Page 3 — CONTENTS

Juki DDL-9000 (38 pages) parts on page 3
Ref	Part number	Part name	Qty
	1	MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
	2	BOBBIN WINDER COMPONENTS
	3	MAIN SHAFT & NEEDLE BAR COMPONENTS
	4	HAND LIFTER & TENSION RELEASE COMPONENTS
	5	FEED ADJUST MECHANISM COMPONENTS
	6	HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS
	7	THREAD TRIMMER COMPONENTS
	8	OIL LUBRICATION COMPONENTS
	9	AUTOMATIC REVERSE FEED COMPONENTS
	10	WIPER COMPONENTS(FOR DDL-9000-WB)
	11	THREAD STAND COMPONENTS
	12	UNDER COVER COMPONENTS
	13	ACCESSORIES PART COMPONENTS
	14	EXCLUSIVE PART FOR DDL-9000DS
	15	EXCLUSIVE PART FOR DDL-9000DF
	16	EXCLUSIVE PART FOR DDL-9000SH-WB,OB
	17	TABLE & STAND COMPONENTS
	18	LIST FOR INFORMATION OF CHANGE
	NUMERICAL INDEX OF PARTS	NUMERICAL INDEX OF PARTS

Page 4 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-9000 (38 pages) parts on page 4
Ref	Part number	Part name	Qty
	33	33
	31	31
	8	8
	4	4
	30	30
	11	11
	43	43
	20	20
	37	37
	39	39
	67	67
	60	60
	69	69
	36	36
	19	19
	25	25
	23	23
	27	27
	28	28
	85~87	85~87
	14	14
	15	15
	16	16
	17	17
	12	12
	13	13
	2	2
	3	3
	34	34
	32	32
	10	10
	40	40
	44~46	44~46
	88	88
	47	47
	80	80
	89	89
	90	90
	5	5
	26	26
	48	48
	22	22
	24	24
	63	63
	62	62
	61	61
	66	66
	64	64
	65	65
	38	38
	83	83
	82	82
	9	9
	42	42
	41	41
	76	76
	72	72
	73	73
	75	75
	77	77
	79	79
	78	78
	71	71
	21	21
	29	29
	18	18
	42	42
	7	7
	35	35
	58	58
	49	49
	57	57
	54	54
	51	51
	53	53
	56	56
	55	55
	52	52
	50	50
	84	84
	1	1
	6	6

Page 5

Juki DDL-9000 (38 pages) parts on page 5
Part number	Part name	Qty
236-00208	SIDE PLATE	1
236-00307	FACE PLATE	1
236-00406	FACE PLATE PACKING	1
236-00505	THREAD TAKE-UP LEVER COVER	1
236-00604	PULLEY COVER	1
236-00703	BED STUD A	1
236-00802	BED STUD B	1
236-00805	CORD FIXING METAL FITTING	2
236-01305	AIR-DISCHARGING CAP	1
236-02506	FACE PLATE	1
400-22407	CORD HOLDER	1
229-01250	SLIDE PLATE ASM.
229-02753	SLIDE PLATE ASM.
229-01201	SLIDE PLATE
229-02704	SLIDE PLATE
229-01300	SLIDE PLATE SPRING
SS-6060210-SP	SCREW 3/32-56 L= 1.9	(1)
CM-3002000-03	ATTENTION LABEL	(1)
229-02605	RULER STOP SEAT	(1)
229-01409	NEEDLE BAR UPPER BUSH CAP	(2)
83538-112-000	OIL RETURN TUBE HOLDER
CM-3002001-A1	SAFETY LABEL, 3 (SMALL).
CM-3002000-01	SAFETY LABEL, 1 (SMALL).
CM-3002001-01	LABEL (16)
CM-3002000-B1
SL-6052592-TN	BOLT
SS-2110915-SP	SCREW 11/64-40 L=8.5	1
SS-2110920-TP	SCREW 11/64-40 L=8.5	1
SS-4110715-SP	SCREW 11/64-40 L=7	1
SS-4120615-SP	SCREW 3/16-28 L=6	4
SS-4120915-SP	SCREW 3/16-28 L=9	1
SS-4120915-SP	SCREW 3/16-28 L=9	7
SS-4150915-SP	SCREW 3/16-28 L=9	3
SS-4150915-SP	SCREW 15/64-28 L=9	1
SS-4150915-SP	SCREW 15/64-28 L=9	2
SS-7110540-SP	SCREW 11/64-40 L=5	2
TA-0850604-RO	RUBBER PLUG	1
TA-0850604-RO	RUBBER PLUG	1
TA-1250406-RO	RUBBER PLUG D=12.5 L=4	2
TA-1250406-RO	RUBBER PLUG D=12.5 L=4	1
TA-1250702-RO	RUBBER PLUG
TA-1470704-RO	RUBBER PLUG
N6022-350-AAA	RESISTOR PACK AA ASM.	2
N6022-350-AAL	RESISTOR PACK AL ASM.	1
N6022-350-AAF	RESISTOR PACK AF ASM.	1
RP-0501016-SD	WASHER 5X10.5X1	1
CM-6001001-01	WEEL MARK LABEL S	1
236-27359	THREAD TENSION ASM.
236-26005	THREAD TENSION NUT
83115-552-000	TENSION POST
83120-125-000	ROTATING STOPPER
83126-012-000	THREAD TENSION DISK
B1109-012-10B	THREAD TENSION DISK
B1109-012-A00
B3129-012-000
B3132-552-000
83111-126-000	TAKE-UP SPRING
SS-8090670-SP	TENSION SPRING
236-26104	THREAD TENSION POST PRESSER
229-20607	TENSION POST
229-45463	SCREW 9/64-40 L= 5.5
229-45414	ARM THREAD GUIDE A
229-45604	ARM THREAD GUIDE B
229-45505	THREAD TENSION ASM. NO.1
229-46703	THREAD TENSION POST
229-45802	THREAD TENSION GUIDE
SS-4110715-SP	THREAD TENSION SPRING
SS-6110610-TP	THREAD TENSION NUT
SS-6110610-TP	THREAD TENSION DISK
SS-8150710-TP	SCREW 11/64-40 L=7
236-38059	SCREW 11/64-40 L=6
236-38000	SCREW 11/64-40 L=6
236-38109	SCREW 15/64-28 L=7
236-38208	SAFETY SWITCH ASM.
236-38307	SAFETY SWITCH BASE
236-38406	SAFETY SWITCH ARM
236-38554	SAFETY SWITCH SPRING
EA-9500801-00	SAFETY SWITCH ARM SHAFT
SH-4021201-SC	SAFETY SWITCH NUT
229-01805	CABLE BAND
SS-4110516-SP	SCREW N2 L=12
236-29900	GROUND MARK
RO-0801502-00	SCREW 11/64-40 L=6
B3118-552-F00	AIR-DISCHARGING
B1109-012-10B	RUBBER RING
T10-28008	TENSION RELEASING PIN
B1109-552-000	THROAT PLATE
SS-4121215-SP	THROAT PLATE
236-01057	SCREW 3/16-28 L=12
SS-4120615-SP	EARTH CORD ASM.
SS-4120615-SP	SCREW 3/16-28 L=6

Page 6 — 2. BOBBIN WINDER COMPONENTS

Juki DDL-9000 (38 pages) parts on page 6
Ref	Part number	Part name
20	20	SCREW
23	23	SPRING
17	17	GUIDE
10	10	SHAFT
2	2	COLLAR
9	9	SHAFT
13	13	COLLAR
16	16	SHAFT
4	4	COLLAR
3	3	COLLAR
14	14	COLLAR
11	11	COLLAR
6	6	COLLAR
22	22	SCREW
8	8	COLLAR
15	15	COLLAR
11	11	COLLAR
5	5	COLLAR
18	18	COLLAR
19	19	COLLAR
21	21	COLLAR
7	7	COLLAR
12	12	COLLAR
1	1	BOBBIN WINDER
29	29	BOBBIN WINDER
30	30	NUT
33	33	COLLAR
32	32	COLLAR
31	31	SPRING
34	34	COLLAR
27	27	SCREW
26	26	BRACKET
28	28	SCREW
25	25	COLLAR
24	24	SCREW

Page 7

Juki DDL-9000 (38 pages) parts on page 7
Part number	Part name	Qty
400-23021	BOBBIN WINDER UNIT	1
262-60109	BTW BASE	(1)
262-60208	BTW CAM PLATE	(1)
262-60307	BTW BASE SHAFT	(1)
262-60406	BTW SHAFT BASE	(1)
262-60505	BTW CAM LEVER	(1)
262-60604	BTW WHEEL	(1)
262-60802	BTW BEARING SPACER	(1)
262-61008	BTW LEVER SHAFT	(1)
262-61206	BTW SPACER	(1)
262-61305	BTW BEARING	(1)
262-61603	BTW WHEEL RUBBER	(2)
262-61604	BOBBIN SPRING	(1)
262-61701	BTW SPRING	(1)
400-11144	BTW TORSION SPRING	(1)
400-14837	BTW SHAFT	(1)
400-23022	BTW LEVER	(1)
RC-0560711-KP	RETAINING RING	(1)
RE-0400000-KO	E-RING 4	(1)
SM-5040655-SN	SCREW	(1)
SM-8040802-TP	SCREW M4X8	(1)
SM-8050602-TP	SCREW M5 L=5	(1)
WP-0450826-SC	WASHER 4.5X10X0.8	(2)
SS-6121030-SN	SCREW 3/16-28 L=10	(1)
105-02300	THREAD CUTTER	(1)
400-23291	THREAD GUIDE NO.1	(1)
SS-4150915-SP	SCREW 15/64-28 L=9	(2)
SS-6090620-TP	SCREW	(1)
236-36657	BOBBIN THREAD TENSION ASM.	(1)
110-72402	THREAD TENSION NUT	(1)
141-13450	BOBBIN THREAD TENSION ROD ASM.	(1)
D7133-555-B00	THREAD TENSION DISK	(2)
B7133-555-B00	CONNECTING ROD SPRING	(1)
NS-6110530-SP	NUT 11/64-40	(1)

Page 8 — 3. MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-9000 (38 pages) parts on page 8
Ref	Part number	Part name	Qty
	39	39
	40	40
	41	41
	42	42
	38	38
	37	37
	25	25
	29	29
	31	31
	30	30
	26	26
	48	48
	27-28	27-28
	36	36
	49	49
	33~35	33~35
	2	2
	3	3
	5	5
	6	6
	4	4
	1	1
	13	13
	9	9
	11	11
	12	12
	10	10
	14	14
	16	16
	15	15
	17	17
	15	15
	17	17
	45	45
	43	43
	47	47
	21	21
	8	8
	24	24
	22	22
	19	19
	20	20
	51	51
	50	50
	20	20
	18	18
	23	23
	46	46
	44	44

Page 9

Juki DDL-9000 (38 pages) parts on page 9
Ref	Part number	Part name	Qty
	236-04010	MAIN SHAFT	1
	236-04168	COUNTER WEIGHT ASM.	1
	236-04119	COUNTER WEIGHT	(1)
	SS-7681650-TP	SCREW 9/32-28 L=16	(1)
	SS-8681650-TP	SCREW 9/32-28 L=16	(1)
	SS-8660610-TP	SCREW 1/4-40 L=6	(2)
	236-04200	MAIN SHAFT BEARING SUPPORT	1
	236-04309	COUPLING	1
	236-04408	HAND WHEEL ASM.	(1)
	236-04457	HAND WHEEL	(1)
	236-04754	MAGNET BASE COMPL., A	(1)
	236-04655	MAGNET BASE COMPL., B	(1)
	236-04044	BALANCE PLATE	(1)
	236-05081-TP	SCREW M6 L=8	(2)
	SL-4040881-SC	SCREW M4 L=8	(1)
	SL-4040881-SC	SCREW M4 L=8	(2)
	236-05009	HAND WHEEL WASHER	(1)
	236-05256	BEARING COMPL.	(1)
	SM-8060812-TP	SCREW M6 L=8	4
	SM-8060812-TP	SCREW M6 L=8	4
	236-07054	SPROCKET,UPPER COMPL.	1
	236-07302	TIMING BELT	1
	236-08012-TP	SCREW M6 L=8	2
	236-08003	NEEDLE BAR METAL, UPPER	1
	236-08102	NEEDLE BAR METAL, LOWER	1
	236-08103	NEEDLE BAR	1
01	111-41207	NEEDLE BAR B	1
02	229-39508	NEEDLE BAR HOLDER ASM.	1
29	229-06408	NEEDLE ROD HOLDER	(1)
30	229-06408	NEEDLE ROD HOLDER	(1)
31	SS-6090670-TP	SCREW 9/64-40 L=6	(1)
32	B1414-555-000	SLIDE BLOCK	1
03	MDB-100B1400	NEEDLE DBX1 #14	1
04	MDB-100B1100	NEEDLE DBX1 #11	1
02	MC-2005007-50	NEEDLE 134 NM75	1
36	SS-7080510-TP	SCREW 1/8-44 L=4.5	1
37	236-22061	THREAD TAKE-UP ASM.	1
38	236-22400	THREAD TAKE-UP CRANK SHAFT	1
39	400-10434	THRUST COLLAR ASM.	1
40	228-91204	BEARING SUPPORT	2
41	SB-3070002-00	BEARING	1
42	SS-6151920-TP	SCREW 15/64-28 L=19	1
43	400-28014	AC SERVO MOTOR	1
44	M6801-471-040	SYNC ASM.	2
45	EA-9500B01-00	CABLE BAND	1
46	SL-4040881-SC	SCREW M4 L=8	2
47	SL-6052592-TP	SCREW	4
48	236-26203	NEEDLE BAR THREAD GUIDE	1
49	229-06309	NEEDLE BAR THREAD GUIDE	1
50	400-20455	BTW DRIVING WHEEL	1
51	SS-6111440-SP	SCREW 11/64-40 L=14	2

Page 10 — 4. HAND LIFTER & TENSION RELEASE COMPONENTS

Juki DDL-9000 (38 pages) parts on page 10
Ref	Part number	Part name
1	1	BASE
2	2	BRACKET
3	3	SPRING GUIDE
4	4	BRACKET
5	5	ROD
6	6	BRACKET
7	7	PLATE
8	8	BRACKET
9	9	SHAFT
10	10	BRACKET
11	11	SPRING
12	12	BRACKET
13	13	ROD
14	14	BRACKET
15	15	BRACKET
16	16	BRACKET
17	17	PIN
18	18	BRACKET
19	19	SHAFT
20	20	BRACKET
21	21	SPRING
22	22	BRACKET
23	23	SHAFT
24	24	SPRING
25	25	SCREW
26	26	BRACKET
27	27	SPRING
28	28	SPRING
29	29	PIN
30	30	SCREW
31	31	SPRING
32	32	SCREW
33	33	SPRING
34	34	WASHER
35	35	WASHER
36	36	BRACKET
37	37	SHAFT
38	38	BRACKET
39	39	PIN
40	40	SHAFT
41	41	SPRING
42	42	BRACKET
43	43	BRACKET
44	44	WASHER
45	45	SPRING
46	46	WASHER
47	47	NUT
48	48	SCREW
49	49	WASHER
50	50	WASHER
51	51	BRACKET
52	52	LEVER
53	53	BRACKET
54	54	SCREW
55	55	COLLAR
56	56	KNOB
57	57	SCREW
58	58	WASHER

Page 11

Juki DDL-9000 (38 pages) parts on page 11
Part number	Part name	Qty
236-09001	BUSHING	1
236-09100	PRESSER BAR THREAD GUIDE	1
236-09209	PRESSER SPRING REGULATOR	1
236-09357	LIFTING LEVER CONNECT ROD ASM.	1
236-09308	LIFTING LINK COMPL.	1
236-09456	PLATE	(1)
236-09605	LIFTING PLATE	(1)
229-08008	SCREW M4 L=6	(1)
SM-6040602-TP	E-RING	(1)
RE-0500000-KO	E-RING	(1)
236-09704	LIFTING LEVER LINK	(1)
236-09803	CONNECTING ROD	1
236-10105	CONNECTING ROD GUIDE	1
236-10306	PRESSER BAR GUIDE BRACKET	1
236-10405	PRESSER BAR	1
236-10506	GUIDE BAR	1
236-10652	LINK SHAFT	2
229-08701	HINGE SCREW	(1)
229-08909	PRESSER SPRING REGULATOR NUT	1
229-07604	HAND LIFTER	1
229-08552	HAND LIFTER CAM ASM.	1
229-07406	PRESSER SPRING	1
B1521-555-000	SCREW	1
B1524-012-0BA	PRESSER FOOT ASM.	1
B1524-552-0BA	PRESSER FOOT ASM.	1
RE-0500000-KO	E-RING	3
RO-0371801-00	RUBBER RING	1
SD-0720331-SP	SCREW HINGE D= 7.24 H= 3.3	1
SS-4121015-SP	SCREW 3/16-28 L=10	1
SS-6090910-SP	SCREW 9/64-40 L=9	1
SS-7091110-TP	WASHER 5X10.5X1	1
WP-0501016-SD	SCREW 11/64-40 L=18	1
SS-7111810-TP	THREAD TENSION RELEASE WIRE	1
236-26307	TENSION RELEASE PIN SPRING	1
236-25900	WIRE HOLDER BRACKET	1
236-26102	TENSION RELEASE SHAFT	1
229-20300	THREAD RELEASE SUPPORTING PIN	1
110-18405	TENSION RELEASE PIN SPRING	1
229-44508	WIRE PRESSER A	2
SS-4120615-SP	SCREW 3/16-28 L=6	2
NS-6620310-SP	NUT 3/16-32	2
RE-0500000-KO	E-RING	2
SS-4110715-SP	SCREW 11/64-40 L=7	2
NS-6150310-SP	NUT 15/64-28	1
RE-0500000-KO	BOLT	1
SS-4110715-SP	WASHER 6.2X13X1	1
RO-0442401-00	RUBBER RING	1
236-10801	MINUTE LIFTING DEVICE ASM.	(1)
WP-0621016-SD	HAND LIFTER	(1)
RO-0442401-00	STOPPER BASE	(1)
236-11056	STOPPER SCREW ASM.	(1)
236-11106	STOPPER SCREW NUT	(1)
236-10504	SET SCREW	(1)
112-44019	WASHER 4.8X8.4X0.8	(1)
236-10702	STOPPER COLLAR	(1)
114-33802	SET SCREW	(1)
WP-0480856-SP	WASHER 4.8X8.4X0.8	(1)

Page 12 — 5. FEED ADJUST MECHANISM COMPONENTS

Juki DDL-9000 (38 pages) parts on page 12
Ref	Part number	Part name	Qty
	33	33
	29	29
	32	32
	42	42
	40	40
	30	30
	46	46
	44	44
	34	34
	20	20
	18	18
	43	43
	31	31
	21	21
	19	19
	27	27
	25	25
	28	28
	22	22
	23	23
	24	24
	13	13
	14	14
	12	12
	47	47
	37	37
	15	15
	16	16
	50	50
	11	11
	7	7
	9	9
	10	10
	8	8
	5	5
	6	6
	49	49
	39	39
	38	38
	48	48
	3	3
	2	2
	45	45
	1	1

Page 13

Juki DDL-9000 (38 pages) parts on page 13
Ref	Part number	Part name	Qty
	400-33391	ADJUSTING LINK ASM.
	400-33392	ADJUSTING LINK
	400-33393	ADJUSTING LINK PIN
	SM-8040412-TP	SET SCREW M4 L=4
	236-12450	FEED CHANGING SHAFT ASM.,A
	SS-6661110-SP	SCREW 1/4-40 L=11
	236-12609	FEED CHANGING SHAFT OIL SEAL
	236-12765	THRUST COLLAR ASM.
	236-12716	THRUST COLLAR
	SS-8660610-TP	SCREW 1/4-40 L=6
	236-12807	METAL, A
	236-13062	METAL, B
	236-13052	FEED CHANGING SHAFT ASM., B
	236-13003	FEED CHANGING SHAFT ARM, B
	SS-6121610-SP	SCREW 3/16-28 L=15.5
	236-13102	FEED CHANGING SHAFT ARM B PIN
	236-13201	FEED ADJUSTING ROD
	236-13300	FEED ADJUSTING BASE
	236-13409	FEED ADJUSTING PIN
	236-13508	ADJUSTING BASE SHAFT METAL
	236-13607	FEED LEVER
	236-13706	FEED LEVER SHAFT
	236-13805	FEED LEVER SHAFT METAL
	236-13953	FEED LEVER ARM.
	SS-6121610-SP	SCREW 3/16-28 L=15.5
	236-14001	FEED ADJUSTING SPRING
	236-14008	FEED LEVER SPRING
	400-23289	SPRING SUSPENSION
	229-12000	FEED REGULATOR PIN
	110-71909	FEED DIAL
	229-52501	BACK LEVER STOPPER
	229-11804	FEED REGULATOR SCREW
	229-12109	FEED REGULATOR PIN SPRING
	CS-1111016-SH	COLLAR ASM. D=11.1 W=10
	SS-8660330-SP	SCREW 1/4-40 L=3.0
	NS-6110310-SP	NUT 11/64-40
	NS-6150310-SP	NUT 15/64-28
	RE-0500000-KO	E-RING
	RE-0500000-KO	E-RING
	RO-0922702-00	RUBBER RING
	SM-8060812-TP	SCREW M6 L=8
	SS-6090670-TP	SCREW 9/64-40 L=6
	SS-6121840-SP	SCREW 3/16-28 L=18
	SS-6121860-SP	SCREW 3/16-28 L=18
	SS-6151920-TP	SCREW 15/64-28 L=19
	236-14407	FEED DIAL RUBBER
	236-12104	TUBE
	400-12032	ADJUSTING LINK CONNECTING LINK
	236-12500	ADJUSTING LINK FULCRUM SHAFT
	FEED CHANGING SHAFT	FEED CHANGING SHAFT

Page 14 — 6. HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-9000 (38 pages) parts on page 14
Ref	Part number	Part name
88	87	86
	46	51
	28~30	1
	75	2
	3	4
	5	6
	7	34
	8	9
	10	19
	84	83
	85	81
	82	80
	61	47
	35	52
	20	7
	45	37
	53	38
	39	41
	40	48~50
	42	54
	44	40
	43	66
	87	86
	88	87
	56	57
	58	59
	70	62~65
	73	60
	71	68~69~89
	72	76
	74	67
	77	78
	79	8
	11	1
	31	33
	21	32
	22	25~27
	24	12
	23	13
	18	14
	15	16
	36	17

Page 15

Juki DDL-9000 (38 pages) parts on page 15
Part number	Part name	Qty
236-16056	FEED ROCKER CAM ASM.	1
236-16006	FEED ROCKER CAM	(1)
SS-8151150-TP	SCREW 15/64-28 L=10.5	(2)
236-16105	FEED ROCKER ROD	1
236-16204	FEED ROCKER CAM PLATE	1
236-16303	CONNECTING LINK, A	2
236-16402	FEED ROCKER ARM	1
236-16550	FEED ROCKER ARM	(1)
236-16501	SCREW 3/16-28 L=15.5	(1)
SS-6121610-SP	FEED ROCKER SHAFT	1
236-16600	FEED ROCKER SHAFT METAL	1
236-16709	FEED ROCKER BASE ARM ASM.	(1)
236-16857	FEED ROCKER BASE ARM	(1)
236-16808	SCREW 3/16-28 L=14	(1)
SS-7121410-TP	WASHER 4.8X8.4X0.8	(1)
MP-0480856-SP	FEED ROCKER BASE SHAFT	1
236-16907	FEED BASE COMPL.	1
229-17053	WALKING FOOT PIN B	1
229-11002	WALKING FOOT PIN C	1
229-11101	OIL SEAL	1
400-29953	MAIN SHAFT THRUST COLLAR ASM.	1
229-04155	SCREW 1/4-40 L=6	(1)
229-04106	FEED DOG 1	1
SS-8660610-TP	FEED DOG A	1
B1613-012-100	FEED DOG 1	1
236-14506	FEED DOG A	1
B1613-552-00A	FEED DOG	1
B4123-522-00A	NEEDLE ROLLAR A	1
B4123-522-00B	NEEDLE ROLLAR B	1
B4123-522-00C	NEEDLE ROLLAR C	1
RC-0150001-KP	RETAINING RING 13.8	2
SS-4080620-TP	SCREW 1/8-44 L=6	1
SS-6090620-TP	SCREW	1
SS-6090620-TP	SCREW 9/64-40 L=6	2
SS-6090670-TP	SCREW 11/64-40 L=7	1
SS-7110740-TP	FEED DRIVING CAM ASM.	1
236-18051	FEED DRIVING CAM	1
236-18002	SCREW 15/64-28 L=10.5	(2)
SS-8151150-TP	FEED DRIVING CAM THRUST BUSH	1
236-18101	FEED DRIVING BASE ARM	1
400-22668	FEED DRIVING CAN PLATE	1
236-18309	FEED DRIVING BASE SHAFT	1
236-18408	FEED DRIVING SHAFT	1
400-11711	BEARING SUPPORT	1
236-18606	OIL SEAL	1
236-18705	BEARING	1
236-18804	BEARING	1
SB-3200006-0A	BEARING	1
SB-3200006-0B	BEARING	1
SB-3200006-0C	BEARING	1
SS-1170004-00	SCREW 1/4-40 L=8	2
SB-1200010-00	SCREW 9/64-40 L=5	1
SS-8660810-TP	SCREW 1/4-40 L=6.5	1
SS-6090670-TP	HOOK SHAFT	1
SS-6110710-TP	HOOK SHAFT METAL COMPL.	1
236-20008	OIL SEAL	1
236-20156	BEARING SUPPORT ASM.	1
236-20206	HOOK SHAFT REAR METAL	1
236-20354	GEAR, LARGE	1
236-20404	GEAR, SMALL(A)	1
236-20503	GEAR, SMALL(B)	1
236-20701	GEAR, SMALL(C)	1
236-20800	GEAR, SMALL(D)	1
236-20909	BOBBIN CASE ASM.	1
236-21008	BOBBIN CASE HOLDER	1
110-38759	HOOK ASM. C	1
110-38809	HOOK ASM.	1
111-41355	HOOK DRIVING SHAFT OIL SEAL	1
110-38650	BOBBIN	1
228-90008	BOBBIN A	1
B9117-012-000	SCREW 1/4-40 L=5.5	2
229-64001	SCREW 11/64-40 L=9.5	1
SS-6110650-TP	SCREW 1/4-40 L=10	2
SS-6111010-TP	SCREW 1/4-40 L=8	2
SS-8661030-SP	OIL SEAL SCREW ASM.	1
SS-8660810-TP	SET SCREW	(1)
229-16556	OIL WICK	(1)
229-16506	SPROCKET ASM.	1
110-15806	SPROCKET	1
400-31605	SPROCKET SUPPORT ASM.	(1)
400-31807	SPROCKET SUPPORT	(1)
400-31606	SCREW 15/64-28 L=8	(1)
SS-8150822-TP	SCREW 11/64-40 L=24	(3)
236-19158	FEED DRIVING CAM F	(1)
236-19109	FEED DRIVING CAM F	(2)
SS-8151150-TP	SCREW 15/64-28 L=10.5	1
236-21303	HOOK ASM. K	1

Page 16 — 7. THREAD TRIMMER COMPONENTS

Juki DDL-9000 (38 pages) parts on page 16
Ref	Part number	Part name	Qty
	1	THREAD TRIMMER COMPONENTS
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56
	57
	58
	59
	60

Page 17

Juki DDL-9000 (38 pages) parts on page 17
Part number	Part name	Qty
236-23051	KNIFE UNIT	(1)
236-23002	KNIFE INSTALLING BASE	(1)
110-40052	MOVING KNIFE ASM.	(1)
110-40409	MOVING KNIFE HINGE SCREW	(1)
110-40508	FORKED BASE FOR KNIFE	(1)
113-13103	THREAD GUIDE FOR KNIFE	(1)
D2406-555-DOH	COUNTER KNIFE	(1)
SD-0460703-TP	HINGE SCREW D=4.6 H=7	(1)
SS-2060210-SP	SCREW 3/32-56 L=2.3	(1)
SS-4080620-TP	SCREW 1/8-44 L=6	(2)
236-23168	THREAD TRIMMER DRIVING UNIT	(1)
236-23150	KNIFE DRIVING ARM ASM.	(1)
236-23200	MOVING KNIFE LINK PIN	(1)
236-23358	CLUTCH PLATE ASM.	(1)
236-23556	BASE PLATE ASM.	(1)
236-23705	PICKER LINK	(1)
236-23804	DRIVING ARM STOPPER	(1)
110-40953	ROLLER ARM ASM.	(1)
229-49002	ROLLER ARM SEAT	(1)
229-49101	ROLLER FULCRUM SHAFT	(1)
229-49200	ROLLER RETURN SPRING	(1)
110-43700	ROLLER RETURN SPRING, B	(1)
229-49408	CLUTCH SPRING	(1)
229-50000	PICKER LINK PIN	(1)
NS-6150310-SP	NUT 15/64-28	(1)
NS-6150810-SP	NUT 15/64-28	(1)
RE-0400000-KO	E-RING 4	(2)
RE-0600000-KO	E-RING 6	(2)
SS-4110715-SP	SCREW 11/64-40 L=7	(2)
SS-7090610-SP	SCREW 9/64-40 L=6	(1)
WP-0621016-SH	WASHER	(1)
236-23903	PIN	(1)
236-24000	MOVING KNIFE LINK	(1)
236-24158	PICKER ARM ASM.	(1)
236-24109	PICKER ARM	(1)
236-24257	THREAD TAKE-UP PICKER ASM.	(1)
SS-6090620-TP	SCREW	(1)
236-24356	SOLENOID ASM.	(1)
236-24307	SOLENOID	(1)
236-24406	SOLENOID BASE	(1)
110-43304	SOLENOID RUBBER	(1)
HK-0346400-OB	PIN CONTACT	(2)
NM-6040000-SN	NUT M4	(2)
NS-6660410-SP	NUT	(1)
NS-6660430-SP	NUT 1/4-40	(1)
WP-0450000-SD	WASHER 4.5X8X0.5	(2)
236-24554	DRIVING BLOCK ASM.	(1)
236-24505	DRIVING BLOCK	(1)
SS-6110710-TP	SCREW 11/64-40 L=6.5	(1)
110-42850	THREAD TRIMMER CAM ASM.	(1)
SS-6660610-TP	SCREW 1/4-40 L=6	(2)
229-50950	CAM COLLAR ASM.	(1)
SS-8110520-TP	SCREW 11/64-40 L=4.5	(1)
400-23290	SOLENOID BASE STUD	(2)
SD-0600321-SP	HINGE SCREW D=6 H=3.2	(1)
SD-0630275-SP	HINGE SCREW D=6.35 H=2.7	(1)
SD-0641452-TP	HINGE SCREW D=6.35 H=14.5	(1)
SS-4110715-SP	SCREW 11/64-40 L=7	(2)
SS-4150915-SP	SCREW 15/64-28 L=9	(2)
SS-4150915-SP	SCREW 15/64-28 L=9	(2)

Page 18 — 8. OIL LUBLICATION COMPONENTS

Juki DDL-9000 (38 pages) parts on page 18
Ref	Part number	Part name
1	1	COVER
2	2	GASKET
3	3	FILTER
4	4	BRACKET
5	5	OIL TANK
6	6	BRACKET
7	7	BRACKET
8	8	BRACKET
9	9	BRACKET
10	10	CLIP
11	11	CLIP
12	12	TUBE
13	13	TUBE
14	14	SCREW
15	15	TUBE
16	16	WASHER
17	17	TUBE
18	18	TUBE
19	19	TUBE
20	20	TUBE
21	21	TUBE
22	22	TUBE
23	23	PLATE
24	24	CLIP
25	25	WASHER
26	26	WASHER
27	27	SCREW
28	28	SCREW
29	29	SCREW
30	30	PLUG
31	31	WASHER
32	32	WASHER
33	33	SCREW
34	34	WASHER
35	35	CAP
36	36	SPRING
37	37	PLUNGER
38	38	BRACKET
39	39	NUT
40	40	WASHER
41	41	BRACKET
42	42	TUBE
43	43	TUBE
44	44	WASHER
45	45	SCREW
46	46	SCREW
47	47	BRACKET

Page 19

Juki DDL-9000 (38 pages) parts on page 19
Part number	Part name	Qty
400-11344	GEAR BOX COVER	1
236-28100	GEAR BOX PACKING	1
236-28357	FLOATER ASH.	1
236-28555	OIL TANK ASH.	1
236-28704	FLOATER CASE	1
236-29108	OIL SIGHT WINDOW	1
236-29256	OIL WICK SUPPORT ASH.	1
236-29207	OIL WICK SUPPORT	(1)
236-29702	OIL WICK	(0.25)
236-29306	PIPE STOPPER A	4
236-29405	PIPE STOPPER B	3
236-29504	DISTRIBUTOR	1
236-29603	OIL INLET	1
236-29801	LUBRICATION CONNECTOR	2
236-30106	TUBE B	0.25
RO-0681901-00	RUBBER RING	1
236-30007	TUBE	0.57
236-30007	TUBE	0.04
236-30007	TUBE	0.07
CQ-2000000-01	OIL WICK	0.75
236-30007	TUBE	0.38
236-30106	TUBE B	0.23
236-30304	FELT	1
229-25101	OIL FELT PRESSER	1
RO-0982401-00	RUBBER RING	1
RO-1952401-00	RUBBER RING	1
SS-4121015-SP	SCREW 3/16-28 L=10	2
SS-4121015-SP	SCREW 3/16-28 L=10	10
SS-6090620-TP	SCREW	1
236-30205	SCREW	1
WP-0501016-XP	WASHER 5X10.5X1	2
WS-0610002-KP	SPRING WASHER 5.1X9.2X1.3	2
236-28209	OIL ADJUSTING SCREW	1
RO-0291801-00	RUBBER RING	1
236-28803	PLUNGER	1
236-28902	PLUNGER SPRING	1
236-29009	PLUNGER SCREW	1
236-30452	OIL FILTER ASM.	(1)
236-30403	OIL FILTER	(1)
236-30502	OIL FILTER STOPPER	(1)
236-30601	OIL FILTER JOINT	(2)
236-30007	TUBE	(0.09)
236-30106	TUBE B	(0.04)
236-29405	PIPE STOPPER B	(2)
400-24644	MAGNET WASHER	1
ST-4040821-SS	TAPPING SCREW	1
236-04705	MAGNET	1

Page 20 — 9. AUTOMATIC REVERSE FEED COMPONENTS

Juki DDL-9000 (38 pages) parts on page 20
Ref	Part number	Part name	Qty
	1	AUTOMATIC REVERSE FEED COMPONENTS
	2	AUTOMATIC REVERSE FEED COMPONENTS
	3	AUTOMATIC REVERSE FEED COMPONENTS
	4	AUTOMATIC REVERSE FEED COMPONENTS
	5	AUTOMATIC REVERSE FEED COMPONENTS
	6	AUTOMATIC REVERSE FEED COMPONENTS
	7	AUTOMATIC REVERSE FEED COMPONENTS
	9	AUTOMATIC REVERSE FEED COMPONENTS
	10	AUTOMATIC REVERSE FEED COMPONENTS
	11	AUTOMATIC REVERSE FEED COMPONENTS
	12	AUTOMATIC REVERSE FEED COMPONENTS
	13	AUTOMATIC REVERSE FEED COMPONENTS
	14	AUTOMATIC REVERSE FEED COMPONENTS
	15	AUTOMATIC REVERSE FEED COMPONENTS
	16	AUTOMATIC REVERSE FEED COMPONENTS
	17	AUTOMATIC REVERSE FEED COMPONENTS
	18	AUTOMATIC REVERSE FEED COMPONENTS
	19	AUTOMATIC REVERSE FEED COMPONENTS
	20	AUTOMATIC REVERSE FEED COMPONENTS
	21	AUTOMATIC REVERSE FEED COMPONENTS
	22	AUTOMATIC REVERSE FEED COMPONENTS
	23	AUTOMATIC REVERSE FEED COMPONENTS
	24	AUTOMATIC REVERSE FEED COMPONENTS
	25	AUTOMATIC REVERSE FEED COMPONENTS
	26	AUTOMATIC REVERSE FEED COMPONENTS
	27	AUTOMATIC REVERSE FEED COMPONENTS
	28	AUTOMATIC REVERSE FEED COMPONENTS
	29	AUTOMATIC REVERSE FEED COMPONENTS
	30	AUTOMATIC REVERSE FEED COMPONENTS
	31	AUTOMATIC REVERSE FEED COMPONENTS
	32	AUTOMATIC REVERSE FEED COMPONENTS
	33	AUTOMATIC REVERSE FEED COMPONENTS
	34	AUTOMATIC REVERSE FEED COMPONENTS

Page 21

Juki DDL-9000 (38 pages) parts on page 21
Part number	Part name	Qty
236-31054	REVERSE FEED SOLENOID BASE ASM	1
236-31005	REVERSE FEED SOLENOID	(1)
236-31104	REVERSE FEED SOLENOID PLUNGER	(1)
236-31203	REVERSE FEED SOLENOID BASE	(1)
D2468-555-00	RUBBER PLUNGER	(1)
HK-0346400-0B	PIN CONTACT	(2)
RE-1200000-KO	E-RING 12	(1)
SS-7110740-TP	SCREW 11/64-40 L=7	(1)
WP-1703001-SC	WASHER 17X30X3	(4)
236-31302	REVERSE FEED ARM	(1)
236-31757	REVERSE FEED SWITCH ASM.	1
236-31708	REVERSE FEED SWITCH COVER	(1)
236-31807	REVERSE FEED SWITCH SHAFT	(1)
236-31906	REVERSE FEED SWITCH SUPPORT	(1)
236-32003	REVERSE FEED SWITCH BASE	(1)
236-32102	REVERSE FEED SWITCH BASE GUIDE	(1)
236-32359	REVERSE FEED CORD ASM.	(1)
EA-9500B01-00	CABLE BAND	(1)
SS-7110740-TP	SCREW 11/64-40 L=7	(1)
236-32656	OPTION SWITCH ASM.
SS-7110740-TP	SCREW 11/64-40 L=7	(1)
236-31708	REVERSE FEED SWITCH COVER	(1)
236-31807	REVERSE FEED SWITCH SHAFT	(1)
236-31906	REVERSE FEED SWITCH SUPPORT	(1)
236-32607	OPTION SWITCH BASE	(1)
236-32102	REVERSE FEED SWITCH BASE GUIDE	(1)
236-32250	REVERSE FEED CORD ASM.	(1)
EA-9500B01-00	CABLE BAND	(1)
WP-0501016-SD	WASHER 5X10.5X1
229-62906	PLUNGER ARM PIN	1
NS-6110350-SP	NUT 11/64-40	2
SD-0951501-SP	HINGE SCREW D= 9.53 H=15	1
SS-4120915-SP	SCREW 3/16-28 L=9	1
SS-4150915-SP	SCREW 15/64-28 L=9	2

Page 22 — 10. WIPER COMPONENTS(FOR DDL-9000-WB)

Juki DDL-9000 (38 pages) parts on page 22
Ref	Part number	Part name	Qty
	236-33167	WIPER ASM.
	236-33159	WIPER BASE ASM.
	236-33209	WIPER LINK B
	236-33357	WIPER SHAFT ASM.
	229-55504	WIPER COVER
	111-10301	WIPER SOLENOID
	229-55900	WIPER RUBBER A
	229-56007	WIPER RUBBER B
	229-56106	WIPER LINK A
	229-56205	WIPER HINGE SCREW COLLAR
	229-56304	WIPER SPRING
	229-56809	WIPER COLLAR
	229-56908	WIPER LINK B HINGE SCREW
	229-57005	WIPER
	229-57203	WIPER LINK COLLAR
	229-57104	WIPER SOLENOID SHAFT
	HA-0005900-00	POWER SWITCH
	HK-0346400-0B	PIN CONTACT
	HW-2003900-00	ELECTRIC WIRE
	HW-5000700-00	2-CORE CABTYRE CORD
	NS-6090310-SP	NUT 9/64-40
	NS-6110310-SP	NUT 11/64-40
	RE-0250000-KO	E-RING 2.5
	RE-0500000-KO	E-RING
	SD-0650321-TP	HINGE SCREW D=6.5 H=3.2
	SL-4030631-SC	SCREW H3X6
	SL-4030641-SE	SCREW
	SS-6090540-SP	SCREW 9/64-40 L=5.0
	SS-4120915-SP	SCREW 3/16-28 L=9

Page 23 — 11. THREAD STAND COMPONENTS

Juki DDL-9000 (38 pages) parts on page 23
Part number	Part name	Qty
229-30358	THREAD STAND ASM.	1
229-31109	SPOOL RETAINER	(2)
229-31000	SPOOL PIN	(2)
229-30903	SPOOL REST CUSHION	(2)
229-30904	SPOOL REST	(2)
SM-6061610-SC	SCREW M6 L=16	(2)
229-30705	THREAD GUIDE ARM JOINT	(2)
229-31406	SPOOL REST ROD RUBBER CAP	(1)
229-30507	SPOOL REST ARM	(2)
229-30408	SPOOL REST ROD, UPPER	(1)
229-31307	SPOOL REST ROD JOINT	(1)
SM-4051405-SE	SCREW M5 L=14	(2)
NM-6050001-SE	NUT M5	(2)
229-30309	SPOOL REST ROD, LOWER	(1)
229-31208	THREAD GUIDE	(2)
WS-0510002-KN	SPRING WASHER	(2)
NM-6050001-SE	NUT M5	(2)
NM-6160511-SE	NUT M16X1.5	(1)
WS-1641610-SE	WASHER 16X30X3.6	(2)
WS-1643202-KR	SPRING WASHER	(1)

Page 24 — 12. UNDER COVER COMPONENTS

Juki DDL-9000 (38 pages) parts on page 24
Ref	Part number	Part name	Qty
	1	UNDER COVER
	2	BRACKET
	3	BRACKET
	4	BRACKET
	5	WASHER
	6	SPRING
	7	BRACKET
	8	SHAFT
	9	SHAFT
	10	SHAFT
	11	BRACKET
	12	COVER
	13	SCREW
	14	BRACKET
	15	BRACKET
	16	SCREW
	17	SCREW
	18	SPRING
	19	SPRING
	20	SCREW
	21	SCREW
	22	SCREW
	23	WASHER
	24	SHAFT
	25	SPRING
	26	SHAFT
	27	COVER
	28	BRACKET
	29	SPRING
	30	SPRING

Page 25

Juki DDL-9000 (38 pages) parts on page 25
Ref	Part number	Part name	Qty
	236-39057	UNDER COVER ASM.
	236-39008	UNDER COVER
	236-39156	BRACKET ASM.
	236-39107	BRACKET
	NM-6060001-SE	NUT M6
	SM-8063012-TR	SCREW M6 L=30
	236-39206	CONNECTING ROT
	236-39305	KNEE PRESS ROD
	236-39404	SHAFT
	236-39503	SPRING
	236-39602	CONNECTING ROD
	101-62600	RUBBER CUSHION
	110-47107	RUBBER CUSHION
	229-32404	BRACKET ASM.
	229-32404	BRACKET
	SM-9062053-SR	SCREW M6 L=20
	NS-6150310-SP	NUT 15/64-28
	RE-1000000-KO	E-RING 10
	RE-1000000-KO	E-RING 10
	SD-0720331-SP	HINGE SCREW D= 7.24 H= 3.3
	SM-9061853-SR	SCREW M6 L=17.5
	SM-9061853-SR	SCREW M6 L=17.5
	WP-0650876-SD	WASHER 6.5X13X0.8
	229-34251	KNEE PAD PLATE ASM.
	229-34301	KNEE PAD PLATE SUPPORT
	229-34400	KNEE PAD PLATE RUBBER
	229-34509	KNEE PAD PLATE COVER
	229-34608	KNEE PAD UPRIGHT SHAFT
	SM-9061203-SE	SCREW M6 L=12
	229-34202	KNEE PAD PLATE

Page 26 — 13. ACCESSORIE PART COMPONENTS

Juki DDL-9000 (38 pages) parts on page 26
Ref	Part number	Part name	Qty
1	236-39750	ACCESSORIE BAG ASM.	01
2	236-39958	ACCESSORIE BAG ASM.,A	02
3	229-31604	FRAME SUPPORT BAR
4	229-32800	ACCESSORIE BAG
5	229-33105	SCREW DRIVER, MIDDLE
6	229-33204	SCREW DRIVER, SMALL
7	229-58300	NEEDLE THREAD GUIDE PIN
8	236-39701	KNEE LIFTER PRESSER ROD
9	229-26356	HINGE COMPL.	02
10	229-58052	RUBBER HINGE ASM.	01
11	229-26000	RUBBER CUSHION
12	229-58003	FRAME RUBBER CUSHION
13	229-26208	NAIL
14	229-26356	HINGE COMPL.
15	229-26505	WASHER
16	229-32909	BOBBIN	01
17	229-64001	BOBBIN A	+02
18	B9121-012-0A0	OILER ASM.
19	MDF-GX1600C0	DEFRIX OIL NO.1 (600CC)
20	MDB-100BI1402	NEEDLE DBX1#14-2	03
21	MDB-100BI102	NEEDLE DBX1#11-2	02
22	MC-2005007-52	134 #75-2	04
23	229-33006	SCREW DRIVER, LARGE
	229-33303	HEAD COVER

Page 27 — 14. EXCLUSIVE PART FOR DDL-9000DS

Juki DDL-9000 (38 pages) parts on page 27
Ref	Part number	Part name
	110-30301	CABLE HOLDER
	SS-4120615-SP	SCREW 3/16-28 L=6
	H6023-350-AAA	RESISTOR PACK AAASM.
	236-08706	NEEDLE BAR LOWER METAL D
5	228-87004	NEEDLE BAR (B)
6	228-86907	NEEDLE BAR (A)
	228-89851	HOOK DRIVING SHAFT BEARING ASM
	SS-8110510-SP	SCREW 11/64-40 L=5
9	228-90404	RP HOOK C
10	228-90205	RP HOOK
11	228-90305	RP HOOK S
12	229-64001	BOBBIN A
13	236-30700	OIL SIGHT WINDOW D
14	228-96302	BOBBIN CASE HOLDER
15	228-96252	KNIFE UNIT D
16	236-24653	KNIFE UNIT
17	110-40052	MOVING KNIFE ASM.
18	228-96104	THREAD GUIDE FOR KNIFE
19	236-23002	KNIFE INSTALLING BASE
20	110-40409	MOVING KNIFE HINGE SCREW
21	228-96005	FORKED BASE FOR KNIFE
22	228-95908	COUNTER KNIFE
23	SD-0460703-TP	HINGE SCREW D=4.6 H=7
24	SS-2060210-SP	SCREW 3/32-56 L=2.3
25	SS-4080620-TP	SCREW 1/8-44 L=6

Page 28 — 15. EXCLUSIVE PART FOR DDL-9000DF

Juki DDL-9000 (38 pages) parts on page 28
Ref	Part number	Part name	Qty
	1	Lever
	2	Screw
	3	Cover
	4	Bracket
	5	Shaft
	6	Shaft
	7	Shaft
	8	Needle Bar
	9	Needle Bar
	10	Needle Bar
	11	Presser Foot
	12	Spring
	13	Screw
	14	Screw
	15	Feed Dog
	16	Screw
	17	Shaft
	18	Bobbin Case
	19	Bobbin Case
	20	Bobbin Case
	21	Hook Driving Shaft
	22	Bobbin Winder
	23	Bobbin Winder
	24	Bobbin Winder
	25	Shaft
	26	Shaft
	27	Bobbin Winder
	28	Bobbin Winder
	29	Spring
	30	Screw
	31	Shaft
	32	Lever
	33	Screw
	34	Nut
	35	Cover
	36	Handwheel
	37	Cover
	38	Feed Dog
	39	Bobbin Case
	40	Lever
	41	Hook
	42	Cover
	43	Lever
	44	Lever
	45	Lever
	46	Screw
	47	Lever
	48	Lever
	49	Screw
	50	Screw
	51	Screw

Page 29

Juki DDL-9000 (38 pages) parts on page 29
Ref	Part number	Part name	Qty
	110-30301	CABLE HOLDER
	SS-4120615-SP	SCREW 3/16-28 L=6
	110-01906	THROAT PLATE K
	M6023-350-AAF	RESISTOR PACK ASM.
	236-08706	NEEDLE BAR LOWER METAL D
	228-86907	NEEDLE BAR (A)
	228-87004	NEEDLE BAR (B)
	MDB-1SFB0900	NEEDLE DBX1SF #9
	MC-2005006-50	NEEDLE 134 NM65
	MDB-100B0900	NEEDLE DBX1 #9
	D1524-555-DBB	PRESSER FOOT ASM.
	111-62104	SPRING
	SS-4090610-SP	SCREW 9/64-40 L=6
	SS-7111410-TP	SCREW 11/64-40 L=14
	D1613-155-W000	FEED DOG W
	228-89851	HOOK DRIVING SHAFT BEARING ASM.
	SS-8110510-SP	SCREW 11/64-40 L=5
	228-90004	RP HOOK C
	228-90205	RP HOOK
	228-90305	RP HOOK S
	236-27458	THREAD TENSION ASM. F
	236-26005	THREAD TENSION NUT
	B3132-552-000	THREAD TENSION DISK PRESSER
	B3126-012-000	THREAD TENSION DISK
	B3111-126-000	TENSION POST SOCKET
	B3115-552-000	TENSION POST
	B3120-125-000	ROTATING STOPPER
	D3129-555-DOO	THREAD TENSION SPRING
	D3128-555-DOO	TAKE-UP SPRING
	SS-8090670-SP	SCREW 9/64-40 L= 5.5
	113-05513	ARM THREAD GUIDE, C
	114-03805	THREAD GUIDE C FITTING PLATE
	114-04209	SPACER
	114-04308	NUT
	236-30700	OIL SIGHT WINDOW D
	229-40506	FEED DIAL
	B1109-012-10B	THROAT PLATE (I)
	B1613-012-10D	FEED DOG I
	229-64001	BOBBIN A
	228-96302	BOBBIN CASE HOLDER
	228-96252	BOBBIN CASE ASM.
	236-24652	KNIFE UNIT D
	110-40052	MOVING KNIFE ASM.
	228-96104	THREAD GUIDE FOR KNIFE
	236-23002	KNIFE INSTALLING BASE
	110-40409	MOVING KNIFE HINGE SCREW
	228-96005	FORKED BASE FOR KNIFE
	228-95908	COUNTER KNIFE
	SD-0460703-TP	HINGE SCREW D=4.6 H=7
	SS-2060210-SP	SCREW 3/32-56 L=2.3
	SS-4080620-TP	SCREW 1/8-44 L=6

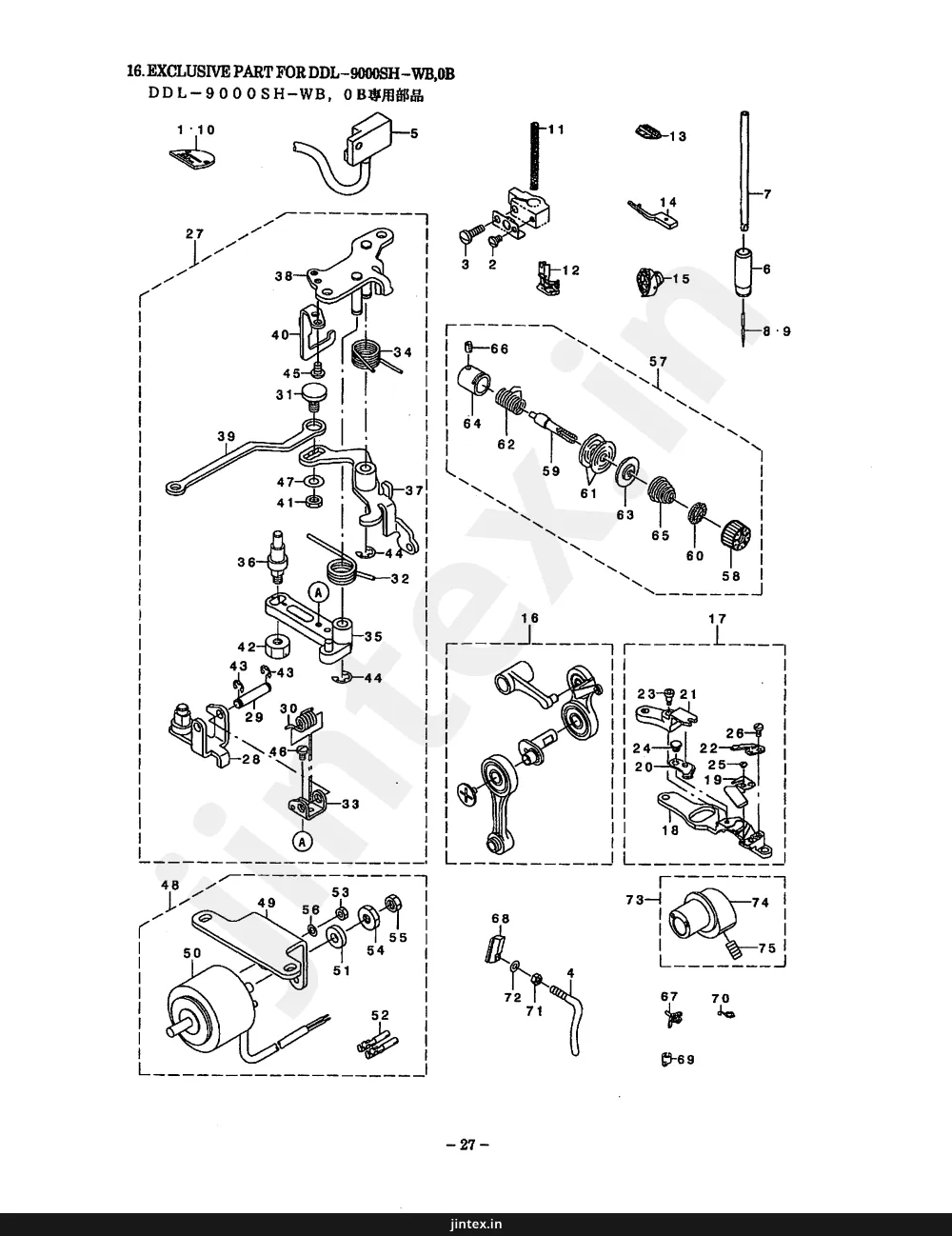

Page 30 — 16. EXCLUSIVE PART FOR DDL-9000SH-WB, 0B

Juki DDL-9000 (38 pages) parts on page 30
Ref	Part number	Part name	Qty
	1	10
	2
	3
	4
	5
	6
	7
	8	9
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56
	57
	58
	59
	60
	61
	62
	63
	64
	65
	66
	67
	68
	69
	70
	71
	72
	73
	74
	75

Page 31

Juki DDL-9000 (38 pages) parts on page 31
Part number	Part name	Qty
114-00801	THROAT PLATE J	1
SS-4090610-SP	SCREW 9/64-40 L=6	1
SS-7111410-TP	SCREW 11/64-40 L=14	1
113-05513	ARM THREAD GUIDE, C	1
M6024-350-AAF	RESISTOR PACK AF ASM.	1
236-45609	NEEDLE BAR METAL, LOWER H	1
110-91303	NEEDLE BAR	1
MDB-100E2100	NEEDLE DBX1 #21	1
MC-2005013-00	NEEDLE 134 NM130	1
236-45807	THROAT PLATE H	1
B1505-552-000-A	PRESSER SPRING	1
D1524-555-EBL	PRESSER FOOT ASM.	1
114-03003	FEED J	1
236-46003	POSITIONING FINGER H	1
110-92251	LUBRICATING BOBBIN ASM.	1
236-45559	THREAD TAKE-UP ASM., H	1
236-45252	KNIFE UNIT H	1
236-45203	KNIFE INSTALLING BASE H	(1)
236-45401	THREAD GUIDE FOR KNIFE H	(1)
114-09257	MOVING KNIFE J ASM.	(1)
110-95601	KNIFE BRANCH	(1)
114-09604	FIX KNIFE	(1)
SD-0460703-TP	HINGE SCREW D=4.6 H=7	(1)
SD-0500131-TP	HINGE SCREW D=5 H=1.25	(1)
SS-2060210-SP	SCREW 3/32-56 L=2.3	(1)
SS-4080520-TP	SCREW 1/8-44 L=6	(2)
236-23176	THREAD TRIMMER DRIVING UNIT H	1
110-40953	ROLLER ARM ASM.	1
110-41407	ROLLER FULCRUM SHAFT	1
229-49200	ROLLER RETURN SPRING	(1)
110-42306	PICKER LINK PIN	(1)
110-43700	KNIFE RETURN SPRING, B	(1)
110-94307	ROLLER ARM BRACKET	(1)
110-94406	SPRING	(1)
236-23150	KNIFE DRIVING ARM ASM.	(1)
236-23200	MOVING KNIFE LINK PIN	(1)
236-23358	CLUTCH PLATE ASM.	(1)
236-23556	BASE PLATE ASM.	(1)
236-23705	PICKER LINK	(1)
236-23804	DRIVING ARM STOPPER	(1)
NS-6150310-SP	NUT 15/64-28	(1)
NS-6150810-SP	NUT 15/64-28	(1)
RE-0400000-KO	E-RING 4	(2)
RE-0600000-KO	E-RING 6	(2)
SS-4110715-SP	SCREW 11/64-40 L=7	(1)
SS-7090610-SP	SCREW 9/64-40 L=6	(1)
WP-0621016-SH	WASHER	1
236-45153	SOLENOID ASM., H	(1)
236-45005	SOLENOID BASE H	(1)
236-45104	SOLENOID H	(1)
110-43304	SOLENOID RUBBER	(2)
HK-0346400-OB	PIN CONTACT	(2)
NM-6040000-SN	NUT M4	(1)
NS-6660410-SN	NUT	(1)
NS-6660430-SP	NUT 1/4-40	(2)
WP-0430800-SC	WASHER 1/4-40	(1)
236-26062	THREAD TENSION ASM., H	1
236-26005	THREAD TENSION NUT	(1)
229-21209	THREAD TENSION POST	(1)
229-21407	ROTATION STOPPER	(1)
229-21506	THREAD TENSION DISK	(2)
229-21605	THREAD TAKE-UP SPRING	(1)
229-21803	DISK STOPPER	(1)
229-45307	THREAD TENSION POST BASE	(1)
229-62005	THREAD TENSION SPRING	(1)
SS-8090670-SP	SCREW 9/64-40 L=5.5	(1)
110-73954	THREAD TENSION ASM.	(1)
114-03805	THREAD GUIDE C FITTING PLATE	1
B1418-415-H00	NEEDLE BAR THREAD GUIDE	1
B1419-553-000	NEEDLE BAR THREAD GUIDE	1
114-04308	NUT	(1)
WP-0371016-SD	WASHER 3.7X8X1	(1)
236-19059	VERTICAL FEED CAM H ASM.	(1)
236-19000	VERTICAL FEED CAM H	(2)
SS-8151150-TP	SCREW 15/64-28 L=10.5	(2)

Page 32 — 17. TABLE & STAND COMPONENTS

Juki DDL-9000 (38 pages) parts on page 32
Ref	Part number	Part name	Qty
	1	TABLE TOP
	2	LEG FRAME
	3	LEG FRAME
	4	LEG FRAME
	5	COVER
	6	COVER
	7	COVER
	8	DRAWER
	9	SUPPORT
	10	BRACKET
	11	BRACKET
	12	BRACKET
	13	BRACKET
	14	BRACKET
	15	BRACKET
	16	SUPPORT
	17	SUPPORT
	18	BRACKET
	19	SCREW
	20	PEDAL BRACKET
	21	PEDAL BRACKET

Page 33

Juki DDL-9000 (38 pages) parts on page 33
Part number	Part name	Qty
236-42200	TABLE	1
111-57567	T LEG JUNCTION
111-59365	T STAND JUNCTION
111-59357	T-STAND ASM.
111-56007	CASE
111-55801	CASE MAGNET
111-55751	CASE ASM. B
111-55108	DRAWER
111-55207	DRAWER SUPPORT
110-73103	RUBBER CUSHION
110-75900	RUBBER SPACER
110-75801	RUBBER SPACER
B8210-012-000	CUSHION SET NAIL
B8210-012-000	CUSHION SET NAIL
D8226-555-E00	FRAME RUBBER CUSHION A
D8204-555-D00	DRAWER STOPPER
SK-3311600-SE	WOOD SCREW D=3.1 L=16
SK-3513200-SC	WOOD SCREW D=5.1 L=32
SK-3382001-SC	WOOD SCREW D=3.8 L=20
GPK-700010A0	3-JOINT PEDAL, 70
GPK-710010A0	2-PEDAL ASM., 71

Page 34 — 18. LIST FOR INFORMATION OF CHANGE

Juki DDL-9000 (38 pages) parts on page 34
Ref	Part number	Part name
48	WS-0510002-KP	WS-0510002-KP
48	CM-6001001-01	CM-6001001-01
1	236-36061	236-36061
1	400-23021	400-23021
26	137-00700	137-00700
26	400-23291	400-23291
29	B11-552-0A0	B11-552-0A0
29	229-06457	229-06457
30	B11-552-000	B11-552-000
30	229-06408	229-06408
39	CS-070081C-SH	CS-070081C-SH
39	400-10434	400-10434
43	KM-0000004-60	KM-0000004-60
43	400-28014	400-28014
19	110-06509	110-06509
19	229-08701	229-08701
39	110-18108	110-18108
39	229-20102	229-20102
1	236-12054	236-12054
1	400-33391	400-33391
2	400-33392	400-33392
3	400-33393	400-33393
4	SM-8040412-TP	SM-8040412-TP
28	101-20004	101-20004
28	400-23289	400-23289
21	226-88002	226-88002
21	400-29963	400-29963
72	B9117-552-A00	B9117-552-A00
72	229-64001	229-64001
79	226-16605	226-16605
79	110-15906	110-15906
80	236-07203	236-07203
80	400-31608	400-31608
81	SM-8000812-TP	SM-8000812-TP
54	233-241-E00	233-241-E00
54	400-23290	400-23290
45	117-34207	117-34207
45	400-24644	400-24644
17	B9117-552-A00	B9117-552-A00
17	229-64001	229-64001
24	D9118-555-B00	D9118-555-B00
24	229-33303	229-33303
12	B9117-552-A00	B9117-552-A00
12	229-64001	229-64001
39	B9117-552-A00	B9117-552-A00
39	229-64001	229-64001

Page 38 — NUMERICAL INDEX OF PARTS

Juki DDL-9000 (38 pages) parts on page 38
Ref	Part number	Part name
58	142-16204	16 58
3	142-16303	16 3
1	142-16352	16 1
7	142-16410	16 7
6	142-16569	16 6
1	142-16501	20 1
13	142-16501	20 13
13	142-16808	20 13
2	142-17004	18 2
3	142-17103	18 3
3	142-17202	20 3
38	142-17301	20 38
39	142-17400	20 39
13	142-17509	20 13
16	142-17764	20 16
7	142-17855	20 7
8	142-17954	20 8
11	142-18002	18 11
4	142-18002	20 4
12	142-19513	22 12
25	142-19604	22 25
26	142-19711	22 26
87	142-20503	2 87
9	142-20750	2 9
21	142-21352	16 21
36	142-21352	30 36
24	142-21451	16 24
2	142-22251	34 2
1	142-22301	34 1
3	142-22459	34 3
46	142-23010	32 46
25	142-24000	36 25
26	142-24109	36 26
33	142-24307	36 33
2	142-24703	36 2
2	142-24760	36 2
8	142-24802	36 8
46	142-25056	36 46
39	144-34906	8 39
10	170-07402	34 10
19	178-45009	26 19
14	229-30309	24 14
1	229-30358	24 1
10	229-30408	24 10
9	229-30507	24 9
7	229-30705	24 7
5	229-30804	24 5
4	229-30903	24 4
3	229-31000	24 3
2	229-31109	24 2
15	229-31208	24 15
11	229-31307	24 11
8	229-31406	24 8
17	229-32800	32 17
18	229-33006	32 18
19	229-33105	32 19
20	229-33204	32 20
15	236-30007	10 15
19	236-30007	22 19
30	260-37903	32 30
24	262-11607	2 24
35	262-21101	10 35
48	262-22208	10 48
11	262-30706	22 11
65	262-34005	32 65
57	262-60109	2 57
58	262-60208	2 58
59	262-60307	2 59
60	262-60406	2 60
61	262-60505	2 61
64	262-60802	2 64
65	262-60901	2 65
66	262-61008	2 66
67	262-61107	2 67
68	262-61206	2 68
69	262-61305	2 69
71	262-61602	2 71
72	262-61701	2 72
73	265-00306	4 73
73	265-00504	14 73
4	265-00900	12 4
4	265-01205	16 4
5	265-01304	12 5
2	265-01403	16 2
8	265-01502	16 8
16	265-01858	10 16
4	265-01908	14 4
37	265-02906	8 37
63	400-11144	2 63
17	400-25746	8 17
62	400-26730	2 62
79	400-26745	2 79
56	400-26746	2 56
55	400-31323	8 55
55	400-31324	8 55
5	400-34676	11 5

Juki DDL-9000 (38 pages) — parts catalog

Page 1 — PARTS LIST

JUKI ® Direct-drive, High-speed, Lockstitch Machine with an Automatic Thread Trimmer ダイレクトドライブ高速本縫自動糸切りミシン DDL-9000 PARTS LIST 29327400 No.1259-06 jintex.in

Page 2 — HOW TO MAKE USE OF THIS PARTS LIST

HOW TO MAKE USE OF THIS PARTS LIST 1. Explanation of codes 1) "*" mark...means this part is changed from the previous parts book. As to the details of the change, refer to "List for Information of change". 2) "01"...refer to "Note" explanation at bottom of page. 2. Codes on the "Qty" column Each numeral indicates the number of parts required. "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3. Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4. Dotted lines on the Figures indicate assembly parts. パーツリストご利用に際して 1. "注記" 欄の記号説明 1) "*"印...前回のパーツブックに比較して今回変更された部品を意味します。変更内容は"変更情報リスト" を参照してください。 2) "01"...ページ下の"注記"の説明を参照してください。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3. 数量欄の( )は、組部品を構成している子部品であることを意味します。 4. イラストページの－－－－枠は、組構成であることを意味します。 From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 3 — CONTENTS

CONTENTS 目次 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS ...1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 頭部・外装関係 2. BOBBIN WINDER COMPONENTS 糸巻装置関係 3. MAIN SHAFT & NEEDLE BAR COMPONENTS 上軸・針棒関係 4. HAND LIFTER & TENSION RELEASE COMPONENTS 押上げ・糸締め関係 5. FEED ADJUST MECHANISM COMPONENTS 送り調節関係 6. HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS 水平送り・上下送り・釜軸関係 7. THREAD TRIMMER COMPONENTS 糸切り装置関係 8. OIL LUBRICATION COMPONENTS 給油関係 9. AUTOMATIC REVERSE FEED COMPONENTS 自動逆送り関係 10. WIPER COMPONENTS(FOR DDL-9000-WB) ワイパー関係(DDL-9000-WB用) 11. THREAD STAND COMPONENTS 糸立装置関係 12. UNDER COVER COMPONENTS アンダーカバー関係 13. ACCESSORIES PART COMPONENTS 付属品関係 14. EXCLUSIVE PART FOR DDL-9000DS DDL-9000DS専用部品 15. EXCLUSIVE PART FOR DDL-9000DF DDL-9000DF専用部品 16. EXCLUSIVE PART FOR DDL-9000SH-WB,OB DDL-9000SH-WB, OB専用部品 17. TABLE & STAND COMPONENTS 脚卓関係 18. LIST FOR INFORMATION OF CHANGE 変更情報リスト NUMERICAL INDEX OF PARTS 索引 From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 4 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 頭部・外装関係 33 31 8 31 8 4 30 11 43 20 37 39 67 60 69 36 19 25 23 A 27 28 85~87 14 15 16 17 12 13 2 3 A 34 32 10 40 44~46 88 47 80 89 90 5 26 48 22 24 63 62 61 66 64 65 38 83 82 9 42 41 76 72 73 75 77 79 78 71 21 29 18 42 7 35 58 49 57 54 51 53 56 55 52 50 84 -1- From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 5

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 236-00208 SIDE PLATE 2 236-00307 FACE PLATE 3 236-00406 FACE PLATE PACKING 4 236-00505 THREAD TAKE-UP LEVER COVER 5 236-00604 PULLEY COVER 6 236-00703 BED STUD A 7 236-00802 BED STUD B 8 236-00805 CORD FIXING METAL FITTING 9 236-01305 AIR-DISCHARGING CAP 10 236-02506 FACE PLATE 11 400-22407 CORD HOLDER 12 07 229-01250 SLIDE PLATE ASM. 13 08 229-02753 SLIDE PLATE ASM. 14 07 229-01201 SLIDE PLATE 15 08 229-02704 SLIDE PLATE 16 229-01300 SLIDE PLATE SPRING 17 SS-6060210-SP SCREW 3/32-56 L= 1.9 18 CM-3002000-03 ATTENTION LABEL 19 229-02605 RULER STOP SEAT 20 229-01409 NEEDLE BAR UPPER BUSH CAP 21 83538-112-000 OIL RETURN TUBE HOLDER 22 CM-3002001-A1 SAFETY LABEL, 3 (SMALL). 23 CM-3002000-01 SAFETY LABEL, 1 (SMALL). 24 CM-3002001-01 LABEL (16) 25 CM-3002000-B1 26 SL-6052592-TN BOLT 27 SS-2110915-SP SCREW 11/64-40 L=8.5 28 SS-2110920-TP SCREW 11/64-40 L=8.5 29 SS-4110715-SP SCREW 11/64-40 L=7 30 SS-4120615-SP SCREW 3/16-28 L=6 31 SS-4120915-SP SCREW 3/16-28 L=9 32 SS-4120915-SP SCREW 3/16-28 L=9 33 SS-4150915-SP SCREW 3/16-28 L=9 34 SS-4150915-SP SCREW 15/64-28 L=9 35 SS-4150915-SP SCREW 15/64-28 L=9 36 SS-7110540-SP SCREW 11/64-40 L=5 37 TA-0850604-RO RUBBER PLUG 38 TA-0850604-RO RUBBER PLUG 39 TA-1250406-RO RUBBER PLUG D=12.5 L=4 40 TA-1250406-RO RUBBER PLUG D=12.5 L=4 41 TA-1250702-RO RUBBER PLUG 42 TA-1470704-RO RUBBER PLUG 43 N6022-350-AAA RESISTOR PACK AA ASM. 44 06 N6022-350-AAL RESISTOR PACK AL ASM. 45 09 N6022-350-AAF RESISTOR PACK AF ASM. 46 05 RP-0501016-SD WASHER 5X10.5X1 47 CM-6001001-01 WEEL MARK LABEL S 48 *05 236-27359 THREAD TENSION ASM. 49 236-26005 THREAD TENSION NUT 50 83115-552-000 TENSION POST 51 83120-125-000 ROTATING STOPPER 52 83126-012-000 THREAD TENSION DISK 53 B1109-012-10B THREAD TENSION DISK 54 B1109-012-A00 55 B3129-012-000 56 B3132-552-000 57 83111-126-000 TAKE-UP SPRING 58 SS-8090670-SP TENSION SPRING 59 236-26104 THREAD TENSION POST PRESSER 60 229-20607 TENSION POST 61 229-45463 SCREW 9/64-40 L= 5.5 62 229-45414 ARM THREAD GUIDE A 63 229-45604 ARM THREAD GUIDE B 64 229-45505 THREAD TENSION ASM. NO.1 65 229-46703 THREAD TENSION POST 66 229-45802 THREAD TENSION GUIDE 67 SS-4110715-SP THREAD TENSION SPRING 68 SS-6110610-TP THREAD TENSION NUT 69 SS-6110610-TP THREAD TENSION DISK 70 SS-8150710-TP SCREW 11/64-40 L=7 71 236-38059 SCREW 11/64-40 L=6 72 236-38000 SCREW 11/64-40 L=6 73 236-38109 SCREW 15/64-28 L=7 74 236-38208 SAFETY SWITCH ASM. 75 236-38307 SAFETY SWITCH BASE 76 236-38406 SAFETY SWITCH ARM 77 236-38554 SAFETY SWITCH SPRING 78 EA-9500801-00 SAFETY SWITCH ARM SHAFT 79 SH-4021201-SC SAFETY SWITCH NUT 80 10 229-01805 CABLE BAND 81 SS-4110516-SP SCREW N2 L=12 82 236-29900 GROUND MARK 83 RO-0801502-00 SCREW 11/64-40 L=6 84 B3118-552-F00 AIR-DISCHARGING 85 B1109-012-10B RUBBER RING 86 T10-28008 TENSION RELEASING PIN 87 03 B1109-552-000 THROAT PLATE 88 SS-4121215-SP THROAT PLATE 89 236-01057 SCREW 3/16-28 L=12 90 10 SS-4120615-SP EARTH CORD ASM. SCREW 3/16-28 L=6 NOTE (注記) 01...FOR JE, GENERAL EXPORT 02...FOR USE IN JAPAN 03...FOR JA, JH 04...FOR GENERAL EXPORT, JA, JH 05...FOR JH 06...FOR JE 07...FOR GENERAL EXPORT, USE IN JAPAN,JH 08...FOR JH 09...FOR GENERAL EXPORT, JR, JE 10...FOR GENERAL EXPORT, JR, JE -2- From the Library of Superior Sewing Machine & Supply LLC jntex.in

Page 6 — 2. BOBBIN WINDER COMPONENTS

2. BOBBIN WINDER COMPONENTS 糸巻装置関係 20 23 17 10 2 9 13 16 4 3 14 11 6 22 8 15 11 5 18 19 21 7 12 1 29 30 33 32 31 34 27 26 28 25 24 -3- From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 7

REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 * 400-23021 BOBBIN WINDER UNIT イトマキウチクミ (1) 2 262-60109 BTW BASE イトマキハリケツケダイ (1) 3 262-60208 BTW CAM PLATE イトマキハリケツケダイ (1) 4 262-60307 BTW BASE SHAFT イトマキハリケツケダイタツク (1) 5 262-60406 BTW SHAFT BASE イトマキハリケツケダイ (1) 6 262-60505 BTW CAM LEVER イトマキハリケツケダイ (1) 7 262-60604 BTW WHEEL イトマキハリケツケダイ (1) 8 262-60802 BTW BEARING SPACER ヘ゛アリンク゛スヘ゜ーサー (1) 9 262-61008 BTW LEVER SHAFT イトマキハリケツケダイ (1) 10 262-61206 BTW SPACER ホ゛ヒ゜ン (1) 11 262-61305 BTW BEARING イトマキハリケツケダイ (1) 12 262-61603 BTW WHEEL RUBBER イトマキハリケツケダイ (2) 13 262-61604 BOBBIN SPRING ホ゛ヒ゜ン (1) 14 262-61701 BTW SPRING イトマキハリケツケダイ (1) 15 400-11144 BTW TORSION SPRING イトマキハリケツケダイ (1) 16 400-14837 BTW SHAFT イトマキハリケツケダイ (1) 17 400-23022 BTW LEVER イトマキハリケツケダイ (1) 18 RC-0560711-KP RETAINING RING C゛ア゛タ゛ー (1) 19 RE-0400000-KO E-RING 4 E゛ア゛タ゛ー 4 (1) 20 SM-5040655-SN SCREW ハ゛イント゛ウ (1) 21 SM-8040802-TP SCREW M4X8 ト゛メネジ 4X0.7 L=8 (1) 22 SM-8050602-TP SCREW M5 L=5 ト゛メネジ (1) 23 WP-0450826-SC WASHER 4.5X10X0.8 ヒ゛ラサ゛カ゛ネ 4.5X10X0.8 (2) 24 SS-6121030-SN SCREW 3/16-28 L=10 ヒ゛ラサ゛カ゛ネ 3/16-28 L=10 (1) 25 105-02300 THREAD CUTTER イトマキリツタ゛ー (1) 26 * 400-23291 THREAD GUIDE NO.1 タ゛イイチアンナイ (1) 27 SS-4150915-SP SCREW 15/64-28 L=9 ナヘ゛ネジ 15/64-28 L=9 (2) 28 SS-6090620-TP SCREW ヒ゛ラサ゛カ゛ネ (1) 29 236-36657 BOBBIN THREAD TENSION ASM. イトマキチョウシクミ (1) 30 110-72402 THREAD TENSION NUT ダイイチイト゛チョウシナット (1) 31 141-13450 BOBBIN THREAD TENSION ROD ASM. イトマキチョウシロツト゛ク゛ (1) 32 D7133-555-B00 THREAD TENSION DISK イトマキチョウシハ゛ネ (2) 33 B7133-555-B00 CONNECTING ROD SPRING シ゛ンタ゛レンク゛ロツト゛ハ゛ネ (1) 34 NS-6110530-SP NUT 11/64-40 ロツカ゛クナット 11/64-40 (1) -4- From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 8 — 3. MAIN SHAFT & NEEDLE BAR COMPONENTS

3. MAIN SHAFT & NEEDLE BAR COMPONENTS 上軸・針棒関係 39 40 41 42 38 37 25 29 31 30 26 48 27-28 36 49 33~35 2 3 5 6 4 1 13 9 11 12 10 14 16 15 17 15 17 45 43 47 21 8 24 22 19 20 51 50 20 18 23 -5- From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 9

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 236-04010 MAIN SHAFT ウワジク 1 2 236-04168 COUNTER WEIGHT ASM. グリアイ(クミ) 1 3 236-04119 COUNTER WEIGHT グリアイ (1) 4 SS-7681650-TP SCREW 9/32-28 L=16 マルヒラネジ 9/32-28 L=16 (1) 5 SS-8681650-TP SCREW 9/32-28 L=16 トメネジ 9/32-28 L=16 (1) 6 SS-8660610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 (2) 7 236-04200 MAIN SHAFT BEARING SUPPORT ウワジクベアリングウケ 1 8 236-04309 COUPLING カップリング 1 9 236-04408 HAND WHEEL ASM. ハズミクルマ(クミ) (1) 10 236-04457 HAND WHEEL ハズミクルマ (1) 11 236-04754 MAGNET BASE COMPL., A マグネトベーストリケダイ(ケツゴウ)A (1) 12 236-04655 MAGNET BASE COMPL., B マグネトベーストリケダイ(ケツゴウ)B (1) 13 236-04044 BALANCE PLATE バランスイタ (1) 14 236-05081-TP SCREW M6 L=8 トメネジ M6 L=8 (2) 15 SL-4040881-SC SCREW M4 L=8 ネジキナベコネジ M4 L=8 (1) 16 SL-4040881-SC SCREW M4 L=8 ネジキナベコネジ M4 L=8 (2) 17 236-05009 HAND WHEEL WASHER ハズミクルマワッシャー (1) 18 236-05256 BEARING COMPL. ウワジクベアリング(ケツゴウ) (1) 19 SM-8060812-TP SCREW M6 L=8 トメネジ M6 L=8 4 20 SM-8060812-TP SCREW M6 L=8 トメネジ M6 L=8 4 21 236-07054 SPROCKET,UPPER COMPL. ウエズプロケット(ケツゴウ) 1 22 236-07302 TIMING BELT タイミングベルト 1 23 236-08012-TP SCREW M6 L=8 トメネジ M6 L=8 2 24 236-08003 NEEDLE BAR METAL, UPPER ハリガネウエメタル 1 25 236-08102 NEEDLE BAR METAL, LOWER ハリガネシタメタル 1 26 236-08103 NEEDLE BAR ハリガネ 1 27 01 111-41207 NEEDLE BAR B ハリガネB 1 28 02 229-39508 NEEDLE BAR HOLDER ASM. ハリガネホルダー(クミ) 1 29 229-06408 NEEDLE ROD HOLDER ハリガネロツドホルダー (1) 30 * 229-06408 NEEDLE ROD HOLDER ハリガネロツドホルダー (1) 31 SS-6090670-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 (1) 32 B1414-555-000 SLIDE BLOCK ハリガネアンナイコロ 1 33 03 MDB-100B1400 NEEDLE DBX1 #14 ハリDBX1 #14 1 34 04 MDB-100B1100 NEEDLE DBX1 #11 ハリDBX1 #11 1 35 02 MC-2005007-50 NEEDLE 134 NM75 ハリヌイシュ 134 NM75 1 36 SS-7080510-TP SCREW 1/8-44 L=4.5 マルヒラネジ 1/8-44 L=4.5 1 37 236-22061 THREAD TAKE-UP ASM. テンビンクミ 1 38 236-22400 THREAD TAKE-UP CRANK SHAFT テンビンクランクシャフト 1 39 400-10434 THRUST COLLAR ASM. テンビンクランクシャフトラスカラクミ 1 40 228-91204 BEARING SUPPORT ベアリングササエ 2 41 SB-3070002-00 BEARING コロ 1 42 SS-6151920-TP SCREW 15/64-28 L=19 ヒラネジ 15/64-28 L=19 1 43 * 400-28014 AC SERVO MOTOR ACサーボモータ 1 44 M6801-471-040 SYNC ASM. シンククミ 2 45 EA-9500B01-00 CABLE BAND ソクセンバンド 1 46 SL-4040881-SC SCREW M4 L=8 ネジキナベコネジ M4 L=8 2 47 SL-6052592-TP SCREW ナベコネジ 4 48 236-26203 NEEDLE BAR THREAD GUIDE ハリガネイトアンナイ 1 49 229-06309 NEEDLE BAR THREAD GUIDE ハリガネイトアンナイ 1 50 400-20455 BTW DRIVING WHEEL イトマキウエシャ 1 51 SS-6111440-SP SCREW 11/64-40 L=14 ヒラネジ 11/64-40 L=14 2 NOTE (注記) 01...EXCEPT JE JEを除く 02...FOR JE JE用 03...FOR GENERAL EXPORT, JA, JH 一般輸出,JA,JH用 04...FOR USE IN JAPAN 日本用 -6- From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 10 — 4. HAND LIFTER & TENSION RELEASE COMPONENTS

4. HAND LIFTER & TENSION RELEASE COMPONENTS 押上げ・糸締め関係 -7- From the Library of Superior Sewing Machine & Supply LLC Jinttex.in

Page 11

REF. NO NOTE PART NO. DESCRIPTION Qty 1 236-09001 BUSHING 1 2 236-09100 PRESSER BAR THREAD GUIDE 1 3 236-09209 PRESSER SPRING REGULATOR 1 4 236-09357 LIFTING LEVER CONNECT ROD ASM. 1 5 236-09308 LIFTING LINK COMPL. 1 6 236-09456 PLATE (1) 7 236-09605 LIFTING PLATE (1) 8 229-08008 SCREW M4 L=6 (1) 9 SM-6040602-TP E-RING (1) 10 RE-0500000-KO E-RING (1) 11 RE-0500000-KO LIFTING LEVER LINK (1) 12 236-09704 CONNECTING ROD (1) 13 236-09803 CONNECTING ROD GUIDE 1 14 236-10105 PRESSER BAR GUIDE BRACKET 1 15 236-10207 PRESSER BAR 1 16 236-10306 GUIDE BAR 1 17 236-10405 LINK SHAFT 2 18 229-08701 HINGE SCREW (1) 19 * 229-08909 PRESSER SPRING REGULATOR NUT 1 20 229-07604 HAND LIFTER 1 21 229-08552 HAND LIFTER CAM ASM. 1 22 229-07406 PRESSER SPRING 1 23 B1521-555-000 SCREW 1 24 B1524-012-0BA PRESSER FOOT ASM. 1 25 01 B1524-552-0BA PRESSER FOOT ASM. 1 26 02 RE-0500000-KO E-RING 3 27 RO-0371801-00 RUBBER RING 1 28 SD-0720331-SP SCREW HINGE D= 7.24 H= 3.3 1 29 SS-4121015-SP SCREW 3/16-28 L=10 1 30 SS-6090910-SP SCREW 9/64-40 L=9 1 31 SS-7091110-TP WASHER 5X10.5X1 1 32 WP-0501016-SD SCREW 11/64-40 L=18 1 33 SS-7111810-TP THREAD TENSION RELEASE WIRE 1 34 236-26307 TENSION RELEASE PIN SPRING 1 35 236-25900 WIRE HOLDER BRACKET 1 36 236-26102 TENSION RELEASE SHAFT 1 37 229-20300 THREAD RELEASE SUPPORTING PIN 1 38 110-18405 TENSION RELEASE PIN SPRING 1 39 229-44508 WIRE PRESSER A 2 40 SS-4120615-SP SCREW 3/16-28 L=6 2 41 NS-6620310-SP NUT 3/16-32 2 42 RE-0500000-KO E-RING 2 43 SS-4110715-SP SCREW 11/64-40 L=7 2 44 NS-6150310-SP NUT 15/64-28 1 45 RE-0500000-KO BOLT 1 46 SS-4110715-SP WASHER 6.2X13X1 1 47 RO-0442401-00 RUBBER RING 1 48 236-10801 MINUTE LIFTING DEVICE ASM. (1) 49 WP-0621016-SD HAND LIFTER (1) 50 RO-0442401-00 STOPPER BASE (1) 51 03 236-11056 STOPPER SCREW ASM. (1) 52 236-11106 STOPPER SCREW NUT (1) 53 236-10504 SET SCREW (1) 54 112-44019 WASHER 4.8X8.4X0.8 (1) 55 236-10652 56 236-10702 57 114-33802 58 WP-0480856-SP NOTE (注記) 01...EXCEPT JA 02...FOR JA 03...SPECIAL ORDER PART -8- From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 12 — 5. FEED ADJUST MECHANISM COMPONENTS

5. FEED ADJUST MECHANISM COMPONENTS 送り調節関係 33 29 32 42 40 30 46 44 34 20 18 43 31 21 19 27 25 28 22 23 24 13 14 12 47 37 15 16 50 11 7 9 10 8 5 6 49 39 38 48 3 2 45 1 -9- From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 13

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 * 400-33391 ADJUSTING LINK ASM. オクリヨウセツリンククミ (1) 2 * 400-33392 ADJUSTING LINK オクリヨウセツリンク (1) 3 * 400-33393 ADJUSTING LINK PIN チョウセツリンクピン (2) 4 * SM-8040412-TP SET SCREW M4 L=4 トメネジ M4 L=4 (4) 5 236-12450 FEED CHANGING SHAFT ASM.,A オクリヨウセツクウデ A (クミ) 1 6 SS-6661110-SP SCREW 1/4-40 L=11 ヒラネジ 1/4-40 L=11 (1) 7 236-12609 FEED CHANGING SHAFT OIL SEAL ヘンカンクウデオイルシール 1 8 236-12765 THRUST COLLAR ASM. ヘンカンクウデスラストウケ (クミ) 1 9 236-12716 THRUST COLLAR ヘンカンクウデスラストウケ (1) 10 SS-8660610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 (2) 11 236-12807 METAL, A オクリヨウカンジクメタL A 1 12 236-13062 METAL, B オクリヨウカンジクメタL B 1 13 236-13052 FEED CHANGING SHAFT ASM., B オクリヨウカンジクウデ B (クミ) 1 14 236-13003 FEED CHANGING SHAFT ARM, B オクリヨウカンジクウデ B (1) 15 SS-6121610-SP SCREW 3/16-28 L=15.5 ヒラネジ 3/16-28 L=15.5 (1) 16 236-13102 FEED CHANGING SHAFT ARM B PIN オクリヨウカンジクウデ B ピン 1 17 236-13201 FEED ADJUSTING ROD オクリヨウセツロッド 1 18 236-13300 FEED ADJUSTING BASE オクリヨウセツダイ 1 19 236-13409 FEED ADJUSTING PIN オクリヨウセツピン 1 20 236-13508 ADJUSTING BASE SHAFT METAL オクリヨウセツダイイシクメタル 1 21 236-13607 FEED LEVER 1 22 236-13706 FEED LEVER SHAFT オクリヨウレバー 1 23 236-13805 FEED LEVER SHAFT METAL オクリヨウレバークメタL 1 24 236-13953 FEED LEVER ARM. オクリヨウレバーウデ (クミ) 1 25 SS-6121610-SP SCREW 3/16-28 L=15.5 ヒラネジ 3/16-28 L=15.5 1 26 236-14001 FEED ADJUSTING SPRING オクリヨウセツバネ 1 27 236-14008 FEED LEVER SPRING オクリレバーバネ 1 28 * 400-23289 SPRING SUSPENSION ギヤクウデスプリング 1 29 229-12000 FEED REGULATOR PIN オクリヨウセツピン 1 30 110-71909 FEED DIAL オクリヨウダイヤル 1 31 229-52501 BACK LEVER STOPPER バツクレバーストツパー 1 32 229-11804 FEED REGULATOR SCREW オクリヨウセツネジ 1 33 229-12109 FEED REGULATOR PIN SPRING オクリヨウセツピンバネ 1 34 CS-1111016-SH COLLAR ASM. D=11.1 W=10 クミ D=11.1 W=10 クミ (2) 35 SS-8660330-SP SCREW 1/4-40 L=3.0 トメネジ 1/4-40 L=3.0 (2) 36 NS-6110310-SP NUT 11/64-40 ロツカクナット 11/64-40 1 37 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 1 38 RE-0500000-KO E-RING Eガタリング 1 39 RE-0500000-KO E-RING Eガタリング 1 40 RO-0922702-00 RUBBER RING Oリング 1 41 SM-8060812-TP SCREW M6 L=8 トメネジ M6 L=8 2 42 SS-6090670-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 2 43 SS-6121840-SP SCREW 3/16-28 L=18 ヒラネジ 3/16-28 L=18 1 44 SS-6121860-SP SCREW 3/16-28 L=18 ヒラネジ 3/16-28 L=18 1 45 SS-6151920-TP SCREW 15/64-28 L=19 ヒラネジ 15/64-28 L=19 2 46 236-14407 FEED DIAL RUBBER オクリヨウダイヤルゴム 0.09 47 236-12104 TUBE チューブ 1 48 400-12032 ADJUSTING LINK CONNECTING LINK チョウセツリンクコネクテイングリンク 2 49 236-12500 ADJUSTING LINK FULCRUM SHAFT チョウセツリンクフルクラムシヤフト 1 50 FEED CHANGING SHAFT オクリヨウカンジシヤフト 1 - 10 - From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 14 — 6. HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

6. HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS 水平送り・上下送り・釜軸関係 -11- From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 15

REF. NO NOTE PART NO. DESCRIPTION Qty 1 236-16056 FEED ROCKER CAM ASM. 1 2 236-16006 FEED ROCKER CAM (1) 3 SS-8151150-TP SCREW 15/64-28 L=10.5 (2) 4 236-16105 FEED ROCKER ROD 1 5 236-16204 FEED ROCKER CAM PLATE 1 6 236-16303 CONNECTING LINK, A 2 7 236-16402 FEED ROCKER ARM 1 8 236-16550 FEED ROCKER ARM (1) 9 236-16501 SCREW 3/16-28 L=15.5 (1) 10 SS-6121610-SP FEED ROCKER SHAFT 1 11 236-16600 FEED ROCKER SHAFT METAL 1 12 236-16709 FEED ROCKER BASE ARM ASM. (1) 13 236-16857 FEED ROCKER BASE ARM (1) 14 236-16808 SCREW 3/16-28 L=14 (1) 15 SS-7121410-TP WASHER 4.8X8.4X0.8 (1) 16 MP-0480856-SP FEED ROCKER BASE SHAFT 1 17 236-16907 FEED BASE COMPL. 1 18 229-17053 WALKING FOOT PIN B 1 19 229-11002 WALKING FOOT PIN C 1 20 229-11101 OIL SEAL 1 21 400-29953 MAIN SHAFT THRUST COLLAR ASM. 1 22 229-04155 SCREW 1/4-40 L=6 (1) 23 229-04106 FEED DOG 1 24 SS-8660610-TP FEED DOG A 1 25 B1613-012-100 FEED DOG 1 26 236-14506 FEED DOG A 1 27 B1613-552-00A FEED DOG 1 28 B4123-522-00A NEEDLE ROLLAR A 1 29 B4123-522-00B NEEDLE ROLLAR B 1 30 B4123-522-00C NEEDLE ROLLAR C 1 31 RC-0150001-KP RETAINING RING 13.8 2 32 SS-4080620-TP SCREW 1/8-44 L=6 1 33 SS-6090620-TP SCREW 1 34 SS-6090620-TP SCREW 9/64-40 L=6 2 35 SS-6090670-TP SCREW 11/64-40 L=7 1 36 SS-7110740-TP FEED DRIVING CAM ASM. 1 37 236-18051 FEED DRIVING CAM 1 38 236-18002 SCREW 15/64-28 L=10.5 (2) 39 SS-8151150-TP FEED DRIVING CAM THRUST BUSH 1 40 236-18101 FEED DRIVING BASE ARM 1 41 400-22668 FEED DRIVING CAN PLATE 1 42 236-18309 FEED DRIVING BASE SHAFT 1 43 236-18408 FEED DRIVING SHAFT 1 44 400-11711 BEARING SUPPORT 1 45 236-18606 OIL SEAL 1 46 236-18705 BEARING 1 47 236-18804 BEARING 1 48 SB-3200006-0A BEARING 1 49 SB-3200006-0B BEARING 1 50 SB-3200006-0C BEARING 1 51 SS-1170004-00 SCREW 1/4-40 L=8 2 52 SB-1200010-00 SCREW 9/64-40 L=5 1 53 SS-8660810-TP SCREW 1/4-40 L=6.5 1 54 SS-6090670-TP HOOK SHAFT 1 55 SS-6110710-TP HOOK SHAFT METAL COMPL. 1 56 236-20008 OIL SEAL 1 57 236-20156 BEARING SUPPORT ASM. 1 58 236-20206 HOOK SHAFT REAR METAL 1 59 236-20354 GEAR, LARGE 1 60 236-20404 GEAR, SMALL(A) 1 61 236-20503 GEAR, SMALL(B) 1 62 236-20701 GEAR, SMALL(C) 1 63 236-20800 GEAR, SMALL(D) 1 64 236-20909 BOBBIN CASE ASM. 1 65 236-21008 BOBBIN CASE HOLDER 1 66 110-38759 HOOK ASM. C 1 67 110-38809 HOOK ASM. 1 68 111-41355 HOOK DRIVING SHAFT OIL SEAL 1 69 110-38650 BOBBIN 1 70 228-90008 BOBBIN A 1 71 B9117-012-000 SCREW 1/4-40 L=5.5 2 72 229-64001 SCREW 11/64-40 L=9.5 1 73 SS-6110650-TP SCREW 1/4-40 L=10 2 74 SS-6111010-TP SCREW 1/4-40 L=8 2 75 SS-8661030-SP OIL SEAL SCREW ASM. 1 76 SS-8660810-TP SET SCREW (1) 77 229-16556 OIL WICK (1) 78 229-16506 SPROCKET ASM. 1 79 110-15806 SPROCKET 1 80 400-31605 SPROCKET SUPPORT ASM. (1) 81 400-31807 SPROCKET SUPPORT (1) 82 400-31606 SCREW 15/64-28 L=8 (1) 83 SS-8150822-TP SCREW 11/64-40 L=24 (3) 84 SS-7112420-SP 85 86 08 236-19158 87 236-19109 88 08 SS-8151150-TP 89 236-21303 KOTE (注記) - 12 - From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 16 — 7. THREAD TRIMMER COMPONENTS

7. THREAD TRIMMER COMPONENTS 糸切り装置関係 1 5 8 9 10 32 4 6 2 3 33 58 55 34 35 36 37 57 50 52 53 51 54 38 40 46 41 45 44 43 42 11 15 17 29 24 16 31 25 13 A 22 28 26 27 20 21 18 19 30 A 59 23 12 14 - 13 - From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 17

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 236-23051 KNIFE UNIT (1) 2 236-23002 KNIFE INSTALLING BASE (1) 3 110-40052 MOVING KNIFE ASM. (1) 4 110-40409 MOVING KNIFE HINGE SCREW (1) 5 110-40508 FORKED BASE FOR KNIFE (1) 6 113-13103 THREAD GUIDE FOR KNIFE (1) 7 D2406-555-DOH COUNTER KNIFE (1) 8 SD-0460703-TP HINGE SCREW D=4.6 H=7 (1) 9 SS-2060210-SP SCREW 3/32-56 L=2.3 (1) 10 SS-4080620-TP SCREW 1/8-44 L=6 (2) 11 236-23168 THREAD TRIMMER DRIVING UNIT (1) 12 236-23150 KNIFE DRIVING ARM ASM. (1) 13 236-23200 MOVING KNIFE LINK PIN (1) 14 236-23358 CLUTCH PLATE ASM. (1) 15 236-23556 BASE PLATE ASM. (1) 16 236-23705 PICKER LINK (1) 17 236-23804 DRIVING ARM STOPPER (1) 18 110-40953 ROLLER ARM ASM. (1) 19 229-49002 ROLLER ARM SEAT (1) 20 229-49101 ROLLER FULCRUM SHAFT (1) 21 229-49200 ROLLER RETURN SPRING (1) 22 110-43700 ROLLER RETURN SPRING, B (1) 23 229-49408 CLUTCH SPRING (1) 24 229-50000 PICKER LINK PIN (1) 25 NS-6150310-SP NUT 15/64-28 (1) 26 NS-6150810-SP NUT 15/64-28 (1) 27 RE-0400000-KO E-RING 4 (2) 28 RE-0600000-KO E-RING 6 (2) 29 SS-4110715-SP SCREW 11/64-40 L=7 (2) 30 SS-7090610-SP SCREW 9/64-40 L=6 (1) 31 WP-0621016-SH WASHER (1) 32 236-23903 PIN (1) 33 236-24000 MOVING KNIFE LINK (1) 34 236-24158 PICKER ARM ASM. (1) 35 236-24109 PICKER ARM (1) 36 236-24257 THREAD TAKE-UP PICKER ASM. (1) 37 SS-6090620-TP SCREW (1) 38 236-24356 SOLENOID ASM. (1) 39 236-24307 SOLENOID (1) 40 236-24406 SOLENOID BASE (1) 41 110-43304 SOLENOID RUBBER (1) 42 HK-0346400-OB PIN CONTACT (2) 43 NM-6040000-SN NUT M4 (2) 44 NS-6660410-SP NUT (1) 45 NS-6660430-SP NUT 1/4-40 (1) 46 WP-0450000-SD WASHER 4.5X8X0.5 (2) 47 236-24554 DRIVING BLOCK ASM. (1) 48 236-24505 DRIVING BLOCK (1) 49 SS-6110710-TP SCREW 11/64-40 L=6.5 (1) 50 110-42850 THREAD TRIMMER CAM ASM. (1) 51 SS-6660610-TP SCREW 1/4-40 L=6 (2) 52 229-50950 CAM COLLAR ASM. (1) 53 SS-8110520-TP SCREW 11/64-40 L=4.5 (1) 54 * 400-23290 SOLENOID BASE STUD (2) 55 SD-0600321-SP HINGE SCREW D=6 H=3.2 (1) 56 SD-0630275-SP HINGE SCREW D=6.35 H=2.7 (1) 57 SD-0641452-TP HINGE SCREW D=6.35 H=14.5 (1) 58 SS-4110715-SP SCREW 11/64-40 L=7 (2) 59 SS-4150915-SP SCREW 15/64-28 L=9 (2) 60 SS-4150915-SP SCREW 15/64-28 L=9 (2) -14- From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 18 — 8. OIL LUBLICATION COMPONENTS

8. OIL LUBLICATION COMPONENTS 給油関係 7 8 2 29 9 46 45 47 23 35 36 37 16 33 34 4 28 15 3 13 14 18 12 19 21 20 14 38 42 39 41 40 43 44 17 10 31 32 27 25 30 22 26 5 11 10 11 6 -15- From the Library of Superior Sewing Machine & Supply LLC Jjinte.in

Page 19

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 400-11344 GEAR BOX COVER 1 2 236-28100 GEAR BOX PACKING 1 3 236-28357 FLOATER ASH. 1 4 236-28555 OIL TANK ASH. 1 5 236-28704 FLOATER CASE 1 6 236-29108 OIL SIGHT WINDOW 1 7 236-29256 OIL WICK SUPPORT ASH. 1 8 236-29207 OIL WICK SUPPORT (1) 9 236-29702 OIL WICK (0.25) 10 236-29306 PIPE STOPPER A 4 11 236-29405 PIPE STOPPER B 3 12 236-29504 DISTRIBUTOR 1 13 236-29603 OIL INLET 1 14 236-29801 LUBRICATION CONNECTOR 2 15 236-30106 TUBE B 0.25 16 RO-0681901-00 RUBBER RING 1 17 236-30007 TUBE 0.57 18 236-30007 TUBE 0.04 19 236-30007 TUBE 0.07 20 CQ-2000000-01 OIL WICK 0.75 21 236-30007 TUBE 0.38 22 236-30106 TUBE B 0.23 23 236-30304 FELT 1 24 229-25101 OIL FELT PRESSER 1 25 RO-0982401-00 RUBBER RING 1 26 RO-1952401-00 RUBBER RING 1 27 SS-4121015-SP SCREW 3/16-28 L=10 2 28 SS-4121015-SP SCREW 3/16-28 L=10 10 29 SS-6090620-TP SCREW 1 30 236-30205 SCREW 1 31 WP-0501016-XP WASHER 5X10.5X1 2 32 WS-0610002-KP SPRING WASHER 5.1X9.2X1.3 2 33 236-28209 OIL ADJUSTING SCREW 1 34 RO-0291801-00 RUBBER RING 1 35 236-28803 PLUNGER 1 36 236-28902 PLUNGER SPRING 1 37 236-29009 PLUNGER SCREW 1 38 236-30452 OIL FILTER ASM. (1) 39 236-30403 OIL FILTER (1) 40 236-30502 OIL FILTER STOPPER (1) 41 236-30601 OIL FILTER JOINT (2) 42 236-30007 TUBE (0.09) 43 236-30106 TUBE B (0.04) 44 236-29405 PIPE STOPPER B (2) 45 * 400-24644 MAGNET WASHER 1 46 ST-4040821-SS TAPPING SCREW 1 47 236-04705 MAGNET 1 - 16 - From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 20 — 9. AUTOMATIC REVERSE FEED COMPONENTS

9. AUTOMATIC REVERSE FEED COMPONENTS 自動逆送り関係 1 2 3 4 5 6 7 9 10 34 32 30 33 29 31 16 18 12 15 11 19 17 14 13 26 28 22 25 20 21 24 23 27 -17-

Page 21

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 236-31054 REVERSE FEED SOLENOID BASE ASM ギヤクオクリソレノイド・ダイ(クミ) (1) 2 236-31005 REVERSE FEED SOLENOID ギヤクオクリソレノイド (1) 3 236-31104 REVERSE FEED SOLENOID PLUNGER ギヤクオクリソレノイド・ア・ランジャ (1) 4 236-31203 REVERSE FEED SOLENOID BASE ギヤクオクリソレノイド・ダイ (1) 5 D2468-555-00 RUBBER PLUNGER プランジャー・ゴ A (1) 6 HK-0346400-0B PIN CONTACT ピンコンタクト (2) 7 RE-1200000-KO E-RING 12 Eリング 12 (1) 8 SS-7110740-TP SCREW 11/64-40 L=7 マルネジ 11/64-40 L=7 (1) 9 WP-1703001-SC WASHER 17X30X3 ヒラガネ 17X30X3 (4) 10 236-31302 REVERSE FEED ARM ギヤクオクリ (1) 11 236-31757 REVERSE FEED SWITCH ASM. ギヤクオクリスイッチ(クミ) 1 12 236-31708 REVERSE FEED SWITCH COVER ギヤクオクリスイッチカバー (1) 13 236-31807 REVERSE FEED SWITCH SHAFT ギヤクオクリスイッチシヤフト (1) 14 236-31906 REVERSE FEED SWITCH SUPPORT ギヤクオクリスイッチウケ (1) 15 236-32003 REVERSE FEED SWITCH BASE ギヤクオクリスイッチダイ (1) 16 236-32102 REVERSE FEED SWITCH BASE GUIDE ギヤクオクリスイッチダイガイド (1) 17 236-32359 REVERSE FEED CORD ASM. ギヤクオクリコード・A(クミ) (1) 18 EA-9500B01-00 CABLE BAND ゾクセンバンド (1) 19 SS-7110740-TP SCREW 11/64-40 L=7 マルネジ 11/64-40 L=7 (1) 20 01 236-32656 OPTION SWITCH ASM. オプションスイッチ(クミ) 1 21 SS-7110740-TP SCREW 11/64-40 L=7 マルネジ 11/64-40 L=7 (1) 22 236-31708 REVERSE FEED SWITCH COVER ギヤクオクリスイッチカバー (1) 23 236-31807 REVERSE FEED SWITCH SHAFT ギヤクオクリスイッチシヤフト (1) 24 236-31906 REVERSE FEED SWITCH SUPPORT ギヤクオクリスイッチウケ (1) 25 236-32607 OPTION SWITCH BASE オプションスイッチダイ (1) 26 236-32102 REVERSE FEED SWITCH BASE GUIDE ギヤクオクリスイッチダイガイド (1) 27 236-32250 REVERSE FEED CORD ASM. ギヤクオクリコード(クミ) (1) 28 EA-9500B01-00 CABLE BAND ゾクセンバンド (1) 29 02 WP-0501016-SD WASHER 5X10.5X1 ヒラガネ 5X10.5X1 1 30 229-62906 PLUNGER ARM PIN プランジヤ・ヤウデ・ピン 1 31 NS-6110350-SP NUT 11/64-40 ロツカクナット 11/64-40 2 32 SD-0951501-SP HINGE SCREW D= 9.53 H=15 ヒラネジ D=9.53 H=15 1 33 SS-4120915-SP SCREW 3/16-28 L=9 ヒラネジ 3/16-28 L=9 1 34 SS-4150915-SP SCREW 15/64-28 L=9 ヒラネジ 15/64-28 L=9 2 01...OPTIONAL PARTS オプション部品 02...FOR OB TYPE OB仕様用 - 18 - From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 22 — 10. WIPER COMPONENTS(FOR DDL-9000-WB)

10. WIPER COMPONENTS(FOR DDL-9000-WB) ワイパー関係(DDL-9000-WB) REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 236-33167 WIPER ASM. ワイパー(クミ) (1) 2 236-33159 WIPER BASE ASM. ワイパー・ベースアッセンブリ (1) 3 236-33209 WIPER LINK B ワイパー・リンクB (1) 4 236-33357 WIPER SHAFT ASM. ワイパー・シャフトアッセンブリ (1) 5 229-55504 WIPER COVER ワイパー・カバー (1) 6 111-10301 WIPER SOLENOID ワイパー・ソレノイド (1) 7 229-55900 WIPER RUBBER A ワイパー・ゴムA (1) 8 229-56007 WIPER RUBBER B ワイパー・ゴムB (1) 9 229-56106 WIPER LINK A ワイパー・リンクA (1) 10 229-56205 WIPER HINGE SCREW COLLAR ワイパー・ヒンジ・スクリュー・カラー (1) 11 229-56304 WIPER SPRING ワイパー・スプリング (1) 12 229-56809 WIPER COLLAR ワイパー・カラー (1) 13 229-56908 WIPER LINK B HINGE SCREW ワイパー・リンクB・ヒンジ・スクリュー (1) 14 229-57005 WIPER ワイパー- (1) 15 229-57203 WIPER LINK COLLAR ワイパー・リンクカラー (1) 16 229-57104 WIPER SOLENOID SHAFT ワイパー・ソレノイド・シャフト (1) 17 HA-0005900-00 POWER SWITCH ピン・コンタクト (1) 18 HK-0346400-0B PIN CONTACT ビニール・コード (2) 19 HW-2003900-00 ELECTRIC WIRE 2コア・キャブタイヤ・コード 0.16 20 20 HW-5000700-00 2-CORE CABTYRE CORD (0.04) 21 NS-6090310-SP NUT 9/64-40 ロツカクナット 9/64-40 (1.3) 22 NS-6110310-SP NUT 11/64-40 ロツカクナット 11/64-40 (1) 23 RE-0250000-KO E-RING 2.5 Eガタトメワ 2.5 (1) 24 RE-0500000-KO E-RING Eガタトメワ (1) 25 SD-0650321-TP HINGE SCREW D=6.5 H=3.2 ダンネジ D=6.5 H=3.2 (3) 26 SL-4030631-SC SCREW H3X6 サガネツメネジ H3X6 (1) 27 SL-4030641-SE SCREW サガネツメネジ (1) 28 SS-6090540-SP SCREW 9/64-40 L=5.0 ヒラネジ 9/64-40 L=5 (1) 29 SS-4120915-SP SCREW 3/16-28 L=9 ヒラネジ 3/16-28 L=9 2 -19- From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 23 — 11. THREAD STAND COMPONENTS

11. THREAD STAND COMPONENTS 糸立装置関係 REF. NO. NOTE PART NO. DESCRIPTION Qty 1 229-30358 THREAD STAND ASM. イトマキダテ(クミ) 1 2 229-31109 SPOOL RETAINER イトマキレテイナ (2) 3 229-31000 SPOOL PIN イトマキピン (2) 4 229-30903 SPOOL REST CUSHION イトマキクツシヨン (2) 5 229-30904 SPOOL REST イトマキプラ (2) 6 SM-6061610-SC SCREW M6 L=16 ヒラコネジ M6 L=16 (2) 7 229-30705 THREAD GUIDE ARM JOINT イトテカﾞイトアームジョイント (2) 8 229-31406 SPOOL REST ROD RUBBER CAP イトマキプラロツドゴム (1) 9 229-30507 SPOOL REST ARM イトマキプラアーム (2) 10 229-30408 SPOOL REST ROD, UPPER イトマキプラロツド(ウエ) (1) 11 229-31307 SPOOL REST ROD JOINT イトマキプラロツドジョイント (1) 12 SM-4051405-SE SCREW M5 L=14 ナベコネジ M5 L=14 (2) 13 NM-6050001-SE NUT M5 ロツカクナット M5 (2) 14 229-30309 SPOOL REST ROD, LOWER イトマキプラロツド(シタ) (1) 15 229-31208 THREAD GUIDE イトミチ (2) 16 WS-0510002-KN SPRING WASHER ハネゲネ 5.1X9.2X1.3 (2) 17 NM-6050001-SE NUT M5 ロツカクナット M5 (2) 18 NM-6160511-SE NUT M16X1.5 ロツカクナット M16X1.5 1シュ (1) 19 WS-1641610-SE WASHER 16X30X3.6 ヒラガネ (2) 20 WS-1643202-KR SPRING WASHER ハネゲネ 16.4X26.6X3.2 (1) - 20 - From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 24 — 12. UNDER COVER COMPONENTS

12. UNDER COVER COMPONENTS アンダーカバー関係 1 2 12 13 14 15 16 17 7 22 9 19 23 17 18 4 3 5 6 21 11 20 201 27 28 29 25 30 26 24 8 A - 21 - From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 25

REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 236-39057 UNDER COVER ASM. 777-7- (クミ) (1) 2 236-39008 UNDER COVER 777-7- (1) 3 236-39156 BRACKET ASM. ヒゲカイテンウデ (クミ) (1) 4 236-39107 BRACKET ヒゲカイテンウデ (1) 5 NM-6060001-SE NUT M6 ロクマルナット M6 1シュ (2) 6 SM-8063012-TR SCREW M6 L=30 トメネジ (2) 7 236-39206 CONNECTING ROT ヒゲアラコウデ (1) 8 236-39305 KNEE PRESS ROD ヒゲアラコウデ (1) 9 236-39404 SHAFT ヒゲナットウシク (1) 10 236-39503 SPRING ヒゲカイテンウデハネ (1) 11 236-39602 CONNECTING ROD ヒゲレンケツゾッド (1) 12 101-62600 RUBBER CUSHION トウブサチエゴム (2) 13 110-47107 RUBBER CUSHION トウブサチエゴム (2) 14 229-32404 BRACKET ASM. ヒゲアラタテシククトリツクウデ (クミ) (1) 15 229-32404 BRACKET アラタテシク (2) 16 SM-9062053-SR SCREW M6 L=20 ロクマルボルト (2) 17 NS-6150310-SP NUT 15/64-28 カクナット 15/64-28 (2) 18 RE-1000000-KO E-RING 10 タトメワ 10 (2) 19 RE-1000000-KO E-RING 10 Eタトメワ 10 (1) 20 SD-0720331-SP HINGE SCREW D= 7.24 H= 3.3 タテシク D= 7.24 H=3.3 (2) 21 SM-9061853-SR SCREW M6 L=17.5 ロクマルボルト (1) 22 SM-9061853-SR SCREW M6 L=17.5 ロクマルボルト (1) 23 WP-0650876-SD WASHER 6.5X13X0.8 サガネ 6.5X13X0.8 (2) 24 229-34251 KNEE PAD PLATE ASM. アテタイタ (クミ) (1) 25 229-34301 KNEE PAD PLATE SUPPORT アテタイタササエ (1) 26 229-34400 KNEE PAD PLATE RUBBER アテタイタゴム (1) 27 229-34509 KNEE PAD PLATE COVER アテタイタカバー (1) 28 229-34608 KNEE PAD UPRIGHT SHAFT アテタイタテジク (1) 29 SM-9061203-SE SCREW M6 L=12 カクボルト M6 L=12 (1) 30 229-34202 KNEE PAD PLATE アテタイタ (1) - 22 - From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 26 — 13. ACCESSORIE PART COMPONENTS

13. ACCESSORIE PART COMPONENTS 付属品関係 1.2 10 9 8 7 6 5 4 3 2 1 16 17 18 19 20~22 11 12 13 14 15 23 24 JUKI REF. NO. NOTE PART NO. DESCRIPTION Qty 1 01 236-39750 ACCESSORIE BAG ASM. アツセンバツク(クミ) 1 2 02 236-39958 ACCESSORIE BAG ASM.,A アツセンバツク(クミ)A (1) 3 229-31604 FRAME SUPPORT BAR トウブタテエバ (1) 4 229-32800 ACCESSORIE BAG アツセンバツク (1) 5 229-33105 SCREW DRIVER, MIDDLE ト・ライバ-(・コウ) (1) 6 229-33204 SCREW DRIVER, SMALL ト・ライバ-(・スウ) (1) 7 229-58300 NEEDLE THREAD GUIDE PIN イトアンナイホウ (1) 8 236-39701 KNEE LIFTER PRESSER ROD ヒザアゲオサエバ (1) 9 02 229-26356 HINGE COMPL. ヒンジクミ (1) 10 01 229-58052 RUBBER HINGE ASM. ラバー・ヒンジ(クミ) (2) 11 229-26000 RUBBER CUSHION ゴ・Aヒンジタ (2) 12 229-58003 FRAME RUBBER CUSHION トウブタテエバ (2) 13 229-26208 NAIL ヒンジケツゴウ (8) 14 229-26356 HINGE COMPL. ヒンジクミ (2) 15 229-26505 WASHER トウブクツシヨ (2) 16 01 229-32909 BOBBIN ホビン 1 17 +02 229-64001 BOBBIN A ホビンA(クミ) 1 18 B9121-012-0A0 OILER ASM. アブラタテ 1 19 MDF-GX1600C0 DEFRIX OIL NO.1 (600CC) デ・フレツクスオイリ(ANO.1(600CC) 1 20 03 MDB-100BI1402 NEEDLE DBX1#14-2 DBX1#14-2 1 21 02 MDB-100BI102 NEEDLE DBX1#11-2 DBX1#11-2 1 22 MC-2005007-52 134 #75-2 134 #75-2 1 23 229-33006 SCREW DRIVER, LARGE ト・ライバ-(タイ) 1 24 * 229-33303 HEAD COVER ヘツドカバ- 1 NOTE (注記) 01...EXCEPT USE IN JAPAN 日本を除く 02...FOR USE IN JAPAN 日本用 03...FOR GENERAL EXPORT, JA, JH 一般輸出,JA,JH用 04...FOR JE JE用 - 23 - From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 27 — 14. EXCLUSIVE PART FOR DDL-9000DS

14. EXCLUSIVE PART FOR DDL-9000DS DDL-9000DS専用部品 REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 110-30301 CABLE HOLDER コード 1 2 SS-4120615-SP SCREW 3/16-28 L=6 3/16-28 L=6 1 3 H6023-350-AAA RESISTOR PACK AAASM. アアケミAAケミ 1 4 236-08706 NEEDLE BAR LOWER METAL D ニードルメタルD 1 5 01 228-87004 NEEDLE BAR (B) ニードルバー(B) 1 6 02 228-86907 NEEDLE BAR (A) ニードルバー(A) 1 7 228-89851 HOOK DRIVING SHAFT BEARING ASM ベアリング(クミ) (2) 8 SS-8110510-SP SCREW 11/64-40 L=5 11/64-40 L=5 (1) 9 03 228-90404 RP HOOK C RPフック C 1 10 04 228-90205 RP HOOK RPフック 1 11 05 228-90305 RP HOOK S RPフック S 1 12 * 229-64001 BOBBIN A ボビンA (1) 13 236-30700 OIL SIGHT WINDOW D オイルサイトウ D 1 14 228-96302 BOBBIN CASE HOLDER ボビンケースホルダー 1 15 228-96252 KNIFE UNIT D ナイフユニットD 1 16 236-24653 KNIFE UNIT ナイフユニット 1 17 110-40052 MOVING KNIFE ASM. メスユニツト (1) 18 228-96104 THREAD GUIDE FOR KNIFE トメネジ (1) 19 236-23002 KNIFE INSTALLING BASE メスイトフア (1) 20 110-40409 MOVING KNIFE HINGE SCREW メスユニツト (1) 21 228-96005 FORKED BASE FOR KNIFE メスフタマ (1) 22 228-95908 COUNTER KNIFE コテイメス (1) 23 SD-0460703-TP HINGE SCREW D=4.6 H=7 ダンネジ D=4.6 H=7 (1) 24 SS-2060210-SP SCREW 3/32-56 L=2.3 マルサラネジ 3/32-56 L=2.3 (1) 25 SS-4080620-TP SCREW 1/8-44 L=6 マルサラネジ 1/8-44 L=6 (2) NOTE (注記) 01...FOR JE JE用 02...EXCEPT JE JEを除く 03...FOR GENERAL EXPORT, JE, JA 一般輸出,JE,JA用 04...FOR USE IN JAPAN 日本用 05...FOR JH JH用 - 24 - From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 28 — 15. EXCLUSIVE PART FOR DDL-9000DF

15. EXCLUSIVE PART FOR DDL-9000DF DDL-9000DF專用部品 2 1 3.37 4 12 6.7 14 13 11 17-B 18~20 39 5 8~10 21 15.38 41 30 25 29 26 24 23 36 28 27 22 35 33 32 34 31 - 25 - From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 29

REF. NO NOTE PART NO. ...* 110-30301 CABLE HOLDER コード・トメナケ 1 110-30301 CABLE HOLDER コード・トメナケ 1 2 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 1 3 110-01906 THROAT PLATE K ハリタ 1 4 M6023-350-AAF RESISTOR PACK ASM. テイコウパツクアセンブリ 1 5 236-08706 NEEDLE BAR LOWER METAL D ウタタメルD 1 6 02 228-86907 NEEDLE BAR (A) ハリタ (A) 1 7 03 228-87004 NEEDLE BAR (B) ハリタ (B) 1 8 01 MDB-1SFB0900 NEEDLE DBX1SF #9 ハリタ DBX1SF #9 1 9 03 MC-2005006-50 NEEDLE 134 NM65 ハリタ 134 NM65 1 10 04 MDB-100B0900 NEEDLE DBX1 #9 ハリタ DBX1 #9 1 11 D1524-555-DBB PRESSER FOOT ASM. プレスフットアセン 1 12 111-62104 SPRING オタエバネ 1 13 SS-4090610-SP SCREW 9/64-40 L=6 ナベネジ 9/64-40 L=6 1 14 SS-7111410-TP SCREW 11/64-40 L=14 マルヒネジ 11/64-40 L=14 1 15 01 D1613-155-W000 FEED DOG W オクリバ 1 16 228-89851 HOOK DRIVING SHAFT BEARING ASM. シタジクベアリングアセンブリ (クミ) (2) 17 SS-8110510-SP SCREW 11/64-40 L=5 トメネジ 11/64-40 L=5 1 18 05 228-90004 RP HOOK C RPフック C 1 19 01 228-90205 RP HOOK RPフック 1 20 06 228-90305 RP HOOK S RPフック S 1 21 236-27458 THREAD TENSION ASM. F イトウテンションアセンブリ F 1 22 236-26005 THREAD TENSION NUT イトウテンションナット 1 23 B3132-552-000 THREAD TENSION DISK PRESSER イトウテンションディスクプレサー (1) 24 B3126-012-000 THREAD TENSION DISK イトウテンションディスク (2) 25 B3111-126-000 TENSION POST SOCKET イトウテンションボーダイ 1 26 B3115-552-000 TENSION POST イトウテンションボー 1 27 B3120-125-000 ROTATING STOPPER イトウテンションストツパー 1 28 D3129-555-DOO THREAD TENSION SPRING イトウテンションスプリング 1 29 D3128-555-DOO TAKE-UP SPRING イトウトリツケバネ 1 30 SS-8090670-SP SCREW 9/64-40 L= 5.5 トメネジ 9/64-40 L=5.5 (1) 31 113-05513 ARM THREAD GUIDE, C アーマイトアンナイ C 1 32 114-03805 THREAD GUIDE C FITTING PLATE イトアンナイ C フイツテイングプレイト 1 33 114-04209 SPACER イトアンナイC スペーサー 1 34 114-04308 NUT イトアンナイC ナツト 1 35 236-30700 OIL SIGHT WINDOW D ユリョウミドサイトD 1 36 229-40506 FEED DIAL オクリダイヤル 1 37 07 B1109-012-10B THROAT PLATE (I) ハリイタ (I) 1 38 07 B1613-012-10D FEED DOG I オクリイ (I) 1 39 * 229-64001 BOBBIN A ボビン (A) 1 40 228-96302 BOBBIN CASE HOLDER ナカマエ 1 41 228-96252 BOBBIN CASE ASM. ボビンケースアセン 1 42 236-24652 KNIFE UNIT D メスユニットD 1 43 110-40052 MOVING KNIFE ASM. トメクミ 1 44 228-96104 THREAD GUIDE FOR KNIFE メスイトアンナイ 1 45 236-23002 KNIFE INSTALLING BASE メスイタツケダイ 1 46 110-40409 MOVING KNIFE HINGE SCREW トメネジ 1 47 228-96005 FORKED BASE FOR KNIFE メスフクマタ 1 48 228-95908 COUNTER KNIFE コテイヌス 1 49 SD-0460703-TP HINGE SCREW D=4.6 H=7 ダンネジ D=4.6 H=7 (1) 50 SS-2060210-SP SCREW 3/32-56 L=2.3 マルサネジ 3/32-56 L=2.3 (1) 51 SS-4080620-TP SCREW 1/8-44 L=6 ナベネジ 1/8-44 L=6 (2) NOTE (注記) 01...FOR USE IN JAPAN 日本用 02...EXCEPT JE JEをなく 03...FOR JE JE用 04...FOR GENERAL EXPORT, JA, JH 一般輸出, JA, JH用 05...FOR GENERAL EXPORT, JE, JA 一般輸出, JE, JA用 06...FOR JH JH用 07...EXCEPT USE IN JAPAN 日本をなく - 26 - From the Library of Superior Sewing Machine & Supply LLC jntex.in

Page 30 — 16. EXCLUSIVE PART FOR DDL-9000SH-WB, 0B

16. EXCLUSIVE PART FOR DDL-9000SH-WB, 0B DDL-9000SH-WB, 0B専用部品 1.10 5 11 13 7 8.9 6 14 15 3 2 12 27 38 40 45 31 39 47 41 36 34 66 64 62 59 61 63 60 58 37 32 42 43 43 29 30 46 28 33 A 48 49 56 55 54 51 50 53 52 16 17 23 21 24 20 22 26 25 19 18 68 73 74 75 72 71 4 67 69 70 -27- From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 31

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 114-00801 THROAT PLATE J 1 2 SS-4090610-SP SCREW 9/64-40 L=6 1 3 SS-7111410-TP SCREW 11/64-40 L=14 1 4 113-05513 ARM THREAD GUIDE, C 1 5 M6024-350-AAF RESISTOR PACK AF ASM. 1 6 236-45609 NEEDLE BAR METAL, LOWER H 1 7 110-91303 NEEDLE BAR 1 8 03 MDB-100E2100 NEEDLE DBX1 #21 1 9 01 MC-2005013-00 NEEDLE 134 NM130 1 10 02 236-45807 THROAT PLATE H 1 11 B1505-552-000-A PRESSER SPRING 1 12 D1524-555-EBL PRESSER FOOT ASM. 1 13 114-03003 FEED J 1 14 236-46003 POSITIONING FINGER H 1 15 110-92251 LUBRICATING BOBBIN ASM. 1 16 236-45559 THREAD TAKE-UP ASM., H 1 17 236-45252 KNIFE UNIT H 1 18 236-45203 KNIFE INSTALLING BASE H (1) 19 236-45401 THREAD GUIDE FOR KNIFE H (1) 20 114-09257 MOVING KNIFE J ASM. (1) 21 110-95601 KNIFE BRANCH (1) 22 114-09604 FIX KNIFE (1) 23 SD-0460703-TP HINGE SCREW D=4.6 H=7 (1) 24 SD-0500131-TP HINGE SCREW D=5 H=1.25 (1) 25 SS-2060210-SP SCREW 3/32-56 L=2.3 (1) 26 SS-4080520-TP SCREW 1/8-44 L=6 (2) 27 236-23176 THREAD TRIMMER DRIVING UNIT H 1 28 110-40953 ROLLER ARM ASM. 1 29 110-41407 ROLLER FULCRUM SHAFT 1 30 229-49200 ROLLER RETURN SPRING (1) 31 110-42306 PICKER LINK PIN (1) 32 110-43700 KNIFE RETURN SPRING, B (1) 33 110-94307 ROLLER ARM BRACKET (1) 34 110-94406 SPRING (1) 35 236-23150 KNIFE DRIVING ARM ASM. (1) 36 236-23200 MOVING KNIFE LINK PIN (1) 37 236-23358 CLUTCH PLATE ASM. (1) 38 236-23556 BASE PLATE ASM. (1) 39 236-23705 PICKER LINK (1) 40 236-23804 DRIVING ARM STOPPER (1) 41 NS-6150310-SP NUT 15/64-28 (1) 42 NS-6150810-SP NUT 15/64-28 (1) 43 RE-0400000-KO E-RING 4 (2) 44 RE-0600000-KO E-RING 6 (2) 45 SS-4110715-SP SCREW 11/64-40 L=7 (1) 46 SS-7090610-SP SCREW 9/64-40 L=6 (1) 47 WP-0621016-SH WASHER 1 48 236-45153 SOLENOID ASM., H (1) 49 236-45005 SOLENOID BASE H (1) 50 236-45104 SOLENOID H (1) 51 110-43304 SOLENOID RUBBER (2) 52 HK-0346400-OB PIN CONTACT (2) 53 NM-6040000-SN NUT M4 (1) 54 NS-6660410-SN NUT (1) 55 NS-6660430-SP NUT 1/4-40 (2) 56 WP-0430800-SC WASHER 1/4-40 (1) 57 236-26062 THREAD TENSION ASM., H 1 58 236-26005 THREAD TENSION NUT (1) 59 229-21209 THREAD TENSION POST (1) 60 229-21407 ROTATION STOPPER (1) 61 229-21506 THREAD TENSION DISK (2) 62 229-21605 THREAD TAKE-UP SPRING (1) 63 229-21803 DISK STOPPER (1) 64 229-45307 THREAD TENSION POST BASE (1) 65 229-62005 THREAD TENSION SPRING (1) 66 SS-8090670-SP SCREW 9/64-40 L=5.5 (1) 67 110-73954 THREAD TENSION ASM. (1) 68 114-03805 THREAD GUIDE C FITTING PLATE 1 69 B1418-415-H00 NEEDLE BAR THREAD GUIDE 1 70 B1419-553-000 NEEDLE BAR THREAD GUIDE 1 71 114-04308 NUT (1) 72 WP-0371016-SD WASHER 3.7X8X1 (1) 73 236-19059 VERTICAL FEED CAM H ASM. (1) 74 236-19000 VERTICAL FEED CAM H (2) 75 SS-8151150-TP SCREW 15/64-28 L=10.5 (2) NOTE (注記) 01...FOR JE JE,用 02...EXCHANGING PARTS 交換部品 (FOR DDL-9000SH-WB) (DDL-9000SH-用) 03...EXCEPT JE JEを除く - 28 - From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 32 — 17. TABLE & STAND COMPONENTS

17. TABLE & STAND COMPONENTS 脚卓関係 19 6 7 19 5 10 13 11 14 15 12 16 17 8 3 18 4 20 21 - 29 - From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 33

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 236-42200 TABLE テーブル 1 2 01 111-57567 T LEG JUNCTION Tヤクジョウ 1 3 02 111-59365 T STAND JUNCTION Tヤクジョウ 1 4 03 111-59357 T-STAND ASM. Tヤクジョウ (クミ) 1 5 111-56007 CASE コモノイレ 1 6 111-55801 CASE MAGNET コモノイレマグネット 1 7 111-55751 CASE ASM. B コモノイレ B(クミ) 1 8 111-55108 DRAWER ヒキダシ 1 9 111-55207 DRAWER SUPPORT ヒキダシササエ 1 10 04 110-73103 RUBBER CUSHION トウフササエ 2 11 110-75900 RUBBER SPACER トウフササエ 1 12 110-75801 RUBBER SPACER ゴムヒキダシ 2 13 B8210-012-000 CUSHION SET NAIL クギ・ダ 2 14 B8210-012-000 CUSHION SET NAIL クギ・ダ (20ミリ) 4 15 D8226-555-E00 FRAME RUBBER CUSHION A トウフササエ 4 16 D8204-555-D00 DRAWER STOPPER ヒキダシ 6 17 SK-3311600-SE WOOD SCREW D=3.1 L=16 マルモクネジ D=3.1 L=16 4 18 SK-3513200-SC WOOD SCREW D=5.1 L=32 マルモクネジ D=5.1 L=32 4 19 SK-3382001-SC WOOD SCREW D=3.8 L=20 マルモクネジ D=3.8 L=20 1 20 03 GPK-700010A0 3-JOINT PEDAL, 70 3レンペダルクミ70(SC-19シリーズ) 1 21 03 GPK-710010A0 2-PEDAL ASM., 71 2レンペダルクミ71(SC-19シリーズ) 1 NOTE (注記) 01...FOR JT-D950 JT-D950用 02...FOR JT-D952 JT-D952用 03...FOR JT-D95J, -D95K JT-D95J, -D95K用 04...EXCEPT AK TYPE AK仕様は除く - 30 - From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 34 — 18. LIST FOR INFORMATION OF CHANGE

18. LIST FOR INFORMATION OF CHANGE 変更情報リスト As to the place changed, refer to the corresponding Rev. No. When previous parts (Obsoleted part) and new parts (Added parts) are not interchangeable with each other: In this case, even if obsoleted part number, so select the parts with changed dates and place your orders. 変更箇所は、該当Rev. No.をご参照ください。部品の互換性がない変更の場合は、削除された部品でも、ご注文できます。 29327400 No. 1259-06 Rev. No. *A: Added parts追加部品/D: Obsoleted parts削除部品/E: Erratum訂正 Rev. Page Ref. Rev. Page Ref. Parts No. Parts No. * No. No. 頁 No. 頁 No. 品番品番 D 05 4 2 48 WS-0510002-KP A 06 2 48 CM-6001001-01 D 05 4 1 236-36061 A 06 4 1 400-23021 D 05 4 26 137-00700 A 06 4 26 400-23291 D 05 6 29 B11-552-0A0 A 06 6 29 229-06457 D 05 6 30 B11-552-000 A 06 6 30 229-06408 D 05 6 39 CS-070081C-SH A 06 6 39 400-10434 D 05 6 43 KM-0000004-60 A 06 6 43 400-28014 D 05 8 19 110-06509 A 06 8 19 229-08701 D 05 8 39 110-18108 A 06 8 39 229-20102 D 05 10 1 236-12054 A 06 10 1 400-33391 A 06 10 2 400-33392 A 06 10 3 400-33393 A 06 10 4 SM-8040412-TP D 05 10 28 101-20004 A 06 10 28 400-23289 D 05 12 21 226-88002 A 06 12 21 400-29963 D 05 12 72 B9117-552-A00 A 06 12 72 229-64001 D 05 12 79 226-16605 A 06 12 79 110-15906 D 05 12 80 236-07203 A 06 12 80 400-31608 D 05 12 81 SM-8000812-TP D 05 14 54 233-241-E00 A 06 14 54 400-23290 D 05 16 45 117-34207 A 06 16 45 400-24644 D 05 23 17 B9117-552-A00 A 06 23 17 229-64001 D 05 23 24 D9118-555-B00 A 06 23 24 229-33303 D 05 24 12 B9117-552-A00 A 06 24 12 229-64001 D 05 26 39 B9117-552-A00 A 06 26 39 229-64001 - 31 - From the Library of Superior Sewing Machine & Supply LLC jintex.in

Page 38 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS 索引 PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF 品番 H NO 品番 H NO 品番 H NO 142-16204 16 58 262-61206 2 68 142-16303 16 3 262-61305 2 69 142-16352 16 1 262-61602 2 71 142-16410 16 7 262-61701 2 72 142-16569 16 6 265-00306 4 73 142-16501 20 1 265-00504 14 73 142-16501 20 13 265-00900 12 4 142-16808 20 13 265-01205 16 4 142-17004 18 2 265-01304 12 5 142-17103 18 3 265-01403 16 2 142-17202 20 3 265-01502 16 8 142-17301 20 38 265-01858 10 16 142-17400 20 39 265-01908 14 4 142-17509 20 13 265-02906 8 37 142-17764 20 16 142-17855 20 7 400-11144 2 63 142-17954 20 8 400-25746 8 17 142-18002 18 11 400-26730 2 62 142-18002 20 4 400-26745 2 79 142-19513 22 12 400-26746 2 56 142-19604 22 25 400-31323 8 55 142-19711 22 26 400-31324 8 55 142-20503 2 87 400-34676 11 5 142-20750 2 9 142-21352 16 21 142-21352 30 36 142-21451 16 24 142-22251 34 2 142-22301 34 1 142-22459 34 3 142-23010 32 46 142-24000 36 25 142-24109 36 26 142-24307 36 33 142-24703 36 2 142-24760 36 2 142-24802 36 8 142-25056 36 46 144-34906 8 39 170-07402 34 10 178-45009 26 19 229-30309 24 14 229-30358 24 1 229-30408 24 10 229-30507 24 9 229-30705 24 7 229-30804 24 5 229-30903 24 4 229-31000 24 3 229-31109 24 2 229-31208 24 15 229-31307 24 11 229-31406 24 8 229-32800 32 17 229-33006 32 18 229-33105 32 19 229-33204 32 20 236-30007 10 15 236-30007 22 19 260-37903 32 30 262-11607 2 24 262-21101 10 35 262-22208 10 48 262-30706 22 11 262-34005 32 65 262-60109 2 57 262-60208 2 58 262-60307 2 59 262-60406 2 60 262-60505 2 61 262-60802 2 64 262-60901 2 65 262-61008 2 66 262-61107 2 67 - 35 - From the Library of Superior Sewing Machine & Supply LLC jntex.in

Page 3 — CONTENTS

Page 4 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Page 5

Page 6 — 2. BOBBIN WINDER COMPONENTS

Page 7

Page 8 — 3. MAIN SHAFT & NEEDLE BAR COMPONENTS

Page 9

Page 10 — 4. HAND LIFTER & TENSION RELEASE COMPONENTS

Page 11

Page 12 — 5. FEED ADJUST MECHANISM COMPONENTS

Page 13

Page 14 — 6. HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Page 15

Page 16 — 7. THREAD TRIMMER COMPONENTS

Page 17

Page 18 — 8. OIL LUBLICATION COMPONENTS

Page 19

Page 20 — 9. AUTOMATIC REVERSE FEED COMPONENTS

Page 21

Page 22 — 10. WIPER COMPONENTS(FOR DDL-9000-WB)

Page 23 — 11. THREAD STAND COMPONENTS

Page 24 — 12. UNDER COVER COMPONENTS

Page 25

Page 26 — 13. ACCESSORIE PART COMPONENTS

Page 27 — 14. EXCLUSIVE PART FOR DDL-9000DS

Page 28 — 15. EXCLUSIVE PART FOR DDL-9000DF

Page 29

Page 30 — 16. EXCLUSIVE PART FOR DDL-9000SH-WB, 0B

Page 31

Page 32 — 17. TABLE & STAND COMPONENTS

Page 33

Page 34 — 18. LIST FOR INFORMATION OF CHANGE

Page 38 — NUMERICAL INDEX OF PARTS

Part Books

Search

Ref	Part number	Part name	Qty
	33	33
	29	29
	32	32
	42	42
	40	40
	30	30
	46	46
	44	44
	34	34
	20	20
	18	18
	43	43
	31	31
	21	21
	19	19
	27	27
	25	25
	28	28
	22	22
	23	23
	24	24
	13	13
	14	14
	12	12
	47	47
	37	37
	15	15
	16	16
	50	50
	11	11
	7	7
	9	9
	10	10
	8	8
	5	5
	6	6
	49	49
	39	39
	38	38
	48	48
	3	3
	2	2
	45	45
	1	1

Ref	Part number	Part name	Qty
	1	10
	2
	3
	4
	5
	6
	7
	8	9
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56
	57
	58
	59
	60
	61
	62
	63
	64
	65
	66
	67
	68
	69
	70
	71
	72
	73
	74
	75

Ref	Part number	Part name	Qty
	33	33
	29	29
	32	32
	42	42
	40	40
	30	30
	46	46
	44	44
	34	34
	20	20
	18	18
	43	43
	31	31
	21	21
	19	19
	27	27
	25	25
	28	28
	22	22
	23	23
	24	24
	13	13
	14	14
	12	12
	47	47
	37	37
	15	15
	16	16
	50	50
	11	11
	7	7
	9	9
	10	10
	8	8
	5	5
	6	6
	49	49
	39	39
	38	38
	48	48
	3	3
	2	2
	45	45
	1	1

Ref	Part number	Part name	Qty
	1	10
	2
	3
	4
	5
	6
	7
	8	9
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56
	57
	58
	59
	60
	61
	62
	63
	64
	65
	66
	67
	68
	69
	70
	71
	72
	73
	74
	75

Ref	Part number	Part name	Qty
	33	33
	29	29
	32	32
	42	42
	40	40
	30	30
	46	46
	44	44
	34	34
	20	20
	18	18
	43	43
	31	31
	21	21
	19	19
	27	27
	25	25
	28	28
	22	22
	23	23
	24	24
	13	13
	14	14
	12	12
	47	47
	37	37
	15	15
	16	16
	50	50
	11	11
	7	7
	9	9
	10	10
	8	8
	5	5
	6	6
	49	49
	39	39
	38	38
	48	48
	3	3
	2	2
	45	45
	1	1

Ref	Part number	Part name	Qty
	1	10
	2
	3
	4
	5
	6
	7
	8	9
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56
	57
	58
	59
	60
	61
	62
	63
	64
	65
	66
	67
	68
	69
	70
	71
	72
	73
	74
	75
