Juki DDL-9000B (37 pages) Parts Book (PDF)
Text index — Juki DDL-9000B (37 pages)
Page 5 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-37158 | SIDE PLATE | 1 |
| 2 | 400-41161 | FACE PLATE | 1 |
| 3 | 400-52819 | FACE PLATE PACKING | 1 |
| 4 | 236-00505 | THREAD TAKE-UP LEVER COVER | 1 |
| 5 | SM-4051055-SP | SCREW | 1 |
| 6 | 400-86713 | BED_STUD_A | 1 |
| 7 | SM-6061002-TP | SCREW M6 L=10 | 2 |
| 8 | 229-51552 | GROUND WIRE ASM. | 1 |
| 9 | SM-4050855-SP | SCREW | 1 |
| 10 | EA-9500B01-00 | CABLE BAND | 1 |
| 400-94561 | SEWING MACHINE LABEL (EU) | ||
| 229-01250 | SLIDE PLATE ASM. | ||
| 229-02753 | SLIDE PLATE ASM. | ||
| 229-01201 | SLIDE PLATE | ||
| 229-02704 | SLIDE PLATE | ||
| 229-01300 | SLIDE PLATE | ||
| SS-6060210-SP | SCREW 3/32-56 L=1.9 | ||
| 400-69110 | ATTACHMENT FIXATION SCREW | ||
| 229-44508 | WIRE PRESSER A | ||
| SM-4040855-SP | SCREW | ||
| CM-3002000-01 | ATTENTION SEAL | ||
| 400-69097 | RULER PLATE | ||
| SM-6052502-TP | SCREW M5X25 | ||
| SM-2040955-TP | SCREW M4 L=8.5 | ||
| SM-2040750-TP | SCREW M4 L=7.4 | ||
| CM-3013000-01 | SAFETY LABEL | ||
| 229-02506 | FACE PLATE | ||
| SM-4051255-SP | SCREW M5 L=12 | ||
| 400-86732 | PULLEY COVER | ||
| 400-86714 | BED_STUD_B | ||
| SM-6061202-TP | SCREW M6 L=12 | ||
| SM-4040655-SP | SCREW M4 L=6 | ||
| 400-35589 | RULER PLATE | ||
| 400-91461 | FEED LEVER SPRING HOOK | ||
| TA-1250406-R0 | RUBBER PLUG D=12.5 L=4 | ||
| TA-1470704-R0 | RUBBER PLUG | ||
| NM-6040001-SP | NUT M4X0.7 | ||
| 401-14043 | FEED_ADJUSTING_SPRING_PLATE | ||
| 400-52933 | ARM THREAD GUIDE C | ||
| SM-80608A2-TP | SCREW M6 L=8 | ||
| 236-40006 | SHEET | ||
| 400-37488 | SHEET | ||
| 400-86639 | THREAD_TENSION_DISK_ASM. | ||
| 236-26005 | THREAD TENSION NUT | ||
| 229-21209 | THREAD TENSION POST | ||
| 229-21407 | ROTATION STOPPER | ||
| 229-21506 | THREAD TENSION DISK | ||
| 229-21605 | THREAD TAKE-UP SPRING | ||
| 229-21704 | THREAD TENSION SPRING A | ||
| 229-21803 | DISK STOPPER | ||
| 400-86640 | TENSION_POST_SOCKET_ASM. | ||
| SS-8090670-SP | SCREW 9/64-40 L=5.5 | ||
| SS-6110610-TP | SCREW 11/64-40 L=6 | ||
| 229-20607 | ARM THREAD GUIDE B | ||
| 229-63458 | THREAD TENSION ASM. | ||
| 229-45414 | THREAD TENSION POST | ||
| 229-45604 | THREAD TENSION GUIDE | ||
| 229-63409 | THREAD TENSION SPRING | ||
| 229-45703 | THREAD TENSION NUT | ||
| 229-45802 | THREAD TENSION DISK | ||
| SM-5040655-SN | SCREW | ||
| 236-26104 | ARM THREAD GUIDE A | ||
| 400-86659 | SAFETY_SWITCH_ASM. | ||
| 400-86660 | SAFETY_SWITCH_BASE | ||
| 236-38109 | SAFETY SWITCH ARM | ||
| 236-38208 | SAFETY SWITCH SPRING | ||
| 236-38307 | SAFETY SWITCH ARM SHAFT | ||
| 236-38406 | SAFETY SWITCH NUT | ||
| 400-98386 | SAFETY_SWITCH_CORD_ASM. | ||
| SM-4021201-SC | SCREW M2 L=12 | ||
| SM-4050655-SP | SCREW M5 L=6 | ||
| 229-01805 | GROUND MARK | ||
| 236-29900 | AIR-DISCHARGING | ||
| RO-0801502-00 | RUBBER RING | ||
| 236-01305 | AIR-DISCHARGING CAP | ||
| B1109-012-IOB | THROAT PLATE (I) | ||
| 110-28008 | THROAT PLATE | ||
| CM-6001001-01 | WEEE MARK LABEL S | ||
| CM-6006001-01 | CHINA ENVIRONMENT LABEL | ||
| WP-0550800-SP | CABLE COVER | ||
| 400-91397 | THROAT PLATE | ||
| B1109-552-000 | WASHER 6.2X13X1 | ||
| WP-0621016-SD | WASHER 6.2X13X1 | ||
| WP-0501016-SD | NOTE(注記) | ||
| NOTE(注記) |
Page 7 — 2. BOBBIN WINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-23021 | BOBBIN WINDER UNIT | 1 |
| 2 | 262-60109 | BTW_BASE | (1) |
| 3 | 262-60208 | BTW_CAM_PLATE | (1) |
| 4 | 262-60307 | BTW_BASE_SHAFT | (1) |
| 5 | 262-60406 | BTW_SHAFT_BASE | (1) |
| 6 | 262-60505 | BTW_CAM_LEVER | (1) |
| 7 | 262-60604 | BTW_WHEEL | (1) |
| 8 | 262-60802 | BTW_BEARING_SPACER | (1) |
| 9 | 262-61008 | BTW_LEVER_SHAFT | (1) |
| 10 | 262-61206 | BTW_SPACER | (1) |
| 11 | 262-61305 | BTW_BEARING | (2) |
| 12 | 262-61503 | BTW_WHEEL_RUBBER | (1) |
| 13 | 262-61602 | BOBBIN_SPRING | (1) |
| 14 | 262-61701 | BTW_SPRING | (1) |
| 15 | 400-11144 | BTW_TORSION_SPRING | (1) |
| 16 | 400-14837 | BTW_SHAFT | (1) |
| 17 | 400-23022 | BTW LEVER | (1) |
| 18 | RC-0560711-KP | RETAINING RING | (1) |
| 19 | RE-0400000-KO | E-RING 4 | (1) |
| 20 | SM-5040655-SN | SCREW | (1) |
| 21 | SM-8040802-TP | SCREW M4X8 | (2) |
| 22 | SM-8050502-TP | SCREW M5 L=5 | (1) |
| 23 | WP-0450826-SC | WASHER 4.5X10X0.8 | (1) |
| 24 | 400-88958 | BOBBIN THREAD TENSION ASM. | 1 |
| 25 | 229-21308 | THREAD TENSION NUT | (1) |
| 26 | 400-88959 | BOBBIN THREAD TENSION ROD ASM. | (1) |
| 27 | 229-21407 | ROTATION STOPPER | (1) |
| 28 | 229-21506 | THREAD TENSION DISK | (2) |
| 29 | 229-21704 | THREAD TENSION SPRING A | (1) |
| 30 | 400-37008 | THREAD_CUTTER | 1 |
| 31 | SM-0050801-SC | SCREW | 1 |
| 32 | SM-0050801-SC | SCREW | 3 |
| 33 | SM-4051055-SP | SCREW | 1 |
Page 9 — 3. MAIN SHAFT & NEEDLE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-86597 | MAIN_SHAFT | 1 |
| 2 | 401-35904 | ASSY_COUNTER WEIGHT | 1 |
| 3 | 401-35916 | COUNTER WEIGHT | (1) |
| 4 | 400-04171 | COUNTER_WEIGHT_SCREW | (1) |
| 5 | SM-8081652-TP | SCREW M8 L=16 | (1) |
| SM-80606A2-TP | 6SCREW M6 L=6 | (2) | |
| 401-50011 | FRONT_BEARING | 1 | |
| SM-80608A2-TP | SCREW M6 L=8 | (2) | |
| 229-06309 | NEEDLE BAR THREAD GUIDE | 1 | |
| SS-7080510-TP | SCREW 1/8-44 L=4.5 | 1 | |
| 400-89196 | AC SERVO MOTOR | 1 | |
| 400-51473 | COUPLING ASM. | (1) | |
| 400-51474 | COUPLING | (1) | |
| 400-37007 | HAND WHEEL ASM. | 1 | |
| 400-37006 | HAND WHEEL | (1) | |
| 401-36292 | BTW_DRIVING_WHEEL_ASM | (1) | |
| 401-36293 | BTW_DRIVING_WHEEL | (2) | |
| SM-80506A2-TP | SCREW M5 L=6 | (2) | |
| SB-1200027-00 | BEARING | 1 | |
| 401-41440 | UPPER SPROCKET ASM. | 1 | |
| 400-86731 | TIMING_BELT_550 | 1 | |
| 236-08003 | NEEDLE BAR METAL UPPER | 1 | |
| 401-07707 | NEEDLE BAR METAL LOWER | 1 | |
| 228-86907 | NEEDLE BAR (A) | (1) | |
| 228-87004 | NEEDLE BAR (B) | (1) | |
| 229-06457 | NEEDLE BAR HOLDER ASM. | 1 | |
| SS-6090670-TP | SCREW 9/64-40 L=6 | (1) | |
| 400-90058 | SLIDE BLOCK | 1 | |
| 236-26203 | NEEDLE BAR THREAD GUIDE | 1 | |
| MDB-100B1100 | NEEDLE DBX1 #11 | 1 | |
| MC-2005007-50 | NEEDLE 134 NM75 | 1 | |
| MDB-100B1400 | NEEDLE DBX1 #14 | 1 | |
| 401-35900 | THREAD TAKE UP COMPL. | (1) | |
| 401-35905 | THREAD_TAKE_UP_ASM._C | (1) | |
| 401-41165 | TAKE_UP_CRANK_ASM. | (1) | |
| 401-35906 | TAKE_UP_CRANK | (1) | |
| 401-43184 | TAKE_UP_CRANK_SHAFT | (1) | |
| 401-35907 | THREAD_TAKE_UP_PIN | (2) | |
| TA-0850604-RO | RUBBER PLUG | 1 | |
| 400-32269 | THRUST COLLAR | (1) | |
| CS-1000881-TP | THRUST COLLAR | (1) | |
| SM-8050412-TP | SCREW M5 L=4 | (2) | |
| SL-6052592-TN | BOLT | 4 | |
| EA-9500B01-00 | CABLE BAND | 2 |
Page 11 — 4. HAND LIFTER & TENSION RELEASE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 401-36700 | PRESSER_BAR_BUSHING | 1 |
| 2 | 400-86606 | PRESSER_BAR_GUIDE_BRACKET_ASM. | 1 |
| 3 | 400-86607 | PRESSER_BAR_GUIDE_BRACKET | (1) |
| 4 | SM-6051400-SP | SCREW | (1) |
| 5 | 236-09357 | LIFTING LEVER CONNECT ROD ASM. | 1 |
| 6 | 236-09456 | LIFTING LINK COMPL. | (1) |
| 7 | 236-09605 | PLATE | (1) |
| 8 | 229-08008 | LIFTING PLATE | (1) |
| 9 | SM-6040602-TP | SCREW M4 L=6 | (1) |
| 10 | RE-0500000-KO | E-RING | (1) |
| 11 | RE-0500000-KO | E-RING | (1) |
| 12 | 236-09308 | LIFTING LEVER CONNECT ROD | (1) |
| 13 | 400-86760 | CONNECTING ROD | 1 |
| 14 | 236-09704 | LIFTING LEVER LINK | 1 |
| 15 | 229-07406 | PRESSER SPRING | 1 |
| 16 | 236-10207 | PRESSER BAR | 1 |
| 17 | 236-10306 | PRESSER GUIDE BAR | 1 |
| 18 | 400-37359 | PRESSER SPRING REGURATOR ASM. | 1 |
| 19 | 400-37141 | PRESSER SPRING REGULATOR | (1) |
| 20 | 400-37144 | PRESSER SPRING REGULATOR NUT | (1) |
| 21 | 400-50583 | LINK SHAFT | 2 |
| 22 | 229-07802 | HAND LIFTER | 1 |
| 23 | B1521-555-000 | SCREW | 1 |
| 24 | 229-08552 | HAND LIFTER CAM ASM. | 1 |
| 25 | RO-0371801-00 | RUBBER RING | 1 |
| 26 | B1524-012-0BA | PRESSER FOOT ASM. | 1 |
| 27 | SS-7091110-TP | SCREW 9/64-40 L=10.5 | 1 |
| 28 | RE-0500000-KO | E-RING | 3 |
| 29 | 229-08909 | HINGE SCREW | 1 |
| 30 | 400-82078 | SHOULDER SCREW D=7.24 H=3.3 | 1 |
| 31 | NM-6060003-SE | NUT FOR BRACKET | 1 |
| 32 | 400-36706 | ADJUSTING SCREW | 1 |
| 33 | WP-0621016-SD | WASHER 6.2X13X1 | 1 |
| 34 | 229-44508 | WIRE PRESSER A | 2 |
| 35 | SM-4040855-SP | SCREW | 1 |
| 36 | SM-4040855-SP | SCREW | 1 |
| 37 | SM-6051402-TP | SCREW M5X0.8 L=14 | 1 |
| 38 | 400-86643 | WIRE_HOLDER | 1 |
| 39 | 400-50582 | TENSION RELEASE SHAFT | 1 |
| 40 | 229-20300 | THREAD RELEASE SUPPORTING PIN | 1 |
| 41 | 229-20409 | THREAD RELEASE PIN SPRING | 1 |
| 42 | 236-26351 | THREAD TENSION RELEASE WIRE | 1 |
| 43 | 236-26807 | TENSION RELEASE RETURN SPRING | 1 |
| 44 | NS-6620310-SP | NUT 3/16-32 | 2 |
| 45 | RE-0500000-KO | E-RING | 2 |
| 46 | 400-56622 | MINUTE LIFTING DEVICE ASM. | 1 |
| 47 | 236-11106 | HAND LIFTER | (1) |
| 48 | 236-10504 | STOPPER BASE | (1) |
| 49 | 236-10652 | STOPPER SCREW ASM. | (1) |
| 50 | D5119-206-KOK | SPACER | (2) |
| 51 | 236-10702 | STOPPER SCREW NUT | (1) |
| 52 | SL-6053592-TN | BOLT | (1) |
| 53 | RO-0442401-00 | RUBBER RING | 1 |
| 54 | B3118-552-F00 | TENSION RELEASING PIN | 1 |
| 55 | WP-0501016-SD | WASHER 5X10.5X1 | 1 |
Page 13 — 5. FEED ADJUST MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-86735 | ADJUSTING_LINK_ASM. | 1 |
| 2 | 400-86695 | FEED_ADJUSTING_LINK | (1) |
| 3 | 400-86696 | FEED_ADJUSTING_LINK_PIN | (2) |
| 4 | SM-80506A2-TP | SCREW M5 L=6 | (2) |
| 5 | 400-86608 | ADJUSTING_LINK_FULCRUM_SHAFT | 1 |
| 6 | SM-80606A2-TP | SCREW M6 L=6 | 1 |
| 7 | 400-86615 | FEED_CHANGING_SHAFT_METAL_A | 1 |
| 8 | 400-86704 | FEED_CHANGING_SHAFT_ARM_ASM. | 1 |
| 9 | 400-86705 | FEED_CHANGING_SHAFT_ARM | (1) |
| 10 | SM-6051602-TP | SCREW M5X0.8 L=16 | (1) |
| 11 | 229-10509 | FEED ADJUSTING LINK PIN | (1) |
| 12 | 400-86706 | FEED_CHANGING_SPRING_PIN | (1) |
| 13 | 400-86616 | FEED_CHANGING_SHAFT_METAL_B | 1 |
| 14 | 400-86614 | FEED_CHANGING_SHAFT | 1 |
| 15 | 400-86738 | REVERSE_FEED_LEVER | 1 |
| 16 | 236-13706 | FEED LEVER SHAFT | 1 |
| 17 | 400-86674 | FEED_LEVER_ARM_ASM. | 1 |
| 18 | 400-86675 | FEED_LEVER_ARM | (1) |
| 19 | SM-6051602-TP | SCREW M5X0.8 L=16 | (1) |
| 20 | 400-86737 | FEED ADJUSTING SPRING | 1 |
| 21 | 400-86739 | FEED LEVER SPRING | 1 |
| 22 | 400-86609 | FEED_ADJUSTING_ROD | 1 |
| 23 | 236-30007 | TUBE | 0.1 |
| 24 | RE-0500000-KO | E-RING | 1 |
| 25 | 236-12609 | FEED CHANGING SHAFT OIL SEAL | 1 |
| 26 | SM-80608A2-TP | SCREW M6 L=8 | 2 |
| 27 | 229-52501 | BACK LEVER STOPPER | 1 |
| 28 | SM-6051850-TP | SCREW M5 L=18 | 1 |
| 29 | 401-41842 | FEED REGULATOR SCREW | 1 |
| 30 | 401-23098 | FEED_REGULATOR_PIN_SPRING | 1 |
| 31 | 401-61440 | FEED_REGULATOR_PIN | 1 |
| 32 | 401-41840 | REGULATOR STOPPER SPRING | 1 |
| 33 | 401-41838 | FEED REGULATOR WASHER | 1 |
| 34 | 401-41841 | REGULATOR PIN DIAL | 1 |
| 35 | SS-6121860-SP | SCREW 3/16-28 L=18 | 1 |
| 36 | 400-86617 | FEED_LEVER_SHAFT_METAL | 1 |
| 37 | 400-86736 | RUBBER PLUG | 1 |
| 38 | SM-80606A2-TP | SCREW M6 L=6 | 1 |
| 39 | 236-13409 | FEED ADJUSTING PIN | 1 |
| 40 | 400-95847 | FEED REGULATOR ASM. | 1 |
| 41 | SM-80606A2-TP | SCREW M6 L=6 | (1) |
| 42 | 401-22891 | FEED_REGULATOR | (1) |
| 43 | RO-0922702-00 | RUBBER RING | 1 |
| 44 | 401-61441 | REGULATOR_PIN_STOPPER | 1 |
| 45 | 400-86613 | FEED_REGULATOR_STOPPER_PIN | 2 |
| 46 | 400-06716 | THREAD_TRIMMER_SHAFT | 1 |
| 47 | SM-80606A2-TP | SCREW M6 L=6 | 1 |
Page 15 — 6. HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-37192 | FEED ROCKER CAM ASM. | 1 |
| 2 | 236-16006 | FEED ROCKER CAM | (1) |
| 3 | SS-8150822-TP | SCREW 15/64-28 L=8 | (2) |
| 4 | 400-37365 | FEED ROCKER ROD ASM. | 1 |
| 5 | 400-26277 | FEED ROCKER ROD | (1) |
| 229-11101 | WALKING FOOT PIN C | ||
| SS-6090620-TP | SCREW | ||
| 400-61246 | FEED ROCKER ARM ALL ASM. | ||
| 400-58504 | FEED ROCKER ARM ASM. | ||
| 400-42079 | FEED ROCKER ARM | ||
| SS-6121610-SP | SCREW 3/16-28 L=15.5 | ||
| 229-11002 | WALKING FOOT PIN B | ||
| 236-16709 | ASSY FEED ROCKER METAL | ||
| 400-37005 | ASSY FEED ROCKER BASE ARM | ||
| 400-26281 | FEED ROCKER BASE ARM | ||
| SM-6051400-SP | SCREW | ||
| WP-0480856-SP | WASHER 4.8X8.4X0.8 | ||
| SM-4050855-SP | SCREW | ||
| 236-16204 | FEED ROCKER CAM PLATE | ||
| SS-6090670-TP | SCREW 9/64-40 L=6 | ||
| 229-04155 | MAIN SHAFT THRUST COLLAR ASM. | ||
| 229-04106 | MAIN SHAFT THRUST COLLAR | ||
| SS-8660610-TP | SCREW 1/4-40 L=6 | ||
| 236-14506 | FEED DOG A | ||
| SS-4080620-TP | SCREW 1/8-44 L=6 | ||
| B4123-522-00A | NEEDLE ROLLAR | ||
| B4123-522-00B | NEEDLE ROLLAR | ||
| B4123-522-00C | NEEDLE ROLLAR | ||
| 400-26278 | CONNECTING LINK A | ||
| 236-16402 | CONNECTING LINK B | ||
| 236-16600 | FEED ROCKER SHAFT | ||
| 400-86743 | BEARING SUPPORT ASM. | ||
| SS-6110710-TP | SCREW 11/64-40 L=6.5 | ||
| 400-26282 | FEED ROCKER BASE SHAFT | ||
| 400-00391 | VERTICAL FEED CAM ASM. 5 | ||
| 400-00392 | VERTICAL FEED CAM 5 | ||
| SS-8151150-TP | SCREW 15/64-28 L=10.5 | ||
| 400-53720 | FEED DRIVING BASE ARM ASM. | ||
| 400-26287 | FEED DRIVING BASE ARM | ||
| SM-4040655-SP | SCREW M4 L=6 | ||
| 400-26288 | FEED DRIVING BASE SHAFT | ||
| 400-86757 | FEED DRIVING SHAFT | ||
| 400-86690 | FEED_DRIVING_BEARING_SUPPORT | ||
| SS-8661012-TP | SCREW | ||
| 236-18101 | FEED DRIVING CAM THRUST BUSH | ||
| SB-3200006-0A | BEARING | ||
| SB-3200006-0B | BEARING | ||
| SB-3200006-0C | BEARING | ||
| SB-1170012-00 | BEARING | ||
| 236-18309 | FEED DRIVING CAM PLATE | ||
| 236-20503 | GEAR (LARGE) | ||
| 236-20008 | HOOK SHAFT | ||
| 236-20156 | HOOK SHAFT METAL COMPL. | ||
| 401-45927 | OIL SEAL | ||
| 229-16555 | OIL SEAL SCREW ASM. | ||
| 229-16506 | SET SCREW | ||
| 110-15906 | OIL WICK | ||
| 236-20701 | GEAR (SMALL)(A) | ||
| 236-20800 | GEAR (SMALL)(B) | ||
| 236-20909 | GEAR (SMALL)(C) | ||
| 236-21006 | GEAR (SMALL)(D) | ||
| 110-38759 | BOBBIN CASE ASM. | ||
| 111-41355 | HOOK ASM. | ||
| 110-38650 | HOOK ASM. | ||
| 400-86740 | OIL SEAL | ||
| 400-30786 | FEED BASE COMPL. | ||
| 229-64001 | BOBBIN A | ||
| 400-86744 | HOOK DRIVING SHAFT OIL SEAL | ||
| 236-20404 | HOOK SHAFT REAR METAL | ||
| 400-89607 | INNER HOOK HOLDER | ||
| SM-4051055-SP | SCREW | ||
| 400-86618 | FEED SHAFT REAR METAL | ||
| 400-86741 | OIL SEAL | ||
| 400-86742 | OIL SEAL | ||
| SB-1200018-00 | BEARING | ||
| 401-41443 | UNDER SPOCKET ASM. | ||
| SM-80608A2-TP | SCREW M6 L=8 | ||
| RC-1200001-KP | C-SHAPED SNAP RING | ||
| 110-79506 | FRONT SCREW | ||
| RO-0360802-00 | RUBBER RING |
Page 17 — 7. THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-50585 | KNIFE UNIT | 1 |
| 2 | 110-40052 | MOVING KNIFE ASM. | (1) |
| 3 | 400-44189 | THREAD_GUIDE_FOR_KNIFE | (1) |
| 4 | 229-47907 | KNIFE MOUNTING BASE | (1) |
| 5 | 110-40409 | MOVING KNIFE HINGE SCREW | (1) |
| 6 | 229-48202 | FORKED BASE FOR KNIFE | (1) |
| 7 | D2406-555-DOH | COUNTER KNIFE | (1) |
| 8 | SD-0460703-TP | HINGE SCREW D=4.6 H=7 | (1) |
| 9 | SS-2060210-SP | SCREW 3/32-56 L=2.3 | (1) |
| 10 | SS-4080620-TP | SCREW 1/8-44 L=6 | (2) |
| 11 | SM-4041055-SP | SCREW | 1 |
| 12 | 400-36998 | ASSY_PICKER_ARM | 1 |
| 13 | 400-61215 | PICKER ARM | (1) |
| 14 | 400-36997 | ASSY_PICKER | (1) |
| 15 | SS-6090670-TP | SCREW 9/64-40 L=6 | (2) |
| 16 | 400-29398 | PICKER SPRING | 1 |
| 17 | SD-0641456-TP | SHOULDER SCREW D=6.35 H=14.5 | 1 |
| 18 | 400-86746 | ASSY_THREAD_TRIM_SOLENOID | 1 |
| 19 | 400-89263 | THREAD TRIMMER SOLENOID | (1) |
| 20 | 110-43304 | SOLENOID RUBBER | (1) |
| 21 | NS-6660410-SH | NUT | (1) |
| 22 | NS-6660430-SP | NUT 1/4-40 | (1) |
| 23 | HK-0346400-0B | PIN CONTACT | (2) |
| 24 | NM-6040000-SN | NUT M4 | (2) |
| 25 | WP-0430800-SC | WASHER M4 | (2) |
| 26 | 400-89672 | SPRING | (1) |
| 27 | 400-86727 | SOLEOID INSTALLING BASE | (1) |
| 28 | SM-6061002-TP | SCREW M6 L=10 | 2 |
| 29 | 400-86711 | SORENOID_PIN | 1 |
| 30 | SS-6110710-TP | SCREW 11/64-40 L=6.5 | 1 |
| 31 | RE-0500000-KO | E-RING | 1 |
| 32 | 106-18304 | WASHER | 2 |
| 33 | 400-86634 | CLUTCH_PLATE | 1 |
| 34 | 400-86635 | CLUTCH_SHAFT | 1 |
| 35 | SM-8060812-TP | SCREW M6 L=8 | 1 |
| 36 | 400-86622 | THREAD_TRIMMER_SHAFT | 1 |
| 37 | 312-56803 | SPRING | 1 |
| 38 | WP-0841600-SD | WASHER M8 | 1 |
| 39 | RE-0700000-KO | E-RING 7 | 1 |
| 40 | B1116-804-000 | RUBBER WASHER | 1 |
| 41 | 400-95843 | ASSY CAM FOLLOWER | 1 |
| 42 | 400-86624 | CAM_FOLLOWER_ASM. | (1) |
| 43 | SM-80606A2-TP | SCREW M6 L=6 | (2) |
| 44 | 400-86748 | ROLLER SHAFT | 1 |
| 45 | 400-15671 | CAM_ROLLER | 1 |
| 46 | NM-6040001-SP | NUT M4X0.7 | 2 |
| 47 | 400-86623 | STOPPER_SCREW | 1 |
| 48 | 400-86636 | CAM_FOLLOWER_STOPPER | 1 |
| 49 | SM-6061010-TP | SCREW M6 L=10 | 2 |
| 50 | 400-95870 | THREAD TRIMMER STOPPER ASM. | 1 |
| 51 | B1116-210-D00 | STOPPER RUBBER | 1 |
| 52 | SM-6040800-SP | SCREW | 2 |
| 53 | 400-86747 | THREAD TRIMMER CAM | 1 |
| 54 | SM-80608A2-TP | SCREW M6 L=8 | 2 |
| 55 | 400-86708 | CONNECTING_ROD_ASM. | 1 |
| 56 | 401-36701 | ROD_END | (2) |
| 57 | NM-6050001-SC | NUT M5 | (2) |
| 58 | 400-86709 | CONNECTING_BAR | (1) |
| 59 | 262-26209 | SPRING | 1 |
| 60 | 400-86621 | SPRING_RACK | 1 |
| 61 | SM-4050655-SP | SCREW M5 L=6 | 1 |
| 62 | 400-86631 | THREAD_TRIMMER_LINK_A | 1 |
| 63 | 400-86632 | THREAD_TRIMMER_LINK_B | 1 |
| 64 | 400-86633 | SHOULDER_SCREW | 1 |
| 65 | SS-7110740-TP | SCREW 11/64-40 L=7 | 1 |
| 66 | WP-0450801-SP | WASHER | 1 |
| 67 | SM-8061050-TP | SCREW | 1 |
| 68 | SM-8061010-TP | SCREW | 1 |
| 69 | SD-0640321-SP | HINGE SCREW D=6.35 H=3.2 | 1 |
| 70 | 400-86628 | MOVING_KNIFE_LINK | 1 |
| 71 | SD-0640631-TP | HINGE SCREW D=6.35 H=6.3 | 1 |
| 72 | 400-86637 | PICKER_LINK_ASM. | 1 |
| 73 | SD-0630275-SP | HINGE SCREW D=6.35 H=2.7 | 1 |
| 74 | 229-50000 | PICKER LINK PIN | 1 |
| 75 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 76 | WP-0621016-SH | WASHER | 1 |
| 77 | SD-0500701-TP | SHOULDER SCREW | 2 |
| 78 | NS-6110310-SP | NUT 11/64-40 | 2 |
| 79 | 400-86712 | CONNECTING ROD FELT | 2 |
| 80 | 400-90099 | WASHER | 1 |
| 81 | WP-0621016-SD | WASHER 6.2X13X1 | 2 |
| 82 | 400-95218 | THREAD TRIMMER STOPPER SPRING | 1 |
| 83 | 400-95873 | THREAD TRIMMER STOPPER BUSH | 1 |
Page 19 — 8. OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-82059 | GEAR BOX COVER ASM. | 1 |
| 2 | 401-35639 | GEAR_BOX_COVER | (1) |
| 3 | 400-34246 | OIL_SIGHT_WINDOW | (1) |
| 4 | RO-1952401-00 | RUBBER RING | (1) |
| 5 | 131-71004 | DRAIN SCREW | (1) |
| 6 | 131-70105 | RUBBER RING | (1) |
| 7 | 236-29256 | OIL WICK SUPPORT ASM. | 1 |
| 8 | 236-29207 | OIL WICK SUPPORT | (1) |
| 9 | CQ-2500000-01 | OIL WICK | (0.25) |
| 10 | 236-29306 | PIPE STOPPER A | 3 |
| 11 | 236-29405 | PIPE STOPPER B | 4 |
| 12 | 400-37166 | GEAR BOX PACKING | 1 |
| 13 | 401-35640 | MAGNET_HOLDER | 1 |
| 14 | SQ-2050453-MZ | CONNECTING SCREW | 2 |
| 15 | 400-86648 | FLOATER_ASM. | 1 |
| 16 | RO-0681901-00 | RUBBER RING | 1 |
| 17 | 236-30007 | TUBE | 0.57 |
| 18 | 236-30007 | TUBE | 0.08 |
| 19 | 236-30007 | TUBE | 0.11 |
| 20 | CQ-2000000-01 | OIL WICK | 0.75 |
| 21 | 236-30106 | TUBE B | 0.165 |
| 22 | 236-30106 | TUBE B | 0.2 |
| 23 | 400-75404 | FACE FELT ASM. | 1 |
| 24 | 229-25101 | OIL FELT PRESSER | 1 |
| 25 | RO-0982401-00 | RUBBER RING | 1 |
| 26 | RO-1721801-00 | RUBBER RING | 1 |
| 27 | SL-6061292-TN | SCREW | 3 |
| 28 | SM-6051402-TP | SCREW M5X0.8 L=14 | 9 |
| 29 | SM-5040655-SN | SCREW | 1 |
| 30 | 400-13595 | OIL_EXIT_CAP | 1 |
| 31 | 400-98329 | OIL_TANK | 1 |
| 32 | 400-86646 | FLOATER_CASE_ASM. | 1 |
| 33 | 400-86647 | FLOATER_CASE | (1) |
| 34 | 236-30403 | OIL FILTER | (1) |
| 35 | 236-30502 | OIL FILTER STOPPER | (1) |
| 36 | 236-28902 | PLUNGER SPRING | 1 |
| 37 | 400-38328 | PLUNGER SCREW | 1 |
| 38 | 400-37502 | OIL ADJUSTING SCREW | 1 |
| 39 | RO-0371801-00 | RUBBER RING | 1 |
| 40 | 236-28803 | PLUNGER | 1 |
| 41 | 400-86693 | FROATER_CASE_GUIDE | 1 |
| 42 | SL-6040892-TN | BOLT | 1 |
| 43 | SL-6051492-TN | BOLT | 1 |
| 44 | B8228-125-000 | OIL RESERVOIR MAGNET | 2 |
| 45 | 401-49785 | ASSY_FLOATER_SIGHT_WINDOW_B | 1 |
| 46 | 400-00344 | LUBRICATING INLET CAP | (1) |
| 47 | RO-0481901-00 | RUBBER RING | (1) |
| 48 | 400-86697 | FLOATER_SIGHT_WINDOW_B | (1) |
| 49 | SM-4040601-SC | SCREW M4X0.7 L=6 | 1 |
| 50 | WP-0501016-SD | WASHER 5X10.5X1 | 9 |
Page 21 — 9. AUTOMATIC REVERSE FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-86750 | REVERSE FEED SOLENOID ASM. | 1 |
| 2 | HK-0346400-0B | PIN CONTACT | (2) |
| 3 | 400-86753 | REVERSE FEED SOLENOID PLUNGER | (1) |
| 4 | RE-1200000-KO | E-RING 12 | (1) |
| 5 | D2468-555-B00 | RUBBER PLUNGER | (1) |
| 6 | WP-1602616-SZ | WASHER 16X24X2.6 | (1) |
| 7 | WP-0550800-SP | WASHER 5.5X10X0.8 | 3 |
| 8 | SM-4051055-SP | SCREW | 3 |
| 9 | WP-0551016-SH | WASHER 5.5X13X1 | 1 |
| 10 | NM-6050001-SP | NUT M5 | 2 |
| 11 | WS-0610002-KN | SPRING WASHER 6.1X12.2X1.5 | 1 |
| 12 | 400-95844 | REVERSE FEED ARM ASM. | 1 |
| 13 | 400-86698 | REVERSE_FEED_ARM | (1) |
| 14 | SM-6051602-TP | SCREW M5X0.8 L=16 | (1) |
| 15 | 236-31757 | REVERSE FEED SWITCH ASM. | 1 |
| 16 | 236-32102 | REVERSE FEED SWITCH BASE GUIDE | (1) |
| 17 | 236-32359 | REVERSE FEED CORD ASM. | (1) |
| 18 | EA-9500B01-00 | CABLE BAND | (1) |
| 19 | SS-7110740-TP | SCREW 11/64-40 L=7 | (1) |
| 20 | 236-31708 | REVERSE FEED SWITCH COVER | (1) |
| 21 | 236-31807 | REVERSE FEED SWITCH SHAFT | (1) |
| 22 | 236-31906 | REVERSE FEED SWITCH SUPPORT | (1) |
| 23 | 236-32003 | REVERSE FEED SWITCH BASE | (1) |
| 24 | SM-4051055-SP | SCREW | 1 |
| 25 | 236-32656 | OPTION SWITCH ASM. | 1 |
| 26 | 236-32102 | REVERSE FEED SWITCH BASE GUIDE | (1) |
| 27 | 236-32250 | REVERSE FEED CORD ASM. | (1) |
| 28 | EA-9500B01-00 | CABLE BAND | (1) |
| 29 | SS-7110740-TP | SCREW 11/64-40 L=7 | (1) |
| 30 | 236-31708 | REVERSE FEED SWITCH COVER | (1) |
| 31 | 236-31807 | REVERSE FEED SWITCH SHAFT | (1) |
| 32 | 236-31906 | REVERSE FEED SWITCH SUPPORT | (1) |
| 33 | 236-32607 | OPTION SWITCH BASE | (1) |
| 34 | 400-86655 | REVERSE_FEED_CONNECTION_LINK | 1 |
| 35 | 400-86699 | REVERSE_FEED_LINK_PIN | 1 |
| 36 | SM-8480652-TP | SCREW | 1 |
| 37 | 400-86759 | BACK_SOLENOID_PLUNGER_PIN | 1 |

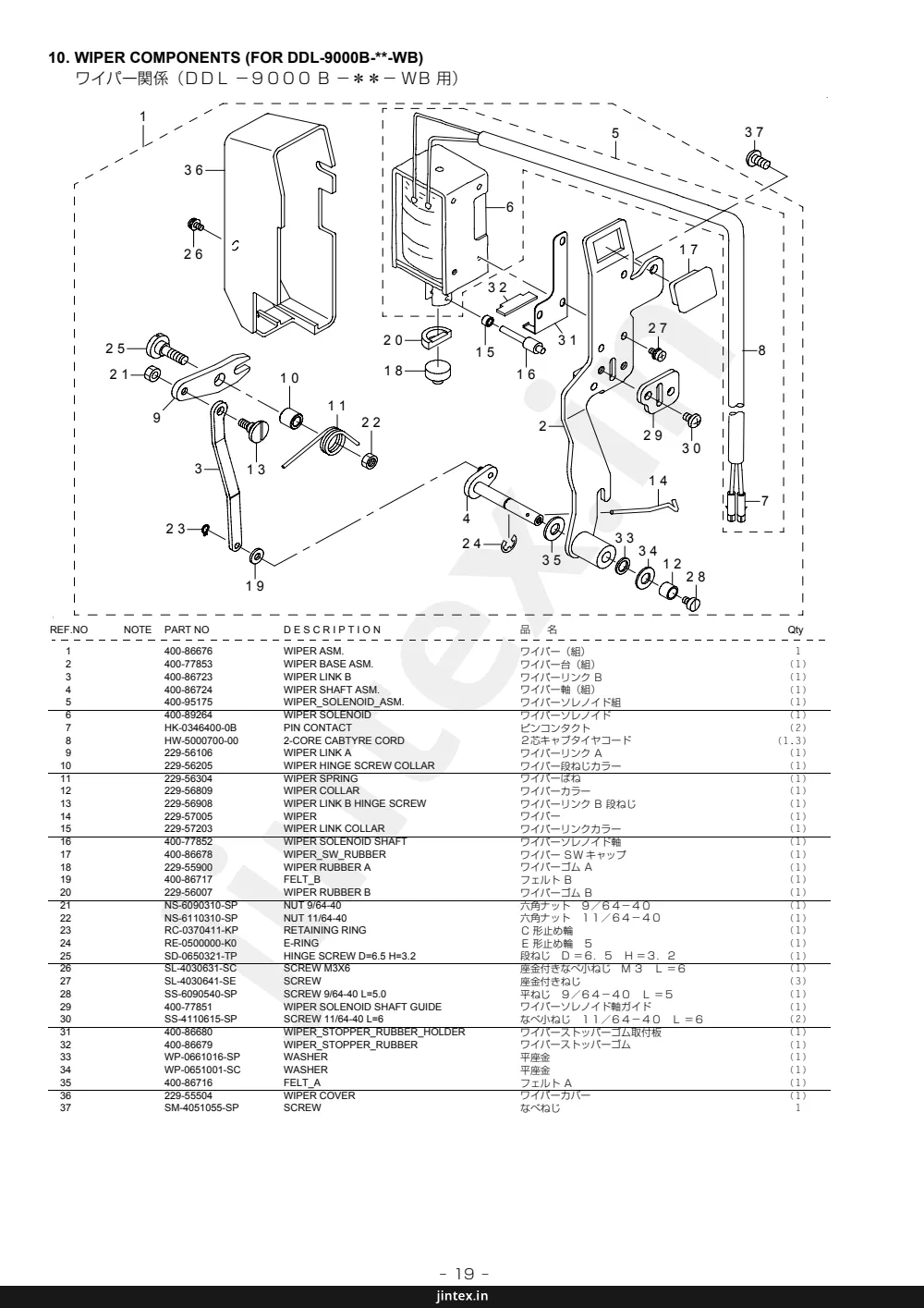

Page 22 — 10. WIPER COMPONENTS (FOR DDL-9000B-**-WB)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-86676 | WIPER ASM. | 1 |
| 2 | 400-77853 | WIPER BASE ASM. | (1) |
| 3 | 400-86723 | WIPER LINK B | (1) |
| 4 | 400-86724 | WIPER SHAFT ASM. | (1) |
| 5 | 400-95175 | WIPER_SOLENOID_ASM. | (1) |
| 6 | 400-89264 | WIPER SOLENOID | (1) |
| 7 | HK-0346400-0B | PIN CONTACT | (2) |
| 8 | HW-5000700-00 | 2-CORE CABTYRE CORD | (1.3) |
| 9 | 229-56106 | WIPER LINK A | (1) |
| 10 | 229-56205 | WIPER HINGE SCREW COLLAR | (1) |
| 11 | 229-56304 | WIPER SPRING | (1) |
| 12 | 229-56809 | WIPER COLLAR | (1) |
| 13 | 229-56908 | WIPER LINK B HINGE SCREW | (1) |
| 14 | 229-57005 | WIPER | (1) |
| 15 | 229-57203 | WIPER LINK COLLAR | (1) |
| 16 | 400-77852 | WIPER SOLENOID SHAFT | (1) |
| 17 | 400-86678 | WIPER_SW_RUBBER | (1) |
| 18 | 229-55900 | WIPER RUBBER A | (1) |
| 19 | 400-86717 | FELT_B | (1) |
| 20 | 229-56007 | WIPER RUBBER B | (1) |
| 21 | NS-6090310-SP | NUT 9/64-40 | (1) |
| 22 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 23 | RC-0370411-KP | RETAINING RING | (1) |
| 24 | RE-0500000-KO | E-RING | (1) |
| 25 | SD-0650321-TP | HINGE SCREW D=6.5 H=3.2 | (1) |
| 26 | SL-4030631-SC | SCREW M3X6 | (1) |
| 27 | SL-4030641-SE | SCREW | (3) |
| 28 | SS-6090540-SP | SCREW 9/64-40 L=5.0 | (1) |
| 29 | 400-77851 | WIPER SOLENOID SHAFT GUIDE | (1) |
| 30 | SS-4110615-SP | SCREW 11/64-40 L=6 | (2) |
| 31 | 400-86680 | WIPER_STOPPER_RUBBER_HOLDER | (1) |
| 32 | 400-86679 | WIPER_STOPPER_RUBBER | (1) |
| 33 | WP-0661016-SP | WASHER | (1) |
| 34 | WP-0651001-SC | WASHER | (1) |
| 35 | 400-86716 | FELT_A | (1) |
| 36 | 229-55504 | WIPER COVER | (1) |
| 37 | SM-4051055-SP | SCREW | 1 |
Page 23 — 11. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 401-08402 | THRED_STAND_B | 1 |
| 2 | 400-85786 | SPOOL REST ARM (LOWER) | (1) |
| 3 | 400-85787 | SPOOL REST ARM (UPPER) | (1) |
| 4 | 400-85788 | SPOOL REST | (2) |
| 5 | 400-85789 | SPOOL REST CUSHION | (2) |
| 6 | 400-85790 | SPOOL PIN | (2) |
| 7 | 400-85791 | SPOOL RETAINER | (2) |
| 8 | 400-85794 | THREAD GUIDE | (2) |
| 9 | 400-85795 | THREAD GUIDE BUSHING | (2) |
| 10 | 400-96326 | SPOOL REST ARM LOWER SCREW | (1) |
| 11 | NM-6050001-SE | NUT M5 | (2) |
| 12 | 400-96327 | SPOOL REST ARM UPPER SCREW | (1) |
| 13 | NM-6050001-SE | NUT M5 | (2) |
| 14 | WS-0510002-KN | SPRING WASHER M5 | (2) |
| 15 | WP-0531001-SC | WASHER M5 | (2) |
| 16 | 401-08401 | THREAD_STAND_A | 1 |
| 17 | 400-85784 | SPOOL REST ROD LOWER | (1) |
| 18 | 400-85785 | SPOOL REST ROD UPPER | (1) |
| 19 | 400-85792 | SPOOL REST ROD JOINT | (1) |
| 20 | 400-85793 | SPOOL REST ROD RUBBER CAP | (1) |
| 21 | 400-96325 | SPOOL REST ROD NUT | (1) |
| 22 | WP-1612616-SE | WASHER 16X30X2.6 | (2) |
| 23 | 400-85796 | SPOOL REST ROD RUBBER CUSHION | (2) |
| 24 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 25 | NM-6050001-SE | NUT M5 | (2) |
Page 24 — 12. UNDER COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-89665 | UNDER COVER AH ASM. | 1 |
| 2 | 400-62321 | UNDER COVER A ASM. | 1 |
| 3 | 400-89671 | UNDER COVER BH ASM. | (1) |
| 4 | 400-62323 | UNDER COVER B ASM. | (1) |
| 5 | 236-39008 | UNDER COVER | (1) |
| 6 | 229-32008 | RUBBER CUSHION | (2) |
| 7 | B1116-210-D00 | FRAME SUPPORT RUBBER | (2) |
| 8 | B1116-210-D00 | FRAME SUPPORT RUBBER | (2) |
| 9 | 236-39156 | BRACKET ASM. | (1) |
| 10 | 236-39107 | BRACKET | (1) |
| 11 | NM-6060001-SE | NUT M6 | (2) |
| 12 | SM-8063012-TR | SCREW M6 L=30 | (2) |
| 13 | 236-39206 | CONNECTING ROT | (1) |
| 14 | 236-39305 | KNEE PRESS ROD | (1) |
| 15 | 236-39404 | SHAFT | (1) |
| 16 | 236-39503 | SPRING | (1) |
| 17 | 236-39602 | CONNECTING ROD | (1) |
| 18 | WP-0650876-SD | WASHER 6.5X13X0.8 | (2) |
| 19 | 229-32453 | BRACKET ASM. | (1) |
| 20 | 229-32404 | BRACKET | (1) |
| 21 | SM-9062053-SR | SCREW M6 L=20 | (2) |
| 22 | NS-6150310-SP | NUT 15/64-28 | (2) |
| 23 | RE-1000000-KO | E-RING 10 | (2) |
| 24 | RE-1000000-KO | E-RING 10 | (1) |
| 25 | SD-0720331-SP | HINGE SCREW D=7.24 H=3.3 | (2) |
| 26 | SM-9061853-SR | SCREW M6 L=17.5 | (1) |
| 27 | SM-9061853-SR | SCREW M6 L=17.5 | (1) |
| 28 | 229-34251 | KNEE PAD PLATE ASM. | 1 |
| 29 | 229-34202 | KNEE PAD PLATE | (1) |
| 30 | 229-34301 | KNEE PAD PLATE SUPPORT | (1) |
| 31 | 229-34400 | KNEE PAD PLATE RUBBER | (1) |
| 32 | 229-34509 | KNEE PAD PLATE COVER | (1) |
| 33 | 229-34608 | KNEE PAD UPRIGHT SHAFT | (1) |
| 34 | SM-9061203-SE | SCREW M6 L=12 | (1) |
Page 25 — 13. ACCESSORIE PART COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-89663 | ACCESSORIE BAG ASM. | 1 |
| 2 | 400-91140 | ACCESSORIE BAG AK ASM. | 1 |
| 3 | 400-99736 | ACCESSORIE BAG ASM. 2 | 1 |
| 4 | 400-99737 | ACCESSORIE BAG AK ASM. 2 | 1 |
| 5 | 229-32800 | ACCESSORIE BAG | (1) |
| 6 | 229-33204 | SCREW DRIVER (SMALL) | (1) |
| 7 | 225-02504 | THREAD GUIDE BAR | (1) |
| 8 | 236-39701 | KNEE LIFTER PRESSER ROD | (1) |
| 9 | EA-9500B01-00 | CABLE BAND | (1) |
| 10 | 400-55591 | HEXAGONAL WRENCH KYE | (1) |
| 11 | 229-33105 | SCREW DRIVER (MIDDLE) | (1) |
| 12 | 229-31604 | FRAME SUPPORT BAR | (1) |
| 13 | 400-24081 | HEAD SUPPORT ROD | (1) |
| 14 | 229-58052 | RUBBER HINGE ASM. | 1 |
| 15 | 229-26505 | WASHER | (2) |
| 16 | 229-26000 | RUBBER CUSHION | (2) |
| 17 | 229-58003 | FRAME BUBBER CUSHION | (2) |
| 18 | 229-26208 | NAIL | (8) |
| 19 | 229-26356 | HINGE COMPL. | (2) |
| 20 | B9121-012-0A0 | OILER ASM. | 1 |
| 21 | MDB-100B1100 | NEEDLE DBX1 #11 | 1 |
| 22 | MDB-100B0900 | NEEDLE DBX1 #9 | 1 |
| 23 | MDB-100B2100 | NEEDLE DBX1 #21 | 1 |
| 24 | MDB-100B1400 | NEEDLE DBX1 #14 | 1 |
| 25 | MC-2005013-00 | NEEDLE 134 NM130 | 1 |
| 26 | MC-2005006-50 | NEEDLE 134 NM65 | 1 |
| 27 | MC-2005007-50 | NEEDLE 134 NM75 | 1 |
| 28 | 401-35803 | HEAD COVER | 1 |
| 29 | 400-89323 | DDL-9000B SETUP DOCUMENT | 1 |
| 30 | CM-6001002-01 | WEEE INFORMATION SHEET | 1 |
| 31 | B9117-012-000 | BOBBIN | 1 |
| 32 | 229-64001 | BOBBIN A | 1 |
| 33 | 401-02087 | JUKI_MACHINE_OIL_7 | 1 |
Page 26 — 14. EXCLUSIVE PARTS DDL-9000B DS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-86605 | NEEDLE_BAR_LOWER_METAL_MD | 1 |
| 2 | SM-4050501-SC | SCREW M5X0.8 L=5 | 1 |
| 3 | 400-37146 | FLOATER SIGHT WINDOW D | 1 |
| 4 | 400-86604 | NEEDLE_BAR_D_(B) | 1 |
| 5 | 400-86602 | NEEDLE_BAR_D_(A) | 1 |
| 6 | 400-89274 | HOOK_SHAFT_FRONT_BEARING_COMPL. | 1 |
| 7 | SS-6110420-TP | SCREW 11/64-40 L=4.8 | (2) |
| 8 | 228-90404 | RP HOOK C | 1 |
| 9 | 228-90206 | RP HOOK | 1 |
| 10 | 228-90305 | RP HOOK S | 1 |
| 11 | 229-64001 | BOBBIN | 1 |
| 12 | 228-96252 | BOBBIN CASE ASM. | 1 |
| 13 | 400-50586 | KNIFE UNIT D | 1 |
| 14 | 228-95908 | COUNTER KNIFE | (1) |
| 15 | SS-2060210-SP | SCREW 3/32-56 L=2.3 | (1) |
| 16 | SS-4080620-TP | SCREW 1/8-44 L=6 | (2) |
| 17 | 110-40052 | MOVING KNIFE ASM. | (1) |
| 18 | 400-50588 | THREAD GUIDE FOR KNIFE D | (1) |
| 19 | 229-47907 | KNIFE MOUNTING BASE | (1) |
| 20 | 110-40409 | MOVING KNIFE HINGE SCREW | (1) |
| 21 | 228-96005 | FORKED BASE FOR KNIFE | (1) |
| 22 | SD-0460703-TP | HINGE SCREW D=4.6 H=7 | (1) |
| 23 | 400-06323 | JUKI GREASE A TUBE | 1 |
| 24 | 400-50581 | JOINT_CABLE_ASM. | 1 |
Page 27 — 15. EXCLUSIVE PARTS DDL-9000B MS,MA DDL-9000B MS, MA 専用部品
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 110-01906 | THROAT PLATE K | 1 |
| 2 | 111-62104 | SPRING | 1 |
| 3 | MDB-100B1100 | NEEDLE DBX1 #11 | 1 |
| 4 | D1613-155-W00 | FEED DOG W | 1 |
| 5 | D1524-555-DBB | PRESSER FOOT ASM. | 1 |
| 6 | MDB-100B0900 | NEEDLE DBX1 #9 | 1 |
| 7 | MC-2005006-50 | NEEDLE 134 NM65 | 1 |
| 8 | 401-41843 | REGULATOR PIN DIAL 4 | 1 |
| 9 | 400-37439 | THREAD TAKE UP COMP. A | 1 |
| 10 | 400-37479 | THREAD TENSION DISK ASM. A | 1 |
| 11 | 236-26005 | THREAD TENSION NUT | (1) |
| 12 | B3132-552-000 | THREAD TENSION DISK PRESSER | (1) |
| 13 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 14 | 400-24845 | TENSION POST SOCKET ASM. | (1) |
| 15 | B3115-552-000 | TENSION POST | (1) |
| 16 | B3120-125-000 | ROTATING STOPPER | (1) |
| 17 | D3129-555-D00 | THREAD TENSION SPRING | (1) |
| 18 | D3128-555-D00 | TAKE-UP SPRING | (1) |
| 19 | SS-8090670-SP | SCREW 9/64-40 L=5.5 | (1) |
| 20 | 400-86605 | NEEDLE_BAR_LOWER_METAL_MD | 1 |
| 21 | SM-4050501-SC | SCREW M5X0.8 L=5 | 1 |
| 22 | 400-86604 | NEEDLE_BAR_D_(B) | 1 |
| 23 | 400-86602 | NEEDLE_BAR_D_(A) | 1 |
| 24 | 400-00264 | BOBBIN CASE ASM. | 1 |
| 25 | 400-06323 | JUKI GREASE A TUBE | 1 |
| 26 | 236-29306 | PIPE STOPPER A | 1 |
| 27 | 400-42086 | CAP | 1 |
| 28 | 110-38759 | BOBBIN CASE ASM. | 1 |
| 29 | 236-30007 | TUBE | 0.07 |
Page 29 — 16. EXCLUSIVE PARTS DDL-9000B SH
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-89605 | THROAT_PLATE_J | 1 |
| 2 | 401-07708 | NEEDLE_BAR_METAL_LOWER_H | 1 |
| 3 | 400-61767 | NEEDLE BAR H | 1 |
| 4 | MDB-100B2100 | NEEDLE DBX1 #21 | 1 |
| 5 | B9117-012-000 | BOBBIN | 1 |
| 6 | B1505-552-000-A | PRESSER SPRING | 1 |
| 7 | D1524-555-EBL | PRESSER FOOT ASM. | 1 |
| 8 | 400-64839 | PRESSER FOOT ASM. | 1 |
| 9 | 400-89610 | INNER_HOOK_HOLDER_H | 1 |
| 10 | 110-92251 | LUBRICATING BOBBIN ASM. | 1 |
| 11 | 400-55604 | THREAD TAKE UP COMP. H | 1 |
| 12 | 400-50587 | KNIFE UNIT H | 1 |
| 13 | 110-95502 | KNIFE MOUNT BASE | (1) |
| 14 | 400-44190 | THREAD_GUIDE_FOR_KNIFE H | (1) |
| 15 | 114-09257 | MOVING KNIFE J ASM. | (1) |
| 16 | 400-09894 | FORKED BASE FOR KNIFE | (1) |
| 17 | 400-50589 | FIX KNIFE H | (1) |
| 18 | SD-0460703-TP | HINGE SCREW D=4.6 H=7 | (1) |
| 19 | SD-0500131-TP | HINGE SCREW D=5 H=1.25 | (1) |
| 20 | SS-2060210-SP | SCREW 3/32-56 L=2.3 | (1) |
| 21 | SS-4080620-TP | SCREW 1/8-44 L=6 | 2 |
| 22 | 400-00264 | BOBBIN CASE ASM. | 1 |
| 23 | 400-37313 | THREAD TENSION DISK ASM. H | 1 |
| 24 | 236-26005 | THREAD TENSION NUT | (1) |
| 25 | B3115-552-000 | TENSION POST | (1) |
| 26 | B3120-125-000 | ROTATING STOPPER | (1) |
| 27 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 28 | B3128-012-000 | TAKE-UP SPRING | (1) |
| 29 | B3132-552-000 | THREAD TENSION DISK PRESSER | (1) |
| 30 | 400-24845 | TENSION POST SOCKET ASM. | (1) |
| 31 | B3114-232-000 | THREAD TENSION SPRING | (1) |
| 32 | SS-8090670-SP | SCREW 9/64-40 L=5.5 | (1) |
| 33 | J1063-000-000 | WRENCH | 1 |
| 34 | 400-24124 | NEEDLE BAR THREAD GUIDE | 1 |
| 35 | 236-19059 | VERTICAL FEED CAM H ASM. | 1 |
| 36 | 236-19000 | VERTICAL FEED CAM H | (1) |
| 37 | SS-8151150-TP | SCREW 15/64-28 L=10.5 | (2) |
| 38 | 400-55058 | ASSY COUNTER WEIGHT H | 1 |
| 39 | 400-53411 | COUNTER WEIGHT H | (1) |
| 40 | 400-04171 | COUNTER_WEIGHT_SCREW | (1) |
| 41 | SM-8081652-TP | SCREW M8 L=16 | (1) |
| 42 | SM-80606A2-TP | SCREW M6 L=6 | (2) |
| 43 | 400-69369 | VERTICAL FEED CAM ASM. 2.0 | 1 |
| 44 | 400-69370 | VERTICAL FEED CAM 2.0 | (1) |
| 45 | SS-8151150-TP | SCREW 15/64-28 L=10.5 | (2) |
| 46 | 400-63697 | ARM THREAD GUIDE A H | 1 |
| 47 | 110-62601 | FEED DOG | 1 |
| 48 | 110-62007 | THROAT PLATE A | 1 |
| 49 | 114-03003 | FEED J | 1 |
Page 31 — 17. TABLE & STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 236-42259 | TABLE ASM. | 1 |
| 2 | 236-42200 | TABLE | (1) |
| 3 | 110-75900 | RUBBER SPACER | (2) |
| 4 | 110-75801 | RUBBER SPACER | (2) |
| 5 | B8210-012-000 | CUSHION SET NAIL | (4) |
| 6 | B8210-012-000 | CUSHION SET NAIL | (4) |
| 7 | D8226-555-E00 | FRAME RUBBER CUSHION A | (2) |
| 8 | 111-57567 | T LEG JUNCTION | 1 |
| 9 | GPK-700010A0 | 3-JOINT PEDAL 70 | 1 |
| 10 | 111-57559 | T-STAND ASM. | 1 |
| 11 | 111-55769 | SMALL CASTINGS BOX B ASM. | 1 |
| 12 | 111-56007 | CASE | (1) |
| 13 | 111-55801 | CASE MAGNET | (1) |
| 14 | 111-55751 | CASE ASM. B | (1) |
| 15 | SK-3382001-SC | WOOD SCREW D=3.8 L=20 | (4) |
| 16 | 111-55157 | DRAWER ASM. | 1 |
| 17 | 111-55108 | DRAWER | (1) |
| 18 | 111-55207 | DRAWER SUPPORT | (2) |
| 19 | SK-3311600-SE | WOOD SCREW D=3.1 L=16 | (6) |
| 20 | GPK-710010A0 | 2-PEDAL ASM. 71 | 1 |
| 21 | D8204-555-D00 | DRAWER STOPPER | 1 |
| 22 | SK-3513200-SC | WOOD SCREW D=5.1 L=32 | 4 |
| 23 | 111-59456 | CASTER ASM. | 1 |
| 24 | SM-9086523-SE | HEXAGONAL BOLT | (2) |
| 25 | 111-59407 | CASTER | (4) |
| 26 | 111-59506 | STRUT AUXILIARY PLATE | (2) |
| 27 | WS-0861410-KR | SPRING WASHER 8.6X15X1.4 | (2) |
| 28 | WP-0871602-SE | WASHER 8.7X18X1.6 | (2) |
| JT-D950 | JT-D950用 |
Page 32 — 18. SPECIAL ORDER PART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-65571 | ELECTRIC FAN HOOK COOLING DEVICE | 1 |
| 2 | 400-44065 | FAN_RELAY_CABLE | (1) |
| 3 | 400-64805 | FAN FILTER | (1) |
| 4 | 400-64806 | FAN COOLING COVER | (1) |
| 5 | 400-65564 | FAN MOTOR ASSY | (1) |
| 6 | SK-3415001-SE | SCREW D=4.1 L=50 | (2) |
| 7 | MAO-11532000 | CORD STAPLE | (3) |
| 8 | 400-65572 | HOOK COOLING DEVICE INSTRUCTION MANUAL | (1) |
Page 33 — 19. LIST FOR INFORMATION OF CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 400-37003 | ||
| 3 | 400-25729 | ||
| 7 | 400-86733 | ||
| 8 | SB-1200027-00 | SB-1200027-00 | |
| 9 | 400-44857 | ||
| 10 | 236-05207 | ||
| 18 | 400-20454 | ||
| 19 | 400-20455 | ||
| 20 | SM-8051610-SP | SM-8051610-SP | |
| 22 | 400-86729 | ||
| 26 | 401-07708 | ||
| 37 | 400-37370 | ||
| 38 | 400-90527 | ||
| 41 | SB-3070002-00 | SB-3070002-00 | |
| 42 | SB-3070002-0A | SB-3070002-0A | |
| 43 | SB-3070002-0B | SB-3070002-0B | |
| 44 | SB-3070002-0C | SB-3070002-0C | |
| 45 | SB-3070002-0D | SB-3070002-0D | |
| 51 | 400-90529 | ||
| 52 | 400-90528 | ||
| 53 | 228-91204 | ||
| 55 | RE-0600000-KO | RE-0600000-KO | |
| 1 | 236-09001 | ||
| 31 | 401-41839 | ||
| 44 | 401-41837 | ||
| 35 | SS-6110650-TP | SS-6110650-TP | |
| 58 | 236-20206 | ||
| 67 | D137-555-BAA-A | D137-555-BAA-A | |
| 81 | 400-86730 | ||
| 15 | SS-6090510-TP | SS-6090510-TP | |
| 2 | 401-35904 | ||
| 3 | 401-35916 | ||
| 7 | 401-50011 | ||
| 18 | 401-36292 | ||
| 19 | 401-36293 | ||
| 20 | SM-80506A2-TP | SM-80506A2-TP | |
| 22 | 401-41440 | ||
| 26 | 401-07707 | ||
| 37 | 401-35900 | ||
| 38 | 401-35905 | ||
| 39 | 401-41165 | ||
| 40 | 401-35906 | ||
| 41 | 401-43184 | ||
| 42 | 401-35907 | ||
| 43 | RE-0300000-KO | RE-0300000-KO | |
| 1 | 401-36700 | ||
| 31 | 401-61440 | ||
| 44 | 401-61441 | ||
| 35 | SS-6110710-TP | SS-6110710-TP | |
| 58 | 401-45927 | ||
| 67 | 110-38759 | ||
| 81 | 401-41443 | ||
| 15 | SS-6090670-TP | SS-6090670-TP |
Page 34
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 56 | 400-86710 | ||
| 2 | 400-82060 | ||
| 28 | SL-6051492-TN | ||
| 46 | 400-82061 | ||
| 28 | D1837-555-BAA-A | ||
| 56 | 401-36701 | ||
| 2 | 401-35639 | ||
| 28 | SM-6051402-TP | ||
| 45 | 401-49785 | ||
| 13 | 401-35640 | ||
| 50 | WP-0501016-SD | ||
| 28 | 110-38759 |
Page 37 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 9 | 400-37439 | 24 | |
| 10 | 400-37479 | 24 | |
| 48 | 400-37488 | 2 | |
| 38 | 400-37502 | 16 | |
| 37 | 400-38328 | 16 | |
| 2 | 400-41161 | 2 | |
| 10 | 400-42079 | 12 | |
| 27 | 400-42086 | 24 | |
| 2 | 400-44065 | 29 | |
| 3 | 400-44189 | 14 | |
| 14 | 400-44190 | 26 | |
| 24 | 400-50581 | 23 | |
| 39 | 400-50582 | 8 | |
| 21 | 400-50583 | 8 | |
| 1 | 400-50585 | 14 | |
| 13 | 400-50586 | 23 | |
| 12 | 400-50587 | 26 | |
| 18 | 400-50588 | 23 | |
| 17 | 400-50589 | 26 | |
| 12 | 400-51473 | 6 | |
| 13 | 400-51474 | 6 | |
| 3 | 400-52819 | 2 | |
| 45 | 400-52933 | 2 | |
| 39 | 400-53411 | 26 | |
| 40 | 400-53720 | 12 | |
| 38 | 400-55058 | 26 | |
| 10 | 400-55591 | 22 | |
| 11 | 400-55604 | 26 | |
| 46 | 400-56622 | 8 | |
| 9 | 400-58504 | 12 | |
| 13 | 400-61215 | 14 | |
| 8 | 400-61246 | 12 | |
| 3 | 400-61767 | 26 | |
| 2 | 400-62321 | 21 | |
| 4 | 400-62323 | 21 | |
| 46 | 400-63697 | 26 | |
| 3 | 400-64805 | 29 | |
| 4 | 400-64806 | 29 | |
| 8 | 400-64839 | 26 | |
| 5 | 400-65564 | 29 | |
| 1 | 400-65571 | 29 | |
| 8 | 400-65572 | 29 | |
| 24 | 400-69097 | 2 | |
| 20 | 400-69110 | 20 | |
| 43 | 400-69369 | 26 | |
| 44 | 400-69370 | 26 | |
| 23 | 400-75404 | 16 | |
| 29 | 400-77851 | 19 | |
| 16 | 400-77852 | 19 | |
| 2 | 400-77853 | 19 | |
| 1 | 400-82059 | 16 | |
| 30 | 400-82078 | 8 | |
| 17 | 400-85784 | 20 | |
| 18 | 400-85785 | 20 | |
| 2 | 400-85786 | 20 | |
| 3 | 400-85787 | 20 | |
| 4 | 400-85788 | 20 | |
| 5 | 400-85789 | 20 | |
| 6 | 400-85790 | 20 | |
| 7 | 400-85791 | 20 | |
| 19 | 400-85792 | 20 | |
| 20 | 400-85793 | 20 | |
| 8 | 400-85794 | 20 | |
| 9 | 400-85795 | 20 | |
| 23 | 400-85796 | 20 | |
| 1 | 400-86597 | 6 | |
| 5 | 400-86602 | 23 | |
| 23 | 400-86604 | 24 | |
| 22 | 400-86604 | 24 | |
| 1 | 400-86605 | 23 | |
| 20 | 400-86605 | 24 | |
| 2 | 400-86606 | 8 | |
| 3 | 400-86607 | 8 | |
| 5 | 400-86608 | 10 | |
| 22 | 400-86609 | 10 | |
| 24 | 400-88958 | 4 | |
| 26 | 400-88959 | 4 | |
| 11 | 400-89196 | 4 | |
| 19 | 400-89263 | 14 | |
| 6 | 400-89264 | 19 | |
| 6 | 400-89274 | 23 | |
| 29 | 400-89323 | 22 | |
| 1 | 400-89605 | 26 | |
| 75 | 400-89607 | 12 | |
| 9 | 400-89610 | 26 | |
| 1 | 400-89663 | 22 | |
| 3 | 400-89665 | 21 | |
| 3 | 400-89671 | 21 | |
| 26 | 400-89672 | 14 | |
| 32 | 400-90058 | 6 | |
| 80 | 400-90099 | 14 | |
| 2 | 400-91140 | 22 | |
| 91 | 400-91397 | 2 | |
| 38 | 400-91461 | 2 | |
| 11 | 400-94561 | 2 | |
| 5 | 400-95175 | 19 | |
| 82 | 400-95218 | 14 | |
| 41 | 400-95843 | 14 | |
| 12 | 400-95844 | 18 | |
| 40 | 400-95847 | 10 | |
| 50 | 400-95870 | 14 | |
| 83 | 400-95873 | 14 | |
| 21 | 400-96325 | 20 | |
| 10 | 400-96326 | 20 | |
| 12 | 400-96327 | 20 | |
| 31 | 400-96329 | 16 | |
| 3 | 400-97336 | 22 | |
| 4 | 400-97337 | 22 | |
| 33 | 401-07707 | 6 | |
| 16 | 401-08401 | 20 | |
| 1 | 401-14043 | 2 | |
| 44 | 401-23098 | 10 | |
| 42 | 401-35640 | 10 | |
| 13 | 401-35803 | 16 | |
| 28 | 401-35900 | 22 | |
| 37 | 401-35904 | 6 | |
| 2 | 401-35905 | 6 | |
| 38 | 401-35906 | 6 | |
| 40 | 401-35907 | 6 | |
| 42 | 401-36292 | 6 | |
| 3 | 401-36293 | 6 | |
| 18 | 401-36700 | 8 | |
| 56 | 401-36701 | 14 | |
| 39 | 401-41165 | 6 | |
| 22 | 401-41440 | 6 | |
| 81 | 401-41838 | 12 | |
| 33 | 401-41840 | 10 | |
| 32 | 401-41841 | 10 | |
| 34 | 401-41842 | 10 | |
| 29 | 401-41843 | 24 | |
| 8 | 401-43184 | 6 | |
| 58 | 401-45927 | 12 | |
| 45 | 401-49785 | 16 | |
| 7 | 401-50011 | 6 | |
| 31 | 401-61440 | 10 | |
| 44 | 401-61441 | 10 |
Juki DDL-9000B (37 pages) — parts catalog
- Page 1 (cover): This is the cover page for the DDL-9000B parts list, featuring the title "PARTS LIST" and the model number "DDL-9000B".

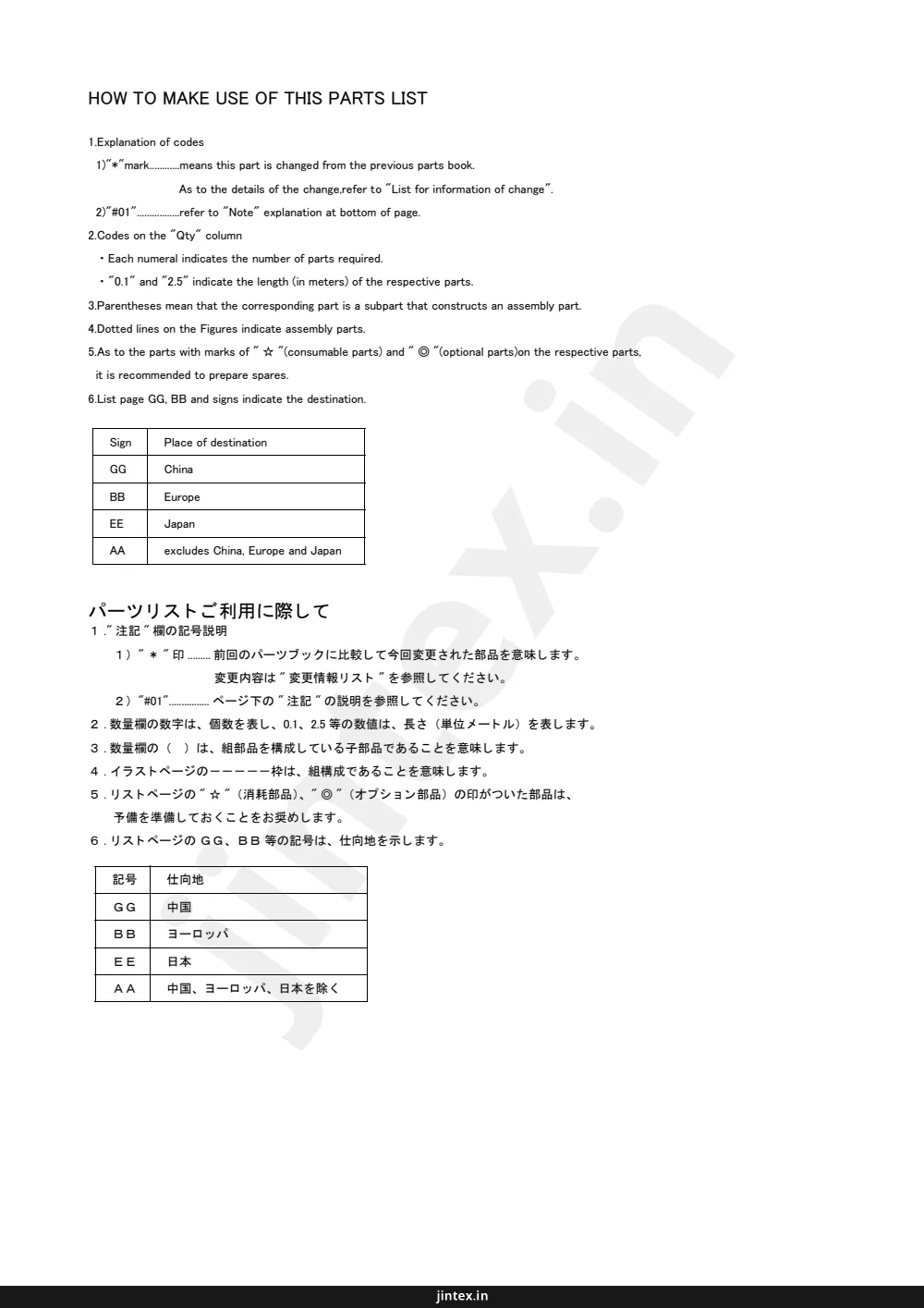

- Page 2 (text): This page explains how to use the parts list, including explanations of codes, quantity column meanings, and destination signs.
- Page 3 (toc): This page is a table of contents for a parts catalog, listing sections like "MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS" and "BOBBIN WINDER COMPONENTS" with corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with numbered parts and their corresponding references.
- Page 5 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes. It covers a wide range of components from plates and screws to labels and covers.
- Page 6 (diagram): This page displays a diagram of bobbin winder components, with numbered parts and their corresponding references.
- Page 7 (parts_list): This page lists parts for a bobbin winder unit, including various screws, springs, and tension components, with their corresponding part numbers and quantities.
- Page 8 (diagram): This page displays a diagram of main shaft and needle bar components, with numbered parts and their corresponding references.
- Page 9 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including shafts, screws, bearings, motors, and other hardware, with part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of hand lifter and tension release components, with numbered parts for identification.
- Page 11 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It covers components like levers, screws, springs, and nuts.
- Page 12 (diagram): This page displays a diagram of the feed adjust mechanism components, with numbered parts and their corresponding details.
- Page 13 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It covers items from reference number 1 to 47.
- Page 14 (diagram): This page displays a diagram of horizontal feed, vertical feed, and hook driving shaft components, with numbered parts for identification.
- Page 15 (parts_list): This page lists parts for the sewing machine, including part numbers, descriptions, and quantities. It also contains notes and references for specific parts.
- Page 16 (diagram): This page displays a diagram of thread trimmer components, with numbered parts and their corresponding references.
- Page 17 (parts_list): This page lists parts for the sewing machine, including part numbers, descriptions, and quantities. It covers items from reference number 1 to 83.
- Page 18 (diagram): This page displays the oil lubrication components for the sewing machine, including various screws, gaskets, tubes, and filters, with reference numbers for each part.
- Page 19 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It contains items such as gear box covers, rubber rings, screws, and oil filters.
- Page 20 (diagram): This page displays a diagram of automatic reverse feed components, with numbered parts and their corresponding references.
- Page 21 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details various components like solenoids, plungers, screws, washers, and cables.
- Page 22 (diagram): This page displays a diagram of wiper components for the DDL-9000B-**-WB model, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 23 (parts_list): This page lists components for thread stand, including part numbers, descriptions, and quantities.
- Page 24 (parts_list): This page lists components for the under cover, including part numbers, descriptions, and quantities.
- Page 25 (parts_list): This page lists accessory components with their part numbers, descriptions, and quantities, including items like screwdrivers, wrenches, needles, and bobbins.
- Page 26 (parts_list): This page lists exclusive parts for the DDL-9000B DS model sewing machine, including part numbers, descriptions, and quantities.
- Page 27 (parts_list): This page lists exclusive parts for DDL-9000B MS,MA sewing machines, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of exclusive parts for the DDL-9000B SH sewing machine, with numbered components for easy identification.
- Page 29 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes.
- Page 30 (diagram): This page displays a diagram of table and stand components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 31 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, quantities, and notes. It details items like tables, rubber spacers, cushions, and various hardware components.
- Page 32 (diagram): This page displays a diagram and parts list for special order parts, including an electric fan hook cooling device, fan relay cable, fan filter, fan cooling cover, fan motor assy, screws, cord staple, and instruction manual.
- Page 33 (text): This page contains a list of changes, including added and obsolete parts, with their corresponding revision numbers, page references, and part numbers.
- Page 34 (parts_list): This page contains a parts list with columns for Rev. No., Page, Ref. No., and Parts No. for various components.
- Page 37 (parts_list): This page contains a numerical index of parts for a sewing machine, listing part numbers, page references, and reference numbers in diagrams.
