Page 3 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-900A parts on page 3

Ref	Part number	Part name	Qty
8	60	BRACKET
11	10	BRACKET
62	61	COVER
67	67	MOTOR
9	9	CAP
15	15	GEAR
14	14	SHAFT
56	56	GEAR
16	16	RING
64	64	FRAME
18	18	SHAFT
17	17	SCREW
19	19	RING
65	65	COVER
13	13	COVER
21	21	BRACKET
22	22	SHAFT
24	24	WASHER
25	25	SPRING
26	26	GEAR
23	23	BRACKET
41	41	SHAFT
40	40	COLLAR
39	39	SPRING
38	38	SHAFT
37	37	WASHER
36	36	WASHER
35	35	SPRING
34	34	SPRING
33	33	GEAR
32	32	SHAFT
57	57	COVER
63	63	COVER
55	55	SHAFT
44	44	PLATE
46	46	SCREW
45	45	SCREW
51	51	COVER
52	52	PLATE
53	53	SPRING
54	54	SCREW
49	49	SCREW
50	50	SCREW
47	47	SCREW
48	48	SCREW
1	1	COVER
2	2	COVER
3	3	SCREW
4	4	BRACKET
12	12	FRAME
58	58	PLATE
59	59	SCREW
42	42	BRACKET
30	30	SPRING
31	31	SHAFT
43	43	SHAFT
20	20	HANDLE
28	28	SCREW
29	29	SCREW
66	66	COVER
7	7	SHAFT
5	5	SPRING
6	6	CAP
27	27	SCREW

Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-900A parts on page 4

Ref	Part number	Part name	Qty
	40102097	FACE PLATE ASM.	1
	40012126	FACE PLATE PACKING	1
	SS6080410SP	SCREW 1/8-44 L=4	1
	40156677	ARM OIL SHIELD ASSY	1
	TA0850604R0	RUBBER PLUG	2
	TA1250705R0	RUBBER PLUG	1
	22958300	NEEDLE THREAD GUIDE PIN	1
	SS4120925SP	SCREW 3/16-28 L=9	8
	TA2100904R0	RUBBER PLUG	1
	22900401	WINDOW PLATE	1
	40012129	SIDE PLATE PACKING	1
	CM300200001	ATTENTION SEAL	2
	40102261	SAFETY LABEL S	1
	22901805	GROUND MARK	1
	SS4120615SP	SCREW 3/16-28 L=6	1
	TA2000502R0	RUBBER PLUG	1
	SS6121840SP	SCREW 3/16-28 L=18	1
	22952501	BACK LEVER STOPPER	1
	TA2101002R0	RUBBER PLUG	1
	11415205	THREAD TAKE-UP LEVER COVER(JE)
	22945463	THREAD TENSION ASM. NO.1	1
	22945414	THREAD TENSION POST	1
	22945604	THREAD TENSION GUIDE	1
	22945802	THREAD TENSION DISK	2
	22945505	THREAD TENSION SPRING	1
	22945703	THREAD TENSION NUT	1
	SS4120615SP	SCREW 3/16-28 L=6	1
	22900609	THREAD TAKE-UP LEVER COVER
	SS4120615SP	SCREW 3/16-28 L=6	1
	22920508	ARM THREAD GUIDE A	1
	22921001	SCREW	1
	22945356	THREAD TENSION ASM.	1
	22921308	THREAD TENSION NUT	1
	22921407	ROTATION STOPPER	1
	22921704	THREAD TENSION SPRING A	1
	22921803	DISK STOPPER	1
	22921506	THREAD TENSION DISK	2
	22921209	THREAD TENSION POST	1
	22921605	THREAD TAKE-UP SPRING	1
	22945307	THREAD TENSION POST BASE	1
	SS8090670SP	SCREW 9/64-40 L=5.5	1
	SS8150710TP	SCREW 15/64-28 L=7	1
	22920904	TENSION RELEASING	1
	B1109552000	THROAT PLATE	1
	SS2110920TP	SCREW 11/64-40 L=8.5	1
	SS2110915SP	SCREW 11/64-40 L=8.5	1

Page 5 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-900A parts on page 5

Ref	Part number	Part name	Qty
8	8	SPRING
60	60	BRACKET
10	10	BRACKET
11	11	BRACKET
61	61	COVER
62	62	COVER
67	67	MOTOR
29	29	SCREW
28	28	HANDLE
20	20	HANDLE
27	27	SPRING
7	7	SHAFT
5	5	SPRING
6	6	CAP
12	12	MACHINE BED
42	42	BRACKET
59	59	BRACKET
58	58	BRACKET
3	3	BRACKET
4	4	BRACKET
1	1	COVER
2	2	COVER
49	49	SCREW
50	50	SCREW
47	47	BRACKET
48	48	BRACKET
55	55	SHAFT
57	57	COVER
63	63	COVER
15	15	GEAR
56	56	GEAR
14	14	PIN
9	9	CAP
64	64	MACHINE BED
16	16	RING
19	19	RING
18	18	SHAFT
17	17	SCREW
65	65	COVER
13	13	COVER
21	21	BRACKET
22	22	BRACKET
23	23	SHAFT
24	24	WASHER
25	25	WASHER
26	26	NUT
43	43	BRACKET
41	41	BRACKET
40	40	SPRING
39	39	SPRING
38	38	WASHER
37	37	WASHER
36	36	WASHER
35	35	GEAR
34	34	GEAR
33	33	GEAR
32	32	SHAFT
31	31	BRACKET
30	30	BRACKET
51	51	COVER
52	52	COVER
53	53	COVER
54	54	SCREW
44	44	COVER
45	45	SCREW
46	46	SCREW

Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-900A parts on page 6

Ref	Part number	Part name	Qty
	22920607	ARM THREAD GUIDE B	1
	SS6110610TP	SCREW 11/64-40 L=6	1
	TA1250406R0	RUBBER PLUG D=12.5 L=4	2
	SS4120925SP	SCREW 3/16-28 L=9	3
	22901250	SLIDE PLATE ASM.	1
	22901201	SLIDE PLATE
	22901300	SLIDE PLATE SPRING
	SS6060210SP	SCREW 3/32-56 L=1.9
	22901003	BED SCREW STUD	4
	WT0530002KS	TOOTHED WASHER D=5.3	1
	22935407	BED OIL SHIELD RUBBER	1
	40099083	RULER STOP SEAT	1
	SS7110720SP	SCREW 11/64-40 L=7	2
	40126308	CORD,CLAMP	1
	40111896	CORD,CLAMP	1
	SS4120615SP	SCREW 3/16-28 L=6	1
	40139555	THREAD NIPPER COMPONENTS
	40156893	EMBLEM DDL900A F	1
	40157335	OIL INJECTION CAUTION SEAL	1
	40156894	EMBLEM DDL900A R	1
	40140416	AK85B_DEVICE

Page 7 — BOBBIN WINDER COMPONENTS

Juki DDL-900A parts on page 7

Ref	Part number	Part name	Qty
2	2	BOBBIN WINDER BODY
3	3	WINDER SHAFT
4	4	WINDER SHAFT BUSHING
5	5	WINDER SHAFT COLLAR
6	6	WINDER SHAFT BRACKET
7	7	WINDER SHAFT WASHER
8	8	WINDER SHAFT WASHER
9	9	WINDER SHAFT
10	10	WINDER PULLEY
11	11	WINDER SHAFT BUSHING
12	12	WINDER SHAFT WASHER
13	13	WINDER SHAFT BUSHING
14	14	WINDER SHAFT SPRING
15	15	WINDER SHAFT SPRING
16	16	WINDER SHAFT
17	17	WINDER ARM
18	18	WINDER ARM BUSHING
19	19	WINDER ARM BUSHING
20	20	SCREW
21	21	WINDER ARM BUSHING
22	22	SCREW
23	23	WINDER ARM SPRING
24	24	WINDER ARM SPRING
25	25	WINDER SHAFT
26	26	WINDER SHAFT
27	27	NUT
28	28	WINDER SHAFT WASHER
29	29	WINDER SHAFT WASHER
30	30	WINDER SHAFT CAP
31	31	SCREW
32	32	WINDER ARM BRACKET
33	33	WINDER SHAFT WASHER
34	34	SCREW
35	35	SCREW

Page 8 — BOBBIN WINDER COMPONENTS

Juki DDL-900A parts on page 8

Ref	Part number	Part name	Qty
	40110976	BOBBIN_WINDER_UNIT	1
	26260109	BTW_BASE
	26260208	BTW_CAM_PLATE
	26260307	BTW_BASE_SHAFT
	26260406	BTW_SHAFT_BASE
	26260505	BTW_CAM_LEVER
	26260604	BTW_WHEEL
	26260802	BTW_BEARING_SPACER
	26261008	BTW_LEVER_SHAFT
	26261206	BTW_SPACER
	26261305	BTW_BEARING
	26261503	BTW_WHEEL_RUBBER
	26261602	BOBBIN_SPRING
	26261701	BTW_SPRING
	40011144	BTW_TORSION_SPRING
	40110975	BTW_SHAFT
	40021933	BTW_LEVER
	RC0560711KP	RETAINING RING
	RE0400000K0	E-RING 4
	SMS040655SN	SCREW
	SM8040802TP	SCREW M4X8
	SM8050502TP	SCREW M5 L=5
	WP0450826SC	WASHER 4.5X10X0.8
	40119475	OIL_GUARD
	40110731	BOBBIN_THREAD_TENSION_ASSY
	40110734	BOBBIN_THREAD_ROD_ASSY
	NS6120630SP	NUT 3/16-28
	22921506	THREAD_TENSION_DISK
	D7133555B00	CONNECTING ROD SPRING
	22945703	THREAD_TENSION_NUT
	SM0050801SC	SCREW
	40037008	THREAD_CUTTER
	40163521	PACKING
	40113241	BTW_SPACER
	SM0050801SC	SCREW	3

Page 9 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS

Juki DDL-900A parts on page 9

Ref	Part number	Part name	Qty
	1	9~12
	2	9~12
	3	9~12
	4	9~12
	5	9~12
	6	9~12
	7	9~12
	8	9~12
	13	9~12
	14	9~12
	15	9~12
	16	9~12
	17	9~12
	18	9~12
	19	9~12
	20	9~12
	21	9~12
	22	9~12
	23	9~12
	24	9~12
	25	9~12
	26	9~12
	27	9~12
	28	9~12
	29	9~12
	30	9~12
	31	9~12
	32	9~12
	33	9~12
	34	9~12
	35	9~12
	36	9~12
	37	9~12
	38	9~12
	39	9~12
	40	9~12
	41	9~12
	42	9~12
	43	9~12
	44	9~12
	45	9~12
	46	9~12

Page 10 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS

Juki DDL-900A parts on page 10

Ref	Part number	Part name	Qty
	SS8151150TP	SCREW 15/64-28 L=10.5	1
	22919559	THREAD TAKE-UP CRANK SHAFT ASM.	1
	11002904	ROLLER FELT	1
	22918072	THREAD TAKE-UP LEVER COMPL.	1
	22918064	THREAD TAKE-UP LEVER ASM.
	22918304	LEFT SCREW
	22918106	NEEDLE BAR CRANK
	22906606	NEEDLE BAR CRANK ROD
	22918403	NEEDLE BEARING A
	22918502	NEEDLE BEARING B
	22918601	NEEDLE BEARING C
	22918700	NEEDLE BEARING D
	22910103	THRUST COLLAR	1
	22903900	ADJUSTING PIN	1
	40110977	MAIN SHAFT	1
	22910053	FEED DRIVE ECCENTRIC CAM ASM.	2
	SS6661110SP	SCREW 1/4-40 L=11
	22910004	FEED DRIVE ECCENTRIC CAM
	SS4090615SP	SCREW 9/64-40 L=6	2
	40110978	MAIN SHAFT BUSHING	1
	40139216	OIL SEAL	1
	RC1850001KP	SNAP RING 18.5	1
	22904155	MAIN SHAFT THRUST COLLAR ASM.	1
	SS8660610TP	SCREW 1/4-40 L=6
	22903207	MAIN SHAFT BUSHING FRONT	1
	B121552000	OIL ADJUSTING COLLAR	1
	22903306	BUSHING INTERMEDIATE	1
	40110979	MAIN MOTOR BASE 76	1
	22919203	OIL PROTECTING RUBBER	1
	22538805	DRIVING WHEEL	1
	SS8660610TP	SCREW 1/4-40 L=6	2
	40111424	FILTER	1
	SM80608A2TP	SCREW M6 L=8	2
	40200576	HAND PULLEY	1
	RO029180100	RUBBER RING	1
	40111025	COUPLING ASM.	1
	40140419	SERVO MOTOR	1
	SL6052592TN	BOLT	3
	SL6051492TN	BOLT	3
	40110390	COUNTER WEIGHT ASM.	1
	SS8681650TP	SCREW 9/32-28 L=16
	SS8660610TP	SCREW 1/4-40 L=6
	RO044240100	RUBBER RING
	SS7681650TP	SCREW 9/32-28 L=16
	40110376	COUNTER WEIGHT
	40156681	FILTER	1

Page 11 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-900A parts on page 11

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3.49	3	3.49
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41
42~44	42~44	42~44
45	45	45
46	46	46
47	47	47
48	48	48
50	50	50

Page 12 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-900A parts on page 12

Ref	Part number	Part name	Qty
	TA0850604R0	RUBBER PLUG	1
	22906101	NEEDLE BAR BUSHING UPPER	1
	22939508	NEEDLE BAR	1
	22906457	NEEDLE BAR HOLDER ASM.	1
	SS6090670TP	SCREW 9/64-40 L=6
	40090058	SLIDE BLOCK	1
	40141523	NEEDLE BAR THREAD GUIDE P	1
	22906200	NEEDLE BAR BUSHING LOWER	1
	SS7080510TP	SCREW 1/8-44 L=4.5
	22906309	NEEDLE BAR THREAD GUIDE	2
	MDB100B1400	NEEDLE DBX1 #14	1
	40145927	OIL SEAL	1
	RO069180100	RUBBER RING	1
	40090002	UPPER LARGE BEVEL GEAR ASM.	1
	SS8660810TP	SCREW 1/4-40 L=8
	40090003	UPPER SMALL BEVEL GEAR ASM.	2
	SS8660810TP	SCREW 1/4-40 L=8
	22932909	BOBBIN	2
	40090004	LOWER LARGE BEVEL GEAR ASM.	1
	SS8660810TP	SCREW 1/4-40 L=8
	40090005	LOWER SMALL BEVEL GEAR ASM.	2
	SS8660810TP	SCREW 1/4-40 L=8
	22905004	UPRIGHT SHAFT	2
	11038759	BOBBIN CASE ASM.	1
	22905103	UPRIGHT SHAFT BUSHING UPPER	1
	22905202	UPRIGHT SHAFT BUSHING LOWER	1
	22916308	HOOK DRIVING SHAFT BUSH REAR	1
	CQ220000000	OUL WICK	0.3
	22917157	THRUST COLLAR ASM. REAR	1
	SS6110420TP	SCREW 11/64-40 L=4.8
	40156687	HOOKDRIVING SHAFT	1
	22942502	INNER HOOK PRESSER	1
	SS4110915TP	SCREW 11/64-40 L=9	1
	11038650	HOOK ASM.	1
	40156815	HOOK SHAFT METAL ASSY	1
	22916555	OIL SEAL SCREW ASM.	1
	11015906	OIL WICK	1
	22916506	SET SCREW	1
	SS4120925SP	SCREW 3/16-28 L=9	1
	40156698	GEAR OIL GUARD PLATE	1
	SM6050802TP	SCREW M5X0.8 L=8	1
	22890404	RP HOOK C
	22890206	RP HOOK
	22890305	RP HOOK S
	B9117552A00	BOBBIN
	22896252	BOBBIN CASE ASM.
	RO036080200	RUBBER RING

Page 13 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-900A parts on page 13

Ref	Part number	Part name	Qty
	1	1
	2	2
	3.49	3.49
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42~44	42~44
	45	45
	46	46
	47	47
	48	48

Page 14 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-900A parts on page 14

Ref	Part number	Part name	Qty
	11079506	FRONT SCREW
	22939607	NEEDLE BAR B
	WP0501016SD	WASHER 5X10.5X1

Page 15 — HAND LIFTER COMPONENTS

Juki DDL-900A parts on page 15

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46

Page 16 — HAND LIFTER COMPONENTS

Juki DDL-900A parts on page 16

Ref	Part number	Part name	Qty
	22907802	HAND LIFTER	1
	B1521555000	SCREW	1
	RO037180100	RUBBER RING	1
	22908552	HAND LIFTER CAM ASM.	1
	40060989	PRESSER BAR BUSHING LOWER	1
	SS7091110TP	SCREW 9/64-40 L=10.5	1
	22908701	LINK SHAFT	2
	RE0500000K0	E-RING	3
	B15240120BA	PRESSER FOOT ASM.	1
	22944706	WIRE PRESSER BASE LOWER	1
	22908909	HINGE SCREW	1
	SD0720331SP	HINGE SCREW D=7.24 H=3.3	1
	22909006	KNEE LIFTER CONNECTING ROD	1
	22908800	KNEE LIFTER LINK	1
	SS4110515SP	SCREW 11/64-40 L=5	2
	SS4110515SP	SCREW 11/64-40 L=5	1
	SS4150915SP	SCREW 15/64-28 L=9	1
	22944508	WIRE PRESSER A	2
	SS4120615SP	SCREW 3/16-28 L=6	1
	22944607	WIRE PRESSER BASE UPPER	1
	NS6620310SP	NUT 3/16-32	2
	RE0500000K0	E-RING	2
	22920201	RETURN SPRING	1
	22920409	THREAD RELEASE PIN SPRING	1
	22945109	WIRE CABLE SUPPORT	1
	22920300	THREAD RELEASE SUPPORTING PIN	1
	SS4120615SP	SCREW 3/16-28 L=6	1
	22944854	THREAD RELEASE WIRE ASM.	1
	22920102	TENSION RELEASE SHAFT	1
	22907554	PRESSER SPRING REGULATOR ASM.	1
	22907604	PRESSER SPRING REGULATOR NUT	1
	22907505	PRESSER SPRING REGULATOR	1
	22907406	PRESSER SPRING	1
	22907208	PRESSER BAR GUIDE BRACKET	1
	40017805	PRESSER BAR	1
	22907307	THREAD GUIDE	1
	SS8660810TP	SCREW 1/4-40 L=8	2
	SS6090910SP	SCREW 9/64-40 L=9	1
	22908354	KNEE LIFTING CROSS ROD ASM.	1
	22908156	LIFTING LINK ASM.	1
	RE0500000K0	E-RING	1
	22908008	LIFTING PLATE	1
	RE0500000K0	E-RING	1
	22908305	KNEE LIFTER SIDE ROD	1
	22907703	PRESSER GUIDE BAR	1
	CQ2020000000	OIL WICK	0.2

Page 17 — FEED MECHANISM COMPONENTS

Juki DDL-900A parts on page 17

Ref	Part number	Part name	Qty
	1	Lever
	2	Screw
	3	Washer
	4	Spring
	5	Screw
	6	Nut
	7	Shaft
	8	Pin
	9	Washer
	10	Handwheel
	11-12	Shaft
	13	Pin
	14	Spring
	15-16	Lever
	17	Spring
	18	Clip
	19	Bracket
	20	Spring
	21	Lever
	22	Spring
	23	Shaft
	24	Pin
	25	Lever
	26	Lever
	27	Bracket
	28	Shaft
	29	Pin
	30	Screw
	31	Shaft
	32	Clip
	33	Lever
	34	Screw
	35	Lever
	36	Screw
	37	Washer
	38	Bracket
	39	Shaft
	40	Screw
	41	Screw
	42	Nut
	43	Washer
	44	Bracket
	45	Screw
	46	Spring
	47	Screw
	48	Shaft
	49	Shaft
	50	Washer
	51	Shaft
	52	Gear
	53	Screw
	54	Clip
	55	Shaft
	56	Screw
	57	Washer
	58	Lever
	59	Screw
	60	Bracket
	61	Spring
	62	Shaft
	63	Screw
	64	Washer
	65	Shaft
	66	Shaft
	67	Shaft
	68	Shaft
	69	Bracket
	70	Washer
	71	Screw
	72	Washer
	73	Shaft
	74	Washer
	75	Shaft

Page 19 — FEED MECHANISM COMPONENTS

Juki DDL-900A parts on page 19

Ref	Part number	Part name	Qty
	1	Lever
	2	Screw
	3	Washer
	4	Spring
	5	Screw
	6	Screw
	7	Shaft
	8	Pin
	9	Washer
	10	Knob
	11-12	Shaft
	13	Pin
	14	Spring
	15-16	Lever
	17	Spring
	18	Clip
	19	Bracket
	20	Spring
	21	Lever
	22	Spring
	23	Shaft
	24	Pin
	25	Lever
	26	Link
	27	Lever
	28	Shaft
	29	Shaft
	30	Screw
	31	Shaft
	32	Clip
	33	Lever
	34	Screw
	35	Lever
	36	Screw
	37	Screw
	38	Bracket
	39	Shaft
	40	Screw
	41	Screw
	42	Nut
	43	Washer
	44	Washer
	45	Screw
	46	Spring
	47	Screw
	48	Shaft
	49	Shaft
	50	Clip
	51	Shaft
	53	Shaft
	54	Clip
	55	Shaft
	56	Screw
	57	Washer
	58	Shaft
	59	Spring
	60	Lever
	61	Spring
	62	Shaft
	63	Clip
	64	Washer
	65	Lever
	66	Shaft
	67	Shaft
	68	Shaft
	69	Shaft
	70	Washer
	71	Shaft
	72	Washer
	73	Shaft
	74	Washer
	75	Shaft

Page 20 — FEED MECHANISM COMPONENTS

Juki DDL-900A parts on page 20

Ref	Part number	Part name	Qty
	SD1000801SH	HINGE SCREW D=10 H=8	1
	40156686	FEED DRIVING SHAFT	1
	40137504	THRUST COLLAR ASM.	1
	SS8660610TP	SCREW 1/4-40 L=6	2
	40162859	FEED_ROCKER_SHAFT BUSHING
	40111897	BEARING	1
	SS7110740TP	SCREW 11/64-40 L=7	1
	RC0150001KP	RETAINING RING 13.8	1
	22940654	FEED ROCKER ASM.	1
	SS7121410TP	SCREW 3/16-28 L=14	1
	WP0480856SP	WASHER 4.8X8.4X0.8	1
	22915359	DRIVING SHAFT CRANK ASM.	1
	SS711120SP	SCREW 11/64-40 L=10.5	1
	40102264	FEED_REVER_ASM.	1
	SM8061010TP	SCREW	2
	22904155	MAIN SHAFT THRUST COLLAR ASM.	1
	SS8660610TP	SCREW 1/4-40 L=6	2
	40156758	FEED SHAFT RUBBER
	TA0950806R0	RUBBER PLUG	1
	40086740	OIL SEAL	1
	RO133170100	RUBBER RING	1
	40100812	FEED LEVER SHAFT	1
	22912802	FEED LEVER SHAFT BUSHING	1
	RO078190100	RUBBER RING	1
	40158189	BUSHING
	TA2000502R0	RUBBER PLUG
	22915003	CONNECTING ROD	1
	RO092270200	RUBBER RING	1
	22913008	FEED ROCKER SHAFT BUSHING	1

Page 21 — THREAD TRIMMER COMPONENTS

Juki DDL-900A parts on page 21

Ref	Part number	Part name	Qty
2	2	Screw
9	9	Screw
10	10	Lever
5	5	Spring
6	6	Screw
12	12	Screw
13	13	Lever
14	14	Lever
15	15	Screw
16	16	Screw
17	17	Screw
18	18	Nut
19	19	Housing
20	20	Shaft
21	21	Lever
22	22	Screw
23	23	Bracket
24	24	Lever
25	25	Lever
26	26	Screw
27	27	Washer
28	28	Spring
29	29	Spring
30	30	Lever
31	31	Lever
32	32	Lever
33	33	Lever
34	34	Screw
35	35	Screw
36	36	Lever
37	37	Screw
38	38	Spring
39	39	Screw
40	40	Pin
41	41	Spring
42	42	Screw
43	43	Lever
44	44	Lever
45	45	Screw
46	46	Washer
47	47	Nut
48	48	Screw
49	49	Screw
50	50	Screw
51	51	Motor
52	52	Washer
53	53	Screw
54	54	Bracket
55	55	Motor
56	56	Shaft
57	57	Screw
58	58	Screw
59	59	Cable
60	60	Screw
61	61	Screw
62	62	Lever
63	63	Screw

Page 22 — THREAD TRIMMER COMPONENTS

Juki DDL-900A parts on page 22

Ref	Part number	Part name	Qty
	40130579	KNIFE UNIT	1
	SD0460703TP	HINGE SCREW D=4.6 H=7	1
	22948202	FORKED BASE FOR KNIFE	1
	11040409	MOVING KNIFE HINGE SCREW	1
	11040052	MOVING KNIFE ASM.
	40130580	KNIFE INSTALLING BASE	1
	22947808	THREAD GUIDE FOR KNIFE
	SS2060210SP	SCREW 3/32-56 L=2.3	1
	SD4080620TP	SCREW 1/8-44 L=6	2
	D240655D0H	COUNTER KNIFE	1
	SD0640631TP	HINGE SCREW D=6.35 H=6.3	1
	SS4110715SP	SCREW 11/64-40 L=7	1
	22950257	PICKER ARM ASM.	1
	22950208	PICKER ARM	1
	22950356	HOOK THREAD PRESSER ASM.	1
	SS6090510TP	SCREW 9/64-40 L=5.0	2
	SD0641451SP	HINGE SCREW D=6.35 H=14.5	1
	SD0630275SP	HINGE SCREW D=6.35 H=2.7	1
	22950851	THREAD TRIMMER CAM ASM.	1
	SS6660610TP	SCREW 1/4-40 L=6	2
	22950950	CAM COLLAR ASM.	1
	SS8110520TP	SCREW 11/64-40 L=4.5	1
	40156728	THREAD TRIMMER DRIVING UNIT	1
	22949754	BASE PLATE ASM.	1
	22950703	DRIVING ARM STOPPER	1
	22950000	PICKER LINK PIN	1
	RE0600000K0	E-RING 6	1
	SS4110715SP	SCREW 11/64-40 L=7	2
	22949408	CLUTCH SPRING	1
	40087245	CLUTCH PLATE ASM.	1
	40156999	PICKER_LINK_ASM	1
	40156699	PICKER LINK	1
	40156721	PICKER LINK RUBBER	1
	RE0600000K0	E-RING 6	1
	40157336	MOVING KNIFE LINK ASM.	1
	22948301	MOVING KNIFE LINK	1
	22919203	OIL PROTECTING RUBBER	1
	22949309	KNIFE RETURN SPRING B	1
	RE0400000K0	E-RING 4	2
	22949101	ROLLER FULCRUM SHAFT	1
	22949200	ROLLER RETURN SPRING	1
	SS7090610SP	SCREW 9/64-40 L=6	1
	22949002	ROLLER ARM SEAT	1
	11040953	ROLLER ARM ASM.	1
	22948558	KNIFE DRIVING ARM ASM.	2
	WP0621016SH	WASHER	2
	NS6150430SP	NUT 15/64-28	2

Page 23

Juki DDL-900A parts on page 23

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	SCREW
3	3	BRACKET
4	4	SPRING
5	5	PIN
6	6	BRACKET
7	7	BRACKET
8	8	SPRING
9	9	SCREW
10	10	BRACKET
11	11	BRACKET
12	12	SCREW
13	13	BRACKET
14	14	BRACKET
15	15	BRACKET
16	16	BRACKET
17	17	SCREW
18	18	NUT
19	19	BRACKET
20	20	BRACKET
21	21	BRACKET
22	22	SPRING
23	23	BRACKET
24	24	BRACKET
25	25	BRACKET
26	26	PIN
27	27	WASHER
28	28	SPRING
29	29	SPRING
30	30	BRACKET
31	31	BRACKET
32	32	BRACKET
33	33	BRACKET
34	34	BRACKET
35	35	BRACKET
36	36	BRACKET
37	37	BRACKET
38	38	SPRING
39	39	SCREW
40	40	PIN
41	41	SPRING
42	42	SCREW
43	43	BRACKET
44	44	BRACKET
45	45	BRACKET
46	46	WASHER
47	47	NUT
48	48	SCREW
49	49	NUT
50	50	BRACKET
51	51	BRACKET
52	52	WASHER
53	53	NUT
54	54	BRACKET
55	55	MOTOR
56	56	BRACKET
57	57	SCREW
58	58	SCREW
59	59	CABLE
60	60	BRACKET
61	61	SCREW
62	62	BRACKET
63	63	PIN

Page 24 — THREAD TRIMMER COMPONENTS

Juki DDL-900A parts on page 24

Ref	Part number	Part name	Qty
48	RE050000K0	E-RING	1
49	22948400	MOVING KNIFE LINK PIN	1
50	SS4150915SP	SCREW 15/64-28 L=9	2
51	40156700	THREAD TRIMMER SOLENOID ASM.	1
52	NM6040001SE	NUT M4	2
53	WS0410002KR	SPRING WASHER M4	2
54	22951404	SOLENOID BASE	1
55	40156701	THREAD TRIMMER SOLENOID	1
56	RO044240100	RUBBER RING	1
57	SS4151215SP	SCREW 15/64-28 L=12	2
58	SD0600361SP	HINGE SCREW D=6 H=3.6	1
59	40112907	GROUND WIRE ASM.	1
60	22951008	SOLENOID PIN	1
61	SS6110710TP	SCREW 11/64-40 L=6.5	1
62	22949903	CLUTCH LINK	1
63	RE050000K0	E-RING	1

Page 25

Juki DDL-900A parts on page 25

Ref	Part number	Part name	Qty
	1	AUTOMATIC REVERSE FEED COMPONENTS
	2	BRACKET
	3	SCREW
	4	HOUSING
	5	CIRCUIT BOARD
	6	BRACKET
	7	BRACKET
	8	WIRE HARNESS
	9	CONNECTOR HOUSING
	10	WASHER
	11	LEVER
	12	SPRING WASHER
	13	BRACKET
	14	SPRING WASHER
	15	LEVER
	16	SPRING CLIP
	17	WASHER
	18	WASHER
	19	SPRING CLIP
	20	SCREW
	21	SCREW
	22	MOTOR HOUSING
	23	SPRING
	24	SPRING WASHER
	25	MOTOR
	26	CABLE TIE

Page 27 — WIPER COMPONENTS

Juki DDL-900A parts on page 27

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	BRACKET
3	3	MOTOR
4	4	WASHER
5	5	BRACKET
6	6	SPRING
7	7	SHAFT
8	8	SPRING
9	9	BRACKET
10	10	SHAFT
11	11	WASHER
12	12	COVER
13	13	BRACKET
14	14	SPRING
15	15	BRACKET
16	16	SHAFT
17	17	SCREW
18	18	BRACKET
19	19	SCREW
20	20	WASHER
21	21	SCREW
22	22	SCREW
23	23	SCREW
24	24	NUT
25	25	SCREW
26	26	BRACKET
27	27	SCREW
28	28	BRACKET
29	29	SCREW
30	30	SCREW
31	31	WASHER

Page 28 — WIPER COMPONENTS

Juki DDL-900A parts on page 28

Ref	Part number	Part name	Qty
	40140992	WIPER ASSY	1
	40140994	WIPER BASE ASSY	1
	40110999	WIPER SOLENOID	1
	22955900	WIPER RUBBER A	1
	22956007	WIPER RUBBER B	1
	22956106	WIPER LINK A	1
	22956205	WIPER HINGE SCREW COLLAR	1
	22956304	WIPER SPRING	1
	22956403	WIPER LINK B	1
	40041419	WIPER LINK C ASM.	1
	22956809	WIPER COLLAR	1
	22955504	WIPER COVER	1
	22956908	WIPER LINK B HINGE SCREW	1
	40140991	WIPER	1
	40086678	WIPER SW RUBBER	1
	40077852	WIPER SOLENOID SHAFT	1
	NS6090310SP	NUT 9/64-40	1
	NS6110310SP	NUT 11/64-40	1
	RE0250000K0	E-RING 2.5	1
	RE0500000K0	E-RING	1
	SD0650321TP	HINGE SCREW D=6.5 H=3.2	3
	SL4030641SE	SCREW	1
	SL4030631SC	SCREW M3X6	1
	SS6090540SP	SCREW 9/64-40 L=5.0	1
	22957203	WIPER LINK COLLAR	1
	40077851	WIPER SOLENOID SHAFT GUIDE	1
	SS4110615SP	SCREW 11/64-40 L=6	2
	40086679	WIPER STOPPER RUBBER	1
	40037500	RUBBER HOLDER	1
	SS4120925SP	SCREW 3/16-28 L=9	1
	WP0482086SD	WASHER 4.8X11.5X2	1

Page 29 — OIL LUBRICATION COMPONENTS

Juki DDL-900A parts on page 29

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
9	9	9
10	10	10
40	40	40
56	56	56
57	57	57
42	42	42
45	45	45
29	29	29
37	37	37
36	36	36
35	35	35
34	34	34
30	30	30
31	31	31
57	57	57
47	47	47
38	38	38
39	39	39
49	49	49
50	50	50
51	51	51
52	52	52
49	49	49
50	50	50
46	46	46
48	48	48
43	43	43
11	11	11
27	27	27
24	24	24
22	22	22
23	23	23
14	14	14
15	15	15
17	17	17
16	16	16
18	18	18
19	19	19
20	20	20
21	21	21
13	13	13
12	12	12
26	26	26
25	25	25
28	28	28

Page 30

Juki DDL-900A parts on page 30

Ref	Part number	Part name	Qty
	22924708	OIL SIGHT WINDOW	1
	RO195240100	RUBBER RING	1
	22924401	MAIN SHAFT OIL TUBE	1
	SS4120615SP	SCREW 3/16-28 L=6	1
	22925101	OIL FELT PRESSER	1
	22924153	OIL RETURN TUBE ASM.	1
	22924302	HOLDER
	WS0451040KP	SPRING WASHER 4.5X8.5X1	0.3
	40037502	OIL ADJUSTING SCREW	1
	RO037180100	RUBBER RING	1
	40156696	HOOK OIL PIPE	1
	22923056	LUBRICATING OIL PUMP ASM.	1
	22923312	OIL PUMP INSTALLING BASE
	22923015	OIL PUMP
	22923700	OIL PUMP IMPELLER
	SE4301041SR	SCREW D=3 L=10
	22923205	LUBRICATING OIL PUMP COVER
	22923809	OIL PUMP IMPELLER COVER
	22923403	PLUNGER
	22923601	PLUNGER SPRING
	22923502	PLUNGER SCREW
	22923908	HOOK DRIVING SHAFT OIL TUBE
	SL403085TSF	SCREW M3 L=8
	SS4150915SP	SCREW 15/64-28 L=9	1
	SS6111010TP	SCREW 11/64-40 L=9.5	1
	22947105	OIL PUMP SUPPORT	1
	WS0651310KP	SPRING WASHER 6.5X11X1.3	1
	22924609	RUBBER JOINT	1
	40156691	OIL SHIELD ASSY	1
	40156692	OIL SHIELD
	SQ2060451MZ	CONNECTING SCREW
	13170105	RUBBER RING
	13171004	DRAIN SCREW
	B8228125000	OIL RESERVOIR MAGNET
	40024644	MAGNET WASHER
	ST4040821SS	TAPPING SCREW
	40156693	DECK PLATE
	WP0501016SD	WASHER 5X10.5X1	13
	SM6051402TP	SCREW M5X0.8 L=14	13
	SQ2050453MZ	CONNECTING SCREW	1
	SQ2060451MZ	CONNECTING SCREW	1
	23630007	TUBE	0.1
	23630007	TUBE	0.1
	40156694	KNEE LIFTER PUSH ROD	1
	40171642	OIL_SHIELD_PACKING	1
	11039203	FELT	1
	40136258	CORD_HOLDER	1

Page 31 — OIL LUBRICATION COMPONENTS

Juki DDL-900A parts on page 31

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	55	55
	56	56
	57	57

Page 32 — OIL LUBRICATION COMPONENTS

Juki DDL-900A parts on page 32

Ref	Part number	Part name	Qty
	40156690	OIL SIGHT GAUGE	1
	22944508	WIRE PRESSER A	2
	SM4040655SP	SCREW M4 L=6	2
	13101407	LOOPER COVER PRESSER PLATE	1
	SM4040655SP	SCREW M4 L=6	1
	40028281	FEED_ADJUSTING_STOPPER	1
	WP0501016SD	WASHER 5X10.5X1	1
	SS4110615SP	SCREW 11/64-40 L=6	1
	23629306	PIPE STOPPER A	2
	40162044	PIPE STOPPER	2

Page 33 — OIL RESERVOIR COMPONENTS

Juki DDL-900A parts on page 33

Ref	Part number	Part name	Qty
	1	OIL RESERVOIR
	2	BRACKET
	3	PLUG
	4	SPRING SEAT
	5	SPRING SEAT
	6	SPRING
	7	WASHER
	8	SHAFT
	9	SPRING
	10	BRACKET
	11	BRACKET
	12	BOLT
	13	SHAFT
	14	BOLT
	15	WASHER
	16	COVER
	17	SHAFT
	18	COVER
	19	SPRING
	20	SPRING SEAT
	21	SPRING SEAT
	22	COVER
	23	PIN

Page 34 — OIL RESERVOIR COMPONENTS

Juki DDL-900A parts on page 34

Ref	Part number	Part name	Qty
	40156724	UNDER COVER ASSY	1
	40156727	UNDER COVER	1
	B1116210D00	FRAME SUPPORT RUBBER	4
	40156725	KNEE LIFTER ROTATION ARM ASM.	1
	22932107	KNEE LIFTER ROTATING ARM	1
	SM8061612TP	SCREW M6X16	2
	NM6060003SC	NUT M6	2
	40156726	KNEE LIFTER SPRING	1
	40101541	KNEE_PRESS_CROSS_SHAFT	1
	22932453	BRACKET ASM.	1
	22932404	BRACKET	1
	22934707	SCREW	2
	RE1000000K0	E-RING 10	1
	SM9062563TR	SCREW M6 L=25	1
	NM6060001SE	NUT M6	1
	22934251	KNEE PAD PLATE ASM.	1
	22934608	KNEE PAD UPRIGHT SHAFT	1
	22934400	KNEE PAD PLATE RUBBER	1
	22934202	KNEE PAD PLATE	1
	22934301	KNEE PAD PLATE SUPPORT	1
	SM9061203SE	SCREW M6 L=12	1
	22934509	KNEE PAD PLATE COVER	1
	HX006690000	GROMMET	0.03

Page 35 — PSC UNIT

Juki DDL-900A parts on page 35

Ref	Part number	Part name	Qty
41	41	PSC UNIT
39	39	PSC UNIT
40	40	PSC UNIT
42	42	PSC UNIT
36~38	36~38	PSC UNIT
35	35	PSC UNIT
43	43	PSC UNIT
1.2	1.2	PSC UNIT
33	33	PSC UNIT
10.24	10.24	PSC UNIT
9	9	PSC UNIT
34	34	PSC UNIT
15.22	15.22	PSC UNIT
16	16	PSC UNIT
7	7	PSC UNIT
12.29	12.29	PSC UNIT
5	5	PSC UNIT
4.25	4.25	PSC UNIT
13	13	PSC UNIT
14.27	14.27	PSC UNIT
21	21	PSC UNIT
31	31	PSC UNIT
11.28	11.28	PSC UNIT
3.26	3.26	PSC UNIT
8	8	PSC UNIT
20.30	20.30	PSC UNIT
17	17	PSC UNIT
18	18	PSC UNIT
19	19	PSC UNIT

Page 36

Juki DDL-900A parts on page 36

Ref	Part number	Part name	Qty
	40156704	CONTROL BOX
	40163109	CONTROL BOX CE
	40141200	AC INPUT CORD ASSY
	40141201	FLT PCB ASSY
	40141203	INPUT CHECK CORD ASSY
	40141204	PWR PCB ASSY
	40141205	PWR PCB FILM SHEET
	40141206	RESISTANCE A ASSY
	40141207	DC POWER SUPPLY CORD ASSY
	40141208	CTL PCB ASSY
	40141209	PEDAL CORD ASSY
	40141210	SOL SIGNAL CORD ASSY
	40141211	SOL POWER CORD ASSY
	40141212	SOL PCB ASSY
	40186301	RATING LABEL A DRAWING
	40141217	PSC COVER
	40141214	PANEL COVER ASSY
	40141215	PANEL COVER
	40141216	MEMBRANE SWITCH
	40141213	PNL PCB ASSY
	40141199	FRAME
	40186302	RATING LABEL C DRAWING
	40145554	PWR-CE PCB ASSY
	40145555	CTL-CE PCB ASSY
	40145553	FLT-CE PCB ASSY
	40149316	AC INPUT CORD ASSY
	40145556	SOL-CE PCB ASSY
	40145557	PEDAL CORD CE ASSY
	40145558	SOL POWER CORD CE ASSY
	40145921	PNL-CE PCB ASSY
	40145944	EMI GASKET
	401557011	CONNECTOR COVER
	40145540	PRT CORD ASSY
	40183785	SWITCH_DUSTPROOF_COVER_ASSY
	40141224	SCREW	1
	40141225	SLO-BLO FUSE
	40141226	SLO-BLO FUSE
	40141227	SLO-BLO FUSE
	40162159	AC POWER CORD ASSY CE
	40141220	AC POWER CORD ASSY
	40141219	PEDAL SENSOR A ASSY
	40042134	CONNECTING ROD ASSY

Page 37 — PSC UNIT

Juki DDL-900A parts on page 37

Ref	Part number	Part name	Qty
41	41	PSC UNIT
39	39	PSC UNIT
40	40	PSC UNIT
36~38	36~38	PSC UNIT
35	35	PSC UNIT
43	43	PSC UNIT
1.2	1.2	PSC UNIT
34	34	PSC UNIT
16	16	PSC UNIT
15.22	15.22	PSC UNIT
33	33	PSC UNIT
10.24	10.24	PSC UNIT
9	9	PSC UNIT
7	7	PSC UNIT
12.29	12.29	PSC UNIT
6.23	6.23	PSC UNIT
5	5	PSC UNIT
4.25	4.25	PSC UNIT
13	13	PSC UNIT
14.27	14.27	PSC UNIT
21	21	PSC UNIT
31	31	PSC UNIT
11.28	11.28	PSC UNIT
3.26	3.26	PSC UNIT
8	8	PSC UNIT
20.30	20.30	PSC UNIT
17	17	PSC UNIT
18	18	PSC UNIT
19	19	PSC UNIT
A	A	PSC UNIT
A	A	PSC UNIT
25	25	PSC UNIT

Page 38 — PSC UNIT

Juki DDL-900A parts on page 38

Ref	Part number	Part name	Qty
	40141223	CORD STAPLE

Page 39 — THREAD STAND COMPONENTS

Juki DDL-900A parts on page 39

Ref	Part number	Part name	Qty
	1	THREAD STAND COMPONENTS
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24

Page 40 — THREAD STAND COMPONENTS

Juki DDL-900A parts on page 40

Ref	Part number	Part name	Qty
	40096354	THREAD STAND ASM.	1
	40085784	SPOOL REST ROD LOWER	1
	40085785	SPOOL REST ROD UPPER	1
	40085786	SPOOL REST ARM LOWER	1
	40085787	SPOOL REST ARM UPPER	1
	40085788	SPOOL REST	2
	40085789	SPOOL REST CUSHION	2
	40085790	SPOOL PIN	2
	40085791	SPOOL RETAINER	2
	40085792	SPOOL REST ROD JOINT	1
	40085793	SPOOL REST ROD RUBBER CAP	1
	40085794	THREAD GUIDE	2
	40085795	THREAD GUIDE BUSHING	2
	40096325	SPOOL REST ROD NUT	1
	WP1612616SE	WASHER 16X30X2.6	2
	40085796	SPOOL REST ROD RUBBER CUSHION	2
	40096326	SPOOL REST ARM LOWER SCREW	1
	NM6050001SE	NUT M5	2
	40096327	SPOOL REST ARM UPPER SCREW	1
	NM6050001SE	NUT M5	2
	WS0510002KN	SPRING WASHER M5	2
	WP0531001SC	WASHER M5	2
	SM4051405SE	SCREW M5 L=14	2
	NM6050001SE	NUT M5	2

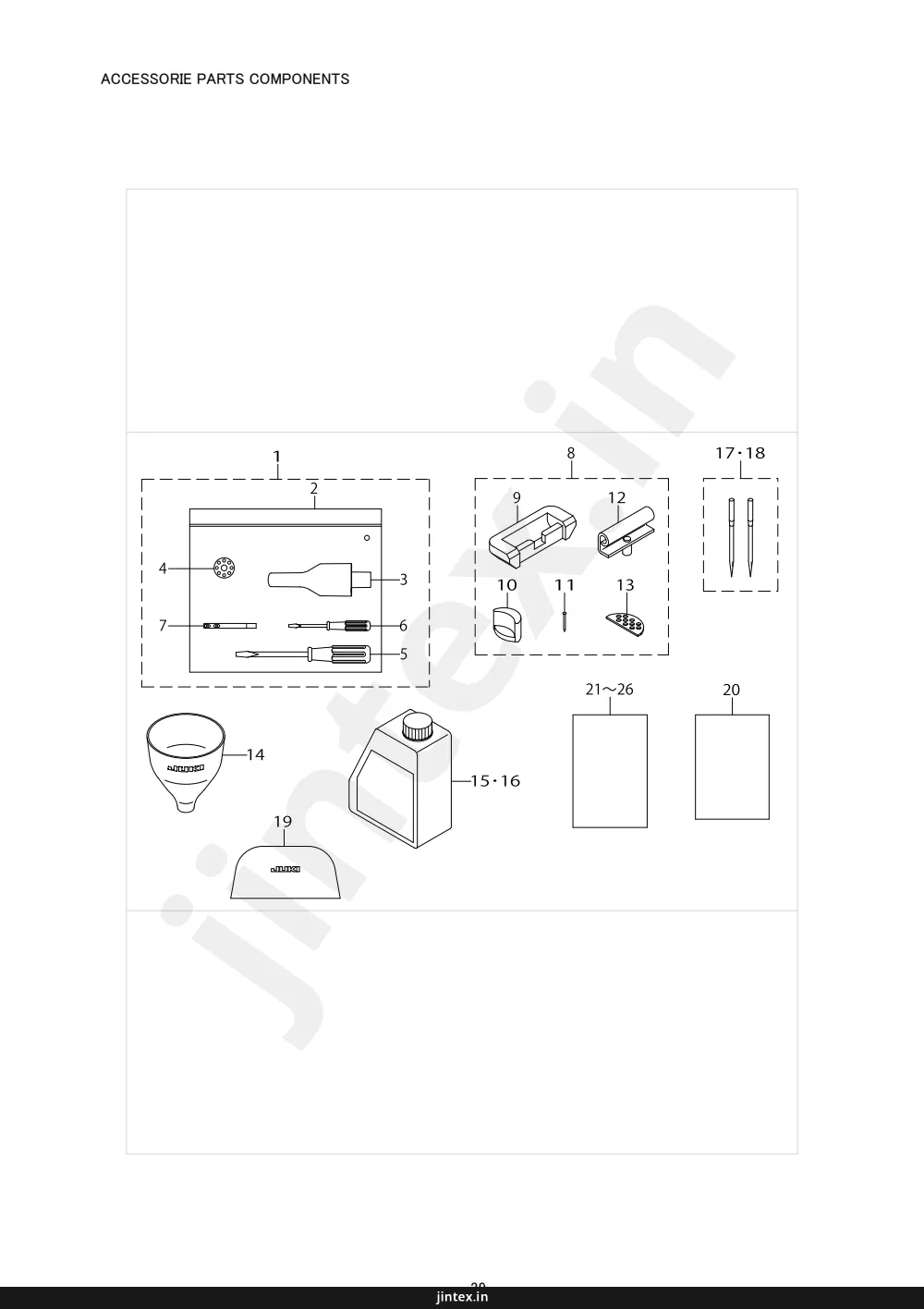

Page 41 — ACCESSORIE PARTS COMPONENTS

Juki DDL-900A parts on page 41

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26

Page 42

Juki DDL-900A parts on page 42

Ref	Part number	Part name	Qty
	40156730	ACCESSORY BAG ASSY	1
	22932800	ACCESSORIE BAG	1
	14101208	HEAD SUPPORT BAR	1
	22932909	BOBBIN	1
	22933105	SCREW DRIVER MIDDLE	1
	22933204	SCREW DRIVER SMALL	1
	22958300	NEEDLE THREAD GUIDE PIN	1
	22958052	RUBBER HINGE ASM.	2
	22926000	RUBBER CUSHION	2
	22958003	FRAME BUBBER CUSHION	8
	22926208	NAIL	2
	22926356	HINGE COMPL.	2
	22926505	WASHER	1
	13160601	FUNNEL	1
	40157520	NEW DEFFIX OIL NO.1 450ML
	40102087	JUki CORPORATION GENUINE OIL 7
	MDB100B1402	NEEDLE DBX1#14-2
	MC200500902	NEEDLE 134 #90-2
	40135803	HEAD COVER	1
	CM600100201	WEEE INFORMATION SHEET
	40157451	SAFETY INSTRUCTION MANUAL C JPN
	40157452	SAFETY INSTRUCTION MANUAL 5 JPN
	40157453	SAFETY INSTRUCTION MANUAL 7 JPN
	40156811	SAFETY INSTRUCTION MANUAL
	40156812	SAFETY INSTRUCTION MANUAL
	40156813	SAFETY INSTRUCTION MANUAL

Page 43 — LIST FOR INFORMATION OF CHANGE

Juki DDL-900A parts on page 43

Ref	Part number	Part name	Qty
33	225-38706	225-38706
34	401-11872	401-11872
41	SL-6051092-TN	SL-6051092-TN
41	SM-6050802-TP	SM-6050802-TP
50	WP-0501016-SD	WP-0501016-SD
49	229-04155	229-04155
51	401-56685	401-56685
45	401-56695	401-56695
2	401-56705	401-56705
15	401-56706	401-56706
22	401-56707	401-56707
34	401-83785	401-83785
39	401-45128	401-45128
33	401-63521	401-63521
34	402-00576	402-00576
49	401-37504	401-37504
51	401-62859	401-62859
45	401-71642	401-71642
2	401-63109	401-63109
15	401-86301	401-86301
22	401-86302	401-86302
39	401-62159	401-62159

Page 45 — NUMERICAL INDEX OF PARTS

Juki DDL-900A parts on page 45

Ref	Part number	Part name	Qty
3	11002904
23	11009800
17	11010311
37	11015906
22	11037405
34	11038650
24	11038759
46	11039203
5	11040052
4	11040409
44	11040953
48	11079506
11	11101300
20	11415205
51	13101407
14	13160601
32	13170105
33	13171004
3	14101208
30	22538805
42~44	22890206
42~44	22890305
42~44	22890404
46	22896252
10	22900401
2	22900609
4	22901003
4	22901201
4	22901250
4	22901300
2	22901805
8	22903207
8	22903306
8	22903900
8	22904155
18	22904155
10	22905004
10	22905103
10	22905202
10	22906101
10	22906200
10	22906309
10	22906457
8	22906606
14	22907208
14	22907307
14	22907406
14	22907505
14	22907554
14	22907604
14	22907703
14	22907802
14	22908008
14	22908156
14	22908305
14	22908354
14	22908552
14	22908701
14	22908800
14	22908909
14	22909006
8	22910004
8	22910053
8	22910103
16	22910202
16	22910251
16	22910806
16	22910905
16	22911002
16	22911101
16	22911507
16	22911606
16	22911804
16	22912000
16	22912109
16	22912257
16	22912505
18	22912802
18	22913008
16	22913701
16	22913800
16	22913859
18	22915003
18	22915359
10	22916308
10	22916506
10	22916555
10	22917157
8	22918064
8	22918072
8	22918106
8	22918304
8	22918403
8	22918502
8	22918601
8	22918700
8	22919203
20	22919203
8	22919559
14	22920102
14	22920201
14	22920300
14	22920409
2	22920508
4	22920607
2	22920904
2	22921001
2	22921209
2	22921308
2	22921407
2	22921506
2	22921605
2	22921704
2	22921803
28	22923015
28	22923056
28	22923205
28	22923312
28	22923403
28	22923502
28	22923601
28	22923700
28	22923809
28	22923908
28	22924153
28	22924302
28	22924401
28	22924609
28	22924708
28	22925101
40	22926000
40	22926208
40	22926356
40	22926505

Page 46 — NUMERICAL INDEX OF PARTS

Juki DDL-900A parts on page 46

Ref	Part number	Part name	Qty
5	22932107
11	22932404
10	22932453
2	22932800
18	22932909
4	22932909
5	22933105
22	22933204
19	22934202
16	22934251
20	22934301
18	22934400
22	22934509
17	22934608
12	22934707
57	22935407
3.49	22939508
3.49	22939607
10	22940506
55	22940654
35	22940753
27	22940951
1	22941108
36	22941306
32	22942502
18	22944508
49	22944508
20	22944607
10	22944706
28	22944854
25	22945109
40	22945307
32	22945356
22	22945414
21	22945463
25	22945505
23	22945604
26	22945703
30	22945703
24	22945802
26	22947105
7	22947808
31	22948202
36	22948301
49	22948400
45	22948558
43	22949002
40	22949101
41	22949200
38	22949309
29	22949408
24	22949754
62	22949903
26	22950000
14	22950208
13	22950257
15	22950356
25	22950703
19	22950851
21	22950950
60	22951008
54	22951404
18	22952501
18	22953400
20	22953509
13	22953657
23	22954002
12	22955504
4	22955900
5	22956007
6	22956106
7	22956205
8	22956304
9	22956403
11	22956809
13	22956908
25	22957203
10	22958003
8	22958052
7	22958300
7	22958300
56	23629306
43	23630007
6	23632102
2	26260109
3	26260208
4	26260307
5	26260406
6	26260505
7	26260604
8	26260802
9	26261008
10	26261206
11	26261305
12	26261503
13	26261602
14	26261701
15	40011144
2	40012126
11	40012129
35	40017805
17	40021933
35	40024644
53	40028281
32	40037008
29	40037500
9	40037502
10	40041419
42	40042134
5	40060989
16	40077851
16	40077852
2	40085784
3	40085785
4	40085786
5	40085787
6	40085788
7	40085789
8	40085790
9	40085791
10	40085792
11	40085793
12	40085794
13	40085795
16	40085796
15	40086678
28	40086679
66	40086740
30	40087245
25	40089548
14	40090002
16	40090003
19	40090004
21	40090005
6	40090058

Page 47 — NUMERICAL INDEX OF PARTS

Juki DDL-900A parts on page 47

Ref	Part number	Part name	Qty
26	40093417		16
14	40096325		38
17	40096326		38
19	40096327		38
1	40096354		38
58	40099083		4
68	40100812		18
9	40101541		32
15-16	40102087		40
1	40102097		2
13	40102261		2
60	40102264		18
45	40109422		16
45	40110376		8
43	40110379		16
40	40110390		8
25	40110731		6
26	40110734		6
16	40110975		6
1	40110976		6
15	40110977		8
20	40110978		8
28	40110979		8
3	40110999		26
36	40111025		8
32	40111424		8
61	40111896		4
52	40111897		18
59	40112907		22
34	40113241		6
24	40119475		6
31	40125485		16
60	40126308		4
1	40130579		20
4	40130580		20
19	40135803		40
47	40136258		28
49	40137504		18
21	40139216		8
63	40139555		4
2	40139771		24
3	40140191		24
4	40140306		24
67	40140416		4
37	40140419		8
14	40140991		26
1	40140992		26
2	40140994		26
21	40141199		34
3-26	40141200		34
4-25	40141201		34
5	40141203		34
6-23	40141204		34
7	40141205		34
8	40141206		34
9	40141207		34
10-24	40141208		34
11-28	40141209		34
12-29	40141210		34
13	40141211		34
14-27	40141212		34
20-30	40141213		34
17	40141214		34
18	40141215		34
19	40141216		34
16	40141217		34
41	40141219		34
40	40141220		34
43	40141223		36
35	40141224		34
36-38	40141225		34
36-38	40141226		34
36-38	40141227		34
7	40141523		10
33	40145540		34
4-25	40145553		34
6-23	40145554		34
10-24	40145555		34
14-27	40145556		34
11-28	40145557		34
12-29	40145558		34
20-30	40145921		34
12	40145927		10
31	40145944		34
1	40148382		24
5	40149069		24
3-26	40149316		34
32	401557011		34
4	40156677		2
46	40156681		8
39	40156684		16
48	40156686		18
31	40156687		10
48	40156690		30
29	40156691		28
30	40156692		28
37	40156693		28
44	40156694		28
11	40156696		28
40	40156698		10
32	40156699		20
51	40156700		22
55	40156701		22
1-2	40156704		34
33	40156721		20
22	40156722		24
15	40156723		24
1	40156724		32
4	40156725		32
8	40156726		32
2	40156727		32
23	40156728		20
1	40156730		40
64-72	40156758		18
21-26	40156811		40
21-26	40156812		40
21-26	40156813		40
35	40156815		10
64	40156893		4
66	40156894		4
31	40156999		20
65	40157335		4
35	40157336		20
21-26	40157451		40
21-26	40157452		40
21-26	40157453		40
15-16	40157520		40
71	40158189		18
57	40162044		30
39	40162159		34
51	40162859		18
1-2	40163109		34
33	40163521		6
45	40171642		28
34	40183785		34

Page 48 — NUMERICAL INDEX OF PARTS

Juki DDL-900A parts on page 48

Ref	Part number	Part name	Qty
15-22	40186301	RE0500000K0
15-22	40186302	RE0500000K0
	40200576	RE0500000KP
	B1109552000	RE0600000K0
	B1116210D00	RE0900000K0
	B1215552000	RE1000000K0
	B1521555000	RE1200000K0
	B15240120BA	RO029180100
	B1613012100	RO036080200
	B8228125000	RO037180100
	B9117552A00	RO037180100
	CM30020001	RO044240100
	CM600100201	RO044240100
	CQ202000000	RO044240100
	CQ220000000	RO069180100
	D2406555D0H	RO078190100
	D7133555B00	RO092270200
	HK034610140	RO133170100
	HK03464000B	RO195240100
	HX00065000A	SD0460703TP
	HX000690000	SD0600361SP
	MC200500902	SD0630275SP
	MDB100B1400	SD0640631TP
	MDB100B1402	SD0641451SP
	NM6040001SE	SD0650321TP
	NM6050001SE	SD0720331SP
	NM6060001SE	SD1000081SH
	NM6060003SC	SE4301041SR
	NS6090310SP	SL4030631SC
	NS6110310SP	SL4030641SE
	NS6120630SP	SL4030851SF
	NS6150430SP	SL6051492TN
	NS6620310SP	SL6052592TN
	NS6680410SP	SM0050801SC
	RC0150001KP	SM4040655SP
	RC0150001KP	SM4051405SE
	RC0560711KP	SM5040655SN
	RC1850001KP	SM6050802TP
	RE0250000K0	SM6051402TP
	RE0400000K0	SM6080402TP
	RE0400000K0	SM60808A2TP
	RE0400000KP	SM8061010TP
	RE0500000K0	SM8061612TP
	RE0500000K0	SM9061203SE
	SM9062563TR	SQ2050453MZ
	SQ2050453MZ	SQ2060451MZ
	SQ2060451MZ	SS2060210SP
	SS2060210SP	SS2110915SP
	SS2110915SP	SS2110920TP
	SS2110920TP	SS4080620TP
	SS4080620TP	SS4090620TP
	SS4090620TP	SS4090615SP
	SS4090615SP	SS4110515SP
	SS4110515SP	SS4110515SP
	SS4110515SP	SS4110615SP
	SS4110615SP	SS4110615SP
	SS4110615SP	SS4110715SP
	SS4110715SP	SS4110915TP
	SS4110915TP	SS4120615SP
	SS4120615SP	SS4120615SP
	SS4120615SP	SS4120615SP
	SS4120615SP	SS4120615SP
	SS4120615SP	SS4120925SP
	SS4120925SP	SS4120925SP
	SS4120925SP	SS4120925SP
	SS4120925SP	SS4150915SP
	SS4150915SP	SS4150915SP
	SS4150915SP	SS4151215SP
	SS4151215SP	SS4151215SP
	SS4151215SP	SS6060210SP
	SS6060210SP	SS6080410SP
	SS6080410SP	SS6090510TP
	SS6090510TP	SS6090540SP
	SS6090540SP	SS6090620TP
	SS6090620TP	SS6090670TP
	SS6090670TP	SS6090910SP
	SS6090910SP	SS6110420TP
	SS6110420TP	SS6110610TP
	SS6110610TP	SS6110710TP
	SS6110710TP	SS6111010TP
	SS6111010TP	SS6121610SP
	SS6121610SP	SS6121840SP
	SS6121840SP	SS6121860SP
	SS6121860SP	SS6151220SP

Page 49 — NUMERICAL INDEX OF PARTS

Juki DDL-900A parts on page 49

Ref	Part number	Part name	Qty
20	SS6660610TP	SS6660610TP
28	WS0651310KP	WS0651310KP
8	SS6661110SP	SS6661110SP
4	WT0530002KS	WT0530002KS
10	SS7080510TP	SS7080510TP
20	SS7090610SP	SS7090610SP
14	SS7091110TP	SS7091110TP
4	SS7110720SP	SS7110720SP
18	SS7110740TP	SS7110740TP
24	SS7110740TP	SS7110740TP
18	SS7111120SP	SS7111120SP
16	SS7120770SH	SS7120770SH
18	SS7121410TP	SS7121410TP
16	SS7121610SP	SS7121610SP
8	SS7681650TP	SS7681650TP
2	SS8090670SP	SS8090670SP
20	SS8110520TP	SS8110520TP
2	SS8150710TP	SS8150710TP
8	SS8151150TP	SS8151150TP
8	SS8660610TP	SS8660610TP
18	SS8660610TP	SS8660610TP
10	SS8660810TP	SS8660810TP
14	SS8660810TP	SS8660810TP
8	SS8681650TP	SS8681650TP
28	ST4040821SS	ST4040821SS
2	TA0850604R0	TA0850604R0
10	TA0850604R0	TA0850604R0
18	TA0950806R0	TA0950806R0
4	TA1250406R0	TA1250406R0
2	TA1250705R0	TA1250705R0
2	TA2000502R0	TA2000502R0
18	TA2000502R0	TA2000502R0
2	TA2100904R0	TA2100904R0
2	TA2101002R0	TA2101002R0
6	WP0450826SC	WP0450826SC
18	WP0480856SP	WP0480856SP
26	WP0482086SD	WP0482086SD
12	WP0501016SD	WP0501016SD
28	WP0501016SD	WP0501016SD
30	WP0501016SD	WP0501016SD
38	WP0531001SC	WP0531001SC
20	WP0621016SH	WP0621016SH
24	WP1602616SZ	WP1602616SZ
38	WP1612616SE	WP1612616SE
22	WS0410002KR	WS0410002KR
28	WS0451040KP	WS0451040KP
38	WS0510002KN	WS0510002KN

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki DDL-900A — parts catalog

• Page 1 (cover): This is the cover page for the DDL-900A model, list number 1668-02, published on 02/15/2019.
• Page 3 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with various parts numbered for identification.
• Page 4 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, descriptions, and quantities.
• Page 5 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with numbered parts indicated for identification.
• Page 6 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, descriptions, and quantities.
• Page 7 (diagram): This page displays a diagram of bobbin winder components, with numbered parts and their corresponding references.
• Page 8 (parts_list): This page lists the components for the Bobbin Winder, including part numbers, names, remarks, and quantities.
• Page 9 (diagram): This page displays a diagram of main shaft and thread take-up lever components, with numbered parts indicated for identification.
• Page 10 (parts_list): This page lists components for the main shaft and thread take-up lever, including part numbers, descriptions, and quantities.
• Page 11 (diagram): This page displays a diagram of needle bar, upright shaft, and hook driving shaft components, with numbered parts indicated for identification.
• Page 12 (parts_list): This page lists components for the needle bar, upright shaft, and hook driving shaft, including part numbers, descriptions, remarks, and quantities.
• Page 13 (diagram): This page displays a diagram of needle bar, upright shaft, and hook driving shaft components, with numbered parts indicated for identification.
• Page 14 (parts_list): This page lists components for the needle bar, upright shaft, and hook driving shaft, including part numbers, descriptions, and quantities.
• Page 15 (diagram): This page displays a diagram of hand lifter components, with various parts numbered for identification.
• Page 16 (parts_list): This page lists hand lifter components, including part numbers, descriptions, quantities, and remarks.
• Page 17 (diagram): This page displays a diagram of feed mechanism components, with various parts numbered for identification.
• Page 19 (diagram): This page displays a diagram of feed mechanism components, illustrating various parts with reference numbers for identification.
• Page 20 (parts_list): This page lists components for the feed mechanism, including screws, bushings, bearings, and seals, with their respective part numbers and quantities.
• Page 21 (diagram): This page displays a diagram of thread trimmer components, with numbered parts and their corresponding references.
• Page 22 (parts_list): This page lists components for a thread trimmer, including part numbers, descriptions, and quantities.
• Page 23 (diagram): This page displays a diagram of thread trimmer components, with numbered parts and their corresponding references.
• Page 24 (parts_list): This page lists components for a thread trimmer, including part numbers, descriptions, and quantities.
• Page 25 (diagram): This page displays a diagram of automatic reverse feed components, with numbered parts and their corresponding references.
• Page 27 (diagram): This page displays a diagram of wiper components, with numbered parts and their corresponding references.
• Page 28 (parts_list): This page lists wiper components with their part numbers, names, and quantities.
• Page 29 (diagram): This page displays a diagram of oil lubrication components, with numbered parts and their corresponding references.
• Page 30 (parts_list): This page lists oil lubrication components with their part numbers, names, remarks, and quantities.
• Page 31 (diagram): This page displays a diagram of oil lubrication components, with numbered parts and their corresponding references.
• Page 32 (parts_list): This page lists oil lubrication components with part numbers, descriptions, and quantities. It includes items like oil sight gauge, wire presser, screws, and pipe stoppers.
• Page 33 (diagram): This page displays a diagram of oil reservoir components, illustrating various parts with reference numbers for identification.
• Page 34 (parts_list): This page lists components for the oil reservoir, including part numbers, descriptions, and quantities.
• Page 35 (diagram): This page displays a diagram of the PSC Unit, illustrating various components with reference numbers for identification.
• Page 36 (parts_list): This page lists parts for the PSC UNIT, including part numbers, names, remarks, and quantities. It details various control boxes, PCBs, cords, covers, and other components.
• Page 37 (diagram): This page displays a diagram of the PSC Unit with various components labeled with reference numbers.
• Page 38 (parts_list): This page lists parts for the PSC UNIT, including part number 40141223, CORD STAPLE, with remarks about various destinations and a quantity of 3.
• Page 39 (diagram): This page displays a diagram of thread stand components, with numbered parts and their corresponding references.
• Page 40 (parts_list): This page lists the components for the thread stand, including part numbers, names, and quantities.
• Page 41 (diagram): This page displays a diagram of accessory parts components for a sewing machine, with numbered parts and their corresponding descriptions.
• Page 42 (parts_list): This page lists accessory parts components with their part numbers, names, remarks, and quantities. It includes items like accessory bags, bobbin, screw drivers, and safety instruction manuals.
• Page 43 (parts_list): This page lists parts that have been added, obsoleted, or corrected, along with their corresponding revision numbers, page numbers, and reference numbers.
• Page 44 (text): This page provides explanations for codes and symbols used in the parts list, including explanations for asterisks, #01 codes, quantity notations, and symbols like stars and circles.
• Page 45 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, corresponding page numbers, and reference numbers.
• Page 46 (parts_list): This page contains a numerical index of parts for a sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
• Page 47 (parts_list): This page contains a numerical index of parts for a sewing machine, listing part numbers, page references, and reference numbers from diagrams.
• Page 48 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page references, and reference numbers.
• Page 49 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, their corresponding page numbers, and reference numbers.

Page 1 — PARTS LIST

MODEL : DDL-900A List No : 1668-02 PARTS LIST Published:02/15/2019 jintex.in

Page 3 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS jintex.in

Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40102097 FACE PLATE ASM. 1 2 40012126 FACE PLATE PACKING 1 3 SS6080410SP SCREW 1/8-44 L=4 1 4 40156677 ARM OIL SHIELD ASSY 1 5 TA0850604R0 RUBBER PLUG 2 6 TA1250705R0 RUBBER PLUG 1 7 22958300 NEEDLE THREAD GUIDE PIN 1 8 SS4120925SP SCREW 3/16-28 L=9 8 9 TA2100904R0 RUBBER PLUG 1 10 22900401 WINDOW PLATE 1 11 40012129 SIDE PLATE PACKING 1 12 CM300200001 ATTENTION SEAL 2 13 40102261 SAFETY LABEL S 1 14 22901805 GROUND MARK 1 15 SS4120615SP SCREW 3/16-28 L=6 1 16 TA2000502R0 RUBBER PLUG 1 17 SS6121840SP SCREW 3/16-28 L=18 1 18 22952501 BACK LEVER STOPPER 1 19 TA2101002R0 RUBBER PLUG 1 20 11415205 THREAD TAKE-UP LEVER COVER(JE) VARIOUS NOS. FOR 1 DESTINATIONS 21 22945463 THREAD TENSION ASM. NO.1 1 22 22945414 THREAD TENSION POST 1 23 22945604 THREAD TENSION GUIDE 1 24 22945802 THREAD TENSION DISK 2 25 22945505 THREAD TENSION SPRING 1 26 22945703 THREAD TENSION NUT 1 27 SS4120615SP SCREW 3/16-28 L=6 1 28 22900609 THREAD TAKE-UP LEVER COVER VARIOUS NOS. FOR 1 DESTINATIONS 29 SS4120615SP SCREW 3/16-28 L=6 1 30 22920508 ARM THREAD GUIDE A 1 31 22921001 SCREW 1 32 22945356 THREAD TENSION ASM. 1 33 22921308 THREAD TENSION NUT 1 34 22921407 ROTATION STOPPER 1 35 22921704 THREAD TENSION SPRING A 1 36 22921803 DISK STOPPER 1 37 22921506 THREAD TENSION DISK 2 38 22921209 THREAD TENSION POST 1 39 22921605 THREAD TAKE-UP SPRING 1 40 22945307 THREAD TENSION POST BASE 1 41 SS8090670SP SCREW 9/64-40 L=5.5 1 42 SS8150710TP SCREW 15/64-28 L=7 1 43 22920904 TENSION RELEASING 1 44 B1109552000 THROAT PLATE 1 45 SS2110920TP SCREW 11/64-40 L=8.5 1 46 SS2110915SP SCREW 11/64-40 L=8.5 1 jintex.in

Page 5 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS JINప్రత్య.in

Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 47 22920607 ARM THREAD GUIDE B 1 48 SS6110610TP SCREW 11/64-40 L=6 1 49 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 50 SS4120925SP SCREW 3/16-28 L=9 3 51 22901250 SLIDE PLATE ASM. 1 52 22901201 SLIDE PLATE * 1 53 22901300 SLIDE PLATE SPRING * 1 54 SS6060210SP SCREW 3/32-56 L=1.9 * 2 55 22901003 BED SCREW STUD 4 56 WT0530002KS TOOTHED WASHER D=5.3 1 57 22935407 BED OIL SHIELD RUBBER 1 58 40099083 RULER STOP SEAT 1 59 SS7110720SP SCREW 11/64-40 L=7 2 60 40126308 CORD,CLAMP 1 61 40111896 CORD,CLAMP 1 62 SS4120615SP SCREW 3/16-28 L=6 1 63 40139555 THREAD NIPPER COMPONENTS OPTIONAL PARTS 1 64 40156893 EMBLEM DDL900A F 1 65 40157335 OIL INJECTION CAUTION SEAL 1 66 40156894 EMBLEM DDL900A R 1 67 40140416 AK85B_DEVICE OPTIONAL PARTS 1

Page 7 — BOBBIN WINDER COMPONENTS

BOBBIN WINDER COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 jintex.in

Page 8 — BOBBIN WINDER COMPONENTS

BOBBIN WINDER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40110976 BOBBIN_WINDER_UNIT 1 2 26260109 BTW_BASE * 1 3 26260208 BTW_CAM_PLATE * 1 4 26260307 BTW_BASE_SHAFT * 1 5 26260406 BTW_SHAFT_BASE * 1 6 26260505 BTW_CAM_LEVER * 1 7 26260604 BTW_WHEEL * 1 8 26260802 BTW_BEARING_SPACER * 1 9 26261008 BTW_LEVER_SHAFT * 1 10 26261206 BTW_SPACER * 1 11 26261305 BTW_BEARING * 2 12 26261503 BTW_WHEEL_RUBBER * 1 13 26261602 BOBBIN_SPRING ☆ 1 14 26261701 BTW_SPRING ☆ 1 15 40011144 BTW_TORSION_SPRING * 1 16 40110975 BTW_SHAFT * 1 17 40021933 BTW_LEVER * 1 18 RC0560711KP RETAINING RING * 1 19 RE0400000K0 E-RING 4 * 2 20 SMS040655SN SCREW * 1 21 SM8040802TP SCREW M4X8 * 1 22 SM8050502TP SCREW M5 L=5 * 2 23 WP0450826SC WASHER 4.5X10X0.8 * 1 24 40119475 OIL_GUARD * 1 25 40110731 BOBBIN_THREAD_TENSION_ASSY * 1 26 40110734 BOBBIN_THREAD_ROD_ASSY * 1 27 NS6120630SP NUT 3/16-28 * 2 28 22921506 THREAD_TENSION_DISK * 1 29 D7133555B00 CONNECTING ROD SPRING * 1 30 22945703 THREAD_TENSION_NUT * 1 31 SM0050801SC SCREW * 1 32 40037008 THREAD_CUTTER * 1 33 40163521 PACKING * 1 34 40113241 BTW_SPACER * 3 35 SM0050801SC SCREW Jinte.in

Page 9 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS

MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS 1 2 6 8 9~12 7 9~12 5 4 29 32 27 23 24 16 17 18 22 A 46 30 31 40 45 41 42 43 44 25 28 39 36 37 34 38 21 20 13 19 26 3 35 14 15 jintex.in

Page 10 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS

MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SS8151150TP SCREW 15/64-28 L=10.5 1 2 22919559 THREAD TAKE-UP CRANK SHAFT ASM. 1 3 11002904 ROLLER FELT 1 4 22918072 THREAD TAKE-UP LEVER COMPL. 1 5 22918064 THREAD TAKE-UP LEVER ASM. * 1 6 22918304 LEFT SCREW * 1 7 22918106 NEEDLE BAR CRANK * 1 8 22906606 NEEDLE BAR CRANK ROD * 1 9 22918403 NEEDLE BEARING A SELECTIVE PARTS * 2 10 22918502 NEEDLE BEARING B SELECTIVE PARTS * 2 11 22918601 NEEDLE BEARING C SELECTIVE PARTS * 2 12 22918700 NEEDLE BEARING D SELECTIVE PARTS * 2 13 22910103 THRUST COLLAR 1 14 22903900 ADJUSTING PIN 1 15 40110977 MAIN SHAFT 1 16 22910053 FEED DRIVE ECCENTRIC CAM ASM. 2 17 SS6661110SP SCREW 1/4-40 L=11 * 1 18 22910004 FEED DRIVE ECCENTRIC CAM * 1 19 SS4090615SP SCREW 9/64-40 L=6 2 20 40110978 MAIN SHAFT BUSHING 1 21 40139216 OIL SEAL 1 22 RC1850001KP SNAP RING 18.5 1 23 22904155 MAIN SHAFT THRUST COLLAR ASM. 1 24 SS8660610TP SCREW 1/4-40 L=6 * 2 25 22903207 MAIN SHAFT BUSHING FRONT 1 26 B121552000 OIL ADJUSTING COLLAR 1 27 22903306 BUSHING INTERMEDIATE 1 28 40110979 MAIN MOTOR BASE 76 1 29 22919203 OIL PROTECTING RUBBER 1 30 22538805 DRIVING WHEEL 1 31 SS8660610TP SCREW 1/4-40 L=6 2 32 40111424 FILTER 1 33 SM80608A2TP SCREW M6 L=8 2 34 40200576 HAND PULLEY 1 35 RO029180100 RUBBER RING 1 36 40111025 COUPLING ASM. 1 37 40140419 SERVO MOTOR 1 38 SL6052592TN BOLT 3 39 SL6051492TN BOLT 3 40 40110390 COUNTER WEIGHT ASM. 1 41 SS8681650TP SCREW 9/32-28 L=16 * 1 42 SS8660610TP SCREW 1/4-40 L=6 * 2 43 RO044240100 RUBBER RING * 1 44 SS7681650TP SCREW 9/32-28 L=16 * 1 45 40110376 COUNTER WEIGHT * 1 46 40156681 FILTER 1 jintex.in

Page 11 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS jintex.in

Page 12 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 TA0850604R0 RUBBER PLUG 1 2 22906101 NEEDLE BAR BUSHING UPPER 1 3 22939508 NEEDLE BAR 1 4 22906457 NEEDLE BAR HOLDER ASM. 1 5 SS6090670TP SCREW 9/64-40 L=6 * 1 6 40090058 SLIDE BLOCK 1 7 40141523 NEEDLE BAR THREAD GUIDE P 1 8 22906200 NEEDLE BAR BUSHING LOWER 1 9 SS7080510TP SCREW 1/8-44 L=4.5 * 1 10 22906309 NEEDLE BAR THREAD GUIDE 2 11 MDB100B1400 NEEDLE DBX1 #14 1 12 40145927 OIL SEAL 1 13 RO069180100 RUBBER RING 1 14 40090002 UPPER LARGE BEVEL GEAR ASM. 1 15 SS8660810TP SCREW 1/4-40 L=8 * 1 16 40090003 UPPER SMALL BEVEL GEAR ASM. 2 17 SS8660810TP SCREW 1/4-40 L=8 * 1 18 22932909 BOBBIN 2 19 40090004 LOWER LARGE BEVEL GEAR ASM. 1 20 SS8660810TP SCREW 1/4-40 L=8 * 1 21 40090005 LOWER SMALL BEVEL GEAR ASM. 2 22 SS8660810TP SCREW 1/4-40 L=8 * 1 23 22905004 UPRIGHT SHAFT 2 24 11038759 BOBBIN CASE ASM. 1 25 22905103 UPRIGHT SHAFT BUSHING UPPER 1 26 22905202 UPRIGHT SHAFT BUSHING LOWER 1 27 22916308 HOOK DRIVING SHAFT BUSH REAR 1 28 CQ220000000 OUL WICK 0.3 29 22917157 THRUST COLLAR ASM. REAR 1 30 SS6110420TP SCREW 11/64-40 L=4.8 * 2 31 40156687 HOOKDRIVING SHAFT 1 32 22942502 INNER HOOK PRESSER 1 33 SS4110915TP SCREW 11/64-40 L=9 1 34 11038650 HOOK ASM. 1 35 40156815 HOOK SHAFT METAL ASSY 1 36 22916555 OIL SEAL SCREW ASM. 1 37 11015906 OIL WICK 1 38 22916506 SET SCREW 1 39 SS4120925SP SCREW 3/16-28 L=9 1 40 40156698 GEAR OIL GUARD PLATE 1 41 SM6050802TP SCREW M5X0.8 L=8 1 42 22890404 RP HOOK C OPTIONAL PARTS 1 43 22890206 RP HOOK OPTIONAL PARTS 1 44 22890305 RP HOOK S OPTIONAL PARTS 1 45 B9117552A00 BOBBIN OPTIONAL PARTS 1 46 22896252 BOBBIN CASE ASM. OPTIONAL PARTS 1 47 RO036080200 RUBBER RING OPTIONAL PARTS 1 jintex.in 10

Page 13 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS 1 2 3.49 4 5 6 7 8 9 10 11 12 13 14 15 16 17 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42~44 45 46 47 48 jintex.in

Page 14 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 11079506 FRONT SCREW OPTIONAL PARTS 1 49 22939607 NEEDLE BAR B ACCORDING TO DESTINATIONS 1 50 WP0501016SD WASHER 5X10.5X1 1 jintex.in jintex.in

Page 15 — HAND LIFTER COMPONENTS

HAND LIFTER COMPONENTS 1 2 3 4 7 39 11 12 14 13 32 40 44 41 8 43 8 42 A 16 19 30 31 45 28 29 22 23 26 24 22 10 17 18 15 36 34 37 38 5 46 35 6 9 20 25 27 jintex.in

Page 16 — HAND LIFTER COMPONENTS

HAND LIFTER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22907802 HAND LIFTER 1 2 B1521555000 SCREW 1 3 RO037180100 RUBBER RING 1 4 22908552 HAND LIFTER CAM ASM. 1 5 40060989 PRESSER BAR BUSHING LOWER 1 6 SS7091110TP SCREW 9/64-40 L=10.5 1 7 22908701 LINK SHAFT 2 8 RE0500000K0 E-RING 3 9 B15240120BA PRESSER FOOT ASM. 1 10 22944706 WIRE PRESSER BASE LOWER 1 11 22908909 HINGE SCREW 1 12 SD0720331SP HINGE SCREW D=7.24 H=3.3 1 13 22909006 KNEE LIFTER CONNECTING ROD 1 14 22908800 KNEE LIFTER LINK 1 15 SS4110515SP SCREW 11/64-40 L=5 2 16 SS4110515SP SCREW 11/64-40 L=5 1 17 SS4150915SP SCREW 15/64-28 L=9 1 18 22944508 WIRE PRESSER A 2 19 SS4120615SP SCREW 3/16-28 L=6 1 20 22944607 WIRE PRESSER BASE UPPER 1 21 NS6620310SP NUT 3/16-32 2 22 RE0500000K0 E-RING 2 23 22920201 RETURN SPRING 1 24 22920409 THREAD RELEASE PIN SPRING 1 25 22945109 WIRE CABLE SUPPORT 1 26 22920300 THREAD RELEASE SUPPORTING PIN 1 27 SS4120615SP SCREW 3/16-28 L=6 1 28 22944854 THREAD RELEASE WIRE ASM. 1 29 22920102 TENSION RELEASE SHAFT 1 30 22907554 PRESSER SPRING REGULATOR ASM. 1 31 22907604 PRESSER SPRING REGULATOR NUT 1 32 22907505 PRESSER SPRING REGULATOR 1 33 22907406 PRESSER SPRING 1 34 22907208 PRESSER BAR GUIDE BRACKET 1 35 40017805 PRESSER BAR 1 36 22907307 THREAD GUIDE 1 37 SS8660810TP SCREW 1/4-40 L=8 2 38 SS6090910SP SCREW 9/64-40 L=9 1 39 22908354 KNEE LIFTING CROSS ROD ASM. 1 40 22908156 LIFTING LINK ASM. 1 41 RE0500000K0 E-RING 1 42 22908008 LIFTING PLATE 1 43 RE0500000K0 E-RING 1 44 22908305 KNEE LIFTER SIDE ROD 1 45 22907703 PRESSER GUIDE BAR 1 46 CQ2020000000 OIL WICK 0.2 jintex.in

Page 17 — FEED MECHANISM COMPONENTS

FEED MECHANISM COMPONENTS 1 2 3 4 5 6 7 8 9 10 11-12 13 14 15-16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 jintex.in

Page 19 — FEED MECHANISM COMPONENTS

FEED MECHANISM COMPONENTS 1 2 3 4 5 6 7 8 9 10 11-12 13 14 15-16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 jintex.in

Page 20 — FEED MECHANISM COMPONENTS

FEED MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 47 SD1000801SH HINGE SCREW D=10 H=8 1 48 40156686 FEED DRIVING SHAFT 1 49 40137504 THRUST COLLAR ASM. 1 50 SS8660610TP SCREW 1/4-40 L=6 2 51 40162859 FEED_ROCKER_SHAFT BUSHING * ACCORDING TO DESTINATIONS 1 52 40111897 BEARING 1 53 SS7110740TP SCREW 11/64-40 L=7 1 54 RC0150001KP RETAINING RING 13.8 1 55 22940654 FEED ROCKER ASM. 1 56 SS7121410TP SCREW 3/16-28 L=14 * 1 57 WP0480856SP WASHER 4.8X8.4X0.8 * 1 58 22915359 DRIVING SHAFT CRANK ASM. * 1 59 SS711120SP SCREW 11/64-40 L=10.5 * 1 60 40102264 FEED_REVER_ASM. 1 61 SM8061010TP SCREW * 2 62 22904155 MAIN SHAFT THRUST COLLAR ASM. 1 63 SS8660610TP SCREW 1/4-40 L=6 * 2 64 40156758 FEED SHAFT RUBBER ACCORDING TO MANUFACTURING BASE 2 65 TA0950806R0 RUBBER PLUG 1 66 40086740 OIL SEAL 1 67 RO133170100 RUBBER RING 1 68 40100812 FEED LEVER SHAFT 1 69 22912802 FEED LEVER SHAFT BUSHING 1 70 RO078190100 RUBBER RING 1 71 40158189 BUSHING ACCORDING TO MANUFACTURING BASE 1 72 TA2000502R0 RUBBER PLUG ACCORDING TO MANUFACTURING BASE 1 73 22915003 CONNECTING ROD 1 74 RO092270200 RUBBER RING 1 75 22913008 FEED ROCKER SHAFT BUSHING 1 jintex.in

Page 21 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 jintex.in

Page 22 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40130579 KNIFE UNIT * 1 2 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 3 22948202 FORKED BASE FOR KNIFE * 1 4 11040409 MOVING KNIFE HINGE SCREW * 1 5 11040052 MOVING KNIFE ASM. * 1 6 40130580 KNIFE INSTALLING BASE * 1 7 22947808 THREAD GUIDE FOR KNIFE * 1 8 SS2060210SP SCREW 3/32-56 L=2.3 * 1 9 SD4080620TP SCREW 1/8-44 L=6 * 2 10 D240655D0H COUNTER KNIFE * 1 11 SD0640631TP HINGE SCREW D=6.35 H=6.3 * 1 12 SS4110715SP SCREW 11/64-40 L=7 1 13 22950257 PICKER ARM ASM. 1 14 22950208 PICKER ARM * 1 15 22950356 HOOK THREAD PRESSER ASM. * 1 16 SS6090510TP SCREW 9/64-40 L=5.0 * 2 17 SD0641451SP HINGE SCREW D=6.35 H=14.5 1 18 SD0630275SP HINGE SCREW D=6.35 H=2.7 1 19 22950851 THREAD TRIMMER CAM ASM. 1 20 SS6660610TP SCREW 1/4-40 L=6 * 2 21 22950950 CAM COLLAR ASM. 1 22 SS8110520TP SCREW 11/64-40 L=4.5 * 1 23 40156728 THREAD TRIMMER DRIVING UNIT 1 24 22949754 BASE PLATE ASM. * 1 25 22950703 DRIVING ARM STOPPER * 1 26 22950000 PICKER LINK PIN * 1 27 RE0600000K0 E-RING 6 * 1 28 SS4110715SP SCREW 11/64-40 L=7 * 2 29 22949408 CLUTCH SPRING * 1 30 40087245 CLUTCH PLATE ASM. * 1 31 40156999 PICKER_LINK_ASM * 1 32 40156699 PICKER LINK * 1 33 40156721 PICKER LINK RUBBER * 1 34 RE0600000K0 E-RING 6 * 1 35 40157336 MOVING KNIFE LINK ASM. * 1 36 22948301 MOVING KNIFE LINK * 1 37 22919203 OIL PROTECTING RUBBER * 1 38 22949309 KNIFE RETURN SPRING B * 1 39 RE0400000K0 E-RING 4 2 40 22949101 ROLLER FULCRUM SHAFT * 1 41 22949200 ROLLER RETURN SPRING * 1 42 SS7090610SP SCREW 9/64-40 L=6 * 1 43 22949002 ROLLER ARM SEAT * 1 44 11040953 ROLLER ARM ASM. * 1 45 22948558 KNIFE DRIVING ARM ASM. * 2 46 WP0621016SH WASHER * 2 47 NS6150430SP NUT 15/64-28 2 jintex.in

Page 23

THREAD TRIMMER COMPONENTS jintex.in

Page 24 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 RE050000K0 E-RING * 1 49 22948400 MOVING KNIFE LINK PIN * 1 50 SS4150915SP SCREW 15/64-28 L=9 2 51 40156700 THREAD TRIMMER SOLENOID ASM. 1 52 NM6040001SE NUT M4 * 2 53 WS0410002KR SPRING WASHER M4 * 2 54 22951404 SOLENOID BASE * 1 55 40156701 THREAD TRIMMER SOLENOID 1 56 RO044240100 RUBBER RING * 1 57 SS4151215SP SCREW 15/64-28 L=12 2 58 SD0600361SP HINGE SCREW D=6 H=3.6 1 59 40112907 GROUND WIRE ASM. 1 60 22951008 SOLENOID PIN 1 61 SS6110710TP SCREW 11/64-40 L=6.5 1 62 22949903 CLUTCH LINK 1 63 RE050000K0 E-RING 1 jintex.in

Page 25

AUTOMATIC REVERSE FEED COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 jintex.in

Page 27 — WIPER COMPONENTS

WIPER COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 jintex.in

Page 28 — WIPER COMPONENTS

WIPER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40140992 WIPER ASSY * 1 2 40140994 WIPER BASE ASSY * 1 3 40110999 WIPER SOLENOID * 1 4 22955900 WIPER RUBBER A * 1 5 22956007 WIPER RUBBER B * 1 6 22956106 WIPER LINK A * 1 7 22956205 WIPER HINGE SCREW COLLAR * 1 8 22956304 WIPER SPRING * 1 9 22956403 WIPER LINK B * 1 10 40041419 WIPER LINK C ASM. * 1 11 22956809 WIPER COLLAR * 1 12 22955504 WIPER COVER * 1 13 22956908 WIPER LINK B HINGE SCREW * 1 14 40140991 WIPER * 1 15 40086678 WIPER SW RUBBER * 1 16 40077852 WIPER SOLENOID SHAFT * 1 17 NS6090310SP NUT 9/64-40 * 1 18 NS6110310SP NUT 11/64-40 * 1 19 RE0250000K0 E-RING 2.5 * 1 20 RE0500000K0 E-RING * 1 21 SD0650321TP HINGE SCREW D=6.5 H=3.2 * 3 22 SL4030641SE SCREW * 1 23 SL4030631SC SCREW M3X6 * 1 24 SS6090540SP SCREW 9/64-40 L=5.0 * 1 25 22957203 WIPER LINK COLLAR * 1 26 40077851 WIPER SOLENOID SHAFT GUIDE * 1 27 SS4110615SP SCREW 11/64-40 L=6 * 2 28 40086679 WIPER STOPPER RUBBER * 1 29 40037500 RUBBER HOLDER * 1 30 SS4120925SP SCREW 3/16-28 L=9 * 1 31 WP0482086SD WASHER 4.8X11.5X2 1 jintex.in

Page 29 — OIL LUBRICATION COMPONENTS

OIL LUBRICATION COMPONENTS 1 2 3 4 5 6 7 9 10 40 56 57 42 45 29 37 36 35 34 30 31 57 47 38 39 49 50 51 52 49 50 46 48 43 11 27 24 22 23 14 15 17 16 18 19 20 21 13 12 26 25 28 jintex.in

Page 30

OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22924708 OIL SIGHT WINDOW 1 2 RO195240100 RUBBER RING 1 3 22924401 MAIN SHAFT OIL TUBE 1 4 SS4120615SP SCREW 3/16-28 L=6 1 5 22925101 OIL FELT PRESSER 1 6 22924153 OIL RETURN TUBE ASM. 1 7 22924302 HOLDER * 1 8 WS0451040KP SPRING WASHER 4.5X8.5X1 0.3 9 40037502 OIL ADJUSTING SCREW 1 10 RO037180100 RUBBER RING 1 11 40156696 HOOK OIL PIPE 1 12 22923056 LUBRICATING OIL PUMP ASM. 1 13 22923312 OIL PUMP INSTALLING BASE * 1 14 22923015 OIL PUMP * 1 15 22923700 OIL PUMP IMPELLER * 1 16 SE4301041SR SCREW D=3 L=10 * 3 17 22923205 LUBRICATING OIL PUMP COVER * 1 18 22923809 OIL PUMP IMPELLER COVER * 1 19 22923403 PLUNGER * 1 20 22923601 PLUNGER SPRING * 1 21 22923502 PLUNGER SCREW * 1 22 22923908 HOOK DRIVING SHAFT OIL TUBE * 1 23 SL403085TSF SCREW M3 L=8 * 1 24 SS4150915SP SCREW 15/64-28 L=9 1 25 SS6111010TP SCREW 11/64-40 L=9.5 1 26 22947105 OIL PUMP SUPPORT 1 27 WS0651310KP SPRING WASHER 6.5X11X1.3 1 28 22924609 RUBBER JOINT 1 29 40156691 OIL SHIELD ASSY 1 30 40156692 OIL SHIELD * 1 31 SQ2060451MZ CONNECTING SCREW * 1 32 13170105 RUBBER RING * 1 33 13171004 DRAIN SCREW * 1 34 B8228125000 OIL RESERVOIR MAGNET * 1 35 40024644 MAGNET WASHER * 1 36 ST4040821SS TAPPING SCREW * 1 37 40156693 DECK PLATE * 4 38 WP0501016SD WASHER 5X10.5X1 13 39 SM6051402TP SCREW M5X0.8 L=14 13 40 SQ2050453MZ CONNECTING SCREW 1 41 SQ2060451MZ CONNECTING SCREW 1 42 23630007 TUBE 0.1 43 23630007 TUBE 0.1 44 40156694 KNEE LIFTER PUSH ROD 1 45 40171642 OIL_SHIELD_PACKING 1 46 11039203 FELT 1 47 40136258 CORD_HOLDER 1 jintex.in 29

Page 31 — OIL LUBRICATION COMPONENTS

OIL LUBRICATION COMPONENTS 1 2 3 4 5 6 7 9 10 40 56 57 42 45 46 48 43 55 54 53 11 26 13 12 8 25 28 27 24 22 19 20 21 14 15 18 17 16 29 37 36 35 34 30 36 31 57 38 39 32 33 51 52 49 49 50 50 38 39 Jintex.in

Page 32 — OIL LUBRICATION COMPONENTS

OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40156690 OIL SIGHT GAUGE 1 49 22944508 WIRE PRESSER A 2 50 SM4040655SP SCREW M4 L=6 2 51 13101407 LOOPER COVER PRESSER PLATE 1 52 SM4040655SP SCREW M4 L=6 1 53 40028281 FEED_ADJUSTING_STOPPER 1 54 WP0501016SD WASHER 5X10.5X1 1 55 SS4110615SP SCREW 11/64-40 L=6 1 56 23629306 PIPE STOPPER A 2 57 40162044 PIPE STOPPER 2

Page 33 — OIL RESERVOIR COMPONENTS

OIL RESERVOIR COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 jintex.in

Page 34 — OIL RESERVOIR COMPONENTS

OIL RESERVOIR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40156724 UNDER COVER ASSY 1 2 40156727 UNDER COVER 1 3 B1116210D00 FRAME SUPPORT RUBBER 4 4 40156725 KNEE LIFTER ROTATION ARM ASM. 1 5 22932107 KNEE LIFTER ROTATING ARM 1 6 SM8061612TP SCREW M6X16 2 7 NM6060003SC NUT M6 2 8 40156726 KNEE LIFTER SPRING 1 9 40101541 KNEE_PRESS_CROSS_SHAFT 1 10 22932453 BRACKET ASM. 1 11 22932404 BRACKET 1 12 22934707 SCREW 2 13 RE1000000K0 E-RING 10 1 14 SM9062563TR SCREW M6 L=25 1 15 NM6060001SE NUT M6 1 16 22934251 KNEE PAD PLATE ASM. 1 17 22934608 KNEE PAD UPRIGHT SHAFT 1 18 22934400 KNEE PAD PLATE RUBBER 1 19 22934202 KNEE PAD PLATE 1 20 22934301 KNEE PAD PLATE SUPPORT 1 21 SM9061203SE SCREW M6 L=12 1 22 22934509 KNEE PAD PLATE COVER 1 23 HX006690000 GROMMET 0.03

Page 35 — PSC UNIT

PSC UNIT 36~38 35 43 41 39 40 1.2 33 10.24 9 34 15.22 16 A 7 12.29 5 4.25 13 14.27 21 31 11.28 3.26 8 20.30 17 18 A 19 jintex.in

Page 36

PSC UNIT No. Parts No. Parts name Remarks Level Cons Qty 1 40156704 CONTROL BOX VARIOUS NOS. FOR DESTINATIONS 1 2 40163109 CONTROL BOX CE FOR CE 1 3 40141200 AC INPUT CORD ASSY VARIOUS NOS. FOR DESTINATIONS 1 4 40141201 FLT PCB ASSY VARIOUS NOS. FOR DESTINATIONS * 1 5 40141203 INPUT CHECK CORD ASSY * 1 6 40141204 PWR PCB ASSY VARIOUS NOS. DESTINATIONS * 1 7 40141205 PWR PCB FILM SHEET * 1 8 40141206 RESISTANCE A ASSY * 1 9 40141207 DC POWER SUPPLY CORD ASSY * 1 10 40141208 CTL PCB ASSY VARIOUS NOS. FOR DESTINATIONS * 1 11 40141209 PEDAL CORD ASSY VARIOUS NOS. DESTINATIONS * 1 12 40141210 SOL SIGNAL CORD ASSY VARIOUS NOS. DESTINATIONS * 1 13 40141211 SOL POWER CORD ASSY * 1 14 40141212 SOL PCB ASSY VARIOUS NOS. DESTINATIONS * 1 15 40186301 RATING LABEL A DRAWING VARIOUS NOS. DESTINATIONS * 1 16 40141217 PSC COVER * 1 17 40141214 PANEL COVER ASSY * 1 18 40141215 PANEL COVER * 1 19 40141216 MEMBRANE SWITCH * 1 20 40141213 PNL PCB ASSY VARIOUS NOS. DESTINATIONS * 1 21 40141199 FRAME * 1 22 40186302 RATING LABEL C DRAWING FOR CE * 1 23 40145554 PWR-CE PCB ASSY FOR CE * 1 24 40145555 CTL-CE PCB ASSY FOR CE * 1 25 40145553 FLT-CE PCB ASSY FOR CE * 1 26 40149316 AC INPUT CORD ASSY FOR CE * 1 27 40145556 SOL-CE PCB ASSY FOR CE * 1 28 40145557 PEDAL CORD CE ASSY FOR CE * 1 29 40145558 SOL POWER CORD CE ASSY FOR CE * 1 30 40145921 PNL-CE PCB ASSY FOR CE * 1 31 40145944 EMI GASKET FOR CE * 1 32 401557011 CONNECTOR COVER * 1 33 40145540 PRT CORD ASSY VARIOUS NOS. DESTINATIONS * 1 34 40183785 SWITCH_DUSTPROOF_COVER_ASSY VARIOUS NOS. DESTINATIONS * 3 35 40141224 SCREW 1 36 40141225 SLO-BLO FUSE VARIOUS NOS. DESTINATIONS 1 37 40141226 SLO-BLO FUSE VARIOUS NOS. DESTINATIONS 1 38 40141227 SLO-BLO FUSE VARIOUS NOS. DESTINATIONS 1 39 40162159 AC POWER CORD ASSY CE FOR CE 1 40 40141220 AC POWER CORD ASSY FOR CE 1 41 40141219 PEDAL SENSOR A ASSY 1 42 40042134 CONNECTING ROD ASSY 1 jintex.in 24

Page 37 — PSC UNIT

PSC UNIT 41 39 40 36~38 35 43 1.2 34 16 15.22 33 10.24 9 7 12.29 6.23 5 4.25 13 14.27 21 31 11.28 3.26 8 20.30 17 18 19 A A 25 jintex.in

Page 38 — PSC UNIT

PSC UNIT No. Parts No. Parts name Remarks Level Cons Qty 43 40141223 CORD STAPLE VARIOUS NOS. FOR DESTINATIONS 3 jintex.in

Page 39 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS 1 9 8 7 6 9 8 7 6 19 11 5 18 3 10 23 4 18 2 15 16 16 15 14 24 17 22 21 20 22 21 20 13 12 jintex.in

Page 40 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40096354 THREAD STAND ASM. 1 2 40085784 SPOOL REST ROD LOWER * 1 3 40085785 SPOOL REST ROD UPPER * 1 4 40085786 SPOOL REST ARM LOWER * 1 5 40085787 SPOOL REST ARM UPPER * 1 6 40085788 SPOOL REST * 2 7 40085789 SPOOL REST CUSHION * 2 8 40085790 SPOOL PIN * 2 9 40085791 SPOOL RETAINER * 2 10 40085792 SPOOL REST ROD JOINT * 1 11 40085793 SPOOL REST ROD RUBBER CAP * 1 12 40085794 THREAD GUIDE * 2 13 40085795 THREAD GUIDE BUSHING * 2 14 40096325 SPOOL REST ROD NUT * 1 15 WP1612616SE WASHER 16X30X2.6 * 2 16 40085796 SPOOL REST ROD RUBBER CUSHION * 2 17 40096326 SPOOL REST ARM LOWER SCREW * 1 18 NM6050001SE NUT M5 * 2 19 40096327 SPOOL REST ARM UPPER SCREW * 1 20 NM6050001SE NUT M5 * 2 21 WS0510002KN SPRING WASHER M5 * 2 22 WP0531001SC WASHER M5 * 2 23 SM4051405SE SCREW M5 L=14 * 2 24 NM6050001SE NUT M5 * 2 jintex.in

Page 41 — ACCESSORIE PARTS COMPONENTS

ACCESSORIE PARTS COMPONENTS 1 2 4 7 14 JUKI 19 JUKI 3 5 6 8 9 10 11 12 13 15 16 17 18 21~26 20 jintex.in

Page 42

ACCESSORIE PARTS COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40156730 ACCESSORY BAG ASSY 1 2 22932800 ACCESSORIE BAG 1 3 14101208 HEAD SUPPORT BAR 1 4 22932909 BOBBIN 1 5 22933105 SCREW DRIVER MIDDLE 1 6 22933204 SCREW DRIVER SMALL 1 7 22958300 NEEDLE THREAD GUIDE PIN 1 8 22958052 RUBBER HINGE ASM. 2 9 22926000 RUBBER CUSHION 2 10 22958003 FRAME BUBBER CUSHION 8 11 22926208 NAIL 2 12 22926356 HINGE COMPL. 2 13 22926505 WASHER 1 14 13160601 FUNNEL 1 15 40157520 NEW DEFFIX OIL NO.1 450ML ACCORDING TO MANUFACTURING BASE 1 16 40102087 JUki CORPORATION GENUINE OIL 7 ACCORDING TO MANUFACTURING BASE 1 17 MDB100B1402 NEEDLE DBX1#14-2 ACCORDING TO MANUFACTURING BASE 1 18 MC200500902 NEEDLE 134 #90-2 ACCORDING TO MANUFACTURING BASE 1 19 40135803 HEAD COVER 1 20 CM600100201 WEEE INFORMATION SHEET ACCORDING TO MANUFACTURING BASE 1 21 40157451 SAFETY INSTRUCTION MANUAL C JPN ACCORDING TO MANUFACTURING BASE 1 22 40157452 SAFETY INSTRUCTION MANUAL 5 JPN ACCORDING TO MANUFACTURING BASE 1 23 40157453 SAFETY INSTRUCTION MANUAL 7 JPN ACCORDING TO MANUFACTURING BASE 1 24 40156811 SAFETY INSTRUCTION MANUAL ACCORDING TO MANUFACTURING BASE 1 25 40156812 SAFETY INSTRUCTION MANUAL ACCORDING TO MANUFACTURING BASE 1 26 40156813 SAFETY INSTRUCTION MANUAL ACCORDING TO MANUFACTURING BASE 1 jintex.in

Page 43 — LIST FOR INFORMATION OF CHANGE

LIST FOR INFORMATION OF CHANGE As to the place changed,refer to the corresponding Rev.No. When previous parts(Obsoleted part)and new parts(Added parts)are not interchangeable with each other. In this case,even obsoleted parts(D.)can be ordered with the obsoleted part number,so select the parts with changed dates and place your orders. 変更箇所は、該当Rev.No.版をご参照ください。 部品の互換性がない変更の場合は、削除された品番でも、ご注文できます。 No.1668-021 Rev.No. *A:Added parts追加部品/D:Obsoleted parts削除部品/E:Erratum訂正 Rev. Page Ref. No. No. No. Parts No. 品 番 Rev. Page Ref. No. No. No. Parts No. 品 番 D 01 4 33 225-38706 A 02 4 33 401-63521 D 01 6 34 401-11872 A 02 6 34 402-00576 D 01 8 41 SL-6051092-TN A 02 8 41 SM-6050802-TP A 02 8 50 WP-0501016-SD D 01 12 49 229-04155 A 02 12 49 401-37504 D 01 * 51 401-56685 A 02 12 51 401-62859 D 01 18 45 401-56695 A 02 18 45 401-71642 D 01 22 2 401-56705 A 02 22 2 401-63109 D 01 22 15 401-56706 A 02 22 15 401-86301 D 01 22 22 401-56707 A 02 22 22 401-86302 A 02 22 34 401-83785 D 01 22 39 401-45128 A 02 22 39 401-62159 jintex.in

Page 44

HOW TO MAKE USE OF THIS PARTS LIST 1.Explanation of codes 1)**mark...means this part is changed from the previous parts book. As to the details of the change, refer to the "List for information of change". 2)"#01"...refer to "Note" explanation at bottom of page. 2.Codes on the "Qty" column • Each numeral indicates the number of parts required. • "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. 5.As to the parts with marks of "☆"(consumable parts) and "◎"(optional parts)on the respective parts, it is recommended to prepare spares. 1."注記"欄の記号説明 1) "*"印...今回のパーツブックに比較して今回変更された部品を意味します。 変更内容は、“変更情報リスト”を参照してください。 2) "#01"...ページ下の"注記"の説明を参照してください。 2.数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3.数量欄の（ ）は、組部品を構成している子部品であることを意味します。 4.イラストページのーーーーー枠は、組構成であることを意味します。 5.リストページの"☆"(消耗部品)、"◎"(オプション部品)の印がついた部品は、 予備を準備しておくことをお奨めします。 jintex.in

Page 45 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 11002904 8 3 22907307 14 36 22918106 8 7 11009800 16 23 22907406 14 33 22918304 8 6 11010311 16 17 22907505 14 32 22918403 8 9~12 11015906 10 37 22907554 14 30 22918502 8 9~12 11037405 16 22 22907604 14 31 22918601 8 9~12 11038650 10 34 22907703 14 45 22918700 8 9~12 11038759 10 24 22907802 14 1 22919203 8 29 11039203 28 46 22908008 14 42 22919203 20 37 11040052 20 5 22908156 14 40 22919559 8 2 11040409 20 4 22908305 14 44 22920102 14 29 11040953 20 44 22908354 14 39 22920201 14 23 11079506 12 48 22908552 14 4 22920300 14 26 11101300 24 11 22908701 14 7 22920409 14 24 11415205 2 20 22908800 14 14 22920508 2 30 13101407 30 51 22908909 14 11 22920607 4 47 13160601 40 14 22909006 14 13 22920904 2 43 13170105 28 32 22910004 8 18 22921001 2 31 13171004 28 33 22910053 8 16 22921209 2 38 14101208 40 3 22910103 8 13 22921308 2 33 22538805 8 30 22910202 16 15~16 22921407 2 34 22890206 10 42~44 22910251 16 11~12 22921506 2 37 22890305 10 42~44 22910806 16 28 22921506 6 28 22890404 10 42~44 22910905 16 24 22921605 2 39 22896252 10 46 22911002 16 40 22921704 2 35 22900401 2 10 22911101 16 13 22921803 2 36 22900609 2 28 22911507 16 2 22923015 28 14 22901003 4 55 22911606 16 4 22923056 28 12 22901201 4 52 22911804 16 7 22923205 28 17 22901250 4 51 22912000 16 9 22923312 28 13 22901300 4 53 22912109 16 8 22923403 28 19 22901805 2 14 22912257 16 19 22923502 28 21 22903207 8 25 22912505 16 20 22923601 28 20 22903306 8 27 22912802 18 69 22923700 28 15 22903900 8 14 22913008 18 75 22923809 28 18 22904155 8 23 22913701 16 38 22923908 28 22 22904155 18 62 22913800 16 15~16 22924153 28 6 22905004 10 23 22913859 16 11~12 22924302 28 7 22905103 10 25 22915003 18 73 22924401 28 3 22905202 10 26 22915359 18 58 22924609 28 28 22906101 10 2 22916308 10 27 22924708 28 1 22906200 10 8 22916506 10 38 22925101 28 5 22906309 10 10 22916555 10 36 22926000 40 9 22906457 10 4 22917157 10 29 22926208 40 11 22906606 8 8 22918064 8 5 22926356 40 12 22907208 14 34 22918072 8 4 22926505 40 13 INDEX - 1 jintex.in

Page 46 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 22932107 32 5 22948558 20 45 26260802 6 8 22932404 32 11 22949002 20 43 26261008 6 9 22932453 32 10 22949101 20 40 26261206 6 10 22932800 40 2 22949200 20 41 26261305 6 11 22932909 10 18 22949309 20 38 26261503 6 12 22932909 40 4 22949408 20 29 26261602 6 13 22933105 40 5 22949754 20 24 26261701 6 14 22933204 40 22 22949903 22 62 40011144 6 15 22934202 32 19 22950000 20 26 40012126 2 2 22934251 32 16 22950208 20 14 40012129 2 11 22934301 32 20 22950257 20 13 40017805 14 35 22934400 32 18 22950356 20 15 40021933 6 17 22934509 32 22 22950703 20 25 40024644 28 35 22934608 32 17 22950851 20 19 40028281 30 53 22934707 32 12 22950950 20 21 40037008 6 32 22935407 4 57 22951008 22 60 40037500 26 29 22939508 10 3.49 22951404 22 54 40037502 28 9 22939607 12 3.49 22952501 2 18 40041419 26 10 22940506 16 10 22953400 24 18 40042134 34 42 22940654 18 55 22953509 24 20 40060989 14 5 22940753 16 35 22953657 24 13 40077851 26 16 22940951 16 27 22954002 24 23 40077852 26 16 22941108 16 1 22955504 26 12 40085784 38 2 22941306 16 36 22955900 26 4 40085785 38 3 22942502 10 32 22956007 26 5 40085786 38 4 22944508 14 18 22956106 26 6 40085787 38 5 22944508 30 49 22956205 26 7 40085788 38 6 22944607 14 20 22956304 26 8 40085789 38 7 22944706 14 10 22956403 26 9 40085790 38 8 22944854 14 28 22956809 26 11 40085791 38 9 22945109 14 25 22956908 26 13 40085792 38 10 22945307 2 40 22957203 26 25 40085793 38 11 22945356 2 32 22958003 40 10 40085794 38 12 22945414 2 22 22958052 40 8 40085795 38 13 22945463 2 21 22958300 2 7 40086678 26 15 22945505 2 25 22958300 40 7 40086679 26 28 22945604 2 23 23629306 30 56 40086740 18 66 22945703 2 26 23630007 28 43 40087245 20 30 22945703 6 30 23632102 24 6 40089548 16 25 22945802 2 24 26260109 6 2 40090002 10 14 22947105 28 26 26260208 6 3 40090003 10 16 22947808 20 7 26260307 6 4 40090004 10 19 22948202 20 31 26260406 6 5 40090005 10 21 22948301 20 36 26260505 6 6 40090058 10 6 22948400 22 49 26260604 6 7 INDEX - 2 jintex.in

Page 47 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40093417 16 26 40140991 26 14 40156684 16 39 40096325 38 14 40140992 26 1 40156686 18 48 40096326 38 17 40140994 26 2 40156687 10 31 40096327 38 19 40141199 34 21 40156690 30 48 40096354 38 1 40141200 34 3-26 40156691 28 29 40099083 4 58 40141201 34 4-25 40156692 28 30 40100812 18 68 40141203 34 5 40156693 28 37 40101541 32 9 40141204 34 6-23 40156694 28 44 40102087 40 15-16 40141205 34 7 40156696 28 11 40102097 2 1 40141206 34 8 40156698 10 40 40102261 2 13 40141207 34 9 40156699 20 32 40102264 18 60 40141208 34 10-24 40156700 22 51 40109422 16 45 40141209 34 11-28 40156701 22 55 40110376 8 45 40141210 34 12-29 40156704 34 1-2 40110379 16 43 40141211 34 13 40156721 20 33 40110390 8 40 40141212 34 14-27 40156722 24 22 40110731 6 25 40141213 34 20-30 40156723 24 15 40110734 6 26 40141214 34 17 40156724 32 1 40110975 6 16 40141215 34 18 40156725 32 4 40110976 6 1 40141216 34 19 40156726 32 8 40110977 8 15 40141217 34 16 40156727 32 2 40110978 8 20 40141219 34 41 40156728 20 23 40110979 8 28 40141220 34 40 40156730 40 1 40110999 26 3 40141223 36 43 40156758 18 64-72 40111025 8 36 40141224 34 35 40156811 40 21-26 40111424 8 32 40141225 34 36-38 40156812 40 21-26 40111896 4 61 40141226 34 36-38 40156813 40 21-26 40111897 18 52 40141227 34 36-38 40156815 10 35 40112907 22 59 40141523 10 7 40156893 4 64 40113241 6 34 40145540 34 33 40156894 4 66 40119475 6 24 40145553 34 4-25 40156999 20 31 40125485 16 31 40145554 34 6-23 40157335 4 65 40126308 4 60 40145555 34 10-24 40157336 20 35 40130579 20 1 40145556 34 14-27 40157451 40 21-26 40130580 20 4 40145557 34 11-28 40157452 40 21-26 40135803 40 19 40145558 34 12-29 40157453 40 21-26 40136258 28 47 40145921 34 20-30 40157520 40 15-16 40137504 18 49 40145927 10 12 40158189 18 71 40139216 8 21 40145944 34 31 40162044 30 57 40139555 4 63 40148382 24 1 40162159 34 39 40139771 24 2 40149069 24 5 40162859 18 51 40140191 24 3 40149316 34 3-26 40163109 34 1-2 40140306 24 4 401557011 34 32 40163521 6 33 40140416 4 67 40156677 2 4 40171642 28 45 40140419 8 37 40156681 8 46 40183785 34 34 INDEX - 3 jintex.in

Page 48 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40186301 34 15-22 RE0500000K0 22 63 SM9062563TR 32 14 40186302 34 15-22 RE0500000K0 26 20 SQ2050453MZ 28 40 40200576 8 RE0500000KP 24 24 SQ2060451MZ 28 41 B1109552000 2 RE0600000K0 20 34 SS2060210SP 20 8 B1116210D00 32 RE0900000K0 24 12 SS2110915SP 2 46 B1215552000 8 RE1000000K0 32 13 SS2110920TP 2 45 B1521555000 14 RE1200000K0 24 16 SS4080620TP 16 34 B15240120BA 14 RO029180100 8 35 SS4090620TP 20 9 B1613012100 16 RO036080200 10 47 SS4090615SP 8 19 B8228125000 28 RO037180100 14 3 SS4110515SP 14 16 B9117552A00 10 RO037180100 28 10 SS4110515SP 16 37 CM30020001 2 RO044240100 8 43 SS4110615SP 26 27 CM600100201 40 RO044240100 22 56 SS4110615SP 30 55 CQ202000000 14 RO044240100 24 25 SS4110715SP 20 28 CQ220000000 10 RO069180100 10 13 SS4110915TP 10 33 D2406555D0H 20 RO078190100 18 70 SS4120615SP 2 62 D7133555B00 6 RO092270200 18 74 SS4120615SP 4 62 HK034610140 24 RO133170100 18 67 SS4120615SP 14 27 HK03464000B 24 RO195240100 28 2 SS4120615SP 24 10 HX00065000A 24 SD0460703TP 20 2 SS4120925SP 2 50 HX000690000 32 SD0600361SP 22 58 SS4120925SP 4 50 MC200500902 40 17-18 SD0630275SP 20 18 SS4120925SP 10 39 MDB100B1400 10 SD0640631TP 20 11 SS4120925SP 26 30 MDB100B1402 40 17-18 SD0641451SP 20 17 SS4150915SP 14 17 NM6040001SE 22 SD0650321TP 26 21 SS4150915SP 22 50 NM6050001SE 38 SD0720331SP 14 12 SS4150915SP 28 24 NM6060001SE 32 SD1000081SH 18 47 SS4151215SP 22 57 NM6060003SC 32 SE4301041SR 28 16 SS4151215SP 24 21 NS6090310SP 26 SL4030631SC 26 23 SS6060210SP 4 54 NS6110310SP 26 SL4030641SE 26 22 SS6080410SP 2 3 NS6120630SP 6 SL4030851SF 28 23 SS6090510TP 20 16 NS6150430SP 20 SL6051492TN 8 39 SS6090540SP 26 24 NS6620310SP 14 SL6052592TN 8 38 SS6090620TP 16 41 NS6680410SP 16 SM0050801SC 6 35 SS6090670TP 10 5 RC0150001KP 16 SM4040655SP 30 52 SS6090910SP 14 38 RC0150001KP 18 SM4051405SE 38 23 SS6110420TP 10 30 RC0560711KP 6 SM5040655SN 6 20 SS6110610TP 4 48 RC1850001KP 8 SM6050802TP 10 41 SS6110710TP 22 61 RE0250000K0 26 SM6051402TP 28 39 SS6111010TP 28 25 RE0400000K0 6 SM6080402TP 6 21 SS6121610SP 16 44 RE0400000K0 20 SM60808A2TP 8 33 SS6121840SP 2 17 RE0400000KP 24 SM8061010TP 18 61 SS6121860SP 16 5 RE0500000K0 14 SM8061612TP 32 6 SS6151220SP 16 29 RE0500000K0 16 SM9061203SE 32 21 INDEX - 4 jintex.in

Page 49 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. SS6660610TP 20 20 WS0651310KP 28 27 SS6661110SP 8 17 WT0530002KS 4 56 SS7080510TP 10 9 SS7090610SP 20 42 SS7091110TP 14 6 SS7110720SP 4 59 SS7110740TP 18 53 SS7110740TP 24 7 SS7111120SP 18 59 SS7120770SH 16 6 SS7121410TP 18 56 SS7121610SP 16 46 SS7681650TP 8 44 SS8090670SP 2 41 SS8110520TP 20 22 SS8150710TP 2 42 SS8151150TP 8 1 SS8660610TP 8 42 SS8660610TP 18 63 SS8660810TP 10 22 SS8660810TP 14 37 SS8681650TP 8 41 ST4040821SS 28 36 TA0850604R0 2 5 TA0850604R0 10 1 TA0950806R0 18 65 TA1250406R0 4 49 TA1250705R0 2 6 TA2000502R0 2 16 TA2000502R0 18 64-72 TA2100904R0 2 9 TA2101002R0 2 19 WP0450826SC 6 23 WP0480856SP 18 57 WP0482086SD 26 31 WP0501016SD 12 50 WP0501016SD 28 54 WP0501016SD 30 54 WP0531001SC 38 22 WP0621016SH 20 46 WP1602616SZ 24 17 WP1612616SE 38 15 WS0410002KR 22 53 WS0451040KP 28 8 WS0510002KN 38 21 INDEX - 5 jintex.in
