Page 3 — CONTENTS

Juki DLM-5200 (28 pages) parts on page 3
Ref	Part number	Part name	Qty
	1	FRAME & MISCELLANEOUS COVER COMPONENTS
	3	MAIN SHAFT COMPONENTS
	5	UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
	7	HAND LIFTER COMPONENTS
	9	FEED MECHANISM COMPONENTS
	11	KNIFE COMPONENTS
	13	OIL LUBRICATION COMPONENTS
	15	OIL RESERVOIR COMPONENTS
	17	BELT COVER & BOBBIN WINDER COMPONENTS
	18	THREAD STAND COMPONENTS
	19	FOLDER COMPONENTS ( EXCLUSIVE PARTS FOR DLM-5210 )
	20	TABLE OF EXCHANGING GAUGES FOR DLM-5200
	20	TABLE OF EXCHANGING GAUGES FOR DLM-5210
	21	NUMERICAL INDEX OF PARTS

Page 4 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DLM-5200 (28 pages) parts on page 4
Ref	Part number	Part name
2	2	JUKI
3	3	COVER
4	4	PACKING
5	5	COVER
6	6	COVER
7	7	SCREW
8	8	SCREW
9	9	COVER
10	10	COVER
11	11	COVER
12	12	COVER
13	13	COVER
14	14	SCREW
15	15	WASHER
16	16	COVER
17	17	ROLLER
18	18	ROLLER
19	19	COVER
20	20	COVER
21	21	COVER
22	22	COVER
23	23	COVER
24	24	SCREW
25	25	COVER
26	26	PULLEY
27	27	WASHER
28	28	WASHER
29	29	WASHER
30	30	PULLEY
31	31	SHAFT
32	32	SPRING
33	33	SHAFT
34	34	SCREW
35	35	BRACKET
36	36	PIN
37	37	BASE
38	38	SCREW
39	39	SPRING
40	40	SPRING
41	41	COVER
42	42	SCREW
43	43	COVER
44	44	COVER
45	45	COVER
46	46	SCREW
47	47	PIN
48	48	COVER
49	49	COVER
50	50	COVER
51	51	COVER
52	52	COVER
53	53	HANDLE

Page 5

Juki DLM-5200 (28 pages) parts on page 5
Ref	Part number	Part name	Qty
	113-30552	FACE PLATE ASM.
	110-00304	FACE PLATE GASKET
	SS-6080410-SP	SCREW 1/8-44 L=4
	SS-1110840-SP	SCREW 11/64-40 L=8
	SS-6080410-SP	SCREW 1/8-44 L=4
	110-00858	ARM OIL SHIELD ASM.
	TA-0850604-RO	RUBBER PLUG
	TA-1250705-RO	RUBBER PLUG
	SS-4120915-SP	SCREW 12/64-28 L=9
	110-00619	SIDE PLATE
	110-00619	GASKET
	B1113-155-000	NEEDLE THREAD GUIDE PIN ASM.
	B1113-155-000	NEEDLE THREAD GUIDE PIN
	B3148-123-000	TENSION DISC
	B3149-123-A00	TENSION SPRING
	SD-0380552-SL	HINGE SCREW D=3.8 H=5.5
	TA-2000502-RO	RUBBER PLUG
	TA-2101002-RO	RUBBER PLUG
	110-18702	THREE-HOLE THREAD EYELET
	110-00700	THREAD TAKE-UP LEVER COVER
	SS-4120615-SP	SCREW 3/16-28 L=6
	SS-4120615-SP	SCREW 3/16-28 L=6
	110-18504	ARM THREAD GUIDE A
	110-01500	SCREW
	110-18959	THREAD TENSION ASM.
	110-18900	TENSION NUT
	B3120-125-000	TENSION DISC STOPPER
	B3129-012-A00	TENSION SPRING
	B3132-552-000	TENSION DISC HOLDER
	B3126-012-000	TENSION DISC
	B3115-552-000	TENSION POST
	B3128-012-000	TAKE-UP SPRING
	B3111-552-B00	TENSION POST SOCKET
	SS-8090670-SP	SCREW 9/64-40 L=5.5
	SS-8150710-SP	SCREW 15/64-28 L=7
	B3118-552-E00	THREAD RELEASE PIN
	B1190-522-S00	GAUGE PLATE 1/8 S
	SS-2110915-SP	SCREW 11/64-40 L=8.5
	113-31402	THREAD GUIDE B
	SS-6110610-TP	SCREW 11/64-40 L=6
	TA-1250406-RO	RUBBER PLUG
	SS-4121615-SP	SCREW
	110-01658	BED SLIDE ASM.
	B1110-012-000	SLIDE PLATE
	110-01609	BRED SLIDE SPRING
	SS-6060210-SP	SCREW 3/32-56 L=1.9
	110-01104	BED SCREW STUD
	B1190-523-000	GAUGE PLATE
	SS-2110915-SP	SCREW 11/64-40 L=6.8
	113-40304	THROAT PLATE
	B1191-523-000	WASTE MATERIAL GUARD
	SS-4080310-SP	SCREW 1/8-44 L=3.4
	111-41801	THREAD TAKE UP LEVER COVER

Page 6 — 2. MAIN SHAFT COMPONENTS

Juki DLM-5200 (28 pages) parts on page 6
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47

Page 7

Juki DLM-5200 (28 pages) parts on page 7
Part number	Part name	Qty
SS-8151150-SP	SCREW 15/64-28 L=10.5	1
110-17209	THREAD TAKE-UP CRANK SHAFT	1
CQ-3500000-PO	OIL FELT	0.1
110-39070	THREAD TAKE-UP LEVER ASM.	1
110-39062	THREAD TAKE-UP LEVER ASM.	1
B1905-541-B00	NEEDLE BEARING, B
110-05204	NEEDLE BAR CRANK	(1)
B1408-552-000	NEEDLE BAR CRANK ROD	(1)
B1903-552-000	END SCREW LEFT	(1)
B1909-500-000	RUBBER	(1)
SS-8681650-TP	SCREW 9/32-28 L=16	1
SS-8660610-TP	SCREW 1/4-40 L=6	1
B1212-552-A00	COUNTERWEIGHT PROTECTING PLATE	1
RO-0442401-00	RUBBER RING	1
SS-7681650-TP	SCREW 9/32-28 L=16	1
113-49107	BUSHING, FRONT	1
B1177-522-000	BALANCER	1
SS-7150940-SP	SCREW 15/64-28 L=9	2
SS-8150912-TH	SCREW	1
110-02300	BUSHING, INTERMEDIATE	1
CS-147121A-SH	THRUST COLLAR ASM. D=14.72 W=12	1
SS-8660610-TP	SCREW 1/4-40 L=6	(2)
110-08059	FEED DRIVE ECCENTRIC CAM ASM.	1
SS-6661110-SP	SCREW 1/4-40 L=6	(2)
110-08000	FEED DRIVE ECCENTRIC CAM	1
110-08109	THRUST COLLAR	(1)
SS-6090670-TP	SCREW 9/64-40 L=6	(2)
RC-1850001-KP	SNAP RING 18.5	1
110-02409	MAIN SHAFT BUSHING, REAR	1
110-02508	OIL SEAL	1
113-49008	MAIN SHAFT	1
110-02607	HAND WHEEL	1
SS-8151550-SP	SCREW 15/64-28 L=15	2
B1213-552-0A0-A	OIL AMOUNT ADJUSTING PIN ASM.	1
RO-0291801-00	RUBBER RING	(1)
110-02904	ROLLER FELT	1
113-46400	WASTE MATERIAL GUIDE	1
SS-4080310-SP	SCREW 1/8-44 L=3.4	2
B1193-530-000	WASTE MATERIAL GUARD PLATE	1
113-46905	WASTE MATERIAL GUARD, E	1
113-46004	NEEDLE PLATE, A	1
SS-2110915-SP	SCREW 11/64-40 L=8.5	2
SS-4080310-SP	SCREW 1/8-44 L=3.4	2
B1115-530-00F	THROAT PLATE COVER F	1
B1115-522-000-A	OPEN COVER SPRING	1
SS-6080320-SP	SCREW 1/8-44 L=2.5	1
113-31154	COUNTERWEIGHT ASM.	1

Page 8 — 3. UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

Juki DLM-5200 (28 pages) parts on page 8
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47

Page 9

Juki DLM-5200 (28 pages) parts on page 9
Ref	Part number	Part name	Qty
	B1405-012-000	CAP	1
	B1402-552-000-A	NEEDLE BAR BUSHING, UPPER	1
	B1401-522-A00-A	NEEDLE BAR (A)	1
	B1414-555-000	SLIDE BLOCK	1
	B1401-552-0A0	NEEDLE BAR CONNECTION ASM.	1
	SS-6090670-TP	SCREW 9/64-40 L=6	(1)
	110-05105	NEEDLE BAR BUSHING, LOWER	1
	SS-7080510-TP	SCREW 1/8-44 L=4.5	1
	113-31204	NEEDLE BAR THREAD GUIDE	1
	MDB-100B1400	NEEDLE DBX1 #14	1
	B1306-155-000	GEAR & PINION ASM.	1
	B1306-155-0BO	GEAR & PINION ASM., UPPER	(1)
	B1305-012-0A0	GEAR ASM.	1
	SS-8660810-TP	SCREW 1/4-40 L=8	2
	B1306-155-0A0	PINION ASM.	1
	SS-8660810-TP	SCREW 1/4-40 L=8	2
	B1307-155-0B0	GEAR & PINION ASM., LOWER	1
	B1307-155-0A0	GEAR ASM. LARGE	1
	SS-8660810-TP	SCREW 1/4-40 L=8	2
	B1308-155-0A0	PINION ASM.	1
	SS-8660810-TP	SCREW 1/4-40 L=8	2
	110-04009	UPRIGHT SHAFT	1
	SS-4120915-SP	SCREW 12/64-28 L=9	1
	110-04306	BUSHING, UPPER	1
	110-04207	UPRIGHT SHAFT BUSHING, LOWER	1
	110-15807	BUSHING, REAR	1
	SS-4120915-SP	SCREW 12/64-28 L=9	1
	CS-079101A-SH	THRUST COLLAR ASM. D=7.94 W=10	(2)
	SS-6110420-TP	SCREW 11/64-40 L=4.8	(2)
	110-15609	HOOK DRIVING SHAFT	1
	110-15609	POSITIONING FINGER	1
	SS-6111010-SP	SCREW 11/64-40 L=9.5	1
	B1808-552-0A0	OIL SEAL SCREW ASM.	1
	B1810-552-000	OIL WICK	(1)
	B1830-127-0A0	HOOK ASM.	1
	B9117-012-000	BOBBIN	1
	B1837-012-0A0	BOBBIN CASE ASM.	1
	CS-079073A-SH	THRUST COLLAR	1
	SS-6110420-TP	SCREW 11/64-40 L=3.5	(2)
	110-15104	BUSHING ASM., FRONT	1
	SS-8150432-TH	SCREW	1
	TA-0180401-MO	PIN	1
#01	B1835-523-000	POSITIONING FINGER
#02	B1401-522-B00-A	NEEDLE BAR (B)
#03	MC-2005007-50	NEEDLE 134 75
#04	MDP-500B1400	NEEDLE DPX5 #14
#04	113-31303	NEEDLE BAR THREAD GUIDE

Page 10 — 4. HAND LIFTER COMPONENTS

Juki DLM-5200 (28 pages) parts on page 10
Ref	Part number	Part name
1	1	HAND LIFTER COMPONENTS
2	2	HAND LIFTER COMPONENTS
3	3	HAND LIFTER COMPONENTS
4	4	HAND LIFTER COMPONENTS
5	5	HAND LIFTER COMPONENTS
6	6	HAND LIFTER COMPONENTS
7	7	HAND LIFTER COMPONENTS
8	8	HAND LIFTER COMPONENTS
9	9	HAND LIFTER COMPONENTS
10	10	HAND LIFTER COMPONENTS
11	11	HAND LIFTER COMPONENTS
12	12	HAND LIFTER COMPONENTS
13	13	HAND LIFTER COMPONENTS
14	14	HAND LIFTER COMPONENTS
15	15	HAND LIFTER COMPONENTS
16	16	HAND LIFTER COMPONENTS
17	17	HAND LIFTER COMPONENTS
18	18	HAND LIFTER COMPONENTS
19	19	HAND LIFTER COMPONENTS
20	20	HAND LIFTER COMPONENTS
21	21	HAND LIFTER COMPONENTS
22	22	HAND LIFTER COMPONENTS
23	23	HAND LIFTER COMPONENTS
24	24	HAND LIFTER COMPONENTS
25	25	HAND LIFTER COMPONENTS
26	26	HAND LIFTER COMPONENTS
27	27	HAND LIFTER COMPONENTS
28	28	HAND LIFTER COMPONENTS
29	29	HAND LIFTER COMPONENTS
30	30	HAND LIFTER COMPONENTS
31	31	HAND LIFTER COMPONENTS
32	32	HAND LIFTER COMPONENTS
33	33	HAND LIFTER COMPONENTS
34	34	HAND LIFTER COMPONENTS
35	35	HAND LIFTER COMPONENTS
36	36	HAND LIFTER COMPONENTS
37	37	HAND LIFTER COMPONENTS
38	38	HAND LIFTER COMPONENTS
39	39	HAND LIFTER COMPONENTS
40	40	HAND LIFTER COMPONENTS
41	41	HAND LIFTER COMPONENTS
42	42	HAND LIFTER COMPONENTS
43	43	HAND LIFTER COMPONENTS

Page 11

Juki DLM-5200 (28 pages) parts on page 11
Ref	Part number	Part name
1	B1520-552-000-A	HAND LIFTER
2	B1521-555-000	SCREW
3	RO-0371801-00	RUBBER RING
4	110-92558	HAND LIFTER CAM ASM.
5	110-06350	HAND LIFTER LINK
6	RE-0500000-KO	E-RING
7	110-06509	LINK SHAFT
8	110-06608	GASKET
9	RE-0500000-KO	E-RING
10	110-06202	LIFTING LEVER
11	110-07309	LIFTING LEVER RING
12	110-07101	HINGE SCREW
13	110-06905	LIFTING LEVER CONNECTING ROD
14	110-07200	CONNECTING ROD VERTICAL
15	110-07002	LIFTING LEVER LINK
16	SD-0720332-SP	HINGE SCREW D= 7.24 H= 3.3
17	RE-0500000-KO	E-RING
18	110-18207	TENSION RELEASE RETURN SPRING
19	110-18405	TENSION RELEASE PIN SPRING
20	RE-0400000-KO	E-RING
21	110-18306	TENSION RELEASE SUPPORTING PIN
22	110-18009	TENSION RELEASE PLATE
23	110-18108	TENSION RELEASE SHAFT
24	B1509-555-000	PRESSER SPRING REGULATOR
25	B1511-555-000	NUT 1/2-28
26	B1510-227-000	PRESSER GUIDE BAR
27	B1505-227-000	PRESSER SPRING
28	110-06004	NEEDLE BAR GUIDE BRACKET
29	B1501-522-000	PRESSER BAR
30	110-06103	PRESSER BAR THREAD GUIDE
31	SS-8660810-TP	SCREW 1/4-40 L= 8
32	SS-7090910-SP	SCREW 9/64-40 L= 8.5
33	B1502-541-000	PRESSER BAR BUSHING, LOWER
34	SS-7091110-SP	SCREW 9/64-40 L=10.5
35	B1524-522-NAO-A	PRESSER FOOT ASM., N
36	B1524-522-NB0-A	PRESSER FOOT ASM.
37	B1524-523-0A0	PRESSER FOOT ASM.
38	WP-0460556-SD	WASHER 4.6X7.5X0.5
39	SD-0450401-SP	HINGE SCREW D= 4.5 H = 4
40	B1524-523-00E	SPRING
41	B1421-523-000	FINGER PROTECTOR
42	CQ-2020000-00	OIL WICK
43	110-19007	WASHER PLATE

Page 12

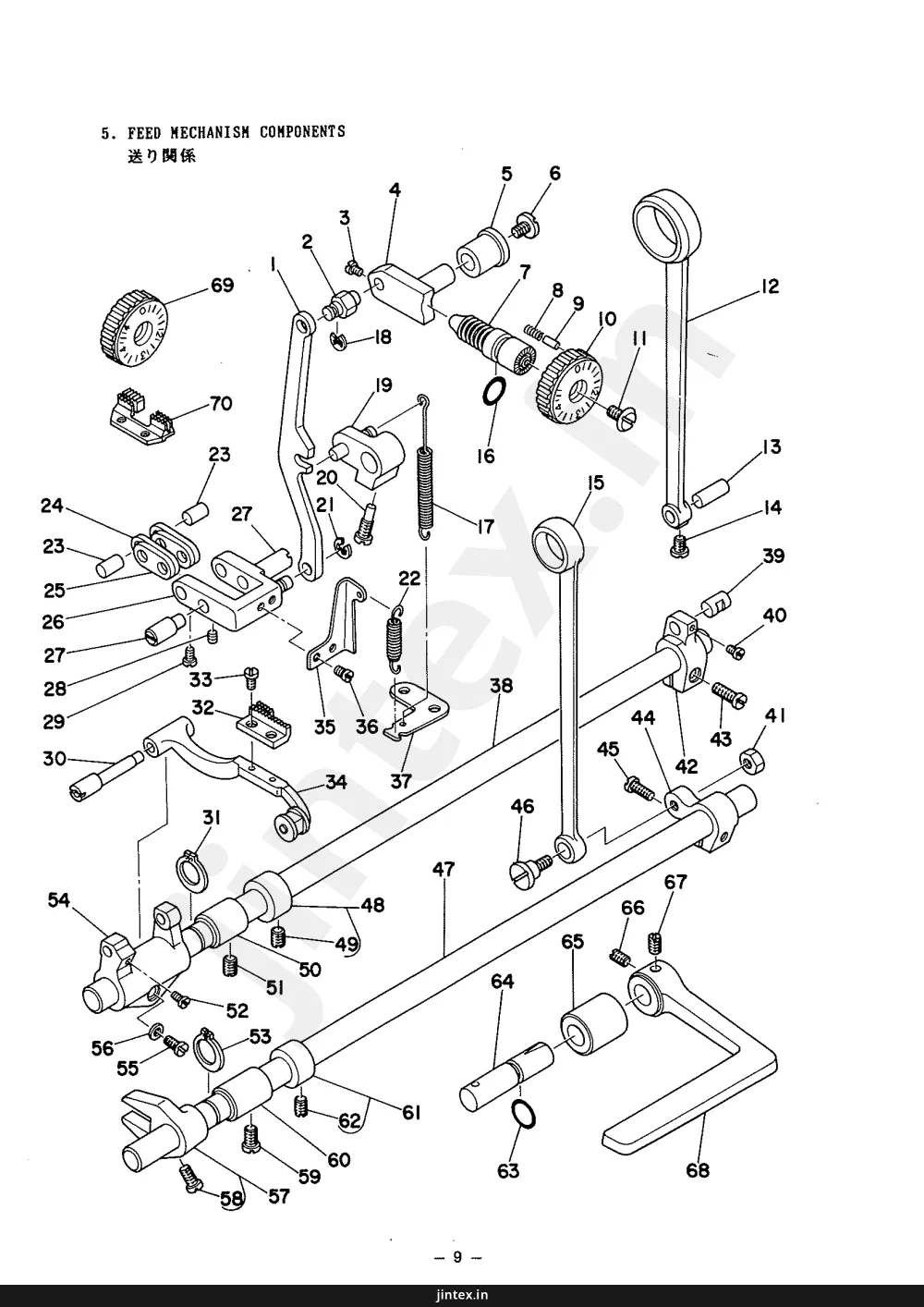

Juki DLM-5200 (28 pages) parts on page 12
Ref	Part number	Part name
1	1	BOLT
2	2	NUT
3	3	SCREW
4	4	BRACKET
5	5	BUSHING
6	6	WASHER
7	7	SHAFT
8	8	GEAR
9	9	GEAR
10	10	SHAFT
11	11	SHAFT
12	12	SHAFT
13	13	SHAFT
14	14	SCREW
15	15	SHAFT
16	16	RING
17	17	SPRING
18	18	SCREW
19	19	BRACKET
20	20	SCREW
21	21	SCREW
22	22	SPRING
23	23	PIN
24	24	LINK
25	25	LINK
26	26	BRACKET
27	27	SHAFT
28	28	SHAFT
29	29	SHAFT
30	30	SHAFT
31	31	CLIP
32	32	BRACKET
33	33	SCREW
34	34	SHAFT
35	35	SCREW
36	36	BRACKET
37	37	BRACKET
38	38	SHAFT
39	39	SHAFT
40	40	SCREW
41	41	NUT
42	42	SHAFT
43	43	SCREW
44	44	SHAFT
45	45	SCREW
46	46	SCREW
47	47	SHAFT
48	48	SHAFT
49	49	SHAFT
50	50	SHAFT
51	51	SHAFT
52	52	SCREW
53	53	CLIP
54	54	SHAFT
55	55	SCREW
56	56	WASHER
57	57	SHAFT
58	58	SPRING
59	59	SPRING
60	60	SHAFT
61	61	SHAFT
62	62	SPRING
63	63	RING
64	64	SHAFT
65	65	SHAFT
66	66	SPRING
67	67	SPRING
68	68	SHAFT
69	69	GEAR
70	70	BRACKET

Page 13

Juki DLM-5200 (28 pages) parts on page 13
Ref	Part number	Part name
1	110-09503	FEED REGULATOR CONNECTING ROD
2	110-09602	FEED REGULATOR PIN
3	SS-6090670-TP	SCREW 9/64-40 L=6
4	110-09701	FEED REGULATOR
5	110-09800	FEED REGULATOR BUSHING
6	SS-7120770-SH	SCREW
7	110-09909	FEED REGULATOR SCREW
8	B1148-555-000	SPRING
9	110-52701	PIN
10	110-10006	FEED DIAL
11	SS-6120930-TP	SCREW 3/16-28 L=9.0
12	110-08208	ROCKER SHAFT CONNECTING ROD
13	110-09206	WALKING FOOT PIN C
14	SS-6090620-TP	SCREW
15	110-14008	CONNECTING ROD
16	RO-0922702-00	RUBBER RING
17	110-10303	FEED REVERSE SPRING
18	RE-0500000-KO	E-RING
19	110-10154	FEED REVERSE ARM ASM.
20	110-10404	FEED REVERSE ARM SCREW
21	RE-0500000-KO	E-RING
22	110-09404	ADGUSTING LINK SPRING
23	110-09008	WALKING FOOT PIN A
24	110-08703	WALKING FOOT LINK
25	110-08604	CONNECTING LINK A
26	110-08455	WALKING FOOT ADJUSTING LINK
27	110-08802	ADGUSTING LINK FULCRUM SHAFT A
28	SS-8150710-SP	SCREW 15/64-28 L=7
29	SS-6090620-TP	SCREW
30	110-11103	FEED BAR SHAFT
31	RC-1381001-KP	RETAINING RING
32	B1613-522-H00-A	FEED DOG
33	SS-4080620-TP	SCREW 1/8-44 L=6
34	110-11251	FEED BAR ASM.
35	110-09305	ADGUSTING LINK SPRING GUIDE
36	SS-7110510-SP	SCREW 11/64-40 L=5
37	110-11301	FEED SPRING HOOK
38	110-10808	FEED ROCKER SHAFT
39	110-09107	WALKING FOOT PIN B
40	SS-6090620-TP	SCREW
41	NS-6680410-SP	NUT 9/32-28
42	110-08356	FEED ROCKER SHAFT CRANK ASM.
43	SS-6121610-SP	SCREW 3/16-28 L=15.5
44	110-14156	REAR CRANK ASM.
45	SS-6121210-SP	SCREW 3/16-28 L=9
46	SD-1000801-SH	HINGE SCREW
47	110-14206	FEED DRIVING SHAFT
48	CS-147121A-SH	THRUST COLLAR ASM. D=14.72 W=12
49	SS-8660610-TP	SCREW 1/4-40 L=6
50	110-10907	FEED ROCKER SHAFT BUSHING
51	SS-8150432-TH	SCREW
52	SS-7110740-TP	SCREW 11/64-40 L=7
53	RC-1381001-KP	RETAINING RING
54	110-11004	FEED ROCKER
55	SS-7121410-TP	SCREW 3/16-28 L=14
56	WP-0480856-SP	MAGNET BASE SPRING WASHER
57	110-14354	DRIVING SHAFT CRANK ASM., FRONT
58	SS-7111120-SP	SCREW 11/64-40 L=10.5
59	SS-4120915-SP	SCREW 12/64-28 L=9
60	110-10907	FEED ROCKER SHAFT BUSHING
61	CS-147121A-SH	JUST COLLAR ASM. D=14.72 W=12
62	SS-8660610-TP	SCREW 1/4-40 L=6
63	RO-0781901-00	RUBBER RING
64	110-10519	FEED REVERSE SHAFT
65	110-10709	FEED LEVER METAL
66	SS-8660810-TP	SCREW 1/4-40 L=8
67	SS-8661040-TP	SCREW 1/4-40 L=10
68	110-10600	REVERSE FEED CONTROL LEVER
69	110-37009	FEED DIAL
70	B1613-523-000	FEED DOG

Page 14 — 6. KNIFE COMPONENTS

Juki DLM-5200 (28 pages) parts on page 14
Ref	Part number	Part name
1	1	KNIFE COMPONENTS
2	2	KNIFE COMPONENTS
3	3	KNIFE COMPONENTS
4	4	KNIFE COMPONENTS
5	5	KNIFE COMPONENTS
6	6	KNIFE COMPONENTS
7	7	KNIFE COMPONENTS
8	8	KNIFE COMPONENTS
9	9	KNIFE COMPONENTS
10	10	KNIFE COMPONENTS
11	11	KNIFE COMPONENTS
12	12	KNIFE COMPONENTS
13	13	KNIFE COMPONENTS
14	14	KNIFE COMPONENTS
15	15	KNIFE COMPONENTS
16	16	KNIFE COMPONENTS
17	17	KNIFE COMPONENTS
18	18	KNIFE COMPONENTS
19	19	KNIFE COMPONENTS
20	20	KNIFE COMPONENTS
21	21	KNIFE COMPONENTS
22	22	KNIFE COMPONENTS
23	23	KNIFE COMPONENTS
24	24	KNIFE COMPONENTS
25	25	KNIFE COMPONENTS
26	26	KNIFE COMPONENTS
27	27	KNIFE COMPONENTS
28	28	KNIFE COMPONENTS
29	29	KNIFE COMPONENTS
30	30	KNIFE COMPONENTS
31	31	KNIFE COMPONENTS
32	32	KNIFE COMPONENTS
33	33	KNIFE COMPONENTS
34	34	KNIFE COMPONENTS
35	35	KNIFE COMPONENTS
36	36	KNIFE COMPONENTS
37	37	KNIFE COMPONENTS
38	38	KNIFE COMPONENTS
39	39	KNIFE COMPONENTS
40	40	KNIFE COMPONENTS
41	41	KNIFE COMPONENTS
42	42	KNIFE COMPONENTS
43	43	KNIFE COMPONENTS
44	44	KNIFE COMPONENTS
45	45	KNIFE COMPONENTS
46	46	KNIFE COMPONENTS
47	47	KNIFE COMPONENTS
48	48	KNIFE COMPONENTS
49	49	KNIFE COMPONENTS

Page 15

Juki DLM-5200 (28 pages) parts on page 15
Part number	Part name	Qty
113-32400	KNIFE POSITIONING PLATE	1
B4131-522-000	FELT	1
SS-4090815-SP	SCREW 9/64-40 L=8	1
B4133-522-000	TENSION SPRING	1
NS-6090310-SP	NUT 9/64-40	1
SS-4090815-SP	SCREW 9/64-40 L=8	1
NS-6090310-SP	NUT 9/64-40	1
NS-6120310-SP	NUT 3/16-28	1
B4119-522-000	TENSION SPRING	1
SS-6121010-SP	SCREW 3/16-28 L=10	1
SS-6111010-SP	SCREW 11/64-40 L=9.5	1
NS-6110420-SP	NUT 11/64-40	1
SS-4080610-SP	SCREW 1/8-44 L=6.4	2
B4122-522-000	WASHER	1
B4121-522-000	KNIFE	1
B4120-522-000	KNIFE HOLDER	1
SS-6110810-TP	SCREW 11/64-40 L=8	1
B4113-522-080	KNIFE DRIVING BLOCK ASM.	(1)
B4117-522-000	BUSHING	(1)
SS-8110510-SP	SCREW 11/64-40 L=5	(1)
B4114-522-000	KNIFE DRIVING BLOCK STUD	1
B4115-522-000	GUIDE STUD FOR KNIFE DRIVING BLOCK	1
WP-0480856-SP	MAGNET BASE SPRING WASHER	2
SS-9121010-TP	SCREW	2
B4111-522-000	KNIFE DRIVING ROD CLUTCH PIN	1
B4125-522-000	SPRING	1
RE-0200000-KO	E-RING	2
B4124-522-000	KNIFE RELEASE LEVER	1
B4126-522-000	PIN	1
B4103-522-000	KNIFE DRIVING ROD CLUTCH RETAINER	1
B4116-530-000	BUSHING	1
SS-6090810-TP	SCREW 9/64-40 L=7.5	1
SS-6090810-TP	SCREW 9/64-40 L=7.5	1
113-32202	KNIFE DRIVING ROD CONNECTION	1
113-32301	KNIFE DRIVING ROD	1
B4123-522-000	KNIFE NEEDLE BEARING	1
B4106-522-000-B	KNIFE CAM	1
B4132-522-000-A	THRUST PLATE	1
B4107-522-000	PIN	1
B4108-522-000	SLIDE BLOCK GUIDE	1
SS-6121060-SP	SCREW	2
B1414-555-000	SLIDE BLOCK	1
B4109-522-000	KNOB	1
NS-6110310-SP	NUT 11/64-40	1
B4112-522-000	CAP	1
B4110-522-000	SPRING	1
B4121-523-000	KNIFE	1
B4135-523-000	CUTTING CLOTH SEPARATOR	1
SS-5060410-SP	SCREW 3/32-56 L=3.5	2

Page 16 — 7. OIL LUBRICATION COMPONENTS

Juki DLM-5200 (28 pages) parts on page 16
Ref	Part number	Part name
1	1	CAP
2	2	O-RING
3	3	TUBE
4	4	BRACKET
5	5	SCREW
6	6	SCREW
7	7	BRACKET
8	8	BRACKET
9	9	SCREW
10	10	BRACKET
11	11	BRACKET
12	12	BRACKET
13	13	SCREW
14	14	SPRING
15	15	PLUNGER
16	16	BODY
17	17	TUBE
18	18	SCREW
19	19	BODY
20	20	BODY
21	21	BODY
22	22	BODY
23	23	BODY
24	24	SHAFT
25	25	SPRING
26	26	SPRING
27	27	BODY
28	28	SCREW
29	29	TUBE
30	30	SCREW
31	31	BODY

Page 17

Juki DLM-5200 (28 pages) parts on page 17
Ref	Part number	Part name	Qty
1	B3530-555-000	OIL SIGHT WINDOW	1
2	RO-1952401-00	RUBBER RING	1
3	110-21201	MAIN SHAFT OIL TUBE	1
4	110-21607	TUBE HOLDER (UPPER)	1
5	SS-4120415-SP	SCREW 3/16-28 L=6	1
6	SS-4120615-SP	SCREW 3/16-28 L=6	1
7	B3529-226-000	OIL FELT PRESSER	1
8	113-31758	OIL RETURN TUBE ASM.	1
9	B3536-122-000	HOLDER B	1
10	CQ-2520000-00	OIL WICK	0.2
11	110-21300	OIL TUBE	1
12	110-21706	TUBE HOLDER (LOWER)	1
13	SS-4150915-SP	SCREW 15/64-28 L=9	1
14	B2616-372-000	SPRING	1
15	B3514-412-000	OIL ADJUSTING SCREW	1
16	110-20054	LUBRICATING OIL PUMP ASM.	1
17	110-20302	OIL PUMP INSTALLING BASE	(1)
18	SL-4030851-SF	SCREW	(3)
19	110-20005	OIL PUMP	(1)
20	110-20708	OIL PUMP IMPELLER	(1)
21	SE-4301041-SR	SCREW	(3)
22	110-20203	LUBRICATING OIL PUMP COVER	(1)
23	110-20807	OIL PUMP IMPELLER COVER	(1)
24	110-20401	PLUNGER	(1)
25	110-20609	PLUNGER SPRING	(1)
26	110-20500	PLUNGER SCREW	(1)
27	110-20906	HOOK DRIVING SHAFT OIL TUBE	(1)
28	SS-6111010-TP	SCREW 11/64-40 L=9.5	1
29	110-21003	OIL PUMP SUPPORT	1
30	SS-4150915-SP	SCREW 15/64-28 L=9	1
31	110-21409	RUBBER JOINT	1

Page 18 — 8. OIL RESERVOIR COMPONENTS

Juki DLM-5200 (28 pages) parts on page 18
Ref	Part number	Part name
1	1	OIL RESERVOIR
2	2	GASKET
3	3	COVER
4	4	SCREW
5	5	PLUG
6	6	DRAIN PLUG
7	7	BRACKET
8	8	SHAFT
9	9	SPRING
10	10	SPRING PIN
11	11	SHAFT
12	12	NUT
13	13	SPRING
14	14	SPRING
15	15	LEVER
16	16	SHAFT
17	17	WHEEL
18	18	BRACKET
19	19	SHAFT
20	20	SPRING
21	21	SPRING
22	22	SPRING PIN
23	23	FILLER PLUG
24	24	BRACKET
25	25	SCREW
26	26	BRACKET
27	27	SCREW
28	28	SCREW
29	29	NUT
30	30	BRACKET
31	31	BRACKET
32	32	COVER
33	33	SCREW
34	34	COVER
35	35	SCREW
36	36	BRACKET
37	37	OIL RESERVOIR
38	38	GASKET
39	39	COVER
40	40	SHAFT
41	41	BRACKET
42	42	SPRING
43	43	SPRING PIN
44	44	SPRING
45	45	SCREW
46	46	NUT
47	47	SPRING
48	48	LEVER
49	49	BRACKET

Page 19

Juki DLM-5200 (28 pages) parts on page 19
Part number	Part name	Qty
113-32855	OIL RESERVOIR ASM.	1
113-60708	OIL RESERVOIR	(1)
110-23108	GASKET	(1)
110-23207	RUBBER CUSHION	(4)
SS-6700710-SH	SCREW	(1)
RO-0982401-00	RUBBER RING	(1)
110-24007	CONNECTING ROD, VERTICAL	(1)
110-24106	SPRING	(1)
RE-1000000-KO	E-RING	(1)
110-24502	KNEE PRESS LOD BEARING BRACKET	(1)
SS-9182010-SN	SCREW 9/32-20 L=20	(2)
NS-6150430-SR	NUT 15/64-28	(2)
SS-8153010-SR	SCREW 15/64-28 L=30	(2)
SS-9151610-SR	SCREW 15/64-28 L=16	(1)
110-24205	KNEE PRESS ROD	(1)
110-23751	KNEE PRESS PLATE ASM.	1
B3431-552-000-A	KNEE PRESS PLATE COVER	(1)
B3419-122-000	KNEE LIFTER PLATE ROD	(1)
110-23900	RUBBER	(1)
110-23702	KNEE PRESS PLATE	(1)
110-23902	KNEE PRESS PLATE HOLDER	(1)
SS-9151540-SR	SCREW 15/64-28 L=15	(1)
110-24304	KNEE PRESS LIFTER ROD	1
113-61003	OIL PUSH GUIDE	1
SS-4110715-SP	SCREW 11/64-40 L=7	2
B8226-522-000	WASTE MATERIAL CHUTE HOLDER	1
SK-3412000-SC	WOOD SCREW D=4.1 L=20	3
SS-7090610-SP	SCREW 9/64-40 L=6	4
NS-6090310-SP	NUT 9/64-40	8
B8224-523-000	WASTE MATERIAL CHUTE (LARGE)	1
B8225-522-000	WASTE MATERIAL CHUTE, SMALL	1
113-41708	HOOK OIL COVER	1
SS-4110715-SP	SCREW 11/64-40 L=7	2
113-41807	WASTE MATERIAL CHUTE	1
SS-4110515-SP	SCREW 11/64-40 L=5	2
113-41559	OIL RESERVOIR ASM.	1
113-41500	OIL RESERVOIR	(1)
110-23108	GASKET	(1)
110-23207	RUBBER CUSHION	(1)
110-24007	CONNECTING ROD, VERTICAL	(1)
110-24106	SPRING	(1)
RE-1000000-KO	E-RING	(1)
110-24502	KNEE PRESS LOD BEARING BRACKET	(1)
SS-9182010-SN	SCREW 9/32-20 L=20	(2)
NS-6150430-SR	NUT 15/64-28	(2)
SS-8153010-SR	SCREW 15/64-28 L=30	(2)
SS-9151610-SR	SCREW 15/64-28 L=16	(1)
110-24205	KNEE PRESS ROD	(1)
SS-7091110-SP	SCREW 9/64-40 L=10.5	4

Page 20 — 9. BELT COVER & BOBBIN WINDER COMPONENTS

Juki DLM-5200 (28 pages) parts on page 20
Ref	Part number	Part name	Qty
	110-23363	BELT COVER ASM.
	110-23355	BELT COVER ASM.
	110-23306	BELT COVER A
	SS-7701010-SP	SCREW 5/16-24 L=10
	110-23405	BELT COVER B
	110-23504	BELT COVER SUPPORT
	SS-7120640-SP	SCREW 3/16-28 L=6
	110-23603	BELT COVER COLLAR
	D3201-555-DAO	BOBBIN WINDER ASM.
	D3213-555-DAO	THREAD TENSION BRACKET ASM.
	SS-4110515-SP	SCREW 11/64-40 L=5
	B3126-012-000	TENSION DISC
	B3129-012-B00	TENSION SPRING B
	B3125-012-000	THREAD TENSION STUD NUT
	SS-7110350-SP	SCREW 11/64-40 L=3
	B3212-555-000	PRESSER PLATE
	B3211-555-000	RUBBER BRAKE
	B3209-555-000	POSITIONING FINGER
	SD-0490261-SP	HINGE SCREW D=4.9 H=2.6
	SS-7081310-SP	SCREW 1/8-44 L=12.5
	WP-0501016-SD	WASHER 5X10.5X1
	SK-3482500-SC	WOOD SCREW D=4.8 L=25

Page 21 — 11. FOLDER COMPONENTS ( EXCLUSIVE PARTS FOR DLM-5210 )

Juki DLM-5200 (28 pages) parts on page 21
Ref	Part number	Part name
1	MAT-11801NAO	BINDER ASM.
2	MAN-011010AO	SINGLE FOLD BIAS FOLDER ASM.
3	MAT-11803NOA	TAPE GUIDE
4	SS-7090510-SP	SCREW 9/64-40 L= 4.6
5	WP-0450000-SD	WASHER 4.5X8X0.5
6	SS-7090710-SP	SCREW 9/64-40 L= 6.8
7	WP-0371026-SD	WASHER 3.7X7X1
8	MAT-11901NAO	BINDER ASM.
9	MAN-015010AO	DOUBLE FOLD BIAS FOLDER ASM.
10	MAT-11903NOA	TAPE GUIDE B
11	SS-7090510-SP	SCREW 9/64-40 L= 4.6
12	WP-0450000-SD	WASHER 4.5X8X0.5
13	SS-7090710-SP	SCREW 9/64-40 L= 6.8
14	WP-0371026-SD	WASHER 3.7X7X1

Page 22 — 10. THREAD STAND COMPONENTS

Juki DLM-5200 (28 pages) parts on page 22
Ref	Part number	Part name
1	111-81054	THREAD STAND ASM.
2	111-81062	THREAD STAND ASM.
3	B3307-012-000	THREAD GUIDE
4	B3310-012-000	POSITION CUP SET SCREW
5	WS-0641560-KR	SPRING WASHER 6.4X11.9X1.5
6	B3309-012-000	POSITION CUP
7	B3308-012-000	ROD WASHER
8	B3306-012-000	SPOOL ROD
9	NM-6061061-SE	NUT M6
10	B3302-012-000	SPOOL REST ROD
11	111-81906	SPOOL RETAINER
12	B3320-704-L00-A	SPOOL PIN
13	B3311-012-000	SPOOL REST CUSHION
14	111-81153	SPOOL REST ASM.
15	WP-0560860-SE	WASHER 5.6X12X0.8
16	WS-0531060-KR	SPRING WASHER 5.3X8.3X1
17	NS-6123881-SE	NUT 3/16-28
18	SM-9061080-SE	SCREW M6 L=10
19	NM-6100663-SE	NUT M10
20	SK-3452000-SE	WOOD SCREW D=4.5 L=20
21	111-81005	THREAD STAND
22	WS-1002560-KR	SPRING WASHER 10X18X2.5

Page 23 — 12. TABLE OF EXCHANGING GAUGES FOR DLM-5200 13. TABLE OF EXCHANGING GAUGES FOR DLM-5210

Juki DLM-5200 (28 pages) parts on page 23
Ref	Part number	Part name	Qty
	11346004	B11155300AD
	11346004	B11155300AD
	11346004	B11155300AD
	11346004	B11155300AF
	11346004	B11155300AF
	11346004	B11155300AF
	11346004	B11155300AM
	11346103	B11155300AM
	11346103	B11155300AM
	11346905	11346400
	11346905	11346400
	11346905	11346400
	11346905	11346400
	11346905	11346400
	11347101	11346509
	11347101	11346509
	11347309	11346509
	B1613522N00A	B4121522000
	B1613522N00A	B4121522000
	B1613522N00A	B4121522000
	B1613522N00A	B4121522000
	B1613522N00A	B4121522000
	B1613522W00A	B4121522000
	B1613522A0A	B4121522000
	B1613522W00A	B4121522000
	B1190523000	11340304
	B15245230A0	B1613523000
	B15245230A0	B1613523000
	B1524523BA0	MAN0110F0A0
	B1524523CA0	MAN0110G0A0
	B1524523EA0	B4121523B00

Page 25

Juki DLM-5200 (28 pages) parts on page 25
Ref	Part number	Qty
20	SS-8110510-SP	12
41	SS-8150432-TH	6
35	SS-8150432-TH	2
28	SS-8150710-SP	10
19	SS-8150710-SP	4
1	SS-8150912-TH	4
33	SS-8151150-SP	4
12	SS-8151550-SP	16
46	SS-8153010-SR	4
22	SS-8660610-TP	4
49	SS-8660610-TP	10
62	SS-8660610-TP	10
14	SS-8660810-TP	6
16	SS-8660810-TP	6
19	SS-8660810-TP	6
21	SS-8660810-TP	8
31	SS-8660810-TP	8
66	SS-8660810-TP	10
67	SS-8661040-TP	10
11	SS-8681650-TP	4
24	SS-9121010-TP	12
22	SS-9151540-SR	16
14	SS-9151610-SR	16
47	SS-9151610-SR	16
11	SS-9182010-SN	16
44	SS-9182010-SN	16
42	TA-0180401-NO	6
7	TA-0850604-RO	2
41	TA-1250406-RO	2
8	TA-1250705-RO	2
17	TA-2000502-RO	2
18	TA-2101002-RO	2
7	WP-0371026-SD	19
14	WP-0371026-SD	19
5	WP-0450000-SD	19
12	WP-0450000-SD	19
38	WP-0460556-SD	8
56	WP-0480856-SP	10
23	WP-0480856-SP	12
21	WP-0501016-SD	17
15	WP-0560860-SE	18
16	VS-0531060-KR	18
5	VS-0641560-KR	18
22	VS-1002560-KR	18
2	110-00304	2
10	110-00510	2
11	110-00619	2
20	110-00700	2
6	110-00858	2
47	110-01104	2
24	110-01500	2
45	110-01609	2
43	110-01658	2
20	110-02300	4
29	110-02409	4
30	110-02508	4
32	110-02607	4
36	110-02904	4
22	110-04009	6
25	110-04207	6
24	110-04306	6
7	110-05105	6
7	110-05204	4
28	110-06004	8
10	110-06103	8
5	110-06202	8
7	110-06350	8
7	110-06509	8
13	110-06608	8
15	110-07002	8
12	110-07101	8
14	110-07200	8
11	110-07309	8
25	110-08000	4
23	110-08059	4
26	110-08109	4
12	110-08208	10
42	110-08356	10
26	110-08455	10
25	110-08604	10
24	110-08703	10
27	110-08802	10
23	110-09008	10
39	110-09107	10
13	110-09206	10
35	110-09305	10
22	110-09404	10
1	110-09503	10
2	110-09602	10
4	110-09701	10
5	110-09800	10
7	110-09909	10
10	110-10006	10
19	110-10154	10
17	110-10303	10
20	110-10410	10
64	110-10519	10
68	110-10600	10
65	110-10709	10
38	110-10808	10
50	110-10907	10
60	110-10907	10
54	110-11004	10
30	110-11103	10
34	110-11251	10
37	110-11301	10
15	110-14008	10
44	110-14156	10
47	110-14206	10
57	110-14354	10
30	110-15005	6
40	110-15104	6
31	110-15609	6
26	110-15807	6
2	110-17209	4
22	110-18009	8
23	110-18108	8
18	110-18207	8
21	110-18306	8
19	110-18405	8
23	110-18504	2
19	110-18702	2
26	110-18900	2
25	110-18959	2
43	110-19007	14
19	110-20005	14
16	110-20054	14
22	110-20203	14
17	110-20302	14
24	110-20401	14
26	110-20500	14
25	110-20609	14
20	110-20708	14
23	110-20807	14
27	110-20906	14
29	110-21003	14
3	110-21201	14
11	110-21300	14
31	110-21409	14
4	110-21607	14
12	110-21706	14
3	110-23108	16
38	110-23108	16
4	110-23207	16
3	110-23306	17
2	110-23355	17
1	110-23363	17
5	110-23405	17
6	110-23504	17
20	110-23702	16
16	110-23751	16
21	110-23801	16
7	110-24007	16
40	110-24007	16
41	110-24106	16
48	110-24106	16
41	110-24205	16
48	110-24205	16
19	110-24304	16
10	110-24403	16
43	110-24502	16
69	110-24502	16
5	110-37009	10
4	110-39062	4
9	110-39070	4
8	110-52701	10
4	110-92558	8
53	111-41801	2
21	111-81005	18
1	111-81054	18
2	111-81062	18
14	111-81153	18
11	111-81906	18
1	113-30552	2
47	113-31154	4
9	113-31204	6
47	113-31303	6
39	113-31402	2
8	113-31758	14
34	113-32202	12
35	113-32301	12
1	113-32855	16
50	113-40304	2
37	113-41500	16
36	113-41559	16
32	113-41708	16
34	113-41807	16
41	113-46004	4
-C	113-46004	20
-CA	113-46004	20
-D	113-46004	20
-E	113-46004	20
-F	113-46004	20
-H	113-46004	20
-HA	113-46004	20
-K	113-46103	20
-L	113-46400	20
-M	113-46400	20
-N	113-46509	20
5-C	113-46509	20
5-CA	113-46905	4
5-D	113-46905	20
5-E	113-46905	20
5-F	113-46905	20
5-H	113-47101	20
5-HA	113-47101	20
5-K	113-47309	4
5-M	113-49008	20
5-N	113-49107	4
24	113-60708	16
4-C	113-61003	20
4-CA	133-46905	20
4-D	113-46509	20
4-E	113-46509	20
4-F	113-47101	20
4-H	113-47101	20
4-HA	113-47309	4
4-K	113-49008	4
4-L	113-49107	4
4-M	113-60708	16
4-N	113-61003	20
4-P	113-46103	4

Juki DLM-5200 (28 pages) — parts catalog

Page 1 — PARTS LIST

JUKI 1-Needle, Lockstitch Sewing Machine With Vertical Edge Trimmer 高速一本針メス付ミシン DLM-5200 1-Needle, Lockstitch Sewing Machine With Vertical Edge Trimmer (Front Type) 高速一本針メス付ミシン(前メス方式) DLM-5210 PARTS LIST 19514306 No.0380-00 jintex.in

Page 3 — CONTENTS

CONTENTS 目次 1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部外装関係 2. MAIN SHAFT COMPONENTS 上軸関係 3. UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS 立軸・下軸関係 4. HAND LIFTER COMPONENTS 押上げ関係 5. FEED MECHANISM COMPONENTS 送り関係 6. KNIFE COMPONENTS メス関係 7. OIL LUBRICATION COMPONENTS 給油関係 8. OIL RESERVOIR COMPONENTS 油溜関係 9. BELT COVER & BOBBIN WINDER COMPONENTS ベルトカバー・糸巻関係 10. THREAD STAND COMPONENTS 糸立装置関係 11. FOLDER COMPONENTS ( EXCLUSIVE PARTS FOR DLM-5210 ) バインダー関係 ( DLM-5210 専用部品 ) 12. TABLE OF EXCHANGING GAUGES FOR DLM-5200 DLM-5200ゲージ一覧表 13. TABLE OF EXCHANGING GAUGES FOR DLM-5210 DLM-5210ゲージ一覧表 NUMERICAL INDEX OF PARTS 索引 1 3 5 7 9 11 13 15 17 18 19 20 20 21

Page 4 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部外装関係 DLM-5200 jintex.in - 1 -

Page 5

REF.NO. NOTE PART NO. DESCRIPTION ヒンメイ ANT. 1 113-30552 FACE PLATE ASM. メンイタクミ 1 2 110-00304 FACE PLATE GASKET メンイタパッキン 1 3 SS-6080410-SP SCREW 1/8-44 L=4 ヒラネジ 1/8-44 L=4 1 4 SS-1110840-SP SCREW 11/64-40 L=8 チラネジ 11/64-40 L=8 3 5 SS-6080410-SP SCREW 1/8-44 L=4 ヒラネジ 1/8-44 L=4 1 6 110-00858 ARM OIL SHIELD ASM. メンブスポウクミ 1 7 TA-0850604-RO RUBBER PLUG トムセン 2 8 TA-1250705-RO RUBBER PLUG トムセン 1 9 SS-4120915-SP SCREW 12/64-28 L=9 ナベネジ 3/16-28 L=9 8 10 110-00619 SIDE PLATE サイドプレート 1 11 110-00619 GASKET マットパッキン 1 12 B1113-155-000 NEEDLE THREAD GUIDE PIN ASM. イトアンナイホウクミ 1 13 B1113-155-000 NEEDLE THREAD GUIDE PIN イトアンナイホウ (1) 14 B3148-123-000 TENSION DISC イトアンナイサラ (2) 15 B3149-123-A00 TENSION SPRING イトアンナイサラバネ 1 16 SD-0380552-SL HINGE SCREW D=3.8 H=5.5 ダンネジ D=3.8 H=5.5 (1) 17 TA-2000502-RO RUBBER PLUG トムセン 1 18 TA-2101002-RO RUBBER PLUG トムセン 1 19 110-18702 THREE-HOLE THREAD EYELET ミツメイトカケ 1 20 110-00700 THREAD TAKE-UP LEVER COVER テンピンカバ 1 21 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 1 22 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 1 23 110-18504 ARM THREAD GUIDE A アームイトアンナイ A 1 24 110-01500 SCREW アームイトアンナイ A トメネジ 1 25 110-18959 THREAD TENSION ASM. イトチョウシクミ 1 26 110-18900 TENSION NUT イトチョウシナツト (1) 27 B3120-125-000 TENSION DISC STOPPER イトチョーシカイテンドメ (1) 28 B3129-012-A00 TENSION SPRING イトチョーシサラバネ A (1) 29 B3132-552-000 TENSION DISC HOLDER イトチョーシサラサエ (1) 30 B3126-012-000 TENSION DISC イトチョーシサラ (2) 31 B3115-552-000 TENSION POST イトチョーシホー (1) 32 B3128-012-000 TAKE-UP SPRING イトトリハネ (1) 33 B3111-552-B00 TENSION POST SOCKET イトチョーシホータイ (1) 34 SS-8090670-SP SCREW 9/64-40 L=5.5 トメネジ 9/64-40 L=5.5 (1) 35 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 1 36 B3118-552-E00 THREAD RELEASE PIN ピン 1 37 B1190-522-S00 GAUGE PLATE 1/8 S ゲージ 1/8 S 1 38 SS-2110915-SP SCREW 11/64-40 L=8.5 マルサラネジ 11/64-40 L=8.5 2 39 113-31402 THREAD GUIDE B アームイトア 1 40 SS-6110610-TP SCREW 11/64-40 L=6 ヒラネジ 11/64-40 L=6 1 41 TA-1250406-RO RUBBER PLUG トメセン D=12.5 L=4 2 42 SS-4121615-SP SCREW ナベネジ 3 43 110-01658 BED SLIDE ASM. スペリライタ (クミ) 1 44 B1110-012-000 SLIDE PLATE スペリライタ (1) 45 110-01609 BRED SLIDE SPRING スペリライタハネ (1) 46 SS-6060210-SP SCREW 3/32-56 L=1.9 ヒラネジ 3/32-56 L=1.9 (2) 47 110-01104 BED SCREW STUD ベツトシチュウ 1 48 #01 B1190-523-000 GAUGE PLATE マエス. ゲージ 1 49 #01 SS-2110915-SP SCREW 11/64-40 L=6.8 マルサラネジ 11/64-40 L=8.5 1 50 #01 113-40304 THROAT PLATE ハリイタ 1 51 #01 B1191-523-000 WASTE MATERIAL GUARD ハリイタケツショウガー 1 52 SS-4080310-SP SCREW 1/8-44 L=3.4 ナベネジ 1/8-44 L=3.4 2 53 111-41801 THREAD TAKE UP LEVER COVER テンピンカバ 1 Note(注記)#01...For DLM-5210 (A, Specification) DLM-5210用(A仕様) #02...For JE JE用 -2- jintex.in

Page 6 — 2. MAIN SHAFT COMPONENTS

2. MAIN SHAFT COMPONENTS 上軸関係 1 2 3 4 8 6 9 5 10 7 19 20 18 16 17 21 22 23 24 25 26 27 28 29 30 31 32 33 47 11 12 13 14 15 34 35 36 37 38 41 42 43 40 39 44 45 46 - 3 - jintex.in

Page 7

REF. NO. NOTE PART NO. D E S C R I P T I O N ヒンメイ AMT. 1 SS-8151150-SP SCREW 15/64-28 L=10.5 トメネジ 15/64-28 L=10.5 1 2 110-17209 THREAD TAKE-UP CRANK SHAFT テンビンササエジク 1 3 CQ-3500000-PO OIL FELT ユシン 0.1 4 110-39070 THREAD TAKE-UP LEVER ASM. リンクテンビンクミ 1 5 110-39062 THREAD TAKE-UP LEVER ASM. リンクテンビン 1 6 #01 B1905-541-B00 NEEDLE BEARING, B テンビンニードルベアリング (1) 7 110-05204 NEEDLE BAR CRANK ハリホウウラク 1 8 B1408-552-000 NEEDLE BAR CRANK ROD ハリホウウラククランクロッド (1) 9 B1903-552-000 END SCREW LEFT ヒタネジ 1 10 B1909-500-000 RUBBER テンビンアツシヨウカメツ (1) 11 SS-8681650-TP SCREW 9/32-28 L=16 トメネジ 9/32-28 L=16 1 12 SS-8660610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 1 13 B1212-552-A00 COUNTERWEIGHT PROTECTING PLATE ツリアイオモリホゴイタ 1 14 RO-0442401-00 RUBBER RING Oリング 1 15 SS-7681650-TP SCREW 9/32-28 L=16 マルヒラネジ 9/32-28 L=16 1 16 113-49107 BUSHING, FRONT ウワジクマエメタル 1 17 B1177-522-000 BALANCER バランサー 1 18 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 2 19 SS-8150912-TH SCREW トメネジ 1 20 110-02300 BUSHING, INTERMEDIATE ウワジククナカメタル 1 21 CS-147121A-SH THRUST COLLAR ASM. D=14.72 W=12 スラストウケ D=14.72 W=12 クミ 1 22 SS-8660610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 (2) 23 110-08059 FEED DRIVE ECCENTRIC CAM ASM. クリヘンシンカムクミ 1 24 SS-6661110-SP SCREW 1/4-40 L=6 ヒラネジ 1/4-40 L=11 (2) 25 110-08000 FEED DRIVE ECCENTRIC CAM オクリヘンシンカム 1 26 110-08109 THRUST COLLAR オクリヘンシンカムスラストウケ (1) 27 SS-6090670-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 6=6 (2) 28 RC-1850001-KP SNAP RING 18.5 Cガタトメワ 18.5 1 29 110-02409 MAIN SHAFT BUSHING, REAR ウワジククナカメタル 1 30 110-02508 OIL SEAL メタルオイルシール 1 31 113-49008 MAIN SHAFT ウワジク 1 32 110-02607 HAND WHEEL ハズミククルマ 1 33 SS-8151550-SP SCREW 15/64-28 L=15 トメネジ 15/64-28 L=15 2 34 B1213-552-0A0-A OIL AMOUNT ADJUSTING PIN ASM. ユリヨージヨウセツピンクミ 1 35 RO-0291801-00 RUBBER RING Oリング (1) 36 110-02904 ROLLER FELT ユリヨウチョウセツフエルト 1 37 113-46400 WASTE MATERIAL GUIDE メノクスガイド 1 38 SS-4080310-SP SCREW 1/8-44 L=3.4 ナベネジ 1/8-44 L=3.4 2 39 B1193-530-000 WASTE MATERIAL GUARD PLATE メノクスカバートメイツ 1 40 113-46905 WASTE MATERIAL GUARD, E メノクスカバ- E 1 41 113-46004 NEEDLE PLATE, A ハリイタ A 1 42 SS-2110915-SP SCREW 11/64-40 L=8.5 マルオラネジ 11/64-40 L=8.5 2 43 SS-4080310-SP SCREW 1/8-44 L=3.4 ナベネジ 1/8-44 L=3.4 2 44 B1115-530-00F THROAT PLATE COVER F ハリイタフタ F 1 45 B1115-522-000-A OPEN COVER SPRING ハリイタカイヘンフスバネ 1 46 SS-6080320-SP SCREW 1/8-44 L=2.5 ヒラネジ 1/8-44 L=2.5 1 47 113-31154 COUNTERWEIGHT ASM. ツリアイオモリクミ LM 1 Note(注記)#01...Selective part (A~D) 選択部品 (A~D) - 4 - jintex.in

Page 8 — 3. UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

3. UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS 立軸・下軸関係 - 5 - jintex.in

Page 9

REF. NO. NOTE PART NO. DESCRIPTION ヒンメイ AMT. 1 B1405-012-000 CAP キャワプ 1 2 B1402-552-000-A NEEDLE BAR BUSHING, UPPER ハリボーウメタル 1 3 B1401-522-A00-A NEEDLE BAR (A) ハリボー-A 1 4 B1414-555-000 SLIDE BLOCK ハリボーダキアンナイユウ 1 5 B1401-552-0A0 NEEDLE BAR CONNECTION ASM. ハリボーダキクミ 1 6 SS-6090670-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 6=6 (1) 7 110-05105 NEEDLE BAR BUSHING, LOWER ハリボーウシタメタル 1 8 SS-7080510-TP SCREW 1/8-44 L=4.5 マルヒラネジ 1/8-44 L=4.5 1 9 113-31204 NEEDLE BAR THREAD GUIDE ハリボーウイトカゲ 1 10 MDB-100B1400 NEEDLE DBX1 #14 NB DBX1 #14 1 11 B1306-155-000 GEAR & PINION ASM. カサハグクルマジヨーククミ 1 12 B1306-155-0BO GEAR & PINION ASM., UPPER ウワカサハグクルマクミ (1) 13 B1305-012-0A0 GEAR ASM. ウワカサハグクルマダイクミ 1 14 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 2 15 B1306-155-0A0 PINION ASM. ウワカサハグクルマクミ 1 16 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 2 17 B1307-155-0B0 GEAR & PINION ASM., LOWER シタカサハグクルマクミ 1 18 B1307-155-0A0 GEAR ASM. LARGE シタカサハグクルマダイクミ 1 19 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 2 20 B1308-155-0A0 PINION ASM. カサハグクルマシヨールクミ 1 21 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 2 22 110-04009 UPRIGHT SHAFT タテジク 1 23 SS-4120915-SP SCREW 12/64-28 L=9 ナベネジ 3/16-28 L=9 1 24 110-04306 BUSHING, UPPER タテジクウワメタル B 1 25 110-04207 UPRIGHT SHAFT BUSHING, LOWER タテジクシタメタル 1 26 110-15807 BUSHING, REAR シモジククミメタル 1 27 SS-4120915-SP SCREW 12/64-28 L=9 ナベネジ 3/16-28 L=9 1 28 CS-079101A-SH THRUST COLLAR ASM. D=7.94 W=10 スラストウケ D=7.94 W=10 クミ (2) 29 SS-6110420-TP SCREW 11/64-40 L=4.8 トメネジ 11/64-40 L=4.8 (2) 30 110-15609 HOOK DRIVING SHAFT シタジク 1 31 110-15609 POSITIONING FINGER ナカガマオサエ 1 32 SS-6111010-SP SCREW 11/64-40 L=9.5 ヒラネジ 11/64-40 L=9.5 1 33 B1808-552-0A0 OIL SEAL SCREW ASM. シタジクマエトメネジユシン 1 34 B1810-552-000 OIL WICK シタジクマエトメネジユシン (1) 35 B1830-127-0A0 HOOK ASM. カマクミ 1 36 B9117-012-000 BOBBIN ホビビン 1 37 B1837-012-0A0 BOBBIN CASE ASM. ホビビンケースクミ 1 38 CS-079073A-SH THRUST COLLAR スラストウケクミ 1 39 SS-6110420-TP SCREW 11/64-40 L=3.5 トメネジ 11/64-40 L=3.5 (2) 40 110-15104 BUSHING ASM., FRONT シタジククミメタル 1 41 SS-8150432-TH SCREW トメネジ 1 42 TA-0180401-MO PIN トメセン 1 43 #01 B1835-523-000 POSITIONING FINGER ナカガマオサエ 1 44 #02 B1401-522-B00-A NEEDLE BAR (B) ハリボー-B 1 45 #03 MC-2005007-50 NEEDLE 134 75 ハリ 134 75 1 46 #04 MDP-500B1400 NEEDLE DPX5 #14 ハリ DPX5 #14 1 47 #04 113-31303 NEEDLE BAR THREAD GUIDE ハリボーイトアンナイ 1 Note(注記)#01...For DLM-5210 DLM-5210用 #02...For JE,JO JE,JO用 #03...For JE JE用 #04...For JO JO用 - 6 - jintex.in

Page 10 — 4. HAND LIFTER COMPONENTS

4. HAND LIFTER COMPONENTS 押上げ関係 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 24 25 26 27 28 29 30 31 32 33 34 35 23 8 22 42 21 20 19 36 37 38 39 40 41 - 7 - jintex.in

Page 11

REF.NO. NOTE PART NO. DESCRIPTION ヒンメイ AMT. 1 B1520-552-000-A HAND LIFTER オサエアゲレバー 1 2 B1521-555-000 SCREW オサエアゲレバートメネジ 1 3 RO-0371801-00 RUBBER RING リンク 1 4 110-92558 HAND LIFTER CAM ASM. オサエアゲカム (クミ) 1 5 110-06350 HAND LIFTER LINK オサエアゲリンク 1 6 RE-0500000-KO E-RING Eガタトメワ 5 1 7 110-06509 LINK SHAFT ヒキアゲリンクシヤフト 2 8 110-06608 GASKET リンクシヤツトパツキン 3 9 RE-0500000-KO E-RING Eガタトメワ 5 1 10 110-06202 LIFTING LEVER ヒキアゲレバー 1 11 110-07309 LIFTING LEVER RING ヒキアゲレバーリングタリンク 1 12 110-07101 HINGE SCREW ヒサゲアゲヨコネジ 1 13 110-06905 LIFTING LEVER CONNECTING ROD ヒキアゲレバーコネクテイングロツド 1 14 110-07200 CONNECTING ROD VERTICAL ヒサゲアゲレンケツボウ 1 15 110-07002 LIFTING LEVER LINK ヒキアゲレバーリンク 1 16 SD-0720332-SP HINGE SCREW D= 7.24 H= 3.3 ダンネジ D= 7.24 H=3.3 1 17 RE-0500000-KO E-RING Eガタトメワ 5 2 18 110-18207 TENSION RELEASE RETURN SPRING イトユルメイツトモトシバネ 1 19 110-18405 TENSION RELEASE PIN SPRING イトユルメピンバネ 1 20 RE-0400000-KO E-RING Eガタトメワ 4 1 21 110-18306 TENSION RELEASE SUPPORTING PIN イトユルメヨコピン 1 22 110-18009 TENSION RELEASE PLATE イトユルメイツ 1 23 110-18108 TENSION RELEASE SHAFT イトユルメイツシヤフト 1 24 B1509-555-000 PRESSER SPRING REGULATOR オサエヨウセツネジ 1 25 B1511-555-000 NUT 1/2-28 オサエヨウセツネジナツト 1 26 B1510-227-000 PRESSER GUIDE BAR オサエアンナイボー 1 27 B1505-227-000 PRESSER SPRING オサエヨウセツバネ 1 28 110-06004 NEEDLE BAR GUIDE BRACKET エホウウタツキ 1 29 B1501-522-000 PRESSER BAR エホウー 1 30 110-06103 PRESSER BAR THREAD GUIDE オサエバウタツキイトアンナイ 1 31 SS-8660810-TP SCREW 1/4-40 L= 8 トメネジ 1/4-40 L=8 1 32 SS-7090910-SP SCREW 9/64-40 L= 8.5 マルヒラネジ 9/64-40 L=8.5 2 33 B1502-541-000 PRESSER BAR BUSHING, LOWER エホエボーシタメタル 1 34 SS-7091110-SP SCREW 9/64-40 L=10.5 マルヒラネジ 9/64-40 L=10.5 1 35 B1524-522-NAO-A PRESSER FOOT ASM., N ジユウオサエ 1 36 #01 B1524-522-NB0-A PRESSER FOOT ASM. オリエ (ハリツトツキ) クミ 1 37 #02 B1524-523-0A0 PRESSER FOOT ASM. マエメスコージユウオサエクミ 1 38 #02 WP-0460556-SD HINGE SCREW D= 4.6X7.5X0.5 ヒラサカバネ 4.6X7.5X0.5 (1) 39 #02 SD-0450401-SP HINGE SCREW D= 4.5 H = 4 ダンネジ D= 4.5 H = 4 (1) 40 #02 B1524-523-00E SPRING オサエバネ (1) 41 #03 B1421-523-000 FINGER PROTECTOR ハリツカパー 1 42 CQ-2020000-00 OIL WICK ユシン 0.2 43 110-19007 WASHER PLATE イトユルメピンイタ 1 Note(注記)#01...For Export 輸出用 #02...For DLM-5210 DLM-5210用 #03...Special order part 特別注文部品 - 8 - jintex.in

Page 12

5. FEED MECHANISM COMPONENTS 送り関係 - 9 - jintex.in

Page 13

REF. NO. NOTE PART NO. DESCRIPTION ヒンメイ AMT. 1 110-09503 FEED REGULATOR CONNECTING ROD オクリチョウセツロツト 1 2 110-09602 FEED REGULATOR PIN オクリチョウセツタ゛イ 1 3 SS-6090670-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 6=6 2 4 110-09701 FEED REGULATOR オクリチョウセツタ゛イ 1 5 110-09800 FEED REGULATOR BUSHING オクリチョウセツタ゛イメタル 1 6 SS-7120770-SH SCREW マルヒラネジ 1 7 110-09909 FEED REGULATOR SCREW オクリチョウセツネジ 1 8 B1148-555-000 SPRING オクリチョーセツﾋﾟﾝ 1 9 110-52701 PIN オクリタ゛イヤル 1 10 110-10006 FEED DIAL ヒラネジ 3/16-28 L=9.0 1 11 SS-6120930-TP SCREW 3/16-28 L=9.0 1 12 110-08208 ROCKER SHAFT CONNECTING ROD スイヘイオクリロツト 1 13 110-09206 WALKING FOOT PIN C スイヘイオクリピン C 1 14 SS-6090620-TP SCREW ヒラネジ 1 15 110-14008 CONNECTING ROD シヨウケ゛オクリロツト 1 16 RO-0922702-00 RUBBER RING Oリング 1 17 110-10303 FEED REVERSE SPRING オクリレハ゛ーネ 1 18 RE-0500000-KO E-RING Eガタトメワ 5 1 19 110-10154 FEED REVERSE ARM ASM. オクリレハ゛ーウテ゛クミ 1 20 110-10404 FEED REVERSE ARM SCREW オクリレハ゛ーウテ゛メネジ 1 21 RE-0500000-KO E-RING Eガタトメワ 5 1 22 110-09404 ADGUSTING LINK SPRING チョウセツリンクヘネ 1 23 110-09008 WALKING FOOT PIN A スイヘイオクリピン A 2 24 110-08703 WALKING FOOT LINK レンケツリンク B 2 25 110-08604 CONNECTING LINK A レンケツリンク A 1 26 110-08455 WALKING FOOT ADJUSTING LINK チョウセツリンククミ 1 27 110-08802 ADGUSTING LINK FULCRUM SHAFT A チョウセツリンクフエルクラムシヤフト A 1 28 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 2 29 SS-6090620-TP SCREW ヒラネジ 1 30 110-11103 FEED BAR SHAFT オクリタ゛イシヤフト 1 31 RC-1381001-KP RETAINING RING Cガタトメワ 1 32 B1613-522-H00-A FEED DOG オクリタ゛ 1 33 SS-4080620-TP SCREW 1/8-44 L=6 ナベネジ 1/8-44 L=6 2 34 110-11251 FEED BAR ASM. オクリハ゛ーヤシ 1 35 110-09305 ADGUSTING LINK SPRING GUIDE チョウセツリンクヘネカ゛イト゛ 1 36 SS-7110510-SP SCREW 11/64-40 L=5 マルヒラネジ 11/64-40 L=5 2 37 110-11301 FEED SPRING HOOK オクリハ゛ーネ 1 38 110-10808 FEED ROCKER SHAFT スイヘイオクリシヤフト 1 39 110-09107 WALKING FOOT PIN B スイヘイオクリピン B 1 40 SS-6090620-TP SCREW ヒラネジ 1 41 NS-6680410-SP NUT 9/32-28 ロツカクナット 9/32-28 1 42 110-08356 FEED ROCKER SHAFT CRANK ASM. スイヘイオクリシヤフトクランククミ 1 43 SS-6121610-SP SCREW 3/16-28 L=15.5 ヒラネジ 3/16-28 L=15.5 (1) 44 110-14156 REAR CRANK ASM. シヨウケ゛オクリクランククミ (1) 45 SS-6121210-SP SCREW 3/16-28 L=9 ヒラネジ 3/16-28 L=9 (1) 46 SD-1000801-SH HINGE SCREW テンネジ 1 47 110-14206 FEED DRIVING SHAFT シヨウケ゛オクリシヤフト 1 48 CS-147121A-SH THRUST COLLAR ASM. D=14.72 W=12 スラストウケ D=14.72 W=12 クミ 1 49 SS-8660610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 (1) 50 110-10907 FEED ROCKER SHAFT BUSHING オクリシヤフトブツシング 1 51 SS-8150432-TH SCREW トメネジ 1 52 SS-7110740-TP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 53 RC-1381001-KP RETAINING RING Cガタトメワ 1 54 110-11004 FEED ROCKER マルヒラ 1 55 SS-7121410-TP SCREW 3/16-28 L=14 マルヒラネジ 3/16-28 L=14 1 56 WP-0480856-SP MAGNET BASE SPRING WASHER ヒラサ゛ガネ 4.8X8.4X0.8 1 57 110-14354 DRIVING SHAFT CRANK ASM., FRONT ジヨウケ゛クランククミ 1 58 SS-7111120-SP SCREW 11/64-40 L=10.5 マルヒラネジ 11/64-40 L=10.5 (1) 59 SS-4120915-SP SCREW 12/64-28 L=9 ナベネジ 3/16-28 L=9 1 60 110-10907 FEED ROCKER SHAFT BUSHING オクリシヤフトブツシング 1 61 CS-147121A-SH JUST COLLAR ASM. D=14.72 W=12 スラストウケ D=14.72 W=12 クミ (2) 62 SS-8660610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 1 63 RO-0781901-00 RUBBER RING Oリング 1 64 110-10519 FEED REVERSE SHAFT オクリレハ゛ーシヤフト 1 65 110-10709 FEED LEVER METAL オクリレハ゛ーメタル 1 66 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 1 67 SS-8661040-TP SCREW 1/4-40 L=10 トメネジ 1/4-40 L=10 1 68 110-10600 REVERSE FEED CONTROL LEVER オクリレハ゛ー 1 69 #01 110-37009 FEED DIAL オクリタ゛イヤル 1 70 #01 B1613-523-000 FEED DOG オクリタ゛ 1 Note(注記)#01...For DLM-5210 - 10 - jintex.in

Page 14 — 6. KNIFE COMPONENTS

6. KNIFE COMPONENTS メス関係 1 2 3 4 5 6 7 10 9 8 11 12 20 19 18 21 22 23 24 25 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 26 27 28 29 13 14 15 16 17 - 11 - jintex.in

Page 15

REF. NO. NOTE PART NO. DESCRIPTION HIN MEI ANT. 1 113-32400 KNIFE POSITIONING PLATE MES SETO HA 1 2 B4131-522-000 FELT MES SETO TA 1 3 SS-4090815-SP SCREW 9/64-40 L=8 MES SETO HI KI AGE HA NE 1 4 B4133-522-000 TENSION SPRING MES SETO HA 1 5 NS-6090310-SP NUT 9/64-40 ROSU KAKU NA 1 6 SS-4090815-SP SCREW 9/64-40 L=8 MES SETO HI KI AGE HA NE 1 7 NS-6090310-SP NUT 9/64-40 ROSU KAKU NA 1 8 NS-6120310-SP NUT 3/16-28 ROSU KAKU NA 1 9 B4119-522-000 TENSION SPRING MES SETO HA 1 10 SS-6121010-SP SCREW 3/16-28 L=10 HI RA NE JI 1 11 SS-6111010-SP SCREW 11/64-40 L=9.5 HI RA NE JI 1 12 NS-6110420-SP NUT 11/64-40 ROSU KAKU NA 11/64-40 1 13 SS-4080610-SP SCREW 1/8-44 L=6.4 NA BE NE JI 1/8-44 L=6.4 2 14 B4122-522-000 WASHER MES O SA E GA NE 1 15 B4121-522-000 KNIFE MES 1 16 B4120-522-000 KNIFE HOLDER MES SA E HA 1 17 SS-6110810-TP SCREW 11/64-40 L=8 TO ME NE JI 1 18 B4113-522-080 KNIFE DRIVING BLOCK ASM. MESU KO-DA-I KU MI (1) 19 B4117-522-000 BUSHING KU RA SU CHI PI N PU SA SHU (1) 20 SS-8110510-SP SCREW 11/64-40 L=5 TO ME NE JI 11/64-40 L=5 (1) 21 B4114-522-000 KNIFE DRIVING BLOCK STUD MESU KO-DA-I JI GU KU 1 22 B4115-522-000 GUIDE STUD FOR KNIFE DRIVING BLOCK MESU KO-DA-I AN NA I SHI KU 1 23 WP-0480856-SP MAGNET BASE SPRING WASHER HI RA SA KA 4.8X8.4X0.8 2 24 SS-9121010-TP SCREW ROSU KAKU HO RU TO 2 25 B4111-522-000 KNIFE DRIVING ROD CLUTCH PIN KU RA SU CHI PI N 1 26 B4125-522-000 SPRING MESU NO KU HA NE 1 27 RE-0200000-KO E-RING E KA TO ME RI 2 28 B4124-522-000 KNIFE RELEASE LEVER MESU NO KU 1 29 B4126-522-000 PIN MESU NO KU PI N 1 30 B4103-522-000 KNIFE DRIVING ROD CLUTCH RETAINER KU RA SU CHI SA E 1 31 B4116-530-000 BUSHING MESU JI KU ME TA RU 1 32 SS-6090810-TP SCREW 9/64-40 L=7.5 HI RA NE JI 9/64-40 L=7.5 1 33 SS-6090810-TP SCREW 9/64-40 L=7.5 HI RA NE JI 9/64-40 L=7.5 1 34 113-32202 KNIFE DRIVING ROD CONNECTION MESU JI KU DA KI 1 35 113-32301 KNIFE DRIVING ROD MESU RO SU TO 1 36 B4123-522-000 KNIFE NEEDLE BEARING MESU NI-TO RU RO-RA- 1 37 B4106-522-000-B KNIFE CAM MESU KA MU (HI OU SHU-N) 1 38 B4132-522-000-A THRUST PLATE MESU KA MU SU RA SU TOU KEI TA 1 39 B4107-522-000 PIN MESU KA MU PI N 1 40 B4108-522-000 SLIDE BLOCK GUIDE MESU RO SU TO AN NA I TA I 1 41 SS-6121060-SP SCREW HI RA NE JI 2 42 B1414-555-000 SLIDE BLOCK HA RI BO-DA-KI AN NA I KU 1 43 B4109-522-000 KNOB KU TSU MA MI 1 44 NS-6110310-SP NUT 11/64-40 ROSU KAKU NA 11/64-40 1 45 B4112-522-000 CAP KU RA SU CHI KA PU 1 46 B4110-522-000 SPRING KU RA SU CHI HA NE 1 47 #01 B4121-523-000 KNIFE MESU MESU 1 48 #01 B4135-523-000 CUTTING CLOTH SEPARATOR KI RI KU SU SA BA KI 1 49 #01 SS-5060410-SP SCREW 3/32-56 L=3.5 TO RA SU NE JI 3/32-56 L=3.5 2 Note(注記)$01...For DLM-5210 DLM-5210用 - 12 - jintex.in

Page 16 — 7. OIL LUBRICATION COMPONENTS

7. OIL LUBRICATION COMPONENTS 給油関係 1 2 3 4 5 6 7 9 8 11 12 13 14 15 10 17 30 31 19 18 20 16 29 27 26 25 24 23 22 21 - 13 - jintex.in

Page 17

REF. NO. NOTE PART NO. DESCRIPTION HIN MEI AKT. 1 B3530-555-000 OIL SIGHT WINDOW 777ラマド 1 2 RO-1952401-00 RUBBER RING 0リンク 1 3 110-21201 MAIN SHAFT OIL TUBE ウワジクキュウパイプ 1 4 110-21607 TUBE HOLDER (UPPER) パイプオサエ (ウエ) 1 5 SS-4120415-SP SCREW 3/16-28 L=6 ナベネ 1 6 SS-4120615-SP SCREW 3/16-28 L=6 ナベネ 3/16-28 L=6 1 7 B3529-226-000 OIL FELT PRESSER カンリューフエルトオサエ 1 8 113-31758 OIL RETURN TUBE ASM. カンリューパイプクミ 1 9 B3536-122-000 HOLDER B キユウパイプオサエ 1 10 CQ-2520000-00 OIL WICK センタン 0.2 11 110-21300 OIL TUBE カマキユウパイプ 1 12 110-21706 TUBE HOLDER (LOWER) パイプオサエ (シタ) 1 13 SS-4150915-SP SCREW 15/64-28 L=9 ナベネ 15/64-28 L=9 1 14 B2616-372-000 SPRING ハガネ 1 15 B3514-412-000 OIL ADJUSTING SCREW シタジククマエメタルユリヨーチョーセツネジ 1 16 110-20054 LUBRICATING OIL PUMP ASM. ポンプタイクミ 1 17 110-20302 OIL PUMP INSTALLING BASE ポンプタイトリツケイタ (1) 18 SL-4030851-SF SCREW ナベネジセムス (3) 19 110-20005 OIL PUMP ポンプタイ (1) 20 110-20708 OIL PUMP IMPELLER インペラー (1) 21 SE-4301041-SR SCREW タツプタイトネジ (3) 22 110-20203 LUBRICATING OIL PUMP COVER ポンプタイフタ (1) 23 110-20807 OIL PUMP IMPELLER COVER ポンプタイウケイタ (1) 24 110-20401 PLUNGER プランジヤ (1) 25 110-20609 PLUNGER SPRING プランジヤハガネ (1) 26 110-20500 PLUNGER SCREW プランジヤネジ (1) 27 110-20906 HOOK DRIVING SHAFT OIL TUBE シタジククキユウパイプ (1) 28 SS-6111010-TP SCREW 11/64-40 L=9.5 ヒラネジ 11/64-40 L=9.5 1 29 110-21003 OIL PUMP SUPPORT ポンプタイシンチユウ 1 30 SS-4150915-SP SCREW 15/64-28 L=9 ナベネ 15/64-28 L=9 1 31 110-21409 RUBBER JOINT キユウパイプツキテ 1 - 14 - jintex.in

Page 18 — 8. OIL RESERVOIR COMPONENTS

8. OIL RESERVOIR COMPONENTS 油溜関係 1 23- 2 3 4 5 6 7 8 9 10 15 13 12 14 13 12 11 24 25 26 49 27 29 30 28 29 31 36 33 32 35 34 16 17 18 19 20 21 22 37 38 39 40 41 48 46 45 47 46 45 42 43 44 15

Page 19

REF.NO. NOTE PART NO. DESCRIPTION ヒンメイ AMT. 1 113-32855 OIL RESERVOIR ASM. アブフ*ラタ*マリケツコ*ウ 1 2 113-60708 OIL RESERVOIR アブフ*ラタ*マリ (1) 3 110-23108 GASKET アブフ*ラタ*メパツキン (1) 4 110-23207 RUBBER CUSHION トウフ*サエゴム (4) 5 SS-6700710-SH SCREW ヒラネツ (1) 6 RO-0982401-00 RUBBER RING Oリンク (1) 7 110-24007 CONNECTING ROD, VERTICAL ヒサ*アケカイテンウデ (1) 8 110-24106 SPRING ヒサ*アケカイテンハ*ネ (1) 9 RE-1000000-KO E-RING E*カ*タトメワ (1) 10 110-24502 KNEE PRESS LOD BEARING BRACKET ヒサ*アテ*デタジ*クトリツケウデ (1) 11 SS-9182010-SN SCREW 9/32-20 L=20 ロツカクボルト 9/32-20 L=20 (2) 12 NS-6150430-SR NUT 15/64-28 ロツカクナツト 15/64-28 (2) 13 SS-8153010-SR SCREW 15/64-28 L=30 トメネジ 15/64-28 L=30 (2) 14 SS-9151610-SR SCREW 15/64-28 L=16 ロツカクボルト 15/64-28 (1) 15 110-24205 KNEE PRESS ROD ヒサ*アテ*コジ*ク (1) 16 110-23751 KNEE PRESS PLATE ASM. ヒサ*アテ*イタクミ 1 17 B3431-552-000-A KNEE PRESS PLATE COVER ヒサ*アテ*イタカバー (1) 18 B3419-122-000 KNEE LIFTER PLATE ROD ヒサ*アテタテジ*ク (1) 19 110-23900 RUBBER ヒサ*アテゴム (1) 20 110-23702 KNEE PRESS PLATE ヒサ*アテ*イタ (1) 21 110-23902 KNEE PRESS PLATE HOLDER ヒサ*アテ*イタササ*エ (1) 22 SS-9151540-SR SCREW 15/64-28 L=15 ロツカクボルト 15/64-28 L=15 (1) 23 110-24304 KNEE PRESS LIFTER ROD ヒサ*アケ*オシ*ボ*ウ 1 24 113-61003 OIL PUSH GUIDE ハイエカイト 1 25 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 2 26 B8226-522-000 WASTE MATERIAL CHUTE HOLDER ヌノクズシユートササ*エ 1 27 SK-3412000-SC WOOD SCREW D=4.1 L=20 マルモクネジ D=4.1 L=20 3 28 SS-7090610-SP SCREW 9/64-40 L=6 マルヒラネジ 9/64-40 L=6 4 29 NS-6090310-SP NUT 9/64-40 ロツカクナツト 9/64-40 8 30 B8224-523-000 WASTE MATERIAL CHUTE (LARGE) ヌノクズシユート (ダイ) 1 31 B8225-522-000 WASTE MATERIAL CHUTE, SMALL ヌノクズシユート (シヨウ) 1 32 #01 113-41708 HOOK OIL COVER ハイユカイト 1 33 #01 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 2 34 #01 113-41807 WASTE MATERIAL CHUTE ヌノクズシユート 1 35 #01 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 2 36 #01 113-41559 OIL RESERVOIR ASM. アブフ*ラタ*マリケツコ*ウ 1 37 113-41500 OIL RESERVOIR アブフ*ラタ*メ (1) 38 110-23108 GASKET アブフ*ラタ*メパツキン (1) 39 110-23207 RUBBER CUSHION トウフ*サエゴム (1) 40 110-24007 CONNECTING ROD, VERTICAL ヒサ*アケカイテンウデ (1) 41 110-24106 SPRING ヒサ*アケカイテンハ*ネ (1) 42 RE-1000000-KO E-RING E*カ*タトメワ (1) 43 110-24502 KNEE PRESS LOD BEARING BRACKET ヒサ*アテ*デタジ*クトリツケウデ (1) 44 SS-9182010-SN SCREW 9/32-20 L=20 ロツカクボルト 9/32-20 L=20 (2) 45 NS-6150430-SR NUT 15/64-28 ロツカクナツト 15/64-28 (2) 46 SS-8153010-SR SCREW 15/64-28 L=30 トメネジ 15/64-28 L=30 (2) 47 SS-9151610-SR SCREW 15/64-28 L=16 ロツカクボルト 15/64-28 (1) 48 110-24205 KNEE PRESS ROD ヒサ*アテ*コジ*ク (1) 49 SS-7091110-SP SCREW 9/64-40 L=10.5 マルヒラネジ 9/64-40 L=10.5 4 Note(注記)#01...For DLM-5210 DLM-5210用 - 16 - jintex.in

Page 20 — 9. BELT COVER & BOBBIN WINDER COMPONENTS

9. BELT COVER & BOBBIN WINDER COMPONENTS ベルトカバー・糸巻関係 REF. NO. NOTE PART NO. DESCRIPTION ヒンメイ AMT. 1 110-23363 BELT COVER ASM. ベルトカバークミ (1) 2 110-23355 BELT COVER ASM. ベルトカバークミ (1) 3 110-23306 BELT COVER A ベルトカバー A (1) 4 SS-7701010-SP SCREW 5/16-24 L=10 マルヒラネジ 5/16-24 L=10 (2) 5 110-23405 BELT COVER B ベルトカバー B (1) 6 110-23504 BELT COVER SUPPORT ベルトカバーサポート (1) 7 SS-7120640-SP SCREW 3/16-28 L=6 マルヒラネジ 3/16-28 L=6 (1) 8 110-23603 BELT COVER COLLAR ベルトカバーカラー (2) 9 D3201-555-DAO BOBBIN WINDER ASM. イトマキソーチクミ (1) 10 D3213-555-DAO THREAD TENSION BRACKET ASM. イトマキイトヨーシヨーダイクミ (1) 11 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 (2) 12 B3126-012-000 TENSION DISC イトチョーシディスク (1) 13 B3129-012-B00 TENSION SPRING B イトチョーシスプリング B (1) 14 B3125-012-000 THREAD TENSION STUD NUT イトチョーシナツト (1) 15 SS-7110350-SP SCREW 11/64-40 L=3 マルヒラネジ 11/64-40 L=3.5 (1) 16 B3212-555-000 PRESSER PLATE セイトーゴムオサエイタ (1) 17 B3211-555-000 RUBBER BRAKE セイトーゴム (1) 18 B3209-555-000 POSITIONING FINGER ホビンオサエ (1) 19 SD-0490261-SP HINGE SCREW D=4.9 H=2.6 ダンネジ D=4.9 H=2.6 (1) 20 SS-7081310-SP SCREW 1/8-44 L=12.5 マルヒラネジ 1/8-44 L=12.5 (1) 21 WP-0501016-SD WASHER 5X10.5X1 ヒラガネワッシャー 5X10.5X1 (2) 22 SK-3482500-SC WOOD SCREW D=4.8 L=25 マルモクネジ D=4.8 L=25 (2) - 17 - jintex.in

Page 21 — 11. FOLDER COMPONENTS ( EXCLUSIVE PARTS FOR DLM-5210 )

11. FOLDER COMPONENTS ( EXCLUSIVE PARTS FOR DLM-5210 ) バインダー関係 ( DLM-5210 専用部品 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 REF. NO. NOTE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 PART NO. MAT-11801NAO MAN-011010AO MAT-11803NOA SS-7090510-SP WP-0450000-SD SS-7090710-SP WP-0371026-SD MAT-11901NAO MAN-015010AO MAT-11903NOA SS-7090510-SP WP-0450000-SD SS-7090710-SP WP-0371026-SD D E S C R I P T I O N BINDER ASM. SINGLE FOLD BIAS FOLDER ASM. TAPE GUIDE SCREW 9/64-40 L= 4.6 WASHER 4.5X8X0.5 SCREW 9/64-40 L= 6.8 WASHER 3.7X7X1 BINDER ASM. DOUBLE FOLD BIAS FOLDER ASM. TAPE GUIDE B SCREW 9/64-40 L= 4.6 WASHER 4.5X8X0.5 SCREW 9/64-40 L= 6.8 WASHER 3.7X7X1 ヒンメイカタマキマエメスバインダーバインダークミテープアンザイマルヒラネジヒラサカガネマルヒラネジヒラサカガネリヨマキマエメスバインダーテープアンザイマルヒラネジヒラサカガネマルヒラネジヒラサカガネ AMT. 1 (1) (1) 2 2 2 2 1 (1) (1) 2 2 2 2 - 19 - jintex.in

Page 22 — 10. THREAD STAND COMPONENTS

10. THREAD STAND COMPONENTS 糸立装置関係 REF.NO. NOTE PART NO. DESCRIPTION ヒンメイ AMT. 1 #01 111-81054 THREAD STAND ASM. イトタテソウチ A 1 2 #02 111-81062 THREAD STAND ASM. イトタテソウチ B 1 3 B3307-012-000 THREAD GUIDE イトタテイトアンナイ (2) 4 B3310-012-000 POSITION CUP SET SCREW イトタテイトアンナイシメネジ (1) 5 WS-0641560-KR SPRING WASHER 6.4X11.9X1.5 カネザガネ 6.4X11.9X1.5 (1) 6 B3309-012-000 POSITION CUP イトタテイトアンナイマワリトメ (1) 7 B3308-012-000 ROD WASHER イトタテイトアンナイウケ (1) 8 B3306-012-000 SPOOL ROD イトタテウエカン (1) 9 NM-6061061-SE NUT M6 ロツカクナツト M6 10X11.5X10 (1) 10 B3302-012-000 SPOOL REST ROD イトタテシタカン (1) 11 #02 111-81906 SPOOL RETAINER イトマキフレトメ (2) 12 B3320-704-L00-A SPOOL PIN イトマキウケボウ (2) 13 B3311-012-000 SPOOL REST CUSHION イトマキウケ (1) 14 111-81153 SPOOL REST ASM. イトマキウケクミ (2) 15 WP-0560860-SE WASHER 5.6X12X0.8 ヒラガネ 5.6X12X0.8 (2) 16 WS-0531060-KR SPRING WASHER 5.3X8.3X1 ハネガネ 5.3X8.3X1 (2) 17 NS-6123881-SE NUT 3/16-28 ロツカクナツト 3/16-28 (2) 18 SM-9061080-SE SCREW M6 L=10 ロツカクボルト M6 L=10 (1) 19 NM-6100663-SE NUT M10 ロツカクナツト M10 3シュ (2) 20 SK-3452000-SE WOOD SCREW D=4.5 L=20 マルモクネジ D=4.5 L=20 (3) 21 111-81005 THREAD STAND イトタテダィ (1) 22 WS-1002560-KR SPRING WASHER 10X18X2.5 ハネガネ 10X18X2.5 (1) Note(注記)#01...For Export 輸出用 #02...For domestic use 国内用 - 18 - jintex.in

Page 23 — 12. TABLE OF EXCHANGING GAUGES FOR DLM-5200 13. TABLE OF EXCHANGING GAUGES FOR DLM-5210

12. TABLE OF EXCHANGING GAUGES FOR DLM-5200 DLM-5200ゲージ一覧表 1 2 3 4 5 6 7 8 9 Specifi- cations of the sub- gauge Gauge width Throat plate 針板 Throat plate cover (asm) 針板蓋(組) Gauge ゲージ Throat plate chip guard 針板布屑カバー Chip guide 布屑ガイド Hinging presser (asm) 自由押え (組) Hinging presser (With finger guard) 自由押え (指ガード付) Feed dog 送り Knife メス CA 5/64" (2.0mm) 11346004 B11155300AD B1190522Y0A 11346905 11346400 B1524522NA0A B1524522NB0A B1613522N00A B4121522000 C 3/32" (2.4mm) 11346004 B11155300AD B1190522X00 11346905 11346400 B1524522NA0A B1524522NB0A B1613522N00A B4121522000 D 1/8" (3.2mm) 11346004 B11155300AD B1190522S00 11346905 11346400 B1524522NA0A B1524522NB0A B1613522N00A B4121522000 E 5/32" (4.0mm) 11346004 B11155300AF B1190522Y00 11346905 11346400 B1524522NA0A B1524522NB0A B1613522N00A B4121522000 F 3/16" (4.8mm) 11346004 B11155300AF B1190522T00 11346905 11346400 B1524522NA0A B1524522NB0A B1613522N00A B4121522000 H 1/4" (6.4mm) 11346004 B11155300AF B1190522U00 11347101 11346509 B15240120A0 B15240120BA B1613522W00A B4121522000 NA 1/4" (6.4mm) 11346004 B11155300AM B1190522U0A 11347101 11346509 B15240120A0 B15240120BA B1613522A0A B4121522000 K 5/16" (7.9mm) 11346103 B11155300AM B1190522Y08 11347101 11346509 B15240120A0 B15240120BA B1613522W00A B4121522000 M 3/8" (9.5mm) 11346103 B11155300AM B1190522V00 11347309 11346509 B15240120A0 B15240120BA B1613522W00A B4121522000 D~Standard specification CA, HA, K~Specification for spare parts C, E, F, H, M~Special specification D~標準仕様 CA, HA, K~摘用パーツ仕様 C,E,F,H,M~特別仕様 13. TABLE OF EXCHANGING GAUGES FOR DLM-5210 DLM-5210ゲージ一覧表 1 2 3 4 5 6 7 8 Binder Specifi- cations of the sub- gauge Gauge width Gauge ゲージ Throat plate 針板 Throat plate cover (asm) 針板布屑カバー Chip guard chip guard Hinging presser (asm) 自由押え (組) Feed dog 送り Binder バインダー Semi-fold binder 三巻 Clean finish top and bottom 四巻仕様仕上がり巾 (m/m) 5 B1190523000 11340304 B1191523000 B15245230A0 B1613523000 MAT11801NA0 MAT11901NA0 6 B1190523B00 B1524523BA0 B4121523000 MAN0110F0A0 MAN0150F0A0 7 B1190523C00 B1524523CA0 MAN0110G0A0 MAN0150G0A0 9.5 B1190523E00 B1524523EA0 B4121523B00 MAN0150J0A0 - 20 - jintex.in

Page 25

NUMERICAL INDEX OF PARTS Part No. Page Ref. 品番頁 No. SS-8110510-SP 12 20 SS-8150432-TH 6 41 SS-8150432-TH 2 35 SS-8150710-SP 10 28 SS-8150710-SP 4 19 SS-8150912-TH 4 1 SS-8151150-SP 4 33 SS-8151550-SP 16 12 SS-8153010-SR 4 46 SS-8660610-TP 4 22 SS-8660610-TP 10 49 SS-8660610-TP 10 62 SS-8660810-TP 6 14 SS-8660810-TP 6 16 SS-8660810-TP 6 19 SS-8660810-TP 8 21 SS-8660810-TP 8 31 SS-8660810-TP 10 66 SS-8661040-TP 10 67 SS-8681650-TP 4 11 SS-9121010-TP 12 24 SS-9151540-SR 16 22 SS-9151610-SR 16 14 SS-9151610-SR 16 47 SS-9182010-SN 16 11 SS-9182010-SN 16 44 TA-0180401-NO 6 42 TA-0850604-RO 2 7 TA-1250406-RO 2 41 TA-1250705-RO 2 8 TA-2000502-RO 2 17 TA-2101002-RO 2 18 WP-0371026-SD 19 7 WP-0371026-SD 19 14 WP-0450000-SD 19 5 WP-0450000-SD 19 12 WP-0460556-SD 8 38 WP-0480856-SP 10 56 WP-0480856-SP 12 23 WP-0501016-SD 17 21 WP-0560860-SE 18 15 VS-0531060-KR 18 16 VS-0641560-KR 18 5 VS-1002560-KR 18 22 110-00304 2 2 110-00510 2 10 110-00619 2 11 110-00700 2 20 110-00858 2 6 110-01104 2 47 110-01500 2 24 110-01609 2 45 110-01658 2 43 110-02300 4 20 110-02409 4 29 110-02508 4 30 110-02607 4 32 110-02904 4 36 110-04009 6 22 110-04207 6 25 110-04306 6 24 110-05105 6 7 110-05204 4 7 110-06004 8 28 110-06103 8 10 110-06202 8 5 110-06350 8 7 110-06509 8 7 110-06608 8 13 110-07002 8 15 110-07101 8 12 110-07200 8 14 110-07309 8 11 110-08000 4 25 110-08059 4 23 110-08109 4 26 110-08208 10 12 110-08356 10 42 110-08455 10 26 110-08604 10 25 110-08703 10 24 110-08802 10 27 110-09008 10 23 110-09107 10 39 110-09206 10 13 110-09305 10 35 110-09404 10 22 110-09503 10 1 110-09602 10 2 110-09701 10 4 110-09800 10 5 110-09909 10 7 110-10006 10 10 110-10154 10 19 110-10303 10 17 110-10410 10 20 110-10519 10 64 110-10600 10 68 110-10709 10 65 110-10808 10 38 110-10907 10 50 110-10907 10 60 110-11004 10 54 110-11103 10 30 110-11251 10 34 110-11301 10 37 110-14008 10 15 110-14156 10 44 110-14206 10 47 110-14354 10 57 110-15005 6 30 110-15104 6 40 110-15609 6 31 110-15807 6 26 110-17209 4 2 110-18009 8 22 110-18108 8 23 110-18207 8 18 110-18306 8 21 110-18405 8 19 110-18504 2 23 110-18702 2 19 110-18900 2 26 110-18959 2 25 110-19007 14 43 110-20005 14 19 110-20054 14 16 110-20203 14 22 110-20302 14 17 110-20401 14 24 110-20500 14 26 110-20609 14 25 110-20708 14 20 110-20807 14 23 110-20906 14 27 110-21003 14 29 110-21201 14 3 110-21300 14 11 110-21409 14 31 110-21607 14 4 110-21706 14 12 110-23108 16 3 110-23108 16 38 110-23207 16 4 110-23306 17 3 110-23355 17 2 110-23363 17 1 Part No. 品番 Page Ref. 頁 No. 110-23405 17 5 110-23504 17 6 110-23702 16 20 110-23751 16 16 110-23801 16 21 110-24007 16 7 110-24007 16 40 110-24106 16 41 110-24106 16 48 110-24205 16 41 110-24205 16 48 110-24304 16 19 110-24403 16 10 110-24502 16 43 110-24502 16 69 110-37009 10 5 110-39062 4 4 110-39070 4 9 110-52701 10 8 110-92558 8 4 111-41801 2 53 111-81005 18 21 111-81054 18 1 111-81062 18 2 111-81153 18 14 111-81906 18 11 113-30552 2 1 113-31154 4 47 113-31204 6 9 113-31303 6 47 113-31402 2 39 113-31758 14 8 113-32202 12 34 113-32301 12 35 113-32855 16 1 113-40304 2 50 113-41500 16 37 113-41559 16 36 113-41708 16 32 113-41807 16 34 113-46004 4 41 113-46004 20 -C 113-46004 20 -CA 113-46004 20 -D 113-46004 20 -E 113-46004 20 -F 113-46004 20 -H 113-46004 20 -HA 113-46103 20 -K 113-46400 20 -L 113-46400 20 -M 113-46509 20 -N 113-46509 20 5-C 113-46905 4 5-CA 113-46905 20 5-D 113-46905 20 5-E 113-46905 20 5-F 113-47101 20 5-H 113-47101 20 5-HA 113-47309 4 5-K 113-49008 20 5-M 113-49107 4 5-N 113-60708 16 24 113-46103 4 4-C 113-61003 20 4-CA 133-46905 20 4-D 113-46509 20 4-E 113-46509 20 4-F 113-47101 20 4-H 113-47101 20 4-HA 113-47309 4 4-K 113-49008 4 4-L 113-49107 4 4-M 113-60708 16 4-N 113-61003 20 4-P - 22 - jintex.in

Page 26

jinttex.in jinttex.in

Page 27

jinttex.in jintex.in

Page 28

JUKI JUKI CORPORATION JUKI 株式会社 jintex.in 1990. 10 Printed in Japan

Page 3 — CONTENTS

Page 4 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Page 5

Page 6 — 2. MAIN SHAFT COMPONENTS

Page 7

Page 8 — 3. UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

Page 9

Page 10 — 4. HAND LIFTER COMPONENTS

Page 11

Page 12

Page 13

Page 14 — 6. KNIFE COMPONENTS

Page 15

Page 16 — 7. OIL LUBRICATION COMPONENTS

Page 17

Page 18 — 8. OIL RESERVOIR COMPONENTS

Page 19

Page 20 — 9. BELT COVER & BOBBIN WINDER COMPONENTS

Page 21 — 11. FOLDER COMPONENTS ( EXCLUSIVE PARTS FOR DLM-5210 )

Page 22 — 10. THREAD STAND COMPONENTS

Page 23 — 12. TABLE OF EXCHANGING GAUGES FOR DLM-5200 13. TABLE OF EXCHANGING GAUGES FOR DLM-5210

Page 25

Part Books

Search

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
