Juki LBH-1700 Parts Book (PDF)
Text index — Juki LBH-1700
Page 7 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 100-04109 | GROUND MARK | 1 |
| 2 | B1116-771-00A | ARM SIDE COVER, C | 1 |
| 3 | B1152-771-000 | SIDE COVER GASKET (C) | 1 |
| 4 | 145-00607 | FACE SIDE COVER | 1 |
| 5 | B1145-771-000 | SIDE COVER GASKET | 1 |
| 6 | 139-11003 | THREAD TAKE-UP LEVER COVER | 1 |
| 7 | SS-4090515-SP | SCREW 9/64-40 L=5 | 2 |
| 8 | 145-00250 | FACE COVER ASM. | 1 |
| 9 | 145-00300 | FACE PLATE GASKET | 1 |
| 10 | TA-1250705-RO | RUBBER PLUG | 1 |
| 11 | 145-00409 | TOP COVER | 1 |
| 12 | 145-00508 | UPPER COVER GASKET | 1 |
| 13 | 145-00706 | RIGHT SIDE COVER GASKET | 1 |
| 14 | 110-23504 | BELT COVER SUPPORT, A | 4 |
| 15 | SS-4110915-SP | SCREW 11/64-40 L=9 | 1 |
| 16 | SS-4111415-SP | SCREW 11/64-40 L=14 | 2 |
| 17 | SS-4110915-SP | SCREW 11/64-40 L=9 | 2 |
| 18 | TA-0750704-RO | RUBBER PLUG | 5 |
| 19 | SS-4110915-SP | SCREW 11/64-40 L=9 | 7 |
| 20 | TA-1900502-RO | RUBBER PLUG | 1 |
| 21 | 145-00805 | SIDE COVER | 1 |
| 22 | SS-4110915-SP | SCREW 11/64-40 L=9 | 5 |
| 23 | B1134-771-000 | OIL SIGHT WINDOW | 1 |
| 24 | 145-00904 | RIGHT SIDE COVER (1) | 1 |
| 25 | 145-01001 | RIGHT SIDE COVER (2) | 1 |
| 26 | SS-4110915-SP | SCREW 11/64-40 L=9 | 9 |
| 27 | SS-4110915-SP | SCREW 11/64-40 L=9 | 2 |
| 28 | SS-4110915-SP | SCREW 11/64-40 L=9 | 6 |
| 29 | 145-02454 | MOTOR COVER AO ASM. | 1 |
| 30 | 145-02405 | MOTOR COVER AO | (1) |
| 31 | SS-6111140-SP | SCREW 11/64-40 L=11 | (3) |
| 32 | M8002-430-000 | STOPPER | (3) |
| 33 | WP-0641601-SC | WASHER | (3) |
| 34 | 145-01159 | MOTOR COVER ASM. | 1 |
| 35 | 145-01100 | MOTOR COVER | (1) |
| 36 | SS-6111140-SP | SCREW 11/64-40 L=11 | (3) |
| 37 | M8002-430-000 | STOPPER | (3) |
| 38 | WP-0641601-SC | WASHER | (3) |
| 39 | CM-3002001-A1 | SAFETY LABEL.,3 (SMALL). | 1 |
| 40 | CM-3002000-01 | ATTENTION SEAL | 2 |
| 41 | CM-3002000-B1 | LABEL(16) | 1 |
| 42 | CM-3002000-C1 | CAUTION LABEL | 1 |
| 43 | CM-3002001-01 | SAFETY LABEL, 1(SMALL). | 1 |
| 44 | 145-01209 | FRAME BASE | 1 |
| 45 | SS-4111015-SP | SCREW 11/64-40 L=10 | 4 |
| 46 | SS-6700710-SH | SCREW 5/16-24 L=7 | 1 |
| 47 | RO-0982401-00 | RUBBER RING | 1 |
| 48 | B1153-771-000 | MACHINE BASE SCREW STUD | 4 |
| 49 | NS-6150310-SP | NUT 15/64-28 | 8 |
| 50 | WP-0612056-SD | WASHER 6.1X18.5X2 | 4 |
| 51 | 137-00703 | RUBBER HINGE | 2 |
| 52 | 137-00406 | HINGE PLATE, A | 1 |
| 53 | 137-00505 | HINGE PLATE, B | 1 |
| 54 | 137-00604 | HINGE PIN | 2 |
| 55 | SS-7151210-SP | SCREW 15/64-28 L=12 | 4 |
| 56 | SS-8150410-TP | SCREW 15/64-28 L= 4.0 | 2 |
| 57 | B1125-761-000 | RUBBER CUSHION | 2 |
| 58 | 145-01308 | FRAME SUPPORT RUBBER (FRONT) | 2 |
| 59 | D6056-555-B00 | RUBBER CUSHION (B) | 4 |
| 60 | 145-01407 | FRAME SUPPORT PLATE | 1 |
| 61 | SS-4150915-SP | SCREW 15/64-28 L=9 | 2 |
| 62 | HX-0015000-0F | CABLE CLIP | 3 |
| 63 | SS-4110715-SP | SCREW 11/64-40 L=7 | 3 |
| 64 | HX-0015000-0F | CABLE CLIP | 1 |
| 65 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
| 66 | HX-0029200-0A | CONNECTING PART | 2 |
| 67 | HX-0045400-00 | TIE MOUNT | 2 |
| 68 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 69 | B1140-761-000 | OILING LABEL | 3 |
| 70 | HX-0015000-0D | CABLE CLIP | 1 |
| 71 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
| 72 | M8518-600-0A0 | HED SENSOR CORD WHOLE ASM. 1 | 1 |
| 73 | TA-0750404-RO | PLUG D=7.5 L=3.5 | 2 |
| 74 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 2 |
Page 9 — 2. FRAME & MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 225-29481 | BOBBIN THREAD TENSION ASM. | 1 |
| 2 | 110-72402 | THREAD TENSION NUT | (1) |
| 3 | 110-93606 | THREAD TENSION SPRING | (1) |
| 4 | B3214-047-000 | BOBBIN WINDER TENSION DISC | (2) |
| 5 | 225-29473 | BOBBIN THREAD TENSION ROD ASM. | (1) |
| 6 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 7 | 145-12867 | BOBBIN WINDER ASM. | 1 |
| 8 | 106-18304 | VERTICAL ROLLER WASHER | (2) |
| 9 | 225-37658 | BOBBIN FITTING BASIS COMPL. | (1) |
| 10 | 145-12859 | BOBBIN WINDER SHAFT COMPL. | (1) |
| 11 | 225-38151 | BOBBIN CAM SHAFT COMPL. | (1) |
| 12 | 236-36202 | BOBBIN LEVER | (1) |
| 13 | 225-38409 | ADJUSTING PLATE | (1) |
| 14 | 225-38904 | OIL RESERVOIR BASE | (1) |
| 15 | A3216-001-00A | RUBBER RING | (1) |
| 16 | B1148-555-000 | SPRING | (1) |
| 17 | B1529-890-00C-A | PRESSUR FOOT SPRING | (1) |
| 18 | 236-36707 | BOBBIN CUSHION | (1) |
| 19 | B3212-761-000 | LATCH SPRING | (1) |
| 20 | RC-0560711-KP | RETAINING RING | (1) |
| 21 | RE-0500000-K0 | E-RING | (1) |
| 22 | RO-0922702-00 | RUBBER RING | (1) |
| 23 | SS-7091410-SP | SCREW 9/64-40 L=13.5 | (1) |
| 24 | 145-12503 | BOBBIN ADJUSTING PLATE | (1) |
| 25 | SS-6090520-SP | SCREW 9/64-40 L= 5.0 | (1) |
| 26 | 105-02300 | THREAD CUTTER | 1 |
| 27 | SS-6080340-SP | SCREW 1/8-44 L=2.9 | 2 |
| 28 | SS-6121030-SN | SCREW 3/16-28 L=10 | 3 |
| 29 | M8506-600-0A0 | THREAD TENSION CORD ASM. | 1 |
| 30 | 145-13154 | THREAD TENSION SOLENOID ASM. | 1 |
| 31 | SS-6111610-SP | SCREW 11/64-40 L=16 | 1 |
| 32 | WP-0430800-SD | WASHER M4 | 2 |
| 33 | 145-13204 | THREAD TENSION FITTING PLATE | 1 |
| 34 | 145-13303 | AT THREAD TENSION SHAFT | 1 |
| 35 | SM-6041802-TP | SCREW M4 L=18 | 2 |
| 36 | NM-6040001-SE | NUT M4 | 1 |
| 37 | 145-13808 | THREAD TENSION DISK | 2 |
| 38 | 145-13451 | THREAD TENSION ASM. | 1 |
| 39 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 40 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 41 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 42 | B3125-012-000 | THREAD TENSION NUT | (2) |
| 43 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 44 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 45 | B2017-372-000 | TENSION SPRING NO.1 | (1) |
| 46 | D3162-555-B00 | THREAD GUIDE | 1 |
| 47 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 48 | 229-20706 | TWO EYELET | 1 |
| 49 | SS-8110310-SP | SCREW 11/64-40 L= 2.8 | 1 |
| 50 | 137-06601 | TAKE-UP THREAD GUIDE, A | 1 |
| 51 | SS-7110510-SP | SCREW 11/64-40 L=5 | 1 |
| 52 | 137-19802 | NEEDLE BAR THREAD GUIDE | 1 |
| 53 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 54 | B3118-771-000 | TENSION THREAD GUIDE, NO.2 | 1 |
| 55 | B3114-771-000 | THREAD GUIDE | 1 |
| 56 | NS-6090310-SP | NUT 9/64-40 | 2 |
| 57 | 225-02504 | THREAD GUIDE BAR | 1 |
| 58 | B2702-210-000 | GUIDE PLATE | 1 |
| 59 | B2703-210-000 | BUSHING | 1 |
| 60 | SS-7090850-SP | SCREW 9/64-40 L=8 | 1 |
| 61 | 225-38706 | PACKING | 1 |
| 62 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
| 63 | 110-30301 | CABLE HOLDER | 1 |
| 64 | HX-0052100-00 | STICKER | 3 |
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 145-02504 | MAIN SHAFT | 1 |
| 2 | B1901-771-0A0 | THREAD TAKE-UP LEVER ASM. | 1 |
| 3 | B1203-771-000 | NEEDLE BAR CRANK | (1) |
| 4 | B1901-761-000 | THREAD TAKE-UP LEVER | (1) |
| 5 | B1902-761-000 | THREAD TAKE-UP CRANK | (1) |
| 6 | B1905-541-A00 | NEEDLE BEARING, A | (1) |
| 7 | B1905-541-B00 | NEEDLE BEARING | (1) |
| 8 | B1905-541-C00 | NEEDLE BEARING | (1) |
| 9 | B1905-541-D00 | NEEDLE BEARING | (1) |
| 10 | B1908-541-000 | THREAD GUIDE | (1) |
| 11 | B1204-761-000 | NEEDLE BAR CRANK CONNECTING RO | 1 |
| 12 | B1905-541-B00 | NEEDLE BEARING | 1 |
| 13 | B1903-552-000 | LEFT SCREW | 1 |
| 14 | B1215-552-000 | OIL ADJUSTING COLLAR | 1 |
| 15 | B2615-232-000 | OIL FELT WASHER | 1 |
| 16 | B1223-771-000 | NEEDLE ROD CRANK WASHER | 1 |
| 17 | B1202-771-000 | COUNTERWEIGHT | 1 |
| 18 | SS-8660512-TP | SCREW 1/4-40 L=5 | 2 |
| 19 | SS-4090515-SP | SCREW 9/64-40 L=5 | 2 |
| 20 | CQ-2020000-00 | OIL WICK | 0.3 |
| 21 | SS-8681650-TP | SCREW 9/32-28 L=16 | 1 |
| 22 | SS-7681750-TP | SCREW 9/32-28 L=16.5 | 1 |
| 23 | B1203-012-000 | OIL FELT | 1 |
| 24 | BP-4000000-00 | VINYL TUBE, WHITE D=4 | 0.24 |
| 25 | 145-02603 | MAIN SHAFT FRONT BUSHING | 1 |
| 26 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 27 | B3541-012-000 | OIL WICK | 1 |
| 28 | B1208-552-000-A | OIL SEAL | 1 |
| 29 | B1205-771-000-A | MAIN SHAFT BUSHING, INTERMEDIA | 1 |
| 30 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 31 | M6001-610-AA0 | MOTOR A ASM. | 1 |
| 32 | SM-6052002-TP | SCREW M5 L=20 | 4 |
| 33 | 145-03908 | COUPLING | 1 |
| 34 | SM-8060812-TP | SCREW M6 L=8 | 4 |
| 35 | SB-1200011-00 | ROLLER BEARING | 1 |
| 36 | 145-02702 | MAIN SHAFT SPROCKET | 1 |
| 37 | SS-8661012-TP | SCREW | 2 |
| 38 | 145-02801 | TIMING BELT | 1 |
| 39 | 145-03809 | MAIN MOTOR COVER | 1 |
| 40 | SS-4150915-SP | SCREW 15/64-28 L=9 | 4 |
| 41 | 145-03205 | MAIN MOTOR FITTING BASE | 1 |
| 42 | SS-6151920-TP | SCREW 15/64-28 L=19.0 | 4 |
| 43 | WP-0621026-SP | WASHER 6.2X9.5X1 | 4 |
| 44 | 145-02959 | IDLER FITTING PLATE ASM. | 1 |
| 45 | 137-16907 | SUSPENSION SCREW | 1 |
| 46 | B2410-980-000 | TENSION SPRING | 1 |
| 47 | SD-1100301-TP | HINGE SCREW H=11 W=3 | 1 |
| 48 | SS-9151440-CP | SCREW 15/64-28 L=14 | 1 |
| 49 | WP-0621016-SD | WASHER 6.2X13X1 | 1 |
| 50 | SB-1150002-00 | BEARING | 2 |
| 51 | RC-0150001-KP | RETAINING RING 13.8 | 1 |
| 52 | CS-147121A-SH | THRUST COLLAR ASM.D=14.72 W=12 | 1 |
| 53 | CS-1471212-SH | THRUST COLLAR D=14.72 W=12 | (1) |
| 54 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 55 | B1211-980-000 | UPPER SHAFT THRUST BEARING | 2 |
| 56 | B1220-771-000 | THRUST WASHER A | 4 |
| 57 | 144-04750 | SDET SENSOR ASM. | 1 |
| 58 | 145-03551 | UPPER DETECTION PLATE ASM. | 1 |
| 59 | SS-8660410-SP | SCREW 1/4-40 L= 4.2 | 2 |
| 60 | SM-4860601-SC | SCREW M2.6 L=6 | 2 |
| 61 | 145-03700 | SENSOR FITTING PLATE | 1 |
| 62 | SM-6040602-TP | SCREW M4 L=6 | 2 |
| 63 | B1144-210-000 | REVOLVING DIRECTION LABEL | 1 |
| 64 | B1404-761-000 | HINGE STUD | 1 |
| 65 | B3561-771-000 | OIL UNWOVEN CLOTH | 1 |
| 66 | CQ-2520000-00 | OIL WICK | 0.78 |
| 67 | B1409-761-000 | OIL WICK HOLDER | 1 |
| 68 | B1147-125-000 | OIL WICK SNAP RING | 1 |
| 69 | BP-6000000-00 | VINYL PIPE | 0.03 |
| 70 | BP-4000000-00 | VINYL TUBE, WHITE D=4 | 0.23 |
| 71 | M8527-600-0A0 | DETECTOR CORD ASM. | 1 |
| 72 | 225-38805 | DRIVING WHEEL | 1 |
| 73 | SS-8660610-TP | SCREW 1/4-40 L=6 | 2 |
| 74 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
Page 13 — 4. HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 137-29769 | BOBBIN CASE ASM. | 1 |
| 2 | B1811-771-000 | BOBBIN | 1 |
| 3 | 137-29066 | HOOK COMPL. | 1 |
| 4 | 137-29306 | BOBBIN CASE POSITIONING PLATE | 1 |
| 5 | 137-27102 | STOPPER | 1 |
| 6 | SS-7110510-SP | SCREW 11/64-40 L=5 | 1 |
| 7 | B1805-771-0A0 | HOOK SLEEVE ASM. | 1 |
| 8 | B1804-761-000 | HOOK DRIVING SHAFT BUSHING,FRO | 1 |
| 9 | B3541-581-0A0 | HOOK OIL SUPPLY RUBBER ASM. | 1 |
| 10 | B3527-112-000 | PLATE SPRING | 1 |
| 11 | B3537-581-000 | POSITIONING SCREW | 1 |
| 12 | B3535-581-000 | HOOK OIL ADJUSTING SCREW | 1 |
| 13 | B1811-761-000-A | OIL SUPPLY FELT HOLDER | 1 |
| 14 | 145-04807 | HOOK OILING FELT | 1 |
| 15 | B1801-761-000 | HOOK DRIVING SHAFT | 1 |
| 16 | SS-8150822-TP | SCREW 15/64-28 L=8 | 3 |
| 17 | SS-4150715-SP | SCREW 15/64-28 L=7 | 1 |
| 18 | 145-04203 | HOOK DRIVING SHAFT SPROCKET | 1 |
| 19 | SS-8660612-TP | SCREW 1/4-40 L=6 | 2 |
| 20 | SB-1150002-00 | BEARING | 2 |
| 21 | SS-8660610-TP | SCREW 1/4-40 L=6 | 4 |
| 22 | SS-6111040-SP | SCREW 11/64-40 L= 9.5 | 2 |
| 23 | 145-04401 | BEARING SUPPORT | 1 |
| 24 | 145-04500 | BEARING BUSH, REAR | 1 |
| 25 | 145-04302 | BEARING BUSH, INTERMEDIATE | 1 |
| 26 | 137-27904 | THRUST BRACKET | 1 |
| 27 | 145-04609 | HAND PULLEY JOINT | 1 |
| 28 | SS-8660612-TP | SCREW 1/4-40 L=6 | 2 |
| 29 | G8039-870-000 | CROWN KNOB | 1 |
| 30 | WP-1052000-SD | WASHER M10 | 1 |
| 31 | 137-82065 | HOOK COMBINATION | 1 |
| 32 | CQ-3030000-00 | OIL WICK | 0.03 |
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1509-012-000 | PRESSER SPRING REGULATOR | 1 |
| 2 | B1501-771-000 | PRESSER BAR | 1 |
| 3 | B1507-761-000 | PRESSER SPRING | 1 |
| 4 | B1506-761-000 | PRESSER BAR GUIDE BRACKET | 1 |
| 5 | SS-7111310-SP | SCREW 11/64-40 L=12.8 | 2 |
| 6 | B1505-761-0A0 | PRESSER BAR POSITION BRACKET A | 1 |
| 7 | B1505-761-000 | PRESSER BAR POSITION BRACKET | (1) |
| 8 | SS-8660810-TP | SCREW 1/4-40 L=8 | (1) |
| 9 | B1504-771-000 | COLLAR | 1 |
| 10 | B1515-771-000 | SLIDE ROLLER | 1 |
| 11 | B1503-771-000 | CONNECTING PIN | 1 |
| 12 | B1502-771-000-A | BRACKET | 1 |
| 13 | B3130-761-000-A | FINGER GUARD | 1 |
| 14 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | 1 |
| 15 | SS-4091520-SP | SCREW 9/64-40 L=15 | 1 |
| 16 | SS-7110710-SP | SCREW 11/64-40 L=7 | 1 |
| 17 | B1513-771-000 | WORK CLAMP BRACKET | 1 |
| 18 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 19 | SS-2110920-TP | SCREW 11/64-40 L=8.5 | 1 |
| 20 | B1552-781-0A0-A | PRESSER ASM. | 1 |
| 21 | B1511-771-000-B | PRESSER FOOT | (1) |
| 22 | B1509-761-000 | WORK CLAMP CHECK SPRING | (2) |
| 23 | B1510-771-00B | WORK CLAMP CHECK SPRING SET PI | (2) |
| 24 | SS-6060210-SP | SCREW 3/32-56 L= 1.9 | (2) |
| 25 | B1512-761-000 | WORK CLAMP CHECK HOLDER SPRING | (1) |
| 26 | B1552-781-000-A | PRESSER | (1) |
| 27 | D1511-772-KAO | WORK CLAMP CHECK HOLDER | 1 |
| 28 | B1511-772-000-A | WORK CLAMP CHECK HOLDER | (1) |
| 29 | B1509-761-000 | WORK CLAMP CHECK SPRING | (2) |
| 30 | B1510-771-00B | WORK CLAMP CHECK SPRING SET PI | (2) |
| 31 | B1512-761-000 | WORK CLAMP CHECK HOLDER SPRING | (1) |
| 32 | SS-6060210-SP | SCREW 3/32-56 L= 1.9 | 2 |
| 33 | D1508-772-K00 | WORK CLAMP CHECK (2K) | 1 |
| 34 | B1517-761-000 | CONNECTING PIN | 1 |
| 35 | SS-7090920-SP | SCREW 9/64-40 L= 8.5 | 1 |
| 36 | 141-10407 | LENGTHWISE FEED GEAR | 1 |
| 37 | 145-05259 | HEAD SENSOR ASM. | 1 |
| 38 | 145-05101 | FEED STEPPING MOTOR | 1 |
| 39 | SS-6111140-SP | SCREW 11/64-40 L=11 | 4 |
| 40 | 135-30209 | LUBRICATING OIL WICK STOPPER | 1 |
| 41 | SS-7110510-SP | SCREW 11/64-40 L=5 | 1 |
| 42 | EA-9500B02-00 | CABLE BAND 150 | 1 |
| 43 | SM-8060602-TP | SCREW M6X6 | 2 |
| 44 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 45 | SM-4860801-SC | SCREW M2.6 L=8 | 1 |
| 46 | 145-05309 | FEED BASE | 1 |
| 47 | 145-05408 | CONNECTING PLATE | 1 |
| 48 | 145-05507 | STEPPING MOTOR FITTING PLATE | 1 |
| 49 | 145-05606 | FEED BAR GUIDE PLATE | 1 |
| 50 | 145-05705 | FEED BASE COVER | 1 |
| 51 | 145-05804 | FEED SENSOR FITTING PLATE | 1 |
| 52 | SS-7151210-SP | SCREW 15/64-28 L=12 | 2 |
| 53 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 54 | SS-7150740-SP | SCREW 15/64-28 L=7 | 2 |
| 55 | B2509-704-000 | BUSHING, REAR | 2 |
| 56 | SS-8150710-TP | SCREW 15/64-28 L=7 | 2 |
| 57 | TA-0750404-R0 | PLUG D=7.5 L=3.5 | 1 |
| 58 | TA-2000502-R0 | RUBBER PLUG | 1 |
| 59 | B1613-771-000-B | WORK CLAMP CARRIER | 1 |
| 60 | SS-9110920-CP | SCREW 11/64-40 L=9 | 2 |
| 61 | M8502-600-0A0 | FEED MOTOR CORD ASM. | 1 |
| 62 | SD-0790203-SP | HINGE SCREW D=7.94 H=2 | 1 |
| 63 | SS-7110340-SP | SCREW 11/64-40 L= 3.2 | 2 |
| 64 | 145-05002 | FEED SHAFT | 1 |
| 65 | B1551-781-000 | WORK CLAMP | 1 |
Page 17 — 6. NEEDLE BAR ROCKING COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1406-761-000 | OIL FELT, FOR NEEDLE BAR | 2 |
| 2 | B1411-771-0A0 | FRAME ROCK SHAFT CRANK ASM., F | 1 |
| 3 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 4 | B1414-232-000 | SQUARE BLOCK | 1 |
| 5 | B1410-771-000 | STUD | 1 |
| 6 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 7 | RO-1482402-00 | RUBBER RING | 1 |
| 8 | B1452-771-000 | BUSHING | 1 |
| 9 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 10 | TA-1050504-R0 | RUBBER PLUG | 1 |
| 11 | 112-11000 | ROCK SHAFT BUSHING, FRONT | 1 |
| 12 | B3541-012-000 | OIL WICK | 1 |
| 13 | B1414-771-0A0 | FRAME ROCK SHAFT CRANK ASM., R | 1 |
| 14 | B1414-771-000 | NEEDLE BAR CRANK,REAR | (1) |
| 15 | SS-7151210-SP | SCREW 15/64-28 L=12 | (1) |
| 16 | CQ-2020000-00 | OIL WICK | 0.4 |
| 17 | NS-6110420-SP | NUT 11/64-40 | 1 |
| 18 | NS-6160520-SP | NUT 1/4-24 | 1 |
| 19 | B1415-761-000 | NEEDLE BAR PITMAN | 1 |
| 20 | B1416-761-000 | ROCK SHAFT CONNECTION GUIDE | 1 |
| 21 | SS-6111620-SP | SCREW 11/64-40 L=16.0 | 2 |
| 22 | SS-8111251-SP | SCREW 11/64-40 L=12.0 | 1 |
| 23 | NS-6110310-SP | NUT 11/64-40 | 1 |
| 24 | 145-06356 | NEEDLE ROD ROCKING CAM COMPL. | 1 |
| 25 | B1446-761-A00 | NEEDLE THROW PEPOSITIONING PIN | 1 |
| 26 | CS-0951019-SH | THRUST COLLAR D=9.53 W=10 | 1 |
| 27 | SS-8150710-TP | SCREW 15/64-28 L=7 | 2 |
| 28 | 145-06208 | NEEDLE BAR ROCKING CAM SHAFT | 1 |
| 29 | CQ-2020000-00 | OIL WICK | 0.18 |
| 30 | SS-8150920-SP | SET-SCREW | 1 |
| 31 | B1403-771-000 | NEEDLE BAR FRAME | 1 |
| 32 | B1404-771-000 | HINGE STUD | 1 |
| 33 | CQ-2520000-00 | OIL WICK | 0.26 |
| 34 | B1405-771-000 | POSITION BRACKET | 1 |
| 35 | SS-5110810-SP | SCREW 11/64-40 L=8 | 2 |
| 36 | B1407-761-000 | OIL FELT | 1 |
| 37 | B1402-761-0A0 | NEEDLE BAR CONNECTION | 1 |
| 38 | B1402-761-000 | NEEDLE BAR CONNECTION | (1) |
| 39 | SS-7090910-TP | SCREW 9/64-40 L= 8.5 | (1) |
| 40 | B1408-761-000 | OIL FELT RETAINER, LOWER | 1 |
| 41 | B1401-761-000 | NEEDLE BAR | 1 |
| 42 | SS-7080510-TP | SCREW 1/8-44 L=4.5 | 1 |
| 43 | MDP-5J0B1100 | NEEDLE DPX5 #11J | 1 |
| 44 | B1451-771-00A | NEEDLE BAR THREAD GUIDE | 1 |
| 45 | SS-8660610-TP | SCREW 1/4-40 L=6 | 2 |
| 46 | SS-4090515-SP | SCREW 9/64-40 L=5 | 2 |
| 47 | TA-1450302-R0 | RUBBER PLUG | 1 |
| 48 | 145-17007 | ROCKING ROD SHAFT | 1 |
| 49 | 145-17106 | SPRING FITTING BASE | 1 |
| 50 | 145-17205 | ROCKING ROD SPRING FITTING | 1 |
| 51 | 145-17304 | ROCKING ROD SPRING | 1 |
| 52 | SS-7110740-TP | SCREW 11/64-40 L=7 | 1 |
Page 19 — 7. LINKING WIDTH COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1425-771-000 | BEARING BRACKET | 1 |
| 2 | NS-6110310-SP | NUT 11/64-40 | 2 |
| 3 | SS-8111251-SP | SCREW 11/64-40 L=12.0 | 2 |
| 4 | CS-1111019-SH | THRUST COLLAR D=11.11 W=10 | 1 |
| 5 | SS-8660530-TP | SCREW 1/4-40 L= 4.5 | 2 |
| 6 | SS-8150822-TP | SCREW 15/64-28 L=8 | 2 |
| 7 | B1421-761-000 | CONNECTING PIN | 2 |
| 8 | CQ-2520000-00 | OIL WICK | 0.04 |
| 9 | 145-06406 | ZIGZAG WIDTH CHANGE LINK | 1 |
| 10 | B1418-761-000 | CONNECTING FORKED LINK PIN | 1 |
| 11 | CQ-2520000-00 | OIL WICK | 0.02 |
| 12 | SS-8111251-SP | SCREW 11/64-40 L=12.0 | 2 |
| 13 | NS-6110310-SP | NUT 11/64-40 | 2 |
| 14 | B1419-761-000 | CONNECTING STUD | 1 |
| 15 | CQ-2520000-00 | OIL WICK | 0.04 |
| 16 | B1417-761-000 | CONNECTING FORKED LINK | 1 |
| 17 | 145-06505 | NEEDLE POSITION CHANGE SHAFT | 2 |
| 18 | 145-07404 | CHANGE SHAFT BUSHING | 4 |
| 19 | 145-06653 | ZIGZAG WIDTH ADJUST ARM COMPL. | 1 |
| 20 | 145-06802 | ZIGZAG WIDTH ADJUST ROD | 1 |
| 21 | SS-8111251-SP | SCREW 11/64-40 L=12.0 | 1 |
| 22 | NS-6110310-SP | NUT 11/64-40 | 1 |
| 23 | B1433-761-000 | REGULATING HINGE PIN | 1 |
| 24 | 145-06901 | NEEDLE POSITION STEPPING MOTOR | 1 |
| 25 | 145-07800 | ZIGZAG WIDTH STEPPING MOTOR | 1 |
| 26 | 141-10407 | LENGTHWISE FEED GEAR | 2 |
| 27 | 145-07008 | SENSOR FITTING PLATE | 2 |
| 28 | HD-0005700-0A | PHOTO SENSOR | 2 |
| 29 | SM-6030600-SP | SCREW M3X0.5 L=6 | 4 |
| 30 | SL-4031091-SC | SCREW M3 X 10 | 4 |
| 31 | SM-8060602-TP | SCREW M6X6 | 4 |
| 32 | SS-6111052-TP | SCREW | 6 |
| 33 | 145-07156 | DETECTION PLATE ASM. | 2 |
| 34 | 145-07602 | NEEDLE POSITION STEP MOTOR ARM | 1 |
| 35 | 145-07701 | ZIGZAG WIDTH STEP MOTOR ARM | 1 |
| 36 | SS-8150822-TP | SCREW 15/64-28 L=8 | 4 |
| 37 | SD-0790402-TP | HINGE SCREW D= 7.94 H= 4 | 1 |
| 38 | 145-07305 | SENSOR COVER | 1 |
| 39 | SS-4150915-SP | SCREW 15/64-28 L=9 | 4 |
| 40 | B2015-357-000 | PLUG | 2 |
| 41 | SS-7090620-TP | SCREW 9/64-40 L=6.1 | 4 |
| 42 | SS-8660530-TP | SCREW 1/4-40 L= 4.5 | 2 |
| 43 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 44 | M8503-600-0A0 | STITCH WIDTH MOTOR CORD ASM. | 1 |
| 45 | M8504-600-0A0 | STITCH BASE LINE CORD ASM. | 1 |
| 46 | B3413-227-000 | SPRING SUSPENSION | 1 |
Page 21 — 8. NEEDLE THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2013-771-000 | CRANK,REAR | 1 |
| 2 | B2001-771-0A0 | NEEDLE THREAD TRIMMER ASM. | 1 |
| 3 | SS-7110510-SP | SCREW 11/64-40 L=5 | 2 |
| 4 | B2008-771-000 | NEEDLE THREAD TRIMMER SHAFT GU | 1 |
| 5 | SS-4150715-SP | SCREW 15/64-28 L=7 | 1 |
| 6 | B2063-781-0A0-A | NEEDLE THREAD TRIMMER LEVER | 1 |
| 7 | SM-8061002-TP | SCREW M6 L=10 | 2 |
| 8 | B2051-781-0A0-A | ACTUATING ARM | 1 |
| 9 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 10 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 11 | B2061-781-000 | DRIVING CAM SPRING | 1 |
| 12 | B2062-781-000 | DRIVING CAM SPRING AXLE | 1 |
| 13 | SD-0450401-SP | HINGE SCREW D= 4.5 H= 4 | 1 |
| 14 | B2059-781-000 | DRIVING CAM INSTALLING PLATE | 1 |
| 15 | SD-0790303-SP | HINGE SCREW D= 7.94 H= 3.0 | 1 |
| 16 | B2060-781-000 | DRIVING CAM | 1 |
| 17 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | 2 |
| 18 | PS-0300102-K0 | SPRING PIN 3.0X10 | 1 |
| 19 | B2010-771-000 | BRACKET | 2 |
| 20 | SS-6621212-TP | SCREW 3/16-32 L=12.0 | 4 |
| 21 | B2009-771-000 | UNIVERSAL JOINT | 1 |
| 22 | B2053-781-000 | THREAD TRIMMER SPRING B | 1 |
| 23 | B2012-771-000 | PRESSURE SPRING | 1 |
| 24 | B2007-771-000 | NEEDLE THREAD TRIMMER SHAFT | 1 |
| 25 | B2014-771-000 | STUD | 1 |
| 26 | B2507-372-000 | CAM ROLL | 1 |
| 27 | SS-6080610-TP | SCREW 1/8-44 L=6 | 1 |
| 28 | 137-96305 | SPRING | 1 |
| 29 | B2024-771-000 | SUSPENSION SCREW | 1 |
| 30 | B2023-761-000 | SPACER | 2 |
| 31 | B2017-771-0A0 | LOCKING BRACKET LATCH ASM. | 1 |
| 32 | B2030-771-000 | THREAD TRIMMING SHAFT SEGMENT | 1 |
| 33 | B8404- 352-000 | BELT COVER SUPPORT STUD | 1 |
| 34 | SD-0641003-SP | HINGE SCREW D=6.35 H=10 | 1 |
| 35 | NS-6080210-SP | NUT 1/8-44 | 1 |
| 36 | NS-6080340-sP | NUT 1/8-44 | 1 |
| 37 | B2031-771-000 | ROLLER | 1 |
| 38 | B2032-771-000 | STUD | 1 |
| 39 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | 2 |
| 40 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 41 | B2027-771-000 | LATCH PRESSER ARM | 1 |
| 42 | B2020-771-00A | NEEDLE THREAD TRIMMER GUIDE (A | 1 |
| 43 | B2020-771-00B | NEEDLE THREAD TRIMMER GUIDE (B | 1 |
| 44 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 45 | SM-8061002-TP | SCREW M6 L=10 | 2 |
| 46 | PT-0301400-S0 | TAPERED PIN 3X14 | 1 |
| 47 | B3405-771-0A0 | PRESSER BAR LIFTING LEVER ASM. | 1 |
| 48 | B3404-771-000 | PRESSER BAR LIFTING ROD, LONG | 1 |
| 49 | RE-0500000-K0 | E-RING | 2 |
| 50 | SD-0720331-SP | HINGE SCREW D= 7.24 H= 3.3 | 2 |
| 51 | B3402-771-0A0 | LEVER ASM, FRONT | 1 |
| 52 | B3406-761-000 | LINK | 1 |
| 53 | PD-0201000-0D | SPLIT PIN 1.8X10 | 2 |
| 54 | B3408-771-0A0 | LEVER ASM, REAR | 1 |
| 55 | B3403-761-000 | PRESSER BAR LIFTING ROD | 1 |
| 56 | B2605-771-000 | TRIPPING LEVER HINGE PIN | 1 |
| 57 | B2015-357-000 | PLUG | 1 |
| 58 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 59 | G5214-164-000 | SPRING | 1 |
| 60 | B2714-761-000 | SPRING RACK | 2 |
| 61 | RC-1021011-KP | RETAINING RING 10.2 | 1 |
| 62 | 118-23200 | WASHER | 1 |
| 63 | 145-12651 | PRESSER LOWERING SENSOR ASM. | 1 |
| 64 | 145-12701 | FALL SENSOR FITTING PLATE | 1 |
| 65 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 66 | 137-00802 | BED SCREW STUD, SMALL | 1 |
| 67 | M8511-600-0A0 | PRESSER DOWN CORD ASM. | 1 |
| 68 | 145-14517 | PRESSER LIFTER LEVER SPRING | 1 |
| 69 | SM-4860801-SC | SCREW M2.6 L=8 | 1 |
| 70 | WP-0621016-SD | WASHER 6.2X13X1 | 2 |
| 82012-771-000 | PRESSURE SPRING | 1 | |
| B2020-771-008 | NEEDLE THREAD TRIMMER GUIDE (B | 1 | |
| PT-0301400-50 | TAPERED PIN 3X14 | I |
Page 23 — 9. BOBBIN THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 145-07966 | THROAT PLATE BASE COMPL. | 1 |
| 2 | 145-09053 | THROAT PLATE COMBINATION K | 1 |
| 3 | 137-39107 | THROAT PLATE | (1) |
| 4 | SS-2090510-SP | SCREW 9/64-40 L=5 | (2) |
| 5 | 137-36202 | BOBBIN THREAD TRIMMER LEVER | (1) |
| 6 | WP-0451016-SP | WASHER 4.5X20X1 | (1) |
| 7 | SS-7110570-SP | SCREW 11/64-40 L= 4.8 | (1) |
| 8 | 139-47866 | BOBBIN THREAD TRIMMER CONNEC. | (1) |
| 9 | 137-35956 | TRIMMER, UPPER ASM. | (1) |
| 10 | 137-36103 | SPRING | (1) |
| 11 | 139-47858 | TRIMMER, LOWER ASM. | (1) |
| 12 | RC-0370411-KP | RETAINING RING | (1) |
| 13 | WP-0410846-SC | WASHER | (1) |
| 14 | B2423-280-00A | MOVING KNIFE WASHER A | (1) |
| 15 | SS-3090410-SP | SCREW | (1) |
| 16 | 137-36350 | BOBBIN THREAD PULLER ASM. | (1) |
| 17 | 137-35808 | LOWER LINK | (1) |
| 18 | SD-0400191-TP | HINGE SCREW D=4 H=1.9 | (1) |
| 19 | 137-36509 | BOBBIN THREAD PULLER LINK | (1) |
| 20 | WP-0410846-SC | WASHER | (2) |
| 21 | RC-0370411-KP | RETAINING RING | (2) |
| 22 | SD-0400191-TP | HINGE SCREW D=4 H=1.9 | (1) |
| 23 | 145-08105 | KNIFE ACTUATING PLATE | (1) |
| 24 | SS-7110570-SP | SCREW 11/64-40 L= 4.8 | (1) |
| 25 | 145-08204 | KNIFE ACTUATING CAM | (1) |
| 26 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | (2) |
| 27 | 139-48005 | BOBBIN THREAD CLAMP PLATE | (1) |
| 28 | SS-6080320-SP | SCREW 1/8-44 L= 2.5 | (2) |
| 29 | 145-07958 | THROAT PLATE BASE ASM. | (1) |
| 30 | 137-82305 | NEEDLE PLATE K | (1) |
| 31 | 145-06109 | FEED PLATE GUIDE | 4 |
| 32 | 145-08303 | BOBBIN THREAD TRIMMER LINK | 1 |
| 33 | SD-0640321-SP | HINGE SCREW D= 6.35 H= 3.2 | 1 |
| 34 | 137-37408 | LINK ROD | 1 |
| 35 | SS-9120910-TP | SCREW 3/16-28 L=9 | 1 |
| 36 | 145-08402 | BOBBIN THREAD TRIMMER LEVER | 1 |
| 37 | SD-0791271-SP | HINGE SCREW D= 7.94 H=12.7 | 1 |
| 38 | B3413-227-000 | SPRING SUSPENSION | 1 |
| 39 | 145-08501 | ACTUATING SPRING | 1 |
| 40 | B2421-771-000 | BOBBIN WINDER TRIP LATCH | 1 |
| 41 | 145-08600 | BOBBIN WINDER TRIP LATCH ARM | 1 |
| 42 | B2424-771-000-A | HOOK THREAD PRESSER STOPPER | 1 |
| 43 | SS-7090620-TP | SCREW 9/64-40 L=6.1 | 1 |
| 44 | B2423-771-000 | BOBBIN PICKER BRACKET SHAFT | 1 |
| 45 | 145-08808 | BOBBIN PICKER SPRING | 1 |
| 46 | B2561-205-000-A | SCREW | 1 |
| 47 | NS-6110310-SP | NUT 11/64-40 | 1 |
| 48 | 145-08709 | BOBBIN PRESSER LEVER | 1 |
| 49 | PS-0300082-KH | SPRING PIN 3X8 | 1 |
| 50 | SS-6120940-SP | SCREW 3/16-28 L=9 | 1 |
| 51 | SS-6120930-SP | SCREW 3/16-28 L=9 | 1 |
| 52 | B2411-771-000 | BOBBIN THREAD TRIMMER DRIVING | 1 |
| 53 | B2416-761-000 | HING STUD | 1 |
| 54 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 55 | B2413-771-000 | CONNECTING LINK | 1 |
| 56 | SD-0790641-SP | HINGE SCREW D= 7.94 H= 6.4 | 1 |
| 57 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 58 | B2414-761-000 | STOP SCREW | 1 |
| 59 | WP-0740516-SP | WASHER 7.4X11.8X0.5 | 1 |
| 60 | NS-6680320-SP | NUT 9/32-28 | 1 |
| 61 | SS-7110570-SP | SCREW 11/64-40 L= 4.8 | 1 |
| 62 | B2412-047-000 | BALL SCREW | 1 |
| 63 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 64 | SS-6110610-TP | SCREW 11/64-40 L=6 | 4 |
| 65 | 145-09202 | THROAT PLATE BASE COVER | 2 |
| 66 | SS-5110810-SP | SCREW 11/64-40 L=8 | 4 |
| SS5-6120930-SP | SCREW 3716-28 L=9 | I |
Page 25 — 10. CLOTH CUTTING KNIFE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 145-10408 | KNIFE BAR | 1 |
| 2 | 145-09905 | SOLENOID LINK | 1 |
| 3 | SS-7110710-SP | SCREW 11/64-40 L=7 | 2 |
| 4 | B2707-761-000 | HINGE STUD | 1 |
| 5 | B2706-761-000 | KNIFE BAR CONNECTING LINK | 1 |
| 6 | 145-09608 | KNIFE BAR LINK SHAFT | 1 |
| 7 | B2704-761-A00 | KNIFE STUD RETAINER (B) | 1 |
| 8 | B2704-761-B00 | KNIFE BAR POSITIONING BRACKET | 1 |
| 9 | B2704-761-CO0 | KNIFE BAR POSITIONING BRACKET | 1 |
| 10 | B2704-761-D00 | KNIFE BAR PRESSER T=0.08 | 1 |
| 11 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 12 | B2701-761-000 | KNIFE HOLDER | 1 |
| 13 | SM-606 1202-TP | SCREW M6 L=12 | 2 |
| 14 | B2702-047-Q00-A | KNIFE 1 | 1 |
| 15 | B2702-047-L00-A | KNIFE 1/2 | 1 |
| 16 | WP-0501016-SD | WASHER 5X10.5X1 | 1 |
| 17 | SS-7620750-SP | SCREW 3/16-32 L= 6.5 | 1 |
| 18 | 145-09707 | KNIFE DRIVING LEVER | 1 |
| 19 | 145-17700 | KNIFE BAR DRIVING SPRING | 1 |
| 20 | B2752-781-000 | KNIFE BAR DRIVING STOP SCREW | 1 |
| 21 | B2753-781-000 | KNIFE BAR DRIVING STOPPER | 1 |
| 22 | NS-6200520~-SP | NUT 5/16-18 | 1 |
| 23 | 145-09806 | KNIFE DRIVING LEVER SHAFT | 1 |
| 24 | RC-1200001-KP | C-SHAPED SNAP RING | 1 |
| 25 | B1820-246-00B | WASHER B | 1 |
| 26 | 101-20004 | SPRING SUSPENSION | 1 |
| 27 | PJ-3040451-08 | ELBOW UNION | 2 |
| 28 | 145-10085 | KNIFE DRIVING SOLENOID COMPL. | 1 |
| 29 | 145-10077 | KNIFE DRIVING SOLENOID ASM. | (1) |
| 30 | 145-17502 | SOLENOID CUSHION | (1) |
| 31 | SS-7110710-SP | SCREW 11/64-40 L=7 | (4) |
| 32 | 145-10911 | SOLENOID PROTECT PLATE | (1) |
| 33 | SS-4110615-SP | SCREW 11/64-40 L=6 | (6) |
| 34 | 145-10119 | SOLENOID FITTING PLATE | (1) |
| 35 | B1515-210-D00 | PIN | 2 |
| 36 | HD-0005700-0A | PHOTO SENSOR | 1 |
| 37 | 145- 10200 | SENSOR INSTALLING BASE | 1 |
| 38 | SS-7120640-SP | SCREW 3/16-28 L=6 | 2 |
| 39 | BT-0400251-EB | URETHANE HOSE, BLACK | 0.8 |
| 40 | BT-0400251-EA | TUBE HOSE, BLUE | 0.8 |
| 41 | SS-7110810-SP | SCREW 11/64-40 L= 8.0 | 1 |
| 42 | SL-4031091-SC | SCREW M3 X 10 | 1 |
| 43 | WP-0560860-SE | WASHER 5.6X12X0.8 | 2 |
| 44 | 145-10309 | ORIGIN DETECTION PLATE | 1 |
| 45 | SS-7110510-SP | SCREW 11/64-40 L=5 | 1 |
| 46 | 137-47001 | BELL CRANK SHAFT | 1 |
| 47 | §M8513-600-0A0-A | CLOTH CUTTING KNIFE CORD ASM. | 1 |
| 48 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 49 | 137-38802 | SUSPENSION SCREW | 1 |
| 50 | SS-8150822-TP | SCREW 15/64-28 L=8 | 2 |
| 51 | EA-9500B01-00 | CABLE BAND | 1 |
| 52 | 145-10705 | CYLINDER CONNECTING SHAFT | 1 |
| 53 | EA-9500B02-00 | CABLE BAND 150 | 1 |
| 54 | PA-4001001-00 | AIR CYLINDER | 1 |
| 55 | 145-10507 | CYLINDER FITTING BASE, FRONT | 1 |
| 56 | 145-10606 | CYLINDER FITTING BASE, REAR | 1 |
| 57 | SM-6081802-TP | SCREW | 4 |
| 58 | SS-6121050-SP | SCREW 3/16-28 L= 9.5 | 2 |
| 59 | 145-09509 | KNIFE BAR GUIDE PLATE | 1 |
| 60 | 145-09400 | KNIFE ROD GUIDE PLATE A | 1 |
| 61 | 145-09301 | KNIFE ROD GUIDE PLATE B | 1 |
| 62 | 145-11000 | KNIFE ROD GUIDE PLATE C | 1 |
| 63 | B1513-210-DO0 | MAGNET PIN | 1 |
| 64 | SS-6121010-SP | SCREW 3/16-28 L=10 | 2 |
| 65 | WP-0550800~SP | WASHER 5.5X10X0.8 | 2 |
| T45-09608 | KNIFE BAR LINK SHAFT | I | |
| 82704-761-B00 | KNIFE BAR POSITIONING BRACKET | l | |
| 35-71 10840-SP | SCREW 11/64-40 L=7.8 | y) | |
| 8B2702-047-Q00-A | KNIFE 1 | 1 | |
| TOI-BoOvos | SPRING SUSPENSION | I | |
| 3S-7110710-SP | SCREW L1/64-40 L=7 | (4) | |
| $S-4110615-SP | SCREW 11/64-40 L=6 | (6) | |
| HD-0005700-04 | PHOTO SENSOR | T | |
| 05BT-0400251-EB | URETHANE HOSE, BLACK | 0.8 | |
| 05BT-0400251-EA | TUBE HOSE, BLUE | 0.8 | |
| SS-7110810-8P | SCREW 11764-40 L2 8.0 | T | |
| 1145-10705 | CYLINDER CONNECTING SHAFT | 1. | |
| Sé-6081802-TP | SCREW | 4 | |
| §S-6121050-SP | SCREW 3/16-28 L= 9.5 | 2 | |
| $S-6121010-SP | SCREW 3/16-28 L=10 | 2 |
Page 27 — 11. STARTING SAFETY COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 145-11158 | TEMPORARY STOP SWITCH ASM. | 1 |
| 2 | 145-13055 | STOP-MOTION SOLENOID ASM. | 1 |
| 3 | 137-75606 | STOP-MOTION BAR | 1 |
| 4 | 137-75705 | SPRING | 1 |
| 5 | B2620-771-0A0-A | STARTING LINK ASM. | 1 |
| 6 | 145-11356 | STARTING SAFETY HOOK ASM. | 1 |
| 7 | 145-11505 | STARTING SAFETY ARM ROD | 1 |
| 8 | 145-11604 | NEEDLE THREAD TRIM REST LEVER | 1 |
| 9 | 145-11703 | STARTING SAFETY SOLENOID BASE | 1 |
| 10 | NS-6660511-SP | NUT 1/4 | 1 |
| 11 | NM-6040001-SE | NUT M4 | 2 |
| 12 | WP-0450000-SD | WASHER 4.5X8X0.5 | 2 |
| 13 | SS-7150740-SP | SCREW 15/64-28 L=7 | 2 |
| 14 | B2416-761-000 | HING STUD | 1 |
| 15 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 16 | 145-11802 | START SAFETY LEVER | 1 |
| 17 | 145-11901 | START SENSOR PLATE | 1 |
| 18 | HD-0005700-0A | PHOTO SENSOR | 1 |
| 19 | SS-6151220-SP | SCREW 15/64-28 L=11.5 | 1 |
| 20 | SD-0720321-TP | HINGE SCREW | 1 |
| 21 | 137-22400 | PRESSER BAR LEVER SHAFT | 1 |
| 22 | SS-7090510-SP | SCREW 9/64-40 L= 4.6 | 2 |
| 23 | SL-4031091-SC | SCREW M3 X 10 | 1 |
| 24 | RO-0742401-00 | RUBBER RING | 1 |
| 25 | B1534-816-000 | HINGE SCREW | 1 |
| 26 | 135-21307 | TENSION SPRING | 1 |
| 27 | SD-0790431-SP | HINGE SCREW D= 7.94 H= 4.3 | 1 |
| 28 | SD-0800341-SP | HINGE SCREW D=8 H=3.4 | 1 |
| 29 | SS-9151440-CP | SCREW 15/64-28 L=14 | 1 |
| 30 | NS-6150310-SP | NUT 15/64-28 | 2 |
| 31 | B1631-012-B00 | SUSPENSION STUD B | 1 |
| 32 | B3413-552-000 | SUSPENSION SCREW | 2 |
| 33 | B1116-804-000 | CLOTH PLATE WASHER | 1 |
| 34 | SS-6110810-TP | SCREW 11/64-40 L=8 | 2 |
| 35 | 145-12057 | START LEVER ASM. | 1 |
| 36 | B2410-980-000 | TENSION SPRING | 1 |
| 37 | B1626-210-000 | SPRING | 1 |
| 38 | B1453-761-000 | SWING ARM STOPPER | 1 |
| 39 | B1432-761-000 | SWING ARM STOPPER RUBBER | 1 |
| 40 | TA-1250504-R0 | RUBBER PLUG | 1 |
| 41 | 145-12206 | STOP SIGNAL SW FITTING PLATE | 1 |
| 42 | SS-4110715-SP | SCREW 11/64-40 L=7 | 2 |
| 43 | 145-16652 | SAFETY SWITCH ASM. | 1 |
| 44 | 145-16603 | SAFETY SW BASE | (1) |
| 45 | 145-16751 | SAFETY SW CORD ASM. | (1) |
| 46 | 145-16900 | SAFETY SWITCH COVER | (1) |
| 47 | SS-7090520-SP | SCREW 9/64-40 L= 4.5 | (2) |
| 48 | EA-9500B01-00 | CABLE BAND | (1) |
| 49 | 236-38109 | SAFETY SWITCH ARM | (1) |
| 50 | 236-38307 | SAFETY SWITCH ARM SHAFT | (1) |
| 51 | 236-38208 | SAFETY SWITCH SPRING | (1) |
| 52 | 236-38406 | SAFETY SWITCH NUT | (1) |
| 53 | SM-4021201-SC | SCREW M2 L=12 | (2) |
| 54 | HK-0346100-40 | HOUSING | (1) |
| 55 | 145-16801 | SAFETY SWITCH PRESSING PLATE | 1 |
| 56 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 57 | SS-4110515-SP | SCREW 11/64-40 L=5 | 2 |
| 58 | HX-0012300-00 | CABLE CLIP | 1 |
| 59 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 60 | M8512-600-0A0 | START-UP CORD ASM. | 1 |
| 61 | M8514-600-0A0 | STOP-MOTION CORD ASM. | 1 |
| 62 | M9019-580-0A0 | EARTH CABLE ASM. | 1 |
| 63 | WP-1221016-SP | WASHER | 1 |
| 64 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
| 14§-13055 | STOP-MOTION SOLENOID ASM. | 1 | |
| 13797-75705 | SPRING | 1 | |
| B2620-771-O0A0-A | STARTIN LINK ASK. | 1 | |
| 1458-11505 | STARTING SAFETY ARH ROD | 001 | |
| N-6040001-SE | NUT M4 | 001 | |
| We-0450000-SD | WASHER 4,5X8X0.5 | 01 | |
| §S-7150740-SP | SCREW 15/64-28 L=7 | 01 |
Page 29 — 12. AO COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 145-14269 | PRESSER LIFTER MAGNET COMPL. | 1 |
| 2 | 145-14251 | PRESSER LIFTER MAGNET ASM. | (1) |
| 3 | 145-14004 | MAGNET FITTING PLATE | (1) |
| 4 | SM-9050850-SP | SCREW | (4) |
| 5 | 145-14103 | CONNECTING SCREW | (1) |
| 6 | NM-6080721-SE | NUT M8 | (1) |
| 7 | MAO-11108N00 | PEDAL SWITCH FRAME BOLT | 4 |
| 8 | MAO-11108N00 | PEDAL SWITCH FRAME BOLT | 2 |
| 9 | WS-0610002-KN | SPRING WASHER 6.1X12.2X1.5 | 4 |
| 10 | WS-0610002-KN | SPRING WASHER 6.1X12.2X1.5 | 2 |
| 11 | NM-6060001-SC | NUT M6 | 4 |
| 12 | NM-6060001-SC | NUT M6 | 2 |
| 13 | 145-14301 | CHAIN COVER | 1 |
| 14 | MAO-25104A00 | CHAIN COVER | 1 |
| 15 | D6056-555-B00 | RUBBER CUSHION (B) | 4 |
| 16 | G5416-171-000 | THRUST CHAIN | 1 |
| 17 | G5414-171-000 | THRUST KNUCKLE | 1 |
| 18 | PJ-3040451-02 | ELBOW UNION, C | 1 |
| 19 | PC-0151080-00 | SPEED CONTROLLER | 1 |
| 20 | PX-5000170-00 | KNUCKLE JOINT | 1 |
| 21 | SM-9086503-SM | SCREW M8 L=65 | 1 |
| 22 | NM-6080003-SC | NUT M8 | 3 |
| 23 | PX-5000300-A0 | CLEVIS PIN ASM. | 1 |
| 24 | G5412-171-000 | THRUST CYLINDER BRACKET | 1 |
| 25 | PA-2006003-A0 | LIFTING LEVER CYLINDER ASM. | 1 |
| 26 | WP-0641601-SC | WASHER | 2 |
| 27 | BT-0400251-EB | URETHANE HOSE, BLACK | 0.6 |
| 28 | M8515-600-0A0 | PRESSER LIFT CORD ASM. | 1 |
| 29 | M8520-590-0A0 | 1-PEDAL ASM. | 1 |
| 30 | SK-3482001-SE | WOOD SCREW D=4.8 L=20 | 2 |

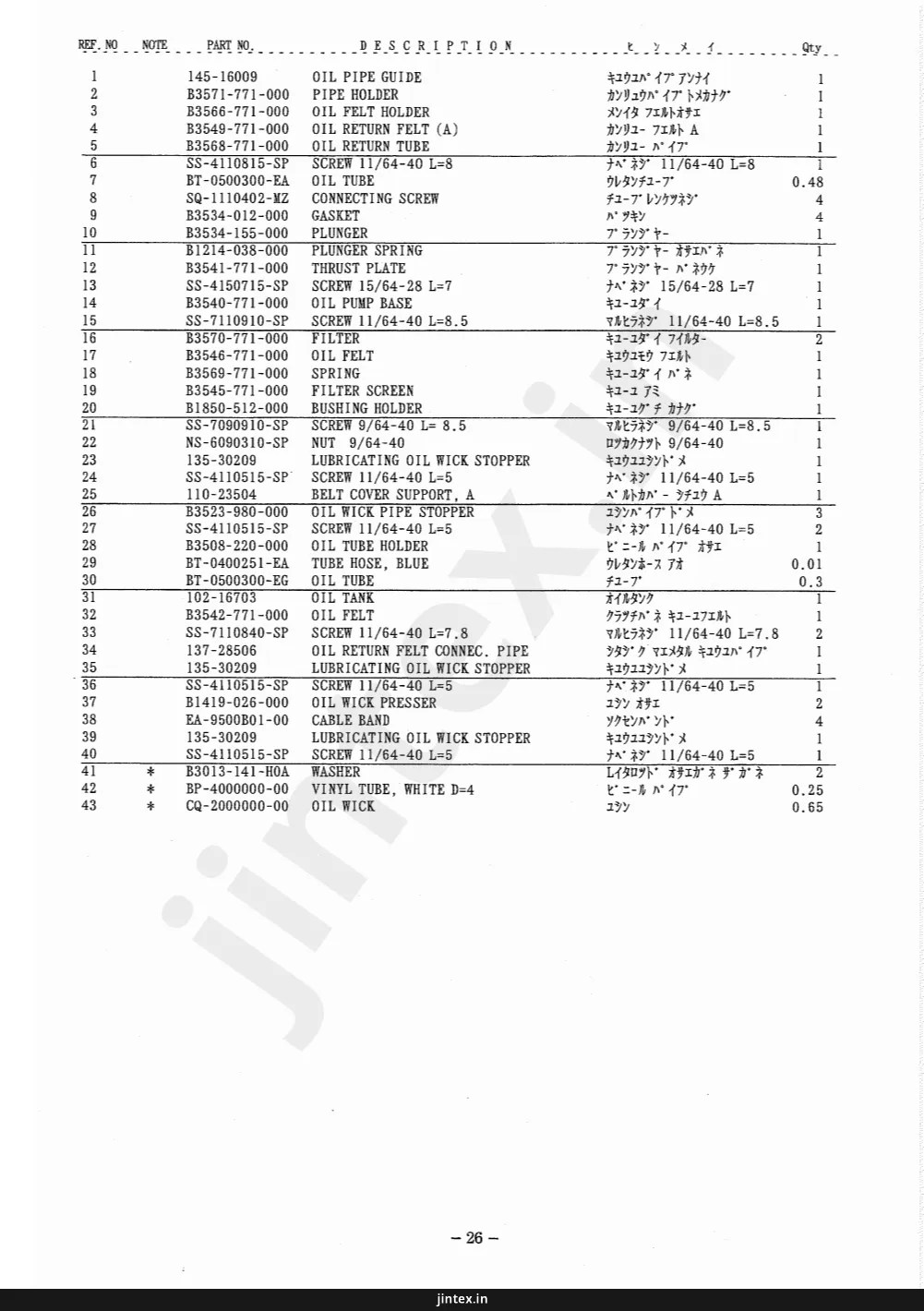

Page 31 — 13. LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 145-16009 | OIL PIPE GUIDE | 1 |
| 2 | B3571-771-000 | PIPE HOLDER | 1 |
| 3 | B3566-771-000 | OIL FELT HOLDER | 1 |
| 4 | B3549-771-000 | OIL RETURN FELT (A) | 1 |
| 5 | B3568-771-000 | OIL RETURN TUBE | 1 |
| 6 | SS-4110815-SP | SCREW 11/64-40 L=8 | 1 |
| 7 | BT-0500300-EA | OIL TUBE | 0.48 |
| 8 | SQ-1110402-MZ | CONNECTING SCREW | 4 |
| 9 | B3534-012-000 | GASKET | 4 |
| 10 | B3534-155-000 | PLUNGER | 1 |
| 11 | B1214-038-000 | PLUNGER SPRING | 1 |
| 12 | B3541-771-000 | THRUST PLATE | 1 |
| 13 | SS-4150715-SP | SCREW 15/64-28 L=7 | 1 |
| 14 | B3540-771-000 | OIL PUMP BASE | 1 |
| 15 | SS-7110910-SP | SCREW 11/64-40 L=8.5 | 1 |
| 16 | B3570-771-000 | FILTER | 2 |
| 17 | B3546-771-000 | OIL FELT | 1 |
| 18 | B3569-771-000 | SPRING | 1 |
| 19 | B3545-771-000 | FILTER SCREEN | 1 |
| 20 | B1850-512-000 | BUSHING HOLDER | 1 |
| 21 | SS-7090910-SP | SCREW 9/64-40 L= 8.5 | 1 |
| 22 | NS-6090310-SP | NUT 9/64-40 | 1 |
| 23 | 135-30209 | LUBRICATING OIL WICK STOPPER | 1 |
| 24 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
| 25 | 110-23504 | BELT COVER SUPPORT, A | 1 |
| 26 | B3523-980-000 | OIL WICK PIPE STOPPER | 3 |
| 27 | SS-4110515-SP | SCREW 11/64-40 L=5 | 2 |
| 28 | B3508-220-000 | OIL TUBE HOLDER | 1 |
| 29 | BT-0400251-EA | TUBE HOSE, BLUE | 0.01 |
| 30 | BT-0500300-EG | OIL TUBE | 0.3 |
| 31 | 102-16703 | OIL TANK | 1 |
| 32 | B3542-771-000 | OIL FELT | 1 |
| 33 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 34 | 137-28506 | OIL RETURN FELT CONNEC. PIPE | 1 |
| 35 | 135-30209 | LUBRICATING OIL WICK STOPPER | 1 |
| 36 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
| 37 | B1419-026-000 | OIL WICK PRESSER | 2 |
| 38 | EA-9500B01-00 | CABLE BAND | 4 |
| 39 | 135-30209 | LUBRICATING OIL WICK STOPPER | 1 |
| 40 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
| 41 | B3013-141-HOA | WASHER | 2 |
| 42 | BP-4000000-00 | VINYL TUBE, WHITE D=4 | 0.25 |
| 43 | CQ-2000000-00 | OIL WICK | 0.65 |
Page 33 — 14. TABLE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 145-14905 | TABLE | 1 |
| 2 | HX-0032600-0L | DOME PLUG | 2 |
| 3 | 111-55108 | DRAWER | 1 |
| 4 | 111-55207 | DRAWER SUPPORT | 2 |
| 5 | SK-3311600-SC | WOOD SCREW D=3.1 L=16 | 6 |
| 6 | D8204-555-D00 | DRAWER STOPPER | 1 |
| 7 | B8101-771-0A0 | T-STAND COMPL. | 1 |
| 8 | 111-57559 | T-STAND ASM. | (1) |
| 9 | 111-57666 | UPPER STAND ASM., RIGHT | (1) |
| 10 | 111-57765 | UPPER STAND ASM., LEFT | (1) |
| 11 | 111-57963 | LOWER LEG, RIGHT | (1) |
| 12 | 111-58060 | LOWER LEG, LEFT | (1) |
| 13 | 111-58300 | STAND SIDE SUPPORT | (1) |
| 14 | 111-58409 | STAND SIDE SUPPORT | (1) |
| 15 | 111-58607 | RUBBER CAP | (4) |
| 16 | 170-07402 | NUT | (2) |
| 17 | WP-1302501-SE | WASHER M12 | (4) |
| 18 | WS-1253010-KN | SPRING WASHER 12.5X21.5X3 | (4) |
| 19 | B8108-555-0A0 | ADJUSTING SCREW ASM. WITH CAP | (4) |
| 20 | NM-6120001-SE | NUT M12 | (1) |
| 21 | 111-58516 | UPPER STAND PLATE | (2) |
| 22 | SL-9082091-SE | WASHER HEXAGONAL BOLT | (12) |
| 23 | 138-17754 | Z-STAND PEDAL ASM. | (1) |
| 24 | GSK-01008000 | RUBBER BUSHING | (1) |
| 25 | 138-17754 | Z-STAND PEDAL ASM. | (1) |
| 26 | B8153-771-000 | PEDAL CONNECTING ROD | (1) |
| 27 | D8113-555-B00 | PEDAL BUSHING | (2) |
| 28 | GPF-060600A0 | PEDAL ASM. | (1) |
| 29 | GPF-06080000 | PEDAL ADJUSTING PLATE | (1) |
| 30 | NM-6080721-SE | NUT M8 | (2) |
| 31 | SM-9061203-SE | SCREW M6 L=12 | (2) |
| 32 | SM-9082023-SE | SCREW M8 L=20 | (2) |
| 33 | WP-0671016-SE | WASHER 6.7X13X1 | (2) |
| 34 | WP-0871602-SE | WASHER 8.7X18X1.6 | (4) |
| 35 | WS-0621210-KR | SPRING WASHER 6.2X11.4X1.2 | (2) |
| 36 | WS-0861410-KR | SPRING WASHER 8.6X15X1.4 | (2) |
| 37 | 111-59001 | PEDAL SHAFT BRACKET | (2) |
| 38 | 111-57567 | T LEG JUNCTION | 1 |
| 39 | 111-57559 | T-STAND ASM. | (1) |
| 40 | 111-58805 | PEDAL | (1) |
| 41 | 111-59001 | PEDAL SHAFT BRACKET | (2) |
| 42 | D8113-555-B00 | PEDAL BUSHING | (2) |
| 43 | D8115-555-B00 | PEDAL SHAFT | (1) |
| 44 | 111-58904 | PEDAL MAT | (1) |
| 45 | NM-6080001-SE | NUT M8 | (2) |
| 46 | SL-9061291-SE | WASHER HEXAGONAL BOLT M6 L=12 | (2) |
| 47 | SL-9082091-SE | WASHER HEXAGONAL BOLT | (2) |
| 48 | WP-0871602-SE | WASHER 8.7X18X1.6 | (2) |
| 49 | 111-58706 | PEDAL ADJUSTING PLATE | (1) |
| 50 | MAO-720020A0 | CONNECTING ROD ASM. | 1 |
| 51 | SK-3483201-SE | WOOD SCREW D=4.8 L=32 | 4 |
| 1114-55108 | DRAWER | l |
Page 34 — 15. PNEUMATIC COMPONENTS (FOR 170**C)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | BT-0600401-EB | TUBE | 0.6 |
| 2 | M8517-600-0A0 | SOLENOID VALVE CORD ASM. | 1 |
| 3 | PF-0552040-A0 | FILTER REGULATOR ASM. | 1 |
| 4 | SL-4051091-SC | SCREW M5X0.8 L=10 | 2 |
| 5 | PJ-3090052-03 | QUICK JOINT PLUG | 1 |
| 6 | PJ-3040652-01 | ELBOW UNION 6XPT1/4 | 1 |
| 7 | B8211-206-000 | FILTER INSTALLING PLATE | 1 |
| 8 | SL-9082093-SE | SCREW | 1 |
| 9 | WP-0871602-SE | WASHER 8.7X18X1.6 | 2 |
| 10 | NM-6080721-SE | NUT M8 | 1 |
| 11 | SK-3482001-SE | WOOD SCREW D=4.8 L=20 | 2 |
| 12 | WS-0861410-KR | SPRING WASHER 8.6X15X1.4 | 1 |
| 13 | 145-14756 | SOLENOID VALVE CABLE ASM. | 1 |
| 14 | 142-04655 | SOLENOID VALVE ASM. | 1 |
| 15 | PV-1502090-00 | 5 PORT SOLENOID VALVE | (2) |
| 16 | PV-9150050-00 | SOLENOID VALVE INSTALLING BASE | (1) |
| 17 | PJ-3040600-01 | ELBOW | (1) |
| 18 | PX-0500030-00 | SILENCER | (1) |
Page 35 — 16. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-30358 | THREAD STAND ASM. | 1 |
| 2 | 229-31109 | SPOOL RETAINER | (2) |
| 3 | 229-31000 | SPOOL PIN | (2) |
| 4 | 229-30903 | SPOOL REST CUSHION | (2) |
| 5 | 229-30804 | SPOOL REST | (2) |
| 6 | SM-6061610-SC | SCREW M6 L=16 | (2) |
| 7 | 229-30705 | THREAD GUIDE ARM JOINT | (2) |
| 8 | 229-31406 | SPOOL REST ROD RUBBER CAP | (1) |
| 9 | 229-30507 | SPOOL REST ARM | (2) |
| 10 | 229-30408 | SPOOL REST ROD, UPPER | (1) |
| 11 | 229-31307 | SPOOL REST ROD JOINT | (1) |
| 12 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 13 | NM-6050001-SE | NUT M5 | (2) |
| 14 | 229-30309 | SPOOL REST ROD, LOWER | (1) |
| 15 | 229-31208 | THREAD GUIDE | (2) |
| 16 | WS-0510002-KN | SPRING WASHER | (2) |
| 17 | NM-6050001-SE | NUT M5 | (2) |
| 18 | NM-6160511-SE | NUT M16X1.5 | (1) |
| 19 | WP-1702600-SO | WASHER 17X30X2.6 | (2) |
Page 37 — 19. WIRING DIAGRAM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | M1001-600-AA0 | CONTROL BOX A ASM. | 1 |
| 2 | M8601-600-AA0-B | MAIN CIRCUIT BOARD AA ASM. | 1 |
| 3 | M8610-610-AAA-A | SDC CIRCUIT BOARD AA ASM. | 1 |
| 4 | M8620-600-AAB | PWR CIRCUIT BOARD AB ASM. | 1 |
| 5 | M8901-590-AA0 | POWER TRANSFORMER A ASM. | 1 |
| 6 | M8519-600-0A0 | DC POWER CORD ASM. | 1 |
| 7 | M8519-610-0A0 | SDC I/F CABLE ASM. | 1 |
| 8 | M9034-580-0A0 | GROUND CORD ASM. | 1 |
| 9 | M8540-580-0A0 | FAN ASM. | 1 |
| 10 | M8523-600-0A0 | INPUT CHANGEOVER CORD ASM. | 1 |
| 11 | HK-0266500-80 | TERMINAL BASE 8P | 1 |
| 12 | M1010-600-AA0 | OPERATION BOX A ASM. | 1 |
| 13 | M8603-600-0A0 | PANEL CIRCUIT BOARD 1 ASM. | (1) |
| 14 | M8604-600-0A0 | PANEL CIRCUIT BOARD 2 ASM. | (1) |
| 15 | M3001-600-00A | PANEL SEET (JAPAN) | (1) |
| 16 | M8520-600-0A0 | PANEL CABLE ASM. | (1) |
| 17 | M8502-600-0A0 | FEED MOTOR CORD ASM. | 1 |
| 18 | M8503-600-0A0 | STITCH WIDTH MOTOR CORD ASM. | 1 |
| 19 | M8504-600-0A0 | STITCH BASE LINE CORD ASM. | 1 |
| 20 | 145-05101 | FEED STEPPING MOTOR | 1 |
| 21 | 145-07800 | ZIGZAG WIDTH STEPPING MOTOR | 1 |
| 22 | 145-06901 | NEEDLE POSITION STEPPING MOTOR | 1 |
| 23 | M6001-610-AA0 | MOTOR A ASM. | 1 |
| 24 | M9019-580-0A0 | EARTH CABLE ASM. | 1 |
| 25 | M9017-580-0A0 | POWER CABLE ASM. | 1 |
| 26 | HA-0042500-00 | SWITCH | 1 |
| 27 | M8521-600-0A0 | BOX POWER CORD ASM. | 1 |
| 28 | M8506-600-0A0 | THREAD TENSION CORD ASM. | 1 |
| 29 | 145-13154 | THREAD TENSION SOLENOID ASM. | 1 |
| 30 | M8518-600-0A0 | HED SENSOR CORD WHOLE ASM. 1 | 1 |
| 31 | M8507-600-0A0 | HED SENSOR CORD ASM. 1 | 1 |
| 32 | 145-05259 | HEAD SENSOR ASM. | 1 |
| 33 | 145-06059 | THREAD BREAKAGE DETECTOR ASM. | 1 |
| 34 | 145-05952 | FEED ORIGIN SENSOR ASM. | 1 |
| 35 | M8508-600-0A0 | HEAD SENSOR CORD 2 ASM. | 1 |
| 36 | 144-04750 | SDET SENSOR ASM. | 1 |
| 37 | 145-11158 | TEMPORARY STOP SWITCH ASM. | 1 |
| 38 | HD-0005700-0A | PHOTO SENSOR | 1 |
| 39 | M8509-600-0A0 | ORIGIN CORD ASM. | 1 |
| 40 | HD-0005700-0A | PHOTO SENSOR | 1 |
| 41 | HD-0005700-0A | PHOTO SENSOR | 1 |
| 42 | M8511-600-0A0 | PRESSER DOWN CORD ASM. | 1 |
| 43 | 145-12651 | PRESSER LOWERING SENSOR ASM. | 1 |
| 44 | M8520-590-0A0 | 1-PEDAL ASM. | 1 |
| 45 | M9011-590-0A0 | PEDAL SWITCH CABLE ASM. | 1 |
| 46 | HD-0013500-00 | SENSOR | 1 |
| 47 | HD-0013500-00 | SENSOR | 1 |
| 48 | M8512-600-0A0 | START-UP CORD ASM. | 1 |
| 49 | HD-0005700-0A | PHOTO SENSOR | 1 |
| 50 | M8513-600-0A0-A | CLOTH CUTTING KNIFE CORD ASM. | 1 |
| 51 | 145-10051 | KNIFE DRIVING SOLENOID ASM. | 1 |
| 52 | M8526-600-0A0 | KNIFE RETURN CORD ASM. | 1 |
| 53 | 145-14756 | SOLENOID VALVE CABLE ASM. | 1 |
| 54 | M8515-600-0A0 | PRESSER LIFT CORD ASM. | 1 |
| 55 | 145-14251 | PRESSER LIFTER MAGNET ASM. | 1 |
| 56 | M8514-600-0A0 | STOP-MOTION CORD ASM. | 1 |
| 57 | 145-13055 | STOP-MOTION SOLENOID ASM. | 1 |
| 58 | M8517-600-0A0 | SOLENOID VALVE CORD ASM. | 1 |
| 59 | 142-04655 | SOLENOID VALVE ASM. | 1 |
| 60 | M8524-600-0A0 | BOBBIN WINDER POWER CORD ASM. | 1 |
| 61 | G5001-198-0A0-A | BOBBIN WINDER ASM. | 1 |
| 62 | M8525-600-0A0 | TENSION VARIABLE RESISTOR | 1 |
| 63 | M8527-600-0A0 | DETECTOR CORD ASM. | 1 |
| 64 | M8528-600-0A0 | SAFETY SWITCH CORD ASM. | 1 |
| 65 | 145- 16652 | SAFETY SWITCH ASM. | 1 |
| 66 | M8530-600-0A0 | TRANSFORMER RELAY CORD ASM. | 1 |
| 67 | M9035-580-0A0 | POWER SOURCE CORD ASM. | 1 |
| M9034-580-040 | GROUND CORD ASM. | 1 | |
| Mi010-600-AA0 | OPERATION BOX A ASM. | 1 | |
| M3001-600-004 | PANEL SEET (JAPAN) | (1) | |
| M8513-600-0A0-4A | CLOTH CUTTING KNIFE CORD ASM. | 1 | |
| 6M8524-600-0A0 | BOBBIN WINDER POWER CORD ASM. | l | |
| G500T-198-0A0-A | BOBBIN WINDER ASM. | 1 | |
| 48525-600-0A0 | TENSION VARIABLE RESISTOR | 1 |
Page 39
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | M1001-600-BAO | CONTROL BOX B ASM. | 1 |
| 2 | M8601-600-AA0-B | MAIN CIRCUIT BOARD AA ASM. | 1 |
| 3 | M8610-610-AAA-A | SDC CIRCUIT BOARD AA ASM. | 1 |
| 4 | M8620-610-BAB | PWR CIRCUIT BOARD BB ASM. | 1 |
| 5 | M8901-590-BA0 | POWER TRANSFORMER B ASM. | 1 |
| 6 | M8519-600-0A0 | DC POWER CORD ASM. | 1 |
| 7 | M8519~-610-0A0 | SDC I/F CABLE ASM. | 1 |
| 8 | M9024-580-0A0 | POWER CABLE ASM.,100V | 1 |
| 9 | M8540-580-0A0 | FAN ASM. | 1 |
| 10 | M8523-600-0A0 | INPUT CHANGEOVER CORD ASM. | 1 |
| 11 | HK-0542500-40 | TERMINAL BASE | 1 |
| 12 | M1010-600-BAO | OPERATION BOX B ASM. | 1 |
| 13 | M8603-600-0A0 | PANEL CIRCUIT BOARD 1 ASM. | (1) |
| 14 | M8604-600-0A0 | PANEL CIRCUIT BOARD 2 ASM. | (1) |
| 15 | M3001-600-00B | PANEL SEET (ENGLISH) | (1) |
| 16 | M8520-600-0A0 | PANEL CABLE ASM. | (1) |
| 17 | M8502-600-0A0 | FEED MOTOR CORD ASM. | 1 |
| 18 | M8503-600-0A0 | STITCH WIDTH MOTOR CORD ASM. | 1 |
| 19 | M8504-600-0A0 | STITCH BASE LINE CORD ASM. | 1 |
| 20 | 145-05101 | FEED STEPPING MOTOR | 1 |
| 21 | 145-07800 | ZIGZAG WIDTH STEPPING MOTOR | 1 |
| 22 | 145-06901 | NEEDLE POSITION STEPPING MOTOR | 1 |
| 23 | M6001-610-AA0 | MOTOR A ASM. | 1 |
| 24 | M9019-580-0A0 | EARTH CABLE ASM. | 1 |
| 25 | M9017-580-0A0 | POWER CABLE ASM. | 1 |
| 26 | HA-0042500-00 | SWITCH | 1 |
| 27 | M8521-600-0A0 | BOX POWER CORD ASM. | 1 |
| 28 | M8506-600-0A0 | THREAD TENSION CORD ASM. | 1 |
| 29 | 145-13154 | THREAD TENSION SOLENOID ASM. | 1 |
| 30 | M8518-600-0A0 | HED SENSOR CORD WHOLE ASM. 1 | 1 |
| 31 | M8507-600-0A0 | HED SENSOR CORD ASM. 1 | 1 |
| 32 | 145-05259 | HEAD SENSOR ASM. | 1 |
| 33 | 145-06059 | THREAD BREAKAGE DETECTOR ASM. | 1 |
| 34 | 145-05952 | FEED ORIGIN SENSOR ASM. | 1 |
| 35 | M8508-600-0A0 | HEAD SENSOR CORD 2 ASM. | 1 |
| 36 | 144-04750 | SDET SENSOR ASM. | 1 |
| 37 | 145-11158 | TEMPORARY STOP SWITCH ASM. | 1 |
| 38 | HD-0005700-0A | PHOTO SENSOR | 1 |
| 39 | M8509-600-0A0 | ORIGIN CORD ASM. | 1 |
| 40 | HD-0005700-0A | PHOTO SENSOR | 1 |
| 41 | HD-0005700-0A | PHOTO SENSOR | 1 |
| 42 | M8511-600-0A0 | PRESSER DOWN CORD ASM. | 1 |
| 43 | 145-12651 | PRESSER LOWERING SENSOR ASM. | 1 |
| 44 | M8520-590-0A0 | 1-PEDAL ASM. | 1 |
| 45 | M9011-590-0A0 | PEDAL SWITCH CABLE ASM. | 1 |
| 46 | HD-0013500-00 | SENSOR | 1 |
| 47 | HD-0013500-00 | SENSOR | 1 |
| 48 | M8512-600-0A0 | START-UP CORD ASM. | 1 |
| 49 | HD-0005700-0A | PHOTO SENSOR | 1 |
| 50 | M8513-600-0A0-A | CLOTH CUTTING KNIFE CORD ASM. | 1 |
| 51 | 145-10051 | KNIFE DRIVING SOLENOID ASM. | 1 |
| 52 | M8526-600-0A0 | KNIFE RETURN CORD ASM. | 1 |
| 53 | 145-14756 | SOLENOID VALVE CABLE ASM. | 1 |
| 54 | M8515-600-0A0 | PRESSER LIFT CORD ASM. | 1 |
| 55 | 145-14251 | PRESSER LIFTER MAGNET ASM. | 1 |
| 56 | M8514-600-0A0 | STOP-MOTION CORD ASM. | 1 |
| 57 | 145-13055 | STOP-MOTION SOLENOID ASM. | 1 |
| 58 | M8517-600-0A0 | SOLENOID VALVE CORD ASM. | 1 |
| 59 | 142-04655 | SOLENOID VALVE ASM. | 1 |
| 60 | M8524-600-0A0 | BOBBIN WINDER POWER CORD ASM. | 1 |
| 61 | G5001-198-0A0-A | BOBBIN WINDER ASM. | 1 |
| 62 | M8525-600-0A0 | TENSION VARIABLE RESISTOR | 1 |
| 63 | M8527~600-0A0 | DETECTOR CORD ASM. | 1 |
| 64 | M8528-600-0A0 | SAFETY SWITCH CORD ASM. | 1 |
| 65 | 145-16652 | SAFETY SWITCH ASM. | 1 |
| 66 | M8530-600-0A0 | TRANSFORMER RELAY CORD ASM. | 1 |
| 67 | M9028-580-0A0 | POWER CABLE ASM. | 1 |
| MW8519-600-0A0 | DC POWER CORD ASH. | I | |
| AK-0542500-40 | TERMINAL BASE | I | |
| W8520-600-UA0 | PANEL CABLE ASM. | (T) | |
| 9011-590-0A0 | PEDAL SWITCH CABLE ASM, | 1 | |
| HD-0O1I500-00 | SENSOR | T |
Page 41 — 21. ACCESSORIE PART COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2001-771-0A0 | NEEDLE THREAD TRIMMER ASM. | 1 |
| 2 | 139-47866 | BOBBIN THREAD TRIMMER CONNEC. | 1 |
| 3 | B2702-047-K00-A | KNIFE 3/8 | 1 |
| 4 | B2702-047-L00-A | KNIFE 1/2 | 1 |
| 5 | B2702-047-M00-A | KNIFE 5/8 | 1 |
| 6 | B2702-047-Q00-A | KNIFE 1 | 1 |
| 7 | B9103-771-000 | OIL DRAIN TUBE | 1 |
| 8 | B8236-771-000 | OIL REMOVING FUNNEL | 1 |
| 9 | SK-3311601-SE | WOOD SCREW D=3.1 L=16 | 3 |
| 10 | B9109-555-000 | SCREW DRIVER, LARGE | 1 |
| 11 | B9118-232-000 | VINYL COVER | 1 |
| 12 | J1067-000-000 | OILER | 1 |
| 13 | MDF-RX1600C0 | DEFRIX OIL NO.1(600CC) | 1 |
| 14 | B1811-771-000 | BOBBIN | 1 |
| 15 | B8103-980-000 | CHAIN | 2 |
| 16 | B8133-019-000 | S SHAPED HOOK | 4 |
| 17 | B9101-552-000 | ACCESSORY BOX | 1 |
| 18 | B9101-771-000 | HOOK TIMING GAUGE | 1 |
| 19 | B9107-761-000 | THREAD PASSING INSTRUMENT | 1 |
| 20 | B9110-012-000 | SCREW DRIVER, MIDDLE | 1 |
| 21 | B9111-012-000 | SCREW DRIVER, SMALL | 1 |
| 22 | B2702-047-S00-A | KNIFE 1-1/4" | 1 |
| 23 | J1066-000-00D | HEXAGONAL WRENCH KEY | 1 |
| 24 | MDP-5JOB1102 | NEEDLE DPX5 #11J-2 | 1 |
| 25 | B3155-781-0A0 | SAFETY PLATE ASM. | 1 |
| 26 | 139-43204 | SAFETY PLATE RETURN SPRING | (1) |
| 27 | B1506-352-000 | TENSION SPRING RACK B | (1) |
| 28 | B3120-372-000 | SAFETY PLATE | (1) |
| 29 | B3121-372-000 | SAFETY PLATE INSTALLING PLATE | (1) |
| 30 | B3155-781-000 | SAFETY PLATE INSTALLING BASE | (1) |
| 31 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 32 | NS-6120310-SP | NUT 3/16-28 | (1) |
| 33 | PS-0200062-KH | SPRING PIN 2X6 | (1) |
| 34 | SD-0601021-SP | HINGE SCREW D=6 H=10.2 | (1) |
| 35 | SS-4110715-SP | SCREW 11/64-40 L=7 | (2) |
| 36 | SS-6111140-SP | SCREW 11/64-40 L=11 | (1) |
| 37 | WP-0450801-SD | WASHER 4.5X10X0.8 | (2) |
| 38 | WP-0740516-SP | WASHER 7.4X11.8X0.5 | (1) |
| 39 | HX-0015000-OR | CABLE CLAMP | 2 |
| 40 | SK-3412001-SE | WOOD SCREW D=4.1 L=20 | 2 |
| 41 | 137-71456 | HEAD SUPPORT ROD CONNEC. | 1 |
| 42 | G5405-161-A00 | FRAME SUPPORT BAR | (1) |
| 43 | 137-71704 | RUBBER CAP | (1) |
| 44 | B3317-704-000 | NUT | (2) |
| 45 | WP-1702600-SO | WASHER 17X30X2.6 | (2) |
| 46 | WS-1643202-KR | SPRING WASHER | (1) |
| 47 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
| 48 | B1552-782-0A0 | PRESSER FOOT 2 ASM. | 1 |
| 49 | B1552-783-0A0 | PRESSER FOOT 3 ASM. | 1 |
Page 43 — 22. SPECIAL SPECIFICATIONS COMPONENTS(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | G5001-198-0A0-A | BOBBIN WINDER ASM. | 1 |
| 2 | M8524-600-0A0 | BOBBIN WINDER POWER CORD ASM. | 1 |
| 3 | B3221-771-0A0 | BOBBIN WINDER TENSION BRACKET | 1 |
| 4 | B3221-771-000 | BOBBIN WINDER TENSION BRACKET | (1) |
| 5 | B3219-232-000 | BOBBIN WINDER TENSION POST | (1) |
| 6 | B3214-047-000 | BOBBIN WINDER TENSION DISC | (2) |
| 7 | B3218-232-000 | BOBBIN WINDER TENSION SPRING | (1) |
| 8 | B3216-047-000 | BOBBIN WINDER TENSION NUT | (1) |
| 9 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 10 | SK-3452000-SC | WOOD SCREW D=4.5 L=20 | 4 |
| 11 | M8525-600-0B0 | THREAD TENSION VOLUME ASM. | 1 |
| 12 | HX-0014200-00 | KNOB | (2) |
| 13 | M3002-600-000 | LABEL | (1) |
| 14 | M8525-600-0A0 | TENSION VARIABLE RESISTOR | (1) |
| 15 | M9013-590-0A0 | PK57 TRANSFER CABLE ASM. | 1 |
| 16 | GPK-510010B0 | PEDAL SWITCH ASM. | 1 |
Page 45 — 23. SPECIAL SPECIFICATIONS COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 145-23062 | FEED 70MM SET | 1 |
| 2 | 145-23864 | FEED 60MM SET | (1) |
| 3 | 145-23054 | WORK CLAMP 70 ASM. | (1) |
| 4 | 145-23856 | WORK CLAMP 60 ASM. | (1) |
| 5 | 145-23005 | WORK CLAMP 70 | (1) |
| 6 | 145-23807 | WORK CLAMP 60 | (1) |
| 7 | 145-23104 | WORK CLAMP BKT. | (1) |
| 8 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | (2) |
| 9 | B2062-781-000 | DRIVING CAM SPRING AXLE | (1) |
| 10 | B2061-781-000 | DRIVING CAM SPRING | (1) |
| 11 | B2059-781-000 | DRIVING CAM INSTALLING PLATE | (1) |
| 12 | SD-0790303-SP | HINGE SCREW D= 7.94 H= 3.0 | (1) |
| 13 | SD-0450401-SP | HINGE SCREW D= 4.5 H= 4 | (1) |
| 14 | 145-23500 | DRIVING CAM | (1) |
| 15 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | (2) |
| 16 | PS-0300102-KO | SPRING PIN 3.0X10 | (1) |
| 17 | B2020-771-00A | NEEDLE THREAD TRIMMER GUIDE (A | (1) |
| 18 | B2020-771-00B | NEEDLE THREAD TRIMMER GUIDE (B | (1) |
| 19 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | (1) |
| 20 | 145-23252 | WORK CLAMP CHECK HOLDER 70 ASM | (1) |
| 21 | 145-23203 | WORK CLAMP CHECK HOLDER 70 | (1) |
| 22 | B1510-771-00B | SPRING SET PIN B | (2) |
| 23 | B1509-761-000 | WORK CLAMP CHECK SPRING | (2) |
| 24 | B1512-761-000 | WORK CLAMP CHECK HOLDER SPRING | (1) |
| 25 | 145-23955 | WORK CLAMP CHECK HOLDER 60 ASM | (1) |
| 26 | 145-23906 | WORK CLAMP CHECK HOLDER 60 | (1) |
| 27 | SD-0790203-SP | HINGE SCREW D=7.94 H=2 | (1) |
| 28 | SD-0790203-SP | HINGE SCREW D=7.94 H=2 | (1) |
| 29 | SS-6060210-SP | SCREW 3/32-56 L= 1.9 | (2) |
| 30 | 145-23302 | WORK CLAMP CARRIER 70 | (1) |
| 31 | 145-24201 | WORK CLAMP SPACER | (1) |
| 32 | SS-7110340-SP | SCREW 11/64-40 L= 3.2 | (1) |
| 33 | 137-97808 | NEEDLE PLATE 2B | (1) |
| 34 | SS-2090530-SP | SCREW 9/64-40 L= 4.8 | (1) |
| 35 | 137-98004 | HOOK TIMING GAUGE B | (1) |
| 36 | 145-23708 | URETHANE PRESSER 70 | 1 |
| 37 | 145-23401 | PRESSER 70 | 1 |
| 38 | 145-24102 | FLAT PRESSER 70 | 1 |
| 39 | 145-24003 | PRESSER 60 | 1 |
| 40 | 145-24409 | PRESSER | 1 |
| 41 | 137-83501 | THROAT PLATE(E) | 1 |
| 42 | D1613-773-E00 | WORK CLAMP CARRIER | 1 |
| 43 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 44 | 145-10853 | KNIFE RETURN SOLENOID ASM. | 1 |
| 45 | R0029-180-100 | RUBBER RING | (1) |
| 46 | NS-6110420-SP | NUT 11/64-40 | (1) |
| 47 | 145-17908 | RETURN SHAFT | (1) |
| 48 | B2015-357-000 | PLUG | (1) |
| 49 | HK-0346400-00 | PIN CONTACT | (2) |
| 50 | HK-0346100-2D | HOUSING | (1) |
| 51 | WP-0320500-SF | WASHER 3.2X7X0.5 | (1) |
| 52 | NM-6030001-SF | NUT M3 | (1) |
| 53 | 145-10804 | KNIFE RETURN SOLENOID | (1) |
| 54 | 145-17809 | SOLENOID FITTING PLATE | (1) |
| 55 | SS-4120915-SP | SCREW 3/16-28 L=9 | 2 |
Page 46 — 24. EXCHANGING PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2702-047-F00 | KNIFE 1/4" | 1 |
| 2 | B2702-047-K00-A | KNIFE 3/8 | 1 |
| 3 | B2702-047-I00 | KNIFE (7/16) | 1 |
| 4 | B2702-047-L00-A | KNIFE 1/2 | 1 |
| 5 | B2702-047-V00 | KNIFE 9/16" | 1 |
| 6 | B2702-047-M00-A | KNIFE 5/8 | 1 |
| 7 | B2702-047-A00 | KNIFE 11/16 | 1 |
| 8 | B2702-047-N00 | KNIFE 3/4" | 1 |
| 9 | B2702-047-P00 | KNIFE 7/8" | 1 |
| 10 | B2702-047-Q00-A | KNIFE 1 | 1 |
| 11 | B2702-047-S00-A | KNIFE 1-1/4" | 1 |
| 12 | B1552-781-000-A | PRESSER | 1 |
| 13 | B1552-782-000 | WORK CLAMP CHECK, 2 | 1 |
| 14 | B1552-783-000 | WORK CLAMP CHECK, 3 | 1 |
| 15 | D1508-771-K00-A | LATCH WORK CLAMP CHECK | 1 |
| 16 | D1508-772-K00 | WORK CLAMP CHECK (2K) | 1 |
| 17 | D1508-773-K00 | WORK CLAMP CHECK (3K) | 1 |
| B2702-047-100 | KNIFE (7/16) |
Page 47 — 25. LIST FOR INFORMATION CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | M8601-600-AA0 | M8601-600-AA0 | |
| 2 | M8610-610-AAA | M8610-610-AAA | |
| 6 | SS-9150860-SP | SS-9150860-SP | |
| 6 | 14512354 | ||
| 10 | M8601-590-BA0 | M8601-590-BA0 | |
| 17 | SD-0790801-SP | SD-0790801-SP | |
| 19 | B1626-210-000 | B1626-210-000 | |
| 28 | 14510069 | ||
| 29 | 14510051 | ||
| 30 | 14510101 | ||
| 31 | TA-1050504-RO | TA-1050504-RO | |
| 32 | 14510903 | ||
| 33 | SS-6110610-TP | SS-6110610-TP | |
| 47 | M8513-600-0A0 | M8513-600-0A0 | |
| 56 | 24003600 | ||
| 57 | NM-6060001-SE | NM-6060001-SE | |
| 63 | 14517601 | ||
| 65 | SK-3512001-SE | SK-3512001-SE | |
| 74 | WP-0480856-SP | ||
| 17 | NS-6110420-SP | ||
| 48 | 14517007 | ||
| 49 | 14517106 | ||
| 50 | 14517205 | ||
| 51 | 14517304 | ||
| 52 | SS-7110740-TP | ||
| 6 | SS-8150822-TP | ||
| 6 | B2063-781-0A0A | ||
| 50 | SS-6120940-SP | ||
| 19 | 14517700 | ||
| 28 | 14510085 | ||
| 29 | 14510077 | ||
| 30 | 14517502 | ||
| 32 | 14510911 | ||
| 33 | SS-4110615-SP | ||
| 34 | 14510119 | ||
| 47 | M8513-600-0A0A | ||
| 64 | SS-6121010-SP | ||
| 65 | WP-0550800-SP | ||
| 41 | B3013-141-H0A | ||
| 42 | BP-4000000-00 | ||
| 43 | CQ-2000000-00 | ||
| 24 | GSK-01008000 | ||
| 1 | M8601-600-AA0B | ||
| 2 | M8610-610-AAAA | ||
| 10 | M8601-590-BA0A | ||
| 11 | M8601-590-BA0A | ||
| 57 | NM-6060001-SC | ||
| 65 | SK-3512001-SF | ||
| 69 | CM-2001000-01 | ||
| 2 | M8601-600-AA0B | ||
| 3 | M8610-610-AAAA |
Page 48
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 44 | ALL PARTS | ||
| 50 | M8513-600-0A0 | ||
| 2 | M8601-600-AA0 | ||
| 3 | M8610-610-AAA | ||
| 50 | M8513-600-0A0 |
Page 50 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 59 | D6056-555-B00 | ||
| 15 | D6056-555-B00 | ||
| 27 | D8113-555-B00 | ||
| 42 | D8113-555-B00 | ||
| 43 | D8115-555-B00 | ||
| 28 | D8204-555-D00 | ||
| 47 | D9101-771-K00 | ||
| 51 | EA-9500B01-00 | ||
| 48 | EA-9500B01-00 | ||
| 38 | EA-9500B01-00 | ||
| 56 | EA-9500B01-00 | ||
| 42 | EA-9500B02-00 | ||
| 53 | EA-9500B02-00 | ||
| 55 | E9567-319-000 | ||
| 28 | GPF-060600A0 | ||
| 29 | GPF-06080000 | ||
| 16 | GPK-510010B0 | ||
| 24 | GSK-01008000 | ||
| 61 | G5001-198-0A0-A | ||
| 61 | G5001-198-0A0-A | ||
| 1 | G5001-198-0A0-A | ||
| 42 | G5405-161-A00 | ||
| 24 | G5412-171-000 | ||
| 17 | G5414-171-000 | ||
| 16 | G5416-171-000 | ||
| 29 | G8039-870-000 | ||
| 63 | HA-0042500-00 | ||
| 26 | HA-0042500-00 | ||
| 26 | HA-0042500-00 | ||
| 28 | HD-0005700-0A | ||
| 36 | HD-0005700-0A | ||
| 18 | HD-0005700-0A | ||
| 38 | HD-0005700-0A | ||
| 40 | HD-0005700-0A | ||
| 41 | HD-0005700-0A | ||
| 49 | HD-0005700-0A | ||
| 46 | HD-0013500-00 | ||
| 47 | HD-0013500-00 | ||
| 46 | HD-0013500-00 | ||
| 47 | HD-0013500-00 | ||
| 46 | HF-0013010-00 | ||
| 45 | HF-0084063-P0 | ||
| 14 | HK-0266500-80 | ||
| 11 | HK-0266500-80 | ||
| 50 | HK-0346100-2D | ||
| 54 | HK-0346100-40 | ||
| 49 | HK-0346400-00 | ||
| 15 | HK-0542500-40 | ||
| 11 | HK-0542500-40 | ||
| 13 | HM-0008600-10 | ||
| 64 | HX-0009300-00 | ||
| 21 | HX-0012300-0B | ||
| 58 | HX-0012300-00 | ||
| 16 | HX-0014200-0C | ||
| 16 | HX-0014700-0C | ||
| 24 | HX-0014700-0D | ||
| 70 | HX-0015000-0D | ||
| 62 | HX-0015000-0F | ||
| 64 | HX-0015000-0F | ||
| 39 | HX-0015000-0R | ||
| 66 | HX-0029200-0A | ||
| 2 | HX-0032600-0L | ||
| 17 | HX-0032600-0L | ||
| 23 | HX-0033900-00 | ||
| 18 | HX-0040700-00 | ||
| 19 | HX-0041000-00 | ||
| 67 | HX-0045400-00 | ||
| 64 | HX-0052100-00 | ||
| 23 | J1066-000-000D | ||
| 12 | J1067-000-000 | ||
| 7 | MA0-11108N00 | ||
| 8 | MA0-11108N00 | ||
| 62 | MA0-11532000 | ||
| 14 | MA0-25104A00 | ||
| 50 | MDF-720200A0 | ||
| 13 | MDF-RX160C0 | ||
| 43 | MDP-5J0B1100 | ||
| 24 | MDP-5J0B1102 | ||
| 6 | M1001-590-000 | ||
| 1 | M1001-590-AA0 | ||
| 32 | M1001-600-000 | ||
| 6 | M1001-600-AA0 | ||
| 8 | M1002-580-0A0 | ||
| 32 | M1002-580-0A0 | ||
| 34 | M1010-600-AA0 | ||
| 36 | M1010-600-AA0 | ||
| 2 | M1010-600-BA0 | ||
| 38 | M1011-580-000 | ||
| 34 | M1017-580-0A0 | ||
| 34 | M1031-580-0A0 | ||
| 10 | M1031-580-0A0 | ||
| 34 | M1032-580-0A0 | ||
| 13 | M2001-600-000 | ||
| 14 | M3001-600-000 | ||
| 5 | M3001-600-00A | ||
| 15 | M3001-600-00A | ||
| 6 | M3001-600-00B | ||
| 15 | M3001-600-00B | ||
| 13 | M3002-600-000 | ||
| 47 | M3003-580-000 | ||
| 60 | M3003-590-00A | ||
| 61 | M3003-590-00B | ||
| 44 | M3004-511-000 | ||
| 36 | M3009-510-000 | ||
| 54 | M8515-600-0A0 | ||
| 58 | M8517-600-0A0 | ||
| 58 | M8517-600-0A0 | ||
| 58 | M8517-600-0A0 | ||
| 72 | M8518-600-0A0 | ||
| 30 | M8518-600-0A0 | ||
| 30 | M8518-600-0A0 | ||
| 22 | M8519-600-0A0 | ||
| 38 | M8519-600-0A0 | ||
| 6 | M8519-600-0A0 | ||
| 31 | M8519-610-0A0 | ||
| 23 | M8519-610-0A0 | ||
| 29 | M8520-590-0A0 | ||
| 44 | M8520-590-0A0 | ||
| 16 | M8520-590-0A0 | ||
| 7 | M8520-600-0A0 | ||
| 16 | M8520-600-0A0 | ||
| 39 | M8520-600-0A0 | ||
| 11 | M8521-600-0A0 | ||
| 45 | M8521-600-0A0 | ||
| 50 | M8521-600-0A0 | ||
| 52 | M8522-600-0A0 | ||
| 10 | M8523-600-0A0 | ||
| 10 | M8523-600-0A0 | ||
| 60 | M8524-600-0A0 | ||
| 60 | M8524-600-0A0 | ||
| 62 | M8525-600-0A0 | ||
| 62 | M8525-600-0A0 | ||
| 12 | M8525-600-0B0 | ||
| 52 | M8526-600-0A0 | ||
| 52 | M8526-600-0A0 | ||
| 71 | M8527-600-0A0 | ||
| 63 | M8527-600-0A0 | ||
| 64 | M8528-600-0A0 | ||
| 64 | M8528-600-0A0 | ||
| 9 | M8530-600-0A0 | ||
| 66 | M8530-600-0A0 | ||
| 51 | M8531-600-0A0 | ||
| 12 | M8540-580-0A0 | ||
| 9 | M8540-580-0A0 | ||
| 42 | M8599-600-AA0 | ||
| 1 | M8601-600-AA0-B | ||
| 2 | M8601-600-AA0-B | ||
| 3 | M8603-600-0A0 | ||
| 13 | M8603-600-0A0 | ||
| 4 | M8604-600-0A0 | ||
| 14 | M8604-600-0A0 | ||
| 3 | M8610-610-AAA | ||
| 3 | M8610-610-AAA | ||
| 2 | M8610-610-AAA-A | ||
| 4 | M8620-610-BAB | ||
| 4 | M8620-610-BAB | ||
| 5 | M8901-590-AA0 | ||
| 5 | M8901-590-AA0 | ||
| 10 | M8901-590-AA0-A | ||
| 45 | M9011-590-0A0 | ||
| 45 | M9011-590-0A0 | ||
| 15 | M9013-590-0A0 | ||
| 40 | M9017-580-0A0 | ||
| 25 | M9017-580-0A0 | ||
| 25 | M9017-580-0A0 | ||
| 62 | M9019-580-0A0 | ||
| 24 | M9019-580-0A0 | ||
| 52 | NM-6030001-SF | ||
| 38 | NM-6030003-SC | ||
| 29 | NM-6040001-SE | ||
| 17 | NM-6050001-SE | ||
| 12 | NM-6060001-SE | ||
| 57 | NM-6060001-SC | ||
| 45 | NM-6080001-SE | ||
| 22 | NM-6080003-SC | ||
| 6 | NM-6080721-SE | ||
| 30 | NM-6080721-SE | ||
| 10 | NM-6080721-SE | ||
| 20 | NM-6120001-SE | ||
| 18 | NM-6160511-SE | ||
| 35 | NS-6080210-SP | ||
| 36 | NS-6080340-SP | ||
| 56 | NS-6090310-SP | ||
| 22 | NS-6090310-SP | ||
| 9 | NS-6110310-SP | ||
| 23 | NS-6110310-SP | ||
| 2 | NS-6110310-SP | ||
| 13 | NS-6110310-SP | ||
| 22 | NS-6110310-SP | ||
| 47 | NS-6110310-SP | ||
| 63 | NS-6110310-SP | ||
| 17 | NS-6110420-SP | ||
| 46 | NS-6110420-SP | ||
| 32 | NS-6150310-SP | ||
| 49 | NS-6150310-SP | ||
| 6 | NS-6150310-SP | ||
| 43 | NS-6150310-SP | ||
| 9 | NS-6150310-SP | ||
| 57 | NS-6150310-SP | ||
| 63 | NS-6150310-SP | ||
| 30 | NS-6150310-SP | ||
| 18 | NS-6160520-SP | ||
| 22 | NS-6200520-SP | ||
| 10 | NS-6660511-SP | ||
| 60 | NS-6680320-SP | ||
| 25 | PA-2006003-A0 | ||
| 54 | PA-4001001-00 | ||
| 19 | PC-0151080-00 | ||
| 53 | PD-0201000-0D | ||
| 3 | PF-0552040-A0 | ||
| 18 | PJ-3040451-02 | ||
| 17 | PJ-3040652-01 | ||
| 17 | PJ-3040652-01 | ||
| 5 | PJ-3090052-03 | ||
| 33 | PS-0200062-KH | ||
| 18 | PS-0300102-KO | ||
| 16 | PS-0300102-KH | ||
| 46 | PT-0301400-S0 | ||
| 15 | PV-1502090-00 | ||
| 16 | PV-9150050-00 | ||
| 18 | PX-0500030-00 | ||
| 20 | PX-5000170-00 | ||
| 23 | PX-5000300-A0 |
Juki LBH-1700 — parts catalog
- Page 1 (cover): This is the cover page for the JUKI Electronic Buttonholing Machine LBH-1700 Series Parts List, indicating the document number 29330008 and No.1263-02.
- Page 2 (unknown): This page is blank except for a watermark and a footer.
- Page 3 (text): This page provides instructions on how to use the parts list, explaining codes, quantity column notations, and symbols for subparts and assembly parts.
- Page 4 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
- Page 5 (toc): Table of contents listing sections such as Accessory Part Components, Special Specifications Components, Exchanging Parts, List for Information Change, and Numerical Index of Parts, with corresponding page numbers.
- Page 6 (diagram): This page illustrates the frame and miscellaneous cover components of an industrial sewing machine, showing an exploded view with numbered parts.
- Page 7 (parts_list): This page lists various parts for an industrial sewing machine, including covers, gaskets, screws, and other components, with their part numbers, descriptions, and quantities.
- Page 8 (diagram): This page illustrates the frame and miscellaneous cover components of an industrial sewing machine, showing an exploded view of various parts with their corresponding reference numbers.
- Page 9 (parts_list): This page lists parts for a sewing machine, including various bobbin components, tension parts, screws, and guides, with their part numbers, descriptions, and quantities.
- Page 10 (diagram): This page illustrates the main shaft components of an industrial sewing machine, showing an exploded view of various parts such as shafts, gears, bearings, and associated hardware.
- Page 11 (parts_list): This page lists parts for an industrial sewing machine, including main shaft components, needle bar parts, screws, bearings, and various other fittings, with their respective part numbers, descriptions, and quantities.
- Page 12 (diagram): This page illustrates the components of the hook driving shaft for an industrial sewing machine, showing various parts such as the hook, gears, and shafts with corresponding reference numbers.
- Page 13 (parts_list): This page lists parts for a sewing machine, including bobbin case assemblies, hooks, screws, bearings, and other components, with their part numbers, descriptions, and quantities.
- Page 14 (diagram): This page illustrates the presser and feed components of an industrial sewing machine, showing an exploded view of various parts with reference numbers.
- Page 15 (parts_list): This page lists various parts for an industrial sewing machine, including presser components, work clamp parts, feed system components, and screws, with their part numbers, descriptions, and quantities.
- Page 16 (diagram): This page illustrates the needle bar rocking components of an industrial sewing machine, showing an exploded view of various parts and their reference numbers.
- Page 17 (parts_list): This page lists various parts for a sewing machine, including oil felts, frame rock shaft cranks, screws, nuts, bushings, and other components, with their part numbers, descriptions, and quantities.
- Page 18 (diagram): This page illustrates the linking width components of an industrial sewing machine, showing various parts and their interconnections.
- Page 19 (parts_list): This page lists various parts including screws, nuts, connecting pins, oil wicks, and motor components, with their respective part numbers, descriptions, and quantities.
- Page 20 (diagram): This page illustrates the components of the needle thread trimmer assembly for an industrial sewing machine, showing various parts and their reference numbers.
- Page 21 (parts_list): This page lists parts for sewing machine models, including reference numbers, part numbers, descriptions, and quantities. It also includes notes for specific model variations.
- Page 22 (diagram): This page displays a diagram of bobbin thread trimmer components, with numbered parts and their corresponding references.
- Page 23 (parts_list): This page lists parts for sewing machines, including throat plates, screws, levers, and springs, with part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of cloth cutting knife components, with numbered parts and their corresponding references.
- Page 25 (parts_list): This page lists parts for sewing machine models, including knife bars, solenoids, screws, and various plates, with part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of starting safety components, with numbered parts and their corresponding references.
- Page 27 (parts_list): This page lists parts for sewing machines, including various switches, solenoids, levers, screws, nuts, and washers, with their corresponding part numbers and quantities.
- Page 28 (diagram): This page displays a diagram of AO components, with numbered parts and their corresponding details.
- Page 29 (parts_list): This page lists parts for various models, including presser lifter magnets, screws, nuts, washers, chain covers, and more, with part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 31 (parts_list): This page lists parts for oil and lubrication systems, including oil pipes, holders, felt, tubes, screws, gaskets, plungers, springs, plates, filters, screens, bushings, nuts, and cable bands. It also includes specific screws and washers with their dimensions and quantities.
- Page 32 (diagram): This page displays a diagram of table components, including various parts like frames, legs, and fasteners, with reference numbers for each component.
- Page 33 (parts_list): This page lists parts for sewing machine stands and pedals, including various screws, nuts, washers, and specific components like T-stands, drawers, and pedal assemblies, with part numbers, descriptions, and quantities.
- Page 34 (parts_list): This page lists pneumatic components for the 170C model, including part numbers, names, quantities, and some specifications.
- Page 35 (diagram): This page displays a diagram and parts list for thread stand components, including various spools, rests, screws, nuts, and washers.
- Page 36 (diagram): This page contains a wiring diagram for a sewing machine, detailing electrical connections and components with reference numbers and labels.
- Page 37 (parts_list): This page lists various parts for industrial sewing machines, including control boxes, circuit boards, motors, cables, sensors, and switches, with their respective part numbers and descriptions.
- Page 38 (diagram): This page displays a wiring diagram for a sewing machine, detailing electrical connections and components with reference numbers and labels.
- Page 39 (parts_list): This page lists various parts for sewing machines, including control boxes, circuit boards, motors, sensors, and cables, with their corresponding part numbers and quantities.
- Page 40 (diagram): This page displays a diagram of accessory part components for a JUKI sewing machine, with numbered illustrations of various parts and their corresponding references.
- Page 41 (parts_list): This page lists parts for industrial sewing machines, including part numbers, descriptions, quantities, and notes. It covers items from reference number 1 to 49, with specific notes for different machine models like 1700S, 1702K, and 170**A.
- Page 42 (diagram): This page displays diagrams for special specification components, including electric bobbin winder components, thread tension volume components, and a pedal for standing machine components.
- Page 43 (parts_list): This page lists parts for a sewing machine, including various winder assemblies, tension components, screws, knobs, labels, resistors, and cables, with their corresponding part numbers, descriptions, and quantities.
- Page 44 (diagram): This page displays a diagram of special specification components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 45 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including feed mechanisms, work clamps, screws, and pressers, with corresponding part numbers, descriptions, and quantities.
- Page 46 (parts_list): This page lists parts for cloth cutting knives and presser feet, including part numbers, descriptions, and quantities.
- Page 47 (parts_list): This page contains a list of added and obsolete parts for information change, including part numbers, descriptions, and revision details.
- Page 48 (parts_list): This page contains a parts list with columns for Rev. No., Page, Ref. No., and Parts No. It lists several part numbers including M8513-600-0A0, M8601-600-AA0B, M8610-610-AAAA, and a general entry for ALL PARTS.
- Page 49 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page numbers, and reference numbers across multiple columns.
- Page 50 (parts_list): This page contains a parts list for industrial sewing machines, with part numbers, page references, and reference numbers.
- Page 51 (text): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page numbers, and reference numbers.
- Page 52 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page numbers, and reference numbers.
- Page 53 (text): This page contains the heading "MEMO" and is otherwise blank with horizontal lines for writing notes. It also includes a page number "- 52 -" and a website "jintex.in".
- Page 54 (text): This page contains the heading "MEMO" and is otherwise blank with horizontal lines for writing, suggesting it is a memo page within the catalog.
- Page 55 (unknown): This page contains a watermark and a website address at the bottom.
- Page 56 (cover): This is the cover page of the JUKI Corporation parts catalog, including contact information and copyright details.
