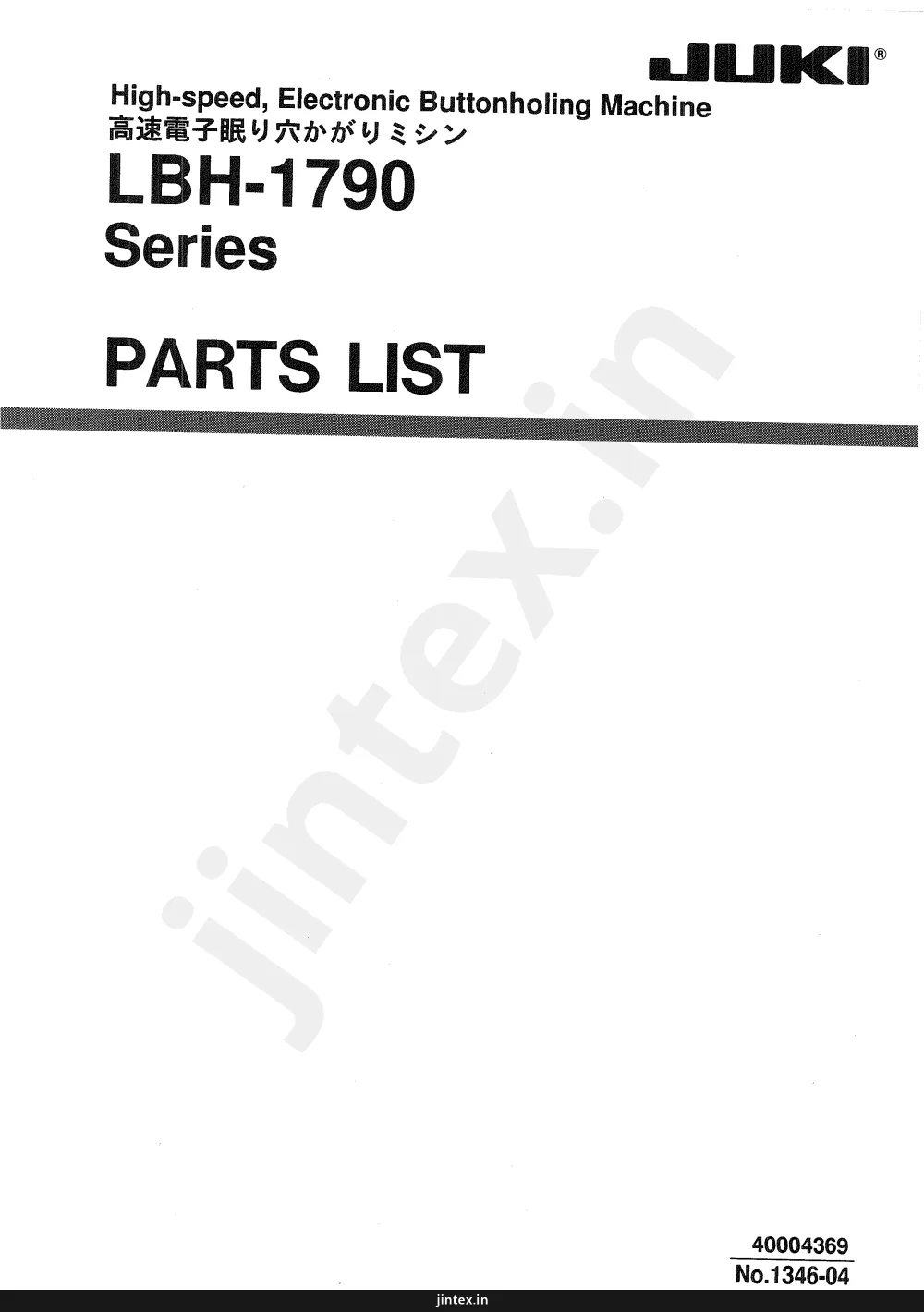

Juki LBH-1790 (48 pages, vol. 2) Parts Book (PDF)
Text index — Juki LBH-1790 (48 pages, vol. 2)
Page 7 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-04153 | UPPER_COVER | 1 |
| 2 | SM-4051055-SP | SCREW | 6 |
| 3 | 400-04154 | LEFT_COVER | 1 |
| 4 | SM-4051055-SP | SCREW | 2 |
| 5 | 400-04155 | LEFT_COVER_B | 1 |
| 6 | SM-4051055-SP | SCREW | 4 |
| 7 | 400-04157 | THREAD_TAKE_UP_LEVER_COVER | 1 |
| 8 | SM-4051055-SP | SCREW | 1 |
| 9 | 400-04156 | FRONT_COVER | 1 |
| 10 | SM-4051055-SP | SCREW | 3 |
| 11 | 400-04159 | MOTOR_COVER | 1 |
| 12 | SM-4051655-SP | SCREW M5 L=16 | 4 |
| 13 | 262-30409 | LUBRICATING OIL WICK STOPPER | 1 |
| 14 | SM-6040602-TP | SCREW M4 L=6 | 1 |
| 15 | 400-04161 | REAR_COVER | 1 |
| 16 | SM-4051055-SP | SCREW | 4 |
| 17 | 139-00956 | HOOK OIL SHIELD COVER COMPL. | 1 |
| 18 | SM-6050652-TP | HEXAGON SOCKET HEAD SCREW M5X6 | 2 |
| 19 | HX-0033900-00 | STUD | 4 |
| 20 | SL-6040892-TN | SCREW | 4 |
| 21 | 400-03422 | INT PCB ASS'Y | 1 |
| 22 | 400-05402 | HEAD FAN MOTOR A ASS'Y | 1 |
| 23 | SL-4042581-SC | SCREW | 2 |
| 24 | 400-04367 | FAN_FITTING_PLATE | 1 |
| 25 | SM-6040602-TP | SCREW M4 L=6 | 2 |
| 26 | CM-3013000-01 | SAFETY LABEL | 1 |
| 27 | CM-3002000-01 | ATTENTION SEAL | 2 |
| 28 | TA-0550604-RO | RUBBER PLUG | 1 |
| 29 | TA-0750404-RO | PLUG D=7.5 L=3.5 | 2 |
| 30 | SM-6040602-TP | SCREW M4 L=6 | 6 |
| 31 | TA-0950806-RO | RUBBER PLUG | 1 |
| 32 | TA-1050504-RO | RUBBER PLUG | 2 |
| 33 | TA-1120804-RO | RUBBER PLUG | 1 |
| 34 | TA-1250406-RO | RUBBER PLUG D=12.5 L=4 | 3 |
| 35 | TA-1550902-RO | PLUG | 2 |
| 36 | SM-6061002-TP | SCREW M6 L=10 | 4 |
| 37 | SM-6067052-TP | HEXAGON BOLT | 1 |
| 38 | SM-8060612-TP | SCREW M6 L=6 | 2 |
| 39 | 320-02354 | SWITCH ASM. | 1 |
| 40 | SL-6040892-TN | SCREW | 2 |
| 41 | 225-28764 | PRE-TENSION CONTROLLER ASM. | 1 |
| 42 | 225-02504 | THREAD GUIDE BAR | 1 |
| 43 | 400-04158 | BED_BASE | 1 |
| 44 | 400-04160 | BED__REAR_COVER | 1 |
| 45 | HX-0015000-0A | CABLE CLAMP | 1 |
| 46 | 400-05403 | HEAD FAN MOTOR B ASS'Y | 1 |
| 47 | HM-0005500-10 | FILTER | 1 |
| 48 | HM-0003800-A0 | FINGER GUARD | 1 |
| 49 | 400-06314 | HINGE_BUSH | 1 |
| 50 | 137-00604 | HINGE PIN | 2 |
| 51 | 137-00406 | HINGE PLATE, A | 1 |
| 52 | 137-00505 | HINGE PLATE, B | 1 |
| 53 | NM-6060001-SD | NUT M6 | 2 |
| 54 | NM-6030001-SD | NUT M3X0.5 | 1 |
| 55 | WP-0612056-SD | WASHER 6.1X18.5X2 | 1 |
| 56 | 139-43303 | OIL SHIELD | 1 |
| 57 | 400-08977 | RUBBER C | 1 |
| 58 | 400-08978 | RUBBER D | 3 |
| 59 | SM-6031402-TP | SCREW | 1 |
| 60 | E2002-855-000 | Z STOPPER RUBBER | 1 |
| 61 | D6056-555-B00 | RUBBER CUSHION (B) | 1 |
| 62 | 137-00703 | RUBBER HINGE | 1 |
| 63 | SL-6040892-TN | SCREW | 1 |
| 64 | SM-1043001-SP | SCREW M4X0.7 L=30 | 2 |
| 65 | B1116-804-000 | CLOTH PLATE WASHER | 2 |
| 66 | E3724-715-000 | VCS STUD A | 1 |
| 67 | TA-0850604-RO | RUBBER PLUG | 1 |
| 68 | B1150-490-000 | RUBBER PLUG | 1 |
| 69 | 137-05405 | NEEDLE BAR THREAD GUIDE | 1 |
| 70 | 139-22208 | TAKE-UP THREAD GUIDE B | 1 |
| 71 | SM-6050802-TP | SCREW M5X0.8 L=8 | 2 |
| 72 | 400-09037 | TAKE-UP THREAD GUIDE A | 1 |
| 73 | SM-6040602-TP | SCREW M4 L=6 | 1 |
| 74 | 400-03495 | SAFETY SWITCH ASS'Y | 1 |
| 75 | 145-16603 | SAFETY SW BASE | 1 |
| 76 | 400-03496 | SAFETY SWITCH CORD ASS'Y | (1) |
| 77 | 145-16900 | SAFETY SWITCH COVER | (1) |
| 78 | 236-38109 | SAFETY SWITCH ARM | (1) |
| 79 | 236-38307 | SAFETY SWITCH ARM SHAFT | (1) |
| 80 | 236-38208 | SAFETY SWITCH SPRING | (1) |
| 81 | 236-38406 | SAFETY SWITCH NUT | (1) |
| 82 | SM-4021201-SC | SCREW M2 L=12 | (2) |
| 83 | SS-7090520-SP | SCREW 9/64-40 L= 4.5 | (2) |
| 84 | EA-9500B01-00 | CABLE BAND | (1) |
| 85 | CM-3002000-03 | ATTENTION LABEL | 1 |
Page 9 — 2. FRAME & MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-06261 | ASSY_AT_SOLENOID | 1 |
| 2 | 400-06263 | AT_SHAFT | 1 |
| 3 | 400-06264 | AT_SHAFT_HOLDER | 1 |
| 4 | RC-1700001-KP | RETAINING RING | 1 |
| 5 | 400-06269 | DISK_STOPPER | 1 |
| 6 | 400-06271 | DISK_STOPPER_HOLDER_CAP | 1 |
| 7 | M9019-580-0AO | EARTH CABLE ASM. | 1 |
| 8 | NM-6020001-CP | NUT | 2 |
| 9 | SM-0860400-SN | SCREW | 3 |
| 10 | SM-6040860-TP | SCREW M4 L=8 | 1 |
| 11 | SM-6050802-TP | SCREW M5X0.8 L=8 | 3 |
| 12 | SM-8030412-TP | SCREW | 2 |
| 13 | SM-8030450-SP | SCREW M3 L=4 | 1 |
| 14 | SM-8060612-TP | SCREW M6 L=6 | 1 |
| 15 | SM-9040800-SP | SCREW | 1 |
| 16 | WS-0410002-KP | SPRING WASHER | 1 |
| 17 | 400-05397 | MAIN-INT CORD A ASS'Y | 1 |
| 18 | 100-06104 | TAKE-UP SPRING | 1 |
| 19 | 400-06268 | THREAD_TENSION_POST_BASE | 1 |
| 20 | 400-06270 | THREAD_TENSION_SHAFT_COLLAR | 2 |
| 21 | 320-55402 | THRUST COLLAR | 1 |
| 22 | 400-04252 | UTT_SUSPENSION_SCREW_9 | 1 |
| 23 | 400-06265 | ASSY_THREAD_TENSION_POST | 1 |
| 24 | B2702-210-000 | GUIDE PLATE | 1 |
| 25 | B2703-210-000 | BUSHING | 1 |
| 26 | 400-03499 | THREAD BREAK DETECTOR A | 1 |
| 27 | 400-11143 | ASSY_BTW | 1 |
| 28 | 262-60109 | BTW_BASE | (1) |
| 29 | 262-60208 | BTW_CAM_PLATE | (1) |
| 30 | 262-60307 | BTW_BASE_SHAFT | (1) |
| 31 | 262-60406 | BTW_SHAFT_BASE | (1) |
| 32 | 262-60505 | BTW_CAM_LEVER | (1) |
| 33 | 262-60604 | BTW_WHEEL | (1) |
| 34 | 400-11144 | BTW_TORSION_SPRING | (1) |
| 35 | 262-60802 | BTW_BEARING_SPACER | (1) |
| 36 | 400-11145 | BTW_SHAFT | (1) |
| 37 | 400-11146 | BTW_LEVER_SHAFT | (1) |
| 38 | 400-21933 | BTW_LEVER | (1) |
| 39 | 262-61206 | BTW_SPACER | (1) |
| 40 | 262-61305 | BTW_BEARING | (2) |
| 41 | 262-61503 | BTW_WHEEL_RUBBER | (1) |
| 42 | 262-61602 | BOBBIN_SPRING | (1) |
| 43 | 262-61701 | BTW_SPRING | (1) |
| 44 | RC-0560711-KP | RETAINING RING | (1) |
| 45 | RE-0400000-KO | E-RING 4 | (1) |
| 46 | WP-0450826-SC | WASHER 4.5X10X0.8 | (1) |
| 47 | SM-5040655-SN | SCREW | (1) |
| 48 | SM-8050502-TP | SCREW M5 L=5 | (1) |
| 49 | SM-8040802-TP | SCREW M4X8 | (2) |
| 50 | 400-05398 | MAIN-INT CORD B ASS'Y | 1 |
| 51 | 400-05399 | MAIN-INT CORD D ASS'Y | 1 |
| 52 | 105-02300 | THREAD CUTTER | 1 |
| 53 | SL-4030581-SC | COMBINATION SCREW M3 X 5 | 2 |
| 54 | D3162-555-B00 | THREAD GUIDE | 1 |
| 55 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 56 | EA-9500B01-00 | CABLE BAND | 10 |
| 57 | HX-0015100-0A | CABLE BAND | 2 |
| 58 | 262-30409 | LUBRICATING OIL WICK STOPPER | 3 |
| 59 | SM-6040602-TP | SCREW M4 L=6 | 3 |
| 60 | SM-6041050-SN | SCREW M4 L=10 | 3 |
| 61 | 225-29481 | BOBBIN THREAD TENSION ASM. | 1 |
| 62 | 110-72402 | THREAD TENSION NUT | (1) |
| 63 | 110-93606 | THREAD TENSION SPRING | (1) |
| 64 | B3214-047-000 | BOBBIN WINDER TENSION DISC | (2) |
| 65 | 225-29473 | BOBBIN THREAD TENSION ROD ASM. | (1) |
| 66 | NS-6110310-SP | NUT 11/64-40 | (1) |
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-04178 | THREAD_TAKE_UP_ASM. | 1 |
| 2 | SB-1080023-00 | BEARING | (1) |
| 3 | SB-1050018-00 | BEARING | (1) |
| 4 | 400-04177 | THREAD_TAKE_UP_CRANK | (1) |
| 5 | SB-1080004-00 | BUSHING | (1) |
| 6 | 400-06311 | BUSH | (1) |
| 7 | B1908-505-000 | THREAD PASS BUSH | (1) |
| 8 | 400-04173 | LINK_TAKE_UP | (1) |
| 9 | 400-04174 | NEEDLE_BAR_CRANK | (1) |
| 10 | 400-04175 | NEEDLE_BAR_CRANK_ROD | (1) |
| 11 | B1903-552-000 | LEFT SCREW | (1) |
| 12 | SM-8040412-TP | SET SCREW M4 L=4 | (1) |
| 13 | SB-1200008-00 | BEARING | 1 |
| 14 | SB-1200020-00 | BEARING | 1 |
| 15 | SB-3070002-00 | BEARING | 2 |
| 16 | 228-91204 | BEARING SUPPORT | 2 |
| 17 | 236-05207 | BEARING HOLDER | 1 |
| 18 | 236-36400 | BOBBIN WINDER DRIVING WHEEL | 1 |
| 19 | 400-04171 | COUNTER_WEIGHT_SCREW | 1 |
| 20 | 400-04170 | COUNTER_WEIGHT | 1 |
| 21 | 236-04309 | COUPLING | 1 |
| 22 | 400-28015 | AC SERVO MOTOR | 1 |
| 23 | 400-04167 | MAIN_SHAFT | 1 |
| 24 | 400-04208 | NEEDLE_CRANK_SHAFT | 1 |
| 25 | SM-8081652-TP | SCREW M8 L=16 | 1 |
| 26 | SM-6041202-TP | SCREW M4X0.7 L=12 | 2 |
| 27 | SM-6052002-TR | SCREW M5 L=20 | 4 |
| 28 | SM-6062502-TP | SCREW M6 L=25 | 3 |
| 29 | 400-10434 | THRUST_COLLAR_ASM. | 1 |
| 30 | SM-8050412-TP | SCREW M5 L=4 | (2) |
| 31 | 400-10435 | THRUST_COLLAR | (1) |
| 32 | SM-8060812-TP | SCREW M6 L=8 | 6 |
| 33 | 400-04168 | SPROCKET_A | 1 |
| 34 | 400-04206 | SQUARE_BLOCK | 1 |
| 35 | 400-08426 | SQUARE_BLOCK | 1 |
| 36 | 400-06307 | SQUARE_BLOCK_GUIDE | 1 |
| 37 | 400-06308 | SQUARE_BLOCK_GUIDE_B | 1 |
| 38 | 400-06300 | THREAD_TAKE_UP_CRANK_SHAFT | 1 |
| 39 | SS-6111440-SP | SCREW 11/64-40 L=14.0 | 2 |
| 40 | 400-04169 | TIMING_BELT | 1 |
| 41 | 400-04182 | IDLER_ASM. | 1 |
| 42 | RC-3781518-KP | RETAINING RING | (2) |
| 43 | 400-04185 | HINGE_SCREW | (1) |
| 44 | 400-04184 | IDLER_FIXED_PLATE | (1) |
| 45 | 400-04183 | IDLER_PULLEY | (1) |
| 46 | 137-10504 | INTERMEDIATE SPROCKET WASHER | (1) |
| 47 | NM-6100001-SD | NUT M10 | (1) |
| 48 | 110-50804 | FEED LEVER SPRING HOOK | (1) |
| 49 | SM-6104352-TP | SCREW M10 L=42.5 | (1) |
| 50 | SB-1100007-00 | BALL BEARING | (2) |
| 51 | WP-0621046-SP | WASHER | 1 |
| 52 | SM-9061403-CP | SCREW M6 L=14 | 1 |
| 53 | 400-04192 | ADJUSTING_SPRING | 1 |
| 54 | 400-04179 | SUSPENSION_SCREW | 1 |
| 55 | 400-11517 | NEEDLE_BAR_CRANK_FELT | 1 |
| 56 | 400-08423 | WASHER | 1 |
| 57 | SM-8060612-TP | SCREW M6 L=6 | 6 |
Page 13 — 4. HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SB-1120016-00 | BEARING | 2 |
| 2 | SB-1100006-00 | BALL BEARING | 2 |
| 3 | SB-1150002-00 | BEARING | 1 |
| 4 | SB-1150015-00 | BEARING | 1 |
| 5 | 400-04188 | BEARING_SUPPORT | 1 |
| 6 | 235-36204 | BUSH | 2 |
| 7 | RC-2791218-KP | RETAINING RING | 2 |
| 8 | 400-04186 | HOOK_DRIVING_SHAFT | 1 |
| 9 | 400-04187 | HOOK_DRIVING_SHAFT_METAL | 1 |
| 10 | 137-29660 | HOOK SLEEVE ASM. | 1 |
| 11 | 137-10306 | INTERMEDIATE SPROCKET SHAFT | 1 |
| 12 | 137-10504 | INTERMEDIATE SPROCKET WASHER | 1 |
| 13 | 137-29066 | HOOK COMPL. | 1 |
| 14 | G8039-870-000 | CROWN KNOB | 1 |
| 15 | SM-8060612-TP | SCREW M6 L=6 | 10 |
| 16 | 137-82065 | HOOK COMPL.(K) | 1 |
| 17 | 145-04401 | BEARING SUPPORT | 1 |
| 18 | 400-04180 | SPROCKET_B | 1 |
| 19 | 400-04181 | SPROCKET_C | 1 |
| 20 | 137-10405 | INTERMEDIATE SPROCKET RING | 1 |
| 21 | 400-06317 | WASHER | 1 |
| 22 | 400-06322 | ADJUSTING SHAFT | 1 |
| 23 | 400-06312 | ADJUSTING_NUT | 1 |
| 24 | SM-8080812-TP | SCREW M8X8 | 1 |
| 25 | 400-06320 | FELT | 1 |
| 26 | 236-30007 | TUBE | 1 |
| 27 | CQ-2020000-00 | OIL WICK | 1 |
| 28 | B1811-771-000 | BOBBIN | 1 |
| 29 | 137-29769 | BOBBIN CASE ASM. | 1 |
| 30 | 400-06321 | PIPE | 1 |
| 31 | 400-11355 | OIL_FILTER | 2 |
| 32 | SM-8050502-TP | SCREW M5 L=5 | 2 |
Page 15 — 5. PRESSER & FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-05372 | FEED MOTOR ASS'Y | 1 |
| 2 | 400-05378 | FEED SENSOR ASS'Y | 1 |
| 3 | 228-91204 | BEARING SUPPORT | 2 |
| 4 | 145-09202 | THROAT PLATE BASE COVER | 2 |
| 5 | 400-04194 | MOTOR_BRACKET | 1 |
| 400-04196 | PULLEY B | ||
| 400-04197 | PULLEY C | ||
| 400-04198 | SUPPORT SHAFT | ||
| 400-04200 | TIMING BELT HOLDER | ||
| 400-04201 | FEED SHAFT | ||
| 400-04203 | FEED BASE ASM. | ||
| 400-04204 | FEED BASE | ||
| SB-7100002-00 | SLIDE BEARING | ||
| SM-8050412-TP | SCREW M5 L=4 | ||
| 400-04205 | WORK CLAMP CARRIER | ||
| SL-4031081-SC | SCREW M3 X 10 | ||
| SM-6040602-TP | SCREW M4 L=6 | ||
| SM-6040802-TP | SCREW M4 L=10 | ||
| SM-6041002-TP | SCREW M4X0.7 L=8 | ||
| SM-6061802-TP | SCREW M6 L=18 | ||
| SM-8050502-TP | SCREW M5 L=5 | ||
| 400-04199 | TIMING BELT | ||
| SM-5040550-TP | SCREW M4 L=5 | ||
| 400-04266 | ASSY PBL GEAR MODULE | ||
| 400-05373 | CLAMP MOTOR ASS'Y | ||
| 400-04273 | PBL FRONT LINK | ||
| 400-04291 | PBL GEAR S | ||
| 400-04275 | PBL GEAR SHAFT | ||
| 400-04282 | PBL L-LINK | ||
| 400-04278 | PBL SENSOR PLATE | ||
| SM-8060552-TP | SCREW M6 L=5 | ||
| SD-0800326-TP | SHOULDER SCREW D8 H3.2 | ||
| 400-04289 | ASSY PBL GEAR L | ||
| 400-04267 | ASY PBL MOTOR BASE | ||
| 122-59008 | PIN SHORT | ||
| 400-05379 | CLAMP SENSOR ASS'Y | ||
| 400-19551 | SLIDE ROLLER | ||
| 400-04281 | PBL COIL SPRING | ||
| 400-04285 | PBL FINGER GUARD | ||
| 400-04276 | PBL GUIDE | ||
| 400-04280 | PBL LIFTING PLATE | ||
| 400-04279 | PBL METAL | ||
| 400-04274 | PBL POSITION BRACKET | ||
| 400-04271 | PBL PRESSER BAR | ||
| 400-04283 | PBL ROLLER BASE | ||
| 400-04286 | PBL ROLLER SHAFT | ||
| 400-04277 | PBL SENSOR BASE | ||
| 400-04272 | PBL SPRING REGULATOR | ||
| 400-04287 | PBL WORK CLAMP ARM | ||
| 400-04288 | PBL WORK CLAMP ARM SHAFT | ||
| SM-6041602-TP | SCREW M4 L=16 | ||
| SM-6050800-SP | SCREW M5 L=8 | ||
| SM-6051002-TP | SCREW M5X0.8 L=10 | ||
| SM-6051202-TP | SCREW M5X0.8 L=12 | ||
| 400-20310 | UTT CLOSE CAM B | ||
| D1511-772-KAO | WORK CLAMP CHECK HOLDER | ||
| B1509-761-000 | WORK CLAMP CHECK SPRING | ||
| B1510-771-00B | WORK CLAMP CHECK SPRING SET PI | ||
| B1512-761-000 | WORK CLAMP CHECK HOLDER SPRING | ||
| SS-6060210-SP | SCREW 3/32-56 L=1.9 | ||
| B1552-781-000-A | HINGE SCREW D=7.94 H=2 | ||
| SD-0790203-SP | |||
| D1508-772-K00 | WORK CLAMP CHECK (2K) | ||
| SB-3070002-00 | BEARING | ||
| SB-4080001-00 | BEARING |
Page 17 — 6. NEEDLE BAR ROCKING COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-04223 | ZIGZAG DRIVE FULL ASSY | 1 |
| 2 | 400-04378 | ZIGZAG ROD ASM. | (1) |
| 3 | 400-04379 | ZIGZAG ROD | (1) |
| 4 | 235-30405 | SHAFT HOLDER LINK BUSH | (2) |
| 5 | 235-44109 | JUNCTION SHAFT A | (2) |
| 6 | 235-44208 | JUNCTION SHAFT B | (2) |
| 7 | 235-44307 | JUNCTION SHAFT C | (2) |
| 8 | 235-44802 | JUNCTION SHAFT D | (2) |
| 9 | SL-4031081-SC | SCREW M3 X 10 | (1) |
| 10 | SM-6041002-TP | SCREW M4 L=10 | (6) |
| 11 | SM-4051655-SP | SCREW M5 L=16 | (1) |
| 12 | SM-6061802-TP | SCREW M6 L=18 | (1) |
| 13 | SM-8050502-TP | SCREW M5 L=5 | (4) |
| 14 | 400-04376 | SENSOR PLATE | (1) |
| 15 | 400-05377 | NEEDLE SWING SENSOR ASSY | (1) |
| 16 | 400-04380 | ZIGZAG LEVER REAR | (1) |
| 17 | 400-04375 | MOTOR BASE | (1) |
| 18 | 400-04377 | MOTOR LEVER | (1) |
| 19 | 400-05371 | NEEDLE SWING MOTOR ASS'Y | (1) |
| 20 | SM-6061002-TP | SCREW M6 L=10 | 3 |
| 21 | 400-04224 | ZIGZAG LEVER SHAFT ASM. | 1 |
| 22 | NM-6050001-SP | NUT M5 | (1) |
| 23 | 400-04373 | ZIGZAG LEVER SHAFT | (1) |
| 24 | 400-04374 | ZIGZAG_STUD | (1) |
| 25 | 400-04214 | NEEDLE BAR CONNECTION | 1 |
| 26 | SM-6040750-TP | SCREW M4 L=7 | 1 |
| 27 | 400-04209 | NEEDLE BAR ROD | 1 |
| 28 | B1414-232-000 | SQUARE BLOCK | 1 |
| 29 | 400-04222 | NEEDLE BAR FRAME ASSY | 1 |
| 30 | 400-04212 | NEEDLE BAR FRAME | (1) |
| 31 | 400-04213 | NEEDLE BAR METAL | (2) |
| 32 | 400-04221 | SUPPORT SHAFT | 1 |
| 33 | 400-04218 | FRAME SUPPORT PLATE ASM. | 1 |
| 34 | 400-04216 | BUSHING | 1 |
| 35 | 400-04217 | BUSHING REAR | 1 |
| 36 | 400-04215 | NEEDLE BAR | 1 |
| 37 | MDP-5JOB1100 | NEEDLE DPX5 #11J | 1 |
| 38 | 137-06403 | NEEDLE BAR BOBBIN THREAD GUIDE | 1 |
| 39 | SM-6030500-SN | SCREW M3 L=5 | 1 |
| 40 | CS-1501181-TP | THRUST COLLAR D=15 W=11 | 1 |
| 41 | SM-8050502-TP | SCREW M5 L=5 | 2 |
| 42 | SM-8060612-TP | SCREW M6 L=6 | 4 |
Page 19 — 7. NEEDLE THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-29904 | ASSY_UTT_MODULE_B | 1 |
| 2 | RE-0300000-KO | E-RING 3 | (1) |
| 3 | EA-9500B01-00 | CABLE BAND | (1) |
| 4 | NM-6040000-SN | NUT M4 | (2) |
| 5 | NM-6050001-SP | NUT M5 | (4) |
| 6 | WP-0430801-SC | WASHER 4.3X9X0.8 | (1) |
| 7 | SL-4031081-SC | SCREW M3 X 10 | (1) |
| 8 | SD-0600266-TP | SHOULDER SCREW D6 H2.6 | (1) |
| 9 | SM-6040600-SP | SCREW M4 L=6 | (2) |
| 10 | SM-6040602-TP | SCREW M4 L=6 | (2) |
| 11 | SM-6040860-TP | SCREW M4 L=8 | (1) |
| 12 | SM-6040802-TP | SCREW M4X0.7 L=8 | (4) |
| 13 | SM-6041200-SP | SCREW M4 L=12 | (2) |
| 14 | SM-6050652-TP | HEXAGON SOCKET HEAD SCREW M5X6 | (2) |
| 15 | SM-6050800-SP | SCREW M5 L=8 | (2) |
| 16 | SM-6050802-TP | SCREW M5X0.8 L=8 | (2) |
| 17 | 400-04400 | ASSY UTT RELEASE ARM B | (1) |
| 18 | SM-6040602-TP | SCREW M4 L=6 | (1) |
| 19 | SM-8050412-TP | SCREW M5 L=4 | (2) |
| 20 | SM-8050502-TP | SCREW M5 L=5 | (4) |
| 21 | SD-0600326-TP | SHOULDER SCREW D6 H3.2 | (4) |
| 22 | SD-0800406-TP | SHOULDER SCREW D8 H4 | (1) |
| 23 | SD-0801506-TP | SHOULDER SCREW D8 H15 | (3) |
| 24 | 112-72507 | SPRING | (1) |
| 25 | CS-0800971-TP | THRUST COLLAR D=8 W=9 | (1) |
| 26 | 400-04235 | UTT ARM A | (1) |
| 27 | 400-04238 | UTT_ARM_B | (1) |
| 28 | 400-04293 | UTT BASE PLATE | (1) |
| 29 | 400-04254 | UTT CAM ROLLER | (2) |
| 30 | 400-04253 | UTT CAM ROLLER SHAFT | (2) |
| 31 | 400-15702 | UTT_RATCH_PLATE_B | (1) |
| 32 | 400-04294 | UTT RELEASE ARM A | (1) |
| 33 | 400-04264 | UTT RELEASE LEVER BASE | (1) |
| 34 | 400-04265 | UTT RELEASE LEVER SHAFT | (1) |
| 35 | 400-04292 | UTT SENSOR BASE | (1) |
| 36 | 400-04296 | UTT_SUPPORT_ARM_SPRING | (1) |
| 37 | 400-04234 | UTT SUPPORT SHAFT | (1) |
| 38 | 400-04248 | UTT SUSPENSION SCREW 4 | (2) |
| 39 | 400-04252 | UTT SUSPENSION SCREW 9 | (1) |
| 40 | 400-04247 | UTT SUSPENSION SHOULDER SCREW | (1) |
| 41 | 400-04244 | UTT THREAD PULLING LINK A | (1) |
| 42 | 400-04245 | UTT THREAD PULLING LINK B | (1) |
| 43 | 400-04236 | UTT X-CAM | (1) |
| 44 | 400-04297 | UTT Y-DRIVE ROLLER | (1) |
| 45 | 400-04298 | UTT Y-DRIVE SHAFT | (1) |
| 46 | 400-05374 | UT TRIM MOTOR ASS'Y | (1) |
| 47 | 400-05380 | UT TRIM SENSOR ASS'Y | (1) |
| 48 | 400-28634 | ASSY_UTT_RELEASE_LEVER_B | (1) |
| 49 | 400-04229 | ASSY UTT CAM | (1) |
| 50 | 400-04240 | ASSY UTT THREAD PULLING ARM | (1) |
| 51 | 400-04226 | ASSY UTT CAM ARM | (1) |
| 52 | 400-04232 | ASSY UTT SUPPORT ARM | (1) |
| 53 | WP-0431005-SP | PLAIN WASHER 4.3X12X1 | (1) |
| 54 | 400-15674 | UTT_RATCH_STOPPER | (1) |
| 55 | SM-6040602-TP | SCREW M4 L=6 | (2) |
| 56 | RE-0300000-KO | E-RING 3 | 1 |
| 57 | NM-6050001-SP | NUT M5 | 1 |
| 58 | SM-6040602-TP | SCREW M4 L=6 | 1 |
| 59 | SM-6040600-SP | SCREW M4 L=6 | 1 |
| 60 | SM-6050802-TP | SCREW M5X0.8 L=8 | 1 |
| 61 | 400-28636 | UTT_GUIDE_SHAFT_B | 1 |
| 62 | 400-04249 | UTT SUSPENSION PLATE | 1 |
| 63 | 400-04243 | UTT THREAD PULLING LEVER | 1 |
| 64 | 400-04246 | UTT THREAD PULLING SHAFT | 1 |
| 65 | 400-04250 | UTT TRIMMER CLOSE SPRING | 1 |
| 66 | 400-04297 | UTT Y-DRIVE ROLLER | 1 |
| 67 | 400-04298 | UTT Y-DRIVE SHAFT | 1 |
| 68 | SM-6051202-TP | SCREW M5X0.8 L=12 | 3 |
| 69 | MAZ-16013000 | BUTTON SUPPORT LEVER SPRING | 1 |
| 70 | 400-04255 | ASSY UTT TRIMMER | 1 |
Page 21 — 8. BOBBIN THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-04330 | BTT_DRIVE_UNIT | 1 |
| 2 | 400-04332 | ASSY_BTT_DRIVE_CAM | (1) |
| 3 | 400-04336 | ASSY_BTT_DRIVE_LEVER | (1) |
| 4 | 400-04329 | BTT_DRIVE_LINK | (1) |
| 5 | 400-04331 | BTT_DRIVE_UNIT_BASE | (1) |
| 6 | 400-04340 | ASSY_BTT_RELEASE_LEVER | (1) |
| 7 | 400-04343 | BTT_RELEASE_LINK_F | (1) |
| 8 | 400-04344 | BTT_RELEASE_LINK_R | (1) |
| 9 | 137-37408 | LINK ROD | (1) |
| 10 | NM-6040001-SD | NUT M4 | (1) |
| 11 | NM-6050001-SP | NUT M5 | (2) |
| 12 | 400-05375 | LT TRIM MOTOR ASS'Y | (1) |
| 13 | SL-4031081-SC | SCREW M3 X 10 | (1) |
| 14 | SM-6040602-TP | SCREW M4 L=6 | (2) |
| 15 | SM-6040802-TP | SCREW M4X0.7 L=8 | (4) |
| 16 | SM-8050412-TP | SCREW M5 L=4 | (2) |
| 17 | SM-9040700-SP | HEXAGONAL BOLT | (1) |
| 18 | 400-04335 | SENSOR_FITTING_PLATE_BT | (1) |
| 19 | 400-05381 | LT TRIM SENSOR ASS'Y | (1) |
| 20 | SD-0801006-TP | SHOULDER SCREW D8 H10 | (2) |
| 21 | 400-04299 | STOPPER_PIN | (1) |
| 22 | 400-04254 | UTT_CAM_ROLLER | (2) |
| 23 | 400-04253 | UTT_CAM_ROLLER_SHAFT | (2) |
| 24 | SD-0800296-TP | SHOULDER SCREW D8 H2.9 | (1) |
| 25 | SM-6040600-SP | SCREW M4 L=6 | (2) |
| 26 | WP-0430801-SC | WASHER 4.3X9X0.8 | (2) |
| 27 | 400-21998 | THROAT_PLATE_BASE_UNIT | 1 |
| 28 | 400-22323 | BT_CLAMP_B | (1) |
| 29 | 400-04309 | BT_CLAMP_LEVER | (1) |
| 30 | 400-22322 | BT_PULLER_B | (1) |
| 31 | 400-04321 | ASSY_BT_RELEASE_ARM | (1) |
| 32 | 400-04308 | BT_TRIMMER_LINK | (1) |
| 33 | 400-29613 | CLAMP_SPRING | (1) |
| 34 | B1623-180-000 | WASHER | (1) |
| 35 | B3013-141-HOA | WASHER | (1) |
| 36 | 400-04311 | BT_TRIMMER | (1) |
| 37 | WP-0431005-SP | PLAIN WASHER 4.3X12X1 | (3) |
| 38 | WP-0451016-SP | WASHER 4.5X20X1 | (1) |
| 39 | 400-04306 | BTT_LEVER | (1) |
| 40 | SM-6040450-TP | SCREW M4 L=4 | (3) |
| 41 | SM-6040450-TP | SCREW M4 L=4 | (5) |
| 42 | SD-0250101-SP | HINGE SCREW | (1) |
| 43 | SD-0500166-TP | SHOULDER SCREW D5 H1.6 | (1) |
| 44 | SD-0500167-TP | SHOULDER SCREW D5 H1.6 | (1) |
| 45 | 400-04327 | SUSPENSION_SCREW | (2) |
| 46 | 400-04301 | ASSY_THROAT_PLATE_BASE | (1) |
| 47 | 400-04324 | OIL_SHIELD | 1 |
| 48 | SM-1030400-SP | SCREW M3 L=4 | 2 |
| 49 | 400-27553 | THROAT_PLATE(1790S5) | 1 |
| 50 | 400-27554 | THROAT_PLATE(1790K5) | 1 |
| 51 | WP-0430800-SC | WASHER M4 | 2 |
| 52 | 400-04345 | PICKER_BASE | 1 |
| 53 | 400-04347 | PICKER_BASE_FITTNG_PLATE | 1 |
| 54 | 137-27102 | STOPPER A | 1 |
| 55 | 137-29306 | BOBBIN CASE POSITIONING PLATE | 1 |
| 56 | SM-4030455-SN | SCREW M3 L=4 | 1 |
| 57 | SM-6040602-TP | SCREW M4 L=6 | 1 |
| 58 | SM-4041050-TP | SCREW M4 L=10 | 2 |
| 59 | SM-6040600-SP | SCREW M4 L=6 | 1 |
| 60 | SM-6041200-SP | SCREW M4 L=12 | 1 |
| 61 | SM-6050802-TP | SCREW M5X0.8 L=8 | 3 |
| 62 | SD-0800296-TP | SHOULDER SCREW D8 H2.9 | 4 |
| 63 | 400-11327 | PICKER_SPRING | 1 |
| 64 | 145-16801 | SAFETY SWITCH PRESSING PLATE | 1 |
| 65 | SM-5030355-SE | SCREW | 1 |
| 66 | NM-6040001-SD | NUT M4 | 1 |
| 67 | SD-0801006-TP | SHOULDER SCREW D8 H10 | 1 |
| 68 | 400-04327 | SUSPENSION_SCREW | 2 |
| 69 | 400-04299 | STOPPER_PIN | 1 |
| 70 | 400-04164 | OIL_TANK_ASM. | 1 |
| 71 | 400-04163 | OIL_TANK_PLATE | 1 |
| 72 | SL-6040892-TN | SCREW | 6 |
| 73 | 400-04328 | PICKER_BASE_STOPPER | 1 |
| 74 | HX-0033900-OC | PARTS | 1 |
| 75 | HX-0033900-00 | STUD | 1 |
| 76 | SM-6040450-TP | SCREW M4 L=4 | 4 |
| 77 | 400-04346 | PICKER | 1 |
| 78 | 400-04348 | PICKER_ACTUATING_LEVER | 1 |
| 79 | 262-30409 | LUBRICATING OIL WICK STOPPER | 1 |
| 80 | 400-04349 | PICKER_ACTUATING_L_LINK | 1 |
Page 23 — 9. CLOTH CUTTING KNIFE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-04381 | KNIFE SOL ASM. | 1 |
| 2 | 400-04384 | CUSION | (1) |
| 3 | 400-04382 | SOLENOID | (1) |
| 4 | 400-09788 | KNIFE_HOLDER | (1) |
| 5 | NM-6080003-SC | NUT M8 | (2) |
| 6 | 400-04383 | PLATE A | (1) |
| 7 | SM-6030802-TP | SCREW M3X0.5 L=8 | (2) |
| 8 | SM-6051202-TP | SCREW M5X0.8 L=12 | (1) |
| 9 | SM-6061002-TP | SCREW M6 L=10 | (3) |
| 10 | 400-04387 | SENSOR SLIT PLATE | (1) |
| 11 | 400-04385 | SOLENOID BASE | (1) |
| 12 | HD-0005700-0A | PHOTO SENSOR | (1) |
| 13 | 400-04386 | SENSOR PLATE | (1) |
| 14 | SL-4031091-SC | SCREW M3 X 10 | (1) |
| 15 | 400-05382 | CUTTER SENSOR JOINT CORD | (1) |
| 16 | B2702-047-L00-A | KNIFE 1/2 | 1 |
| 17 | 400-04394 | KNIFE BAR | 1 |
| 18 | 400-04396 | KNIFE BAR BASE | 1 |
| 19 | 400-04397 | KNIFE BAR BRACKET | 1 |
| 20 | 400-04398 | KNIFE BAR BUSH | 1 |
| 21 | 137-46508 | KNIFE BAR CONNECTING LINK | 2 |
| 22 | 400-04390 | KNIFE BAR DRIVING LEVER | 1 |
| 23 | 400-04219 | KNIFE BAR DRIVING STOPPER ASM. | 1 |
| 24 | 400-04391 | KNIFE BAR DRIVING STOP SCREW | (1) |
| 25 | 137-50807 | KNIFE DRIVING LEVER STOPPER | (1) |
| 26 | 400-04210 | KNIFE BAR SUPPORT SHAFT | 1 |
| 27 | 400-40276 | KNIFE_BAR_LOWER_BUSHING | 1 |
| 28 | 400-04393 | KNIFE FITTING BASE | 1 |
| 29 | 400-04395 | KNIFE LEVER SHAFT | 1 |
| 30 | NM-6060002-SD | NUT M6 | 1 |
| 31 | WP-0430801-SC | WASHER 4.3X9X0.8 | 1 |
| 32 | WP-0501016-SD | WASHER 5X10.5X1 | 1 |
| 33 | 400-04392 | BELL CRANK SHAFT | 4 |
| 34 | SM-6040802-TP | SCREW M4X0.7 L=8 | 2 |
| 35 | SM-6061202-TP | SCREW M6 L=12 | 1 |
| 36 | SM-6061200-SP | SCREW | 1 |
| 37 | SM-8060612-TP | SCREW M6 L=6 | 4 |
| 38 | SM-9040700-SP | HEXAGONAL BOLT | 1 |
| 39 | SD-0400506-TP | SHOULDER SCREW D4 H5 | 1 |
| 40 | SM-6051202-TP | SCREW M5X0.8 L=12 | 5 |
| 41 | SM-8050502-TP | SCREW M5 L=5 | 5 |
| 42 | 400-04389 | SPRING | 1 |
| 43 | 400-06315 | SQUARE BLOCK | 1 |
| 44 | 400-04211 | SUPPORT GUIDE | 1 |
| 45 | 137-38802 | SUSPENSION SCREW | 1 |
| 46 | 400-04179 | SUSPENSION SCREW | 1 |
| 47 | CS-1201171-TP | THRUST COLLAR D=12 W=11 | 1 |
| 48 | 400-06313 | COLLAR | 1 |
Page 25 — 10. TABLE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-06306 | TABLE | 1 |
| 2 | ST-9053511-SR | TAPPING SCREW M5X35 | 4 |
| 3 | 111-55108 | DRAWER | 1 |
| 4 | 111-55207 | DRAWER SUPPORT | 2 |
| 5 | SK-3311600-SC | WOOD SCREW D=3.1 L=16 | 6 |
| 6 | D8204-555-D00 | DRAWER STOPPER | 1 |
| 7 | B8101-771-0A0 | T-STAND COMPL. | 1 |
| 8 | 111-57559 | T-STAND ASM. | (1) |
| 9 | 111-57666 | UPPER STAND ASM., RIGHT | (1) |
| 10 | 111-57765 | UPPER STAND ASM., LEFT | (1) |
| 11 | 111-57963 | LOWER LEG, RIGHT | (1) |
| 12 | 111-58060 | LOWER LEG, LEFT | (1) |
| 13 | 111-58300 | STAND SIDE SUPPORT | (1) |
| 14 | 111-58409 | STAND SIDE SUPPORT | (1) |
| 15 | 111-58607 | RUBBER CAP | (4) |
| 16 | 170-07402 | NUT | (2) |
| 17 | WP-1302501-SE | WASHER M12 | (4) |
| 18 | WS-1253010-KN | SPRING WASHER 12.5X21.5X3 | (4) |
| 19 | B8108-555-0A0 | ADJUSTING SCREW ASM. WITH CAP | (4) |
| 20 | NM-6120001-SE | NUT M12 | (1) |
| 21 | 111-58516 | UPPER STAND PLATE | (2) |
| 22 | SL-9082091-SE | WASHER HEXAGONAL BOLT | (12) |
| 23 | 138-17754 | Z-STAND PEDAL ASM. | (1) |
| 24 | 138-17754 | Z-STAND PEDAL ASM. | (1) |
| 25 | 111-59001 | PEDAL SHAFT BRACKET | (2) |
| 26 | B8153-771-000 | PEDAL CONNECTING ROD | (1) |
| 27 | D8113-555-B00 | PEDAL BUSHING | (2) |
| 28 | GPF-060600A0 | PEDAL ASM. | (1) |
| 29 | GPF-06080000 | PEDAL ADJUSTING PLATE | (1) |
| 30 | NM-6080721-SE | NUT M8 | (2) |
| 31 | SM-9061203-SE | SCREW M6 L=12 | (2) |
| 32 | SM-9082023-SE | SCREW M8 L=20 | (2) |
| 33 | WP-0671016-SE | WASHER 6.7X13X1 | (2) |
| 34 | WP-0871602-SE | WASHER 8.7X18X1.6 | (4) |
| 35 | WS-0621210-KR | SPRING WASHER 6.2X11.4X1.2 | (2) |
| 36 | WS-0861410-KR | SPRING WASHER 8.6X15X1.4 | (2) |
| 37 | 400-03491 | ASSY 4 POSITION PEDAL | 1 |
| 38 | 137-31906 | SPRING | (1) |
| 39 | B2583-210-D00 | SPRING | (1) |
| 40 | NM-6060001-CP | NUT M6 | (1) |
| 41 | 400-04360 | PEDAL FRAME | (1) |
| 42 | 400-04361 | PEDAL FRAME A | (1) |
| 43 | 400-04362 | PEDAL FRAME B | (1) |
| 44 | 400-04363 | PEDAL FRAME GUIDE | (1) |
| 45 | HD-0005700-0A | PHOTO SENSOR | (2) |
| 46 | SL-4031091-SC | SCREW M3 X 10 | (1) |
| 47 | SL-6031042-TN | SCREW | (1) |
| 48 | SM-5040655-SN | SCREW | (3) |
| 49 | SM-6050652-TP | HEXAGON SOCKET HEAD SCREW M5X6 | (4) |
| 50 | 400-04364 | SENSOR DETECTING PLATE | (3) |
| 51 | SD-1000646-TP | SHOULDER SCREW D10 H6.4 | (1) |
| 52 | 400-04299 | STOPPER PIN | (1) |
| 53 | 400-04327 | SUSPENSION SCREW | (2) |
| 54 | SK-3482001-SE | WOOD SCREW D=4.8 L=20 | 2 |
Page 27 — 11. CONTROL BOX COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-03451 | CONTROL BOX | 1 |
| 2 | 400-03452 | CONTROL BOX FRONT COVER | 1 |
| 3 | 400-03453 | CONTROL BOX REAR COVER | 1 |
| 4 | SL-4040891-SC | SCREW M4 L=8 | 6 |
| 5 | SL-4040891-SC | SCREW M4 L=8 | 4 |
| SM-6083002-TN | SCREW M8 L=30 | 4 | |
| WS-0820002-KR | SPRING WASHER, M8 | 4 | |
| WP-0841601-SC | WASHER 8.4X17.4X1.6 | 4 | |
| SL-4040881-SC | SCREW M4 L=8 | 7 | |
| 400-00029 | SDC PCB A ASS'Y | 1 | |
| 400-00056 | FLT-T PCB A ASS'Y | 1 | |
| 400-00046 | FLT-S PCB A ASS'Y | 1 | |
| HX-0033900-00 | STUD | 6 | |
| NM-3040520-SC | NUT M4 | 2 | |
| 400-05401 | FAN MOTOR ASS'Y | 1 | |
| HM-0004800-10 | FINGER GUIDE | 1 | |
| SL-4043591-SC | SCREW | 4 | |
| SL-4033091-SC | SCREW M3 L=30 | 4 | |
| 400-05404 | FAN MOTOR BRACKET | 1 | |
| HX-0040700-00 | BUSH | 1 | |
| 178-45009 | CORD FITTING PLATE | 1 | |
| SL-4041091-SC | SCREW M4 L=10 | 2 | |
| 400-05391 | POWER CORD 3P ASS'Y | 1 | |
| 400-05392 | POWER CORD 1P ASS'Y | 1 | |
| 400-05388 | POWER CORD 1P220V ASS'Y | 1 | |
| HX-0041000-0A | BUSHING | 1 | |
| 400-05393 | FLT-SDC CORD P ASS'Y | 1 | |
| 400-05394 | FLT-SDC CORD S ASS'Y | 1 | |
| 400-05395 | SDC-MAIN CORD P ASS'Y | 1 | |
| 400-05396 | SDC-MAIN CORD S ASS'Y | 1 | |
| 400-03484 | PEDAL SENSOR ASM. | 1 | |
| 400-03485 | SENSOR FITTING PLATE A ASM. | (1) | |
| M4002-461-000 | PEDAL BASE | (1) | |
| M4007-351-000 | FRONT SPRING | (1) | |
| SM-8040802-TP | SCREW M4X8 | (2) | |
| SL-4041681-SF | SCREW M4 L=16 | 3 | |
| HX-0051100-00 | WIRE SADDLE | 1 | |
| M9017-580-0A0 | POWER CABLE ASM. | 1 | |
| 400-05390 | POWER CABLE JE ASS'Y | 1 | |
| M9024-580-0A0 | POWER CABLE ASM., 100V | 1 | |
| M9035-580-0A0 | POWER SOURCE CORD ASM. | 1 | |
| SL-4041081-SC | SCREW M4 L=10 | 1 | |
| CM-3004006-01 | VOLTAGE CAUTION LABEL | 1 | |
| CM-3001004-01 | DENGEL LABEL 3 (LARGE) | 1 | |
| 400-05385 | ACCESSORIE PARTS A ASM. | 1 | |
| M3004-511-00A | VOLTAGE INDICATION CARD,A | 1 | |
| HF-0030002-00 | FUSE 2A (220/240V) | (1) | |
| HF-0013050-PO | FUSE 5A | (1) | |
| 229-58458 | CONNECTING ROD ASM. B | (1) | |
| SK-3512001-SE | WOOD SCREW D=5.1 L=20 | (2) | |
| SM-6084002-TN | SCREW M8 L=40 | (1) | |
| HA-0042500-00 | SWITCH | 1 | |
| 400-03480 | RATING LABEL A | 1 | |
| 400-12038 | REACTOR CORD ASSY | 1 | |
| CM-3004007-01 | VOLTAGE CAUTION LABEL | 1 | |
| HN-0024600-00 | CORES | 1 |
Page 29 — 12. OPERATION BOX COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-03465 | OPERATION PANEL A ASS'Y | 1 |
| 2 | 400-03434 | PANEL1 PCB A ASS'Y | (1) |
| 3 | 400-03441 | PANEL2 PCB ASS'Y | (1) |
| 4 | 400-03460 | PANEL SHEET | (1) |
| 5 | 400-03462 | LCD SHEET | (1) |
| 6 | HG-0074700-00 | LCD MODULE | (1) |
| 7 | 400-03464 | OPERATION BOX UPPER CASE | (1) |
| 8 | M1031-580-0AO | OPERATION BOX LOWER CASE ASM. | (1) |
| 9 | M1031-580-000 | OPERATION BOX LOWER CASE | (1) |
| 10 | M1011-580-000 | MAGNET SHEET | (2) |
| 11 | M1032-580-000 | VOLUME TONGUE | (1) |
| 12 | ST-4031051-SN | TAPPING SCREW D=3-24 L=10 | (6) |
| 13 | M1017-580-0AO | OPERATION BOX FIXED PLATE ASM. | 1 |
| 14 | SK-3413201-SE | WOOD SCREW D=4.1 L=32 | 2 |
Page 31 — 13. OPERATION PANEL COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-09938 | IP-200A_ASSY | 1 |
| 2 | 400-00131 | NAME_PLATE | (1) |
| 3 | 400-00132 | OPERATION_PANEL_F | (1) |
| 4 | 400-00133 | INSERT_NUT | (6) |
| 5 | A3906-010-000 | TOUCH PANEL | (1) |
| 6 | 400-00134 | TTP_H_FELT | (2) |
| 7 | 400-00135 | TTP_V_FELT | (2) |
| 8 | 400-00136 | KEY_SHEET | (1) |
| 9 | 400-00137 | LCD_BASE_PLATE | (1) |
| 10 | 400-00138 | BOTHSIDES_TAPE | (3) |
| 11 | A3950-010-0A0 | LCD | (1) |
| 12 | SL-4030691-SC | SCREW M3X6 | (4) |
| 13 | 400-00139 | STUD | (6) |
| 14 | 400-00140 | ISOLATION_SHEET | (1) |
| 15 | TA-0550604-R0 | RUBBER PLUG | (1) |
| 16 | 400-00141 | OPERATION_PANEL_R | (1) |
| 17 | 400-00142 | SM_COVER | (1) |
| 18 | 400-00143 | SERIAL_COVER | (1) |
| 19 | 400-00144 | OPERATION_PANEL_MAGNET | (1) |
| 20 | SL-4030881-SC | SCREW M3X8 | (4) |
| 21 | 400-00146 | LCD_CABLE_ASS'Y | (1) |
| 22 | 400-00148 | PANEL_PCB_A_ASS'Y | (1) |
Page 33
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-03454 | CONTROL BOX A ASM. | 1 |
| 2 | 400-03456 | CONTROL BOX C ASM. | 1 |
| 3 | 400-03455 | CONTROL BOX B ASM. | 1 |
| 4 | 400-00056 | FLT-T PCB A ASS'Y | (1) |
| 5 | 400-00046 | FLT-S PCB A ASS'Y | (1) |
| 6 | 400-00029 | SDC PCB A ASS'Y | (1) |
| 7 | 400-03412 | MAIN PCB A ASS'Y | (1) |
| 8 | 400-05393 | FLT-SDC CORD P ASS'Y | (1) |
| 9 | 400-05394 | FLT-SDC CORD S ASS'Y | (1) |
| 10 | 400-05395 | SDC-MAIN CORD P ASS'Y | (1) |
| 11 | 400-05396 | SDC-MAIN CORD S ASS'Y | (1) |
| 12 | 400-03491 | ASSY 4 POSITION PEDAL | (1) |
| 13 | 400-03484 | PEDAL SENSOR ASM. | (1) |
| 14 | 400-05401 | FAN MOTOR ASS'Y | (1) |
| 15 | 400-05401 | FAN MOTOR ASS'Y | (1) |
| 16 | 400-05405 | WINDER CORD ASS'Y | (1) |
| 17 | 400-12038 | REACTOR CORD ASSY | (1) |
| 18 | M9017-580-0A0 | POWER CABLE ASM. | 1 |
| 19 | M9024-580-0A0 | POWER CABLE ASM.,100V | 1 |
| 20 | 400-05390 | POWER CABLE JE ASS'Y | 1 |
| 21 | M9034-580-0A0 | GROUND CORD ASM. | 1 |
| 22 | 400-05391 | POWER CORD 3P ASS'Y | 1 |
| 23 | 400-05388 | POWER CORD 1P220V ASS'Y | 1 |
| 24 | 400-05392 | POWER CORD 1P ASS'Y | 1 |
| 25 | 400-28015 | AC SERVO MOTOR | 1 |
| 26 | 400-05397 | MAIN-INT CORD A ASS'Y | 1 |
| 27 | 400-05398 | MAIN-INT CORD B ASS'Y | 1 |
| 28 | 400-05399 | MAIN-INT CORD D ASS'Y | 1 |
| 29 | 400-03465 | OPERATION PANEL A ASS'Y | 1 |
| 30 | G5001-198-0A0-A | BOBBIN WINDER ASM. | 1 |
| 31 | 400-03422 | INT PCB ASS'Y | 1 |
| 32 | 400-05371 | NEEDLE SWING MOTOR ASS'Y | 1 |
| 33 | 400-05372 | FEED MOTOR ASS'Y | 1 |
| 34 | 400-05373 | CLAMP MOTOR ASS'Y | 1 |
| 35 | 400-05374 | UT TRIM MOTOR ASS'Y | 1 |
| 36 | 400-05375 | LT TRIM MOTOR ASS'Y | 1 |
| 37 | 400-04382 | SOLENOID | 1 |
| 38 | 400-06261 | ASSY AT SOLENOID | 1 |
| 39 | 400-05402 | HEAD FAN MOTOR A ASS'Y | 1 |
| 40 | 400-05377 | NEEDLE SWING SENSOR ASSY | 1 |
| 41 | 400-05378 | FEED SENSOR ASS'Y | 1 |
| 42 | 400-05379 | CLAMP SENSOR ASS'Y | 1 |
| 43 | 400-05380 | UT TRIM SENSOR ASS'Y | 1 |
| 44 | 400-05381 | LT TRIM SENSOR ASS'Y | 1 |
| 45 | HD-0005700-0A | PHOTO SENSOR | 1 |
| 46 | 400-03499 | THREAD BREAK DETECTOR A | 1 |
| 47 | 400-05382 | CUTTER SENSOR JOINT CORD | 1 |
| 48 | 320-02354 | SWITCH ASM. | 1 |
| 49 | 400-03495 | SAFETY SWITCH ASS'Y | 1 |
| 50 | 400-05400 | PAUSE SWITCH JOINT CORD | 1 |
| 51 | 400-03497 | SAFETY SWITCH JOINT CORD | 1 |
| 52 | 400-05403 | HEAD FAN MOTOR B ASS'Y | 1 |
| 53 | M9035-580-0A0 | POWER SOURCE CORD ASM. | 1 |
| 54 | 400-09938 | IP-200A_ASSY | 1 |
Page 35 — 15. ACCESSORIE PART COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-32800 | ACCESSORIE BAG | 1 |
| 2 | 229-33204 | SCREW DRIVER,SMALL | 1 |
| 3 | 229-33105 | SCREW DRIVER,MIDDLE | 1 |
| 4 | 400-09148 | BOBBIN | 1 |
| 5 | MDP-5JOB1102 | NEEDLE DPX5 #11J-2 | 1 |
| 6 | J1066-000-00D | HEXAGONAL WRENCH KEY | 1 |
| 7 | 137-82107 | HOOK TIMING GAUGE, K | 1 |
| 8 | 400-04311 | BT_TRIMMER | 1 |
| 9 | 400-04255 | ASSY_UTT_TRIMMER | 1 |
| 10 | 225-02504 | THREAD GUIDE BAR | 1 |
| 11 | D6056-555-B00 | RUBBER CUSHION (B) | 4 |
| 12 | 261-04851 | CONNECTING ROD COMPL. | 1 |
| 13 | 400-08890 | AUXILIARY TABLE ASM. | 1 |
| 14 | 400-08889 | AUXILIARY TABLE | (1) |
| 15 | 137-85803 | INSTALLING PLATE | (2) |
| 16 | SS-7110570-SP | SCREW 11/64-40 L= 4.8 | (4) |
| 17 | SM-6061002-TP | SCREW M6 L=10 | 2 |
| 18 | B2702-047-Q00-A | KNIFE 1 | 1 |
| 19 | J1067-000-000 | OILER | 1 |
| 20 | MDF-RX1600CO | DEFRIX OIL NO.1(600CC) | 1 |
| 21 | B2702-047-M00-A | KNIFE 5/8 | 1 |
| 22 | B2702-047-L00-A | KNIFE 1/2 | 1 |
| 23 | B9107-761-000 | THREAD PASSING INSTRUMENT | 1 |
| 24 | 400-52047 | ASSY SAFETY PLATE B | 1 |
| 25 | 400-49424 | SAFETY PLATE BESE | (1) |
| 26 | B3120-372-000 | SAFETY PLATE | (1) |
| 27 | SL-4040891-SC | SCREW M4 L=8 | (2) |
| 28 | SM-6040602-TP | SCREW M4 L=6 | (1) |
| 29 | WP-0612056-SD | WASHER 6.1X18.5X2 | 4 |
| 30 | NM-6060001-SD | NUT M6 | 8 |
| 31 | 262-34005 | VINYL COVER | 1 |
| 32 | 139-43402 | TIMING GAUGE, DMESTIC USE. | 1 |
| 33 | B2702-047-K00-A | KNIFE 3/8 | 1 |
| 34 | SL-6040892-TN | BOLT | 1 |
| 35 | B1552-782-0A0 | PRESSER FOOT 2 ASM. | 1 |
| 36 | 400-06323 | JUKI GREASE A TUBE | 1 |
| 37 | CM-6001002-01 | WEEE INFORMATION SHEET | 1 |
| 38 | GCT-02906000 | HEXAGONAL SPANNER | 1 |
| 39 | 229-33006 | SCREW DRIVER,LARGE | 1 |
| 40 | 291-80403 | EC PRODUCTION DECLARATION | 1 |
| 41 | 141-01208 | HEAD SUPPORT BAR | 1 |
| 42 | SM-6067052-TP | HEXAGON BOLT | 4 |
Page 36 — 16. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-30358 | THREAD STAND ASM. | 1 |
| 2 | 229-31109 | SPOOL RETAINER | (2) |
| 3 | 229-31000 | SPOOL PIN | (2) |
| 4 | 229-30903 | SPOOL REST CUSHION | (2) |
| 5 | 229-30804 | SPOOL REST | (2) |
| 6 | SM-6061610-SC | SCREW M6 L=16 | (2) |
| 7 | 229-30705 | THREAD GUIDE ARM JOINT | (2) |
| 8 | 229-31406 | SPOOL REST ROD RUBBER CAP | (1) |
| 9 | 229-30507 | SPOOL REST ARM | (2) |
| 10 | 229-30408 | SPOOL REST ROD, UPPER | (1) |
| 11 | 229-31307 | SPOOL REST ROD JOINT | (1) |
| 12 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 13 | NM-6050001-SE | NUT M5 | (2) |
| 14 | 229-30309 | SPOOL REST ROD, LOWER | (1) |
| 15 | 229-31208 | THREAD GUIDE | (2) |
| 16 | WS-0510002-KN | SPRING WASHER | (2) |
| 17 | NM-6050001-SE | NUT M5 | (2) |
| 18 | NM-6160511-SE | NUT M16X1.5 | (1) |
| 19 | WP-1702600-SO | WASHER 17X30X2.6 | (2) |
Page 37 — 17. SPECIAL SPECIFICATIONS COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | G5001-198-0A0-A | BOBBIN WINDER ASM. | 1 |
| 2 | 400-05405 | WINDER CORD ASS'Y | 1 |
| 3 | B3221-771-0A0 | BOBBIN WINDER TENSION BRACKET | 1 |
| 4 | B3221-771-000 | BOBBIN WINDER TENSION BRACKET | (1) |
| 5 | B3219-232-000 | BOBBIN WINDER TENSION POST | (1) |
| 6 | B3214-047-000 | BOBBIN WINDER TENSION DISC | (2) |
| 7 | B3218-232-000 | BOBBIN WINDER TENSION SPRING | (1) |
| 8 | B3216-047-000 | BOBBIN WINDER TENSION NUT | (1) |
| 9 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 10 | SK-3452000-SC | WOOD SCREW D=4.5 L=20 | 4 |
| 11 | 400-03493 | PK PEDAL JOINT CORD ASS'Y | 1 |
| 12 | GPK-510010B0 | PEDAL SWITCH ASM. | 1 |
| 13 | 400-28669 | HOOK_COOLING_UNIT_B | 1 |
| 14 | 400-23432 | FILTER REGULATOR ASM. | (1) |
| 15 | PF-0551060-A0 | FILTER REGULATOR | (1) |
| 16 | PF-9020050-00 | REGULATOR BRACKET | (1) |
| 17 | PJ-0251000-03 | PLUG | (1) |
| 18 | PV-0151220-00 | FINGER VALVE | (1) |
| 19 | 400-28670 | PIPE_BRACKET_ASM._B | (1) |
| 20 | SK-3412001-SE | WOOD SCREW D=4.1 L=20 | (2) |
| 21 | SL-6041092-TN | SCREW | (1) |
| 22 | MA-0115320-00 | STAPLE | (2) |
| 23 | EA-9500B01-00 | CABLE BAND | (2) |
Page 39 — 18. SPECIAL SPECIFICATIONS COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-06345 | RP_HOOK_ASM. | 1 |
| 2 | 400-06349 | RP_BOBBIN_CASE | 1 |
| 3 | 137-29603 | HOOK SLEEVE | 1 |
| 4 | SS-8660612-TP | SCREW 1/4-40 L=6 | 4 |
| 5 | 400-06340 | WORK_CLAMP_HOLDER_SPACE | 1 |
| 6 | SM-6040450-TP | SCREW M4 L=4 | 3 |
| 7 | 400-28682 | UTT_CLOSE_CAM_120B | 1 |
| 8 | 400-06342 | LIFTING_PLATE_120 | 1 |
| 9 | SM-6050800-SP | SCREW M5 L=8 | 2 |
| 10 | 400-06335 | WORK_CLAMP_ARM_120 | 1 |
| 11 | 400-06339 | WORK_CLAMP_CARRIER_120 | 1 |
| 12 | 145-23252 | PRESSER FOOT 70 ASM. | 1 |
| 13 | B1509-761-000 | PRESSER FITTING PLATE SPRING | (2) |
| 14 | B1512-761-000 | PRESSER FOOT HOLDER SPRING | (1) |
| 15 | 145-23203 | PRESSER FOOT 70 | (1) |
| 16 | B1510-771-00B | WORK CLAMP CHECK SPRING SET PI | (2) |
| 17 | 145-23708 | URETHANE PRESSER 70 | 1 |
| 18 | 145-24102 | PRESSER 70 (FLAT) | 1 |
| 19 | 145-23401 | PRESSER 70 | 1 |
| 20 | SS-6060210-SP | SCREW 3/32-56 L= 1.9 | 6 |
| 21 | SD-0790203-SP | HINGE SCREW D=7.94 H=2 | 3 |
| 22 | 145-24409 | PRESSER 6MM | 1 |
| 23 | 400-04351 | THROAT_PLATE(S6) | 1 |
| 24 | 400-04353 | THROAT_PLATE(K6) | 1 |
| 25 | 400-08646 | ASSY_WORK_CLAMP_CHECK_HOLDER_1 | 1 |
| 26 | 400-08638 | WORK_CLAMP_CHECK_HOLDER_SPRING | (1) |
| 27 | B1510-771-00B | WORK CLAMP CHECK SPRING SET PI | (2) |
| 28 | B1509-761-000 | WORK CLAMP CHECK SPRING | (2) |
| 29 | 400-08647 | WORK_CLAMP_CHECK_HOLDER_120 | (1) |
| 30 | 400-08658 | WORK_CLAMP_120 | 1 |
| 31 | 400-15733 | THROAT_PLATE(S10) | 1 |
| 32 | 400-15802 | OIL_SHIELD_10 | 1 |
| 33 | 400-20010 | WORK_CLAMP_HOLDER(3-10)_ASSY | 1 |
| 34 | 400-20011 | WORK_CLAMP_HOLDER(3-10) | (1) |
| 35 | 400-08638 | WORK_CLAMP_CHECK_HOLDER_SPRING | (1) |
| 36 | B1510-771-00B | WORK CLAMP CHECK SPRING SET PI | (2) |
| 37 | B1509-761-000 | WORK CLAMP CHECK SPRING | (2) |
| 38 | 400-17810 | WORK_CLAMP(3S-10) | 1 |
| 39 | 400-20014 | WORK_CLAMP_CARRIER(10X41)_CL | 1 |
| 40 | 400-20012 | WORK_CLAMP_CARRIER(10X41) | (1) |
| 41 | CM-3002000-01 | ATTENTION SEAL | (1) |
| 42 | 400-20013 | WORK_CLAMP_ARM(10X41) | 1 |
Page 40 — 19. EXCHANGING PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2702-047-F00 | KNIFE 1/4" | 1 |
| 2 | B2702-047-K00-A | KNIFE 3/8 | 1 |
| 3 | B2702-047-I00 | KNIFE (7/16) | 1 |
| 4 | B2702-047-L00-A | KNIFE 1/2 | 1 |
| 5 | B2702-047-V00 | KNIFE 9/16" | 1 |
| 6 | B2702-047-M00-A | KNIFE 5/8 | 1 |
| 7 | B2702-047-A00 | KNIFE 11/16 | 1 |
| 8 | B2702-047-N00 | KNIFE 3/4" | 1 |
| 9 | B2702-047-P00 | KNIFE 7/8" | 1 |
| 10 | B2702-047-Q00-A | KNIFE 1 | 1 |
| 11 | B2702-047-S00-A | KNIFE 1-1/4" | 1 |
| 12 | B1552-781-000-A | PRESSER | 1 |
| 13 | B1552-782-000 | WORK CLAMP CHECK, 2 | 1 |
| 14 | B1552-783-000 | WORK CLAMP CHECK, 3 | 1 |
| 15 | D1508-771-K00-A | LATCH WORK CLAMP CHECK | 1 |
| 16 | D1508-772-K00 | WORK CLAMP CHECK (2K) | 1 |
| 17 | D1508-773-K00 | WORK CLAMP CHECK (3K) | 1 |
| 18 | 145-24409 | WORK CLAMP CHECK | 1 |
| 19 | D1511-771-KA0-A | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 20 | D1511-772-KA0 | WORK CLAMP CHECK HOLDER | 1 |
| 21 | D1511-773-KA0 | WORK CLAMP CHECK HOLDER | 1 |
| B2702-047-100 | KNIFE (7/16) |
Page 41 — 20. LIST FOR INFORMATION OF CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 26 | CM-3002001-B1 | CM-3002001-B1 | |
| 4 | B1811-771-000 | B1811-771-000 | |
| 24 | 400-04365 | ||
| 25 | 400-04366 | ||
| 27 | 139-43105 | ||
| 28 | 139-43204 | ||
| 29 | PS-0200062-KH | PS-0200062-KH | |
| 30 | SS-4110715-SP | SS-4110715-SP | |
| 32 | NS-6110310-SP | NS-6110310-SP | |
| 33 | WP-0450801-SD | WP-0450801-SD | |
| 34 | SD-0601021-SP | SD-0601021-SP | |
| 35 | 262-26407 | ||
| 36 | NS-6120310-SP | NS-6120310-SP | |
| 37 | WP-0740516-SP | WP-0740516-SP | |
| 26 | CM-3013000-01 | CM-3013000-01 | |
| 4 | 400-09148 | ||
| 24 | 400-52047 | ||
| 25 | 400-49424 | ||
| 27 | SL-4040891-SC | SL-4040891-SC |
Page 45 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30 | 400-08658 | ||
| 14 | 400-08889 | ||
| 13 | 400-08890 | ||
| 57 | 400-08977 | ||
| 58 | 400-08978 | ||
| 72 | 400-09037 | ||
| 4 | 400-09148 | ||
| 4 | 400-09788 | ||
| 1 | 400-09938 | ||
| 54 | 400-09938 | ||
| 29 | 400-10434 | ||
| 15 | 400-10434 | ||
| 31 | 400-10435 | ||
| 16 | 400-10435 | ||
| 27 | 400-11143 | ||
| 36 | 400-11144 | ||
| 36 | 400-11145 | ||
| 37 | 400-11146 | ||
| 63 | 400-11327 | ||
| 31 | 400-11355 | ||
| 55 | 400-11517 | ||
| 87 | 400-12038 | ||
| 17 | 400-12038 | ||
| 54 | 400-15674 | ||
| 31 | 400-15702 | ||
| 31 | 400-15733 | ||
| 32 | 400-15802 | ||
| 38 | 400-17810 | ||
| 45 | 400-19551 | ||
| 33 | 400-20010 | ||
| 34 | 400-20011 | ||
| 40 | 400-20012 | ||
| 42 | 400-20013 | ||
| 39 | 400-20014 | ||
| 67 | 400-20310 | ||
| 38 | 400-21933 | ||
| 27 | 400-21998 | ||
| 11 | 400-22121 | ||
| 30 | 400-22322 | ||
| 14 | 400-23432 | ||
| 49 | 400-27553 | ||
| 50 | 400-27554 | ||
| 22 | 400-28015 | ||
| 25 | 400-28015 | ||
| 48 | 400-28634 | ||
| 61 | 400-28636 | ||
| 13 | 400-28669 | ||
| 19 | 400-28670 | ||
| 7 | 400-28682 | ||
| 33 | 400-29613 | ||
| 1 | 400-29904 | ||
| 27 | 400-40276 | ||
| 25 | 400-49424 | ||
| 24 | 400-52047 |
Juki LBH-1790 (48 pages, vol. 2) — parts catalog
- Page 1 (cover): This is the cover page for the JUKI LBH-1790 Series High-speed, Electronic Buttonholing Machine parts list. It includes the model number, series, and manufacturer logo.
- Page 2 (unknown): This page contains a watermark with the text "jinttex.in". There is no other discernible content on the page.
- Page 3 (text): This page provides instructions on how to use the parts list, explaining codes and symbols used in the catalog, including explanations for asterisks, '01' codes, parentheses, and dotted lines. It also includes Japanese explanations for similar concepts.
- Page 6 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 7 (parts_list): This page lists parts for the industrial sewing machine, including screws, covers, and various components with their part numbers and descriptions.
- Page 8 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 9 (parts_list): This page lists parts for the sewing machine, including part numbers, descriptions, and quantities, with items numbered from 1 to 66.
- Page 10 (diagram): This page displays a diagram of main shaft components, including various pulleys, bearings, shafts, and fasteners, with reference numbers for each part.
- Page 11 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It covers items from reference number 1 to 57.
- Page 12 (diagram): This page displays a diagram of hook driving shaft components, with numbered parts and their corresponding references.
- Page 13 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, quantities, and notes. It details components like bearings, shafts, screws, and filters, with specific models LBH-1790S and LBH-1792K mentioned.
- Page 14 (diagram): This page displays a diagram of presser and feed components, including various screws, shafts, gears, and mounting brackets, with reference numbers for each part.
- Page 15 (parts_list): This page lists parts for the LBH-1790S and LBH-1792K sewing machines, including feed motor assemblies, sensor assemblies, bearings, pulleys, shafts, screws, and various other components.
- Page 16 (diagram): This page displays a diagram of needle bar rocking components, with numbered parts and their corresponding details.
- Page 17 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes, with items like zigzag drive assemblies, shafts, screws, and needle bars.
- Page 18 (diagram): This page displays a diagram of needle thread trimmer components, with numbered parts and their corresponding references.
- Page 19 (parts_list): This page lists parts for the UTT MODULE B, including various screws, nuts, washers, and assemblies, with their corresponding part numbers and quantities.
- Page 21 (parts_list): This page lists parts for industrial sewing machines, including part numbers, descriptions, quantities, and notes. It covers a wide range of components from drive units and levers to screws and oil shields.
- Page 22 (diagram): This page displays a diagram of cloth cutting knife components, with numbered parts and their corresponding references.
- Page 23 (parts_list): Parts list page for knife assembly components of the sewing machine, giving reference numbers, part numbers, English and Japanese descriptions, and quantities for items 1 to 48.
- Page 24 (diagram): This page displays a diagram of table components, including various parts like the tabletop, frame elements, and smaller hardware components, each identified by a reference number.
- Page 25 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details components like tables, screws, drawers, stands, pedals, and sensors.
- Page 26 (diagram): This page displays a diagram of control box components, including various parts like fans, screws, and wiring harnesses, with reference numbers for each component.
- Page 27 (parts_list): This page lists various parts for the sewing machine, including screws, washers, control boxes, PCBs, cables, and labels, along with their part numbers and descriptions.
- Page 28 (diagram): This page displays a diagram of operation box components, with numbered parts and their corresponding references.
- Page 29 (parts_list): This page lists parts for a standard panel model, including operation panels, PCB assemblies, panel sheets, LCD sheets, LCD modules, operation boxes, volume tongues, tapping screws, and wood screws, with quantities and notes.
- Page 30 (diagram): This page displays a diagram of operation panel components, with numbered parts and their corresponding references.
- Page 31 (parts_list): This page lists parts for the IP PANEL MODEL, including various screws, panels, and covers, with their corresponding part numbers and quantities.
- Page 33 (parts_list): This page lists parts for industrial sewing machines, including part numbers, descriptions, quantities, and notes. It covers items from reference number 1 to 54, with additional notes explaining usage conditions for different regions and power requirements.
- Page 34 (diagram): This page displays a diagram of accessory part components, with numbered parts and their corresponding references.
- Page 35 (parts_list): This page lists parts for JUKI sewing machines, including part numbers, descriptions, quantities, and notes. It covers items from reference number 1 to 42, with additional notes for specific models.
- Page 36 (parts_list): This page lists the components of the thread stand, including part numbers, descriptions, and quantities.
- Page 37 (parts_list): This page lists components for electric bobbin winder and 2-pedal for standing machine, including part numbers, descriptions, and quantities.
- Page 38 (diagram): This page displays diagrams of special specification components for large size type sewing machines, including parts for 70mm and 120mm swing width, and non-lubricating hook type components.
- Page 39 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes. It also includes a section for notes explaining different part variations.
- Page 40 (parts_list): This page lists exchanging parts for cloth cutting knives and presser feet, including part numbers, descriptions, and quantities.
- Page 41 (text): This page contains a list of changes and updated parts, including part numbers, descriptions, and revision information.
- Page 45 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers.
- Page 46 (text): This page contains the heading "ME MO" and a series of horizontal lines, suggesting it is a memo or notes page. It also includes a page number "- 41 -" and a website address "jintex.in".
- Page 47 (unknown): This page contains a watermark with the text "jinte.in" and a footer with the same text. There is no other discernible content on the page.
- Page 48 (cover): This is the cover page of the JUKI CORPORATION parts catalog, copyright 2002-2006, with contact information for orders and further inquiries.
