Page 1 — PARTS LIST
MODEL : LBH-1790 SERIES List No : 1346-10 PARTS LIST Published:09/22/2017 jintex.in
Juki LBH-1790 — parts catalog
- Page 1 (cover): This is the cover page for the parts list of the LBH-1790 Series, published on September 22, 2017.
- Page 2 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
- Page 3 (diagram): This page illustrates the frame and miscellaneous cover components of an industrial sewing machine, with various parts labeled with reference numbers.
- Page 4 (parts_list): This page lists frame and miscellaneous cover components, including screws, covers, plugs, and other parts, with their respective part numbers, names, and quantities.
- Page 5 (diagram): This page illustrates the frame and miscellaneous cover components of an industrial sewing machine, with various parts labeled with reference numbers.
- Page 6 (parts_list): This page lists frame and miscellaneous cover components, including part numbers, names, remarks, and quantities for various parts such as finger guards, hinges, nuts, washers, screws, rubber components, thread guides, and safety switch assemblies.
- Page 7 (diagram): This page illustrates the frame and miscellaneous cover components of an industrial sewing machine, showing various parts with their corresponding reference numbers.
- Page 8 (parts_list): This page lists frame and miscellaneous cover components, including part numbers, names, and quantities for various screws, shafts, rings, and other assembly parts.
- Page 9 (diagram): This page illustrates the frame and miscellaneous cover components of an industrial sewing machine, showing various parts with their corresponding reference numbers.
- Page 10 (parts_list): This page lists frame and miscellaneous cover components, including screws, thread guides, cable bands, and tension assembly parts.
- Page 11 (diagram): This page displays an exploded diagram of the main shaft components for an industrial sewing machine.
- Page 12 (parts_list): This page lists the components of the main shaft, including part numbers, names, and quantities.
- Page 13 (diagram): This page displays an exploded view diagram of the main shaft components, showing various parts such as shafts, gears, bearings, and their assembly.
- Page 14 (parts_list): This page lists the main shaft components, including part numbers, names, and quantities.
- Page 15 (diagram): This page illustrates the components of a hook driving shaft, showing an exploded view of various parts including shafts, bearings, gears, and fasteners.
- Page 16 (parts_list): This page lists the components for the hook driving shaft, including bearings, bushes, retaining rings, hook driving shafts, hook sleeve assemblies, intermediate sprocket shafts, intermediate sprocket washers, hook complete parts, crown knobs, screws, bearing supports, sprockets, intermediate sprocket rings, washers, adjusting shafts, adjusting nuts, felts, tubes, oil wicks, bobbins, bobbin case assemblies, pipes, and oil filters.
- Page 17 (diagram): This page illustrates the presser and feed components for LBH-1790S and LBH-1792S models, showing an exploded view of various parts with reference numbers.
Page 2 — CONTENTS
CONTENTS FRAME & MISCELLANEOUS COVER COMPONENTS (1).................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Page 3 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)
FRAME & MISCELLANEOUS COVER COMPONENTS (1) jintex.in
Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40004153 | UPPER_COVER | 1 | |
| SM4051055SP | SCREW | 6 | |
| 40004154 | LEFT_COVER | 1 | |
| SM4051055SP | SCREW | 2 | |
| 40004155 | LEFT_COVER_B | 1 | |
| SM4051055SP | SCREW | 4 | |
| 40004157 | THREAD_TAKE_UP_LEVER_COVER | 1 | |
| SM4051055SP | SCREW | 1 | |
| 40004156 | FRONT_COVER | 1 | |
| SM4051055SP | SCREW | 3 | |
| 40004159 | MOTOR_COVER | 1 | |
| SM4051655SP | SCREW M5 L=16 | 4 | |
| 26230409 | LUBRICATING OIL WICK STOPPER | 1 | |
| SM6050802TP | SCREW M5X0.8 L=8 | 1 | |
| 40004161 | REAR_COVER | 1 | |
| SM4051055SP | SCREW | 4 | |
| 13900956 | HOOK OIL SHIELD COVER COMPL. | 1 | |
| SM6050652TP | HEXAGON SOCKET HEAD SCREW M5X6 | 2 | |
| HX003390000 | STUD | 4 | |
| SL6040892TN | SCREW | 4 | |
| 40122600 | INT PCB ASSY | 1 | |
| 40119461 | HEAD FAN MOTOR A ASSY | 1 | |
| SL4042581SC | SCREW | 2 | |
| 40004367 | FAN_FITTING_PLATE | 1 | |
| SM6040602TP | SCREW M4 L=6 | 2 | |
| CM301300001 | SAFETY LABEL | 1 | |
| CM300200001 | ATTENTION SEAL | 2 | |
| TA0550604R0 | RUBBER PLUG | 1 | |
| TA0750404R0 | PLUG D=7.5 L=3.5 | 2 | |
| SM6040602TP | SCREW M4 L=6 | 6 | |
| TA1550902R0 | PLUG | 1 | |
| TA1050504R0 | RUBBER PLUG | 1 | |
| TA1120804R0 | RUBBER PLUG | 1 | |
| TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 4 | |
| TA1550902R0 | PLUG | 2 | |
| SM6061002TP | SCREW M6 L=10 | 4 | |
| SM6067052TP | HEXAGON BOLT | 1 | |
| SM80606A2TP | SCREW M6 L=6 | 2 | |
| 32002354 | SWITCH ASM. | 1 | |
| SL6040892TN | SCREW | 2 | |
| 22528764 | PRE-TENSION CONTROLLER ASM. | 1 | |
| 22502504 | THREAD GUIDE BAR | 1 | |
| 40004158 | BED BASE | 1 | |
| 40004160 | BED_REAR_COVER | 1 | |
| HX00150000A | CABLE CLAMP | 1 | |
| 40005403 | HEAD FAN MOTOR B ASS'Y | 1 | |
| HM000550010 | FILTER | 1 |
FRAME & MISCELLANEOUS COVER COMPONENTS (1) No. Parts No. Parts name Remarks Level Cons Qty 1 40004153 UPPER_COVER 1 2 SM4051055SP SCREW 6 3 40004154 LEFT_COVER 1 4 SM4051055SP SCREW 2 5 40004155 LEFT_COVER_B 1 6 SM4051055SP SCREW 4 7 40004157 THREAD_TAKE_UP_LEVER_COVER 1 8 SM4051055SP SCREW 1 9 40004156 FRONT_COVER 1 10 SM4051055SP SCREW 3 11 40004159 MOTOR_COVER 1 12 SM4051655SP SCREW M5 L=16 4 13 26230409 LUBRICATING OIL WICK STOPPER 1 14 SM6050802TP SCREW M5X0.8 L=8 1 15 40004161 REAR_COVER 1 16 SM4051055SP SCREW 4 17 13900956 HOOK OIL SHIELD COVER COMPL. 1 18 SM6050652TP HEXAGON SOCKET HEAD SCREW M5X6 2 19 HX003390000 STUD 4 20 SL6040892TN SCREW 4 21 40122600 INT PCB ASSY 1 22 40119461 HEAD FAN MOTOR A ASSY 1 23 SL4042581SC SCREW 2 24 40004367 FAN_FITTING_PLATE 1 25 SM6040602TP SCREW M4 L=6 2 26 CM301300001 SAFETY LABEL 1 27 CM300200001 ATTENTION SEAL 2 28 TA0550604R0 RUBBER PLUG 1 29 TA0750404R0 PLUG D=7.5 L=3.5 2 30 SM6040602TP SCREW M4 L=6 6 31 TA1550902R0 PLUG 1 32 TA1050504R0 RUBBER PLUG 1 33 TA1120804R0 RUBBER PLUG 1 34 TA1250406R0 RUBBER PLUG D=12.5 L=4 4 35 TA1550902R0 PLUG 2 36 SM6061002TP SCREW M6 L=10 ACCESSORIE PARTS 4 37 SM6067052TP HEXAGON BOLT 1 38 SM80606A2TP SCREW M6 L=6 2 39 32002354 SWITCH ASM. 1 40 SL6040892TN SCREW 2 41 22528764 PRE-TENSION CONTROLLER ASM. 1 42 22502504 THREAD GUIDE BAR ACCESSORIE PARTS 1 43 40004158 BED BASE 1 44 40004160 BED_REAR_COVER 1 45 HX00150000A CABLE CLAMP 1 46 40005403 HEAD FAN MOTOR B ASS'Y 1 47 HM000550010 FILTER 1 jintex.in
Page 5 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)
FRAME & MISCELLANEOUS COVER COMPONENTS (1)
Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | HM0003800A0 | FINGER GUARD | 1 |
| 49 | 40006314 | HINGE BUSH | 1 |
| 50 | 13700604 | HINGE PIN | 2 |
| 51 | 13700406 | HINGE PLATE A | 1 |
| 52 | 13700505 | HINGE PLATE B | 1 |
| 53 | NM6060001SD | NUT M6 | 2 |
| 54 | NM6030001SD | NUT M3X0.5 | 1 |
| 55 | WP0612056SD | WASHER 6.1X18.5X2 | 1 |
| 56 | 13943303 | OIL SHIELD | 1 |
| 57 | 40008977 | RUBBER C | 3 |
| 58 | 40008978 | RUBBER D | 1 |
| 59 | SM6031402TP | SCREW | 1 |
| 60 | E2002855000 | Z STOPPER RUBBER | 1 |
| 61 | D6056555B00 | RUBBER CUSHION (B) | 1 |
| 62 | 13700703 | RUBBER HINGE | 1 |
| 63 | SL6040892TN | SCREW | 1 |
| 64 | SM1043001SP | SCREW M4X0.7 L=30 | 2 |
| 65 | B1116804000 | CLOTH PLATE WASHER | 2 |
| 66 | E3724715000 | VCS STUD A | 1 |
| 67 | TA0850604R0 | RUBBER PLUG | 1 |
| 68 | CM300200003 | ATTENTION LABEL | 1 |
| 69 | 13705405 | NEEDLE BAR THREAD GUIDE | 1 |
| 70 | 13922208 | TAKE-UP THREAD GUIDE B | 1 |
| 71 | SM6050802TP | SCREW M5X0.8 L=8 | 2 |
| 72 | 40009037 | TAKE-UP THREAD GUIDE A | 1 |
| 73 | SM6040602TP | SCREW M4 L=6 | 1 |
| 74 | 40003495 | SAFETY SWITCH ASS'Y | 1 |
| 75 | 14516603 | SAFETY SW BASE | 1 |
| 76 | 40003496 | SAFETY SWITCH CORD ASS'Y | 1 |
| 77 | 14516900 | SAFETY SWITCH COVER | 1 |
| 78 | 23638109 | SAFETY SWITCH ARM | 1 |
| 79 | 23638307 | SAFETY SWITCH ARM SHAFT | 1 |
| 80 | 23638208 | SAFETY SWITCH SPRING | 1 |
| 81 | 23638406 | SAFETY SWITCH NUT | 1 |
| 82 | SM4021201SC | SCREW M2 L=12 | 2 |
| 83 | SS7090520SP | SCREW 9/64-40 L=4.5 | 2 |
| 84 | EA9500B0100 | CABLE BAND | 1 |
FRAME & MISCELLANEOUS COVER COMPONENTS (1) No. Parts No. Parts name Remarks Level Cons Qty 48 HM0003800A0 FINGER GUARD 1 49 40006314 HINGE BUSH ACCESSORIE PARTS 1 50 13700604 HINGE PIN 2 51 13700406 HINGE PLATE A ACCESSORIE PARTS 1 52 13700505 HINGE PLATE B ACCESSORIE PARTS 1 53 NM6060001SD NUT M6 2 54 NM6030001SD NUT M3X0.5 1 55 WP0612056SD WASHER 6.1X18.5X2 1 56 13943303 OIL SHIELD ACCESSORIE PARTS 1 57 40008977 RUBBER C 3 58 40008978 RUBBER D 1 59 SM6031402TP SCREW 1 60 E2002855000 Z STOPPER RUBBER 1 61 D6056555B00 RUBBER CUSHION (B) 1 62 13700703 RUBBER HINGE ACCESSORIE PARTS 1 63 SL6040892TN SCREW ACCESSORIE PARTS 1 64 SM1043001SP SCREW M4X0.7 L=30 2 65 B1116804000 CLOTH PLATE WASHER 2 66 E3724715000 VCS STUD A 1 67 TA0850604R0 RUBBER PLUG 1 68 CM300200003 ATTENTION LABEL 1 69 13705405 NEEDLE BAR THREAD GUIDE 1 70 13922208 TAKE-UP THREAD GUIDE B 1 71 SM6050802TP SCREW M5X0.8 L=8 2 72 40009037 TAKE-UP THREAD GUIDE A 1 73 SM6040602TP SCREW M4 L=6 1 74 40003495 SAFETY SWITCH ASS'Y * 1 75 14516603 SAFETY SW BASE * 1 76 40003496 SAFETY SWITCH CORD ASS'Y * 1 77 14516900 SAFETY SWITCH COVER * 1 78 23638109 SAFETY SWITCH ARM * 1 79 23638307 SAFETY SWITCH ARM SHAFT * 1 80 23638208 SAFETY SWITCH SPRING * 1 81 23638406 SAFETY SWITCH NUT * 1 82 SM4021201SC SCREW M2 L=12 * 2 83 SS7090520SP SCREW 9/64-40 L=4.5 * 2 84 EA9500B0100 CABLE BAND * 1 jintex.in

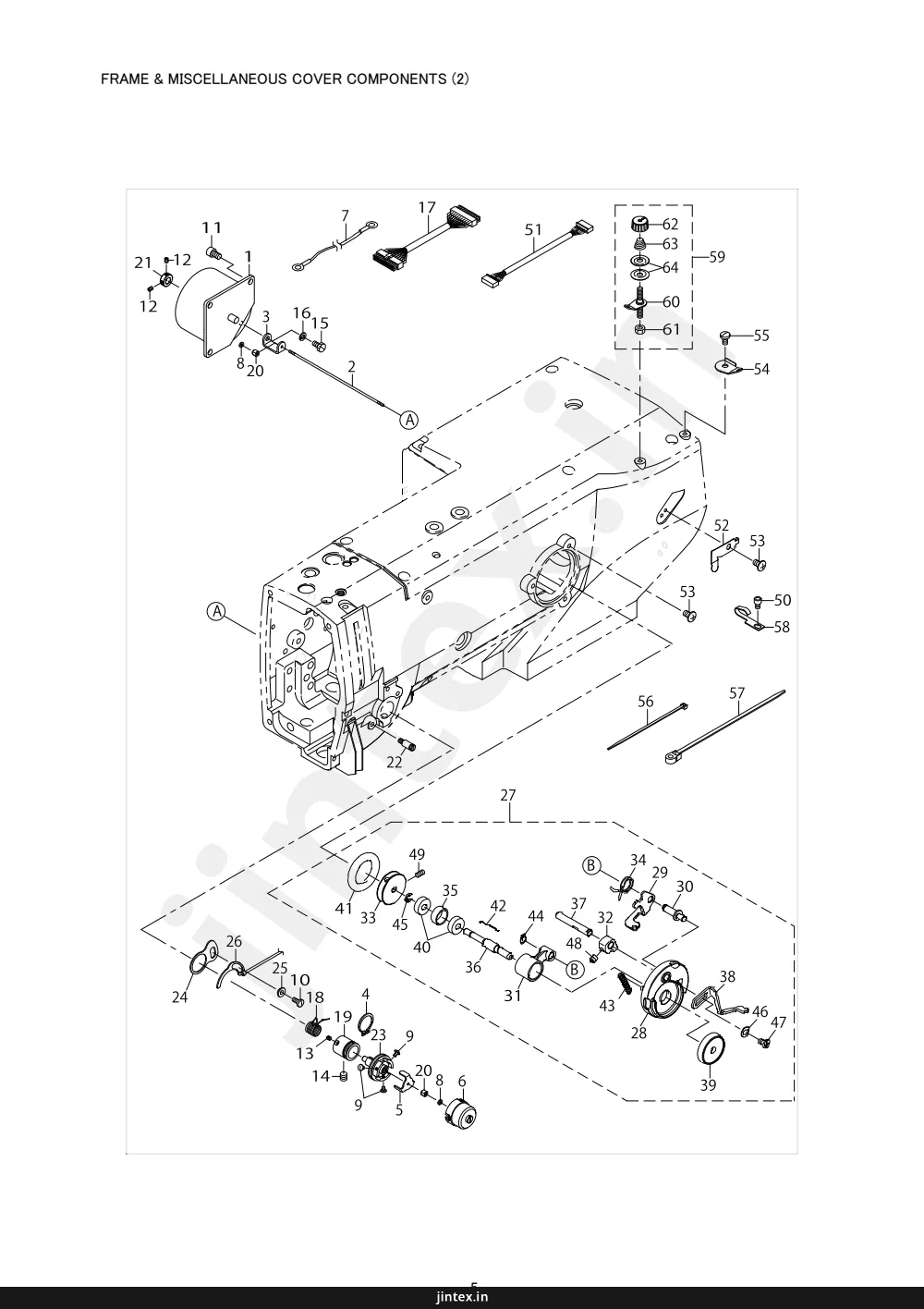

Page 7
FRAME & MISCELLANEOUS COVER COMPONENTS (2) 11 21 12 1 12 3 16 15 8 20 2 7 17 51 62 63 64 60 61 59 55 54 52 53 53 50 58 22 27 56 57 49 34 29 30 35 42 37 32 44 45 40 48 36 43 38 41 33 26 25 10 24 18 4 19 23 13 14 9 20 5 8 6 9 28 46 47 39 jintex.in
Page 8 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40006261 | ASSY_AT_SOLENOID | 1 |
| 2 | 40006263 | AT_SHAFT | 1 |
| 3 | 40006264 | AT_SHAFT_HOLDER | 1 |
| 4 | RC1700001KP | RETAINING RING | 1 |
| 5 | 40010514 | DISK_STOPPER | 1 |
| 6 | 40010511 | DISK_STOPPER_HOLDER_CAP | 1 |
| 7 | M90195800A0 | EARTH CABLE ASM. | 1 |
| 8 | 40010522 | SHAFT_NUT | 2 |
| 9 | SM0860400SN | SCREW | 3 |
| 10 | SM6040860TP | SCREW M4 L=8 | 1 |
| 11 | SM6050802TP | SCREW M5X0.8 L=8 | 3 |
| 12 | SM8030412TP | SCREW | 2 |
| 13 | SM8030412TP | SCREW | 1 |
| 14 | SM80606A2TP | SCREW M6 L=6 | 1 |
| 15 | SM9040800SP | SCREW | 1 |
| 16 | WS0410002KP | SPRING WASHER | 1 |
| 17 | 40005397 | MAIN-INT. CORD A ASS'Y | 1 |
| 18 | 10006104 | TAKE-UP SPRING | 1 |
| 19 | 40010510 | THREAD_TENSION_POST_BASE | 1 |
| 20 | 40010512 | THREAD_TENSION_SHAFT_COLLAR | 2 |
| 21 | 32055402 | THRUST COLLAR | 1 |
| 22 | 40004252 | UTT_SUSPENSION_SCREW_9 | 1 |
| 23 | 40006265 | ASSY_THREAD_TENSION_POST | 1 |
| 24 | B2702210000 | GUIDE PLATE | 1 |
| 25 | B2703210000 | BUSHING | 1 |
| 26 | 40003499 | THREAD BREAK DETECTOR A | 1 |
| 27 | 40011143 | ASSY_BTW | 1 |
| 28 | 26260109 | BTW_BASE | 1 |
| 29 | 26260208 | BTW_CAM_PLATE | 1 |
| 30 | 26260307 | BTW_BASE_SHAFT | 1 |
| 31 | 26260406 | BTW_SHAFT_BASE | 1 |
| 32 | 26260505 | BTW_CAM_LEVER | 1 |
| 33 | 26260604 | BTW_WHEEL | 1 |
| 34 | 40011144 | BTW_TORSION_SPRING | 1 |
| 35 | 26260802 | BTW_BEARING_SPACER | 1 |
| 36 | 40011145 | BTW_SHAFT | 1 |
| 37 | 40011146 | BTW_LEVER_SHAFT | 1 |
| 38 | 40021933 | BTW_LEVER | 1 |
| 39 | 26261206 | BTW_SPACER | 1 |
| 40 | 26261305 | BTW_BEARING | 2 |
| 41 | 26261503 | BTW_WHEEL_RUBBER | 1 |
| 42 | 26261602 | BOBBIN_SPRING | 1 |
| 43 | 26261701 | BTW_SPRING | 1 |
| 44 | RC0560711KP | RETAINING RING | 1 |
| 45 | RE040000K0 | E-RING 4 | 1 |
| 46 | WP0450826SC | WASHER 4.5X10X0.8 | 1 |
| 47 | SM5040655SN | SCREW | 1 |
FRAME & MISCELLANEOUS COVER COMPONENTS (2) No. Parts No. Parts name Remarks Level Cons Qty 1 40006261 ASSY_AT_SOLENOID 1 2 40006263 AT_SHAFT 1 3 40006264 AT_SHAFT_HOLDER 1 4 RC1700001KP RETAINING RING 1 5 40010514 DISK_STOPPER 1 6 40010511 DISK_STOPPER_HOLDER_CAP 1 7 M90195800A0 EARTH CABLE ASM. 1 8 40010522 SHAFT_NUT 2 9 SM0860400SN SCREW 3 10 SM6040860TP SCREW M4 L=8 1 11 SM6050802TP SCREW M5X0.8 L=8 3 12 SM8030412TP SCREW 2 13 SM8030412TP SCREW 1 14 SM80606A2TP SCREW M6 L=6 1 15 SM9040800SP SCREW 1 16 WS0410002KP SPRING WASHER 1 17 40005397 MAIN-INT. CORD A ASS'Y 1 18 10006104 TAKE-UP SPRING 1 19 40010510 THREAD_TENSION_POST_BASE 1 20 40010512 THREAD_TENSION_SHAFT_COLLAR 2 21 32055402 THRUST COLLAR 1 22 40004252 UTT_SUSPENSION_SCREW_9 1 23 40006265 ASSY_THREAD_TENSION_POST 1 24 B2702210000 GUIDE PLATE 1 25 B2703210000 BUSHING 1 26 40003499 THREAD BREAK DETECTOR A 1 27 40011143 ASSY_BTW 1 28 26260109 BTW_BASE * 1 29 26260208 BTW_CAM_PLATE * 1 30 26260307 BTW_BASE_SHAFT * 1 31 26260406 BTW_SHAFT_BASE * 1 32 26260505 BTW_CAM_LEVER * 1 33 26260604 BTW_WHEEL * 1 34 40011144 BTW_TORSION_SPRING * 1 35 26260802 BTW_BEARING_SPACER * 1 36 40011145 BTW_SHAFT * 1 37 40011146 BTW_LEVER_SHAFT * 1 38 40021933 BTW_LEVER * 1 39 26261206 BTW_SPACER * 1 40 26261305 BTW_BEARING * 2 41 26261503 BTW_WHEEL_RUBBER * 1 42 26261602 BOBBIN_SPRING * 1 43 26261701 BTW_SPRING * 1 44 RC0560711KP RETAINING RING * 1 45 RE040000K0 E-RING 4 * 1 46 WP0450826SC WASHER 4.5X10X0.8 * 1 47 SM5040655SN SCREW * 1 jintex.in
Page 9 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)
FRAME & MISCELLANEOUS COVER COMPONENTS (2)
Page 10 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SM8050502TP | SCREW M5 L=5 | 1 |
| 49 | SM8040802TP | SCREW M4X8 | 2 |
| 50 | SM6040602TP | SCREW M4 L=6 | 3 |
| 51 | 40005399 | MAIN-INT CORD D ASS'Y | 1 |
| 52 | 40037008 | THREAD,CUTTER | 1 |
| 53 | SM0050801SC | SCREW | 4 |
| 54 | D316255B00 | THREAD GUIDE | 1 |
| 55 | SS7110840SP | SCREW 11/64-40 L=7.8 | 1 |
| 56 | EA9500B0100 | CABLE BAND | 10 |
| 57 | HX00151000A | CABLE BAND | 2 |
| 58 | 26230409 | LUBRICATING OIL WICK STOPPER | 3 |
| 59 | 22529481 | BOBBIN THREAD TENSION ASM. | 1 |
| 60 | 22529473 | BOBBIN THREAD TENSION ROD ASM. | 1 |
| 61 | NS6110310SP | NUT 11/64-40 | 1 |
| 62 | 11072402 | THREAD TENSION NUT | 1 |
| 63 | 11093606 | THREAD TENSION SPRING | 1 |
| 64 | B3214047000 | BOBBIN WINDER TENSION DISC | 2 |
FRAME & MISCELLANEOUS COVER COMPONENTS (2) No. Parts No. Parts name Remarks Level Cons Qty 48 SM8050502TP SCREW M5 L=5 * 1 49 SM8040802TP SCREW M4X8 * 2 50 SM6040602TP SCREW M4 L=6 3 51 40005399 MAIN-INT CORD D ASS'Y 1 52 40037008 THREAD,CUTTER 1 53 SM0050801SC SCREW 4 54 D316255B00 THREAD GUIDE 1 55 SS7110840SP SCREW 11/64-40 L=7.8 1 56 EA9500B0100 CABLE BAND 10 57 HX00151000A CABLE BAND 2 58 26230409 LUBRICATING OIL WICK STOPPER 3 59 22529481 BOBBIN THREAD TENSION ASM. * 1 60 22529473 BOBBIN THREAD TENSION ROD ASM. * 1 61 NS6110310SP NUT 11/64-40 * 1 62 11072402 THREAD TENSION NUT * 1 63 11093606 THREAD TENSION SPRING * 1 64 B3214047000 BOBBIN WINDER TENSION DISC * 2 jintex.in
Page 11 — MAIN SHAFT COMPONENTS
MAIN SHAFT COMPONENTS 51 44 29 31 30 37 39 40 41 38 41 46 47 42 48 45 49 50 33 43 34 26 32 24 26 27 18 23 19 22 25 21 14 17 36 35 2 20 28 18 9 16 15 8 12 4 13 6 3 11 7 5 11 3 10 jintex.in
Page 12 — MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40011517 | NEEDLE_BAR_CRANK_FELT | 1 |
| 2 | 40004182 | IDLER_ASM. | 1 |
| 3 | RC3781518KP | RETAINING RING | 2 |
| 4 | 40004185 | HINGE_SCREW | 1 |
| 5 | 40004184 | IDLER_FIXED_PLATE | 1 |
| 6 | 40004183 | IDLER_PULLEY | 1 |
| 7 | 13710504 | INTERMEDIATE SPROCKET WASHER | 1 |
| 8 | NM6100001SD | NUT M10 | 1 |
| 9 | 11050804 | FEED LEVER SPRING HOOK | 1 |
| 10 | SM6104352TP | SCREW M10 L=42.5 | 2 |
| 11 | SB110000700 | BALL BEARING | 1 |
| 12 | WP0621046SP | WASHER | 1 |
| 13 | SM9061403CP | SCREW M6 L=14 | 1 |
| 14 | SB120002700 | BEARING | 1 |
| 15 | 40051473 | COUPLING ASM. | 1 |
| 16 | 40051474 | COUPLING | 1 |
| 17 | SM80608A2TP | SCREW M6 L=8 | 4 |
| 18 | SM80606A2TP | SCREW M6 L=6 | 4 |
| 19 | 40004171 | COUNTER_WEIGHT_SCREW | 1 |
| 20 | 40004170 | COUNTER_WEIGHT | 1 |
| 21 | SM8081652TP | SCREW M8 L=16 | 1 |
| 22 | 40028015 | AC SERVO MOTOR | 1 |
| 23 | SM6052002TR | SCREW M5 L=20 | 4 |
| 24 | 23636400 | BOBBIN WINDER DRIVING WHEEL | 1 |
| 25 | 23605207 | BEARING HOLDER | 1 |
| 26 | SS6111440SP | SCREW 11/64-40 L=14.0 | 2 |
| 27 | 40004167 | MAIN_SHAFT | 1 |
| 28 | 40004169 | TIMING_BELT | 1 |
| 29 | 40010434 | THRUST_COLLAR_ASM. | 1 |
| 30 | 40010436 | THRUST_COLLAR_SCREW | 2 |
| 31 | 40010435 | THRUST_COLLAR | 1 |
| 32 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 33 | 40108752 | SPROCKET_A | 2 |
| 34 | SB120000800 | BEARING | 1 |
| 35 | 40004192 | ADJUSTING_SPRING | 1 |
| 36 | 40004179 | SUSPENSION_SCREW | 1 |
| 37 | 40121890 | PH=SQUARE_BLOCK_GUIDE_ASM. | 1 |
| 38 | SM6041202TP | SCREW M4X0.7 L=12 | 2 |
| 39 | 40080072 | THREAD_TAKE_UP_ASM. | 1 |
| 40 | 40008339 | P=T NEEDLE BEARING SELECTIVE PARTS | 2 |
| 41 | 22891204 | BEARING SUPPORT | 2 |
| 42 | 40006300 | THREAD_TAKE_UP_CRANK_SHAFT | 1 |
| 43 | SM80608A2TP | SCREW M6 L=8 | 1 |
| 44 | 40006307 | SQUARE_BLOCK_GUIDE | 1 |
| 45 | 40004208 | NEEDLE_BAR_ROD | 1 |
| 46 | 40004206 | SQUARE_BLOCK | 1 |
| 47 | 40008423 | WASHER | 1 |
MAIN SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40011517 NEEDLE_BAR_CRANK_FELT 1 2 40004182 IDLER_ASM. 1 3 RC3781518KP RETAINING RING * 2 4 40004185 HINGE_SCREW * 1 5 40004184 IDLER_FIXED_PLATE * 1 6 40004183 IDLER_PULLEY * 1 7 13710504 INTERMEDIATE SPROCKET WASHER * 1 8 NM6100001SD NUT M10 * 1 9 11050804 FEED LEVER SPRING HOOK * 1 10 SM6104352TP SCREW M10 L=42.5 * 2 11 SB110000700 BALL BEARING 1 12 WP0621046SP WASHER 1 13 SM9061403CP SCREW M6 L=14 1 14 SB120002700 BEARING 1 15 40051473 COUPLING ASM. 1 16 40051474 COUPLING * 1 17 SM80608A2TP SCREW M6 L=8 * 4 18 SM80606A2TP SCREW M6 L=6 4 19 40004171 COUNTER_WEIGHT_SCREW 1 20 40004170 COUNTER_WEIGHT 1 21 SM8081652TP SCREW M8 L=16 1 22 40028015 AC SERVO MOTOR 1 23 SM6052002TR SCREW M5 L=20 4 24 23636400 BOBBIN WINDER DRIVING WHEEL 1 25 23605207 BEARING HOLDER 1 26 SS6111440SP SCREW 11/64-40 L=14.0 2 27 40004167 MAIN_SHAFT 1 28 40004169 TIMING_BELT 1 29 40010434 THRUST_COLLAR_ASM. 1 30 40010436 THRUST_COLLAR_SCREW * 2 31 40010435 THRUST_COLLAR * 1 32 SM80608A2TP SCREW M6 L=8 2 33 40108752 SPROCKET_A 2 34 SB120000800 BEARING 1 35 40004192 ADJUSTING_SPRING 1 36 40004179 SUSPENSION_SCREW 1 37 40121890 PH=SQUARE_BLOCK_GUIDE_ASM. 1 38 SM6041202TP SCREW M4X0.7 L=12 * 2 39 40080072 THREAD_TAKE_UP_ASM. * 1 40 40008339 P=T NEEDLE BEARING SELECTIVE PARTS * 2 41 22891204 BEARING SUPPORT * 2 42 40006300 THREAD_TAKE_UP_CRANK_SHAFT * 1 43 SM80608A2TP SCREW M6 L=8 * 1 44 40006307 SQUARE_BLOCK_GUIDE * 1 45 40004208 NEEDLE_BAR_ROD * 1 46 40004206 SQUARE_BLOCK * 1 47 40008423 WASHER * 1 jintex.in
Page 13 — MAIN SHAFT COMPONENTS
MAIN SHAFT COMPONENTS 51 44 29 31 30 37 39 38 40 41 46 41 47 48 42 49 50 33 43 34 26 32 24 26 27 18 23 19 22 25 21 14 17 36 35 2 20 28 18 9 16 15 8 12 4 13 6 5 3 11 11 3 10 jintex.in
Page 14 — MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 40008426 | SQUARE_BLOCK | 1 |
| 49 | 40022363 | SQUARE_BLOCK_GUIDE_B | 1 |
| 50 | 40083369 | NEEDLE_CRANK_SHAFT | 1 |
| 51 | SM6062502TP | SCREW M6 L=25 | 3 |
MAIN SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40008426 SQUARE_BLOCK * 1 49 40022363 SQUARE_BLOCK_GUIDE_B * 1 50 40083369 NEEDLE_CRANK_SHAFT * 1 51 SM6062502TP SCREW M6 L=25 3 jintex.in
Page 15 — HOOK DRIVING SHAFT COMPONENTS
HOOK DRIVING SHAFT COMPONENTS 11 18 15 15 2 7 20 7 12 8 1 21 5 32 32 9 30 31 15 31 25 10 13 16 14 26 28 27 17 29 15 3 23 15 15 22 4 24 6 15 15 19 15 6 15 jintex.in
Page 16 — HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SB112001600 | BEARING | |
| 2 | SB110000600 | BALL BEARING | |
| 3 | SB115000200 | BEARING | |
| 4 | SB115001500 | BEARING | |
| 5 | 40004188 | BEARING_SUPPORT | |
| 6 | 23536204 | BUSH | |
| 7 | RC2791218KP | RETAINING RING | |
| 8 | 40004186 | HOOK_DRIVING_SHAFT | |
| 9 | 40004187 | HOOK_DRIVING_SHAFT_METAL | |
| 10 | 13729660 | HOOK SLEEVE ASM. | |
| 11 | 13710306 | INTERMEDIATE SPROCKET SHAFT | |
| 12 | 13710504 | INTERMEDIATE SPROCKET WASHER | |
| 13 | 13729066 | HOOK COMPL. | |
| 14 | G8039870000 | CROWN KNOB | |
| 15 | SM80606A2TP | SCREW M6 L=6 | |
| 16 | 13782065 | HOOK COMPL. (K) | |
| 17 | 14504401 | BEARING SUPPORT | |
| 18 | 40004180 | SPROCKET_B | |
| 19 | 40108753 | SPROCKET_C | |
| 20 | 13710405 | INTERMEDIATE SPROCKET RING | |
| 21 | 40006317 | WASHER | |
| 22 | 40006322 | ADJUSTING SHAFT | |
| 23 | 40006312 | ADJUSTING_NUT | |
| 24 | SM8080812TP | SCREW M8X8 | |
| 25 | 40006320 | FELT | |
| 26 | 23630007 | TUBE | |
| 27 | CQ202000000 | OIL WICK | |
| 28 | B1811771000 | BOBBIN | |
| 29 | 13729769 | BOBBIN CASE ASM. | |
| 30 | 40006321 | PIPE | |
| 31 | 40011355 | OIL_FILTER | |
| 32 | SM8050502TP | SCREW M5 L=5 |
HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SB112001600 BEARING 2 2 SB110000600 BALL BEARING 2 3 SB115000200 BEARING 1 4 SB115001500 BEARING 1 5 40004188 BEARING_SUPPORT 1 6 23536204 BUSH 2 7 RC2791218KP RETAINING RING 2 8 40004186 HOOK_DRIVING_SHAFT 1 9 40004187 HOOK_DRIVING_SHAFT_METAL 1 10 13729660 HOOK SLEEVE ASM. 1 11 13710306 INTERMEDIATE SPROCKET SHAFT 1 12 13710504 INTERMEDIATE SPROCKET WASHER 1 13 13729066 HOOK COMPL. FOR LBH-1790S 1 14 G8039870000 CROWN KNOB 1 15 SM80606A2TP SCREW M6 L=6 10 16 13782065 HOOK COMPL. (K) FOR LBH-1792K 1 17 14504401 BEARING SUPPORT 1 18 40004180 SPROCKET_B 1 19 40108753 SPROCKET_C 1 20 13710405 INTERMEDIATE SPROCKET RING 1 21 40006317 WASHER 1 22 40006322 ADJUSTING SHAFT 1 23 40006312 ADJUSTING_NUT 1 24 SM8080812TP SCREW M8X8 1 25 40006320 FELT 1 26 23630007 TUBE 1 27 CQ202000000 OIL WICK 1 28 B1811771000 BOBBIN 1 29 13729769 BOBBIN CASE ASM. 1 30 40006321 PIPE 1 31 40011355 OIL_FILTER 2 32 SM8050502TP SCREW M5 L=5 2 jintex.in
Page 17 — PRESSER & FEED COMPONENTS (FOR LBH-1790S,LBH-1792S)
PRESSER & FEED COMPONENTS (FOR LBH-1790S,LBH-1792S) 38 65 29 40 39 30 41 32 57 33 64 53 49 36 37 42 35 47 34 40 60 44 61 62 51 31 63 40 68 54 46 45 69 56 52 59 55 58 66 70 1 43 71 5 48 74 24 22 50 67 75 63 80 72 83 25 77 73 20 76 12 23 88 78 84 14 6 79 25 82 13 14 28 18 14 28 10 28 26 9 4 11 22 27 21 19 4 26 22 2 8 86 85 20 15 3 87 17 16 jintex.in
