Page 1 — PARTS LIST
MODEL : LBH-1790AB List No : 1674-00 PARTS LIST Published:09/10/2017 jintex.in
Juki LBH-1790AB — parts catalog
- Page 1 (cover): This page is the cover for the parts list of the LBH-1790AB model, with a list number of 1674-00 and published on October 9, 2017.
- Page 2 (toc): This page is a table of contents for a parts list, detailing sections like "SHORTER-THREAD REMAINING TYPE" and "HOW TO MAKE USE OF THIS PARTS LIST" with their corresponding page numbers.
- Page 3 (diagram): This page illustrates components for a shorter-thread remaining type sewing machine, including bobbin thread trimmer components, accessory parts, and presser and feed components.
- Page 4 (parts_list): This page lists parts for a shorter-thread remaining type, including work clamps, throat plates, screws, spacers, washers, and a timing gauge.
- Page 5 (text): This page provides instructions on how to use the parts list, explaining the meaning of codes, quantities, parenthetical information, and dotted lines.
- Page 6 (index): This page provides a numerical index of parts, listing part numbers, their corresponding page numbers, and reference numbers.
Page 2 — CONTENTS
CONTENTS SHORTER-THREAD REMAINING TYPE .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Page 3 — SHORTER-THREAD REMAINING TYPE
SHORTER-THREAD REMAINING TYPE BOBBIN THREAD TRIMMER COMPONENTS 下糸切り関係 4 3 6 5 7 ACCESSORE PARTS COMPONENTS 付属品関係 8 PRESSER & FEED COMPONENTS 押え・送り関係 2 1 jintex.in

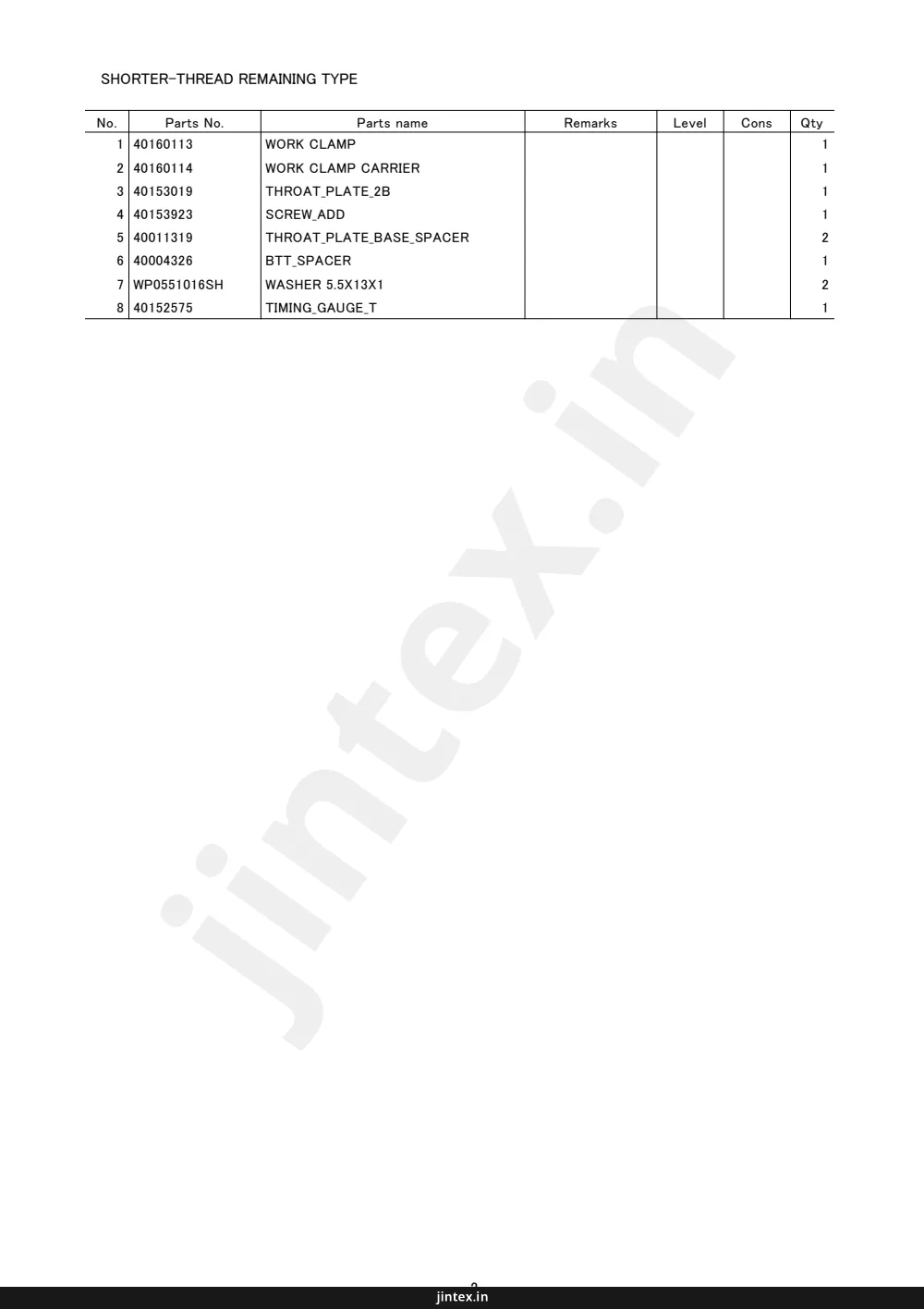

Page 4 — SHORTER-THREAD REMAINING TYPE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40160113 | WORK CLAMP | 1 |
| 2 | 40160114 | WORK CLAMP CARRIER | 1 |
| 3 | 40153019 | THROAT_PLATE_2B | 1 |
| 4 | 40153923 | SCREW_ADD | 1 |
| 5 | 40011319 | THROAT_PLATE_BASE_SPACER | 2 |
| 6 | 40004326 | BTT_SPACER | 1 |
| 7 | WP0551016SH | WASHER 5.5X13X1 | 2 |
| 8 | 40152575 | TIMING_GAUGE_T | 1 |
SHORTER-THREAD REMAINING TYPE No. Parts No. Parts name Remarks Level Cons Qty 1 40160113 WORK CLAMP 1 2 40160114 WORK CLAMP CARRIER 1 3 40153019 THROAT_PLATE_2B 1 4 40153923 SCREW_ADD 1 5 40011319 THROAT_PLATE_BASE_SPACER 2 6 40004326 BTT_SPACER 1 7 WP0551016SH WASHER 5.5X13X1 2 8 40152575 TIMING_GAUGE_T 1 jintex.in
Page 5 — HOW TO MAKE USE OF THIS PARTS LIST
HOW TO MAKE USE OF THIS PARTS LIST 1.As to "#01" and "#02" refer to the "Note" given at the bottom of the respective pages. 2.Codes on the "Qty" column Each numeral indicates the number of parts required. "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. 1. リストページの#01、#02の印は、ページ下の“注記”の説明を参照下さい。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3. 数量欄の( )は、組部品を構成している子部品であることを意味します。 4. イラストページの一----枠は、組構成であることを意味します。 jintex.in
Page 6 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 6 | 40004326 | ||
| 5 | 40011319 | ||
| 8 | 40152575 | ||
| 3 | 40153019 | ||
| 4 | 40153923 | ||
| 1 | 40160113 | ||
| 2 | 40160114 | ||
| 7 | WP0551016SH |
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. 40004326 2 6 40011319 2 5 40152575 2 8 40153019 2 3 40153923 2 4 40160113 2 1 40160114 2 2 WP0551016SH 2 7 INDEX - 1 jintex.in
