Page 3 — HOOK COOLING UNIT B

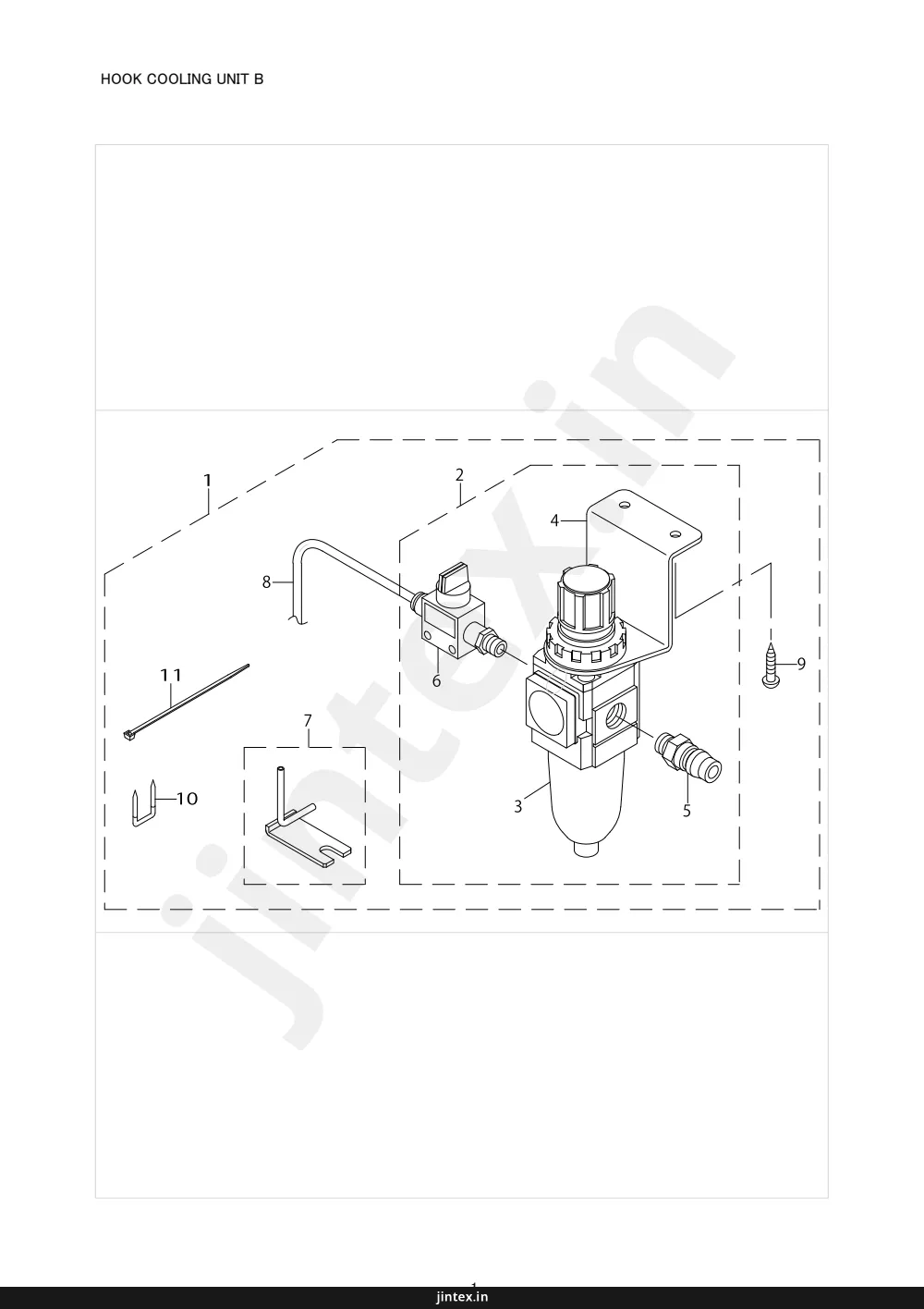

HOOK COOLING UNIT B 1 2 4 8 6 3 5 11 7 10 9 jintex.in
Page 4 — HOOK COOLING UNIT B
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40097040 | HOOK COOLING UNIT B | 1 | |
| 40023432 | FILTER REGULATOR ASM. | 1 | |
| PF0551060A0 | FILTER REGULATOR | 1 | |
| PF902005000 | REGULATOR BRACKET | 1 | |
| PJ025100003 | PLUG | 1 | |
| PV015122000 | FINGER VALVE | 1 | |
| 40094012 | PIPE BRACKET ASM. | 1 | |
| BT0400251EB | URETHANE HOSE, BLACK | 1.5 | |
| SK3412001SE | WOOD SCREW D=4.1 L=20 | 2 | |
| MAO11532000 | CORD STAPLE | 2 | |
| EA9500B0100 | CABLE BAND | 2 |
HOOK COOLING UNIT B No. Parts No. Parts name Remarks Level Cons Qty 1 40097040 HOOK COOLING UNIT B 1 2 40023432 FILTER REGULATOR ASM. * 1 3 PF0551060A0 FILTER REGULATOR * 1 4 PF902005000 REGULATOR BRACKET * 1 5 PJ025100003 PLUG * 1 6 PV015122000 FINGER VALVE * 1 7 40094012 PIPE BRACKET ASM. * 1 8 BT0400251EB URETHANE HOSE, BLACK * 1.5 9 SK3412001SE WOOD SCREW D=4.1 L=20 * 2 10 MAO11532000 CORD STAPLE * 2 11 EA9500B0100 CABLE BAND * 2 jintex.in
Page 5 — HOW TO MAKE USE OF THIS PARTS LIST
HOW TO MAKE USE OF THIS PARTS LIST 1.As to "#01" and "#02" refer to the "Note" given at the bottom of the respective pages. 2.Codes on the "Qty" column Each numeral indicates the number of parts required. "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. 1. リストページの#01、#02の印は、ページ下の“注記”の説明を参照下さい。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3. 数量欄の( )は、組部品を構成している子部品であることを意味します。 4. イラストページのーーーーー枠は、組構成であることを意味します。 jintex.in
Page 6 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 40023432 | ||
| 7 | 40094012 | ||
| 1 | 40097040 | ||
| 8 | BT0400251EB | ||
| 11 | EA9500B0100 | ||
| 10 | MA011532000 | ||
| 3 | PF0551060A0 | ||
| 4 | PF902005000 | ||
| 5 | PJ025100003 | ||
| 6 | PV015122000 | ||
| 9 | SK3412001SE |
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. 40023432 2 2 40094012 2 7 40097040 2 1 BT0400251EB 2 8 EA9500B0100 2 11 MA011532000 2 10 PF0551060A0 2 3 PF902005000 2 4 PJ025100003 2 5 PV015122000 2 6 SK3412001SE 2 9 INDEX - 1 jintex.in
