Juki LBH-761 Parts Book (PDF)
Text index — Juki LBH-761
Page 7 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1112-761-000 | Face cover | 1 |
| 2 | SS-7111810-SP | Screw 11/64-40 L=18.0 | 2 |
| 3 | SS-7110910-SP | Screw 11/64-40 L=8.5 | 1 |
| 4 | B1123-581-000 | Thread take-up lever oil guard | 1 |
| 5 | SS-4090610-SP | Screw 9/64-40 L=6.0 | 2 |
| 6 | B1113-761-000-A | Left side cover | 1 |
| 7 | SS-7110910-SP | Screw 11/64-40 L=8.5 | 3 |
| 8 | TA-1250705-R0 | Rubber plug | |
| 9 | B1117-761-000 | Oil felt | 2 |
| 10 | B1109-761-000 | Top cover, front | 1 |
| 11 | SS-7111810-SP | Screw 11/64-40 L=18.0 | 3 |
| 12 | B1139-761-000 | Oil pipe | |
| 13 | B3118-552-E00 | Thread release pin | 1 |
| 14 | B1111-761-000 | Spring | 1 |
| 15 | B1110-761-000 | Oiling hole cover | 1 |
| 16 | B1103-761-000 | Top cover | 1 |
| 17 | SS-7112420-SP | Screw 11/64-40 L=24.0 | 5 |
| 18 | B1108-761-000 | Top cover position pin | 2 |
| 19 | B1104-761-000 | Top cover gasket | 1 |
| 20 | TA-0750704-R0 | Rubber plug | 3 |
| 21 | SS-5680740-SP | Screw 9/32-28 L=6.8 | |
| 22 | B3544-122-000 | Gasket | |
| 23 | SS-7111310-SP | Screw 11/64-40 L=12.8 | 1 |
| 24 | B1106-761-0A0 | Gear case cover asm. | 1 |
| 25 | SD-0640241-SP | Hinge screw D=6.35 H=2.4 | 1 |
| 26 | B3125-155-000 | Disc spring | 1 |
| 27 | B1131-761-000 | Oil felt | 2 |
| 28 | PS-0600402-00 | Oil tube | 1 |
| 29 | B1120-352-000 | Stopper | 1 |
| 30 | NS-6120310-SP | Nut 3/16-28 | 1 |
| 31 | B1116-761-000 | Side cover (C) | 1 |
| 32 | B1124-761-000 | Frame side cover (C) gasket | 1 |
| 33 | SS-7110910-SP | Screw 11/64-40 L=8.5 | 4 |
| 34 | B1119-761-000 | Machine arm support rod | 1 |
| 35 | B1120-761-000 | Hinge pin | 1 |
| 36 | SS-8110510-SP | Screw 11/64-40 L=5.0 | 1 |
| 37 | B1118-761-000 | Rubber cushion | 1 |
| 38 | B1130-761-000 | Frame side cover (B) | 1 |
| 39 | SS-7111110-TP | Screw 11/64-40 L=10.5 | 1 |
| 40 | SS-7110910-SP | Screw 11/64-40 L=8.5 | 1 |
| 41 | B1115-761-000 | Side cover (B) | 1 |
| 42 | SS-7110910-SP | Screw 11/64-40 L=8.5 | 1 |
| 43 | B1114-761-000 | Side cover (A) | 1 |
| 44 | B2926-761-000 | Hand stop latch | 1 |
| 45 | SS-7110910-SP | Screw 11/64-40 L=8.5 | 4 |
| 46 | B1129-761-000 | Side cover (A) | 1 |
| 47 | SS-7110910-SP | Screw 11/64-40 L=8.5 | 2 |
| 48 | B1121-761-000 | Bed slide | 1 |
| 49 | B1134-761-000 | Bed slide spring | 1 |
| 50 | SS-7110740-TP | Screw 11/64-40 L=7.0 | 1 |
| 51 | B1162-771-000 | Bed screw stud (A) | |
| B1162-771-000 | Bed screw stud | 2 | |
| 52 | B1127-761-000 | Belt guard | 1 |
| 53 | B1128-761-000 | Belt guard spring | 1 |
| 54 | SS-7110510-SP | Screw 11/64-40 L=5.0 | 2 |
| 55 | B1137-761-0A0 | Belt guard hinge asm. | 2 |
| 56 | SS-7621040-SP | Screw 3/16-32 L=9.5 | 8 |
| 57 | SS-9157030-SP | Bolt 15/64-28 L=70.0 | 4 |
| 58 | WP-0621016-SD | Washer 6.2 x 13.0 x 1.0 | 4 |
| 59 | B1125-761-000 | Rubber cushion | 4 |
| 60 | SS-7111120-SP | Screw 11/64-40 L=10.5 | 4 |
| 61 | B1122-761-000 | Hinge holder | 2 |
| 62 | B1120-761-000 | Hinge pin | 2 |
| 63 | SS-9157130-CP | Bolt 15/64-28 L=20.5 | 4 |
| 64 | WP-0621016-SD | Washer 6.2 x 13.0 x 1.0 | 4 |
| 65 | B1105-761-000 | Machine base | |
| B1105-761-000-A | Machine base | 1 | |
| 66 | B1133-761-000 | Machine base felt | 4 |
| 67 | WP-0612056-SD | Washer 6.1 x 18.5 x 2.0 | 4 |
| 68 | NS-6150430-SP | Nut 15/64-28 | 4 |
| 69 | B1135-352-000 | Oil gauge | 1 |
| SS-912130-GP | Bolt 15/64-28 L=20.5 | 4 |
Page 9 — 2. MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1201-761-000 | Main shaft | – |
| B1201-761-000-A | Main shaft | 1 | |
| 2 | B1409-761-000 | Oil wick holder | 1 |
| 3 | SS-7090510-SP | Screw 9/64-40 L=4.6 | 2 |
| 4 | CQ-3030000-00 | Oil wick | 0.8 |
| 5 | B1404-761-000 | Hinge stud | 1 |
| 6 | SS-8151150-SP | Screw 15/64-28 L=10.5 | 1 |
| 7 | B1903-541-000 | Left screw | 1 |
| 8 | B1905-541-A00 | Needle bushing | 2 |
| 9 | B1204-761-000 | Needle bar crank connecting rod | 1 |
| 10 | B1203-761-000 | Needle bar crank | 1 |
| 11 | B1901-761-0A0 | Thread take-up lever asm. | 1 |
| 12 | B1147-125-000 | Oil wick snap ring | 1 |
| 13 | BP-5000000-00 | Vinyl tube (WHITE) | 0.1 |
| 14 | B1202-761-000 | Counterweight | 1 |
| 15 | SS-7681750-TP | Screw 9/32-28 L=16.5 | 1 |
| 16 | SS-8680940-SP | Screw 9/32-28 L=9.0 | 1 |
| 17 | SS-8660610-TP | Screw 1/4-40 L=6.0 | 1 |
| 18 | SS-8660530-TP | Screw 1/4-40 L=4.5 | 1 |
| 19 | B1213-761-0A0 | Main shaft bushing asm., front | 1 |
| 20 | CQ-3030000-00 | Oil wick | (0.1) |
| 21 | TA-0300503-R0 | Plug D=3.0 L=4.5 | (1) |
| 22 | SS-8150750-SP | Screw 15/64-28 L=7.0 | 1 |
| 23 | B1203-012-000 | Oil felt | 1 |
| 24 | CQ-3030000-00 | Oil wick | 0.1 |
| 25 | B2720-761-0A0 | Knife bar connecting rod asm. | 1 |
| 26 | CQ-3030000-00 | Oil wick | (0.2) |
| 27 | B2722-761-000 | Knife bar driving eccentric | 1 |
| 28 | SS-8660810-TP | Screw 1/4-40 L=8.0 | 2 |
| 29 | B1209-761-A00-A | Oil seal ring | 1 |
| 30 | B1205-761-000-A | Main shaft bushing, intermediate | 1 |
| 31 | SS-8151150-SP | Screw 15/64-28 L=10.5 | 1 |
| 32 | B2920-761-0A0 | Worm asm. | 1 |
| 33 | SS-8660610-TP | Screw 1/4-40 L=6.0 | (2) |
| 34 | B1209-761-B00 | Oil seal ring (B) | 1 |
| 35 | B3209-761-000 | Bobbin winder pulley | 1 |
| 36 | SS-7151120-SP | Screw 15/64-28 L=11.0 | 2 |
| 37 | CS-147121B-SH | Thrust collar asm. | 1 |
| 38 | SS-8660530-TP | Screw 1/4-40 L=4.5 | (2) |
| 39 | B1206-761-0A0 | Main shaft bushing asm., rear | 1 |
| 40 | CQ-3030000-00 | Oil wick | (0.1) |
| 41 | SS-8151150-SP | Screw 15/64-28 L=10.5 | 1 |
| 42 | B1218-012-000 | Rear bushing oil felt | 1 |
| 43 | B3538-112-000 | Oil wick holder | 1 |
| 44 | SS-7110710-SP | Screw 11/64-40 L=7.0 | 1 |
| 45 | BP-5000000-00 | Vinyl tube | 0.1 |
| 46 | B1135-761-000 | Felt holder | 1 |
| 47 | B1208-761-000 | Idler pulley | 2 |
| 48 | B1210-761-000 | Ball bearing | 2 |
| 49 | B1207-761-0A0 | Driving pulley asm., front | – |
| B1207-761-0A0-A | Driving pulley asm., front | 1 | |
| 50 | SS-8151550-SP | Screw 15/64-28 L=15.0 | (2) |
| 50-1 | B1221-771-00C | Main shaft thrust washer C | 1 |
| 51 | B1211-761-000-B | Driving pulley | – |
| 51-1 | B1211-761-000-C | Driving pulley | 1 |
| 52 | B1214-761-A00 | Positioning pin | – |
| 52-1 | B1224-771-00A | Positioning pin | 1 |
| 53 | B1210-232-000 | Stop-motion cam pin slide block | 2 |
| 54 | B1211-232-000 | Stop cam pressure spring | – |
| B1231-771-000 | Stop cam pressure spring | 1 | |
| 55 | B1212-232-000 | Bakelite segment | 1 |
| 56 | PT-0402200-C0 | Tapered pin 4.0 x 22.0 | – |
| 57 | SS-5150-540-SP | Screw 15/64-28 L=5.0 | – |
| 57-1 | SS-7660510-SP | Screw 1/4-40 L=5.0 | 1 |
| 58 | SS-8150410-TP | Screw 15/64-28 L=4.0 | – |
| 58-1 | SS-9660512-TP | Screw 1/4-40 L=5.0 | 1 |
| 59 | B1208-232-000 | Stop-motion cam | – |
| B1208-771-000 | Stop-motion cam | 1 | |
| 60 | B1209-232-000 | Stop-motion cam position pin | 1 |
| 61 | B1212-761-000 | Brake cam | 1 |
| 62 | SS-2110920-TP | Screw 11/64-40 L=8.5 | 3 |
| B1903-541-SP | Left screw | ||
| B1209-761-800 | Oil seal ring (B) | ||
| CS-1471218-SH | Thrust collar asm. | ||
| B3538-12-000 | Oil wick holder | ||
| 0402200-C0 | Tapered pin 4.0 x 22.0 | ||
| SS-7660510-TP | Screw 15/64-28 L=4.0 |
Page 11 — 3. UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1302-761-0AO | Gear case asm. | 1 |
| 2 | SS-9152130-CP | Bolt 15/64-28 L=20.5 | (1) |
| 3 | SS-9151120-CP | Bolt 15/64-28 L=11.0 | (1) |
| 4 | B1310-012-000 | Oil seal (A) | 1 |
| 5 | B1311-012-000 | Oil seal (B) | 1 |
| 6 | B1312-012-000 | Oil seal (C) | 1 |
| 7 | B1306-155-0C0 | Gear & pinion asm. | 1 |
| 8 | B1306-155-0B0 | Gear & pinion asm., upper | (1) |
| 9 | B1305-012-0A0 | Gear asm. | (1) |
| 10 | SS-8660810-TP | Screw 1/4-40 L=8.0 | (2) |
| 11 | B1306-155-0A0 | Pinion asm. | (1) |
| 12 | SS-8660810-TP | Screw 1/4-40 L=8.0 | (2) |
| 13 | B1307-155-0B0 | Gear & pinion asm., lower | (1) |
| 14 | B1307-155-0A0 | Gear asm. | (1) |
| 15 | SS-8660810-TP | Screw 1/4-40 L=8.0 | (2) |
| 16 | B1308-155-0A0 | Pinion asm. | (1) |
| 17 | SS-8660810-TP | Screw 1/4-40 L=8.0 | (2) |
| 18 | B1301-761-000-A | Upright shaft | 1 |
| 19 | B1303-761-0A0 | Upright shaft bushing asm. upper | 1 |
| 20 | CQ-2020000-00 | Oil wick | (0.1) |
| 21 | B1304-761-0A0 | Upright shaft bushing asm., lower | 1 |
| 22 | CQ-2020000-00 | Oil wick | (0.1) |
| 23 | SS-6151220-SP | Screw 15/64-28 L=11.5 | 2 |
| 24 | CQ-3030000-00 | Oil wick | 0.5 |
| 25 | B3538-112-000 | Oil wick holder | |
| 26 | SS-7110710-SP | Screw 11/64-40 L=7.0 | |
| 27 | B1802-761-000 | Hook driving shaft bushing, rear | 1 |
| 28 | CQ-3030000-00 | Oil wick | 0.5 |
| 29 | SS-8150710-SP | Screw 15/64-28 L=7.0 | 1 |
| 30 | B3506-761-000 | Oil wick holder | 1 |
| 31 | SS-7110510-SP | Screw 11/64-40 L=5.0 | 1 |
| 32 | B1807-232-000 | Rubber plug | |
| TA-0850604-R0 | Rubber plug | 1 | |
| 33 | B1446-761-CA0 | Pinion asm. | 1 |
| 34 | SS-8660610-TP | Screw 1/4-40 L=6.0 | (2) |
| 35 | B1803-761-000 | Hook driving shaft bushing, intermediate | 1 |
| 36 | SS-8150710-SP | Screw 15/64-28 L=7.0 | 1 |
| 37 | B3541-581-000 | Oil adjusting rubber | 1 |
| 38 | B3540-581-000 | Bushing | 1 |
| 39 | B3527-112-000 | Plate spring | 1 |
| 40 | B3535-581-000 | Hook oil adjusting screw | 1 |
| 41 | B3537-581-000 | Positioning screw | 1 |
| 42 | B1811-761-000 | Oil supply felt holder | 1 |
| 43 | SS-7110710-SP | Screw 11/64-40 L=7.0 | 2 |
| 44 | B1804-761-0A0 | Hook driving shaft bushing asm., front | 1 |
| 45 | CQ-2520000-00 | Oil wick | (0.3) |
| 46 | SS-8150710-SP | Screw 15/64-28 L=7.0 | 1 |
| 47 | B1812-761-000 | Oil supply felt | 1 |
| 48 | B1805-761-0A0 | Hook sleeve asm. | 1 |
| 49 | SS-8660820-TP | Screw 1/4-40 L=8.0 | |
| SS-8660810-TP | Screw 1/4-40 L=8.0 | ||
| SS-8680810-TP | Screw 9/32-28 L=8.0 | (4) | |
| 50 | CQ-2000000-00 | Oil wick | 0.1 |
| 51 | B1808-761-0A0 | Hook asm. | |
| B1808-761-0AB | Hook B asm. | 1 | |
| 52 | B1807-761-000 | Bobbin case stop | 1 |
| 53 | SS-7110820-SP | Screw 11/64-40 L=7.5 | |
| SS-7110840-SP | Screw 11/64-40 L=7.8 | 2 | |
| 54 | B1813-761-000 | Bobbin thread guide | 1 |
| 55 | B1809-761-000 | Bobbin | 1 |
| 56 | B1810-761-0A0 | Bobbin case asm. | 1 |
| 57 | B1810-761-G00 | Latch stop screw | |
| B1810-761-G00-A | Latch stop screw | (1) | |
| 58 | B1810-761-F00 | Latch spring | (1) |
| 59 | B1810-761-B00 | Bobbin case latch | |
| B1810-761-B00-A | Bobbin case latch | (1) | |
| 60 | B1810-761-C00 | Bobbin case latch lever | (1) |
| 61 | B1810-761-D00 | Hinge pin | (1) |
| 62 | B1810-761-E00 | Tension spring | (1) |
| 63 | B1810-761-J00 | Tension screw | (1) |
| 64 | B1810-761-H00 | Clamp screw | (1) |
| 65 | B1801-761-000 | Hook driving shaft | 1 |
| 66 | B1810-761-0BA | Bobbin case asm. | 1 |
| 67 | B1814-761-000 | Bobbin case spring | (1) |
| B1301-761-000 | Oil wick | 1 | |
| 09 B1446-761-CA0 | Pinion asm. | 1 | |
| 09 B1810-761-0BA | Bobbin case asm. | 1 | |
| 09 B1814-761-000 | Bobbin case spring | (1) |
Page 13 — 4. PRESSER BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1509-012-000 | Presser spring regulator | 1 |
| 2 | B1507-761-000 | Presser spring | 1 |
| 3 | B1501-761-000 | Presser bar | 1 |
| 4 | B1506-761-000 | Presser bar guide bracket | 1 |
| 5 | SS-7111310-SP | Screw 11/64-40 L=12.8 | 2 |
| 6 | B1505-761-0AO | Presser bar position bracket asm. | 1 |
| 7 | SS-8660610-TP | Screw 1/4-40 L=6.0 | (1) |
| 8 | SS-4091520-SP | Screw 9/64-40 L=15.0 | 1 |
| 9 | B1502-761-000 | Bracket | 1 |
| 10 | B1502-761-0A0 | Bracket asm. | 1 |
| 11 | B2022-761-000 | Needle thread trimmer finger | 1 |
| 12 | SS-7090710-SP | Screw 9/64-40 L=6.8 | 1 |
| 13 | SS-4090610-SP | Screw 9/64-40 L=6.0 | 1 |
| 14 | B1504-761-B00 | Roller collar (B) | 1 |
| 15 | B1515-761-000 | Sliding roller | 1 |
| 16 | B1503-761-000 | Connecting pin | 1 |
| 17 | B1514-761-000 | Work clamp arm | 1 |
| 18 | B1514-762-000 | Work clamp arm | 1 |
| 19 | B1514-763-000 | Work clamp arm | 1 |
| 20 | SD-0791301-SP | Hinge screw D=7.94 H=13.0 | 1 |
| 21 | B1513-761-000 | Work clamp bracket | 1 |
| 22 | SS-7110710-SP | Screw 11/64-40 L=7.0 | 2 |
| 23 | SS-7110840-SP | Screw 11/64-40 L=7.8 | 2 |
| 24 | B1513-763-000 | Work clamp bracket | 1 |
| 25 | SS-2110840-SP | Screw 11/64-40 L=8.0 | - |
| 25 | SS-2110930-SP | Screw 11/64-40 L=8.7 | 1 |
| 26 | B2020-761-000 | Needle thread trimmer guide | 1 |
| 27 | B2020-762-000 | Needle thread trimmer guide | 1 |
| 28 | B1511-761-0A0 | Work clamp check holder asm. | 1 |
| 28-1 | B1512-761-000 | Work clamp check holder spring | 1 |
| 28-2 | B1509-761-000 | Work clamp check spring | 2 |
| 28-3 | B1510-761-000 | Work clamp check spring set pin | 2 |
| 29 | B1511-762-0A0 | Work clamp check holder asm. | 1 |
| 30 | B1511-763-0A0 | Work clamp check holder asm. | 1 |
| 31 | SD-0790202-SP | Hinge screw D=7.94 H=2.0 | 1 |
| 32 | SS-6060210-SP | Screw 3/32-56 L=1.9 | 2 |
| 33 | B1508-761-000 | Work clamp check | 1 |
| 34 | B1508-761-B00 | Work clamp check | 1 |
| 35 | B1508-762-000 | Work clamp check | 1 |
| 36 | B1508-762-B00 | Work clamp check | 1 |
| 37 | B1508-763-000 | Work clamp check | 1 |
| B1502-761-0AD | Bracket asm. | 1 |
Page 15 — 5. WORK CLAMP CARRIER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1611-761-0A0 | Hand stop crank shaft asm. | 1 |
| 2 | SS-6151440-SP | Screw 15/64-28 L= 14.0 | (2) |
| 3 | B1609-761-000 | Work clamp arm slide rod | 1 |
| 4 | B1609-761-000-A | Work clamp arm slide rod | 1 |
| 5 | B1609-763-000 | Work clamp arm slide rod | - |
| 6 | B1609-763-000-A | Work clamp arm slide rod | 1 |
| 7 | NS-6150310-SP | Nut 15/64-28 | - |
| 8 | CQ-3030000-00 | Oil wick | 0.5 |
| 9 | B1516-761-000 | Work clamp arm bearing bracket | - |
| 10 | B1516-771-000 | Work clamp arm bearing bracket | - |
| B1516-761-000-A | Work clamp arm bearing bracket | 1 | |
| 11 | SS-8150710-SP | Screw 15/64-28 L= 7.0 | 1 |
| 12 | SS-8151160-SP | Screw 15/64-28 L= 11.0 | 1 |
| 13 | SS-7090920-SP | Screw 9/64-40 L= 8.5 | 1 |
| 14 | B1517-761-000 | Connecting pin | 1 |
| 15 | B1612-761-000 | Work clamp carrier bracket guide | 1 |
| 16 | B1612-763-000 | Work clamp carrier bracket guide | 1 |
| 17 | SS-6111010-SP | Screw 11/64-40 L= 9.5 | 2 |
| 18 | B1606-761-000 | Work clamp carrier bracket pitman | 1 |
| 19 | B1606-763-000 | Work clamp carrier bracket pitman | 1 |
| 20 | SD-0870601-SP | Hinge screw D=8.73 H=6.0 | 1 |
| 21 | B1605-761-000 | Length regulating hinge stud | 1 |
| 22 | B1603-761-0A0 | Length regulating scale asm. | 1 |
| 23 | B1603-763-0A0 | Length regulating scale asm. | 1 |
| 24 | B1608-761-000 | Length regulating shaft guide | 1 |
| 25 | B1608-762-000 | Length regulating shaft guide | 1 |
| 26 | NS-6150440-SP | Nut 15/64-28 | 1 |
| 27 | CQ-3030000-00 | Oil wick | - |
| 28 | B1613-761-000 | Work clamp carrier | 1 |
| 29 | B1613-762-000 | Work clamp carrier | 1 |
| 30 | B1613-763-000 | Work clamp carrier | 1 |
| 31 | SS-2110920-TP | Screw 11/64-40 L= 8.5 | - |
| SS-5110810-SP | Screw 11/64-40 L= 8.0 | 1 | |
| 32 | B1601-761-0A0 | Length regulating shaft bell crank asm. | 1 |
| 33 | SS-9151630-CP | Bolt 15/64-28 L= 15.5 | (1) |
| 34 | B1602-761-000 | Bell crank roller stud | 1 |
| 35 | B2502-232-000 | Regulating shaft bell crank roller | 1 |
| 36 | NS-6150310-SP | Nut 15/64-28 | 1 |
| 37 | B1503-761-000 | Connecting pin | 2 |
| 38 | SS-7111120-SP | Screw 11/64-40 L= 10.5 | 2 |
| 39 | B1515-761-00A | Sliding roller | 2 |
| 40 | WP-0651056-SD | Washer 6.5 x 11.0 x 1.0 | - |
| WP-0651056-SH | Washer 6.5 x 11.0 x 1.0 | 2 | |
| 41 | B1607-761-000 | Work clamp carrier bracket cover | 1 |
| 42 | B1607-763-0A0 | Work clamp carrier bracket cover asm. | 1 |
| B1516-761-00A | Sliding roller | 1 |
Page 17 — 6. NEEDLE BAR FRAME COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1403-761-000 | Needle bar frame | 1 |
| 2 | B1404-761-000 | Hinge stud | 1 |
| 3 | SS-7151120-SP | Screw 15/64-28 L= 11.0 | 1 |
| 4 | CQ-3030000-00 | Oil wick | 0.5 |
| 5 | B1405-771-000 | Position bracket | 1 |
| 6 | SS-7110840-SP | Screw 11/64-40 L= 7.8 | 2 |
| 7 | B1401-761-000 | Needle bar | 1 |
| 8 | B1451-761-000 | Needle bar thread guide | 1 |
| 9 | MDP-500B1400 | Needle DP x 5 14 | 1 |
| 10 | SS-7080510-SP | Screw 1/8-44 L=4.5 | |
| SS-7080510-TP | Screw 1/8-44 L=4.5 | 1 | |
| 11 | B1406-761-000 | Oil felt | 2 |
| 12 | B1408-761-000 | Oil felt retainer lower | 1 |
| 13 | SS-7090520-SP | Screw 9/64-40 L= 4.5 | 1 |
| 14 | B1414-232-000 | Crank slide block | 1 |
| 15 | B1410-761-000 | Crank slide block stud | 1 |
| 16 | B1402-761-0AO | Needle bar connection | 1 |
| 17 | SS-7090910-SP | Screw 9/64-40 L= 8.5 | (1) |
| 18 | B1452-761-000 | Oil felt | 1 |
| 19 | B1407-761-000 | Oil felt | 1 |
| 20 | SS-7090520-SP | Screw 9/64-40 L= 4.5 | 1 |
| 21 | NS-6150310-SP | Nut 15/64-28 | 1 |
| 22 | B1411-761-0AO | Frame rock shaft crank asm., front | 1 |
| 23 | B2502-372-000 | Shaft bushing | 1 |
| 24 | SS-8151150-SP | Screw 15/64-28 L- 10.5 | 1 |
| 25 | CQ-3030000-00 | Oil wick | 0.3 |
| 26 | B1413-761-000 | Bushing, rear | 1 |
| 27 | SS-8151150-SP | Screw 15/64-28 L= 10.5 | 1 |
| 28 | B3505-761-000 | Oil tube holder | 1 |
| 29 | SS-7110510-SP | Screw 11/64-40 L= 5.0 | 1 |
| 30 | BP-8000000-00 | Vinyl tube | 1 |
| 31 | CQ-3030000-00 | Oil wick | 0.2 |
| 32 | B3541-012-000 | Oil wick | 1 |
| 33 | B3538-112-000 | Oil wick holder | 1 |
| 34 | SS-7110710-SP | Screw 11/64-40 L= 7.0 | 1 |
| 35 | B3539-112-000 | Oil wick holer | 1 |
| 36 | SS-4090610-SP | Screw 9/64-40 L= 6.0 | 1 |
| 37 | B1416-761-000 | Rock shaft connection guide | 1 |
| 38 | SS-6111620-SP | Screw 11/64-40 L= 16.0 | 2 |
| 39 | CQ-3030000-00 | Oil wick | 0.3 |
| 40 | B1414-761-0AO | Frame rock shaft crank asm., rear | 1 |
| 41 | SS-7151210-SP | Screw 15/64-28 L= 12.0 | (1) |
| 42 | CQ-3030000-00 | Oil wick | 0.2 |
| 43 | SD-0790801-SP | Hinge screw D 7.94 H 8.0 | 1 |
| 44 | NS-6160520-SP | Nut 1/4-24 | 1 |
| 45 | B1415-761-000 | Needle bar forked rod | 1 |
| 46 | CQ-3030000-00 | Oil wick | |
| 47 | SS-8111251-SP | Screw 11/64-40 L= 12.0 | 1 |
| 48 | NS-6110310-SP | Nut 11/64-40 | 1 |
| 49 | B1447-761-000 | Knife driving shaft | 1 |
| 50 | CQ-5050000-00 | Oil wick | 0.3 |
| 51 | CS-095101B-SH | Thrust collar | 1 |
| SS-8150710-SP | Screw 15/64-28 L= 7.0 | (2) | |
| 53 | SS-8151160-SP | Screw 15/64-28 L= 11.0 | 1 |
| 54 | B1445-761-0AO | Knife driving gear asm. | 1 |
| 55 | CS-095101C-SH | Thrust collar asm. | 1 |
| 56 | SS-8150710-SP | Screw 15/64-28 L= 7.0 | (1) |
| 57 | SS-8151160-SP | Screw 15/64-28 L= 11.0 | (1) |
Page 19 — 7. OVEREDGING WIDTH ADJUSTING COMPONENTS / カガリ幅調節関係
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1441-761-000 | Seam width indication | - |
| 1-1 | B1441-771-000 | Seam width indication | 1 |
| 2 | SS-7080510-SP | Screw 1/8-44 L=4.5 | - |
| 2 | SS-7080510-TP | Screw 1/8-44 L=4.5 | 2 |
| 3 | B1453-761-0A0 | Regulating lever stopper asm. | 1 |
| 4 | NS-6150310-SP | Nut 15/64-28 | 1 |
| 5 | B1422-761-000 | Suspension screw | 2 |
| 6 | B1426-761-000 | Tension spring (A) | 1 |
| 7 | B1417-761-000 | Connecting forked link | 1 |
| 8 | B1419-761-000 | Connecting stud | 1 |
| 9 | CQ-3030000-00 | Oil wick | 0.2 |
| 10 | B1418-761-0A0 | Connecting forked link pin asm. | 1 |
| 11 | CQ-2520000-00 | Oil wick | (0.1) |
| 12 | B1427-761-000 | Tension spring (B) | 1 |
| 13 | B1420-761-000 | Needle throw repositioning lever link | 1 |
| 15 | NS-6110310-SP | Nut 11/64-40 | 2 |
| 16 | B1421-761-0A0 | Bearing bracket asm. | 2 |
| 17 | CQ-2520000-00 | Oil wick | (0.2) |
| 18 | B1425-761-000 | Bearing bracket | 1 |
| 19 | SS-8111251-SP | Screw 11/64-40 L=12.0 | 2 |
| 20 | NS-6110310-SP | Nut 11/64-40 | 2 |
| 21 | SS-7120910-SP | Screw 3/16-28 L=9.0 | 2 |
| 22 | B1424-761-000 | Needle throw repositioning shaft | 1 |
| 23 | B1423-761-0A0 | Needle throw repositioning lever asm. | 1 |
| 24 | SS-6121210-SP | Screw 3/16-28 L=12.0 | (2) |
| 25 | B1449-761-000 | Stitch width regulating screw | 3 |
| 26 | NS-6200710-SN | Nut 5/16-18 | 3 |
| 27 | B1429-761-0B0 | Tripping rod asm. | - |
| 27-1 | B1429-771-0B0 | Tripping rod asm. | 1 |
| 28 | B1450-761-000 | Pin | - |
| 29 | B1430-761-000 | Roller | 1 |
| 30 | B1431-761-000 | Pin | 1 |
| 31 | SS-9152130-CP | Bolt 15/64-28 L=20.5 | 1 |
| 32 | NS-6150440-SP | Nut 15/64-28 | 1 |
| 33 | B1435-761-000 | Regulating lever | - |
| 33 | B1435-761-000-A | Regulating lever | 1 |
| 34 | B1440-761-000 | Seam width gauge | - |
| 35 | SS-7080410-SP | Screw 1/8-44 L=3.8 | - |
| 36 | B1442-761-000 | Barred width gauge | - |
| 37 | SS-7080410-SP | Screw 1/8-44 L=3.8 | - |
| 38 | B1434-761-000 | Regulating lever connection | 1 |
| 39 | B1433-761-000 | Regulating hinge pin | 1 |
| 40 | SD-0790432-SP | Hinge screw D=7.94 H=4.3 | 1 |
| 41 | B1436-761-000 | Bell crank | 1 |
| 42 | B1443-761-000 | Barred width indicator | - |
| 42-1 | B1443-761-000-A | Barred width indicator | 1 |
| 43 | SS-7080410-SP | Screw 1/8-44 L=3.8 | - |
| 43 | SS-6080410-SP | Screw 1/8-44 L=4 | 2 |
| 44 | B1439-761-000 | Roller | 1 |
| 45 | SD-0640471-SP | Hinge screw D=6.35 H=4.7 | 1 |
| 46 | NS-6110310-SP | Nut 11/64-40 | 1 |
| 47 | SS-8111251-SP | Screw 11/64-40 L=12.0 | 1 |
| 48 | B1448-761-000 | Spring | 1 |
| 49 | SS-7080510-SP | Screw 1/8-44 L=4.5 | - |
| 49 | SS-7080510-TP | Screw 1/8-44 L=4.5 | 2 |
| 50 | B1437-761-000 | Regulating lever bracket | 1 |
| 51 | SS-7151210-SP | Screw 15/64-28 L=12.0 | 2 |
| 52 | B1438-761-000 | Regulating lever shaft | 1 |
| 53 | CQ-3030000-00 | Oil wick | 0.3 |
| 54 | NS-6150310-SP | Nut 15/64-28 | - |
Page 20 — 8. NEEDLE THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2001-761-0AO | Needle thread trimmer (A) asm. | 1 |
| 2 | SD-0400181-TP | Hinge screw D= 4.00 H= 1.8 | - |
| 2 | SD-0400191-TP | Hinge screw D= 4.00 H= 1.9 | (1) |
| 3 | B2001-762-0AO | Needle thread trimmer asm. | 1 |
| 4 | B2001-763-0AO | Needle thread trimmer asm. | 1 |
| 5 | SS-7110510-SP | Screw 11/64-40 L= 5.0 | 2 |
| 6 | B2008-761-000 | Needle thread trimmer shaft guide | 1 |
| 7 | SS-7110910-SP | Screw 11/64-40 L= 8.5 | 1 |
| 8 | B2006-761-0AO | Needle thread trimmer arm asm. | 1 |
| 9 | SS-7111110-TP | Screw 11/64-40 L= 10.5 | (2) |
| 10 | B2006-762-0AO | Needle thread trimmer arm asm. | 1 |
| 11 | B2006-763-0AO | Needle thread trimmer arm asm. | 1 |
| 12 | B2007-761-0AO | Needle thread trimmer shaft asm. | 1 |
| 13 | B2011-761-000 | Plate spring (A) | 1 |
| 14 | B2015-761-000 | Plate spring (B) | 1 |
| 15 | SS-7110710-SP | Screw 11/64-40 L= 7.0 | 2 |
| 16 | B2010-761-000 | Bracket | 2 |
| 17 | SS-7111410-TP | Screw 11/64-40 L= 14.0 | 4 |
| 18 | B2009-761-000 | Universal joint | - |
| 18-1 | B2009-771-000 | Universal joint | 1 |
| 19 | CQ-3030000-00 | Oil wick | 0.1 |
| 20 | B2021-761-000 | Trimmer shaft crank tension spring | 1 |
| 21 | SD-0550501-SP | Hinge screw D= 5.50 H= 5.0 | 1 |
| 22 | B2012-761-000 | Pressure spring | - |
| 22-1 | B2012-761-000-A | Pressure spring | 1 |
| 23 | B2014-761-000 | Roller stud | 1 |
| 24 | B2507-372-000 | Cam roll | 1 |
| 25 | SS-6080610-TP | Screw 1/8-44 L= 6.0 | 1 |
| 26 | NS-6150310-SP | Nut 15/64-28 | 1 |
| 27 | B2016-761-0AO | Locking bracket latch asm. | 1 |
| 28 | SS-7110910-SP | Screw 11/64-40 L= 8.5 | 2 |
| 29 | B2023-761-000 | Spacer | 1 |
Page 21 — 9. THROAT PLATE & BOBBIN THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2402-761-000 | Throat plate | 1 |
| 2 | B2402-762-000 | Throat plate | 1 |
| 3 | B2402-763-000 | Throat plate | 1 |
| 4 | SS-6090510-SP | Screw 9/64-40 L=5.0 | 2 |
| 5 | B2406-761-0A0 | Bobbin thread trimmer blade asm. | 1 |
| 6 | SD-0640135-SP | Hinge screw D=6.35 H=1.3 | 1 |
| 7 | B2408-761-000 | Counter knife | 1 |
| 8 | SS-6090420-SP | Screw 9/64-40 L=4.0 | 2 |
| 9 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 2 |
| 10 | B2401-761-0A0 | Needle plate base asm. | 1 |
| 11 | SS-7090850-SP | Screw 9/64-40 L=8.0 | 4 |
| 12 | NS-611031-SP | Nut 11/64-40 | 1 |
| 13 | B2401-763-0A0 | Throat plate base (3) asm. | 1 |
| 14 | B2404-761-000 | Bobbin thread trimmer lever | 1 |
| 15 | SS-7110570-SP | Screw 11/64-40 L=4.8 | 1 |
| 16 | B2405-761-000 | Bobbin thread puller | 1 |
| 17 | SS-6090440-SP | Screw 9/64-40 L=4.0 | 2 |
| 18 | B2410-761-000 | Thread trimmer driving lever connection | 1 |
| 19 | SD-0640321-SP | Hinge screw D=6.35 H=3.2 | 1 |
| 20 | B2412-761-000 | Driving lever | |
| 20-1 | B2412-761-000-A | Driving lever | 1 |
| 21 | SD-0640602-SP | Hinge screw D=6.35 H=6.0 | 1 |
| 22 | SD-0791051-SP | Hinge screw D=7.94 H=10.5 | |
| 22 | SD-0791271-SP | Hinge screw D=7.94 H=12.7 | 1 |
| 23 | B2409-761-000 | Torsion spring | 1 |
| 24 | B1506-352-000 | Suspension screw (B) | 1 |
| 25 | SD-0550501-SP | Hinge screw D 5.50 H 5.0 | 1 |
| 26 | B2411-761-000 | Driving arm | 1 |
| 27 | B2412-047-000 | Ball screw | 1 |
| 28 | NS-6150310-SP | Nut 15/64-28 | 1 |
| 29 | B2413-761-000 | Connecting link | 1 |
| 30 | SS-7110570-SP | Screw 11/64-40 L 4.8 | 1 |
| 31 | NS-6150310-SP | Nut 15/64-28 | 1 |
| 32 | B2414-761-000 | Stop screw | 1 |
| 33 | NS-6680320-SP | Nut 9/32-28 | 1 |
| 34 | SD-0790641-SP | Hinge screw D 7.94 H 6.4 | 1 |
| 35 | B1404-761-000 | Hinge stud | |
| 35 | B2416-761-000 | Hinge stud | 1 |
| 36 | CQ-3030000-00 | Oil wick | 0.1 |
| 37 | SS-8150710-SP | Screw 15/64-28 L=7.0 | 1 |
Page 23 — 10. KNIFE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2729-761-000 | Knife stop lever | 1 |
| 2 | B2732-761-000 | Knife stop lever bracket | 1 |
| 3 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 2 |
| 4 | SS-7110740-TP | Screw 11/64-40 L= 7.0 | 2 |
| 5 | B2733-761-000 | Knife stop lever finger | 1 |
| 6 | NS-6620310-SP | Nut 3/16-32 | 1 |
| 7 | SS-7110820-SP | Screw 11/64-40 L=7.5 | |
| SS-7110840-SP | Screw 11/64-40 L=7.8 | 1 | |
| 8 | B2739-761-000 | Washer | 1 |
| 9 | B2730-761-000 | Knife stop lever hinge stud | 1 |
| 10 | SS-7110710-SP | Screw 11/64-40 L 7.0 | 2 |
| 11 | CQ-3030000-00 | Oil wick | 0.2 |
| 12 | B3537-122-000 | Oil wick holder | 1 |
| 13 | SS-4090610-SP | Screw 9/64-40 L=6.0 | 1 |
| 14 | B2715-761-000 | Knife bar driving crank | 1 |
| 15 | B2717-761-000 | Latch | 1 |
| 16 | B2718-761-000 | Tension spring | 1 |
| 17 | B2719-761-000 | Knife bar driving crank nut | 1 |
| 18 | SS-7161040-SP | Screw 1/4-24 L=9.5 | 1 |
| 19 | SD-1110905-TH | Hinge screw D 11.11 H 9.0 | 1 |
| 20 | B2716-761-000 | Knife bar driving crank shaft | 1 |
| 21 | B2738-761-000 | Spacer | 1 |
| 22 | SS-9152130-CP | Bolt 15/64-28 L 20.5 | 4 |
| 23 | SS-9202443-CP | Bolt 5/16-18 L= 22.0 | 1 |
| 24 | NS-6200710-SP | Nut 5/16-18 | 1 |
| 25 | B2731-761-000 | Thread check wire | 1 |
| 63537-122-000 | Oil wick holder | 1 | |
| B2719-751-000 | Knife bar driving crank put | 1 | |
| B2702-771-000 | Knife bar | 1 | |
| B2702-761-000 | Knife bar | 1 | |
| B2703-761-000 | Knife bar guide bracket | 1 | |
| B2707-761-000 | Knife bar connecting link hinge stud | 1 | |
| B2706-761-000 | Knife bar connecting link | 1 | |
| B2705-761-000 | Hinge screw | 1 | |
| NS-6660430-SP | Nut 1/4-40 | 1 | |
| B2704-761-A00 | Knife stud retainer (A) | 1 | |
| B2701-761-000 | Knife holder | 1 | |
| WS-0651510-KP | Spring washer 6.5 x 12.5 x 1.5 | 2 | |
| WS-0651310-KP | Spring washer | 2 | |
| SS-9661230-CP | Bolt 1/4-40 L= 12.0 | 2 | |
| B2702-047-L00 | Knife (1/2) | 1 | |
| B2702-047-Q00 | Knife (1) | 1 | |
| B2702-047-S00 | Knife (1-1/4) | 1 | |
| WP-0501016-SD | Washer 5.0 x 10.5 x 1.0 | 1 | |
| SS-7620750-SP | Screw 3/16-32 L= 6.5 | 1 | |
| B2708-761-000 | Knife bar driving lever | 1 | |
| SS-7110810-SP | Screw 11/64-40 L= 8.0 | 1 | |
| SD-0530221-SD | Hinge screw D. 5.30 H= 2.2 | 1 | |
| B2710-761-000 | Knife bar driving lever spring | 1 | |
| B2714-761-000 | Spring suspension | 1 | |
| B2709-761-000 | Knife bar driving lever shaft | 1 | |
| NS-6700540-SP | Nut 5/16-24 | 1 | |
| NS-6740510-SP | Nut 3/8-28 | 1 | |
| B2721-761-000 | Plate spring | 1 | |
| SS-7110910-SP | Screw 11/64-40 L= 8.5 | 1 | |
| B2712-761-000 | Knife bar driving lever bell crank | 1 | |
| B2711-761-000 | Finger | 1 | |
| NS-6110310-SP | Nut 11/64-40 | 1 | |
| B2713-761-000 | Hinge stud | 1 | |
| B1404-761-0A0 | Hinge stud asm. | 1 | |
| CQ-5050000-00 | Oil wick | 0.1 | |
| SS-8150710-SP | Screw 15/64-28 L= 7.0 | 1 | |
| B2725-761-000 | Tension spring | 1 | |
| B2724-761-000 | Ratchet pawl (B) | 1 | |
| B2723-761-0A0 | Ratchet pawl (A) asm. | 1 | |
| B2726-761-000 | Tension spring | 1 | |
| B2727-761-000 | Tension spring | 1 | |
| B2633-232-000 | Suspension | 1 | |
| B2728-761-000 | Driving rod | 1 | |
| B2737-761-000 | Finger | 1 | |
| SS-7090910-SP | Screw 9/64-40 L=8.5 | 2 | |
| B2735-761-000 | Positioning pin (B) | 1 | |
| B1450-761-000 | Positioning pin | 1 | |
| PS-0300182-KF | Spring pin 3.3 x 18 | 1 |
Page 25 — 11. FEED CAM & TRIPPING SEGMENT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2935-761-000 | Spur gear (152) | 1 |
| 2 | B2934-761-000 | Spur gear (123) | 1 |
| 3 | B2930-761-000 | Spur gear (100) | 1 |
| 4 | B2931-761-000 | Spur gear (190) | 1 |
| 5 | B2948-761-000 | Spur gear (88) | 1 |
| 6 | B2949-761-000 | Spur gear (212) | 1 |
| 7 | B2916-761-0AO | Spur gear bushing asm. | 2 |
| 8 | B2917-761-000 | Spur gear bushing pin | (4) |
| 9 | SS-7120910-TP | Screw 3/16-28 L= 9.0 | (4) |
| 10 | B2913-761-0AO | Clutch collar asm. | 2 |
| 11 | SS-8660610-TP | Screw 1/4-40 L= 6.0 | (2) |
| 12 | SS-8660410-SP | Screw 1/4-40 L= 4.2 | (2) |
| 13 | B2914-761-000 | Clutch spring | 2 |
| 14 | B2919-761-000 | Feed cam driving worm wheel | 1 |
| 15 | B2918-761-000-A | Feed cam driving worm wheel shaft | 1 |
| 16 | B2911-761-000 | Feed cam driving shaft | 1 |
| 17 | B2915-761-0AO | Handle crank bevel gear asm. (LEFT) | |
| 17 | B2915-761-B00 | Handle crank bevel gear (LEFT) | 1 |
| 18 | B2912-761-000 | Thrust collar | 1 |
| 19 | B2958-761-000 | Oil seal ring | 1 |
| 20 | B2910-761-0A0 | Feed cam driving gear asm. | 1 |
| 21 | SS-8660610-TP | Screw 1/4-40 L= 6.0 | (2) |
| 22 | B2915-761-0AO | Handle crank bevel gear asm. (RIGHT) | |
| 22 | B2915-761-AA0 | Handle crank bevel gear asm. (RIGHT) | 1 |
| 23 | SS-8660610-TP | Screw 1/4-40 L= 6.0 | (2) |
| 24 | CS-111101C-SH | Thrust collar asm. | 1 |
| 25 | SS-8660610-TP | Screw 1/4-40 L= 6.0 | 2 |
| 26 | B2923-761-000 | Handle crank | 1 |
| 27 | SS-8150510-TP | Screw 15/64-28 L= 4.7 | 2 |
| 28 | B2922-761-000 | Handle crank shaft | 1 |
| 29 | SS-8620610-SP | Screw 3/16-32 L= 6.0 | 1 |
| 30 | B2925-761-000 | Handle shaft | 1 |
| 31 | B2924-761-000 | Handle shaft | 1 |
| 32 | CQ-3030000-00 | Oil wick | 0.2 |
| 33 | B2927-761-000 | Feed cam shaft cover | |
| 34 | NS-6320640-SP | Nut 1/2-20 | 1 |
| 35 | B2909-761-000 | Thrust washer | 1 |
| 36 | B2908-761-000 | Feed cam shaft | 1 |
| 37 | B2901-761-000 | Feed cam | 1 |
| 38 | B2905-761-000 | Tension release tripping segment No. 1 | 1 |
| 39 | B2904-761-000 | Knife tripping segment | 1 |
| 40 | B2902-761-000 | Bar tripping segment No. 1 | 1 |
| 41 | B2902-761-B00 | Bar tripping segment No. 1 (B) | 1 |
| 42 | B2903-761-000 | Bar tripping segment No. 2 | 1 |
| 43 | B2903-761-B00 | Bar tripping segment No. 2 (B) | 1 |
| 44 | B2906-761-000 | Tension release tripping segment No. 2 | 1 |
| 45 | B2906-761-B00 | Tripping segment No.2, less than 80 stitches | 1 |
| 46 | B2907-761-000 | Stop tripping segment | 1 |
| 47 | B2907-761-B00 | Stop tripping segment, less than 80 stitches | 1 |
| 48 | SS-6111610-SP | Screw 11/64-40 L= 16.0 | 6 |
| 49 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 6 |
| 50 | SS-9241513-CP | Bolt 3/8-18 L= 15.0 | 1 |
| 51 | WP-0982616-SP | Washer 9.8 x 24.0 x 2.6 | 1 |
| 52 | SS-6111610-SP | Screw 11/64-40 L= 16.0 | 6 |
| 53 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 6 |

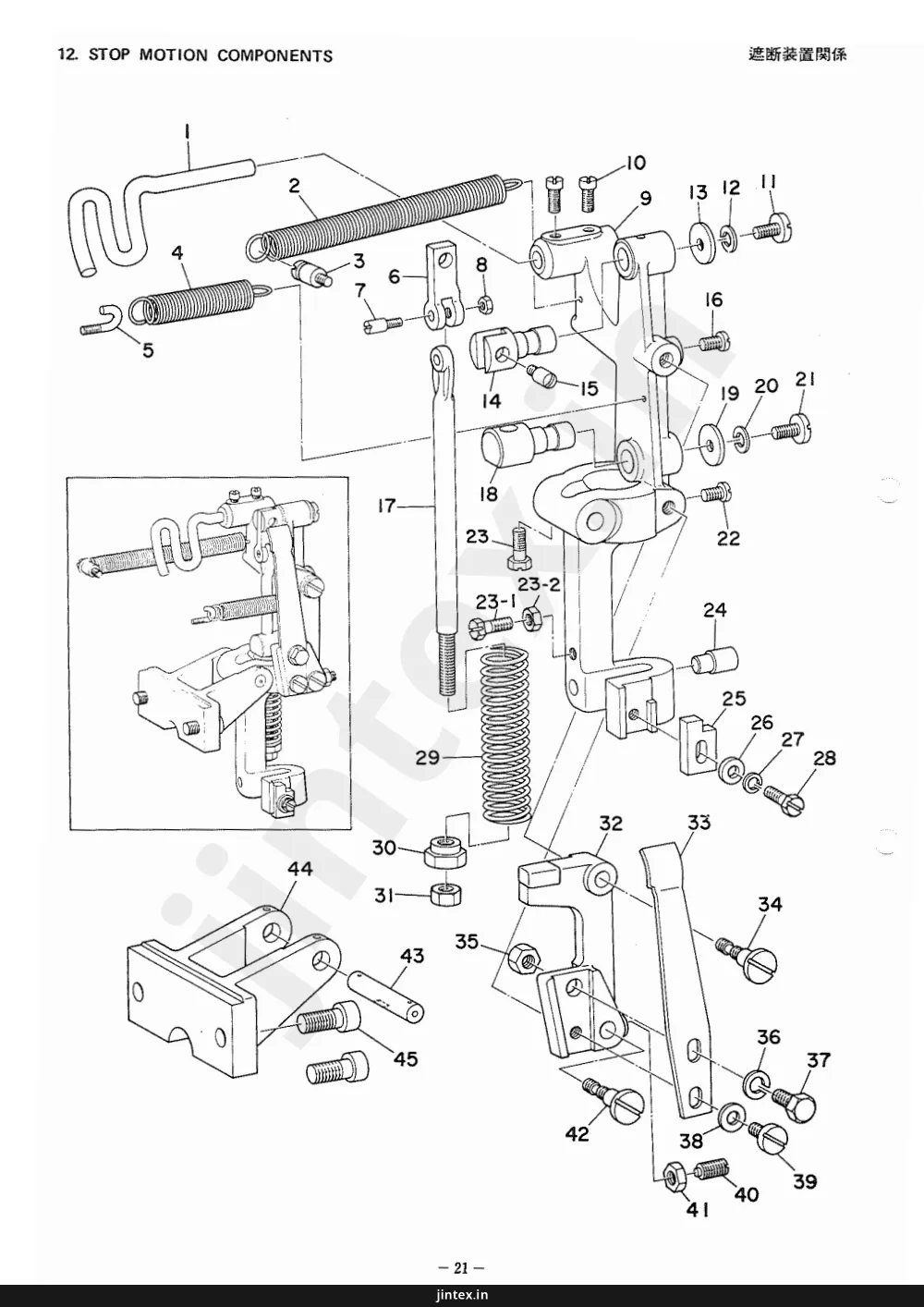

Page 27 — 12. STOP MOTION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2602-761-000 | Belt shifter | 1 |
| 2 | B2604-761-000 | Tension spring | 1 |
| 3 | B2714-761-000 | Spring suspension | 1 |
| 4 | B2622-761-000 | Tension spring | 1 |
| 5 | B2633-232-000 | Suspension screw | 1 |
| 6 | B2607-232-000 | Stopper | 1 |
| 7 | B2613-232-000 | Stop link rod hinge screw | 1 |
| 8 | NS 6620310-SP | Nut 3/16-32 | 1 |
| 9 | B2604-232-000 | Stop motion lever | 1 |
| 10 | SS-7151120-SP | Screw 15/64-28 L 11.0 | 2 |
| 11 | SS-7151330-SP | Screw 15/64-28 L 13.0 | 1 |
| 12 | B2623-232-000 | Washer | 1 |
| 13 | WP-0612056-SD | Washer 6.1 x 18.5 x 2.0 | 1 |
| 14 | B2608-232-000 | Stop link hinge stud | 1 |
| 15 | B2611-232-000 | Stop link connecting screw | 1 |
| 16 | SS-7151120-SP | Screw 15/64-28 L 11.0 | 1 |
| 17 | B2612-232-000 | Stop link rod | 1 |
| 18 | B2618-232-000 | Stop link rod hinge stud | 1 |
| 19 | WP-0612056-SD | Washer 6.1 x 18.5 x 2.0 | 1 |
| 20 | B2623-232-000 | Washer | 1 |
| 21 | SS-7151330-SP | Screw 15/64-28 L 13.0 | 1 |
| 22 | SS-7151120-SP | Screw 15/64-28 L 11.0 | 1 |
| 23 | SS-9151630-CP | Bolt 15/64-28 L 15.5 | 1 |
| 23-1 | SS-9152130-CP | Screw 15/64-28 L=20.5 | 1 |
| 23-2 | NS-6150430-SP | Nut 15/64-28 | 1 |
| 24 | B2648-232-000 | Stop pin | 1 |
| 25 | WP-0612516-SD | Stop motion lever catch | 1 |
| 26 | B2603-761-000 | Washer 6.1 x 15.2 x 2.5 | 1 |
| 27 | B2623-232-000 | Washer | 1 |
| 28 | SS-9152130-CP | Bolt 15/64-28 L 20.5 | 1 |
| 29 | B2619-232-000 | Stop link rod pressure spring | 1 |
| 30 | B2621-232-000 | Nut | 1 |
| 31 | NS-6240630-SP | Nut 3/8-18 | 1 |
| 32 | B2623-761-000 | Brake lever | 1 |
| 33 | B2624-761-000 | Brake lever plate spring | 1 |
| 34 | B2655-232-000 | Brake lever hinge pin | 1 |
| 35 | NS-6200710-SP | Nut 5/16-18 | 1 |
| 36 | WS-0822010-KN | Spring washer 8.2 x 15.0 x 2.0 | 1 |
| 37 | SS-9201973-CP | Bolt 5/16-18 L 19.0 | 1 |
| 38 | WP-0621016-SD | Washer 6.2 x 13.0 x 1.0 | 1 |
| 39 | SS-6151040-SP | Screw 15/64-28 L 10.0 | 1 |
| 40 | SS-8681650-TP | Screw 9/32-28 L 16.0 | 1 |
| 41 | NS-6680410-SP | Nut 9/32-28 | 1 |
| 42 | B2655-232-000 | Brake lever hinge pin | 1 |
| 43 | B2602-232-000 | Stop motion lever hinge stud | 1 |
| 44 | B2601-761-000 | Stop motion lever bracket | 1 |
| 45 | SS-6242272-TP | Screw 3/8-18 L 22.0 | 2 |
| B2656-232-000 | Brake lever hinge pin | 1 |
Page 29 — 13. TRIPPING LEVER & STARTING LEVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2620-761-000 | Starting link | |
| B2620-771-000 | Starting link | 1 | |
| 2 | B1404-761-000 | Hinge stud | |
| B2416-761-000 | Hinge stud | 1 | |
| 3 | CQ-5050000-00 | Oil wick | 0.1 |
| 4 | SS-7150940-SP | Screw 15/64-28 L=9.0 | 1 |
| 5 | SD-0790641-SP | Hinge screw D=7.94 H=6.4 | |
| B2646-771-000 | Hinge screw | 2 | |
| 6 | NS-6150320-SP | Nut 15/64-28 | |
| NS-6150310-SP | Nut 15/64-28 | 2 | |
| 7 | B2621-761-000 | Starting link driving rod | 1 |
| 8 | SD-0790451-SP | Hinge screw D=7.94 H=4.5 | 1 |
| 9 | CS-079101B-SH | Thrust collar asm. | 1 |
| 10 | SS-7110740-TP | Screw 11/64-40 L=7.0 | (1) |
| 11 | SS-8110510-SP | Screw 11/64-40 L=5.0 | (1) |
| 12 | B2614-761-000 | Hand stop crank shaft tension spring | 1 |
| 13 | SS-7120640-SP | Screw 3/16-28 L=6.0 | |
| 13-1 | SS-6111010-SP | Screw 11/64-40 L=9.5 | 1 |
| 14 | B2608-761-000 | Hand stop crank shaft ball | 1 |
| 15 | B2611-761-000 | Hand stop crank shaft pressure spring | 1 |
| 16 | B2613-761-00A | Hand stop rod | 1 |
| 17 | B2612-761-000 | Hand stop crank shaft | 1 |
| 18 | B2610-761-0A0 | Hand stop crank asm. | 1 |
| 19 | SS-7120640-SP | Screw 3/16-28 L=6.0 | |
| 19-1 | SS-6111010-SP | Screw 11/64-40 L=9.5 | 1 |
| 20 | SS-8150510-SP | Screw | 2 |
| 21 | B2605-761-000 | Tripping lever hinge pin | 1 |
| 22 | SS-7150940-SP | Screw 15/64-28 L=9.0 | 1 |
| 23 | B2606-761-000 | Tripping lever | 1 |
| 24 | B2615-761-000 | Tripping dog | 1 |
| 25 | SS-9152130-CP | Bolt 15/64-28 L=20.5 | 1 |
| 26 | NS-6150430-SP | Nut 15/64-28 | 1 |
| 27 | B2617-771-000 | Tripping lever tension spring | 1 |
| 28 | NS-6150430-SP | Nut 15/64-28 | 1 |
| 29 | B2607-761-000 | Latch (B) | 1 |
| 30 | WS-0651510-KP | Spring washer 6.5 x 12.5 x 1.5 | 1 |
| 31 | SS-9152130-CP | Bolt 15/64-28 L=20.5 | 1 |
| 32 | B2618-761-000 | Starting lever | |
| 32-1 | B2618-771-000 | Srarting lever | 1 |
| 33 | SS-9201973-CP | Bolt 5/16-18 L=19.0 | 1 |
| 34 | NS-6200710-SP | Nut 5/16-18 | 1 |
| 35 | SS-7111120-SP | Screw 11/64-40 L=10.5 | |
| 35-1 | SS-7151210-SP | Screw 15/64-28 L=12 | 1 |
| 36 | B2619-761-000 | Starting lever pressure spring | 1 |
| 37 | B2616-761-000 | Starting lever bracket | |
| 38 | B2602-232-000 | Stop motion lever hinge stud | |
| 38-1 | B2416-761-000 | Hinge stud | 1 |
| 39 | SS-9152130-CP | Bolt 15/64-28 L=20.5 | |
| 40 | B1453-771-0A0 | Stop screw asm. | 1 |
| 41 | NS-6150310-SP | Nut 15/64-28 | 1 |
| 09 B2613-761-00A | Hand stop rod | ||
| B2610-761-0AD | Hand stop crank asm. |
Page 31 — 14. LIFTING LEVER & BOBBIN WINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B3404-761-000 | Presser bar lifting rod | - |
| 1-1 | B3404-771-000 | Presser bar lifting rod | 1 |
| 2 | B3405-761-000 | Hinge stud | - |
| 2-1 | RE-0500000-KO | Snap ring 5.0 | 2 |
| 3 | SS-7110910-SP | Screw 11/64-40 L=8.5 | 1 |
| 4 | B3402-761-000 | Lever | - |
| 4-1 | B3402-771-0A0 | Lever asm., front | 1 |
| 4-2 | B3408-771-0A0 | Lever asm., rear | 1 |
| 5 | PD-0201000-0B | Split pin 2 x 10 | - |
| PD-0201000-0D | Split pin 2 x 10 | 2 | |
| 6 | B3406-761-000 | Link | 1 |
| 7 | SS-8150710-SP | Screw 15/64-28 L=7.0 | - |
| 7-1 | SD-0720331-SP | Hinge screw D=7.24 H=3.3 | 2 |
| 8 | B3403-761-000 | Presser bar lifing rod | 1 |
| 9 | B2605-761-000 | Hinge pin | 1 |
| 10 | B3401-761-000 | Presser bar lifting lever | 1 |
| 11 | B1120-372-000 | Screw stud | 1 |
| 12 | B2714-761-000 | Spring suspension | 2 |
| 13 | B3407-761-000 | Tension spring | 1 |
| 14 | SS-8151150-SP | Screw 15/64-28 L=10.5 | 1 |
| 15 | B3211-761-000 | Bobbin thread guide | 1 |
| 16 | SS-7110820-SP | Screw 11/64-40 L=7.5 | - |
| SS-7110840-SP | Screw 11/64-40 L=7.8 | 1 | |
| 17 | B3201-761-0B0 | Bobbin winder post base asm. | 1 |
| 18 | NS-6110310-SP | Nut 11/64-40 | (2) |
| 19 | B3206-761-000 | Bobbin winder bearing bracket | (1) |
| 20 | B3205-761-000 | Bobbin winder trip latch | (1) |
| 21 | B3210-761-000 | Plate spring | (1) |
| 22 | SS-3060310-SP | Screw | |
| SS-7060310-SP | Screw 3/32-56 L=3.0 | (1) | |
| 23 | A3208-958-000 | Spring | (1) |
| 24 | B3213-761-000 | Spring | (1) |
| 25 | B3206-232-000 | Bobbin winder tension bracket | (1) |
| 26 | SD-0720221-SP | Hinge screw D= 7.24 H= 2.2 | (1) |
| 27 | B3202-761-0A0 | Bobbin winder post asm. | (1) |
| 28 | B3201-761-000 | Bobbin winder bearing bracket | (1) |
| 29 | B3203-761-0A0 | Bobbin winder wheel asm. | (1) |
| 29-1 | B3204-761-000 | Bobbin winder wheel ring | (1) |
| 30 | NS-6120310-SP | Nut 3/16-28 | (1) |
| 31 | SD-0640901-SP | Hinge screw D= 6.35 H= 9.0 | (1) |
| 32 | SS-7110820-SP | Screw 11/64-40 L=7.5 | - |
| SS-7110840-SP | Screw 11/64-40 L=7.8 | 2 | |
| 33 | SS-7110510-SP | Screw 11/64-40 L= 5.0 | 1 |
| 34 | CQ-3030000-00 | Oil wick | 0.2 |
| 35 | B3538-112-000 | Oil wick | 1 |
| 36 | SS-7110410-SP | Screw 11/64-40 L= 4.0 | 1 |
| 37 | B3208-761-0A0 | Bobbin winder tension bracket asm. | 1 |
| 38 | B3216-047-000 | Bobbin winder tension nut | (1) |
| 39 | B3218-232-000 | Bobbin winder tension spring | (1) |
| 40 | B3214-047-000 | Bobbin winder tension disc | (2) |
| 41 | B3219-232-000 | Bobbin winder tension post | (1) |
| 42 | B3208-761-000 | Bobbin winder tension bracket | (1) |
| 43 | NS-6110310-SP | Nut 11/64-40 | (1) |
| 44 | SS-7110820-SP | Screw 11/64-40 L=7.5 | - |
| SS-7110840-SP | Screw 11/64-40 L=7.8 | 2 | |
| B3203-761-000 | Bobbin winder tension bracket |
Page 33 — 15. THREAD TENSION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B3105-761-000 | Tension release lever | 1 |
| 2 | SS-7110740-TP | Screw 11/64-40 L 7.0 | 2 |
| 3 | SD-0640391-TP | Hinge screw D 6.35 H 3.9 | 1 |
| 4 | NS-6120310-SP | Nut 3/16-28 | 1 |
| 5 | B2736-761-000 | Knife stop lever stop roller | 1 |
| 6 | B3104-761-000 | Tension release lever connecting link | 1 |
| 7 | SS-6620730-SP | Screw 3 16-32 L 7.0 | 1 |
| 8 | B3107-761-000 | Tension release lever crank | 1 |
| 9 | B3106-761-000 | Tension release lever shaft | 1 |
| 10 | SD-0500251-SP | Hinge screw D 5.00 H 2.5 | 1 |
| 11 | NS-6090310-SP | Nut 9/64-40 | 1 |
| 12 | B3108-761-000 | Tension release rod | 1 |
| 13 | B3118-552-E00 | Pin | 1 |
| 14 | SS-6111610-SP | Screw 11 64-40 L 16.0 | 1 |
| 15 | B3110-761-0A0 | Tension post No. 3 asm. | 1 |
| 16 | B3116-125-000 | Tension nut | (1) |
| 17 | B3120-125-000 | Tension disc stopper | (1) |
| 18 | B3129-051-000 | Tension spring | (1) |
| 19 | B3132-012-000 | Tension disc holder | (1) |
| 20 | B3126-012-000 | Tension disc | (2) |
| 21 | B3111-761-000 | Tension post No. 3 | (1) |
| 22 | B3112-761-000 | Thread take-up spring | (1) |
| 23 | B3110-761-000 | Tension post socket | (1) |
| 24 | SS-8090670-SP | Screw 9/64-40 L 5.5 | (1) |
| 25 | B3103-761-0A0 | Tension post No. 2 asm. | 1 |
| 26 | B3116-125-000 | Tension nut | (1) |
| 27 | B3120-125-000 | Tension disc stopper | (1) |
| 28 | B3116-761-000 | Tension spring No. 2 | (1) |
| 29 | B3132-012-000 | Tension disc holder | (1) |
| 30 | B3103-761-000 | Tension release pin No. 2 | (1) |
| 31 | B3126-012-000 | Tension disc | (2) |
| 32 | B2019-372-000 | Tension post No. 2 | (1) |
| 33 | NS-6160-520-SP | Nut 1/4-24 | (1) |
| 34 | B3113-761-0A0 | Tension post No. 1 asm | 1 |
| 35 | B3116-125-000 | Tension nut | (1) |
| 36 | B3120-125-000 | Tension disc stopper | (1) |
| 37 | B3129-051-000 | Tension spring | (1) |
| 38 | B3126-012-000 | Tension disc | (2) |
| 39 | B3108-352-000 | Needle thread tension post | (1) |
| 40 | NS-6150310-SP | Nut 15/64-28 | (1) |
| 41 | B1111-232-000 | Thread guide plate | 1 |
| 42 | SS-7151210-SP | Screw 15/64-28 L 12.0 | 1 |
| 43 | B3102-761-0A0 | Tension release arm asm | 1 |
| 44 | SS-6661110-SP | Screw 1/4-40 L=11.0 | |
| 44 | SS-9660810-SP | Screw 1/4-40 L=7.9 | (1) |
| 45 | B2311-019-000 | Tension spring | 1 |
| 46 | CS-0790610-TH | Thrust collar asm. | 1 |
| 47 | SS-7090520-SP | Screw 9/64-40 L 4.5 | (2) |
| 48 | B3101-761-000 | Tension release rod | 1 |
| 49 | B1450-761-000 | Positioning pin | |
| 49 | PS-0300182-KF | Spring pin 3.3 x 18 | 1 |
| 50 | B3109-761-000 | Three-hole thread eyelet | 1 |
| 51 | SS-7110910-SP | Screw 11/64-40 L=8.5 | 1 |
| 52 | B3118-771-000 | Tension thread guide, No. 2 | 1 |
| 53 | NS-6090310-SP | Nut 9/64-40 | 1 |
| 54 | B1118-542-000 | Thread guide (A) | 1 |
| 55 | NS-6080440-SP | Nut 1/8-44 | 1 |
| 56 | B3114-771-000 | Take-up thread guide | 1 |
| 57 | B3115-761-000 | Needle bar thread guide | 1 |
| 58 | SS-7110820-SP | Screw 11/64-40 L=7.5 | |
| 58 | SS-7110840-SP | Screw 11/64-40 L=7.8 | 1 |
Page 35 — 16. EXCLUSIVE PARTS FOR SUBCLASSES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D1508-761-K00 | Work clamp check | 1 |
| 2 | D1508-761-K0B | Work clamp check | 1 |
| 3 | D2402-761-K00 | Throat plate | 1 |
| 4 | D9101-761-K00 | Hook timing gauge | 1 |
| 1 | D1613-761-W00 | Work clamp carrier | 1 |
| 2 | SS-5110810-SP | Screw 11/64-40 L= 8.0 | 2 |
| 3 | D1508-761-W00 | Work clamp check | 1 |
| 4 | D2402-761-K00 | Throat plate | 1 |
| 5 | D9101-761-C00 | Hook timing gauge | 1 |
| 1 | D1508-762-K00 | Work clamp check | 1 |
| 2 | D1508-762-K0B | Work clamp check | 1 |
| 3 | D1508-762-K0C | Work clamp check | 1 |
| 4 | D2402-762-K00 | Throat plate | 1 |
| 5 | D9101-761-K00 | Hook timing gauge | 1 |
| 1 | D2901-762-V00 | Feed cam | 1 |
| 2 | D2908-761-D00 | Tension releasing gear No. 1 | 1 |
| 3 | D2906-761-D00 | Tension releasing gear No. 4 | 1 |
| 4 | D2903-762-V00 | Bar tripping segment No. 2 | 1 |
| 5 | D2905-761-D00 | Tension releasing gear No. 3 | 1 |
| 6 | D2904-762-V00 | Knife tripping segment | 1 |
| 7 | D9302-762-V00 | Gimp guide tripping segment No. 2 | 1 |
| 8 | D2902-762-V00 | Bar tripping segment No. 1 | 1 |
| 9 | D2907-762-V00 | Stop tripping segment | 1 |
| 10 | D2615-762-V00 | Latch (C) | 1 |
| 11 | D1601-762-VA0 | Length regulating shaft bell crank asm. | 1 |
| 12 | SS-9151630-CP | Bolt 15/64-28 L= 15.5 | (1) |
| 13 | B2944-761-000 | Spur gear (74) | 1 |
| 14 | B2945-761-000 | Spur gear (252) | 1 |
| 15 | D1508-762-K00 | Work clamp check | 1 |
| 16 | D2402-762-K00 | Throat plate | 1 |
| 17 | D9101-761-K00 | Hook timing gauge | 1 |
Page 37 — 16. EXCLUSIVE PARTS FOR SUBCLASS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D1514-762-T00 | Work clamp arm | 1 |
| 2 | SS-7111120-SP | Screw 11/64-40 L= 10.5 | 2 |
| 3 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 2 |
| 4 | D9323-762-T00 | Work clamp arm spacing plate | 2 |
| 5 | D9322-762-T00 | Work clamp arm gimp guide holder | 1 |
| 6 | SS-7090610-SP | Screw 9/64-40 L= 6.0 | 1 |
| 7 | SS-7091410-SP | Screw 9/64-40 L= 13.5 | 1 |
| 8 | WP-0482086-SD | Washer 4.8 x 11.5 x 2.0 | 1 |
| 9 | D9310-762-T00 | Gimp guide shaft | 1 |
| 10 | D9335-762-TA0 | Gimp trimmer blade asm. (B) | 1 |
| 11 | D9336-762-T00 | Gimp trimmer blade tension spring (B) | (1) |
| 12 | WP-0250516-SD | Washer 2.5 x 6.0 x 0.5 | (1) |
| 13 | SS-5060410-SP | Screw 3/32-56 L= 3.5 | (1) |
| 14 | SS-7060310-SP | Screw 3/32-56 L= 3.0 | 1 |
| 15 | SS-6060410-TP | Screw 3/32-56 L= 3.5 | 1 |
| 16 | D1508-762-K00 | Work clamp check | 1 |
| 17 | D2402-762-K00 | Throat plate | 1 |
| 18 | D9314-762-T00 | Gimp guide holder | 1 |
| 19 | D9315-762-T00 | Gimp guide | 1 |
| 20 | SS-6090510-SP | Screw 9/64-40 L= 5.0 | 1 |
| 21 | D9313-762-TA0 | Gimp guide holder bracket asm. | 1 |
| 22 | SS-7111110-TP | Screw 11/64-40 L= 10.5 | (2) |
| 23 | SS-7110910-SP | Screw 11/64-40 L= 8.5 | (1) |
| 24 | D9318-762-T00 | Gimp guide shaft thrust ring | 1 |
| 25 | WP-1002066-SD | Washer 10.0 x 17.0 x 2.0 | 1 |
| 26 | D9317-762-T00 | Gimp guide shaft spring | 2 |
| 27 | D9316-762-T00 | Gimp guide shaft collar | 2 |
| 28 | D9319-762-T00 | Gimp guide shaft tension spring | 1 |
| 29 | D9311-772-TA0 | Gimp guide shaft crank asm. | 1 |
| 30 | SS-8150750-SP | Screw 15/64-28 L=7.0 | 1 |
| 30-1 | SS-8151160-SP | Screw 15/64-28 L=11 | 1 |
| 30-2 | SS-8150410-SP | Screw 15/64-28 L=4 | 2 |
| 31 | D9320-762-T00 | Shaft bracket spacer | 2 |
| 32 | SS-7111810-TP | Screw 11/64-40 L= 18.0 | 4 |
| 33 | WS-0441040-KP | Spring washer 4.4 x 7.4 x 1.0 | 4 |
| 34 | D9321-762-T00 | Spring | 1 |
| 35 | D9303-762-T00 | Gimp repositioning screw, right | 2 |
| 36 | D9302-762-T00 | Gimp guide shaft stop bracket | 1 |
| 37 | SS-7110740-TP | Screw 11/64-40 L= 7.0 | 2 |
| 38 | NS-6110420-SP | Nut 11/64-40 | 2 |
| 39 | D9301-762-T00-A | Gimp guide shaft mounting bracket | 1 |
| 40 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 4 |
| 41 | PS-0200102-KH | Spring pin 2.0 x 10 | 2 |
| 42 | SD-0640751-SP | Hinge screw D=6.35 H=7.5 | 1 |
| 43 | D9308-762-T00 | Gimp guide holder crank pin | 1 |
| 44 | D9309-762-T00 | Gimp guide holder crank roller | 1 |
| 45 | D9307-762-T00 | Gimp guide holder crank | 1 |
| 46 | B2037-372-000 | Nipper bar block spring | 1 |
| 47 | NS-6120310-SP | Nut 3/16-28 | 1 |
| 48 | D9324-762-T00 | Work clamp arm retainer | 1 |
| 49 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 2 |
| 50 | SS-9111010-SP | Bolt 11/64-40 L=9.5 | 2 |
| 51 | B2009-761-000 | Universal joint | 1 |
| SS-70908610-SP | Screw 9/64-40 L= 6.0 | 1 |
Page 38 — 16. EXCLUSIVE PARTS FOR SUBCLASS 6) LBH-762-T(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D3402-762-T00 | Presser bar lifting rod | 1 |
| 2 | NS-6150320-SP | Nut 15/64-28 | - |
| 2 | NS-6150310-SP | Nut 15/64-28 | 1 |
| 3 | WP-0612516-SD | Washer 6.1 x 15.2 x 2.5 | 1 |
| 4 | B3107-352-000 | Guide plate | 1 |
| 5 | B3119-352-000 | Thread tension post | 1 |
| 6 | B3126-012-000 | Tension disc | 2 |
| 7 | B3118-352-000 | Thread tension spring | 1 |
| 8 | B3117-352-000 | Thread tension post nut | 2 |
| 9 | D1129-762-T00 | Machine frame side cover (A) | 1 |
| 10 | D9333-762-T00 | Gimp spool rest rod | 1 |
| 11 | NS-6700420-SP | Nut 5/16-24 | 1 |
| 12 | SS-7090520-SL | Screw 9/64-40 L= 4.5 | 1 |
| 13 | D9334-762-T00 | Gimp spool rest rod extension guide | 1 |
| 14 | SS-8152080-SP | Screw 15/64-28 L= 19.5 | 1 |
| 15 | NS-6150540-SP | Nut 15/64-28 | 1 |
| 16 | D9101-761-K00 | Hook timing gauge | 1 |
| 17 | D93320762-T00 | Driving rod tension spring | 1 |
| 18 | D9331-762-T00 | Slide block | 1 |
| 19 | SS-8661030-SP | Screw 1/4-40 L= 10.0 | 1 |
| 20 | D9330-762-T00 | Positioning shaft driving rod | - |
| 20-1 | D9330-762-T00-A | Positioning shaft driving rod | 1 |
| 20-2 | NS-6680410-SP | Nut 9/32-28 | 2 |
| 21 | D9329-762-T00 | Gimp guide tripping segment No. 2 | 1 |
| 22 | D9328-762-T00 | Gimp guide tripping segment No. 1 | 1 |
| 23 | D2902-762-T00 | Bar tripping segment No. 1 | 1 |
Page 39 — 16. EXCLUSIVE PARTS FOR SUBCLASSES 7) LBH-762-V(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D3402-762-T00 | Presser bar lifting rod | 1 |
| 2 | NS-6150320-SP | Nut 15/64-28 | |
| 2 | NS-6150310-SP | Nut 15/64-28 | 1 |
| 3 | WP-0612516-SD | Washer 6.1 x 15.2 x 2.5 | 1 |
| 4 | B3107-352-000 | Plate | 1 |
| 5 | B3119-352-000 | Thread tension post | 1 |
| 6 | B3126-012-000 | Tension disc | 2 |
| 7 | B3118-352-000 | Thread tension spring | 1 |
| 8 | B3117-352-000 | Thread tension post nut | 2 |
| 9 | D1129-762-T00 | Machine frame side cover (A) | 1 |
| 10 | D9333-762-T00 | Gimp spool rest rod | 1 |
| 11 | NS-6700420-SP | Nut 5/16-24 | 1 |
| 12 | SS-7090520-SL | Screw 9/64-40 L= 4.5 | 1 |
| 13 | D9334-762-T00 | Gimp spool rest rod extension guide | 1 |
| 14 | SS-8152080-SP | Screw 15/64-28 L= 19.5 | 1 |
| 15 | NS-6150540-SP | Nut 15/64-28 | 1 |
| 16 | D9101-761-K00 | Hook timing gauge | 1 |
| 17 | D9332-762-T00 | Driving rod tension spring | 1 |
| 18 | D9331-762-T00 | Slide block | 1 |
| 19 | SS-8661030-SP | Screw 1/4-40 L= 10.0 | 1 |
| 20 | D9330-762-T00 | Positioning shaft driving rod | |
| 20-1 | D9330-762-T00-A | Positioning shaft driving rod | 1 |
| 20-2 | NS-6680410-SP | Nut 9/32-28 | 2 |
| 21 | D2901-762-V00 | Feed cam | 1 |
| 22 | D9303-762-V00 | Gimp guide tripping segment No. 4 | 1 |
| 23 | D2903-762-V00 | Bar tripping segment No. 2 | 1 |
| 24 | D9301-762-V00 | Gimp guide tripping segment No. 1, 3 | 2 |
| 25 | D2904-762-V00 | Knife tripping segment | 1 |
| 26 | D9302-762-V00 | Gimp guide tripping segment No. 2 | 1 |
| 27 | D2902-762-V00 | Bar tripping segment No. 1 | 1 |
| 28 | D2907-762-V00 | Stop tripping segment | 1 |
| 29 | D2615-762-V00 | Latch (C) | 1 |
| 30 | D1601-762-VA0 | Length regulating shaft bell crank asm. | 1 |
| SS-9151630-CP | Bolt 15/64-28 L= 15.5 | (1) |
Page 41 — 16. EXCLUSIVE PARTS FOR SUBCLASS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D1514-762-T00 | Work clamp arm | 1 |
| 2 | SS-7111120-SP | Screw 11/64-40 L- 10.5 | 2 |
| 3 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 2 |
| 4 | D9323-762-T00 | Work clamp arm spacing plate | 2 |
| 5 | D9322-762-T00 | Work clamp arm gimp guide holder | 1 |
| 6 | SS-7090610-SP | Screw 9/64-40 L- 6.0 | 1 |
| 7 | SS-2110840-SP | Screw 11/64-40 L 8.0 | - |
| 8 | WP-0482086-SD | Washer 4.8 x 11.5 x 2.0 | 1 |
| 9 | D9310-762-T00 | Gimp guide shaft | 1 |
| 10 | D9335-762-TA0 | Gimp trimmer blade asm. (B) | 1 |
| 11 | D9336-762-T00 | Gimp trimmer blade tension spring (B) | (1) |
| 12 | WP-0250516-SD | Washer 2.5 x 6.0 x 0.5 | (1) |
| 13 | SS-5060410-SP | Screw 3/32-56 L- 3.5 | (1) |
| 14 | SS-7060310-SP | Screw 3/32-56 L 3.0 | 1 |
| 15 | SS-6060410-TP | Screw 3/32-56 L- 3.5 | 1 |
| 16 | D1508-762-K00 | Work clamp check | 1 |
| 17 | D2402-762-K00 | Throat plate | 1 |
| 18 | D9314-762-T00 | Gimp guide holder | 1 |
| 19 | D9315-762-T00 | Gimp guide | 1 |
| 20 | SS-6090510-SP | Screw 9/64-40 L= 5.0 | 1 |
| 21 | D9313-762-TA0 | Gimp guide holer bracket asm. | 1 |
| 22 | SS-7111110-TP | Screw 11/64-40 L- 10.5 | (2) |
| 23 | SS-7110910-SP | Screw 11/64-40 L 8.5 | (1) |
| 24 | D9318-762-T00 | Gimp guide shaft thrust ring | 1 |
| 25 | WP-1002066-SD | Washer 10.0 x 17.0 x 2.0 | 1 |
| 26 | D9317-762-T00 | Gimp guide shaft spring | 2 |
| 27 | D9316-762-T00 | Gimp guide shaft collar | 2 |
| 28 | D9319-762-T00 | Gimp guide shaft tension spring | 1 |
| 29 | D9311-772-TA0 | Gimp guide shaft crank asm. | 1 |
| 30 | SS-8150750-SP | Screw 15/64-28 L=7.0 | 1 |
| 30-1 | SS-8151160-SP | Screw 15/64-28 L=11 | 1 |
| 30-2 | SS-8150410-SP | Screw 15/64-28 L=4 | 2 |
| 31 | D9320-762-T00 | Shaft bracket spacer | 2 |
| 32 | SS-7111810-TP | Screw 11/64-40 L= 18.0 | 4 |
| 33 | WS-0441040-KP | Spring washer 4.4 x 7.4 x 1.0 | 4 |
| 34 | D9321-762-T00 | Spring | 1 |
| 35 | D9303-762-T00 | Gimp repositioning screw, right | 2 |
| 36 | D9302-762-T00 | Gimp guide shaft stop bracket | 1 |
| 37 | SS-7110740-TP | Screw 11/64-40 L= 7.0 | 2 |
| 38 | NS-6110420-SP | Nut 11/64-40 | 2 |
| 39 | D9301-762-T00-A | Gimp guide shaft mounting bracket | 1 |
| 40 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 4 |
| 41 | PS-0200102-KH | Spring pin 2.0 x 10 | 2 |
| 42 | SD-0640751-SP | Hinge screw D= 6.35 H= 7.5 | 1 |
| 43 | D9308-762-T00 | Gimp guide holder crank pin | 1 |
| 44 | D9309-762-T00 | Gimp guide holder crank roller | 1 |
| 45 | D9307-762-T00 | Gimp guide holder crank | 1 |
| 46 | B2037-372-000 | Nipper bar block spring | 1 |
| 47 | NS-6120310-SP | Nut 3/16-28 | 1 |
| 48 | D9324-762-T00 | Work clamp arm retainer | 1 |
| 49 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 2 |
| 50 | SS-9111010-SP | Bolt 11/64-40 L= 9.5 | 2 |
| 51 | B2009-761-000 | Universal joint | 1 |
| SS-9100610-SP | Screw 9/64-40 L= 6.0 | 1 | |
| SS-8180750-SP | Screw 15/64-28 L=7.0 |
Page 42 — 16. EXCLUSIVE PARTS FOR SUBCLASS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D2901-762-V00 | Feed cam | 1 |
| 2 | D2908-761-D00 | Tension releasing gear No. 1 | 1 |
| 3 | D2906-761-D00 | Tension releasing gear No. 4 | 1 |
| 4 | D2905-762-V00 | Bar tripping segment No. 2 | 1 |
| 5 | D2905-761-D00 | Tension releasing gear No. 3 | 1 |
| 6 | D2904-762-V00 | Knife tripping segment | 1 |
| 7 | D9302-762-V00 | Gimp guide tripping segment No. 2 | 1 |
| 8 | D2902-762-V00 | Bar tripping segment No. 1 | 1 |
| 9 | D2907-762-V00 | Stop tripping segment | 1 |
| 10 | D2615-762-V00 | Latch (C) | 1 |
| 11 | D1601-762-VA0 | Length regulating shaft bell crank asm | 1 |
| 12 | SS-9151630-CP | Bolt 15/64-28 L= 15.5 | (1) |
| 13 | B2938-761-000 | Spur gear (63) | 1 |
| 14 | B2939-761-000 | Spur gear (300) | 1 |
| 15 | D1508-763-K00 | Work clamp check | 1 |
| 16 | D2402-763-K00 | Throat plate | 1 |
| 17 | D9101-761-K00 | Hook timing gauge | 1 |
| 1 | D1508-763-K00 | Work clamp check | 1 |
| 2 | D2402-763-K00 | Throat plate | 1 |
| 3 | D9101-761-K00 | Hook timing gauge | 1 |
Page 43 — 16. EXCLUSIVE PARTS FOR SUBCLASS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D3402-762-T00 | Presser bar lifting rod | 1 |
| 2 | NS-6150320-SP | Nut 15/64-28 | – |
| NS-6150310-SP | Nut 15/64-28 | 1 | |
| 3 | WP-0612516-SD | Washer 6.1 x 15.2 x 2.5 | 1 |
| 4 | B3107-352-000 | Needle thread guide | 1 |
| 5 | B3119-352-000 | Thread tension post | 1 |
| 6 | B3126-012-000 | Tension disc | 2 |
| 7 | B3118-352-000 | Thread tension spring | 1 |
| 8 | B3117-352-000 | Thread tension post nut | 2 |
| 9 | D1129-762-T00 | Machine frame side cover (A) | 1 |
| 10 | D9333-762-T00 | Gimp spool rest rod | 1 |
| 11 | NS-6700420-SP | Nut 5/16-24 | 1 |
| 12 | SS-7090520-SL | Screw 9/64-40 L= 4.5 | 1 |
| 13 | D9334-762-T00 | Gimp spool rest rod extension guide | 1 |
| 14 | SS-8152080-SP | Screw 15/64-28 L= 19.5 | 1 |
| 15 | NS-6150540-SP | Nut 15/64-28 | 1 |
| 16 | D9101-761-K00 | Hook timing gauge | 1 |
| 17 | D9332-762-T00 | Driving rod tension spring | 1 |
| 18 | D9331-762-T00 | Slide block | 1 |
| 19 | SS-8661030-SP | Screw 1/4-40 L= 10.0 | 1 |
| 20 | D9330-762-T00 | Positioning shaft driving rod | – |
| 20-1 | D9330-762-T00-A | Positioning shaft driving rod | 1 |
| 20-2 | NS-6680410-SP | Nut 9/32-28 | 2 |
| 21 | D9329-762-T00 | Gimp guide tripping segment No. 2 | 1 |
| 22 | D9323-762-T00 | Gimp guide tripping segment No. 1 | 1 |
| 23 | D2902-762-T00 | Bar tripping segment No. 1 | 1 |
Page 45 — 16. EXCLUSIVE PARTS FOR SUBCLASS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D1514-763-T00 | Work clamp arm | 1 |
| 2 | SS-7111120-SP | Screw 11/64-40 L= 10.5 | 2 |
| 3 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 2 |
| 4 | D9323-762-T00 | Work clamp arm spacing plate | 2 |
| 5 | D9322-762-T00 | Work clamp arm gimp guide holder | 1 |
| 6 | SS-7090610-SP | Screw 9/64-40 L= 6.0 | 1 |
| 7 | SS-2110840-SP | Screw 11/64-40 L=8.0 | – |
| SS-2110930-SP | Screw 11/64-40 L=8.7 | 1 | |
| 8 | WP-0482086-SD | Washer 4.8 x 11.5 x 2.0 | 1 |
| 9 | D9310-762-T00 | Gimp guide shaft | 1 |
| 10 | D9335-762-TA0 | Gimp trimmer blade asm. (B) | 1 |
| 11 | D9336-762-T00 | Gimp trimmer blade tension spring (B) | (1) |
| 12 | WP-0250516-SD | Washer 2.5 x 6.0 x 0.5 | (1) |
| 13 | SS-5060410-SP | Screw 3/32-56 L= 3.5 | (1) |
| 14 | SS-7060310-SP | Screw 3/32-56 L= 3.0 | 1 |
| 15 | SS-6060410-TP | Screw 3/32-56 L= 3.5 | 1 |
| 16 | D1508-763-K00 | Work clamp check | 1 |
| 17 | D2402-763-K00 | Throat plate | 1 |
| 18 | D9314-762-T00 | Gimp guide holder | 1 |
| 19 | D9315-762-T00 | Gimp guide | 1 |
| 20 | SS-6090510-SP | Screw 9/64-40 L= 5.0 | 1 |
| 21 | D9313-762-TA0 | Gimp guide holder bracket asm. | 1 |
| 22 | SS-7111110-TP | Screw 11/64-40 L= 10.5 | (2) |
| 23 | SS-7110910-SP | Screw 11/64-40 L= 8.5 | (1) |
| 24 | D9318-762-T00 | Gimp guide shaft thrust ring | 1 |
| 25 | WP-1002066-SD | Washer 10.0 x 17.0 x 2.0 | 1 |
| 26 | D9317-762-T00 | Gimp guide shaft spring | 2 |
| 27 | D9316-762-T00 | Gimp guide shaft collar | 2 |
| 28 | D9319-762-T00 | Gimp guide shaft tension spring | 1 |
| 29 | D9311-772-TA0 | Gimp guide shaft crank asm. | 1 |
| 30 | SS-8150750-SP | Screw 15/64-28 L=7.0 | 1 |
| 30-1 | SS-8151160-SP | Screw 15/64-28 L=11 | 1 |
| 30-2 | SS-8150410-SP | Screw 15/64-28 L=4 | 2 |
| 31 | D9320-762-T00 | Shaft bracket spacer | 2 |
| 32 | SS-7111810-TP | Screw 11/64-40 L= 18.0 | 4 |
| 33 | WS-0441040-KP | Spring washer 4.4 x 7.4 x 1.0 | 4 |
| 34 | D9321-762-T00 | Spring | 1 |
| 35 | D9303-762-T00 | Gimp repositioning screw, right | 2 |
| 36 | D9302-762-T00 | Gimp guide shaft stop bracket | 1 |
| 37 | SS-7110740-TP | Screw 11/64-40 L= 7.0 | 2 |
| 38 | NS-6110420-SP | Nut 11/64-40 | 2 |
| 39 | D9301-762-T00-A | Gimp guide shaft mounting bracket | 1 |
| 40 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 4 |
| 41 | PS-0200102-KH | Spring pin 2.0 x 10 | 2 |
| 42 | SD-0640751-SP | Hinge screw D= 6.35 H= 7.5 | 1 |
| 43 | D9308-762-T00 | Gimp guide holder crank pin | 1 |
| 44 | D9309-762-T00 | Gimp guide holder crank roller | 1 |
| 45 | D9307-762-T00 | Gimp guide holder crank | 1 |
| 46 | B2037-372-000 | Nipper bar block spring | 1 |
| 47 | NS-6120310-SP | Nut 3/16-28 | 1 |
| 48 | D9324-762-T00 | Work clamp arm retainer | 1 |
| 49 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 2 |
| 50 | SS-9111010-SP | Bolt 11/64-40 L= 9.5 | 2 |
| 51 | B2009-761-000 | Universal joint | 1 |
| WP-048086-SD | Gimp guide shaft | 1 | |
| WS-0411040-KP | Spring washer 4.4 x 7.4 x 1.0 | 4 |
Page 47 — 16. EXCLUSIVE PARTS FOR SUBCLASS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D1514-763-T00 | Work clamp arm | 1 |
| 2 | SS-7111120-SP | Screw 11/64-40 L= 10.5 | 2 |
| 3 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 2 |
| 4 | D9323-762-T00 | Work clamp arm spacing plate | 2 |
| 5 | D9322-762-T00 | Work clamp arm gimp guide holder | 1 |
| 6 | SS-7090610-SP | Screw 9/64-40 L= 6.0 | 1 |
| 7 | SS-2110840-SP | Screw 11/64-40 L=8.0 | — |
| SS-2110930-SP | Screw 11/64-40 L=8.7 | 1 | |
| 8 | WP-0482086-SD | Washer 4.8 x 11.5 x 2.0 | 1 |
| 9 | D9310-762-T00 | Gimp guide shaft | 1 |
| 10 | D9335-762-TA0 | Gimp trimmer blade asm. (B) | 1 |
| 11 | D9336-762-T00 | Gimp trimmer blade tension spring (B) | (1) |
| 12 | WP-0250516-SD | Washer 2.5 x 6.0 x 0.5 | (1) |
| 13 | SS-5060410-SP | Screw 3/32-56 L= 3.5 | (1) |
| 14 | SS-7060310-SP | Screw 3/32-56 L= 3.0 | 1 |
| 15 | SS-6060410-TP | Screw 32-56 L= 4.0 | 1 |
| 16 | D1508-763-K00 | Work clamp check | 1 |
| 17 | D2402-763-K00 | Throat plate | 1 |
| 18 | D9314-762-T00 | Gimp guide holder | 1 |
| 19 | D9315-762-T00 | Gimp guide | 1 |
| 20 | SS-6090510-SP | Screw 9/64-40 L= 5.0 | 1 |
| 21 | D9313-762-TA0 | Gimp guide arm asm. | 1 |
| 22 | SS-7111110-TP | Screw 11/64-40 L= 10.5 | (2) |
| 23 | SS-7110910-SP | Screw 11/64-40 L= 8.5 | (1) |
| 24 | D9318-762-T00 | Gimp guide shaft thrust ring | 1 |
| 25 | WP-1002066-SD | Washer 10.0 x 17.0 x 2.0 | 1 |
| 26 | D9317-762-T00 | Gimp guide shaft spring | 2 |
| 27 | D9316-762-T00 | Gimp guide shaft collar | 2 |
| 28 | D9319-762-T00 | Gimp guide shaft tension spring | 1 |
| 29 | D9311-762-TA0 | Gimp guide shaft crank asm. | 1 |
| 30 | SS-8150750-SP | Screw 15/64-28 L=7.0 | 1 |
| 30-1 | SS-8151160-SP | Screw 15/64-28 L=11 | 1 |
| 30-2 | SS-8150410-SP | Screw 15/64-28 L=4 | 2 |
| 31 | D9320-762-T00 | Shaft bracket spacer | 2 |
| 32 | SS-7111810-TP | Screw 11/64-40 L= 18.0 | 4 |
| 34 | D9321-762-T00 | Spring | 1 |
| 35 | D9303-762-T00 | Gimp repositioning screw, right | 2 |
| 36 | D9302-762-T00 | Gimp guide shaft stop bracket | 1 |
| 37 | SS-7110740-TP | Screw 11/64-40 L= 7.0 | 2 |
| 38 | NS-6110420-SP | Nut 11/64-40 | 2 |
| 39 | D9301-762-T00-A | Gimp guide shaft mounting bracket | 1 |
| 40 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 4 |
| 41 | PS-0200102-KH | Spring pin 2.0 x 10 | 2 |
| 42 | SD-0640751-SP | Hinge screw D= 6.35 H= 7.5 | 1 |
| 43 | D9308-762-T00 | Gimp guide holder crank pin | 1 |
| 44 | D9309-762-T00 | Gimp guide holder crank roller | 1 |
| 45 | D9307-762-T00 | Gimp guide holder crank | 1 |
| 46 | B2037-372-000 | Nipper bar block spring | 1 |
| 47 | NS-6120310-SP | Nut 3/16-28 | 1 |
| 48 | D9324-762-T00 | Work clamp arm retainer | 1 |
| 49 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 2 |
| 50 | SS-9111010-SP | Bolt 11/64-40 L= 9.5 | 2 |
| 51 | B2009-761-000 | Universal joint | 1 |
Page 48 — 16. EXCLUSIVE PARTS FOR SUBCLASS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D3402-762-T00 | Presser bar lifting rod | 1 |
| 2 | NS-6150320-SP | Nut 15/64-28 | — |
| NS-6150310-SP | Nut 15/64-28 | 1 | |
| 3 | WP-0612516-SD | Washer 6.1 x 15.2 x 2.5 | 1 |
| 4 | B3107-352-000 | Needle thread guide | 1 |
| 5 | B3119-352-000 | Thread tension post | 1 |
| 6 | B3126-012-000 | Tension disc | 2 |
| 7 | B3118-352-000 | Thread tension spring | 1 |
| 8 | B3117-352-000 | Thread tension post nut | 2 |
| 9 | D1129-762-T00 | Machine frame side cover (A) | 1 |
| 10 | D9333-762-T00 | Gimp spool rest rod | 1 |
| 11 | NS-6700420-SP | Nut 5/16-24 | 1 |
| 12 | SS-7090520-SL | Screw 9/64-40 L= 4.5 | 1 |
| 13 | D9334-762-T00 | Gimp spool rest rod extension guide | 1 |
| 14 | SS-8152080-SP | Screw 15/64-28 L= 19.5 | 1 |
| 15 | NS-6150540-SP | Nut 15/64-28 | 1 |
| 16 | D9101-761-K00 | Hook timing gauge | 1 |
| 17 | D9332-762-T00 | Driving rod tension spring | 1 |
| 18 | D9331-762-T00 | Slide block | 1 |
| 19 | SS-8661030-SP | Screw 1/4-40 L= 10.0 | 1 |
| 20 | D9330-762-T00-A | Positioning shaft driving rod | — |
| 20-1 | D9330-762-T00-A | Positioning shaft driving rod | 1 |
| 20-2 | NS-6680410-SP | Nut 9/32-28 | 2 |
| 21 | D2901-762-V00 | Feed cam | 1 |
| 22 | D9303-762-V00 | Gimp guide tripping segment No. 4 | 1 |
| 23 | D2903-762-V00 | Bar tripping segment No. 2 | 1 |
| 24 | D9301-762-V00 | Gimp guide tripping segment No. 1, 3 | 2 |
| 25 | D2904-762-V00 | Knife tripping segment | 1 |
| 26 | D9302-762-V00 | Gimp guide tripping segment No. 2 | 1 |
| 27 | D2902-762-V00 | Bar tripping segment No. 1 | 1 |
| 28 | D2907-762-V00 | Stop tripping segment | 1 |
| 29 | D2615-762-V00 | Latch (C) | 1 |
| 30 | D1601-762-VA0 | Length regulating shaft bell crank asm. | 1 |
| 31 | SS-9151630-CP | Bolt 15/64-28 L= 15.5 | (1) |
Page 49 — 17. EXCHANGING PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | B2936-761-000 | ||
| B | B2938-761-000 | ||
| B2937-761-000 | Large gear | 53 | |
| B2939-761-000 | Large gear | 51 | |
| B2940-761-000 | Small gear | 24 | |
| B2941-761-000 | Large gear | 50 | |
| B2942-761-000 | Small gear | 25 | |
| B2943-761-000 | Large gear | 49 | |
| B2944-761-000 | Small gear | 26 | |
| B2945-761-000 | Large gear | 48 | |
| B2946-761-000 | Small gear | 27 | |
| B2947-761-000 | Large gear | 47 | |
| B2928-761-000 | Small gear | 28 | |
| B2929-761-000 | Large gear | 46 | |
| B2948-761-000 | Small gear | 29 | |
| B2949-761-000 | Large gear | 45 | |
| B2950-761-000 | Small gear | 30 | |
| B2951-761-000 | Large gear | 44 | |
| B2930-761-000 | Small gear | 31 | |
| B2931-761-000 | Large gear | 43 | |
| B2952-761-000 | Small gear | 32 | |
| B2953-761-000 | Large gear | 42 | |
| B2932-761-000 | Small gear | 33 | |
| B2933-761-000 | Large gear | 41 | |
| B2954-761-000 | Small gear | 34 | |
| B2955-761-000 | Large gear | 40 | |
| B2934-761-000 | Small gear | 35 | |
| B2935-761-000 | Large gear | 39 | |
| B2956-761-000 | Small gear | 36 | |
| B2957-761-000 | Large gear | 38 |
Page 50 — 17. EXCHANGING PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B7121-761-0A0 | ||
| 2 | B7111-761-AA0 | ||
| 3 | B7112-761-AA0 | ||
| 4 | B7113-761-0A0 | ||
| 5 | B7114-761-0A0 | ||
| 6 | B7115-761-0A0 | ||
| 7 | B7116-761-0A0 | ||
| 8 | B7112-761-LA0 | ||
| 9 | B7114-761-LA0 | ||
| 10 | B7116-761-LA0 | ||
| 11 | B7111-761-MA0 | ||
| 12 | B7112-761-MA0 | ||
| 13 | B7114-761-MA0 | ||
| 13-1 | B7115-761-MA0 | ||
| 14 | B7116-761-MA0 | ||
| 15 | B7112-761-NA0 | ||
| 16 | B7114-761-NA0 | ||
| 17 | B7116-761-NA0 | ||
| 1 | B2702-047-F00 | ||
| 2 | B2702-047-K00 | ||
| 3 | B2702-047-L00 | ||
| 3 | B1508-761-000 | ||
| 3 | B2402-761-000 | ||
| 4 | B2702-047-V00 | ||
| 5 | B2702-047-M00 | ||
| 6 | B2702-047-N00 | ||
| 7 | B2702-047-P00 | ||
| 7 | B1508-762-000 | ||
| 7 | B2402-762-000 | ||
| 8 | B2702-047-Q00 | ||
| 9 | B2702-047-S00 | ||
| 9 | B1508-763-000 | ||
| 9 | B2402-763-000 |
Page 51 — 18. SPECIAL ORDER PARTS 1) THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B3301-051-0AO | Thread stand asm. | 1 |
| 2 | B3301-012-0A0 | Thread stand asm. | (1) |
| 3 | B3310-012-000 | Position cup set nut | (1) |
| 4 | WS-0641560-KR | Spring washer | (1) |
| 5 | B3309-012-000 | Position cup | (1) |
| 6 | B3307-012-000 | Thread guide | (2) |
| 7 | B3307-012-000 | Thread guide | (1) |
| 8 | B3308-012-000 | Rod washer | (1) |
| 9 | B3306-012-000 | Spool rod | (1) |
| 10 | NM-6061061-SE | Nut M-6 | (1) |
| 11 | B3302-012-000 | Spool rest rod | (1) |
| 12 | B3303-372-0A0 | Spool rest asm. | (1) |
| 13 | SM-9061080-SE | Bolt | (1) |
| 14 | B3311-012-000 | Spool rest cushion | (1) |
| 15 | B3305-012-000 | Spool pin | (1) |
| 16 | WP-0560860-SE | Washer | (1) |
| 17 | WS-0531060-KR | Spring washer | (1) |
| 18 | NS-6123881-SE | Nut 3/16-28 | (1) |
| 19 | B3303-012-0A0 | Spool rest asm. | (1) |
| 20 | SM-9061080-SE | Bolt | (1) |
| 21 | B3311-012-000 | Spool rest cushion | (2) |
| 22 | B3305-012-000 | Spool pin | (2) |
| 23 | WP-0560860-SE | Washer | (2) |
| 24 | WS-0531060-KR | Spring washer | (2) |
| 25 | NS-6123881-SE | Nut 3/16-28 | (2) |
| 26 | B3301-012-000 | Spool stand | (1) |
| 27 | SK-3452000-SE | Wood screw | (3) |
| 28 | WS-1002560-KR | Spring washer | (1) |
| 29 | NM-6100663-SE | Nut | (1) |
| 30 | B3312-012-000 | Spool rest rock nut | 3 |
Page 53 — 18 SPECIAL ORDER PARTS / 特別注文部品
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B9201-761-0A0 | Reinforcing tape attachment asm. | 1 |
| 2 | B9204-047-0A0 | Tape attachment support plate asm. | (1) |
| 3 | SS-4090810-SP | Screw 9/64-40 L=8 | (1) |
| 4 | B9205-047-000 | Adjusting felt | (2) |
| 5 | B9201-761-0B0 | Reinforcing tape attachment asm. | (1) |
| 6 | NS-6700540-SP | Nut 5/16-24 | (1) |
| 7 | B9202-761-0A0 | Tape guide plate asm. | (1) |
| 8 | SS-5110740-TP | Screw 11/64-40 L=6.5 | (1) |
| 9 | SS-7090510-SP | Screw 9/64-40 L=4.6 | (2) |
| 10 | WP-0450000-SD | Washer 4.5 x 8.0 x 0.5 | (2) |
| 11 | B9206-761-000 | Tape retainer | (1) |
| 12 | B9207-761-000 | Tape retainer spring | (1) |
| 13 | SS-6060210-SP | Screw 3/32-56 L=1.9 | (2) |
| 14 | B9205-761-000 | Spacer for tape retainer | (1) |
| 15 | SS-5060410-SP | Screw 3/32-56 L=3.5 | (2) |
| 1 | B3120-761-0A0 | Safety plate asm. | 1 |
| 2 | B3120-372-000 | Safety plate | (1) |
| 3 | SS-7110740-TL | Screw 11/64-40 L=7.0 | |
| SS-7110740-TP | Screw 11/64-40 L=7 | (2) | |
| 4 | B3121-372-000 | Safety plate installing plate | (1) |
| 5 | SD-0600401-SD | Hinge screw D=6.00 H=4.0 | (1) |
| 6 | B3125-155-000 | Disc spring | (1) |
| 7 | WP-0650876-SD | Washer 6.5 x 13.0 x 0.8 | (1) |
| 8 | B3120-761-000 | Safety plate adjusting base | (1) |
| 9 | B3123-372-000 | Stopper pin | (1) |
| 10 | SS-7111120-SP | Screw 11/64-40 L=10.5 | (1) |
| 1 | B9402-761-000 | Measuring gauge, crosswise | 1 |
| 2 | SS-7111120-SP | Screw 11/64-40 L=10.5 | 2 |
| 3 | WP-0501016-SD | Washer 5.0 x 10.5 x 1.0 | 2 |
| 4 | B9401-761-000 | Distance measuring gauge | 1 |
| 5 | SS-7110840-SP | Screw 11/64-40 L=7.8 | 2 |
| 6 | WP-0501016-SD | Washer 5.0 x 10.5 x 1.0 | 2 |
| 1 | B2745-771-L00 | Knife 1/2" | 1 |
| 2 | B2745-771-M00 | Knife 5/8" | 1 |
| 3 | B2745-771-N00 | Knife 3/4" | 1 |
| 4 | B2746-761-000 | Knife guard | 1 |
| 5 | B2402-761-00B | Throat plate | 1 |
| 1 | B1157-771-0A0 | Hook oil shield asm. | 1 |
| 2 | B1157-771-000 | Hook oil shield | (1) |
| 3 | B1158-771-000 | Hook oil shield spring | (1) |
| 4 | B1159-771-000 | Spring set plate | (1) |
| 5 | SS-5090610-SP | Screw 9/64-40 L=6 | (2) |
| 6 | B1161-771-000 | Hook oil shield hinge | (1) |
| 7 | B1160-771-000 | Hinge pin | (1) |
| 8 | SS-7110510-SP | Screw 11/64-40 L=5 | 2 |
| 1 | B7125-761-000 | Guard plate | 1 |
| 2 | WP-0621016-SD | Washer 6.2 x 13.0 x 1 | 3 |
| 3 | WS-0521010-KN | Spring washer 5.2 x 8.2 x 1 | 3 |
| 4 | SK-3482500-SC | Wood screw D=4.8 L=25 | 3 |
Juki LBH-761 — parts catalog
- Page 1 (cover): This is the cover page for the JUKI Industrial Sewing Machine Parts List for the 1-Needle Lockstitch Straight Button-Holing models LBH-761, LBH-762, LBH-763 & Subclasses. The document number is BE7610TOPJA No.0029-12.
- Page 3 (text): This page explains how to use the parts list, including codes for part changes and quantity requirements, and provides instructions for ordering spare parts.
- Page 4 (unknown): This page contains a watermark and the website address "jinte.in" at the bottom. No other text or parts information is visible.
- Page 5 (toc): This page is a table of contents for an industrial sewing machine parts catalog, listing various component sections with their corresponding page numbers.
- Page 6 (diagram): This page displays a diagram of frame and miscellaneous cover components for a JUKI sewing machine, with numbered parts and their corresponding references.
- Page 7 (parts_list): This page lists frame and miscellaneous cover components for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of main shaft components, illustrating various parts with reference numbers for identification.
- Page 9 (parts_list): This page lists main shaft components for an industrial sewing machine, including part numbers, descriptions, quantities, and other details.
- Page 10 (diagram): This page displays a diagram of upright shaft and hook driving shaft components, with numbered parts for identification.
- Page 11 (parts_list): This page lists components for the upright shaft and hook driving shaft, including part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays a diagram of presser bar components, with numbered parts and their corresponding references.
- Page 13 (parts_list): This page lists components for presser bar, including part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of work clamp carrier components, with numbered parts and their corresponding references.
- Page 15 (parts_list): This page lists components for the Work Clamp Carrier, including part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of needle bar frame components, with numbered parts and their corresponding references.
- Page 17 (parts_list): This page lists components for the Needle Bar Frame, including part numbers, descriptions, and quantities. It details items such as needle bar frames, hinge studs, screws, oil wicks, and various retainers and guides.
- Page 18 (diagram): This page displays a diagram of overedging width components, with numbered parts and their corresponding references.
- Page 19 (parts_list): Parts list for the overedging width adjusting components of an industrial sewing machine, giving reference numbers, part numbers, descriptions, engineering change dates and required quantities.
- Page 20 (parts_list): This page lists components for the Needle Thread Trimmer, including part numbers, descriptions, and quantities.
- Page 21 (diagram): This page displays a diagram of throat plate and bobbin thread trimmer components, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays a diagram of knife bar components, with numbered parts and their corresponding details.
- Page 23 (parts_list): This page lists components for the knife bar, including part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of feed cam and tripping segment components, with numbered parts and their corresponding references.
- Page 25 (parts_list): This page lists feed cam and tripping segment components for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of stop motion components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 27 (parts_list): This page lists stop motion components for an industrial sewing machine, including part numbers, descriptions, quantities, and E.C. (change year) information.
- Page 28 (diagram): This page displays a diagram of tripping lever and starting lever components, with numbered parts and their corresponding details.
- Page 29 (parts_list): This page lists components for tripping lever and starting lever, including part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of lifting lever and bobbin winder components, with numbered parts and their corresponding references.
- Page 31 (parts_list): This page lists components for the 14. Lifting Lever & Bobbin Winder, including part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of thread tension components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 33 (parts_list): This page lists thread tension components for a sewing machine, including part numbers, descriptions, and quantities.
- Page 34 (diagram): This page displays exclusive parts for subclasses, detailing parts for LBH-761-K, LBH-761-W, LBH-762-K, and LBH-762-D, along with various numbered components like gears, screws, and brackets.
- Page 35 (parts_list): This page lists exclusive parts for subclasses, including part numbers, descriptions, and quantities for various components like work clamp checks, throat plates, and hook timing gauges.
- Page 36 (diagram): This page displays a diagram of exclusive parts for subclass LBH-762-T(1), with numbered components and their corresponding part numbers and descriptions.
- Page 37 (parts_list): This page lists exclusive parts for subclass, including part numbers, descriptions, and quantities.
- Page 38 (parts_list): This page lists exclusive parts for subclass LBH-762-T(2), including part numbers, descriptions, and quantities.
- Page 39 (diagram): This page displays a diagram of exclusive parts for subclasses, specifically for model LBH-762-V(1), along with a detailed parts list.
- Page 40 (diagram): This page displays a diagram of exclusive parts for subclass LBH-762-V(2), with numbered components and their corresponding part numbers and descriptions.
- Page 41 (parts_list): This page lists exclusive parts for subclass, including part numbers, descriptions, and quantities for various components like screws, washers, and shafts.
- Page 42 (diagram): This page displays a diagram of exclusive parts for subclass LBH-763-D and LBH-763-K, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 43 (parts_list): This page lists exclusive parts for subclass LBH-763-T(1), including part numbers, descriptions, and quantities.
- Page 44 (diagram): This page displays a diagram of exclusive parts for subclass LBH-763-T(2), including various screws, springs, and brackets with reference numbers.
- Page 45 (parts_list): This page lists exclusive parts for subclass, including part numbers, descriptions, and quantities. It also contains notes and model information.
- Page 46 (diagram): This page displays a diagram of exclusive parts for subclass 13) LBH-763-V(1), with numbered components and their corresponding part numbers and descriptions.
- Page 47 (parts_list): This page lists exclusive parts for subclass, including part numbers, descriptions, and quantities. It contains items numbered 1 through 51.
- Page 48 (parts_list): This page lists exclusive parts for subclass LBH-763-V(2), including part numbers, descriptions, and quantities.
- Page 49 (parts_list): This page contains a table of changing gears, listing small gears and large gears with their respective teeth numbers, stitch numbers, and part numbers.
- Page 50 (parts_list): This page contains a table of motor pulleys with their part numbers and specifications, followed by a table of knives, work clamp checks, and throat plates with their respective part numbers.
- Page 51 (parts_list): This page lists special order parts for thread stand components, including part numbers, descriptions, and quantities, with notes on model applicability.
- Page 52 (diagram): This page displays diagrams and parts lists for special order components including tape reel components, needle safety plate components, button-holing measuring gauges, knife for special, hook oil shield components, and safety guard components.
- Page 53 (parts_list): Special order parts list for a sewing machine covering tape reel, needle safety plate, button-holing measuring gauges, knife for special, hook oil shield, and safety guard components, with part numbers, descriptions, E.C. dates and quantities.
- Page 56 (index): Cross-reference index listing parts numbers with their catalog page, head item and reference numbers, including oil tube, oil wick and thrust collar entries.
- Page 57 (index): Alphabetical parts number index listing part numbers with their catalog page, head (item) and reference numbers for needles, nuts, screws, pins, snap rings, hinge screws and other SS/NS/SD/PS parts, in three columns across the page.
- Page 59 (unknown): This page contains a watermark and no other discernible text or parts information.
- Page 60 (cover): This is the cover page of a JUKI sewing machine parts catalog, featuring the JUKI logo and corporation name, along with contact information and notes about the catalog's content and printing date.
