Page 4 — CONTENTS

Juki LBH-780 (56 pages) parts on page 4
Ref	Part number	Part name	Qty
	1	FRAME & MISCELLANEOUS COVER COMPONENTS (1)
	3	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	5	MAIN SHAFT COMPONENTS
	7	HOOK DRIVING SHAFT COMPONENTS
	9	PRESSER BAR & WORK CLAMP CARRIER COMPONENTS
	11	NEEDLE BAR FRAME COMPONENTS
	13	OVEREDGING WIDTH ADJUSTING COMPONENTS
	15	NEEDLE THREAD TRIMMER COMPONENTS
	17	BOBBIN THREAD TRIMMER COMPONENTS
	19	KNIFE BAR COMPONENTS
	21	FEED CAM & TRIPPING SEGMENT COMPONENTS
	23	STOP-MOTION COMPONENTS
	24	TRIPPING LEVER COMPONENTS
	25	LIFTING LEVER & BOBBIN WINDER COMPONENTS
	27	THREAD TENSION COMPONENTS
	29	LUBRICATION MECHANISM COMPONENTS
	31	SPEED TRANSMITTER COMPONENTS
	33	MOTOR PULLEY COMPONENTS

Page 5

Juki LBH-780 (56 pages) parts on page 5
Ref	Part number	Part name	Qty
	19	THREAD STAND COMPONENTS
	20	EXCLUSIVE PARTS FOR LBH-782,LBH-783,LBH-784
	21	SPECIAL ORDER PARTS
	22	EXCHANGING PARTS
	23	EXCLUSIVE PARTS FOR LBH-781-K
	24	EXCLUSIVE PARTS FOR LBH-782-K,LBH-783-K
	25	EXCLUSIVE PARTS FOR LBH-784-K
	26	LIST FOR INFORMATION OF CHANGE
	NUMERICAL INDEX OF PARTS	NUMERICAL INDEX OF PARTS

Page 6 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS (1)

Juki LBH-780 (56 pages) parts on page 6
Ref	Part number	Part name	Qty
	1	FRAME & MISCELLANEOUS COVER COMPONENTS (1)
	2	頭部外装関係 (1)
	3
	4
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56
	57
	58
	59
	60
	61
	62
	63
	64
	65
	66
	67
	68
	69
	70
	71
	72
	73
	74
	75
	76
	77
	78
	79
	80

Page 7

Juki LBH-780 (56 pages) parts on page 7
Part number	Part name	Qty
B1137-771-000	FRAME SIDE COVER B	1
B1137-771-00A	FRAME SIDE COVER B	1
SS-4111015-SP	SCREW 11/64-40 L=10	1
WP-0450000-SD	WASHER 4.5X8X0.5	2
CM-3002001-01	SAFETY LABEL, 1(SMALL).	1
SS-4111015-SP	SCREW 11/64-40 L=10	1
400-09028	ARM SUPPORT ROD	1
SS-8110510-SP	SCREW 11/64-40 L=5	1
B1120-761-000	PIN	1
B1118-761-000	RUBBER CUSHION	1
B1116-771-000	SIDE COVER (C)	1
400-09010	ARM SIDE COVER (C)	1
B1152-771-000	SIDE COVER GASKET (C)	1
SS-4110915-SP	SCREW 11/64-40 L=9	7
B1138-771-000	FRAME SIDE COVER C	1
B1138-771-00A	FRAME SIDE COVER C	1
SS-41112215-SP	SCREW 11/64-40 L=22	1
SS-4111415-SP	SCREW 11/64-40 L=14	1
B1155-771-000	CUSHION	2
B1144-771-000	FRAME SIDE COVER GASKET (C)	2
B1153-781-000	LEFT SIDE COVER	1
400-08995	LEFT SIDE COVER	1
B1145-771-000	SIDE COVER GASKET	1
SS-4110915-SP	SCREW 11/64-40 L=9	3
B1122-581-000	THREAD TAKE-UP LEVER OIL GUARD	1
400-09039	THREAD TAKE-UP LEVER COVER	1
SS-4090515-SP	SCREW 9/64-40 L=5	2
B1112-771-0A0	FACE COVER COMPLETE	1
B1112-771-0AA	FACE COVER COMPLETE	1
B1149-771-000	GASKET	1
B1151-771-000	FACE PLATE GASKET (B)	1
SS-4111415-SP	SCREW 11/64-40 L=14	2
SS-4110915-SP	SCREW 11/64-40 L=9	1
TA-1250705-RO	RUBBER PLUG	2
B1103-771-000-A	TOP COVER	1
B1103-771-00A	TOP COVER	1
B1106-771-000	WORM GEAR SHAFT METAL	2
100-04109	GROUND MARK	1
SS-6120620-TP	SCREW	4
B1110-771-000	TOP COVER GASKET, FRONT	1
B1117-771-000	OIL FELT	2
SS-4111815-SP	MAIN SHAFT THRUST SEEL	1
SS-4110915-SP	SCREW 11/64 L=18	6
TA-0750704-RO	RUBBER PLUG	1
B1106-761-000	GEAR CASE COVER	1
400-09030	GEAR CASE COVER	1
B3125-155-000	DISK SPRING	1
SD-0640261-SP	HINGE SCREW D=3.65 H=2.6	1
SS-7111310-SP	SCREW 11/64-40 L=12.8	1
400-09311	HAND STOP LATCH	1
SS-4110715-SP	SCREW 11/64-40 L=7	2
NS-6120310-SP	NUT 3/16-28	1
TA-2101002-RO	RUBBER PLUG	1
B1104-771-000	TOP COVER GASKET, REAR	1
400-09370	ARM OIL SHIELD	1
SS-4110715-SP	SCREW 11/64-40 L=7	1
B2743-771-000	KNIFE STOP LEVER SHAFT GUIDE	1
TA-1050504-RO	RUBBER PLUG	1
B1111-771-000	SIDE COVER (A) GASKET	1
B1114-771-000	SIDE COVER (A)	1
400-09008	ARM SIDE COVER (A)	1
SS-4110915-SP	SCREW 11/64-40 L=9	6
B1133-771-000	OIL SIGHT WINDOW GASKET	1
B1115-771-0A0	SIDE COVER ASM. B	1
400-09009	ARM SIDE COVER (B)	1
SS-4110915-SP	SCREW 11/64-40 L=9	1
B1128-771-000	SIDE COVER A	1
B1128-771-00A	SIDE COVER A	1
SS-4111015-SP	SCREW 11/64-40 L=10	2
WP-0450000-SD	WASHER 4.5X8X0.5	2
CM-3002001-A1	SAFETY LABEL, 3 (SMALL).	1
400-09034	BED SLIDE	1
400-09034	BED SLIDE SETUP A	2
400-09036	BED OIL SHIELD ASM.	1
400-09036	BED OIL SHIELD STUD	1
400-09363	BED OIL SHIELD STUD	1
CM-3002000-B1	LABEL (16)	1
SS-4110515-SP	SCREW 11/64-40 L=5	1
400-09014	OIL SIGHT WINDOW	1

Page 8 — 2. FRAME & MISCELLANEOUS COVER COMPONENTS (2)

Juki LBH-780 (56 pages) parts on page 8
Ref	Part number	Part name
3	3	WASHER
4	4	WASHER
2	2	COVER, SIDE
6	6	SCREW
5	5	BRACKET, COVER
1	1	COVER, SIDE
16	16	SCREW
17	17	WASHER
10	10	BRACKET, COVER
7	7	NUT
12	12	BRACKET, COVER
8	8	WASHER
9	9	SCREW
14	14	COVER, SIDE
15	15	COVER, SIDE
11	11	BRACKET, COVER
13	13	COVER, SIDE

Page 9

Juki LBH-780 (56 pages) parts on page 9
Ref	Part number	Part name	Qty
	400-52419	SAFETY PLATE ASM.
	260-37200	SAFETY PLATE
	SM-4040655-SP	SCREW M4 L=6
	WP-0450801-SD	WASHER 4.5X10X0.8
	400-52354	SAFETY PLATE INSTALLING BASE
	SS-6111140-SP	SCREW 11/64-40 L=11
	NS-6110310-SP	NUT 11/64-40
	WP-0501016-SC	WASHER 5X10.5X1
	SK-3452000-SE	WOOD SCREW D=4.5 L=20
	B7272-781-000	COVER MOUNTING BRACKET B
	400-09421	COVER MOUNTING BRACKET A
	262-36703	COVER MOUNTING BRACKET C
	137-72504	MOTOR PULLEY COVER
	CM-3002000-A3	LABEL,(31.5)
	400-09458	PULLEY COVER
	SS-7110710-SP	SCREW 11/64-40 L=7
	WP-0480856-SP	WASHER 4.8X8.4X0.8

Page 10

Juki LBH-780 (56 pages) parts on page 10
Ref	Part number	Part name	Qty
	1	LEVER, CHANGE SPEED
	2	SPRING, CHANGE SPEED LEVER
	3	BRACKET, CHANGE SPEED LEVER
	4	SCREW, PAN HEAD
	5	WASHER, FLAT
	6	ROD, CHANGE SPEED LEVER
	7	SPRING, CHANGE SPEED ROD
	8	SHAFT, FEED ROCK
	9	SHAFT, FEED
	10	BRACKET, FEED ROCK SHAFT
	11	COLLAR, FEED ROCK SHAFT
	12	COLLAR, FEED ROCK SHAFT
	13	BRACKET, FEED ROCK SHAFT
	14	BEARING, NEEDLE
	15	SCREW, HEXAGON SOCKET HEAD
	16	COLLAR, FEED ROCK SHAFT
	17	WASHER, FLAT
	18	CAM, FEED ROCK
	19	SCREW, HEXAGON SOCKET HEAD
	20	SPRING, CAM
	21	SCREW, HEXAGON SOCKET HEAD
	22	CAM, FEED ROCK
	23	COLLAR, FEED ROCK SHAFT
	24	SPRING, FEED ROCK CAM
	25	BRACKET, FEED ROCK CAM
	26	COLLAR, FEED ROCK SHAFT
	27	COLLAR, FEED ROCK SHAFT
	28	SCREW, PAN HEAD
	29	COLLAR, FEED ROCK SHAFT
	30	COLLAR, FEED ROCK SHAFT
	31	COLLAR, FEED ROCK SHAFT
	32	SPRING, FEED ROCK SHAFT
	33	COLLAR, FEED ROCK SHAFT
	34	COLLAR, FEED ROCK SHAFT
	35	COLLAR, FEED ROCK SHAFT
	36	BEARING, NEEDLE
	37	SCREW, PAN HEAD
	38	SHAFT, FEED ROCK
	39	FLANGE, FEED ROCK SHAFT
	40	BEARING, NEEDLE
	41	FLANGE, FEED ROCK SHAFT
	42	SPRING, FEED ROCK SHAFT
	43	COLLAR, FEED ROCK SHAFT
	44	COLLAR, FEED ROCK SHAFT
	45	COLLAR, FEED ROCK SHAFT
	46	COLLAR, FEED ROCK SHAFT
	47	COLLAR, FEED ROCK SHAFT
	48	SPRING, FEED ROCK SHAFT
	49	SCREW, PAN HEAD
	50	COLLAR, FEED ROCK SHAFT
	51	COLLAR, FEED ROCK SHAFT
	52	COLLAR, FEED ROCK SHAFT
	53	COLLAR, FEED ROCK SHAFT
	54	SCREW, PAN HEAD
	55	WASHER, FLAT
	56	COLLAR, FEED ROCK SHAFT
	57	PIN, FEED ROCK SHAFT
	58	SPRING, FEED ROCK SHAFT
	59	COLLAR, FEED ROCK SHAFT
	60	COLLAR, FEED ROCK SHAFT
	61	COLLAR, FEED ROCK SHAFT
	62	COLLAR, FEED ROCK SHAFT
	63	FLANGE, FEED ROCK SHAFT
	64	SCREW, PAN HEAD
	65	BRACKET, CHANGE SPEED LEVER
	66	SPRING, FEED ROCK SHAFT

Page 11

Juki LBH-780 (56 pages) parts on page 11
Ref	Part number	Part name	Qty
	B1404-761-000	HINGE STUD	1
	SS-8150822-TP	SCREW 15/64-28 L=8	1
	CQ-2520000-00	OIL WICK	0.38
	400-09087	OIL WICK HOLDER	1
	SS-7090510-SP	SCREW 9/64-40 L= 4.6	2
	B1147-125-000	OIL WICK SNAP RING	1
	BP-6000000-00	VINYL PIPE	0.03
	400-08610	MAIN SHAFT	1
	CM-5003000-01	DIRECTION LABEL	1
10	B1901-761-BA0	THREAD TAKE-UP LEVER ASM., CER	1
	B1901-761-0A0	THREAD TAKE-UP LEVER ASM.	1
	B1204-761-000	NEEDLE BAR CRANK	1
	B1204-761-000	NEEDLE BAR CRANK CONNECTING RO	1
14	B1905-541-B00	NEEDLE BEARING	2
	B1903-552-000	LEFT SCREW	1
	B2615-232-000	OIL FELT WASHER	1
	B1223-771-000	NEEDLE ROD CRANK WASHER	1
	400-09048	COUNTERWEIGHT ASM.	1
	SS-8681650-TP	SCREW 9/32-28 L=16	(1)
	SS-8660512-TP	SCREW 1/4-40 L=5	(2)
	SS-7681750-TP	SCREW 9/32-28 L=16.5	1
	B1204-771-000-A	BUSHING, FRONT	1
	SS-8150822-TP	SCREW 15/64-28 L=8	2
	B1203-012-000	OIL FELT	1
	B3541-012-000	OIL WICK	1
	261-00701	KNIFE BAR DRIVING CONNECTING	1
	B2722-761-000	KNIFE BAR DRIVING ECCENTRIC	1
	SS-8660810-TP	SCREW 1/4-40 L=8	2
	B1208-552-000-A	OIL SEAL	1
	261-04703	MAIN SHAFT BUSHING INTERMEDIA	1
	SS-8150822-TP	SCREW 15/64-28 L=8	(2)
	B2920-761-0A0	WORM ASM.	1
	SS-8660610-TP	SCREW 1/4-40 L=6	(2)
	CS-147121B-SH	THRUST COLLAR ASM. D=14.72 W=1	1
	SS-8660530-TP	SCREW 1/4-40 L= 4.5	(2)
	400-09400	MAIN SHAFT THRUST COLLAR ASM.	1
	SS-8660530-TP	SCREW 1/4-40 L= 4.5	(4)
	B1256-781-0A0	UPPER SHAFT REAR METAL ASM.	1
	B1256-781-000-A	UPPER SHAFT REAR METAL	1
	B1208-552-000-A	OIL SEAL	(1)
	400-09426	BEARING RETAINER	(1)
	SS-7110910-TP	SCREW 11/64-40 L= 8.5	(3)
	B1257-781-000	FELT B	(1)
	B1252-781-0B0	LOOSE PULLEY ASM.	(1)
	RC-3000001-KP	RETAINING RING 30	(1)
46	B1255-781-00B	WASHER B	2
	B1229-771-000	MAIN SHAFT THRUST WASHER (C)	1
	SS-8150822-TP	SCREW 15/64-28 L=8	1
	SS-7090410-SP	SCREW 9/64-40 L= 3.5	3
	B1254-781-000	MAIN SHAFT THRUST SEEL	1
	B1227-771-000	GASKET	1
	B1220-771-000	THRUST WASHER A	2
	B1225-771-000	BEARING	1
	SS-7660510-SP	SCREW 1/4-40 L=5.0	1
	SS-8660512-TP	SCREW 1/4-40 L=5	1
	400-09049	DRIVING PULLEY	1
57	B1224-771-00C	SCREW (C)	1
	B1231-771-000	STOP CAM PRESSURE SPRING	1
	400-09070	STOP-MOTION CAM PIN SLIDE BLOC	2
	B1212-232-000	BAKELITE SEGMENT	1
	400-09669	STOP-MOTION CAM POSITION PIN	1
	B1208-771-000	STOP MOTION CAM	1
	400-09058	STOP-MOTION CAM PRESSER PLATE	1
	SS-7110710-SP	SCREW 11/64-40 L=7	3
	CQ-2520000-00	OIL WICK	0.4
	B3541-012-000	OIL WICK	1

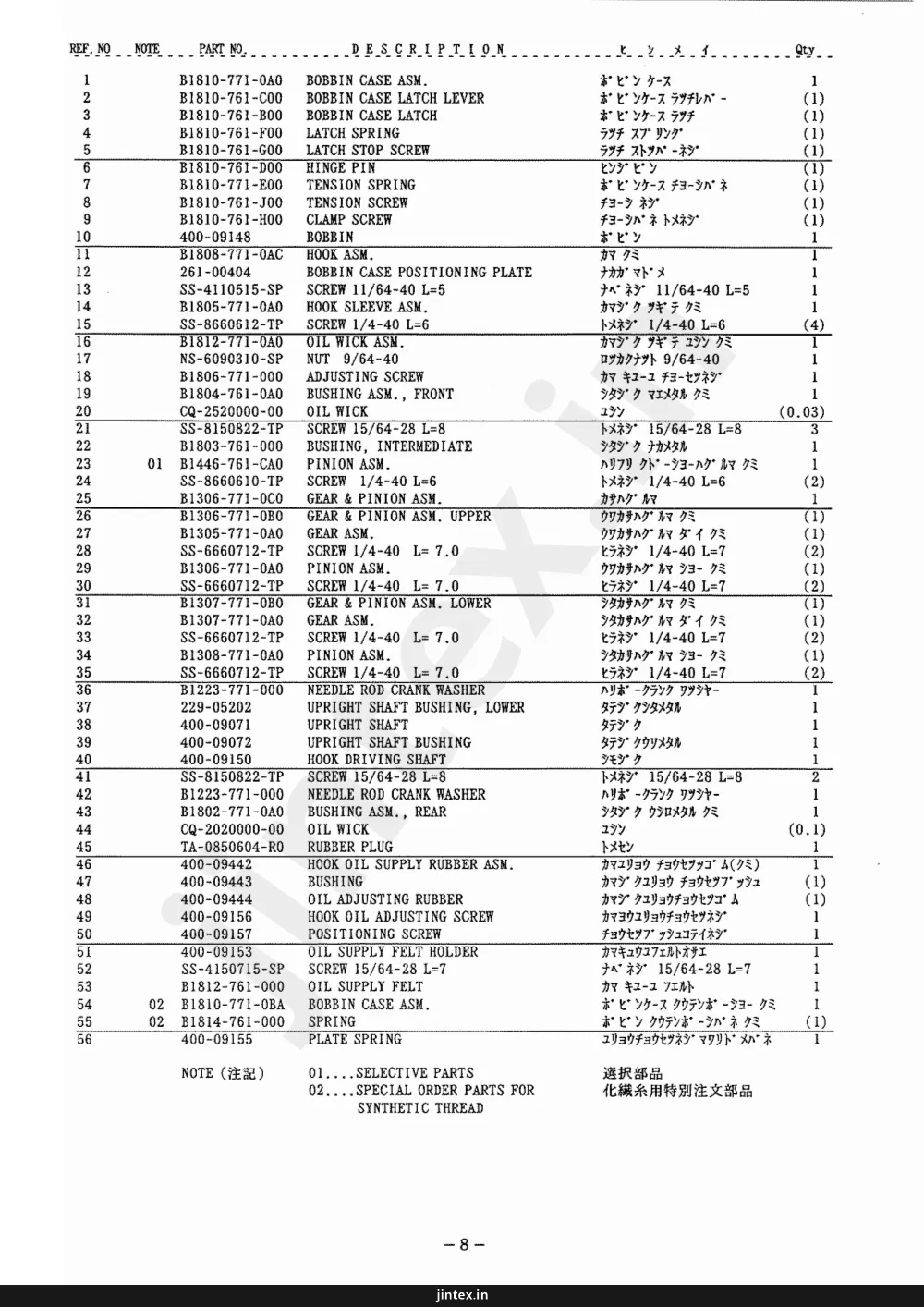

Page 12 — 4. HOOK DRIVING SHAFT COMPONENTS

Juki LBH-780 (56 pages) parts on page 12
Ref	Part number	Part name	Qty
	27	27
	28	28
	29	29
	30	30
	25	25
	26	26
	39	39
	38	38
	31	31
	36	36
	41	41
	37	37
	33	33
	32	32
	34	34
	35	35
	19	19
	22	22
	20	20
	21	21
	44	44
	42	42
	43	43
	21	21
	45	45
	24	24
	23	23
	14	14
	46	46
	47	47
	48	48
	56	56
	49	49
	50	50
	53	53
	52	52
	51	51
	54	54
	40	40
	55	55

Page 13

Juki LBH-780 (56 pages) parts on page 13
Ref	Part number	Part name	Qty
	B1810-771-0A0	BOBBIN CASE ASM.
	B1810-761-C00	BOBBIN CASE LATCH LEVER
	B1810-761-B00	BOBBIN CASE LATCH
	B1810-761-F00	LATCH SPRING
	B1810-761-G00	LATCH STOP SCREW
	B1810-761-D00	HINGE PIN
	B1810-771-E00	TENSION SPRING
	B1810-761-J00	TENSION SCREW
	B1810-761-H00	CLAMP SCREW
	400-09148	BOBBIN
	B1808-771-0AC	HOOK ASM.
	261-00404	BOBBIN CASE POSITIONING PLATE
	SS-4110515-SP	SCREW 11/64-40 L=5
	B1805-771-0A0	HOOK SLEEVE ASM.
	SS-8660612-TP	SCREW 1/4-40 L=6
	B1812-771-0A0	OIL WICK ASM.
	NS-6090310-SP	NUT 9/64-40
	B1806-771-000	ADJUSTING SCREW
	B1804-761-0A0	BUSHING ASM., FRONT
	CQ-2520000-00	OIL WICK
	SS-8150822-TP	SCREW 15/64-28 L=8
	B1803-761-000	BUSHING, INTERMEDIATE
	B1446-761-CA0	PINION ASM.
	SS-8660610-TP	SCREW 1/4-40 L=6
	B1306-771-0C0	GEAR & PINION ASM. UPPER
	B1306-771-0B0	GEAR ASM.
	B1305-771-0A0	GEAR ASM.
	SS-6660712-TP	SCREW 1/4-40 L=7.0
	B1306-771-0A0	PINION ASM.
	SS-6660712-TP	SCREW 1/4-40 L=7.0
	B1307-771-0B0	GEAR & PINION ASM. LOWER
	B1307-771-0A0	GEAR ASM.
	SS-6660712-TP	SCREW 1/4-40 L=7.0
	B1308-771-0A0	PINION ASM.
	SS-6660712-TP	SCREW 1/4-40 L=7.0
	B1223-771-000	NEEDLE ROD CRANK WASHER
	229-05202	UPRIGHT SHAFT BUSHING, LOWER
	400-09071	UPRIGHT SHAFT
	400-09072	UPRIGHT SHAFT BUSHING
	400-09150	HOOK DRIVING SHAFT
	SS-8150822-TP	SCREW 15/64-28 L=8
	B1223-771-000	NEEDLE ROD CRANK WASHER
	B1802-771-0A0	BUSHING ASM., REAR
	CQ-2020000-00	OIL WICK
	TA-0850604-RO	RUBBER PLUG
	400-09442	HOOK OIL SUPPLY RUBBER ASM.
	400-09443	BUSHING
	400-09444	OIL ADJUSTING RUBBER
	400-09156	HOOK OIL ADJUSTING SCREW
	400-09157	POSITIONING SCREW
	400-09153	OIL SUPPLY FELT HOLDER
	SS-4150715-SP	SCREW 15/64-28 L=7
	B1812-761-000	OIL SUPPLY FELT
	B1810-771-0BA	BOBBIN CASE ASM.
	B1814-761-000	SPRING
	400-09155	PLATE SPRING

Page 14 — 5. PRESSER BAR & WORK CLAMP CARRIER COMPONENTS

Juki LBH-780 (56 pages) parts on page 14
Ref	Part number	Part name
1	1	BOLT
2	2	PRESSER BAR
3	3	SPRING
4	4	BRACKET
5	5	BRACKET
6	6	SCREW
7	7	COLLAR
8	8	COLLAR
9	9	WASHER
10	10	BOLT
11	11	BRACKET
12	12	BRACKET
13	13	SPRING
14	14	SCREW
15	15	SCREW
16	16	SCREW
17	17	BRACKET
18	18	BRACKET
19	19	SCREW
20	20	SCREW
21	21	BRACKET
22	22	BRACKET
23	23	SPRING
24	24	SPRING
25	25	SPRING
26	26	SPRING
27	27	SPRING
28	28	PLATE
29	29	PLATE
30	30	PLATE
31	31	PLATE
32	32	PLATE
33	33	PLATE
34	34	SCREW
35	35	BRACKET
36	36	BRACKET
37	37	BRACKET
38	38	SCREW
39	39	BRACKET
40	40	BRACKET
41	41	SCREW
42	42	BRACKET
43	43	PIN
44	44	SCREW
45	45	BRACKET
46	46	BRACKET
47	47	SCREW
48	48	SCREW
49	49	PIN
50	50	NUT
51	51	CLAMP
52	52	BRACKET
53	53	SCREW
54	54	WASHER
55	55	SCREW
56	56	COLLAR
57	57	SCREW
58	58	NUT
59	59	SCREW

Page 15

Juki LBH-780 (56 pages) parts on page 15
Part number	Part name	Qty
400-09129	PRESSER SPRING REGULATOR	1
400-09119	PRESSER BAR	1
B1507-761-000	PRESSER SPRING	1
B1506-761-000	PRESSER BAR GUIDE BRACKET	1
SS-7111310-SP	SCREW 11/64-40 L=12.8	2
B1505-761-0A0	PRESSER BAR POSITION BRACKET A	1
SS-8660810-TP	SCREW 1/4-40 L=8	(1)
400-09121	SLEEVE	1
400-09123	SLIDE ROLLER	1
B1503-771-000	CONNECTING PIN	1
B1502-771-AA0-A	BRACKET ASM.	1
400-09131	BRACKET	(1)
400-09132	FINGER GUARD	(1)
SS-7090710-SP	SCREW 9/64-40 L=6.8	(1)
SS-4091520-SP	SCREW 9/64-40 L=15	1
SS-7110710-SP	SCREW 11/64-40 L=7	1
400-09122	WORK CLAMP BRACKET	1
SS-2110920-TP	SCREW 11/64-40 L=8.5	1
SS-7110840-SP	SCREW 11/64-40 L=7.8	1
SS-7110840-SP	SCREW 11/64-40 L=7.8	1
400-09190	NEEDLE THREAD TRIMMER GUIDE (A	1
B1552-781-0A0-A	PRESSER ASM.	(1)
B1511-771-0A0-B	PRESSER FOOT ASM.	(1)
B1511-771-0A0-B	PRESSER FOOT	(1)
B1509-761-000	WORK CLAMP CHECK SPRING	(2)
B1510-771-00B	WORK CLAMP CHECK SPRING SET PI	(2)
B1512-761-000	WORK CLAMP CHECK HOLDER SPRING	(1)
B1552-781-0A0-A	PRESSER	(1)
SS-6060210-SP	SCREW 3/32-56 L=1.9	(2)
B1508-771-A00	WORK CLAMP CHECK, KNIT GOOD	1
B1613-771-A00-A	WORK CLAMP CARRIER	1
400-09445	WORK CLAMP CARRIER	1
B1607-763-0A0	BRACKET COVER	1
SS-5110810-SP	SCREW 11/64-40 L=8.5	2
B1611-771-0A0	WORK CLAMP ARM BRACKET ASM.	1
SS-6151440-SP	SCREW 15/64-28 L=14	(2)
B1506-763-000	WORK CLAMP CARRIER BRACKET PIT	1
SD-0870601-SP	HINGE SCREW D= 8.73 H= 6	1
261-05908	WORK CLAMP ARM SLIDE ROD	1
B1612-763-000	WORK CLAMP CARIER BRACKET GUID	1
SS-6111010-TP	SCREW 11/64-40 L=9.5	2
B1551-781-000	WORK CLAMP	1
B1517-761-000	CONNECTING PIN	1
SS-7090920-SP	SCREW 9/64-40 L=8.5	1
B1516-771-000	BEARING ARM	1
SS-8150710-SP	SCREW 15/64-28 L=7	1
SS-8150920-SP	SET-SCREW	1
400-09134	LENGTH REGULATING HINGE STUD	1
NS-6150310-SP	LENGTH REGULATING SHAFT GUIDE	1
400-09137	LENGTH REGULATING NUT 15/64-28	1
B1603-763-0A0	LENGTH REGULATING SCALE ASM.	1
400-09144	LENGTH REGULATING SHAFT CRANK	1
SM-6061602-TP	SCREW M6 L=16	(1)
WP-0650876-SD	WASHER 6.5X13X0.8	(1)
400-09146	BELL CRANK ROLLER STUD	1
400-09143	ROLLER	1
SD-0790203-SP	HINGE SCREW D=7.94 H=2	1
NS-6150310-SP	NUT 15/64-28	1
400-09178	NEEDLE THREAD TRIMMER GUIDE (B	1

Page 16 — 6. NEEDLE BAR FRAME COMPONENTS

Juki LBH-780 (56 pages) parts on page 16
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52

Page 17

Juki LBH-780 (56 pages) parts on page 17
Ref	Part number	Part name	Qty
	B1414-232-000	SQUARE BLOCK	1
	B1410-771-000	STUD	1
	NS-6150310-SP	NUT 15/64-28	1
	400-09082	BUSHING	1
	SS-8151150-SP	SCREW 15/64-28 L=10.5	2
	RO-1482402-00	RUBBER RING	1
	B3541-012-000	OIL WICK	1
	B1411-771-0A0	FRAME ROCK SHAFT CRANK ASM., F	1
	261-06906	FRAME NEEDLE BAR SHAFT	(1)
	PT-0302000-SO	TAPERED PIN 3.0X20	(2)
	400-09099	NEEDLE BAR CLANK (FRONT)	(1)
	400-09452	NEEDLE BAR CRANK (REARE) ASM.	1
	SS-7151210-SP	SCREW 15/64-28 L=12	(1)
	SD-0790801-SP	HINGE SCREW D=7.94 H=8	1
	NS-6160520-SP	NUT 1/4-24	1
	B1415-761-000	NEEDLE BAR PITMAN	1
	B1416-761-000	ROCK SHAFT CONNECTION GUIDE	1
	SS-6111620-SP	SCREW 11/64-40 L=16.0	2
	SS-8111251-SP	SCREW 11/64-40 L=12.0	1
	NS-6110310-SP	NUT 11/64-40	1
	B1445-761-0A0	NEEDLE DRIVING GEAR ASM.	1
	CS-095101C-SH	THRUST COLLAR ASM. D=9.53 W=10	1
	SS-8150920-SP	SET-SCREW	(1)
	SS-8150710-SP	SCREW 15/64-28 L=7	(1)
	B1447-761-0A0	KNIFE DRIVING SHAFT ASM.	1
	CQ-2020000-00	OIL WICK	(0.21)
	400-09091	KNIFE DRIVING SHAFT	(1)
	CS-095101B-SH	THRUST COLLAR ASM. D=9.53 W=10	1
	SS-8150710-SP	SCREW 15/64-28 L=7	(2)
	B1403-771-000	NEEDLE BAR FRAME	1
	SS-8150822-TP	SCREW 15/64-28 L=8	1
	B1404-771-000	HINGE STUD	1
	CQ-2520000-00	OIL WICK	0.26
	400-09075	POSITION BRACKET	1
	SS-5110810-SP	SCREW 11/64-40 L=8	2
	B1406-761-000	OIL FELT, FOR NEEDLE BAR	2
	400-09085	OIL FELT UPPER	1
	SS-7090520-SP	SCREW 9/64-40 L=4.5	2
	B1402-761-0A0	NEEDLE BAR CONNECTION	1
	SS-7090910-TP	SCREW 9/64-40 L=8.5	(1)
	400-09086	OIL FELT RETAINER	1
	400-09083	NEEDLE BAR	1
	400-09093	NEEDLE BAR BOBBIN THREAD GUIDE	1
	SS-4080415-SP	SCREW 1/8-44 L=4	1
	MDP-5JOB1100	NEEDLE DPX5 #11J	1
01	01	B1451-771-00A	NEEDLE BAR THREAD GUIDE
02	02	MC-2005E07-50	NEEDLE 134SES #75
03	03	MDP-5JOB1400	NEEDLE DPX5 #14J
	SS-8150920-SP	SET-SCREW	1
04	04	MC-2005007-50	NEEDLE 134 NM75
	400-09077	BUSHING	1
	CQ-2520000-00	OIL WICK	0.25

Page 18 — 7. OVEREDGING WIDTH ADJUSTING COMPONENTS

Juki LBH-780 (56 pages) parts on page 18
Ref	Part number	Part name
1	1	BOLT
2	2	BOLT
3	3	NUT
4	4	NUT
5	5	BRACKET
6	6	SPRING
7	7	BRACKET
8	8	SCREW
9	9	WASHER
10	10	SHAFT
11	11	NUT
12	12	PIN
13	13	BRACKET
14	14	BRACKET
15	15	SPRING
16	16	SPRING
17	17	SCREW
18	18	SPRING
19	19	BRACKET
20	20	BRACKET
21	21	BRACKET
22	22	BRACKET
23	23	WASHER
24	24	SCREW
25	25	BOLT
26	26	SCREW
27	27	WASHER
28	28	BOLT
29	29	NUT
30	30	BOLT
31	31	SHAFT
32	32	BOLT
33	33	BRACKET
34	34	SPRING
35	35	SPRING
36	36	BOLT
37	37	NUT
38	38	BRACKET
39	39	NUT
40	40	BRACKET
41	41	SPRING
42	42	SPRING
43	43	PIN
44	44	BRACKET
45	45	SPRING
46	46	BOLT
47	47	BRACKET
48	48	BRACKET
49	49	SCREW
50	50	BOLT
51	51	BRACKET
52	52	SHAFT
53	53	NUT
54	54	SPRING
55	55	SCREW

Page 20 — 8. NEEDLE THREAD TRIMMER COMPONENTS

Juki LBH-780 (56 pages) parts on page 20
Ref	Part number	Part name
1	1	BRACKET
2	2	BRACKET
3	3	BRACKET
4	4	BRACKET
5	5	BRACKET
6	6	SCREW
7	7	SCREW
8	8	SCREW
9	9	SCREW
10	10	BRACKET
11	11	SCREW
12	12	BRACKET
13	13	SCREW
14	14	BRACKET
15	15	SCREW
16	16	SPRING
17	17	SCREW
18	18	SCREW
19	19	BRACKET
20	20	SCREW
21	21	SCREW
22	22	SCREW
23	23	SPRING
24	24	BRACKET
25	25	SPRING
26	26	SCREW
27	27	SHAFT
28	28	SPRING
29	29	BRACKET
30	30	BRACKET
31	31	SCREW
32	32	SCREW
33	33	SCREW
34	34	SPRING
35	35	BRACKET
36	36	SCREW
37	37	BRACKET
38	38	BRACKET
39	39	SCREW
40	40	BRACKET
41	41	SCREW
42	42	NUT
43	43	WASHER
44	44	WASHER
45	45	PIN
46	46	SCREW
47	47	BRACKET

Page 22 — 9. BOBBIN THREAD TRIMMER COMPONENTS

Juki LBH-780 (56 pages) parts on page 22
Ref	Part number	Part name	Qty
	1	BOBBIN THREAD TRIMMER COMPONENTS
	2	下糸切り関係
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48

Page 23

Juki LBH-780 (56 pages) parts on page 23
Part number	Part name	Qty
B2401-771-0AO	NEEDLE PLATE ASM.	(1)
B2402-771-000	NEEDLE PLATE	(1)
SS-2090510-SP	SCREW 9/64-40 L=5	(2)
B2401-771-0BO	THROAT PLATE BASE ASM.	(1)
B2406-771-0AO	BOBBIN THREAD TRIMMER BLADE AS	(1)
SS-5090320-SP	SCREW 9/64-40 L= 3.2	(1)
B2408-771-000-A	COUNTER KNIFE	(1)
SS-4080310-SP	SCREW 1/8-44 L=3.4	(2)
B2404-771-000	BOBBIN THREAD TRIMMER LEVER	(1)
SS-7110570-SP	SCREW 11/64-40 L= 4.8	(1)
WP-0451016-SP	WASHER 4.5X20X1	(1)
B2405-771-000	BOBBIN THREAD PULLER	(1)
SS-6090440-SP	SCREW 9/64-40 L= 4.0	(2)
SS-6090630-TP	SCREW 9/64-40 L=6	4
400-09215	BOBBIN PICKER STOPPER	(1)
B2416-771-000	PRESSER PLATE	(1)
SS-7110540-SP	SCREW 11/64-40 L=7.8	1
400-09209	BOBBIN PICKER PRESSER PLATE	(1)
SD-0630272-SP	HINGE SCREW	(1)
B2422-771-000	BOBBIN PICKER BRACKET	(1)
SS-7090620-TP	SCREW 9/64-40 L=6.1	1
400-09217	BOBBIN PICKER BRACKET SHAFT	(1)
400-09215	BOBBIN WINDER TRIP LATCH	(1)
400-09223	SAFETY STOPPER	(1)
SS-6110610-TP	SCREW 11/64-40 L=6	1
400-09222	PRESSER PLATE ADJUSTING SPRING	(1)
400-09219	PRESSER PLATE MOUNTING BASE	(1)
400-09214	BOBBIN THREAD TRIMMER LINK	(1)
NS-6120310-SP	NUT 3/16-28	(1)
400-09221	PRESSER PLATE ADJUSTING SCREW	(1)
SD-0640321-SP	HINGE SCREW D= 6.35 H= 3.2	(1)
SD-0640602-SP	HINGE SCREW D= 6.35 H= 6.0	(1)
B2417-771-000	BOBBIN THREAD GUIDE	(1)
SS-4090415-SP	SCREW 9/64-40 L=4	2
NS-6150310-SP	NUT 15/64-28	(1)
SD-0790602-SP	HINGE SCREW D= 7.94 H= 6	(1)
400-09210	BOBBIN THREAD TRIMMER DRIVING	(1)
NS-6150310-SP	NUT 15/64-28	(1)
SS-7110570-SP	SCREW 11/64-40 L= 4.8	(1)
400-09211	CONNECTING LINK	(1)
B2414-761-000	STOP SCREW	(1)
NS-6680320-SP	NUT 9/32-28	(1)
B2416-761-000	HING STUD	(1)
SS-8150822-TP	SCREW 15/64-28 L=8	(1)
400-09209	BOBBIN THREAD TRIMMER DRIVING	(1)
SD-0790641-SP	HINGE SCREW D= 7.94 H= 6.4	(1)
B2412-047-000	BALL SCREW	(1)
SS-7110710-SP	SCREW 11/64-40 L=7	(1)

Page 24 — 10. KNIFE BAR COMPONENTS

Juki LBH-780 (56 pages) parts on page 24
Ref	Part number	Part name
1	1	KNIFE BAR
2	2	SPRING
3	3	SCREW
4	4	BRACKET
5	5	SCREW
6	6	SPRING
7	7	PIN
8	8	SCREW
9	9	KNIFE BAR
10	10	BRACKET
11	11	SCREW
12	12	PIN
13	13	LINK
14	14	SCREW
15	15	NUT
16	16	BRACKET
17	17	SCREW
18	18	BRACKET
19	19	WASHER
20	20	SCREW
21	21	BRACKET
22	22	WASHER
23	23	SCREW
24	24	KNIFE BAR
25	25	SPRING
26	26	PIN
27	27	SCREW
28	28	SCREW
29	29	COLLAR
30	30	COLLAR
31	31	NUT
32	32	SCREW
33	33	NUT
34	34	SPRING
35	35	SPRING
36	36	SPRING
37	37	BRACKET
38	38	SCREW
39	39	SPRING
40	40	SPRING
41	41	SCREW
42	42	SCREW
43	43	BRACKET
44	44	SHAFT
45	45	PLATE
46	46	KNIFE BAR
47	47	SCREW
48	48	WASHER
49	49	SCREW
50	50	SCREW
51	51	SCREW
52	52	COLLAR
53	53	SCREW
54	54	SPRING
55	55	BRACKET
56	56	KNIFE BAR
57	57	BRACKET
58	58	SCREW
59	59	SCREW
60	60	SPRING
61	61	SCREW
62	62	KNIFE BAR
63	63	SPRING
64	64	U-SHAPED PIN
65	65	BRACKET
66	66	SCREW
67	67	SPRING
68	68	NUT
69	69	SHAFT

Page 25

Juki LBH-780 (56 pages) parts on page 25
Ref	Part number	Part name	Qty
	400-09302	KNIFE STOP LEVER BRACKET	1
	PS-0300182-KF	SPRING PIN 3X18	1
	SS-7110740-TP	SCREW 11/64-40 L=7	2
	B2729-771-000	KNIFE STOP LEVER	1
	SS-6110420-TP	SCREW 11/64-40 L=4.8	2
	400-09300	KNIFE STOP LEVER HINGE STUD	1
	B2731-761-000	THREAD CHECK WIRE	1
	SS-7110840-SP	SCREW 11/64-40 L=7.8	1
	B2702-771-000-A	KNIFE BAR	1
02	400-09280	KNIFE ROD GUIDE PLATE A	1
	SS-7110710-SP	SCREW 11/64-40 L=7	2
	400-09290	HINGE STUD	1
	B2706-761-000	KNIFE BAR CONNECTING LINK	1
	B2705-761-000	HINGE SCREW	1
	NS-6660430-SP	NUT 1/4-40	1
02	400-09284	KNIFE BAR POSITIONING BRACKET	1
	SS-7110840-SP	SCREW 11/64-40 L=7.8	2
	B2701-761-000	KNIFE HOLDER	1
	B2740-771-000	THRUST WASHER	1
	SM-6061202-TP	SCREW M6 L=12	2
01	B2702-047-L00-A	KNIFE 1/2	1
	WP-0501016-SD	WASHER 5X10.5X1	1
	SS-7620750-SP	SCREW 3/16-32 L=6.5	1
	B2751-781-000	KNIFE BAR DRIVING LEVER	1
	SS-7110810-SP	SCREW 11/64-40 L=8.0	1
	B2710-771-000	SPRING	1
	SD-0550501-SP	HINGE SCREW D=5.5 H=5	1
	400-09265	KNIFE BAR STOPPER ASM.	1
	400-09265	KNIFE BAR STOPPER	1
	400-09266	STOPPER BUSH	(1)
	NS-6740510-SP	NUT 3/8-28	1
	SD-0790201-SD	HINGE SCREW D=7.9 H=2.0	1
	NS-6700540-SP	NUT 5/16-24	1
	400-09294	KNIFE BAR DRIVING CRANK NUT	1
	B2718-761-000	TENSION SPRING	1
	400-09292	LATCH	1
	SS-7161040-SP	SCREW 1/4-24 L=9.5	1
	400-09291	KNIFE BAR DRIVING CRANK	1
	CQ-2520000-00	OIL WICK	0.4
	B3537-122-000	OIL WICK HOLDER	1
	SS-4090610-SP	SCREW 9/64-40 L=6	1
	SM-6062002-TP	SCREW M6 L=20	4
	SD-1110905-TH	HINGE SCREW D=11.11 H=9.0	1
	261-05809	KNIFE BAR DRIVING CRANK SHAFT	1
02	400-09304	SPACER	1
	400-09441	KNIFE BAR DRIVING LEVER BELL C	1
	SS-811610-SP	NUT 11/64-40	1
	NS-6110310-SP	NUT 11/64-40	1
	SD-1110905-TH	HINGE SCREW D=11.11 H=9.0	1
	400-09277	HOOK PIN NUT	1
	400-09278	HOOK PIN	1
	B2416-761-000	HINGE STUD	1
	SS-8150822-TP	SCREW 15/64-28 L=8	1
	B2725-761-000	TENSION SPRING	1
	B2724-761-000	RATCHET PAWL (B)	1
	B2723-761-0A0-A	HOOK DIFFERENTIAL CLICK A ASM.	(1)
	B2723-761-000-A	HOOK DIFFERENTIAL CLICK A	(1)
	101-20004	SPRING SUSPENSION	(1)
	B1110-280-000	THREAD CUTTING LINK SPRING RAC	1
	B2726-761-000-A	TENSION SPRING	1
	SD-0530221-SP	HINGE SCREW D=5.3 H=2.2	1
	400-09270	DRIVING ROD	1
	400-09299	TENSION SPRING	1
	400-09305	SUSPENSION SCREW	1
	400-09274	FINGER	1
	SS-7090710-SP	SCREW 9/64-40 L=6.8	2
	400-09303	POSITIONING PIN (B)	1
	NS-6200520-SP	NUT 5/16-18	1
	B2709-771-000	KNIFE BAR DRIVING LEVER SHAFT	1

Page 26 — 11. FEED CAM & TRIPPING SEGMENT COMPONENTS

Juki LBH-780 (56 pages) parts on page 26
Ref	Part number	Part name
1	1	CAM
2	2	SHAFT
3	3	COLLAR
4	4	SCREW
5	5	COLLAR
6	6	SCREW
7	7	COLLAR
8	8	COLLAR
9	9	GEAR
10	10	SHAFT
11	11	COLLAR
12	12	SHAFT
13	13	CAM
14	14	CAM
15	15	COLLAR
16	16	SCREW
17	17	COLLAR
18	18	SCREW
19	19	SHAFT
20	20	COLLAR
21	21	COLLAR
22	22	BRACKET
23	23	SCREW
24	24	COLLAR
25	25	PIN
26	26	GEAR
27	27	COLLAR
28	28	NUT
29	29	WASHER
30	30	SHAFT
31	31	BASE
32	32	WASHER
33	33	BOLT
34	34	SCREW
35	35	GEAR
36	36	WASHER
37	37	SCREW
38	38	CAM
39	39	CAM
40	40	CAM
41	41	CAM
42	42	CAM
43	43	CAM
44	44	CAM
45	45	CAM
46	46	COLLAR

Page 27

Juki LBH-780 (56 pages) parts on page 27
Ref	Part number	Part name	Qty
	B2935-761-000	SPUR GEAR (152)	1
	B2916-761-000	SPUR GEAR BUSHING ASM.	2
	B2917-761-000	SPUR GEAR BUSHING PIN	(4)
	SS-7120910-TP	SCREW 3/16-28 L=9	(4)
	B2913-761-0A0	CLUTCH COLLAR ASM.	2
	SS-8660610-TP	SCREW 1/4-40 L=6	(1)
	SS-8660410-SP	SCREW 1/4-40 L=4.2	(1)
	400-09314	CLUTCH COLLAR	(1)
	B2919-761-000	FEED CAM DRIVING WORM WHEEL	1
	400-09316	FEED CAM DRIVING WORM WHEEL SH	1
	B3542-771-000	OIL FELT	1
	261-07201	CAM DRIVING STUD	1
01	B2934-761-000	SPUR GEAR (123)	1
	B2915-761-B00	HANDLE CRANK BEVEL GEAR, LEFT	1
	B2915-761-AA0	HANDLE CRANK BEVEL GEAR ASM.	1
	SS-8660610-TP	SCREW 1/4-40 L=6	(2)
	CS-111101D-SH	THRUST COLLAR ASM. D=11.11 W=1	1
	SS-8660530-TP	SCREW 1/4-40 L=4.5	(2)
	400-09318	HANDLE CRANK SHAFT	1
	B2923-761-000	HANDLE CRANK	1
04	400-09319	HANDLE CRANK	2
	SS-8150510-TP	SCREW 15/64-28 L=4.7	2
	SS-8660610-TP	SCREW 3/16-32 L=6	1
	400-09320	HANDLE	1
	400-09321	HANDLE SHAFT	1
	B2910-761-0A0	FEED CAM DRIVING GEAR ASM.	1
	SS-8660610-TP	SCREW 1/4-40 L=6	(2)
	NM-6120001-CP	NUT M12	1
	B2909-761-000	THRUST WASHER	1
	400-09312	FEED CAM SHAFT	1
	B2901-771-00C	FEED CAM	1
	WP-0982616-SP	WASHER 9.8X24.0X2.6	1
	SS-9241513-CP	SCREW 3/8-18 L=15	10
	SS-7111410-TP	SCREW 11/64-40 L=14	4
02	B2902-761-B00	BAR TRIPPING SEGMENT NO.2 (B)	1
	WP-0480856-SP	WASHER 4.8X8.4X0.8	1
	SS-6111610-SP	SCREW 11/64-40 L=16	10
	B2904-771-000	KNIFE TRIPPING SEGMENT	1
	400-09309	TENSION RELEASE TRIPPING SEGME	1
	400-09310	TENSION RELEASE TRIPPING SEGME	1
03	B2906-761-B00	TRIPPING SEGMENT NO. 2 UNDER 8	1
02	261-00909	BAR TRIPPING SEGMENT NO.1	2
02	B2903-761-B00	BAR TRIPPING SEGMENT NO.2 (B)	1
	261-00800	LOW-SPEED CAM	1
	261-04604	STOPPER CAM	1
	B2914-761-000	CLUTCH SPRING	2

Page 28 — 12. STOP-MOTION COMPONENTS

Juki LBH-780 (56 pages) parts on page 28
Part number	Part name	Qty
262-12308	BELT COVER SETSCREW	1
B2653-771-000	TENSION SPRING	1
B2613-232-000	STOP LINK ROD HINGE SCREW	1
261-06807	UPPER SHAFT STOPPER	1
NS-6620310-SP	NUT 3/16-32	1
261-07300	STOPPER PIN	1
B2611-232-000	STOP LINK CONNECTING SCREW	1
261-07508	STOP LINK ROD HINGE STUD	1
B2604-771-000-B	STOP MOTION LEVER	1
400-09228	BELT SHIFTER	1
SS-4150715-SP	SCREW 15/64-28 L=7	2
WP-0650876-SD	WASHER 6.5X13X0.8	2
400-09254	INSTALLING BASE PIN	1
RC-1200001-KP	C-SHAPED SNAP RING	1
RC-1200001-KP	C-SHAPED SNAP RING	1
B2648-232-000	STOP PIN	1
400-09229	LATCH (A)	1
SM-6061602-TP	SCREW M6 L=16	1
WS-0610002-KP	SPRING WASHER	1
SM-6062002-TP	SCREW M6 L=20	1
NS-6150430-SP	NUT 15/64-28	1
SS-6153040-SP	SCREW 15/64-28 L=30	1
400-09249	STOP LINK ROD	1
400-09252	STOP LINK ROD PRESSURE SPRING	1
400-09252	SPRING SUPPORT NUT	1
NS-6240630-SP	NUT 3/8-18	1
B2601-761-000-A	STOP MOTION LEVER BRACKET	1
SM-6102002-TP	SCREW M10 L=20	2

Page 29 — 13. TRIPPING LEVER COMPONENTS

Juki LBH-780 (56 pages) parts on page 29
Ref	Part number	Part name	Qty
	400-09255	STARTING LINK COMPL.
	400-09256	STARTING LINK ASM.
	400-09259	SAFETY BASE
	SS-7110710-SP	SCREW 11/64-40 L=7
	B2416-761-000	HINGE STUD
	SS-8150822-TP	SCREW 15/64-28 L=8
	400-09233	HINGE SCREW
	NS-6150310-SP	NUT 15/64-28
	400-09245	STARTING LINK DRIVING ROD
	SD-0790451-SP	HINGE SCREW D= 7.94 H= 4.5
	CS-079101B-SH	THRUST COLLAR ASM. D=7.94 W=10
	SS-7110740-TP	SCREW 11/64-40 L=7
	SS-8110510-SP	SCREW 11/64-40 L=5
	400-09247	CRANK SHAFT TENSION SPRING
	400-09241	HAND STOP CRANK SHAFT
	SS-611010-TP	SCREW 11/64-40 L=9.5
	B2608-761-000	HAND STOP CRANK SHAFT BALL
	B2611-761-000	CRANK SHAFT PRESSURE SPRING
	400-09242	HAND STOP ROD B
	B2610-761-CAO	HAND STOP CRANK ASM.
	B2610-761-OAA	HAND STOP CRANK ASM.
	SS-8150510-TP	SCREW 15/64-28 L=4.7
	B2617-771-000	TRIPPING LEVER TENSION SPRING
	400-09262	WASHER
	SS-7150940-SP	SCREW 15/64-28 L=9
	NM-6060001-CP	NUT M6
	400-09238	LATCH (B)
	SM-6062002-TP	SCREW M6 L=20
	WS-0610002-KP	SPRING WASHER
	B2651-781-000-A	TRIPPING LEVER
	400-09243	TRIPPING DOG
	400-09116	ROLLER
	SD-0640471-SP	HINGE SCREW D= 6.35 H= 4.7
	400-09260	TRIPPING LEVER HINGE PIN ASM.
	400-09261	TRIPPING LEVER HINGE PIN
	RC-1021011-KP	RETAINING RING 10.2

Page 30 — 14. LIFTING LEVER & BOBBIN WINDER COMPONENTS

Juki LBH-780 (56 pages) parts on page 30
Ref	Part number	Part name	Qty
	1	LEVER
	2	SPRING
	3	SCREW
	4	SPRING
	5	SHAFT
	6	SCREW
	7	LEVER
	8	BRACKET
	9	SCREW
	10	SCREW
	11	SHAFT
	12	BRACKET
	13	BRACKET
	14	SPRING
	15	SCREW
	16	BRACKET
	17	SCREW
	18	SPRING
	19	WASHER
	20	SCREW
	21	SPRING
	22	BRACKET
	23	SCREW
	24	SPRING
	25	BRACKET
	26	BRACKET
	27	SCREW
	28	SCREW
	29	SPRING
	30	SCREW
	31	PIN
	32	SCREW
	33	SHAFT
	34	SHAFT
	35	WASHER
	36	SHAFT
	37	SCREW
	38	SCREW
	39	BOBBIN WINDER
	40	WASHER
	41	SCREW
	42	BRACKET
	43	SCREW
	44	SCREW
	45	BRACKET
	46	SCREW
	47	SHAFT
	48	SHAFT
	49	RING

Page 31

Juki LBH-780 (56 pages) parts on page 31
Part number	Part name	Qty
B3404-771-000	PRESSER BAR LIFTING ROD, LONG	1
RE-050000-KO	E-RING	2
SD-0720331-SP	HINGE SCREW D= 7.24 H= 3.3	2
B3402-771-0AO	LEVER ASM., FRONT	1
B3406-761-000	LINK	1
PD-0201000-OB	SPLIT PIN	2
B3408-771-0AO	LEVER ASM., REAR	1
B3403-761-000	PRESSER BAR LIFTING ROD	1
400-09262	WASHER	1
SS-8150822-TP	SCREW 15/64-28 L=8	1
400-09357	LIFTING LEVER STOPPER	1
261-06658	LIFTING LEVER ASM.	1
WP-0740516-SP	WASHER 7.4X11.8X0.5	1
B3451-781-000	PRESSER FOOT LIFTING SPRING	1
262-12308	BELT COVER SETSCREW	2
400-09348	BOBBIN WINDER TENSION ASM.	(1)
262-16507	BOBBIN WINDER TENSION NUT	(1)
262-16606	BOBBIN WINDER TENSION SPRING	(1)
229-45802	THREAD TENSION DISK	(2)
262-16705	BOBBIN WINDER TENSION POST	(1)
262-16705	BOBBIN WINDER TENSION POST	(1)
400-09349	BOBBIN WINDER TENSION	(1)
SS-7110840-SP	SCREW 11/64-40 L=7.8	4
SS-7110840-SP	SCREW 11/64-40 L=7.8	2
261-03150	BOBBIN WINDER ASM.	1
261-03101	BOBBIN WINDER BRACKET	(1)
261-04208	NUT	(1)
261-04307	NUT	(1)
261-03705	BOBBIN WINDER SPRING	(1)
SD-0450401-SP	HINGE SCREW D= 4.5 H= 4	(1)
261-03903	BOBBIN STOP SPRING	(1)
SS-6090620-SP	SCREW 9/64-40 L=6	(3)
261-03309	PULLEY SHAFT BASE	(1)
261-03507	BOBBIN WINDER SHAFT	(1)
261-04109	COLLAR	(1)
SD-0790433-TP	HINGE SCREW D= 7.94 H= 4.3	(1)
261-03408	BOBBIN WINDER SHAFT BUSHING	(1)
SS-8120740-SP	SCREW 3/16-28 L=7	(2)
261-03200	BOBBIN WINDER DRIVING PULLEY	(1)
WP-0651056-SD	WASHER 6.5X11X1	(1)
261-03606	BOBBIN WINDER TRIP LATCH	(1)
261-03804	BOBBIN GUIDE SPRING	(1)
SS-7090520-SP	SCREW 9/64-40 L= 4.5	(2)
261-04000	ADJUSTING SCREW	(1)
261-04505	NUT	(1)
261-04406	BOBBIN GUIDE SHAFT	(1)
400-09260	TRIPPING LEVER HINGE PIN ASM.	1
400-09261	TRIPPING LEVER HINGE PIN	(1)
RC-1021011-KP	RETAINING RING 10.2	(1)

Page 32 — 15. THREAD TENSION COMPONENTS

Juki LBH-780 (56 pages) parts on page 32
Ref	Part number	Part name	Qty
	1	THREAD TENSION LEVER
	2	SPRING PIN
	3	SPRING PIN
	4	WASHER
	5	NUT
	6	THREAD TENSION ARM
	7	WASHER
	8	SPRING
	9	NUT
	10	BRACKET
	11	WASHER
	12	NUT
	13	WASHER
	14	SPRING
	15	SCREW
	16	SPRING
	17	WASHER
	18	BRACKET
	19	SPRING
	20	SCREW
	21	NUT
	22	WASHER
	23	WASHER
	24	SPRING
	25	SPRING
	26	THREAD GUIDE
	27	THREAD GUIDE
	28	THREAD GUIDE
	29	THREAD GUIDE
	30	THREAD GUIDE
	31	THREAD GUIDE
	32	THREAD GUIDE
	33	THREAD GUIDE
	34	THREAD GUIDE
	35	SPRING
	36	THREAD GUIDE
	37	THREAD GUIDE
	38	SPRING
	39	THREAD TENSION DIAL
	40	THREAD TENSION DIAL
	41	WASHER
	42	SPRING
	43	WASHER
	44	SPRING
	45	THREAD TENSION POST
	46	THREAD TENSION POST
	47	NUT
	48	BRACKET
	49	SCREW
	50	BRACKET
	51	BRACKET
	52	SPRING
	53	THREAD TENSION POST
	54	SCREW
	55	THREAD TENSION POST
	56	PIN
	57	SCREW
	58	BRACKET
	59	SPRING
	60	SPRING
	61	SPRING
	62	SPRING
	63	SPRING
	64	SPRING
	65	SPRING
	66~73	THREAD GUIDE

Page 34 — 16. LUBRICATION MECHANISM COMPONENTS

Juki LBH-780 (56 pages) parts on page 34
Ref	Part number	Part name	Qty
	1	NEEDLE BAR LUBRICATING DEVICE
	2	BRACKET
	3	BRACKET
	4	SPRING
	5	SPRING
	6	BRACKET
	7	BRACKET
	8	SHAFT
	9	TUBE
	10	SHAFT
	11	COLLAR
	12	COLLAR
	13	BRACKET
	14	BRACKET
	15	BRACKET
	16	BRACKET
	17	BRACKET
	18	BRACKET
	19	BRACKET
	20	BRACKET
	21	BRACKET
	22	BRACKET
	23	BRACKET
	24	BRACKET
	25	BRACKET
	26	BRACKET
	27	WASHER
	28	BRACKET
	29	BRACKET
	30	BRACKET
	31	BRACKET
	32	BRACKET
	33	BRACKET
	34	TUBE
	35	TUBE
	36	COLLAR
	37	COLLAR
	38	COLLAR
	39	COLLAR
	40	COLLAR
	41	COLLAR
	42	COLLAR
	43	COLLAR
	44	COLLAR
	45	BRACKET
	46	BRACKET
	47	BRACKET
	48	BRACKET
	49	BRACKET
	50	BRACKET
	51	BRACKET
	52	BRACKET
	53	BRACKET
	54	BRACKET
	55	BRACKET
	56	BRACKET
	57	BRACKET
	58	BRACKET
	59	BRACKET
	60	BRACKET
	61	BRACKET
	62	BRACKET
	63	BRACKET
	64	BRACKET
	65	BRACKET
	66	BRACKET
	67	BRACKET
	68	BRACKET
	69	BRACKET
	70	BRACKET
	71	BRACKET
	72	BRACKET
	73	BRACKET
	74	BRACKET
	75	BRACKET
	76	BRACKET
	77	BRACKET
	78	BRACKET
	79	TUBE
	80	TUBE
	81	TUBE
	82	TUBE

Page 35

Juki LBH-780 (56 pages) parts on page 35
Ref	Part number	Part name	Qty
	400-09374	OIL FELT HOLDER
	B3549-771-000	OIL RETURN FELT (A)
	B3568-771-000	OIL RETURN TUBE
	B3571-771-000	PIPE HOLDER
	SS-7110710-SP	SCREW 11/64-40 L=7
	SS-7110710-TP	SCREW 11/64-40 L=8.5
	400-09369	PIPE GUIDE (A)
	BP-6000000-00	VINYL PIPE
	BP-5000000-00	VINYL PIPE
	BP-3000000-00	VINYL PIPE
	SQ-1110402-MZ	CONNECTING SCREW
	B3534-012-000	GASKET
	B3534-155-000	PLUNGER
	B1214-038-000	PLUNGER SPRING
	400-09361	THRUST PLATE
	SS-4150715-SP	SCREW 15/64-28 L=7
	400-09373	OIL FELT GUIDE
	SS-7110710-SP	SCREW 11/64-40 L=7
	B3560-771-000	OIL FELT
	B1135-771-0AO	OIL PAN ASM.
	SS-4110515-SP	SCREW 11/64-40 L=5
	B3561-771-000	OIL UNWOVEN CLOTH
	B1148-771-000	OIL FELT
	B1147-771-000	OIL FELT
	B3563-771-000-A	OIL SHIELD
	SS-4110515-SP	SCREW 11/64-40 L=5
	B1124-771-000	CUSHION
	B1154-781-000	BELT GUARD
	B1154-781-00A	BELT GUARD
	SS-4110815-SP	SCREW 11/64-40 L=8
	400-09001	PLATE SPRING
	BP-6000000-00	SET NUT
	B1156-781-000	RUBBER BUSHING
	BP-8000000-00	VINYL TUBE, WHITE D=8
	CQ-3030000-00	OIL WICK
	400-09360	OIL PUMP BASE
	SS-4110815-SP	SCREW 11/64-40 L=8
	B3570-771-000	FILTER OIL FELT
	400-09375	SPRING
	400-09366	FILTER SCREEN
	400-09379	BUSHING HOLDER
	SS-7090910-SP	SCREW 9/64-40 L=8.5
	NS-6090310-SP	NUT 9/64-40
	NS-6150310-SP	NUT 15/64-28
	400-08994	DRIVING PIN BASE
	B1151-781-00A	MACHINE BASE ASM.
	B1151-781-0AA-A	MACHINE BASE ASM.
	B1151-781-000	MACHINE BASE
	B1151-781-00A	HEAD BASE
	400-08996	GUIDE PIN
	400-09035	RUBBER CUSHION
	SS-7111120-SP	SCREW 11/64-40 L=10.5
	B1122-761-000	HINGE HOLDER
	261-09207	HINGE HOLDER
	B1151-761-000	PIN
	SM-6062002-TP	SCREW M6 L=20
	WP-0621016-SD	WASHER 6.2X13X1
	SS-6741010-SP	SCREW 3/8-28 L=10
	B8219-125-000	OIL DRAIN CAP GASKET
	400-09244	STARTING LEVER PRESSURE SPRING
	SM-9082003-CP	SCREW M8 L=20
	NS-6150310-SP	NUT 15/64-28
	400-09235	STOP SCREW ASM.
	NM-6080721-SE	NUT M8
	SS-7151210-SP	SCREW 15/64-28 L=12
	400-09231	STARTING LINK SHAFT
	SS-9150860-SP	SCREW 15/64-28 L=8
	SS-8150710-SP	SCREW 15/64-28 L=7
	261-07409	STARTING LINK
	B2655-781-000	STARTING LEVER
	RE-0600000-KO	E-RING 6
	B7160-781-0AO	SHIFTER DRIVING PIN
	SS-7112420-SP	SCREW 11/64-40 L=24
	B1133-761-000	MACHINE BASE FELT PAD
	B1153-771-000	MACHINE BASE SCREW STUD
	WP-0612056-SD	WASHER 6.1X18.5X2
	B8213-012-000	BED HINGE CONNECTION
	BP-3000000-00	VINYL PIPE
	BP-5000000-00	VINYL PIPE
	BP-6000000-00	VINYL TUBE, WHITE D=8
	BP-4000000-00	VINYL TUBE, WHITE D=4

Page 36 — 17. SPEED TRANSMITTER COMPONENTS

Juki LBH-780 (56 pages) parts on page 36
Ref	Part number	Part name	Qty
	1	BRACKET, SPEED TRANSMITTER
	2	BRACKET, SPEED TRANSMITTER
	3	BRACKET, SPEED TRANSMITTER
	4	LEVER, SPEED TRANSMITTER
	5	SPRING, COMPRESSION
	6	LEVER, SPEED TRANSMITTER
	7	BRACKET, SPEED TRANSMITTER
	8	BRACKET, SPEED TRANSMITTER
	9	BRACKET, SPEED TRANSMITTER
	10	BRACKET, SPEED TRANSMITTER
	11	BRACKET, SPEED TRANSMITTER
	12	BRACKET, SPEED TRANSMITTER
	13	BRACKET, SPEED TRANSMITTER
	14	BEARING
	15	PULLEY
	16	BRACKET, SPEED TRANSMITTER
	17	BRACKET, SPEED TRANSMITTER
	18	WASHER
	19	BOLT
	20	BRACKET, SPEED TRANSMITTER
	21	BRACKET, SPEED TRANSMITTER
	22	BRACKET, SPEED TRANSMITTER
	23	BOLT
	24	BRACKET, SPEED TRANSMITTER
	25	BOLT
	26	WASHER
	27	WASHER
	28	BRACKET, SPEED TRANSMITTER
	29	BEARING
	30	BEARING
	31	BRACKET, SPEED TRANSMITTER
	32	BRACKET, SPEED TRANSMITTER
	33	BRACKET, SPEED TRANSMITTER
	34	BEARING
	35	PULLEY
	36	PULLEY
	37	BRACKET, SPEED TRANSMITTER
	38	WASHER
	39	BOLT
	40	SPRING, COMPRESSION
	41	BRACKET, SPEED TRANSMITTER
	42	BRACKET, SPEED TRANSMITTER
	43	BRACKET, SPEED TRANSMITTER
	44	SPRING, COMPRESSION
	45	BOLT
	46	BRACKET, SPEED TRANSMITTER
	47	BRACKET, SPEED TRANSMITTER
	48	BOLT
	49	BRACKET, SPEED TRANSMITTER
	50	BRACKET, SPEED TRANSMITTER
	51	BRACKET, SPEED TRANSMITTER
	52	BRACKET, SPEED TRANSMITTER
	53	BRACKET, SPEED TRANSMITTER
	54	BRACKET, SPEED TRANSMITTER
	55	BRACKET, SPEED TRANSMITTER
	56	BRACKET, SPEED TRANSMITTER
	57	BRACKET, SPEED TRANSMITTER
	58	BRACKET, SPEED TRANSMITTER
	59	BRACKET, SPEED TRANSMITTER
	60	BOLT
	61	BRACKET, SPEED TRANSMITTER
	62	BOLT

Page 37

Juki LBH-780 (56 pages) parts on page 37
Part number	Part name	Qty
B7180-781-0A0	TENSION PULLEY ASM.	(1)
400-009388	TENSION PULLEY BRACKET	(1)
NS-6150430-SP	NUT 15/64-28	(1)
400-009392	TENSION LEVER	(1)
B4419-372-000	NIPPER BAR ACTUATING LEVER SPR	(1)
400-009393	FIXING PAWL	(1)
SD-0450211-SP	HINGE SCREW D= 4.50 H= 2.1	(1)
B7186-781-000	RATCHET	(1)
SS-7110710-SP	SCREW 11/64-40 L=7	(2)
400-009395	LEVER COLLAR	(1)
400-009391	TENSION SPRING	(1)
400-009390	TENSION PULLEY LINK	(1)
SD-0902501-SP	HINGE SCREW D=9 H=25	(1)
SB-1150002-00	BEARING	(1)
400-009389	TENSION PULLEY	(1)
SD-1501101-SP	HINGE SCREW D=14.5 H=11	(1)
SM-6061202-TP	SCREW M6 L=12	(2)
WP-0651056-SH	WASHER 6.5X11X1	(3)
SS-9152130-CP	SCREW 15/64-28 L=20.5	(3)
B7151-781-0A0	SPEED TRANSMITTER ASM.	(1)
B7151-781-000-A	SPEED TRANSMITTER BRACKET	(1)
RE-1200000-KO	E-RING 12	(2)
SM-6061202-TP	SCREW M6 L=12	(1)
B1221-771-00A	HIGH SPEED WASHER FOR BEARING	(2)
400-00935	STOP SCREW ASM.	(1)
NS-6150310-SP	NUT 15/64-28	(1)
B7158-781-000	SHIFTER STOPPER BRACKET	(1)
SM-6061202-TP	SCREW M6 L=12	(2)
SB-1150002-00	BEARING	(2)
RC-3500002-KP	RETAINING RING 35	(2)
B7155-781-000	ACCELERATING PULLEY	(1)
SS-8150710-SP	SCREW 15/64-28 L=7	(2)
B7154-781-000	HIGH-SPEED PULLEY	(1)
SB-1450004-00	BEARING	(2)
B7156-781-000-A	LOW-SPEED PULLEY	(1)
B7152-781-000-A	SPEED TRANSMITTER SHAFT	(1)
B7153-781-000	SLEEVE	(1)
WP-1502500-SC	WASHER 15X24X2.5	(1)
SS-7151210-SP	SCREW 15/64-28 L=12	(2)
B7159-781-000	SHIFTER TENSION SPRING	(1)
261-01253	SHIFTER BASE ASM.	(1)
261-01204	SHIFTER BASE	(1)
NS-6150310-SP	NUT 15/64-28	(3)
261-02004	SHIFTER CAM SPRING	(1)
NS-6160520-SP	NUT 1/4-24	(2)
261-02202	SHIFTER TENSION SPRING	(1)
261-01402	SHIFTER DRIVING ARM	(1)
261-02509	SHIFTER DRIVING ARM SCREW	(3)
261-02103	SHIFTER CAM ROLLER STUD	(1)
261-02301	SHIFTER CAM ROLLER	(1)
SS-6080610-TP	SCREW 1/8-44 L=6	(1)
261-01600	SHIFTER INSTALLING PLATE	(1)
SD-0790802-SP	HINGE SCREW D= 7.94 H= 8.0	(2)
261-01501	SHIFTER HOLDING ARM	(1)
261-01709	SPEED TRANSMITTER SHIFTER	(1)
SS-7161040-SP	SCREW 1/4-24 L= 9.5	(2)
261-01303	SHIFTER PIN	(1)
NS-6150430-SP	NUT 15/64-28	(1)
261-01808	SHIFTER CAM INSTALLING BASE	(1)
SS-7110910-SP	SCREW 11/64-40 L=8.5	(2)
261-01907	SHIFTER CAM	(1)
261-02400	SHIFTER CAM SUSPENSION	(1)

Page 38 — 18. MOTOR PULLEY COMPONENTS

Juki LBH-780 (56 pages) parts on page 38
Ref	Part number	Part name	Qty
1	MTJ-MS000000	MOUNTING BOLT	4
2	B7109-771-000	SPACER	4
3	400-09401	MOTOR BASE PLATE	1
4	WP-0850002-SC	WASHER 8.5X18X1.6	4
5	NS-6200520-SP	NUT 5/16-18	8
6	400-09397	MOTOR PULLEY FOR 50HZ 3000SPM	1
7	400-09398	MOTOR PULLEY FOR 60HZ 3000SPM	1
8	400-09415	MOTOR PULLEY FOR 50HZ 3300SPM	1
9	B7257-781-000-A	MOTOR PULLEY (60HZ 3300-USE)	1
10	SS-8150710-SP	SCREW 15/64-28 L=7	2
11	MTJ-VM004200	V-BELT, 42 INCH	1
12	MTJ-VM004300	V-BELT, 43 INCH	1
13	MTJ-VM004400	V-BELT, 44 INCH	1
14	B7252-781-000	BELT	1

Page 39 — 19. THREAD STAND COMPONENTS

Juki LBH-780 (56 pages) parts on page 39
Part number	Part name	Qty
229-30358	THREAD STAND ASM.	(1)
229-31109	SPOOL RETAINER	(2)
229-31000	SPOOL PIN	(2)
229-30903	SPOOL REST CUSHION	(2)
229-30804	SPOOL REST	(2)
SM-6061610-SC	SCREW M6 L=16	(2)
229-30705	THREAD GUIDE ARM JOINT	(2)
229-31406	SPOOL REST ROD RUBBER CAP	(1)
229-30507	SPOOL REST ARM	(1)
229-30408	SPOOL REST ROD, UPPER	(1)
229-31307	SPOOL REST ROD JOINT	(1)
SM-4051405-SE	SCREW M5 L=14	(2)
NM-6050001-SE	NUT M5	(2)
229-30309	SPOOL REST ROD, LOWER	(1)
229-30556	THREAD STANDING ARM ASM.	(1)
WS-0510002-KN	SPRING WASHER	(2)
NM-6050001-SE	NUT M5	(2)
NM-6160511-SE	NUT M16X1.5	(1)
WP-1612616-SE	WASHER 16X30X2.6	(2)
WS-1643202-KR	SPRING WASHER	(1)

Page 40 — 20. EXCLUSIVE PARTS FOR LBH-782,LBH-783,LBH-784

Juki LBH-780 (56 pages) parts on page 40
Ref	Part number	Part name	Qty
	1	LBH-782
	2	LBH-782
	3	LBH-782
	4	LBH-782
	5	LBH-782
	6	LBH-782
	7	LBH-782
	8	LBH-782
	9	LBH-783
	10	LBH-783
	11	LBH-783
	12	LBH-783
	13	LBH-783
	14	LBH-783
	15	LBH-783
	16	LBH-783
	17	LBH-784
	18	LBH-784
	19	LBH-784
	20	LBH-784
	21	LBH-784
	22	LBH-784
	23	LBH-784
	24	LBH-784
	25	LBH-784
	26	LBH-784
	27	LBH-784
	28	LBH-784
	29	LBH-784
	30	LBH-784
	31	LBH-784
	32	LBH-784
	33	LBH-784
	34	LBH-784
	35	LBH-784
	36	LBH-784
	37	LBH-784
	38	LBH-784
	39	LBH-784
	40	LBH-784

Page 41

Juki LBH-780 (56 pages) parts on page 41
Ref	Part number	Part name	Qty
	B1511-772-0B0	WORK CLAMP CHECK HOLDER ASM.	1
	B2702-047-Q00-A	KNIFE 1	1
	B1608-772-000	LENGTH REGULATING SHAFT GUIDE	1
	B2930-761-000	SPUR GEAR (100)	1
	B2931-761-000	SPUR GEAR (190)	1
	B1552-782-000	WORK CLAMP CHECK, 2	1
7	B1508-772-A00	WORK CLAMP CHECK (2A)	1
8	B1613-771-A00-A	WORK CLAMP CARRIER	1
	B1511-773-0B0	WORK CLAMP CHECK HOLDER ASM.	1
	B2702-047-S00-A	KNIFE 1-1/4"	1
	B1608-761-000	LENGTH REGULATING SHAFT GUIDE	1
	B2948-761-000	SPUR GEAR (88)	1
	B2949-761-000	SPUR GEAR (212)	1
	B1552-783-000	WORK CLAMP CHECK, 3	1
15	B1508-773-A00	WORK CLAMP CHECK (3A)	1
16	B1613-771-A00-A	WORK CLAMP CARRIER	1
	B1513-774-000	WORK CLAMP BRACKET	1
	B1551-784-000-A	WORK CLAMP ARM (4)	1
	B1511-774-0A0	WORK CLAMP CHECK HOLDER ASM.	1
	B1552-784-000	WORK CLAMP CHECK	1
	B2402-774-000	THROAT PLATE	1
	SS-2090530-SP	SCREW 9/64-40 L=4.8	2
	B2401-774-0A0	THROAT PLATE BASE ASM.	1
	SS-5090320-SP	SCREW 9/64-40 L=3.2	1
	B1611-774-0A0	WORK CLAMP ARM BRACKET ASM.	1
	SS-6151440-SP	SCREW 15/64-28 L=14	(1)
	B1606-774-000	WORK CLAMP CARRIER PITMAN	1
	SD-0870401-SP	HINGE SCREW D= 8.73 H= 4	1
	B1605-774-000	FEED ADJUSTING SHAFT	1
	B2745-774-00B-A	KNIFE 1-1/2"	1
	B2745-774-00A-A	KNIFE 1-3/8"	1
	B2944-761-000	SPUR GEAR (74)	1
	B2945-761-000	SPUR GEAR 252	1
	B1603-774-0A0	LENGTH REGULATING ARM ASM.	1
	B1608-774-000	LENGTH REGULATING SHAFT GUIDE	1
	B1612-774-000	WORK CLAMP ARM BRACKET GUIDE	1
	400-09447	WORK CLAMP CARRIER(4)	1
	B1609-774-000	WORK CLAMP ARM SLIDE ROD	1
	B1516-774-000	WORK CLAMP ARM BEARING BRACKET	1
	SD-0790203-SP	HINGE SCREW D=7.94 H=2	1

Page 42 — 21. SPECIAL ORDER PARTS

Juki LBH-780 (56 pages) parts on page 42
Ref	Part number	Part name	Qty
	1	TAPE REEL COMPONENTS
	2	TAPE REEL COMPONENTS
	3	TAPE REEL COMPONENTS
	4	TAPE REEL COMPONENTS
	5	TAPE REEL COMPONENTS
	6	TAPE REEL COMPONENTS
	7	TAPE REEL COMPONENTS
	8	TAPE REEL COMPONENTS
	9	TAPE REEL COMPONENTS
	10	TAPE REEL COMPONENTS
	11	TAPE REEL COMPONENTS
	12	TAPE REEL COMPONENTS
	13	TAPE REEL COMPONENTS
	14	TAPE REEL COMPONENTS
	15	TAPE REEL COMPONENTS
	16	BUTTON-HOLING MEASURING GAUGES
	17	BUTTON-HOLING MEASURING GAUGES
	18	BUTTON-HOLING MEASURING GAUGES
	19	BUTTON-HOLING MEASURING GAUGES
	20	BUTTON-HOLING MEASURING GAUGES
	21	BUTTON-HOLING MEASURING GAUGES
	22	KNIFE FOR SPECIAL
	31	KNIFE FOR SPECIAL
	32	KNIFE FOR SPECIAL
	33	KNIFE FOR SPECIAL
	34	KNIFE FOR SPECIAL
	37	KNIFE FOR SPECIAL
	38	KNIFE FOR SPECIAL
	56	KNIFE FOR SPECIAL
	57	HOOK OIL SHIELD COMPONENTS
	59	HOOK OIL SHIELD COMPONENTS
	60	HOOK OIL SHIELD COMPONENTS
	6158	HOOK OIL SHIELD COMPONENTS
	62	HOOK OIL SHIELD COMPONENTS
	63	HOOK OIL SHIELD COMPONENTS
	64	HOOK OIL SHIELD COMPONENTS
	65	COVER COMPONENTS
	66	COVER COMPONENTS
	67	COVER COMPONENTS
	68	COVER COMPONENTS
	69	COVER COMPONENTS
	70	COVER COMPONENTS
	71	COVER COMPONENTS
	72	COVER COMPONENTS

Page 43

Juki LBH-780 (56 pages) parts on page 43
Part number	Part name	Qty
B9201-761-0A0	REINFORCING TAPE ATCHMENT ASM.	1
B9204-047-0A0	TAPE ATTACHMENT SUPPORT PLATE	(1)
SS-4090810-SP	SCREW 9/64-40 L=8	(1)
B9205-047-000	ADJUSTING FELT	(2)
B9201-761-0B0	REINFORCING TAPE ATTACHMENT AS	(1)
NS-6700540-SP	NUT 5/16-24	(1)
B9202-761-0A0	TAPE GUIDE PLATE ASM.	(1)
SS-5110740-TP	SCREW 11/64-40 L=6.5	(1)
SS-7090510-SP	SCREW 9/64-40 L=4.6	(2)
WP-0450000-SD	WASHER 4.5X8X0.5	(2)
B9206-761-000	TAPE RETAINER	(1)
B9207-761-000	TAPE RETAINER SPRING	(1)
SS-6060210-SP	SCREW 3/32-56 L=1.9	(2)
B9205-761-000	SPACER FOR TAPE RETAINER	(1)
SS-5060410-SP	SCREW 3/32-56 L=3.5	(2)
B9402-771-000	MEASURING GAUGE, CROSSWISE	1
SS-6110610-TP	SCREW 11/64-40 L=6	2
WP-0501016-SD	WASHER 5X10.5X1	2
B9401-761-000	DISTANCE MEASURING GAUGE	1
SS-7110840-SP	SCREW 11/64-40 L=7.8	2
WP-0501016-SD	WASHER 5X10.5X1	2
B2745-771-F00	KNIFE 1/4" (FLUOROCARBON)	1
B2745-771-K00	KNIFE 3/8" (FLUOROCARBON)	1
B2745-771-L00	KNIFE 1/2"	1
B2745-771-M00	KNIFE 5/8"	1
B2745-771-N00	KNIFE 3/4"	1
B2745-771-P00	KNIFE 7/8" (FLUOROCARBON)	1
B2745-771-Q00	KNIFE 1"	1
B2745-771-R00	KNIFE 1-1/8" (FLUOROCARBON)	1
B2745-771-S00	KNIFE 1-1/4"	1
B2745-771-T00	KNIFE 9/16" (FLUOROCARBON)	1
B2746-771-000	KNIFE GUARD	1
B2402-771-00B	THROAT PLATE (FLUOROCARBON)	1
B2745-771-P0B	KNIFE 7/8"	1
B2745-771-Q0B	KNIFE 1"	1
B2745-771-R0B	KNIFE 1-1/8	1
B2745-771-S0B	KNIFE 1-1/4	1
B2702-047-F00	KNIFE 5/8	1
B2702-047-K00-A	KNIFE 3/8	1
B2702-047-100	KNIFE (7/16)	1
B2702-047-L0A	KNIFE 1/2	1
B2702-047-V0B	KNIFE 14	1
B2702-047-V00	KNIFE 9/16	1
B2702-047-M0A	KNIFE 5/8	1
B2702-047-M00	KNIFE 3/4	1
B2702-047-N00-A	KNIFE 11/16	1
B2702-047-N0A	KNIFE 3/4"	1
B2702-047-C00	KNIFE 13/16	1
B2702-047-Q00-A	KNIFE 1	1
B2702-047-R00	KNIFE 1-1/8	1
B2702-047-S0A	KNIFE 1-1/4	1
B2702-047-S0-A	KNIFE 1-1/4"	1
B2702-047-U00	KNIFE (1-1/2)	1
B1157-771-0A0	HOOK OIL SHIELD ASM.	1
B1157-771-000	HOOK OIL SHIELD	(1)
B1158-771-000	HOOK OIL SHIELD SPRING	(1)
B1159-771-000	SPRING SET PLATE	(1)
SS-5090610-SP	SCREW 9/64-40 L=6	(2)
B1161-771-000	HOOK OIL SHIELD HINGE	(1)
B1161-771-000	HINGE PIN	(1)
SS-7110510-SP	SCREW 11/64-40 L=5	2
SS-7110710-SP	SCREW 11/64-40 L=7	4
WP-0480856-SP	WASHER 4.8X8.4X0.8	4
B7272-781-000	COVER MOUNTING BRACKET B	1
WP-0501016-SC	WASHER 5X10.5X1	2
SK-3452000-SE	WOOD SCREW D=4.5 L=20	2
NS-6110310-SP	NUT 11/64-40	4
B7273-781-000	SPEED TRANSMITTER COVER	1
262-36703	COVER MOUNTING BRACKET C	1

Page 44 — 22. EXCHANGING PARTS

Juki LBH-780 (56 pages) parts on page 44
Ref	Part number	Part name	Qty
A	B2936-761-000	Small gear	54
A	B2937-761-000	Large gear	345
B	B2938-761-000	Small gear	62
B	B2939-761-000	Large gear	300
C	B2940-761-000	Small gear	66
C	B2941-761-000	Large gear	285
D	B2942-761-000	Small gear	70
D	B2943-761-000	Large gear	268
E	B2944-761-000	Small gear	74
E	B2945-761-000	Large gear	252
F	B2946-761-000	Small gear	79
F	B2947-761-000	Large gear	238
G	B2928-761-000	Small gear	83
G	B2929-761-000	Large gear	225
H	B2948-761-000	Small gear	88
H	B2949-761-000	Large gear	212
I	B2950-761-000	Small gear	93
I	B2951-761-000	Large gear	200
J	B2930-761-000	Small gear	100
J	B2931-761-000	Large gear	190
K	B2952-761-000	Small gear	105
K	B2953-761-000	Large gear	180
L	B2932-761-000	Small gear	110
L	B2933-761-000	Large gear	170
M	B2954-761-000	Small gear	115
M	B2955-761-000	Large gear	160
N	B2934-761-000	Small gear	123
N	B2935-761-000	Large gear	152
O	B2956-761-000	Small gear	130
O	B2957-761-000	Large gear	145
1	B2702-047-F00	Knife
2	B2702-047-K00-A	Knife
3	B2702-047-L00-A	Knife
3	B1552-781-000-A	Work clamp check
4	B2702-047-V00	Knife
5	B2702-047-M00-A	Knife
5	B2402-771-000	Throat plate
6	B2702-047-P00	Knife
7	B2702-047-Q00	Knife
7	B1552-782-000	Work clamp check
8	B2702-047-Q00-A	Knife
9	B2702-047-S00-A	Knife
9	B1552-783-000	Work clamp check
10	B2745-774-00A-A	Knife
11	B2745-774-008-A	Knife
11	B1552-784-000	Work clamp check
11	B2402-774-000	Throat plate

Page 45 — 23. EXCLUSIVE PARTS FOR LBH-781-K

Juki LBH-780 (56 pages) parts on page 45
Ref	Part number	Part name	Qty
	D1508-771-K00-A	LATCH WORK CLAMP CHECK
	D2402-772-K00	THROAT PLATE (K)
	B1808-761-0AB	HOOK ASM.
	D3110-772-TA0	THREAD TENSION NO.3 ASM. K
	SS-8090670-SP	SCREW 9/64-40 L= 5.5
	B3110-771-000	TENSION POST SOCKET
	B3111-761-000	TENSION POST NO.3
	B3112-761-000	THREAD TAKE-UP SPRING
	B3126-012-000	THREAD TENSION DISK
	B3107-804-000	THREAD TENSION DISK PRESSER
	B3129-012-A00	TENSION SPRING
	B3120-125-000	ROTATING STOPPER
	B3119-771-000	THREAD TENSION NUT
	D9101-771-K00	HOOK TIMING GAUGE (K)
	D1508-771-K0B	WORK CLAMP CHECK 5/8"
	D1508-771-K0C	WORK CLAMP CHECK 1/2"
	D1508-771-KOE	WORK CLAMP CHECK 5/8"
	D1508-771-KOF	WORK CLAMP CHECK 1/2"
	D1508-771-KOH	WORK CLAMP CHECK

Page 46 — 24. EXCLUSIVE PARTS FOR LBH-782-K,LBH-783-K

Juki LBH-780 (56 pages) parts on page 46
Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38

Page 47

Juki LBH-780 (56 pages) parts on page 47
Part number	Part name	Qty
B2702-047-Q00-A	KNIFE 1	1
B1608-772-000	LENGTH REGULATING SHAFT GUIDE	1
B1511-772-0B0	WORK CLAMP CHECK HOLDER ASM.	1
D1508-772-K00	WORK CLAMP CHECK (2K)	1
D2402-772-K00	THROAT PLATE (K)	1
B1808-761-0AB	HOOK ASM.	1
B2931-761-000	SPUR GEAR (190)	1
B2930-761-000	SPUR GEAR (100)	1
D3110-772-TA0	THREAD TENSION NO.3 ASM. K	1
SS-8090670-SP	SCREW 9/64-40 L= 5.5	(1)
B3110-771-000	TENSION POST SOCKET	(1)
B3111-761-000	TENSION POST NO.3	(1)
B3112-761-000	THREAD TAKE-UP SPRING	(1)
B3126-012-000	THREAD TENSION DISK	(2)
B3107-804-000	THREAD TENSION DISK PRESSER	(1)
B3129-012-000	TENSION SPRING	(1)
B3120-125-000	ROTATING STOPPER	(1)
B3119-771-000	THREAD TENSION NUT	(1)
D9101-771-K00	HOOK TIMING GAUGE (K)	1
B1511-772-0B0	WORK CLAMP CHECK HOLDER ASM.	1
D1508-772-K00	WORK CLAMP CHECK (3K)	1
D2402-772-K00	THROAT PLATE (K)	1
B2949-761-000	SPUR GEAR (212)	1
B2948-761-000	SPUR GEAR (88)	1
B1808-761-0AB	HOOK ASM.	1
B2702-047-S00-A	KNIFE 1-1/4"	1
B1608-762-000	LENGTH REGULATING SHAFT GUIDE	1
D3110-772-TA0	THREAD TENSION NO.3 ASM. K	1
SS-8090670-SP	SCREW 9/64-40 L= 5.5	(1)
B3110-771-000	TENSION POST SOCKET	(1)
B3111-761-000	TENSION POST NO.3	(1)
B3112-761-000	THREAD TAKE-UP SPRING	(1)
B3126-012-000	THREAD TENSION DISK	(1)
B3107-804-000	THREAD TENSION DISK PRESSER	(1)
B3129-012-A00	TENSION SPRING	(1)
B3120-125-000	ROTATING STOPPER	(1)
B3119-771-000	THREAD TENSION NUT	(1)
D9101-771-K00	HOOK TIMING GAUGE (K)	1

Page 48 — 25. EXCLUSIVE PARTS FOR LBH-784-K

Juki LBH-780 (56 pages) parts on page 48
Ref	Part number	Part name	Qty
	1	ARM
	2	FRAME
	3	SHAFT
	4	BOBBIN CASE
	5	BRACKET
	6	LINK
	8	SCREW
	9	BRACKET
	10	BRACKET
	11	PLATE
	12	PLATE
	13	PLATE
	14	SUPPORT
	15	SCREW
	16	BRACKET
	17	PLATE
	18	SHAFT
	19	GEAR
	20	GEAR
	21	SHAFT
	22	SPRING
	23	SPRING
	24	SHAFT
	25	SPRING
	26	WASHER
	27	SPRING
	28	SPRING
	29	SPRING
	30	SPRING
	31	BASE
	32	SCREW
	33	PLATE
	34	BASE
	35	BRACKET
	36	SPRING
	37	PLATE
	38	SCREW
	39	PLATE
	40	SCREW
	41	WASHER
	42	SPRING
	43	SCREW
	44	ARM
	45	PIN

Page 49

Juki LBH-780 (56 pages) parts on page 49
Part number	Part name	Qty
B1513-774-000	WORK CLAMP BRACKET	1
B1551-774-000-A	WORK CLAMP ARM (4)	1
B1609-774-000	WORK CLAMP ARM SLIDE ROD	1
B1808-761-0AB	HOOK ASM.	1
D9101-771-K00	HOOK TIMING GAUGE (K)	1
B1606-774-000	WORK CLAMP CARRIER PITMAN	1
SD-0870401-SP	HINGE SCREW D= 8.73 H= 4	1
B1605-774-000	FEED ADJUSTING SHAFT	1
B2745-774-00B-A	KNIFE 1-1/2"	1
B2745-774-00A-A	KNIFE 1-3/8"	1
D1508-774-K00	WORK CLAMP CHECK, K	1
400-09447	WORK CLAMP CARRIER(4)	1
B1612-774-000	WORK CLAMP ARM BRACKET GUIDE	1
B1516-774-000	WORK CLAMP ARM BEARING BRACKET	1
B1611-774-0A0	WORK CLAMP ARM BRACKET ASM.	1
SS-6151440-SP	SCREW 15/64-28 L=14	(1)
B1608-774-000	LENGTH REGULATING SHAFT GUIDE	1
B1603-774-0A0	LENGTH REGULATING ARM ASM.	1
B2944-761-000	SPUR GEAR (74)	1
B2945-761-000	SPUR GEAR 252	1
D3110-772-TA0	THREAD TENSION NO.3 ASM. K	1
SS-8090670-SP	SCREW 9/64-40 L= 5.5	(1)
B3110-771-000	TENSION POST SOCKET	(1)
B3110-761-000	TENSION POST SOCKET	(1)
B3112-761-000	THREAD TAKE-UP SPRING	(1)
B3126-012-000	THREAD TENSION DISK	(1)
B3107-804-000	THREAD TENSION DISK PRESSER	(1)
B3129-012-A00	TENSION SPRING	(1)
B3120-125-000	ROTATING STOPPER	(1)
B3119-771-000	THREAD TENSION NUT	(1)
D2401-774-KC0	NEEDLE PLATE ASM.	1
SS-8090530-SP	SCREW 9/64-40 L= 4.8	(2)
D2402-774-K00	THROAT PLATE, K	1
B2401-774-0A0	THROAT PLATE BASE ASM.	1
B2406-771-0A0	BOBBIN THREAD TRIMMER BLADE AS	1
SS-5090320-SP	SCREW 9/64-40 L= 3.2	(1)
B2408-771-000-A	COUNTER KNIFE	(1)
SS-4080310-SP	SCREW 1/8-44 L=3.4	(2)
B2405-771-000	BOBBIN THREAD PULLER	(1)
SS-6090440-SP	SCREW 9/64-40 L= 4.0	(2)
B2404-771-000	BOBBIN THREAD TRIMMER LEVER	(1)
WP-0451016-SP	WASHER 4.5X20X1	(1)
SS-5090320-SP	SCREW 9/64-40 L= 3.2	(1)
B1511-774-0A0	WORK CLAMP CHECK HOLDER ASM.	1
SD-0790203-SP	HINGE SCREW D=7.94 H=2	1

Page 50 — 26. LIST FOR INFORMATION OF CHANGE

Juki LBH-780 (56 pages) parts on page 50
Ref	Part number	Part name	Qty
1	B3155-781-0A0
3	SS-4110715-SP
5	SD-0601021-SP
6	139-43204
7	WP-0740516-SP
8	262-26407
9	B3155-781-000
10	B3121-372-000
11	PS-0200062-KH
12	NS-6110310-SP
13	NS-6120310-SP
4	D2611-555-B00-A
16	B3120-761-0A0
1	400-52419
3	SM-4040655-SP
5	400-52354
4	B3571-771-000

Juki LBH-780 (56 pages) — parts catalog

Page 1 — PARTS LIST

JUKI 1-Needle,Lockstitch Straight Button-holing Machine 一本針本縫眠り穴かがりミシン LBH-781 LBH-781-K LBH-782 LBH-782-K LBH-783 LBH-783-K LBH-784 LBH-784-K PARTS LIST BE078130PJA No.0158-20 jintex.in

Page 2

jintex.in jintex.in

Page 3 — HOW TO MAKE USE OF THIS PARTS LIST

HOW TO MAKE USE OF THIS PARTS LIST 1. Explanation of codes 1) "*" mark...means this part is changed from the previous parts book. As to the details of the change,refer to "List for information of change". 2) "01"...refer to "Note" explanation at bottom of page. 2. Codes on the "Qty" column - Each numeral indicates the number of parts required. - "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3. Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4. Dotted lines on the Figures indicate assembly parts. パーツリストご利用に際して 1. "注記"欄の記号説明 1) "*"印...前回のパーツブックに比較して今回変更された部品を意味します。変更内容は"変更情報リスト"を参照してください。 2) "01"...ページ下の"注記"の説明を参照してください。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3. 数量欄の( )は、組立部品を構成している子部品であることを意味します。 4. イラストページのー－－－－－枠は、組構成であることを意味します。 jintex.in

Page 4 — CONTENTS

CONTENTS 目次 1. FRAME & MISCELLANEOUS COVER COMPONENTS (1) 頭部外装関係 (1) 2. FRAME & MISCELLANEOUS COVER COMPONENTS (2) 頭部外装関係 (2) 3. MAIN SHAFT COMPONENTS 上軸関係 4. HOOK DRIVING SHAFT COMPONENTS 下軸関係 5. PRESSER BAR & WORK CLAMP CARRIER COMPONENTS 押さえ棒・布送り関係 6. NEEDLE BAR FRAME COMPONENTS 針棒揺動台関係 7. OVEREDGING WIDTH ADJUSTING COMPONENTS かがり幅調節関係 8. NEEDLE THREAD TRIMMER COMPONENTS 上糸切り関係 9. BOBBIN THREAD TRIMMER COMPONENTS 下糸切り関係 10. KNIFE BAR COMPONENTS メス棒関係 11. FEED CAM & TRIPPING SEGMENT COMPONENTS 主カム・閂止め関係 12. STOP-MOTION COMPONENTS 遮断装置関係 13. TRIPPING LEVER COMPONENTS 手動停止関係 14. LIFTING LEVER & BOBBIN WINDER COMPONENTS 押さえ上げ・糸巻関係 15. THREAD TENSION COMPONENTS 糸調子関係 16. LUBRICATION MECHANISM COMPONENTS 給油装置関係 17. SPEED TRANSMITTER COMPONENTS 減速機関係 18. MOTOR PULLEY COMPONENTS モータープーリ関係 1 3 5 7 9 11 13 15 17 19 21 23 24 25 27 29 31 33 jintex.in

Page 5

19. THREAD STAND COMPONENTS 34 糸立装置関係 20. EXCLUSIVE PARTS FOR LBH-782,LBH-783,LBH-784 35 LBH-782 LBH-783 LBH-784専門部品 21. SPECIAL ORDER PARTS 37 特別注文部品 22. EXCHANGING PARTS 39 交換部品 23. EXCLUSIVE PARTS FOR LBH-781-K 40 LBH-781-K専用部品 24. EXCLUSIVE PARTS FOR LBH-782-K,LBH-783-K 41 LBH-782-K LBH-783-K専用部品 25. EXCLUSIVE PARTS FOR LBH-784-K 43 LBH-784-K専用部品 26. LIST FOR INFORMATION OF CHANGE 45 変更情報リスト NUMERICAL INDEX OF PARTS 46 索引

Page 6 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS (1)

1. FRAME & MISCELLANEOUS COVER COMPONENTS (1) 頭部外装関係 (1) 1 2 3 4 6 7 8 9 10 11 12 13 14 17 19 18 19 15 20 16 24 21 22 23 31 32 27 28 29 30 33 35 36 40 41 42 44 43 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 38 37 39 78 79 64 65 66 67 73 74 75 76 77 70 71 80 -1- jintex.in

Page 7

REF. NO NOTE PART NO. DESCRIPTION Qty 1 B1137-771-000 FRAME SIDE COVER B 1 2 B1137-771-00A FRAME SIDE COVER B 1 3 SS-4111015-SP SCREW 11/64-40 L=10 1 4 WP-0450000-SD WASHER 4.5X8X0.5 2 5 CM-3002001-01 SAFETY LABEL, 1(SMALL). 1 6 SS-4111015-SP SCREW 11/64-40 L=10 1 7 400-09028 ARM SUPPORT ROD 1 8 SS-8110510-SP SCREW 11/64-40 L=5 1 9 B1120-761-000 PIN 1 10 B1118-761-000 RUBBER CUSHION 1 11 B1116-771-000 SIDE COVER (C) 1 12 400-09010 ARM SIDE COVER (C) 1 13 B1152-771-000 SIDE COVER GASKET (C) 1 14 SS-4110915-SP SCREW 11/64-40 L=9 7 15 B1138-771-000 FRAME SIDE COVER C 1 16 B1138-771-00A FRAME SIDE COVER C 1 17 SS-41112215-SP SCREW 11/64-40 L=22 1 18 SS-4111415-SP SCREW 11/64-40 L=14 1 19 B1155-771-000 CUSHION 2 20 B1144-771-000 FRAME SIDE COVER GASKET (C) 2 21 B1153-781-000 LEFT SIDE COVER 1 22 400-08995 LEFT SIDE COVER 1 23 B1145-771-000 SIDE COVER GASKET 1 24 SS-4110915-SP SCREW 11/64-40 L=9 3 25 B1122-581-000 THREAD TAKE-UP LEVER OIL GUARD 1 26 400-09039 THREAD TAKE-UP LEVER COVER 1 27 SS-4090515-SP SCREW 9/64-40 L=5 2 28 B1112-771-0A0 FACE COVER COMPLETE 1 29 B1112-771-0AA FACE COVER COMPLETE 1 30 B1149-771-000 GASKET 1 31 B1151-771-000 FACE PLATE GASKET (B) 1 32 SS-4111415-SP SCREW 11/64-40 L=14 2 33 SS-4110915-SP SCREW 11/64-40 L=9 1 34 TA-1250705-RO RUBBER PLUG 2 35 B1103-771-000-A TOP COVER 1 36 B1103-771-00A TOP COVER 1 37 B1106-771-000 WORM GEAR SHAFT METAL 2 38 100-04109 GROUND MARK 1 39 SS-6120620-TP SCREW 4 40 B1110-771-000 TOP COVER GASKET, FRONT 1 41 B1117-771-000 OIL FELT 2 42 SS-4111815-SP MAIN SHAFT THRUST SEEL 1 43 SS-4110915-SP SCREW 11/64 L=18 6 44 TA-0750704-RO RUBBER PLUG 1 45 B1106-761-000 GEAR CASE COVER 1 46 400-09030 GEAR CASE COVER 1 47 B3125-155-000 DISK SPRING 1 48 SD-0640261-SP HINGE SCREW D=3.65 H=2.6 1 49 SS-7111310-SP SCREW 11/64-40 L=12.8 1 50 400-09311 HAND STOP LATCH 1 51 SS-4110715-SP SCREW 11/64-40 L=7 2 52 NS-6120310-SP NUT 3/16-28 1 53 TA-2101002-RO RUBBER PLUG 1 54 B1104-771-000 TOP COVER GASKET, REAR 1 55 400-09370 ARM OIL SHIELD 1 56 SS-4110715-SP SCREW 11/64-40 L=7 1 57 B2743-771-000 KNIFE STOP LEVER SHAFT GUIDE 1 58 TA-1050504-RO RUBBER PLUG 1 59 B1111-771-000 SIDE COVER (A) GASKET 1 60 B1114-771-000 SIDE COVER (A) 1 61 400-09008 ARM SIDE COVER (A) 1 62 SS-4110915-SP SCREW 11/64-40 L=9 6 63 B1133-771-000 OIL SIGHT WINDOW GASKET 1 64 B1115-771-0A0 SIDE COVER ASM. B 1 65 400-09009 ARM SIDE COVER (B) 1 66 SS-4110915-SP SCREW 11/64-40 L=9 1 67 B1128-771-000 SIDE COVER A 1 68 B1128-771-00A SIDE COVER A 1 69 01 SS-4111015-SP SCREW 11/64-40 L=10 2 70 WP-0450000-SD WASHER 4.5X8X0.5 2 71 CM-3002001-A1 SAFETY LABEL, 3 (SMALL). 1 72 400-09034 BED SLIDE 1 73 400-09034 BED SLIDE SETUP A 2 74 400-09036 BED OIL SHIELD ASM. 1 75 400-09036 BED OIL SHIELD STUD 1 76 400-09363 BED OIL SHIELD STUD 1 77 CM-3002000-B1 LABEL (16) 1 78 SS-4110515-SP SCREW 11/64-40 L=5 1 79 400-09014 OIL SIGHT WINDOW 1 80 NOTE (注記) 01...FOR URBAN WHITE 02...FOR USE IN JAPAN 03...FOR EXPORT(EXCEPT JE) - 2 - jintex.in

Page 8 — 2. FRAME & MISCELLANEOUS COVER COMPONENTS (2)

2. FRAME & MISCELLANEOUS COVER COMPONENTS (2) 頭部外装関係 (2) 3 4 2 6 5 1 16 10 7 12 8 9 14 16 17 15 16 17 11 7 8 9 16 17 14 11 7 10 8 9 16 17 13 -3- jintex.in

Page 9

REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 *01 400-52419 SAFETY PLATE ASM. アンゼンプレートクミ 2 260-37200 SAFETY PLATE アンゼンプレート 3 * SM-4040655-SP SCREW M4 L=6 ナベコネジ M4 L=6 4 WP-0450801-SD WASHER 4.5X10X0.8 ヒラザガネ 4.5X10X0.8 5 * 400-52354 SAFETY PLATE INSTALLING BASE アンゼンプレートトリツケダイ 6 SS-6111140-SP SCREW 11/64-40 L=11 ヒラザガネ 11/64-40 L=11 7 01 NS-6110310-SP NUT 11/64-40 ロツカクナット 11/64-40 8 01 WP-0501016-SC WASHER 5X10.5X1 ヒラザガネ 5X10.5X1 9 01 SK-3452000-SE WOOD SCREW D=4.5 L=20 マルモクネジ D=4.5 L=20 10 01 B7272-781-000 COVER MOUNTING BRACKET B カバートリツケケブラケツト B 11 01 400-09421 COVER MOUNTING BRACKET A カバートリツケケブラケツト A 12 01 262-36703 COVER MOUNTING BRACKET C カバートリツケケブラケツト C 13 01 137-72504 MOTOR PULLEY COVER モータープーリーカバー 14 01 CM-3002000-A3 LABEL,(31.5) マキコミチユウイシ-ル(31.5) 15 01 400-09458 PULLEY COVER プーリーカバー 16 01 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラザガネ 11/64-40 L=7 17 01 WP-0480856-SP WASHER 4.8X8.4X0.8 ヒラザガネ 4.8X8.4X0.8 NOTE (注記) 01...FOR USE IN JAPAN 日本用 - 4 - jintex.in

Page 10

COMPONENTS -5- jintex.in

Page 11

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 B1404-761-000 HINGE STUD 1 2 SS-8150822-TP SCREW 15/64-28 L=8 1 3 CQ-2520000-00 OIL WICK 0.38 4 400-09087 OIL WICK HOLDER 1 5 SS-7090510-SP SCREW 9/64-40 L= 4.6 2 6 B1147-125-000 OIL WICK SNAP RING 1 7 BP-6000000-00 VINYL PIPE 0.03 8 400-08610 MAIN SHAFT 1 9 CM-5003000-01 DIRECTION LABEL 1 10 01 B1901-761-BA0 THREAD TAKE-UP LEVER ASM., CER 1 11 B1901-761-0A0 THREAD TAKE-UP LEVER ASM. 1 12 B1204-761-000 NEEDLE BAR CRANK 1 13 B1204-761-000 NEEDLE BAR CRANK CONNECTING RO 1 14 02 B1905-541-B00 NEEDLE BEARING 2 15 B1903-552-000 LEFT SCREW 1 16 B2615-232-000 OIL FELT WASHER 1 17 B1223-771-000 NEEDLE ROD CRANK WASHER 1 18 400-09048 COUNTERWEIGHT ASM. 1 19 SS-8681650-TP SCREW 9/32-28 L=16 (1) 20 SS-8660512-TP SCREW 1/4-40 L=5 (2) 21 SS-7681750-TP SCREW 9/32-28 L=16.5 1 22 B1204-771-000-A BUSHING, FRONT 1 23 SS-8150822-TP SCREW 15/64-28 L=8 2 24 B1203-012-000 OIL FELT 1 25 B3541-012-000 OIL WICK 1 26 261-00701 KNIFE BAR DRIVING CONNECTING 1 27 B2722-761-000 KNIFE BAR DRIVING ECCENTRIC 1 28 SS-8660810-TP SCREW 1/4-40 L=8 2 29 B1208-552-000-A OIL SEAL 1 30 261-04703 MAIN SHAFT BUSHING INTERMEDIA 1 31 SS-8150822-TP SCREW 15/64-28 L=8 (2) 32 B2920-761-0A0 WORM ASM. 1 33 SS-8660610-TP SCREW 1/4-40 L=6 (2) 34 CS-147121B-SH THRUST COLLAR ASM. D=14.72 W=1 1 35 SS-8660530-TP SCREW 1/4-40 L= 4.5 (2) 36 400-09400 MAIN SHAFT THRUST COLLAR ASM. 1 37 SS-8660530-TP SCREW 1/4-40 L= 4.5 (4) 38 B1256-781-0A0 UPPER SHAFT REAR METAL ASM. 1 39 B1256-781-000-A UPPER SHAFT REAR METAL 1 40 B1208-552-000-A OIL SEAL (1) 41 400-09426 BEARING RETAINER (1) 42 SS-7110910-TP SCREW 11/64-40 L= 8.5 (3) 43 B1257-781-000 FELT B (1) 44 B1252-781-0B0 LOOSE PULLEY ASM. (1) 45 RC-3000001-KP RETAINING RING 30 (1) 46 02 B1255-781-00B WASHER B 2 47 B1229-771-000 MAIN SHAFT THRUST WASHER (C) 1 48 SS-8150822-TP SCREW 15/64-28 L=8 1 49 SS-7090410-SP SCREW 9/64-40 L= 3.5 3 50 B1254-781-000 MAIN SHAFT THRUST SEEL 1 51 B1227-771-000 GASKET 1 52 B1220-771-000 THRUST WASHER A 2 53 B1225-771-000 BEARING 1 54 SS-7660510-SP SCREW 1/4-40 L=5.0 1 55 SS-8660512-TP SCREW 1/4-40 L=5 1 56 400-09049 DRIVING PULLEY 1 57 02 B1224-771-00C SCREW (C) 1 58 B1231-771-000 STOP CAM PRESSURE SPRING 1 59 400-09070 STOP-MOTION CAM PIN SLIDE BLOC 2 60 B1212-232-000 BAKELITE SEGMENT 1 61 400-09669 STOP-MOTION CAM POSITION PIN 1 62 B1208-771-000 STOP MOTION CAM 1 63 400-09058 STOP-MOTION CAM PRESSER PLATE 1 64 SS-7110710-SP SCREW 11/64-40 L=7 3 65 CQ-2520000-00 OIL WICK 0.4 66 B3541-012-000 OIL WICK 1 NOTE (注記) 01...SPECIAL ORDER PARTS 特別注文部品 02...SELECTIVE PARTS 選択部品 -6- jintex.in

Page 12 — 4. HOOK DRIVING SHAFT COMPONENTS

4. HOOK DRIVING SHAFT COMPONENTS 下軸関係 27 28 29 30 39 25 26 38 31 36 41 37 33 32 34 35 19 22 44 20 21 42 43 21 45 24 23 14 46 47 48 56 49 50 53 52 51 54 40 55 -7- jintex.in

Page 13

REF. NO NOTE PART NO. DESCRIPTION E 1 B1810-771-0A0 BOBBIN CASE ASM. 2 B1810-761-C00 BOBBIN CASE LATCH LEVER 3 B1810-761-B00 BOBBIN CASE LATCH 4 B1810-761-F00 LATCH SPRING 5 B1810-761-G00 LATCH STOP SCREW 6 B1810-761-D00 HINGE PIN 7 B1810-771-E00 TENSION SPRING 8 B1810-761-J00 TENSION SCREW 9 B1810-761-H00 CLAMP SCREW 10 400-09148 BOBBIN 11 B1808-771-0AC HOOK ASM. 12 261-00404 BOBBIN CASE POSITIONING PLATE 13 SS-4110515-SP SCREW 11/64-40 L=5 14 B1805-771-0A0 HOOK SLEEVE ASM. 15 SS-8660612-TP SCREW 1/4-40 L=6 16 B1812-771-0A0 OIL WICK ASM. 17 NS-6090310-SP NUT 9/64-40 18 B1806-771-000 ADJUSTING SCREW 19 B1804-761-0A0 BUSHING ASM., FRONT 20 CQ-2520000-00 OIL WICK 21 SS-8150822-TP SCREW 15/64-28 L=8 22 B1803-761-000 BUSHING, INTERMEDIATE 23 01 B1446-761-CA0 PINION ASM. 24 SS-8660610-TP SCREW 1/4-40 L=6 25 B1306-771-0C0 GEAR & PINION ASM. UPPER 26 B1306-771-0B0 GEAR ASM. 27 B1305-771-0A0 GEAR ASM. 28 SS-6660712-TP SCREW 1/4-40 L=7.0 29 B1306-771-0A0 PINION ASM. 30 SS-6660712-TP SCREW 1/4-40 L=7.0 31 B1307-771-0B0 GEAR & PINION ASM. LOWER 32 B1307-771-0A0 GEAR ASM. 33 SS-6660712-TP SCREW 1/4-40 L=7.0 34 B1308-771-0A0 PINION ASM. 35 SS-6660712-TP SCREW 1/4-40 L=7.0 36 B1223-771-000 NEEDLE ROD CRANK WASHER 37 229-05202 UPRIGHT SHAFT BUSHING, LOWER 38 400-09071 UPRIGHT SHAFT 39 400-09072 UPRIGHT SHAFT BUSHING 40 400-09150 HOOK DRIVING SHAFT 41 SS-8150822-TP SCREW 15/64-28 L=8 42 B1223-771-000 NEEDLE ROD CRANK WASHER 43 B1802-771-0A0 BUSHING ASM., REAR 44 CQ-2020000-00 OIL WICK 45 TA-0850604-RO RUBBER PLUG 46 400-09442 HOOK OIL SUPPLY RUBBER ASM. 47 400-09443 BUSHING 48 400-09444 OIL ADJUSTING RUBBER 49 400-09156 HOOK OIL ADJUSTING SCREW 50 400-09157 POSITIONING SCREW 51 400-09153 OIL SUPPLY FELT HOLDER 52 SS-4150715-SP SCREW 15/64-28 L=7 53 B1812-761-000 OIL SUPPLY FELT 54 02 B1810-771-0BA BOBBIN CASE ASM. 55 02 B1814-761-000 SPRING 56 400-09155 PLATE SPRING NOTE (注記) 01...SELECTIVE PARTS 02...SPECIAL ORDER PARTS FOR SYNTHETIC THREAD -8- jintex.in

Page 14 — 5. PRESSER BAR & WORK CLAMP CARRIER COMPONENTS

5. PRESSER BAR & WORK CLAMP CARRIER COMPONENTS 押さえ棒・布送り関係 1 2 3 5 4 6 7 8 9 10 11 14 13 12 15 16 17 18 19 20 59 21 36 37 38 22 23 24 25 26 27 29 28 30 31 32 33 34 35 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 -9- jintex.in

Page 15

REF. NO NOTE PART NO. DESCRIPTION ﾋﾝﾒｲ Qty 1 400-09129 PRESSER SPRING REGULATOR オサエチョウセツネジ 1 2 400-09119 PRESSER BAR オサエバ 1 3 B1507-761-000 PRESSER SPRING オサエバネ 1 4 B1506-761-000 PRESSER BAR GUIDE BRACKET オサエボーダキアンナイ 1 5 SS-7111310-SP SCREW 11/64-40 L=12.8 マルヒラネジ 11/64-40 L=12.8 2 6 B1505-761-0A0 PRESSER BAR POSITION BRACKET A オサエボ・ダキクミ 1 7 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 (1) 8 400-09121 SLEEVE オサエローラースリーブ 1 9 400-09123 SLIDE ROLLER オサエローラ 1 10 B1503-771-000 CONNECTING PIN オサエローラージク 1 11 B1502-771-AA0-A BRACKET ASM. オサエローラートリツケダイ (クミ) 1 12 400-09131 BRACKET オサエローラートリツケダイ (1) 13 400-09132 FINGER GUARD ユビガード (1) 14 SS-7090710-SP SCREW 9/64-40 L=6.8 マルヒラネジ 9/64-40 L=6.8 (1) 15 SS-4091520-SP SCREW 9/64-40 L=15 ナベネジ 9/64-40 L=15 1 16 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 17 400-09122 WORK CLAMP BRACKET オサエフック 1 18 SS-2110920-TP SCREW 11/64-40 L=8.5 マルヒラネジ 11/64-40 L=8.5 1 19 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1 20 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1 21 400-09190 NEEDLE THREAD TRIMMER GUIDE (A ウワイトキリメサド・ウイタ A 1 22 01 B1552-781-0A0-A PRESSER ASM. オサエ (クミ) (1) 23 B1511-771-0A0-B PRESSER FOOT ASM. オサエアシクミ (1) 24 B1511-771-0A0-B PRESSER FOOT オサエアシ (1) 25 B1509-761-000 WORK CLAMP CHECK SPRING オサエトリツケバネ (2) 26 B1510-771-00B WORK CLAMP CHECK SPRING SET PI オサエアシピン B (2) 27 B1512-761-000 WORK CLAMP CHECK HOLDER SPRING オサエアシシバネ (1) 28 B1552-781-0A0-A PRESSER オサエ (1) 29 SS-6060210-SP SCREW 3/32-56 L=1.9 ヒラネジ 3/32-56 L=1.9 (2) 30 02 B1508-771-A00 WORK CLAMP CHECK, KNIT GOOD オサエ A 1 31 B1613-771-A00-A WORK CLAMP CARRIER ヌノオクリイタ 1 32 400-09445 WORK CLAMP CARRIER ヌノオクリイタ 1 33 B1607-763-0A0 BRACKET COVER ヌノオクリダイイカバ・クミ 1 34 SS-5110810-SP SCREW 11/64-40 L=8.5 トラスネジ 11/64-40 L=8.5 2 35 B1611-771-0A0 WORK CLAMP ARM BRACKET ASM. ヌノオクリイタアームクミ 1 36 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 (2) 37 B1506-763-000 WORK CLAMP CARRIER BRACKET PIT ヌノオクリロット 1 38 SD-0870601-SP HINGE SCREW D= 8.73 H= 6 ダンネジ D=8.73 H=6 1 39 261-05908 WORK CLAMP ARM SLIDE ROD ヌノオクリイタ 1 40 B1612-763-000 WORK CLAMP CARIER BRACKET GUID ヌノオクリイタイアンナイタ 1 41 SS-6111010-TP SCREW 11/64-40 L=9.5 ヒラネジ 11/64-40 L=9.5 2 42 B1551-781-000 WORK CLAMP オサエツク 1 43 B1517-761-000 CONNECTING PIN オサエツクシノク 1 44 SS-7090920-SP SCREW 9/64-40 L=8.5 マルヒラネジ 9/64-40 L=8.5 1 45 B1516-771-000 BEARING ARM オサエツクシノウデ 1 46 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 1 47 SS-8150920-SP SET-SCREW トメネジ 1 48 400-09134 LENGTH REGULATING HINGE STUD オクリチョウセツジク 1 49 NS-6150310-SP LENGTH REGULATING SHAFT GUIDE ヌノオクリナガサダシン 1 50 400-09137 LENGTH REGULATING NUT 15/64-28 ロツカクナット 15/64-28 1 51 B1603-763-0A0 LENGTH REGULATING SCALE ASM. ヌノオクリワデクミ 1 52 400-09144 LENGTH REGULATING SHAFT CRANK ヌノオクリワデシタ(ケツコウ) 1 53 SM-6061602-TP SCREW M6 L=16 ロツカクアナツキボルト (1) 54 WP-0650876-SD WASHER 6.5X13X0.8 ヒラザガネ 6.5X13X0.8 (1) 55 400-09146 BELL CRANK ROLLER STUD ヌノオクリコロク 1 56 400-09143 ROLLER ヌノオクリコロ 1 57 SD-0790203-SP HINGE SCREW D=7.94 H=2 ダンネジ D=7.94 H=2 1 58 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 1 59 400-09178 NEEDLE THREAD TRIMMER GUIDE (B ウワイトキリメサド・ウイタ B 1 NOTE (注記) 01...THE SIZE OF THE BUTTONHOLE VARI ES ACCORDING TO THE WOR CLAMP CHECK, SO FOR FURTHER DETAILS PLEASE REFER TO PAGE 39,22-(2). ボタンサイズ穴によって押さえが変りますので、詳しくはP39,22-(2) を参照ください。 02...SPECIAL ORDER PARTS FOR LIGHT WEIGHT KNIT MATERIALS. (PLEASE USE THE WORK CLAMP CHECK AND THE WORK CLAMP CARRIER TOGETHER AS A PAIR.) 薄物ニット用特別注文部品 (押さえと布送り板は一緒にご使用ください。) - 10 - jintex.in

Page 16 — 6. NEEDLE BAR FRAME COMPONENTS

6. NEEDLE BAR FRAME COMPONENTS 針棒揺動台関係 1 2 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 50 51 52 - 11 - jintex.in

Page 17

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 B1414-232-000 SQUARE BLOCK カク 1 2 B1410-771-000 STUD ハリボー・ヨード・カクマシク 1 3 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 1 4 400-09082 BUSHING ハリフリジクマエメタル 1 5 SS-8151150-SP SCREW 15/64-28 L=10.5 トメネジ 15/64-28 L=10.5 2 6 RO-1482402-00 RUBBER RING Oリング 1 7 B3541-012-000 OIL WICK カンリユーユシン 1 8 B1411-771-0A0 FRAME ROCK SHAFT CRANK ASM., F ハリボー・ヨード・ウデマエクミ 1 9 261-06906 FRAME NEEDLE BAR SHAFT ハリボーウヨウトウジク (1) 10 PT-0302000-SO TAPERED PIN 3.0X20 テーパピン 3X20 (2) 11 400-09099 NEEDLE BAR CLANK (FRONT) ハリボーウヨウトウデマエ (1) 12 400-09452 NEEDLE BAR CRANK (REARE) ASM. ハリボーウヨウトウデ・アト(クミ) 1 13 SS-7151210-SP SCREW 15/64-28 L=12 マルヒラネジ 15/64-28 L=12 (1) 14 SD-0790801-SP HINGE SCREW D=7.94 H=8 ダンネジ D=7.94 H=8 1 15 NS-6160520-SP NUT 1/4-24 ロツカクナット 1/4-24 1 16 B1415-761-000 NEEDLE BAR PITMAN ハリボー・ヨード・ロツド 1 17 B1416-761-000 ROCK SHAFT CONNECTION GUIDE ハリボー・ヨード・ロツド・アンナイ 1 18 SS-6111620-SP SCREW 11/64-40 L=16.0 ヒラネジ 11/64-40 L=16 2 19 SS-8111251-SP SCREW 11/64-40 L=12.0 トメネジ 11/64-40 L=12 1 20 NS-6110310-SP NUT 11/64-40 ロツカクナット 11/64-40 1 21 B1445-761-0A0 NEEDLE DRIVING GEAR ASM. ハリフリクト・ダイハグルマクミ 1 22 CS-095101C-SH THRUST COLLAR ASM. D=9.53 W=10 スラストカラー D=9.53 W=10 1 23 SS-8150920-SP SET-SCREW トメネジ (1) 24 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 (1) 25 B1447-761-0A0 KNIFE DRIVING SHAFT ASM. ハリボー・ヨード・カムジククミ 1 26 CQ-2020000-00 OIL WICK ユシン (0.21) 27 400-09091 KNIFE DRIVING SHAFT ハリボーウヨウトウカムジク (1) 28 CS-095101B-SH THRUST COLLAR ASM. D=9.53 W=10 スラストウケ D=9.53 W=10 クミ 1 29 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 (2) 30 B1403-771-000 NEEDLE BAR FRAME ハリボー・ヨード・タイ 1 31 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 1 32 B1404-771-000 HINGE STUD ハリボー・ヨード・タイジク 1 33 CQ-2520000-00 OIL WICK ユシン 0.26 34 400-09075 POSITION BRACKET コツト・ウデ・イットノイレン 1 35 SS-5110810-SP SCREW 11/64-40 L=8 トラスネジ 11/64-40 L=8 2 36 B1406-761-000 OIL FELT, FOR NEEDLE BAR ハリボー・ジユンカツフェルト 2 37 400-09085 OIL FELT UPPER ハリボーウフエルトオサエウエ 1 38 SS-7090520-SP SCREW 9/64-40 L=4.5 マルヒラネジ 9/64-40 L=4.5 2 39 B1402-761-0A0 NEEDLE BAR CONNECTION ハリボー・ターキミ 1 40 SS-7090910-TP SCREW 9/64-40 L=8.5 マルヒラネジ 9/64-40 L=8.5 (1) 41 400-09086 OIL FELT RETAINER ハリボーウフエルトオサエタ 1 42 400-09083 NEEDLE BAR ハリボー・ウ 1 43 400-09093 NEEDLE BAR BOBBIN THREAD GUIDE ハリボーウカアイトアンナイ 1 44 SS-4080415-SP SCREW 1/8-44 L=4 ナベネジ 1/8-44 L=4 1 45 MDP-5JOB1100 NEEDLE DPX5 #11J ハリ DPX5 #11J 1 46 01 B1451-771-00A NEEDLE BAR THREAD GUIDE ハリボー・シタイトアンナイ(カセンヨー) 1 47 02 MC-2005E07-50 NEEDLE 134SES #75 ハリ 134SES #75 1 48 03 MDP-5JOB1400 NEEDLE DPX5 #14J ハリ DPX5 #14J 1 49 SS-8150920-SP SET-SCREW トメネジ 1 50 04 MC-2005007-50 NEEDLE 134 NM75 ハリシュメツツ 134 NM75 1 51 400-09077 BUSHING ハリボーウヨウトウシクウシロメタル 1 52 CQ-2520000-00 OIL WICK ユシン 0.25 NOTE (注記) 01...SPECIAL ORDER PARTS FOR 化繊系用特別注文部品 SYNTHETIC THREAD 02...SPECIAL ORDER PARTS 特別注文部品 03...FOR EXPORT 輸出用 04...FOR JE JE用 - 12 - jintex.in

Page 18 — 7. OVEREDGING WIDTH ADJUSTING COMPONENTS

7. OVEREDGING WIDTH ADJUSTING COMPONENTS かがり幅調節関係 1 2 3 4 5 6 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 -13- jintex.in

Page 20 — 8. NEEDLE THREAD TRIMMER COMPONENTS

8. NEEDLE THREAD TRIMMER COMPONENTS 上糸切り関係 14 15 9 8 7 1 2 3 4 5 6 16 17 18 24 12 26 13 10 20 21 22 23 19 27 25 30 34 29 31 32 33 24 26 36 35 37 40 41 42 43 44 45 46 47 38 39 -15- jintex.in

Page 22 — 9. BOBBIN THREAD TRIMMER COMPONENTS

9. BOBBIN THREAD TRIMMER COMPONENTS 下糸切り関係 1 3 2 14 4 5 6 7 8 28 15 16 17 18 19 20 21 22 23 27 26 29 24 48 25 31 33 32 34 38 39 40 44 43 41 42 47 35 36 37 -17- jintex.in

Page 23

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 B2401-771-0AO NEEDLE PLATE ASM. ハリイタイクミ (1) 2 B2402-771-000 NEEDLE PLATE ハリイタ (1) 3 SS-2090510-SP SCREW 9/64-40 L=5 マルサラネジ 9/64-40 L=5 (2) 4 B2401-771-0BO THROAT PLATE BASE ASM. ハリイタイクミ (1) 5 B2406-771-0AO BOBBIN THREAD TRIMMER BLADE AS シタイトキラメスクミ (1) 6 SS-5090320-SP SCREW 9/64-40 L= 3.2 トラスネジ 9/64-40 L=3.2 (1) 7 B2408-771-000-A COUNTER KNIFE コテイメス (1) 8 SS-4080310-SP SCREW 1/8-44 L=3.4 ナベネジ 1/8-44 L=3.4 (2) 9 B2404-771-000 BOBBIN THREAD TRIMMER LEVER シタイトキラウデ (1) 10 SS-7110570-SP SCREW 11/64-40 L= 4.8 マルヒラネジ 11/64-40 L=4.8 (1) 11 WP-0451016-SP WASHER 4.5X20X1 ヒラザガネ 4.5X20X1 (1) 12 B2405-771-000 BOBBIN THREAD PULLER シタイトタクリウデ (1) 13 SS-6090440-SP SCREW 9/64-40 L= 4.0 ヒラネジ 9/64-40 L=4 (2) 14 SS-6090630-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 4 15 400-09215 BOBBIN PICKER STOPPER ホーピンオサエストッパー (1) 16 B2416-771-000 PRESSER PLATE シタイトメサオシ (1) 17 SS-7110540-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1 18 400-09209 BOBBIN PICKER PRESSER PLATE ホーピンオサエシタイタ (1) 19 SD-0630272-SP HINGE SCREW ダンネジ D=6.35 H=2.7 (1) 20 B2422-771-000 BOBBIN PICKER BRACKET ホーピンオサエクミ (1) 21 SS-7090620-TP SCREW 9/64-40 L=6.1 マルヒラネジ 9/64-40 L=6.1 1 22 400-09217 BOBBIN PICKER BRACKET SHAFT ホーピンオサエシヤフト (1) 23 400-09215 BOBBIN WINDER TRIP LATCH ホーピンオサエ (1) 24 400-09223 SAFETY STOPPER アンセ・ンストッパー (1) 25 SS-6110610-TP SCREW 11/64-40 L=6 ヒラネジ 11/64-40 L=6 1 26 400-09222 PRESSER PLATE ADJUSTING SPRING オシイタチョウセツバネ (1) 27 400-09219 PRESSER PLATE MOUNTING BASE オシイタトリツケダイ (1) 28 400-09214 BOBBIN THREAD TRIMMER LINK シタイトリツケリンク (1) 29 NS-6120310-SP NUT 3/16-28 ロツカクナット 3/16-28 (1) 30 400-09221 PRESSER PLATE ADJUSTING SCREW チョウセツネシ (1) 31 SD-0640321-SP HINGE SCREW D= 6.35 H= 3.2 ダンネジ D=6.35 H=3.2 (1) 32 SD-0640602-SP HINGE SCREW D= 6.35 H= 6.0 ダンネジ D=6.35 H=6 (1) 33 B2417-771-000 BOBBIN THREAD GUIDE シタイトウケ (1) 34 SS-4090415-SP SCREW 9/64-40 L=4 ナベネジ 9/64-40 L=4 2 35 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 (1) 36 SD-0790602-SP HINGE SCREW D= 7.94 H= 6 ダンネジ D=7.94 H=6 (1) 37 400-09210 BOBBIN THREAD TRIMMER DRIVING シタイトリレバ (1) 38 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 (1) 39 SS-7110570-SP SCREW 11/64-40 L= 4.8 マルヒラネジ 11/64-40 L=4.8 (1) 40 400-09211 CONNECTING LINK イトキリリンク (1) 41 B2414-761-000 STOP SCREW シタイトメサスクリツク (1) 42 NS-6680320-SP NUT 9/32-28 ロツカクナット 9/32-28 (1) 43 B2416-761-000 HING STUD シタイトメサクドウシツク (1) 44 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 (1) 45 400-09209 BOBBIN THREAD TRIMMER DRIVING シタイトリクウデ (1) 46 SD-0790641-SP HINGE SCREW D= 7.94 H= 6.4 ダンネジ D=7.94 H=6.4 (1) 47 B2412-047-000 BALL SCREW シタイトリアンナイピン (1) 48 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (1) - 18 - jinteх.in

Page 24 — 10. KNIFE BAR COMPONENTS

10. KNIFE BAR COMPONENTS メス棒関係 3 1 5 4 6 7 28 68 29 30 11 10 9 25 26 12 13 14 15 17 16 18 20 22 23 24 47 48 46 49 39 34 35 36 33 31 32 54 52 55 53 51 50 60 61 56 57 58 59 63 64 62 66 65 67 2 19 - 19 - jintex.in

Page 25

REF. NO NOTE PART NO. DESCRIPTIONヒンメンQty. 1 400-09302 KNIFE STOP LEVER BRACKET メストメレバーツリアイオモリ 1 2 PS-0300182-KF SPRING PIN 3X18 スプリングピン 3X18 1 3 SS-7110740-TP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 2 4 B2729-771-000 KNIFE STOP LEVER メストメレバー 1 5 SS-6110420-TP SCREW 11/64-40 L=4.8 ヒラネジ 11/64-40 L=4.8 2 6 400-09300 KNIFE STOP LEVER HINGE STUD メストメレバーヒンジ 1 7 B2731-761-000 THREAD CHECK WIRE イトレケケンシュツワイヤー 1 8 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1 9 B2702-771-000-A KNIFE BAR メスボー 1 10 02 400-09280 KNIFE ROD GUIDE PLATE A メスボウアンナイタ A 1 11 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 2 12 400-09290 HINGE STUD メスボウリンクピン 1 13 B2706-761-000 KNIFE BAR CONNECTING LINK メスボーリンク 1 14 B2705-761-000 HINGE SCREW リンクフク 1 15 NS-6660430-SP NUT 1/4-40 ロツカクナット 1/4-40 1 16 02 400-09284 KNIFE BAR POSITIONING BRACKET メスボウオオエ A 1 17 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 2 18 B2701-761-000 KNIFE HOLDER メストリツクダイ 1 19 B2740-771-000 THRUST WASHER メスサトローオシークケ 1 20 SM-6061202-TP SCREW M6 L=12 ロツカクアナボルト M6 L=12 2 21 01 B2702-047-L00-A KNIFE 1/2 メス 1/2 1 22 WP-0501016-SD WASHER 5X10.5X1 ヒラガネ 5X10.5X1 1 23 SS-7620750-SP SCREW 3/16-32 L=6.5 マルヒラネジ 3/16-32 L=6.5 1 24 B2751-781-000 KNIFE BAR DRIVING LEVER メスドレバー 1 25 SS-7110810-SP SCREW 11/64-40 L=8.0 マルヒラネジ 11/64-40 L=8 1 26 B2710-771-000 SPRING メスドレバーカネ 1 27 SD-0550501-SP HINGE SCREW D=5.5 H=5 タンネジ D=5.5 H=5 1 28 400-09265 KNIFE BAR STOPPER ASM. メスドウレバーストツパー (クミ) 1 29 400-09265 KNIFE BAR STOPPER メスドウレバーストツパー 1 30 400-09266 STOPPER BUSH メスドウレバーストツパーネジ (1) 31 NS-6740510-SP NUT 3/8-28 ロツカクナット 3/8-28 1 32 SD-0790201-SD HINGE SCREW D=7.9 H=2.0 タンネジ D=7.9 H=2 1 33 NS-6700540-SP NUT 5/16-24 ロツカクナット 5/16-24 1 34 400-09294 KNIFE BAR DRIVING CRANK NUT メスドウデナツト 1 35 B2718-761-000 TENSION SPRING フツクケイタ 1 36 400-09292 LATCH フツクケイタ 1 37 SS-7161040-SP SCREW 1/4-24 L=9.5 マルヒラネジ 1/4-24 L=9.5 1 38 400-09291 KNIFE BAR DRIVING CRANK メスドウデ 1 39 CQ-2520000-00 OIL WICK ユシン 0.4 40 B3537-122-000 OIL WICK HOLDER ユシンオオエ 1 41 SS-4090610-SP SCREW 9/64-40 L=6 ナベネジ 9/64-40 L=6 1 42 SM-6062002-TP SCREW M6 L=20 ロツカクアナボルト M6 L=20 4 43 SD-1110905-TH HINGE SCREW D=11.11 H=9.0 タンネジ D=11.11 H=9 1 44 261-05809 KNIFE BAR DRIVING CRANK SHAFT メスドウデシフク 1 45 02 400-09304 SPACER メスドウフツク 1 46 400-09441 KNIFE BAR DRIVING LEVER BELL C メスドウデレバーベル C 1 47 SS-811610-SP NUT 11/64-40 トメネジ 11/64-40 1 48 NS-6110310-SP NUT 11/64-40 ロツカクナット 11/64-40 1 49 SD-1110905-TH HINGE SCREW D=11.11 H=9.0 タンネジ D=11.11 H=9 1 50 400-09277 HOOK PIN NUT メスドウフツクナット 1 51 400-09278 HOOK PIN メスドウフツクピン 1 52 B2416-761-000 HINGE STUD シタイキリクトウデジク 1 53 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 1 54 B2725-761-000 TENSION SPRING フツクサトツメ B ハネ 1 55 B2724-761-000 RATCHET PAWL (B) フツクサトツメ B 1 56 B2723-761-0A0-A HOOK DIFFERENTIAL CLICK A ASM. フツクサトツメ A グミ 1 57 B2723-761-000-A HOOK DIFFERENTIAL CLICK A フツクサトツメ A 1 58 101-20004 SPRING SUSPENSION ギヤクオクリレバーハネカケ (1) 59 B1110-280-000 THREAD CUTTING LINK SPRING RAC イトキリリンクハネカケ (1) 60 B2726-761-000-A TENSION SPRING フツクサトツメ A ハネ 1 61 SD-0530221-SP HINGE SCREW D=5.3 H=2.2 タンネジ D=5.3 H=2.2 1 62 400-09270 DRIVING ROD メスドウオンボウ 1 63 400-09299 TENSION SPRING フツクヒツパリネ 1 64 400-09305 SUSPENSION SCREW フツクヒツパリネカケ 1 65 400-09274 FINGER メスドウオンボウデ 1 66 SS-7090710-SP SCREW 9/64-40 L=6.8 マルヒラネジ 9/64-40 L=6.8 2 67 400-09303 POSITIONING PIN (B) メスドウオシボウピン B 1 68 NS-6200520-SP NUT 5/16-18 ロツカクナット 5/16-18 1 69 B2709-771-000 KNIFE BAR DRIVING LEVER SHAFT メスドレバージク 1 NOTE (注記) 01...THE SIZE OF THE BUTTONHOLE ボタン穴サイズによってメスが変り VARIES ACCORDING TO THE KNIFE, ますので、詳しく P39,22-(2)を SO FOR FURTHER DETAILS PLEASE ご参照ください。 REFER TO PAGE 39,22-(2). 02...SELECTIVE PARTS 選択部品 - 20 - jintex.in

Page 26 — 11. FEED CAM & TRIPPING SEGMENT COMPONENTS

11. FEED CAM & TRIPPING SEGMENT COMPONENTS 主カム・閉止め関係 1 13 15 3 12 17 2 4 16 18 8 5 6 14 7 46 9 11 10 22 19 20 21 24 25 27 26 28 29 30 38 36 39 37 31 36 43 41 37 40 36 35 37 32 33 34 42 44 45 - 21 - jintex.in

Page 27

REF. NO NOTE PART NO. DESCRIPTION Qty 1 B2935-761-000 SPUR GEAR (152) 1 2 B2916-761-000 SPUR GEAR BUSHING ASM. 2 3 B2917-761-000 SPUR GEAR BUSHING PIN (4) 4 SS-7120910-TP SCREW 3/16-28 L=9 (4) 5 B2913-761-0A0 CLUTCH COLLAR ASM. 2 6 SS-8660610-TP SCREW 1/4-40 L=6 (1) 7 SS-8660410-SP SCREW 1/4-40 L=4.2 (1) 8 400-09314 CLUTCH COLLAR (1) 9 B2919-761-000 FEED CAM DRIVING WORM WHEEL 1 10 400-09316 FEED CAM DRIVING WORM WHEEL SH 1 11 B3542-771-000 OIL FELT 1 12 261-07201 CAM DRIVING STUD 1 13 01 B2934-761-000 SPUR GEAR (123) 1 14 B2915-761-B00 HANDLE CRANK BEVEL GEAR, LEFT 1 15 B2915-761-AA0 HANDLE CRANK BEVEL GEAR ASM. 1 16 SS-8660610-TP SCREW 1/4-40 L=6 (2) 17 CS-111101D-SH THRUST COLLAR ASM. D=11.11 W=1 1 18 SS-8660530-TP SCREW 1/4-40 L=4.5 (2) 19 400-09318 HANDLE CRANK SHAFT 1 20 B2923-761-000 HANDLE CRANK 1 21 04 400-09319 HANDLE CRANK 2 22 SS-8150510-TP SCREW 15/64-28 L=4.7 2 23 SS-8660610-TP SCREW 3/16-32 L=6 1 24 400-09320 HANDLE 1 25 400-09321 HANDLE SHAFT 1 26 B2910-761-0A0 FEED CAM DRIVING GEAR ASM. 1 27 SS-8660610-TP SCREW 1/4-40 L=6 (2) 28 NM-6120001-CP NUT M12 1 29 B2909-761-000 THRUST WASHER 1 30 400-09312 FEED CAM SHAFT 1 31 B2901-771-00C FEED CAM 1 32 WP-0982616-SP WASHER 9.8X24.0X2.6 1 33 SS-9241513-CP SCREW 3/8-18 L=15 10 34 SS-7111410-TP SCREW 11/64-40 L=14 4 35 02 B2902-761-B00 BAR TRIPPING SEGMENT NO.2 (B) 1 36 WP-0480856-SP WASHER 4.8X8.4X0.8 1 37 SS-6111610-SP SCREW 11/64-40 L=16 10 38 B2904-771-000 KNIFE TRIPPING SEGMENT 1 39 400-09309 TENSION RELEASE TRIPPING SEGME 1 40 400-09310 TENSION RELEASE TRIPPING SEGME 1 41 03 B2906-761-B00 TRIPPING SEGMENT NO. 2 UNDER 8 1 42 261-00909 BAR TRIPPING SEGMENT NO.1 2 43 02 B2903-761-B00 BAR TRIPPING SEGMENT NO.2 (B) 1 44 261-00800 LOW-SPEED CAM 1 45 261-04604 STOPPER CAM 1 46 B2914-761-000 CLUTCH SPRING 2 NOTE (注記) 01...FOR EXCHANGING GEARS, PLEASE REFER TO PAGE 39,22-(1). 02...SPECIAL ORDER PARTS FOR 80% BARTACKING 03...SPECIAL ORDER PARTS FOR LESS THAN 80 STITCHES 04...FOR URBAN WHITE 交換歯車については、 P39,22-(1) をご参照ください。門止メ80%用特別注文部品 80針以下用特別注文部品アーバンホワイト用 - 22 - jintex.in

Page 28 — 12. STOP-MOTION COMPONENTS

12. STOP-MOTION COMPONENTS 遮断装置関係 REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 262-12308 BELT COVER SETSCREW 1 2 B2653-771-000 TENSION SPRING テンションスプリング 1 3 B2613-232-000 STOP LINK ROD HINGE SCREW ツキアゲホ・レンクツケネジ 1 4 261-06807 UPPER SHAFT STOPPER ウワシ・クストツパー 1 5 NS-6620310-SP NUT 3/16-32 ロツカクナット 3/16-32 1 6 261-07300 STOPPER PIN ストツパーピン 1 7 B2611-232-000 STOP LINK CONNECTING SCREW ウワシ・クストツハ・レンクツケネジ 1 8 261-07508 STOP LINK ROD HINGE STUD ツキアゲ・ホ・ウアンナイ 1 9 B2604-771-000-B STOP MOTION LEVER シヤダ・ンフレーム 1 10 400-09228 BELT SHIFTER ヘルトシフター 1 11 SS-4150715-SP SCREW 15/64-28 ナベネジ 15/64-28 L=7 2 12 WP-0650876-SD WASHER 6.5X13X0.8 ヒラガネ 6.5X13X0.8 2 13 400-09254 INSTALLING BASE PIN シヤダンソウチツケダイ・イピン 1 14 RC-1200001-KP C-SHAPED SNAP RING Cガ・タトメワ 1 15 RC-1200001-KP C-SHAPED SNAP RING Cガ・タトメワ 1 16 B2648-232-000 STOP PIN キド・ーリンク・チョーセツ・アテガネ 1 17 400-09229 LATCH (A) フツク A 1 18 SM-6061602-TP SCREW M6 L=16 ロツカクアナボルト 1 19 WS-0610002-KP SPRING WASHER ハ・ネ・ガネ 1 20 SM-6062002-TP SCREW M6 L=20 ロツカクアナボルト M6 L=20 1 21 NS-6150430-SP NUT 15/64-28 ロツカクアナツト 15/64-28 1 22 SS-6153040-SP SCREW 15/64-28 L=30 ヒラネジ 15/64-28 L=30 1 23 400-09249 STOP LINK ROD ツキアゲ・ホウ 1 24 400-09252 STOP LINK ROD PRESSURE SPRING ツキアゲ・ホ・ウオウアツシユクハネ 1 25 400-09252 SPRING SUPPORT NUT ハ・ネウケナツト 1 26 NS-6240630-SP NUT 3/8-18 ロツカクアナツト 3/8-18 1 27 B2601-761-000-A STOP MOTION LEVER BRACKET シヤダンソウチトリツケダイ 1 28 SM-6102002-TP SCREW M10 L=20 ロツカクアナボルト M10 L=20 2 - 23 - jintex.in

Page 29 — 13. TRIPPING LEVER COMPONENTS

13. TRIPPING LEVER COMPONENTS 手動停止関係 REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 400-09255 STARTING LINK COMPL. キト・ウァンビンクデ (ケゴユウ) (1) 2 400-09256 STARTING LINK ASM. キト・ウァンビンクデ (クミ) (1) 3 400-09259 SAFETY BASE ヌノキリスメアンビンアン 1 4 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジナ 11/64-40 L=7 (1) 5 B2416-761-000 HINGE STUD シタイキリクトーウデジク 1 6 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 2 7 400-09233 HINGE SCREW キト・ウァンビンロッドシク 1 8 NS-6150310-SP NUT 15/64-28 ロクカクナット 15/64-28 2 9 400-09245 STARTING LINK DRIVING ROD キト・ウァンビンデ・ロッド 1 10 SD-0790451-SP HINGE SCREW D= 7.94 H= 4.5 ダンネジ D= 7.94 H= 4.5 1 11 CS-079101B-SH THRUST COLLAR ASM. D=7.94 W=10 スラストコウ・D=7.94 W=10 (1) 12 SS-7110740-TP SCREW 11/64-40 L=7 マルヒラネジナ 11/64-40 L=7 (1) 13 SS-8110510-SP SCREW 11/64-40 L=5 トメネジ 11/64-40 L=5 (1) 14 400-09247 CRANK SHAFT TENSION SPRING シュト・ウテイハント・ルバネ 1 15 400-09241 HAND STOP CRANK SHAFT シュト・ウテイハント・ルジク 1 16 SS-611010-TP SCREW 11/64-40 L=9.5 ヒラネジ 11/64-40 L=9.5 2 17 B2608-761-000 HAND STOP CRANK SHAFT BALL シュト・テーシハント・コーキュー 1 18 B2611-761-000 CRANK SHAFT PRESSURE SPRING シュト・テーシハント・タマ・ネ 1 19 01 400-09242 HAND STOP ROD B シュト・ウテイシホウ・ボウ B 1 20 B2610-761-CAO HAND STOP CRANK ASM. シュト・テーシハント・クルミ 1 21 02 B2610-761-OAA HAND STOP CRANK ASM. シュト・テーシハント・クルミ・W 1 22 SS-8150510-TP SCREW 15/64-28 L=4.7 トメネジ 15/64-28 L=4.7 2 23 B2617-771-000 TRIPPING LEVER TENSION SPRING フックヒキハズシレバー・バネ 1 24 400-09262 WASHER フックヒキハズシレバー・ジク・ガ・ネ 1 25 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジナ 15/64-28 L=9 1 26 NM-6060001-CP NUT M6 ロクカクアナット M6 1 27 400-09238 LATCH (B) フック B 1 28 SM-6062002-TP SCREW M6 L=20 ロクカクアナット M6 L=20 2 29 WS-0610002-KP SPRING WASHER スプリングワッシャー 1 30 B2651-781-000-A TRIPPING LEVER フック・レバー 1 31 400-09243 TRIPPING DOG フック・ケンカ・ローラー 1 32 400-09116 ROLLER フック・ケンカ・ローラー 1 33 SD-0640471-SP HINGE SCREW D= 6.35 H= 4.7 ダンネジ D= 6.35 H=4.7 1 34 400-09260 TRIPPING LEVER HINGE PIN ASM. フックヒキハズ・シレバー・ジク・クミ (1) 35 400-09261 TRIPPING LEVER HINGE PIN フックヒキハズ・シレバー・ジク (1) 36 RC-1021011-KP RETAINING RING 10.2 C・ガ・トメワ 10.2 (1) NOTE (注記) 01...SELECTIVE PARTS 選択部品 02...FOR URBAN WHITE アーバンホワイト用 - 24 - jintex.in

Page 30 — 14. LIFTING LEVER & BOBBIN WINDER COMPONENTS

14. LIFTING LEVER & BOBBIN WINDER COMPONENTS 押さえ上げ・糸巻関係 - 25 - jintex.in

Page 31

REF. NO NOTE PART NO. DESCRIPTION Qty 1 B3404-771-000 PRESSER BAR LIFTING ROD, LONG オサエアゲヨコリンク 1 2 RE-050000-KO E-RING Eガタトメツ 5 2 3 SD-0720331-SP HINGE SCREW D= 7.24 H= 3.3 タンネシ D= 7.24 H= 3.3 2 4 B3402-771-0AO LEVER ASM., FRONT オサエアゲリンクマエレバークミ 1 5 B3406-761-000 LINK ヒキアゲリンク 1 6 PD-0201000-OB SPLIT PIN ワリヒン 2X10 2 7 B3408-771-OAO LEVER ASM., REAR オサエアゲリンクウシロレバークミ 1 8 B3403-761-000 PRESSER BAR LIFTING ROD オサエアゲタテリンク 1 9 400-09262 WASHER フックヒキヌシヌシレバージクシカネ 1 10 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 1 11 400-09357 LIFTING LEVER STOPPER オサエアゲストッパージク 1 12 261-06658 LIFTING LEVER ASM. オサエアゲレバー (クミ) 1 13 WP-0740516-SP WASHER 7.4X11.8X0.5 ヒラザガネ 7.4X11.8X0.5 1 14 B3451-781-000 PRESSER FOOT LIFTING SPRING オサエアゲレバーハネ 1 15 262-12308 BELT COVER SETSCREW ベルトカバートメネジ 2 16 400-09348 BOBBIN WINDER TENSION ASM. シタイトアンナイイ (クミ) (1) 17 262-16507 BOBBIN WINDER TENSION NUT イトマキチョウシクシマミ (1) 18 262-16606 BOBBIN WINDER TENSION SPRING イトマキチョウシスプリング (1) 19 229-45802 THREAD TENSION DISK ダイイイトチョウシクサラ (2) 20 262-16705 BOBBIN WINDER TENSION POST イトマキチョウシポスト (1) 21 262-16705 BOBBIN WINDER TENSION POST イトマキチョウシポスト (1) 22 400-09349 BOBBIN WINDER TENSION シタイトアンナイイ (1) 23 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 4 24 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 2 25 261-03150 BOBBIN WINDER ASM. シタイトマキ (クミ) 1 26 261-03101 BOBBIN WINDER BRACKET イトマキリツケダイ (1) 27 261-04208 NUT ボ・ピンアンナイシクナット (1) 28 261-04307 NUT トリツケタナット (1) 29 261-03705 BOBBIN WINDER SPRING イトマキプーリーリモートシハネ (1) 30 SD-0450401-SP HINGE SCREW D= 4.5 H= 4 タンネシ D= 4.5 H=4 (1) 31 261-03903 BOBBIN STOP SPRING ボ・ピントメバネ (1) 32 SS-6090620-SP SCREW 9/64-40 L=6 ヒラザガネ 9/64-40 L=6 (3) 33 261-03309 PULLEY SHAFT BASE イトマキグシクワケトリツケダイ (1) 34 261-03507 BOBBIN WINDER SHAFT イトマキシャフト (1) 35 261-04109 COLLAR タンネシクラー (1) 36 SD-0790433-TP HINGE SCREW D= 7.94 H= 4.3 タンネシ D= 7.94 H=4.3 (1) 37 261-03408 BOBBIN WINDER SHAFT BUSHING イトマキクシクワケ (1) 38 SS-8120740-SP SCREW 3/16-28 L=7 トメネジ 3/16-28 L=7 (2) 39 261-03200 BOBBIN WINDER DRIVING PULLEY イトマキプーリー (1) 40 WP-0651056-SD WASHER 6.5X11X1 ヒラザガネ 6.5X11X1 (1) 41 261-03606 BOBBIN WINDER TRIP LATCH ボ・ピンアンナイ (1) 42 261-03804 BOBBIN GUIDE SPRING ボ・ピンアンナイハネ (1) 43 SS-7090520-SP SCREW 9/64-40 L= 4.5 マルヒラネジ 9/64-40 L=4.5 (2) 44 261-04000 ADJUSTING SCREW イトマキリヨウチョウセツネジ (1) 45 261-04505 NUT イトマキリヨウチョウセツナット (1) 46 261-04406 BOBBIN GUIDE SHAFT ボ・ピンアンナイシク (1) 47 400-09260 TRIPPING LEVER HINGE PIN ASM. フックヒキハスシレバージククミ (1) 48 400-09261 TRIPPING LEVER HINGE PIN フックヒキハスシレバージク (1) 49 RC-1021011-KP RETAINING RING 10.2 Cガタトメワ 10.2 (1) - 26 - jintex.in

Page 32 — 15. THREAD TENSION COMPONENTS

15. THREAD TENSION COMPONENTS 糸調子関係 2 1 3 13 15 7 4 5 6 14 16 17 18 19 21 22 25 20 10 11 66~73 34 33 32 31 30 29 28 27 26 23 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 65 64 63 62 61 59 60 - 27 - jintex.in

Page 34 — 16. LUBRICATION MECHANISM COMPONENTS

16. LUBRICATION MECHANISM COMPONENTS 給油装置関係 19 20 21 22 23 24 28 29 30 17 18 9 16 15 14 13 10 2 8 12 34 35 10 11 12 36 37 38 39 40 41 44 42 43 25 26 47 48 78 27 6 53 51 52 54 55 56 57 58 73 59 60 62 63 64 65 66 67 68 69 70 71 75 76 77 45 79 80 81 82 - 29 - jintex.in

Page 35

REF NO NOTE PART NO. DESCRIPTION Qty 1 400-09374 OIL FELT HOLDER メンイタフェルトオタエ I 2 B3549-771-000 OIL RETURN FELT (A) カンリューフエルト A I 3 B3568-771-000 OIL RETURN TUBE カンリューイプ I 4 B3571-771-000 PIPE HOLDER カンリユウパイプトメカク I 5 * SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 I 6 02 SS-7110710-TP SCREW 11/64-40 L=8.5 マルヒラネジ 11/64-40 L=8.5 4 7 400-09369 PIPE GUIDE (A) パイプアンナイ A 1 8 BP-6000000-00 VINYL PIPE ビニールパイプ 0.1 9 BP-5000000-00 VINYL PIPE ビニールパイプ 0.05 10 BP-3000000-00 VINYL PIPE ビニールパイプ 0.55 11 SQ-1110402-MZ CONNECTING SCREW チューブレンケツスクリュー 4 12 B3534-012-000 GASKET ベアリング 1 13 B3534-155-000 PLUNGER アラシジャー 1 14 B1214-038-000 PLUNGER SPRING アラシジャーオタエハネ 1 15 400-09361 THRUST PLATE アラシジャーヤークネウケ 1 16 SS-4150715-SP SCREW 15/64-28 L=7 ナベネジ 15/64-28 L=7 1 17 400-09373 OIL FELT GUIDE フエルトアンナイ 1 18 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 19 B3560-771-000 OIL FELT ウオームギヤーキユユーフエルト 1 20 B1135-771-0AO OIL PAN ASM. アブラウケ 1 21 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1 22 B3561-771-000 OIL UNWOVEN CLOTH ウツクシヤフツシヨクプ 1 23 B1148-771-000 OIL FELT アブラウケフエルト A 1 24 B1147-771-000 OIL FELT アブラウケフエルト B 1 25 B3563-771-000-A OIL SHIELD クモシヤシユールドーヘン 1 26 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 2 27 B1124-771-000 CUSHION ヒンクククツシヨン 2 28 B1154-781-000 BELT GUARD ベルトカバー 1 29 B1154-781-00A BELT GUARD ベルトカバー 1 30 SS-4110815-SP SCREW 11/64-40 L=8 ベルトカバートメカネ 2 31 400-09001 PLATE SPRING ベルトカバーゴムアツクス 1 32 BP-6000000-00 SET NUT ビニールパイプ 8 0.1 33 B1156-781-000 RUBBER BUSHING ビニールパイプ 0.1 34 BP-8000000-00 VINYL TUBE, WHITE D=8 ユシン 1 35 CQ-3030000-00 OIL WICK キユースダイ 1 36 400-09360 OIL PUMP BASE ナベネジ 11/64-40 L=8 1 37 SS-4110815-SP SCREW 11/64-40 L=8 キユーユダイフイルター 1 38 B3570-771-000 FILTER OIL FELT キユユーモウフエルト 2 39 400-09375 SPRING キユウユフエルト 1 40 400-09366 FILTER SCREEN キユウユアミ 1 41 400-09379 BUSHING HOLDER キユウエフミナゲ 1 42 SS-7090910-SP SCREW 9/64-40 L=8.5 マルヒラネジ 9/64-40 L=8.5 1 43 NS-6090310-SP NUT 9/64-40 ロクカクナット 9/64-40 1 44 NS-6150310-SP NUT 15/64-28 ロクカクナット 15/64-28 8 45 400-08994 DRIVING PIN BASE グドービンダイ 1 46 02 B1151-781-00A MACHINE BASE ASM. トウアベース (クミ) 1 47 B1151-781-0AA-A MACHINE BASE ASM. トウアベース (クミ) 1 48 B1151-781-000 MACHINE BASE トウアベース (1) 49 01 B1151-781-00A HEAD BASE トウアベース (1) 50 400-08996 GUIDE PIN ガイドピン (2) 51 400-09035 RUBBER CUSHION トウアサタエゴ A (4) 52 SS-7111120-SP SCREW 11/64-40 L=10.5 マルヒラネジ 11/64-40 L=10.5 (4) 53 B1122-761-000 HINGE HOLDER ヒンクジクウケ (2) 54 261-09207 HINGE HOLDER ヒンクジクウケ (2) 55 01 B1151-781-00A PIN ピン (2) 56 B1151-761-000 PIN ピン (2) 57 SM-6062002-TP SCREW M6 L=20 ロクカクアナト M6 L=20 (4) 58 WP-0621016-SD WASHER 6.2X13X1 ヒラガネ 6.2X13X1 (4) 59 SS-6741010-SP SCREW 3/8-28 L=10 ヒラガネ 3/8-28 L=10 (2) 60 B8219-125-000 OIL DRAIN CAP GASKET ハイエラナベツキン (2) 61 400-09244 STARTING LEVER PRESSURE SPRING キドウリンケツハネ (1) 62 SM-9082003-CP SCREW M8 L=20 ロクカクナット M8 L=20 (1) 63 NS-6150310-SP NUT 15/64-28 ロクカクナット 15/64-28 (1) 64 400-09235 STOP SCREW ASM. キドウリンクストツパー (クミ) (1) 65 NM-6080721-SE NUT M8 ロクカクナット M8 (1) 66 SS-7151210-SP SCREW 15/64-28 L=12 マルヒラネジ 15/64-28 L=12 (1) 67 400-09231 STARTING LINK SHAFT キドウリンクシヤフト (1) 68 SS-9150860-SP SCREW 15/64-28 L=8 ロクカクボルト 15/64-28 L=8 (1) 69 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 (1) 70 261-07409 STARTING LINK キドウリンク (1) 71 B2655-781-000 STARTING LEVER キドレーバー (1) 72 02 RE-0600000-KO E-RING 6 Eガタトメワ 6 1 73 02 B7160-781-0AO SHIFTER DRIVING PIN ゲフターグドービンクミ 1 74 02 SS-7112420-SP SCREW 11/64-40 L=24 マルヒラネジ 11/64-40 L=24 3 75 B1133-761-000 MACHINE BASE FELT PAD トウアベースザフエルト 4 76 B1153-771-000 MACHINE BASE SCREW STUD トウアベーススタツド 4 77 WP-0612056-SD WASHER 6.1X18.5X2 ヒラガネ 6.1X18.5X2 4 78 B8213-012-000 BED HINGE CONNECTION ヒンクジク 2 79 BP-3000000-00 VINYL PIPE ビニールパイプ 0.13 80 BP-5000000-00 VINYL PIPE ビニールパイプ 0.05 81 BP-6000000-00 VINYL TUBE, WHITE D=8 ビニールパイプ 8 0.1 82 BP-4000000-00 VINYL TUBE, WHITE D=4 ビニールパイプ 0.03 NOTE (注記) 01...FOR URBAN WHITE アーバンホワイト用 02...ACCESSORY PARTS 付属吕 - 30 - jintex.in

Page 36 — 17. SPEED TRANSMITTER COMPONENTS

17. SPEED TRANSMITTER COMPONENTS 減速機関係 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 48 55 48 56 57 58 59 60 61 62 - 31 - jintex.in

Page 37

REF. NO NOTE DESCRIPTION Qty 1 B7180-781-0A0 TENSION PULLEY ASM. (1) 2 400-009388 TENSION PULLEY BRACKET (1) 3 NS-6150430-SP NUT 15/64-28 (1) 4 400-009392 TENSION LEVER (1) 5 B4419-372-000 NIPPER BAR ACTUATING LEVER SPR (1) 6 400-009393 FIXING PAWL (1) 7 SD-0450211-SP HINGE SCREW D= 4.50 H= 2.1 (1) 8 B7186-781-000 RATCHET (1) 9 SS-7110710-SP SCREW 11/64-40 L=7 (2) 10 400-009395 LEVER COLLAR (1) 11 400-009391 TENSION SPRING (1) 12 400-009390 TENSION PULLEY LINK (1) 13 SD-0902501-SP HINGE SCREW D=9 H=25 (1) 14 SB-1150002-00 BEARING (1) 15 400-009389 TENSION PULLEY (1) 16 SD-1501101-SP HINGE SCREW D=14.5 H=11 (1) 17 SM-6061202-TP SCREW M6 L=12 (2) 18 01 WP-0651056-SH WASHER 6.5X11X1 (3) 19 01 SS-9152130-CP SCREW 15/64-28 L=20.5 (3) 20 B7151-781-0A0 SPEED TRANSMITTER ASM. (1) 21 B7151-781-000-A SPEED TRANSMITTER BRACKET (1) 22 RE-1200000-KO E-RING 12 (2) 23 SM-6061202-TP SCREW M6 L=12 (1) 24 B1221-771-00A HIGH SPEED WASHER FOR BEARING (2) 25 400-00935 STOP SCREW ASM. (1) 26 NS-6150310-SP NUT 15/64-28 (1) 27 B7158-781-000 SHIFTER STOPPER BRACKET (1) 28 SM-6061202-TP SCREW M6 L=12 (2) 29 SB-1150002-00 BEARING (2) 30 RC-3500002-KP RETAINING RING 35 (2) 31 B7155-781-000 ACCELERATING PULLEY (1) 32 SS-8150710-SP SCREW 15/64-28 L=7 (2) 33 B7154-781-000 HIGH-SPEED PULLEY (1) 34 SB-1450004-00 BEARING (2) 35 B7156-781-000-A LOW-SPEED PULLEY (1) 36 B7152-781-000-A SPEED TRANSMITTER SHAFT (1) 37 B7153-781-000 SLEEVE (1) 38 WP-1502500-SC WASHER 15X24X2.5 (1) 39 01 SS-7151210-SP SCREW 15/64-28 L=12 (2) 40 01 B7159-781-000 SHIFTER TENSION SPRING (1) 41 261-01253 SHIFTER BASE ASM. (1) 42 261-01204 SHIFTER BASE (1) 43 NS-6150310-SP NUT 15/64-28 (3) 44 261-02004 SHIFTER CAM SPRING (1) 45 NS-6160520-SP NUT 1/4-24 (2) 46 261-02202 SHIFTER TENSION SPRING (1) 47 261-01402 SHIFTER DRIVING ARM (1) 48 261-02509 SHIFTER DRIVING ARM SCREW (3) 49 261-02103 SHIFTER CAM ROLLER STUD (1) 50 261-02301 SHIFTER CAM ROLLER (1) 51 SS-6080610-TP SCREW 1/8-44 L=6 (1) 52 261-01600 SHIFTER INSTALLING PLATE (1) 53 SD-0790802-SP HINGE SCREW D= 7.94 H= 8.0 (2) 54 261-01501 SHIFTER HOLDING ARM (1) 55 261-01709 SPEED TRANSMITTER SHIFTER (1) 56 SS-7161040-SP SCREW 1/4-24 L= 9.5 (2) 57 261-01303 SHIFTER PIN (1) 58 NS-6150430-SP NUT 15/64-28 (1) 59 261-01808 SHIFTER CAM INSTALLING BASE (1) 60 SS-7110910-SP SCREW 11/64-40 L=8.5 (2) 61 261-01907 SHIFTER CAM (1) 62 261-02400 SHIFTER CAM SUSPENSION (1) NOTE (注記) 01...ACCESSORY PARTS (付属 - 32 - jintex.in

Page 38 — 18. MOTOR PULLEY COMPONENTS

18. MOTOR PULLEY COMPONENTS モータープーリ関係 REF. NO. NOTE PART NO. D E S C R I P T I O N モータ・トリツケボルト Qty 1 MTJ-MS000000 MOUNTING BOLT 4 2 B7109-771-000 SPACER モータ・スペーサー 4 3 400-09401 MOTOR BASE PLATE モータ・ダイ 1 4 WP-0850002-SC WASHER 8.5X18X1.6 ヒラザガネ 8.5X18X1.6 4 5 NS-6200520-SP NUT 5/16-18 ロツカクナット 5/16-18 8 6 01 400-09397 MOTOR PULLEY FOR 50HZ 3000SPM モータプーリー-50HZ 3000SPM 1 7 01 400-09398 MOTOR PULLEY FOR 60HZ 3000SPM モータプーリー-60HZ 3000SPM 1 8 01 400-09415 MOTOR PULLEY FOR 50HZ 3300SPM モータプーリー(50HZ 3300SPM) 1 9 01 B7257-781-000-A MOTOR PULLEY (60HZ 3300-USE) モータプーリー(60HZ 3300ヨウ) 1 10 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 2 11 01 MTJ-VM004200 V-BELT, 42 INCH Vベルト 42インチ 1 12 01 MTJ-VM004300 V-BELT, 43 INCH Vベルト 43インチ 1 13 01 MTJ-VM004400 V-BELT, 44 INCH Vベルト 44インチ 1 14 B7252-781-000 BELT ヒラベルト 1 NOTE (注記) 01... SPECIAL ORDER PARTS 特別注文部品 - 33 - jintex.in

Page 39 — 19. THREAD STAND COMPONENTS

19. THREAD STAND COMPONENTS 糸立装置関係 REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 229-30358 THREAD STAND ASM. イトタテツウチ(クミ) (1) 2 229-31109 SPOOL RETAINER イトマキレツトメ (2) 3 229-31000 SPOOL PIN イトマキウケ (2) 4 229-30903 SPOOL REST CUSHION イトマキウケラクツシヨン (2) 5 229-30804 SPOOL REST イトマキウケ・ラ (2) 6 SM-6061610-SC SCREW M6 L=16 ヒラコネジ M6 L=16 (2) 7 229-30705 THREAD GUIDE ARM JOINT イトタテホウシメカナク (2) 8 229-31406 SPOOL REST ROD RUBBER CAP イトタテホウウエゴム (1) 9 229-30507 SPOOL REST ARM イトタテウデ (1) 10 229-30408 SPOOL REST ROD, UPPER イトタテホウウエ (1) 11 229-31307 SPOOL REST ROD JOINT イトタテホウウエ・ジヨイント (1) 12 SM-4051405-SE SCREW M5 L=14 ナベコネジ M5 L=14 (2) 13 NM-6050001-SE NUT M5 ロツカクナット M5 (2) 14 229-30309 SPOOL REST ROD, LOWER イトタテホウシタ (1) 15 229-30556 THREAD STANDING ARM ASM. イトタテウデ(クミ) (1) 16 WS-0510002-KN SPRING WASHER ハネザガネ 5.1X9.2X1.3 (2) 17 NM-6050001-SE NUT M5 ロツカクナット M5 (2) 18 NM-6160511-SE NUT M16X1.5 ロツカクナット M16X1.5 1シュ (1) 19 WP-1612616-SE WASHER 16X30X2.6 ヒラサガネ (2) 20 WS-1643202-KR SPRING WASHER ハネザガネ 16.4X26.6X3.2 (1) - 34 - jintex.in

Page 40 — 20. EXCLUSIVE PARTS FOR LBH-782,LBH-783,LBH-784

20. EXCLUSIVE PARTS FOR LBH-782,LBH-783,LBH-784 LBH-782 LBH-783 LBH-784 (1) LBH-782 (2) LBH-783 (3) LBH-784 - 35 - jintex.in

Page 41

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 B1511-772-0B0 WORK CLAMP CHECK HOLDER ASM. オサエツクミ 1 2 B2702-047-Q00-A KNIFE 1 メス 1 3 B1608-772-000 LENGTH REGULATING SHAFT GUIDE ヌノクリナガサシン 1 4 B2930-761-000 SPUR GEAR (100) コーカンハグルマ 100 1 5 B2931-761-000 SPUR GEAR (190) コーカンハグルマ 190 1 6 B1552-782-000 WORK CLAMP CHECK, 2 オサエ 1 7 01 B1508-772-A00 WORK CLAMP CHECK (2A) オサエ(2A) 1 8 01 B1613-771-A00-A WORK CLAMP CARRIER ヌノクリイタ 1 9 B1511-773-0B0 WORK CLAMP CHECK HOLDER ASM. オサエツクミ 1 10 B2702-047-S00-A KNIFE 1-1/4" メス(1-1/4") 1 11 B1608-761-000 LENGTH REGULATING SHAFT GUIDE ヌノクリナガサシン 1 12 B2948-761-000 SPUR GEAR (88) コーカンハグルマ 88 1 13 B2949-761-000 SPUR GEAR (212) コーカンハグルマ 212 1 14 B1552-783-000 WORK CLAMP CHECK, 3 オサエ 1 15 01 B1508-773-A00 WORK CLAMP CHECK (3A) オサエ(3A) 1 16 01 B1613-771-A00-A WORK CLAMP CARRIER ヌノクリイタ 1 17 B1513-774-000 WORK CLAMP BRACKET オサエフツク 1 18 B1551-784-000-A WORK CLAMP ARM (4) オサエツデ(4) 1 19 B1511-774-0A0 WORK CLAMP CHECK HOLDER ASM. オサエフククミ 1 20 B1552-784-000 WORK CLAMP CHECK オサエ 1 21 B2402-774-000 THROAT PLATE ハリイタ 1 22 SS-2090530-SP SCREW 9/64-40 L=4.8 マルサラネジ 9/64-40 L=4.8 2 23 B2401-774-0A0 THROAT PLATE BASE ASM. ハリイタダイクミ 1 24 SS-5090320-SP SCREW 9/64-40 L=3.2 トラスネジ 9/64-40 L=3.2 1 25 B1611-774-0A0 WORK CLAMP ARM BRACKET ASM. ヌノクリダイクミ 1 26 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 (1) 27 B1606-774-000 WORK CLAMP CARRIER PITMAN ヌノクリツド 1 28 SD-0870401-SP HINGE SCREW D= 8.73 H= 4 タンネジ D=8.73 H=4 1 29 B1605-774-000 FEED ADJUSTING SHAFT オクリチョウセツシフク 1 30 B2745-774-00B-A KNIFE 1-1/2" メス(1-1/2") 1 31 B2745-774-00A-A KNIFE 1-3/8" メス(1-3/8") 1 32 B2944-761-000 SPUR GEAR (74) コーカンハグルマ 74 1 33 B2945-761-000 SPUR GEAR 252 コーカンハグルマ 252 1 34 B1603-774-0A0 LENGTH REGULATING ARM ASM. ヌノクリナガサアーム 1 35 B1608-774-000 LENGTH REGULATING SHAFT GUIDE ヌノクリナガサシン 1 36 B1612-774-000 WORK CLAMP ARM BRACKET GUIDE ヌノクリダイアンナイタ 1 37 400-09447 WORK CLAMP CARRIER (4) ヌノクリイタ(4) 1 38 B1609-774-000 WORK CLAMP ARM SLIDE ROD ヌノクリシク 1 39 B1516-774-000 WORK CLAMP ARM BEARING BRACKET オサエツデシジウデ 1 40 SD-0790203-SP HINGE SCREW D=7.94 H=2 タンネジ D=7.94 H=2 1 NOTE (注記) 01...SPECIAL ORDER PARTS FOR LIGHT 薄ニット用特別注文部品 WEIGHT KNIT MATERIALS. (押さえと布送り板は一緒にご使用 (PLEASE USE THE WORK CLAMP ください。) CHECK AND THE WORK CLAMP CARRIER TOGETHER AS A PAIR.) ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THESE USED IN MODEL LBH-781. 上記以外の部品はLBH-781と同じです。 - 36 - jintex.in

Page 42 — 21. SPECIAL ORDER PARTS

21. SPECIAL ORDER PARTS 特別注文部品 (1) TAPE REEL COMPONENTS テープ装置関係 1 2 4 3 15 14 13 12 11 5 6 7 8 9 10 (2) BUTTON-HOLING MEASURING GAUGES ボタン穴間ゲ 16 17 18 19 20 21 (3) KNIFE FOR SPECIAL 特別用メス 22 ? 31 32 33 38 ? 56 34 ? 37 (4) HOOK OIL SHIELD COMPONENTS 釜カバー関係 57 6158 59 60 64 62 63 (5) COVER COMPONENTS カバー関係 65 66 67 70 68 69 72 70 68 69 71 -37- jintex.in

Page 43

REF. NO NOTE PART NO. DESCRIPTION 1 B9201-761-0A0 REINFORCING TAPE ATCHMENT ASM. 2 B9204-047-0A0 TAPE ATTACHMENT SUPPORT PLATE 3 SS-4090810-SP SCREW 9/64-40 L=8 4 B9205-047-000 ADJUSTING FELT 5 B9201-761-0B0 REINFORCING TAPE ATTACHMENT AS 6 NS-6700540-SP NUT 5/16-24 7 B9202-761-0A0 TAPE GUIDE PLATE ASM. 8 SS-5110740-TP SCREW 11/64-40 L=6.5 9 SS-7090510-SP SCREW 9/64-40 L=4.6 10 WP-0450000-SD WASHER 4.5X8X0.5 11 B9206-761-000 TAPE RETAINER 12 B9207-761-000 TAPE RETAINER SPRING 13 SS-6060210-SP SCREW 3/32-56 L=1.9 14 B9205-761-000 SPACER FOR TAPE RETAINER 15 SS-5060410-SP SCREW 3/32-56 L=3.5 16 B9402-771-000 MEASURING GAUGE, CROSSWISE 17 SS-6110610-TP SCREW 11/64-40 L=6 18 WP-0501016-SD WASHER 5X10.5X1 19 B9401-761-000 DISTANCE MEASURING GAUGE 20 SS-7110840-SP SCREW 11/64-40 L=7.8 21 WP-0501016-SD WASHER 5X10.5X1 22 01 B2745-771-F00 KNIFE 1/4" (FLUOROCARBON) 23 01 B2745-771-K00 KNIFE 3/8" (FLUOROCARBON) 24 01 B2745-771-L00 KNIFE 1/2" 25 01 B2745-771-M00 KNIFE 5/8" 26 01 B2745-771-N00 KNIFE 3/4" 27 01 B2745-771-P00 KNIFE 7/8" (FLUOROCARBON) 28 01 B2745-771-Q00 KNIFE 1" 29 01 B2745-771-R00 KNIFE 1-1/8" (FLUOROCARBON) 30 01 B2745-771-S00 KNIFE 1-1/4" 31 01 B2745-771-T00 KNIFE 9/16" (FLUOROCARBON) 32 B2746-771-000 KNIFE GUARD 33 B2402-771-00B THROAT PLATE (FLUOROCARBON) 34 02 B2745-771-P0B KNIFE 7/8" 35 02 B2745-771-Q0B KNIFE 1" 36 02 B2745-771-R0B KNIFE 1-1/8 37 02 B2745-771-S0B KNIFE 1-1/4 38 B2702-047-F00 KNIFE 5/8 39 B2702-047-K00-A KNIFE 3/8 40 B2702-047-100 KNIFE (7/16) 41 B2702-047-L0A KNIFE 1/2 42 B2702-047-V0B KNIFE 14 43 B2702-047-V00 KNIFE 9/16 44 B2702-047-M0A KNIFE 5/8 45 B2702-047-M00 KNIFE 3/4 46 B2702-047-N00-A KNIFE 11/16 47 B2702-047-N0A KNIFE 3/4" 48 B2702-047-C00 KNIFE 13/16 49 B2702-047-C00 KNIFE 13/16 50 B2702-047-Q00-A KNIFE 1 51 B2702-047-R00 KNIFE 1-1/8 52 B2702-047-S0A KNIFE 1-1/4 53 B2702-047-S0-A KNIFE 1-1/4" 54 B2702-047-U00 KNIFE (1-1/2) 55 B1157-771-0A0 HOOK OIL SHIELD ASM. 56 B1157-771-000 HOOK OIL SHIELD 57 B1158-771-000 HOOK OIL SHIELD SPRING 58 B1159-771-000 SPRING SET PLATE 59 SS-5090610-SP SCREW 9/64-40 L=6 60 B1161-771-000 HOOK OIL SHIELD HINGE 61 B1161-771-000 HINGE PIN 62 SS-7110510-SP SCREW 11/64-40 L=5 63 SS-7110710-SP SCREW 11/64-40 L=7 64 WP-0480856-SP WASHER 4.8X8.4X0.8 65 B7272-781-000 COVER MOUNTING BRACKET B 66 WP-0501016-SC WASHER 5X10.5X1 67 SK-3452000-SE WOOD SCREW D=4.5 L=20 68 NS-6110310-SP NUT 11/64-40 69 B7273-781-000 SPEED TRANSMITTER COVER 70 262-36703 COVER MOUNTING BRACKET C 01...FOR FLUOROCARBON 02...FOR HEAVY WEIGHT METERIALS - 38 - jintex.in

Page 44 — 22. EXCHANGING PARTS

22. EXCHANGING PARTS 交換部品 (1) TABLE OF CHANGING GEARS 交換歯車一覧表 1. Small gear 小歯車 2. Large gear 大歯車 Set Stitch No. Part No. Stitch No. Part No. A 54 B2936-761-000 345 B2937-761-000 B 62 B2938-761-000 300 B2939-761-000 C 66 B2940-761-000 285 B2941-761-000 D 70 B2942-761-000 268 B2943-761-000 E 74 B2944-761-000 252 B2945-761-000 F 79 B2946-761-000 238 B2947-761-000 G 83 B2928-761-000 225 B2929-761-000 H 88 B2948-761-000 212 B2949-761-000 I 93 B2950-761-000 200 B2951-761-000 J 100 B2930-761-000 190 B2931-761-000 K 105 B2952-761-000 180 B2953-761-000 L 110 B2932-761-000 170 B2933-761-000 M 115 B2954-761-000 160 B2955-761-000 N 123 B2934-761-000 152 B2935-761-000 0 130 B2956-761-000 145 B2957-761-000 (2) TABLE SHOWING PARTS USED IN CONNECTION WITH KNIVES メス関連表 Knife Work clamp check Throat plate A B C No. Size (mm) Part No. 品番 Part No. 品番 Part No. 品番 1 1/4" (6.35) B2702-047-F00 2 3/8" (9.53) B2702-047-K00-A 3 1/2" (12.7) B2702-047-L00-A B1552-781-000-A 4 9/16" (14.29) B2702-047-V00 5 5/8" (15.88) B2702-047-M00-A B2402-771-000 6 3/4" (19.05) B2702-047-P00 7 7/8" (22.23) B2702-047-Q00 B1552-782-000 8 1" (25.4) B2702-047-Q00-A 9 1-1/4" (31.75) B2702-047-S00-A B1552-783-000 10 1-3/8" (34.9) B2745-774-00A-A 11 1-1/2" (38.1) B2745-774-008-A B1552-784-000 B2402-774-000 Note (注釈) Standard model machine is used as the standard for work clamp check and throat plate. 押えと針板は標準機種を基準にしています。 -39- jintex.in

Page 45 — 23. EXCLUSIVE PARTS FOR LBH-781-K

23. EXCLUSIVE PARTS FOR LBH-781-K LBH-781-K専用部品 (1) LBH-781-K REF. NO NOTE PART NO. DESCRIPTION Qty. 1 D1508-771-K00-A LATCH WORK CLAMP CHECK メリヤスオサエ(K) 1 2 D2402-772-K00 THROAT PLATE (K) ハリイタ 2K 1 3 B1808-761-0AB HOOK ASM. カマカセンョークミ 1 4 D3110-772-TA0 THREAD TENSION NO.3 ASM. K TVヨーダイ2 イトチョークミ 1 5 SS-8090670-SP SCREW 9/64-40 L= 5.5 トメネジ 9/64-40 L=5.5 (1) 6 B3110-771-000 TENSION POST SOCKET イトチョーシボー・ダイ (1) 7 B3111-761-000 TENSION POST NO.3 イトチョーシボー (1) 8 B3112-761-000 THREAD TAKE-UP SPRING イトトリハネ (1) 9 B3126-012-000 THREAD TENSION DISK イトチョーシサラ (2) 10 B3107-804-000 THREAD TENSION DISK PRESSER イトチョーシサラオサエ (1) 11 B3129-012-A00 TENSION SPRING イトチョーシハネ A (1) 12 B3120-125-000 ROTATING STOPPER イトチョーシサラカイテンド・メ (1) 13 B3119-771-000 THREAD TENSION NUT イトチョーシナット (1) 14 D9101-771-K00 HOOK TIMING GAUGE (K) カマタイミングゲージ K 1 15 01 D1508-771-K0B WORK CLAMP CHECK 5/8" メリヤスオサエ 5/8 (ヘーダンヨー) 1 16 01 D1508-771-K0C WORK CLAMP CHECK 1/2" メリヤスオサエ 1/2 (ヘーダンヨー) 1 17 02 D1508-771-KOE WORK CLAMP CHECK 5/8" ダンブオサエ 5/8 1 18 02 D1508-771-KOF WORK CLAMP CHECK 1/2" ダンブオサエ 1/2 1 19 03 D1508-771-KOH WORK CLAMP CHECK マエタテオサエ 1 NOTE (注記) 01...SPECIAL ORDER PARTS FOR FLAT 平坦用特別注文部品 02...SPECIAL ORDER PARTS 段部用特別注文部品 FOR UNEVEN THICKNESS 03...SPECIAL ORDER PARTS FOR FRONT 前立て用特別注文部品 ALL PARTS OTHER THAN ABOVE ARE SAME AS THOSE OF MODEL LBH-781. 上記以外の部品はLBH-781と共通です。 -40- jintex.in

Page 46 — 24. EXCLUSIVE PARTS FOR LBH-782-K,LBH-783-K

24. EXCLUSIVE PARTS FOR LBH-782-K,LBH-783-K LBH-782-K·LBH-783-K専用部品 (1) LBH-782-K 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 (2) LBH-783-K 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 - 41 - jintex.in

Page 47

REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 B2702-047-Q00-A KNIFE 1 メス 1 1 2 B1608-772-000 LENGTH REGULATING SHAFT GUIDE ヌノクリナガサシン 1 3 B1511-772-0B0 WORK CLAMP CHECK HOLDER ASM. オサエアシクミ 1 4 D1508-772-K00 WORK CLAMP CHECK (2K) オサエ K 1 5 D2402-772-K00 THROAT PLATE (K) ハリイタ 2K 1 6 B1808-761-0AB HOOK ASM. カマカセンヨークミ 1 7 B2931-761-000 SPUR GEAR (190) コーカンハグルマ 190 1 8 B2930-761-000 SPUR GEAR (100) コーカンハグルマ 100 1 9 D3110-772-TA0 THREAD TENSION NO.3 ASM. K TVヨーダイ 2 イトチョーシクミ 1 10 SS-8090670-SP SCREW 9/64-40 L= 5.5 トメネジ 9/64-40 L=5.5 (1) 11 B3110-771-000 TENSION POST SOCKET イトチョーシボーダイ (1) 12 B3111-761-000 TENSION POST NO.3 イトチョーシボー (1) 13 B3112-761-000 THREAD TAKE-UP SPRING イトトリハネ (1) 14 B3126-012-000 THREAD TENSION DISK イトチョーシサラ (2) 15 B3107-804-000 THREAD TENSION DISK PRESSER イトチョーシサラオサエ (1) 16 B3129-012-000 TENSION SPRING イトチョーシハネ A (1) 17 B3120-125-000 ROTATING STOPPER イトチョーシサラカイデント・メ (1) 18 B3119-771-000 THREAD TENSION NUT イトチョーシシナツト (1) 19 D9101-771-K00 HOOK TIMING GAUGE (K) カマタイミングゲーシ K 1 20 B1511-772-0B0 WORK CLAMP CHECK HOLDER ASM. オサエアシクミ 1 21 D1508-772-K00 WORK CLAMP CHECK (3K) オサエ K 1 22 D2402-772-K00 THROAT PLATE (K) ハリイタ 2K 1 23 B2949-761-000 SPUR GEAR (212) コーカンハグルマ 212 1 24 B2948-761-000 SPUR GEAR (88) コーカンハグルマ 88 1 25 B1808-761-0AB HOOK ASM. カマカセンヨークミ 1 26 B2702-047-S00-A KNIFE 1-1/4" メス(1-1/4") 1 27 B1608-762-000 LENGTH REGULATING SHAFT GUIDE ヌノクリナガサシン 1 28 D3110-772-TA0 THREAD TENSION NO.3 ASM. K TVヨーダイ 2 イトチョーシクミ 1 29 SS-8090670-SP SCREW 9/64-40 L= 5.5 トメネジ 9/64-40 L=5.5 (1) 30 B3110-771-000 TENSION POST SOCKET イトチョーシボーダイ (1) 31 B3111-761-000 TENSION POST NO.3 イトチョーシボー (1) 32 B3112-761-000 THREAD TAKE-UP SPRING イトトリハネ (1) 33 B3126-012-000 THREAD TENSION DISK イトチョーシサラ (1) 34 B3107-804-000 THREAD TENSION DISK PRESSER イトチョーシサラオサエ (1) 35 B3129-012-A00 TENSION SPRING イトチョーシハネ A (1) 36 B3120-125-000 ROTATING STOPPER イトチョーシサラカイデント・メ (1) 37 B3119-771-000 THREAD TENSION NUT イトチョーシシナツト (1) 38 D9101-771-K00 HOOK TIMING GAUGE (K) カマタイミングゲーシ K 1 NOTE (注記) ALL PARTS OTHER THAN ABOVE ARE SAME AS THOSE OF MODEL LBH-781 上記以外の部品は LBH-781 と共通です。

Page 48 — 25. EXCLUSIVE PARTS FOR LBH-784-K

25. EXCLUSIVE PARTS FOR LBH-784-K LBH-784-K専用部品 (1) LBH-784-K 22 23 24 25 26 21 27 28 29 30 31 32 33 32 34 35 36 37 38 39 40 40 41 42 43 1 44 45 2 3 6 8 5 9 10 11 12 13 14 15 16 17 18 19 20 - 43 - jintex.in

Page 49

REF. NO NOTE PART NO. DESCRIPTION Qty 1 B1513-774-000 WORK CLAMP BRACKET オサエフック 1 2 B1551-774-000-A WORK CLAMP ARM (4) オサエツケ (4) 1 3 B1609-774-000 WORK CLAMP ARM SLIDE ROD ヌノオクリジツク 1 4 B1808-761-0AB HOOK ASM. カマカセンヨークミ 1 5 D9101-771-K00 HOOK TIMING GAUGE (K) カマタイミングゲーシ K 1 6 B1606-774-000 WORK CLAMP CARRIER PITMAN ヌノオクリロツド 1 7 SD-0870401-SP HINGE SCREW D= 8.73 H= 4 ダンネン D= 8.73 H=4 1 8 B1605-774-000 FEED ADJUSTING SHAFT オクリチョウセツシク 1 9 B2745-774-00B-A KNIFE 1-1/2" メス(1-1/2") 1 10 B2745-774-00A-A KNIFE 1-3/8" メス(1-3/8") 1 11 D1508-774-K00 WORK CLAMP CHECK, K オサエ 1 12 400-09447 WORK CLAMP CARRIER(4) ヌノオクリタイ(4) 1 13 B1612-774-000 WORK CLAMP ARM BRACKET GUIDE ヌノオクリタイアンナイイタ 1 14 B1516-774-000 WORK CLAMP ARM BEARING BRACKET オサエウデシジサデ 1 15 B1611-774-0A0 WORK CLAMP ARM BRACKET ASM. ヌノオクリタイクミ 1 16 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 (1) 17 B1608-774-000 LENGTH REGULATING SHAFT GUIDE ヌノオクリナガサシツシン 1 18 B1603-774-0A0 LENGTH REGULATING ARM ASM. ヌノオクリウデウエクミ 1 19 B2944-761-000 SPUR GEAR (74) コーカンハグルマ 74 1 20 B2945-761-000 SPUR GEAR 252 コーカンハグルマ 252 1 21 D3110-772-TA0 THREAD TENSION NO.3 ASM. K TVヨーダイ 2 イトチョーシクミ 1 22 SS-8090670-SP SCREW 9/64-40 L= 5.5 トメネジ 9/64-40 L=5.5 (1) 23 B3110-771-000 TENSION POST SOCKET イトチョーシボーダイ 1 24 B3110-761-000 TENSION POST SOCKET イトチョーシボーダイ 1 25 B3112-761-000 THREAD TAKE-UP SPRING イトトリツネ 1 26 B3126-012-000 THREAD TENSION DISK イトチョーシサラ 1 27 B3107-804-000 THREAD TENSION DISK PRESSER イトチョーシサラオサエ 1 28 B3129-012-A00 TENSION SPRING イトチョーシハネ A 1 29 B3120-125-000 ROTATING STOPPER イトチョーシサラカイトントメ 1 30 B3119-771-000 THREAD TENSION NUT イトチョーシナツト 1 31 D2401-774-KC0 NEEDLE PLATE ASM. ハリイタダイクミ 1 32 SS-8090530-SP SCREW 9/64-40 L= 4.8 マルサラネジ 9/64-40 L=4.8 (2) 33 D2402-774-K00 THROAT PLATE, K ハリイタ 4K 1 34 B2401-774-0A0 THROAT PLATE BASE ASM. ハリイタダイクミ 1 35 B2406-771-0A0 BOBBIN THREAD TRIMMER BLADE AS שיטאי키리 메스 1 36 SS-5090320-SP SCREW 9/64-40 L= 3.2 トラスネジ 9/64-40 L=3.2 (1) 37 B2408-771-000-A COUNTER KNIFE コテイメス 1 38 SS-4080310-SP SCREW 1/8-44 L=3.4 ナベネジ 1/8-44 L=3.4 (2) 39 B2405-771-000 BOBBIN THREAD PULLER שיטאי 타쿠 리우데 1 40 SS-6090440-SP SCREW 9/64-40 L= 4.0 ヒラネジ 9/64-40 L=4 (2) 41 B2404-771-000 BOBBIN THREAD TRIMMER LEVER שיטאי 쿠데 1 42 WP-0451016-SP WASHER 4.5X20X1 ヒラザガネ 4.5X20X1 1 43 SS-5090320-SP SCREW 9/64-40 L= 3.2 トラスネジ 9/64-40 L=3.2 (1) 44 B1511-774-0A0 WORK CLAMP CHECK HOLDER ASM. オサエヤクミ 1 45 SD-0790203-SP HINGE SCREW D=7.94 H=2 ダンネジ D=7.94 H=2 1 NOTE (注記) ALL PARTS OTHER THAN ABOVE ARE SAME AS THOSE OF MODEL LBH-781 上記以外の部品はLBH-781と同じです。 - 44 - jintex.in

Page 50 — 26. LIST FOR INFORMATION OF CHANGE

26. LIST FOR INFORMATION OF CHANGE 変更情報リスト As to the place changed, refer to the corresponding Rev. No. When previous parts(Obsoleted part)and new parts(Added parts)are not interchangeable with each other: In this case,even obsoleted parts(D.)can be ordered with the obsoleted part number, so select the parts with changed dates and place your orders. 変更箇所は、該当Rev. No.版をご参照ください。部品の互換性がない変更の場合は、削除された品番でも、ご注文できます。 BE078130PJA No.0158-20 Rev. No. *A:Added parts追加部品/D:Obsoleted parts削除部品/E:Errata訂正 Rev. Page Ref. No. No. No. Parts No. 品番 Rev. Page Ref. No. No. No. Parts No. 品番 * D 19 4 1 B3155-781-0A0 A 20 4 1 400-52419 D 19 4 3 SS-4110715-SP A 20 4 3 SM-4040655-SP D 19 4 5 SD-0601021-SP D 19 4 6 139-43204 D 19 4 7 WP-0740516-SP D 19 4 8 262-26407 D 19 4 9 B3155-781-000 A 20 4 5 400-52354 D 19 4 10 B3121-372-000 D 19 4 11 PS-0200062-KH D 19 4 12 NS-6110310-SP D 19 4 13 NS-6120310-SP D 19 30 4 D2611-555-B00-A A 20 30 4 B3571-771-000 D 19 38 16 B3120-761-0A0 - 45 - jintex.in

Page 55

jinte.in jinte.in

Page 56

JUKI JUKI CORPORATION Copyright © 1996-2007 JUKI CORP. 本書の内容を無断で転載、複写することを禁止します。 All rights reserved throughout the world. JUKI株式会社おい求め、ご相談は To order or for further information, please contact ; ※このパーツリストは商品改良のため予告なく変更する事があります。 * The description covered in this parts list is subject to change for improvement of the commodity without notice. ※このパーツリストは、2007年2月現在の商品仕様で編集したものです。 * This parts list is edited in accordance with the product specifications as of February 2007. Printed in Japan jintex.in

Ref	Part number	Part name	Qty
	27	27
	28	28
	29	29
	30	30
	25	25
	26	26
	39	39
	38	38
	31	31
	36	36
	41	41
	37	37
	33	33
	32	32
	34	34
	35	35
	19	19
	22	22
	20	20
	21	21
	44	44
	42	42
	43	43
	21	21
	45	45
	24	24
	23	23
	14	14
	46	46
	47	47
	48	48
	56	56
	49	49
	50	50
	53	53
	52	52
	51	51
	54	54
	40	40
	55	55

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52

Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38

Ref	Part number	Part name	Qty
	27	27
	28	28
	29	29
	30	30
	25	25
	26	26
	39	39
	38	38
	31	31
	36	36
	41	41
	37	37
	33	33
	32	32
	34	34
	35	35
	19	19
	22	22
	20	20
	21	21
	44	44
	42	42
	43	43
	21	21
	45	45
	24	24
	23	23
	14	14
	46	46
	47	47
	48	48
	56	56
	49	49
	50	50
	53	53
	52	52
	51	51
	54	54
	40	40
	55	55

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52

Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38

Ref	Part number	Part name	Qty
	27	27
	28	28
	29	29
	30	30
	25	25
	26	26
	39	39
	38	38
	31	31
	36	36
	41	41
	37	37
	33	33
	32	32
	34	34
	35	35
	19	19
	22	22
	20	20
	21	21
	44	44
	42	42
	43	43
	21	21
	45	45
	24	24
	23	23
	14	14
	46	46
	47	47
	48	48
	56	56
	49	49
	50	50
	53	53
	52	52
	51	51
	54	54
	40	40
	55	55

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52

Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
