Juki LH-3168 Parts Book (PDF)

Double Needle Lockstitch · also listed as LH3168, 3168Download PDF

Text index — Juki LH-3168

Page 7 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Juki LH-3168 parts on page 7
Ref	Part number	Part name	Qty
1	SS-4110815-SP	SCREW 11/64-40 L=8	5
2	106-02902	SLIDE PLATE	1
3	101-01004	GASKET	1
4	SS-4110815-SP	SCREW 11/64-40 L=8	3
5	SS-6111140-SP	SCREW 11/64-40 L=11	3
6	D2112-555-B00	CORD HOLDER, LARGE	2
7	SS-4120615-SP	SCREW 3/16-28 L=6	1
8	229-51552	GROUND WIRE ASM.	1
9	SS-4120615-SP	SCREW 3/16-28 L=6	1
10	WT-0530002-KS	TOOTHED WASHER D=5.3	1
11	226-19100	CAP	1
12	TA-0750404-RO	PLUG D=7.5 L=3.5	2
13	TA-1250406-RO	RUBBER PLUG D=12.5 L=4	3
14	226-20900	CAP	1
15	TA-0750704-RO	RUBBER PLUG	2
16	SS-6151780-SP	SCREW 15/64-28 L=17.0	2
17	226-02007	THREAD TAKE-UP LEVER OIL GUARD	1
18	TA-1250406-RO	RUBBER PLUG D=12.5 L=4	1
19	D2112-555-B00	CORD HOLDER, LARGE	2
20	226-80250	FACE PLATE ASM.	1
21	SS-4121015-SP	SCREW 3/16-28 L=10	4
22	TA-1250406-RO	RUBBER PLUG D=12.5 L=4	2
23	229-20706	TWO EYELET	2
24	SS-8120740-SP	SCREW 3/16-28 L=7	2
25	226-03013	THREAD GUIDE (UPPER)	1
26	SS-2090710-TP	SCREW 9/64-40 L=7.2	1
27	226-03112	THREAD GUIDE	1
28	SS-2090710-TP	SCREW 9/64-40 L=7.2	1
29	226-03203	THREAD GUIDE(LOWER)	1
30	SS-2090710-TP	SCREW 9/64-40 L=7.2	1
31	B1104-051-000	THROAT PLATE PIN	1
32	226-80003	PLATE	1
33	SS-9110460-CP	SCREW 11/64-40 L=4	2
34	229-01805	GROUND MARK	1
35	SS-2090710-TP	SCREW 9/64-40 L=7.2	2
36	SS-6090630-SP	SCREW 9/64-40 L=6	1
37	SS-2110920-TP	SCREW 11/64-40 L=8.5	1
38	226-01058	BED SLIDE LEFT, ASM., A	1
39	226-50857	BED SLIDE LEFT, ASM., A	1
40	226-25503	THROAT PLATE 1/4	1
41	226-60609	THROAT PLATE 1/4	1
42	226-00555	BED SLIDE RIGHT, ASM., A	1
43	226-50352	BED SLIDE RIGHT, ASM., A	1
44	226-50055	BED SLIDE ASM.	1
45	226-50055	BED SLIDE ASM.	1
46	226-02601	BED SCREW STUD	4
47	226-51459	THREAD GUIDE ASM., E	1
48	226-03609	THREAD GUIDE	1
49	226-03708	FELT	1
50	SS-8151150-SP	SCREW 15/64-28 L=10.5	1
51	228-18009	BALANCE COVER(FOR JE)	1
52	SS-5090610-SP	SCREW 9/64-40 L=6	1
53	226-51202	AUXILIARY COVER	1
54	226-57803	RUBBER PLUG	1
55	M6043-350-AAA	RESISTANCE PACK ASM.,AA	1
56	SS-4111015-SP	SCREW 11/64-40 L=10	1
57	SS-8150410-TP	SCREW 15/64-28 L= 4.0	1
58	CM-3002001-A1	SAFETY LABEL.,3 (SMALL).	1
59	CM-3002001-01	SAFETY LABEL, 1(SMALL).	1
60	400-21415	INSTRUCTION MANUAL(SUPPLEMENT)	1

Page 9 — 2. MAIN SHAFT & THREAD TAKE-UP COMPONENTS

Juki LH-3168 parts on page 9
Ref	Part number	Part name	Qty
1	226-05356	THREAD TAKE-UP LEVER PIN ASM.	1
2	226-05307	THREAD TAKE-UP LEVER PIN	(1)
3	CQ-2020000-00	OIL WICK	(0.4)
4	CQ-2520000-00	OIL WICK	(0.04)
5	232-03805	TAKE-UP LEVER B	1
6	232-03904	TAKE-UP LEVER C	1
7	226-05406	TAKE-UP LEVER THRUST PIN	1
8	CQ-2520000-00	OIL WICK	0.03
9	SS-8151150-TP	SCREW 15/64-28 L=10.5	2
10	226-22401	SYNCRO FRNGE	1
11	226-80656	NEEDLE BAR CRANK PIN ASM.	1
12	CQ-5050000-00	OIL WICK	(0.1)
13	SS-8680540-SP	SCREW 9/32-28 L= 4.5	1
14	B1202-512-000	MAIN SHAFT BUSHING, FRONT	1
15	226-23201	SPROCKET WHEEL	1
16	SS-6661110-SP	SCREW 1/4-40 L=11	4
17	226-04508	HAND WHEEL	1
18	SS-8151550-SP	SCREW 15/64-28 L=15	2
19	226-51566	HAND WHEEL ASM.	1
20	226-51558	HAND WHEEL	(1)
21	226-51509	HAND WHEEL	(1)
22	M4002 110-000	GENERATOR ROTOR	(1)
23	M4007-110-0AA	MAGNET FITTING BASE A ASM.	(1)
24	M4007-110-0AB	MAGNET FITTING BASE B ASM.	(1)
25	SS-8151550-SP	SCREW 15/64-28 L=15	(2)
26	SS-6111210-SP	SCREW 11/64-40 L=12	(2)
27	WP-0450801-SD	WASHER 4.5X10X0.8	(2)
28	229-37965	DYNAMO STATOR	1
29	106-04809	SCREW	2
30	226-03906	UPPER SHAFT INNER METAL	1
31	226-22351	SENSOR SUPPORT SHAFT ASM.	1
32	226-04656	THRUST COLLAR ASM.	1
33	226-04607	THRUST COLLAR	(1)
34	SB-1200001-00	BEARING D=20X47	(1)
35	R0-4372002-00	RUBBER RING	(1)
36	SS-8660530-TP	SCREW 1/4-40 L= 4.5	(2)
37	226-04409	COUNTERWEIGHT	1
38	SS-8681650-TP	SCREW 9/32-28 L=16	1
39	SS-7681750-TP	SCREW 9/32-28 L=16.5	1
40	SS-8680810-TP	SCREW 9/32-28 L=8.0	1
41	226-04003	MAIN SHAFT	1
42	226-04904	UPPER SPROCKET	1
43	226-04300	TIMING BELT	1
44	226-51608	SPROCKET WHEEL	1
45	SS-7120760-SP	SCREW 3/16-28 L= 7.0	2

Page 11 — 3. NEEDLE BAR COMPONENTS

Juki LH-3168 parts on page 11
Ref	Part number	Part name	Qty
1	226-82652	NEEDLE ROD ROCKING BASE ASM.	1
2	226-93451	NEEDLE ROD ROCKING BASE ASM.	1
3	232-04951	NEEDLE ROD ROCKING BASE ASM.	(1)
4	232-04902	NEEDLE ROD ROCKING BASE	(1)
5	226-06602	NEEDLE BAR SHAFT	(1)
6	PT-0502700-SO	TAPERED PIN	(1)
7	226-82702	NEEDLE BAR SWIVEL STOPPER	(1)
8	226-81712	STOPPER SCREW	(2)
9	226-82850	FELT ASM.	(1)
10	226-81951	SLIDER BLOCK ASM. A	(1)
11	226-82058	SLIDER BLOCK ASM. B	(1)
12	226-82157	SLIDE BLOCK	(1)
13	226-82256	SLIDER BLOCK ASM. D	(1)
14	226-82355	SLIDER BLOCK ASM. E	(1)
15	226-81803	SLIDE BLOCK GUIDE PLATE	(1)
16	SS-4090815-SP	SCREW 9/64-40 L=8	(2)
17	226-85903	FELT GUIDE	(1)
18	WP-0450000-SD	WASHER 4.5X8X0.5	(1)
19	SS-7110710-SP	SCREW 11/64-40 L=7	(1)
20	226-86000	NEEDLE BAR OIL SEAL FELT, A	(1)
21	226-85804	NEEDLE BAR OIL SEAL PLATE	(1)
22	SS-6060510-TP	SCREW 3/32-56 L=4.5	(1)
23	226-86158	OIL SEAL FELT ASM., B	(1)
24	226-81407	NEEDLE BAR STOPPER	(2)
25	226-81506	SPRING	(2)
26	226-81316	STOPPER SPRING COVER	(1)
27	SS-6080410-SP	SCREW 1/8-44 L=4	(1)
28	226-93253	NEEDLE BAR UNIT, LEFT	(1)
29	226-85150	NEEDLE BAR ASM., LEFT	(1)
30	226-85101	NEEDLE BAR, LEFT	(1)
31	226-85200	SEESAW PLATE	(1)
32	226-85408	NEEDLE BAR PIN	(1)
33	226-82504	SPRING BEARING	(1)
34	B1425-526-000	SCREW 1/8-44 L=6	(1)
35	B1402-528-FAL-A	NEEDLE CLAMP ASM. 1/4	(1)
36	B1425-526-000	SCREW 1/8-44 L=6	(1)
37	226-93352	NEEDLE BAR UNIT, RIGHT	(1)
38	226-85358	NEEDLE BAR ASM., RIGHT	(1)
39	226-85309	NEEDLE BAR, RIGHT	(1)
40	226-85200	SEESAW PLATE	(1)
41	226-85408	NEEDLE BAR PIN	(1)
42	226-82504	SPRING BEARING	(1)
43	B1425-526-000	SCREW 1/8-44 L=6	(1)
44	B1402-528-FAR-A	NEEDLE CLAMP ASM. 1/4	(1)
45	B1425-526-000	SCREW 1/8-44 L=6	(1)
46	226-85168	NEEDLE BAR UNIT, LEFT	(1)
47	226-85366	NEEDLE BAR UNIT, RIGHT	(1)
48	SS-4090715-SP	SCREW 9/64-40 L=7	(2)
49	226-83056	NEEDLE BAR CONNECTION ASM.	(1)
50	SS-7060310-SP	SCREW 3/32-56 L=3	(1)
51	226-83205	RELEASE PIN COVER	(1)
52	226-83304	SPRING	(1)
53	226-83106	RELEASE PIN	(1)
54	226-83809	SPRING	(2)
55	226-83007	NEEDLE BAR CONNECTION	(1)
56	226-83403	NEEDLE BAR CONNECTION PIN	(1)
57	226-84104	SPRING	(2)
58	SS-6080340-SP	SCREW 1/8-44 L=2.9	(2)
59	226-84203	SPRING BRACKET	(1)
60	226-83908	CLUTCH STOPPER, LEFT	(1)
61	226-84005	CLUTCH STOPPER, RIGHT	(1)
62	226-83502	NEEDLE BAR CLUTCH	(2)
63	B1705-850-000	STOPPER PIN	(2)
64	226-83601	CLUTCH LEVER	(2)
65	CQ-2520000-00	OIL WICK	(0.1)
66	400-15144	NEEDLE BAR CONNECTION PIN	(1)
67	232-04506	ROCKING ROD SQUARE BLOCK A	(1)
68	232-04605	ROCKING ROD SQUARE BLOCK B	(1)
69	232-04704	ROCKING ROD SQUARE BLOCK C	(1)
70	226-84609	NEEDLE BAR CRANK ROD	(1)
71	B1438-512-B00	WASHER 17.1X28X1.5	1
72	226-07303	BUSHING	1
73	226-07402	BUSHING	1
74	226-07006	REAR ARM	1
75	SS-6152440-SP	SCREW 15/64-28 L=23.5	1
76	SD-0870601-SP	HINGE SCREW D= 8.73 H= 6.0	2
77	NS-6150430-SP	NUT 15/64-28	2
78	226-07105	DRIVING ROD	1
79	226-07204	DRIVING ARM	1
80	SS-6121610-TP	SCREW 3/16-28 L=15.5	1
81	MDP-500B1400	NEEDLE DPX5 #14	2
82	226-85705	OIL GUARD RUBBER	1
83	B1414-512-000	OIL WICK RETAINER	1

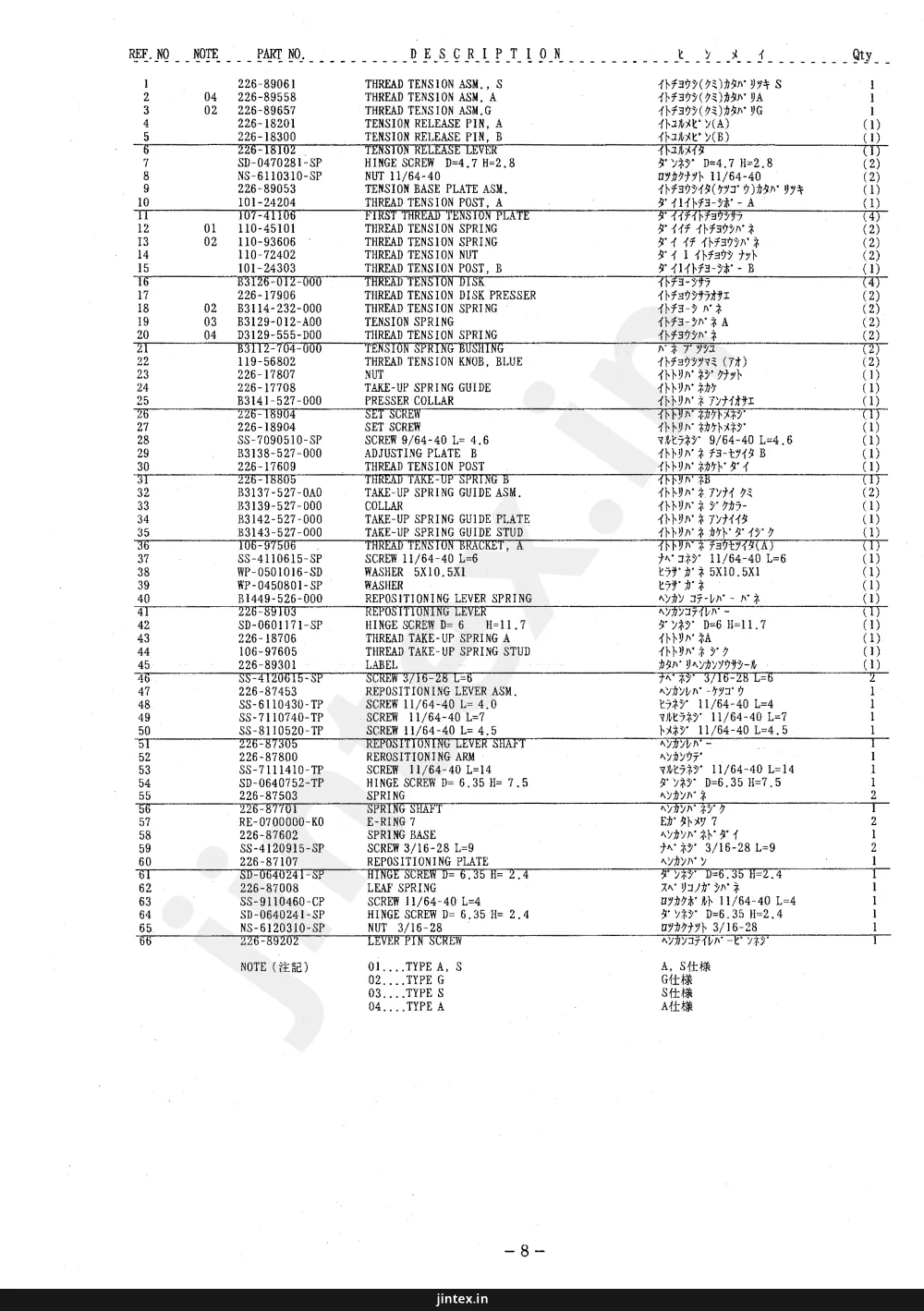

Page 13 — 4. TENSION POST COMPONENTS

Juki LH-3168 parts on page 13
Ref	Part number	Part name	Qty
1	226-89061	THREAD TENSION ASM., S	1
2	226-89558	THREAD TENSION ASM. A	1
3	226-89657	THREAD TENSION ASM.G	1
4	226-18201	TENSION RELEASE PIN, A	(1)
5	226-18300	TENSION RELEASE PIN, B	(1)
6	226-18102	TENSION RELEASE LEVER	(1)
7	SD-0470281-SP	HINGE SCREW D=4.7 H=2.8	(1)
8	NS-6110310-SP	NUT 11/64-40	(2)
9	226-89053	TENSION BASE PLATE ASM.	(1)
10	101-24204	THREAD TENSION POST, A	(1)
11	107-41106	FIRST THREAD TENSION PLATE	(4)
12	110-45101	THREAD TENSION SPRING	(2)
13	110-93606	THREAD TENSION SPRING	(2)
14	110-72402	THREAD TENSION NUT	(2)
15	101-24303	THREAD TENSION POST, B	(1)
17	226-17906	THREAD TENSION DISK PRESSER	(2)
18	B3114-232-000	THREAD TENSION SPRING	(2)
19	B3129-012-A00	TENSION SPRING	(2)
20	D3129-555-D00	THREAD TENSION SPRING	(2)
21	B3112-704-000	TENSION SPRING BUSHING	(2)
22	119-56802	THREAD TENSION KNOB, BLUE	(2)
23	226-17807	NUT	(1)
24	226-17708	TAKE-UP SPRING GUIDE	(1)
25	B3141-527-000	PRESSER COLLAR	(1)
26	226-18904	SET SCREW	(1)
28	SS-7090510-SP	SCREW 9/64-40 L=4.6	(1)
29	B3138-527-000	ADJUSTING PLATE, B	(1)
30	226-17609	THREAD TENSION POST	(1)
31	226-18805	THREAD TAKE-UP SPRING B	(1)
32	B3137-527-0A0	TAKE-UP SPRING GUIDE ASM.	(2)
34	B3142-527-000	TAKE-UP SPRING GUIDE PLATE	(1)
35	B3143-527-000	TAKE-UP SPRING GUIDE STUD	(1)
36	106-97506	THREAD TENSION BRACKET, A	(1)
37	SS-4110615-SP	SCREW 11/64-40 L=6	(1)
38	WP-0501016-SD	WASHER 5X10.5X1	(1)
39	WP-0450801-SP	WASHER	(1)
40	B1449-526-000	REPOSITIONING LEVER SPRING	(1)
41	226-89103	REPOSITIONING LEVER	(1)
42	SD-0601171-SP	HINGE SCREW D=6 H=11.7	(1)
43	226-18706	THREAD TAKE-UP SPRING A	(1)
44	106-97605	THREAD TAKE-UP SPRING STUD	(1)
45	226-89301	LABEL	(1)
47	226-87453	REPOSITIONING LEVER ASM.	(1)
49	SS-7110740-TP	SCREW 11/64-40 L=7	(1)
50	SS-8110520-TP	SCREW 11/64-40 L=4.5	(1)
51	226-87305	REPOSITIONING LEVER SHAFT	(1)
52	226-87800	REROSITIONING ARM	(1)
53	SS-7111410-TP	SCREW 11/64-40 L=14	(1)
54	SD-0640752-TP	HINGE SCREW D=6.35 H=7.5	(1)
55	226-87503	SPRING	(2)
57	RE-0700000-KO	E-RING 7	(2)
58	226-87602	SPRING BASE	(1)
59	SS-4120915-SP	SCREW 3/16-28 L=9	(2)
60	226-87107	REPOSITIONING PLATE	(1)
61	SD-0640241-SP	HINGE SCREW D=6.35 H=2.4	(1)
62	226-87008	LEAF SPRING	(1)
63	SS-9110460-CP	SCREW 11/64-40 L=4	(1)
65	NS-6120310-SP	NUT 3/16-28	(1)
66	226-89202	LEVER PIN SCREW	(1)

Page 15 — 5. HOOK DRIVING SHAFT COMPONENTS

Juki LH-3168 parts on page 15
Ref	Part number	Part name	Qty
1	101-08512	HOOK DRIVING SHAFT	1
2	B1802-512-0AO-A	BUSHING ASM., FRONT	1
3	SS-8151150-SP	SCREW 15/64-28 L=10.5	1
4	B1816-512-000	HOOK DRIVING SHAFT, LARGE	2
5	SS-8660810-TP	SCREW 1/4-40 L=8	4
6	101-1200I	HOOK SHAFT GEAR, A	2
7	SS-8660530-TP	SCREW 1/4-40 L= 4.5	6
8	226-09804	FEED DRIVING CAM	1
9	SS-8660530-TP	SCREW 1/4-40 L= 4.5	1
10	B1803-515-0AO	BUSHING ASM., INTERMEDIATE	1
11	101-08611	PLUNGER BUSHING	1
12	SS-8151150-SP	SCREW 15/64-28 L=10.5	2
13	226-13608	GEAR GUIDE	2
14	106-11457	THRUST COLLAR ASM.	1
15	SS-7120760-SP	SCREW 3/16-28 L= 7.0	2
16	CS-1471012-SH	THRUST COLLAR D=14.72 W=10	1
17	SS-8660530-TP	SCREW 1/4-40 L= 4.5	2
18	SS-7110710-SP	SCREW 11/64-40 L=7	4
19	226-23102	LOWER SHAFT B	1
20	226-11701	PLUNGER BUSHING, B	1
21	226-11651	THRUST COLLAR ASM., B	1
22	TA-0500601-M0	PLUG D=5X5.4 L=6	1
23	226-11909	OIL PUMP SHAFT	1
24	SS-8660530-TP	SCREW 1/4-40 L= 4.5	3

Page 17

Juki LH-3168 parts on page 17
Ref	Part number	Part name	Qty
1	101-11508	SPRING	2
2	102-10805	HARD ALUMITE BOBBIN	2
3	SS-6090810-SP	SCREW 9/64-40 L= 7.5	2
4	SM-6082502-TP	SCREW M8 L=25	2
5	WP-0850002-SP	WASHER 8.5X18X1.6	2
6	226-13400	HOOK DRIVING SHAFT BUSHING	2
7	SS-4110515-SP	SCREW 11/64-40 L=5	2
8	226-16254	OIL WICK HOLDER ASM. RIGHT	1
9	226-15959	OIL WICK HOLDER ASM. LEFT	1
10	226-15801	OIL ADJUSTING SCREW	2
12	226-15702	OIL ADJUSTING BALL
13	226-53158	RATCHET HOOK ASM.
14	226-15306	FELT HOLDER
15	SS-4110815-SP	SCREW 11/64-40 L=8
16	226-15009	HOOK SHAFT SADDLE COVER
17	226-15207	FELT
18	B9117-051-000	BOBBIN
19	226-88253	HOOK ASM.
20	226-88154	BOBBIN CASE ASM.
21	226-88402	TENSION ADJUSTING SPRING (0.3)
22	226-88501	TENSION ADJUSTING SPRING (0.25)
23	101-10500	TENSION SPRING INSTALLING SCREW
24	226-12907	TENSION ADJUSTING SCREW
25	226-88105	BOBBIN CASE
26	226-88204	SPRING
27	SS-6560150-SH	SCREW 3/32-80 L=13.2
28	226-88055	HOOK ASM.
29	226-12204	HOOK GIB
30	101-12803	SCREW
32	101-12902	SCREW
34	226-88006	OUTER HOOK
35	226-12709	BOBBIN BASKET
37	226-93857	HOOK ASM.
46	226-53000	SEWING HOOK
47	226-53307	HOOK GIB
55	101-09908	SADDLE INSTALLING BLOCK, UPPER
57	SS-6153040-SP	SCREW 15/64-28 L=30
58	B1820-051-000	BOBBIN CASE OPENING LEVER LINK
59	CQ-2020000-00	OIL WICK
62	NS-6110420-SP	NUT 11/64-40
67	226-12055	HOOK ASM.
68	226-13905	HOOK SHAFT UPPER METAL
69	226-13103	HOOK SHAFT SADDLE, LEFT
70	226-53604	HOOK SHAFT SADDLE, RIGHT
71	226-13004	HOOK SHAFT SADDLE, LEFT
72	226-53505	HOOK SHAFT SADDLE, RIGHT
74	226-15454	RUBBER BUSHING ASM.
76	226-94855	BOBBIN CASE ASM.
77	226-94806	BOBBIN CASE
79	226-94707	TENSION ADJUSTING SPRING (0.4)
83	226-15462	RUBBER BUSHING ASM.
84	400-13657	BOBBIN CASE ASM.
88	400-13658	BOBBIN CASE

Page 19 — 7. FEED MECHANISM COMPONENTS

Juki LH-3168 parts on page 19
Ref	Part number	Part name	Qty
1	SS-6090670-TP	SCREW 9/64-40 L=6	2
2	226-10109	ROD PIN	1
3	RE-0500000-KO	E-RING	1
4	226-10208	FEED REGULATOR CONNECTING ROD	1
5	SD-0800422-CP	HINGE SCREW D= 8 H= 4.2	1
6	226-10000	FEED REGULATOR	1
7	SS-7121410-SP	SCREW 3/16-28 L=14	1
8	226-10307	FEED REGULATOR SPRING	1
9	226-10604	REVERSE FEED SHAFT	1
10	226-52101	REVERSE FEED SHAFT	1
11	CS-102121A-SH	THRUST COLLAR ASM. D=10.2 W=12	1
12	SS-8660610-TP	SCREW 1/4-40 L=6	(2)
13	101-08009	OIL SEAL	1
14	RE-0900000-KO	E-RING 9	1
15	SS-7120910-SP	SCREW 3/16-28 L=9	2
16	226-10505	REVERSE FEED CONTROL LEVER	1
17	RO-0922702-00	RUBBER RING	1
18	229-11804	FEED REGULATOR SCREW	1
19	229-12109	FEED REGULATOR PIN SPRING	1
20	229-12000	FEED REGULATOR PIN	1
21	229-11903	FEED DIAL	1
22	SS-6121860-SP	SCREW 3/16-28 L=18	1
23	226-10406	SPRING BRACKET	1
24	SS-4110815-SP	SCREW 11/64-40 L=8	2
25	226-09200	FEED ROCK SHAFT CONNECTING ROD	1
26	226-52002	FEED DRIVE ECCENTRIC CAM	1
27	SS-6661110-SP	SCREW 1/4-40 L=11	2
28	SS-7110710-SP	SCREW 11/64-40 L=7	2
29	226-09101	CAM COVER	1
30	B1636-581-B00	NEEDLE BEARING B	1
31	B1610-512-000	FEED DRIVING SLIDE BLOCK	1
32	SS-6580752-TP	SCREW 1/8-40 L=7	2
33	226-30602	FEED DOG 1/4	1
34	102-38202	FEED DOG 1/4	1
35	226-09754	FEED BAR ASM.	1
36	226-09705	FEED BAR	(1)
37	101-07902	FEED BAR FORK	(1)
38	SS-9151440-CP	SCREW 15/64-28 L=14	(1)
39	WP-0621016-SD	WASHER 6.2X13X1	(1)
40	RE-0500711-KP	SNAP RING 5	1
41	B1604-012-000-A	FEED BAR SHAFT	1
42	SM-8050502-TP	SCREW M5 L=5	1
43	226-09408	FEED ROCK SHAFT	1
44	NS-6080210-SP	NUT 1/8-44	1
45	SS-6081810-SP	SCREW 1/8-44 L=18.0	1
46	B1603-512-000	FEED ROCKER	1
47	SS-7111310-TP	SCREW 11/64-40 L=12.8	2
48	101-06102	BUSHING	2
49	SS-8151150-SP	SCREW 15/64-28 L=10.5	1
50	229-04155	MAIN SHAFT THRUST COLLAR ASM.	2
51	CQ-2520000-00	OIL WICK	0.26
52	226-09002	FEED DRIVE ECCENTRIC CAM, B	1
53	SS-7110910-SP	SCREW 11/64-40 L=8.5	4
54	103-15505	PLATE	2
55	226-09606	FEED DRIVING ROCKER BLOCK, S	2
56	226-09309	FEED ROCKER SHAFT CRANK	1
57	NS-6680320-SP	NUT 9/32-28	1
58	SS-6121610-TP	SCREW 3/16-28 L=15.5	1
59	SD-0900701-TP	HINGE SCREW D= 9 H= 7	1
60	103-15208	FEED ROCK CONNECTING ROD	1
61	103-15455	FEED DRIVING ROCKER ASM.	1
62	SS-7110510-SP	SCREW 11/64-40 L=5	1
63	B1633-470-000	STOPPER PLATE	1
64	BT-0500300-EA	OIL TUBE	0.09
65	B1653-470-000	PIN	1

Page 21

Juki LH-3168 parts on page 21
Ref	Part number	Part name	Qty
1	229-07802	HAND LIFTER	1
2	B1521-555-000	SCREW	1
3	R0-0371801-00	RUBBER RING	1
4	229-08552	HAND LIFTER CAM ASM.	1
5	226-08152	LIFTING LEVER ROD ASM.	1
6	110-06350	HAND LIFTER LINK	(1)
7	110-06202	LIFTING LEVER	(1)
8	110-07309	E-RING	(1)
9	RE-0500000-KO	E-RING	(1)
10	226-08103	LIFTING LEVER CONNECTING ROD	(1)
11	110-06509	LINK SHAFT	2
12	RE-0500000-KO	E-RING	2
13	229-08909	HINGE SCREW	1
14	SD-0720332-SP	HINGE SCREW D= 7.24 H= 3.3	1
15	229-08800	KNEE LIFTER LINK	1
16	101-25201	CONNECTING ROD, VERTICAL	1
17	SD-0600322-SD	HINGE SCREW D=6 H=3.2	1
18	RE-0500000-KO	E-RING	3
19	229-20201	RETURN SPRING	1
20	110-18108	TENSION RELEASE SHAFT	1
21	226-17104	TENSION RELEASE PLATE	1
22	226-54958	TENSION RELEASE PLATE ASM.	1
23	226-17104	TENSION RELEASE PLATE	(1)
24	113-94509	WIRE CABLE	(1)
25	226-54909	WIRE TUBE	(1)
26	D3159-555-B00	SET SCREW	(1)
27	NS-6620310-SP	NUT 3/16-32	2
28	D3164-555-B00	OUTER PRESSER PLATE	2
29	SS-4110715-SP	SCREW 11/64-40 L=7	1
30	D3163-555-B00-A	FLEXIBLE TUBE SUPPORT PLATE	1
31	SS-4111215-SP	SCREW 11/64-40 L=12	2
32	226-20801	PIPE HOLDER	1
33	SS-4111015-SP	SCREW 11/64-40 L=10	1
34	226-17005	PUSH BAR	1
35	PS-0600502-KP	SPRING PIN	1
36	229-07505	PRESSER SPRING REGULATOR	1
37	229-07604	PRESSER SPRING REGULATOR NUT	1
38	229-07703	PRESSER GUIDE BAR	1
39	B1505-227-T00-A	PRESSER SPRING T	1
40	B1501-581-000	PRESSER BAR	1
41	400-17058	PRESSER BAR HOLDER	1
42	SS-8660810-TP	SCREW 1/4-40 L=8	1
43	229-07109	PRESSER BAR BUSHING, LOWER	1
44	101-52957	PRESSER FOOT ASM. 1/4"	1
45	SS-7090910-TP	SCREW 9/64-40 L= 8.5	1
46	SS-4110515-SP	SCREW 11/64-40 L=5	1

Page 23 — 9. THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3168-7)

Juki LH-3168 parts on page 23
Ref	Part number	Part name	Qty
1	SS-2080810-SP	SCREW 1/8-44 L=7.5	4
2	102-11605	MOVING KNIFE	2
3	101-16051	MOVING KNIFE SHAFT ASM.	2
4	226-54255	MOVING KNIFE SUPPORT ASM.	2
5	226-54206	MOVING KNIFE SUPPORT PLATE	(2)
6	102-11407	THREAD PRESSER ADJUSTING PLATE	(2)
7	SS-8080610-SP	SCREW 1/8-44 L=5.5	(2)
8	SS-9080410-SP	SCREW 1/8-44 L=4.3	(2)
9	SS-5090610-SP	SCREW 9/64-40 L=6	4
10	226-55401	THREAD PRESSER	2
11	226-55302	COUNTER KNIFE	2
12	SS-7090710-SP	SCREW 9/64-40 L= 6.8	2
13	SS-6121212-TP	SCREW 3/16-28 L=12.0	1
14	226-54800	STOPPER, A	1
15	101-16804	SHAFT	1
17	B3418-180-000	SPRING	1
18	101-17208	TENSION DISC RELEASE PLATE	1
19	SD-0600271-SP	HINGE SCREW D= 6 H= 2.7	1
20	226-55153	LINK INSTALLING BASE ASM.	1
21	SS-8111010-TP	SCREW 11/64-40 L=9.5	(1)
22	226-55104	TENSION DISC RELEASE ARM	(1)
23	101-16606	LINK INSTALLING BASE	(1)
24	101-17109	BUSHING	(1)
25	PS-0300201-KP	SPRING PIN 3.0X20	(1)
26	400-12461	STOPPER PLATE	1
27	SS-2110920-TP	SCREW 11/64-40 L=8.5	1
28	SS-6111052-TP	SCREW 1	1
29	CS-1470710-SH	THRUST COLLAR ASM. D=14.72 W=7	1
30	SS-8110410-TP	SCREW 11/64-40 L=3.5	(2)
31	226-54107	THREAD TRIMMER CAM	1
32	SS-8660810-TP	SCREW 1/4-40 L=8	2
33	CS-070081B-SH	THRUST COLLAR ASM. D=7 W=8	2
34	SS-8110510-SP	SCREW 11/64-40 L=5	(4)
35	101-16903	SPRING	1
36	WP-0753016-SZ	WASHER 7.5X16.0X3.0	1
37	101-16754	CAM INSTALLING LINK ASM.	1
38	SS-6151220-SP	SCREW 15/64-28 L=11.5	(1)
39	D2430-555-B00	SNAP RING	(1)
40	101-16705	CAM INSTALLING LINK	(1)
41	D2428-555-B00-A	CAM ROLLER SHAFT	(1)
42	D2427-555-B00-B	CAM ROLLER	(1)
44	226-54404	DRIVING ARM, LEFT	1
45	SS-6121610-TP	SCREW 3/16-28 L=15.5	1
46	B1515-051-000	HAND LIFTER PIN	2
47	226-54552	CONNECTING LINK ASM.	1
48	226-54503	CONNECTING LINK, A	(1)
49	226-54602	CONNECTING LINK, B	(1)
50	SS-9111010-SP	SCREW 11/64-40 L=9.5	(2)
51	WP-0501016-SD	WASHER 5X10.5X1	(2)
52	SD-0650305-TP	HINGE SCREW D= 6.5 H= 3	2
53	226-54305	DRIVING ARM, RIGHT	1
55	101-17851	SOLENOID ASM.	1
56	HK-0346400-OB	PIN CONTACT	2
57	HK-0346101-40	HOUSING 14P	1
59	B3041-980-000	SPRING	1
60	226-55005	JOINT ROD	1
61	226-54008	DRIVING ARM PLATE	1
63	SS-6120940-SP	SCREW 3/16-28 L=9	1

Page 25 — 10. AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)

Juki LH-3168 parts on page 25
Ref	Part number	Part name	Qty
1	226-56557	REVERSE FEED SWITCH ASM.	1
2	110-72501	REVERSE FEED SWITCH COVER	(1)
3	SM-4040655-SP	SCREW M4 L=6	(1)
4	226-56508	REVERSE FEED SWITCH BASE	(1)
5	111-02100	REVERSE FEED SWITCH SHAFT	(1)
6	111-02209	REVERSE FEED SWITCH SPRING	(1)
7	SM-4041655-SP	SCREW M4 L=16	(1)
8	SM-4031501-SC	SCREW M3 L=15	(2)
9	HW-5000700-00	2-CORE CABTYRE CORD	(1.4)
10	HA-0019000-00	MICROSWITCH	(1)
11	111-02308	MICRO SWITCH PLATE	(1)
12	226-56607	REVERSE FEED SWITCH LEVER	(1)
13	HK-0346400-OB	PIN CONTACT	4
14	SS-4120615-SP	SCREW 3/16-28 L=6	2
15	SS-7110710-SP	SCREW 11/64-40 L=7	4
16	WP-0501016-SD	WASHER 5X10.5X1	4
17	101-61305	SOLENOID COVER	1
18	101-19105	REVERSE FEED SOLENOID, AC24V	1
19	101-19204	SOLENOID INSTALLING PLATE	1
20	WP-0501016-SD	WASHER 5X10.5X1	4
21	SS-9111010-SP	SCREW 11/64-40 L=9.5	4
22	D2464-555-B00	LINK DRIVING MAGNET PIN	1
23	RE-0400000-KO	E-RING 4	2
24	SS-7151210-SP	SCREW 15/64-28 L=12	2
25	WS-0631510-KP	SPRING WASHER	2
26	WP-0621016-SD	WASHER 6.2X13X1	2
27	226-56409	LINK FULCULUM	1
28	226-56300	REVERSE FEED LINK, L	1
29	SS-4153015-SP	PAN-SCREW 15/64-28 L=30	1
30	WS-0610002-KP	SPRING WASHER	1
31	WP-0612056-SD	WASHER 6.1X18.5X2	1
32	226-56201	REVERSE FEED LINK, (2)	1
33	226-56102	REVERSE FEED LINK, (1)	1
34	SD-0640321-SP	HINGE SCREW D= 6.35 H= 3.2	2
35	SS-4120615-SP	SCREW 3/16-28 L=6	1
36	SS-7120760-SP	SCREW 3/16-28 L= 7.0	1
37	229-52501	BACK LEVER STOPPER	1
38	SS-6121840-SP	SCREW 3/16-28 L=18	1
39	262-26407	TENSION SPRING HOOK	1
40	262-26209	SPRING	1
41	226-56003	SPRING SUSPENSION	1

Page 27 — 11. WIPER MECHANISM COMPONENTS (FOR LH-3168-7)

Juki LH-3168 parts on page 27
Ref	Part number	Part name	Qty
1	226-57159	WIPER SOLENOID ASM.	1
2	110-72709	WIPER COVER	(1)
3	SM-4030601-SN	SCREW M3 X 6	(1)
4	WP-0320501-SC	WASHER M3	(1)
5	SD-0650321-TP	HINGE SCREW D=6.5 H=3.2	(1)
6	226-57209	WIPER LINK, A	(1)
7	B2024-771-000	SUSPENSION SCREW	(1)
8	111-10707	WIPER HINGE SCREW COLLAR	(1)
9	226-57308	WIPER SPRING	(1)
10	NS-6110310-SP	NUT 11/64-40	(1)
11	111-10400	WIPER RUBBER A	(1)
12	111-10509	WIPER RUBBER B	(1)
13	111-10301	WIPER SOLENOID	(1)
14	111-11705	WIPER SOLENOID PIN	(1)
15	HA-0005900-00	POWER SWITCH	(1)
16	HW-2003900-00	ELECTRIC WIRE	(0.1)
17	HW-5000700-00	2-CORE CABTYRE CORD	(1.4)
18	226-57100	WIPER SOLENOID BASE	(1)
19	WS-0310002-KR	SPRING WASHER 3.1X5.9X0.7	(3)
20	SM-4030601-SN	SCREW M3 X 6	(3)
21	111-11804	WIPER LINK COLLAR	(1)
22	CS-0300711-SP	THRUST COLLAR	(1)
23	SS-6080320-SP	SCREW 1/8-44 L= 2.5	(2)
24	HK-0346400-OB	PIN CONTACT	2
25	SS-4120615-SP	SCREW 3/16-28 L=6	1
26	NS-6090310-SP	NUT 9/64-40	1
27	SD-0500301-SP	HINGE SCREW D= 5 H= 3	1
28	226-57050	WIPER LINK ASM., 2	1
29	102-08551	WIPER BASE ASM.	1
30	SS-9111010-SP	SCREW 11/64-40 L=9.5	2
31	RE-0320000-KO	E-RING 3.2	2
32	102-08700	WIPER LINK SHAFT	1
33	SS-3090520-SP	SCREW 9/64-40 L=4.5	2
34	WP-0371016-SD	WASHER 3.7X8X1	2
35	102-09203	WIPER 3/32"-3/8"	1
36	102-09500	WIPER	1
37	102-09807	WIPER	1
38	102-09906	WIPER	1

Page 29 — 12. LUBRICATION COMPONENTS

Juki LH-3168 parts on page 29
Ref	Part number	Part name	Qty
1	229-24708	OIL SIGHT WINDOW	1
2	RO-1952401-00	RUBBER RING	1
3	SS-4111815-SP	SCREW 11/64 L=18	2
4	102-16703	OIL TANK	1
5	NS-6110310-SN	NUT 11/64-40	2
6	226-20355	OIL PIPE ASM.	1
7	226-20454	FELT ASM.	1
8	226-20702	OIL TUBE	1
9	226-20108	PIPE HOLDER, B	1
10	SS-4110715-SP	SCREW 11/64-40 L=7	1
11	226-19209	OIL WICK GUIDE	1
12	SS-6121610-TP	SCREW 3/16-28 L=15.5	1
13	NS-6120310-SP	NUT 3/16-28	1
14	226-20504	OIL WICK HOLDER	1
15	SS-4111215-SP	SCREW 11/64-40 L=12	1
16	NS-6110420-SP	NUT 11/64-40	1
17	B3517-009-000	OIL FELT REAR	2
18	226-19415	OIL ADJUSTING SHAFT	1
19	SS-8701782-TP	SCREW 5/16-24 L=17.0	1
20	NS-6700420-SP	NUT 5/16-24	1
21	226-20801	PIPE HOLDER	1
22	SS-6111610-SP	SCREW 11/64-40 L=16	1
23	400-12577	PIPE HOLDER	1
24	SS-4110615-SP	SCREW 11/64-40 L=6	1
25	226-19803	VILENE HOLDER	1
27	226-19605	VILENE	1
28	226-19001	SUCTION	1
29	SS-2110930-SP	SCREW 11/64-40 L=8.7	1
32	SS-7090910-SP	SCREW 9/64-40 L= 8.5	1
33	NS-6090310-SP	NUT 9/64-40	1
36	B1834-512-000-A	OIL ADJUSTING SCREW	1
37	NS-6110310-SP	NUT 11/64-40	1
38	236-30007	TUBE	0.12
40	SQ-1110401-MZ	CONNECTING SCREW	1
44	137-65607	OIL CONNEC. ARM	3
52	B1214-038-000	PLUNGER SPRING	1
53	B3524-552-000	PLUNGER THRUST PLATE	1
54	SS-4110815-SP	SCREW 11/64-40 L=8	1
56	B3538-112-000	OIL RETURN TUBE HOLDER	1
58	EA-9500B01-00	CABLE BAND	3
59	232-04803	LUBRICATING GUIDE	1
60	SS-7090610-SP	SCREW 9/64-40 L=6	1
61	226-86455	NEEDLE BAR	1
62	B3534-012-000	GASKET	1
64	226-19704	OILING JOINT	1

Page 30 — 13. BELT COVER & BOBBIN WINDER COMPONENTS

Juki LH-3168 parts on page 30
Ref	Part number	Part name	Qty
1	226-03401	BELT COVER A ASM.	1
2	110-76858	BELT COVER B ASM.	1
3	110-76957	BELT COVER B CAP ASM.	(1)
4	110-76809	BELT COVER B	(1)
5	B8233-555-000	BELT COVER SUPPORT STUD	2
6	SK-3482500-SC	WOOD SCREW D=4.8 L=25	2
7	SS-4111215-SP	SCREW 11/64-40 L=12	2
8	SS-6121610-TP	SCREW 3/16-28 L=15.5	1
9	WS-0451040-KP	SPRING WASHER 4.5X8.5X1	3
10	WP-0501016-SD	WASHER 5X10.5X1	3
11	SK-3412000-SC	WOOD SCREW D=4.1 L=20	2
12	WP-0501016-SC	WASHER 5X10.5X1	2
13	110-77567	BOBBIN WINDER COMPL.	1
14	110-78250	THREAD TENSION BRACKET ASM.	(1)
15	SS-7110840-SP	SCREW 11/64-40 L=7.8	(1)
16	B3126-012-000	THREAD TENSION DISK	(2)
17	B3129-012-B00	THREAD TENSION SPRING	(1)
18	B3125-012-000	THREAD TENSION NUT	(1)
19	SS-4110515-SP	SCREW 11/64-40 L=5	(1)
20	110-78102	PRESSER PLATE	(1)
21	B3211-555-000	RUBBER BRAKE	(1)
22	110-78003	POSITIONING FINGER	(1)
23	SD-0490261-SP	HINGE SCREW D=4.9 H=2.6	(1)
24	SS-7081310-SP	SCREW 1/8-44 L=12.5	(1)
25	WP-0480856-SP	WASHER 4.8X8.4X0.8	(1)
26	WP-0501016-SC	WASHER 5X10.5X1	2
27	226-21155	THREAD WINDER ASM.	1
28	226-21056	TENSION BAR BASE	(1)
29	SS-7110840-SP	SCREW 11/64-40 L=7.8	(1)
30	229-28907	THREAD TENSION DISK	(4)
31	229-29004	THREAD TENSION SPRING	(2)
32	229-28808	NUT	(2)
33	SS-4110515-SP	SCREW 11/64-40 L=5	(1)
34	229-28402	CONTROL RUBBER HOLDING PLATE	(1)
35	229-28303	CONTROL RUBBER	(1)
36	226-21106	BOBBIN PRESSER	(1)
37	SD-0490261-SP	HINGE SCREW D=4.9 H=2.6	(1)
38	SS-7081310-SP	SCREW 1/8-44 L=12.5	(1)
39	WP-0480856-SP	WASHER 4.8X8.4X0.8	(1)
40	WP-0501016-SC	WASHER 5X10.5X1	2
41	SK-3482500-SC	WOOD SCREW D=4.8 L=25	2

Page 31 — 14. OIL RESERVOIR & KNEE LIFTER COMPONENTS

Juki LH-3168 parts on page 31
Ref	Part number	Part name	Qty
1	101-62253	OIL RESERVOIR ASM.	1
2	101-62204	OIL RESERVOIR	(1)
3	101-62600	RUBBER CUSHION	(2)
4	110-47107	RUBBER CUSHION	(2)
5	SM-0081001-SD	SCREW	(1)
6	RO-0982401-00	RUBBER RING	(1)
7	110-24015	CONNECTING ROT, VERTICAL	(1)
8	110-24106	SPRING	(1)
9	RE-1000000-KO	E-RING 10	(1)
10	229-32453	BRACKET ASM.	(1)
11	110-24205	KNEE PRESS ROD	(1)
12	NM-6060001-SE	NUT M6	(2)
13	SM-8063012-TR	SCREW M6 L=30	(2)
14	SM-9061853-SR	SCREW M6 L=17.5	(1)
15	226-22104	OIL RESERVOIR SPACER, B	1
16	229-34251	KNEE PAD PLATE ASM.	1
17	229-34509	KNEE PAD PLATE COVER	(1)
18	229-34608	KNEE PAD UPRIGHT SHAFT	(1)
19	229-34400	KNEE PAD PLATE RUBBER	(1)
20	229-34202	KNEE PAD PLATE	(1)
21	229-34301	KNEE PAD PLATE SUPPORT	(1)
22	SM-9061203-SE	SCREW M6 L=12	(1)
23	110-24304	KNEE PRESS LIFTER ROD	1
24	226-22005	OIL RESERVOIR SPACER, A	1

Page 32 — 15. THREAD STAND COMPONENTS (1) (FOR USE IN JAPAN)

Juki LH-3168 parts on page 32
Ref	Part number	Part name	Qty
1	131-67556	THREAD STANDING DEVICE ASM.	1
2	229-30556	SPOOL REST ARM ASM.	(2)
3	229-30507	SPOOL REST ARM	(2)
4	229-30705	THREAD GUIDE ARM JOINT	(4)
5	229-31406	THREAD STANDING ROD RUBBER CAP	(1)
6	229-30408	THREAD STANDING ROD, UPPER	(1)
7	229-31307	THREAD STANDING ROD JOINT	(1)
8	131-67903	THREAD STANDING THREAD GUIDE	(1)
9	131-68000	THREAD STANDING GUIDE BASE	(1)
10	131-68109	THREAD STANDING GUIDE ARM	(1)
11	131-68208	THREAD STANDING GUIDE ARM BASE	(1)
12	229-30309	THREAD STANDING ROD, LOWER	(1)
13	229-31109	SPOOL RETAINER	(4)
14	229-31000	SPOOL PIN	(4)
15	229-30903	SPOOL REST CUSHION	(4)
16	229-30804	SPOOL REST	(4)
17	SM-6061610-SC	SCREW M6 L=16	(4)
18	SM-4051405-SE	SCREW M5 L=14	(2)
19	NM-6050001-SE	NUT M5	(2)
20	SM-4041001-SC	SCREW M4X0.7 L=10	(2)
21	NM-6040002-SE	NUT M4X0.7	(2)
22	SM-4041201-SC	SCREW M4 L=12	(1)
23	SM-4042001-SC	SCREW M4 X 20	(1)
24	NM-6040002-SE	NUT M4X0.7	(2)
25	WP-1612616-SE	WASHER 16X30X2.6	(2)
26	WS-1643202-KR	SPRING WASHER	(1)
27	NM-6160511-SE	NUT M16X1.5	(1)
28	NM-6050001-SE	NUT M5	(4)
29	WS-0510002-KN	SPRING WASHER	(4)

Page 33 — 16. THREAD STANDING DEVICE ASM. 糸立装置関係 (2) (日本を除く)

Juki LH-3168 parts on page 33
Ref	Part number	Part name	Qty
1	269-10158	THREAD STANDING DEVICE ASM.	1
2	229-30507	SPOOL REST ARM	(2)
3	229-30705	THREAD GUIDE ARM JOINT	(4)
4	229-31406	SPOOL REST ROD RUBBER CAP	(1)
5	229-30408	SPOOL REST ROD, UPPER	(1)
6	229-31307	SPOOL REST ROD JOINT	(1)
7	229-30309	SPOOL REST ROD, LOWER	(1)
8	229-31109	SPOOL RETAINER	(4)
9	229-31000	SPOOL PIN	(4)
10	229-30903	SPOOL REST CUSHION	(4)
11	229-30804	SPOOL REST	(4)
12	SM-6061610-SC	SCREW M6 L=16	(4)
13	SM-4051405-SE	SCREW M5 L=14	(2)
14	NM-6050001-SE	NUT M5	(2)
15	WP-1612616-SE	WASHER 16X30X2.6	(2)
16	WS-1643202-KR	SPRING WASHER	(1)
17	NM-6160511-SE	NUT M16X1.5	(1)
18	NM-6050001-SE	NUT M5	(4)
19	WS-0510002-KN	SPRING WASHER	(4)
20	229-30556	THREAD STANDING ARM ASM.	(2)

Page 34 — 17. TABLE OF EXCHANGING GAUGE PARTS (1)

Juki LH-3168 parts on page 34
Ref	Part number	Part name	Qty
1	226-25107
2	226-25206
3	226-25305
4	226-25404
5	226-25503
6	226-25602
7	226-25701
8	226-25800
9	226-26006
10	226-26105
11	226-26204
12	226-26402
13	226-30107
14	226-35205
15	226-35304
16	226-35403
17	226-35502
18	226-35700
19	226-35809
20	226-35908
21	226-36203
22	226-36302
23	226-36401
24	226-36708
25	226-30206
26	226-30404
27	226-30503
28	226-30602
29	226-30800
30	226-30909
31	226-31006
32	226-31303
33	226-31402
34	226-31501
35	226-31808
36	B1613-512-DOH
37	B1613-512-EOH
38	B1613-512-FOH
39	B1613-512-GOH
40	B1613-512-HOH
41	B1613-512-KOH
42	B1613-512-LOH
43	B1613-512-MOH
44	B1613-512-NOH
45	B1613-512-QOH
46	226-37656
47	226-37755
48	226-37854
49	226-37953
50	226-38050
51	226-38258
52	226-38357
53	226-38456
54	226-38753
55	226-38852
56	226-38951
57	226-39256
58	101-52650
59	101-52759
60	101-52858
61	101-52957
62	101-53054
63	101-53153
64	101-53252
65	101-53450
66	101-53559
67	101-53658
68	101-53856
69	226-40353
70	226-40452
71	226-40551
72	226-40759
73	226-40858
74	226-40957
75	226-41252
76	226-41351
77	226-41450
78	226-41757

Page 35

Juki LH-3168 parts on page 35
Ref	Part number	Part name	Qty
1	226-25107	THROAT PLATE 1/8" (3.2MM)	1
2	226-25206	THROAT PLATE 5/32" (4MM)	1
3	226-25305	THROAT PLATE 3/16" (4.8MM)	1
4	226-25404	THROAT PLATE 7/32" (5.6MM)	1
5	226-25503	THROAT PLATE 1/4	1
6	226-25602	THROAT PLATE 9/32" (7.1MM)	1
7	226-25701	THROAT PLATE 5/16" (7.9MM)	1
8	226-25800	THROAT PLATE 3/8" (9.5MM)	1
9	226-26006	THROAT PLATE 1/2" (12.7MM)	1
10	226-26105	THROAT PLATE 5/8" (15.9MM)	1
11	226-26204	THROAT PLATE 3/4" (19.1MM)	1
12	226-26402	THROAT PLATE 1" (25.4MM)	1
13	226-30107	FEED DOG 1/8" (3.2MM)	1
14	226-35205	FEED DOG 5/32" (4.0MM)	1
15	226-35304	FEED DOG 3/16" (4.8MM)	1
16	226-35403	FEED DOG 7/32" (5.6MM)	1
17	226-35502	FEED DOG 1/4" (6.4MM)	1
18	226-35700	FEED DOG 9/32" (7.1MM)	1
19	226-35809	FEED DOG 5/16" (7.9MM)	1
20	226-35908	FEED DOG 3/8" (9.5MM)	1
21	226-36203	FEED DOG 1/2" (12.7MM)	1
22	226-36302	FEED DOG 5/8" (15.9MM)	1
23	226-36401	FEED DOG 3/4" (19.1MM)	1
24	226-36708	FEED DOG 1" (25.4MM)	1
25	226-30206	FEED DOG 5/32" (4.0MM)	1
26	226-30404	FEED DOG 3/16" (4.8MM)	1
27	226-30503	FEED DOG 7/32" (5.6MM)	1
28	226-30602	FEED DOG 1/4	1
29	226-30800	FEED DOG 9/32" (7.1MM)	1
30	226-30909	FEED DOG 5/16" (7.9MM)	1
31	226-31006	FEED DOG 3/8" (9.5MM)	1
32	226-31303	FEED DOG 1/2" (12.7MM)	1
33	226-31402	FEED DOG 5/8" (15.9MM)	1
34	226-31501	FEED DOG 3/4" (19.1MM)	1
35	226-31808	FEED DOG 1" (25.4MM)	1
36	B1613-512-DOH	FEED DOG 3/16"	1
37	B1613-512-EOH	FEED DOG 7/32"	1
38	B1613-512-FOH	FEED DOG 1/4"	1
39	B1613-512-GOH	FEED DOG 9/32"	1
40	B1613-512-HOH	FEED DOG 5/16"	1
41	B1613-512-KOH	FEED DOG 3/8"	1
42	B1613-512-LOH	FEED DOG 1/2"	1
43	B1613-512-MOH	FEED DOG 5/8"	1
44	B1613-512-NOH	FEED DOG 3/4"	1
45	B1613-512-QOH	FEED DOG 1"	1
46	226-37656	PRESSER FOOT ASM.	1
47	226-37755	PRESSER FOOT ASM.	1
48	226-37854	PRESSER FOOT ASM.	1
49	226-37953	PRESSER FOOT ASM.	1
50	226-38050	PRESSER FOOT ASM.	1
51	226-38258	PRESSER FOOT ASM.	1
52	226-38357	PRESSER FOOT ASM.	1
53	226-38456	PRESSER FOOT ASM.	1
54	226-38753	PRESSER FOOT ASM.	1
55	226-38852	PRESSER FOOT ASM.	1
56	226-38951	PRESSER FOOT ASM.	1
57	226-39256	PRESSER FOOT ASM.	1
58	101-52650	PRESSER FOOT ASM. 5/32"	1
59	101-52759	PRESSER FOOT ASM. 3/16"	1
60	101-52858	PRESSER FOOT ASM. 7/32"	1
61	101-52957	PRESSER FOOT ASM. 1/4"	1
62	101-53054	PRESSER FOOT ASM. 9/32"	1
63	101-53153	PRESSER FOOT ASM. 5/16"	1
64	101-53252	PRESSER FOOT ASM. 3/8"	1
65	101-53450	PRESSER FOOT ASM. 1/2"	1
66	101-53559	PRESSER FOOT ASM. 5/8"	1
67	101-53658	PRESSER FOOT ASM. 3/4"	1
68	101-53856	PRESSER FOOT ASM. 1"	1
69	226-40353	PRESSER FOOT ASM.	1
70	226-40452	PRESSER FOOT ASM.	1
71	226-40551	PRESSER FOOT ASM.	1
72	226-40759	PRESSER FOOT ASM.	1
73	226-40858	PRESSER FOOT ASM.	1
74	226-40957	PRESSER FOOT ASM.	1
75	226-41252	PRESSER FOOT ASM.	1
76	226-41351	PRESSER FOOT ASM.	1
77	226-41450	PRESSER FOOT ASM.	1
78	226-41757	PRESSER FOOT ASM.	1

Page 36 — 18. TABLE OF EXCHANGING GAUGE PARTS (2)

Juki LH-3168 parts on page 36
Ref	Part number	Part name	Qty
1	226-60203
2	226-60302
3	226-60401
4	226-60500
5	226-60609
6	226-60708
7	226-60807
8	226-60906
9	226-61102
10	226-61201
11	226-61300
12	226-61508
13	226-65103
14	226-65202
15	226-65301
16	226-65400
17	226-65509
18	226-65707
19	226-65806
20	226-65905
21	226-66200
22	226-66309
23	226-66408
24	226-66705
25	102-37907
26	102-38004
27	102-38103
28	102-38202
29	102-38301
30	102-38400
31	102-38509
32	102-38707
33	102-38806
34	102-38905
35	102-39002
36	102-39101
37	102-39200
38	102-39309
39	102-39408
40	102-39507
41	102-39606
42	102-39804
43	102-39903
44	101-71106
45	101-71304
46	B1402-528-BAO-A
47	B1402-528-CAO-A
48	B1402-528-DAL-A
49	B1402-528-EAL
50	B1402-528-FAL-A
51	B1402-528-GAL
52	B1402-528-HAL-A
53	B1402-528-KAL-A
54	B1402-528-LAL
55	B1402-528-MAL
56	B1402-528-NAL
57	B1402-528-QAL
58	B1402-528-BAO-A
59	B1402-528-CAO-A
60	B1402-528-DAR-A
61	B1402-528-EAR
62	B1402-528-FAR-A
63	B1402-528-GAR
64	B1402-528-HAR-A
65	B1402-528-KAR-A
66	B1402-528-LAR
67	B1402-528-MAR
68	B1402-528-NAR
69	B1402-528-QAR

Page 37

Juki LH-3168 parts on page 37
Ref	Part number	Part name	Qty
1	226-60203	THROAT PLATE 1/8"	1
2	226-60302	THROAT PLATE 5/32"	1
3	226-60401	THROAT PLATE 3/16"	1
4	226-60500	THROAT PLATE 7/32"	1
5	226-60609	THROAT PLATE 1/4	1
	226-60708	THROAT PLATE 9/32"	1
	226-60807	THROAT PLATE 5/16"	1
	226-60906	THROAT PLATE 3/8"	1
	226-61102	THROAT PLATE 1/2"	1
	226-61201	THROAT PLATE 5/8"	1
	226-61300	THROAT PLATE 3/4"	1
	226-61508	THROAT PLATE 1"	1
	226-65103	FEED DOG 1/8"	1
	226-65202	FEED DOG	1
	226-65301	FEED DOG 3/16"	1
	226-65400	FEED DOG	1
	226-65509	FEED DOG 1/4"	1
	226-65707	FEED DOG	1
	226-65806	FEED DOG 5/16"	1
	226-65905	FEED DOG	1
	226-66200	FEED DOG 1/2"	1
	226-66309	FEED DOG	1
	226-66408	FEED DOG 5/8"	1
	226-66705	FEED DOG	1
	102-37907	FEED DOG 5/32	1
	102-38004	FEED DOG 3/16	1
	102-38103	FEED DOG 7/32	1
	102-38202	FEED DOG 1/4	1
	102-38301	FEED DOG 9/32	1
	102-38400	FEED DOG 5/16	1
	102-38509	FEED DOG 3/8	1
	102-38707	FEED DOG 1/2	1
	102-38806	FEED DOG	1
	102-38905	FEED DOG 3/4	1
	102-39002	FEED DOG 1"	1
	102-39101	FEED DOG 3/16	1
	102-39200	FEED DOG 7/32	1
	102-39309	FEED DOG 1/4	1
	102-39408	FEED DOG 9/32	1
	102-39507	FEED DOG 5/16	1
	102-39804	FEED DOG 1/2	1
	102-39903	FEED DOG	1
	101-71106	FEED DOG 3/4"	1
	101-71304	FEED DOG 1"	1
	B1402-528-BAO-A	NEEDLE CLAMP ASM. 1/8	1
	B1402-528-DAL-A	NEEDLE CLAMP ASM. LEFT	1
	B1402-528-FAL-A	NEEDLE CLAMP ASM. 1/4	1
	B1402-528-GAL	NEEDLE CLAMP ASM., LEFT 5/16	1
	B1402-528-HAL-A	NEEDLE CLAMP ASM. 3/8	1
	B1402-528-KAL-A	NEEDLE CLAMP ASM., LEFT 1/2"	1
	B1402-528-LAL	NEEDLE CLAMP ASM., LEFT 5/8"	1
	B1402-528-MAL	NEEDLE CLAMP ASM., LEFT 3/4"	1
	B1402-528-NAL	NEEDLE CLAMP ASM., LEFT 1"	1
	B1402-528-DAR-A	NEEDLE CLAMP ASM. 7/32	1
	B1402-528-EAR	NEEDLE CLAMP ASM. 1/4	1
	B1402-528-KAR-A	NEEDLE CLAMP ASM. RIGHT 5/8"	1
	B1402-528-MAR	NEEDLE CLAMP ASM., RIGHT 1"	1
	B1402-528-QAR	NEEDLE CLAMP ASM. 5/32	1

Page 38 — 19. TABLE OF EXCHANGING GAUGE PARTS (3)

Juki LH-3168 parts on page 38
Ref	Part number	Part name	Qty
1	226-50857
2	226-50956
3	226-51053
4	226-50352
5	226-50451
6	226-50550
7	226-01058
8	226-01157
9	226-01256
10	226-00555
11	226-00654
12	226-00753
13	B1802-512-0A0-A
14	B1802-512-0AB
15	B1803-515-0A0
16	101-12357
17	102-09230
18	102-09500
19	102-09807
20	102-09906

Page 39

Juki LH-3168 parts on page 39
Ref	Part number	Part name	Qty
1	226-50857	BED SLIDE LEFT, ASM., A	1
2	226-50956	LEFT SLIDER PLATE B ASM.	1
3	226-51053	BED SLIDE LEFT, ASM., C	1
4	226-50352	BED SLIDE RIGHT, ASM., A	1
5	226-50451	RIGHT SLIDER PLATE B ASM.	1
6	226-50550	BED SLIDE RIGHT, ASM., C	1
7	226-01058	BED SLIDE LEFT, ASM., A	1
8	226-01157	LEFT SLIDER PLATE B ASM.	1
9	226-01256	BED SLIDE LEFT, ASM., C	1
10	226-00555	BED SLIDE RIGHT, ASM., A	1
11	226-00654	RIGHT SLIDER PLATE B ASM.	1
12	226-00753	BED SLIDE RIGHT, ASM., C	1
13	B1802-512-0A0-A	BUSHING ASM., FRONT	1
14	B1802-512-0AB	BUSHING ASM., FRONT	1
15	B1803-515-0A0	BUSHING ASM., INTERMEDIATE	1
16	101-12357	BUSHING ASM. INTERMEDIATE	1
17	102-09230	WIPER	1
18	102-09500	WIPER	1
19	102-09807	WIPER	1
20	102-09906	WIPER	1

Page 40 — LIST FOR INFORMATION OF CHANGE

Juki LH-3168 parts on page 40
Ref	Part number	Part name
34	100-04109
34	229-01805
28	110-32562
28	400-21415
58	B1820-563-000	B1820-563-000
66	229-37965
58	B1820-051-000	B1820-051-000
83	226-15462
84	400-13657
18	110-09909
18	229-11804
20	110-52701
20	229-12000
1	110-71800
1	229-07802
13	110-07101
13	229-08909
19	110-18207
19	229-20201
36	110-71602
36	229-07505
37	110-71701
37	229-07604
41	226-08004
41	400-17058
26	226-54701
26	400-12461
28	SS-2110930-SP	SS-2110930-SP
28	SS-611052-TP	SS-611052-TP
37	111-00500
37	229-52501
39	B1506-352-000	B1506-352-000
39	262-26407
40	135-15606
40	262-26209
1	B3530-555-000	B3530-555-000
1	229-24708
12	SS-6121610-SP	SS-6121610-SP
12	SS-6121610-TP	SS-6121610-TP
23	226-19902
23	400-12577
8	SS-6121610-SP	SS-6121610-SP
8	SS-6121610-TP	SS-6121610-TP
30	B3126-011-000	B3126-011-000
30	229-28907
31	B3129-012-B00	B3129-012-B00
31	229-29004
32	B3125-012-000	B3125-012-000
32	229-28808
34	110-78102
34	229-28402
35	B3211-555-000	B3211-555-000
35	229-28303
27	ALL PARTS-全部	ALL PARTS-全部
27	ALL PARTS-全部	ALL PARTS-全部
28	ALL PARTS-全部	ALL PARTS-全部

Page 41 — NUMERICAL INDEX OF PARTS

Juki LH-3168 parts on page 41
Ref	Part number	Qty
64	BT-0500300-EA	14
31	B1104-051-000	2
14	B1202-512-000	4
52	B1214-038-000	24
46	B1402-528-BA0-A	32
58	B1402-528-CA0-A	32
47	B1402-528-CA0-A	32
59	B1402-528-DAL-A	32
48	B1402-528-DAL-A	32
60	B1402-528-DAR-A	32
49	B1402-528-EAL	32
61	B1402-528-EAR	32
35	B1402-528-FAL-A	6
50	B1402-528-FAL-A	32
44	B1402-528-FAR-A	6
62	B1402-528-FAR-A	32
51	B1402-528-GAL	32
63	B1402-528-GAR	32
52	B1402-528-HAL-A	32
64	B1402-528-HAR-A	32
53	B1402-528-KAL-A	32
65	B1402-528-KAR-A	32
54	B1402-528-LAL	32
66	B1402-528-LAR	32
55	B1402-528-MAL	32
67	B1402-528-MAR	32
56	B1402-528-NAL	32
68	B1402-528-NAR	32
57	B1402-528-QAL	32
69	B1402-528-QAR	32
83	B1414-512-000	6
34	B1425-526-000	6
36	B1425-526-000	6
43	B1425-526-000	6
45	B1425-526-000	6
71	B1438-512-B00	6
40	B1449-526-000	8
40	B1501-581-000	16
39	B1505-227-T00-A	16
46	B1515-051-000	18
2	B1521-555-000	16
46	B1603-512-000	14
41	B1604-012-000-A	14
31	B1610-512-000	14
36	B1613-512-DOH	30
37	B1613-512-EOH	30
38	B1613-512-FOH	30
39	B1613-512-GOH	30
40	B1613-512-HOH	30
41	B1613-512-KOH	30
42	B1613-512-LOH	30
43	B1613-512-MOH	30
44	B1613-512-NOH	30
45	B1613-512-QOH	30
63	B1633-470-000	14
30	B1636-581-B00	14
65	B1653-470-000	14
63	B1705-850-000	6
14	B1802-512-0AB	34
2	B1802-512-0A0-A	10
13	B1802-512-0A0-A	34
10	B1803-515-0A0	10
15	B1803-515-0A0	34
4	B1816-512-000	10
58	B1820-051-000	12
60	B1821-051-000	12
61	B1822-051-000	12
64	B1823-051-000	12
36	B1834-512-000-A	24
31	B1850-512-000	24
30	B1851-512-000	24
7	B2024-771-000	22
59	B3041-980-000	18
21	B3112-704-000	8
18	B3114-232-000	8
18	B3125-012-000	25
16	B3126-012-000	8
19	B3129-012-A00	8
17	B3129-012-B00	25
32	B3137-527-0A0	8
29	B3138-527-000	8
33	B3139-527-000	8
25	B3141-527-000	8
34	B3142-527-000	8
35	B3143-527-000	8
21	B3211-555-000	25
62	B3417-051-000	18
17	B3418-180-000	18
53	B3524-555-000	24
51	B3534-155-000	24
5	B8233-555-000	25
18	B9117-051-000	12
58	CM-3002001-A1	2
59	CM-3002001-01	2
3	CQ-2020000-00	4
55	CQ-2020000-00	12
4	CQ-2520000-00	4
65	CQ-2520000-00	6
51	CQ-2520000-00	14
12	CQ-5050000-00	4
22	CS-0300711-SP	22
33	CS-070081B-SH	18
11	CS-102121A-SH	14
29	CS-1470710-SH	18
16	CS-1471012-SH	10
6	D2112-555-B00	2
19	D2112-555-B00	18
42	D2128-555-B00-A	18
41	D2428-555-B00	18
39	D2430-555-B00	18
22	D2464-555-B00	20
20	D3129-555-D00	8
26	D3159-555-B00	16
30	D3163-555-B00-A	16
28	D3164-555-B00	16
11	D3171-415-B0H	12
65	EA-9500B01-00	18
58	EA-9500B01-00	24
15	HA-0005900-00	22
10	HA-0019000-00	20
57	HK-0346401-0B	18
56	HK-0346400-0B	18
13	HK-0346400-0B	20
16	HW-003900-00	22
9	HW-5000700-00	20
17	HW-5000700-00	22
81	MDP-500B1400	6
22	M4002-110-000	4
23	M4007-110-0AA	4
24	M4007-110-0AB	4
55	M6043-350-AAA	2
21	NM-6040002-SE	27
24	NM-6040002-SE	27
19	NM-6050001-SE	27
14	NM-6050001-SE	28
18	NM-6050001-SE	28
43	NM-6050001-SP	18
12	NM-6060001-SE	26
12	NM-6060001-SE	26
27	NM-6160511-SE	27
17	NM-6160511-SE	28
44	NS-6080210-SP	14
26	NS-6090310-SP	22
33	NS-6090310-SP	24
5	NS-6110310-SN	24
8	NS-6110310-SP	24
10	NS-6110310-SP	22
37	NS-6110310-SP	24
62	NS-6110420-SP	12
16	NS-6120310-SP	24
16	NS-6120310-SP	24
16	NS-6200310-SP	24
16	NS-6700420-SP	24
25	PS-0300201-KP	18
35	PS-0600502-KP	16
6	PT-0502700-SO	6
31	RE-0320000-KO	22
23	RE-0400000-KO	20
16	RE-0500000-KO	14
12	RE-0500000-KO	16
18	RE-0500000-KO	16
40	RE-0500711-KP	14
57	RE-0700000-KO	8
14	RE-0900000-KO	14
9	RE-1000000-KO	26
57	RO-0371801-00	16
54	RO-0922702-00	14
3	RO-0982401-00	26
35	RO-1952401-00	4
35	RO-4372002-00	4
34	SB-1200001-00	4
7	SD-0470281-SP	2
23	SD-0490261-SP	25
27	SD-0490261-SP	22
17	SD-0500301-SP	22
19	SD-0600271-SP	18
17	SD-0600322-SD	16
42	SD-0601171-SP	8
61	SD-0640241-SP	8
64	SD-0640241-SP	8
34	SD-0640321-SP	20
54	SD-0640752-TP	8
52	SD-0650305-TP	18
5	SD-0650321-TP	22
14	SD-0720332-SP	16
59	SD-0800422-CP	14
76	SD-0870601-SP	14
3	SD-0900701-TP	12
36	SK-3412000-SC	2
11	SK-3482500-SC	25
6	SK-3482500-SC	25
41	SM-0081001-SD	24
5	SM-4030601-SN	26
3	SM-4031501-SC	22
20	SM-4040655-SP	27
22	SM-4041001-SC	27
23	SM-4041655-SP	27
18	SM-4042001-SC	27
13	SM-4051405-SE	28
17	SM-4051405-SE	27
12	SM-6061610-SC	28
4	SM-6082502-TP	12
42	SM-8050502-TP	14
13	SM-8063012-TR	26
22	SM-9061203-SE	26
46	SS-4120615-SP	8
14	SS-4120615-SP	20
35	SS-4120615-SP	20
25	SS-4120615-SP	20
59	SS-4120915-SP	8
21	SS-4121015-SP	2
29	SS-4153015-SP	20
52	SS-5090610-SP	2
9	SS-5090610-SP	18
22	SS-6060510-TP	6
23	SS-6080320-SP	22
58	SS-6080340-SP	6
27	SS-6080410-SP	6
45	SS-6081810-SP	14
36	SS-6090630-SP	2
1	SS-6090670-TP	14
3	SS-6090810-SP	12
48	SS-6110430-TP	8
28	SS-6111052-TP	18
5	SS-6111140-SP	2
26	SS-6111210-SP	4
22	SS-6111610-SP	24
35	SS-6111610-SP	24
9	SS-6120940-SP	2
13	SS-6121212-TP	18
80	SS-6121610-TP	6
58	SS-6121610-TP	14
45	SS-6121610-TP	18
54	SS-6121610-TP	18
12	SS-6121610-TP	24
38	SS-6121840-SP	20
58	SS-6151040-SP	18
38	SS-6151220-SP	18
16	SS-6151780-SP	2
75	SS-6152440-SP	6

Page 42 — NUMERICAL INDEX OF PARTS

Juki LH-3168 parts on page 42
Ref	Part number	Qty
57	SS-6153040-SP	12
27	SS-6560150-SH	12
82	SS-6560150-SH	12
12	SS-6560150-SH	12
4	SS-6580752-TP	14
16	SS-6661110-SP	14
27	SS-6661110-SP	4
50	SS-7060310-SP	6
24	SS-7081310-SP	25
38	SS-7081310-SP	25
28	SS-7090510-SP	25
60	SS-7090610-SP	24
12	SS-7090710-SP	18
32	SS-7090910-SP	24
45	SS-7090910-TP	16
62	SS-7110510-SP	14
19	SS-7110710-SP	6
15	SS-7110710-SP	10
28	SS-7110710-SP	14
15	SS-7110710-SP	20
49	SS-7110740-TP	8
15	SS-7110840-SP	25
29	SS-7110840-SP	25
53	SS-7110910-SP	14
47	SS-7111310-TP	14
53	SS-7111410-TP	8
73	SS-7111810-TP	12
45	SS-7120760-SP	4
15	SS-7120760-SP	10
36	SS-7120760-SP	20
15	SS-7120910-SP	14
7	SS-7121410-SP	14
24	SS-7151210-SP	20
16	SS-7151610-SP	24
39	SS-7681750-TP	4
7	SS-8080610-SP	18
30	SS-8110410-TP	18
34	SS-8110510-SP	18
50	SS-8110520-SP	18
21	SS-8111010-TP	8
24	SS-8120740-TP	2
57	SS-8150410-TP	2
3	SS-8151150-SP	10
12	SS-8151150-SP	10
49	SS-8151150-SP	10
9	SS-8151150-TP	4
18	SS-8151550-SP	4
25	SS-8151550-SP	4
36	SS-8660530-TP	4
7	SS-8660530-TP	10
9	SS-8660530-TP	10
17	SS-8660530-TP	10
24	SS-8660810-TP	10
12	SS-8660810-TP	14
5	SS-8680540-SP	10
13	SS-8680810-TP	4
40	SS-8681650-TP	4
38	SS-8681650-TP	4
19	SS-8701782-TP	24
8	SS-9080410-SP	18
63	SS-9110460-CP	8
50	SS-9111010-SP	18
21	SS-9111010-SP	20
30	SS-9111010-SP	22
38	SS-9151440-CP	14
22	TA-0500601-MO	10
12	TA-0750404-RO	2
15	TA-0750704-RO	2
13	TA-1250406-RO	2
18	TA-1250406-RO	2
22	TA-1250406-RO	2
4	WP-0320501-SD	22
53	WP-0371016-SC	12
18	WP-0450000-SD	6
39	WP-0450801-SP	8
25	WP-0450801-SP	25
25	WP-0480856-SP	25
39	WP-0480856-SP	25
12	WP-0501016-SC	25
26	WP-0501016-SC	25
40	WP-0501016-SD	25
38	WP-0501016-SD	8
51	WP-0501016-SD	18
64	WP-0501016-SD	18
16	WP-0501016-SD	20
20	WP-0501016-SD	20
39	WP-0621016-SD	14
26	WP-0621016-SD	20
36	WP-0753016-SZ	18
5	WP-0850002-SP	12
25	WP-1612616-SE	27
15	WP-1612616-SE	28
19	WS-0310002-KR	22
9	WS-0451040-KP	25
29	WS-0510002-KN	27
19	WS-0510002-KN	28
30	WS-0615102-KP	20
25	WS-1643202-KR	20
26	WS-1643202-KR	27
16	WS-1643202-KR	28
10	WT-0530002-KS	2
48	101-01004	14
3	101-06102	2
37	101-07902	14
13	101-08009	14
1	101-08512	10
11	101-08611	10
55	101-09908	12
23	101-10500	12
41	101-10500	12
80	101-10500	12
86	101-10500	12
1	101-11201	12
66	101-11508	12
6	101-12001	10
16	101-12357	34
56	101-12407	12
30	101-12803	12
48	101-12803	12
32	101-12902	12
50	101-12902	12
3	101-16051	18
23	101-16606	18
40	101-16705	18
37	101-16754	18
15	101-16804	18
35	101-16903	18
24	101-17109	18
18	101-17208	18
55	101-17851	18
19	101-19105	20
18	101-19204	20
10	101-24204	20
15	101-24303	8
16	101-25201	16
58	101-52650	30
59	101-52858	30
60	101-52957	30
44	101-52957	16
61	101-53054	30
62	101-53153	30
64	101-53252	30
65	101-53450	30
66	101-53559	30
67	101-53658	30
68	101-53856	30
17	101-61305	20
2	101-62204	26
1	101-62253	26
3	101-62600	26
44	101-71106	32
45	101-71304	32
29	102-08551	22
32	102-08700	22
35	102-09203	22
17	102-09230	34
36	102-09500	34
18	102-09500	22
37	102-09807	22
37	102-09807	22
38	102-09906	22
20	102-09906	34
2	102-10805	12
6	102-11407	18
2	102-11605	18
4	102-16703	24
25	102-37907	32
26	102-38004	32
27	102-38103	32
34	102-38202	32
29	102-38301	32
30	102-38400	32
31	102-38509	32
32	102-38707	32
33	102-38806	32
34	102-38905	32
35	102-39002	32
36	102-39101	32
37	102-39200	32
38	102-39309	32
39	102-39408	32
40	102-39507	32
41	102-39606	32
42	102-39804	32
43	102-39903	32
60	103-15208	14
61	103-15455	14
54	103-15505	14
2	106-02902	2
29	106-04809	4
14	106-11457	10
34	106-23403	24
36	106-97506	8
44	106-97605	8
11	107-41106	8
7	110-06202	16
6	110-06350	16
11	110-06509	16
8	110-07309	16
20	110-18108	16
7	110-24015	26
8	110-24106	26
11	110-24205	26
23	110-24304	26
12	110-45101	8
4	110-47107	8
14	110-72402	8
2	110-72501	20
2	110-72709	22
4	110-76809	25
3	110-76858	25
13	110-77567	25
20	110-78003	25
22	110-78102	25
14	110-78250	25
13	110-93606	8
5	111-02100	20
13	111-02209	20
11	111-02308	20
13	111-10301	22
11	111-10400	22
12	111-10509	22
8	111-10707	22
14	111-11804	22
24	113-94509	16
22	119-56802	8
1	131-67556	27
8	131-67903	27
9	131-68000	27
10	131-68109	27
44	137-65607	24
42	226-00555	2
10	226-00555	34
11	226-00654	34
12	226-00753	34
38	226-01058	2
7	226-01058	34
8	226-01157	34
9	226-01256	34
17	226-02007	2
46	226-02601	2
25	226-03013	2
27	226-03112	2
29	226-03203	2
1	226-03401	25
48	226-03609	2
49	226-03708	2
30	226-03906	4
41	226-04003	4
43	226-04300	4
37	226-04409	4
17	226-04508	4
33	226-04607	4
32	226-04656	4
42	226-04904	4
2	226-05307	4
1	226-05356	4
7	226-05406	4
5	226-06602	6
74	226-07006	6
78	226-07105	6
79	226-07204	6
72	226-07303	6
73	226-07402	6
10	226-08103	16
5	226-08152	16
52	226-09002	14
29	226-09101	14
25	226-09200	14
56	226-09309	14
43	226-09408	14
55	226-09606	14
36	226-09705	14
35	226-09754	14
8	226-09804	10
6	226-10000	14
2	226-10109	14
4	226-10208	14
8	226-10307	14
23	226-10406	14
16	226-10505	14
9	226-10604	14
21	226-11651	10
20	226-11701	10
23	226-11909	10
67	226-12055	12
29	226-12204	12
31	226-12303	12
49	226-12303	12

Page 44 — NUMERICAL INDEX OF PARTS

Juki LH-3168 parts on page 44
Ref	Part number	Part name
23	229-20706	PART NO
1	229-24708	PART NO
35	229-28303	PART NO
34	229-28402	PART NO
32	229-28808	PART NO
30	229-28907	PART NO
31	229-29004	PART NO
12	229-30309	PART NO
7	229-30309	PART NO
6	229-30408	PART NO
5	229-30408	PART NO
3	229-30507	PART NO
2	229-30507	PART NO
2	229-30556	PART NO
20	229-30556	PART NO
4	229-30705	PART NO
3	229-30705	PART NO
16	229-30804	PART NO
11	229-30804	PART NO
15	229-30903	PART NO
10	229-30903	PART NO
14	229-31000	PART NO
9	229-31000	PART NO
13	229-31109	PART NO
8	229-31109	PART NO
7	229-31307	PART NO
6	229-31307	PART NO
5	229-31406	PART NO
4	229-31406	PART NO
10	229-32453	PART NO
20	229-34202	PART NO
16	229-34251	PART NO
21	229-34301	PART NO
19	229-34400	PART NO
17	229-34509	PART NO
18	229-34608	PART NO
28	229-37965	PART NO
8	229-51552	PART NO
37	229-52501	PART NO
5	232-03805	PART NO
6	232-03904	PART NO
67	232-04506	PART NO
68	232-04605	PART NO
69	232-04704	PART NO
59	232-04803	PART NO
4	232-04902	PART NO
3	232-04951	PART NO
38	236-30007	PART NO
41	236-30007	PART NO
42	236-30007	PART NO
43	236-30007	PART NO
45	236-30007	PART NO
46	236-30007	PART NO
47	236-30007	PART NO
48	236-30007	PART NO
49	236-30007	PART NO
55	236-30007	PART NO
63	236-30007	PART NO
40	262-26209	PART NO
39	262-26407	PART NO
1	269-10158	PART NO
26	400-12461	PART NO
23	400-12577	PART NO
84	400-13657	PART NO
88	400-13658	PART NO
66	400-15144	PART NO
41	400-17058	PART NO
60	400-21415	PART NO

Juki LH-3168 Parts Book (PDF)

Page 7 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Page 9 — 2. MAIN SHAFT & THREAD TAKE-UP COMPONENTS

Page 11 — 3. NEEDLE BAR COMPONENTS

Page 13 — 4. TENSION POST COMPONENTS

Page 15 — 5. HOOK DRIVING SHAFT COMPONENTS

Page 17

Page 19 — 7. FEED MECHANISM COMPONENTS

Page 21

Page 23 — 9. THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3168-7)

Page 25 — 10. AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)

Page 27 — 11. WIPER MECHANISM COMPONENTS (FOR LH-3168-7)

Page 29 — 12. LUBRICATION COMPONENTS

Page 30 — 13. BELT COVER & BOBBIN WINDER COMPONENTS

Page 31 — 14. OIL RESERVOIR & KNEE LIFTER COMPONENTS

Page 32 — 15. THREAD STAND COMPONENTS (1) (FOR USE IN JAPAN)

Page 33 — 16. THREAD STANDING DEVICE ASM. 糸立装置関係 (2) (日本を除く)

Page 34 — 17. TABLE OF EXCHANGING GAUGE PARTS (1)

Page 35

Page 36 — 18. TABLE OF EXCHANGING GAUGE PARTS (2)

Page 37

Page 38 — 19. TABLE OF EXCHANGING GAUGE PARTS (3)

Page 39

Page 40 — LIST FOR INFORMATION OF CHANGE

Page 41 — NUMERICAL INDEX OF PARTS

Page 42 — NUMERICAL INDEX OF PARTS

Page 44 — NUMERICAL INDEX OF PARTS

Part Books

Search

Parts on page 1

Parts on page 1

Page 7 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Page 9 — 2. MAIN SHAFT & THREAD TAKE-UP COMPONENTS

Page 11 — 3. NEEDLE BAR COMPONENTS

Page 13 — 4. TENSION POST COMPONENTS

Page 15 — 5. HOOK DRIVING SHAFT COMPONENTS

Page 17

Page 19 — 7. FEED MECHANISM COMPONENTS

Page 21

Page 23 — 9. THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3168-7)

Page 25 — 10. AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)

Page 27 — 11. WIPER MECHANISM COMPONENTS (FOR LH-3168-7)

Page 29 — 12. LUBRICATION COMPONENTS

Page 30 — 13. BELT COVER & BOBBIN WINDER COMPONENTS

Page 31 — 14. OIL RESERVOIR & KNEE LIFTER COMPONENTS

Page 32 — 15. THREAD STAND COMPONENTS (1) (FOR USE IN JAPAN)

Page 33 — 16. THREAD STANDING DEVICE ASM. 糸立装置関係 (2) (日本を除く)

Page 34 — 17. TABLE OF EXCHANGING GAUGE PARTS (1)

Page 35

Page 36 — 18. TABLE OF EXCHANGING GAUGE PARTS (2)

Page 37

Page 38 — 19. TABLE OF EXCHANGING GAUGE PARTS (3)

Page 39

Page 40 — LIST FOR INFORMATION OF CHANGE

Page 41 — NUMERICAL INDEX OF PARTS

Page 42 — NUMERICAL INDEX OF PARTS

Page 44 — NUMERICAL INDEX OF PARTS

Juki LH-3168 — parts catalog
