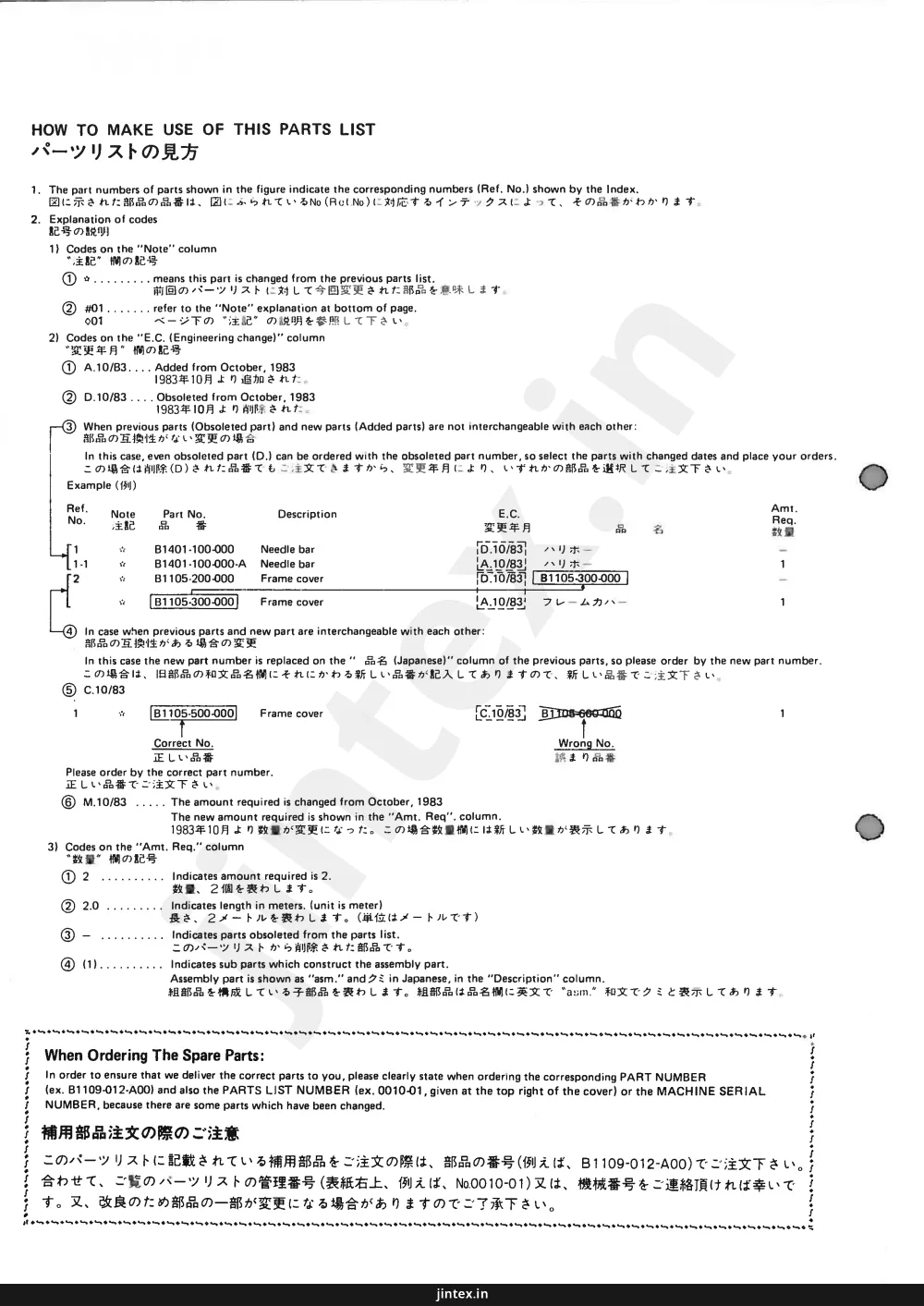

Parts index — Juki LH-512 / LH-515tap a row to open its page

Page 2

Juki LH-512 / LH-515 parts on page 2
Ref	Part number	Part name	Qty
	B1401-100-000	Needle bar
	B1401-100-000-A	Needle bar
	B1105-200-000	Frame cover
	B1105-300-000	Frame cover
	B1105-500-000	Frame cover
	B1105-600-000	Frame cover

Page 4 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Juki LH-512 / LH-515 parts on page 4
Ref	Part number	Part name	Qty
	1	FRAME & MISCELLANEOUS COVER COMPONENTS
	2	SCREW
	3	COVER
	4	HOOK DRIVING SHAFT
	5	HOOK DRIVING SHAFT
	6	NEEDLE CLAMP SCREW
	7	NEEDLE CLAMP
	8	SPRING
	9	SPRING
	10	SPRING
	11	COVER
	12	COVER
	13	COVER
	14	COVER
	15	THREAD GUIDE
	16	THREAD GUIDE
	17	NEEDLE PLATE
	18	NEEDLE PLATE
	19	NEEDLE PLATE
	20	NEEDLE PLATE
	21	FEED DOG
	22	FEED DOG
	23	FEED DOG
	24	FEED DOG
	25	PRESSER BAR
	26	PRESSER BAR
	27	PRESSER BAR
	28	PRESSER BAR
	29	COVER
	30	BRACKET
	31	BRACKET
	32	BRACKET
	33	SPRING
	34	SPRING
	35	SPRING
	36	SPRING
	37	MOTOR
	38	GEAR
	39	GEAR
	40	WASHER
	41	WASHER
	42	WASHER
	43	WASHER
	44	WASHER
	45	WASHER
	46	SHAFT
	47	SHAFT
	48	BASE PLATE
	49	BASE PLATE
	50	NEEDLE PLATE
	51	NEEDLE PLATE
	52	SCREW
	53	SCREW
	54	BASE PLATE
	55	BASE PLATE
	56	BASE PLATE
	57	BASE PLATE

Page 5 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Juki LH-512 / LH-515 parts on page 5
Part number	Part name	Qty
B1103-512-0A0-A	Face plate asm.	1
SS-711111120-SP	Screw 11/64-40 L=10.5	2
B1179-552-000	Rubber plug	2
B1118-512-00E	Thread guide (E)	1
SS-7090610-SP	Screw 9/64-40 L=6.0	1
B1121-512-000	Frame thread guide	1
NS-6060310-SP	Nut 3/32-56	1
B1118-522-000	Side plate	1
B1119-522-000	Gasket	1
SS-7111120-SP	Screw 11/64-40 L=10.5	8
B1187-552-000	Rubber plug	2
B1123-552-000-A	Thread take-up lever oil guard	1
SS-7110510-SP	Screw 11/64-40 L=5.0	1
B1164-012-000	Rubber plug, large	1
B1114-051-000	Needle thread guide pin	1
NS-6620310-SP	Nut 3/32-56	1
B3138-512-000	Take-up spring adjusting plate	1
SS-7090520-SP	Screw 9/64-40 L=4.5	1
B1118-512-000-A	Thread guide (A)	1
B1132-512-000	Nut	1
B1118-512-00C	Thread guide (C)	1
WP-0330500-0E	Washer 3.3 x 6.0 x 0.5	1
SS-4080620-TP	Screw 1/8-44 L=6.4	1
B1131-512-000	L-shaped thread guide	1
B1118-512-00D	Thread guide (D)	1
B3125-155-000	Disc spring	1
SD-0600271-SP	Hinge screw D=6.00 H=2.7	1
SS-2090710-SP	Screw 9/64-40 L=7.0	1
B3121-512-0B0	Tension post base asm.	1
B3124-512-0A0	Tension post asm.	(1)
B3134-051-000	Tension release lever	(2)
SD-0470281-SP	Hinge screw D=4.80 H=2.8	(2)
B3127-051-000	Tension release pin, short	(1)
B3128-512-000	Pin (B)	(1)
B3128-512-000	Take-up spring	(1)
B3123-512-000	Thread take-up spring stud	(1)
B3137-512-0A0	Thread take-up spring guide asm.	(2)
SS-6081210-SP	Screw 1/8-44 L=12.0	(1)
B3125-155-000	Tension stud nut	(1)
B3126-051-000	Tension disc	(4)
B3132-051-000	Tension disc holder	(2)
B3129-012-A00	Tension spring (A)	(2)
B3120-125-000	Tension disc stopper	(2)
B3116-512-00B	Thread tension post nut (B)	(1)
B3116-512-00A	Thread tension post nut (A)	(1)
B3122-512-000-A	Tension release bar	(1)
PS-0600402-00	Spring 6.0 x 40	1
B1112-512-C00	Bed slide, left (C)	1
B1113-512-C00	Bed slide, right (C)	1
B1109-512-000	Throat plate 3/16"	1
SS-2110920-TP	Screw 11/64-40 L=8.5	1
SS-6090630-SP	Screw 9/64-40 L=6.0	1
B1104-051-000	Pin	1
B1110-051-0A0	Bed slide asm.	(1)
B1110-051-000	Bed slide	(1)
B1111-051-00B	Bed throat spring asm.	(1)
B1111-051-00B	Spring	(1)

Page 6 — 2. MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki LH-512 / LH-515 parts on page 6
Ref	Part number	Part name	Qty
	1	NEEDLE BAR CONNECTING ROD
	2	NEEDLE BAR CONNECTING ROD SCREW
	3	NEEDLE BAR CONNECTING ROD COLLAR
	4	NEEDLE BAR CONNECTING ROD SCREW
	5	NEEDLE BAR CONNECTING ROD COLLAR
	6	NEEDLE BAR CONNECTING ROD
	7	NEEDLE BAR CONNECTING ROD COLLAR
	8	NEEDLE BAR CONNECTING ROD COLLAR
	9	NEEDLE BAR CONNECTING ROD COLLAR
	10	NEEDLE BAR CONNECTING ROD COLLAR
	11	NEEDLE BAR CONNECTING ROD COLLAR
	12	NEEDLE BAR CONNECTING ROD SCREW
	13	NEEDLE BAR CONNECTING ROD COLLAR
	14	NEEDLE BAR CONNECTING ROD COLLAR
	15	NEEDLE BAR CONNECTING ROD SCREW
	16	NEEDLE BAR CONNECTING ROD COLLAR
	17	MAIN SHAFT
	18	MAIN SHAFT COLLAR
	19	MAIN SHAFT COLLAR
	20	MAIN SHAFT COLLAR
	21	MAIN SHAFT COLLAR SCREW
	22	MAIN SHAFT COLLAR SCREW
	23	MAIN SHAFT COLLAR
	24	MAIN SHAFT COLLAR
	25	MAIN SHAFT COLLAR
	26	MAIN SHAFT COLLAR
	27	MAIN SHAFT COLLAR
	28	MAIN SHAFT COLLAR
	29	MAIN SHAFT COLLAR
	30	MAIN SHAFT COLLAR
	31	MAIN SHAFT COLLAR
	32	MAIN SHAFT COLLAR
	33	NEEDLE BAR CONNECTING ROD COLLAR
	34	NEEDLE BAR CONNECTING ROD COLLAR
	35	NEEDLE BAR
	36	NEEDLE BAR CONNECTING ROD COLLAR
	37	NEEDLE BAR CONNECTING ROD COLLAR
	38	NEEDLE BAR CONNECTING ROD COLLAR
	39	NEEDLE BAR CONNECTING ROD COLLAR SCREW
	40	NEEDLE BAR CONNECTING ROD COLLAR
	41	NEEDLE BAR CONNECTING ROD COLLAR SCREW
	42	NEEDLE
	43	NEEDLE
	44	NEEDLE BAR CONNECTING ROD COLLAR
	45	NEEDLE BAR CONNECTING ROD COLLAR SCREW
	46	NEEDLE BAR CONNECTING ROD COLLAR
	47	NEEDLE BAR CONNECTING ROD COLLAR
	48	NEEDLE BAR CONNECTING ROD COLLAR SCREW
	49	MAIN SHAFT COLLAR
	50	MAIN SHAFT COLLAR

Page 7 — 2. MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki LH-512 / LH-515 parts on page 7
Ref	Part number	Part name	Qty
	B1407-512-000	Oil pipe	2
	CQ-2520000-00	Oil wick	03
	B1904-512-000	Thread take-up lever pin	1
	SS-8151550-SP	Screw 15/64-28 L=15.0	1
	RO-0371801-00	Rubber ring	1
	B1901-512-0AO	Thread take-up lever asm.	1
002	B1905-541-B00	Thread take-up lever needle bearing (B)	2
	B1209-512-000	Needle bar crank	1
	B1408-512-000	Needle bar crank rod	1
	B1903-552-000	End screw left	1
	B1206-512-0AO	Counter weight asm.	1
	SS-9661120-CP	Screw 1/4-40 L=10.5	(1)
	SS-8681690-TP	Screw 9/32-28 L=16.0	1
	B2529-352-000	Protection plate	1
	SS-7681750-TP	Screw 9/32-28 L=16.5	1
	SS-8660610-TP	Screw 1/4-40 L=6.0	1
	B1202-512-000	Main shaft bearing, front	1
	B1201-512-000	Main shaft	1
	B1214-019-000	Sprocket ring	3
	B1302-512-000	Sprocket wheel, upper	1
	SS-6661110-SP	Screw 1/4-40 L=11.0	4
	SS-8151550-SP	Screw 15/64-28 L=15.0	4
003	B1217-515-000	Hand wheel
	B1203-512-000	Main shaft bearing, rear	2
	B1301-051-000	Timing belt	1
004	B1217-512-000	Hand wheel
	B1430-512-0AO	Needle bar frame driving arm asm.	1
	SS-9152130-SP	Screw 15/64-28 L=20.5	(1)
002	B1438-512-B00	Washer T=1.5
	B1608-512-000	Rock shaft bushing, rear	1
	B1302-512-000	Sprocket wheel, lower	1
	B1606-512-000	Rock shaft bushing, front	1
	B1424-512-0AO-A	Needle bar frame rock shaft asm.	1
	B1437-512-000-A	Needle bar slide block	(1)
	B1401-512-000	Needle bar	1
	B1414-512-000	Oil wick retainer	1
	B1411-512-0AO-A	Needle bar connection asm.	1
	B1412-051-000	Felt	(0.1)
	SS-7090910-SP	Screw 9/64-40 L=8.5	(1)
	B1402-051-0AO	Needle clamp 3/16" asm.	1
	SS-6090410-TP	Screw 9/64-40 L=3.5	(2)
	MDP-70081400	Needle DP x 7 #14	2
005	MDP-70081600	Needle DP x 7 #16
	B1422-512-000	Felt	1
	B1440-512-000	Retainer	1
	NS-6680410-SP	Nut 9/32-28	2
	B1433-512-0AO	Needle bar frame driving crank asm.	1
	SS-6151440-SP	Screw 15/64-28 L=14.0	(1)
	B1431-512-000	Driving rod	1
	SD-1020961-SP	Hinge screw D=10.20 H=9.6	2

Page 8 — 3. PRESSER BAR & FEED ROCK SHAFT COMPONENTS

Juki LH-512 / LH-515 parts on page 8
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	34-1	34-1
	34-2	34-2
	34-3	34-3
	34-4	34-4
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	55	55
	56	56
	57	57

Page 9 — 3. PRESSER BAR & FEED ROCK SHAFT COMPONENTS

Juki LH-512 / LH-515 parts on page 9
Part number	Part name	Qty
B1517-552-000	Hinge pin	1
B3412-512-000A	Lifting lever link, left	1
B3413-512-000A	Lifting lever connecting rod	1
B416-552-000	Connecting rod hinge screw	3
RE-0500000-KO	Snap ring 5.0	4
SD-0720331-SP	Hinge screw D=7.24 H=3.3	1
B3414-552-000	Lifting lever link, right	1
B3413-227-000	Spring suspension	1
B3417-552-000	Lifting lever link spring	1
B3418-552-000	Swivel screw	1
B3416-012-000	Swivel	1
NS 6620310-SP	Nut 3/16-32	1
B3415-512-000A	Connecting rod, vertical	1
B1523-226-000	Snap ring (B)	1
RE-0600000-KO	Snap ring 6.0	1
B3411-512-000A	Lifting lever rod	1
B1519-581-000	Presser screw	1
B1509-227-000	Presser spring regulator	1
B1510-227-000	Presser bar guide bracket	1
B1505-227-000-A	Presser spring	1
B1507-512-000	Presser bar guide bracket	1
SS-7111310-SP	Screw 11/64-40 L=12.8	1
B3141-512-000-A	Tension release plate mounting base	1
B3140-512-000	Thread tension release plate	1
SS-4110910-TP	Screw 11/64-40 L=9.0	2
B1512-012-000	Hand lifter	1
B1510-450-000	Bushing, lower	1
B1501-581-000	Presser bar	1
B1515-512-000	Hand lifter shaft	1
SS-6090910-TP	Screw 9/64-40 L=9.0	1
B1524-512-DAD	Presser foot 3/16" asm.	1
B1524-512-DBR	Presser foot 3/16" (FINGER GUARD) asm.	1
B1524-512-DB0	Presser foot 3/16" (OPEN STYLE) asm.	1
B1524-512-DAO	Presser foot 3/16" (OPEN STYLE) asm.	1
B1524-512-DBE	Presser foot 3/16" (SPRING STYLE) asm.	1
B1524-512-DBF	Presser foot 3/16" (SPRING STYLE) asm.	1
B1524-512-DAF	Presser foot 3/16" (GUIDE STYLE) asm.	1
B1524-512-DBF	Presser foot 3/16" (GUIDE STYLE) asm.	1
B1610-512-000	Feed driving slide block	1
SS-6580750-TP	Screw 1/8-40 L=7.0	2
B1613-512-D00	Feed dog 3/16"	1
B1602-512-000	Feed bar asm.	1
B1602-512-000	Feed bar	(1)
B1604-512-000	Feed bar slide fork	(1)
WP-0621016-SD	Washer 6.2 x 13.0 x 1.0	1
WS-0651510-KP	Spring washer 6.5 x 12.5 x 1.5	(1)
SS-9151440-CP	Screw 15/64-28 L=14.0	(1)
SS-8620610-TP	Screw 3/16-32 L=6.0	1
NS-6080210-SP	Nut 1/8-44	1
SS-6081210-SP	Screw 1/8-44 L=12.0	1
CS-0640860-SH	Thrust collar asm.	1
SS-8110510-SP	Screw 11/64-40 L=5.0	(2)
B1604-012-000	Feed bar shaft	1
CQ-3030000-00	Oil wick	0.2
B1603-155-0A0	Feed rocker asm.	1
SS-7111310-TP	Screw 11/64-40 L=12.8	(2)
B1606-512-000	Rock shaft bushing, front	1
B1601-512-000	Feed rock shaft	1
CS-170101A-SZ	Thrust collar asm.	2
SS-8150750-SP	Screw 15/64-28 L=7.0	(4)
SS-8681130-SP	Screw 9/32-28 L=11.0	1

Page 10 — 4. HOOK & HOOK DRIVING SHAFT COMPONENTS

Juki LH-512 / LH-515 parts on page 10
Ref	Part number	Part name
1	J8140155000-A	1
2	N/A	2
3	N/A	3
4	N/A	4
5	N/A	5
6	N/A	6
7	N/A	7
8	N/A	8
9	N/A	9
10	N/A	10
11	N/A	11
12	N/A	12
13	N/A	13
14	N/A	14
15	N/A	15
16	N/A	16
17	N/A	17
18	N/A	18
19	N/A	19
20	N/A	20
21	N/A	21
22	N/A	22
23	N/A	23
24	N/A	24
25	N/A	25
26	N/A	26
27	N/A	27
28	N/A	28
29	N/A	29
30	N/A	30
31	N/A	31
32	N/A	32
33	N/A	33
34	N/A	34
35	N/A	35
36	N/A	36
37	N/A	37
38	N/A	38
39	N/A	39
40	N/A	40
41	N/A	41
42	N/A	42
43	N/A	43
44	N/A	44
45	N/A	45
46	N/A	46
47	N/A	47
48	N/A	48
49	N/A	49
50	N/A	50
51	N/A	51
52	N/A	52

Page 11 — 4. HOOK & HOOK DRIVING SHAFT COMPONENTS

Juki LH-512 / LH-515 parts on page 11
Ref	Part number	Part name	Qty
1	B1801-512-000-A	Hook driving shaft	1
2	B1801-515-000-A	Hook driving shaft	1
3	B1802-512-0A0	Hook driving shaft bushing, front asm.	1
4	B1802-512-0A0	Hook driving shaft gear asm.	1
5	B1816-512-0A0	Hook driving shaft gear asm.	2
6	SS-8660810-TP	Screw 1/4-40 L=8.0.	(4)
7	B1803-515-0A0	Hook driving shaft bushing, intermediate asm.	1
8	B1813-512-000	Hook driving shaft bearing	1
9	SS-6111140-SP	Screw 11/64-40 L=11.0	1
10	B1804-512-0A0	Hook driving shaft collar asm.	1
11	SS-8150710-SP	Screw 15/64-28 L=7.0.	(2)
12	SS-8150710-SP	Screw 15/64-28 L=7.0.	2
13	B1814-512-0A0	Bobbin case opening lever shaft gear asm.	2
14	SS-8660810-TP	Screw 1/4-40 L=8.0.	(4)
15	B1817-512-0A0	Hook shaft gear asm.	1
16	SS-8660610-SP	Screw 1/4-40 L=6.0.	(4)
17	B1840-512-0A0	Feed driving cam asm.	1
18	SS-8150510-TP	Screw 15/64-28 L=4.7.	(1)
19	SS-8152030-SP	Screw 15/64-28 L=20.0.	1
20	SS-4080620-TP	Screw 1/8-44 L=6.4.	2
21	WP-0371026-SD	Washer 3.7 x 7.0 x 1.0.	2
22	B1824-512-000	Bobbin case opening lever	2
23	SS-6080610-TP	Screw 1/8-44 L=6.0.	2
24	B1822-512-000	Bobbin case opening lever base	2
25	B1825-512-000	Bobbin case opening lever base stud	2
26	SS-6080610-TP	Screw 1/8-44 L=6.0.	2
27	B1820-512-00A	Bobbin case opening lever link, left	1
28	B1819-512-000	Bobbin case opening lever shaft	2
29	B1854-512-00B	Washer (B)	2
30	B1823-512-000	Bobbin case opening lever stud	2
31	SS-6080320-SP	Screw 1/8-44 L=2.5.	4
32	B1821-512-000	Upper bushing	4
33	B1810-512-000-B	Hook shaft saddle, left	1
34	SS-8150710-SP	Screw 15/64-28 L=7.0.	4
35	SS-6153040-SP	Screw 15/64-28 L=30.0.	2
36	WP-0850002-SP	Washer 8.5 x 18.0 x 1.6.	2
37	SM-6082502-TM	Screw M8 L=25.	2
38	B1860-512-000	Hook shaft saddle cover	2
39	SS-7060610-SP	Screw 3/32-56 L=5.5.	6
40	SS-8150710-SP	Screw 15/64-28 L=7.0.	2
41	B1805-512-000-A	Hook shaft lower bushing	2
42	B1853-512-00C-A	Washer (C).	6
43	B1831-512-000-A	Hook shaft.	2
44	CQ-3030000-00	Oil wick.	0.1
45	CQ-2520000-00	Oil wick.	0.1
46	B1808-552-000	Oil seal screw.	2
47	B1826-512-CA0-A	Hook shaft needle bearing asm. (C)	2
48	B1830-512-0A0	Vertical-axis hook asm.	2
49	040-51242982	Hook set screw.	(4)
50	B9117-051-000	Bobbin.	2
51	B1811-512-000-B	Hook shaft saddle, right.	1
52	B1820-512-00B	Bobbin case opening lever, right.	1

Page 12 — 5. REVERSE FEED CONTROL LEVER COMPONENTS (EXCLUSIVE PARTS FOR LH-515)

Juki LH-512 / LH-515 parts on page 12
Ref	Part number	Part name	Qty
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	26-1	26-1
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	55	55
	56	56
	57	57
	58	58
	59	59
	60	60
	61	61
	62	62
	63	63
	64	64
	65	65
	66	66
	67	67
	68	68
	69	69

Page 13 — REVERSE FEED CONTROL LEVER COMPONENTS (EXCLUSIVE PARTS FOR LH-515)

Juki LH-512 / LH-515 parts on page 13
Ref	Part number	Part name	Qty
	B1213-012-000	Felt retainer
	B1702-012-000	Oil felt
	B1614-515-0AO	Crank connecting rod asm.
	NS-6080210-SP	Nut 1/8-44
	SS-8081210-TH	Screw 1/8-44 L=10.0
	B1623-057-000	Feed adjusting lead cam pin
	SS-8151550-SP	Screw 15/64-28 L=15.0
	81622-057-000	Friction plate
	B1636-055-000	Feed eccentric adjusting knob
	81639-051-000	Spring
	RE-0500000-KO	Snap ring 5.0
	B1626-562-000	Feed eccentric guide
	B1624-055-000	Spring
	B1625-057-0AO	Retaining collar asm.
	SS-8110750-SP	Screw 11/64-40 L=5.0
	SS-8110510-SP	Screw 11/64-40 L=5.0
	SS-7620750-SP	Screw 3/16-32 L=6.5
	SS-8660970-TP	Screw 1/4-40 L=8.5
	SS-9660940-SP	Screw 1/4-40 L=8
	B1624-555-000	Reverse feed control lever
	B1655-515-000	Feed changing base
	SM-6081542-CP	Screw M8 L=15
	SS-8150710-SP	Screw 15/64-28 L=7.0
	B1629-555-0AO	Control lever rear asm.
	SS-6121210-SP	Screw 3/16-28 L=12.0
	RO-0611801-00	Rubber ring
	WZ-0641510-KP	Washer 6.4 x 11.0 x 0.3
	SD-0600321-SP	Hinge screw D=6.0 H=3.2
	SD-0600271-SP	Hinge screw D=6.00 H=2.7
	B1657-515-000	Feed regulating rod
	B1641-515-000	Feed regulating shaft
	B1666-515-000	Tension spring
	SS-8110520-TP	Screw 11/64-40 L=4.5
	B1642-515-0AO	Feed regulating arm pin asm.
	CQ-2020000-00	Oil wick
	SS-8150710-SP	Screw 15/64-28 L=7.0
	B1647-122-000	Suspension bracket (A)
	82007-232-000	Tension spring
	B1659-562-000	Tension spring suspension (B)
	WP-0371016-SD	Washer 3.7 x 8.0 x 1.0
	SS-4091010-SP	Screw 9/64-40 L=10.0
	SS-7090710-SP	Screw 9/64-40 L=6.8
	B1644-515-0AO	Feed regulating pin asm.
	CQ-3030000-00	Oil wick
	NS-6150310-SP	Nut 15/64-28
	B1453-771-000	Stopper
	B1667-515-000-A	Feed limiting plate
	WP-0480856-SP	Washer 4.8 x 8.4 x 0.8
	SS-9121340-CP	Screw 3/16-28 L=13.0
	SS-8110750-SP	Screw 11/64-40 L=6.5
	81640-515-0AO	Feed regulating arm asm.
	SS-7151210-SP	Screw 15/64-28 L=12.0
	SS-8110510-SP	Screw 11/64-40 L=5.0
	81643-562-000	Bushing, for arm shaft
	B1668-515-0AO	Feed regulating spring retaining collar asm.
	SS-8660530-TP	Screw 1/4-40 L=4.5
	B1645-562-000	Feed regulating link
	SS-8110750-SP	Screw 11/64-40 L=6.5
	B1646-562-0AO	Feed regulating link pin asm.
	CQ-2020000-00	Oil wick
	B1647-562-000	Feed regulating fork link
	B1664-562-000	Needle bearing
	B1648-562-0AO	Connecting pin asm.
	CQ-2020000-00	Oil wick
	SS-8110520-TP	Screw 11/64-40 L=4.5
	B1616-515-0AO	Feed rock shaft crank asm.
	SS-7111410-SP	Screw 11/64-40 L=14.0
	B1654-515-0AO	Feed changing crank asm.
	SS-6121210-SP	Screw 3/16-28 L=12.0
	SS-8150710-SP	Screw 15/64-28 L=7.0

Page 14 — 6. FEED MECHANISM COMPONENTS (EXCLUSIVE PARTS FOR LH-512)

Juki LH-512 / LH-515 parts on page 14
Part number	Part name	Qty
B1614-512-OB0	Crank connecting rod asm.	1
NS-6080210-SP	Nut 1/8-44	(2)
SS-8081050-TH	Screw 1/8-44 L=10.0	(2)
SS-8081210-TH	Screw 1/8-44 L=11.5	(2)
B1623-057-000	Feed adjusting lead cam pin	(1)
SS-8151550-SP	Screw 15/64-28 L=15.0	(2)
B1622-057-000	Friction plate	1
B1213-012-000	Felt retainer	1
B1702-012-000	Oil felt	1
B1402-352-0AO	Feed rock shaft crank asm.	1
SS-6621220-SP	Screw 3/16-32 L=12.0	(2)
B1403-352-000	Feed regulating link pin	1
B1625-057-0AO	Retaining collar asm.	(1)
SS-8110510-SP	Screw 11/64-40 L=5.0	(1)
SS-8110750-SP	Screw 11/64-40 L=6.5	(1)
SS-8110510-SP	Screw 11/64-40 L=5.0	1
B1624-055-000	Spring	1
B1636-055-000	Feed eccentric adjusting knob	1
B1639-051-000	Spring	1
RE-0500000-KO	Snap ring 5.0	1
B1626-512-000	Feed eccentric guide	1

Page 15

Juki LH-512 / LH-515 parts on page 15
Ref	Part number	Part name	Qty
	B1907-512-0A0-A	Oil shaft asm.
	B3501-512-0A0-A	Oil tank asm.
	SQ-1110401-MZ	Connection screw.
	SS-2110930-SP	Screw 11/64-40 L=8.7
	PS-0400402-KH	Spring pin
	B3505-512-000-A	Vinyl tube holder A
	SS-6091210-TP	Screw 9/64-40 L=12.0
	B3511-512-0A0	Oil return wick asm.
	B3508-512-000	Oil felt holder
	SS-7110710-SP	Screw 11/64-40 L=7.0
	BP-3000000-00	Vinyl tube
	SS-7091410-SP	Screw 9/64-40 L=13.5
	B1834-512-000-A	Oil adjusting screw
	NS-6110310-SP	Nut 11/64-40
	B3418-512-000	Vinyl tube holder
	B3536-122-000	Vinyl tube holder
	SQ-1110401-MZ	Connecting screw.
	B1807-512-00B	Hook driving shaft bushing (B), intermediate
	SS-8150410-SP	Screw 15/64-28 L=4.0
	B3513-512-000	Lubricating oil pump shaft
	B3502-512-0A0-A	Oil adjusting base asm.
	SQ-1110401-MZ	Connecting screw.
	NS-6110310-SP	Nut 11/64-40
	B1834-512-000-A	Oil adjusting screw
	SS-7111410-SP	Screw 11/64-40 L=14.0
	B3534-155-000	Oil return pump plunger
	B1214-038-000	Plunger spring
	B1850-512-000	Filter screen holder.
	B3511-512-000	Plunger presser
	SS-7110720-SP	Screw 11/64-40 L=7.0
	SS-7090910-SP	Screw 9/64-40 L=8.5
	SS-8110750-SP	Screw 11/64-40 L=6.5
	B1851-512-000	Filter screen
	NS-6090310-SP	Nut 9/64-40
	CQ-2020000-00	Oil wick
	SS-7110710-SP	Screw 11/64-40 L=7.0
	SS-5150510-SP	Screw 15/64-28 L=5.0
	B3512-512-000	Hook lubricating vinyl tube holder.

Page 16 — 8. OIL RESERVOIR & KNEE LIFTER COMPONENTS

Juki LH-512 / LH-515 parts on page 16
Part number	Part name	Qty
B8218-512-000-A	Oil pad	1
B3421-512-0AA	Knee press lifter rod asm.	1
B8217-512-0B0	Oil reservoir asm.	1
B8217-512-000-A	Oil reservoir	(1)
SS-6741010-SP	Screw 3/8-28 L=10.0	(1)
B8219-125-000	Oil drain cap gasket	(1)
B8227-125-000	Felt cushion	(4)
B8226-125-000	Rubber cushion	(4)
B3420-512-0AO	Knee press rod asm.	(1)
B3427-512-00A	Knee press rod bearing bracket	(1)
SS-9182010-SN	Screw 9/32-20 L=20.0	(2)
B3420-512-00A	Knee press rod	(1)
B3426-552-000	Snap ring	(1)
B3429-552-000	Spring	(1)
B3429-552-000-A	Spring	(1)
SS-8152080-SR	Screw 15/64-28 L=19.5	(1)
SS-9151540-SR	Screw 15/64-28 L=15.0	(2)
NS-6150430-SR	Nut 15/64-28	(4)
SS-8153010-SR	Screw 15/64-28 L=30.0	(1)
B3424-552-000	Knee press rod lifting lever (A)	(1)
SS-9151220-SR	Screw 15/64-28 L=12.0	(1)
B3425-552-000	Knee press rod lifting lever (B)	(1)
B3419-552-0AO	Knee lifter plate rod asm.	1
SM-9061003-SE	Screw M6 L=10.0	-
B3432-552-000	Knee press plate stopper	-
B3430-552-000	Knee press plate	-
B3431-552-000	Knee press plate cover	-
B3430-552-0AO	Knee press plate asm.	(1)
SS-9661120-CP	Screw 1/4-40 L=10.5	(1)
B3431-552-000-A	Knee press plate cover	(1)
B3419-122-000	Knee lifter plate rod	(1)

Page 17 — 9. SUBCLASS COMPONENTS (1) LH-512, LH-515 SPECIFICATIONS OF FOUNDATION

Juki LH-512 / LH-515 parts on page 17
Ref	Part number	Part name
1	B1109-512-B0B	針板
2	B1109-512-D0B	針板
3	B1109-512-F0B	針板
4	B1109-512-G0B	針板
5	B1109-512-H0B	針板
	SS-1110840-SP	針板メネジ
	B1524-512-GAC	定規付き押工 (組)
	B1524-512-DAC	定規付き押工 (組)
	B1613-512-B0B	送り歯
	B1613-512-D0B	送り歯
	B1613-512-F0B	送り歯
	B1613-512-G0B	送り歯
	B1613-512-H0B	送り歯
	B1505-227-T00-A	押工調節バネ

Page 18 — 9. SUBCLASS COMPONENTS (2) LH-512-H, LH-515-H (FOR HEAVY WEIGHT MATERIALS)

Juki LH-512 / LH-515 parts on page 18
Ref	Part number	Part name	Qty
	B1524-512-CAH	Presser Foot asm.
	B1524-512-DAH	Presser Foot asm.
	B1524-512-EAH	Presser Foot asm.
	B1524-512-FAH	Presser Foot asm.
	B1524-512-GAH	Presser Foot asm.
	B1524-512-HAH	Presser Foot asm.
	B1524-512-KAH	Presser Foot asm.
	B1524-512-LAH	Presser Foot asm.
	B1524-512-MAH	Presser Foot asm.
	B1524-512-NAH	Presser Foot asm.
	B1524-512-PAH	Presser Foot asm.
	B1524-512-QAH	Presser Foot asm.
	B1524-512-RAH	Presser Foot asm.
	B1524-512-SAH	Presser Foot asm.
	B1524-512-TAH	Presser Foot asm.
	B1524-512-UAH	Presser Foot asm.
	B1524-512-CBH	Feed Dog
	B1524-512-DBH	Feed Dog
	B1524-512-EBH	Feed Dog
	B1524-512-FBH	Feed Dog
	B1524-512-GBH	Feed Dog
	B1524-512-HBH	Feed Dog
	B1524-512-KBH	Feed Dog
	B1524-512-LBH	Feed Dog
	B1524-512-MBH	Feed Dog
	B1524-512-NBH	Feed Dog
	B1524-512-PBH	Feed Dog
	B1524-512-QBH	Feed Dog
	B1524-512-RBH	Feed Dog
	B1524-512-SBH	Feed Dog
	B1524-512-TBH	Feed Dog
	B1524-512-UBH	Feed Dog
	B1613-512-CBH	Counter Weight asm.
	B1613-512-DBH	Counter Weight asm.
	B1613-512-EBH	Counter Weight asm.
	B1613-512-FBH	Counter Weight asm.
	B1613-512-GBH	Counter Weight asm.
	B1613-512-HBH	Counter Weight asm.
	B1613-512-KBH	Counter Weight asm.
	B1613-512-LBH	Counter Weight asm.
	B1613-512-MBH	Counter Weight asm.
	B1613-512-NBH	Counter Weight asm.
	B1613-512-PBH	Counter Weight asm.
	B1613-512-QBH	Counter Weight asm.
	B1613-512-RBH	Counter Weight asm.
	B1613-512-SBH	Counter Weight asm.
	B1613-512-TBH	Counter Weight asm.
	B1613-512-UBH	Counter Weight asm.
	B1206-512-HA0	Bar Crank
	B1209-512-H00	Bar Crank
	B3114-232-000	Tension Spring

Page 19

Juki LH-512 / LH-515 parts on page 19
Ref	Part number	Part name
G	B1830-512-0AH	Vertical-axis Hook asm.
H	MDP-700B1800	Needle Bar
J	B1626-562-000	Needle (DPX 7 #18)
K	B1217-512-H00	EXCLUSIVE PARTS FOR LH-512-H
L	B1217-512-H00	Hand Wheel

Page 20 — 10. TABLE OF EXCHANGING PARTS

Juki LH-512 / LH-515 parts on page 20
Ref	Part number	Part name
1	B1402-051-AA0	3/32(2.4m/m)
2	B1402-051-BA0	1/8(3.2m/m)
3	B1402-051-CA0	5/32(4.0m/m)
4	B1402-051-DA0	3/16(4.8m/m)
5	B1402-051-EA0	7/32(5.6m/m)
6	B1402-051-FA0	1/4(6.4m/m)
7	B1402-051-GA0	9/32(7.1m/m)
8	B1402-051-HA0	5/16(7.9m/m)
9	B1402-051-KA0	3/8(9.5m/m)
10	B1402-512-WA0	7/16(11.1m/m)
11	B1402-051-LA0	1/2(12.7m/m)
12	B1402-051-MA0	5/8(15.9m/m)
13	B1402-051-NA0	3/4(19.1m/m)
14	B1402-051-PA0	7/8(22.2m/m)
15	B1402-051-QA0	1-1/8(28.6m/m)
16	B1402-051-RA0	1-1/4(31.8m/m)
17	B1402-051-SA0	1-3/8(34.9m/m)
18	B1402-051-TA0	1-1/2(38.1m/m)
19	B1402-051-UA0
	B1524-512-ABD	F
	B1524-512-BBD	E
	B1524-512-CBD	D
	B1524-512-DBD	C
	B1524-512-EBD	B
	B1524-512-FBD	A
	B1524-512-GBD
	B1524-512-HBD
	B1524-512-KBD
	B1524-512-WBD
	B1524-512-LBD
	B1524-512-MBD
	B1524-512-NBD
	B1524-512-PBD
	B1524-512-QBD
	B1524-512-RBD
	B1524-512-SBD
	B1524-512-TBD
	B1524-512-UBD

Page 21

Juki LH-512 / LH-515 parts on page 21
Ref	Part number	Part name
F-1	B1524-512-BAE	Presser Foot asm. 押工(組)
F-2	B1524-512-DAE	Presser Foot asm. 押工(組)
G	B1112-512-B00	Feed Dog 送り歯
H	B1112-512-C00	Bed Slide, Left 滑り板(左)
J	B1112-512-D00	Bed Slide, Right 滑り板(右)
K	B1112-512-E00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1112-512-W00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1112-512-F00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1112-512-G00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1112-512-H00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1112-512-J00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1112-512-K00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1112-512-L00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1112-512-M00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1112-512-N00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1112-512-P00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1112-512-Q00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1112-512-R00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1112-512-S00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1112-512-T00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1112-512-U00	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1802-512-0A0-A	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)
K	B1802-512-0AB	Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組)

Page 22 — 11. THREAD STAND COMPONENTS (SPECIAL ORDER PARTS)

Juki LH-512 / LH-515 parts on page 22
Part number	Part name	Qty
B3301-051-0A0	Thread stand asm.	1
B3310-012-000	Position cup set nut	(1)
WS-0641560-KR	Spring washer 6.4 x 11.9 x 1.5	(1)
B3309-012-000	Position cup	(1)
B3307-012-000	Thread guide	(1)
B3308-012-000	Rod washer	(1)
NM-6061061-SE	Nut M6	(1)
NM-6061061-SE	Nut M6	(1)
B3302-012-000	Spool rod	(1)
B3303-072-0A0	Spool rest asm.	(1)
B3303-012-0A0	Spool rest asm.	(2)
SM-9061080-SE	Screw M6 L=10.0	(3)
B3311-012-000	Spool rest cushion	(3)
B3305-012-000	Spool pin	(3)
WP-0560860-SE	Washer 5.6 x 12.0 x 0.8	(3)
WS-0531060-KR	Spring washer 5.3 x 8.3 x 1.0	(3)
NS-6123881-SE	Nut 3/16-28	(3)
B3301-012-000	Spool stand	(1)
SK-3413200-SC	Wood screw D=4.1 L=32	-
SK-3452000-SE	Wood screw D=4.5 L=20	(3)
WS-1002560-KR	Spring washer 10.0 x 18.0 x 2.5	(1)
NM-6100663-SE	Nut M10	(2)
B3312-012-000	Spool vibration stopper	3
D3301-772-TA0	Thread stand asm.	1

Page 23 — 12. BELT COVER & THREAD WINDER COMPONENTS (SPECIAL ORDER PARTS)

Juki LH-512 / LH-515 parts on page 23
Part number	Part name	Qty
B8230-512-0A0	Belt cover asm.	(1)
B8230-125-A00	Belt cover, upper	(1)
SS-6151040-SP	Screw 15/64-28 L=10.0	(2)
WP-0621016-SD	Washer 6.2 x 13.0 x 1.0	(2)
B8230-552-000	Belt cover	(1)
SK-3482000-SC	Wood screw D=4.8 L=20.0	(1)
WP-0501016-SC	Washer 5.0 x 10.5 x 1.0	(1)
B3201-012-080	Thread winder asm.	1
SK-3482000-SC	Wood screw D=4.8 L=20.0	(2)
WP-0501016-SC	Washer 5.0 x 10.5 x 1.0	(2)
B3201-012-0A0	Thread winder asm.	(1)
B3125-012-000	Tension nut	(1)
B3129-012-B00	Tension spring (B)	(1)
B3126-012-000	Tension disc	(2)
B3223-012-0A0	Tension bracket asm.	(1)
SS-7110820-SN	Screw 11/64-40 L=7.5	(1)
WP-0501016-SC	Washer 5.0 x 10.5 x 1.0	(1)
B3214-012-0A0	Thread winder pulley asm.	(1)
SS-8110510-SN	Screw 11/64-40 L=5.0	(1)
B3228-012-000	Belt brake	(1)
B3229-012-000	Presser plate	(1)
SS-7110410-SN	Screw 11/64-40 L=4.0	(1)
B3204-012-0A0	Thread winder base asm.	(1)
B3212-012-000	Thread winder shaft	(1)
SD-0490261-SP	Hinge screw D=4.90 H=2.6	(1)
B3217-012-000	Bobbin presser	(1)
SS-7081310-SN	Screw 1/8-44 L=12.5	(1)

Juki LH-512 / LH-515 — parts catalog

Page 1 — PARTS LIST

JUUKI Twin-needle, Needle Feed, Lockstitch Industrial Sewing Machine 高速二本針本縫い送りミシン LH-512 & Subclass Twin-needle, Needle Feed, Lockstitch Industrial Sewing Machine with Reverse Feed Mechanism 高速二本針本縫い送り返し縫い付きミシン LH-515 & Subclass PARTS LIST BE5150TOPJA No.0061-04 jintex.in

Page 2

HOW TO MAKE USE OF THIS PARTS LIST パーツリストの見方 1. The part numbers of parts shown in the figure indicate the corresponding numbers (Ref. No.) shown by the Index. 図に示された部品の品番は、図にふれられているNo (Rot No)に対応するインテックスによつて、その品番がわかります。 2. Explanation of codes 記号の説明 1) Codes on the "Note" column “注記”欄の記号 ① ☆ . . . means this part is changed from the previous parts list. この記号は、今回変更された部品を意味します。 ② #01 . . . refer to the "Note" explanation at bottom of page. ページ下の“注記”の説明を参照して下さい。 ③ D.10/83 . . . Obsoleted from October, 1983 1983年10月より削除された。 Example (例) Ref. No. Note 注記 Part No. 品番 Description E.C. 変更年月品名 Amt. Req. 数量 1 ☆ B1401-100-000 Needle bar D.10/83 ハリホー 1 1-1 ☆ B1401-100-000-A Needle bar D.10/83 ハリホー 1 2 ☆ B1105-200-000 Frame cover D.10/83 B1105-300-000 1 B1105-300-000 Frame cover A.10/83 フレームカバー 1 In case when previous parts and new part are interchangeable with each other: この場合は、旧部品との互換性がある場合の変更 5 C.10/83 B1105-500-000 Frame cover C.10/83 B1105-600-000 1 Correct No. 正しい品番 Wrong No. 誤まり品番 Please order by the correct part number. 正しい品番でご注文下さい。 6 M.10/83 The amount required is changed from October, 1983 The new amount required is shown in the "Amt. Req." column. 1983年10月より数量が変更になった。この場合数量欄には新しい数量が表示してあります。 3) Codes on the "Amt. Req." column “数量”欄の記号 ① 12 . . . Indicates amount required is 2. 数量、2個を表わします。 ② 2.0 . . . Indicates length in meters. (unit is meter) 長さ、2メートルを表わします。(単位はメートルです) ③ - . . . Indicates parts obsoleted from the parts list. このパーツリストから削除された部品です。 ④ (1) . . . Indicates sub parts which construct the assembly part. Assembly part is shown as "asm" and クミ in Japanese, in the "Description" column. 組立部品を構成している子部品を表わします。子部品は品番欄に英文で "asm." 和文でクミと表示してあります。 When Ordering The Spare Parts: In order to ensure that we deliver the correct parts to you, please clearly state when ordering the corresponding PART NUMBER (ex. B1109-012-A00) or the MACHINE SERIAL NUMBER, because there are some parts which have been changed. 補用部品注文の際のご注意このパーツリストに記載されている補用部品ご注文の際は、部品の番号(例えば、B1109-012-A00)でご注文下さい。合わせて、このパーツリストの管理番号(表紙右上、例えば、No.0010-01)又は、機械番号をご連絡頂ければ幸いです。又、改良のため部品の一部が変更になる場合がありますのでご了承下さい。 jintex.in

Page 4 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部、外装関係 8. 9. 10. 47 32 31 30 46 33 34 35 36 40 41 42 43 44 45 38 39 11 13 14 15 16 12 29 24 28 21 25 26 27 19 20 23 22 49 50 51 48 52 53 54 55 56 57 - 1 - jintex.in

Page 5 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

1. FRAME & MISCELLANEOUS COVER COMPONENTS Ref. No. Note 注記 Part No. 品番 Description E.C. 変更年月品名 Amt. Req. 数量 1 B1103-512-0A0-A Face plate asm. メンイタクミ 1 2 SS-711111120-SP Screw 11/64-40 L=10.5 マルヒラネジ 11 64 40 L=10.5 2 3 B1179-552-000 Rubber plug アナキャップ 2 4 B1118-512-00E Thread guide (E) テンピンイトアンナイ E 1 5 SS-7090610-SP Screw 9/64-40 L=6.0 マルヒラネジ 9/64 40 L=6 1 6 B1121-512-000 Frame thread guide アームイトカケ 1 7 NS-6060310-SP Nut 3/32-56 6カクナット 3/32 56 1 8 B1118-522-000 Side plate マドイタ 1 9 B1119-522-000 Gasket マドイタパッキン 1 10 SS-7111120-SP Screw 11/64-40 L=10.5 マルヒラネジ 11/64 40 L=10.5 8 11 B1187-552-000 Rubber plug アナキャップ 2 12 B1123-552-000-A Thread take-up lever oil guard テンピンカバー 1 13 SS-7110510-SP Screw 11/64-40 L=5.0 マルヒラネジ 11/64 40 L=5 1 14 B1164-012-000 Rubber plug, large アナキャップ 1 15 B1114-051-000 Needle thread guide pin イトアンナイピン 1 16 NS-6620310-SP Nut 3/32-56 6カクナット 3/32 56 1 17 B3138-512-000 Take-up spring adjusting plate イトトリバネチョウセツバン 1 18 SS-7090520-SP Screw 9/64-40 L=4.5 マルヒラネジ 9/64 40 L=4.5 1 19 B1118-512-000-A Thread guide (A) テンピンイトアンナイ A 1 20 B1132-512-000 Nut テンピンイトアンナイトメナット 1 21 B1118-512-00C Thread guide (C) テンピンイトアンナイ C 1 22 WP-0330500-0E Washer 3.3 x 6.0 x 0.5 ヒラザガネ 3.3×6.0×0.5 1 23 SS-4080620-TP Screw 1/8-44 L=6.4 ナベネジ 1/8-44 L=6.0 1 24 B1131-512-000 L-shaped thread guide Lガタイトカケ 1 25 B1118-512-00D Thread guide (D) テンピンイトアンナイ D 1 26 B3125-155-000 Disc spring サラバネ 1 27 SD-0600271-SP Hinge screw D=6.00 H=2.7 ダンネジ D=6 H=2.7 1 28 SS-2090710-SP Screw 9/64-40 L=7.0 マルサラネジ 9/64 40 L=7 1 29 B3121-512-0B0 Tension post base asm. イトチョーシナツト 1 30 B3124-512-0A0 Tension post asm. イトチョーシボウクミ (1) 31 B3134-051-000 Tension release lever イトユルメケイタ (2) 32 SD-0470281-SP Hinge screw D=4.80 H=2.8 ダンネジ D=4.80 H=2.8 (2) 33 B3127-051-000 Tension release pin, short イトユルメピン (1) 34 B3128-512-000 Pin (B) イトユルメピン B (1) 35 B3128-512-000 Take-up spring イトユルメバネ (1) 36 B3123-512-000 Thread take-up spring stud イトトリバネジク (1) 37 B3137-512-0A0 Thread take-up spring guide asm. イトトリバネアンナイクミ (2) 38 SS-6081210-SP Screw 1/8-44 L=12.0 ヒラネジ 1/8-44 L=12 (1) 39 B3125-155-000 Tension stud nut イトチョーシナツト (1) 40 B3126-051-000 Tension disc イトチョーシサラ (4) 41 B3132-051-000 Tension disc holder イトチョーシサラオサエ (2) 42 B3129-012-A00 Tension spring (A) イトチョーシバネ A (2) 43 B3120-125-000 Tension disc stopper イトチョーシサラカイテンドメ (2) 44 B3116-512-00B Thread tension post nut (B) イトチョーシナツト B (1) 45 B3116-512-00A Thread tension post nut (A) イトチョーシナツト A (1) 46 B3122-512-000-A Tension release bar イトユルメメオシボー (1) 47 PS-0600402-00 Spring 6.0 x 40 スプリングピン 6.0×40 1 48 01 B1112-512-C00 Bed slide, left (C) スペリイタヒダリ C 1 49 01 B1113-512-C00 Bed slide, right (C) スペリイタミギ C 1 50 01 B1109-512-000 Throat plate 3/16" ハリイタ 3/16 1 51 SS-2110920-TP Screw 11/64-40 L=8.5 マルサラネジ 11/64 40 L=8.5 1 52 SS-6090630-SP Screw 9/64-40 L=6.0 ヒラネジ 9/64 40 L=6 1 53 B1104-051-000 Pin トメピン 1 54 B1110-051-0A0 Bed slide asm. スペリイタクミ (1) 55 B1110-051-000 Bed slide スペリイタ (1) 56 B1111-051-00B Bed throat spring asm. スペリイタバネクミ (1) 57 B1111-051-00B Spring スペリイタバネ (1) Note (注記) 01... Please refer to the table of exchanging parts 17~18ページの交換部品一覧表をご参照下さい。 on pages 17~18. -2- jintex.in 頭部、外装関係

Page 6 — 2. MAIN SHAFT & NEEDLE BAR COMPONENTS

2. MAIN SHAFT & NEEDLE BAR COMPONENTS 上軸、針棒関係 - 3 - jintex.in

Page 7 — 2. MAIN SHAFT & NEEDLE BAR COMPONENTS

2. MAIN SHAFT & NEEDLE BAR COMPONENTS Ref. No. Note 主記 Part No. 品番 Description E.C. 変更年月品名 Amt. Req 数量 1 B1407-512-000 Oil pipe ハリボークランクアフラインフ 2 CQ-2520000-00 Oil wick ユシン 03 3 B1904-512-000 Thread take-up lever pin テンピンササエジク 1 4 SS-8151550-SP Screw 15/64-28 L=15.0 トメネジ 15/64-28 L=15 1 5 RO-0371801-00 Rubber ring 0リング 1 6 B1901-512-0AO Thread take-up lever asm. テンピンクミ 1 7 002 B1905-541-B00 Thread take-up lever needle bearing (B) ニードルジクウケ B 2 8 B1209-512-000 Needle bar crank ハリボークランク 1 9 B1408-512-000 Needle bar crank rod ハリボークランクロッド 1 10 B1903-552-000 End screw left ヒダリネジ 1 11 B1206-512-0AO Counter weight asm. ツリアイオモリクミ 1 12 SS-9661120-CP Screw 1/4-40 L=10.5 6カクボルト 1/4-40 L=10.5 (1) 13 SS-8681690-TP Screw 9/32-28 L=16.0 トメネジ 9/32-28 L=16 1 14 B2529-352-000 Protection plate ホゴイタ 1 15 SS-7681750-TP Screw 9/32-28 L=16.5 トメネジ 9/32-28 L=16.5 1 16 SS-8660610-TP Screw 1/4-40 L=6.0 トメネジ 1/4-40 L=6 1 17 B1202-512-000 Main shaft bearing, front ウワジクマエベアリング 1 18 B1201-512-000 Main shaft ウワジク 1 19 B1214-019-000 Sprocket ring スプロケットリング 3 20 B1302-512-000 Sprocket wheel, upper ウワスプロケット 1 21 SS-6661110-SP Screw 1/4-40 L=11.0 ヒラネジ 1/4-40 L=11 4 22 SS-8151550-SP Screw 15/64-28 L=15.0 トメネジ 15/64-28 L=15 4 23 003 B1217-515-000 Hand wheel ハズミクルマ 1 24 B1203-512-000 Main shaft bearing, rear ウワジクウシロベアリング 2 25 B1301-051-000 Timing belt タイミングベルト 1 26 004 B1217-512-000 Hand wheel ハズミクルマ 1 27 B1430-512-0AO Needle bar frame driving arm asm. ハリボーヨーコウブデクミ 1 28 SS-9152130-SP Screw 15/64-28 L=20.5 6カクボルト 15/64-28 L=20.5 (1) 29 002 B1438-512-B00 Washer T=1.5 ニードルジクメタルザガネ T=1.5 2 30 B1608-512-000 Rock shaft bushing, rear スイヘイジクウシロメタル 1 31 B1302-512-000 Sprocket wheel, lower シタスプロケット 1 32 B1606-512-000 Rock shaft bushing, front スイヘイジクマエメタル 1 33 B1424-512-0AO-A Needle bar frame rock shaft asm. ハリボーヨージククミ 1 34 B1437-512-000-A Needle bar slide block ハリボーカクマ (1) 35 B1401-512-000 Needle bar ハリボー 1 36 B1414-512-000 Oil wick retainer ハリボーユシントメガネ 1 37 B1411-512-0AO-A Needle bar connection asm. ハリボーダキクミ 1 38 B1412-051-000 Felt ハリボーダキフェルト (0.1) 39 SS-7090910-SP Screw 9/64-40 L=8.5 マルヒラネジ 9/64-40 L=8.5 (1) 40 B1402-051-0AO Needle clamp 3/16" asm. ハリドメ 3/16 クミ 1 41 SS-6090410-TP Screw 9/64-40 L=3.5 マルヒラネジ 9/64-40 L=3.5 (2) 42 MDP-70081400 Needle DP x 7 #14 ハリ DP×7 #14 2 43 005 MDP-70081600 Needle DP x 7 #16 ハリ DP×7 #16 2 44 B1422-512-000 Felt ハリボーヨーダイフェルト 1 45 B1440-512-000 Retainer ハリボーヨーダイフェルトオサエ 1 46 NS-6680410-SP Nut 9/32-28 6カクナット 9/32-28 2 47 B1433-512-0AO Needle bar frame driving crank asm. ハリボーヨーオクリウデクミ 1 48 SS-6151440-SP Screw 15/64-28 L=14.0 ヒラネジ 15/64-28 L=14 (1) 49 B1431-512-000 Driving rod ハリボーヨードロッド 1 50 SD-1020961-SP Hinge screw D=10.20 H=9.6 ダンネジ D=10.20 H=9.6 2 Note (注記) 002 ... Selecting part 選択部品 003 ... Exclusive part for LH-515 LH-515専用部品 004 ... Exclusive part for LH-512 LH-512専用部品 005 ... Special order part 特別注文部品 -4- jintex.in

Page 8 — 3. PRESSER BAR & FEED ROCK SHAFT COMPONENTS

3. PRESSER BAR & FEED ROCK SHAFT COMPONENTS 押工棒、水平送り軸関係 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 34-1 34-2 34-3 34-4 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 54 55 55 - 5 - jintex.in

Page 9 — 3. PRESSER BAR & FEED ROCK SHAFT COMPONENTS

3. PRESSER BAR & FEED ROCK SHAFT COMPONENTS 押工棒、水平送り軸関係 Rel. No. Note 主記 Part No. 品番 Description E.C. 変更年月 Amt. Req. 数量 1 B1517-552-000 Hinge pin ヒキアゲリンケジク 1 2 B3412-512-000A Lifting lever link, left ヒキアゲリンクウテヒダリ 1 3 B3413-512-000A Lifting lever connecting rod ヒキアゲヨコボー 1 4 B416-552-000 Connecting rod hinge screw ヒキアゲヨコボーダンネジ 3 RE-0500000-KO Snap ring 5.0 トメワ 5. 4 SD-0720331-SP Hinge screw D=7.24 H=3.3 ダンネジ D=7.24 H=3.3 1 B3414-552-000 Lifting lever link, right ヒキアゲリンクウテミキ 1 B3413-227-000 Spring suspension ヒキアゲリンクウテバネケジク 1 B3417-552-000 Lifting lever link spring ヒキアゲリンクウテハネ 1 B3418-552-000 Swivel screw ツリボーダマトメネジ 1 B3416-012-000 Swivel ツリボーダルマ 1 NS 6620310-SP Nut 3/16-32 6カクナット 3/16-32 1 B3415-512-000A Connecting rod, vertical ヒキアゲレンケツボー 1 B1523-226-000 Snap ring (B) トメワ B 1 RE-0600000-KO Snap ring 6.0 Eガタトメワ 6. 1 B3411-512-000A Lifting lever rod ヒキアゲヨコボー 1 B1519-581-000 Presser screw オサエチョーセツネジ 1 B1509-227-000 Presser spring regulator オサエチヨーセツバネ 1 B1510-227-000 Presser bar guide bracket オサエボーダキ 1 B1505-227-000-A Presser spring オサエチヨーセツバネ 1 B1507-512-000 Presser bar guide bracket オサエボーダキ 1 SS-7111310-SP Screw 11/64-40 L=12.8 マルヒラネジ 11/64-40 L=12.8 1 B3141-512-000-A Tension release plate mounting base イトユルメイタトリツケダイ 1 B3140-512-000 Thread tension release plate イトユルメイタ 1 SS-4110910-TP Screw 11/64-40 L=9.0 ナベネジ 11/64-40 L=9 2 B1512-012-000 Hand lifter オサエボー 1 B1510-450-000 Bushing, lower オサエボーシタメタル 1 B1501-581-000 Presser bar オサエボー 1 B1515-512-000 Hand lifter shaft オサエアジク 1 SS-6090910-TP Screw 9/64-40 L=9.0 ナベネジ 9/64-40 L=9 1 01 B1524-512-DAD Presser foot 3/16" asm. オサエ 3/16 クミ 1 06 B1524-512-DBR Presser foot 3/16" (FINGER GUARD) asm. オサエ 3/16 (ハリカバーツキ) クミ 1 06 B1524-512-DB0 Presser foot 3/16" (OPEN STYLE) asm. オサエ 3/16 (ハリアオープン) クミ 1 06 B1524-512-DAO Presser foot 3/16" (OPEN STYLE) asm. オサエ 3/16 (ハリアオープン) クミ 1 06 B1524-512-DBE Presser foot 3/16" (SPRING STYLE) asm. A.9/77 オサエ 3/16 (ハネツキ) クミ 1 34-2 06 B1524-512-DBF Presser foot 3/16" (SPRING STYLE) asm. A.9/77 オサエ 3/16 (ハネ、ハリカバーツキ) クミ 1 34-3 05 B1524-512-DAF Presser foot 3/16" (GUIDE STYLE) asm. A.11/78 オサエ 3/16 (スイブルガイドツキ) クミ 1 34-4 05 B1524-512-DBF Presser foot 3/16" (GUIDE STYLE) asm. A.11/78 オサエ 3/16 (スイブルガイドツキ) クミ 1 B1610-512-000 Feed driving slide block ジョーゲオクリカクゴマ 1 SS-6580750-TP Screw 1/8-40 L=7.0 カクアナボルト 1/8-40 L=7 2 01 B1613-512-D00 Feed dog 3/16" オクリバ 3/16 1 B1602-512-000 Feed bar asm. オクリダイクミ 1 B1602-512-000 Feed bar オクリダイ (1) B1604-512-000 Feed bar slide fork オクリダイフタマタ (1) WP-0621016-SD Washer 6.2 x 13.0 x 1.0 D.2/79 メガネ 6.2×13.0×1 WS-0651510-KP Spring washer 6.5 x 12.5 x 1.5 A.2/79 バネメガネ 6.5×12.5×1.5 (1) SS-9151440-CP Screw 15/64-28 L=14.0 6カクボルト 15/64-28 L=14 (1) SS-8620610-TP Screw 3/16-32 L=6.0 トメネジ 3/16-32 L=6 1 NS-6080210-SP Nut 1/8-44 6カクナット 1/8-44 1 SS-6081210-SP Screw 1/8-44 L=12.0 ヒラネジ 1/8-44 L=12 1 CS-0640860-SH Thrust collar asm. スラストウケ D=6.35 W=8クミ 1 SS-8110510-SP Screw 11/64-40 L=5.0 トメネジ 11/64-40 L=5 (2) B1604-012-000 Feed bar shaft オクリダイジク 1 CQ-3030000-00 Oil wick ユシン 0.2 B1603-155-0A0 Feed rocker asm. オクリダイウデクミ 1 SS-7111310-TP Screw 11/64-40 L=12.8 マルヒラネジ 11/64-40 L=12.8 (2) B1606-512-000 Rock shaft bushing, front スイヘイジクマエメタル 1 B1601-512-000 Feed rock shaft スイヘイジク 1 CS-170101A-SZ Thrust collar asm. スラストウケ D=17.0 W=10 クミ 2 SS-8150750-SP Screw 15/64-28 L=7.0 トメネジ 15/64-28 L=7 (4) SS-8681130-SP Screw 9/32-28 L=11.0 トメネジ 9/32-28 L=11 1 Note (注記) 01... Please refer to the table of exchanging parts on pages 17~18. 17~18ページの交換部品一覧表を御参照下さい。 005... Special order part 特別注文部品 006... Please refer to the table of exchanging parts on pages 17~18. (Special order part) 17~18ページの交換部品一覧表をご参照下さい。(特別注文部品) -6- jintex.in

Page 10 — 4. HOOK & HOOK DRIVING SHAFT COMPONENTS

4. HOOK & HOOK DRIVING SHAFT COMPONENTS 釜、下軸関係 1 J8140155000-A 2 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 - 7 - jinte.in

Page 11 — 4. HOOK & HOOK DRIVING SHAFT COMPONENTS

4. HOOK & HOOK DRIVING SHAFT COMPONENTS 釜、下軸関係 Ref. Note Part No. Description E.C. 変更年月品名 Amt. Req. 数量 1 004 B1801-512-000-A Hook driving shaft シタジク 1 2 003 B1801-515-000-A Hook driving shaft シタジク 1 3 007 B1802-512-0A0 Hook driving shaft bushing, front asm. シタジクマエメタルクミ. 1 4 008 B1802-512-0A0 Hook driving shaft gear asm. シタジクマエメタルクミ. 1 5 B1816-512-0A0 Hook driving shaft gear asm. シタジクネジハグルマクミ. 2 6 SS-8660810-TP Screw 1/4-40 L=8.0. トメネジ 1 4-40 L=8 (4) 7 B1803-515-0A0 Hook driving shaft bushing, intermediate asm. シタジクナカメタルクミ. 1 8 B1813-512-000 Hook driving shaft bearing シタジクベアリング 1 9 SS-6111140-SP Screw 11/64-40 L=11.0 ヒラネジ 11/64-40 L=11 1 10 B1804-512-0A0 Hook driving shaft collar asm. シタジクスラストウケクミ. 1 11 SS-8150710-SP Screw 15/64-28 L=7.0. トメネジ 15/64-28 L=7 (2) 12 SS-8150710-SP Screw 15/64-28 L=7.0. トメネジ 15/64-28 L=7 2 13 B1814-512-0A0 Bobbin case opening lever shaft gear asm. ナカガマアンナイジクギヤクミ. 2 14 SS-8660810-TP Screw 1/4-40 L=8.0. トメネジ 1 4-40 L=8 (4) 15 B1817-512-0A0 Hook shaft gear asm. カマジク 1 16 SS-8660610-SP Screw 1/4-40 L=6.0. トメネジ 1/4-40 L=6 (4) 17 B1840-512-0A0 Feed driving cam asm. ジョーゲオクリカムクミ. 1 18 SS-8150510-TP Screw 15/64-28 L=4.7. トメネジ 15/64-28 L=4.7 (1) 19 SS-8152030-SP Screw 15/64-28 L=20.0. トメネジ 15/64-28 L=20 1 20 SS-4080620-TP Screw 1/8-44 L=6.4. ナベネジ 1/8-44 L=6.4 2 21 WP-0371026-SD Washer 3.7 x 7.0 x 1.0. ヒラザガネ 3.7x7.0x1 2 22 B1824-512-000 Bobbin case opening lever ナカガマ 2 23 SS-6080610-TP Screw 1/8-44 L=6.0. ヒラネジ 1/8-44 L=6. 2 24 B1822-512-000 Bobbin case opening lever base ナカガム 2 25 B1825-512-000 Bobbin case opening lever base stud ナカガムアンナイダイウエコミジク. 2 26 SS-6080610-TP Screw 1/8-44 L=6.0. ヒラネジ 1/8-44 L=6 2 27 B1820-512-00A Bobbin case opening lever link, left ナカガマアンナイリンクヒダリ. 1 28 B1819-512-000 Bobbin case opening lever shaft ナカガマアンナイジク. 2 29 002 B1854-512-00B Washer (B) D.4/79 ナカガマアンナイジクザガネ B. 2 30 B1823-512-000 Bobbin case opening lever stud ナカガマアンナイジクササエジク. 2 31 SS-6080320-SP Screw 1/8-44 L=2.5. ヒラネジ 1/8-44 L=2.5 4 32 B1821-512-000 Upper bushing ナカガマアンナイジクメタル. 4 33 B1810-512-000-B Hook shaft saddle, left カマジクダイヒダリ 1 34 SS-8150710-SP Screw 15/64-28 L=7.0. トメネジ 15/64-28 L=7 4 35 SS-6153040-SP Screw 15/64-28 L=30.0. トメネジ 15/64-28 L=30 2 36 WP-0850002-SP Washer 8.5 x 18.0 x 1.6. ヒラサガネ 8.5x18.0x1.6 2 37 SM-6082502-TM Screw M8 L=25. カクアナボルト M8 L=25 2 38 B1860-512-000 Hook shaft saddle cover カマジクダイフタ 2 39 SS-7060610-SP Screw 3/32-56 L=5.5. マルヒラネジ 3/32-56 L=5.5 6 40 SS-8150710-SP Screw 15/64-28 L=7.0. トメネジ 15/64-28 L=7 2 41 B1805-512-000-A Hook shaft lower bushing カマジクシタメタル. 2 42 B1853-512-00C-A Washer (C). カマジクザガネ C 6 43 B1831-512-000-A Hook shaft. カマジク 2 44 CQ-3030000-00 Oil wick. ユシン. 0.1 45 CQ-2520000-00 Oil wick. ユシン. 0.1 46 B1808-552-000 Oil seal screw. トメネジ 2 47 002 B1826-512-CA0-A Hook shaft needle bearing asm. (C) カマジクニードルベアリング C クミ. 2 48 B1830-512-0A0 Vertical-axis hook asm. カマクミ. 2 49 040-51242982 Hook set screw. カマトメネジ (4) 50 B9117-051-000 Bobbin. ボビン. 2 51 B1811-512-000-B Hook shaft saddle, right. カマジクダイミギ. 1 52 B1820-512-00B Bobbin case opening lever, right. ナカガマアンナイリンクミギ. 1 Note (注記) 002... Selecting part LH-515 この部品は針幅3/32" (2.4m/m)~7/8" (22.2m/m)にご使用下さい。 003... Exclusive part for LH-515 LH-515専用部品 007... Please use this part for needle gauges LH-512専用部品この部品は針幅1" (25.4m/m)~1-1/2" (38.1m/m)にご使用下さい。 008... Please use this part for needle gauges 1" (25.4m/m)~1-1/2" (38.1m/m). - 8 - jintex.in

Page 12 — 5. REVERSE FEED CONTROL LEVER COMPONENTS (EXCLUSIVE PARTS FOR LH-515)

5. REVERSE FEED CONTROL LEVER COMPONENTS (EXCLUSIVE PARTS FOR LH-515) 送りレバー関係 (LH-515専用部品) -9- jintex.in

Page 13 — REVERSE FEED CONTROL LEVER COMPONENTS (EXCLUSIVE PARTS FOR LH-515)

5. REVERSE FEED CONTROL LEVER COMPONENTS (EXCLUSIVE PARTS FOR LH-515) 送リレバー関係 (LH-515専用部品) Ref. No. Note 注記 Part No. 部品 Description E.C. 変更年月品名 Amt. Req. 数量 1 B1213-012-000 Felt retainer フェルトオサエ 1 2 B1702-012-000 Oil felt フェルト 1 3 B1614-515-0AO Crank connecting rod asm. クランクコネクテイングロツドクミ 1 4 NS-6080210-SP Nut 1/8-44 6カクナット 1/8-44 (2) 5 SS-8081210-TH Screw 1/8-44 L=10.0 .D.10/77 SS-8081210TH (2) 6 B1623-057-000 Feed adjusting lead cam pin トメネジ 1/8-44 L=11.5 (2) 7 SS-8151550-SP Screw 15/64-28 L=15.0 .A.10/77 オクリチョーセツリードカムピン (1) 8 81622-057-000 Friction plate オクリチョーセツアミソリ 1 9 B1636-055-000 Feed eccentric adjusting knob オシボタン 1 10 81639-051-000 Spring ポンポンバネ 1 11 RE-0500000-KO Snap ring 5.0 Eガタトメワ 5 1 12 B1626-562-000 Feed eccentric guide オクリチョーセツアンナイカム 1 13 B1624-055-000 Spring オクリチョーセツバネ 1 14 B1625-057-0AO Retaining collar asm. オクリチョーセツバネケツミ 1 15 SS-8110750-SP Screw 11/64-40 L=5.0 トメネジ 11/64-40 L=5 (1) 16 SS-8110510-SP Screw 11/64-40 L=5.0 トメネジ 11/64-40 L=5 (1) 17 SS-7620750-SP Screw 3/16-32 L=6.5 マルヒラネジ 3/16-32 L=6.5 2 18 SS-8660970-TP Screw 1/4-40 L=8.5 トメネジ 1/4-40 L=8.5 1 19 SS-9660940-SP Screw 1/4-40 L=8 .D.10/78 SS-8660810-TP 1 20 B1624-555-000 Reverse feed control lever トメネジ 1/4-40 L=8 レバー 1 21 B1655-515-000 Feed changing base オクリレバーヘンカンジクダイ 1 22 SM-6081542-CP Screw M8 L=15 6カクアナボルト M8 L=15 2 23 SS-8150710-SP Screw 15/64-28 L=7.0 トメネジ 15/64-28 L=7 1 24 B1629-555-0AO Control lever rear asm. オクリレバーリアクウデクミ 1 25 SS-6121210-SP Screw 3/16-28 L=12.0 ヒラネジ 3/16-28 L=12 (1) 26 RO-0611801-00 Rubber ring Oリング 1 26-1 WZ-0641510-KP Washer 6.4 x 11.0 x 0.3 ナミガタザガネ 6.4x11.0x0.3 1 27 SD-0600321-SP Hinge screw D=6.0 H=3.2 ダンネジ D=6 H=3.2 1 28 SD-0600271-SP Hinge screw D=6.00 H=2.7 ダンネジ D=6 H=2.7 1 29 B1657-515-000 Feed regulating rod オクリチョーセツロッド 1 30 B1641-515-000 Feed regulating shaft オクリチョーセツデジク 1 31 B1666-515-000 Tension spring オクリチョーセツバネ 1 32 SS-8110520-TP Screw 11/64-40 L=4.5 トメネジ 11/64-40 L=4.5 1 33 B1642-515-0AO Feed regulating arm pin asm. オクリチョーセツウデピンクミ 1 34 CQ-2020000-00 Oil wick ユシン 1 35 SS-8150710-SP Screw 15/64-28 L=7.0 トメネジ 15/64-28 L=7 (0.3) 36 B1647-122-000 Suspension bracket (A) ヒツパリバネケ A 1 37 82007-232-000 Tension spring ヒツパリバネ 1 38 B1659-562-000 Tension spring suspension (B) ヒツパリバネケ B 1 39 WP-0371016-SD Washer 3.7 x 8.0 x 1.0 ヒラガネ 3.7x8.0x1 1 40 SS-4091010-SP Screw 9/64-40 L=10.0 ナベネジ 9/64-40 L=10 1 41 SS-7090710-SP Screw 9/64-40 L=6.8 .D.1/79 マルヒラネジ 9/64-40 L=6.8 1 42 B1644-515-0AO Feed regulating pin asm. オクリチョーセツピンクミ 1 43 CQ-3030000-00 Oil wick ユシン (0.2) 44 NS-6150310-SP Nut 15/64-28 6カクナット 15/64-28 1 45 B1453-771-000 Stopper ストツパー 1 46 B1667-515-000-A Feed limiting plate オクリセイゲンイツタ 1 47 WP-0480856-SP Washer 4.8 x 8.4 x 0.8 ヒラガネ 4.8x8.4x0.8 1 48 SS-9121340-CP Screw 3/16-28 L=13.0 ヒラガネ 3/16-28 L=13 2 49 SS-8110750-SP Screw 11/64-40 L=6.5 トメネジ 11/64-40 L=6.5 2 50 81640-515-0AO Feed regulating arm asm. オクリチョーセツウデクミ 1 51 SS-7151210-SP Screw 15/64-28 L=12.0 トメネジ 15/64-28 L=12 (1) 52 SS-8110510-SP Screw 11/64-40 L=5.0 トメネジ 11/64-40 L=5 1 53 81643-562-000 Bushing, for arm shaft チョーセツデジクメタル 1 54 B1668-515-0AO Feed regulating spring retaining collar asm. オクリチョーセツバネケツミ 1 55 SS-8660530-TP Screw 1/4-40 L=4.5 トメネジ 1/4-40 L=4.5 (2) 56 B1645-562-000 Feed regulating link オクリチョーセツリンク 1 57 SS-8110750-SP Screw 11/64-40 L=6.5 トメネジ 11/64-40 L=6.5 1 58 B1646-562-0AO Feed regulating link pin asm. オクリチョーセツリンクジククミ (0.1) 59 CQ-2020000-00 Oil wick ユシン 1 60 B1647-562-000 Feed regulating fork link オクリチョーセツフタマタリンク (0.1) 61 B1664-562-000 Needle bearing ニードルベアリング 1 62 B1648-562-0AO Connecting pin asm. スイヘイオクリウデジククミ 1 63 CQ-2020000-00 Oil wick ユシン (0.1) 64 SS-8110520-TP Screw 11/64-40 L=4.5 トメネジ 11/64-40 L=4.5 2 65 B1616-515-0AO Feed rock shaft crank asm. スイヘイオクリウデクミ 1 66 SS-7111410-SP Screw 11/64-40 L=14.0 トメネジ 11/64-40 L=14 (2) 67 B1654-515-0AO Feed changing crank asm. オクリヘンカンウデクミ 1 68 SS-6121210-SP Screw 3/16-28 L=12.0 ヒラネジ 3/16-28 L=12 (1) 69 SS-8150710-SP Screw 15/64-28 L=7.0 トメネジ 15/64-28 L=7 1 - 10 - jintex.in

Page 14 — 6. FEED MECHANISM COMPONENTS (EXCLUSIVE PARTS FOR LH-512)

6. FEED MECHANISM COMPONENTS (EXCLUSIVE PARTS FOR LH-512) 送リ関係 (LH-512専用部品) Ref. No. Note 注記 Part No. 品番 Description E.C. 変更年月品名 Amt. Req. 数量 1 B1614-512-OB0 Crank connecting rod asm. オクリロッドクミ 1 2 NS-6080210-SP Nut 1/8-44 6カクナット 1/8-44 (2) 3 SS-8081050-TH Screw 1/8-44 L=10.0 D.10/77 SS-8081210-TH (2) SS-8081210-TH Screw 1/8-44 L=11.5 A.10/77 トメネジ 1/8-44 L=11.5 (2) 4 B1623-057-000 Feed adjusting lead cam pin オクリリードカムピン (1) 5 SS-8151550-SP Screw 15/64-28 L=15.0 トメネジ 15/64-28 L=15 (2) 6 B1622-057-000 Friction plate オクリフオクシヨ 1 7 B1213-012-000 Felt retainer フエルトオサエ 1 8 B1702-012-000 Oil felt フエルト 1 9 B1402-352-0AO Feed rock shaft crank asm. フタマタウデクミ 1 10 SS-6621220-SP Screw 3/16-32 L=12.0 ヒラネジ 3/16-32 L=12 (2) 11 B1403-352-000 Feed regulating link pin ピン 1 12 B1625-057-0AO Retaining collar asm. オクリカラークミ (1) 13 SS-8110510-SP Screw 11/64-40 L=5.0 トメネジ 11/64-40 L=5 (1) 14 SS-8110750-SP Screw 11/64-40 L=6.5 トメネジ 11/64-40 L=6.5 (1) 15 SS-8110510-SP Screw 11/64-40 L=5.0 トメネジ 11/64-40 L=5 (1) 16 B1624-055-000 Spring オクリチョーセツバネ 1 17 B1636-055-000 Feed eccentric adjusting knob オシボタン 1 18 B1639-051-000 Spring オシボタンバネ 1 19 RE-0500000-KO Snap ring 5.0 Eガタトメワ 5.0 1 20 B1626-512-000 Feed eccentric guide オクリチョーセツカム 1 - 11 - jintex.in

Page 15

7. OIL LUBRICATION COMPONENTS 給油関係 Ref. No. Note 注記 Part No. 品番 Description E.C. 変更年月 Amt. Req. 数量 1 B1907-512-0A0-A Oil shaft asm. テンビンキユウジククミ 1 2 B3501-512-0A0-A Oil tank asm. オイルタンククミ 1 3 SQ-1110401-MZ Connection screw. ビニールパイプツギテ (3) 4 SS-2110930-SP Screw 11/64-40 L=8.7 マルサラネジ 11/64-40 L=8.7 3 5 PS-0400402-KH Spring pin スプリングピン 1 6 B3505-512-000-A Vinyl tube holder A パイプオサエ 1 7 SS-6091210-TP Screw 9/64-40 L=12.0 ヒラネジ 9/64-40 L=12 1 8 B3511-512-0A0 Oil return wick asm. カンリューフェルトクミ 1 9 B3508-512-000 Oil felt holder カンリューフェルト A オサエ 2 10 SS-7110710-SP Screw 11/64-40 L=7.0 マルヒラネジ 11/64-40 L=7 2 11 BP-3000000-00 Vinyl tube ビニールパイプ 2.5 12 SS-7091410-SP Screw 9/64-40 L=13.5 マルヒラネジ 9/64-40 L=13.5 1 13 B1834-512-000-A Oil adjusting screw ユリョーチョウセツネジ 2 14 NS-6110310-SP Nut 11/64-40 6カクナット 11/64-40 2 15 B3418-512-000 Vinyl tube holder パイプオサエ 1 16 B3536-122-000 Vinyl tube holder ビニールパイプオサエ 1 17 SQ-1110401-MZ Connecting screw. ビニールパイプツギテ 7 18 B1807-512-00B Hook driving shaft bushing (B), intermediate シタクナカメタブ B 1 19 SS-8150410-SP Screw 15/64-28 L=4.0 トメネジ 15/64-28 L=4 2 20 B3513-512-000 Lubricating oil pump shaft キューユポンプジク 1 21 B3502-512-0A0-A Oil adjusting base asm. アブラプンシツクミ 1 22 SQ-1110401-MZ Connecting screw. ビニールパイプツギテ (1) 23 NS-6110310-SP Nut 11/64-40 6カクナット 11/64-40 (1) 24 B1834-512-000-A Oil adjusting screw ユリョーチョウセツネジ (1) 25 SS-7111410-SP Screw 11/64-40 L=14.0 マルヒラネジ 11/64-40 L=14 1 26 B3534-155-000 Oil return pump plunger カンリューポンププランジャー 1 27 B1214-038-000 Plunger spring プランジャーオサエバネ 1 28 B1850-512-000 Filter screen holder. フイルタースクリーンホルダ 1 29 B3511-512-000 Plunger presser プランジャーオサエ 1 30 SS-7110720-SP Screw 11/64-40 L=7.0 マルヒラネジ 11/64-40 L=7 1 31 SS-7090910-SP Screw 9/64-40 L=8.5 マルヒラネジ 9/64-40 L=8.5 1 32 SS-8110750-SP Screw 11/64-40 L=6.5 トメネジ 11/64-40 L=6.5 1 33 B1851-512-000 Filter screen フイルタースクリーン 1 34 NS-6090310-SP Nut 9/64-40 6カクナット 9/64-40 1 35 CQ-2020000-00 Oil wick ユシン 0.6 36 SS-7110710-SP Screw 11/64-40 L=7.0 マルヒラネジ 11/64-40 L=7 1 37 SS-5150510-SP Screw 15/64-28 L=5.0 トメネジ 15/64-28 L=5 1 38 B3512-512-000 Hook lubricating vinyl tube holder. カマキユースパイプササエ 1 - 12 - jintex.in

Page 16 — 8. OIL RESERVOIR & KNEE LIFTER COMPONENTS

8. OIL RESERVOIR & KNEE LIFTER COMPONENTS 油溜、膝上ゲ関係 Ref. No. Note 注記 Part No. 品番 Description E.C. 変更年月 Amt. Req. 数量 1 B8218-512-000-A Oil pad アブラダメザ 1 2 B3421-512-0AA Knee press lifter rod asm. ヒザアゲオシボークミ 1 3 B8217-512-0B0 Oil reservoir asm. アブラダメ 1 4 B8217-512-000-A Oil reservoir アブラダメ (1) 5 SS-6741010-SP Screw 3/8-28 L=10.0 ヒラネジ 3/8-28 L=10 (1) 6 B8219-125-000 Oil drain cap gasket ハイユアナフタパッキン (1) 7 B8227-125-000 Felt cushion トープクツシヨン (4) 8 B8226-125-000 Rubber cushion ササエゴム (4) 9 B3420-512-0AO Knee press rod asm. ヒザアゲヨコジククミ (1) 10 B3427-512-00A Knee press rod bearing bracket ヒザアゲタテジクトリツケウデ (1) 11 SS-9182010-SN Screw 9/32-20 L=20.0 6カクボルト 9/32-20 L=20 (2) 12 B3420-512-00A Knee press rod ヒザアゲヨコボート (1) 13 B3426-552-000 Snap ring ヒザアゲヨコジクスラストケ・ (1) 14 B3429-552-000 Spring カイテンウデバネ (1) 15 B3429-552-000-A Spring A.1/77. ヒザアゲカイテンウデバネ (1) 16 SS-8152080-SR Screw 15/64-28 L=19.5 トメネジ 15/64-28 L=19.5 (1) 17 SS-9151540-SR Screw 15/64-28 L=15.0 6カクボルト 15/64-28 L=15 (2) 18 NS-6150430-SR Nut 15/64-28 6カクナット 15/64-28 (4) 19 SS-8153010-SR Screw 15/64-28 L=30.0 トメネジ 15/64-28 L=30 (1) 20 B3424-552-000 Knee press rod lifting lever (A) ヒザアゲカクテツレバー A (1) 21 SS-9151220-SR Screw 15/64-28 L=12.0 6カクボルト 15/64-28 L=12 (1) 22 B3425-552-000 Knee press rod lifting lever (B) ヒザアゲカクテツレバー B (1) 23 B3419-552-0AO Knee lifter plate rod asm. ヒザアゲタテジククミ 1 24 SM-9061003-SE Screw M6 L=10.0 D.1/77. 6カクボルト M6 L=10 - 25 B3432-552-000 Knee press plate stopper D.1/77. ヒザアゲイタストツパー - 26 B3430-552-000 Knee press plate D.1/77. ヒザアゲイタ - 27 B3431-552-000 Knee press plate cover D.1/77. ヒザアゲイタカバー - 28 B3430-552-0AO Knee press plate asm. A.1/77. ヒザアゲイタクミ (1) 29 SS-9661120-CP Screw 1/4-40 L=10.5 A.1/77. 6カクボルト 1/4-40 L=10.5 (1) 30 B3431-552-000-A Knee press plate cover A.1/77. ヒザアゲイタカバー (1) 31 B3419-122-000 Knee lifter plate rod ヒザアゲタテジク (1) - 13 - jintex.in

Page 17 — 9. SUBCLASS COMPONENTS (1) LH-512, LH-515 SPECIFICATIONS OF FOUNDATION

9. SUBCLASS COMPONENTS (1) LH-512, LH-515 SPECIFICATIONS OF FOUNDATION A B C D D-1 D-2 E F Needle Gauge (") Throat Plate Presser Foot asm. (with guide) Presser Foot asm. Feed Dog 押工調節バネ送り歯 Presser Spring 押工調節バネ針板針定規付き押工 (組) 針板メネジ B1109-512-BAC B1524-512-GAC B1613-512-B0B B1505-227-T00-A 1 1/8(3.2m/m) B1109-512-B0B 2 3/16(4.8m/m) B1109-512-D0B B1524-512-DAC B1613-512-D0B 3 1/4(6.4m/m) B1109-512-F0B B1613-512-F0B 4 9/32(7.1m/m) B1109-512-G0B B1613-512-G0B 5 5/16(7.9m/m) B1109-512-H0B B1613-512-H0B SS-1110840-SP (Note) All parts besides the above are in use with the standard parts of LH-512 or LH-515. Refer to the table of exchanging parts on pages 17~18 for the details of needle clamp asm., bed slide (left), bed slide (right) and hook driving shaft bushing from LH-515 standard needle gauge. * Special order part. (注記) 上記以外の部品は、LH-512又はLH-515の標準部品と共通。 3/16" (4.8m/m) is standard needle gauge. 針板メネジ、送り歯、押工(組)、滑り板(左、右)、下軸メタル(組)については、17~18ページの交換部品一覧表を参照して下さい。 3/16" (4.8m/m) は標準針盤です。 * 特別注文部品 - 14 - jintex.in サブクラス関係 LH-512, LH-515ファンデーション仕様 ON FOLDER : Please consult us by indicating the sewing conditions clearly. バインダーについては縫製条件を明示の上、当社にお問い合せ下さい.

Page 18 — 9. SUBCLASS COMPONENTS (2) LH-512-H, LH-515-H (FOR HEAVY WEIGHT MATERIALS)

9. SUBCLASS COMPONENTS (2) LH-512-H, LH-515-H (FOR HEAVY WEIGHT MATERIALS) - 15 - jintex.in A B C D E F Needle Gauge ( " ) 針幅 Presser Foot asm. 押工(組) Feed Dog 送り歯 Counter Weight asm. 鈴合鎖(組) Bar Crank クランク Tension Spring 糸調子ハネ 1 5/32(4.0m/m) B1524-512-CAH B1613-512-CBH B1206-512-HA0 B3114-232-000 2 3/16(4.8m/m) B1524-512-DAH B1524-512-DBH B1613-512-DBH 3 7/32(5.6m/m) B1524-512-EAH B1524-512-EBH B1613-512-EBH 4 1/4(6.4m/m) B1524-512-FAH B1524-512-FBH B1613-512-FBH 5 9/32(7.1m/m) B1524-512-GAH B1524-512-GBH B1613-512-GBH 6 5/16(7.9m/m) B1524-512-HAH B1524-512-HBH B1613-512-HBH 7 3/8(9.5m/m) B1524-512-KAH B1524-512-KBH B1613-512-KBH 8 1/2(12.7m/m) B1524-512-LAH B1524-512-LBH B1613-512-LBH 9 5/8(15.9m/m) B1524-512-MAH B1524-512-MBH B1613-512-MBH 10 3/4(19.1m/m) B1524-512-NAH B1524-512-NBH B1613-512-NBH 11 7/8(22.2m/m) B1524-512-PAH B1524-512-PBH B1613-512-PBH 12 1(25.4m/m) B1524-512-QAH B1524-512-QBH B1613-512-QBH 13 1-1/8(28.6m/m) B1524-512-RAH B1524-512-RBH B1613-512-RBH 14 1-1/4(31.8m/m) B1524-512-SAH B1524-512-SBH B1613-512-SBH 15 1-3/8(34.9m/m) B1524-512-TAH B1524-512-TBH B1613-512-TBH 16 1-1/2(38.1m/m) B1524-512-UAH B1524-512-UBH B1613-512-UBH B1209-512-H00

Page 19

Note) All parts besides the above are in use with the standard parts of LH-512 or LH-515. Refer to the table of exchanging parts on pages 17~18 for the details of throat plate, needle clamp asm., bed slide (left), bed slide (right) and hook driving shaft bushing, front asm.. 3/16" (4.8mm) is standard needle gauge. Special order part. (注記) 上記以外の部品はLH-512又はLH-515の標準部品と共通、針板、針止め組)、滑り軸受(注、右)、下軸前メタル(組)については、17~18ページの交換部品一覧表をご参照下さい。 3 16" (4.8mm) は標準針幅です。特別注文部品 11 7/8(22.2m/m) 10 3/4(19.1m/m) 9 5/8(15.9m/m) 8 1/2(12.7m/m) 7 3/8(9.5m/m) 6 5/16(7.9m/m) 5 9/32(7.1m/m) 4 1/4(6.4m/m) 3 7/32(5.6m/m) 2 3/16(4.8m/m) 1 5/32(4.0m/m) 針幅 Needle Gauge ("") Vertical-axis Hook asm. 針(組) G H J K L MDP-700B1800 B1830-512-0AH B1626-562-000 B1217-512-H00 針棒 Needle Bar 針(DPX7 #18) 送リ調節案内カム Feed Eccentric Guide バネミ車 HAND WHEEL ARTS FOR LH-512-H EXCLUSIVE PA - 16 - jintex.in

Page 20 — 10. TABLE OF EXCHANGING PARTS

交換部品一覧表 F E D C B A Presser Foot asm. 押工(組) Needle Clamp asm. 針板 10. TABLE OF EXCHANGING PARTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Throat Plate 針 3/32(2.4m/m) 1/8(3.2m/m) 5/32(4.0m/m) 3/16(4.8m/m) 7/32(5.6m/m) 1/4(6.4m/m) 9/32(7.1m/m) 5/16(7.9m/m) 3/8(9.5m/m) 7/16(11.1m/m) 1/2(12.7m/m) 5/8(15.9m/m) 3/4(19.1m/m) 7/8(22.2m/m) 1-1/8(28.6m/m) 1-1/4(31.8m/m) 1-3/8(34.9m/m) 1-1/2(38.1m/m) B1402-051-AA0 B1402-051-BA0 B1402-051-CA0 B1402-051-DA0 B1402-051-EA0 B1402-051-FA0 B1402-051-GA0 B1402-051-HA0 B1402-051-KA0 B1402-512-WA0 B1402-051-LA0 B1402-051-MA0 B1402-051-NA0 B1402-051-PA0 B1402-051-QA0 B1402-051-RA0 B1402-051-SA0 B1402-051-TA0 B1402-051-UA0 B1524-512-ABD B1524-512-BBD B1524-512-CBD B1524-512-DBD B1524-512-EBD B1524-512-FBD B1524-512-GBD B1524-512-HBD B1524-512-KBD B1524-512-WBD B1524-512-LBD B1524-512-MBD B1524-512-NBD B1524-512-PBD B1524-512-QBD B1524-512-RBD B1524-512-SBD B1524-512-TBD B1524-512-UBD - 17 - jintex.in

Page 21

K H G F-2 F-1 Hook Driving Shaft Bushing, Front asm. 下軸前メタル(組) Bed Slide, Right 滑り板(右) Bed Slide, Left 滑り板(左) Feed Dog 送り歯 Presser Foot asm. 押工(組) Needle Gauge ( ") 針幅 1 3/32(2.4m/m) B1524-512-BAE 2 1/8(3.2m/m) B1524-512-DAE 3 5/32(4.0m/m) 4 3/16(4.8m/m) 5 7/32(5.6m/m) 6 1/4(6.4m/m) 7 9/32(7.1m/m) 8 5/16(7.9m/m) 9 3/8(9.5m/m) 10 7/16(11.1m/m) 11 1/2(12.7m/m) 12 5/8(15.9m/m) 13 3/4(19.1m/m) 14 7/8(22.2m/m) 15 1(25.4m/m) 16 1-1/8(28.6m/m) 17 1-1/4(31.8m/m) 18 1-3/8(34.9m/m) 19 1-1/2(38.1m/m) (Note) 3/16" (4.8m/m) is standard needle gauge. B1112-512-B00 B1112-512-C00 B1112-512-D00 B1112-512-E00 B1112-512-W00 B1112-512-F00 B1112-512-G00 B1112-512-H00 B1112-512-J00 B1112-512-K00 B1112-512-L00 B1112-512-M00 B1112-512-N00 B1112-512-P00 B1112-512-Q00 B1112-512-R00 B1112-512-S00 B1112-512-T00 B1112-512-U00 B1802-512-0A0-A B1802-512-0AB - 18 - jintex.in

Page 22 — 11. THREAD STAND COMPONENTS (SPECIAL ORDER PARTS)

11. THREAD STAND COMPONENTS (SPECIAL ORDER PARTS) 糸立装置関係 (特別注文部品) Ref. No. Note 注記 Part No. 品番 Description E.C. 変更年月品名 Amt. Req. 数量 1 B3301-051-0A0 Thread stand asm. イトタテソーチ 1 2 B3310-012-000 Position cup set nut イトアンナイシメネジ (1) 3 WS-0641560-KR Spring washer 6.4 x 11.9 x 1.5 バネザガネ 6.4×11.9×1.5 (1) 4 B3309-012-000 Position cup イトタテイトアンナイマクリドメ (1) 5 B3307-012-000 Thread guide イトタテイトアンナイ (1) 6 B3308-012-000 Rod washer イトタテイトアンナイウケ (1) 7 NM-6061061-SE Nut M6 6カクナット M6 (1) 8 NM-6061061-SE Nut M6 6カクナット M6 (1) 9 B3302-012-000 Spool rod イトタテシタカン (1) 10 B3303-072-0A0 Spool rest asm. イトマウケクミ (1) 11 B3303-012-0A0 Spool rest asm. イトマウケクミ (2) 12 SM-9061080-SE Screw M6 L=10.0 6カクボルト M6 L=10.0 (3) 13 B3311-012-000 Spool rest cushion イトマキウケザ (3) 14 B3305-012-000 Spool pin イトマキウケボー (3) 15 WP-0560860-SE Washer 5.6 x 12.0 x 0.8 ヒラザガネ 5.6×12.0×0.8 (3) 16 WS-0531060-KR Spring washer 5.3 x 8.3 x 1.0 バネザガネ 5.3×8.3×1.0 (3) 17 NS-6123881-SE Nut 3/16-28 6カクナット 3/16-28 (3) 18 B3301-012-000 Spool stand イトタテダイ (1) 19 SK-3413200-SC Wood screw D=4.1 L=32 D.2/77. SK-3452000-SE - 20 SK-3452000-SE Wood screw D=4.5 L=20 A.2/77. マルモクネジ D=4.5 L=20 (3) 21 WS-1002560-KR Spring washer 10.0 x 18.0 x 2.5 バネザガネ 10.0×18.0×2.5 (1) 22 NM-6100663-SE Nut M10 6カクナット M10 (2) 23 B3312-012-000 Spool vibration stopper イトマキフレドメ 3 D3301-772-TA0 Thread stand asm. テンジヨーハイセンヨーイトタテソーチ 1 - 19 - jintex.in

Page 23 — 12. BELT COVER & THREAD WINDER COMPONENTS (SPECIAL ORDER PARTS)

12. BELT COVER & THREAD WINDER COMPONENTS (SPECIAL ORDER PARTS) ベルトカバー、糸巻装置関係 (特別注文部品) Ref. No. Note 注記 Part No. 品番 Description E.C. 変更年月品名 Amt. Req. 数量 1 B8230-512-0A0 Belt cover asm. ベルトカバークミ (1) 2 B8230-125-A00 Belt cover, upper ベルトカバーウェ (1) 3 SS-6151040-SP Screw 15/64-28 L=10.0 ヒラネジ 15/64-28 L=10 (2) 4 WP-0621016-SD Washer 6.2 x 13.0 x 1.0 ヒラザガネ 6.2×13.0×1 (2) 5 B8230-552-000 Belt cover ベルトカバー (1) 6 SK-3482000-SC Wood screw D=4.8 L=20.0 マルモクネジ D=4.8 L=20.0 (1) 7 WP-0501016-SC Washer 5.0 x 10.5 x 1.0 ヒラザガネ 5.0×10.5×1 (1) 8 B3201-012-080 Thread winder asm. イトマキソーチ 1 9 SK-3482000-SC Wood screw D=4.8 L=20.0 マルモクネジ D=4.8 L=20.0 (2) 10 WP-0501016-SC Washer 5.0 x 10.5 x 1.0 ヒラザガネ 5.0×10.5×1 (2) 11 B3201-012-0A0 Thread winder asm. イトマキソーチ (1) 12 B3125-012-000 Tension nut イトマキチョーシナット (1) 13 B3129-012-B00 Tension spring (B) イトマキチョーシバネ B (1) 14 B3126-012-000 Tension disc イトマキチョーシサラ (2) 15 B3223-012-0A0 Tension bracket asm. イトマキチョーシボーダイクミ (1) 16 SS-7110820-SN Screw 11/64-40 L=7.5 マルヒラネジ 11/64-40 L=7.5 (1) 17 WP-0501016-SC Washer 5.0 x 10.5 x 1.0 ヒラザガネ 5.0×10.5×1 (1) 18 B3214-012-0A0 Thread winder pulley asm. イトマキクルマクミ (1) 19 SS-8110510-SN Screw 11/64-40 L=5.0 トメネジ 11/64-40 L=5.0 (1) 20 B3228-012-000 Belt brake セイドーベル (1) 21 B3229-012-000 Presser plate セイドーベルオサエタ (1) 22 SS-7110410-SN Screw 11/64-40 L=4.0 マルヒラネジ 11/64-40 L=4.0 (1) 23 B3204-012-0A0 Thread winder base asm. イトマキダイクミ (1) 24 B3212-012-000 Thread winder shaft イトマキジク (1) 25 SD-0490261-SP Hinge screw D=4.90 H=2.6 ダンネジ D=4.90 H=2.6 (1) 26 B3217-012-000 Bobbin presser ボビンオサエ (1) 27 SS-7081310-SN Screw 1/8-44 L=12.5 マルヒラネジ 1/8-44 L=12.5 (1) - 20 - jintex.in

Page 27

jinte.in jintex.in

Page 28

JUKI JUKI CORPORATION HEAD OFFICE 8-2-1 KOKURYO-CHO, CHOFU-CITY, TOKYO 182, JAPAN BUSINESS OFFICE 1-23-3 KABUKI-CHO SHINJUKU-KU, TOKYO 160, JAPAN PHONE : 03(3205)1081 FAX : 03(3205)9132 TELEX : J22967. 232-2301 JUKI株式会社〒182 東京都調布市国領町8-2-1 TEL. 03-3480-1111 (代表) 工業製品販売本部 TEL. 03-3480-1113 (ダイヤルイン) お買い求め、ご相談は To order or for further information, please contact : ※このパーツリストは商品改良のため予告なく変更する事があります。 * The description covered in this parts list is subject to change for improvement of the commodity without notice. ※このパーツリストは、1991年11月現在の商品仕様で編集・印刷したものてす。 * This parts list is edited and printed in accordance with the product specifications as of November 1991. Printed in Japan jintex.in

Page 2

Page 4 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Page 5 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Page 6 — 2. MAIN SHAFT & NEEDLE BAR COMPONENTS

Page 7 — 2. MAIN SHAFT & NEEDLE BAR COMPONENTS

Page 8 — 3. PRESSER BAR & FEED ROCK SHAFT COMPONENTS

Page 9 — 3. PRESSER BAR & FEED ROCK SHAFT COMPONENTS

Page 10 — 4. HOOK & HOOK DRIVING SHAFT COMPONENTS

Page 11 — 4. HOOK & HOOK DRIVING SHAFT COMPONENTS

Page 12 — 5. REVERSE FEED CONTROL LEVER COMPONENTS (EXCLUSIVE PARTS FOR LH-515)

Page 13 — REVERSE FEED CONTROL LEVER COMPONENTS (EXCLUSIVE PARTS FOR LH-515)

Page 14 — 6. FEED MECHANISM COMPONENTS (EXCLUSIVE PARTS FOR LH-512)

Page 15

Page 16 — 8. OIL RESERVOIR & KNEE LIFTER COMPONENTS

Page 17 — 9. SUBCLASS COMPONENTS (1) LH-512, LH-515 SPECIFICATIONS OF FOUNDATION

Page 18 — 9. SUBCLASS COMPONENTS (2) LH-512-H, LH-515-H (FOR HEAVY WEIGHT MATERIALS)

Page 19

Page 20 — 10. TABLE OF EXCHANGING PARTS

Page 21

Page 22 — 11. THREAD STAND COMPONENTS (SPECIAL ORDER PARTS)

Page 23 — 12. BELT COVER & THREAD WINDER COMPONENTS (SPECIAL ORDER PARTS)

Part Books

Search
