JUKI® Computer-controlled High-speed Bar-tacking Industrial Sewing Machine 高速電子閂止めミシン LK-1900A Series PARTS LIST 40006891 No.1368-03 jintex.in
Juki LK-1900A — parts catalog
- Page 1 (cover): This is the cover page for the JUKI LK-1900A Series Computer-controlled High-speed Bar-tacking Industrial Sewing Machine Parts List.
- Page 2 (unknown): This page is blank except for a watermark and a footer.
- Page 3 (text): This page provides instructions on how to use the parts list, explaining codes, quantity column interpretations, and symbols for subparts and assembly structures.
- Page 4 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
- Page 5 (toc): This page is a table of contents listing various sections related to exclusive parts, accessories, option components, and information on changes for different LK series models, along with their corresponding page numbers.
- Page 6 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with various parts labeled with reference numbers.
- Page 7 (parts_list): This page lists parts for an industrial sewing machine, including covers, screws, plates, springs, and various other components with their part numbers and quantities.
- Page 8 (diagram): This page illustrates the main shaft and needle bar components of an industrial sewing machine, showing an exploded view with reference numbers for each part.
- Page 9 (parts_list): This page lists parts for an industrial sewing machine, including main shaft, bearings, screws, and various other components, with their corresponding part numbers, descriptions, and quantities.
- Page 10 (diagram): This page illustrates the components of the presser lifter and wiper assembly for an industrial sewing machine.
- Page 11 (parts_list): This page lists various parts for an industrial sewing machine, including screws, nuts, shafts, links, arms, and washers, with their corresponding part numbers, descriptions, and quantities.
- Page 12 (diagram): This page illustrates the components of the shuttle driver shaft assembly, including various shafts, gears, and related parts.
- Page 13 (parts_list): This page lists parts for a sewing machine, including cable clips, oil pipe holders, screws, thrust collars, bearings, shafts, and various shuttle components.
- Page 14 (diagram): This page displays a diagram of thread tension components for an industrial sewing machine, with various parts labeled with reference numbers.
- Page 15 (parts_list): This page lists parts for an industrial sewing machine, including solenoids, screws, springs, washers, links, bearings, nuts, shafts, disks, and other components, with their respective part numbers, descriptions, and quantities.
- Page 16 (diagram): This page illustrates the components of the thread trimmer mechanism for an industrial sewing machine, showing various parts and their assembly.
- Page 17 (parts_list): This page lists parts related to the thread trimmer, needle plate, and moving knife assemblies, including screws, washers, shafts, and various guides and levers.
- Page 18 (diagram): This page illustrates the components of the feed mechanism for an industrial sewing machine, showing an exploded view of various parts and their reference numbers.
- Page 19 (parts_list): This page lists parts for an industrial sewing machine, including various screws, motors, gears, arms, plates, sensors, and other components, with their corresponding part numbers, descriptions, and quantities.
- Page 20 (diagram): This page illustrates the components of the TC clamp assembly for an industrial sewing machine.
- Page 21 (parts_list): This page lists various parts for an industrial sewing machine, including clamps, plates, screws, washers, and sensors, with their part numbers, descriptions, and quantities.
- Page 22 (parts_list): This page illustrates and lists sensor components for an industrial sewing machine, including various sensor cables, safety switch assemblies, screws, and other related parts.
- Page 23 (diagram): This page illustrates the components of a thread stand assembly, including various parts like spool retainers, pins, cushions, rests, and associated hardware, with a corresponding parts list.
- Page 24 (diagram): This page illustrates the components of a table stand for an industrial sewing machine, specifically for models JT-K44, with a detailed exploded view showing various parts and their reference numbers.
Page 2
jintex.in
Page 3 — HOW TO MAKE USE OF THIS PARTS LIST
HOW TO MAKE USE OF THIS PARTS LIST 1. Explanation of codes 1) "*" mark...........means this part is changed from the previous parts book. As to the details of the change,refer to "List for information of change". 2) "01" .................refer to "Note" explanation at bottom of page. 2. Codes on the "Qty" column Each numeral indicates the number of parts required. "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3. Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4. Dotted lines on the Figures indicate assembly parts. パーツリストご利用に際して 1. "注記" 欄の記号説明 1) "*" 印 ............前回のパーツブックに比較して今回変更された部品を意味します。 変更内容は”変更情報リスト”を参照してください。 2) "01" ............ページ下の”注記”の説明を参照してください。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3. 数量欄の( )は、組部品を構成している子部品であることを意味します。 4. イラストページのーーーーーーー枠は、組構成であることを意味します。 jintex.in
Page 4
CONTENTS 目 次 1. FRAME & MISCELLANEOUS COVER COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

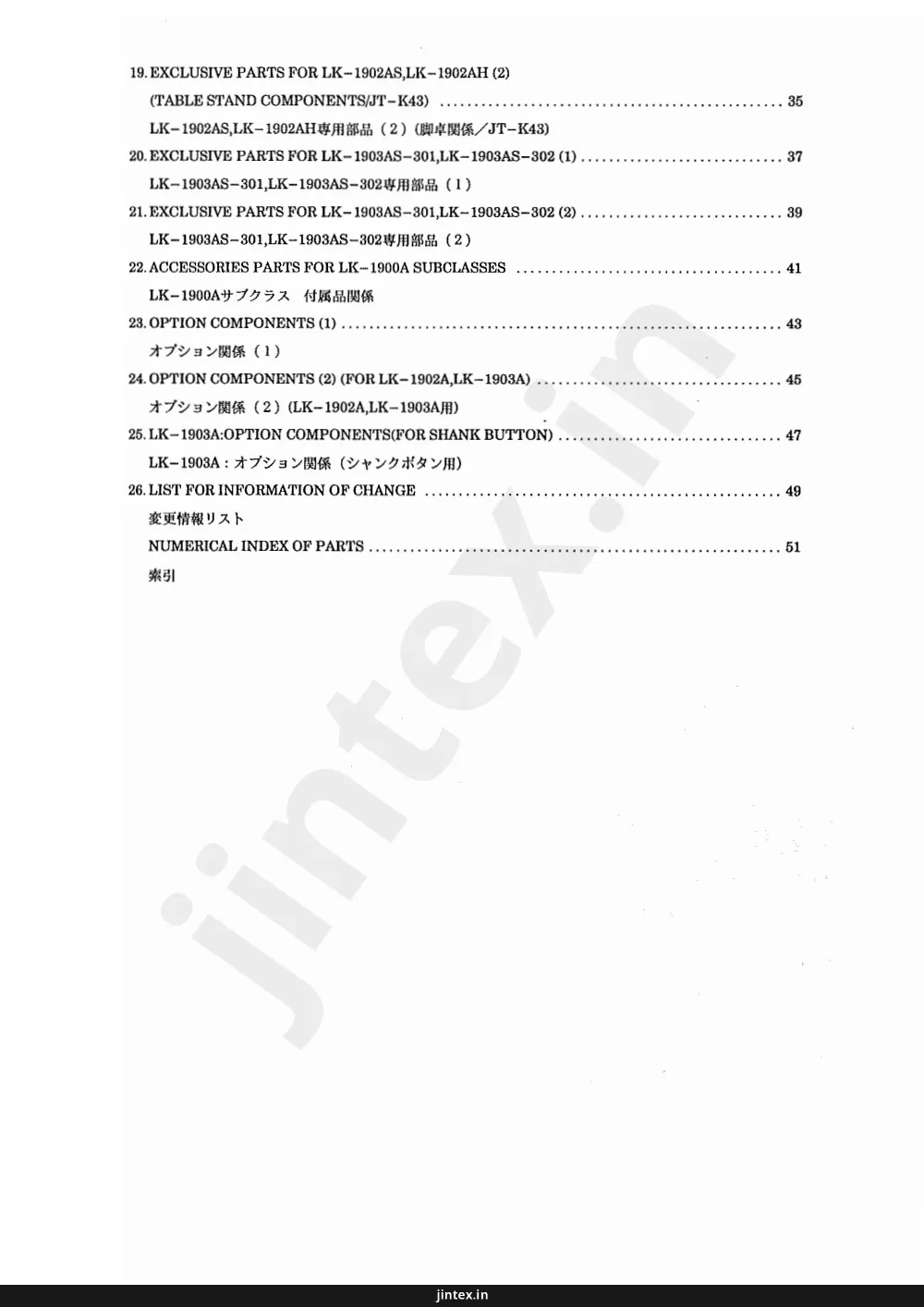

Page 5
19. EXCLUSIVE PARTS FOR LK-1902AS,LK-1902AH (2) (TABLE STAND COMPONENTS/JT-K43) LK-1902AS,LK-1902AH専用部品(2)(脚卓関係/JT-K43) 20. EXCLUSIVE PARTS FOR LK-1903AS-301,LK-1903AS-302 (1) LK-1903AS-301,LK-1903AS-302専用部品(1) 21. EXCLUSIVE PARTS FOR LK-1903AS-301,LK-1903AS-302 (2) LK-1903AS-301,LK-1903AS-302専用部品(2) 22. ACCESSORIES PARTS FOR LK-1900A SUBCLASSES LK-1900Aサブクラス 付属品関係 23. OPTION COMPONENTS (1) オプション関係(1) 24. OPTION COMPONENTS (2) (FOR LK-1902A,LK-1903A) オプション関係(2)(LK-1902A,LK-1903A用) 25. LK-1903A:OPTION COMPONENTS(FOR SHANK BUTTON) LK-1903A:オプション関係(シャンクボタン用) 26. LIST FOR INFORMATION OF CHANGE 変更情報リスト NUMERICAL INDEX OF PARTS 索引 35 37 39 41 43 45 47 49 51
Page 6 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS
1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部・外装関係 -1- jintex.in
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-06475 | MOTOR COVER | |
| 2 | SM-5040855-SN | SCREW | |
| 3 | 400-06478 | UPSIDE COVER | |
| 4 | SM-4061255-SP | SCREW M6 L=12 | |
| 5 | 400-10404 | PROTECTION PLATE | |
| 6 | SM-4060855-SP | SCREW M5 L=8 | |
| 7 | 400-06487 | BED COVER LEFT | |
| 8 | 400-06488 | BED COVER RIGHT | |
| 9 | SM-6040650-TP | SCREW M4 L=6 | |
| 10 | 400-06481 | FACE COVER | |
| 11 | 229-02506 | FACE PLATE | |
| 12 | SM-4041055-SP | SCREW M4 L=10 | |
| 13 | 400-10405 | CRANK ROD COVER | |
| 14 | SM-5040855-SN | SCREW | |
| 15 | 138-16855 | CYLINDER ARM CAP | |
| 16 | 135-08700 | HOOK COVER PRESSER SPRING PIN | |
| 17 | 135-08809 | HOOK COVER PRESSER SPRING A | |
| 18 | 135-08908 | HOOK COVER PRESSER SPRING B | |
| 19 | SM-5040855-SN | SCREW | |
| 20 | SM-6041150-TP | SCREW M4 L=11 | |
| 21 | B2707-761-000 | HINGE STUD | |
| 22 | SM-6060612-TP | SCREW M6 L=6 | |
| 23 | 141-13468 | BOBBIN THREAD TENSION ASM. | |
| 24 | 141-13450 | BOBBIN THREAD TENSION ROD ASM. | |
| 25 | B3126-012-000 | THREAD TENSION DISK | |
| 26 | D7133-555-B00 | CONNECTING ROD SPRING | |
| 27 | 110-72402 | THREAD TENSION NUT | |
| 28 | NS-6110310-SP | NUT 11/64-40 | |
| 29 | 138-16608 | BALANCE COVER | |
| 30 | SM-4030855-SN | SCREW M3 L=8.0 | |
| 31 | 400-10414 | THREAD GUIDE NO.1 | |
| 32 | SM-4061255-SP | SCREW M6 L=12 | |
| 33 | B1111-232-000 | THREAD GUIDE PLATE | |
| 34 | SM-4061255-SP | SCREW M6 L=12 | |
| 35 | 400-10571 | L SHAPED THREAD GUIDE A | |
| 36 | NM-6040000-SN | NUT M4 | |
| 37 | 229-20508 | ARM THREAD GUIDE A | |
| 38 | SM-6040650-TP | SCREW M4 L=6 | |
| 39 | 137-05108 | TAKE-UP THREAD GUIDE B | |
| 40 | SM-6040860-TP | SCREW M4 L=8 | |
| 41 | B1129-210-000 | FRAME THREAD GUIDE (B) | |
| 42 | SM-6040860-TP | SCREW M4 L=8 | |
| 43 | CM-3002000-02 | CAUTION LABEL(25) | |
| 44 | SM-4030601-SN | SCREW M3 X 6 | |
| 45 | CM-3012000-01 | SAFETY LABEL S | |
| 46 | 105-02300 | THREAD CUTTER | |
| 47 | 100-04109 | GROUND MARK | |
| 48 | TA-0750704-RO | RUBBER PLUG | |
| 49 | TA-0850604-RO | RUBBER PLUG | |
| 50 | TA-1050504-RO | RUBBER PLUG | |
| 51 | TA-1250406-RO | RUBBER PLUG D=12.5 L=4 | |
| 52 | TA-1270502-RO | RUBBER PLUG | |
| 53 | TA-1470704-RO | RUBBER PLUG D=15.5 L=9 | |
| 54 | TA-1550902-RO | PLUG | |
| 55 | TA-2100904-RO | RUBBER PLUG | |
| 56 | 262-60000 | BOBBIN WINDER UNIT | |
| 57 | RC-0560711-KP | RETAINING RING | |
| 58 | RE-0400000-KO | E-RING 4 | |
| 59 | 262-60802 | BTW BEARING SPACER | |
| 60 | 262-61602 | BOBBIN SPRING | |
| 61 | 262-61701 | BTW SPRING | |
| 62 | 262-60109 | BTW BASE | |
| 63 | 262-60208 | BTW CAM PLATE | |
| 64 | 262-60901 | BTW SHAFT | |
| 65 | 262-61008 | BTW LEVER SHAFT | |
| 66 | 262-61107 | BTW LEVER | |
| 67 | SM-5040655-SN | SCREW | |
| 68 | WP-0450826-SC | WASHER 4.5X10X0.8 | |
| 69 | 262-60307 | BTW BASE SHAFT | |
| 70 | 262-61305 | BTW BEARING | |
| 71 | 262-60406 | BTW SHAFT BASE | |
| 72 | 262-61206 | BTW SPACER | |
| 73 | 262-60505 | BTW CAM LEVER | |
| 74 | SM-8050502-TP | SCREW M5 L=5 | |
| 75 | 262-60604 | BTW WHEEL | |
| 76 | SM-8040802-TP | SCREW M4X8 | |
| 77 | 262-60703 | BTW TORSION SPRING | |
| 78 | 262-61503 | BTW WHEEL RUBBER | |
| 79 | 400-11928 | CRANK ROD UNDER COVER | |
| 80 | SM-5040855-SN | SCREW | |
| 81 | 229-01409 | NEEDLE BAR UPPER BUSH CAP | |
| 82 | CM-1001000-01 | OIL INJECTION PROHIBITION LABE |
REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 400-06475 MOTOR COVER 1 2 SM-5040855-SN SCREW 4 3 400-06478 UPSIDE COVER 1 4 SM-4061255-SP SCREW M6 L=12 6 5 400-10404 PROTECTION PLATE 1 6 SM-4060855-SP SCREW M5 L=8 3 7 400-06487 BED COVER LEFT 1 8 400-06488 BED COVER RIGHT 1 9 SM-6040650-TP SCREW M4 L=6 5 10 400-06481 FACE COVER 1 11 229-02506 FACE PLATE 1 12 SM-4041055-SP SCREW M4 L=10 2 13 400-10405 CRANK ROD COVER 1 14 SM-5040855-SN SCREW 4 15 138-16855 CYLINDER ARM CAP 1 16 135-08700 HOOK COVER PRESSER SPRING PIN 1 17 135-08809 HOOK COVER PRESSER SPRING A 1 18 135-08908 HOOK COVER PRESSER SPRING B 1 19 SM-5040855-SN SCREW 1 20 SM-6041150-TP SCREW M4 L=11 3 21 B2707-761-000 HINGE STUD 2 22 SM-6060612-TP SCREW M6 L=6 4 23 141-13468 BOBBIN THREAD TENSION ASM. (1) 24 141-13450 BOBBIN THREAD TENSION ROD ASM. (1) 25 B3126-012-000 THREAD TENSION DISK (2) 26 D7133-555-B00 CONNECTING ROD SPRING (1) 27 110-72402 THREAD TENSION NUT (1) 28 NS-6110310-SP NUT 11/64-40 (1) 29 138-16608 BALANCE COVER 1 30 SM-4030855-SN SCREW M3 L=8.0 2 31 400-10414 THREAD GUIDE NO.1 1 32 SM-4061255-SP SCREW M6 L=12 1 33 B1111-232-000 THREAD GUIDE PLATE 1 34 SM-4061255-SP SCREW M6 L=12 1 35 400-10571 L SHAPED THREAD GUIDE A 1 36 NM-6040000-SN NUT M4 1 37 229-20508 ARM THREAD GUIDE A 1 38 SM-6040650-TP SCREW M4 L=6 1 39 137-05108 TAKE-UP THREAD GUIDE B 1 40 SM-6040860-TP SCREW M4 L=8 1 41 B1129-210-000 FRAME THREAD GUIDE (B) 1 42 SM-6040860-TP SCREW M4 L=8 1 43 CM-3002000-02 CAUTION LABEL(25) 1 44 SM-4030601-SN SCREW M3 X 6 1 45 * CM-3012000-01 SAFETY LABEL S 1 46 105-02300 THREAD CUTTER 1 47 100-04109 GROUND MARK 1 48 TA-0750704-RO RUBBER PLUG 2 49 TA-0850604-RO RUBBER PLUG 2 50 TA-1050504-RO RUBBER PLUG 6 51 TA-1250406-RO RUBBER PLUG D=12.5 L=4 1 52 TA-1270502-RO RUBBER PLUG 1 53 TA-1470704-RO RUBBER PLUG D=15.5 L=9 2 54 TA-1550902-RO PLUG 1 55 TA-2100904-RO RUBBER PLUG 3 56 262-60000 BOBBIN WINDER UNIT 1 57 RC-0560711-KP RETAINING RING (1) 58 RE-0400000-KO E-RING 4 (1) 59 262-60802 BTW BEARING SPACER (1) 60 262-61602 BOBBIN SPRING (1) 61 262-61701 BTW SPRING (1) 62 262-60109 BTW BASE (1) 63 262-60208 BTW CAM PLATE (1) 64 262-60901 BTW SHAFT (1) 65 262-61008 BTW LEVER SHAFT (1) 66 262-61107 BTW LEVER (1) 67 SM-5040655-SN SCREW (1) 68 WP-0450826-SC WASHER 4.5X10X0.8 (1) 69 262-60307 BTW BASE SHAFT (1) 70 262-61305 BTW BEARING (2) 71 262-60406 BTW SHAFT BASE (1) 72 262-61206 BTW SPACER (1) 73 262-60505 BTW CAM LEVER (1) 74 SM-8050502-TP SCREW M5 L=5 (1) 75 262-60604 BTW WHEEL (1) 76 SM-8040802-TP SCREW M4X8 (1) 77 262-60703 BTW TORSION SPRING (1) 78 262-61503 BTW WHEEL RUBBER (1) 79 400-11928 CRANK ROD UNDER COVER 1 80 SM-5040855-SN SCREW 3 81 229-01409 NEEDLE BAR UPPER BUSH CAP 1 82 * CM-1001000-01 OIL INJECTION PROHIBITION LABE 1 -2- jintex.in
Page 8 — 2. MAIM SHAFT & NEEDLE BAR COMPONENTS
2. MAIM SHAFT & NEEDLE BAR COMPONENTS 上軸・針棒関係 39 41 40 41 35~38 34 35~38 34 84 51 80 73 70 71 69 74 76 75 77~79 60 59 63 62 61 64 68 67 68 42 44 43 44 66 65 66 82 14 16 18 15 20 18 81 81 15 17 19 11 12 13 14 27 33 32 30 31 29 28 72 21 23 25 24 26 23 22 49 48 45 50 46 47 5 4 3 4 2 52 55 6 53 54 2 3 4 1 58 7 10 9 10 8 57 58 83 56 -3- jintex.in
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-10572 | MAIN SHAFT | 1 |
| 2 | 400-10415 | BEARING BUSH A ASM. | 2 |
| 3 | 400-10416 | BEARING BUSH A | (2) |
| 4 | SB-8060812-TP | SCREW M6 L=8 | (4) |
| 5 | SB-1200018-00 | BEARING | 1 |
| 6 | SB-1200018-00 | BEARING | 1 |
| 7 | SB-1200017-00 | BEARING | 1 |
| 8 | 400-10418 | BEARING BUSH B ASM. | 1 |
| 9 | 400-10419 | BEARING BUSH B | (1) |
| 10 | SM-8060812-TP | SCREW M6 L=8 | (2) |
| 11 | 400-31136 | CRANK ROD ALL ASM. | 1 |
| 12 | 400-10421 | CRANK ROD SUPPORT PLATE | (1) |
| 13 | SM-1030601-SP | SCREW M3 L=6 | (3) |
| 14 | TA-0670604-RO | PLUG D=6.7 L=6 | (2) |
| 15 | 101-08009 | OIL SEAL | (2) |
| 16 | 400-06561 | OSCILLATOR | (1) |
| 17 | 400-26818 | WASHER | (1) |
| 18 | SM-8480652-TP | SCREW M6X0.75 L=6 | (2) |
| 19 | RE-0800000-KO | E-SHAPED SNAP RING (8MM) | (1) |
| 20 | SM-6060550-TP | SCREW M6 L=4.5 | (1) |
| 21 | 400-06529 | THREAD TAKE UP COMPL. | 1 |
| 22 | 400-06530 | THREAD TAKE UP LEVER ASM. | (1) |
| 23 | SB-1080022-00 | BEARING | (2) |
| 24 | SB-1040016-00 | BEARING | (1) |
| 25 | 400-06531 | THREAD TAKE UP LEVER | (1) |
| 26 | B1908-505-000 | THREAD PASS BUSH | (1) |
| 27 | 400-06534 | NEEDLE BAR CRANK ROD ASM. | (1) |
| 28 | 228-91006 | NEEDLE BAR CRANK ROD METAL | (1) |
| 29 | 400-06535 | NEEDLE BAR CRANK ROD | (1) |
| 30 | SB-1080023-00 | BEARING | (1) |
| 31 | B1903-552-000 | LEFT SCREW | (1) |
| 32 | 400-06532 | THREAD TAKE UP CRANK | (1) |
| 33 | 400-06537 | NEEDLE ROD CRANK | (1) |
| 34 | 228-91204 | BEARING SUPPORT | (1) |
| 35 | SB-3070002-0A | BEARING | 2 |
| 36 | SB-3070002-0B | BEARING | 2 |
| 37 | SB-3070002-0C | BEARING | 2 |
| 38 | SB-3070002-0D | BEARING | 2 |
| 39 | 400-10434 | THRUST COLLAR ASM. | 1 |
| 40 | 400-10435 | THRUST COLLAR | (1) |
| 41 | 400-10436 | THRUST COLLAR SCREW | (2) |
| 42 | 400-10532 | BTW DRIVING WHEEL ASM. | 1 |
| 43 | 400-10533 | BTW DRIVING WHEEL | (1) |
| 44 | 400-10534 | BTW DRIVING WHEEL ASM. | (2) |
| 45 | 400-06517 | COUNTER WEIGHT | 1 |
| 46 | 400-06518 | COUNTER WEIGHT SCREW A | 1 |
| 47 | SM-8480652-TP | SCREW M6X0.75 L=6 | 1 |
| 48 | SM-6081252-TP | BOLT M8 L=12 | 1 |
| 49 | SM-6061200-SP | SCREW M6 L=12 | 1 |
| 50 | WP-0820516-SP | WASHER 8.2X11.6X0.6 | 1 |
| 51 | 400-11902 | THREAD TAKE UP CRANK SHAFT | 1 |
| 52 | 400-10437 | CRANK BALANCER ASM. | (1) |
| 53 | 400-10439 | CRANK BALANCER FIX PLATE | (1) |
| 54 | 400-10440 | CRANK BALANCER FIX PLATE SCREW | (2) |
| 55 | 400-28015 | AC SERVO MOTOR | (1) |
| 56 | SL-6052592-TN | BOLT | 4 |
| 57 | 236-04309 | COUPLING | 1 |
| 58 | SM-8060812-TP | SCREW M6 L=8 | 1 |
| 59 | B1212-210-D00 | PULLEY | 1 |
| 60 | B1144-210-000 | REVOLVING DIRECTION LABEL | 1 |
| 61 | 265-00306 | HAND PULLEY SHAFT | 1 |
| 62 | PS-0400142-KH | SPRING PIN 4X14 | 1 |
| 63 | A1230-500-00A | SET-SCREW | 1 |
| 64 | GAP-01007000 | SPRING | 1 |
| 65 | 400-06515 | GEAR A | 1 |
| 66 | SM-8040310-SS | SCREW M4 L=3 | 2 |
| 67 | 400-06516 | GEAR B | 1 |
| 68 | SM-8040310-SS | SCREW M4 L=3 | 2 |
| 69 | 400-10573 | NEEDLE BAR | 1 |
| 70 | B1411-552-000 | NEEDLE BAR CLAMP | 1 |
| 71 | SS-6090670-TP | SCREW 9/64-40 L=6 | 1 |
| 72 | B1414-555-000 | SLIDE BLOCK | 1 |
| 73 | 400-10441 | NEEDLE ROD METAL | 1 |
| 74 | 400-10442 | NEEDLE ROD LOWER METAL | 1 |
| 75 | 400-10574 | THREAD GUIDE | 1 |
| 76 | D1405-L7A-W00 | NEEDLE BAR THREAD GUIDE | 1 |
| 77 | MDP-500B1100 | NEEDLE DPX5 #11 | 1 |
| 78 | MDP-500B1400 | NEEDLE DPX5 #14 | 1 |
| 79 | MDP-170B2100 | NEEDLE DPX17 #21 | 1 |
| 80 | SM-7030550-TP | SCREW M3 L=4.5 | 3 |
| 81 | SM-8480652-TP | SCREW M6X0.75 L=6 | 2 |
| 82 | SM-8060812-TP | SCREW M6 L=8 | 2 |
| 83 | 400-28015 | AC SERVO MOTOR | 1 |
| 84 | SM-6061250-TP | SCREW M6 L=12 | 2 |
REF. NO NOTE PART NO. DESCRIPTION Qty 1 400-10572 MAIN SHAFT 1 2 400-10415 BEARING BUSH A ASM. 2 3 400-10416 BEARING BUSH A (2) 4 SB-8060812-TP SCREW M6 L=8 (4) 5 SB-1200018-00 BEARING 1 6 SB-1200018-00 BEARING 1 7 SB-1200017-00 BEARING 1 8 400-10418 BEARING BUSH B ASM. 1 9 400-10419 BEARING BUSH B (1) 10 SM-8060812-TP SCREW M6 L=8 (2) 11 400-31136 CRANK ROD ALL ASM. 1 12 400-10421 CRANK ROD SUPPORT PLATE (1) 13 SM-1030601-SP SCREW M3 L=6 (3) 14 TA-0670604-RO PLUG D=6.7 L=6 (2) 15 101-08009 OIL SEAL (2) 16 400-06561 OSCILLATOR (1) 17 400-26818 WASHER (1) 18 SM-8480652-TP SCREW M6X0.75 L=6 (2) 19 RE-0800000-KO E-SHAPED SNAP RING (8MM) (1) 20 SM-6060550-TP SCREW M6 L=4.5 (1) 21 400-06529 THREAD TAKE UP COMPL. 1 22 400-06530 THREAD TAKE UP LEVER ASM. (1) 23 SB-1080022-00 BEARING (2) 24 SB-1040016-00 BEARING (1) 25 400-06531 THREAD TAKE UP LEVER (1) 26 B1908-505-000 THREAD PASS BUSH (1) 27 400-06534 NEEDLE BAR CRANK ROD ASM. (1) 28 228-91006 NEEDLE BAR CRANK ROD METAL (1) 29 400-06535 NEEDLE BAR CRANK ROD (1) 30 SB-1080023-00 BEARING (1) 31 B1903-552-000 LEFT SCREW (1) 32 400-06532 THREAD TAKE UP CRANK (1) 33 400-06537 NEEDLE ROD CRANK (1) 34 228-91204 BEARING SUPPORT (1) 35 01 SB-3070002-0A BEARING 2 36 01 SB-3070002-0B BEARING 2 37 01 SB-3070002-0C BEARING 2 38 01 SB-3070002-0D BEARING 2 39 400-10434 THRUST COLLAR ASM. 1 40 400-10435 THRUST COLLAR (1) 41 400-10436 THRUST COLLAR SCREW (2) 42 400-10532 BTW DRIVING WHEEL ASM. 1 43 400-10533 BTW DRIVING WHEEL ASM. (1) 44 400-10534 BTW DRIVING WHEEL ASM. (2) 45 400-06517 COUNTER WEIGHT 1 46 400-06518 COUNTER WEIGHT SCREW A 1 47 SM-8480652-TP SCREW M6X0.75 L=6 1 48 SM-6081252-TP BOLT M8 L=12 1 49 SM-6061200-SP SCREW M6 L=12 1 50 WP-0820516-SP WASHER 8.2X11.6X0.6 1 51 400-11902 THREAD TAKE UP CRANK SHAFT 1 52 400-10437 CRANK BALANCER ASM. (1) 53 400-10439 CRANK BALANCER FIX PLATE (1) 54 400-10440 CRANK BALANCER FIX PLATE SCREW (2) 55 * 400-28015 AC SERVO MOTOR (1) 56 SL-6052592-TN BOLT 4 57 236-04309 COUPLING 1 58 SM-8060812-TP SCREW M6 L=8 1 59 B1212-210-D00 PULLEY 1 60 B1144-210-000 REVOLVING DIRECTION LABEL 1 61 265-00306 HAND PULLEY SHAFT 1 62 PS-0400142-KH SPRING PIN 4X14 1 63 A1230-500-00A SET-SCREW 1 64 GAP-01007000 SPRING 1 65 400-06515 GEAR A 1 66 SM-8040310-SS SCREW M4 L=3 2 67 400-06516 GEAR B 1 68 SM-8040310-SS SCREW M4 L=3 2 69 400-10573 NEEDLE BAR 1 70 B1411-552-000 NEEDLE BAR CLAMP 1 71 SS-6090670-TP SCREW 9/64-40 L=6 1 72 B1414-555-000 SLIDE BLOCK 1 73 400-10441 NEEDLE ROD METAL 1 74 400-10442 NEEDLE ROD LOWER METAL 1 75 02 400-10574 THREAD GUIDE 1 76 03 D1405-L7A-W00 NEEDLE BAR THREAD GUIDE 1 77 04 MDP-500B1100 NEEDLE DPX5 #11 1 78 05 MDP-500B1400 NEEDLE DPX5 #14 1 79 03 MDP-170B2100 NEEDLE DPX17 #21 1 80 * SM-7030550-TP SCREW M3 L=4.5 3 81 SM-8480652-TP SCREW M6X0.75 L=6 2 82 SM-8060812-TP SCREW M6 L=8 2 83 400-28015 AC SERVO MOTOR 1 84 SM-6061250-TP SCREW M6 L=12 2 NOTE (注記) 01....SELECTIVE PARTS 02....EXCEPT LK-1900AH,AW 03....FOR LK-1900AH,AW 04....FOR LK-1900AF,AM 05....FOR LK-1900AS - 4 - jintex.in
Page 10 — 3. PRESSER LIFTER & WIPER COMPONENTS
3. PRESSER LIFTER & WIPER COMPONENTS 押え上げ・ワイパー関係 - 5 - jintex.in
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-29903 | PRESSER LIFTING MOTOR | 1 |
| 2 | SM-4051655-SP | SCREW M5 L=16 | 4 |
| 3 | SB-1100024-00 | BEARING | 1 |
| 4 | SM-6040802-TP | SCREW M4X0.7 L=8 | 1 |
| 5 | 235-17501 | NEEDLE CAM ROLLER A | 1 |
| 6 | 400-40256 | CAM ROLLER SHAFT | 1 |
| 7 | NM-6040001-SP | NUT M4X0.7 | 2 |
| 8 | 400-06661 | LIFTER LINK A ASM. | 1 |
| 9 | 400-06716 | THREAD TRIMMER SHAFT | 1 |
| 10 | SM-8060812-TP | SCREW M6 L=8 | 1 |
| 11 | 400-23831 | SPRING RACK | 1 |
| 12 | SM-4040855-SP | SCREW | 1 |
| 13 | 135-15606 | SPRING | 1 |
| 14 | 400-06666 | SENSOR SLIT ASM. | 1 |
| 15 | SM-8050402-TP | SCREW | 2 |
| 16 | 400-10443 | SENSOR_INSTALLING_BASE | 1 |
| 17 | SM-6040802-TP | SCREW M4X0.7 L=8 | 1 |
| 18 | HD-0005700-0A | PHOTO SENSOR | 1 |
| 19 | SL-4031201-SC | SCREW M3X12 | 1 |
| 20 | 400-06665 | LIFTER LINK B | 1 |
| 21 | SD-0800327-TP | HINGE SCREW D=8 H=3.2 | 1 |
| 22 | NM-6050001-SP | NUT M5 | 1 |
| 23 | SD-0700406-TP | HINGE SCREW D=7 H=4 | 1 |
| 24 | 400-06671 | CONNECTING ARM | 1 |
| 25 | SM-6061802-TP | SCREW M6 L=18 | 1 |
| 26 | 265-00405 | CONNECTING SHAFT | 1 |
| 27 | 400-08693 | LOWERING ARM | 1 |
| 28 | SM-6061802-TP | SCREW M6 L=18 | 1 |
| 29 | SD-0790606-TP | HINGE SCREW D=7.94 H=6 | 1 |
| 30 | NM-6060001-CP | NUT M6 | 1 |
| 31 | 400-06672 | LOWERING FOOT | 1 |
| 32 | 141-04400 | CONNECTING LINK | 1 |
| 33 | SD-1000406-TP | HINGE SCREW D=10 H=4 | 2 |
| 34 | 400-06674 | WIPER CONNECTING LINK | 1 |
| 35 | SD-0600206-TP | HINGE SCREW D=6 H=2 | 1 |
| 36 | 135-09708 | SPRING | 1 |
| 37 | 400-10451 | WIPER_CONNECTING_ARM_ASM | 1 |
| 38 | RC-0470611-KP | RETAINING RING 4.7 | 2 |
| 39 | 400-10455 | WIPER_CONNECTING_LINK_SHAFT | 1 |
| 40 | 400-10457 | WIPER STOPPER | 1 |
| 41 | 400-10458 | WIPER_CONNECTING_PLATE | 1 |
| 42 | 400-17202 | WIPER C ASM. | 1 |
| 43 | NM-6060003-SC | NUT M6 | 1 |
| 44 | RC-0470611-KP | RETAINING RING 4.7 | 1 |
| 45 | SD-0640216-TP | HINGE SCREW D=6.35 H=2.1 | 1 |
| 46 | 400-06678 | WIPER BASE PLATE | 1 |
| 47 | SM-4040855-SP | SCREW | 1 |
| 48 | WP-0450801-SP | WASHER | 1 |
| 49 | WP-0450801-SP | WASHER | 1 |
| 50 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 1 |
REF. NO NOTE PART NO. DESCRIPTION Qty 1 400-29903 PRESSER LIFTING MOTOR 1 2 SM-4051655-SP SCREW M5 L=16 4 3 SB-1100024-00 BEARING 1 4 SM-6040802-TP SCREW M4X0.7 L=8 1 5 235-17501 NEEDLE CAM ROLLER A 1 6 400-40256 CAM ROLLER SHAFT 1 7 NM-6040001-SP NUT M4X0.7 2 8 400-06661 LIFTER LINK A ASM. 1 9 400-06716 THREAD TRIMMER SHAFT 1 10 SM-8060812-TP SCREW M6 L=8 1 11 400-23831 SPRING RACK 1 12 SM-4040855-SP SCREW 1 13 135-15606 SPRING 1 14 400-06666 SENSOR SLIT ASM. 1 15 SM-8050402-TP SCREW 2 16 400-10443 SENSOR_INSTALLING_BASE 1 17 SM-6040802-TP SCREW M4X0.7 L=8 1 18 HD-0005700-0A PHOTO SENSOR 1 19 SL-4031201-SC SCREW M3X12 1 20 400-06665 LIFTER LINK B 1 21 SD-0800327-TP HINGE SCREW D=8 H=3.2 1 22 NM-6050001-SP NUT M5 1 23 SD-0700406-TP HINGE SCREW D=7 H=4 1 24 400-06671 CONNECTING ARM 1 25 SM-6061802-TP SCREW M6 L=18 1 26 265-00405 CONNECTING SHAFT 1 27 400-08693 LOWERING ARM 1 28 SM-6061802-TP SCREW M6 L=18 1 29 SD-0790606-TP HINGE SCREW D=7.94 H=6 1 30 NM-6060001-CP NUT M6 1 31 400-06672 LOWERING FOOT 1 32 141-04400 CONNECTING LINK 1 33 SD-1000406-TP HINGE SCREW D=10 H=4 2 34 400-06674 WIPER CONNECTING LINK 1 35 SD-0600206-TP HINGE SCREW D=6 H=2 1 36 135-09708 SPRING 1 37 400-10451 WIPER_CONNECTING_ARM_ASM 1 38 RC-0470611-KP RETAINING RING 4.7 2 39 400-10455 WIPER_CONNECTING_LINK_SHAFT 1 40 400-10457 WIPER STOPPER 1 41 400-10458 WIPER_CONNECTING_PLATE 1 42 400-17202 WIPER C ASM. 1 43 NM-6060003-SC NUT M6 1 44 RC-0470611-KP RETAINING RING 4.7 1 45 SD-0640216-TP HINGE SCREW D=6.35 H=2.1 1 46 400-06678 WIPER BASE PLATE 1 47 SM-4040855-SP SCREW 1 48 WP-0450801-SP WASHER 1 49 WP-0450801-SP WASHER 1 50 WP-0480856-SP WASHER 4.8X8.4X0.8 1 - 6 - jintex.in
Page 12 — 4. SHUTTLE DRIVER SHAFT COMPONENTS
4. SHUTTLE DRIVER SHAFT COMPONENTS 下軸関係 48・49 50 45~47 51・52 54・70 53・69 66~68 60 1 62 61 2 3 15 16 72 18 44 43 39~42 32 30 33 38 37 19・31 39~42 20 34 23 5 11 22 21 36 12 71 35 28 29 24 9 37 9 27 25 7 9 26 6 12 8 8 10 17 64 63 57 56 55 13 65 14 58 59 -7- jintex.in
Page 13
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | HX-0015000-0D | CABLE CLIP | 1 |
| 2 | 400-12127 | OIL PIPE HOLDER | 1 |
| 3 | SM-6040602-TP | SCREW M4 L=6 | 1 |
| 4 | 400-13721 | TUBE CLAMP | 1 |
| 5 | SL-4040891-SC | SCREW M4 L=8 | 1 |
| 6 | 400-10464 | THRUST COLLAR ASM. | 1 |
| 7 | 400-10467 | THRUST COLLAR | (1) |
| 8 | 400-10469 | THRUST COLLAR SCREW | (1) |
| 9 | SB-1100024-00 | BEARING | 3 |
| 10 | 400-16077 | LOWER SHAFT GEAR ASM. | 1 |
| 11 | 400-06563 | OSCILLATOR SHAFT | 1 |
| 12 | SM-8060612-TP | SCREW M6 L=6 | 2 |
| 13 | 400-10575 | LOWER SHAFT | 1 |
| 14 | EA-9500B01-00 | CABLE BAND | 2 |
| 15 | 400-06578 | OIL WICK PRESSER | 1 |
| 16 | SM-8060610-TP | SCREW M6 L=6 | 1 |
| 17 | SM-8060812-TP | SCREW M6 L=8 | 2 |
| 18 | 400-06573 | SHUTTLE ASM. | 1 |
| 19 | 400-06574 | SHUTTLE | (1) |
| 20 | B1820-210-D00 | SHUTTLE OIL FELT,A | (2) |
| 21 | B1821-210-D00 | SHUTTLE OIL FELT,B | (1) |
| 22 | B1822-210-D00 | INNER HOOK PRESSER SPRING | (2) |
| 23 | RE-0300000-K0 | E-RING 3 | (2) |
| 24 | 265-01858 | INNER HOOK PRESSER ASM. | (1) |
| 25 | 141-04004 | ONCE THROUGH OIL FELT PRESSER | (1) |
| 26 | SM-6020460-TP | SCREW M2 L=3.5 | (2) |
| 27 | 141-03907 | SHUTTLE ONCE THROUGH OIL FELT | (1) |
| 28 | 400-06577 | SHUTTLE LUBRICATING PLATE | (1) |
| 29 | SM-4030455-SP | SCREW M3 L=4 | (2) |
| 30 | CQ-2000000-00 | OIL WICK | (2.6) |
| 31 | CQ-2000000-00 | OIL WICK | (1.4) |
| 32 | 236-30007 | TUBE | (1) |
| 33 | 236-30007 | TUBE | (0.6) |
| 34 | 135-29607 | SHUTTLE PACKING | (2) |
| 35 | 400-10471 | SHUTTLE RACE ADJUSTING SHAFT | 1 |
| 36 | SM-6040650-TP | SCREW M4 L=6 | 2 |
| 37 | 400-06575 | SHUTTLE BEARING RING | 2 |
| 38 | 400-06576 | SHUTTLE OIL SEAL | 2 |
| 39 | SB-3080010-0A | BEARING | 2 |
| 40 | SB-3080010-0B | BEARING | 2 |
| 41 | SB-3080010-0C | BEARING | 2 |
| 42 | SB-3080010-0D | BEARING | 2 |
| 43 | B1815-210-000 | INNER HOOK UPPER SPRING | 1 |
| 44 | SM-6020460-TP | SCREW M2 L=3.5 | 2 |
| 45 | 141-03353 | INNER HOOK PRESSER ASM., A | 1 |
| 46 | 141-03352 | INNER HOOK PRESSER ASM., B | 1 |
| 47 | 141-03659 | SHUTTLE RACE RING ASM., C | 1 |
| 48 | 400-11512 | DRIVER ASM. | 1 |
| 49 | 400-14963 | SHUTTLE DRIVER ASM. | 1 |
| 50 | SS-6121212-TP | SCREW 3/16-28 L=12 | (1) |
| 51 | 400-11511 | SHUTTLE DRIVER | (1) |
| 52 | 400-10879 | SHUTTLE DRIVER | (1) |
| 53 | B1828-980-0BB | BOBBIN CASE ASM. (RACING PREVE | 1 |
| 54 | 138-12102 | BOBBIN | 1 |
| 55 | 400-10473 | LOWER SHAFT GEAR COVER ASM. | 1 |
| 56 | 400-10474 | LOWER SHAFT GEAR COVER | (1) |
| 57 | 400-10475 | LOWER SHAFT GEAR FELT | (1) |
| 58 | WP-0450801-SP | WASHER | 2 |
| 59 | SM-5040855-SN | SCREW | 2 |
| 60 | SL-4040891-SC | SCREW M4 L=8 | 1 |
| 61 | HX-0015000-0B | CABLE CLIP | 2 |
| 62 | SL-4040891-SC | SCREW M4 L=8 | 2 |
| 63 | SM-6040650-TP | SCREW M4 L=6 | 2 |
| 64 | 400-06840 | RUBBER BUSH | 2 |
| 65 | 400-06836 | OIL TANK ASM. | 1 |
| 66 | 400-06580 | SHUTTLE | 1 |
| 67 | 400-06581 | SHUTTLE (H) | 1 |
| 68 | 400-14965 | BOBBIN CASE ASM. | 1 |
| 69 | B1828-210-DAA | BOBBIN | 1 |
| 70 | B1806-210-D00 | SHUTTLE ASM.SCREW | 1 |
| 71 | 400-10470 | SCREW | 1 |
| 72 | SM-8061050-TP | SCREW M6 L=10 | 1 |
REF. NO NOTE PART NO. DESCRIPTION Qty. 1 HX-0015000-0D CABLE CLIP 1 2 400-12127 OIL PIPE HOLDER 1 3 SM-6040602-TP SCREW M4 L=6 1 4 400-13721 TUBE CLAMP 1 5 SL-4040891-SC SCREW M4 L=8 1 6 400-10464 THRUST COLLAR ASM. 1 7 400-10467 THRUST COLLAR (1) 8 400-10469 THRUST COLLAR SCREW (1) 9 SB-1100024-00 BEARING 3 10 400-16077 LOWER SHAFT GEAR ASM. 1 11 400-06563 OSCILLATOR SHAFT 1 12 SM-8060612-TP SCREW M6 L=6 2 13 400-10575 LOWER SHAFT 1 14 EA-9500B01-00 CABLE BAND 2 15 400-06578 OIL WICK PRESSER 1 16 SM-8060610-TP SCREW M6 L=6 1 17 SM-8060812-TP SCREW M6 L=8 2 18 400-06573 SHUTTLE ASM. 1 19 400-06574 SHUTTLE (1) 20 B1820-210-D00 SHUTTLE OIL FELT,A (2) 21 B1821-210-D00 SHUTTLE OIL FELT,B (1) 22 B1822-210-D00 INNER HOOK PRESSER SPRING (2) 23 RE-0300000-K0 E-RING 3 (2) 24 265-01858 INNER HOOK PRESSER ASM. (1) 25 141-04004 ONCE THROUGH OIL FELT PRESSER (1) 26 SM-6020460-TP SCREW M2 L=3.5 (2) 27 141-03907 SHUTTLE ONCE THROUGH OIL FELT (1) 28 400-06577 SHUTTLE LUBRICATING PLATE (1) 29 SM-4030455-SP SCREW M3 L=4 (2) 30 CQ-2000000-00 OIL WICK (2.6) 31 CQ-2000000-00 OIL WICK (1.4) 32 236-30007 TUBE (1) 33 236-30007 TUBE (0.6) 34 135-29607 SHUTTLE PACKING (2) 35 400-10471 SHUTTLE RACE ADJUSTING SHAFT 1 36 SM-6040650-TP SCREW M4 L=6 2 37 400-06575 SHUTTLE BEARING RING 2 38 400-06576 SHUTTLE OIL SEAL 2 39 01 SB-3080010-0A BEARING 2 40 01 SB-3080010-0B BEARING 2 41 01 SB-3080010-0C BEARING 2 42 01 SB-3080010-0D BEARING 2 43 B1815-210-000 INNER HOOK UPPER SPRING 1 44 SM-6020460-TP SCREW M2 L=3.5 2 45 02 141-03353 INNER HOOK PRESSER ASM., A 1 46 03 141-03352 INNER HOOK PRESSER ASM., B 1 47 06 141-03659 SHUTTLE RACE RING ASM., C 1 48 08 400-11512 DRIVER ASM. 1 49 07 400-14963 SHUTTLE DRIVER ASM. 1 50 SS-6121212-TP SCREW 3/16-28 L=12 (1) 51 08 400-11511 SHUTTLE DRIVER (1) 52 07 400-10879 SHUTTLE DRIVER (1) 53 08 B1828-980-0BB BOBBIN CASE ASM. (RACING PREVE 1 54 08 138-12102 BOBBIN 1 55 400-10473 LOWER SHAFT GEAR COVER ASM. 1 56 400-10474 LOWER SHAFT GEAR COVER (1) 57 400-10475 LOWER SHAFT GEAR FELT (1) 58 WP-0450801-SP WASHER 2 59 SM-5040855-SN SCREW 2 60 SL-4040891-SC SCREW M4 L=8 1 61 HX-0015000-0B CABLE CLIP 2 62 SL-4040891-SC SCREW M4 L=8 2 63 SM-6040650-TP SCREW M4 L=6 2 64 400-06840 RUBBER BUSH 2 65 400-06836 OIL TANK ASM. 1 66 05 400-06580 SHUTTLE 1 67 04 400-06581 SHUTTLE (H) 1 68 07 400-14965 BOBBIN CASE ASM. 1 69 07 B1828-210-DAA BOBBIN 1 70 07 B1806-210-D00 SHUTTLE ASM.SCREW 1 71 400-10470 SCREW 1 72 * SM-8061050-TP SCREW M6 L=10 1 NOTE (注記) 01....SELECTIVE PARTS 02....FOR LK-1900AF,AM 03....FOR LK-1900AS 04....FOR LK-1900AH 05....EXCEPT LK-1900AH,AW 06....FOR LK-1900AH,AW 07....FOR LK-1900AW 08....EXCEPT LK-1900AW - 8 - jintex.in
Page 14 — 5. THREAD TENSION COMPONENTS
5. THREAD TENSION COMPONENTS 糸調子関係 22 23 21 24 46 45 25 1 5 4 7 6 7 44 40 39 43 33 38 41 41 41 47 32 36 37 35 42 34 27 28 30 31 29 22 23 21 24 26 17 20 11 19 19 16 15 18 17 20 26 12 19 13 18 14 10 9 8 2 -9- jintex.in
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-06628 | AT SOLENOID | 1 |
| 2 | SM-6040602-TP | SCREW M4 L=6 | 4 |
| 3 | RE-090000-KO | E-RING 9 | 1 |
| 4 | 400-06625 | SPRING | 1 |
| 5 | 400-06617 | AT SOL PIN | 1 |
| 6 | 400-10477 | AT SOL COLLAR | 2 |
| 7 | SM-8030412-TP | SCREW | 2 |
| 8 | 400-10479 | AT PLATE | 1 |
| 9 | SM-6040802-TN | SCREW | 2 |
| 10 | WP-0430801-SC | WASHER 4.3X9X0.8 | 2 |
| 11 | 400-10482 | AT DRIVE LINK(F) ASM | 1 |
| 12 | 400-10483 | AT DRIVE LINK(R) ASM | 1 |
| 13 | 400-10495 | AT PIVOT BASE(R) | 1 |
| 14 | SM-6040602-TP | SCREW M4 L=6 | 2 |
| 15 | 400-10496 | AT PIVOT BASE(F) | 1 |
| 16 | SM-6041050-TP | SCREW M4 L=10 | 2 |
| 17 | 400-10487 | AT PIVOT SCREW | 2 |
| 18 | NM-6040003-SC | NUT M4 | 2 |
| 19 | WP-0400516-UZ | PLAIN WASHER | 3 |
| 20 | 400-10488 | AT PIVOT BEARING | 2 |
| 21 | 400-10497 | AT JOINT | 2 |
| 22 | WP-0400516-UZ | PLAIN WASHER | 2 |
| 23 | 400-10498 | AT JOINT BEARING | 2 |
| 24 | NM-6030003-SC | NUT M3 | 2 |
| 25 | 400-10500 | AT CONNECTION BAR | 1 |
| 26 | 400-06622 | AT SNAP PIN | 2 |
| 27 | 400-10503 | THREAD TENSION 1 ASM | 1 |
| 28 | 400-10504 | THREAD TENSION SHAFT | (1) |
| 29 | 229-28808 | NUT | (1) |
| 30 | 229-21506 | THREAD TENSION DISK | (2) |
| 31 | 262-18602 | FIRST THREAD TENSION SPRING | (1) |
| 32 | 400-10508 | THREAD TENSION 2 ASM | 1 |
| 33 | 400-10510 | THREAD TENSION POST BASE | (1) |
| 34 | 400-10511 | DISK STOPPER HOLDER CAP | (1) |
| 35 | 400-10512 | THREAD TENSION SHAFT COLLAR | (1) |
| 36 | 400-10513 | DISK STOPPER SP | (3) |
| 37 | 400-10514 | DISK STOPPER | (1) |
| 38 | 400-10515 | ASSY THREAD TENSION POST | (1) |
| 39 | 400-10478 | AT SOL COLLAR SCREW | (1) |
| 40 | 229-21605 | THREAD TAKE-UP SPRING | (1) |
| 41 | 400-10521 | HOLD CAP SCREW | (3) |
| 42 | 400-10522 | SHAFT NUT | (1) |
| 43 | 400-10523 | POST BASE C RING | (1) |
| 44 | 400-10509 | THREAD TENSION SHAFT | (1) |
| 45 | 400-13967 | AT-FELT | 1 |
| 46 | SL-4040681-SC | COMBINATION SCREW M4 X 8 | 1 |
| 47 | SM-8061612-TP | SCREW M6X16 | 1 |
REF. NO NOTE PART NO. DESCRIPTION Qty 1 400-06628 AT SOLENOID 1 2 SM-6040602-TP SCREW M4 L=6 4 3 RE-090000-KO E-RING 9 1 4 400-06625 SPRING 1 5 400-06617 AT SOL PIN 1 6 400-10477 AT SOL COLLAR 2 7 SM-8030412-TP SCREW 2 8 400-10479 AT PLATE 1 9 SM-6040802-TN SCREW 2 10 WP-0430801-SC WASHER 4.3X9X0.8 2 11 400-10482 AT DRIVE LINK(F) ASM 1 12 400-10483 AT DRIVE LINK(R) ASM 1 13 400-10495 AT PIVOT BASE(R) 1 14 SM-6040602-TP SCREW M4 L=6 2 15 400-10496 AT PIVOT BASE(F) 1 16 SM-6041050-TP SCREW M4 L=10 2 17 400-10487 AT PIVOT SCREW 2 18 NM-6040003-SC NUT M4 2 19 WP-0400516-UZ PLAIN WASHER 3 20 400-10488 AT PIVOT BEARING 2 21 400-10497 AT JOINT 2 22 WP-0400516-UZ PLAIN WASHER 2 23 400-10498 AT JOINT BEARING 2 24 NM-6030003-SC NUT M3 2 25 400-10500 AT CONNECTION BAR 1 26 400-06622 AT SNAP PIN 2 27 400-10503 THREAD TENSION 1 ASM 1 28 400-10504 THREAD TENSION SHAFT (1) 29 229-28808 NUT (1) 30 229-21506 THREAD TENSION DISK (2) 31 262-18602 FIRST THREAD TENSION SPRING (1) 32 400-10508 THREAD TENSION 2 ASM 1 33 400-10510 THREAD TENSION POST BASE (1) 34 400-10511 DISK STOPPER HOLDER CAP (1) 35 400-10512 THREAD TENSION SHAFT COLLAR (1) 36 400-10513 DISK STOPPER SP (3) 37 400-10514 DISK STOPPER (1) 38 400-10515 ASSY THREAD TENSION POST (1) 39 400-10478 AT SOL COLLAR SCREW (1) 40 229-21605 THREAD TAKE-UP SPRING (1) 41 400-10521 HOLD CAP SCREW (3) 42 400-10522 SHAFT NUT (1) 43 400-10523 POST BASE C RING (1) 44 400-10509 THREAD TENSION SHAFT (1) 45 400-13967 AT-FELT 1 46 SL-4040681-SC COMBINATION SCREW M4 X 8 1 47 SM-8061612-TP SCREW M6X16 1 - 10 - jintex.in
Page 16 — 6. THREAD TRIMMER MECHANISM COMPONENTS
6. THREAD TRIMMER MECHANISM COMPONENTS 糸切り関係 - 11 - jintex.in
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-06711 | THREAD TRIMMER CAM | |
| 2 | SM-8050592-TP | SCREW | |
| 3 | WP-0450801-SP | WASHER | |
| 4 | 400-40256 | CAM ROLLER SHAFT | |
| 5 | NM-6040001-SP | NUT M4X0.7 | |
| 6 | 400-06712 | THREAD TRIMMER LINK ASM. | |
| 7 | SD-0800327-TP | HINGE SCREW D=8 H=3.2 | |
| 8 | NM-6050001-SP | NUT M5 | |
| 9 | 400-06716 | THREAD TRIMMER SHAFT | |
| 10 | SM-8060812-TP | SCREW M6 L=8 | |
| 11 | 400-06717 | CONNECTING BAR | |
| 12 | 400-10525 | THREAD_TRIMMER_SENSOR_SLIT | |
| 13 | SM-6040802-TP | SCREW M4X0.7 L=8 | |
| 14 | HD-0022300-00 | PHOTO SENSOR | |
| 15 | SL-4041291-SC | SCREW M4 L=12 | |
| 16 | 400-10526 | THREAD TRIMMER_SENSOR_BASE | |
| 17 | SM-6040855-SP | SCREW | |
| 18 | 400-06722 | NEEDLE PLATE ASM.,A | |
| 19 | 400-06723 | NEEDLE PLATE ASM.,H | |
| 20 | 400-06724 | NEEDLE PLATE ASM.,E | |
| 21 | B2417-280-000 | THREAD CUTTER LEVER SHAFT | |
| 22 | B2426-280-000 | NEEDLE HOLE GUIDE | |
| 23 | 141-09607 | NEEDLE HOLE GUIDE | |
| 24 | D2426-282-C00 | NEEDLE HOLE GUIDE | |
| 25 | SS-1060210-TP | SCREW 3/32-56 L=2.2 | |
| 26 | 400-06721 | NEEDLE PLATE | |
| 27 | B2424-280-000 | FIXING KNIFE | |
| 28 | SS-7090410-SP | SCREW 9/64-40 L=3.5 | |
| 29 | B2418-280-000 | MOVING KNIFE LINK | |
| 30 | B2416-280-000 | THREAD CUTTING LEVER RING | |
| 31 | B2415-280-0A0 | THREAD CUTTER LEVER ASM.,SMALL | |
| 32 | B2414-280-0A0 | THREAD CUTTER LEVER ASM.,LARGE | |
| 33 | SS-6110430-TP | SCREW 11/64-40 L=4 | |
| 34 | WP-0450846-SP | WASHER | |
| 35 | SS-7110740-TP | SCREW 11/64-40 L=7 | |
| 36 | B2423-280-00C | MOVING KNIFE WASHER C | |
| 37 | B2423-280-00A | MOVING KNIFE WASHER A | |
| 38 | B2423-280-00B | MOVING KNIFE WASHER B | |
| 39 | B2423-280-00D | MOVING KNIFE WASHER D | |
| 40 | B2423-280-00E | MOVING KNIFE WASHER E | |
| 41 | B2421-280-0A0 | MOVING KNIFE ASM. | |
| 42 | SD-0500091-TP | HINGE SCREW D=5.0 H=0.9 | |
| 43 | SM-1040650-TP | SCREW M4 L=6 | |
| 44 | 263-15606 | NEEDLE CAM ROLLER A | |
| 45 | 263-15705 | NEEDLE CAM ROLLER B | |
| 46 | 263-15804 | NEEDLE CAM ROLLER C | |
| 47 | 263-15903 | NEEDLE CAM ROLLER D |
REF. NO. NOTE PART NO. DESCRIPTION Qty 1 400-06711 THREAD TRIMMER CAM 1 2 SM-8050592-TP SCREW 2 3 WP-0450801-SP WASHER 1 4 400-40256 CAM ROLLER SHAFT 1 5 NM-6040001-SP NUT M4X0.7 2 6 400-06712 THREAD TRIMMER LINK ASM. 1 7 SD-0800327-TP HINGE SCREW D=8 H=3.2 1 8 NM-6050001-SP NUT M5 1 9 400-06716 THREAD TRIMMER SHAFT 1 10 SM-8060812-TP SCREW M6 L=8 1 11 400-06717 CONNECTING BAR 1 12 400-10525 THREAD_TRIMMER_SENSOR_SLIT 1 13 SM-6040802-TP SCREW M4X0.7 L=8 1 14 HD-0022300-00 PHOTO SENSOR 1 15 SL-4041291-SC SCREW M4 L=12 1 16 400-10526 THREAD TRIMMER_SENSOR_BASE 1 17 SM-6040855-SP SCREW 2 18 01 400-06722 NEEDLE PLATE ASM.,A 1 19 02 400-06723 NEEDLE PLATE ASM.,H 1 20 03 400-06724 NEEDLE PLATE ASM.,E 1 21 B2417-280-000 THREAD CUTTER LEVER SHAFT (1) 22 01 B2426-280-000 NEEDLE HOLE GUIDE (1) 23 02 141-09607 NEEDLE HOLE GUIDE (1) 24 03 D2426-282-C00 NEEDLE HOLE GUIDE (1) 25 SS-1060210-TP SCREW 3/32-56 L=2.2 (2) 26 400-06721 NEEDLE PLATE (1) 27 B2424-280-000 FIXING KNIFE (1) 28 SS-7090410-SP SCREW 9/64-40 L=3.5 (2) 29 B2418-280-000 MOVING KNIFE LINK (1) 30 B2416-280-000 THREAD CUTTING LEVER RING (1) 31 B2415-280-0A0 THREAD CUTTER LEVER ASM.,SMALL (1) 32 B2414-280-0A0 THREAD CUTTER LEVER ASM.,LARGE (1) 33 SS-6110430-TP SCREW 11/64-40 L=4 (1) 34 WP-0450846-SP WASHER (1) 35 SS-7110740-TP SCREW 11/64-40 L=7 (1) 36 04 B2423-280-00C MOVING KNIFE WASHER C (1) 37 04 B2423-280-00A MOVING KNIFE WASHER A (1) 38 04 B2423-280-00B MOVING KNIFE WASHER B (1) 39 04 B2423-280-00D MOVING KNIFE WASHER D (1) 40 04 B2423-280-00E MOVING KNIFE WASHER E (1) 41 B2421-280-0A0 MOVING KNIFE ASM. (1) 42 SD-0500091-TP HINGE SCREW D=5.0 H=0.9 (1) 43 SM-1040650-TP SCREW M4 L=6 4 44 263-15606 NEEDLE CAM ROLLER A 1 45 263-15705 NEEDLE CAM ROLLER B 1 46 263-15804 NEEDLE CAM ROLLER C 1 47 263-15903 NEEDLE CAM ROLLER D 1 NOTE (注記) 01....FOR LK-1900AS LK-1900AS用 02....FOR LK-1900AH,AW LK-1900AH,AW用 03....FOR LK-1900AF,AM LK-1900AF,AM用 04....SELECTIVE PARTS 選択部品 - 12 - jintex.in
Page 18
7. FEED MECHANISM COMPONENTS 送り関係 57 67 49 48 52 40 53 45 80 42 43 60 55 56 62 64 66 61 63 65 58 59 39 69 41 70 54 44 45 51 49 48 68 57 78 79 73 26 25 71 72 74 53 75 76 77 24 14 23 22 3 4 4 32 31 13 12 38 37 34 36 33 17 50 15 46 47 35 2 28 11 21 18 19 5 30 27 16 29 20 6 8 7 10 9 10 18 82 81 - 13 - jintex.in
Page 19
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400-29901 | X FEED MOTOR | 1 | |
| SM-4041655-SP | SCREW M4 L=16 | 4 | |
| 265-01403 | X FEED GEAR | 1 | |
| SM-8060602-TP | SCREW M6X6 | 2 | |
| 400-29902 | Y FEED MOTOR | 1 | |
| SM-6041150-TP | SCREW M4 L=11 | 2 | |
| 400-10536 | Y FEED MOTOR BASE | 1 | |
| SM-6041150-TP | SCREW M4 L=11 | 2 | |
| 265-01502 | Y FEED GEAR | 1 | |
| SM-8060602-TP | SCREW M6X6 | 2 | |
| 400-06736 | CLOTH FEED ARM | 1 | |
| 135-16208 | FEED DRIVING ARM SHAFT | 1 | |
| SM-8060812-TP | SCREW M6 L=8 | 1 | |
| 262-23305 | SLIDE BLOCK STUD | 1 | |
| B1414-232-000 | SQUARE BLOCK | 1 | |
| SM-8060812-TP | SCREW M6 L=8 | 1 | |
| 400-06738 | Y FEED SHAFT | 1 | |
| B2509-704-000 | BUSHING, REAR | 2 | |
| 265-00009 | Y FEED ARM | 1 | |
| SS-8660612-TP | SCREW 1/4-40 L=6 | 2 | |
| 135-17404 | HINGE STUD | 1 | |
| 400-06740 | CLOTH FEED SUPPORT PLAE | 1 | |
| SM-6040650-TP | SCREW M4 L=6 | 3 | |
| 400-06737 | CLOTH FEED PLATE | 1 | |
| 400-06739 | CLOTH FEED PRESSER PLATE | 1 | |
| SM-1040650-TP | SCREW M4 L=6 | 4 | |
| HD-002250A-00 | PHOTO SENSOR | 1 | |
| SL-4041281-SC | SCREW M4X0.7 L=12 | 1 | |
| 141-11702 | SENSOR INSTALLING BASE | 1 | |
| SM-4040855-SP | SCREW | 2 | |
| 141-11504 | CROSSFEED SENSOR SLIT | 1 | |
| SM-6040650-TP | SCREW M4 L=6 | 1 | |
| HD-0005700-0A | PHOTO SENSOR | 1 | |
| SL-4031291-SC | SCREW M3X0.5 L=12 | 1 | |
| 141-11801 | SENSOR INSTALLING BASE | 1 | |
| SM-4040855-SP | SCREW | 1 | |
| 141-36402 | LENGTHWISE FEED SENSOR SLIT | 1 | |
| SS-6110480-SP | SCREW 11/64-40 L=4.3 | 1 | |
| 400-39255 | SUPPORT PLATE | 1 | |
| SM-4040802-TP | SCREW M4X0.7 L=8 | 2 | |
| 400-39013 | FEED BRACKET B | 1 | |
| B2549-280-000 | WORK CLAMP FOOT MOUNTING BASE | 7 | |
| B2548-280-000 | BALL RETAINER | 1 | |
| SS-8150510-TP | SCREW 15/64-28 L=4.7 | 1 | |
| 45 | B2557-280-00A | WASHER FOR DRIVING ARM | 2 |
| 46 | B1414-232-00A | CRANK SLIDE BLOCK | 1 |
| 47 | B1414-232-00B | GUIDE ROLLER | 1 |
| CS-0800881-TP | THRUST COLLAR | 2 | |
| SM-8050512-TP | SCREW M5 L=5 | 4 | |
| WP-0450801-SP | WASHER | 4 | |
| 262-04008 | LIFTING LEVER RIGHT | 1 | |
| 262-04107 | LIFTING LEVER LEFT | 1 | |
| 141-05407 | CLOTH PRESSER SPRING | 2 | |
| 135-18501 | SPRING SUSPENSION | 1 | |
| 135-18808 | WORK CLAMP FOOT FACE PLATE | 1 | |
| SS-2110930-SP | SCREW 11/64-40 L=8.7 | 4 | |
| 57 | SS-7110740-TP | SCREW 11/64-40 L=7 | 1 |
| 58 | 135-33104 | FINGER GUARD | 1 |
| 59 | 135-48300 | FINGER GUARD | 1 |
| SS-8080310-TP | SCREW 1/8-44 L=2.8 | 2 | |
| 61 | 135-18600 | WORK CLAMP FOOT, RIGHT | 1 |
| 62 | 135-18709 | WORK CLAMP FOOT, LEFT | 1 |
| 63 | 135-48102 | WORK CLAMP FOOT, RIGHT | 1 |
| 64 | 135-48201 | WORK CLAMP FOOT, LEFT | 1 |
| 65 | 135-42915 | WORK CLAMP FOOT, RIGHT | 1 |
| 66 | 135-43012 | WORK CLAMP FOOT, LEFT | 1 |
| 400-06745 | LEVER DRIVING PLATE L ASM. | 1 | |
| 400-06747 | LEVER DRIVING PLATE R ASM. | 1 | |
| SM-6061802-TP | SCREW M6 L=18 | 1 | |
| WP-0621016-SD | WASHER 6.2X13X1 | 1 | |
| 400-10570 | HIDDEN PLATE | 1 | |
| SM-5030501-SC | SCREW M3 L=5 | 2 | |
| 73 | 141-16107 | FEED PLATE A | 1 |
| 74 | 141-16206 | FEED PLATE B | 1 |
| 75 | 135-54803 | FEED PLATE | 1 |
| 76 | 141-16800 | FEED PLATE H | 1 |
| 77 | 141-16404 | FEED PLATE D | 1 |
| SM-3061052-TP | SCREW M6 L=10 | 1 | |
| WP-0621016-SD | WASHER 6.2X13X1 | 1 | |
| 400-39012 | LIFTING LEVER SHAFT B | 1 | |
| SM-4042055-SP | SCREW M4 L=20 | 2 | |
| WP-0450801-SP | WASHER | 2 |
REF. NO NOTE PART NO. D E S C R I P T I O N Qty 1 400-29901 X FEED MOTOR 1 2 SM-4041655-SP SCREW M4 L=16 4 3 265-01403 X FEED GEAR 1 4 SM-8060602-TP SCREW M6X6 2 5 400-29902 Y FEED MOTOR 1 6 SM-6041150-TP SCREW M4 L=11 2 7 400-10536 Y FEED MOTOR BASE 1 8 SM-6041150-TP SCREW M4 L=11 2 9 265-01502 Y FEED GEAR 1 10 SM-8060602-TP SCREW M6X6 2 11 400-06736 CLOTH FEED ARM 1 12 135-16208 FEED DRIVING ARM SHAFT 1 13 SM-8060812-TP SCREW M6 L=8 1 14 262-23305 SLIDE BLOCK STUD 1 15 B1414-232-000 SQUARE BLOCK 1 16 SM-8060812-TP SCREW M6 L=8 1 17 400-06738 Y FEED SHAFT 1 18 B2509-704-000 BUSHING, REAR 2 19 265-00009 Y FEED ARM 1 20 SS-8660612-TP SCREW 1/4-40 L=6 2 21 135-17404 HINGE STUD 1 22 400-06740 CLOTH FEED SUPPORT PLAE 1 23 SM-6040650-TP SCREW M4 L=6 3 24 400-06737 CLOTH FEED PLATE 1 25 400-06739 CLOTH FEED PRESSER PLATE 1 26 SM-1040650-TP SCREW M4 L=6 4 27 HD-002250A-00 PHOTO SENSOR 1 28 SL-4041281-SC SCREW M4X0.7 L=12 1 29 141-11702 SENSOR INSTALLING BASE 1 30 SM-4040855-SP SCREW 2 31 141-11504 CROSSFEED SENSOR SLIT 1 32 SM-6040650-TP SCREW M4 L=6 1 33 HD-0005700-0A PHOTO SENSOR 1 34 SL-4031291-SC SCREW M3X0.5 L=12 1 35 141-11801 SENSOR INSTALLING BASE 1 36 SM-4040855-SP SCREW 1 37 141-36402 LENGTHWISE FEED SENSOR SLIT 1 38 SS-6110480-SP SCREW 11/64-40 L=4.3 1 39 400-39255 SUPPORT PLATE 1 40 SM-4040802-TP SCREW M4X0.7 L=8 2 41 400-39013 FEED BRACKET B 1 42 B2549-280-000 WORK CLAMP FOOT MOUNTING BASE 7 43 B2548-280-000 BALL RETAINER 1 44 SS-8150510-TP SCREW 15/64-28 L=4.7 1 45 01 B2557-280-00A WASHER FOR DRIVING ARM 2 46 01 B1414-232-00A CRANK SLIDE BLOCK 1 47 01 B1414-232-00B GUIDE ROLLER 1 48 CS-0800881-TP THRUST COLLAR 2 49 SM-8050512-TP SCREW M5 L=5 4 50 WP-0450801-SP WASHER 4 51 262-04008 LIFTING LEVER RIGHT 1 52 262-04107 LIFTING LEVER LEFT 1 53 141-05407 CLOTH PRESSER SPRING 2 54 135-18501 SPRING SUSPENSION 1 55 135-18808 WORK CLAMP FOOT FACE PLATE 1 56 SS-2110930-SP SCREW 11/64-40 L=8.7 4 57 02 SS-7110740-TP SCREW 11/64-40 L=7 1 58 03 135-33104 FINGER GUARD 1 59 03 135-48300 FINGER GUARD 1 60 SS-8080310-TP SCREW 1/8-44 L=2.8 2 61 04 135-18600 WORK CLAMP FOOT, RIGHT 1 62 04 135-18709 WORK CLAMP FOOT, LEFT 1 63 03 135-48102 WORK CLAMP FOOT, RIGHT 1 64 03 135-48201 WORK CLAMP FOOT, LEFT 1 65 05 135-42915 WORK CLAMP FOOT, RIGHT 1 66 05 135-43012 WORK CLAMP FOOT, LEFT 1 67 400-06745 LEVER DRIVING PLATE L ASM. 1 68 400-06747 LEVER DRIVING PLATE R ASM. 1 69 SM-6061802-TP SCREW M6 L=18 1 70 WP-0621016-SD WASHER 6.2X13X1 1 71 400-10570 HIDDEN PLATE 1 72 SM-5030501-SC SCREW M3 L=5 2 73 06 141-16107 FEED PLATE A 1 74 05 141-16206 FEED PLATE B 1 75 03 135-54803 FEED PLATE 1 76 07 141-16800 FEED PLATE H 1 77 08 141-16404 FEED PLATE D 1 78 SM-3061052-TP SCREW M6 L=10 1 79 WP-0621016-SD WASHER 6.2X13X1 1 80 400-39012 LIFTING LEVER SHAFT B 1 81 SM-4042055-SP SCREW M4 L=20 2 82 WP-0450801-SP WASHER 2 NOTE (注記) 01....SELECTIVE PARTS 02....EXCEPT LK-1900AH,AW 03....FOR LK-1900AH,AW 04....FOR LK-1900AS,AF 05....FOR LK-1900AM 06....FOR LK-1900AS 07....FOR LK-1900AF(EXCEPT JE) 08....FOR LK-1900AF,JE - 14 - jintex.in
Page 20 — 8. TC CLAMP COMPONENTS
8. TC CLAMP COMPONENTS 糸掴み関係 - 15 - jintex.in
Page 21
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-06761 | TC CLAMP | 1 |
| 2 | 400-06762 | TC CLAMP PLATE ASM. | 1 |
| 3 | 400-06765 | TC SUPPORT PLATE ASM. | 1 |
| 4 | 400-06768 | TC JOINT ASM. | 1 |
| 5 | 400-15800 | TC LINK ASM | 1 |
| 6 | SM-2360110-TP | SCREW M1.6X0.2 L=1.35 | 2 |
| 7 | WP-0320500-SC | WASHER M3 | 1 |
| 8 | RE-0200000-KO | E-RING | 2 |
| 9 | SD-0400266-TP | HINGE SCREW D=4 H=2.6 | 1 |
| 10 | 400-10589 | TC BASE | 1 |
| 11 | SM-6040650-TP | SCREW M4 L=6 | 4 |
| 12 | 400-06772 | TC CAM PLATE | 1 |
| 13 | 400-06780 | TC SPRING | 1 |
| 14 | 400-06781 | TC BASE COVER | 1 |
| 15 | SM-6020350-SP | SCREW M2 L=2.5 | 4 |
| 16 | 400-06782 | TC NOTCH R | 1 |
| 17 | SM-4020600-SP | SCREW M2 L=6 | 2 |
| 18 | 400-06777 | TC NOTCH F | 1 |
| 19 | SM-6020450-TP | SCREW | 2 |
| 20 | 400-10527 | TC DRIVING ARM ASM. | 1 |
| 21 | 400-10528 | TC DRIVING ARM | (1) |
| 22 | 400-11152 | TC ARM SCREW | (2) |
| 23 | SD-0800406-TP | SHOULDER SCREW D8 H4 | 1 |
| 24 | 400-06776 | TC CONNECTING LINK | 1 |
| 25 | SD-0350156-TP | SHOULDER SCREW | 1 |
| 26 | 400-10530 | SENSOR SLIT | 1 |
| 27 | SM-6030502-TP | BOLT M3X5 | 1 |
| 28 | 400-06864 | THREAD CLAMP MOTOR | 1 |
| 29 | SM-6041200-SP | SCREW M4 L=12 | 4 |
| 30 | 400-10531 | SENSOR INSTALLING BASE | 1 |
| 31 | SM-6040802-TP | SCREW M4X0.7 L=8 | 1 |
| 32 | HD-0005700-0A | PHOTO SENSOR | 2 |
| 33 | SL-4031091-SC | SCREW M3 X 10 | 2 |
| 34 | 400-10532 | DUST GUARD | 1 |
| 35 | SM-4030601-SN | SCREW M3 X 6 | 1 |
| 36 | WP-0450801-SP | WASHER | 1 |
REF. NO NOTE PART NO. DESCRIPTION Qty 1 400-06761 TC CLAMP 1 2 400-06762 TC CLAMP PLATE ASM. 1 3 400-06765 TC SUPPORT PLATE ASM. 1 4 400-06768 TC JOINT ASM. 1 5 400-15800 TC LINK ASM 1 6 SM-2360110-TP SCREW M1.6X0.2 L=1.35 2 7 WP-0320500-SC WASHER M3 1 8 RE-0200000-KO E-RING 2 9 SD-0400266-TP HINGE SCREW D=4 H=2.6 1 10 400-10589 TC BASE 1 11 SM-6040650-TP SCREW M4 L=6 4 12 400-06772 TC CAM PLATE 1 13 400-06780 TC SPRING 1 14 400-06781 TC BASE COVER 1 15 SM-6020350-SP SCREW M2 L=2.5 4 16 400-06782 TC NOTCH R 1 17 SM-4020600-SP SCREW M2 L=6 2 18 400-06777 TC NOTCH F 1 19 SM-6020450-TP SCREW 2 20 400-10527 TC DRIVING ARM ASM. 1 21 400-10528 TC DRIVING ARM (1) 22 400-11152 TC ARM SCREW (2) 23 SD-0800406-TP SHOULDER SCREW D8 H4 1 24 400-06776 TC CONNECTING LINK 1 25 SD-0350156-TP SHOULDER SCREW 1 26 400-10530 SENSOR SLIT 1 27 SM-6030502-TP BOLT M3X5 1 28 400-06864 THREAD CLAMP MOTOR 1 29 SM-6041200-SP SCREW M4 L=12 4 30 400-10531 SENSOR INSTALLING BASE 1 31 SM-6040802-TP SCREW M4X0.7 L=8 1 32 HD-0005700-0A PHOTO SENSOR 2 33 SL-4031091-SC SCREW M3 X 10 2 34 400-10532 DUST GUARD 1 35 SM-4030601-SN SCREW M3 X 6 1 36 WP-0450801-SP WASHER 1 - 16 - jintex.in
Page 22 — 9. SENSOR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-05729 | TH SENSOR CABLE ASM. | 1 |
| 2 | 400-05731 | Y SENSOR CABLE ASM. | 1 |
| 3 | 400-05732 | PF SENSOR CABLE ASM. | 1 |
| 4 | 400-05730 | X SENSOR CABLE ASM. | 1 |
| 5 | 400-05733 | TT SENSOR CABLE ASM. | 1 |
| 6 | 400-06495 | SAFETY SW ASM. | 1 |
| 7 | 400-06496 | SAFETY SW BASE | (1) |
| 8 | 236-38109 | SAFETY SWITCH ARM. | (1) |
| 9 | 400-06497 | SAFETY SW ARM SHAFT | (1) |
| 10 | 236-38208 | SAFETY SWITCH SPRING | (1) |
| 11 | 236-38406 | SAFETY SWITCH NUT | (1) |
| 12 | 400-05734 | SAFETY SW CABLE ASM. | (1) |
| 13 | SM-4021201-SC | SCREW M2 L=12 | (2) |
| 14 | EA-9500B01-00 | CABLE BAND | (1) |
| 15 | SM-4050855-SP | SCREW | 1 |
| 16 | 400-05664 | INT PCB ASM. | 1 |
| 17 | 400-05660 | INT PCB | (1) |
| 18 | 400-05725 | INT CABLE ASM. | (1) |
| 19 | SL-4040881-SF | SCREW M4 L=8 | 1 |
| 20 | 141-15554 | HEAD GROUND CABLE A ASM. | 1 |
| 21 | SM-4040855-SP | SCREW | 6 |
| 22 | EA-9500B01-00 | CABLE BAND | 1 |
| 23 | EA-9500B02-00 | CABLE BAND 150 | 3 |
| 24 | HX-0015000-0K | CABLE CLIP | 1 |
| 25 | SM-4040855-SP | SCREW | 1 |
| 26 | HX-0033900-00 | STUD | 4 |
9. SENSOR COMPONENTS センサー関係 10 8 9 13 15 17 18 12 16 14 19 11 6 20 21 25 22 23 24 REF. NO NOTE PART NO. DESCRIPTION Qty 1 400-05729 TH SENSOR CABLE ASM. イトウカミセンサーケーブルクミ 1 2 400-05731 Y SENSOR CABLE ASM. Yセンサーケーブルクミ 1 3 400-05732 PF SENSOR CABLE ASM. ソトオタエセンサーケーブルクミ 1 4 400-05730 X SENSOR CABLE ASM. Xセンサーケーブルクミ 1 5 400-05733 TT SENSOR CABLE ASM. イトキリセンサーケーブルクミ 1 6 400-06495 SAFETY SW ASM. アンゼンスイッチクミ 1 7 400-06496 SAFETY SW BASE アンゼンスイッチダイ (1) 8 236-38109 SAFETY SWITCH ARM. アンゼンスイッチウデ (1) 9 400-06497 SAFETY SW ARM SHAFT アンゼンスイッチウデジク (1) 10 236-38208 SAFETY SWITCH SPRING アンゼンスイッチモトバネ (1) 11 236-38406 SAFETY SWITCH NUT アンゼンスイッチメイツ (1) 12 400-05734 SAFETY SW CABLE ASM. アンゼンスイッチコードクミ (1) 13 SM-4021201-SC SCREW M2 L=12 ナベコネジ M2 L=12 (2) 14 EA-9500B01-00 CABLE BAND ソクセンバンド (1) 15 SM-4050855-SP SCREW ナベネジ M5 L=8 1 16 400-05664 INT PCB ASM. INTキバンクミ 1 17 400-05660 INT PCB INTキバン (1) 18 400-05725 INT CABLE ASM. INTケーブルクミ (1) 19 SL-4040881-SF SCREW M4 L=8 ナベコネジセムス M4 L=8 1 20 141-15554 HEAD GROUND CABLE A ASM. トウチアースケーブルクミ 1 21 SM-4040855-SP SCREW ナベネジ 6 22 EA-9500B01-00 CABLE BAND ソクセンバンド 1 23 EA-9500B02-00 CABLE BAND 150 ソクセンバンド 150 3 24 HX-0015000-0K CABLE CLIP ケーブルクリップ 1 25 SM-4040855-SP SCREW ナベネジ 1 26 HX-0033900-00 STUD キバンバーサ 4 - 17 - jintex.in
Page 23 — 10. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-30358 | THREAD STAND ASM. | 1 |
| 2 | 229-31109 | SPOOL RETAINER | (2) |
| 3 | 229-31000 | SPOOL PIN | (2) |
| 4 | 229-30903 | SPOOL REST CUSHION | (2) |
| 5 | 229-30804 | SPOOL REST | (2) |
| 6 | SM-6061610-SC | SCREW M6 L=16 | (2) |
| 7 | 229-30705 | THREAD GUIDE ARM JOINT | (2) |
| 8 | 229-31406 | SPOOL REST ROD RUBBER CAP | (1) |
| 9 | 229-30507 | SPOOL REST ARM | (2) |
| 10 | 229-30408 | SPOOL REST ROD, UPPER | (1) |
| 11 | 229-31307 | SPOOL REST ROD JOINT | (1) |
| 12 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 13 | NM-6050001-SE | NUT M5 | (2) |
| 14 | 229-30309 | SPOOL REST ROD, LOWER | (1) |
| 15 | 229-31208 | THREAD GUIDE | (2) |
| 16 | WS-0510002-KN | SPRING WASHER | (2) |
| 17 | NM-6050001-SE | NUT M5 | (2) |
| 18 | NM-6160511-SE | NUT M16X1.5 | (1) |
| 19 | WP-1702600-SO | WASHER 17X30X2.6 | (2) |
10. THREAD STAND COMPONENTS 糸立て装置関係 REF. NO NOTE PART NO. DESCRIPTION Qty. 1 229-30358 THREAD STAND ASM. イトタテウデ(クミ) 1 2 229-31109 SPOOL RETAINER イトマキフレドメ (2) 3 229-31000 SPOOL PIN イトマキウケボウ (2) 4 229-30903 SPOOL REST CUSHION イトマキウケザラ クッション (2) 5 229-30804 SPOOL REST イトマキウケザラ (2) 6 SM-6061610-SC SCREW M6 L=16 ヒラコネジ M6 L=15 (2) 7 229-30705 THREAD GUIDE ARM JOINT イトタテホウシメカナグ (2) 8 229-31406 SPOOL REST ROD RUBBER CAP イトタテホウボウゴム (1) 9 229-30507 SPOOL REST ARM イトタテウデ (2) 10 229-30408 SPOOL REST ROD, UPPER イトタテホウ(ウエ) (1) 11 229-31307 SPOOL REST ROD JOINT イトタテホウツギテ (1) 12 SM-4051405-SE SCREW M5 L=14 ナベコネジ M5 L=14 (2) 13 NM-6050001-SE NUT M5 ロツカクナツト M5 (2) 14 229-30309 SPOOL REST ROD, LOWER イトタテホウ(シタ) (1) 15 229-31208 THREAD GUIDE イトミチ (2) 16 WS-0510002-KN SPRING WASHER バネザガネ 5.1X9.2X1.3 (2) 17 NM-6050001-SE NUT M5 ロツカクナツト M5 (2) 18 NM-6160511-SE NUT M16X1.5 ロツカクナツト M16X1.5 1シュ (1) 19 WP-1702600-SO WASHER 17X30X2.6 ヒラザガネ 17X30X2.6 (2) - 18 - jintex.in
Page 24 — 11. TABLE STAND COMPONENTS (JT-K44)
11. TABLE STAND COMPONENTS (JT-K44) 脚卓関係(JT-K44) - 19 - jintex.in
