Juki LU-1510,1510-7 Parts Book (PDF)
Text index — Juki LU-1510,1510-7
Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 21331558 | FACE PLATE ASM. | 1 |
| 2 | SS4111215SP | SCREW 11/64-40 L=12 | 3 |
| 3 | TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 2 |
| 4 | 21331301 | TOP COVER B | 1 |
| 5 | SS4110815SP | SCREW 11/64-40 L=8 | 6 |
| 6 | 21355904 | ARM THREAD GUIDE | 1 |
| 7 | SS7621040SP | SCREW 3/16-32 L= 9.5 | 2 |
| 8 | 21331756 | WINDOW PLATE A ASM. | 1 |
| 9 | TA1450404R0 | RUBBER PLUG D=14.5 L=4 | 1 |
| 10 | D2112555B00 | CORD HOLDER, LARGE | 1 |
| 11 | 21331202 | SETSCREW | 1 |
| 12 | 21331806 | WINDOW PLATE B | 1 |
| 13 | 21332002 | WINDOW PLATE PACKING B | 1 |
| 14 | SS4110815SP | SCREW 11/64-40 L=8 | 5 |
| 15 | TA1250504R0 | RUBBER PLUG | 1 |
| 16 | 21332309 | SIDE COVER | 1 |
| 17 | SS4110815SP | SCREW 11/64-40 L=8 | 1 |
| 18 | 21331608 | BALANCE COVER | 1 |
| 19 | SS7150910TP | SCREW 15/64-28 L=9 | 1 |
| 20 | 21355805 | THREAD GUIDE | 1 |
| 21 | SS5090610SP | SCREW 9/64-40 L=6 | 1 |
| 22 | B1129051000 | FRAME THREAD GUIDE, UPPER | 1 |
| 23 | SS2090710TP | SCREW 9/64-40 L=7.2 | 2 |
| 24 | 21408554 | THREAD GUIDE ASM. | 1 |
| 25 | 21408505 | THREAD GUIDE PLATE | 1 |
| 26 | 17912106 | NEEDLE THREAD PRESSER PLATE | 1 |
| 27 | B1132521000 | THREAD PRESSER PLATE SPRING | 1 |
| 28 | SD0380551SL | HINGE SCREW D= 3.80 H= 5.5 | 1 |
| 29 | SS2090710TP | SCREW 9/64-40 L=7.2 | 1 |
| 30 | 22651202 | AUXILIARY COVER | 1 |
| 31 | SS2090710TP | SCREW 9/64-40 L=7.2 | 2 |
| 32 | B3138512000 | TAKE-UP SPRING ADJUSTING PLATE | 1 |
| 33 | SS7090520TP | SCREW 9/64-40 L= 4.5 | 1 |
| 34 | B1111563000 | BED SLIDE SPRING | 1 |
| 35 | SS4110515SP | SCREW 11/64-40 L=5 | 2 |
| 36 | B1109563000 | THROAT PLATE | 1 |
| 37 | SS2110920TP | SCREW 11/64-40 L=8.5 | 2 |
| 38 | 21349600 | SLIDING PLATE (LEFT) | 1 |
| 39 | 21349709 | SLIDING PLATE (RIGHT) | 1 |
| 40 | TA1050504R0 | RUBBER PLUG | 1 |
| 41 | CM300200101 | SAFETY LABEL, 1(SMALL). | 1 |
| 42 | CM3002001A1 | SAFETY LABEL.,3 (SMALL). | 1 |
| 43 | CM3002000B1 | LABEL(16) | 1 |
| 44 | CM300200001 | ATTENTION SEAL | 1 |
| 45 | 10004109 | GROUND MARK | 1 |
| 46 | 21332200 | OIL SHIELD (LEFT) | 1 |
| 47 | 22877609 | DUST COVER | 1 |
Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SS4110815SP | SCREW 11/64-40 L=8 | 1 |
| 49 | 21331905 | WINDOW PLATE C | 1 |
| 50 | 21332101 | WINDOW PLATE PACKING C | 1 |
| 51 | SS4110815SP | SCREW 11/64-40 L=8 | 7 |
| 52 | 22619100 | CAP | 1 |
| 53 | 10201200 | RUBBER PLUG | 1 |
| 54 | 21349808 | THREAD CUTTING SLIDING PLATE | 1 |
| 55 | SS6111140SP | SCREW 11/64-40 L=11 | 1 |
| 56 | WT0530002KS | TOOTHED WASHER D=5.3 | 1 |
| 57 | 22602601 | BED SCREW STUD | 3 |
| 58 | TA1050504R0 | RUBBER PLUG | 1 |
| 59 | HX00123000A | CABLE CLIP | 2 |
| 60 | SS4110815SP | SCREW 11/64-40 L=8 | 2 |
| 61 | 23208556 | AUXILIARY COVER ASM. | 1 |
| 62 | 23208507 | AUXILIARY COVER | 1 |
| 63 | 23208606 | SIDEING PLATE SUPPORT | 1 |
| 64 | SS2090520SL | SCREW 9/64-40 L=5 | 2 |
| 65 | SS6111140SP | SCREW 11/64-40 L=11 | 1 |
| 66 | TA0550604R0 | RUBBER PLUG | 1 |
| 67 | 21348909 | WINDOW PLATE D | 1 |
| 68 | SS4110815SP | SCREW 11/64-40 L=8 | 1 |
Page 8 — UPPER SHAFT,LOWER SHAFT DRIVING & BALANCE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 21332705 | UPPER SHAFT | 1 |
| 2 | 21333000 | UPPER SHAFT FRONT METAL | 1 |
| 3 | 21333208 | BALANCE | 1 |
| 4 | B1905563000 | THREAD TAKE-UP LEVER ASM. | 1 |
| 5 | B1906051000 | TAKE-UP LEVER PIN | 1 |
| 6 | B1907051000 | TAKE-UP LEVER THRUST PIN | 1 |
| 7 | SS8150822TP | SCREW 15/64-28 L=8 | 2 |
| 8 | 21339106 | NEEDLE BAR CRANK ROD | 1 |
| 9 | CQ303000000 | OIL WICK | 0.45 |
| 10 | CQ202000000 | OIL WICK | 0.03 |
| 11 | B1210051000 | NEEDLE BAR CRANK PIN | 1 |
| 12 | CQ505000000 | OIL WICK | 0.03 |
| 13 | 21332507 | COUNTER WEIGHT (A) (36MM) | 1 |
| 14 | SS8150822TP | SCREW 15/64-28 L=8 | 2 |
| 15 | SM8080812TP | SCREW M8X8 | 2 |
| 16 | 21339502 | UPPER FEED CAM (3.5) | 1 |
| 17 | SS8660810TP | SCREW 1/4-40 L=8 | 2 |
| 18 | 21333109 | UPPER SHAFT INNER METAL | 1 |
| 19 | CQ202000000 | OIL WICK | 0.15 |
| 20 | 21336557 | ECCENTRIC CAM A ASM. | 1 |
| 21 | 21336508 | ECCENTRIC CAM A | 1 |
| 22 | SS8660810TP | SCREW 1/4-40 L=8 | 2 |
| 23 | 22604904 | UPPER SPROCKET | 1 |
| 24 | SS6661110SP | SCREW 1/4-40 L=11 | 2 |
| 25 | 22604300 | TIMING BELT | 1 |
| 26 | B1203512000 | BUSHING, REAR | 1 |
| 27 | 10704906 | UPPER SHAFT BEARING HOOK | 1 |
| 28 | SM8060602TP | SCREW M6X6 | 2 |
| 29 | 21332804 | FLYWHEEL | 1 |
| 30 | SS8150822TP | SCREW 15/64-28 L=8 | 2 |
| 31 | 21333505 | LOWER SPROCKET | 1 |
| 32 | B1214019000 | SPROCKET RING | 1 |
| 33 | B1305055000A | SAFETY CLUTCH SPRING | 1 |
| 34 | B1307055000 | SAFETY CLUTCH HOOK | 1 |
| 35 | B1308055000 | SAFETY CLUTCH COUNTER-HOOK | 1 |
| 36 | B1309055000 | COUNTER-HOOK SPRING | 1 |
| 37 | B1310055000 | SAFETY CLUTCH SMALL LINK | 1 |
| 38 | 10503605 | SAFETY BASE | 1 |
| 39 | B1314055000 | SAFETY CLUTCH SMALL LINK PIN | 1 |
| 40 | SS6661110SP | SCREW 1/4-40 L=11 | 2 |
| 41 | SD0640322TP | HINGE SCREW D= 6.35 H= 3.2 | 1 |
| 42 | SD0640322TP | HINGE SCREW D= 6.35 H= 3.2 | 1 |
| 43 | SS8090540SP | SCREW 9/64-40 L=5 | 1 |
| 44 | B1312563000A | SAFETY CLUTCH PUSH BUTTON | 1 |
| 45 | RE0500000K0 | E-RING | 1 |
| 46 | B1639051000 | SPRING | 1 |
| 47 | B1313055000 | SAFETY CLUTCH KNOB SLEEVE | 1 |
Page 10 — UPPER SHAFT,LOWER SHAFT DRIVING & BALANCE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 21333703 | SAFETY CLUTCH DISC | 1 |
| 49 | SS8150710TP | SCREW 15/64-28 L=7 | 2 |
| 50 | 22611651 | THRUST COLLAR ASM., B | 1 |
| 51 | 22611602 | THRUST COLLAR, B | 1 |
| 52 | SS8661030SP | SCREW 1/4-40 L=10 | 2 |
| 53 | SB120000200 | BEARING 20X42 | 1 |
| 54 | SS7120760SP | SCREW 3/16-28 L= 7.0 | 2 |
| 55 | 21353008 | HORIZONTAL FEED CAM COVER | 1 |
| 56 | SS7110710SP | SCREW 11/64-40 L=7 | 2 |
| 57 | 21333307 | BALANCE SLIDE SHAFT | 1 |
| 58 | 21333802 | SAFETY CLUTCH PUSH BUTTON | 1 |
| 59 | SS8660530TP | SCREW 1/4-40 L= 4.5 | 2 |
| 60 | 21333406 | BALANCER | 1 |
| 61 | SS8151550SP | SCREW 15/64-28 L=15 | 2 |
| 62 | 21333901 | SAFETY CLUTCH DISC | 1 |
| 63 | 21334008 | FLYWHEEL | 1 |
Page 12 — NEEDLE BAR ROCKING COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1420563000 | NEEDLE BAR FRAME | 1 |
| 2 | 21339403 | HINGE STUD | 1 |
| 3 | B185351200CA | HOOK SHAFT WASHER, C | 1 |
| 4 | CQ202000000 | OIL WICK | 0.05 |
| 5 | SS8151150TP | SCREW 15/64-28 L=10.5 | 1 |
| 6 | TA0370601M0 | PLUG D=3.9X4 L=6 | 1 |
| 7 | B1401053000 | NEEDLE BAR | 1 |
| 8 | B1411053000 | NEEDLE BAR CONNECTION | 1 |
| 9 | SS7090910SP | SCREW 9/64-40 L= 8.5 | 1 |
| 10 | B1412051000 | FELT | 1 |
| 11 | 10308609 | THREAD GUARD | 1 |
| 12 | SS7080510TP | SCREW 1/8-44 L=4.5 | 1 |
| 13 | MC372001600 | NEEDLE SY3355 160 | 1 |
| 14 | B1467563000 | UPPER FEED BAR GUIDE | 1 |
| 15 | SS7110910TP | SCREW 11/64-40 L= 8.5 | 2 |
| 16 | 21338702 | ROCKING BASE GUIDE | 1 |
| 17 | SS7110830SP | SCREW 11/64-40 L= 7.5 | 2 |
| 18 | 21338603 | ROCKING BASE GUIDE (B) | 1 |
| 19 | SS6091022TP | SCREW | 2 |
| 20 | 21338801 | ROCKING FRONT ARM | 1 |
| 21 | SM8080802TP | SCREW | 2 |
| 22 | 21338900 | ROCKING SHAFT | 1 |
| 23 | B1414232000 | SQUARE BLOCK | 1 |
| 24 | B1410771000 | STUD | 1 |
| 25 | 21339304 | ROCKING SHAFT FRONT METAL | 1 |
| 26 | 21339205 | ROCKING SHAFT REAR METAL | 1 |
| 27 | 21339056 | ROCKING REAR ARM ASM. | 1 |
| 28 | 21339007 | ROCKING REAR ARM | 1 |
| 29 | SS6152440SP | SCREW 15/64-28 L=23.5 | 1 |
| 30 | 21347406 | ROCKING REAR ARM FELT | 1 |
| 31 | EA9500B0100 | CABLE BAND | 2 |
| 32 | 21338405 | NEEDLE BAR THREAD RACK | 1 |
| 33 | 21338504 | NEEDLE BAR THREAD RACK | 1 |
| 34 | CQ202000000 | OIL WICK | 0.05 |
| 35 | B1437051000 | OIL WICK RETAINER | 1 |
| 36 | 22814909 | FELT | 1 |
Page 14 — PRESSURE ADJUSTING & UPPER FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 21340401 | UPPER FEED SHAFT | 1 |
| 2 | 21340500 | UPPER FEED FRONT ARM | 1 |
| 3 | SS8660612TP | SCREW 1/4-40 L=6 | 2 |
| 4 | 21341904 | FRONT METAL | 1 |
| 5 | 21378302 | FEED ROCK SHAFT METAL | 1 |
| 6 | 22904155 | MAIN SHAFT THRUST COLLAR ASM. | 2 |
| 7 | 22904106 | MAIN SHAFT THRUST COLLAR | 1 |
| 8 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 9 | SS8150710SP | SCREW 15/64-28 L=7 | 1 |
| 10 | TA0550604R0 | RUBBER PLUG | 1 |
| 11 | 22814909 | FELT | 2 |
| 12 | 21339908 | UPPER FEED LINK | 1 |
| 13 | 21347109 | FELT | 1 |
| 14 | EA9500B0000 | CLIP CV-70S | 2 |
| 15 | B3016141H00 | HINGE SCREW, B | 2 |
| 16 | SD0640701SP | HINGE SCREW D=6.35 H=7 | 1 |
| 17 | B1414555000 | SLIDE BLOCK | 1 |
| 18 | WP0501046SC | WASHER 5 X 13 X 1 | 1 |
| 19 | 21340807 | TRIANGULAR LEVER | 1 |
| 20 | SS7110510SP | SCREW 11/64-40 L=5 | 1 |
| 21 | B1414555000 | SLIDE BLOCK | 1 |
| 22 | 10509701 | FELT | 1 |
| 23 | B1465053000 | WALKING BAR DRIVING LINK | 1 |
| 24 | B1466563000 | WALKING BAR | 1 |
| 25 | B14670530A0 | WALKING BAR ASM. | 1 |
| 26 | B1468053000 | WALKING BAR SPRING | 1 |
| 27 | SS6151780SP | SCREW 15/64-28 L=17.0 | 1 |
| 28 | 21341300 | UPPER FEED GUIDE PLATE | 1 |
| 29 | 13514310 | ROLLER | 2 |
| 30 | SS6151920SP | SCREW 15/64-28 L=19.0 | 2 |
| 31 | 21340104 | UPPER FEED ROD | 1 |
| 32 | D1456055B00 | HINGE SCREW | 1 |
| 33 | D1455055B00 | CONNECTING STUD | 1 |
| 34 | WP0482086SD | WASHER 4.8X11.5X2 | 1 |
| 35 | NS6110530SP | NUT 11/64-40 | 1 |
| 36 | 21340203 | UPPER FEED REAR ARM | 1 |
| 37 | SM9062250SC | SCREW M6 L=22 | 1 |
| 38 | GBC02621000 | 15-POLE PLUG, WHITE | 1 |
| 39 | 21341052 | PRESSER BAR HOLDER ASM. | 1 |
| 40 | 21341003 | PRESSER BAR HOLDER | 1 |
| 41 | SS7110910TP | SCREW 11/64-40 L= 8.5 | 1 |
| 42 | 21340906 | PRESSER ADJUSTING SCREW | 1 |
| 43 | B1511555000 | NUT | 1 |
| 44 | B1502246000 | PRESSER SPRING | 1 |
| 45 | SD0800481SP | HINGE SCREW D= 8 H= 4.9 | 1 |
| 46 | 21341151 | THREAD RELEASE HOLDING PLATE | 1 |
| 47 | B1462053000 | THREAD RELEASE SPRING | 1 |
Page 16 — PRESSURE ADJUSTING & UPPER FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 21343504 | PRESSER LIFTER LEVER | 1 |
| 49 | 11006509 | LINK SHAFT | 1 |
| 50 | SS6090910TP | SCREW 9/64-40 L=9 | 1 |
| 51 | B1470241H00 | WALKING FOOT | 1 |
| 52 | B1471241H00 | SCREW | 1 |
| 53 | SM8050602TP | SCREW M5 L=6 | 2 |
| 54 | B1525241HA0 | PRESSER FOOT ASM. | 1 |
| 55 | B1525241H00 | PRESSER FOOT | 1 |
| 56 | 10337905 | FINGER GUARD | 1 |
| 57 | 10774354 | UPPER AND LOWER DIAL ASM. | 1 |
| 58 | 10774305 | VERTICAL DIAL | 1 |
| 59 | 10774404 | VERTICAL CAM | 1 |
| 60 | 10715100 | VERTICAL DIAL SHAFT BUSHING | 1 |
| 61 | 10715001 | VERTICAL ADJUSTING CAM | 1 |
| 62 | 10715704 | VERTICAL DIAL PIN | 1 |
| 63 | B152652700G | SPRING | 1 |
| 64 | SS6110630TP | SCREW 11/64-40 L=6 | 1 |
| 65 | 21341607 | VERTICAL ADJUSTING ARM | 1 |
| 66 | 10715308 | PIN | 1 |
| 67 | SM6051402TP | SCREW M5X0.8 L=14 | 1 |
| 68 | 21341508 | VERTICAL CHANGE BASE SHAFT | 1 |
| 69 | 10718203 | FEED SHAFT FRONT METAL | 1 |
| 70 | 10714202 | VERTICAL CHANGE BELT | 1 |
| 71 | 21339601 | UPPER FEED STOPPER PLATE (A) | 1 |
| 72 | SM1050801SR | SCREW M5 L=8 | 1 |
| 73 | 21339700 | UPPER FEED STOPPER PLATE (B) | 1 |
| 74 | SS7111120TP | SCREW | 2 |
| 75 | 10713501 | SPRING HOOK | 2 |
| 76 | 10716504 | VERTICAL SHAFT SPRING | 1 |
| 77 | B3416552000 | CONNECTING ROD HINGE SCREW | 2 |
| 78 | RE0500000K0 | E-RING | 2 |
| 79 | 21339809 | UPPER FEED DOG SPRING HOOK | 1 |
| 80 | SS7110830SP | SCREW 11/64-40 L= 7.5 | 1 |
| 81 | 10713766 | ECCENTRIC ROD (SET) | 1 |
| 82 | SS8660810TP | SCREW 1/4-40 L=8 | 2 |
| 83 | 10713808 | CONNECTION LINK PIN B | 1 |
| 84 | 10714509 | CONNECTION LINK B | 2 |
| 85 | 10714608 | CONNECTION LINK B SUPPORT PIN | 2 |
| 86 | SM8050602TP | SCREW M5 L=6 | 2 |
| 87 | 21340005 | UPPER FEED LINK (B) | 1 |
| 88 | 21048707 | HINGE SCREW | 1 |
| 89 | RE0800000K0 | E-SHAPED SNAP RING (8MM) | 1 |
| 90 | 21340302 | UPPER FEED REAR ARM (B) | 1 |
| 91 | SM6052002TP | SCREW M5 L=20 | 1 |
| 92 | 21337803 | FEED ADJUSTING BASE SUPPORT | 1 |
| 93 | SS8150710SP | SCREW 15/64-28 L=7 | 1 |
| 94 | 21357561 | VERTICAL DETECTOR SWITCH ASM. | 1 |
Page 18 — PRESSURE ADJUSTING & UPPER FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 95 | SL4040881SC | SCREW M4 L=8 | 2 |
| 96 | GPK58005000 | PLUG COVER 15P | 1 |
| 97 | D1470241E0A | WALKING FOOT | 1 |
| 98 | EA9500B0100 | CABLE BAND | 1 |
| 99 | B1501241H00 | PRESSER BAR | 1 |
Page 20 — FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 21336052 | FEED BASE ASM. (A) | 1 |
| 2 | 21336003 | FEED BASE | 1 |
| 3 | 10107902 | FEED BAR FORK | 1 |
| 4 | SS9151440CP | SCREW 15/64-28 L=14 | 1 |
| 5 | WP0621016SD | WASHER 6.2X13X1 | 1 |
| 6 | SM8050502TP | SCREW M5 L=5 | 1 |
| 7 | B1604012000A | FEED BAR SHAFT | 1 |
| 8 | RE0500711KP | SNAP RING 5 | 1 |
| 9 | CQ202000000 | OIL WICK | 0.14 |
| 10 | 21364104 | FEED ROCKER | 1 |
| 11 | SS7111410SP | SCREW 11/64-40 L=14 | 2 |
| 12 | 22609408 | FEED ROCK SHAFT | 1 |
| 13 | 21378302 | FEED ROCK SHAFT METAL | 2 |
| 14 | SS8151150TP | SCREW 15/64-28 L=10.5 | 1 |
| 15 | B3025141H00A | CONNECTING ARM | 1 |
| 16 | SS6121210TP | SCREW 3/16-28 L=12 | 1 |
| 17 | 22904155 | MAIN SHAFT THRUST COLLAR ASM. | 2 |
| 18 | 22904106 | MAIN SHAFT THRUST COLLAR | 1 |
| 19 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 20 | 10205201 | NEEDLE BAR FRAME ROD | 1 |
| 21 | SD0900701TP | HINGE SCREW D= 9 H= 7 | 1 |
| 22 | NS6680320SP | NUT 9/32-28 | 1 |
| 23 | 21337506 | FEED ADJUSTING BASE | 1 |
| 24 | 21337704 | FEED ADJUSTING BASE COVER | 2 |
| 25 | SS7110910TP | SCREW 11/64-40 L= 8.5 | 4 |
| 26 | 21337407 | SQUARE BLOCK | 2 |
| 27 | 21337803 | FEED ADJUSTING BASE SUPPORT | 2 |
| 28 | SS8150822TP | SCREW 15/64-28 L=8 | 2 |
| 29 | 21338306 | FELT SUPPORT | 1 |
| 30 | SS7090610SP | SCREW 9/64-40 L=6 | 2 |
| 31 | 21337902 | ECCENTRIC PIN | 1 |
| 32 | SS7090910TP | SCREW 9/64-40 L= 8.5 | 2 |
| 33 | 21337308 | FEED ADJUSTING ROD | 1 |
| 34 | SD0800402TP | HINGE SCREW D= 8 H= 4 | 1 |
| 35 | 21337605 | SPRING | 1 |
| 36 | 21338009 | SPRING HOOK | 1 |
| 37 | SS6111610SP | SCREW 11/64-40 L=16 | 2 |
| 38 | 21337209 | FEED ADJUSTING A | 1 |
| 39 | B1610512000 | FEED DRIVING SLIDE BLOCK | 1 |
| 40 | SM6061802TP | SCREW M6 L=18 | 1 |
| 41 | 21336805 | FEED DIAL A | 1 |
| 42 | 21349303 | FEED DOG (2.5X7.2) | 1 |
| 43 | SS6121860SP | SCREW 3/16-28 L=18 | 1 |
| 44 | 11009909 | FEED REGULATOR SCREW | 1 |
| 45 | RO092270200 | RUBBER RING | 1 |
| 46 | 11052701 | PIN | 1 |
| 47 | 22912109 | FEED REGULATOR PIN SPRING | 1 |
Page 22 — FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 21336656 | FEED LINK ASM. | 1 |
| 49 | 21336607 | FEED LINK | 1 |
| 50 | B1418761000 | CONNECTING FORKED LINK PIN | 1 |
| 51 | CQ202000000 | OIL WICK | 0.04 |
| 52 | SM8050612TP | SCREW M5X6 | 1 |
| 53 | 21336706 | FEED ROD A | 1 |
| 54 | 21338207 | FEED LINK PIN | 1 |
| 55 | SD1000801SH | HINGE SCREW D=10 H=8 | 1 |
| 56 | SS6110520TP | SCREW 11/64-40 L=4.5 | 1 |
| 57 | 21378203 | FEED ROCK SHAFT HINGE SCREW | 1 |
| 58 | WP0650876SD | WASHER 6.5X13X0.8 | 1 |
| 59 | NS6150310SP | NUT 15/64-28 | 1 |
| 60 | 21336300 | BACKWARD FEED LEVER SHAFT | 1 |
| 61 | B1611055000 | SCREW FEED ROCK SHAF | 2 |
| 62 | CS1201010SH | THRUST COLLAR ASM. D=12 W=10 | 1 |
| 63 | CS1201011SH | THRUST COLLAR D=12 W=10 | 1 |
| 64 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 65 | RE0900000K0 | E-RING 9 | 1 |
| 66 | 22610505 | REVERSE FEED CONTROL LEVER | 1 |
| 67 | SS6120930TP | SCREW 3/16-28 L=9 | 2 |
| 68 | 21349204 | FEED DOG (2.5X3.5) | 1 |
| 69 | 22814909 | FELT | 1 |
| 70 | B1613563E00 | FEED DOG | 1 |
Page 24 — HOOK SHAFT & LOWER SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 21335203 | SHAFT BASE (RIGHT) | 1 |
| 2 | 21334909 | INNER HOOK GUIDE LINK | 1 |
| 3 | B1821051000 | CRANK SCREW STUD | 1 |
| 4 | CQ202000000 | OIL WICK | 0.01 |
| 5 | NS6110420SP | NUT 11/64-40 | 1 |
| 6 | 21335500 | GUIDE ARM (FOR THREAD CUTTING) | 1 |
| 7 | 21335708 | INNER HOOK GUIDE ARM SHAFT | 1 |
| 8 | SS7111810TP | SCREW 11/64-40 L=18 | 1 |
| 9 | CQ202000000 | OIL WICK | 0.01 |
| 10 | 21335807 | INNER HOOK GUIDE | 1 |
| 11 | WP0371016SD | WASHER 3.7X8X1 | 1 |
| 12 | SS6090810SP | SCREW 9/64-40 L= 7.5 | 1 |
| 13 | 10111102 | THRUST WASHER 1.3 | 1 |
| 14 | 21378401 | HOOK SHAFT UPPER METAL | 1 |
| 15 | 21334701 | HOOK SHAFT LOWER METAL | 1 |
| 16 | 10109908 | SADDLE INSTALLING BLOCK, UPPER | 1 |
| 17 | 10112407 | SADDLE INSTALLING BLOCK, LOWER | 1 |
| 18 | SS6153040SP | SCREW 15/64-28 L=30 | 1 |
| 19 | WP0850002SP | WASHER 8.5X18X1.6 | 1 |
| 20 | SM6082502TP | SCREW M8 L=25 | 1 |
| 21 | B1834512000A | OIL ADJUSTING SCREW | 1 |
| 22 | NS6110420SP | NUT 11/64-40 | 1 |
| 23 | 21334552 | THREAD CUTTING HOOK ASM. | 1 |
| 24 | 21334800 | ALUMINUM BOBBIN WITH KNURL | 1 |
| 25 | 21333604 | LOWER SHAFT | 1 |
| 26 | B1802563000A | HOOK DRIVING SHAFT FRONT METAL | 1 |
| 27 | CQ202000000 | OIL WICK | 0.04 |
| 28 | SS8151150TP | SCREW 15/64-28 L=10.5 | 1 |
| 29 | B18035150A0 | BUSHING ASM., INTERMEDIATE | 1 |
| 30 | B1830563BA0 | HOOK ASM., FOR EXTREME THICK T | 1 |
| 31 | B1840051000 | FEED DRIVING ECCENTRIC | 1 |
| 32 | SS8151150TP | SCREW 15/64-28 L=10.5 | 1 |
| 33 | 21378104 | VERTICAL FEED CAM | 1 |
| 34 | SS8150510TP | SCREW 15/64-28 L= 4.7 | 1 |
| 35 | B1817051000 | HOOK DRIVING SHAFT GEAR, SMALL | 1 |
| 36 | SS8660670SP | SCREW 1/4-40 L= 6.1 | 1 |
| 37 | SS8660530TP | SCREW 1/4-40 L= 4.5 | 1 |
| 38 | B1816051000 | HOOK DRIVING SHAFT GEAR, LARGE | 1 |
| 39 | SS8660810TP | SCREW 1/4-40 L=8 | 2 |
| 40 | TA1750502R0 | RUBBER PLUG D=17.5 L=5 | 1 |
| 41 | SQ1110401MZ | CONNECTING SCREW | 2 |
| 42 | 22611909 | OIL PUMP SHAFT | 1 |
| 43 | SS8660530TP | SCREW 1/4-40 L= 4.5 | 3 |
| 44 | 22611701 | PLUNGER BUSHING, B | 1 |
| 45 | 10109700 | THRUST WASHER, A | 1 |
| 46 | 10109809 | THRUST WASHER, B | 1 |
| 47 | 10110906 | BUSHING THRUST 1.1 | 1 |
Page 26 — HOOK SHAFT & LOWER SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 10111003 | THRUST WASHER 1.2 | 1 |
| 49 | 10111201 | THRUST WASHER, F | 1 |
| 50 | 10112506 | THRUST WASHER 1.6 | 1 |
| 51 | 10112605 | THRUST WASHER 1.7 | 1 |
| 52 | 10112704 | THRUST WASHER 1.8 | 1 |
| 53 | 21335104 | HOOK SHAFT BASE (RIGHT) | 1 |
| 54 | B1820563000 | BOBBIN CASE OPENING LEVER LINK | 1 |
| 55 | B1822563000 | BOBBIN CASE OPENING LEVER CRAN | 1 |
| 56 | B1823051000 | OPENING LEVER CRANK PIN | 1 |
| 57 | B1824563000 | BOBBIN CASE OPENING LEVER | 1 |
| 58 | 21378500 | HOOK SHAFT UPPER METAL | 1 |
| 59 | B18305630A0 | VERTICAL-AXIS SEWING HOOK ASM. | 1 |
| 60 | B9117563000 | BOBBIN | 1 |
| 61 | SS8110422TP | SCREW 11/64-40 L=4 | 2 |
Page 28 — THREAD CUTTING COMPONENTS (FOR LU-1510-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 10726305 | MOVING KNIFE | 1 |
| 2 | SM6030802TP | SCREW M3X0.5 L=8 | 2 |
| 3 | WP0320501SC | WASHER M3 | 2 |
| 4 | 21354857 | FIXED KNIFE BASIS ASM. | 1 |
| 5 | 21354808 | FIXED KNIFE BASIS | 1 |
| 6 | 10726404 | FIXED KNIFE | 1 |
| 7 | 10726909 | CLAMP SPRING | 1 |
| 8 | SS7060610SP | SCREW 3/32-56 L= 5.5 | 2 |
| 9 | SS7060610SP | SCREW 3/32-56 L= 5.5 | 2 |
| 10 | SM6041202TP | SCREW M4X0.7 L=12 | 2 |
| 11 | WP0430800SC | WASHER M4 | 2 |
| 12 | 21354907 | MOVING KNIFE SHAFT | 1 |
| 13 | CS0790731SH | THRUST COLLAR | 1 |
| 14 | SS8110422TP | SCREW 11/64-40 L=4 | 2 |
| 15 | 21354501 | THREAD CUTTING STOPPER (RIGHT) | 1 |
| 16 | SS7111120SP | SCREW 11/64-40 L=10.5 | 1 |
| 17 | 21353750 | VERTICAL FITTING BASIS ASM. | 1 |
| 18 | 21353701 | VERTICAL FITTING BASIS | 1 |
| 19 | SS8110510SP | SCREW 11/64-40 L=5 | 2 |
| 20 | 21354006 | THREAD CUTTING DRIVING PLATE | 1 |
| 21 | 10116804 | SHAFT | 1 |
| 22 | 21353859 | THREAD CUTTING ROLLER ARM | 1 |
| 23 | 21353909 | CAM ROLLER SHAFT | 1 |
| 24 | D2430555B00 | SNAP RING | 1 |
| 25 | 21353800 | THREAD CUTTING ROLLER ARM | 1 |
| 26 | D2427555B00B | CAM ROLLER | 2 |
| 27 | CS070081BSH | THRUST COLLAR ASM. D=7 W=8 | 1 |
| 28 | CS0700811SH | THRUST COLLAR D=7 W=8 | 1 |
| 29 | SS8110510SP | SCREW 11/64-40 L=5 | 2 |
| 30 | SS7151610SP | SCREW 15/64-28 L=16 | 2 |
| 31 | 21354105 | CONNECTING PLATE | 2 |
| 32 | 21354204 | STOPPING PLATE | 1 |
| 33 | SD0640325SP | HINGE SCREW | 1 |
| 34 | SS6111140SP | SCREW 11/64-40 L=11 | 2 |
| 35 | 21353602 | THREAD CUTTING CAM | 1 |
| 36 | SS8660612TP | SCREW 1/4-40 L=6 | 2 |
| 37 | 21354402 | ROCKING ARM | 1 |
| 38 | SS6121610TP | SCREW 3/16-28 L=15.5 | 1 |
| 39 | SD0640325SP | HINGE SCREW | 1 |
| 40 | SD0640482SP | HINGE SCREW D= 6.35 H= 4.8 | 1 |
| 41 | 21355102 | THREAD CUTTING SOLENOID | 1 |
| 42 | 21354600 | SOLENOID FITTING PLATE | 1 |
| 43 | SS6151040SP | SCREW 15/64-28 L=10 | 2 |
| 44 | SM6040802TP | SCREW M4X0.7 L=8 | 2 |
| 45 | 21354709 | SOLENOID CONNECTING PLATE | 1 |
| 46 | SS6110710TP | SCREW 11/64-40 L= 6.5 | 2 |
| 47 | HK03464000B | PIN CONTACT | 2 |
Page 30 — THREAD CUTTING COMPONENTS (FOR LU-1510-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | HK034610140 | HOUSING 14P | 1 |
| 49 | EA9500B0100 | CABLE BAND | 1 |
| 50 | 22620801 | PIPE HOLDER | 1 |
| 51 | SS7111810TP | SCREW 11/64-40 L=18 | 1 |
Page 32 — AUTOMATIC BACK COMPONENTS (FOR LU-1510-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | PA320150200 | JIG CYLINDER | 1 |
| 2 | SM6061602TP | SCREW M6 L=16 | 2 |
| 3 | WP0641601SD | WASHER M6 | 2 |
| 4 | 21348602 | CYLINDER CONNECTING SCREW | 1 |
| 5 | NM6060003SC | NUT M6 | 1 |
| 6 | 21348503 | FITTING BASE | 1 |
| 7 | SS7151210SP | SCREW 15/64-28 L=12 | 2 |
| 8 | 21348701 | BACKWARD FEED LINK | 1 |
| 9 | SD0800402TP | HINGE SCREW D= 8 H= 4 | 1 |
| 10 | NS6150430SP | NUT 15/64-28 | 1 |
| 11 | SD0800352SP | HINGE SCREW D= 8 H= 3.5 | 2 |
| 12 | 22656102 | REVERSE FEED LINK,(1) | 1 |
| 13 | SS7120760SP | SCREW 3/16-28 L= 7.0 | 1 |
| 14 | 22656003 | SPRING SUSPENSION | 1 |
| 15 | SS4120615SP | SCREW 3/16-28 L=6 | 1 |
| 16 | 13515606 | SPRING | 1 |
| 17 | 10120004 | SPRING SUSPENSION | 1 |
| 18 | 11100500 | REVERSE FEED LEVER STOPPER | 1 |
| 19 | SS7111810SP | SCREW 11/64-40 L=18 | 1 |
| 20 | PJ301065104 | HALF UNION | 1 |
| 21 | PX015101000 | MUFFLER | 1 |
| 22 | 21348859 | TOUCH BUCK SWITCH ASM. | 1 |
| 23 | D1680141EA0 | TOUCH BUCK SWITCH ASM. | 1 |
| 24 | MAT81126T00 | 2-POLE PLUG COVER | 1 |
| 25 | HK03464000B | PIN CONTACT | 2 |
| 26 | HK034610140 | HOUSING 14P | 1 |
| 27 | EA9500B0000 | CLIP CV-70S | 1 |
| 28 | 21348800 | SWITCH FITTING PLATE | 1 |
| 29 | SS7110840SP | SCREW 11/64-40 L=7.8 | 2 |
| 30 | 21349105 | CYLINDER PACKING | 1 |
| 31 | 21349055 | TOUCH BUCK SWITCH B ASM. | 1 |
| 32 | D1680141EA0 | TOUCH BUCK SWITCH ASM | 1 |
| 33 | MAT81126T00 | 2-POLE PLUG COVER | 1 |
| 34 | HK03464000B | PIN CONTACT | 2 |
| 35 | HK034610140 | HOUSING 14P | 1 |
| 36 | EA9500B0000 | CLIP CV-70S | 1 |
| 37 | 21349006 | SWITCH FITTING PLATE B | 1 |
| 38 | SS6110610TP | SCREW 11/64-40 L=6 | 2 |
| 39 | WP0501016SD | WASHER 5X10.5X1 | 2 |
Page 34 — THREAD TENSION COMPONENTS (FOR 1510-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 21377668 | THREAD TENSION ASM. | 1 |
| 2 | 21377650 | TENSION POST BASE COMPL. | 1 |
| 3 | 10320109 | SCREW STUD | 1 |
| 4 | 21378807 | TENSION SPRING | 1 |
| 5 | B31375270A0 | TAKE-UP SPRING GUIDE ASM. | 1 |
| 6 | 10320208 | THRED TENSION STUD NUT | 1 |
| 7 | SS3090710TP | SCREW 9/64-40 L=7 | 1 |
| 8 | B3127051000 | TENSION RELEASE PIN, SHORT | 1 |
| 9 | B3126012000 | THREAD TENSION DISK | 2 |
| 10 | 22617906 | THREAD TENSION DISK PRESSER | 1 |
| 11 | B3129053000 | TENSION SPRING | 1 |
| 12 | B3120125000 | ROTATING STOPPER | 1 |
| 13 | 11956802 | THREAD TENSION KNOB, BLUE | 1 |
| 14 | 10124204 | THREAD TENSION POST, A | 1 |
| 15 | 10741106 | FIRST THREAD TENSION PLATE | 2 |
| 16 | D3168555H0B | TENSION SPRING NO.1 | 1 |
| 17 | 11072402 | THREAD TENSION NUT | 1 |
| 18 | 21378005 | THREAD TENSION RELEASE PLATE | 1 |
| 19 | SD0470281SP | HINGE SCREW D=4.7 H=2.8 | 2 |
| 20 | NS6110310SP | NUT 11/64-40 | 1 |
| 21 | SS7110910TP | SCREW 11/64-40 L= 8.5 | 2 |
| 22 | 23006406 | TENSION RELEASE BAR | 1 |
| 23 | PS0600502KP | SPRING PIN | 1 |
| 24 | 21347950 | THREAD TENSION ASM. | 1 |
| 25 | SS7110570SP | SCREW 11/64-40 L= 4.8 | 2 |
| 26 | 10320703 | TENSION RELEASE SOLENOID | 1 |
| 27 | SS6110480SP | SCREW 11/64-40 L=4.3 | 1 |
| 28 | 21348206 | TENSION RELEASE BAR | 1 |
| 29 | 10321107 | TENSION RELEASE BAR | 1 |
Page 36 — THREAD TENSION COMPONENTS (FOR LU-1510)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 21377569 | THREAD TENSION ASM. | 1 |
| 2 | 21377551 | TENSION POST COMPL. | 1 |
| 3 | 10320109 | SCREW STUD | 1 |
| 4 | 21378807 | TENSION SPRING | 1 |
| 5 | B31375270A0 | TAKE-UP SPRING GUIDE ASM. | 1 |
| 6 | B3125012000 | THREAD TENSION NUT | 1 |
| 7 | 22618201 | TENSION RELEASE PIN, A | 2 |
| 8 | B3126051000 | TENSION DISC | 4 |
| 9 | 22617906 | THREAD TENSION DISK PRESSER | 2 |
| 10 | B3129526000 | TENSION SPRING (1.2) | 2 |
| 11 | B3120125000 | ROTATING STOPPER | 2 |
| 12 | 11956802 | THREAD TENSION KNOB, BLUE | 2 |
| 13 | 10124204 | THREAD TENSION POST, A | 1 |
| 14 | 10741106 | FIRST THREAD TENSION PLATE | 2 |
| 15 | 11045101 | THREAD TENSION SPRING | 1 |
| 16 | 11072402 | THREAD TENSION NUT | 1 |
| 17 | B3134521000 | TENSION RELEASE LEVER | 1 |
| 18 | SS3090710TP | SCREW 9/64-40 L=7 | 1 |
| 19 | SD0470281SP | HINGE SCREW D=4.7 H=2.8 | 2 |
| 20 | NS6110310SP | NUT 11/64-40 | 1 |
| 21 | 23006406 | TENSION RELEASE BAR | 1 |
| 22 | PS0600502KP | SPRING PIN | 1 |
| 23 | SS7110910TP | SCREW 11/64-40 L= 8.5 | 2 |
| 24 | 21348206 | TENSION RELEASE BAR | 1 |
| 25 | 10321107 | TENSION RELEASE BAR | 1 |
Page 38 — KNEE LIFTING COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 21343207 | KNEE LIFTER SHAFT BASIS | 1 |
| 2 | SM6061202TP | SCREW M6 L=12 | 3 |
| 3 | 21342555 | KNEE LIFTER SHAFT A ASM. | 1 |
| 4 | 21342506 | KNEE LIFTER SHAFT A | 1 |
| 5 | 21342605 | KNEE LIFTER SHAFT PIN | 1 |
| 6 | 21343702 | KNEE LIFTER SHAFT A SPRING | 1 |
| 7 | 21343801 | KNEE LIFTER SPRING RACK | 1 |
| 8 | SM6051602TP | SCREW M5X0.8 L=16 | 1 |
| 9 | 21342704 | KNEE LIFTER SHAFT B | 1 |
| 10 | RE0800000K0 | E-SHAPED SNAP RING (8MM) | 1 |
| 11 | 21343009 | KNEE LIFTER LEVER B | 2 |
| 12 | SM6051602TP | SCREW M5X0.8 L=16 | 2 |
| 13 | 21342803 | KNEE LIFTER LEVER A | 1 |
| 14 | SM6051602TP | SCREW M5X0.8 L=16 | 1 |
| 15 | SM8052502TP | SCREW M5X0.8 L=25 | 1 |
| 16 | NM6050001SD | NUT M5X0.8 | 1 |
| 17 | 21342902 | KNEE LIFTER LINK | 1 |
| 18 | SD0700451TP | HINGE SCREW D=7 H=4.5 | 2 |
| 19 | 21343405 | KNEE LIFTER CONNECTING PLATE | 1 |
| 20 | SD0700451TP | HINGE SCREW D=7 H=4.5 | 2 |
| 21 | 21343355 | KNEE LIFTER LEVER ASM. | 1 |
| 22 | SM6062502TP | SCREW M6 L=25 | 2 |
| 23 | 22863252 | KNEE LIFTER JOINT ASM. | 1 |
| 24 | B3428521000 | PRESSER SPRING | 1 |
| 25 | SS7090510SP | SCREW 9/64-40 L= 4.6 | 1 |
| 26 | 22863203 | KNEE LIFTER JOINT | 1 |
| 27 | 22932453 | BRACKET ASM. | 1 |
| 28 | 22932404 | BRACKET | 1 |
| 29 | 22934707 | SCREW | 2 |
| 30 | 21343157 | KNEE PRESS PLATE ASM. | 1 |
| 31 | SM9061203SE | SCREW M6 L=12 | 1 |
| 32 | 21343108 | KNEE PRESS LEVER | 1 |
| 33 | 22934509 | KNEE PAD PLATE COVER | 1 |
| 34 | 22934400 | KNEE PAD PLATE RUBBER | 1 |
| 35 | 22934202 | KNEE PAD PLATE | 1 |
| 36 | 22934301 | KNEE PAD PLATE SUPPORT | 1 |
Page 40 — LOWER THREAD WINDER MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 21357967 | BOBBIN DEVICE ASM. | 1 |
| 2 | 22537658 | BOBBIN FITTING BASIS COMPL. | 1 |
| 3 | 21357959 | BOBIN SHAFT COMPL. | 1 |
| 4 | 22538151 | BOBBIN CAM SHAFT COMPL. | 1 |
| 5 | 23636202 | BOBBIN LEVER | 1 |
| 6 | 21356001 | ADJUSTING PLATE | 1 |
| 7 | B152989000CA | PRESSUR FOOT SPRING | 1 |
| 8 | 10618304 | VERTICAL ROLLER WASHER | 2 |
| 9 | A321600100A | RUBBER RING | 1 |
| 10 | B3205210000 | CUSHION | 1 |
| 11 | B1148555000 | SPRING | 1 |
| 12 | RC0560711KP | RETAINING RING | 1 |
| 13 | RE0500000K0 | E-RING | 1 |
| 14 | RO092270200 | RUBBER RING | 1 |
| 15 | SS7091410SP | SCREW 9/64-40 L=13.5 | 1 |
| 16 | SS6090520SP | SCREW 9/64-40 L= 5.0 | 1 |
| 17 | 14512503 | BOBBIN ADJUSTING PLATE | 1 |
| 18 | SS6110810TP | SCREW 11/64-40 L=8 | 3 |
| 19 | 10704807 | BOBBIN FRICTION WHEEL | 1 |
| 20 | SM8050602TP | SCREW M5 L=6 | 2 |
| 21 | 10502300 | THREAD CUTTER | 1 |
| 22 | SS6090620SP | SCREW 9/64-40 L=6 | 2 |
| 23 | 21355755 | LOWER THREAD GUIDE ASM. | 1 |
| 24 | 21355706 | FITTING BASE | 1 |
| 25 | D3162555B00 | THREAD GUIDE | 1 |
| 26 | NS6110310SP | NUT 11/64-40 | 1 |
| 27 | D3168555H0B | TENSION SPRING NO.1 | 1 |
| 28 | B3214047000 | BOBBIN WINDER TENSION DISC | 2 |
| 29 | 21378708 | THREAD TENSION POST | 1 |
| 30 | 11072402 | THREAD TENSION NUT | 1 |
| 31 | SM6040800SP | SCREW | 2 |
| 32 | 22538706 | PACKING | 1 |
Page 42 — AUTOMATIC PRESSER LIFTING MECHANISM (OPTION) COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | PA400150100 | AIR CYLINDER | 1 |
| 2 | SM6082002TP | SCREW M8 L=20 | 4 |
| 3 | 21356506 | CYLINDER CONNECTING SCREW | 1 |
| 4 | NM6080001SE | NUT M8 | 1 |
| 5 | SD0720331SP | HINGE SCREW D= 7.24 H= 3.3 | 1 |
| 6 | 21356605 | LEVER A | 1 |
| 7 | 21356803 | LEVER B | 1 |
| 8 | SM6051002TP | SCREW M5X0.8 L=10 | 2 |
| 9 | 21356704 | SHAFT | 1 |
| 10 | PJ304065102 | ELBOW | 2 |
| 11 | 21356308 | CYLINDER STAY(FRONT) | 1 |
| 12 | 21356407 | CYLINDER STAY(REAR) | 1 |
| 13 | SK3514000SC | WOOD SCREW D=5.1 L=40 | 2 |
| 14 | SS6151040SP | SCREW 15/64-28 L=10 | 4 |
| 15 | HX002950000 | WIRE MARK(1) | 1 |
| 16 | HX00295000A | WIRE MARK(2) | 1 |
| 17 | CM3002000B1 | LABEL(16) | 1 |
| 18 | CM300200001 | ATTENTION SEAL | 1 |
| 19 | GAKA14040D0 | KNEE SWITCH B ASM. | 1 |
| 20 | GAKA14040B0 | KNEE SWITCH B ASM. | 1 |
| 21 | MAT80231T00 | DRIVING BAR, T002 | 1 |
| 22 | MAT80230T00 | KNEE SWITCH SUPPORT BASE | 2 |
| 23 | SS6151220SP | SCREW 15/64-28 L=11.5 | 4 |
| 24 | SS7111410SP | SCREW 11/64-40 L=14 | 2 |

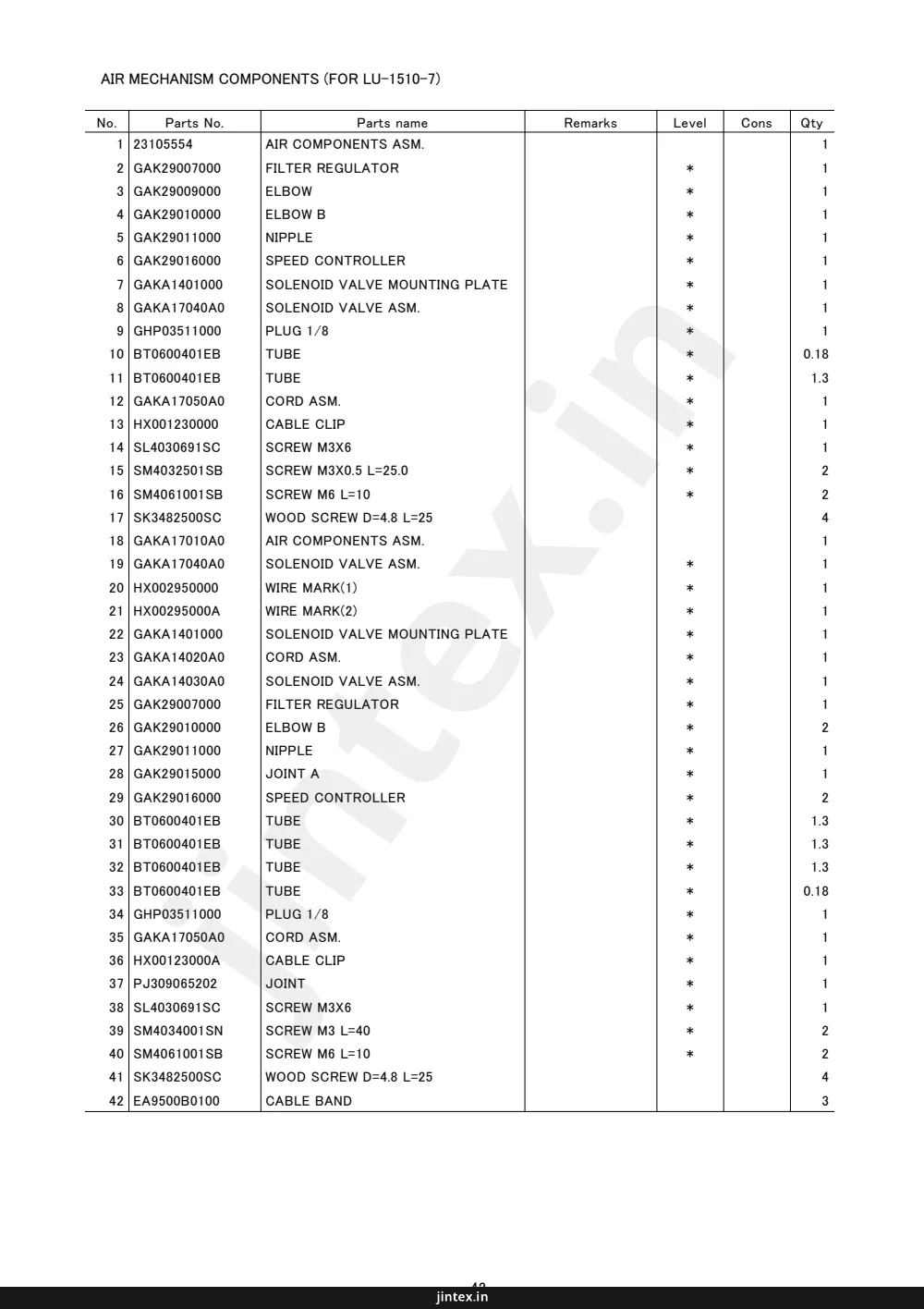

Page 44 — AIR MECHANISM COMPONENTS (FOR LU-1510-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 23105554 | AIR COMPONENTS ASM. | 1 |
| 2 | GAK29007000 | FILTER REGULATOR | 1 |
| 3 | GAK29009000 | ELBOW | 1 |
| 4 | GAK29010000 | ELBOW B | 1 |
| 5 | GAK29011000 | NIPPLE | 1 |
| 6 | GAK29016000 | SPEED CONTROLLER | 1 |
| 7 | GAKA1401000 | SOLENOID VALVE MOUNTING PLATE | 1 |
| 8 | GAKA17040A0 | SOLENOID VALVE ASM. | 1 |
| 9 | GHP03511000 | PLUG 1/8 | 1 |
| 10 | BT0600401EB | TUBE | 0.18 |
| 11 | BT0600401EB | TUBE | 1.3 |
| 12 | GAKA17050A0 | CORD ASM. | 1 |
| 13 | HX001230000 | CABLE CLIP | 1 |
| 14 | SL4030691SC | SCREW M3X6 | 1 |
| 15 | SM4032501SB | SCREW M3X0.5 L=25.0 | 2 |
| 16 | SM4061001SB | SCREW M6 L=10 | 2 |
| 17 | SK3482500SC | WOOD SCREW D=4.8 L=25 | 4 |
| 18 | GAKA17010A0 | AIR COMPONENTS ASM. | 1 |
| 19 | GAKA17040A0 | SOLENOID VALVE ASM. | 1 |
| 20 | HX002950000 | WIRE MARK(1) | 1 |
| 21 | HX00295000A | WIRE MARK(2) | 1 |
| 22 | GAKA1401000 | SOLENOID VALVE MOUNTING PLATE | 1 |
| 23 | GAKA14020A0 | CORD ASM. | 1 |
| 24 | GAKA14030A0 | SOLENOID VALVE ASM. | 1 |
| 25 | GAK29007000 | FILTER REGULATOR | 1 |
| 26 | GAK29010000 | ELBOW B | 2 |
| 27 | GAK29011000 | NIPPLE | 1 |
| 28 | GAK29015000 | JOINT A | 1 |
| 29 | GAK29016000 | SPEED CONTROLLER | 2 |
| 30 | BT0600401EB | TUBE | 1.3 |
| 31 | BT0600401EB | TUBE | 1.3 |
| 32 | BT0600401EB | TUBE | 1.3 |
| 33 | BT0600401EB | TUBE | 0.18 |
| 34 | GHP03511000 | PLUG 1/8 | 1 |
| 35 | GAKA17050A0 | CORD ASM. | 1 |
| 36 | HX00123000A | CABLE CLIP | 1 |
| 37 | PJ309065202 | JOINT | 1 |
| 38 | SL4030691SC | SCREW M3X6 | 1 |
| 39 | SM4034001SN | SCREW M3 L=40 | 2 |
| 40 | SM4061001SB | SCREW M6 L=10 | 2 |
| 41 | SK3482500SC | WOOD SCREW D=4.8 L=25 | 4 |
| 42 | EA9500B0100 | CABLE BAND | 3 |
Page 46 — LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 21345756 | ARM ONCE THROUGH OIL FELT ASM. | 1 |
| 2 | 21345707 | ARM ONCE THROUGH FELT A | 1 |
| 3 | 21345806 | FELT B | 1 |
| 4 | 21345905 | FACE ONCE THROUGH FELT | 1 |
| 5 | 21346358 | FELT SUPPORT ASM. | 1 |
| 6 | 21346309 | FELT | 1 |
| 7 | 21346507 | FEED CHANGE FELT | 1 |
| 8 | 21346408 | FELT | 1 |
| 9 | EA9500B0000 | CLIP CV-70S | 2 |
| 10 | 21340708 | UPPER FEED OIL BAR PLATE | 1 |
| 11 | SS7110510SP | SCREW 11/64-40 L=5 | 1 |
| 12 | CQ202000000 | OIL WICK | 0.2 |
| 13 | B1140051000 | TAKE-UP OIL SPLASHER | 1 |
| 14 | 21347000 | TAKE-UP OIL PLATE | 1 |
| 15 | CQ202000000 | OIL WICK | 0.2 |
| 16 | 21347208 | TAKE-UP LUBRICATION FELT | 1 |
| 17 | SS3090610SP | SCREW 9/64-40 L=6 | 1 |
| 18 | 21346002 | FELT | 1 |
| 19 | B1412051000 | FELT | 1 |
| 20 | BT0600402EA | OIL TUBE | 0.12 |
| 21 | B3538112000 | OIL RETURN TUBE HOLDER | 1 |
| 22 | SS4110615SP | SCREW 11/64-40 L=6 | 1 |
| 23 | 21345657 | ARM OIL TANK ASM. | 1 |
| 24 | B3520586000 | OIL SIGHT WINDOW | 1 |
| 25 | 21345608 | ARM OIL TANK | 1 |
| 26 | SQ1110401MZ | CONNECTING SCREW | 1 |
| 27 | SQ1150451MZ | CONNECTING SCREW | 2 |
| 28 | SS6111010SP | SCREW 11/64-40 L= 9.5 | 2 |
| 29 | 21346101 | LUBRICATION FELT PRESSER | 1 |
| 30 | 21346200 | MUTUAL VERTICAL CHANGE FELT | 1 |
| 31 | SS7120760SP | SCREW 3/16-28 L= 7.0 | 1 |
| 32 | 21346606 | PIPE SUPPORT | 1 |
| 33 | SS7110830SP | SCREW 11/64-40 L= 7.5 | 1 |
| 34 | 21345103 | LUBRICATION BRACKET | 1 |
| 35 | SS4150915SP | SCREW 15/64-28 L=9 | 2 |
| 36 | 21345202 | OIL PIPE STAY | 1 |
| 37 | SS4150915SP | SCREW 15/64-28 L=9 | 2 |
| 38 | SQ1150451MZ | CONNECTING SCREW | 1 |
| 39 | SQ1110401MZ | CONNECTING SCREW | 1 |
| 40 | SS6110480SP | SCREW 11/64-40 L=4.3 | 1 |
| 41 | B3538112000 | OIL RETURN TUBE HOLDER | 1 |
| 42 | SS4110615SP | SCREW 11/64-40 L=6 | 1 |
| 43 | 13765607 | OIL CONNEC. ARM | 2 |
| 44 | B3534155000 | PLUNGER | 1 |
| 45 | B1214038000 | PLUNGER SPRING | 1 |
| 46 | B3524552000 | PLUNGER THRUST PLATE | 1 |
| 47 | SS4110815SP | SCREW 11/64-40 L=8 | 1 |
Page 48 — LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SM2041001SB | SCREW M4X0.7 L=10 | 2 |
| 49 | 23630007 | TUBE | 0.36 |
| 50 | 23630007 | TUBE | 0.08 |
| 51 | 23630007 | TUBE | 0.22 |
| 52 | 23630007 | TUBE | 0.35 |
| 53 | 23630007 | TUBE | 0.58 |
| 54 | 23630007 | TUBE | 0.46 |
| 55 | 23630007 | TUBE | 0.13 |
| 56 | 23630007 | TUBE | 0.02 |
| 57 | 23630007 | TUBE | 0.06 |
| 58 | EA9500B0000 | CLIP CV-70S | 15 |
| 59 | 10126803 | OIL TUBE HOLDER | 1 |
| 60 | PS0500202KP | SPRING PIN 5X20 | 1 |
| 61 | WP0450801SD | WASHER 4.5X10X0.8 | 1 |
| 62 | CQ202000000 | OIL WICK | 0.2 |
| 63 | BT0500300EA | OIL TUBE | 0.2 |
| 64 | SM2041001SB | SCREW M4X0.7 L=10 | 1 |
| 65 | EA9500B0000 | CLIP CV-70S | 1 |
| 66 | 22620504 | OIL WICK HOLDER | 1 |
| 67 | EA9500B0100 | CABLE BAND | 1 |
| 68 | A407855000A | CLIP BAND | 1 |
Page 50 — BELT COVER & OIL RESERVOIR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 21351457 | OIL RESERVOIR ASM. | 1 |
| 2 | SS6151440SP | SCREW 15/64-28 L=14 | 1 |
| 3 | SS7110840SP | SCREW 11/64-40 L=7.8 | 1 |
| 4 | SS5110740TP | SCREW 11/64-40 L= 6.5 | 1 |
| 5 | B8202205000 | OIL MANAGEMENT | 1 |
| 6 | B8111220000 | WASHER | 1 |
| 7 | B8112220000 | OIL SEAL | 1 |
| 8 | B9121012000 | OIL CAN | 1 |
| 9 | SM3031401SE | SCREW M3X0.5 L=14 | 4 |
| 10 | NM6030001SC | NUT M3 | 4 |
| 11 | 10748101 | OIL REMOVING SETSCREW PACKING | 8 |
| 12 | WP0320501SC | WASHER M3 | 4 |
| 13 | SK3241601SC | WOOD SCREW D=2.4 L=16 | 8 |
| 14 | 10755254 | BELT COVER C ASM. (FOR JE) | 1 |
| 15 | 10755205 | BELT COVER C(JE) | 1 |
| 16 | SK3482500SC | WOOD SCREW D=4.8 L=25 | 2 |
| 17 | 21351150 | BELT COVER ASM. (RIGHT) | 1 |
| 18 | 21351101 | BELT COVER (RIGHT) | 1 |
| 19 | 21351002 | BELT COVER AUXILIARY PLATE | 1 |
| 20 | 21351200 | BELT COVER (LEFT) | 1 |
| 21 | D8232241E00 | BELT COVER SUPPORT A | 1 |
| 22 | SS6153040SP | SCREW 15/64-28 L=30 | 2 |
| 23 | 21345350 | OIL TANK ASM. | 1 |
| 24 | 10727303 | FILTER | 1 |
| 25 | 10727204 | FILTER CAP | 1 |
| 26 | 10753002 | FILTER PLATE | 1 |
| 27 | 21345301 | OIL TANK | 1 |
| 28 | 21346804 | COVER(LOWER) | 1 |
| 29 | SM6021000TP | SCREW | 3 |
| 30 | NM9050001SC | WING NUT M5X0.8 | 1 |
| 31 | TA0800704R0 | RUBBER PLUG | 1 |
| 32 | 21346903 | FILTER | 1 |
| 33 | 21346705 | COVER(REAR) | 1 |
| 34 | 21345509 | FILTER CASE | 1 |
| 35 | B8228125000 | OIL RESERVOIR MAGNET | 1 |
| 36 | 10739209 | FILTER PACKING | 1 |
Page 52 — THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 22930358 | THREAD STAND ASM. | 1 |
| 2 | 22931109 | SPOOL RETAINER | 2 |
| 3 | 22931000 | SPOOL PIN | 2 |
| 4 | 22930903 | SPOOL REST CUSHION | 2 |
| 5 | 22930804 | SPOOL REST | 2 |
| 6 | SM6061610SC | SCREW M6 L=16 | 2 |
| 7 | 22930705 | THREAD GUIDE ARM JOINT | 2 |
| 8 | 22931406 | SPOOL REST ROD RUBBER CAP | 1 |
| 9 | 22930507 | SPOOL REST ARM | 2 |
| 10 | 22930408 | SPOOL REST ROD, UPPER | 1 |
| 11 | 22931307 | SPOOL REST ROD JOINT | 1 |
| 12 | SM4051405SE | SCREW M5 L=14 | 2 |
| 13 | NM6050001SE | NUT M5 | 2 |
| 14 | 22930309 | SPOOL REST ROD, LOWER | 1 |
| 15 | 22931208 | THREAD GUIDE | 2 |
| 16 | WS0510002KN | SPRING WASHER | 2 |
| 17 | NM6050001SE | NUT M5 | 2 |
| 18 | NM6160511SE | NUT M16X1.5 | 1 |
| 19 | WP1702600S0 | WASHER 17X30X2.6 | 2 |
| 20 | B33097040A0 | THREAD GUIDE ARM ASM. | 1 |
Page 54 — OPTIONAL PARTS (ADDITIONAL SPRING FOR PRESSER BAR) COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 21006507 | ADJUST SCREW B | 1 |
| 2 | NS6110530SP | NUT 11/64-40 | 1 |
| 3 | 21006408 | ADJUST SCREW A | 1 |
| 4 | 21342407 | GUIDE SHAFT | 1 |
| 5 | 21006002 | ADJUST SPRING B | 3 |
Page 56 — SUSPENSION SQUARE (OPTION) COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MAH152010A0 | RULER | 1 |
| 2 | WP0621016SD | WASHER 6.2X13X1 | 2 |
| 3 | WS0610002KN | SPRING WASHER 6.1X12.2X1.5 | 2 |
| 4 | SS7151610SP | SCREW 15/64-28 L=16 | 2 |
Page 58 — ACCESSORIES PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 21413158 | ACCESSORY BOX | 1 |
| 2 | 22933006 | SCREW DRIVER,LARGE | 1 |
| 3 | SS7110710SP | SCREW 11/64-40 L=7 | 1 |
| 4 | 10741759 | GROUND WIRE ASM. | 1 |
| 5 | B9113012000 | WRENCH (9X10) | 1 |
| 6 | MDFRX2700C0 | NEW DEFRIX OIL NO.2(700CC) | 1 |
| 7 | J1067000000 | OILER | 1 |
| 8 | MSCM80000A0 | SYNCHRONIZER ASM. | 1 |
| 9 | B9117563000 | BOBBIN | 1 |
| 10 | MC372001602 | NEEDLE SY3355 #160-2 | 1 |
| 11 | B8213125AA0 | HINGE ASM. | 2 |
| 12 | 10529808 | COVER | 1 |
| 13 | 21334800 | ALUMINUM BOBBIN WITH KNURL | 1 |
| 14 | B8206012000 | FELT CUSHION | 4 |
| 15 | B8209012000 | RUBBER CUSHION | 4 |
| 16 | 11075801 | RUBBER SPACER | 2 |
| 17 | B8210012000 | CUSHION SET NAIL | 8 |
| 18 | 10742203 | FIXED SURGICAL KNIFE GAUGE | 1 |
| 19 | D7101245E00 | SYNCHRONIZER HOLDER STUD | 1 |
| 20 | NS6150430SP | NUT 15/64-28 | 1 |
| 21 | B9109246000 | DETECTOR SUPPORT PLATE | 1 |
Page 59 — OPTIONAL PARTS COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1478-245-000 | ||
| 2 | B1478-245-000 | ||
| 3 | B1479-245-00D | ||
| 4 | B1479-245-00F | ||
| 5 | B1479-245-00H | ||
| 6 | B1474-245-00C | ||
| 7 | B1474-245-00D | ||
| 8 | B1474-245-00F | ||
| 9 | B1474-245-00H | ||
| 10 | B1474-245-00K | ||
| 11 | 103-38309 | ||
| 12 | B1530-245-0AC | ||
| 13 | B1530-245-0AD | ||
| 14 | B1530-245-0AF | ||
| 15 | B1530-245-0AH | ||
| 16 | B1530-245-0AK | ||
| 17 | B1531-245-0AC | ||
| 18 | B1531-245-0AD | ||
| 19 | B1531-245-0AF | ||
| 20 | B1531-245-0AH | ||
| 21 | B1527-245-0AC | ||
| 22 | B1527-245-0AD | ||
| 23 | B1527-245-0AF | ||
| 24 | B1527-245-0AH | ||
| 25 | B1527-245-0AK | ||
| 26 | B1525-563-SA0 |
Page 60 — OPTIONAL PARTS COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1478245000 | INNER PRESSER | 1 |
| 2 | B1478245000 | INNER PRESSER | 1 |
| 3 | B147924500D | CENTER PRESSER FOOT 3/16 | 1 |
| 4 | B147924500F | BACK CUT INNER PRESSER 1/4 | 1 |
| 5 | B147924500H | BACK CUT INNER PRESSER 5/16 | 1 |
| 6 | B147424500C | INNER PRESSER 5/32 | 1 |
| 7 | B147424500D | INNER PRESSER (BLADE) 3/16 | 1 |
| 8 | B147424500F | WALKING FOOT, F | 1 |
| 9 | B147424500H | INNER PRESSER 5/16 | 1 |
| 10 | B147424500K | CENTER PRESSER FOOT 3/8 | 1 |
| 11 | 10338309 | UPPER FEED FOOT | 1 |
| 12 | B15302450AC | OUTER PRESSER ASM. 5/32 | 1 |
| 13 | B15302450AD | OUTER PRESSER FOOT ASM.,3/16. | 1 |
| 14 | B15302450AF | OUTER PRESSER FOOT 1/4 ASM. | 1 |
| 15 | B15302450AH | OUTER PRESSER FOOT ASM. (5/16) | 1 |
| 16 | B15302450AK | OUTER PRESSER FOOT ASM. (3/8) | 1 |
| 17 | B15312450AC | OUTER PRESSER ASM. 5/32 | 1 |
| 18 | B15312450AD | OUTER PRESSER FOOT ASM. 3/16 | 1 |
| 19 | B15312450AF | OUTER PRESSER ASM., 1/4 | 1 |
| 20 | B15312450AH | FEEDING FRAME 5/16 ASM. | 1 |
| 21 | B15272450AC | OUTER PRESSER FOOT ASM. 5/32 | 1 |
| 22 | B15272450AD | FEEDING FRAME 3/16 ASM. | 1 |
| 23 | B15272450AF | OUTER PRESSER ASM., 1/4 | 1 |
| 24 | B15272450AH | OUTER PRESSER FOOT ASM. 5/16 | 1 |
| 25 | B15272450AK | OUTER PRESSER FOOT ASM.3/8 | 1 |
| 26 | B1525563SA0 | PRESSER FOOT ASM. | 1 |
Page 61 — OPTIONAL PARTS COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MAQ-09307000 | Walking foot | |
| 6 | MAQ-093080A0 | Presser foot | |
| 2 | MAN-10452000 | Walking foot | |
| 10 | B1470-245-000 | Walking foot | |
| 11 | B1524-245-0A0 | Presser foot | |
| 3 | B1476-245-00A | Walking foot | |
| 7 | B1529-245-0AA | Presser foot | |
| 4 | 103-25306 | Walking foot | |
| 8 | 103-25157 | Presser foot | |
| 5 | 103-26205 | Walking foot | |
| 9 | 103-26304 | Presser foot | |
| 12 | B1840-051-000 | Feed driving eccentric | |
| 13 | 213-78104 | Feed driving eccentric |

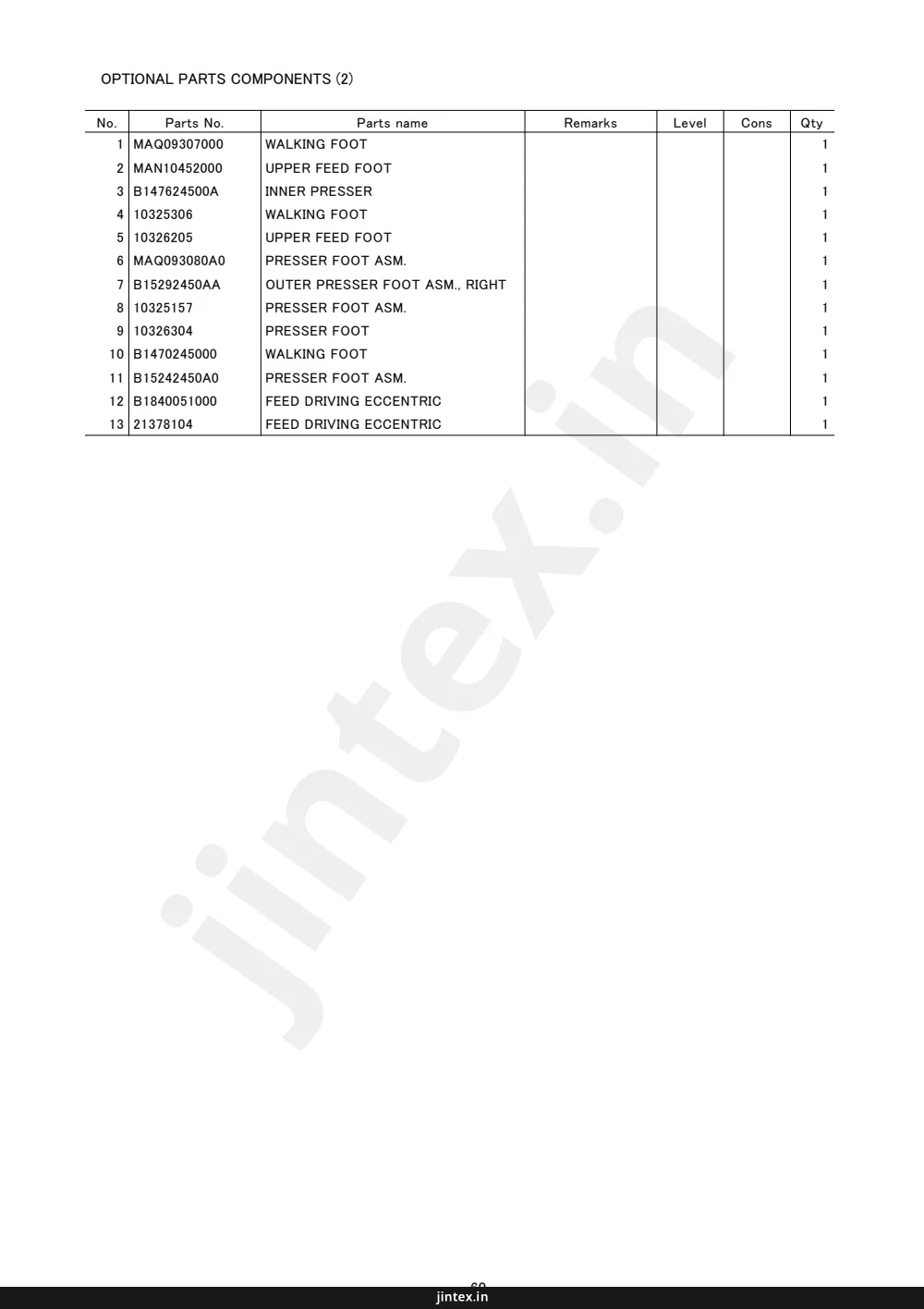

Page 62 — OPTIONAL PARTS COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MAQ09307000 | WALKING FOOT | 1 |
| 2 | MAN10452000 | UPPER FEED FOOT | 1 |
| 3 | B147624500A | INNER PRESSER | 1 |
| 4 | 10325306 | WALKING FOOT | 1 |
| 5 | 10326205 | UPPER FEED FOOT | 1 |
| 6 | MAQ093080A0 | PRESSER FOOT ASM. | 1 |
| 7 | B15292450AA | OUTER PRESSER FOOT ASM., RIGHT | 1 |
| 8 | 10325157 | PRESSER FOOT ASM. | 1 |
| 9 | 10326304 | PRESSER FOOT | 1 |
| 10 | B1470245000 | WALKING FOOT | 1 |
| 11 | B15242450A0 | PRESSER FOOT ASM. | 1 |
| 12 | B1840051000 | FEED DRIVING ECCENTRIC | 1 |
| 13 | 21378104 | FEED DRIVING ECCENTRIC | 1 |
Page 63 — LIST FOR INFORMATION OF CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 24 | 213-55656 | ||
| 25 | 213-55607 | ||
| 37 | SM-6062002-TP | ||
| 27 | 110-24569 | ||
| 28 | 110-24510 | ||
| 29 | SM-9062053-SR | ||
| 1 | 213-56050 | ||
| 3 | 230-09756 | ||
| 6 | 225-38409 | ||
| 1 | B9101-552-000 | ||
| 3 | B9110-012-000 | ||
| 4 | B9111-012-000 | ||
| 8 | 110-73103 | ||
| 13 | 229-58300 | ||
| 24 | 214-08554 | ||
| 25 | 214-08505 | ||
| 68 | SS-4110815-SP | ||
| 63 | 213-34008 | ||
| 37 | SM-9062250-SC | ||
| 70 | B1613-563-E00 | ||
| 27 | 229-32453 | ||
| 28 | 229-32404 | ||
| 29 | 229-34707 | ||
| 1 | 213-57967 | ||
| 3 | 213-57959 | ||
| 6 | 213-56001 | ||
| 68 | A4078-550-00A | ||
| 1 | 214-13158 |
Page 65 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 45 | 10004109 | ||
| 3 | 10107902 | ||
| 13~45~ | 10109700 | ||
| 13~45~ | 10109809 | ||
| 13~45~ | 10109908 | ||
| 13~45~ | 10110906 | ||
| 13~45~ | 10111003 | ||
| 13~45~ | 10111102 | ||
| 13~45~ | 10111201 | ||
| 13~45~ | 10112407 | ||
| 13~45~ | 10112506 | ||
| 13~45~ | 10112605 | ||
| 13~45~ | 10112704 | ||
| 17 | 10116804 | ||
| 10120004 | |||
| 13 | 10124204 | ||
| 10124204 | |||
| 10126803 | |||
| 10201200 | |||
| 10205201 | |||
| 10308609 | |||
| 3 | 10320109 | ||
| 10320109 | |||
| 10320208 | |||
| 10320703 | |||
| 22-28-29 | 10321107 | ||
| 21-24-25 | 10321107 | ||
| 8 | 10325157 | ||
| 4 | 10325306 | ||
| 5 | 10326205 | ||
| 9 | 10326304 | ||
| 56 | 10337905 | ||
| 10338309 | |||
| 10502300 | |||
| 10503605 | |||
| 10509701 | |||
| 10529808 | |||
| 10618304 | |||
| 10704807 | |||
| 27 | 10704906 | ||
| 75 | 10713501 | ||
| 81 | 10713766 | ||
| 83 | 10713808 | ||
| 70 | 10714202 | ||
| 84 | 10714509 | ||
| 85 | 10714608 | ||
| 61 | 10715001 | ||
| 60 | 10715100 | ||
| 66 | 10715308 | ||
| 62 | 10715704 | ||
| 76 | 10716504 | ||
| 69 | 10718203 | ||
| 1 | 10726305 | ||
| 6 | 10726404 | ||
| 7 | 10726909 | ||
| 25 | 10727204 | ||
| 24 | 10727303 | ||
| 36 | 10739209 | ||
| 15 | 10741106 | ||
| 14 | 10741106 | ||
| 4 | 10741759 | ||
| 18 | 10742203 | ||
| 11 | 10748101 | ||
| 26 | 10753002 | ||
| 15 | 10755205 | ||
| 14 | 10755254 | ||
| 58 | 10774305 | ||
| 57 | 10774354 | ||
| 59 | 10774404 | ||
| 49 | 11006509 | ||
| 44 | 11009909 | ||
| 15 | 11045101 | ||
| 46 | 11052701 | ||
| 17 | 11072402 | ||
| 16 | 11072402 | ||
| 30 | 11072402 | ||
| 16 | 11075801 | ||
| 18 | 11100500 | ||
| 13 | 11956802 | ||
| 12 | 11956802 | ||
| 29 | 13514310 | ||
| 16 | 13515606 | ||
| 43 | 13765607 | ||
| 17 | 14512503 | ||
| 26 | 17912106 | ||
| 5 | 21006002 | ||
| 3 | 21006408 | ||
| 1 | 21006507 | ||
| 88 | 21048707 | ||
| 11 | 21331202 | ||
| 1 | 21331558 | ||
| 18 | 21331608 | ||
| 8 | 21331756 | ||
| 12 | 21331806 | ||
| 49 | 21331905 | ||
| 13 | 21332002 | ||
| 50 | 21332101 | ||
| 46 | 21332200 | ||
| 16 | 21332309 | ||
| 13 | 21332507 | ||
| 1 | 21332705 | ||
| 29-63 | 21332804 | ||
| 2 | 21333000 | ||
| 18 | 21333109 | ||
| 3 | 21333208 | ||
| 6-57 | 21333307 | ||
| 60 | 21333406 | ||
| 31 | 21333505 | ||
| 25 | 21333604 | ||
| 48-62 | 21333703 | ||
| 44-58 | 21333802 | ||
| 48-62 | 21333901 | ||
| 29-63 | 21334008 | ||
| 23-30-59 | 21334552 | ||
| 15 | 21334701 | ||
| 24-60 | 21334800 | ||
| 9-13 | 21334800 | ||
| 2-54 | 21334909 | ||
| 1-53 | 21335104 | ||
| 1-53 | 21335203 | ||
| 6-55 | 21335500 | ||
| 7-56 | 21335708 | ||
| 10-57 | 21335807 | ||
| 2 | 21336003 | ||
| 1 | 21336052 | ||
| 60 | 21336300 | ||
| 21 | 21336508 | ||
| 20 | 21336557 |
Page 66 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 49 | 21336607 | ||
| 48 | 21336656 | ||
| 53 | 21336706 | ||
| 41 | 21336805 | ||
| 38 | 21337209 | ||
| 33 | 21337308 | ||
| 26 | 21337407 | ||
| 23 | 21337506 | ||
| 35 | 21337605 | ||
| 24 | 21337704 | ||
| 92 | 21337803 | ||
| 27 | 21337803 | ||
| 31 | 21337902 | ||
| 36 | 21338009 | ||
| 54 | 21338207 | ||
| 29 | 21338306 | ||
| 7-32 | 21338405 | ||
| 33 | 21338504 | ||
| 18 | 21338603 | ||
| 16 | 21338702 | ||
| 20 | 21338801 | ||
| 22 | 21338900 | ||
| 28 | 21339007 | ||
| 27 | 21339056 | ||
| 8 | 21339106 | ||
| 26 | 21339205 | ||
| 25 | 21339304 | ||
| 2 | 21339403 | ||
| 16 | 21339502 | ||
| 71 | 21339601 | ||
| 73 | 21339700 | ||
| 79 | 21339809 | ||
| 12 | 21339908 | ||
| 14 | 21340005 | ||
| 12 | 21340104 | ||
| 12 | 21340203 | ||
| 14 | 21340302 | ||
| 12 | 21340401 | ||
| 12 | 21340500 | ||
| 44 | 21340708 | ||
| 12 | 21340807 | ||
| 12 | 21340906 | ||
| 12 | 21341003 | ||
| 12 | 21341052 | ||
| 12 | 21341151 | ||
| 28 | 21341300 | ||
| 68 | 21341508 | ||
| 65 | 21341607 | ||
| 4 | 21341904 | ||
| 4 | 21342407 | ||
| 4 | 21342506 | ||
| 3 | 21342555 | ||
| 5 | 21342605 | ||
| 9 | 21342704 | ||
| 13 | 21342803 | ||
| 17 | 21342902 | ||
| 11 | 21343009 | ||
| 32 | 21343108 | ||
| 30 | 21343157 | ||
| 1 | 21343207 | ||
| 21 | 21343355 | ||
| 19 | 21343405 | ||
| 48 | 21343504 | ||
| 6 | 21343702 | ||
| 7 | 21343801 | ||
| 34 | 21345103 | ||
| 36 | 21345202 | ||
| 27 | 21345301 | ||
| 23 | 21345350 | ||
| 34 | 21345509 | ||
| 25 | 21345608 | ||
| 23 | 21345657 | ||
| 2 | 21345707 | ||
| 1 | 21345756 | ||
| 3 | 21345806 | ||
| 4 | 21345905 | ||
| 18 | 21346002 | ||
| 29 | 21346101 | ||
| 30 | 21346200 | ||
| 6 | 21346309 | ||
| 5 | 21346358 | ||
| 8 | 21346408 | ||
| 7 | 21346507 | ||
| 32 | 21346606 | ||
| 33 | 21346705 | ||
| 28 | 21346804 | ||
| 32 | 21346903 | ||
| 13-14 | 21347000 | ||
| 13 | 21347109 | ||
| 16 | 21347208 | ||
| 30 | 21347406 | ||
| 24 | 21347950 | ||
| 22-28-29 | 21348206 | ||
| 21-24-25 | 21348206 | ||
| 6 | 21348503 | ||
| 4 | 21348602 | ||
| 8 | 21348701 | ||
| 28 | 21348800 | ||
| 22 | 21348859 | ||
| 67 | 21348909 | ||
| 37 | 21349006 | ||
| 31 | 21349055 | ||
| 30 | 21349105 | ||
| 42-68-70 | 21349204 | ||
| 42-68-70 | 21349303 | ||
| 38 | 21349600 | ||
| 39-54 | 21349709 | ||
| 39-54 | 21349808 | ||
| 19 | 21351002 | ||
| 18 | 21351101 | ||
| 17 | 21351150 | ||
| 20 | 21351200 | ||
| 1 | 21351457 | ||
| 55 | 21353008 | ||
| 35 | 21353602 | ||
| 18 | 21353701 | ||
| 17 | 21353750 | ||
| 25 | 21353800 | ||
| 22 | 21353859 | ||
| 23 | 21353909 | ||
| 20 | 21354006 | ||
| 31 | 21354105 | ||
| 32 | 21354204 | ||
| 37 | 21354402 | ||
| 15 | 21354501 | ||
| 42 | 21354600 | ||
| 45 | 21354709 | ||
| 5 | 21354808 | ||
| 4 | 21354857 | ||
| 12 | 21354907 | ||
| 41 | 21355102 | ||
| 24 | 21355706 | ||
| 23 | 21355755 | ||
| 20 | 21355805 | ||
| 6 | 21355904 |
Page 67 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 6 | 21356001 | ||
| 11 | 21356308 | ||
| 12 | 21356407 | ||
| 3 | 21356506 | ||
| 6 | 21356605 | ||
| 9 | 21356704 | ||
| 7 | 21356803 | ||
| 94 | 21357561 | ||
| 3 | 21357959 | ||
| 1 | 21357967 | ||
| 10 | 21364104 | ||
| 2 | 21377551 | ||
| 1 | 21377569 | ||
| 2 | 21377650 | ||
| 1 | 21377668 | ||
| 18 | 21378005 | ||
| 31-33 | 21378104 | ||
| 13 | 21378104 | ||
| 57 | 21378203 | ||
| 5 | 21378302 | ||
| 13 | 21378302 | ||
| 14-58 | 21378401 | ||
| 14-58 | 21378500 | ||
| 29 | 21378708 | ||
| 4 | 21378807 | ||
| 4 | 21378807 | ||
| 25 | 21408505 | ||
| 24 | 21408554 | ||
| 1 | 21413158 | ||
| 2 | 22537658 | ||
| 4 | 22538151 | ||
| 32 | 22538706 | ||
| 57 | 22602601 | ||
| 25 | 22604300 | ||
| 23 | 22604904 | ||
| 12 | 22609408 | ||
| 66 | 22610505 | ||
| 51 | 22611602 | ||
| 50 | 22611651 | ||
| 44 | 22611701 | ||
| 42 | 22611909 | ||
| 10 | 22617906 | ||
| 34 | 22617906 | ||
| 7 | 22618201 | ||
| 52 | 22619100 | ||
| 66 | 22620504 | ||
| 50 | 22620801 | ||
| 30 | 22651202 | ||
| 14 | 22656003 | ||
| 12 | 22656102 | ||
| 36 | 22814909 | ||
| 11 | 22814909 | ||
| 69 | 22814909 | ||
| 26 | 22863203 | ||
| 23 | 22863252 | ||
| 47 | 22877609 | ||
| 7 | 22904106 | ||
| 18 | 22904106 | ||
| 6 | 22904155 | ||
| 17 | 22904155 | ||
| 47 | 22912109 | ||
| 14 | 22930309 | ||
| 1 | 22930358 | ||
| 10 | 22930408 | ||
| 9 | 22930507 | ||
| 7 | 22930705 | ||
| 5 | 22930804 | ||
| 4 | 22930903 | ||
| 3 | 22931000 | ||
| 2 | 22931109 | ||
| 15 | 22931208 | ||
| 11 | 22931307 | ||
| 8 | 22931406 | ||
| 28 | 22932404 | ||
| 27 | 22932453 | ||
| 2 | 22933006 | ||
| 35 | 22934202 | ||
| 36 | 22934301 | ||
| 34 | 22934400 | ||
| 33 | 22934509 | ||
| 29 | 22934707 | ||
| 22-29 | 23006406 | ||
| 21-24-25 | 23006406 | ||
| 1 | 23105554 | ||
| 62 | 23208507 | ||
| 61 | 23208556 | ||
| 63 | 23208606 | ||
| 57 | 23630007 | ||
| 5 | 23636202 | ||
| 9 | A321600100A | A321600100A | |
| 68 | A407855000A | A407855000A | |
| 36 | B1109563000 | B1109563000 | |
| 34 | B1111563000 | B1111563000 | |
| 22 | B1129051000 | B1129051000 | |
| 27 | B1132521000 | B1132521000 | |
| 13-14 | B1140051000 | B1140051000 | |
| 11 | B114855000 | B114855000 | |
| 26 | B1203512000 | B1203512000 | |
| 11 | B1210051000 | B1210051000 | |
| 32 | B1214019000 | B1214019000 | |
| 45 | B1214038000 | B1214038000 | |
| 33 | B1305055000A | B1305055000A | |
| 34 | B1307055000 | B1307055000 | |
| 35 | B1308055000 | B1308055000 | |
| 36 | B1309055000 | B1309055000 | |
| 37 | B1310055000 | B1310055000 | |
| 44-58 | B1312563000A | B1312563000A | |
| 47 | B1313055000 | B1313055000 | |
| 39 | B1314055000 | B1314055000 | |
| 7-32 | B1401053000 | B1401053000 | |
| 24 | B140771000 | B140771000 | |
| 8 | B141053000 | B141053000 | |
| 10 | B1412051000 | B1412051000 | |
| 19 | B1412051000 | B1412051000 | |
| 23 | B1414232000 | B1414232000 | |
| 21 | B141455000 | B141455000 | |
| 50 | B1418761000 | B1418761000 | |
| 1 | B1420563000 | B1420563000 | |
| 35 | B1437051000 | B1437051000 | |
| 47 | B1462053000 | B1462053000 | |
| 23 | B1465053000 | B1465053000 | |
| 24 | B1466563000 | B1466563000 | |
| 25 | B14670530A0 | B14670530A0 | |
| 14 | B1467563000 | B1467563000 | |
| 26 | B1468053000 | B1468053000 | |
| 51 | B1470241H00 | B1470241H00 | |
| 10 | B1470245000 | B1470245000 | |
| 52 | B1471241H00 | B1471241H00 | |
| 6 | B147424500C | B147424500C | |
| 7 | B147424500D | B147424500D | |
| 8 | B147424500F | B147424500F | |
| 9 | B147424500H | B147424500H | |
| 10 | B147424500K | B147424500K | |
| 3 | B147624500A | B147624500A | |
| 2 | B1478245000 | B1478245000 |
Page 68 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | B147924500D | B147924500D | |
| 4 | B147924500F | B147924500F | |
| 5 | B147924500H | B147924500H | |
| 99 | B1501241H00 | B1501241H00 | |
| 44 | B1502246000 | B1502246000 | |
| 43 | B1512246000 | B1512246000 | |
| 11 | B152424500 | B152424500 | |
| 55 | B1525241H00 | B1525241H00 | |
| 54 | B1525241HA0 | B1525241HA0 | |
| 26 | B1525563SA0 | B1525563SA0 | |
| 63 | B152652700G | B152652700G | |
| 21 | B15272450AC | B15272450AC | |
| 22 | B15272450AD | B15272450AD | |
| 23 | B15272450AF | B15272450AF | |
| 24 | B15272450AH | B15272450AH | |
| 25 | B15272450AK | B15272450AK | |
| 7 | B15292450AA | B15292450AA | |
| 7 | B15298900CA | B15298900CA | |
| 12 | B15302450AC | B15302450AC | |
| 13 | B15302450AD | B15302450AD | |
| 14 | B15302450AF | B15302450AF | |
| 15 | B15302450AH | B15302450AH | |
| 16 | B15302450AK | B15302450AK | |
| 17 | B15312450AC | B15312450AC | |
| 18 | B15312450AD | B15312450AD | |
| 19 | B15312450AF | B15312450AF | |
| 20 | B15312450AH | B15312450AH | |
| 39 | B1604012000A | B1604012000A | |
| 39 | B1610512000 | B1610512000 | |
| 61 | B1611055000 | B1611055000 | |
| 42-68-70 | B1613563E00 | B1613563E00 | |
| 46 | B1639051000 | B1639051000 | |
| 26 | B1802563000A | B1802563000A | |
| 29 | B18035150A0 | B18035150A0 | |
| 38 | B1816051000 | B1816051000 | |
| 35 | B1817051000 | B1817051000 | |
| 2-54 | B1820563000 | B1820563000 | |
| 3 | B1821051000 | B1821051000 | |
| 6-55 | B1822563000 | B1822563000 | |
| 7-56 | B1823051000 | B1823051000 | |
| 10-57 | B1824563000 | B1824563000 | |
| 23-30-59 | B18305630A0 | B18305630A0 | |
| 23-30-59 | B1830563BA0 | B1830563BA0 | |
| 31 | B1834512000A | B1834512000A | |
| 31-33 | B1840051000 | B1840051000 | |
| 12 | B1840051000 | B1840051000 | |
| 3 | B185351200CA | B185351200CA | |
| 4 | B1905563000 | B1905563000 | |
| 5 | B1906051000 | B1906051000 | |
| 6-57 | B1907051000 | B1907051000 | |
| 15 | B3016141H00 | B3016141H00 | |
| 15 | B3025141H00A | B3025141H00A | |
| 12 | B3120125000 | B3120125000 | |
| 11 | B3120125000 | B3120125000 | |
| 6 | B3125012000 | B3125012000 | |
| 9 | B3126012000 | B3126012000 | |
| 8 | B3126051000 | B3126051000 | |
| 8 | B3127051000 | B3127051000 | |
| 11 | B3129053000 | B3129053000 | |
| 10 | B3129526000 | B3129526000 | |
| 17 | B3134521000 | B3134521000 | |
| 5 | B31375270A0 | B31375270A0 | |
| 5 | B31375270A0 | B31375270A0 | |
| 32 | B3138512000 | B3138512000 | |
| 10 | B3205210000 | B3205210000 | |
| 28 | B3214047000 | B3214047000 | |
| 20 | B33097040A0 | B33097040A0 | |
| 77 | B3416552000 | B3416552000 | |
| 24 | B3428521000 | B3428521000 | |
| 24 | B3520586000 | B3520586000 | |
| 46 | B3524552000 | B3524552000 | |
| 44 | B3534155000 | B3534155000 | |
| 41 | B3538112000 | B3538112000 | |
| 6 | B8111220000 | B8111220000 | |
| 7 | B8112220000 | B8112220000 | |
| 5 | B8202205000 | B8202205000 | |
| 14 | B8206012000 | B8206012000 | |
| 15 | B8209012000 | B8209012000 | |
| 17 | B8210012000 | B8210012000 | |
| 11 | B8213125AA0 | B8213125AA0 | |
| 35 | B8228125000 | B8228125000 | |
| 21 | B9109246000 | B9109246000 | |
| 5 | B9113012000 | B9113012000 | |
| 24-60 | B9117563000 | B9117563000 | |
| 9-13 | B9117563000 | B9117563000 | |
| 8 | B9121012000 | B9121012000 | |
| 63 | BT0500300EA | BT0500300EA | |
| 33 | BT0600401EB | BT0600401EB | |
| 20 | BT0600402EA | BT0600402EA | |
| 17-18 | CM300200001 | CM300200001 | |
| 43-44 | CM3002000B1 | CM3002000B1 | |
| 17-18 | CM3002000B1 | CM3002000B1 | |
| 41-42 | CM300200101 | CM300200101 | |
| 41-42 | CM3002001A1 | CM3002001A1 | |
| 19 | CQ202000000 | CQ202000000 | |
| 34 | CQ202000000 | CQ202000000 | |
| 51 | CQ202000000 | CQ202000000 | |
| 51 | CQ202000000 | CQ202000000 | |
| 27 | CQ202000000 | CQ202000000 | |
| 62 | CQ202000000 | CQ202000000 | |
| 62 | CQ202000000 | CQ202000000 | |
| 9 | CQ303000000 | CQ303000000 | |
| 12 | CQ505000000 | CQ505000000 | |
| 28 | CS0700811SH | CS0700811SH | |
| 27 | CS070081BSH | CS070081BSH | |
| 13 | CS0790731SH | CS0790731SH | |
| 62 | CS1201010SH | CS1201010SH | |
| 63 | CS1201011SH | CS1201011SH | |
| 33 | D1455055B00 | D1455055B00 | |
| 32 | D1456055B00 | D1456055B00 | |
| 97 | D1470241E0A | D1470241E0A | |
| 32 | D1680141EA0 | D1680141EA0 | |
| 10 | D2112555B00 | D2112555B00 | |
| 26 | D2427555B00B | D2427555B00B | |
| 24 | D2430555B00 | D2430555B00 | |
| 25 | D3162555B00 | D3162555B00 | |
| 16 | D3168555H0B | D3168555H0B | |
| 27 | D3168555H0B | D3168555H0B | |
| 19 | D7101245E00 | D7101245E00 | |
| 21 | D8232241E00 | D8232241E00 | |
| 14 | EA9500B0000 | EA9500B0000 | |
| 36 | EA9500B0000 | EA9500B0000 | |
| 65 | EA9500B0000 | EA9500B0000 | |
| 65 | EA9500B0000 | EA9500B0000 | |
| 31 | EA9500B0100 | EA9500B0100 | |
| 98 | EA9500B0100 | EA9500B0100 | |
| 49 | EA9500B0100 | EA9500B0100 | |
| 42 | EA9500B0100 | EA9500B0100 | |
| 67 | EA9500B0100 | EA9500B0100 | |
| 25 | GAK29007000 | GAK29007000 | |
| 3 | GAK29009000 | GAK29009000 | |
| 26 | GAK29010000 | GAK29010000 | |
| 27 | GAK29011000 | GAK29011000 | |
| 28 | GAK29015000 | GAK29015000 |
Page 69 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 29 | GAK29016000 | GAK29016000 | |
| 22 | GAKA1401000 | GAKA1401000 | |
| 23 | GAKA14020A0 | GAKA14020A0 | |
| 24 | GAKA14030A0 | GAKA14030A0 | |
| 20 | GAKA14040A0 | GAKA14040A0 | |
| 19 | GAKA14040D0 | GAKA14040D0 | |
| 18 | GAKA17010A0 | GAKA17010A0 | |
| 19 | GAKA17040A0 | GAKA17040A0 | |
| 35 | GAKA17050A0 | GAKA17050A0 | |
| 38 | GBC02621000 | GBC02621000 | |
| 34 | GHP03511000 | GHP03511000 | |
| 96 | GPK58005000 | GPK58005000 | |
| 48 | HK034610140 | HK034610140 | |
| 35 | HK034610140 | HK034610140 | |
| 47 | HK03464000B | HK03464000B | |
| 34 | HK03464000B | HK03464000B | |
| 13 | HX001230000 | HX001230000 | |
| 59 | HX00123000A | HX00123000A | |
| 36 | HX00123000A | HX00123000A | |
| 15 | HX002950000 | HX002950000 | |
| 20 | HX002950000 | HX002950000 | |
| 16 | HX00295000A | HX00295000A | |
| 21 | HX00295000A | HX00295000A | |
| 7 | J1067000000 | J1067000000 | |
| 1 | MAH152010A0 | MAH152010A0 | |
| 2 | MAN10452000 | MAN10452000 | |
| 6 | MAQ09307000 | MAQ09307000 | |
| 1 | MAQ093080A0 | MAQ093080A0 | |
| 22 | MAT80230T00 | MAT80230T00 | |
| 21 | MAT80231T00 | MAT80231T00 | |
| 33 | MAT81126T00 | MAT81126T00 | |
| 13 | MC372001600 | MC372001600 | |
| 10 | MC372001602 | MC372001602 | |
| 6 | MDFRX2700C0 | MDFRX2700C0 | |
| 8 | MSCM80000A0 | MSCM80000A0 | |
| 10 | NM6030001SC | NM6030001SC | |
| 16 | NM6050001SD | NM6050001SD | |
| 50 | NM6050001SE | NM6050001SE | |
| 30 | NM6060003SC | NM6060003SC | |
| 40 | NM6080001SE | NM6080001SE | |
| 50 | NM6160511SE | NM6160511SE | |
| 48 | NM9050001SC | NM9050001SC | |
| 32 | NS6110310SP | NS6110310SP | |
| 34 | NS6110310SP | NS6110310SP | |
| 38 | NS6110310SP | NS6110310SP | |
| 22 | NS6110420SP | NS6110420SP | |
| 12 | NS6110530SP | NS6110530SP | |
| 52 | NS6110530SP | NS6110530SP | |
| 20 | NS6150310SP | NS6150310SP | |
| 30 | NS6150430SP | NS6150430SP | |
| 56 | NS6150430SP | NS6150430SP | |
| 18 | NS6680320SP | NS6680320SP | |
| 30 | PA320150200 | PA320150200 | |
| 40 | PA400150100 | PA400150100 | |
| 30 | PJ301065104 | PJ301065104 | |
| 40 | PJ304065102 | PJ304065102 | |
| 42 | PJ309065202 | PJ309065202 | |
| 46 | PS0500202KP | PS0500202KP | |
| 32 | PS0600502KP | PS0600502KP | |
| 34 | PS0600502KP | PS0600502KP | |
| 30 | PX015101000 | PX015101000 | |
| 38 | RC0560711KP | RC0560711KP | |
| 6 | RE0500000K0 | RE0500000K0 | |
| 14 | RE0500000K0 | RE0500000K0 | |
| 38 | RE0500000K0 | RE0500000K0 | |
| 18 | RE0500711KP | RE0500711KP | |
| 14 | RE0800000K0 | RE0800000K0 | |
| 36 | RE0800000K0 | RE0800000K0 | |
| 20 | RE0900000K0 | RE0900000K0 | |
| 18 | R0092270200 | R0092270200 | |
| 38 | R0092270200 | R0092270200 | |
| 8 | SB120000200 | SB120000200 | |
| 2 | SD00380551SL | SD00380551SL | |
| 32 | SD0470281SP | SD0470281SP | |
| 34 | SD0470281SP | SD0470281SP | |
| 6 | SD0640322TP | SD0640322TP | |
| 26 | SD0640325SP | SD0640325SP | |
| 26 | SD0640482SP | SD0640482SP | |
| 12 | SD0640701SP | SD0640701SP | |
| 36 | SD0700451TP | SD0700451TP | |
| 40 | SD0720331SP | SD0720331SP | |
| 30 | SD0800352SP | SD0800352SP | |
| 18 | SD0800402TP | SD0800402TP | |
| 30 | SD0800402TP | SD0800402TP | |
| 12 | SD0800481SP | SD0800481SP | |
| 18 | SD0900701TP | SD0900701TP | |
| 20 | SD1000801SH | SD1000801SH | |
| 48 | SK3241601SC | SK3241601SC | |
| 42 | SK3482500SC | SK3482500SC | |
| 48 | SK3482500SC | SK3482500SC | |
| 40 | SK3514000SC | SK3514000SC | |
| 42 | SL4030691SC | SL4030691SC | |
| 16 | SL4040881SC | SL4040881SC | |
| 14 | SM1050801SR | SM1050801SR | |
| 46 | SM2041001SB | SM2041001SB | |
| 48 | SM3031401SE | SM3031401SE | |
| 42 | SM4032501SB | SM4032501SB | |
| 42 | SM4034001SN | SM4034001SN | |
| 50 | SM4051405SE | SM4051405SE | |
| 42 | SM4061001SB | SM4061001SB | |
| 48 | SM6021000TP | SM6021000TP | |
| 26 | SM6030802TP | SM6030802TP | |
| 38 | SM6040800SP | SM6040800SP | |
| 26 | SM6040802TP | SM6040802TP | |
| 26 | SM6041202TP | SM6041202TP | |
| 40 | SM6051002TP | SM6051002TP | |
| 14 | SM6051402TP | SM6051402TP | |
| 36 | SM6051602TP | SM6051602TP | |
| 14 | SM6052002TP | SM6052002TP | |
| 36 | SM6061202TP | SM6061202TP | |
| 50 | SM6061610SC | SM6061610SC | |
| 18 | SM6061802TP | SM6061802TP | |
| 36 | SM6062502TP | SM6062502TP | |
| 40 | SM6082002TP | SM6082002TP | |
| 22 | SM6082502TP | SM6082502TP | |
| 18 | SM8050502TP | SM8050502TP | |
| 14 | SM8050602TP | SM8050602TP | |
| 38 | SM8050602TP | SM8050602TP | |
| 20 | SM8050612TP | SM8050612TP | |
| 36 | SM8052502TP | SM8052502TP | |
| 6 | SM8060602TP | SM8060602TP | |
| 10 | SM8080802TP | SM8080802TP | |
| 6 | SM8080812TP | SM8080812TP | |
| 36 | SM9061203SE | SM9061203SE | |
| 36 | SM9061900SE | SM9061900SE | |
| 12 | SM9062250SC | SM9062250SC | |
| 22 | SQ110401MZ | SQ110401MZ | |
| 44 | SQ110401MZ | SQ110401MZ | |
| 44 | SQ1150451MZ | SQ1150451MZ | |
| 4 | SS2090520SL | SS2090520SL | |
| 2 | SS2090710TP | SS2090710TP | |
| 2 | SS2110920TP | SS2110920TP | |
| 44 | SS3090610SP | SS3090610SP | |
| 32 | SS3090710TP | SS3090710TP | |
| 34 | SS3090710TP | SS3090710TP |
Page 70 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 35 | SS4110515SP | SS4110515SP | |
| 42 | SS4110615SP | SS4110615SP | |
| 68 | SS4110815SP | SS4110815SP | |
| 68 | SS4110815SP | SS4110815SP | |
| 47 | SS4110815SP | SS4110815SP | |
| 2 | SS4111215SP | SS4111215SP | |
| 15 | SS4120615SP | SS4120615SP | |
| 37 | SS4150915SP | SS4150915SP | |
| 21 | SS5090610SP | SS5090610SP | |
| 4 | SS5110740TP | SS5110740TP | |
| 16 | SS6090520SP | SS6090520SP | |
| 22 | SS6090620SP | SS6090620SP | |
| 12 | SS6090810SP | SS6090810SP | |
| 50 | SS6090910TP | SS6090910TP | |
| 19 | SS6091022TP | SS6091022TP | |
| 27 | SS6110480SP | SS6110480SP | |
| 40 | SS6110480SP | SS6110480SP | |
| 56 | SS6110520TP | SS6110520TP | |
| 38 | SS6110610TP | SS6110610TP | |
| 64 | SS6110630TP | SS6110630TP | |
| 46 | SS6110710TP | SS6110710TP | |
| 18 | SS6110810TP | SS6110810TP | |
| 28 | SS6111010SP | SS6111010SP | |
| 65 | SS6111140SP | SS6111140SP | |
| 34 | SS6111140SP | SS6111140SP | |
| 37 | SS6120930TP | SS6120930TP | |
| 67 | SS6121210TP | SS6121210TP | |
| 16 | SS6121610TP | SS6121610TP | |
| 38 | SS6121610TP | SS6121610TP | |
| 43 | SS6121860SP | SS6121860SP | |
| 43 | SS6151040SP | SS6151040SP | |
| 14 | SS6151040SP | SS6151040SP | |
| 23 | SS6151220SP | SS6151220SP | |
| 2 | SS6151440SP | SS6151440SP | |
| 27 | SS6151780SP | SS6151780SP | |
| 30 | SS6151920SP | SS6151920SP | |
| 10 | SS6152440SP | SS6152440SP | |
| 22 | SS6153040SP | SS6153040SP | |
| 48 | SS6153040SP | SS6153040SP | |
| 40 | SS6661110SP | SS6661110SP | |
| 9 | SS7060610SP | SS7060610SP | |
| 12 | SS7080510TP | SS7080510TP | |
| 25 | SS7090510SP | SS7090510SP | |
| 33 | SS7090520TP | SS7090520TP | |
| 30 | SS7090610SP | SS7090610SP | |
| 9 | SS7090910SP | SS7090910SP | |
| 32 | SS7090910TP | SS7090910TP | |
| 15 | SS7091410SP | SS7091410SP | |
| 20 | SS7110510SP | SS7110510SP | |
| 11 | SS7110510SP | SS7110510SP | |
| 25 | SS7110570SP | SS7110570SP | |
| 56 | SS7110710SP | SS7110710SP | |
| 3 | SS7110710SP | SS7110710SP | |
| 17 | SS7110830SP | SS7110830SP | |
| 80 | SS7110830SP | SS7110830SP | |
| 33 | SS7110830SP | SS7110830SP | |
| 29 | SS7110840SP | SS7110840SP | |
| 3 | SS7110840SP | SS7110840SP | |
| 15 | SS7110910TP | SS7110910TP | |
| 41 | SS7110910TP | SS7110910TP | |
| 25 | SS7110910TP | SS7110910TP | |
| 21 | SS7110910TP | SS7110910TP | |
| 23 | SS7110910TP | SS7110910TP | |
| 16 | SS7111120SP | SS7111120SP | |
| 74 | SS7111120TP | SS7111120TP | |
| 11 | SS7111410SP | SS7111410SP | |
| 24 | SS7111410SP | SS7111410SP | |
| 19 | SS7111810SP | SS7111810SP | |
| 8 | SS7111810TP | SS7111810TP | |
| 51 | SS7111810TP | SS7111810TP | |
| 54 | SS7120760SP | SS7120760SP | |
| 13 | SS7120760SP | SS7120760SP | |
| 31 | SS7120760SP | SS7120760SP | |
| 19 | SS7150910TP | SS7150910TP | |
| 7 | SS7151210SP | SS7151210SP | |
| 30 | SS7151610SP | SS7151610SP | |
| 4 | SS7151610SP | SS7151610SP | |
| 7 | SS7621040SP | SS7621040SP | |
| 43 | SS8090540SP | SS8090540SP | |
| 61 | SS8110422TP | SS8110422TP | |
| 14 | SS8110422TP | SS8110422TP | |
| 29 | SS8110510SP | SS8110510SP | |
| 34 | SS8150510TP | SS8150510TP | |
| 93 | SS8150710SP | SS8150710SP | |
| 93 | SS8150710SP | SS8150710SP | |
| 49-59 | SS8150710TP | SS8150710TP | |
| 30 | SS8150822TP | SS8150822TP | |
| 28 | SS8150822TP | SS8150822TP | |
| 5 | SS8151150TP | SS8151150TP | |
| 14 | SS8151150TP | SS8151150TP | |
| 32 | SS8151150TP | SS8151150TP | |
| 61 | SS8151150SP | SS8151150SP | |
| 49-59 | SS8660530TP | SS8660530TP | |
| 43 | SS8660530TP | SS8660530TP | |
| 8 | SS8660610TP | SS8660610TP | |
| 64 | SS8660610TP | SS8660610TP | |
| 64 | SS8660610TP | SS8660610TP | |
| 3 | SS8660612TP | SS8660612TP | |
| 36 | SS8660612TP | SS8660612TP | |
| 36 | SS8660670SP | SS8660670SP | |
| 22 | SS8660810TP | SS8660810TP | |
| 82 | SS8660810TP | SS8660810TP | |
| 39 | SS8660810TP | SS8660810TP | |
| 52 | SS8661030SP | SS8661030SP | |
| 4 | SS9151440CP | SS9151440CP | |
| 6 | TA0370601M0 | TA0370601M0 | |
| 66 | TA0550604R0 | TA0550604R0 | |
| 10 | TA0550604R0 | TA0550604R0 | |
| 31 | TA0800704R0 | TA0800704R0 | |
| 58 | TA1050504R0 | TA1050504R0 | |
| 58 | TA1050504R0 | TA1050504R0 | |
| 3 | TA1250406R0 | TA1250406R0 | |
| 15 | TA1250504R0 | TA1250504R0 | |
| 9 | TA1450404R0 | TA1450404R0 | |
| 40 | TA1750502R0 | TA1750502R0 | |
| 3 | WP0320501SC | WP0320501SC | |
| 12 | WP0320501SC | WP0320501SC | |
| 11 | WP0371016SD | WP0371016SD | |
| 11 | WP0430800SC | WP0430800SC | |
| 61 | WP0450801SD | WP0450801SD | |
| 34 | WP0482086SD | WP0482086SD | |
| 39 | WP0501016SD | WP0501016SD | |
| 18 | WP0501016SD | WP0501016SD | |
| 5 | WP0621016SD | WP0621016SD | |
| 2 | WP0621016SD | WP0621016SD | |
| 3 | WP0641601SD | WP0641601SD | |
| 58 | WP0650876SD | WP0650876SD | |
| 19 | WP0850002SP | WP0850002SP | |
| 19 | WP1702600S0 | WP1702600S0 | |
| 16 | WS0510002KN | WS0510002KN | |
| 3 | WS0610002KN | WS0610002KN | |
| 56 | WT0530002KS | WT0530002KS |
Juki LU-1510,1510-7 — parts catalog
- Page 1 (cover): This is the cover page for a parts list for the LU-1510, 1510-7 model sewing machine, list number 1277-03, published on 09/10/2017.
- Page 2 (toc): This page contains the table of contents for the parts catalog, listing various machine components and their corresponding page numbers.
- Page 3 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts indicated for identification.
- Page 4 (parts_list): This page lists frame and miscellaneous cover components for a sewing machine, including part numbers, descriptions, remarks, and quantities.
- Page 5 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts indicated for identification.
- Page 6 (parts_list): This page lists frame and miscellaneous cover components for the LU-1510 and LU-1510-7 models, including part numbers, descriptions, and quantities.
- Page 7 (diagram): This page displays a diagram of upper shaft, lower shaft driving, and balance components for an industrial sewing machine, with numbered parts indicated.
- Page 8 (parts_list): Parts list for the upper shaft, lower shaft driving and balance components, giving part numbers, names, remarks, levels and quantities for items 1 to 47.
- Page 9 (diagram): This page displays a diagram of upper shaft, lower shaft driving & balance components, with numbered parts for identification.
- Page 10 (parts_list): This page lists components for the upper shaft, lower shaft driving, and balance components, including part numbers, descriptions, and quantities.
- Page 11 (diagram): This page displays a diagram of needle bar rocking components, with numbered parts and their corresponding references.
- Page 12 (parts_list): Parts list of needle bar rocking components with 36 numbered entries giving part numbers, names, remarks, levels, and quantities.
- Page 13 (diagram): This page displays a diagram of components for the pressure adjusting and upper feed mechanism of an industrial sewing machine, with numbered parts indicated.
- Page 14 (parts_list): Parts list for the pressure adjusting and upper feed mechanism components, giving part numbers, names, remarks, level markers and quantities for items 1 to 47.
- Page 15 (diagram): This page displays a diagram of components for the pressure adjusting and upper feed mechanism of an industrial sewing machine, with numbered parts indicated for identification.
- Page 16 (parts_list): This page lists components for the PRESSURE ADJUSTING & UPPER FEED MECHANISM, including part numbers, descriptions, and quantities.
- Page 17 (diagram): This page displays a diagram of the pressure adjusting and upper feed mechanism components for an industrial sewing machine, with numbered parts for easy identification.
- Page 18 (parts_list): This page lists components for the pressure adjusting and upper feed mechanism, including part numbers, names, remarks, and quantities.
- Page 19 (diagram): This page displays a diagram of the feed mechanism components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 20 (parts_list): This page lists the components of the feed mechanism, including part numbers, descriptions, and quantities.
- Page 21 (diagram): This page displays a diagram of feed mechanism components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 22 (parts_list): This page lists components for the feed mechanism, including various screws, links, shafts, and dogs, with their part numbers and quantities.
- Page 23 (diagram): This page displays a diagram of hook shaft and lower shaft components for an industrial sewing machine, with numbered parts and their corresponding part numbers.
- Page 24 (parts_list): This page lists hook shaft and lower shaft components for the LU-1510-7 sewing machine, including part numbers, descriptions, and quantities.
- Page 25 (diagram): This page displays a diagram of hook shaft and lower shaft components for an industrial sewing machine, with numbered parts and their corresponding part numbers.
- Page 26 (parts_list): This page lists components for hook shaft and lower shaft, including various washers, hook shaft base, bobbin case parts, and screws, with part numbers, descriptions, and quantities.
- Page 27 (diagram): This page displays a diagram of thread cutting components for the LU-1510-7 sewing machine, with numbered parts indicated.
- Page 28 (parts_list): This page lists thread cutting components for the LU-1510-7 machine, including part numbers, descriptions, and quantities.
- Page 29 (diagram): This page displays a diagram of thread cutting components for the LU-1510-7 sewing machine, with various parts numbered for identification.
- Page 30 (parts_list): This page lists thread cutting components for the LU-1510-7 machine, including part numbers, names, and quantities.
- Page 31 (diagram): This page displays a diagram of automatic back components for the LU-1510-7 sewing machine, illustrating various parts with reference numbers.
- Page 32 (parts_list): This page lists automatic back components with part numbers, descriptions, remarks, and quantities.
- Page 33 (diagram): This page displays a diagram of thread tension components for model 1510-7, with numbered parts indicated.
- Page 34 (parts_list): This page lists thread tension components for model 1510-7, including part numbers, descriptions, and quantities.
- Page 35 (diagram): This page displays a diagram of thread tension components for the LU-1510 sewing machine, with numbered parts indicated.
- Page 36 (parts_list): This page lists thread tension components for the LU-1510 sewing machine, including part numbers, descriptions, and quantities.
- Page 37 (diagram): This page displays a diagram of knee lifting components for an industrial sewing machine, with numbered parts indicated for reference.
- Page 38 (parts_list): This page lists knee lifting components with part numbers, descriptions, and quantities.
- Page 39 (diagram): This page displays a diagram of the lower thread winder mechanism components, with numbered parts indicated.
- Page 40 (parts_list): This page lists components for the lower thread winder mechanism, including part numbers, names, and quantities.
- Page 41 (diagram): This page displays a diagram of the automatic presser lifting mechanism (option) components, with numbered parts for identification.
- Page 42 (parts_list): Parts table listing 24 components of the automatic presser lifting mechanism option, including air cylinder, screws, levers, shaft, elbow, knee switch assemblies and labels, with remarks and levels.
- Page 43 (diagram): This page displays a diagram of air mechanism components for the LU-1510-7 model, with numbered parts and their corresponding details.
- Page 44 (parts_list): This page lists air mechanism components for the LU-1510-7, including part numbers, descriptions, and quantities.
- Page 45 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with various parts numbered for identification.
- Page 46 (parts_list): This page lists lubrication components for a sewing machine, including part numbers, names, remarks, and quantities.
- Page 47 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 48 (parts_list): This page lists lubrication components for sewing machines, including part numbers, descriptions, and quantities.
- Page 49 (diagram): This page displays a diagram of belt cover and oil reservoir components, with numbered parts and their corresponding references.
- Page 50 (parts_list): Parts list table of belt cover and oil reservoir components, with part numbers, names, levels, and quantities for 36 items.
- Page 51 (diagram): This page displays a diagram of thread stand components, with numbered parts and their corresponding references.
- Page 52 (parts_list): This page lists the components for a thread stand, including part numbers, descriptions, and quantities.
- Page 53 (diagram): This page displays a diagram of optional parts for the presser bar, including a screw, washer, sleeve, pin, and springs.
- Page 54 (parts_list): This page lists optional parts for presser bar components, including part numbers, names, and quantities.
- Page 55 (diagram): This page displays a diagram of suspension square (option) components, with numbered parts including a screw, washers, and a main assembly.
- Page 56 (parts_list): This page lists the components for the Suspension Square (Option) including part numbers, descriptions, and quantities.
- Page 57 (diagram): This page displays a diagram of accessories, parts, and components for an industrial sewing machine, with numbered illustrations of various items.
- Page 58 (parts_list): This page lists accessories parts components for LU-1510-7, including part numbers, descriptions, and quantities.
- Page 59 (parts_list): This page lists optional walking feet and presser feet with their corresponding part numbers and sizes.
- Page 60 (parts_list): This page lists optional parts components for a sewing machine, including part numbers, descriptions, and quantities.
- Page 61 (parts_list): This page lists optional parts components for sewing machines, including various walking feet, presser feet, and feed driving eccentrics with their corresponding part numbers and descriptions.
- Page 62 (parts_list): This page lists optional parts components for an industrial sewing machine, including part numbers, names, and quantities.
- Page 63 (parts_list): This page contains a list of parts for a sewing machine, including added and obsolete parts, with their corresponding Rev. No., page, reference number, and part number.
- Page 64 (text): This page provides instructions on how to use the parts list, explaining codes and symbols used in the catalog, including how to interpret marks, references, and quantity notations.
- Page 65 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, corresponding page numbers, and reference numbers from diagrams.
- Page 66 (parts_list): This page contains a numerical index of parts for a sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
- Page 67 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, corresponding page numbers, and reference numbers from diagrams.
- Page 68 (index): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, corresponding page numbers, and reference numbers.
- Page 69 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
- Page 70 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
