Page 7 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 235-00978 | FACE PLATE COMPL. | 1 |
| 2 | 235-26205 | SIDE PLATE | 1 |
| 3 | 400-03586 | BED SUPPORT PLATE | 1 |
| 4 | 235-26403 | BED SUPPORT PLATE B | 1 |
| 5 | 400-11123 | THREAD RELEASE AUXILIARY PIN | 1 |
| 6 | 225-28764 | PRE-TENSION CONTROLLER ASM. | 1 |
| 7 | M6095-350-CAA | RESISTANCE PACK CA ASM. | 1 |
| 8 | M6096-350-CAL | RESISTANCE PACK CL ASM. | 1 |
| 9 | M6095-350-CAF | RESISTANCE PACK CF ASM. | 1 |
| 10 | M6096-350-CAF | RESISTANCE PACK CF ASM. | 1 |
| 11 | 400-03625 | RESISTANCE PACK CB 40 | 1 |
| 12 | 400-03626 | RESISTANCE PACK CB 45 | 1 |
| 13 | 400-03623 | RESISTANCE PACK CB 40U | 1 |
| 14 | 400-03624 | RESISTANCE PACK CB 45U | 1 |
| 15 | M6100-350-CAA | RESISTANCE PACK CA ASM. | 1 |
| 16 | M6097-350-CAA | RESISTANCE PACK CA ASM. | 1 |
| 17 | 400-03627 | RESISTANCE PACK CB 45D | 1 |
| 18 | M6099-350-CAF | RESISTANCE PACK CF ASM. | 1 |
| 19 | M6099-350-CAL | RESISTANCE PACK CL ASM. | 1 |
| 20 | M6098-350-CAF | RESISTANCE PACK CF ASM. | 1 |
| 21 | M6098-350-CAA | RESISTANCE PACK CA ASM. | 1 |
| 22 | 400-17100 | RESISTANCE PACK WB40 | 1 |
| 23 | 400-17101 | RESISTANCE PACK CB40 | 1 |
| 24 | 400-17102 | RESISTANCE PACK WB45 | 1 |
| 25 | 400-17103 | RESISTANCE PACK CB45 | 1 |
| 26 | 236-00604 | PULLEY COVER | 1 |
| 27 | SL-6052592-TN | BOLT | 4 |
| 28 | 236-01305 | AIR-DISCHARGING CAP | 1 |
| 29 | 236-29900 | AIR-DISCHARGING | 1 |
| 30 | 100-01709 | TAKE-UP THREAD CUTTER | 1 |
| TA-1250705-RO | RUBBER PLUG | ||
| 137-47308 | SUSPENSION SCREW | ||
| 229-20409 | THREAD RELEASE PIN SPRING | ||
| SS-8110750-SP | SCREW 11/64-40 L=6.5 | ||
| GPR-01015000 | RUBBER RING | ||
| RO-0801502-00 | RUBBER RING | ||
| RO-1331701-00 | SPRING PIN 8X20 | ||
| PS-0800202-KH | HINGE SCREW D=6.35 H=7.5 | ||
| SD-0640751-SP | CABLE BAND | ||
| EA-9500B01-00 | SCREW 11/64-40 L=7 | ||
| SS-1110710-SP | SCREW 9/64-40 L=7.2 | ||
| SS-2090710-TP | SCREW 11/64-40 L=9 | ||
| 263-05102 | BALANCE THREAD GUIDE B | ||
| 263-05409 | BALANCE COVER | ||
| SS-4120615-SP | SCREW 3/16-28 L=6 | ||
| SS-4120915-SP | SCREW 3/16-28 L=9 | ||
| SS-4121015-SP | SCREW 3/16-28 L=10 | ||
| SS-4150915-SP | SCREW 15/64-28 L=9 | ||
| 225-02108 | BALANCE COVER | ||
| 263-05300 | BALANCE COVER STOPPER SPRING | ||
| 400-03588 | HEAD SUPPORT A POKING | ||
| TA-0800504-RO | PLUG D=8 L=4.5 | ||
| TA-1250406-RO | RUBBER PLUG D=12.5 L=4 | ||
| WP-0501016-SD | WASHER 5X10.5X1 | ||
| WP-0651056-SD | WASHER 6.5X11X1 | ||
| D2112-555-B00 | CORD HOLDER LARGE | ||
| WZ-0641510-KP | WAVED WASHER 6.4X11X0.3 | ||
| 400-22407 | CORD HOLDER | ||
| WP-0330500-0E | WASHER 3.3X6X0.5 | ||
| #06 | 225-29101 | SUPPORT BALANCE BASE | |
| #06 | 225-29200 | MOUNTING BASE | |
| #06 | SS-6090540-SP | SCREW 11/64-40 L=9 | |
| #06 | SS-6580752-TP | SCREW 9/64-40 L=5.0 | |
| #06 | 400-03633 | THREAD TENSION ASM. B | |
| #06 | 400-03634 | THREAD TENSION ASM. A | |
| #06 | SS-8090670-SP | SCREW 1/8-40 L=7 | |
| #06 | 235-38309 | THREAD TAKE-UP SPRING | |
| #06 | 235-47557 | FELT | |
| #06 | 225-28509 | ROTATION STOPPER | |
| #06 | 229-21407 | THREAD TENSION ROD BASE ASM. | |
| #06 | 235-37665 | THREAD TENSION ROD COMPL. | |
| #06 | 235-37756 | THREAD RELEASE PIN | |
| #06 | 235-37814 | THREAD TENSION NUT | |
| #06 | B3121-352-000 | TENSION SPRING | |
| #06 | B3129-012-A00 | TENSION SPRING | |
| #01 | LZ-2290A-SR-7-CB | VARIOUS NOS. FOR DESTINATIONS | |
| #02 | LZ-2290A-SU-OB, | VARIOUS NOS. FOR DESTINATIONS | |
| LZ-2290A-SU-7-WB | VARIOUS NOS. FOR DESTINATIONS | ||
| #03 | LZ-2290A-SS-7-CB | VARIOUS NOS. FOR DESTINATIONS | |
| #04 | LZ-2290A-DS-7-CB, | VARIOUS NOS. FOR DESTINATIONS | |
| #05 | LZ-2290A-DS-OB, | VARIOUS NOS. FOR DESTINATIONS | |
| LZ-2290A-DU- | VARIOUS NOS. FOR DESTINATIONS | ||
| #06 | LZ-2290A-DU-7-WB | VARIOUS NOS. FOR DESTINATIONS | |
| #07 | LZ-2290A-DU-7-CB | VARIOUS NOS. FOR DESTINATIONS | |
| #08 | LZ-2290A-SS, | VARIOUS NOS. FOR DESTINATIONS | |
| #09 | LZ-2290A-SS-OB | VARIOUS NOS. FOR DESTINATIONS | |
| #10 | LZ-2290A-SU, | VARIOUS NOS. FOR DESTINATIONS | |
| #12 | LZ-2290A-SR-7-WB | VARIOUS NOS. FOR DESTINATIONS |
Page 9 — 2. FRAME & MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-11345 | GEAR BOX (LARGE) COVER | 1 |
| 2 | 235-26601 | GEAR BOX (LARGE) PACKING | 1 |
| 3 | 400-28463 | GEAR BOX (SMALL) COVER | 1 |
| 4 | 235-26809 | GEAR BOX (SMALL) PACKING | 1 |
| 5 | 235-27203 | PIPE GUIDE PLATE | 1 |
| 6 | M8524-476-AA0 | GROUND WIRE A ASM. | 1 |
| 7 | 225-82407 | NEEDLE PLATE | 1 |
| 8 | 229-01805 | GROUND MARK | 1 |
| 9 | 263-00103 | SEMILUNAR PLATE | 1 |
| 10 | 263-14757 | BED SLIDE ASM. | 1 |
| 11 | 110-01609 | BED SLIDE SPRING | (1) |
| 12 | SS-6060210-SP | SCREW 3/32-56 L=1.9 | (2) |
| 13 | CM-3002000-01 | ATTENTION SEAL | 1 |
| 14 | 262-30409 | LUBRICATING OIL WICK STOPPER | 1 |
| 15 | CM-3013000-01 | SAFETY LABEL | 1 |
| 16 | CM-3013000-01 | SAFETY LABEL | 1 |
| 17 | SS-2090810-SP | SCREW 9/64-40 L=7.5 | 2 |
| 18 | SS-2090810-SP | SCREW 9/64-40 L=7.5 | 2 |
| 19 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 20 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 21 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 22 | SS-4120915-SP | SCREW 3/16-28 L=9 | 4 |
| 23 | SS-4120915-SP | SCREW 3/16-28 L=9 | 12 |
| 24 | 400-28294 | FEED_ADJUSTING_CAP | 1 |
| 25 | 260-25106 | SPACER PLATE | 1 |
| 26 | SL-4051091-SC | SCREW M5X0.8 L=10 | 1 |
| 27 | 225-03908 | SPACER | 1 |
| 28 | 400-26835 | BOBBIN WINDER UNIT | 1 |
| 29 | 262-60109 | BTW_BASE | (1) |
| 30 | 262-60208 | BTW_CAM_PLATE | (1) |
| 31 | 262-60307 | BTW_BASE_SHAFT | (1) |
| 32 | 262-60406 | BTW_SHAFT_BASE | (1) |
| 33 | 262-60505 | BTW_CAM_LEVER | (1) |
| 34 | 262-60604 | BTW_WHEEL | (1) |
| 35 | 400-11144 | BTW_TORSION_SPRING | (1) |
| 36 | 262-60802 | BTW_BEARING_SPACER | (1) |
| 37 | 400-14837 | BTW_SHAFT | (1) |
| 38 | 262-61008 | BTW_LEVER_SHAFT | (1) |
| 39 | 400-21933 | BTW_LEVER | (1) |
| 40 | 262-61206 | BTW_SPACER | (1) |
| 41 | 262-61305 | BTW_BEARING | (2) |
| 42 | 262-61503 | BTW_WHEEL_RUBBER | (1) |
| 43 | 262-61602 | BOBBIN_SPRING | (1) |
| 44 | 262-61701 | BTW_SPRING | (1) |
| 45 | RC-0560711-KP | RETAINING RING | (1) |
| 46 | RE-0400000-KO | E-RING 4 | (1) |
| 47 | WP-0450826-SC | WASHER 4.5X10X0.8 | (1) |
| 48 | SM-5040655-SN | SCREW | (3) |
| 49 | SM-8050502-TP | SCREW M5 L=5 | (1) |
| 50 | SM-8040802-TP | SCREW M4X8 | (2) |
| 51 | SS-7090410-SP | SCREW 9/64-40 L=3.5 | 1 |
| 52 | SM-4040655-SP | SCREW M4 L=6 | 1 |
| 53 | 110-33008 | MAGNET | 1 |
| 54 | 400-24644 | MAGNET WASHER | 1 |
| 55 | ST-4040821-SS | TAPPING SCREW | 1 |
| 56 | 400-37008 | THREAD_CUTTER | 1 |
| 57 | SM-0051001-SC | SCREW | 2 |
| 58 | SM-0051001-SC | SCREW | 3 |
| 59 | SS-8111251-SP | SCREW 11/64-40 L=12.0 | 2 |
| 60 | EA-9500B02-00 | CABLE BAND 150 | 1 |
| 61 | 236-29108 | OIL SIGHT WINDOW | 1 |
| 62 | 235-39901 | HEAD LUBRICATION PIPE STOPPER | 1 |
| 63 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 64 | 235-41352 | SAFETY SWITCH ASM. | 1 |
| 65 | 235-41303 | SAFETY SWITCH BASE | (1) |
| 66 | 236-38109 | SAFETY SWITCH ARM | (1) |
| 67 | 236-38208 | SAFETY SWITCH SPRING | (1) |
| 68 | 236-38307 | SAFETY SWITCH ARM SHAFT | (1) |
| 69 | 236-38406 | SAFETY SWITCH STOPPER PLATE | (1) |
| 70 | 235-41451 | SAFETY SWITCH CORD ASM. | (1) |
| 71 | HK-0346100-60 | HOUSING 6P | (1) |
| 72 | EA-9500B01-00 | CABLE BAND | (1) |
| 73 | SM-4021201-SC | SCREW M2 L=12 | (2) |
| 74 | SS-4120915-SP | SCREW 3/16-28 L=9 | 2 |
| 75 | CM-3002000-03 | ATTENTION LABEL | 1 |
| 76 | 229-58300 | NEEDLE THREAD GUIDE PIN | 1 |
| 77 | 225-02504 | THREAD GUIDE BAR | 1 |
| 78 | 225-02702 | SPRING GUARD | 1 |
| 79 | 400-06012 | PM RELAY CABLE A ASM. | 1 |
| 80 | 400-06013 | PM RELAY CABLE B ASM. | 1 |
| 81 | 263-12504 | BALANCE THREAD GUIDE | 1 |
| 82 | 225-04104 | BALANCE THREAD GUIDE A | 1 |
| 83 | 400-35589 | RULER PLATE | 1 |
| 84 | 110-43601 | RUBBER STOPPER | 1 |
| 85 | 401-16677 | GOST_SAFTY_LABEL_S | 1 |
| 86 | SS-1110840-SP | SCREW 11/64-40 L=8 | 2 |
| 87 | 400-26836 | BOBBIN WINDER DRIVING WHEEL ASM. | 1 |
| 88 | 400-20454 | BTW DRIVING WHEEL ASM. | (1) |
| 89 | 235-28607 | BOBBIN DRIVING WHEEL BLADE | (3) |
| 90 | SM-4030501-SN | SCREW M3 L=5 | (3) |
| 91 | 225-29481 | BOBBIN THREAD TENSION ASM. | 1 |
| 92 | 225-29473 | BOBBIN THREAD TENSION ROD ASM. | (1) |
| 93 | B3214-047-000 | BOBBIN WINDER TENSION DISC | (2) |
| 94 | 110-93606 | THREAD TENSION SPRING | (1) |
| 95 | 110-72402 | THREAD TENSION NUT | (1) |
| 96 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 97 | CM-6001001-01 | WEEE MARK LABEL S | 1 |
Page 11 — 3. MAIN SHAFT & THREAD TAKE-UP & NEEDLE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 235-27906 | UPPER SHAFT | 1 |
| 2 | 400-10324 | COUNTER WEIGHT | 1 |
| 3 | 401-60261 | UPPER_SHAFT_SPROCKET | 1 |
| 4 | 235-28102 | NEEDLE ROD CRANK | 1 |
| 5 | 235-28250 | HAND WHEEL ASM. | 1 |
| 6 | 235-28359 | MAGNET FITTING BASE COMPL. U | (1) |
| 7 | 235-28458 | MAGNET FITTING BASE COMPL. D | (1) |
| 8 | 236-05009 | HAND WHEEL WASHER | (2) |
| 9 | 236-04804 | BALANCE PLATE | (1) |
| 10 | 235-28201 | HAND WHEEL | (1) |
| 11 | SL-4040881-SC | SCREW M4 L=8 | (2) |
| 12 | SL-4040881-SC | SCREW M4 L=8 | (1) |
| 13 | SM-8060812-TP | SCREW M6 L=8 | (2) |
| 14 | SB-1200013-CO | BEARING | 1 |
| 15 | 236-04200 | MAIN SHAFT BEARING SUPPORT | 1 |
| 16 | 225-06208 | BALANCE V | 1 |
| 17 | 225-05705 | TIMING BELT | 1 |
| 18 | 400-28014 | AC SERVO MOTOR | 1 |
| 19 | M6801-471-0A0 | SYNC ASM. | 1 |
| 20 | EA-9500B01-00 | CABLE BAND | 1 |
| 21 | SB-1200008-CO | BEARING | 1 |
| 22 | 236-05207 | BEARING HOLDER | 1 |
| 23 | SL-4040881-SC | SCREW M4 L=8 | 2 |
| 24 | SL-6052592-TN | BOLT | 3 |
| 25 | 100-08753 | TAKE-UP COUNTERWEIGHT ASM. | 1 |
| 26 | SS-1090930-SP | SCREW 9/64-40 L=8.6 | 3 |
| 27 | 400-15494 | NEEDLE BAR | 1 |
| 28 | SM-8060812-TP | SCREW M6 L=8 | 2 |
| 29 | SS-7681650-TP | SCREW 9/32-28 L=16 | 1 |
| 30 | SS-8680730-SP | SCREW 9/32-28 L=7 | 1 |
| 31 | SM-8060812-TP | SCREW M6 L=8 | 4 |
| 32 | SS-8660610-TP | SCREW 1/4-40 L=6 | 2 |
| 33 | 235-28755 | NEEDLE ROD CRANK ROD ASM. | 1 |
| 34 | 235-28706 | NEEDLE ROD CRANK ROD | (1) |
| 35 | SB-1080019-00 | BEARING | (2) |
| 36 | 400-10281 | NEEDLE ROD CRANK ROD GUIDE | 1 |
| 37 | 225-08006 | NEEDLE BAR CONNECTION GUIDE | 1 |
| 38 | 225-07701 | THRED RACK RIGHT | 1 |
| 39 | 225-07404 | THREAD RACK | 1 |
| 40 | SL-6052092-TN | SCREW | 1 |
| 41 | 400-70532 | NEEDLE_BAR_CONNECTION_ASM. | 1 |
| 42 | 400-56873 | NEEDLE BAR CONNECTION | (1) |
| 43 | SS-7090910-TP | SCREW 9/64-40 L=8.5 | (1) |
| 44 | MC-2005F07-00 | NEEDLE 134SUK 70 | 1 |
| 45 | MDP-500B1000 | NEEDLE DPX5 #10 | 1 |
| 46 | 235-44901 | THRUST BUSH | 2 |
| 47 | SS-7080520-SP | SCREW 1/8-44 L=4.9 | 1 |
| 48 | SS-7060310-SP | SCREW 3/32-56 L=3 | 1 |
| 49 | SS-4110915-SP | SCREW 11/64-40 L=9 | 2 |
| 50 | SS-4110915-SP | SCREW 11/64-40 L=9 | 2 |
| 51 | 235-29159 | NEEDLE ROD SUPPORT BASE ASM. | 1 |
| 52 | 235-29100 | NEEDLE ROD SUPPORT BASE | (1) |
| 53 | 235-29209 | NEEDLE ROD SUPPORT BASE SHAFT | (1) |
| 54 | 235-29308 | SUPPORT BASE GUIDE SHAFT | (1) |
| 55 | 235-29506 | NEEDLE ROD METAL | (2) |
| 56 | 235-29407 | NEEDLE ROD SUPPORT BASE FELT | (1) |
| 57 | PS-0400222-KO | SPRING PIN | (1) |
| 58 | SS-8120740-SP | SCREW 3/16-28 L=7 | (1) |
| 59 | 400-10315 | SUPPORT BASE SHAFT FRONT METAL | 1 |
| 60 | 235-31114 | SUPPORT BASE SHAFT REAR METAL | 2 |
| 61 | 400-10297 | SUPPORT BASE GUIDE PIN A | 1 |
| 62 | 400-10296 | SUPPORT BASE GUIDE PIN B | 1 |
| 63 | RO-0371801-00 | RUBBER RING | 1 |
| 64 | SS-8151230-SP | SCREW 15/64-28 L=12 | 1 |
| 65 | SM-8061212-TP | SCREW M6X12 | 1 |
| 66 | 400-03618 | METAL B | 1 |
| 67 | 400-10322 | SPRING | 1 |
| 68 | WP-0720516-SD | PLAIN WASHER | 1 |
| 69 | NM-6060001-SC | NUT M6 | 1 |
| 70 | CQ-2020000-00 | OIL WICK | 0.15 |
Page 13 — 4. NEEDLE VIBRATOR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 401-49235 | NEEDLE_VIBRATOR_UNIT | 1 |
| 2 | 401-49234 | NEEDLE_VIBRATOR_UNIT_BASIS | (1) |
| 3 | 400-10278 | MOTOR LINK | (1) |
| 4 | 400-10286 | JUNCTION SHAFT A | (1) |
| 5 | 400-10287 | JUNCTION SHAFT B | (1) |
| 6 | 400-10288 | JUNCTION SHAFT C | (1) |
| 7 | 400-10289 | JUNCTION SHAFT D | (1) |
| 8 | 400-08169 | SHAFT CONNECTION LINK | (1) |
| 9 | EA-9500B01-00 | CABLE BAND | (2) |
| 10 | WP-0520656-SA | WASHER 5.2X9.5X0.6 | (1) |
| 11 | 400-08119 | JUNCTION SHAFT A | (1) |
| 12 | 400-08120 | JUNCTION SHAFT B | (1) |
| 13 | 400-08121 | JUNCTION SHAFT C | (1) |
| 14 | 400-08118 | SUPPORT BASE SHAFT CONNECTION | (1) |
| 15 | 235-30702 | SENSOR FITTING PLATE | (1) |
| 16 | 235-30801 | SENSOR SLIT | (1) |
| 17 | 235-31007 | CORD CLAMP | (1) |
| 18 | KM-0000003-50 | PULSE MOTOR | (1) |
| 19 | M8523-476-AA0 | ZERO SENSOR A ASM. | (1) |
| 20 | SS-4110615-SP | SCREW 11/64-40 L=6 | (1) |
| 21 | SS-7121410-TP | SCREW 3/16-28 L=14 | (1) |
| 22 | SM-4030655-SP | SCREW | (2) |
| 23 | SM-4051255-SP | SCREW M5 L=12 | (1) |
| 24 | SM-4860801-SN | SCRER M2.6 L=8 | (1) |
| 25 | SM-6041002-TP | SCREW M4 L=10 | (3) |
| 26 | SS-7110740-TP | SCREW 11/64-40 L=7 | (2) |
| 27 | SM-8050612-TP | SCREW M5X6 | (1) |
| 28 | WP-0482016-SZ | WASHER | (2) |
| 29 | NM-6040001-SN | NUT M4X0.7 | (1) |
| 30 | SS-8090670-SP | SCREW 9/64-40 L=5.5 | (1) |
| 31 | 400-10298 | JUNCTION SHAFT COLLAR | (1) |
| 32 | SM-6041402-TP | SCREW M4 L=14 | (1) |
| 33 | 401-49236 | NEEDLE_VIBRATOR_UNIT_COVER | 1 |
| 34 | SM-6061002-TP | SCREW M6 L=10 | 3 |
| 35 | SS-4121215-SP | SCREW 3/16-28 L=12 | 4 |
Page 15 — 5. HAND LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 235-31304 | KNEE LIFTING SIDE ROD LINK | 1 |
| 2 | 235-31403 | KNEE LIFTING LINK | 1 |
| 3 | 235-31502 | KNEE LIFTING LINK SPRING | 1 |
| 4 | 400-03601 | KNEE LIFTING JUNCTION ROD | 1 |
| 5 | 236-09209 | PRESSER SPRING REGULATOR | 1 |
| 6 | 236-09001 | BUSHING | 1 |
| 7 | 263-08007 | LIFTING PLATE | 1 |
| 8 | 263-07850 | PRESSER LIFTER CAM COMPL. | 1 |
| 9 | 229-07802 | HAND LIFTER | 1 |
| 10 | 229-07604 | PRESSER SPRING REGULATOR NUT | 1 |
| 11 | 100-55051 | PRESSER FOOT ASM. | 1 |
| 12 | 225-84965 | PRESSER FOOT ASM. | 1 |
| 13 | 225-80864 | PRESSER ASM. | 1 |
| 14 | 235-03154 | PRESSER ASM. | 1 |
| 15 | 235-03162 | PRESSER ASM. | 1 |
| 16 | 401-25469 | PRESSER_BAR | 1 |
| 17 | 400-70531 | PRESSER_BAR_CONNECTION_ASM. | 1 |
| 18 | 263-02901 | PRESSER BAR HOLDER | (1) |
| 19 | SS-7111110-TP | SCREW 11/64-40 L=10.5 | (1) |
| 20 | 229-07703 | PRESSER GUIDE BAR | 1 |
| 21 | B1516-552-000 | LIFTING LEVER LINK | 1 |
| 22 | B1517-552-000 | HINGE PIN | 1 |
| 23 | B1521-555-000 | SCREW | 1 |
| 24 | B1523-226-000 | SNAP RING | 1 |
| 25 | B3416-552-000 | CONNECTING ROD HINGE SCREW | 1 |
| 26 | B3416-555-000 | SWIVEL | 1 |
| 27 | B3431-581-000 | LIFTING LEVER GASKET | 1 |
| 28 | GAK-33041000 | KNEE LIFTING LINK STEP-SCREW | 1 |
| 29 | NS-6620310-SP | NUT 3/16-32 | 1 |
| 30 | RE-0500000-K0 | E-RING | 1 |
| 31 | RE-0600000-K0 | E-RING 6 | 1 |
| 32 | RO-0371801-00 | RUBBER RING | 1 |
| 33 | SD-0600341-TP | HINGE SCREW D=6.0 H=3.4 | 1 |
| 34 | SD-0630275-SP | HINGE SCREW D=6.35 H=2.7 | 1 |
| 35 | SD-0630301-SP | HINGE SCREW D=6.35 H=3 | 1 |
| 36 | SD-0630371-SP | HINGE SCREW | 1 |
| 37 | SS-7090910-TP | SCREW 9/64-40 L=8.5 | 1 |
| 38 | B1505-227-T00-A | PRESSER SPRING T | 1 |
| 39 | SS-8150510-TP | SCREW 15/64-28 L=4.7 | 1 |
| 40 | SS-8152030-SP | SCREW 15/64-28 L=20 | 1 |
| 41 | WP-0740516-SP | WASHER 7.4X11.8X0.5 | 1 |
| 42 | 225-80369 | PRESSER FOOT ASM. | 1 |
| 43 | 229-07406 | PRESSER SPRING | 1 |
Page 17 — 6. FEED MECHANISM COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 235-32500 | FEED ADJUSTING SPRING | 1 |
| 2 | 400-10311 | HORIZONTAL FEED SHAFT | 1 |
| 3 | 235-32906 | REGULATE PLATE | 1 |
| 4 | 235-33003 | REGULATE PLATE | 1 |
| 5 | 235-32609 | FEED SPRING RACK | 1 |
| 6 | 235-32807 | FEED REVERSAL LINK | 1 |
| 7 | 400-10318 | FEED ADJUSTING A | 1 |
| 8 | 401-49246 | HORIZONTAL_FEED_CAM | 1 |
| 9 | 235-32401 | HORIZONTAL FEED CAM COVER | 1 |
| 10 | 235-32203 | FEED ADJUSTING PRESSER | 1 |
| 11 | 400-10313 | FEED CHANGE SHAFT | 1 |
| 12 | 400-10268 | FEED CHANGE ARM A ASM. | 1 |
| 13 | 400-10269 | FEED CHANGE ARM A | (1) |
| 14 | 229-10509 | FEED ADJUSTING LINK PIN | (1) |
| 15 | SS-7121410-TP | SCREW 3/16-28 L=14 | (1) |
| 16 | 400-10270 | FEED CHANGE ARM B ASM. | 1 |
| 17 | 400-10271 | FEED CHANGE ARM B | (1) |
| 18 | SS-8660612-TP | SCREW 1/4-40 L=6 | (1) |
| 19 | 235-32708 | FEED ADJUSTING ARM | 1 |
| 20 | 401-49244 | FEED_BASE_ASM | 1 |
| 21 | 401-49245 | FEED_BASE | (1) |
| 22 | SS-7091110-TP | SCREW 9/64-40 L=10.5 | (1) |
| 23 | 400-10276 | HORIZONTAL FEED JUNCTION ROD | 1 |
| 24 | 225-81508 | FEED DOG | 1 |
| 25 | RC-0150001-KP | RETAINING RING 13.8 | 1 |
| 26 | 401-39216 | OIL_SEAL | 1 |
| 27 | 236-12609 | FEED CHANGING SHAFT OIL SEAL | 1 |
| 28 | 236-12807 | METAL A | 1 |
| 29 | 236-12906 | METAL B | 1 |
| 30 | 236-13102 | FEED CHANGING SHAFT ARM B PIN | 2 |
| 31 | NS-6150310-SP | NUT 15/64-28 | 2 |
| 32 | 263-00509 | HORIZONTAL FEED ROD | 1 |
| 33 | 236-16709 | FEED ROCKER SHAFT METAL | 1 |
| 34 | 401-25485 | FEED_BASE_SHAFT | 1 |
| 35 | 229-40654 | FEED ROCKER ASM. | 1 |
| 36 | SS-7121410-TP | SCREW 3/16-28 L=14 | (1) |
| 37 | WP-0480856-SD | WASHER 4.8X8.4X0.8 | (1) |
| 38 | 100-27308 | PLATE A | 2 |
| 39 | 400-50457 | FEED DRIVING ROCKER BLOCK | 2 |
| 40 | B1608-555-0A0 | FEED ROCKER SHAFT CRANK ASM. | 1 |
| 41 | SB-3220002-CA | BEARING | 1 |
| 42 | SB-3220002-CB | BEARING | 1 |
| 43 | SB-3220002-CC | BEARING | 1 |
| 44 | SB-3220002-CD | BEARING | 1 |
| 45 | SB-3220002-CE | BEARING | 1 |
| 46 | B1653-470-000 | PIN | 1 |
| 47 | CS-1470710-SH | THRUST COLLAR ASM. D=14.72 W=7 | 2 |
| 48 | NS-6120310-SP | NUT 3/16-28 | 1 |
| 49 | NS-6680410-SP | NUT 9/32-28 | 2 |
| 50 | RE-0300000-KO | E-RING 3 | 1 |
| 51 | RE-0500000-KO | E-RING | 1 |
| 52 | SD-0600321-SP | HINGE SCREW D=6 H=3.2 | 1 |
| 53 | SD-0900701-TP | HINGE SCREW D=9 H=7 | 2 |
| 54 | SS-4080620-TP | SCREW 1/8-44 L=6 | 2 |
| 55 | SS-7110740-TP | SCREW 11/64-40 L=7 | 1 |
| 56 | SS-4150915-SP | SCREW 15/64-28 L=9 | 1 |
| 57 | SS-4150915-SP | SCREW 15/64-28 L=9 | 2 |
| 58 | SS-4110615-SP | SCREW 11/64-40 L=6 | 1 |
| 59 | SS-6580752-TP | SCREW 1/8-40 L=7 | 2 |
| 60 | SS-7110910-TP | SCREW 11/64-40 L=8.5 | 2 |
| 61 | SS-4110915-SP | SCREW 11/64-40 L=9 | 4 |
| 62 | CS-1000881-TP | THRUST COLLAR | 1 |
| 63 | SM-80506A2-TP | SCREW M5 L=6 | 2 |
| 64 | SS-8660810-TP | SCREW 1/4-40 L=8 | 2 |
| 65 | 400-10312 | HORIZONTAL FEED SHAFT U | 1 |
| 66 | 235-45304 | HORIZONTAL FEED SHAFT METAL B | 1 |
| 67 | 263-03206 | HORIZONTAL FEED JUNCTION ROD | 1 |
| 68 | 100-27100 | FEED ROCKER SHAFT CRANK | 1 |
| 69 | 263-03107 | VERTICAL FEED LINK SHAFT | 1 |
| 70 | 401-25483 | VERTICAL_FEED_LINK | 1 |
| 71 | 235-32005 | FEED ADJUSTING OIL SEAL | 1 |
| 72 | 400-11850 | CONNECTING ROD | 1 |
| 73 | 400-18430 | FEED DOG | 1 |
Page 19 — 7. FEED MECHANISM COMPONENTS (2)(EXCEPT LZ-2290A-SR-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 235-33706 | FEED ADJUSTING SHAFT METAL | 1 |
| 2 | 235-33805 | FEED ADJUSTING SHAFT | 1 |
| 3 | 235-33409 | FEED ADJUSTING ROD | 1 |
| 4 | 235-33904 | FEED ADJUSTING SCREW | 2 |
| 5 | 400-10272 | FEED BLIND CONTROLLER | 1 |
| 6 | 235-34019 | FEED ADJUSTING BASE | 2 |
| 7 | PS-0300122-KH | SPRING PIN 3X12 | 2 |
| 8 | 235-34407 | CONDENS DIAL | 1 |
| 9 | 235-34308 | CONDENS ADJUSTING SHAFT | 1 |
| 10 | 235-34258 | CONDENS STOPPER ASM. | 1 |
| 11 | 235-34209 | CONDENS STOPPER | (1) |
| 12 | SS-7121410-TP | SCREW 3/16-28 L=14 | (1) |
| 13 | 236-13607 | FEED LEVER | 1 |
| 14 | 236-13706 | FEED LEVER SHAFT | 1 |
| 15 | 236-13805 | FEED LEVER SHAFT METAL | 1 |
| 16 | 236-13953 | FEED LEVER ARM ASM. | 1 |
| 17 | SS-6121610-SP | SCREW 3/16-28 L=15.5 | (1) |
| 18 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 19 | 235-33607 | FEED ADJUSTING SHAFT | 1 |
| 20 | 110-71909 | FEED DIAL | 1 |
| 21 | 229-52501 | BACK LEVER STOPPER | 1 |
| 22 | 113-02700 | SPRING | 1 |
| 23 | SM-8060812-TP | SCREW M6 L=8 | 2 |
| 24 | SS-6121840-SP | SCREW 3/16-28 L=18 | 1 |
| 25 | SS-6121860-SP | SCREW 3/16-28 L=18 | 1 |
| 26 | SS-7121410-TP | SCREW 3/16-28 L=14 | 1 |
| 27 | SS-6121860-SP | SCREW 3/16-28 L=18 | 1 |
| 28 | SS-1110710-SP | SCREW 11/64-40 L=7 | 4 |
| 29 | WP-1651616-SD | WASHER | 3 |
| 30 | 235-34506 | FEED DIAL SPRING | 2 |
| 31 | 400-10273 | FEED BLIND CONTROLLER U | 1 |
| 32 | 235-45007 | CONDENS DIAL U | 1 |
| 33 | 263-02000 | FEED DIAL | 1 |
Page 21 — 8. FEED MECHANISM COMPONENTS (3)(FOR LZ-2290A-SR-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-11831 | ASSY FEED PULSE MOTOR UNIT | 1 |
| 2 | 400-11832 | FEED PULSE MOTOR BASE | (1) |
| 3 | 400-09305 | SUSPENSION SCREW | (1) |
| 4 | NS-6090310-SP | NUT 9/64-40 | (1) |
| 5 | WP-0460556-SD | WASHER 4.6X7.5X0.5 | (2) |
| 6 | SL-4040891-SC | SCREW M4 L=8 | (2) |
| 7 | 400-11839 | SENSOR BASE | (1) |
| 8 | M8523-476-AA0 | ZERO SENSOR A ASM. | (1) |
| 9 | SM-4860801-SN | SCRER M2.6 L=8 | (1) |
| 10 | SL-4040891-SC | SCREW M4 L=8 | (1) |
| 11 | KM-0000003-50 | PULSE MOTOR | (1) |
| 12 | SM-6042502-TP | SCREW M4X0.7 L=25 | (2) |
| 13 | SM-6041602-TP | SCREW M4X0.7 L=16 | (2) |
| 14 | NM-6040000-SN | NUT M4 | (4) |
| 15 | 400-11843 | PIPE GUIDE PLATE C | (1) |
| 16 | 400-22407 | CORD HOLDER | (4) |
| 17 | SL-4040891-SC | SCREW M4 L=8 | (4) |
| 18 | 400-11836 | PULSE MOTOR LINK B | (1) |
| 19 | 400-11840 | SENSOR SLIT | (1) |
| 20 | SL-4030581-SC | COMBINATION SCREW M3X5 | (1) |
| 21 | SM-8050612-TP | SCREW M5X6 | (1) |
| 22 | SM-4051655-SP | SCREW M5 L=16 | (1) |
| 23 | 400-11833 | ASSY PULSE MOTOR LINK A | (1) |
| 24 | 400-10286 | JUNCTION SHAFT A | (1) |
| 25 | 400-10287 | JUNCTION SHAFT B | (1) |
| 26 | 400-10288 | JUNCTION SHAFT C | (1) |
| 27 | 400-10289 | JUNCTION SHAFT D | (1) |
| 28 | 400-11838 | FEED LINK SHAFT | (1) |
| 29 | 400-11837 | PULSE MOTOR LINK C | (1) |
| 30 | SM-8050612-TP | SCREW M5X6 | (2) |
| 31 | SS-7111810-TP | SCREW 11/64-40 L=18 | (2) |
| 32 | 235-41352 | SAFETY SWITCH ASM. | (1) |
| 33 | 235-41303 | SAFETY SWITCH BASE | (1) |
| 34 | 236-38109 | SAFETY SWITCH ARM | (1) |
| 35 | 236-38208 | SAFETY SWITCH SPRING | (1) |
| 36 | 236-38307 | SAFETY SWITCH ARM SHAFT | (1) |
| 37 | 236-38406 | SAFETY SWITCH NUT | (1) |
| 38 | 235-41451 | SAFETY SWITCH CORD ASM. | (1) |
| 39 | HK-0346100-60 | HOUSING 6P | (1) |
| 40 | EA-9500B01-00 | CABLE BAND | (1) |
| 41 | SM-4021201-SC | SCREW M2 L=12 | (2) |
| 42 | SS-4151215-SP | SCREW 15/64-28 L=12 | 3 |
| 43 | 400-17098 | BTPM RELAY CABLE ASM. | 1 |
| 44 | B3508-220-000 | OIL TUBE HOLDER | 1 |
| 45 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 46 | 400-11841 | BED SUPPORT PLATE B | 1 |
| 47 | 400-11842 | PIPE GUIDE PLATE B | 1 |
| 48 | CM-3003000-03 | ATTENTION SEAL 2(31.5) | 1 |
Page 23 — 9. FEED MECHANISM COMPONENTS (4)(FOR LZ-2290A-SR-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-11847 | ASSY FEED LEVER ROD | 1 |
| 2 | 400-11848 | FEED LEVER ROD | (1) |
| 3 | 118-46805 | HOLDER PIN | (1) |
| 4 | SM-8060612-TP | SCREW M6 L=6 | (1) |
| 5 | 110-50705 | LEVER RETURN SPRING | 1 |
| 6 | 400-11849 | FEED LEVER SHAFT | 1 |
| 7 | B1114-280-000 | PIN | 1 |
| 8 | 400-11844 | VOLUME LINK | 1 |
| 9 | SM-8050612-TP | SCREW M5X6 | 1 |
| 10 | 400-11846 | LEVER SENSOR PLATE | 1 |
| 11 | SL-6051092-TN | BOLT | 2 |
| 12 | EA-9500B01-00 | CABLE BAND | 2 |
| 13 | HD-0015300-00 | SENSOR | 1 |
| 14 | 400-16039 | FEED LEVER SENSOR ASSY | 1 |
| 15 | TA-1250406-R0 | RUBBER PLUG D=12.5 L=4 | 1 |
| 16 | SS-6121860-SP | SCREW 3/16-28 L=18 | 1 |
| 17 | 229-52501 | BACK LEVER STOPPER | 1 |
| 18 | 236-13607 | FEED LEVER | 1 |
| 19 | SM-8060812-TP | SCREW M6 L=8 | 2 |
| 20 | 236-13805 | FEED LEVER SHAFT METAL | 1 |
| 21 | 236-13953 | FEED LEVER ARM ASM. | 1 |
| 22 | SS-6121610-SP | SCREW 3/16-28 L=15.5 | (1) |
Page 25 — 10. HOOK DRIVING SHAFT COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 235-35107 | HOOK SHAFT FRONT METAL | 1 |
| 2 | 400-03590 | HOOK SHAFT BEARING ASM. | 2 |
| 3 | 235-35602 | HOOK DRIVING SHAFT REAR METAL | 1 |
| 4 | 400-10283 | HOOK SHAFT | 1 |
| 5 | 400-03567 | HOOK DRIVING SHAFT | 1 |
| 6 | 235-36303 | HOOK DRIVING GEAR (SMALL) A | 1 |
| 7 | 235-36402 | HOOK DRIVING GEAR (SMALL) B | 1 |
| 8 | 235-36501 | HOOK DRIVING GEAR (SMALL) C | 1 |
| 9 | 235-36600 | HOOK DRIVING GEAR (SMALL) D | 1 |
| 10 | 235-36709 | HOOK DRIVING GEAR (SMALL) E | 1 |
| 11 | 235-36808 | HOOK DRIVING GEAR (SMALL) F | 1 |
| 12 | 400-03599 | BOBBIN CASE COMPL. | 1 |
| 13 | 400-03598 | BOBBIN CASE ASM. | 1 |
| 14 | 225-25877 | HOOK COMPL. V | 1 |
| 15 | 225-96704 | BOBBIN S | 1 |
| 16 | 235-03402 | INNER HOOK STOPPER | 1 |
| 17 | B1308-155-000 | MITRE GEAR SMALL | 1 |
| 18 | B1307-155-0A0 | GEAR ASM. LARGE | 1 |
| 19 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 20 | 110-15906 | OIL WICK | 1 |
| 21 | 229-16506 | SET SCREW | 1 |
| 22 | RO-0360802-00 | RUBBER RING | 1 |
| 23 | RO-0481901-00 | RUBBER RING | 1 |
| 24 | SS-4110915-SP | SCREW 11/64-40 L=9 | 1 |
| 25 | SS-8110520-TP | SCREW 11/64-40 L=4.5 | 4 |
| 26 | SS-8660810-TP | SCREW 1/4-40 L=8 | 2 |
| 27 | SS-8660810-TP | SCREW 1/4-40 L=8 | 2 |
| 28 | 401-20730 | HOOK SHAFT OIL SEAL | 2 |
| 29 | 400-10282 | OIL SEAL COLLAR | 2 |
| 30 | 400-10261 | PUMP METAL ASM. | 1 |
| 31 | 400-10262 | PUMP METAL | (1) |
| 32 | TA-0180401-MO | NEEDLE COOLER PLUG CAP | (7) |
| 33 | 236-28902 | PLUNGER SPRING | 3 |
| 34 | 236-29009 | PLUNGER SCREW | 3 |
| 35 | RO-0681901-00 | RUBBER RING | 3 |
| 36 | RO-1721801-00 | RUBBER RING | 1 |
| 37 | SS-8111251-SP | SCREW 11/64-40 L=12.0 | 1 |
| 38 | TA-0850604-RO | RUBBER PLUG | 1 |
| 39 | 235-38903 | HOOK DRIVING GEAR (SMALL) S | 1 |
| 40 | 228-90008 | HOOK DRIVING SHAFT OIL SEAL | 2 |
| 41 | 236-28803 | PLUNGER | 3 |
| 42 | 400-11424 | HOOK GEAR BOX OIL SEAL | 2 |
Page 27 — 11. HOOK DRIVING SHAFT COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-10316 | LOWER SHAFT FRONT BEARING BUSH | 1 |
| 2 | 400-10314 | LOWER SHAFT INNER METAL | 1 |
| 3 | 235-36055 | LOWER SHAFT INNER BEARING ASM. | 1 |
| 4 | 235-36105 | LOWER SHAFT REAR BUSH | 1 |
| 5 | 235-36253 | LOWER SHAFT REAR BEARING ASM. | 1 |
| 6 | 400-10303 | LOWER SHAFT | 1 |
| 7 | 401-49251 | HELICAL_GEAR_A | 1 |
| 8 | 401-49252 | HELICAL_GEAR_B | 1 |
| 9 | 401-49253 | HELICAL_GEAR_C | 1 |
| 10 | 401-49254 | HELICAL_GEAR_D | 1 |
| 11 | G1615-880-000 | OIL SEAL | 1 |
| 12 | SB-3100010-C0 | BEARING | 2 |
| 13 | SS-6660710-TP | SCREW 1/4-40 L=7 | 2 |
| 14 | SS-8110750-SP | SCREW 11/64-40 L=6.5 | 2 |
| 15 | SS-8660810-TP | SCREW 1/4-40 L=8 | 2 |
| 16 | SM-8060812-TP | SCREW M6 L=8 | 2 |
| 17 | 235-41709 | THREAD TRIMMER CAM | 1 |
| 18 | CS-1000881-TP | THRUST COLLAR | 1 |
| 19 | SS-6660710-TP | SCREW 1/4-40 L=7 | 2 |
| 20 | 401-60262 | LOWER_SHAFT_SPROCKET | 1 |
| 21 | B2508-704-000 | OIL SEAL | 2 |
| 22 | G1615-880-000 | OIL SEAL | 1 |
| 23 | SM-80506A2-TP | SCREW M5 L=6 | 2 |
Page 29 — 12. THREAD TRIMMER MECHANISM COMPONENTS(FOR LZ-2290A-SS-7,LZ-2290A-SU-7,LZ-2290A-SR-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-10290 | BASE PLATE ASM. | 1 |
| 2 | 235-42053 | CLUTCH PLATE ASM. | 1 |
| 3 | 235-42103 | CLUTCH RETURN SPRING | 1 |
| 4 | 235-42202 | KNIFE RETURN SPARING | 1 |
| 5 | 235-41808 | MOVING KNIFE LINK | 1 |
| 6 | 110-40854 | KNIFE DRIVING ARM ASM. | 1 |
| 7 | 229-49002 | ROLLER ARM SEAT | 1 |
| 8 | 229-49101 | ROLLER FULCRUM SHAFT | 1 |
| 9 | 225-54505 | CLUTCH LINK | 1 |
| 10 | 235-42301 | THREAD TRIMMER SOLENOID | 1 |
| 11 | 400-10295 | MOVING KNIFE LINK PIN | 1 |
| 12 | 225-54802 | MOVING KNIFE LINK BASE | 1 |
| 13 | 225-54901 | DRIVING ARM STOPPER | 1 |
| 14 | 225-55304 | ROLLER RETURN SPRING | 1 |
| 15 | 225-55551 | FORK KNIFE ASM. | 1 |
| 16 | 225-55858 | ROLLER ARM ASM. | 1 |
| 17 | 225-56906 | FIXED PLATE | 1 |
| 18 | 225-57458 | KNIFE UNIT | 1 |
| 19 | 225-58308 | SLIDING PLATE | (1) |
| 20 | 225-58407 | KNIFE BASE | (1) |
| 21 | 225-57557 | DRIVING KNIFE ASM. | (1) |
| 22 | 225-57706 | FIXED KNIFE | (1) |
| 23 | 225-57805 | KNIFE STOPPER RIGHT | (1) |
| 24 | 225-57904 | KNIFE STOPPER LEFT | (1) |
| 25 | 225-58209 | SPRING | (1) |
| 26 | 225-58159 | CLAMP PLATE ASM. | (1) |
| 27 | 225-58001 | FELT | (1) |
| 28 | 225-58100 | CLAMP PLATE | (1) |
| 29 | SS-7090610-SP | SCREW 9/64-40 L=6 | (2) |
| 30 | SS-1090510-SP | SCREW 9/64-40 L=5 | (2) |
| 31 | SS-7060310-SP | SCREW 3/32-56 L=3 | (1) |
| 32 | SS-7060310-SP | SCREW 3/32-56 L=3 | (1) |
| 33 | NP-2103000-00 | LOCATING SPRING WASHER | (1) |
| 34 | WS-0270002-KN | SPRING WASHER M2.6 | (1) |
| 35 | D2056-772-B0B | WASHER B T=0.4 | (1) |
| 36 | 235-42418 | CLUTCH LINK PIN | 1 |
| 37 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 38 | NS-6150430-SP | NUT 15/64-28 | 1 |
| 39 | NM-6030001-SB | NUT M3 | 2 |
| 40 | RE-0400000-KO | E-RING 4 | 2 |
| 41 | RE-0500000-KO | E-RING | 1 |
| 42 | RE-0600000-KO | E-RING 6 | 1 |
| 43 | RE-0600000-KO | E-RING 6 | 1 |
| 44 | SD-0600291-TP | HINGE SCKEW D=6 H=2.9 | 1 |
| 45 | SD-0791503-SP | HINGE SCREW D=7.94 H=15 | 1 |
| 46 | SM-4040601-SC | SCREW M4X0.7 L=6 | 3 |
| 47 | SS-2110920-TP | SCREW 11/64-40 L=8.5 | 1 |
| 48 | SS-2111010-TP | SCREW 11/64-40 L=9.5 | 1 |
| 49 | SS-4110915-SP | SCREW 11/64-40 L=9 | 2 |
| 50 | SS-4150915-SP | SCREW 15/64-28 L=9 | 2 |
| 51 | SS-7090610-SP | SCREW 9/64-40 L=6 | 1 |
| 52 | WP-0621016-SH | WASHER | 1 |
| 53 | 229-19203 | OIL PROTECTING RUBBER | 1 |
| 54 | BP-6000000-00 | VINYL PIPE | 1 |
Page 30 — 13. FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 100-25906 | SPACER | 1 |
| 2 | 235-01901 | FEED BASE | 1 |
| 3 | 229-13206 | FEED BASE SHAFT | 1 |
| 4 | 235-01802 | FEED BASE SHAFT B | 1 |
| 5 | 229-13107 | FEED BASE ARM | 1 |
| 6 | SS-7110740-TP | SCREW 11/64-40 L=7 | 1 |
| 7 | 235-45403 | VERTICAL FEED ARM | 1 |
| 8 | 235-01356 | VERTICAL FEED CAM ASM. | 1 |
| 9 | 112-14806 | PIN | 1 |
| 10 | 235-01703 | LINK B | 1 |
| 11 | 235-01604 | FEED BASE LINK | 1 |
| 12 | SS-7121410-TP | SCREW 3/16-28 L=14 | 1 |
| 13 | SS-6110820-TP | SCREW 11/64-40 L=8 | 2 |
| 14 | RC-0330415-KP | SNAP RING | 2 |
| 15 | SM-8050612-TP | SCREW M5X6 | 2 |
| 16 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 1 |
| 17 | WP-0500916-SD | WASHER 5X7X0.9 | 1 |
| 18 | 235-45106 | LOWER SHAFT U | 1 |
| 19 | 400-10264 | VERTICAL FEED LINK | 1 |
| 20 | 235-58406 | VERTICAL FEED LINK SHAFT D | 2 |
| 21 | SS-7121410-TP | SCREW 3/16-28 L=14 | 1 |
| 22 | 235-59909 | VERTICAL FEED ROD PIN DU | 1 |
| 23 | RE-0300000-KO | E-RING 3 | 2 |
Page 31 — 14. AUTOMATIC REVERSE FEED MECHANISM COMPONENTS(FOR LZ-2290A-SS-7,LZ-2290A-SU-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 235-42509 | AUTOMATIC REVERSE FEED LINK | 1 |
| 2 | 400-10307 | AUTOMATIC REVERSE FEED ARM | 1 |
| 3 | 400-08596 | SOLENOID BASE ASM. | 1 |
| 4 | 401-08063 | REVERSE FEED SOLENOID | (1) |
| 5 | 401-08064 | REVERSE FEED SOLENOID PLUNGER | (1) |
| 6 | 235-42707 | REVERSE FEED SOLENOID BASE | (1) |
| 7 | D2468-555-B00 | RUBBER PLUNGER | (1) |
| 8 | RE-1200000-KO | E-RING 12 | (1) |
| 9 | SS-7110740-TP | SCREW 11/64-40 L=7 | (3) |
| 10 | WP-1703001-SC | WASHER 17X30X3 | (1) |
| 11 | HK-0346400-0B | PIN CONTACT | (2) |
| 12 | CM-3003000-03 | ATTENTION SEAL 2(3.15) | (1) |
| 13 | 113-14408 | PLUNGER ARM PIN | 1 |
| 14 | NS-6110350-SP | NUT 11/64-40 | 2 |
| 15 | SD-0600452-TP | HINGE SCREW D=6 H=4.5 | 2 |
| 16 | SD-0951501-SP | HINGE SCREW D=9.53 H=15 | 1 |
| 17 | SS-4150915-SP | SCREW 15/64-28 L=9 | 2 |
| 18 | 400-10280 | SOLENOID BASE STUD | 2 |
Page 32 — 15. THREAD FEEDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 235-38457 | FEEDER SOLENOID ASM. | 1 |
| 2 | 400-10321 | FEEDER WIRE FITTING BASE | 1 |
| 3 | 235-38606 | FEEDER WIRE | 1 |
| 4 | SS-6110650-TP | SCREW 11/64-40 L=5.5 | 1 |
| 5 | SS-8151230-SP | SCREW 15/64-28 L=12 | 1 |
| 6 | SS-8110422-TP | SCREW 11/64-40 L=4 | 2 |
Page 33 — 16. MANUAL SWITCH COMPONENTS (FOR LZ-2290A-SS,LZ-2290A-SU)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-03582 | MANUAL SWITCH BASE COMPL. | 1 |
| 2 | 400-03570 | SWLED CABLE A ASM. | (1) |
| 3 | 400-03583 | MANUAL SWITCH BASE ASM. | (1) |
| 4 | 400-03575 | UP-AND-DOWN SWITCH BASE | (1) |
| 5 | 400-03578 | MANUAL SWITCH BASE | (1) |
| 6 | SS-4110515-SP | SCREW 11/64-40 L=5 | (1) |
| 7 | EA-9500B01-00 | CABLE BAND | (1) |
| 8 | HK-0346101-20 | HOUSING 12P | (1) |
Page 35 — 17. MANUAL SWITCH COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-03574 | MANUAL SWITCH BASE COMPL. A | 1 |
| 2 | 400-03570 | SWLED CABLE A ASM. | (1) |
| 3 | 400-03577 | MANUAL SWITCH BASE ASM. A | (1) |
| 4 | 400-03575 | UP-AND-DOWN SWITCH BASE | (1) |
| 5 | 400-03578 | MANUAL SWITCH BASE | (1) |
| 6 | 400-03579 | TOUCH BACK SWITCH BASE ASM. | (1) |
| 7 | 400-03580 | TOUCH BACK SWITCH BASE | (1) |
| 8 | 400-03581 | REVERSE FEED CORD ASM. | (1) |
| 9 | 236-31708 | REVERSE FEED SWITCH COVER | (1) |
| 10 | 236-31807 | REVERSE FEED SWITCH SHAFT | (1) |
| 11 | 236-31906 | REVERSE FEED SWITCH SUPPORT | (1) |
| 12 | 236-32102 | REVERSE FEED SWITCH BASE GUIDE | (1) |
| 13 | EA-9500B01-00 | CABLE BAND | (1) |
| 14 | SS-7110740-TP | SCREW 11/64-40 L=7 | (1) |
| 15 | SS-4110515-SP | SCREW 11/64-40 L=5 | (3) |
| 16 | EA-9500B01-00 | CABLE BAND | (1) |
| 17 | HK-0346101-20 | HOUSING 12P | (1) |
| 18 | 400-03573 | MANUAL SWITCH BASE COMPL. B | 1 |
| 19 | 400-03570 | SWLED CABLE A ASM. | (1) |
| 20 | 400-03576 | MANUAL SWITCH BASE ASM. B | (1) |
| 21 | 400-03575 | UP-AND-DOWN SWITCH BASE | (1) |
| 22 | 400-03578 | MANUAL SWITCH BASE | (1) |
| 23 | 400-03581 | REVERSE FEED CORD ASM. | (1) |
| 24 | 236-31708 | REVERSE FEED SWITCH COVER | (1) |
| 25 | 236-31807 | REVERSE FEED SWITCH SHAFT | (1) |
| 26 | 236-31906 | REVERSE FEED SWITCH SUPPORT | (1) |
| 27 | 236-32102 | REVERSE FEED SWITCH BASE GUIDE | (1) |
| 28 | EA-9500B01-00 | CABLE BAND | (1) |
| 29 | SS-4110515-SP | SCREW 11/64-40 L=5 | (1) |
| 30 | SS-7110740-TP | SCREW 11/64-40 L=7 | (1) |
| 31 | EA-9500B01-00 | CABLE BAND | (1) |
| 32 | HK-0346101-20 | HOUSING 12P | (1) |
| 33 | TA-0950806-R0 | RUBBER PLUG | 1 |
| 34 | SS-4120615-SP | SCREW 3/16-28 L=6 | 2 |
Page 37 — 18. THREAD RELEASE SOLENOID COMPONENTS(FOR LZ-2290A-SS-7,LZ-2290A-SU-7,LZ-2290A-SR-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-03572 | SOLENOID COMPL. A | 1 |
| 2 | 400-03574 | MANUAL SWITCH BASE COMPL. A | (1) |
| 3 | 400-03570 | SWLED CABLE A ASM. | (1) |
| 4 | 400-03577 | MANUAL SWITCH BASE ASM. A | (1) |
| 5 | 400-03575 | UP-AND-DOWN SWITCH BASE | (1) |
| 6 | 400-03578 | MANUAL SWITCH BASE | (1) |
| 7 | 400-03579 | TOUCH BACK SWITCH BASE ASM. | (1) |
| 8 | 400-03580 | TOUCH BACK SWITCH BASE | (1) |
| 9 | 400-03581 | REVERSE FEED CORD ASM. | (1) |
| 10 | 236-31708 | REVERSE FEED SWITCH COVER | (1) |
| 11 | 236-31807 | REVERSE FEED SWITCH SHAFT | (1) |
| 12 | 236-31906 | REVERSE FEED SWITCH SUPPORT | (1) |
| 13 | 236-32102 | REVERSE FEED SWITCH BASE GUIDE | (1) |
| 14 | EA-9500B01-00 | CABLE BAND | (1) |
| 15 | SS-7110740-TP | SCREW 11/64-40 L=7 | (1) |
| 16 | SS-4110515-SP | SCREW 11/64-40 L=5 | (3) |
| 17 | EA-9500B01-00 | CABLE BAND | (1) |
| 18 | HK-0346101-20 | HOUSING 12P | (1) |
| 19 | 137-05603 | FRAME SIDE COVER GASKET | (2) |
| 20 | 225-52905 | THREAD RELEASE PUSH PLATE | (1) |
| 21 | 400-03651 | THREAD RELEASE SOLENOID ASM. | (1) |
| 22 | NM-6030001-SC | NUT M3 | (2) |
| 23 | NM-6040001-SN | NUT M4X0.7 | (1) |
| 24 | SS-4121015-SP | SCREW 3/16-28 L=10 | 4 |
| 25 | PS-0300182-KF | SPRING PIN 3X18 | 1 |
| 26 | 400-03571 | SOLENOID COMPL. B | 1 |
| 27 | 400-03573 | MANUAL SWITCH BASE COMPL. B | (1) |
| 28 | 400-03570 | SWLED CABLE A ASM. | (1) |
| 29 | 400-03576 | MANUAL SWITCH BASE ASM. B | (1) |
| 30 | 400-03575 | UP-AND-DOWN SWITCH BASE | (1) |
| 31 | 400-03578 | MANUAL SWITCH BASE | (1) |
| 32 | 400-03581 | REVERSE FEED CORD ASM. | (1) |
| 33 | 236-31708 | REVERSE FEED SWITCH COVER | (1) |
| 34 | 236-31807 | REVERSE FEED SWITCH SHAFT | (1) |
| 35 | 236-31906 | REVERSE FEED SWITCH SUPPORT | (1) |
| 36 | 236-32102 | REVERSE FEED SWITCH BASE GUIDE | (1) |
| 37 | EA-9500B01-00 | CABLE BAND | (1) |
| 38 | SS-4110515-SP | SCREW 11/64-40 L=5 | (1) |
| 39 | SS-7110740-TP | SCREW 11/64-40 L=7 | (1) |
| 40 | EA-9500B01-00 | CABLE BAND | (1) |
| 41 | HK-0346101-20 | HOUSING 12P | (1) |
| 42 | 137-05603 | FRAME SIDE COVER GASKET | (1) |
| 43 | 225-52905 | THREAD RELEASE PUSH PLATE | (1) |
| 44 | 400-03651 | THREAD RELEASE SOLENOID ASM. | (1) |
| 45 | NM-6030001-SC | NUT M3 | (2) |
| 46 | NM-6040001-SN | NUT M4X0.7 | (1) |
| 47 | SS-4121015-SP | SCREW 3/16-28 L=10 | 4 |
| 48 | PS-0300182-KF | SPRING PIN 3X18 | 1 |
Page 39 — 19.LUBRICATION COMPONENTS(EXCEPT LZ-2290A-DS,LZ-2290A-DS-7,LZ-2290A-DU,LZ-2290A-DU-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 401-75861 | OIL_TANK | 1 |
| 2 | 235-39372 | HOOK OIL REGULATING ASM. | 1 |
| 3 | 235-39315 | HOOK OIL REGULATING | (1) |
| 4 | 235-39414 | HOOK OIL REGULATING SCREW | (2) |
| 5 | 236-29801 | LUBRICATION CONNECTOR | (5) |
| RO-0371801-00 | RUBBER RING | (2) | |
| SS-4120615-SP | SCREW 3/16-28 L=6 | 2 | |
| 236-30106 | TUBE B | 0.39 | |
| 400-00344 | LUBRICATING INLET CAP | 1 | |
| WP-0460556-SD | WASHER 4.6X7.5X0.5 | 3 | |
| 235-40305 | FLOATER CASE CAP | 1 | |
| SL-6052092-TN | SCREW | 2 | |
| 235-40057 | ONCE THROUGH OIL FELT ASM. | 1 | |
| 235-40008 | ONCE THROUGH OIL FELT | (1) | |
| 236-30007 | TUBE | (1.07) | |
| B3536-122-000 | FLOATER | 1 | |
| 236-28357 | FLOATER ASM. | 1 | |
| 236-28704 | FLOATER CASE | 15 | |
| 236-29306 | PIPE STOPPER A | 3 | |
| 236-29405 | PIPE STOPPER B | 1 | |
| 235-39703 | LUBRICATION TANK PIPE GUIDE | 1 | |
| 235-40107 | ONCE THROUGH OIL FELT PRESSER | 1 | |
| RO-0481901-00 | RUBBER RING | 1 | |
| 400-00343 | LUBRICATING INLET | 5 | |
| 400-13595 | OIL_EXIT_CAP | 1 | |
| RO-0982401-00 | RUBBER RING | 1 | |
| RO-1952401-00 | RUBBER RING | 2 | |
| SS-4110615-SP | SCREW 11/64-40 L=6 | 2 | |
| SS-4110815-SP | SCREW 11/64-40 L=8 | 2 | |
| SS-4121615-SP | SCREW 3/16-28 L=16 | 1 | |
| SS-4111415-SP | SCREW 11/64-40 L=14 | 0.16 | |
| M8002-430-000 | STOPPER | 0.16 | |
| 401-49239 | TUBE B | (2) | |
| 400-50598 | FACE LUBRICATION TANK ASM. | (1) | |
| SM-0081001-SD | LUBRICATION CONNECTOR | (0.475) | |
| TA-0850604-RO | SCREW | (0.188) | |
| 401-49240 | RUBBER PLUG | (1) | |
| 400-22407 | FACE LUBRICATION TANK | (1) | |
| SL-4051091-SC | RUBBER RING | (0.42) | |
| 235-39562 | SCREW M5X0.8 L=10 | (0.46) | |
| 235-39513 | FACE LUBRICATION PRESSER ASM. | (1) | |
| B3518-280-000 | FACE LUBRICATION PRESSER | (2) | |
| CQ-2200000-00 | TUBE | (0.04) | |
| 101-26803 | PIPE STOPPER A | 1 | |
| 236-30452 | OIL TUBE HOLDER | (1) | |
| 236-30650 | PIPE STOPPER B | 1 | |
| 236-30601 | OIL FILTER JOINT ASM. | 1 | |
| 401-76805 | TUBE | 0.11 | |
| TA-0750404-RO | OIL_TANK_PLATE | 1 | |
| EA-9500B01-00 | PLUG D=7.5 L=3.5 | 1 |

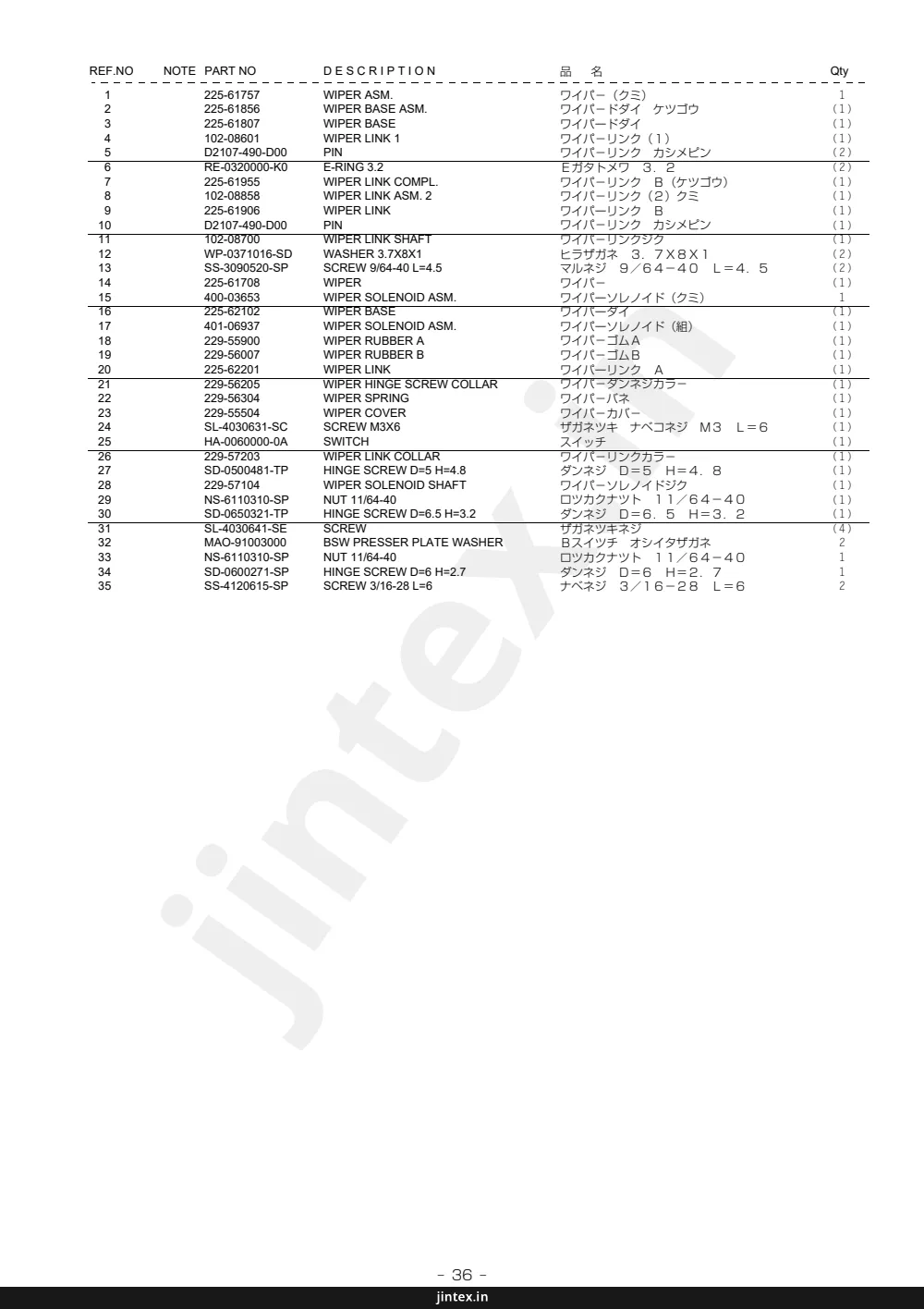

Page 41 — 20. WIPER MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 225-61757 | WIPER ASM. | 1 |
| 2 | 225-61856 | WIPER BASE ASM. | (1) |
| 3 | 225-61807 | WIPER BASE | (1) |
| 4 | 102-08601 | WIPER LINK 1 | (1) |
| 5 | D2107-490-D00 | PIN | (2) |
| 6 | RE-0320000-K0 | E-RING 3.2 | (2) |
| 7 | 225-61955 | WIPER LINK COMPL. | (1) |
| 8 | 102-08858 | WIPER LINK ASM. 2 | (1) |
| 9 | 225-61906 | WIPER LINK | (1) |
| 10 | D2107-490-D00 | PIN | (1) |
| 11 | 102-08700 | WIPER LINK SHAFT | (1) |
| 12 | WP-0371016-SD | WASHER 3.7X8X1 | (2) |
| 13 | SS-3090520-SP | SCREW 9/64-40 L=4.5 | (2) |
| 14 | 225-61708 | WIPER | (1) |
| 15 | 400-03653 | WIPER SOLENOID ASM. | 1 |
| 16 | 225-62102 | WIPER BASE | (1) |
| 17 | 401-06937 | WIPER SOLENOID ASM. | (1) |
| 18 | 229-55900 | WIPER RUBBER A | (1) |
| 19 | 229-56007 | WIPER RUBBER B | (1) |
| 20 | 225-62201 | WIPER LINK | (1) |
| 21 | 229-56205 | WIPER HINGE SCREW COLLAR | (1) |
| 22 | 229-56304 | WIPER SPRING | (1) |
| 23 | 229-55504 | WIPER COVER | (1) |
| 24 | SL-4030631-SC | SCREW M3X6 | (1) |
| 25 | HA-0060000-0A | SWITCH | (1) |
| 26 | 229-57203 | WIPER LINK COLLAR | (1) |
| 27 | SD-0500481-TP | HINGE SCREW D=5 H=4.8 | (1) |
| 28 | 229-57104 | WIPER SOLENOID SHAFT | (1) |
| 29 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 30 | SD-0650321-TP | HINGE SCREW D=6.5 H=3.2 | (1) |
| 31 | SL-4030641-SE | SCREW | (4) |
| 32 | MAO-91003000 | BSW PRESSER PLATE WASHER | 2 |
| 33 | NS-6110310-SP | NUT 11/64-40 | 1 |
| 34 | SD-0600271-SP | HINGE SCREW D=6 H=2.7 | 1 |
| 35 | SS-4120615-SP | SCREW 3/16-28 L=6 | 2 |
Page 43 — 21. UNDER COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-03603 | UNDER COVER ASM. | 1 |
| 2 | 400-03604 | UNDER COVER | (1) |
| 3 | 110-47107 | RUBBER CUSHION | (2) |
| 4 | 101-62600 | RUBBER CUSHION | (2) |
| 5 | 229-32453 | BRACKET ASM. | (1) |
| 6 | 229-32404 | BRACKET | (1) |
| 7 | SM-9062053-SR | SCREW M6 L=20 | (2) |
| 8 | 400-03606 | KNEE LIFTER ROTATING ARM ASM. | (1) |
| 9 | 236-39107 | BRACKET | (1) |
| 10 | SM-8063012-TR | SCREW M6 L=30 | (2) |
| 11 | NM-6060001-SE | NUT M6 | (2) |
| 12 | 236-39206 | CONNECTING ROT | (1) |
| 13 | 236-39305 | KNEE PRESS ROD | (1) |
| 14 | 236-39404 | SHAFT | (1) |
| 15 | 236-39503 | SPRING | (1) |
| 16 | 236-39602 | CONNECTING ROD | (1) |
| 17 | NS-6150310-SP | NUT 15/64-28 | (2) |
| 18 | RE-1000000-KO | E-RING 10 | (2) |
| 19 | RE-1000000-KO | E-RING 10 | (1) |
| 20 | SD-0720331-SP | HINGE SCREW D=7.24 H=3.3 | (2) |
| 21 | SM-9061853-SR | SCREW M6 L=17.5 | (1) |
| 22 | SM-9061853-SR | SCREW M6 L=17.5 | (1) |
| 23 | WP-0650876-SD | WASHER 6.5X13X0.8 | (2) |
| 24 | 400-03605 | COOLING FAN | (1) |
| 25 | 400-03607 | FILTER | (2) |
| 26 | 229-44508 | WIRE PRESSER A | (2) |
| 27 | HM-0008600-10 | FAN FILTER | (1) |
| 28 | SM-1044050-SM | SCREW M4X0.7 L=40 | (2) |
| 29 | SM-4040601-SC | SCREW M4X0.7 L=6 | (2) |
| 30 | 229-34251 | KNEE PAD PLATE ASM. | 1 |
| 31 | SM-9061203-SE | SCREW M6 L=12 | (1) |
| 32 | 229-34202 | KNEE PAD PLATE | (1) |
| 33 | 229-34301 | KNEE PAD PLATE SUPPORT | (1) |
| 34 | 229-34400 | KNEE PAD PLATE RUBBER | (1) |
| 35 | 229-34509 | KNEE PAD PLATE COVER | (1) |
| 36 | 229-34608 | KNEE PAD UPRIGHT SHAFT | (1) |
Page 44 — 22. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-30358 | THREAD STAND ASM. | 1 |
| 2 | 229-31109 | SPOOL RETAINER | (2) |
| 3 | 229-31000 | SPOOL PIN | (2) |
| 4 | 229-30903 | SPOOL REST CUSHION | (2) |
| 5 | 229-30804 | SPOOL REST | (2) |
| 6 | SM-6061610-SC | SCREW M6 L=16 | (2) |
| 7 | 229-30705 | THREAD GUIDE ARM JOINT | (2) |
| 8 | 229-31406 | SPOOL REST ROD RUBBER CAP | (1) |
| 9 | 229-30507 | SPOOL REST ARM | (2) |
| 10 | 229-30408 | SPOOL REST ROD UPPER | (1) |
| 11 | 229-31307 | SPOOL REST ROD JOINT | (1) |
| 12 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 13 | NM-6050001-SE | NUT M5 | (2) |
| 14 | 229-30309 | SPOOL REST ROD LOWER | (1) |
| 15 | 229-31208 | THREAD GUIDE | (2) |
| 16 | WS-0510002-KN | SPRING WASHER | (2) |
| 17 | NM-6050001-SE | NUT M5 | (2) |
| 18 | NM-6160511-SE | NUT M16X1.5 | (1) |
| 19 | WP-1702600-SO | WASHER 17X30X2.6 | (2) |
| 20 | WS-1643202-KR | SPRING WASHER | (1) |
| 21 | 269-10059 | THREAD GUIDE ARM ASM. | 1 |
| 22 | 401-06583 | THREAD GUIDE 6 | (1) |
| 23 | 401-06580 | THREAD GUIDE UNDER BASE | (1) |
| 24 | 401-06576 | THREAD GUIDE ARM | (1) |
| 25 | 401-06579 | THREAD GUIDE ARM BASE | (1) |
| 26 | SM-4041201-SC | SCREW_M4X0.7_L=12 | (2) |
| 27 | NM-6040002-SE | NUT M4X0.7 | (2) |
| 28 | SM-4041201-SC | SCREW_M4X0.7_L=12 | (1) |
| 29 | SM-4042501-SC | SCREW M4X0.7 L=25 | (1) |
| 30 | NM-6040002-SE | NUT M4X0.7 | (2) |
Page 45 — IP-100 PANEL COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 401-22922 | PANEL_D_ASSY | 1 |
| 2 | 401-22923 | PANEL_E_ASSY | 1 |
| 3 | 401-08879 | PANEL_ASSY | (1) |
| 4 | 401-08880 | PANEL_PCB_ASSY | (1) |
| 5 | 401-05708 | FRONT_PANEL | (1) |
| 6 | 401-06354 | MEMBRANE SWITCH | (1) |
| 7 | 401-05715 | LCD_COVER | (1) |
| 8 | 401-05720 | LCD_MODULE | (1) |
| 9 | ST-4030851-SN | SCREW | (4) |
| 10 | 401-05717 | ONLINE_INDICATOR | (1) |
| 11 | 401-09555 | METAL_FOIL_SHEET | (1) |
| 12 | SM-4030401-SN | SCREW M3 L=4 | (1) |
| 13 | 401-05714 | CONNECTOR_COVER_B | (1) |
| 14 | 401-05716 | POWER_INDICATOR | (1) |
| 15 | 401-05707 | BACK_PANEL | (1) |
| 16 | SV-4032001-SN | SCREW | (4) |
| 17 | ST-4030851-SN | SCREW | (1) |
| 18 | 401-05713 | CONNECTOR_COVER_A | (1) |
| 19 | 400-05848 | D-SUB 9P COVER | (1) |
| 20 | 401-05188 | CORD_EXIT_COVER | (1) |
| 21 | 401-23001 | PANEL_BRACKET | (1) |
| 22 | SV-4031001-SN | SCREW | (4) |
| 23 | 401-19704 | CONVERTER_CABLE_ASSY | (1) |
| 24 | CM-5001000-03 | CE LABEL | (1) |
| 25 | 401-15767 | TYPE LABEL D0C | (1) |
| 26 | 400-24479 | TYPE LABEL E0A | (1) |
| 27 | 400-55293 | CF TYPE-A | 1 |
| 28 | 400-55295 | CF TYPE-D | 1 |
| 29 | 400-08168 | OP SWITCH CABLE A ASSY | 1 |
Page 47 — 24. SC-915/SC-916 TRANSMISSION COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-05951 | CTL PCB A ASM. | 1 |
| 2 | 400-00056 | FLT-T PCB A ASS'Y | 1 |
| 3 | 400-00046 | FLT-S PCB A ASS'Y | 1 |
| 4 | 400-05979 | REGENERATIVE RESISTANCE A ASM. | 1 |
| 5 | 400-06000 | REAR COVER A ASM. | 1 |
| 6 | 400-06001 | REAR COVER 200V 1-PHASE ASM. | 1 |
| 7 | 400-12697 | REAR COVER A ASSY | 1 |
| 8 | 400-12698 | REAR COVER B ASSY | 1 |
| 9 | 400-15548 | REAR COVER | (1) |
| 10 | CM-3001004-01 | LABEL 3 (LARGE) | (1) |
| CM-3001000-03 | VOLTAGE WARNING LABEL(25) | ||
| CM-3004006-01 | VOLTAGE CAUTION LABEL | ||
| HX-0022200-0B | CABLE CLAMP | ||
| SL-4040881-SC | SCREW M4 L=8 | ||
| 400-03451 | CONTROL BOX | ||
| M3801-476-000 | TRANSMISSION BOX FITTING PLATE | ||
| 401-54493 | FAN ASSY | ||
| HX-0033700-0B | SPACER | ||
| SL-6083092-TN | SCREW | ||
| WS-0410002-KN | SPRING WASHER | ||
| WP-0430801-SC | WASHER 4.3X9X0.8 | ||
| M4206-461-000 | WASHER | ||
| WP-0841601-SC | WASHER 8.4X17.4X1.6 | ||
| NM-6080001-SC | NUT M8X1.25 | ||
| SL-4040891-SC | SCREW M4 L=8 | ||
| NM-3040520-SF | FLANGE NUT M4 | ||
| SL-4044091-SE | SCREW M4 L=40 | ||
| 400-05987 | PDD RELAY CORD A ASM. | ||
| 400-05985 | DC85 VOLT CORD A ASM. | ||
| 400-05986 | DC33 VOLT CORD A ASM. | ||
| 400-16451 | CTL PCB A ASSY | ||
| HX-0051100-00 | WIRE SADDLE | ||
| 400-06003 | CTL CLAMP HOLDER PLATE | ||
| 400-15544 | BTPM POWER CABLE ASSY | ||
| 400-05404 | FAN MOTOR BRACKET | ||
| SL-4033091-SC | SCREW M3 X 0.5 L=30 | ||
| 400-13881 | BTPM PCB A ASSY | ||
| 400-13864 | BTPM PCB HOLDER BOARD | ||
| HX-0014700-OC | SPACER | ||
| HX-0033900-00 | STUD | ||
| HX-0059400-00 | SPACER | ||
| SM-9041050-SC | SCREW M4X0.7 L=10 |
Page 49 — 25. SC-915/SC-916 TRANSMISSION COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-06021 | PWR CIRCUIT BOARD A ASM. | 1 |
| 2 | 400-05980 | PEDAL SENSOR UNIT A ASM. | 1 |
| 3 | SM-8040802-TP | SCREW M4X8 | (2) |
| 4 | 400-05981 | SENSOR FITTING PLATE A ASM. | (1) |
| 5 | M4006-461-000 | SENSOR INSTALLING PLATE | (1) |
| 6 | EA-9500B01-00 | CABLE BAND | (1) |
| 7 | M4001-461-000 | PEDAL SENSOR BASE | (1) |
| 8 | M4002-461-000 | PEDAL LEVER | (1) |
| 9 | M4004-461-000 | PEDAL RING | (1) |
| 10 | M4005-461-000 | VOLUME LINK | (1) |
| 11 | M2010-110-000 | ADJUST NUT | (2) |
| 12 | M4007-351-000 | FRONT SPRING | (1) |
| 13 | M4008-351-000-A | SPRING SHAFT A | (1) |
| 14 | M4009-351-000-A | SPRING SHAFT B | (1) |
| 15 | SV-4030601-SR | SCREW M3 L=6 | (2) |
| 16 | M4011-351-000 | SPRING B | (2) |
| 17 | M4012-351-000 | ADJUST SCREW | (2) |
| 18 | SM-4030801-SF | SCREW M3X0.5 L=8 | (1) |
| 19 | SL-4040881-SC | SCREW M4 L=8 | 9 |
| 20 | SL-4041681-SF | SCREW M4 L=16 | 3 |
| 21 | 400-05975 | AC INPUT 3-PHASE CORD A ASM. | 1 |
| 22 | 400-05976 | AC INPUT 1-PHASE CORD A ASM. | 1 |
| 23 | 400-05990 | FRONT COVER A ASM. | 1 |
| 24 | 400-05992 | FRONT COVER 200V 1-PHASE ASM. | 1 |
| 25 | 400-05991 | TRANSMISSION BOX FRONT COVER | (1) |
| 26 | CM-3001000-03 | VOLTAGE WARNING LABEL(25) | (1) |
| 27 | CM-3001004-01 | LABEL 3 (LARGE) | (1) |
| 28 | HX-0040700-00 | BUSH | (1) |
| 29 | 178-45009 | CORD FITTING PLATE | (1) |
| 30 | SL-4042091-SC | SCREW M4X0.7 L=20 | (2) |
| 31 | SL-4041091-SE | SCREW M4 L=10 | 3 |
| 32 | SL-4040891-SC | SCREW M4 L=8 | 2 |
| 33 | 400-05977 | AC INPUT 1-PHASE CORD CE ASM. | 1 |
| 34 | CM-2001000-01 | PE MARK LABEL | 1 |
| 35 | HX-0041000-0A | STRAIN RELIEF BUSHING | 1 |
| 36 | E9567-319-000 | EARTH MARK | 1 |
| 37 | SL-4040891-SC | SCREW M4 L=8 | 6 |
| 38 | HX-0018800-0D | BUSH | 1 |
| 39 | 400-06002 | BOX HORIZONTAL COVER | 1 |
| 40 | HX-0022200-0A | CABLE CLAMP | 4 |
| 41 | HX-0051100-00 | WIRE SADDLE | 4 |
Page 50 — 26. SC-915/SC-916 ACCESSORIE PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-05390 | POWER CABLE JE ASM. | 1 |
| 2 | 401-13427 | POWER SWITCH | 1 |
| 3 | 400-06010 | BOX ACCESSORIE PART A ASM. | 1 |
| 4 | 229-58458 | CONNECTING ROD ASM. B | (1) |
| 5 | HF-0013010-00 | TIMING LAG FUSE 10A | (1) |
| 6 | HF-0078020-PO | FUSE 2A | (1) |
| 7 | MTS-HJ100003 | BOLT | (2) |
| 8 | NM-6080002-SC | NUT M8 | (2) |
| 9 | WP-0852086-SC | WASHER M8 | (2) |
| 10 | WS-0820002-KR | SPRING WASHER M8 | (2) |
| 11 | SM-6084002-TN | SCREW M8 L=40 | (1) |
| 12 | WS-0820002-KR | SPRING WASHER M8 | (1) |
| 13 | WP-0841601-SC | WASHER 8.4X17.4X1.6 | (1) |
| 14 | SK-3512001-SE | WOOD SCREW D=5.1 L=20 | (2) |
| 15 | MAO-11532000 | CORD STAPLE | (5) |
| 16 | HX-0051000-00 | OMEGALOCK | (1) |
| 17 | 400-05988 | HEAD FAN RELAY CORD A ASM. | (1) |
| 18 | M9034-580-0A0 | GROUND CORD ASM. | 1 |
| 19 | M9024-580-0A0 | POWER CABLE ASM. 100V | 1 |
| 20 | M9017-580-0A0 | POWER CABLE ASM. | 1 |
| 21 | M9035-580-0A0 | POWER SOURCE CORD ASM. | 1 |
Page 51 — 27. ACCESSORIE PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 225-87174 | ACCESSORIE BAG | 1 |
| 225-96704 | BOBBIN S | ||
| 229-33204 | SCREW DRIVER SMALL | ||
| 236-39701 | KNEE LIFTER PRESSER ROD | ||
| 229-32800 | ACCESSORIE BAG | ||
| B9102-057-000 | WRENCH (3/32) | ||
| 229-58052 | RUBBER HINGE ASM. | ||
| 229-58003 | FRAME BUBBER CUSHION | ||
| 229-26208 | NAIL | ||
| 229-26356 | HINGE COMPL. | ||
| 229-26505 | WASHER | ||
| 229-26000 | RUBBER CUSHION | ||
| 262-34005 | VINYL COVER | ||
| MDP-500B1002 | NEEDLE DPX5 #10-2 | ||
| 236-40006 | SHEET | ||
| 100-25906 | SPACER | ||
| 225-36502 | TIMING GAUGE E | ||
| 141-01208 | HEAD SUPPORT BAR | ||
| MDF-RX1200C0 | NEW DEFRIX OIL NO.1 (200ML) | ||
| B9121-012-0A0 | OILER ASM. | ||
| 400-06323 | JUKE GREASE A TUBE | ||
| 225-03908 | SPACER | ||
| MC-1923007-52 | NEEDLE 438 #75-2 |
Page 52 — 28. COMMON PARTS FOR LZ-2290A-DS,LZ-2290A-DS-7,LZ-2290A-DU,LZ-2290A-DU-7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 235-56053 | NEEDLE ROD SUPPORT BASE D ASM. | 1 |
| 2 | 235-56004 | NEEDLE ROD METAL D | (2) |
| 3 | 235-56301 | SUPPORT BASE GUIDE SHAFT D | (1) |
| 4 | 235-56202 | NEEDLE ROD CRANK ROD GUIDE D | 1 |
| 5 | 235-56103 | NEEDLE ROD HOLDER D | 1 |
| 6 | 235-58109 | INNER HOOK STOPPER D | 1 |
| 7 | 400-03609 | BOBBIN CASE D3 COMPL. | 1 |
| 8 | 400-03610 | BOBBIN CASE D3 ASM. | 1 |
| 9 | 235-57259 | HOOK COMPL. D | 1 |
| 10 | SS-4120915-SP | SCREW 3/16-28 L=9 | 2 |
| 11 | 235-58208 | FEED D | 1 |
| 12 | 235-58000 | FEED BASE D | 1 |
| 13 | 235-58406 | VERTICAL FEED LINK SHAFT D | 1 |
| 14 | 400-10264 | VERTICAL FEED LINK | 1 |
| 15 | 235-57101 | OIL SEAL COLLAR D | 1 |
| 16 | 235-57051 | BEARING D AMS. | 1 |
| 17 | SS-8110410-TP | SCREW 11/64-40 L=3.5 | 2 |
| 18 | 235-35255 | HOOK SHAFT BEARING ASM. | 1 |
| 19 | SS-8110510-SP | SCREW 11/64-40 L=5 | 2 |
Page 53 — 29. CB TYPE (1) (PRESSER FOOT COMPONENTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-03542 | WIDE KNIFE PRESSER ASM. | 1 |
| 2 | 400-03543 | PRESSER (UPPER) | (1) |
| 3 | 400-03544 | PRESSER (LOWER) WIDE | (1) |
| 4 | 400-03545 | FINGER GUARD | (1) |
| 5 | 400-03547 | FIXING PLATE (WIDE) COMPL. | (1) |
| 6 | 400-03546 | KNIFE FIXING PLATE (WIDE) | (1) |
| 7 | 400-03553 | KNIFE STOPPER SCREW | (2) |
| 8 | 114-34206 | THREAD CUTTER KNIFE | (2) |
| 9 | 400-03554 | STOPPER SCREW | (2) |
| 10 | 100-56109 | PRESSER PIN A | (1) |
| 11 | B1525-582-000 | SPRING | (1) |
| 12 | SS-6090810-SP | SCREW 9/64-40 L=7.5 | (1) |
| 13 | 400-03549 | NARROW KNIFE PRESSER ASM. | 1 |
| 14 | 400-03543 | PRESSER (UPPER) | (1) |
| 15 | 400-03545 | FINGER GUARD | (1) |
| 16 | 400-03550 | PRESSER LOWER (NARROW) | (1) |
| 17 | 400-03552 | FIXING PLATE (NARROW) COMPL. | (1) |
| 18 | 400-03551 | KNIFE FIXING PLATE (NARROW) | (1) |
| 19 | 400-03553 | KNIFE STOPPER SCREW | (1) |
| 20 | 114-34206 | THREAD CUTTER KNIFE | (1) |
| 21 | 400-03554 | STOPPER SCREW | (2) |
| 22 | 225-47806 | PRESSER PIN | (1) |
| 23 | B1525-582-000 | SPRING | (1) |
| 24 | SS-6090810-SP | SCREW 9/64-40 L=7.5 | (1) |
Page 55 — 30. CB TYPE (2) (THREAD HOLDER & AIR COMPONENTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | PJ-0325260-01 | HOSE NIPPLE | 1 |
| 2 | 114-29305 | CLAMP HEAD | 1 |
| 3 | 400-03536 | CLAMP BASE A | 1 |
| 4 | 400-03537 | CLAMP BASE B | 1 |
| 5 | 114-29008 | CLAMP CYLINDER | 1 |
| 6 | 114-28505 | CLAMP BALL | 1 |
| 7 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 8 | PJ-3090405-01 | ELBOW UNION | 1 |
| 9 | 400-03538 | HEAD COVER | 1 |
| 10 | 114-27705 | HEAD BUSH | 1 |
| 11 | 400-03562 | ELECTROMAGNETIC VALVE COMPL. | 1 |
| 12 | 400-03565 | FITTING PLATE | (1) |
| 13 | PV-1352070-00 | 3-PORT ELECTROMAGNETIC VALVE | (1) |
| 14 | PV-1305390-00 | 3-PORT ELECTROMAGNETIC VALVE | (1) |
| 15 | PJ-3010852-01 | HALF UNION | (1) |
| 16 | PJ-3040652-01 | ELBOW UNION 6XPT1/4 | (1) |
| 17 | PJ-3010605-03 | HALF UNION | (1) |
| 18 | PX-0505010-00 | SILENCER | (1) |
| 19 | SL-4850891-SC | SCREW M2.5 L=8 | (2) |
| 20 | PJ-0251000-02 | PLUG R1/8 | (1) |
| 21 | SL-4030891-SC | SCREW M3X8 | (2) |
| 22 | NM-6030001-SC | NUT M3 | (2) |
| 23 | 400-03560 | REGULATOR ASM. | 1 |
| 24 | PF-0152030-A0 | FILTER REGULATOR | (1) |
| 25 | PF-9020050-00 | REGULATOR BRACKET | (1) |
| 26 | PJ-3080800-01 | UNION Y | 1 |
| 27 | F1012-003-0A0 | NOZZLE ASM. | 1 |
| 28 | B1155-771-000 | CUSHION | 1 |
| 29 | SK-3412000-SC | WOOD SCREW D=4.1 L=20 | 2 |
| 30 | 400-03564 | CORD ASM. | 1 |
| 31 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 32 | SS-4110715-SP | SCREW 11/64-40 L=7 | 1 |
| 33 | SK-3412000-SC | WOOD SCREW D=4.1 L=20 | 2 |
| 34 | 114-28802 | DUST BAG | 1 |
| 35 | PJ-3010800-01 | REDUCER | 1 |
| 36 | HX-0028900-00 | BEADE BAND | 1 |
| 37 | BT-1601001-Z0 | TUBE | 0.4 |
| 38 | BT-0400251-EB | URETHANE HOSE BLACK | 1.5 |
| 39 | BT-0600401-EB | TUBE | 0.14 |
| 40 | PX-9500090-00 | PLUG | 1 |
| 41 | BT-0800501-EB | VINYL TUBE | 0.06 |
| 42 | BT-0800501-EB | VINYL TUBE | 0.3 |
| 43 | BT-0600401-EB | TUBE | 0.13 |
| 44 | BT-0800501-EB | VINYL TUBE | 1.3 |
| 45 | PJ-3080852-02 | UNION Y | 1 |
| 46 | BT-1601001-Z0 | TUBE | 0.15 |
| 47 | D8204-555-D00 | DRAWER STOPPER | 2 |
Page 57 — 31. CB TYPE (3) (WIPER MECHANISM COMPONENTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-03534 | WIPER FITTING BASE ASM. | 1 |
| 2 | 114-25907 | WIPER COVER | 1 |
| 3 | SL-4030631-SC | SCREW M3X6 | 1 |
| 4 | SD-0650321-TP | HINGE SCREW D=6.5 H=3.2 | 1 |
| 5 | NS-6090310-SP | NUT 9/64-40 | 1 |
| 6 | 229-56106 | WIPER LINK A | 1 |
| 7 | 400-03529 | WIPER LINK B | 1 |
| 8 | RE-0250000-KO | E-RING 2.5 | 1 |
| 9 | 229-56908 | WIPER LINK B HINGE SCREW | 1 |
| 10 | 229-56205 | WIPER HINGE SCREW COLLAR | 1 |
| 11 | 229-56304 | WIPER SPRING | 1 |
| 12 | NS-6110310-SP | NUT 11/64-40 | 1 |
| 13 | 229-55900 | WIPER RUBBER A | 1 |
| 14 | 229-56007 | WIPER RUBBER B | 1 |
| 15 | 401-06937 | WIPER SOLENOID ASM. | 1 |
| 16 | 229-57104 | WIPER SOLENOID SHAFT | 1 |
| 17 | HA-0060000-0A | SWITCH | 1 |
| 18 | HW-2003900-00 | ELECTRIC WIRE | 0.04 |
| 19 | HW-5F18S12-28 | TWO-CORE CORD | 1.7 |
| 20 | 400-03528 | WIPER BASE | 1 |
| 21 | SS-8080310-TP | SCREW 1/8-44 L=2.8 | 2 |
| 22 | SL-4030641-SE | SCREW | 4 |
| 23 | HK-0346400-0B | PIN CONTACT | 2 |
| 24 | 400-03539 | WIPER | 1 |
| 25 | SS-6090540-SP | SCREW 9/64-40 L=5.0 | 1 |
| 26 | 229-56809 | WIPER COLLAR | 1 |
| 27 | 400-03540 | WIPER SHAFT ASM. | 1 |
| 28 | 229-57203 | WIPER LINK COLLAR | 1 |
| 29 | 114-29107 | SLIDE SPRING | 1 |
| 30 | 114-22706 | STOPPER SPRING B | 1 |
| 31 | 400-03530 | RATCHET COMPL. | 1 |
| 32 | 114-25451 | FOLLOWER ASM. | 1 |
Page 59 — 32. SPECIAL ORDER PARTS LZ-2290A (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 225-35801 | TIMING GAUGE | 1 |
| 2 | 225-86705 | TIMING GAUGE | 1 |
| 3 | 225-35900 | TIMMING GAUGE RIGHT | 1 |
| 4 | 225-36403 | TIMMING GAUG D | 1 |
| 5 | 225-36502 | TIMING GAUGE E | 1 |
| 6 | B1551-586-000 | PRESSER FOOT JOINT | 1 |
| 7 | SS-7090910-SP | SCREW 9/64-40 L=8.5 | 1 |
| 8 | D1501-583-H00 | PRESSER BAR | 1 |
| 9 | D1502-583-H00 | PRESSER BAR | 1 |
| 10 | B1505-227-00A | PRESSER ADJUSTING SPRING | 1 |
| 225-56054 | FIXED KNIFE | ||
| 225-56302 | CLAMP PLATE ASM. | ||
| 225-56450 | SLIDING PLATE | ||
| 225-56609 | DRIVING BASE | ||
| 225-56708 | DRIVING BASE | ||
| 225-56807 | SCREW 9/64-40 L=5 | ||
| SS-1090510-SP | SCREW 9/64-40 L=4.0 | ||
| SS-6090420-SP | SCREW 9/64-40 L=6.8 | ||
| SS-7090710-SP | DRIVING KNIFE ASM. | ||
| 225-56153 | SPRING | ||
| 111-62104 | DRIVER | ||
| B9101-490-000 | NEEDLE HOLDER ASM. | ||
| 225-25455 | NEEDLE GUARD | ||
| 225-25406 | SCREW M3X0.5 L=6 | ||
| SM-6030602-TP | WASHER M3 | ||
| WS-0310702-KS | SPRING WASHER | ||
| WP-0320500-SC | WASHER M3 | ||
| 100-25906 | SPACER | ||
| 225-03908 | SPACER | ||
| 225-25059 | HOOK COMPL. V(LASTIC HOOK) | ||
| 225-26677 | HOOK COMPL. V(HARD POINT) | ||
| 225-26578 | HOOK COMBINATION (HARD POINT) | ||
| 225-25257 | HOOK COMPL. V(PLASTIC HOOK) | ||
| 225-25752 | HOOK COMPL. V(PLASTIC HOOK) | ||
| 225-25968 | OUTER HOOK V. | ||
| 225-25919 | ROTATING HOOK V ASM. | ||
| 235-03501 | OUTER HOOK V. | ||
| 100-33009 | INNER HOOK V. | ||
| 225-26206 | HOOK GIB SCREW | ||
| 100-33108 | REVERSE PLATE V | ||
| 225-26008 | HOOK COUNTER BALANCE SCREW | ||
| SS-8110422-TP | INNER HOOK V. | ||
| SS-8110520-TP | SCREW 11/64-40 L=4.5 | ||
| 225-07701 | THREAD RACK RIGHT. | ||
| 225-03353 | SAFETY PLATE ASM. | ||
| 235-22550 | NOT TURN BOBBIN CASE ASM. | ||
| 235-23004 | NOT TURN BOBBIN. | ||
| 235-23152 | NOT TURN BOBBIN HOOK COMPL. V. | ||
| 235-23202 | NOT TURN BOBBIN INNER HOOK V | ||
| 235-02958 | HOOK CONNECTION K | ||
| 235-03709 | OUTER HOOK S | ||
| 235-03808 | INNER HOOK S | ||
| 235-03907 | INNER HOOK PRESSER S | ||
| 235-03006 | INNER HOOK PRESSER K | ||
| 235-04004 | INNER HOOK PRESSER K | ||
| 235-04103 | BACK PLATE S | ||
| 235-04301 | INNER HOOK PRESSER SETSCREW S | ||
| 235-04400 | OUTER HOOK SETSCREWS | ||
| 235-04657 | BOBBIN CASE WITH SPRING | ||
| 235-34951 | R FEED KITS | ||
| 235-34902 | FEED BASE SHAFT R | ||
| 225-19706 | FEED BASE | ||
| 100-26508 | LINK PIN | ||
| 198-00903 | LC-601-1/ LATCH LEVER | ||
| 198-01000 | LC-602-2/ LATCH | ||
| 198-01307 | SMS-801-B/ SETSCREW PICK-UP | ||
| 198-01109 | LSP-4/ LATCH SPRING | ||
| 198-01208 | LFP-1/ LATCH PIN | ||
| 198-01406 | TSP-604-B/ TENSION SPRING | ||
| 198-01505 | SMS-608-B/ TENSION SCREW | ||
| 198-01604 | BOBBIN | ||
| 225-24201 | REVERSE PLATE | ||
| 225-24805 | REVERSE PLATE V | ||
| 235-03303 | OP SWITCH CABLE A ASM. | ||
| 400-17095 | THREAD TENSION DISK ASM | ||
| HX-0057500-00 | PRESSER FOOT ASM. | ||
| 225-91564 | FEED DOG | ||
| 100-64004 | THROAT PLATE ASM. | ||
| MAM-09700BA0 | FAGOTTING FOLDER ASM. | ||
| SS-5110710-SP | SCREW 11/64-40 L=7 | ||
| MAM-097000A0 | FAGOTTING FELLER | ||
| 400-16408 | HOOK GIB VS | ||
| 400-91888 | FAN RELAY CABLE |
Page 60 — 33. SPECIAL ORDER PARTS LZ-2290A (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-23431 | HOOK COOLING UNIT | 1 |
| 2 | 400-23432 | FILTER REGULATOR ASM. | (1) |
| 3 | PV-0151220-00 | FINGER VALVE | (1) |
| 4 | PF-0551060-A0 | FILTER REGULATOR | (1) |
| 5 | PF-9020050-00 | REGULATOR BRACKET | (1) |
| 6 | PJ-0251000-03 | PLUG | (1) |
| 7 | 400-23433 | PIPE BRACKET ASM. | (1) |
| 8 | 400-23434 | PIPE BRACKET | (1) |
| 9 | 400-23435 | BLOWING PIPE | (1) |
| 10 | 110-45408 | WIRE HOLDER A | (1) |
| 11 | BT-0400251-EB | URETHANE HOSE BLACK | (1) |
| 12 | SS-4110715-SP | SCREW 11/64-40 L=7 | (1) |
| 13 | SK-3412001-SE | WOOD SCREW D=4.1 L=20 | (2) |
| 14 | SS-4111215-SP | SCREW 11/64-40 L=12 | (2) |
| 15 | WP-0450801-SD | WASHER 4.5X10X0.8 | (2) |
| 16 | B4122-804-000 | ROLLER | (2) |
| 17 | MA-0115320-00 | STAPLE | (2) |
| 18 | EA-9500B01-00 | CABLE BAND | (2) |
Page 61 — 34. SPECIAL ORDER PARTS LZ-2290A (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-25920 | TWO NEEDLES BAR SET | 1 |
| 2 | 400-25762 | THREAD TENSION ASM. | (1) |
| 3 | 400-25763 | TENSION BASE PLATE | (1) |
| 4 | 225-28764 | PRE-TENSION CONTROLLER ASM. | (1) |
| 5 | 400-25764 | TWO NEEDLES CLAMP ASM. | (1) |
| 6 | 400-99885 | NEEDLE CLAMP ASM. | (1) |
| 7 | 400-25768 | GUIDE BLOCK L | (1) |
| 8 | 400-25767 | GUIDE BLOCK R | (1) |
| 9 | 400-25765 | NEEDLE CLAMP | (1) |
| 10 | 400-25766 | TWO NEEDLES CLAMP PLATE | (1) |
| 11 | SS-4060310-SP | SCREW 3/32-56 L=2.5 | (2) |
| 12 | SS-8080410-TP | SCREW 1/8-44 L=3.5 | (2) |
| 13 | B1401-380-000 | NEEDLE BAR | (1) |
| 14 | 400-25769 | GUIDE BLOCK SCREW | (1) |
| 15 | 400-25913 | THREAD TENSION ASM.C | (1) |
| 16 | 235-47557 | THREAD TENSION T COMPL. | (2) |
| 17 | 225-28509 | FELT | (4) |
| 18 | 229-21407 | ROTATION STOPPER | (1) |
| 19 | 235-37665 | THREAD TENSION ROD BASE ASM. | (1) |
| 20 | 235-37756 | THREAD TENSION ROD COMPL. | (1) |
| 21 | 400-25915 | TENSION RELEASING PIN | (1) |
| 22 | 236-26005 | THREAD TENSION NUT | (1) |
| 23 | B3129-012-A00 | TENSION SPRING | (1) |
| 24 | SS-8090670-SP | SCREW 9/64-40 L=5.5 | (1) |
| 25 | RO-1331701-00 | RUBBER RING | (1) |
| 26 | 100-06005 | TENSION DISC HOLDER | (1) |
| 27 | 235-38309 | THREAD TAKE-UP SPRING | (1) |
| 28 | 400-25923 | TWO NEEDLES BAR SET INSTRUCTIO | (1) |
| 29 | SS-6620730-SP | SCREW 3/16-32 L=7.0 | (1) |
Page 62 — 35. LIST FOR INFORMATION OF CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14 | 293-42409 |
Page 67 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 43 | 400-10261 | 16 | |
| 22 | 400-10262 | 2 | |
| 23 | 400-10264 | 2 | |
| 24 | 400-10264 | 2 | |
| 25 | 400-10268 | 2 | |
| 73 | 400-10269 | 12 | |
| 88 | 400-10270 | 4 | |
| 39 | 400-10271 | 4 | |
| 63 | 400-10272 | 2 | |
| 16 | 400-10273 | 16 | |
| 46 | 400-10276 | 34 | |
| 1 | 400-10278 | 55 | |
| 2 | 400-10280 | 55 | |
| 7 | 400-10281 | 55 | |
| 8 | 400-10282 | 55 | |
| 9 | 400-10283 | 55 | |
| 26 | 400-10286 | 40 | |
| 54 | 400-10287 | 4 | |
| 2 | 400-10287 | 56 | |
| 3 | 400-10288 | 56 | |
| 5 | 400-10289 | 56 | |
| 9 | 400-10289 | 56 | |
| 10 | 400-10290 | 56 | |
| 8 | 400-10295 | 56 | |
| 7 | 400-10296 | 56 | |
| 14 | 400-10297 | 56 | |
| 21 | 400-10298 | 56 | |
| 28 | 400-10303 | 56 | |
| 28 | 400-10307 | 4 | |
| 87 | 400-10311 | 4 | |
| 18 | 400-10312 | 6 | |
| 24 | 400-10313 | 4 | |
| 3 | 400-10314 | 4 | |
| 83 | 400-10315 | 4 | |
| 56 | 400-10316 | 4 | |
| 39 | 400-10318 | 12 | |
| 42 | 400-10321 | 34 | |
| 27 | 400-10322 | 40 | |
| 28 | 400-10324 | 40 | |
| 42 | 400-11123 | 6 | |
| 17 | 400-11144 | 10 | |
| 41 | 400-11345 | 6 | |
| 93 | 400-11424 | 54 | |
| 6 | 400-11831 | 56 | |
| 20 | 400-11832 | 40 | |
| 15 | 400-11833 | 40 | |
| 13 | 400-11836 | 40 | |
| 18 | 400-11837 | 40 | |
| 7 | 400-11838 | 40 | |
| 13 | 400-11839 | 40 | |
| 14 | 400-11840 | 40 | |
| 10 | 400-11841 | 40 | |
| 8 | 400-11842 | 40 | |
| 6 | 400-11843 | 40 | |
| 24 | 400-11844 | 39 | |
| 25 | 400-11846 | 39 | |
| 23 | 400-11847 | 39 | |
| 22 | 400-11848 | 39 | |
| 17 | 400-11849 | 36 | |
| 15 | 400-11850 | 52 | |
| 4 | 400-12697 | 26 | |
| 5 | 400-12698 | 26 | |
| 3 | 400-13595 | 40 | |
| 4 | 400-13864 | 40 | |
| 11 | 400-13881 | 40 | |
| 2 | 400-14837 | 45 | |
| 25 | 400-15494 | 40 | |
| 85 | 400-15544 | 4 | |
| 23 | 400-15548 | 40 | |
| 28 | 400-16039 | 20 | |
| 1 | 400-16408 | 40 | |
| 2 | 400-16451 | 40 | |
| 21 | 400-17095 | 40 | |
| 16 | 400-10261 | 10 | |
| 70 | 400-10262 | 12 | |
| 34 | 400-10264 | 12 | |
| 26 | 400-10264 | 12 | |
| 2 | 400-10268 | 8 | |
| 1 | 400-10269 | 8 | |
| 33 | 400-10270 | 8 | |
| 41 | 400-10271 | 34 | |
| 45 | 400-10272 | 34 | |
| 20 | 400-10273 | 12 | |
| 21 | 400-10276 | 12 | |
| 8 | 400-10278 | 12 | |
| 7 | 400-10280 | 22 | |
| 9 | 400-10281 | 22 | |
| 10 | 400-10282 | 22 | |
| 17 | 400-10283 | 42 | |
| 39 | 400-10286 | 42 | |
| 3 | 400-10287 | 6 | |
| 20 | 400-10287 | 22 | |
| 1 | 400-10288 | 34 | |
| 64 | 400-10289 | 34 |
Juki LZ-2290A — parts catalog
- Page 1 (cover): This is the cover page for the LZ-2290A Series Parts List, providing information on how to access the online parts book.
- Page 2 (unknown): This page contains a watermark and a website address at the bottom.
- Page 3 (text): This page explains how to use the parts list, including codes for changed parts, quantity column explanations, and how to interpret diagrams.
- Page 6 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts indicated for identification.
- Page 7 (parts_list): This page lists various parts for industrial sewing machines, including screws, bolts, washers, and specialized components like resistance packs and thread tension parts, along with their part numbers and descriptions.
- Page 8 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 9 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It covers a wide range of components from gear boxes and screws to safety switches and labels.
- Page 10 (diagram): This page displays a diagram of main shaft and thread take-up and needle bar components, with numbered parts for identification.
- Page 11 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It covers items from reference number 1 to 70.
- Page 12 (diagram): This page displays a diagram of needle vibrator components, with numbered parts and their corresponding references.
- Page 13 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details items like needle vibrator units, shafts, screws, and washers.
- Page 14 (diagram): This page displays a diagram of hand lifter components, with numbered parts and their corresponding part numbers and descriptions.
- Page 15 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, and quantities. It details components like knee lifting links, presser feet, and various screws and hardware, with specific notes for different machine models.
- Page 16 (diagram): This page displays a diagram of feed mechanism components, with numbered parts and their corresponding references.
- Page 17 (parts_list): This page lists parts for various sewing machine models, including feed adjusting springs, shafts, plates, screws, and bearings, with their corresponding part numbers and quantities.
- Page 18 (diagram): This page displays a diagram of feed mechanism components, specifically for models except LZ-2290A-SR-7, with numbered parts for identification.
- Page 19 (parts_list): This page lists parts for the sewing machine, including feed adjusting shafts, screws, levers, and condensers, with their corresponding part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of feed mechanism components for the LZ-2290A-SR-7 sewing machine, with numbered parts indicated.
- Page 21 (parts_list): This page lists parts for the sewing machine, including part numbers, descriptions, and quantities. It covers items from reference number 1 to 48, with a note at the end indicating selective parts.
- Page 22 (diagram): This page displays a diagram of feed mechanism components for the LZ-2290A-SR-7 sewing machine, with numbered parts indicated.
- Page 23 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and reference numbers. It details items such as feed lever rods, screws, springs, and sensors.
- Page 24 (diagram): This page displays a diagram of hook driving shaft components, with numbered parts and their corresponding references.
- Page 25 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It also includes notes regarding specific models.
- Page 26 (diagram): This page displays a diagram of hook driving shaft components, with numbered parts and their corresponding references.
- Page 27 (parts_list): This page lists parts for the lower shaft, including bearings, gears, screws, and oil seals, with their corresponding part numbers and quantities.
- Page 28 (diagram): This page displays a diagram of thread trimmer mechanism components for LZ-2290A-SS-7, LZ-2290A-SU-7, and LZ-2290A-SR-7 models.
- Page 29 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It covers items from reference number 1 to 54.
- Page 30 (parts_list): This page lists feed mechanism components for LZ-2290A-SU, LZ-2290A-SU-7, LZ-2290A-DU, and LZ-2290A-DU-7 models, including part numbers, descriptions, and quantities.
- Page 31 (diagram): This page displays a diagram of automatic reverse feed mechanism components for LZ-2290A-SS-7 and LZ-2290A-SU-7 models, along with a parts list detailing part numbers, descriptions, and quantities.
- Page 32 (parts_list): This page lists components for thread feeder components, including part numbers, descriptions, and quantities.
- Page 33 (diagram): This page displays a diagram of manual switch components for LZ-2290A-SS and LZ-2290A-SU models, along with a parts list detailing part numbers, descriptions, and quantities.
- Page 34 (diagram): This page displays a diagram of manual switch components for models LZ-2290A-SS-0B and LZ-2290A-SU-0B, with numbered parts indicated.
- Page 35 (parts_list): This page lists parts for a sewing machine, including manual switch bases, cables, screws, and rubber plugs, with their corresponding part numbers and descriptions.
- Page 36 (diagram): This page displays a diagram of thread release solenoid components for LZ-2290A-SS-7, LZ-2290A-SU-7, and LZ-2290A-SR-7 models, with numbered parts indicated.
- Page 37 (parts_list): This page lists parts for a sewing machine, including solenoids, switch bases, cables, screws, nuts, and pins, with their corresponding part numbers and descriptions.
- Page 38 (diagram): This page displays a diagram of lubrication components, including various fittings, tubes, and mounting hardware, with reference numbers for each part.
- Page 39 (parts_list): This page lists parts for the lubrication system, including oil tanks, regulators, screws, tubes, and connectors, with part numbers, descriptions, and quantities.
- Page 40 (diagram): This page displays a diagram of wiper mechanism components for LZ-2290A-SS-7-WB, LZ-2290A-SU-7-WB, and LZ-2290A-SR-7-WB models, with numbered parts indicated.
- Page 41 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details various wiper components, screws, nuts, and washers.
- Page 42 (diagram): This page displays a diagram of under cover components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 43 (parts_list): This page lists parts for an industrial sewing machine, including covers, cushions, brackets, screws, and various specialized components like knee lifters and connecting rods, with their corresponding part numbers and quantities.
- Page 44 (diagram): This page displays the components of the thread stand, including a diagram and a parts list with part numbers, descriptions, and quantities.
- Page 45 (diagram): This page displays a diagram of IP-100 panel components and a detailed parts list with part numbers, descriptions, and quantities.
- Page 46 (diagram): This page displays a diagram of SC-915/SC-916 transmission components, detailing various parts with reference numbers and descriptions.
- Page 47 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including control boards, covers, screws, washers, and other hardware, with part numbers, descriptions, and quantities.
- Page 48 (diagram): This page displays a diagram of SC-915/SC-916 transmission components, detailing various parts with reference numbers and labels.
- Page 49 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes.
- Page 50 (parts_list): This page lists accessories and components for SC-915/SC-916 models, including various cables, screws, washers, and other hardware, with their corresponding part numbers and descriptions.
- Page 51 (parts_list): This page lists accessory parts components for a sewing machine, including part numbers, descriptions, quantities, and remarks.
- Page 52 (diagram): This page displays a diagram of common parts for LZ-2290A-DS, LZ-2290A-DS-7, LZ-2290A-DU, and LZ-2290A-DU-7 sewing machines, along with a detailed parts list.
- Page 53 (diagram): This page displays a diagram and parts list for CB type (1) presser foot components, including part numbers, descriptions, and quantities.
- Page 54 (diagram): This page displays a diagram of CB Type 2 thread holder and air components, with numbered parts and their corresponding references.
- Page 55 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including nipples, clamps, screws, unions, valves, regulators, tubes, and stoppers, along with their part numbers and quantities.
- Page 56 (diagram): This page displays a diagram of CB Type (3) wiper mechanism components, with numbered parts and their corresponding details.
- Page 57 (parts_list): This page lists parts for a wiper system, including fitting bases, covers, screws, nuts, links, rings, springs, solenoids, and followers, with part numbers, descriptions, and quantities.
- Page 58 (diagram): This page displays a diagram of special order parts for the LZ-2290A (1) sewing machine, with reference numbers and part names for various components.
- Page 59 (parts_list): This page lists various parts for an industrial sewing machine, including timing gauges, presser foot components, knives, screws, hooks, and other miscellaneous items, with their corresponding part numbers and descriptions.
- Page 60 (diagram): This page displays a diagram of special order parts for the LZ-2290A (2) model, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 61 (diagram): This page displays a diagram of special order parts for the LZ-2290A (3) sewing machine, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 62 (parts_list): This page contains a list for information of change, detailing added and obsolete parts with their corresponding revision numbers, page references, and part numbers.
- Page 67 (parts_list): This page contains a numerical index of parts for a sewing machine, listing part numbers, page numbers, and reference numbers across multiple columns.
