Page 1
JUKI model LZ-582 583 High Speed Single Needle Lockstitch Zigzag Industrial Sewing Machine PARTS BOOK REVISION No. 4 (1976.1) TOKYO JUKI INDUSTRIAL CO., LTD. From the library of: Superior Sewing Machine & Supply LLC jintex.in
Parts index — Juki LZ-582 / LZ-583tap a row to open its page
Page 2 — HOW TO MAKE USE OF THIS PARTS BOOK
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| *1 | B-1111-111-0A0 | Name of part | |
| B-1111-111-000 | " | (1) |
Page 3 — 1. PRESSER BAR & LIFTING LEVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1524-582-0A0 | Presser foot complete | 1 | |
| SS-6090910-SP | Clamp screw | 1 | |
| B-1512-155-000 | Presser bar oil seal cap | 1 | |
| B-1501-5B1-000 | Presser bar | 1 | |
| B-1503-5B1-000 | Presser bar bushing | 1 | |
| B-1511-5B1-000 | Presser bar lifting bracket | 1 | |
| B-1507-5B1-000 | Presser bar guide collar | 1 | |
| SS-4091010-SP | Clamp screw | 1 | |
| B-1528-5B1-000 | Presser bar lifter | 1 | |
| SS-7110710-SP | Clamp screw | 1 | |
| B-3411-5B1-000 | Presser bar lifting link | 1 | |
| B-1519-5B1-000 | Hinge screw | 1 | |
| B-1527-5B1-000 | Thread regulator position pin | 1 | |
| B-1518-5B1-000 | Thread regulator | 1 | |
| SS-6090620-SP | Clamp screw | 2 | |
| B-1505-5B1-000 | Pressure regulator spring | 1 | |
| B-1509-5B1-0A0 | Pressure regulator asm. | 1 | |
| B-3413-5B1-000 | Lifting lever link, front | 1 | |
| B-3414-5B1-000 | Lifting lever link hinge stud | 2 | |
| RE-0600000-KO | Thrust washer | 2 | |
| B-3431-5B1-000 | Gasket (washer) | 2 | |
| B-3415-5B1-000 | Lifting lever | 1 | |
| B-3421-5B1-000 | Plate | 1 | |
| B-3416-5B1-000 | Lifting lever link, rear | 1 | |
| B-3418-5B1-000 | Lifting lever connecting rod | 1 | |
| PD-0201500-00 | Cotter pin | 1 | |
| NS-6620310-SP | Nut | 1 | |
| B-3416-012-000 | Joint | 1 | |
| SD-0600400-SP | Clamp screw | 1 | |
| B-3401-5B1-0A0 | Knee lifter bell crank complete | 1 | |
| B-3404-5B1-000 | Tension spring | 1 | |
| B-3406-5B1-000 | Suspension screw | 1 | |
| B-3405-5B1-000 | Adjusting screw | 1 | |
| NS-6090310-SP | Nut | 1 | |
| SS 7120910-SP | Clamp screw | 2 | |
| B-1540-5B3-000 | Needle guard, for LZ-582 | 1 | |
| SS-7060610-SP | Clamp screw | 3 |
Page 4 — 2. MACHINE ARM & BED COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1115-581-000 | Top cover | 1 | |
| B-1116-581-000 | Gasket | 3 | |
| SS-7110810-SP | Clamp screw | 4 | |
| B-1618-581-000 | Push button assembly | 1 | |
| B-1622-541-000 | Spring | 1 | |
| RE-0500000-KO | Thrust washer | 1 | |
| B-1113-581-0A0 | Thread guide pin asm. | (1) | |
| B-1175-581-000 | Eslen case | 1 | |
| B-1177-581-000 | Felt | 1 | |
| B-1176-581-000 | Holder | 1 | |
| B-1113-581-000 | Needle thread guide pin | 2 | |
| NS-6150310-SP | Nut | 1 | |
| B-1114-581-000 | Thread guide | 1 | |
| B-314B-123-000 | Tension disc | 2 | |
| B-3149-123-A00 | Tension spring | 1 | |
| SD-03B0552-SL | Tension stud | 1 | |
| B-1121-581-000 | Head cover | 1 | |
| SS-4091010-SP | Clamp screw | 4 | |
| B-1122-581-000 | Gasket | 1 | |
| B-1159-581-000 | Plug (A) | 1 | |
| B-1180-541-000 | Plug (B) | 1 | |
| B-1530-581-000 | Presser bar lifting pin | 1 | |
| B-1531-581-000 | Spring | 1 | |
| B-1532-581-000 | Gasket | 1 | |
| B-1529-581-000 | Guide | 1 | |
| B-1126-581-000 | Take-up oil splasher | 1 | |
| SS-6090610-SP | Clamp screw | 1 | |
| B-3127-581-0A0 | Thread release pin complete | 1 | |
| B-3121-541-000 | Tension post socket | 1 | |
| B-3128-012-000 | Take-up spring | 1 | |
| B-3124-541-000 | Tension post | 1 | |
| SS-6090670-SP | Clamp screw | 2 | |
| B-3126-012-000 | Tension disc | 1 | |
| B-3120-125-000 | Thrust washer | 1 | |
| B-3129-012-A00 | Tension spring | 1 | |
| B-3132-012-000 | Tension disc gummet | 1 | |
| B-3116-125-000 | Tension nut | 1 | |
| B-2120-582-000 | Zigzag scale | 1 | |
| SS-7060310-SP | Clamp screw | 4 | |
| B-2101-581-000 | Frame | 1 | |
| SS-5110810-SP | Clamp screw | 1 | |
| B-2111-581-000 | Gasket | 1 | |
| B-1157-581-000 | Oil dripping pan | 1 | |
| SS-4090610-SP | Screw | 2 | |
| B-1619-581-000 | Push button guide | 1 | |
| B-1532-581-000 | Gasket | 1 |

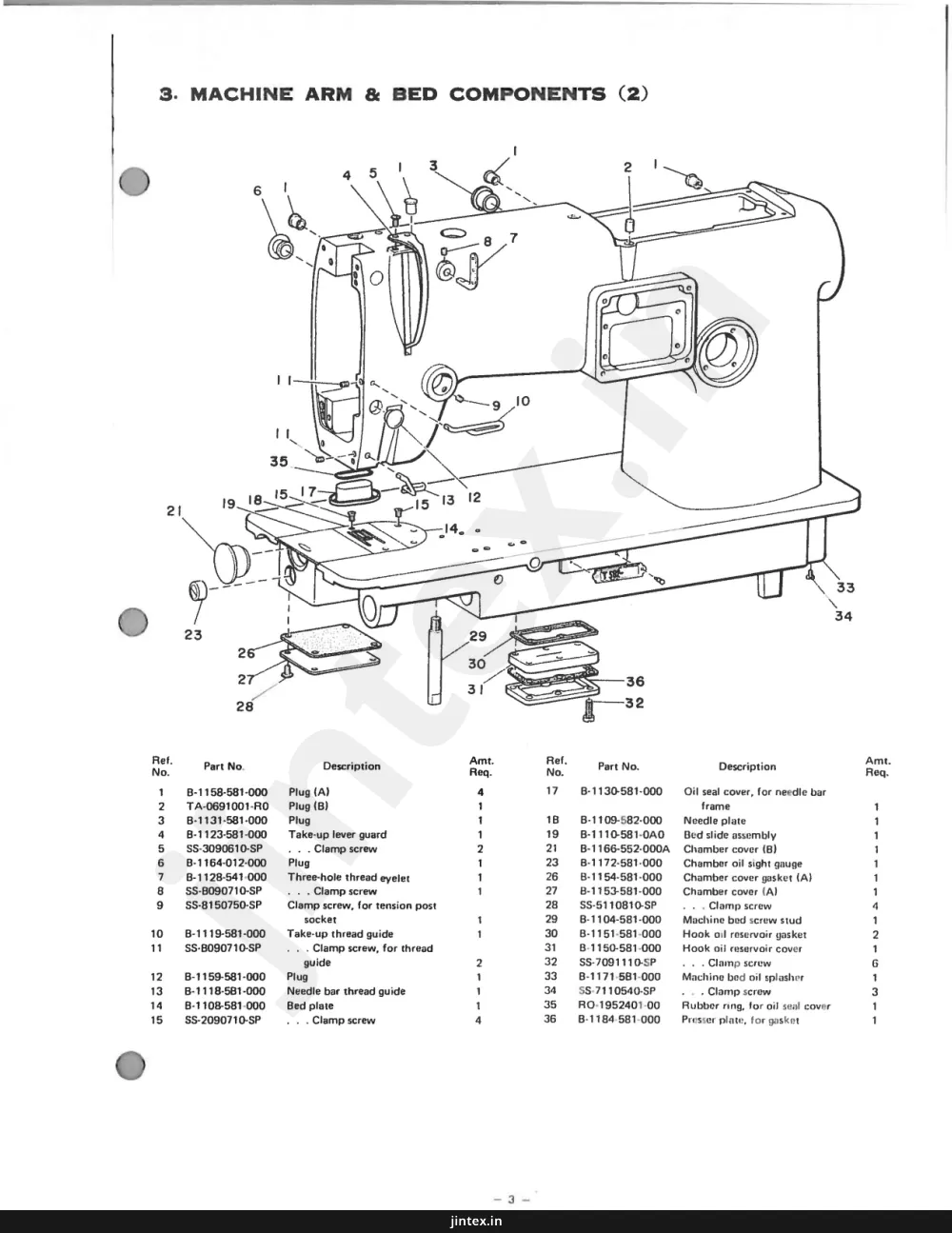

Page 5 — 3. MACHINE ARM & BED COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1158-581-000 | Plug (A) | 4 | |
| TA-0691001-RO | Plug (B) | 1 | |
| B-1131-581-000 | Plug | 1 | |
| B-1123-581-000 | Take-up lever guard | 1 | |
| SS-3090610-SP | Clamp screw | 21 | |
| B-1164-012-000 | Plug | 1 | |
| B-1128-541-000 | Three-hole thread eyelet | 1 | |
| SS-B090710-SP | Clamp screw | 1 | |
| SS-8150750-SP | Clamp screw, for tension post | 1 | |
| B-1119-581-000 | Take-up thread guide | 1 | |
| SS-B090710-SP | Clamp screw, for thread guide | 2 | |
| B-1159-581-000 | Plug | 1 | |
| B-1118-581-000 | Needle bar thread guide | 1 | |
| B-1108-581-000 | Bed plate | 1 | |
| SS-2090710-SP | Clamp screw | 4 | |
| B-1130-581-000 | Oil seal cover, for needle bar frame | 1 | |
| B-1109-582-000 | Needle plate | 1 | |
| B-1110-581-0A0 | Bed slide assembly | 1 | |
| B-1110-582-000A | Chamber cover (B) | 1 | |
| B-1172-581-000 | Chamber oil sight gauge | 1 | |
| B-1154-581-000 | Chamber cover gasket (A) | 1 | |
| SS-5110810-SP | Clamp screw | 4 | |
| B-1104-581-000 | Machine bed screw stud | 1 | |
| B-1151-581-000 | Hook oil reservoir gasket | 2 | |
| B-1150-581-000 | Hook oil reservoir cover | 1 | |
| SS-7091110-SP | Clamp screw | 6 | |
| B-1151-581-000 | Machine bed oil splasher | 1 | |
| SS-7110540-SP | Clamp screw | 3 | |
| B-1171-581-000 | Rubber ring, for oil seal cover | 1 | |
| B-1184-581-000 | Presser plate, for gasket | 1 |
Page 6 — 4. HOOK DRIVE, FEED LIFTING & FEED ROCKER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1B02-581-000 | Hook drive shaft front bushing | 1 | |
| SS-B150710-SP | Clamp screw | 1 | |
| CS-0871019-SH | Hook drive shaft thrust collar | 2 | |
| SS-B150510-SP | Clamp screw | 1 | |
| B-1801-581-000 | Hook drive shaft | 1 | |
| B-1814-581-000 | Needle bearing sleeve | 1 | |
| SS-B150510-SP | Clamp screw | 2 | |
| B-1B03-581-000 | Needle bearing | 1 | |
| B-1611-155-000 | Feed lifting shaft crank rear hinge stud | 1 | |
| SS-7121410-SP | Clamp screw, for crank, front & rear | 1 | |
| B-1711-581-000 | Feed lifting shaft rear bushing | 1 | |
| B-1635-581-000 | Oil felt | 1 | |
| SS-B150750-SP | Clamp screw, bushing, front & rear | 2 | |
| B-1704-581-000 | Feed lifting shaft | 1 | |
| B-1710-581-000 | Front bushing | 1 | |
| B-1705-581-000 | Crank, front | 1 | |
| SS-7111410-SP | Screw | 1 | |
| B-1709-581-000 | Oil wick holder | 1 | |
| SS-7080510-SP | Clamp screw | 1 | |
| SS-5150510-SP | Oil seal screw | 2 | |
| CS-1470712-SH | Feed rocker shaft thrust collar | 2 | |
| SS-B110410-TP | Clamp screw | 4 | |
| B-1702-155-000 | Feed rocker shaft front bushing | 1 | |
| SS-B150750-SP | Clamp screw | 2 | |
| B-1637-581-000 | Feed rocker shaft set collar | 1 | |
| SS-B150750-SP | Clamp screw | 1 | |
| B-1601-581-000 | Feed rocker shaft | 1 | |
| B-1631-581-000 | Rear bushing | 1 | |
| B-1635-581-000 | Oil felt | 2 | |
| B-1608-161-0A0 | Crank, front | 1 | |
| SS-6121610-TP | Screw | 1 | |
| B-1613-582-000 | Feed dog | 1 | |
| B-1638-581-000 | Clamp screw | 2 | |
| B-1602-581-000 | Feed bar | 1 | |
| B-1604-012-000 | Feed bar hinge stud | 1 | |
| SS-8620610-SP | Clamp screw | 1 | |
| CS-0640860-SH | Thrust collar asm. | 1 | |
| SS-B110410-SP | Clamp screw | 2 | |
| B-1603-155-000 | Feed rocker | 1 | |
| SS-7111310-TP | Clamp screw | 2 | |
| B-1609-581-000 | Oil wick holder, for feed bar hinge stud | 1 | |
| SS-7080410-SP | Clamp screw | 1 | |
| B-1804-581-000 | Hook drive shaft bevel gear asm. | 1 | |
| SS-B660610-TP | Clamp screw | 2 |
Page 7 — 5. HOOK & ZIGZAG REGULATOR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1B10-581-000 | Hook shaft rear bushing | 1 | |
| B-1B11-581-000 | Housing | 1 | |
| SS-B110750-SP | Clamp screw | 1 | |
| SS-6090630-SP | Set screw | 1 | |
| B-1807-581-000 | Hook shaft | 1 | |
| B-1B05-581-000 | Bevel gear | 1 | |
| SS-B660410-TP | Clamp screw | 2 | |
| B-1B52-581-000 | Thread pull-off link | 1 | |
| SD-0550502-SP | Hinge screw | 1 | |
| B-1B51-581-000 | Thread pull-off eccentric | 1 | |
| SS-B104170-SP | Clamp screw | 2 | |
| B-1B08-581-000 | Hook shaft front bushing | 1 | |
| SS-B111110-SP | Clamp screw | 1 | |
| B-1B12-581-000 | Hook oil supply felt | 1 | |
| SS-B110870-SP | Hook holder | 1 | |
| B-1830-581-0A0 | Hook complete | 1 | |
| B-9117-155-000 | Screw | 2 | |
| B-1B37-582-0A0 | Screw | 1 | |
| B-1835-581-000 | Bobbin case assembly | 1 | |
| SS-B111010-SP | Bobbin case position finger | 1 | |
| B-1857-581-000 | Thread pull-off lever | 1 | |
| SS-4090810-SP | Clamp screw | 1 | |
| B-1856-581-000 | Thread pull-off lever shaft | 1 | |
| B-1B55-581-000 | Front bushing | 1 | |
| NS-6090310-SP | Nut, for hinge screw | 1 | |
| B-1B53-581-000 | Crank | 1 | |
| B-1857-581-000 | Clamp screw | 1 | |
| B-1858-581-000 | Rear bushing | 1 | |
| B-1860-581-000 | Retaining ring | 1 | |
| B-2106-581-000 | Zigzag regulating screw stud | 1 | |
| B-114B-012-000 | Scale position pin | 1 | |
| B-1148-012-000 | Tension spring | 1 | |
| B-2107-581-000 | Zigzag regulator | 1 | |
| SS-7110910-SP | Clamp screw | 4 | |
| B-2105-581-000 | Knob | 1 | |
| B-2108-581-000 | Scale pointer | 1 | |
| SS-1080510-SP | Clamp screw | 2 | |
| B-2104-581-000 | Zigzag regulator positioning link | 1 | |
| SD-1000401-SP | Stop roller | 1 | |
| B-2121-581-A00 | Stop roller | 1 | |
| B-2121-581-B00 | Stop roller (B) | 1 | |
| SS-6080720-SP | Clamp screw | 2 | |
| B-2118-581-000 | Adjusting dog | 1 | |
| SS-7080510-SP | Clamp screw | 1 | |
| B-2112-581-000 | Bushing, for zigzag regulating screw stud | 1 |
Page 8 — 6. NEEDLE BAR & ARM SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1440-581-000 | Needle bar thread eyelet | 1 | |
| SS-7080510-SP | Clamp screw for needle | 1 | |
| B-1401-581-000 | Needle bar | 1 | |
| B-1411-581-000 | Needle bar connecting stud asm. | 1 | |
| SS-7110720-SP | Clamp screw | (1) | |
| B-1414-581-000 | Slide block | 1 | |
| SS-5090610-SP | Clamp screw | 1 | |
| B-1415-581-000 | Position bracket | 1 | |
| SS-7111110-TP | Clamp screw | 2 | |
| B-1443-581-000 | Oil wick holder | 1 | |
| SS-7090410-SP | Clamp screw | 1 | |
| B-1404-581-0AO | Needle bar crank rod complete | (1) | |
| B-1404-581-000 | Upper rod | 1 | |
| B-1405-581-000 | Crank rod | 1 | |
| B-1406-581-000 | Lower rod | 2 | |
| B-1407-581-000 | Pin | 1 | |
| B-1439-581-000 | Screw | 2 | |
| B-1903-541-000 | End screw | 1 | |
| B-1905-541-B00 | Needle bearing | 1 | |
| B-1209-581-000 | Needle bar crank | 1 | |
| B-1901-541-0AO | Take-up lever assembly | 1 | |
| B-1904-541-000 | Hinge stud | 1 | |
| SS-8151150-SP | Clamp screw | 1 | |
| B-1906-581-000 | Thrust washer | 1 | |
| B-1206-581-000 | Counterweight asm. | 1 | |
| SS-8680730-SK | Clamp screw (B) | 1 | |
| SS-7681750-TP | Clamp screw (A) | 1 | |
| SS-8660610-TP | Clamp screw, for needle bar crank | 1 | |
| B-1201-581-000 | Arm shaft | 1 | |
| TA-0620301-MO | Plug | 2 | |
| B-1202-581-000 | Front bushing | 1 | |
| SS-8151150-SP | Clamp screw | 1 | |
| B-1430-581-000 | Bevel gear, for needle vibrating mechanism | 1 | |
| SS-8660810-TP | Clamp screw | 1 | |
| CS-147121B-SH | Thrust collar asm. | 1 | |
| SS-8660530-SP | Clamp screw | 2 | |
| B-1203-581-000 | Center bushing | 1 | |
| SS-8151150-SP | Clamp screw | 1 | |
| SS-6661110-SP | Screw, for needle bar crank | 1 | |
| WP-0371026-SD | Washer, for slide block | 1 |
Page 9 — 7. FEED DRIVING CONNECTION & FEED LIFTING CONNECTION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1610-5B1-0A0 | Feed driving eccentric complete | 1 | |
| B-1611-038-000 | Retainer housing | 1 | |
| SS-B661430-SP | Clamp screw | 1 | |
| SD-0700381-SD | Set screw | 1 | |
| B-1610-5B1-000 | Feed driving eccentric | 1 | |
| B-1612-5B1-000 | Sleeve | 1 | |
| B-1609-5B1-000 | Feed driving connection | 1 | |
| SD-1020961-SP | Hinge screw | 1 | |
| NS-6680410-SP | Nut | 1 | |
| B-1636-5B1-000 | Needle bearing | 1 | |
| B-1623-051-000 | Ratchet pawl | 1 | |
| B-1624-051-000 | Torsion spring | 1 | |
| SD-0260271-SP | Clamp screw | 1 | |
| B-1619-155-000 | Ratchet gear | 1 | |
| B-1620-155-000 | Position pin | 1 | |
| B-1702-5B1-000 | Feed lifting eccentric asm. | 1 | |
| SS-B150710-SP | Clamp screw | 2 | |
| B-1701-5B1-000 | Feed lifting connection | 1 | |
| B-1715-5B1-000 | Needle bearing | 1 | |
| B-1204-5B1-000 | Arm shaft rear bushing | 1 | |
| SS-B1511-000-SP | Clamp screw | 1 | |
| RO-4450001-00 | Rubber ring | 1 | |
| TA-0370301-M0 | Plug | 1 | |
| B-1227-5B1-000 | Hand wheel asm. | 1 | |
| SS-B1515-000-SP | Clamp screw | 2 | |
| RO-14B20-00 | Rubber ring | 1 | |
| B-1304-5B1-000 | Sprocket flange | 2 | |
| B-1302-5B1-000 | Sprocket, small | 1 | |
| SS-B150710-SP | Clamp screw | 2 | |
| B-1305-5B1-000 | Timing belt | 1 | |
| B-1301-5B1-000 | Sprocket, large | 1 | |
| SS-B6B1650-TP | Screw | 2 |
Page 10 — 8. OIL LUBRICATING MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| BP-4000000-00 | Take-up lever oil tube | 1 | |
| CQ-3030000-00 | Oil wick | 1 | |
| B-1161-581-000 | Holder | 1 | |
| SS-7090520-SP | Clamp screw | 1 | |
| B-3542-581-000 | Oil felt | 1 | |
| B-3543-581-000 | Holder | 1 | |
| SS-7091110-SP | Clamp screw | 1 | |
| NS-6090310-SP | Nut | 1 | |
| B-1162-581-000 | Oil wick holder, for crank hinge stud | 1 | |
| SS-6090510-SP | Clamp screw | 2 | |
| NS-6090310-SP | Nut | 1 | |
| BP-3000000-00 | Oil return tube (A) | 1 | |
| B-3536-555-B00 | Holder | 1 | |
| SS-7090710-SP | Clamp screw | 1 | |
| B-1170-581-000 | Oil filter sponge | 1 | |
| CQ-3030000-00 | Oil wick, for connecting stud position bracket | 1 | |
| B-3525-581-0A0 | Arm shaft oil pipe assembly | 1 | |
| B-352B-581-000 | Plug screw, for arm shaft front bushing | 1 | |
| RO-1542401-00 | Rubber ring | 1 | |
| B-3511-122-000 | Oil pipe clamping sleeve nut | 1 | |
| B-3512-122-000 | Oil pipe clamping sleeve | 1 | |
| BP-3000000-00 | Oil tube, for needle vibrating link | 1 | |
| SQ-1110401-MZ | Connecting screw, for oil tube | 1 | |
| B-3501-581-000 | Machine arm oil reservoir | 1 | |
| CQ-20200000-00 | Oil wick | 1 | |
| SS-7110810-SP | Clamp screw | 1 | |
| B-3502-581-000 | Cover | 1 | |
| SS-6090810-SP | Clamp screw | 4 | |
| BP-3000000-00 | Oil tube, for bevel gear | 1 | |
| BP-3000000-00 | Oil return tube (B) | 1 | |
| SQ-1090401-MZ | Connecting screw | 1 | |
| B-3545-581-000 | Oil drain funnel | 1 | |
| SS-6090610-SP | Clamp screw | 2 | |
| B-3534-155-000 | Oil return plunger | 2 | |
| B-1214-038-000 | Tension spring | 2 | |
| B-3536-155-000 | Plug screw, for oil return pump | 2 | |
| RO-1542401-00 | Rubber ring | 1 | |
| B-3514-581-000 | Oil supply pipe | 1 | |
| B-3515-581-000 | Connecting screw | 1 | |
| B-3516-581-000 | Gasket | 2 | |
| B-3531-155-000 | Oil sight window base | 1 | |
| B-3520-038-000 | Oil sight window | 1 | |
| B-3523-038-000 | Gasket | 3 | |
| B-3521-038-000 | Flange | 1 | |
| SS-7091410-SP | Clamp screw | 4 | |
| B-3518-581-000 | Oil filter | 1 | |
| B-3519-581-000 | Retaining collar | 1 | |
| B-3546-581-000 | Oil filter cover | 1 | |
| B-3547-581-000 | Clamp | 1 | |
| SS-6081210-SP | Nut | 1 | |
| NS-6080210-SP | Oil filter retainer | 1 | |
| B-3517-581-000 | Retaining screw, for oil valve | 1 | |
| B-3551-581-000 | Valve ball | 1 | |
| B-3539-122-000 | Oil pipe, for feed lifting shaft | 1 | |
| CQ-3030000-00 | Oil pipe, for oil reservoir | 1 | |
| B-3536-581-000 | Oil pipe, for oil reservoir shaft | 1 | |
| CQ-3030000-00 | Oil wick, for feed rocker shaft | 1 | |
| B-3541-581-000 | Hook oil regulating rubber | 1 | |
| B-3540-581-000 | Bushing | 1 | |
| B-3537-581-000 | Positioning screw | 1 | |
| CQ-3030000-00 | Hook oil regulating screw | 1 | |
| CQ-3030000-00 | Oil wick, for feed rocker | 1 | |
| CQ-3030000-00 | Oil wick, for feed rocker | 1 | |
| CQ-3030000-00 | Oil wick, bushing | 1 | |
| CQ-20200000-00 | Oil wick, needle bar frame | 1 | |
| CQ-20200000-00 | Oil wick, needle bar frame | 1 |
Page 11 — 9. OIL RESERVOIR, KNEE LIFTER & EXCLUSIVE PARTS FOR LZ-583
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B-1160-583-000 | Model plate, for LZ-583 | 1 |
| 2 | B-1613-583-000 | Fixed dog | 1 |
| 3 | B-1109-583-000 | Needle plate | 1 |
| *4 | B-1524-583-0A0 | Presser foot complete | 1 |
| *5 | B-1445-583-0A0 | Needle vibrating eccentric complete | 1 |
| 6 | B-2120-583-000 | Zigzag scale | 1 |
| *7 | B-8201-581-0A0 | Oil reservoir complete | 1 |
| *8 | B-3419-122-0A0 | Knee lifter complete | 1 |
| *9 | B-3423-581-0A0 | Knee press lifter rod asm. | 1 |
Page 12 — 10. NEEDLE BAR FRAME COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1421-581-000 | Needle bar frame | 1 | |
| B-1447-581-000 | Hinge stud bushing, left | 1 | |
| SS-8150510-TP | Clamp screw, for bushing | 2 | |
| B-1446-581-000 | Hinge stud bushing, right | 1 | |
| RO-0681901-00 | Rubber ring, for bushing | 2 | |
| SS-5220860-SP | Plug screw, for bushing | 2 | |
| B-1422-581-000 | Hinge stud | 1 | |
| SS-8110510-SP | Clamp screw | 1 | |
| B-1436-581-000 | Position pin | 2 | |
| SS-81150410-SP | Clamp screw | 2 | |
| B-1141-581-000 | Stop pin (B) | 2 | |
| SS-6111440-SP | Clamp screw | 2 | |
| B-1169-581-000 | Gasket (washer) | 2 | |
| SS-3090510-SP | Screw | 2 | |
| B-1437-581-000 | Oil guard | 1 | |
| SS-2060510-SP | Clamp screw | 2 | |
| B-1140-581-000 | Stop pin (A) | 1 | |
| SS-7110810-SP | Clamp screw | 1 | |
| B-2102-581-000 | Needle bar frame pitman | 1 | |
| B-2110-581-000 | Eccentric stud | 1 | |
| SS-8150410-SP | Clamp screw | 1 | |
| RE-0600000-KO | Snap ring | 1 | |
| B-1417-581-000 | Oil felt | 1 | |
| SS-5090710-SP | Clamp screw | 1 | |
| B-1424-581-000 | Needle vibrating link | 1 | |
| SS-8660610-TP | Clamp screw | 1 | |
| B-1420-581-000 | Hinge stud | 1 | |
| TA-0370301-MO | Oil seal plug | 1 | |
| SS-6121030-SP | Set screw | 1 | |
| B-1428-581-000 | Gasket | 1 | |
| B-1433-581-000 | Hinge stud, for pitman | 1 | |
| B-1426-581-000 | Needle bar frame forked link | 1 | |
| TA-0290301-MO | Plug | 2 | |
| B-1425-581-000 | Hinge stud | 1 | |
| B-2103-581-000 | Needle bar frame pitman | 1 | |
| SS-7110910-SP | Clamp screw | 2 | |
| SS-7680870-SP | Set screw, for bevel gear shaft bushing | 1 | |
| B-1435-581-000 | Bevel gear shaft bushing | 1 | |
| SS-8151550-SP | Clamp screw | 1 | |
| B-1432-581-000 | Bevel gear shaft | 1 | |
| SS-8151150-SP | Clamp screw | 1 | |
| RO-1542401-00 | Rubber ring | 1 | |
| B-1445-582-0A0 | Needle vibrating eccentric complete | 1 | |
| SS-6090530-SP | Clamp screw (A) | 1 | |
| SS-7090410-SP | Clamp screw (B) | 3 |
Page 13 — GAUGE PARTS FOR LZ-582 & 583
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B-1524-582-0AO | LZ-582 | |
| B-1109-582-000 | LZ-582 | ||
| B-1613-582-000 | LZ-582 | ||
| 2 | B-1524-582-CAO | LZ-582 | |
| B-1109-582-000 | LZ-582 | ||
| B-1613-582-000 | LZ-582 | ||
| 3 | B-1524-582-DAO | LZ-582 | |
| B-1109-582-DOO | LZ-582 | ||
| B-1613-582-DOO | LZ-582 | ||
| 4 | B-1524-582-EAO | LZ-582 | |
| B-1109-582-EOO | LZ-582 | ||
| B-1613-582-EOO | LZ-582 | ||
| 5 | B-1524-582-FAO | LZ-582 | |
| B-1109-582-FOO | LZ-582 | ||
| B-1613-582-FOO | LZ-582 | ||
| 6 | B-1524-582-MAO | LZ-582 | |
| B-1109-582-MOO | LZ-582 | ||
| B-1613-582-MOO | LZ-582 | ||
| 1 | B-1524-583-0AO | LZ-583 | |
| B-1109-583-000 | LZ-583 | ||
| B-1613-583-000 | LZ-583 | ||
| 2 | B-1524-583-BAO | LZ-583 | |
| B-1109-583-000 | LZ-583 | ||
| B-1613-583-000 | LZ-583 |
Page 14
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | B-1524-583-CAO | PRESSER FOOT | |
| 3 | B-1109-583-000 | NEEDLE PLATE | |
| 3 | B-1613-583-000 | FEED DOG | |
| 4 | B-1524-583-EAO | PRESSER FOOT | |
| 4 | B-1109-583-EOO | NEEDLE PLATE | |
| 4 | B-1613-583-EOO | FEED DOG | |
| 5 | B-1524-583-FAO | PRESSER FOOT | |
| 5 | B-1109-583-FOO | NEEDLE PLATE | |
| 5 | B-1613-583-FOO | FEED DOG | |
| 6 | B-1524-583-GAO | PRESSER FOOT | |
| 6 | B-1109-583-GOO | NEEDLE PLATE | |
| 6 | B-1613-583-GOO | FEED DOG | |
| 7 | B-1524-583-HAO | PRESSER FOOT | |
| 7 | B-1109-583-HOO | NEEDLE PLATE | |
| 7 | B-1613-583-HOO | FEED DOG | |
| 8 | B-1524-583-JAO | PRESSER FOOT | |
| 8 | B-1109-583-DOO | NEEDLE PLATE | |
| 8 | B-1613-583-DOO | FEED DOG | |
| 9 | B-1524-583-JBO | PRESSER FOOT | |
| 9 | B-1109-583-DOO | NEEDLE PLATE | |
| 9 | B-1613-583-DOO | FEED DOG | |
| 10 | B-1524-583-KAO | PRESSER FOOT | |
| 10 | B-1109-583-DOO | NEEDLE PLATE | |
| 10 | B-1613-583-DOO | FEED DOG | |
| 11 | B-1524-583-KBO | PRESSER FOOT | |
| 11 | B-1109-583-DOO | NEEDLE PLATE | |
| 11 | B-1613-583-DOO | FEED DOG |
Page 15 — LZ-582, 583 LIST OF EXCHANGING PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | LZ-582 B-1109-582-000 | B 1524-582-0A0 | |
| B-1524-582-CAO | For garments requiring stepped stitches | ||
| 3 | B-1109-582-100 | B-1524-582-DAO | |
| 4 | B-1109-582-F00 | B-1524-582-EA0 | |
| 5 | B-1109-582-FA0 | B-1524-582-FA0 | |
| 6 | B-1109-582-M00 | B-1524-582-MA0 | |
| 7 | LZ-583 B-1109-583-000 | B 1524-583-0A0 | |
| B-1524-583-DAO | For medium heavy materials requiring stepped stitches | ||
| B-1524-583-CAO | For light weight materials requiring stepped stitches | ||
| 10 | B-1109-583-D00 | B-1524-583-EA0 | |
| 11 | B-1109-583-F00 | B-1524-583-FA0 | |
| 12 | B-1109-583-G00 | B-1524-583-GA0 | |
| 13 | B-1109-583-H00 | B-1524-583-HA0 | |
| 14 | B-1109-583-J00 | B-1524-583-JA0 | |
| B-1524-583-JB0 | Extreme light weight materials Zigzag width less than 3 mm | ||
| B-1524-583-KA0 | Light weight materials | ||
| B-1524-583-KBO | Light weight materials | ||
| 18 | B-1109-583-E00 | B-1524-583-LA0 |
Page 16 — 12. NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1424-581-000 | B-1104-581-000 | EXCLUSIVE PARTS | 3-29 |
| B-1425-581-000 | B-1108-581-000 | EXCLUSIVE PARTS | 3-18 |
| B-1426-581-000 | B-1109-582-000 | EXCLUSIVE PARTS | 3-29 |
| B-1428-581-000 | B-1109-583-000 | EXCLUSIVE PARTS | 9-3 |
| B-1432-581-000 | B-1110-581-0A0 | EXCLUSIVE PARTS | 3-19 |
| B-1433-581-000 | B-1113-581-000 | EXCLUSIVE PARTS | 2-13 |
| B-1435-581-000 | B-1113-581-0A0 | EXCLUSIVE PARTS | 2-* |
| B-1436-581-000 | B-1114-581-000 | EXCLUSIVE PARTS | 2-13 |
| B-1439-581-000 | B-1115-581-000 | EXCLUSIVE PARTS | 2-1 |
| B-1440-581-000 | B-1116-581-000 | EXCLUSIVE PARTS | 2-2 |
| B-1443-581-000 | B-1119-581-000 | EXCLUSIVE PARTS | 3-10 |
| B-1445-582-0A0 | B-1121-581-000 | EXCLUSIVE PARTS | 2-17 |
| B-1445-583-0A0 | B-1122-581-000 | EXCLUSIVE PARTS | 2-19 |
| B-1446-581-000 | B-1123-581-000 | EXCLUSIVE PARTS | 3-4 |
| B-1447-581-000 | B-1126-581-000 | EXCLUSIVE PARTS | 2-25 |
| B-1501-581-000 | B-1128-541-000 | EXCLUSIVE PARTS | 3-7 |
| B-1503-581-000 | B-1130-581-000 | EXCLUSIVE PARTS | 3-17 |
| B-1505-581-000 | B-1131-581-000 | EXCLUSIVE PARTS | 3-3 |
| B-1507-581-000 | B-1140-581-000 | EXCLUSIVE PARTS | 10-17 |
| B-1509-581-000 | B-1141-581-000 | EXCLUSIVE PARTS | 10-11 |
| B-1511-581-000 | B-1148-012-000 | EXCLUSIVE PARTS | 5-32 |
| B-1512-155-000 | B-1150-581-000 | EXCLUSIVE PARTS | 3-31 |
| B-1518-581-000 | B-1151-581-000 | EXCLUSIVE PARTS | 3-30 |
| B-1524-582-0A0 | B-1153-581-000 | EXCLUSIVE PARTS | 3-27 |
| B-1524-583-0A0 | B-1154-581-000 | EXCLUSIVE PARTS | 3-26 |
| B-1527-581-000 | B-1157-581-000 | EXCLUSIVE PARTS | 2-42 |
| B-1528-581-000 | B-1158-581-000 | EXCLUSIVE PARTS | 3-1 |
| B-1529-581-000 | B-1159-581-000 | EXCLUSIVE PARTS | 2-12A |
| B-1530-581-000 | B-1160-583-000 | EXCLUSIVE PARTS | 9-1 |
| B-1531-581-000 | B-1161-581-000 | EXCLUSIVE PARTS | 8-3 |
| B-1532-581-000 | B-1164-012-000 | EXCLUSIVE PARTS | 3-6 |
| B-1540-582-000 | B-1166-552-000A | EXCLUSIVE PARTS | 3-21 |
| B-1601-581-000 | B-1169-581-000 | EXCLUSIVE PARTS | 10-13 |
| B-1602-581-000 | B-1171-581-000 | EXCLUSIVE PARTS | 3-33 |
| B-1603-155-000 | B-1172-581-000 | EXCLUSIVE PARTS | 3-23 |
| B-1604-012-000 | B-1175-581-000 | EXCLUSIVE PARTS | 2-7 |
| B-1607-155-000 | B-1176-581-000 | EXCLUSIVE PARTS | 2-9 |
| B-1608-161-0A0 | B-1177-581-000 | EXCLUSIVE PARTS | 2-8 |
| B-1609-581-000 | B-1180-541-000 | EXCLUSIVE PARTS | 2-20B |
| B-1609-581-000 | B-1184-581-000 | EXCLUSIVE PARTS | 3-36 |
| B-1610-581-000 | B-1201-581-000 | EXCLUSIVE PARTS | 6-25 |
| B-1610-581-0A0 | B-1202-581-000 | EXCLUSIVE PARTS | 6-27 |
| B-1611-038-000 | B-1203-581-000 | EXCLUSIVE PARTS | 6-33 |
| B-1612-581-000 | B-1204-581-000 | EXCLUSIVE PARTS | 7-15 |
| B-1613-582-000 | B-1206-581-000 | EXCLUSIVE PARTS | 6-21 |
| B-1613-583-000 | B-1209-581-000 | EXCLUSIVE PARTS | 6-15 |
| B-1618-581-000 | B-1214-038-000 | EXCLUSIVE PARTS | 8-35 |
| B-1619-155-000 | B-1227-581-000 | EXCLUSIVE PARTS | 7-19 |
| B-1619-581-000 | B-1301-581-000 | EXCLUSIVE PARTS | 2-26 |
| B-1620-155-000 | B-1302-581-000 | EXCLUSIVE PARTS | 7-23 |
| B-1622-541-000 | B-1304-581-000 | EXCLUSIVE PARTS | 7-22 |
| B-1623-051-000 | B-1401-581-000 | EXCLUSIVE PARTS | 6-3 |
| B-1624-051-000 | B-1404-581-000 | EXCLUSIVE PARTS | 6-12A |
| B-1631-581-000 | B-1405-581-000 | EXCLUSIVE PARTS | 6-12B |
| B-1635-581-000 | B-1406-581-000 | EXCLUSIVE PARTS | 6-12C |
| B-1635-581-000 | B-1407-581-000 | EXCLUSIVE PARTS | 6-12D |
| B-1636-581-000 | B-1404-581-0A0 | EXCLUSIVE PARTS | 6-12 |
| B-1637-581-000 | B-1411-581-000 | EXCLUSIVE PARTS | 6-4 |
| B-1638-581-000 | B-1414-581-000 | EXCLUSIVE PARTS | 6-6 |
| B-1701-581-000 | B-1415-581-000 | EXCLUSIVE PARTS | 6-8 |
| B-1702-155-000 | B-1417-581-000 | EXCLUSIVE PARTS | 10-23 |
| B-1702-581-000 | B-1420-581-000 | EXCLUSIVE PARTS | 10-26 |
| B-1706-581-000 | B-1421-581-000 | EXCLUSIVE PARTS | 10-1 |
| B-1709-581-000 | B-1422-581-000 | EXCLUSIVE PARTS | 10-7 |
| B-3421-581-000 | B-1710-581-000 | EXCLUSIVE PARTS | 4-17 |
| B-3431-581-000 | B-1711-581-000 | EXCLUSIVE PARTS | 4-13 |
| B-3501-581-000 | B-1801-581-000 | EXCLUSIVE PARTS | 4-5 |
| B-3502-581-000 | B-1802-581-000 | EXCLUSIVE PARTS | 4-1 |
| B-3511-122-000 | B-1803-581-000 | EXCLUSIVE PARTS | 4-8 |
| B-3512-122-000 | B-1804-581-000 | EXCLUSIVE PARTS | 4-43 |
| B-3514-581-000 | B-1805-581-000 | EXCLUSIVE PARTS | 5-6 |
| B-3515-581-000 | B-1807-581-000 | EXCLUSIVE PARTS | 5-5 |
| B-3516-581-000 | B-1808-581-000 | EXCLUSIVE PARTS | 5-12 |
| B-3517-581-000 | B-1810-581-000 | EXCLUSIVE PARTS | 5-1 |
| B-3518-581-000 | B-1811-581-000 | EXCLUSIVE PARTS | 5-2 |
| B-3519-581-000 | B-1812-581-000 | EXCLUSIVE PARTS | 5-14 |
| B-3520-038-000 | B-1813-581-000 | EXCLUSIVE PARTS | 5-15 |
| B-3521-038-000 | B-1830-581-0A0 | EXCLUSIVE PARTS | 5-16 |
| B-3523-038-000 | B-1835-581-000 | EXCLUSIVE PARTS | 5-19 |
| B-3525-581-0A0 | B-1837-582-0A0 | EXCLUSIVE PARTS | 5-18 |
| B-3531-155-000 | B-1851-581-000 | EXCLUSIVE PARTS | 5-10 |
| B-3534-012-000 | B-1852-581-000 | EXCLUSIVE PARTS | 5-8 |
| B-3534-155-000 | B-1853-581-000 | EXCLUSIVE PARTS | 5-26 |
| B-3536-155-000 | B-1855-581-000 | EXCLUSIVE PARTS | 5-24 |
| B-3536-555-B00 | B-1856-581-000 | EXCLUSIVE PARTS | 5-23 |
| B-3536-581-000 | B-1857-581-000 | EXCLUSIVE PARTS | 5-21 |
| B-3537-581-000 | B-1860-581-000 | EXCLUSIVE PARTS | 5-28 |
| B-3539-122-000 | B-1861-581-000 | EXCLUSIVE PARTS | 5-29 |
| B-3540-581-000 | B-1901-541-0A0 | EXCLUSIVE PARTS | 6-16 |
| B-3541-581-000 | B-1903-541-000 | EXCLUSIVE PARTS | 6-13 |
| B-3542-581-000 | B-1904-541-000 | EXCLUSIVE PARTS | 6-17 |
| B-3543-581-000 | B-1905-541-B00 | EXCLUSIVE PARTS | 6-14 |
| B-3545-581-000 | B-1906-581-000 | EXCLUSIVE PARTS | 6-19 |
| B-3546-518-000 | B-2101-581-000 | EXCLUSIVE PARTS | 2-39 |
| B-3547-581-000 | B-2102-581-000 | EXCLUSIVE PARTS | 10-19 |
| B-3551-581-000 | B-2103-581-000 | EXCLUSIVE PARTS | 5-38 |
| B-8201-581-0B0 | B-2104-581-000 | EXCLUSIVE PARTS | 5-35 |
| B-9117-155-000 | B-2105-581-000 | EXCLUSIVE PARTS | 5-35 |
| CS-064060-SH | B-2106-581-000 | EXCLUSIVE PARTS | 5-30 |
| CS-1470711-SH | B-2107-581-000 | EXCLUSIVE PARTS | 5-33 |
| CS-1470712-SH | B-2108-581-000 | EXCLUSIVE PARTS | 10-20 |
| CS-147121B-SH | B-2111-581-000 | EXCLUSIVE PARTS | 2-41 |
| NS-608021A-SP | B-2115-581-000 | EXCLUSIVE PARTS | 5-36 |
| NS-6090310-SP | B-2116-581-000 | EXCLUSIVE PARTS | 5-31 |
| NS-6090310-SP | B-211B-581-000 | EXCLUSIVE PARTS | 5-43 |
| NS-6090310-SP | B-2120-582-000 | EXCLUSIVE PARTS | 2-37 |
| NS-6090310-SP | B-2120-583-000 | EXCLUSIVE PARTS | 9-6 |
| NS-6150310-SP | B-2121-581-A00 | EXCLUSIVE PARTS | 5-40 |
| NS-6620310-SP | B-2121-581-B00 | EXCLUSIVE PARTS | 5-41 |
| NS-6680410-SP | B-3116-125-000 | EXCLUSIVE PARTS | 2-36 |
| PD-0200150-00 | B-3120-125-000 | EXCLUSIVE PARTS | 2-33 |
| TA-0290301-MO | B-3124-541-000 | EXCLUSIVE PARTS | 2-30 |
| TA-0370301-MO | B-3126-012-000 | EXCLUSIVE PARTS | 2-32 |
| TA-0691001-RO | B-3127-581-0A0 | EXCLUSIVE PARTS | 2-27 |
| TA-0691001-RO | B-3128-012-000 | EXCLUSIVE PARTS | 2-29 |
| RE-0500000-KO | B-3129-012-A00 | EXCLUSIVE PARTS | 2-34 |
| RE-0600000-KO | B-3132-012-000 | EXCLUSIVE PARTS | 2-35 |
| RE-0600000-KO | B-3148-123-000 | EXCLUSIVE PARTS | 2-14 |
| RO-0681901-00 | B-3149-123-A00 | EXCLUSIVE PARTS | 2-15 |
| RO-1482402-00 | B-3404-581-000 | EXCLUSIVE PARTS | 1-30 |
| RO-1542401-00 | B-3405-581-000 | EXCLUSIVE PARTS | 1-33 |
| RO-1542401-00 | B-3406-581-000 | EXCLUSIVE PARTS | 1-11 |
| RO-1952401-00 | B-3411-581-000 | EXCLUSIVE PARTS | 1-11 |
| SS-6090610-SP | B-3413-581-000 | EXCLUSIVE PARTS | 1-18 |
| SS-6090620-SP | B-3414-581-000 | EXCLUSIVE PARTS | 1-19 |
| SS-6090630-SP | B-3415-581-000 | EXCLUSIVE PARTS | 1-22 |
| SS-6090810-SP | B-3416-581-000 | EXCLUSIVE PARTS | 1-23 |
| SS-6090910-SP | B-3418-581-000 | EXCLUSIVE PARTS | 1-24 |
| SS-6110870-TP | B-3419-122-0B0 | EXCLUSIVE PARTS | 9-8 |
| SS-6111010-SP | RO-4453001-00 | SCREW | 7-1 |
| SS-6111110-SP | SD-0260271-SP | SCREW | 7-8 |
| SS-6121030-SP | SD-0550502-SP | SCREW | 5-9 |
| SS-6121610-TP | SD-0600401-SD | SCREW | 1-28 |
| SS-6661110-SP | SD-0700381-SD | SCREW | 7-1c |
| SS-7060310-SP | SD-1000401-SP | SCREW | 5-39 |
| SS-7060510-SP | SD-1020961-SP | SCREW | 7-3 |
| SS-7080410-SP | SD-1090401-MZ | SCREW | 8-32 |
| SS-7080510-SP | SQ-1090401-MZ | SCREW | 8-32 |
| SS-7080510-SP | SS-2090710-SP | SCREW | 3-15 |
| SS-7080510-SP | SS-3090510-SP | SCREW | 10-14 |
| SS-7090410-SP | SS-3090610-SP | SCREW | 3-5 |
| SS-7090410-SP | SS-4090610-SP | SCREW | 2-43 |
| SS-7090520-SP | SS-4090810-SP | SCREW | 5-27 |
| SS-7090710-SP | SS-4090810-SP | SCREW | 5-22 |
| SS-7091110-SP | SS-4091010-SP | SCREW | 1-8 |
| SS-7091110-SP | SS-4091010-SP | SCREW | 2-18 |
| SS-7091410-SP | SS-5090610-SP | SCREW | 10-24 |
| SS-7110540-SP | SS-5090710-SP | SCREW | 10-24 |
| SS-7110710-SP | SS-5110810-SP | SCREW | 3-28 |
| SS-7110710-SP | SS-5110810-SP | SCREW | 3-28 |
| SS-7110810-SP | SS-6080320-SP | SCREW | 2-10 |
| SS-7110810-SP | SS-6090320-SP | SCREW | 10-4 |
| SS-7110810-SP | SS-6090510-SP | SCREW | 8-49 |
| SS-7110910-SP | SS-6090510-SP | SCREW | 8-49 |
| SS-7110910-SP | SS-6090610-SP | SCREW | 2-46 |
| SS-7111110-TP | SS-6090610-SP | SCREW | 2-46 |
| SS-7111110-TP | SS-6090610-SP | SCREW | 2-46 |
| SS-7111110-TP | SS-6090610-SP | SCREW | 2-46 |
| SS-7111110-TP | SS-6090610-SP | SCREW | 5-3 |
| SS-7111110-TP | SS-6090610-SP | SCREW | B-29A |
| SS-7111110-TP | SS-7060310-SP | SCREW | 2-38 |
| SS-7111110-TP | SS-7060510-SP | SCREW | 1-(38) |
| SS-7111110-TP | SS-7080410-SP | SCREW | 4-42 |
| SS-7111110-TP | SS-7080510-SP | SCREW | 6-2 |
| SS-7111110-TP | SS-7080510-SP | SCREW | 4-20 |
| SS-7111110-TP | SS-7080510-SP | SCREW | 5-44 |
| SS-7111110-TP | SS-7090410-SP | SCREW | 10-47c |
| SS-7111110-TP | SS-7090410-SP | SCREW | 10-47c |
| SS-7111110-TP | SS-7090520-SP | SCREW | B-4 |
| SS-7111110-TP | SS-7090710-SP | SCREW | 8-13 |
| SS-7111110-TP | SS-7091110-SP | SCREW | 3-32 |
| SS-7111110-TP | SS-7091110-SP | SCREW | 8-7 |
| SS-7111110-TP | SS-7091410-SP | SCREW | 8-44 |
| SS-7111110-TP | SS-7110540-SP | SCREW | 3-34 |
| SS-7111110-TP | SS-7110710-SP | SCREW | 1-10 |
| SS-7111110-TP | SS-7110710-SP | SCREW | 6-5 |
| SS-7111110-TP | SS-7110810-SP | SCREW | B-26 |
| SS-7111110-TP | SS-7110810-SP | SCREW | 10-18 |
| SS-7111110-TP | SS-7110810-SP | SCREW | 2-3 |
| SS-7111110-TP | SS-7110910-SP | SCREW | 10-36 |
| SS-7111110-TP | SS-7110910-SP | SCREW | 5-34 |
| SS-7111110-TP | SS-7111110-TP | SCREW | 6-9 |
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4-40 | SS-7111310-TP | SS-7111310-TP | |
| 4-12A | SS-7111410-SP | SS-7111410-SP | |
| 1-36 | SS-7120910-SP | SS-7120910-SP | |
| 4-12 | SS-7121410-SP | SS-7121410-SP | |
| 10-37 | SS-7680870-SP | SS-7680870-SP | |
| 2-31 | SS-8090670-SP | SS-8090670-SP | |
| 3-8 | SS-8090710-SP | SS-8090710-SP | |
| 4-23 | SS-8110410-TP | SS-8110410-TP | |
| 4-3B | SS-8110410-SP | SS-8110410-SP | |
| 5-11 | SS-8110510-SP | SS-8110510-SP | |
| 4-7 | SS-8110510-SP | SS-8110510-SP | |
| 10-8 | SS-8110510-SP | SS-8110510-SP | |
| 5-47 | SS-8110530-TP | SS-8110530-TP | |
| 4-10 | SS-8110750-SP | SS-8110750-SP | |
| 4-27 | SS-8110750-SP | SS-8110750-SP | |
| 5-3 | SS-8110750-SP | SS-8110750-SP | |
| 10-10 | SS-8150410-SP | SS-8150410-SP | |
| 10-21 | SS-8150410-SP | SS-8150410-SP | |
| 4-4 | SS-8150510-SP | SS-8150510-SP | |
| 10-3 | SS-8150510-TP | SS-8150510-TP | |
| 7-24 | SS-8150710-SP | SS-8150710-SP | |
| 7-12 | SS-8150710-SP | SS-8150710-SP | |
| 4-2 | SS-8150710-SP | SS-8150710-SP | |
| 4-15 | SS-8150750-SP | SS-8150750-SP | |
| 3-9 | SS-8150750-SP | SS-8150750-SP | |
| 4-25 | SS-8150750-SP | SS-8150750-SP | |
| 6-28 | SS-8151150-SP | SS-8151150-SP | |
| 6-18 | SS-8151150-SP | SS-8151150-SP | |
| 6-34 | SS-8151150-SP | SS-8151150-SP | |
| 7-16 | SS-8151150-SP | SS-8151150-SP | |
| 10-45 | SS-8151150-SP | SS-8151150-SP | |
| 7-20 | SS-8151150-SP | SS-8151150-SP | |
| 10-40 | SS-8151550-SP | SS-8151550-SP | |
| 4-36 | SS-8620610-SP | SS-8620610-SP | |
| 5-7 | SS-8660410-SP | SS-8660410-SP | |
| 6-32 | SS-8660530-SP | SS-8660530-SP | |
| 4-44 | SS-8660610-TP | SS-8660610-TP | |
| 6-24 | SS-8660610-TP | SS-8660610-TP | |
| 10-34 | SS-8660610-TP | SS-8660610-TP | |
| 6-30 | SS-8660810-TP | SS-8660810-TP | |
| 7-1b | SS-8661430-SP | SS-8661430-SP | |
| 2-27 | SS-8681650-TP | SS-8681650-TP | |
| 6-22 | SS-8680730-SK | SS-8680730-SK | |
| 8-11 | BP-3000000-00 | BP-3000000-00 | |
| 8-22 | BP-3000000-00 | BP-3000000-00 | |
| 8-30 | BP-3000000-00 | BP-3000000-00 | |
| 8-31 | BP-3000000-00 | BP-3000000-00 | |
| 8-1 | BP-4000000-00 | BP-4000000-00 | |
| 8-25A | CQ-2020000-00 | CQ-2020000-00 | |
| 8-64 | CQ-2020000-00 | CQ-2020000-00 | |
| 8-65 | CQ-2020000-00 | CQ-2020000-00 | |
| 8-2 | CQ-3030000-00 | CQ-3030000-00 | |
| 8-15 | CQ-3030000-00 | CQ-3030000-00 | |
| 8-54 | CQ-3030000-00 | CQ-3030000-00 | |
| 8-56 | CQ-3030000-00 | CQ-3030000-00 | |
| 8-60 | CQ-3030000-00 | CQ-3030000-00 | |
| 8-61 | CQ-3030000-00 | CQ-3030000-00 | |
| 8-62 | CQ-3030000-00 | CQ-3030000-00 | |
| 8-63 | CQ-3030000-00 | CQ-3030000-00 | |
| 6-36 | WP-0371026-SD | WASHER |
Juki LZ-582 / LZ-583 — parts catalog
- Page 1 (cover): This is the cover page for the JUKI LZ-582 and LZ-583 High Speed Single Needle Lockstitch Zigzag Industrial Sewing Machine Parts Book, Revision No. 4 (1976.1).
- Page 2 (text): This page provides instructions on how to use the parts book and includes an example of a parts list entry. It also contains a table of contents for the parts book.
- Page 3 (diagram): This page displays a diagram of presser bar and lifting lever components for a sewing machine, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 4 (diagram): This page displays a diagram of machine arm and bed components, along with a detailed parts list for these components, including part numbers, descriptions, and quantities.
- Page 5 (diagram): This page displays a diagram of machine arm and bed components, along with a detailed parts list for these components, including part numbers, descriptions, and quantities.
- Page 6 (diagram): This page displays a diagram of hook drive and feed lifting components, along with a detailed parts list for these components, including part numbers, descriptions, and quantities.
- Page 7 (diagram): This page displays a diagram of hook and zigzag regulator components for a sewing machine, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of needle bar and arm shaft components, along with a detailed parts list for these components, including part numbers, descriptions, and quantities required.
- Page 9 (diagram): This page displays a diagram of feed driving connection and feed lifting connection components, along with a detailed parts list for these components.
- Page 10 (diagram): This page displays a diagram of oil lubricating mechanism components for an industrial sewing machine, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 11 (diagram): This page displays a diagram and parts list for the oil reservoir, knee lifter, and exclusive parts for the LZ-583 model sewing machine.
- Page 12 (diagram): This page displays a diagram and parts list for needle bar frame components, including part numbers, descriptions, and quantities required for various parts.
- Page 13 (parts_list): This page lists gauge parts for LZ-582 & 583 sewing machines, detailing various presser feet and needle plates with their corresponding part numbers.
- Page 14 (diagram): This page displays various sewing machine presser feet and related parts for the LZ-583 model, with each part clearly labeled with its part number and illustrated with a diagram.
- Page 15 (parts_list): This page lists exchanging parts for the LZ-583 sewing machine, including needle plates, presser feet, feed dogs, width of throw, and usage remarks.
- Page 16 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, corresponding page numbers, and reference numbers.
- Page 17 (parts_list): This page lists various parts for sewing machines, including oil tubes, oil wicks, and washers, along with their part numbers and reference pages.
- Page 18 (cover): This is the cover page of a JUKI sewing machine parts catalog, featuring the company logo and contact information for Tokyo JUKI Industrial Co., Ltd. It also includes a document reference number and printing location.
Page 2 — HOW TO MAKE USE OF THIS PARTS BOOK
HOW TO MAKE USE OF THIS PARTS BOOK 1. This is a consolidated PARTS BOOK of Model LZ-582-583. 2. This book is divided, as a principle, into various sections according to the functions of parts and also contains illustrations to assist you visually. For example, if you want some parts for the HOOK & ZIGZAG REGULATOR COMPONENTS, just refer to the section on "HOOK & ZIGZAG REGULATOR COMPONENTS" etc. 3. The figures on the illustrations indicate the corresponding numbers on the BOOK. 4. On bits and pieces parts such as screws, etc. the illustration shows only a representative one and so for the required quantity of the these parts, refer to the BOOK. 5. Parts marked with on the "Ref. No." column, mean these parts are one complete assembly unit. 6. The parts circled by O are parts included in the one assembly unit which is marked with just above these parts. 7. When placing your order, please specify your order by the assembly unit number marked with under the "Ref. No." column. FOR EXAMPLE Ref. No. Part No. Description Amt. Req. *1 B-1111-111-0A0 Name of part 1 Means one assembly unit 2 B-1111-111-000 (1) Means this is included in the above B-1111-111-0A0 assembly unit. (This part can be sold as a single unit) CONTENTS 1. PRESSER BAR & LIFTING LEVER COMPONENTS 2. MACHINE ARM & BED COMPONENTS (1) 3. MACHINE ARM & BED COMPONENTS (2) 4. HOOK DRIVE, FEED LIFTING & FEED ROCKER SHAFTS COMPONENTS 5. HOOK & ZIGZAG REGULATOR COMPONENTS 6. NEEDLE BAR & ARM SHAFT COMPONENTS 7. FEED DRIVING CONNECTION & FEED LIFTING CONNECTION COMPONENTS 8. OIL LUBRICATING MECHANISM COMPONENTS 9. OIL RESERVOIR, KNEE LIFTER & EXCLUSIVE PARTS FOR LZ-583 10. NEEDLE BAR FRAME COMPONENTS 11. GAUGE PARTS FOR LZ-582 & LZ-583 12. NUMERICAL INDEX OF PARTS From the library of: Superior Sewing Machine & Supply LLC jintex.in
Page 3 — 1. PRESSER BAR & LIFTING LEVER COMPONENTS
1. PRESSER BAR & LIFTING LEVER COMPONENTS 17 22A 19 21 18 20 22 19 21 23 25 20 7 24 12 9 15 39 14 26 27 13 30 31 33 34 36 Ref. No. Part No. Description Amt. Req. Ref. No. Part No. Description Amt. Req. 1 B-1524-582-0A0 Presser foot complete 1 21 B-3431-5B1-000 Gasket (washer) 2 2 SS-6090910-SP Clamp screw 1 22 B-3415-5B1-000 Lifting lever 1 3 B-1512-155-000 Presser bar oil seal cap 1 22A B-3421-5B1-000 Plate 1 4 B-1501-5B1-000 Presser bar 1 23 B-3416-5B1-000 Lifting lever link, rear 1 5 B-1503-5B1-000 Presser bar bushing 1 24 B-3418-5B1-000 Lifting lever connecting rod 1 6 B-1511-5B1-000 Presser bar lifting bracket 1 25 PD-0201500-00 Cotter pin 1 7 B-1507-5B1-000 Presser bar guide collar 1 26 NS-6620310-SP Nut 1 8 SS-4091010-SP Clamp screw 1 27 B-3416-012-000 Joint 1 9 B-1528-5B1-000 Presser bar lifter 1 28 SD-0600400-SP Clamp screw 1 10 SS-7110710-SP Clamp screw 1 *39 B-3401-5B1-0A0 Knee lifter bell crank complete 1 11 B-3411-5B1-000 Presser bar lifting link 1 30 B-3404-5B1-000 Tension spring 1 12 B-1519-5B1-000 Hinge screw 1 31 B-3406-5B1-000 Suspension screw 1 13 B-1527-5B1-000 Thread regulator position pin 1 33 B-3405-5B1-000 Adjusting screw 1 14 B-1518-5B1-000 Thread regulator 1 34 NS-6090310-SP Nut 1 15 SS-6090620-SP Clamp screw 2 36 SS 7120910-SP Clamp screw 2 16 B-1505-5B1-000 Pressure regulator spring 1 (37) B-1540-5B3-000 Needle guard, for LZ-582 1 17 B-1509-5B1-0A0 Pressure regulator asm. 1 (3B) SS-7060610-SP Clamp screw 3 18 B-3413-5B1-000 Lifting lever link, front 1 19 B-3414-5B1-000 Lifting lever link hinge stud 2 20 RE-0600000-KO Thrust washer 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in
Page 4 — 2. MACHINE ARM & BED COMPONENTS (1)
2. MACHINE ARM & BED COMPONENTS (1) Ref. No. Part No. Description Amt. Req. Ref. No. Part No. Description Amt. Req. 1 B-1115-581-000 Top cover 1 25 B-1126-581-000 Take-up oil splasher 1 2 B-1116-581-000 Gasket 3 26 SS-6090610-SP Clamp screw 1 3 SS-7110810-SP Clamp screw 4 27 B-3127-581-0A0 Thread release pin complete 1 4 B-1618-581-000 Push button assembly 1 28 B-3121-541-000 Tension post socket 1 5 B-1622-541-000 Spring 1 29 B-3128-012-000 Take-up spring 1 6 RE-0500000-KO Thrust washer 1 30 B-3124-541-000 Tension post 1 7 B-1113-581-0A0 Thread guide pin asm. (1) 31 SS-6090670-SP Clamp screw 2 8 B-1175-581-000 Eslen case 1 32 B-3126-012-000 Tension disc 1 9 B-1177-581-000 Felt 1 33 B-3120-125-000 Thrust washer 1 10 B-1176-581-000 Holder 1 34 B-3129-012-A00 Tension spring 1 11 B-1113-581-000 Needle thread guide pin 2 35 B-3132-012-000 Tension disc gummet 1 12 NS-6150310-SP Nut 1 36 B-3116-125-000 Tension nut 1 13 B-1114-581-000 Thread guide 1 37 B-2120-582-000 Zigzag scale 1 14 B-314B-123-000 Tension disc 2 38 SS-7060310-SP Clamp screw 4 15 B-3149-123-A00 Tension spring 1 39 B-2101-581-000 Frame 1 16 SD-03B0552-SL Tension stud 1 40 SS-5110810-SP Clamp screw 1 17 B-1121-581-000 Head cover 1 41 B-2111-581-000 Gasket 1 18 SS-4091010-SP Clamp screw 4 42 B-1157-581-000 Oil dripping pan 1 19 B-1122-581-000 Gasket 1 43 SS-4090610-SP Screw 2 20A B-1159-581-000 Plug (A) 1 44 B-1619-581-000 Push button guide 1 20B B-1180-541-000 Plug (B) 1 45 B-1532-581-000 Gasket 1 21 B-1530-581-000 Presser bar lifting pin 1 22 B-1531-581-000 Spring 1 23 B-1532-581-000 Gasket 1 24 B-1529-581-000 Guide 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in
Page 5 — 3. MACHINE ARM & BED COMPONENTS (2)
3. MACHINE ARM & BED COMPONENTS (2) Ref. No. Part No. Description Amt. Req. Ref. No. Part No. Description Amt. Req. 1 B-1158-581-000 Plug (A) 4 17 B-1130-581-000 Oil seal cover, for needle bar frame 1 2 TA-0691001-RO Plug (B) 1 18 B-1109-582-000 Needle plate 1 3 B-1131-581-000 Plug 1 18 B-1109-582-000 Needle plate 1 4 B-1123-581-000 Take-up lever guard 1 19 B-1110-581-0A0 Bed slide assembly 1 5 SS-3090610-SP Clamp screw 21 20 B-1110-582-000A Chamber cover (B) 1 6 B-1164-012-000 Plug 1 21 B-1172-581-000 Chamber oil sight gauge 1 7 B-1128-541-000 Three-hole thread eyelet 1 22 B-1154-581-000 Chamber cover gasket (A) 1 8 SS-B090710-SP Clamp screw 1 23 B-1154-581-000 Chamber cover gasket (A) 1 9 SS-8150750-SP Clamp screw, for tension post 1 24 SS-5110810-SP . . Clamp screw 4 10 B-1119-581-000 Take-up thread guide 1 25 SS-5110810-SP . . Clamp screw 4 11 SS-B090710-SP Clamp screw, for thread guide 2 26 B-1104-581-000 Machine bed screw stud 1 12 B-1159-581-000 Plug 1 27 B-1151-581-000 Hook oil reservoir gasket 2 13 B-1118-581-000 Needle bar thread guide 1 28 B-1150-581-000 Hook oil reservoir cover 1 14 B-1108-581-000 Bed plate 1 29 SS-7091110-SP . . Clamp screw 6 15 SS-2090710-SP . . Clamp screw 4 30 B-1151-581-000 Machine bed oil splasher 1 16 B-1171-581-000 Rubber ring, for oil seal cover 1 31 SS-7110540-SP . . Clamp screw 3 32 B-1184-581-000 Presser plate, for gasket 1 From the library of: Superior Sewing Machine & Supply LLC Jinte.in
Page 6 — 4. HOOK DRIVE, FEED LIFTING & FEED ROCKER COMPONENTS
4. HOOK DRIVE, FEED LIFTING & FEED ROCKER COMPONENTS 43 44 3 5 6 8 14 12 9 2 13 10 15 16 19 20 12A 18 33 32 34 36 42 41 39 35 38 37 23 24 25 26 27 28 29 30 31 12B Ref. No. Part No. Description Amt. Req. Ref. No. Part No. Description Amt. Req. 1 B-1B02-581-000 Hook drive shaft front bushing 1 24 B-1702-155-000 Feed rocker shaft front bushing 1 2 SS-B150710-SP . . Clamp screw 1 25 SS-B150750-SP . . Clamp screw 2 3 CS-0871019-SH Hook drive shaft thrust collar 2 26 B-1637-581-000 Feed rocker shaft set collar 1 4 SS-B150510-SP . . Clamp screw 1 27 SS-B150750-SP . . Clamp screw 1 5 B-1801-581-000 Hook drive shaft 1 28 B-1601-581-000 Feed rocker shaft 1 6 B-1814-581-000 Needle bearing sleeve 1 29 B-1631-581-000 . . Rear bushing 1 7 SS-B150510-SP . . Clamp screw 2 30 B-1635-581-000 . . Oil felt 2 B B-1B03-581-000 Needle bearing 1 *31 B-1608-161-0A0 . . Crank, front 1 9 B-1611-155-000 Feed lifting shaft crank rear 1 12B SS-6121610-TP . . Screw 1 hinge stud 12 SS-7121410-SP . . Clamp screw, for crank, front & rear 1 32 B-1613-582-000 Feed dog 1 13 B-1711-581-000 Feed lifting shaft rear bushing 1 33 B-1638-581-000 . . Clamp screw 2 14 B-1635-581-000 Oil felt 1 34 B-1602-581-000 . . Feed bar 1 15 SS-B150750-SP . . Clamp screw, bushing, front & rear 2 35 B-1604-012-000 Feed bar hinge stud 1 16 B-1704-581-000 Feed lifting shaft 1 36 SS-8620610-SP . . Clamp screw 1 17 B-1710-581-000 . . Front bushing 1 37 CS-0640860-SH . . Thrust collar asm. 1 18 B-1705-581-000 . . Crank, front 1 38 SS-B110410-SP . . Clamp screw 2 12A SS-7111410-SP . . Screw 1 39 B-1603-155-000 Feed rocker 1 19 B-1709-581-000 . . Oil wick holder 1 40 SS-7111310-TP . . Clamp screw 2 20 SS-7080510-SP . . Clamp screw 1 41 B-1609-581-000 Oil wick holder, for feed bar 1 21 SS-5150510-SP Oil seal screw 2 hinge stud 22 CS-1470712-SH Feed rocker shaft thrust collar 2 42 SS-7080410-SP . . Clamp screw 1 23 SS-B110410-TP . . Clamp screw 4 43 B-1804-581-000 Hook drive shaft bevel gear 1 asm. 44 SS-B660610-TP . . Clamp screw 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in
Page 7 — 5. HOOK & ZIGZAG REGULATOR COMPONENTS
5. HOOK & ZIGZAG REGULATOR COMPONENTS Ref. No. Part No. Description Amt. Req. Ref. No. Part No. Description Amt. Req. 1 B-1B10-581-000 Hook shaft rear bushing 1 24 B-1B55-581-000 Front bushing 1 2 B-1B11-581-000 Housing 1 25 NS-6090310-SP Nut, for hinge screw 1 3 SS-B110750-SP Clamp screw 1 26 B-1B53-581-000 Crank 1 4 SS-6090630-SP Set screw 1 27 B-1857-581-000 Clamp screw 1 5 B-1807-581-000 Hook shaft 1 28 B-1858-581-000 Rear bushing 1 6 B-1B05-581-000 Bevel gear 1 29 B-1860-581-000 Retaining ring 1 7 SS-B660410-TP Clamp screw 2 30 B-2106-581-000 Zigzag regulating screw stud 1 8 B-1B52-581-000 Thread pull-off link 1 31 B-114B-012-000 Scale position pin 1 9 SD-0550502-SP Hinge screw 1 32 B-1148-012-000 Tension spring 1 10 B-1B51-581-000 Thread pull-off eccentric 1 33 B-2107-581-000 Zigzag regulator 1 11 SS-B104170-SP Clamp screw 2 34 SS-7110910-SP Clamp screw 4 12 B-1B08-581-000 Hook shaft front bushing 1 35 B-2105-581-000 Knob 1 13 SS-B111110-SP Clamp screw 1 36 B-2108-581-000 Scale pointer 1 14 B-1B12-581-000 Hook oil supply felt 1 37 SS-1080510-SP Clamp screw 2 15 SS-B110870-SP Hook holder 1 3B B-2104-581-000 Zigzag regulator positioning 16 B-1830-581-0A0 Hook complete 1 link 17 B-9117-155-000 Screw 2 39 SD-1000401-SP Stop roller 1 18 B-1B37-582-0A0 Screw 1 40 B-2121-581-A00 Stop roller 1 19 B-1835-581-000 Bobbin case assembly 1 41 B-2121-581-B00 Stop roller (B) 1 20 SS-B111010-SP Bobbin case position finger 1 42 SS-6080720-SP Clamp screw 2 21 B-1857-581-000 Thread pull-off lever 1 43 B-2118-581-000 Adjusting dog 1 22 SS-4090810-SP Clamp screw 1 44 SS-7080510-SP Clamp screw 1 23 B-1856-581-000 Thread pull-off lever shaft 1 45 B-2112-581-000 Bushing, for zigzag regulating screw stud 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in
Page 8 — 6. NEEDLE BAR & ARM SHAFT COMPONENTS
6. NEEDLE BAR & ARM SHAFT COMPONENTS 17 18 16 14 13 12A 12 36 15 14 12B 12E 12C 5 4 3 2 1 21 22 24 26 25 27 28 29 31 34 33 35 30 32 Ref. No. Part No. Description Amt. Req. Ref. No. Part No. Description Amt. Req. 1 B-1440-581-000 Needle bar thread eyelet 1 21 B-1206-581-000 Counterweight asm. 1 2 SS-7080510-SP Clamp screw for needle 1 22 SS-8680730-SK Clamp screw (B) 1 3 B-1401-581-000 Needle bar 1 23 SS-7681750-TP Clamp screw (A) 1 4 B-1411-581-000 Needle bar connecting stud 1 24 SS-8660610-TP Clamp screw, for needle bar asm. crank 1 5 SS-7110720-SP Clamp screw (1) 25 B-1201-581-000 Arm shaft 1 6 B-1414-581-000 Slide block 1 26 TA-0620301-MO Plug 2 7 SS-5090610-SP Clamp screw 1 27 B-1202-581-000 Front bushing 1 8 B-1415-581-000 Position bracket 1 28 SS-8151150-SP Clamp screw 1 9 SS-7111110-TP Clamp screw 2 29 B-1430-581-000 Bevel gear, for needle 10 B-1443-581-000 Oil wick holder 1 vibrating mechanism 1 11 SS-7090410-SP Clamp screw 1 30 SS-8660810-TP Clamp screw 1 12 B-1404-581-0AO Needle bar crank rod complete (1) 31 CS-147121B-SH Thrust collar asm. 1 12A B-1404-581-000 Upper rod 1 32 SS-8660530-SP Clamp screw 2 12B B-1405-581-000 Crank rod 1 33 B-1203-581-000 Center bushing 1 12C B-1406-581-000 Lower rod 2 34 SS-8151150-SP Clamp screw 1 12D B-1407-581-000 Pin 1 35 SS-6661110-SP Screw, for needle bar crank 1 12E B-1439-581-000 Screw 2 36 WP-0371026-SD Washer, for slide block 1 13 B-1903-541-000 End screw 1 14 B-1905-541-B00 Needle bearing 1 15 B-1209-581-000 Needle bar crank 1 16 B-1901-541-0AO Take-up lever assembly 1 17 B-1904-541-000 Hinge stud 1 18 SS-8151150-SP Clamp screw 1 19 B-1906-581-000 Thrust washer 1 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in
Page 9 — 7. FEED DRIVING CONNECTION & FEED LIFTING CONNECTION COMPONENTS
7. FEED DRIVING CONNECTION & FEED LIFTING CONNECTION COMPONENTS Ref. No. Part No. Description Amt. Req. Ref. No. Part No. Description Amt. Req. 1 B-1610-5B1-0A0 Feed driving eccentric complete 1 15 B-1204-5B1-000 Arm shaft rear bushing 1 1a B-1611-038-000 Retainer housing 1 16 SS-B1511-000-SP Clamp screw 1 1b SS-B661430-SP Clamp screw 1 17 RO-4450001-00 Rubber ring 1 1c SD-0700381-SD Set screw 1 18 TA-0370301-M0 Plug 1 1d B-1610-5B1-000 Feed driving eccentric 1 19 B-1227-5B1-000 Hand wheel asm. 1 1e B-1612-5B1-000 Sleeve 1 20 SS-B1515-000-SP Clamp screw 2 2 B-1609-5B1-000 Feed driving connection 1 21 RO-14B20-00 Rubber ring 1 3 SD-1020961-SP Hinge screw 1 22 B-1304-5B1-000 Sprocket flange 2 4 NS-6680410-SP Nut 1 23 B-1302-5B1-000 Sprocket, small 1 5 B-1636-5B1-000 Needle bearing 1 24 SS-B150710-SP Clamp screw 2 6 B-1623-051-000 Ratchet pawl 1 25 B-1305-5B1-000 Timing belt 1 7 B-1624-051-000 Torsion spring 1 26 B-1301-5B1-000 Sprocket, large 1 8 SD-0260271-SP Clamp screw 1 27 SS-B6B1650-TP Screw 2 9 B-1619-155-000 Ratchet gear 1 10 B-1620-155-000 Position pin 1 11 B-1702-5B1-000 Feed lifting eccentric asm. 1 12 SS-B150710-SP Clamp screw 2 13 B-1701-5B1-000 Feed lifting connection 1 14 B-1715-5B1-000 Needle bearing 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in
Page 10 — 8. OIL LUBRICATING MECHANISM COMPONENTS
8. OIL LUBRICATING MECHANISM COMPONENTS 19A 29A 28 26 25 36 19B 35 34 32 31 67 40 41 42 43 44 45 46 48 50 51 53 54 55 56 57 58 59 60 61 62 63 64 65 Ref. No. Part No. Description Amt. Req. Ref. No. Part No. Description Amt. Req. 1 BP-4000000-00 Take-up lever oil tube 1 33 B-3545-581-000 Oil drain funnel 1 2 CQ-3030000-00 Oil wick 1 29B SS-6090610-SP Clamp screw 2 3 B-1161-581-000 Holder 1 34 B-3534-155-000 Oil return plunger 2 4 SS-7090520-SP Clamp screw 1 35 B-1214-038-000 Tension spring 2 5 B-3542-581-000 Oil felt 1 36 B-3536-155-000 Plug screw, for oil return pump 2 6 B-3543-581-000 Holder 1 19B RO-1542401-00 Rubber ring 1 7 SS-7091110-SP Clamp screw 1 37 B-3514-581-000 Oil supply pipe 1 8A NS-6090310-SP Nut 1 38 B-3515-581-000 Connecting screw 1 9 B-1162-581-000 Oil wick holder, for crank hinge stud 1 39 B-3516-581-000 Gasket 2 40 B-3531-155-000 Oil sight window base 1 10 SS-6090510-SP Clamp screw 2 41 B-3520-038-000 Oil sight window 1 BB NS-6090310-SP Nut 1 42 B-3523-038-000 Gasket 3 11 BP-3000000-00 Oil return tube (A) 1 43 B-3521-038-000 Flange 1 12 B-3536-555-B00 Holder 1 44 SS-7091410-SP Clamp screw 4 13 SS-7090710-SP Clamp screw 1 45 B-3518-581-000 Oil filter 1 14 B-1170-581-000 Oil filter sponge 1 46 B-3519-581-000 Retaining collar 1 15 CQ-3030000-00 Oil wick, for connecting stud position bracket 1 47 B-3546-581-000 Oil filter cover 1 48 B-3547-581-000 Clamp 1 16 B-3525-581-0A0 Arm shaft oil pipe assembly 1 49 SS-6081210-SP Nut 1 18 B-352B-581-000 Plug screw, for arm shaft front bushing 1 50 NS-6080210-SP Oil filter retainer 1 19A RO-1542401-00 Rubber ring 1 51 B-3517-581-000 Retaining screw, for oil valve 1 20 B-3511-122-000 Oil pipe clamping sleeve nut 1 52 B-3551-581-000 Valve ball 1 21 B-3512-122-000 Oil pipe clamping sleeve 1 53 B-3539-122-000 Oil pipe, for feed lifting shaft 1 22 BP-3000000-00 Oil tube, for needle vibrating link 1 54 CQ-3030000-00 Oil pipe, for oil reservoir 1 23 SQ-1110401-MZ Connecting screw, for oil tube 1 55 B-3536-581-000 Oil pipe, for oil reservoir shaft 1 25 B-3501-581-000 Machine arm oil reservoir 1 56 CQ-3030000-00 Oil wick, for feed rocker shaft 1 25A CQ-20200000-00 Oil wick 1 57 B-3541-581-000 Hook oil regulating rubber 1 26 SS-7110810-SP Clamp screw 1 58 B-3540-581-000 Bushing 1 28 B-3502-581-000 Cover 1 59 B-3537-581-000 Positioning screw 1 29A SS-6090810-SP Clamp screw 4 60 CQ-3030000-00 Hook oil regulating screw 1 30 BP-3000000-00 Oil tube, for bevel gear 1 61 CQ-3030000-00 Oil wick, for feed rocker 1 31 BP-3000000-00 Oil return tube (B) 1 62 CQ-3030000-00 Oil wick, for feed rocker 1 32 SQ-1090401-MZ Connecting screw 1 63 CQ-3030000-00 Oil wick, bushing 1 64 CQ-20200000-00 Oil wick, needle bar frame 1 65 CQ-20200000-00 Oil wick, needle bar frame 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in
Page 11 — 9. OIL RESERVOIR, KNEE LIFTER & EXCLUSIVE PARTS FOR LZ-583
9. OIL RESERVOIR, KNEE LIFTER & EXCLUSIVE PARTS FOR LZ-583 LZ-583 1 3 2 4 5 6 7 8 9 Ref. No. Part No. Description Amt. Req. 1 B-1160-583-000 Model plate, for LZ-583 1 2 B-1613-583-000 Fixed dog 1 3 B-1109-583-000 Needle plate 1 *4 B-1524-583-0A0 Presser foot complete 1 *5 B-1445-583-0A0 Needle vibrating eccentric complete 1 6 B-2120-583-000 Zigzag scale 1 *7 B-8201-581-0A0 Oil reservoir complete 1 *8 B-3419-122-0A0 Knee lifter complete 1 *9 B-3423-581-0A0 Knee press lifter rod asm. 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in
Page 12 — 10. NEEDLE BAR FRAME COMPONENTS
10. NEEDLE BAR FRAME COMPONENTS Ref. No. Part No. Description Amt. Req. Ref. No. Part No. Description Amt. Req. 1 B-1421-581-000 Needle bar frame 1 25 B-1424-581-000 Needle vibrating link 1 2 B-1447-581-000 Hinge stud bushing, left 1 34 SS-8660610-TP Clamp screw 1 3 SS-8150510-TP Clamp screw, for 2 26 B-1420-581-000 Hinge stud 1 bushing 27 TA-0370301-MO Oil seal plug 1 4 B-1446-581-000 Hinge stud bushing, 1 28 SS-6121030-SP Set screw 1 right 29 B-1428-581-000 Gasket 1 5 RO-0681901-00 Rubber ring, for 2 30 B-1433-581-000 Hinge stud, for pitman 1 bushing 31 B-1426-581-000 Needle bar frame forked link 1 6 SS-5220860-SP Plug screw, for bushing 2 32 TA-0290301-MO Plug 2 7 B-1422-581-000 Hinge stud 1 33 B-1425-581-000 Hinge stud 1 8 SS-8110510-SP Clamp screw 1 35 B-2103-581-000 Needle bar frame pitman 1 9 B-1436-581-000 Position pin 2 10 SS-81150410-SP Clamp screw 2 36 SS-7110910-SP Clamp screw 2 11 B-1141-581-000 Stop pin (B) 2 37 SS-7680870-SP Set screw, for bevel gear shaft 1 12 SS-6111440-SP Clamp screw 2 bushing 13 B-1169-581-000 Gasket (washer) 2 39 B-1435-581-000 Bevel gear shaft bushing 1 14 SS-3090510-SP Screw 2 40 SS-8151550-SP Clamp screw 1 15 B-1437-581-000 Oil guard 1 44 B-1432-581-000 Bevel gear shaft 1 16 SS-2060510-SP Clamp screw 2 45 SS-8151550-SP Clamp screw 1 17 B-1140-581-000 Stop pin (A) 1 46 RO-1542401-00 Rubber ring 1 18 SS-7110810-SP Clamp screw 1 *47 B-1445-582-0A0 Needle vibrating eccentric 1 19 B-2102-581-000 Needle bar frame pitman 1 complete 20 B-2110-581-000 Eccentric stud 1 42 SS-6090530-SP Clamp screw (A) 1 21 SS-8150410-SP Clamp screw 1 47c SS-7090410-SP Clamp screw (B) 3 22 RE-0600000-KO Snap ring 1 23 B-1417-581-000 Oil felt 1 24 SS-5090710-SP Clamp screw 1 --10-- From the library of: Superior Sewing Machine & Supply LLC jintex.in
Page 13 — GAUGE PARTS FOR LZ-582 & 583
GAUGE PARTS FOR LZ-582 & 583 (NOTE) 1. The figures in the circle ①-⑥ of this list designate the numbers of each set. For example, the figure ② of LZ-582 indicates the presser foot assembly (B-1524-582-CAO), the needle plate (B-1109-582-000) and the feed dog (B-1613- 582-000). 2. When only one part of respective set is desired, please order that part number of each set. 3. When the part numbers are identical, it means that they are same parts of all sets. LZ-582 B-1524-582-0AO B-1109-582-000 B-1613-582-000 LZ-582 B-1524-582-DAO B-1109-582-DOO B-1613-582-DOO LZ-582 B-1524-582-EAO B-1109-582-EOO B-1613-582-EOO LZ-582 B-1524-582-FAO B-1109-582-FOO B-1613-582-FOO LZ-582 B-1524-582-MAO B-1109-582-MOO B-1613-582-MOO LZ-583 B-1524-583-0AO B-1109-583-000 B-1613-583-000 LZ-583 B-1524-583-BAO B-1109-583-000 B-1613-583-000 From the library of: Superior Sewing Machine & Supply LLC jintex.in
Page 14
LZ-583 3 B-1524-583-CAO B-1109-583-000 B-1613-583-000 LZ-583 6 B-1524-583-GAO B-1109-583-GOO B-1613-583-GOO LZ-583 9 B-1524-583-JBO B-1109-583-DOO B-1613-583-DOO LZ-583 4 B-1524-583-EAO B-1109-583-EOO B-1613-583-EOO LZ-583 7 B-1524-583-HAO B-1109-583-HOO B-1613-583-HOO LZ-583 10 B-1524-583-KAO B-1109-583-DOO B-1613-583-DOO LZ-583 5 B-1524-583-FAO B-1109-583-FOO B-1613-583-FOO LZ-583 8 B-1524-583-JAO B-1109-583-DOO B-1613-583-DOO LZ-583 11 B-1524-583-KBO B-1109-583-DOO B-1613-583-DOO From the library of: Superior Sewing Machine & Supply LLC jintex.in
Page 15 — LZ-582, 583 LIST OF EXCHANGING PARTS
LZ-583 (12) LZ-582, 583 LIST OF EXCHANGING PARTS No Model Needle Plate Presser Foot Feed dog Width of Throw Usage & Remarks B-1524-583-LA0 1 LZ-582 B-1109-582-000 B 1524-582-0A0 B-1613-582-000 6 mm (1/4") Standard parts 2 B-1524-582-CAO For garments requiring stepped stitches 3 B-1109-582-100 B-1524-582-DAO B-1613-582-1000 5 mm (3/16") For light weight materials 4 B-1109-582-F00 B-1524-582-EA0 B-1613-582-F00 For overseaming 5 B-1109-582-FA0 B-1524-582-FA0 B-1613-582-FA0 6 mm For spun tex materials 6 B-1109-582-M00 B-1524-582-MA0 B-1613-582-M00 5 mm Standard type parts B-1109-583-E00 7 LZ-583 B-1109-583-000 B 1524-583-0A0 B-1613-583-000 4 mm (5/32") Standard parts 8 B-1524-583-DAO For medium heavy materials requiring stepped stitches 9 B-1524-583-CAO For light weight materials requiring stepped stitches 10 B-1109-583-D00 B-1524-583-EA0 B-1613-583-D00 4 mm Extreme light weight materials 11 B-1109-583-F00 B-1524-583-FA0 B-1613-583-F00 3 mm Extreme light weight materials tricot run stitches B-1613-583-E00 12 B-1109-583-G00 B-1524-583-GA0 B-1613-583-G00 3 mm (1/8") Light weight materials, overseaming width 3mm 13 B-1109-583-H00 B-1524-583-HA0 B-1613-583-H00 2 mm (1/16") Light weight materials zigzag width 2mm 14 B-1109-583-J00 B-1524-583-JA0 B-1613-583-J00 3 mm Extreme light weight materials Zigzag width less than 3 mm 15 B-1524-583-JB0 Extreme light weight materials Zigzag width less than 3 mm 16 B-1524-583-KA0 Light weight materials 17 B-1524-583-KBO Light weight materials 18 B-1109-583-E00 B-1524-583-LA0 B-1613-583-E00 Overseaming width of throw 3mm From the library of: Superior Sewing Machine & Supply LLC jintex.in
Page 16 — 12. NUMERICAL INDEX OF PARTS
12. NUMERICAL INDEX OF PARTS EXCLUSIVE PARTS Part No. Page Ref. No. Part No. Page Ref. No. Part No. Page Ref. No. Part No. Page Ref. No. B-1104-581-000 3-29 B-1424-581-000 10-25 B-1710-581-000 4-17 B-3421-581-000 1-22A RO-4453001-00 7-1 B-1108-581-000 3-18 B-1425-581-000 10-31 B-1711-581-000 4-13 B-3431-581-000 9-9 SCREW 7-9 B-1109-582-000 3-29 B-1426-581-000 10-29 B-1801-581-000 4-5 B-3501-581-000 8-25 SD-0260271-SP 7-8 B-1109-583-000 9-3 B-1428-581-000 10-33 B-1802-581-000 4-1 B-3502-581-000 8-28 SD-0550502-SP 5-9 B-1110-581-0A0 3-19 B-1432-581-000 10-4 B-1803-581-000 4-8 B-3511-122-000 8-20 SD-0550502-SP 5-9 B-1113-581-000 2-13 B-1433-581-000 10-39 B-1804-581-000 4-43 B-3512-122-000 8-36 SD-0600401-SD 1-28 B-1113-581-0A0 2-* B-1435-581-000 10-3 B-1805-581-000 5-6 B-3514-581-000 8-37 SD-0700381-SD 7-1c B-1114-581-000 2-13 B-1436-581-000 10-6 B-1807-581-000 5-5 B-3515-581-000 8-38 SD-1000401-SP 5-39 B-1115-581-000 2-1 B-1439-581-000 6-26 B-1808-581-000 5-12 B-3516-581-000 8-39 SD-1020961-SP 7-3 B-1116-581-000 2-2 B-1440-581-000 6-15 B-1810-581-000 5-1 B-3517-581-000 8-51 SD-1090401-MZ 8-32 B-1119-581-000 3-10 B-1443-581-000 6-10 B-1811-581-000 5-2 B-3518-581-000 8-40 SQ-1090401-MZ 8-32 B-1121-581-000 2-17 B-1445-582-0A0 10-4 B-1812-581-000 5-14 B-3519-581-000 8-46 SS-2090710-SP 3-15 B-1122-581-000 2-19 B-1445-583-0A0 9-5 B-1813-581-000 5-15 B-3520-038-000 8-41 SS-2090710-SP 3-15 B-1123-581-000 3-4 B-1446-581-000 10-1 B-1830-581-0A0 5-16 B-3521-038-000 8-43 SS-3090510-SP 10-14 B-1126-581-000 2-25 B-1447-581-000 10-15 B-1835-581-000 5-19 B-3523-038-000 8-42 SS-3090610-SP 3-5 B-1128-541-000 3-7 B-1501-581-000 1-4 B-1837-582-0A0 5-18 B-3525-581-0A0 8-36 SS-4090610-SP 2-43 B-1130-581-000 3-17 B-1503-581-000 1-16 B-1851-581-000 5-10 B-3531-155-000 8-40 SS-4090810-SP 5-27 B-1131-581-000 3-3 B-1505-581-000 1-17 B-1852-581-000 5-8 B-3534-012-000 8-24 SS-4090810-SP 5-22 B-1140-581-000 10-17 B-1507-581-000 1-12 B-1853-581-000 5-26 B-3534-155-000 8-36 SS-4091010-SP 1-8 B-1141-581-000 10-11 B-1509-581-000 1-17 B-1855-581-000 5-24 B-3536-155-000 8-36 SS-4091010-SP 2-18 B-1148-012-000 5-32 B-1511-581-000 1-13 B-1856-581-000 5-23 B-3536-581-000 8-55 SS-5090610-SP 10-24 B-1150-581-000 3-31 B-1512-155-000 1-3 B-1857-581-000 5-21 B-3537-581-000 8-59 SS-5090710-SP 10-24 B-1151-581-000 3-30 B-1518-581-000 1-1 B-1860-581-000 5-29 B-3539-122-000 8-53 SS-5110810-SP 3-28 B-1153-581-000 3-27 B-1524-582-0A0 1-12 B-1901-541-0A0 6-16 B-3540-581-000 8-58 SS-5110810-SP 3-28 B-1154-581-000 3-26 B-1524-583-0A0 9-3 B-1903-541-000 6-13 B-3541-581-000 8-57 SS-6080320-SP 2-10 B-1157-581-000 2-42 B-1527-581-000 1-13 B-1904-541-000 6-17 B-3542-581-000 8-58 SS-6090320-SP 10-4 B-1158-581-000 3-1 B-1528-581-000 1-24 B-1905-541-B00 6-14 B-3543-581-000 8-6 SS-6090510-SP 8-49 B-1159-581-000 2-12A B-1529-581-000 2-24 B-1906-581-000 6-19 B-3545-581-000 8-33 SS-6090510-SP 8-49 B-1160-583-000 9-1 B-1530-581-000 2-22 B-2101-581-000 2-39 B-3546-518-000 8-47 SS-6090610-SP 2-46 B-1161-581-000 8-3 B-1531-581-000 2-22 B-2102-581-000 10-19 B-3547-581-000 8-48 SS-6090610-SP 2-46 B-1164-012-000 3-6 B-1532-581-000 2-45 B-2103-581-000 5-38 B-3547-581-000 8-47 SS-6090610-SP 2-46 B-1166-552-000A 3-21 B-1540-582-000 1-30 B-2104-581-000 5-35 B-3551-581-000 8-5 SS-6090610-SP 2-46 B-1169-581-000 10-13 B-1601-581-000 4-28 B-2105-581-000 5-35 THRUST COLLAR SS-6090610-SP 5-3 B-1171-581-000 3-33 B-1602-581-000 4-34 B-2107-581-000 5-30 CS-064060-SH 4-37 SS-6090610-SP B-29A B-1172-581-000 3-23 B-1603-155-000 4-4 B-2108-581-000 10-20 CS-1470711-SH 4-22 SS-6110870-TP 5-46 B-1175-581-000 2-7 B-1604-012-000 4-35 B-2111-581-000 2-41 CS-1470712-SH 6-31 SS-6110870-TP 5-46 B-1176-581-000 2-9 B-1607-155-000 4-1 B-2115-581-000 5-36 CS-147121B-SH 8-50 SS-6111010-SP 5-20 B-1177-581-000 2-8 B-1608-161-0A0 4-31 B-2118-581-000 5-31 SS-6111010-SP 5-13 B-1180-541-000 2-20B B-1609-581-000 4-36 B-2120-582-000 2-37 NUT SS-6111440-SP 10-12 B-1184-581-000 3-36 B-1609-581-000 7-14 B-2120-583-000 9-6 NS-608021A-SP 8-50 SS-6120300-SP 10-28 B-1201-581-000 6-25 B-1610-581-000 7-14 B-2121-581-000 5-40 NS-6090310-SP 1-34 SS-6121610-TP 4-12B B-1202-581-000 6-27 B-1610-581-0A0 7-1 B-2121-581-B00 5-41 NS-6090310-SP B-8A SS-6661110-SP 6-35 B-1203-581-000 6-33 B-1611-038-000 7-1A B-3116-125-000 2-36 NS-6090310-SP B-8A SS-7060310-SP 2-38 B-1204-581-000 7-15 B-1612-581-000 7-7 B-3120-125-000 2-33 NS-6090310-SP 2-12 SS-7060510-SP 1-(38) B-1206-581-000 6-21 B-1613-582-000 7-12 B-3120-125-000 2-33 NS-6620310-SP 1-26 SS-7080410-SP 4-42 B-1209-581-000 6-15 B-1613-583-000 9-4 B-3124-541-000 2-30 NS-6680410-SP 7-4 SS-7080510-SP 6-20 B-1214-038-000 8-35 B-1618-581-000 2-7 B-3126-012-000 2-30 PIN SS-7080510-SP 4-20 B-1227-581-000 7-19 B-1619-155-000 7-2 B-3132-012-000 2-35 PD-0200150-00 1-25 SS-7080510-SP 5-44 B-1301-581-000 2-26 B-1619-581-000 2-44 B-3148-123-000 2-14 TA-0290301-MO 10-32 SS-7090410-SP 10-47c B-1302-581-000 7-23 B-1620-155-000 7-19 B-3149-123-A00 2-15 TA-0370301-MO 10-27 SS-7090410-SP 10-47c B-1304-581-000 7-22 B-1622-541-000 2-5 B-3156-123-000 2-15 TA-0691001-RO 7-18 SS-7090710-SP 8-13 B-1401-581-000 6-3 B-1623-051-000 7-7 B-3156-123-000 2-15 TA-0691001-RO 3-26 SS-7091110-SP 3-32 B-1404-581-000 6-12A B-1624-051-000 7-14 B-3156-123-000 2-15 TA-0691001-RO 3-5 SS-7091110-SP 8-7 B-1405-581-000 6-12B B-1631-581-000 4-14 B-3404-581-000 1-30 SS-7091410-SP 8-44 B-1406-581-000 6-12C B-1635-581-000 4-14 B-3405-581-000 1-33 "O" RING SS-7110540-SP 3-34 B-1407-581-000 6-12D B-1635-581-000 4-30 B-3406-581-000 1-11 RE-0500000-KO 2-6 SS-7110710-SP 1-10 B-1404-581-0A0 6-12 B-1636-581-000 7-14 B-3411-581-000 1-11 RE-0600000-KO 1-20 SS-7110710-SP 6-5 B-1411-581-000 6-4 B-1637-581-000 4-26 B-3413-581-000 1-18 RE-0600000-KO 10-22 SS-7110810-SP B-26 B-1414-581-000 6-6 B-1701-581-000 7-14 B-3414-581-000 1-19 RO-0681901-00 10-5 SS-7110810-SP 10-18 B-1415-581-000 6-8 B-1702-155-000 7-11 B-3415-581-000 1-22 RO-1482402-00 7-21 SS-7110810-SP 2-3 B-1417-581-000 10-23 B-1702-581-000 7-11 B-3416-581-000 1-23 RO-1542401-00 8-19A SS-7110910-SP 10-36 B-1420-581-000 10-26 B-1706-581-000 7-11 B-3418-581-000 1-24 RO-1542401-00 10-46 SS-7110910-SP 5-34 B-1421-581-000 10-1 B-1709-581-000 4-19 B-3419-122-0B0 9-8 RO-1952401-00 3-35 SS-7111110-TP 6-9 B-1422-581-000 10-7 B-1709-581-000 4-19 B-3551-581-000 8-5 SS-7090710-SP 8-13 B-1702-155-000 7-11 B-3551-581-000 8-5 SS-7091110-SP 3-32 B-1702-581-000 7-11 B-3551-581-000 8-5 SS-7091110-SP 8-7 B-1706-581-000 7-11 B-3551-581-000 8-5 SS-7091410-SP 8-44 B-1709-581-000 4-19 B-3551-581-000 8-5 SS-7110540-SP 3-34 B-1709-581-000 4-19 B-3551-581-000 8-5 SS-7110710-SP 1-10 B-1709-581-000 4-19 B-3551-581-000 8-5 SS-7110710-SP 6-5 B-1709-581-000 4-19 B-3551-581-000 8-5 SS-7110810-SP B-26 B-1709-581-000 4-19 B-3551-581-000 8-5 SS-7110810-SP 10-18 B-1709-581-000 4-19 B-3551-581-000 8-5 SS-7110810-SP 2-3 B-1709-581-000 4-19 B-3551-581-000 8-5 SS-7110910-SP 10-36 B-1709-581-000 4-19 B-3551-581-000 8-5 SS-7110910-SP 5-34 B-1709-581-000 4-19 B-3551-581-000 8-5 SS-7111110-TP 6-9 From the library of: Superior Sewing Machine & Supply LLC jintex.in -14-
Page 17
Part No. Page Ref. No. SS-7111310-TP 4-40 SS-7111410-SP 4-12A SS-7120910-SP 1-36 SS-7121410-SP 4-12 SS-7680870-SP 10-37 SS-8090670-SP 2-31 SS-8090710-SP 3-8 SS-8110410-TP 4-23 SS-8110410-SP 4-3B SS-8110510-SP 5-11 SS-8110510-SP 4-7 SS-8110510-SP 10-8 SS-8110530-TP 5-47 SS-8110750-SP 4-10 SS-8110750-SP 4-27 SS-8110750-SP 5-3 SS-8150410-SP 10-10 SS-8150410-SP 10-21 SS-8150510-SP 4-4 SS-8150510-TP 10-3 SS-8150710-SP 7-24 SS-8150710-SP 7-12 SS-8150710-SP 4-2 SS-8150750-SP 4-15 SS-8150750-SP 3-9 SS-8150750-SP 4-25 SS-8151150-SP 6-28 SS-8151150-SP 6-18 SS-8151150-SP 6-34 SS-8151150-SP 7-16 SS-8151150-SP 10-45 SS-8151150-SP 7-20 SS-8151550-SP 10-40 SS-8620610-SP 4-36 SS-8660410-SP 5-7 SS-8660530-SP 6-32 SS-8660610-TP 4-44 SS-8660610-TP 6-24 SS-8660610-TP 10-34 SS-8660810-TP 6-30 SS-8661430-SP 7-1b SS-8681650-TP 2-27 SS-8680730-SK 6-22 OIL TUBE BP-3000000-00 8-11 BP-3000000-00 8-22 BP-3000000-00 8-30 BP-3000000-00 8-31 BP-4000000-00 8-1 OIL WICK CQ-2020000-00 8-25A CQ-2020000-00 8-64 CQ-2020000-00 8-65 CQ-3030000-00 8-2 CQ-3030000-00 8-15 CQ-3030000-00 8-54 CQ-3030000-00 8-56 CQ-3030000-00 8-60 CQ-3030000-00 8-61 CQ-3030000-00 8-62 CQ-3030000-00 8-63 WASHER WP-0371026-SD 6-36 From the library of: Superior Sewing Machine & Supply LLC jintex.in
Page 18
JUKI TOKYO JUKI INDUSTRIAL CO.,LTD. Business Office : Kabuki-cho, Shinjuku-ku, Tokyo, Japan Cable Address : JUKI TOKYO Telex : 22967 JUKITK Telephone : Tokyo 203-8241 Dr.ch.51106D/51106DBEP Printed in Japan(T) From the library of: Superior Sewing Machine & Supply LLC jintex.in
