Juki MEB-3200 Parts Book (PDF)

Eyelet Buttonhole · also listed as MEB3200, 3200Download PDF

Text index — Juki MEB-3200

Page 7 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS(1)

Juki MEB-3200 parts on page 7
Ref	Part number	Part name	Qty
1	320-00507	TOP COVER	1
2	320-00606	TOP COVER PACKING	1
3	320-00705	FACE COVER	1
4	320-00804	FACE COVER PACKING	1
5	320-01000	SENSOR COVER	1
6	320-01208	AUXILIARY COVER RIGHT	1
7	320-01307	AUXILIARY COVER LEFT	1
8	320-01604	MOVING COVER	1
9	320-01703	MOVING COVER HOLDING PLATE	1
10	320-01802	MOVING COVER SPACER	1
11	320-02107	FEEDER BASE LOWER COVER	1
12	110-00403	PLATE	1
13	EA-9500B01-00	CABLE BAND	15
14	G5314-161-000	CONVEYOR SUPPORT	2
15	HX-0015000-0A	CABLE CLAMP	1
16	HX-0015000-0C	CABLE CLIP	2
17	G6343-870-000	SHEET	0.2
18	HX-0015000-0J	CLIP	1
19	HX-0032600-0B	BUSH	1
20	HX-0032600-0F	BUSH	1
21	SM-1041001-SN	SCREW M4X0.7 L=10	8
22	SL-6040892-TN	BOLT	3
23	SM-1040801-SC	SCREW M4X0.7 L=8	4
24	SM-1041001-SN	SCREW M4X0.7 L=10	9
25	SM-1041001-SN	SCREW M4X0.7 L=10	1
26	320-02602	FEED BASE LOWER COVER CUSHION	1
27	SS-1110840-SP	SCREW 11/64-40 L=8	1
28	SS-1110840-SP	SCREW 11/64-40 L=8	2
29	SS-1110840-SP	SCREW 11/64-40 L=8	6
30	SS-4121215-SP	SCREW 3/16-28 L=12	7
31	SS-4121215-SP	SCREW 3/16-28 L=12	2
32	106-22009	COAD BUSH	1
33	B1150-490-000	RUBBER PLUG	1
34	TA-0800501-RO	PLUG D=8X8.2 L=5	2
35	TA-0850604-RO	RUBBER PLUG	5
36	TA-0950806-RO	RUBBER PLUG	4
37	TA-1050504-RO	RUBBER PLUG	3
38	SL-6041092-TN	SCREW	1
39	TA-1250406-RO	RUBBER PLUG D=12.5 L=4	8
40	TA-1470704-RO	RUBBER PLUG	2
41	WP-1221016-SP	WASHER	2
42	320-76853	SENSOR ASM.	1
43	SM-4860601-SC	SCREW M2.6 L=6	1
44	320-76903	SENSOR BRACKET	1
45	SS-7110830-SP	SCREW 11/64-40 L= 7.5	2
46	320-02008	VERTICAL SHAFT	2
47	320-32005	AUXILIARY COVER LEFT	1
48	320-03105	HAND PULLEY COVER	1
49	320-03204	HAND PULLEY COVER SPRING	2
50	320-03352	COVER FITTING PLATE ASM.	1
51	SL-6040892-TN	BOLT	2
52	SL-6040892-TN	BOLT	2
53	SM-6030502-TN	SCREW M3 L=5	2
54	140-12504	CLAMP HOLDING PLATE	2
55	WZ-0620290-KP	WAVED WASHER	2
56	WP-0550800-SP	WASHER 5.5X10X0.8	2
57	RE-0400000-KP	E-RING 4	4
58	NS-6110310-SP	NUT 11/64-40	1
59	320-03808	CLAMP RETAINER PLATE SPACER	2
60	262-17604	WASHER	2
61	PS-0400162-KP	SPRING PIN	1
62	SS-8153010-SR	SCREW 15/64-28 L=30	1
63	NS-6150310-SP	NUT 15/64-28	1
64	320-03808	CLAMP RETAINER PLATE SPACER	2

Page 9

Juki MEB-3200 parts on page 9
Ref	Part number	Part name	Qty
1	320-00903	REVOLUTION COVER	1
2	320-01109	ADJUST COVER	1
3	320-01406	FINGER GUARD	1
4	320-01505	FINGER GUARD SPRING	1
5	400-49095	SAFETY PLATE BRACKET	1
6	320-02800	BEARING COVER	1
7	320-03659	NEEDLE BAR COVER ASM.	1
8	100-04109	GROUND MARK	1
9	107-43003	SIDE COVER	1
10	107-00706	SIDE COVER PACKING	1
11	400-23425	LUBRICATION/THREADING SEAL	1
12	B1144-210-000	REVOLVING DIRECTION LABEL	1
13	CM-3013000-01	SAFETY LABEL	1
14	260-37200	SAFETY PLATE	1
15	CM-3002000-02	CAUTION LABEL(25)	2
16	G5618-830-000	NEEDLE PRESSER SCREW	2
17	B1140-761-000	OILING LABEL	1
18	CM-3001000-04	DANGER LABEL (50)	1
19	320-76507	SWITCH FITTING PLATE SUPPORT	1
20	SL-6051292-TN	BOLT	2
21	CM-3002000-03	ATTENTION LABEL	3
22	SL-6041092-TN	SCREW	4
23	NM-6030003-SC	NUT M3	2
24	CM-6001001-01	WEEE MARK LABEL S	1
25	CM-3002000-01	ATTENTION SEAL	2
26	HX-0015000-0J	CLIP	1
27	SD-0600271-SP	HINGE SCREW D= 6 H= 2.7	1
28	SL-6041092-TN	SCREW	1
29	SL-4040881-SC	SCREW M4 L=8	5
30	SL-4040881-SC	SCREW M4 L=8	2
31	SL-6040892-TN	BOLT	2
32	SL-6040892-TN	BOLT	3
33	SM-6030402-TN	BOLT M3X4	2
34	SM-4040655-SP	SCREW M4 L=6	2
35	SS-6110480-SL	SCREW 11/64-40 L=4.3	2
36	SS-6121010-SP	SCREW 3/16-28 L=10	4
37	WP-0320501-SC	WASHER M3	2
38	WP-0450801-SD	WASHER 4.5X10X0.8	2
39	320-02750	RELAY CABLE ASM.	1
40	WZ-0620550-KP	WASHER	1
41	320-02354	SWITCH ASM.	1
42	SL-6040892-TN	BOLT	2
43	320-03402	EYE GUARD COVER FITTING BASIS	1
44	SL-6041092-TN	SCREW	2
45	320-76655	HAND SWITCH ASM.	1
46	320-78552	NEAR SWITCH ASM.	1
47	SM-4030501-SC	SCREW M3X0.5 L=5	(1)
48	SL-4021091-SC	SCREW M2 L=10	(4)
49	SL-6030692-TN	BOLT	(4)
50	SL-6051292-TN	BOLT	(2)
51	NS-6110310-SP	NUT 11/64-40	(2)
52	EA-9500B01-00	CABLE BAND	(1)
53	WP-0480856-SP	WASHER 4.8X8.4X0.8	(2)
54	NS-6110310-SP	NUT 11/64-40	(1)
55	320-78503	SWITCH BOX	(1)
56	320-78651	LED SW ASM.	(1)
57	320-78800	SWITCH FITTING PLATE	(2)
58	320-78909	SWITCH LEVER RIGHT	(1)
59	320-79006	SWITCH LEVER LEFT	(1)
60	320-79105	LEVER RETURN SPRING	(1)
61	320-79204	NEAR SWITCH FITTING PLATE	(1)
62	SD-0601021-SP	HINGE SCREW D=6 H=10.2	(1)
63	SD-0640231-SP	HINGE SCREW D= 6.35 H= 2.3	(2)

Page 11 — 3. BOTTOM COVER COMPONENTS

Juki MEB-3200 parts on page 11
Ref	Part number	Part name	Qty
1	320-04517	BOTTOM COVER	1
2	320-04608	FRONT COVER	1
3	320-04707	REAR COVER	1
4	320-04806	CONNECTOR FITTING PLATE	1
5	400-12051	BOTTOM COVER A	1
6	320-05001	GAS SPRING BRACKET, UPPER	1
7	320-05100	GAS SPRING BRACKDT, LOWER	1
8	320-05209	HINGE SHAFT	2
9	320-05415	HINGE STOPPER	1
10	320-05803	HINGE STOPPER SHAFT	2
11	320-06504	CLOTH WASTE BUSH	1
12	320-06108	HINGE STOPPER FIXING PLATE B	2
13	320-06009	HINGE STOPPER FIXING PLATE A	2
14	118-49601	SPACER	1
15	320-05902	HINGE STOPPER NUT	2
16	B1509-210-000	CONNECTING SCREW	2
17	SM-1102552-TT	SCREW M10 L=25	2
18	B8112-220-000	OIL SEAL	1
19	B8111-220-000	WASHER	1
20	B8202-205-000	OIL MANAGEMENT	1
21	B9121-012-000	OIL CAN	1
22	CQ-2520000-00	OIL WICK	0.1
23	320-06306	HINGE STOPPER COLLAR	2
24	E2193-172-000	PT EV PP METAL	2
25	G6264-870-000	BEARING	2
26	HX-0015000-0A	CABLE CLAMP	2
27	HX-0015000-0M	CABLE CLIP	1
28	HX-0015000-0J	CABLE CLIP	1
29	HX-0018800-0A	BUSH	1
30	HX-0032600-00	BUSH	1
31	NM-6040000-SN	NUT M4	4
32	NS-6150540-SP	NUT 15/64-28	2
33	PS-0800162-KP	SPRING PIN 8X16	1
34	SL-4031481-SC	SCREW M3 X 14	4
35	SL-4040881-SC	SCREW M4 L=8	2
36	400-12229	GAS SPRING BRACKET UPPER	1
37	SL-4041481-SC	SCREW M4X0.7 L=14	4
38	SL-6040892-TN	BOLT	5
39	SL-6041092-TN	SCREW	2
40	SL-6041092-TN	SCREW	2
41	SL-6061492-TN	BOLT	2
42	SL-6061492-TN	BOLT	4
43	SL-6083092-TN	SCREW	2
44	SM-1103552-TT	SCREW M10 L=35	2
45	320-05704	HINGE STOPPER WASHER	1
46	SM-8061002-TP	SCREW M6 L=10	2
47	B1223-771-000	NEEDLE ROD CRANK WASHER	4
48	SL-4040881-SC	SCREW M4 L=8	1
49	320-02255	SWITCH ASM.	1
50	SL-6031692-TN	SCREW	2
51	WP-0410846-SC	WASHER	8
52	M8602-620-0AO	CIRCUIT BOARD ASM.	1
53	HX-0033900-00	STUD	4
54	SL-4040881-SC	SCREW M4 L=8	4
55	SS-8660512-TP	SCREW 1/4-40 L=5	4
56	320-06207	HINGE STOPPER SPRING RACK	1
57	262-27900	TENSION SPRING	1
58	320-05605	HINGE STOPPER RACK	1
59	400-61247	GAS SPRING ASM	1
60	400-59760	CAUTION LABEL	(1)
61	320-04905	GAS SPRING	(1)

Page 13 — 4. FEED COMPONENTS

Juki MEB-3200 parts on page 13
Ref	Part number	Part name	Qty
1	320-07007	CLOTH FEED BASE	1
2	320-07106	VERTICAL FEED SHAFT	1
3	320-07205	VERTICAL FEED SHAFT METAL	2
4	320-07304	VERTICAL FEED CONNECTING ARM	1
	320-07403	CONNECTING ARM METAL, A	1
	320-07502	CONNECTING ARM METAL, B	1
	320-07601	CONNECTING SHAFT	1
	320-07700	CONNECTING SHAFT	1
	320-07809	GUIDE PLATE	1
	320-07908	MOTOR BRACKET	1
	320-08104	CROSSFEED ARM	1
	320-08203	CROSSFEED DRIVEN ARM, REAR	1
	320-08302	CROSSFEED ARM METAL	4
	320-08401	FULCRUM SHAFT	2
	320-78107	CROSSFEED SENSOR BRACKET	1
	SL-6041092-TN	SCREW	2
	320-08658	DRIVEN ARM LEFT ASM.	1
	320-78206	SENSOR SLIT PLATE	1
	320-08906	GUIDE SHAFT FIXING BASE	1
	320-09003	GUIDE SHAFT FIXING BASE, FRONT	1
	320-09102	GUIDE SHAFT FIXING BASE METAL	2
	320-09201	DRIVEN ARM CONNECTING SHAFT	1
	320-09300	DRIVEN ARM CONNECTING SHAFT	2
	320-09409	VERTICAL FEED GUIDE SHAFT, A	1
	320-09508	VERTICAL FEED GUIDE SHAFT, B	1
	320-09607	CONNECTING PLATE, LOWER	1
	320-09706	CONNECTING PLATE, UPPER	1
	320-09904	CONNECTING PLATE UPPER SHAFT	1
	KM-0000003-10	PULSE MOTOR	1
	KM-0000003-20	PULSE MOTOR	1
	105-23504	WASHER	1
	265-01502	FEED GEAR	1
	CS-100101D-SH	THRUST COLLAR ASM.	2
	E1902-172-000	INSERT CARRIAGE BUSH	4
	E5541-172-000	SINTERED BEARING	2
	RC-1951211-KP	C-RING	8
	RE-0900000-KO	E-RING 9	1
	SB-4080001-00	BEARING	1
	SL-6051092-TN	BOLT	2
	SM-4041455-SN	SCREW M4 L=14	4
	SM-4041655-SP	SCREW M4 L=20	2
	SM-4042055-SP	SCREW	4
	SM-6051002-TP	SCREW M5X0.8 L=10	4
	SM-8060602-TP	SCREW M6X6	2
	SM-8060812-TP	SCREW M6 L=8	2
	SM-8061212-TP	SCREW M6X12	2
	SS-7110840-SP	SCREW 11/64-40 L=7.8	2
	WP-0450846-SP	WASHER	4
	320-78057	HOME POSITION SENSOR ASM.	1
	SM-4860601-SC	SCREW M2.6 L=6	1
	320-10258	VERTICAL FEED CONNECTING ARM	1
	320-10209	VERTICAL FEED CONNECTING ARM	(1)

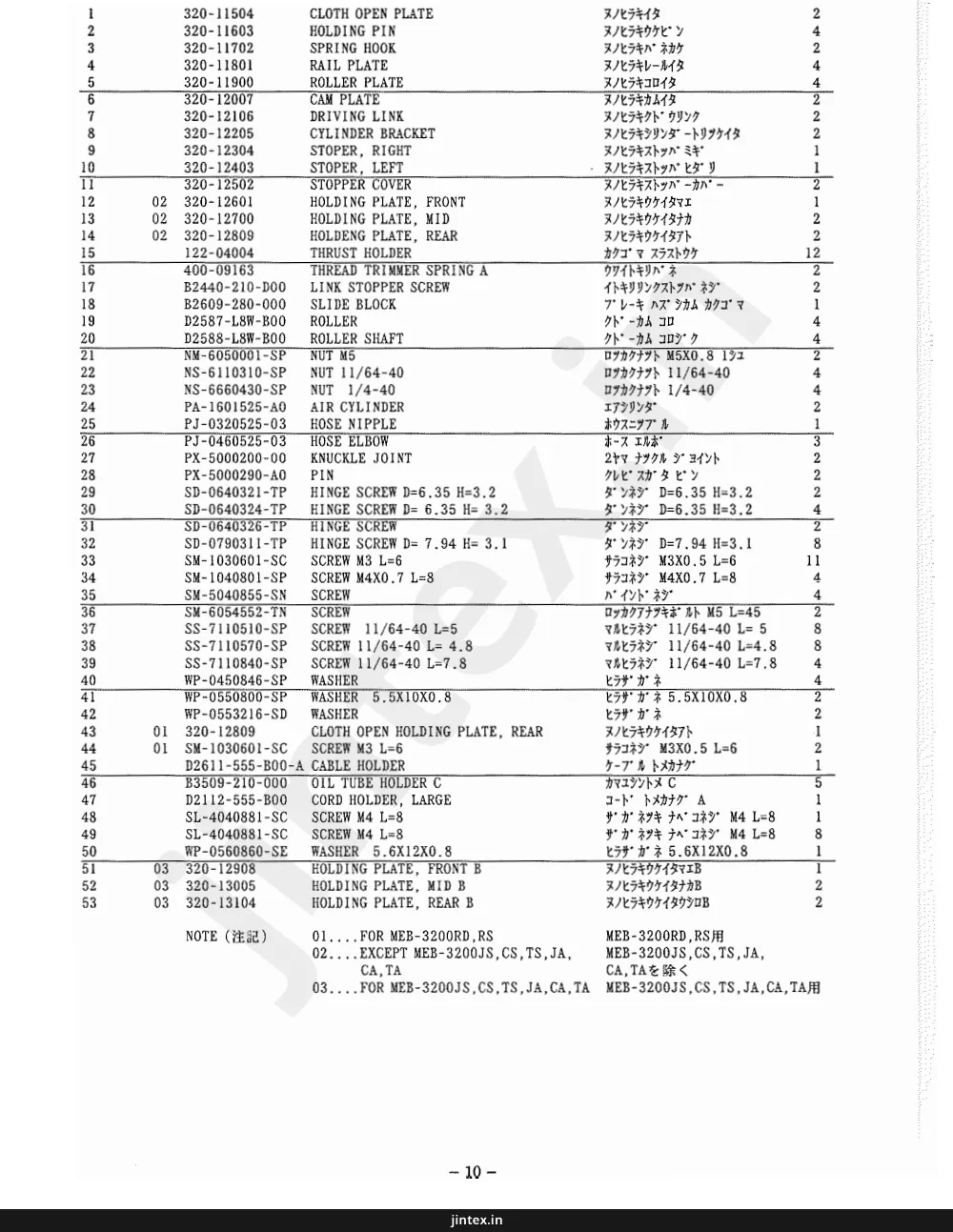

Page 15 — 5. CLOTH OPEN COMPONENTS

Juki MEB-3200 parts on page 15
Ref	Part number	Part name	Qty
1	320-11504	CLOTH OPEN PLATE	2
2	320-11603	HOLDING PIN	4
3	320-11702	SPRING HOOK	2
4	320-11801	RAIL PLATE	4
5	320-11900	ROLLER PLATE	4
6	320-12007	CAM PLATE	2
7	320-12106	DRIVING LINK	2
8	320-12205	CYLINDER BRACKET	2
9	320-12304	STOPER, RIGHT	1
10	320-12403	STOPER, LEFT	1
11	320-12502	STOPPER COVER	2
12	320-12601	HOLDING PLATE, FRONT	1
13	320-12700	HOLDING PLATE, MID	2
14	320-12809	HOLDENG PLATE, REAR	2
15	122-04004	THRUST HOLDER	12
16	400-09163	THREAD TRIMMER SPRING A	2
17	B2440-210-D00	LINK STOPPER SCREW	2
18	B2609-280-000	SLIDE BLOCK	1
19	D2587-L8W-B00	ROLLER	4
20	D2588-L8W-B00	ROLLER SHAFT	4
21	NM-6050001-SP	NUT M5	2
22	NS-6110310-SP	NUT 11/64-40	4
23	NS-6660430-SP	NUT 1/4-40	4
24	PA-1601525-A0	AIR CYLINDER	2
25	PJ-0320525-03	HOSE NIPPLE	1
26	PJ-0460525-03	HOSE ELBOW	3
27	PX-5000200-00	KNUCKLE JOINT	2
28	PX-5000290-A0	PIN	2
29	SD-0640321-TP	HINGE SCREW D=6.35 H=3.2	2
30	SD-0640324-TP	HINGE SCREW D= 6.35 H= 3.2	4
31	SD-0640326-TP	HINGE SCREW	2
32	SD-0790311-TP	HINGE SCREW D= 7.94 H= 3.1	8
33	SM-1030601-SC	SCREW M3 L=6	11
34	SM-1040801-SP	SCREW M4X0.7 L=8	4
35	SM-5040855-SN	SCREW	4
36	SM-6054552-TN	SCREW	2
37	SS-7110510-SP	SCREW 11/64-40 L=5	8
38	SS-7110570-SP	SCREW 11/64-40 L= 4.8	8
39	SS-7110840-SP	SCREW 11/64-40 L=7.8	4
40	WP-0450846-SP	WASHER	4
41	WP-0550800-SP	WASHER 5.5X10X0.8	2
42	WP-0553216-SD	WASHER	2
43	320-12809	CLOTH OPEN HOLDING PLATE, REAR	1
44	SM-1030601-SC	SCREW M3 L=6	2
45	D2611-555-B00-A	CABLE HOLDER	1
46	B3509-210-000	OIL TUBE HOLDER C	5
47	D2112-555-B00	CORD HOLDER, LARGE	1
48	SL-4040881-SC	SCREW M4 L=8	1
49	SL-4040881-SC	SCREW M4 L=8	8
50	WP-0560860-SE	WASHER 5.6X12X0.8	1
51	320-12908	HOLDING PLATE, FRONT B	1
52	320-13005	HOLDING PLATE, MID B	2
53	320-13104	HOLDING PLATE, REAR B	2

Page 17 — 6. LOWER THREAD CUTTING COMPONENTS (1) (FOR MEB-3200SS, RS, RD)

Juki MEB-3200 parts on page 17
Ref	Part number	Part name	Qty
1	320-17006	CYLINDER BRACKET	1
2	320-17105	CYLINDER CLICK	1
3	320-20000	SHAFT HOLDER,S	1
4	320-20406	DRIVING ARM,S	1
5	320-17451	CYLINDER ASM.	1
6	320-17501	LOWER THREAD CUTTING STOPPER	1
7	320-17600	RETURN SPRING,S	1
8	320-17865	MOVING KNIFE ASM.	1
9	400-34923	MOVING KNIFE ASM.	1
10	320-18012	MOVING KNIFE	(1)
11	PS-0150065-KP	SPRING PIN 1.5X6	(1)
12	320-18301	AUXILIARY BASE	1
13	320-18400	FIXING KNIFE FITTING BASE	1
14	320-18509	FIXING KNIFE	1
15	320-18608	SPRING, LOWER	1
16	320-18707	SPRING, UPPER	1
17	320-18806	GUIDE PLATE	1
18	320-18905	GRASPING FIXING PLATE	1
19	320-19002	LOWER THREAD GRASPING	1
20	320-19101	GIMP GRASPING	1
21	320-19200	PIN	1
22	320-21206	SPRING HOLDER,S	1
23	320-19408	SPRING	1
24	320-19507	KNIFE COVER,S	1
25	137-37804	DRIVING ARM BOSS ROLLER	1
26	NM-6020001-SC	NUT M2	2
27	PJ-0460525-03	HOSE ELBOW	2
28	320-18103	TREATING PLATE	1
29	SD-0500721-SP	HINGE SCREW D= 5 H= 7.2	1
30	SD-0550212-TP	HINGE SCREW D=5.5 H=2.1	1
31	SM-1030400-SP	SCREW M3 L=4	2
32	SM-1030400-SP	SCREW M3 L=4	3
33	SM-1041001-SN	SCREW M4X0.7 L=10	2
34	SM-4020401-SC	SCREW M2 L=4	2
35	SM-4020601-SC	SCREW M2 L=6	2
36	SM-4030501-SN	SCREW M3 L=5	2
37	SM-4030501-SN	SCREW M3 L=5	2
38	SM-6040502-TP	SCREW M4X0.7 L=5	1
39	SM-6020450-TP	SCREW	2
40	SM-6030802-TN	BOLT	2
41	SM-6041002-TP	SCREW M4 L=10	1
42	SS-5090420-SP	SCREW 9/64-40 L=3.5	2
43	SS-7110840-SP	SCREW 11/64-40 L=7.8	2
44	TA-0750404-RO	PLUG D=7.5 L=3.5	1
45	WP-0430801-SC	WASHER 4.3X9X0.8	1
46	WP-0450801-SP	WASHER	2
47	320-19705	LOWER THREAD GRASPING SPACER	2
48	320-21552	KNIFE COVER,S SHEET ASM.	1
49	320-18210	LOWER THRAED GRASPING OPENER	1

Page 19 — 7.LOWER THREAD CUTTING COMPONENTS (2) (FOR MEB-3200JS, CS, JA, CA)

Juki MEB-3200 parts on page 19
Ref	Part number	Part name	Qty
1	320-17006	CYLINDER BRACKET	1
2	320-17105	CYLINDER CLICK	1
3	320-17204	SHAFT HOLDER	1
4	320-17303	DRIVING ARM	1
5	320-17451	CYLINDER ASM.	1
6	320-17709	SPRING, J	1
7	320-19309	SRING HOLDER	1
8	320-19606	KNIFE COVER, J	1
9	320-19853	LOWER THREAD CUTTER LINK ASM.	1
10	320-19903	CONECTING LINK	1
11	320-20109	LOWER KNIFE LINK	1
12	320-20257	UPPER KNIFE LINK ASM.	1
13	320-20505	THREAD CUTTER LOWER KNIFE	1
14	400-15996	THREAD CUTTER UPPER KNIFE	1
15	320-20703	THREAD HAUL PLATE	1
16	320-20802	KNIFE FITTING BASE	1
17	320-20919	UPPER KNIFE LOWER COVER	1
18	320-21008	STOPPER PLATE	1
19	137-37804	DRIVING ARM BOSS ROLLER	1
20	B1651-210-000	LINK NUT.	1
21	D2522-232-D00	PIN	1
22	NS-6110310-SP	NUT 11/64-40	1
23	PJ-0460525-03	HOSE ELBOW	2
24	SD-0500131-TP	HINGE SCREW D=5 H=1.25	1
25	SD-0500721-SP	HINGE SCREW D= 5 H= 7.2	1
26	SD-0550212-TP	HINGE SCREW D=5.5 H=2.1	1
27	SD-0600311-TP	HINGESCREW	1
28	SD-0640381-TP	HINGE SCREW	1
29	SM-1041001-SN	SCREW M4X0.7 L=10	2
30	SM-4020601-SC	SCREW M2 L=6	2
31	SM-6041002-TP	SCREW M4 L=10	1
32	SS-5080212-TP	SCREW 1/8-44 L=2	2
33	SS-6110480-SP	SCREW 11/64-40 L=4.3	2
34	SS-6110480-SP	SCREW 11/64-40 L=4.3	1
35	SS-6110520-TP	SCREW 11/64-40 L=4.5	1
36	SS-7110840-SP	SCREW 11/64-40 L=7.8	2
37	WP-0320500-SC	WASHER M3	2
38	WZ-0880200-KP	WAVED WASHER	1
39	320-78354	SENSOR CABLE ASM.	1
40	WP-0450801-SP	WASHER	2
41	320-21859	KNIFE COVER,J SHEET ASM.	1

Page 21 — 8. LOWER THREAD CUTTING COMPONENTS (3) (FOR MEB-3200TS, TA)

Juki MEB-3200 parts on page 21
Ref	Part number	Part name	Qty
1	320-16008	CUTTING KNIFE MOVING ARM, T	1
2	320-16107	LOWER THREAD CUTTING KNIFE, T	1
3	400-18894	LOWER THREAD HOLDER T ASM	1
4	320-16206	LOWER THREAD HOLDER, T	(1)
5	320-16305	THREAD HOLDER FITTING BKT., T	(1)
6	320-16503	PIN, T	(1)
7	105-07200	PIN	(1)
8	400-09222	PRESSER PLATE ADJUSTING SPRING	(1)
9	NM-6040001-SC	NUT M4	(1)
10	SM-8040802-TP	SCREW M4X8	(1)
11	WP-0320500-SC	WASHER M3	(1)
12	320-16404	THREAD HOLDER FULCRUM BKT., T	1
13	320-16602	SPRING RACK, T	1
14	320-16701	SPRING, T	1
15	NM-6040003-SC	NUT M4	1
16	RE-0400000-KO	E-RING 4	1
17	SD-0500456-TP	HINGE SCREW	1
18	SM-4030455-SN	SCREW	1
19	SM-6040802-TP	SCREW M4X0.7 L=8	1
20	SM-8040412-TP	SET SCREW M4 L=4	2
21	320-15109	SPRING	1
22	SM-8041012-TP	SCREW M4 L=10	1
23	SM-8041402-TP	SCREW M4X0.7 L=14	1
24	320-23400	FULCRUM SHAFT	1
25	WP-0430800-SD	WASHER M4	2
26	WP-0450801-SP	WASHER	1
27	NM-6040003-SC	NUT M4	1
28	NM-6040001-SC	NUT M4	1

Page 23 — 9. UPPER THREAD CUTTING COMPONENTS

Juki MEB-3200 parts on page 23
Ref	Part number	Part name	Qty
1	320-23004	CUTTING KNIFE MOVING ARM	2
2	320-23103	ADJUST BASE, J	1
3	320-23210	LOWER THREAD HOLDER	1
4	320-23319	THREAD CUTTING KNIFE	2
5	320-23400	FULCRUM SHAFT	2
6	320-23558	LINK ASM.	1
7	WP-0553216-SD	WASHER	1
8	WP-0612516-SD	WASHER 6.1X15.2X2.5	1
9	320-23756	VERTICAL MOVING ARM ASM.	1
10	WP-0621046-SP	WASHER	2
11	WP-0651056-SH	WASHER 6.5X11X1	1
12	320-23905	CYLINDER FITTING BASE	1
13	320-24002	THREAD TRIMMER SHAFT	1
14	105-07200	PIN	1
15	121-18709	ROCKER SHAFT METAL	1
16	WP-0320500-SC	WASHER M3	1
17	140-50157	KNIFE ADJUSTING BASE ASM.	1
18	400-09222	PRESSER PLATE ADJUSTING SPRING	1
19	B4105-522-000	KNIFE DRIVING STUD CONNECTION	1
20	CS-0640860-SH	THRUST COLLAR ASM. D=6.35 W=8	1
21	CS-080081C-SH	THRUST COLLAR ASM. D=8.0 W=8	2
22	NM-6030003-SC	NUT M3	1
23	NM-6040000-SN	NUT M4	1
24	NM-6040003-SC	NUT M4	2
25	NM-6050001-SP	NUT M5	1
26	WP-0371036-SD	WASHER 3.7X6X1	3
27	PA-1601525-A0	AIR CYLINDER	1
28	PJ-0460525-03	HOSE ELBOW	2
29	WP-0450801-SP	WASHER	1
30	PX-5000200-00	KNUCKLE JOINT	1
31	RE-0400000-K0	E-RING 4	1
32	SD-0400161-TP	HINGE SCREW	1
33	SM-4030455-SN	SCREW	2
34	SM-6040802-TP	SCREW M4X0.7 L=8	1
35	SM-6061202-TP	SCREW M6 L=12	2
36	SM-8030502-TP	SCREW M3 L=5	1
37	SM-8040412-TP	SET SCREW M4 L=4	2
38	SM-8041012-TP	SCREW M4 L=10	2
39	SM-8050612-TP	SCREW M5X6	2
40	SM-8052502-TP	SCREW M5X0.8 L=25	1
41	WP-0450801-SP	WASHER	1
42	SS-9091010-SP	SCREW 9/64-40 L=10	1

Page 25 — 10. PRESSER COMPONENTS (1) (FOR MEB-3200SS, JS, CS, TS, JA, CA, TA)

Juki MEB-3200 parts on page 25
Ref	Part number	Part name	Qty
1	320-26007	PRESSER PLATE, RIGHT	1
2	320-26106	PRESSER PLATE, LEFT	1
3	320-26205	ARM INSTALLING BASE	2
4	320-26304	FULCRUM SHAFT	2
5	320-26403	PRESSER ARM BASE, RIGHT	1
	320-26502	PRESSER ARM BASE, LEFT
	320-26809	AUXILIARY PRESSER PLATE, RIGHT
	320-26908	AUXILIARY PRESSER PLATE, LEFT
	320-27005	HOLDING PLATE, RIGHT
	320-27104	HOLDING PLATE, LEFT
	320-27203	PRESSER LEVER MOVING ARM
	320-27401	PRESSER LEVER SHAFT
	320-27500	PRESSER LEVER
	320-28003	PRESSER ARM, RIGHT
	320-28102	PRESSER ARM, LEFT
	140-10102	PRESSER FOOT (LEFT) 40MM
	140-10508	PRESSER FOOT ATTACHING SCREW
	210-57500	AIR CYLINDER
	PA-1602011-A0	Hose ELBOW
	PX-5000200-00	RETAINING RING 4.7
	RC-0470611-KP	SCREW M3 L=4
	SM-1030400-SP	SCREW M4X0.7 L=10
	SM-6051002-TN	BOLT
	SM-8040612-TP	SCREW M4 L=6
	WZ-0320290-UZ	WASHER 3.2X6.5X0.15
	320-27708	VERTICAL GUIDE, LEFT
	320-28607	PRESSER FOOT, RIGHT M
	320-28706	PRESSER FOOT, LEFT M
	320-28805	HOLDING PLATE, J RIGHT M
	320-28912	HOLDING PLATE, J LEFT M
	PJ-0460525-03	KNUCKLE JOINT
	320-29209	VERTICAL GUIDE, RIGHT J
	320-29308	VERTICAL GUIDE, LEFT J
	320-28201	COMPENSATING FOOT, RIGHT S
	320-28409	HOLDING PLAT, J RIGHT S
	320-28516	HOLDING PLAT, J LEFT S
	320-29803	PRESSER PLATE, T RIGHT
	320-29902	PRESSER PLATE, T LEFT
	140-11407	HOLDING PLATE (RIGHT)
	140-11506	HOLDING PLATE (LEFT)
	320-27807	PRESSER PLATE J, RIGHT
	320-27906	PRESSER PLATE J, LEFT
	400-35239	PRESSER FOOT LEFT W(M)

Page 27 — 11. PRESSER COMPONENTS (2) (FOR MEB-3200RD, RS)

Juki MEB-3200 parts on page 27
Ref	Part number	Part name	Qty
1	320-26809	AUXILIARY PRESSER PLATE, RIGHT	1
2	320-26908	AUXILIARY PRESSER PLATE, LEFT	1
3	320-27005	HOLDING PLATE, RIGHT	1
4	320-27104	HOLDING PLATE, LEFTT	1
5	320-27203	PRESSER LEVER MOVING ARM	2
6	320-27401	PRESSER LEVER SHAFT	2
7	320-27500	PRESSER LEVER	2
8	320-28003	PRESSER ARM, RIGHT	1
9	320-28102	PRESSER ARM, LEFT	1
10	140-10003	PRESSER FOOT (RIGHT) 40MM	1
11	140-10102	PRESSER FOOT (LEFT) 40MM	1
12	140-10508	PRESSER FOOT ATTACHING SCREW	2
13	PA-1602011-A0	AIR CYLINDER	2
14	PJ-0460525-03	HOSE ELBOW	2
15	PX-5000200-00	KNUCKLE JOINT	2
16	SS-5090610-SP	SCREW 9/64-40 L=6	4
17	SM-1030400-SP	SCREW M3 L=4	4
18	SM-1041001-SP	SCREW M4X0.7 L=10	3
19	SM-6040802-TP	SCREW M4X0.7 L=8	2
20	SM-6041202-TP	SCREW M4X0.7 L=12	2
21	SM-6051002-TN	BOLT	2
22	WZ-0320290-UZ	WASHER 3.2X6.5X0.15	2
23	320-31007	PRESSER PLATE, RIGHT	1
24	320-31106	PRESSER PLATE, LEFT	1
25	320-31205	ARM INSTALLING BASE, RIGHT	1
26	320-31304	ARM BASE SHAFT, RIGHT	1
27	320-31502	ARM INSTALLING BASE, LEFT	1
28	320-31601	ARM BASE SHAFT, LEFT	1
29	320-31700	MOVING ARM	1
30	320-31809	PRESSER ARM BASE, RIGHT	1
31	320-31908	PRESSER ARM BASE, LEFT	1
32	110-41100	ROLLER	1
33	CS-080081B-SH	THRUST COLLAR ASM. D=8.0 W=8	1
34	RC-0470611-KP	RETAINING RING 4.7	1
35	RC-0740811-KP	C-RING	1
36	SM-5040855-SN	SCREW	3
37	SM-8050412-TP	SCREW M5 L=4	6
38	320-32104	GUIDE, FRONT	1
39	320-32203	GUIDE, REAR	1
40	SM-0030601-SC	SCREW M3X0.5 L=6	1

Page 29 — 12. REVOLUTION COMPONENTS

Juki MEB-3200 parts on page 29
Ref	Part number	Part name	Qty
1	320-34001	REVOLUTION MOTOR BRACKET	1
2	320-34308	REVOLUTION MOTOR PULLEY	1
3	320-34407	CONNECTING PULLEY, L	1
4	320-34506	CONNECTING PULLEY, U	1
5	320-34605	CONNECTING SHAFT	1
6	320-34704	TENSION PULLEY	1
7	320-34803	TENSION PULLEY SHAFT	1
8	320-34902	TENSION PULLEY BRACKET	1
9	320-35008	TIMING BELT, L	1
10	320-35107	TIMING BELT, U	1
11	KM-0000003-30	PULSE MOTOR	1
12	B1816-280-000	GUIDE PIN	2
13	CS-1201010-SH	THRUST COLLAR ASM. D=12 W=10	1
14	NM-6050003-SC	NUT M5X0.8	1
15	PH-0400105-SO	PIN 4.0X10	1
16	RC-0740816-KO	RETAINING RING	1
17	SB-1080002-00	SIDE BEARING	2
18	SB-1120006-00	BEARING	2
19	SM-6041202-TP	SCREW M4X0.7 L=12	2
20	SM-6041602-TP	SCREW M4X0.7 L=16	1
21	SM-6051202-TP	SCREW M5X0.8 L=12	4
22	SM-8060812-TP	SCREW M6 L=8	2
23	SM-8060812-TP	SCREW M6 L=8	2
24	SS-6110610-TP	SCREW 11/64-40 L=6	1
25	SS-7111120-TP	SCREW	4
26	WP-0430800-SD	WASHER M4	4
27	320-35206	REVOLUTION TENSION BRACKET	1
28	WP-0561616-SC	WASHER 5.6X16X1.6	4
29	WP-0550800-SP	WASHER 5.5X10X0.8	1
30	WP-0820516-SP	WASHER 11.6X8.2X0.6	1
31	320-77059	HOME POSITION SENSOR ASM.	1
32	320-77109	SENSOR BRACKET	1
33	SS-7110510-SP	SCREW 11/64-40 L=5	2
34	320-77208	SENSOR SLIT	1
35	SM-6031002-TP	HEXAGONAL BOLT M3 X 10	2
36	WP-0320501-SC	WASHER M3	2
37	WP-0551016-SH	WASHER 5.5X13X1	4

Page 31 — 13. LOOPER DRIVING COMPONENTS

Juki MEB-3200 parts on page 31
Ref	Part number	Part name	Qty
2	320-38259	DRIVING ARM, A COMPLE.	1
3	320-38408	SPREADER DRIVING ARM, B	1
4	320-38507	SPREADER DRIVING SHFT GUIDE	1
5	320-38614	CAM	1
6	320-38705	SPREADER SPRING (RIGHT)	1
7	320-38804	FULCRUM SHAFT	1
8	320-40800	LOOPER, LEFT	1
9	320-39109	LOOPER DRIVING ARM	1
10	320-39208	LOOPER DRIVING ARM METAL	2
11	320-39307	FULCRUM SHAFT	1
12	320-39406	LOOPER DRIVING SHAFT	1
13	320-39505	GUIDE PLATE	1
14	320-39604	LOOPER FITTING BASE	1
15	320-39703	FULCRUM SHAFT	1
16	320-39802	LOOPER BRACKET SPACER A	1
17	320-39901	LOOPER REVOLUTION PULLEY	1
18	320-40008	NEEDLE PLATE SUPPORT	1
19	320-40115	NEEDLE PLATE	1
20	320-40206	GIMP GUIDE	1
21	320-40305	PRESSER PLATE	1
22	101-12704	THRUST WASHER 1.8	2
23	101-12704	THRUST WASHER 1.8	2
24	138-87005	THRUST WASHER	1
25	140-28104	LOOPER CAM ROLLER SHAFT	1
26	SS-7110710-SP	SCREW 11/64-40 L=7	1
27	140-28302	LOOPER DRIVING FORK SHAFT	2
28	140-28302	LOOPER DRIVING FORK SHAFT	2
29	140-28708	LOOPER DRIVING SHAFT COLLAR	1
30	140-28708	LOOPER DRIVING SHAFT COLLAR	1
31	140-28807	LOOPER DRIVE SHAFT GUIDE	1
32	140-29755	LOOPER DRIVING ROD ASM.	1
33	140-29904	SCREW	2
34	140-30001	LOOPER DRIVE BUSHING	2
35	140-30001	LOOPER DRIVE BUSHING	2
36	140-30100	WASHER	2
37	140-30506	SPREADER DRIVING ROD	1
38	140-30605	SCREW	2
39	140-30803	LOOPER, RIGHT	1
40	140-30902	LOOPER, LEFT	1
41	140-31017	SPREADER, RIGHT	1
42	140-31116	SPREADER, LEFT	1
43	400-15693	SPREADER STOPPER RIGHT	1
44	400-15692	SPREADER STOPPER LEFT	1
45	140-32403	SPREDER SPRING, LEFT	1
46	140-44200	CAM ROLLER SHAFT	1
47	WP-0410846-SC	WASHER	1
48	140-44903	SCREW	1
49	169-92604	THRUST WASHER	1
50	B1135-850-000	TENSION SPRING (A)	1
51	B1211-280-000	THRUST BEARING	1
52	B1643-470-000	THRUST WASHER	1
53	CS-100081C-SP	THRUST COLLAR ASM.	1
54	CS-1201010-SH	THRUST COLLAR ASM. D=12 W=10	1
55	NM-6050003-SC	NUT M5X0.8	2
56	NM-6050003-SC	NUT M5X0.8	2
57	NM-6060003-SC	NUT M6	1
58	NM-6060003-SC	NUT M6	1
59	SB-1170007-00	BEARING	1
60	SM-4040855-SP	SCREW	2
61	SM-6041402-TP	SCREW M4 L=14	1
62	SM-8030412-TP	SCREW	4
63	SM-6030802-TP	SCREW M3X0.5 L=8	1
64	SM-6040802-TP	SCREW M4X0.7 L=8	1
65	SM-6041002-TP	SCREW M4 L=10	2
66	400-15684	SPREADER LEFT (NARROW) G	1
67	SM-6041002-TP	SCREW M4 L=10	1
68	SM-6041602-TP	SCREW M4X0.7 L=16	1
69	SM-6850502-TN	SCREW M2.5 L=5	1
70	SM-6850600-SP	SCREW	2
71	400-15685	SPREADER RIGHT G	1
72	SM-8050502-TP	SCREW M5 L=5	1
73	SM-8060812-TP	SCREW M6 L=8	4
74	400-15694	LOOPER RIGHT G	1
75	WP-0531000-SC	WASHER 5.3X10X1	2
76	WP-0531000-SC	WASHER 5.3X10X1	2
77	WP-0621016-SH	WASHER	1
78	320-39802	LOOPER BRACKET SPACER A	1
79	320-40404	LOOPER BRACKET SPACER A1	1
80	320-40503	LOOPER BRACKET SPACER A2	1
81	320-40602	LOOPER BRACKET SPACER A3	1
82	320-40701	LOOPER BRACKET SPACER A4	1
83	320-40917	SPREADER, LEFT	1
84	WP-0280501-SC	WASHER M2.6	1
85	320-37400	FULCRUM SHAFT T	1
86	B1821-210-D00	SHUTTLE OIL FELT,B	2
87	CQ-3500000-F0	OIL FELT	0.02
88	400-26894	LOOPER BRACKET ASM	1
89	400-26895	LOOPER BRACKET T ASM	1
90	140-45504	THREAD GUIDE PIPE	(1)
91	CQ-3030000-00	OIL WICK	(0.4)
92	400-16203	LOOPER BRACKET	(1)
93	400-16204	LOOPER BRACKET T	(1)
94	400-20192	BRACKET LUBRICATION FELT B	(1)

Page 32 — 14. LOWER SHAFT COMPONENTS

Juki MEB-3200 parts on page 32
Ref	Part number	Part name	Qty
1	KM-0000003-40	SERVO MOTOR	1
2	320-36907	TENSION PULLEY SHAFT	1
3	SM-8060812-TP	SCREW M6 L=8	2
4	320-37004	TENSION PULLEY BRACKET	1
5	320-36709	UPPER SHAFT TIMING BELT	1
6	320-36808	TENSION PULLEY	1
7	320-36600	LOWER SHAFT PULLEY	1
8	137-07500	OIL SEAL	1
9	CS-0700811-SH	THRUST COLLAR D=7 W=8	2
10	G1216-870-000	UPPER SHAFT REAR BEARING	1
11	NS-6660430-SP	NUT 1/4-40	1
12	RC-0100001-KP	SNAP RING M10	1
13	RC-2791218-KP	RETAINING RING	2
14	SB-1100004-00	BALL BEARING	1
15	SL-6052592-TN	BOLT	4
16	SL-6062092-TN	SCREW M6 L=20	2
17	SM-8060612-TP	SCREW M6 L=6	2
18	400-39169	LOOPER DRIVING CAM ASM	1
19	320-37608	LOOPER CAM ROLLER A	(1)
20	320-37707	LOOPER CAM ROLLER B	(1)
21	320-37806	LOOPER CAM ROLLER C	(1)
22	320-37905	LOOPER CAM ROLLER D	(1)
23	320-51203	CAM ROLLER, A	(1)
24	320-51302	CAM ROLLER, B	(1)
25	320-51401	CAM ROLLER, C	(1)
26	320-51500	CAN ROLLER, D	(1)
27	320-36501	LOOPER DRIVING CAM	(1)

Page 33 — 工軸図係

Juki MEB-3200 parts on page 33
Ref	Part number	Part name	Qty
1	320-44000	UPPER SHAFT	1
2	320-44109	UPPER SHAFT COLLAR	1
3	SS-6110610-TP	SCREW 11/64-40 L=6	1
4	320-44307	NEEDLE BAR ROCKING CAM	1
5	320-44406	ROCKING CAM COVER	1
6	320-44505	UPPER SHAFT PULLEY	1
7	228-88507	OIL SEAL	1
8	A1230-500-000-A	HANDWHEEL SETSCREW	1
9	B1212-210-D00	PULLEY	1
10	PS-0400142-KH	SPRING PIN 4X14	1
11	RC-1200001-KP	C-SHAPED SNAP RING	1
12	SB-1120001-00	BEARING D=12X32	2
13	SM-6040802-TP	SCREW M4X0.7 L=8	2
14	SM-8060812-TP	SCREW M6 L=8	2
15	SM-8060812-TP	SCREW M6 L=8	2
16	SM-8060812-TP	SCREW M6 L=8	2
17	SS-8110422-TP	SCREW 11/64-40 L=4	2
18	320-77653	SENSOR ASM.	1
19	SL-4031041-SC	WASHER SCREW	1
20	320-77703	SENSOR BRACKET	1
21	SM-6040802-TP	SCREW M4X0.7 L=8	2
22	WP-0480856-SP	WASHER 4.8X8.4X0.8	1
23	320-77802	SENSOR SLIT	1
24	WP-0430801-SC	WASHER 4.3X9X0.8	2
25	400-39176	BALANCE CAM ASM	1
26	400-39177	BALANCE CAM A ASM	1
27	320-51203	CAM ROLLER, A	(1)
28	320-51302	CAM ROLLER, B	(1)
29	320-51401	CAM ROLLER, C	(1)
30	320-51500	CAN ROLLER, D	(1)
31	320-44208	BALANCE CAM	(1)
32	400-20277	BALANCE CAM A	(1)
	228-89507	OIL SEAL	1

Page 34 — 16. NEEDLE BAR DRIVING COMPONENTS

Juki MEB-3200 parts on page 34
Ref	Part number	Part name	Qty
1	320-46054	NEEDLE BAR ROCKING CAM ASM.	1
2	320-45809	NEEDLE BAR VERTICAL DRIVE ARM	1
3	320-46302	VERTICAL ROCKING LINK	1
4	320-45908	NEEDLE BAR VERTICAL BRANCH	1
5	320-46401	VERTICAL ROCKING LINK SHAFT	1
6	320-46500	FULCRUM SHAFT	1
7	320-46609	NEEDLE BAR DRIVING SHAFT	1
8	320-46708	VERTICAL ARM METAL	2
9	138-87005	THRUST WASHER	2
10	CS-1201010-SH	THRUST COLLAR ASM. D=12 W=10	2
11	CS-1201010-SH	THRUST COLLAR ASM. D=12 W=10	1
12	SB-3350002-0A	BEARING	1
13	SB-3350002-0B	BEARING	1
14	SB-3350002-0C	BEARING	1
15	SB-3350002-0D	BEARING	1
16	SB-3350002-0E	BEARING	1
17	SM-8040412-TP	SET SCREW M4 L=4	2
18	SM-8050612-TP	SCREW M5X6	1
19	SM-8060812-TP	SCREW M6 L=8	2
20	SM-8060812-TP	SCREW M6 L=8	2

Page 35 — FIG. 1 MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki MEB-3200 parts on page 35
Ref	Part number	Part name	Qty
1	320-48100	ROCKING LINK, A	1
2	320-48209	FULCRUM SHAFT	2
3	320-48308	ROCKING LINK, B	1
4	320-48506	ECCENTRIC SHAFT	1
5	320-48605	ADJUSTING ARM	1
6	320-48704	FULCRUM SHAFT	1
7	320-48803	VERTICAL SHAFT HOLDER	1
8	320-48902	VERTICAL SHAFT HOLDER METAL	2
9	320-49009	ROCKING VERTICAL SHAFT	1
10	320-49108	VERTICAL UPPER METAL	1
11	137-15701	FRAME ROCK SHAFT CRANK PIN	1
12	137-15800	NEEDLE BAR PITMAN	1
13	140-07108	FORK	1
14	180-27607	SLEEVE	1
15	B1633-210-D00	ADJUSTING NUT	1
16	SD-0801501-TP	HINGE SCREW	1
17	SM-8060812-TP	SCREW M6 L=8	2
18	SS-8110422-TP	SCREW 11/64-40 L=4	2
19	SS-8110750-SP	SCREW 11/64-40 L= 6.5	1
20	SS-8660610-TP	SCREW 1/4-40 L=6	1
21	SS-8660612-TP	SCREW 1/4-40 L=6	2
22	WP-0611626-SP	WASHER 15X6X1.6	1

Page 37 — 18. NEEDLE BAR COMPONENTS

Juki MEB-3200 parts on page 37
Ref	Part number	Part name	Qty
1	320-41055	NDEEDLE BAR	1
2	320-41303	NEEDLE BAR REVOLUTION RING	1
3	320-41402	THRUST WASHER	1
4	320-41105	NEEDLE BAR ROCKING BASE	1
5	320-42350	NEEDLE BAR THREAD GUIDE ASM.	1
6	320-41600	PULLEY SUPPORT, A	1
7	320-41709	PULLEY SUPPORT, B	2
8	320-41204	REVOLUTION PULLEY	1
9	320-41907	SPRING	1
10	320-42004	UPPER METAL RING	2
11	320-42103	RING HOLDER	1
12	320-41808	UPPER METAL	1
13	320-42202	NUT	1
14	320-42715	THROAT PLATE, A	1
15	320-42830	THROAT PLATE, B	1
16	320-41501	PULLEY METAL	1
17	B1906-581-000	THRUST WASHER	1
18	140-05508	LINK	1
19	140-05607	COLLAR	2
20	140-06506	COLLAR	1
21	140-07009	NEEDLE BAR ROCK LINK	1
22	140-09005	NEEDLE BAR THRUST PIN	2
23	140-09104	NEEDLE BAR ROCKING GUIDE	2
24	140-09203	SPRING	2
25	140-09302	ROCKING GUIDE HOOK	2
26	140-09807	SCREW	1
27	B1658-506-E00-A	SHAFT HOLDER	1
28	MC-1858010-00	NEEDLE, SCHMETZ, 558 NM100	1
29	MC-1858011-00	NEEDLE, SCHMETZ 558 NM110	1
30	SM-6030602-TP	SCREW M3X0.5 L=6	2
31	SM-6031202-TP	SCREW M3X0.5 L=12	2
32	SM-6041402-TP	SCREW M4 L=14	1
33	SM-6041802-TP	SCREW M4 L=18	3
34	SM-8430550-TP	SCREW M3X0.35 L=4.5	1
35	SM-8040612-TP	SCREW M4 L=6	2
36	SM-8050502-TP	SCREW M5 L=5	2
37	SS-6110610-TP	SCREW 11/64-40 L=6	2
38	320-43424	THROAT PLATE JA	1
39	320-43523	THROAT PLATE JE	1
40	MC-1858012-00	NEEDLE SCHMETZ,558 NM120	1
41	320-43713	THROAT PLATE TE	1
42	320-51708	THREAD GUIDE	1
43	400-23465	THREAD GUIDE	1
44	B2313-180-000	TENSION DISC	1
45	140-45900	TENSION SPRING	1
46	140-45801	SCREW	1
47	400-29122	THROAT PLATE JA C	1
48	400-29123	THROAT PLATE JE C	1

Page 39 — 19. THREAD TAKE-UP LEVER & THREAD GUIDE COMPONENTS

Juki MEB-3200 parts on page 39
Ref	Part number	Part name	Qty
1	320-50551	THREAD TAKE-UP LEVER COMPLE.	1
2	320-51005	FULCRUM SHAFT	1
3	320-50957	FULCRUM BOSS COMPLE.	1
4	320-53506	THREAD TENSIONS RUBBER SEAT	1
5	400-20483	THREAD GUIDE	1
6	SL-4031081-SC	SCREW M3 X 10	1
7	320-52201	LOWER THREAD GUIDE	1
8	320-52300	LOWER THREAD TENSION BRACKET	1
9	320-52409	THREAD TAKE-UP SPRING	1
10	320-52508	LOWER THREAD PIPE, A	1
11	320-52656	LOWER THREAD PIPE, B COMPLE.	1
12	320-52854	LOWER THREAD PIPE, C COMPLE.	1
13	320-53001	AT FITTING PLATE	1
14	400-20391	AT THREAD TENSION BRACKET	1
15	320-53209	AT (LOWER)	1
16	320-53357	AT RELAY CODE ASM.	1
17	140-44200	CAM ROLLER SHAFT	1
18	CS-100081C-SP	THRUST COLLAR ASM.	1
19	NM-6060003-SC	NUT M6	1
20	SM-8060812-TP	SCREW M6 L=8	2
21	SS-7110840-SP	SCREW 11/64-40 L=7.8	2
22	WP-0450000-SD	WASHER 4.5X8X0.5	2
23	WP-0641600-SC	WASHEW 6.4X12.5X1.6	1
24	PS-0200162-KH	SPRING PIN	1
25	SL-6040892-TN	BOLT	1
26	HX-0015000-0A	CABLE CLAMP	1
27	RE-0400000-KO	E-RING 4	1
28	320-53407	AT(LOWER) THREAD TENSION SHAFT	1
29	B1618-804-000	WASHER	1
30	400-20389	THREAD TENSION DISK	2
31	162-03507	MAGNET SPRING	1
32	NM-6040000-SN	NUT M4	1
33	SL-4061291-SE	SCREW	4
34	SL-6040892-TN	BOLT	2
35	SM-6030602-TP	SCREW M3X0.5 L=6	4
36	140-45504	THREAD GUIDE PIPE	1
37	SL-6040892-TN	BOLT	2
38	SL-6040892-TN	BOLT	2
39	SL-6041092-TN	SCREW	1
40	SM-8050812-TP	SCREW M5X8	1
41	SS-7110710-SP	SCREW 11/64-40 L=7	2
42	140-45306	ADJUST PIN	1
43	400-23464	SPRING STOPPER	1
44	B1513-210-000	CLOTH PRESSER MAGNET SPACER	1
45	SL-4030631-SC	SCREW M3X6	1
46	SM-6042502-TN	SCREW M4X0.7 L=25	1
47	WP-0450846-SP	WASHER	2

Page 40 — 20. LOWER THREAD HAUL COMPONENTS

Juki MEB-3200 parts on page 40
Ref	Part number	Part name	Qty
1	400-23426	LOWER THREAD HAUL PLATE	1
2	320-15109	SPRING	1
3	320-15208	LOWER THREAD HAUL LINK, A	1
4	320-15307	LOWER THREAD HAUL LINK, B	1
5	320-15406	LOWER THREAD HAUL LINK, C	1
6	320-15505	ADJUSTING PLATE	1
7	320-15653	DRIVING ARM ASM.	1
8	WP-0320501-SC	WASHER M3	1
9	WP-0480856-SP	WASHER 4.8X8.4X0.8	1
10	B1503-771-000	CONNECTING PIN	1
11	SD-0460182-SP	HINGE SCREW D= 4.6 H= 1.8	2
12	SD-0640326-TP	HINGE SCREW	1
13	SD-0640801-TP	HINGE SCREW D= 6.35 H= 8.0	1
14	SM-6030602-TP	SCREW M3X0.5 L=6	2
15	SM-6030602-TP	SCREW M3X0.5 L=6	1
16	SS-8110422-TP	SCREW 11/64-40 L=4	2
17	WP-0320501-SC	WASHER M3	2
18	SM-8040612-TP	SCREW M4 L=6	1
19	320-15802	DRIVING ARM ASM.T	1
20	B2423-280-00C	MOVING KNIFE WASHER C	2

Page 41 — 上糸プレ関係

Juki MEB-3200 parts on page 41
Ref	Part number	Part name	Qty
1	400-20390	AT THREAD GUIDE	1
2	400-11721	THREAD GUIDE ASM	1
3	320-54603	UPPER THREAD HAUL ARM	1
4	BT-0320201-EB	POLYURETHANE TUBE,BLACK 3.18X2	1.5
5	320-54900	AT (UPPER)	1
6	320-55105	BALANS THREAD GUIDE	2
7	320-55204	BALANS THREAD GUIDE BASE	1
8	320-55303	AT(UPPER) THREAD TENSION SHAFT	1
9	225-02504	THREAD GUIDE BAR	2
10	WP-0430801-SC	WASHER 4.3X9X0.8	1
11	320-55501	AT(UPPER) SPRING	1
12	HX-0015000-0A	CABLE CLAMP	1
13	NM-6040000-SN	NUT M4	1
14	PA-1001529-AO	AIR CYLINDER	1
15	PJ-0460525-03	HOSE ELBOW	2
16	SL-6041092-TN	SCREW	4
17	SL-6041092-TN	SCREW	2
18	SL-6041092-TN	SCREW	2
19	SL-6041092-TN	SCREW	1
20	SL-6051092-TN	BOLT	2
21	SM-0030301-SN	SCREW	1
22	SM-6030502-TN	SCREW M3 L=5	2
23	SM-6030802-TP	SCREW M3X0.5 L=8	2
24	SM-6031602-TP	SCREW	2
25	WP-0320501-SC	WASHER M3	2
26	400-20389	THREAD TENSION DISK	2
27	262-17604	WASHER	1
28	400-10477	AT_SOL_COLLAR	1
29	SM-8030412-TP	SCREW	2
30	320-53506	AT(LOWER) RUBBER SEAT	1
31	PC-0124010-00	SPEED CONTROLLER	1
32	320-55600	UPPER THREAD HAUL CYLINDER,B	1
33	320-55709	CYLINDER,B FITTING PLATE	1
34	320-55808	UPPER THREAD HAUL PLATE	1
35	320-55907	UPPER THREAD HAUL GUIDE PLATE	1
36	PJ-0460390-02	BARB ELBOW	1
37	SM-6030602-TP	SCREW M3X0.5 L=6	2
38	PJ-3030300-01	JOINT (STRAIGHT)	1
39	PS-0200162-KH	SPRING PIN	1
	SM-6030301-SN	SCREW M3 L=5

Page 43 — 22. GIMP HAUL COMPONENTS

Juki MEB-3200 parts on page 43
Ref	Part number	Part name	Qty
1	320-57002	CYLINDER BRACKET	1
2	400-16045	CYLINDER BRACKET	1
3	320-57309	INTERMEDIATE THREAD GUIDE	1
4	320-57457	PIPE, A COMPLE.	1
5	320-57655	PIPE, B COMPLE.	1
6	320-57101	HAUL ARM	1
7	320-57804	THREAD GUIGE, S	1
8	320-57903	THREAD GUIDE, J	1
9	320-58000	DISK RISING PLATE	1
10	B1128-850-000	LOOPER THREAD GUIDE	1
11	NS-6110310-SP	NUT 11/64-40	1
12	PA-1001501-A0	AIR CYLINDER	1
13	PA-9000340-00	JOINT	1
14	PJ-0460525-01	ELBOW	2
15	SD-0630275-SP	HINGE SCREW D= 6.35 H= 2.7	1
16	SL-6041092-TN	SCREW	3
17	SM-6041202-TN	SCREW M4X0.7 L=12	2
18	SL-6061292-TN	SCREW	1
19	SM-6040602-TP	SCREW M4 L=6	2
20	SM-6040602-TP	SCREW M4 L=6	1
21	SS-6110610-TP	SCREW 11/64-40 L=6	1
22	SS-7110840-SP	SCREW 11/64-40 L=7.8	2
23	B3107-352-000	NEEDLE THREAD GUIDE	1
24	B3108-352-000	NEEDLE THREAD TENSION POST	1
25	229-28808	NUT	2
26	B3126-012-000	THREAD TENSION DISK	2
27	B3129-012-A00	TENSION SPRING	1
28	NS-6150430-SP	NUT 15/64-28	2
29	WP-0450801-SP	WASHER	2

Page 45 — 23. CLOTH CUTTING COMPONENTS (1)

Juki MEB-3200 parts on page 45
Ref	Part number	Part name	Qty
1	320-61715	KNIFE BASE	1
2	320-61806	KNIFE BASE KEY	1
3	320-61913	DUST CHUTE,L	1
4	140-40703	KNIFE FIX PLATE, LOWER	1
5	140-40802	KNIFE STOPPER(UPPER, LOWER)	1
6	140-41206	CUTTING KNIFE, EYELET	1
7	BT-1200801-EF	TUBE	1.5
8	PJ-0320525-03	HOSE NIPPLE	1
9	SM-6030402-TP	SCREW M3X0.5 L=4	1
10	SM-6041202-TP	SCREW M4X0.7 L=12	2
11	SM-6051202-TP	SCREW M5X0.8 L=12	3
12	SM-6051602-TP	SCREW M5X0.8 L=16	1
13	SM-8030602-TP	SCREW M3X0.5 L=6	1
14	WP-0320500-SD	M3 WASHER	1
15	320-59701	BALL THREAD GEAR	1
16	320-59800	WASHER (UPPER)	2
17	320-59909	BALL THREAD	1
18	320-60006	HOUSING	1
19	320-60303	LINK	2
20	320-60402	LINK SHAFT, B	2
21	320-60501	LINK SHAFT, A	2
22	320-60600	LEVER	1
23	320-60709	DRIVING SHAFT	1
24	320-60808	DIRECT DRIVE GEAR	1
25	320-62002	DIAL	1
26	G5103-162-000	FEED BLOCK STOPPER	1
27	G5705-880-000	SHAFT HOLDER UNIT A	1
28	NM-6100003-SC	NUT M10	2
29	NM-6610515-SC	NUT	2
30	PS-0300182-KH	SPRING PIN 3.3X18	1
31	RC-1850001-KP	SNAP RING 18.5	1
32	SB-1200002-00	BEARING 20X42	2
33	SB-1200009-00	BEARING	2
34	SB-6120001-00	BEARING	1
35	SB-8120003-00	BEARING	1
36	SL-6051092-TN	BOLT	1
37	SM-6051602-TP	SCREW M5X0.8 L=16	2
38	SM-6060802-TP	SCREW M6 L=8	4
39	SM-6062002-TP	SCREW M6 L=20	4
40	SM-8060602-TP	SCREW M6X6	2
41	SS-8701042-TP	SCREW 5/16-24 L=10.0	1
42	SS-8701042-TP	SCREW 5/16-24 L=10.0	1
43	SS-8701782-TP	SCREW 5/16-24 L=17.0	1
44	SS-8701782-TP	SCREW 5/16-24 L=17.0	1
45	WP-0531000-SD	WASHER M5	2
46	WP-0621016-SH	WASHER	4
47	WP-0642016-SD	WASHER 6.4X18.5X2	4
48	WP-1252210-SC	WASHER 12.5X25.6X2.2	1
49	SM-6041602-TP	SCREW M4X0.7 L=16	2
50	NM-6040003-SC	NUT M4	2
51	320-77356	HOME POSITION SENSOR ASM.	1
52	320-77406	SENSOR BERCKET	1
53	SS-7110840-SP	SCREW 11/64-40 L=7.8	2
54	320-77505	SENSOR SLIT	1
55	SM-6040602-TP	SCREW M4 L=6	2
56	WP-0430801-SC	WASHER 4.3X9X0.8	2
57	161-21907	HOSE BAND	1
58	HX-0006500-0A	CABLE CLIP	1
59	320-75301	CLOTH KNIFE LEVER FELT	2
60	320-63604	CUTTING KNIFE (EYLET), S	1
61	PS-0200052-KH	SPRING PIN 2.3X5	2
62	320-63703	CUTTING KNIFE (EYELET), M	1
63	320-68702	CUTTING PLATE A	1
64	320-68801	CUTTING PLATE B	1
65	EA-9500B02-00	CABLE BAND 150	1

Page 46 — 24. CLOTH CUTTING COMPONENTS (2)

Juki MEB-3200 parts on page 46
Ref	Part number	Part name	Qty
1	320-60907	DIRECT DRIVE SHAFT	1
2	320-61004	DIRECT DRIVE KEY	1
3	320-61103	DIRECT DRIVE METAL	1
4	320-61210	CUTTING KNIFE FITTING BASE	1
5	320-61319	KNIFE FIXING PLATE	1
6	320-61400	DUST CHUTE COVER	1
7	320-68009	KNIFE HOLDER,22MM (EYELET) H	1
8	320-65500	SPACER, A	1
9	320-68900	KNIFE FIXING SCREW	1
10	140-39507	SCREW	1
11	B3538-112-000	OIL RETURN TUBE HOLDER	1
12	BT-0400251-EB	URETHANE HOSE, BLACK	3
13	PJ-0460525-01	ELBOW	1
14	RO-2973501-00	O-RING	1
15	RO-4552002-00	O-RING	1
16	SL-6041092-TN	SCREW	2
17	SM-6030802-TN	BOLT	2
18	SM-6040602-TP	SCREW M4 L=6	1
19	SM-6041202-TN	SCREW M4X0.7 L=12	2
20	SM-6062002-TN	SCREW M6 L=20	3
21	WP-0430801-SC	WASHER 4.3X9X0.8	2
22	WP-0641601-SC	WASHER	3
23	320-61558	DUST CHUTE ASM.	1
24	320-59503	MOTOR FITTING BASE	1
25	320-59602	MOTOR GEAR	1
26	KM-0000003-00	PULSE MOTOR	1
27	SB-4120001-00	BEARING	1
28	SM-4051055-SP	SCREW	4
29	SM-6051602-TP	SCREW M5X0.8 L=16	4
30	SM-8060602-TP	SCREW M6 L=6	2
31	WP-0531000-SD	WASHER M5	4
32	WP-0531000-SD	WASHER M5	4
33	320-66805	CLOTH CUTTING SPACER	1
34	320-68207	KNIFE HOLDER,18MM (EYELET) H	1
35	140-40802	KNIFE STOPPER(UPPER, LOWER)	1
36	SM-6030402-TP	SCREW M3X0.5 L=4	1
37	WP-0320500-SD	M3 WASHER	1
38	SS-8660330-SP	SCREW 1/4-40 L=3.0	2
	B3538-L12-000	SCREW	1
	PJ-0400251-EB	URETHANE HOSE, BLACK	1
	RO-2973501-GO	ELBOW	1
	SN-6030502-TN	SCREW	1
	SN-6041202-TN	SCREW M4 L=6	2
	SM-6052002-TP	SCREW M4X0.7 L=12	1
	MEB-3200CS, TS, CA, TA	OPTIONAL PARTS
	MEB-3200SS, RS, RDを除く	EXCEPT MEB-3200SS, RS, RD

Page 47 — エア関係

Juki MEB-3200 parts on page 47
Ref	Part number	Part name	Qty
1	320-72118	SOLENOID VALVE, 7	1
2	320-72217	SOLENOID VALVE, 6	1
3	320-72001	SORENOID VALVE FITTING BASE	1
4	B4715-215-0A0	FILTER REGULATOR ASM.	1
5	B8211-206-000	FILTER INSTALLING PLATE	1
6	BT-0400251-EB	URETHANE HOSE, BLACK	69.6
7	BT-0600401-EB	TUBE	1.7
8	EA-9500B01-00	CABLE BAND	2
9	EA-9500B01-00	CABLE BAND	2
10	320-72308	SOLENOID COVER	1
11	HX-0023300-00	CLIP	12
12	HX-0036400-0E	PARTS	1
13	NM-6080721-SE	NUT M8	1
14	PC-0124010-00	SPEED CONTROLLER	4
15	PJ-3080400-02	QUICK COUPLING	5
16	PX-5000140-00	PLUG	4
17	SK-3452001-SE	WOOD SCREW D=4.5 L=20	3
18	SK-3452001-SE	WOOD SCREW D=4.5 L=20	2
19	SL-4051091-SC	SCREW M5X0.8 L=10	2
20	SL-4051091-SC	SCREW M5X0.8 L=10	2
21	SL-9082093-SE	SCREW	1
22	WP-0871602-SE	WASHER 8.7X18X1.6	2
23	320-72407	SOLENOID VALVE, 5	1
24	M9015-620-0A0-A	SOLENOID VALVE CABLE ASM.	1
25	PX-5000140-00	PLUG	2
26	PX-0500030-00	SILENCER	1
27	PV-0100150-00	VALVE	2
28	PX-5000140-00	PLUG	3
29	PC-0124010-00	SPEED CONTROLLER	5
30	PJ-3080400-02	QUICK COUPLING	4
31	PC-0124010-00	SPEED CONTROLLER	3
32	PJ-3080400-02	QUICK COUPLING	4

Page 49 — 26. LUBRICATION MECHANISM COMPONENTS

Juki MEB-3200 parts on page 49
Ref	Part number	Part name	Qty
1	320-74759	BED OIL TANK ASM.	1
	320-73504	ARM LUBRICATION PLATE	1
	320-73603	ARM LUBRICATION FELT, A	1
	320-73702	ARM LUBRICATION FELT, B	1
	320-73801	LUBRICATION FELT	1
	320-73900	FELT HOLDER	1
	320-74106	FELT	1
	320-74403	CAM LUBRICATION PLATE	1
	320-74502	OIL FELT	1
	320-74908	BED OIL TANK FIXING BASE	1
	320-75400	ARM FELT	1
	320-75509	OIL RETURN FELT	1
	320-75608	OIL RETURN PIPE HOLDER	1
	B1821-210-D00	SHUTTLE OIL FELT, B	1
	B3501-210-000	OIL GAUGE	1
	B3518-280-000	BALANCE LUBRICATING	1
	B3529-226-000	OIL FELT PRESSER	1
	B3538-112-000	OIL RETURN TUBE HOLDER	1
	D2112-555-B00	CORD HOLDER, LARGE	1
	WP-0480856-SP	WASHER 4.8X8.4X0.8	1
	EA-9500B01-00	CABLE BAND	9
	HX-0015000-0C	CABLE CLIP	1
	SL-6040892-TN	BOLT	1
	SL-6041092-TN	SCREW	2
	SM-6040502-TP	SCREW M4X0.7 L=5	1
	SM-6061002-TP	SCREW M6 L=10	2
	SS-4110715-SP	SCREW 11/64-40 L=7	2
	SS-4120615-SP	SCREW 3/16-28 L=6	1
	SL-4051291-SC	SCREW M5X0.8 L=12	2
	BP-3000001-00	VINYL TUBE	4.3
	BP-5000000-00	VINYL PIPE	0.5
	CQ-2000000-00	OIL WICK	3.5
	CQ-2522000-00	OIL WICK	4.4
	400-20191	BRACKET LUBRICATION FELT A	1
	B1140-761-000	OILING LABEL	1
	NM-6050001-SP	NUT M5	2
	CQ-2020000-00	OIL WICK	0.3

Page 51 — 27. TABLE COMPONENTS

Juki MEB-3200 parts on page 51
Ref	Part number	Part name	Qty
1	320-80509	SEMI-SUNKEN TABLE(LONGITUDINAL	1
2	320-80707	TABLE REINFORCEMENT PLATE	2
3	320-80806	BOTTOM COVER STAY	4
4	111-55108	DRAWER	1
5	111-55207	DRAWER SUPPORT	2
6	111-55801	CASE MAGNET	1
7	111-56007	CASE	1
8	140-03701	BOLT CUSHION A	16
9	B8101-221-DAO	STAND ASM.	1
10	D8204-555-D00	DRAWER STOPPER	1
11	CM-5001000-01	CE MARKING LABEL	1
12	HX-0006500-0A	CABLE CLIP	3
13	140-03701	BOLT CUSHION A	14
14	HX-0015000-0N	CABLE CLIP	2
15	MAO-11108N00	PEDAL SWITCH FRAME BOLT	8
16	MAO-11108N00	PEDAL SWITCH FRAME BOLT	4
17	MTJ-MS00000S	SCREW SET	4
18	NM-6060001-SC	NUT M6	16
19	NM-6060001-SC	NUT M6	8
20	SK-3311601-SE	WOOD SCREW D=3.1 L=16	6
21	SK-3382001-SE	SCREW D=3.8 L=20	2
22	HX-0015000-0H	CABLE CLIP	2
23	SK-3382001-SE	SCREW D=3.8 L=20	4
24	SM-6082502-TN	BOLT	20
25	WP-0641601-SC	WASHER	8
26	WP-0852086-SC	WASHER M8	4
27	WS-0610002-KN	SPRING WASHER 6.1X12.2X1.5	8
28	320-80608	SEMI-SUNKEN TABLE (LATERAL)	1
29	168-70206	GRAVITY SEAL	1
30	WP-0850002-SP	WASHER 8.5X18X1.6	20
31	320-80707	TABLE REINFORCEMENT PLATE	1
32	MAO-11108N00	PEDAL SWITCH FRAME BOLT	4
33	NM-6060001-SC	NUT M6	8
34	WS-0610002-KN	SPRING WASHER 6.1X12.2X1.5	4
35	WP-0641601-SC	WASHER	4
36	320-80905	EARTH PLATE	1
37	320-81002	EARTH PLATE	1
38	400-11991	TABLE A	1
39	140-03800	BOLT CUSHION B	4
40	140-03701	BOLT CUSHION A	4
41	WP-0852086-SC	WASHER M8	4
42	SM-6088502-TP	SCREW M8 L=85	4
43	WP-0852086-SC	WASHER M8	4
44	NM-6060001-SC	NUT M6	8
45	B8210-012-000	CUSHION SET NAIL	3
46	HX-0013500-00	CABLE CLAMP	1
47	HX-0015000-0F	CABLE CLIP	1
48	SK-1272001-SE	WOOD SCREW D=2.7 L=20	1
49	SK-3412001-SE	WOOD SCREW D=4.1 L=20	1

Page 53 — 28. TRANSMISSION COMPONENTS (1)

Juki MEB-3200 parts on page 53
Ref	Part number	Part name	Qty
1	M8601-620-AA0	MAIN CIRCUIT BOARD A ASM.	1
2	M8610-610-AAB	SDC CIRCUIT BOARD AB ASM.	1
3	M8620-600-AAB	PWR CIRCUIT BOARD AB ASM.	1
4	M8620-610-BAB	PWR CIRCUIT BOARD BB ASM.	1
5	M8523-600-0A0	INPUT CHANGEOVER CORD ASM.	1

Page 54 — 29. TRANSMISSION COMPONENTS (2)

Juki MEB-3200 parts on page 54
Ref	Part number	Part name	Qty
1	M9017-580-0A0	POWER CABLE ASM.	1
2	M9035-580-0A0	POWER SOURCE CORD ASM.	1
3	M9028-580-0A0	POWER CABLE ASM.	1
4	M9024-580-0A0	POWER CABLE ASM.	1
5	M9034-580-0A0	GROUND CORD ASM.	1
6	SL-4860891-SC	SCREW M2.6X8	2
7	SL-4040681-SC	COMBINATION SCREW M4 X 8	1
8	BME-0110000	VOLTAGE INDICATION SEAL
9	BME-0111000	VOLTAGE INDICATION SEAL
10	BME-0112000	VOLTAGE INDICATION SEAL
11	BME-0320000	VOLTAGE INDICATION SEAL
12	BME-0322000	VOLTAGE INDICATION SEAL
13	BME-0324000	VOLTAGE INDICATION SEAL
14	M8590-513-0AA	PEDAL SWITCH ASM.
15	M9001-620-0A0	RELAY CABLE ASM.
16	M9002-620-0A0	RELAY CABLE ASM.
17	M9003-620-0A0	SENSOR CABLE ASM.
18	M9010-620-0A0	RELAY CABLE ASM.
19	M9011-620-0A0	RELAY CABLE ASM.
20	M9013-620-0A0	RELAY CABLE ASM.
21	M9004-620-0A0	SERVO MOTOR CABLE ASM.
22	M9005-620-0A0	RELAY CABLE ASM.
23	BME-01230000	VOLTAGE INDICATION SEAL
24	BME-01240000	VOLTAGE INDICATION SEAL
25	BME-03220000	VOLTAGE INDICATION SEAL
26	BME-03240000	VOLTAGE INDICATION SEAL
27	BME-03340000	VOLTAGE INDICATION SEAL
28	BME-03400000	VOLTAGE INDICATION SEAL
29	BME-03415000	VOLTAGE INDICATION SEAL
30	CM-2001000-01	PE MARK LABEL
31	M8512-581-0A0	SWITCH
32	HX-0006500-0A	CABLE CLIP
33	M9014-620-0A0	PEDAL SWITCH CABLE ASM.
34	SK-3512001-SF	WOOD SCREW

Page 55

Juki MEB-3200 parts on page 55
Ref	Part number	Part name	Qty
1	M8510-620-AA0	OPERATION BOX, A ASM.	1
2	M8510-620-BA0	OPERATION BOX, B ASM.	1
3	M8603-620-0A0	PANEL CIRCUIT BOARD, 1 ASM.	(1)
4	M8604-620-0A0	PANEL CIRCUIT BOARD, 2 ASM.	(1)
5	M3001-620-000	PANEL SEET (JAPAN)	(1)
6	M3002-620-000	PANEL SEET (ENGLISH)	(1)
7	M9021-620-0A0	PANEL CABLE ASM.	(1)
8	M1010-600-000	OPERATION BOX UPPER CASE	(1)
9	M1031-580-0A0	OPERATION BOX LOWER CASE ASM.	(1)
10	M1031-580-000	OPERATION BOX LOWER CASE	(1)
11	M1011-580-000	MAGNET SHEET	(2)
12	CM-6001001-01	WEEE MARK LABEL S	(1)
13	G1002-007-000	BLIND PLATE	(1)
14	M2001-600-000	PANEL SIDE LABEL	(1)
15	ST-4031051-SN	TAPPING SCREW D=3-24 L=10	(6)
16	M1017-580-0A0	OPERATION BOX FIXED PLATE ASM.	1
17	SK-3413201-SE	WOOD SCREW D=4.1 L=32	2
18	WP-0501016-SC	WASHER 5X10.5X1	2

Page 57

Juki MEB-3200 parts on page 57
Ref	Part number	Part name	Qty
1	M8501-620-AA0	CONTROL BOX, A ASM.	1
	M8501-620-BA0	CONTROL BOX, B ASM.	1
	M8501-620-CAO	CONTROL BOX, C ASM.	1
	M8620-600-AAB	PWR CIRCUIT BOARD AB ASM.	(1)
	M8620-610-BAB	PWR CIRCUIT BOARD BB ASM.	(1)
	M8901-620-AA0	POWER TRANSFORMER, A ASM.	(1)
	M9007-620-0A0	DC POWER SUPPLY CABLE ASM.	(1)
	M8540-590-0A0	FAN ASM.	(1)
	M8521-600-0A0	BOX POWER CORD ASM.	(1)
	HK-0266500-80	TERMINAL BASE 8P	(1)
	HK-0542500-40	TERMINAL BASE 4P	(2)
	M8601-620-AA0	MAIN CIRCUIT BOARD, A ASM.	(1)
	M8610-610-AAB	SDC CIRCUIT BOARD AB ASM.	(1)
	M9022-620-0A0	SDC-I/F CABLE ASM.	(1)
	M8901-620-BA0	POWER TRANSFORMER, B ASM.	(1)
	M9013-620-0A0	RELAY CABLE ASM.	1
	M9011-620-0A0	AT CABLE ASM.	1
	M9003-620-0A0	PULSE MOTOR RELAY CABLE, B ASM.	1
	M9010-620-0A0	UPER SHAFT SENSOR CABLE ASM.	1
	M8510-620-AA0	OPERATION BOX, A ASM.	1
	M8510-620-BA0	OPERATION BOX, B ASM.	1
	M8603-620-0A0	PANEL CIRCUIT BOARD, 1 ASM.	(1)
	M9014-620-0A0	PEDAL SWITCH CABLE ASM.	1
	320-76655	HAND SWITCH ASM.	1
	320-78354	SENSOR CABLE ASM.	1
	320-76853	HOME POSITION SENSOR CABLE ASM.	1
	320-77059	HOME POSITION SENSOR CABLE ASM.	1
	320-77950	RELAY CABLE ASM.	1
	320-53357	RELAY CABLE ASM.	1
	320-02255	SWITCH ASM.	1
	400-21684	SENSOR SWITCH ASM.	1
	320-77356	HOME POSITION SENSOR CABLE ASM.	1
	320-77653	UPPER SHAFT SENSOR CABLE ASM.	1
	320-02354	SWITCH ASM.	1
	320-54900	AT (UPPER)	1
	320-53209	AT (LOWER)	1
	B4715-210-0A0	SERVO MOTOR	1
	M9004-620-0A0	FILTER REGULATOR ASM.	1
	M9017-580-0A0	POWER CABLE ASM.	1
	M9028-580-0A0	POWER CABLE ASM.	1
	M9024-580-0A0	POWER CABLE ASM.	1
	M9034-580-0A0	GROUND CORD ASM.	1
	M9015-620-0A0-A	VALVE CABLE ASM.	1
	M9021-620-0A0	PANEL CABLE ASM.	1
	HA-0042500-00	SWITCH	1
	M8590-513-0AA	PEDAL SWITCH ASM.	1
	M9005-620-0A0	ENCODER RELAY CABLE ASM.	1
	M8523-600-0A0	INPUT CHANGEOVER CORD ASM.	1

Page 59 — 32. OPTION COMPONENTS(1)

Juki MEB-3200 parts on page 59
Ref	Part number	Part name	Qty
1	320-28458	EYELET COMPENSATING FOOT S SET	1
2	320-28409	HOLDING PLAT, RIGHT S	(1)
3	320-28516	HOLDING PLATE, LEFT S	(1)
4	320-28201	COMPENSATING FOOT, RIGHT S	(1)
5	320-28300	COMPENSATING FOOT, LEFT S	(1)
6	320-63604	CLOTH CUTTING KNIFE (EYELET) S	(1)
7	140-10508	PRESSER FOOT ATTACHING SCREW	(2)
8	WZ-0320290-UZ	WASHER 3.2X6.5X0.15	(2)
9	SM-1030400-SP	SCREW M3 L=4	(4)
10	400-16000	HOLDING PLATE SPACER LEFT	(1)
11	400-15997	HOLDING PLATE SPACER RIGHT S	(1)
12	320-29050	EYELET COMPENSATING FOOT L SET	1
13	140-58804	PRESSER FOOT, RIGHT, H	(1)
14	140-58903	PRESSER FOOT, LEFT H	(1)
15	140-41206	CUTTING KNIFE, EYELET	(1)
16	140-10508	PRESSER FOOT ATTACHING SCREW	(2)
17	WZ-0320290-UZ	WASHER 3.2X6.5X0.15	(2)
18	SM-1030400-SP	SCREW M3 L=4	(5)
19	320-07304	VERTICAL FEED CONNECTING ARM	(1)
20	320-07403	CONNECTING ARM METAL, A	(1)
21	320-07502	CONNECTING ARM METAL, B	(1)
22	320-29001	HOLDING PLATE J, RIGHT L	(1)
23	320-29100	HOLDING PLATE J, LEFT L	(1)
24	400-16000	HOLDING PLATE SPACER LEFT	(1)
25	400-15999	HOLDING PLATE SPACER RIGHT L	(1)
26	320-31064	VERTICAL HOLE PRESSER SET	1
27	320-31056	PRESSER PLATE, RIGHT ASM.	(1)
28	320-31700	DRIVING ARM	(1)
29	110-41100	ROLLER	(1)
30	RC-0470611-KP	RETAINING RING 4.7	(1)
31	320-31007	PRESSER PLATE, RIGHT	(1)
32	320-31205	PRESSER ARM FITTING BASE,RIGHT	(1)
33	SM-5040855-SN	SCREW	(3)
34	320-31304	PRESSER ARM BASE SHAFT, RIGHT	(1)
35	320-31809	PRESER ARM BASE, RIGHT	(1)
36	SM-8050412-TP	SCREW M5 L=4	(4)
37	SM-6051002-TN	BOLT	(1)
38	320-31155	HOLE PRESSER PLATE ASM.	(1)
39	SM-8050412-TP	SCREW M5 L=4	(2)
40	SM-6051002-TN	BOLT	(1)
41	320-32104	VERTICAL HOLE GUIDE, FRONT	(1)
42	320-32203	VERTICAL HOLE GUIDE, REAR	(1)
43	SS-5090610-SP	SCREW 9/64-40 L=6	(4)
44	320-31106	HOLE PRESER PLATE, LEFT	(1)
45	320-31502	PRESSER ARM FITTING BASE, LEFT	(1)
46	SM-1041001-SP	SCREW M4X0.7 L=10	(3)
47	SM-0030601-SC	SCREW M3X0.5 L=6	(1)
48	320-31601	PRESSER ATM BASE SHAFT, LEFT	(1)
49	RC-0740811-KP	C-RING	(1)
50	320-31908	PRESSER ARM BASE, LEFT	(1)
51	CS-080081B-SH	THRUST COLLAR ASM. D=8.0 W=8	(1)
52	320-32054	AUXILIARY COVER, LEFT ASM.	(1)
53	140-12504	CLAMP HOLDING PLATE	(1)
54	RE-0400000-KP	E-RING 4	(2)
55	262-17604	WASHER	(1)
56	G6343-870-000	SHEET	(0.1)
57	320-03808	CLAMP RETAINER PLATE SPACER	(1)
58	WP-0550800-SP	WASHER 5.5X10X0.8	(1)
59	WZ-0620290-KP	WASHER	(1)
60	320-32005	AUXILIARY COVER, LEFT	(1)
61	320-02008	FULCRUM SHAFT	(1)
62	SM-1030601-SC	SCREW M3 L=6	(2)
63	320-12809	HOLDING PLATE, REAR	(1)
64	320-29506	HOLDING PLATE, LEFT	1
65	320-43218	THROAT PLATE, D	1
66	320-43325	THROAT PLATE, JF	1
67	320-43424	THROAT PLATE, JA	1
68	320-43523	THROAT PLATE, JE	1
69	320-43622	THROAT PLATE, JD	1
70	320-42830	THROAT PLATE, JB	1
71	320-42913	THROAT PLATE, B	1
72	320-43010	THROAT PLATE, C	1
73	320-43135	THROAT PLATE, JC	1
74	320-28854	EYELET COMPENSATING FOOT M SET	1
75	320-28805	HOLDING PLATE, J RIGHT M	(1)
76	320-28912	HOLDING PLATE, J LEFT M	(1)
77	320-28607	PRESSER FOOT, RIGHT M	(1)
78	320-28706	PRESSER FOOT, LEFT M	(1)
79	320-63703	CUTTING KNIFE (EYELET), M	(1)
80	140-10508	PRESSER FOOT ATTACHING SCREW	(2)
81	WZ-0320290-UZ	WASHER 3.2X6.5X0.15	(2)
82	SM-1030400-SP	SCREW M3 L=4	(4)
83	400-16000	HOLDING PLATE SPACER LEFT	(1)
84	400-15998	HOLDING PLATE SPACER RIGHT M	(1)
85	320-29407	HOLDING PLATE, RIGHT	1
86	BT-1200801-EF	TUBE	2.3
87	HX-0015000-OF	CABLE CLIP	3
88	SL-6041092-TN	SCREW	3
89	400-29122	THROAT PLATE JA C	1
90	400-29123	THROAT PLATE JE C	1
	320-32101	VERTICAL HOLE GUIDE, FRONT	(1)
	320-28855	HOLDING PLATE, J RIGHT M	(1)

Page 61 — 33. OPTION COMPONENTS(2)

Juki MEB-3200 parts on page 61
Ref	Part number	Part name	Qty
1	320-70054	MARKING LIGHT UNIT	1
2	320-70005	MARKING LIGHT FITTING BASE	(1)
3	320-70104	MARKING LIGHT FITTING PLATE	(1)
4	320-70203	MARKING LIGHT FITTING BOSS	(1)
5	320-70302	CONVERTER FITTING PLATE	(1)
6	HE-0004600-00	MARKING PROJECTOR	(1)
7	HE-0004600-10	CONVERTER	(1)
8	HX-0015000-00	CLIP	(1)
9	EA-9500B01-00	CABLE BAND	(3)
10	SM-6040802-TP	SCREW M4X0.7 L=8	(2)
11	SM-8040412-TP	SET SCREW M4 L=4	(2)
12	SL-4030881-SC	SCREW M3X8	(2)
13	SL-4040891-SC	SCREW M4 L=8	(1)
14	SL-6043092-TN	BOLT	(2)
15	SK-3382001-SE	SCREW D=3.8 L=20	(2)
16	WP-0450801-SP	WASHER	(2)
17	320-24481	UPPER THREAD CLAMP UNIT	1
18	320-24952	UPPER THREAD CLAMP ARM ASM.	(1)
19	320-24903	UPPER THREAD CLAMP ARM	(1)
20	320-25108	UPPER THREAD CLAMP GUIDE	(1)
21	320-25207	GUIDE SHAFT A	(1)
22	320-25306	GUIDE SHAFT B	(1)
23	320-25405	CYLINDER FITTING PLATE	(1)
24	140-44903	SCREW	(1)
25	140-30100	WASHER	(2)
26	PA-1001532-00	AIR CYLINDER	(1)
27	PJ-0320390-02	COUPLING	(2)
28	SB-7060005-00	BEARING	(1)
29	RO-0371801-00	RUBBER RING	(1)
30	SM-5030655-SP	SCREW	(4)
31	BT-0320201-EB	TUBE 3.18X2	(2.2)
32	320-24499	UPPER THREAD CLAMP ASM.	(1)
33	400-18402	UPPER THREAD CLAMP AB ASM	(1)
34	320-24416	UPPER THREAD CLAMP A	(1)
35	320-24507	UPPER THREAD CLAMP B	(1)
36	320-24606	UPPER THREAD CLAMP SPRING	(1)
37	320-25009	UPPER THREAD CLAMP SHAFT	(1)
38	RE-0200000-KO	E-RING	(2)
39	PS-0150082-KH	SPRING PIN	(1)
40	PA-0400301-00	AIR CYLINDER	(1)
41	PJ-0460390-02	ELBOW	(2)
42	SM-6020402-TN	BOLT M2 L=4	(2)
43	320-24713	UPPER THREAD CLAMP BRACKET	(1)
44	320-24804	UPPER THREAD CLAMP DRIVING PIN	(1)
45	PS-0250062-KH	SPRING PIN 2.5X6	(1)
46	SL-4851481-SF	SCREW M2.5 L=14	(1)
47	BT-0320201-EB	TUBE 3.18X2	(2.4)
48	320-25504	UPPER THREAD CLAMP SPACER	(3)
49	M9024-620-000	SOLENOID VALVE CONNECTOR	(2)
50	PC-0105220-00	SPEED CONTROLLER	(2)
51	PF-0705010-00	PRESSURE DECREASING VALVE	(1)
52	PJ-3040300-01	ELBOW	(1)
53	PJ-2102031-00	UNION	(1)
54	EA-9500B01-00	CABLE BAND	(4)
55	320-25603	HEXAGONAL WRENCH	(1)
56	EA-9500B01-00	CABLE BAND	(4)
57	SS-6110480-SP	SCREW 11/64-40 L=4.3	(2)
58	PV-1502091-00	SOLENOID VALVE	(2)

Page 62 — 34. OPTION COMPONENTS(3)

Juki MEB-3200 parts on page 62
Ref	Part number	Part name
15	14042501	For decorative buttonhole
1	32062101	For eyelet buttonhole
47	32067209	For hard eyelet buttonhole
2	32062200	For eyelet buttonhole
16	32064404	For decorative buttonhole
48	32067308	For hard eyelet buttonhole
3	32062309	For eyelet buttonhole
17	32064503	For decorative buttonhole
49	32067407	For hard eyelet buttonhole
4	32062408	For eyelet buttonhole
18	14042600	For decorative buttonhole
50	32067506	For hard eyelet buttonhole
5	32062507	For eyelet buttonhole
19	32064602	For decorative buttonhole
51	32067605	For hard eyelet buttonhole
6	32062606	For eyelet buttonhole
20	32064701	For decorative buttonhole
52	32067704	For hard eyelet buttonhole
7	32062705	For eyelet buttonhole
21	14042808	For decorative buttonhole
53	32067803	For hard eyelet buttonhole
8	32062804	For eyelet buttonhole
22	32064800	For decorative buttonhole
54	32067902	For hard eyelet buttonhole
46	32062903	For eyelet buttonhole
23	14042907	For decorative buttonhole
55	32038009	For hard eyelet buttonhole
9	32063000	For eyelet buttonhole
24	32064909	For decorative buttonhole
56	32068108	For hard eyelet buttonhole
10	32063109	For eyelet buttonhole
25	32065005	For decorative buttonhole
57	32068207	For hard eyelet buttonhole
11	32063208	For eyelet buttonhole
26	14043103	For decorative buttonhole
58	32068306	For hard eyelet buttonhole
12	32063307	For eyelet buttonhole
27	32065104	For decorative buttonhole
59	32068405	For hard eyelet buttonhole
13	32063406	For eyelet buttonhole
28	32065203	For decorative buttonhole
60	32068504	For hard eyelet buttonhole
14	32063505	For eyelet buttonhole
29	14043301	For decorative buttonhole
61	32068603	For hard eyelet buttonhole
39	32063604	For eyelet buttonhole
40	32063802	For eyelet buttonhole
41	32063901	For eyelet buttonhole
42	32064008	For eyelet buttonhole
43	32064107	For eyelet buttonhole
44	32064206	For eyelet buttonhole
45	32064305	For eyelet buttonhole
62	32066904	For eyelet buttonhole
63	14041206	For eyelet buttonhole
64	32063703	For eyelet buttonhole
30	32065302	For decorative buttonhole
31	32065401	For decorative buttonhole
32	14041404	For decorative buttonhole
33	14059604	For eyelet buttonhole 32mm
34	14059802	For eyelet buttonhole 22mm
35	14013908	For decorative buttonhole 40mm
65	14010102	For eyelet buttonhole 40mm
67	32028706	For eyelet buttonhole 32mm
69	32028300	For eyelet buttonhole 22mm
72	14058903	For eyelet buttonhole 40mm
73	40035239	For eyelet buttonhole 32mm
75	40039844	For eyelet buttonhole 22mm
36	14059505	For eyelet buttonhole 32mm
37	14059703	For eyelet buttonhole 22mm
38	14013809	For decorative buttonhole 40mm
66	14010003	For eyelet buttonhole 40mm
68	32028607	For eyelet buttonhole 32mm
70	32028201	For eyelet buttonhole 22mm
71	14058804	For eyelet buttonhole 40mm
74	40035238	For eyelet buttonhole 32mm
76	40039843	For eyelet buttonhole 22mm

Page 63

Juki MEB-3200 parts on page 63
Ref	Part number	Part name	Qty
1	320-62101	KNIFE HOLDER, 38MM (EYELET)	1
2	320-62200	KNIFE HOLDER, 36MM (EYELET)	1
3	320-62309	KNIFE HOLDER, 34MM (EYELET)	1
4	320-62408	KNIFE HOLDER, 32MM (EYELET)	1
5	320-62507	KNIFE HOLDER, 30MM (EYELET)	1
6	320-62606	KNIFE HOLDER, 28MM (EYELET)	1
7	320-62705	KNIFE HOLDER, 26MM (EYELET)	1
8	320-62804	KNIFE HOLDER, 24MM (EYELET)	1
9	320-63000	KNIFE HOLDER, 20MM (EYELET)	1
10	320-63109	KNIFE HOLDER, 18MM (EYELET)	1
11	320-63208	KNIFE HOLDER, 16MM (EYELET)	1
12	320-63307	KNIFE HOLDER, 14MM (EYELET)	1
13	320-63406	KNIFE HOLDER, 12MM (EYELET)	1
14	320-63505	KNIFE HOLDER, 10MM (EYELET)	1
15	140-42501	KNIFE HOLDER, 40MM, DECORATIVE	1
16	320-64404	KNIFE HOLDER, 36MM, DECORATIVE	1
17	320-64503	KNIFE HOLDER, 34MM, DECORATIVE	1
18	140-42600	KNIFE HOLDER, 32MM, DECORATIVE	1
19	320-64602	KNIFE HOLDER, 30MM, DECORATIVE	1
20	320-64701	KNIFE HOLDER, 28MM, DECORATIVE	1
21	140-42808	KNIFE HOLDER, 26MM, DECORATIVE	1
22	320-64800	KNIFE HOLDER, 24MM, DECORATIVE	1
23	140-42907	KNIFE HOLDER, 22MM, DECORATIVE	1
24	320-64909	KNIFE HOLDER, 20MM, DECORATIVE	1
25	320-65005	KNIFE HOLDER, 18MM, DECORATIVE	1
26	140-43103	KNIFE HOLDER, 16MM, DECORATIVE	1
27	320-65104	KNIFE HOLDER, 14MM, DECORATIVE	1
28	320-65203	KNIFE HOLDER, 12MM, DECORATIVE	1
29	140-43301	KNIFE HOLDER, 10MM, DECORATIVE	1
30	320-65302	CUTTING KNIFE (DECORATIVE), S	1
31	320-65401	CUTTING KNIFE (DECORATIVE), M	1
32	140-41404	CUTTING KNIFE, DECORATIVE	1
33	140-59604	PRESSER FOOT, LEFT 32MM	1
34	140-59802	PRESSER FOOT, LEFT 22MM	1
35	140-13908	PRESSER FOOT, LEFT 40MM	1
36	140-59505	PRESSER FOOT, RIGHT 32MM	1
37	140-59703	PRESSER FOOT, RIGHT 22MM	1
38	140-13809	PRESSER FOOT, RIGHT 40MM	1
39	320-63604	CUTTING KNIFE (EYLET), S	1
40	320-63802	CUTTING KNIFE (EYELET), 1	1
41	320-63901	CUTTING KNIFE (EYELET), 1S	1
42	320-64008	CUTTING KNIFE (EYELET), 1M	1
43	320-64107	CUTTING KNIFE (EYELET), 5	1
44	320-64206	CUTTING KNIFE (EYELET), 5S	1
45	320-64305	CUTTING KNIFE (EYELET), 5M	1
46	320-62903	KNIFE HOLDER,22MM (EYELET)	1
47	320-67209	KNIFE HOLDER, 38MM (EYELET),H	1
48	320-67308	KNIFE HOLDER, 36MM (EYELET),H	1
49	320-67407	KNIFE HOLDER, 34MM (EYELET),H	1
50	320-67506	KNIFE HOLDER, 32MM (EYELET),H	1
51	320-67605	KNIFE HOLDER, 30MM (EYELET),H	1
52	320-67704	KNIFE HOLDER, 28MM (EYELET),H	1
53	320-67803	KNIFE HOLDER, 26MM (EYELET),H	1
54	320-67902	KNIFE HOLDER, 24MM (EYELET),H	1
55	320-68009	KNIFE HOLDER, 22MM (EYELET),H	1
56	320-68108	KNIFE HOLDER, 20MM (EYELET),H	1
57	320-68207	KNIFE HOLDER, 18MM (EYELET),H	1
58	320-68306	KNIFE HOLDER, 16MM (EYELET),H	1
59	320-68405	KNIFE HOLDER, 14MM (EYELET),H	1
60	320-68504	KNIFE HOLDER, 12MM (EYELET),H	1
61	320-68603	KNIFE HOLDER, 10MM (EYELET),H	1
62	320-66904	CUTTING KNIFE (EYELET), 6	1
63	140-41206	CUTTING KNIFE, EYELET	1
64	320-63703	CUTTING KNIFE (EYELET), M	1
65	140-10102	PRESSER FOOT (LEFT) 40MM	1
66	140-10003	PRESSER FOOT (RIGHT) 40MM	1
67	320-28706	PRESSER FOOT, LEFT M	1
68	320-28607	PRESSER FOOT, RIGHT M	1
69	320-28300	COMPENSATING FOOT, LEFT S	1
70	320-28201	COMPENSATING FOOT, RIGHT S	1
71	140-58804	PRESSER FOOT, RIGHT, H	1
72	140-58903	PRESSER FOOT, LEFT H	1
73	400-35239	PRESSER FOOT LEFT W(M)	1
74	400-35238	PRESSER FOOT RIGHT W(M)	1
75	400-39844	PRESSER FOOT LEFT W(S)	1
76	400-39843	PRESSER FOOT RIGHT W(S)	1

Page 65 — 35. ACCESSORY PARTS COMPONENTS

Juki MEB-3200 parts on page 65
Ref	Part number	Part name	Qty
1	138-50052	THREAD STAND ASM.	1
2	229-31406	SPOOL REST ROD CAP	(1)
3	229-30705	SPOOL REST ROD JOINT	(4)
4	SM-6061610-SC	SCREW M6 L=16	(4)
5	229-30556	SPOOL REST ARM ASM.	(1)
6	229-30507	SPOOL REST ARM	(1)
7	229-30408	SPOOL REST ROD,UPPER	(1)
8	229-31307	SPOOL REST ROD JOINT	(1)
9	SM-4051405-SE	SCREW M5 L=14	(2)
10	NM-6050001-SE	NUT M5	(2)
11	229-30309	SPOOL REST ROD,LOWER	(1)
12	NM-6160511-SE	NUT	(1)
13	NM-6050001-SE	NUT M5	(3)
14	WP-1612616-SE	WASHER 16X30X2.6	(2)
15	229-31109	SPOOL RETAINER	(3)
16	229-31000	SPOOL PIN	(3)
17	229-30903	SPOOL REST CUSHION	(3)
18	229-30804	SPOOL REST	(3)
19	131-68950	SPOOL REST ARM,A ASM.	(1)
20	131-68901	SPOOL REST ARM,A	(1)
21	WS-1643202-KR	SPRING WASHER	(1)
22	WS-0510002-KN	SPRING WASHER	(3)
23	229-33204	SCREW DRIVER,SMALL	1
24	MDF-RX2001L0	DEFRIX OIL, NO.2 900CC	1
25	B9121-012-0A0	OILER ASM.	1
26	320-67209	KNIFE HOLDER 38MM (EYELET),H	1
27	320-67803	KNIFE HOLDER 26MM (EYELET),H	1
28	320-68108	KNIFE HOLDER 20MM (EYELET),H	1
29	320-68306	KNIFE HOLDER 16MM (EYELET),H	1
30	140-41404	CUTTING KNIFE, DECORATIVE	1
31	140-42907	KNIFE HOLDER, 22MM, DECORATIVE	1
32	GEB-03653000	DUST BAG	1
33	320-27609	VERTICAL GUIDE, RIGHT	1
34	320-27708	VERTICAL GUIDE, LEFT	1
35	PB-0000100-00	HOSE BAND	1
36	PJ-3095200-01	SOCKET	1
37	140-58002	THREADER	1
38	293-43217	INSTRUCTION MANUAL(JAPAN)	1
39	293-43316	INSTRUCTION MANUAL(6 LANGUAGES	1
40	B2313-180-000	TENSION DISC	1
41	229-33006	SCREW DRIVER,LARGE	1
42	229-32800	ACCESSORIE BAG	1
43	MC-1858010-02	NEEDLE, SCHMETZ, 558 NM100-2	1
44	MC-1858011-02	NEEDLE, SCHMETZ, 558 NM110-2	1
45	320-21404	TIMING GAUGE	1
46	140-58200	TIMING GAUGE SUPPORT BASE	1
47	B9142-372-000	HEXAGONAL WRENCH (7.1X8.1)	1
48	MAI-17001000	SPANNER (1.5)	1
49	J1066-000-00C	HEXAGONAL WRENCH KEY 2.5	1
50	GCT-02905000	SPANNER	1
51	J1066-000-00D	HEXAGONAL WRENCH KEY	1
52	B9140-372-000	HEXAGONAL WRENCH, SMALL	1
53	GCT-02906000	HEXAGONAL SPANNER	1
54	MC-1858012-02	NEEDLE	1
55	320-68009	KNIFE HOLDER,22MM (EYELET),H	1
56	320-68207	KNIFE HOLDER,18MM (EYELET),H	1
57	229-33105	SCREW DRIVER,MIDDLE	1
58	B9143-372-000	WRENCH (7.1 X 8.1)	1
59	B9113-012-000	WRENCH (9X10)	1
60	B9112-012-000	WRENCH (11X14)	1
61	140-58101	TIMING GAUGE	1
62	140-45801	SCREW	1
63	140-45900	TENSION SPRING	1
64	400-23465	THREAD GUIDE	1
65	400-23941	INSTRUCTION MANUAL (CC)	1
66	CM-6001002-01	WEEE INFORMATION SHEET	1
67	320-51708	THREAD GUIDE	1

Page 66 — 36. LIST FOR INFORMATION OF CHANGE

Juki MEB-3200 parts on page 66
Ref	Part number	Part name	Qty
59	400-61247
60	400-59760

Page 71

Juki MEB-3200 parts on page 71
Ref	Part number	Part name	Qty
7	320-19309
23	320-19408
24	320-19507
8	320-19606
47	320-19705
9	320-19853
10	320-19903
3	320-20000
11	320-20109
12	320-20257
4	320-20406
13	320-20505
15	320-20703
16	320-20802
17	320-20919
18	320-21008
22	320-21206
45	320-21404
48	320-21552
41	320-21859
1	320-23004
2	320-23103
3	320-23210
4	320-23319
24	320-23400
5	320-23400
6	320-23558
9	320-23756
12	320-23905
13	320-24002
34	320-24416
17	320-24481
32	320-24499
35	320-24507
36	320-24606
43	320-24713
44	320-24804
19	320-24903
18	320-24952
37	320-25009
20	320-25108
21	320-25207
22	320-25306
23	320-25405
48	320-25504
55	320-25603
1	320-26007
2	320-26106
3	320-26205
36	320-26205
4	320-26304
37	320-26304
5	320-26403
38	320-26403
6	320-26502
39	320-26502
7	320-26809
1	320-26809
8	320-26908
2	320-26908
9	320-27005
3	320-27005
10	320-27104
4	320-27104
11	320-27203
40	320-27203
5	320-27203
12	320-27401
41	320-27401
6	320-27401
13	320-27500
42	320-27500
7	320-27500
31	320-27609
33	320-27609
32	320-27708

Page 72 — NUMERICAL INDEX OF PARTS

Juki MEB-3200 parts on page 72
Ref	Part number	Qty
23	320-60709	40
24	320-60808	40
64	320-60907	40
2	320-61004	41
3	320-61103	41
4	320-61210	41
5	320-61319	41
6	320-61400	41
23	320-61558	41
1	320-61715	40
2	320-61806	40
3	320-61913	40
25	320-62002	40
1	320-62101	58
2	320-62200	58
3	320-62309	58
4	320-62408	58
5	320-62507	58
6	320-62606	58
7	320-62705	58
8	320-62804	58
46	320-62903	58
9	320-63000	58
10	320-63109	58
11	320-63208	58
12	320-63307	58
13	320-63406	58
14	320-63505	58
60	320-63604	40
6	320-63604	54
39	320-63604	58
62	320-63703	40
79	320-63703	54
64	320-63703	58
40	320-63802	58
41	320-63901	58
42	320-64008	58
43	320-64107	58
44	320-64206	58
45	320-64305	58
16	320-64404	58
17	320-64503	58
19	320-64602	58
20	320-64701	58
22	320-64800	58
24	320-64909	58
25	320-65005	58
27	320-65104	58
28	320-65203	58
30	320-65302	58
31	320-65401	58
8	320-65500	41
33	320-66805	41
62	320-66904	58
47	320-67209	58
26	320-67209	60
48	320-67308	58
49	320-67407	58
50	320-67506	58
51	320-67605	58
52	320-67704	58
27	320-67803	60
53	320-67803	58
54	320-67902	58
7	320-68009	41
55	320-68009	58
55	320-68009	60
56	320-68108	58
28	320-68108	60
34	320-68207	41
57	320-68207	58
56	320-68207	60
58	320-68306	58
29	320-68306	60
59	320-68405	58
60	320-68504	58
36	400-12229	6
66	400-15684	26
71	400-15685	26
44	400-15692	26
43	400-15693	26
74	400-15694	26
76	400-15695	14
77	400-15997	20
77	400-15997	54
54	400-15998	54
54	400-15998	54
75	400-16000	20
24	400-16000	54
24	400-16000	54
26	400-16045	38
93	400-16203	26
93	400-16204	26
38	400-18894	56
34	400-20191	16
36	400-20277	44
32	400-20389	26
30	400-20389	34
26	400-20390	36
14	400-20391	34
52	400-20483	34
38	400-21684	52
35	400-23425	4
34	400-23426	35
32	400-23464	34
60	400-23465	32
64	400-23465	60
65	400-23941	60
36	400-26894	26
36	400-26895	26
47	400-29122	32
47	400-29122	54
48	400-29123	32
48	400-29123	54
9	400-34923	12
58	400-35238	20
74	400-35238	58
59	400-35239	20
73	400-35239	58
18	400-39169	27
26	400-39176	28
26	400-39177	28
58	400-39843	58
75	400-39844	58
5	400-49095	4
60	400-59760	6
59	400-61247	6

Page 7 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS(1)

Page 9

Page 11 — 3. BOTTOM COVER COMPONENTS

Page 13 — 4. FEED COMPONENTS

Page 15 — 5. CLOTH OPEN COMPONENTS

Page 17 — 6. LOWER THREAD CUTTING COMPONENTS (1) (FOR MEB-3200SS, RS, RD)

Page 19 — 7.LOWER THREAD CUTTING COMPONENTS (2) (FOR MEB-3200JS, CS, JA, CA)

Page 21 — 8. LOWER THREAD CUTTING COMPONENTS (3) (FOR MEB-3200TS, TA)

Page 23 — 9. UPPER THREAD CUTTING COMPONENTS

Page 25 — 10. PRESSER COMPONENTS (1) (FOR MEB-3200SS, JS, CS, TS, JA, CA, TA)

Page 27 — 11. PRESSER COMPONENTS (2) (FOR MEB-3200RD, RS)

Page 29 — 12. REVOLUTION COMPONENTS

Page 31 — 13. LOOPER DRIVING COMPONENTS

Page 32 — 14. LOWER SHAFT COMPONENTS

Page 33 — 工軸図係

Page 34 — 16. NEEDLE BAR DRIVING COMPONENTS

Page 35 — FIG. 1 MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Page 37 — 18. NEEDLE BAR COMPONENTS

Page 39 — 19. THREAD TAKE-UP LEVER & THREAD GUIDE COMPONENTS

Page 40 — 20. LOWER THREAD HAUL COMPONENTS

Page 41 — 上糸プレ関係

Page 43 — 22. GIMP HAUL COMPONENTS

Page 45 — 23. CLOTH CUTTING COMPONENTS (1)

Page 46 — 24. CLOTH CUTTING COMPONENTS (2)

Page 47 — エア関係

Page 49 — 26. LUBRICATION MECHANISM COMPONENTS

Page 51 — 27. TABLE COMPONENTS

Page 53 — 28. TRANSMISSION COMPONENTS (1)

Page 54 — 29. TRANSMISSION COMPONENTS (2)

Page 55

Page 57

Page 59 — 32. OPTION COMPONENTS(1)

Page 61 — 33. OPTION COMPONENTS(2)

Page 62 — 34. OPTION COMPONENTS(3)

Page 63

Page 65 — 35. ACCESSORY PARTS COMPONENTS

Page 66 — 36. LIST FOR INFORMATION OF CHANGE

Page 71

Page 72 — NUMERICAL INDEX OF PARTS

Juki MEB-3200 — parts catalog
