Juki MF-7523 Parts Book (PDF)
Text index — Juki MF-7523
Page 4 — MISCELLANEOUS COVER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 70001411 | FACE COVER | 1 |
| 2 | 22902506 | PLATE | 1 |
| 3 | TA1050504R0 | RUBBER PLUG | 1 |
| 4 | SM4041055SP | SCREW | 4 |
| 5 | 70001416 | GASKET H | 1 |
| 6 | TA2050406R0 | RUBBER PLUG | 1 |
| 7 | 70001409 | TOP COVER | 1 |
| 8 | SM4041055SP | SCREW | 8 |
| 9 | 10753309 | WINDOW PLATE RUBBER PLUG | 1 |
| 10 | RO195240100 | O-RING | 1 |
| 11 | 22924708 | OIL SIGHT WINDOW | 1 |
| 12 | 13300801 | GASKET T | 1 |
| 13 | 70001421 | BRACKET HOLDER | 1 |
| 14 | 40033341 | BRACKET | 1 |
| 15 | 13301700 | PROTECTION SHIELD | 1 |
| 16 | WZ0641510KP | WAVED WASHER 6.4X11X0.3 | 1 |
| 17 | SM4030455SN | SCREW | 1 |
| 18 | SM4030855SN | SCREW M3 L=8.0 | 1 |
| 19 | NM6040000SN | NUT M4 | 1 |
| 20 | SD0640246SP | SHOULDER SCREW D=6.35 H=2.4 | 1 |
| 21 | SM4060801SE | SCREW | 1 |
| 22 | 70001422 | THREAD COVER | 1 |
| 23 | SM4040655SP | SCREW M4 L=6 | 1 |
| 24 | TA2351004R0 | RUBBER PLUG | 1 |
| 25 | CM300200001 | FINGER INJURY CAUTION LABEL (16) | 1 |
| 26 | CM301300001 | SAFETY LABEL | 1 |
| 27 | 70001837 | NEEDLE BAR GUARD ASSY | 1 |
| 28 | 70001407 | NEEDLE BAR GUARD | 1 |
| 29 | CM300200001 | FINGER INJURY CAUTION LABEL (16) | 1 |
| 30 | SM4040855SP | SCREW | 2 |
| 31 | TA1250705R0 | RUBBER PLUG | 2 |
| 32 | TA0850604R0 | RUBBER PLUG | 3 |
| 33 | TA0850604R0 | RUBBER PLUG | 1 |
| 34 | 22901805 | GROUND MARK | 1 |
Page 6 — MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 70001420 | CLOTH PLATE LEFT | 1 |
| 2 | 13426903 | MESH PLATE | 1 |
| 3 | RC1900002KP | C-RING 19(20.5) | 1 |
| 4 | WP0531000SD | WASHER M5 | 4 |
| 5 | 13302302 | RUBBER BUMPER | 2 |
| 6 | SM6041002TP | SCREW M4X0.7 L=10 | 3 |
| 7 | SM1040800SP | SCREW | 1 |
| 8 | 70001978 | CLOTH PLATE RIGHT | 1 |
| 9 | TA0400301M0 | PLUG D=4X4.5 L=3 | 1 |
| 10 | SM6040602TP | SCREW M4X0.7 L=6 | 1 |
| 11 | SM10414C0SP | SCREW | 2 |
| 12 | SM6041002TP | SCREW M4X0.7 L=10 | 1 |
| 13 | 70001415 | BED TOP COVER | 1 |
| 14 | SM6040800SP | SCREW | 11 |
| 15 | 70001423 | GASKET B | 1 |
| 16 | TA2050416R0 | RUBBER PLUG | 2 |
| 17 | TA1050504R0 | RUBBER PLUG | 1 |
| 18 | 70001424 | THROAT PLATE SUPPORT | 1 |
| 19 | 13302302 | RUBBER BUMPER | 1 |
| 20 | TA0850604R0 | RUBBER PLUG | 1 |
| 21 | 40082196 | ADJUSTING COLLAR | 2 |
| 22 | SM60407C0TP | SCREW M4 L=7 | 2 |
| 23 | SM6050800SP | SCREW M5 L=8 | 3 |
| 24 | 13302203 | SCREW | 2 |
| 25 | 13301809 | SUPPORT STUD | 4 |
| 26 | 70001426 | SWING DOWN COVER | 1 |
| 27 | 70001431 | HINGE | 1 |
| 28 | 13409800 | DIFF LINK PIN | 1 |
| 29 | 70001414 | SCREW | 1 |
| 30 | WS0510002KP | SPRING WASHER 5.1X9.2X1.3 | 1 |
| 31 | WP0531000SC | WASHER 5.3X10X1 | 2 |
| 32 | 13304308 | LATCH SPRING | 1 |
| 33 | 13302302 | RUBBER BUMPER | 2 |
| 34 | SM8040412TP | SET SCREW M4 L=4 | 2 |
| 35 | SM4040655SP | SCREW M4 L=6 | 2 |
| 36 | 13302302 | RUBBER BUMPER | 1 |
| 37 | 40099371 | BRACKET | 1 |
| 38 | SM6030800SP | SCREW M3X0.5 L=8 | 2 |
| 39 | SM6051400SP | SCREW | 2 |
| 40 | 13302104 | PIN | 1 |
| 41 | 70001418 | SIDE COVER | 1 |
| 42 | RE0300000K0 | E-RING 3 | 1 |
| 43 | WP0550800SP | WASHER 5.5X10X0.8 | 1 |
| 44 | 70001659 | FEED CHAMBER COVER | 1 |
| 45 | 13305107 | PIN FOR SIDE COVER | 1 |
| 46 | 13302708 | RUBBER WASHER | 2 |
| 47 | TA0850604R0 | RUBBER PLUG | 1 |
Page 8 — MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 13304308 | LATCH SPRING | 1 |
| 49 | 13302302 | RUBBER BUMPER | 2 |
| 50 | SM8040312TP | SCREW M4 L=3 | 1 |
| 51 | SM4040555SP | SCREW | 2 |
| 52 | SM4041055SP | SCREW | 7 |
| 53 | 13302104 | PIN | 1 |
| 54 | 13304209 | SUPPORT BRACKET | 1 |
| 55 | SM4041055SP | SCREW | 1 |
| 56 | SM4040655SP | SCREW M4 L=6 | 1 |
| 57 | NM6040000SN | NUT M4 | 1 |
| 58 | 70001436 | HOUSING | 1 |
| 59 | SM6051602TP | SCREW M5X0.8 L=16 | 4 |
| 60 | 70001976 | SLIDE COVER | 1 |
| 61 | WZ0641510KP | WAVED WASHER 6.4X11X0.3 | 1 |
| 62 | 70004493 | SHOULDER_SCREW | 1 |
| 63 | 70001831 | DRIVING BELT COVER ASSY | 1 |
| 64 | 70001830 | DRIVING BELT COVER | 1 |
| 65 | CM300200001 | FINGER INJURY CAUTION LABEL (16) | 1 |
| 66 | SM4051055SP | SCREW | 3 |
| 67 | TA2101002R0 | RUBBER PLUG | 1 |
| 68 | TA2050416R0 | RUBBER PLUG | 2 |
| 69 | WP0501016SD | WASHER 5X10.5X1 | 1 |
| 70 | TA1050504R0 | RUBBER PLUG | 2 |
Page 10 — MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 70004635 | TIMING_BELT | 1 |
| 2 | 70001445 | LOWER MAINSHAFT RIGHT | 1 |
| 3 | 13406707 | LOWER_PULLEY | 1 |
| 4 | SM8061212TP | SCREW M6X12 | 2 |
| 5 | 40017824 | LOOPER LOD STOPPER | 1 |
| 6 | 70004640 | COUPLING_E_ASSY | 1 |
| 7 | SM8060612TP | SCREW M6 L=6 | 2 |
| 8 | 13308457 | BEARING ASSY C | 1 |
| 9 | 70004197 | BEARING | 1 |
| 10 | 40018922 | COUPLING C | 1 |
| 11 | SM8060612TP | SCREW M6 L=6 | 2 |
| 12 | RO148240200 | O-RING | 1 |
| 13 | 13307509 | JOINT | 1 |
| 14 | SM8060612TP | SCREW M6 L=6 | 4 |
| 15 | 70004630 | LMS_LEFT_ASSY | 1 |
| 16 | 70004631 | LOWER_MAINSHAFT_LEFT | 1 |
| 17 | 70004633 | LOOPER_DRIVE | 1 |
| 18 | 70004632 | LOOPER_ROD_DRIVE | 1 |
| 19 | SM6061402TP | SCREW M6 L=14 | 1 |
| 20 | SM8040412TP | SCREW M4X4 | 1 |
| 21 | 13324108 | SCREW | 4 |
| 22 | 70003316 | FLY_WHEEL | 1 |
| 23 | SM8060612TP | SCREW M6 L=6 | 2 |
| 24 | SM4040655SP | SCREW M4 L=6 | 3 |
| 25 | 70001447 | BUSHING LMS MIDDLE | 1 |
| 26 | 70001448 | BUSHING LMS LEFT | 1 |
| 27 | 70005086 | BEARING | 1 |
| 28 | 13308705 | GASKET FOR BUSHING LEFT | 1 |
| 29 | SM4041055SP | SCREW | 3 |
| 30 | 70001451 | THRUST PLATE | 1 |
| 31 | 70001453 | BEARING HOLDER | 1 |
| 32 | SM8060812TP | SCREW M6 L=8 | 1 |
| 33 | SM8060842TP | SCREW M6 L=8 | 1 |
| 34 | 70004184 | LMS SPROCKET | 1 |
| 35 | 70004489 | LMS_WORM_ASSY | 1 |
| 36 | SM8060552TP | SCREW M6 L=5 | 1 |
| 37 | 13308507 | COUPLING D | 1 |
| 38 | SM8060842TP | SCREW M6 L=8 | 1 |
| 39 | 70004484 | BEARING | 1 |
| 40 | SM8060612TP | SCREW M6 L=6 | 2 |
| 41 | SB120001500 | BEARING | 1 |
| 42 | RO148240200 | O-RING | 1 |
| 43 | 40035711 | OIL WICK | 2 |
| 44 | 70003331 | COUPLING B | 1 |
| 45 | 70001437 | UPPER MAINSHAFT RIGHT | 1 |
| 46 | 70001439 | UPPER_PULLEY | 1 |
| 47 | SM8061212TP | SCREW M6X12 | 2 |
Page 12 — MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 13307251 | BEARING ASSY A | 1 |
| 49 | SM8060842TP | SCREW M6 L=8 | 1 |
| 50 | SM8060612TP | SCREW M6 L=6 | 1 |
| 51 | 70001443 | COLLAR | 1 |
| 52 | SM8060612TP | SCREW M6 L=6 | 2 |
| 53 | 13307301 | UMS SPROCKET | 1 |
| 54 | SM8060812TP | SCREW M6 L=8 | 4 |
| 55 | SB120002200 | BEARING | 1 |
| 56 | 70001440 | COUPLING B | 1 |
| 57 | 70001638 | BEARING COVER PLATE | 1 |
| 58 | SM8060612TP | SCREW M6 L=6 | 4 |
| 59 | 70001441 | UPPER MAINSHAFT LEFT | 1 |
| 60 | 70001442 | TAKE UP ROD ASSY | 1 |
| 61 | SM6061402TP | SCREW M6 L=14 | 1 |
| 62 | 70001535 | CRANK | 1 |
| 63 | 70001536 | ROD | 1 |
| 64 | 13324108 | SCREW | 2 |
| 65 | 70001444 | TAKE UP ECCENTRIC | 1 |
| 66 | SM8060612TP | SCREW M6 L=6 | 2 |
| 67 | 13307806 | HOUSING A | 1 |
| 68 | 13309307 | HOUSING B | 1 |
| 69 | 13309406 | HOUSING C | 1 |
| 70 | SB120001900 | BEARING | 1 |
| 71 | SM8060842TP | SCREW M6 L=8 | 1 |
| 72 | SM8060612TP | SCREW M6 L=6 | 1 |
| 73 | 13309208 | SCREW FOR COUNTERWEIGHT | 1 |
| 74 | SM8080812TP | SCREW M8X8 | 1 |
| 75 | SM6061200SP | SCREW | 1 |
| 76 | 13307707 | COUNTER WEIGHT | 1 |
Page 14 — NEEDLE BAR & PRESSER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40070574 | ADJ SCREW P B NUT ASSY | 1 |
| 2 | 40070573 | ADJ SCREW P B ASSY | 1 |
| 3 | 13313101 | LOCKING NUT | 1 |
| 4 | 13313309 | SPRING PRESSER BAR A | 1 |
| 5 | 70001480 | SPRING PRESSER BAR B | 1 |
| 6 | 70001481 | PRESSER BAR | 1 |
| 7 | 70001499 | BUSHING PRESSER BAR | 1 |
| 8 | 13315908 | OIL SEAL | 1 |
| 9 | 70001483 | FINGER GUARD | 1 |
| 10 | SM4040655SP | SCREW M4 L=6 | 1 |
| 11 | 13313804 | GUIDE PLATE | 1 |
| 12 | SM6041000SP | SCREW M4 L=10 | 2 |
| 13 | 70001485 | PRESSER BAR BRACKET | 1 |
| 14 | SM6041200SP | SCREW M4 L=12 | 1 |
| 15 | 13314109 | LINK | 1 |
| 16 | SD070020CTP | SHOULDER SCREW D=7 H=2 | 2 |
| 17 | 13314356 | ASSY LIFTER SHAFT | 1 |
| 18 | 23537202 | HOOK SHAFT OIL SEAL | 1 |
| 19 | 70001486 | BUSHING LIFTER FRONT | 1 |
| 20 | PS0500142KP | SPRING PIN TYPE W 5X14 | 1 |
| 21 | 70001498 | SPRING LIFTER LEVER | 1 |
| 22 | 70001494 | TENSION RELEASE LEVER | 1 |
| 23 | SM6041202TP | SCREW M4X0.7 L=12 | 1 |
| 24 | SD070058CTP | SHOULDER SCREW D=7 H=5.8 | 1 |
| 25 | 70001495 | LIFTER LEVER STOPPER | 1 |
| 26 | SM60625COTP | SCREW M6 L=25 | 1 |
| 27 | NM6060001CP | NUT M6X1 TYPE1 | 1 |
| 28 | SM6061202TP | SCREW M6 L=12 | 2 |
| 29 | 70001487 | LIFTER LEVER ASSY | 1 |
| 30 | SM6051002TP | SCREW M5X0.8 L=10 | 1 |
| 31 | WP0551016SH | WASHER 5.5X13X1 | 1 |
| 32 | 70001488 | LIFTER LEVER | 1 |
| 33 | 70001489 | LIFTER LEVER SHAFT | 1 |
| 34 | 70001490 | BUSHING LIFTER LEVER | 1 |
| 35 | 70001478 | LIFTER SHAFT LEVER | 1 |
| 36 | SM6051202TP | SCREW M5X0.8 L=12 | 1 |
| 37 | 70001477 | LIFTER LEVER COLLAR | 1 |
| 38 | SM6040800SP | SCREW | 1 |
| 39 | 70001491 | SPACER | 2 |
| 40 | WP0450826SC | WASHER 4.5X10X0.8 | 2 |
| 41 | SM4041055SP | SCREW | 2 |
| 42 | 70001492 | LIFTER LEVER LINK | 1 |
| 43 | 70001493 | MINUTES LIFTING COLLAR | 1 |
| 44 | SM8040512TP | SCREW | 2 |
| 45 | 13311253 | ASSY NEEDLE MECH | 1 |
| 46 | 70004371 | ASSY_CONNECTING_ROD | 1 |
| 47 | 13311006 | ECCENTRIC PIN | 1 |
Page 16 — NEEDLE BAR & PRESSER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 13311204 | CONNECTING ROD | 1 |
| 49 | SB30800110A | BEARING | 1 |
| 50 | SB30800110B | BEARING | 1 |
| 51 | SB30800110C | BEARING | 1 |
| 52 | SB30800110D | BEARING | 1 |
| 53 | SM6041000SP | SCREW M4 L=10 | 1 |
| 54 | 13311303 | NEEDLE BAR CLAMP | 1 |
| 55 | 13312103 | THRUST WASHER | 1 |
| 56 | 13312202 | THRUST WASHER | 1 |
| 57 | 13312301 | THRUST WASHER | 1 |
| 58 | 13311501 | SLIDE BLOCK | 1 |
| 59 | SM6051202TP | SCREW M5X0.8 L=12 | 3 |
| 60 | 13326806 | NEEDLE BAR EYELET | 1 |
| 61 | SM4030855SN | SCREW M3 L=8.0 | 1 |
| 62 | 13311956 | ASSY BUSHING NB | 1 |
| 63 | 13311907 | BUSHING NB LOWER | 1 |
| 64 | 13311808 | BUSHING NB UPPER | 1 |
| 65 | 13311451 | NEEDLE BAR ASSY | 1 |
| 66 | 70001500 | BUSHING LIFTER REAR | 1 |
| 67 | 13311600 | NEEDLE BAR GUIDE | 1 |

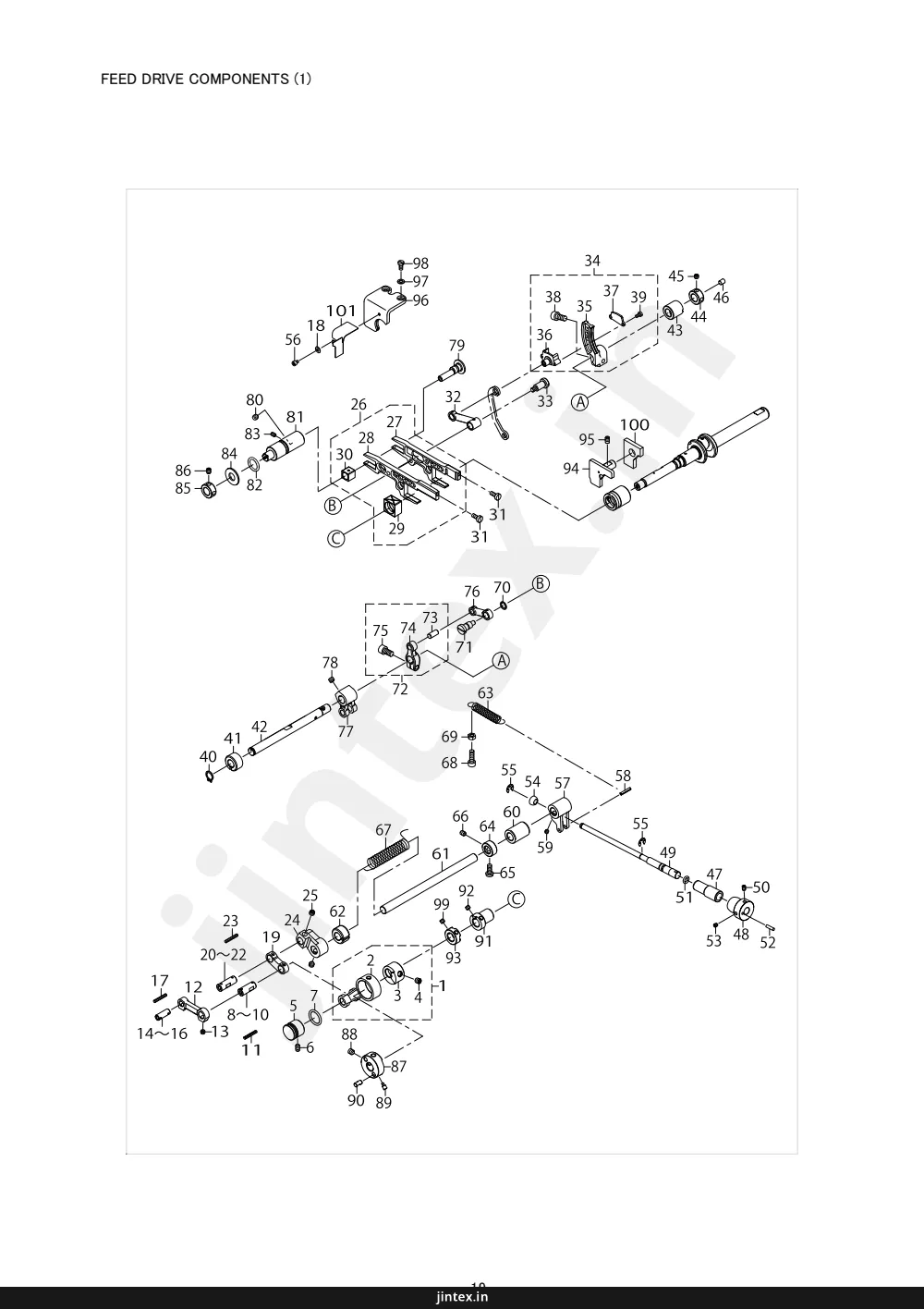

Page 18 — FEED DRIVE COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 70001521 | FEED ECCENTRIC HORIZON ASSY | 1 |
| 2 | 70001505 | CRNAK ROD | 1 |
| 3 | 70001522 | FEED ECCENTRIC HORIZON | 1 |
| 4 | SM8060612TP | SCREW M6 L=6 | 2 |
| 5 | 13323803 | CRANK ROD GUIDE | 1 |
| 6 | SM8050812TP | SCREW M5X8 | 1 |
| 7 | RO158240100 | O-RING | 1 |
| 8 | 13323308 | FEED ADJ LINK PIN A | 1 |
| 9 | 13323407 | FEED ADJ LINK PIN B | 1 |
| 10 | 13323506 | FEED ADJ LINK PIN C | 1 |
| 11 | CQ303000000 | COTTON OIL WICK D=3 | 0.07 |
| 12 | 13317201 | MAIN FEED DRIVE LINK | 1 |
| 13 | SM8050612TP | SCREW M5X6 | 2 |
| 14 | 13318704 | MAIN FEED CRANK PIN A | 1 |
| 15 | 13318803 | MAIN FEED CRANK PIN B | 1 |
| 16 | 13318902 | MAIN FEED CRANK PIN C | 1 |
| 17 | CQ303000000 | COTTON OIL WICK D=3 | 0.04 |
| 18 | WP0370316SD | WASHER 3.7X8X0.3 | 1 |
| 19 | 13317300 | ADJUST LINK | 1 |
| 20 | 13317409 | FEED ADJ LINK PIN A | 1 |
| 21 | 13317508 | FEED ADJ LINK PIN B | 1 |
| 22 | 13317607 | FEED ADJ LINK PIN C | 1 |
| 23 | CQ303000000 | COTTON OIL WICK D=3 | 0.08 |
| 24 | 13317706 | MAIN FEED ADJ LEVER | 1 |
| 25 | SM8060552TP | SCREW M6 L=5 | 2 |
| 26 | 70001528 | FEED BAR ASSY | 1 |
| 27 | 70001959 | MAIN FEED BAR | 1 |
| 28 | 13321708 | DIFF FEED BAR | 1 |
| 29 | 70001509 | SLIDE BLOCK | 1 |
| 30 | 13322409 | SLIDE BLOCK | 1 |
| 31 | SM6041000SP | SCREW M4 L=10 | 2 |
| 32 | 13319702 | DIFF FEED LINK | 1 |
| 33 | SD0801326TH | SHOULDER SCREW D=8 H=13.2 | 1 |
| 34 | 13319959 | DIFF DRIVE ARM ASSY | 1 |
| 35 | 13319900 | DIFF DRIVE ARM | 1 |
| 36 | 13320007 | DIFF FEED PIN | 1 |
| 37 | 13320106 | DIFF FEED PIN PLATE | 1 |
| 38 | SM6061402TP | SCREW M6 L=14 | 1 |
| 39 | SM6030600SP | SCREW M3X0.5 L=6 | 2 |
| 40 | RC0100001KP | C-RING 10 (9.3) | 1 |
| 41 | 70001510 | BUSHING FEED FRONT | 1 |
| 42 | 13319009 | ROCKER SHAFT | 1 |
| 43 | 70001511 | BUSHING FEED REAR | 1 |
| 44 | CS1000881TP | THRUST COLLAR D=10 W=8 | 1 |
| 45 | SM8050612TP | SCREW M5X6 | 2 |
| 46 | TA0500601M0 | PLUG D=5X5.4 L=6 | 1 |
| 47 | 13318209 | BUSHING FEED ADJUST | 1 |
Page 20 — FEED DRIVE COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 13318001 | KNOB FEED ADJUST | 1 |
| 49 | 13318100 | SHAFT FEED ADJUST | 1 |
| 50 | SM8040602TP | SCREW M4X0.7 L=6 | 1 |
| 51 | RO055200100 | O-RING | 1 |
| 52 | B3215470000 | PIN | 1 |
| 53 | SM8040412TP | SCREW M4X4 | 1 |
| 54 | 13318308 | STOPPER FEED ADJUST | 1 |
| 55 | RE0500000K0 | E-RING | 2 |
| 56 | SM6030402TP | SCREW M3X0.5 L=4 | 1 |
| 57 | 13317904 | FEED ADJUST LEVER | 1 |
| 58 | PS0300162KH | SPRING PIN 3X16 | 1 |
| 59 | SM8050612TP | SCREW M5X6 | 1 |
| 60 | 70001512 | BUSHING FEED ADJUST | 1 |
| 61 | 13317805 | FEED ADJUST SHAFT | 1 |
| 62 | 70001510 | BUSHING FEED FRONT | 1 |
| 63 | 13318506 | TORSIN SPRING | 1 |
| 64 | CS1000881TP | THRUST COLLAR D=10 W=8 | 1 |
| 65 | SM4051255SP | SCREW | 1 |
| 66 | SM8050612TP | SCREW M5X6 | 1 |
| 67 | B2556280000 | SPRING | 1 |
| 68 | SM6051602TP | SCREW M5X0.8 L=16 | 1 |
| 69 | NM6050001SC | NUT M5X0.8 TYPE1 | 1 |
| 70 | RC0741013KP | C-RING 8 (7.4) | 1 |
| 71 | 13398409 | SHOULDER SCREW | 1 |
| 72 | 70001513 | MAIN FEED ROCKER ASSY | 1 |
| 73 | 13319405 | MAIN FEED ROCKER PIN | 1 |
| 74 | 70001506 | MAIN FEED ROCKER | 1 |
| 75 | SM6061202TP | SCREW M6 L=12 | 1 |
| 76 | 13319504 | MAIN FEED LINK | 1 |
| 77 | 13318605 | MAIN FEED CRANK | 1 |
| 78 | SM80606A2TP | SCREW M6 L=6 | 2 |
| 79 | 13322201 | ECCENTRIC PIN | 1 |
| 80 | SM8060552TP | SCREW M6 L=5 | 1 |
| 81 | 13322003 | FEED BAR SHAFT | 1 |
| 82 | RO137230100 | O-RING | 1 |
| 83 | SM8040612TP | SCREW M4 L=6 | 1 |
| 84 | 13322102 | WASHER FEED BAR SHAFT | 1 |
| 85 | CS1000881TP | THRUST COLLAR D=10 W=8 | 1 |
| 86 | SM8050612TP | SCREW M5X6 | 2 |
| 87 | 70001523 | POSITIONING CAM HORIZON | 1 |
| 88 | SM8060612TP | SCREW M6 L=6 | 2 |
| 89 | 70001524 | FEED ECCENTRIC SCREW | 1 |
| 90 | 70001525 | FEED ECCENTRIC PIN | 1 |
| 91 | 70001526 | FEED ECCENTRIC | 1 |
| 92 | SM8050412TP | SCREW M5 L=4 | 2 |
| 93 | 70001527 | POSITIONING CAM VERTICAL | 1 |
| 94 | 70001507 | FEED BAR GUIDE 1 | 1 |
Page 22 — FEED DRIVE COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 95 | SM8050812TP | SCREW M5X8 | 1 |
| 96 | 70001508 | FEED BAR GUIDE 2 | 1 |
| 97 | WP0480856SP | WASHER 4.8X8.4X0.8 | 2 |
| 98 | SM6040800SP | SCREW | 2 |
| 99 | SM8050412TP | SCREW M5 L=4 | 2 |
| 100 | 70001532 | FELT FOR FEED BAR GUIDE | 1 |
| 101 | 70001533 | OIL PROTECTION SHEILD | 1 |
Page 24 — FEED DRIVE COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40040206 | DIFF FEED LEVER ASSY | 1 |
| 2 | R0068190100 | O-RING | 1 |
| 3 | 40039630 | PLATE DIFF FEED LEVER | 1 |
| 4 | 13321203 | STOPPER DIFF ADJ | 2 |
| 5 | WP0450826SC | WASHER 4.5X10X0.8 | 2 |
| 6 | SM5040655SN | SCREW | 2 |
| 7 | 70001530 | SCREW | 1 |
| 8 | 13217708 | DIFFERENTIAL FEED BLOCK | 1 |
| 9 | WP0460556SD | WASHER 4.6X7.5X0.5 | 1 |
| 10 | 13123302 | ADJUSTING SPRING | 1 |
| 11 | RE0300000K0 | E-RING 3 | 1 |
| 12 | 13217500 | DIFFERENTIAL FEED LOCK NUT | 1 |
| 13 | 13217401 | DIFFERENTIAL FEED HINGE SCREW | 1 |
| 14 | SM4051255SP | SCREW | 1 |
| 15 | SM7051460TP | SCREW M5 L=14 | 1 |
| 16 | WP0621016SD | WASHER 6.2X13X1 | 1 |
| 17 | 70001531 | ADJUSTING LEVER SPRING | 1 |
| 18 | 13320304 | BUSHING DIFF ADJ LEVER | 1 |
| 19 | 13320403 | DIFF ADJ LEVER | 1 |
| 20 | SM8050612TP | SCREW M5X6 | 1 |
| 21 | 40018443 | DIFF ADJ LINK | 1 |
| 22 | 31013808 | HINGE SCREW | 1 |
| 23 | CS1000881TP | THRUST COLLAR D=10 W=8 | 1 |
| 24 | SM8050612TP | SCREW M5X6 | 2 |
| 25 | 13323209 | BUSHING DIFF ADJ LEVER | 1 |
| 26 | 70001589 | NEEDLE GUARD BASE | 1 |
| 27 | TA0750404R0 | PLUG D=7.5 L=3.5 | 2 |
| 28 | 70001514 | FEED BAR SEAL 1 | 1 |
| 29 | 70001515 | FEED BAR SEAL PLATE 1 | 1 |
| 30 | 70001516 | FEED BAR SEAL PLATE 2 | 1 |
| 31 | 70001517 | FEED BAR SEAL 2 | 1 |
| 32 | 70001518 | FEED BAR SEAL PLATE 3 | 1 |
| 33 | SM1030400SP | SCREW M3 L=4 | 3 |
| 34 | SM6041000SP | SCREW M4 L=10 | 3 |
Page 26 — THREAD TAKE-UP LEVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SM6051002TP | SCREW M5X0.8 L=10 | 1 |
| 2 | WS0510002KP | SPRING WASHER 5.1X9.2X1.3 | 1 |
| 3 | 70001537 | SHAFT | 1 |
| 4 | WP0522016SH | WASHER | 1 |
| 5 | 13324504 | BUSHING REAR | 1 |
| 6 | CS1000881TP | THRUST COLLAR D=10 W=8 | 1 |
| 7 | SM8050612TP | SCREW M5X6 | 2 |
| 8 | 13324603 | BUSHING FRONT | 1 |
| 9 | 23612609 | FEED CHANGING SHAFT OIL SEAL | 1 |
| 10 | 13324702 | HOLDER TAKE UP EYELET | 1 |
| 11 | WS0510002KN | SPRING WASHER M5 | 1 |
| 12 | SM6051402TP | SCREW M5X0.8 L=14 | 1 |
| 13 | 70001548 | NDL THD TAKE UP | 1 |
| 14 | 13324900 | UP LPR THREAD TAKE UP | 1 |
| 15 | SM4041055SP | SCREW | 2 |
| 16 | 13325006 | THREAD GUIDE | 1 |
| 17 | SM4040655SP | SCREW M4 L=6 | 2 |
| 18 | 70001540 | THREAD TENSION GUIDE | 1 |
| 19 | 13348008 | TANK | 1 |
| 20 | 70001546 | SILICONE OIL TANK COVER | 1 |
| 21 | B9214850000 | HEAT REMOVING FELT | 1 |
| 22 | PS0150082KH | SPRING PIN 1.5X8 | 2 |
| 23 | ST4040851SN | TAPPING SCREW M4X8 | 2 |
| 24 | 13325204 | HOLDER | 1 |
| 25 | 30391601 | NEEDLE THREAD EYELET | 3 |
| 26 | SM8030312TP | SCREW M3 L=3 | 3 |
| 27 | SM4030855SN | SCREW M3 L=8.0 | 1 |
| 28 | SM4040655SP | SCREW M4 L=6 | 2 |
| 29 | 70001541 | THREAD GUIDE | 1 |
| 30 | SM4040655SP | SCREW M4 L=6 | 1 |
| 31 | 70001542 | THREAD GUIDE | 1 |
| 32 | 70001543 | NDL THD STRIKE OFF | 1 |
| 33 | SM4040655SP | SCREW M4 L=6 | 1 |
| 34 | PS0400082KP | SPRING PIN TYPE W 4X8 | 1 |
| 35 | 13326905 | NDL THD STRIKE OFF R | 1 |
| 36 | WP0280501SC | WASHER M2.6 | 1 |
| 37 | SM48504C5SP | SCREW | 1 |
| 38 | SM1040650TP | SCREW | 1 |
| 39 | 13326301 | THREAD GUIDE UPPER LPR | 1 |
| 40 | 13326400 | THREAD GUIDE | 1 |
| 41 | 22945802 | THREAD TENSION DISK | 2 |
| 42 | 13326509 | TENSION POST | 1 |
| 43 | 22945505 | THREAD TENSION SPRING | 1 |
| 44 | 13326608 | TENSION NUT | 1 |
| 45 | NM6050001SC | NUT M5X0.8 TYPE1 | 1 |
| 46 | WP0450826SC | WASHER 4.5X10X0.8 | 2 |
| 47 | SM6040800SP | SCREW | 2 |
Page 28 — THREAD TAKE-UP LEVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 13325808 | NIPPER PLATE SUPPORT | 1 |
| 49 | 13325907 | NIPPER PLATE | 1 |
| 50 | 13326004 | NIPPER GUIDE PLATE | 1 |
| 51 | 13326103 | SPRING | 1 |
| 52 | 13326202 | SHOULDER SCREW | 1 |
| 53 | SM4040655SP | SCREW M4 L=6 | 1 |
| 54 | 13326707 | THREAD GUIDE | 1 |
| 55 | 40085995 | FINGER GUARD | 1 |
| 56 | SM40405C5SP | SCREW | 2 |
| 57 | WP0450801SC | WASHER 4.5X10X0.8 | 2 |
| 58 | 70001544 | TAKE UP COVER | 1 |
| 59 | SM1040750TP | SCREW M4 L=7 | 1 |
| 60 | 70001545 | FINGER GUARD | 1 |
Page 30 — SPREADER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 13328158 | ASSY UPPER LPR MECH | 1 |
| 2 | 13328109 | CONNROD FOR UPPER LPR | 1 |
| 3 | 13328000 | UPPER LOOPER ECCENTRIC | 1 |
| 4 | 13328208 | STUD | 1 |
| 5 | SM8050412TP | SCREW M5 L=4 | 2 |
| 6 | 70001555 | DRIVING ARM | 1 |
| 7 | WP0550800SP | WASHER 5.5X10X0.8 | 1 |
| 8 | NM6050001SC | NUT M5X0.8 TYPE1 | 1 |
| 9 | SM6061402TP | SCREW M6 L=14 | 1 |
| 10 | 70001558 | UPPER LOOPER SHAFT | 1 |
| 11 | 13399209 | COLLAR | 2 |
| 12 | SM8040412TP | SCREW M4X4 | 4 |
| 13 | 13329008 | BUSHING REAR | 1 |
| 14 | 70001559 | BUSHING_FRONT | 1 |
| 15 | 13328554 | ASSY UPPER LPR MECH 2 | 1 |
| 16 | 13328505 | CRANK ROD | 1 |
| 17 | 13328604 | UPPER LOOPER ROCKER | 1 |
| 18 | 13328703 | UP LPR SHAFT VERTICAL | 1 |
| 19 | CQ303000000 | COTTON OIL WICK D=3 | 0.05 |
| 20 | SM9061050TP | SCREW M6 L=10 | 1 |
| 21 | SM8060612TP | SCREW M6 L=6 | 1 |
| 22 | 13329206 | BUSHING VERTICAL | 1 |
| 23 | 13338900 | OIL SEAL | 1 |
| 24 | WP1022016SH | WASHER | 1 |
| 25 | CS1000881TP | THRUST COLLAR D=10 W=8 | 1 |
| 26 | SM8050412TP | SCREW M5 L=4 | 2 |
| 27 | 13328802 | UPPER LOOPER HOLDER | 1 |
| 28 | SM6041200SP | SCREW M4 L=12 | 1 |
| 29 | 70004223 | UPPER_LOOPER | 1 |
| 30 | SM6041000SP | SCREW M4 L=10 | 1 |
| 31 | 70004224 | UPPER_LOOPER | 1 |
Page 32 — LOWER THREAD CAM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 70004637 | BELT_TAKE_UP | 1 |
| 2 | 70001582 | THREAD GUIDE PLATE | 1 |
| 3 | 40087068 | CAM THREAD CATCH | 1 |
| 4 | 70001580 | SPROCKET TAKE UP | 1 |
| 5 | SM8050612TP | SCREW M5X6 | 2 |
| 6 | 70001581 | WASHER | 1 |
| 7 | 70001572 | SHAFT TAKE UP | 1 |
| 8 | CS1000881TP | THRUST COLLAR D=10 W=8 | 1 |
| 9 | SM8050612TP | SCREW M5X6 | 2 |
| 10 | 40023441 | OIL SEAL | 1 |
| 11 | 70001573 | BUSHING A TAKE UP | 1 |
| 12 | 40023481 | BUSHING B TAKE UP | 1 |
| 13 | 40023441 | OIL SEAL | 1 |
| 14 | 13332309 | BASE TAKE UP PLATE | 1 |
| 15 | SL4041281SC | SCREW M4 L=12 | 1 |
| 16 | 13333208 | WASHER | 1 |
| 17 | 13332903 | SPRING | 1 |
| 18 | SM4040655SP | SCREW M4 L=6 | 1 |
| 19 | 13332804 | BRACKET | 1 |
| 20 | SM4040655SP | SCREW M4 L=6 | 2 |
| 21 | SD064024CSP | SHOULDER SCREW D=6.35 H=2.4 | 1 |
| 22 | WZ0641510KP | WAVED WASHER 6.4X11X0.3 | 1 |
| 23 | WP0410516SD | PLAIN WASHER | 1 |
| 24 | 70001579 | TAKE UP PLATE | 1 |
| 25 | 40100791 | EYELET A ASSY | 1 |
| 26 | WP0280500SC | WASHER | 1 |
| 27 | SM48504C5SP | SCREW | 1 |
| 28 | 13333307 | LPR THD DISC UPPER | 1 |
| 29 | 40100793 | LPR THD GUIDE BASE ASSY | 1 |
| 30 | 13333505 | TENSION POST | 1 |
| 31 | 13333604 | LOOPER CAM SPRING | 1 |
| 32 | NM6030001SC | NUT M3X0.5 TYPE1 | 1 |
| 33 | WP0280500SC | WASHER | 1 |
| 34 | SM4850455SP | SCREW | 1 |
| 35 | 70001575 | EYELET C ASSY | 1 |
| 36 | SM4040655SP | SCREW M4 L=6 | 1 |
| 37 | 13333703 | EYELET D | 1 |
| 38 | 40019335 | ASSY TAKE UP | 1 |
| 39 | SM8060552TP | SCREW M6 L=5 | 2 |
| 40 | TA2101002R0 | RUBBER PLUG | 1 |
| 41 | 70001584 | SPRING COLLAR | 1 |
| 42 | SM6850802TN | SCREW M2.5 L=8 | 1 |
| 43 | NM6850001SC | NUT M2.5X0.45 TYPE1 | 1 |
| 44 | 70001585 | THREAD GUIDE | 1 |
| 45 | 70001583 | THREAD GUIDE PLATE SPRING | 1 |
Page 34 — NEEDLE GUARD COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40052924 | REAR NEEDLE GUARD | 1 |
| 2 | 13334701 | FRONT NDL GUARD | 1 |
| 3 | SM4850455SP | SCREW | 1 |
| 4 | 70001592 | NEEDLE GUARD BLOCK | 1 |
| 5 | 70001587 | FORK NEEDLE GUARD | 1 |
| 6 | SM8050612TP | SCREW M5X6 | 1 |
| 7 | 70001590 | NEEDLE GUARD SHAFT | 1 |
| 8 | 70001591 | BUSHING NEEDLE GUARD | 1 |
| 9 | RO055200100 | O-RING | 1 |
| 10 | WP0621016SD | WASHER 6.2X13X1 | 1 |
| 11 | RE0500000K0 | E-RING | 1 |
| 12 | 70001588 | REAR NEEDLE GUARD HOLDER | 1 |
| 13 | SM6051000SP | SCREW | 1 |
| 14 | SM8040312TP | SCREW M4 L=3 | 1 |
Page 36 — LOOPER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 13337357 | ECC LOOPER AVOID ASSY | 1 |
| 2 | 13337308 | ECC LOOPER AVOID | 1 |
| 3 | 13337407 | LOOPER ROD AVOID | 1 |
| 4 | SM6041202TP | SCREW M4X0.7 L=12 | 2 |
| 5 | 13337506 | PIN LOOPER AVOID | 1 |
| 6 | SM8060612TP | SCREW M6 L=6 | 2 |
| 7 | 13338801 | BALANCE WEIGHT LP | 1 |
| 8 | SM6041000SP | SCREW M4 L=10 | 2 |
| 9 | TA1600406R0 | PRUG | 1 |
| 10 | 70001601 | BUSHING LPR RIGHT | 1 |
| 11 | WP1021026SH | WASHER | 1 |
| 12 | RE0700000K0 | E-RING 7 | 1 |
| 13 | 13337605 | CRANK LOOPER AVOID | 1 |
| 14 | SM8050612TP | SCREW M5X6 | 1 |
| 15 | WP0550800SP | WASHER 5.5X10X0.8 | 1 |
| 16 | NM6050001SC | NUT M5X0.8 TYPE1 | 1 |
| 17 | 13338504 | LOOPER SHAFT AVOID | 1 |
| 18 | TA0500601M0 | PLUG D=5X5.4 L=6 | 2 |
| 19 | 70001602 | BUSHING LPR LEFT | 1 |
| 20 | 40052522 | SCREW | 1 |
| 21 | 13337704 | COLLAR LOOPER AVOID | 1 |
| 22 | SM6041000SP | SCREW M4 L=10 | 1 |
| 23 | 13337803 | LOOPER AVOID PIN | 1 |
| 24 | WP0461516SH | WASHER | 2 |
| 25 | 70001603 | BUSHING LPR SHAFT REAR | 1 |
| 26 | 40050448 | LOOPER SHAFT | 1 |
| 27 | 70001604 | BUSHING LPR SHAFT FRONT | 1 |
| 28 | 13338900 | OIL SEAL | 1 |
| 29 | 40050449 | LOOPER HOLDER | 1 |
| 30 | SM6051402TP | SCREW M5X0.8 L=14 | 1 |
| 31 | 13337902 | LOOPER | 1 |
| 32 | SM6040750TP | SCREW M4 L=7 | 1 |
Page 38 — THREAD TENSION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 70001610 | ASSY PULL OFF LEVER | 1 |
| 2 | 40065785 | TENS RELEASE ADJ ECC | 1 |
| 3 | SM4041655SP | SCREW M4 L=16 | 1 |
| 4 | 70001612 | THREAD TENSION ASSY | 1 |
| 5 | 13140504 | TENSION SPRING | 3 |
| 6 | 13340302 | SHOULDER SCREW | 1 |
| 7 | 26019000 | THREAD TENSION SPRING | 1 |
| 8 | 70001620 | TENSION POST | 5 |
| 9 | 40042363 | KNOB | 2 |
| 10 | 40042364 | KNOB GREEN | 3 |
| 11 | 40042365 | SPRING BUSHING | 5 |
| 12 | 40042366 | THREAD TENSION DISK PRESSER | 5 |
| 13 | 40101602 | THREAD TENSION DISC | 10 |
| 14 | 40102003 | SPRING | 2 |
| 15 | 70001617 | SPACER | 5 |
| 16 | 70001615 | TENSION DISC EYELET A | 4 |
| 17 | 70001616 | TENSION DISC EYELET B | 1 |
| 18 | 70001613 | TENSION POST SUPPORT | 1 |
| 19 | 70001614 | TENSION DISC SEPARATOR | 1 |
| 20 | SM4041055SP | SCREW | 2 |
| 21 | 13340005 | THREAD GUIDE PLATE | 1 |
| 22 | 13340104 | THREAD GUIDE | 1 |
| 23 | SM4040655SP | SCREW M4 L=6 | 3 |
Page 40 — LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 13345202 | FILTER COVER | 1 |
| 2 | SM4041055SP | SCREW | 4 |
| 3 | 13344809 | GASKET O | 1 |
| 4 | 13142500 | CARTRIDGE FILTER | 1 |
| 5 | 13343801 | FITTING FILTER | 1 |
| 6 | 13346556 | ASSY OIL SUPPLY | 1 |
| 7 | SM4040655SP | SCREW M4 L=6 | 1 |
| 8 | 13345855 | OIL SUPPLY ASSY | 1 |
| 9 | SM4040655SP | SCREW M4 L=6 | 1 |
| 10 | 70001634 | ASSY OIL PIPE | 1 |
| 11 | SQ2060442SD | CONNECTING SCREW | 3 |
| 12 | SQ0000454MZ | CONNECTING SCREW | 1 |
| 13 | SQ0000453MZ | CONNECTING SCREW | 1 |
| 14 | BP30000010R | VINYL PIPE | 0.04 |
| 15 | SQ0000452MZ | CONNECTING SCREW | 1 |
| 16 | SQ2060441SD | CONNECTING SCREW | 1 |
| 17 | BP30000010R | VINYL PIPE | 0.12 |
| 18 | BP30000010R | VINYL PIPE | 0.12 |
| 19 | BP30000010R | VINYL PIPE | 0.19 |
| 20 | 23629306 | PIPE STOPPER A | 17 |
| 21 | BP30000010R | VINYL PIPE | 0.1 |
| 22 | BP30000010R | VINYL PIPE | 0.2 |
| 23 | 23629504 | DISTRIBUTOR | 3 |
| 24 | 13346705 | CONNECTING SCR BRACKET | 1 |
| 25 | SQ2050452MZ | CONNECTING SCREW | 1 |
| 26 | NM6050001SC | NUT M5X0.8 TYPE1 | 1 |
| 27 | SM4040655SP | SCREW M4 L=6 | 2 |
| 28 | 40024405 | ASSY OIL PAN | 1 |
| 29 | 13345509 | OIL PAN | 1 |
| 30 | 13170105 | RUBBER RING | 1 |
| 31 | 13171004 | DRAIN SCREW | 1 |
| 32 | SM6061802TP | SCREW M6 L=18 | 6 |
| 33 | 13345608 | O RING | 1 |
| 34 | 13345905 | COVER PLATE | 1 |
| 35 | SM4040655SP | SCREW M4 L=6 | 2 |
| 36 | 70001636 | OIL TUBE HOLDER | 1 |
| 37 | SM4040855SP | SCREW | 1 |
| 38 | 13346101 | OIL SIGHT GAUGE | 1 |
| 39 | 13345459 | ASSY PUMP 2-STAGE | 1 |
| 40 | 13343108 | OIL PUMP HOUSING | 1 |
| 41 | 13343009 | WORM WHEEL | 1 |
| 42 | SM8050412TP | SCREW M5 L=4 | 2 |
| 43 | 13345400 | OIL PUMP SHAFT LARGE | 1 |
| 44 | 13228309 | OIL PUMP PINION | 2 |
| 45 | 13228200 | OIL PUMP PINION | 2 |
| 46 | 13227905 | GEAR PUMP SHAFT | 1 |
| 47 | 13343405 | OIL PUMP SPACER | 1 |
Page 42 — LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 13343207 | OIL PUMP CASING | 1 |
| 49 | 13343306 | OIL PUMP COVER | 1 |
| 50 | SM6042000SP | SCREW | 2 |
| 51 | SM6040600SP | SCREW M4 L=6 | 2 |
| 52 | SQ2060451MZ | CONNECTING SCREW | 1 |
| 53 | 40004749 | GASCKET | 1 |
| 54 | WP0550800SP | WASHER 5.5X10X0.8 | 2 |
| 55 | SM6051602TP | SCREW M5X0.8 L=16 | 2 |
| 56 | BP30000010R | VINYL PIPE | 0.05 |
| 57 | BP30000010R | VINYL PIPE | 0.14 |
| 58 | BP30000010R | VINYL PIPE | 0.1 |
| 59 | 70001639 | PIPE HOLDER | 1 |
| 60 | EA9500B0100 | CABLE BAND | 5 |
| 61 | 13343900 | OIL PROTECTION SHIELD | 1 |
| 62 | 13343603 | OIL TUBE | 1 |
| 63 | 70001630 | FELT FOR HEAD LUB | 1 |
| 64 | 11856101 | NEEDLE COOLER PIN | 1 |
| 65 | SM8060812TP | SCREW M6 L=8 | 1 |
| 66 | 13344056 | ASSY HEAD SUCTION | 1 |
| 67 | 13344601 | SUCTION PIPE | 1 |
| 68 | 13344502 | PIPE CLAMP | 1 |
| 69 | 13344700 | BUSHING FOR SUCTION | 1 |
| 70 | 23630007 | TUBE | 0.43 |
| 71 | 13344155 | ASSY HEAD SUCTION 2 | 1 |
| 72 | SM4040655SP | SCREW M4 L=6 | 1 |
| 73 | 70001631 | OIL SAUCER | 1 |
| 74 | SM4040655SP | SCREW M4 L=6 | 2 |
| 75 | NM6040000SN | NUT M4 | 1 |
| 76 | 23629306 | PIPE STOPPER A | 1 |
| 77 | BP30000010R | VINYL PIPE | 0.5 |
| 78 | 13345053 | ASSY OIL SUPPLY FOR TOP | 1 |
| 79 | 70001632 | LUBRICATION ADJUSTING BLOCK | 1 |
| 80 | 70001633 | LUBRICATION ADJUSTING PLATE | 1 |
| 81 | SM4040655SP | SCREW M4 L=6 | 2 |
| 82 | SM4030855SN | SCREW M3 L=8.0 | 2 |
| 83 | NM6040000SN | NUT M4 | 1 |
| 84 | SM6041200SP | SCREW M4 L=12 | 1 |
| 85 | WP0450801SC | WASHER 4.5X10X0.8 | 1 |
| 86 | NM6040000SN | NUT M4 | 1 |
| 87 | 70001975 | ASSY_OIL_SUPPLY | 1 |
Page 44 — THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40106591 | THREAD STAND ASM. | 1 |
| 2 | 40106575 | SPOOL REST LONG ARM UPPER | 1 |
| 3 | 40085794 | THREAD GUIDE | 5 |
| 4 | 40085795 | THREAD GUIDE BUSHING | 5 |
| 5 | 40085787 | SPOOL REST ARM UPPER | 1 |
| 6 | 40085793 | SPOOL REST ROD RUBBER CAP | 1 |
| 7 | 40085785 | SPOOL REST ROD UPPER | 1 |
| 8 | 40085792 | SPOOL REST ROD JOINT | 1 |
| 9 | 40106581 | THREAD GUIDE 5 | 1 |
| 10 | 40106580 | THREAD GUIDE UNDER BASE | 1 |
| 11 | 40106576 | THREAD GUIDE ARM | 1 |
| 12 | 40106579 | THREAD GUIDE ARM BASE | 1 |
| 13 | 40085784 | SPOOL REST ROD LOWER | 1 |
| 14 | 40085791 | SPOOL RETAINER | 5 |
| 15 | 40085790 | SPOOL PIN | 5 |
| 16 | 40085789 | SPOOL REST CUSHION | 5 |
| 17 | 40085788 | SPOOL REST | 5 |
| 18 | 40085786 | SPOOL REST ARM LOWER | 1 |
| 19 | 40106574 | SPOOL REST LONG ARM LOWER | 1 |
| 20 | 40096327 | SPOOL REST ARM UPPER SCREW | 2 |
| 21 | 40085796 | SPOOL REST ROD RUBBER CUSHION | 2 |
| 22 | 40096325 | SPOOL REST ROD NUT | 1 |
| 23 | 40096326 | SPOOL REST ARM LOWER SCREW | 2 |
| 24 | SM4041201SC | SCREW_M4X0.7_L=12 | 3 |
| 25 | SM4051405SE | SCREW M5 L=14 | 2 |
| 26 | SM4042501SC | SCREW M4X0.7 L=25 | 1 |
| 27 | NM6040002SC | NUT_M4X0.7 TYPE2 | 4 |
| 28 | NM6050001SE | NUT M5X0.8 TYPE1 | 11 |
| 29 | WP1612616SE | WASHER 16X30X2.6 | 2 |
| 30 | WP0531001SC | WASHER M5 | 5 |
| 31 | WS0510002KN | SPRING WASHER M5 | 5 |
Page 46 — GAUGE PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 13350004 | NEEDLE HEAD 32 | 1 |
| 2 | 13350103 | NEEDLE HEAD 40 | 1 |
| 3 | 13350202 | NEEDLE HEAD 48 | 1 |
| 4 | 13350301 | NEEDLE HEAD 56 | 1 |
| 5 | 13350400 | NEEDLE HEAD 64 | 1 |
| 6 | MUY128S1000 | NEEDLE UYX128GAS (S BALL POINT) #10S | 2 |
| 7 | MUY128S1000 | NEEDLE UYX128GAS (S BALL POINT) #10S | 3 |
| 8 | MUY128S1400 | NEEDLE UYX128GAS (S BALL POINT) #14S | 3 |
| 9 | SM8030312TP | SCREW M3 L=3 | 3 |
| 10 | 40058587 | THROAT PLATE | 1 |
| 11 | 40058706 | THROAT PLATE | 1 |
| 12 | 70004610 | THROAT_PLATE | 1 |
| 13 | 40040514 | THROAT PLATE | 1 |
| 14 | 40058033 | THROAT PLATE | 1 |
| 15 | 40040513 | THROAT PLATE | 1 |
| 16 | 40082978 | THROAT_PLATE | 1 |
| 17 | 13358304 | DIFF FEED DOG | 1 |
| 18 | 13357603 | DIFF FEED DOG | 1 |
| 19 | 40090133 | PRESSER FOOT ASSY | 1 |
| 20 | 40090196 | PRESSER FOOT ASSY | 1 |
| 21 | 40090197 | PRESSER FOOT ASSY | 1 |
| 22 | 40082974 | PRESSER FOOT ASSY | 1 |
| 23 | 70004613 | PRESSER_FOOT_ASSY | 1 |
| 24 | 40090130 | PRESSER FOOT BOTTOM | 1 |
| 25 | 40090131 | PRESSER FOOT BOTTOM | 1 |
| 26 | 40090132 | PRESSER FOOT BOTTOM | 1 |
| 27 | 40082975 | PRESSER FOOT BOTTOM | 1 |
| 28 | 70004612 | PRESSER_FOOT_BOTTOM | 1 |
| 29 | 40070224 | PRESSER FOOT HINGE | 1 |
| 30 | 13467907 | PRESSER_FOOT_SHANK | 1 |
| 31 | SM6040800SP | SCREW | 1 |
| 32 | 13375209 | PIVOT PIN | 1 |
| 33 | SM8030412TP | SCREW | 1 |
| 34 | 13377106 | SPRING | 1 |
| 35 | 40070226 | P_F_YIELDING SECTION | 2 |
| 36 | 40038032 | YIELDING SECTION | 1 |
| 37 | 40070227 | GUIDE PLATE | 2 |
| 38 | 13468103 | YIELDING_SECTION_PLATE | 1 |
| 39 | SM1850600SP | SCREW | 2 |
| 40 | SM1850600SP | SCREW | 1 |
| 41 | 40070231 | PRESSER FOOT GUIDE | 1 |
| 42 | SM6850400SP | SCREW M2.5 L=4 | 1 |
| 43 | WP0280500SC | WASHER | 1 |
| 44 | SM8031002TP | SCREW | 1 |
| 45 | NM6030001SD | NUT M3X0.5 TYPE1 | 1 |
| 46 | 40070230 | SPRING R | 1 |
| 47 | 40070229 | SPRING L | 1 |
Page 48 — GAUGE PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 13375308 | SPRING_L | 1 |
| 49 | PS0150065KP | SPRING PIN 1.5X6 | 2 |
| 50 | PS0150082KH | SPRING PIN | 1 |
| 51 | SM8030312TP | SCREW M3 L=3 | 4 |
| 52 | 13354204 | MAIN FEED DOG | 1 |
| 53 | 13353701 | MAIN FEED DOG | 1 |
| 54 | 70004611 | THROAT_PLATE | 1 |
Page 50 — NEEDLE COOLING COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40056919 | SILICONE OIL TANK | 1 |
| 13429105 | SILICONE OIL TANK CAP | 1 | |
| SM4050855SP | SCREW | 1 | |
| BT0600402EA | URETHANE TUBE CLEAR BLUE 6X4 | 0.15 | |
| 70001644 | SILICONE OIL CUP | 1 | |
| SM6030600SP | SCREW M3X0.5 L=6 | 2 | |
| 13348305 | FELT | 1 | |
| 11856101 | NEEDLE COOLER PIN | 1 | |
| B3538112000 | OIL RETURN TUBE HOLDER | 1 | |
| SM4040655SP | SCREW M4 L=6 | 1 |
Page 52 — ACCESSORIES PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40013913 | ACCESSORY BAG ASSY | 1 |
| 2 | 22932800 | ACCESSORIE BAG | 1 |
| 3 | 22933105 | SCREW DRIVER | 1 |
| 4 | 12347308 | SCREW DRIVER (SMALL) | 1 |
| 5 | 13160304 | S SHAPED HOOK | 2 |
| 6 | 70001840 | CHAIN | 1 |
| 7 | 12288403 | TWEEZERS | 1 |
| 8 | MML018800CB | JUKI CORPORATION GENUINE OIL 18 | 1 |
| 9 | 40072505 | ISOLATOR | 1 |
| 10 | 13155403 | ISOLATOR | 3 |
| 11 | 13348966 | ASSY BOLT SET | 1 |
| 12 | 13348859 | SUPPORT PLATE ASSY | 2 |
| 13 | 13302203 | SCREW | 1 |
| 14 | B9101490000 | DRIVER | 1 |
| 15 | 40032763 | HEXAGONAL DRIVER(1.5) | 1 |
| 16 | J106600000B | HEXAGONAL ROD SPANNER KEY 2 | 1 |
| 17 | 40099374 | BINDER BRACKET ASSY | 1 |
| 18 | 40099373 | BINDER BRACKET | 1 |
| 19 | SM5050855SN | SCREW M5 L=8 | 2 |
| 20 | WP0550836SC | WASHER 5.5X12X0.8 | 2 |
| 21 | SM4040855SP | SCREW | 2 |
| 22 | WP0450801SP | WASHER | 2 |
| 23 | 70001964 | HEM GUIDE ASSY | 1 |
| 24 | 70001967 | HEM GUIDE | 1 |
| 25 | 70001962 | HEM GUIDE BASE 1 | 1 |
| 26 | 40019379 | KNOB SCREW | 1 |
| 27 | SM1040801SC | SCREW M4X0.7 L=8 | 2 |
| 28 | 70001963 | HEM GUIDE BASE 2 | 1 |
| 29 | 70001813 | COVERING GUIDE RIGHT | 1 |
| 30 | 70001814 | COVERING GUIDE LEFT | 1 |
| 31 | 40099375 | BRACKET B | 1 |
| 32 | 70001838 | COVERING GUARD L | 1 |
| 33 | 70001839 | COVERING GUARD R | 1 |
| 34 | 70001846 | BRACKET | 1 |
| 35 | SM6040650TP | SCREW | 2 |
| 36 | 40066644 | HEAD_COVER | 1 |
| 37 | MUY128S1003 | NEEDLES(PACKAGE_OF_3) | 1 |
| 38 | 70001842 | GUIDE LEFT | 1 |
| 39 | 70004227 | ACCESSORY BAG ASSY | 1 |
| 40 | 22932800 | ACCESSORIE BAG | 1 |
| 41 | 22933105 | SCREW DRIVER | 1 |
| 42 | 12347308 | SCREW DRIVER (SMALL) | 1 |
| 43 | 12288403 | TWEEZERS | 1 |
Page 53 — LIST FOR INFORMATION OF CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 133-08804 | ||
| 1 | 700-04635 | ||
| 1 | 700-01987 | ||
| 1 | 700-04637 | ||
| 1 | 401-06592 | ||
| 1 | 401-06591 | ||
| 133-52307 | |||
| 133-52406 | |||
| 700-01946 | |||
| 700-01947 |
Page 54 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 9 | 10753309 | 2 | |
| 64 | 11856101 | 40 | |
| 9 | 11856101 | 48 | |
| 43 | 12288403 | 50 | |
| 42 | 12347308 | 50 | |
| 10 | 13123302 | 22 | |
| 5 | 13140504 | 36 | |
| 13142500 | 38 | ||
| 9~10 | 13155403 | 50 | |
| 5 | 13160304 | 50 | |
| 30 | 13170105 | 38 | |
| 31 | 13171004 | 38 | |
| 13 | 13217401 | 22 | |
| 12 | 13217500 | 22 | |
| 8 | 13217708 | 22 | |
| 46 | 13227905 | 38 | |
| 45 | 13228200 | 38 | |
| 44 | 13228309 | 38 | |
| 12 | 13300801 | 2 | |
| 13 | 13301700 | 2 | |
| 25 | 13301809 | 4 | |
| 53 | 13302104 | 4 | |
| 53 | 13302104 | 6 | |
| 24 | 13302203 | 4 | |
| 13 | 13302203 | 50 | |
| 49 | 13302302 | 4 | |
| 49 | 13302302 | 6 | |
| 46 | 13302708 | 4 | |
| 54 | 13304209 | 6 | |
| 48 | 13304308 | 4 | |
| 48 | 13304308 | 6 | |
| 45 | 13305107 | 4 | |
| 48 | 13307251 | 10 | |
| 53 | 13307301 | 10 | |
| 13 | 13307509 | 8 | |
| 76 | 13307707 | 10 | |
| 67~69 | 13307806 | 10 | |
| 8 | 13308457 | 8 | |
| 37 | 13308507 | 8 | |
| 28 | 13308705 | 8 | |
| 73 | 13309208 | 10 | |
| 67~69 | 13309307 | 10 | |
| 67~69 | 13309406 | 10 | |
| 47 | 13311006 | 12 | |
| 48 | 13311204 | 14 | |
| 45 | 13311253 | 12 | |
| 54 | 13311303 | 14 | |
| 65 | 13311451 | 14 | |
| 58 | 13311501 | 14 | |
| 67 | 13311600 | 14 | |
| 64 | 13311808 | 14 | |
| 63 | 13311907 | 14 | |
| 62 | 13311956 | 14 | |
| 55~57 | 13312103 | 14 | |
| 55~57 | 13312202 | 14 | |
| 55~57 | 13312301 | 14 | |
| 3 | 13313101 | 12 | |
| 4 | 13313309 | 12 | |
| 11 | 13313804 | 12 | |
| 15 | 13314109 | 12 | |
| 17 | 13314356 | 12 | |
| 8 | 13315908 | 12 | |
| 12 | 13317201 | 16 | |
| 19 | 13317300 | 16 | |
| 20~22 | 13317409 | 16 | |
| 20~22 | 13317508 | 16 | |
| 20~22 | 13317607 | 16 | |
| 24 | 13317706 | 16 | |
| 61 | 13317805 | 18 | |
| 57 | 13317904 | 18 | |
| 48 | 13318001 | 18 | |
| 49 | 13318100 | 18 | |
| 47 | 13318209 | 16 | |
| 54 | 13318308 | 18 | |
| 63 | 13318506 | 18 | |
| 77 | 13318605 | 18 | |
| 14~16 | 13318704 | 16 | |
| 14~16 | 13318803 | 16 | |
| 14~16 | 13318902 | 16 | |
| 42 | 13319009 | 16 | |
| 73 | 13319405 | 18 | |
| 76 | 13319504 | 18 | |
| 32 | 13319702 | 16 | |
| 35 | 13319900 | 16 | |
| 34 | 13319959 | 16 | |
| 36 | 13320007 | 16 | |
| 37 | 13320106 | 16 | |
| 18 | 13320304 | 22 | |
| 19 | 13320403 | 22 | |
| 4 | 13321203 | 22 | |
| 28 | 13321708 | 16 | |
| 81 | 13322003 | 18 | |
| 84 | 13322102 | 18 | |
| 79 | 13322201 | 18 | |
| 30 | 13322409 | 16 | |
| 25 | 13323209 | 22 | |
| 8~10 | 13323308 | 16 | |
| 8~10 | 13323407 | 16 | |
| 8~10 | 13323506 | 16 | |
| 5 | 13323803 | 16 | |
| 64 | 13324108 | 8 | |
| 64 | 13324108 | 10 | |
| 5 | 13324504 | 24 | |
| 8 | 13324603 | 24 | |
| 10 | 13324702 | 24 | |
| 14 | 13324900 | 24 | |
| 16 | 13325006 | 24 | |
| 24 | 13325204 | 24 | |
| 48 | 13325808 | 26 | |
| 49 | 13325907 | 26 | |
| 50 | 13326004 | 26 | |
| 51 | 13326103 | 26 | |
| 52 | 13326202 | 26 | |
| 39 | 13326301 | 24 | |
| 40 | 13326400 | 24 | |
| 42 | 13326509 | 24 | |
| 44 | 13326608 | 24 | |
| 54 | 13326707 | 26 | |
| 60 | 13326806 | 14 | |
| 35 | 13326905 | 24 | |
| 3 | 13328000 | 28 | |
| 2 | 13328109 | 28 | |
| 1 | 13328158 | 28 | |
| 4 | 13328208 | 28 | |
| 16 | 13328505 | 28 | |
| 15 | 13328554 | 28 | |
| 17 | 13328604 | 28 | |
| 18 | 13328703 | 28 | |
| 27 | 13328802 | 28 | |
| 13 | 13329008 | 28 | |
| 22 | 13329206 | 28 | |
| 14 | 13332309 | 30 | |
| 19 | 13332804 | 30 | |
| 17 | 13332903 | 30 | |
| 16 | 13333208 | 30 |
Page 55 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 28 | 13333307 | ||
| 30 | 13333505 | ||
| 31 | 13333604 | ||
| 37 | 13333703 | ||
| 2 | 13334701 | ||
| 2 | 13337308 | ||
| 1 | 13337357 | ||
| 3 | 13337407 | ||
| 5 | 13337506 | ||
| 13 | 13337605 | ||
| 21 | 13337704 | ||
| 23 | 13337803 | ||
| 31 | 13337902 | ||
| 17 | 13338004 | ||
| 7 | 13338801 | ||
| 23 | 13338900 | ||
| 28 | 13338900 | ||
| 21 | 13340005 | ||
| 22 | 13340104 | ||
| 6 | 13340302 | ||
| 41 | 13340909 | ||
| 40 | 13343108 | ||
| 48 | 13343207 | ||
| 49 | 13343306 | ||
| 47 | 13343405 | ||
| 62 | 13343603 | ||
| 5 | 13343801 | ||
| 61 | 13343900 | ||
| 66 | 13344056 | ||
| 71 | 13344155 | ||
| 68 | 13344502 | ||
| 67 | 13344601 | ||
| 69 | 13344700 | ||
| 3 | 13344809 | ||
| 78 | 13345053 | ||
| 1 | 13345202 | ||
| 43 | 13345400 | ||
| 39 | 13345459 | ||
| 29 | 13345509 | ||
| 33 | 13345608 | ||
| 49 | 13345855 | ||
| 34 | 13345905 | ||
| 38 | 13346101 | ||
| 6 | 13346556 | ||
| 24 | 13346705 | ||
| 19 | 13348008 | ||
| 8 | 13348305 | ||
| 12 | 13348859 | ||
| 11 | 13348966 | ||
| 1-2 | 13350004 | ||
| 1-2 | 13350103 | ||
| 3-5 | 13350202 | ||
| 3-5 | 13350301 | ||
| 3-5 | 13350400 | ||
| 52-53 | 13353701 | ||
| 52-53 | 13354204 | ||
| 17-18 | 13357603 | ||
| 17-18 | 13358304 | ||
| 32 | 13375209 | ||
| 47-48 | 13375308 | ||
| 34 | 13377106 | ||
| 71 | 13398409 | ||
| 11 | 13399209 | ||
| 3 | 13406707 | ||
| 28 | 13409800 | ||
| 2 | 13426903 | ||
| 2 | 13429105 | ||
| 29-30 | 13467907 | ||
| 37-38 | 13468103 | ||
| 34 | 22901805 | ||
| 2 | 22902506 | ||
| 11 | 22924708 | ||
| 40 | 22932800 | ||
| 41 | 22933105 | ||
| 43 | 22945505 | ||
| 41 | 22945802 | ||
| 18 | 23537202 | ||
| 9 | 23612609 | ||
| 76 | 23629306 | ||
| 76 | 23629306 | ||
| 23 | 23629504 | ||
| 70 | 23630007 | ||
| 7 | 26019000 | ||
| 25 | 30391601 | ||
| 22 | 31013808 | ||
| 53 | 40004749 | ||
| 1 | 40013913 | ||
| 5 | 40017824 | ||
| 21 | 40018443 | ||
| 10 | 40018922 | ||
| 38 | 40019335 | ||
| 26 | 40019379 | ||
| 13 | 40023441 | ||
| 12 | 40023481 | ||
| 28 | 40024405 | ||
| 15 | 40032763 | ||
| 14 | 40033341 | ||
| 43 | 40035711 | ||
| 35-36 | 40038032 | ||
| 3 | 40039630 | ||
| 1 | 40040206 | ||
| 13-16 | 40040513 | ||
| 13-16 | 40040514 | ||
| 9 | 40042363 | ||
| 10 | 40042364 | ||
| 11 | 40042365 | ||
| 12 | 40042366 | ||
| 26 | 40050448 | ||
| 29 | 40050549 | ||
| 20 | 40052522 | ||
| 1 | 40052924 | ||
| 1 | 40056919 | ||
| 13-16 | 40058033 | ||
| 10-12 | 40058587 | ||
| 10-12 | 40058706 | ||
| 2 | 40065785 | ||
| 36 | 40066644 | ||
| 29-30 | 40070224 | ||
| 35-36 | 40070226 | ||
| 37-38 | 40070227 | ||
| 47-48 | 40070229 | ||
| 46 | 40070230 | ||
| 41 | 40070231 | ||
| 2 | 40070573 | ||
| 1 | 40070574 | ||
| 9-10 | 40072505 | ||
| 21 | 40082196 | ||
| 19-23 | 40082974 | ||
| 24-28 | 40082975 | ||
| 13-16 | 40082978 | ||
| 13 | 40085784 | ||
| 7 | 40085785 | ||
| 18 | 40085786 | ||
| 5 | 40085787 | ||
| 17 | 40085788 |
Page 56 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 16 | 40085789 | ||
| 15 | 40085790 | ||
| 14 | 40085791 | ||
| 8 | 40085792 | ||
| 6 | 40085793 | ||
| 3 | 40085794 | ||
| 4 | 40085795 | ||
| 21 | 40085796 | ||
| 55 | 40085995 | ||
| 3 | 40087068 | ||
| 24-28 | 40090130 | ||
| 24-28 | 40090131 | ||
| 24-28 | 40090132 | ||
| 19-23 | 40090133 | ||
| 19-23 | 40090196 | ||
| 19-23 | 40090197 | ||
| 22 | 40096325 | ||
| 23 | 40096326 | ||
| 20 | 40096327 | ||
| 4 | 40099371 | ||
| 50 | 40099373 | ||
| 50 | 40099374 | ||
| 50 | 40099375 | ||
| 30 | 40100791 | ||
| 30 | 40100793 | ||
| 36 | 40101602 | ||
| 36 | 40102003 | ||
| 42 | 40106574 | ||
| 42 | 40106575 | ||
| 42 | 40106576 | ||
| 42 | 40106579 | ||
| 42 | 40106580 | ||
| 42 | 40106581 | ||
| 42 | 40106591 | ||
| 2 | 70001407 | ||
| 2 | 70001409 | ||
| 2 | 70001411 | ||
| 4 | 70001414 | ||
| 4 | 70001415 | ||
| 2 | 70001416 | ||
| 4 | 70001418 | ||
| 4 | 70001420 | ||
| 2 | 70001421 | ||
| 2 | 70001422 | ||
| 4 | 70001423 | ||
| 18 | 70001424 | ||
| 26 | 70001426 | ||
| 27 | 70001431 | ||
| 58 | 70001436 | ||
| 45 | 70001437 | ||
| 46 | 70001439 | ||
| 44-56 | 70001440 | ||
| 59 | 70001441 | ||
| 60 | 70001442 | ||
| 51 | 70001443 | ||
| 65 | 70001444 | ||
| 2 | 70001445 | ||
| 25 | 70001447 | ||
| 26 | 70001448 | ||
| 30 | 70001451 | ||
| 31 | 70001453 | ||
| 37 | 70001477 | ||
| 35 | 70001478 | ||
| 5 | 70001480 | ||
| 6 | 70001481 | ||
| 9 | 70001483 | ||
| 13 | 70001485 | ||
| 19 | 70001486 | ||
| 29 | 70001487 | ||
| 32 | 70001488 | ||
| 33 | 70001489 | ||
| 34 | 70001490 | ||
| 39 | 70001491 | ||
| 42 | 70001492 | ||
| 43 | 70001493 | ||
| 22 | 70001494 | ||
| 25 | 70001495 | ||
| 21 | 70001498 | ||
| 7 | 70001499 | ||
| 66 | 70001500 | ||
| 2 | 70001505 | ||
| 74 | 70001506 | ||
| 94 | 70001507 | ||
| 96 | 70001508 | ||
| 29 | 70001509 | ||
| 62 | 70001510 | ||
| 62 | 70001510 | ||
| 43 | 70001511 | ||
| 60 | 70001512 | ||
| 72 | 70001513 |
Page 57 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 8 | 70001591 | ||
| 4 | 70001592 | ||
| 10 | 70001601 | ||
| 19 | 70001602 | ||
| 25 | 70001603 | ||
| 27 | 70001604 | ||
| 1 | 70001610 | ||
| 4 | 70001612 | ||
| 18 | 70001613 | ||
| 19 | 70001614 | ||
| 16 | 70001615 | ||
| 17 | 70001616 | ||
| 15 | 70001617 | ||
| 8 | 70001620 | ||
| 63 | 70001630 | ||
| 73 | 70001631 | ||
| 79 | 70001632 | ||
| 80 | 70001633 | ||
| 10 | 70001634 | ||
| 36 | 70001636 | ||
| 57 | 70001638 | ||
| 59 | 70001639 | ||
| 6 | 70001644 | ||
| 44 | 70001659 | ||
| 29 | 70001813 | ||
| 30 | 70001814 | ||
| 64 | 70001830 | ||
| 63 | 70001831 | ||
| 27 | 70001837 | ||
| 32 | 70001838 | ||
| 33 | 70001839 | ||
| 6 | 70001840 | ||
| 38 | 70001842 | ||
| 34 | 70001846 | ||
| 27 | 70001959 | ||
| 25 | 70001962 | ||
| 28 | 70001963 | ||
| 23 | 70001964 | ||
| 24 | 70001967 | ||
| 87 | 70001975 | ||
| 60 | 70001976 | ||
| 8 | 70001978 | ||
| 22 | 70003316 | ||
| 44-56 | 70003331 | ||
| 34 | 70004184 | ||
| 9 | 70004197 | ||
| 29-31 | 70004223 | ||
| 29-31 | 70004224 | ||
| 39 | 70004227 | ||
| 46 | 70004371 | ||
| 39 | 70004484 | ||
| 35 | 70004489 | ||
| 62 | 70004493 | ||
| 10-12 | 70004610 | ||
| 54 | 70004611 | ||
| 24-28 | 70004612 | ||
| 19-23 | 70004613 | ||
| 15 | 70004630 | ||
| 16 | 70004631 | ||
| 18 | 70004632 | ||
| 17 | 70004633 | ||
| 1 | 70004635 | ||
| 1 | 70004637 | ||
| 6 | 70004640 | ||
| 27 | 70005086 | ||
| 67 | B2556280000 | B2556280000 | |
| 10 | B3215470000 | B3215470000 | |
| 10 | B3538112000 | B3538112000 | |
| 14 | B9101490000 | B9101490000 | |
| 21 | B9214850000 | B9214850000 | |
| 77 | BP30000010R | BP30000010R | |
| 77 | BP30000010R | BP30000010R | |
| 4 | BT0600402EA | BT0600402EA | |
| 29 | CM300200001 | CM300200001 | |
| 65 | CM30020001 | CM30020001 | |
| 26 | CM301300001 | CM301300001 | |
| 23 | CQ303000000 | CQ303000000 | |
| 19 | CQ303000000 | CQ303000000 | |
| 5 | CQ303000000 | CQ303000000 | |
| 85 | CS1000881TP | CS1000881TP | |
| 85 | CS1000881TP | CS1000881TP | |
| 23 | CS1000881TP | CS1000881TP | |
| 6 | CS1000881TP | CS1000881TP | |
| 25 | CS1000881TP | CS1000881TP | |
| 8 | CS1000881TP | CS1000881TP | |
| 60 | EA9500B0100 | EA9500B0100 | |
| 16 | J106600000B | J106600000B | |
| 8 | MML018800CB | MML018800CB | |
| 7-8 | MUY128S1000 | MUY128S1000 | |
| 37 | MUY128S1003 | MUY128S1003 | |
| 7-8 | MUY128S1400 | MUY128S1400 | |
| 32 | NM6030001SC | NM6030001SC | |
| 45 | NM6030001SD | NM6030001SD | |
| 19 | NM6040000SN | NM6040000SN | |
| 57 | NM6040000SN | NM6040000SN | |
| 86 | NM6040000SN | NM6040000SN | |
| 27 | NM6040002SC | NM6040002SC | |
| 69 | NM6050001SC | NM6050001SC | |
| 45 | NM6050001SC | NM6050001SC | |
| 8 | NM6050001SC | NM6050001SC | |
| 16 | NM6050001SC | NM6050001SC | |
| 26 | NM6050001SC | NM6050001SC | |
| 28 | NM6050001SE | NM6050001SE | |
| 27 | NM6060001CP | NM6060001CP | |
| 43 | NM6850001SC | NM6850001SC | |
| 49-50 | PS0150065KP | PS0150065KP | |
| 22 | PS0150082KH | PS0150082KH | |
| 49-50 | PS0150082KH | PS0150082KH | |
| 58 | PS0300162KH | PS0300162KH | |
| 34 | PS0400082KP | PS0400082KP | |
| 20 | PS0500142KP | PS0500142KP | |
| 40 | RC0100001KP | RC0100001KP | |
| 70 | RC0741013KP | RC0741013KP | |
| 3 | RC1900002KP | RC1900002KP | |
| 42 | RE0300000KO | RE0300000KO | |
| 11 | RE0300000KO | RE0300000KO | |
| 55 | RE0500000KO | RE0500000KO | |
| 11 | RE0500000KO | RE0500000KO | |
| 12 | RE0700000KO | RE0700000KO | |
| 51 | RO055200100 | RO055200100 | |
| 9 | RO055200100 | RO055200100 | |
| 2 | RO068190100 | RO068190100 | |
| 82 | RO137230100 | RO137230100 | |
| 42 | RO148240200 | RO148240200 | |
| 7 | RO158240100 | RO158240100 | |
| 10 | RO195240100 | RO195240100 | |
| 41 | SB120001500 | SB120001500 | |
| 70 | SB120001900 | SB120001900 | |
| 55 | SB120002200 | SB120002200 | |
| 49-52 | SB30800110A | SB30800110A | |
| 49-52 | SB30800110B | SB30800110B | |
| 49-52 | SB30800110C | SB30800110C | |
| 49-52 | SB30800110D | SB30800110D | |
| 20 | SD0640246SP | SD0640246SP | |
| 21 | SD0640246CSP | SD0640246CSP |
Page 58 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 16 | SD070020CTP | SD070020CTP | |
| 24 | SD070058CTP | SD070058CTP | |
| 33 | SD0801326TH | SD0801326TH | |
| 15 | SL4041281SC | SL4041281SC | |
| 33 | SM1030400SP | SM1030400SP | |
| 38 | SM1040055SP | SM1040055SP | |
| 59 | SM1040100TP | SM1040100TP | |
| 7 | SM1040800SP | SM1040800SP | |
| 27 | SM1040801SC | SM1040801SC | |
| 11 | SM10414C0SP | SM10414C0SP | |
| 39-40 | SM1850600SP | SM1850600SP | |
| 17 | SM4030455SN | SM4030455SN | |
| 18 | SM4030855SN | SM4030855SN | |
| 61 | SM4030855SN | SM4030855SN | |
| 27 | SM4030855SN | SM4030855SN | |
| 82 | SM4030855SN | SM4030855SN | |
| 51 | SM4040555SP | SM4040555SP | |
| 56 | SM40405C5SP | SM40405C5SP | |
| 23 | SM4040655SP | SM4040655SP | |
| 56 | SM4040655SP | SM4040655SP | |
| 56 | SM4040655SP | SM4040655SP | |
| 24 | SM4040655SP | SM4040655SP | |
| 10 | SM4040655SP | SM4040655SP | |
| 53 | SM4040655SP | SM4040655SP | |
| 53 | SM4040655SP | SM4040655SP | |
| 36 | SM4040655SP | SM4040655SP | |
| 23 | SM4040655SP | SM4040655SP | |
| 81 | SM4040655SP | SM4040655SP | |
| 81 | SM4040655SP | SM4040655SP | |
| 11 | SM4040655SP | SM4040655SP | |
| 30 | SM4040855SP | SM4040855SP | |
| 37 | SM4040855SP | SM4040855SP | |
| 21 | SM4040855SP | SM4040855SP | |
| 8 | SM4041055SP | SM4041055SP | |
| 55 | SM4041055SP | SM4041055SP | |
| 29 | SM4041055SP | SM4041055SP | |
| 41 | SM4041055SP | SM4041055SP | |
| 15 | SM4041055SP | SM4041055SP | |
| 20 | SM4041055SP | SM4041055SP | |
| 2 | SM4041055SP | SM4041055SP | |
| 24 | SM404115C | SM404115C | |
| 36 | SM4041655SP | SM4041655SP | |
| 26 | SM4042501SC | SM4042501SC | |
| 3 | SM4050855SP | SM4050855SP | |
| 66 | SM4051055SP | SM4051055SP | |
| 65 | SM405125SP | SM405125SP | |
| 14 | SM405125SP | SM405125SP | |
| 25 | SM4051405SE | SM4051405SE | |
| 21 | SM4060801SE | SM4060801SE | |
| 34 | SM4850455SP | SM4850455SP | |
| 3 | SM4850455SP | SM4850455SP | |
| 37 | SM48504C5SP | SM48504C5SP | |
| 27 | SM48504C5SP | SM48504C5SP | |
| 6 | SM5050855SN | SM5050855SN | |
| 19 | SM5050855SN | SM5050855SN | |
| 56 | SM6030402TP | SM6030402TP | |
| 39 | SM6030600SP | SM6030600SP | |
| 7 | SM6030600SP | SM6030600SP | |
| 38 | SM6030800SP | SM6030800SP | |
| 51 | SM6040600SP | SM6040600SP | |
| 10 | SM6040602TP | SM6040602TP | |
| 35 | SM6040650TP | SM6040650TP | |
| 32 | SM6040750TP | SM6040750TP | |
| 22 | SM60407C0TP | SM60407C0TP | |
| 14 | SM6040800SP | SM6040800SP | |
| 38 | SM6040800SP | SM6040800SP | |
| 47 | SM6041000SP | SM6041000SP | |
| 31 | SM6041000SP | SM6041000SP | |
| 53 | SM6041000SP | SM6041000SP | |
| 53 | SM6041000SP | SM6041000SP | |
| 31 | SM6041000SP | SM6041000SP | |
| 34 | SM6041000SP | SM6041000SP | |
| 30 | SM6041000SP | SM6041000SP | |
| 22 | SM6041000SP | SM6041000SP | |
| 12 | SM6041002TP | SM6041002TP | |
| 14 | SM6041200SP | SM6041200SP | |
| 28 | SM6041200SP | SM6041200SP | |
| 84 | SM6041200SP | SM6041200SP | |
| 23 | SM6041202TP | SM6041202TP | |
| 4 | SM6041202TP | SM6041202TP | |
| 50 | SM6042000SP | SM6042000SP | |
| 23 | SM6050800SP | SM6050800SP | |
| 13 | SM6051000SP | SM6051000SP | |
| 30 | SM6051002TP | SM6051002TP | |
| 1 | SM6051002TP | SM6051002TP | |
| 59 | SM6051202TP | SM6051202TP | |
| 59 | SM6051202TP | SM6051202TP | |
| 39 | SM6051400SP | SM6051400SP | |
| 12 | SM6051402TP | SM6051402TP | |
| 30 | SM6051402TP | SM6051402TP | |
| 59 | SM6051602TP | SM6051602TP | |
| 68 | SM6051602TP | SM6051602TP | |
| 55 | SM6051602TP | SM6051602TP | |
| 75 | SM6061200SP | SM6061200SP | |
| 28 | SM6061200SP | SM6061200SP | |
| 75 | SM6061200TP | SM6061200TP | |
| 61 | SM6061402TP | SM6061402TP | |
| 61 | SM6061402TP | SM6061402TP | |
| 38 | SM6061402TP | SM6061402TP | |
| 9 | SM6061402TP | SM6061402TP | |
| 32 | SM6061802TP | SM6061802TP | |
| 26 | SM60625C0TP | SM60625C0TP | |
| 42 | SM6850400SP | SM6850400SP | |
| 42 | SM6850802TN | SM6850802TN | |
| 15 | M7051460TP | M7051460TP | |
| 26 | SM8030312TP | SM8030312TP | |
| 51 | SM8030312TP | SM8030312TP | |
| 51 | SM8030312TP | SM8030312TP | |
| 33 | SM8030412TP | SM8030412TP | |
| 44 | SM8030412TP | SM8030412TP | |
| 50 | SM8030412TP | SM8030412TP | |
| 20 | SM8040412TP | SM8040412TP | |
| 53 | SM8040512TP | SM8040512TP | |
| 12 | SM8040612TP | SM8040612TP | |
| 44 | SM8040612TP | SM8040612TP | |
| 50 | SM8040612TP | SM8040612TP | |
| 83 | SM8040612TP | SM8040612TP | |
| 99 | SM8050412TP | SM8050412TP | |
| 99 | SM8050412TP | SM8050412TP | |
| 26 | SM8050412TP | SM8050412TP | |
| 42 | SM8050412TP | SM8050412TP | |
| 86 | SM8050612TP | SM8050612TP | |
| 86 | SM8050612TP | SM8050612TP | |
| 7 | SM8050612TP | SM8050612TP | |
| 9 | SM8050612TP | SM8050612TP | |
| 6 | SM8050612TP | SM8050612TP | |
| 14 | SM8050612TP | SM8050612TP | |
| 95 | SM8050812TP | SM8050812TP | |
| 95 | SM8050812TP | SM8050812TP | |
| 36 | SM8060552TP | SM8060552TP | |
| 80 | SM8060552TP | SM8060552TP |
Page 59 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 80 | SM8060552TP | SM8060552TP | |
| 39 | SM8060552TP | SM8060552TP | |
| 72 | SM8060612TP | SM8060612TP | |
| 72 | SM8060612TP | SM8060612TP | |
| 88 | SM8060612TP | SM8060612TP | |
| 88 | SM8060612TP | SM8060612TP | |
| 21 | SM8060612TP | SM8060612TP | |
| 6 | SM8060612TP | SM8060612TP | |
| 78 | SM80606A2TP | SM80606A2TP | |
| 54 | SM8060812TP | SM8060812TP | |
| 54 | SM8060812TP | SM8060812TP | |
| 65 | SM8060812TP | SM8060812TP | |
| 71 | SM8060842TP | SM8060842TP | |
| 71 | SM8060842TP | SM8060842TP | |
| 47 | SM8061212TP | SM8061212TP | |
| 74 | SM8080812TP | SM8080812TP | |
| 20 | SM9061050TP | SM9061050TP | |
| 15 | SQ0000452MZ | SQ0000452MZ | |
| 13 | SQ0000453MZ | SQ0000453MZ | |
| 12 | SQ0000454MZ | SQ0000454MZ | |
| 25 | SQ2000452MZ | SQ2000452MZ | |
| 16 | SQ2060441SD | SQ2060441SD | |
| 11 | SQ2060442SD | SQ2060442SD | |
| 52 | SQ2060451MZ | SQ2060451MZ | |
| 23 | ST4040851SN | ST4040851SN | |
| 9 | TA0400301MO | TA0400301MO | |
| 46 | TA0500601MO | TA0500601MO | |
| 18 | TA0500601MO | TA0500601MO | |
| 27 | TA0750404R0 | TA0750404R0 | |
| 33 | TA0850604R0 | TA0850604R0 | |
| 47 | TA0850604R0 | TA0850604R0 | |
| 3 | TA1050504R0 | TA1050504R0 | |
| 70 | TA1050504R0 | TA1050504R0 | |
| 70 | TA1050504R0 | TA1050504R0 | |
| 31 | TA1250705R0 | TA1250705R0 | |
| 9 | TA1600406R0 | TA1600406R0 | |
| 6 | TA2050406R0 | TA2050406R0 | |
| 68 | TA2050416R0 | TA2050416R0 | |
| 68 | TA2050416R0 | TA2050416R0 | |
| 67 | TA2101002R0 | TA2101002R0 | |
| 40 | TA2101002R0 | TA2101002R0 | |
| 24 | TA2351004R0 | TA2351004R0 | |
| 33 | WP0280500SC | WP0280500SC | |
| 43 | WP0280500SC | WP0280500SC | |
| 36 | WP0280501SC | WP0280501SC | |
| 18 | WP0370316SD | WP0370316SD | |
| 23 | WP0410516SD | WP0410516SD | |
| 57 | WP0450801SC | WP0450801SC | |
| 85 | WP0450801SC | WP0450801SC | |
| 22 | WP0450801SP | WP0450801SP | |
| 40 | WP0450826SC | WP0450826SC | |
| 5 | WP0450826SC | WP0450826SC | |
| 46 | WP0450826SC | WP0450826SC | |
| 9 | WP0460556SD | WP0460556SD | |
| 24 | WP0461516SH | WP0461516SH | |
| 97 | WP0480856SP | WP0480856SP | |
| 69 | WP0501016SD | WP0501016SD | |
| 4 | WP0522016SH | WP0522016SH | |
| 31 | WP0531000SC | WP0531000SC | |
| 4 | WP0531000SD | WP0531000SD | |
| 30 | WP0531001SC | WP0531001SC | |
| 43 | WP0550800SP | WP0550800SP | |
| 7 | WP0550800SP | WP0550800SP | |
| 15 | WP0550800SP | WP0550800SP | |
| 54 | WP0550800SP | WP0550800SP | |
| 20 | WP0550836SC | WP0550836SC | |
| 31 | WP0551016SH | WP0551016SH | |
| 16 | WP0621016SD | WP0621016SD | |
| 10 | WP0621016SD | WP0621016SD | |
| 11 | WP1021026SH | WP1021026SH | |
| 24 | WP1022016SH | WP1022016SH | |
| 29 | WP1612616SE | WP1612616SE | |
| 11 | WS0510002KN | WS0510002KN | |
| 31 | WS0510002KN | WS0510002KN | |
| 30 | WS0510002KP | WS0510002KP | |
| 2 | WS0510002KP | WS0510002KP | |
| 16 | WZ0641510KP | WZ0641510KP | |
| 61 | WZ0641510KP | WZ0641510KP | |
| 22 | WZ0641510KP | WZ0641510KP |
Juki MF-7523 — parts catalog
- Page 1 (cover): This is the cover page for the parts list of the MF-7500 Series, List No. 1595-03, published on 03/05/2018.
- Page 2 (toc): This page contains the table of contents for the parts catalog, listing various component sections and their corresponding page numbers.
- Page 3 (diagram): This page displays a diagram of miscellaneous cover components for an industrial sewing machine, with numbered parts and their corresponding details.
- Page 4 (parts_list): This page lists miscellaneous cover components, including face covers, plates, rubber plugs, screws, gaskets, and labels, with their corresponding part numbers and quantities.
- Page 6 (parts_list): This page lists miscellaneous cover components for an industrial sewing machine, including various screws, washers, plates, and other hardware, with their part numbers, descriptions, and quantities.
- Page 7 (diagram): This page displays a diagram of miscellaneous cover components for an industrial sewing machine, with numbered parts indicated by reference numbers.
- Page 8 (parts_list): This page lists miscellaneous cover components with part numbers, descriptions, and quantities.
- Page 9 (diagram): This page displays a diagram of main shaft components, with numbered parts and their corresponding references.
- Page 10 (parts_list): This page lists main shaft components with part numbers, descriptions, and quantities.
- Page 11 (diagram): This page displays a diagram of main shaft components, illustrating various parts with reference numbers for identification.
- Page 12 (parts_list): This page lists main shaft components with part numbers, descriptions, and quantities.
- Page 13 (diagram): This page displays a diagram of needle bar and presser components, with numbered parts and their corresponding references.
- Page 14 (parts_list): This page lists needle bar and presser components, including part numbers, descriptions, and quantities.
- Page 15 (diagram): This page displays a diagram of needle bar and presser components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 16 (parts_list): This page lists components for the needle bar and presser, including part numbers, descriptions, remarks, and quantities.
- Page 17 (diagram): This page displays a diagram of feed drive components, with numbered parts and their corresponding references.
- Page 18 (parts_list): This page lists feed drive components with part numbers, descriptions, remarks, and quantities.
- Page 19 (diagram): This page displays a diagram of feed drive components, with numbered parts and their corresponding references.
- Page 20 (parts_list): This page lists feed drive components with part numbers, descriptions, and quantities, ranging from part number 13318100 to 70001507.
- Page 21 (diagram): This page displays a diagram of feed drive components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 22 (parts_list): This page lists components for the feed drive, including screws, washers, and felt, with their corresponding part numbers and quantities.
- Page 23 (diagram): This page displays a diagram of feed drive components, labeled with reference numbers for identification.
- Page 24 (parts_list): This page lists feed drive components, including part numbers, descriptions, and quantities.
- Page 25 (diagram): This page displays a diagram of thread take-up lever components, with numbered parts indicated for identification.
- Page 26 (parts_list): This page lists components for the thread take-up lever, including part numbers, descriptions, and quantities.
- Page 27 (diagram): This page displays a diagram of thread take-up lever components, with numbered parts and their corresponding references.
- Page 28 (parts_list): This page lists components for the thread take-up lever, including part numbers, names, and quantities.
- Page 29 (diagram): This page displays a diagram of spreader components with numbered parts, including part numbers and descriptions.
- Page 30 (parts_list): This page lists spreader components, including part numbers, descriptions, and quantities.
- Page 31 (diagram): This page displays a diagram of lower thread cam components, with numbered parts and their corresponding references.
- Page 32 (parts_list): This page lists lower thread cam components, including part numbers, descriptions, and quantities.
- Page 33 (diagram): This page displays a diagram of needle guard components, with numbered parts indicated for identification.
- Page 34 (parts_list): This page lists needle guard components, including part numbers, descriptions, and quantities.
- Page 35 (diagram): This page displays a diagram of looper components with numbered parts for identification.
- Page 36 (parts_list): This page lists looper components with their part numbers, names, and quantities.
- Page 37 (diagram): This page displays a diagram of thread tension components, with numbered parts and their corresponding references.
- Page 38 (parts_list): Parts list table for thread tension components, listing 23 numbered parts with part numbers, names, levels, and quantities.
- Page 39 (diagram): This page displays a diagram of lubrication components for a sewing machine, with numbered parts and their corresponding references.
- Page 40 (parts_list): This page lists lubrication components with their part numbers, names, and quantities.
- Page 41 (diagram): This page displays a diagram of lubrication components for a sewing machine, with numbered parts and their corresponding references.
- Page 42 (parts_list): This page lists lubrication components with their part numbers, names, and quantities.
- Page 43 (diagram): This page displays a diagram of thread stand components, illustrating various parts with reference numbers for identification.
- Page 44 (parts_list): This page lists thread stand components, including part numbers, descriptions, and quantities.
- Page 45 (diagram): This page displays a diagram of gauge parts components for an industrial sewing machine, with various parts numbered for identification.
- Page 46 (parts_list): This page lists gauge parts components, including part numbers, names, remarks, and quantities.
- Page 47 (diagram): This page displays a diagram of gauge parts components, with various parts numbered for identification.
- Page 48 (parts_list): This page lists gauge parts components including part numbers, names, remarks, and quantities.
- Page 49 (diagram): This page displays a diagram of needle cooling components, with numbered parts indicated by reference numbers.
- Page 50 (parts_list): This page lists needle cooling components with part numbers, descriptions, and quantities.
- Page 51 (diagram): This page displays a diagram of accessories, parts, and components for an industrial sewing machine, with numbered items indicating specific parts.
- Page 52 (parts_list): This page lists accessory parts components with their part numbers, names, remarks, and quantities.
- Page 53 (parts_list): This page lists parts with their revision numbers, page references, and part numbers. It includes information on obsolete and added parts.
- Page 54 (parts_list): This page contains a numerical index of parts for a sewing machine, listing part numbers, page numbers, and reference numbers.
- Page 55 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
- Page 56 (parts_list): This page contains a numerical index of parts for the industrial sewing machine, listing part numbers, page numbers, and reference numbers across multiple columns.
- Page 57 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
- Page 58 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, their corresponding page numbers, and reference numbers.
- Page 59 (index): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page references, and reference numbers.
