Page 9 — 1. FRAME COMPONENTS (1) / フレーム関係（1）
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-01255 | Cloth plate asm. | 1 |
| 2 | 118-01354 | Cloth plate asm. | 1 |
| 3 | 115-01301 | Eccentric bushing | 1 |
| 4 | SS-8110422-TP | Screw 11/64-40 L=4 | 1 |
| 4-1 | WZ-0420350-KP | Disc spring | 1 |
| 5 | CS-0400511-SD | Thrust collar D=4 W=5 | 1 |
| 6 | SS-8080322-TP | Screw 1/8-44 L=3.2 | 1 |
| 7 | 118-01503 | Cloth plate cover | 1 |
| 8 | 118-02204 | Rubber plug | 1 |
| 9 | 118-02402 | Spring | 1 |
| 10 | NS-6110420-SP | Nut 11/64-40 | 1 |
| 11 | SS-6111740-SP | Screw 11/64-40 L=17 | 1 |
| 12 | 118-02303 | Stopper | 1 |
| 13 | SS-4110715-SP | Screw 11/64-40 L=7 | 2 |
| 13-1 | WP-0450000-SD | Washer 8 x 4.5 x 0.5 | 2 |
| 14 | SS-4091015-SP | Screw 9/64-40-L=10 | 3 |
| 15 | 118-01701 | Cloth plate side cover | 1 |
| 16 | SS-4120615-SP | Screw 3/16-28 L=6 | 2 |
| 17 | 118-02501 | Feed machanism cover | 1 |
| 18 | SS-1090930-SP | Screw 9/64-40 L=8.6 | 1 |
| 19 | SS-4090815-SP | Screw 9/64-40 L=8 | 4 |
| 20 | 118-02709 | Rubber plug | 1 |
| 21 | TA-1250406-R0 | Rubber plug | 1 |
| 22 | 118-02600 | Gasket | 1 |
| 23 | 118-04200 | Cover | 1 |
| 24 | 118-04309 | Gasket | 1 |
| 25 | SS-4110715-SP | Screw 11/64-40 L=7 | 4 |
| 26 | 118-03905 | Chip guard cover, left | 1 |
| 27 | 118-04002 | Chip guard cover, left | 1 |
| 28 | SS-7110510-SP | Screw 11/64-40 L=5 | 2 |
| 29 | 118-67306 | Chip guard cover | 1 |
| 30 | 118-67207 | Chip guard cover | 1 |
| 31 | 118-67108 | Chip guard cover | 1 |
| 32 | SS-7090610-SP | Screw 9/64-40 L=6 | |
| 32 | SS-3090610-SP | Screw 9/64-40 L=6 | 2 |
| 33 | 118-02808 | Looper cover | 1 |
| 34 | 118-03004 | Looper cover hinge pin | 1 |
| 35 | SS-8110422-TP | Screw 11/64-40 L=4 | 1 |
| 36 | 118-02907 | Looper cover bracket | 1 |
| 37 | SS-4110715-SP | Screw 11/64-40 L=7 | 3 |
| 38 | 118-03400 | Looper cover presser spring | 1 |
| 39 | SS-7110720-SP | Screw 11/64-40 L=7 | 1 |
| 40 | SS-7090530-SP | Screw 9/64-40 L=4.5 | 2 |
| 41 | 118-03301 | Looper cover presser plate | 1 |
| 42 | 118-03202 | Looper cover guide plate | 1 |
| 43 | SS-3090510-SP | Screw 9/64-40 L=5 | |
| 43 | SS-7090530-SP | Screw 9/64-40 L=4.5 | 2 |
| 44 | 118-03103 | Looper cover plate | 1 |
| 45 | B1140-716-000 | Spring | 1 |
Page 11 — 2. FRAME COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-00406 | Upper cover | 1 |
| 2 | 115-00808 | Gasket | 1 |
| 3 | 118-00604 | Oil cap | 1 |
| 4 | SS-4121015-SP | Screw 3/16-28 L=10 | 3 |
| 5 | 118-05009 | Sponge | 1 |
| 6 | 118-08805 | Color belt | 1 |
| 7 | 118-04101 | Belt cover | 1 |
| 8 | SS-4151415-SP | Screw 15/64-28 L=14 | 3 |
| 9 | 118-00505 | Upper cover gasket | 1 |
| 10 | SS-7090510-SP | Screw 9/64-40 L=4.6 | 1 |
| 11 | 118-00901 | Face plate cover spring | 1 |
| 12 | 118-00760 | Face plate cover asm. | 1 |
| 13 | SS-8090410-SP | Screw 9/64-40 L=3.5 | 1 |
| 14 | 118-00802 | Face plate cover pin | 1 |
| 15 | 118-01008 | Safety plate | 1 |
| 16 | 118-01107 | Safety plate | 1 |
| 17 | WP-0370316-SD | Washer 3.7 x 8 x 0.3 | 2 |
| 18 | SS-4090815-SP | Screw 9/64-40 L=8 | 2 |
| 19 | NS-6090310-SP | Nut 9/64-40 | 2 |
| 20 | 118-00307 | Side cover | 1 |
| 21 | SS-6122510-SP | Screw 3/16-28 L=15 | 1 |
| 22 | PS-0400182-KO | Spring pin 4.0 x 18 | 1 |
| 23 | SS-6122030-SP | Screw 3/16-28 L=20 | 1 |
| 24 | 118-05108 | Sponge | 1 |
| 25 | TA-2050805-RO | Rubber plug | 2 |
| 26 | 118-03806 | Chip guard cover, upper | 1 |
| 27 | 118-03707 | Chip guard cover, upper | 1 |
| 28 | SS-4120615-SP | Screw 3/16-28 L=6 | 2 |
| 29 | SS-9151210-TP | Screw 15/64-28 L=11.8 | 1 |
| 30 | 118-05207 | Thread guide, large | 2 |
| 31 | TA-1871602-RO | Rubber plug | 1 |
| 32 | 118-41400 | Filter presser plate | 1 |
| 33 | 118-41509 | Filter | 1 |
| 33-1 | 118-42804 | Shelter plate | 1 |
| 34 | 118-41301 | Filter holder | 1 |
| 35 | ST-6030821-OA | Screw D=3-24 L=8 | 5 |
| 36 | 115-03703 | Screw stud | 4 |
| 37 | WP-0751576-SD | Washer 7.5 x 19 x 1.5 | 4 |
| 38 | WS-0822010-KP | Spring washer 8.2 x 15 x 2 | 4 |
| 39 | NS-6680410-SP | Nut 9/32-28 | 4 |
| 40 | 115-03901 | Oil preservoir gasket | 1 |
| 41 | 115-03802 | Oil reservoir | 1 |
| 42 | B8219-125-000 | Oil drain cap gasket | |
| 118-10306 | Oil drain cap gasket | 1 | |
| 43 | SS-6741010-SP | Screw 3/8-28 L=10 | 1 |
| 44 | WP-0370316-SD | Washer 3.7 x 8 x 0.3 | 1 |
| 118-00805 | Sponge | 1 |

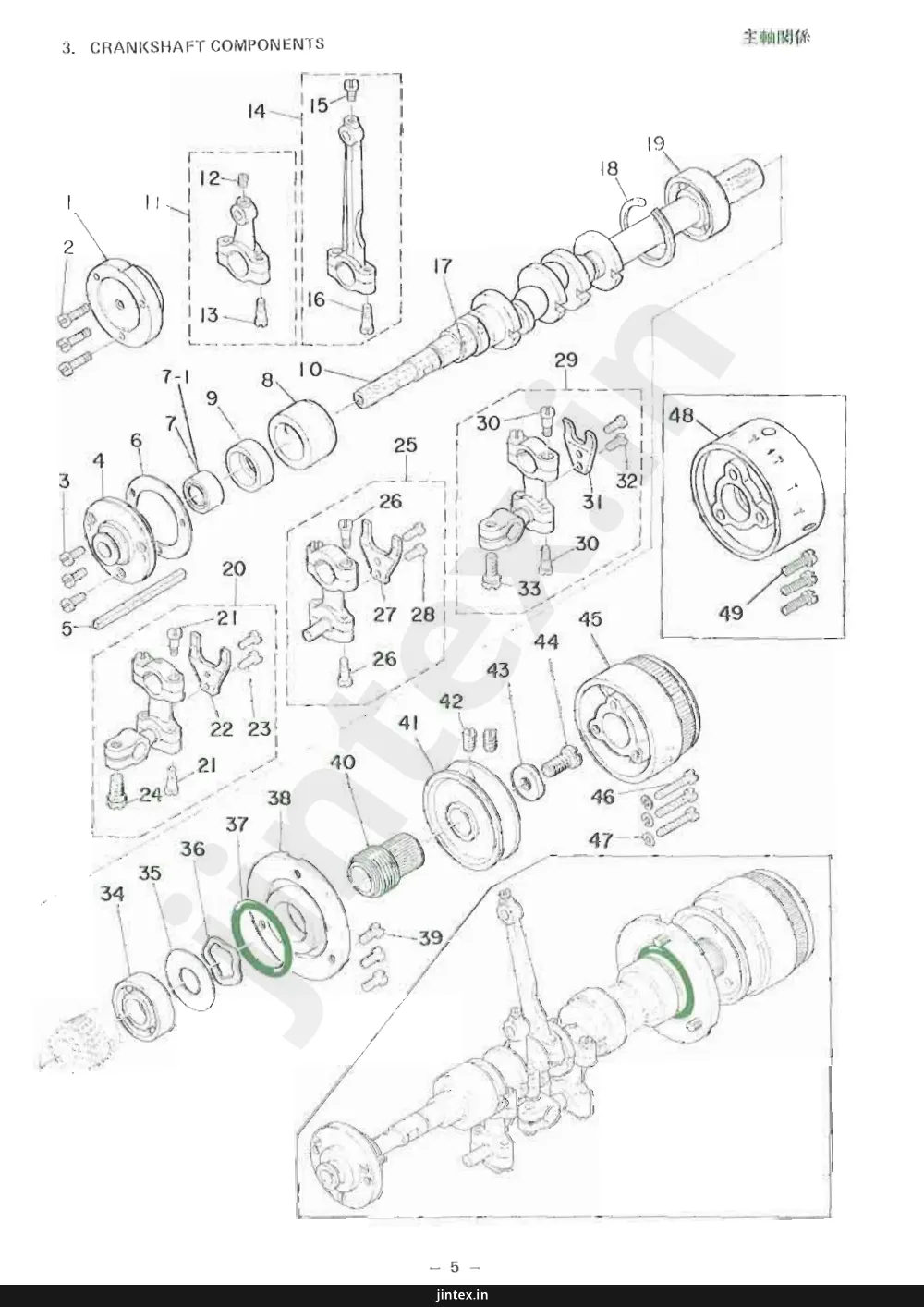

Page 13 — 3. CRANKSHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1214-704-000 | Crankshaft bushing D | 1 |
| 2 | SS-7091110-TP | Screw 9/64-40 L=10.5 | - |
| SS-7091410-SP | Screw 9/64-40 L=14 | 3 | |
| 3 | SS-6090810-TP | Screw 9/64-40- L=7.5 | 3 |
| 4 | B1214-716-000 | Crankshaft bushing D | - |
| 118-12104 | Crankshaft bushing D | 1 | |
| 5 | B1215-816-000 | Felt | - |
| 6 | B1219-804-000 | Gasket | 1 |
| 7 | B1215-804-000 | Ball bearing D | 1 |
| 7-1 | SB-1100003-00 | Bearing | 1 |
| 8 | 118-11809 | Crankshaft bushing C | 1 |
| 9 | 116-50900 | Rubber cap | 1 |
| 10 | 118-11106 | Crankshaft | 1 |
| 11 | 118-45153 | Knife driving rod asm. | 1 |
| 12 | SS-7110910-SP | Screw | - |
| SS-8110520-TP | Screw 11/64-40 L=4.5 | (1) | |
| 13 | SD-0450701-TP | Hinge screw D=4.5 H=7 | (2) |
| 14 | 115-15053 | Connecting rod asm. | 1 |
| 15 | SS-7110910-TP | Screw 11/64-40 L=8.5 | (1) |
| 16 | SD-0450701-TP | Hinge screw D=4.5 H=7 | (2) |
| 17 | 116-51007 | Oil wick | - |
| 18 | B1212-704-000 | Bearing retainer | 1 |
| 19 | B1211-804-000 | Ball bearing B | 1 |
| 20 | 118-32151 | Lower looper driving rod asm. | 1 |
| 21 | SD-0450701-TP | Hinge screw D=4.5 H=7 | (4) |
| 22 | 118-32201 | Stopper | (1) |
| 23 | SS-7110910-TP | Screw 11/64-40 L=8.5 | (2) |
| 24 | SS-9151210-TP | Screw 15/64-28 L=11.8 | (1) |
| 25 | 118-29157 | Chain looper driving rod asm. | 1 |
| 26 | SD-0450701-TP | Hinge screw D=4.5 H=7 | (4) |
| 27 | 118-32201 | Stopper | (1) |
| 28 | SS-7110910-TP | Screw 11/64-40 L=8.5 | (2) |
| 29 | 118-31153 | Upper looper driving rod asm. | 1 |
| 30 | SD-0450701-TP | Hinge screw D=4.5 H=7 | (4) |
| 31 | 118-31203 | Stopper | (1) |
| 32 | SS-7110910-TP | Screw 11/64-40 L=8.5 | (2) |
| 33 | SS-9151210-TP | Screw 15/64-28 L=11.8 | (1) |
| 34 | SB-1150003-00 | Ball bearing A | 1 |
| 35 | 115-10609 | Washer | 1 |
| 36 | WZ-2640310-KH | Waved washer 27.4 x 33.9 x 3.5 | 1 |
| 37 | RQ-3473501-00 | Rubber ring | 1 |
| 38 | 118-11403 | Thrust holder | 1 |
| 39 | SS-4121015-SP | Screw 3/16-28 L=10 | 3 |
| 40 | 118-11502 | Oil shield | 1 |
| 41 | 118-11205 | Handwheel A | 1 |
| 42 | SS-8151150-SP | Screw 15/64-28 L=10.5 | 2 |
| 43 | WP-0764016-SP | Washer | 1 |
| 44 | SS-9681610-TP | Screw 9/32-28 L=16 | 1 |
| 45 | 118-11304 | Handwheel B | 1 |
| 46 | SS-7112420-SP | Screw 11/64-40 L=24 | 3 |
| 47 | WS-0451040-KP | Spring washer | 3 |
| 48 | 118-12401 | Handwheel C | 1 |
| 49 | SS-7111410-SP | Screw 11/64-40 L=14 | 3 |
Page 15 — 4. NEEDLE DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 115-82558 | Needle driving shaft asm. | - |
| 118-17459 | Needle driving shaft asm. | 1 | |
| 2 | 115-82509 | Oil wick | (1) |
| 3 | 115-17505 | Oil cap | (1) |
| 4 | TA-0180401-MO | Needle cooler plug cap | (1) |
| 5 | B3510-704-000 | Oil felt | (1) |
| 6 | B3511-704-000 | Oil felt | (1) |
| 7 | 115-17802 | Oil seal | 1 |
| 8 | 118-14407 | Cover | 1 |
| 9 | SS-7110410-SP | Screw 11/64-40 L=4 | 2 |
| 10 | 118-141100 | Bushing, front | 1 |
| 11 | B3525-704-000 | Oil felt | 1 |
| 12 | SS-8120740-SP | Screw 3/16-28 L=7 | 1 |
| 13 | CS-1201010-SH | Thrust collar asm. D=12 W=10 | 1 |
| 14 | SS-8660610-TP | Screw 1/4-40 L=6 | (2) |
| 15 | B1402-804-0A0 | Forked crank asm. | 1 |
| 16 | SS-9151210-TP | Screw 15/64-28 L=11.8 | (1) |
| 17 | 118-23804 | Crank pin | 1 |
| 18 | 118-14308 | Bushing, rear | 1 |
| 19 | 118-16105 | Needle thread presser | 1 |
| 20 | SS-6080410-SP | Screw 1/8-44 L=4 | 2 |
| 21 | 115-15152 | Needle driving lever asm. | 1 |
| 22 | 115-15301 | Oil shield | (1) |
| 23 | SS-4080320-TP | Screw 1/8-44 L=3.4 | (1) |
| 24 | 115-15202 | Outer sleeve | (1) |
| 25 | B1411-804-A00 | Bearing A | 1 |
| 26 | 115-15459 | Needle driving lever shaft asm. | 1 |
| 27 | CQ-2020000-00 | Oil wick | (0.2) |
| 28 | 115-15509 | Bushing | 1 |
| 29 | SS-8120740-SP | Screw 3/16-28 L=7 | 1 |
| 30 | CS-087081A-SH | Thrust collar D=8.73 W=8 | 1 |
| 31 | SS-6110420-TP | Screw 11/64-40 L=4.8 | (2) |
| 32 | 115-17059 | Pin asm. | 1 |
| 33 | CQ-2020000-00 | Oil wick | (0.1) |
| 34 | 115-17307 | Plug | (2) |
| 35 | 118-15107 | Oil wick cover bushing | 1 |
| 36 | 118-15057 | Oil wick cover asm. | 1 |
| 37 | CQ-2020000-00 | Oil wick | (0.3) |
| 38 | SS-7121410-TP | Screw 3/16-28 L=14 | 2 |
| 39 | 118-14803 | Needle clamp guide shaft base | 1 |
| 40 | WP-0651056-SD | Washer 6.5 x 11 x 1 | 2 |
| 41 | SS-6151812-TP | Screw 15/64-28 L=18 | 2 |
| 42 | 118-16501 | Needle thread guide | 1 |
| 43 | SS-7090540-TP | Screw 9/64-40 L=5 | 1 |
| 44 | SS-7090530-SP | Screw 9/64-40 L=4.5 | 1 |
| 45 | 118-16600 | Needle thread take-up guide | 1 |
| 46 | 118-16857 | Needle clamp base | 1 |
| 47 | 118-17103 | Needle clamp washer | (1) |
| 48 | SS-5060310-SP | Screw 3/32-56 L=2.8 | (2) |
| 49 | 118-16907 | Needle thread clamp | (1) |
| 50 | SS-6080410-SP | Screw 1/8-44 L=4 | 1 |
| 51 | 118-17004 | Needle clamp oil felt | 1 |
| 52 | 118-14902 | Needle clamp guide shaft asm. | 1 |
| 53 | 118-15206 | Oil wick | 1 |
| 54 | 118-15354 | Oil reservoir asm. | 1 |
| 55 | SS-6090420-SP | Screw 9/64-40 L=4.0 | 2 |
| 56 | 118-15503 | Needle clamp base | 1 |
| 57 | SS-8090410-SP | Screw 9/64-40 L=3.5 | 1 |
| 58 | SS-8110422-TP | Screw 11/64-40 L=4 | 1 |
| 59 | 118-16006 | Needle thread take-up lever | 1 |
| 60 | 118-16204 | Needle thread presser spring | 1 |
| 61 | 118-16303 | Needle thread presser guide | 1 |
| 62 | 118-16402 | Needle thread presser guide | 1 |
| 63 | SS-6080410-SP | Screw 1/8-44 L=4 | 2 |
| 64 | 118-69005 | Needle clamp | 1 |
| 65 | SS-8080310-TP | Screw 1/8-44 L=2.8 | 1 |
| 66 | MDC-270B1100 | Needle DC x 27 #11 | 1 |
| MDC-270B0900 | Needle DC x 27 #9 | 1 | |
| 67 | MC-0336007-50 | Needle B-27 NM75 | 1 |
| 68 | 118-69658 | Needle clamp | 1 |
| 69 | MDC-270B1100 | Needle DC x 27 #11 | 2 |
| MDC-270B0900 | Needle DC x 27 #9 | 2 | |
| 70 | MC-0336007-50 | Needle B-27 NM75 | 2 |
| 71 | SS-8080310-TP | Screw 1/8-44 L=2.8 | 2 |
| 72 | 118-70359 | Needle clamp | 1 |
| 73 | MDC-270B1100 | Needle DC x 27 #11 | 2 |
| 74 | 118-17301 | Needle thread take up lever | 1 |
| 115-15206 | Screw 9/64-40 L=3.5 | 1 | |
| 115-15503 | Needle thread presser | 1 |
Page 17 — 5. FEED MECHANISM COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-24059 | Feed rocker asm. | 1 |
| 2 | 115-30102 | Main feed rocker | (1) |
| 3 | SS-6121220-TP | Screw 3/16-28 L=11.5 | (1) |
| 4 | 118-24000 | Pin | (1) |
| 5 | B1618-804-000 | Washer | (1) |
| 6 | B1667-804-000 | Washer B | (1) |
| 7 | NS-6620320-SP | Nut 3/16-32 | (1) |
| 8 | 118-24109 | Main feed link | 1 |
| 9 | B1620-804-000 | Collar | 1 |
| 10 | B2107-816-000 | Washer | 1 |
| 11 | SS-6121220-TP | Screw 3/16-28 L=11.5 | 1 |
| 12 | 118-23804 | Crank pin | 1 |
| 13 | B1614-704-000 | Feed rocker shaft bushing, front | 1 |
| 14 | TA-1030402-R0 | Rubber plug | 1 |
| 15 | B1611-804-0AO | Forked link asm. | 1 |
| 16 | SS-9151210-TP | Screw 15/64-28 L=11.8 | (1) |
| 17 | CS-095081B-SH | Thrust collar asm. D=9.53 W=8 | 2 |
| 18 | SS-8110410-TP | Screw 11/64-40 L=3.5 | (4) |
| 19 | SS-6121020-SP | Screw 3/16-28 L=9.5 | 1 |
| 20 | B1615-704-000 | Feed rocker shaft bushing, rear | 1 |
| 21 | B1613-804-000 | Rocker shaft | 1 |
| 22 | SS-7110910-TP | Screw 11/64-40 L=8.5 | 1 |
| 23 | 118-23176 | Feed eccentric body asm. | 1 |
| 24 | B1610-804-000 | Crank rod | (1) |
| 25 | B1609-804-B00 | Bearing | (1) |
| 26 | 118-23507 | Ratchet gear | (1) |
| 27 | SS-8110750-SP | Screw 11/64-40 L=6.5 | (1) |
| 28 | SS-6110710-TP | Screw 11/64-40 L=6.5 | (1) |
| 29 | B1606-704-000 | Ratchet pawl spring | (1) |
| 30 | SD-0260271-SP | Hinge screw D=2.60 H=2.7 | (1) |
| 31 | B1604-704-000 | Ratchet pawl | (1) |
| 32 | PS-0300132-KH | Spring pin 3 x 13 | (2) |
| 33 | SS-6660810-TP | Screw 1/4-40 L=7.5 | (1) |
| 34 | SS-8110422-TP | Screw 11/64-40 L=4 | (2) |
| 35 | 118-23309 | Nut | (1) |
| 36 | 118-23408 | Plug | (1) |
| 37 | SS-6090440-SP | Screw 9/64-40 L=4.0 | (1) |
| 38 | 118-23200 | Washer | (1) |
| 39 | 118-24406 | Slide block | 1 |
| 40 | B1651-704-000 | Felt | 1 |
| 41 | B1654-704-000 | Washer | 1 |
| 42 | B1652-704-000 | Spring | 1 |
| 43 | B1650-704-000 | Push button stud | 1 |
| 44 | SS-7151550 SP | Screw 15/64-28 L=14.5 | 1 |
| 45 | 118-14704 | Filter | 1 |
Page 19 — FEED MECHANISM COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-24505 | Feed bar shaft | 1 |
| 2 | SS-7120910-SP | Screw 3/16-28 L=9 | 1 |
| 3 | RO-0371801-00 | Rubber ring | 1 |
| 3-1 | TA-0800504-RO | Rubber plug D=8 L=4.5 | 1 |
| 4 | RO-0781901-00 | Rubber ring | 1 |
| 5 | 118-24653 | Collar asm. | 1 |
| 6 | SS-8660330-SP | Screw 1/4-40 L=3.0 | (1) |
| 7 | 115-29906 | Washer | 1 |
| 8 | B1624-704-000 | Slide block | 1 |
| 9 | B1627-804-0A0-A | Collar asm. | 1 |
| 10 | SS-8110410-TP | Screw 11/64-40 L=3.5 | (1) |
| 11 | 118-82107 | Main feed dog | 1 |
| 12 | 115-97101 | Main feed dog | 1 |
| 13 | 118-82800 | Main feed dog | 1 |
| 14 | SS-9111050-SP | Screw 11/64-40 L=9.5 | 1 |
| 15 | 118-87106 | Auxiliary feed dog | 1 |
| 16 | 118-87403 | Auxiliary feed dog | 1 |
| 17 | SS-4080610-SP | Screw 1/8-44 L=6.4 | 1 |
| 18 | 118-24257 | Main feed bar asm. | 1 |
| 19 | 118-24307 | Differential feed bar | (1) |
| 20 | 118-24208 | Main feed bar | (1) |
| 21 | B1657-804-00T | Differential feed dog | 1 |
| 22 | B1657-814-B0E | Differential feed dog | 1 |
| 23 | 118-85209 | Differential feed dog | 1 |
| 24 | SS-9111010-SP | Screw 11/64-40 L=9.5 | 1 |
| 25 | RE-0500000-KO | Snap ring 5 | 1 |
| 26 | 118-26302 | Link | 1 |
| 27 | SD-0720271-SP | Hinge screw D=7.2 H=2.7 | 1 |
| 28 | 118-25353 | Differential feed rocker asm. | 1 |
| 29 | 118-25304 | Differential feed pin | (1) |
| 30 | 118-26401 | Pin cover | (1) |
| 31 | SS-6080410-SP | Screw 1/8-44 L=4 | (2) |
| 32 | 115-27967 | Differential feed rocker asm. | - |
| 32-1 | 115-30656 | Differential feed rocker asm. | (1) |
| 33 | SS-6121220-TP | Screw 3/16-28 L=11.5 | (1) |
| 34 | B1663-804-000 | Slide block | 1 |
| 35 | 118-25700 | Oil shield plate | 1 |
| 36 | SS-4120915-SP | Screw 12/64-28 L=9 | 1 |
| 37 | SS-6091210-TP | Screw 9/64-40 L=12 | 1 |
| 38 | SS-7060310-SP | Screw 3/32-56 L=3 | 6 |
| 39 | 118-25601 | Rubber presser plate asm. | 1 |
| 40 | 118-25205 | Oil shield rubber presser plate | 1 |
| 41 | 118-25106 | Oil shield rubber | 1 |
| 42 | 118-25007 | Rubber cover | 1 |
| 43 | 118-25403 | Rubber base plate | 1 |
| 44 | SS-7090620-TP | Screw 9/64-40 L=6.1 | 2 |
| 45 | 118-24802 | Rubber case | 1 |
| 45-1 | 118-27607 | Oil shield rubber, lower | 1 |
| 45-2 | SS-7060310-SP | Screw 3/32-56 L=3 | 2 |
| 46 | 118-24703 | Feed bar support | 2 |
| 47 | 118-24901 | Rubber | 1 |
| 47-1 | 118-27904 | Rubber | 1 |
| 48 | RO-4801201-00 | Rubber ring | 1 |
| 49 | SS-9111010-SP | Screw 11/64-40 L=9.5 | 1 |
| 49-1 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 4 |
| 50 | SS-7111120-SP | Screw 11/64-40 L=10.5 | 3 |
| 51 | SS-6090650-SP | Screw 9/64-40 L=6 | 4 |
| 52 | B1642-804-000-B | Differential feed rocker | 1 |
| 53 | SS-7120910-TP | Screw 3/16-28 L=9 | 1 |
| 54 | B1645-704-000-A | Bushing | 1 |
| 55 | RO-0601501-00 | Rubber ring | 1 |
| 56 | 115-28908 | Spring | 1 |
| 57 | 118-25858 | Rocker shaft asm. | 1 |
| 58 | RE-0900000-KP | Snap ring 9 | 1 |
| 59 | B1508-352-000 | Stopper screw | - |
| PS-0400222-KO | Spring pin | 1 | |
| 60 | 118-27102 | Differential feed graduation | 1 |
| 61 | 115-29005 | Stopper | 2 |
| 62 | 115-28809 | Washer | 2 |
| 63 | 115-29104 | Washer | 2 |
| 64 | SS-4121215-SP | Screw 3/16-28 L=12 | 2 |
| 65 | SS-4090515-SP | Screw 9/64-40 L=5 | 2 |
| 66 | WP-0621016-SD | Washer 6.2 x 13 x 1 | 1 |
| 67 | B1647-704-000-A | Differential feed lock nut | 1 |
| 68 | B1646-704-000-A | Differential feed hinge screw | 1 |
| B1627-704-00A | Collar asm. | ||
| SS-4090516-SP | Screw 9/64-40 L=5 |
Page 21 — 7. UPPER & LOWER LOOPER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2509-704-000 | Bushing, rear | 2 |
| 2 | CS-103121A-SH | Thrust collar asm. D=10.32 W=12 | 2 |
| 3 | SS-8660530-TP | Screw 1/4-10 L=4.5 | (4) |
| 4 | B2507-804-000-B | Bushing, front | 2 |
| 5 | SS-6121020-SP | Screw 3/16-28 L=9.5 | 2 |
| 6 | 118-31302 | Upper looper shaft | 1 |
| 7 | SS-6151440-SP | Screw 15/64-28 L=14 | 2 |
| 8 | 118-31682 | Upper looper asm. | 1 |
| 9 | 118-31690 | Upper looper asm. | 1 |
| 10 | 118-33605 | Upper looper guide support | (1) |
| 11 | 118-31674 | Holder connection asm. | (1) |
| 12 | B3526-704-000 | Oil felt | – |
| 118-42101 | Oil felt | 1 | |
| 13 | SS-8110422-TP | Screw 11/64-40 L=4 | (1) |
| 14 | 118-33704 | Upper looper guide cover | (1) |
| 15 | SS-7060610-SP | Screw 3/32-56 L=5.5 | (1) |
| 16 | SS-5060310-SP | Screw 3/32-56 L=2.8 | – |
| SS-7060510-SP | Screw 3/32-56 L=4.8 | (1) | |
| 17 | 118-33308 | Looper thread guide, upper | (1) |
| 18 | SS-4090615-SP | Screw 9/64-40 L=6 | (1) |
| 19 | 118-31757 | Pin asm. | (1) |
| 20 | 118-31708 | Oil wick stopper ball | (1) |
| 21 | CQ-2020000-00 | Oil wick | (1) |
| 22 | CQ-2000000-00 | Oil wick | (0.1) |
| 23 | 118-31450 | Looper holder asm. A | (1) |
| 24 | 118-31559 | Looper holder asm. B | (1) |
| 25 | SS-9151210-TP | Screw 15/64-28 L=11.8 | (1) |
| 26 | SS-8090410-SP | Screw 9/64-40 L=3.5 | (1) |
| 27 | 118-88005 | Upper looper | 1 |
| 28 | 118-88104 | Upper looper | 1 |
| 29 | 118-88302 | Upper looper | 1 |
| 30 | 118-33001 | Looper thread take-up, right | 1 |
| 31 | 118-33506 | Lower looper thread take-up | 1 |
| 32 | SS-7110840-SP | Screw 11/64-40 L=7.8 | 1 |
| 33 | SS-6080410-SP | Screw 1/8-44 L=4 | 1 |
| 34 | 118-31906 | Pin | 1 |
| 35 | 118-31807 | Gauge | 1 |
| 36 | RO-0371801-00 | Rubber ring | 1 |
| 37 | 118-32904 | Looper thread guide, right | 1 |
| 38 | SS-5090420-SP | Screw 9/64-40 L=3.5 | – |
| SS-3090610-SP | Screw 9/64-40 L=6 | 1 | |
| 39 | 118-32805 | Lopper thread take-up cover | 1 |
| 40 | SS-4110715-SP | Screw 11/64-40 L=7 | 2 |
| 41 | 118-33407 | Loower looper thread guide | 1 |
| 42 | SS-5090420-SP | Screw 9/64-40 L=3.5 | – |
| SS-3090610-SP | Screw 9/64-40 L=6 | 1 | |
| 43 | 118-32706 | Oil shield plate asm. | 1 |
| 44 | B2530-704-000 | Upper looper shaft rubber pring | 1 |
| 45 | SS-6090630-SP | Screw 9/64-40 L=6 | 4 |
| 46 | 118-33100 | Looper thread guide | 1 |
| 47 | SS-7090850-SP | Screw 9/64-40 L=8 | 1 |
| 48 | 118-90001 | Traveling needle guard | 1 |
| 49 | SS-6060410-TP | Screw 3/32-56 L=3.5 | 2 |
| 50 | 118-88401 | Lower looper | 1 |
| 51 | SS-6090620-SP | Screw 9/64-40 L=6 | 1 |
| 52 | 118-33209 | Looper thread take-up, left | 1 |
| 53 | SS-7110840-SP | Screw 11/64-40 L=7.8 | 1 |
| 54 | 118-32458 | Lower looper support arm asm. | 1 |
| 55 | PS-0200062-KH | Spring pin 2 x 6 | (1) |
| 56 | B2531-704-000 | Washer | (1) |
| 57 | SS-9151210-TP | Screw 15/64-28 L=11.8 | (1) |
| 58 | B2508-704-000 | Oil seal | 1 |
| 59 | 118-32300 | Lower looper shaft | 1 |
| 118-313674 | Holder connection asm. | (1) |
Page 22 — CHAIN LOOPER COMPONENTS (FOR MO-2416)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2103-816-0A0 | Chain looper shaft slide arm asm. | 1 |
| 2 | B2103-816-000 A | Chain looper shaft slide arm | (1) |
| 3 | SS-7110720-TP | Screw 11/64-30 L=7.0 | (1) |
| 4 | B2120-816-000 | Chain looper slide block pin | (1) |
| 5 | B2105-816-000 | Chain looper slide block | (1) |
| 6 | B2102-816-000-A | Chain looper rod (22mm) | 1 |
| 7 | SD-0720801-TH | Hinge screw D=7.24 H=8 | 1 |
| 8 | B2119-816-B00 | Bearing B | 1 |
| 9 | B2108-816-0A0 | Bracket asm. | 1 |
| 10 | SS-6121220-TP | Screw 3/16-28 L=11.5 | (1) |
| 11 | B2111-716-000 | Bushing, rear | 1 |
| 12 | 118-29207 | Chain looper shaft | 1 |
| 13 | 115-39053 | Chain looper shaft driving arm asm. | 1 |
| 14 | SS-6121220-TP | Screw 3/16-28 L=11.5 | (2) |
| 15 | SS-4080610-SP | Screw 1/8-44 L=6.4 | 1 |
| 16 | B2106-816-CA0 | Pin asm., long | 1 |
| 17 | CQ-2020000-00 | Oil wick | (0.1) |
| 18 | B2113-816-000 | Chain looper shaft driving link | 1 |
| 19 | B2114-816-CA0 | Pin asm., short | 1 |
| 20 | CQ-2020000-00 | Oil wick | (0.1) |
| 21 | B2115-816-000 | Driving ball arm Bracket | 1 |
| 22 | SS-6110710-TP | Screw 11/64-40 L=6.5 | 3 |
| 23 | SS-4080610-SP | Screw 1/8-44 L=6.4 | 1 |
| 24 | B2110-816-000-B | Bushing, front | 1 |
| 25 | B2525-352-000 | Oil seal ring | 1 |
| 26 | 118-29405 | Chain looper | 1 |
| 27 | SS-8110422-TP | Screw 11/64-40 L=4 | 1 |
| 28 | 118-29355 | Chain looper driving arm asm. | 1 |
| 29 | PS-0200062-KH | Spring pin 2 x 6 | (1) |
| 30 | B2531-704-000 | Washer | (1) |
| 31 | SS-9151210-TP | Screw 15/64-28 L=11.8 | (1) |
| SS-71110720-TP | Screw 11/64-30 L=7.0 | (1) |
Page 23 — 9. PRESSER FOOT COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-20404 | Presser foot lifting lever | 1 |
| 2 | SD-0630271-SP | Hinge screw D=7.35 H=2.7 | 1 |
| 3 | SS-8110422-TP | Screw 11/64-40 L=4 | 1 |
| 4 | 118-20602 | Stopper | 1 |
| 5 | 118-20909 | Spring | 1 |
| 6 | 118-20503 | Washer | 1 |
| 7 | SS-6110610-TP | Screw 11/64-40 L=6 | 1 |
| 8 | 118-20305 | Presser foot lifting bar | 1 |
| 9 | 118-20156 | Presser bar asm. | 1 |
| 10 | B1515-804-00B | Presser spring | 1 |
| 11 | 118-20206 | Presser spring regulator | 1 |
| 12 | SS-8110510-SP | Screw 11/64-40 L=5 | 1 |
| 13 | B1534-804-000 | Presser foot arm hinge shaft | 1 |
| 14 | 115-21002 | Presser foot shaft | 1 |
| 15 | 115-21101 | Bushing | 1 |
| 16 | SS-8120740-SP | Screw 3/16-28 L=7 | 1 |
| 17 | 118-19406 | Lifting hook | - |
| 17-1 | 118-19414 | Lifting hook | 1 |
| 18 | PD-0201000-0D | Split pin 2 x 10 | - |
| 19 | SS-6121240-SP | Screw 3/16-28 L=12 | 1 |
| 20 | NS-6120310-SP | Nut 3/16-28 | 1 |
| 21 | 118-19505 | Lifting arm | 1 |
| 22 | B1536-804-000 | Pin | 1 |
| 23 | B1535-804-0AO | Presser foot shaft thrust arm asm. | 1 |
| 24 | SS-9151210-TP | Screw 15/64-28 L=11.8 | (1) |
| 25 | SS-7161040-SP | Screw 1/4-24 L=9.5 | 1 |
| 26 | 118-19307 | Lifting lever | 1 |
| 27 | 118-19109 | Lifting lever screw | 1 |
| 28 | 118-19208 | Lifting lever spring | 1 |
| 29 | NS-6110310-SP | Nut 11/64-40 | 1 |
| 30 | SS-7111410-SP | Screw 11/64-40 L=14 | 1 |
| 31 | B1529-804-000 | Presser foot lifting lever stopper | 1 |
Page 25 — 10. PRESSER FOOT COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-19604 | Presser foot arm | 1 |
| 2 | B1528-804-000-A | Thread trimmer | 1 |
| 3 | SS-5060410-SP | Screw 3/32-56 L=3.5 | 1 |
| 4 | 118-81455 | Presser foot asm. | 1 |
| 5 | 118-76158 | Presser foot asm. | 1 |
| 6 | 118-72009 | Presser foot hinge | (1) |
| 7 | SS-6090650-SP | Screw 9/64-40 L=6 | (1) |
| 8 | B1530-804-000 | Stopper | (1) |
| 9 | WP-0250516-SD | Washer 3.5 x 6 x 0.5 | (1) |
| 10 | SS-7060610-SP | Screw 3/32-56 L=5.5 | (1) |
| 11 | SS-6060210-SP | Screw 3/32-56 L=1.9 | (1) |
| 12 | B1511-804-000 | Rear presser foot | (1) |
| 13 | B1507-804-C00 | Presser foot | (1) |
| 14 | SS-7080520-SP | Screw 1/8-44 L=4.9 | (1) |
| 15 | B1508-804-00B | Spring | (1) |
| 16 | B1509-804-C00 | Stitch tongue | (1) |
| 17 | 118-74609 | Stitch tongue | (1) |
| 18 | SS-6060410-TP | Screw 3/32-56 L=3.5 | (1) |
| 19 | B1510-814-000 | Curl guard | (1) |
| 20 | 118-81471 | Presser foot asm. | 1 |
| 21 | 118-76166 | Presser foot asm. | 1 |
| 22 | 118-81554 | Presser foot asm. | 1 |
| 23 | 118-76851 | Presser foot asm. | 1 |
| 24 | 118-72009 | Presser foot hinge | (1) |
| 25 | SS-6090650-SP | Screw 9/64-40 L=6 | (1) |
| 26 | B1530-804-000 | Stopper | (1) |
| 27 | WP-0250516-SD | Washer 2.5 x 6 x 0.5 | (1) |
| 28 | SS-7060610-SP | Screw 3/32-56 L=5.5 | (1) |
| 29 | SS-6060210-SP | Screw 3/32-56 L-1.9 | (1) |
| 30 | B1511-814-000 | Rear presser foot | (1) |
| 31 | B1507-814-00P | Presser foot | (1) |
| 32 | SS-7080520-SP | Screw 1/8-44 L=4.9 | (1) |
| 33 | B1508-804-00B | Spring | (1) |
| 34 | B1509-814-00P | Stitch tongue | (1) |
| 35 | 118-74708 | Stitch tongue | (1) |
| 36 | SS-6060410-TP | Screw 3/32-56 L=3.5 | (1) |
| 37 | B1510-814-000 | Curl guard | (1) |
| 38 | 118-81570 | Presser foot asm. | 1 |
| 39 | 118-76869 | Presser foot asm. | 1 |
| 40 | 118-77552 | Presser foot asm. | 1 |
| 41 | 118-72108 | Presser foot hinge | (1) |
| 42 | SS-6090650-SP | Screw 9/64-40 L=6 | (1) |
| 43 | 118-75309 | Rear presser foot | (1) |
| 44 | B1512-816-000 | Spring, for rear presser foot | (1) |
| 45 | B1513-816-000 | Nut, for rear presser foot | (1) |
| 46 | B1510-816-000 | Hinge pin | (1) |
| 47 | B1507-816-000 | Hinged type presser foot | (1) |
| 48 | B1515-816-000 | Presser foot arm spring | (1) |
| 49 | B1514-816-000 | Screw | (1) |
| 50 | SS-6060340-SP | Screw 3/32-56 L=2.5 | (1) |
| 51 | B1511-816-000 | Hinge screw | (1) |
| 52 | B1530-816-D00 | Auxiliary stopper | (1) |
| 53 | 118-77578 | Presser foot asm. | 1 |
| 54 | B1539-804-000 | Presser foot fixing plate | 1 |
| 55 | SS-6060410-TP | Screw 3/32-56 L=3.5 | 1 |
| 118-81465 | Presser foot asm. | (1) | |
| B1507-804-000 | Presser foot | (1) | |
| B1530-816-000 | Auxiliary stopper | (1) |
Page 27 — 11. THREAD TENSION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-29504 | Chain looper thread guide | 1 |
| 2 | B2204-816-000 | Hook | 1 |
| 3 | 118-29603 | Chain looper thread guide | 1 |
| 4 | SS-4090615-SP | Screw 9/64-40 L=6 | 2 |
| 5 | B2202-816-000 | Shaft | 1 |
| 6 | B2201-816-000 | Thread cam | 1 |
| 7 | SS-8110410-TP | Screw 11/64-40 L=3.5 | 2 |
| 8 | B2402-716-000 | Looper thread guide tube guide | 1 |
| 9 | SS-5150510-SP | Screw 15/64-28 L=5 | 1 |
| 10 | B3113-352-000 | Mounting bracket | 1 |
| 11 | SS-4120615-SP | Screw 3/16-28 L=6 | 1 |
| 12 | B2401-816-000 | Looper thread guide tube | 1 |
| 13 | 118-16709 | Needle thread guide | 1 |
| 14 | SS-4110715-SP | Screw 11/64-40 L=7 | 1 |
| 15 | 118-17202 | Needle thread guide | 1 |
| 16 | SS-4110715-SP | Screw 11/64-40 L=7 | 1 |
| 17 | 115-50852 | Tension controller asm. | 1 |
| 18 | B2314-019-000 | Tension post nut | (1) |
| 19 | B3120-125-000 | Tension disc stopper | (1) |
| 20 | B2017-372-000 | Tension spring No. 1 | (1) |
| 21 | B3126-012-000 | Tension disc | (2) |
| 22 | B3120-352-000 | Thread tension spring felt | (1) |
| 23 | 115-50803 | Thread tension post | (1) |
| 24 | 115-50308 | Thread guide | (1) |
| 25 | B3102-704-0B0 | Tension controller asm., yellow | 1 |
| 26 | B3106-704-00C | Thread tension knob, yellow | (1) |
| 27 | B3112-704-000 | Tension spring bushing | (1) |
| 28 | B3102-804-000 | Tension spring, yellow | (1) |
| 29 | B3107-704-000 | Tension disc presser tube | (1) |
| 30 | B3120-704-000 | Thread tension spring felt | (1) |
| 31 | B3126-012-000 | Tension disc | (2) |
| 32 | B3120-352-000 | Thread tension spring felt | (1) |
| 33 | B3105-804-000 | Tension post | (1) |
| 34 | B3101-704-0B0 | Tension controller asm., red | 1 |
| 35 | B3106-704-00A | Thread tension knob., red | (1) |
| 36 | B3112-704-000 | Tension spring bushing | (1) |
| 37 | B3101-804-000 | Tension spring, red | (1) |
| 38 | B3107-704-000 | Tension disc presser tube | (1) |
| 39 | B3120-704-000 | Thread tension spring felt | (1) |
| 40 | B3126-012-000 | Tension disc | (2) |
| 41 | B3120-352-000 | Thread tension spring felt | (1) |
| 42 | B3105-804-000 | Tension post | (1) |
| 43 | B3103-704-0B0 | Thread tension spring asm., blue | 1 |
| 44 | B3106-704-00B | Thread tension knob, blue | (1) |
| 45 | B3112-704-000 | Tension spring bushing | (1) |
| 46 | B3103-804-000 | Tension spring, blue | (1) |
| 47 | B3107-704-000 | Tension disc presser tube | (1) |
| 48 | B3120-704-000 | Thread tension spring felt | (1) |
| 49 | B3126-012-000 | Tension disc | (2) |
| 50 | B3120-352-000 | Thread tension spring felt | (1) |
| 51 | B3105-804-000 | Tension post | (1) |
| 52 | B3108-704-000 | Thread guide | 1 |
| 53 | 118-36301 | Thread guide | 3 |
| 54 | 118-36202 | Thread guide | 1 |
| 55 | SS-6151820-TP | Screw 15/64-28 | 1 |
| 56 | SS-8110422-TP | Screw 11/64-40 L=4 | 1 |
| 57 | SS-7110710-SL | Screw 11/64-40 L=7.0 | 1 |
| B3120-362-000 | Thread tension spring felt | ||
| B3102-704-080 | Tension controller asm., yellow | ||
| B3101-704-080 | Tension controller asm., red | ||
| B3103-704-080 | Tension spring asm., blue |
Page 29 — 12. LOWER KNIFE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SS-2110710-TP | Screw 11/64-40 L=7 | 2 |
| 2 | R4200-H0D-DAO | Throat plate asm. | 1 |
| 3 | 118-06304 | Plug | (2) |
| 4 | R4205-H0D-EA0 | Throat plate asm. | 1 |
| 5 | R4508-H0D-DAO | Throat plate asm. | 1 |
| 6 | SS-6110610-TP | Screw 11/64-40 L=6 | 2 |
| 7 | 118-47902 | Throat plate base B | 1 |
| 8 | 118-04408 | Throat plate base B retainer | 1 |
| 9 | SS-6121010-SP | Screw 3/16-28 L=10 | 2 |
| 10 | 118-47852 | Lower knife bracket asm. | 1 |
| 11 | 118-47860 | Lower knife bracket asm. | 1 |
| 12 | 118-46904 | Spring stopper | (1) |
| 13 | 118-06304 | Plug | (1) |
| 14 | SS-7110720-SP | Screw 11/64-40 L=7 | (1) |
| 15 | 118-46607 | Spring | (1) |
| 16 | 118-47803 | Lower knife support bracket | (1) |
| 17 | 118-04507 | Throat plate base A | (1) |
| 18 | SS-6110610-TP | Screw 11/64-40 L=6 | (2) |
| 19 | 118-04705 | Rubber plug B | - |
| 19-1 | 118-04713 | Rubber plug | (1) |
| 20 | 118-04606 | Rubber plug | (1) |
| 21 | 118-46201 | Lower knife slide stud | (1) |
| 22 | SS-9111010-SP | Screw 11/64-40 L=9.5 | (1) |
| 23 | 118-46102 | Lower knife presser plate | (1) |
| 24 | 118-46003 | Lower knife | (1) |
| 25 | 118-46409 | Rotating stopper | (1) |
| 26 | SS-7090710-SP | Screw 9/64-40 L=6.8 | (2) |
| 27 | 118-46300 | Lower knife slide stud | (1) |
| 28 | 118-46508 | Rotating stopper | (1) |
| 29 | 118-46805 | Holder pin | (3) |
| 30 | B4115-704-000 | Spring | (1) |
| 31 | SS-7151120-SP | Screw 15/64-28 L=11 | (1) |
| 32 | 118-01859 | Lever | (1) |
| 33 | 118-02105 | Rubber plug | (1) |
| 34 | 118-02006 | Lever spring | (1) |
| 35 | SD-0601021-SP | Hinge screw D=6 H=10.2 | (1) |
| 36 | B2739-761-000 | Washer | (1) |
| 37 | SS-7110840-SP | Screw 11/64-40 L=7.8 | (1) |
| 38 | SS-6151440-SP | Screw 15/64-28 L=14 | 2 |
| 39 | 118-47100 | Needle guard holder | 1 |
| 40 | 118-90100 | Needle guard | 1 |
| 41 | SS-7110840-SP | Screw 11/64-40 L=7.8 | 1 |
| 42 | SS-7090610-SP | Screw 9/64-40 L=6 | 1 |
| 43 | 118-90308 | Needle guard | 1 |
| 44 | 118-90506 | Needle guard | 1 |
| 45 | 118-90605 | Needle guard | 1 |
| 46 | SS-7060510-SP | Screw 3/32-56 L=4.8 | 3 |
| 47 | 118-90704 | Needle guard | 1 |
| 48 | SS-7090510-SP | Screw 9/64-40 L=4.6 | - |
| SS-6090560-TP | Screw 9/64-40 L=4.5 | 1 | |
| SS-911010-SP | Screw 11/64-40 L=9.5 | 1 |
Page 30 — 13. UPPER KNIFE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1403-352-C00 | Crank pin | 1 |
| 2 | 115-65058 | Upper knife driving arm asm. | 1 |
| 3 | SS-9661230-CP | Screw 1/4-40 L=12 | (1) |
| 4 | 115-65306 | Bushing, rear | 1 |
| 5 | CS-111101E-SH | Thrust collar asm. D=11.11 W=10 | 1 |
| 6 | SS-8660330-SP | Screw 1/4-40 L=3.0 | (2) |
| 7 | 118-45203 | Knife driving arm shaft | 1 |
| 7-1 | SS-4060310-SP | Screw 3/32-56 L=2.5 | 1 |
| 8 | 115-65801 | Upper knife guide shaft | 1 |
| 9 | 115-66809 | Oil seal | 1 |
| 10 | 115-65207 | Bushing, front | 1 |
| 11 | SS-8120740-SP | Screw 3/16-28 L=7 | 1 |
| 12 | SS-6111040-SP | Screw 11/64-40 L=9.5 | 1 |
| 13 | 118-45302 | Upper knife support A | 1 |
| 14 | 118-45609 | Knife | 1 |
| 15 | SS-9090813-TP | Screw 9/64-40 L=8 | 1 |
| 15-1 | WP-0370316-SD | Washer 3.7 x 8 x 0.8 | 1 |
| 16 | 118-45708 | Knife | 1 |
| 17 | 118-45401 | Upper knife support | 1 |
| 18 | SS-6111610-SP | Screw 11/64-40 L=16 | 1 |
| 19 | 115-98000 | Upper knife support | 1 |
| 20 | 118-45807 | Upper knife | 1 |
| 21 | 115-65702 | Washer | 1 |
| 22 | SS-4060310-SP | Screw 3/32-56 L=2.5 | 1 |
| 23 | 115-65504 | Upper knife presser plate | 1 |
| 24 | 115-65603 | Upper knife cover | 1 |
| 25 | SS-9111610-SP | Screw 11/64-40 L=16 | 1 |
| 26 | 118-45500 | Upper knife support | 1 |
| 27 | 118-45906 | Upper knife | 1 |
| 28 | SS-9112310-SP | Screw 11/64-40 L=23 | 1 |
Page 31 — 14. NEEDLE COOLING MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-54304 | Needle cooler A | 1 |
| 2 | 118-54700 | Sponge A | 1 |
| 3 | 118-54908 | Felt A | 1 |
| 4 | 118-53405 | Oil joint A | 2 |
| 5 | 118-53801 | Stopper ring | 4 |
| 6 | BP-3000000-00 | Vinyl tube, white D=3 | 0.2 |
| 7 | 118-53603 | Gasket | 4 |
| 8 | 118-53504 | Screw A | 2 |
| 9 | 118-54205 | Support | 1 |
| 10 | SS-4090615-SP | Screw 9/64-40 L=6 | 1 |
| 11 | SS-7110840-SP | Screw 11/64-40-L=7.8 | 1 |
| 12 | CO-2000000-00 | Oil wick | 0.2 |
| 13 | 118-55806 | Wire | 1 |
| 14 | 118-54502 | Plate A | 1 |
| 15 | 118-54601 | Plate B | 1 |
| 16 | 118-54403 | Needle cooler B | 1 |
| 17 | 118-55004 | Felt B | 1 |
| 18 | 118-54809 | Sponge B | 1 |
| 19 | 118-53306 | Stud | 1 |
| 20 | 118-53157 | Silicon oil tank asm. | 1 |
| 21 | SS-4090615-SP | Screw 9/64-40 L=5 | 2 |
| 22 | RO-0371801-00 | Rubber ring | 1 |
| 23 | SS-7090710-SL | Screw 9/64-40 L=6.8 | 2 |
| 24 | WS-0441040-KP | Spring washer 4.4 x 7.4 x 1 | 2 |
| 25 | WP-070316-SD | Washer 3.7 x 0.3 | 2 |
| 26 | B3534-012-000 | Gasket | 2 |
| 27 | 118-53702 | Oil joint B | 1 |
| 28 | B3525-357-000 | Connecting screw B | 1 |
| 29 | BP-3000000-00 | Vinyl tube, white D=3 | 0.1 |
Page 32 — 15. LUBRICATION MECHANISM COMPONENTS / 給油装置関係
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-14704 | Filter | 1 |
| 2 | 118-14506 | Bushing | 1 |
| 3 | B3525-357-000 | Connecting screw B | 1 |
| 4 | SQ-0000401-MZ | Connecting screw | -- |
| 4-1 | 118-42507 | Oil adjusting plate | - |
| 4-2 | WP-0520656-SA | Washer 5.2 x 9.5 x 0.6 | 1 |
| 5 | BT-0500300-E0 | Oil tube D=3 x 5 | 0.3 |
| 6 | SS-6110610-TP | Screw 11/64-40 L=6 | 1 |
| 7 | 118-40709 | Oil exhaust holder | 1 |
| 8 | WP-0480856-SP | Washer 4.8 x 8.4 x 0.8 | 1 |
| 9 | SQ-1110401-MZ | Connecting screw | 1 |
| 10 | BT-0500300-E0 | Oil tube D=3 x 5 | 0.2 |
| 11 | CQ-2020000-00 | Oil wick | 0.1 |
| 12 | 118-41608 | Upper looper guide oil felt | 1 |
| 13 | 118-40808 | Oil gauge | 1 |
| 14 | 118-40907 | Oil gauge holder | 1 |
| 15 | 118-41905 | Washer | 1 |
| 16 | 118-41053 | Float asm. | 1 |
| 17 | 118-41202 | Float support | 1 |
| 18 | SS-4150715-SP | Screw 15/64-28 L=7 | 1 |
| 19 | SS-9152130-CP | Screw 15/64-28 L=20.5 | 2 |
| 20 | WP-0612066-SP | Washer 6.1 x 11 x 2 | -- |
| 20 | WP-0651056-SH | Washer 6.5 x 11 x 1 | 2 |
| 21 | 101-26803 | Oil tube holder | 2 |
| 22 | 118-40600 | Worm | 1 |
| 23 | 118-40154 | Oil pump asm. | 1 |
| 24 | 118-41707 | Worm gear | (1) |
| 25 | SS-8110410-TP | Screw 11/64-40 L=3.5 | (2) |
| 26 | 118-41855 | Oil pump shaft large asm. | (1) |
| 27 | SQ-1150451-MZ | Connecting screw | (1) |
| 27-1 | SQ-1150452-MZ | Connecting screw | - |
| 28 | 118-40162 | Oil pump asm. | (1) |
| 29 | 118-40303 | Oil pump pinion | (1) |
| 30 | 118-40204 | Pinion gear case | (1) |
| 31 | 118-40501 | Cover | (1) |
| 32 | SS-6090650-SP | Screw 9/64-40 L=6 | (3) |
| 33 | SS-7111810-SP | Screw 11/64-40 L=18 | (2) |
| 34 | 118-42606 | Filter screen | (1) |
| 35 | 118-42705 | Filter screen retainer | (1) |
Page 33 — 16. SPECIAL ORDER PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | R4200-H0D-DAB | Throat plate asm. | 1 |
| 2 | 118-06304 | Throat plate plug | (2) |
| 3 | R4305-H0D-EAB | Throat plate asm. | 1 |
| 4 | R4508-H0D-DAC | Throat plate asm. | 1 |
| 5 | 118-92205 | Regulator hook | 1 |
| 6 | 118-92304 | Regulator hook | 1 |
| 7 | 118-92403 | Regulator hook set base | 1 |
| 8 | SD-0640211-SP | Hinge Screw D=6.35 H=2.1 | 2 |
| 9 | SS-5090420-SP | Screw 9/64-40 L=3.5 | 2 |
| 10 | B1515-804-000-A | Presser spring | 1 |
| 11 | SS-8080322-TP | Screw 1/8-44 L=3.2 | 1 |
| 12 | SS-8080322-TP | Screw 1/8-44 L=3.2 | 2 |
| 13 | B9112-804-000 | Spanner | 1 |
| 14 | B2519-804-000 | Upper looper | 1 |
| 15 | B2519-814-000 | Upper looper | 1 |
| 16 | 115-44756 | Upper looper support arm asm. | 1 |
| 17 | SS-6080410-SP | Screw 1/8-44 L=4 | (1) |
| 18 | 118-12401 | Handwheel C | 1 |
| 19 | SS-7111410-SP | Screw 11/64-40 L=14 | 3 |
| 20 | B4111-804-00E | Upper knife | 1 |
| 21 | SS-4110715-SP | Screw 11/64-40 L=7 | 1 |
| 22 | 118-55509 | Presser | 1 |
| 23 | 118-55251 | Silicon tank asm. | 1 |
| 24 | 118-55400 | Felt | 1 |
| 25 | CO-2000000-00 | Oil wick | 0.1 |
| 26 | SS-4110915-SP | Screw 11/64-40 L=9 | 1 |
| 27 | TA-0550604-RO | Rubber plug | 1 |
| 28 | 118-98103 | Presser foot auxiliary plate | 1 |
| 29 | SS-4080620-TP | Screw 1/8-44 L=6 | 1 |
| 30 | 118-34488 | Lower looper support arm asm. | 1 |
| 31 | PS-0200062-KH | Spring pin 2 x 6 | (1) |
| 32 | B2531-704-000 | Washer | (1) |
| 33 | SS-9151210-TP | Screw 15/64-28 L=11.8 | (1) |
| 34 | B2521-804-000 | Lower looper | 1 |
Page 34 — 17. SEMI-SUNKEN TYPE TABLE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-49007 | Table | 1 |
| 2 | 115-71601 | Bolt A | 4 |
| 3 | 118-50054 | Waste chute asm. | 1 |
| 4 | 118-50005 | Waste chute, upper | (8) |
| 5 | 118-49908 | Waste chute, lower | (1) |
| 6 | SK-3311600-SC | Wood screw D 3.1 L 16 | 3 |
| 7 | SS-6090630-SP | Screw 9/64-40 L-6 | 5 |
| 8 | WP-0370316-SD | Washer 3.7 x 8 x 0.3 | 3 |
| 9 | 118-50708 | Case presser plate | 1 |
| 10 | 118-50807 | Case sponge | 1 |
| 11 | 118-49403 | Cooling fan case | 1 |
| 12 | 115-71403 | Rubber cushion | 4 |
| 13 | 115-71502 | Rubber cushion base | |
| 14 | NS-6240630-SP | Nut 3/8-18 | |
| 14-1 | 118-49601 | Spacer | 4 |
| 15 | 118-49304 | Frame support plate | |
| 15-1 | 118-49361 | Frame support plate asm. | 1 |
| 16 | WP-1102016-SC | Washer 11 x 21 x 2 | 4 |
| 16-1 | WS-1002560-KR | Spring washer 10 x 18 x 2.5 | 4 |
| 17 | NS-6240630-SP | Nut 3/8-18 | 4 |
| 18 | 118-49502 | Drawer | 1 |
| 19 | B8204-012-000 | Drawer support | 2 |
| 20 | SK-1211000-SC | Wood screw D-2.1 L-10 | 6 |
| 21 | B8205-012-000 | Drawer stopper | 1 |
| 22 | SK-3482500-SC | Wood screw D 4.8 L 25 | 2 |
| NS-G240630-SP | Nut 3/8-18 | 4 | |
| WS-1002560-KB | Spring washer 10 x 18 x 2.5 | 4 | |
| BB204-012-000 | Drawer support | 2 | |
| BB205-012-000 | Drawer stopper | 1 |
Page 35 — 18. FULLY-SUNKEN TYPE TABLE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-49155 | Table asm. | 1 |
| 2 | 115-71700 | Bolt B | 2 |
| 3 | 115-71809 | Bolt C | 2 |
| 4 | 115-71809 | Bolt C | 2 |
| 5 | 115-71908 | Bolt D | 2 |
| 6 | WP-1102016-SC | Washer 11 x 21 x 2 | 12 |
| 7 | NS-6240630-SP | Nut 3/8-18 | 12 |
| 8 | 115-71403 | Rubber cushion | 4 |
| 9 | 115-71502 | Rubber cushion base | |
| 10 | 118-49353 | Frame support plate asm. | |
| 10-1 | 118-49379 | Frame support plate asm. | 1 |
| 11 | 118-49304 | Frame support plate | |
| 11-1 | 118-49361 | Frame support plate asm. | (1) |
| 12 | 118-50906 | Frame support auxiliary plate | (1) |
| 13 | SM-9083653-SN | Screw M8 L=36 | |
| SM-9082513-CF | Screw M8 L=25 | (4) | |
| 14 | NM-6080600-SM | Nut M8 | (4) |
| 15 | WP-085C002-SC | Washer 8.5 x 18 x 1.6 | (4) |
| 16 | 118-50153 | Waste chute asm. | 1 |
| 17 | 118-50104 | Waste chute | (1) |
| 18 | ST-6030821-0A | Screw D=3-24 L=8 | (2) |
| 19 | 118-50401 | Cloth waste chute inlet lever | (1) |
| 20 | 118-50203 | Cloth waste chute inlet | (1) |
| 21 | SS-6090420-SP | Screw 9/64-40 L=4.0 | (2) |
| 22 | 118-50609 | Rubber | (1) |
| 23 | 118-50500 | Spring | (1) |
| 24 | WP-0370316-SD | Washer 3.7 x 8 x 0.3 | (1) |
| 25 | ST-6030821-0A | Screw D=3-24 L=8 | (1) |
| 26 | SS-5110710-SP | Screw 11/64-40 L=7 | 2 |
| 27 | 118-49403 | Cooling fan case | 1 |
| 28 | 118-50807 | Case sponge | 1 |
| 29 | 118-50708 | Case presser plate | 1 |
| 30 | WP-0370316-SD | Washer 3.7 x 8 x 0.3 | 3 |
| 31 | SS-6090630-SP | Screw 9/64-40 L=6 | 5 |
| 32 | 118-49502 | Drawer | 1 |
| 33 | B8204-012-000 | Drawer support | 2 |
| 34 | SK-1211000-SC | Wood screw D=2.1 L=10 | 6 |
| 35 | B8205-012-000 | Drawer stopper | 1 |
| 36 | SK-3482500-SC | Wood screw D=4.8 L=25 | 2 |
| WP-0850002-SC | Washer 8.5 x 18 x 1.6 | ||
| 118-49602 | Drawer | ||
| 88204-012-000 | Drawer support |
Page 37 — 19. THREAD STAND COMPONENTS (FOR MO-2404, MO-2414)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B3301-704-LA0 | Thread stand asm. | 1 |
| 2 | B3301-704-LAC | Thread stand asm. | 1 |
| 3 | B3302-704-LCB | Thread guide asm. B | (2) |
| 4 | B3319-704-L00 | Thread guide | (4) |
| 5 | B3318-704-L00-A | Thread guide arm joint | (4) |
| 6 | SM-6061610-SC | Screw M6 L=16 | (4) |
| 7 | B3311-704-000 | Spool rest rod rubber cap | (1) |
| 8 | B3313-704-L00 | Spool rest rod rubber cap | (1) |
| 9 | B3305-704-000-A | Spool rest rod joint | (1) |
| 10 | SM-4051405-SE | Screw M5 x 0.8 L=14 | (2) |
| 11 | NM-6050001-SE | Nut M5 x 0.8 | (2) |
| 12 | B3309-704-0A0 | Thread guide arm asm. | (1) |
| 13 | B3311-804-000 | Lower thread guide | (1) |
| 14 | SS-7110540-SP | Screw 11/64-40 L=5 | (1) |
| 15 | B3309-704-000 | Thread guide arm | (1) |
| 16 | B3304-704-000-A | Thread guide arm holder | (1) |
| 17 | SM-6053000-SE | Screw M5 x 0.8 L=30 | (1) |
| 18 | NM-6050001-SE | Nut M5 x 0.8 | (1) |
| 19 | B3301-704-000-A | Spool rest rod, lower | (1) |
| 20 | B3322-704-L00 | Spool retainer | (4) |
| 21 | B3320-704-L00-A | Spool pin | (4) |
| 22 | B3311-012-000 | Spool rest cushion | (4) |
| 23 | B3303-704-L00-A | Spool rest | (4) |
| 24 | B3302-704-L0B-A | Spool rest arm, B | (2) |
| 25 | WS-0510002-KN | Spring washer 5.1 x 9.2 x 1.3 | (4) |
| 26 | NM-6050001-SE | Nut M5 x 0.8 | (4) |
| 27 | B3317-704-000 | Nut C15 | (2) |
| 28 | WP-1702600-SO | Washer 17 x 30 x 2.7 | (2) |
| 29 | WS-1643202-KR | Spring washer 16.4 x 27.7 x 3.2 | (1) |
| 30 | B3302-704-LA0 | Thread guide asm., A | (2) |
| 31 | B3319-704-L00 | Thread guide | (4) |
| 32 | B3302-704-L00-A | Spool rest arm, A | (2) |
| 33 | B3321-704-L0B | Spool rest arm support, B | (1) |
| 34 | SM-4061201-SE | Screw M6 L=12 | (2) |
| 35 | NM-6060001-SE | Nut M6 | (2) |
| 36 | SK-3382001-SE | Wood screw D=3.8 L=20 | (2) |
| 37 | B3321-704-L00 | Spool rest arm support, A | (1) |
| 38 | MAO-11532000 | Staple | 3 |
Page 39 — 20. THREAD STAND COMPONENTS (FOR MO-2416)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B3301-716-LA0 | Thread stand asm. | 1 |
| 2 | B3301-716-LAC | Thread stand asm. | 1 |
| 3 | B3302-704-LB0 | Thread guide asm. A | (1) |
| 4 | B3319-704-L00 | Thread guide | (3) |
| 5 | B3318-704-L00-A | Thread guide arm joint | (4) |
| 6 | SM-6061610-SC | Screw M6 L=16 | (4) |
| 7 | B3311-704-000 | Spool rest rod rubber cap | (1) |
| 8 | B3302-704-LCB | Thread guide asm. B | (1) |
| 9 | B3319-704-L00 | Thread guide | (2) |
| 10 | B3313-704-L00 | Spool rest rod, upper | (1) |
| 11 | B3305-704-000-A | Spool rest rod joint | (1) |
| 12 | NM-6050001-SE | Nut M5 x 0.8 | (2) |
| 13 | SM-4051405-SE | Screw M5 x 0.8 L=14 | (2) |
| 14 | B3309-704-0A0 | Thread guide arm asm. | (1) |
| 15 | B3311-804-000 | Lower thread guide | (1) |
| 16 | SS-7110540-SP | Screw 11/64-40 L=5 | (1) |
| 17 | B3309-704-000 | Thread guide arm | (1) |
| 18 | B3304-704-000-A | Thread guide arm holder | (1) |
| 19 | SM-6053000-SE | Screw M5 x 0.8 L=30 | (1) |
| 20 | NM-6050001-SE | Nut M5 x 0.8 | (1) |
| 21 | B3301-704-000-A | Spool rest rod, lower | (1) |
| 22 | B3322-704-L00 | Spool retainer | (5) |
| 23 | B3320-704-L00-A | Spool pin | (5) |
| 24 | B3311-012-000 | Spool rest cushion | (5) |
| 25 | B3303-704-L00-A | Spool rest | (5) |
| 26 | B3302-704-L0B-A | Spool rest arm, B | (1) |
| 27 | WS-0510002-KN | Spring washer 5.1 x 9.2 x 1.3 | (5) |
| 28 | NM-6050001-SE | Nut M5 x 0.8 | (5) |
| 29 | B3302-704-L00-A | Spool rest arm, A | (1) |
| 30 | B3317-704-000 | Nut C15 | (2) |
| 31 | WP-1702600-S0 | Washer 17 x 30 x 2.6 | (2) |
| 32 | WS-1643202-KR | Spring washer 16.4 x 26.6 x 3.2 | (1) |
| 33 | B3321-704-L00 | Spool rest arm support, A | (1) |
| 34 | SM-4061201-SE | Screw M6 L=12 | (1) |
| 35 | NM-6060001-SE | Nut M6 | (1) |
| 36 | SK-3382001-SE | Screw D=3.8 L=20 | (1) |
| 37 | B3302-704-LBB | Thread guide asm. B | (1) |
| 38 | B3319-704-L00 | Thread guide | (1) |
| 39 | B3318-704-L00-A | Thread guide arm joint | (2) |
| 40 | SM-6061610-SC | Screw M6 L=16 | (2) |
| 41 | B3302-704-LA0 | Thread guide asm., A | (2) |
| 42 | B3319-704-L00 | Thread guide | (4) |
| 43 | B3302-704-L0B-A | Spool rest arm, B | (1) |
| 44 | B3302-704-L00-A | Spool rest arm, A | (1) |
| 45 | B3321-704-L0B | Spool rest arm support, B | (1) |
| 46 | SM-4061201-SE | Screw M6 L=12 | (1) |
| 47 | NM-6060001-SE | Nut M6 | (1) |
| 48 | SK-3382001-SE | Screw D=3.8 L=20 | (1) |
| 49 | MAO-11532000 | Staple | 3 |
| B3301-704-L00-A | Spool rest arm, A | (1) | |
| WP-1702500-SO | Washer 17 x 30 x 2.6 | (2) |
Page 42
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30 | CS-087081A-SH | ||
| 17 | CS-095081B-SH | ||
| 2 | CS-103121A-SH | ||
| 5 | CS-111101E-SH | ||
| 13 | CS-1201010-SH | ||
| 38 | MAO-11532000 | ||
| 49 | MAO-11532000 | ||
| 67 | MC-0336007-50 | ||
| 70 | MC-0336007-50 | ||
| 66 | MDC-270B0900 | ||
| 69 | MDC-270B0900 | ||
| 66 | MDC-270B1100 | ||
| 69 | MDC-270B1100 | ||
| 73 | MDC-270B1100 | ||
| 11 | NM-6050001-SE | ||
| 18 | NM-6050001-SE | ||
| 26 | NM-6050001-SE | ||
| 12 | NM-6050001-SE | ||
| 20 | NM-6050001-SE | ||
| 28 | NM-6050001-SE | ||
| 35 | NM-6060001-SE | ||
| 35 | NM-6060001-SE | ||
| 47 | NM-6060001-SE | ||
| 14 | NM-6080600-SM | ||
| 19 | NS-6090310-SP | ||
| 29 | NS-6110310-SP | ||
| 10 | NS-6110420-SP | ||
| 20 | NS-6120310-SP | ||
| 14 | NS-6240630-SP | ||
| 17 | NS-6240630-SP | ||
| 7 | NS-6240630-SP | ||
| 7 | NS-6620320-SP | ||
| 39 | NS-6680410-SP | ||
| 18 | PD-0201000-0D | ||
| 55 | PS-0200062-KH | ||
| 29 | PS-0200062-KH | ||
| 31 | PS-0200062-KH | ||
| 32 | PS-0300132-KH | ||
| 22 | PS-0400182-K0 | ||
| 59 | PS-0400222-K0 | ||
| 25 | RE-0500000-K0 | ||
| 58 | RE-0900000-KP | ||
| 3 | RO-0371801-00 | ||
| 36 | RO-0371801-00 | ||
| 22 | RO-0371801-00 | ||
| 55 | RO-0601501-00 | ||
| 4 | RO-0781901-00 | ||
| 37 | RO-3473501-00 | ||
| 48 | RO-4801201-00 | ||
| 1 | R4200-H0D-DAB | ||
| 2 | R4200-H0D-DA0 | ||
| 4 | R4205-H0D-EA0 | ||
| 3 | R4305-H0D-EAB | ||
| 4 | R4508-H0D-DAC | ||
| 5 | R4508-H0D-DA0 | ||
| 7-1 | SB-1100003-00 | ||
| 34 | SB-1150003-00 |
Page 43
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | SS-9661230-CP | ||
| 3-1 | TA-0800504-RO | ||
| 4 | TA-0180401-MO | ||
| 4-2 | WP-0520656-SA | ||
| 4-1 | WZ-0420350-KP | ||
| 9 | WP-0250516-SD | ||
| 13-1 | WP-0450000-SD | ||
| 14 | TA-1030402-RO | ||
| 15 | SS-9090813-TP | ||
| 15 | WASHER | ||
| 15 | WP-0850002-SC | ||
| 16 | WP-1102016-SC | ||
| 16-1 | WS-1002560-KR | ||
| 17 | WP-0370316-SD | ||
| 19 | SS-9152130-CP | ||
| 20 | WP-0651056-SH | ||
| 22 | SS-9111050-SP | ||
| 24 | SS-9111010-SP | ||
| 24 | WS-0441040-KP | ||
| 25 | SS-9111610-SP | ||
| 25 | TA-2050805-RO | ||
| 25 | WA-0510002-KN | ||
| 27 | TA-0550604-RO | ||
| 27 | WS-0510002-KN | ||
| 28 | SS-9112310-SP | ||
| 28 | WP-1702600-SO | ||
| 29 | SS-9151210-TP | ||
| 29 | WS-1643202-KR | ||
| 31 | TA-1250406-RO | ||
| 31 | TA-1871602-RO | ||
| 33 | PLUG | ||
| 33 | WP-0751576-SD | ||
| 35 | ST-6030821-0A | ||
| 36 | WZ-2640310-KH | ||
| 38 | WS-0822010-KP | ||
| 43 | WP-0764016-SP | ||
| 44 | SS-9681610-TP | ||
| 47 | WS-0451040-KP | ||
| 49-1 | WP-0480856-SP | ||
| 66 | WP-0621016-SD |
Juki MO-2416 — parts catalog
- Page 1 (cover): This is the cover page for the JUKI MO-2400, MO-2404-OD4, MO-2414-BD4, and MO-2416-DD4 industrial sewing machine parts book. It includes the JUKI logo, model numbers, and the title "PARTS BOOK".
- Page 2 (unknown): This page contains a watermark and no other discernible text or parts information.
- Page 3 (cover): This is the cover page for the JUKI MO-2400, MO-2414, and MO-2416 series industrial sewing machines parts book, published in 1986-9.
- Page 4 (unknown): This page contains a watermark with the text "jintex.in". There is no other discernible content on the page.
- Page 5 (text): This page explains how to use the parts book, including explanations of codes and examples of part entries, and provides instructions for ordering spare parts.
- Page 6 (text): This page explains how to read the parts book, including how to interpret notes, change indicators, and quantity notations. It also provides examples of part listings and instructions for ordering replacement parts.
- Page 7 (toc): This page is a table of contents for a parts catalog, listing sections such as Frame Components, Crankshaft Components, Feed Mechanism Components, and more, along with their corresponding page numbers.
- Page 8 (diagram): This page displays a diagram of frame components for a JUKI sewing machine, with numbered parts and their corresponding reference numbers.
- Page 9 (parts_list): Parts list page of frame components (1) with reference numbers, part numbers, English and Japanese names, E.C. dates and quantities for a sewing machine.
- Page 10 (diagram): This page displays diagrammatic representations of frame components for a JUKI sewing machine, including various screws, gaskets, and housing parts labeled with reference numbers.
- Page 11 (parts_list): This page lists frame components (2) for MO-2404 and MO-2414 models, including upper covers, gaskets, oil caps, screws, and other hardware with their respective part numbers and quantities.
- Page 12 (diagram): This page displays a diagram of crankshaft components, illustrating various parts with reference numbers for identification.
- Page 13 (parts_list): This page lists crankshaft components with their part numbers, descriptions, and quantities, including notes on applicable models.
- Page 14 (diagram): This page displays a diagram of needle driving shaft components, with numbered parts and their corresponding references.
- Page 15 (parts_list): This page lists needle driving shaft components, including part numbers, descriptions, and quantities. It also includes notes on part selection for specific models.
- Page 16 (diagram): This page displays a diagram of feed mechanism components, labeled with reference numbers from 1 to 45.
- Page 17 (parts_list): This page lists components for the feed mechanism, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of the feed mechanism components (2) for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 19 (parts_list): This page lists components for the feed mechanism, including part numbers, descriptions, and quantities, with notes indicating applicability to specific machine models like MO-2404, MO-2414, and MO-2416.
- Page 20 (diagram): This page displays a diagram of upper and lower looper components, with numbered parts and their corresponding references.
- Page 21 (parts_list): This page lists upper and lower looper components for MO-2404, MO-2414, and MO-2416 sewing machines, including part numbers, descriptions, and quantities.
- Page 22 (parts_list): This page lists chain looper components for model MO-2416, including part numbers, descriptions, and quantities.
- Page 23 (parts_list): This page lists presser foot components, including part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays diagrammatic representations of presser foot components, with numbered parts and their corresponding references.
- Page 25 (parts_list): This page lists presser foot components, including part numbers, descriptions, and quantities, with notes indicating applicability to specific machine models.
- Page 26 (diagram): This page displays a diagram of thread tension components, including various parts labeled with reference numbers and some associated part numbers and model information.
- Page 27 (parts_list): This page lists thread tension components for MO-2416, MO-2414, and MO-2404 sewing machines, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of lower knife components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 29 (parts_list): This page lists lower knife components for sewing machines, including part numbers, descriptions, quantities, and notes on applicable models like MO-2404, MO-2414, MO-2416, and MO-2474.
- Page 30 (parts_list): This page lists upper knife components, including part numbers, descriptions, and quantities, with notes explaining different part designations.
- Page 31 (diagram): This page displays a diagram of the needle cooling mechanism components, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 32 (diagram): Exploded diagram of the lubrication mechanism components with an accompanying parts table listing reference numbers, part numbers, descriptions, E.C. dates and quantities.
- Page 33 (parts_list): This page lists special order parts for sewing machines, including part numbers, descriptions, and usage notes for various models like MO-2404 and MO-2416.
- Page 34 (parts_list): This page lists components for the semi-sunken type table, including part numbers, descriptions, and quantities.
- Page 35 (parts_list): This page lists components for the fully-sunken type table, including part numbers, descriptions, quantities, and remarks. It also contains a diagram illustrating the assembly.
- Page 36 (diagram): This page displays diagram 19, which details the thread stand components for MO-2404 and MO-2414 sewing machines, along with a list of numbered parts.
- Page 37 (parts_list): This page lists thread stand components for MO-2404 and MO-2414 models, including part numbers, descriptions, quantities, and remarks.
- Page 38 (diagram): This page displays a diagram of thread stand components for the MO-2416 sewing machine, with numbered parts and their corresponding details.
- Page 39 (parts_list): This page lists thread stand components for model MO-2416, including part numbers, descriptions, and quantities.
- Page 42 (parts_list): Parts cross-reference table (Part No., Page, Ref. No.) for a sewing machine catalog, with four column groups; this extraction covers only the leftmost column group, covering exclusive M parts, needles, nuts, pins, snap rings, rubber rings, throat plates and bearings.
- Page 43 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including part numbers, reference numbers, and page numbers where they can be found. It lists parts such as SS-9090813-TP, SS-9111010-SP, and WP-0850002-SC, among others.
- Page 44 (text): This page contains the text "M E M O".
- Page 45 (unknown): This page contains a watermark with the text "jinttex.in" and a footer with the same text.
- Page 46 (cover): This is the cover page of the JUKI industrial sewing machine parts catalog, featuring the JUKI logo and company information, along with a "Printed in Japan" note.
