Page 4 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Juki MO-3300 Series parts on page 4
Ref	Part number	Part name
46	46	SCREW
91	91	SCREW
47	47	WASHER
31	31	SCREW
73	73	WASHER
30	30	SCREW
28	28	SCREW
71	71	WASHER
49	49	SCREW
72	72	WASHER
51	51	SCREW
29	29	WASHER
92	92	WASHER
83	83	SCREW
24	24	COVER
25	25	COVER
19	19	COVER
17	17	BRACKET
60	60	SCREW
68	68	SCREW
67	67	WASHER
20	20	CAP
63	63	SPRING
61	61	PIN
26	26	COVER
23	23	COVER
2	2	COVER
42	42	PLATE
50	50	SCREW
82	82	BRACKET
7	7	GASKET
81	81	SCREW
80	80	SCREW
37	37	BRACKET
86	86	PLUG
64	64	SPRING
62	62	PIN
44	44	COVER
84	84	COVER
1	1	COVER
3	3	COVER
5	5	COVER
89	89	RING
48	48	SCREW
43	43	LABEL
4	4	GASKET
36	36	COVER
79	79	SCREW
35	35	COVER
38	38	SCREW
78	78	SCREW
13	13	SCREW
39~41	39~41	SCREW
10	10	BRACKET
87	87	SCREW
85	85	PLUG
14	14	SHAFT
59	59	SCREW
90	90	SCREW
52	52	WASHER
16	16	BRACKET
18	18	BRACKET
57	57	SCREW
22	22	COVER
58	58	BRACKET
27	27	BRACKET
32	32	SPRING
69	69	SCREW
34	34	GASKET
33	33	COVER
75	75	WASHER
74	74	NUT
77	77	WASHER
76	76	SCREW
55	55	SCREW
12	12	BRACKET
9	9	COVER
11	11	BRACKET
54	54	SCREW
45	45	SCREW
53~4	53~4	SCREW
15	15	SHAFT

Page 5

Juki MO-3300 Series parts on page 5
Part number	Part name	Qty
124-00107	SIDE COVER	1
124-00206	SIDE COVER GASKET	1
124-00305	UPPER COVER	1
124-00404	UPPER COVER GASKET	1
124-00503	OIL SIGHT WINDOW	1
124-00602	FEED MECHANISM COVER	1
124-00701	GASKET	1
124-00800	UPPER COVER BRACKET	1
124-00909	UPPER COVER	1
124-01006	UPPER COVER STOPPER	1
124-01105	GUIDE PLATE	1
124-01204	PRESSER	1
124-01303	PRESSER	1
124-01402	HINGE PIN	1
124-01501	LOOPER COVER SPRING	1
124-01717	CLOTH PLATE RIB COVER	1
124-01717	CLOTH PLATE RIB COVER	1
124-02754	CLOTH PLATE COMPL.	1
124-02805	CLOTH PLATE COMPL.	1
124-03202	CLOTH PLATE COMPL.	1
124-02905	CLOTH WASTE COVER COMPL.	1
124-03259	CLOTH WASTE COVER COMPL.	1
124-03202	CLOTH WASTE COVER COMPL.	1
124-09009	COVER	1
124-09105	GASKET	2
124-03303	RUBBER CLOTH COVER	1
124-03507	EYE GUARD COVER BASE	1
124-03705	EYE GUARD COVER	1
124-03804	EYE GUARD COVER BASE COLLAR	1
124-03903	EYE GUARD COVER BASE HOSING	1
124-04000	BOLT	1
124-04109	OIL RESERVOIR	1
124-04208	OIL RESERVOIR GASKET	1
124-04307	BELT COVER	1
124-04400	BELT COVER B	1
124-04406	THROAT PLATE RETAINER	1
124-04505	THREAD GUIDE, LARGE	1
124-05403	THREADING DIAGRAM	1
124-05502	THREADING DIAGRAM	1
124-05700	THREADING DIAGRAM	1
124-05700	THREADING DIAGRAM	1
CM-3002001-A1	SAFETY LABEL..3 (SMALL).	1
100-04109	GROUND MARK	1
CM-3002000-01	ATTENTION SEAL	1
SM-4041055-SP	SCREW	4
310-07107	BUSHING D PLUG	1
310-19508	SCREW	1
SM-4040855-SP	SCREW	1
SM-1040801-SP	SCREW	1
J10-0680E	SCREW	1
SM-4041055-SP	SCREW	1
SM-4040412-TP	SCREW	1
SM-4040655-SP	SCREW	1
310-16005	SCREW	1
SM-4040655-SP	SCREW	1
SM-4040655-SP	SCREW	1
SS-2090520-SL	SCREW 9/64-40 L=5	1
MS-6090310-SN	NUT 9/64-40	1
SM-4040655-SP	SCREW	1
310-00003	CLOTH PLATE HINGE SHAFT COLLAR	1
SM-6030312-TP	SCREW M3 L=6	1
RZ-0429360-SP	SCREW M4 L=6	1
SM-9040612-TP	SCREW M4 L=6	1
SM-6040900-SP	SCREW M4 L=6	1
WP-0430800-SP	WASHER M4	1
SM-4040655-SP	SCREW M4 L=6	1
WP-0430800-SB	WASHER M3	1
SM-4040655-SP	SCREW M4 L=6	1
310-15508	SCREW	1
WZ-060302-KO	WAVEL WASHER B.8X12.8X0.3	1
SM-6030500-SH	SCREW M3 L=6	1
310-11505	WASHER	1
310-06103	NUT	1
310-11208	WASHER	1
310-14103	SCREW	1
RO-1082401-00	RUBBER RING	1
SM-4051655-SP	SCREW M5 L=16	2
310-26008	SCREW	2
310-24102	SCREW	2
WP-0320501-SD	WASHER	1
SM-8040412-TP	SET SCREW	1
SM-4040655-SP	SCREW	1
310-07008	RUBBER PLUG	1
310-07206	RUBBER PLUG	1
310-07107	BUSHING D PLUG	1
310-07008	RUBBER PLUG	1
SM-4061255-SP	SCREW M6 L=12	1
RO-2182401-00	RUBBER RING	1
WP-0430800-SD	WASHER M4	3
310-15209	SCREW	1
124-03506	EYE GUARD COVER	1

Page 6 — 2. CRANKSHAFT COMPONENTS

Juki MO-3300 Series parts on page 6
Ref	Part number	Part name
16	16	BEARING
19	19	BEARING
31	31	PIN
18	18	FLANGE
14	14	FLANGE
13	13	WASHER
21	21	NUT
17	17	FLANGE
30	30	COLLAR
15	15	SCREW
29	29	SCREW
22	22	KEY
20	20	PLUG
21	21	NUT
5	5	FLANGE
12	12	PLUG
28	28	SCREW
11	11	RING
9	9	WASHER
8	8	WASHER
7	7	BEARING
10	10	SCREW
6	6	FLANGE
2	2	FLANGE
23	23	SCREW
3	3	FLANGE
25	25	VALVE
26	26	SPRING
24	24	WASHER
32	32	FAN
27	27	FLANGE
33	33	SCREW

Page 7

Juki MO-3300 Series parts on page 7
Ref	Part number	Part name
1	124-10015	CRANKSHAFT
2	124-10106	HAND WHEEL B
3	124-10205	HAND WHEEL A
4	124-10353	CRANKSHAFT THRUST COLLAR ASM.
5	124-10304	CRANKSHAFT THRUST COLLAR
6	124-10403	BEARING SUPPORT PLATE
7	310-04104	CRANKSHAFT BEARING
8	124-10502	BEARING RECEIVIG PLATE
9	310-12909	WASHER
10	SM-6040800-SP	SCREW
11	RO-4973501-00	RUBBER RING
12	124-10601	OIL SHIELD
13	124-10700	BEARING RETAINER
14	124-10809	CRANKSHAFT BUSHING B
15	124-10908	SCREW
16	124-11112	CRANKSHAFT BUSHING C
17	124-11203	CRANKSHAFT BUSHING D
18	124-11302	BUSHING D GASKET
19	310-04005	BUSHING D BEARING
20	310-07107	BUSHING D PLUG
21	SM-8060612-TP	SCREW M6 L=6
22	SM-8040310-SS	SCREW M4 L=3
23	310-19706	SCREW
24	310-10606	WASHER
25	SM-8061212-TP	SCREW M6X12
26	SM-6062502-TP	SCREW M6 L=16
27	310-11000	WASHER
28	SM-6051600-SP	SCREW M5 L=16
29	SM-6041000-SP	SCREW M4 L=10
30	310-00300	SLIDE BLOCK COLLAR
31	SM-8040412-TP	SET SCREW M4 L=4
32	124-11500	COOLING FAN
33	310-21207	SCREW

Page 8 — 3. NEEDLE DRIVING SHAFT COMPONENTS

Juki MO-3300 Series parts on page 8
Ref	Part number	Part name	Qty
	26	NEEDLE DRIVING SHAFT COMPONENTS
	25	NEEDLE DRIVING SHAFT COMPONENTS
	28	NEEDLE DRIVING SHAFT COMPONENTS
	53	NEEDLE DRIVING SHAFT COMPONENTS
	22	NEEDLE DRIVING SHAFT COMPONENTS
	51	NEEDLE DRIVING SHAFT COMPONENTS
	27	NEEDLE DRIVING SHAFT COMPONENTS
	24	NEEDLE DRIVING SHAFT COMPONENTS
	53	NEEDLE DRIVING SHAFT COMPONENTS
	52	NEEDLE DRIVING SHAFT COMPONENTS
	21	NEEDLE DRIVING SHAFT COMPONENTS
	27	NEEDLE DRIVING SHAFT COMPONENTS
	53	NEEDLE DRIVING SHAFT COMPONENTS
	23	NEEDLE DRIVING SHAFT COMPONENTS
	52	NEEDLE DRIVING SHAFT COMPONENTS
	20	NEEDLE DRIVING SHAFT COMPONENTS
	51	NEEDLE DRIVING SHAFT COMPONENTS
	3	NEEDLE DRIVING SHAFT COMPONENTS
	5	NEEDLE DRIVING SHAFT COMPONENTS
	37	NEEDLE DRIVING SHAFT COMPONENTS
	47	NEEDLE DRIVING SHAFT COMPONENTS
	38	NEEDLE DRIVING SHAFT COMPONENTS
	2	NEEDLE DRIVING SHAFT COMPONENTS
	46	NEEDLE DRIVING SHAFT COMPONENTS
	56~58	NEEDLE DRIVING SHAFT COMPONENTS
	36	NEEDLE DRIVING SHAFT COMPONENTS
	39	NEEDLE DRIVING SHAFT COMPONENTS
	4	NEEDLE DRIVING SHAFT COMPONENTS
	47	NEEDLE DRIVING SHAFT COMPONENTS
	46	NEEDLE DRIVING SHAFT COMPONENTS
	10	NEEDLE DRIVING SHAFT COMPONENTS
	6	NEEDLE DRIVING SHAFT COMPONENTS
	45	NEEDLE DRIVING SHAFT COMPONENTS
	41	NEEDLE DRIVING SHAFT COMPONENTS
	7	NEEDLE DRIVING SHAFT COMPONENTS
	43	NEEDLE DRIVING SHAFT COMPONENTS
	9	NEEDLE DRIVING SHAFT COMPONENTS
	42	NEEDLE DRIVING SHAFT COMPONENTS
	12	NEEDLE DRIVING SHAFT COMPONENTS
	19	NEEDLE DRIVING SHAFT COMPONENTS
	30	NEEDLE DRIVING SHAFT COMPONENTS
	32	NEEDLE DRIVING SHAFT COMPONENTS
	31	NEEDLE DRIVING SHAFT COMPONENTS
	29	NEEDLE DRIVING SHAFT COMPONENTS
	13	NEEDLE DRIVING SHAFT COMPONENTS
	55	NEEDLE DRIVING SHAFT COMPONENTS
	49	NEEDLE DRIVING SHAFT COMPONENTS
	33	NEEDLE DRIVING SHAFT COMPONENTS
	14	NEEDLE DRIVING SHAFT COMPONENTS
	16	NEEDLE DRIVING SHAFT COMPONENTS
	18	NEEDLE DRIVING SHAFT COMPONENTS
	17	NEEDLE DRIVING SHAFT COMPONENTS
	48	NEEDLE DRIVING SHAFT COMPONENTS
	8	NEEDLE DRIVING SHAFT COMPONENTS
	50	NEEDLE DRIVING SHAFT COMPONENTS
	15	NEEDLE DRIVING SHAFT COMPONENTS
	34	NEEDLE DRIVING SHAFT COMPONENTS
	14	NEEDLE DRIVING SHAFT COMPONENTS
	34	NEEDLE DRIVING SHAFT COMPONENTS

Page 9

Juki MO-3300 Series parts on page 9
Part number	Part name	Qty
124-12608	NEEDLE DRIVING ROD	1
124-12607	NEEDLE DRIVING FORKED CRANK	1
124-12805	NEEDLE DRIVING SHAFT	1
124-12904	BUSHING, FRONT	1
124-13001	BUSHING, REAR	1
124-13209	NEEDLE DRIVING ARM	1
124-13308	NEEDLE DRIVING LINK	1
124-65407	NEEDLE CLAMP, CHAIN LOOPER
124-13506	NEEDLE BAR HOLDER	1
124-13605	NEEDLE BAR BUSHING, UPPER	1
124-65100	NEEDLE CLAMP, 2-NEEDLE
124-13803	NEEDLE BAR	1
124-13902	NEEDLE BAR BUSHING, LOWER	1
124-16103	NEEDLE THREAD PRESSER GUIDE A
124-14009	NEEDLE THREAD PRESSER GUIDE
124-14207	NEEDLE THREAD PRESSER PLATE A	1
124-14405	NEEDLE THREAD PRESSER SPRING	1
124-14504	FELT A	1
124-15709	FELT A	2
124-14603	TAKE-UP LEVER
124-14702	TAKE-UP LEVER, 2-NEEDLE
124-14801	TAKE-UP LEVER, CHAIN LOOP
124-14900	NEEDLE THREAD GUIDE
124-15006	NEEDLE THREAD GUIDE, 2-NEEDLE
124-15105	THREAD GUIDE, CHAIN LOOP
124-15303	TAKE-UP LEVER GUIDE
124-15402	TAKE-UP LEVER GUIDE, 2-NEEDLE
124-15501	TAKE-UP LEVER GUIDE, CHAIN LOOP
124-15600	COVER	1
BP-3000001-00	VINYL TUBE	0.31
CQ-2000000-00	OIL WICK	0.32
TA-0071101-RO	PLUG	1
MDC-270B1100	NEEDLE BCX27 #11
MDC-270B1100	NEEDLE BCX27 #11
SM-6041202-TP	SCREW M4 L=12	2
SM-6040600-SP	SCREW M4 L=6	1
SM-6061202-TP	SCREW M6 L=12	1
CQ-2000000-00	OIL WICK	0.04
SM-6061002-TP	SCREW M6 L=10	1
SM-8050502-TP	SCREW M5 L=5	1
SM-8030312-TP	SCREW M3 L=3	1
SM-6041000-SP	SCREW M4 L=10	1
SM-8030312-TP	SCREW M3 L=3	1
CQ-2000000-00	OIL WICK	1
310-20605	SCREW	2
310-00409	THRUST COLLAR	4
SM-8040412-TP	SET SCREW M4 L=4	1
310-17205	SCREW	1
SM-8030312-TP	SCREW M3 L=3
SM-8030312-TP	SCREW M3 L=3
SM-6040800-SP	SCREW M4 L=6	2
SM-6040600-SP	SCREW M4 L=6	2
SM-4040655-SP	SCREW M4 L=6	2
310-18104	SCREW	1
124-65001	NEEDLE CLAMP
124-16202	CRANK PIN C
124-16509	CRANK PIN C
124-16400	CRANK PIN B
124-12201	LINK PIN C
124-12003	LINK PIN A
124-12702	LINK PIN B

Page 10 — 4. PRESSER FOOT COMPONENTS(1)

Juki MO-3300 Series parts on page 10
Ref	Part number	Part name
40	40	Screw
26	26	Washer
25	25	Spring
24	24	Nut
17	17	Hook
18	18	Lever
34	34	Screw
33	33	Nut
19	19	Bracket
32	32	Screw
28	28	Screw
27	27	Screw
3	3	Shaft
5	5	Shaft
13	13	Cap
12	12	Spring
29	29	Pin
6	6	Shaft
14	14	Lever
31	31	Screw
15	15	Washer
1	1	Shaft
38	38	Screw
23	23	Bracket
37	37	Screw
30	30	Screw
11	11	Nut
9	9	Shaft
22	22	Screw
21	21	Screw
10	10	Shaft
41	41	Wire
20	20	Screw
35	35	Screw
2	2	Shaft
4	4	Pin
7	7	Pin
39	39	Screw
8	8	Lever
16	16	Pin

Page 11

Juki MO-3300 Series parts on page 11
Ref	Part number	Part name
1	124-17507	PRESSER FOOT SHAFT
2	124-17606	BUSHING
3	124-17705	LIFTING ARM
4	124-17804	SPRING
5	124-17903	THRUST ARM
6	124-18000	PRESSER FOOT SHAFT ARM
7	124-18109	PRESSER FOOT ARM HINGE SHAFT
8	124-18208	PRESSER FOOT ARM
9	124-18414	PRESSER BAR
10	124-18513	PRESSER BAR BLOCK
11	124-18604	LIFTING PIN BLOCK
12	124-18703	PRESSER SPRING
13	124-18802	PRESSER REGULATOR SCREW
14	124-18950	PRESSER LIFTING LEVER ASM.
15	124-19107	SPRING
16	124-19206	STOPPER
17	124-19305	LEVER HOOK
18	124-19404	PRESSER FOOT LIFTING LEVER
19	124-19503	STOPPER PLATE
20	124-19602	THREAD TRIMMER
21	124-19701	STOPPER
22	124-19800	PRESSER FOOT ARM SPRING
23	124-20006	STOPPER
24	124-20105	HINGE SCREW
25	124-20204	LIFTING LEVER SPRING
26	124-20303	LIFTING LEVER SPRING HOOK
27	SS-6110710-TP	SCREW 11/64-40 L=6.5
28	SS-9151210-TP	SCREW 15/64-28 L=11.8
29	SM-8030312-TP	SCREW M3 L=3
30	310-01506	PRESSER BAR LIFTING PIN
31	310-13606	HINGE SCREW
32	SM-6051400-SP	SCREW
33	NM-6050001-SP	NUT M5
34	310-21207	SCREW
35	310-18005	SCREW
36	310-18005	SCREW
37	310-18005	SCREW
38	310-18005	SCREW
39	SM-8051002-TP	SCREW M5 L=10
40	SM-6060800-SP	SCREW M6 L=8
41	124-67700	FINGER GUARD

Page 12 — 5. PRESSER FOOT COMPONENTS(2)

Juki MO-3300 Series parts on page 12
Ref	Part number	Part name	Qty
	1	PRESSER FOOT COMPONENTS(2)
	2	BASE PLATE
	3	GUIDE
	4	SPRING HOUSING
	5	PRESSER BAR
	6	WASHER
	7	BRACKET
	8	SCREW
	9	SCREW
	10	SCREW
	11	SCREW
	12	PRESSER FOOT COMPONENTS
	13	PRESSER FOOT
	14	PRESSER FOOT HOLDER
	15	SPRING HOUSING
	16	PRESSER BAR
	17	WASHER
	18	BRACKET
	19	SCREW
	20	SCREW
	21	SCREW
	22	SCREW
	23	PRESSER FOOT COMPONENTS
	24	PRESSER FOOT
	25	PRESSER BAR
	26	BRACKET
	27	ADJUSTING SCREW
	28	SPRING GUIDE
	29	SCREW
	30	SPRING
	31	SCREW
	32	SCREW
	33	NUT

Page 13

Juki MO-3300 Series parts on page 13
Ref	Part number	Part name
1	124-66058	PRESSER FOOT ASM.
2	124-67007	PRESSER FOOT
3	124-67106	CURL GUARD
4	124-67205	STITCH TONGUE
5	124-67304	PRESSER FOOT HINGE
6	124-67403	SPRING
7	124-67502	REAR PRESSER FOOT
8	SS-6090670-TP	SCREW 9/64-40 L=6
9	310-16306	SCREW
10	310-16207	SCREW
11	SS-6060410-TP	SCREW 3/32-56 L=3.5
12	124-66553	PRESSER FOOT ASM.
13	124-67809	PRESSER FOOT
14	124-67106	CURL GUARD
15	124-67908	STITCH TONGUE
16	124-67304	PRESSER FOOT HINGE
17	124-67403	SPRING
18	124-67502	REAR PRESSER FOOT
19	SS-6090670-TP	SCREW 9/64-40 L=6
20	310-16306	SCREW
21	310-16207	SCREW
22	SS-6060410-TP	SCREW 3/32-56 L=3.5
23	124-70050	PRESSER FOOT ASM.
24	124-71009	PRESSER FOOT
25	124-71108	PRESSER FOOT HINGE
26	124-71207	REAR PRESSER FOOT
27	124-71306	HINGE PIN
28	124-71405	CLOTH PRESSER
29	124-71504	HINGE SCREW
30	124-71603	SPRING
31	SS-6090670-TP	SCREW 9/64-40 L=6
32	SS-6060340-SP	SCREW 3/32-56 L=2.5
33	NS-6080210-SP	NUT 1/8-44

Page 14

Juki MO-3300 Series parts on page 14
Ref	Part number	Part name
60	60	SCREW
59	59	COLLAR
58	58	COLLAR
21	21	CYLINDER
83	83	SCREW
53	53	BRACKET
18	18	SCREW
54	54	PLATE
34	34	BRACKET
35	35	BRACKET
36	36	SHAFT
39	39	SCREW
37	37	BRACKET
38	38	SCREW
28	28	BLOCK
29	29	BRACKET
33	33	NUT
32	32	WASHER
30	30	BRACKET
31	31	SCREW
65	65	SCREW
19	19	SHAFT
56	56	SHAFT
17	17	BRACKET
20	20	COLLAR
61	61	CAP
78~60	78~60	SCREW
55	55	COLLAR
62	62	SCREW
3	3	BRACKET
8	8	PIN
9	9	SPRING
4	4	BRACKET
14~16	14~16	WASHER
64	64	WASHER
2	2	COLLAR
13	13	COLLAR
24	24	WASHER
23	23	SPRING
22	22	SHAFT
26	26	SCREW
25	25	COLLAR
63	63	SCREW
42	42	BRACKET
43	43	BRACKET
68	68	SCREW
69	69	CLIP
45	45	COLLAR
67	67	SCREW
70	70	PIN
44	44	SPRING
41	41	SHAFT
40	40	BRACKET
66	66	COLLAR
51	51	BRACKET
77	77	SCREW
52	52	WASHER
50	50	BLOCK
75	75	PIN
76	76	SCREW
47	47	BRACKET
74	74	NUT
71	71	SCREW
73	73	WASHER
72	72	SCREW
49	49	COLLAR
46	46	BRACKET
48	48	SCREW
11	11	SCREW
5	5	COLLAR
10	10	PIN
12	12	SPRING
1	1	BRACKET
6	6	SCREW
7	7	PIN
81	81	BRACKET
82	82	SCREW

Page 15

Juki MO-3300 Series parts on page 15
Ref	Part number	Part name	Qty
	124-21004	FEED ECCENTRIC BODY	1
	124-21103	FEED CAM	1
	124-21301	FEED ADJUSTING CAM	1
	124-21509	RATCHET PAWL	1
	124-21608	RATCHET GEAR	1
	SM-6040412-TP	SET SCREW M4 L=4	1
	SM-6040612-TP	SCREW M4 L=6	2
	310-01407	FEED REGULATING PIN	1
	310-17304	SCREW	1
	SM-6040412-TP	SET SCREW M4 L=4	1
	310-16203	RATCHET GEAR SET SCREW B	1
	R1600-704-000	RATCHET PAWL SPRING	1
	124-21808	FEED CRANK ROD	1
	124-21905	FEED BEARING A	1
01	124-22002	FEED BEARING B	1
01	124-22101	FEED BEARING C	1
	124-22200	FORKED CRANK	1
	310-15209	SCREW	2
	124-22408	FEED SHAFT	1
	124-22607	FEED SHAFT BUSHING, FRONT	1
	124-22606	FEED SHAFT BUSHING, REAR	1
	124-27803	PUSH BUTTON SPRING	1
	124-22804	PUSH BUTTON SHAFT	1
	124-22903	WASHER	1
	124-27902	PUSH BUTTON SHAFT B	1
	124-23117	PUSH BUTTON SHAFT SCREW	1
	124-23216	SLIDE BLOCK	1
	124-23703	DIFFERENTIAL FEED SLIDE BLOCK	1
	124-23851	MAIN FEED ROCKER ASM.	1
	124-23802	MAIN FEED ROCKER	1
	124-27001	PIN	1
	124-27100	WASHER	1
	NS-6620320-SP	NUT 3/16 32	(1)
	124-23950	DIFFERENTIAL FEED ROCKER ASM.	1
	124-23901	DIFFERENTIAL FEED ROCKER	1
	124-24008	PIN	1
	124-24107	PIN	1
	SM-6030600-SP	SCREW M3X0.5 L=6	(1)
	310-20407	SCREW	(1)
	124-24552	DIFFERENTIAL FEED SHAFT ASM.	1
	124-24701	BUSHING	1
	124-24800	DIFFERENTIAL FEED ARM	1
	124-24900	DIFFERENTIAL FEED LINK	1
	124-25005	SPRING	1
	124-25153	SPRING HOOK ASM.	1
	124-25203	DIFFERENTIAL FEED GRADUATION	1
	124-25401	STOPPER	1
	124-25500	LOCK NUT	1
	124-25609	SCREW BASE ASM.	1
	124-25807	ROTATION STOPPER	1
	124-25908	OIL SHIELD A	1
	124-25714	OIL SHIELD B	1
	124-26615	SCREW M6 L=14	2
	124-26714	OIL WICK	0.04
	310-15100	THRUST COLLAR	1
	SM-6051402-TP	SCREW M4 L=4	3
	CQ-2000003-00	THRUST COLLAR, THIN	1
	310-00201	SCREW	1
	124-27308	RUBBER PLUG	1
	SM-6040412-TP	RUBBER PLUG D=10.3 L=4	1
	310-16204	SCREW	1
	TA-1930402-R0	SCREW	1
	310-16604	SCREW	1
	RO-0952001-00	RUBBER RING	1
	310-20407	SCREW	1
	310-03205	SCREW	1
	310-20407	SCREW	1
	319-13808	HINGE SCREW	1
	RE-0500000-K0	E-RING	1
	SM-6040412-TP	SET SCREW M4 L=4	2
	SM-6040800-SP	SCREW	2
	SM-6040600-SP	SCREW M4 L=6	2
	NP-0450501-SD	WASHER 4.5X10X0.8	2
	NM-6040003-SD	NUT M4	2
	RE-0300000-K0	E-RING 3	1
	SM-6040600-SP	SCREW M4 L=6	2
	SM-6040600-SP	SCREW M4 L=6	2
01	124-27407	FORKED CRANK PIN A	1
01	124-27506	FORKED CRANK PIN B	1
01	124-27605	FORKED CRANK PIN C	1
	124-27704	OIL SHIELD	1
	SM-6040600-SP	SCREW M4 L=6	2
	SS-5060310-SP	SCREW 3/32-56 L=2.8	2

Page 16 — 8. CHAIN LOOPER COMPONENTS(FOR MO-3316)

Juki MO-3300 Series parts on page 16
Ref	Part number	Part name
8	8	BOLT
9	9	WASHER
38	38	SPRING
35	35	SHAFT
10	10	CAM
39	39	SCREW
12	12	COLLAR
41	41	PIN
2	2	BEARING
4-6	4-6	COLLAR
14	14	SHAFT
3	3	COLLAR
11	11	SHAFT
42	42	SCREW
13	13	BRACKET
17	17	CYLINDER
40	40	RING
26	26	PLATE
31	31	SCREW
29	29	LEVER
28	28	BRACKET
30	30	SCREW
52	52	SCREW
27	27	BASE
15	15	SHAFT
18	18	ARM
44	44	BEARING
21	21	POST
16	16	COLLAR
20	20	LOOPER
50	50	SCREW
22	22	WASHER
51	51	WASHER
24	24	PLATE
25	25	SCREW
32	32	BRACKET
54	54	SCREW
33	33	SPRING
46	46	SPRING
55	55	SCREW
56	56	SCREW
45	45	NUT
19	19	LINK
60~62	60~62	PIN
48	48	PIN
49	49	SHAFT
63	63	PIN
37	37	BRACKET
59	59	SCREW
1	1	FLANGE
57	57	BUSHING
58	58	BRACKET
34	34	BRACKET
23	23	SHAFT

Page 17

Juki MO-3300 Series parts on page 17
Ref	Part number	Part name
1	124-28000	CHAIN LOOPER ECCENTRIC CAM
2	124-28108	CHAIN LOOPER ROD
3	124-28207	ECCENTRIC CAM COVER
4	124-28306	CHAIN LOOPER ROD BEARING A
5	124-28405	CHAIN LOOPER ROD BEARING B
6	124-28504	CHAIN LOOPER ROD BEARING C
7	124-28603	CHAIN LOOPER SHAFT SLIDE ARM
8	124-28702	HINGE SCREW
9	124-28801	WASHER
10	124-31607	NUT
11	124-28900	CHAIN LOOPER SHAFT
12	124-29007	CHAIN LOOPER SHAFT THRUST
13	124-29105	SLIDE BLOCK BRACKET
14	124-29204	CHAIN LOOPER SLIDE BLOCK
15	124-29304	CHAIN LOOPER SHAFT
16	124-29403	BUSHING, REAR
17	124-29502	BUSHING, REAR
18	124-29601	CHAIN LOOPER SHAFT DRIVING ARM
19	124-29700	DRIVING LINK
20	124-82600	CHAIN LOOPER
21	124-29908	CHAIN LOOPER DRIVING ARM
22	124-30005	LOWER LOOPER
23	124-30104	LOOPER THREAD CAM SHAFT
24	124-30252	LOOPER THREAD CAM ASM.
25	SM-8030312-TP	SCREW M3 L=3
26	124-30559	THREAD GUIDE BASE STOPPER BASE
27	124-30658	THREAD GUIDE BASE ASM.
28	124-30807	LOOPER THREAD CAM CLAW
29	124-30906	THREAD GUIDE
30	SM-6040800-SP	SCREW
31	310-17502	SCREW
32	124-31003	THREAD GUIDE BASE STOPPER BASE
33	124-31102	THREAD GUIDE BASE STOPPER
34	124-31201	LOOPER THREAD CONDUIT GUIDE
35	124-31300	LOOPER THREAD CONDUIT
36	124-31409	INSTALLING BASE
37	124-31508	LOOPER THREAD GUIDE
38	SM-6040612-TP	SCREW M4 L=6
39	310-16108	SCREW
40	RO-0781901-00	RUBBER RING
41	SM-6040412-TP	SET SCREW W4 L=4
42	SM-6051400-SP	SCREW
43	SM-6051102-TP	SCREW M5X0.8 L=14
44	310-05507	OIL SEAL RING
45	SM-6061402-TP	SCREW M6 L=14
46	310-15100	SCREW
47	SM-6040600-SP	SCREW W4 L=6
48	CQ-2000000-00	OIL WICK
49	310-25208	SCREW
50	SS-6090810-SP	SCREW 9/64-40 L=7.5
51	SM-6860600-SP	SCREW
52	310-13907	HINGE SCREW
53	WZ-0641510-KP	WAVED WASHER 6.4X11X0.3
54	SM-6040800-SP	SCREW
55	SM-6040600-SP	SCREW M4 L=6
56	WP-0430800-SD	WASHER M4
57	SM-6060800-SP	SCREW M6 L=8
58	SM-6040800-SP	SCREW
59	SM-6040800-SP	SCREW
60	124-31706	DRIVING LINK PIN A
61	124-31805	DRIVING LINK PIN B
62	124-31904	DRIVING LINK PIN C
63	124-35301	WASHER

Page 18 — 9. UPPER & LOWER LOOPER COMPONENTS

Juki MO-3300 Series parts on page 18
Ref	Part number	Part name
47	47	SCREW
1	1	SHAFT
46	46	COLLAR
8	8	SLEEVE
46	46	COLLAR
47	47	SCREW
7	7	SLEEVE
4	4	SHAFT
60	60	SPRING
61	61	PIN
9	9	LOOPER
50	50	SCREW
51	51	SCREW
2	2	SHAFT
22	22	NUT
21	21	COLLAR
29	29	SLEEVE
31	31	BEARING
3	3	SHAFT
28	28	COLLAR
66	66	BEARING
5	5	SHAFT
32	32	BRACKET
23	23	SCREW
67	67	WASHER
40	40	SCREW
58	58	SCREW
30	30	WASHER
6	6	SHAFT
15	15	LOOPER
25	25	SCREW
33	33	BRACKET
43	43	SCREW
42	42	SCREW
24	24	SCREW
62	62	SPRING
10	10	BRACKET
11	11	SHAFT
12	12	SHAFT
13	13	SHAFT
18	18	BRACKET
54	54	PIN
55	55	PIN
63-65	63-65	SPRING
14	14	BRACKET
52	52	SCREW
53	53	SCREW
17	17	SHAFT
56	56	SCREW
34	34	BRACKET
48	48	SCREW
44	44	SCREW
35	35	BRACKET
36	36	SCREW
45	45	SCREW
41	41	BRACKET
26	26	SCREW
19	19	BRACKET
20	20	WASHER
37	37	BRACKET
38	38	BRACKET
49	49	SCREW
27	27	SCREW

Page 19

Juki MO-3300 Series parts on page 19
Part number	Part name	Qty
124-33157	UPPER LOOPER BALL HOLDER ASM.	1
124-36868	BALL HOLDER A ASM.	1
124-35657	BALL HOLDER B ASM.	1
124-34205	LOOPER SHAFT	1
124-33306	UPPER LOOPER SHAFT	1
124-35103	LOWER LOOPER SHAFT	1
124-29403	BUSHING, FRONT	1
124-29502	BUSHING, REAR	1
124-33405	LOOPER HOLDER	1
124-33553	LOOPER GUIDE SUPPORT ASM.	1
124-33504	UPPER LOOPER GUIDE SUPPORT	1
122-73108	UPPER LOOPER GUIDE	(1)
124-33702	UPPER LOOPER HOLDER	(1)
124-33801	UPPER LOOPER GUIDE COVER	(1)
124-84002	TRAVELING NEEDLE GUARD	1
124-34403	OIL WICK STOP BALL	1
124-34502	PIN	1
124-34601	GAUGE	1
124-34700	OIL SHIELD	1
124-34809	UPPER LOOPER SHAFT RUBBER RING	1
310-00201	THRUST COLLAR	1
SM-8040412-TP	SET SCREW M4 L=4	2
310-25208	SCREW	1
SS-6090810-TP	SCREW 9/64-40 L=7.5	1
310-16405	SCREW	2
SS-40906T5-SP	SCREW 9/64-40 L=6	1
SS-6080410-SP	SCREW	1
124-34908	BUSHING, FRONT	1
124-29502	BUSHING, REAR	1
124-35707	SPACER	1
124-35202	SPACER	1
124-35805	LOWER LOOPER ARM	1
124-30005	LOWER LOOPER STOPPER	1
123-40304	LOOPER THREAD TAKE-UP COVER	1
123-40303	THREAD GUIDE, RIGHT	1
123-40808	THREAD DRIVING	1
123-40402	THREAD GUIDE, RIGHT	1
123-40709	LOWER LOOPER THREAD TAKE-UP	1
124-35507	LOWER LOOPER ARM	1
123-40907	LOWER THREAD TAKE-UP, LEFT	1
123-40501	THREAD GUIDE, MIDDLE	1
124-36804	THREAD GUIDE, LEFT	1
SM-4040855-SP	SCREW	1
SS-6090610-SP	SCREW	2
310-00201	THRUST COLLAR	4
SM-8040412-TP	SET SCREW M4 L=4	1
SS-3000510-SP	SCREW 9/64-40 L=6	1
SM-6040600-SP	SCREW M4 L=6	1
SM-9061250-TP	SCREW M6 L=12	1
310-15100	SCREW	1
SS-7060610-SP	SCREW 3/32-56 L=5.5	2
SS-6061200-SP	SCREW M6 L=12	2
CQ-2000000-00	OIL WICK	0.04
CQ-2020000-00	OIL WICK	0.04
310-15209	RUBBER RING	1
SM-6040600-SP	SCREW M4 L=6	6
SS-9090410-TP	SCREW	1
124-81005	UPPER LOOPER	1
124-81008	UPPER LOOPER	1
124-81800	LOWER LOOPER	1
124-33900	UPPER LOOPER HOLDER PIN A	1
124-34007	UPPER LOOPER HOLDER PIN B	1
124-34105	UPPER LOOPER HOLDER PIN C	1
310-05507	OIL SEAL RING	1
124-35301	WASHER	1

Page 20 — 10. THREAD TENSION COMPONENTS

Juki MO-3300 Series parts on page 20
Ref	Part number	Part name
2	2	MO-3304
11	11	MO-3304
31	31	MO-3304
32	32	MO-3304
20	20	MO-3304
30	30	MO-3304
2	2	MO-3314
11	11	MO-3314
31	31	MO-3314
20	20	MO-3314
30	30	MO-3314
2	2	MO-3316
11	11	MO-3316
31	31	MO-3316
20	20	MO-3316
30	30	MO-3316
1	1	THREAD TENSION COMPONENTS
1.1	1.1	THREAD TENSION COMPONENTS
2.0	2.0	THREAD TENSION COMPONENTS
3	3	THREAD TENSION COMPONENTS
4	4	THREAD TENSION COMPONENTS
5	5	THREAD TENSION COMPONENTS
6	6	THREAD TENSION COMPONENTS
7	7	THREAD TENSION COMPONENTS
8	8	THREAD TENSION COMPONENTS
9	9	THREAD TENSION COMPONENTS
10	10	THREAD TENSION COMPONENTS
12	12	THREAD TENSION COMPONENTS
13	13	THREAD TENSION COMPONENTS
14	14	THREAD TENSION COMPONENTS
15	15	THREAD TENSION COMPONENTS
16	16	THREAD TENSION COMPONENTS
17	17	THREAD TENSION COMPONENTS
18	18	THREAD TENSION COMPONENTS
19	19	THREAD TENSION COMPONENTS
21	21	THREAD TENSION COMPONENTS
22	22	THREAD TENSION COMPONENTS
23	23	THREAD TENSION COMPONENTS
24	24	THREAD TENSION COMPONENTS
25	25	THREAD TENSION COMPONENTS
26	26	THREAD TENSION COMPONENTS
27	27	THREAD TENSION COMPONENTS
28	28	THREAD TENSION COMPONENTS
29	29	THREAD TENSION COMPONENTS
33	33	THREAD TENSION COMPONENTS
34	34	THREAD TENSION COMPONENTS
35	35	THREAD TENSION COMPONENTS
36	36	THREAD TENSION COMPONENTS
37	37	THREAD TENSION COMPONENTS
38	38	THREAD TENSION COMPONENTS
39	39	THREAD TENSION COMPONENTS
40	40	THREAD TENSION COMPONENTS

Page 21

Juki MO-3300 Series parts on page 21
Part number	Part name	Qty
124-38008	CENTER THREAD GUIDE	1
124-38156	TENSION SPRING ASM., RED	1
122-85003	THREAD TENSION KNOB, RED	(1)
122-85508	TENSION SPRING BUSHING	(1)
122-84709	TENSION SPRING, RED	(1)
122-85409	TENSION DISK PRESSER	(1)
122-85607	THREAD TENSION SPRING FELT	(1)
122-85706	THREAD TENSION DISK	(2)
124-39402	TENSION POST	(1)
122-85805	THREAD TENSION RUBBER	(1)
124-38255	TENSION SPRING ASM., BLUE	1
122-85102	THREAD TENSION KNOB, BLUE	(1)
122-85508	TENSION SPRING BUSHING	(1)
122-84808	TENSION SPRING, BLUE	(1)
122-85409	TENSION DISK PRESSER	(1)
122-85607	THREAD TENSION SPRING FELT	(1)
122-85706	THREAD TENSION DISK	(2)
124-39402	TENSION POST	(1)
122-85805	THREAD TENSION RUBBER	(1)
124-38354	TENSION SPRING ASH., BLUE	(1)
122-85201	THREAD TENSION KNOB, BLUE	(1)
122-85508	TENSION SPRING BUSHING	(1)
122-84907	TENSION SPRING, BLUE	(1)
122-85409	TENSION DISK PRESSER	(1)
122-85607	THREAD TENSION SPRING FELT	(1)
122-85706	THREAD TENSION DISK	(2)
124-39402	TENSION POST	(1)
122-85805	THREAD TENSION RUBBER	(1)
310-08006	NUT	1
124-39501	THREAD GUIDE	1
124-39600	THREAD GUIDE	1
310-19300	SCREW	1
124-39708	THREAD GUIDE	1
124-39808	TENSION POST	1
124-39303	THREAD TENSION DISK	2
124-39204	THREAD TENSION FELT	1
124-39907	TENSION SPRING	1
124-38701	ROTATING STOPPER	1
124-40004	NUT	1
310-10705	THREAD TENSION COLLAR	1
MO-3316	FOR MO-3316
MO-3304	FOR MO-3304

Page 22 — 12. KNIFE COMPONENTS

Juki MO-3300 Series parts on page 22
Ref	Part number	Part name
4	4	KNIFE COMPONENTS
2	2	KNIFE COMPONENTS
5	5	KNIFE COMPONENTS
6	6	KNIFE COMPONENTS
7	7	KNIFE COMPONENTS
8	8	KNIFE COMPONENTS
10	10	KNIFE COMPONENTS
11	11	KNIFE COMPONENTS
12	12	KNIFE COMPONENTS
13	13	KNIFE COMPONENTS
14	14	KNIFE COMPONENTS
15	15	KNIFE COMPONENTS
16	16	KNIFE COMPONENTS
17	17	KNIFE COMPONENTS
18	18	KNIFE COMPONENTS
19	19	KNIFE COMPONENTS
20	20	KNIFE COMPONENTS
21	21	KNIFE COMPONENTS
22	22	KNIFE COMPONENTS
23	23	KNIFE COMPONENTS
24	24	KNIFE COMPONENTS
25	25	KNIFE COMPONENTS
26	26	KNIFE COMPONENTS
27	27	KNIFE COMPONENTS
28	28	KNIFE COMPONENTS
29	29	KNIFE COMPONENTS
30	30	KNIFE COMPONENTS
31	31	KNIFE COMPONENTS
32	32	KNIFE COMPONENTS
33	33	KNIFE COMPONENTS
34	34	KNIFE COMPONENTS
35	35	KNIFE COMPONENTS
36	36	KNIFE COMPONENTS
37	37	KNIFE COMPONENTS
38	38	KNIFE COMPONENTS
39	39	KNIFE COMPONENTS
40	40	KNIFE COMPONENTS
41	41	KNIFE COMPONENTS
42	42	KNIFE COMPONENTS
43	43	KNIFE COMPONENTS
44	44	KNIFE COMPONENTS
45	45	KNIFE COMPONENTS
46	46	KNIFE COMPONENTS
47	47	KNIFE COMPONENTS
48	48	KNIFE COMPONENTS
49	49	KNIFE COMPONENTS
50	50	KNIFE COMPONENTS
51	51	KNIFE COMPONENTS
52	52	KNIFE COMPONENTS
53	53	KNIFE COMPONENTS
54	54	KNIFE COMPONENTS
55	55	KNIFE COMPONENTS
56	56	KNIFE COMPONENTS
57	57	KNIFE COMPONENTS
59~61	59~61	KNIFE COMPONENTS
62	62	KNIFE COMPONENTS
63~65	63~65	KNIFE COMPONENTS

Page 23

Juki MO-3300 Series parts on page 23
Part number	Part name	Qty
124-45003	UPPER KNIFE ROD	1
124-45102	UPPER KNIFE FORK ARM	1
124-84606	CHAIN LOOPER NEEDLE GUARD	1
124-45201	KNIFE DRIVING ARM SHAFT	1
124-45300	BUSHING, FRONT	1
124-45301	BUSHING, REAR	1
124-13001	KNIFE	1
124-45508	UPPER KNIFE SUPPORT	1
124-45706	UPPER KNIFE SUPPORT	1
124-45805	UPPER KNIFE GUIDE SHAFT	1
124-45804	LOWER KNIFE BRACKET	1
124-46001	LOWER KNIFE SLIDE STUD	1
124-46100	LOWER KNIFE SLIDE STUD	1
124-46209	SPRING	1
124-46308	STOPPER PLATE	1
124-46407	ROTATING STOPPER	1
124-46605	LOWER KNIFE HOLDER	1
124-46902	LEVER	1
124-47009	SPRING	1
124-47108	HINGE SCREW	1
124-47207	THROAT PLATE BASE	1
124-47306	RUBBER PLUG A	2
310-01605	GUIDE PIN	1
SM-6041000-SP	SCREW M4 L=10	1
NM-6040003-SD	NUT M4	1
SN-4050855-SP	SCREW	1
SM-6040800-SP	SCREW	2
SM-6050800-SP	SCREW	1
SM-9040800-SP	SCREW	1
310-10804	WASHER	1
310-20308	SCREW	1
SM-8041012-TP	SCREW M4 L=10	1
SM-8030312-TP	SCREW M3 L=3	1
124-47405	THROAT PLATE POSITIONING KEY	1
124-47504	LOWER KNIFE	1
124-46704	NEEDLE GUARD HOLDER	1
124-46803	NEEDLE GUARD HOLDER	1
SS-6090630-TP	SCREW 9/64-40 L=6	4
310-16009	SCREW	2
SM-6041202-TP	SCREW M4X0.7 L=12	1
SM-6040600-SP	SCREW M4 L=6	1
CQ-2000000-00	OIL WICK	0.05
SM-6061602-TP	SCREW M6 L=16	1
310-05606	OIL SEAL	1
310-00409	THRUST COLLAR	2
SM-8040412-TP	SET SCREW M4 L=4	1
SS-9000813-TP	SCREW 9/64-40 L=8	1
WP-0370316-SD	WASHER 3.7X8X0.3	1
SM-6041000-SP	SCREW M4 L=10	1
SM-6040800-SP	SCREW M5 L=8	2
SM-6061802-TP	SCREW M6 L=18	2
124-85009	THROAT PLATE	1
R4200-LOE-E00	THROAT PLATE	1
R4305-LOE-E00	THROAT PLATE	1
R4508-LOE-GOO	THROAT PLATE CLAW	1
SS-1060210-TP	SCREW 3/32-56 L=2.2	(1)
310-16504	SCREW	(1)
124-84101	NEEDLE GUARD	2
124-84200	NEEDLE GUARD	1
124-84403	CHAIN LOOPER NEEDLE GUARD	1
124-84507	CHAIN LOOPER NEEDLE GUARD	1
124-16202	CRANK PIN A	1
124-16400	CRANK PIN B	1
124-16509	CRANK PIN C	1

Page 24 — 13. SEMI-SUNKEN TYPE TABLE COMPONENTS

Juki MO-3300 Series parts on page 24
Ref	Part number	Part name
6	6	6
3	3	3
56	56	56
59	59	59
2	2	2
4	4	4
5	5	5
61	61	61
60	60	60
7	7	7
8	8	8
20	20	20
21	21	21
55	55	55
19	19	19
27	27	27
24	24	24
43	43	43
44	44	44
45	45	45
26	26	26
57	57	57
9	9	9
10	10	10
11	11	11
18	18	18
15	15	15
12	12	12
16	16	16
13	13	13
17	17	17
14	14	14
23	23	23
25	25	25
31	31	31
42	42	42
46	46	46
29	29	29
30	30	30
38	38	38
39	39	39
50	50	50
51	51	51
34	34	34
37	37	37
49	49	49
47	47	47
48	48	48
35	35	35
33	33	33
32	32	32
40	40	40
36	36	36
52	52	52
41	41	41
53	53	53
54	54	54
22	22	22

Page 25

Juki MO-3300 Series parts on page 25
Ref	Part number	Part name	Qty
	124-48007	FRAME SUPPORT PLATE ASM.	1
	124-48106	RUBBER CUSHION	4
	124-48205	BOLT A	4
	124-47900	BOLT SPACER	4
	310-11307	WASHER	8
	124-49401	CLOTH WASTE CHUTE INLET	1
	124-48502	CLOTH WASTE CHUTE, UPPER	1
	124-48601	CLOTH WASTE CHUTE, LOWER	1
	124-48759	CONNECTING ROD JOINT ASM.	(2)
	124-48700	CONNECTING ROD JOINT	(2)
	124-48809	CONNECTING ROD JOINT A	(2)
	124-48908	CONNECTING ROD	(1)
	124-49005	CONNECTING BASE	(2)
	310-08808	NUT	(2)
	310-12107	SPRING WASHER	(2)
	310-25307	BOLT	(1)
	310-09004	NUT	(1)
	310-08808	NUT	(2)
01	124-49104	TABLE ASM. (SEMI-SUNKEN)	1
01	124-49203	DRAWER	2
01	124-49302	DRAWER SUPPORT
01	124-50052	T-STAND COMPL.	(1)
	124-50151	UPPER STAND COMPL., LEFT	(1)
	124-50250	UPPER STAND COMPL., RIGHT	(1)
	124-50557	LOWER STAND COMPL., LEFT	(1)
	124-50656	LOWER STAND COMPL., RIGHT	(1)
	124-51209	SIDE STRUT	(1)
	124-51308	LOWER STRUT	(1)
	124-51456	ADJUSTING SCREW COMPL.	(4)
	124-51605	BASE CAP	(4)
	124-51704	STAND BASE CAP	(4)
	124-51852	PEDAL COMPL.	(1)
	124-52009	PEDAL ADJUSTING PLATE	(1)
	124-52108	PEDAL SUPPORT	(4)
	124-52207	BUSHING	(4)
	124-52306	PEDAL SHAFT	(1)
	124-52405	PRESSER LIFTING PEDAL	(1)
	124-52504	CHAIN HOOK	(1)
	124-52603	SCREW	(2)
	124-52702	PEDAL SHAFT	(4)
	124-52801	NUT	(4)
	124-52800	COLLAR	(16)
	310-25307	BOLT	(16)
	310-11109	WASHER	(16)
	310-12206	SPRING WASHER	(4)
	310-00301	NUT	(4)
	310-24706	SCREW	(2)
	310-10903	WASHER	(2)
	310-12107	SPRING WASHER	(4)
	310-25307	BOLT	(8)
	310-11109	WASHER	(4)
	310-09004	NUT	(1)
	310-12107	SPRING WASHER	(1)
	310-08808	NUT	(4)
	310-25107	SCREW	(3)
	310-26602	SCREW	4
01	310-26206	WOOD SCREW	4
01	310-26503	SCREW	4
	310-13709	SCREW	4
	310-09004	NUT	4
	310-12206	SPRING WASHER	4

Page 26 — 14. FULLY-SUNKEN TYPE TABLE COMPONENTS

Juki MO-3300 Series parts on page 26
Ref	Part number	Part name	Qty
	19	FULLY-SUNKEN TYPE TABLE COMPONENTS
	3	screw
	55	screw
	58	washer
	57	nut
	64	bracket
	2	support
	56	screw
	65	washer
	66	nut
	67	washer
	5	bracket
	57	nut
	58	washer
	56	screw
	7	support
	8	support
	60	bracket
	6	bracket
	59	screw
	4	base
	61	screw
	20	box
	21	guide
	9	bracket
	43	screw
	44	washer
	45	nut
	27	frame
	24	frame
	62	screw
	43	screw
	44	washer
	45	nut
	38	screw
	39	lever
	50	screw
	53	spring
	54	pin
	34	bracket
	31	support
	37	pedal
	35	screw
	47	spring
	48	pin
	49	lever
	32	pedal
	34	bracket
	35	screw
	36	base
	50	screw
	51	washer
	34	bracket
	35	screw
	31	support
	41	screw
	44	washer
	45	nut
	43	screw
	42	washer
	46	spring
	29	washer
	30	ring
	23	panel
	25	panel
	52	screw
	28	frame
	22	frame
	10	screw
	11	washer
	18	nut
	14	screw
	15	washer
	12	rod
	16	spring
	17	pin
	13	lever
	1	frame
	26	frame

Page 27

Juki MO-3300 Series parts on page 27
Ref	Part number	Part name
	124-48007	FRAME SUPPORT PLATE ASM.
	124-48106	RUBBER CUSHION
	124-53205	BOLT B
	124-53304	AUXILIARY PLATE A
	124-53403	AUXILIARY PLATE B
	124-53502	SUPPORT PLATE
	124-48502	CLOTH WASTE CHUTE, UPPER
	124-48601	CLOTH WASTE CHUTE, LOWER
01	124-48759	CONNECTING ROD JOINT ASM.
	124-48700	CONNECTING ROD JOINT
	124-48809	CONNECTING ROD JOINT A
	124-48908	CONNECTING ROD
	124-49005	CONNECTING BASE
	310-08808	NUT
	310-12107	SPRING WASHER
	310-25307	BOLT
	310-09004	NUT
	310-08808	NUT
01	124-53650	TABLE ASM., FULLY-SUNKEN TYPE
01	124-49203	DRAWER
01	124-49302	DRAWER SUPPORT
01	124-50052	T-STAND COMPL.
	124-50151	UPPER STAND COMPL., LEFT
	124-50250	UPPER STAND COMPL., RIGHT
	124-50557	LOWER STAND COMPL., LEFT
	124-50656	LOWER STAND COMPL., RIGHT
	124-51209	SIDE STRUT
	124-51308	LOWER STRUT
	124-51456	ADJUSTING SCREW COMPL.
	124-51605	BASE CAP
	124-51704	STAND BASE CAP
	124-51852	PEDAL COMPL.
	124-52009	PEDAL ADJUSTING PLATE
	124-52108	PEDAL SUPPORT
	124-52207	BUSHING
	124-52306	PEDAL SHAFT
	124-52405	PRESSER LIFTING PEDAL
	124-52504	CHAIN HOOK
	124-52603	SCREW
	124-52702	PEDAL SHAFT
	124-52801	NUT
	124-52900	COLLAR
	310-25307	BOLT
	310-11109	WASHER
	310-12206	SPRING WASHER
	310-09301	NUT
	310-24706	SCREW
	310-10903	WASHER
	310-12107	SPRING WASHER
	310-25307	BOLT
	310-11109	WASHER
	310-09004	NUT
	310-12107	SPRING WASHER
	310-08808	NUT
	310-25406	BOLT
	310-09004	NUT
	310-11307	WASHER
	310-12206	SPRING WASHER
	SM-4050855-SP	SCREW
	SN-6041200-SP	SCREW
	310-08303	NUT
01	310-26206	WOOD SCREW
01	310-26503	SCREW
	310-13709	SCREW
	310-09004	NUT
	310-12206	SPRING WASHER
	310-1307	WASHER

Page 28 — 15. THREAD STAND COMPONENTS

Juki MO-3300 Series parts on page 28
Ref	Part number	Part name	Qty
	1	THREAD STAND COMPONENTS
	2	糸立装置関係
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34

Page 29

Juki MO-3300 Series parts on page 29
Part number	Part name	Qty
124-60150	THREAD STANDING DEVICE ASM.	(1)
229-30507	SPOOL REST ARM	(1)
124-61703	SPOOL REST ARM, LONG	(1)
229-31208	THREAD GUIDE	(5)
229-30705	THREAD GUIDE ARM JOINT	(2)
229-31406	SPOOL REST ROD RUBBER CAP	(1)
229-30408	SPOOL REST ROD, UPPER	(1)
229-31307	SPOOL REST ROD JOINT	(1)
124-60705	SPOOL REST ROD, LOWER	(1)
124-60804	LOWER SPOOL REST ROD BASE	(1)
124-60903	THREAD GUIDE ARM	(1)
124-61000	THREAD GUIDE ARM BASE	(1)
229-30309	SPOOL REST ROD, LOWER	(1)
229-31109	SPOOL RETAINER	(5)
229-31009	SPOOL PIN	(5)
229-30903	SPOOL REST CUSHION	(5)
229-30804	SPOOL REST	(5)
229-30507	SPOOL REST ARM	(1)
124-61703	SPOOL REST ARM, LONG	(1)
229-30705	THREAD GUIDE ARM JOINT	(2)
SM-6061610-SC	SCREW M6 L=16	(2)
SM-4051405-SE	SCREW M5 L=14	(2)
NM-6050001-SE	NUT M5	(2)
310-18302	SCREW	(2)
310-08303	NUT	(2)
310-18401	SCREW A	(1)
310-18500	SCREW B	(1)
310-08303	NUT	(2)
WP-1702600-SO	WASHER 17X30X2.6	(2)
WS-1643202-KR	SPRING WASHER	(1)
NM-6160511-SE	NUT M16X1.5	(1)
NM-6050001-SE	NUT M5	(5)
WS-0510002-KN	SPRING WASHER	(5)
SM-6061610-SC	SCREW M6 L=16	(2)

Page 30 — 16. NEEDLE COOLER COMPONENTS

Juki MO-3300 Series parts on page 30
Ref	Part number	Part name
1	124-58550	NEEDLE COOLER TANK ASM.
2	124-58501	NEEDLE COOLER TANK
3	124-58600	TANK COVER
4	310-06505	PLUG
5	124-58709	NEEDLE COOLER UNIT (OVER)
6	124-58808	NEEDLE COOLER UNIT (INTER)
7	124-59103	NEEDLE COOLER FELT
8	124-58907	NEEDLE COOLER FELT
9	124-59004	NEEDLE COOLER FELT PRESSER
10	SM-6040800-SP	SCREW
11	SM-6040600-SP	SCREW M4 L=6
12	310-02603	NEEDLE COOLER PIPE
13	310-02405	NEEDLE COOLER OIL WICK

Page 31 — 17. ACCESSORIE PART COMPONENTS

Juki MO-3300 Series parts on page 31
Part number	Part name	Qty
124-55002	ACCESSORY PACK	1
124-55101	THREADER	1
124-55200	TWEESERS	1
124-55309	VINYL HEAD COVER	1
124-55408	OILER	1
124-55507	HEXAGONAL WRENCH, 1.5	1
124-55606	HEXAGONAL WRENCH, 2.0	1
124-55705	HEXAGONAL WRENCH, 2.5	1
124-55804	HEXAGONAL WRENCH, 3.0	1
124-55903	HEXAGONAL WRENCH, 4.0	1
124-56000	HEXAGONAL WRENCH, 5.0	1
124-56109	SCREWDRIVER, SMALL	1
124-56208	SCREWDRIVER, MIDDLE	1
124-56307	SCREW DRIVER, LARGE	1
124-56505	SPECTACLE WRENCH, 7X7	1
124-56406	SPECTACLE WRENCH, 5.5	1
124-56703	SPECTACLE WRENCH, 9.0	1
124-57701	WRENCH, 5X6	1
124-57107	OIL	1
124-57206	FUNNEL	1
MDC-270B1104	NEEDLE BCX27 #11-4EA.	1
124-47504	LOWER KNIFE	1
124-57404	CHAIN	1
124-57503	S-SHAPED METAL FITTING, SMALL	1
124-57602	S-SHAPED METAL FITTING, LARGE	1

Page 32 — 18. LIST INFOMATION OF CHANGE

Juki MO-3300 Series parts on page 32
Ref	Part number	Part name
32	124-11500	124-11500
18	SM-1040601-SP	SM-1040601-SP
33	310-21207	310-21207
18	310-15209	310-15209

Juki MO-3300 Series — parts catalog

Page 1 — PARTS LIST

JU KI® 1-Needle, Overedging Industrial Sewing Machine 高速一本針オーバーロックミシン MO-3304E-0E4 2-Needle, Overedging Industrial Sewing Machine 高速二本針オーバーロックミシン MO-3314E-BE6 Safety Stitch Industrial Sewing Machine 高速安全縫ミシン MO-3316E-DE4 PARTS LIST 29322609 No. 1252-04 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 2

HOW TO MAKE USE OF THIS PARTS LIST 1. Explanation of codes 1) "*" mark...means this part is changed from the previous parts book. As to the details of the change, refer to "List for information of change". 2) "01"...refer to "Note" explanation at bottom of page. 2. Codes on the "Qty" column Each numeral indicates the number of parts required. - "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3. Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4. Dotted lines on the Figures indicate assembly parts. パーツリストご利用に際して 1. "注記" 欄の記号説明 1) "*"印...前回のパーツブックに比較して今回変更された部品を意味します。変更内容は”変更情報リスト”を参照してください。 2) "01"...ページ下の”注記”の説明を参照してください。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3. 数量欄の（）は、細部部品を構成している子部品であることを意味します。 4. イラストページの - - - 枠は、組構成であることを意味します。 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 3

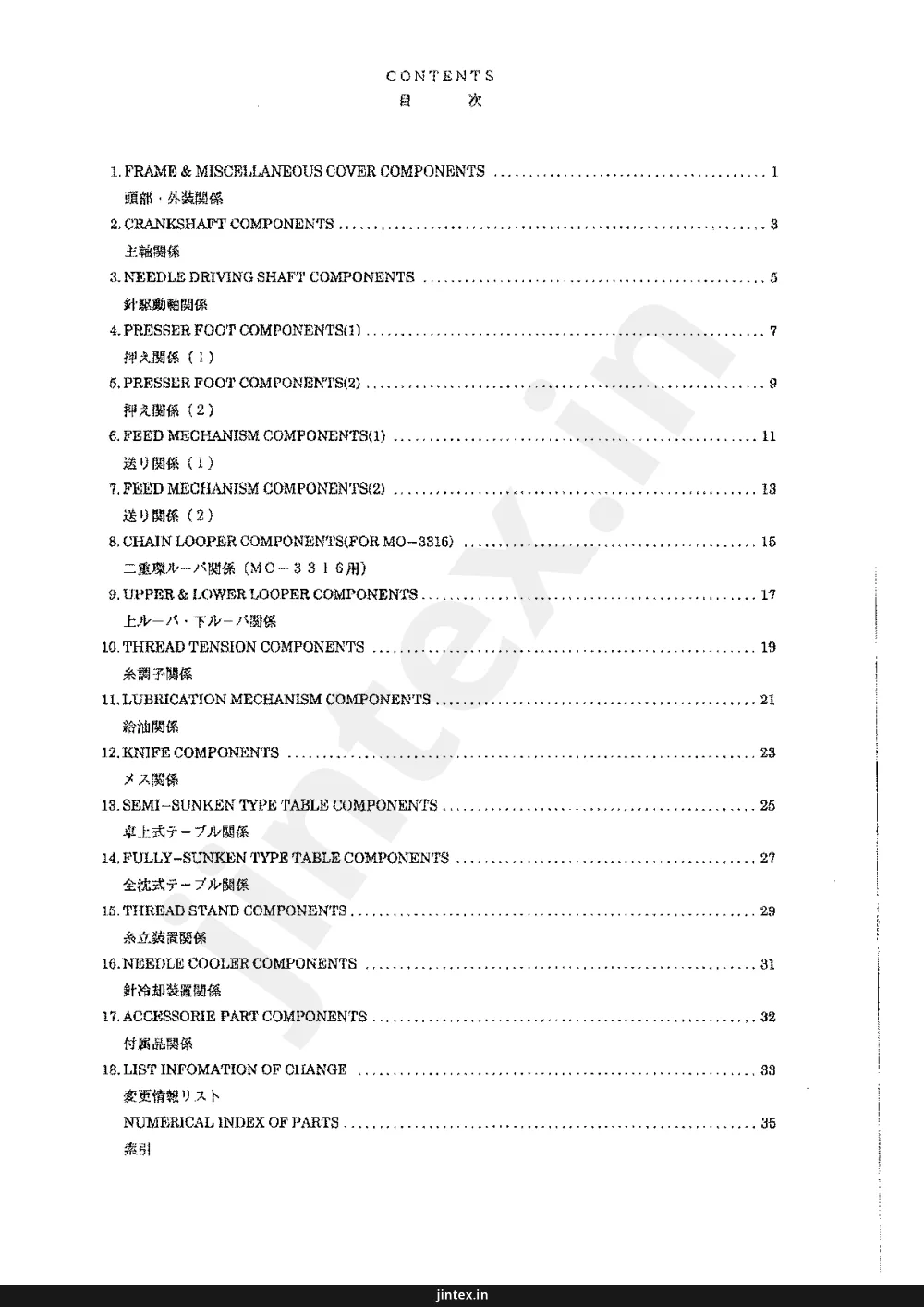

CONTENTS 目次 1. FRAME & MISCELLANEOUS COVER COMPONENTS ...* 1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部・外装関係 2. CRANKSHAFT COMPONENTS 主軸関係 3. NEEDLE DRIVING SHAFT COMPONENTS 針駆動軸関係 4. PRESSER FOOT COMPONENTS(1) 押え関係(1) 5. PRESSER FOOT COMPONENTS(2) 押え関係(2) 6. FEED MECHANISM COMPONENTS(1) 送り関係(1) 7. FEED MECHANISM COMPONENTS(2) 送り関係(2) 8. CHAIN LOOPER COMPONENTS(FOR MO-3316) 二重環ルーパ関係(MO-3316用) 9. UPPER & LOWER LOOPER COMPONENTS 上ルーパ・下ルーパ関係 10. THREAD TENSION COMPONENTS 糸調子関係 11. LUBRICATION MECHANISM COMPONENTS 給油関係 12. KNIFE COMPONENTS メス関係 13. SEMI-SUNKEN TYPE TABLE COMPONENTS 卓上式テーブル関係 14. FULLY-SUNKEN TYPE TABLE COMPONENTS 全沈式テーブル関係 15. THREAD STAND COMPONENTS 糸立装置関係 16. NEEDLE COOLER COMPONENTS 針冷却装置関係 17. ACCESSORIE PART COMPONENTS 付属品関係 18. LIST INFOMATION OF CHANGE 変更情報リスト NUMERICAL INDEX OF PARTS 索引 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 32 33 35 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 4 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部・外装関係 46 91 47 31 73 30 28 71 49 72 51 29 92 83 24 25 19 17 60 68 67 20 63 61 26 23 2 42 50 82 7 81 80 37 86 64 62 44 84 1 3 5 89 48 43 4 36 79 35 38 78 13 39~41 10 87 85 14 59 90 52 16 18 57 22 58 27 32 34 33 75 74 -1- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 5

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 124-00107 SIDE COVER 1 2 124-00206 SIDE COVER GASKET 1 3 124-00305 UPPER COVER 1 4 124-00404 UPPER COVER GASKET 1 5 124-00503 OIL SIGHT WINDOW 1 7 124-00602 FEED MECHANISM COVER 1 8 124-00701 GASKET 1 9 124-00800 UPPER COVER BRACKET 1 10 124-00909 UPPER COVER 1 11 124-01006 UPPER COVER STOPPER 1 12 124-01105 GUIDE PLATE 1 13 124-01204 PRESSER 1 14 124-01303 PRESSER 1 15 124-01402 HINGE PIN 1 16 124-01501 LOOPER COVER SPRING 1 17 124-01717 CLOTH PLATE RIB COVER 1 18 02 124-01717 CLOTH PLATE RIB COVER 1 19 124-02754 CLOTH PLATE COMPL. 1 20 124-02805 CLOTH PLATE COMPL. 1 21 124-03202 CLOTH PLATE COMPL. 1 22 01 124-02905 CLOTH WASTE COVER COMPL. 1 23 124-03259 CLOTH WASTE COVER COMPL. 1 24 124-03202 CLOTH WASTE COVER COMPL. 1 25 124-09009 COVER 1 26 124-09105 GASKET 2 27 124-03303 RUBBER CLOTH COVER 1 28 DI 124-03507 EYE GUARD COVER BASE 1 29 124-03705 EYE GUARD COVER 1 30 124-03804 EYE GUARD COVER BASE COLLAR 1 31 124-03903 EYE GUARD COVER BASE HOSING 1 32 124-04000 BOLT 1 33 124-04109 OIL RESERVOIR 1 34 124-04208 OIL RESERVOIR GASKET 1 35 124-04307 BELT COVER 1 36 124-04400 BELT COVER B 1 37 124-04406 THROAT PLATE RETAINER 1 38 124-04505 THREAD GUIDE, LARGE 1 39 03 124-05403 THREADING DIAGRAM 1 40 04 124-05502 THREADING DIAGRAM 1 41 01 124-05700 THREADING DIAGRAM 1 42 01 124-05700 THREADING DIAGRAM 1 43 CM-3002001-A1 SAFETY LABEL..3 (SMALL). 1 44 100-04109 GROUND MARK 1 45 CM-3002000-01 ATTENTION SEAL 1 46 SM-4041055-SP SCREW 4 47 310-07107 BUSHING D PLUG 1 48 310-19508 SCREW 1 49 SM-4040855-SP SCREW 1 50 SM-1040801-SP SCREW 1 51 J10-0680E SCREW 1 52 SM-4041055-SP SCREW 1 53 SM-4040412-TP SCREW 1 54 SM-4040655-SP SCREW 1 55 310-16005 SCREW 1 56 SM-4040655-SP SCREW 1 57 SM-4040655-SP SCREW 1 58 SS-2090520-SL SCREW 9/64-40 L=5 1 59 MS-6090310-SN NUT 9/64-40 1 60 SM-4040655-SP SCREW 1 61 310-00003 CLOTH PLATE HINGE SHAFT COLLAR 1 62 SM-6030312-TP SCREW M3 L=6 1 63 RZ-0429360-SP SCREW M4 L=6 1 64 SM-9040612-TP SCREW M4 L=6 1 65 SM-6040900-SP SCREW M4 L=6 1 66 WP-0430800-SP WASHER M4 1 67 SM-4040655-SP SCREW M4 L=6 1 68 WP-0430800-SB WASHER M3 1 69 SM-4040655-SP SCREW M4 L=6 1 70 310-15508 SCREW 1 71 WZ-060302-KO WAVEL WASHER B.8X12.8X0.3 1 72 SM-6030500-SH SCREW M3 L=6 1 73 310-11505 WASHER 1 74 310-06103 NUT 1 75 310-11208 WASHER 1 76 310-14103 SCREW 1 77 RO-1082401-00 RUBBER RING 1 78 SM-4051655-SP SCREW M5 L=16 2 79 310-26008 SCREW 2 80 310-24102 SCREW 2 81 WP-0320501-SD WASHER 1 82 SM-8040412-TP SET SCREW 1 83 SM-4040655-SP SCREW 1 84 310-07008 RUBBER PLUG 1 85 02 310-07206 RUBBER PLUG 1 86 310-07107 BUSHING D PLUG 1 87 310-07008 RUBBER PLUG 1 88 02 SM-4061255-SP SCREW M6 L=12 1 89 RO-2182401-00 RUBBER RING 1 90 WP-0430800-SD WASHER M4 3 91 310-15209 SCREW 1 92 02 124-03506 EYE GUARD COVER 1 NOTE (注) 01...FOR NO-3316 MO-3316用 02...FOR NO-3304,3314 MO-3304,3314用 03...FOR NO-3304 MO-3304用 04...FOR NO-3314 MO-3314用 -2- From the library of: Superior Sewing Machine & Supply LLC Jintex.in

Page 6 — 2. CRANKSHAFT COMPONENTS

2. CRANKSHAFT COMPONENTS 主軸関係 16 19 31 18 14 13 21 17 30 15 29 22 20 21 5 12 28 11 9 8 7 10 6 2 23 3 25 26 24 32 27 33 -3- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 7

REF. NO. NOTE --- PART NO. --- D E S C R I P T I O N --- Qty --- 1 124-10015 CRANKSHAFT シュージク 1 2 124-10106 HAND WHEEL B ハスミク (B) 1 3 124-10205 HAND WHEEL A ハスミク (A) 1 4 124-10353 CRANKSHAFT THRUST COLLAR ASM. シュージククスラストウケ (クミ) 1 5 124-10304 CRANKSHAFT THRUST COLLAR シュージククスラストウケ (1) 6 124-10403 BEARING SUPPORT PLATE ベアリングスチエタ (1) 7 310-04104 CRANKSHAFT BEARING クシクベアリング (2) 8 124-10502 BEARING RECEIVIG PLATE ベアリングウケイタ (1) 9 310-12909 WASHER ヨアケナミサツシヤ (2) 10 SM-6040800-SP SCREW ヨアケナミサツシヤ (3) 11 RO-4973501-00 RUBBER RING Oリング (1) 12 124-10601 OIL SHIELD シュージククアプ・ラキリ 1 13 124-10700 BEARING RETAINER ベアリングリテイナ 1 14 124-10809 CRANKSHAFT BUSHING B Bメタル 1 15 124-10908 SCREW Bメタル 1 16 124-11112 CRANKSHAFT BUSHING C Cメタル 1 17 124-11203 CRANKSHAFT BUSHING D Dメタル 1 18 124-11302 BUSHING D GASKET Dメタルハツキン 1 19 310-04005 BUSHING D BEARING Dメタルベアリング 1 20 01 310-07107 BUSHING D PLUG Dメタルトメセン 1 21 SM-8060612-TP SCREW M6 L=6 トメネジ M6 L=6 2 22 SM-8040310-SS SCREW M4 L=3 トメネジ 4 23 310-19706 SCREW ヒラネジ 3 24 310-10606 WASHER ヒラサカノネ 3 25 SM-8061212-TP SCREW M6X12 トメネジ M6 L=12 2 26 SM-6062502-TP SCREW M6 L=16 ロツカクアナボルト 1 27 310-11000 WASHER ハズミクルマストダガネ 1 28 SM-6051600-SP SCREW M5 L=16 ヒラネジ M5 L=16 4 29 SM-6041000-SP SCREW M4 L=10 ヒラネジ M4 L=10 4 30 01 310-00300 SLIDE BLOCK COLLAR スライドカラー 1 31 01 SM-8040412-TP SET SCREW M4 L=4 トメネジ 2 32 *02 124-11500 COOLING FAN レイキクフアン 1 33 *02 310-21207 SCREW サラネジ 3 NOTE (注記) 01...FOR MO-3304,3314 MO-3304,3314用 02...FOR JB, JUS, ME JB, JUS, ME用 -4- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 8 — 3. NEEDLE DRIVING SHAFT COMPONENTS

3. NEEDLE DRIVING SHAFT COMPONENTS 針駆動軸関係 26 25 28 53 22 51 27 24 53 52 21 27 53 23 52 20 51 3 5 37 47 38 2 46 56~58 36 39 4 47 46 10 6 45 41 7 43 9 42 12 19 30 32 31 29 13 55 49 33 14 16 18 17 48 8 50 15 34 14 34 -5- From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 9

REF_NO NOTE PART_NO. DESCRIPTION Qty. 1 124-12608 NEEDLE DRIVING ROD 1 2 124-12607 NEEDLE DRIVING FORKED CRANK 1 3 124-12805 NEEDLE DRIVING SHAFT 1 4 124-12904 BUSHING, FRONT 1 5 124-13001 BUSHING, REAR 1 6 124-13209 NEEDLE DRIVING ARM 1 7 124-13308 NEEDLE DRIVING LINK 1 8 02 124-65407 NEEDLE CLAMP, CHAIN LOOPER 1 9 124-13506 NEEDLE BAR HOLDER 1 10 124-13605 NEEDLE BAR BUSHING, UPPER 1 11 04 124-65100 NEEDLE CLAMP, 2-NEEDLE 1 12 124-13803 NEEDLE BAR 1 13 124-13902 NEEDLE BAR BUSHING, LOWER 1 14 01 124-16103 NEEDLE THREAD PRESSER GUIDE A 1 15 02 124-14009 NEEDLE THREAD PRESSER GUIDE 1 16 124-14207 NEEDLE THREAD PRESSER PLATE A 1 17 124-14405 NEEDLE THREAD PRESSER SPRING 1 18 124-14504 FELT A 1 19 124-15709 FELT A 2 20 03 124-14603 TAKE-UP LEVER 1 21 04 124-14702 TAKE-UP LEVER, 2-NEEDLE 1 22 02 124-14801 TAKE-UP LEVER, CHAIN LOOP 1 23 03 124-14900 NEEDLE THREAD GUIDE 1 24 04 124-15006 NEEDLE THREAD GUIDE, 2-NEEDLE 1 25 02 124-15105 THREAD GUIDE, CHAIN LOOP 1 26 02 124-15303 TAKE-UP LEVER GUIDE 1 27 01 124-15402 TAKE-UP LEVER GUIDE, 2-NEEDLE 1 28 02 124-15501 TAKE-UP LEVER GUIDE, CHAIN LOOP 1 29 124-15600 COVER 1 30 BP-3000001-00 VINYL TUBE 0.31 31 CQ-2000000-00 OIL WICK 0.32 32 TA-0071101-RO PLUG 1 33 03 MDC-270B1100 NEEDLE BCX27 #11 2 34 05 MDC-270B1100 NEEDLE BCX27 #11 1 35 SM-6041202-TP SCREW M4 L=12 2 36 SM-6040600-SP SCREW M4 L=6 1 37 SM-6061202-TP SCREW M6 L=12 1 38 CQ-2000000-00 OIL WICK 0.04 39 SM-6061002-TP SCREW M6 L=10 1 40 SM-8050502-TP SCREW M5 L=5 1 41 SM-8030312-TP SCREW M3 L=3 1 42 SM-6041000-SP SCREW M4 L=10 1 43 SM-8030312-TP SCREW M3 L=3 1 44 CQ-2000000-00 OIL WICK 1 45 310-20605 SCREW 2 46 310-00409 THRUST COLLAR 4 47 SM-8040412-TP SET SCREW M4 L=4 1 48 310-17205 SCREW 1 49 03 SM-8030312-TP SCREW M3 L=3 2 50 05 SM-8030312-TP SCREW M3 L=3 2 51 SM-6040800-SP SCREW M4 L=6 2 52 SM-6040600-SP SCREW M4 L=6 2 53 SM-4040655-SP SCREW M4 L=6 2 54 310-18104 SCREW 1 55 03 124-65001 NEEDLE CLAMP 1 56 06 124-16202 CRANK PIN C 1 57 06 124-16509 CRANK PIN C 1 58 06 124-16400 CRANK PIN B 1 59 06 124-12201 LINK PIN C 2 60 06 124-12003 LINK PIN A 2 61 06 124-12702 LINK PIN B 2 NOTE (注記) 01...FOR MO-3304,3314 MO-3304,3314用 02...FOR MO-3316 MO-3316用 03...FOR MO-3304 MO-3304用 04...FOR MO-3314 MO-3314用 05...FOR MO-3314,3316 MO-3314,3316用 06...FOR SELECTIVE PART 選択部品 -6- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 10 — 4. PRESSER FOOT COMPONENTS(1)

4. PRESSER FOOT COMPONENTS(1) 押え関係 (1) 40 26 25 24 17 18 34 33 19 33 28 27 3 5 13 12 29 6 14 31 15 1 38 23 37 30 11 9 22 21 10 41 20 35 -7- From the library: Superior Sewing Machine & Supply LLC Jinte.in

Page 11

REF. NO. NOTE PART NO. D E S C R I P T I O N Qty. 1 124-17507 PRESSER FOOT SHAFT オサエジク 1 2 124-17606 BUSHING オサエブッシュ 1 3 124-17705 LIFTING ARM オサエアゲウデ 1 4 124-17804 SPRING オサエアゲバネ 1 5 124-17903 THRUST ARM オサエジククラストウデ 1 6 124-18000 PRESSER FOOT SHAFT ARM オサエアゲクアーム 1 7 124-18109 PRESSER FOOT ARM HINGE SHAFT オサエウデヒンジジク 1 8 124-18208 PRESSER FOOT ARM オサエウデ 1 9 124-18414 PRESSER BAR オサエホウ 1 10 124-18513 PRESSER BAR BLOCK オサエホウクルマ 1 11 124-18604 LIFTING PIN BLOCK オサエホウクビアゲピンコマ 1 12 124-18703 PRESSER SPRING オサエバネ 1 13 124-18802 PRESSER REGULATOR SCREW オサエチョウセツネジ 1 14 124-18950 PRESSER LIFTING LEVER ASM. オサエアゲレバー (クミ) 1 15 124-19107 SPRING オサエバネ 1 16 124-19206 STOPPER オサエバネストッパー 1 17 124-19305 LEVER HOOK オサエアゲレバー 1 18 124-19404 PRESSER FOOT LIFTING LEVER オサエアゲレバーストッパーイタ 1 19 124-19503 STOPPER PLATE オサエアゲレバーストッパーイタ 1 20 124-19602 THREAD TRIMMER イトキリバ 1 21 01 124-19701 STOPPER オサエヨウストッパー 1 22 02 124-19800 PRESSER FOOT ARM SPRING オサエウデバネ 1 23 124-20006 STOPPER オサエミセイゲストッパー 1 24 124-20105 HINGE SCREW オサエアゲレバーダンネジ 1 25 124-20204 LIFTING LEVER SPRING オサエアゲレバーバネ 1 26 124-20303 LIFTING LEVER SPRING HOOK オサエアゲレバーバネナカ 1 27 SS-6110710-TP SCREW 11/64-40 L=6.5 ヒラネジ 11/64-40 L=6.5 1 28 SS-9151210-TP SCREW 15/64-28 L=11.8 ロツカクボルト 15/64-28 1 29 SM-8030312-TP SCREW M3 L=3 トメネジ M3 L=3 1 30 310-01506 PRESSER BAR LIFTING PIN ワリピン 1 31 310-13606 HINGE SCREW ダンネジ 1 32 SM-6051400-SP SCREW ヒラネジ 2 33 NM-6050001-SP NUT M5 ロツカクナット M5X0.8 イシュ 2 34 310-21207 SCREW サラネジ 1 35 310-18005 SCREW ナベネジ 1 36 01 310-18005 SCREW ナベネジ 1 37 02 310-18005 SCREW ナベネジ 1 38 310-18005 SCREW ナベネジ 1 39 SM-8051002-TP SCREW M5 L=10 トメネジ M5 L=10 1 40 SM-6060800-SP SCREW M6 L=8 ヒラネジ M6 L=8 1 41 124-67700 FINGER GUARD ユビガード 1 NOTE (注記) 01...FOR MO-3304,3314 MO-3304,3314用 02...FOR MO-3316 MO-3316用

Page 12 — 5. PRESSER FOOT COMPONENTS(2)

5. PRESSER FOOT COMPONENTS(2) 押え関係 (2) 1 10 7 9 6 5 4 11 3 2 18 21 12 19 16 20 17 15 14 13 29 26 31 25 32 30 28 23 27 24 -9- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 13

REF. NO NOTE PART NO. D E S C R I P T I O N Qty. 1 01 124-66058 PRESSER FOOT ASM. オサエタケゴウ 1 2 124-67007 PRESSER FOOT オサエ (1) 3 124-67106 CURL GUARD カート・メ (1) 4 124-67205 STITCH TONGUE イトスペリリタイ (1) 5 124-67304 PRESSER FOOT HINGE オサエヒンジ (1) 6 124-67403 SPRING オサエトリツケバネ (1) 7 124-67502 REAR PRESSER FOOT カラカント・メ (1) 8 SS-6090670-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 (1) 9 310-16306 SCREW マルヒラネジ (1) 10 310-16207 SCREW ヒラネジ (1) 11 SS-6060410-TP SCREW 3/32-56 L=3.5 ヒラネジ 3/32-56 L=3.5 (1) 12 02 124-66553 PRESSER FOOT ASM. オサエタケゴウ (1) 13 124-67809 PRESSER FOOT オサエ 1 14 124-67106 CURL GUARD カート・メ (1) 15 124-67908 STITCH TONGUE イトスペリリタイ (1) 16 124-67304 PRESSER FOOT HINGE オサエヒンジ (1) 17 124-67403 SPRING オサエトリツケバネ (1) 18 124-67502 REAR PRESSER FOOT カラカント・メ (1) 19 SS-6090670-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 (1) 20 310-16306 SCREW マルヒラネジ (1) 21 310-16207 SCREW ヒラネジ (1) 22 SS-6060410-TP SCREW 3/32-56 L=3.5 ヒラネジ 3/32-56 L=3.5 (1) 23 03 124-70050 PRESSER FOOT ASM. シユウサエツゴウ (1) 24 124-71009 PRESSER FOOT オサエ (1) 25 124-71108 PRESSER FOOT HINGE シユウサエヒンジ (1) 26 124-71207 REAR PRESSER FOOT アトオサエ (1) 27 124-71306 HINGE PIN シユウサエヒンジ・ピン (1) 28 124-71405 CLOTH PRESSER ヌノオサエ (1) 29 124-71504 HINGE SCREW ニダンオサエヒンジ・ネラ (1) 30 124-71603 SPRING ニダンオサエバネ (1) 31 SS-6090670-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 (1) 32 SS-6060340-SP SCREW 3/32-56 L=2.5 ヒラネジ 3/32-56 L=2.5 (1) 33 NS-6080210-SP NUT 1/8-44 ロクカクナット 1/8-44 (1) NOTE (注記) 01... FOR MO-3304 MO-3304用 02... FOR MO-3314 MO-3314用 03... FOR MO-3316 MO-3316用 - 10 - From the library of: Superior Sewing Machine & Supply LLC jntex.in

Page 14

6. FEED MECHANISM COMPONENTS(1) 送り関係 (1) - 11 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 15

REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 124-21004 FEED ECCENTRIC BODY 1 2 124-21103 FEED CAM 1 3 124-21301 FEED ADJUSTING CAM 1 4 124-21509 RATCHET PAWL 1 5 124-21608 RATCHET GEAR 1 6 SM-6040412-TP SET SCREW M4 L=4 1 7 SM-6040612-TP SCREW M4 L=6 2 8 310-01407 FEED REGULATING PIN 1 9 310-17304 SCREW 1 10 SM-6040412-TP SET SCREW M4 L=4 1 11 310-16203 RATCHET GEAR SET SCREW B 1 12 R1600-704-000 RATCHET PAWL SPRING 1 13 124-21808 FEED CRANK ROD 1 14 124-21905 FEED BEARING A 1 15 01 124-22002 FEED BEARING B 1 16 01 124-22101 FEED BEARING C 1 17 124-22200 FORKED CRANK 1 18 310-15209 SCREW 2 19 124-22408 FEED SHAFT 1 20 124-22607 FEED SHAFT BUSHING, FRONT 1 21 124-22606 FEED SHAFT BUSHING, REAR 1 22 124-27803 PUSH BUTTON SPRING 1 23 124-22804 PUSH BUTTON SHAFT 1 24 124-22903 WASHER 1 25 124-27902 PUSH BUTTON SHAFT B 1 26 124-23117 PUSH BUTTON SHAFT SCREW 1 27 124-23216 SLIDE BLOCK 1 28 124-23703 DIFFERENTIAL FEED SLIDE BLOCK 1 29 124-23851 MAIN FEED ROCKER ASM. 1 30 124-23802 MAIN FEED ROCKER 1 31 124-27001 PIN 1 32 124-27100 WASHER 1 33 NS-6620320-SP NUT 3/16 32 (1) 34 124-23950 DIFFERENTIAL FEED ROCKER ASM. 1 35 124-23901 DIFFERENTIAL FEED ROCKER 1 36 124-24008 PIN 1 37 124-24107 PIN 1 38 SM-6030600-SP SCREW M3X0.5 L=6 (1) 39 310-20407 SCREW (1) 40 124-24552 DIFFERENTIAL FEED SHAFT ASM. 1 41 124-24701 BUSHING 1 42 124-24800 DIFFERENTIAL FEED ARM 1 43 124-24900 DIFFERENTIAL FEED LINK 1 44 124-25005 SPRING 1 45 124-25153 SPRING HOOK ASM. 1 46 124-25203 DIFFERENTIAL FEED GRADUATION 1 47 124-25401 STOPPER 1 48 124-25500 LOCK NUT 1 49 124-25609 SCREW BASE ASM. 1 50 124-25807 ROTATION STOPPER 1 51 124-25908 OIL SHIELD A 1 52 124-25714 OIL SHIELD B 1 53 124-26615 SCREW M6 L=14 2 54 124-26714 OIL WICK 0.04 55 310-15100 THRUST COLLAR 1 56 SM-6051402-TP SCREW M4 L=4 3 57 CQ-2000003-00 THRUST COLLAR, THIN 1 58 310-00201 SCREW 1 59 124-27308 RUBBER PLUG 1 60 SM-6040412-TP RUBBER PLUG D=10.3 L=4 1 61 310-16204 SCREW 1 62 TA-1930402-R0 SCREW 1 63 310-20407 SCREW 1 64 RO-0952001-00 RUBBER RING 1 65 310-20407 SCREW 1 66 310-03205 SCREW 1 67 310-20407 SCREW 1 68 319-13808 HINGE SCREW 1 69 RE-0500000-K0 E-RING 1 70 SM-6040412-TP SET SCREW M4 L=4 2 71 SM-6040800-SP SCREW 2 72 SM-6040600-SP SCREW M4 L=6 2 73 NP-0450501-SD WASHER 4.5X10X0.8 2 74 NM-6040003-SD NUT M4 2 75 RE-0300000-K0 E-RING 3 1 76 SM-6040600-SP SCREW M4 L=6 2 77 SM-6040600-SP SCREW M4 L=6 2 78 01 124-27407 FORKED CRANK PIN A 1 79 01 124-27506 FORKED CRANK PIN B 1 80 01 124-27605 FORKED CRANK PIN C 1 81 124-27704 OIL SHIELD 1 82 SM-6040600-SP SCREW M4 L=6 2 83 SS-5060310-SP SCREW 3/32-56 L=2.8 2 NOTE (注記) 01...SELECTIVE PART 選択部品 - 12 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 16 — 8. CHAIN LOOPER COMPONENTS(FOR MO-3316)

8. CHAIN LOOPER COMPONENTS(FOR MO-3316) 二重環ルーパ関係 (MO-3316用) 9 8 38 35 10 39 12 41 2 4-6 14 3 41 11 42 13 17 40 26 31 29 28 30 52 27 15 18 44 21 16 20 50 22 51 24 25 32 54 33 46 55 56 45 19 60~62 48 49 63 48 47 37 59 From the library of: Superior Sewing Machine & Supply LLC 15 jintex.in

Page 17

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 124-28000 CHAIN LOOPER ECCENTRIC CAM 1 2 124-28108 CHAIN LOOPER ROD 1 3 124-28207 ECCENTRIC CAM COVER 1 4 01 124-28306 CHAIN LOOPER ROD BEARING A 1 5 01 124-28405 CHAIN LOOPER ROD BEARING B 1 6 01 124-28504 CHAIN LOOPER ROD BEARING C 1 7 124-28603 CHAIN LOOPER SHAFT SLIDE ARM 1 8 124-28702 HINGE SCREW 1 9 124-28801 WASHER 1 10 124-31607 NUT 1 11 124-28900 CHAIN LOOPER SHAFT 2 12 124-29007 CHAIN LOOPER SHAFT THRUST 1 13 124-29105 SLIDE BLOCK BRACKET 1 14 124-29204 CHAIN LOOPER SLIDE BLOCK 1 15 124-29304 CHAIN LOOPER SHAFT 1 16 124-29403 BUSHING, REAR 1 17 124-29502 BUSHING, REAR 1 18 124-29601 CHAIN LOOPER SHAFT DRIVING ARM 1 19 124-29700 DRIVING LINK 1 20 124-82600 CHAIN LOOPER 1 21 124-29908 CHAIN LOOPER DRIVING ARM 2 22 124-30005 LOWER LOOPER 1 23 124-30104 LOOPER THREAD CAM SHAFT 1 24 124-30252 LOOPER THREAD CAM ASM. 1 25 SM-8030312-TP SCREW M3 L=3 (2) 26 124-30559 THREAD GUIDE BASE STOPPER BASE 1 27 124-30658 THREAD GUIDE BASE ASM. 1 28 124-30807 LOOPER THREAD CAM CLAW 1 29 124-30906 THREAD GUIDE 1 30 SM-6040800-SP SCREW 1 31 310-17502 SCREW 1 32 124-31003 THREAD GUIDE BASE STOPPER BASE 1 33 124-31102 THREAD GUIDE BASE STOPPER 1 34 124-31201 LOOPER THREAD CONDUIT GUIDE 1 35 124-31300 LOOPER THREAD CONDUIT 1 36 124-31409 INSTALLING BASE 1 37 124-31508 LOOPER THREAD GUIDE 1 38 SM-6040612-TP SCREW M4 L=6 2 39 310-16108 SCREW 1 40 RO-0781901-00 RUBBER RING 1 41 SM-6040412-TP SET SCREW W4 L=4 2 42 SM-6051400-SP SCREW 1 43 SM-6051102-TP SCREW M5X0.8 L=14 1 44 310-05507 OIL SEAL RING 1 45 SM-6061402-TP SCREW M6 L=14 1 46 310-15100 SCREW 1 47 SM-6040600-SP SCREW W4 L=6 0.1 48 CQ-2000000-00 OIL WICK 1 49 310-25208 SCREW 1 50 SS-6090810-SP SCREW 9/64-40 L=7.5 1 51 SM-6860600-SP SCREW 1 52 310-13907 HINGE SCREW 1 53 WZ-0641510-KP WAVED WASHER 6.4X11X0.3 1 54 SM-6040800-SP SCREW 1 55 SM-6040600-SP SCREW M4 L=6 1 56 WP-0430800-SD WASHER M4 1 57 SM-6060800-SP SCREW M6 L=8 1 58 SM-6040800-SP SCREW 1 59 SM-6040800-SP SCREW 1 60 01 124-31706 DRIVING LINK PIN A 2 61 01 124-31805 DRIVING LINK PIN B 2 62 01 124-31904 DRIVING LINK PIN C 1 63 124-35301 WASHER 1 NOTE (注記) 01...SELECTIVE PART 選択部品 -16- From the library of: Superior Sewing Machine & Supply LLC jinte.x.in

Page 18 — 9. UPPER & LOWER LOOPER COMPONENTS

9. UPPER & LOWER LOOPER COMPONENTS 上ルーパ・下ルーパ関係 -17- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 19

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 124-33157 UPPER LOOPER BALL HOLDER ASM. 1 2 01 124-36868 BALL HOLDER A ASM. 1 3 02 124-35657 BALL HOLDER B ASM. 1 4 124-34205 LOOPER SHAFT 1 5 01 124-33306 UPPER LOOPER SHAFT 1 6 02 124-35103 LOWER LOOPER SHAFT 1 7 124-29403 BUSHING, FRONT 1 8 124-29502 BUSHING, REAR 1 9 124-33405 LOOPER HOLDER 1 10 124-33553 LOOPER GUIDE SUPPORT ASM. 1 11 124-33504 UPPER LOOPER GUIDE SUPPORT 1 12 122-73108 UPPER LOOPER GUIDE (1) 13 124-33702 UPPER LOOPER HOLDER (1) 14 124-33801 UPPER LOOPER GUIDE COVER (1) 15 124-84002 TRAVELING NEEDLE GUARD 1 16 124-34403 OIL WICK STOP BALL 1 17 124-34502 PIN 1 18 124-34601 GAUGE 1 19 124-34700 OIL SHIELD 1 20 124-34809 UPPER LOOPER SHAFT RUBBER RING 1 21 310-00201 THRUST COLLAR 1 22 SM-8040412-TP SET SCREW M4 L=4 2 23 310-25208 SCREW 1 24 SS-6090810-TP SCREW 9/64-40 L=7.5 1 25 310-16405 SCREW 2 26 SS-40906T5-SP SCREW 9/64-40 L=6 1 27 SS-6080410-SP SCREW 1 28 124-34908 BUSHING, FRONT 1 29 124-29502 BUSHING, REAR 1 30 124-35707 SPACER 1 31 01 124-35202 SPACER 1 32 124-35805 LOWER LOOPER ARM 1 33 124-30005 LOWER LOOPER STOPPER 1 34 123-40304 LOOPER THREAD TAKE-UP COVER 1 35 123-40303 THREAD GUIDE, RIGHT 1 36 123-40808 THREAD DRIVING 1 37 123-40402 THREAD GUIDE, RIGHT 1 38 123-40709 LOWER LOOPER THREAD TAKE-UP 1 39 124-35507 LOWER LOOPER ARM 1 40 123-40907 LOWER THREAD TAKE-UP, LEFT 1 41 123-40501 THREAD GUIDE, MIDDLE 1 42 124-36804 THREAD GUIDE, LEFT 1 43 SM-4040855-SP SCREW 1 44 SS-6090610-SP SCREW 2 45 310-00201 THRUST COLLAR 4 46 SM-8040412-TP SET SCREW M4 L=4 1 47 SS-3000510-SP SCREW 9/64-40 L=6 1 48 SM-6040600-SP SCREW M4 L=6 1 49 SM-9061250-TP SCREW M6 L=12 1 50 310-15100 SCREW 1 51 SS-7060610-SP SCREW 3/32-56 L=5.5 2 52 SS-6061200-SP SCREW M6 L=12 2 53 CQ-2000000-00 OIL WICK 0.04 54 CQ-2020000-00 OIL WICK 0.04 55 310-15209 RUBBER RING 1 56 SM-6040600-SP SCREW M4 L=6 6 57 SS-9090410-TP SCREW 1 58 124-81005 UPPER LOOPER 1 59 03 124-81008 UPPER LOOPER 1 60 04 124-81800 LOWER LOOPER 1 61 05 124-33900 UPPER LOOPER HOLDER PIN A 1 62 05 124-34007 UPPER LOOPER HOLDER PIN B 1 63 05 124-34105 UPPER LOOPER HOLDER PIN C 1 64 310-05507 OIL SEAL RING 1 65 124-35301 WASHER 1 NOTE (注記) 01...FOR MO-3304,3314 MO-3304,3314用 02...FOR MO-3316 MO-3316用 03...FOR MO-3304,3316 MO-3304,3316用 04...FOR MO-3314 MO-3314用 05...FOR SELECTIVE PART 選択部品 FOR ALL BALL HOLDER ASM., ORDER FOR SET ONLY CAN BE ACCEPTED ※機構は、セットのみの注文になります。

Page 20 — 10. THREAD TENSION COMPONENTS

10. THREAD TENSION COMPONENTS 糸調子関係 MO-3304 20 31 31 11 32 2 MO-3314 31 31 11 2 20 MO-3316 31 31 11 2 20 1 1,1 2,0 3 12 4 13 5 14 6 15 7 16 8 17 9 18 10 19 29 29 29 21 22 23 24 25 26 27 28 33 34 35 36 37 38 39 40 -19- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 21

REF_NO NOTE PART NO. DESCRIPTION Qty. 1 124-38008 CENTER THREAD GUIDE チュウカンイトアンナイ 1 2 124-38156 TENSION SPRING ASM., RED イトチョウシンバネケザコウ(アカ) 1 3 122-85003 THREAD TENSION KNOB, RED イトチョウシンジツマミ(アカ) (1) 4 122-85508 TENSION SPRING BUSHING ハネブツシュ (1) 5 122-84709 TENSION SPRING, RED イトチョウシンバネ(アカ) (1) 6 122-85409 TENSION DISK PRESSER イトチョウシンチラオサエ (1) 7 122-85607 THREAD TENSION SPRING FELT イトチョウシンバネ・ネザ・フェルト (1) 8 122-85706 THREAD TENSION DISK イトチョウシンサラ (2) 9 124-39402 TENSION POST イトチョウシンボウ (1) 10 122-85805 THREAD TENSION RUBBER イトチョウシンコゴム (1) 11 124-38255 TENSION SPRING ASM., BLUE イトチョウシンバネケザコウ(キ) 1 12 122-85102 THREAD TENSION KNOB, BLUE イトチョウシンジツマミ(キ) (1) 13 122-85508 TENSION SPRING BUSHING ハネブツシュ (1) 14 122-84808 TENSION SPRING, BLUE イトチョウシンバネ(キ) (1) 15 122-85409 TENSION DISK PRESSER イトチョウシンチラオサエ (1) 16 122-85607 THREAD TENSION SPRING FELT イトチョウシンバネ・ネザ・フェルト (1) 17 122-85706 THREAD TENSION DISK イトチョウシンサラ (2) 18 124-39402 TENSION POST イトチョウシンボウ (1) 19 122-85805 THREAD TENSION RUBBER イトチョウシンコゴム (1) 20 124-38354 TENSION SPRING ASH., BLUE イトチョウシンバネケザコウ(アオ) (1) 21 122-85201 THREAD TENSION KNOB, BLUE イトチョウシンジツマミ(アオ) (1) 22 122-85508 TENSION SPRING BUSHING ハネブツシュ (1) 23 122-84907 TENSION SPRING, BLUE イトチョウシンバネ(アオ) (1) 24 122-85409 TENSION DISK PRESSER イトチョウシンチラオサエ (1) 25 122-85607 THREAD TENSION SPRING FELT イトチョウシンバネ・ネザ・フェルト (1) 26 122-85706 THREAD TENSION DISK イトチョウシンサラ (2) 27 124-39402 TENSION POST イトチョウシンボウ (1) 28 122-85805 THREAD TENSION RUBBER イトチョウシンコゴム (1) 29 310-08006 NUT ナット 1 30 124-39501 THREAD GUIDE イトチョウシンライトアンナイ 1 31 124-39600 THREAD GUIDE チョウシンライトアンナイ 1 32 02 310-19300 SCREW クツケツネジ 1 33 01 124-39708 THREAD GUIDE イトチョウシンライトアンナイ 1 34 01 124-39808 TENSION POST イトチョウシンボウ 1 35 01 124-39303 THREAD TENSION DISK イトチョウシンサラ 2 36 01 124-39204 THREAD TENSION FELT イトチョウシンフェルト 1 37 01 124-39907 TENSION SPRING イトチョウシンバネ 1 38 01 124-38701 ROTATING STOPPER イトチョウシンラツトストツパー・メ 1 39 01 124-40004 NUT イトチョウシンナット 1 40 01 310-10705 THREAD TENSION COLLAR イトチョウシンカラー 1 NOTE (注記) 01...FOR MO-3316 MO-3316用 02...FOR MO-3304 MO-3304用 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 22 — 12. KNIFE COMPONENTS

12. KNIFE COMPONENTS メス関係 45 6 45 46 43 2 45 46 63~65 42 41 4 5 44 10 49 48 7 8 50 47 59~61 40 38 31 32 22 3 39 39 62 37 53 54 34 35 21 29 36 51 55 17 12 13 56 33 11 28 16 27 52 30 14 15 23 19 25 24 26 18 20 -23- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 23

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 124-45003 UPPER KNIFE ROD ウメスロッヅ 1 2 124-45102 UPPER KNIFE FORK ARM ウメスフタマタウデ 1 3 02 124-84606 CHAIN LOOPER NEEDLE GUARD ニジユウカンリウケ 1 4 124-45201 KNIFE DRIVING ARM SHAFT メスウデシフク 1 5 124-45300 BUSHING, FRONT ウメスツケマエ 1 6 124-45301 BUSHING, REAR ヘリクツトウシロ 1 7 124-13001 KNIFE ヒラメス 1 8 01 124-45508 UPPER KNIFE SUPPORT ヒラメスササエ 1 9 02 124-45706 UPPER KNIFE SUPPORT ヒラメスササエ 1 10 124-45805 UPPER KNIFE GUIDE SHAFT ウメスガイトシフク 1 11 124-45804 LOWER KNIFE BRACKET シタメストリツケダイ 1 12 01 124-46001 LOWER KNIFE SLIDE STUD シタメススライドシフク 1 13 02 124-46100 LOWER KNIFE SLIDE STUD シタメススライドシフク 1 14 124-46209 SPRING シタメススプリング 1 15 124-46308 STOPPER PLATE シタメスネツメイタ 1 16 124-46407 ROTATING STOPPER シタメススライドシフク 1 17 124-46605 LOWER KNIFE HOLDER シタメスササエ 1 18 124-46902 LEVER スノケイタメレ 1 19 124-47009 SPRING マノイタメレ 1 20 124-47108 HINGE SCREW ヌノイタメレ 1 21 124-47207 THROAT PLATE BASE ヘリダイタ 1 22 124-47306 RUBBER PLUG A イタダイワツシヤ 2 23 310-01605 GUIDE PIN サツビピン 1 24 SM-6041000-SP SCREW M4 L=10 ヒラネジ M4 L=10 1 25 NM-6040003-SD NUT M4 ロククアツト 1 26 SN-4050855-SP SCREW ナベネジ 1 27 SM-6040800-SP SCREW ヒラネジ M5 L=8 2 28 SM-6050800-SP SCREW ヒラネジ M5 L=8 1 29 SM-9040800-SP SCREW ロククアツト 1 30 310-10804 WASHER ヌノイタメレ 1 31 310-20308 SCREW ヒラネジ 1 32 SM-8041012-TP SCREW M4 L=10 トメネジ M4 L=10 1 33 SM-8030312-TP SCREW M3 L=3 トメネジ M3 L=3 1 34 124-47405 THROAT PLATE POSITIONING KEY ハリタイチヤ 1 35 124-47504 LOWER KNIFE メス 1 36 01 124-46704 NEEDLE GUARD HOLDER ハリククチササエ 1 37 02 124-46803 NEEDLE GUARD HOLDER ハリククチササエ 1 38 SS-6090630-TP SCREW 9/64-40 L=6 マツネジ 9/64-40 L=6 4 39 02 310-16009 SCREW ヒラネジ 2 40 SM-6041202-TP SCREW M4X0.7 L=12 ヒラネジ M4X0.7 L=12 1 41 SM-6040600-SP SCREW M4 L=6 ヒラネジ M4 L=6 1 42 CQ-2000000-00 OIL WICK ユシ 0.05 43 SM-6061602-TP SCREW M6 L=16 ロククアツト 1 44 310-05606 OIL SEAL ヌノイタメレ 1 45 310-00409 THRUST COLLAR スラストカラー 2 46 SM-8040412-TP SET SCREW M4 L=4 トメネジ M4 L=4 1 47 SS-9000813-TP SCREW 9/64-40 L=8 ヒラネジ 9/64-40 L=8 1 48 WP-0370316-SD WASHER 3.7X8X0.3 ヒラガネ 3.7X8X0.3 1 49 01 SM-6041000-SP SCREW M4 L=10 ヒラネジ M4 L=10 1 50 02 SM-6040800-SP SCREW M5 L=8 ヒラネジ M5 L=8 2 51 SM-6061802-TP SCREW M6 L=18 ヒラネジ M6 L=18 2 52 124-85009 THROAT PLATE ハリタイ 1 53 03 R4200-LOE-E00 THROAT PLATE ハリタイ 1 54 04 R4305-LOE-E00 THROAT PLATE ハリタイ 1 55 02 R4508-LOE-GOO THROAT PLATE CLAW ハリタイタメ 1 56 02 SS-1060210-TP SCREW 3/32-56 L=2.2 サラネジ 3/32-56 L=2.2 (1) 57 310-16504 SCREW サラネジ (1) 58 124-84101 NEEDLE GUARD ハリククチ 2 59 03 124-84200 NEEDLE GUARD ハリククチ 1 60 04 124-84403 CHAIN LOOPER NEEDLE GUARD ニジユウカンリウケ 1 61 02 124-84507 CHAIN LOOPER NEEDLE GUARD ニジユウカンリウケ 1 62 02 124-16202 CRANK PIN A ヘリクツトウフタマタリンクピン 1 63 05 124-16400 CRANK PIN B ヘリクツトウフタマタリンクピン 1 64 05 124-16509 CRANK PIN C ヘリクツトウフタマタリンクピン 1 NOTE (注記) 01...FOR MO-3304,3314 MO-3304用 02...FOR MO-3316 MO-3316用 03...FOR MO-3314 MO-3314用 04...FOR MO-3314 MO-3314用 05...FOR SELECTIVE PART 送択部品 - 24 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 24 — 13. SEMI-SUNKEN TYPE TABLE COMPONENTS

13. SEMI-SUNKEN TYPE TABLE COMPONENTS 卓上式テーブル関係 19 3 56 6 59 2 4 7 8 61 60 20 21 55 24 27 43 44 45 26 57 9 10 11 18 15 12 16 13 17 12 14 15 10 11 18 23 25 31 42 46 29 30 37 34 49 47 48 33 35 50 51 34 35 36 52 41 43 44 45 31 42 46 29 30 22 - 25 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 25

REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 124-48007 FRAME SUPPORT PLATE ASM. 1 2 124-48106 RUBBER CUSHION 4 3 124-48205 BOLT A 4 4 124-47900 BOLT SPACER 4 5 310-11307 WASHER 8 6 124-49401 CLOTH WASTE CHUTE INLET 1 7 124-48502 CLOTH WASTE CHUTE, UPPER 1 8 124-48601 CLOTH WASTE CHUTE, LOWER 1 9 124-48759 CONNECTING ROD JOINT ASM. (2) 10 124-48700 CONNECTING ROD JOINT (2) 11 124-48809 CONNECTING ROD JOINT A (2) 12 124-48908 CONNECTING ROD (1) 13 124-49005 CONNECTING BASE (2) 14 310-08808 NUT (2) 15 310-12107 SPRING WASHER (2) 16 310-25307 BOLT (1) 17 310-09004 NUT (1) 18 310-08808 NUT (2) 19 01 124-49104 TABLE ASM. (SEMI-SUNKEN) 1 20 01 124-49203 DRAWER 2 21 124-49302 DRAWER SUPPORT 22 01 124-50052 T-STAND COMPL. (1) 23 124-50151 UPPER STAND COMPL., LEFT (1) 24 124-50250 UPPER STAND COMPL., RIGHT (1) 25 124-50557 LOWER STAND COMPL., LEFT (1) 26 124-50656 LOWER STAND COMPL., RIGHT (1) 27 124-51209 SIDE STRUT (1) 28 124-51308 LOWER STRUT (1) 29 124-51456 ADJUSTING SCREW COMPL. (4) 30 124-51605 BASE CAP (4) 31 124-51704 STAND BASE CAP (4) 32 124-51852 PEDAL COMPL. (1) 33 124-52009 PEDAL ADJUSTING PLATE (1) 34 124-52108 PEDAL SUPPORT (4) 35 124-52207 BUSHING (4) 36 124-52306 PEDAL SHAFT (1) 37 124-52405 PRESSER LIFTING PEDAL (1) 38 124-52504 CHAIN HOOK (1) 39 124-52603 SCREW (2) 40 124-52702 PEDAL SHAFT (4) 41 124-52801 NUT (4) 42 124-52800 COLLAR (16) 43 310-25307 BOLT (16) 44 310-11109 WASHER (16) 45 310-12206 SPRING WASHER (4) 46 310-00301 NUT (2) 47 310-24706 SCREW (2) 48 310-10903 WASHER (4) 49 310-12107 SPRING WASHER (8) 50 310-25307 BOLT (4) 51 310-11109 WASHER (4) 52 310-09004 NUT (1) 53 310-12107 SPRING WASHER (1) 54 310-08808 NUT (4) 55 310-25107 SCREW (3) 56 310-26602 SCREW 4 57 01 310-26206 WOOD SCREW 4 58 01 310-26503 SCREW 4 59 310-13709 SCREW 4 60 310-09004 NUT 4 61 310-12206 SPRING WASHER 4 NOTE (注記) 01...EXCLUDED WHEN DELIVERING HEAD ONLY. 鎖のみ出荷時は除く - 26 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 26 — 14. FULLY-SUNKEN TYPE TABLE COMPONENTS

14. FULLY-SUNKEN TYPE TABLE COMPONENTS 全沈式テーブル関係 19 3 55 67 58 66 64 2 57 65 56 67 5 66 65 57 58 56 7 8 60 6 59 4 61 20 21 9 43 44 45 27 24 62 43 44 45 48 38 39 50 53 54 34 31 26 37 34 35 47 49 32 33 34 35 36 50 51 34 35 31 46 29 30 41 44 45 43 42 46 29 30 23 25 52 28 22 -27- Jinte.in From the library of: Superior Sewing Machine & Supply LLC

Page 27

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 124-48007 FRAME SUPPORT PLATE ASM. フレームウケイタ 2 124-48106 RUBBER CUSHION ウランクン 3 124-53205 BOLT B ウケイタ 4 124-53304 AUXILIARY PLATE A フレームウケイタツキテ A 5 124-53403 AUXILIARY PLATE B フレームウケイタツキテ B 6 124-53502 SUPPORT PLATE スノウケズシユートメイツ 7 124-48502 CLOTH WASTE CHUTE, UPPER スノウケズシユート(ウエ) 8 124-48601 CLOTH WASTE CHUTE, LOWER スノウケズシユート(シタ) 9 01 124-48759 CONNECTING ROD JOINT ASM. レンケツサポウダツキデクミ 10 124-48700 CONNECTING ROD JOINT レンケツサポウダツキテ 11 124-48809 CONNECTING ROD JOINT A レンケツサポウダツキテ A 12 124-48908 CONNECTING ROD レンケツサポウダツキウ 13 124-49005 CONNECTING BASE レンケツサポウダツキイ 14 310-08808 NUT ナツト 15 310-12107 SPRING WASHER ハネザカネ 16 310-25307 BOLT 6カクアツマナツ 17 310-09004 NUT ナツト 18 310-08808 NUT ナツト 19 01 124-53650 TABLE ASM., FULLY-SUNKEN TYPE テープル(ピンンンンンクミ) 20 01 124-49203 DRAWER ヒキダン 21 01 124-49302 DRAWER SUPPORT ヒキダンシユート 22 01 124-50052 T-STAND COMPL. Tヤキヤクウ 23 124-50151 UPPER STAND COMPL., LEFT ウツキヤクウシユートウ(ヒダリ) 24 124-50250 UPPER STAND COMPL., RIGHT ウツキヤクウシユートウ(ミギ) 25 124-50557 LOWER STAND COMPL., LEFT シタキヤクウシユートウ(ヒダリ) 26 124-50656 LOWER STAND COMPL., RIGHT シタキヤクウシユートウ(ミギ) 27 124-51209 SIDE STRUT ヨコチユウチユウク 28 124-51308 LOWER STRUT シタンチユウチユウク 29 124-51456 ADJUSTING SCREW COMPL. チョウセツセネダケタコウ 30 124-51605 BASE CAP コウセツセネドダイキヤツプ 31 124-51704 STAND BASE CAP キヤツトダイキヤツプ 32 124-51852 PEDAL COMPL. フミイタケツウ 33 124-52009 PEDAL ADJUSTING PLATE フミイタチヨウサイタ 34 124-52108 PEDAL SUPPORT フミイタケツク 35 124-52207 BUSHING フミイタケツクブツシユ 36 124-52306 PEDAL SHAFT フミイタケツク 37 124-52405 PRESSER LIFTING PEDAL オサエカケベタル 38 124-52504 CHAIN HOOK クサリカケ 39 124-52603 SCREW クサリカケ 40 124-52702 PEDAL SHAFT オサエカケベタルケツク 41 124-52801 NUT シタラチユウチユウク 42 124-52900 COLLAR チョウセツセネダカラー 43 310-25307 BOLT 6カクアツマナツ 44 310-11109 WASHER ヒラガネ 45 310-12206 SPRING WASHER ハネザカネ 46 310-09301 NUT ナツト 47 310-24706 SCREW 6カクアツマナツ 48 310-10903 WASHER ヒラガネ 49 310-12107 SPRING WASHER ハネザカネ 50 310-25307 BOLT 6カクアツマナツ 51 310-11109 WASHER ヒラガネ 52 310-09004 NUT ナツト 53 310-12107 SPRING WASHER ハネザカネ 54 310-08808 NUT ナツト 55 310-25406 BOLT 6カクアツマナツ 56 310-09004 NUT ナツト 57 310-11307 WASHER ウケイタ 58 310-12206 SPRING WASHER ハネザカネ 59 SM-4050855-SP SCREW ナベネジ M5 L=8 60 SN-6041200-SP SCREW ナベネジ M4 L=12 61 310-08303 NUT ナツト 62 01 310-26206 WOOD SCREW モクネダ 63 01 310-26503 SCREW モクネダ 64 310-13709 SCREW ボウリンコウメツネダ 65 310-09004 NUT ナツト 66 310-12206 SPRING WASHER ハネザカネ 67 310-1307 WASHER ウケイタ NOTE (注記) 01...EXCLUDED WHEN DELIVERING HEAD ONLY. 頭部のみ出荷時は除く - 28 - From the library: Superior Sewing Machine & Supply LLC jintex.in

Page 28 — 15. THREAD STAND COMPONENTS

15. THREAD STAND COMPONENTS 糸立装置関係 1 2 3 4 5 21 5 21 6 7 8 22 23 28 26 12 28 24 27 10 24 25 9 11 13 14 15 16 17 18 19 20 20 34 29 30 31 32 33 29 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 29

REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 124-60150 THREAD STANDING DEVICE ASM. イトタテツウチ(クミ) (1) 2 229-30507 SPOOL REST ARM イトタテウデ (1) 3 124-61703 SPOOL REST ARM, LONG イトタテウデ (チョウ) (1) 4 229-31208 THREAD GUIDE イトミチ (5) 5 229-30705 THREAD GUIDE ARM JOINT イトタテボウシメカクナ (2) 6 229-31406 SPOOL REST ROD RUBBER CAP イトタテボウネゴゴム (1) 7 229-30408 SPOOL REST ROD, UPPER イトタテボウ(ウエ) (1) 8 229-31307 SPOOL REST ROD JOINT イトタテボウ(ウエ) (1) 9 124-60705 SPOOL REST ROD, LOWER イトタテテイトアンナイ(ウタ) (1) 10 124-60804 LOWER SPOOL REST ROD BASE イトタテテイトアンナイ(ウタ)ダイ (1) 11 124-60903 THREAD GUIDE ARM イトタテテイトアンナイウデ (1) 12 124-61000 THREAD GUIDE ARM BASE イトタテテイトアンナイウデ・ダイ (1) 13 229-30309 SPOOL REST ROD, LOWER イトタテボウ(ウエ) (1) 14 229-31109 SPOOL RETAINER イトマキブレトメ (5) 15 229-31009 SPOOL PIN イトマキウケツボウ (5) 16 229-30903 SPOOL REST CUSHION イトマキウケダラククシヨン (5) 17 229-30804 SPOOL REST イトマキウケラ (5) 18 229-30507 SPOOL REST ARM イトタテウデ (1) 19 124-61703 SPOOL REST ARM, LONG イトタテウデ (チョウ) (1) 20 229-30705 THREAD GUIDE ARM JOINT イトタテボウシメカクナ (2) 21 SM-6061610-SC SCREW M6 L=16 ヒラコネジ M6 L=16 (2) 22 SM-4051405-SE SCREW M5 L=14 ヘパコネジ M5 L=14 (2) 23 NM-6050001-SE NUT M5 ロクカクナット M5 (2) 24 310-18302 SCREW ヒラネジ (2) 25 310-08303 NUT ナット (2) 26 310-18401 SCREW A ヒラネジ (1) 27 310-18500 SCREW B ヒラネジ (1) 28 310-08303 NUT ナット (2) 29 WP-1702600-SO WASHER 17X30X2.6 ヒラザカネ 17X30X2.6 (2) 30 WS-1643202-KR SPRING WASHER ハネザカネ 16.4X26.6X3.2 (1) 31 NM-6160511-SE NUT M16X1.5 ロクカクナット M16X1.5 1シュ (1) 32 NM-6050001-SE NUT M5 ロクカクナット M5 (5) 33 WS-0510002-KN SPRING WASHER ハネザカネ 5.1X9.2X1.3 (5) 34 SM-6061610-SC SCREW M6 L=16 ヒラコネジ M6 L=16 (2) - 30 - From the library Jinttex.in Superior Sewing Machine & Supply LLC

Page 30 — 16. NEEDLE COOLER COMPONENTS

16. NEEDLE COOLER COMPONENTS 針冷却装置関係 12 7 9 5 6 4 11 2 3 10 13 REF. NO. NOTE PART NO. DESCRIPTION. Qty. 1 124-58550 NEEDLE COOLER TANK ASM. ハリレイキタンククミ 1 2 124-58501 NEEDLE COOLER TANK ハリレイキタンク (1) 3 124-58600 TANK COVER ハリレイキタンクフタ (1) 4 310-06505 PLUG ポンプタイトメセン 1 5 01 124-58709 NEEDLE COOLER UNIT (OVER) ハリレイキクミ(オーパー) 1 6 02 124-58808 NEEDLE COOLER UNIT (INTER) ハリレイキクミ(インター) 1 7 01 124-59103 NEEDLE COOLER FELT ハリレイキクフェルト 1 8 02 124-58907 NEEDLE COOLER FELT ハリレイキクフェルト 1 9 124-59004 NEEDLE COOLER FELT PRESSER ハリレイキクフェルトオサエ 1 10 SM-6040800-SP SCREW ヒラネジ 1 11 SM-6040600-SP SCREW M4 L=6 ヒラネジ M4 L=6 2 12 310-02603 NEEDLE COOLER PIPE ハリレイキクハパ 0.05 13 310-02405 NEEDLE COOLER OIL WICK ハリレイキクユンツ 0.15 NOTE (注記) 01...FOR MO-3304,3314 MO-3304,3314用 02...FOR MO-3316 MO-3316用 - 31 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 31 — 17. ACCESSORIE PART COMPONENTS

17. ACCESSORIE PART COMPONENTS 付属品関係 REF. NO. NOTE PART NO. 1 124-55002 2 124-55101 3 124-55200 4 124-55309 5 124-55408 6 124-55507 7 124-55606 8 124-55705 9 124-55804 10 124-55903 11 124-56000 12 124-56109 13 124-56208 14 124-56307 15 124-56505 16 124-56406 17 124-56703 18 124-57701 19 124-57107 20 124-57206 21 MDC-270B1104 22 124-47504 23 124-57404 24 124-57503 25 124-57602 DESCRIPTION ACCESSORY PACK THREADER TWEESERS VINYL HEAD COVER OILER HEXAGONAL WRENCH, 1.5 HEXAGONAL WRENCH, 2.0 HEXAGONAL WRENCH, 2.5 HEXAGONAL WRENCH, 3.0 HEXAGONAL WRENCH, 4.0 HEXAGONAL WRENCH, 5.0 SCREWDRIVER, SMALL SCREWDRIVER, MIDDLE SCREW DRIVER, LARGE SPECTACLE WRENCH, 7X7 SPECTACLE WRENCH, 5.5 SPECTACLE WRENCH, 9.0 WRENCH, 5X6 OIL FUNNEL NEEDLE BCX27 #11-4EA. LOWER KNIFE CHAIN S-SHAPED METAL FITTING, SMALL S-SHAPED METAL FITTING, LARGE Qty. 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 -- 32 -- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 32 — 18. LIST INFOMATION OF CHANGE

18. LIST INFOMATION OF CHANGE 変更情報リスト As to the place changed, refer to the corresponding Rev.No. When previous parts(Obsoleted part)and new parts(Added parts)are not interchangeable with each other: In this case, even obsolete parts(D.)can be ordered with the obsoleted part number, so select the parts with changed dates and place your orders. 変更箇所は、該当Rev.No.版をご参照ください。部品の互換性がない変更の場合は、削除された品番で 29322609 No. 1252-04 Rev. No. *A:Added parts追加部品/D:Obsoleted parts削除部品/E:Erratum訂正 Rev. No. Page 頁 Ref. No. Parts No. 品番 Rev. No. Page 頁 Ref. No. Parts No. 品番 * A 04 4 32 124-11500 D 03 12 18 SM-1040601-SP A 04 4 33 310-21207 A 04 12 18 310-15209 -33- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 36

JUKI JUKI CORPORATION お問い求め、ご相談は To order or for further information, please contact: Copyright © 1998-2001 JUKI CORP. 本書の内容を無断で転載、複写することを禁止します。 All rights reserved throughout the world. ※このパーツリストは商品改良のため予告なく変更する事があります。 * The description covered in this parts list is subject to change for improvement of the commodity without notice. ※このパーツリストは、2001年12月現在の商品仕様で編集したものです。 * This parts list is edited in accordance with the product specifications as of December 2001. Printed in Japan From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 4 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Page 5

Page 6 — 2. CRANKSHAFT COMPONENTS

Page 7

Page 8 — 3. NEEDLE DRIVING SHAFT COMPONENTS

Page 9

Page 10 — 4. PRESSER FOOT COMPONENTS(1)

Page 11

Page 12 — 5. PRESSER FOOT COMPONENTS(2)

Page 13

Page 14

Page 15

Page 16 — 8. CHAIN LOOPER COMPONENTS(FOR MO-3316)

Page 17

Page 18 — 9. UPPER & LOWER LOOPER COMPONENTS

Page 19

Page 20 — 10. THREAD TENSION COMPONENTS

Page 21

Page 22 — 12. KNIFE COMPONENTS

Page 23

Page 24 — 13. SEMI-SUNKEN TYPE TABLE COMPONENTS

Page 25

Page 26 — 14. FULLY-SUNKEN TYPE TABLE COMPONENTS

Page 27

Page 28 — 15. THREAD STAND COMPONENTS

Page 29

Page 30 — 16. NEEDLE COOLER COMPONENTS

Page 31 — 17. ACCESSORIE PART COMPONENTS

Page 32 — 18. LIST INFOMATION OF CHANGE

Part Books

Search

Ref	Part number	Part name
6	6	6
3	3	3
56	56	56
59	59	59
2	2	2
4	4	4
5	5	5
61	61	61
60	60	60
7	7	7
8	8	8
20	20	20
21	21	21
55	55	55
19	19	19
27	27	27
24	24	24
43	43	43
44	44	44
45	45	45
26	26	26
57	57	57
9	9	9
10	10	10
11	11	11
18	18	18
15	15	15
12	12	12
16	16	16
13	13	13
17	17	17
14	14	14
23	23	23
25	25	25
31	31	31
42	42	42
46	46	46
29	29	29
30	30	30
38	38	38
39	39	39
50	50	50
51	51	51
34	34	34
37	37	37
49	49	49
47	47	47
48	48	48
35	35	35
33	33	33
32	32	32
40	40	40
36	36	36
52	52	52
41	41	41
53	53	53
54	54	54
22	22	22

Ref	Part number	Part name
6	6	6
3	3	3
56	56	56
59	59	59
2	2	2
4	4	4
5	5	5
61	61	61
60	60	60
7	7	7
8	8	8
20	20	20
21	21	21
55	55	55
19	19	19
27	27	27
24	24	24
43	43	43
44	44	44
45	45	45
26	26	26
57	57	57
9	9	9
10	10	10
11	11	11
18	18	18
15	15	15
12	12	12
16	16	16
13	13	13
17	17	17
14	14	14
23	23	23
25	25	25
31	31	31
42	42	42
46	46	46
29	29	29
30	30	30
38	38	38
39	39	39
50	50	50
51	51	51
34	34	34
37	37	37
49	49	49
47	47	47
48	48	48
35	35	35
33	33	33
32	32	32
40	40	40
36	36	36
52	52	52
41	41	41
53	53	53
54	54	54
22	22	22

Ref	Part number	Part name
6	6	6
3	3	3
56	56	56
59	59	59
2	2	2
4	4	4
5	5	5
61	61	61
60	60	60
7	7	7
8	8	8
20	20	20
21	21	21
55	55	55
19	19	19
27	27	27
24	24	24
43	43	43
44	44	44
45	45	45
26	26	26
57	57	57
9	9	9
10	10	10
11	11	11
18	18	18
15	15	15
12	12	12
16	16	16
13	13	13
17	17	17
14	14	14
23	23	23
25	25	25
31	31	31
42	42	42
46	46	46
29	29	29
30	30	30
38	38	38
39	39	39
50	50	50
51	51	51
34	34	34
37	37	37
49	49	49
47	47	47
48	48	48
35	35	35
33	33	33
32	32	32
40	40	40
36	36	36
52	52	52
41	41	41
53	53	53
54	54	54
22	22	22
