Parts index — Juki MO-3616tap a row to open its page

Page 4 — 1. FRAME COMPONENTS (1)

Juki MO-3616 parts on page 4

Ref	Part number	Part name	Qty
1	1	COVER
2	2	COVER
3	3	SHAFT
4	4	WASHER
5	5	SPRING
6	6	SPRING
7	7	FRAME
8	8	SCREW
9	9	WASHER
10	10	SCREW
11	11	BRACKET
12	12	SCREW
13	13	SCREW
14	14	COVER
15	15	SCREW
16	16	COVER
17	17	SCREW
18	18	SCREW
19	19	SHAFT
20	20	COVER
21	21	COVER
22	22	COVER
23	23	SPRING
24	24	COVER
25	25	COVER
26	26	SPRING
27	27	BRACKET
28	28	COVER
29	29	SCREW
30	30	SPRING
31	31	NUT
32	32	SCREW
33	33	COVER
34	34	SHAFT
35	35	SPRING
36	36	COVER
37	37	SCREW
38	38	BRACKET
39	39	SCREW
40	40	SCREW
41	41	BRACKET
42	42	COVER
43	43	SCREW
44	44	BRACKET
45	45	COVER

Page 5 — D E S C R I P T I O N

Juki MO-3616 parts on page 5

Ref	Part number	Part name	Qty
	121-05359	CLOTH PLATE ASM.	1
	121-02752	CLOTH PLATE ASM.	(1)
	115-01301	ECCENTRIC BUSHING	(1)
	WZ-0420350-KP	DISC SPRING	(1)
	CS-0400671-SP	THRUST HOLDER	(1)
	SM-8040302-TP	SETSCREW	(1)
	119-49005	CLOTH BASE COVER	1
	SS-8110410-TP	SCREW 11/64-40 L= 3.5	1
	NS-6110420-SP	NUT 11/64-40	1
	SS-6111440-SP	SCREW 11/64-40 L=14.0	1
	118-10207	STOPPER	1
	SS-7110510-SP	SCREW 11/64-40 L=5	2
	SS-4091015-SP	SCREW 9/64-40 L=10	3
	123-42101	CLOTH PLATE SIDE COVER	1
	SS-4120615-SP	SCREW 3/16-28 L=6	2
	123-44503	FEED MECHANISM COVER	1
	SM-1040801-SC	SCREW M4X0.7 L=8	1
	SM-4040855-SP	SCREW	4
	B1140-716-000	SPRING	1
	122-50601	GASKET	1
	119-51100	COVER	1
	122-70500	GASKET	1
	SM-04040855-SP	SCREW	4
01	121-02307	CHIP GUARD COVER, LEFT	1
02	121-02406	CHIP GUARD COVER, LEFT	1
	SS-7110510-SP	SCREW 11/64-40 L=5	2
01	122-86803	CLOTH WASTE COVER	1
02	122-86902	CLOTH WASTE COVER	1
	SS-2090520-SL	SCREW 9/64-40 L=5	1
	121-01515	CROTH WASTE COVER STOPPER	1
	NS-6090310-SN	NUT 9/64-40	1
	SS-3090610-SP	SCREW 9/64-40 L=6	2
	121-01309	LOOPER COVER	1
	118-03004	LOOPER COVER HINGE PIN	1
	SS-8110410-TP	SCREW 11/64-40 L= 3.5	1
	123-44909	LOOPER COVER BRACKET	1
	SM-4041055-SP	SCREW	3
	121-03404	LOOPER COVER PRESSER SPRING	1
	SM-4040655-SP	SCREW M4 L=6	1
	SS-7090530-SP	SCREW 9/64-40 L= 4.5	1
	121-03206	LOOPER COVER PRESSER PLATE	1
	121-01408	GUIDE PLATE	1
	SS-7090610-SP	SCREW 9/64-40 L=6	1
03	CM-3002000-01	ATTENTION SEAL	1
	118-02204	RUBBER PLUG	1

Page 6 — 2. FRAME COMPONENTS (2)

Juki MO-3616 parts on page 6

Ref	Part number	Part name	Qty
	1	FRAME BASE
	2	GASKET
	3	PLUG
	4	BRACKET
	5	COVER
	6	COVER
	7	COVER
	8	COVER
	9	SCREW
	10	PLATE
	11	PLATE
	12	RING
	13	PIN
	14	GASKET
	15	SCREW
	16	WASHER
	17	BRACKET
	18	BRACKET
	19	SCREW
	20	BRACKET
	21	BOLT
	22	WASHER
	23	WASHER
	24	NUT
	25	GASKET
	26	COVER
	27	SCREW
	28	SCREW
	29	COVER
	30	PIN
	31	PLUG
	32	BRACKET
	33	COVER
	34	COVER
	35	SCREW
	36	BRACKET
	37	SCREW
	38	GASKET
	39	COVER
	40	COVER
	41	SCREW
	42	SCREW
	43	SCREW
	44	SCREW

Page 7

Juki MO-3616 parts on page 7

Ref	Part number	Part name	Qty
	122-70203	UPPER COVER
	RO-1952401-00	RUBBER RING
	B3530-555-000	OIL SIGHT WINDOW
	SM-4051255-SP	SCREW, M5 L=12.
	121-01952	BELT COVER ASM.
	CM-3002000-A1	CAUTION LABEL(16)
	121-01903	BELT COVER
	121-01903	BELT COVER
	SS-4151215-SP	SCREW 15/64-28 L=12
	CM-3002001-01	SAFETY LABEL, 1(SMALL).
	CM-3002001-A1	SAFETY LABEL, 3 (SMALL).
	100-04109	GROUND MARK
	118-05207	THREAD GUIDE, LARGE
	TA-1871602-RO	RUBBER PLUG
	SS-5110710-SP	SCREW 11/64-40 L=7
	WZ-0850302-KO	WAVED WASHER 8.5X12.5X0.3
	B3013-141-HOA	WASHER
	123-42002	SAFETY PLATE BRACKET
	SS-7090611-SL	SCREW 9/64-40 L=6.1
	121-02109	SAFETY PLATE
	115-03703	SCREW STUD
	WP-0751576-SD	WASHER 7.5X19X1.5
	WS-0822010-KP	SPRING WASHER 8.2X15X2
	NS-6680410-SP	NUT 9/32-28
	115-03919	OIL RESERVOIR GASKET
	115-03885	OIL RESERVOIR ASM.
	RO-0742401-00	RUBBER RING
	SM-0081001-SD	SCREW
	115-03810	OIL RESERVOIR
	TA-1250406-RO	RUBBER PLUG D=12.5 L=4
	TA-1701107-RO	RUBBER PLUG
	121-04907	SAFETY PLATE
	118-41350	FILTER BASE ASM.
	121-05201	BELT COVER
	SK-3412000-SC	WOOD SCREW D=4.1 L=20
	122-71904	SHELTER PLATE
	TA-1120804-RO	RUBBER PLUG
	122-70302	UPPER COVER GASKET
	123-45203	SIDE COVER
	121-00301	SIDE COVER GASKET
	SM-4040855-SP	SCREW
	SM-1040801-SC	SCREW M4X0.7 L=8
	SS-9151210-TP	SCREW 15/64-28 L=11.8
	122-58000	BUSH

Page 8 — 3. CRANKSHAFT COMPONENTS

Juki MO-3616 parts on page 8

Ref	Part number	Part name	Qty
	1	COVER
	2	SCREW
	3	SCREW
	4	COVER
	5	GASKET
	6	BEARING
	7	COLLAR
	8	BEARING
	9	COLLAR
	10	CRANKSHAFT
	11	CONNECTING ROD
	12	SCREW
	13	SCREW
	14	CONNECTING ROD
	15	SCREW
	16	SCREW
	17	BEARING
	18	COLLAR
	19	CONNECTING ROD
	20	SCREW
	21	SCREW
	22	SCREW
	23	COLLAR
	24	CONNECTING ROD
	25	SCREW
	26	SCREW
	27	SCREW
	28	CONNECTING ROD
	29	SCREW
	30	SCREW
	31	SCREW
	32	PIN
	33	WASHER
	34	FLYWHEEL
	35	SCREW
	36	SCREW
	37	BEARING
	38	COLLAR
	39	GASKET
	40	COVER
	41	COVER
	42	SCREW
	43	CLUTCH DRUM
	44	FLYWHEEL
	45	SCREW
	46	WASHER
	47	WASHER
	48	FLYWHEEL

Page 9

Juki MO-3616 parts on page 9

Ref	Part number	Part name	Qty
	123-43406	CRANKSHAFT BUSHING D	1
	SM-4040855-SP	SCREW	3
	SM-4040855-SP	SCREW	3
	123-43505	CRANKSHAFT BUSHING D	1
	121-08403	GASKET	1
	B1215-804-000	BALL BEARING D	1
	SB-1100003-SP	BALL BEARING	1
	121-08007	CRANKSHAFT BUSHING C	1
	121-24509	STOPPER (R)	2
	121-07108	CRANKSHAFT	1
	121-32155	KNIFE DRIVING ROD ASM.	1
	SS-7111810-TP	SCREW 11/64-40 L=18	(1)
	SS-7110840-SP	SCREW 11/64-40 L=7.8	2
	121-09153	CONNECTING ROD ASM.	1
	SS-7111810-TP	SCREW 11/64-40 L=18	(2)
	SS-7110840-SP	SCREW 11/64-40 L=7.8	1
	B1212-704-000	BEARING RETAINER	1
	B1211-804-000	BALL BEARING B	1
	121-22362	UPPER LOOPER ROD ASM.	1
	SS-7111810-TP	SCREW 11/64-40 L=18	(2)
	SS-7111410-TP	SCREW 11/64-40 L=14	(2)
	SM-6061202-TP	SCREW M6 L=12	(1)
	121-24400	STOPPER (L)	2
	121-23360	LOWER LOOPER ROD ASM., A	1
	SS-7111810-TP	SCREW 11/64-40 L=18	(2)
	SS-7111410-TP	SCREW 11/64-40 L=14	(2)
	SM-6061202-TP	SCREW M6 L=12	(1)
	121-20150	LOWER LOOPER ROD ASM., B	1
	SS-7111810-TP	SCREW 11/64-40 L=18	(2)
	SS-7111410-TP	SCREW 11/64-40 L=14	(2)
	SS-7112420-SP	SCREW 11/64-40 L=24	3
	121-08106	OIL ADJUSTING BAR	1
	SS-5080212-TP	SCREW 1/8-44 L=2	5
	119-56505	HANDWHEEL C	1
	SS-7111810-SP	SCREW 11/64-40 L=18	3
	WS-0451040-K0	SPRING WASHER 4.5X8.5X1	3
	B1211-804-000	BALL BEARING B	1
	115-10609	WASHER	1
	WZ-2640310-KH	WAVED WASHER 26.4X33.9X3.5	1
	RO-3473501-00	RUBBER RING	1
	122-71706	THRUST HOLDER	1
	SM-4050855-SP	SCREW M5 L=8	3
	122-80103	OIL SHIELD	1
	118-11205	HANDWHEEL A	1
	SS-8151150-SP	SCREW 15/64-28 L=10.5	2
	WP-0764016-SP	WASHER	1
	SS-9681610-TP	SCREW 9/32-28 L=16	1
	119-56307	HAND WHEEL B	1

Page 10 — 4. NEEDLE DRIVING SHAFT COMPONENTS

Juki MO-3616 parts on page 10

Ref	Part number	Part name	Qty
2	2	BOLT
1	1	SHAFT
11	11	PIN
6	6	SHAFT
10	10	BEARING
9	9	HOLDER
8	8	COLLAR
7	7	COLLAR
4	4	BOLT
3	3	ARM
5	5	WASHER
52	52	SPRING
12	12	SHAFT
13	13	SHAFT
15	15	SHAFT
14	14	SHAFT
16	16	CYLINDER
17	17	PIN
18	18	BRACKET
19	19	BALL
20	20	BRACKET
26	26	SHAFT
27	27	PIN
21	21	SHAFT
46	46	SHAFT
45	45	SHAFT
47	47	COLLAR
43	43	SHAFT
44	44	RING
23	23	SHAFT
24	24	SHAFT
25	25	SHAFT
22	22	SHAFT
35	35	SHAFT
37	37	SHAFT
38	38	SHAFT
54	54	RING
29	29	SHAFT
30	30	SHAFT
31	31	SHAFT
32	32	SPRING
33	33	SCREW
28	28	SCREW
51	51	SHAFT
50	50	SHAFT
49	49	SHAFT
39	39	SHAFT
40	40	SHAFT
41	41	PIN
42	42	PIN
48	48	PIN
53	53	PIN
36	36	SCREW
34	34	SHAFT

Page 11

Juki MO-3616 parts on page 11

Ref	Part number	Part name	Qty
	122-80707	FEED FORKED CRANK	1
	SM-6061402-TP	SCREW M6 L=14	1
	122-80806	NEEDLE DRIVING ARM	1
	SM-6061402-TP	SCREW M6 L=14	1
	SS-8090530-TP	SCREW 9/64-40 L= 5.0	2
	122-87108	NEEDLE DRIVING SHAFT	1
	122-80202	BUSHING, FRONT	1
	122-80301	BUSHING, REAR	1
	CS-1201010-SH	THRUST COLLAR ASM. D=12 W=10	2
	SS-8660610-TP	SCREW 1/4-40 L=6	(4)
01	118-23804	CRANK PIN C
01	121-09955	LINK PIN C ASM.
	CQ-2520000-00	OIL WICK	(0.1)
	123-44859	NEEDLE HOLDER ASM.	1
	122-80509	NEEDLE HOLDER	(1)
	123-44800	NEEDLE HOLDER BUSHING	(1)
	SM-8040612-TP	SCREW M4 L=6	1
05	122-81101	NEEDLE THREAD GUIDE
	SS-4110515-SP	SCREW 11/64-40 L=5	1
03	122-81200	THREAD GUIDE, 2-NEEDLE
04	122-81309	THREAD GUIDE, CHAIN LOOPER
05	122-81705	TAKE-UP LEVER GUIDE
	SM-4040855-SP	SCREW	1
03	122-81804	TAKE-UP LEVER GUIDE, 2-NEEDLE
04	122-81903	TAKE-UP LEVER GUIDE CHAIN LOOP
	121-12108	NEEDLE THREAD GUIDE STAND	1
	SM-4040855-SP	SCREW	2
	SS-6080720-SP	SCREW	1
	122-80608	NEEDLE CLAMP HOLDER	1
06	122-80905	NEEDLE THREAD PRESSER GUIDE A
	121-10904	NEEDLE THREAD PRESSER PLATE	1
	121-10805	NEEDLE THREAD PRESSER SPRING	1
	SD-0280401-SL	HINGE SCREW D= 2.8 H=4	1
04	122-81002	NEEDLE THREAD PRESSER GUIDE B
02	122-81408	NEEDLE THREAD TAKE-UP LEVER
	SS-6090670-TP	SCREW 9/64-40 L=6	2
03	122-81507	TAKE-UP LEVER, 2-NEEDLE
04	122-81606	TAKE-UP LEVER, CHAIN LOOPER
02	SS-8080310-TP	SCREW 1/8-44 L=2.8
	MDC-270B1100	NEEDLE DCX27 #11	2
07	SS-8080310-TP	SCREW 1/8-44 L=2.8
	MDC-270B1100	NEEDLE DCX27 #11	2
	121-12207	COVER	1
	121-12306	FELT A	1
	122-53308	FELT B	1
	BT-0600402-EA	OIL TUBE	0.1
	TA-0951301-RO	RUBBER PLUG	1
08	MC-0336007-50	NEEDLE B-27 NM75
02	121-48607	NEEDLE CLAMP
03	121-48706	NEEDLE CLAMP, CHAIN LOOPER
04	121-49803	NEEDLE CLAMP, 2-NEEDLE
	122-80400	NEEDLE DRIVING LINK	1
09	MC-0336007-50	NEEDLE B-27 NM75
	RO-1082401-00	RUBBER RING	1

Page 12 — 5. FEED MECHANISM COMPONENTS (1)

Juki MO-3616 parts on page 12

Ref	Part number	Part name	Qty
2	2	SCREW
3	3	BRACKET
4	4	BRACKET
5	5	SCREW
6	6	HOLDER
7	7	COVER
8	8	BRACKET
9	9	SPRING
10	10	HOLDER
11	11	SPRING
12	12	ROLLER
13	13	SHAFT
14	14	SCREW
15	15	CONNECTING ROD
16	16	GEAR
17	17	HOUSING
18	18	GEAR
19	19	SPRING
20	20	SPRING
21	21	SCREW
22	22	PLATE
23	23	PIN
24	24	SCREW
25	25	CAM
26	26	HOUSING
27	27	COVER
28	28	BRACKET
29	29	SPRING
30	30	BRACKET
31	31	SCREW
32	32	BLOCK
33	33	SPRING
34	34	WASHER
35	35	WASHER
36	36	HOLDER
37	37	SCREW
38	38	PIN
39	39	PIN
40	40	BRACKET
41	41	BRACKET
42	42	SCREW
43	43	SCREW
44	44	WASHER
45	45	NUT

Page 14 — 6. FEED MECHANISM COMPONENTS (2)

Juki MO-3616 parts on page 14

Ref	Part number	Part name	Qty
	1	FEED MECHANISM COMPONENTS (2)
	2	送り関係 (2)
	1	SCREW
	2	WASHER
	4	COLLAR
	5	BLOCK
	6	FEED DOG
	7	SCREW
	8	FEED DOG
	9	FEED DOG
	10	FEED DOG
	11	SCREW
	12	BRACKET
	13	FEED DOG
	14	SCREW
	15	FEED ROCK SHAFT
	16	FEED ROCK LEVER
	17	FEED ROCK LEVER
	18	FEED ROCK SHAFT
	19	FEED DOG
	20	FEED DOG
	21	SCREW
	22	LINK
	23	BRACKET
	24	SCREW
	25	FEED ROCK LEVER
	26	BRACKET
	27	SCREW
	28	SPRING
	29	BRACKET
	30	SCREW
	31	BLOCK
	32	SCREW
	33	FEED DIAL
	34	SCREW
	35	SCREW
	36	FEED DOG
	37	FEED DOG
	38	FEED DOG
	39	FEED DOG
	40	FEED DOG
	41	SCREW
	42	PIN
	43	BRACKET
	44	SCREW
	45	BRACKET
	46	BRACKET
	47	BRACKET
	48	BRACKET
	49	BRACKET
	50	SCREW
	51	SCREW
	52	SPRING
	53	SCREW
	54	BRACKET
	55	SCREW
	56	COLLAR
	57	RING
	58	SPRING
	59	BRACKET
	60	SCREW
	61	BRACKET
	62	BRACKET
	3	WASHER

Page 15

Juki MO-3616 parts on page 15

Ref	Part number	Part name	Qty
	118-27409	FEED BAR SHAFT
	SM-4040855-SP	SCREW
	WP-0371016-SD	WASHER 3.7X8X1
	TA-0800504-RO	PLUG D=8 L=4.5
	B1624-704-000	SLIDE BLOCK
	118-28050	COLLAR ASM.
	SS-8110410-TP	SCREW 11/64-40 L= 3.5
	118-82107	MAIN FEED DOG
	119-49807	MAIN FEED DOG
	118-82800	MAIN FEED DOG
	SS-9111050-SP	SCREW 11/64-40 L=9.5
	118-87106	AUXILIARY FEED DOG
	118-87403	AUXILIARY FEED DOG
	SS-4080610-SP	SCREW 1/8-44 L=6.4
	121-17461	MAIN FEED BAR ASM.
	121-17511	DIFFERENTIAL FEED BAR
	121-17412	MAIN FEED BAR
	B1657-804-00T	DIFFERENTIAL FEED DOG
	119-49906	DIFFERENTIAL FEED DOG
	121-72805	DIFFERENTIAL FEED DOG
	SS-9111010-SP	SCREW 11/64-40 L=9.5
	RE-0500000-KO	E-RING
	118-26310	ADJUSTING LINK
	SD-0720271-SP	HINGE SCREW D=7.2 H=2.7
	118-28563	DIFFERENTIAL FEED ROCKER ASM.
	118-25304	PIN
	118-28564	PIN COVER
	SS-6080410-SP	SCREW 1/8-44 L=4
	118-28514	DIFFERENTIAL FEED ROCKER ASM.
	SM-6051202-TP	SCREW M5X0.8 L=12
	B1414-555-000	SLIDE BLOCK
	WP-0621016-SD	WASHER 6.2X13X1
	B1647-704-000	DIFFERENTIAL FEED LOCK NUT
	B1646-704-000-A	DIFFERENTIAL FEED HINGE SCREW
	SS-7060310-SP	SCREW 3/32-56 L=3
	121-19756	RUBBER PLATE ASM.
	121-19806	RUBBER PREESSER PLATE
	121-19905	OIL SHIELD RUBBER
	121-20002	RUBBER COVER
	SS-7090620-TP	SCREW 9/64-40 L=6.1
	121-19400	RUBBER BASE PLATE
	118-27607	OIL SHIELD RUBBER, LOWER
	SS-7060510-SP	SCREW 3/32-56 L=4.8
	122-82901	FEED BAR SUPPORT
	121-19509	RUBBER
	118-27904	RUBBER
	RO-4801201-000	RUBBER RING
	118-28304	SUPPORT THROAT PLATE
	SL-4051231-SC	SCREW M5 L=12
	WP-0480856-SP	WASHER 4.8X8.4X0.8
	SM-4041055-SP	SCREW
	SS-6090620-SP	SCREW 9/64-40 L=6
	118-28605	DIFFERENTIAL FEED ROCKER
	SS-6661110-SP	SCREW 1/4-40 L=11
	B1645-704-000-A	BUSHING
	RO-0601501-000	RUBBER RING
	119-91502	SPRING
	122-83255	ROCKER SHAFT ASM.
	SS-4090515-SP	SCREW 9/64-40 L=5
	122-83107	DIFFERENTIAL FEED GRADUATION STOPPER
	115-29005	DIFFERENTIAL FEED GRADUATION STOPPER

Page 16

Juki MO-3616 parts on page 16

Ref	Part number	Part name	Qty
	1	CHAIN LOOPER COMPONENTS (FOR MO-3616)
	2	二重環ルーパ関係(MO-3616用)
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29

Page 17

Juki MO-3616 parts on page 17

Ref	Part number	Part name	Qty
	B2103-816-0A0	SLIDER ARM ASM.	1
	B2103-816-000-B	CHAIN LOOPER SHAFT SLIDE ARM	(1)
	SS-7110720-TP	SCREW 11/64-40 L=7	(1)
	118-29751	CHAIN LOOPER SLIDE BLOCK PIN	(1)
	B2105-816-000	CHAIN LOOPER SLIDE BLOCK	(1)
	122-84105	CHAIN LOOPER ROD	1
	SD-0720803-TH	STEP-SCREW D=7.24 H=8	1
01	B2119-816-B00	BEARING B	1
	123-42309	BRACKET	1
	SM-6051202-TP	SCREW M5X0.8 L=12	1
	B2111-716-000	BUSHING, REAR	1
	122-83404	CHAIN LOOPER SHAFT	1
	115-39061	CHAIN LOOPER SHAFT DRIVING ARM	1
	SM-6051202-TP	SCREW M5X0.8 L=12	(1)
	SS-4080610-SP	SCREW 1/8-44 L=6.4	1
01	122-58505	PIN,LONG	1
	123-42300	CHAIN LOOPER SHAFT DRIV. LINK	1
01	122-59008	PIN, SHORT	1
	121-21612	DRIVING BALL ARM BRACKET	1
	SS-6110710-TP	SCREW 11/64-40 L=6.5	3
	SS-4080610-SP	SCREW 1/8-44 L=6.4	1
	121-22008	BUSHING, FRONT	1
	B2525-352-000	OIL SEAL RING	1
	118-29405	CHAIN LOOPER	1
	SS-9110430-TP	SCREW 11/64-40 L=4	1
	122-83503	CHAIN LOOPER DRIVING ARM	1
	PS-0200062-KH	SPRING PIN 2X6	1
	B2531-704-000	WASHER	1
	SS-9151210-TP	SCREW 15/64-28 L=11.8	1

Page 18 — 8. UPPER & LOWER LOOPER COMPONENTS

Juki MO-3616 parts on page 18

Ref	Part number	Part name	Qty
1	1	CYLINDER
2	2	SPRING
3	3	SPRING
4	4	CYLINDER
5	5	SHAFT
6	6	SCREW
7	7	BRACKET
8	8	BRACKET
9	9	LOOPER
10	10	LOOPER
11	11	BRACKET
12	12	SHAFT
13	13	BRACKET
14	14	SHAFT
15	15	BRACKET
16	16	PLATE
17	17	PLATE
18	18	PLATE
19	19	PLATE
20	20	SCREW
21	21	PLATE
22	22	PLATE
23	23	PLATE
24	24	PLATE
25	25	ARM
26	26	SCREW
27	27	SCREW
28	28	ARM
29	29	SCREW
30	30	SCREW
31	31	PLATE
32	32	PLATE
33	33	SCREW
34	34	SCREW
35	35	CYLINDER
36	36	PLATE
37	37	PLATE
38	38	RING
39	39	SCREW
40	40	SCREW
41	41	PLATE
42	42	SCREW
43	43	SCREW
44	44	SCREW
45	45	FRAME
46	46	PLATE
47	47	PLATE
48	48	SCREW
49	49	SCREW
50	50	SCREW
51	51	PLATE
52	52	SPRING
53	53	PLATE
54	54	SCREW
55	55	PLATE
56	56	SCREW
57	57	LOOPER
58	58	PIN
59	59	LOOPER
60	60	SCREW
61	61	CYLINDER
62	62	SCREW
63	63	LOOPER
64	64	LOOPER
65	65	LOOPER
66	66	BRACKET
67	67	PLATE
68	68	SCREW
69	69	BRACKET

Page 19

Juki MO-3616 parts on page 19

Ref	Part number	Part name	Qty
	122-54009	BUSHING, REAR	2
	CS-103121A-SH	COLLAR ASM. D=10.32 W=12	2
	SS-8660530-TP	SCREW 1/4-40 L=4.5	(4)
	B2507-804-000-B	BUSHING, FRONT	2
	121-22404	UPPER LOOPER SHAFT	1
	SM-6061200-SP	SCREW M6 L=12	2
01	122-73355	UPPER LOOPER GUIDE ASM.	1
02	122-73454	UPPER LOOPER GUIDE B ASM.	1
01	118-33613	UPPER LOOPER GUIDE SUPPORT	1
02	118-93302	UPPER LOOPER GUIDE SUPPORT B	(1)
	122-73108	UPPER LOOPER GUIDE	(1)
	122-73207	UPPER LOOPER HOLDER	(1)
	118-42101	OIL FELT	1
	121-23410	LOWER LOOPER SHAFT	1
	SS-9090410-TP	SCREW	1
01	119-91601	UPPER LOOPER GUIDE COVER B	2
02	B2515-704-00B	UPPER LOOPER GUIDE COVER B	1
	SS-7060610-SP	SCREW 3/32-56 L=5.5	1
	118-33308	UPPER LOOPER THREAD GUIDE	1
	SS-4090615-SP	SCREW 9/64-40 L=6	1
03	118-31757	PIN ASM.	1
	118-31708	OIL WICK STOPPER BALL	(0.1)
	CQ-2020000-00	OIL WICK	(0.1)
	CQ-2000000-00	OIL WICK	1
01	122-84402	LOOPER HOLDER, A	1
	SS-9151210-TP	SCREW 15/64-28 L=11.8	1
	SS-9090610-TP	SCREW 9/64-40 L=5.5	1
02	122-84501	LOOPER HOLDER, B	1
	SS-9151210-TP	SCREW 15/64-28 L=11.8	1
	SS-9090610-TP	SCREW 9/64-40 L=5.5	1
	118-33506	LOWER LOOPER THREAD TAKE-UP	1
	121-24004	THREAD TAKE-UP, RIGHT	1
	SS-7110840-SP	SCREW 11/64-40 L=7.8	1
	SS-6080410-SP	SCREW 1/8-44 L=4	1
	118-31906	PIN	1
06	118-31807	GAUGE	1
07	119-91809	GAUGE	1
	RO-0371801-00	RUBBER RING	1
	121-23907	THREAD GUIDE, RIGHT	1
	SS-3090610-SP	SCREW 9/64-40 L=6	1
	121-23808	LOOPER THREAD TAKE-UP COVER	2
	SM-4040655-SP	SCREW M4 L=6	1
	118-33407	LOWER LOOPER THREAD GUIDE	1
	SS-3090610-SP	SCREW 9/64-40 L=6	1
	121-23659	OIL SHIELD PLATE ASM.	1
	B2508-704-000	OIL SEAL	1
	B2530-704-000	UPPER LOOPER SHAFT RUBBER RING	1
	SS-6090630-SP	SCREW 9/64-40 L=6	4
	118-33100	LOOPER THREAD GUIDE	1
	SS-7090850-SP	SCREW 9/64-40 L=8	1
	118-90001	TRAVELING NEEDLE GUARD	1
	SS-6060440-TP	SCREW 3/32-56 L=3.5	2
	119-99307	LOWER LOOPER	1
	SS-6090620-TP	SCREW	1
	118-33209	LOOPER THREAD TAKE-UP, LEFT	1
	SS-7110840-SP	SCREW 11/64-40 L=7.8	1
	122-87306	LOWER LOOPER ARM	1
	PS-0300062-KH	SPRING PIN 3X6	1
	B2531-704-000	WASHER	1
	SS-9151210-TP	SCREW 15/64-28 L=11.8	1
07	CS-103121A-SH	COLLAR ASM. D=10.32 W=12	(2)
	SS-8660530-TP	SCREW 1/4-40 L=4.5	1
02	121-76004	UPPER LOOPER	1
04	118-88104	UPPER LOOPER	1
05	119-99208	UPPER LOOPER	1
	121-30803	OIL FELT	1
	SS-7060310-SP	FELT HOLDER	0.1
	CQ-2020000-00	SCREW 3/32-56 L=3	1

Page 20 — 9. PRESSER FOOT COMPONENTS (1)

Juki MO-3616 parts on page 20

Ref	Part number	Part name	Qty
1	1	PRESSER FOOT COMPONENTS (1)
2	2	BRACKET
3	3	PRESSER BAR
4	4	SPRING GUIDE
5	5	SPRING
6	6	SCREW
7	7	PIN
8	8	SPRING
9	9	SCREW
10	10	SCREW
11	11	PRESSER BAR
12	12	SPRING
13	13	NUT
14	14	SPRING SEAT
15	15	SCREW
16	16	RING
17	17	PRESSER BAR
18	18	RING
19	19	PRESSER FOOT
20	20	PRESSER FOOT
21	21	LEVER
22	22	PIN
23	23	LEVER
24	24	GUIDE
25	25	SCREW
26	26	SPRING
27	27	SPRING
28	28	SPRING
29	29	SPRING
30	30	LEVER
31	31	BRACKET
32	32	SCREW
33	33	SCREW
34	34	BRACKET
35	35	NUT
36	36	LEVER
37	37	SPRING
38	38	SPRING
39	39	BRACKET
40	40	SCREW

Page 21

Juki MO-3616 parts on page 21

Ref	Part number	Part name	Qty
	122-82257	FOOT LIFTING LEVER STAND ASM.	1
	122-82208	FOOT LIFTING LEVER STAND	(1)
	122-82307	PRESSER FOOT LIFTING LEVER	(1)
	122-82406	STOPPER	(1)
	SM-7040550-SP	SCREW M4 L=5	(2)
	SD-0640246-SP	HINGE SCREW D=6.35 H=2.4	(1)
	PS-0300142-KH	SPRING PIN 0.3 X 14	(1)
	122-82505	SPRING	(1)
	SM-6030350-SD	SCREW M3 L=2.9	(1)
	SS-4110715-SP	SCREW 11/64-40 L=7	2
	122-87207	PRESSER REGULATOR SCREW	1
	121-15903	PRESSER SPRING	1
	121-14807	PRESSER REGULATOR NUT	1
	122-88700	RRESSER REGULATOR SCREW WASHER	1
	SM-8040402-TP	SCREW M4X0.7 L=4	1
	RO-1100901-00	RUBBER RING	1
	121-14906	PRESSER BAR COVER	1
	RO-1100901-00	RUBBER RING	2
	122-82109	PRESSER BAR BUSHING	1
	121-14468	PRESSER BAR ASM.	1
	SS-8110510-SP	SCREW 11/64-40 L=5	1
	B1534-804-000	PRESSER FOOT ARM HINGE SHAFT	1
	121-13205	PRESSER FOOT SHAFT	1
	121-13304	BUSHING	1
	SS-6121020-SP	SCREW 3/16-28 L= 9.5	1
	118-19414	LIFTING HOOK	1
	SM-6061200-SC	SCREW	1
	NM-6060003-SC	NUT M6	1
	118-19703	PRESSER FOOT ARM SPRING	1
	121-13403	LIFTING ARM	1
	121-13403	LIFTING ARM	1
	SS-9151210-TP	SCREW 15/64-28 L=11.8	1
	SS-7161040-SP	SCREW 1/4-24 L= 9.5	1
	118-19315	LIFTING LEVER	1
	118-19109	LIFTING LEVER SCREW	1
	118-19208	LIFTING LEVER SPRING	1
	NS-6110420-SP	NUT 11/64-40	1
	SS-7111410-SP	SCREW 11/64-40 L=14	1
	B1529-804-000	PRESSER FOOT LIFTING LEVER STO	1
	SS-6110710-TP	SCREW 11/64-40 L= 6.5	1

Page 22 — 10. PRESSER FOOT COMPONENTS (2)

Juki MO-3616 parts on page 22

Ref	Part number	Part name	Qty
	1	PRESSER FOOT COMPONENTS (2)
	2	押さえ関係 (2)
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56
	57
	58
	59
	60
	61
	62
	63
	64

Page 23

Juki MO-3616 parts on page 23

Ref	Part number	Part name	Qty
	122-53811	PRESSER FOOT ARM	1
	B1528-804-000	THREAD TRIMMER	1
	SS-7060510-SP	SCREW 3/32-56 L=4.8	(1)
	118-76166	PRESSER FOOT ASM.	(1)
	118-72009	PRESSER FOOT HINGE	(1)
	SS-6090650-SP	SCREW 9/64-40 L=6	(1)
	B1530-804-000	STOPPER	(1)
	WP-0250516-SD	WASHER 2.5X6X0.5	(1)
	SS-7060610-SP	SCREW 3/32-56 L=5.5	(1)
	SS-6060210-SP	SCREW 3/32-56 L=1.9	(1)
	B1511-814-000	REAR PRESSER FOOT	(1)
	B1507-804-00P	PRESSER FOOT	(1)
	SS-7080520-SP	SCREW 1/8-44 L=4.9	(1)
	B1508-804-00B	SPRING	(1)
	B1509-804-00P	STITCH TONGUE	(1)
	SS-6060440-TP	SCREW 3/32-56 L=3.5	(1)
	B1510-814-000	CURL GUARD	(1)
	118-20701	FINGER GUARD	(1)
	121-52468	PRESSER FOOT., (FINGER GUARD).	1
	118-72009	PRESSER FOOT HINGE	(1)
	SS-6090650-SP	SCREW 9/64-40 L=6	(1)
	B1530-804-000	STOPPER	(1)
	WP-0250516-SD	WASHER 2.5X6X0.5	(1)
	SS-7060610-SP	SCREW 3/32-56 L=5.5	(1)
	SS-6060210-SP	SCREW 3/32-56 L=1.9	(1)
	B1511-814-000	REAR PRESSER FOOT	(1)
	B1507-804-00P	PRESSER FOOT	(1)
	SS-7080520-SP	SCREW 1/8-44 L=4.9	(1)
	B1508-804-00B	SPRING	(1)
	121-60008	STITCH TONGUE	(1)
	SS-6060440-TP	SCREW 3/32-56 L=3.5	(1)
	B1510-814-000	CURL GUARD	(1)
	118-20701	FINGER GUARD	(1)
	121-53763	PRESSER FOOT ASM.	1
	121-56907	PRESSER FOOT HINGE	1
	SS-6090650-SP	SCREW 9/64-40 L=6	(1)
	121-64802	REAR PRESSER FOOT	(1)
	121-67805	SPRING, FOR REAR PRESSER FOOT	(1)
	B1513-816-000	NUT, FOR REAR PRESSER FOOT	(1)
	121-67409	HINGE PIN	(1)
	121-62202	PRESSER FOOT	(1)
	121-67607	PRESSER FOOT ARM SPRING	(1)
	121-67508	HINGE SCREW	(1)
	SS-6060340-SP	SCREW 3/32-56 L=2.5	(1)
	B1514-816-000	SCREW	(1)
	121-67706	PRESSER FOOT	(1)
	121-15408	FINGER GUARD	(1)
	B1539-804-000	PRESSER FOOT FIXING PLATE	1
	SS-6060410-TP	SCREW 3/32-56 L=3.5	1
	118-76869	PRESSER FOOT ASM.	(1)
	118-72009	PRESSER FOOT HINGE	(1)
	SS-6090650-SP	SCREW 9/64-40 L=6	(1)
	B1530-804-000	STOPPER	(1)
	WP-0250516-SD	WASHER 2.5X6X0.5	(1)
	SS-7060610-SP	SCREW 3/32-56 L=5.5	(1)
	SS-6060210-SP	SCREW 3/32-56 L=1.9	(1)
	B1511-814-000	REAR PRESSER FOOT	(1)
	B1507-814-00P	PRESSER FOOT	(1)
	SS-7080520-SP	SCREW 1/8-44 L=4.9	(1)
	B1508-804-00B	SPRING	(1)
	B1509-814-00P	STITCH TONGUE	(1)
	SS-6060440-TP	SCREW 3/32-56 L=3.5	(1)
	B1510-814-000	CURL GUARD	(1)
	118-20701	FINGER GUARD	(1)

Page 24 — 11. THREAD TENSION COMPONENTS

Juki MO-3616 parts on page 24

Ref	Part number	Part name	Qty
1	1	Screw
2	2	Guide
3	3	Shaft
4	4	Bracket
5	5	Screw
6	6	Spring
7	7	Washer
8	8	Washer
9	9	Disc
10	10	Disc
11	11	Disc
12	12	Screw
13	13	Plate
14	14	Bracket
15	15	Screw
16	16	Lever
17	17	Spring
18	18	Shaft
19	19	Screw
20	20	Screw
21	21	Disc
22	22	Shaft
23	23	Spring
24	24	Bracket
25	25	Screw
26	26	Shaft
27	27	Screw
28	28	Screw
29	29	Cover
30	30	Screw
31	31	Disc
32	32	Disc
33	33	Disc
34	34	Spring
35	35	Disc
36	36	Disc
37	37	Disc
38	38	Disc
39	39	Shaft
40	40	Disc
41	41	Nut
42	42	Disc
43	43	Disc
44	44	Disc
45	45	Spring
46	46	Disc
47	47	Disc
48	48	Disc
49	49	Disc
50	50	Shaft
51	51	Disc
52	52	Nut
53	53	Disc
54	54	Disc
55	55	Disc
56	56	Spring
57	57	Disc
58	58	Disc
59	59	Disc
60	60	Disc
61	61	Shaft
62	62	Disc
63	63	Nut
64	64	Shaft
31	M0-3614	Spool	4
31	M0-3616	Spool	4
31	M0-3604	Spool	4

Page 25

Juki MO-3616 parts on page 25

Ref	Part number	Part name	Qty
	SM-4050855-SP	SCREW	1
	B3113-352-000	MOUNTING BRACKET	1
	B2401-816-000	LOOPER THREAD GUIDE TUBE	1
	B2402-716-000	LOOPER THREAD GUIDE TUBE GUIDE	1
	SS-5150510-SP	SCREW 15/64-28 L=5	1
	122-86050	TENSION CONTROLLER ASM.	1
	122-86308	TENSION POST NUT	(1)
	122-86506	ROTATING STOPPER	(1)
	122-86407	TENSION SPRING	(1)
	122-86605	THREAD TENSION DISK	(2)
	122-86209	THREAD TENSION FELT	(1)
	122-86001	THREAD TENSION POST	(1)
	122-86100	THREAD GUIDE	(1)
	122-83701	THREAD GUIDE A	(1)
	SS-4090415-SP	SCREW 9/64-40 L=4	1
	122-83800	THREAD GUIDE B	3
	122-83602	THREAD GUIDE BASE	1
	122-83909	THREAD GUIDE HOOK	1
	SD-0600341-TP	HINGE SCREW D=6.0 H=3.4	1
	PS-0200052-KH	SPRING PIN 2.3X5	1
	123-47555	LOWER THREAD CAM. COMPL.	1
	122-87405	SHAFT	1
	SS-8110410-TP	SCREW 11/64-40 L=3.5	2
	122-84006	THREAD GUIDE	1
	SS-4110515-SP	SCREW 11/64-40 L=5	1
	121-21307	THREAD GUIDE SPRING	1
	WZ-0640312-KP	WAVED WASHER	1
	SS-4090415-SP	SCREW 9/64-40 L=4	1
	122-88604	CENTER THREAD GUIDE	1
	SM-1030601-SC	SCREW M3 L=6	3
	122-84857	THREAD TENSION SPRING JUNCTION	(1)
	122-85102	THREAD TENSION KNOB, YELLOW	(1)
	122-84808	TENSION SPRING BUSHING	(1)
	122-85409	TENSION SPRING, YELLOW	(1)
	122-85607	TENSION DISK PRESSER	(1)
	122-85807	THREAD TENSION SPRING FELT	(1)
	122-85706	TENSION SPRING DISK	(2)
	122-85805	THREAD TENSION RUBBER	(1)
	122-85300	TENSION POST	(1)
	122-85904	THREAD GUIDE	(1)
	NS-6110420-SP	NUT 11/64-40	(1)
	122-84956	THREAD TENSION SPRING JUNCTION	1
	122-85003	THREAD TENSION KNOB, RED	(1)
	122-85508	TENSION SPRING BUSHING	(1)
	122-84709	TENSION SPRING, RED	(1)
	122-85409	TENSION DISK PRESSER	(1)
	122-85607	THREAD TENSION SPRING FELT	(1)
	122-85706	TENSION SPRING DISK	(2)
	122-85805	THREAD TENSION RUBBER	(1)
	122-85300	TENSION POST	(1)
	122-85904	THREAD GUIDE	(1)
	NS-6110420-SP	NUT 11/64-40	(1)
	122-84956	THREAD TENSION SPRING JUNCTION	1
	122-85201	THREAD TENSION KNOB, BLUE	(1)
	122-85508	TENSION SPRING BUSHING	(1)
	122-84907	TENSION SPRING, BLUE	(1)
	122-85409	TENSION DISK PRESSER	(1)
	122-85607	THREAD TENSION SPRING FELT	(1)
	122-85706	THREAD TENSION DISK	(2)
	122-85805	THREAD TENSION RUBBER	(1)
	122-85300	TENSION POST	(1)
	122-85904	THREAD GUIDE	(1)
	NS-6110420-SP	NUT 11/64-40	(1)
	SS-7110710-SL	SCREW 11/64-40 L=7	1

Page 26 — 12. UPPER KNIFE COMPONENTS

Juki MO-3616 parts on page 26

Ref	Part number	Part name	Qty
1	1	PIN
2	2	BRACKET
3	3	SCREW
4	4	COLLAR
5	5	HOLDER
6	6	SCREW
7	7	BRACKET
8	8	SPRING
9	9	PIN
10	10	COLLAR
11	11	COLLAR
12	12	SCREW
13	13	HOLDER
14	14	BRACKET
15	15	SCREW
16	16	WASHER
17	17	BLADE
18	18	BLADE
19	19	SCREW
20	20	HOLDER
21	21	BLADE
22	22	BRACKET
23	23	SPRING
24	24	SPRING
25	25	BRACKET
26	26	BRACKET
27	27	HOLDER
28	28	BRACKET
29	29	SCREW

Page 27

Juki MO-3616 parts on page 27

Ref	Part number	Part name	Qty
	118-23804	CRANK PIN C
	122-86704	FEED FORKED ARM
	SM-6061402-TP	SCREW M6 L=14
	121-32502	BUSHING, REAR
	CS-111101E-SH	COLLAR ASM. D=11.11 W=10
	SS-8660330-SP	SCREW 1/4-40 L=3.0	(2)
	121-32304	KNIFE DRIVING ARM SHAFT
	SS-4060310-SP	SCREW 3/32-56 L=2.5
	115-65801	UPPER KNIFE GUIDE SHAFT
	115-66809	OIL SEAL
	121-32403	BUSHING, FRONT
	SS-6111040-SP	SCREW 11/64-40 L=9.5
	121-33302	UPPER KNIFE SUPPORT A
	118-45609	KNIFE
	SS-9090813-TP	SCREW 9/64-40 L=8
	WP-0370316-SD	WASHER 3.7X8X0.3
	118-45708	KNIFE
	121-33401	UPPER KNIFE SUPPORT
	SS-6111610-SP	SCREW 11/64-40 L=16
	115-98000	UPPER KNIFE SUPPORT
	118-45807	UPPER KNIFE
	115-65702	WASHER
	SS-4060310-SP	SCREW 3/32-56 L=2.5
	115-65504	UPPER KNIFE PRESSER PLATE
	118-48405	UPPER KNIFE COVER
	SS-9111610-SP	SCREW 11/64-40 L=16
	118-45500	UPPER KNIFE SUPPORT
	118-45906	UPPER KNIFE
	SS-9112310-SP	SCREW 11/64-40 L=23

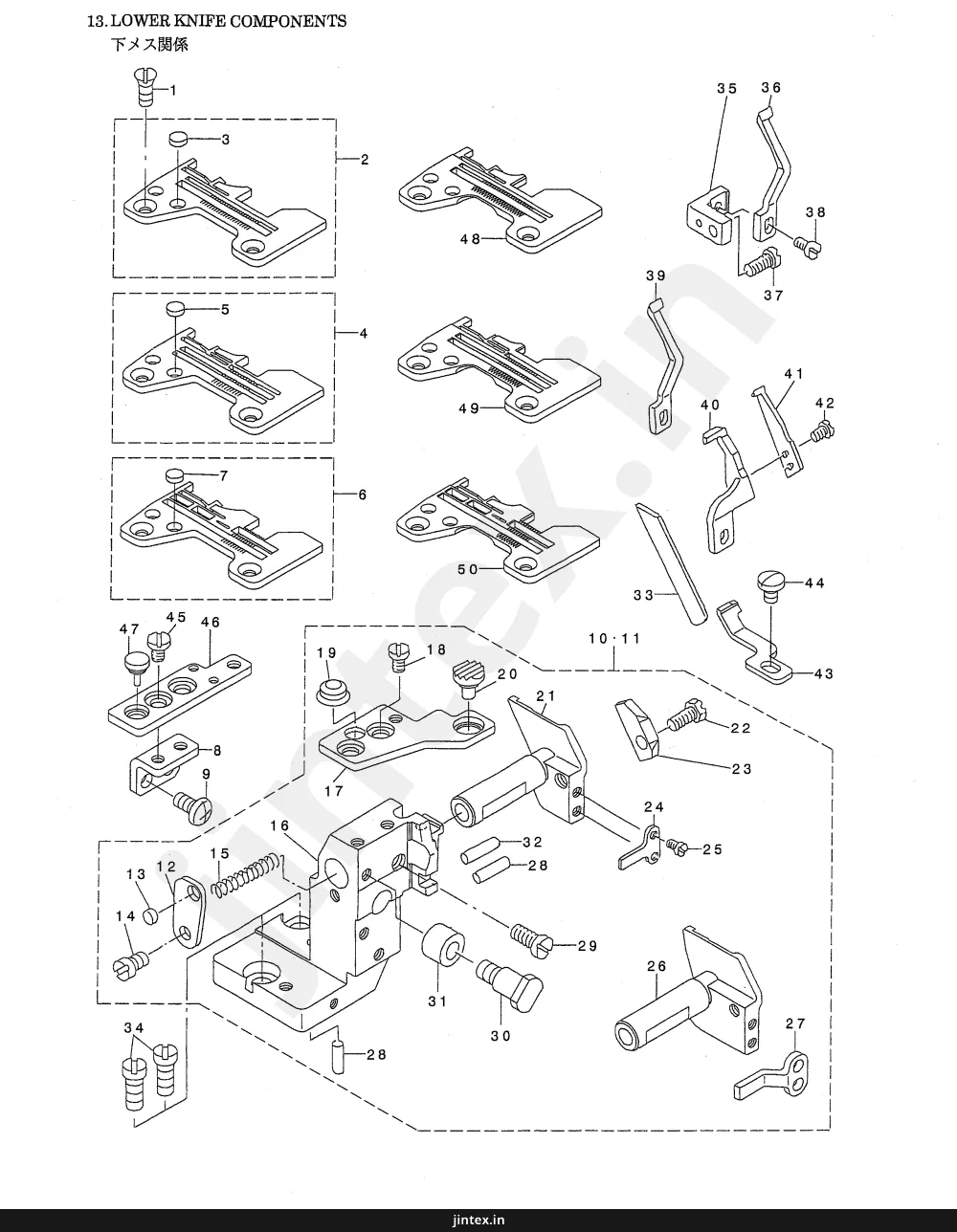

Page 28 — 13. LOWER KNIFE COMPONENTS

Juki MO-3616 parts on page 28

Ref	Part number	Part name	Qty
1	1	SCREW
2	2	BASE
3	3	WASHER
4	4	BASE
5	5	BASE
6	6	BASE
7	7	BASE
8	8	BRACKET
9	9	SCREW
10	10	SPRING
11	11	SPRING
12	12	PIN
13	13	PIN
14	14	PIN
15	15	SPRING
16	16	BASE
17	17	BASE
18	18	SCREW
19	19	WASHER
20	20	SCREW
21	21	BRACKET
22	22	SPRING
23	23	BRACKET
24	24	BRACKET
25	25	SCREW
26	26	SHAFT
27	27	BRACKET
28	28	PIN
29	29	SPRING
30	30	SHAFT
31	31	COLLAR
32	32	PIN
33	33	SHAFT
34	34	SCREW
35	35	BRACKET
36	36	LEVER
37	37	SPRING
38	38	SCREW
39	39	BRACKET
40	40	BRACKET
41	41	LEVER
42	42	SCREW
43	43	BRACKET
44	44	SCREW
45	45	SCREW
46	46	BASE
47	47	WASHER
48	48	BASE
49	49	BASE
50	50	BASE

Page 29

Juki MO-3616 parts on page 29

Ref	Part number	Part name	Qty
1	SS-2110910-SL	SCREW 11/64-40 L=9	2
2	RA200-JOE-DAO	THROAT PLATE ASM.	1
3	118-06304	PLUG	(2)
4	R4305-JOE-EAO	THROAT PLATE ASM.	1
5	118-06304	PLUG	(2)
6	R4508-JOE-DAO	THROAT PLATE ASM.	1
7	118-06304	PLUG	(2)
8	118-06304	THROAT PLATE BASE B SUPPORT	1
9	SM-4051055-SP	SCREW	2
10	122-57267	LOWER KNIFE BRACKET ASM.	1
11	122-57366	LOWER KNIFE BRACKET ASM.	1
12	121-33211	SPRING STOPPER	(1)
13	118-06304	PLUG	(1)
14	SS-7110720-SP	SCREW 11/64-40 L=7	(1)
15	118-46607	SPRING	(1)
16	121-32619	LOWER KNIFE BRACKET	(1)
17	121-02208	THROAT PLATE BASE A	(1)
18	SS-6110610-TP	SCREW 11/64-40 L=6	(2)
19	121-03701	RUBBER PLUG B	(1)
20	121-03602	RUBBER PLUG A	(1)
21	121-32700	LOWER KNIFE SLIDE STUD	(1)
22	SS-9111010-SP	SCREW 11/64-40 L=9.5	(1)
23	121-33104	LOWER KNIFE PRESSER PLATE	(1)
24	121-32908	ROTATING STOPPER	(1)
25	SS-7090710-SP	SCREW 9/64-40 L=6.8	(2)
26	121-32809	LOWER KNIFE SLIDE STUD	(1)
27	121-33005	ROTATING STOPPER	(1)
28	121-33708	HOLDER PIN	(2)
29	SS-7151120-SP	SCREW 15/64-28 L=11	(1)
30	B1423-804-000	UPPER PLATE	(1)
31	B1422-804-000	PIN	(1)
32	118-46805	HOLDER PIN	(1)
33	118-46003	LOWER KNIFE	1
34	SS-6151440-SP	SCREW 15/64-28 L=14	2
35	118-47100	NEEDLE GUARD HOLDER	1
36	118-90100	NEEDLE GUARD	1
37	SS-7110840-SP	SCREW 11/64-40 L=7.8	1
38	SS-7090610-SP	SCREW 9/64-40 L=6	1
39	118-90308	NEEDLE HOLDER	1
40	120-15301	NEEDLE HOLDER	1
41	120-15400	NEEDLE HOLDER	1
42	SS-7060510-SP	SCREW 3/32-56 L=4.8	2
43	121-77903	NEEDLE HOLDER	1
44	SS-6110610-TP	SCREW 9/64-40 L=4.6	1
45	SS-6110610-TP	SCREW 11/64-40 L=6	2
46	122-87801	THROAT PLATE BASE C	1
47	118-04606	RUBBER PLUG	1
48	R4200-J6E-DOO	THROAT PLATE	1
49	R4305-J6E-EOO	THROAT PLATE	1
50	R4508-J6E-DOO	THROAT PLATE	1

Page 30 — 14. LUBRICATION MECHANISM COMPONENTS

Juki MO-3616 parts on page 30

Ref	Part number	Part name	Qty
	1	OIL PUMP BODY
	2	GEAR
	3	PIN
	4	PLUG
	5	PLUG
	6	PLUNGER
	7	SPRING
	8	PIN
	9	SPRING
	10	CAP
	11	SPRING
	12	TUBE
	13	TUBE
	14	CLAMP
	15	BRACKET
	16	BOLT
	17	FILTER
	18	PLUG
	19	WASHER
	20	PLUG
	21	WASHER
	22	PLUG
	23	BRACKET
	24	NUT
	25	PLUG
	26	BRACKET
	27	BOLT
	28	BRACKET
	29	BRACKET
	30	PLUG

Page 32 — 15. SEMI-SUNKEN TYPE TABLE COMPONENTS

Juki MO-3616 parts on page 32

Ref	Part number	Part name	Qty
	1	TABLE
	2	SCREW
	3	WASHER
	4	BRACKET
	5	BRACKET
	6	BRACKET
	7	SCREW
	8	SCREW
	9	SCREW
	10	BRACKET
	11	BRACKET
	12	BRACKET
	13	BRACKET
	14	SCREW
	15	BASE PLATE
	16	SCREW
	17	SCREW
	18	NUT
	19	BRACKET
	20	BRACKET
	21	SCREW
	22	BRACKET
	23	BRACKET
	24	BRACKET
	25	BRACKET
	26	BRACKET
	27	BRACKET
	28	BRACKET
	29	BRACKET

Page 34 — 16. FULLY-SUNKEN TYPE TABLE COMPONENTS

Juki MO-3616 parts on page 34

Ref	Part number	Part name	Qty
	1	TABLE TOP
	2	SCREW
	3	SCREW
	4	WASHER
	5	NUT
	6	NUT
	7	BRACKET
	8	BRACKET
	9	BRACKET
	10	BRACKET
	11	SCREW
	12	NUT
	13	BRACKET
	14	BRACKET
	15	BRACKET
	16	SCREW
	17	BRACKET
	18	BRACKET
	19	BRACKET
	20	BRACKET
	21	SCREW
	22	SCREW
	23	BRACKET
	24	SCREW
	25	BRACKET
	26	BRACKET
	27	SCREW
	28	SCREW
	29	SCREW
	30	DRAWER
	31	BRACKET
	32	BRACKET
	33	BRACKET
	34	BRACKET
	35	BRACKET
	36	BRACKET
	37	BRACKET
	38	BRACKET
	39	BRACKET
	40	BRACKET

Page 35

Juki MO-3616 parts on page 35

Ref	Part number	Part name	Qty
	119-59558	TABLE ASM.	1
	115-71809	BOLT C	2
	115-71908	BOLT D	2
	WP-1002036-SE	WASHER 10X21X2	12
	WS-1002560-KR	SPRING WASHER 10X18X2.5	4
	NS-6240630-SE	NUT 3/8-18	12
	115-71403	RUBBER CUSHION	4
	118-49379	FRAME SUPPORT PLATE ASM.	1
	118-49361	FRAME SUPPORT PLATE ASM.	(1)
	118-50906	FRAME SUPPORT AUXILIARY PLATE	(1)
	SM-9082513-CF	SCREW M8 L=25	(4)
	NM-6080600-SM	NUT M8	(4)
	WP-0850002-SC	WASHER 8.5X18X1.6	(4)
	119-60259	CLOTH CHUTE ASM.	1
	119-60200	CLOTH WASTE CHUTE	(1)
	ST-6030821-0A	SCREW D=3-24 L=8	(2)
	118-50401	CLOTH WASTE CHUTE INLET LEVER	(1)
	119-60309	CLOTH WASTE CHUTE HOLE	(1)
	SS-6090420-SP	SCREW 9/64-40 L= 4.0	(2)
	118-50609	RUBBER	(1)
	118-50500	SPRING	(1)
	WP-0370316-SP	WASHER 3.7X8X0.3	(1)
	ST-6030821-0A	SCREW D=3-24 L=8	(1)
	SS-5110710-SP	SCREW 11/64-40 L=7	2
	118-50815	COOLING FAN CASE	1
	118-50815	CASE SPONGE	1
	SS-5110710-SP	SCREW 11/64-40 L=7	2
	SK-2351600-SC	WOOD SCREW D=3.5 L=16	3
	SS-6090630-SP	SCREW 9/64-40 L=6	5
	111-55108	DRAWER	1
	111-55207	DRAWER SUPPORT	2
	SK-3311500-SC	WOOD SCREW D=3.1 L=15	6
	D8204-555-D0	DRAWER STOPPER	1
	121-35554	CLOTH WASTE CHUTE ASM.	1
	121-35505	CLOTH WASTE CHUTE SUPPORT	(1)
	119-62800	CLOTH WASTE CHUTE INLET	(1)
	119-62909	CLOTH WASTE CHUTE, UPPER	(1)
	SS-5090610-SP	SCREW 9/64-40 L=6	(3)
	NS-6090310-SP	NUT 9/64-40	(3)
	119-60002	CLOTH WASTE CHUTE, LOWER (BENCH)	1

Page 36 — 17. THREAD STAND COMPONENTS(FOR MO-3604,MO-3614)

Juki MO-3616 parts on page 36

Ref	Part number	Part name	Qty
	1	THREAD STAND COMPONENTS
	2	STAND
	3	CLAMP
	4	NUT
	5	COLLAR
	6	POST
	7	SPRING
	8	SPRING
	9	WASHER
	10	BASE
	11	ARM
	12	ARM
	13	ARM
	14	SUPPORT
	15	SUPPORT
	16	SUPPORT
	17	SPRING
	18	CAP
	19	CAP
	20	CAP
	21	BASE
	22	BASE
	23	BASE
	24	WASHER
	25	BRACKET
	26	SCREW
	27	WASHER

Page 37

Juki MO-3616 parts on page 37

Ref	Part number	Part name	Qty
	119-69458	THREAD STANDING DEVICE ASM.	1
	111-85352	THREAD GUIDE ASM.	(2)
	111-85402	THREAD GUIDE ARM JOINT	(4)
	NM-6050001-SE	NUT M5	(4)
	B3311-704-000	SPOOL REST ROD CAP	(4)
	111-85204	SPOOL REST ROD, UPPER	(1)
	B3305-704-000-A	SPOOL REST ROD JOINT	(1)
	SM-4051405-SE	SCREW M5 L=14	(1)
	NM-6050001-SE	NUT M5	(2)
	B3309-704-000	THREAD GUIDE ARM ASM.	(2)
	B3311-804-000	LOWER THREAD GUIDE	(1)
	SS-7110540-SP	SCREW 11/64-40 L=5	(1)
	B3309-704-000	THREAD GUIDE ARM	(1)
	B3304-704-000-A	THREAD GUIDE ARM HOLDER	(1)
	SM-6053000-SE	SCREW M5X0.8 L=30	(1)
	NM-6050001-SE	NUT M5	(1)
	111-85105	SPOOL REST ROD, LOWER	(4)
	111-85501	SPOOL RETAINER	(4)
	B3320-704-000-A	SPOOL PIN	(4)
	B3311-012-000	SPOOL REST CUSHION	(2)
	111-85006	SPOOL REST ARM	(4)
	NM-6050001-SE	NUT M5	(1)
	B3317-704-000	NUT	(2)
	WP-1612616-SE	WASHER 16X30X2.6	(3)
	MAO-11532000	CORD STAPLE	(4)
	SM-4051405-SE	SCREW M5 L=14	1
	WS-1643202-KN	SPRING WASHER 16.4X26.6X3.2	1

Page 38 — 18. THREAD STAND COMPONENTS(FOR MO-3616)

Juki MO-3616 parts on page 38

Ref	Part number	Part name	Qty
	1	THREAD STAND COMPONENTS
	2	MO-3616
	3	糸立装置関係
	4	FOR
	5	CLAMP
	6	SCREW
	7	CAP
	8	BRACKET
	9	BRACKET
	10	POST
	11	HOLDER
	12	SCREW
	13	SCREW
	14	BRACKET
	15	BRACKET
	16	SCREW
	17	BRACKET
	18	BRACKET
	19	SCREW
	20	NUT
	21	POST
	22	POST
	23	POST
	24	THREAD HOLDER
	25	THREAD HOLDER
	26	SCREW
	27	NUT
	28	BASE
	29	NUT
	30	WASHER
	31	BASE
	32	SCREW
	33	BASE
	34	BRACKET

Page 39

Juki MO-3616 parts on page 39

Ref	Part number	Part name	Qty
	119-69557	THREAD STANDING DEVICE ASM.	1
	SK-3382001-SE	SCREW D=3.8 L=20	(1)
	119-69565	SPOOL REST ARM A ASM.	(1)
	B3319-704-L00	THREAD GUIDE	(3)
	B3318-704-L00-A	THREAD GUIDE ARM JOINT	(4)
	SM-6061610-SC	SCREW M6 L=16	(4)
	B3311-704-000	SPOOL REST ROD CAP	(1)
	119-69466	THREAD GUIDE ARM B ASM.	(1)
	B3319-704-L00	THREAD GUIDE	(2)
	111-85204	SPOOL REST ROD,UPPER	(1)
	B3305-704-000-A	SPOOL REST ROD JOINT	(1)
	NM-6050001-SE	NUT M5	(2)
	SM-4051405-SE	SCREW M5 L=14	(2)
	B3309-704-0A0	THREAD GUIDE ARM ASM.	(1)
	B3311-804-000	LOWER THREAD GUIDE	(1)
	SS-7110540-SP	SCREW T1/64-40 L=5	(1)
	B3309-704-000	THREAD GUIDE ARM	(1)
	B3304-704-000-A	THREAD GUIDE ARM HOLDER	(1)
	SM-6053000-SE	SCREW M5X0.8 L=30	(1)
	NM-6050001-SE	NUT M5	(1)
	111-85105	SPOOL REST ROD,LOWER	(1)
	111-85500	SPOOL RETAINER	(5)
	B3320-704-L00-A	SPOOL PIN	(5)
	B3311-012-000	SPOOL REST CUSHION	(5)
	119-85650	SPOOL REST	(5)
	119-66503	THREAD GUIDE ARM B	(1)
	NM-6050001-SE	NUT M5	(5)
	119-69508	SPOOL REST ARM A	(1)
	B3317-704-000	NUT	(1)
	WP-1612616-SE	WASHER 16X30X2.6	(2)
	B3321-704-L00	SPOOL REST ARM SUPPORT, A	(1)
	SM-4061201-SE	SCREW M6 L=12	(1)
	NM-6060001-SE	NUT M6	(1)
	MA0-11532000	CORD STAPLE	(3)

Page 40 — 19. LIST FOR INFORMATION OF CHANGE

Juki MO-3616 parts on page 40

Ref	Part number	Part name	Qty
20	SS-7111810-TP	SS-7111810-TP
21	SS-7111410-TP	SS-7111410-TP
22	SM-6061202-TP	SM-6061202-TP
25	SS-7111810-TP	SS-7111810-TP
26	SS-7111410-TP	SS-7111410-TP
27	SM-6061202-TP	SM-6061202-TP
29	SS-7111810-TP	SS-7111810-TP
30	SS-7111410-TP	SS-7111410-TP
21	122-84204	122-84204
21	123-47555	123-47555

Page 43 — NUMERICAL INDEX OF PARTS

Juki MO-3616 parts on page 43

Ref	Part number	Part name	Qty
16	121-16703		10
30	121-17107		10
17	121-17412		12
12	121-17461		12
16	121-17511		12
18	121-18808		10
42	121-19400		12
46	121-19509		12
38	121-19608		12
36	121-19756		12
37	121-19806		12
39	121-19905		12
40	121-20002		12
28	121-20150		6
26	121-21307		22
19	121-21612		14
22	121-22008		14
19	121-22362		6
5	121-22404		16
24	121-23360		6
14	121-23410		16
45	121-23659		16
41	121-23808		16
39	121-23907		16
32	121-24004		16
23	121-24400		6
9	121-24509		6
29	121-29805		28
26	121-29854		28
27	121-29904		28
28	121-30001		28
20	121-30100		28
21	121-30209		28
6	121-30308		28
7	121-30407		28
67	121-30704		16
66	121-30803		16
11	121-32155		6
7	121-32304		24
11	121-32403		24
16	121-32502		24
16	121-32619		26
21	121-32700		26
26	121-32809		26
24	121-32908		26
27	121-33005		26
23	121-33104		26
12	121-33211		26
13	121-33302		24
18	121-33401		24
28	121-33708		26
24	121-35505		30
35	121-35505		32
23	121-35554		30
34	121-35554		32
49	121-48607		8
50	121-48706		8
51	121-49803		8
19	121-52468		20
34	121-53763		20
35	121-56907		20
41	121-60008		20
37	121-62202		20
40	121-64802		20
43	121-67409		20
42	121-67508		20
46	121-67607		20
38	121-67706		20
20	121-67805		12
20	121-72805		12
63	121-76004		16
43	121-77903		26
20	122-50601		2
11	122-52706		28
45	122-53308		8
1	122-53811		20
1	122-54009		16
23	122-55907		28
14	122-56004		28
2	122-56103		28
10	122-57267		26
11	122-57366		26
44	122-58000		4
16	122-58505		14
18	122-59008		14
1	122-70203		4
38	122-70302		4
41	122-71706		6
17	122-71805		28
36	122-71904		4
4	122-73009		10
12	122-73207		16
7	122-73355		16
8	122-73454		16
1	122-75962		28
43	122-80103		6
7	122-80202		8
8	122-80301		8
52	122-80400		8
15	122-80509		8
29	122-80608		8
1	122-80707		8
3	122-80806		8
30	122-80905		8
34	122-81002		8
18	122-81101		8
20	122-81200		8
21	122-81309		8
35	122-81408		8
37	122-81507		8
38	122-81606		8
22	122-81705		8
24	122-81804		8
25	122-81903		8
19	122-82109		18
2	122-82208		18
1	122-82257		18
3	122-82307		18
4	122-82406		18
8	122-82505		18
15	122-82604		10
6	122-82703		10
12	122-82802		10
45	122-82901		12
13	122-83008		10
61	122-83107		12
59	122-83255		12
12	122-83404		14
26	122-83503		14
17	122-83602		22
14	122-83701		22
16	122-83800		22
18	122-83909		22
24	122-84006		22
6	122-84105		14
8	122-84303		16
25	122-84402		16
28	122-84501		16
45	122-84709		22
42	122-84758		22
34	122-84808		22
31	122-84857		22
56	122-84907		22
53	122-84956		22
43	122-85003		22
32	122-85102		22
54	122-85201		22
39	122-85300		22
50	122-85300		22
61	122-85300		22
35	122-85409		22
46	122-85409		22
57	122-85409		22
33	122-85508		22
44	122-85508		22
55	122-85508		22
36	122-85607		22
47	122-85607		22
58	122-85607		22
37	122-85706		22
48	122-85706		22
59	122-85706		22
38	122-85805		22
49	122-85904		22
60	122-85904		22
40	122-85904		22
51	123-41806		22
5	123-41905		30
4	123-41954		30
18	123-42002		4
17	123-42101		14
9	123-42200		14
1	123-42309		6
4	123-43406		6
16	123-43505		2
14	123-44503		2
16	123-44800		8
14	123-44859		8
36	123-44909		2
21	123-45203		22
21	123-47555		22

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki MO-3616 — parts catalog

• Page 1 (cover): This is the cover page for the JUKI MO-3604-0E4, MO-3614-BE6, and MO-3616-DE4 industrial sewing machines parts list.
• Page 2 (text): This page provides instructions on how to use the parts list, explaining codes and symbols used in the catalog, including explanations for asterisk marks, '01' codes, and how quantities and parenthetical notations are represented.
• Page 4 (diagram): This page displays a diagram of frame components for a JUKI sewing machine, with numbered parts and their corresponding references.
• Page 5 (parts_list): This page lists parts for industrial sewing machines, including part numbers, descriptions, quantities, and notes for specific models like MO-3604, MO-3614, MO-3616, and JE.
• Page 6 (diagram): This page displays a diagram of frame components for an industrial sewing machine, with numbered parts indicated for identification.
• Page 7 (parts_list): This page lists parts for industrial sewing machines, including part numbers, descriptions, quantities, and notes.
• Page 8 (diagram): This page displays a diagram of crankshaft components, including various parts like the crankshaft itself, connecting rods, bearings, and fasteners, each identified by a reference number.
• Page 9 (parts_list): This page lists parts for a sewing machine, including crankshaft bushings, screws, bearings, and washers, with their corresponding part numbers, descriptions, and quantities. It also includes notes regarding specific models and export/Japan usage.
• Page 10 (diagram): This page displays a diagram of needle driving shaft components, with numbered parts and their corresponding references.
• Page 11 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It also provides a legend for the notes.
• Page 12 (diagram): This page displays a diagram of feed mechanism components, labeled with reference numbers for identification.
• Page 14 (diagram): This page displays a diagram of feed mechanism components, labeled with reference numbers and part numbers for identification.
• Page 15 (parts_list): This page lists parts for the MO-3604, MO-3614, and MO-3616 models, including screws, washers, pins, and various assemblies with their corresponding part numbers and descriptions.
• Page 16 (diagram): This page displays a diagram of chain looper components for model MO-3616, with numbered parts indicated.
• Page 17 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It also includes a note about selecting parts for fit tolerance.
• Page 18 (diagram): This page displays a diagram of upper and lower looper components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 19 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, quantities, and notes. It details components like bushings, screws, guides, and holders, with specific model applicability mentioned in the notes section.
• Page 20 (diagram): This page displays a diagram of presser foot components, with numbered parts and their corresponding references.
• Page 21 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It details items like lifting levers, screws, springs, and bushings.
• Page 22 (diagram): This page displays a diagram of presser foot components, with numbered parts and their corresponding references.
• Page 23 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, and quantities. It also includes notes for specific models like MO-3604 and MO-3614.
• Page 24 (diagram): This page displays a diagram of thread tension components, including various screws, plates, springs, and tension discs, with corresponding reference numbers.
• Page 25 (parts_list): This page lists parts for a sewing machine, including screws, brackets, thread guides, tension components, and washers, with their corresponding part numbers and descriptions.
• Page 26 (diagram): This page displays a diagram of upper knife components, with numbered parts and their corresponding references.
• Page 27 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It details various screws, shafts, supports, and other components, with some parts specified for different models or regions like Japan and export.
• Page 28 (diagram): This page displays a diagram of lower knife components, with numbered parts and their corresponding references.
• Page 29 (parts_list): This page lists parts for sewing machines, including screws, plates, and holders, with their corresponding part numbers and descriptions. It also includes notes indicating compatibility with specific machine models like MO-3604, MO-3614, and MO-3616.
• Page 30 (diagram): This page displays a diagram of lubrication mechanism components, with numbered parts and their corresponding references.
• Page 32 (diagram): This page displays a diagram of semi-sunken type table components, illustrating various parts with reference numbers.
• Page 34 (diagram): This page displays a diagram of fully-sunken type table components, with various parts numbered for identification.
• Page 35 (parts_list): This page lists parts for a sewing machine, including table assemblies, bolts, washers, screws, nuts, and various support and chute components, with their corresponding part numbers and quantities.
• Page 36 (diagram): This page displays a diagram of thread stand components for models MO-3604 and MO-3614, with numbered parts and their corresponding references.
• Page 37 (parts_list): This page lists parts for a sewing machine, including thread standing devices, guides, arms, spools, nuts, screws, washers, and staples, with their corresponding part numbers, descriptions, and quantities.
• Page 38 (diagram): This page displays a diagram of thread stand components for the MO-3616 sewing machine, with numbered parts indicated.
• Page 39 (parts_list): This page lists parts for a sewing machine, including thread standing device assembly, screws, thread guides, nuts, and washers, with their corresponding part numbers and quantities.
• Page 40 (text): This page contains information about changes to parts, including added and obsolete parts, and their corresponding revision numbers and page references.
• Page 43 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page numbers, and reference numbers.
• Page 44 (cover): This is the cover page of a JUKI Corporation parts catalog, including copyright information and contact details for ordering or further information. It also states that the parts list is subject to change without notice.

Page 1 — PARTS LIST

JUKI 1-Needle, Overedging Industrial Sewing Machine 高速一本針オーバーロックミシン MO-3604-0E4 2-Needle, Overedging Industrial Sewing Machine 高速二本針オーバーロックミシン MO-3614-BE6 Safety Stitch Industrial Sewing Machine 高速安全縫ミシン MO-3616-DE4 PARTS LIST jintex.in 29186509

Page 2

HOW TO MAKE USE OF THIS PARTS LIST 1. Explanation of codes 1) "*" mark...means this part is changed from the previous parts book. As to the details of the change, refer to "List for information of change". 2) "01"...refer to "Note" explanation at bottom of page. 2. Codes on the "Qty" column Each numeral indicates the number of parts required. "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3. Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4. Dotted lines on the Figures indicate assembly parts. パーツリストご利用に際して 1. "注記" 欄の記号説明 1) "*"印...前回 のパーツブックに比較して今回変更された部品を意味します。 変更内容は"変更情報リスト"を参照してください。 2) "01"...ページ下の"注記"の説明を参照してください。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3. 数量欄の（ ）は、組部品を構成している子部品であることを意味します。 4. イラストページのー－－－－－枠は、組構成であることを意味します。 jintex.in

Page 4 — 1. FRAME COMPONENTS (1)

1. FRAME COMPONENTS (1) フレーム関係 (1) JUKI jintex.in

Page 5 — D E S C R I P T I O N

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 121-05359 CLOTH PLATE ASM. ヌノダ イケツゴウ 1 2 121-02752 CLOTH PLATE ASM. ヌノダ イクミ (1) 3 115-01301 ECCENTRIC BUSHING ヌノダ イヘンシンブツシュ (1) 4 WZ-0420350-KP DISC SPRING サラバネ (1) 5 CS-0400671-SP THRUST HOLDER スラストウケ (1) 6 SM-8040302-TP SETSCREW トメネジ (1) 7 119-49005 CLOTH BASE COVER ヌノダ イカバ- 1 8 SS-8110410-TP SCREW 11/64-40 L= 3.5 トメネジ 11/64-40 L=3.5 1 9 NS-6110420-SP NUT 11/64-40 ロツカクナット 11/64-40 1 10 SS-6111440-SP SCREW 11/64-40 L=14.0 ヒラネジ 11/64-40 L=14 1 11 118-10207 STOPPER ヌノダ イストツパ- バネ 1 12 SS-7110510-SP SCREW 11/64-40 L=5 マルヒラネジ 11/64-40 L= 5 2 13 SS-4091015-SP SCREW 9/64-40 L=10 ナベネジ 9/64-40 L=10 3 14 123-42101 CLOTH PLATE SIDE COVER ヌノダ イヨコカバー - 1 15 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 2 16 123-44503 FEED MECHANISM COVER ネクリフタ- 1 17 SM-1040801-SC SCREW M4X0.7 L=8 サラコネジ M4X0.7 L=8 1 18 SM-4040855-SP SCREW ナベネジ 4 19 B1140-716-000 SPRING ルーパカバー バネ 1 20 122-50601 GASKET オクリフタ タツキン 1 21 119-51100 COVER チョウセツアナフタ 1 22 122-70500 GASKET チョウセツアナフタツキン 1 23 SM-04040855-SP SCREW ナベネジ 4 24 01 121-02307 CHIP GUARD COVER, LEFT ヌノクス カバー ヒダリ 1 25 02 121-02406 CHIP GUARD COVER, LEFT ヌノクス カバー ヒダリ 1 26 SS-7110510-SP SCREW 11/64-40 L=5 マルヒラネジ 11/64-40 L= 5 2 27 01 122-86803 CLOTH WASTE COVER ヌノクス カバー (オーパー-) 1 28 02 122-86902 CLOTH WASTE COVER ヌノクス カバー (インダー-) 1 29 SS-2090520-SL SCREW 9/64-40 L=5 マルサラネジ 9/64-40 L= 5 1 30 121-01515 CROTH WASTE COVER STOPPER ヌノクス カバー ストツパー - 1 31 NS-6090310-SN NUT 9/64-40 ロツカクナット 9/64-40 1 32 SS-3090610-SP SCREW 9/64-40 L=6 マルネジ 9/64-40 L=6 2 33 121-01309 LOOPER COVER ルーパカバー - 1 34 118-03004 LOOPER COVER HINGE PIN ルーパカバー ヒンジジク 1 35 SS-8110410-TP SCREW 11/64-40 L= 3.5 トメネジ 11/64-40 L=3.5 1 36 123-44909 LOOPER COVER BRACKET ルーパカバー ウケダイ 1 37 SM-4041055-SP SCREW ルーパカバー 3 38 121-03404 LOOPER COVER PRESSER SPRING ルーパカバー オサエバネ 1 39 SM-4040655-SP SCREW M4 L=6 ナベネジ M4 L=6 1 40 SS-7090530-SP SCREW 9/64-40 L= 4.5 マルヒラネジ 9/64-40 L=4.5 1 41 121-03206 LOOPER COVER PRESSER PLATE ルーパカバー オサエ イタ 1 42 121-01408 GUIDE PLATE ルーパカバー ガイドバン 1 43 SS-7090610-SP SCREW 9/64-40 L=6 マルヒラネジ 9/64-40 L=6 1 44 03 CM-3002000-01 ATTENTION SEAL ュビケガチュウイシール (16) 1 45 118-02204 RUBBER PLUG ヌノタイカバ- ボーシンゴム 1 NOTE (注記) 01...FOR MO-3604,MO-3614 MO-3604,MO-3614用 02...FOR MO-3616 MO-3616用 03...FOR JE JE用

Page 6 — 2. FRAME COMPONENTS (2)

2. FRAME COMPONENTS (2) フレーム関係 (2) 1 2 3 10.11 4 35 34 5 6 7 8 9 12 13 30 31 38 40 39 42 41 44 37 15 16 17 18 19 20 32 25 14 26 33 21 22 23 24 27 28 29 jintex.in

Page 7

REF. NO NOTE PART NO. D E S C R I P T I O N Qty. 1 122-70203 UPPER COVER ウツカバ-(MO-3600) 1 2 RO-1952401-00 RUBBER RING 0リング 1 3 B3530-555-000 OIL SIGHT WINDOW アツブ・ラマド 1 4 SM-4051255-SP SCREW, M5 L=12. ナベ・ネシ M5 L=12 7 5 121-01952 BELT COVER ASM. ベルトカバ-(クミ) 1 6 04 CM-3002000-A1 CAUTION LABEL(16) マキコミュウイシール(16) (1) 7 04 121-01903 BELT COVER ベルトカバ- (1) 8 121-01903 BELT COVER ベルトカバ- 1 9 SS-4151215-SP SCREW 15/64-28 L=12 ナベ・ネシ 15/64-28 L=12 3 10 04 CM-3002001-01 SAFETY LABEL, 1(SMALL). アンゼシラペル 1(ショウ) 1 11 06 CM-3002001-A1 SAFETY LABEL, 3 (SMALL). アンゼシラペル 3(ショウ) 1 12 100-04109 GROUND MARK グランド・マーク 1 13 118-05207 THREAD GUIDE, LARGE イトミチ・ダイ 2 14 01 TA-1871602-RO RUBBER PLUG トメセン D=18.7 L=16 1 15 SS-5110710-SP SCREW 11/64-40 L=7 トラスネジ 11/64-40 L=7 1 16 WZ-0850302-KO WAVED WASHER 8.5X12.5X0.3 ナミガタワシヤ 8.5X12.5X0.3 2 17 B3013-141-HOA WASHER レイタロット・オサエガネ・サカナ 1 18 123-42002 SAFETY PLATE BRACKET メホコバ・ーダイ 1 19 SS-7090611-SL SCREW 9/64-40 L=6.1 マルヒラネジ 9/64-40 L=6.1 2 20 02 121-02109 SAFETY PLATE メホコバ・ー 1 21 115-03703 SCREW STUD シチユー・ボルト 4 22 WP-0751576-SD WASHER 7.5X19X1.5 ヒラサガネ 7.5X19X1.5 4 23 WS-0822010-KP SPRING WASHER 8.2X15X2 ハネサガネ 8.2X15X2 4 24 NS-6680410-SP NUT 9/32-28 ロツカクナット 9/32-28 4 25 115-03919 OIL RESERVOIR GASKET アツプラダ・マリ・パツキン 1 26 115-03885 OIL RESERVOIR ASM. アツプラダマリ(クミ) 1 27 RO-0742401-00 RUBBER RING 0リング (1) 28 SM-0081001-SD SCREW トラスネジ M8 L=10 (1) 29 115-03810 OIL RESERVOIR アツプラダマリ (1) 30 TA-1250406-RO RUBBER PLUG D=12.5 L=4 トメセン D=12.5 L=4 1 31 TA-1701107-RO RUBBER PLUG トメセン 1 32 01 121-04907 SAFETY PLATE メホコバ・ー 1 33 118-41350 FILTER BASE ASM. フィルターダイクミ 1 34 03 121-05201 BELT COVER ベルトカバ-(B) 1 35 03 SK-3412000-SC WOOD SCREW D=4.1 L=20 マルモクネジ D=4.1 L=20 2 36 122-71904 SHELTER PLATE シヤヘイバン 1 37 TA-1120804-RO RUBBER PLUG トメセン 1 38 122-70302 UPPER COVER GASKET ウツカバ・ーパツキン 1 39 123-45203 SIDE COVER ソクメンカバ- 1 40 121-00301 SIDE COVER GASKET ソクメンカバ・ーパツキン 1 41 SM-4040855-SP SCREW ナベ・ネジ 3 42 SM-1040801-SC SCREW M4X0.7 L=8 サラコネジ M4X0.7 L=8 1 43 SS-9151210-TP SCREW 15/64-28 L=11.8 ロツカクボルト 15/64-28 1 44 122-58000 BUSH メホコカバ・ーブツシユ 1 NOTE (注記) 01...FOR MO-3604,MO-3614 MO-3604,MO-3614用 02...FOR MO-3616 MO-3616用 03...FOR JE JE用 04...FOR JAPAN 日本用 05...FOR EXPORT 輸出用 06...FOR EXPORT(EXCEPT JE) 輸出用(JEは除く) jintex.in

Page 8 — 3. CRANKSHAFT COMPONENTS

3. CRANKSHAFT COMPONENTS 主軸関係 1 2 3 4 5 6 7 8 10 32 14 15 16 13 11 12 23 9 25 26 27 28 29 30 24 19 20 21 22 17 18 33 40 41 37 38 39 43 44 45 46 47 48 34 36 35 31 jintex.in

Page 9

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 123-43406 CRANKSHAFT BUSHING D Dメタル 1 2 01 SM-4040855-SP SCREW ナベネジ 3 3 02 SM-4040855-SP SCREW ナベネジ 3 4 02 123-43505 CRANKSHAFT BUSHING D Dメタル 1 5 121-08403 GASKET Dメタルパッキン 1 6 01 B1215-804-000 BALL BEARING D シユジク ボールベアリング D 1 7 02 SB-1100003-SP BALL BEARING ボールベアリング 1 8 121-08007 CRANKSHAFT BUSHING C Cメタル 1 9 121-24509 STOPPER (R) ルーバーロッド・フレド・メキ 2 10 121-07108 CRANKSHAFT シユジク 1 11 121-32155 KNIFE DRIVING ROD ASM. ウエ メスロッド・クミ 1 12 SS-7111810-TP SCREW 11/64-40 L=18 マルヒラネジ 11/64-40 L=18 (1) 13 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 2 14 121-09153 CONNECTING ROD ASM. ハリクツウロツド・クミ 1 15 SS-7111810-TP SCREW 11/64-40 L=18 マルヒラネジ 11/64-40 L=18 (2) 16 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1 17 B1212-704-000 BEARING RETAINER ホーールベアリング・トメワ 1 18 B1211-804-000 BALL BEARING B シユジク ボールベアリング B 1 19 121-22362 UPPER LOOPER ROD ASM. ウワルーバー・タマウデ (クミ) 1 20 * SS-7111810-TP SCREW 11/64-40 L=18 マルヒラネジ 11/64-40 L=18 (2) 21 * SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (2) 22 * SM-6061202-TP SCREW M6 L=12 ロツカクアナボルト M6 L=12 (1) 23 121-24400 STOPPER (L) ルーバーロッド・フレド・メヒタリ 2 24 01 121-23360 LOWER LOOPER ROD ASM., A シタルーパ・タマウデ A (クミ) 1 25 * SS-7111810-TP SCREW 11/64-40 L=18 マルヒラネジ 11/64-40 L=18 (2) 26 * SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (2) 27 * SM-6061202-TP SCREW M6 L=12 ロツカクアナボルト M6 L=12 (1) 28 02 121-20150 LOWER LOOPER ROD ASM., B シタルーパ・タマウデ B クミ 1 29 * SS-7111810-TP SCREW 11/64-40 L=18 マルヒラネジ 11/64-40 L=18 (2) 30 * SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (2) 31 03 SS-7112420-SP SCREW 11/64-40 L=24 マルヒラネジ 11/64-40 L=24 3 32 121-08106 OIL ADJUSTING BAR ユリヨウチヨウセツポウ 1 33 SS-5080212-TP SCREW 1/8-44 L=2 ハインドネジ 5 34 04 119-56505 HANDWHEEL C ハズミククルマ (C) 1 35 04 SS-7111810-SP SCREW 11/64-40 L=18 マルヒラネジ 11/64-40 L=18 3 36 03 WS-0451040-K0 SPRING WASHER 4.5X8.5X1 ハネネガネ 4.5X8.5X1 3 37 B1211-804-000 BALL BEARING B シユジク ボールベアリング B 1 38 115-10609 WASHER ベアリング ウケイタ 1 39 WZ-2640310-KH WAVED WASHER 26.4X33.9X3.5 ナミガタサネガネ 26.4X33.9X3.5 1 40 RO-3473501-00 RUBBER RING Oリング 1 41 122-71706 THRUST HOLDER スラストウケ 1 42 SM-4050855-SP SCREW M5 L=8 ナベネジ M5 L=8 3 43 122-80103 OIL SHIELD シユジククアプラキラリ 1 44 118-11205 HANDWHEEL A ハズミククルマ A 1 45 SS-8151150-SP SCREW 15/64-28 L=10.5 トメネジ 15/64-28 L=10.5 2 46 WP-0764016-SP WASHER ビフザガネ 76X20X4 1 47 SS-9681610-TP SCREW 9/32-28 L=16 ロツカクボルト 9/32-28 L=16 1 48 03 119-56307 HAND WHEEL B ハズミククルマ (B) 1 NOTE (注記) 01...FOR MO-3604,MO-3614 MO-3604,MO-3614用 02...FOR MO-3616 MO-3616用 03...FOR EXPORT 輸出用 04...FOR JAPAN 日本用 FOR BALL HOLDER ASM., ORDER FOR SET ONLY CAN BE ACCEPTED 玉腕組は,セットのみの注文になります。

Page 10 — 4. NEEDLE DRIVING SHAFT COMPONENTS

4. NEEDLE DRIVING SHAFT COMPONENTS 針駆動軸関係 jintex.in

Page 11

REF. NO NOTE PART NO. D E S C R I P T I O N ヒンメQty 1 122-80707 FEED FORKED CRANK ハリクト ウフタマタクランク 1 2 SM-6061402-TP SCREW M6 L=14 ロツカクアナネジ M6 L=14 1 3 122-80806 NEEDLE DRIVING ARM ハリクト ウデ 1 4 SM-6061402-TP SCREW M6 L=14 ロツカクアナネジ M6 L=14 1 5 SS-8090530-TP SCREW 9/64-40 L= 5.0 トメネジ 9/64-40 L=5 2 6 122-87108 NEEDLE DRIVING SHAFT ハリクト ウジク 1 7 122-80202 BUSHING, FRONT ハリクト ウジク マエメタル 1 8 122-80301 BUSHING, REAR ハリクト ウジク アトメタル 1 9 CS-1201010-SH THRUST COLLAR ASM. D=12 W=10 スラストウケ D=12 W=10 クミ 2 10 SS-8660610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 (4) 11 01 118-23804 CRANK PIN C オクリクワタ クランクピン C 1 12 01 121-09955 LINK PIN C ASM. ハリクト ウリンクピン C(クミ) 2 13 CQ-2520000-00 OIL WICK ユシン (0.1) 14 123-44859 NEEDLE HOLDER ASM. ハリボウ(クミ) 1 15 122-80509 NEEDLE HOLDER ハリボウ (1) 16 123-44800 NEEDLE HOLDER BUSHING ハリボーメタル (1) 17 SM-8040612-TP SCREW M4 L=6 トメネジ M4 L=6 1 18 05 122-81101 NEEDLE THREAD GUIDE ハリトツナイ 1 19 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1 20 03 122-81200 THREAD GUIDE, 2-NEEDLE ニホンバ リハリトアンナイ 1 21 04 122-81309 THREAD GUIDE, CHAIN LOOPER ニジユウカンハリトアンナイ 1 22 05 122-81705 TAKE-UP LEVER GUIDE ハリトテンビン ガイド 1 23 SM-4040855-SP SCREW ナベネジ 1 24 03 122-81804 TAKE-UP LEVER GUIDE, 2-NEEDLE ニホンバ リハリトテンビン ガイド 1 25 04 122-81903 TAKE-UP LEVER GUIDE CHAIN LOOP ニジユウカンハリトテンビン ガイド 1 26 121-12108 NEEDLE THREAD GUIDE STAND ハリト アンナイダイ 1 27 SM-4040855-SP SCREW ナベネジ 2 28 SS-6080720-SP SCREW ヒラネジ 1/8-44 L=7 1 29 122-80608 NEEDLE CLAMP HOLDER ハリトメダキ 1 30 06 122-80905 NEEDLE THREAD PRESSER GUIDE A ハリトオサエトアンナイA 1 31 121-10904 NEEDLE THREAD PRESSER PLATE ハリトオサエタ A 1 32 121-10805 NEEDLE THREAD PRESSER SPRING ハリトオサエ スプリング 1 33 SD-0280401-SL HINGE SCREW D= 2.8 H=4 ダンネジ D= 2.8 H=4 1 34 04 122-81002 NEEDLE THREAD PRESSER GUIDE B ハリトオサエトアンナイB 1 35 02 122-81408 NEEDLE THREAD TAKE-UP LEVER ハリトテンビン 1 36 SS-6090670-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 2 37 03 122-81507 TAKE-UP LEVER, 2-NEEDLE ニホンバ リハリトテンビン 1 38 04 122-81606 TAKE-UP LEVER, CHAIN LOOPER ニジユウカンハリトテンビン 1 39 02 SS-8080310-TP SCREW 1/8-44 L=2.8 トメネジ 1/8-44 L=2.8 1 40 02 MDC-270B1100 NEEDLE DCX27 #11 ハリ DCX27 #11 2 41 07 SS-8080310-TP SCREW 1/8-44 L=2.8 トメネジ 1/8-44 L=2.8 1 42 07 MDC-270B1100 NEEDLE DCX27 #11 ハリ DCX27 #11 2 43 121-12207 COVER ハリカンリユウカバ 1 44 121-12306 FELT A ハリカンリユウフエルト A 1 45 122-53308 FELT B ハリカンリユウフエルト B 1 46 BT-0600402-EA OIL TUBE チューブ 0.1 47 TA-0951301-RO RUBBER PLUG トメセン 1 48 08 MC-0336007-50 NEEDLE B-27 NM75 ハリ B-27 75 1 49 02 121-48607 NEEDLE CLAMP 1 ポンバリ ハリトメ 1 50 03 121-48706 NEEDLE CLAMP, CHAIN LOOPER ニホンバ リハリトメ 1 51 04 121-49803 NEEDLE CLAMP, 2-NEEDLE ニジユウカン ハリトメ 1 52 122-80400 NEEDLE DRIVING LINK ハリクト ウリンク 1 53 09 MC-0336007-50 NEEDLE B-27 NM75 ハリ B-27 75 2 54 RO-1082401-00 RUBBER RING Oリング 1 NOTE (注記) 01...SELECTING PART FOR FIT TOLERANCE 選択かん合部品 02...FOR MO-3604 MO-3604用 03...FOR MO-3614 MO-3614用 04...FOR MO-3616 MO-3616用 05...FOR MO-3604,MO-3616 MO-3604,MO-3616用 06...FOR MO-3604,MO-3614 MO-3604,MO-3614用 07...FOR JE(MO-3604) MO-3614,MO-3616用 08...FOR JE(MO-3614,MO-3616) JE(MO-3604)用 JE(MO-3614,MO-3616)用 jintex.in

Page 12 — 5. FEED MECHANISM COMPONENTS (1)

5. FEED MECHANISM COMPONENTS (1) 送り関係 (1) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 40 41 42 43 44 45 jintex.in

Page 14 — 6. FEED MECHANISM COMPONENTS (2)

6. FEED MECHANISM COMPONENTS (2) 送り関係 (2) 1 2 4 5 6 7 8 11 12 14 9 10 13 15 16 17 18 19 20 21 25 26 27 28 30 29 22 23 24 35 36 37 38 39 40 41 35 43 44 45 46 47 48 49 51 52 53 54 55 56 57 58 59 60 61 62 3 3 32 33 34 50 60 11 jintex.in

Page 15

REF. NO NOTE PART NO. D E S C R I P T I O N Qty. 1 118-27409 FEED BAR SHAFT ヨード・カン ササエジク 1 2 SM-4040855-SP SCREW ナベネジ 1 3 WP-0371016-SD WASHER 3.7X8X1 ヒラザガネ 3.7X8X1 2 4 TA-0800504-RO PLUG D=8 L=4.5 トメネジ D=8X4.5 1 5 B1624-704-000 SLIDE BLOCK ヨード・カン ササエ カクコマ 1 6 118-28050 COLLAR ASM. ササエジク カラー クミ 1 7 SS-8110410-TP SCREW 11/64-40 L= 3.5 トメネジ 11/64-40 L=3.5 (1) 8 118-82107 MAIN FEED DOG シュオクリバ 1 9 01 119-49807 MAIN FEED DOG シュオクリバ (F-25) 1 10 02 118-82800 MAIN FEED DOG シュオクリバ 1 11 SS-9111050-SP SCREW 11/64-40 L=9.5 ロツカクボルト 11/64-40 L=9.5 1 12 04 118-87106 AUXILIARY FEED DOG ホシヨクリバ 1 13 03 118-87403 AUXILIARY FEED DOG ホシヨクリバ 1 14 SS-4080610-SP SCREW 1/8-44 L=6.4 ナベネジ 1/8-44 L=6.4 1 15 121-17461 MAIN FEED BAR ASM. シュオクリヨウト ウカン(クミ) 1 16 121-17511 DIFFERENTIAL FEED BAR フクオクリヨウト ウカン (1) 17 121-17412 MAIN FEED BAR シュオクリヨウト ウカン (1) 18 B1657-804-00T DIFFERENTIAL FEED DOG フクオクリバ (F-25) 1 19 02 119-49906 DIFFERENTIAL FEED DOG フクオクリバ (F-25) 1 20 03 121-72805 DIFFERENTIAL FEED DOG フクオクリバ 1 21 SS-9111010-SP SCREW 11/64-40 L=9.5 ロツカクボルト 11/64-40 L=9.5 1 22 RE-0500000-KO E-RING Eガタトメワ 5 1 23 118-26310 ADJUSTING LINK サトウチヨウセツリンク 1 24 SD-0720271-SP HINGE SCREW D=7.2 H=2.7 ダンネジ D=7.2 H=2.7 1 25 118-28563 DIFFERENTIAL FEED ROCKER ASM. フクオクリウデ(クミ) 1 26 118-25304 PIN フクオクリピン (1) 27 118-28564 PIN COVER フクオクリピン フタ (1) 28 118-28564 PIN COVER フクオクリピン フタ (1) 29 SS-6080410-SP SCREW 1/8-44 L=4 ヒラネジ 1/8-44 L=4 (2) 30 118-28514 DIFFERENTIAL FEED ROCKER ASM. フクオクリウデ (1) 31 SM-6051202-TP SCREW M5X0.8 L=12 ロツカクアナボルト M5X0.8 L=12 (1) 32 B1414-555-000 SLIDE BLOCK ハリボ ウタキ アンナイコロ 1 33 WP-0621016-SD WASHER 6.2X13X1 ヒラザガネ 6.2X13X1 1 34 B1647-704-000 DIFFERENTIAL FEED LOCK NUT サト・ロックナット 1 35 B1646-704-000-A DIFFERENTIAL FEED HINGE SCREW サト・ダンネジ 1 36 SS-7060310-SP SCREW 3/32-56 L=3 マルヒラネジ 3/32-56 L=3 6 37 121-19756 RUBBER PLATE ASM. ウツア ラキリゴム(クミ) 1 38 121-19806 RUBBER PREESSER PLATE アア ラキリゴム ムサエイタ 1 39 121-19905 OIL SHIELD RUBBER アア ラキリゴム 1 40 121-20002 RUBBER COVER アア ラキリゴム ダイ 1 41 SS-7090620-TP SCREW 9/64-40 L=6.1 マルヒラネジ 9/64-40 L=6.1 2 42 121-19400 RUBBER BASE PLATE アア ラキリゴム ダイイタ 1 43 118-27607 OIL SHIELD RUBBER, LOWER シタアプラ ゴム A 1 44 SS-7060510-SP SCREW 3/32-56 L=4.8 マルヒラネジ 3/32-56 L=4.8 2 45 122-82901 FEED BAR SUPPORT ヨード ウカンオサエ 1 46 121-19509 RUBBER ホウシンゴム A 2 47 118-27904 RUBBER タイシンゴム A 1 48 RO-4801201-000 RUBBER RING Oリング 1 49 118-28304 SUPPORT THROAT PLATE ハリイタサエ 1 50 SL-4051231-SC SCREW M5 L=12 ザガネツキメネジ M5 L=12 2 51 WP-0480856-SP WASHER 4.8X8.4X0.8 ヒラザガネ 4.8X8.4X0.8 4 52 SM-4041055-SP SCREW ナベネジ M4 L=10 4 53 SS-6090620-SP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 4 54 118-28605 DIFFERENTIAL FEED ROCKER SATO UCHOU SETSU UDE 1 55 SS-6661110-SP SCREW 1/4-40 L=11 ヒラネジ 1/4-40 L=11 1 56 B1645-704-000-A BUSHING SATO CHOU SETSU KINZOKU METAL 1 57 RO-0601501-000 RUBBER RING Oリング 1 58 119-91502 SPRING サトウチョウセツレバー・バネ 1 59 122-83255 ROCKER SHAFT ASM. サトウチョウセツレバー・バネ 1 60 SS-4090515-SP SCREW 9/64-40 L=5 ナベネジ 9/64-40 L=5 2 61 122-83107 DIFFERENTIAL FEED GRADUATION STOPPER サト・チョウセツストツパー 2 62 115-29005 DIFFERENTIAL FEED GRADUATION STOPPER 1 NOTE (注記) 01...FOR MO-3604 MO-3604用 02...FOR MO-3614 MO-3614用 03...FOR MO-3616 MO-3616用 04...FOR MO-3604,MO-3614 MO-3604,MO-3614用 jintex.in

Page 16

7. CHAIN LOOPER COMPONENTS (FOR MO-3616) 二重環ルーパ関係(MO-3616用) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 jintex.in

Page 17

REF. NO. NOTE PART NO. D E S C R I P T I O N Qty. 1 B2103-816-0A0 SLIDER ARM ASM. ニジ ユーカン ゼンゴ ウデ クミ 1 2 B2103-816-000-B CHAIN LOOPER SHAFT SLIDE ARM ニジ ユーカンゼンゴ ウデ (1) 3 SS-7110720-TP SCREW 11/64-40 L=7 マルヒラネシ 11/64-40 L=7 (1) 4 118-29751 CHAIN LOOPER SLIDE BLOCK PIN ニジ ユウカンカクゴ マビ ソンクミ (1) 5 B2105-816-000 CHAIN LOOPER SLIDE BLOCK ニジ ユーカン カクゴマ (1) 6 122-84105 CHAIN LOOPER ROD ニジ ユーカン ロッド 1 7 SD-0720803-TH STEP-SCREW D=7.24 H=8 タンネシ 1 8 01 B2119-816-B00 BEARING B ニジ ユーカン ロッド ベアリング B 1 9 123-42309 BRACKET ニジ ユーカンカクゴ マタギ 1 10 SM-6051202-TP SCREW M5X0.8 L=12 ロツカアナボルト M5X0.8 L=12 1 11 B2111-716-000 BUSHING, REAR ニジ ユーカンシク ウシロメタル 1 12 122-83404 CHAIN LOOPER SHAFT ニジ ユーカンシク 1 13 115-39061 CHAIN LOOPER SHAFT DRIVING ARM ニジ ユーカン ヨード ウデ クミ 1 14 SM-6051202-TP SCREW M5X0.8 L=12 ロツカアナボルト M5X0.8 L=12 (1) 15 SS-4080610-SP SCREW 1/8-44 L=6.4 ナベネジ 1/8-44 L=6.4 1 16 01 122-58505 PIN,LONG ニジ ユーカンヨウト ウピン (チョウ) 1 17 123-42300 CHAIN LOOPER SHAFT DRIV. LINK ニジ ユーカンヨウト ウピンク 1 18 122-59008 PIN, SHORT シタルパー タマダキ 1 19 121-21612 DRIVING BALL ARM BRACKET ヒラネシ 11/64-40 L=6.5 1 20 SS-6110710-TP SCREW 11/64-40 L=6.5 ヒラネシ 11/64-40 L=6.5 3 21 SS-4080610-SP SCREW 1/8-44 L=6.4 ナベネジ 1/8-44 L=6.4 1 22 121-22008 BUSHING, FRONT ニジ ユーカンシク マエメタル 1 23 B2525-352-000 OIL SEAL RING ルーパシク オイルシール 1 24 118-29405 CHAIN LOOPER ニジ ユーカン ルーパ 1 25 SS-9110430-TP SCREW 11/64-40 L=4 ロツカアナボルト 1 26 122-83503 CHAIN LOOPER DRIVING ARM ニジ ユーカンルーパ ウデ 1 27 PS-0200062-KH SPRING PIN 2X6 スプリング ピン 2X6 1 28 B2531-704-000 WASHER シジ ウデ シメワツシヤー 1 29 SS-9151210-TP SCREW 15/64-28 L=11.8 ロツカアナボルト 15/64-28 1 NOTE (注記) 01...SELECTING PART FOR FIT TOLERANCE 選択かん合部品

Page 18 — 8. UPPER & LOWER LOOPER COMPONENTS

8. UPPER & LOWER LOOPER COMPONENTS 上ルーパ、下ルーパ関係 1 6 9 10 61 13 15 4 62 17 16 5 21 25 18 22 23 24 26 32 31 33 27 35 34 29 36 38 39 40 37 43 41 42 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 1 2 3 4 14 jintex.in

Page 19

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 122-54009 BUSHING, REAR 2 2 06 CS-103121A-SH COLLAR ASM. D=10.32 W=12 2 3 SS-8660530-TP SCREW 1/4-40 L=4.5 (4) 4 B2507-804-000-B BUSHING, FRONT 2 5 121-22404 UPPER LOOPER SHAFT 1 6 SM-6061200-SP SCREW M6 L=12 2 7 01 122-73355 UPPER LOOPER GUIDE ASM. 1 8 02 122-73454 UPPER LOOPER GUIDE B ASM. 1 9 01 118-33613 UPPER LOOPER GUIDE SUPPORT 1 10 02 118-93302 UPPER LOOPER GUIDE SUPPORT B (1) 11 122-73108 UPPER LOOPER GUIDE (1) 12 122-73207 UPPER LOOPER HOLDER (1) 13 118-42101 OIL FELT 1 14 121-23410 LOWER LOOPER SHAFT 1 15 SS-9090410-TP SCREW 1 16 01 119-91601 UPPER LOOPER GUIDE COVER B 2 17 02 B2515-704-00B UPPER LOOPER GUIDE COVER B 1 18 SS-7060610-SP SCREW 3/32-56 L=5.5 1 19 118-33308 UPPER LOOPER THREAD GUIDE 1 20 SS-4090615-SP SCREW 9/64-40 L=6 1 21 03 118-31757 PIN ASM. 1 22 118-31708 OIL WICK STOPPER BALL (0.1) 23 CQ-2020000-00 OIL WICK (0.1) 24 CQ-2000000-00 OIL WICK 1 25 01 122-84402 LOOPER HOLDER, A 1 26 SS-9151210-TP SCREW 15/64-28 L=11.8 1 27 SS-9090610-TP SCREW 9/64-40 L=5.5 1 28 02 122-84501 LOOPER HOLDER, B 1 29 SS-9151210-TP SCREW 15/64-28 L=11.8 1 30 SS-9090610-TP SCREW 9/64-40 L=5.5 1 31 118-33506 LOWER LOOPER THREAD TAKE-UP 1 32 121-24004 THREAD TAKE-UP, RIGHT 1 33 SS-7110840-SP SCREW 11/64-40 L=7.8 1 34 SS-6080410-SP SCREW 1/8-44 L=4 1 35 118-31906 PIN 1 36 06 118-31807 GAUGE 1 37 07 119-91809 GAUGE 1 38 RO-0371801-00 RUBBER RING 1 39 121-23907 THREAD GUIDE, RIGHT 1 40 SS-3090610-SP SCREW 9/64-40 L=6 1 41 121-23808 LOOPER THREAD TAKE-UP COVER 2 42 SM-4040655-SP SCREW M4 L=6 1 43 118-33407 LOWER LOOPER THREAD GUIDE 1 44 SS-3090610-SP SCREW 9/64-40 L=6 1 45 121-23659 OIL SHIELD PLATE ASM. 1 46 B2508-704-000 OIL SEAL 1 47 B2530-704-000 UPPER LOOPER SHAFT RUBBER RING 1 48 SS-6090630-SP SCREW 9/64-40 L=6 4 49 118-33100 LOOPER THREAD GUIDE 1 50 SS-7090850-SP SCREW 9/64-40 L=8 1 51 118-90001 TRAVELING NEEDLE GUARD 1 52 SS-6060440-TP SCREW 3/32-56 L=3.5 2 53 119-99307 LOWER LOOPER 1 54 SS-6090620-TP SCREW 1 55 118-33209 LOOPER THREAD TAKE-UP, LEFT 1 56 SS-7110840-SP SCREW 11/64-40 L=7.8 1 57 122-87306 LOWER LOOPER ARM 1 58 PS-0300062-KH SPRING PIN 3X6 1 59 B2531-704-000 WASHER 1 60 SS-9151210-TP SCREW 15/64-28 L=11.8 1 61 07 CS-103121A-SH COLLAR ASM. D=10.32 W=12 (2) 62 SS-8660530-TP SCREW 1/4-40 L=4.5 1 63 02 121-76004 UPPER LOOPER 1 64 118-88104 UPPER LOOPER 1 65 05 119-99208 UPPER LOOPER 1 66 121-30803 OIL FELT 1 67 SS-7060310-SP FELT HOLDER 0.1 68 CQ-2020000-00 SCREW 3/32-56 L=3 1 69 NOTE (注記) 01...FOR MO-3604,MO-3616 02...FOR MO-3614 03...SELECTING PART FOR FIT TOLERANCE 04...FOR MO-3604,MO-3616 (NEEDLE #9,#11,#14) 05...FOR MO-3604,MO-3616 (NEEDLE #14,#16,#18) 06...FOR MO-3604,MO-3616 07...FOR MO-3616 MO-3604,MO-3616用 MO-3614用 選択かん合部品 MO-3604,MO-3616用 (針番手#9,#11,#14) MO-3604,MO-3616用 (針番手#14,#16,#18) MO-3604,MO-3616用 MO-3616用 jintex.in

Page 20 — 9. PRESSER FOOT COMPONENTS (1)

9. PRESSER FOOT COMPONENTS (1) 押さえ関係 (1) 1 10 2 3 6 9 4 7 8 13 14 15 17 18 19 12 20 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 21 22 23 24 11 jintex.in

Page 21

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 122-82257 FOOT LIFTING LEVER STAND ASM. 1 2 122-82208 FOOT LIFTING LEVER STAND (1) 3 122-82307 PRESSER FOOT LIFTING LEVER (1) 4 122-82406 STOPPER (1) 5 SM-7040550-SP SCREW M4 L=5 (2) 6 SD-0640246-SP HINGE SCREW D=6.35 H=2.4 (1) 7 PS-0300142-KH SPRING PIN 0.3 X 14 (1) 8 122-82505 SPRING (1) 9 SM-6030350-SD SCREW M3 L=2.9 (1) 10 SS-4110715-SP SCREW 11/64-40 L=7 2 11 122-87207 PRESSER REGULATOR SCREW 1 12 121-15903 PRESSER SPRING 1 13 121-14807 PRESSER REGULATOR NUT 1 14 122-88700 RRESSER REGULATOR SCREW WASHER 1 15 SM-8040402-TP SCREW M4X0.7 L=4 1 16 RO-1100901-00 RUBBER RING 1 17 121-14906 PRESSER BAR COVER 1 18 RO-1100901-00 RUBBER RING 2 19 122-82109 PRESSER BAR BUSHING 1 20 121-14468 PRESSER BAR ASM. 1 21 SS-8110510-SP SCREW 11/64-40 L=5 1 22 B1534-804-000 PRESSER FOOT ARM HINGE SHAFT 1 23 121-13205 PRESSER FOOT SHAFT 1 24 121-13304 BUSHING 1 25 SS-6121020-SP SCREW 3/16-28 L= 9.5 1 26 118-19414 LIFTING HOOK 1 27 SM-6061200-SC SCREW 1 28 NM-6060003-SC NUT M6 1 29 118-19703 PRESSER FOOT ARM SPRING 1 30 121-13403 LIFTING ARM 1 31 121-13403 LIFTING ARM 1 32 SS-9151210-TP SCREW 15/64-28 L=11.8 1 33 SS-7161040-SP SCREW 1/4-24 L= 9.5 1 34 118-19315 LIFTING LEVER 1 35 118-19109 LIFTING LEVER SCREW 1 36 118-19208 LIFTING LEVER SPRING 1 37 NS-6110420-SP NUT 11/64-40 1 38 SS-7111410-SP SCREW 11/64-40 L=14 1 39 B1529-804-000 PRESSER FOOT LIFTING LEVER STO 1 40 SS-6110710-TP SCREW 11/64-40 L= 6.5 1 jinte.in 18

Page 22 — 10. PRESSER FOOT COMPONENTS (2)

10. PRESSER FOOT COMPONENTS (2) 押さえ関係 (2) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 jintex.in 10

Page 23

REF. NO NOTE PART NO. D E S C R I P T I O N と ン メ イ Qty 1 122-53811 PRESSER FOOT ARM オサエウデ 1 2 B1528-804-000 THREAD TRIMMER イトキリバ 1 3 SS-7060510-SP SCREW 3/32-56 L=4.8 マルヒラネジ 3/32-56 L=4.8 (1) 4 118-76166 PRESSER FOOT ASM. オサエクミ (1) 5 118-72009 PRESSER FOOT HINGE オサエヒンジ (1) 6 SS-6090650-SP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 (1) 7 B1530-804-000 STOPPER オサエ ストツパー (1) 8 WP-0250516-SD WASHER 2.5X6X0.5 ヒラザガネ 2.5X6X0.5 (1) 9 SS-7060610-SP SCREW 3/32-56 L=5.5 マルヒラネジ 3/32-56 L=5.5 (1) 10 SS-6060210-SP SCREW 3/32-56 L=1.9 ヒラネジ 3/32-56 L=1.9 (1) 11 B1511-814-000 REAR PRESSER FOOT カラカンドメ (1) 12 B1507-804-00P PRESSER FOOT オサエ (1) 13 SS-7080520-SP SCREW 1/8-44 L=4.9 マルヒラネジ 1/8-44 L=4.9 (1) 14 B1508-804-00B SPRING オサエ トリツケバネ (1) 15 B1509-804-00P STITCH TONGUE イトスペリダイ (1) 16 SS-6060440-TP SCREW 3/32-56 L=3.5 ヒラネジ (1) 17 B1510-814-000 CURL GUARD カールドメ (1) 18 118-20701 FINGER GUARD ユビガード (1) 19 02 121-52468 PRESSER FOOT., (FINGER GUARD). シユウサエケツゴウ(ユビガードツキ) 1 20 118-72009 PRESSER FOOT HINGE オサエヒンジ (1) 21 SS-6090650-SP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 (1) 22 B1530-804-000 STOPPER オサエ ストツパー (1) 23 WP-0250516-SD WASHER 2.5X6X0.5 ヒラザガネ 2.5X6X0.5 (1) 24 SS-7060610-SP SCREW 3/32-56 L=5.5 マルヒラネジ 3/32-56 L=5.5 (1) 25 SS-6060210-SP SCREW 3/32-56 L=1.9 ヒラネジ 3/32-56 L=1.9 (1) 26 B1511-814-000 REAR PRESSER FOOT カラカンドメ (1) 27 B1507-804-00P PRESSER FOOT オサエ (1) 28 SS-7080520-SP SCREW 1/8-44 L=4.9 マルヒラネジ 1/8-44 L=4.9 (1) 29 B1508-804-00B SPRING オサエ トリツケバネ (1) 30 121-60008 STITCH TONGUE イトスペリダイ (1) 31 SS-6060440-TP SCREW 3/32-56 L=3.5 ヒラネジ (1) 32 B1510-814-000 CURL GUARD カールドメ (1) 33 118-20701 FINGER GUARD ユビガード (1) 34 04 121-53763 PRESSER FOOT ASM. シユウサエケツゴウ(ユビガードツキ) 1 35 121-56907 PRESSER FOOT HINGE オサエヒンジ 1 36 SS-6090650-SP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 (1) 37 121-64802 REAR PRESSER FOOT ウシロ オサエ (1) 38 121-67805 SPRING, FOR REAR PRESSER FOOT ニダン オサエ ハネ (1) 39 B1513-816-000 NUT, FOR REAR PRESSER FOOT 2ダン オサエ ヒンジ ナツト (1) 40 121-67409 HINGE PIN シユウサエヒンジ ピン (1) 41 121-62202 PRESSER FOOT シユウサエ (1) 42 121-67607 PRESSER FOOT ARM SPRING オサエウデ ハネ (1) 43 121-67508 HINGE SCREW ニダン オサエ ヒンジ ネジ (1) 44 SS-6060340-SP SCREW 3/32-56 L=2.5 ヒラネジ 3/32-56 L=2.5 (1) 45 B1514-816-000 SCREW ヌノオサエ (1) 46 121-67706 PRESSER FOOT ユビガード (1) 47 121-15408 FINGER GUARD オサエ コテイタ (1) 48 05 B1539-804-000 PRESSER FOOT FIXING PLATE ヒラネジ 3/32-56 L=3.5 1 49 05 SS-6060410-TP SCREW 3/32-56 L=3.5 オサエ クミ 1 50 03 118-76869 PRESSER FOOT ASM. オサエヒンジ (1) 51 118-72009 PRESSER FOOT HINGE ヒラネジ 9/64-40 L=6 (1) 52 SS-6090650-SP SCREW 9/64-40 L=6 オサエ ストツパー (1) 53 B1530-804-000 STOPPER ヒラザガネ 2.5X6X0.5 (1) 54 WP-0250516-SD WASHER 2.5X6X0.5 マルヒラネジ 3/32-56 L=5.5 (1) 55 SS-7060610-SP SCREW 3/32-56 L=5.5 ヒラネジ 3/32-56 L=1.9 (1) 56 SS-6060210-SP SCREW 3/32-56 L=1.9 カラカンドメ (1) 57 B1511-814-000 REAR PRESSER FOOT オサエ (1) 58 B1507-814-00P PRESSER FOOT マルヒラネジ 1/8-44 L=4.9 (1) 59 SS-7080520-SP SCREW 1/8-44 L=4.9 オサエ トリツケバネ (1) 60 B1508-804-00B SPRING イトスペリダイ (1) 61 B1509-814-00P STITCH TONGUE ヒラネジ (1) 62 SS-6060440-TP SCREW 3/32-56 L=3.5 カールドメ (1) 63 B1510-814-000 CURL GUARD ユビガード (1) 64 118-20701 FINGER GUARD (1) NOTE (注記) 01...FOR MO-3604 MO-3604 02...FOR MO-3614(FOR JAPAN) MO-3614(日本用) 03...FOR MO-3614(FOR EXPORT) MO-3614(輸出用) 04...FOR MO-3616 MO-3616 05...SPECIAL ORDER PART 特別注文部品 (FOR MO-3604,MO-3614) (MO-3604,MO-3614用) jintex.in 20

Page 24 — 11. THREAD TENSION COMPONENTS

11. THREAD TENSION COMPONENTS 糸調子関係 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 M0-3614 M0-3616 M0-3604 jintex.in

Page 25

REF. NO. NOTE PART NO. D E S C R I P T I O N ヒン メイ Qty. 1 SM-4050855-SP SCREW 1 2 B3113-352-000 MOUNTING BRACKET 1 3 B2401-816-000 LOOPER THREAD GUIDE TUBE 1 4 B2402-716-000 LOOPER THREAD GUIDE TUBE GUIDE 1 5 SS-5150510-SP SCREW 15/64-28 L=5 1 6 122-86050 TENSION CONTROLLER ASM. 1 7 122-86308 TENSION POST NUT (1) 8 122-86506 ROTATING STOPPER (1) 9 122-86407 TENSION SPRING (1) 10 122-86605 THREAD TENSION DISK (2) 11 122-86209 THREAD TENSION FELT (1) 12 122-86001 THREAD TENSION POST (1) 13 122-86100 THREAD GUIDE (1) 14 122-83701 THREAD GUIDE A (1) 15 SS-4090415-SP SCREW 9/64-40 L=4 1 16 122-83800 THREAD GUIDE B 3 17 122-83602 THREAD GUIDE BASE 1 18 122-83909 THREAD GUIDE HOOK 1 19 SD-0600341-TP HINGE SCREW D=6.0 H=3.4 1 20 PS-0200052-KH SPRING PIN 2.3X5 1 21 * 123-47555 LOWER THREAD CAM. COMPL. 1 22 122-87405 SHAFT 1 23 SS-8110410-TP SCREW 11/64-40 L=3.5 2 24 122-84006 THREAD GUIDE 1 25 SS-4110515-SP SCREW 11/64-40 L=5 1 26 121-21307 THREAD GUIDE SPRING 1 27 WZ-0640312-KP WAVED WASHER 1 28 SS-4090415-SP SCREW 9/64-40 L=4 1 29 122-88604 CENTER THREAD GUIDE 1 30 SM-1030601-SC SCREW M3 L=6 3 31 122-84857 THREAD TENSION SPRING JUNCTION (1) 32 122-85102 THREAD TENSION KNOB, YELLOW (1) 33 122-84808 TENSION SPRING BUSHING (1) 34 122-85409 TENSION SPRING, YELLOW (1) 35 122-85607 TENSION DISK PRESSER (1) 36 122-85807 THREAD TENSION SPRING FELT (1) 37 122-85706 THREAD TENSION DISK (2) 38 122-85805 THREAD TENSION RUBBER (1) 39 122-85300 TENSION POST (1) 40 122-85904 THREAD GUIDE (1) 41 NS-6110420-SP NUT 11/64-40 (1) 42 122-84956 THREAD TENSION SPRING JUNCTION 1 43 122-85003 THREAD TENSION KNOB, RED (1) 44 122-85508 TENSION SPRING BUSHING (1) 45 122-84709 TENSION SPRING, RED (1) 46 122-85409 TENSION DISK PRESSER (1) 47 122-85607 THREAD TENSION SPRING FELT (1) 48 122-85706 TENSION SPRING DISK (2) 49 122-85805 THREAD TENSION RUBBER (1) 50 122-85300 TENSION POST (1) 51 122-85904 THREAD GUIDE (1) 52 NS-6110420-SP NUT 11/64-40 (1) 53 122-84956 THREAD TENSION SPRING JUNCTION 1 54 122-85201 THREAD TENSION KNOB, BLUE (1) 55 122-85508 TENSION SPRING BUSHING (1) 56 122-84907 TENSION SPRING, BLUE (1) 57 122-85409 TENSION DISK PRESSER (1) 58 122-85607 THREAD TENSION SPRING FELT (1) 59 122-85706 THREAD TENSION DISK (2) 60 122-85805 THREAD TENSION RUBBER (1) 61 122-85300 TENSION POST (1) 62 122-85904 THREAD GUIDE (1) 63 NS-6110420-SP NUT 11/64-40 (1) 64 SS-7110710-SL SCREW 11/64-40 L=7 1 jintex.in

Page 26 — 12. UPPER KNIFE COMPONENTS

12. UPPER KNIFE COMPONENTS 上メス関係 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 jintex.in

Page 27

REF. NO. NOTE PART NO. DESCRIPTION 1 01 118-23804 CRANK PIN C 2 122-86704 FEED FORKED ARM 3 SM-6061402-TP SCREW M6 L=14 4 121-32502 BUSHING, REAR 5 CS-111101E-SH COLLAR ASM. D=11.11 W=10 6 SS-8660330-SP SCREW 1/4-40 L=3.0 7 121-32304 KNIFE DRIVING ARM SHAFT 8 06 SS-4060310-SP SCREW 3/32-56 L=2.5 9 115-65801 UPPER KNIFE GUIDE SHAFT 10 115-66809 OIL SEAL 11 121-32403 BUSHING, FRONT 12 02 SS-6111040-SP SCREW 11/64-40 L=9.5 13 02 121-33302 UPPER KNIFE SUPPORT A 14 02 118-45609 KNIFE 15 07 SS-9090813-TP SCREW 9/64-40 L=8 16 07 WP-0370316-SD WASHER 3.7X8X0.3 17 03 118-45708 KNIFE 18 03 121-33401 UPPER KNIFE SUPPORT 19 03 SS-6111610-SP SCREW 11/64-40 L=16 20 04 115-98000 UPPER KNIFE SUPPORT 21 04 118-45807 UPPER KNIFE 22 04 115-65702 WASHER 23 06 SS-4060310-SP SCREW 3/32-56 L=2.5 24 06 115-65504 UPPER KNIFE PRESSER PLATE 25 06 118-48405 UPPER KNIFE COVER 26 04 SS-9111610-SP SCREW 11/64-40 L=16 27 05 118-45500 UPPER KNIFE SUPPORT 28 05 118-45906 UPPER KNIFE 29 05 SS-9112310-SP SCREW 11/64-40 L=23 NOTE (注記) 01...SELECTING PART FOR FIT TOLERANCE 02...FOR MO-3604,MO-3614(FOR JAPAN) 03...FOR MO-3616(FOR JAPAN) 04...FOR MO-3604,MO-3614(FOR EXPORT) 05...FOR MO-3616(FOR EXPORT) 06...FOR EXPORT 07...FOR JAPAN D E S C R I P T I O N ヒン メ イ Qty オクリフタマタクランクピン C 1 ウワメスフタマタウデ 1 ロツカクアナネジ M6 L=14 1 ウエメスジク ウシロメタル 1 スラストウケ・D=11.11 W=10 クミ 1 トメネジ 1/4-40 L=3 (2) メス ウデジク 1 ナベネジ 3/32-56 L=2.5 1 ウワメスガイドジク 1 ウワメスジク オイルシール 1 ウエメスジク マエメタル 1 ヒラネジ 11/64-40 L=9.5 1 ヒラメス ササエ(A) 1 ヒラメス 1 ロツカクボルト 9/64-40 L=8 1 ヒラメス 3.7X8X0.3 1 ヒラメス 1 ヒラメス ササエ 1 ヒラネジ 11/64-40 L=16 1 ウワメスササエ 1 ウワメス 1 ウワメスササエ ザガネ 1 ナベネジ 3/32-56 L=2.5 1 ウワメスオサエ 1 ウワメスカバ 1 ロツカクボルト 11/64-40 L=16 1 ウワメスササエ 1 ウワメス 1 ロツカクボルト 11/64-40 L=23 1 選択かん合部品 MO-3604,MO-3614(日本用) MO-3616(日本用) MO-3604,MO-3614(輸出用) MO-3616(輸出用) 輸出用 日本用

Page 28 — 13. LOWER KNIFE COMPONENTS

13. LOWER KNIFE COMPONENTS 下メス関係 1 2 3 5 4 6 7 48 49 50 35 36 38 37 39 40 41 42 43 44 33 47 45 46 8 9 19 18 20 21 22 23 17 24 25 16 15 12 13 14 32 28 31 30 29 26 27 34 jintex.in

Page 29

REF. NO NOTE PART NO. D E S C R I P T I O N ヒン メ イ Qty. 1 SS-2110910-SL SCREW 11/64-40 L=9 マルサラネジ 11/64-40 L=8.5 2 2 01 RA200-JOE-DAO THROAT PLATE ASM. ハリイタ(クミ) 1 3 118-06304 PLUG ハリイタフタ (2) 4 02 R4305-JOE-EAO THROAT PLATE ASM. ハリイタ(クミ) 1 5 118-06304 PLUG ハリイタフタ (2) 6 03 R4508-JOE-DAO THROAT PLATE ASM. ハリイタ(クミ) 1 7 118-06304 PLUG ハリイタフタ (2) 8 118-06304 THROAT PLATE BASE B SUPPORT ハリイタダイ(B)ササエ 1 9 SM-4051055-SP SCREW ナベネジ 2 10 10 122-57267 LOWER KNIFE BRACKET ASM. シタメスストリツケタイ(クミ) 1 11 09 122-57366 LOWER KNIFE BRACKET ASM. シタメスストリツケタイ(クミ) 1 12 121-33211 SPRING STOPPER シタメスバネトメイタ (1) 13 118-06304 PLUG ハリイタフタ (1) 14 SS-7110720-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (1) 15 118-46607 SPRING シタメススライド・ジクバネ (1) 16 121-32619 LOWER KNIFE BRACKET シタメスストリツケタイ (1) 17 121-02208 THROAT PLATE BASE A ハリイタダイ A (1) 18 SS-6110610-TP SCREW 11/64-40 L=6 ヒラネジ 11/64-40 L=6 (2) 19 121-03701 RUBBER PLUG B ヌノダイイボウシンゴム B (1) 20 121-03602 RUBBER PLUG A ヌノダイイボウシンゴム A (1) 21 10 121-32700 LOWER KNIFE SLIDE STUD シタメススライド・ジク (1) 22 SS-9111010-SP SCREW 11/64-40 L=9.5 ロツカクボルト 11/64-40 L=9.5 (1) 23 121-33104 LOWER KNIFE PRESSER PLATE シタメス オサエ (1) 24 10 121-32908 ROTATING STOPPER シタメススライド・ジク マワリトメ (1) 25 SS-7090710-SP SCREW 9/64-40 L=6.8 マルヒラネジ 9/64-40 L=6.8 (2) 26 09 121-32809 LOWER KNIFE SLIDE STUD シタメス スライド・ジク (1) 27 09 121-33005 ROTATING STOPPER シタメス スライド・ジク マワリトメ (1) 28 121-33708 HOLDER PIN ハリウケササエピン (2) 29 SS-7151120-SP SCREW 15/64-28 L=11 マルヒラネジ 15/64-28 L=11 (1) 30 B1423-804-000 UPPER PLATE ハリイト チョーサ゛ラ ウワイタ (1) 31 B1422-804-000 PIN ハリクート・レバー・ピン (1) 32 118-46805 HOLDER PIN ササエピン (1) 33 118-46003 LOWER KNIFE シタメス 1 34 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 2 35 118-47100 NEEDLE GUARD ハリウケササエ 1 36 07 118-90100 NEEDLE GUARD ハリウケ 1 37 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1 38 SS-7090610-SP SCREW 9/64-40 L=6 マルヒラネジ 9/64-40 L=6 1 39 118-90308 NEEDLE HOLDER ハリウケ 1 40 09 120-15301 NEEDLE HOLDER ハリウケ 1 41 09 120-15400 NEEDLE HOLDER ハリウケ 1 42 09 SS-7060510-SP SCREW 3/32-56 L=4.8 マルヒラネジ 3/32-56 L=4.8 2 43 09 121-77903 NEEDLE HOLDER ハリウケ 1 44 09 SS-6110610-TP SCREW 9/64-40 L=4.6 マルヒラネジ 9/64-40 L=4.6 1 45 SS-6110610-TP SCREW 11/64-40 L=6 ヒラネジ 11/64-40 L=6 2 46 122-87801 THROAT PLATE BASE C ハリイタダイ(C) 1 47 118-04606 RUBBER PLUG ヌノダイイボーシンゴ゛ A 1 48 04 R4200-J6E-DOO THROAT PLATE ハリイタ 1 49 05 R4305-J6E-EOO THROAT PLATE ハリイタ 1 50 06 R4508-J6E-DOO THROAT PLATE ハリイタ 1 NOTE (注記) 01...FOR MO-3604 MO-3604用 02...FOR MO-3614 MO-3614用 03...FOR MO-3616 MO-3616用 04...FOR MO-3604(FOR JSP) MO-3604(JSP用) 05...FOR MO-3614(FOR JSP) MO-3614(JSP用) 06...FOR MO-3616(FOR JSP) MO-3616(JSP用) 07...FOR MO-3604,MO-3604(FOR JSP) MO-3604用,MO-3604(JSP用) 08...FOR MO-3614,MO-3614(FOR JSP) MO-3614用,MO-3614(JSP用) 09...FOR MO-3616,MO-3616(FOR JSP) MO-3616用,MO-3616(JSP用) 10...FOR MO-3604,MO-3604(FOR JSP) MO-3604用,MO-3604(JSP用) MO-3614,MO-3614(FOR JSP) MO-3614用,MO-3614(JSP用) jintex.in

Page 30 — 14. LUBRICATION MECHANISM COMPONENTS

14. LUBRICATION MECHANISM COMPONENTS 給油装置関係 8 7 6 9 16 15 10 11 14 A 12 1 2 3 4 5 17 19 18 20 21 22 23 24 25 13 27 28 29 26 30 jintex.in

Page 32 — 15. SEMI-SUNKEN TYPE TABLE COMPONENTS

15. SEMI-SUNKEN TYPE TABLE COMPONENTS 卓上式テーブル関係 1 2.3 22 21 20 19 16 17 18 11 12 15 8 7 4 5 6 23 10 25 27 24 28 29 9 jintex.in

Page 34 — 16. FULLY-SUNKEN TYPE TABLE COMPONENTS

16. FULLY-SUNKEN TYPE TABLE COMPONENTS 全沈式テーブル関係 1 2 3 33 30 32 31 4 5 6 4 7 8 26 29 25 12 13 10 9 11 14 19 18 17 16 15 20 21 22 23 24 34 36 37 35 39 40 27 jintex.in

Page 35

REF. NO. NOTE ... 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 119-59558 115-71809 115-71908 WP-1002036-SE WS-1002560-KR NS-6240630-SE 115-71403 118-49379 118-49361 118-50906 SM-9082513-CF NM-6080600-SM WP-0850002-SC 119-60259 119-60200 ST-6030821-0A 118-50401 119-60309 SS-6090420-SP 118-50609 118-50500 WP-0370316-SP ST-6030821-0A SS-5110710-SP 118-50815 118-50815 SS-5110710-SP SK-2351600-SC SS-6090630-SP 111-55108 111-55207 SK-3311500-SC D8204-555-D0 121-35554 121-35505 119-62800 119-62909 SS-5090610-SP NS-6090310-SP 01 119-60002 01 NOTE (注記) PART NO. ... 01 01 D E S C R I P T I O N TABLE ASM. BOLT C BOLT D WASHER 10X21X2 SPRING WASHER 10X18X2.5 NUT 3/8-18 RUBBER CUSHION FRAME SUPPORT PLATE ASM. FRAME SUPPORT PLATE ASM. FRAME SUPPORT AUXILIARY PLATE SCREW M8 L=25 NUT M8 WASHER 8.5X18X1.6 CLOTH CHUTE ASM. CLOTH WASTE CHUTE SCREW D=3-24 L=8 CLOTH WASTE CHUTE INLET LEVER CLOTH WASTE CHUTE HOLE SCREW 9/64-40 L= 4.0 RUBBER SPRING WASHER 3.7X8X0.3 SCREW D=3-24 L=8 SCREW 11/64-40 L=7 COOLING FAN CASE CASE SPONGE SCREW 11/64-40 L=7 WOOD SCREW D=3.5 L=16 SCREW 9/64-40 L=6 DRAWER DRAWER SUPPORT WOOD SCREW D=3.1 L=15 DRAWER STOPPER CLOTH WASTE CHUTE ASM. CLOTH WASTE CHUTE SUPPORT CLOTH WASTE CHUTE INLET CLOTH WASTE CHUTE, UPPER SCREW 9/64-40 L=6 NUT 9/64-40 CLOTH WASTE CHUTE, LOWER (BENCH) 01...FOR JE ... ヒンメ Qty ... テーブル(ゼンチン)クミ 1 ウケイタボルト C 2 ウケイタボルト D 2 ヒラザガネ 12 ハネザガネ 10X18X2.5 4 ロツカクナット 12 ホー・シンゴム 4 フレームウケイタソウクミ(ゼンチンシキ) 1 フレームウケイタクミ (1) フレームウケイタツギテ (1) ロツカクアナボルト M8 L=25 (4) ロツカクアナツト M8 1シュ (4) ヒラザガネ 8.5X18X1.6 (4) ヌノクス シユート(ゼンチン)クミ 1 ヌノクス シユート(ゼンチン) (1) タツビシンネジ D=3-24 L=8 (2) シユートクレバ (1) ヌノクス シユートクチ (1) ヒラネジ 9/64-40 L=4 (2) シユートグゴム (1) シユートグハネ (1) ヒラザガネ 3.7X8X0.3 (1) タツビシンネジ D=3-24 L=8 (1) トラスネジ 11/64-40 L=7 2 ソウフウケース 1 ケーススポンジ 1 トラスネジ 11/64-40 L=7 2 マルサラモクネジ 3 ヒラネジ 9/64-40 L=6 5 ヒキダシ 1 ヒキダシ ササエ 2 マルモクネジ D=3.1 L=15 6 ヒキダシ シストツパー 1 ヌノクス シユート(クミ) 1 シユート ササエ (1) ヌノクス シユートクチ (1) ヌノクス シユート(ウエ) (1) トラスネジ 9/64-40 L=6 (3) ロツカクアナツト 9/64-40 (3) ヌノクス シユートシタ(タクシヨウ) 1 JE用

Page 36 — 17. THREAD STAND COMPONENTS(FOR MO-3604,MO-3614)

17. THREAD STAND COMPONENTS(FOR MO-3604,MO-3614) 糸立装置関係(MO-3604,MO-3614用) 1 5 26 2 4 3 26 3 6 10 15 9 7 18 19 8 17 20 14 16 13 11 12 21 3 4 26 22 24 27 23 25 jintex.in

Page 37

REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 119-69458 THREAD STANDING DEVICE ASM. 1 2 111-85352 THREAD GUIDE ASM. (2) 3 111-85402 THREAD GUIDE ARM JOINT (4) 4 NM-6050001-SE NUT M5 (4) 5 B3311-704-000 SPOOL REST ROD CAP (4) 6 111-85204 SPOOL REST ROD, UPPER (1) 7 B3305-704-000-A SPOOL REST ROD JOINT (1) 8 SM-4051405-SE SCREW M5 L=14 (1) 9 NM-6050001-SE NUT M5 (2) 10 B3309-704-000 THREAD GUIDE ARM ASM. (2) 11 B3311-804-000 LOWER THREAD GUIDE (1) 12 SS-7110540-SP SCREW 11/64-40 L=5 (1) 13 B3309-704-000 THREAD GUIDE ARM (1) 14 B3304-704-000-A THREAD GUIDE ARM HOLDER (1) 15 SM-6053000-SE SCREW M5X0.8 L=30 (1) 16 NM-6050001-SE NUT M5 (1) 17 111-85105 SPOOL REST ROD, LOWER (4) 18 111-85501 SPOOL RETAINER (4) 19 B3320-704-000-A SPOOL PIN (4) 20 B3311-012-000 SPOOL REST CUSHION (2) 21 111-85006 SPOOL REST ARM (4) 22 NM-6050001-SE NUT M5 (1) 23 B3317-704-000 NUT (2) 24 WP-1612616-SE WASHER 16X30X2.6 (3) 25 MAO-11532000 CORD STAPLE (4) 26 SM-4051405-SE SCREW M5 L=14 1 27 WS-1643202-KN SPRING WASHER 16.4X26.6X3.2 24 jintex.in

Page 38 — 18. THREAD STAND COMPONENTS(FOR MO-3616)

18. THREAD STAND COMPONENTS(FOR MO-3616) 糸立装置関係(MO-3616用) 1 3 4 14 18 15 16 17 19 20 22 23 24 25 26 27 28 30 29 31 32 2 33 34 jintex.in

Page 39

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 119-69557 THREAD STANDING DEVICE ASM. イトタテソウチ クミ 1 2 SK-3382001-SE SCREW D=3.8 L=20 マルモクネジ D=3.8 L=20 (1) 3 119-69565 SPOOL REST ARM A ASM. イトタテウデ A クミ (1) 4 B3319-704-L00 THREAD GUIDE イトミチ (3) 5 B3318-704-L00-A THREAD GUIDE ARM JOINT イトタテウデ・シメカナク (4) 6 SM-6061610-SC SCREW M6 L=16 ヒラコネジ M6 L=15 (4) 7 B3311-704-000 SPOOL REST ROD CAP イトタテボ-キャツプ (1) 8 119-69466 THREAD GUIDE ARM B ASM. イトタテウデ B クミ (1) 9 B3319-704-L00 THREAD GUIDE イトミチ (2) 10 111-85204 SPOOL REST ROD,UPPER イトタテボ ウエ (1) 11 B3305-704-000-A SPOOL REST ROD JOINT イトタテボ-ツギテ (1) 12 NM-6050001-SE NUT M5 ロツクナット M5 (2) 13 SM-4051405-SE SCREW M5 L=14 ナベコネジ M5 L=14 (2) 14 B3309-704-0A0 THREAD GUIDE ARM ASM. イトタラ イトアンナイ ウデ クミ (1) 15 B3311-804-000 LOWER THREAD GUIDE イトタテ イトアンナイ シタ (1) 16 SS-7110540-SP SCREW T1/64-40 L=5 マルヒラネジ T1/64-40 L=5 (1) 17 B3309-704-000 THREAD GUIDE ARM イトタテ イトアンナイ ウデ (1) 18 B3304-704-000-A THREAD GUIDE ARM HOLDER イトアンナイウデ ホルダ- (1) 19 SM-6053000-SE SCREW M5X0.8 L=30 ヒラコネジ M5X0.8 30 (1) 20 NM-6050001-SE NUT M5 ロツクナット M5 (1) 21 111-85105 SPOOL REST ROD,LOWER イトタテボ ウ シタ (1) 22 111-85500 SPOOL RETAINER イトマキ フレドメ (5) 23 B3320-704-L00-A SPOOL PIN イトマキウケボウ (5) 24 B3311-012-000 SPOOL REST CUSHION イトマキウケザ (5) 25 119-85650 SPOOL REST イトマキウケザラ (5) 26 119-66503 THREAD GUIDE ARM B イトタテウデ B (1) 27 NM-6050001-SE NUT M5 ロツクナット M5 (5) 28 119-69508 SPOOL REST ARM A イトタテウデ A (1) 29 B3317-704-000 NUT イトタテボー トメナツト (1) 30 WP-1612616-SE WASHER 16X30X2.6 ヒラザガネ (2) 31 B3321-704-L00 SPOOL REST ARM SUPPORT, A イトタテウデ ササエ A (1) 32 SM-4061201-SE SCREW M6 L=12 ナベコネジ M6 L=12 (1) 33 NM-6060001-SE NUT M6 ロツクナット M6 1シュ (1) 34 MA0-11532000 CORD STAPLE コ-ド ステツプル (3)

Page 40 — 19. LIST FOR INFORMATION OF CHANGE

19. LIST FOR INFORMATION OF CHANGE 変更情報リスト As to the place changed, refer to the corresponding Rev. No. When previous parts(Obsoleted part)and new parts(Added parts)are not interchangeable with each other: In this case,even obsoleted parts(D.)can be ordered with the obsoleted part number, so select the parts with changed dates and place your orders. 変更箇所は、該当Rev. No.版をご参照ください。 部品の互換性がない変更の場合は、削除された品番でも、ご注文できます。 29186509 No. 1098-04 Rev. No. *A:Added parts追加部品/D:Obsoleted parts削除部品/E:Erratum訂正 Rev. Page Ref. Parts No. Rev. Page Ref. Parts No. No. 頁 No. 品 番 No. 頁 No. 品 番 * A 04 6 20 SS-7111810-TP A 04 6 21 SS-7111410-TP A 04 6 22 SM-6061202-TP A 04 6 25 SS-7111810-TP A 04 6 26 SS-7111410-TP A 04 6 27 SM-6061202-TP A 04 6 29 SS-7111810-TP A 04 6 30 SS-7111410-TP D 03 22 21 122-84204 A 04 22 21 123-47555 jintex.in

Page 43 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS 索引 PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF 品番 頁 NO 品番 頁 NO 品番 頁 NO 121-16703 10 16 122-54009 16 1 122-85409 22 35 121-17107 10 30 122-55907 28 23 122-85409 22 46 121-17412 12 17 122-56004 28 14 122-85409 22 57 121-17461 12 12 122-57267 26 10 122-85508 22 33 121-17511 12 16 122-57366 26 11 122-85508 22 44 121-18808 10 18 122-58000 4 44 122-85508 22 55 121-19400 12 42 122-58505 14 16 122-85607 22 36 121-19509 12 46 122-59008 14 18 122-85607 22 47 121-19608 12 38 122-70203 4 1 122-85607 22 58 121-19756 12 36 122-70302 4 38 122-85706 22 37 121-19806 12 37 122-71706 6 41 122-85706 22 48 121-19905 12 39 122-71805 28 17 122-85706 22 59 121-20002 12 40 122-71904 4 36 122-85805 22 38 121-20150 6 28 122-73009 10 4 122-85904 22 49 121-21307 22 26 122-73207 16 12 122-85904 22 60 121-21612 14 19 122-73355 16 7 122-85904 22 40 121-22008 14 22 122-73454 16 8 122-86000 22 51 121-22362 6 19 122-75962 28 1 122-86050 22 62 121-22404 16 5 122-80103 6 43 122-86100 22 12 121-23360 6 24 122-80202 8 7 122-86209 22 6 121-23410 16 14 122-80301 8 8 122-86308 22 13 121-23659 16 45 122-80400 8 52 122-86407 22 11 121-23808 16 41 122-80509 8 15 122-86506 22 7 121-23907 16 39 122-80608 8 29 122-86605 22 9 121-24004 16 32 122-80707 8 1 122-86704 22 8 121-24400 6 23 122-80806 8 3 122-86803 22 10 121-24509 6 9 122-80905 8 30 122-86902 22 2 121-29805 28 29 122-81002 8 34 122-87108 18 11 121-29854 28 26 122-81101 8 18 122-87207 18 57 121-29904 28 27 122-81200 8 20 122-87306 22 22 121-30001 28 28 122-81309 8 21 122-87405 26 46 121-30100 28 20 122-81408 8 35 122-87603 22 29 121-30209 28 21 122-81507 8 37 122-87801 26 14 121-30308 28 6 122-81606 8 38 122-88502 18 8 121-30407 28 7 122-81705 8 22 122-88700 24 16 121-30704 16 67 122-81804 8 24 122-88908 26 28 121-30803 16 66 122-81903 8 25 123-41805 30 5 121-32155 6 11 122-82109 18 19 123-41905 30 5 121-32304 24 7 122-82208 18 2 123-41954 30 4 121-32403 24 11 122-82257 18 1 123-42002 4 18 121-32502 24 16 122-82307 18 3 123-42101 14 17 121-32619 26 16 122-82406 18 4 123-42200 14 9 121-32700 26 21 122-82505 18 8 123-42309 6 1 121-32809 26 26 122-82604 10 15 123-43406 6 4 121-32908 26 24 122-82703 10 6 123-43505 2 16 121-33005 26 27 122-82802 10 12 123-44503 2 14 121-33104 26 23 122-82901 12 45 123-44859 2 17 121-33211 26 12 122-83008 10 13 123-45203 22 21 121-33302 24 13 122-83107 12 61 123-47555 22 21 121-33401 24 18 122-83255 12 59 121-33708 26 28 122-83404 14 12 121-35505 30 24 122-83503 14 26 121-35505 32 35 122-83602 22 17 121-35554 30 23 122-83701 22 14 121-35554 32 34 122-83800 22 16 121-48607 8 49 122-83909 22 18 121-48706 8 50 122-84006 22 24 121-49803 8 51 122-84105 14 6 121-52468 20 19 122-84303 16 8 121-53763 20 34 122-84402 16 25 121-56907 20 35 122-84501 16 28 121-60008 20 41 122-84709 22 42 121-62202 20 37 122-84758 22 34 121-64802 20 40 122-84808 22 31 121-67409 20 43 122-84857 22 56 121-67508 20 42 122-84907 22 53 121-67607 20 46 122-84956 22 43 121-67706 20 38 122-85003 22 32 121-67805 12 20 122-85102 22 54 121-72805 12 20 122-85201 22 39 121-76004 16 63 122-85300 22 50 121-77903 26 43 122-85300 22 61 122-50601 2 20 122-85300 22 61 122-52706 28 11 122-53308 8 45 122-53811 20 1 -40- jintex.in

Page 44

JUKI JUKI CORPORATION Copyright © 1998-2001 JUKI CORP. 本書の内容を無断で転載、複写すること を禁止します。 JUKI株式会社 お買い求め、ご相談は To order or for further information, please contact: ※このパーツリストは商品改良のため予告なく変更する事があります。 *The description covered in this parts list is subject to change for improvement of the commodity without notice. ※このパーツリストは、2001年3月現在の商品仕様で編集したものです。 jintex.in
