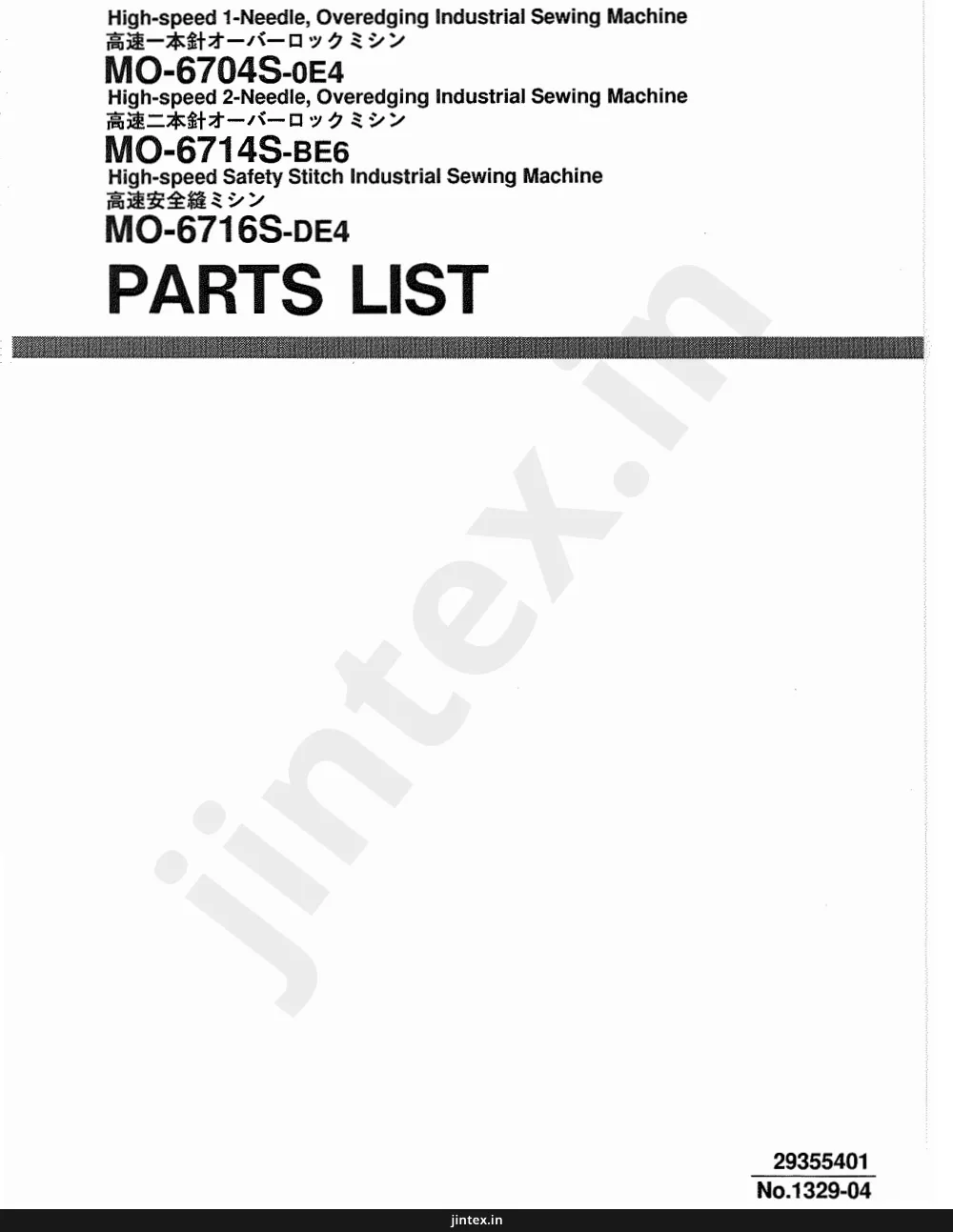

Juki MO-6716 Parts Book (PDF)
Text index — Juki MO-6716
Page 7 — 1. MISCELLANEOUS COVER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-04005 | CLOTH WASTE COVER | 1 |
| 2 | 131-04203 | CLOTH WASTE COVER | 1 |
| 3 | 131-02405 | CROTH WASTE COVER STOPPER | 1 |
| 4 | SS-2090520-SL | SCREW 9/64-40 L=5 | 1 |
| 5 | NS-6090310-SN | NUT 9/64-40 | 1 |
| 6 | SS-3090610-SP | SCREW 9/64-40 L=6 | 2 |
| 7 | 132-00704 | FEED MECHANISM COVER | 1 |
| 8 | 132-00803 | FEED MECHANISM COVER GASKET | 1 |
| 9 | SM-4040855-SP | SCREW | 4 |
| 10 | SM-1040801-SC | SCREW M4X0.7 L=8 | 1 |
| 11 | 123-42101 | CLOTH BASE SIDE COVER | 1 |
| 12 | SS-4120615-SP | SCREW 3/16-28 L=6 | 2 |
| 13 | 131-03809 | CLOTH BASE COVER | 1 |
| 14 | SS-4091015-SP | SCREW 9/64-40 L=10 | 2 |
| 15 | 131-00904 | LOOPER COVER | 1 |
| 16 | 131-00805 | LOOPER COVER BRACKET | 1 |
| 17 | SM-4041055-SP | SCREW M4 L=10 | 3 |
| 18 | 131-01209 | LOOPER COVER SPRING | 1 |
| 19 | 131-01407 | LOOPER COVER PRESSER PLATE | 1 |
| 20 | SS-7090530-SP | SCREW 9/64-40 L= 4.5 | 1 |
| 21 | 131-01001 | LOOPER COVER GUIDE PLATE | 1 |
| 22 | SS-7090610-SP | SCREW 9/64-40 L=6 | 1 |
| 23 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | 1 |
| 24 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | 1 |
| 25 | 131-01506 | CLOTH WASTE COVER , LEFT | 1 |
| 26 | 131-01605 | CLOTH WASTE COVER , LEFT | 1 |
| 27 | SS-7110510-SP | SCREW 11/64-40 L=5 | 2 |
| 28 | 131-01704 | CLOTH BASE SWITCH-TYPE STOPPER | 1 |
| 29 | SS-7110710-SP | SCREW 11/64-40 L=7 | 2 |
| 30 | 131-01308 | LOOPER COVER PRESSER SPRING | 1 |
| 31 | SM-4040655-SP | SCREW M4 L=6 | 1 |
| 32 | 131-01803 | CROTH BASE SUPPORT PLATE | 1 |
| 33 | SS-7091410-SP | SCREW 9/64-40 L=13.5 | 1 |
| 34 | 131-03650 | CLOTH BASE CMPL. | 1 |
| 35 | 131-02058 | CLOTH BASE ASM. | (1) |
| 36 | 131-01902 | CLOTH BASE ECCENTRIC BUSHING | (1) |
| 37 | WZ-0420350-KP | DISC SPRING | (1) |
| 38 | 131-72903 | CLOTH BASE HINGE SHAFT COLLAR | (1) |
| 39 | SM-8040302-TP | SETSCREW | (1) |
| 40 | CM-3002000-01 | ATTENTION SEAL | 1 |
| 41 | 132-01504 | ADJUSTING HOLE COVER | 1 |
| 42 | 132-01603 | ADJUSTING HOLE COVER GASKET | 1 |
| 43 | SM-4040855-SP | SCREW | 4 |
| 44 | 131-04302 | CLOTH BASE COVER RUBBER PLUG | 1 |
| 45 | 131-02207 | CLOTH BASE SWITCH-TYPE SPRING | 1 |
| 46 | NS-6110420-SP | NUT 11/64-40 | 1 |
| 47 | SS-6111440-SP | SCREW 11/64-40 L=14.0 | 1 |
| 48 | 132-40007 | LOOPER COVER HINGE SHAFT A | 1 |
| 49 | 132-40106 | LOOPER COVER HINGE SHAFT B | 1 |
| 50 | 132-40205 | LOOPER COVER HINGE SHAFT C | 1 |
| 51 | 131-04104 | CLOTH WASTE COVER | 1 |
Page 9 — 2. MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 132-00209 | SIDE COVER | 1 |
| 2 | 132-00308 | SIDE COVER GASKET | 1 |
| 3 | SM-4040855-SP | SCREW | 3 |
| 4 | SM-1040801-SC | SCREW M4X0.7 L=8 | 1 |
| 5 | 132-00506 | UPPER COVER | 1 |
| 6 | 132-00605 | UPPER COVER GASKET | 1 |
| 7 | SM-4051255-SP | SCREW M5 L=12. | 5 |
| 8 | 229-24708 | OIL SIGHT WINDOW | 1 |
| 9 | 131-70006 | RUBBER RING | 1 |
| 10 | 131-04500 | OIL DRAIN SCREW | 1 |
| 11 | 131-70204 | RUBBER RING | 1 |
| 12 | 132-01009 | COOLING FAN PLATE | 1 |
| 13 | SM-1040801-SC | SCREW M4X0.7 L=8 | 1 |
| 14 | SM-4040855-SP | SCREW | 2 |
| 15 | 132-01454 | BELT COVER ASM. | 1 |
| 16 | 132-01405 | BELT COVER | (1) |
| 17 | CM-3002000-A1 | CAUTION LABEL(16) | (1) |
| 18 | SS-4151215-SP | SCREW 15/64-28 L=12 | 3 |
| 19 | 131-02553 | OIL RESERVOIR ASM. | 1 |
| 20 | 131-02504 | OIL RESERVOIR | (1) |
| 21 | 131-70105 | RUBBER RING | (1) |
| 22 | 131-71004 | DRAIN SCREW | (1) |
| 23 | 131-02603 | OIL RESERVOIR GASKET | 1 |
| 24 | 131-03908 | SCREW STUD | 4 |
| 25 | WP-0751576-SD | WASHER 7.5X19X1.5 | 4 |
| 26 | WS-0822010-KP | SPRING WASHER 8.2X15X2 | 4 |
| 27 | NS-6680410-SP | NUT 9/32-28 | 4 |
| 28 | 132-01108 | SAFETY PLATE BRACKET | 1 |
| 29 | 131-04807 | SAFETY PLATE BRACKET COLLAR | 1 |
| 30 | WZ-0850302-KO | WAVED WASHER 8.5X12.5X0.3 | 1 |
| 31 | SS-5110710-SP | SCREW 11/64-40 L=7 | 1 |
| 32 | 132-01306 | SAFETY PLATE | 1 |
| 33 | 132-01207 | SAFETY PLATE | 1 |
| 34 | SS-7090611-SL | SCREW 9/64-40 L=6.1 | 2 |
| 35 | 132-04003 | SAFETY PLATE BUSH | 1 |
| 36 | CM-3002001-B1 | SAFETY LABEL 12 | 1 |
| 37 | 229-01805 | GROUND MARK | 1 |
| 38 | 131-02900 | THREAD GUIDE, LARGE | 2 |
| 39 | 107-53309 | WINDOW PLATE RUBBER PLUG | 1 |
| 40 | SK-3412001-SE | WOOD SCREW D=4.1 L=20 | 2 |
| 41 | TA-1871602-RO | RUBBER PLUG | 1 |
| 42 | TA-2050805-RO | RUBBER PLUG | 1 |
| 43 | 131-60700 | BELT COVER (B) | 1 |
| 44 | CM-6001001-01 | WEEE MARK LABEL S | 1 |
| 45 | 400-37392 | BELT COVER C | 1 |
| 46 | 400-40065 | VIBRATION PROOF RUBBER | 1 |
Page 11 — 3. CRANKSHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-23235 | MAIN SHAFT ASM. | 1 |
| 2 | 400-23234 | MAIN SHAFT (300) | (1) |
| 3 | SS-5080212-TP | SCREW 1/8-44 L=2 | (5) |
| 4 | 131-07602 | HANDWHEEL (A) | 1 |
| 5 | SS-8151150-TP | SCREW 15/64-28 L=10.5 | 2 |
| 6 | 131-07800 | THRUST COLLAR | 1 |
| 7 | SM-4050855-SP | SCREW M5 L=8 | 3 |
| 8 | 131-08402 | COOLING FAN | 1 |
| 9 | 131-08501 | CRANKSHFT OIL SHIELD | 1 |
| 10 | 131-07701 | HANDWHEEL | 1 |
| 11 | SS-7111810-TP | SCREW 11/64-40 L=18 | 3 |
| 12 | SS-9681610-TP | SCREW 9/32-28 L=16 | 1 |
| 13 | WP-0764016-SP | WASHER | 1 |
| 14 | 131-70303 | RUBBER RING | 1 |
| 15 | WZ-2640310-KH | WAVED WASHER 26.4X33.9X3.5 | 1 |
| 16 | B1211-804-000 | BALL BEARING B | 1 |
| 17 | B1212-704-000 | BEARING RETAINER | 1 |
| 18 | B1211-804-000 | BALL BEARING B | 1 |
| 19 | 132-05406 | CRANKSHAFT BUSHING C | 1 |
| 20 | 131-04906 | OIL ADJUSTING BAR | 1 |
| 21 | B1215-804-000 | BALL BEARING D | 1 |
| 22 | SB-1100003-00 | BALL BEARING | 1 |
| 23 | 131-08006 | CRANKSHAFT BUSHING D | 1 |
| 24 | 131-08105 | CRANKSHAFT BUSHING D | 1 |
| 25 | 131-08204 | CRANKSHAFT BUSHING GASKET | 1 |
| 26 | SM-4040855-SP | SCREW | 3 |
| 27 | 131-08303 | BEARING HOLDING PLATE | 1 |
| 28 | 121-09153 | CONNECTING ROD ASM. | 1 |
| 29 | SS-7111810-TP | SCREW 11/64-40 L=18 | (2) |
| 30 | 121-22362 | UPPER LOOPER ROD ASM. | 1 |
| 31 | SS-7111810-TP | SCREW 11/64-40 L=18 | (2) |
| 32 | SS-7111410-TP | SCREW 11/64-40 L=14 | (2) |
| 33 | SM-6061202-TP | SCREW M6 L=12 | (1) |
| 34 | 121-23360 | LOWER LOOPER ROD ASM., A | 1 |
| 35 | SS-7111810-TP | SCREW 11/64-40 L=18 | (2) |
| 36 | SS-7111410-TP | SCREW 11/64-40 L=14 | (2) |
| 37 | SM-6061202-TP | SCREW M6 L=12 | (1) |
| 38 | 121-20150 | LOWER LOOPER ROD ASM., B | 1 |
| 39 | SS-7111810-TP | SCREW 11/64-40 L=18 | (2) |
| 40 | SS-7111410-TP | SCREW 11/64-40 L=14 | (2) |
| 41 | 400-17824 | LOOPER LOD STOPPER | 4 |
| 42 | SS-6081210-TP | SCREW 1/8-44 L=12 | 2 |
| 43 | 121-32155 | KNIFE DRIVING ROD ASM. | 1 |
| 44 | SS-7111810-TP | SCREW 11/64-40 L=18 | (2) |
| 45 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 46 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 47 | 400-17714 | BALANCER | 1 |
| 48 | 400-35711 | OIL WICK | 1 |
Page 13 — 4. NEEDLE DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-10556 | FEED FORKED CRANK ASM. | 1 |
| 2 | 131-10507 | NEEDLE DRIVING BRANCH CRANK | (1) |
| 3 | SM-6061402-TP | SCREW M6 L=14 | (1) |
| 4 | 131-10606 | NEEDLE DRIVING SHAFT | 1 |
| 5 | 131-10101 | BUSHING, REAR | 1 |
| 6 | 132-09853 | NEEDLE DRIVING ARM ASM. | 1 |
| 7 | 132-09804 | NEEDLE DRIVING ARM | (1) |
| 8 | SM-6061402-TP | SCREW M6 L=14 | (1) |
| 9 | 132-09101 | NEEDLE DRIVING ARM PIN A | 2 |
| 10 | 132-09200 | NEEDLE DRIVING ARM PIN B | 2 |
| 11 | 132-09309 | NEEDLE DRIVING ARM PIN C | 2 |
| 12 | 132-09408 | NEEDLE DRIVING PIN A | 1 |
| 13 | 132-09507 | NEEDLE DRIVING PIN B | 1 |
| 14 | 132-09606 | NEEDLE DRIVING PIN C | 1 |
| 15 | 131-10002 | BUSHING,REAR | 1 |
| 16 | 132-08350 | NEEDLE ROD (A) ASM. | 1 |
| 17 | 132-08103 | NEEDLE DRIVING LINK WASHER | 2 |
| 18 | EA-9500B01-00 | CABLE BAND | 1 |
| 19 | 132-09705 | NEEDLE ROD BUSHING, UPPER | 1 |
| 20 | 132-07808 | NEEDLE ROD BUSHING CAP SCREW | 1 |
| 21 | 131-10259 | NEEDLE CLAMP HOLDER ASM. | 1 |
| 22 | 131-10200 | NEEDLE CLAMP HOLDER | (1) |
| 23 | SS-6080720-SP | SCREW 1/8-44 L=7 | (1) |
| 24 | 131-10705 | NEEDLE THREAD PRESSER GUIDE A | 1 |
| 25 | 131-10804 | NEEDLE THREAD PRESSER GUIDE B | 1 |
| 26 | 131-10903 | NEEDLE THREAD PRESSER SPRING | 1 |
| 27 | 131-11000 | NEEDLE THREAD PRESSER PLATE A | 1 |
| 28 | 132-08806 | NEEDLE THREAD GUIDE | 1 |
| 29 | 132-08905 | THREAD GUIDE, 2-NEEDLE | 1 |
| 30 | 132-08707 | NEEDLE THREAD GUIDE BASE | 1 |
| 31 | 131-11109 | THREAD GUIDE, CHAIN LOOPER | 1 |
| 32 | SM-4040855-SP | SCREW | 2 |
| 33 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
| 34 | 131-11208 | NEEDLE THREAD TAKE-UP LEVER | 1 |
| 35 | 131-11307 | TAKE-UP LEVER , 2-NEEDLE | 1 |
| 36 | 131-11406 | TAKE-UP LEVER , CHAIN LOOP | 1 |
| 37 | SS-6090670-TP | SCREW 9/64-40 L=6 | 2 |
| 38 | 131-11505 | NEEDLE THREAD BALANCE GUIDE | 1 |
| 39 | 131-11604 | TAKE-UP LEVER GUIDE , 2-NEEDLE | 1 |
| 40 | 131-11703 | TAKE-UP LEVER GUIDE,CHAIN LOOP | 1 |
| 41 | SM-4040855-SP | SCREW | 1 |
| 42 | 132-08459 | ONCE THROUGH OIL PIPE ASM. | 1 |
| 43 | 132-08509 | ONCE THROUGH OIL COVER | (1) |
| 44 | CQ-2000000-00 | OIL WICK | (0.8) |
| 45 | 236-30007 | TUBE | (0.39) |
| 46 | 132-44009 | ONCE THROUGH OIL PIPE BUSHING | (1) |
| 47 | 132-08608 | ONCE THROUGH OIL FELT | (1) |
| 48 | 131-42609 | PIPE CLAMP | (1) |
| 49 | 131-22007 | FEED BRANCH CRANK PIN A | 1 |
| 50 | 131-22106 | FEED BRANCH CRANK PIN B | 1 |
| 51 | 131-22205 | FEED BRANCH CRANK PIN C | 1 |
| 52 | 131-22304 | FEED BRANCH CRANK PIN D | 1 |
| 53 | MDC-270B1100 | NEEDLE DCX27 #11 | 2 |
| 54 | 131-72754 | THRUST COLLAR ASM. | 2 |
| 55 | 131-72705 | THRUST COLLAR | (1) |
| 56 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 57 | SS-8090530-TP | SCREW 9/64-40 L= 5.0 | 2 |
| 58 | CQ-2020000-00 | OIL WICK | 0.09 |
| 59 | SS-8090530-TP | SCREW 9/64-40 L= 5.0 | 1 |
| 60 | CQ-2520000-00 | OIL WICK | 0.04 |
| 61 | SD-0280401-SL | HINGE SCREW D=2.8 H=4 | 1 |
| 62 | 131-75005 | NEEDLE CLAMP, 1-NEEDLE | 1 |
| 63 | 131-75203 | NEEDLE CLAMP, 2-NEEDLE | 1 |
| 64 | 122-57002 | CHAIN LOOPER NEEDLE CLAMP, DEA | 1 |
| 65 | SS-8080310-TP | SCREW 1/8-44 L=2.8 | 1 |
| 66 | MDC-270B1100 | NEEDLE DCX27 #11 | 1 |
| 67 | SS-8080310-TP | SCREW 1/8-44 L=2.8 | 2 |
| 68 | 132-08004 | NEEDLE DRIVING LINK | 1 |
| 131-10550 | NEEDLE DRIVING SHAFT | (1) |
Page 15 — 5. FEED MECHANISM COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-18054 | FEED ECCENTRIC BODY ASM. | 1 |
| 2 | 131-20605 | WASHER | 1 |
| 3 | SS-6121220-TP | SCREW 3/16-28 L=11.5 | 1 |
| 4 | 131-22452 | FEED BRANCH CRANK ASM. | 1 |
| 5 | 131-22403 | FEED BRANCH CRANK | (1) |
| 6 | SM-6061402-TP | SCREW M6 L=14 | (1) |
| 7 | TA-1030402-RO | RUBBER PLUG D=10.3 L=4 | 1 |
| 8 | TA-2050416-RO | RUBBER PLUG | 1 |
| 9 | 131-72556 | FEED SHAFT THRUST COLLAR ASM. | 2 |
| 10 | 131-72507 | FEED SHAFT THRUST COLLAR | (1) |
| 11 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (2) |
| 12 | 132-17807 | SLIDE BLOCK A | 1 |
| 13 | 131-22502 | RATCHET PAWL SPRING | 1 |
| 14 | 131-19300 | RATCHET GEAR SPRING | 1 |
| 15 | SS-6080320-SP | SCREW 1/8-44 L= 2.5 | 1 |
| 16 | 131-18708 | FEED CRANK ROD | 1 |
| 17 | SS-7110910-TP | SCREW 11/64-40 L= 8.5 | 1 |
| 18 | 121-16604 | NEEDLE BEARING A | 1 |
| 19 | 121-16703 | NEEDLE BEARING B | 1 |
| 20 | 121-16802 | NEEDLE BEARING.,C. | 1 |
| 21 | 121-16901 | NEEDLE BEARING.,D. | 1 |
| 22 | 121-17008 | NEEDLE BEARING.,E. | 1 |
| 23 | 131-19409 | FEED SHAFT METAL , FRONT | 1 |
| 24 | 131-19508 | FEED SHAFT METAL , REAR | 1 |
| 25 | 131-19607 | FEED SHAFT | 1 |
| 26 | 132-16809 | PUSH BUTTON SHAFT | 1 |
| 27 | SM-4041455-SN | SCREW M4 L=14 | 1 |
| 28 | 132-16601 | PUSH BUTTON SPRING | 1 |
| 29 | 132-16700 | PUSH BUTTON SHAFT WASHER | 1 |
| 30 | 132-44108 | RUBBER RING | 1 |
| 31 | 132-17906 | SLIDE BLOCK B | 1 |
| 32 | 131-19953 | MAIN FEED ARM ASM. | 1 |
| 33 | 131-19904 | MAIN FEED ARM | (1) |
| 34 | SM-6051202-TP | SCREW M5X0.8 L=12 | (1) |
| 35 | 131-22007 | CRANK PIN A | 1 |
| 36 | 131-22106 | CRANK PIN B | 1 |
| 37 | 131-22205 | CRANK PIN C | 1 |
| 38 | 131-22304 | CRANK PIN D | 1 |
| 39 | 131-19706 | MAIN FEED ARM PIN | 1 |
| 40 | NS-6620320-SP | NUT 3/16-32 | 1 |
| 41 | 131-20001 | WASHER B | 1 |
| 42 | 131-19805 | MAIN FEED LINK | 1 |
| 43 | B1620-804-000 | PIN COLLAR | 1 |
Page 17 — 6. FEED MECHANISM COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 132-15157 | FEED ROCKER ASM. | 1 |
| 2 | SS-4080620-TP | SCREW 1/8-44 L=6 | 1 |
| 3 | SS-9111010-SP | SCREW 11/64-40 L=9.5 | 1 |
| 4 | 132-15306 | RUBBER CASE | 1 |
| 5 | 132-15405 | RUBBER CASE GASKET | 1 |
| 6 | 132-15504 | FEED BAR SUPPORT , RIGHT | 1 |
| 7 | 132-15603 | FEED BAR SUPPORT , LEFT | 1 |
| 8 | SS-6090620-TP | SCREW | 4 |
| 9 | 121-18303 | DUST-PROOF RUBBER | 1 |
| 10 | 121-18204 | OIL SHIELD RUBBER | 3 |
| 11 | 132-15702 | RUBBER HOLDING PLATE | 1 |
| 12 | SS-7060310-SP | SCREW 3/32-56 L=3 | 2 |
| 13 | 132-15900 | OIL SHIELD CASE | 1 |
| 14 | 132-16007 | OIL SHIELD CASE GASKET | 1 |
| 15 | SM-4040855-SP | SCREW | 1 |
| 16 | SM-4030455-SP | SCREW | 2 |
| 17 | 132-15801 | THROAT PLATE SUPPORT | 1 |
| 18 | 131-22700 | ADJUSTING SHAFT METAL | 1 |
| 19 | 132-16106 | OIL SHIECD PLATE | 1 |
| 20 | SS-1060610-SP | SCREW 3/32-56 L=5.5 | 2 |
| 21 | 132-16205 | FEED CAM OIL SHIECD PLATE | 1 |
| 22 | SM-6040600-SP | SCREW M4 L=6 | 2 |
| 23 | 132-16304 | OIL SHIECD PLATE | 1 |
| 24 | 131-22809 | DIFFERENTIAL FEED GRADUATION | 1 |
| 25 | SM-4051255-SP | SCREW..M5 L=12. | 2 |
| 26 | 131-21405 | ADJUSTING STOPPER | 2 |
| 27 | SS-4090515-SP | SCREW 9/64-40 L=5 | 2 |
| 28 | WP-0371016-SD | WASHER 3.7X8X1 | 2 |
| 29 | 131-20902 | SUPPORT SHAFT | 1 |
| 30 | 131-21058 | HRUST COLLAR ASM. | 1 |
| 31 | 131-21009 | HRUST COLLAR | |
| 32 | SS-8660330-SP | SCREW 1/4-40 L= 3.0 | |
| 33 | 131-20803 | SLIDE BLOCK | 1 |
| 34 | 131-70204 | RUBBER RING | 1 |
| 35 | SM-4040855-SP | SCREW | 1 |
| 36 | 132-17708 | DIFFERENTIAL FEED BLOCK | 1 |
| 37 | RE-0300000-KO | E-RING 3 | 1 |
| 38 | 132-13012 | ADJUSTING SCREW | 1 |
| 39 | 131-23302 | DIFFERENTIAL FEED SCREW SPRING | 1 |
| 40 | 131-21306 | ADJUSTING LINK | 1 |
| 41 | RE-0500000-KO | E-RING 5 | 1 |
| 42 | 131-21256 | SUPPORT SHAFT COLLAR ASM. | 1 |
| 43 | 131-21207 | SUPPORT SHAFT COLLAR | |
| 44 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | |
| 45 | 131-21900 | DIFFERENTIAL FEED ROCKER | 1 |
| 46 | SS-6661110-SP | SCREW 1/4-40 L=11 | 1 |
| 47 | 132-17351 | ROCKER SHAFT ASM. | 1 |
| 48 | 131-70501 | RUBBER RING | 1 |
| 49 | 131-21603 | ADJUSTING LEVER SPRING | 1 |
| 50 | 132-18052 | DIFFERENTIAL FEED ARM ASM. | 1 |
| 51 | SS-9111050-SP | SCREW 11/64-40 L=9.5 | 1 |
| 52 | 131-21108 | WASHER | 1 |
| 53 | TA-0800504-RO | PLUG D=8 L=4.5 | 1 |
| 54 | 132-00902 | FEED MECHANISM COVER PRESSER | 1 |
| 55 | SS-6080340-SP | SCREW 1/8-44 L=2.9 | 1 |
| 56 | 132-18102 | SLIDE BLOCK | 1 |
| 57 | 132-17401 | DIFFERENTIAL FEED HINGE SCREW | 1 |
| 58 | 132-17500 | DIFFERENTIAL FEED LOCK NUT | 1 |
| 59 | SD-0720271-SP | HINGE SCREW D=7.2 H=2.7 | 1 |
| 60 | SM-4041055-SP | SCREW M4 L=10 | 4 |
| 61 | WP-0460556-SD | WASHER 4.6X7.5X0.5 | 1 |
| 62 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 4 |
| 63 | WP-0621016-SD | WASHER 6.2X13X1 | 1 |
| 64 | 131-91606 | MAIN FEED DOG | 1 |
| 65 | 131-92000 | MAIN FEED DOG | 1 |
| 66 | 131-92406 | MAIN FEED DOG | 1 |
| 67 | 131-92802 | DIFFERENTIAL FEED DOG | 1 |
| 68 | 131-93206 | DIFFERENTIAL FEED DOG | 1 |
| 69 | 131-93602 | DIFFERENTIAL FEED DOG | 1 |
| 70 | 131-91309 | AUXILIARY FEED DOG | 1 |
| 71 | 131-91408 | AUXILIARY FEED DOG | 1 |
Page 19 — 7. UPPER & LOWER LOOPER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-90001 | TRAVELING NEEDLE GUARD | 1 |
| 2 | 132-22609 | LOOPER SHAFT FRONT BUSHING | 2 |
| 3 | 132-22708 | LOOPER SHAFT REAR BUSHING | 2 |
| 4 | 131-31057 | UPPER LOOPER ARM A ASM. | 1 |
| 5 | 131-31008 | UPPER LOOPER ARM A | (1) |
| 6 | SS-9151210-TP | SCREW 15/64-28 L=11.8 | (1) |
| 7 | 131-31156 | UPPER LOOPER ARM B ASM. | 1 |
| 8 | 131-31107 | UPPER LOOPER ARM B | (1) |
| 9 | SS-9151210-TP | SCREW 15/64-28 L=11.8 | (1) |
| 10 | 400-15637 | GUIDE SUPPORT ASM. | 1 |
| 11 | 400-16841 | GUIDE SUPPORT B ASM | 1 |
| 12 | SS-6090630-TP | SCREW 9/64-40 L=6 | 4 |
| 13 | 119-99307 | LOWER LOOPER | 1 |
| 14 | 118-88104 | UPPER LOOPER | 1 |
| 15 | 121-76004 | UPPER LOOPER | 1 |
| 16 | PS-0300062-KH | SPRING PIN 3X6 | 1 |
| 17 | 131-70600 | RUBBER RING | 1 |
| 18 | SS-6060440-TP | SCREW 3/32-56 L=3.5 | 2 |
| 19 | 131-32550 | LOWER LOOPER SUPPORT ARM ASM. | 1 |
| 20 | 131-32501 | LOWER LOOPER SUPPORT ARM | (1) |
| 21 | 131-29309 | WASHER | (1) |
| 22 | SS-9151210-TP | SCREW 15/64-28 L=11.8 | (1) |
| 23 | SM-6061200-SP | SCREW M6 L=12 | 2 |
| 24 | 131-33053 | OIL SHIELD PLATE ASM. | 1 |
| 25 | 123-40600 | UPPER LOOPER THREAD GUIDE | 1 |
| 26 | SS-7090850-SP | SCREW 9/64-40 L=8 | 1 |
| 27 | 123-40709 | LOWER LOOPER THREAD TAKE-UP | 1 |
| 28 | SS-6080410-SP | SCREW 1/8-44 L=4 | 1 |
| 29 | 132-22401 | LOOPER THREAD TAKE-UP COVER | 1 |
| 30 | SM-4040655-SP | SCREW M4 L=6 | 2 |
| 31 | 123-40303 | THREAD GUIDE, RIGHT | 1 |
| 32 | SS-3090610-SP | SCREW 9/64-40 L=6 | 1 |
| 33 | 123-40402 | THREAD TAKE-UP,RIGHT | 1 |
| 34 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 35 | 123-40907 | LOWER THREAD TAKE-UP,LEFT | 1 |
| 36 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 37 | 131-31206 | UPPER LOOPER HOLDER PIN A | 1 |
| 38 | 131-31305 | UPPER LOOPER HOLDER PIN B | 1 |
| 39 | 131-31404 | UPPER LOOPER HOLDER PIN C | 1 |
| 40 | 131-31503 | UPPER LOOPER HOLDER PIN D | 1 |
| 41 | 131-31602 | UPPER LOOPER HOLDER PIN E | 1 |
| 42 | SS-9090610-TP | SCREW 9/64-40 L=5.5 | 1 |
| 43 | SS-9090410-TP | SCREW | 1 |
| 44 | 131-31701 | OIL WICK STOPPER BALL | 1 |
| 45 | 131-31909 | GUIDE SUPPORT GAUGE | 1 |
| 46 | 131-31800 | GAUGE FIXING PIN | 1 |
| 47 | 131-32006 | GUIDE SUPPORT GAUGE | 1 |
| 48 | 123-40501 | THREAD GUIDE, UPPER | 1 |
| 49 | SS-4090615-SP | SCREW 9/64-40 L=6 | 1 |
| 50 | 123-40808 | THREAD GUIDE | 1 |
| 51 | SS-3090610-SP | SCREW 9/64-40 L=6 | 1 |
| 52 | 132-22203 | UPPER LOOPER GAUGE COVER | 1 |
| 53 | 132-22302 | UPPER LOOPER GAUGE COVER B | 1 |
| 54 | SS-7060610-SP | SCREW 3/32-56 L= 5.5 | 2 |
| 55 | 400-10804 | OIL SEAL RING | 1 |
| 56 | 131-32709 | UPPER LOOPER SHAFT RUBBER RING | 1 |
| 57 | CQ-2000000-00 | OIL WICK | 0.04 |
| 58 | CQ-2020000-00 | OIL WICK | 0.04 |
| 59 | 131-72853 | THRUST COLLAR ASM. | 2 |
| 60 | 131-72804 | THRUST COLLAR | (1) |
| 61 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 62 | 131-72853 | THRUST COLLAR ASM. | 1 |
| 63 | 131-72804 | THRUST COLLAR | (1) |
| 64 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 65 | SS-6090620-TP | SCREW | 1 |
| 66 | 132-21403 | UPPER LOOPER GUIDE A | 1 |
| 67 | 132-21502 | UPPER LOOPER GUIDE B | 1 |
| 68 | 132-21601 | UPPER LOOPER GUIDE C | 1 |
| 69 | 132-21700 | UPPER LOOPER GUIDE A | 1 |
| 70 | 132-21809 | UPPER LOOPER GUIDE B | 1 |
| 71 | 132-21908 | UPPER LOOPER GUIDE C | 1 |
| 72 | 400-11234 | DUST SEALING FELT | 1 |
| 118-68104 | UPPER LOOPER | 1 |
Page 20 — 8. CHAIN LOOPER COMPONENTS (FOR MO-6716S)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-29853 | BRACKET | 1 |
| 2 | SM-6051202-TP | SCREW M5X0.8 L=12 | (1) |
| 3 | 131-26909 | CHAIN LOOPER SHAFT | 1 |
| 4 | 131-26008 | FRONT-AND-REAR ARM | 1 |
| 5 | 131-29952 | CHAIN LOOPER DRIVING ARM ASM. | 1 |
| 6 | 131-29903 | CHAIN LOOPER DRIVING ARM | (1) |
| 7 | 131-29309 | WASHER | (1) |
| 8 | SS-9151210-TP | SCREW 15/64-28 L=11.8 | (1) |
| 9 | 131-26354 | SLIDE BLOCK PIN ASM. | 1 |
| 10 | 400-10805 | OIL SEAL RING | 1 |
| 11 | 121-20705 | CHAIN LOOPER | 1 |
| 12 | 131-25950 | CHAIN LOOPER DRIVING ARM ASM. | 1 |
| 13 | 131-25901 | CHAIN LOOPER DRIVING ARM | (1) |
| 14 | SM-6051202-TP | SCREW M5X0.8 L=12 | (1) |
| 15 | 132-20009 | CHAIN LOOPER ROD | 1 |
| 16 | 131-28103 | BUSHING, FORNT | 1 |
| 17 | 131-27006 | BUSHING, REAR | 1 |
| 18 | 131-27105 | CHAIN LOOPER SHAFT DRIV. LINK | 1 |
| 19 | 131-26503 | PIN , LONG A | 1 |
| 20 | 131-26602 | PIN , LONG B | 1 |
| 21 | 131-26701 | PIN , LONG C | 1 |
| 22 | 131-26800 | PIN , LONG D | 1 |
| 23 | 131-27204 | PIN , SHORT A | 1 |
| 24 | 131-27303 | PIN , SHORT B | 1 |
| 25 | 131-27402 | PIN , SHORT C | 1 |
| 26 | 131-27501 | PIN , SHORT D | 1 |
| 27 | B2119-816-A00 | BEARING A | 1 |
| 28 | B2119-816-B00 | BEARING B | 1 |
| 29 | B2119-816-C00 | BEARING C | 1 |
| 30 | B2119-816-D00 | BEARING D | 1 |
| 31 | B2119-816-E00 | BEARING E | 1 |
| 32 | PS-0250062-KH | SPRING PIN 2.5X6 | 1 |
| 33 | SD-0720803-TH | STEP-SCREW D=7.24 H=8 | 1 |
| 34 | 121-21612 | DRIVING BALL ARM BRACKET | 1 |
| 34 | 121-21512 | DRIVING BALL ARM BRACKET | |
| 35 | SS-6110710-TP | SCREW 11/64-40 L= 6.5 | 1 |
| 36 | SS-4080620-TP | SCREW 1/8-44 L=6 | 2 |
| 37 | SS-6090620-TP | SCREW | 1 |
| 38 | SS-6110710-TP | SCREW 11/64-40 L= 6.5 | 2 |
| 39 | SS-7110720-TP | SCREW 11/64-40 L=7 | 1 |
Page 21 — PRESSER LIFTING LEVER
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-15001 | PRESSER FOOT SHAFT | 1 |
| 2 | 131-15100 | PRESSER FOOT SHAFT BUSHING | 1 |
| 3 | 131-15258 | THRUST ARM ASM. | 1 |
| 4 | 131-15209 | THRUST ARM | (1) |
| 5 | SS-6110710-TP | SCREW 11/64-40 L= 6.5 | (1) |
| 6 | SS-9151210-TP | SCREW 15/64-28 L=11.8 | (1) |
| 7 | 131-16801 | LIFTING ARM | 1 |
| 8 | 131-15407 | PRESSER FOOT ARM HINGE SHAFT | 1 |
| 9 | 131-15753 | PRESSER LIFTING LEVER BASE ASM | 1 |
| 10 | 131-15803 | PRESSER LIFTING LEVER BASE | (1) |
| 11 | 131-15902 | PRESSER LIFTING LEVER | (1) |
| 12 | 131-16009 | PRESSER ARM STOPPER | (1) |
| 13 | 131-16108 | PRESSER FOOT LIFTING SPRING | (1) |
| 14 | SS-7110510-SP | SCREW 11/64-40 L=5 | (2) |
| 15 | SD-0640241-SP | HINGE SCREW D=6.35 H=2.4 | (1) |
| 16 | PS-0300142-KH | SPRING PIN 0.3 X 14 | (1) |
| 17 | SS-6080340-SP | SCREW 1/8-44 L=2.9 | (1) |
| 18 | 131-16207 | PRESSER FOOT SPRING | 1 |
| 19 | 131-17007 | PRESSER LIFTING LEVER SCREW | 1 |
| 20 | 131-16306 | PRESSER LIFTING LEVER SPRING | 1 |
| 21 | 131-16900 | PRESSER LIFTING LEVER | 1 |
| 22 | 131-16405 | PRESSER LIFTING HOOK | 1 |
| 23 | 131-16504 | LIFTING LEVER ARM SPRING | 1 |
| 24 | 131-16603 | PRESSER LIFTING LEVER SPRING | 1 |
| 25 | NW-6060003-SC | NUT M6 | 1 |
| 26 | NS-6110420-SP | NUT 11/64-40 | 1 |
| 27 | SM-6061200-SP | SCREW M6 L=12 | 2 |
| 28 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 29 | SS-7111410-TP | SCREW 11/64-40 L=14 | 1 |
| 30 | SW-8050412-TP | SCREW M5 L=4 | 1 |
| 31 | 400-34897 | PRESSER ADJUSTING SCREW | 1 |
| 32 | 131-15654 | PRESSER BAR ASM. | 1 |
| 33 | 122-88700 | RRESSER REGULATOR SCREW WASHER | 1 |
| 34 | 131-17106 | PRESSER REGULATOR NUT | 1 |
| 35 | 132-12709 | PRESSER BAR COVER | 1 |
| 36 | 131-70402 | RUBBER RING | 2 |
| 37 | 131-70402 | RUBBER RING | 1 |
| 38 | SW-8040402-TP | SCREW M4X0.7 L=4 | 1 |
| 39 | 132-12501 | PRESSER BAR BUSHING | 1 |
| 40 | SS-6121020-SP | SCREW 3/16-28 L=9.5 | 1 |
| 41 | 132-12808 | ADJUSTING BASE | 1 |
| 42 | 132-13012 | ADJUSTING SCREW | 1 |
| 43 | 132-12915 | ADJUSTING BLOCK | 1 |
| 44 | 131-23302 | ADJUSTING SPRING | 1 |
| 45 | SS-7150740-SP | SCREW 15/64-28 L=7 | 2 |
| 46 | WP-0460556-SD | WASHER 4.6X7.5X0.5 | 1 |
| 47 | RE-0300000-KO | E-RING 3 | 1 |
| 48 | SS-7161040-SP | SCREW 1/4-24 L=9.5 | 1 |
| SS-7110510-TP | SCREW 11/64-40 L=6.5 | ||
| 131-15601 | PRESSER ARM HINGE SHAFT | ||
| NM-6060003-SC | NUT M6 | ||
| SS-7110410-TP | SCREW 11/64-40 L=14 | ||
| SM-8050412-TP | SCREW M5 L=4 | ||
| SM-8040402-TP | SCREW M4X0.7 L=4 | ||
| 132-12308 | ADJUSTING SCREW |
Page 23 — 10. PRESSER FOOT COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 122-53829 | PURESSER FOOT ARM | 1 |
| 2 | 131-16702 | THREAD TRIMMER | 1 |
| 3 | SS-7060510-SP | SCREW 3/32-56 L=4.8 | 1 |
| 4 | 118-76166 | PRESSER FOOT ASM. | 1 |
| 5 | 118-72009 | PRESSER FOOT HINGE | (1) |
| 6 | SS-6090670-TP | SCREW 9/64-40 L=6 | (1) |
| 7 | B1530-804-000 | STOPPER | (1) |
| 8 | WP-0250516-SD | WASHER 2.5X6X0.5 | (1) |
| 9 | SS-7060610-SP | SCREW 3/32-56 L= 5.5 | (1) |
| 10 | SS-6060210-SP | SCREW 3/32-56 L= 1.9 | (1) |
| 11 | B1511-814-000 | REAR PRESSER FOOT | (1) |
| 12 | B1507-804-C00 | PRESSER FOOT | (1) |
| 13 | SS-7080520-SP | SCREW 1/8-44 L=4.9 | (1) |
| 14 | B1508-804-00B | SPRING | (1) |
| 15 | B1509-804-C00 | STITCH TONGUE | (1) |
| 16 | SS-6060440-TP | SCREW 3/32-56 L=3.5 | (1) |
| 17 | B1510-814-000 | CURL GUARD | (1) |
| 18 | 131-78306 | FINGER GUIDE | (1) |
| 19 | 118-76869 | PRESSER FOOT ASM. | 1 |
| 20 | 118-72009 | PRESSER FOOT HINGE | (1) |
| 21 | SS-6090670-TP | SCREW 9/64-40 L=6 | (1) |
| 22 | B1530-804-000 | STOPPER | (1) |
| 23 | WP-0250516-SD | WASHER 2.5X6X0.5 | (1) |
| 24 | SS-7060610-SP | SCREW 3/32-56 L= 5.5 | (1) |
| 25 | SS-6060210-SP | SCREW 3/32-56 L= 1.9 | (1) |
| 26 | B1511-814-000 | REAR PRESSER FOOT | (1) |
| 27 | B1507-814-00P | PRESSER FOOT | (1) |
| 28 | SS-4080620-TP | SCREW 1/8-44 L=6 | (1) |
| 29 | B1508-804-00B | SPRING | (1) |
| 30 | B1509-814-00P | STITCH TONGUE | (1) |
| 31 | SS-6060440-TP | SCREW 3/32-56 L=3.5 | (1) |
| 32 | B1510-814-000 | CURL GUARD | (1) |
| 33 | 131-78306 | FINGER GUIDE | (1) |
| 34 | 400-30533 | PRESSER FOOT AUXILIARY PLATE | (1) |
| 35 | 121-53763 | PRESSER FOOT ASM. | 1 |
| 36 | SS-6090670-TP | SCREW 9/64-40 L=6 | (1) |
| 37 | 121-64802 | REAR PRESSER FOOT | (1) |
| 38 | 121-67805 | SPRING, FOR REAR PRESSER FOOT | (1) |
| 39 | B1513-816-000 | NUT, FOR REAR PRESSER FOOT | (1) |
| 40 | 121-67409 | HINGE PIN | (1) |
| 41 | 121-62202 | PRESSER FOOT | (1) |
| 42 | 121-67607 | PRESSER FOOT ARM SPRING | (1) |
| 43 | 121-67508 | HINGE SCREW | (1) |
| 44 | SS-6060340-SP | SCREW 3/32-56 L= 2.5 | (1) |
| 45 | B1514-816-000 | SCREW | (1) |
| 46 | 121-67706 | PRESSER FOOT | (1) |
| 47 | 131-78405 | FINGER GUIDE | (1) |
| 48 | 121-56907 | PRESSER FOOT HINGE | (1) |
Page 25 — 11. THREAD TENSION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 132-25008 | CENTER THREAD GUIDE | 1 |
| 2 | 131-37559 | THREAD TENSION SPRING COMPL. | 1 |
| 3 | 131-38359 | THREAD TENSION SPRING COMPL. | 1 |
| 4 | 131-38656 | THREAD TENSION SPRING COMPL. | 1 |
| 5 | 131-37807 | THREAD TENSION SPRING, RED | (1) |
| 6 | 131-38508 | THREAD TENSION SPRING, YELLOW | (1) |
| 7 | 131-38805 | THREAD TENSION SPRING, BLUE | (1) |
| 8 | 131-37708 | THREAD TENSION KNOB, RED | (1) |
| 9 | 131-38409 | THREAD TENSION KNOB, YELLOW | (1) |
| 10 | 131-38706 | THREAD TENSION KNOB, BLUE | (1) |
| 11 | 131-38904 | THREAD TENSION BAR | (1) |
| 12 | 131-37609 | THREAD TENSION DISK PRESSER | (1) |
| 13 | 131-37906 | SPRING BUSHING | (1) |
| 14 | 131-38102 | THREAD TENSION SPRING FELT | (1) |
| 15 | 131-38201 | THREAD TENSION DISK | (2) |
| 16 | 131-38003 | THREAD TENSION RUBBER WASHER | (1) |
| 17 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | 2 |
| 18 | 132-25107 | TESION DISK THREAD GUIDE | 3 |
| 19 | 132-25107 | TESION DISK THREAD GUIDE | 4 |
| 20 | 131-39555 | THREAD TENSION POST CONPL. | 1 |
| 21 | 131-40009 | THREAD TENSION POST | (1) |
| 22 | 131-39605 | TESION DISK THREAD GUIDE | (1) |
| 23 | 131-39902 | THREAD TENSION SPRING FELT | (1) |
| 24 | 131-39803 | THREAD TENSION NUT | (1) |
| 25 | 131-39704 | THREAD TENSION SPRING | (1) |
| 26 | 229-21407 | ROTATION STOPPER | (1) |
| 27 | 131-38201 | THREAD TENSION DISK | (2) |
| 28 | PS-0200052-KH | SPRING PIN 2.3X5 | 1 |
| 29 | SS-7110710-SL | SCREW 11/64-40 L=7.0 | 1 |
| 30 | SS-4110615-SP | SCREW 11/64-40 L=6 | 2 |
| 31 | 131-28202 | THREAD CAM THREAD GUIDE BASE | 1 |
| 32 | 131-28301 | THREAD CAM THREAD GUIDE A | 1 |
| 33 | 131-28400 | THREAD CAM THREAD GUIDE B | 1 |
| 34 | 131-28509 | LOWER THREAD CAM HOOK | 1 |
| 35 | 131-28608 | LOWER THREAD GUIDE | 1 |
| 36 | 131-28707 | THREAD GUIDE BASE SPRING | 1 |
| 37 | 131-29259 | LOOPER THREAD CAM ASM. | 1 |
| 38 | 131-29457 | LOWER THREAD CAM COMPL. | 1 |
| 39 | B2202-816-000 | SHAFT | 1 |
| 40 | 131-29101 | LOWER THREAD CONDUIT GUIDE | 1 |
| 41 | SS-5150510-SP | SCREW 15/64-28 L=5 | 1 |
| 42 | SD-0600341-TP | HINGE SCREW D=6.0 H=3.4 | 1 |
| 43 | WZ-0640312-KO | WAVED WASHER | 1 |
| 44 | SM-4050855-SP | SCREW M5 L=8 | 1 |
| 45 | SS-4090415-SP | SCREW 9/64-40 L=4 | 1 |
| 46 | SS-4090415-SP | SCREW 9/64-40 L=4 | 1 |
| 47 | SS-4090415-SP | SCREW 9/64-40 L=4 | 1 |
| 48 | SS-4090415-SP | SCREW 9/64-40 L=4 | 1 |
| 49 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
Page 27 — 12. LOWER KNIFE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | R4200-J6E-D00 | THROAT PLATE | 1 |
| 2 | R4305-J6E-E00 | THROAT PLATE | 1 |
| 3 | R4508-J6E-D00 | THROAT PLATE | 1 |
| 4 | SS-2110910-SL | SCREW 11/64-40 L=9 | 2 |
| 5 | 131-51204 | THROAT PLATE BASE B | 1 |
| 6 | SS-6110610-TP | SCREW 11/64-40 L=6 | 2 |
| 7 | 122-88908 | THROAT PLATE BASE B SUPPORT | 1 |
| 8 | SM-4051055-SP | SCREW | 2 |
| 9 | 132-32657 | LOWER KNIFE BRACKET ASM. | 1 |
| 10 | 132-32756 | LOWER KNIFE BRACKET ASM. | 1 |
| 11 | 131-49307 | SPRING STOPPER | (1) |
| 12 | 131-02702 | THROAT PLATE COVER | (1) |
| 13 | SS-7110720-SP | SCREW 11/64-40 L=7 | (1) |
| 14 | 131-48101 | SPRING | (1) |
| 15 | 131-49406 | LOWER KNIFE BRACKET | (1) |
| 16 | 131-48309 | THROAT PLATE BASE A | (1) |
| 17 | SS-6110610-TP | SCREW 11/64-40 L=6 | (2) |
| 18 | 131-49109 | RUBBER PLUG B | (1) |
| 19 | 132-35304 | RUBBER PLUG A | (1) |
| 20 | 131-49505 | LOWER KNIFE SLIDE STUD | (1) |
| 21 | SS-9111010-SP | SCREW 11/64-40 L=9.5 | (1) |
| 22 | 131-49208 | LOWER KNIFE PRESSER PLATE | (1) |
| 23 | 131-48408 | LEVER SHAFT | (1) |
| 24 | 131-49703 | ROTATING STOPPER | (1) |
| 25 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | (2) |
| 26 | 131-49604 | LOWER KNIFE SLIDE STUD | (1) |
| 27 | 131-49802 | ROTATING STOPPER | (1) |
| 28 | 131-49901 | HOLDER PIN | (2) |
| 29 | 131-48903 | RUBBER PLUG | (1) |
| 30 | SS-7151120-SP | SCREW 15/64-28 L=11 | (1) |
| 31 | 131-48556 | LEVER ASM. | (1) |
| 32 | 131-48804 | LEVER SPRING | (1) |
| 33 | 131-49901 | HOLDER PIN | (1) |
| 34 | SS-6151440-SP | SCREW 15/64-28 L=14 | 2 |
| 35 | 131-51105 | NEEDLE HOLDER SUPPORT | 1 |
| 36 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 37 | 118-90100 | NEEDLE GUARD | 1 |
| 38 | 118-90308 | NEEDLE GUARD | 1 |
| 39 | 120-15301 | NEEDLE HOLDER | 1 |
| 40 | 120-15400 | NEEDLE HOLDER | 1 |
| 41 | 121-77903 | NEEDLE HOLDER | 1 |
| 42 | SS-7090510-SP | SCREW 9/64-40 L= 4.6 | 1 |
| 43 | SS-7060510-SP | SCREW 3/32-56 L=4.8 | 2 |
| 44 | SS-7090610-SP | SCREW 9/64-40 L=6 | 1 |
| 45 | 131-50701 | LOWER KNIFE | 1 |
| 46 | 131-02702 | THROAT PLATE COVER | 2 |
Page 28 — 13. UPPER KNIFE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-47558 | FEED FORKED ARM ASM. | 1 |
| 2 | 131-47509 | FEED FORKED ARM | (1) |
| 3 | SM-6061402-TP | SCREW M6 L=14 | (1) |
| 4 | 131-51303 | KNIFE DRIVING ARM SHAFT | 1 |
| 5 | 131-50909 | BUSHING, FRONT | 1 |
| 6 | 131-51006 | BUSHING, REAR | 1 |
| 7 | 131-47400 | PLAIN KNIFE SUPPORT A | 1 |
| 8 | SS-6111040-SP | SCREW 11/64-40 L= 9.5 | 1 |
| 9 | 131-47301 | PLAIN KNIFE SUPPORT | 1 |
| 10 | SS-6111610-SP | SCREW 11/64-40 L=16 | 1 |
| 11 | 131-50800 | UPPER KNIFE GUIDE SHAFT | 1 |
| 12 | 115-66809 | OIL SEAL | 1 |
| 13 | 131-22007 | CRANK PIN A | 1 |
| 14 | 131-22106 | CRANK PIN B | 1 |
| 15 | 131-22205 | CRANK PIN C | 1 |
| 16 | 131-22304 | CRANK PIN D | 1 |
| 17 | 131-50503 | PLAIN KNIFE | 1 |
| 18 | 131-50602 | PLAIN KNIFE | 1 |
| 19 | SS-9090823-TP | BOLT 9/64-40 L=8 | 1 |
| 20 | WP-0370316-SD | WASHER 3.7X8X0.3 | 1 |
| 21 | CS-111101H-SH | THRUST COLLAR ASM. | 1 |
| 22 | CS-1111019-SH | THRUST COLLAR D=11.11 W=10 | (1) |
| 23 | SS-8660330-SP | SCREW 1/4-40 L= 3.0 | (1) |
Page 29 — 針冷却装置関係（SH用）
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-63456 | SILICON TANK ASM. | 1 |
| 2 | 131-63803 | NEEDLE THREAD FELT | 1 |
| 3 | 131-63902 | NEEDLE THREAD FELT PRESSER | 1 |
| 4 | TA-0950806-RO | RUBBER PLUG | 1 |
| 5 | SM-4040855-SP | SCREW | 1 |
| 6 | 131-62557 | NEEDLE COOLER UNIT ASM. (OVER) | 1 |
| 7 | 131-62565 | NEEDLE COOLER UNIT COMPL. | (1) |
| 8 | 131-62573 | NEEDLE COOLER UNIT ASM. (OVER) | (1) |
| 9 | 131-62805 | NEEDLE COOLER SUPPORT | (1) |
| 10 | SS-7090610-SP | SCREW 9/64-40 L=6 | (1) |
| 11 | 131-62904 | TANK | (1) |
| 12 | 131-63001 | TANK COVER | (1) |
| 13 | SS-4091015-SP | SCREW 9/64-40 L=10 | 1 |
| 14 | WP-0371026-SD | WASHER 3.7X7X1 | 1 |
| 15 | 131-63159 | NEEDLE COOLER UNIT ASM.(INTER) | 1 |
| 16 | 131-63167 | NEEDLE COOLER COMPL.(INTER) | (1) |
| 17 | 131-63175 | NEEDLE COOLER ASM.(INTER) | (1) |
| 18 | 131-62805 | NEEDLE COOLER SUPPORT | (1) |
| 19 | SS-7090610-SP | SCREW 9/64-40 L=6 | (1) |
| 20 | 131-62904 | TANK | (1) |
| 21 | 131-63001 | TANK COVER | (1) |
| 22 | SS-4091015-SP | SCREW 9/64-40 L=10 | 1 |
| 23 | WP-0371026-SD | WASHER 3.7X7X1 | 1 |
| 24 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
Page 31 — 15. LUBRICATION MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 132-30305 | WORM | 1 |
Page 32 — 16. SEMI-SUNKEN TYPE TABLE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-61005 | CASE SPONGE | 1 |
| 2 | 131-60908 | COOLING FAN CASE | 1 |
| 3 | 131-61153 | FRAME SUPPORT PLATE ASM. | 1 |
| 4 | 123-41954 | CLOTH WASTE CHUTE ASM. | 1 |
| 5 | 123-41905 | CLOTH WASTE CHUTE(SEMI-SUNKEN) | (1) |
| 6 | 123-41806 | CLOTH WASTE CHUTE | (1) |
| 7 | 131-55759 | CLOTH WASTE CHUTE ASM. | 1 |
| 8 | 131-55601 | CLOTH WASTE CHUTE INLET | (1) |
| 9 | 131-55700 | CLOTH WASTE CHUTE, UPPER | (1) |
| 10 | 131-55502 | CHUTE SUPPORT | (1) |
| 11 | SS-5090610-SP | SCREW 9/64-40 L=6 | (3) |
| 12 | NS-6090310-SP | NUT 9/64-40 | (3) |
| 13 | 131-55403 | DUST-PROOF RUBBER | 4 |
| 14 | 131-56500 | DUST-PROOF RUBBER SPACER | 4 |
| 15 | 131-55007 | HOLDING PLATE BOLT | 4 |
| 16 | 123-41806 | CLOTH WASTE CHUTE | 1 |
| 17 | SS-5110710-SP | SCREW 11/64-40 L=7 | 2 |
| 18 | SK-2351600-SC | WOOD SCREW D=3.5 L=16 | 3 |
| 19 | 111-55108 | DRAWER | 1 |
| 20 | 111-55207 | DRAWER SUPPORT | 2 |
| 21 | 119-59400 | TABLE (SEMI-SUNKEN) | 1 |
| 22 | D8204-555-D00 | DRAWER STOPPER | 1 |
| 23 | NS-6240630-SE | NUT 3/8-18 | 4 |
| 24 | SK-2351600-SC | WOOD SCREW D=3.5 L=16 | 3 |
| 25 | SK-3311500-SC | WOOD SCREW D=3.1 L=15 | 6 |
| 26 | SK-3513200-SC | WOOD SCREW D=5.1 L=32 | 4 |
| 27 | SS-6090630-TP | SCREW 9/64-40 L=6 | 5 |
| 28 | WP-1002036-SE | WASHER 10X21X2 | 4 |
| 29 | WS-1002560-KR | SPRING WASHER 10X18X2.5 | 4 |
Page 33
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-61005 | CASE SPONGE | 1 |
| 2 | 131-60908 | COOLING FAN CASE | 1 |
| 3 | SS-5110710-SP | SCREW 11/64-40 L=7 | 2 |
| 4 | SK-2351600-SC | WOOD SCREW D=3.5 L=16 | 3 |
| 5 | 131-55858 | CLOTH WASTE CHUTE ASM. | 1 |
| 6 | 131-56203 | CLOTH WASTE CHUTE | (1) |
| 7 | 131-56302 | CLOTH WASTE CHUTE INLET | (1) |
| 8 | 131-55908 | CHUTE INLET LEVER | (1) |
| 9 | 131-56005 | CHUTE INLET SPRING | (1) |
| 10 | 131-56104 | CHUTE INLET RUBBER | (1) |
| 11 | SS-6090420-SP | SCREW 9/64-40 L= 4.0 | (2) |
| 12 | ST-6030821-OA | SCREW D=3-24 L=8 | (2) |
| 13 | ST-6030821-OA | SCREW D=3-24 L=8 | (1) |
| 14 | WP-0370316-SD | WASHER 3.7X8X0.3 | (1) |
| 15 | 119-59558 | TABLE ASM. | 1 |
| 16 | 131-55403 | DUST-PROOF RUBBER | 4 |
| 17 | 131-55106 | HOLDING PLATE BOLT C | 2 |
| 18 | 131-55205 | HOLDING PLATE BOLT D | 2 |
| 19 | 131-55759 | CLOTH WASTE CHUTE ASM. | 1 |
| 20 | 131-55601 | CLOTH WASTE CHUTE INLET | (1) |
| 21 | 131-55700 | CLOTH WASTE CHUTE, UPPER | (1) |
| 22 | 131-55502 | CHUTE SUPPORT | (1) |
| 23 | SS-5090610-SP | SCREW 9/64-40 L=6 | (3) |
| 24 | NS-6090310-SP | NUT 9/64-40 | (3) |
| 25 | 123-41806 | CLOTH WASTE CHUTE | 1 |
| 26 | 131-61153 | FRAME SUPPORT PLATE ASM. | 1 |
| 27 | 131-55304 | FRAME HOLDING PLATE COUPLING | 1 |
| 28 | SM-9082513-CF | SCREW M8 L=25 | 4 |
| 29 | NM-6080600-SM | NUT M8 | 4 |
| 30 | WP-0850002-SC | WASHER 8.5X18X1.6 | 4 |
| 31 | SK-3513200-SC | WOOD SCREW D=5.1 L=32 | 4 |
| 32 | 111-55108 | DRAWER | 1 |
| 33 | 111-55207 | DRAWER SUPPORT | 2 |
| 34 | D8204-555-D00 | DRAWER STOPPER | 1 |
| 35 | SK-3311500-SC | WOOD SCREW D=3.1 L=15 | 6 |
| 36 | WS-1002560-KR | SPRING WASHER 10X18X2.5 | 4 |
| 37 | SS-6090630-TP | SCREW 9/64-40 L=6 | 5 |
| 38 | SS-5110710-SP | SCREW 11/64-40 L=7 | 2 |
| 39 | WP-1002036-SE | WASHER 10X21X2 | 12 |
| 40 | NS-6240630-SE | NUT 3/8-18 | 12 |
| NM-6080600-SH | NUT M8 | 4 |
Page 35 — 18. STAND COMPONENTS (Z T)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 119-60655 | T STAND JUNCTION | 1 |
| 2 | 111-57567 | T LEG JUNCTION | (1) |
| 3 | GPF-06060000 | PEDAL | (1) |
| 4 | GPF-06070000 | PEDAL MAT | (1) |
| 5 | GPF-06080000 | PEDAL ADJUSTING PLATE | (1) |
| 6 | 111-59001 | PEDAL SHAFT BRACKET | (2) |
| 7 | D8113-555-B00 | PEDAL BUSHING | (2) |
| 8 | B8153-771-000 | PEDAL CONNECTING ROD | (1) |
| 9 | NM-6080001-SE | NUT M8 | (2) |
| 10 | SL-9082091-SE | WASHER HEXAGONAL BOLT | (2) |
| 11 | WP-0871602-SE | WASHER 8.7X18X1.6 | (2) |
| 12 | SL-9061291-SE | WASHER HEXAGONAL BOLT M6 L=12 | (2) |
| 13 | 119-60754 | T STAND JUNCTION(WITH CASTER) | 1 |
| 14 | 111-59365 | T STAND JUNCTION | (1) |
| 15 | GPF-06060000 | PEDAL | (1) |
| 16 | GPF-06070000 | PEDAL MAT | (1) |
| 17 | GPF-06080000 | PEDAL ADJUSTING PLATE | (1) |
| 18 | 111-59001 | PEDAL SHAFT BRACKET | (2) |
| 19 | D8113-555-B00 | PEDAL BUSHING | (2) |
| 20 | B8153-771-000 | PEDAL CONNECTING ROD | (1) |
| 21 | NM-6080001-SE | NUT M8 | (2) |
| 22 | SL-9082091-SE | WASHER HEXAGONAL BOLT | (2) |
| 23 | WP-0871602-SE | WASHER 8.7X18X1.6 | (2) |
| 24 | SL-9061291-SE | WASHER HEXAGONAL BOLT M6 L=12 | (2) |
| 25 | B7114-012-0A0 | MOTOR CONNECTING ROD ASM. | 1 |
| 26 | 111-51065 | Z LEG JUNCTION (B) | 1 |
| 27 | B8151-771-0A0 | PEDAL ASM. | 1 |
| 28 | SM-9082023-SE | SCREW M8 L=20 | (2) |
| 29 | WS-0861410-KR | SPRING WASHER 8.6X15X1.4 | (2) |
| 30 | WP-0871602-SE | WASHER 8.7X18X1.6 | (4) |
| 31 | 111-51909 | PEDAL SHAFT BRACKET | (2) |
| 32 | NM-6080721-SE | NUT M8 | (2) |
| 33 | D8113-555-B00 | PEDAL BUSHING | (2) |
| 34 | SM-9061203-SE | SCREW M6 L=12 | (2) |
| 35 | WS-0621210-KR | SPRING WASHER 6.2X11.4X1.2 | (2) |
| 36 | WP-0671016-SE | WASHER 6.7X13X1 | (2) |
| 37 | 112-46600 | PEDAL ADJUSTING PLATE | (1) |
| 38 | 112-46501 | PEDAL | (1) |
| 39 | B8152-771-000 | PEDAL MAT | (1) |
| 40 | B8153-771-000 | PEDAL CONNECTING ROD | (1) |
Page 37 — 19. THREAD STAND COMPONENTS (FOR MO-6704S,MO-6714S)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-67556 | THREAD STANDING DEVICE ASM. | 1 |
| 2 | 229-30556 | SPOOL REST ARM ASM. | (2) |
| 3 | 229-30507 | SPOOL REST ARM | (2) |
| 4 | 229-30705 | THREAD GUIDE ARM JOINT | (4) |
| 5 | 229-31406 | THREAD STANDING ROD RUBBER CAP | (1) |
| 6 | 229-30408 | THREAD STANDING ROD, UPPER | (1) |
| 7 | 229-31307 | THREAD STANDING ROD JOINT | (1) |
| 8 | 131-67903 | THREAD STANDING THREAD GUIDE | (1) |
| 9 | 131-68000 | THREAD STANDING GUIDE BASE | (1) |
| 10 | 131-68109 | THREAD STANDING GUIDE ARM | (1) |
| 11 | 131-68208 | THREAD STANDING GUIDE ARM BASE | (1) |
| 12 | 229-30309 | THREAD STANDING ROD, LOWER | (1) |
| 13 | 229-31109 | SPOOL RETAINER | (4) |
| 14 | 229-31000 | SPOOL PIN | (4) |
| 15 | 229-30903 | SPOOL REST CUSHION | (4) |
| 16 | 229-30804 | SPOOL REST | (4) |
| 17 | SM-6061610-SC | SCREW M6 L=16 | (4) |
| 18 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 19 | NM-6050001-SE | NUT M5 | (2) |
| 20 | SM-4041001-SC | SCREW M4X0.7 L=10 | (2) |
| 21 | NM-6040002-SE | NUT M4X0.7 | (2) |
| 22 | SM-4041201-SC | SCREW M4 L=12 | (1) |
| 23 | SM-4042001-SC | SCREW M4 X 20 | (1) |
| 24 | NM-6040002-SE | NUT M4X0.7 | (2) |
| 25 | WP-1612616-SE | WASHER 16X30X2.6 | (2) |
| 26 | WS-1643202-KR | SPRING WASHER | (1) |
| 27 | NM-6160511-SE | NUT M16X1.5 | (1) |
| 28 | NM-6050001-SE | NUT M5 | (4) |
| 29 | WS-0510002-KN | SPRING WASHER | (4) |
| SM-6051405-SE | SCREW M5 L=14 | (2) |
Page 39 — 20. THREAD STAND COMPONENTS (MO-6704S,MO-6714S SPECIAL ORDER PARTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-67754 | THREAD STANDING DEVICE ASM. | 1 |
| 2 | 131-68851 | THREAD STANDING ARM ASM. ,LONG | (2) |
| 3 | 131-68505 | THREAD GUIDE ARM B | (1) |
| 4 | 131-68802 | THREAD STANDING ARM ,LONG | (2) |
| 5 | 229-30705 | THREAD GUIDE ARM JOINT | (4) |
| 6 | 229-31406 | THREAD STANDING ROD RUBBER CAP | (1) |
| 7 | 229-30408 | THREAD STANDING ROD, UPPER | (1) |
| 8 | 229-31307 | THREAD STANDING ROD JOINT | (1) |
| 9 | 131-67903 | THREAD GUIDE | (1) |
| 10 | 131-68000 | THREAD GUIDE BASE ,LOWER | (1) |
| 11 | 131-68109 | THREAD GUIDE ARM | (1) |
| 12 | 131-68208 | THREAD GUIDE ARM BASE | (1) |
| 13 | 229-30309 | THREAD STANDING ROD, LOWER | (1) |
| 14 | 229-31109 | SPOOL RETAINER | (4) |
| 15 | 229-31000 | SPOOL PIN | (4) |
| 16 | 229-30903 | SPOOL REST CUSHION | (4) |
| 17 | 229-30804 | SPOOL REST | (4) |
| 18 | 131-68406 | THREAD STANDING ARM SUPPORT, A | (1) |
| 19 | SM-6061610-SC | SCREW M6 L=16 | (4) |
| 20 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 21 | NM-6050001-SE | NUT M5 | (2) |
| 22 | SM-4041001-SC | SCREW M4X0.7 L=10 | (2) |
| 23 | NM-6040002-SE | NUT M4X0.7 | (2) |
| 24 | SM-4041201-SC | SCREW M4 L=12 | (1) |
| 25 | SM-4042001-SC | SCREW M4 X 20 | (1) |
| 26 | NM-6040002-SE | NUT M4X0.7 | (2) |
| 27 | WP-1612616-SE | WASHER 16X30X2.6 | (2) |
| 28 | WS-1643202-KR | SPRING WASHER | (1) |
| 29 | NM-6160511-SE | NUT M16X1.5 | (1) |
| 30 | NM-6050001-SE | NUT M5 | (4) |
| 31 | WS-0510002-KN | SPRING WASHER | (4) |
| 32 | SK-3382001-SE | SCREW D=3.8 L=20 | (2) |
| 33 | SM-4061201-SE | SCREW M6 L=12 | (2) |
| 34 | NM-6060001-SE | NUT M6 | (2) |
Page 41 — 21. THREAD STAND COMPONENTS (FOR MO-6716S)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-67655 | THREAD STANDING DEVICE ASM. | 1 |
| 2 | 229-30556 | THREAD STANDING ARM ASM. | (1) |
| 3 | 131-68356 | THREAD STANDING ARM ASM. ,LONG | (1) |
| 4 | 229-30507 | THREAD STANDING ARM | (1) |
| 5 | 229-30705 | THREAD GUIDE ARM JOINT | (4) |
| 6 | 229-31406 | THREAD STANDING ROD RUBBER CAP | (1) |
| 7 | 229-30408 | THREAD STANDING ROD, UPPER | (1) |
| 8 | 229-31307 | THREAD STANDING ROD JOINT | (1) |
| 9 | 131-67903 | THREAD GUIDE | (1) |
| 10 | 131-68000 | THREAD GUIDE BASE, LOWER | (1) |
| 11 | 131-68109 | THREAD GUIDE ARM | (1) |
| 12 | 131-68208 | THREAD GUIDE ARM BASE | (1) |
| 13 | 229-30309 | THREAD STANDING ROD, LOWER | (1) |
| 14 | 229-31109 | SPOOL RETAINER | (5) |
| 15 | 229-31000 | SPOOL PIN | (5) |
| 16 | 229-30903 | SPOOL REST CUSHION | (5) |
| 17 | 229-30804 | SPOOL REST | (5) |
| 18 | SM-6061610-SC | SCREW M6 L=16 | (4) |
| 19 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 20 | NM-6050001-SE | NUT M5 | (2) |
| 21 | SM-4041001-SC | SCREW M4X0.7 L=10 | (2) |
| 22 | NM-6040002-SE | NUT M4X0.7 | (2) |
| 23 | SM-4041201-SC | SCREW M4 L=12 | (1) |
| 24 | SM-4042001-SC | SCREW M4 X 20 | (1) |
| 25 | NM-6040002-SE | NUT M4X0.7 | (2) |
| 26 | WP-1612616-SE | WASHER 16X30X2.6 | (2) |
| 27 | WS-1643202-KR | SPRING WASHER | (1) |
| 28 | NM-6160511-SE | NUT M16X1.5 | (1) |
| 29 | NM-6050001-SE | NUT M5 | (5) |
| 30 | WS-0510002-KN | SPRING WASHER | (5) |
| 31 | 131-68307 | THREAD STANDING ARM ,LONG | (1) |
Page 43 — 22. THREAD STAND COMPONENTS (MO-6716S SPECIAL ORDER PARTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-67853 | THREAD STANDING DEVICE ASM. | 1 |
| 2 | 131-68851 | THREAD STANDING ARM ASM. ,LONG | (2) |
| 3 | 131-68505 | THREAD STANDING ARM SUPPORT B | (1) |
| 4 | 131-68802 | THREAD STANDING ARM ,LONG | (2) |
| 5 | 229-30705 | THREAD GUIDE ARM JOINT | (6) |
| 6 | 229-31406 | THREAD STANDING ROD RUBBER CAP | (1) |
| 7 | 229-30408 | THREAD STANDING ROD, UPPER | (1) |
| 8 | 229-31307 | THREAD STANDING ROD JOINT | (1) |
| 9 | 131-67903 | THREAD STANDING THREAD GUIDE | (1) |
| 10 | 131-68000 | THREAD GUIDE BASE, LOWER | (1) |
| 11 | 131-68109 | THREAD GUIDE ARM BASE | (1) |
| 12 | 131-68208 | THREAD GUIDE ARM BASE | (1) |
| 13 | 229-30309 | THREAD STANDING ROD, LOWER | (1) |
| 14 | 229-31109 | SPOOL RETAINER | (5) |
| 15 | 229-31000 | SPOOL PIN | (5) |
| 16 | 229-30903 | SPOOL REST CUSHION | (5) |
| 17 | 229-30804 | SPOOL REST | (5) |
| 18 | 131-68406 | THREAD STANDING ARM SUPPORT A | (1) |
| 19 | 131-68950 | THREAD STANDING ARM A ASM. | (1) |
| 20 | SM-6061610-SC | SCREW M6 L=16 | (6) |
| 21 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 22 | NM-6050001-SE | NUT M5 | (2) |
| 23 | SM-4041001-SC | SCREW M4X0.7 L=10 | (2) |
| 24 | NM-6040002-SE | NUT M4X0.7 | (2) |
| 25 | SM-4041201-SC | SCREW M4 L=12 | (1) |
| 26 | SM-4042001-SC | SCREW M4 X 20 | (1) |
| 27 | NM-6040002-SE | NUT M4X0.7 | (2) |
| 28 | WP-1612616-SE | WASHER 16X30X2.6 | (2) |
| 29 | WS-1643202-KR | SPRING WASHER | (1) |
| 30 | NM-6160511-SE | NUT M16X1.5 | (1) |
| 31 | NM-6050001-SE | NUT M5 | (5) |
| 32 | WS-0510002-KN | SPRING WASHER | (5) |
| 33 | SK-3382001-SE | SCREW D=3.8 L=20 | (2) |
| 34 | SM-4061201-SE | SCREW M6 L=12 | (2) |
| 35 | NM-6060001-SE | NUT M6 | (2) |
| 36 | 131-68901 | THREAD STANDING ARM A | (1) |
Page 45 — 23. SPECIAL ORDER PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SS-8080322-TP | SCREW 1/8-44 L=3.2 | 1 |
| 2 | SS-8080322-TP | SCREW 1/8-44 L=3.2 | 2 |
| 3 | B9112-804-000 | SPANNER | 1 |
| 4 | 121-20713 | CHAIN LOOPER | 1 |
| 5 | 115-44707 | UPPER LOOPER SUPPORT ARM | 1 |
| 6 | 118-98103 | PRESSER FOOT AUXILIARY PLATE | 1 |
| 7 | 121-23709 | LOWER LOOPER SUPPORT ARM | 1 |
| 8 | B2519-804-000 | UPPER LOOPER | 1 |
| 9 | B2519-814-000 | UPPER LOOPER | 1 |
| 10 | B2521-804-000 | LOWER LOOPER | 1 |
| SS-6080410-SP | SCREW 1/8-44 L=4 | 1 | |
| 118-47605 | LOWER KNIFE | 1 | |
| 119-64509 | CERAMIC LOWER KNIFE | 1 | |
| 119-92005 | LOWER KNIFE | 1 | |
| 119-65753 | PEDAL ASM. | 1 | |
| SM-9061203-SE | SCREW M6 L=12 | (2) | |
| 119-65704 | PEDAL | (1) | |
| 119-65803 | PEDAL THRUST COLLAR | (2) | |
| PS-0200062-KH | SPRING PIN 2X6 | 1 | |
| 121-05458 | CLOTH PLATE ASM. | (1) | |
| 121-04550 | CLOTH PLATE ASM. | (1) | |
| 115-01301 | ECCENTRIC BUSHING | (1) | |
| WZ-0420350-KP | DISC SPRING | (1) | |
| CS-0400671-SD | THRUST HOLDER | (1) | |
| SM-8040302-TP | SETSCREW | (1) | |
| B1539-804-000 | PRESSER FOOT FIXING PLATE | 1 | |
| SS-6060410-TP | SCREW 3/32-56 L=3.5 | 1 | |
| 121-52468 | PRESSER FOOT (FINGER GUARD). | 1 | |
| 118-72009 | PRESSER FOOT HINGE | (1) | |
| SS-6090670-TP | SCREW 9/64-40 L=6 | (1) | |
| B1530-804-000 | STOPPER | (1) | |
| WP-0250516-SD | WASHER 2.5X6X0.5 | (1) | |
| SS-7060610-SP | SCREW 3/32-56 L=5.5 | (1) | |
| SS-6060210-SP | SCREW 3/32-56 L=1.9 | (1) | |
| B1511-814-000 | REAR PRESSER FOOT | (1) | |
| B1507-814-00P | PRESSER FOOT | (1) | |
| SS-7080520-SP | SCREW 1/8-44 L=4.9 | (1) | |
| B1508-804-00B | SPRING | (1) | |
| 121-60008 | STITCH TONGUE | 1 | |
| SS-6060440-TP | SCREW 3/32-56 L=3.5 | 1 | |
| B1510-814-000 | CURL GUARD | 1 | |
| 131-78306 | FINGER GUARD | 1 | |
| 115-98000 | UPPER KNIFE SUPPORT | 1 | |
| 118-45807 | UPPER KNIFE | 1 | |
| SS-9111610-SP | SCREW 11/64-40 L=16 | 1 | |
| 118-45500 | UPPER KNIFE SUPPORT | 1 | |
| 118-45906 | UPPER KNIFE | 1 | |
| SS-9112310-SP | SCREW 11/64-40 L=23 | 1 | |
| 115-65702 | WASHER | 1 | |
| 118-48405 | UPPER KNIFE COVER | 1 | |
| SS-4060310-SP | SCREW 3/32-56 L=2.5 | 1 | |
| 400-25294 | SYNCHRONIZER STOPPER ASM. | 1 | |
| 400-11755 | SYNCHRONIZER TURN STOPPER ASM | (1) | |
| 400-11757 | SYNCHRONIZER STOPPER BASE | (1) | |
| 400-22255 | SYNCHRONIZER STOPPER | (1) | |
| SS-5120810-SP | SCREW | (1) | |
| SS-9154540-SP | SCREW 15/64-28 L=45 | 1 | |
| 400-11758 | SYNCHRONIZER BASE COLLAR | 1 | |
| 400-36778 | V_BELT SLIDER | 1 | |
| 400-30533 | PRESSER FOOT AUXILIARY PLATE | 1 |
Page 46 — 24. ACCESSORIES PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-60858 | ACCESSORIE BAG ASM. | 1 |
| 2 | 131-60007 | RING SPANNER | (1) |
| 3 | 131-60205 | PIN SPANNER | (1) |
| 4 | 229-32800 | ACCESSORIE BAG | (1) |
| 5 | 229-33105 | SCREW DRIVER,MIDDLE | (1) |
| 6 | 123-47308 | SCREW DRIVER (SMALL) | (1) |
| 7 | 131-60106 | SPANNER (5X6) | (1) |
| 8 | 131-60304 | S SHAPED HOOK | (2) |
| 9 | 131-60403 | CHAIN | (1) |
| 10 | 122-88403 | TWEEZERS | (1) |
| 11 | 131-60601 | FUNNEL | 1 |
| 12 | 229-33006 | SCREW DRIVER,LARGE | 1 |
| 13 | 400-48535 | HEAD_COVER | 1 |
| 14 | MDC-270B1104 | NEEDLE DCX27 #11-4EA. | 1 |
| 15 | MML-018900CA | JUKI MACHINE OIL 18 | 1 |
| 16 | 131-42500 | CARTRIDGE FILTER | 1 |
Page 47 — 変更情報リスト
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 28 | 121-03305 | ||
| 28 | 131-01704 | ||
| 44 | CM-6001001-01 | ||
| 45 | 400-37392 | ||
| 46 | 400-40065 | ||
| 63 | 122-56905 | ||
| 63 | 131-75203 | ||
| 65 | 119-49807 | ||
| 65 | 131-92000 | ||
| 24 | 121-23659 | ||
| 24 | 131-33053 | ||
| 30 | SS-8110520-TP | ||
| 30 | SM-8050412-TP | ||
| 31 | 132-12600 | ||
| 31 | 400-34897 | ||
| 37 | 131-28905 | ||
| 37 | 131-29259 | ||
| 41 | 131-29200 | ||
| 9 | 123-47167 | ||
| 9 | 132-32657 | ||
| 10 | 123-47266 | ||
| 10 | 132-32756 | ||
| 11 | 121-33211 | ||
| 11 | 131-49307 | ||
| 12 | 118-06304 | ||
| 12 | 131-02702 | ||
| 14 | 118-46607 | ||
| 14 | 131-48101 | ||
| 15 | 121-32619 | ||
| 15 | 131-49406 | ||
| 16 | 121-02208 | ||
| 16 | 131-48309 | ||
| 18 | 121-03701 | ||
| 18 | 131-49109 | ||
| 20 | 121-32700 | ||
| 20 | 131-49505 | ||
| 22 | 121-33104 | ||
| 22 | 131-49208 | ||
| 23 | 121-02810 | ||
| 23 | 131-48408 | ||
| 24 | 121-32908 | ||
| 24 | 131-49703 | ||
| 26 | 121-32809 | ||
| 26 | 131-49604 | ||
| 27 | 121-33005 | ||
| 27 | 131-49802 | ||
| 28 | 118-46805 | ||
| 28 | 131-49901 | ||
| 29 | 121-03107 | ||
| 29 | 131-48903 | ||
| 31 | 121-02950 | ||
| 31 | 131-48556 | ||
| 32 | 118-02006 | ||
| 32 | 131-48804 | ||
| 33 | 118-46805 | ||
| 33 | 131-49901 | ||
| 13 | 229-33303 | ||
| 13 | 400-48535 |

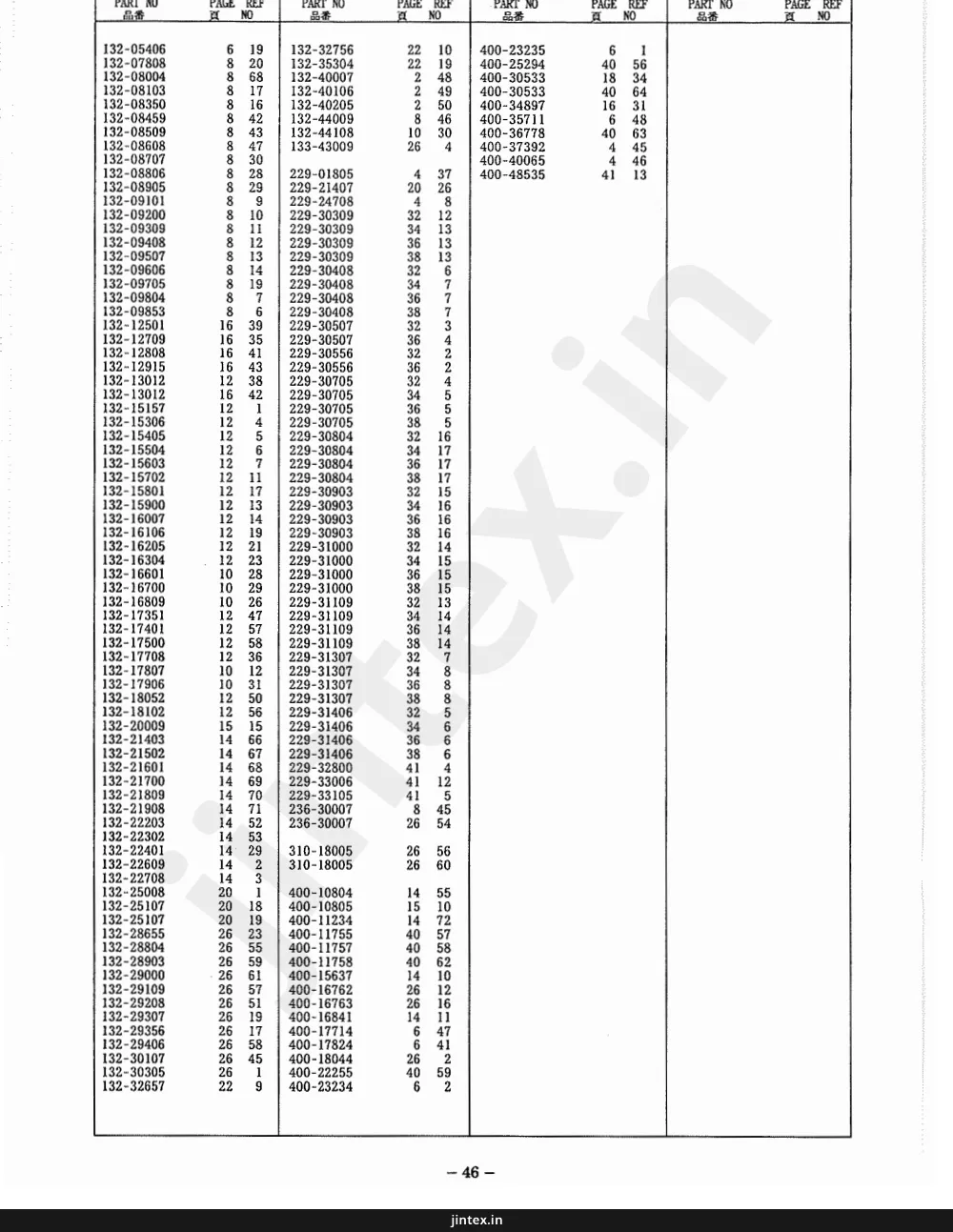

Page 51
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 19 | 132-05406 | ||
| 20 | 132-07808 | ||
| 68 | 132-08004 | ||
| 17 | 132-08103 | ||
| 16 | 132-08350 | ||
| 42 | 132-08459 | ||
| 43 | 132-08509 | ||
| 47 | 132-08608 | ||
| 30 | 132-08707 | ||
| 28 | 132-08806 | ||
| 29 | 132-08905 | ||
| 9 | 132-09101 | ||
| 10 | 132-09200 | ||
| 11 | 132-09309 | ||
| 12 | 132-09408 | ||
| 13 | 132-09507 | ||
| 14 | 132-09606 | ||
| 19 | 132-09705 | ||
| 7 | 132-09804 | ||
| 6 | 132-09853 | ||
| 39 | 132-12501 | ||
| 35 | 132-12709 | ||
| 41 | 132-12808 | ||
| 43 | 132-12915 | ||
| 38 | 132-13012 | ||
| 42 | 132-13012 | ||
| 1 | 132-15157 | ||
| 4 | 132-15306 | ||
| 5 | 132-15405 | ||
| 6 | 132-15504 | ||
| 7 | 132-15603 | ||
| 11 | 132-15702 | ||
| 17 | 132-15801 | ||
| 13 | 132-15900 | ||
| 14 | 132-16007 | ||
| 19 | 132-16106 | ||
| 21 | 132-16205 | ||
| 23 | 132-16304 | ||
| 28 | 132-16601 | ||
| 29 | 132-16700 | ||
| 26 | 132-16809 | ||
| 47 | 132-17351 | ||
| 57 | 132-17401 | ||
| 58 | 132-17500 | ||
| 36 | 132-17708 | ||
| 12 | 132-17807 | ||
| 31 | 132-17906 | ||
| 50 | 132-18052 | ||
| 56 | 132-18102 | ||
| 15 | 132-20009 | ||
| 66 | 132-21403 | ||
| 67 | 132-21502 | ||
| 68 | 132-21601 | ||
| 69 | 132-21700 | ||
| 70 | 132-21809 | ||
| 71 | 132-21908 | ||
| 52 | 132-22203 | ||
| 53 | 132-22302 | ||
| 29 | 132-22401 | ||
| 2 | 132-22609 | ||
| 3 | 132-22708 | ||
| 1 | 132-25008 | ||
| 18 | 132-25107 | ||
| 19 | 132-25107 | ||
| 23 | 132-28655 | ||
| 55 | 132-28804 | ||
| 59 | 132-28903 | ||
| 61 | 132-29000 | ||
| 57 | 132-29109 | ||
| 51 | 132-29307 | ||
| 17 | 132-29356 | ||
| 58 | 132-29406 | ||
| 45 | 132-30107 | ||
| 1 | 132-30305 | ||
| 9 | 132-32657 | ||
| 1 | 400-23235 | ||
| 56 | 400-25294 | ||
| 34 | 400-30533 | ||
| 64 | 400-30533 | ||
| 31 | 400-34897 | ||
| 48 | 400-35711 | ||
| 63 | 400-36778 | ||
| 45 | 400-37392 | ||
| 46 | 400-40065 | ||
| 13 | 400-48535 |
Juki MO-6716 — parts catalog
- Page 1 (cover): This is the cover page for the JIN-TEX industrial sewing machine parts list, featuring models MO-6704S-0E4, MO-6714S-BE6, and MO-6716S-DE4.
- Page 2 (unknown): This page contains a watermark and footer text, but no other discernible content.
- Page 3 (text): This page provides explanations for codes and symbols used in the parts book, including explanations for asterisk marks, '01' codes, quantity column notations, parentheses, and dotted lines. It also includes Japanese text explaining how to use the parts list, with specific notes on asterisk marks, '01' codes, quantity values, parentheses, and dotted lines.
- Page 5 (toc): This page is a table of contents for a parts catalog, listing sections such as Thread Stand Components, Special Order Parts, Accessories Parts Components, List for Information of Change, and Numerical Index of Parts, along with their corresponding page numbers.
- Page 6 (diagram): This page displays a diagram of miscellaneous cover components for a JUKI sewing machine, with numbered parts and their corresponding references.
- Page 7 (parts_list): This page lists parts for MO-6704S, MO-6714S, and MO-6716S sewing machines, including various screws, covers, and springs.
- Page 8 (diagram): This page displays a diagram of miscellaneous cover components for the JUKI MC-6700 sewing machine, with numbered parts and their corresponding references.
- Page 9 (parts_list): This page lists various parts for an industrial sewing machine, including screws, gaskets, covers, and labels, with their corresponding part numbers and descriptions.
- Page 10 (diagram): This page displays a diagram of crankshaft components, including the crankshaft itself, connecting rods, bearings, and related hardware, with reference numbers for each part.
- Page 11 (parts_list): This page lists parts for MO-6704S, MO-6714S, and MO-6716S sewing machines, including screws, bearings, and various assemblies.
- Page 12 (diagram): This page displays a diagram of needle driving shaft components, with numbered parts and their corresponding references.
- Page 13 (parts_list): This page lists parts for sewing machines, including part numbers, names, quantities, and remarks. It covers items from reference number 1 to 68, with a note at the bottom regarding order acceptance for part number 16.
- Page 14 (diagram): This page displays a diagram of the feed mechanism components (1) of an industrial sewing machine, with numbered parts for identification.
- Page 15 (parts_list): This page lists parts for a sewing machine, including screws, bearings, shafts, and arms, with their corresponding part numbers and descriptions.
- Page 16 (diagram): This page displays a diagram of feed mechanism components, labeled with reference numbers and part numbers for identification.
- Page 17 (parts_list): Parts list page 12 with reference numbers 1 to 71 giving part numbers, English and Japanese descriptions, and quantities for feed rocker, feed bar, oil shield, differential feed and feed dog components, with a note on model-specific feed dogs.
- Page 18 (diagram): This page displays a diagram of upper and lower looper components, with numbered parts and their corresponding details.
- Page 19 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, quantities, and remarks. It also includes notes about ordering sets for specific part numbers.
- Page 20 (diagram): This page displays a diagram of chain looper components for model MO-6716S, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 21 (parts_list): This page lists parts for the presser foot and lifting lever assembly, including various screws, springs, arms, and bases, with their corresponding part numbers and quantities.
- Page 22 (diagram): This page displays a diagram of presser foot components, with numbered parts and their corresponding details.
- Page 23 (parts_list): This page lists parts for sewing machines, including various screws, feet, springs, and guards, with part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of thread tension components for sewing machine models MO-6704S, MO-6714S, and MO-6716S, with numbered parts for identification.
- Page 25 (parts_list): This page lists various thread tension springs, knobs, bars, disks, and related components for sewing machines, along with their part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of lower knife components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 27 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, and quantities. It also includes notes indicating which models each part is for.
- Page 28 (diagram): This page displays a diagram of upper knife components and a corresponding parts list with part numbers and descriptions.
- Page 29 (diagram): This page displays a diagram of the needle cooler unit assembly, including parts like the silicon tank, needle thread felt, and various screws and washers, along with their corresponding part numbers and descriptions.
- Page 30 (diagram): This page displays a diagram of lubrication mechanism components, with numbered parts and their corresponding references.
- Page 31 (parts_list): Parts list page 26 of an industrial sewing machine part book, listing reference numbers 1 to 64 with part numbers, English and Japanese descriptions, and quantities for oil pump, gear pump, oiling and felt components.
- Page 32 (diagram): This page displays a diagram of semi-sunken type table components, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 33 (parts_list): This page lists parts for the JUKI sewing machine, including screws, washers, and various components like the cooling fan case and table assembly, with their corresponding part numbers and quantities.
- Page 34 (diagram): This page displays a diagram of stand components (Z, T) for a sewing machine, with numbered parts and their corresponding references.
- Page 35 (parts_list): This page lists parts for the T STAND JUNCTION and T LEG JUNCTION, including various pedals, washers, nuts, and connecting rods with their respective part numbers and quantities.
- Page 36 (diagram): This page displays a diagram of thread stand components for MO-6704S and MO-6714S sewing machines, with numbered parts indicated.
- Page 37 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details items like thread standing devices, spool rests, screws, nuts, and washers.
- Page 38 (diagram): This page displays a diagram of thread stand components for MO-6704S and MO-6714S special order parts, with numbered parts and their corresponding references.
- Page 39 (parts_list): This page lists parts for thread standing devices, including various screws, nuts, washers, and assemblies, with their corresponding part numbers and quantities.
- Page 40 (diagram): This page displays a diagram of thread stand components for model MO-6716S, with numbered parts and their corresponding references.
- Page 41 (parts_list): This page lists parts for the thread standing device and related components, including part numbers, descriptions, and quantities.
- Page 42 (diagram): This page displays a diagram of thread stand components for the MO-6716S model, including various parts labeled with reference numbers.
- Page 43 (parts_list): This page lists parts for a sewing machine, including thread standing devices, arms, rods, and various screws, nuts, and washers, with their corresponding part numbers and descriptions.
- Page 44 (diagram): This page displays a diagram of special order parts and components for an industrial sewing machine, with numbered illustrations of various parts.
- Page 45 (parts_list): This page lists parts for industrial sewing machines, including screws, plates, knives, and various components, with their corresponding part numbers and descriptions. It also includes notes indicating compatibility with specific machine models like MO-6704S and MO-6716S.
- Page 46 (parts_list): This page lists accessory parts and components for an industrial sewing machine, including various tools, bags, and maintenance items like oil and filters.
- Page 47 (parts_list): This page contains a parts list for obsolete and added parts, with columns for Rev. No., Page Ref. No., and Parts No.
- Page 51 (parts_list): This page contains a parts list with part numbers, page references, and reference numbers for various components.
- Page 52 (cover): This is the cover page of the JUKI CORPORATION parts catalog, featuring the JUKI logo and contact information for ordering or further inquiries. It also includes copyright information from 2002-2007.
