Parts index — Juki MS-1261tap a row to open its page

Page 2 — CONTENTS

Juki MS-1261 parts on page 2

Ref	Part number	Part name	Qty
	1	FRAME & MISCELLANEOUS COVER COMPONENTS
	5	LOOPER THREAD GUIDE COMPONENTS
	9	NEEDLE BAR & MAIN SHAFT COMPONENTS
	13	PRESSER BAR & LOWER SHAFT COMPONENTS
	15	FEED MECHANISM COMPONENTS
	19	LOOPER & FEED DOG COMPONENTS
	21	KNEE LIFTER COMPONENTS
	23	THREAD STAND COMPONENTS
	25	TABLE OF EXCHANGING GAUGE PARTS (1)
	27	TABLE OF EXCHANGING GAUGE PARTS (2)
	29	TABLE OF EXCHANGING GAUGE PARTS (3)
	31	LIST FOR INFORMATION OF CHANGE (1)

Page 3 — FRAME & MISCELLANEOUS COVER COMPONENTS

Juki MS-1261 parts on page 3

Ref	Part number	Part name	Qty
1	1	COVER
2	2	COVER
3	3	BRACKET
4	4	BRACKET
5	5	BRACKET
6	6	SCREW
7	7	WASHER
8	8	BRACKET
9	9	BRACKET
10	10	BRACKET
11	11	BRACKET
12	12	COVER
13	13	SCREW
14	14	BRACKET
15	15	BRACKET
16	16	COVER
17	17	BRACKET
18	18	SCREW
19	19	COVER
20	20	BRACKET
21	21	BRACKET
22	22	SCREW
23	23	SCREW
24	24	BRACKET
25	25	RING
26	26	BRACKET
27	27	BRACKET
28	28	WASHER
29	29	BRACKET
30	30	BRACKET
31	31	BRACKET
32	32	BRACKET
33	33	BRACKET
34	34	SCREW
35	35	SCREW
36	36	WASHER
37	37	WASHER
38	38	BRACKET
39	39	BRACKET
40	40	BRACKET
41	41	BRACKET
42	42	BRACKET
43	43	SHAFT
44	44	BRACKET
45	45	BRACKET
46	46	BRACKET
47	47	BRACKET
48	48	COVER
49	49	COVER
50	50	SCREW
51	51	COVER
52	52	WASHER
53	53	BRACKET
54	54	SHAFT
55	55	BRACKET
56	56	SPRING
57	57	BRACKET
58	58	SCREW
59	59	BRACKET
60	60	SCREW
61	61	BRACKET
62	62	SCREW
63	63	WASHER
64	64	BRACKET
65	65	SCREW
66	66	BRACKET
67	67	BRACKET
68	68	COVER
69	69	BRACKET
70	70	SCREW
71	71	BRACKET
72	72	SCREW
73	73	BASE
74	74	SCREW
75	75	PLATE
76	76	PLATE
77	77	SCREW
78	78	COVER
79	79	COVER
80	80	COVER
81	81	COVER
83	83	FRAME
84	84	BRACKET
85	85	SCREW
86	86	BRACKET
87	87	SCREW

Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS

Juki MS-1261 parts on page 4

Ref	Part number	Part name	Qty
	12950705	FACE PLATE	1
	12950754	FACE PLATE
	22902506	FACE PLATE	1
	12921003	FACE PLATE GASKET	1
	12950804	FACE PLATE SIDE PLATE	1
	SS4120915SP	SCREW 11/64-40 L=6	2
	SS4120915SP	SCREW 3/16-28 L=9	3
	TA1250406R09	RUBBER PLUG D=12.5 L=4	3
	B11620260A0	TENSION RELEASE ARM A	1
	SS4091010SP	SCREW 9/64-40 L=10	1
	B1161026000	CONNECTING LINK	1
	SS5090710SP	SCREW 9/64-40 L=6.5	1
	12950606	TENSION COVER	1
	SS4110815SP	SCREW 11/64-40 L=8	1
	SS7090710SP	SCREW 9/64-40 L=6.8	1
	12966800	UPPER THREAD GUIDE	1
	12951000	SPROCKET WHEEL COVER	1
	12967501	LOWER THREAD TUBE (A)	1
	SS6122030SP	SCREW 3/16-28 L=20	6
	12921201	SPROCKET WHEEL AUXILI	1
	12921409	SPROCKET WHEEL COVER	1
	B1219019000	TIMING BELT	1
	SS7151210SP	SCREW 15/64-28 L=12	2
	SS4090815SP	SCREW 9/64-40 L=8	3
	B1124804000	THREAD GUIDE, SMALL	6
	12921607	RUBBER PLUG	1
	12922704	CHAIN CUTTER BLADE	1
	SS3060410SP	SCREW 3/32-56 L=4	2
	10704203	OIL POT WINDOW	1
	12952552	LEFT GATE LOOPER COV	1
	12952255	RIGHT GATE LOOPER COV	1
	B1157019000	LOOPER THREAD TUBE (C	1
	12950507	THREAD INDICATION LAB	1
	12955803	THREAD TENSION DISK HO	1
	SS7090910SP	SCREW 9/64-40 L=8.5	1
	SS7090910TP	THREAD TENSION DISC	1
	B113485000A	TENSION SPRING (A)	1
	B1135850000	HINGE SCREW D= 3.80 H=	1
	SD0380551SL	FRAME THREAD GUIDE, M	1
	B1130051000	SCREW 9/64-40 L=6	1
	SS3090610SP	THREAD TAKE-UP TENSIC	1
	12965703	WASHER 4.5X10X0.8	1
	WP0450801SD	SCREW 9/64-40 L=9.5	1
	SS5091020SP	TENSION RELEASE LEVER	1
	12966909	TENSION RELEASE LEVER	1
	12967006	NEEDLE THREAD TENSION	1
	12967105	SCREW 9/64-40 L=5.0	2
	SS6090540SP	SCREW 9/64-40 L=6.8	1
	SS7090710SP	FRONT BUSHING COVER	1
	B1805019000	GASKET	1
	B1806019000	SCREW 9/64-40 L=6	4
	SS5090610SP	SCREW 3/8-28 L=6.5	2
	SS7740740SP	RUBBER RING	2
	RO068190100	PUSH BUTTON GUIDE ASM	1
	12932158	PUSH BUTTON STUD	1
	12932000	PUSH BUTTON GUIDE	1
	12932109	SPRING	1
	B1622541000	O-RING	1
	RO040100210	E-RING 4	1
	RE040000K0	GASKET	1
	B1806019000	SCREW 11/64-40 L=10.5	3
	SS7111120SP	Discontinue	1.00
	SS7111120TP	SCREW 11/64-40 L=10.5	3

Page 5 — FRAME & MISCELLANEOUS COVER COMPONENTS

Juki MS-1261 parts on page 5

Ref	Part number	Part name	Qty
1	1	COVER
2	2	COVER
3	3	COVER
4	4	COVER
5	5	COVER
6	6	COVER
7	7	COVER
8	8	COVER
9	9	COVER
10	10	COVER
11	11	COVER
12	12	COVER
13	13	COVER
14	14	COVER
15	15	COVER
16	16	COVER
17	17	COVER
18	18	COVER
19	19	COVER
20	20	COVER
21	21	COVER
22	22	COVER
23	23	COVER
24	24	COVER
25	25	COVER
26	26	COVER
27	27	COVER
28	28	COVER
29	29	COVER
30	30	COVER
31	31	COVER
32	32	COVER
33	33	COVER
34	34	COVER
35	35	COVER
36	36	COVER
37	37	COVER
38	38	COVER
39	39	COVER
40	40	COVER
41	41	COVER
42	42	COVER
43	43	COVER
44	44	COVER
45	45	COVER
46	46	COVER
47	47	COVER
48	48	COVER
49	49	COVER
50	50	COVER
51	51	COVER
52	52	COVER
53	53	COVER
54	54	COVER
55	55	COVER
56	56	COVER
57	57	COVER
58	58	COVER
59	59	COVER
60	60	COVER
61	61	COVER
62	62	COVER
63	63	COVER
64	64	COVER
65	65	COVER
66	66	COVER
67	67	COVER
68	68	COVER
69	69	COVER
70	70	COVER
71	71	COVER
72	72	COVER
73	73	COVER
74	74	COVER
75	75	COVER
76	76	COVER
77	77	COVER
78	78	COVER
79	79	COVER
80	80	COVER
81	81	COVER
83	83	COVER
84	84	COVER
85	85	COVER
86	86	COVER
87	87	COVER

Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS

Juki MS-1261 parts on page 6

Ref	Part number	Part name	Qty
	B1156019000	RUBBER CUSHION, C	1
	22920607	ARM THREAD GUIDE B	1
	SS7110710SP	SCREW 11/64-40 L=7	1
	12940102	LOOPER THREAD GUIDE F	1
	SS7110710SP	SCREW 11/64-40 L=7	2
	B11041910A0	BELT COVER ASM.	1
	B110419100	BELT COVER	1
	B110419100B	TOP COVER	1
	B110419100C	BELT COVER PLATE	1
	SS6110480SP	SCREW 11/64-40 L=4.3	10
	CM500300001	DIRECTION LABEL	1
	WP0370316SD	WASHER 3.7X8X0.3	3
	12943700	BELT GUARD INSTALLING	1
	SS9284043CP	SCREW 7/16-16 L=40	2
	12951950	BED COVER ASM.	1
	12952008	BED COVER GASKET	1
	SS5110810SP	SCREW 11/64-40 L=8	11
	SS5820540SP	SCREW 1/2-28 L=5.0	1
	B1140019000	GASKET	1
	12970406	FELT A	1
	40060166	LABEL	1
	TA1600406R0	PLUG	1
	CM301200002	SAFETY LABEL L	1
	CM500200001	ATTENTION SEAL	1
	22901805	GROUND MARK	1
	CM300200001	ATTENTION SEAL	1
	SS7151210SP	SCREW 15/64-28 L=12	4

Page 7

Juki MS-1261 parts on page 7

Ref	Part number	Part name	Qty
1	1	BASE
2	2	PIN
3	3	SPRING
4	4	WASHER
5	5	SLEEVE
6	6	GUIDE
7	7	SPRING
8	8	CAP
9	9	SHAFT
10	10	SCREW
11	11	NUT
12	12	BRACKET
13	13	SCREW
14	14	SCREW
15	15	PLATE
16	16	BRACKET
17	17	SCREW
18	18	BRACKET
19	19	BRACKET
20	20	SCREW
21	21	BRACKET
22	22	SCREW
23	23	SCREW
24	24	BRACKET
25	25	BRACKET
26	26	BRACKET
27	27	SCREW
28	28	SCREW
29	29	COVER
30	30	BRACKET
31	31	SCREW
32	32	PIN
33	33	ROD
34	34	SPRING
35	35	SPRING
36	36	WASHER
37	37	SCREW
38	38	BRACKET
39	39	SPRING
40	40	SPRING
41	41	BRACKET
42	42	SCREW
43	43	SCREW
44	44	PLATE
45	45	SCREW
46	46	SCREW
47	47	SPRING
48	48	SCREW
49	49	BRACKET
50	50	SCREW
51	51	BRACKET
52	52	SCREW
53	53	BRACKET
54	54	BRACKET
55	55	SPRING
56	56	WASHER
57	57	SPRING
58	58	WASHER
59	59	SCREW
60	60	SCREW
61	61	BRACKET
62	62	BRACKET
63	63	BRACKET
64	64	SCREW
65	65	SCREW
66	66	BRACKET
67	67	WASHER
68	68	SPRING
69	69	WASHER
70	70	SCREW

Page 8 — LOOPER THREAD GUIDE COMPONENTS

Juki MS-1261 parts on page 8

Ref	Part number	Part name	Qty
	40085675	TENSION THREAD GUDE	3
	B2310019000	TENSION RELEASING PIN	3
	40085671	TENSION POST	3
	B3126012000	THREAD TENSION DISK	6
	11957305	TENSION DISC PRESSER	3
	12938304	TENSION SPRING	3
	B3112704000	TENSION SPRING BUSHING	3
	11956703	THREAD TENSION KNOB,]
	12966602	TENSION RELEASING SHAI	1
	SS8111160SP	SCREW 11/64-40 L=11.0	1
	NS6110310SP	SCREW 11/64-40	1
	40085676	TENSION STUD BUSHING	1
	12966701	LOWER THREAD GUIDE (L	1
	SS7090510SP	SCREW 9/64-40 L= 4.6	1
	12967600	THREAD GUIDE MOUNTIN	1
	B2402019000	THREAD GUIDE	6
	SS7060510SP	SCREW 3/32-56 L=4.8	4
	SS4622340SP	SCREW 3/16-32 L=23	1
	B2421019000	THREAD EYELET	1
	SS7090510SP	SCREW 9/64-40 L= 4.6	1
	12967303	THREAD GUIDE FITTING P	2
	SS2060510SP	SCREW 3/32-56 L=4.5	8
	SS5060410SP	SCREW 3/32-56 L=3.5	4
	12967204	THREAD GUIDE BRACKET	1
	SS7090710SP	SCREW 9/64-40 L= 6.8	1
	12967402	THREAD GUIDE BRACKET	1
	SS7090520SP	SCREW 9/64-40 L= 4.5	1
	SS4090815SP	SCREW 9/64-40 L=8	1
	12936803	LOOPER THREAD TAKE-U	1
	B2208019000	LOOPER THREAD TAKE-U	1
	SS6060210SP	SCREW 3/32-56 L= 1.9	1
	PS0500202KP	SPRING PIN 5X20	1
	12936902	LOOPER THREAD TAKE-U	1
	12935516	TENSION TAKE-UP STRIP	1
	12966305	LOOPER THREAD GUIDE (	1
	WP0371016SD	WASHER 3.7X8X1	1
	SS7090530SP	SCREW 9/64-40 L= 4.5	3
	12966206	LOOPER THREAD GUIDE (	1
	12966107	LOOPER THREAD GUIDE (	1
	12966008	LOOPER THREAD CAM PR	1
	12935607	CAM HOLDER BRACKET	1
	SS7090530SP	SCREW 9/64-40 L= 4.5	1
	SS7090850SP	SCREW 9/64-40 L=8	1
	12936217	FELT	1
	SS5090420SP	SCREW 9/64-40 L=3.5	1
	SS7110840SP	SCREW 11/64-40 L=7.8	1
	12935805	LOOPER THREAD GUIDE	1
	SS7111410SP	SCREW 11/64-40 L=14	1
	12936506	STRIPPER PLATE BRACKE	1
	SS7110710SP	SCREW 11/64-40 L=7	1
	12922803	COVER SPRING	1
	SS6110610TP	SCREW 11/64-40 L=6	2
	12967758	LOOPER THREAD TENSION	1
	12939500	TENSION BASE PLATE	1
	12939609	TENSION POST	3
	12939708	TENSION DISC	6
	12939807	TENSION SPRING	3
	12939906	TENSION NUT	3
	NS6110350SP	NUT 11/64-40	3
	SS7110710SP	SCREW 11/64-40 L=7	2

Page 9 — LOOPER THREAD GUIDE COMPONENTS

Juki MS-1261 parts on page 9

Ref	Part number	Part name	Qty
7	7	7
8	8	8
6	6	6
5	5	5
4	4	4
3	3	3
2	2	2
1	1	1
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41
42	42	42
43	43	43
44	44	44
45	45	45
46	46	46
47	47	47
48	48	48
49	49	49
50	50	50
51	51	51
52	52	52
53	53	53
54	54	54
55	55	55
56	56	56
57	57	57
58	58	58
59	59	59
60	60	60
61	61	61
62	62	62
63	63	63
64	64	64
65	65	65
66	66	66
67	67	67
68	68	68
69	69	69
70	70	70

Page 10 — LOOPER THREAD GUIDE COMPONENTS

Juki MS-1261 parts on page 10

Ref	Part number	Part name	Qty
	12951505	LOOPER THREAD TUBE C	1
	12921904	LOOPER THREAD TUBE C	1
	12922001	LOOPER THREAD TUBE C	1
	B1534816000	HINGE SCREW	2
	SS7110840SP	SCREW 11/64-40 L=7.8	2
	SS7110840SP	SCREW 11/64-40 L=7.8	2
	40038331	VIBRATION-PROOF RUBBI	2
	12935904	LOOPER THREAD GUIDE	1
	WP0371016SD	WASHER 3.7X8X1	1
	SS7090530SP	SCREW 9/64-40 L= 4.5	1

Page 11

Juki MS-1261 parts on page 11

Ref	Part number	Part name	Qty
	1	NEEDLE BAR & MAIN SHAFT COMPONENTS
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31-65
	32
	33-66
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56
	57
	58-62
	60
	61

Page 12 — NEEDLE BAR & MAIN SHAFT COMPONENTS

Juki MS-1261 parts on page 12

Ref	Part number	Part name	Qty
	B12070260A0	COUNTERWEIGHT ASM.	1
	B12090190A0	NEEDLE BAR CRANK PIN A	1
	B1236125BA0	NEEDLE BUSHING ASM.	1
	B1408038000	NEEDLE BAR CRANK ROD, WASHER	1
	B1208019000	COUNTERWEIGHT	1
	B1207026000	SCREW 1/4-40 L= 4.2	2
	SS866010SP	SCREW 15/64-28 L=11.5	2
	SS6151220SP	MAIN SHAFT BUSHING, FR	1
	B1202512000	OIL FELT	1
	B3510019000	OIL WICK	1
	B3541012000	SLIDE BLOCK GUIDE	1
	B1412038000	SLIDE BLOCK GUIDE	1
	B1411019000	SCREW 3/16-28 L=9	2
	SS7120910SP	OIL WICK PRESSER	1
	12943106	SCREW 9/64-40 L= 4.5	1
	SS7090530SP	SCREW 3/8-28 L= 6.5	1
	SS7740740SP	PACKING	1
	B1222019000	MAIN SHAFT	1
	12924502	NEEDLE CLAMP (1/4") ASM.	1
	12956256	SCREW 1/8-44 L=2.8	2
	SS8080310TP	SCREW 1/8-44 L=5.5	1
	SS8080610SP	BUSHING REAR ASM.	1
	12924767	BUSHING REAR ASM.	1
	12924767	BUSHING REAR ASM.	1
	12924767	BUSHING	1
	12924718	SCREW 15/64-28 L=7	2
	SS8150710SP	BUSHING, REAR	1
	B1203512000	SPROCKET WHEEL A	1
	12924916	SCREW 1/4-40 L=4.5	2
	SS866052TP	PULLEY PLATE	1
	12925004	SCREW 9/64-40 L=5	3
	SS1090510SP	HAND WHEEL	1
	12955407	SCREW 15/64-28 L=20	2
	SS8152030SP	HAND WHEEL SCALE PLA	1
	12955506	RIVET	2
	B1161227000	RUBBER RING	1
	RO098240100	OIL CUP BODY ASM.	1
	40026875	OIL CUP BODY CAP RETA	1
	B3504019000	OIL CUP BODY CAP	1
	B3502019000	OIL CUP BODY CAP GASK	1
	B3503019000	RUBBER RING	1
	RO069180100	SCREW 1/4-40 L= 4.0	1
	SS5660440SP	OIL CUP BODY	1
	40026874	SCREW 9/64-40 L=21.2	4
	SS6092120SP	OIL WICK	1
	CQ252000000	NEEDLE BAR BUSHING, UF	1
	B1402026B0G	SCREW 15/64-28 L= 3.4	2
	SS8150310SP	OIL WICK	1
	CQ303000000	THREAD TAKE-UP	1
	B1901026000	SCREW 9/64-40 L= 8.5	1
	SS7090910TP	NEEDLE BAR CLAMP ASM.	1
	B14090190B0	FELT	1
	B1418019000	SCREW 9/64-40 L= 8.5	1
	SS7090910SP	NEEDLE BAR BUSHING, LC	1
	B1404026B0G	NEEDLE BAR	1
	B1401019000	NEEDLE CLAMP (1/4") ASM	1
	12956256	SCREW 1/8-44 L=2.8	2
	SS8080310TP	SCREW 1/8-44 L=5.5	1
	SS8080610SP	NEEDLE UY128GAS NM130	3
	MC380001300	REFER TO THE

Page 13 — NEEDLE BAR & MAIN SHAFT COMPONENTS

Juki MS-1261 parts on page 13

Ref	Part number	Part name	Qty
	1	NEEDLE BAR & MAIN SHAFT COMPONENTS
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31.65
	32
	33.66
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56
	57
	58.62
	60
	61
	63.64

Page 14 — NEEDLE BAR & MAIN SHAFT COMPONENTS

Juki MS-1261 parts on page 14

Ref	Part number	Part name	Qty
	SS2110920TP	SCREW 11/64-40 L=8.5	3
	12953907	THROAT PLATE XH (1/4")	1
	12954509	THROAT PLATE MH (1/4")	1
	MUY128N2100	NEEDLE UYX128GAS-NY #	3
	MC380001200	NEEDLE UYX128GAS NM120	3
	MUY128N1900	NEEDLE UYX128GAS-NY #	3
	12978003	HAND WHEEL	1
	12978102	HAND WHEEL SCALE PLA	1

Page 15 — PRESSER BAR & LOWER SHAFT COMPONENTS

Juki MS-1261 parts on page 15

Ref	Part number	Part name	Qty
	1	PRESSER BAR & LOWER SHAFT COMPONENTS
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47

Page 16 — PRESSER BAR & LOWER SHAFT COMPONENTS

Juki MS-1261 parts on page 16

Ref	Part number	Part name	Qty
	12968103	FITTING SHAFT	1
	SS7091410SP	SCREW 9/64-40 L=13.5	1
	12968202	LOOPER THREAD EYELET	1
	SS6110610TP	SCREW 11/64-40 L=6	1
	SS8150822TP	SCREW 15/64-28 L=8	2
	12956066	PRESSER MH(1/4") ASM.,EX	1
	B1127026000	LOOPER GATE RETAINING	2
	SS7090710SP	SCREW 9/64-40 L=6.8	1
	B150190000	PRESSER BAR UPPER BUSH	1
	SS8150310SP	SCREW 15/64-28 L=8	2
	22906457	NEEDLE BAR HOLDER ASM	1
	22906408	NEEDLE ROD HOLDER	1
	SS6090670TP	SCREW 9/64-40 L=6	1
	B15040190A0	PRESSER BAR GUIDE BRAC	1
	SS7111110TP	SCREW 11/64-40 L=10.5	1
	B1503026000	PRESSER BAR LOWER BUS	1
	B1501019000	PRESSER BAR	1
	SS7091110SP	SCREW 9/64-40 L=10.5	1
	B1506019000	PRESSER BAR STEEL BALL	1
	B2327019000	PRESSER BAR SPRING	1
	B2329019000	PRESSER BAR SPRING UPP	1
	B2330019000	PRESSER BAR SPRING RET	1
	A116100100B	RIVET	1
	B2326019000	PRESSER REGULATING SC	1
	B2328019000	PRESSER REGULATING SC	1
	NS6120310SP	NUT 3/16-28	1
	B2328019000	PRESSER BAR SPRING PIN	1
	MAM2990BBBA	HOLDER 1/4XH ASM.	1
	MAM2970EEBA	FOLDER 1/4MH	1
	12924809	METAL PRESSER	1
	12957064	PRESSER 1/4" ASM.,EXPOF	3
	SS6111610SP	SCREW 11/64-40 L=16	3
	12933719	SPROCKET WHEEL B	1
	SS7110830SP	SCREW 11/64-40 L= 7.5	1
	B1802019000	BALL BEARING, FRONT	1
	B1803019000	BALL BEARING, INTERMEI	1
	B18080190A0	SLEEVE ASM.	1
	SS8110310SP	SCREW 11/64-40 L= 2.8	2
	12966552	LOOPER THREAD CAM AS	1
	12966503	LOOPER THREAD CAM	1
	SS8110310SP	SCREW 11/64-40 L= 2.8	2
	12924767	BUSHING REAR ASM.	1
	12924767	BUSHING REAR ASM.	1
	12924767	BUSHING REAR ASM.	1
	B1203512000	BUSHING, REAR	1
	12924718	BUSHING	1
	SS8150710SP	SCREW 15/64-28 L=7	2
	12965513	LOOPER SHAFT	1
	RE1200000K0	E-RING 12	1

Page 17

Juki MS-1261 parts on page 17

Ref	Part number	Part name	Qty
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	1	1
	2	2
	3	3
	19	19
	21	21
	22	22
	5	5
	6.17.18	6.17.18
	24	24
	23	23
	20	20
	25	25
	26	26
	27	27
	28	28
	29	29
	31	31
	35	35
	34	34
	32	32
	33	33
	36	36
	37	37
	4	4
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	45.46	45.46
	47	47
	44	44
	66	66
	65	65
	49	49
	50	50
	67	67
	48	48
	51	51
	52	52
	53	53
	54	54
	56	56
	55	55
	57	57
	58	58
	59	59
	60	60
	61	61
	62	62
	63	63
	7	7
	30	30
	64	64

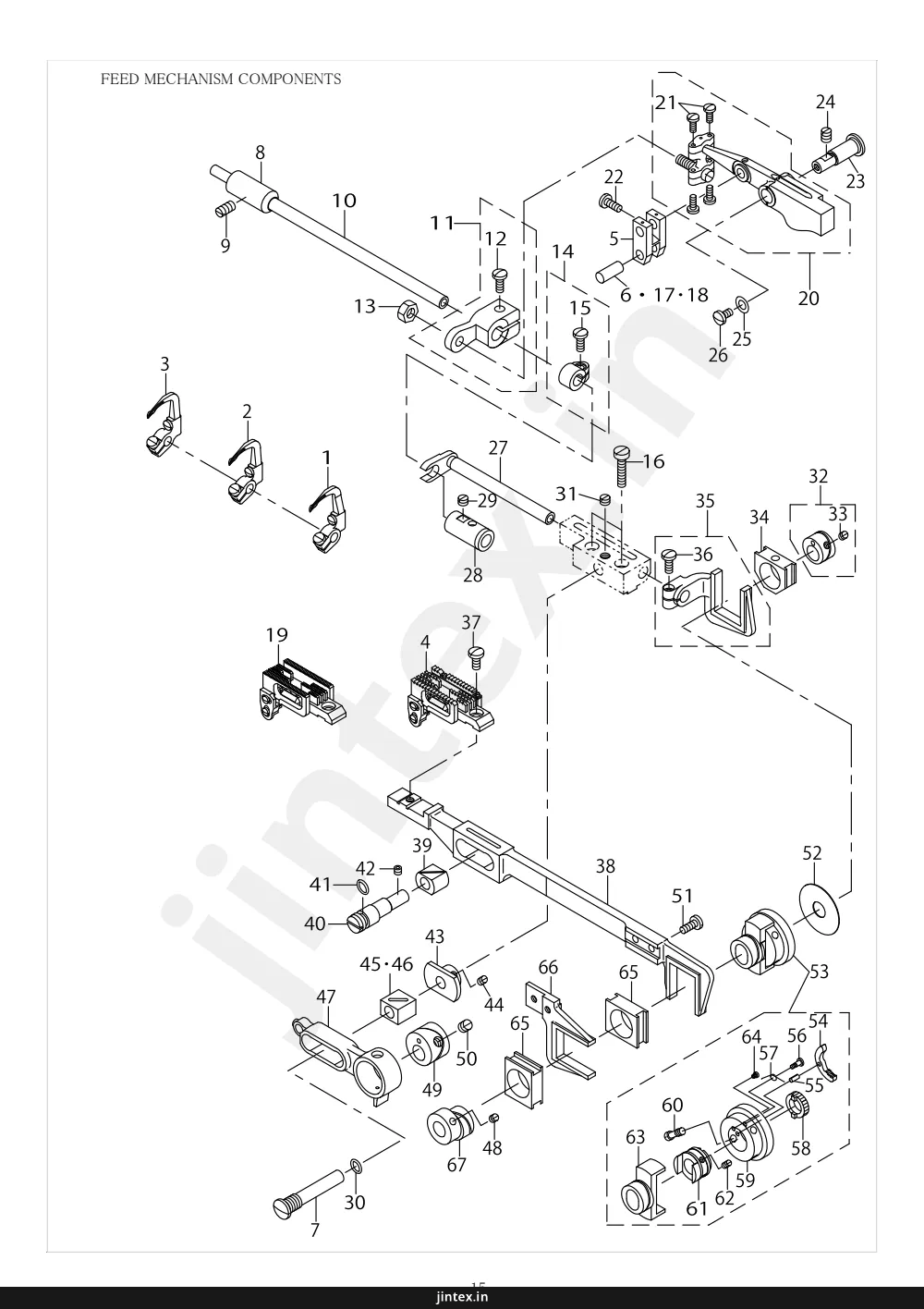

Page 18 — FEED MECHANISM COMPONENTS

Juki MS-1261 parts on page 18

Ref	Part number	Part name	Qty
	12968558	LOOPER L (1) ASM.	1
	12968855	LOOPER R (1) ASM.	1
	12969150	LOOPER C (1) ASM.	1
	12965059	FEED DOG XH(1/4") ASM.	1
	B2115191000	FEED ROCKER CONNECTI	1
	B2116191000	FEED CONNECTING LINK	2
	B2106026000	SLIDE BLOCK PIN	1
	B2502019000	BUSHING, FRONT	1
SS8151150TP	SS8151150SP	SCREW 15/64-28 L=10.5	1
	12968004	LOOPER SHAFT	1
	B2120260A0	FEED ROCKER ASM.	1
	SS7111110TP	SCREW 11/64-40 L=10.5	1
	NS6150310SP	NUT 15/64-28	1
	B25050190A0	CONNECTION CRANK ASM.	1
	SS7111110TP	SCREW 11/64-40 L=10.5	1
	SS6122030SP	SCREW 3/16-28 L=20	2
	B211619100A	FEED CONNECTING LINK	2
	B211619100B	FEED CONNECTING LINK	2
	12969952	FEED DOG MH(1/4") ASM.	1
	B21020260A0A	FEED ROCKER ASM.	1
	SS7090920SP	SCREW 9/64-40 L=8.5	4
	SS7080510TP	SCREW 1/8-44 L=4.5	4
	B2107019000	FEED ROCKER SHAFT	1
SS8150710TP	SS8150710SP	SCREW 15/64-28 L=7	1
	40040608	PACKING	1
	SS7110830SP	SCREW 11/64-40 L=7.5	1
	B2002026000A	LOOPER AVOIDING SHAFT	1
	B2503019000	LOOPER ROCKER SHAFT I	1
	SS8150310SP	SCREW 15/64-28 L=3.4	1
	RO095200100	RUBBER RING	1
SS8150410TP	SS8150410SP	SCREW 15/64-28 L=4	1
	B20060190A0	LOOPER AVOIDING ECCE	1
	SS8110410TP	SCREW 11/64-40 L=3.5	2
	B1635191000	SLIDE BLOCK	1
	B20012610A0	LOOPER AVOIDING SHAF]	1
	SS7111110TP	SCREW 11/64-40 L=10.5	1
	SS7621040SP	SCREW 3/16-32 L=9.5	1
	B1601026000	FEED BAR	1
	B1610019000	SLIDE BLOCK	1
	12962809	ADJUSTING SHAFT	1
	RO061180100	RUBBER RING	1
	SS8110422TP	SCREW 11/64-40 L=4	1
	B2108026000	SLIDE BLOCK STOPPER	1
SS8110520TP	SS8110510SP	SCREW 11/64-40 L=5	1
	B2105019000	FEED ROCKER SLIDE BLO	1
	B210501900A	FEED ROCKER SLIDE BLO	1
	B2101261000A	FEED ROCKER DRIVING LI	1
	SS8660612TP	SCREW 1/4-40 L=6	2
	B21032610A0	FEED ECCENTRIC CAM	1
	SS8660612TP	SCREW 1/4-40 L=6	2
	SS7111110TP	SCREW 11/64-40 L=10.5	1
	12931903	BODY CAP	1
	12963062	FEED ECCENTRIC BASE A	1
	B1624191000	RATCHET PAWL	1
	PS0250081K0	SPRING PIN 2.5X8	1
	B1626191000	SCREW	1
	B1625191000	RATCHET PAWL SPRING	1
	B1623191000	RATCHET GEAR	1
	12963005	FEED ECCENTRIC	1
	12931606	SCREW	1

Page 19

Juki MS-1261 parts on page 19

Ref	Part number	Part name	Qty
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41
42	42	42
43	43	43
44	44	44
45	45	45
46	46	46
47	47	47
48	48	48
49	49	49
50	50	50
51	51	51
52	52	52
53	53	53
54	54	54
55	55	55
56	56	56
57	57	57
58	58	58
59	59	59
60	60	60
61	61	61
62	62	62
63	63	63
64	64	64
65	65	65
66	66	66
67	67	67
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7

Page 20 — FEED MECHANISM COMPONENTS

Juki MS-1261 parts on page 20

Ref	Part number	Part name	Qty
	12931507	FEED ECCENTRIC BODY	1
	SS8110410TP	SCREW 11/64-40 L= 3.5	2
	B1621261000A	FEED ECCENTRIC SLIDE	1
	12931705	SCREW	1
	B1606191000	FEED ECCENTRIC SLIDE B	2
	B1602019000	FEED LIFTING FORKED CO	1
	12962601	FEED ECCENTRIC CAM	1

Page 21

Juki MS-1261 parts on page 21

Ref	Part number	Part name	Qty
29	29	SCREW
27	27	SPRING
28	28	PLATE
26	26	FEED DOG
25	25	WASHER
24	24	SCREW
21	21	BRACKET
20	20	SCREW
19	19	SCREW
18	18	BRACKET
23	23	SCREW
22	22	SCREW
16	16	FEED DOG
11	11	LOOPER
12	12	SCREW
14	14	SCREW
15	15	SCREW
13	13	BRACKET
10	10	SCREW
9	9	BRACKET
6	6	LOOPER
1	1	LOOPER
2	2	LOOPER
3	3	BRACKET
4	4	SCREW
5	5	SCREW
31	31	FEED DOG
39	39	SCREW
40	40	WASHER
36	36	SCREW
35	35	BRACKET
34	34	BRACKET
33	33	BRACKET
32	32	BRACKET
37	37	SCREW
38	38	SCREW
30	30	FEED DOG

Page 22 — LOOPER & FEED DOG COMPONENTS

Juki MS-1261 parts on page 22

Ref	Part number	Part name	Qty
	12968558	LOOPER L (1) ASM.	1
	12968509	LOOPER L (1)	1
	12942009	LOOPER HOLDER,2	1
	SS4080620TP	SCREW 1/8-44 L=6	1
	SS7090910TP	SCREW 9/64-40 L= 8.5	1
	12968855	LOOPER R (1) ASM.	1
	12968806	LOOPER R (1)	1
	12969309	LOOPER HOLDER (3)	1
	SS4080620TP	SCREW 1/8-44 L=6	1
	SS7090910TP	SCREW 9/64-40 L= 8.5	1
	12969150	LOOPER C (1) ASM.	1
	12969101	LOOPER C (1)	1
	12941100	LOOPER HOLDER,1	1
	SS4080620TP	SCREW 1/8-44 L=6	1
	SS7090910TP	SCREW 9/64-40 L= 8.5	1
	12965059	FEED DOG XH(1/4") ASM.	1
	12964409	NEEDLE HOLDER ADJUSTI	1
	12964805	NEEDLE HOLDER (A)	1
	40080579	NEEDLE POSITIONER (L)	1
	12964607	NEEDLE HOLDER (INSIDE)	1
	40080580	NEEDLE POSITIONER (R)	1
	SS7090510SP	SCREW 9/64-40 L= 4.6	1
	SS7091110TP	SCREW 9/64-40 L=10.5	1
	SS7091110TP	SCREW 9/64-40 L=10.5	1
	WP0450000SD	WASHER 4.5X8X0.5	1
	12965000	FEED DOG XH(1/4")	1
	12963807	ADJUSTING FEED DOG XH	1
	12963906	FEED DOG ADJUSTING PL	1
	12964300	ADJUSTING FEED DOG SE	2
	12969952	FEED DOG MH(1/4") ASM.	1
	12969903	FEED DOG MH(1/4")	1
	12964409	NEEDLE HOLDER ADJUSTI	1
	12964805	NEEDLE HOLDER (A)	1
	40080579	NEEDLE POSITIONER (L)	1
	12964607	NEEDLE HOLDER (INSIDE)	1
	40080580	NEEDLE POSITIONER (R)	1
	SS7090510SP	SCREW 9/64-40 L= 4.6	1
	SS7091110TP	SCREW 9/64-40 L=10.5	1
	SS7091110TP	SCREW 9/64-40 L=10.5	1
	WP0450000SD	WASHER 4.5X8X0.5	1

Page 23 — KNEE LIFTER COMPONENTS

Juki MS-1261 parts on page 23

Ref	Part number	Part name	Qty
1	1	LINK
2	2	SCREW
3	3	SHAFT
4	4	LEVER
5	5	LINK
6	6	SCREW
7	7	BRACKET
8	8	SCREW
9	9	SPRING
10	10	BRACKET
11	11	BRACKET
12	12	SCREW
13	13	BRACKET
14	14	SPRING
15	15	CLAMP
16	16	SCREW
17	17	CLAMP
18	18	BRACKET
19	19	ROD
20	20	SCREW
21	21	BRACKET
22	22	PLATE
23	23	SPRING
24	24	SPRING
25	25	COVER
26	26	ROD
27	27	SPRING

Page 24 — KNEE LIFTER COMPONENTS

Juki MS-1261 parts on page 24

Ref	Part number	Part name	Qty
	B2322019000	PRESSER BAR LIFTING BRA	1
	SD0790431SP	HINGE SCREW D= 7.94 H=	1
	B3701019000	HINGE SCREW	1
	B231919100A	PRESSER BAR LIFTING LEV	1
	B2315019000	TENSION RELEASING CON	1
	SD0450211SP	HINGE SCREW D= 4.50 H=	2
	B2317019000	TENSION RELEASING SHAI	1
	SS7110710SP	SCREW 11/64-40 L=7	1
	B2321019000	PRESSER BAR LIFTING LEV	1
	B81011910A0	KNEE LIFTER ASM.	1
	B81021910A0	KNEE LIFTER LEVER ASM.	1
	SS9151210TP	SCREW 15/64-28 L=11.8	1
	B8101191000	KNEE DRIVING SHAFT MO
	B8511180000	SPRING
	12944906	KNEE LIFTER SPRING RAC	1
	SS9182010TE	BOLT 9/32-20 L=20	2
	12944906	KNEE LIFTER SPRING RAC	1
	22932453	BRACKET ASM.	1
	B3421012000	KNEE PRESS ROD	1
	SK3452500SC	WOOD SCREW D=4.5 L=25	4
	22934251	KNEE PAD PLATE ASM.	1
	22934202	KNEE PAD PLATE	1
	22934301	KNEE PAD PLATE SUPPOR	1
	22934400	KNEE PAD PLATE RUBBER	1
	22934509	KNEE PAD PLATE COVER	1
	22934608	KNEE PAD UPRIGHT SHAF	1
	SM9061203SE	SCREW M6 L=12	1

Page 25

Juki MS-1261 parts on page 25

Ref	Part number	Part name	Qty
	1	THREAD STAND COMPONENTS
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26

Page 26 — THREAD STAND COMPONENTS

Juki MS-1261 parts on page 26

Ref	Part number	Part name	Qty
	40111348	THREAD STAND ASM.	1
	40106575	SPOOL REST LONG ARM U	2
	40085795	THREAD GUIDE BUSHING	6
	40085794	THREAD GUIDE	6
	40096327	SPOOL REST ARM UPPER	2
	40106574	SPOOL REST LONG ARM L	2
	40096326	SPOOL REST ARM LOWER	2
	40085784	SPOOL REST ROD LOWER	1
	40096325	SPOOL REST ROD NUT	1
	40085796	SPOOL REST ROD RUBBER	2
	40085785	SPOOL REST ROD UPPER	1
	40085793	SPOOL REST ROD RUBBER	1
	40085792	SPOOL REST ROD JOINT	1
	40085789	SPOOL REST CUSHION	6
	40085788	SPOOL REST	6
	40096300	SPOOL PIN	6
	40085791	SPOOL RETAINER	6
	40106577	SPOOL REST ARM LOWER	1
	40106578	SPOOL REST ARM LOWER	1
	SM4051405SE	SCREW M5 L=14	2
	SM4051001SE	SCREW M5 L=10	2
	SK3412001SE	WOOD SCREW D=4.1 L=20	2
	NM6050001SE	NUT M5	14
	WP0531001SC	WASHER M5	6
	WP1612616SE	WASHER 16X30X2.6	2
	WS0510002KN	SPRING WASHER M5	6

Page 27 — MS-1261 (For Extra heavy-weight)

Juki MS-1261 parts on page 27

Ref	Part number	Part name	Qty
1	12954061	Gauge set
6	12954004	Throat plate
11	12956355	Needle clamp asm.
16	12957163	Presser foot asm.
21	12965158	Feed dog asm.
2	12953907	Gauge set
7	12953907	Throat plate
12	12956256	Needle clamp asm.
17	12957064	Presser foot asm.
22	12965059	Feed dog asm.
3	12954160	Gauge set
8	12954103	Throat plate
13	12956454	Needle clamp asm.
18	12957262	Presser foot asm.
23	12965257	Feed dog asm.
4	12954269	Gauge set
9	12954202	Throat plate
14	12956553	Needle clamp asm.
19	12957361	Presser foot asm.
24	12965356	Feed dog asm.
5	12954368	Gauge set
10	12954301	Throat plate
15	12956652	Needle clamp asm.
20	12957460	Presser foot asm.
25	12965455	Feed dog asm.
26	12968558	Looper asm. (L)
28	12968855	Looper asm. (R)
30	12969150	Looper asm. (C)
27	12968657	Looper asm. (L)
29	12968954	Looper asm. (R)
31	12976601	Adjusting plate B
32	12976700	Adjusting plate C
33	12976809	Adjusting plate D

Page 28 — TABLE OF EXCHANGING GAUGE PARTS (1)

Juki MS-1261 parts on page 28

Ref	Part number	Part name	Qty
	12954061	WITH FINGER GUARD GAU	1
	12953964	GAUGE SET 1/4	1
	12954160	GAUGE SET 9/32	1
	12954269	GAUGE SET, 5/16, FINGER	1
	12954368	WITH FINGER GUARD GAU	1
	12954004	THROAT PLATE XH 7/32	1
	12953907	THROAT PLATE XH (1/4")	1
	12954103	THROAT PLATE XH 9/32	1
	12954202	THROAT PLATE XH 5/16	1
	12954301	THROAT PLATE XH 3/8	1
	12956355	NEEDLE CLAMP 7/32" ASM	1
	12956256	NEEDLE CLAMP (1/4") ASN	1
	12956454	NEEDLE CLAMP 9/32" ASM	1
	12956553	NEEDLE CLAMP 5/16" ASM	1
	12956652	NEEDLE CLAMP 3/8" ASM.	1
	12957163	PRESSER FOOT ASM., 7/32	1
	12957064	PRESSER 1/4" ASM.,EXPOF	1
	12957262	PRESSER FOOT ASM., 9/32	1
	12957361	PRESSER FOOT ASM., 5/16	1
	12957460	PRESSER (3/8") ASM. EXPC	1
	12965158	FEED DOG XH ASM. 7/32	1
	12965059	FEED DOG XH(1/4") ASM.	1
	12965257	FEED DOG XH ASM. 9/32	1
	12965356	FEED DOG XH ASM. 5/32	1
	12965455	FEED DOG XH ASM. 3/8	1
	12968558	LOOPER L (1) ASM.	1
	12968657	LOOPER L (2) ASM.	1
	12968855	LOOPER R (1) ASM.	1
	12968954	LOOPER R (2) ASM.	1
	12969150	LOOPER C (1) ASM.	1
	12976601	FEED ADJUSTING PLATE,	1
	12976700	FEED ADJUSTING PLATE,	1
	12976809	FEED ADJUSTING PLATE,	1

Page 29 — TABLE OF EXCHANGING GAUGE PARTS (2)

Juki MS-1261 parts on page 29

Ref	Part number	Part name	Qty
1	12954665	Gauge set (with finger guard)
2	12954566	Gauge set (with finger guard)
3	12954764	Gauge set (with finger guard)
4	12954863	Gauge set (with finger guard)
5	12954962	Gauge set (with finger guard)
6	12954608	Throat plate
7	12954509	Throat plate
8	12954707	Throat plate
9	12954806	Throat plate
10	12954905	Throat plate
11	12956355	Needle clamp asm.
12	12956256	Needle clamp asm.
13	12956454	Needle clamp asm.
14	12956553	Needle clamp asm.
15	12956652	Needle clamp asm.
16	12956165	Presser foot asm. (with finger guard)
17	12956066	Presser foot asm. (with finger guard)
18	12956769	Presser foot asm. (with finger guard)
19	12956868	Presser foot asm. (with finger guard)
20	12956967	Presser foot asm. (with finger guard)
21	12970059	Feed dog asm.
22	12969952	Feed dog asm.
23	12970158	Feed dog asm.
24	12970257	Feed dog asm.
25	12970356	Feed dog asm.
26	12968558	Looper asm. (L)
27	12968657	Looper asm. (L)
28	12968855	Looper asm. (R)
29	12968954	Looper asm. (R)
30	12969150	Looper asm. (C)

Page 30 — TABLE OF EXCHANGING GAUGE PARTS (2)

Juki MS-1261 parts on page 30

Ref	Part number	Part name	Qty
	12954665	WITH FINGER GUARD GAU	1
	12954666	GAUGE SET 1/4 (WITH GU	1
	12954764	GAUGE SET 9/32 (FINGER	1
	12954863	GAUGE SET 5/16 (FINGER	1
	12954962	WITH FINGER GUARD GAU	1
	12954608	THROAT PLATE MH 7/32	1
	12954509	THROAT PLATE MH (1/4")	1
	12954707	THROAT PLATE MH 9/32	1
	12954806	THROAT PLATE MH 5/16	1
	12954905	THROAT PLATE MH 3/8	1
	12956355	NEEDLE CLAMP (7/32") ASM	1
	12956256	NEEDLE CLAMP (1/4") ASN	1
	12956454	NEEDLE CLAMP 9/32" ASM	1
	12956553	NEEDLE CLAMP 5/16" ASM	1
	12956652	NEEDLE CLAMP 3/8" ASM.	1
	12956165	PRESSER FOOT ASM.,7/32	1
	12956066	PRESSER MH(1/4") ASM.,E	1
	12956769	PRESSER MH(9/32") ASM.,F	1
	12956868	PRESSER FOOT ASM. 5/16'	1
	12956967	PRESSER FOOT ASM.,3/8 M	1
	12970059	FEED DOG MH ASM. 7/32	1
	12969952	FEED DOG MH(1/4") ASM.	1
	12970158	FEED DOG MH ASM. 9/32	1
	12970257	FEED DOG MH ASM. 5/16	1
	12970356	FEED DOG MH ASM. 3/8	1
	12968558	LOOPER L (1) ASM.	1
	12968657	LOOPER L (2) ASM.	1
	12968855	LOOPER R (1) ASM.	1
	12968954	LOOPER R (2) ASM.	1
	12969150	LOOPER C (1) ASM.	1

Page 31 — TABLE OF EXCHANGING GAUGE PARTS (3)

Juki MS-1261 parts on page 31

Ref	Part number	Part name	Qty
1	MAM2970DDBA	E
2	MAM2970EFBA	F
3	MAM2970FFBA	G
4	MAM2970GGBBA	H
5	MAM2970HHBA	K
6	MAM2980AABA	E
7	MAM2980BBBA	F
8	MAM2980CCBA	G
9	MAM2980DDBA	H
10	MAM2980EEBA	K
11	MAM2990AABA	E
12	MAM2990BBBA	F
13	MAM2990CCBA	G
14	MAM2990DDBA	H
15	MAM2990EEBA	K

Page 32 — TABLE OF EXCHANGING GAUGE PARTS (3)

Juki MS-1261 parts on page 32

Ref	Part number	Part name	Qty
	MAM2970DDBA	FOLDER 7/32 MH	1
	MAM2970EEBA	FOLDER 1/4 MH	1
	MAM2970FFBA	FOLDER 9/32 MH	1
	MAM2970GGBBA	HOLDER 5/16 MH	1
	MAM2970HHBA	FOLDER 3/8 MH	1
	MAM2980AABA	FOLDER 7/32 H ASM.	1
	MAM2980BBBA	FOLDER 1/4 H ASM.	1
	MAM2980CCBA	FOLDER 9/32 H ASM.	1
	MAM2980DDBA	HOLDER 5/16 H ASM.	1
	MAM2980EEBA	FOLDER 3/8 H ASM.	1
	MAM2990AABA	FOLDER 7/32 XH ASM.	1
	MAM2990BBBA	HOLDER 1/4XH ASM.	1
	MAM2990CCBA	FOLDER 9/32 XH ASM.	1
	MAM2990DDBA	FOLDER 5/16 XH ASM.	1
	MAM2990EEBA	FOLDER 3/8 XH ASM.	1

Page 33

Juki MS-1261 parts on page 33

Ref	Part number	Part name	Qty
2	110-00403	110-00403
23	SS-4091010-SP	SS-4091010-SP
24	B1128-804-000	B1128-804-000
59	B1634-191-000	B1634-191-000
62	110-18603	110-18603
72	B3526-226-000	B3526-226-000
81	B3513-261-000	B3513-261-000
82	CM-3002001-01	CM-3002001-01
83	CM-3002001-A1	CM-3002001-A1
85	CM-3002000-C1	CM-3002000-C1
87	CM-3002000-B1	CM-3002000-B1
1	115-50308	115-50308
3	129-38205	129-38205
5	B3107-804-000	B3107-804-000
8	119-57008	119-57008
12	B2301-261-00A	B2301-261-00A
28	SS-4091010-SP	SS-4091010-SP
67	115-03604	115-03604
20	129-24809	129-24809
21	SS-6111610-SP	SS-6111610-SP
36	B3501-019-0A0	B3501-019-0A0
40	B3508-019-000	B3508-019-000
42	B3501-019-000	B3501-019-000
54	B1401-026-000	B1401-026-000
61	129-25954	129-25954
62	SS-8080310-TP	SS-8080310-TP
64	129-77807	129-77807
5	SS-9151440-CP	SS-9151440-CP
11	B1411-552-0A0	B1411-552-0A0
12	B1411-552-000	B1411-552-000
22	B2326-019-000	B2326-019-000
29	MAM-2970CCBA	MAM-2970CCBA
2	229-02506	229-02506
23	SS-4090815-SP	SS-4090815-SP
24	B1124-804-000	B1124-804-000
59	B1806-019-000	B1806-019-000
62	229-20607	229-20607
72	WP-0370316-SD	WP-0370316-SD
81	400-60166	400-60166
82	TA-1600406-R0	TA-1600406-R0
83	CM-3012000-02	CM-3012000-02
85	229-01805	229-01805
1	400-85675	400-85675
3	400-85671	400-85671
5	119-57305	119-57305
8	119-56703	119-56703
12	400-85676	400-85676
28	SS-4090815-SP	SS-4090815-SP
67	400-38331	400-38331
36	400-26875	400-26875
40	RO-0691801-00	RO-0691801-00
42	400-26874	400-26874
54	B1401-019-000	B1401-019-000
5	SS-8150822-TP	SS-8150822-TP
11	229-06457	229-06457
12	229-06408	229-06408
22	B2330-019-000	B2330-019-000
29	MAM-2970EEBA	MAM-2970EEBA

Page 34 — LIST FOR INFORMATION OF CHANGE (1)

Juki MS-1261 parts on page 34

Ref	Part number	Part name	Qty
	1-06	13

Page 35 — NUMERICAL INDEX OF PARTS

Juki MS-1261 parts on page 35

Ref	Part number	Part name	Qty
28	10704203
8	11956703
5	11957305
3	12921003
19	12921201
20	12921409
25	12921607
62	12921904
63	12922001
26	12922704
51	12922803
19	12924502
24	12924718
44	12924718
10	12924767
42	12924767
14	12924809
10	12924916
10	12925004
18	12931507
16	12931606
18	12931705
16	12931903
2	12932000
2	12932109
2	12932158
14	12933719
6	12935516
6	12935607
6	12935805
8	12935904
6	12936217
6	12936506
6	12936803
6	12936902
6	12938304
6	12939500
6	12939609
6	12939708
6	12939807
6	12939906
4	12940102
20	12941100
20	12942009
10	12943106
73	12943700
17	12944906
32	12950507
12	12950606
1	12950705
4	12950804
16	12951000
61	12951505
75	12951950
76	12952008
30	12952255
29	12952552
60	12953007
7	12953007
2	12953964
6	12954004
1	12954061
8	12954103
3	12954160
9	12954202
4	12954269
10	12954301
5	12954368
61	12954509
7	12954509
2	12954566
6	12954608
1	12954665
8	12954707
3	12954764
9	12954806
4	12954863
10	12954905
5	12954962
31	12955007
33	12955506
33	12955803
6	12956066
17	12956066
16	12956165
55	12956256
12	12956256
12	12956256
11	12956355
11	12956355
13	12956454
13	12956454
14	12956553
14	12956553
15	12956652
15	12956652
18	12956769
19	12956868
20	12956967
31	12957064
17	12957064
16	12957163
18	12957262
19	12957361
20	12957460
67	12962601
40	12962809
59	12963005
53	12963062
27	12963807
28	12963906
29	12964300
32	12964409
35	12964607
33	12964805
26	12965000
4	12965059
16	12965059
22	12965059
21	12965158
23	12965257
24	12965356
25	12965455
46	12965513
40	12965703
40	12966008
39	12966107
38	12966206
35	12966305
40	12966503
39	12966552
9	12966602
13	12966701
15	12966800
43	12966909

Page 36 — NUMERICAL INDEX OF PARTS

Juki MS-1261 parts on page 36

Ref	Part number	Part name	Qty
44	12967006	22901805
45	12967105	22902506
24	12967204	22906408
21	12967303	22906457
26	12967402	22920607
17	12967501	22932453
15	12967600	22934202
53	12967758	22934251
10	12968004	22934301
1	12968103	22934400
3	12968202	22934509
2	12968509	22934608
1	12968558	40026874
1	12968558	40026875
26	12968558	40038331
26	12968558	40040608
27	12968657	40060166
27	12968657	40080579
7	12968806	40080580
2	12968855	40085671
2	12968855	40085675
26	12968855	40085676
28	12968855	40085784
26	12968954	40085785
28	12968954	40085788
20	12969101	40085789
16	12969150	40085790
20	12969150	40085791
26	12969150	40085792
28	12969150	40085793
20	12969309	40085794
20	12969903	40085795
16	12969952	40085796
20	12969952	40096325
28	12969952	40096326
28	12970059	40096327
28	12970158	40106574
28	12970257	40106575
28	12970356	40106577
4	12970406	40106578
26	12976601	40111348
26	12976700	A116100100B
26	12976809	B110419100A
12	12978003	B110419100B
12	12978102	B110419100C
85	22901805	B11041910A0
2	22902506	B1124804000
12	22906408	B1127026000
11	22906457	B1130051000
62	22920607	B1134850000A
18	22932453	B1135850000
19	22934202	B1140019000
21	22934251	B1156019000
23	22934301	B1157019000
24	22934400	B1161026000
25	22934509	B1161227000
26	22934608	B11620260A0
42	40026874	B1202512000
36	40026875	B1203512000
67	40038331	B1203512000
25	40040608	B1207026000
81	40060166	B12070260A0
34	40080579	B1208019000
36	40080580	B12090190A0
3	40085671	B1219019000
1	40085675	B1222019000
12	40085676	B1236125BA0
8	40085784	B1401019000
11	40085785	B1402026B0G
15	40085788	B1404026B0G
14	40085789	B1408038000
16	40085790	B14090190B0
17	40085791	B1411019000
13	40085792	B1412038000
12	40085793	B1418019000
4	40085794	B1501019000
3	40085795	B1502019000
10	40085796	B1503026000
9	40096325	B15040190A0
7	40096326	B1506019000
5	40096327	B1534816000
6	40106574	B1601026000
2	40106575	B1602019000
18	40106577	B1606191000
19	40106578	B1610019000
1	40111348	B1621261000A
23	A116100100B	B1622541000
67	B110419100A	B1623191000
68	B110419100B	B1624191000
69	B110419100C	B1625191000

Page 37 — NUMERICAL INDEX OF PARTS

Juki MS-1261 parts on page 37

Ref	Part number	Part name	Qty
56	B1626191000	B3502019000
34	B1635191000	B3503019000
35	B1802019000	B3504019000
36	B1803019000	B3510019000
48	B1805019000	B3541012000
59	B1806019000	B3701019000
37	B18080190A0	B8101191000
48	B1901026000	B81011910A0
35	B20012610A0	B81021910A0
27	B2002026000A	B8511180000
47	B20060190A0	CM300200001
32	B2101261000A	CM301200002
47	B21020260A0A	CM500300001
20	B21032610A0	CQ252000000
49	B2105019000	CQ300000000
45	B210501900A	MAM2970DDBA
46	B2106026000	MAM2970EEBA
7	B2107019000	MAM2970EEBA
43	B2108026000	MAM2970FFBA
5	B2115191000	MAM2970GGBBA
6	B2116191000	MAM2970HHBA
17	B211619100A	MAM2980AABA
18	B211619100B	MAM2980BBBA
11	B21230260A0	MAM2980CCBA
30	B2208019000	MAM2980DDBA
2	B2310019000	MAM2980EEBA
5	B2315019000	MAM2990AABA
7	B2317019000	MAM2990BBBA
9	B2319100A	MAM2990BBBA
1	B2321019000	MAM2990CCBA
1	B2322019000	MAM2990DDBA
25	B2324261000	MAM2990EEBA
26	B2326019000	MC380001200
21	B2327019000	MC380001300
27	B2328019000	MUY128N1900
21	B2329019000	MUY128N2100
22	B2330019000	NM6050001SE
6	B2402019000	NS6110310SP
19	B2421019000	NS6110350SP
8	B2502019000	NS6120310SP
28	B2503019000	NS6150310SP
19	B25050190A0	PS0250081K0
7	B3112704000	PS0500202KP
4	B3126012000	RE0400000K0
47	B3421012000	RE1200000K0
57	RO040100210	B3502019000
41	RO061180100	B3503019000
52	RO068190100	B3504019000
40	RO069180100	B3510019000
30	RO095200100	B3541012000
35	RO098240100	B3701019000
57	SD0380551SL	B8101191000
2	SD0450211SP	B81011910A0
2	SD0790431SP	B81021910A0
22	SK3412001SE	B8511180000
20	SK3452500SC	CM300200001
21	SM4051001SE	CM301200002
20	SM4051405SE	CM500300001
27	SM9061203SE	CQ252000000
30	SS1090510SP	CQ300000000
22	SS2060510SP	MAM2970DDBA
59	SS2110920TP	MAM2970EEBA
27	SS3060410SP	MAM2970EEBA
39	SS3090610SP	MAM2970FFBA
14	SS3090810SP	MAM2970GGBBA
28	SS4080620TP	MAM2970HHBA
9	SS4090815SP	MAM2980AABA
2	SS4091010SP	MAM2980BBBA
13	SS4110815SP	MAM2980CCBA
6	SS4120915SP	MAM2980DDBA
18	SS4622340SP	MAM2980EEBA
23	SS5060410SP	MAM2990AABA
45	SS5090420SP	MAM2990BBBA
50	SS5090610SP	MAM2990BBBA
11	SS5090710SP	MAM2990CCBA
42	SS5091020SP	MAM2990DDBA
77	SS5110810SP	MAM2990EEBA
41	SS5660440SP	MC380001200
78	SS5820540SP	MC380001300
31	SS6060210SP	MUY128N1900
46	SS6090540SP	MUY128N2100
13	SS6090670TP	NM6050001SE
43	SS6092120SP	NS6110310SP
70	SS6110480SP	NS6110350SP
5	SS6110610TP	NS6120310SP
52	SS6110610TP	NS6150310SP
4	SS6110610TP	PS0250081K0
32	SS6111610SP	PS0500202KP
18	SS6122030SP	RE0400000K0
16	SS6122030SP	RE1200000K0

Page 38 — NUMERICAL INDEX OF PARTS

Juki MS-1261 parts on page 38

Ref	Part number	Part name	Qty
8	SS6151220SP	SS6151220SP
17	SS7060510SP	SS7060510SP
22	SS7080510TP	SS7080510TP
20	SS7090510SP	SS7090510SP
37	SS7090510SP	SS7090510SP
27	SS7090520SP	SS7090520SP
42	SS7090530SP	SS7090530SP
70	SS7090530SP	SS7090530SP
16	SS7090530SP	SS7090530SP
47	SS7090710SP	SS7090710SP
25	SS7090710SP	SS7090710SP
8	SS7090710SP	SS7090710SP
43	SS7090850SP	SS7090850SP
34	SS7090910SP	SS7090910SP
52	SS7090910SP	SS7090910SP
49	SS7090910TP	SS7090910TP
15	SS7090910TP	SS7090910TP
21	SS7090920SP	SS7090920SP
18	SS7091110SP	SS7091110SP
39	SS7091110TP	SS7091110TP
2	SS7091410SP	SS7091410SP
65	SS7110710SP	SS7110710SP
60	SS7110710SP	SS7110710SP
8	SS7110710SP	SS7110710SP
34	SS7110830SP	SS7110830SP
26	SS7110830SP	SS7110830SP
46	SS7110840SP	SS7110840SP
66	SS7110840SP	SS7110840SP
15	SS7111110TP	SS7111110TP
51	SS7111110TP	SS7111110TP
60	SS7111120SP	SS7111120SP
48	SS7111410SP	SS7111410SP
14	SS7120910SP	SS7120910SP
22	SS7151210SP	SS7151210SP
87	SS7151210SP	SS7151210SP
37	SS7621040SP	SS7621040SP
51	SS7740740SP	SS7740740SP
17	SS7740740SP	SS7740740SP
56	SS8080310TP	SS8080310TP
57	SS8080610SP	SS8080610SP
41	SS8110310SP	SS8110310SP
33	SS8110410TP	SS8110410TP
62	SS8110410TP	SS8110410TP
42	SS8110422TP	SS8110422TP
44	SS8110510SP	SS8110510SP
10	SS8111160SP	SS8111160SP
46	SS8150310SP	SS8150310SP
10	SS8150310SP	SS8150310SP
29	SS8150310SP	SS8150310SP
31	SS8150410SP	SS8150410SP
25	SS8150710SP	SS8150710SP
45	SS8150710SP	SS8150710SP
24	SS8150710SP	SS8150710SP
5	SS8150822TP	SS8150822TP
9	SS8151150SP	SS8151150SP
32	SS8152030SP	SS8152030SP
7	SS860410SP	SS860410SP
28	SS860522TP	SS860522TP
50	SS860612TP	SS860612TP
12	SS9151210TP	SS9151210TP
16	SS9182010TE	SS9182010TE
74	SS9284043CP	SS9284043CP
7	TA1250406R0	TA1250406R0
82	TA1600406R0	TA1600406R0
71	WP0370316SD	WP0370316SD
36	WP0371016SD	WP0371016SD
69	WP0371016SD	WP0371016SD
40	WP0450000SD	WP0450000SD
41	WP0450801SD	WP0450801SD
24	WP0531001SC	WP0531001SC
25	WP1612616SE	WP1612616SE
26	WS0510002KN	WS0510002KN

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki MS-1261 — parts catalog

• Page 1 (cover): This is the cover page for the parts list of the SOFOTORG MS-1261/MS-1261M sewing machine, list number 1031-06, published on August 22, 2016.
• Page 2 (toc): This page is a table of contents listing various machine components and their corresponding page numbers, including frame and miscellaneous cover components, looper thread guide components, needle bar and main shaft components, presser bar and lower shaft components, feed mechanism components, looper and feed dog components, knee lifter components, thread stand components, and tables of exchanging gauge parts.
• Page 3 (diagram): This page displays a diagram of frame and miscellaneous cover components for a JUKI sewing machine, with numbered parts and their corresponding references.
• Page 4 (parts_list): This page lists frame and miscellaneous cover components for industrial sewing machines, including part numbers, descriptions, quantities, and remarks for various models.
• Page 5 (diagram): This page displays a diagram of frame and miscellaneous cover components for a Juki sewing machine, with numbered parts and their corresponding references.
• Page 6 (parts_list): This page lists frame and miscellaneous cover components for an industrial sewing machine, including part numbers, names, quantities, and remarks.
• Page 7 (diagram): This page displays a diagram of looper thread guide components, with numbered parts and their corresponding references.
• Page 8 (parts_list): This page lists looper thread guide components with part numbers, descriptions, quantities, and other details.
• Page 9 (diagram): This page displays a diagram of looper thread guide components, with numbered parts and their corresponding references.
• Page 10 (parts_list): This page lists components for looper thread guide, including part numbers, names, quantities, and specifications.
• Page 11 (diagram): This page displays a diagram of needle bar and main shaft components, with numbered parts for identification.
• Page 12 (parts_list): This page lists components for the needle bar and main shaft, including part numbers, descriptions, quantities, and remarks for various parts.
• Page 13 (diagram): This page displays a diagram of needle bar and main shaft components, illustrating various parts with reference numbers for identification.
• Page 14 (parts_list): This page lists components for the needle bar and main shaft, including part numbers, names, quantities, and remarks.
• Page 15 (diagram): This page displays a diagram of presser bar and lower shaft components for an industrial sewing machine, with numbered parts indicated.
• Page 16 (parts_list): This page lists parts for the Presser Bar & Lower Shaft Components, including part numbers, descriptions, quantities, and remarks.
• Page 17 (diagram): This page displays a diagram of the feed mechanism components of an industrial sewing machine, with numbered parts indicated for reference.
• Page 18 (parts_list): This page lists components for the feed mechanism, including part numbers, descriptions, quantities, and remarks.
• Page 19 (diagram): This page displays a diagram of the feed mechanism components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 20 (parts_list): This page lists components for the feed mechanism, including part numbers, names, quantities, and other specifications.
• Page 21 (diagram): This page displays a diagram of looper and feed dog components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 22 (parts_list): This page lists components for Looper & Feed Dog, including part numbers, descriptions, quantities, and remarks for various models.
• Page 23 (diagram): This page displays a diagram of knee lifter components, with numbered parts and their corresponding references.
• Page 24 (parts_list): This page lists components for knee lifter mechanisms, including part numbers, names, quantities, and remarks such as 'Discontinue'.
• Page 25 (diagram): This page displays a diagram of thread stand components, illustrating various parts with reference numbers and associated hardware.
• Page 26 (parts_list): This page lists components for a thread stand, including part numbers, names, quantities, and specifications.
• Page 27 (parts_list): This page lists parts for the MS-1261 (For Extra Heavy-weight) sewing machine, including gauge sets, throat plates, needle clamp assemblies, presser foot assemblies, feed dog assemblies, and looper assemblies.
• Page 28 (parts_list): This page contains a parts list for exchanging gauge parts, detailing part numbers, names, quantities, and other specifications.
• Page 29 (parts_list): This page lists parts for the MS-1261M (For Medium-weight) sewing machine, including gauge sets, throat plates, needle clamps, presser feet, feed dogs, and loopers, with their corresponding part numbers and reference numbers.
• Page 30 (parts_list): This page contains a list of exchanging gauge parts, including part numbers, names, quantities, and other details.
• Page 31 (parts_list): This page lists parts for gauge sets, including part numbers, descriptions, and reference numbers. It also provides a diagram of a folder assembly and notes that the folder is not included in the gauge set.
• Page 32 (parts_list): This page lists exchanging gauge parts, including part numbers, names, quantities, and other details.
• Page 33 (parts_list): This page contains a parts list for obsolete and added parts, with columns for revision number, page number, reference number, and part number.
• Page 34 (parts_list): This page contains a list of parts for information of change (1), with columns for No., C-ons, Le-vel, Parts No., Replacement, Supply Code, Parts name, Qty, R-ep. Q-TY, Status, Spec, and Remarks.
• Page 35 (parts_list): This page contains a numerical index of parts for a sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
• Page 36 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page references, and reference numbers from diagrams.
• Page 37 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page numbers, and reference numbers.
• Page 38 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page numbers, and reference numbers.

Page 1 — PARTS LIST

SOFOTORG MODEL : MS-1261/MS-1261M List No : 1031-06 PARTS LIST Published:08/22/2016 jintex.in

Page 2 — CONTENTS

CONTENTS FRAME & MISCELLANEOUS COVER COMPONENTS LOOPER THREAD GUIDE COMPONENTS NEEDLE BAR & MAIN SHAFT COMPONENTS PRESSER BAR & LOWER SHAFT COMPONENTS FEED MECHANISM COMPONENTS LOOPER & FEED DOG COMPONENTS KNEE LIFTER COMPONENTS THREAD STAND COMPONENTS TABLE OF EXCHANGING GAUGE PARTS (1) TABLE OF EXCHANGING GAUGE PARTS (2) TABLE OF EXCHANGING GAUGE PARTS (3) LIST FOR INFORMATION OF CHANGE (1) TOC - 1 jintex.in

Page 3 — FRAME & MISCELLANEOUS COVER COMPONENTS

FRAME & MISCELLANEOUS COVER COMPONENTS JUKI 18 19 85 15 14 11 8 9 12 10 3 1 6 2 7 27 26 29 84 32 33 34 35 36 37 38 39 31 40 41 42 43 86 83 16 81 44 45 46 47 22 23 72 25 24 21 20 64 65 66 62 63 61 58 59 57 54 55 56 53 87 68 71 70 69 67 73 74 75 48 49 50 51 52 28 77 78 79 80 jintex.in

Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS

FRAME & MISCELLANEOUS COVER COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 12950705 12950754 FACE PLATE 1 1.00 2 22902506 FACE PLATE 1 3 12921003 FACE PLATE GASKET 1 4 12950804 FACE PLATE SIDE PLATE 1 5 SS4120915SP SCREW 11/64-40 L=6 2 6 SS4120915SP SCREW 3/16-28 L=9 3 7 TA1250406R09 RUBBER PLUG D=12.5 L=4 3 8 B11620260A0 TENSION RELEASE ARM A 1 9 SS4091010SP SCREW 9/64-40 L=10 1 10 B1161026000 CONNECTING LINK 1 11 SS5090710SP SCREW 9/64-40 L=6.5 1 12 12950606 TENSION COVER 1 13 SS4110815SP SCREW 11/64-40 L=8 1 14 SS7090710SP SCREW 9/64-40 L=6.8 1 15 12966800 UPPER THREAD GUIDE 1 16 12951000 SPROCKET WHEEL COVER 1 17 12967501 LOWER THREAD TUBE (A) 1 18 SS6122030SP SCREW 3/16-28 L=20 6 19 12921201 SPROCKET WHEEL AUXILI 1 20 12921409 SPROCKET WHEEL COVER 1 21 B1219019000 TIMING BELT 1 22 SS7151210SP SCREW 15/64-28 L=12 2 23 SS4090815SP SCREW 9/64-40 L=8 3 24 B1124804000 THREAD GUIDE, SMALL 6 25 12921607 RUBBER PLUG 1 26 12922704 CHAIN CUTTER BLADE 1 27 SS3060410SP SCREW 3/32-56 L=4 2 28 10704203 OIL POT WINDOW 1 29 12952552 LEFT GATE LOOPER COV 1 30 12952255 RIGHT GATE LOOPER COV 1 31 B1157019000 LOOPER THREAD TUBE (C 1 32 12950507 THREAD INDICATION LAB 1 33 12955803 THREAD TENSION DISK HO 1 34 SS7090910SP SS7090910TP SCREW 9/64-40 L=8.5 1 1.00 FOR MS-1261 35 B113485000A THREAD TENSION DISC 1 FOR MS-1261 36 B1135850000 TENSION SPRING (A) 1 FOR MS-1261 37 SD0380551SL HINGE SCREW D= 3.80 H= 1 FOR MS-1261 38 B1130051000 FRAME THREAD GUIDE, M 1 FOR MS-1261M 39 SS3090610SP SCREW 9/64-40 L=6 1 FOR MS-1261M 40 12965703 THREAD TAKE-UP TENSIC 1 41 WP0450801SD WASHER 4.5X10X0.8 1 42 SS5091020SP SCREW 9/64-40 L=9.5 1 43 12966909 TENSION RELEASE LEVER 1 44 12967006 TENSION RELEASE LEVER 1 45 12967105 NEEDLE THREAD TENSION 1 46 SS6090540SP SCREW 9/64-40 L=5.0 2 47 SS7090710SP SCREW 9/64-40 L=6.8 1 48 B1805019000 FRONT BUSHING COVER 1 49 B1806019000 GASKET 1 50 SS5090610SP SCREW 9/64-40 L=6 4 51 SS7740740SP SCREW 3/8-28 L=6.5 2 52 RO068190100 RUBBER RING 2 53 12932158 PUSH BUTTON GUIDE ASM 1 54 12932000 PUSH BUTTON STUD 1 55 12932109 PUSH BUTTON GUIDE 1 56 B1622541000 SPRING 1 57 RO040100210 O-RING 1 58 RE040000K0 E-RING 4 1 59 B1806019000 GASKET 1 60 SS7111120SP SS7111120TP SCREW 11/64-40 L=10.5 3 1.00 Discontinue jintex.in

Page 5 — FRAME & MISCELLANEOUS COVER COMPONENTS

FRAME & MISCELLANEOUS COVER COMPONENTS JUKI 18 19 85 15 14 11 8 9 13 12 10 3 1 6 2 7 27 26 29 84 40 41 42 32 33 34 35 36 37 38 39 31 86 83 17 16 81 44 45 46 47 22 23 72 25 24 21 20 64 65 66 62 63 61 58 59 57 54 55 56 53 87 68 71 70 69 67 73 74 75 48 49 50 51 52 28 77 78 79 80 jintex.in

Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS

FRAME & MISCELLANEOUS COVER COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 61 B1156019000 RUBBER CUSHION, C 1 62 22920607 ARM THREAD GUIDE B 1 63 SS7110710SP SCREW 11/64-40 L=7 1 64 12940102 LOOPER THREAD GUIDE F 1 65 SS7110710SP SCREW 11/64-40 L=7 2 66 B11041910A0 BELT COVER ASM. 1 67 B110419100 BELT COVER 1 68 B110419100B TOP COVER 1 69 B110419100C Discontinue BELT COVER PLATE 1 70 SS6110480SP SCREW 11/64-40 L=4.3 10 71 CM500300001 DIRECTION LABEL 1 72 WP0370316SD WASHER 3.7X8X0.3 3 73 12943700 BELT GUARD INSTALLING 1 74 SS9284043CP SCREW 7/16-16 L=40 2 75 12951950 BED COVER ASM. 1 76 12952008 BED COVER GASKET 1 77 SS5110810SP SCREW 11/64-40 L=8 11 78 SS5820540SP SCREW 1/2-28 L=5.0 1 79 B1140019000 GASKET 1 80 12970406 FELT A 1 81 40060166 LABEL 1 82 TA1600406R0 PLUG 1 83 CM301200002 SAFETY LABEL L 1 84 CM500200001 ATTENTION SEAL 1 85 22901805 GROUND MARK 1 86 CM300200001 ATTENTION SEAL 1 87 SS7151210SP SCREW 15/64-28 L=12 4 jintex.in

Page 7

LOOPER THREAD GUIDE COMPONENTS jintex.in

Page 8 — LOOPER THREAD GUIDE COMPONENTS

LOOPER THREAD GUIDE COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 40085675 TENSION THREAD GUDE 3 2 B2310019000 TENSION RELEASING PIN 3 3 40085671 TENSION POST 3 4 B3126012000 22921506 THREAD TENSION DISK 6 1.00 5 11957305 13137609 TENSION DISC PRESSER 3 1.00 6 12938304 TENSION SPRING 3 7 B3112704000 TENSION SPRING BUSHING 3 8 11956703 THREAD TENSION KNOB,] 3 9 12966602 TENSION RELEASING SHAI 1 10 SS8111160SP SCREW 11/64-40 L=11.0 1 11 NS6110310SP SCREW 11/64-40 1 12 40085676 TENSION STUD BUSHING 1 13 12966701 LOWER THREAD GUIDE (L 1 14 SS7090510SP SCREW 9/64-40 L= 4.6 1 15 12967600 40117113 THREAD GUIDE MOUNTIN 1 1.00 16 B2402019000 THREAD GUIDE 6 17 SS7060510SP SCREW 3/32-56 L=4.8 4 18 SS4622340SP Discontinue SCREW 3/16-32 L=23 1 19 B2421019000 THREAD EYELET 1 20 SS7090510SP SCREW 9/64-40 L= 4.6 1 21 12967303 40117111 THREAD GUIDE FITTING P 2 1.00 22 SS2060510SP SCREW 3/32-56 L=4.5 8 23 SS5060410SP SCREW 3/32-56 L=3.5 4 24 12967204 40117111 THREAD GUIDE BRACKET 1 1.00 25 SS7090710SP SCREW 9/64-40 L= 6.8 1 26 12967402 40117111 THREAD GUIDE BRACKET 1 1.00 27 SS7090520SP SS7090520TP SCREW 9/64-40 L= 4.5 1 1.00 28 SS4090815SP SCREW 9/64-40 L=8 1 29 12936803 LOOPER THREAD TAKE-U 1 30 B2208019000 LOOPER THREAD TAKE-U 1 31 SS6060210SP SCREW 3/32-56 L= 1.9 1 32 PS0500202KP SPRING PIN 5X20 1 33 12936902 LOOPER THREAD TAKE-U 1 34 12935516 TENSION TAKE-UP STRIP 1 35 12966305 LOOPER THREAD GUIDE ( 1 36 WP0371016SD WASHER 3.7X8X1 1 37 SS7090530SP SCREW 9/64-40 L= 4.5 3 38 12966206 LOOPER THREAD GUIDE ( 1 39 12966107 LOOPER THREAD GUIDE ( 1 40 12966008 LOOPER THREAD CAM PR 1 41 12935607 CAM HOLDER BRACKET 1 42 SS7090530SP SCREW 9/64-40 L= 4.5 1 43 SS7090850SP SCREW 9/64-40 L=8 1 44 12936217 FELT 1 45 SS5090420SP SCREW 9/64-40 L=3.5 1 46 SS7110840SP SCREW 11/64-40 L=7.8 1 47 12935805 LOOPER THREAD GUIDE 1 48 SS7111410SP SS7111410TP SCREW 11/64-40 L=14 1 1.00 49 12936506 STRIPPER PLATE BRACKE 1 50 SS7110710SP SCREW 11/64-40 L=7 1 51 12922803 COVER SPRING 1 52 SS6110610TP SCREW 11/64-40 L=6 2 53 12967758 LOOPER THREAD TENSION 1 54 12939500 TENSION BASE PLATE 1 55 12939609 TENSION POST 3 56 12939708 TENSION DISC 6 57 12939807 TENSION SPRING 3 58 12939906 TENSION NUT 3 59 NS6110350SP NUT 11/64-40 3 60 SS7110710SP SCREW 11/64-40 L=7 2

Page 9 — LOOPER THREAD GUIDE COMPONENTS

LOOPER THREAD GUIDE COMPONENTS 7 8 6 5 4 3 2 1 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 jintex.in

Page 10 — LOOPER THREAD GUIDE COMPONENTS

LOOPER THREAD GUIDE COMPONENTS No. C- Ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 61 12951505 LOOPER THREAD TUBE C 1 62 12921904 LOOPER THREAD TUBE C 1 63 12922001 LOOPER THREAD TUBE C 1 64 B1534816000 HINGE SCREW 2 65 SS7110840SP SCREW 11/64-40 L=7.8 2 66 SS7110840SP SCREW 11/64-40 L=7.8 2 67 40038331 VIBRATION-PROOF RUBBI 2 68 12935904 LOOPER THREAD GUIDE 1 69 WP0371016SD WASHER 3.7X8X1 1 70 SS7090530SP SCREW 9/64-40 L= 4.5 1 jintex.in

Page 11

NEEDLE BAR & MAIN SHAFT COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31-65 32 33-66 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58-62 60 61 jintex.in

Page 12 — NEEDLE BAR & MAIN SHAFT COMPONENTS

NEEDLE BAR & MAIN SHAFT COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 B12070260A0 COUNTERWEIGHT ASM. 1 2 B12090190A0 NEEDLE BAR CRANK PIN A 1 3 B1236125BA0 NEEDLE BUSHING ASM. 1 4 B1408038000 NEEDLE BAR CRANK ROD, 1 WASHER 1 5 B1208019000 COUNTERWEIGHT 1 6 B1207026000 SCREW 1/4-40 L= 4.2 2 7 SS866010SP SCREW 15/64-28 L=11.5 2 8 SS6151220SP MAIN SHAFT BUSHING, FR 1 9 B1202512000 OIL FELT 1 10 B3510019000 OIL WICK 1 11 B3541012000 SLIDE BLOCK GUIDE 1 12 B1412038000 SLIDE BLOCK GUIDE 1 13 B1411019000 SCREW 3/16-28 L=9 2 1.00 14 SS7120910SP SS7120910TP OIL WICK PRESSER 1 15 12943106 SCREW 9/64-40 L= 4.5 1 16 SS7090530SP SCREW 3/8-28 L= 6.5 1 17 SS7740740SP PACKING 1 18 B1222019000 MAIN SHAFT 1 19 12924502 NEEDLE CLAMP (1/4") ASM. 1 20 12956256 SCREW 1/8-44 L=2.8 2 1.00 21 SS8080310TP SCREW 1/8-44 L=5.5 1 22 SS8080610SP BUSHING REAR ASM. 1 1.00 23 12924767 12924718 BUSHING REAR ASM. 1 1.00 23 12924767 B1203512000 BUSHING REAR ASM. 1 1.00 23 12924767 SS8150710SP BUSHING 1 24 12924718 SCREW 15/64-28 L=7 2 1.00 25 SS8150710SP SS8150710TP BUSHING, REAR 1 26 B1203512000 SPROCKET WHEEL A 1 27 12924916 SCREW 1/4-40 L=4.5 2 28 SS866052TP PULLEY PLATE 1 29 12925004 SCREW 9/64-40 L=5 3 30 SS1090510SP HAND WHEEL 1 31 12955407 SCREW 15/64-28 L=20 2 32 SS8152030SP HAND WHEEL SCALE PLA 1 33 12955506 RIVET 2 34 B1161227000 RUBBER RING 1 35 RO098240100 OIL CUP BODY ASM. 1 36 40026875 OIL CUP BODY CAP RETA 1 1.00 37 B3504019000 B35010190A0 OIL CUP BODY CAP 1 1.00 38 B3502019000 B35010190A0 OIL CUP BODY CAP GASK 1 39 B3503019000 RUBBER RING 1 40 RO069180100 SCREW 1/4-40 L= 4.0 1 41 SS5660440SP OIL CUP BODY 1 42 40026874 SCREW 9/64-40 L=21.2 4 43 SS6092120SP OIL WICK 1 44 CQ252000000 NEEDLE BAR BUSHING, UF 1 45 B1402026B0G SCREW 15/64-28 L= 3.4 2 46 SS8150310SP OIL WICK 1 1.00 47 CQ303000000 CQ303000000 THREAD TAKE-UP 1 48 B1901026000 SCREW 9/64-40 L= 8.5 1 49 SS7090910TP NEEDLE BAR CLAMP ASM. 1 50 B14090190B0 FELT 1 51 B1418019000 SCREW 9/64-40 L= 8.5 1 1.00 52 SS7090910SP SS7090910TP NEEDLE BAR BUSHING, LC 1 53 B1404026B0G NEEDLE BAR 1 54 B1401019000 NEEDLE CLAMP (1/4") ASM 1 55 12956256 SCREW 1/8-44 L=2.8 2 56 SS8080310TP SCREW 1/8-44 L=5.5 1 57 SS8080610SP NEEDLE UY128GAS NM130 3 58 MC380001300 FOR MS-1261 FOR MS-1261 REFER TO THE FOR JE(MS-126. jintex.in

Page 13 — NEEDLE BAR & MAIN SHAFT COMPONENTS

NEEDLE BAR & MAIN SHAFT COMPONENTS 1 2 3 6 7 5 4 8 9 15 16 12 13 14 10 11 19 25 23 24 31.65 32 33.66 35 26 28 27 29 30 34 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58.62 20 21 22 63.64 60 61 jintex.in

Page 14 — NEEDLE BAR & MAIN SHAFT COMPONENTS

NEEDLE BAR & MAIN SHAFT COMPONENTS No. C- Cons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 59 SS2110920TP SCREW 11/64-40 L=8.5 3 60 12953907 THROAT PLATE XH (1/4") 1 61 12954509 THROAT PLATE MH (1/4") 1 62 MUY128N2100 NEEDLE UYX128GAS-NY # 3 63 MC380001200 NEEDLE UYX128GAS NM120 3 64 MUY128N1900 NEEDLE UYX128GAS-NY # 3 65 12978003 HAND WHEEL 1 66 12978102 HAND WHEEL SCALE PLA 1 REFER TO THE REFER TO THE FOR MS-1261 FOR MS-1261M FOR MS-1261M FOR MS-1261M jintex.in

Page 15 — PRESSER BAR & LOWER SHAFT COMPONENTS

PRESSER BAR & LOWER SHAFT COMPONENTS 2 1 3 4 8 7 24 25 21 20 23 22 27 26 19 10 11 12 13 14 15 16 18 31 30 32 45 6 5 33 47 46 40 41 43 42 39 38 37 35 36 34 jintex.in

Page 16 — PRESSER BAR & LOWER SHAFT COMPONENTS

PRESSER BAR & LOWER SHAFT COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 12968103 FITTING SHAFT 1 2 SS7091410SP SCREW 9/64-40 L=13.5 1 3 12968202 LOOPER THREAD EYELET 1 4 SS6110610TP SCREW 11/64-40 L=6 1 5 SS8150822TP SCREW 15/64-28 L=8 2 6 12956066 PRESSER MH(1/4") ASM.,EX 1 7 B1127026000 LOOPER GATE RETAINING 2 8 SS7090710SP SCREW 9/64-40 L=6.8 1 9 B150190000 PRESSER BAR UPPER BUSH 1 10 SS8150310SP SCREW 15/64-28 L=8 2 11 22906457 NEEDLE BAR HOLDER ASM 1 12 * 22906408 22906457 NEEDLE ROD HOLDER 1 1.00 13 * SS6090670TP SCREW 9/64-40 L=6 1 14 B15040190A0 PRESSER BAR GUIDE BRAC 1 15 * SS7111110TP SCREW 11/64-40 L=10.5 1 16 B1503026000 PRESSER BAR LOWER BUS 1 17 B1501019000 PRESSER BAR 1 18 SS7091110SP SS7091110TP SCREW 9/64-40 L=10.5 1 1.00 19 B1506019000 PRESSER BAR STEEL BALL 1 20 B2327019000 PRESSER BAR SPRING 1 21 B2329019000 PRESSER BAR SPRING UPP 1 22 B2330019000 PRESSER BAR SPRING RET 1 23 A116100100B RIVET 1 24 B2326019000 PRESSER REGULATING SC 1 25 B2328019000 PRESSER REGULATING SC 1 26 NS6120310SP NUT 3/16-28 1 27 B2328019000 PRESSER BAR SPRING PIN 1 28 MAM2990BBBA HOLDER 1/4XH ASM. 1 REFER TO THE 29 MAM2970EEBA FOLDER 1/4MH 1 30 12924809 METAL PRESSER 1 31 12957064 PRESSER 1/4" ASM.,EXPOF 3 32 SS6111610SP SCREW 11/64-40 L=16 3 33 12933719 SPROCKET WHEEL B 1 34 SS7110830SP SCREW 11/64-40 L= 7.5 1 35 B1802019000 BALL BEARING, FRONT 1 36 B1803019000 BALL BEARING, INTERMEI 1 37 B18080190A0 SLEEVE ASM. 1 38 SS8110310SP SCREW 11/64-40 L= 2.8 2 39 12966552 LOOPER THREAD CAM AS 1 40 * 12966503 12966552 LOOPER THREAD CAM 1 1.00 41 * SS8110310SP SCREW 11/64-40 L= 2.8 2 42 12924767 12924718 BUSHING REAR ASM. 1 1.00 42 12924767 B1203512000 BUSHING REAR ASM. 1 1.00 42 12924767 SS8150710SP BUSHING REAR ASM. 1 1.00 43 * B1203512000 BUSHING, REAR 1 44 * 12924718 BUSHING 1 45 * SS8150710SP SS8150710TP SCREW 15/64-28 L=7 2 1.00 46 12965513 LOOPER SHAFT 1 47 RE1200000K0 E-RING 12 1 jintex.in

Page 17

FEED MECHANISM COMPONENTS 8 9 10 11 12 13 1 2 3 19 21 22 5 6.17.18 24 23 20 25 26 27 28 29 31 35 34 32 33 36 37 4 38 39 40 41 42 43 45.46 47 44 66 65 49 50 67 48 51 52 53 54 56 55 57 58 59 60 61 62 63 jintex.in

Page 18 — FEED MECHANISM COMPONENTS

FEED MECHANISM COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 12968558 LOOPER L (1) ASM. 1 FOR MS-1261,1' 2 12968855 LOOPER R (1) ASM. 1 FOR MS-1261,1' 3 12969150 LOOPER C (1) ASM. 1 FOR MS-1261,1' 4 12965059 FEED DOG XH(1/4") ASM. 1 FOR MS-1261 R 5 B2115191000 FEED ROCKER CONNECTI 1 6 B2116191000 FEED CONNECTING LINK 2 7 B2106026000 SLIDE BLOCK PIN 1 8 B2502019000 BUSHING, FRONT 1 9 SS8151150SP SS8151150TP SCREW 15/64-28 L=10.5 1 1.00 10 12968004 LOOPER SHAFT 1 11 B2120260A0 FEED ROCKER ASM. 1 12 SS7111110TP SCREW 11/64-40 L=10.5 1 13 NS6150310SP NUT 15/64-28 1 14 B25050190A0 CONNECTION CRANK ASM. 1 15 SS7111110TP SCREW 11/64-40 L=10.5 1 16 SS6122030SP SCREW 3/16-28 L=20 2 17 B211619100A FEED CONNECTING LINK 2 SELECTIVE PAI 18 B211619100B FEED CONNECTING LINK 2 SELECTIVE PAI 19 12969952 FEED DOG MH(1/4") ASM. 1 FOR MS-1261M 20 B21020260A0A FEED ROCKER ASM. 1 21 SS7090920SP SCREW 9/64-40 L=8.5 4 22 SS7080510TP SCREW 1/8-44 L=4.5 4 23 B2107019000 FEED ROCKER SHAFT 1 24 SS8150710SP SS8150710TP SCREW 15/64-28 L=7 1 1.00 25 40040608 PACKING 1 26 SS7110830SP SCREW 11/64-40 L=7.5 1 27 B2002026000A LOOPER AVOIDING SHAFT 1 28 B2503019000 LOOPER ROCKER SHAFT I 1 29 SS8150310SP SCREW 15/64-28 L=3.4 1 30 RO095200100 RUBBER RING 1 31 SS8150410SP SS8150410TP SCREW 15/64-28 L=4 1 1.00 32 B20060190A0 LOOPER AVOIDING ECCE 1 33 SS8110410TP SCREW 11/64-40 L=3.5 2 34 B1635191000 SLIDE BLOCK 1 35 B20012610A0 LOOPER AVOIDING SHAF] 1 36 SS7111110TP SCREW 11/64-40 L=10.5 1 37 SS7621040SP SCREW 3/16-32 L=9.5 1 38 B1601026000 FEED BAR 1 39 B1610019000 SLIDE BLOCK 1 40 12962809 ADJUSTING SHAFT 1 41 RO061180100 RUBBER RING 1 42 SS8110422TP SCREW 11/64-40 L=4 1 43 B2108026000 SLIDE BLOCK STOPPER 1 44 SS8110510SP SS8110520TP SCREW 11/64-40 L=5 1 1.00 45 B2105019000 FEED ROCKER SLIDE BLO 1 SELECTIVE PAI 46 B210501900A Discontinue FEED ROCKER SLIDE BLO 1 SELECTIVE PAI 47 B2101261000A FEED ROCKER DRIVING LI 1 48 SS8660612TP SCREW 1/4-40 L=6 2 49 B21032610A0 FEED ECCENTRIC CAM 1 50 SS8660612TP SCREW 1/4-40 L=6 2 51 SS7111110TP SCREW 11/64-40 L=10.5 1 52 12931903 BODY CAP 1 53 12963062 FEED ECCENTRIC BASE A 1 54 B1624191000 RATCHET PAWL 1 55 PS0250081K0 SPRING PIN 2.5X8 1 56 B1626191000 SCREW 1 57 B1625191000 RATCHET PAWL SPRING 1 58 B1623191000 RATCHET GEAR 1 59 12963005 FEED ECCENTRIC 1 60 12931606 SCREW 1 jintex.in 16

Page 19

FEED MECHANISM COMPONENTS jintex.in

Page 20 — FEED MECHANISM COMPONENTS

FEED MECHANISM COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 61 * 12931507 FEED ECCENTRIC BODY 1 62 * SS8110410TP SCREW 11/64-40 L= 3.5 2 63 * B1621261000A FEED ECCENTRIC SLIDE 1 64 * 12931705 SCREW 1 65 B1606191000 FEED ECCENTRIC SLIDE B 2 66 B1602019000 FEED LIFTING FORKED CO 1 67 12962601 FEED ECCENTRIC CAM 1

Page 21

LOOPER & FEED DOG COMPONENTS 29 27 28 26 25 24 21 20 19 18 23 22 16 11 12 14 15 13 10 9 6 1 2 3 4 5 31 39 40 36 35 34 33 32 37 38 30 jintex.in

Page 22 — LOOPER & FEED DOG COMPONENTS

LOOPER & FEED DOG COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 12968558 LOOPER L (1) ASM. 1 FOR MS-1261,1 2 12968509 LOOPER L (1) 1 3 12942009 LOOPER HOLDER,2 1 4 SS4080620TP SCREW 1/8-44 L=6 1 5 SS7090910TP SCREW 9/64-40 L= 8.5 1 6 12968855 LOOPER R (1) ASM. 1 FOR MS-1261,1 7 12968806 LOOPER R (1) 1 8 12969309 LOOPER HOLDER (3) 1 9 SS4080620TP SCREW 1/8-44 L=6 1 10 SS7090910TP SCREW 9/64-40 L= 8.5 1 11 12969150 LOOPER C (1) ASM. 1 FOR MS-1261,1 12 12969101 LOOPER C (1) 1 13 12941100 LOOPER HOLDER,1 1 14 SS4080620TP SCREW 1/8-44 L=6 1 15 SS7090910TP SCREW 9/64-40 L= 8.5 1 16 12965059 FEED DOG XH(1/4") ASM. 1 1.00 FOR MS-1261 R 17 12964409 NEEDLE HOLDER ADJUSTI 1 18 12964805 NEEDLE HOLDER (A) 1 19 40080579 NEEDLE POSITIONER (L) 1 20 12964607 NEEDLE HOLDER (INSIDE) 1 21 40080580 NEEDLE POSITIONER (R) 1 22 SS7090510SP SCREW 9/64-40 L= 4.6 1 23 SS7091110TP SCREW 9/64-40 L=10.5 1 24 SS7091110TP SCREW 9/64-40 L=10.5 1 25 WP0450000SD WASHER 4.5X8X0.5 1 26 12965000 12965059 FEED DOG XH(1/4") 1 1.00 27 12963807 ADJUSTING FEED DOG XH 1 28 12963906 FEED DOG ADJUSTING PL 1 29 12964300 ADJUSTING FEED DOG SE 2 30 12969952 FEED DOG MH(1/4") ASM. 1 FOR MS-1261M 31 12969903 FEED DOG MH(1/4") 1 32 12964409 NEEDLE HOLDER ADJUSTI 1 33 12964805 NEEDLE HOLDER (A) 1 34 40080579 NEEDLE POSITIONER (L) 1 35 12964607 NEEDLE HOLDER (INSIDE) 1 36 40080580 NEEDLE POSITIONER (R) 1 37 SS7090510SP SCREW 9/64-40 L= 4.6 1 38 SS7091110TP SCREW 9/64-40 L=10.5 1 39 SS7091110TP SCREW 9/64-40 L=10.5 1 40 WP0450000SD WASHER 4.5X8X0.5 1 jintex.in

Page 23 — KNEE LIFTER COMPONENTS

KNEE LIFTER COMPONENTS 6 3 4 5 7 2 1 8 6 10 12 13 11 14 15 16 18 19 16 17 21 24 26 25 22 27 23 jintex.in

Page 24 — KNEE LIFTER COMPONENTS

KNEE LIFTER COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 B2322019000 PRESSER BAR LIFTING BRA 1 2 SD0790431SP HINGE SCREW D= 7.94 H= 1 3 B3701019000 HINGE SCREW 1 4 B231919100A PRESSER BAR LIFTING LEV 1 5 B2315019000 TENSION RELEASING CON 1 6 SD0450211SP HINGE SCREW D= 4.50 H= 2 7 B2317019000 TENSION RELEASING SHAI 1 8 SS7110710SP SCREW 11/64-40 L=7 1 9 B2321019000 PRESSER BAR LIFTING LEV 1 10 B81011910A0 KNEE LIFTER ASM. 1 11 B81021910A0 KNEE LIFTER LEVER ASM. 1 12 * SS9151210TP SCREW 15/64-28 L=11.8 1 13 * B8101191000 Discontinue KNEE DRIVING SHAFT MO 1 14 * B8511180000 Discontinue SPRING 1 15 * 12944906 KNEE LIFTER SPRING RAC 1 16 * SS9182010TE BOLT 9/32-20 L=20 2 17 * 12944906 KNEE LIFTER SPRING RAC 1 18 * 22932453 BRACKET ASM. 1 19 B3421012000 KNEE PRESS ROD 1 20 SK3452500SC WOOD SCREW D=4.5 L=25 4 21 22934251 KNEE PAD PLATE ASM. 1 22 * 22934202 KNEE PAD PLATE 1 23 * 22934301 KNEE PAD PLATE SUPPOR 1 24 * 22934400 KNEE PAD PLATE RUBBER 1 25 * 22934509 KNEE PAD PLATE COVER 1 26 * 22934608 KNEE PAD UPRIGHT SHAF 1 27 * SM9061203SE SCREW M6 L=12 1 jintex.in

Page 25

THREAD STAND COMPONENTS 1 12 5 4 3 23 2 23 5 2 11 13 20 17 16 8 14 15 6 7 23 26 24 23 26 24 23 25 10 10 25 9 22 23 26 24 23 21 26 24 23 22 18 19 jintex.in

Page 26 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS No. C- le- ons vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 40111348 THREAD STAND ASM. 1 2 * 40106575 SPOOL REST LONG ARM U 2 3 * 40085795 THREAD GUIDE BUSHING 6 4 * 40085794 THREAD GUIDE 6 5 * 40096327 SM4053001SE SPOOL REST ARM UPPER 2 1.00 6 * 40106574 SPOOL REST LONG ARM L 2 7 * 40096326 SPOOL REST ARM LOWER 2 8 * 40085784 SPOOL REST ROD LOWER 1 9 * 40096325 SPOOL REST ROD NUT 1 10 * 40085796 SPOOL REST ROD RUBBER 2 11 * 40085785 SPOOL REST ROD UPPER 1 12 * 40085793 SPOOL REST ROD RUBBER 1 13 * 40085792 SPOOL REST ROD JOINT 1 14 * 40085789 SPOOL REST CUSHION 6 15 * 40085788 SPOOL REST 6 16 * 40096300 SPOOL PIN 6 17 * 40085791 SPOOL RETAINER 6 18 * 40106577 SPOOL REST ARM LOWER 1 19 * 40106578 SPOOL REST ARM LOWER 1 20 * SM4051405SE SCREW M5 L=14 2 21 * SM4051001SE SCREW M5 L=10 2 22 * SK3412001SE WOOD SCREW D=4.1 L=20 2 23 * NM6050001SE NUT M5 14 24 * WP0531001SC WASHER M5 6 25 * WP1612616SE WASHER 16X30X2.6 2 26 * WS0510002KN SPRING WASHER M5 6 jintex.in

Page 27 — MS-1261 (For Extra heavy-weight)

TABLE OF EXCHANGING GAUGE PARTS (1) MS-1261 (For Extra heavy-weight) MS-1261 (極厚物用) Description 品 名 Gauge set (with finger guard) ゲージセット (指ガード付) Needle gauge size 針 幅 Code ゲージ 記号 inch mm Ref.No Part No. Ref.No Part No. Ref.No Part No. Ref.No Part No. E 7/32 5.6 1 12954061 6 12954004 11 12956355 16 12957163 21 12965158 F 1/4 6.4 2 12953907 7 12953907 12 12956256 17 12957064 22 12965059 G 9/32 7.2 3 12954160 8 12954103 13 12956454 18 12957262 23 12965257 H 5/16 8.0 4 12954269 9 12954202 14 12956553 19 12957361 24 12965356 K 3/8 9.5 5 12954368 10 12954301 15 12956652 20 12957460 25 12965455 Throat plate 針 板 Needle clamp asm. 針 留 (組) Presser foot asm. (with finger guard) 押さえ(組) (指ガード付) Feed dog asm. 送り歯(組) Description 品 名 Looper asm. (L) ルーパ(L)(組) Looper asm. (R) ルーパ(R)(組) Looper asm. (C) ルーパ(C)(組) Needle gauge size 針 幅 Mark Mark Mark inch mm Ref.No Part No. Mark Ref.No Part No. Mark Ref.No Part No. Mark No. Ref.No Part No. Mark No. No. E 7/32 5.6 26 12968558 1 28 12968855 1 30 12969150 1 F 1/4 6.4 1 1 1 1 G 9/32 7.2 1 1 1 1 H 5/16 8.0 27 12968657 2 29 12968954 2 2 1 K 3/8 9.5 2 1 2 1 Spacer for feed dog(FOR MS-1261) 送り歯用スペーサ(MS-1261用) No. Thickness 板厚(mm) Ref.No Part No. Description 品 名 ① 0.3 31 12976601 Adjusting plate B 送り歯調節板 B ② 0.8 32 12976700 Adjusting plate C 送り歯調節板 C ③ 1.0 33 12976809 Adjusting plate D 送り歯調節板 D The spacer is not included in gauge set. スペーサは、ゲージセットには含まれません。 jintex.in

Page 28 — TABLE OF EXCHANGING GAUGE PARTS (1)

TABLE OF EXCHANGING GAUGE PARTS (1) No. C- Le- ons vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 12954061 WITH FINGER GUARD GAU 1 2 12953964 GAUGE SET 1/4 1 3 12954160 GAUGE SET 9/32 1 4 12954269 GAUGE SET, 5/16, FINGER 1 5 12954368 WITH FINGER GUARD GAU 1 6 12954004 THROAT PLATE XH 7/32 1 7 12953907 THROAT PLATE XH (1/4") 1 8 12954103 THROAT PLATE XH 9/32 1 9 12954202 THROAT PLATE XH 5/16 1 10 12954301 THROAT PLATE XH 3/8 1 11 12956355 NEEDLE CLAMP 7/32" ASM 1 12 12956256 NEEDLE CLAMP (1/4") ASN 1 13 12956454 NEEDLE CLAMP 9/32" ASM 1 14 12956553 NEEDLE CLAMP 5/16" ASM 1 15 12956652 NEEDLE CLAMP 3/8" ASM. 1 16 12957163 PRESSER FOOT ASM., 7/32 1 17 12957064 PRESSER 1/4" ASM.,EXPOF 1 18 12957262 PRESSER FOOT ASM., 9/32 1 19 12957361 PRESSER FOOT ASM., 5/16 1 20 12957460 PRESSER (3/8") ASM. EXPC 1 21 12965158 FEED DOG XH ASM. 7/32 1 22 12965059 FEED DOG XH(1/4") ASM. 1 23 12965257 FEED DOG XH ASM. 9/32 1 24 12965356 FEED DOG XH ASM. 5/32 1 25 12965455 FEED DOG XH ASM. 3/8 1 26 12968558 LOOPER L (1) ASM. 1 27 12968657 LOOPER L (2) ASM. 1 28 12968855 LOOPER R (1) ASM. 1 29 12968954 LOOPER R (2) ASM. 1 30 12969150 LOOPER C (1) ASM. 1 31 12976601 FEED ADJUSTING PLATE, 1 32 12976700 FEED ADJUSTING PLATE, 1 33 12976809 FEED ADJUSTING PLATE, 1

Page 29 — TABLE OF EXCHANGING GAUGE PARTS (2)

TABLE OF EXCHANGING GAUGE PARTS (2) MS-1261M (For Medium-weight) MS-1261M (中厚物用) Description 品 名 Gauge set (with finger guard) ゲージセット (指ガード付) Needle gauge size 針 幅 Code ゲージ 記号 inch mm Part No. Ref.No Part No. Ref.No Part No. Ref.No Part No. Ref.No E 7/32 5.6 1 12954665 6 12954608 11 12956355 16 12956165 F 1/4 6.4 2 12954566 7 12954509 12 12956256 17 12956066 G 9/32 7.2 3 12954764 8 12954707 13 12956454 18 12956769 H 5/16 8.0 4 12954863 9 12954806 14 12956553 19 12956868 K 3/8 9.5 5 12954962 10 12954905 15 12956652 20 12956967 Description Feed dog asm. 送り歯(組) Looper asm. (L) ルーパ(L)(組) Looper asm. (R) ルーパ(R)(組) Looper asm. (C) ルーパ(C)(組) Needle gauge size 針 幅 Mark Mark Mark Code ゲージ 記号 inch mm Ref.No Part No. Ref.No Part No. Ref.No Part No. Mark No. Ref.No Part No. Mark No. E 7/32 5.6 21 12970059 26 12968558 28 12968855 1 30 12969150 1 F 1/4 6.4 12969952 1 1 1 G 9/32 7.2 22 12970158 1 1 1 H 5/16 8.0 24 12970257 27 12968657 2 29 12968954 2 1 K 3/8 9.5 25 12970356 2 2 1 jintex.in

Page 30 — TABLE OF EXCHANGING GAUGE PARTS (2)

TABLE OF EXCHANGING GAUGE PARTS (2) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 12954665 WITH FINGER GUARD GAU 1 2 12954666 GAUGE SET 1/4 (WITH GU 1 3 12954764 GAUGE SET 9/32 (FINGER 1 4 12954863 GAUGE SET 5/16 (FINGER 1 5 12954962 WITH FINGER GUARD GAU 1 6 12954608 THROAT PLATE MH 7/32 1 7 12954509 THROAT PLATE MH (1/4") 1 8 12954707 THROAT PLATE MH 9/32 1 9 12954806 THROAT PLATE MH 5/16 1 10 12954905 THROAT PLATE MH 3/8 1 11 12956355 NEEDLE CLAMP (7/32") ASM 1 12 12956256 NEEDLE CLAMP (1/4") ASN 1 13 12956454 NEEDLE CLAMP 9/32" ASM 1 14 12956553 NEEDLE CLAMP 5/16" ASM 1 15 12956652 NEEDLE CLAMP 3/8" ASM. 1 16 12956165 PRESSER FOOT ASM.,7/32 1 17 12956066 PRESSER MH(1/4") ASM.,E 1 18 12956769 PRESSER MH(9/32") ASM.,F 1 19 12956868 PRESSER FOOT ASM. 5/16' 1 20 12956967 PRESSER FOOT ASM.,3/8 M 1 21 12970059 FEED DOG MH ASM. 7/32 1 22 12969952 FEED DOG MH(1/4") ASM. 1 23 12970158 FEED DOG MH ASM. 9/32 1 24 12970257 FEED DOG MH ASM. 5/16 1 25 12970356 FEED DOG MH ASM. 3/8 1 26 12968558 LOOPER L (1) ASM. 1 27 12968657 LOOPER L (2) ASM. 1 28 12968855 LOOPER R (1) ASM. 1 29 12968954 LOOPER R (2) ASM. 1 30 12969150 LOOPER C (1) ASM. 1

Page 31 — TABLE OF EXCHANGING GAUGE PARTS (3)

TABLE OF EXCHANGING GAUGE PARTS (3) Description 品 名 Needle gauge size 針 幅 Mark Code ゲージ 記 号 inch mm Ref.No Part No. Ref.No Part No. Ref.No Part No. E 7/32 5.6 1 MAM2970DDBA 6 MAM2980AABA 11 MAM2990AABA F 1/4 6.4 2 MAM2970EFBA 7 MAM2980BBBA 12 MAM2990BBBA G 9/32 7.2 3 MAM2970FFBA 8 MAM2980CCBA 13 MAM2990CCBA H 5/16 8.0 4 MAM2970GGBBA 9 MAM2980DDBA 14 MAM2990DDBA K 3/8 9.5 5 MAM2970HHBA 10 MAM2980EEBA 15 MAM2990EEBA Folder asm. フォルダ (組) M297 M298 M299 MH H XH Mark The folder is not included in gauge set. フォルダ、ゲージセットには含まれません。 Folder mark フォルダ 記号 M297 Medium-weight (MS-1261M Standard equipment) M298 Heavy-weight(Option) M299 Extra heavy-weight (MS-1261 Standard equipment) 中厚物用 (MS-1261M 標準装備) 厚物用 (オプション) 極厚物用 (MS-1261 標準装備) jintex.in

Page 32 — TABLE OF EXCHANGING GAUGE PARTS (3)

TABLE OF EXCHANGING GAUGE PARTS (3) No. C- Le- vel Cons Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 MAM2970DDBA FOLDER 7/32 MH 1 2 MAM2970EEBA FOLDER 1/4 MH 1 3 MAM2970FFBA FOLDER 9/32 MH 1 4 MAM2970GGBBA HOLDER 5/16 MH 1 5 MAM2970HHBA FOLDER 3/8 MH 1 6 MAM2980AABA FOLDER 7/32 H ASM. 1 7 MAM2980BBBA FOLDER 1/4 H ASM. 1 8 MAM2980CCBA FOLDER 9/32 H ASM. 1 9 MAM2980DDBA HOLDER 5/16 H ASM. 1 10 MAM2980EEBA FOLDER 3/8 H ASM. 1 11 MAM2990AABA FOLDER 7/32 XH ASM. 1 12 MAM2990BBBA HOLDER 1/4XH ASM. 1 13 MAM2990CCBA FOLDER 9/32 XH ASM. 1 14 MAM2990DDBA FOLDER 5/16 XH ASM. 1 15 MAM2990EEBA FOLDER 3/8 XH ASM. 1 jintex.in

Page 33

As to the replaced, refer to the corresponding Rev.No. When previous parts(Obsoleted part)and new parts(Added parts)are not interchangeable with each other: In this case,even obsoleted parts can be ordered with the obsoleted part number,so select the parts with changed dates and place your orders. 変更箇所は、該当Rev.No.版をご参照ください。 部品の互換性がない変更の場合は、削除された品番でも、ご注文できます。 29161502 No.1031-06 Rev.No. *A:Added parts追加部品/D:Obsoleted parts削除部品/E:Erratum訂正 Rev. Page Ref. No. No. No. Parts No. 品 番 Rev. Page Ref. No. No. No. Parts No. 品 番 D 05 2 2 110-00403 A 06 2 2 229-02506 D 05 2 23 SS-4091010-SP A 06 2 23 SS-4090815-SP E 05 2 24 B1128-804-000 A 06 2 24 B1124-804-000 E 05 2 59 B1634-191-000 A 06 2 59 B1806-019-000 D 05 2 62 110-18603 A 06 2 62 229-20607 D 05 2 72 B3526-226-000 A 06 2 72 WP-0370316-SD D 05 2 81 B3513-261-000 A 06 2 81 400-60166 D 05 2 82 CM-3002001-01 A 06 2 82 TA-1600406-R0 D 05 2 83 CM-3002001-A1 A 06 2 83 CM-3012000-02 D 05 2 85 CM-3002000-C1 A 06 2 85 229-01805 D 05 2 87 CM-3002000-B1 D 05 4 1 115-50308 A 06 4 1 400-85675 D 05 4 3 129-38205 A 06 4 3 400-85671 D 05 4 5 B3107-804-000 A 06 4 5 119-57305 D 05 4 8 119-57008 A 06 4 8 119-56703 D 05 4 12 B2301-261-00A A 06 4 12 400-85676 D 05 4 28 SS-4091010-SP A 06 4 28 SS-4090815-SP D 05 4 67 115-03604 A 06 4 67 400-38331 D 05 6 20 129-24809 D 05 6 21 SS-6111610-SP D 05 6 36 B3501-019-0A0 A 06 6 36 400-26875 D 05 6 40 B3508-019-000 A 06 6 40 RO-0691801-00 D 05 6 42 B3501-019-000 A 06 6 42 400-26874 D 05 6 54 B1401-026-000 A 06 6 54 B1401-019-000 D 05 6 61 129-25954 D 05 6 62 SS-8080310-TP D 05 6 64 129-77807 D 05 8 5 SS-9151440-CP A 06 8 5 SS-8150822-TP D 05 8 11 B1411-552-0A0 A 06 8 11 229-06457 D 05 8 12 B1411-552-000 A 06 8 12 229-06408 D 05 8 22 B2326-019-000 A 06 8 22 B2330-019-000 D 05 8 29 MAM-2970CCBA A 06 8 29 MAM-2970EEBA jintex.in

Page 34 — LIST FOR INFORMATION OF CHANGE (1)

LIST FOR INFORMATION OF CHANGE (1) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1-06 13 jintex.in

Page 35 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 10704203 2 28 12943700 4 73 12956454 26 13 11956703 6 8 12944906 22 17 12956454 28 13 11957305 6 5 12950507 2 32 12956553 26 14 12921003 2 3 12950606 2 12 12956553 28 14 12921201 2 19 12950705 2 1 12956652 26 15 12921409 2 20 12950804 2 4 12956652 28 15 12921607 2 25 12951000 2 16 12956769 28 18 12921904 8 62 12951505 8 61 12956868 28 19 12922001 8 63 12951950 4 75 12956967 28 20 12922704 2 26 12952008 4 76 12957064 14 31 12922803 6 51 12952255 2 30 12957064 26 17 12924502 10 19 12952552 2 29 12957163 26 16 12924718 10 24 12953007 12 60 12957262 26 18 12924718 14 44 12953007 26 7 12957361 26 19 12924767 10 23 12953964 26 2 12957460 26 20 12924767 14 42 12954004 26 6 12962601 18 67 12924809 14 30 12954061 26 1 12962809 16 40 12924916 10 27 12954103 26 8 12963005 16 59 12925004 10 29 12954160 26 3 12963062 16 53 12931507 18 61 12954202 26 9 12963807 20 27 12931606 16 60 12954269 26 4 12963906 20 28 12931705 18 64 12954301 26 10 12964300 20 29 12931903 16 52 12954368 26 5 12964409 20 32 12932000 2 54 12954509 12 61 12964607 20 35 12932109 2 55 12954509 28 7 12964805 20 33 12932158 2 53 12954566 28 2 12965000 20 26 12933719 14 33 12954608 28 6 12965059 16 4 12935516 6 34 12954665 28 1 12965059 20 16 12935607 6 41 12954707 28 8 12965059 26 22 12935805 6 47 12954764 28 3 12965158 26 21 12935904 8 68 12954806 28 9 12965257 26 23 12936217 6 44 12954863 28 4 12965356 26 24 12936506 6 49 12954905 28 10 12965455 26 25 12936803 6 29 12954962 28 5 12965513 14 46 12936902 6 33 12955007 10 31 12965703 2 40 12938304 6 6 12955506 10 33 12966008 6 40 12939500 6 54 12955803 2 33 12966107 6 39 12939609 6 55 12956066 14 6 12966206 6 38 12939708 6 56 12956066 28 17 12966305 6 35 12939807 6 57 12956165 28 16 12966503 14 40 12939906 6 58 12956256 10 55 12966552 14 39 12940102 4 64 12956256 26 12 12966602 6 9 12941100 20 13 12956256 28 12 12966701 6 13 12942009 20 3 12956355 26 11 12966800 2 15 12943106 10 15 12956355 28 11 12966909 2 43 INDEX - 1 jintex.in

Page 36 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 12967006 2 44 22901805 4 85 B11041910A0 4 66 12967105 2 45 22902506 2 2 B1124804000 2 24 12967204 6 24 22906408 14 12 B1127026000 14 7 12967303 6 21 22906457 14 11 B1130051000 2 38 12967402 6 26 22920607 4 62 B1134850000A 2 35 12967501 2 17 22932453 22 18 B1135850000 2 36 12967600 6 15 22934202 22 19 B1140019000 4 79 12967758 6 53 22934251 22 21 B1156019000 4 61 12968004 16 10 22934301 22 23 B1157019000 2 31 12968103 14 1 22934400 22 24 B1161026000 2 10 12968202 14 3 22934509 22 25 B1161227000 10 34 12968509 20 2 22934608 22 26 B11620260A0 2 8 12968558 16 1 40026874 10 42 B1202512000 10 9 12968558 20 1 40026875 10 36 B1203512000 10 26 12968558 26 26 40038331 8 67 B1203512000 14 43 12968558 28 26 40040608 16 25 B1207026000 10 6 12968657 26 27 40060166 4 81 B12070260A0 10 1 12968657 28 27 40080579 20 34 B1208019000 10 5 12968806 20 7 40080580 20 36 B12090190A0 10 2 12968855 16 2 40085671 6 3 B1219019000 2 21 12968855 20 2 40085675 6 1 B1222019000 10 18 12968855 26 28 40085676 6 12 B1236125BA0 10 3 12968855 28 28 40085784 24 8 B1401019000 10 54 12968954 26 29 40085785 24 11 B1402026B0G 10 45 12968954 28 29 40085788 24 15 B1404026B0G 10 53 12969101 20 12 40085789 24 14 B1408038000 10 4 12969150 16 3 40085790 24 16 B14090190B0 10 50 12969150 20 11 40085791 24 17 B1411019000 10 13 12969150 26 30 40085792 24 13 B1412038000 10 12 12969150 28 30 40085793 24 12 B1418019000 10 51 12969309 20 8 40085794 24 4 B1501019000 14 17 12969903 20 31 40085795 24 3 B1502019000 14 9 12969952 16 19 40085796 24 10 B1503026000 14 16 12969952 20 30 40096325 24 9 B15040190A0 14 14 12969952 28 22 40096326 24 7 B1506019000 14 19 12970059 28 21 40096327 24 5 B1534816000 8 64 12970158 28 23 40106574 24 6 B1601026000 16 38 12970257 28 24 40106575 24 2 B1602019000 18 66 12970356 28 25 40106577 24 18 B1606191000 18 65 12970406 4 80 40106578 24 19 B1610019000 16 39 12976601 26 31 40111348 24 1 B1621261000A 18 63 12976700 26 32 A116100100B 14 23 B1622541000 2 56 12976809 26 33 B110419100A 4 67 B1623191000 16 58 12978003 12 65 B110419100B 4 68 B1624191000 16 54 12978102 12 66 B110419100C 4 69 B1625191000 16 57 INDEX - 2 jintex.in

Page 37 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. B1626191000 16 56 B3502019000 10 38 RO040100210 2 57 B1635191000 16 34 B3503019000 10 39 RO061180100 16 41 B1802019000 14 35 B3504019000 10 37 RO068190100 2 52 B1803019000 14 36 B3510019000 10 10 RO069180100 10 40 B1805019000 2 48 B3541012000 10 11 RO095200100 16 30 B1806019000 2 59 B3701019000 22 3 RO098240100 10 35 B18080190A0 14 37 B8101191000 22 13 SD0380551SL 2 57 B1901026000 10 48 B81011910A0 22 10 SD0450211SP 22 2 B20012610A0 16 35 B81021910A0 22 11 SD0790431SP 22 2 B2002026000A 16 27 B8511180000 22 14 SK3412001SE 24 22 B20060190A0 16 47 CM300200001 4 86 SK3452500SC 22 20 B2101261000A 16 32 CM301200002 4 83 SM4051001SE 24 21 B21020260A0A 16 20 CM500300001 4 71 SM4051405SE 24 20 B21032610A0 16 47 CQ252000000 10 44 SM9061203SE 22 27 B2105019000 16 45 CQ300000000 10 47 SS1090510SP 10 30 B210501900A 16 46 MAM2970DDBA 30 1 SS2060510SP 6 22 B2106026000 16 7 MAM2970EEBA 14 29 SS2110920TP 12 59 B2107019000 16 23 MAM2970EEBA 30 2 SS3060410SP 2 27 B2108026000 16 43 MAM2970FFBA 30 3 SS3090610SP 2 39 B2115191000 16 5 MAM2970GGBBA 30 4 SS3090810SP 2 14 B2116191000 16 17 MAM2970HHBA 30 5 SS4080620TP 20 14 B211619100A 16 17 MAM2980AABA 30 6 SS4090815SP 6 28 B211619100B 16 18 MAM2980BBBA 30 7 SS4091010SP 2 9 B21230260A0 16 11 MAM2980CCBA 30 8 SS4110815SP 2 13 B2208019000 6 30 MAM2980DDBA 30 9 SS4120915SP 2 6 B2310019000 6 2 MAM2980EEBA 30 10 SS4622340SP 6 18 B2315019000 22 5 MAM2990AABA 30 11 SS5060410SP 6 23 B2317019000 22 7 MAM2990BBBA 14 28 SS5090420SP 6 45 B2319100A 22 9 MAM2990BBBA 30 12 SS5090610SP 2 50 B2321019000 22 1 MAM2990CCBA 30 13 SS5090710SP 2 11 B2322019000 22 1 MAM2990DDBA 30 14 SS5091020SP 2 42 B2324261000 14 25 MAM2990EEBA 30 15 SS5110810SP 4 77 B2326019000 14 26 MC380001200 12 63 SS5660440SP 10 41 B2327019000 14 21 MC380001300 10 58 SS5820540SP 4 78 B2328019000 14 27 MUY128N1900 12 64 SS6060210SP 6 31 B2329019000 14 21 MUY128N2100 12 62 SS6090540SP 2 46 B2330019000 14 22 NM6050001SE 24 23 SS6090670TP 14 13 B2402019000 16 6 NS6110310SP 6 11 SS6092120SP 10 43 B2421019000 6 19 NS6110350SP 6 59 SS6110480SP 4 70 B2502019000 16 8 NS6120310SP 14 26 SS6110610TP 2 5 B2503019000 16 28 NS6150310SP 16 13 SS6110610TP 6 52 B25050190A0 16 19 PS0250081K0 16 55 SS6110610TP 14 4 B3112704000 6 7 PS0500202KP 6 32 SS6111610SP 14 32 B3126012000 6 4 RE0400000K0 2 58 SS6122030SP 2 18 B3421012000 22 4 RE1200000K0 14 47 SS6122030SP 16 16 INDEX - 3 jintex.in

Page 38 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. SS6151220SP 10 8 SS8111160SP 6 10 SS7060510SP 6 17 SS8150310SP 10 46 SS7080510TP 16 22 SS8150310SP 14 10 SS7090510SP 6 20 SS8150310SP 16 29 SS7090510SP 20 37 SS8150410SP 16 31 SS7090520SP 6 27 SS8150710SP 10 25 SS7090530SP 6 42 SS8150710SP 14 45 SS7090530SP 8 70 SS8150710SP 16 24 SS7090530SP 10 16 SS8150822TP 14 5 SS7090710SP 2 47 SS8151150SP 16 9 SS7090710SP 6 25 SS8152030SP 10 32 SS7090710SP 14 8 SS860410SP 10 7 SS7090850SP 6 43 SS860522TP 10 28 SS7090910SP 2 34 SS860612TP 16 50 SS7090910SP 10 52 SS9151210TP 22 12 SS7090910TP 10 49 SS9182010TE 22 16 SS7090910TP 20 15 SS9284043CP 4 74 SS7090920SP 16 21 TA1250406R0 2 7 SS7091110SP 14 18 TA1600406R0 4 82 SS7091110TP 20 39 WP0370316SD 4 71 SS7091410SP 14 2 WP0371016SD 6 36 SS7110710SP 4 65 WP0371016SD 8 69 SS7110710SP 6 60 WP0450000SD 20 40 SS7110710SP 22 8 WP0450801SD 2 41 SS7110830SP 14 34 WP0531001SC 24 24 SS7110830SP 16 26 WP1612616SE 24 25 SS7110840SP 6 46 WS0510002KN 24 26 SS7110840SP 8 66 SS7111110TP 14 15 SS7111110TP 16 51 SS7111120SP 2 60 SS7111410SP 6 48 SS7120910SP 10 14 SS7151210SP 2 22 SS7151210SP 4 87 SS7621040SP 16 37 SS7740740SP 2 51 SS7740740SP 10 17 SS8080310TP 10 56 SS8080610SP 10 57 SS8110310SP 14 41 SS8110410TP 16 33 SS8110410TP 18 62 SS8110422TP 16 42 SS8110510SP 16 44 INDEX - 4 jintex.in
