JUKI PS-800 NEW Parts Book (PDF)
Text index — JUKI PS-800 NEW
Page 7 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-28010 | 20_RUBBER_PLUG | 1 |
| 2 | 402-28011 | 26_RUBBER_PLUG | 1 |
| 3 | 402-28012 | FACE_THREADER | 1 |
| 4 | 402-27991 | SIDE_COVER_REAR | 1 |
| 5 | - | SCREW | 6 |
| 6 | - | SCREW | 1 |
| 7 | - | SPRING_WASHER | 1 |
| 8 | - | WASHER | 1 |
| 9 | 402-27992 | PANEL_RUBBER_CUSHION | 5 |
| 10 | - | UPPER_THREAD_BLOW | 1 |
| 11 | 402-27993 | UPPER_THREAD_BLOW_ADJUSTING_JOINT | 1 |
| 12 | - | UPPER_THREAD_BLOW_TRACHEA | 1 |
| 13 | 402-27994 | SIDE_COVER_FRONT | 1 |
| 14 | 402-28121 | SCREW | 1 |
| 15 | 402-27995 | THREAD_LOOSENING_SOLENOID_ASM | 1 |
| 16 | - | E_RING | 1 |
| 17 | - | WASHER | 2 |
| 18 | 402-27996 | THREAD_RELEASE_PIN_SPRING | 1 |
| 19 | 402-27997 | THREAD_RELEASE_PIN | 1 |
| 20 | - | PIN | 2 |
| 21 | - | SCREW | 4 |
| 22 | 402-25491 | BOAT_PRESSER_L | 1 |
| 23 | 402-28585 | SIDE_COVER_BIG | 1 |
| 24 | - | SCREW | 4 |
| 25 | 402-28000 | SUPPLEMENTARY_PRESSER_CYLINDER | 1 |
| 26 | - | SCREW | 2 |
| 27 | 402-28001 | CYLINDER_JOINT | 2 |
| 28 | 402-28002 | SUPPLEMENTARY_PRESSER_ROD_GUIDE | 1 |
| 29 | - | SCREW | 2 |
| 30 | 402-28003 | SUPPLEMENTARY_PRESSER_ROD | 1 |
| 31 | 402-28004 | SUPPLEMENTARY_PRESSER_CASE | 1 |
| 32 | 402-28005 | SSUPPLEMENTARY_PRESSER_PILLAR | 1 |
| 33 | - | SCREW | 1 |
| 34 | 402-28006 | SUPPLEMENTARY_PRESSER_CONNECT_PILLARS | 1 |
| 35 | - | SCREW | 1 |
| 36 | - | SCREW | 1 |
| 37 | - | SCREW | 2 |
| 38 | 402-28007 | PLANE_THREAD_BRONCHUS | 2 |
| 39 | 402-28008 | 8_RUBBER_PLUG | 4 |
| 40 | 402-28009 | 12_RUBBER_PLUG | 1 |
Page 9 — 2. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | SCREW | 1 |
| 2 | 402-28013 | THREAD_TAKE_UP_COVER | 1 |
| 3 | 402-28468 | SCREW | 4 |
| 4 | 402-28009 | 12_RUBBER_PLUG | 2 |
| 5 | 402-28014 | FACE_COVER | 1 |
| 6 | 402-28470 | LOWER_GUIDE | 1 |
| 7 | - | SCREW | 5 |
| 8 | 402-28015 | SCREW | 1 |
| 9 | 402-28016 | SOLENOID_ASM | 1 |
| 10 | 402-28017 | RIGHT_GUIDE | 3 |
| 11 | 402-28018 | VERTICA_GUIDE | 1 |
| 12 | 402-28019 | IN-SENSOR_INSULATION_PIECE | 1 |
| 13 | 402-28020 | SENSOR_PLATE_THREAD | 1 |
| 14 | 402-28021 | SHEAR_THREAD_DETECT_SENSOR_PLATE | 1 |
| 15 | - | OUT-SENSOR_INSULATION_PIECE | 1 |
| 16 | - | SCREW | 1 |
| 17 | 402-28089 | SCREW | 1 |
| 18 | 402-28022 | THREAD_TENSION_ASM | 1 |
| 19 | 402-28023 | THREAD_TENSION_GUIDE | 1 |
| 20 | 402-28024 | UPPER_THREAD_TENSION_ASM | 1 |
| 21 | - | SCREW | 2 |
| 22 | 402-28025 | PULLEY_SHAFT_GEAR | 1 |
| 23 | 402-28026 | PULLEY_METAL | 1 |
| 24 | 402-28027 | PULLEY_SHAFT | 1 |
| 25 | - | PIN | 1 |
| 26 | 402-28028 | PULLEY_SPRING | 1 |
| 27 | 402-28029 | PULLEY | 1 |
| 28 | 402-28030 | SCREW | 1 |
| 29 | 402-28031 | SCREW | 7 |
| 30 | 402-28032 | DOUBLE_HOLE_GUIDE | 2 |
| 31 | 402-28033 | SINGLE_HOLE_GUIDE | 2 |
| 32 | 402-28034 | FIXING_PLATE | 3 |
| 33 | 402-28586 | FACE COVER PLATE | 1 |
| 34 | 402-28035 | SPINDLE_BACK_COVER | 1 |
| 35 | 402-28040 | GUIDE_TUBE | 1 |
| 36 | 402-28041 | THREAD_TENSION_CASE_TUBE | 1 |
| 37 | 402-28042 | SHEAR_THREAD_DETECT_SENSOR_PLATE_RUBBER | 1 |
| 38 | 402-28043 | RUBBER_PLUG | 1 |
| 39 | 402-28051 | 3RD THREAD TENSION ASM | 1 |
| 40 | - | SAFETY PLATE | 1 |
| 41 | - | SCREW M4X0.7 L=6 | 2 |
| 42 | - | WASHER 4.5X10X0.8 | 2 |
| 43 | - | BASE_PLATE | 1 |
| 44 | - | SCREW M4X0.7 L=8 | 2 |
| 45 | - | LINK_PLATE | 1 |
| 46 | - | SCREW M4 L=8 | 1 |
| 47 | 402-34081 | THREAD_TENSION_ASM | 1 |
Page 11 — 3. DISPLAY UNIT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | SCREW | 8 |
| 2 | 402-28052 | PANEL_INSTALLATION_CUSHION | 1 |
| 3 | 402-27992 | PANEL_RUBBER_CUSHION | 4 |
| 4 | 402-28053 | PANEL_INSTALLATION_PLATE | 1 |
| 5 | 402-28054 | PANEL | 1 |
| 6 | 402-59264 | PANEL_CE | 1 |
| 7 | 402-28719 | PANEL_CABLE | 1 |
Page 13 — 4. UPPER SHAFT AND PICK LINE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-28102 | THREAD_TAKE_UP_CONNECT_ROD_HINGE_SHAFT | 1 |
| 2 | 402-28089 | SCREW | 2 |
| 3 | - | SCREW | 2 |
| 4 | 402-28103 | THRUST | 1 |
| 5 | 402-28104 | THREAD_TAKE_UP_ASM | 1 |
| 6 | 402-28126 | SCREW | 5 |
| 7 | 402-28590 | COUNTER_WEIGHT_15.2 | 1 |
| 8 | - | SCREW | 1 |
| 9 | - | SCREW | 1 |
| 10 | 402-28591 | BALANCER | 1 |
| 11 | 402-28105 | UPPER_SHAFT_GEAR | 1 |
| 12 | 402-34393 | SCREW | 2 |
| 13 | - | UPPER_SHAFT_SUPPORT_BEARING | 1 |
| 14 | - | UPPER_SHAFT_SUPPORT_BEARING_BASE | 1 |
| 15 | - | WASHER | 6 |
| 16 | 402-24786 | SPRING_WASHER | 6 |
| 17 | - | SCREW | 6 |
| 18 | 402-28592 | UPPER_SHAFT_PULLEY | 1 |
| 19 | 402-28106 | TIMING_BELT | 1 |
| 20 | 402-28593 | UPPER_SHAFT | 1 |
| 21 | 402-28107 | UPPER_SHAFT_FRONT_BEARING_ASM | 1 |
| 22 | 402-28290 | UPPER_SHAFT_FRONT_REAR_BEARIN_ASM | 2 |
| 23 | 402-28594 | UPPER_SHAFT_REAR_&_FRONT_BEARING_ASM | 1 |
| 24 | 402-28109 | UPPER_SHAFT_REAR_BEARING_ASM | 1 |
| 25 | 402-28595 | ECCENTRIC_CAM_CONNECT_ROD_ASM | 1 |
Page 15 — 5. NEEDLE BAR AND LOWER SHAFT PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-28110 | NEEDLE_BAR_UPPER_CAP | 1 |
| 2 | 402-28015 | SCREW | 1 |
| 3 | 402-28111 | NEEDLE_BAR_UPPER_METAL | 1 |
| 4 | 402-28485 | SCREW | 1 |
| 5 | 402-28113 | NEEDLE_BAR_1.6 | 1 |
| 6 | 402-28114 | NEEDLE_BAR_CONNECTING | 1 |
| 7 | 402-28115 | SCREW | 1 |
| 8 | 402-28116 | NEEDLE_BAR_LOWER_BUSHING | 1 |
| 9 | 402-28117 | SCREW | 1 |
| 10 | 402-28118 | NEEDLE_BAR_THREAD_GUIDE | 1 |
| 11 | MDB-100B0800 | NEEDLE DBX1 #8 | 1 |
| 12 | 402-28119 | SLIDE_BLOCK | 1 |
| 13 | - | SCREW | 2 |
| 14 | 402-28120 | SLIP_GROOVE | 1 |
| 15 | 402-28507 | MAIN_SHAFT_COUPLING_ASM | 1 |
| 16 | 402-28121 | MAIN_SHAFT_MOTOR | 1 |
| 17 | 402-34399 | WASHER | 4 |
| 18 | 402-28598 | SPRING_WASHER | 4 |
| 19 | 402-28158 | SCREW | 4 |
| 20 | - | LOWER_SHAFT | 1 |
| 21 | 402-28599 | LOWER_SHAFT_PULLEY_ASM | 1 |
| 22 | 402-28600 | LOWER_SHAFT_REAR_BEARING_ASM | 1 |
| 23 | 402-28112 | NEEDLE BAR 2.0 | 1 |
| 24 | MDP-170B2100 | NEEDLE DPX17 #21 | 1 |
| 25 | 402-62515 | MAIN_SHAFT_MOTOR_CE | 1 |
Page 17 — 6. ROTARY SHUTTLE TRANSMISSION AND THREAD CUTTING PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-25492 | FIX_KNIFE | 1 |
| 2 | 402-28486 | NUT | 1 |
| 3 | 402-28140 | O_RING | 1 |
| 4 | 402-28123 | PACKING | 2 |
| 5 | 402-28139 | EXHAUST_CASE | 1 |
| 6 | 402-28603 | THREAD_CUTTER_CAM_ASM | 1 |
| 7 | 402-28604 | BEARING_ASM | 1 |
| 8 | 402-28605 | LARGE_GEARS_ASM | 1 |
| 9 | 402-25489 | BOBBIN_CASE_ASM | 1 |
| 10 | 402-25494 | BOBBIN | 1 |
| 11 | 402-25488 | HOOK_ASM | 1 |
| 12 | 402-28192 | OIL_WICK | 1 |
| 13 | 402-28130 | MOVING_KNIFE_SHAKING_TABLE | 1 |
| 14 | 402-37772 | THREAD_DETECT_MOVING_KNIFE | 1 |
| 15 | 402-28131 | SCREW | 2 |
| 16 | 402-28132 | DRIVING_POSITION_BASE | 1 |
| 17 | 402-28133 | OIL_THREAD | 1 |
| 21 | 402-28134 | COTTON_OIL_WICK | 1 |
| 22 | 402-34400 | STATIC_FORT_CASE | 1 |
| 26 | 402-28070 | SNAP RING | 2 |
| 28 | 402-28601 | HOOK_SHAFT | 1 |
| 34 | 402-28602 | HOOK_SHAFT_METAL | 1 |
| 38 | 402-28606 | HOOK_SHAFT_GEAR_ASM | 1 |
| 39 | 402-28015 | SCREW | 2 |
| 40 | 402-28135 | SCREW | 1 |
| 41 | 402-28435 | SCREW | 1 |
| 42 | 402-28136 | SCREW | 1 |
| 43 | 402-28137 | HOOK_POSITION_HOOK 2.6 | 1 |
| 44 | 402-28138 | NUT | 1 |
| 45 | 402-34079 | HOOK ASM | 1 |
| 46 | 402-34080 | STATIC KNIFE | 1 |
| 47 | 402-91905 | HOOK_RUBBER_PLUG | 1 |
| 48 | 402-91904 | O_RING | 1 |
Page 19 — 7. OIL SUPPLY AND NEEDLE PLATE PARTS OF ROTARY COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | RAISING_PLATE_UPPER_PIPE | 1 |
| 2 | 402-28142 | CYLINDER_JOINT | 1 |
| 3 | - | SCREW | 2 |
| 4 | - | SPRING_WASHER | 10 |
| 5 | 402-28622 | WASHER | 12 |
| 6 | 402-28143 | CYLINDER_PLATE | 1 |
| 7 | 402-28144 | RAISING_PLATE_CYLINDER | 1 |
| 8 | - | RAISING_PLATE_LOWER_PIPE | 1 |
| 9 | 402-28001 | CYLINDER_JOINT | 1 |
| 10 | - | COPPER_PIPE | 1 |
| 11 | 402-28145 | COPPER_PIPE_JOINT_ASM | 2 |
| 12 | 402-28146 | OIL_INSTRUCTION_PLATE_ASM | 1 |
| 13 | 402-28147 | OIL_INSTRUCTION_PLATE | 1 |
| 14 | 402-28148 | OUTER_OIL_INSTRUCTION_SCREW | 1 |
| 15 | 402-28149 | WASHER | 1 |
| 16 | 402-28150 | SPRING_WASHER | 1 |
| 17 | 402-28151 | NUT | 1 |
| 18 | 402-28152 | O_RING | 1 |
| 19 | 402-28153 | SCREW | 1 |
| 20 | - | SCREW | 2 |
| 21 | 402-28154 | OIL_TRAY_FITTING_PLATE | 1 |
| 22 | - | SCREW | 2 |
| 23 | 402-28361 | IC_CARD | 1 |
| 24 | 402-28166 | REFUELING_ADJUSTMENT_ASM | 1 |
| 25 | 402-28167 | OIL_TRAY_ASM | 1 |
| 26 | 402-28608 | RFID_UNIT | 1 |
| 27 | 402-28168 | POLICY_BOARD | 1 |
| 28 | 402-28609 | SCREW | 2 |
| 29 | - | SCREW | 2 |
| 30 | 402-28155 | HOOK_BASE_TABLE_RIGHT_ADJUST_PLATE | 1 |
| 31 | 402-28169 | POLICY_BOARD_ADJUST_CONNEC_CASE | 2 |
| 32 | 402-28170 | POLICY_BOARD_ADJUST_CONNEC_PRESS_CASE | 2 |
| 33 | 402-28015 | SCREW | 2 |
| 34 | 402-28156 | GEAR_BOX_UPPER_COVER_CUSHION | 1 |
| 35 | 402-28157 | GEAR_BOX_UPPER_COVER | 1 |
| 36 | 402-28659 | SCREW | 6 |
| 37 | 402-34402 | HOOK_COVER | 1 |
| 38 | 402-28159 | SCREW | 4 |
| 39 | 402-28160 | SCREW | 2 |
| 40 | 402-25486 | NEEDLE_PLATE_(SMALL)_D=1.6 | 1 |
| 41 | 402-28161 | HOOK_BASE_TABLE_LEFT_ADJUST_PLATE | 1 |
| 42 | 402-28162 | LED_LAMP | 1 |
| 43 | - | HOOK_BASE | 1 |
| 44 | - | OIL_TRAY_RUBBER_STOPPER | 1 |
| 45 | 402-28171 | WASHER | 2 |
| 46 | 402-28498 | SCREW | 2 |
| 47 | - | SCREW | 2 |
| 48 | - | TUBE | 2 |
| 49 | - | COTTON_OIL_WICK | 2 |
| 50 | 402-28607 | SCREW | 2 |
| 51 | 402-25498 | NEEDLE_PLATE_(SMALL)_D2.4 | 1 |
| SCREW | 1 | ||
| WASHER | 10 | ||
| COPPER_PIPE | 1 | ||
| O_RING | Oリング | 1 | |
| OIL_TRAY_FITTING_PLATE | 1 | ||
| HOOK_BASE | 1 | ||
| OIL_TRAY_RUBBER_STOPPER | 1 | ||
| 402-29007 | SCREW | 1 | |
| NOTE(注記) | #01: TYPE S |
Page 21 — 8. WIRE CUT ELECTROMAGNETIC COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-28172 | AXIAL_THRUST | 1 |
| 2 | 402-28173 | SCREW | 1 |
| 3 | - | SCREW | 2 |
| 4 | - | SCREW | 2 |
| 5 | 402-28174 | SUPPORT_PLATE | 1 |
| 6 | 402-28175 | BEARING | 2 |
| 7 | - | CASE | 1 |
| 8 | 402-28176 | CONNECTING_ROD_PARTS | 1 |
| 9 | 402-28177 | THREAD_CUTTER_SOLENOID_PARTS | 1 |
| 10 | 402-28036 | THREAD_CUTTER_CONNECTING_ROD_P | 1 |
Page 23
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-28179 | BASE_SITTING_LEG | 4 |
| 2 | - | NUT | 5 |
| 3 | - | WASHER | 6 |
| 4 | - | SPRING_WASHER | 4 |
| 5 | 402-28180 | SUPPORT_SEAT | 4 |
| 6 | 402-28181 | GUIDE RAIL_CLAMP | 6 |
| 7 | 402-28182 | SCREW | 6 |
| 8 | 402-28183 | SCREW | 6 |
| 9 | 402-28186 | COUPLING_COVER | 4 |
| 10 | - | SCREW | 2 |
| 11 | 402-28184 | Y_AXIS_RAIL_ASM | 2 |
| 12 | 402-28185 | SCREW | 36 |
| 13 | - | SPRING_WASHER | 4 |
| 14 | - | WASHER | 4 |
| 15 | - | BED_VIBRATION_CONTROL_SEAT | 8 |
Page 25 — 10. Y SCREW ROD MOTOR UNIT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-91755 | POSITION_SENSOR | 1 |
| 2 | 402-82478 | Y_SENSOR_PLATE | 1 |
| 3 | - | SCREW | 2 |
| 4 | 402-82436 | SCREW | 1 |
| 5 | 402-28189 | AUXILIARY_BEARING_ASM | 1 |
| 6 | - | SCREW | 8 |
| 7 | - | SPRING_WASHER | 8 |
| 8 | - | WASHER | 8 |
| 9 | 402-28610 | Y_AXIS_FIXED_SEAT_ASM | 2 |
| 10 | 402-28190 | Y_AXIS_BALL_SCREW_ASM | 1 |
| 11 | - | SCREW | 2 |
| 12 | - | SPRING_WASHER | 4 |
| 13 | - | WASHER | 4 |
| 14 | - | SCREW | 2 |
| 15 | 402-80462 | LOWER_AXIS_AUXILIARY_ADJUSTMEN | 1 |
| 16 | 402-80463 | LOWER_SHAFT_SUPPORT_BEARING_SEAT | 1 |
| 17 | 402-28191 | Y_AXIS_MOTOR | 1 |
| 18 | - | SCREW | 2 |
| 19 | - | WASHER | 2 |
| 20 | - | Y_AXIS_MOTOR_SEAT | 1 |
| 21 | - | WASHER | 4 |
| 22 | - | SPRING_WASHER | 4 |
| 23 | - | SCREW | 4 |
| 24 | 402-28611 | Y_AXIS_COUPLING | 1 |
| 25 | - | CASE_POSITION_PIN | 1 |
| 26 | - | SCREW | 4 |
| 27 | 402-62519 | Y_AXIS_MOTOR_CE | 1 |
| 28 | 402-81445 | 12080_Y_SENSOR_RELAY_CABLE | 1 |
| 29 | 402-82427 | X_SENSOR_BLOCK | 1 |
| 30 | 402-87675 | SCREW | 1 |
| 31 | 402-68665 | WASHER | 1 |
Page 27 — 11. Y CONNECTION SEAT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | SCREW | 2 |
| 2 | - | SPRING_WASHER | 2 |
| 3 | - | WASHER | 2 |
| 4 | 402-82475 | Y_SENSOR_PLATE | 1 |
| 5 | - | SCREW | 52 |
| 6 | - | SPRING_WASHER | 32 |
| 7 | - | WASHER | 52 |
| 8 | 402-80464 | Y-AXIS_BALL_SCREW_CONNECTION | 1 |
| 9 | - | SCREW | 12 |
| 10 | 402-80465 | Y_AXIS_NUT_CONNECTION | 1 |
| 11 | - | WASHER | 6 |
| 12 | - | SPRING_WASHER | 6 |
| 13 | - | SCREW | 6 |
| 14 | - | SCREW | 28 |
| 15 | 402-28612 | DRIVE_LEFT_SUPPORT_SEAT_ASM | 1 |
| 16 | - | REFUELING_NOZZLE | 4 |
| 17 | - | OIL_PIPE_JOINT | 4 |
| 18 | - | OIL_PIPE | 4 |
| 19 | 402-28613 | Y_AXIS_SLIDE_LEFT_CONNECTION_ASM | 1 |
| 20 | 402-28614 | X_AXIS_DRIVE_RIGHT_SUPPORT_ASM | 1 |
| 21 | 402-28615 | Y_AXIS_SLIDE_RIGHT_CONNECTION_ASM | 1 |
| 22 | 402-80466 | Y_AXIS_SLIP_ASM | 1 |
| 23 | 402-80467 | Y_AXIS_POSITION_COVER | 2 |
| 24 | 402-28193 | OIL_PIPE_JOINT | 4 |

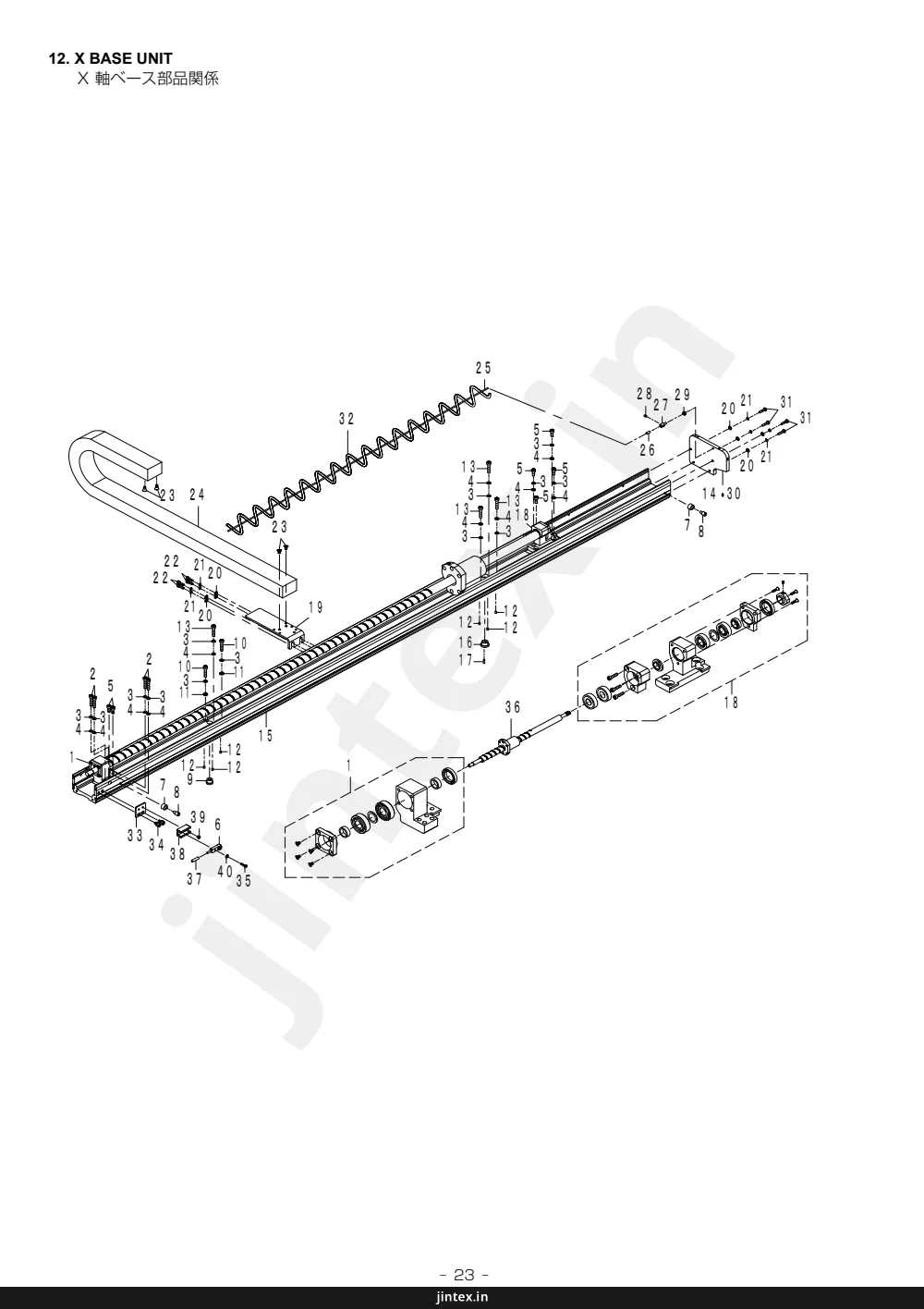

Page 29 — 12. X BASE UNIT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-28616 | X_AXIS_LEFT_FIXED_ASM | 1 |
| 2 | - | SCREW | 2 |
| 3 | - | SPRING_WASHER | 7 |
| 4 | - | WASHER | 7 |
| 5 | - | SCREW | 5 |
| 6 | 402-91755 | POSITION_SENSOR | 1 |
| 7 | - | X_AXIS_RUBBER_SEAT | 2 |
| 8 | - | SCREW | 2 |
| 9 | - | LEFT_PIN_CASE | 1 |
| 10 | - | SCREW | 8 |
| 11 | - | SPRING_WASHER | 8 |
| 12 | - | SCREW_FIXED_RUBBER_COLUMN | 6 |
| 13 | - | SCREW | 2 |
| 14 | 402-35605 | X_FEEDED_SIDE_COVER | 1 |
| 15 | 402-80468 | X_AXIS_DRIVE_BASE | 1 |
| 16 | - | RIGHT_PIN_CASE | 1 |
| 17 | - | PIN | 1 |
| 18 | 402-28617 | X_AXIS_FIXED_SEAT_ASM | 1 |
| 19 | 402-80469 | CABLE_LANE_LOWER_SUPPORT | 1 |
| 20 | - | WASHER | 16 |
| 21 | - | SPRING_WASHER | 16 |
| 22 | - | SCREW | 4 |
| 23 | - | SCREW | 4 |
| 24 | 402-28199 | CABLE_LANE_25X38 | 1 |
| 25 | - | TRACHEAL_FIXATION_THREAD | 1 |
| 26 | - | TRACHEAL_FIXED_TRACHEA_COVER | 2 |
| 27 | - | X_AXIS_BRONCHIAL_COLUMN_JOINT | 2 |
| 28 | - | SCREW | 1 |
| 29 | - | NUT | 1 |
| 30 | 402-80470 | X_AXIS_DRIVE_SIDE_PLATE | 1 |
| 31 | - | SCREW | 4 |
| 32 | 402-28200 | HELICAL_TRACHEA | 1 |
| 33 | 402-82437 | X_SENSOR_PLATE | 1 |
| 34 | - | SCREW | 2 |
| 35 | 402-82436 | SCREW | 1 |
| 36 | 402-28204 | X AXIS BALL SCREW ASM (120) | 1 |
| 37 | 402-81444 | 12080_X_SENSOR_RELAY_CABLE | 1 |
| 38 | 402-82427 | X_SENSOR_BLOCK | 1 |
| 39 | 402-87675 | SCREW | 1 |
| 40 | 402-68665 | WASHER | 1 |
Page 31 — 13. X MOTOR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | SCREW | 8 |
| 2 | - | SPRING_WASHER | 8 |
| 3 | - | WASHER | 8 |
| 4 | 402-28205 | X_AXIS_MOTOR | 1 |
| 5 | 402-28206 | X_AXIS_MOTOR_COMMUNICATION_CABLE(IN) | 1 |
| 6 | 402-28207 | X_AXIS_MOTOR_COMMUNICATION_CABLE(OUT) | 1 |
| 7 | - | SCREW | 1 |
| 8 | 402-28211 | CABLE_BAND | 1 |
| 9 | - | WASHER | 1 |
| 10 | - | SCREW | 1 |
| 11 | 402-28619 | X_AXIS_MOTOR_BASE | 1 |
| 12 | - | SCREW | 1 |
| 13 | - | X_AXIS_BRONCHIAL_COLUMN_JOINT | 1 |
| 14 | - | NUT | 1 |
| 15 | - | AIR_GUN_TUBE | 1 |
| 16 | 402-28210 | L_TYPE_JOINT | 2 |
| 17 | 402-28618 | X_AXIS_COUPLING | 1 |
| 18 | 402-62517 | X_AXIS_MOTOR_CE | 1 |
Page 33 — 14. X PRESSURE PLATE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | SCREW | 4 |
| 2 | 402-28212 | CLAMP | 2 |
| 3 | 402-28213 | CYLINDER_CONNECTING_COLUMN | 2 |
| 4 | 402-28620 | PIN | 2 |
| 5 | 402-80528 | PUTTER_POSITION_PILLAR | 4 |
| 6 | - | SCREW | 4 |
| 7 | - | TRACHEA | 2 |
| 8 | - | JOINT | 2 |
| 9 | - | SCREW | 2 |
| 10 | - | SCREW | 4 |
| 11 | 402-28214 | CLAMP_CYLINDER | 2 |
| 12 | - | NUT | 4 |
| 13 | 402-28621 | X_AXIS_SLIDE_CONNECTING_PLATE | 1 |
| 14 | - | SCREW | 10 |
| 15 | 402-28215 | X_AXIS_CYLINDER_ADJUSTMENT_PLATE | 2 |
| 16 | 402-28216 | X_AXIS_CYLINDER_FIXING_PLATE | 2 |
| 17 | - | SCREW | 2 |
| 18 | - | SPRING_WASHER | 2 |
| 19 | - | WASHER | 9 |
| 20 | 402-82486 | X_SENSOR_PLATE | 1 |
| 21 | - | LEFT_BLOCK | 1 |
| 22 | 402-28218 | TUBE_JOINT | 2 |
| 23 | - | TUBE_I | 2 |
| 24 | - | OIL_NOZZLE | 2 |
| 25 | - | SCREW | 6 |
| 26 | - | SCREW | 4 |
| 27 | 402-28219 | WASHER | 4 |
| 28 | - | TUBE_JOINT | 2 |
| 29 | 402-28622 | WASHER | 1 |
| 30 | - | WASHER | 6 |
| 31 | - | SPRING_WASHER | 6 |
| 32 | - | SCREW | 6 |
| 33 | - | SCREW | 3 |
| 34 | 402-28220 | T_TYPE_TRIPLE_CONNECTION | 1 |
| 35 | - | AIR_GUN_TUBE | 1 |
| 36 | - | TRACHEA_(100) | 1 |
| 37 | 402-28221 | L-TYPE_DOUBLE_CONNECTION | 1 |
| 38 | - | SCREW | 1 |
| 39 | - | RIGHT_BLOCK | 1 |
| 40 | - | CYLINDER_CONNECTING_PLATE | 2 |
| 41 | 402-34603 | LIFT_BOSS | 2 |
| 42 | 402-28634 | 12080_H_CLAMP_ASSY | 1 |
| 43 | 402-34756 | LEFT_CLAMP_BASE | (1) |
| 44 | 402-34757 | RIGHT_CLAMP_BASE | (1) |
| 45 | 402-36631 | CYLINDER | (4) |
| 46 | 402-36391 | CYLINDER_STOPPER_BUSHING | (4) |
| 47 | 402-34759 | CYLINDER_STOPPER_PLATE | (4) |
| 48 | - | BANKING_PIN | (1) |
| 49 | - | BANKING_PIN_CONNECTING | (1) |
| 50 | 402-82479 | X_SENSOR_PLATE | (1) |
| 51 | - | BREAKET | (1) |
| 52 | - | SCREW | (2) |
| 53 | - | SPRING_WASHER | (2) |
| 54 | - | WASHER | (2) |
| 55 | - | SCREW | (1) |
| 56 | - | SCREW | (12) |
| 57 | - | SPRING_WASHER | (12) |
| 58 | - | WASHER | (12) |
| 59 | - | SCREW | (8) |
| 60 | - | SCREW | (8) |
| 61 | - | PIN | (2) |
| 62 | - | SCREW | (4) |
| 63 | - | PLATE_CONNECTING_PLATE | (2) |
| 64 | - | CYLINDER_SHORT_PLATE | (2) |
| 65 | - | PRESSER_BLOCK | (2) |
| 66 | - | WASHER | (2) |
| 67 | - | OIL NOZZLE | (1) |
| 68 | - | T TYPE TRIPLE CONNECTION | (2) |
| 69 | - | AIR TUBE | (3) |
| 70 | 402-36748 | CLAMP_BLACKET | (1) |
| 71 | - | T TYPE TRIPLE CONNECTION | (1) |
| 72 | - | SCREW | (2) |
| 73 | - | SCREW | (8) |
| 74 | - | WASHER | (8) |
| 75 | - | AIR TUBE | (2) |
| 76 | 402-28218 | TUBE_JOINT | (3) |
| 77 | - | SCREW | (4) |
| 78 | - | SCREW | (2) |
Page 35 — 15. X SHELL PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | SCREW | 24 |
| 2 | - | WASHER | 1 |
| 3 | - | WASHER | 23 |
| 4 | 402-28222 | DUCT | 1 |
| 5 | - | X_AXIS_DRIVE_COVER_(120) | 1 |
| 6 | - | X_AXIS_DRIVE_COVER_STOPPER | 9 |
| 7 | 402-28223 | SCREW | 26 |
| 8 | 402-28224 | X_AXIS_RAIL_ASM_(120) | 1 |
| 9 | 402-28623 | X_AXIS_DRIVE_BASE_(120) | 1 |
| 10 | 402-35606 | X_FEEDED_COVER | 1 |
Page 37
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | NUT_M8 | 20 |
| 2 | 402-28225 | ALUMINUM_FRAME_ROTATING_SUPPORT | 12 |
| 3 | - | SCREW_M8X20 | 12 |
| 4 | - | JOINT | 6 |
| 5 | 402-28226 | SCREW | 6 |
| 6 | - | NUT | 6 |
| 7 | - | SCREW | 2 |
| 8 | 402-28227 | NUT | 6 |
| 9 | 402-28228 | JOINT | 6 |
| 10 | - | SCREW | 24 |
| 11 | - | SPRING_WASHER | 40 |
| 12 | - | WASHER | 24 |
| 13 | - | SCREW | 8 |
| 14 | - | WASHER | 8 |
| 15 | - | SCREW | 16 |
| 16 | - | SCREW | 16 |
| 17 | 402-28624 | MACHINE_FRONT_COVER | 1 |
| 18 | 402-28625 | MEDIUM_COVER | 1 |
| 19 | 402-28626 | MACHINE_RACK | 1 |
| 20 | - | MACHINE_REAR_COVER | 1 |
| 21 | 402-28229 | SCREW | 4 |
| 22 | - | CASTER | 4 |
| 23 | - | WASHER | 16 |
Page 39 — 17. FRAME CONNECTION ALUMINUM PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-28627 | FRONT_COVER | 1 |
| 2 | - | SCREW | 47 |
| 3 | 402-28230 | NUT_M4 | 47 |
| 4 | - | FRONT_CONNECTION_ALUMINUM_FRAME | 1 |
| 5 | - | UPPER_AND_LOWER_CONNECTED_ALUMINUM_FRAME | 4 |
| 6 | - | NUT_M8 | 88 |
| 7 | - | ALUMINUM_ANGLE | 12 |
| 8 | - | ALUMINUM_ANGLE | 16 |
| 9 | - | SCREW_M8X20 | 88 |
| 10 | - | UPPER_AND_LOWER_CONNECTED_ALUMINUM_FRAME | 4 |
| 11 | - | CONNECTED_ALUMINUM_FRAME | 1 |
| 12 | - | LEFT_CONNECTED_ALUMINUM_FRAME | 2 |
| 13 | 402-28628 | MACHINE_COVER | 2 |
| 14 | - | REAR_CONNECTION_ALUMINUM_FRAME | 1 |
| 15 | - | REAR_MIDDLE_CONNECTED_ALUMINUM_FRAME | 1 |
| 16 | 402-28629 | REAR_COVER | 1 |
Page 41 — 18. PLATEN CONNECTION ALUMINUM PARTS (120) COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | NUT_M8 | (134) |
| 2 | - | WASHER | (6) |
| 3 | - | HINGE_LEFT_COLUMN_ASM | 3 |
| 4 | - | SCREW_M8X20 | (134) |
| 5 | - | HINGE_AXIS | (6) |
| 6 | - | ALUMINUM_FRAME_ROTARY_CONNECTION_PLATE | 6 |
| 7 | - | COVER | 8 |
| 8 | - | ALUMINUM_FRAME_CONNECTING_PLATE | 4 |
| 9 | - | LEFT_CONNECTED_ALUMINUM_FRAME | 6 |
| 10 | - | FRONT_CONNECTION_ALUMINUM_FRAME_(120) | 1 |
| 11 | - | ALUMINUM_ANGLE | 18 |
| 12 | - | HINGE_LEFT_COLUMN | (3) |
| 13 | - | REAR_CONNECTION_ALUMINUM_FRAME_(120) | 3 |
| 14 | - | WASHER | 71 |
| 15 | - | SCREW | 71 |
| 16 | - | SEAL_PLATE | 1 |
| 17 | - | LEFT_CONNECTED_ALUMINUM_FRAME | 1 |
| 18 | - | REAR_CONNECTION_ALUMINUM_FRAME | 1 |
| 19 | - | HINGE_LEFT_TURN_SEAT | (3) |
| 20 | - | RIGHT_CONNECTION_ALUMINUM_FRAME | 1 |
| 21 | - | RIGHT_CONNECTION_ALUMINUM_FRAME | 6 |
| 22 | - | MIDDLE_CONNECTING_ALUMINUM_FRAME | 2 |
| 23 | - | LEFT_CONNECTED_ALUMINUM_FRAME | 1 |
| 24 | - | REAR_LEFT_CONNECTED_ALUMINUM_FRAME | 3 |
| 25 | - | ALUMINUM_ANGLE | 10 |
| 26 | - | HINGE_RIGHT_POST | (3) |
| 27 | - | HINGE_RIGHT_TURN_SEAT | (3) |
| 28 | - | HINGE_RIGHT_POST_ASM | 3 |
| 29 | - | REAR_CONNECTION_ALUMINUM_FRAME_(100) | 3 |
| 30 | - | FRONT_CONNECTION_ALUMINUM_FRAME_(120) | 1 |
Page 43 — 19. PLATEN PARTS (120) COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-28630 | FRONT_LEFT_TABLE_(120) | 1 |
| 2 | 402-28633 | PRE-FIXED_TABLE | 1 |
| 3 | 402-28631 | FRONT_RIGHT_INSIDE_TABLE_(120) | 1 |
| 4 | 402-28234 | MAGNET | 4 |
| 5 | 402-28449 | CYLINDER_RASING_PLATE_ASM | 1 |
| 6 | - | SCREW | 4 |
| 7 | - | SPRING_WASHER | 4 |
| 8 | - | WASHER | 4 |
| 9 | - | TABLE_ADJUSTMENT_BOARD | 2 |
| 10 | 402-28632 | RIGHT_TABLE_(120) | 1 |
| 11 | 402-94340 | MEDIUM_TABLE | 1 |
| 12 | 402-28247 | INSIDE_TABLE_BACK_LID | 1 |
| 13 | 402-34585 | SCREW | 6 |
| 14 | 402-28010 | 20_RUBBER_PLUG | 1 |
| 15 | 402-28635 | LEFT_TABLE_(120) | 1 |
| 16 | 402-28636 | THREAD_STAND | 1 |
| 17 | 402-34425 | SCREW | 8 |
| 18 | 402-28171 | WASHER | 12 |
| 19 | 402-28637 | MEDIUM_TABLE | 1 |
| 20 | 402-34425 | SCREW | 4 |
| 21 | 402-28238 | TURNTABLE FIXED PLATE | 2 |
| 22 | 402-28239 | ROTATING_TABLE_FIXING_PLATE | 2 |
| 23 | 402-28240 | TABLE_ROTATION_CLAMP | 2 |
| 24 | 402-28241 | TABLE_CLAMP | 2 |
| 25 | 402-28242 | SCREW | 8 |
| 26 | - | TABLE_ROTATING_HINGE_CLAMP | 4 |
| 27 | 402-28243 | RUBBER_RING | 1 |
| 28 | 402-28244 | MEDIUM_TABLE_STOPPER | 1 |
| 29 | - | TABLE_ADJUSTMENT_RUBBER_SEAT | 2 |
| 30 | 402-34588 | TABLE_AUXILIARY_CLAMP | 1 |
| 31 | 402-34602 | CYLINDER_PLATE | 2 |
| 32 | 402-28183 | SCREW | 4 |
| 33 | 402-34600 | CYLINDER | 2 |
| 34 | 402-34596 | SCREW | 4 |
| 35 | 402-34604 | FIXING_BLOCK | 2 |
| 36 | 402-28659 | SCREW | 2 |
| 37 | 402-34603 | LIFT_BOSS | 2 |
| 38 | 402-28282 | JOINT | 4 |
| 39 | 402-34597 | TUBE | 4 |
Page 45 — 20. ELECTRICAL COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | TUBE | 1 |
| 2 | 402-28061 | JOINT | 2 |
| 3 | 402-28059 | AIR_COCK | 1 |
| 4 | 402-28062 | PRESSURE_CONTROL_VALVE | 1 |
| 5 | 402-28253 | PRESSURE_CONTROL_VALVE_POST | 1 |
| 6 | - | SCREW | 4 |
| 7 | - | WASHER | 2 |
| 8 | 402-28555 | SLIDER NUT M4 | 4 |
| 9 | 402-28254 | JOINT | 1 |
| 10 | - | TUBE | 1 |
| 11 | 402-28255 | SPIRAL_TUBE | 1 |
| 12 | 402-28256 | AIR_GUN_JOINT | 3 |
| 13 | 402-28257 | AIR_GUN | 1 |
| 14 | - | HOOK | 1 |
| 15 | - | TUBE | 1 |
| 16 | - | ADJUSTMENT_VALVE_JOINT | 2 |
| 17 | 402-28258 | TUNING_VALVE | 1 |
| 18 | - | ADJUSTMENT_VALVE_SUPPORT | 1 |
| 19 | - | TUBE | 1 |
| 20 | 402-43044 | HEAD2 PCB ASSY | 1 |
| 21 | 402-47794 | CONTROL_BOX_K | 1 |
| 22 | - | SCREW | 2 |
| 23 | 402-28260 | POWER_SWITCH | 1 |
| 24 | - | SCREW | 4 |
| 25 | 402-28057 | SOLENOID_VALVE_ASM | 8 |
| 26 | 402-28262 | JOINT | 4 |
| 27 | 402-28263 | JOINT | 1 |
| 28 | 402-28264 | Y_FEEDER_DRIVER | 1 |
| 29 | 402-28265 | X_FEEDER_DRIVER | 1 |
| 30 | - | SCREW | 4 |
| 31 | 402-28266 | TERMINAL_BLOCK | 9 |
| 32 | 402-28267 | CIRCUIT BREAKER | 1 |
| 33 | - | SCREW | 6 |
| 34 | - | AIR_SWITCH_BASE | 1 |
| 35 | 402-28268 | CONTROL_BOX_BP | 1 |
| 36 | - | SCREW | 4 |
| 37 | 402-28269 | TERMINAL_BLOCK_ASM | 1 |
| 38 | - | WASHER | 4 |
| 39 | 402-28270 | FILTER | 2 |
| 40 | 402-28271 | FAN | 1 |
| 41 | - | SCREW | 8 |
| 42 | - | NUT | 4 |
| 43 | - | WASHER | 4 |
| 44 | - | SPRING_WASHER | 4 |
| 45 | - | SCREW | 4 |
| 46 | 402-28272 | SWITCH_POWER_SUPPLY | 1 |
| 47 | - | SCREW_M8X20 | 2 |
| 48 | 402-28273 | PAUSE_SWITCH_MOUNTING_PLATE | 1 |
| 49 | 402-28274 | BUTTON_BOX | 1 |
| 50 | - | SCREW | 2 |
| 51 | - | NUT_M8 | 2 |
| 52 | 402-29462 | PWR_PCB_ASSY | 1 |
| 53 | 402-29464 | DRV_PCB_ASSY | 1 |
| 54 | 402-29465 | MAIN PCB ASSY_BP | 1 |
| 55 | 402-43041 | HEAD1 PCB ASSY | 1 |
| 56 | 402-29463 | PWR PCB ASSY_K | 1 |
| 57 | 402-43036 | MAIN PCB ASSY_K | 1 |
| 58 | 402-43039 | CON PCB ASSY | 1 |
| 59 | 402-42580 | LOWER_KNIFE_MOTOR_DRIVER | 1 |
| 60 | 402-42122 | UPPER_ROTARY_MOTOR_DRIVER | 1 |
| 61 | 402-42123 | LOWER_ROTARY_MOTOR_DRIVER | 1 |
| 62 | 402-59257 | MAIN PCB ASSY_BP_CE | 1 |
| 63 | 402-59259 | MAIN PCB ASSY_K_CE | 1 |
| 64 | 402-59261 | CONTROL_BOX_BP_CE | 1 |
| 65 | 402-59263 | CONTROL_BOX_K_CE | 1 |
| 66 | 402-80618 | SOLENOID VALVE CABLE | 1 |
| 67 | WP-0501016-SD | WASHER 5X10.5X1 | 2 |
| 68 | SM-6051202-TP | SCREW M5X0.8 L=12 | 2 |
| 69 | 401-73544 | SWITCH_INSTALLATION_BOARD | 2 |
| 70 | HX-0068500-00 | GROMMET | 2 |
| 71 | 402-81548 | POWER SWITCH CASE | 1 |
| 402-80500-00 | GROMMET | 2 |
Page 47 — 21. WIPER CYLINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-28303 | TIN_THREAD_CYLINDER_MOUNTING_PLATE | 1 |
| 2 | - | SCREW | 2 |
| 3 | 402-28304 | WIPER_CYLINDER | 1 |
| 4 | - | SCREW | 2 |
| 5 | - | JOINT | 2 |
| 6 | - | TUBE | 2 |
| 7 | - | SLIDING_ARM_MOUNTING_PLATE | 1 |
| 8 | 402-28305 | WIPER_SHAFT_BASE | 1 |
| 9 | - | SCREW | 2 |
| 10 | 402-28306 | WASHER | 1 |
| 11 | 402-28307 | WIPER_DRIVE_BEARING_PLATE | 1 |
| 12 | - | WASHER | 1 |
| 13 | 402-28308 | THRUST | 1 |
| 14 | 402-28309 | WIPER_DRIVE_SHAFT | 1 |
| 15 | 402-28310 | THRUST | 1 |
| 16 | 402-28311 | TWINE_ROD_SLIDING_ARM | 1 |
| 17 | - | SCREW | 1 |
| 18 | 402-28056 | SILK_THREAD_ROD | 1 |
| 19 | - | SCREW | 1 |
| 20 | 402-28047 | SOLENOID_VALVE | 1 |
| 21 | - | SCREW | 2 |
| 22 | - | JOINT | 2 |
| 23 | - | ELECTRICAL_WIRE | 1 |
Page 49 — 22. NEEDLE COOLER PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-28312 | CYLINDER_FIXING_PLATE | 2 |
| 2 | 402-28313 | CYLINDER_CONNECTING_PLATE | 1 |
| 3 | - | SCREW | 2 |
| 4 | 402-28314 | AUXILIARY_PRESSER_CYLINDER | 1 |
| 5 | - | CYLINDER_JOINT | 2 |
| 6 | - | SCREW | 4 |
| 7 | 402-28315 | AUXILIARY_PRESSER_CONNECTION_PLATE | (1) |
| 8 | - | WASHER | (6) |
| 9 | - | SPRING_WASHER | (4) |
| 10 | - | SCREW | (4) |
| 11 | - | SCREW | (2) |
| 12 | 402-28316 | PIN | (2) |
| 13 | - | PLANE_THREAD_BRONCHUS | (2) |
| 14 | - | WASHER | (2) |
| 15 | - | SCREW | (2) |
| 16 | 402-28317 | UPPER_THREAD_AIR_BLOW | (1) |
| 17 | - | AUXILIARY_PRESSER_ASM | 1 |
Page 51 — 23. ELECTRONIC PRESSER FOOT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | SCREW | 4 |
| 2 | - | WASHER | 4 |
| 3 | 402-28723 | MOTOR | 1 |
| 4 | 402-28320 | BEARING | 1 |
| 5 | 402-28324 | ELECTRONIC_HOLDING_ARM(26.5) | 1 |
| 6 | - | SCREW | 1 |
| 7 | - | SCREW | 1 |
| 8 | 402-28327 | CONNECTION_PLATE_SET | 1 |
| 9 | 402-28329 | TRANSMISSION_SHAKING_ROD_PIN | 1 |
| 10 | - | COUPLING_SHAFT_SCREW | 1 |
| 11 | - | SCREW | 1 |
| 12 | 402-28331 | ELECTRONIC_HOLDING_AND_HOLDING | 1 |
| 13 | - | SCREW | 2 |
| 14 | 402-28334 | 13_RUBBER_PLUG | 1 |
| 15 | 402-28073 | INTERMEDIATE_PRESSER_D2.2 | 1 |
| 16 | 402-28066 | PRESS_BUSHING | 1 |
| 17 | 402-28067 | PRESSER BAR | 1 |
| 18 | - | WASHER | 1 |
| 19 | 402-28069 | SCREW | 1 |
| 20 | 402-28084 | PRESS_DUST_CASE | 1 |
| 21 | 402-28075 | INTERMEDIATE_PRESSER_D3.5 | 1 |
| 22 | 402-62520 | MOTOR_CE | 1 |
Page 53 — 24. POWER SUPPLY WIRING COMPONENT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | NUT_M4 | 6 |
| 2 | - | POWER_SWITCH | 1 |
| 3 | - | SCREW | 2 |
| 4 | - | SPRING_WASHER | 2 |
| 5 | - | WASHER | 2 |
| 6 | - | SEAT_PLATE | 1 |
| 7 | - | SCREW | 2 |
| 8 | - | REAR_CONNECTION_ALUMINUM_FRAME | 1 |
| 9 | - | ALUMINUM_ANGLE | 2 |
| 10 | - | T-TYPE_SCREW_M8X20 | 8 |
| 11 | - | NUT_M8 | 8 |
| 12 | - | LASER_POWER_SUPPLY_100W | 1 |
| 13 | - | SCREW | 2 |
Page 55 — 25. ACCESSORY BOX PART COMPONENTS (SPECIAL ORDER PARTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-25494 | BOBBIN | 5 |
| 2 | 402-28067 | PRESS | 1 |
| 3 | 402-28740 | NEEDLE_D2.0 | 10 |
| 4 | 402-25495 | NEEDLE_PLATE_(SMALL)_D=1.4 | 1 |
| 5 | 402-28805 | SCISSORS | 1 |
| 6 | 402-28789 | SCREW_DRIVER_(6X200) | 1 |
| 7 | 402-28790 | SCREW_DRIVER_(5X75) | 1 |
| 8 | 402-28791 | SCREW_DRIVER_(3X100) | 1 |
| 9 | 402-28792 | PLUS_DRIVER_(6X200) | 1 |
| 10 | 402-28793 | PINCET | 1 |
| 11 | 402-28794 | HEXAGONAL WRENCH KYE 2 | 1 |
| 12 | 402-28795 | HEXAGONAL WRENCH KYE 2.5 | 1 |
| 13 | 402-28796 | HEXAGONAL WRENCH KYE 3 | 1 |
| 14 | 402-28797 | HEXAGONAL WRENCH KYE 4 | 1 |
| 15 | 402-28798 | HEXAGONAL WRENCH KYE 5 | 1 |
| 16 | 402-28799 | FORCE LEVER | 1 |
| 17 | 402-28785 | SPANNER_24X27 | 1 |
| 18 | 402-28801 | SPANNER_13X15 | 1 |
| 19 | 402-28800 | SPANNER_8X10 | 1 |
| 20 | 402-28802 | OILER_ASM | 1 |
| 21 | 402-28112 | NEEDLE BAR 2.0 | 1 |
| 22 | 402-28356 | BOBBIN_DEVICE_ASM | 1 |
| 23 | 402-28357 | PLASTIC_BOAT_PRESSER_ASM | 1 |
| 24 | 402-28583 | BOAT_PRESSER_ASSY | 1 |
| 25 | 402-28811 | S_COUPLER(PLUG_SOCKET) | 1 |
| 26 | 402-28359 | JOINT | (1) |
| 27 | 402-28360 | JOINT | (1) |
| 28 | 402-28361 | IC_CARD | 10 |
| 29 | 402-28362 | RUBBER_CUSHION | 10 |
| 30 | 402-28780 | USB_MEMORY | 1 |
| 31 | 402-28363 | SCREW_M6X16 | 3 |
| 32 | 402-28364 | FLANGE_NUT_M6 | 3 |
| 33 | 402-28255 | SPIRAL_AIR_TUBE | 1 |
| 34 | 402-28809 | BOBBIN WINDER MAMUAL | 1 |
| 35 | 402-28808 | TEMPLATE_ASSY _DRAWING | 1 |
| 36 | 402-25492 | FIX_KNIFE | 1 |
| 37 | 402-28003 | AID_PRESSER_BAR | 1 |
| 38 | 402-28820 | GREASE_(SYRINGE ASSY_5ML) | 1 |
| 39 | 402-28819 | GREASE_(SYRINGE ASSY_10ML) | 1 |
| 40 | 402-28822 | GREASE_(BOX_100ML) | 1 |
| 41 | 402-38556 | GOGGLES | 1 |
| 42 | 402-28641 | LASER_TOOL | 1 |
| NOTE(注記) | #01....TYPE S(FOR DPX5) |
Page 57 — 26. PRESSER FOOT COMPONENTS (SPECIAL ORDER PARTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-25516 | BOAT_PLASTIC_PRESSER | 1 |
| 2 | 402-25496 | BOAT_PRESSER_S | 1 |
| 3 | 402-25491 | BOAT_PRESSER_L | 1 |
| 4 | 402-28079 | INTERMEDIATE_PRESSER_D2.2L | 1 |
| 5 | 402-28073 | INTERMEDIATE_PRESSER_D2.2 | 1 |
| 6 | 402-28074 | INTERMEDIATE_PRESSER_D2.7 | 1 |
| 7 | 402-28075 | INTERMEDIATE_PRESSER_D3.5 | 1 |
| 8 | 402-28076 | INTERMEDIATE_PRESSER_D4.0 | 1 |
| 9 | 402-25511 | INTERMEDIATE_PRESSER_D2.0 | 1 |
| 10 | 402-25512 | INTERMEDIATE_PRESSER_D2.5 | 1 |
| 11 | 402-25505 | INTERMEDIATE_PRESSER_D2.5L | 1 |
| 12 | 402-28077 | INTERMEDIATE_PRESSER_D3.0 | 1 |
| 13 | 402-28078 | INTERMEDIATE_PRESSER_D2.2S | 1 |
Page 59 — 27. NEEDLE PLATE COMPONENTS (SPECIAL ORDER PARTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-25498 | NEEDLE_PLATE_D2.4 | 1 |
| 2 | 402-25499 | NEEDLE_PLATE_D3.0 | 1 |
| 3 | 402-25500 | NEEDLE_PLATE_SMALL_D3.5 | 1 |
| 4 | 402-25495 | NEEDLE_PLATE_CONVEX_D1.4 | 1 |
| 5 | 402-25486 | NEEDLE_PLATE_CONVEX_D1.6 | 1 |
| 6 | 402-25501 | NEEDLE_PLATE_CONVEX_D2.0 | 1 |
| 7 | 402-25502 | NEEDLE_PLATE_CONVEX_D2.2 | 1 |
| 8 | 402-25503 | NEEDLE_PLATE_CONVEX_D2.4 | 1 |
| 9 | 402-25504 | NEEDLE_PLATE_SMALL_D1.6 | 1 |
Page 61 — 28. THE THIRD THREAD TENSION REGULATOR (OPTIONAL PARTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-28788 | CYLINDER_BASE | 1 |
| 2 | 402-28089 | SCREW | 1 |
| 3 | 402-28051 | THIRD_THREAD_TENSION_ASSY | 1 |
| 4 | 402-28783 | SCREW | 1 |
| 5 | 402-28804 | CYLINDER | 1 |
| 6 | 402-28814 | TUBE | 1 |
| 7 | 402-28815 | TUBE | 1 |
| 8 | 402-28803 | SOLENOIDO_VALVE_ASSY | 1 |
| 9 | 402-28047 | SOLENOIDO_VALVE | (1) |
| 10 | 402-28813 | CABLE | (1) |
| 11 | 402-32400 | CONNECTOR | (1) |
| 12 | 402-28810 | SCREW | 2 |
| 13 | 402-28812 | UNION | 2 |
Page 63 — 29. LASER TUBE COMPONENTS (SUBCLASS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-80503 | LASER_SHIELD_COVER | 1 |
| 2 | 402-80472 | SCREW | 4 |
| 3 | 402-80473 | LASER_COVER_MIDDLE_MOUNTING_PLATE | 1 |
| 4 | - | SCREW | 24 |
| 5 | 402-80474 | LASER_COVER_BACK_MOUNTING_PLATE | 1 |
| 6 | - | WASHER | 1 |
| 7 | 402-80475 | LASER_BACK_POST_PLATE | 1 |
| 8 | - | SCREW | 1 |
| 9 | - | SPRING_WASHER | 24 |
| 10 | - | WASHER | 36 |
| 11 | - | SCREW | 2 |
| 12 | - | SCREW | 2 |
| 13 | - | NUT | 24 |
| 14 | 402-80476 | LASER_TUBE_LOWER_COVER | 1 |
| 15 | 402-80477 | FIXING_PLATE | 3 |
| 16 | 402-80478 | LASER_TUBE_SUPPORT_ASM | 2 |
| 17 | 402-28772 | LASER-TUBE | 1 |
| 18 | 402-80479 | LASER_TUBE_TOP_COVER | 1 |
| 19 | - | SCREW | 15 |
| 20 | - | CAP | 3 |
| 21 | - | LASER_TUBE_CASE | 1 |
| 22 | 402-80480 | LASER_TIP_SUPPORT_PLATE | 1 |
| 23 | 402-80481 | SCREW | 8 |
| 24 | 402-80482 | LASER_TIP_BLOCK | 1 |
| 25 | 402-80483 | LASER_TIP_BLOCK_COVER | 1 |
| 26 | - | SCREW | 3 |
| 27 | - | NUT | 3 |
| 28 | - | SCREW | 2 |
| 29 | - | SPRING | 2 |
| 30 | 402-28771 | REDLECTOR | 1 |
| 31 | 402-80484 | LASER_SAFE_REFLECTOR_SEAT | 1 |
| 32 | 402-80485 | LASER_REFLECTOR_CLAMP | 1 |
| 33 | 402-80486 | LASER_NECK_CONNECTION_COVER | 1 |
| 34 | 402-80487 | NUT | 1 |
| 35 | 402-80488 | LASER-CONCAVE_MIRROR_TUBE | 1 |
| 36 | 402-28770 | LENS | 1 |
| 37 | 402-80489 | LASER_LOCUST_WHITE_PROTECTIVE_SEAT | 1 |
| 38 | - | NUT | 1 |
| 39 | 402-80490 | LASER_NECK_LOWER_CONNECTING_TUBE | 1 |
| 40 | 402-80491 | LASER_FIXED_PLATE_A | 1 |
| 41 | 402-80492 | LASER_FIXED_BLOCK | 1 |
| 42 | 402-80493 | LASER_FIXED_PLATE_B | 1 |
| 43 | - | SPING_WASHER | 9 |
| 44 | - | WASHER | 9 |
| 45 | 402-80494 | LASER_TUBE_BLOCK_TOP | 1 |
| 46 | - | SCREW | 2 |
| 47 | 402-80495 | BELOW_THE_LASER_TUBE_BLOCK | 1 |
| 48 | - | SCREW | 2 |
| 49 | - | SPRING_WASHER | 9 |
| 50 | - | WASHER | 9 |
| 51 | 402-80496 | LASER_TUBE_SUPPORT_POST | 1 |
| 52 | - | WASHER_PLATE | 1 |
| 53 | 402-28646 | LASER_CYLINDER_SENSOR | 1 |
| 54 | - | SCREW | 3 |
| 55 | - | CABLE_BAND | 4 |
| 56 | - | TUBE | 1 |
| 57 | - | ADJUSTMENT_JOINT | 1 |
| 58 | - | TUBE | 1 |
| 59 | 402-80497 | LASER_UPPER_AIR_BLOWING_TUBE | 1 |
| 60 | 402-80498 | UNDER_THE_LASER_TUBE_RUBBER_PLATE | 1 |
| 61 | 402-80499 | LASER_TUBE_ON_RUBBER_PLATE | 1 |
| 62 | 402-80500 | LASER_TUBE_RUBBER_PLATE_BEHIND | 1 |
| 63 | 402-68914 | AMPEROMETER | 1 |
| 64 | 402-80502 | CURRENT_REGULATOR | 1 |
| 65 | - | SCREW | 4 |
| 66 | - | JOINT | 2 |
| 67 | - | DRIVE_CYLINDER_MOUNTING_PLATE | 1 |
| 68 | - | SCREW | 4 |
| 69 | 402-28654 | LASER_SUCTION_FIXED_BLOCK | 2 |
| 70 | - | SCREW | 3 |
| 71 | - | SCREW | 4 |
| 72 | - | SCREW | 2 |
| 73 | 402-80503 | LASER_SHIELD_COVER | 1 |
| 74 | - | CYLINDER | 1 |
| 75 | - | SCREW | 1 |
| 76 | - | BUCKLE_RING | 1 |
| 77 | - | SUCTION_TUBE | 1 |
| 78 | 402-27993 | UPPER_THREAD_BLOW_JOINT | 2 |
Page 65
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-80515 | SUCTION_TOP_COVER | 1 |
| 2 | 402-80516 | COVER_DURING_SUCTION | 1 |
| 3 | - | SCREW | 3 |
| 4 | 402-80517 | SUCTION_CONNECTION_TUBE_ASM | 1 |
| 5 | - | SCREW | 3 |
| 6 | - | COVER | 1 |
| 7 | - | BOAR_NECK | 2 |
| 8 | - | TUBE | 1 |
| 9 | - | T_UNION | 1 |
| 10 | - | SPEAKON | 1 |
| 11 | - | IRON_PIPE | 1 |
| 12 | - | JOINT | 1 |
| 13 | 402-80518 | FILTER_CAN | 1 |
| 14 | 402-80519 | JOINT | 1 |
| 15 | 402-80520 | IRON_PIPE | 1 |
| 16 | - | AIR_SUCTION_CASE | 1 |
| 17 | - | FILTER_NET | 1 |
| 18 | 402-63261 | BLOWER | 1 |
| 19 | 402-80521 | SUCTION_PIPE_CONNECTION_COVER | 1 |
| 20 | - | BOAR_NECK | 1 |
| 21 | 402-28085 | COLD_WATER_MACHINE_3000_TYPE | 1 |
| 22 | - | LASER_LAUNCHING_TUBE | 1 |
| 23 | - | LASER_OUTLET_TUBE | 1 |
| 24 | 402-63260 | FREQUENCY CONVERTER | 1 |
| 25 | 402-80523 | WATER_TANK_FIXED_PLATE | 1 |
| 26 | 402-80524 | WATER_TANK_LEAVING_PLATE | 2 |
| 27 | - | WASHER | 12 |
| 28 | - | SPRING_WASHER | 12 |
| 29 | - | SCREW | 4 |
| 30 | - | SCREW | 14 |
| 31 | - | CASTER | 4 |
| 32 | - | SCREW | 16 |
| 33 | - | SPRING_WASHER | 16 |
| 34 | - | WASHER | 16 |
| 35 | - | PILLAR | 2 |
| 36 | - | SCREW | 2 |
| 37 | - | SUCTION_CUP_SUPPORT | 1 |
| 38 | - | CHILLER_FIXED_PLATE | 2 |
| 39 | - | BLOWER_CLAMP | 2 |
| 40 | 402-28366 | NUT_M8 | 2 |
| 41 | 402-64286 | LASER_POWER SUPPLY | 1 |
| 42 | 402-52388 | CABLE | 1 |
| 43 | 402-63257 | CABLE | 1 |
| 44 | 402-63258 | CABLE | 1 |
| 45 | 402-64296 | CABLE | 1 |
| 46 | 402-34454 | SCREW | 2 |
| 47 | 402-63270 | LASER_SWITCH_PLATE | 1 |
| 48 | 402-34454 | SCREW | 4 |
| 49 | 402-28365 | SCREW_M16X16 | 2 |
Page 67 — 31. LASER ELECTRONIC CONTROL PARTS COMPONENTS (SUBCLASS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-80525 | LASER_SOLENOID_VALVE | 1 |
| 2 | - | SCREW | 2 |
| 3 | - | WASHER | 2 |
| 4 | - | LASER_CYLENDER_SOLENOID_VALVE_COUPL | 1 |
| 5 | 402-80526 | ELECTROMAGNETIC_RELAY_BASE | 1 |
| 6 | - | SCREW | 2 |
| 7 | 402-80527 | ELECTROMAGNETIC_RELAY | 1 |
Page 69 — 32. ROTARY CUTTER MEMBER COMPONENTS (SUBCLASS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | BRACKET_B | 1 |
| 2 | - | FIXED_FEMALE_BASE | 1 |
| 3 | 402-28223 | SCREW | 4 |
| 4 | - | SPRING_WASHER | 24 |
| 5 | - | WASHER | 22 |
| 6 | 402-34451 | SCREW | 12 |
| 7 | - | ROTARY_MOTOR_MOUNTING_PLATE | 1 |
| 8 | 402-28419 | SPIN_KNIFE_MOTOR | 1 |
| 9 | 402-28420 | MOTOR_TIMING_SPROCKET | 1 |
| 10 | - | SCREW | 3 |
| 11 | 402-28421 | MOTOR_TIMING_BELT | 1 |
| 12 | 402-28422 | CONNECTION | 1 |
| 13 | 402-25491 | BOAT_PRESSER_L | 1 |
| 14 | - | PIN | 2 |
| 15 | 402-35588 | SCREW | 1 |
| 16 | 402-28435 | SCREW | 2 |
| 17 | 402-28436 | FIXED_KNIFE_SHAFT_BUSHING_ASM | 1 |
| 18 | 402-28437 | FACE PLATE | 1 |
| 19 | 402-34438 | SCREW | 2 |
| 20 | 402-28423 | MOVING_KINFE_SHAFT_CONNECTING | 2 |
| 21 | - | SCREW | 3 |
| 22 | - | WASHER | 1 |
| 23 | - | O-RING | 1 |
| 24 | 402-28564 | SPIN_FIXED_KNIFE_BASE | 1 |
| 25 | 402-28455 | FIX_KNIFE_LOWER_BUSHING | 1 |
| 26 | 402-28424 | SPIN_FIXED_KNIFE_SHAFT | 1 |
| 27 | 402-28425 | FIXED_FEMALE_BASE | 1 |
| 28 | 402-28426 | FIXED_KNIFE | 1 |
| 29 | 402-28427 | CYLINDER | 1 |
| 30 | - | TUBE_JOINT | 4 |
| 31 | - | SCREW | 2 |
| 32 | - | DRIVE_CYLINDER_MOUNTING_PLATE | 1 |
| 33 | - | FIXED_FEMALE_BASE_COVER | 1 |
| 34 | - | SCREW | 4 |
| 35 | 402-28428 | LOWER_TIMING_BELT_COVER | 1 |
| 36 | - | SCREW | 3 |
| 37 | - | WASHER | 3 |
| 38 | 402-28429 | PRESSER_BUSHING_UPPER | 1 |
| 39 | 402-28430 | PRESSER_LOWER_BUSHING | 1 |
| 40 | 402-28431 | PRESSER_CYLINDER_ARM | 1 |
| 41 | 402-28432 | CYLINDER | 1 |
| 42 | - | SCREW | 2 |
| 43 | - | SCREW | 2 |
| 44 | - | WASHER | 2 |
| 45 | - | SPRING_WASHER | 2 |
| 46 | - | CUTTING_CYLINDER_BASE | 1 |
| 47 | 402-28433 | KNIFE_PRESSER_SHAFT | 1 |
| 48 | 402-28434 | BASE | 1 |
| 49 | PS-0200082-KH | SPRING PIN | 1 |
| 50 | WS-0410002-KP | SPRING WASHER | 1 |
| 51 | WP-0460556-SD | WASHER 4.6X7.5X0.5 | 1 |
| 52 | - | BRACKET_A | 1 |
| 53 | - | PLATE_A | 1 |
| 54 | - | SCREW | 2 |
| 55 | - | SCREW | 1 |
| 56 | - | SPRING_WASHER | 1 |
| 57 | - | WASHER | 1 |
| 58 | - | PLATE_B | 1 |
| 59 | - | SCREW | 2 |
| 60 | - | SPRING_WASHER | 2 |
| 61 | - | WASHER | 2 |
| 62 | - | PLATE_C | 1 |
| 63 | - | PLATE_D | 1 |
| 64 | - | SCREW_PLATE | 1 |
| 65 | - | SCREW | 2 |
| 66 | - | SCREW | 2 |
| 67 | - | DUST_PROOF_RUBBER | 1 |
| 68 | 402-62521 | SPIN_KNIFE_MOTOR | 1 |
Page 71 — 33. ROTARY KNIFE COMPONENTS (SUBCLASS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | MOVING_KNIFE_BASE | 1 |
| 2 | 402-28438 | MOVING_KNIFE_BUSHING_UPPER | 1 |
| 3 | - | ROTARY_MOTOR_MOUNTING_PLATE | 1 |
| 4 | 402-34451 | SCREW | 8 |
| 5 | - | SPRING_WASHER | 8 |
| 6 | - | WASHER | 14 |
| 7 | - | SCREW | 4 |
| 8 | 402-28419 | SPIN_KNIFE_MOTOR | 1 |
| 9 | 402-28420 | MOTOR_TIMING_SPROCKET | 1 |
| 10 | - | SCREW | 2 |
| 11 | 402-28421 | MOTOR_TIMING_BELT | 1 |
| 12 | 402-35592 | TIMING_SPROCKET | 1 |
| 13 | 402-28422 | CONNECTION | 1 |
| 14 | - | SPRING_WASHER | 5 |
| 15 | - | WASHER | 5 |
| 16 | 402-28448 | MOVING_KNIFE_PIN_ASM | 1 |
| 17 | 402-28569 | MOVING_KNIFE_LOWER_BUSHING_ASM | 1 |
| 18 | 402-28449 | CYLINDER_LIFTING_PLATE_ASM | 1 |
| 19 | - | SCREW | 5 |
| 20 | 402-28423 | MOVING_KINFE_SHAFT_CONNECTING | 2 |
| 21 | 402-35593 | SCREW | 2 |
| 22 | 402-28563 | WASHER | 2 |
| 23 | 402-28439 | SPIN_MOVING_KNIFE_PIN | 1 |
| 24 | 402-28450 | RAISING_PLATE_CYLINDER_BASE | 1 |
| 25 | 402-28451 | RAISING_PLATE_CYLINDER | 1 |
| 26 | 402-28452 | PIPE_JOINT | 1 |
| 27 | 402-28453 | OIL_INSTRUCTION_PLATE | 1 |
| 28 | 402-35594 | MOVING_KNIFE_ARM | 1 |
| 29 | - | SCREW | 5 |
| 30 | - | SCREW | 4 |
| 31 | 402-28440 | MOVING_KNIFE_MOTOR | 1 |
| 32 | - | SCREW | 4 |
| 33 | - | MOVING_KNIFE_MOTOR_PLATE | 1 |
| 34 | - | MOVING_KNIFE_MOTOR_PLATE_METAL | 1 |
| 35 | - | SCREW | 2 |
| 36 | - | WASHER | 1 |
| 37 | - | WASHER | 1 |
| 38 | - | WASHER | 1 |
| 39 | - | WASHER | 1 |
| 40 | - | SPRING_WASHER | 1 |
| 41 | - | NUT | 4 |
| 42 | - | SCREW | 1 |
| 43 | 402-28442 | REVERSION_SPRING | 1 |
| 44 | - | HEIGHT_BLOCK | 1 |
| 45 | 402-28443 | NUT | 2 |
| 46 | - | MOVING_KNIFE_CYLINDER_PLATE | 1 |
| 47 | - | SCREW | 1 |
| 48 | 402-28444 | CYLINDER | 1 |
| 49 | - | PIPE_JOINT | 2 |
| 50 | - | NUT | 2 |
| 51 | 402-28445 | SPIN_MOVING_KNIFE_SHAFT | 1 |
| 52 | - | MOVING_KNIFE_CLAMP | 1 |
| 53 | 402-34439 | SCREW | 2 |
| 54 | 402-37598 | MOVING_KNIFE_COVER | 1 |
| 55 | 402-28712 | MOVING_KNIFE | 1 |
| 56 | 402-28447 | MOVING_KNIFE_BASE_SEAT_PLATE | 1 |
| 57 | - | SCREW | 7 |
| 58 | 402-28568 | MOVING_KNIFE_COVER | 1 |
| 59 | - | SCREW | 4 |
| 60 | 402-39269 | REST_SPRING_LINK_PLATE_B | 1 |
| 61 | 402-38353 | RESET_SPRING_LINK_PLATE | 1 |
| 62 | 402-62521 | SPIN_KNIFE_MOTOR | 1 |
| 402-34459 | SCREW | 2 |
Page 73 — 34. BARCODE READER (SUBCLASS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-34788 | BARCODE_READER_PLATE | 1 |
| 2 | 402-35199 | BARCODE_READER | 1 |
| 3 | 402-34468 | SCREW | 4 |
| 4 | 402-35200 | SCREW | 2 |
| 5 | 402-34514 | WASHER | 2 |
| 6 | 402-35332 | CABLE_BAND | 1 |
| 7 | 402-40831 | PLATE | 1 |
Page 75 — 35. ACTIVE TENSION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-28700 | ACTIVE_TENSION_DEVICE | 1 |
| 2 | 401-72470 | THREAD_TENSION_ASM | (1) |
| 3 | 402-44934 | THREAD_TENSION_SHAFT_ASSY | (1) |
| 4 | 402-43919 | AT_SPRING | (1) |
| 5 | 402-44974 | AT_SOLENOID_ASSY | (1) |
| 6 | 402-43045 | AT_SOL_PCB_ASSY | (1) |
| 7 | 402-43046 | AT_SOL_CABLE ASSY_A | (1) |
| 8 | 402-43047 | AT_SOL_CABLE ASSY_B | (1) |
| 9 | SM-6041402-TP | SCREW M4 L=14 | (2) |
| 10 | SM-6041002-TN | SCREW | (1) |
| 11 | KX-0000002-10 | SADDLE TYPE TIE MOUNT | (2) |
| 12 | HX-0029400-00 | FIXED BASE | (1) |
| 13 | EA-9500B02-00 | CABLE BAND 150 | (6) |
Page 77 — 36. THICK MATERIAL KIT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-28701 | THICK_MATERIAL_KIT | 1 |
| 2 | 402-28075 | INTERMEDIATE_PRESSER_D3.5 | (1) |
| 3 | 402-34081 | THREAD_TENSION_ASM | (1) |
| 4 | 402-25499 | NEEDLE_PLATE_D3.0 | (1) |
| 5 | 402-34080 | FIXED_KNIFE | (1) |
| 6 | 402-34079 | HOOK_ASM | (1) |
Page 79 — 37. OPTIONAL PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-28696 | THIRD_THREAD_TENSION_UNIT | 1 |
| 2 | 402-28701 | THICK_MATERIAL_KIT | 1 |
| 3 | 402-28698 | LOWER_THREAD_DETECTOR_ASSY | 1 |
| 4 | 402-28695 | BIRD_NEST_PREVENTION_DEVICE | 1 |
| 5 | 402-28699 | AUTO_BOBBIN_CHANGER BK-8 | 1 |
| 6 | 402-28700 | ACTIVE_TENSION_DEVICE | 1 |
| 7 | 402-28670 | PEN_STICK_ASSY | 1 |
| 8 | 402-28686 | PEN_STICK_ASSY | 1 |
| 9 | 402-35197 | BARCODE_READER_UNIT | 1 |
Page 80 — 38. ABOUT PS-800 OPTION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 8045 | 40239772 | ||
| 8045 | 40228701 | ||
| 8045 | 40228696 | ||
| 8045 | 40228670 | N社タイプ | |
| 8045 | 40228686 | PS700タイプ | |
| 12080 | 40239772 | ||
| 12080 | 40228701 | ||
| 12080 | 40228696 | ||
| 12080 | 40228670 | N社タイプ | |
| 12080 | 40228686 | PS700タイプ | |
| 13085 | 40239772 | ||
| 13085 | 40228701 | ||
| 13085 | 40228696 | ||
| 13085 | 40228670 | N社タイプ | |
| 13085 | 40228686 | PS700タイプ | |
| 8045 | 40228698 | 1 | |
| 8045 | 40235197 | 1 | |
| 8045 | 40228695 | 1 | |
| 8045 | 40228700 | 1 | |
| 8045 | 40228699 | ボビンチェンジャー BK-8 | 2 |
| 12080 | 40228698 | 1 | |
| 12080 | 40235197 | 1 | |
| 12080 | 40228695 | 1 | |
| 12080 | 40228700 | 1 | |
| 12080 | 40228699 | ボビンチェンジャー BK-8 | 2 |
| 13085 | 40228698 | 1 | |
| 13085 | 40235197 | 1 | |
| 13085 | 40228695 | 1 | |
| 13085 | 40228700 | 1 | |
| 13085 | 40228699 | ボビンチェンジャー BK-8 | 2 |
| 8045 | 40246945 | BK-8 | 1 |
| 12080 | 40246947 | BK-8 | 1 |
| 13085 | 40246949 | BK-8 | 1 |
| BK-8 | 40228699 | BK-8 | 1 |
| 8045 | 1MP5NM0030~ | 1 | |
| 12080 | 1MP6NM0043~ | 1 | |
| 13085 | 1MP7NM0027~ | 1 |
Page 81 — 39. LIST FOR INFORMATION OF CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 402-28532 | ||
| 1 | 402-91755 | ||
| 2 | 402-28188 | ||
| 2 | 402-82478 | ||
| 4 | - | ||
| 4 | 402-82436 | ||
| 47 | 402-91905 | ||
| 48 | 402-91904 | ||
| 29 | 402-82427 | ||
| 30 | 402-87675 | ||
| 31 | 402-68665 | ||
| 4 | 402-28192 | ||
| 4 | 402-82475 | ||
| 6 | 402-28532 | ||
| 6 | 402-91755 | ||
| 33 | 402-28203 | ||
| 33 | 402-82437 | ||
| 35 | - | ||
| 35 | 402-82436 | ||
| 38 | 402-82427 | ||
| 39 | 402-87675 | ||
| 40 | 402-68665 | ||
| 20 | 402-28217 | ||
| 20 | 402-82486 | ||
| 50 | - | ||
| 50 | 402-82479 |
Page 83 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 66 | 402-27993 | 8 | |
| 66 | 402-27994 | 9 | |
| 66 | 402-27995 | 10 | |
| 66 | 402-27996 | 11 | |
| 66 | 402-27997 | 13 | |
| 66 | 402-28000 | 14 | |
| 66 | 402-28001 | 15 | |
| 14 | 402-28001 | 17 | |
| 66 | 402-28002 | 1 | |
| 66 | 402-28003 | 2 | |
| 50 | 402-28003 | 6 | |
| 66 | 402-28004 | 7 | |
| 66 | 402-28005 | 10 | |
| 66 | 402-28006 | 11 | |
| 66 | 402-28007 | 13 | |
| 66 | 402-28008 | 14 | |
| 66 | 402-28009 | 15 | |
| 66 | 402-28010 | 1 | |
| 2 | 402-28010 | 2 | |
| 2 | 402-28011 | 3 | |
| 2 | 402-28012 | 4 | |
| 4 | 402-28013 | 5 | |
| 70 | 402-28014 | 6 | |
| 40 | 402-28015 | 7 | |
| 10 | 402-28015 | 8 | |
| 12 | 402-28015 | 9 | |
| 14 | 402-28015 | 10 | |
| 4 | 402-28016 | 11 | |
| 4 | 402-28017 | 12 | |
| 4 | 402-28018 | 13 | |
| 49 | 58 | 64 | |
| 4 | 402-28019 | 6 | |
| 4 | 402-28020 | 8 | |
| 70 | 402-28021 | 10 | |
| 70 | 402-28022 | 11 | |
| 40 | 402-28023 | 12 | |
| 4 | 402-28024 | 13 | |
| 4 | 402-28025 | 19 | |
| 4 | 402-28026 | 20 | |
| 4 | 402-28027 | 21 | |
| 4 | 402-28028 | 26 | |
| 4 | 402-28029 | 27 | |
| 4 | 402-28030 | 28 | |
| 4 | 402-28031 | 29 | |
| 4 | 402-28032 | 38 | |
| 4 | 402-28033 | 43 | |
| 4 | 402-28034 | 44 | |
| 4 | 402-28035 | 46 | |
| 16 | 402-28036 | 48 | |
| 4 | 402-28040 | 49 | |
| 4 | 402-28041 | 50 | |
| 4 | 402-28042 | 52 | |
| 4 | 402-28043 | 54 | |
| 42 | 402-28047 | 55 | |
| 56 | 402-28047 | 56 | |
| 4 | 402-28051 | 57 | |
| 56 | 402-28051 | 58 | |
| 6 | 402-28052 | 65 | |
| 6 | 402-28053 | 66 | |
| 6 | 402-28054 | 67 | |
| 42 | 402-28056 | 68 | |
| 40 | 402-28057 | 70 | |
| 40 | 402-28059 | 71 | |
| 40 | 402-28061 | 72 | |
| 40 | 402-28062 | 74 | |
| 46 | 402-28066 | 75 | |
| 46 | 402-28067 | 76 | |
| 50 | 402-28067 | 77 | |
| 46 | 402-28069 | 3 | |
| 12 | 402-28070 | 5 | |
| 46 | 402-28073 | 6 | |
| 52 | 402-28073 | 7 | |
| 52 | 402-28074 | 8 | |
| 46 | 402-28075 | 9 | |
| 52 | 402-28075 | 10 |
Page 85 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 402-28701 | ||
| 55 | 402-28712 | ||
| 7 | 402-28719 | ||
| 3 | 402-28723 | ||
| 3 | 402-28740 | ||
| 36 | 402-28770 | ||
| 30 | 402-28771 | ||
| 17 | 402-28772 | ||
| 30 | 402-28780 | ||
| 4 | 402-28783 | ||
| 17 | 402-28785 | ||
| 1 | 402-28788 | ||
| 6 | 402-28789 | ||
| 8 | 402-28791 | ||
| 9 | 402-28792 | ||
| 10 | 402-28793 | ||
| 11 | 402-28794 | ||
| 12 | 402-28795 | ||
| 13 | 402-28796 | ||
| 14 | 402-28797 | ||
| 15 | 402-28798 | ||
| 16 | 402-28799 | ||
| 19 | 402-28800 | ||
| 18 | 402-28801 | ||
| 20 | 402-28802 | ||
| 8 | 402-28803 | ||
| 5 | 402-28804 | ||
| 5 | 402-28805 | ||
| 35 | 402-28808 | ||
| 34 | 402-28809 | ||
| 12 | 402-28810 | ||
| 25 | 402-28811 | ||
| 10 | 402-28813 | ||
| 6 | 402-28814 | ||
| 7 | 402-28815 | ||
| 39 | 402-28819 | ||
| 38 | 402-28820 | ||
| 40 | 402-28822 | ||
| 52 | 402-29462 | ||
| 56 | 402-29463 | ||
| 53 | 402-29464 | ||
| 54 | 402-29465 | ||
| 11 | 402-32400 | ||
| 45 | 402-34079 | ||
| 6 | 402-34079 | ||
| 46 | 402-34080 | ||
| 5 | 402-34080 | ||
| 47 | 402-34081 | ||
| 3 | 402-34081 | ||
| 12 | 402-34393 | ||
| 22 | 402-34400 | ||
| 37 | 402-34402 | ||
| 17 | 402-34425 | ||
| 20 | 402-34425 | ||
| 53 | 402-34439 | ||
| 6 | 402-34451 | ||
| 46 | 402-34454 | ||
| 48 | 402-34454 | ||
| 3 | 402-34468 | ||
| 5 | 402-34514 | ||
| 13 | 402-34585 | ||
| 30 | 402-34588 | ||
| 34 | 402-34596 | ||
| 33 | 402-34600 | ||
| 31 | 402-34602 | ||
| 41 | 402-34603 | ||
| 37 | 402-34603 | ||
| 35 | 402-34604 | ||
| 43 | 402-34756 | ||
| 22 | 402-80480 | ||
| 23 | 402-80481 | ||
| 24 | 402-80482 | ||
| 25 | 402-80483 | ||
| 31 | 402-80484 | ||
| 32 | 402-80485 | ||
| 33 | 402-80486 | ||
| 34 | 402-80487 | ||
| 35 | 402-80488 | ||
| 37 | 402-80489 | ||
| 39 | 402-80490 | ||
| 41 | 402-80491 | ||
| 42 | 402-80492 | ||
| 45 | 402-80493 | ||
| 47 | 402-80494 | ||
| 51 | 402-80495 | ||
| 59 | 402-80496 | ||
| 60 | 402-80497 | ||
| 61 | 402-80498 | ||
| 62 | 402-80500 | ||
| 64 | 402-80501 | ||
| 1 | 402-80502 | ||
| 73 | 402-80503 | ||
| 1 | 402-80503 | ||
| 2 | 402-80515 | ||
| 4 | 402-80516 | ||
| 13 | 402-80517 | ||
| 14 | 402-80518 | ||
| 15 | 402-80519 | ||
| 19 | 402-80520 | ||
| 25 | 402-80521 | ||
| 5 | 402-80523 | ||
| 26 | 402-80524 | ||
| 5 | 402-80525 | ||
| 7 | 402-80526 | ||
| 5 | 402-80527 | ||
| 5 | 402-80528 | ||
| 66 | 402-80618 | ||
| 37 | 402-81444 | ||
| 71 | 402-81548 | ||
| 29 | 402-82427 | ||
| 38 | 402-82436 | ||
| 4 | 402-82436 | ||
| 35 | 402-82475 | ||
| 2 | 402-82476 | ||
| 50 | 402-82478 | ||
| 28 | 402-82479 | ||
| 20 | 402-87675 | ||
| 24 | 402-87675 | ||
| 20 | 402-91755 | ||
| 12 | 402-91904 | ||
| 12 | 402-91905 | ||
| 38 | 402-94340 | ||
| 38 | 402-94340 | ||
| 12 | 402-91904 | ||
| 38 | 402-94340 | ||
| 38 | 402-94340 |
JUKI PS-800 NEW — parts catalog
- Page 1 (cover): This is the cover page for the JUKI PS-800-12080 Parts List. It provides a URL to access the online parts list with a search function, noting that free membership registration is required.
- Page 2 (unknown): This page contains a watermark with the text "jintex.in" and a footer with the same text. There is no other discernible content on the page.
- Page 3 (text): This page provides instructions on how to use the parts list, explaining various codes and symbols used in the catalog, including explanations for marks indicating changed parts, reference numbers, and quantity notations.
- Page 6 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with numbered parts indicated for identification.
- Page 7 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It details various screws, washers, plugs, and specialized components like the thread release pin spring.
- Page 8 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with numbered parts indicated for reference.
- Page 9 (parts_list): This page lists parts for an industrial sewing machine, including screws, covers, guides, and tension components, with their corresponding part numbers and quantities.
- Page 10 (diagram): This page displays a diagram of the display unit and its related components, including part numbers and reference numbers for assembly.
- Page 11 (parts_list): This page lists parts for a machine, including screws, cushions, panels, and cables, with their respective part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays a diagram of upper shaft and pick line components, with numbered parts for identification.
- Page 13 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details components like screws, shafts, bearings, and belts.
- Page 14 (diagram): This page displays a diagram of needle bar and lower shaft components, with numbered parts and their corresponding references.
- Page 15 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It also includes notes and references for specific parts.
- Page 16 (diagram): This page displays a diagram of rotary shuttle transmission and thread cutting parts components, with numbered parts for identification.
- Page 17 (parts_list): Parts list page for a sewing machine hook and bobbin assembly section, giving reference numbers, part numbers, English and Japanese names, and quantities for items 1 to 48 with TYPE S and TYPE H notes.
- Page 18 (diagram): This page displays a diagram of oil supply and needle plate parts for rotary components, with numbered parts and their corresponding references.
- Page 19 (parts_list): This page lists parts for the sewing machine, including part numbers, descriptions, and quantities. It details components like pipes, cylinders, screws, washers, and various plates.
- Page 20 (diagram): This page displays a diagram of wire cut electromagnetic components, with numbered parts and their corresponding references.
- Page 21 (parts_list): This page lists parts for a sewing machine, including AXIAL_THRUST, SCREW, SUPPORT_PLATE, BEARING, CASE, CONNECTING_ROD_PARTS, and THREAD_CUTTER_SOLENOID_PARTS, with their corresponding part numbers and quantities.
- Page 23 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details components like base sitting legs, nuts, washers, screws, and vibration control seats.
- Page 24 (diagram): This page displays a diagram of the Y Screw Rod Motor Unit, with numbered parts and their corresponding references.
- Page 25 (parts_list): This page lists parts for a sewing machine, including position sensors, screws, washers, bearings, motors, and cables, with their corresponding part numbers and quantities.
- Page 26 (diagram): This page displays a diagram of Y connection seat components, with various parts numbered for identification.
- Page 27 (parts_list): This page lists parts for an industrial sewing machine, including screws, washers, plates, and various assemblies with their part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of the X BASE UNIT, showing various components labeled with reference numbers and part numbers.
- Page 29 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes. It covers components like sensors, screws, washers, and various assemblies.
- Page 30 (diagram): This page displays a diagram of X motor components, with numbered parts and their corresponding references.
- Page 31 (parts_list): This page lists parts for the X axis motor, including screws, washers, cables, and couplings, with part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of pressure plate components, labeled with reference numbers and part numbers for identification.
- Page 33 (parts_list): This page lists parts for the machine, including screws, clamps, cylinders, and various plates, with their corresponding part numbers and quantities.
- Page 34 (diagram): This page displays a diagram of X SHELL PARTS COMPONENTS, illustrating various components with reference numbers and part details.
- Page 35 (parts_list): This page lists parts for a sewing machine, including screws, washers, ducts, and various covers, with their corresponding part numbers, descriptions, and quantities.
- Page 37 (parts_list): This page lists parts for the machine, including nuts, screws, washers, joints, and covers, with their corresponding part numbers and quantities.
- Page 38 (diagram): This page displays a diagram of frame connection aluminum parts components, with numbered parts indicated by reference numbers.
- Page 39 (parts_list): This page lists various parts for a machine, including front and rear connection frames, covers, nuts, and screws, with their corresponding part numbers and quantities.
- Page 40 (diagram): This page displays a diagram of platen connection aluminum parts, labeled with reference numbers for identification.
- Page 41 (parts_list): This page lists parts for the machine, including nuts, screws, hinges, frames, and angles, with their corresponding part numbers, descriptions, and quantities.
- Page 42 (diagram): This page displays a diagram of platen parts (120) and their components, with numbered references for each part.
- Page 43 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details various table components, screws, washers, and other hardware.
- Page 44 (diagram): This page displays a diagram of electrical components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 45 (parts_list): This page lists parts for the machine, including part numbers, descriptions, quantities, and notes. It details various components such as tubes, joints, valves, screws, and electronic boards.
- Page 46 (diagram): This page displays a diagram of wiper cylinder components, with numbered parts indicated for identification.
- Page 47 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details components like mounting plates, screws, cylinders, shafts, and electrical wires.
- Page 48 (diagram): This page displays a diagram of needle cooler parts components, with numbered parts and their corresponding references.
- Page 49 (parts_list): This page lists parts for the auxiliary presser cylinder, including various screws, washers, and plates, with their corresponding part numbers and quantities.
- Page 50 (diagram): This page displays a diagram of electronic presser foot components, with numbered parts and their corresponding references.
- Page 51 (parts_list): This page lists various parts for an industrial sewing machine, including screws, washers, motors, bearings, and specialized components, along with their part numbers, descriptions, and quantities.
- Page 52 (diagram): This page displays a diagram of power supply wiring components, illustrating various parts with reference numbers and their corresponding labels.
- Page 53 (parts_list): This page contains a parts list for various components including nuts, screws, washers, switches, plates, frames, and power supplies, with quantities specified for each.
- Page 54 (parts_list): This page lists accessory box part components, including various tools like wrenches, screwdrivers, a bottle, a machine, and safety glasses, each with a reference number.
- Page 55 (parts_list): This page lists various parts for an industrial sewing machine, including tools, hardware, and specialized components, with their corresponding part numbers and quantities.
- Page 56 (diagram): This page displays diagram components for presser foot components, including items numbered 1 through 13.
- Page 57 (parts_list): This page lists parts for the BOAT_PLASTIC_PRESSER and INTERMEDIATE_PRESSER series, including part numbers, descriptions, and quantities.
- Page 58 (diagram): This page displays a diagram of needle plate components, with parts numbered 1 through 9.
- Page 59 (parts_list): This page lists needle plates with their part numbers, descriptions, and quantities. It includes parts like NEEDLE_PLATE_D2.4, NEEDLE_PLATE_D3.0, and NEEDLE_PLATE_SMALL_D1.6.
- Page 60 (diagram): This page displays a diagram of the third thread tension regulator, including optional parts, with various components labeled with reference numbers.
- Page 61 (parts_list): This page lists parts for a sewing machine, including cylinder base, screws, tubes, solenoids, cables, connectors, and unions, with their corresponding part numbers and quantities.
- Page 62 (diagram): This page displays a diagram of laser tube components, with numbered parts and their corresponding references.
- Page 63 (parts_list): This page lists parts for a laser system, including various covers, screws, nuts, washers, and specialized components like regulators and sensors, with their corresponding part numbers and quantities.
- Page 65 (parts_list): This page lists parts for a machine, including part numbers, descriptions, and quantities. It details components like covers, screws, tubes, and electrical parts.
- Page 66 (diagram): This page displays a diagram of laser electronic control parts components (subclass) for an industrial sewing machine, with numbered parts indicated.
- Page 67 (parts_list): This page lists parts for the LASER_SOLENOID_VALVE, SCREW, WASHER, LASER_CYLINDER_SOLENOID_VALVE_COUPL, ELECTROMAGNETIC_RELAY_BASE, and ELECTROMAGNETIC_RELAY with their corresponding part numbers and quantities.
- Page 68 (diagram): This page displays a diagram of rotary cutter member components, subclass, with numbered parts and their corresponding references.
- Page 69 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It covers items from reference number 1 to 68.
- Page 70 (diagram): This page displays a diagram of rotary knife components, including various parts with their corresponding reference numbers and some part numbers.
- Page 71 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It details components like moving knife bases, motors, screws, washers, and cylinders.
- Page 72 (diagram): This page displays a diagram of a barcode reader subclass, showing various components labeled with reference numbers.
- Page 73 (parts_list): This page lists parts for a barcode reader, including part numbers, descriptions, and quantities. It contains 7 items with part numbers ranging from 402-34788 to 402-40831.
- Page 74 (diagram): This page displays a diagram of active tension components, with numbered parts including screws, a spring, a rod, and a motor assembly.
- Page 75 (parts_list): This page lists parts for the machine, including part numbers, descriptions, quantities, and reference numbers. It contains 13 items.
- Page 76 (diagram): This page displays a diagram of thick material kit components, with numbered parts including a bracket, a plate, a spool-like component, and a cylindrical part.
- Page 77 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. The parts include a thick material kit, intermediate presser, thread tension assembly, needle plate, fixed knife, and hook assembly.
- Page 78 (diagram): This page displays a diagram of optional parts and components for an industrial sewing machine, with reference numbers pointing to individual parts.
- Page 79 (parts_list): This page lists parts for the sewing machine, including part numbers, descriptions, and quantities. It also includes notes for specific parts related to China.
- Page 80 (parts_list): This page lists the options for the PS-800 sewing machine, including part numbers, descriptions, and compatibility with different machine models. It also provides notes on installation requirements and specific part numbers for different options.
- Page 81 (parts_list): This page contains a list of parts with their revision numbers, page numbers, reference numbers, and part numbers. It also includes information about added and obsoleted parts.
- Page 82 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers from diagrams.
- Page 83 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, corresponding page numbers, and reference numbers from diagrams.
- Page 85 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers from diagrams.
