Juki PS800-8045 Parts Book (PDF)
Text index — Juki PS800-8045
Page 2 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40228011 | 26_RUBBER_PLUG | 1.00 |
| 2 | 40228466 | PRESSER_CYLINDER | 1.00 |
| 3 | - | SCREW | 4.00 |
| 4 | 40228463 | SIDE_COVER | 1.00 |
| 5 | - | SCREW | 6.00 |
| 6 | 40228642 | SCREW | 1.00 |
| 7 | - | SPRING_WASHER | 5.00 |
| 8 | - | WASHER | 3.00 |
| 9 | 40227992 | PANEL_RUBBER_CUSHION | 5.00 |
| 10 | - | UPPER_THREAD_BLOW | 1.00 |
| 11 | 40227993 | UPPER_THREAD_BLOW_ADJUSTING_JOINT | 1.00 |
| 12 | - | UPPER_THREAD_BLOW | 1.00 |
| 13 | 40227994 | SIDE_COVER_FRONT | 1.00 |
| 14 | - | SCREW | 1.00 |
| 15 | 40227995 | THREAD_TENSION_ASM | 1.00 |
| 16 | - | E_RING | 1.00 |
| 17 | - | WASHER | 2.00 |
| 18 | 40227996 | THREAD_RELEASE_PIN_SPRING | 1.00 |
| 19 | 40227997 | THREAD_RELEASE_PIN | 1.00 |
| 20 | 40228467 | CABLE_LANE_UPPER_PILLAR_X_PLATE | 1.00 |
| 21 | - | SCREW | 4.00 |
| 22 | - | SCREW | 1.00 |
| 23 | - | SCREW | 4.00 |
| 24 | 40228001 | CYLINDER_JOINT | 2.00 |
| 25 | 40228000 | SUPPLEMENTARY_PRESSER_CYLINDER | 1.00 |
| 26 | - | SCREW | 2.00 |
| 27 | 40228002 | SUPPLEMENTARY_PRESSER_ROD_GUIDE | 1.00 |
| 28 | - | SCREW | 2.00 |
| 29 | 40228007 | THREAD_TRACHEA_TONG | 2.00 |
| 30 | 40228012 | THREAD_BLOW | 1.00 |
| 31 | 40225491 | BOAT_PRESSER_L | 1.00 |
| 32 | 40228465 | STICK | 1.00 |
| 33 | 40228003 | SUPPLEMENTARY_PRESSER_ROD | 1.00 |
| 34 | 40228004 | SUPPLEMENTARY_PRESSER_CASE | 1.00 |
| 35 | 40228005 | SSUPPLEMENTARY_PRESSER_PILLAR | 1.00 |
| 36 | - | SCREW | 1.00 |
| 37 | - | SCREW | 2.00 |
| 38 | 40228006 | SUPPLEMENTARY_PRESSER_CONNECT_PILLARS | 1.00 |
| 39 | 40228008 | 8_RUBBER_PLUG | 5.00 |
| 40 | 40228009 | 12_RUBBER_PLUG | 1.00 |
| 41 | 40228010 | 20_RUBBER_PLUG | 2.00 |
| 42 | - | ELASTIC_CYLINDRICAL_PIN | 2.00 |
| 43 | - | SCREW | 1.00 |

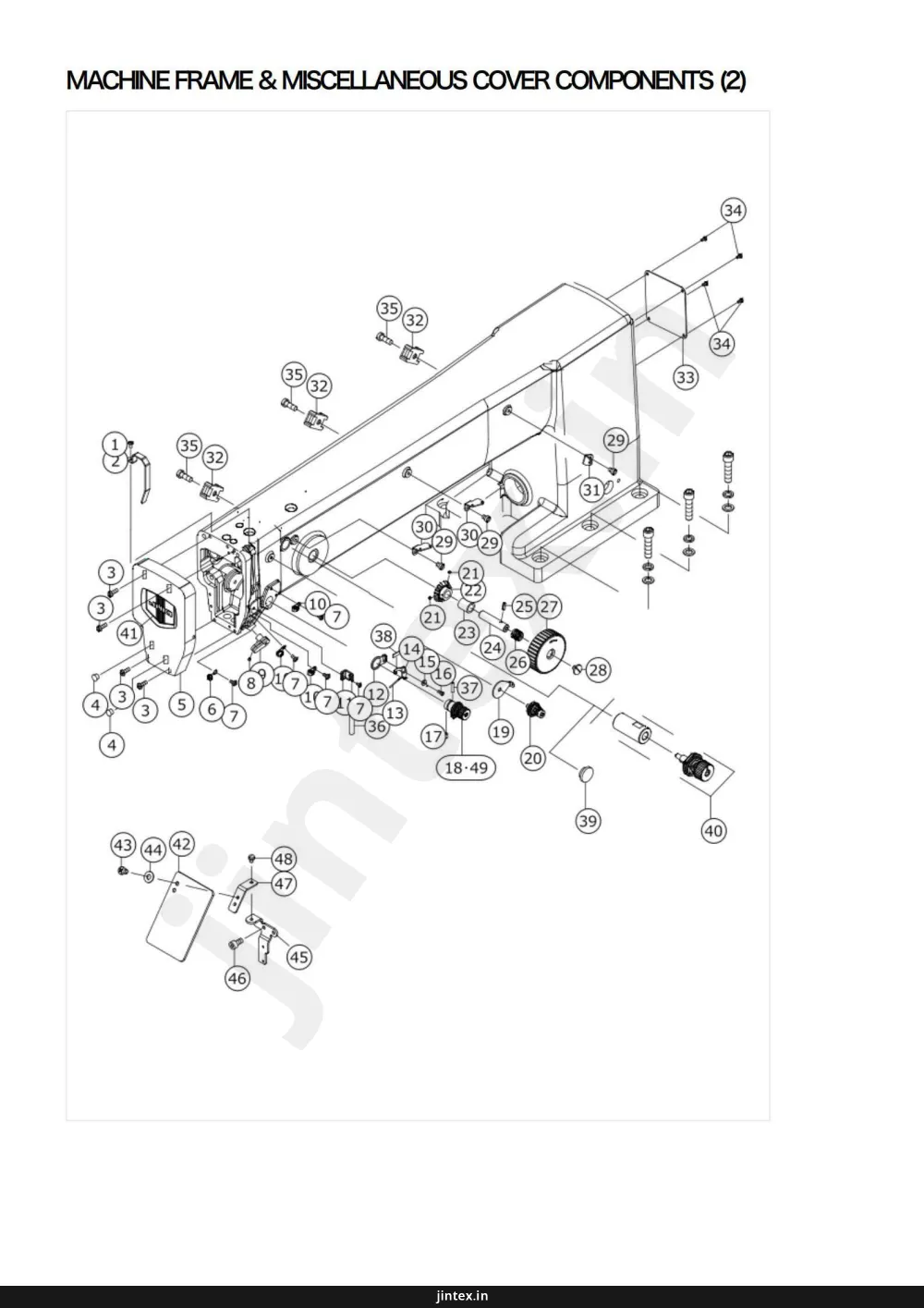

Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | SCREW | 1.00 |
| 2 | 40228013 | THREAD_TAKE_UP_COVER | 1.00 |
| 3 | 40228468 | SCREW | 4.00 |
| 4 | - | 12_RUBBER_PLUG | 2.00 |
| 5 | 40228469 | FACE_COVER | 1.00 |
| 6 | 40228470 | LOWER_GUIDE | 1.00 |
| 7 | - | SCREW | 5.00 |
| 8 | 40228015 | SCREW | 1.00 |
| 9 | 40228016 | AT_SOLENOID_ASM | 1.00 |
| 10 | 40228017 | RIGHT_GUIDE | 3.00 |
| 11 | 40228018 | VERTICA_GUIDE | 1.00 |
| 12 | 40228019 | IN-SENSOR_INSULATION_PIECE | 1.00 |
| 13 | 40228020 | SENSOR_PLATE_THREAD | 1.00 |
| 14 | 40228021 | SHEAR_THREAD_DETECT_SENSOR_PLATE | 1.00 |
| 15 | - | OUT-SENSOR_INSULATION_PIECE | 1.00 |
| 16 | - | SCREW | 1.00 |
| 17 | - | SCREW | 2.00 |
| 18 | 40228022 | THREAD_TENSION_ASM | 1.00 |
| 19 | 40228023 | THREAD_TENSION_GUIDE | 1.00 |
| 20 | 40228024 | UPPER_THREAD_TENSION_ASM | 1.00 |
| 21 | - | SCREW | 2.00 |
| 22 | 40228105 | PULLEY_SHAFT_GEAR | 1.00 |
| 23 | - | PULLEY_METAL | 1.00 |
| 24 | 40228027 | PULLEY_SHAFT | 1.00 |
| 25 | - | PIN | 1.00 |
| 26 | 40228028 | PULLEY_SPRING | 1.00 |
| 27 | 40228029 | PULLEY | 1.00 |
| 28 | 40228030 | HANDWHEEL_SETSCREW | 1.00 |
| 29 | 40228031 | SCREW | 3.00 |
| 30 | 40228032 | DOUBLE_HOLE_GUIDE | 2.00 |
| 31 | 40228033 | SINGLE_HOLE_GUIDE | 1.00 |
| 32 | 40228034 | FIXING_PLATE | 3.00 |
| 33 | 40228035 | BED_REAR_COVER | 1.00 |
| 34 | - | SCREW | 4.00 |
| 35 | - | SCREW | 3.00 |
| 36 | - | GUIDE_TUBE | 1.00 |
| 37 | - | THREAD_TENSION_CASE_TUBE | 1.00 |
| 38 | 40228042 | SHEAR_THREAD_DETECT_SENSOR_PLATE_RUBBER | 1.00 |
| 39 | 40228043 | RUBBER_PLUG | 1.00 |
| 40 | 40228051 | 3RD THREAD TENSION ASM | 1.00 |
| 41 | 40228586 | FACE COVER PLATE | 1.00 |
| 42 | - | SAFETY_PLATE | 1.00 |
| 43 | - | SCREW M4X0.7 L=6 | 2.00 |
| 44 | - | WASHER 4.5X10X0.8 | 2.00 |
| 45 | - | BASE_PLATE | 1.00 |
| 46 | - | SCREW M4X0.7 L=8 | 2.00 |
| 47 | - | LINK_PLATE | 1.00 |
| 48 | - | SCREW | 1.00 |
| 49 | 40234081 | THREAD TENSION ASM | 1.00 |
Page 6 — DISPLAY UNIT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | SCREW | 8.00 |
| 2 | 40228052 | PANEL_INSTALLATION_CUSHION | 1.00 |
| 3 | 40227992 | PANEL_RUBBER_CUSHION | 4.00 |
| 4 | 40228053 | PANEL_INSTALLATION_PLATE | 1.00 |
| 5 | 40228054 | PANEL | 1.00 |
| 6 | 40259264 | PANEL_CE | 1.00 |
| 7 | 40228719 | PANEL_CABLE | 1.00 |
Page 8 — UPPER SHAFT & PICK LINE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40228102 | THREAD_TAKE_UP_CONNECT_ROD_HINGE_SHAFT | 1.00 |
| 2 | - | SCREW | 2.00 |
| 3 | - | SCREW | 2.00 |
| 4 | 40228103 | THRUST | 1.00 |
| 5 | 40228104 | THREAD_TAKE_UP_CONNECT_ROD_ASM | 1.00 |
| 6 | - | SCREW | 3.00 |
| 7 | 40228590 | COUNTER WEIGHT 15.2 | 1.00 |
| 8 | - | SCREW | 1.00 |
| 9 | - | SCREW | 1.00 |
| 10 | 40228025 | UPPER_SHAFT_GEAR | 1.00 |
| 11 | - | SCREW | 2.00 |
| 12 | 40228645 | UPPER_SHAFT_PULLEY_ASM | 1.00 |
| 13 | 40228483 | MAIN_SHAFT_MOTOR | 1.00 |
| 14 | - | WASHER | 4.00 |
| 15 | - | SPRING_WASHER | 4.00 |
| 16 | - | SCREW | 4.00 |
| 17 | 40228106 | TIMING_BELT | 1.00 |
| 18 | 40228595 | ECCENTRIC_CAM_CONNECT_ROD_ASM | 1.00 |
| 19 | 40228647 | UPPER_SHAFT | 1.00 |
| 20 | 40228107 | UPPER_SHAFT_FRONT_BEARING_ASM | 1.00 |
| 21 | 40228290 | UPPER_SHAFT_FRONT_REAR_BEARIN_ASM | 1.00 |
| 22 | 40228484 | UPPER_SHAFT_PULLEY_BAFFLE | 1.00 |
| 23 | 40228316 | ELASTIC_CYLINDRICAL_PIN | 1.00 |
| 24 | 40228648 | MAIN_SHAFT_COUPLING | 1.00 |
| 25 | 40228591 | BALANCER | 1.00 |
| 26 | 40262514 | MAIN_SHAFT_MOTOR_CE | 1.00 |
Page 10 — NEEDLE BAR & LOWER SHAFT PART COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40228110 | NEEDLE_BAR_UPPER_CAP | 1.00 |
| 2 | - | SCREW | 1.00 |
| 3 | 40228111 | NEEDLE_BAR_UPPER_METAL | 1.00 |
| 4 | - | SCREW | 1.00 |
| 5 | 40228113 | NEEDLE_BAR_1.6 | 1.00 |
| 6 | - | NEEDLE_BAR_CONNECTING | 1.00 |
| 7 | - | SCREW | 1.00 |
| 8 | 40228116 | NEEDLE_BAR_LOWER_BUSHING | 1.00 |
| 9 | 40228117 | SCREW | 1.00 |
| 10 | 40228118 | NEEDLE_BAR_THREAD_GUIDE | 1.00 |
| 11 | MDB100B0800 | NEEDLE DBX1 #8 | 1.00 |
| 12 | 40228119 | SLIDE_BLOCK | 1.00 |
| 13 | - | SCREW | 2.00 |
| 14 | 40228120 | SLIP_GROOVE | 1.00 |
| 15 | 40228650 | LOWER_SHAFT_PULLEY_ASM | 1.00 |
| 16 | 40228651 | LOWER_SHAFT | 1.00 |
| 17 | 40228112 | NEEDLE_BAR_2.0 | 1.00 |
| 18 | MDP170B2100 | NEEDLE DPX17 #21 | 1.00 |
| SCREW | SCREW | 1.00 | |
| NEEDLE_BAR_CONNECTING | NEEDLE_BAR_CONNECTING | 1.00 |
Page 12 — ROTARY SHUTTLE TRANSMISSION & THREAD CUTTING PART COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40225492 | FIX_KNIFE | 1.00 |
| 2 | - | FIXED_KNIFE_FIXED_NUT | 1.00 |
| 3 | 40228140 | O_RING | 1.00 |
| 4 | - | PACKING | 2.00 |
| 5 | 40228139 | EXHAUST_CASE | 1.00 |
| 6 | 40228603 | THREAD_CUTTER_CAM_ASM | 1.00 |
| 7 | 40228604 | BEARING_ASM | 1.00 |
| 8 | 40228605 | LARGE_GEARS_ASM | 1.00 |
| 9 | 40225489 | BOBBIN_CASE | 1.00 |
| 10 | 40225494 | BOBBIN | 1.00 |
| 11 | 40225488 | HOOK | 1.00 |
| 12 | 40228192 | OIL_WICK | 1.00 |
| 13 | 40228130 | MOVING_KNIFE_SHAKING_TABLE | 1.00 |
| 14 | 40225493 | MOVING_KNIFE | 1.00 |
| 15 | 40228131 | SCREW | 2.00 |
| 16 | 40228132 | DRIVING_POSITION_BASE | 1.00 |
| 17 | 40228133 | OIL_THREAD | 1.00 |
| 18 | - | TUBE | 1.00 |
| 19 | - | SCREW | 1.00 |
| 20 | - | MOVING_FORT_CASE | 1.00 |
| 21 | 40228134 | COTTON_OIL_WICK | 1.00 |
| 22 | - | STATIC_FORT_CASE | 1.00 |
| 23 | - | E_BEARING | 2.00 |
| 24 | - | SPRING_WASHER | 2.00 |
| 25 | - | BEARING | 1.00 |
| 26 | - | AXIAL_ELASTIC_THRUST | 2.00 |
| 27 | - | CASE | 1.00 |
| 28 | 40228601 | HOOK_SHAFT | 1.00 |
| 29 | - | BALL 1.5 | 1.00 |
| 30 | - | WASHER | 2.00 |
| 31 | - | SCREW | 2.00 |
| 32 | - | TUBE | 1.00 |
| 33 | - | JOINT | 1.00 |
| 34 | 40228602 | HOOK_SHAFT_METAL | 1.00 |
| 35 | - | SCREW | 1.00 |
| 36 | - | HOOK_SHAFT_METAL_O_RING | 1.00 |
| 37 | - | PACKING | 1.00 |
| 38 | 40228606 | HOOK_SHAFT_GEAR_ASM | 1.00 |
| 39 | - | SCREW | 2.00 |
| 40 | 40228135 | SCREW | 1.00 |
| 41 | - | SCREW | 1.00 |
| 42 | 40228136 | SCREW | 1.00 |
| 43 | 40228137 | HOOK_POSITION_HOOK 2.6 | 1.00 |
| 44 | 40228138 | POSITION_HOOK_FIXED_NUT | 1.00 |
| 45 | 40234079 | HOOK ASM | 1.00 |
| 46 | 40234080 | STATIC KNIFE | 1.00 |
Page 14 — OIL SUPPLY & NEEDLE PLATE PARTS OF ROTARY SHUTTLE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | RAISING_PLATE_UPPER_PIPE | 1.00 |
| 2 | 40228142 | CYLINDER_JOINT | 1.00 |
| 3 | - | SCREW | 2.00 |
| 4 | - | SPRING WASHER | 10.00 |
| 5 | - | WASHER | 12.00 |
| 6 | 40228143 | CYLINDER_PLATE | 1.00 |
| 7 | 40228144 | RAISING_PLATE_CYLINDER | 1.00 |
| 8 | - | RAISING_PLATE_LOWER_PIPE | 1.00 |
| 9 | - | CYLINDER_JOINT | 1.00 |
| 10 | - | COPPER_PIPE | 1.00 |
| 11 | 40228145 | COPPER_PIPE_JOINT_ASM | 2.00 |
| 12 | 40228146 | OIL_INSTRUCTION_PLATE_ASM | 1.00 |
| 13 | 40228147 | OIL_INSTRUCTION_PLATE | 1.00 |
| 14 | 40227148 | OUTER_OIL_INSTRUCTION_SCREW | 1.00 |
| 15 | 40228149 | WASHER | 1.00 |
| 16 | 40228150 | SPRING_WASHER | 1.00 |
| 17 | 40228151 | NUT | 1.00 |
| 18 | 40228152 | O_RING | 1.00 |
| 19 | 40228153 | INNER_OIL_INSTRUCTION_SCREW | 1.00 |
| 20 | 40228154 | HOOK_SHAFT_POSITION_CASE | 1.00 |
| 21 | 40228488 | PACKING | 1.00 |
| 22 | - | SCREW | 2.00 |
| 23 | - | WASHER | 2.00 |
| 24 | - | JOINT | 1.00 |
| 25 | - | SCREW | 2.00 |
| 26 | - | HOOK_BASE_TABLE_RIGHT_ADJUST_PLATE | 1.00 |
| 27 | - | SCREW | 2.00 |
| 28 | 40228608 | RFID_UNIT | 1.00 |
| 29 | 40228168 | POLICY_BOARD | 1.00 |
| 30 | 40228156 | GEAR_BOX_UPPER_COVER_CUSHION | 1.00 |
| 31 | 40228157 | GEAR_BOX_UPPER_COVER | 1.00 |
| 32 | - | SCREW | 6.00 |
| 33 | 40228158 | HOOK_COVER | 1.00 |
| 34 | 40228159 | SCREW | 4.00 |
| 35 | 40228160 | SCREW | 2.00 |
| 36 | 40225486 | NEEDLE_PLATE_CONVEX_D1.6 | 1.00 |
| 37 | 40228161 | HOOK_BASE_TABLE_LEFT_ADJUST_PLATE | 1.00 |
| 38 | 40228162 | LED_LAMP | 1.00 |
| 39 | - | HOOK_BASE | 1.00 |
| 40 | 40228659 | SCREW | 2.00 |
| 41 | 40228169 | POLICY_BOARD_ADJUST_CONNEC_CASE | 2.00 |
| 42 | 40228170 | POLICY_BOARD_ADJUST_CONNEC_PRESS_CASE | 2.00 |
| 43 | - | SCREW | 2.00 |
| 44 | 40228171 | WASHER | 2.00 |
| 45 | - | SCREW | 2.00 |
| 46 | - | SCREW | 2.00 |
| 47 | 40228361 | IC_CARD | 1.00 |
| 48 | 40228167 | OIL_TRAY_ASM | 1.00 |
| 49 | - | OIL_TRAY_RUBBER_STOPPER | 1.00 |
| 50 | 40228166 | REFUELING_ADJUSTMENT_ASM | 1.00 |
Page 15 — OIL SUPPLY & NEEDLE PLATE PARTS OF ROTARY SHUTTLE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 51 | - | SCREW | 2.00 |
| 52 | - | COTTON_OIL_WICK | 2.00 |
| 53 | - | TUBE | 2.00 |
| 54 | - | SCREW | 2.00 |
| 55 | - | SCREW | 2.00 |
| 56 | 40228154 | OIL_TRAY_FITTING_PLATE | 1.00 |
| 57 | 40225498 | NEEDLE_PLATE_(SMALL)_D=2.4 | 1.00 |
Page 17 — WIRE CUT ELECTROMAGNETIC COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40228172 | AXIAL_THRUST | 1.00 |
| 2 | 40228173 | SCREW | 1.00 |
| 3 | - | SCREW | 2.00 |
| 4 | 40228174 | PLATE | 1.00 |
| 5 | 40228175 | BEARING | 2.00 |
| 6 | - | CASE | 1.00 |
| 7 | 40228176 | CONNECTING_ROD_PARTS | 1.00 |
| 8 | 40228177 | THREAD_CUTTER_SOLENOID_PARTS | 1.00 |
| 9 | 40228036 | THREAD_CUTTER_CONNECTING_ROD_P | 1.00 |
| 10 | - | SCREW | 2.00 |
Page 19 — THE BASE MEMBER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | SPRING_WASHER | 4.00 |
| 2 | 40228490 | RUBBER_CUSHION | 6.00 |
| 3 | - | POSITION_CASE | 4.00 |
| 4 | - | BED_CUSHION | 4.00 |
| 5 | - | WASHER | 4.00 |
| 6 | - | SCREW | 4.00 |
| 7 | 40228660 | Y_MOTOR_CUSHION | 1.00 |
| 8 | - | SCREW | 4.00 |
| 9 | - | WASHER | 4.00 |
| 10 | - | SPRING_WASHER | 4.00 |
| 11 | 40228744 | Y_MOTOR | 1.00 |
| 12 | - | SCREW | 4.00 |
| 13 | - | SPRING_WASHER | 6.00 |
| 14 | 40228661 | Y_MOTOR_PULLEY | 1.00 |
| 15 | - | BOLD. FUP | 1.00 |
| 16 | - | SCREW | 1.00 |
| 17 | - | BEARING | 1.00 |
| 18 | 40228492 | Y_MOTOR_BELT | 1.00 |
| 19 | 40228662 | Y_MOTOR_PULLEY | 1.00 |
| 20 | - | SCREW | 4.00 |
| 21 | 40228663 | Y_MAIN_SHAFT | 1.00 |
| 22 | 40228493 | MOTOR_TIMING_BELT_ADJUST_CUSHION | 1.00 |
| 23 | - | SCREW | 22.00 |
| 24 | - | WASHER | 4.00 |
| 25 | - | SCREW | 1.00 |
| 26 | - | NUT | 1.00 |
| 27 | 40228494 | MODULE_PLATE_BOARD | 4.00 |
| 28 | - | SCREW | 8.00 |
| 29 | - | FIXING_PLATE | 3.00 |
| 30 | - | SCREW | 3.00 |
| 31 | - | 7X200_CABLE_BAND | 3.00 |
| 32 | - | WIRING_BOX | 1.00 |
| 33 | - | SCREW | 2.00 |
| 34 | 40228664 | Y_RIGHT_LINEAR_MODULE | 1.00 |
| 35 | 40228665 | Y_LEFT_LINEAR_MODULE | 1.00 |
| 36 | - | MODULE_PLATE | 4.00 |
| 37 | 40228495 | MODULE_RAISING_PLATE | 4.00 |
| 38 | - | SCREW | 8.00 |
| 39 | - | SPRING_WASHER | 8.00 |
| 40 | - | WASHER | 8.00 |
| 41 | 40262518 | Y_AXIS_MOTOR_CE | 1.00 |
Page 21 — Y RIGHT LINEAR MODULE UNIT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40228666 | Y_RIGHT_LINEAR_MODULE_BED | 1.00 |
| 2 | 40228667 | Y_REAR_RIGHT_BEARING_CUSHION | 1.00 |
| 3 | - | SCREW | 6.00 |
| 4 | - | SPRING_WASHER | 6.00 |
| 5 | - | WASHER | 6.00 |
| 6 | - | Y_REAR_BEARING_CUSHION_CONNECTING_PLATE | 2.00 |
| 7 | 40228668 | Y_REAR_LEFT_BEARING_CUSHION | 1.00 |
| 8 | 40228496 | BEARING | 2.00 |
| 9 | - | SCREW | 4.00 |
| 10 | 40228669 | Y_MOTOR_PULLEY | 1.00 |
| 11 | - | Y_MOTOR_PULLEY_BOLD. FUP | 1.00 |
| 12 | - | SCREW | 1.00 |
| 13 | 40228497 | Y_FEED_GUIDE_RAIL | 1.00 |
| 14 | 40228498 | SCREW | 12.00 |
| 15 | 40228499 | GUIDE_RAIL_BAFFLE | 1.00 |
| 16 | - | SCREW | 2.00 |
| 17 | 40228769 | Y_REAR_BEARING_CUSHION | 1.00 |
| 18 | - | SCREW | 2.00 |
| 19 | - | SPRING_WASHER | 4.00 |
| 20 | - | WASHER | 2.00 |
| 21 | 40228500 | BEARING | 2.00 |
| 22 | - | E_RING | 2.00 |
| 23 | 40228502 | Y_SWING_TIMING_BELT_WHEEL_AXIS | 1.00 |
| 24 | 40228671 | Y_SWING_TIMING_PULLEY | 1.00 |
| 25 | - | SCREW | 2.00 |
| 26 | - | Y_FRONT_BEARING_SEAT_SIDEWAYS_FIXED_MASS | 2.00 |
| 27 | - | SCREW | 4.00 |
| 28 | 40228503 | SIDEWAYS_FIXED_MASS_CONNECTING_SHAFT | 1.00 |
| 29 | 40228504 | SCREW | 1.00 |
| 30 | - | Y_FRONT_BEARING_BLOCK | 1.00 |
| 31 | - | SCREW | 2.00 |
| 32 | - | Y_RIGHT_SLIDE | 1.00 |
| 33 | 40228505 | Y_BEARING | 8.00 |
| 34 | 40228506 | SCREW | 8.00 |
| 35 | 40228507 | Y_BEARING_ADJUST_MASS | 6.00 |
| 36 | 40228508 | SCREW | 24.00 |
| 37 | 40228509 | FELT | 2.00 |
| 38 | 40228512 | DUST_BAFFLE | 2.00 |
| 39 | - | SCREW | 4.00 |
| 40 | - | Y_TIMING_BELT_PLATE | 2.00 |
| 41 | - | SCREW | 8.00 |
| 42 | - | SPRING_WASHER | 8.00 |
| 43 | - | WASHER | 8.00 |
| 44 | - | Y_SLIDE_COVER | 1.00 |
| 45 | - | SCREW | 4.00 |
| 46 | - | X_MODULE_SUPPORT | 1.00 |
| 47 | - | SUPPORT_CUSHION_CYLINDER_PIN | 2.00 |
| 48 | - | SCREW | 2.00 |
| 49 | - | WASHER | 2.00 |
| 50 | 40228510 | Y_TIMING_BELT | 1.00 |
Page 23 — Y LEFT LINEAR MODULE UNIT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40228666 | Y_LINEAR_MODULE_BED | 1.00 |
| 2 | 40228667 | Y_REAR_RIGHT_BEARING_CUSHION | 1.00 |
| 3 | - | SCREW | 6.00 |
| 4 | - | SPRING_WASHER | 6.00 |
| 5 | - | WASHER | 6.00 |
| 6 | - | Y_REAR_BEARING_CUSHION_CONNECTING_PLATE | 2.00 |
| 7 | 40228668 | Y_REAR_LEFT_BEARING_CUSHION | 1.00 |
| 8 | 40228496 | BEARING | 2.00 |
| 9 | - | SCREW | 4.00 |
| 10 | 40228669 | Y_MOTOR_PULLEY | 1.00 |
| 11 | - | Y_MOTOR_PULLEY_BOLD. FUP | 1.00 |
| 12 | - | SCREW | 1.00 |
| 13 | 40228497 | Y_GUIDE_RAIL | 1.00 |
| 14 | 40228498 | SCREW | 12.00 |
| 15 | 40228499 | GUIDE_RAIL_BAFFLE | 1.00 |
| 16 | - | SCREW | 2.00 |
| 17 | 40228769 | Y_REAR_BEARING_CUSHION | 1.00 |
| 18 | - | SCREW | 2.00 |
| 19 | - | SPRING_WASHER | 4.00 |
| 20 | - | WASHER | 2.00 |
| 21 | 40228500 | BEARING | 2.00 |
| 22 | - | E_RING | 2.00 |
| 23 | 40228502 | Y_TIMING_BELT_WHEEL_AXIS | 1.00 |
| 24 | 40228671 | TIMING_BELT_WHEEL | 1.00 |
| 25 | - | SCREW | 2.00 |
| 26 | - | Y_FRONT_BEARING_SEAT_SIDEWAYS_FIXED_MASS | 2.00 |
| 27 | - | SCREW | 4.00 |
| 28 | 40228503 | SIDEWAYS_FIXED_MASS_CONNECTING_SHAFT | 1.00 |
| 29 | 40228504 | SCREW | 1.00 |
| 30 | - | Y_FRONT_BEARING_BLOCK | 1.00 |
| 31 | - | SCREW | 2.00 |
| 32 | - | Y_LEFT_SLIDE | 1.00 |
| 33 | 40228505 | Y_BEARING | 8.00 |
| 34 | 40228506 | SCREW | 8.00 |
| 35 | 40228507 | Y_BEARING_ADJUST_MASS | 6.00 |
| 36 | 40228508 | SCREW | 24.00 |
| 37 | 40228509 | FORT | 2.00 |
| 38 | 40228512 | DUST_BAFFLE | 2.00 |
| 39 | - | SCREW | 4.00 |
| 40 | - | Y_TIMING_BELT_PLATE | 2.00 |
| 41 | - | SCREW | 8.00 |
| 42 | - | SPRING_WASHER | 8.00 |
| 43 | - | WASHER | 8.00 |
| 44 | - | Y_SLIDE_COVER | 1.00 |
| 45 | - | SCREW | 4.00 |
| 46 | - | X_MODULE_SUPPORT_CUSHION | 1.00 |
| 47 | - | CYLINDER_PIN | 2.00 |
| 48 | - | SCREW | 2.00 |
| 49 | - | WASHER | 2.00 |
| 50 | 40228510 | Y_TIMING_BELT | 1.00 |
Page 24 — Y LEFT LINEAR MODULE UNIT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 51 | - | Y_SENSOR_PLATE | 1.00 |
| 52 | - | SCREW | 4.00 |
| 53 | - | Y_SENSOR_BASE | 1.00 |
| 54 | - | POSITION_SENSOR | 1.00 |
| 55 | - | SCREW | 2.00 |
| 56 | - | SENSOR_BASE_FIXED_PLATE | 1.00 |
Page 26
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | SCREW | 8.00 |
| 2 | 40228517 | X_LINEAR_MODULE_SIDE_COVER | 2.00 |
| 3 | - | SCREW | 24.00 |
| 4 | - | SENSOR_BASE_FIXED_PLATE | 1.00 |
| 5 | 40228518 | BEARING | 2.00 |
| 6 | 40228519 | X_SWING_SHAFT | 1.00 |
| 7 | - | X_LINEAR_MODULE_BED | 1.00 |
| 8 | - | SCREW | 4.00 |
| 9 | 40228072 | X_SWING_TIMING_PULLEY | 1.00 |
| 10 | - | AXIAL_ELASTIC_THRUST A-TYPE | 1.00 |
| 11 | - | PULLEY_THRUST | 1.00 |
| 12 | 40228520 | BEARING | 1.00 |
| 13 | - | X_SWING_SHAFT_FIXED_WASHER | 1.00 |
| 14 | - | SCREW | 1.00 |
| 15 | - | X_BEARING_PLATE | 1.00 |
| 16 | - | WASHER | 19.00 |
| 17 | - | SPRING_WASHER | 15.00 |
| 18 | - | SCREW | 11.00 |
| 19 | - | 8_RUBBER_PLUG | 2.00 |
| 20 | 40228521 | X_LINEAR_MODULE_UPPER_COVER | 2.00 |
| 21 | - | SCREW | 8.00 |
| 22 | - | SCREW | 4.00 |
| 23 | - | 12_RUBBER_PLUG | 4.00 |
| 24 | - | SCREW | 4.00 |
| 25 | 40228522 | CABLE_LANES_LOWER_PILLAR | 1.00 |
| 26 | - | SCREW | 8.00 |
| 27 | 40228523 | CABLE_LANES | 1.00 |
| 28 | 40228524 | X_STEPPING_MOTOR | 1.00 |
| 29 | 40228504 | X_MOTOR_TIMING_PULLEY | 1.00 |
| 30 | - | SCREW | 10.00 |
| 31 | 40228525 | C-TYPE_CABLE_LANE_SUPPORT_CUSHION | 1.00 |
| 32 | - | 4X2.5_PIPE | 1.00 |
| 33 | 40228526 | X_CABLE_LANES | 1.00 |
| 34 | 40228527 | X_SWING_TIMING_BELT | 1.00 |
| 35 | 40230289 | X_MOTOR_POWER_RELAY_CABLE | 1.00 |
| 36 | 40228216 | X_CYLINDER_PLATE | 1.00 |
| 37 | - | SPRING_WASHER | 4.00 |
| 38 | - | WASHER | 12.00 |
| 39 | 40228528 | AIR_CYLINDER | 4.00 |
| 40 | - | SCREW | 8.00 |
| 41 | 40228530 | CYLINDER_PLATE_CONNECTING_PLATE | 2.00 |
| 42 | - | JOINT | 4.00 |
| 43 | - | PIPE | 1.00 |
| 44 | - | Y_UNION | 1.00 |
| 45 | - | PIPE | 1.00 |
| 46 | 40228537 | Y-TYPE 3_PASS | 3.00 |
| 47 | 40228538 | SENSOR_PLATE | 1.00 |
| 48 | - | SCREW | 1.00 |
| 49 | 40228539 | X_SENSOR_PLATE | 1.00 |
| 50 | 40228540 | X_CABLE_LANE_PLATE | 1.00 |
Page 27
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 51 | - | SCREW | 2.00 |
| 52 | 40228532 | POSITION_SENSOR | 1.00 |
| 53 | 40228533 | X_SENSOR_BASE | 1.00 |
| 54 | 40228534 | CABLE_CLAMP | 2.00 |
| 55 | - | SCREW | 2.00 |
| 56 | - | PLATE_CONNECTING_PLATE | 2.00 |
| 57 | - | SCREW | 8.00 |
| 58 | - | CYLINDER_SHORT_PLATE | 2.00 |
| 59 | - | PRESSER_BLOCK | 2.00 |
| 60 | 40230290 | X_MOTOR_ENCODER_RELAY_CABLE | 1.00 |
| 61 | 40262516 | X_AXIS_MOTOR_CE | 1.00 |
Page 29 — X SLIDE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | SCREW | 1.00 |
| 2 | - | ADJUST_PLATE_BOARD | 2.00 |
| 3 | - | TIMING_BELT_ADJUST_PLATE | 1.00 |
| 4 | - | ADJUSTING_END_TIMING_BELT_PLATE | 1.00 |
| 5 | 40228541 | WASHER | 24.00 |
| 6 | - | SPRING_WASHER | 10.00 |
| 7 | - | SCREW | 3.00 |
| 8 | - | SCREW | 3.00 |
| 9 | - | SCREW | 4.00 |
| 10 | 40228542 | X_FORT_BAFFLE | 4.00 |
| 11 | 40228543 | X_FELT | 2.00 |
| 12 | 40228544 | SCREW | 14.00 |
| 13 | 40228545 | X_OUTER_BEARING_BAFFLE | 2.00 |
| 14 | 40228546 | X_INNER_SIDE_BEARING_BAFFLE | 2.00 |
| 15 | 40228547 | SCREW | 8.00 |
| 16 | 40228548 | X_BEARING | 8.00 |
| 17 | - | X_RIGHT_SLIDE | 1.00 |
| 18 | 40228549 | X_BEARING_ADJUST_MASS | 4.00 |
| 19 | - | SCREW | 16.00 |
| 20 | - | FIXED_END_TIMING_BELT_PLATE | 1.00 |
| 21 | - | SCREW | 4.00 |
| 22 | - | NUT | 1.00 |
| 23 | - | WASHER | 1.00 |
| 24 | - | X_SLIDE_CONNECTING_PLATE | 1.00 |
| 25 | - | SIDEWAYS_POSITION_PIN_CASE | 1.00 |
| 26 | - | SCREW | 1.00 |
| 27 | - | PATTERN_X_POSITIONING_PIN | 1.00 |
| 28 | - | X_LEFT_SLIDE | 1.00 |
| 29 | 40228550 | X_GUIDE_RAIL | 1.00 |
| 30 | - | CYLINDER_PIN | 2.00 |
Page 31 — PACK UNIT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | TABLE_SUPPORT | 1.00 |
| 2 | 40228551 | CONTROL_BOX_CS | 1.00 |
| 3 | - | SCREW | 4.00 |
| 4 | - | WASHER | 6.00 |
| 5 | 40228416 | POWER_SWITCH | 1.00 |
| 6 | - | SCREW | 2.00 |
| 7 | 40228417 | LASER_PART | 9.00 |
| 8 | 40228271 | FAN | 1.00 |
| 9 | - | SCREW | 8.00 |
| 10 | 40228270 | DUST_PLATE | 2.00 |
| 11 | - | NUT | 4.00 |
| 12 | 40228552 | WIRE GUIDE | 1.00 |
| 13 | - | SCREW | 4.00 |
| 14 | - | OIL_JAR_MOUNTING_PLATE | 1.00 |
| 15 | - | SCREW | 4.00 |
| 16 | 40228553 | OIL_CANS | 1.00 |
| 17 | - | SCREW | 4.00 |
| 18 | - | WASHER | 4.00 |
| 19 | - | CASTER | 4.00 |
| 20 | - | SCREW | 16.00 |
| 21 | - | SPRING_WASHER | 16.00 |
| 22 | - | WASHER | 16.00 |
| 23 | 40228643 | TABLE_SUPPORT_UPPER_FRONT_COVER | 1.00 |
| 24 | 40228644 | SCREW | 15.00 |
| 25 | - | TABLE_SUPPORT_UPPER_REAR_COVER | 1.00 |
| 26 | - | CIRCUIT_PROTECTOR_BASE | 1.00 |
| 27 | - | PIN | 2.00 |
| 28 | 40247794 | CONTROL_BOX_K | 1.00 |
Page 33
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | LEFT_CONNECT_ALUMINUM_FRAME | 1.00 |
| 2 | - | SCREW | 4.00 |
| 3 | - | SLIDE_NUT M6 | 4.00 |
| 4 | - | FLANGE_NUT_M6 | 73.00 |
| 5 | - | POWERFUL_CORNER_PARTS | 16.00 |
| 6 | - | T-TYPE M6X16 | 69.00 |
| 7 | - | RIGHT_CONNECT_ALUMINUM_FRAME | 1.00 |
| 8 | - | FRONT_CONNECT_ALUMINUM_FRAME | 1.00 |
| 9 | - | REAR_VERTICAL_CONNECT_ALUMINUM_FRAME | 2.00 |
| 10 | - | FRONT_VERTICAL_CONNECT_ALUMINUM_FRAME | 2.00 |
| 11 | - | TABLE_FRONT_CONNECT_ALUMINUM_FRAME | 1.00 |
| 12 | - | SCREW | 31.00 |
| 13 | - | WASHER | 31.00 |
| 14 | - | RUBBER_CUSHION | 31.00 |
| 15 | - | ALUMINUM_FRAME (TABLE_LEFT) | 1.00 |
| 16 | - | ALUMINUM_ANGLE | 2.00 |
| 17 | - | TABLE_RIGHT_CONNECT_ALUMINUM_FRAME | 1.00 |
| 18 | - | TABLE_LEFT_REAR_CONNECT_ALUMINUM_FRAME | 1.00 |
| 19 | - | TABLE_RIGHT_REAR_CONNECT_ALUMINUM_FRAME | 3.00 |
| 20 | - | TABLE_REAR_CONNECT_ALUMINUM_FRAME | 1.00 |
| 21 | - | COVER | 6.00 |
| 22 | 40228649 | TABLE_SUPPORT_FRONT_COVER | 1.00 |
| 23 | - | SCREW | 36.00 |
| 24 | 40228555 | SLIDE_NUT M4 | 33.00 |
| 25 | - | FRONT_COVER_LARGE_FIXED_PIECE | 2.00 |
| 26 | 40228556 | FRONT_COVER_SMALL_FIXED_PIECE | 2.00 |
| 27 | - | SCREW | 4.00 |
| 28 | 40228652 | TABLE_SUPPORT_LEFT_COVER | 1.00 |
| 29 | - | TABLE_SUPPORT_RIGHT_COVER | 1.00 |
| 30 | - | TABLE_SUPPORT_REAR_COVER | 1.00 |
| 31 | - | Y_MOTOR_COVER | 1.00 |
| 32 | - | SCREW | 1.00 |
| 33 | - | Y_MOTOR_COVER_CONNECTING_PILLARS | 1.00 |
| 34 | - | NUT | 1.00 |
| 35 | - | POWER_SWITCH | 1.00 |
| 36 | - | SCREW | 2.00 |
| 37 | - | WASHER | 2.00 |
| 38 | WP0501016SD | WASHER 5X10.5X1 | 2.00 |
| 39 | SM6051202TP | SCREW M5X0.8 L=12 | 2.00 |
| 40 | 40228557 | BUTTON_BOX | 1.00 |
| 41 | - | T-TYPE M6X12 | 2.00 |
| 42 | - | NUT | 2.00 |
| 43 | - | SUSPENSION_SWITCH_PLATE | 1.00 |
| 44 | - | CABLE_WIRE_PLATE | 1.00 |
| 45 | - | WASHER | 4.00 |
| 46 | 40173544 | SWITCH_INSTALLATION_BOARD | 1.00 |
| 47 | HX006850000 | GROMMET | 2.00 |
Page 35 — PLATEN PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40228655 | TABLE | 1.00 |
| 2 | - | MAGNET | 4.00 |
| 3 | 40228558 | CYLINDER_RAISING_PLATE | 1.00 |
| 4 | 40228236 | TABLE_ADJUST_PLATE | 2.00 |
| 5 | 40228234 | TABLE_ADJUST_RUBBER | 2.00 |
| 6 | - | SCREW | 4.00 |
| 7 | - | WASHER | 8.00 |
| 8 | - | SPRING_WASHER | 8.00 |
| 9 | - | TABLE_SUPPLEMENTARY_PLATE | 2.00 |
| 10 | - | SCREW | 4.00 |
| 11 | 40228636 | SPOOL REST ARM | 1.00 |
| 12 | 40225559 | 304 SCREW_HOOK | 1.00 |
| 13 | 40234602 | CYLINDER_PLATE | 2.00 |
| 14 | 40228183 | SCREW | 4.00 |
| 15 | 40234600 | CYLINDER | 2.00 |
| 16 | 40234596 | SCREW | 4.00 |
| 17 | 40234604 | FIXING_BLOCK | 2.00 |
| 18 | 40228659 | SCREW | 2.00 |
| 19 | 40234603 | LIFT_BOSS | 2.00 |
| 20 | 40228282 | JOINT | 4.00 |
| 21 | 40234597 | TUBE | 4.00 |
Page 37 — ELECTRICAL COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | PRESSURE_REGULATING_VALVE_AIR_PIPE | 2.00 |
| 2 | 40228061 | JOINT | 2.00 |
| 3 | 40228059 | AIR_COCK | 1.00 |
| 4 | 40228058 | REGULATOR | 1.00 |
| 5 | - | SCREW | 4.00 |
| 6 | - | WASHER | 6.00 |
| 7 | - | NUT M4 | 4.00 |
| 8 | - | TUBE | 1.00 |
| 9 | 40228254 | Y_UNION | 1.00 |
| 10 | 40228255 | TUBE | 1.00 |
| 11 | 40228256 | AIR_GUN_JOINT | 1.00 |
| 12 | 40228257 | AIR_GUN | 1.00 |
| 13 | - | SOLENOID_VALVE_BED_PIPE | 1.00 |
| 14 | - | SOLENOID_VALVE_JOINT | 1.00 |
| 15 | 40228561 | SOLENOID_VALVE_BED_ASM | 1.00 |
| 16 | - | SCREW | 4.00 |
| 17 | - | TUBE | 1.00 |
| 18 | - | PRESSURE_REGULATING_VALVE_JOINT | 2.00 |
| 19 | 40228060 | REGULATOR | 1.00 |
| 20 | - | TUBE | 1.00 |
| 21 | 40229462 | PWR PCB ASSY | 1.00 |
| 22 | 40247795 | MAIN PCB ASSY_CS | 1.00 |
| 23 | 40228272 | SWITCH_POWER_SUPPLY | 1.00 |
| 24 | 40228551 | CONTROL_BOX_CS | 1.00 |
| 25 | 40229463 | PWR PCB ASSY_K | 1.00 |
| 26 | 40243036 | MAIN PCB ASSY_K | 1.00 |
| 27 | 40243039 | CON PCB ASSY | 1.00 |
| 28 | 40242580 | LOWER_KNIFE_MOTOR_DRIVER | 1.00 |
| 29 | 40242122 | UPPER_ROTARY_MOTOR_DRIVER | 1.00 |
| 30 | 40242123 | LOWER_ROTARY_MOTOR_DRIVER | 1.00 |
| 31 | 40243041 | HEAD1 PCB ASSY | 1.00 |
| 32 | 40243044 | HEAD2 PCB ASSY | 1.00 |
| 33 | 40247794 | CONTROL_BOX_K | 1.00 |
Page 38 — ELECTRICAL COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 34 | 40259256 | MAIN PCB ASSY_CS_CE | 1.00 |
| 35 | 40259259 | MAIN PCB ASSY_K_CE | 1.00 |
| 36 | 40259260 | CONTROL_BOX_CS_CE | 1.00 |
| 37 | 40259263 | CONTROL_BOX_K_CE | 1.00 |
Page 40 — WIPER CYLINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40228303 | TIN_THREAD_CYLINDER_MOUNTING_PLATE | 1.00 |
| 2 | - | SCREW | 2.00 |
| 3 | 40228304 | WIPER_CYLINDER | 1.00 |
| 4 | - | SCREW | 2.00 |
| 5 | - | JOINT | 2.00 |
| 6 | - | TUBE | 2.00 |
| 7 | - | SLIDING_ARM_MOUNTING_PLATE | 1.00 |
| 8 | 40228305 | WIPER_SHAFT_BASE | 1.00 |
| 9 | - | SCREW | 2.00 |
| 10 | 40228306 | WASHER | 1.00 |
| 11 | 40228307 | WIPER_DRIVE_BEARING_PLATE | 1.00 |
| 12 | - | WASHER | 1.00 |
| 13 | 40228308 | THRUST | 1.00 |
| 14 | 40228309 | WIPER_DRIVE_SHAFT | 1.00 |
| 15 | 40228310 | THRUST | 1.00 |
| 16 | 40228311 | TWINE_ROD_SLIDING_ARM | 1.00 |
| 17 | - | SCREW | 1.00 |
| 18 | 40228056 | SILK_THREAD_ROD | 1.00 |
| 19 | - | SCREW | 1.00 |
| 20 | 40228047 | SOLENOID_VALVE | 1.00 |
| 21 | - | SCREW | 2.00 |
| 22 | - | JOINT | 2.00 |
| 23 | - | ELECTRICAL_WIRE | 1.00 |
Page 42 — NEEDLE COOLER PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40228312 | CYLINDER_FIXING_PLATE | 2.00 |
| 2 | 40228313 | CYLINDER_CONNECTING_PLATE | 1.00 |
| 3 | - | SCREW | 2.00 |
| 4 | 40228314 | AUXILIARY_PRESSER_CYLINDER | 1.00 |
| 5 | - | CYLINDER_JOINT | 2.00 |
| 6 | - | SCREW | 4.00 |
| 7 | 40228315 | AUXILIARY_PRESSER_CONNECTION_PLATE | 1.00 |
| 8 | - | WASHER | 6.00 |
| 9 | - | SPRING_WASHER | 4.00 |
| 10 | - | SCREW | 4.00 |
| 11 | - | SCREW | 2.00 |
| 12 | 40228316 | PIN | 2.00 |
| 13 | - | PLANE_THREAD_BRONCHUS | 2.00 |
| 14 | - | WASHER | 2.00 |
| 15 | - | SCREW | 2.00 |
| 16 | 40228317 | UPPER_THREAD_AIR_BLOW | 1.00 |
| 17 | - | AUXILIARY_PRESSER_ASM | 1.00 |
Page 44 — ELECTRONIC PRESSER FOOT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | SCREW | 4.00 |
| 2 | - | WASHER | 4.00 |
| 3 | 40228723 | MOTOR | 1.00 |
| 4 | 40228320 | BEARING | 1.00 |
| 5 | 40228324 | ELECTRONIC_HOLDING_ARM(26.5) | 1.00 |
| 6 | - | SCREW | 1.00 |
| 7 | - | SCREW | 1.00 |
| 8 | 40228327 | CONNECTION_PLATE_SET | 1.00 |
| 9 | 40228329 | TRANSMISSION_SHAKING_ROD_PIN | 1.00 |
| 10 | - | COUPLING_SHAFT_SCREW | 1.00 |
| 11 | - | SCREW | 1.00 |
| 12 | 40228331 | ELECTRONIC_HOLDING_AND_HOLDING | 1.00 |
| 13 | - | SCREW | 2.00 |
| 14 | 40228334 | 13_RUBBER_PLUG | 1.00 |
| 15 | 40228073 | INTERMEDIATE_PRESSER_D2.2 | 1.00 |
| 16 | 40228066 | PRESS_BUSHING | 1.00 |
| 17 | 40228067 | PRESSER BAR | 1.00 |
| 18 | - | WASHER | 1.00 |
| 19 | 40228069 | SCREW | 1.00 |
| 20 | 40228084 | PRESS_DUST_CASE | 1.00 |
| 21 | 40228075 | INTERMEDIATE_PRESSER_D3.5 | 1.00 |
| 22 | 40262520 | MOTOR_CE | 1.00 |
Page 46 — NEEDLE PLATE COMPONENTS (SPECIAL ORDER PARTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40225498 | NEEDLE_PLATE_D2.4 | 1.00 |
| 2 | 40225499 | NEEDLE_PLATE_D3.0 | 1.00 |
| 3 | 40225500 | NEEDLE_PLATE_SMALL_D3.5 | 1.00 |
| 4 | 40225495 | NEEDLE_PLATE (SMALL) D=1.4 | 1.00 |
| 5 | 40225486 | NEEDLE_PLATE (SMALL) D=1.6 | 1.00 |
| 6 | 40225501 | NEEDLE_PLATE_CONVEX_D2.0 | 1.00 |
| 7 | 40225502 | NEEDLE_PLATE_CONVEX_D2.2 | 1.00 |
| 8 | 40225503 | NEEDLE_PLATE_CONVEX_D2.4 | 1.00 |
| 9 | 40225504 | NEEDLE_PLATE_SMALL_D1.6 | 1.00 |
Page 48 — PRESSER FOOT COMPONENTS (SPECIAL ORDER PARTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40225516 | BOAT_PLASTIC_PRESSER | 1.00 |
| 2 | 40225496 | BOAT_PRESSER_S | 1.00 |
| 3 | 40225491 | BOAT_PRESSER_L | 1.00 |
| 4 | 40228079 | INTERMEDIATE_PRESSER_D2.2L | 1.00 |
| 5 | 40228073 | INTERMEDIATE_PRESSER_D2.2 | 1.00 |
| 6 | 40228074 | INTERMEDIATE_PRESSER_D2.7 | 1.00 |
| 7 | 40228075 | INTERMEDIATE_PRESSER_D3.5 | 1.00 |
| 8 | 40228076 | INTERMEDIATE_PRESSER_D4.0 | 1.00 |
| 9 | 40225511 | INTERMEDIATE_PRESSER_D2.0 | 1.00 |
| 10 | 40225512 | INTERMEDIATE_PRESSER_D2.5 | 1.00 |
| 11 | 40225505 | INTERMEDIATE_PRESSER_D2.5L | 1.00 |
| 12 | 40228077 | INTERMEDIATE_PRESSER_D3.0 | 1.00 |
| 13 | 40228078 | INTERMEDIATE_PRESSER_D2.2S | 1.00 |
Page 50 — ACCESSORY BOX PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40225494 | BOBBIN | 5.00 |
| 2 | 40228067 | PRESS | 1.00 |
| 3 | MDB100B0800 | NEEDLE DBX1 #8 | 10.00 |
| 4 | 40225495 | NEEDLE_PLATE_CONVEX_D1.4 | 1.00 |
| 5 | - | SCISSORS | 1.00 |
| 6 | - | SCREW_DRIVER_(6X200) | 1.00 |
| 7 | - | SCREW_DRIVER_(5X75) | 1.00 |
| 8 | - | SCREW_DRIVER_(3X100) | 1.00 |
| 9 | - | PLUS_DRIVER_(6X200) | 1.00 |
| 10 | - | TWEEZERS_ASM | 1.00 |
| 11 | - | HEX_WRENCH_2 | 1.00 |
| 12 | - | HEX_WRENCH_2.5 | 1.00 |
| 13 | - | HEX_WRENCH_3 | 1.00 |
| 14 | - | HEX_WRENCH_4 | 1.00 |
| 15 | - | HEX_WRENCH_5 | 1.00 |
| 16 | - | BOOSTER_ROD | 1.00 |
| 17 | - | SPANNER_8X10 | 1.00 |
| 18 | - | SPANNER_13X15 | 1.00 |
| 19 | - | OIL_CANS | 1.00 |
| 20 | 40228112 | NEEDLE_BAR_2.0 | 1.00 |
| 21 | - | PLASTIC_PRESSER_ASM | 1.00 |
| 22 | 40228583 | SUPPLEMENTARY_SMALL_PRESSER_ASM | 1.00 |
| 23 | - | PIPE_JOINT | 1.00 |
| 24 | - | JOINT | 1.00 |
| 25 | 40228359 | JOINT | 1.00 |
| 26 | 40228361 | IC_CARD | 10.00 |
| 27 | 40228362 | RUBBER_CUSHION | 10.00 |
| 28 | - | USB | 1.00 |
| 29 | 40228363 | T-TYPE_SCREW_M16X16 | 5.00 |
| 30 | 40228364 | NUT M6 | 5.00 |
| 31 | 40228356 | BOBBIN_DEVICE_ASM | 1.00 |
| 32 | - | AIR_GUN_TUBE | 1.00 |
| 33 | - | INSTRUCTION_BOOK | 1.00 |
| 34 | - | CASSETTE_DRAWING | 1.00 |
| 35 | - | HEX_WRENCH_6 | 1.00 |
| 36 | - | TOOL_CABNET | 1.00 |
| 37 | - | GREASE_(NEEDLE_TUBING_5ML) | 1.00 |
| 38 | - | GREASE_(NEEDLE_TUBING_10ML) | 1.00 |
| 39 | - | GREASE_(BOX_100ML) | 1.00 |
| 40 | 40228003 | SUBSIDIARY_PRESSER_BAR | 1.00 |
| 41 | 40238556 | GOGGLES | 1.00 |
| 42 | 40228641 | LASER_TOOL | 1.00 |
Page 52 — THE THIRD THREAD TENSION REGULATOR (OPTIONAL PARTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40228788 | CYLINDER_BASE | 1.00 |
| 2 | 40228089 | SCREW | 1.00 |
| 3 | 40228051 | THIRD_THREAD_TENSION_ASSY | 1.00 |
| 4 | 40228783 | SCREW | 1.00 |
| 5 | 40228804 | CYLINDER | 1.00 |
| 6 | 40228814 | TUBE | 1.00 |
| 7 | 40228815 | TUBE | 1.00 |
| 8 | 40228803 | SOLENOIDO_VALVE_ASSY | 1.00 |
| 9 | 40228047 | SOLENOIDO_VALVE | 1.00 |
| 10 | 40228813 | CABLE | 1.00 |
| 11 | 40232400 | CONNECTOR | 1.00 |
| 12 | 40228810 | SCREW | 2.00 |
| 13 | 40228812 | UNION | 2.00 |
Page 54 — LASER TUBE COMPONENTS (SUBCLASS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | LASER_COVER_FRONT_MOUNTING_PLATE | 1.00 |
| 2 | - | SCREW | 4.00 |
| 3 | - | LASER_COVER_MIDDLE_MOUNTING_PLATE | 1.00 |
| 4 | - | SCREW | 24.00 |
| 5 | - | LASER_COVER_BACK_MOUNTING_PLATE | 1.00 |
| 6 | - | WASHER | 1.00 |
| 7 | - | LASER_BACK_POST_PLATE | 1.00 |
| 8 | - | SCREW | 1.00 |
| 9 | - | SPRING_WASHER | 24.00 |
| 10 | - | WASHER | 36.00 |
| 11 | - | SCREW | 2.00 |
| 12 | - | SCREW | 2.00 |
| 13 | - | NUT | 24.00 |
| 14 | - | LASER_TUBE_LOWER_COVER | 1.00 |
| 15 | - | FIXING_PLATE | 3.00 |
| 16 | - | LASER_TUBE_SUPPORT_ASM | 2.00 |
| 17 | 40228772 | LASER-TUBE | 1.00 |
| 18 | - | LASER_TUBE_TOP_COVER | 1.00 |
| 19 | - | SCREW | 15.00 |
| 20 | - | CAP | 3.00 |
| 21 | - | LASER_TUBE_CASE | 1.00 |
| 22 | - | LASER_TIP_SUPPORT_PLATE | 1.00 |
| 23 | - | SCREW | 8.00 |
| 24 | - | LASER_TIP_BLOCK | 1.00 |
| 25 | - | LASER_TIP_BLOCK_COVER | 1.00 |
| 26 | - | SCREW | 3.00 |
| 27 | - | NUT | 3.00 |
| 28 | - | SCREW | 2.00 |
| 29 | - | SPRING | 2.00 |
| 30 | 40228771 | REDLECTOR | 1.00 |
| 31 | - | LASER_SAFE_REFLECTOR_SEAT | 1.00 |
| 32 | - | LASER_REFLECTOR_CLAMP | 1.00 |
| 33 | - | LASER_NECK_CONNECTION_COVER | 1.00 |
| 34 | - | NUT | 1.00 |
| 35 | - | LASER-CONCAVE_MIRROR_TUBE | 1.00 |
| 36 | 40228770 | LENS | 1.00 |
| 37 | - | LASER_LOCUST_WHITE_PROTECTIVE_SEAT | 1.00 |
| 38 | - | NUT | 1.00 |
| 39 | - | LASER_NECK_LOWER_CONNECTING_TUBE | 1.00 |
| 40 | - | LASER_FIXED_PLATE_A | 1.00 |
| 41 | - | LASER_FIXED_BLOCK | 1.00 |
| 42 | - | LASER_FIXED_PLATE_B | 1.00 |
| 43 | - | SPING_WASHER | 7.00 |
| 44 | - | WASHER | 7.00 |
| 45 | - | SCREW | 2.00 |
| 46 | - | LASER_SHIELD_COVER | 1.00 |
| 47 | - | CYLINDER | 1.00 |
| 48 | - | SCREW | 1.00 |
| 49 | - | SPRING_WASHER | 7.00 |
| 50 | - | WASHER | 7.00 |
Page 55 — LASER TUBE COMPONENTS (SUBCLASS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 51 | - | BUCKLE_RING | 1.00 |
| 52 | - | SUCTION_TUBE | 1.00 |
| 53 | 40228646 | LASER_CYLINDER_SENSOR | 1.00 |
| 54 | - | SCREW | 3.00 |
| 55 | - | CABLE_BAND | 4.00 |
| 56 | - | TUBE | 1.00 |
| 57 | - | ADJUSTMENT_JOINT | 1.00 |
| 58 | - | TUBE | 1.00 |
| 59 | - | LASER_UPPER_AIR_BLOWING_TUBE | 1.00 |
| 60 | - | UNDER_THE_LASER_TUBE_RUBBER_PLATE | 1.00 |
| 61 | - | LASER_TUBE_ON_RUBBER_PLATE | 1.00 |
| 62 | - | LASER_TUBE_RUBBER_PLATE_BEHIND | 1.00 |
| 63 | - | TEST_50A | 1.00 |
| 64 | - | CURRENT_REGULATOR | 1.00 |
| 65 | - | SCREW | 4.00 |
| 66 | - | JOINT | 2.00 |
| 67 | - | DRIVE_CYLINDER_MOUNTING_PLATE | 1.00 |
| 68 | - | SCREW | 4.00 |
| 69 | 40228654 | LASER_SUCTION_FIXED_BLOCK | 2.00 |
| 70 | - | SCREW | 3.00 |
| 71 | - | SCREW | 4.00 |
| 72 | 40227993 | UPPER_THREAD_BLOW_JOINT | 2.00 |
Page 57 — LASER AIR SUCTION COMPONENTS (SUBCLASS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | SUCTION_TOP_COVER | 1.00 |
| 2 | - | COVER_DURING_SUCTION | 1.00 |
| 3 | - | SCREW | 3.00 |
| 4 | - | SUCTION_CONNECTION_TUBE_ASM | 1.00 |
| 5 | - | SCREW | 3.00 |
| 6 | - | COVER | 1.00 |
| 7 | - | BOAR_NECK | 2.00 |
| 8 | - | TUBE | 1.00 |
| 9 | - | T_UNION | 1.00 |
| 10 | - | SPEAKON | 1.00 |
| 11 | - | IRON_PIPE | 1.00 |
| 12 | - | JOINT | 1.00 |
| 13 | - | FILTER_CAN | 1.00 |
| 14 | - | JOINT | 1.00 |
| 15 | - | IRON_PIPE | 1.00 |
| 16 | - | AIR_SUCTION_CASE | 1.00 |
| 17 | - | FILTER_NET | 1.00 |
| 18 | 40263261 | BLOWER | 1.00 |
| 19 | - | SUCTION_PIPE_CONNECTION_COVER | 1.00 |
| 20 | - | BOAR_NECK | 1.00 |
| 21 | - | COLD_WATER_MACHINE_3000_TYPE | 1.00 |
| 22 | - | LASER_LAUNCHING_TUBE | 1.00 |
| 23 | - | LASER_OUTLET_TUBE | 1.00 |
| 24 | 40263260 | FREQUENCY CONVERTER | 1.00 |
| 25 | - | WATER_TANK_FIXED_PLATE | 1.00 |
| 26 | - | WATER_TANK_LEAVING_PLATE | 2.00 |
| 27 | - | WASHER | 12.00 |
| 28 | - | SPRING_WASHER | 12.00 |
| 29 | - | SCREW | 4.00 |
| 30 | - | SCREW | 14.00 |
| 31 | - | CASTER | 4.00 |
| 32 | - | SCREW | 16.00 |
| 33 | - | SPRING_WASHER | 16.00 |
| 34 | - | WASHER | 16.00 |
| 35 | - | PILLAR | 2.00 |
| 36 | - | SCREW | 2.00 |
| 37 | - | SUCTION_CUP_SUPPORT | 1.00 |
| 38 | - | CHILLER_FIXED_PLATE | 2.00 |
| 39 | - | BLOWER_CLAMP | 2.00 |
| 40 | 40228418 | LASER_POWER SUPPLY | 1.00 |
| 41 | 40264286 | LASER_POWER SUPPLY_CE | 1.00 |
| 42 | 40252388 | CABLE | 1.00 |
| 43 | 40263257 | CABLE | 1.00 |
| 44 | 40263258 | CABLE | 1.00 |
| 45 | 40264296 | CABLE | 1.00 |
| 46 | 40234454 | SCREW | 2.00 |
| 47 | 40263270 | LASER_SWITCH_PLATE | 1.00 |
| 48 | 40234454 | SCREW | 4.00 |
| 49 | 40228365 | SCREW_M16X16 | 2.00 |
| 50 | 40228366 | NUT_M8 | 2.00 |
Page 59 — LASER ELECTRONIC CONTROL PARTS COMPONENTS (SUBCLASS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | LASER_SOLENOID_VALVE | 1.00 |
| 2 | - | SCREW | 2.00 |
| 3 | - | WASHER | 2.00 |
| 4 | - | LASER_CYLENDER_SOLENOID_VALVE_COUPLING | 1.00 |
| 5 | - | ELECTROMAGNETIC_RELAY_BASE | 1.00 |
| 6 | - | SCREW | 2.00 |
| 7 | - | ELECTROMAGNETIC_RELAY | 1.00 |
Page 61
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | BRACKET_B | 1.00 |
| 2 | - | FIXED_FEMALE_BASE | 1.00 |
| 3 | 40228223 | SCREW | 4.00 |
| 4 | - | SPRING_WASHER | 24.00 |
| 5 | - | WASHER | 22.00 |
| 6 | 40234451 | SCREW | 12.00 |
| 7 | - | ROTARY_MOTOR_MOUNTING_PLATE | 1.00 |
| 8 | 40228419 | SPIN_KNIFE_MOTOR | 1.00 |
| 9 | 40228420 | MOTOR_TIMING_SPROCKET | 1.00 |
| 10 | - | SCREW | 3.00 |
| 11 | 40228421 | MOTOR_TIMING_BELT | 1.00 |
| 12 | 40228422 | CONNECTION | 1.00 |
| 13 | 40225491 | BOAT_PRESSER_L | 1.00 |
| 14 | - | PIN | 2.00 |
| 15 | 40235588 | SCREW | 1.00 |
| 16 | 40228435 | SCREW | 2.00 |
| 17 | 40228436 | FIXED_KNIFE_SHAFT_BUSHING_ASM | 1.00 |
| 18 | 40228437 | FACE PLATE | 1.00 |
| 19 | 40234438 | SCREW | 2.00 |
| 20 | 40228423 | MOVING_KNIFE_SHAFT_CONNECTING | 2.00 |
| 21 | - | SCREW | 3.00 |
| 22 | - | WASHER | 1.00 |
| 23 | - | O-RING | 1.00 |
| 24 | 40228564 | SPIN_FIXED_KNIFE_BASE | 1.00 |
| 25 | 40228455 | FIX_KNIFE_LOWER_BUSHING | 1.00 |
| 26 | 40228424 | SPIN_FIXED_KNIFE_SHAFT | 1.00 |
| 27 | 40228425 | FIXED_FEMALE_BASE | 1.00 |
| 28 | 40228426 | FIXED_KNIFE | 1.00 |
| 29 | 40228427 | CYLINDER | 1.00 |
| 30 | - | TUBE_JOINT | 4.00 |
| 31 | - | SCREW | 2.00 |
| 32 | - | DRIVE_CYLINDER_MOUNTING_PLATE | 1.00 |
| 33 | - | FIXED_FEMALE_BASE_COVER | 1.00 |
| 34 | - | SCREW | 4.00 |
| 35 | 40228428 | LOWER_TIMING_BELT_COVER | 1.00 |
| 36 | - | SCREW | 3.00 |
| 37 | - | WASHER | 3.00 |
| 38 | 40228429 | PRESSER_BUSHING_UPPER | 1.00 |
| 39 | 40228430 | PRESSER_LOWER_BUSHING | 1.00 |
| 40 | 40228431 | PRESSER_CYLINDER_ARM | 1.00 |
| 41 | 40228432 | CYLINDER | 1.00 |
| 42 | - | SCREW | 2.00 |
| 43 | - | SCREW | 2.00 |
| 44 | - | WASHER | 2.00 |
| 45 | - | SPRING_WASHER | 2.00 |
| 46 | - | CUTTING_CYLINDER_BASE | 1.00 |
| 47 | 40228433 | KNIFE_PRESSER_SHAFT | 1.00 |
| 48 | 40228434 | BASE | 1.00 |
| 49 | PS0200082KH | SPRING PIN | 1.00 |
| 50 | WS0410002KP | SPRING WASHER | 1.00 |
Page 62
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 51 | WP0460556SD | WASHER 4.6X7.5X0.5 | 1.00 |
| 52 | - | BRACKET_A | 1.00 |
| 53 | - | PLATE_A | 1.00 |
| 54 | - | SCREW | 2.00 |
| 55 | - | SCREW | 1.00 |
| 56 | - | SPRING_WASHER | 1.00 |
| 57 | - | WASHER | 1.00 |
| 58 | - | PLATE_B | 1.00 |
| 59 | - | SCREW | 2.00 |
| 60 | - | SPRING_WASHER | 2.00 |
| 61 | - | WASHER | 2.00 |
| 62 | - | PLATE_C | 1.00 |
| 63 | - | PLATE_D | 1.00 |
| 64 | - | SCREW_PLATE | 1.00 |
| 65 | - | SCREW | 2.00 |
| 66 | - | SCREW | 2.00 |
| 67 | - | DUST_PROOF_RUBBER | 1.00 |
| 68 | 40262521 | SPIN_KNIFE_MOTOR | 1.00 |
Page 64 — ROTARY KNIFE COMPONENTS (SUBCLASS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | - | MOVING_KNIFE_BASE | 1.00 |
| 2 | 40228438 | MOVING_KNIFE_BUSHING_UPPER | 1.00 |
| 3 | - | ROTARY_MOTOR_MOUNTING_PLATE | 1.00 |
| 4 | 40234451 | SCREW | 8.00 |
| 5 | - | SPRING_WASHER | 8.00 |
| 6 | - | WASHER | 14.00 |
| 7 | - | SCREW | 4.00 |
| 8 | 40228419 | SPIN_KNIFE_MOTOR | 1.00 |
| 9 | 40228420 | MOTOR_TIMING_SPROCKET | 1.00 |
| 10 | - | SCREW | 2.00 |
| 11 | 40228421 | MOTOR_TIMING_BELT | 1.00 |
| 12 | 40235592 | TIMING_SPROCKET | 1.00 |
| 13 | 40228422 | CONNECTION | 1.00 |
| 14 | - | SPRING_WASHER | 5.00 |
| 15 | - | WASHER | 5.00 |
| 16 | 40228448 | MOVING_KNIFE_PIN_ASM | 1.00 |
| 17 | 40228569 | MOVING_KNIFE_LOWER_BUSHING_ASM | 1.00 |
| 18 | 40228558 | CYLINDER_RAISING_PLATE | 1.00 |
| 19 | - | SCREW | 5.00 |
| 20 | 40228423 | MOVING_KNIFE_SHAFT_CONNECTING | 2.00 |
| 21 | 40235593 | SCREW | 2.00 |
| 22 | 40228563 | WASHER | 2.00 |
| 23 | 40228439 | SPIN_MOVING_KNIFE_PIN | 1.00 |
| 24 | 40228450 | RAISING_PLATE_CYLINDER_BASE | 1.00 |
| 25 | 40228451 | RAISING_PLATE_CYLINDER | 1.00 |
| 26 | 40228452 | PIPE_JOINT | 1.00 |
| 27 | 40228453 | OIL_INSTRUCTION_PLATE | 1.00 |
| 28 | 40235594 | MOVING_KNIFE_ARM | 1.00 |
| 29 | - | SCREW | 5.00 |
| 30 | - | SCREW | 4.00 |
| 31 | 40228440 | MOVING_KNIFE_MOTOR | 1.00 |
| 32 | - | SCREW | 4.00 |
| 33 | - | MOVING_KNIFE_MOTOR_PLATE | 1.00 |
| 34 | - | MOVING_KNIFE_MOTOR_PLATE_METAL | 1.00 |
| 35 | - | SCREW | 2.00 |
| 36 | - | WASHER | 1.00 |
| 37 | - | WASHER | 1.00 |
| 38 | - | WASHER | 1.00 |
| 39 | - | WASHER | 1.00 |
| 40 | - | SPRING_WASHER | 1.00 |
| 41 | - | NUT | 4.00 |
| 42 | - | SCREW | 1.00 |
| 43 | 40228442 | REVERSION_SPRING | 1.00 |
| 44 | - | HEIGHT_BLOCK | 1.00 |
| 45 | 40228443 | NUT | 2.00 |
| 46 | - | MOVING_KNIFE_CYLINDER_PLATE | 1.00 |
| 47 | - | SCREW | 1.00 |
| 48 | 40228444 | CYLINDER | 1.00 |
| 49 | - | PIPE_JOINT | 2.00 |
| 50 | - | NUT | 2.00 |
Page 65 — ROTARY KNIFE COMPONENTS (SUBCLASS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 51 | 40228445 | SPIN_MOVING_KNIFE_SHAFT | 1.00 |
| 52 | - | MOVING_KNIFE_CLAMP | 1.00 |
| 53 | 40234439 | SCREW | 2.00 |
| 54 | 40237598 | MOVING_KNIFE_COVER | 1.00 |
| 55 | 40228712 | MOVING_KNIFE | 1.00 |
| 56 | 40228447 | MOVING_KNIFE_BASE_SEAT_PLATE | 1.00 |
| 57 | - | SCREW | 7.00 |
| 58 | 40228568 | MOVING_KNIFE_COVER | 1.00 |
| 59 | - | SCREW | 4.00 |
| 60 | 40239269 | REST_SPRING_LINK_PLATE_B | 1.00 |
| 61 | 40238353 | RESET_SPRING_LINK_PLATE | 1.00 |
| 62 | 40262521 | SPIN_KNIFE_MOTOR | 1.00 |
Page 67 — BARCODE READER (SUBCLASS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40234788 | BARCODE_READER_PLATE | 1.00 |
| 2 | 40235199 | BARCODE_READER | 1.00 |
| 3 | 40234468 | SCREW | 4.00 |
| 4 | 40235200 | SCREW | 2.00 |
| 5 | 40234514 | WASHER | 2.00 |
| 6 | 40235332 | CABLE_BAND | 1.00 |
| 7 | 40240831 | PLATE | 1.00 |
Page 69 — ACTIVE TENSION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40228700 | ACTIVE_TENSION_DEVICE | 1.00 |
| 2 | 40172470 | THREAD_TENSION_ASM | 1.00 |
| 3 | 40244934 | THREAD_TENSION_SHAFT_ASSY | 1.00 |
| 4 | 40243919 | AT_SPRING | 1.00 |
| 5 | 40244974 | AT_SOLENOID_ASSY | 1.00 |
| 6 | 40243045 | AT_SOL_PCB_ASSY | 1.00 |
| 7 | 40243046 | AT_SOL_CABLE ASSY_A | 1.00 |
| 8 | 40243047 | AT_SOL_CABLE ASSY_B | 1.00 |
| 9 | SM6041402TP | SCREW M4 L=14 | 2.00 |
| 10 | SM6041002TN | SCREW | 1.00 |
| 11 | KX000000210 | SADDLE TYPE TIE MOUNT | 2.00 |
| 12 | HX002940000 | FIXED BASE | 1.00 |
| 13 | EA9500B0200 | CABLE BAND 150 | 6.00 |
Page 71 — THICK MATERIAL KIT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40228701 | THICK_MATERIAL_KIT | 1.00 |
| 2 | 40228075 | INTERMEDIATE_PRESSER_D3.5 | 1.00 |
| 3 | 40234081 | THREAD_TENSION_ASM | 1.00 |
| 4 | 40225499 | NEEDLE_PLATE_D3.0 | 1.00 |
| 5 | 40234080 | FIXED_KNIFE | 1.00 |
| 6 | 40234079 | HOOK_ASM | 1.00 |
Page 73 — OPTIONAL PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40228696 | THIRD_THREAD_TENSION_UNIT | 1.00 |
| 2 | 40228701 | THICK_MATERIAL_KIT | 1.00 |
| 3 | 40228698 | LOWER_THREAD_DETECTOR_ASSY | 1.00 |
| 4 | 40228695 | BIRD_NEST_PREVENTION_DEVICE | 1.00 |
| 5 | 40228699 | AUTO_BOBBIN_CHANGER BK-8 | 1.00 |
| 6 | 40228700 | ACTIVE_TENSION_DEVICE | 1.00 |
| 7 | 40228670 | PEN_STICK_ASSY | 1.00 |
| 8 | 40228686 | PEN_STICK_ASSY | 1.00 |
| 9 | 40235197 | BARCODE_READER_UNIT | 1.00 |
Juki PS800-8045 — parts catalog
- Page 1 (diagram): This page displays a diagram of machine frame and miscellaneous cover components for the PS-800-8045 model, with various parts labeled with reference numbers.
- Page 2 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It contains 43 entries.
- Page 3 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with numbered parts indicated for reference.
- Page 4 (parts_list): Parts list table with item numbers, part numbers 品番, English names 品品, remarks 備考, and quantities 個数 for items 1 through 49.
- Page 5 (diagram): This page displays a diagram of the display unit, with various components labeled with reference numbers.
- Page 6 (parts_list): This page contains a parts list for various components including screws, panels, and cables, with part numbers, descriptions, and quantities.
- Page 7 (diagram): This page displays a diagram of upper shaft and pick line components, with numbered parts for identification.
- Page 8 (parts_list): Parts list table of 26 numbered items with 品番 part numbers, 品名 names, 備考 remarks and 個数 quantities for a machine assembly.
- Page 9 (diagram): This page displays a diagram of needle bar and lower shaft part components, with numbered parts indicated for reference.
- Page 10 (parts_list): This page contains a parts list for sewing machine components, including part numbers, descriptions, and quantities.
- Page 11 (diagram): This page displays a diagram of rotary shuttle transmission and thread cutting components, with numbered parts indicated for identification.
- Page 12 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, bearings, hooks, and cases, with corresponding part numbers and quantities.
- Page 13 (diagram): This page displays a diagram of oil supply and needle plate parts for rotary shuttle components, with various parts numbered for identification.
- Page 14 (parts_list): A parts table listing 50 items with part numbers, Japanese/English names, notes, and quantities for a sewing machine catalog page.
- Page 15 (parts_list): This page contains a parts list for screws, cotton oil wick, tube, oil tray fitting plate, and needle plate, with part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of wire cut electromagnetic components, with numbered parts indicated for reference.
- Page 17 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of base member components for an industrial sewing machine, with various parts numbered for identification.
- Page 19 (parts_list): This page contains a parts list for various components of the sewing machine, including washers, screws, cushions, and motors, with corresponding part numbers and quantities.
- Page 20 (diagram): This page displays a diagram of the Y Right Linear Module Unit Components, with various parts numbered for identification.
- Page 21 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It contains 50 items, with part numbers ranging from 40228666 to 40228510.
- Page 22 (diagram): This page displays a diagram of the Y LEFT LINEAR MODULE UNIT COMPONENTS, with various parts numbered for identification.
- Page 23 (parts_list): Parts list table of Y-axis linear module, bearing, pulley, guide rail and timing belt components with 40228xxx part numbers and quantities.
- Page 24 (parts_list): This page contains a parts list for various sensor components, including plates, screws, and bases, with quantities ranging from 1.00 to 4.00.
- Page 26 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, bearings, shafts, pulleys, and plates, with corresponding part numbers and quantities.
- Page 27 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, sensors, plates, and cables, with corresponding part numbers and quantities.
- Page 28 (diagram): This page displays a diagram of X slide components, with various parts numbered for identification.
- Page 29 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, plates, bearings, and pins, with their corresponding part numbers and quantities.
- Page 30 (diagram): This page displays a diagram of pack unit components, with various parts labeled with reference numbers.
- Page 31 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, washers, control boxes, and other hardware, with corresponding part numbers and quantities.
- Page 32 (diagram): This page displays a diagram of frame connection aluminum parts and components, with various parts labeled with reference numbers.
- Page 33 (parts_list): A parts table listing 47 numbered items with 品番 part numbers, English names, remarks, and quantities for an industrial sewing machine table frame assembly.
- Page 34 (diagram): This page displays a diagram of platen parts and components, with numbered references to individual parts.
- Page 35 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It details items like magnets, plates, screws, and tubes.
- Page 36 (diagram): This page displays a diagram of electrical components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 37 (parts_list): Parts table listing items 1 to 33 with part numbers, English names, remarks and quantities for pneumatic, PCB and control components, with 'TYPE SPIN KNIFE' remarks on later rows.
- Page 38 (parts_list): This page lists parts for industrial sewing machines, including part numbers, descriptions, and quantities. It details components like main PCB assemblies and control boxes.
- Page 39 (diagram): This page displays a diagram of wiper cylinder components, with numbered parts indicated for identification.
- Page 40 (parts_list): A parts table listing 23 numbered items with part numbers, English names, and quantities, mostly wiper and sliding arm components.
- Page 41 (diagram): This page displays a diagram of needle cooler parts and components, with numbered callouts for individual parts.
- Page 42 (parts_list): This page contains a parts list for cylinder fixing plate, cylinder connecting plate, screws, auxiliary presser cylinder, cylinder joint, auxiliary presser connection plate, washer, spring washer, pin, plane thread bronchus, upper thread air blow, and auxiliary presser ASM. It includes part numbers, descriptions, and quantities.
- Page 43 (diagram): This page displays a diagram of electronic presser foot components, with numbered parts and their corresponding references.
- Page 44 (parts_list): Parts table listing 22 numbered items with part numbers, Japanese/English names, remarks and quantities for a sewing machine.
- Page 45 (diagram): This page displays a diagram of needle plate components, with nine parts numbered from 1 to 9.
- Page 46 (parts_list): This page contains a parts list for needle plates, including part numbers, descriptions, and quantities.
- Page 47 (diagram): This page displays a diagram of presser foot components, with parts numbered from 1 to 13.
- Page 48 (parts_list): This page contains a parts list for various presser components, including part numbers, descriptions, and quantities.
- Page 49 (diagram): This page displays a diagram of accessory box parts components, with numbered items indicating various tools and accessories.
- Page 50 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and remarks. It contains items such as bobbins, presser feet, screwdrivers, wrenches, and various tools.
- Page 51 (diagram): This page displays a diagram of the third thread tension regulator and its optional parts, with numbered components for identification.
- Page 52 (parts_list): This page contains a parts list for various components including cylinder bases, screws, tubes, solenoids, cables, connectors, and unions, with corresponding part numbers and quantities.
- Page 53 (diagram): This page displays a diagram of laser tube components, with various parts numbered for identification.
- Page 54 (parts_list): A parts list table of 50 numbered laser tube and cover components with part numbers, Japanese and English item names, and quantities.
- Page 55 (parts_list): This page lists parts with reference numbers, part numbers, descriptions, and quantities. It includes items like BUCKLE RING, SUCTION TUBE, and various SCREW and TUBE components.
- Page 56 (diagram): This page displays a diagram of laser air suction components, with various parts numbered for identification.
- Page 57 (parts_list): Parts list table of 50 numbered items with part numbers, Japanese/English names, remarks and quantities for a sewing machine laser unit assembly.
- Page 58 (diagram): This page displays a diagram of laser electronic control parts and components, with numbered callouts indicating various parts.
- Page 59 (parts_list): This page contains a parts list for a sewing machine, detailing various components like solenoid valves, screws, washers, and couplings, along with their quantities and remarks.
- Page 61 (parts_list): Parts table listing 50 numbered items with part numbers, Japanese and English names, and quantities for a sewing machine knife and presser assembly.
- Page 62 (parts_list): Parts table listing reference numbers 51 to 68 with part numbers, English descriptions, remarks and quantities for a sewing machine parts book page.
- Page 63 (diagram): This page displays a diagram of rotary knife components, with various parts numbered for identification.
- Page 64 (parts_list): This page contains a parts list for the industrial sewing machine, detailing part numbers, descriptions, and quantities for various components.
- Page 65 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and remarks. It covers items from reference number 51 to 62.
- Page 66 (diagram): This page displays a diagram of a barcode reader (subclass) with various components labeled with reference numbers.
- Page 67 (parts_list): A parts table listing seven items with part numbers 40234788 through 40240831, including barcode reader, barcode reader plate, screws, washer, cable band and plate, with quantities.
- Page 68 (diagram): This page displays a diagram of active tension components, illustrating various parts with reference numbers.
- Page 69 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including tension devices, screws, and cable bands, with their corresponding part numbers and quantities.
- Page 70 (diagram): This page displays a diagram of components for a thick material kit, with parts numbered 1 through 6.
- Page 71 (parts_list): This page contains a parts list for various sewing machine components, including part numbers, descriptions, and quantities.
- Page 72 (diagram): This page displays a diagram of optional parts and components for an industrial sewing machine, with numbered illustrations of various parts.
- Page 73 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including tension units, material kits, and detector assemblies, with part numbers, descriptions, and quantities.
- Page 75 (text): This page contains a list of changes and updates to parts, including information on obsolete and added parts, with a table listing part numbers and related details.
- Page 76 (text): This page provides instructions on how to use the parts list, explaining codes and symbols used in the catalog, including how to interpret part numbers, quantity indicators, and special markings for consumable and optional parts.
