KM Cutting Machine Parts Book (PDF)
Text index — KM Cutting Machine

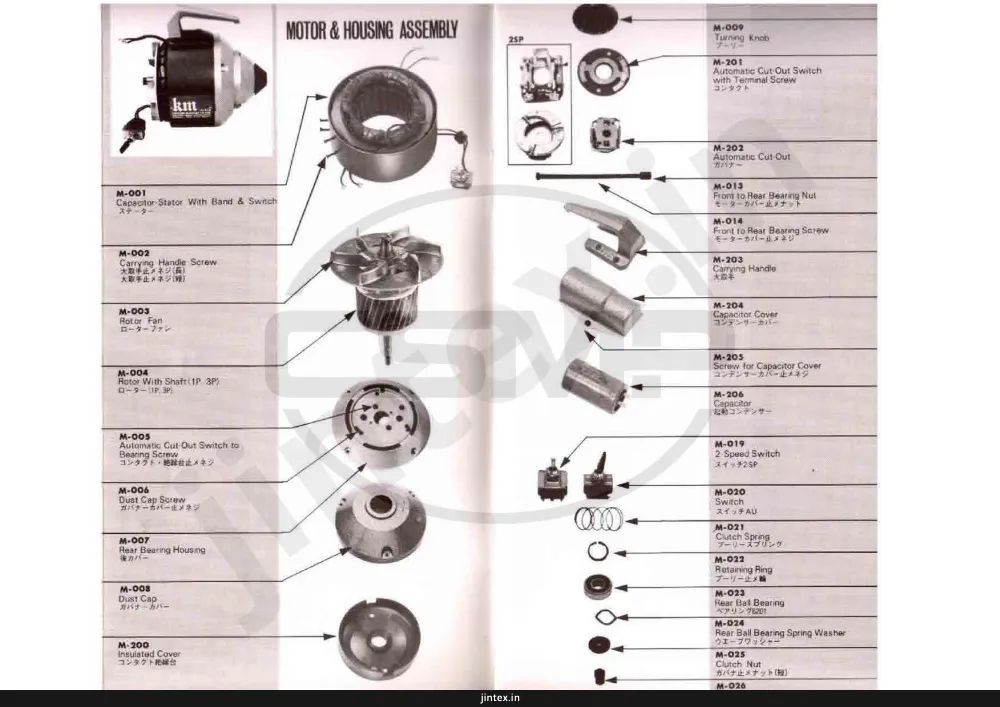

Page 3 — MOTOR & HOUSING ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-001 | Capacitor Stator With Band & Switch | ||
| M-002 | Carrying Handle Screw | ||
| M-003 | Rotor Fan | ||
| M-004 | Rotor With Shaft (1P, 3P) | ||
| M-005 | Automatic Cut Out Switch to Bearing Screw | ||
| M-006 | Dust Cap Screw | ||
| M-007 | Rear Bearing Housing | ||
| M-008 | Dust Cap | ||
| M-200 | Insulated Cover | ||
| M-009 | Turning Knob | ||
| M-201 | Automatic Cut Out Switch with Terminal Screw | ||
| M-202 | Automatic Cut Out | ||
| M-013 | Front to Rear Bearing Nut | ||
| M-014 | Front to Rear Bearing Screw | ||
| M-203 | Carrying Handle | ||
| M-204 | Capacitor Cover | ||
| M-205 | Screw for Capacitor Cover | ||
| M-206 | Capacitor | ||
| M-019 | 2 Speed Switch | ||
| M-020 | Switch | ||
| M-021 | Clutch Spring | ||
| M-022 | Retaining Ring | ||
| M-023 | Rear Ball Bearing | ||
| M-024 | Rear Ball Bearing Spring Washer | ||
| M-025 | Clutch Nut | ||
| M-026 |
Page 4 — CRANK & GUIDE ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-027 | Crank (32"/36") (1P, 3P) | ||
| M-028 | Crank Ball Bearing | ||
| M-029 | Crank Ball Bearing Lock Nut | ||
| M-030 | Screw for Brg Shaft | ||
| M-031 | Shaft for Ball Bearing | ||
| M-032 | Oil pad Holder | ||
| M-033 | Oil Felt | ||
| M-034 | Oil Tank | ||
| M-035 | Oil Tank Cap | ||
| M-208 | Oil Tank Pipe | ||
| M-209 | Vinyl Tube | ||
| M-036 | Connecting Rod (32"/36") | ||
| M-037 | Shakeproof Washer | ||
| M-038 | Connecting Rod Clamp Screw | ||
| M-039 | Wrist Pin | ||
| M-040 | Wrist Pin Plug | ||
| M-041 | Knife Lock Washer | ||
| M-042 | Nut for Guide Screw | ||
| M-043 | Guide Washer | ||
| M-044 | Connecting Rod Washer | ||
| M-045 | Guide Adjusting Screw | ||
| M-046 | Guide Adjusting Nuts | ||
| M-047 | Guide Lock Screw | ||
| M-048 | R.H Guide | ||
| M-049 | L.H Guide | ||
| M-050 | Cross Head (32"/36") | ||
| M-051 |
Page 5 — FRONT COVER ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-052 | Terminal Block Screw | ||
| M-052-3P | for three phase | ||
| M-053 | Ground Clip Screw | ||
| M-053-3P | for three phase | ||
| M-054 | Set Screw | ||
| M-055 | Front Bearing Housing | ||
| M-056 | Sharpener Hold Down Screw | ||
| M-057 | Front Ball Bearing Retainer Screw | ||
| M-058 | Oil Pad Hold Screw | ||
| M-059 | Guide Hold Down Screw (S)・(L) | ||
| M-060 | Lower Sharpener hold down Nut | ||
| M-061 | Stud Lower L.H Mountaing | ||
| M-062 | Stud Guide Rod Bracket | ||
| M-063 | Standard to Bearing Screw | ||
| M-064 | Front Ball Bearing | ||
| M-065 | Front Ball Bearing Retainer | ||
| M-066 | Ground Clip | ||
| M-067 | Attachment Plug Complete(3P) | ||
| M-068 | Terminal Block Complete(3P) | ||
| M-069 | Attachment Plug(Complete) | ||
| M-070 | Terminal Block (Complete) | ||
| M-071 | Terminal Sleeve | ||
| M-072 | Terminal Contact with Pin | ||
| M-073 | Operating Handle (With Nut) | ||
| M-074 | Operating Handle Lock Nut only | ||
| M-075 | Switch Cover Screw | ||
| M-215 | Switch Cover |
Page 6 — STANDARD & BASE PLATES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-077L | Plate | ||
| M-078 | Plate Complete(Rubber Mounted Rollers) | ||
| M-080 | Rubber Mounted Roller (Complete) | ||
| M-080C | Roller | ||
| M-080R | Rubber | ||
| M-081 | Hinge Pins Short | ||
| M-082 | Hinge Pin Clamp Screw | ||
| M-084 | Knife Slide Screw | ||
| M-085 | Standard(Complete with Knife Slides and Throat Plates) | ||
| M-086 | Knife Slides | ||
| M-087 | Screw for Throat Plate | ||
| M-088 | Throat Plates With Screws and Pins | ||
| M-089 | Lock Washer | ||
| M-090 | Plate Bolt & Nut |
Page 7 — AUTOMATIC SHARPENER ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-092 | Cap for Tube | ||
| M-093 | Driving Shaft | ||
| M-094 | Right and Left Hand Follower | ||
| M-096 | Screw for Latch | ||
| M-097 | Shaft for Cam | ||
| M-098 | Cam Shaft Spring Screw | ||
| M-099 | Pres. Foot Lock Bracket Screw | ||
| M-100S | Screw for Cover L.S | ||
| M-100L | |||
| M-101 | Cam Over Cam | ||
| M-231 | Screw for Knob | ||
| M-108 | Stop Nut for Screw Shaft | ||
| M-107 | Spacer Tube | ||
| M-106 | Screw Shaft With Extension | ||
| M-105 | Washer for Screw Shaft L.H | ||
| M-104 | Nut for Screw Shaft L.H. & R.H. | ||
| M-229 | Thrust Washer | ||
| M-102 | Collar for Lower Screw Shaft | ||
| M-109 | Spring for Pressure Foot Lock | ||
| M-110 | Spring for Latch | ||
| M-111 | Cam Spring | ||
| M-216 | Pressure Foot Rod | ||
| M-113 | Screw for Pressure Foot Shoe | ||
| M-217 | Pressure Foot Lever | ||
| M-115 | Pressure Foot Lever Screw | ||
| M-116 | Spring for Pressure Foot Lever | ||
| M-117 | Set Screw for Cam Shaft | ||
| M-118C | Cam | ||
| M-118S | Cam Screw | ||
| M-218 | Release Lever | ||
| M-119 | Lock Screw & Spring Washer for Release Lever | ||
| M-120 | Lock (only) Pressure Foot | ||
| M-121 | Nut & Screw for Pres Ft Lock | ||
| M-122 | Pressure Foot Lock Bracket | ||
| M-123 | Slide for Pressure Foot Rod |
Page 8 — AUTOMATIC SHARPENER ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-232 | Oiling Felt for Idler Gear | ||
| M-233 | Set Screw for Oiling Felt | ||
| M-126 | Spring for Belt Crank | ||
| M-127 | Sharpener Housing | ||
| M-128 | Bottom Plate Screw | ||
| M-129 | Bottom Plate | ||
| M-130 | Oil Pad & Holder | ||
| M-131 | Screw for Oil Pad | ||
| M-132 | Belt Crank With Pin & Bushing | ||
| M-133 | Screw for Cover | ||
| M-134 | Cover for Crank | ||
| M-136 | R.H Square Shaft | ||
| M-137 | Left Hand Follower Nut | ||
| M-138 | L.H Square Shaft | ||
| M-139 | Push Rod | ||
| M-140 | Ball Pin for Push Rod | ||
| M-141 | Driver Shaft With Gear | ||
| M-142 | Screw for Spreader Pin | ||
| M-143 | Spreader Pin | ||
| M-144 | Gear & Shaft | ||
| M-145 | Bearing for Gear | ||
| M-138 W | L.H Square Shaft Washer | ||
| M-146 | Rubber Driver & Driven Pulley(Set) | ||
| M-148 | Spur Gear | ||
| M-149 | Ball Bearing for Crank | ||
| M-150 | Retaining Ring | ||
| M-151 | Thrust Washers for Spiral Gear | ||
| M-152 | Lock Nut for Crank Shaft | ||
| M-153 | Shaft for Crank | ||
| M-154 | Washer for Crank Shaft | ||
| M-155 | Lock Ring for Ball Bearing | ||
| M-156 | Idler Gear with Bushing |
Page 9 — LOWER GEAR BRACKET ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-158 | Screw for Gear Cover | ||
| M-159 | Screw for Gear Cover | ||
| M-160 | Grease Plug | ||
| M-161 | Screw for Stabilizer | ||
| M-162 | Lower Gear Bracket | ||
| M-163 | Screw for Side Pulley | ||
| M-164 | Lower Gear Bracket Gear Cover | ||
| M-165 | Adjusting Screw with Nut | ||
| M-166 | Gear on Screw Shaft | ||
| M-167 | Intermediate Gear | ||
| M-168 | Bushing for shoe | ||
| M-169 | R.H. Shoe | ||
| M-170 | L.H.Shoe | ||
| M-171 | Set Screw for Sharpener Shoe | ||
| M-172 | Stabilizer | ||
| M-173 | Guide Back of Standard | ||
| M-175 | Screw for Guide Back(With Washer) | ||
| M-176 | R.H.Slide with Pulley | ||
| M-177 | L.H.Slide with Pulley | ||
| M-178 | Neoprene Band for Pulley | ||
| M-179 | Front Pulley for Belt | ||
| M-180 | Roll Pin for Belt | ||
| M-181 | Spring for Pulley Slide | ||
| M-182 | Screw for Clamping Arm | ||
| M-183 | Clamping Arm for Shoe | ||
| M-184 | Nut for Sharpener Shoe Screw | ||
| M-185 | Screw for Sharpner Shoe | ||
| M-186 | R.H.Sharpener Shoe Spring | ||
| M-187 | L.H.Sharpener Shoe Spring | ||
| M-188 | Spring for Arm |
Page 10 — Accessory Box
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-189 | Abrasive Belts (See Page 18) | ||
| M-190 | Electric Corde Complete | ||
| M-191 | Knife (See Page 18) | ||
| M-194 | Knife Bolt Wrench | ||
| M-195 | Screw Driver | ||
| M-197 | Accessory Box | ||
| M-198 | Bearing Grease |
KM Cutting Machine — parts catalog
- Page 1 (diagram): Operation, lubrication and care diagram for the KS-AUV cutter showing front and side views with lettered callouts for oil points, switch, handle and blade parts.
- Page 3 (diagram): Exploded view of a motor and housing assembly with part-number labels M-001 to M-026 and M-200 to M-206 for the stator, rotor, fan, cut-out switch, housing, capacitor, carrying handle, and 2-speed switch parts.
- Page 4 (diagram): Exploded diagram of the crank and guide assembly with a numbered list of parts M-027 to M-051, including connecting rod, crank bearing, oil tank, guide metal and cross head.
- Page 5 (diagram): Exploded view of the front cover assembly with a photo of the unit and part-number labels for the front cover, bearing, sharpener, terminal block, plug, switch cover and operating handle.
- Page 6 (diagram): This page shows an exploded diagram of standard and base plates for a sewing machine, with bed plates, hinge pins, knife slides, throat plates, washers and bolts labelled by part number.
- Page 7 (diagram): Exploded diagram of the automatic sharpener assembly with a labelled list of its part numbers, names, and components such as screws, rods, springs, levers, and brackets.
- Page 8 (diagram): Exploded diagrams and part-number labels for the automatic sharpener assembly, with a right-hand list of shaft, gear, and bearing parts M-136 to M-157.
- Page 9 (diagram): Exploded view of the lower gear bracket assembly with a list of part codes M-158 to M-188 for gears, screws, shoes, springs, pulleys and slides.
- Page 10 (diagram): Illustrated accessory page for a KM electric cloth cutting machine showing abrasive belts, electric cord, knife, knife bolt wrench, screw driver, accessory box and bearing grease with their item numbers M-189 to M-198.
