Pegasus FR151 (EX/EXT5100) Parts Book (PDF)
Text index — Pegasus FR151 (EX/EXT5100)
Page 2 — FR component parts list
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 305211 - 91 | Rear roller assembly | ||
| 305199A91 | Lower roller assembly | ||
| 305206 - 91 | Front roller assembly | ||
| 305226A91 | Edge guide unit | ||
| 302477A91 | Valve set | ||
| 350645 - 91 | Knee switch assembly | ||
| 601089 | Joint | ||
| 9A9050 | Table diagram | ||
| 302459A9R | Waste chute assembly | ||
| 305220A91 | Edge guide set | ||
| 302459A | Waste chute assembly |

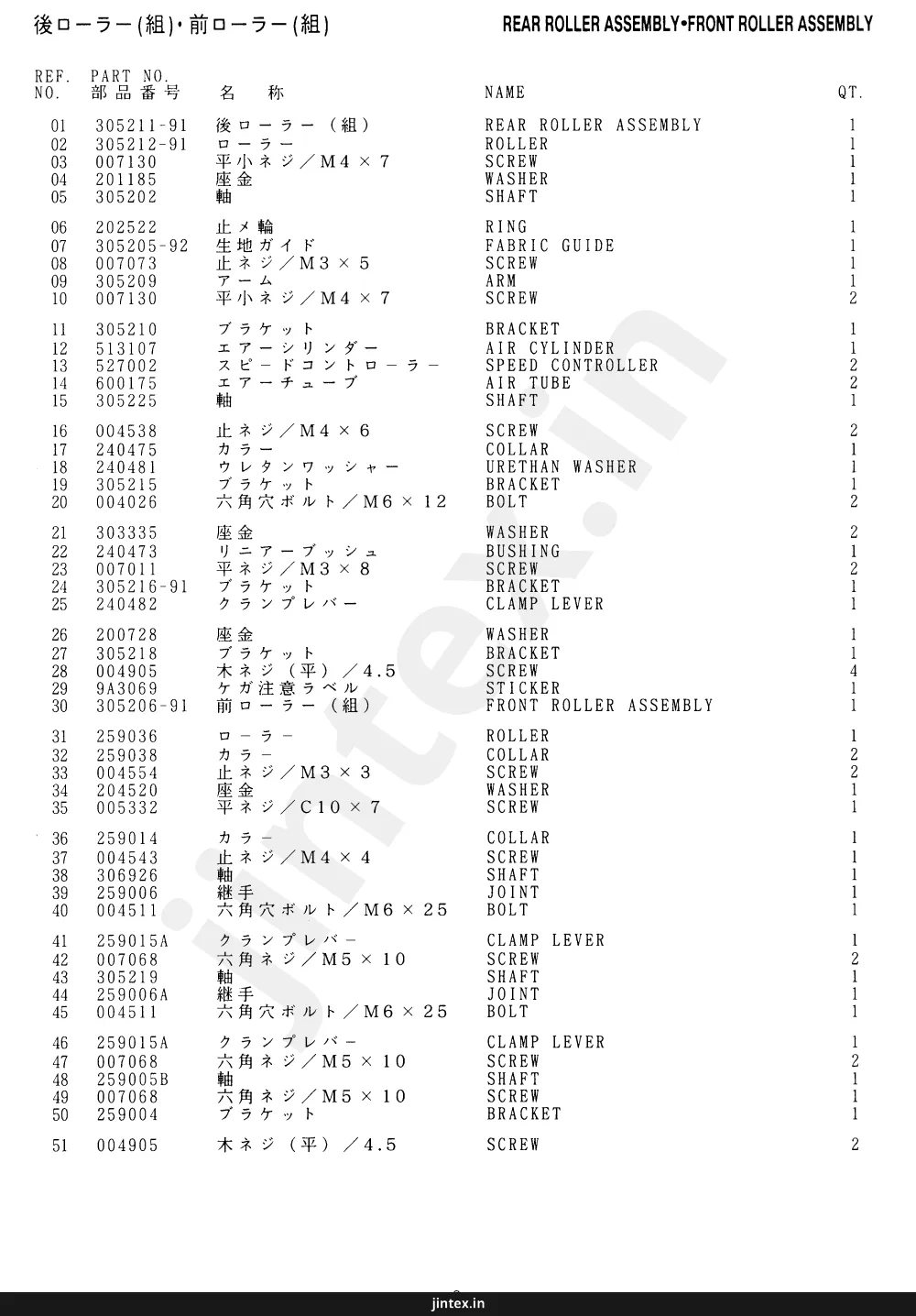

Page 5 — REAR ROLLER ASSEMBLY・FRONT ROLLER ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 305211-91 | REAR ROLLER ASSEMBLY | 1 |
| 02 | 305212-91 | ROLLER | 1 |
| 03 | 007130 | SCREW | 1 |
| 04 | 201185 | WASHER | 1 |
| 05 | 305202 | SHAFT | 1 |
| 06 | 202522 | RING | 1 |
| 07 | 305205-92 | FABRIC GUIDE | 1 |
| 08 | 007073 | SCREW | 1 |
| 09 | 305209 | ARM | 1 |
| 10 | 007130 | SCREW | 2 |
| 11 | 305210 | BRACKET | 1 |
| 12 | 513107 | AIR CYLINDER | 1 |
| 13 | 527002 | SPEED CONTROLLER | 2 |
| 14 | 600175 | AIR TUBE | 2 |
| 15 | 305225 | SHAFT | 1 |
| 16 | 004538 | SCREW | 2 |
| 17 | 240475 | COLLAR | 1 |
| 18 | 240481 | URETHAN WASHER | 1 |
| 19 | 305215 | BRACKET | 1 |
| 20 | 004026 | BOLT | 2 |
| 21 | 303335 | WASHER | 2 |
| 22 | 240473 | BUSHING | 1 |
| 23 | 007011 | SCREW | 2 |
| 24 | 305216-91 | BRACKET | 1 |
| 25 | 240482 | CLAMP LEVER | 1 |
| 26 | 200728 | WASHER | 1 |
| 27 | 305218 | BRACKET | 1 |
| 28 | 004905 | SCREW | 4 |
| 29 | 9A3069 | STICKER | 1 |
| 30 | 305206-91 | FRONT ROLLER ASSEMBLY | 1 |
| 31 | 259036 | ROLLER | 1 |
| 32 | 259038 | COLLAR | 2 |
| 33 | 004554 | SCREW | 2 |
| 34 | 204520 | WASHER | 1 |
| 35 | 005332 | SCREW | 1 |
| 36 | 259014 | COLLAR | 1 |
| 37 | 004543 | SCREW | 1 |
| 38 | 306926 | SHAFT | 1 |
| 39 | 259006 | JOINT | 1 |
| 40 | 004511 | BOLT | 1 |
| 41 | 259015A | CLAMP LEVER | 1 |
| 42 | 007068 | SCREW | 2 |
| 43 | 305219 | SHAFT | 1 |
| 44 | 259006A | JOINT | 1 |
| 45 | 004511 | BOLT | 1 |
| 46 | 259015A | CLAMP LEVER | 1 |
| 47 | 007068 | SCREW | 2 |
| 48 | 259005B | SHAFT | 1 |
| 49 | 007068 | SCREW | 1 |
| 50 | 259004 | BRACKET | 1 |
| 51 | 004905 | SCREW | 2 |
Page 7 — LOWER ROLLER ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 305199A91 | LOWER ROLLER ASSEMBLY | 1 |
| 02 | 305200-91 | ROLLER | 2 |
| 03 | 007130 | SCREW | 2 |
| 04 | 201185 | WASHER | 2 |
| 05 | 305202 | SHAFT | 2 |
| 06 | 202522 | RING | 2 |
| 07 | 305205-92 | FABRIC GUIDE | 2 |
| 08 | 007073 | SCREW | 2 |
| 09 | 305203 | BRACKET | 1 |
| 10 | 007280 | SCREW | 1 |
| 11 | 259015A | CLAMP LEVER | 1 |
| 12 | 204023 | WASHER | 1 |
| 13 | 305220 | BRACKET | 1 |
| 14 | 007020 | SCREW | 2 |
| 15 | 201185 | WASHER | 2 |
| 16 | 514001 | CYLINDER | 1 |
| 17 | 305221 | BRACKET | 2 |
| 18 | 007130 | SCREW | 4 |
| 19 | 201185 | WASHER | 4 |
| 20 | 527002 | SPEED CONTROLLER | 2 |
| 21 | 600032 | AIR TUBE(4X6X500) | 1 |
| 22 | 600101 | AIR TUBE(4X6X1010) | 1 |
| 23 | 748002 | BAND | 2 |
| 24 | 601120 | JOINT | 2 |
| 25 | 305224 | HOUSING | 1 |
| 26 | 305223 | SHEET | 1 |
| 27 | 350665 | SCALE PLATE | 1 |
| 28 | 004026 | BOLT | 2 |
| 29 | 303335 | WASHER | 2 |
| 30 | 204293 | SPRING WASHER | 2 |
| 31 | 305222 | STOPPER | 1 |
| 32 | 240305 | CUSHION RUBBER | 2 |
| 33 | 240482 | CLAMP LEVER | 1 |
| 34 | 204023 | WASHER | 1 |
| 35 | 305204 | BRACKET | 1 |
| 36 | 004502 | SCREW | 4 |
| 37 | 303335 | WASHER | 4 |
| 38 | 303067 | SPRING WASHER | 4 |
| 39 | 004820 | NUT | 4 |
| 40 | 748015 | BAND | 5 |
| 41 | 004920 | SCREW | 3 |
| 42 | 748042 | BAND | 3 |
| 43 | 9A3069 | STICKER | 1 |
Page 9 — EDGE GUIDE UNIT ・ KNEE SWITCH ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 305226A91 | EDGE GUIDE UNIT | 1 |
| 02 | 305227 | BRACKET | 1 |
| 03 | 007026 | SCREW | 1 |
| 04 | 240332 | SPACER | 1 |
| 05 | 007020 | SCREW | 1 |
| 06 | 305228-91 | BRACKET | 1 |
| 07 | 007160 | SCREW | 1 |
| 08 | 004818 | NUT | 1 |
| 09 | 204888 | SPRING | 2 |
| 10 | 206055 | WASHER | 1 |
| 11 | W00128-2 | SCREW | 1 |
| 12 | 305230 | PLATE | 1 |
| 13 | 007130 | SCREW | 1 |
| 14 | 201185 | WASHER | 1 |
| 15 | 305234 | SPACER | 1 |
| 16 | 305231 | GUIDE (LEFT) | 1 |
| 17 | 007143 | SCREW | 1 |
| 18 | 201185 | WASHER | 1 |
| 19 | 305232 | BRACKET | 1 |
| 20 | 007143 | SCREW | 1 |
| 21 | 305233 | GUIDE (RIGHT) | 2 |
| 22 | 007024 | SCREW | 1 |
| 23 | 201185 | WASHER | 1 |
| 24 | 305234 | SPACER | 1 |
| 25 | 305235 | SEPARATER | 1 |
| 26 | 305236 | AUXILIARY GUIDE | 1 |
| 27 | 350336 | LATCH | 1 |
| 28 | 004527 | BOLT | 1 |
| 29 | 305238 | STOPPER | 1 |
| 30 | 240305 | CUSHION RUBBER | 1 |
| 31 | 007021 | SCREW | 1 |
| 32 | 007281 | NUT | 1 |
| 33 | 305239 | SPRING | 1 |
| 34 | 004554 | SCREW | 2 |
| 35 | 513108 | AIR CYLINDER | 1 |
| 36 | 210930 | SPRING WASHER | 2 |
| 37 | 201185 | WASHER | 2 |
| 38 | 527006 | SPEED CONTROLLER | 1 |
| 39 | 601097 | JOINT | 1 |
| 40 | 305237 | BRACKET | 1 |
| 41 | 007021 | SCREW | 2 |
| 42 | 007281 | NUT | 2 |
| 43 | 201185 | WASHER | 2 |
| 44 | 350645-91 | KNEE SWITCH ASSEMBLY | |
| 45 | 000197 | BRACKET | 1 |
| 46 | 004910 | SCREW | 2 |
| 47 | 204585 | WASHER | 2 |
| 48 | 350643 | BRACKET | 1 |
| 49 | 540003 | PUSH BUTTON | 1 |
| 50 | 540004 | SWITCH BODY | 1 |
| 51 | 600079 | TUBE (2.5×4×150) | 1 |
| 52 | 600078 | TUBE (2.5×4×700) | 1 |
| 53 | 540005 | VALVE | 1 |
| 54 | 600079 | TUBE (2.5×4×150) | 1 |
| 55 | 600077 | TUBE (2.5×4×550) | 1 |
| 56 | 601136 | JOINT | 1 |
| 57 | 600099 | TUBE (4×6×350) | 1 |
| 58 | 300220 | VALVE ACTUATOR ASSEMBLY | 1 |
| 59 | 005183 | SCREW | 1 |
| 60 | 003044 | NUT | 1 |
| 61 | 137142 | WASHER | 1 |
| 62 | 005118 | SCREW | 1 |
| 63 | 137142 | WASHER | 1 |
Page 11 — VALVE SET
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 302477A91 | VALVE SET | 1 |
| 02 | 532007-91 | AIR VALVE ASSEMBLY | 1 |
| 03 | 532001 | AIR VALVE | 1 |
| 04 | 306731 | BRACKET | 1 |
| 05 | 300469 | COLLAR | 1 |
| 06 | 300468 | ACTUATOR | 1 |
| 07 | 306733 | PITMAN ROD | 1 |
| 08 | 601002 | JOINT | 3 |
| 09 | 201759 | GASKET | 3 |
| 10 | 601043 | SLEEVE | 3 |
| 11 | 303991 | BALL JOINT | 2 |
| 12 | 600015 | TUBE(4X6X830) | 2 |
| 13 | 306733A | PITMAN ROD | 1 |
| 14 | 137558 | SPRING | 1 |
| 15 | 600024 | TUBE(4X6X830) | 1 |
| 16 | 004320 | SCREW | 3 |
| 17 | 302469 | BRACKET | 1 |
| 18 | 004921 | SCREW | 2 |
| 19 | 004502 | BOLT | 2 |
| 20 | 303067 | SPRING WASHER | 2 |
| 21 | 004820 | NUT | 2 |
| 22 | 302470 | BRACKET | 1 |
| 23 | 601089 | JOINT | 1 |
Page 13 — TABLE・WASTE CHUTE ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 9A9050 | TABLE | 1 |
| 02 | 302459A9R | WASTE CHUTE ASSEMBLY | 1 |
| 03 | 302453-RA | WASTE CHUTE (UPPER) | 1 |
| 04 | 302454-RA | WASTE CHUTE (LOWER) | 1 |
| 05 | 003044 | NUT | 4 |
| 06 | 005453 | SCREW | 4 |
| 07 | 303067 | SPRING WASHER | 4 |
| 08 | 305360 | BRACKET | 1 |
| 09 | 004109 | SCREW | 2 |
| 10 | 240104 | WASHER | 2 |
| 11 | 004821 | NUT | 2 |
| 12 | 004905 | SCREW | 2 |
Pegasus FR151 (EX/EXT5100) — parts catalog
- Page 1 (cover): This is the cover page for the FR151 EX(T) 5100 Series Parts Catalog, a provisional issue from Pegasus.
- Page 2 (parts_list): This page provides a compatibility table for FR151 models and a component parts list for FR151, including special parts.
- Page 3 (toc): This page is a table of contents listing various roller assemblies, an edge guide unit, a valve set, and a table with waste chute assembly, along with their corresponding page numbers.
- Page 4 (diagram): This page displays two exploded diagrams of components, likely for an industrial sewing machine, with various parts numbered for identification.
- Page 5 (parts_list): This page lists parts for the rear roller assembly and front roller assembly, including rollers, screws, washers, shafts, and other components with their corresponding part numbers and quantities.
- Page 6 (diagram): This page illustrates various components of a machine, including a roller, shafts, brackets, valves, and fasteners, with numerical callouts for each part.
- Page 7 (parts_list): This page lists parts for the lower roller assembly, including various screws, washers, brackets, and other components, with their respective part numbers, names, and quantities.
- Page 8 (diagram): This page displays two diagrams of components, with the top diagram showing parts numbered 1 through 43 and the bottom diagram showing parts numbered 44 through 63.
- Page 9 (parts_list): This page lists parts for the Edge Guide Unit and Knee Switch Assembly, including screws, brackets, washers, and other components, with their corresponding part numbers and quantities.
- Page 10 (diagram): This page displays an exploded view diagram of various components, including brackets, screws, nuts, and other mechanical parts, with reference numbers indicating their positions.
- Page 11 (parts_list): This page lists parts for a valve set, including various components like valves, brackets, actuators, joints, screws, and nuts, with their respective part numbers, names, and quantities.
- Page 12 (diagram): This page displays a diagram of a sewing machine component assembly, showing various parts with reference numbers.
- Page 13 (parts_list): This page lists parts for the Table and Waste Chute Assembly, including the table, waste chute components, nuts, screws, spring washers, brackets, and washers.
- Page 14 (unknown): This page is blank except for a watermark and a footer.
- Page 15 (unknown): This page is blank except for a watermark 'jintex.in' and a footer with the same text.
- Page 16 (cover): This page is the cover of a parts catalog for Pegasus Sewing Machine Mfg. Co., Ltd., published in September 1997 with catalog number 9752.
