Page 5 — MACHINE BED FRAME (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 230048-SD | MACHINE BED COMPLETE | 1 |
| 2 | 230048ASD | MACHINE BED COMPLETE | 1 |
| 3 | 230050-SD | HEAD | 1 |
| 4 | 230053 | BUSHING | 1 |
| 5 | 230003 | BUSHING | 1 |
| 6 | 230004 | BUSHING | 1 |
| 7 | 230054 | BUSHING | 1 |
| 8 | 230062 | BUSHING | 1 |
| 9 | 230055 | BUSHING | 1 |
| 10 | 206942 | OIL SEAL | 1 |
| 11 | 230018 | KEY | 2 |
| 12 | 5091 | SCREW | 2 |
| 13 | 206215 | PIN | 1 |
| 14 | 230058 | SPACER | 1 |
| 15 | 5616 | SCREW | 1 |
| 16 | 5555 | SCREW | 2 |
| 17 | 202045 | SPRING WASHER | 2 |
| 18 | 230051-SD | MACHINE BED | 1 |
| 19 | 230056 | BUSHING | 1 |
| 20 | 230013 | BUSHING | 1 |
| 21 | 230014 | BUSHING | 1 |
| 22 | 230057 | BUSHING | 1 |
| 23 | 230016 | BUSHING | 1 |
| 24 | 230028 | ECCENTRIC PIN | 1 |
| 25 | 5461 | SCREW | 1 |
| 26 | 202526 | NAME PLATE | 1 |
| 27 | 5138B | SCREW | 1 |
| 28 | 202287A | WASHER | 1 |
| 29 | 5556 | SCREW | 2 |
| 30 | 206705 | PLUG | 1 |
| 31 | 230553 | OIL SIGHT GAUGE | 2 |
| 32 | 202179 | OIL WICK | 1 |
| 33 | 202047 | OIL FELT | 1 |
| 34 | 230021 | OIL FELT | 2 |
| 35 | 230059-91 | OIL GUARD ASSEMBLY | 1 |
| 36 | 230047A | SERIAL NUMBER PLATE | 1 |
| 37 | 210679 | PIN | 2 |
| 38 | 212279A | TYPE PLATE | 1 |
| 39 | 212280A | TYPE PLATE | 1 |
| 40 | 210679 | PIN | 2 |
| 41 | 5557 | SCREW | 3 |
| 42 | 230030 | WASHER | 3 |
| 43 | 234515 | THREAD GUIDE | 1 |
| 44 | 234514 | THREAD GUIDE | 1 |
| 45 | 230073-SD | CYLINDER | 1 |
| 46 | 230074-SD | CYLINDER | 1 |
| 47 | 230045 | BUSHING | 1 |
| 48 | 230026 | BUSHING | 1 |
| 49 | 230027 | BUSHING | 1 |
| 50 | 233036 | OIL SEAL | 2 |
| 51 | 234594 | THREAD TUBE | 1 |
| 52 | 234595 | THREAD TUBE | 2 |
| 53 | 206215 | PIN | 1 |
| 54 | 230042 | O RING | 1 |
| 55 | 5584 | SCREW | 1 |
| 56 | 230043 | O RING | 1 |
| 57 | 202405 | PIN | 1 |
| 58 | 236603 | PIN | 1 |

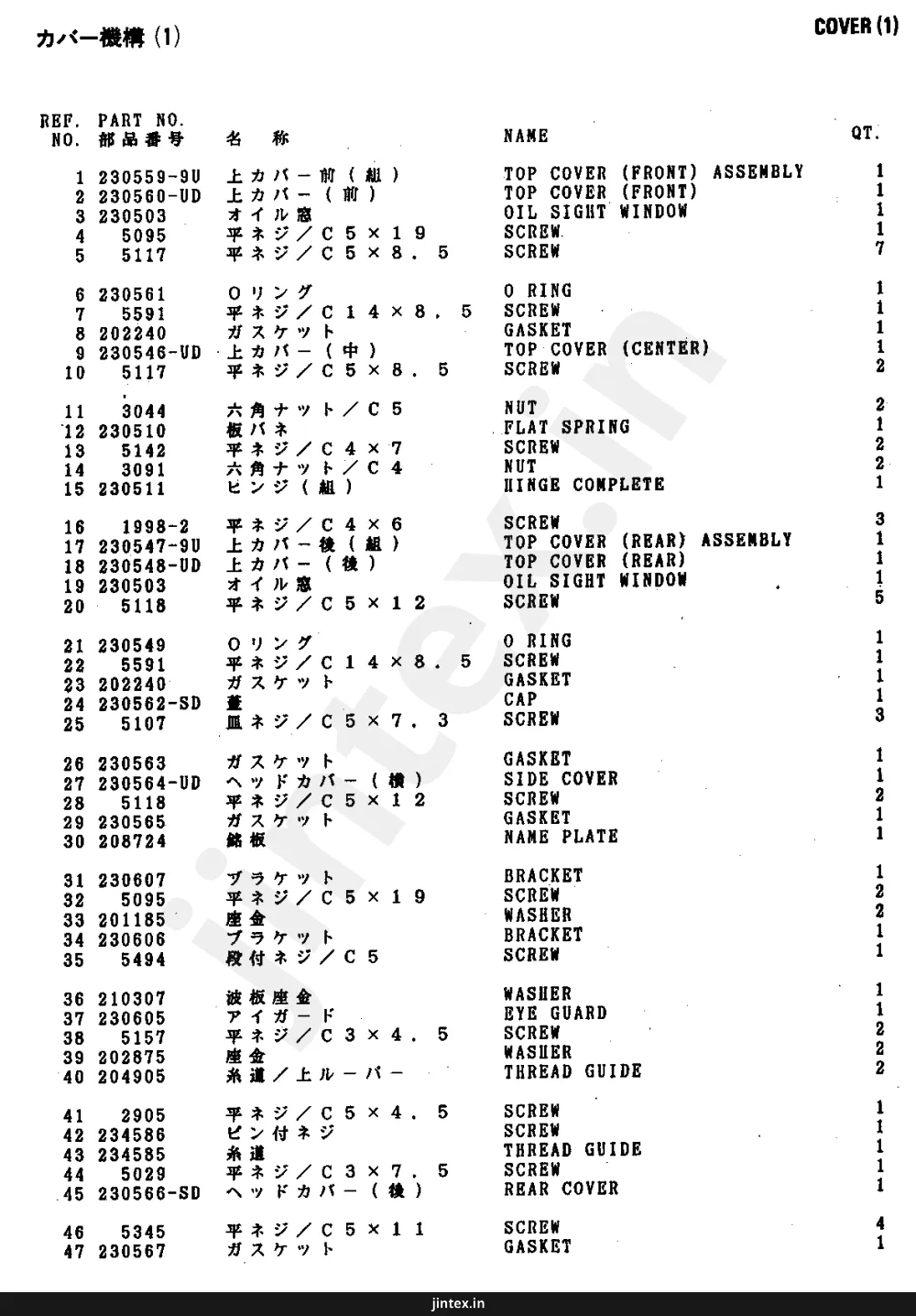

Page 7 — COVER (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 230559-9U | TOP COVER (FRONT) ASSEMBLY | 1 |
| 2 | 230560-UD | TOP COVER (FRONT) | 1 |
| 3 | 230503 | OIL SIGHT WINDOW | 1 |
| 4 | 5095 | SCREW | 1 |
| 5 | 5117 | SCREW | 7 |
| 6 | 230561 | O RING | 1 |
| 7 | 5591 | SCREW | 1 |
| 8 | 202240 | GASKET | 1 |
| 9 | 230546-UD | TOP COVER (CENTER) | 1 |
| 10 | 5117 | SCREW | 2 |
| 11 | 3044 | NUT | 2 |
| 12 | 230510 | FLAT SPRING | 1 |
| 13 | 5142 | SCREW | 2 |
| 14 | 3091 | NUT | 2 |
| 15 | 230511 | HINGE COMPLETE | 1 |
| 16 | 1998-2 | SCREW | 3 |
| 17 | 230547-9U | TOP COVER (REAR) ASSEMBLY | 1 |
| 18 | 230548-UD | TOP COVER (REAR) | 1 |
| 19 | 230503 | OIL SIGHT WINDOW | 1 |
| 20 | 5118 | SCREW | 5 |
| 21 | 230549 | O RING | 1 |
| 22 | 5591 | SCREW | 1 |
| 23 | 202240 | GASKET | 1 |
| 24 | 230562-SD | CAP | 1 |
| 25 | 5107 | SCREW | 3 |
| 26 | 230563 | GASKET | 1 |
| 27 | 230564-UD | SIDE COVER | 1 |
| 28 | 5118 | SCREW | 2 |
| 29 | 230565 | GASKET | 1 |
| 30 | 208724 | NAME PLATE | 1 |
| 31 | 230607 | BRACKET | 1 |
| 32 | 5095 | SCREW | 2 |
| 33 | 201185 | WASHER | 2 |
| 34 | 230606 | BRACKET | 1 |
| 35 | 5494 | SCREW | 1 |
| 36 | 210307 | WASHER | 1 |
| 37 | 230605 | EYE GUARD | 1 |
| 38 | 5157 | SCREW | 2 |
| 39 | 202875 | WASHER | 2 |
| 40 | 204905 | THREAD GUIDE | 2 |
| 41 | 2905 | SCREW | 1 |
| 42 | 234586 | SCREW | 1 |
| 43 | 234585 | THREAD GUIDE | 1 |
| 44 | 5029 | SCREW | 1 |
| 45 | 230566-SD | REAR COVER | 1 |
| 46 | 5345 | SCREW | 4 |
| 47 | 230567 | GASKET | 1 |
Page 9 — カバー機構 (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 234596 | BRACKET | 1 |
| 2 | 5117 | SCREW | 2 |
| 3 | 204099 | PIPE | 1 |
| 4 | 206115 | HOLDER | 1 |
| 5 | 2905 | SCREW | 1 |
| 6 | 201185 | WASHER | 1 |
| 7 | 236110-91 | FINGER GUARD ASSEMBLY | 1 |
| 8 | 236111-91 | FINGER GUARD ASSEMBLY | 1 |
| 9 | 5453 | SCREW | 2 |
| 10 | 230604 | BRACKET | 1 |
| 11 | 257559A | CLOTH GUIDE (RIGHT) | 1 |
| 12 | 236112 | CLOTH GUIDE (RIGHT) | 1 |
| 13 | 257558A | CLOTH GUIDE(LEFT) | 1 |
| 14 | 236113 | CLOTH GUIDE(LEFT) | 1 |
| 15 | 5346 | SCREW | 2 |
| 16 | 230570-UD | LOOPER COVER | 1 |
| 17 | 5613 | SCREW | 1 |
| 18 | 230531 | BRACKET | 1 |
| 19 | 5427 | SCREW | 1 |
| 20 | 230530 | SPRING | 1 |
| 21 | 1206 | SCREW | 1 |
| 22 | 230590-9U | CYLINDER COVER (TOP) | 1 |
| 23 | 230590A9U | CYLINDER COVER (TOP) | 1 |
| 24 | 5328-HC | SCREW | 8 |
| 25 | 230526AUD | CYLINDER COVER (TOP) | 1 |
| 26 | 230526CUD | CYLINDER COVER | 1 |
| 27 | 230591 | OIL GUARD | 1 |
| 28 | 230527A | GASKET | 1 |
| 29 | 230528 | FLAT SPRING | 1 |
| 30 | 1231 | SCREW | 1 |
| 31 | 230554-UD | CYLINDER SIDE COVER | 1 |
| 32 | 5373 | SCREW | 6 |
| 33 | 230555 | O RING | 1 |
| 34 | 230551AUD | CYLINDER COVER (REAR) COM. | 1 |
| 35 | 5328 | SCREW | 4 |
| 36 | 230552 | O RING | 1 |
Page 11 — CRANKSHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 231019 | CRANKSHAFT | 1 |
| 2 | 231019A | CRANKSHAFT | 1 |
| 3 | 231020 | BALANCE WEIGHT | 1 |
| 4 | 1170-1 | SCREW | 2 |
| 5 | 240091 | BALL BEARING | 1 |
| 6 | 231008 | COLLAR | 2 |
| 7 | 5461 | SCREW | 2 |
| 8 | 231032-91 | COUPLING COMPLETE | 1 |
| 9 | 231033 | COUPLING | 1 |
| 10 | 5385 | SCREW | 7 |
| 11 | 231007 | GEAR (LARGE) | 1 |
| 12 | 5336 | SCREW | 3 |
| 13 | 240161 | COLLAR | 1 |
| 14 | 234591-91 | THREAD TAKEUP | 1 |
| 15 | 1457 | SCREW | 2 |
| 16 | 5105 | SCREW | 1 |
| 17 | 231021 | CRANKSHAFT | 1 |
| 18 | 240140 | BALL BEARING | 1 |
| 19 | 231022 | OIL SEAL | 1 |
| 20 | 206837 | O RING | 1 |
| 21 | 231023 | COVER | 1 |
| 22 | 5117 | SCREW | 3 |
| 23 | 231024 | GASKET | 1 |
| 24 | 231025 | MACHINE PULLEY | 1 |
| 25 | 5080 | SCREW | 1 |
| 26 | 5081 | SCREW | 1 |
| 27 | 5522 | SCREW | 1 |
| 28 | 204293 | SPRING WASHER | 1 |
| 29 | 231026-UA | HANDWHEEL | 1 |
| 30 | 2903 | SCREW | 3 |
| 31 | 231027 | WASHER | 1 |
Page 13 — NEEDLE DRVIE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 231500 | ROD | 1 |
| 2 | 2213-1 | SCREW | 2 |
| 3 | 231501 | PIN | 23 |
| 4 | 231502 | STOPPER | 4 |
| 5 | 231503 | LEVER | 1 |
| 6 | 5461 | SCREW | 2 |
| 7 | 231504 | PIN | 1 |
| 8 | 1170 | SCREW | 2 |
| 9 | 202177 | OIL WICK | 1 |
| 10 | 231507 | LINK | 1 |
| 11 | 200654 | PIN | 2 |
| 12 | 1222 | SCREW | 2 |
| 13 | 202175 | OIL WICK | 2 |
| 14 | 202174 | OIL WICK | 4 |
| 15 | 231512-92 | NEEDLE BAR CLAMP ASSEMBLY | 1 |
| 16 | 231512 | NEEDLE BAR CLAMP | 1 |
| 17 | 1175-2 | SCREW | 1 |
| 18 | 231513 | SHAFT | 1 |
| 19 | 231506 | COLLAR | 1 |
| 20 | 5461 | SCREW | 2 |
| 21 | 231509A | NEEDLE BAR | 1 |
| 22 | XXXXXX | NEEDLE HOLDER | 1 |
| 23 | 234561 | THREAD GUIDE | 1 |
| 24 | 253593 | TENSION DISC | 1 |
| 25 | 200205 | SPRING | 1 |
| 26 | 9070-2 | SCREW | 1 |
| 27 | UY128GAS | NEEDLE | |
| 28 | 5292 | SCREW | |
| 29 | 234583 | NEEDLE BAR THREAD GUIDE | 1 |
| 30 | 1216 | SCREW | 1 |
| 31 | XXXXXX | NEEDLE PLATE | 1 |
| 32 | 5373-HC | SCREW | 2 |
| 33 | 230598-UD | NEEDLE BAR COVER | 1 |
| 34 | 1216 | SCREW | 2 |
| 35 | 234526 | BRACKET | 1 |
| 36 | 5336 | SCREW | 2 |
| 37 | 234525A | THREAD SUPPORT | 3 |
| 38 | 5292 | SCREW | 3 |
| 39 | 192064 | THREAD GUIDE | 1 |
| 40 | 1196 | SCREW | 1 |
| 41 | 234562 | THREAD GUIDE | 1 |
| 42 | 4009-1 | SCREW | 2 |
| 43 | 234563 | BRACKET | 1 |
| 44 | 1229 | SCREW | 2 |
| 45 | 234521A | THREAD GUIDE | 3 |
| 46 | 5292 | SCREW | 3 |
| 47 | 234522 | BRACKET | 1 |
| 48 | 1231 | SCREW | 2 |
| 49 | 5563 | SCREW | 1 |
| 50 | 5359 | SCREW | 1 |
| 51 | 234523 | SPRING | 1 |
| 52 | 234524 | HOLDER | 1 |
| 53 | 5366 | SCREW | 1 |
Page 15 — SPREADER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 232027-92 | CONNECTION ASSEMBLY | 1 |
| 2 | 232027 | CONNECTION | 1 |
| 3 | 2213-1 | SCREW | 2 |
| 4 | 1170 | SCREW | 2 |
| 5 | 232028 | BALL STUD | 1 |
| 6 | 3018 | NUT | 1 |
| 7 | 204520 | WASHER | 1 |
| 8 | 232513 | GUIDE | 1 |
| 9 | 1170-3 | SCREW | 1 |
| 10 | 232029-92 | CRANK ASSEMBLY | 1 |
| 11 | 232029 | CRANK | 1 |
| 12 | 5594 | SCREW | 1 |
| 13 | 206162 | O RING | 1 |
| 14 | 232030 | SHAFT | 1 |
| 15 | 207937 | BRACKET | 1 |
| 16 | 1170-1 | SCREW | 1 |
| 17 | 207936A | SPREADER | 1 |
| 18 | 5328 | SCREW | 1 |
| 19 | 207938 | LINK | 1 |
| 20 | 207939 | PIN | 1 |
| 21 | 5012 | SCREW | 1 |
| 22 | 202175 | OIL WICK | 1 |
| 23 | 202174 | OIL WICK | 2 |
| 24 | 207940A | CRANKSHAFT | 1 |
| 25 | 202175 | OIL WICK | 2 |
| 26 | 202174 | OIL WICK | 2 |
| 27 | 232032 | BRACKET | 1 |
| 28 | 1206 | SCREW | 2 |
| 29 | 207942 | COLLAR | 1 |
| 30 | 5292 | SCREW | 2 |
| 31 | 207943 | THREAD GUIDE | 1 |
| 32 | 5292 | SCREW | 1 |
| 33 | 232031 | BRACKET | 1 |
| 34 | 5579 | SCREW | 2 |
| 35 | 234616 | THREAD GUIDE | 1 |
| 36 | 2905 | SCREW | 1 |
| 37 | 212503 | BRACKET | 1 |
| 38 | 212504 | TENSION DISC | 1 |
| 39 | 210751 | SPRING | 1 |
| 40 | 234617 | LINER | 1 |
| 41 | 5227 | SCREW | 1 |
Page 17 — LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 232523-92 | CONNECTION ASSEMBLY | 1 |
| 2 | 232523 | CONNECTION | 1 |
| 3 | 2213-1 | SCREW | 2 |
| 4 | 232504 | PIN | 1 |
| 5 | 1222 | SCREW | 1 |
| 6 | 202175 | OIL WICK | 1 |
| 7 | 202174 | OIL WICK | 2 |
| 8 | 232505A | LEVER | 1 |
| 9 | 232506 | SHAFT | 1 |
| 10 | 1435 | SCREW | 1 |
| 11 | 240165 | O RING | 1 |
| 12 | 232508 | COLLAR | 2 |
| 13 | 5220 | SCREW | 2 |
| 14 | 232509A | CONNECTION ASSEMBLY | 1 |
| 15 | 232510 | CONNECTION | 1 |
| 16 | 1170-1 | SCREW | 2 |
| 17 | 232009A | BALL STUD | 1 |
| 18 | 232511 | ROD | 1 |
| 19 | 1170-1 | SCREW | 2 |
| 20 | 232512 | BALL STUD | 1 |
| 21 | 232513 | GUIDE | 1 |
| 22 | 2918 | SCREW | 1 |
| 23 | 232010 | ROD | 1 |
| 24 | 89-1 | NUT | 1 |
| 25 | 28-1 | NUT | 1 |
| 26 | 5020 | NUT | 1 |
| 27 | 5020 | NUT | 1 |
| 28 | 232520 | LOOPER SHAFT | 1 |
| 29 | 232522 | LOOPER HOLDER | 1 |
| 30 | 5569 | SCREW | 1 |
| 31 | 5590 | SCREW | 1 |
| 32 | 236501A | LOOPER | 1 |
| 33 | 5053A | SCREW | 1 |
| 34 | 236624 | LOOPER GUARD | 1 |
| 35 | 1231 | SCREW | 1 |
| 36 | 232521 | COLLAR | 1 |
| 37 | 5568 | SCREW | 1 |
| 38 | 232517 | SLEEVE | 1 |
| 39 | 1170 | SCREW | 1 |
| 40 | 232518 | WASHER | 1 |
| 41 | 232519 | PIN | 1 |
| 42 | 1458 | SCREW | 1 |
| 43 | 232514 | LINK COMPLETE | 1 |
| 44 | 232515 | LINK | 1 |
| 45 | 232502 | NEEDLE BEARING | 2 |
| 46 | 232516 | BUSHING | 2 |
| 47 | 5567 | SCREW | 2 |
| 48 | 239033B | NUT | 1 |
| 49 | 234542B | BRACKET | 1 |
| 50 | 5186 | SCREW | 2 |
| 51 | 234588 | BRACKET | 1 |
| 52 | 5600 | SCREW | 2 |
| 53 | 234589 | THREAD GUIDE | 1 |
| 54 | 5364 | SCREW | 1 |
| 55 | 137906 | WASHER | 1 |
| 56 | 234590 | THREAD SUPPORT | 1 |
| 57 | 5141 | SCREW | 1 |
| 58 | 234544 | THREAD GUIDE | 1 |
| 59 | 1231 | SCREW | 1 |
| 60 | 234545 | THREAD GUIDE | 1 |
| 61 | 1231 | SCREW | 1 |
Page 19 — FEED MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 233000 | CONNECTION ASSEMBLY | 1 |
| 2 | 233001 | ROD | 1 |
| 3 | 5233 | SCREW | 2 |
| 4 | 233002-92 | ECCENTRIC | 1 |
| 5 | 5461 | SCREW | 2 |
| 6 | 233035 | FELT | 1 |
| 7 | 210766 | PIN | 1 |
| 8 | 232511 | ROD | 1 |
| 9 | 1170-1 | SCREW | 2 |
| 10 | 233004 | BALL STUD | 1 |
| 11 | 232513 | GUIDE | 1 |
| 12 | 2918 | SCREW | 1 |
| 13 | 233003 | CONNECTING BAR | 1 |
| 14 | 89-1 | NUT | 1 |
| 15 | 28-1 | NUT | 1 |
| 16 | 5461 | SCREW | 1 |
| 17 | 233007A | MAIN FEED BAR | 1 |
| 18 | 233006 | AUXILIARY PLATE | 1 |
| 19 | 2928 | SCREW | 2 |
| 20 | XXXXXX | MAIN FEED DOG | 1 |
| 21 | 5116 | SCREW | 1 |
| 22 | 236628 | NEEDLE GUARD | 1 |
| 23 | 5408 | SCREW | 1 |
| 24 | 233005 | DIFFERENTIAL FEED BAR | 1 |
| 25 | 233005A | DIFFERENTIAL FEED BAR | 1 |
| 26 | 233006 | AUXILIARY PLATE | 1 |
| 27 | 2928 | SCREW | 2 |
| 28 | XXXXXX | DIFFERENTIAL FEED DOG | 1 |
| 29 | 5614 | SCREW | 1 |
| 30 | 233008 | BLOCK/FEED BAR LIFT | 1 |
| 31 | 233009 | ECCENTRIC PIN | 1 |
| 32 | 5461 | SCREW | 1 |
| 33 | 204185 | O RING | 1 |
| 34 | 233039 | LINK | 1 |
| 35 | 233011 | BUSHING | 1 |
| 36 | 5571 | SCREW | 1 |
| 37 | 233012 | PIN | 1 |
| 38 | 5220 | SCREW | 1 |
| 39 | 233040 | LINK | 1 |
| 40 | 233011 | BUSHING | 1 |
| 41 | 5571 | SCREW | 1 |
| 42 | 233014 | BLOCK | 1 |
| 43 | 5572 | SCREW | 1 |
| 44 | 233015 | LINK | 1 |
| 45 | 5573 | SCREW | 1 |
| 46 | 5574 | SCREW | 1 |
| 47 | 233041-91 | LEVER | 1 |
| 48 | 208245 | WASHER | 1 |
| 49 | 233037A | SHAFT | 1 |
| 50 | 233020 | O RING | 2 |
| 51 | 5461 | SCREW | 2 |
| 52 | 233019 | BUSHING | 1 |
| 53 | 5147 | SCREW | 1 |
| 54 | 233042 | CRANK | 1 |
| 55 | 233032 | LINK | 1 |
| 56 | 233012 | PIN | 1 |
| 57 | 5146 | SCREW | 1 |
| 58 | 233011 | BUSHING | 1 |
| 59 | 5361 | SCREW | 1 |
| 60 | 233033A | NUT | 1 |
| 61 | 233034 | FLAT SPRING | 1 |
| 62 | 234066 | PIPE | 1 |
| 63 | 5408 | SCREW | 1 |
| 64 | 202174 | OIL WICK | 1 |
Page 21 — FEED MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 233043-91 | CONNECTION ASSEMBLY | 1 |
| 2 | 233001 | ROD | 1 |
| 3 | 5233 | SCREW | 2 |
| 4 | 233044-92 | ECCENTRIC ASSEMBLY | 1 |
| 5 | 233044 | ECCENTRIC | 1 |
| 6 | 5461 | SCREW | 2 |
| 7 | 233035 | FELT | 1 |
| 8 | 210766 | PIN | 1 |
| 9 | 233028 | ROD | 1 |
| 10 | 1170-1 | SCREW | 2 |
| 11 | 233029 | BALL STUD | 1 |
| 12 | 233003 | CONNECTING BAR | 1 |
| 13 | 89-1 | NUT | 1 |
| 14 | 28-1 | NUT | 1 |
| 15 | 233030 | GUIDE | 1 |
| 16 | 202433 | WASHER | 1 |
| 17 | 5181 | NUT | 1 |
| 18 | 233045 | CRANK | 1 |
| 19 | 233037 | SHAFT | 1 |
| 20 | 233020 | O RING | 2 |
| 21 | 5461 | SCREW | 2 |
| 22 | 233019 | BUSHING | 1 |
| 23 | 5147 | SCREW | 1 |
| 24 | 233021 | INDICATION PLATE | 1 |
| 25 | 5373 | SCREW | 3 |
| 26 | 233022 | GASKET | 1 |
| 27 | 233038 | LEVER | 1 |
| 28 | 204185 | O RING | 1 |
| 29 | 233024 | LEVER | 1 |
| 30 | 5373 | SCREW | 1 |
| 31 | 233025 | SPRING WASHER | 1 |
| 32 | 5575 | SCREW | 2 |
| 33 | 3152 | NUT | 2 |
Page 23 — PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 233527 | LEVER | 1 |
| 2 | 5117 | SCREW | 2 |
| 3 | 233528 | BRACKET | 1 |
| 4 | 4531 | BOLT | 2 |
| 5 | 5503 | SCREW | 1 |
| 6 | 3044 | NUT | 1 |
| 7 | 233526 | LEVER | 1 |
| 8 | 5048 | SCREW | 1 |
| 9 | 233511 | LINK (LONG) | 1 |
| 10 | 5494 | SCREW | 2 |
| 11 | 2905 | SCREW | 2 |
| 12 | 233512 | LINK (SHORT) | 1 |
| 13 | 233514 | LEVER | 1 |
| 14 | 5048 | SCREW | 1 |
| 15 | 5654 | SCREW | 1 |
| 16 | 233523-91 | LEVER | 1 |
| 17 | 233522 | LINK | 1 |
| 18 | 5386 | SCREW | 2 |
| 19 | 206055 | WASHER | 1 |
| 20 | 233520-92 | GUIDE | 1 |
| 21 | 5579 | SCREW | 1 |
| 22 | 233521 | SHAFT | 1 |
| 23 | 5461 | SCREW | 1 |
| 24 | 233503 | SCREW | 1 |
| 25 | 233504 | SPRING | 1 |
| 26 | 233519 | PRESSER BAR | 1 |
| 27 | 233545 | COLLAR | 1 |
| 28 | 2193 | SCREW | 1 |
| 29 | 233544 | FINGER GUARD | 1 |
| 30 | 1229 | SCREW | 1 |
| 31 | 202875 | WASHER | 1 |
| 32 | XXXXXX | PRESSER FOOT COMPLETE | 1 |
| 33 | 1170-3 | SCREW | 2 |
| 34 | XXXXXX | PRESSER FOOT COMPLETE | 1 |
| 35 | 257718 | GUIDE | 1 |
| 36 | 7120 | SCREW | 1 |
Page 25 — THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 234555 | THREAD GUIDE PLATE COMPLETE | 1 |
| 2 | 506 | THREAD GUIDE | 6 |
| 3 | 5117 | SCREW | 2 |
| 4 | 234512 | BRACKET | 2 |
| 5 | 5357 | SCREW | 2 |
| 6 | 234513 | BRACKET | 1 |
| 7 | 5117 | SCREW | 2 |
| 8 | 192120 | PIPE | 2 |
| 9 | 206115 | HOLDER | 2 |
| 10 | 2905 | SCREW | 2 |
| 11 | 201185 | WASHER | 2 |
| 12 | 234598-91 | THREAD GUIDE BRACKET | 1 |
| 13 | 2903 | SCREW | 1 |
| 14 | 234501 | BRACKET | 2 |
| 15 | 5186 | SCREW | 2 |
| 16 | 234502A | SHAFT | 1 |
| 17 | 234503 | SPRING | 1 |
| 18 | 234551-9S | SILICONE OIL RESERVOIR COM. | 1 |
| 19 | 198205 | THREAD EYELET | 8 |
| 20 | 234554 | OIL FELT | 4 |
| 21 | 5118 | SCREW | 2 |
| 22 | 234604-91 | THREAD TENSION COMPLETE | |
| 23 | 3056 | NUT | 1 |
| 24 | 101113 | TENSION SPRING BUSHING | 1 |
| 25 | 234507 | SPRING | 1 |
| 26 | 210319 | TENSION DISC | 2 |
| 27 | 234602 | THREAD GUIDE BAR | 1 |
| 28 | 234605-91 | THREAD TENSION COMPLETE | |
| 29 | 234509 | SPRING | 1 |
| 30 | 234606-91 | THREAD TENSION COMPLETE | 1 |
| 31 | 234511 | SPRING | 1 |
| 32 | 234603 | THREAD GUIDE | |
| 33 | 234601 | THREAD RELEASER PIN | |
| 34 | 234607 | NUT | |
| 35 | 5535 | SCREW |
Page 27 — LUBRICATING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 234000 | PUMP ASSEMBLY | 1 |
| 2 | 234001 | PUMP BASE | 1 |
| 3 | 234002 | GEAR (SMALL) | 4 |
| 4 | 234003 | PIN | 2 |
| 5 | 234004 | GEAR (LARGE) | 1 |
| 6 | 5461 | SCREW | 2 |
| 7 | 200020 | O RING | 1 |
| 8 | 234005 | WASHER | 1 |
| 9 | 234006 | PIN | 1 |
| 10 | 5118 | SCREW | 2 |
| 11 | 5580 | SCREW | 2 |
| 12 | 234062A | GASKET | 1 |
| 13 | 234042 | GASKET | 1 |
| 14 | 234007A91 | OIL PIPE ASSEMBLY | 1 |
| 15 | 1175-2 | SCREW | 3 |
| 16 | 234012 | FILTER | 1 |
| 17 | 234084-91 | OIL PIPE (REAR) ASSEMBLY | 1 |
| 18 | 5242 | SCREW | 1 |
| 19 | 234059 | PIPE GUIDE RUBBER | 4 |
| 20 | 1175-2 | SCREW | 3 |
| 21 | 234015A91 | OIL GUARD (FRONT) ASSEMBLY | 1 |
| 22 | 234016A | OIL GUARD (FRONT) | 1 |
| 23 | 234017A | PIPE | 1 |
| 24 | 234018 | PIPE | 1 |
| 25 | 234019 | PIPE | 1 |
| 26 | 202175 | OIL WICK | 1 |
| 27 | 234068 | OIL FELT | 1 |
| 28 | 202176 | OIL WICK | 1 |
| 29 | 200030 | O RING | 1 |
| 30 | 234060 | OIL GUARD RUBBER | 1 |
| 31 | 234061 | PIPE GUIDE RUBBER | 1 |
| 32 | 234054 | OIL GUARD ASSEMBLY | 1 |
| 33 | 5453 | SCREW | 2 |
| 34 | 208272 | O RING | 2 |
| 35 | 234057 | OIL CUP (FRONT) | 1 |
| 36 | 2905 | SCREW | 2 |
| 37 | 234032 | PIPE | 1 |
| 38 | 234058 | BRACKET | 1 |
| 39 | 2905 | SCREW | 2 |
| 40 | 202175 | OIL WICK | 3 |
| 41 | 234079-9S | OIL RESERVOIR ASSEMBLY | 1 |
| 42 | 234087-SD | OIL RESERVOIR | 1 |
| 43 | 5138B | SCREW | 1 |
| 44 | 202287A | WASHER | 1 |
| 45 | 5001 | SCREW | 1 |
| 46 | 234080 | O RING | 1 |
| 47 | 234081 | FILTER | 1 |
| 48 | 234082 | FILTER SUPPORT | 1 |
| 49 | 23408 | PIPE GUIDE | 1 |
Page 29 — ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 412 | OIL CONTAINER/500CC | 1 |
| 2 | 485 | OILER | 1 |
| 3 | 484 | OIL FUNNEL | 1 |
| 4 | 178 | CONTAINER - SILICONE | 1 |
| 5 | 286 | WRENCH/9.5MM | 1 |
| 6 | 285 | WRENCH/8MM | 1 |
| 7 | 284 | WRENCH/7MM | 1 |
| 8 | 283 | WRENCH/6MM | 1 |
| 9 | 179 | ALLEN KEY DRIVER | 1 |
| 10 | 322 | ALLEN KEY/2.38MM | 1 |
| 11 | 200 | ALLEN KEY/4.76MM | 1 |
| 12 | 182 | ALLEN KEY | 1 |
| 13 | 127 | SCREWDRIVER (LARGE) | 1 |
| 14 | 128 | SCREWDRIVER (MEDIUM) | 1 |
| 15 | 129 | SCREWDRIVER (SMALL) | 1 |
| 16 | 131 | TWEEZERS | 1 |
| 17 | UY128GAS | NEEDLE | 1 |
| 18 | 482 | ACCESSORY BAG | 1 |
| 19 | 153 | THREADING WIRE | 1 |
| 20 | 235083-UD | MACHINE REST BOARD | 1 |
| 21 | 5585 | BOLT | 2 |
| 22 | 235009 | WASHER | 2 |
| 23 | 205473 | CUSHION RUBBER | 4 |
| 24 | 235084-UD | BELT COVER | 1 |
| 25 | 235085 | BELT COVER | 1 |
| 26 | 235086 | SIDE PLATE | 1 |
| 27 | 4009-1 | SCREW | 5 |
| 28 | 7029 | SCREW | 3 |
| 29 | 235088-92 | STOPPER COMPLETE | 1 |
| 30 | 235088 | STOPPER | 1 |
| 31 | 107723-05 | STOPPER | 1 |
| 32 | 5117 | SCREW | 2 |
| 33 | 481 | V BELT | 1 |
| 34 | 392A | CHAIN | 1 |
| 35 | 478 | PEDAL | 1 |
| 36 | 207351 | PULLEY ASSEMBLY | 1 |
| 37 | 207352 | BRACKET | 1 |
| 38 | 4908 | SCREW | 2 |
| 39 | 207353 | PULLEY | 1 |
| 40 | 207354 | SCREW | 1 |
| 41 | 202577 | RING | 1 |
| 42 | 202924 | WASHER | 1 |
| 43 | 202922 | WASHER | 1 |
| 44 | 4809 | NUT | 1 |
| 45 | 9020 | CUSHION RUBBER (SET) | 1 |
| 46 | 9060 | MACHINE REST BOARD (SET) | 1 |
Page 31 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 486A9S | THREAD STAND ASS. (5-SPOOLS) | 1 | |
| 486B9S | THREAD STAND ASS. (4-SPOOLS) | 1 | |
| 486C9S | THREAD STAND ASS. (3-SPOOLS) | 1 | |
| 1 | 503-SA | THREAD STAND ROD (LOWER) | 1 |
| 2 | 509 | WASHER | 1 |
| 3 | 5476 | NUT | 1 |
| 4 | 505-SA | BRACKET | 1 |
| 5 | 505ASA | BRACKET | 1 |
| 6 | 380A | SPOOL PIN | 3 |
| 7 | 201252 | SPRING WASHER | 3 |
| 8 | 4803 | NUT | 3 |
| 9 | 381-SA | SPOOL TRAY | 3 |
| 10 | 507 | CUSHION | 3 |
| 11 | 382-SA | SPOOL RETAINING FIN | 3 |
| 12 | 7102 | SCREW | 1 |
| 13 | 512 | WASHER | 1 |
| 14 | 4022 | SCREW | 1 |
| 15 | 502-SA | THREAD STAND ROD (UPPER) | 1 |
| 16 | 504-SA | JOINT | 1 |
| 17 | 4021 | SCREW | 2 |
| 18 | 4805 | NUT | 2 |
| 19 | 383-SA | BRACKET | 1 |
| 20 | 384 | THREAD GUIDE BAR ROD | 1 |
| 21 | 4014 | SCREW | 1 |
| 22 | 4803 | NUT | 1 |
| 23 | 233-SA | HOLDER | 1 |
| 24 | 4012 | SCREW | 2 |
| 25 | 4803 | NUT | 2 |
| 26 | 293A | THREAD GUIDE BAR (5-SPOOLS) | 1 |
| 27 | 293B | THREAD GUIDE BAR (4-SPOOLS) | 1 |
| 28 | 293C | THREAD GUIDE BAR (3-SPOOLS) | 1 |
| 29 | 4012 | SCREW | 1 |
| 30 | 4803 | NUT | 1 |
| 31 | 527-SA | BRACKET | 1 |
| 32 | 527ASA | BRACKET | 2 |
| 33 | 506 | THREAD GUIDE | 2 |
| 34 | 4117 | SCREW | 1 |
| 35 | 4805 | NUT | 1 |
| 36 | 386 | ROD CAP | 1 |
Page 33 — 専用部品 FW603EB / SPECIAL PARTS FOR FW603EB
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 230600-91 | CHAIN CUTTER (COMP) | 1 |
| 2 | 230601 | CHAIN CUTTER | 1 |
| 3 | 230602 | FLAT SPRING | 1 |
| 4 | 5428 | SCREW | 1 |
| 5 | 236107-91 | FABRIC GUIDE ASSEMBLY | 1 |
| 6 | 236108 | CLOTH GUIDE (RIGHT) | 1 |
| 7 | 236109 | CLOTH GUIDE(LEFT) | 1 |
| 8 | 230604 | BRACKET | 1 |
| 9 | 5346 | SCREW | 2 |
| 10 | 230590A9U | CYLINDER COVER (TOP) | 1 |
| 11 | 230526CUD | CYLINDER COVER | 1 |
| 12 | 230591 | OIL GUARD | 1 |
Page 34 — GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 236627-48 | |||
| 236627-56 | |||
| 236631-56 | |||
| 236631-64 | |||
| 236033B (C) 48 | |||
| 236034B (C) 56 | |||
| 236035B 56 | |||
| 236035B 64 | |||
| 236222B16F | |||
| 236223B16F | |||
| 236227-16F | |||
| 236228-16F | |||
| 236313-48 | |||
| 236314-56 | |||
| 236315-56 | |||
| 236315-64 | |||
| 236501A | |||
| 236624 | |||
| 236628 | |||
| 207936A |
Page 35 — GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 236627-40 | |||
| 236627-48 | |||
| 236627-56 | |||
| 236631-56 | |||
| 236631-64 | |||
| 236038B(C) 40 | |||
| 236038B(C) 48 | |||
| 236039B(C) 56 | |||
| 236040B56 | |||
| 236040B64 | |||
| 236222-16F | |||
| 236223-16F | |||
| 236229-16F | |||
| 236230-16F | |||
| 236320-40 | |||
| 236320-48 | |||
| 236321-56 | |||
| 236322-56 | |||
| 236322-64 | |||
| 236501A | |||
| 236624 | |||
| 236628 | |||
| 207998A | |||
| 207996A | Part |
Page 36 — GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 236631-56 | |||
| 236631-64 | |||
| 236031B56 | |||
| 236031B64 | |||
| 236228-16F | |||
| 236226-16F | |||
| 236319-56 | |||
| 236319-64 | |||
| 236501A | |||
| 236624 | |||
| 236628 | |||
| 207936A | |||
| 236225-16F | |||
| 236519-56 |
Page 38 — FW603-403 ゲージパーツ表
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 236627-48 | NEEDLE HOLDER | ||
| 236033B48 | NEEDLE PLATE | ||
| 236222B16F | MAIN FEED DOG | ||
| 236227-16F | DIFF. FEED DOG | ||
| 236313-48 | PRESSER FOOT ASS. | ||
| 236501A | LOOPER | ||
| 236631-56 | |||
| 236627-40 |
Page 39 — FW603·403 GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 236624 | LOOPER AUXILIARY | ||
| 236624 | LOOPER AUXILIARY | ||
| 236624 | LOOPER AUXILIARY | ||
| 236624 | LOOPER AUXILIARY | ||
| 236624 | LOOPER AUXILIARY | ||
| 236624 | LOOPER AUXILIARY | ||
| 236624 | LOOPER AUXILIARY | ||
| 236624 | LOOPER AUXILIARY | ||
| 236624 | LOOPER AUXILIARY | ||
| 236624 | LOOPER AUXILIARY | ||
| 236624 | LOOPER AUXILIARY | ||
| 236624 | LOOPER AUXILIARY | ||
| 236624 | LOOPER AUXILIARY | ||
| 236624 | LOOPER AUXILIARY | ||
| 236628 | NDL GUARD | N | |
| 201936A | SPREADER | N | |
| UYI28CAS 110 | NEEDLE SIZE | N | |
| 238828 | NDL GUARD | N | |
| 20793& | SPREADER | # | |
| 2366211 | NDL GUARD | • | |
| 2311821 | LOOPER AUXILIARY (REAR) | N | |
| 207938A | SPREADER | • |
Page 40 — INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 31 | 230526CUD | 230526CUD | 7 |
| 31 | 230527A | 230527A | 7 |
| 28 | 230528 | 7 | |
| 20 | 230530 | 7 | |
| 18 | 230531 | 7 | |
| 9 | 230546-UD | 230546-UD | 5 |
| 17 | 230547-90 | 5 | |
| 18 | 230548-UD | 230548-UD | 5 |
| 21 | 230549 | 5 | |
| 34 | 230551AUD | 230551AUD | 7 |
| 36 | 230552 | 7 | |
| 31 | 230553 | 7 | |
| 33 | 230554-UD | 230554-UD | 7 |
| 31 | 230555 | 7 | |
| 1 | 230559-90 | 5 | |
| 2 | 230560-UD | 230560-UD | 5 |
| 6 | 230561 | 5 | |
| 24 | 230562-SD | 230562-SD | 5 |
| 26 | 230563 | 5 | |
| 29 | 230565 | 5 | |
| 47 | 230566-SD | 230566-SD | 5 |
| 16 | 230570-UD | 230570-UD | 7 |
| 22 | 230570-90 | 7 | |
| 23 | 230590A90 | 230590A90 | 7 |
| 10 | 230590A9U | 230590A9U | 31 |
| 27 | 230591 | 7 | |
| 33 | 230598-UD | 230598-UD | 11 |
| 1 | 230600-91 | 31 | |
| 2 | 230601 | 31 | |
| 3 | 230602 | 31 | |
| 10 | 230604 | 7 | |
| 8 | 230604 | 31 | |
| 37 | 230605 | 5 | |
| 31 | 230606 | 5 | |
| 11 | 230607 | 5 | |
| 6 | 230608 | 9 | |
| 1 | 231019 | 9 | |
| 1 | 231019A | 231019A | 9 |
| 2 | 231020 | 9 | |
| 3 | 231021 | 9 | |
| 17 | 231022 | 9 | |
| 21 | 231026-UA | 231026-UA | 9 |
| 24 | 231027 | 9 | |
| 9 | 231032-91 | 8 | |
| 1 | 231033 | 11 | |
| 3 | 231500 | 11 | |
| 4 | 231501 | 11 | |
| 5 | 231502 | 11 | |
| 7 | 231503 | 11 | |
| 11 | 231504 | 11 | |
| 19 | 231506 | 11 | |
| 10 | 231507 | 11 | |
| 21 | 231509A | 231509A | 11 |
| 16 | 231512 | 11 | |
| 15 | 231512-92 | 11 | |
| 18 | 231513 | 11 | |
| 17 | 232009A | 232009A | 15 |
| 23 | 232010 | 15 | |
| 2 | 232027 | 13 | |
| 1 | 232027-92 | 13 | |
| 5 | 232028 | 13 | |
| 11 | 232029 | 13 | |
| 10 | 232029 92 | 13 | |
| 14 | 232030 | 13 | |
| 33 | 232031 | 13 | |
| 27 | 232032 | 13 | |
| 45 | 232502 | 15 | |
| 4 | 232504 | 15 | |
| 8 | 232505A | 232505A | 15 |
| 9 | 232506 | 15 | |
| 12 | 232508 | 15 | |
| 14 | 232509A | 232509A | 15 |
| 15 | 232510 | 15 | |
| 18 | 232511 | 15 | |
| 8 | 232512 | 17 | |
| 20 | 232513 | 15 | |
| 8 | 232513 | 13 | |
| 21 | 232513 | 15 | |
| 43 | 232514 | 15 | |
| 44 | 232515 | 15 | |
| 46 | 232516 | 15 | |
| 38 | 232517 | 15 | |
| 40 | 232518 | 15 | |
| 41 | 232519 | 15 | |
| 28 | 232520 | 15 | |
| 15 | 232521 | 15 | |
| 2 | 232522 | 15 | |
| 1 | 232523 | 15 | |
| 1 | 232523-92 | 15 | |
| 2 | 233000 | 17 | |
| 19 | 233001 | 17 | |
| 4 | 233002-92 | 17 | |
| 13 | 233003 | 17 | |
| 19 | 233004 | 17 | |
| 10 | 233005 | 17 | |
| 24 | 233005A | 233005A | 17 |
| 25 | 233006 | 17 | |
| 17 | 233006 | 17 | |
| 17 | 233007A | 233007A | 17 |
| 10 | 233008 | 17 | |
| 30 | 233009 | 17 | |
| 35 | 233011 | 17 | |
| 40 | 233011 | 17 | |
| 58 | 233011 | 17 | |
| 37 | 233012 | 17 | |
| 56 | 233012 | 17 | |
| 42 | 233014 | 17 | |
| 44 | 233015 | 17 | |
| 52 | 233019 | 17 | |
| 22 | 233019 | 19 | |
| 50 | 233020 | 17 | |
| 20 | 233020 | 19 | |
| 26 | 233021 | 19 | |
| 29 | 233022 | 19 | |
| 31 | 233024 | 19 | |
| 9 | 233025 | 19 | |
| 11 | 233028 | 19 | |
| 15 | 233029 | 19 | |
| 55 | 233030 | 19 | |
| 60 | 233032 | 17 | |
| 60 | 233033A | 233033A | 17 |
| 48 | 233033B | 233033B | 15 |
| 61 | 233034 | 17 | |
| 6 | 233035 | 17 | |
| 7 | 233035 | 19 | |
| 3 | 233036 | 19 | |
| 19 | 233037 | 19 | |
| 17 | 233037A | 233037A | 17 |
| 19 | 233038 | 17 | |
| 17 | 233039 | 17 | |
| 39 | 233040 | 17 | |
| 47 | 233041-91 | 17 | |
| 54 | 233042 | 17 | |
| 5 | 233043-91 | 19 | |
| 4 | 233044 | 19 | |
| 18 | 233044-92 | 19 | |
| 25 | 233045 | 21 | |
| 21 | 233503 | 21 | |
| 21 | 233504 | 21 | |
| 21 | 233511 | 21 | |
| 12 | 233512 | 21 | |
| 13 | 233514 | 21 | |
| 26 | 233519 | 21 | |
| 20 | 233520-92 | 21 | |
| 22 | 233521 | 21 | |
| 17 | 233522 | 21 | |
| 16 | 233523-91 | 21 | |
| 7 | 233526 | 21 | |
| 1 | 233527 | 21 | |
| 3 | 233528 | 21 | |
| 29 | 233544 | 21 | |
| 21 | 233545 | 25 | |
| 25 | 234000 | 25 | |
| 25 | 234001 | 25 | |
| 25 | 234002 | 25 | |
| 25 | 234003 | 25 | |
| 25 | 234004 | 25 | |
| 25 | 234005 | 25 | |
| 25 | 234006 | 25 | |
| 14 | 234007A91 | 234007A91 | 25 |
| 16 | 234012 | 25 | |
| 21 | 234015A91 | 234015A91 | 25 |
| 22 | 234016A | 234016A | 25 |
| 23 | 234017A | 234017A | 25 |
| 24 | 234018 | 25 | |
| 25 | 234019 | 25 | |
| 37 | 234032 | 25 | |
| 13 | 234042 | 25 | |
| 32 | 234054 | 25 | |
| 35 | 234057 | 25 | |
| 38 | 234058 | 25 | |
| 19 | 234059 | 25 | |
| 30 | 234060 | 25 | |
| 31 | 234061 | 25 | |
| 12 | 234062A | 234062A | 25 |
| 27 | 234068 | 25 | |
| 41 | 234079-95 | 25 | |
| 46 | 234080 | 25 | |
| 47 | 234081 | 25 | |
| 48 | 234082 | 25 | |
| 49 | 234083-91 | 25 | |
| 17 | 234084-91 | 25 | |
| 42 | 234087-SD | 234087-SD | 25 |
| 16 | 234501 | 23 | |
| 14 | 234502A | 234502A | 23 |
| 17 | 234503 | 23 | |
| 25 | 234507 | 23 | |
| 29 | 234509 | 23 | |
| 31 | 234511 | 23 | |
| 4 | 234512 | 23 | |
| 6 | 234513 | 23 | |
| 44 | 234514 | 3 | |
| 43 | 234515 | 3 | |
| 45 | 234521A | 234521A | 11 |
| 47 | 234522 | 11 | |
| 51 | 234523 | 11 | |
| 52 | 234524 | 11 | |
| 37 | 234525A | 234525A | 11 |
| 35 | 234526 | 11 | |
| 49 | 234542B | 234542B | 15 |
| 58 | 234544 | 15 | |
| 60 | 234545 | 15 | |
| 20 | 234551-9S | 234551-9S | 23 |
| 18 | 234554 | 23 | |
| 1 | 234555 | 23 | |
| 11 | 234561 | 23 | |
| 23 | 234562 | 23 | |
| 17 | 234563 | 23 | |
| 29 | 234581 | 11 | |
| 43 | 234585 | 5 | |
| 42 | 234586 | 5 | |
| 51 | 234588 | 7 | |
| 53 | 234589 | 15 | |
| 56 | 234590 | 15 | |
| 14 | 234591-91 | 9 | |
| 51 | 234595 | 3 | |
| 52 | 234596 | 3 | |
| 12 | 234598-91 | 23 | |
| 33 | 234601 | 23 | |
| 32 | 234602 | 23 | |
| 22 | 234603 | 23 | |
| 28 | 234604-91 | 23 | |
| 22 | 234605-91 | 23 | |
| 30 | 234606-91 | 23 | |
| 34 | 234607 | 23 | |
| 35 | 234616 | 13 | |
| 40 | 234617 | 13 | |
| 22 | 235009 | 27 | |
| 20 | 235083-UD | 235083-UD | 27 |
| 24 | 235084-UD | 235084-UD | 27 |
| 25 | 235085 | 27 | |
| 26 | 235086 | 27 | |
| 30 | 235088 | 27 | |
| 29 | 235088-92 | 27 | |
| 36 | 236031B56 | 236031B56 | 36 |
| 36 | 236031B64 | 236031B64 | 36 |
| 36 | 236033B48 | 236033B48 | 36 |
| 36 | 236033C48 | 236033C48 | 36 |
| 36 | 236034B56 | 236034B56 | 36 |
| 36 | 236035B56 | 236035B56 | 36 |
| 36 | 236035B64 | 236035B64 | 36 |
| 36 | 236038B48 | 236038B48 | 36 |
| 36 | 236038C40 | 236038C40 | 36 |
| 36 | 236038C48 | 236038C48 | 36 |
| 36 | 236039B56 | 236039B56 | 36 |
| 36 | 236039C56 | 236039C56 | 36 |
| 36 | 236040B56 | 236040B56 | 36 |
| 5 | 236107-91 | 31 | |
| 6 | 236108 | 31 | |
| 7 | 236109 | 31 | |
| 8 | 236110-91 | 7 | |
| 12 | 236111-91 | 7 | |
| 14 | 236112 | 7 | |
| 14 | 236113 | 7 | |
| 36 | 236222-16F | 236222-16F | 36 |
| 36 | 236222B16F | 236222B16F | 36 |
| 36 | 236223B16F | 236223B16F | 36 |
| 36 | 236226-16F | 236226-16F | 36 |
| 36 | 236227-16F | 236227-16F | 36 |
| 36 | 236228-16F | 236228-16F | 36 |
| 36 | 236229-16F | 236229-16F | 36 |
| 36 | 236230-16F | 236230-16F | 36 |
| 36 | 236313-48 | 36 | |
| 36 | 236314-56 | 36 | |
| 36 | 236315-56 | 36 | |
| 36 | 236315-64 | 36 | |
| 36 | 236319-56 | 36 | |
| 36 | 236319-64 | 36 | |
| 36 | 236320-48 | 36 | |
| 36 | 236321-56 | 36 | |
| 36 | 236322-56 | 36 | |
| 36 | 236322-64 | 36 | |
| 32 | 236501A | 236501A | 15 |
| 32 | 236501A | 236501A | 15 |
| 58 | 236603 | 15 | |
| 34 | 236624 | 15 | |
| 36 | 236624 | 36 | |
| 36 | 236627-40 | 36 | |
| 36 | 236627-48 | 36 | |
| 36 | 236627-56 | 36 | |
| 22 | 236628 | 17 | |
| 36 | 236628 | 36 | |
| 36 | 236631-56 | 36 | |
| 36 | 236631-64 | 36 | |
| 18 | 240091 | 15 | |
| 11 | 240140 | 15 | |
| 18 | 240161 | 5 | |
| 13 | 240165 | 7 | |
| 11 | 253593 | 7 | |
| 24 | 257558A | 257558A | 7 |
| 21 | 257559A | 257559A | 7 |
| 35 | 257718 | 21 |
Pegasus FW400 / FW600 — parts catalog
- Page 1 (cover): This is the cover page for the Pegasus Parts Catalog for FW600 and FW400 series high-speed, 2- or 3-needle interlock machines, published in August 1992.
- Page 2 (text): This page provides an introduction to the parts catalog, explaining its organization, how to find parts, and important notes regarding part orders and catalog changes.
- Page 3 (toc): This page is a table of contents for a parts catalog, listing various mechanisms, accessories, and parts lists with their corresponding page ranges.
- Page 4 (diagram): This page displays a diagram of the machine bed frame with various components labeled with reference numbers.
- Page 5 (parts_list): This page lists parts for the machine bed frame, including bushings, screws, pins, washers, oil seals, and other components.
- Page 6 (diagram): This page displays an exploded view diagram of a cover assembly, showing various components and their reference numbers.
- Page 7 (parts_list): This page lists parts for the cover mechanism, including various screws, gaskets, covers, and other components, with their part numbers, names, and quantities.
- Page 8 (diagram): This page illustrates various cover components for industrial sewing machines, including parts for covering operations on different fabric weights.
- Page 9 (parts_list): This page lists parts for the cover mechanism, including brackets, screws, pipes, holders, washers, finger guard assemblies, cloth guides, looper covers, springs, cylinder covers, oil guards, gaskets, flat springs, and O-rings.
- Page 10 (diagram): This page illustrates the crankshaft mechanism with a detailed exploded view, showing various components and their assembly.
- Page 11 (parts_list): This page lists parts for the crankshaft mechanism, including crankshafts, balance weights, screws, ball bearings, collars, couplings, gears, oil seals, covers, gaskets, machine pulleys, spring washers, handwheels, and washers.
- Page 12 (diagram): This page illustrates the Needle Drive Mechanism with a detailed diagram and corresponding reference numbers.
- Page 13 (parts_list): This page lists parts for the Needle Drive Mechanism, including screws, pins, levers, oil wicks, needle bar clamps, shafts, collars, needle holders, thread guides, tension discs, springs, needle plates, needle bar covers, and brackets.
- Page 14 (diagram): This page illustrates the spreader mechanism with an exploded view of its components, each labeled with a reference number.
- Page 15 (parts_list): This page lists parts for the spreader mechanism, including rods, screws, nuts, washers, guides, cranks, O-rings, shafts, brackets, links, pins, oil wicks, crankshafts, thread guides, tension discs, springs, and liners.
- Page 16 (diagram): This page illustrates the looper drive mechanism with a detailed diagram showing various components and their interconnections.
- Page 17 (parts_list): This page lists parts for the looper drive mechanism, including screws, rods, nuts, collars, and various other components with their part numbers and quantities.
- Page 18 (diagram): This page illustrates the feed mechanism components with a detailed exploded view.
- Page 19 (parts_list): This page lists parts for the feed mechanism, including screws, rods, pins, bushings, and various plates and links.
- Page 20 (diagram): This page illustrates the components of the feed mechanism, showing various parts such as screws, nuts, shafts, and levers with their corresponding reference numbers.
- Page 21 (parts_list): This page lists parts for the FEED MECHANISM (2) including connection assemblies, rods, screws, eccentric assemblies, nuts, guides, washers, cranks, shafts, O-rings, bushings, indication plates, gaskets, levers, and spring washers.
- Page 22 (diagram): This page illustrates the presser foot mechanism with a detailed diagram and reference numbers for various components.
- Page 23 (parts_list): This page lists parts for the presser foot mechanism, including levers, screws, brackets, nuts, links, washers, shafts, springs, collars, finger guards, and guides.
- Page 24 (diagram): This page illustrates the thread tension mechanism for various FW series sewing machines, showing different configurations for 3-needle without top cover thread, 3-needle with top cover thread, and 2-needle without top cover thread models.
- Page 25 (parts_list): This page lists parts for the thread tension mechanism, including thread guides, screws, brackets, and other components, with their corresponding part numbers and quantities.
- Page 26 (diagram): This page illustrates the lubricating mechanism of the machine with an exploded view diagram and reference numbers for various components.
- Page 27 (parts_list): This page lists parts for the lubricating mechanism, including pumps, gears, screws, gaskets, oil pipes, filters, oil guards, oil wicks, and oil reservoirs.
- Page 28 (diagram): This page illustrates various accessories and components for an industrial sewing machine, including tools, oil containers, and specific assemblies with reference numbers.
- Page 29 (parts_list): This page lists accessories for an industrial sewing machine, including various tools, fasteners, and machine components.
- Page 30 (diagram): This page illustrates the components of a thread stand with a detailed exploded view.
- Page 31 (parts_list): This page lists parts for the THREAD STAND, including various screws, nuts, brackets, and thread stand assemblies with their corresponding part numbers and quantities.
- Page 32 (diagram): This page displays a diagram of special parts for the FW603EB sewing machine, including a parts list with reference numbers, part numbers, and descriptions.
- Page 33 (parts_list): This page lists special parts for the FW603EB, including chain cutters, flat springs, screws, fabric guide assemblies, cloth guides, brackets, and cylinder covers, along with their part numbers and quantities.
- Page 34 (diagram): This page displays a construction chart for gauge parts, showing various part numbers and their corresponding diagrams, along with dimensions and model applicability for FW603FC, FW403FC, FW603FB, and FW403FB models.
- Page 35 (diagram): This page displays a construction chart for gauge parts, showing various components with their part numbers and diagrams, including models FW603GC, FW403GC, FW603GB, and FW403GB.
- Page 36 (diagram): This page displays a construction chart for gauge parts, featuring diagrams and part numbers for various components like needle plates, presser feet, and other accessories for the FW603EB model.
- Page 37 (unknown): This page contains a watermark and a website address at the bottom.
- Page 38 (parts_list): This page contains parts lists for FW603-403 gauges, divided into two sections, (1) and (2), detailing various machine models and their corresponding part numbers for components like needle holders, plates, feed dogs, presser feet, and loopers.
- Page 39 (parts_list): This page lists gauge parts for FW603 and 403 models, including part numbers, descriptions like LOOPER, NEEDLE GUARD, SPREADER, and NEEDLE AUXILIARY, along with sizes.
- Page 40 (index): This page is an index of part numbers and their corresponding page and reference numbers. It lists parts from 230526CUD to 236314-56.
- Page 41 (text): This page contains the text "MEMO" and a watermark "jinte.in".
- Page 42 (unknown): This page contains a watermark and a website address at the bottom.
- Page 43 (unknown): This page contains a watermark and a website address at the bottom.
- Page 44 (cover): This is the cover page for a Pegasus Sewing Machine Mfg. Co., Ltd. parts catalog, copyright 1990, listing the publication dates of its various editions.
