Page 1
PARTS CATALOG Cat. No. 9544 August, 1992 FW600 (両面飾り With cover thread) FW400 (片面飾り Without cover thread) 高速筒型2・3本針ミシン High speed, 2- or 3-needle interlock machines PEGASUS jintex.in
Pegasus FW400 / FW600 — parts catalog
- Page 1 (cover): This is the cover page for the Pegasus Parts Catalog for FW600 and FW400 series high-speed, 2- or 3-needle interlock machines, published in August 1992.
- Page 2 (text): This page provides an introduction to the parts catalog, explaining its organization, how to find parts, and important notes regarding part orders and catalog changes.
- Page 3 (toc): This page is a table of contents for a parts catalog, listing various mechanisms, accessories, and parts lists with their corresponding page ranges.
- Page 4 (diagram): This page displays a diagram of the machine bed frame with various components labeled with reference numbers.
- Page 5 (parts_list): This page lists parts for the machine bed frame, including bushings, screws, pins, washers, oil seals, and other components.
- Page 6 (diagram): This page displays an exploded view diagram of a cover assembly, showing various components and their reference numbers.
- Page 7 (parts_list): This page lists parts for the cover mechanism, including various screws, gaskets, covers, and other components, with their part numbers, names, and quantities.
- Page 8 (diagram): This page illustrates various cover components for industrial sewing machines, including parts for covering operations on different fabric weights.
- Page 9 (parts_list): This page lists parts for the cover mechanism, including brackets, screws, pipes, holders, washers, finger guard assemblies, cloth guides, looper covers, springs, cylinder covers, oil guards, gaskets, flat springs, and O-rings.
- Page 10 (diagram): This page illustrates the crankshaft mechanism with a detailed exploded view, showing various components and their assembly.
- Page 11 (parts_list): This page lists parts for the crankshaft mechanism, including crankshafts, balance weights, screws, ball bearings, collars, couplings, gears, oil seals, covers, gaskets, machine pulleys, spring washers, handwheels, and washers.
- Page 12 (diagram): This page illustrates the Needle Drive Mechanism with a detailed diagram and corresponding reference numbers.
- Page 13 (parts_list): This page lists parts for the Needle Drive Mechanism, including screws, pins, levers, oil wicks, needle bar clamps, shafts, collars, needle holders, thread guides, tension discs, springs, needle plates, needle bar covers, and brackets.
- Page 14 (diagram): This page illustrates the spreader mechanism with an exploded view of its components, each labeled with a reference number.
- Page 15 (parts_list): This page lists parts for the spreader mechanism, including rods, screws, nuts, washers, guides, cranks, O-rings, shafts, brackets, links, pins, oil wicks, crankshafts, thread guides, tension discs, springs, and liners.
- Page 16 (diagram): This page illustrates the looper drive mechanism with a detailed diagram showing various components and their interconnections.
- Page 17 (parts_list): This page lists parts for the looper drive mechanism, including screws, rods, nuts, collars, and various other components with their part numbers and quantities.
- Page 18 (diagram): This page illustrates the feed mechanism components with a detailed exploded view.
- Page 19 (parts_list): This page lists parts for the feed mechanism, including screws, rods, pins, bushings, and various plates and links.
- Page 20 (diagram): This page illustrates the components of the feed mechanism, showing various parts such as screws, nuts, shafts, and levers with their corresponding reference numbers.
- Page 21 (parts_list): This page lists parts for the FEED MECHANISM (2) including connection assemblies, rods, screws, eccentric assemblies, nuts, guides, washers, cranks, shafts, O-rings, bushings, indication plates, gaskets, levers, and spring washers.
- Page 22 (diagram): This page illustrates the presser foot mechanism with a detailed diagram and reference numbers for various components.
- Page 23 (parts_list): This page lists parts for the presser foot mechanism, including levers, screws, brackets, nuts, links, washers, shafts, springs, collars, finger guards, and guides.
- Page 24 (diagram): This page illustrates the thread tension mechanism for various FW series sewing machines, showing different configurations for 3-needle without top cover thread, 3-needle with top cover thread, and 2-needle without top cover thread models.
- Page 25 (parts_list): This page lists parts for the thread tension mechanism, including thread guides, screws, brackets, and other components, with their corresponding part numbers and quantities.
- Page 26 (diagram): This page illustrates the lubricating mechanism of the machine with an exploded view diagram and reference numbers for various components.
- Page 27 (parts_list): This page lists parts for the lubricating mechanism, including pumps, gears, screws, gaskets, oil pipes, filters, oil guards, oil wicks, and oil reservoirs.
- Page 28 (diagram): This page illustrates various accessories and components for an industrial sewing machine, including tools, oil containers, and specific assemblies with reference numbers.
- Page 29 (parts_list): This page lists accessories for an industrial sewing machine, including various tools, fasteners, and machine components.
- Page 30 (diagram): This page illustrates the components of a thread stand with a detailed exploded view.
- Page 31 (parts_list): This page lists parts for the THREAD STAND, including various screws, nuts, brackets, and thread stand assemblies with their corresponding part numbers and quantities.
- Page 32 (diagram): This page displays a diagram of special parts for the FW603EB sewing machine, including a parts list with reference numbers, part numbers, and descriptions.
- Page 33 (parts_list): This page lists special parts for the FW603EB, including chain cutters, flat springs, screws, fabric guide assemblies, cloth guides, brackets, and cylinder covers, along with their part numbers and quantities.
- Page 34 (diagram): This page displays a construction chart for gauge parts, showing various part numbers and their corresponding diagrams, along with dimensions and model applicability for FW603FC, FW403FC, FW603FB, and FW403FB models.
- Page 35 (diagram): This page displays a construction chart for gauge parts, showing various components with their part numbers and diagrams, including models FW603GC, FW403GC, FW603GB, and FW403GB.
- Page 36 (diagram): This page displays a construction chart for gauge parts, featuring diagrams and part numbers for various components like needle plates, presser feet, and other accessories for the FW603EB model.
- Page 37 (unknown): This page contains a watermark and a website address at the bottom.
- Page 38 (parts_list): This page contains parts lists for FW603-403 gauges, divided into two sections, (1) and (2), detailing various machine models and their corresponding part numbers for components like needle holders, plates, feed dogs, presser feet, and loopers.
- Page 40 (index): This page is an index of part numbers and their corresponding page and reference numbers. It lists parts from 230526CUD to 236314-56.
- Page 41 (text): This page contains the text "MEMO" and a watermark "jinte.in".
- Page 42 (unknown): This page contains a watermark and a website address at the bottom.
- Page 43 (unknown): This page contains a watermark and a website address at the bottom.
- Page 44 (cover): This is the cover page for a Pegasus Sewing Machine Mfg. Co., Ltd. parts catalog, copyright 1990, listing the publication dates of its various editions.
Page 2 — パーツカタログの見方 INTRODUCTION
パーツカタログの見方 INTRODUCTION このパーツカタログは、1992年8月製造中のFW のミシンを次の要領で編集しています。 2~31頁には部品を機構別に収録し、左頁が部 品の分解図、右頁がパーツリストになっていま す。 また、部品分解図に付されている番号は、パー ツリストのREF. NO. (参照番号) を示してい ます。 ゲージパーツ系列構成図・ゲージパーツ表 (32 ~37頁) これらの部品は、特定の形式にのみ使 用されている部品で、系列構成図は32~34頁に、 ゲージパーツ表は36~37頁に一括して記載して います。 38~39頁には部品番号インデックスを記載し、 部品番号だけで、その図解、名称などが容易に 引き出せます。 部品をご注文いただくときは、必ず部品番号だ けを明示してください。 なお、このパーツカタログの記載事項は改良に より、予告なく変更されることがありますので、 あらかじめご了承ください。 This parts catalog covers the FW machine manufactured from august. 1992 On pages2~31, each mechanism is arranged on facing pages, the first page containing illustrations and the second page containing the data of the individual parts. The number given to each illustration is the REF. NO. on the parts list. Gauge parts construction charts/gauge parts lists. Gauge parts are used in some machine typesand sewing gauges only. Pages32~34 contain the gauge parts construction charts in order to know the illustrations and the combinations of the parts, and pages36~37 contain the gauge parts lists to obtain the data at a glance. A parts number index is attached to the back of this catalog for convenience. When placing orders for parts from this catalog, use ONLY THE PART NUMBER. This parts catalog is applicable to your machine and is subject to change without notification. jintex.in
Page 3 — TABLE OF CONTENTS
目 次 TABLE OF CONTENTS アームベッド機構 2-3 MACHINE BED FRAME 2-3 カバー機構 (1) 4-5 COVERS (1) 4-5 カバー機構 (2) 6-7 COVERS (2) 6-7 クランクシャフト機構 8-9 CRANKSHAFT MECHANISM 8-9 針棒機構 10-11 NEEDLE DRIVE MECHANISM 10-11 飾り振り機構 12-13 SPREADER MECHANISM 12-13 ルーバー機構 14-15 LOOPER DRIVE MECHANISM 14-15 送り機構 (1) 16-17 FEED MECHANISM (1) 16-17 送り機構 (2) 18-19 FEED MECHANISM (2) 18-19 押エ機構 20-21 PRESSER FOOT MECHANISM 20-21 糸調子機構 22-23 THREAD TENSION MECHANISM 22-23 給油機構 24-25 LUBRICATING MECHANISM 24-25 付属品 26-27 ACCESSORIES 26-27 糸立台 28-29 THREAD STAND 28-29 専用部品 FW603EB 30-31 SPECIFIC PARTS FOR FW603EB 30-31 ゲージパーツ系列構成図 32-34 GAUGE PARTS CONSTRUCTION CHART 32-34 FW603・403 ゲージパーツ表 36-37 FW603・403 GAUGE PARTS LIST 36-37 インデックス 38-39 PARTS NUMBER INDEX jintex.in
Page 4 — MACHINE BED FRAME
アームベッド機構 MACHINE BED FRAME FW603用 For FW603 FW403用 For FW403 FW603用 For FW603 FW403用 For FW403 PEGASUS Willcox & Gibbs jintex.in
Page 5 — MACHINE BED FRAME (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 230048-SD | MACHINE BED COMPLETE | 1 |
| 2 | 230048ASD | MACHINE BED COMPLETE | 1 |
| 3 | 230050-SD | HEAD | 1 |
| 4 | 230053 | BUSHING | 1 |
| 5 | 230003 | BUSHING | 1 |
| 6 | 230004 | BUSHING | 1 |
| 7 | 230054 | BUSHING | 1 |
| 8 | 230062 | BUSHING | 1 |
| 9 | 230055 | BUSHING | 1 |
| 10 | 206942 | OIL SEAL | 1 |
| 11 | 230018 | KEY | 2 |
| 12 | 5091 | SCREW | 2 |
| 13 | 206215 | PIN | 1 |
| 14 | 230058 | SPACER | 1 |
| 15 | 5616 | SCREW | 1 |
| 16 | 5555 | SCREW | 2 |
| 17 | 202045 | SPRING WASHER | 2 |
| 18 | 230051-SD | MACHINE BED | 1 |
| 19 | 230056 | BUSHING | 1 |
| 20 | 230013 | BUSHING | 1 |
| 21 | 230014 | BUSHING | 1 |
| 22 | 230057 | BUSHING | 1 |
| 23 | 230016 | BUSHING | 1 |
| 24 | 230028 | ECCENTRIC PIN | 1 |
| 25 | 5461 | SCREW | 1 |
| 26 | 202528 | NAME PLATE | 1 |
| 27 | 5138B | SCREW | 1 |
| 28 | 202287A | WASHER | 2 |
| 29 | 5556 | SCREW | 1 |
| 30 | 206705 | PLUG | 1 |
| 31 | 230553 | OIL SIGHT GAUGE | 2 |
| 32 | 202179 | OIL WICK | 1 |
| 33 | 230017 | OIL FELT | 2 |
| 34 | 230021 | OIL FELT | 2 |
| 35 | 230059-91 | OIL GUARD ASSEMBLY | 1 |
| 36 | 230047A | SERIAL NUMBER PLATE | 1 |
| 37 | 210679 | PIN | 2 |
| 38 | 212279A | TYPE PLATE | 1 |
| 39 | 212280A | TYPE PLATE | 1 |
| 40 | 210679 | PIN | 2 |
| 41 | 5557 | SCREW | 3 |
| 42 | 230030 | WASHER | 3 |
| 43 | 234515 | THREAD GUIDE | 1 |
| 44 | 234514 | THREAD GUIDE | 1 |
| 45 | 230073-SD | CYLINDER | 1 |
| 46 | 230074-SD | CYLINDER | 1 |
| 47 | 230045 | BUSHING | 1 |
| 48 | 230026 | BUSHING | 1 |
| 49 | 230027 | BUSHING | 1 |
| 50 | 233036 | OIL SEAL | 2 |
| 51 | 234594 | THREAD TUBE | 1 |
| 52 | 234595 | THREAD TUBE | 2 |
| 53 | 206215 | PIN | 1 |
| 54 | 230042 | O RING | 1 |
| 55 | 5584 | SCREW | 1 |
| 56 | 230043 | O RING | 1 |
| 57 | 202405 | PIN | 1 |
| 58 | 236603 | PIN | 1 |
アームベッド機構(1) MACHINE BED FRAME (1) REF. PART NO. NAME QT. NO. 部品番号 名 称 1 230048-SD ベッド (組) MACHINE BED COMPLETE 1 2 230048ASD ベッド (組) MACHINE BED COMPLETE 1 3 230050-SD ヘッド HEAD 1 4 230053 ブッシュ BUSHING 1 5 230003 ブッシュ BUSHING 1 6 230004 ブッシュ BUSHING 1 7 230054 ブッシュ BUSHING 1 8 230062 ブッシュ BUSHING 1 9 230055 ブッシュ BUSHING 1 10 206942 オイルシール OIL SEAL 1 11 230018 キー KEY 2 12 5091 平ネジ/C5×7.5 SCREW 2 13 206215 平行ピン PIN 1 14 230058 スペーサー SPACER 1 15 5616 六角ネジ/C11×20 SCREW 1 16 5555 六角ネジ/C11×33 SCREW 2 17 202045 バネ座金 SPRING WASHER 2 18 230051-SD ベッド MACHINE BED 1 19 230056 ブッシュ BUSHING 1 20 230013 ブッシュ BUSHING 1 21 230014 ブッシュ BUSHING 1 22 230057 ブッシュ BUSHING 1 23 230016 ブッシュ BUSHING 1 24 230028 エキセンピン ECCENTRIC PIN 1 25 5461 止ネジ/C5×5 SCREW 1 26 202528 記銘板 NAME PLATE 1 27 5138B 平ネジ/H11×12 SCREW 1 28 202287A 座金 WASHER 2 29 5556 止ネジ/M14×5 SCREW 1 30 206705 栓 PLUG 1 31 230553 オイルゲージ OIL SIGHT GAUGE 2 32 202179 給油紐 OIL WICK 1 33 230017 給油フェルト OIL FELT 2 34 230021 給油フェルト OIL FELT 2 35 230059-91 オイルフェンス(組) OIL GUARD ASSEMBLY 1 36 230047A 機番板 SERIAL NUMBER PLATE 1 37 210679 止ピン PIN 2 38 212279A 形式板 TYPE PLATE 1 39 212280A 形式板 TYPE PLATE 1 40 210679 止ピン PIN 2 41 5557 平ネジ/C12×31 SCREW 3 42 230030 座金 WASHER 3 43 234515 糸道パイプ THREAD GUIDE 1 44 234514 糸受 THREAD GUIDE 1 45 230073-SD シリンダー(組) CYLINDER 1 46 230074-SD シリンダー CYLINDER 1 47 230045 ブッシュ BUSHING 1 48 230026 ブッシュ BUSHING 1 49 230027 ブッシュ BUSHING 1 50 233036 オイルシール OIL SEAL 2 51 234594 糸道パイプ THREAD TUBE 1 52 234595 糸道パイプ THREAD TUBE 2 53 206215 平行ピン PIN 1 54 230042 Oリング O RING 1 55 5584 平ネジ/M22×6.5 SCREW 1 56 230043 Oリング O RING 1 57 202405 平行ピン PIN 1 58 236603 平行ピン PIN 1 jintex.in
Page 6 — カバー機構(1) COVER(1)
カバー機構(1) COVER(1) FW603用 For FW603 FW603用 For FW603 jintex.in
Page 7 — COVER (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 230559-9U | TOP COVER (FRONT) ASSEMBLY | |
| 2 | 230560-UD | TOP COVER (FRONT) | |
| 3 | 230503 | OIL SIGHT WINDOW | |
| 4 | 5095 | SCREW | |
| 5 | 5117 | SCREW | |
| 6 | 230561 | O RING | |
| 7 | 5591 | SCREW | |
| 8 | 202240 | GASKET | |
| 9 | 230546-UD | TOP COVER (CENTER) | |
| 10 | 5117 | SCREW | |
| 11 | 3044 | NUT | |
| 12 | 230510 | FLAT SPRING | |
| 13 | 5142 | SCREW | |
| 14 | 3091 | NUT | |
| 15 | 230511 | HINGE COMPLETE | |
| 16 | 1998-2 | SCREW | |
| 17 | 230547-9U | TOP COVER (REAR) ASSEMBLY | |
| 18 | 230548-UD | TOP COVER (REAR) | |
| 19 | 230503 | OIL SIGHT WINDOW | |
| 20 | 5118 | SCREW | |
| 21 | 230549 | O RING | |
| 22 | 5591 | SCREW | |
| 23 | 202240 | GASKET | |
| 24 | 230562-SD | CAP | |
| 25 | 5107 | SCREW | |
| 26 | 230563 | GASKET | |
| 27 | 230564-UD | SIDE COVER | |
| 28 | 5118 | SCREW | |
| 29 | 230565 | GASKET | |
| 30 | 208724 | NAME PLATE | |
| 31 | 230607 | BRACKET | |
| 32 | 5095 | SCREW | |
| 33 | 201185 | WASHER | |
| 34 | 230606 | BRACKET | |
| 35 | 5494 | SCREW | |
| 36 | 210307 | WASHER | |
| 37 | 230605 | EYE GUARD | |
| 38 | 5157 | SCREW | |
| 39 | 202875 | WASHER | |
| 40 | 204905 | THREAD GUIDE | |
| 41 | 2905 | SCREW | |
| 42 | 234586 | SCREW | |
| 43 | 234585 | THREAD GUIDE | |
| 44 | 5029 | SCREW | |
| 45 | 230566-SD | REAR COVER | |
| 46 | 5345 | SCREW | |
| 47 | 230567 | GASKET |
カバー機構 (1) COVER (1) REF. PART NO. NO. 部品番号 名 称 NAME QT. 1 230559-9U 上カバー(組) TOP COVER (FRONT) ASSEMBLY 1 2 230560-UD 上カバー(前) TOP COVER (FRONT) 1 3 230503 オイル窓 OIL SIGHT WINDOW 1 4 5095 平ネジ/C5×19 SCREW 1 5 5117 平ネジ/C5×8.5 SCREW 7 6 230561 Oリング O RING 1 7 5591 平ネジ/C14×8.5 SCREW 1 8 202240 ガスケット GASKET 1 9 230546-UD 上カバー(中) TOP COVER (CENTER) 1 10 5117 平ネジ/C5×8.5 SCREW 2 11 3044 六角ナット/C5 NUT 2 12 230510 板バネ FLAT SPRING 1 13 5142 平ネジ/C4×7 SCREW 2 14 3091 六角ナット/C4 NUT 2 15 230511 ヒンジ(組) HINGE COMPLETE 1 16 1998-2 平ネジ/C4×6 SCREW 3 17 230547-9U 上カバー後(組) TOP COVER (REAR) ASSEMBLY 1 18 230548-UD 上カバー(後) TOP COVER (REAR) 1 19 230503 オイル窓 OIL SIGHT WINDOW 1 20 5118 平ネジ/C5×12 SCREW 5 21 230549 Oリング O RING 1 22 5591 平ネジ/C14×8.5 SCREW 1 23 202240 ガスケット GASKET 1 24 230562-SD 蓋 CAP 1 25 5107 皿ネジ/C5×7.3 SCREW 3 26 230563 ガスケット GASKET 1 27 230564-UD ヘッドカバー(横) SIDE COVER 1 28 5118 平ネジ/C5×12 SCREW 2 29 230565 ガスケット GASKET 1 30 208724 銘板 NAME PLATE 1 31 230607 ブラケット BRACKET 1 32 5095 平ネジ/C5×19 SCREW 2 33 201185 座金 WASHER 2 34 230606 ブラケット BRACKET 1 35 5494 段付ネジ/C5 SCREW 1 36 210307 波板座金 WASHER 1 37 230605 アイガード EYE GUARD 1 38 5157 平ネジ/C3×4.5 SCREW 2 39 202875 座金 WASHER 2 40 204905 糸道/上ルーバー THREAD GUIDE 2 41 2905 平ネジ/C5×4.5 SCREW 1 42 234586 ピン付ネジ SCREW 1 43 234585 糸道 THREAD GUIDE 1 44 5029 平ネジ/C3×7.5 SCREW 1 45 230566-SD ヘッドカバー(後) REAR COVER 1 46 5345 平ネジ/C5×11 SCREW 4 47 230567 ガスケット GASKET 1 jintex.in
Page 8 — カバー機構(2) COVER(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23 | FW603E/Z020 | ||
| 26 | FW603E/Z020 |
カバー機構(2) COVER(2) 23 FW603E/Z020 26 FW603E/Z020 FW603F FW403F 10 11 13 15 カバーリング用 中厚生地用:ツブシ縫い For covering operations. For medium to heavy weight fabric: To flatten out overlock seams. FW603G FW403G 10 12 14 15 カバーリング用 薄生地用:タオシ縫い For covering operations. For light weight fabric: To fold overlock seams to one side. jintex.in
Page 9 — カバー機構 (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 234596 | BRACKET | 1 |
| 2 | 5117 | SCREW | 2 |
| 3 | 204099 | PIPE | 1 |
| 4 | 206115 | HOLDER | 1 |
| 5 | 2905 | SCREW | 1 |
| 6 | 201185 | WASHER | 1 |
| 7 | 236110-91 | FINGER GUARD ASSEMBLY | 1 |
| 8 | 236111-91 | FINGER GUARD ASSEMBLY | 1 |
| 9 | 5453 | SCREW | 2 |
| 10 | 230604 | BRACKET | 1 |
| 11 | 257559A | CLOTH GUIDE (RIGHT) | 1 |
| 12 | 236112 | CLOTH GUIDE (RIGHT) | 1 |
| 13 | 257558A | CLOTH GUIDE (LEFT) | 1 |
| 14 | 236113 | CLOTH GUIDE (LEFT) | 1 |
| 15 | 5346 | SCREW | 2 |
| 16 | 230570-UD | LOOPER COVER | 1 |
| 17 | 5613 | SCREW | 1 |
| 18 | 230531 | BRACKET | 1 |
| 19 | 5427 | SCREW | 1 |
| 20 | 230530 | SPRING | 1 |
| 21 | 1206 | SCREW | 1 |
| 22 | 230590-9U | CYLINDER COVER (TOP) | 1 |
| 23 | 230590A9U | CYLINDER COVER (TOP) | 1 |
| 24 | 5328-HC | SCREW | 8 |
| 25 | 230526AUD | CYLINDER COVER (TOP) | 1 |
| 26 | 230526CUD | CYLINDER COVER | 1 |
| 27 | 230591 | OIL GUARD | 1 |
| 28 | 230527A | GASKET | 1 |
| 29 | 230528 | FLAT SPRING | 1 |
| 30 | 1231 | SCREW | 1 |
| 31 | 230554-UD | CYLINDER SIDE COVER | 1 |
| 32 | 5373 | SCREW | 6 |
| 33 | 230555 | O RING | 1 |
| 34 | 230551AUD | CYLINDER COVER (REAR) COM. | 1 |
| 35 | 5328 | SCREW | 4 |
| 36 | 230552 | O RING | 1 |
カバー機構 (2) COVER (2) REF. PART NO. NAME QT. NO. 部品番号 名称 1 234596 ブラケット BRACKET 1 2 5117 平ネジ/C5×8.5 SCREW 2 3 204099 パイプ PIPE 1 4 206115 ホルダー HOLDER 1 5 2905 平ネジ/C5×4.5 SCREW 1 6 201185 座金 WASHER 1 7 236110-91 布案内(組) FINGER GUARD ASSEMBLY 1 8 236111-91 布案内(組) FINGER GUARD ASSEMBLY 1 9 5453 平ネジ/C5×6.5 SCREW 2 10 230604 ブラケット BRACKET 1 11 257559A 布案内(右) CLOTH GUIDE (RIGHT) 1 12 236112 布案内(右) CLOTH GUIDE (RIGHT) 1 13 257558A 布案内(左) CLOTH GUIDE (LEFT) 1 14 236113 布案内(左) CLOTH GUIDE (LEFT) 1 15 5346 平ネジ/C3×4.2 SCREW 2 16 230570-UD ルーバーカバー LOOPER COVER 1 17 5613 ピン付ネジ/C4 SCREW 1 18 230531 ブラケット BRACKET 1 19 5427 止ネジ/C3×5.5 SCREW 1 20 230530 板バネ SPRING 1 21 1206 平ネジ/C4×5.3 SCREW 1 22 230590-9U シリンダーカバー(上) CYLINDER COVER (TOP) 1 23 230590A9U シリンダーカバー(上) CYLINDER COVER (TOP) 1 24 5328-HC 平ネジ/C4×6.3 SCREW 8 25 230526AUD シリンダーカバー(上) CYLINDER COVER (TOP) 1 26 230526CUD シリンダーカバー CYLINDER COVER 1 27 230591 油除ケ OIL GUARD 1 28 230527A ガスケット GASKET 1 29 230528 板バネ FLAT SPRING 1 30 1231 平ネジ/C1×3.4 SCREW 1 31 230554-UD シリンダーカバー(横) CYLINDER SIDE COVER 1 32 5373 皿ネジ/C4×8.7 SCREW 6 33 230555 Oリング O RING 1 34 230551AUD シリンダーカバー後(組) CYLINDER COVER (REAR) COM. 1 35 5328 平ネジ/C4×6.3 SCREW 4 36 230552 Oリング O RING 1 jintex.in
Page 10
クランクシャフト機構 CRANKSHAFT MECHANISM FW603用 For FW603 FW403用 For FW403 ① ② ⑤ ③ ④ ⑥ ⑦ ⑫ ⑪ ⑨ ⑧ ⑩ ⑩ ⑬ ⑥ ⑦ ⑯ ⑮ ⑭ ⑰ ⑱ ⑲ ⑳ ㉓ ㉑ ㉒ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ jintex.in

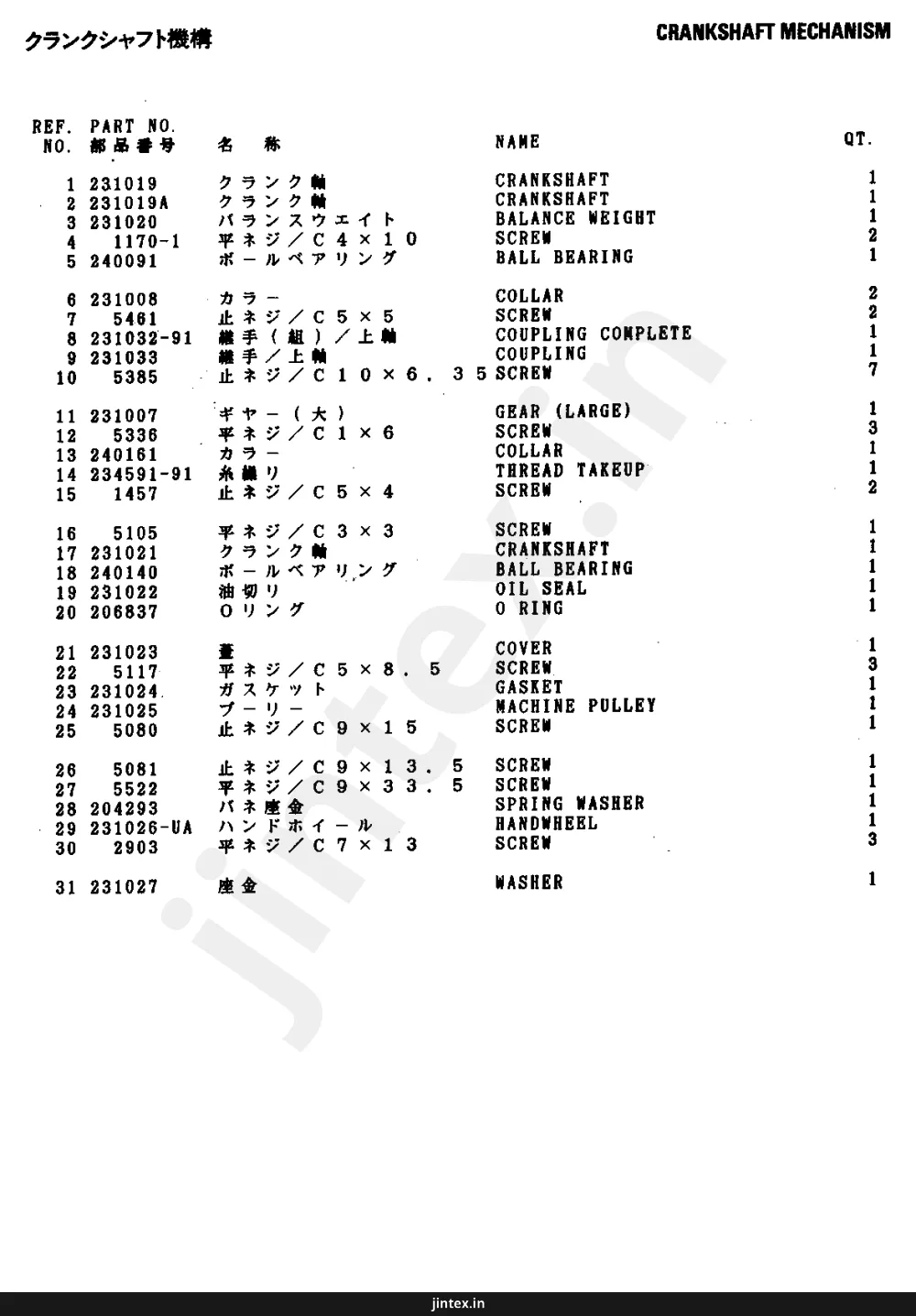

Page 11 — CRANKSHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 231019 | CRANKSHAFT | 1 |
| 2 | 231019A | CRANKSHAFT | 1 |
| 3 | 231020 | BALANCE WEIGHT | 1 |
| 4 | 1170-1 | SCREW | 2 |
| 5 | 240091 | BALL BEARING | 1 |
| 6 | 231008 | COLLAR | 2 |
| 7 | 5461 | SCREW | 1 |
| 8 | 231032-91 | COUPLING COMPLETE | 1 |
| 9 | 231033 | COUPLING | 1 |
| 10 | 5385 | SCREW | 7 |
| 11 | 231007 | GEAR (LARGE) | 1 |
| 12 | 5336 | SCREW | 3 |
| 13 | 240161 | COLLAR | 1 |
| 14 | 234591-91 | THREAD TAKEUP | 1 |
| 15 | 1457 | SCREW | 2 |
| 16 | 5105 | SCREW | 1 |
| 17 | 231021 | CRANKSHAFT | 1 |
| 18 | 240140 | BALL BEARING | 1 |
| 19 | 231022 | OIL SEAL | 1 |
| 20 | 206837 | O RING | 1 |
| 21 | 231023 | COVER | 1 |
| 22 | 5117 | SCREW | 3 |
| 23 | 231024 | GASKET | 1 |
| 24 | 231025 | MACHINE PULLEY | 1 |
| 25 | 5080 | SCREW | 1 |
| 26 | 5081 | SCREW | 1 |
| 27 | 5522 | SCREW | 1 |
| 28 | 204293 | SPRING WASHER | 1 |
| 29 | 231026-UA | HANDWHEEL | 1 |
| 30 | 2903 | SCREW | 3 |
| 31 | 231027 | WASHER | 1 |
クランクシャフト機構 REF. PART NO. NO. 部品番号 1 231019 2 231019A 3 231020 4 1170-1 5 240091 6 231008 7 5461 8 231032-91 9 231033 10 5385 11 231007 12 5336 13 240161 14 234591-91 15 1457 16 5105 17 231021 18 240140 19 231022 20 206837 21 231023 22 5117 23 231024 24 231025 25 5080 26 5081 27 5522 28 204293 29 231026-UA 30 2903 31 231027 名称 クランク軸 クランク軸 バランスウエイト 平ネジ/C4×10 ボールベアリング カラー 止ネジ/C5×5 継手(組)/上軸 継手/上軸 止ネジ/C10×6.3 ギヤー(大) 平ネジ/C1×6 カラー 糸繰り 止ネジ/C5×4 平ネジ/C3×3 クランク軸 ボールベアリング 油切り Oリング 蓋 平ネジ/C5×8.5 ガスケット プーリー 止ネジ/C9×15 止ネジ/C9×13.5 平ネジ/C9×33.5 バネ座金 ハンドホイール 平ネジ/C7×13 座金 CRANKSHAFT MECHANISM NAME CRANKSHAFT CRANKSHAFT BALANCE WEIGHT SCREW BALL BEARING COLLAR SCREW COUPLING COMPLETE COUPLING SCREW GEAR (LARGE) SCREW COLLAR THREAD TAKEUP SCREW SCREW CRANKSHAFT BALL BEARING OIL SEAL O RING COVER SCREW GASKET MACHINE PULLEY SCREW SCREW SCREW SPRING WASHER HANDWHEEL SCREW WASHER QT. 1 1 1 2 1 2 1 1 1 7 1 3 1 1 2 1 1 1 1 1 1 3 1 1 1 1 1 1 3 1 jintex.in
Page 12 — NEEDLE DRVIE MECHANISM
針 棒 機 構 NEEDLE DRVIE MECHANISM 18 19 30 20 29 6 12 13 10 14 11 12 16 15 17 48 45 46 42 43 41 37 36 38 35 34 40 39 5 8 7 9 50 49 44 47 53 52 51 33 2 1 3 4 21 26 25 24 23 28 22 27 32 31 jintex.in
Page 13 — NEEDLE DRVIE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 231500 | ROD | |
| 2 | 2213-1 | SCREW | 2 |
| 3 | 231501 | PIN | 23 |
| 4 | 231502 | STOPPER | 4 |
| 5 | 231503 | LEVER | 1 |
| 6 | 5461 | SCREW | 2 |
| 7 | 231504 | PIN | 1 |
| 8 | 1170 | SCREW | 2 |
| 9 | 202177 | OIL WICK | 1 |
| 10 | 231507 | LINK | 1 |
| 11 | 200654 | PIN | 2 |
| 12 | 1222 | SCREW | 2 |
| 13 | 202175 | OIL WICK | 2 |
| 14 | 202174 | OIL WICK | 4 |
| 15 | 231512-92 | NEEDLE BAR CLAMP ASSEMBLY | 1 |
| 16 | 231512 | NEEDLE BAR CLAMP | 1 |
| 17 | 1175-2 | SCREW | 1 |
| 18 | 231513 | SHAFT | 1 |
| 19 | 231506 | COLLAR | 1 |
| 20 | 5461 | SCREW | 2 |
| 21 | 231509A | NEEDLE BAR | 1 |
| 22 | XXXXXX | NEEDLE HOLDER | 1 |
| 23 | 234561 | THREAD GUIDE | 1 |
| 24 | 253593 | TENSION DISC | 1 |
| 25 | 200205 | SPRING | 1 |
| 26 | 9070-2 | SCREW | 1 |
| 27 | UY128GAS | NEEDLE | 1 |
| 28 | 5292 | SCREW | 1 |
| 29 | 234583 | NEEDLE BAR THREAD GUIDE | 1 |
| 30 | 1216 | SCREW | 1 |
| 31 | XXXXXX | NEEDLE PLATE | 1 |
| 32 | 5373-HC | SCREW | 2 |
| 33 | 230598-UD | NEEDLE BAR COVER | 1 |
| 34 | 1216 | SCREW | 2 |
| 35 | 234526 | BRACKET | 1 |
| 36 | 5336 | SCREW | 2 |
| 37 | 234525A | THREAD SUPPORT | 3 |
| 38 | 5292 | SCREW | 3 |
| 39 | 192064 | THREAD GUIDE | 1 |
| 40 | 1196 | SCREW | 1 |
| 41 | 234562 | THREAD GUIDE | 1 |
| 42 | 4009-1 | SCREW | 2 |
| 43 | 234563 | BRACKET | 1 |
| 44 | 1229 | SCREW | 2 |
| 45 | 234521A | THREAD GUIDE | 3 |
| 46 | 5292 | SCREW | 3 |
| 47 | 234522 | BRACKET | 1 |
| 48 | 1231 | SCREW | 2 |
| 49 | 5563 | SCREW | 1 |
| 50 | 5359 | SCREW | 1 |
| 51 | 234523 | SPRING | 1 |
| 52 | 234524 | HOLDER | 1 |
| 53 | 5366 | SCREW | 1 |
針棒機構 REF. PART NO. NO. 部品番号 1 231500 2 2213-1 3 231501 4 231502 5 231503 6 5461 7 231504 8 1170 9 202177 10 231507 11 200654 12 1222 13 202175 14 202174 15 231512-92 16 231512 17 1175-2 18 231513 19 231506 20 5461 21 231509A 22 XXXXXX 23 234561 24 253593 25 200205 26 9070-2 27 UY128GAS 28 5292 29 234583 30 1216 31 XXXXXX 32 5373-HC 33 230598-UD 34 1216 35 234526 36 5336 37 234525A 38 5292 39 192064 40 1196 41 234562 42 4009-1 43 234563 44 1229 45 234521A 46 5292 47 234522 48 1231 49 5563 50 5359 51 234523 52 234524 53 5366 「XXXXXX」は、36~37頁のゲージパーツ表参照。 See Pages 36~37 for "XXXXXX" parts. jintex.in 名 称 ロッド 平ネジ/C5×12.5 平行ピン 抜止メ片 レバー 止ネジ/C5×5 平行ピン 平ネジ/C4×12 給油紐 リンク 平行ピン 平ネジ/C3×4 給油紐 給油紐 針棒抱キ(組) 針棒抱キ 平ネジ/C4×8 軸 カラー 止ネジ/C5×5 針棒 針留 糸案内 小調子皿 圧縮バネ 段付ネジ/W5 針 止ネジ/C3×2.7 針棒糸道 平ネジ/C4×5.5 針板 皿ネジ/C4×8.7 針棒カバー 平ネジ/C4×5.5 ブラケット 平ネジ/C1×6 糸受 止ネジ/C3×2.7 糸道 平ネジ/C3×6.5 糸道 平ネジ/C5×7.5 ブラケット 平ネジ/C3×4.5 糸道 止ネジ/C3×2.7 ブラケット 平ネジ/C1×3.4 ピン付ネジ/C1 平ネジ/C3×6.5 ネジリバネ ホルダー 平ネジ/C3×6.2 NEEDLE DRVIE MECHANISM NAME ROD SCREW PIN STOPPER LEVER SCREW PIN SCREW OIL WICK LINK PIN SCREW OIL WICK OIL WICK NEEDLE BAR CLAMP ASSEMBLY NEEDLE BAR CLAMP SCREW SHAFT COLLAR SCREW NEEDLE BAR NEEDLE HOLDER THREAD GUIDE TENSION DISC SPRING SCREW NEEDLE SCREW NEEDLE BAR THREAD GUIDE SCREW NEEDLE PLATE SCREW NEEDLE BAR COVER SCREW BRACKET SCREW THREAD SUPPORT SCREW THREAD GUIDE SCREW THREAD GUIDE SCREW BRACKET SCREW THREAD GUIDE SCREW BRACKET SCREW SCREW SCREW SPRING HOLDER SCREW QT. 1 2 23 4 1 2 1 2 1 1 2 2 2 4 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 2 1 2 1 2 3 3 1 1 1 2 1 2 3 3 1 2 1 1 1 1 1
Page 14 — SPREADER MECHANISM
飾り振り機構 SPREADER MECHANISM jintex.in
Page 15 — SPREADER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 232027-92 | CONNECTION ASSEMBLY | |
| 2 | 232027 | CONNECTION | |
| 3 | 2213-1 | SCREW | |
| 4 | 1170 | SCREW | |
| 5 | 232028 | BALL STUD | |
| 6 | 3018 | NUT | |
| 7 | 204520 | WASHER | |
| 8 | 232513 | GUIDE | |
| 9 | 1170-3 | SCREW | |
| 10 | 232029-92 | CRANK ASSEMBLY | |
| 11 | 232029 | CRANK | |
| 12 | 5594 | SCREW | |
| 13 | 206162 | O RING | |
| 14 | 232030 | SHAFT | |
| 15 | 207937 | BRACKET | |
| 16 | 1170-1 | SCREW | |
| 17 | 207936A | SPREADER | |
| 18 | 5328 | SCREW | |
| 19 | 207938 | LINK | |
| 20 | 207939 | PIN | |
| 21 | 5012 | SCREW | |
| 22 | 202175 | OIL WICK | |
| 23 | 202174 | OIL WICK | |
| 24 | 207940A | CRANKSHAFT | |
| 25 | 202175 | OIL WICK | |
| 26 | 202174 | OIL WICK | |
| 27 | 232032 | BRACKET | |
| 28 | 1206 | SCREW | |
| 29 | 207942 | COLLAR | |
| 30 | 5292 | SCREW | |
| 31 | 207943 | THREAD GUIDE | |
| 32 | 5292 | SCREW | |
| 33 | 232031 | BRACKET | |
| 34 | 5579 | SCREW | |
| 35 | 234616 | THREAD GUIDE | |
| 36 | 2905 | SCREW | |
| 37 | 212503 | BRACKET | |
| 38 | 212504 | TENSION DISC | |
| 39 | 210751 | SPRING | |
| 40 | 234617 | LINER | |
| 41 | 5227 | SCREW |
飾り振り機構 SPREADER MECHANISM REF. PART NO. NAME QT. NO. 部品番号 名 称 1 232027-92 ロッド(組) CONNECTION ASSEMBLY 1 2 232027 ロッド CONNECTION 1 3 2213-1 平ネジ/C5×12.5 SCREW 2 4 1170 平ネジ/C4×12 SCREW 2 5 232028 ロッド球 BALL STUD 1 6 3018 六角ナット/C9 NUT 1 7 204520 座金 WASHER 1 8 232513 振レ止メ GUIDE 1 9 1170-3 平ネジ/C4×9 SCREW 1 10 232029-92 クランク(組) CRANK ASSEMBLY 1 11 232029 クランク CRANK 1 12 5594 平ネジ/C7×13.5 SCREW 1 13 206162 Oリング O RING 1 14 232030 軸 SHAFT 1 15 207937 飾り振り台 BRACKET 1 16 1170-1 平ネジ/C4×10 SCREW 1 17 207936A 飾り振り SPREADER 1 18 5328 平ネジ/C4.×6.3 SCREW 1 19 207938 リンク LINK 1 20 207939 段付ピン PIN 1 21 5012 平ネジ/C3×5.5 SCREW 1 22 202175 給油紐 OIL WICK 1 23 202174 給油紐 OIL WICK 2 24 207940A クランク軸 CRANKSHAFT 1 25 202175 給油紐 OIL WICK 2 26 202174 給油紐 OIL WICK 2 27 232032 ブラケット BRACKET 1 28 1206 平ネジ/C4×5.3 SCREW 2 29 207942 カラー COLLAR 1 30 5292 止ネジ/C3×2.7 SCREW 2 31 207943 糸道 THREAD GUIDE 1 32 5292 止ネジ/C3×2.7 SCREW 1 33 232031 ブラケット BRACKET 1 34 5579 平ネジ/C7×9.5 SCREW 2 35 234616 糸道 THREAD GUIDE 1 36 2905 平ネジ/C5×4.5 SCREW 1 37 212503 小調子台 BRACKET 1 38 212504 小調子皿 TENSION DISC 1 39 210751 圧縮バネ SPRING 1 40 234617 ライナー LINER 1 41 5227 平ネジ/C3×7 SCREW 1 jintex.in
Page 16 — LOOPER DRIVE MECHANISM
ルーパ一機構 LOOPER DRIVE MECHANISM
Page 17 — LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 232523-92 | ロッド (組) | |
| 2 | 232523 | ロッド | |
| 3 | 2213-1 | 平ネジ/C 5 × 12.5 | |
| 4 | 232504 | 段付ピン | |
| 5 | 1222 | 平ネジ/C 3 × 4 | |
| 6 | 202175 | 給油紐 | |
| 7 | 202174 | 給油紐 | |
| 8 | 232505A | レバー | |
| 9 | 232506 | 軸 | |
| 10 | 1435 | 止ネジ/C 5 × 12.7 | |
| 11 | 240165 | Oリング | |
| 12 | 232508 | カラー | |
| 13 | 5220 | 六角ネジ/C 4 × 4.5 | |
| 14 | 232509A | ロッド (組) | |
| 15 | 232510 | ロッド | |
| 16 | 1170-1 | 平ネジ/C 4 × 10 | |
| 17 | 232009A | ロッド球 | |
| 18 | 232511 | ロッド | |
| 19 | 1170-1 | 平ネジ/C 4' × 10 | |
| 20 | 232512 | ロッド球 | |
| 21 | 232513 | 横レメ | |
| 22 | 2918 | 平ネジ/C 3 × 8.5 | |
| 23 | 232010 | 連結棒 | |
| 24 | 89-1 | 六角ナット/W 1 | |
| 25 | 28-1 | 六角ナット/W 1 | |
| 26 | 5020 | 六角ナット/C 10 | |
| 27 | 5020 | 六角ナット/C 10 | |
| 28 | 232520 | ルーバー軸 | |
| 29 | 232522 | ルーバー台 | |
| 30 | 5569 | 平ネジ/C 4 × 8 | |
| 31 | 5590 | 段付ネジ/C 4 | |
| 32 | 236501A | ルーバー | |
| 33 | 5053A | 平ネジ/C 4 × 4.8 | |
| 34 | 236624 | ルーバー補助器 | |
| 35 | 1231 | 平ネジ/C 1 × 3.4 | |
| 36 | 232521 | カラー | |
| 37 | 5568 | 平ネジ/C 5 × 13.5 | |
| 38 | 232517 | スリーブ | |
| 39 | 1170 | 平ネジ/C 4 × 12 | |
| 40 | 232518 | 座金 | |
| 41 | 232519 | 平行ピン | |
| 42 | 1458 | 止ネジ/C 5 × 6 | |
| 43 | 232514 | リンク (組) | |
| 44 | 232515 | リンク | |
| 45 | 232502 | ニードルベアリング | |
| 46 | 232516 | ブッシュ/C 8 | |
| 47 | 5567 | 段付ネジ | |
| 48 | 233038B | 丸ナット | |
| 49 | 234542B | ブラケット | |
| 50 | 5180 | 平ネジ/C 8 × 10 | |
| 51 | 234588 | ブラケット | |
| 52 | 5800 | 平ネジ/C 3 × 5 | |
| 53 | 234589 | 糸案内 | |
| 54 | 5364 | 六角ネジ/C 4 × 6.3 | |
| 55 | 137906 | 座金 | |
| 56 | 234590 | 糸受 | |
| 57 | 5141 | 平ネジ/C 1 × 5 | |
| 58 | 234544 | 糸道 | |
| 59 | 1231 | 平ネジ/C 1 × 3.4 | |
| 60 | 234545 | 糸道 | |
| 61 | 1231 | 平ネジ/C 1 × 3.4 |
ルーバー機構 LOOPER DRIVE MECHANISM REF. PART NO. NO. 部品番号 名 称 NAME QT. 1 232523-92 ロッド (組) 2 232523 ロッド 3 2213-1 平ネジ/C 5 × 12.5 4 232504 段付ピン 5 1222 平ネジ/C 3 × 4 CONNECTION ASSEMBLY CONNECTION SCREW PIN SCREW 1 1 2 1 1 6 202175 給油紐 7 202174 給油紐 8 232505A レバー 9 232506 軸 10 1435 止ネジ/C 5 × 12.7 OIL WICK OIL WICK LEVER SHAFT SCREW 1 2 1 1 1 11 240165 Oリング 12 232508 カラー 13 5220 六角ネジ/C 4 × 4.5 14 232509A ロッド (組) 15 232510 ロッド O RING COLLAR SCREW CONNECTION ASSEMBLY CONNECTION 1 2 2 1 1 16 1170-1 平ネジ/C 4 × 10 17 232009A ロッド球 18 232511 ロッド 19 1170-1 平ネジ/C 4' × 10 20 232512 ロッド球 SCREW BALL STUD ROD SCREW BALL STUD 2 1 1 2 1 21 232513 横レメ 22 2918 平ネジ/C 3 × 8.5 23 232010 連結棒 24 89-1 六角ナット/W 1 25 28-1 六角ナット/W 1 GUIDE SCREW ROD NUT NUT 1 1 1 1 1 26 5020 六角ナット/C 10 27 5020 六角ナット/C 10 28 232520 ルーバー軸 29 232522 ルーバー台 30 5569 平ネジ/C 4 × 8 NUT NUT LOOPER SHAFT LOOPER HOLDER SCREW 1 1 1 1 1 31 5590 段付ネジ/C 4 32 236501A ルーバー 33 5053A 平ネジ/C 4 × 4.8 34 236624 ルーバー補助器 35 1231 平ネジ/C 1 × 3.4 SCREW LOOPER SCREW LOOPER GUARD SCREW 1 1 1 1 1 36 232521 カラー 37 5568 平ネジ/C 5 × 13.5 38 232517 スリーブ 39 1170 平ネジ/C 4 × 12 40 232518 座金 COLLAR SCREW SLEEVE SCREW WASHER 1 1 1 1 1 41 232519 平行ピン 42 1458 止ネジ/C 5 × 6 43 232514 リンク (組) 44 232515 リンク 45 232502 ニードルベアリング PIN SCREW LINK COMPLETE LINK NEEDLE BEARING 1 1 1 1 2 46 232516 ブッシュ/C 8 47 5567 段付ネジ 48 233038B 丸ナット 49 234542B ブラケット 50 5180 平ネジ/C 8 × 10 51 234588 ブラケット 52 5800 平ネジ/C 3 × 5 53 234589 糸案内 54 5364 六角ネジ/C 4 × 6.3 55 137906 座金 BUSHING SCREW NUT BRACKET SCREW BRACKET SCREW THREAD GUIDE SCREW WASHER 2 2 1 1 2 1 2 1 1 1 1 56 234590 糸受 57 5141 平ネジ/C 1 × 5 58 234544 糸道 59 1231 平ネジ/C 1 × 3.4 60 234545 糸道 THREAD SUPPORT SCREW THREAD GUIDE SCREW THREAD GUIDE 1 1 1 1 1 61 1231 平ネジ/C 1 × 3.4 SCREW 1 jintex.in
Page 18 — FEED MECHANISM(1)
送り機構(1) FEED MECHANISM(1) 標 準 standard FW403用 For FW403 jintex.in
Page 19 — FEED MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 233000 | CONNECTION ASSEMBLY | |
| 2 | 233001 | ROD | |
| 3 | 5233 | SCREW | |
| 4 | 233002-92 | ECCENTRIC | |
| 5 | 5461 | SCREW | |
| 6 | 233035 | FELT | |
| 7 | 210766 | PIN | |
| 8 | 232511 | ROD | |
| 9 | 1170-1 | SCREW | |
| 10 | 233004 | BALL STUD | |
| 11 | 232513 | GUIDE | |
| 12 | 2918 | SCREW | |
| 13 | 233003 | CONNECTING BAR | |
| 14 | 89-1 | NUT | |
| 15 | 28-1 | NUT | |
| 16 | 5461 | SCREW | |
| 17 | 233007A | MAIN FEED BAR | |
| 18 | 233006 | AUXILIARY PLATE | |
| 19 | 2928 | SCREW | |
| 20 | XXXXXX | MAIN FEED DOG | |
| 21 | 5116 | SCREW | |
| 22 | 236628 | NEEDLE GUARD | |
| 23 | 5408 | SCREW | |
| 24 | 233005 | DIFFERENTIAL FEED BAR | |
| 25 | 233005A | DIFFERENTIAL FEED BAR | |
| 26 | 233006 | AUXILIARY PLATE | |
| 27 | 2928 | SCREW | |
| 28 | XXXXXX | DIFFERENTIAL FEED DOG | |
| 29 | 5614 | SCREW | |
| 30 | 233008 | BLOCK/FEED BAR LIFT | |
| 31 | 233009 | ECCENTRIC PIN | |
| 32 | 5461 | SCREW | |
| 33 | 204185 | O RING | |
| 34 | 233039 | LINK | |
| 35 | 233011 | BUSHING | |
| 36 | 5571 | SCREW | |
| 37 | 233012 | PIN | |
| 38 | 5220 | SCREW | |
| 39 | 233040 | LINK | |
| 40 | 233011 | BUSHING | |
| 41 | 5571 | SCREW | |
| 42 | 233014 | BLOCK | |
| 43 | 5572 | SCREW | |
| 44 | 233015 | LINK | |
| 45 | 5573 | SCREW | |
| 46 | 5574 | SCREW | |
| 47 | 233041-91 | LEVER | |
| 48 | 208245 | WASHER | |
| 49 | 233037A | SHAFT | |
| 50 | 233020 | O RING | |
| 51 | 5461 | SCREW | |
| 52 | 233019 | BUSHING | |
| 53 | 5147 | SCREW | |
| 54 | 233042 | CRANK | |
| 55 | 233032 | LINK | |
| 56 | 233012 | PIN | |
| 57 | 5146 | SCREW | |
| 58 | 233011 | BUSHING | |
| 59 | 5361 | SCREW | |
| 60 | 233033A | NUT | |
| 61 | 233034 | FLAT SPRING | |
| 62 | 234066 | PIPE | |
| 63 | 5408 | SCREW | |
| 64 | 202174 | OIL WICK |
送り機構(1) FEED MECHANISM (1) REF. PART NO. NAME QT. NO. 部品番号 1 233000 ロッド(組) CONNECTION ASSEMBLY 1 2 233001 ロッド ROD 1 3 5233 平ネジ/C7×18.5 SCREW 2 4 233002-92 エキセン ECCENTRIC 1 5 5461 止ネジ/C5×5 SCREW 2 6 233035 フェルト FELT 1 7 210766 止ピン PIN 1 8 232511 ロッド ROD 2 9 1170-1 平ネジ/C4×10 SCREW 1 10 233004 ロッド棒 BALL STUD 1 11 232513 振レ止メ GUIDE 1 12 2918 平ネジ/C3×8.5 SCREW 1 13 233003 連結棒 CONNECTING BAR 1 14 89-1 六角ナット/W1 NUT 1 15 28-1 六角ナット/W1 NUT 1 16 5461 止ネジ/C5×5 SCREW 1 17 233007A 主送り台 MAIN FEED BAR 1 18 233006 補助板 AUXILIARY PLATE 1 19 2928 平ネジ/C4×16 SCREW 2 20 XXXXXX 主送り歯 MAIN FEED DOG 1 21 5116 平ネジ/C7×9 SCREW 1 22 236628 針受 NEEDLE GUARD 1 23 5408 止ネジ/C3×4.5 SCREW 1 24 233005 差動送り台 DIFFERENTIAL FEED BAR 1 25 233005A 差動送り台 DIFFERENTIAL FEED BAR 1 26 233006 補助板 AUXILIARY PLATE 1 27 2928 平ネジ/C4×16 SCREW 2 28 XXXXXX 差動送り歯 DIFFERENTIAL FEED DOG 1 29 5614 平ネジ/C7 SCREW 1 30 233008 平角/送り上下 BLOCK/FEED BAR LIFT 1 31 233009 エキセンピン/送り上下 ECCENTRIC PIN 1 32 5461 止ネジ/C5×5 SCREW 1 33 204185 Oリング O RING 1 34 233039 リンク LINK 1 35 233011 ブッシュ BUSHING 1 36 5571 六角ネジ/C8×11 SCREW 1 37 233012 平行ピン PIN 1 38 5220 平ネジ/C4×4.5 SCREW 1 39 233040 リンク LINK 1 40 233011 ブッシュ BUSHING 1 41 5571 六角ネジ/C8×11 SCREW 1 42 233014 角駒 BLOCK 1 43 5572 段付ネジ/C8 SCREW 1 44 233015 リンク/駆動連結 LINK 1 45 5573 平ネジ/C8×4.8 SCREW 1 46 5574 段付ネジ/C5 SCREW 1 47 233041-91 レバー LEVER 1 48 208245 座金 WASHER 1 49 233037A 軸 SHAFT 1 50 233020 Oリング O RING 2 51 5461 止ネジ/C5×5 SCREW 2 52 233019 ブッシュ BUSHING 1 53 5147 平ネジ/C5×6 SCREW 1 54 233042 クランク CRANK 1 55 233032 リンク LINK 1 56 233012 平行ピン PIN 1 57 5146 止ネジ/C4×4 SCREW 1 58 233011 ブッシュ BUSHING 1 59 5361 平ネジ/C8×11 SCREW 1 60 233033A 丸ナット NUT 1 61 233034 板バネ FLAT SPRING 1 62 234066 パイプ PIPE 1 63 5408 止ネジ/C3×4.5 SCREW 1 64 202174 給油紐 OIL WICK 1 「XXXXXX」は、36~37頁のゲージパーツ表参照。 See Pages 36 jintex.in
Page 20 — FEED MECHANISM(2)
送り機構(2) FEED MECHANISM(2) 7 3 2 6 4 5 8 1 13 12 14 11 9 10 21 23 20 15 22 18 16 17 19 25 30 29 31 32 20 33 24 26 28 27 jintex.in
Page 21 — FEED MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 233043-91 | CONNECTION ASSEMBLY | 1 |
| 2 | 233001 | ROD | 1 |
| 3 | 5233 | SCREW | 2 |
| 4 | 233044-92 | ECCENTRIC ASSEMBLY | 1 |
| 5 | 233044 | ECCENTRIC | 1 |
| 6 | 5461 | SCREW | 2 |
| 7 | 233035 | FELT | 1 |
| 8 | 210766 | PIN | 1 |
| 9 | 233028 | ROD | 1 |
| 10 | 1170-1 | SCREW | 2 |
| 11 | 233029 | BALL STUD | 1 |
| 12 | 233003 | CONNECTING BAR | 1 |
| 13 | 89-1 | NUT | 1 |
| 14 | 28-1 | NUT | 1 |
| 15 | 233030 | GUIDE | 1 |
| 16 | 202433 | WASHER | 1 |
| 17 | 5181 | NUT | 1 |
| 18 | 233045 | CRANK | 1 |
| 19 | 233037 | SHAFT | 1 |
| 20 | 233020 | O RING | 2 |
| 21 | 5461 | SCREW | 2 |
| 22 | 233019 | BUSHING | 1 |
| 23 | 5147 | SCREW | 1 |
| 24 | 233021 | INDICATION PLATE | 1 |
| 25 | 5373 | SCREW | 3 |
| 26 | 233022 | GASKET | 1 |
| 27 | 233038 | LEVER | 1 |
| 28 | 204185 | O RING | 1 |
| 29 | 233024 | LEVER | 1 |
| 30 | 5373 | SCREW | 1 |
| 31 | 233025 | SPRING WASHER | 1 |
| 32 | 5575 | SCREW | 2 |
| 33 | 3152 | NUT | 2 |
送り機構 (2) REF. PART NO. NO. 部品番号 1 233043-91 2 233001 3 5233 4 233044-92 5 233044 6 5461 7 233035 8 210766 9 233028 10 1170-1 11 233029 12 233003 13 89-1 14 28-1 15 233030 16 202433 17 5181 18 233045 19 233037 20 233020 21 5461 22 233019 23 5147 24 233021 25 5373 26 233022 27 233038 28 204185 29 233024 30 5373 31 233025 32 5575 33 3152 名 称 ロッド (組) ロッド 平ネジ/C7×18.5 エキセン (組) エキセン 止ネジ/C5×5 フェルト 止ピン ロッド 平ネジ/C4×10 ロッド球 連結棒 六角ナット/W1 六角ナット/W1 振レ止メ 座金 六角ナット/C10×5 クランク 軸 Oリング 止ネジ/C5×5 ブッシュ 平ネジ/C5×6 表示板/差動調節 皿ネジ/C4×8.7 ガスケット レバー Oリング レバー 皿ネジ/C4×8.7 バネ座金 平ネジ/C3×2.5 六角ナット/C3 FEED MECHANISM (2) NAME CONNECTION ASSEMBLY ROD SCREW ECCENTRIC ASSEMBLY ECCENTRIC SCREW FELT PIN ROD SCREW BALL STUD CONNECTING BAR NUT NUT GUIDE WASHER NUT CRANK SHAFT O RING SCREW BUSHING SCREW INDICATION PLATE SCREW GASKET LEVER O RING LEVER SCREW SPRING WASHER SCREW NUT QT. 1 1 2 1 1 2 1 1 1 2 1 1 1 1 1 1 1 1 2 2 1 1 1 3 1 1 1 1 1 1 2 2 jintex.in
Page 22
押工機構 PRESSER FOOT MECHANISM 28頁参照 See Page 28 4 3 6 5 10 9 11 12 7 8 2 1 19 15 14 13 22 23 16 17 18 24 25 20 21 29 30 31 28 27 26 33 32 FW603F FW403F 36 35 34 33 FW603G FW403G jintex.in
Page 23 — PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 233527 | LEVER | |
| 2 | 5117 | SCREW | 2 |
| 3 | 233528 | BRACKET | |
| 4 | 4531 | BOLT | 2 |
| 5 | 5503 | SCREW | |
| 6 | 3044 | NUT | |
| 7 | 233526 | LEVER | |
| 8 | 5048 | SCREW | |
| 9 | 233511 | LINK (LONG) | |
| 10 | 5494 | SCREW | 2 |
| 11 | 2905 | SCREW | 2 |
| 12 | 233512 | LINK (SHORT) | |
| 13 | 233514 | LEVER | |
| 14 | 5048 | SCREW | |
| 15 | 5654 | SCREW | |
| 16 | 233523-91 | LEVER | |
| 17 | 233522 | LINK | |
| 18 | 5386 | SCREW | 2 |
| 19 | 206055 | WASHER | |
| 20 | 233520-92 | GUIDE | |
| 21 | 5579 | SCREW | |
| 22 | 233521 | SHAFT | |
| 23 | 5461 | SCREW | |
| 24 | 233503 | SCREW | |
| 25 | 233504 | SPRING | |
| 26 | 233519 | PRESSER BAR | |
| 27 | 233545 | COLLAR | |
| 28 | 2193 | SCREW | |
| 29 | 233544 | FINGER GUARD | |
| 30 | 1229 | SCREW | |
| 31 | 202875 | WASHER | |
| 32 | XXXXXX | PRESSER FOOT COMPLETE | |
| 33 | 1170-3 | SCREW | 2 |
| 34 | XXXXXX | PRESSER FOOT COMPLETE | |
| 35 | 257718 | GUIDE | |
| 36 | 7120 | SCREW |
押工機構 PRESSER FOOT MECHANISM REF. PART NO. NO. 部品番号 名 称 NAME QT. 1 233527 レバー LEVER 1 2 5117 平ネジ/C5×8.5 SCREW 2 3 233528 ブラケツト BRACKET 1 4 4531 六角穴ボルト/M5×12 BOLT 2 5 5503 六角ネジ/C5×22.5 SCREW 1 6 3044 六角ナット/C5 NUT 1 7 233526 レバー LEVER 1 8 5048 六角ネジ/C8×7 SCREW 1 9 233511 リンク(長) LINK (LONG) 1 10 5494 段付ネジ/C5 SCREW 2 11 2905 平ネジ/C5×4.5 SCREW 2 12 233512 リンク(短) LINK (SHORT) 1 13 233514 レバー LEVER 1 14 5048 六角ネジ/C8×7 SCREW 1 15 5654 段付ネジ/C10 SCREW 1 16 233523-91 レバー LEVER 1 17 233522 リンク LINK 1 18 5386 段付ネジ/C7 SCREW 2 19 206055 座金 WASHER 1 20 233520-92 案内 GUIDE 1 21 5579 平ネジ/C7×9.5 SCREW 1 22 233521 軸 SHAFT 1 23 5461 止ネジ/C5×5 SCREW 1 24 233503 調節ネジ SCREW 1 25 233504 圧縮バネ SPRING 1 26 233519 押工棒 PRESSER BAR 1 27 233545 カラー COLLAR 1 28 2193 六角ネジ/C5×8.5 SCREW 1 29 233544 フィンガーガード FINGER GUARD 1 30 1229 平ネジ/C3×4.5 SCREW 1 31 202875 座金 WASHER 1 32 XXXXXX 押工(組) PRESSER FOOT COMPLETE 1 33 1170-3 平ネジ/C4×9 SCREW 2 34 XXXXXX 押工(組) PRESSER FOOT COMPLETE 1 35 257718 案内 GUIDE 1 36 7120 平ネジ/M2×3 SCREW 1 「XXXXXX」は、36~37頁のゲージパーツ表参照。 See Pages 36~37 For 「XXXXXX」. jintex.in
Page 24 — THREAD TENSION MECHANISM
糸調子機構 THREAD TENSION MECHANISM FW403 3本針 上飾り無 3-Needle Without top cover thread FW603 3本針 上飾り付 3-Needle With top cover thread FW603 2本針 上飾り付 2-Needle With top cover thread FW403 2本針 上飾り無 2-Needle Without top cover thread jintex.in
Page 25 — THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 234555 | THREAD GUIDE PLATE COMPLETE | 1 |
| 2 | 506 | THREAD GUIDE | 6 |
| 3 | 5117 | SCREW | 2 |
| 4 | 234512 | BRACKET | 2 |
| 5 | 5357 | SCREW | 2 |
| 6 | 234513 | BRACKET | 1 |
| 7 | 5117 | SCREW | 2 |
| 8 | 192120 | PIPE | 2 |
| 9 | 206115 | HOLDER | 2 |
| 10 | 2905 | SCREW | 2 |
| 11 | 201185 | WASHER | 2 |
| 12 | 234518-91 | THREAD GUIDE BRACKET | 1 |
| 13 | 2903 | SCREW | 1 |
| 14 | 234501 | BRACKET | 2 |
| 15 | 5186 | SCREW | 2 |
| 16 | 234502A | SHAFT | 1 |
| 17 | 234503 | SPRING | 1 |
| 18 | 234551-9S | SILICONE OIL RESERVOIR COM. | 1 |
| 19 | 198205 | THREAD EYELET | 8 |
| 20 | 234554 | OIL FELT | 4 |
| 21 | 5118 | SCREW | 2 |
| 22 | 234604-91 | THREAD TENSION COMPLETE | 1 |
| 23 | 3056 | NUT | 1 |
| 24 | 101113 | TENSION SPRING BUSHING | 1 |
| 25 | 234507 | SPRING | 1 |
| 26 | 210319 | TENSION DISC | 2 |
| 27 | 234602 | THREAD GUIDE BAR | 1 |
| 28 | 234605-91 | THREAD TENSION COMPLETE | 1 |
| 29 | 234509 | SPRING | 1 |
| 30 | 234606-91 | THREAD TENSION COMPLETE | 1 |
| 31 | 234511 | SPRING | 1 |
| 32 | 234603 | THREAD GUIDE | |
| 33 | 234601 | THREAD RELEASER PIN | |
| 34 | 234607 | NUT | |
| 35 | 5535 | SCREW |
糸調子機構 THREAD TENSION MECHANISM REF. PART NO. NAME QT. NO. 部品番号 名 称 1 234555 糸道(組) THREAD GUIDE PLATE COMPLETE 1 2 506 糸道 THREAD GUIDE 6 3 5117 平ネジ/C5×8.5 SCREW 2 4 234512 ブラケット BRACKET 2 5 5357 平ネジ/C9×11 SCREW 2 6 234513 ブラケット BRACKET 1 7 5117 平ネジ/C5×8.5 SCREW 2 8 192120 パイプ PIPE 2 9 206115 ホルダー HOLDER 2 10 2905 平ネジ/C5×4.5 SCREW 2 11 201185 座金 WASHER 2 12 234518-91 糸道台 THREAD GUIDE BRACKET 1 13 2903 平ネジ/C7×13 SCREW 1 14 234501 ブラケット BRACKET 2 15 5186 平ネジ/C8×10 SCREW 2 16 234502A 軸 SHAFT 1 17 234503 ネジリバネ SPRING 1 18 234551-9S シリコンタンク(組) SILICONE OIL RESERVOIR COM. 1 19 198205 糸道 THREAD EYELET 8 20 234554 給油フェルト OIL FELT 4 21 5118 平ネジ/C5×12 SCREW 2 22 234604-91 糸調子(組) THREAD TENSION COMPLETE 1 23 3056 調子ナット NUT 1 24 101113 止メバイブ TENSION SPRING BUSHING 1 25 234507 圧縮バネ SPRING 1 26 210319 調子皿 TENSION DISC 2 27 234602 糸調子棒 THREAD GUIDE BAR 1 28 234605-91 糸調子(組) THREAD TENSION COMPLETE 1 29 234509 圧縮バネ SPRING 1 30 234606-91 糸調子(組) THREAD TENSION COMPLETE 1 31 234511 圧縮バネ SPRING 1 32 234603 糸道 THREAD GUIDE 33 234601 糸軸メピン THREAD RELEASER PIN 34 234607 ナット NUT 35 5535 平ネジ/C5×5.3 SCREW jintex.in
Page 26 — LUBRICATING MECHANISM
給油機構 LUBRICATING MECHANISM jintex.in
Page 27 — LUBRICATING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 234000 | PUMP ASSEMBLY | |
| 2 | 234001 | PUMP BASE | |
| 3 | 234002 | GEAR (SMALL) | |
| 4 | 234003 | PIN | |
| 5 | 234004 | GEAR (LARGE) | |
| 6 | 5461 | SCREW | |
| 7 | 200020 | O RING | |
| 8 | 234005 | WASHER | |
| 9 | 234006 | PIN | |
| 10 | 5118 | SCREW | |
| 11 | 5580 | SCREW | |
| 12 | 234062A | GASKET | |
| 13 | 234042 | GASKET | |
| 14 | 234007A91 | OIL PIPE ASSEMBLY | |
| 15 | 1175-2 | SCREW | |
| 16 | 234012 | FILTER | |
| 17 | 234084-91 | OIL PIPE (REAR) ASSEMBLY | |
| 18 | 5242 | SCREW | |
| 19 | 234059 | PIPE GUIDE RUBBER | |
| 20 | 1175-2 | SCREW | |
| 21 | 234015A91 | OIL GUARD (FRONT) ASSEMBLY | |
| 22 | 234016A | OIL GUARD (FRONT) | |
| 23 | 234017A | PIPE | |
| 24 | 234018 | PIPE | |
| 25 | 234019 | PIPE | |
| 26 | 202175 | OIL WICK | |
| 27 | 234068 | OIL FELT | |
| 28 | 202176 | OIL WICK | |
| 29 | 200030 | O RING | |
| 30 | 234060 | OIL GUARD RUBBER | |
| 31 | 234061 | PIPE GUIDE RUBBER | |
| 32 | 234054 | OIL GUARD ASSEMBLY | |
| 33 | 5453 | SCREW | |
| 34 | 208272 | O RING | |
| 35 | 234057 | OIL CUP (FRONT) | |
| 36 | 2905 | SCREW | |
| 37 | 234032 | PIPE | |
| 38 | 234058 | BRACKET | |
| 39 | 2905 | SCREW | |
| 40 | 202175 | OIL WICK | |
| 41 | 234079-9S | OIL RESERVOIR ASSEMBLY | |
| 42 | 234087-SD | OIL RESERVOIR | |
| 43 | 5138B | SCREW | |
| 44 | 202287A | WASHER | |
| 45 | 5001 | SCREW | |
| 46 | 234080 | O RING | |
| 47 | 234081 | FILTER | |
| 48 | 234082 | FILTER SUPPORT | |
| 49 | 23408 | PIPE GUIDE |
給油機構 REF. PART NO. NO. 部品番号 1 234000 2 234001 3 234002 4 234003 5 234004 6 5461 7 200020 8 234005 9 234006 10 5118 11 5580 12 234062A 13 234042 14 234007A91 15 1175-2 16 234012 17 234084-91 18 5242 19 234059 20 1175-2 21 234015A91 22 234016A 23 234017A 24 234018 25 234019 26 202175 27 234068 28 202176 29 200030 30 234060 31 234061 32 234054 33 5453 34 208272 35 234057 36 2905 37 234032 38 234058 39 2905 40 202175 41 234079-9S 42 234087-SD 43 5138B 44 202287A 45 5001 46 234080 47 234081 48 234082 49 23408 LUBRICATING MECHANISM NAME PUMP ASSEMBLY PUMP BASE GEAR (SMALL) PIN GEAR (LARGE) SCREW O RING WASHER PIN SCREW SCREW GASKET GASKET OIL PIPE ASSEMBLY SCREW FILTER OIL PIPE (REAR) ASSEMBLY SCREW PIPE GUIDE RUBBER SCREW OIL GUARD (FRONT) ASSEMBLY OIL GUARD (FRONT) PIPE PIPE PIPE OIL WICK OIL FELT OIL WICK O RING OIL GUARD RUBBER PIPE GUIDE RUBBER OIL GUARD ASSEMBLY SCREW O RING OIL CUP (FRONT) SCREW PIPE BRACKET SCREW OIL WICK OIL RESERVOIR ASSEMBLY OIL RESERVOIR SCREW WASHER SCREW O RING FILTER FILTER SUPPORT PIPE GUIDE QT. 1 1 4 2 1 2 1 1 1 2 2 1 1 1 3 1 1 1 4 3 1 1 1 1 1 1 1 1 1 1 1 2 2 1 2 1 1 2 3 1 1 1 1 1 1 1 1 1 jintex.in
Page 28
付 属 品 ACCESSORIES 1 2 3 4 5 6 7 8 9 10 12 11 16 15 14 13 17 18 19 22 21 20 23 33 28 25 26 27 32 30 24 34 29 31 45 35 23 x4 46 20~22 24~28 35 45 36 20頁参照番号③~⑥を使用 Refer to Page 20 REF. No. ③~⑥ 38 44 43 37 39 42 40 41 jintex.in
Page 29 — ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 412 | OIL CONTAINER/500CC | |
| 2 | 485 | OILER | |
| 3 | 484 | OIL FUNNEL | |
| 4 | 178 | CONTAINER - SILICONE | |
| 5 | 286 | WRENCH/9.5MM | |
| 6 | 285 | WRENCH/8MM | |
| 7 | 284 | WRENCH/7MM | |
| 8 | 283 | WRENCH/6MM | |
| 9 | 179 | ALLEN KEY DRIVER | |
| 10 | 322 | ALLEN KEY/2.38MM | |
| 11 | 200 | ALLEN KEY/4.76MM | |
| 12 | 182 | ALLEN KEY/3.19MM | |
| 13 | 127 | SCREWDRIVER (LARGE) | |
| 14 | 128 | SCREWDRIVER (MEDIUM) | |
| 15 | 129 | SCREWDRIVER (SMALL) | |
| 16 | 131 | TWEEZERS | |
| 17 | UY128GAS | NEEDLE | |
| 18 | 482 | ACCESSORY BAG | |
| 19 | 153 | THREADING WIRE | |
| 20 | 235083-UD | MACHINE REST BOARD | |
| 21 | 5585 | BOLT | |
| 22 | 235009 | WASHER | |
| 23 | 205473 | CUSHION RUBBER | |
| 24 | 235084-UD | BELT COVER | |
| 25 | 235085 | BELT COVER | |
| 26 | 235086 | SIDE PLATE | |
| 27 | 4009-1 | SCREW | |
| 28 | 7029 | SCREW | |
| 29 | 235088-92 | STOPPER COMPLETE | |
| 30 | 235088 | STOPPER | |
| 31 | 107723-05 | STOPPER | |
| 32 | 5117 | SCREW | |
| 33 | 481 | V BELT | |
| 34 | 392A | CHAIN | |
| 35 | 478 | PEDAL | |
| 36 | 207351 | PULLEY ASSEMBLY | |
| 37 | 207352 | BRACKET | |
| 38 | 4908 | SCREW | |
| 39 | 207353 | PULLEY | |
| 40 | 207354 | SCREW | |
| 41 | 202577 | RING | |
| 42 | 202924 | WASHER | |
| 43 | 202922 | WASHER | |
| 44 | 4809 | NUT | |
| 45 | 9020 | CUSHION RUBBER (SET) | |
| 46 | 9060 | MACHINE REST BOARD (SET) |
付 属 品 REF. PART NO. NO. 部品番号 1 412 2 485 3 484 4 178 5 286 6 285 7 284 8 283 9 179 10 322 11 200 12 182 13 127 14 128 15 129 16 131 17 UY128GAS 18 482 19 153 20 235083-UD 21 5585 22 235009 23 205473 24 235084-UD 25 235085 26 235086 27 4009-1 28 7029 29 235088-92 30 235088 31 107723-05 32 5117 33 481 34 392A 35 478 36 207351 37 207352 38 4908 39 207353 40 207354 41 202577 42 202924 43 202922 44 4809 45 9020 46 9060 名 称 油缶/500CC 油差シ ジョウゴ シリコンオイル/500CC スパナ/9.5MM スパナ/8MM スパナ/7MM スパナ/6MM キーレンチドライバー キーレンチ/2.38MM キーレンチ/4.76MM キーレンチ/3.19MM ドライバー(大) ドライバー(中) ドライバー(小) ピンセット 針 アクセサリーバッグ 糸通シ具 ミシン取付台 六角ボルト/WW 歯付座金 防振ゴム ベルトカバー本体 ベルトカバー 側板 平ネジ/C5×7.5 平ネジ/M5×12 ストッパー(組) ストッパー ストッパー 平ネジ/C5×8.5 Vベルト 鎖 ペダル 滑車(組) ブラケット 木ネジ(皿)/4.5 滑車 ピン付ネジ/M8 止メ輪 座金 座金 六角ナット/M8 防振ゴム(セット) ミシン取付台(セット) ACCESSORIES NAME OIL CONTAINER/500CC OILER OIL FUNNEL CONTAINER - SILICONE WRENCH/9.5MM WRENCH/8MM WRENCH/7MM WRENCH/6MM ALLEN KEY DRIVER ALLEN KEY/2.38MM ALLEN KEY/4.76MM ALLEN KEY/3.19MM SCREWDRIVER (LARGE) SCREWDRIVER (MEDIUM) SCREWDRIVER (SMALL) TWEEZERS NEEDLE ACCESSORY BAG THREADING WIRE MACHINE REST BOARD BOLT WASHER CUSHION RUBBER BELT COVER BELT COVER SIDE PLATE SCREW SCREW STOPPER COMPLETE STOPPER STOPPER SCREW V BELT CHAIN PEDAL PULLEY ASSEMBLY BRACKET SCREW PULLEY SCREW RING WASHER WASHER NUT CUSHION RUBBER (SET) MACHINE REST BOARD (SET) QT. 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 4 1 1 1 5 3 1 1 1 2 1 1 1 1 1 2 1 1 1 1 1 1 1 1 jintex.in
Page 30 — THREAD STAND
糸 立 台 THREAD STAND jintex.in
Page 31 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 486A9S | 糸立 (組) (5本立) | ||
| 486B9S | 糸立 (組) (4本立) | ||
| 486C9S | 糸立 (組) (3本立) | ||
| 1 | 503-SA | スタンド棒 (下) | |
| 2 | 509 | 座金 | |
| 3 | 5476 | 六角ナット | |
| 4 | 505-SA | ブラケット (3本立) | |
| 5 | 505ASA | ブラケット (2本立) | |
| 6 | 380A | 糸立棒 | |
| 7 | 201252 | バネ座金 | |
| 8 | 4803 | 六角ナット/M4 | |
| 9 | 381-SA | 受皿 | |
| 10 | 507 | ウレタン | |
| 11 | 382-SA | ユリ止メ | |
| 12 | 7102 | 六角ネジ/M6×32 | |
| 13 | 512 | 座金 | |
| 14 | 4022 | 平ネジ/M6×10 | |
| 15 | 502-SA | スタンド棒 (上) | |
| 16 | 504-SA | ジョイント | |
| 17 | 4021 | 平ネジ/M5×16 | |
| 18 | 4805 | 六角ナット/M5 | |
| 19 | 383-SA | ブラケット | |
| 20 | 384 | 糸道棒腕 | |
| 21 | 4014 | 平ネジ/M4×25 | |
| 22 | 4803 | 六角ナット/M4 | |
| 23 | 233-SA | ホルダー | |
| 24 | 4012 | 平ネジ/M4×12 | |
| 25 | 4803 | 六角ナット/M4 | |
| 26 | 293A | 糸道棒 (5本立) | |
| 27 | 293B | 糸道棒 (4本立) | |
| 28 | 293C | 糸道棒 (3本立) | |
| 29 | 4012 | 平ネジ/M4×12 | |
| 30 | 4803 | 六角ナット/M4 | |
| 31 | 527-SA | ブラケット (4本立) | |
| 32 | 527ASA | ブラケット (3本立) | |
| 33 | 506 | 糸道 | |
| 34 | 4117 | 止ネジ/M5×12 | |
| 35 | 4805 | 六角ナット/M5 | |
| 36 | 386 | キャップ |
THREAD STAND REF. PART NO. NO. 部品番号 名 称 486A9S 糸立 (組) (5本立) 486B9S 糸立 (組) (4本立) 486C9S 糸立 (組) (3本立) 1 503-SA スタンド棒 (下) 2 509 座金 3 5476 六角ナット 4 505-SA ブラケット (3本立) 5 505ASA ブラケット (2本立) 6 380A 糸立棒 7 201252 バネ座金 8 4803 六角ナット/M4 9 381-SA 受皿 10 507 ウレタン 11 382-SA ユリ止メ 12 7102 六角ネジ/M6×32 13 512 座金 14 4022 平ネジ/M6×10 15 502-SA スタンド棒 (上) 16 504-SA ジョイント 17 4021 平ネジ/M5×16 18 4805 六角ナット/M5 19 383-SA ブラケット 20 384 糸道棒腕 21 4014 平ネジ/M4×25 22 4803 六角ナット/M4 23 233-SA ホルダー 24 4012 平ネジ/M4×12 25 4803 六角ナット/M4 26 293A 糸道棒 (5本立) 27 293B 糸道棒 (4本立) 28 293C 糸道棒 (3本立) 29 4012 平ネジ/M4×12 30 4803 六角ナット/M4 31 527-SA ブラケット (4本立) 32 527ASA ブラケット (3本立) 33 506 糸道 34 4117 止ネジ/M5×12 35 4805 六角ナット/M5 36 386 キャップ NAME QT. QT. QT. THREAD STAND ASS. (5-SPOOLS) 1 THREAD STAND ASS. (4-SPOOLS) 1 THREAD STAND ASS. (3-SPOOLS) 1 THREAD STAND ROD (LOWER) 1 1 1 WASHER 1 1 1 NUT 1 1 1 BRACKET 1 1 BRACKET 2 1 THREAD ROD 3 4 1 SPOOL PIN 3 4 5 SPRING WASHER 3 4 5 NUT 3 4 5 SPOOL TRAY 3 4 5 CUSHION 3 4 5 SPOOL RETAINING FIN 3 4 5 SCREW 1 2 2 WASHER 1 2 2 SCREW 1 2 2 THREAD STAND ROD (UPPER) 1 1 1 JOINT 1 1 1 SCREW 2 2 2 NUT 2 2 2 BRACKET 1 1 1 THREAD GUIDE BAR ROD 1 1 1 SCREW 1 1 1 NUT 1 1 1 HOLDER 2 2 2 SCREW 1 1 1 NUT 2 2 2 THREAD GUIDE BAR (5-SPOOLS) 1 THREAD GUIDE BAR (4-SPOOLS) 1 THREAD GUIDE BAR (3-SPOOLS) 1 SCREW 1 1 1 NUT 1 1 1 BRACKET 1 1 BRACKET 2 1 THREAD GUIDE 2 4 5 SCREW 1 2 2 NUT 1 2 2 ROD CAP 1 1 1
Page 32 — FW603EB/Z020
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | 1 | |
| 2 | 2 | 2 | |
| 3 | 3 | 3 | |
| 4 | 4 | 4 | |
| 5 | 5 | 5 | |
| 6 | 6 | 6 | |
| 7 | 7 | 7 | |
| 8 | 8 | 8 | |
| 9 | 9 | 9 | |
| 10 | 10 | 10 | |
| 11 | 11 | 11 | |
| 12 | 12 | 12 |
専用部品 FW603EB SPECIAL PARTS FOR FW603EB FW603EB/Z020 4 1 2 11 10 12 5 6 7 8 9 FW603EB/Z020 カバーリング用 中厚生地用:ツツシ縫い チェーンカッター付 For covering operations. For medium to heavy weight fabric: To flatten out overlock seams. Equipped with chain cutter. jintex.in
Page 33
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 230600-91 | チェーンカッター(組) | ||
| 230601 | チェーンカッター | ||
| 230602 | 板バネ | ||
| 5428 | 平ネジ/C1×1.2 | ||
| 236107-91 | 布案内(組) | ||
| 236108 | 布案内(右) | ||
| 236109 | 布案内(左) | ||
| 230604 | ブラケット | ||
| 5346 | 平ネジ/C3×4.2 | ||
| 230590A9U | シリンダーカバー(上) | ||
| 230526CUD | シリンダーカバー | ||
| 230591 | 油除ケ |
専用部品 FW603EB SPECIAL PARTS FOR FW603EB REF. PART NO. NO. 部品番号 名 称 NAME QT. 1 230600-91 チェーンカッター(組) CHAIN CUTTER (COMP) 1 2 230601 チェーンカッター CHAIN CUTTER 1 3 230602 板バネ FLAT SPRING 1 4 5428 平ネジ/C1×1.2 SCREW 1 5 236107-91 布案内(組) FABRIC GUIDE ASSEMBLY 1 6 236108 布案内(右) CLOTH GUIDE (RIGHT) 1 7 236109 布案内(左) CLOTH GUIDE (LEFT) 1 8 230604 ブラケット BRACKET 1 9 5346 平ネジ/C3×4.2 SCREW 2 10 230590A9U シリンダーカバー(上) CYLINDER COVER (TOP) 1 11 230526CUD シリンダーカバー CYLINDER COVER 1 12 230591 油除ケ OIL GUARD 1
Page 34 — GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 248 | 236627-48 | 248 | |
| 256 | 236627-56 | 256 | |
| 356 | 236631-56 | 356 | |
| 364 | 236631-64 | 364 | |
| 236033B (C) 48 | 236033B (C) 48 | ||
| 236034B (C) 56 | 236034B (C) 56 | ||
| 236035B 56 | 236035B 56 | ||
| 236035B 64 | 236035B 64 | ||
| 236222B16F | 236222B16F | ||
| 236223B16F | 236223B16F | ||
| 236227-16F | 236227-16F | ||
| 236228-16F | 236228-16F | ||
| 236313-48 | 236313-48 | ||
| 236314-56 | 236314-56 | ||
| 236315-56 | 236315-56 | ||
| 236315-64 | 236315-64 | ||
| 236501A | 236501A | ||
| 236624 | 236624 | ||
| 236628 | 236628 | ||
| 207936A | 207936A |
ゲージパーツ 系列構成図 FW603FC FW403FC 248 236627-48 NG 236033B (C) 48 Bタイプ B Type 4.8 Cタイプ C Type 14.4 236222B16F 1.6 17.2 236227-16F 1.6 9.0 236313-48 NG 8.0 236501A NG=NEED GAUGE PARTS CONSTRUCTION CHART FW603FB FW403FB 256 236627-56 NG 236034B (C) 56 Bタイプ B Type 5.6 Cタイプ C Type 1.9 16.0 236223B16F 1.6 17.2 236228-16F 1.6 9.0 236314-56 23.0 8.0 236624 236628 356 236631-56 364 236631-64 Bタイプ B Type 5.6 6.4 236035B 56 236035B 64 16.0 236315-56 236315-64 23.0 8.0 207936A for FW603 jintex.in
Page 35 — GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 240 | 236627-40 | Part | |
| 248 | 236627-48 | Part | |
| 256 | 236627-56 | Part | |
| 356 | 236631-56 | Part | |
| 364 | 236631-64 | Part | |
| 236038B(C) 40 | Part | ||
| 236038B(C) 48 | Part | ||
| 236039B(C) 56 | Part | ||
| 236040B56 | Part | ||
| 236040B64 | Part | ||
| 236222-16F | Part | ||
| 236223-16F | Part | ||
| 236229-16F | Part | ||
| 236230-16F | Part | ||
| 236320-40 | Part | ||
| 236320-48 | Part | ||
| 236321-56 | Part | ||
| 236322-56 | Part | ||
| 236322-64 | Part | ||
| 236501A | Part | ||
| 236624 | Part | ||
| 236628 | Part | ||
| 207996A | Part |
ゲージパーツ 系列構成図 GAUGE PARTS CONSTRUCTION CHART FW603GC FW403GC FW603GB FW403GB 240 236627-40 248 236627-48 256 236627-56 356 236631-56 364 236631-64 NG NG NG 236038B(C) 40 236038B(C) 48 236039B(C) 56 236040B56 236040B64 Bタイプ B Type Bタイプ B Type Bタイプ B Type 4.0 5.6 5.6 4.8 5.8 6.4 14.4 16.0 16.0 236222-16F 236223-16F 1.6 17.2 1.6 17.2 236229-16F 236230-16F 1.6 1.6 9.0 9.0 236320-40 236320-48 236321-56 236322-56 236322-64 NG 8.0 NG 8.0 236501A 236624 236628 207996A for FW603 jintex.in
Page 36 — GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FW603EB | 236631-56 | 236631-64 | |
| 236031B56 | 236031B64 | ||
| 236225-16F | |||
| 236226-16F | |||
| 236519-56 | 236519-64 | ||
| 236501A | |||
| 236624 | |||
| 236628 | |||
| 207936A |
ゲージパーツ 系列構成図 GAUGE PARTS CONSTRUCTION CHART FW603EB 236631-56 236631-64 - NG 236031B56 236031B64 Bタイプ Type -16.8 236225-16F -17.2 236226-16F -1.6 10.8 236519-56 236519-64 - NG -8.0 236501A 236624 236628 207936A jintex.in
Page 37
jinte x.in jintex.in
Page 38 — FW603-403 ゲージパーツ表
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 236627-48 | 23603848 | ||
| -56 | 236034856 | ||
| 236631-56 | 236035856 | ||
| -64 | B64 | ||
| 236627-48 | 236033848 | ||
| -56 | 236034856 | ||
| 236631-56 | 236035856 | ||
| -64 | B64 | ||
| 236627-48 | 236033C48 | ||
| -56 | 236034C56 | ||
| 236627-48 | 236033C48 | ||
| -56 | 236034C56 | ||
| 236627-40 | 236038840 | ||
| -48 | B48 | ||
| -56 | 236039856 | ||
| 236631-56 | 236040856 | ||
| -64 | B64 | ||
| 236627-40 | 236038840 | ||
| -48 | B48 | ||
| -56 | 236039C56 | ||
| 236627-40 | 236038C40 | ||
| -48 | C48 | ||
| -56 | 236039C56 | ||
| 236627-40 | 236038C40 | ||
| -48 | C48 | ||
| -56 | 236039C56 | ||
| 236631-56 | 236031856 |
FW603-403 ゲージパーツ表(1) 形 式 MACHINE ゲージ GAUGE 針 留 NEEDLE HOLDER 針 板 NEEDLE PLATE 主送り 歯 MAIN FEED DOG. 差動送り 歯 DIFF. FEED DOG. 押 工 PRESSER FOOT ASS. ルーバー LOOPER 248 236627-48 23603848 23622816F 236227-16F 236313-48 236501A FW603FB 256 -56 236034856 23622816F 236228-16F 236314-56 356 236631-56 236035856 236315-56 364 -64 B64 -64 248 236627-48 236033848 23622816F 236227-16F 236313-48 236501A FW403FB 256 -56 236034856 23622816F 236228-16F 236314-56 356 236631-56 236035856 236315-56 364 -64 B64 -64 248 236627-48 236033C48 23622816F 236227-16F 236313-48 236501A FW603FC 256 -56 236034C56 23622816F 236228-16F 236314-56 248 236627-48 236033C48 23622816F 236227-16F 236313-48 236501A FW403FC 256 -56 236034C56 23622816F 236228-16F 236314-56 FW603-403 ゲージパーツ表(2) 形 式 MACHINE ゲージ GAUGE 針 留 NEEDLE HOLDER 針 板 NEEDLE PLATE 主送り 歯 MAIN FEED DOG. 差動送り 歯 DIFF. FEED DOG. 押 工 PRESSER FOOT ASS. ルーバー LOOPER 240 236627-40 236038840 236222-16F 236229-16F 236320-40 236501A FW603GB 248 -48 B48 256 -56 236039856 236223-16F 236230-16F 236321-56 356 236631-56 236040856 236322-56 364 -64 B64 -64 240 236627-40 236038840 236222-16F 236229-16F 236320-40 236501A FW403GB 248 -48 B48 256 -56 236039C56 236223-16F 236230-16F 236321-56 356 236631-56 236040856 236322-56 364 -64 B64 -64 240 236627-40 236038C40 236222-16F 236229-16F 236320-40 236501A FW603GC 248 -48 C48 256 -56 236039C56 236223-16F 236230-16F 236321-56 240 236627-40 236038C40 236222-16F 236229-16F 236320-40 236501A FW403GC 248 -48 C48 256 -56 236039C56 236223-16F 236230-16F 236321-56 FW603EB 356 236631-56 236031856 236223-16F 236226-16F 236319-56 236501A /Z020 jintex.in
Page 40 — INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 31 | 230526CUD | 230526CUD | 7 |
| 31 | 230527A | 230527A | 7 |
| 28 | 230528 | 230528 | 7 |
| 20 | 230530 | 230530 | 7 |
| 18 | 230531 | 230531 | 7 |
| 9 | 230546-UD | 230546-UD | 5 |
| 17 | 230547-90 | 230547-90 | 5 |
| 18 | 230548-UD | 230548-UD | 5 |
| 21 | 230549 | 230549 | 5 |
| 34 | 230551AUD | 230551AUD | 7 |
| 36 | 230552 | 230552 | 7 |
| 31 | 230553 | 230553 | 7 |
| 33 | 230554-UD | 230554-UD | 7 |
| 31 | 230555 | 230555 | 7 |
| 1 | 230559-90 | 230559-90 | 5 |
| 2 | 230560-UD | 230560-UD | 5 |
| 6 | 230561 | 230561 | 5 |
| 24 | 230562-SD | 230562-SD | 5 |
| 26 | 230563 | 230563 | 5 |
| 29 | 230565 | 230565 | 5 |
| 47 | 230566-SD | 230566-SD | 5 |
| 16 | 230570-UD | 230570-UD | 7 |
| 22 | 230570-90 | 230570-90 | 7 |
| 23 | 230590A90 | 230590A90 | 7 |
| 10 | 230590A9U | 230590A9U | 31 |
| 27 | 230591 | 230591 | 7 |
| 33 | 230598-UD | 230598-UD | 11 |
| 1 | 230600-91 | 230600-91 | 31 |
| 2 | 230601 | 230601 | 31 |
| 3 | 230602 | 230602 | 31 |
| 10 | 230604 | 230604 | 7 |
| 8 | 230604 | 230604 | 31 |
| 37 | 230605 | 230605 | 5 |
| 31 | 230606 | 230606 | 5 |
| 11 | 230607 | 230607 | 5 |
| 6 | 230608 | 230608 | 9 |
| 1 | 231019 | 231019 | 9 |
| 1 | 231019A | 231019A | 9 |
| 2 | 231020 | 231020 | 9 |
| 3 | 231021 | 231021 | 9 |
| 17 | 231022 | 231022 | 9 |
| 21 | 231026-UA | 231026-UA | 9 |
| 24 | 231027 | 231027 | 9 |
| 9 | 231032-91 | 231032-91 | 8 |
| 1 | 231033 | 231033 | 11 |
| 3 | 231500 | 231500 | 11 |
| 4 | 231501 | 231501 | 11 |
| 5 | 231502 | 231502 | 11 |
| 7 | 231503 | 231503 | 11 |
| 11 | 231504 | 231504 | 11 |
| 19 | 231506 | 231506 | 11 |
| 10 | 231507 | 231507 | 11 |
| 21 | 231509A | 231509A | 11 |
| 16 | 231512 | 231512 | 11 |
| 15 | 231512-92 | 231512-92 | 11 |
| 18 | 231513 | 231513 | 11 |
| 17 | 232009A | 232009A | 15 |
| 23 | 232010 | 232010 | 15 |
| 2 | 232027 | 232027 | 13 |
| 1 | 232027-92 | 232027-92 | 13 |
| 5 | 232028 | 232028 | 13 |
| 11 | 232029 | 232029 | 13 |
| 10 | 232029 92 | 232029 92 | 13 |
| 14 | 232030 | 232030 | 13 |
| 33 | 232031 | 232031 | 13 |
| 27 | 232032 | 232032 | 13 |
| 45 | 232502 | 232502 | 15 |
| 4 | 232504 | 232504 | 15 |
| 8 | 232505A | 232505A | 15 |
| 9 | 232506 | 232506 | 15 |
| 12 | 232508 | 232508 | 15 |
| 14 | 232509A | 232509A | 15 |
| 15 | 232510 | 232510 | 15 |
| 18 | 232511 | 232511 | 15 |
| 8 | 232512 | 232512 | 17 |
| 20 | 232513 | 232513 | 15 |
| 8 | 232513 | 232513 | 13 |
| 21 | 232513 | 232513 | 15 |
| 43 | 232514 | 232514 | 15 |
| 44 | 232515 | 232515 | 15 |
| 46 | 232516 | 232516 | 15 |
| 38 | 232517 | 232517 | 15 |
| 40 | 232518 | 232518 | 15 |
| 41 | 232519 | 232519 | 15 |
| 28 | 232520 | 232520 | 15 |
| 15 | 232521 | 232521 | 15 |
| 2 | 232522 | 232522 | 15 |
| 1 | 232523 | 232523 | 15 |
| 1 | 232523-92 | 232523-92 | 15 |
| 2 | 233000 | 233000 | 17 |
| 19 | 233001 | 233001 | 17 |
| 4 | 233002-92 | 233002-92 | 17 |
| 13 | 233003 | 233003 | 17 |
| 19 | 233004 | 233004 | 17 |
| 10 | 233005 | 233005 | 17 |
| 24 | 233005A | 233005A | 17 |
| 25 | 233006 | 233006 | 17 |
| 17 | 233006 | 233006 | 17 |
| 17 | 233007A | 233007A | 17 |
| 10 | 233008 | 233008 | 17 |
| 30 | 233009 | 233009 | 17 |
| 35 | 233011 | 233011 | 17 |
| 40 | 233011 | 233011 | 17 |
| 58 | 233011 | 233011 | 17 |
| 37 | 233012 | 233012 | 17 |
| 56 | 233012 | 233012 | 17 |
| 42 | 233014 | 233014 | 17 |
| 44 | 233015 | 233015 | 17 |
| 52 | 233019 | 233019 | 17 |
| 22 | 233019 | 233019 | 19 |
| 50 | 233020 | 233020 | 17 |
| 20 | 233020 | 233020 | 19 |
| 26 | 233021 | 233021 | 19 |
| 29 | 233022 | 233022 | 19 |
| 31 | 233024 | 233024 | 19 |
| 9 | 233025 | 233025 | 19 |
| 11 | 233028 | 233028 | 19 |
| 15 | 233029 | 233029 | 19 |
| 55 | 233030 | 233030 | 19 |
| 60 | 233032 | 233032 | 17 |
| 60 | 233033A | 233033A | 17 |
| 48 | 233033B | 233033B | 15 |
| 61 | 233034 | 233034 | 17 |
| 6 | 233035 | 233035 | 17 |
| 7 | 233035 | 233035 | 19 |
| 3 | 233036 | 233036 | 19 |
| 19 | 233037 | 233037 | 19 |
| 17 | 233037A | 233037A | 17 |
| 19 | 233038 | 233038 | 17 |
| 17 | 233039 | 233039 | 17 |
| 39 | 233040 | 233040 | 17 |
| 47 | 233041-91 | 233041-91 | 17 |
| 54 | 233042 | 233042 | 17 |
| 5 | 233043-91 | 233043-91 | 19 |
| 4 | 233044 | 233044 | 19 |
| 18 | 233044-92 | 233044-92 | 19 |
| 25 | 233045 | 233045 | 21 |
| 21 | 233503 | 233503 | 21 |
| 21 | 233504 | 233504 | 21 |
| 21 | 233511 | 233511 | 21 |
| 12 | 233512 | 233512 | 21 |
| 13 | 233514 | 233514 | 21 |
| 26 | 233519 | 233519 | 21 |
| 20 | 233520-92 | 233520-92 | 21 |
| 22 | 233521 | 233521 | 21 |
| 17 | 233522 | 233522 | 21 |
| 16 | 233523-91 | 233523-91 | 21 |
| 7 | 233526 | 233526 | 21 |
| 1 | 233527 | 233527 | 21 |
| 3 | 233528 | 233528 | 21 |
| 29 | 233544 | 233544 | 21 |
| 21 | 233545 | 233545 | 25 |
| 25 | 234000 | 234000 | 25 |
| 25 | 234001 | 234001 | 25 |
| 25 | 234002 | 234002 | 25 |
| 25 | 234003 | 234003 | 25 |
| 25 | 234004 | 234004 | 25 |
| 25 | 234005 | 234005 | 25 |
| 25 | 234006 | 234006 | 25 |
| 14 | 234007A91 | 234007A91 | 25 |
| 16 | 234012 | 234012 | 25 |
| 21 | 234015A91 | 234015A91 | 25 |
| 22 | 234016A | 234016A | 25 |
| 23 | 234017A | 234017A | 25 |
| 24 | 234018 | 234018 | 25 |
| 25 | 234019 | 234019 | 25 |
| 37 | 234032 | 234032 | 25 |
| 13 | 234042 | 234042 | 25 |
| 32 | 234054 | 234054 | 25 |
| 35 | 234057 | 234057 | 25 |
| 38 | 234058 | 234058 | 25 |
| 19 | 234059 | 234059 | 25 |
| 30 | 234060 | 234060 | 25 |
| 31 | 234061 | 234061 | 25 |
| 12 | 234062A | 234062A | 25 |
| 27 | 234068 | 234068 | 25 |
| 41 | 234079-95 | 234079-95 | 25 |
| 46 | 234080 | 234080 | 25 |
| 47 | 234081 | 234081 | 25 |
| 48 | 234082 | 234082 | 25 |
| 49 | 234083-91 | 234083-91 | 25 |
| 17 | 234084-91 | 234084-91 | 25 |
| 42 | 234087-SD | 234087-SD | 25 |
| 16 | 234501 | 234501 | 23 |
| 14 | 234502A | 234502A | 23 |
| 17 | 234503 | 234503 | 23 |
| 25 | 234507 | 234507 | 23 |
| 29 | 234509 | 234509 | 23 |
| 31 | 234511 | 234511 | 23 |
| 4 | 234512 | 234512 | 23 |
| 6 | 234513 | 234513 | 23 |
| 44 | 234514 | 234514 | 3 |
| 43 | 234515 | 234515 | 3 |
| 45 | 234521A | 234521A | 11 |
| 47 | 234522 | 234522 | 11 |
| 51 | 234523 | 234523 | 11 |
| 52 | 234524 | 234524 | 11 |
| 37 | 234525A | 234525A | 11 |
| 35 | 234526 | 234526 | 11 |
| 49 | 234542B | 234542B | 15 |
| 58 | 234544 | 234544 | 15 |
| 60 | 234545 | 234545 | 15 |
| 20 | 234551-9S | 234551-9S | 23 |
| 18 | 234554 | 234554 | 23 |
| 1 | 234555 | 234555 | 23 |
| 11 | 234561 | 234561 | 23 |
| 23 | 234562 | 234562 | 23 |
| 17 | 234563 | 234563 | 23 |
| 29 | 234581 | 234581 | 11 |
| 43 | 234585 | 234585 | 5 |
| 42 | 234586 | 234586 | 5 |
| 51 | 234588 | 234588 | 7 |
| 53 | 234589 | 234589 | 15 |
| 56 | 234590 | 234590 | 15 |
| 14 | 234591-91 | 234591-91 | 9 |
| 51 | 234595 | 234595 | 3 |
| 52 | 234596 | 234596 | 3 |
| 12 | 234598-91 | 234598-91 | 23 |
| 33 | 234601 | 234601 | 23 |
| 32 | 234602 | 234602 | 23 |
| 22 | 234603 | 234603 | 23 |
| 28 | 234604-91 | 234604-91 | 23 |
| 22 | 234605-91 | 234605-91 | 23 |
| 30 | 234606-91 | 234606-91 | 23 |
| 34 | 234607 | 234607 | 23 |
| 35 | 234616 | 234616 | 13 |
| 40 | 234617 | 234617 | 13 |
| 22 | 235009 | 235009 | 27 |
| 20 | 235083-UD | 235083-UD | 27 |
| 24 | 235084-UD | 235084-UD | 27 |
| 25 | 235085 | 235085 | 27 |
| 26 | 235086 | 235086 | 27 |
| 30 | 235088 | 235088 | 27 |
| 29 | 235088-92 | 235088-92 | 27 |
| 36 | 236031B56 | 236031B56 | 36 |
| 36 | 236031B64 | 236031B64 | 36 |
| 36 | 236033B48 | 236033B48 | 36 |
| 36 | 236033C48 | 236033C48 | 36 |
| 36 | 236034B56 | 236034B56 | 36 |
| 36 | 236035B56 | 236035B56 | 36 |
| 36 | 236035B64 | 236035B64 | 36 |
| 36 | 236038B48 | 236038B48 | 36 |
| 36 | 236038C40 | 236038C40 | 36 |
| 36 | 236038C48 | 236038C48 | 36 |
| 36 | 236039B56 | 236039B56 | 36 |
| 36 | 236039C56 | 236039C56 | 36 |
| 36 | 236040B56 | 236040B56 | 36 |
| 5 | 236107-91 | 236107-91 | 31 |
| 6 | 236108 | 236108 | 31 |
| 7 | 236109 | 236109 | 31 |
| 8 | 236110-91 | 236110-91 | 7 |
| 12 | 236111-91 | 236111-91 | 7 |
| 14 | 236112 | 236112 | 7 |
| 14 | 236113 | 236113 | 7 |
| 36 | 236222-16F | 236222-16F | 36 |
| 36 | 236222B16F | 236222B16F | 36 |
| 36 | 236223B16F | 236223B16F | 36 |
| 36 | 236226-16F | 236226-16F | 36 |
| 36 | 236227-16F | 236227-16F | 36 |
| 36 | 236228-16F | 236228-16F | 36 |
| 36 | 236229-16F | 236229-16F | 36 |
| 36 | 236230-16F | 236230-16F | 36 |
| 36 | 236313-48 | 236313-48 | 36 |
| 36 | 236314-56 | 236314-56 | 36 |
| 36 | 236315-56 | 236315-56 | 36 |
| 36 | 236315-64 | 236315-64 | 36 |
| 36 | 236319-56 | 236319-56 | 36 |
| 36 | 236319-64 | 236319-64 | 36 |
| 36 | 236320-48 | 236320-48 | 36 |
| 36 | 236321-56 | 236321-56 | 36 |
| 36 | 236322-56 | 236322-56 | 36 |
| 36 | 236322-64 | 236322-64 | 36 |
| 32 | 236501A | 236501A | 15 |
| 32 | 236501A | 236501A | 15 |
| 58 | 236603 | 236603 | 15 |
| 34 | 236624 | 236624 | 15 |
| 36 | 236624 | 236624 | 36 |
| 36 | 236627-40 | 236627-40 | 36 |
| 36 | 236627-48 | 236627-48 | 36 |
| 36 | 236627-56 | 236627-56 | 36 |
| 22 | 236628 | 236628 | 17 |
| 36 | 236628 | 236628 | 36 |
| 36 | 236631-56 | 236631-56 | 36 |
| 36 | 236631-64 | 236631-64 | 36 |
| 18 | 240091 | 240091 | 15 |
| 11 | 240140 | 240140 | 15 |
| 18 | 240161 | 240161 | 5 |
| 13 | 240165 | 240165 | 7 |
| 11 | 253593 | 253593 | 7 |
| 24 | 257558A | 257558A | 7 |
| 21 | 257559A | 257559A | 7 |
| 35 | 257718 | 257718 | 21 |
INDEX PART NO. PAGE REF. PART NO. PAGE REF. PART NO. PAGE REF. PART NO. PAGE REF. 230526CUD 7 31 232518 15 40 234058 25 38 236222B16F 36 230527A 7 31 232519 15 41 234059 25 19 236223B16F 36 230528 7 28 232520 15 28 234060 25 30 236226-16F 36 230530 7 20 232521 15 15 234061 25 31 236227-16F 36 230531 7 18 232522 15 2 234062A 25 12 236228-16F 36 230546-UD 5 9 232523 15 1 234068 25 27 236229-16F 36 230547-90 5 17 232523-92 15 1 234079-95 25 41 236230-16F 36 230548-UD 5 18 233000 17 2 234080 25 46 236313-48 36 230549 5 21 233001 17 19 234081 25 47 236314-56 36 230551AUD 7 34 233002-92 17 4 234082 25 48 236315-56 36 230552 7 36 233003 17 13 234083-91 25 49 236315-64 36 230553 7 31 233004 17 19 234084-91 25 17 236319-56 36 230554-UD 7 33 233005 17 10 234087-SD 25 42 236319-64 36 230555 7 31 233005A 17 24 234501 23 16 236320-48 36 230559-90 5 1 233006 17 25 234502A 23 14 236321-56 36 230560-UD 5 2 233006 17 17 234503 23 17 236322-56 36 230561 5 6 233007A 17 17 234507 23 25 236322-64 36 230562-SD 5 24 233008 17 10 234509 23 29 236501A 15 32 230563 5 26 233009 17 30 234511 23 31 236501A 15 32 230565 5 29 233011 17 35 234512 23 4 236603 15 58 230566-SD 5 47 233011 17 40 234513 23 6 236624 15 34 230570-UD 7 16 233011 17 58 234514 3 44 236624 36 230570-90 7 22 233012 17 37 234515 3 43 236627-40 36 230590A90 7 23 233012 17 56 234521A 11 45 236627-48 36 230590A9U 31 10 233014 17 42 234522 11 47 236627-56 36 230591 7 27 233015 17 44 234523 11 51 236628 36 230598-UD 11 33 233019 17 52 234525A 11 52 236628 36 230600-91 31 1 233019 19 22 234526 11 37 236631-56 36 230601 31 2 233020 17 50 234542B 15 49 236631-64 36 230602 31 3 233020 19 20 234544 15 58 240140 15 18 230604 7 10 233021 19 26 234545 15 60 240161 15 11 230604 31 8 233022 19 29 234551-9S 23 20 240165 5 18 230605 5 37 233024 19 31 234554 23 1 253593 7 13 230606 5 31 233025 19 9 234555 23 1 257558A 7 11 230607 5 11 233028 19 11 234561 23 11 257559A 7 21 230608 9 6 233032 17 55 234562 23 23 257718 21 35 231019 9 1 233033A 17 60 234581 9 43 231019A 9 1 2330338 15 48 234585 3 51 231020 9 2 233034 17 61 234586 5 52 231021 9 3 233035 19 6 234588 7 1 231022 9 17 233035 19 7 234589 7 12 231026-UA 9 21 233036 19 3 234590 23 12 231027 9 24 233037 19 19 234591-91 9 14 231032-91 9 29 233037A 17 17 234601 23 33 231033 8 9 233038 17 19 234602 23 32 231500 11 1 233039 17 17 234603 23 22 231501 11 3 233040 17 39 234604-91 23 28 231502 11 4 233041-91 17 47 234605-91 23 22 231503 11 5 233042 17 54 234606-91 23 28 231504 11 7 233043-91 19 5 234607 23 34 231506 11 19 233044 19 4 234616 13 35 231507 11 10 233045 19 18 234617 13 40 231509A 11 21 233503 21 24 235009 27 22 231512 11 16 233504 21 25 235083-UD 27 20 231512-92 11 15 233511 21 21 235084-UD 27 24 231513 11 18 233512 21 12 235085 27 25 232009A 15 17 233514 21 13 235086 27 26 232010 15 23 233519 21 26 235088 27 30 232027 13 2 233520-92 21 20 235088-92 27 29 232027-92 13 1 233521 21 22 236031B56 36 232028 13 5 233522 21 17 236031B64 36 232029 13 11 233523-91 21 16 236033B48 36 232029 92 13 10 233526 21 7 236033C48 36 232030 13 14 233527 21 1 236034B56 36 232031 13 33 233528 21 3 236035B56 36 232032 13 27 233544 21 29 236035B64 36 232502 15 45 234000 25 25 236038B48 36 232504 15 4 234001 25 25 236038C40 36 232505A 15 8 234002 25 25 236038C48 36 232506 15 9 234003 25 25 236039B56 36 232508 15 12 234004 25 25 236039C56 36 232509A 15 14 234005 25 25 236040B56 36 232510 15 15 234006 25 25 236107-91 31 5 232511 15 18 234007A91 25 14 236108 31 6 232512 17 8 234012 25 16 236109 31 7 232513 15 20 234015A91 25 21 236110-91 7 8 232513 13 8 234016A 25 22 236111-91 7 12 232513 15 21 234017A 25 23 236112 7 14 232514 15 43 234018 25 24 236113 7 14 232515 15 44 234019 25 25 236222-16F 36 232516 15 46 234032 25 37 236034B56 36 232517 15 38 234054 25 13 236035B56 36 234057 25 35 236035B64 36 236038B48 36 236038C40 36 236038C48 36 236039B56 36 236039C56 36 236040B56 36 236107-91 31 5 236108 31 6 236109 31 7 236110-91 7 8 236111-91 7 12 236112 7 14 236113 7 14 236222-16F 36 jintex.in
Page 41
MEMO jintex.in
Page 42
jinte x.in jintex.in
Page 43
jinteх.in jintex.in
Page 44
PEGASUS SEWING MACHINE MFG. CO., LTD. First edition ; issued in December, 1984 Second edition ; issued in April, 1986 Third edition ; issued in December, 1989 Fourth edition ; issued July, 1990 Fifth edition ; issued in August, 1992 初版(1984年12月発行) 第二版(1986年4月発行) 第三版(1989年12月発行) 第四版(1990年7月発行) 第五版(1992年8月発行) © 1990 PEGASUS SEWING MACHINE MFG. CO., LTD. (0 7 9 0 3.5 H 2 6 5 P) jintex.in
