PARTS CATALOG Cat. No. 9544 August, 1992 FW600 (両面飾り With cover thread) FW400 (片面飾り Without cover thread) 高速筒型2・3本針ミシン High speed, 2- or 3-needle interlock machines PEGASUS jintex.in
Pegasus FW600 — parts catalog
- Page 1 (cover): This is the cover page for the Pegasus Parts Catalog, Cat. No. 9544, published in August 1992, featuring models FW600 (with cover thread) and FW400 (without cover thread) high-speed, 2- or 3-needle interlock machines.
- Page 2 (text): This page provides an introduction to the parts catalog, explaining its organization, how to find parts, and important notes regarding ordering and catalog changes.
- Page 3 (toc): This page is a table of contents for a parts catalog, listing various mechanisms, accessories, and parts lists with their corresponding page numbers.
- Page 4 (diagram): This page illustrates the machine bed frame and its associated components, including parts for FW603 and FW403 models, as well as specific parts for Pegasus and Willcox & Gibbs machines.
- Page 5 (parts_list): This page lists parts for the machine bed frame, including various bushings, screws, pins, washers, oil seals, and other components.
- Page 6 (diagram): This page illustrates the cover assembly for an industrial sewing machine, showing various components and their reference numbers.
- Page 7 (parts_list): This page lists parts for the cover mechanism, including various screws, gaskets, covers, nuts, and washers, with their corresponding part numbers, names, and quantities.
- Page 8 (diagram): This page illustrates the cover mechanism (2) for an industrial sewing machine, showing various components and their assembly, along with specific parts for different fabric types and operations.
- Page 9 (parts_list): This page lists parts for the cover mechanism, including brackets, screws, pipes, holders, washers, finger guard assemblies, cloth guides, looper covers, springs, cylinder covers, oil guards, gaskets, and O-rings.
- Page 10 (diagram): This page illustrates the crankshaft mechanism with an exploded view, showing various components and their assembly.
- Page 11 (parts_list): This page lists parts for the crankshaft mechanism, including crankshafts, screws, bearings, collars, couplings, gears, oil seals, O-rings, covers, gaskets, machine pulleys, spring washers, handwheels, and washers.
- Page 12 (diagram): This page illustrates the needle drive mechanism with a detailed diagram showing various components and their interconnections.
- Page 13 (parts_list): This page lists parts for the needle drive mechanism, including screws, pins, levers, oil wicks, needle bar clamps, shafts, collars, needle holders, thread guides, tension discs, springs, needle plates, and brackets.
- Page 14 (diagram): This page illustrates the spreader mechanism with a detailed exploded view of its components.
- Page 15 (parts_list): This page lists parts for the spreader mechanism, including various screws, connections, brackets, and other components, with their part numbers, names, and quantities.
- Page 16 (diagram): This page illustrates the looper drive mechanism with a detailed diagram showing various components and their reference numbers.
- Page 17 (parts_list): This page lists parts for the looper drive mechanism, including various screws, rods, nuts, and other components with their corresponding part numbers and quantities.
- Page 18 (diagram): This page displays a diagram of the feed mechanism (1) for a sewing machine, showing various components and their reference numbers.
- Page 19 (parts_list): This page lists parts for the feed mechanism, including rods, screws, bushings, and various plates and links.
- Page 20 (diagram): This page illustrates the components of the feed mechanism (2) for an industrial sewing machine, showing an exploded view of various parts with reference numbers.
- Page 21 (parts_list): This page lists parts for the FEED MECHANISM (2) including connection assembly, rods, screws, eccentric assembly, ball studs, nuts, guides, washers, cranks, shafts, O-rings, bushings, indication plates, gaskets, levers, and spring washers.
- Page 22 (diagram): This page illustrates the presser foot mechanism with a detailed diagram and reference numbers for various components.
- Page 23 (parts_list): This page lists parts for the presser foot mechanism, including levers, screws, brackets, nuts, links, washers, guides, shafts, springs, presser bars, collars, and complete presser foot assemblies.
- Page 24 (diagram): This page illustrates the thread tension mechanism for various sewing machine models, including 3-needle without top cover thread, 3-needle with top cover thread, and 2-needle without top cover thread configurations.
- Page 25 (parts_list): This page lists parts for the thread tension mechanism, including screws, brackets, guides, springs, and other components, with their part numbers, names, and quantities.
- Page 26 (diagram): This page illustrates the lubricating mechanism of an industrial sewing machine, showing various components and their arrangement.
- Page 27 (parts_list): This page lists parts for the lubricating mechanism, including pumps, gears, screws, gaskets, oil pipes, filters, oil guards, oil wicks, and oil reservoirs.
- Page 28 (diagram): This page displays a diagram of accessories and various components, with some parts referring to page 20 for details.
- Page 29 (parts_list): This page lists accessories for an industrial sewing machine, including various tools, fasteners, and machine components.
- Page 30 (diagram): This page illustrates the components of a thread stand with a detailed exploded view and corresponding reference numbers.
- Page 31 (parts_list): This page lists parts for the Thread Stand, including part numbers, names, quantities, and reference numbers.
- Page 32 (diagram): This page contains a diagram of special parts for the FW603EB sewing machine, with numbered components and a description of their function.
- Page 33 (parts_list): This page lists special parts for the FW603EB, including chain cutters, flat springs, screws, fabric guides, brackets, and cylinder covers, along with their part numbers and quantities.
- Page 34 (diagram): This page displays a construction chart for gauge parts, showing various needle gauges and their associated part numbers for models FW603FC, FW403FC, FW603FB, and FW403FB.
- Page 35 (diagram): This page displays a construction chart for gauge parts, showing various components with their part numbers and diagrams, categorized under FW603GC, FW403GC, FW603GB, and FW403GB models.
- Page 36 (diagram): This page displays a construction chart for gauge parts, specifically for model FW603EB, with diagrams and part numbers for various components.
- Page 37 (unknown): This page contains a large watermark and a page number at the bottom.
- Page 38 (parts_list): This page contains parts lists for FW603-403 gauges, part 1 and part 2, detailing machine models, gauge sizes, needle holders, needle plates, feed dogs, presser foot assemblies, and loopers.
- Page 40 (index): This page is an index of part numbers and their corresponding page references, organized into columns for easy lookup.
- Page 41 (text): This page contains the text "MEMO" and a watermark "jinte .in".
- Page 42 (unknown): This page contains a watermark with the text "jinte.in" and a footer with "jinte.in". There is no other discernible content on the page.
- Page 43 (unknown): This page contains a watermark and a website address at the bottom.
- Page 44 (cover): This is the cover page for a Pegasus Sewing Machine Mfg. Co., Ltd. parts catalog, copyright 1990, listing the publication dates of its five editions.
Page 2 — INTRODUCTION
パーツカタログの見方 INTRODUCTION ■このパーツカタログは、1992年8月製造中のFW のミシンを次の要領で編集しています。 ■2~31頁には部品を機構別に収録し、左頁が部 品の分解図、右頁がパーツリストになっていま す。 また、部品分解図に付されている番号は、パー ツリストのREF. NO. (参照番号)を示してい ます。 ■ゲージパーツ系列構成図・ゲージパーツ表 (32 ~37頁) これらの部品は、特定の形式にのみ使 用されている部品で、系列構成図は32~34頁に、 ゲージパーツ表は36~37頁に一括して記載して います。 ■38~39頁には部品番号インデックスを記載し、 部品番号だけで、その図解、名称などが容易に 引き出せます。 ■部品をご注文いただくときは、必ず部品番号だ けを明示してください。 なお、このパーツカタログの記載事項は改良に より、予告なく変更されることがありますので、 あらかじめご了承ください。 ■This parts catalog covers the FW machine manufactured from august. 1992 ■On pages2~31, each mechanism is arranged on facing pages, the first page containing illustrations and the second page containing the data of the individual parts. The number given to each illustration is the REF. NO. on the parts list. ■Gauge parts construction charts/gauge parts lists. Gauge parts are used in some machine typesand sewing gauges only. Pages32~34 contain the gauge parts construction charts in order to know the illustrations and the combinations of the parts, and pages36~37 contain the gauge parts lists to obtain the data at a glance. ■A parts number index is attached to the back of this catalog for convenience. ■When placing orders for parts from this catalog, use ONLY THE PART NUMBER. ■This parts catalog is applicable to your machine and is subject to change without notification. jintex.in
Page 3 — TABLE OF CONTENTS
目 次 TABLE OF CONTENTS アームベッド機構 2-3 MACHINE BED FRAME 2-3 カバー機構(1) 4-5 COVERS (1) 4-5 カバー機構(2) 6-7 COVERS (2) 6-7 クランクシャフト機構 8-9 CRANKSHAFT MECHANISM 8-9 針棒機構 10-11 NEEDLE DRIVE MECHANISM 10-11 飾り振り機構 12-13 SPREADER MECHANISM 12-13 ルーパー機構 14-15 LOOPER DRIVE MECHANISM 14-15 送り機構(1) 16-17 FEED MECHANISM (1) 16-17 送り機構(2) 18-19 FEED MECHANISM (2) 18-19 押エ機構 20-21 PRESSER FOOT MECHANISM 20-21 糸調子機構 22-23 THREAD TENSION MECHANISM 22-23 給油機構 24-25 LUBRICATING MECHANISM 24-25 付属品 26-27 ACCESSORIES 26-27 糸立台 28-29 THREAD STAND 28-29 専用部品 FW603EB 30-31 SPECIFIC PARTS FOR FW603EB 30-31 ゲージパーツ系列構成図 32-34 GAUGE PARTS CONSTRUCTION CHART 32-34 FW603・403 ゲージパーツ表 36-37 FW603・403 GAUGE PARTS LIST 36-37 インデックス 38-39 PARTS NUMBER INDEX 38-39 jintex.in
Page 4 — MACHINE BED FRAME
アームベッド機構 MACHINE BED FRAME 1 3~7 9 11~25 FW603用 For FW603 2 3~6 8 9 11~25 FW403用 For FW403 16 17 35 19 20 27 26 38 PEGASUS 33 34 28 39 Willcox & Gibbs 31 21 32 41 30 34 29 42 4 40 13 37 36 10 6 9 15 12 22 23 29 43 18 14 11 44 25 3 24 5 7 FW603用 For FW603 8 FW403用 For FW403 50 54 50 47 58 46 49 48 53 45 57 51 52 31 56 55 jintex.in

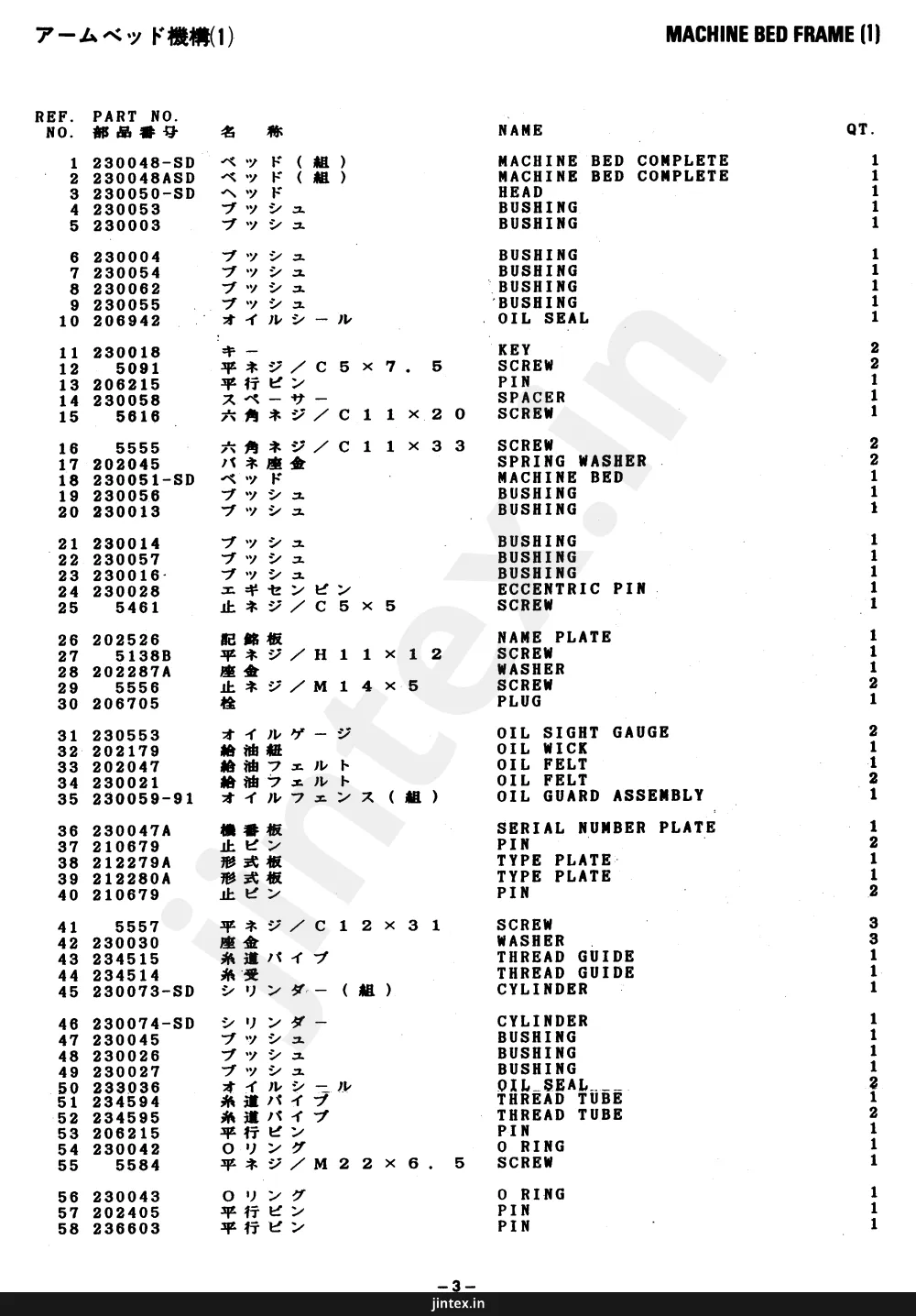

Page 5 — MACHINE BED FRAME (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 230048-SD | MACHINE BED COMPLETE | 1 |
| 2 | 230048ASD | MACHINE BED COMPLETE | 1 |
| 3 | 230050-SD | HEAD | 1 |
| 4 | 230053 | BUSHING | 1 |
| 5 | 230003 | BUSHING | 1 |
| 6 | 230004 | BUSHING | 1 |
| 7 | 230054 | BUSHING | 1 |
| 8 | 230062 | BUSHING | 1 |
| 9 | 230055 | BUSHING | 1 |
| 10 | 206942 | OIL SEAL | 1 |
| 11 | 230018 | KEY | 2 |
| 12 | 5091 | SCREW | 2 |
| 13 | 206215 | PIN | 1 |
| 14 | 230058 | SPACER | 1 |
| 15 | 5616 | SCREW | 1 |
| 16 | 5555 | SCREW | 2 |
| 17 | 202045 | SPRING WASHER | 2 |
| 18 | 230051-SD | MACHINE BED | 1 |
| 19 | 230056 | BUSHING | 1 |
| 20 | 230013 | BUSHING | 1 |
| 21 | 230014 | BUSHING | 1 |
| 22 | 230057 | BUSHING | 1 |
| 23 | 230016 | BUSHING | 1 |
| 24 | 230028 | ECCENTRIC PIN | 1 |
| 25 | 5461 | SCREW | 1 |
| 26 | 202526 | NAME PLATE | 1 |
| 27 | 5138B | SCREW | 1 |
| 28 | 202287A | WASHER | 2 |
| 29 | 5556 | SCREW | 1 |
| 30 | 206705 | PLUG | 1 |
| 31 | 230553 | OIL SIGHT GAUGE | 2 |
| 32 | 202179 | OIL WICK | 1 |
| 33 | 202047 | OIL FELT | 1 |
| 34 | 230021 | OIL FELT | 2 |
| 35 | 230059-91 | OIL GUARD ASSEMBLY | 1 |
| 36 | 230047A | SERIAL NUMBER PLATE | 1 |
| 37 | 210679 | PIN | 2 |
| 38 | 212279A | TYPE PLATE | 1 |
| 39 | 212280A | TYPE PLATE | 1 |
| 40 | 210679 | PIN | 2 |
| 41 | 5557 | SCREW | 3 |
| 42 | 230030 | WASHER | 3 |
| 43 | 234515 | THREAD GUIDE | 1 |
| 44 | 234514 | THREAD GUIDE | 1 |
| 45 | 230073-SD | CYLINDER | 1 |
| 46 | 230074-SD | CYLINDER | 1 |
| 47 | 230045 | BUSHING | 1 |
| 48 | 230026 | BUSHING | 1 |
| 49 | 230027 | BUSHING | 1 |
| 50 | 233036 | OIL SEAL | 2 |
| 51 | 234594 | THREAD TUBE | 1 |
| 52 | 234595 | THREAD TUBE | 2 |
| 53 | 206215 | PIN | 1 |
| 54 | 230042 | O RING | 1 |
| 55 | 5584 | SCREW | 1 |
| 56 | 230043 | O RING | 1 |
| 57 | 202405 | PIN | 1 |
| 58 | 230003 | PIN | 1 |
アームベッド機構(1) MACHINE BED FRAME (1) REF. PART NO. NAME QT. NO. 部品番号 名 称 1 230048-SD ベッド ( 組 ) MACHINE BED COMPLETE 1 2 230048ASD ベッド ( 組 ) MACHINE BED COMPLETE 1 3 230050-SD ヘッド HEAD 1 4 230053 ブッシュ BUSHING 1 5 230003 ブッシュ BUSHING 1 6 230004 ブッシュ BUSHING 1 7 230054 ブッシュ BUSHING 1 8 230062 ブッシュ BUSHING 1 9 230055 ブッシュ BUSHING 1 10 206942 オイルシール OIL SEAL 1 11 230018 キー KEY 2 12 5091 平ネジ / C 5 × 7.5 SCREW 2 13 206215 平行ピン PIN 1 14 230058 スペーサー SPACER 1 15 5616 六角ネジ / C 1 1 × 2 0 SCREW 1 16 5555 六角ネジ / C 1 1 × 3 3 SCREW 2 17 202045 バネ座金 SPRING WASHER 2 18 230051-SD ベッド MACHINE BED 1 19 230056 ブッシュ BUSHING 1 20 230013 ブッシュ BUSHING 1 21 230014 ブッシュ BUSHING 1 22 230057 ブッシュ BUSHING 1 23 230016 ブッシュ BUSHING 1 24 230028 エキセンピン ECCENTRIC PIN 1 25 5461 止ネジ / C 5 × 5 SCREW 1 26 202526 記銘板 NAME PLATE 1 27 5138B 平ネジ / H 1 1 × 1 2 SCREW 1 28 202287A 座金 WASHER 2 29 5556 止ネジ / M 1 4 × 5 SCREW 1 30 206705 栓 PLUG 1 31 230553 オイルゲージ OIL SIGHT GAUGE 2 32 202179 給油紐 OIL WICK 1 33 202047 給油フェルト OIL FELT 1 34 230021 給油フェルト OIL FELT 2 35 230059-91 オイルフェンス ( 組 ) OIL GUARD ASSEMBLY 1 36 230047A 機番板 SERIAL NUMBER PLATE 1 37 210679 止ピン PIN 2 38 212279A 形式板 TYPE PLATE 1 39 212280A 形式板 TYPE PLATE 1 40 210679 止ピン PIN 2 41 5557 平ネジ / C 1 2 × 3 1 SCREW 3 42 230030 座金 WASHER 3 43 234515 糸道パイプ THREAD GUIDE 1 44 234514 糸受 THREAD GUIDE 1 45 230073-SD シリンダー ( 組 ) CYLINDER 1 46 230074-SD シリンダー CYLINDER 1 47 230045 ブッシュ BUSHING 1 48 230026 ブッシュ BUSHING 1 49 230027 ブッシュ BUSHING 1 50 233036 オイルシール OIL SEAL 2 51 234594 糸道パイプ THREAD TUBE 1 52 234595 糸道パイプ THREAD TUBE 2 53 206215 平行ピン PIN 1 54 230042 Oリング O RING 1 55 5584 平ネジ / M 2 2 × 6.5 SCREW 1 56 230043 Oリング O RING 1 57 202405 平行ピン PIN 1 58 230003 平行ピン PIN 1 -3- jintex.in
Page 6 — COVER(1)
カバー機構(1) COVER(1) FW603用 For FW603 FW603用 For FW603 jintex.in
Page 7 — COVER (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 230559-9U | TOP COVER (FRONT) ASSEMBLY | 1 |
| 2 | 230560-UD | TOP COVER (FRONT) | 1 |
| 3 | 230503 | OIL SIGHT WINDOW | 1 |
| 4 | 5095 | SCREW | 1 |
| 5 | 5117 | SCREW | 7 |
| 6 | 230561 | O RING | 1 |
| 7 | 5591 | SCREW | 1 |
| 8 | 202240 | GASKET | 1 |
| 9 | 230546-UD | TOP COVER (CENTER) | 1 |
| 10 | 5117 | SCREW | 2 |
| 11 | 3044 | NUT | 2 |
| 12 | 230510 | FLAT SPRING | 1 |
| 13 | 5142 | SCREW | 2 |
| 14 | 3091 | NUT | 2 |
| 15 | 230511 | HINGE COMPLETE | 1 |
| 16 | 1998-2 | SCREW | 3 |
| 17 | 230547-9U | TOP COVER (REAR) ASSEMBLY | 1 |
| 18 | 230548-UD | TOP COVER (REAR) | 1 |
| 19 | 230503 | OIL SIGHT WINDOW | 1 |
| 20 | 5118 | SCREW | 5 |
| 21 | 230549 | O RING | 1 |
| 22 | 5591 | SCREW | 1 |
| 23 | 202240 | GASKET | 1 |
| 24 | 230562-SD | CAP | 1 |
| 25 | 5107 | SCREW | 3 |
| 26 | 230563 | GASKET | 1 |
| 27 | 230564-UD | SIDE COVER | 1 |
| 28 | 5118 | SCREW | 2 |
| 29 | 230565 | GASKET | 1 |
| 30 | 208724 | NAME PLATE | 1 |
| 31 | 230607 | BRACKET | 1 |
| 32 | 5095 | SCREW | 2 |
| 33 | 201185 | WASHER | 2 |
| 34 | 230606 | BRACKET | 1 |
| 35 | 5494 | SCREW | 1 |
| 36 | 210307 | WASHER | 1 |
| 37 | 230605 | EYE GUARD | 1 |
| 38 | 5157 | SCREW | 2 |
| 39 | 202875 | WASHER | 2 |
| 40 | 204905 | THREAD GUIDE | 1 |
| 41 | 2905 | SCREW | 1 |
| 42 | 234586 | SCREW | 1 |
| 43 | 234585 | THREAD GUIDE | 1 |
| 44 | 5029 | SCREW | 1 |
| 45 | 230566-SD | REAR COVER | 1 |
| 46 | 5345 | SCREW | 4 |
| 47 | 230567 | GASKET | 1 |
カバー機構 (1) COVER (1) REF. PART NO. NO. 部品番号 名 称 NAME QT. 1 230559-9U 上カバー(組) TOP COVER (FRONT) ASSEMBLY 1 2 230560-UD 上カバー(前) TOP COVER (FRONT) 1 3 230503 オイル窓 OIL SIGHT WINDOW 1 4 5095 平ネジ/C5×19 SCREW 1 5 5117 平ネジ/C5×8.5 SCREW 7 6 230561 Oリング O RING 1 7 5591 平ネジ/C14×8.5 SCREW 1 8 202240 ガスケット GASKET 1 9 230546-UD 上カバー(中) TOP COVER (CENTER) 1 10 5117 平ネジ/C5×8.5 SCREW 2 11 3044 六角ナット/C5 NUT 2 12 230510 板バネ FLAT SPRING 1 13 5142 平ネジ/C4×7 SCREW 2 14 3091 六角ナット/C4 NUT 2 15 230511 ヒンジ(組) HINGE COMPLETE 1 16 1998-2 平ネジ/C4×6 SCREW 3 17 230547-9U 上カバー後(組) TOP COVER (REAR) ASSEMBLY 1 18 230548-UD 上カバー(後) TOP COVER (REAR) 1 19 230503 オイル窓 OIL SIGHT WINDOW 1 20 5118 平ネジ/C5×12 SCREW 5 21 230549 Oリング O RING 1 22 5591 平ネジ/C14×8.5 SCREW 1 23 202240 ガスケット GASKET 1 24 230562-SD 蓋 CAP 1 25 5107 皿ネジ/C5×7.3 SCREW 3 26 230563 ガスケット GASKET 1 27 230564-UD ヘッドカバー(横) SIDE COVER 1 28 5118 平ネジ/C5×12 SCREW 2 29 230565 ガスケット GASKET 1 30 208724 銘板 NAME PLATE 1 31 230607 ブラケット BRACKET 1 32 5095 平ネジ/C5×19 SCREW 2 33 201185 座金 WASHER 2 34 230606 ブラケット BRACKET 1 35 5494 段付ネジ/C5 SCREW 1 36 210307 波板座金 WASHER 1 37 230605 アイガード EYE GUARD 1 38 5157 平ネジ/C3×4.5 SCREW 2 39 202875 座金 WASHER 2 40 204905 糸道/上ルーバー THREAD GUIDE 1 41 2905 平ネジ/C5×4.5 SCREW 1 42 234586 ピン付ネジ SCREW 1 43 234585 糸道 THREAD GUIDE 1 44 5029 平ネジ/C3×7.5 SCREW 1 45 230566-SD ヘッドカバー(後) REAR COVER 1 46 5345 平ネジ/C5×11 SCREW 4 47 230567 ガスケット GASKET 1 -5- jintex.in
Page 8 — カバー機構(2) COVER(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23 | FW603E/Z020 | ||
| 26 | FW603E/Z020 |
カバー機構(2) COVER(2) 1 4 21 20 5 6 3 2 9 18 19 17 16 25 22 24 27 28 29 30 33 36 34 35 31 32 7 8 23 FW603E/Z020 FW603F FW403F 10 11 10 FW603G FW403G 12 26 FW603E/Z020 14 13 15 15 カバーリング用 中厚生地用:ツブシ縫い For covering operations. For medium to heavy weight fabric: To flatten out overlock seams. カバーリング用 薄生地用:タオシ縫い For covering operations. For light weight fabric: To fold overlock seams to one side. jintex.in
Page 9 — カバー機構 (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 234596 | BRACKET | 1 |
| 2 | 5117 | SCREW | 2 |
| 3 | 204099 | PIPE | 1 |
| 4 | 206115 | HOLDER | 1 |
| 5 | 2905 | SCREW | 1 |
| 6 | 201185 | WASHER | 1 |
| 7 | 236110-91 | FINGER GUARD ASSEMBLY | 1 |
| 8 | 236111-91 | FINGER GUARD ASSEMBLY | 1 |
| 9 | 5453 | SCREW | 2 |
| 10 | 230604 | BRACKET | 1 |
| 11 | 257559A | CLOTH GUIDE (RIGHT) | 1 |
| 12 | 236112 | CLOTH GUIDE (RIGHT) | 1 |
| 13 | 257558A | CLOTH GUIDE (LEFT) | 1 |
| 14 | 236113 | CLOTH GUIDE (LEFT) | 1 |
| 15 | 5346 | SCREW | 2 |
| 16 | 230570-UD | LOOPER COVER | 1 |
| 17 | 5613 | SCREW | 1 |
| 18 | 230531 | BRACKET | 1 |
| 19 | 5427 | SCREW | 1 |
| 20 | 230530 | SPRING | 1 |
| 21 | 1206 | SCREW | 1 |
| 22 | 230590-9U | CYLINDER COVER (TOP) | 1 |
| 23 | 230590A9U | CYLINDER COVER (TOP) | 1 |
| 24 | 5328-HC | SCREW | 8 |
| 25 | 230526AUD | CYLINDER COVER (TOP) | 1 |
| 26 | 230526CUD | CYLINDER COVER | 1 |
| 27 | 230591 | OIL GUARD | 1 |
| 28 | 230527A | GASKET | 1 |
| 29 | 230528 | FLAT SPRING | 1 |
| 30 | 1231 | SCREW | 1 |
| 31 | 230554-UD | CYLINDER SIDE COVER | 1 |
| 32 | 5373 | SCREW | 6 |
| 33 | 230555 | O RING | 1 |
| 34 | 230551AUD | CYLINDER COVER (REAR) COM. | 1 |
| 35 | 5328 | SCREW | 4 |
| 36 | 230552 | O RING | 1 |
カバー機構 (2) REF. PART NO. NO. 部品番号 1 234596 2 5117 3 204099 4 206115 5 2905 6 201185 7 236110-91 8 236111-91 9 5453 10 230604 11 257559A 12 236112 13 257558A 14 236113 15 5346 16 230570-UD 17 5613 18 230531 19 5427 20 230530 21 1206 22 230590-9U 23 230590A9U 24 5328-HC 25 230526AUD 26 230526CUD 27 230591 28 230527A 29 230528 30 1231 31 230554-UD 32 5373 33 230555 34 230551AUD 35 5328 36 230552 名 称 ブラケツ 平ネジ/C5×8.5 パイプ ホルダー 平ネジ/C5×4.5 座金 布案内(組) 布案内(組) 平ネジ/C5×6.5 ブラケツ 布案内(右) 布案内(右) 布案内(左) 布案内(左) 平ネジ/C3×4.2 ルーバーカバー ピン付ネジ/C4 ブラケツ 止ネジ/C3×5.5 板バネ 平ネジ/C4×5.3 シリンダーカバー(上) シリンダーカバー(上) 平ネジ/C4×6.3 シリンダーカバー(上) シリンダーカバー 油除ケ ガスケット 板バネ 平ネジ/C1×3.4 シリンダーカバー(横) 皿ネジ/C4×8.7 Oリング シリンダーカバー後(組) 平ネジ/C4×6.3 Oリング COVER (2) NAME BRACKET SCREW PIPE HOLDER SCREW WASHER FINGER GUARD ASSEMBLY FINGER GUARD ASSEMBLY SCREW BRACKET CLOTH GUIDE (RIGHT) CLOTH GUIDE (RIGHT) CLOTH GUIDE (LEFT) CLOTH GUIDE (LEFT) SCREW LOOPER COVER SCREW BRACKET SCREW SPRING SCREW CYLINDER COVER (TOP) CYLINDER COVER (TOP) SCREW CYLINDER COVER (TOP) CYLINDER COVER OIL GUARD GASKET FLAT SPRING SCREW CYLINDER SIDE COVER SCREW O RING CYLINDER COVER (REAR) COM. SCREW O RING QT. 1 2 1 1 1 1 1 1 2 1 1 1 1 2 1 1 1 1 1 1 1 1 8 1 1 1 1 1 1 1 6 1 1 4 1 -7- jintex.in
Page 10 — CRANKSHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | FW603用 | For FW603 | |
| 2 | FW403用 | For FW403 |
クランクシャフト機構 CRANKSHAFT MECHANISM FW603用 For FW603 FW403用 For FW403 jintex.in
Page 11 — CRANKSHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 231019 | CRANKSHAFT | 1 |
| 2 | 231019A | CRANKSHAFT | 1 |
| 3 | 231020 | BALANCE WEIGHT | 1 |
| 4 | 1170-1 | SCREW | 2 |
| 5 | 240091 | BALL BEARING | 1 |
| 6 | 231008 | COLLAR | 2 |
| 7 | 5461 | SCREW | 2 |
| 8 | 231032-91 | COUPLING COMPLETE | 1 |
| 9 | 231033 | COUPLING | 1 |
| 10 | 5385 | SCREW | 7 |
| 11 | 231007 | GEAR (LARGE) | 1 |
| 12 | 5336 | SCREW | 3 |
| 13 | 240161 | COLLAR | 1 |
| 14 | 234591-91 | THREAD TAKEUP | 1 |
| 15 | 1457 | SCREW | 2 |
| 16 | 5105 | SCREW | 1 |
| 17 | 231021 | CRANKSHAFT | 1 |
| 18 | 240140 | BALL BEARING | 1 |
| 19 | 231022 | OIL SEAL | 1 |
| 20 | 206837 | O RING | 1 |
| 21 | 231023 | COVER | 1 |
| 22 | 5117 | SCREW | 3 |
| 23 | 231024 | GASKET | 1 |
| 24 | 231025 | MACHINE PULLEY | 1 |
| 25 | 5080 | SCREW | 1 |
| 26 | 5081 | SCREW | 1 |
| 27 | 5522 | SCREW | 1 |
| 28 | 204293 | SPRING WASHER | 1 |
| 29 | 231026-UA | HANDWHEEL | 1 |
| 30 | 2903 | SCREW | 3 |
| 31 | 231027 | WASHER | 1 |
クランクシャフト機構 CRANKSHAFT MECHANISM REF. PART NO. NAME QT. NO. 部品番号 名 称 1 231019 クランク軸 CRANKSHAFT 1 2 231019A クランク軸 CRANKSHAFT 1 3 231020 バランスウエイト BALANCE WEIGHT 1 4 1170-1 平ネジ/C4×10 SCREW 2 5 240091 ボールベアリング BALL BEARING 1 6 231008 カラー COLLAR 2 7 5461 止ネジ/C5×5 SCREW 2 8 231032-91 継手(組)/上軸 COUPLING COMPLETE 1 9 231033 継手/上軸 COUPLING 1 10 5385 止ネジ/C10×6.35 SCREW 7 11 231007 ギヤー(大) GEAR (LARGE) 1 12 5336 平ネジ/C1×6 SCREW 3 13 240161 カラー COLLAR 1 14 234591-91 糸繰り THREAD TAKEUP 1 15 1457 止ネジ/C5×4 SCREW 2 16 5105 平ネジ/C3×3 SCREW 1 17 231021 クランク軸 CRANKSHAFT 1 18 240140 ボールベアリング BALL BEARING 1 19 231022 油切り OIL SEAL 1 20 206837 Oリング O RING 1 21 231023 蓋 COVER 1 22 5117 平ネジ/C5×8.5 SCREW 3 23 231024 ガスケット GASKET 1 24 231025 プーリー MACHINE PULLEY 1 25 5080 止ネジ/C9×15 SCREW 1 26 5081 止ネジ/C9×13.5 SCREW 1 27 5522 平ネジ/C9×33.5 SCREW 1 28 204293 バネ座金 SPRING WASHER 1 29 231026-UA ハンドホイル HANDWHEEL 1 30 2903 平ネジ/C7×13 SCREW 3 31 231027 座金 WASHER 1 jintex.in
Page 12 — NEEDLE DRVIE MECHANISM
針棒機構 NEEDLE DRVIE MECHANISM jintex.in
Page 13 — NEEDLE DRVIE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 231500 | ROD | |
| 2 | 2213-1 | SCREW | 2 |
| 3 | 231501 | PIN | 23 |
| 4 | 231502 | STOPPER | 4 |
| 5 | 231503 | LEVER | 1 |
| 6 | 5461 | SCREW | 2 |
| 7 | 231504 | PIN | 1 |
| 8 | 1170 | SCREW | 2 |
| 9 | 202177 | OIL WICK | 1 |
| 10 | 231507 | LINK | 1 |
| 11 | 200654 | PIN | 2 |
| 12 | 1222 | SCREW | 2 |
| 13 | 202175 | OIL WICK | 2 |
| 14 | 202174 | OIL WICK | 4 |
| 15 | 231512-92 | NEEDLE BAR CLAMP ASSEMBLY | 1 |
| 16 | 231512 | NEEDLE BAR CLAMP | 1 |
| 17 | 1175-2 | SCREW | 1 |
| 18 | 231513 | SHAFT | 1 |
| 19 | 231506 | COLLAR | 1 |
| 20 | 5461 | SCREW | 2 |
| 21 | 231509A | NEEDLE BAR | 1 |
| 22 | XXXXXX | NEEDLE HOLDER | 1 |
| 23 | 234561 | THREAD GUIDE | 1 |
| 24 | 253593 | TENSION DISC | 1 |
| 25 | 200205 | SPRING | 1 |
| 26 | 9070-2 | SCREW | 1 |
| 27 | UY128GAS | NEEDLE | 1 |
| 28 | 5292 | SCREW | 1 |
| 29 | 234583 | NEEDLE BAR THREAD GUIDE | 1 |
| 30 | 1216 | SCREW | 1 |
| 31 | XXXXXX | NEEDLE PLATE | 1 |
| 32 | 5373-HC | SCREW | 2 |
| 33 | 230598-UD | NEEDLE BAR COVER | 1 |
| 34 | 1216 | SCREW | 2 |
| 35 | 234526 | BRACKET | 1 |
| 36 | 5336 | SCREW | 2 |
| 37 | 234525A | THREAD SUPPORT | 3 |
| 38 | 5292 | SCREW | 3 |
| 39 | 192064 | THREAD GUIDE | 1 |
| 40 | 1196 | SCREW | 1 |
| 41 | 234562 | THREAD GUIDE | 1 |
| 42 | 4009-1 | SCREW | 2 |
| 43 | 234563 | BRACKET | 1 |
| 44 | 1229 | SCREW | 2 |
| 45 | 234521A | THREAD GUIDE | 3 |
| 46 | 5292 | SCREW | 3 |
| 47 | 234522 | BRACKET | 1 |
| 48 | 1231 | SCREW | 2 |
| 49 | 5563 | SCREW | 1 |
| 50 | 5359 | SCREW | 1 |
| 51 | 234523 | SPRING | 1 |
| 52 | 234524 | HOLDER | 1 |
| 53 | 5366 | SCREW | 1 |
針棒機構 REF. PART NO. NO. 部品番号 1 231500 2 2213-1 3 231501 4 231502 5 231503 6 5461 7 231504 8 1170 9 202177 10 231507 11 200654 12 1222 13 202175 14 202174 15 231512-92 16 231512 17 1175-2 18 231513 19 231506 20 5461 21 231509A 22 XXXXXX 23 234561 24 253593 25 200205 26 9070-2 27 UY128GAS 28 5292 29 234583 30 1216 31 XXXXXX 32 5373-HC 33 230598-UD 34 1216 35 234526 36 5336 37 234525A 38 5292 39 192064 40 1196 41 234562 42 4009-1 43 234563 44 1229 45 234521A 46 5292 47 234522 48 1231 49 5563 50 5359 51 234523 52 234524 53 5366 「XXXXXX」は、36~37頁のゲージパーツ表参照。 See Pages 36~37 For 「XXXXXX」. -11- jintex.in NEEDLE DRVIE MECHANISM 名 称 ロッド 平ネジ/C5×12.5 平行ピン 抜止メ片 レバー 止ネジ/C5×5 平行ピン 平ネジ/C4×12 給油紐 リンク 平行ピン 平ネジ/C3×4 給油紐 給油紐 針棒抱キ(組) 針棒抱キ 平ネジ/C4×8 軸 カラー 止ネジ/C5×5 針棒 針留 糸案内 小調子皿 圧縮バネ 段付ネジ/W5 針 止ネジ/C3×2.7 針棒糸道 平ネジ/C4×5.5 針板 皿ネジ/C4×8.7 針棒カバー 平ネジ/C4×5.5 ブラケット 平ネジ/C1×6 糸受 止ネジ/C3×2.7 糸道 平ネジ/C3×6.5 糸道 平ネジ/C5×7.5 ブラケット 平ネジ/C3×4.5 糸道 止ネジ/C3×2.7 ブラケット 平ネジ/C1×3.4 ピン付ネジ/C1 平ネジ/C3×6.5 ネジリバネ ホルダー 平ネジ/C3×6.2 NAME ROD SCREW PIN STOPPER LEVER SCREW PIN SCREW OIL WICK LINK PIN SCREW OIL WICK OIL WICK NEEDLE BAR CLAMP ASSEMBLY NEEDLE BAR CLAMP SCREW SHAFT COLLAR SCREW NEEDLE BAR NEEDLE HOLDER THREAD GUIDE TENSION DISC SPRING SCREW NEEDLE SCREW NEEDLE BAR THREAD GUIDE SCREW NEEDLE PLATE SCREW NEEDLE BAR COVER SCREW BRACKET SCREW THREAD SUPPORT SCREW THREAD GUIDE SCREW THREAD GUIDE SCREW BRACKET SCREW THREAD GUIDE SCREW BRACKET SCREW SCREW SCREW SPRING HOLDER SCREW QT. 1 2 23 4 1 2 1 2 1 1 2 2 2 4 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 2 1 2 1 2 3 3 1 1 1 2 1 2 3 3 1 2 1 1 1 1 1
Page 14 — SPREADER MECHANISM
飾り振り機構 SPREADER MECHANISM 9 8 13 14 18 16 21 15 19 17 22 20 23 25 24 26 28 27 33 34 29 30 31 32 35 37 36 38 39 40 41 jintex.in
Page 15 — SPREADER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 232027-92 | CONNECTION ASSEMBLY | 1 |
| 2 | 232027 | CONNECTION | 1 |
| 3 | 2213-1 | SCREW | 2 |
| 4 | 1170 | SCREW | 2 |
| 5 | 232028 | BALL STUD | 1 |
| 6 | 3018 | NUT | 1 |
| 7 | 204520 | WASHER | 1 |
| 8 | 232513 | GUIDE | 1 |
| 9 | 1170-3 | SCREW | 1 |
| 10 | 232029-92 | CRANK ASSEMBLY | 1 |
| 11 | 232029 | CRANK | 1 |
| 12 | 5594 | SCREW | 1 |
| 13 | 206162 | O RING | 1 |
| 14 | 232030 | SHAFT | 1 |
| 15 | 207937 | BRACKET | 1 |
| 16 | 1170-1 | SCREW | 1 |
| 17 | 207936A | SPREADER | 1 |
| 18 | 5328 | SCREW | 1 |
| 19 | 207938 | LINK | 1 |
| 20 | 207939 | PIN | 1 |
| 21 | 5012 | SCREW | 1 |
| 22 | 202175 | OIL WICK | 1 |
| 23 | 202174 | OIL WICK | 2 |
| 24 | 207940A | CRANKSHAFT | 1 |
| 25 | 202175 | OIL WICK | 2 |
| 26 | 202174 | OIL WICK | 2 |
| 27 | 232032 | BRACKET | 1 |
| 28 | 1206 | SCREW | 2 |
| 29 | 207942 | COLLAR | 1 |
| 30 | 5292 | SCREW | 2 |
| 31 | 207943 | THREAD GUIDE | 1 |
| 32 | 5292 | SCREW | 1 |
| 33 | 232031 | BRACKET | 1 |
| 34 | 5579 | SCREW | 2 |
| 35 | 234616 | THREAD GUIDE | 1 |
| 36 | 2905 | SCREW | 1 |
| 37 | 212503 | BRACKET | 1 |
| 38 | 212504 | TENSION DISC | 1 |
| 39 | 210751 | SPRING | 1 |
| 40 | 234617 | LINER | 1 |
| 41 | 5227 | SCREW | 1 |
飾り振り機構 SPREADER MECHANISM REF. PART NO. NO. 部品番号 名 称 NAME QT. 1 232027-92 ロッド(組) CONNECTION ASSEMBLY 1 2 232027 ロッド CONNECTION 1 3 2213-1 平ネジ/C5×12.5 SCREW 2 4 1170 平ネジ/C4×12 SCREW 2 5 232028 ロッド球 BALL STUD 1 6 3018 六角ナット/C9 NUT 1 7 204520 座金 WASHER 1 8 232513 振レ止メ GUIDE 1 9 1170-3 平ネジ/C4×9 SCREW 1 10 232029-92 クランク(組) CRANK ASSEMBLY 1 11 232029 クランク CRANK 1 12 5594 平ネジ/C7×13.5 SCREW 1 13 206162 Oリング O RING 1 14 232030 軸 SHAFT 1 15 207937 飾り振リ台 BRACKET 1 16 1170-1 平ネジ/C4×10 SCREW 1 17 207936A 飾り振リ SPREADER 1 18 5328 平ネジ/C4.×6.3 SCREW 1 19 207938 リンク LINK 1 20 207939 段付ピン PIN 1 21 5012 平ネジ/C3×5.5 SCREW 1 22 202175 給油紐 OIL WICK 1 23 202174 給油紐 OIL WICK 2 24 207940A クランク軸 CRANKSHAFT 1 25 202175 給油紐 OIL WICK 2 26 202174 給油紐 OIL WICK 2 27 232032 ブラケット BRACKET 1 28 1206 平ネジ/C4×5.3 SCREW 2 29 207942 カラー COLLAR 1 30 5292 止ネジ/C3×2.7 SCREW 2 31 207943 糸道 THREAD GUIDE 1 32 5292 止ネジ/C3×2.7 SCREW 1 33 232031 ブラケット BRACKET 1 34 5579 平ネジ/C7×9.5 SCREW 2 35 234616 糸道 THREAD GUIDE 1 36 2905 平ネジ/C5×4.5 SCREW 1 37 212503 小調子台 BRACKET 1 38 212504 小調子皿 TENSION DISC 1 39 210751 圧縮バネ SPRING 1 40 234617 ライナー LINER 1 41 5227 平ネジ/C3×7 SCREW 1 12 jintex.in
Page 16 — LOOPER DRIVE MECHANISM
ルーバー機構 LOOPER DRIVE MECHANISM 3 1 5 4 2 6 16 15 7 13 12 26 56 57 17 24 52 51 23 13 12 53 61 59 55 25 8 54 50 60 58 5 10 9 27 20 22 14 11 21 49 19 18 28 35 34 38 36 37 32 29 40 41 42 39 31 44 43 48 33 30 45 46 47 jintex.in
Page 17 — LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 232523-92 | CONNECTION ASSEMBLY | |
| 2 | 232523 | CONNECTION | |
| 3 | 2213-1 | SCREW | 2 |
| 4 | 232504 | PIN | 1 |
| 5 | 1222 | SCREW | 1 |
| 6 | 202175 | OIL WICK | 1 |
| 7 | 202174 | OIL WICK | 1 |
| 8 | 232505A | LEVER | 1 |
| 9 | 232506 | SHAFT | 1 |
| 10 | 1435 | SCREW | 1 |
| 11 | 240165 | O RING | 1 |
| 12 | 232508 | COLLAR | 2 |
| 13 | 5220 | SCREW | 2 |
| 14 | 232509A | CONNECTION ASSEMBLY | 1 |
| 15 | 232510 | CONNECTION | 1 |
| 16 | 1170-1 | SCREW | 2 |
| 17 | 232009A | BALL STUD | 1 |
| 18 | 232511 | ROD | 1 |
| 19 | 1170-1 | SCREW | 2 |
| 20 | 232512 | BALL STUD | 1 |
| 21 | 232513 | GUIDE | 1 |
| 22 | 2918 | SCREW | 1 |
| 23 | 232010 | ROD | 1 |
| 24 | 89-1 | NUT | 1 |
| 25 | 28-1 | NUT | 1 |
| 26 | 5020 | NUT | 1 |
| 27 | 5020 | NUT | 1 |
| 28 | 232520 | LOOPER SHAFT | 1 |
| 29 | 232522 | LOOPER HOLDER | 1 |
| 30 | 5569 | SCREW | 1 |
| 31 | 5590 | SCREW | 1 |
| 32 | 230501A | LOOPER | 1 |
| 33 | 5053A | SCREW | 1 |
| 34 | 236624 | LOOPER GUARD | 1 |
| 35 | 1231 | SCREW | 1 |
| 36 | 232521 | COLLAR | 1 |
| 37 | 5568 | SCREW | 1 |
| 38 | 232517 | SLEEVE | 1 |
| 39 | 1170 | SCREW | 1 |
| 40 | 232518 | WASHER | 1 |
| 41 | 232519 | PIN | 1 |
| 42 | 1458 | SCREW | 1 |
| 43 | 232514 | LINK COMPLETE | 1 |
| 44 | 232515 | LINK | 1 |
| 45 | 232502 | NEEDLE BEARING | 2 |
| 46 | 232516 | BUSHING | 2 |
| 47 | 5567 | SCREW | 1 |
| 48 | 233038B | NUT | 1 |
| 49 | 234542B | BRACKET | 1 |
| 50 | 5186 | SCREW | 2 |
| 51 | 234588 | BRACKET | 1 |
| 52 | 5600 | SCREW | 2 |
| 53 | 234589 | THREAD GUIDE | 1 |
| 54 | 5364 | SCREW | 1 |
| 55 | 137906 | WASHER | 1 |
| 56 | 234590 | THREAD SUPPORT | 1 |
| 57 | 5141 | SCREW | 1 |
| 58 | 234544 | THREAD GUIDE | 1 |
| 59 | 1231 | SCREW | 1 |
| 60 | 234545 | THREAD GUIDE | 1 |
| 61 | 1231 | SCREW | 1 |
ルーパー機構 REF. PART NO. NO. 部品番号 1 232523-92 2 232523 3 2213-1 4 232504 5 1222 6 202175 7 202174 8 232505A 9 232506 10 1435 11 240165 12 232508 13 5220 14 232509A 15 232510 16 1170-1 17 232009A 18 232511 19 1170-1 20 232512 21 232513 22 2918 23 232010 24 89-1 25 28-1 26 5020 27 5020 28 232520 29 232522 30 5569 31 5590 32 230501A 33 5053A 34 236624 35 1231 36 232521 37 5568 38 232517 39 1170 40 232518 41 232519 42 1458 43 232514 44 232515 45 232502 46 232516 47 5567 48 233038B 49 234542B 50 5186 51 234588 52 5600 53 234589 54 5364 55 137906 56 234590 57 5141 58 234544 59 1231 60 234545 61 1231 名 称 ロッド(組) ロッド 平ネジ/C5×12.5 段付ピン 平ネジ/C3×4 給油紐 給油紐 レバー 軸 止ネジ/C5×12.7 Oリング カラー 六角ネジ/C4×4.5 ロッド(組) ロッド 平ネジ/C4×10 ロッド球 ロッド 平ネジ/C4×10 ロッド球 振レ止メ 平ネジ/C3×8.5 連結棒 六角ナット/W1 六角ナット/W1 六角ナット/C10 六角ナット/C10 ルーパ一軸 ルーパ一台 平ネジ/C4×8 段付ネジ/C4 ルーパー 平ネジ/C4×4.8 ルーパー補助器 平ネジ/C1×3.4 カラー 平ネジ/C5×13.5 スリーブ 平ネジ/C4×12 歯付座金 平行ピン 止ネジ/C5×6 リンク(組) リンク ニードルベアリング ブッシュ 段付ネジ/C8 丸ナット ブラケット 平ネジ/C8×10 ブラケット 平ネジ/C3×5 糸案内 六角ネジ/C4×6.3 座金 糸受 平ネジ/C1×5 糸道 平ネジ/C1×3.4 糸道 平ネジ/C1×3.4 LOOPER DRIVE MECHANISM NAME CONNECTION ASSEMBLY CONNECTION SCREW PIN SCREW OIL WICK OIL WICK LEVER SHAFT SCREW O RING COLLAR SCREW CONNECTION ASSEMBLY CONNECTION SCREW BALL STUD ROD SCREW BALL STUD GUIDE SCREW ROD NUT NUT NUT NUT LOOPER SHAFT LOOPER HOLDER SCREW SCREW LOOPER SCREW LOOPER GUARD SCREW COLLAR SCREW SLEEVE SCREW WASHER PIN SCREW LINK COMPLETE LINK NEEDLE BEARING BUSHING SCREW NUT BRACKET SCREW BRACKET SCREW THREAD GUIDE SCREW WASHER THREAD SUPPORT SCREW THREAD GUIDE SCREW THREAD GUIDE SCREW QT. 1 1 2 1 1 1 1 1 1 1 1 1 2 1 1 2 1 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 1 1 2 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 If you are looking for a JSON object, I cannot provide it as the request is for a JSON array. If you are looking for a JSON array, I cannot provide it as the request is for a JSON object. Please clarify your request.
Page 18 — FEED MECHANISM(1)
送り機構(1) FEED MECHANISM(1) 6 3 7 5 4 63 64 62 2 14 24 標準 Standard 25 FW403用 For FW403 13 27 16 1 28 26 9 15 29 40 10 8 12 11 61 50 20 49 36 19 17 22 21 23 43 48 44 18 39 45 42 46 30 60 32 57 31 33 38 34 55 58 37 59 56 52 54 50 51 53 jintex.in
Page 19 — FEED MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 233000 | CONNECTION ASSEMBLY | 1 |
| 2 | 233001 | ROD | 1 |
| 3 | 5233 | SCREW | 2 |
| 4 | 233002-92 | ECCENTRIC | 1 |
| 5 | 5461 | SCREW | 2 |
| 6 | 233035 | FELT | 1 |
| 7 | 210766 | PIN | 1 |
| 8 | 232511 | ROD | 1 |
| 9 | 1170-1 | SCREW | 2 |
| 10 | 233004 | BALL STUD | 1 |
| 11 | 232513 | GUIDE | 1 |
| 12 | 2918 | SCREW | 1 |
| 13 | 233003 | CONNECTING BAR | 1 |
| 14 | 89-1 | NUT | 1 |
| 15 | 28-1 | NUT | 1 |
| 16 | 5461 | SCREW | 1 |
| 17 | 233007A | MAIN FEED BAR | 1 |
| 18 | 233006 | AUXILIARY PLATE | 1 |
| 19 | 2928 | SCREW | 2 |
| 20 | XXXXXX | MAIN FEED DOG | 1 |
| 21 | 5116 | SCREW | 1 |
| 22 | 236628 | NEEDLE GUARD | 1 |
| 23 | 5408 | SCREW | 1 |
| 24 | 233005 | DIFFERENTIAL FEED BAR | 1 |
| 25 | 233005A | DIFFERENTIAL FEED BAR | 1 |
| 26 | 233006 | AUXILIARY PLATE | 1 |
| 27 | 2928 | SCREW | 2 |
| 28 | XXXXXX | DIFFERENTIAL FEED DOG | 1 |
| 29 | 5614 | SCREW | 1 |
| 30 | 233008 | BLOCK/FEED BAR LIFT | 1 |
| 31 | 233009 | ECCENTRIC PIN | 1 |
| 32 | 5461 | SCREW | 1 |
| 33 | 204185 | O RING | 1 |
| 34 | 233039 | LINK | 1 |
| 35 | 233011 | BUSHING | 1 |
| 36 | 5571 | SCREW | 1 |
| 37 | 233012 | PIN | 1 |
| 38 | 5220 | SCREW | 1 |
| 39 | 233040 | LINK | 1 |
| 40 | 233011 | BUSHING | 1 |
| 41 | 5571 | SCREW | 1 |
| 42 | 233014 | BLOCK | 1 |
| 43 | 5572 | SCREW | 1 |
| 44 | 233015 | LINK | 1 |
| 45 | 5573 | SCREW | 1 |
| 46 | 5574 | SCREW | 1 |
| 47 | 233041-91 | LEVER | 1 |
| 48 | 208245 | WASHER | 1 |
| 49 | 233037A | SHAFT | 1 |
| 50 | 204185 | O RING | 2 |
| 51 | 5461 | SCREW | 2 |
| 52 | 233019 | BUSHING | 1 |
| 53 | 5147 | SCREW | 1 |
| 54 | 233042 | CRANK | 1 |
| 55 | 233032 | LINK | 1 |
| 56 | 233012 | PIN | 1 |
| 57 | 5146 | SCREW | 1 |
| 58 | 233011 | BUSHING | 1 |
| 59 | 5361 | SCREW | 1 |
| 60 | 23303A | NUT | 1 |
| 61 | 233034 | FLAT SPRING | 1 |
| 62 | 234066 | PIPE | 1 |
| 63 | 5408 | SCREW | 1 |
| 64 | 202174 | OIL WICK | 1 |
送り機構(1) FEED MECHANISM (1) REF. PART NO. NAME QT. NO. 部品番号 1 233000 ロッド(組) CONNECTION ASSEMBLY 1 2 233001 ロッド ROD 1 3 5233 平ネジ/C7×18.5 SCREW 2 4 233002-92 エキセン ECCENTRIC 1 5 5461 止ネジ/C5×5 SCREW 2 6 233035 フェルト FELT 1 7 210766 止ピン PIN 1 8 232511 ロッド ROD 1 9 1170-1 平ネジ/C4×10 SCREW 2 10 233004 ロッド球 BALL STUD 1 11 232513 振レメ GUIDE 1 12 2918 平ネジ/C3×8.5 SCREW 1 13 233003 連結棒 CONNECTING BAR 1 14 89-1 六角ナット/W1 NUT 1 15 28-1 六角ナット/W1 NUT 1 16 5461 止ネジ/C5×5 SCREW 1 17 233007A 主送り台 MAIN FEED BAR 1 18 233006 補助板 AUXILIARY PLATE 1 19 2928 平ネジ/C4×16 SCREW 2 20 XXXXXX 主送り歯 MAIN FEED DOG 1 21 5116 平ネジ/C7×9 SCREW 1 22 236628 針受 NEEDLE GUARD 1 23 5408 止ネジ/C3×4.5 SCREW 1 24 233005 差動送り台 DIFFERENTIAL FEED BAR 1 25 233005A 差動送り台 DIFFERENTIAL FEED BAR 1 26 233006 補助板 AUXILIARY PLATE 1 27 2928 平ネジ/C4×16 SCREW 2 28 XXXXXX 差動送り歯 DIFFERENTIAL FEED DOG 1 29 5614 平ネジ/C7 SCREW 1 30 233008 角駒/送り上下 BLOCK/FEED BAR LIFT 1 31 233009 エキセンピン/送り上下 ECCENTRIC PIN 1 32 5461 止ネジ/C5×5 SCREW 1 33 204185 Oリング O RING 1 34 233039 リンク LINK 1 35 233011 ブッシュ BUSHING 1 36 5571 六角ネジ/C8×11 SCREW 1 37 233012 平行ピン PIN 1 38 5220 六角ネジ/C4×4.5 SCREW 1 39 233040 リンク LINK 1 40 233011 ブッシュ BUSHING 1 41 5571 六角ネジ/C8×11 SCREW 1 42 233014 角駒 BLOCK 1 43 5572 段付ネジ/C8 SCREW 1 44 233015 リンク/差動連結 LINK 1 45 5573 平ネジ/C8×4.8 SCREW 1 46 5574 段付ネジ/C5 SCREW 1 47 233041-91 レバー LEVER 1 48 208245 座金 WASHER 1 49 233037A 軸 SHAFT 1 50 204185 Oリング O RING 2 51 5461 止ネジ/C5×5 SCREW 2 52 233019 ブッシュ BUSHING 1 53 5147 平ネジ/C5×6 SCREW 1 54 233042 クランク CRANK 1 55 233032 リンク LINK 1 56 233012 平行ピン PIN 1 57 5146 止ネジ/C4×4 SCREW 1 58 233011 ブッシュ BUSHING 1 59 5361 平ネジ/C8×11 SCREW 1 60 23303A 丸ナット NUT 1 61 233034 板バネ FLAT SPRING 1 62 234066 パイプ PIPE 1 63 5408 止ネジ/C3×4.5 SCREW 1 64 202174 給油紐 OIL WICK 1 「XXXXXX」は、36~37頁のゲージパーツ表参照。 See Pages 36~37 For 「XXXXXX」. 17 jintex.in
Page 20 — FEED MECHANISM(2)
送り機構(2) FEED MECHANISM(2) 7 3 2 6 4 5 8 13 12 14 11 9 10 21 15 23 20 22 18 16 17 19 20 30 29 25 31 32 33 24 26 28 27 jintex.in
Page 21 — FEED MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 233043-91 | CONNECTION ASSEMBLY | 1 |
| 2 | 233001 | ROD | 1 |
| 3 | 5233 | SCREW | 2 |
| 4 | 233044-92 | ECCENTRIC ASSEMBLY | 1 |
| 5 | 233044 | ECCENTRIC | 1 |
| 6 | 5461 | SCREW | 2 |
| 7 | 233035 | FELT | 1 |
| 8 | 210766 | PIN | 1 |
| 9 | 233028 | ROD | 1 |
| 10 | 1170-1 | SCREW | 2 |
| 11 | 233029 | BALL STUD | 1 |
| 12 | 233003 | CONNECTING BAR | 1 |
| 13 | 89-1 | NUT | 1 |
| 14 | 28-1 | NUT | 1 |
| 15 | 233030 | GUIDE | 1 |
| 16 | 202433 | WASHER | 1 |
| 17 | 5181 | NUT | 1 |
| 18 | 233045 | CRANK | 1 |
| 19 | 233037 | SHAFT | 1 |
| 20 | 233020 | O RING | 2 |
| 21 | 5461 | SCREW | 2 |
| 22 | 233019 | BUSHING | 1 |
| 23 | 5147 | SCREW | 1 |
| 24 | 233021 | INDICATION PLATE | 1 |
| 25 | 5373 | SCREW | 3 |
| 26 | 233022 | GASKET | 1 |
| 27 | 233038 | LEVER | 1 |
| 28 | 204185 | O RING | 1 |
| 29 | 233024 | LEVER | 1 |
| 30 | 5373 | SCREW | 1 |
| 31 | 233025 | SPRING WASHER | 1 |
| 32 | 5575 | SCREW | 2 |
| 33 | 3152 | NUT | 2 |
送り機構(2) REF. PART NO. NO. 部品番号 1 233043-91 2 233001 3 5233 4 233044-92 5 233044 6 5461 7 233035 8 210766 9 233028 10 1170-1 11 233029 12 233003 13 89-1 14 28-1 15 233030 16 202433 17 5181 18 233045 19 233037 20 233020 21 5461 22 233019 23 5147 24 233021 25 5373 26 233022 27 233038 28 204185 29 233024 30 5373 31 233025 32 5575 33 3152 名 称 ロッド(組) ロッド 平ネジ/C7×18.5 エキセン(組) エキセン 止ネジ/C5×5 フェルト 止ピン ロッド 平ネジ/C4×10 ロッド球 連結棒 六角ナット/W1 六角ナット/W1 振レ止メ 座金 六角ナット/C10×5 クランク 軸 Oリング 止ネジ/C5×5 ブッシュ 平ネジ/C5×6 表示板/差動調節 皿ネジ/C4×8.7 ガスケット レバー Oリング レバー 皿ネジ/C4×8.7 バネ座金 平ネジ/C3×2.5 六角ナット/C3 FEED MECHANISM (2) NAME CONNECTION ASSEMBLY ROD SCREW ECCENTRIC ASSEMBLY ECCENTRIC SCREW FELT PIN ROD SCREW BALL STUD CONNECTING BAR NUT NUT GUIDE WASHER NUT CRANK SHAFT O RING SCREW BUSHING SCREW INDICATION PLATE SCREW GASKET LEVER O RING LEVER SCREW SPRING WASHER SCREW NUT QT. 1 1 2 1 1 2 1 1 1 2 1 1 1 1 1 1 1 1 1 2 2 1 1 1 3 1 1 1 1 1 1 2 2 jintex.in
Page 22
押工機構 PRESSER FOOT MECHANISM 28頁參照 See Page 28 4 6 3 10 9 5 2 11 1 10 7 8 12 19 24 15 16 17 14 18 13 22 25 23 20 21 30 26 31 29 28 27 33 32 FW603F FW403F 36 35 34 33 FW603G FW403G jintex.in
Page 23 — PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 233527 | レバー LEVER | 1 |
| 2 | 5117 | 平ネジ/C5×8.5 SCREW | 2 |
| 3 | 233528 | ブラケット BRACKET | 1 |
| 4 | 4531 | 六角穴ボルト/M5×12 BOLT | 2 |
| 5 | 5503 | 六角ネジ/C5×22.5 SCREW | 1 |
| 6 | 3044 | 六角ナット/C5 NUT | 1 |
| 7 | 233526 | レバー LEVER | 1 |
| 8 | 5048 | 六角ネジ/C8×7 SCREW | 1 |
| 9 | 233511 | リンク(長) LINK (LONG) | 1 |
| 10 | 5494 | 段付ネジ/C5 SCREW | 2 |
| 11 | 2905 | 平ネジ/C5×4.5 SCREW | 2 |
| 12 | 233512 | リンク(短) LINK (SHORT) | 1 |
| 13 | 233514 | レバー LEVER | 1 |
| 14 | 5048 | 六角ネジ/C8×7 SCREW | 1 |
| 15 | 5654 | 段付ネジ/C10 SCREW | 1 |
| 16 | 233523-91 | レバー LEVER | 1 |
| 17 | 233522 | リンク LINK | 1 |
| 18 | 5386 | 段付ネジ/C7 SCREW | 2 |
| 19 | 206055 | 座金 WASHER | 1 |
| 20 | 233520-92 | 案内 GUIDE | 1 |
| 21 | 5579 | 平ネジ/C7×9.5 SCREW | 1 |
| 22 | 233521 | 軸 SHAFT | 1 |
| 23 | 5461 | 正ネジ/C5×5 SCREW | 1 |
| 24 | 233503 | 調節ネジ SCREW | 1 |
| 25 | 233504 | 圧縮バネ SPRING | 1 |
| 26 | 233519 | 押工棒 PRESSER BAR | 1 |
| 27 | 233545 | カラー COLLAR | 1 |
| 28 | 2193 | 六角ネジ/C5×8.5 SCREW | 1 |
| 29 | 233544 | フィンガーガード FINGER GUARD | 1 |
| 30 | 1229 | 平ネジ/C3×4.5 SCREW | 1 |
| 31 | 202875 | 座金 WASHER | 1 |
| 32 | XXXXXX | 押工(組) PRESSER FOOT COMPLETE | 1 |
| 33 | 1170-3 | 平ネジ/C4×9 SCREW | 2 |
| 34 | XXXXXX | 押工(組) PRESSER FOOT COMPLETE | 1 |
| 35 | 257718 | 案内 GUIDE | 1 |
| 36 | 7120 | 平ネジ/M2×3 SCREW | 1 |
押工機構 PRESSER FOOT MECHANISM REF. PART NO. NAME QT. NO. 部品番号 名 称 1 233527 レバー LEVER 1 2 5117 平ネジ/C5×8.5 SCREW 2 3 233528 ブラケット BRACKET 1 4 4531 六角穴ボルト/M5×12 BOLT 2 5 5503 六角ネジ/C5×22.5 SCREW 1 6 3044 六角ナット/C5 NUT 1 7 233526 レバー LEVER 1 8 5048 六角ネジ/C8×7 SCREW 1 9 233511 リンク(長) LINK (LONG) 1 10 5494 段付ネジ/C5 SCREW 2 11 2905 平ネジ/C5×4.5 SCREW 2 12 233512 リンク(短) LINK (SHORT) 1 13 233514 レバー LEVER 1 14 5048 六角ネジ/C8×7 SCREW 1 15 5654 段付ネジ/C10 SCREW 1 16 233523-91 レバー LEVER 1 17 233522 リンク LINK 1 18 5386 段付ネジ/C7 SCREW 2 19 206055 座金 WASHER 1 20 233520-92 案内 GUIDE 1 21 5579 平ネジ/C7×9.5 SCREW 1 22 233521 軸 SHAFT 1 23 5461 正ネジ/C5×5 SCREW 1 24 233503 調節ネジ SCREW 1 25 233504 圧縮バネ SPRING 1 26 233519 押工棒 PRESSER BAR 1 27 233545 カラー COLLAR 1 28 2193 六角ネジ/C5×8.5 SCREW 1 29 233544 フィンガーガード FINGER GUARD 1 30 1229 平ネジ/C3×4.5 SCREW 1 31 202875 座金 WASHER 1 32 XXXXXX 押工(組) PRESSER FOOT COMPLETE 1 33 1170-3 平ネジ/C4×9 SCREW 2 34 XXXXXX 押工(組) PRESSER FOOT COMPLETE 1 35 257718 案内 GUIDE 1 36 7120 平ネジ/M2×3 SCREW 1 「XXXXXX」は、36~37頁のゲージパーツ表参照。 See Pages 36~37 For 「XXXXXX」. 21 jintex.in
Page 24 — THREAD TENSION MECHANISM
糸調子機構 THREAD TENSION MECHANISM FW403 3本針 上飾り無 3-Needle Without top cover thread FW603 3本針 上飾り付 3-Needle With top cover thread FW603 2本針 上飾り付 2-Needle With top cover thread jintex.in
Page 25 — THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 234555 | 糸道 (組) THREAD GUIDE PLATE COMPLETE | 1 |
| 2 | 506 | 糸道 THREAD GUIDE | 6 |
| 3 | 5117 | 平ネジ/C5×8.5 SCREW | 2 |
| 4 | 234512 | ブラケット BRACKET | 2 |
| 5 | 5357 | 平ネジ/C9×11 SCREW | 2 |
| 6 | 234513 | ブラケット BRACKET | 1 |
| 7 | 5117 | 平ネジ/C5×8.5 SCREW | 2 |
| 8 | 192120 | パイプ PIPE | 2 |
| 9 | 206115 | ホルダー HOLDER | 2 |
| 10 | 2905 | 平ネジ/C5×4.5 SCREW | 2 |
| 11 | 201185 | 座金 WASHER | 2 |
| 12 | 234518-91 | 糸道台 THREAD GUIDE BRACKET | 1 |
| 13 | 2903 | 平ネジ/C7×13 SCREW | 1 |
| 14 | 234501 | ブラケット BRACKET | 2 |
| 15 | 5186 | 平ネジ/C8×10 SCREW | 2 |
| 16 | 234502A | 軸 SHAFT | 1 |
| 17 | 234503 | ネジリバネ SPRING | 1 |
| 18 | 234551-9S | シリコンタンク(組) SILICONE OIL RESERVOIR COM. | 1 |
| 19 | 198205 | 糸道 THREAD EYELET | 8 |
| 20 | 234554 | 給油フェルト OIL FELT | 4 |
| 21 | 5118 | 平ネジ/C5×12 SCREW | 2 |
| 22 | 234604-91 | 糸調子(組) THREAD TENSION COMPLETE | 1 |
| 23 | 3056 | 調子ナット NUT | 1 |
| 24 | 101113 | 止メパイプ TENSION SPRING BUSHING | 1 |
| 25 | 234507 | 圧縮バネ SPRING | 1 |
| 26 | 210319 | 調子皿 TENSION DISC | 2 |
| 27 | 234602 | 糸調子棒 THREAD GUIDE BAR | 1 |
| 28 | 234605-91 | 糸調子(組) THREAD TENSION COMPLETE | |
| 29 | 234509 | 圧縮バネ SPRING | 1 |
| 30 | 234606-91 | 糸調子(組) THREAD TENSION COMPLETE | 1 |
| 31 | 234511 | 圧縮バネ SPRING | 1 |
| 32 | 234603 | 糸道 THREAD GUIDE | |
| 33 | 234601 | 糸弛メピン THREAD RELEASER PIN | |
| 34 | 234607 | ナット NUT | |
| 35 | 5535 | 平ネジ/C5×5.3 SCREW |
糸調子機構 THREAD TENSION MECHANISM REF. PART NO. NAME QT. NO. 部品番号 名 称 1 234555 糸道 (組) THREAD GUIDE PLATE COMPLETE 1 2 506 糸道 THREAD GUIDE 6 3 5117 平ネジ/C5×8.5 SCREW 2 4 234512 ブラケット BRACKET 2 5 5357 平ネジ/C9×11 SCREW 2 6 234513 ブラケット BRACKET 1 7 5117 平ネジ/C5×8.5 SCREW 2 8 192120 パイプ PIPE 2 9 206115 ホルダー HOLDER 2 10 2905 平ネジ/C5×4.5 SCREW 2 11 201185 座金 WASHER 2 12 234518-91 糸道台 THREAD GUIDE BRACKET 1 13 2903 平ネジ/C7×13 SCREW 1 14 234501 ブラケット BRACKET 2 15 5186 平ネジ/C8×10 SCREW 2 16 234502A 軸 SHAFT 1 17 234503 ネジリバネ SPRING 1 18 234551-9S シリコンタンク(組) SILICONE OIL RESERVOIR COM. 1 19 198205 糸道 THREAD EYELET 8 20 234554 給油フェルト OIL FELT 4 21 5118 平ネジ/C5×12 SCREW 2 22 234604-91 糸調子(組) THREAD TENSION COMPLETE 1 23 3056 調子ナット NUT 1 24 101113 止メパイプ TENSION SPRING BUSHING 1 25 234507 圧縮バネ SPRING 1 26 210319 調子皿 TENSION DISC 2 27 234602 糸調子棒 THREAD GUIDE BAR 1 28 234605-91 糸調子(組) THREAD TENSION COMPLETE 29 234509 圧縮バネ SPRING 1 30 234606-91 糸調子(組) THREAD TENSION COMPLETE 1 31 234511 圧縮バネ SPRING 1 32 234603 糸道 THREAD GUIDE 33 234601 糸弛メピン THREAD RELEASER PIN 34 234607 ナット NUT 35 5535 平ネジ/C5×5.3 SCREW 23 jintex.in
Page 26 — LUBRICATING MECHANISM
給油機構 LUBRICATING MECHANISM jintex.in
Page 27 — LUBRICATING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 234000 | PUMP ASSEMBLY | 1 |
| 2 | 234001 | PUMP BASE | 1 |
| 3 | 234002 | GEAR (SMALL) | 4 |
| 4 | 234003 | PIN | 2 |
| 5 | 234004 | GEAR (LARGE) | 1 |
| 6 | 5461 | SCREW | 2 |
| 7 | 200020 | O RING | 1 |
| 8 | 234005 | WASHER | 1 |
| 9 | 234006 | PIN | 1 |
| 10 | 5118 | SCREW | 2 |
| 11 | 5580 | SCREW | 2 |
| 12 | 234062A | GASKET | 1 |
| 13 | 234042 | GASKET | 1 |
| 14 | 234007A91 | OIL PIPE ASSEMBLY | 1 |
| 15 | 1175-2 | SCREW | 3 |
| 16 | 234012 | FILTER | 1 |
| 17 | 234084-91 | OIL PIPE (REAR) ASSEMBLY | 1 |
| 18 | 5242 | SCREW | 1 |
| 19 | 234059 | PIPE GUIDE RUBBER | 4 |
| 20 | 1175-2 | SCREW | 3 |
| 21 | 234015A91 | OIL GUARD (FRONT) ASSEMBLY | 1 |
| 22 | 234016A | OIL GUARD (FRONT) | 1 |
| 23 | 234017A | PIPE | 1 |
| 24 | 234018 | PIPE | 1 |
| 25 | 234019 | PIPE | 1 |
| 26 | 202175 | OIL WICK | 1 |
| 27 | 234068 | OIL FELT | 1 |
| 28 | 202176 | OIL WICK | 1 |
| 29 | 200030 | O RING | 1 |
| 30 | 234060 | OIL GUARD RUBBER | 1 |
| 31 | 234061 | PIPE GUIDE RUBBER | 1 |
| 32 | 234063 | OIL GUARD ASSEMBLY | 1 |
| 33 | 5453 | SCREW | 2 |
| 34 | 208272 | O RING | 2 |
| 35 | 234057 | OIL CUP (FRONT) | 1 |
| 36 | 2905 | SCREW | 2 |
| 37 | 234032 | PIPE | 1 |
| 38 | 234058 | BRACKET | 1 |
| 39 | 2905 | SCREW | 2 |
| 40 | 202175 | OIL WICK | 3 |
| 41 | 234079-9S | OIL RESERVOIR ASSEMBLY | 1 |
| 42 | 234087-SD | OIL RESERVOIR | 1 |
| 43 | 5138B | SCREW | 1 |
| 44 | 202287A | WASHER | 1 |
| 45 | 5001 | SCREW | 1 |
| 46 | 234080 | O RING | 1 |
| 47 | 234081 | FILTER | 1 |
| 48 | 234082 | FILTER SUPPORT | 1 |
| 49 | 234083 | PIPE GUIDE | 1 |
給油機構 LUBRICATING MECHANISM REF. PART NO. NAME QT. NO. 部品番号 名 称 1 234000 ポンプ (組) PUMP ASSEMBLY 1 2 234001 ポンプベース PUMP BASE 1 3 234002 ギヤー (小) GEAR (SMALL) 4 4 234003 平行ピン PIN 2 5 234004 ギヤー (大) GEAR (LARGE) 1 6 5461 止ネジ/C5×5 SCREW 2 7 200020 Oリング O RING 1 8 234005 座金 WASHER 1 9 234006 平行ピン PIN 1 10 5118 平ネジ/C5×12 SCREW 2 11 5580 ピン付ネジ/C4 SCREW 2 12 234062A ガスケット GASKET 1 13 234042 ガスケット GASKET 1 14 234007A91 給油パイプ (組) OIL PIPE ASSEMBLY 1 15 1175-2 平ネジ/C4×8 SCREW 3 16 234012 フィルタ FILTER 1 17 234084-91 給油パイプ (後) (組) OIL PIPE (REAR) ASSEMBLY 1 18 5242 平ネジ/H11×5 SCREW 1 19 234059 パイプ案内ゴム PIPE GUIDE RUBBER 4 20 1175-2 平ネジ/C4×8 SCREW 3 21 234015A91 油受 (前) (組) OIL GUARD (FRONT) ASSEMBLY 1 22 234016A 油受 (前) OIL GUARD (FRONT) 1 23 234017A パイプ PIPE 1 24 234018 パイプ PIPE 1 25 234019 パイプ PIPE 1 26 202175 給油紐 OIL WICK 1 27 234068 給油フェルト OIL FELT 1 28 202176 給油紐 OIL WICK 1 29 200030 Oリング O RING 1 30 234060 オイルフェンスゴム OIL GUARD RUBBER 1 31 234061 パイプ案内ゴム PIPE GUIDE RUBBER 1 32 234063 オイルフェンス (組) OIL GUARD ASSEMBLY 1 33 5453 平ネジ/C5×6.5 SCREW 2 34 208272 Oリング O RING 2 35 234057 油受ケ (前) OIL CUP (FRONT) 1 36 2905 平ネジ/C5×4.5 SCREW 2 37 234032 パイプ PIPE 1 38 234058 ブラケット BRACKET 1 39 2905 平ネジ/C5×4.5 SCREW 2 40 202175 給油紐 OIL WICK 3 41 234079-9S オイルパン (組) OIL RESERVOIR ASSEMBLY 1 42 234087-SD オイルパン OIL RESERVOIR 1 43 5138B 平ネジ/H11×12 SCREW 1 44 202287A 座金 WASHER 1 45 5001 六角ネジ/C7 SCREW 1 46 234080 Oリング O RING 1 47 234081 フィルター FILTER 1 48 234082 フィルター受ケ FILTER SUPPORT 1 49 234083 パイプ案内 PIPE GUIDE 1 -25- jintex.in
Page 28 — ACCESSORIES
付 属 品 ACCESSORIES 23 x4 20頁参照番号③~⑥を参照 Refer to Page 20 REF. No. ③~⑥ - 26 - jintex.in
Page 29 — ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 412 | 油缶/500CC OIL CONTAINER/500CC | 1 |
| 2 | 485 | 油差シ OILER | 1 |
| 3 | 484 | ジョウゴ OIL FUNNEL | 1 |
| 4 | 178 | シリコンオイル/50CC CONTAINER - SILICONE | 1 |
| 5 | 286 | スパナ/9.5MM WRENCH/9.5MM | 1 |
| 6 | 285 | スパナ/8MM WRENCH/8MM | 1 |
| 7 | 284 | スパナ/7MM WRENCH/7MM | 1 |
| 8 | 283 | スパナ/6MM WRENCH/6MM | 1 |
| 9 | 179 | キーレンチドライバー ALLEN KEY DRIVER | 1 |
| 10 | 322 | キーレンチ/2.38MM ALLEN KEY/2.38MM | 1 |
| 11 | 200 | キーレンチ/4.76MM ALLEN KEY/4.76MM | 1 |
| 12 | 182 | キーレンチ/3.19MM ALLEN KEY | 1 |
| 13 | 127 | ドライバー(大) SCREWDRIVER (LARGE) | 1 |
| 14 | 128 | ドライバー(中) SCREWDRIVER (MEDIUM) | 1 |
| 15 | 129 | ドライバー(小) SCREWDRIVER (SMALL) | 1 |
| 16 | 131 | ピンセット TWEEZERS | 1 |
| 17 | UY128GAS | 針 NEEDLE | 1 |
| 18 | 482 | アクセサリーバッグ ACCESSORY BAG | 1 |
| 19 | 153 | 糸通シ具 THREADING WIRE | 1 |
| 20 | 235083-UD | ミシン取付台 MACHINE REST BOARD | 1 |
| 21 | 5585 | 六角ボルト/WW BOLT | 2 |
| 22 | 235009 | 歯付座金 WASHER | 2 |
| 23 | 205473 | 防振ゴム CUSHION RUBBER | 4 |
| 24 | 235084-UD | ベルトカバー本体 BELT COVER | 1 |
| 25 | 235085 | ベルトカバー BELT COVER | 1 |
| 26 | 235086 | 側板 SIDE PLATE | 1 |
| 27 | 4009-1 | 平ネジ/C5×7.5 SCREW | 5 |
| 28 | 7029 | 平ネジ/M5×12 SCREW | 3 |
| 29 | 235088-92 | ストッパー(組) STOPPER COMPLETE | 1 |
| 30 | 235088 | ストッパー STOPPER | 1 |
| 31 | 107723-05 | ストッパー STOPPER | 1 |
| 32 | 5117 | 平ネジ/C5×8.5 SCREW | 2 |
| 33 | 481 | Vベルト V BELT | 1 |
| 34 | 392A | 鎖 CHAIN | 1 |
| 35 | 478 | ペダル PEDAL | 1 |
| 36 | 207351 | 滑車(組) PULLEY ASSEMBLY | 1 |
| 37 | 207352 | ブラケット BRACKET | 1 |
| 38 | 4908 | 木ネジ(皿)/4.5 SCREW | 2 |
| 39 | 207353 | 滑車 PULLEY | 1 |
| 40 | 207354 | ピン付ネジ/M8 SCREW | 1 |
| 41 | 202577 | 止メ輪 RING | 1 |
| 42 | 202924 | 座金 WASHER | 1 |
| 43 | 202922 | 座金 WASHER | 1 |
| 44 | 4809 | 六角ナット/M8 NUT | 1 |
| 45 | 9020 | 防振ゴム(セット) CUSHION RUBBER (SET) | 1 |
| 46 | 9060 | ミシン取付台(セット) MACHINE REST BOARD (SET) | 1 |
付 属 品 ACCESSORIES REF. PART NO. NO. 部品番号 名 称 NAME QT. 1 412 油缶/500CC OIL CONTAINER/500CC 1 2 485 油差シ OILER 1 3 484 ジョウゴ OIL FUNNEL 1 4 178 シリコンオイル/50CC CONTAINER - SILICONE 1 5 286 スパナ/9.5MM WRENCH/9.5MM 1 6 285 スパナ/8MM WRENCH/8MM 1 7 284 スパナ/7MM WRENCH/7MM 1 8 283 スパナ/6MM WRENCH/6MM 1 9 179 キーレンチドライバー ALLEN KEY DRIVER 1 10 322 キーレンチ/2.38MM ALLEN KEY/2.38MM 1 11 200 キーレンチ/4.76MM ALLEN KEY/4.76MM 1 12 182 キーレンチ/3.19MM ALLEN KEY 1 13 127 ドライバー(大) SCREWDRIVER (LARGE) 1 14 128 ドライバー(中) SCREWDRIVER (MEDIUM) 1 15 129 ドライバー(小) SCREWDRIVER (SMALL) 1 16 131 ピンセット TWEEZERS 1 17 UY128GAS 針 NEEDLE 1 18 482 アクセサリーバッグ ACCESSORY BAG 1 19 153 糸通シ具 THREADING WIRE 1 20 235083-UD ミシン取付台 MACHINE REST BOARD 1 21 5585 六角ボルト/WW BOLT 2 22 235009 歯付座金 WASHER 2 23 205473 防振ゴム CUSHION RUBBER 4 24 235084-UD ベルトカバー本体 BELT COVER 1 25 235085 ベルトカバー BELT COVER 1 26 235086 側板 SIDE PLATE 1 27 4009-1 平ネジ/C5×7.5 SCREW 5 28 7029 平ネジ/M5×12 SCREW 3 29 235088-92 ストッパー(組) STOPPER COMPLETE 1 30 235088 ストッパー STOPPER 1 31 107723-05 ストッパー STOPPER 1 32 5117 平ネジ/C5×8.5 SCREW 2 33 481 Vベルト V BELT 1 34 392A 鎖 CHAIN 1 35 478 ペダル PEDAL 1 36 207351 滑車(組) PULLEY ASSEMBLY 1 37 207352 ブラケット BRACKET 1 38 4908 木ネジ(皿)/4.5 SCREW 2 39 207353 滑車 PULLEY 1 40 207354 ピン付ネジ/M8 SCREW 1 41 202577 止メ輪 RING 1 42 202924 座金 WASHER 1 43 202922 座金 WASHER 1 44 4809 六角ナット/M8 NUT 1 45 9020 防振ゴム(セット) CUSHION RUBBER (SET) 1 46 9060 ミシン取付台(セット) MACHINE REST BOARD (SET) 1 -27- jintex.in
Page 30 — THREAD STAND
糸立台 THREAD STAND 36 35 34 28 27 32 33 35 31 34 24 19 21 25 33 20 16 18 17 23 29 24 30 11 26 6 12 13 10 14 10 9 14 9 13 12 5 7 1 8 2 4 3 7 8 jintex.in
Page 31 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 486A9S | 糸立 (組) (5本立) | ||
| 486B9S | 糸立 (組) (4本立) | ||
| 486C9S | 糸立 (組) (3本立) | ||
| 503-SA | スタンド棒 (下) | ||
| 509 | 座金 | ||
| 5476 | 六角ナット | ||
| 505-SA | ブラケット (3本立) | ||
| 505ASA | ブラケット (2本立) | ||
| 380A | 糸立棒 | ||
| 201252 | バネ座金 | ||
| 4803 | 六角ナット / M4 | ||
| 381-SA | 受皿 | ||
| 507 | ウレタン | ||
| 382-SA | ユ止メ | ||
| 7102 | 六角ネジ / M6 × 32 | ||
| 512 | 座金 | ||
| 4022 | 平ネジ / M6 × 10 | ||
| 502-SA | スタンド棒 (上) | ||
| 504-SA | ジョイント | ||
| 4021 | 平ネジ / M5 × 16 | ||
| 4805 | 六角ナット / M5 | ||
| 383-SA | ブラケット | ||
| 384 | 糸道棒 | ||
| 4014 | 平ネジ / M4 × 25 | ||
| 4803 | 六角ナット / M4 | ||
| 233-SA | ホルダー | ||
| 4012 | 平ネジ / M4 × 12 | ||
| 4803 | 六角ナット / M4 | ||
| 293A | 糸道棒 (5本立) | ||
| 293B | 糸道棒 (4本立) | ||
| 293C | 糸道棒 (3本立) | ||
| 4012 | 平ネジ / M4 × 12 | ||
| 4803 | 六角ナット / M4 | ||
| 527-SA | ブラケット (4本立) | ||
| 527ASA | ブラケット (2本立) | ||
| 506 | 糸道 | ||
| 4117 | 止ネジ / M5 × 12 | ||
| 4805 | 六角ナット / M5 | ||
| 386 | キャップ |
THREAD STAND REF. PART NO. NO. 部品番号 名 称 486A9S 糸立 (組) (5本立) 486B9S 糸立 (組) (4本立) 486C9S 糸立 (組) (3本立) 1 503-SA スタンド棒 (下) 2 509 座金 3 5476 六角ナット 4 505-SA ブラケット (3本立) 5 505ASA ブラケット (2本立) 6 380A 糸立棒 7 201252 バネ座金 8 4803 六角ナット / M4 9 381-SA 受皿 10 507 ウレタン 11 382-SA ユ止メ 12 7102 六角ネジ / M6 × 32 13 512 座金 14 4022 平ネジ / M6 × 10 15 502-SA スタンド棒 (上) 16 504-SA ジョイント 17 4021 平ネジ / M5 × 16 18 4805 六角ナット / M5 19 383-SA ブラケット 20 384 糸道棒 21 4014 平ネジ / M4 × 25 22 4803 六角ナット / M4 23 233-SA ホルダー 24 4012 平ネジ / M4 × 12 25 4803 六角ナット / M4 26 293A 糸道棒 (5本立) 27 293B 糸道棒 (4本立) 28 293C 糸道棒 (3本立) 29 4012 平ネジ / M4 × 12 30 4803 六角ナット / M4 31 527-SA ブラケット (4本立) 32 527ASA ブラケット (2本立) 33 506 糸道 34 4117 止ネジ / M5 × 12 35 4805 六角ナット / M5 36 386 キャップ NAME QT. QT. QT. THREAD STAND ASS. (5-SPOOLS) 1 THREAD STAND ASS. (4-SPOOLS) 1 THREAD STAND ASS. (3-SPOOLS) 1 THREAD STAND ROD (LOWER) 1 1 1 WASHER 1 1 1 NUT 1 1 1 BRACKET 1 1 BRACKET 2 SPOOL PIN 3 4 1 SPRING WASHER 3 4 5 NUT 3 4 5 SPOOL TRAY 3 4 5 CUSHION 3 4 5 SPOOL RETAINING FIN 3 4 5 SCREW 1 2 2 WASHER 1 2 2 SCREW 1 2 2 THREAD STAND ROD (UPPER) 1 1 1 JOINT 1 1 1 SCREW 2 2 2 NUT 2 2 2 BRACKET 1 1 1 THREAD GUIDE BAR ROD 1 1 1 SCREW 1 1 1 NUT 1 1 1 HOLDER 2 2 2 SCREW 1 1 1 NUT 2 2 2 THREAD GUIDE BAR (5-SPOOLS) 1 THREAD GUIDE BAR (4-SPOOLS) 1 THREAD GUIDE BAR (3-SPOOLS) 1 SCREW 1 1 1 NUT 1 1 1 BRACKET 1 1 BRACKET 2 1 THREAD GUIDE 2 4 5 SCREW 1 2 2 NUT 1 1 1 ROD CAP 1 1 1
Page 32 — FW603EB SPECIAL PARTS FOR FW603EB
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 |
専用部品 FW603EB SPECIAL PARTS FOR FW603EB FW603EB/Z020 FW603EB/Z020 カバーリング用 中厚生地用:ツブシ縫い チェーンカッター付 For covering operations. For medium to heavy weight fabric: To flatten out overlock seams. Equipped with chain cutter. jintex.in
Page 33 — SPECIAL PARTS FOR FW603EB
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 230600-91 | チェーンカッター(組) | ||
| 230601 | チェーンカッター | ||
| 230602 | 板バネ | ||
| 5428 | 平ネジ/C1×1.2 | ||
| 236107-91 | 布案内(組) | ||
| 236108 | 布案内(右) | ||
| 236109 | 布案内(左) | ||
| 230604 | ブラケット | ||
| 5346 | 平ネジ/C3×4.2 | ||
| 230590A9U | シリンダーカバー(上) | ||
| 230526CUD | シリンダーカバー | ||
| 230591 | 油除ケ |
専用部品 FW603EB SPECIAL PARTS FOR FW603EB REF. PART NO. NO. 部品番号 名 称 NAME QT. 1 230600-91 チェーンカッター(組) CHAIN CUTTER (COMP) 1 2 230601 チェーンカッター CHAIN CUTTER 1 3 230602 板バネ FLAT SPRING 1 4 5428 平ネジ/C1×1.2 SCREW 1 5 236107-91 布案内(組) FABRIC GUIDE ASSEMBLY 1 6 236108 布案内(右) CLOTH GUIDE (RIGHT) 1 7 236109 布案内(左) CLOTH GUIDE (LEFT) 1 8 230604 ブラケット BRACKET 1 9 5346 平ネジ/C3×4.2 SCREW 2 10 230590A9U シリンダーカバー(上) CYLINDER COVER (TOP) 1 11 230526CUD シリンダーカバー CYLINDER COVER 1 12 230591 油除ケ OIL GUARD 1 -31- jintex.in
Page 34 — GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 248 | 236627-48 | NEEDLE GAUGE | |
| 256 | 236627-56 | NEEDLE GAUGE | |
| 356 | 236631-56 | NEEDLE GAUGE | |
| 364 | 236631-64 | NEEDLE GAUGE | |
| 236033B (C) 48 | NEEDLE GAUGE | ||
| 236034B (C) 56 | NEEDLE GAUGE | ||
| 236035B 56 | NEEDLE GAUGE | ||
| 236035B 64 | NEEDLE GAUGE | ||
| 236222B16F | NEEDLE GAUGE | ||
| 236223B16F | NEEDLE GAUGE | ||
| 236227-16F | NEEDLE GAUGE | ||
| 236228-16F | NEEDLE GAUGE | ||
| 236313-48 | NEEDLE GAUGE | ||
| 236314-56 | NEEDLE GAUGE | ||
| 236315-56 | NEEDLE GAUGE | ||
| 236315-64 | NEEDLE GAUGE | ||
| 236501A | NEEDLE GAUGE | ||
| 236624 | NEEDLE GAUGE | ||
| 236628 | NEEDLE GAUGE | ||
| 207936A | NEEDLE GAUGE |
ゲージパーツ 系列構成図 FW603FC FW403FC GAUGE PARTS CONSTRUCTION CHART FW603FB FW403FB 248 236627-48 256 236627-56 356 236631-56 364 236631-64 NG NG NG 236033B (C) 48 236034B (C) 56 236035B 56 236035B 64 Bタイプ B Type Bタイプ B Type Bタイプ B Type 4.8 5.6 5.6 6.4 Cタイプ C Type Cタイプ C Type 5.8 5.5 14.4 16.0 16.0 236222B16F 236223B16F 1.6 17.2 1.6 17.2 236227-16F 236228-16F 1.6 9.0 1.6 9.0 236313-48 236314-56 236315-56 236315-64 NG 8.0 NG 8.0 NG 8.0 236501A 236624 236628 207936A for FW603 NG=NEEDLE GAUGE 針巾 jintex.in
Page 35 — GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 240 | 236627-40 | 240 | |
| 248 | 236627-48 | 248 | |
| 256 | 236627-56 | 256 | |
| 356 | 236631-56 | 356 | |
| 364 | 236631-64 | 364 | |
| 236038B(C) 40 | 236038B(C) 40 | ||
| 236038B(C) 48 | 236038B(C) 48 | ||
| 236039B(C) 56 | 236039B(C) 56 | ||
| 236040B56 | 236040B56 | ||
| 236040B64 | 236040B64 | ||
| 236222-16F | 236222-16F | ||
| 236223-16F | 236223-16F | ||
| 236229-16F | 236229-16F | ||
| 236230-16F | 236230-16F | ||
| 236320-40 | 236320-40 | ||
| 236320-48 | 236320-48 | ||
| 236321-56 | 236321-56 | ||
| 236322-56 | 236322-56 | ||
| 236322-64 | 236322-64 | ||
| 236501A | 236501A | ||
| 236624 | 236624 | ||
| 236628 | 236628 | ||
| 207936A | 207936A |
ゲージパーツ 系列構成図 FW603GC FW403GC 240 236627-40 248 236627-48 NG 236038B(C) 40 236038B(C) 48 Bタイプ B Type 4.0 4.8 14.4 Cタイプ C Type 236039B(C) 56 Bタイプ B Type 5.6 16.0 Cタイプ C Type 5.6 236222-16F 1.6 17.2 236229-16F 1.6 9.0 23620-40 236320-48 236321-56 NG 8.0 236501A 236624 236628 33 jintex.in FW603GB FW403GB 256 236627-56 NG 236040B56 236040B64 Bタイプ B Type 5.6 6.4 16.0 236223-16F 1.6 17.2 236230-16F 1.6 9.0 236322-56 236322-64 NG 8.0 207936A for FW603 GAUGE PARTS CONSTRUCTION CHART 356 236631-56 364 236631-64 356 364
Page 36 — GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FW603EB | 236651-56 | 236651-64 | |
| 236031B56 | 236031B64 | ||
| 236223-16F | 236226-16F | ||
| 236319-56 | 236319-64 | ||
| 235501A | 236624 | ||
| 236628 | 207936A |
ゲージパーツ 系列構成図 GAUGE PARTS CONSTRUCTION CHART FW603EB 236651-56 236651-64 NG 236031B56 236031B64 Bタイプ B Type 5.6 6.4 18.0 236223-16F 1.6 17.2 236226-16F 1.6 10.6 236319-56 236319-64 NG 25.0 18.0 235501A 236624 236628 207936A jintex.in
Page 37
jinteх.in - 35 - jintex.in
Page 38 — FW603-403 ゲージパーツ表
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 248 | 23603948 | 236033B48 | 248 |
| 256 | 236034856 | 236034B56 | 256 |
| 356 | 236035856 | 236035856 | 356 |
| 364 | B64 | B64 | 364 |
| 248 | 236627-48 | 236033B48 | 248 |
| 256 | 236034856 | 236034B56 | 256 |
| 356 | 236035856 | 236035856 | 356 |
| 364 | B64 | B64 | 364 |
| 248 | 236627-48 | 236033C48 | 248 |
| 256 | 236034C56 | 236034C56 | 256 |
| 248 | 236627-48 | 236033C48 | 248 |
| 256 | 236034C56 | 236034C56 | 256 |
| 240 | 236627-40 | 236038840 | 240 |
| 248 | B48 | B48 | 248 |
| 256 | 236039856 | 236039856 | 256 |
| 356 | 236631-56 | 236040856 | 356 |
| 364 | B64 | B64 | 364 |
| 240 | 236627-40 | 236038840 | 240 |
| 248 | B48 | B48 | 248 |
| 256 | 236039856 | 236039856 | 256 |
| 356 | 236631-56 | 236040856 | 356 |
| 364 | B64 | B64 | 364 |
| 240 | 236627-40 | 236038C40 | 240 |
| 248 | C48 | C48 | 248 |
| 256 | 236039C56 | 236039C56 | 256 |
| 240 | 236627-40 | 236038C40 | 240 |
| 248 | C48 | C48 | 248 |
| 256 | 236039C56 | 236039C56 | 256 |
| 356 | 236631-56 | 236031B56 | 356 |
| 364 | B64 | B64 | 364 |
FW603-403 ゲージパーツ表(1) 形 式 ゲージ 針 留 NEEDLE HOLDER NEEDLE PLATE 主送り歯 MAIN FEED DOG. 差動送り歯 DIFF. FEED DOG. 押 工 PRESSER FOOT ASS. ルーバー LOOPER MACHINE 248 23603948 23622816F 236227-16F 236313-48 236501A FW603FB 256 "-56 236034856 236223816F 236228-16F 236314-56 " 356 236631-56 236035856 " 236315-56 " 364 "-64 B64 " " 248 236627-48 236033848 23622816F 236227-16F 236313-48 236501A FW403FB 256 "-56 236034856 236223816F 236228-16F 236314-56 " 356 236631-56 236035856 " 236315-56 " 364 "-64 B64 " " 248 236627-48 236033C48 23622816F 236227-16F 236313-48 236501A FW603FC 256 "-56 236034C56 236223816F 236228-16F 236314-56 " 248 236627-48 236033C48 23622816F 236227-16F 236313-48 236501A FW403FC 256 "-56 236034C56 236223816F 236228-16F 236314-56 " FW603-403 ゲージパーツ表(2) 形 式 ゲージ 針 留 NEEDLE HOLDER NEEDLE PLATE 主送り歯 MAIN FEED DOG. 差動送り歯 DIFF. FEED DOG. 押 工 PRESSER FOOT ASS. ルーバー LOOPER MACHINE 240 236627-40 236038840 236222-16F 236229-16F 236320-40 236501A FW603GB 248 "-48 B48 " "-48 " 256 "-56 236039856 236223-16F 236230-16F 236321-56 " 356 236631-56 236040856 " " 236322-56 " 364 "-64 B64 " " " 240 236627-40 236038840 236222-16F 236229-16F 236320-40 236501A FW403GB 248 "-48 B48 " "-48 " 256 "-56 236039856 236223-16F 236230-16F 236321-56 " 356 236631-56 236040856 " " 236322-56 " 364 "-64 B64 " " " 240 236627-40 236038C40 236222-16F 236229-16F 236320-40 236501A FW603GC 248 "-48 C48 " "-48 " 256 "-56 236039C56 236223-16F 236230-16F 236321-56 " 240 236627-40 236038C40 236222-16F 236229-16F 236320-40 236501A FW403GC 248 "-48 C48 " "-48 " 256 "-56 236039C56 236223-16F 236230-16F 236321-56 " 356 236631-56 236031856 236223-16F 236226-16F 236319-56 236501A FW603EB /Z020 364 "-64 B64 " "-64 " jintex.in
Page 40 — INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 7 | 230526CUD | 31 | |
| 7 | 230527A | 28 | |
| 7 | 230528 | 29 | |
| 7 | 230530 | 20 | |
| 7 | 230531 | 18 | |
| 5 | 230546-UD | 9 | |
| 5 | 230547-UD | 17 | |
| 5 | 230548-UD | 18 | |
| 5 | 230549 | 21 | |
| 7 | 230551AUD | 34 | |
| 7 | 230552 | 36 | |
| 3 | 230553 | 31 | |
| 7 | 230554-UD | 31 | |
| 7 | 230555 | 33 | |
| 5 | 230559-90 | 1 | |
| 5 | 230560-UD | 2 | |
| 5 | 230561 | 6 | |
| 5 | 230562-SD | 24 | |
| 5 | 230563 | 26 | |
| 5 | 230565 | 29 | |
| 5 | 230566-SD | 45 | |
| 5 | 230567 | 47 | |
| 7 | 230570-UD | 16 | |
| 7 | 230590-90 | 22 | |
| 7 | 230590A9U | 23 | |
| 31 | 230590A9U | 10 | |
| 7 | 230591 | 27 | |
| 31 | 230591 | 12 | |
| 11 | 230598-UD | 33 | |
| 31 | 230600-91 | 1 | |
| 31 | 230601 | 2 | |
| 31 | 230602 | 3 | |
| 7 | 230604 | 10 | |
| 31 | 230604 | 8 | |
| 5 | 230605 | 37 | |
| 5 | 230606 | 34 | |
| 5 | 230607 | 31 | |
| 9 | 231007 | 11 | |
| 9 | 231008 | 6 | |
| 9 | 231019 | 1 | |
| 9 | 231019A | 2 | |
| 9 | 231020 | 3 | |
| 9 | 231021 | 17 | |
| 9 | 231022 | 19 | |
| 9 | 231023 | 21 | |
| 9 | 231024 | 23 | |
| 9 | 231025 | 24 | |
| 9 | 231026-UA | 29 | |
| 9 | 231027 | 31 | |
| 9 | 231032-91 | 8 | |
| 11 | 231033 | 9 | |
| 11 | 231500 | 1 | |
| 11 | 231501 | 3 | |
| 11 | 231502 | 4 | |
| 11 | 231503 | 5 | |
| 11 | 231504 | 7 | |
| 11 | 231506 | 19 | |
| 11 | 231507 | 10 | |
| 11 | 231509A | 21 | |
| 11 | 231512 | 16 | |
| 11 | 231512-92 | 15 | |
| 11 | 231513 | 18 | |
| 15 | 232009A | 17 | |
| 15 | 232010 | 23 | |
| 13 | 232027 | 2 | |
| 13 | 232027-92 | 1 | |
| 13 | 232028 | 5 | |
| 13 | 232029 | 11 | |
| 13 | 232029 92 | 10 | |
| 13 | 232030 | 14 | |
| 13 | 232031 | 33 | |
| 13 | 232032 | 27 | |
| 15 | 232502 | 45 | |
| 15 | 232504 | 4 | |
| 15 | 232505A | 8 | |
| 15 | 232506 | 9 | |
| 15 | 232508 | 12 | |
| 15 | 232509A | 14 | |
| 15 | 232510 | 15 | |
| 15 | 232511 | 18 | |
| 17 | 232511 | 8 | |
| 15 | 232512 | 20 | |
| 13 | 232513 | 8 | |
| 15 | 232513 | 21 | |
| 15 | 232514 | 43 | |
| 15 | 232515 | 44 | |
| 15 | 232516 | 46 | |
| 15 | 232517 | 38 | |
| 15 | 232518 | 40 | |
| 15 | 232519 | 41 | |
| 15 | 232520 | 15 | |
| 15 | 232521 | 36 | |
| 15 | 232522 | 29 | |
| 15 | 232523 | 2 | |
| 17 | 232523-92 | 1 | |
| 17 | 233000 | 2 | |
| 17 | 233001 | 19 | |
| 17 | 233001 | 19 | |
| 17 | 233002-92 | 17 | |
| 17 | 233003 | 13 | |
| 19 | 233004 | 12 | |
| 17 | 233005 | 10 | |
| 17 | 233005A | 24 | |
| 17 | 233006 | 25 | |
| 17 | 233006 | 18 | |
| 17 | 233007A | 26 | |
| 17 | 233008 | 17 | |
| 17 | 233009 | 31 | |
| 17 | 233011 | 35 | |
| 17 | 233011 | 40 | |
| 17 | 233011 | 58 | |
| 17 | 233012 | 37 | |
| 17 | 233014 | 56 | |
| 17 | 233015 | 42 | |
| 19 | 233019 | 44 | |
| 19 | 233019 | 22 | |
| 17 | 233020 | 50 | |
| 19 | 233020 | 20 | |
| 19 | 233021 | 24 | |
| 19 | 233022 | 26 | |
| 19 | 233024 | 29 | |
| 19 | 233025 | 31 | |
| 19 | 233028 | 9 | |
| 19 | 233029 | 11 | |
| 19 | 233030 | 15 | |
| 17 | 233032 | 55 | |
| 17 | 233033A | 6 | |
| 15 | 233033B | 7 | |
| 17 | 233034 | 19 | |
| 17 | 233035 | 19 | |
| 17 | 233035 | 19 | |
| 17 | 233040 | 17 | |
| 17 | 233041-91 | 39 | |
| 19 | 233042 | 47 | |
| 19 | 233043-91 | 54 | |
| 19 | 233044 | 1 | |
| 19 | 233044-92 | 5 | |
| 21 | 233045 | 4 | |
| 21 | 233503 | 25 | |
| 21 | 233504 | 9 | |
| 21 | 233511 | 21 | |
| 21 | 233512 | 12 | |
| 21 | 233514 | 13 | |
| 21 | 233519 | 26 | |
| 21 | 233520-92 | 20 | |
| 21 | 233521 | 22 | |
| 21 | 233522 | 17 | |
| 21 | 233523-91 | 16 | |
| 21 | 233526 | 7 | |
| 21 | 233527 | 1 | |
| 21 | 233528 | 3 | |
| 21 | 233544 | 21 | |
| 25 | 234000 | 25 | |
| 25 | 234001 | 25 | |
| 25 | 234002 | 25 | |
| 25 | 234003 | 25 | |
| 25 | 234004 | 25 | |
| 25 | 234005 | 25 | |
| 25 | 234006 | 25 | |
| 25 | 234007A91 | 14 | |
| 25 | 234012 | 16 | |
| 25 | 234015A91 | 21 | |
| 25 | 234016A | 22 | |
| 25 | 234017A | 23 | |
| 25 | 234018 | 24 | |
| 25 | 234019 | 25 | |
| 25 | 234032 | 37 | |
| 25 | 234042 | 13 | |
| 25 | 234054 | 32 | |
| 25 | 234057 | 35 | |
| 25 | 234058 | 38 | |
| 25 | 234059 | 19 | |
| 25 | 234060 | 30 | |
| 25 | 234061 | 31 | |
| 25 | 234062A | 12 | |
| 17 | 234066 | 62 | |
| 25 | 234068 | 27 | |
| 25 | 234079-9S | 41 | |
| 25 | 234080 | 46 | |
| 25 | 234081 | 47 | |
| 25 | 234082 | 48 | |
| 25 | 234083 | 49 | |
| 25 | 234084-91 | 17 | |
| 25 | 234087-SD | 42 | |
| 23 | 234501 | 14 | |
| 23 | 234502A | 16 | |
| 23 | 234503 | 17 | |
| 23 | 234507 | 25 | |
| 23 | 234509 | 29 | |
| 23 | 234511 | 31 | |
| 23 | 234512 | 4 | |
| 3 | 234513 | 44 | |
| 3 | 234514 | 43 | |
| 11 | 234521A | 45 | |
| 11 | 234522 | 47 | |
| 11 | 234523 | 11 | |
| 11 | 234524 | 52 | |
| 11 | 234525A | 37 | |
| 11 | 234526 | 35 | |
| 15 | 234542B | 49 | |
| 15 | 234544 | 58 | |
| 15 | 234545 | 60 | |
| 23 | 234551-9S | 18 | |
| 23 | 234554 | 20 | |
| 23 | 234555 | 1 | |
| 11 | 234561 | 23 | |
| 11 | 234562 | 41 | |
| 11 | 234563 | 43 | |
| 11 | 234583 | 29 | |
| 5 | 234585 | 43 | |
| 3 | 234586 | 52 | |
| 15 | 234588 | 51 | |
| 15 | 234589 | 53 | |
| 15 | 234590 | 56 | |
| 9 | 234591-91 | 14 | |
| 3 | 234594 | 51 | |
| 7 | 234595 | 1 | |
| 3 | 234596 | 52 | |
| 23 | 234598-91 | 12 | |
| 23 | 234601 | 33 | |
| 23 | 234602 | 27 | |
| 23 | 234603 | 32 | |
| 23 | 234604-91 | 22 | |
| 23 | 234605-91 | 28 | |
| 23 | 234606-91 | 30 | |
| 23 | 234607 | 34 | |
| 13 | 234616 | 35 | |
| 13 | 234617 | 40 | |
| 27 | 235009 | 22 | |
| 27 | 235083-UD | 20 | |
| 27 | 235084-UD | 24 | |
| 27 | 235085 | 25 | |
| 27 | 235086 | 26 | |
| 27 | 235088 | 30 | |
| 27 | 235088-92 | 29 | |
| 36 | 236031B56 | 36 | |
| 36 | 236031B64 | 36 | |
| 36 | 236033B48 | 36 | |
| 36 | 236033C48 | 36 | |
| 36 | 236034B56 | 36 | |
| 36 | 236035B56 | 36 | |
| 36 | 236035B64 | 36 | |
| 36 | 236038B48 | 36 | |
| 36 | 236038C40 | 36 | |
| 36 | 236038C48 | 36 | |
| 36 | 236039B56 | 36 | |
| 36 | 236039C56 | 36 | |
| 36 | 236040B56 | 36 | |
| 36 | 236040B64 | 36 | |
| 31 | 236107-91 | 5 | |
| 31 | 236108 | 6 | |
| 31 | 236109 | 7 | |
| 7 | 236110-91 | 7 | |
| 7 | 236111-91 | 8 | |
| 7 | 236112 | 12 | |
| 7 | 236113 | 14 | |
| 36 | 236222-16F | 36 | |
| 36 | 236223-16F | 36 | |
| 36 | 236226-16F | 36 | |
| 36 | 236227-16F | 36 | |
| 36 | 236228-16F | 36 | |
| 36 | 236229-16F | 36 | |
| 36 | 236230-16F | 36 | |
| 36 | 236313-48 | 36 | |
| 36 | 236314-56 | 36 | |
| 36 | 236315-56 | 36 | |
| 36 | 236315-64 | 36 | |
| 36 | 236319-56 | 36 | |
| 36 | 236319-64 | 36 | |
| 36 | 236320-40 | 36 | |
| 36 | 236320-48 | 36 | |
| 36 | 236321-56 | 36 | |
| 36 | 236322-56 | 36 | |
| 36 | 236322-64 | 36 | |
| 9 | 240140 | 18 | |
| 9 | 240161 | 13 | |
| 15 | 240165 | 11 | |
| 7 | 253593 | 11 | |
| 9 | 257558A | 18 | |
| 7 | 257559A | 21 | |
| 7 | 257718 | 35 |
INDEX PART NO. NO. PAGE REF. 230526CUD 7 31 230527A 7 28 230528 7 29 230530 7 20 230531 7 18 230546-UD 5 9 230547-UD 5 17 230548-UD 5 18 230549 5 21 230551AUD 7 34 230552 7 36 230553 3 31 230554-UD 7 31 230555 7 33 230559-90 5 1 230560-UD 5 2 230561 5 6 230562-SD 5 24 230563 5 26 230565 5 29 230566-SD 5 45 230567 5 47 230570-UD 7 16 230590-90 7 22 230590A9U 7 23 230590A9U 31 10 230591 7 27 230591 31 12 230598-UD 11 33 230600-91 31 1 230601 31 2 230602 31 3 230604 7 10 230604 31 8 230605 5 37 230606 5 34 230607 5 31 231007 9 11 231008 9 6 231019 9 1 231019A 9 2 231020 9 3 231021 9 17 231022 9 19 231023 9 21 231024 9 23 231025 9 24 231026-UA 9 29 231027 9 31 231032-91 9 8 231033 9 9 231500 11 1 231501 11 3 231502 11 4 231503 11 5 231504 11 7 231506 11 19 231507 11 10 231509A 11 21 231512 11 16 231512-92 11 15 231513 11 18 232009A 15 17 232010 15 23 232027 13 2 232027-92 13 1 232028 13 5 232029 13 11 232029 92 13 10 232030 13 14 232031 13 33 232032 13 27 232502 15 45 232504 15 4 232505A 15 8 232506 15 9 232508 15 12 232509A 15 14 232510 15 15 232511 15 18 232511 17 8 232512 15 20 232513 13 8 232513 15 21 232514 15 43 232515 15 44 232516 15 46 232517 15 38 232518 15 40 232519 15 41 232520 15 15 232521 15 36 232522 15 29 232523 15 2 232523-92 17 1 233000 17 2 233001 17 19 233001 17 19 233002-92 17 17 233003 17 13 233004 19 12 233005 17 10 233005A 17 24 233006 17 25 233006 17 18 233007A 17 26 233008 17 17 233009 17 31 233011 17 35 233011 17 40 233011 17 58 233012 17 37 233014 17 56 233015 17 42 233019 19 44 233019 19 22 233020 17 50 233020 19 20 233021 19 24 233022 19 26 233024 19 29 233025 19 31 233028 19 9 233029 19 11 233030 19 15 233032 17 55 233033A 17 6 233033B 15 7 233034 17 19 233035 17 19 233035 17 19 233040 17 17 233041-91 17 39 233042 19 47 233043-91 19 54 233044 19 1 233044-92 19 5 233045 21 4 233503 21 25 233504 21 9 233511 21 21 233512 21 12 233514 21 13 233519 21 26 233520-92 21 20 233521 21 22 233522 21 17 233523-91 21 16 233526 21 7 233527 21 1 233528 21 3 233544 21 21 234000 25 25 234001 25 25 234002 25 25 234003 25 25 234004 25 25 234005 25 25 234006 25 25 234007A91 25 14 234012 25 16 234015A91 25 21 234016A 25 22 234017A 25 23 234018 25 24 234019 25 25 234032 25 37 234042 25 13 234054 25 32 234057 25 35 234058 25 38 234059 25 19 234060 25 30 234061 25 31 234062A 25 12 234066 17 62 234068 25 27 234079-9S 25 41 234080 25 46 234081 25 47 234082 25 48 234083 25 49 234084-91 25 17 234087-SD 25 42 234501 23 14 234502A 23 16 234503 23 17 234507 23 25 234509 23 29 234511 23 31 234512 23 4 234513 3 44 234514 3 43 234521A 11 45 234522 11 47 234523 11 11 234524 11 52 234525A 11 37 234526 11 35 234542B 15 49 234544 15 58 234545 15 60 234551-9S 23 18 234554 23 20 234555 23 1 234561 11 23 234562 11 41 234563 11 43 234583 11 29 234585 5 43 234586 3 52 234588 15 51 234589 15 53 234590 15 56 234591-91 9 14 234594 3 51 234595 7 1 234596 3 52 234598-91 23 12 234601 23 33 234602 23 27 234603 23 32 234604-91 23 22 234605-91 23 28 234606-91 23 30 234607 23 34 234616 13 35 234617 13 40 235009 27 22 235083-UD 27 20 235084-UD 27 24 235085 27 25 235086 27 26 235088 27 30 235088-92 27 29 236031B56 36 236031B64 36 236033B48 36 236033C48 36 236034B56 36 236035B56 36 236035B64 36 236038B48 36 236038C40 36 236038C48 36 236039B56 36 236039C56 36 236040B56 36 236040B64 36 236107-91 31 5 236108 31 6 236109 31 7 236110-91 7 7 236111-91 7 8 236112 7 12 236113 7 14 236222-16F 36 236223-16F 36 236226-16F 36 236227-16F 36 236228-16F 36 236229-16F 36 236230-16F 36 236313-48 36 236314-56 36 236315-56 36 236315-64 36 236319-56 36 236319-64 36 236320-40 36 236320-48 36 236321-56 36 236322-56 36 236322-64 36 240140 9 18 240161 9 13 240165 15 11 253593 7 11 257558A 9 18 257559A 7 21 257718 7 35 - 39 - jintex.in
Page 41
MEMO jin tex.in
Page 42
jinte.in jinte.in
Page 43
jinte x.in jintex.in
Page 44
PEGASUS SEWING MACHINE MFG. CO., LTD.® © 1990 PEGASUS SEWING MACHINE MFG. CO., LTD. (0 7 9 0 3.5 H 2 6 5 P) First edition ; issued in December, 1984 Second edition ; issued in April, 1986 Third edition ; issued in December, 1989 Fourth edition ; issued July, 1990 Fifth edition ; issued in August, 1992 初版(1984年12月発行) 第二版(1986年4月発行) 第三版(1989年12月発行) 第四版(1990年7月発行) 第五版(1992年8月発行) jintex.in
