Pegasus M632 / M652 Parts Book (PDF)
Text index — Pegasus M632 / M652
Page 2 — INTRODUCTION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M632-01 | M632-38, -38A | ||
| M632-02 | M632-39, -39A | ||
| M632-03 | M632-48, -48P1, -48P2 | ||
| M632-04 | M632-49 | ||
| M632-05 | M632-70 | ||
| M632-06 | M632-71 | ||
| M632-07 | M632-78 | ||
| M632-08 | M632-79 | ||
| M632-30 | M632-86 | ||
| M632-31 | M632-87 | ||
| M632-32 | M632-88 | ||
| M632-33 | M632-89 | ||
| M632-36 | M632-355 | ||
| M632-37 | |||
| M652-01 | |||
| M652-13 | |||
| M652-16S2 | |||
| M652-17 | |||
| M652-23, -23A | |||
| M652-27 | |||
| M652-51 | |||
| M652-52 | |||
| M652-54 | |||
| M652-55 | |||
| M652-57 | |||
| M652-160 |
Page 5 — アームベッド機構 [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| *01 | 209420A9S | MACHINE FRAME COMPLETE | 01 |
| *02 | 209421A9S | MACHINE FRAME COMPLETE | 01 |
| *03 | 209434-SD | MACHINE ARM (RIGHT) | 01 |
| 04 | 208248 | BUSHING | 01 |
| 05 | 208249 | BUSHING | 01 |
| 06 | 204625A | BUSHING | 01 |
| 07 | 204627A | BUSHING | 01 |
| 08 | 201002 | PIN | 02 |
| 09 | 204251 | GASKET | 01 |
| 10 | 201002 | PIN | 02 |
| *11 | 209418ASD | MACHINE BED | 01 |
| *12 | 209419ASD | MACHINE BED | 01 |
| 13 | 204014 | BUSHING | 01 |
| 14 | 204149 | BUSHING | 01 |
| 15 | 210067 | BUSHING | 01 |
| 16 | 209169A | BUSHING | 01 |
| 17 | 209169 | BUSHING | 01 |
| 18 | 210292 | BUSHING | 01 |
| 19 | 204089 | BUSHING | 01 |
| 20 | 210164 | BUSHING | 01 |
| 21 | 208292 | BUSHING | 01 |
| 22 | 210297 | BUSHING | 01 |
| 23 | 208429 | BUSHING (REAR) | 01 |
| 24 | 208938 | BUSHING (REAR) | 01 |
| 25 | 210124 | BUSHING | 01 |
| 26 | 210125 | BUSHING | 01 |
| 27 | 210296 | BUSHING | 01 |
| 28 | 210297 | BUSHING | 01 |
Page 7 — MACHINE BED FRAME [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 209435-SD | MACHINE ARM (LEFT) | 01 |
| 02 | 005163 | SCREW | 01 |
| 03 | 005237 | SCREW | 01 |
| 04 | 208434 | OIL SHIELD | 01 |
| 05 | 005163 | SCREW | 01 |
| 06 | 005078 | SCREW | 04 |
| 07 | 210005 | COVER PLATE | 01 |
| 08 | 005117 | SCREW | 06 |
| 09 | 209357A | NAME PLATE | 01 |
| 10 | 005332A | SCREW | 02 |
| 11 | 230047A | SERIAL NUMBER PLATE | 01 |
| 12 | 210679 | PIN | 02 |
| 13 | 005332A | SCREW | 02 |
| 14 | 204003 | OIL SIGHT GAUGE | 01 |
| 15 | 209450 | TYPE PLATE | 01 |
| 16 | 210679 | PIN | 02 |
| 17 | 204006 | BED PIN | 04 |
| 18 | 002022 | SCREW | 01 |
Page 9 — カバー機構 [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 209422-SD | TOP COVER | 01 |
| 02 | 208482 | CUSHION RUBBER | 02 |
| 03 | 208481 | O RING | 01 |
| 04 | 005118 | SCREW | 04 |
| 05 | 206457 | OIL SIGHT WINDOW | 01 |
| 06 | 206682 | GASKET | 01 |
| 07 | 208919 | BED PLATE COMPLETE (LEFT) | 01 |
| 08 | 208921 | GASKET | 01 |
| 09 | 004009-1 | SCREW | 07 |
| 10 | 005482 | SCREW | 01 |
| 11 | 208342 | GASKET | 01 |
| 12 | 208341 | BED COVER PLATE (RIGHT) | 01 |
| 13 | 005117 | SCREW | 06 |
| 14 | 204848A | FABRIC GUARD | 01 |
| 15 | 004009-1 | SCREW | 02 |
| 16 | 198192 | CUSHION RUBBER | 01 |
| 17 | 204223 | FLAT SPRING | 01 |
| 18 | 004009-1 | SCREW | 01 |
| 19 | 209426-SD | NEEDLE BAR COVER | 01 |
| 20 | 209426ASD | NEEDLE BAR COVER | 01 |
| 21 | 209449A | NAME PLATE | 01 |
| 22 | 202653 | SCREW | 02 |
| 23 | 209427 | FLAT SPRING | 01 |
| 24 | 001234 | SCREW | 02 |
| 25 | 209448 | BRACKET | 01 |
| 26 | 210307 | WASHER | 02 |
| 27 | 005659 | SCREW | 01 |
| 28 | 209446 | EYE GUARD | 01 |
| 29 | 209447 | EYE GUARD | 01 |
| 30 | 202875 | WASHER | 02 |
| 31 | 005359 | SCREW | 02 |
| 32 | 209432-9U | BELT COVER ASSEMBLY | 01 |
| 33 | 209433-UB | BELT COVER | 01 |
| 34 | 240305 | CUSHION RUBBER | 01 |
| 35 | 002903 | SCREW | 03 |
| 36 | 204681 | SPACER | 01 |
| 37 | 002922 | SCREW | 01 |
| 38 | 209459 | SPACER PLATE | 01 |
| 39 | 005010 | SCREW | 01 |
| 40 | 001216 | SCREW | 01 |
Page 11 — COVER [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208430 | FACE PLATE COMPLETE | 01 |
| 02 | 004009-1 | SCREW | 03 |
| 03 | 208945 | COVER/FEED ECCENTRIC | 01 |
| 04 | 001206 | SCREW | 02 |
| 05 | 204868 | SPACER | 01 |
| 06 | 202286 | SPRING WASHER | 01 |
| 07 | 002902 | SCREW | 01 |
| 08 | 210007 | FEED BAR COVER | 01 |
| 09 | 002905 | SCREW | 02 |
| 10 | 208604 | OIL SHIELD COMPLETE | 01 |
| 11 | 005147 | SCREW | 01 |
| 12 | 208008-UD | HINGE/FRONT COVER | 01 |
| 13 | 005095 | SCREW | 01 |
| 14 | 005137 | NUT | 01 |
| 15 | 137906 | WASHER | 03 |
| 16 | 001189 | SCREW | 03 |
| 17 | 208009 | PIN | 01 |
| 18 | 208401A | FRONT COVER (LEFT) | 01 |
| 19 | 208003A | FRONT COVER (LEFT) | 01 |
| 20 | 209285A | FRONT COVER (LEFT) | 01 |
| 21 | 208005A | FRONT COVER (LEFT) | 01 |
| 22 | 208058A | FRONT COVER (LEFT) | 01 |
| 23 | 200821 | WASHER | 02 |
| 24 | 001175-3 | SCREW | 02 |
| 25 | 208001AUD | FRONT COVER (RIGHT) | 01 |
| 26 | 005146 | SCREW | 02 |
| 27 | 208010 | SPRING | 01 |
| 28 | 200555 | RING | 01 |
Page 13 — COVER (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208610 | CLOTH PLATE COMPLETE | 01 |
| 02 | 210025 | CUSHION | 01 |
| 03 | 204218 | FLAT SPRING | 01 |
| 04 | 200162A | WASHER | 01 |
| 05 | 001216 | SCREW | 02 |
| 06 | 208612 | CLOTH PLATE COMPLETE | 01 |
| 07 | 210025 | CUSHION | 01 |
| 08 | 204218 | FLAT SPRING | 01 |
| 09 | 200162A | WASHER | 01 |
| 10 | 001216 | SCREW | 02 |
| 11 | 208611 | CLOTH PLATE COMPLETE | 01 |
| 12 | 303874 | CLOTH PLATE | 01 |
| 13 | 204744 | BRACKET | 01 |
| 14 | 204743 | SCREW | 01 |
| 15 | 001202 | SCREW | 01 |
| 16 | 202576 | WASHER | 01 |
| 17 | 201139 | COLLAR | 01 |
| 18 | 001457 | SCREW | 02 |
| 19 | 209475-UB | SIDE COVER | 01 |
| 20 | 005182 | SCREW | 01 |
| 21 | 005091 | SCREW | 02 |
| 22 | 209405 | INDICATION PLATE | 01 |
| 23 | 204243 | RUBBER PLUG | 01 |
| 24 | 204242 | RUBBER PLUG | 01 |
| 25 | 005022 | SCREW | 01 |
| 26 | 003044 | NUT | 01 |
| 27 | 005118 | SCREW | 01 |
| 28 | 208741 | STOPPER | 01 |
| 29 | 001732 | SCREW | 01 |
| 30 | 208740 | SPRING | 01 |
| 31 | 208738 | PIN | 01 |
| 32 | 208737 | LEVER | 01 |
| 33 | 201629 | RING | 01 |
| 34 | 204827 | RUBBER PLUG | 01 |
| 35 | 204749 | RUBBER PLUG | 01 |
| 36 | 204749 | RUBBER PLUG | 01 |
| 37 | 209474-UB | SIDE COVER | 01 |
| 38 | 005091 | SCREW | 01 |
| 39 | 209405 | INDICATION PLATE | 01 |
| 40 | 204748 | SPRING | 01 |
| 41 | 204746 | PIN | 01 |
| 42 | 204747 | GUIDE | 01 |
| 43 | 005053 | SCREW | 01 |
| 44 | 001459 | SCREW | 01 |
| 45 | 001435 | SCREW | 01 |
| 46 | 208245 | WASHER | 01 |
| 47 | 204742 | LATCH | 01 |
| 48 | 204745 | SPRING | 01 |
| 49 | 005362 | SCREW | 01 |
Page 15 — CRANKSHAFT DRIVE MECHANISM [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208932AUD | MACHINE PULLEY | 01 |
| 02 | 005080 | SCREW | 01 |
| 03 | 005081 | SCREW | 01 |
| 04 | 204023 | WASHER | 01 |
| 05 | 005549 | SCREW | 01 |
| 06 | 209482 | SPACER | 01 |
| 07 | 005267 | SCREW | 01 |
| 08 | 209481 | COOLING FAN | 01 |
| 09 | 208476 | OIL SEAL COLLAR | 01 |
| 10 | 208272 | O RING | 01 |
| 11 | 208477 | PLATE | 01 |
| 12 | 204022 | GASKET | 01 |
| 13 | 005117 | SCREW | 04 |
| 14 | 204020A | BUSHING | 01 |
| 15 | 204019A | SPACER | 01 |
| 16 | 204018 | SPRING | 01 |
| 17 | 201523A | BALL BEARING | 01 |
| 18 | 204186A | WORM | 01 |
| 19 | 002022 | SCREW | 01 |
| 20 | 204016-92 | BUSHING | 01 |
| 21 | 001170-1 | SCREW | 02 |
| 22 | 005240 | SCREW | 01 |
| 23 | 240102 | WASHER | 01 |
| 24 | 204010 | BUSHING | 01 |
| 25 | 204873 | CRANK SHAFT EXTENSION | 01 |
| 26 | 005361 | SCREW | 01 |
| 27 | 204881 | HOUSING | 01 |
| 28 | 204737 | HOUSING | 01 |
| 29 | 204319 | GASKET | 01 |
| 30 | 001175-2 | SCREW | 04 |
| 31 | 207358 | OIL FELT | 01 |
| 32 | 005304 | SCREW | 01 |
Page 17 — CRANKSHAFT DRIVE MECHANISM [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 209367A91 | CRANKSHAFT ASSEMBLY | 01 |
| 02 | 209367B91 | CRANKSHAFT ASSEMBLY | 01 |
| 03 | 208951 | CRANKSHAFT | 01 |
| 04 | 001459 | SCREW | 02 |
| 05 | 204029-92 | ROD | 01 |
| 06 | 005233 | SCREW | 02 |
| 07 | 204145A92 | ROD | 01 |
| 08 | 005233 | SCREW | 02 |
| 09 | 208346-92 | ROD | 01 |
| 10 | 005376 | SCREW | 04 |
| 11 | 208192-92 | CRANK | 01 |
| 12 | 002022-4 | SCREW | 02 |
| 13 | 208346-92 | ROD | 01 |
| 14 | 005376 | SCREW | 04 |
| 15 | 204048A92 | CRANK | 01 |
| 16 | 204788-92 | CRANK | 01 |
| 17 | 002022-4 | SCREW | 02 |
Page 19 — CRANKSHAFT DRIVE MECHANISM [3]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 209367C91 | CRANKSHAFT ASSEMBLY | 01 |
| 02 | 209367D91 | CRANKSHAFT ASSEMBLY | 01 |
| 03 | 209367E91 | CRANKSHAFT ASSEMBLY | 01 |
| 04 | 208951 | CRANKSHAFT | 01 |
| 05 | 001459 | SCREW | 02 |
| 06 | 204029-92 | ROD | 01 |
| 07 | 005233 | SCREW | 02 |
| 08 | 204145A92 | ROD | 01 |
| 09 | 005233 | SCREW | 02 |
| 10 | 208346-92 | ROD | 01 |
| 11 | 005376 | SCREW | 04 |
| 12 | 204787-92 | CRANK | 01 |
| 13 | 204788-92 | CRANK | 01 |
| 14 | 002022-4 | SCREW | 02 |
| 15 | 208346-92 | ROD | 01 |
| 16 | 005376 | SCREW | 04 |
| 17 | 204048A92 | CRANK | 01 |
| 18 | 204788-92 | CRANK | 01 |
| 19 | 002022-4 | SCREW | 02 |
Page 21 — NEEDLE DRIVE MECHANISM [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 201360B92 | CRANK | 01 |
| 02 | 201441B92 | CRANK | 01 |
| 03 | 005381 | SCREW | 01 |
| 04 | 205495 | PIN | 01 |
| 05 | 005234 | SCREW | 01 |
| 06 | 201117 | COLLAR | 01 |
| 07 | 005328 | SCREW | 02 |
| 08 | 208250 | OIL SEAL | 01 |
| 09 | 208247 | SHAFT | 01 |
| 10 | 208424-92 | CRANK/NEEDLE BAR | 01 |
| 11 | 002022-4 | SCREW | 01 |
| 12 | 005312 | SCREW | 01 |
| 13 | 208425 | LINK/NEEDLE BAR DRIVE | 01 |
| 14 | 202176 | OIL WICK | 02 |
| 15 | 200654 | PIN | 02 |
| 16 | 005292 | SCREW | 01 |
| 17 | 208427-92 | NEEDLE BAR CLAMP | 01 |
| 18 | 001170-3 | SCREW | 01 |
| 19 | 005292 | SCREW | 01 |
| 20 | 208621 | CAP | 01 |
| 21 | 001457 | SCREW | 01 |
| 22 | 200030 | O RING | 01 |
| 23 | 212186 | OIL WICK | 01 |
| 24 | 208617 | OIL FELT | 01 |
| 25 | 208616 | DUST SHIELD | 01 |
| 26 | 005053 | SCREW | 02 |
| 27 | 204623 | NEEDLE BAR COMPLETE | 01 |
| 28 | 003119 | NUT | 01 |
| 29 | XXXXXX | NEEDLE | 01 |
| 30 | 208903 | NEEDLE BAR | 01 |
| 31 | XXXXXX | NEEDLE | 01 |
| 32 | 005292-HU | SCREW | 02 |
| 33 | XXXXXX | NEEDLE | 01 |
| 34 | XXXXXX | NEEDLE HOLDER | 01 |
| 35 | 005292-HU | SCREW | 02 |
| 36 | XXXXXX | NEEDLE | 01 |
| 37 | XXXXXX | NEEDLE HOLDER | 01 |
| 38 | 005292-HU | SCREW | 03 |
| 39 | XXXXXX | NEEDLE | 01 |
| 40 | 208568 | NEEDLE BAR LINK COVER COMPLETE | 01 |
| 41 | 208560 | NEEDLE BAR LINK COVER | 01 |
| 42 | 208561 | OIL FELT | 01 |
| 43 | 208562 | OIL FELT | 01 |
| 44 | 208563 | OIL FELT PLATE | 01 |
| 45 | 208713 | PIN | 02 |
| 46 | 200555 | RING | 02 |
| 47 | 005113 | SCREW | 02 |
Page 23 — NEEDLE DRIVE MECHANISM [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | XXXXXX | NEEDLE PLATE | 01 |
| 02 | 001732-HC | SCREW | 02 |
| 03 | 204783 | BRACKET | 01 |
| 04 | 005227 | SCREW | 01 |
| 05 | 005107 | SCREW | 01 |
| 06 | XXXXXX | NEEDLE GUARD (REAR) | 01 |
| 07 | 005012 | SCREW | 01 |
| 08 | XXXXXX | NEEDLE GUARD (FRONT) | 01 |
| 09 | 005029 | SCREW | 02 |
| 10 | XXXXXX | NEEDLE GUARD (FRONT) | 01 |
| 11 | 005227 | SCREW | 01 |
| 12 | XXXXXX | NEEDLE GUARD (REAR) | 01 |
| 13 | 005010 | SCREW | 01 |
| 14 | 001216 | SCREW | 01 |
| 15 | XXXXXX | NEEDLE PLATE | 01 |
| 16 | 004009-1HC | SCREW | 02 |
| 17 | 204750 | BRACKET/NEEDLE PLATE | 01 |
| 18 | 204630 | PIN | 02 |
| 19 | 005357 | SCREW | 02 |
| 20 | 204631 | KEY | 01 |
| 21 | 005142 | SCREW | 02 |
| 22 | 204636 | BRACKET/NEEDLE DUARD | 01 |
| 23 | 001175-3 | SCREW | 02 |
| 24 | XXXXXX | NEEDLE GUARD (REAR) | 01 |
| 25 | 001206 | SCREW | 01 |
| 26 | XXXXXX | NEEDLE GUARD (FRONT) | 01 |
| 27 | 001206 | SCREW | 01 |
| 28 | 208935 | SUPPORT/NEEDLE PLATE | 01 |
| 29 | 005091 | SCREW | 02 |
| 30 | 204636A | BRACKET/NEEDLE DUARD | 01 |
| 31 | 001175-3 | SCREW | 02 |
| 32 | XXXXXX | MOVABLE NEEDLE GUARD | 01 |
| 33 | 210930 | SPRING WASHER | 01 |
| 34 | 005501 | SCREW | 01 |
Page 25 — UPPER LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 209389-91Y | UPPER LOOPER HOLDER ASSEMBLY | 01 |
| 02 | 204055B92 | CRANK/UPPER LOOPER | 01 |
| 03 | 005239 | SCREW | 01 |
| 04 | 202045 | SPRING WASHER | 01 |
| 05 | 005286 | NUT | 01 |
| 06 | 005084 | SCREW | 01 |
| 07 | 209478-91 | PIN ASSEMBLY | 01 |
| 08 | 208258 | PIN | 01 |
| 09 | 202176 | OIL WICK | 01 |
| 10 | 208976 | UPPER LOOPER HOLDER ASSEMBLY | 01 |
| 11 | 208974 | UPPER LOOPER HOLDER | 01 |
| 12 | 210107 | GUIDE/UPPER LOOPER HOLDER | 01 |
| 13 | 001998-2 | SCREW | 01 |
| 14 | 204274 | OIL WICK | 01 |
| 15 | XXXXXX | UPPER LOOPER | 01 |
| 16 | 208592 | CAP | 01 |
| 17 | 202175 | OIL WICK | 01 |
| 18 | 209250 | HOUSING ASSEMBLY | 01 |
| 19 | 208937 | HOUSING | 01 |
| 20 | 210109 | BUSHING | 01 |
| 21 | 005408 | SCREW | 01 |
| 22 | 001175-2 | SCREW | 02 |
| 23 | 208173 | PLUG | 01 |
| 24 | 210281 | SHAFT/LOWER LOOPER | 01 |
| 25 | 204052A | OIL SEAL | 01 |
| 26 | 204107 | WASHER | 01 |
| 27 | 202286 | SPRING WASHER | 01 |
| 28 | 002193 | SCREW | 01 |
| 29 | 210003 | PLUG | 01 |
| 30 | 201074A | GUIDE | 01 |
| 31 | 202286 | SPRING WASHER | 01 |
| 32 | 005546 | SCREW | 01 |
Page 27 — LOWER LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 204664-91 | LOWER LOOPER HOLDER ASSEMBLY | 01 |
| 02 | 204293 | SPRING WASHER | 01 |
| 03 | 005284 | SCREW | 01 |
| 04 | 209007-91 | LOWER LOOPER HOLDER ASSEMBLY | 01 |
| 05 | 204293 | SPRING WASHER | 01 |
| 06 | 005284 | SCREW | 01 |
| 07 | XXXXXX | LOWER LOOPER | 01 |
| 08 | 001175-3 | SCREW | 01 |
| 09 | 210586 | OIL SEAL | 01 |
| 10 | 210281 | SHAFT/LOWER LOOPER | 01 |
| 11 | 201074A | GUIDE | 01 |
| 12 | 202286 | SPRING WASHER | 01 |
| 13 | 005546 | SCREW | 01 |
| 14 | 240102 | WASHER | 01 |
| 15 | 204107 | WASHER | 01 |
| 16 | 202286 | SPRING WASHER | 01 |
| 17 | 002193 | SCREW | 01 |
Page 29 — FEED MECHANISM [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 204085-92 | CRANK/FEED DRIVE | 01 |
| 02 | 005381 | SCREW | 01 |
| 03 | 205495 | PIN | 01 |
| 04 | 005084 | SCREW | 01 |
| 05 | 204100 | CONNECTION | 01 |
| 06 | 204084 | NEEDLE BEARING | 01 |
| 07 | 210127 | ECCENTRIC/FEED DRIVE | 01 |
| 08 | 005427 | SCREW | 01 |
| 09 | 005292 | SCREW | 01 |
| 10 | 210130 | FLAT SPRING | 01 |
| 11 | 210129 | GUIDE/FEED ECCENTRIC | 01 |
| 12 | 210282A | ECCENTRIC/LOOPER AVOIDING | 01 |
| 13 | 210128A | FEED ECCENTRIC RETAINER | 01 |
| 14 | 005461 | SCREW | 02 |
| 15 | 211802A | ECCENTRIC/FEED REGULATING | 01 |
| 16 | 211804 | STOPPER | 01 |
| 17 | 005437 | SCREW | 01 |
| 18 | 202522 | RING | 01 |
| 19 | 240484 | WASHER | 02 |
| 20 | 200020 | O RING | 02 |
| 21 | 208421 | SPRING | 01 |
| 22 | 209476 | PUSH BUTTON | 01 |
| 23 | 208411 | FEED REGULATING RATCHET | 01 |
| 24 | 208413 | BRACKET | 01 |
| 25 | 208412 | RATCHET | 01 |
| 26 | 005336 | SCREW | 01 |
| 27 | 206781 | PIN | 02 |
| 28 | 208415 | SPRING | 02 |
| 29 | 210136 | RATCHET WHEEL COMPLETE | 01 |
| 30 | 211807 | BRACKET | 01 |
| 31 | 211806 | WHEEL | 01 |
| 32 | 005157 | SCREW | 03 |
| 33 | 005461 | SCREW | 02 |
| 34 | 208944 | SPACER | 01 |
Page 31 — FEED MECHANISM [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 204751 | SHAFT | 01 |
| 02 | 201056 | COLLAR | 01 |
| 03 | 005084 | SCREW | 02 |
| 04 | 208284-92 | CRANK/MAIN FEED | 01 |
| 05 | 005381 | SCREW | 01 |
| 06 | 208285 | SCREW | 01 |
| 07 | 208286 | WASHER | 01 |
| 08 | 005455 | NUT | 01 |
| 09 | 204107 | WASHER | 01 |
| 10 | 004009-1 | SCREW | 01 |
| 11 | 210003 | PLUG | 01 |
| 12 | 204111A | LINK/MAIN FEED | 01 |
| 13 | 204588 | RETAINER | 01 |
| 14 | 204618 | OIL WICK | 01 |
| 15 | 204114 | BUSHING | 01 |
| 16 | 204115 | WASHER | 01 |
| 17 | 005231 | SCREW | 01 |
| 18 | 204122 | LINK/DIFFERENTIAL FEED | 01 |
| 19 | 204115 | WASHER | 02 |
| 20 | 204114 | BUSHING | 01 |
| 21 | 005231 | SCREW | 01 |
| 22 | 204129A | BUSHING | 01 |
| 23 | 002133-1 | SCREW | 01 |
| 24 | 005084 | SCREW | 01 |
| 25 | 204128A | PIN | 01 |
| 26 | 205857 | BLOCK/FEED BAR GUIDE | 01 |
| 27 | 204439A | WASHER | 01 |
| 28 | 005317 | SCREW | 01 |
| 29 | 240162 | PLUG | 01 |
| 30 | 204123A | MAIN FEED BAR | 01 |
| 31 | XXXXXX | MAIN FEED DOG COMPLETE | 01 |
| 32 | 005492 | SCREW | 01 |
| 33 | 001175-2 | SCREW | 01 |
| 34 | 204124 | DIFFERENTIAL FEED BAR | 01 |
| 35 | XXXXXX | DIFFERENTIAL FEED DOG | 01 |
| 36 | 001175-3 | SCREW | 01 |
| 37 | 001189 | SCREW | 01 |
| 38 | 204810 | BLOCK/FEED BAR LIFT | 01 |
| 39 | 208952 | GUIDE (LEFT)/FEED BAR | 01 |
| 40 | 208168 | GASKET | 01 |
| 41 | 005205 | SCREW | 02 |
| 42 | 208108 | GUIDE (RIGHT)/FEED BAR | 01 |
| 43 | 005205 | SCREW | 02 |
| 44 | 208625 | INSERT PLATE | 01 |
| 45 | 005346 | SCREW | 02 |
| 46 | 208109 | OIL SHIELD/FEED BAR GUIDE | 02 |
Page 33 — FEED MECHANISM [3]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208273-91 | REGULATOR COMPLETE/DIFF. FEED | 01 |
| 02 | 208274 | CRANK | 01 |
| 03 | 005381 | SCREW | 01 |
| 04 | 005141 | SCREW | 01 |
| 05 | 208275 | BLOCK | 01 |
| 06 | 208276 | COVER | 01 |
| 07 | 005029 | SCREW | 02 |
| 08 | 204140A | LINK/DIFF. FEED REGULATING | 01 |
| 09 | 005316 | SCREW | 02 |
| 10 | 204139A92 | LEVER/DIFF. FEED REGULATING | 01 |
| 11 | 005381 | SCREW | 01 |
| 12 | 204754A | COLLAR | 01 |
| 13 | 204757 | PIN | 01 |
| 14 | 005084 | SCREW | 01 |
| 15 | 204756 | SPRING | 01 |
| 16 | 204052A | OIL SEAL | 01 |
| 17 | 204752 | SHAFT | 01 |
| 18 | 204755 | LEVER/DIFF. FEED REGULATING | 01 |
| 19 | 204883 | LEVER | 01 |
| 20 | 005118 | SCREW | 01 |
| 21 | 001216 | SCREW | 01 |
| 22 | 204143A | STOPPER | 02 |
| 23 | 204142B | REGULATING PLATE | 01 |
| 24 | 005118 | SCREW | 02 |
| 25 | 202868 | WASHER | 01 |
| 26 | 204870 | THUMB NUT | 01 |
| 27 | 005321A | SCREW | 01 |
Page 35 — KNIFE DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208693 | UPPER KNIFE LEVER | 01 |
| 02 | 204154 | PIN | 01 |
| 03 | 204796 | PIN | 01 |
| 04 | 208402 | UPPER KNIFE CLAMP | 01 |
| 05 | 204638 | UPPER KNIFE CLAMP | 01 |
| 06 | 001175-2 | SCREW | 02 |
| 07 | XXXXXX | UPPER KNIFE | 01 |
| 08 | 005088 | SCREW | 01 |
| 09 | 208235 | WASHER | 01 |
| 10 | 206181B92 | COLLAR | 01 |
| 11 | 005001 | SCREW | 01 |
| 12 | 204147-92 | CRANK/UPPER KNIFE | 01 |
| 13 | 005381 | SCREW | 01 |
| 14 | 204146 | PIN | 01 |
| 15 | 001458 | SCREW | 01 |
| 16 | 210003 | PLUG | 01 |
| 17 | 005260 | NUT | 01 |
| 18 | 200098 | WASHER | 01 |
| 19 | 204159 | STOPPER | 01 |
| 20 | 005117 | SCREW | 01 |
| 21 | 005117 | SCREW | 01 |
| 22 | 204158 | SPRING | 01 |
| 23 | 208404 | LOWER KNIFE HOLDER | 01 |
| 24 | 004009-1 | SCREW | 01 |
| 25 | XXXXXX | LOWER KNIFE | 01 |
| 26 | 204162 | CLAMP STUD/LOWER KNIFE | 01 |
| 27 | 208851 | LOWER KNIFE HOLDER | 01 |
| 28 | 005002 | SCREW | 01 |
| 29 | XXXXXX | LOWER KNIFE | 01 |
| 30 | 210184 | CLAMP/LOWER KNIFE | 01 |
| 31 | 002193 | SCREW | 01 |
| 32 | 204160A | GUIDE/LOWER BAR | 01 |
| 33 | 208096 | GUIDE/LOWER KNIFE HOLDER | 01 |
| 34 | 001175-2 | SCREW | 01 |
Page 37 — PRESSER FOOT MECHANISM [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208526 | PRESSER ARM | 01 |
| 02 | XXXXXX | PRESSER FOOT COMPLETE | 01 |
| 03 | 209472 | FINGER GUARD | 01 |
| 04 | 209471 | FINGER GUARD | 01 |
| 05 | 202451 | CHAIN CUTTER | 01 |
| 06 | 001229 | SCREW | 02 |
| 07 | 208549 | PIN | 01 |
| 08 | 001457-1 | SCREW | 01 |
| 09 | 208534A | SHAFT | 01 |
| 10 | 209455-91 | BUSHING ASSEMBLY | 01 |
| 11 | 002133-1 | SCREW | 01 |
| 12 | 274005 | SPRING | 01 |
| 13 | 209460 | LEVER | 01 |
| 14 | 209454-92 | COLLAR | 01 |
| 15 | 005457 | SCREW | 01 |
| 16 | 274006 | LINK | 01 |
| 17 | 209452 | LEVER/FOOT LIFT | 01 |
| 18 | 209458 | SPRING | 01 |
| 19 | 007060 | SCREW | 01 |
| 20 | 209453 | STOPPER | 01 |
| 21 | 005118 | SCREW | 02 |
| 22 | 005152 | SCREW | 01 |
| 23 | 003044 | NUT | 01 |
| 24 | 208774 | THUMB SCREW | 01 |
| 25 | 208773 | SPRING | 01 |
| 26 | 208537-91 | PRESSER BAR COMPLETE | 01 |
| 27 | 208598 | LEVER/HAND LIFT | 01 |
| 28 | 202647A | PIN | 01 |
| 29 | 208599 | BUSHING | 01 |
| 30 | 005029 | SCREW | 01 |
| 31 | 201395 | SPRING | 01 |
| 32 | 202645 | PLUNGER | 01 |
| 33 | 005271 | SCREW | 01 |
| 34 | 003044 | NUT | 01 |
Page 39 — PRESSER FOOT MECHANISM [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208529 | SPRING | 01 |
| 02 | 002921 | SCREW | 01 |
| 03 | XXXXXX | PRESSER FOOT COMPLETE | 01 |
| 04 | 005328 | SCREW | 01 |
| 05 | 208958-B | SCREW | 01 |
| 06 | 208528-B | SCREW | 01 |
| 07 | 208913 | SPRING | 01 |
| 08 | 005409 | NUT | 01 |
| 09 | 208531 | FABRIC GUARD | 01 |
| 10 | 208532 | PRESSER FOOT FABRIC GUARD | 01 |
| 11 | 005030 | SCREW | 01 |
| 12 | 211906 | SPRING | 01 |
| 13 | 002921 | SCREW | 01 |
| 14 | 211905-92B | BRACKET/PRESSER FOOT | 01 |
| 15 | 005328 | SCREW | 01 |
| 16 | XXXXXX | PRESSER FOOT COMPLETE | 01 |
| 17 | 211919 | PIN | 01 |
| 18 | 211918 | SPRING | 01 |
| 19 | 211920 | PIN | 01 |
| 20 | 003150 | NUT | 01 |
| 21 | 211915A | PRESSER FOOT FINGER | 01 |
| 22 | 211916A | PRESSER FOOT FINGER | 01 |
| 23 | 211917 | BRACKET | 01 |
| 24 | 300248 | WASHER | 01 |
| 25 | 005089 | SCREW | 01 |
| 26 | 208978 | SPRING | 01 |
| 27 | 005291 | SCREW | 01 |
| 28 | XXXXXX | PRESSER FOOT COMPLETE | 01 |
| 29 | 005328 | SCREW | 01 |
| 30 | 208958-B | SCREW | 01 |
| 31 | 208958-B | SCREW | 02 |
| 32 | 204683 | FABRIC GUARD | 01 |
| 33 | 202875 | WASHER | 01 |
| 34 | 005157 | SCREW | 01 |
| 35 | 208547 | REGULATOR | 01 |
| 36 | 002921 | SCREW | 01 |
| 37 | 208525-92B | BRACKET/PRESSER FOOT | 01 |
| 38 | 005328 | SCREW | 01 |
| 39 | XXXXXX | PRESSER FOOT | 01 |
| 40 | 204668 | PRESSER FOOT UNCURLER | 01 |
| 41 | 210584 | UNCURLER | 01 |
| 42 | 211600 | UNCURLER | 01 |
| 43 | 210585 | WASHER | 01 |
| 44 | 005030 | SCREW | 01 |
| 45 | XXXXXX | PRESSER FOOT FINGER | 01 |
| 46 | 201156 | SET PLATE/PRESSER FOOT | 01 |
| 47 | 005089 | SCREW | 01 |
| 48 | 201265B | FABRIC GURAD | 01 |
| 49 | 208735 | FABRIC GURAD | 01 |
| 50 | 001231 | SCREW | 01 |
| 51 | 005089 | SCREW | 01 |
| 52 | 202875 | WASHER | 01 |
| 53 | 212184 | ELASTIC GUIDE (UPPER) | 01 |
| 54 | 212185 | ELASTIC GUIDE (LOWER) | 01 |
| 55 | XXXXXX | is one of the gauge parts. | 01 |
Page 41 — 給油機構 / LUBRICATION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 204194A | PIPE COMPLETE | 01 |
| 02 | 201758 | JOINT SCREW | 01 |
| 03 | 204193 | OIL DISTRIBUTOR | 01 |
| 04 | 208117 | OIL DISTRIBUTOR | 01 |
| 05 | 210214 | PLUG | 02 |
| 06 | 200152 | JOINT SCREW | 01 |
| 07 | 204593 | TROCHOID PUMP ASSEMBLY | 01 |
| 08 | 204187 | WORM WHEEL | 01 |
| 09 | 005060 | SCREW | 02 |
| 10 | 209407 | TROCHOID PUMP | 01 |
| 11 | 005145 | SCREW | 01 |
| 12 | 212978-91 | ROTOR (INSIDE) SHAFT | 01 |
| 13 | 212981 | ROTOR (OUTSIDE) | 01 |
| 14 | 212982A | PLATE | 01 |
| 15 | 005328 | SCREW | 03 |
| 16 | 209410 | CLAMP | 01 |
| 17 | 001170-1 | SCREW | 01 |
| 18 | 003091 | NUT | 01 |
| 19 | 209408 | FILTER (INSIDE) | 01 |
| 20 | 209409 | FILTER (OUTSIDE) | 01 |
| 21 | 204185 | O RING | 01 |
| 22 | 005095 | SCREW | 02 |
| 23 | 209425 | GASKET | 01 |
| 24 | 209423-91 | OIL RESERVOIR ASSEMBLY | 01 |
| 25 | 209424 | OIL RESERVOIR | 01 |
| 26 | 202287A | GASKET | 01 |
| 27 | 005138B | SCREW | 01 |
| 28 | 204806 | WASHER | 04 |
| 29 | 005150B | BOLT | 04 |
Page 43 — 二重環ルーパー機構 [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 210284 | CONNECTION/LOOPER AVOIDING | 01 |
| 02 | 205015 | NEEDLE BEARING | 01 |
| 03 | 210283 | COLLAR | 01 |
| 04 | 005259 | SCREW | 02 |
| 05 | 210285 | PIN | 01 |
| 06 | 208286 | WASHER | 01 |
| 07 | 005455 | NUT | 01 |
| 08 | 210287-92 | CRANK/LOOPER AVOIDING | 01 |
| 09 | 005457 | SCREW | 01 |
| 10 | 205088 | PLUG | 01 |
| 11 | 208025-92 | LINK/LOOPER AVOIDING | 01 |
| 12 | 005385 | SCREW | 02 |
| 13 | 201056 | COLLAR | 01 |
| 14 | 005084 | SCREW | 02 |
| 15 | 201056 | COLLAR | 01 |
| 16 | 005084 | SCREW | 02 |
| 17 | 204874 | SHAFT/LOOPER AVOIDING | 01 |
| 18 | 208027 | BLOCK | 01 |
| 19 | 005292 | SCREW | 01 |
| 20 | 208026 | PIN | 01 |
| 21 | 208029 | COLLAR | 01 |
| 22 | 005084 | SCREW | 01 |
| 23 | 208028 | WASHER | 01 |
| 24 | 208196 | SHAFT/LOOPER DRIVE | 01 |
| 25 | 004802 | NUT | 01 |
| 26 | 210294-92 | CRANK/LOOPER DRIVE | 01 |
| 27 | 204293 | SPRING WASHER | 01 |
| 28 | 005457 | SCREW | 01 |
| 29 | 005084 | SCREW | 01 |
| 30 | 208195 | PIN | 01 |
| 31 | 202176 | OIL WICK | 01 |
| 32 | 208194 | LINK/LOOPER DRIVE | 01 |
| 33 | 208195 | PIN | 01 |
| 34 | 202176 | OIL WICK | 01 |
| 35 | 005328 | SCREW | 02 |
| 36 | 210586 | OIL SEAL | 01 |
| 37 | 204093-92 | CHAINSTITCH LOOPER LEVER | 01 |
| 38 | 204293 | SPRING WASHER | 01 |
| 39 | 005284 | SCREW | 01 |
| 40 | XXXXXX | DOUBLE CHAINSTITCH LOOPER | 01 |
| 41 | 001189 | SCREW | 01 |
| 42 | 204172 | WASHER | 01 |
| 43 | 002922 | SCREW | 01 |
Page 45 — CHAINSTITCH LOOPER MECHANISM [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 204099 | PIPE | 01 |
| 02 | 001457 | SCREW | 01 |
| 03 | 201048A | THREAD EYELET | 01 |
| 04 | 202849 | TENSION GUIDE | 01 |
| 05 | 167072 | TENSION POST | 01 |
| 06 | 208449 | FELT | 01 |
| 07 | 210319 | TENSION DISC | 02 |
| 08 | 167077 | SPRING | 01 |
| 09 | 003056 | NUT | 01 |
| 10 | 167079 | THREAD EYELET | 01 |
| 11 | 005091 | SCREW | 01 |
| 12 | 204097A | BRACKET | 01 |
| 13 | 005113 | SCREW | 01 |
| 14 | 204096 | THREAD TAKEUP | 01 |
| 15 | 004009-1 | SCREW | 01 |
| 16 | 204324 | THREAD EYELET | 02 |
| 17 | 005077 | SCREW | 02 |
| 18 | 208362 | THREAD GUIDE | 01 |
| 19 | 005113 | SCREW | 01 |
| 20 | 204095A92 | THREAD TAKEUP | 01 |
| 21 | 005292 | SCREW | 02 |
Page 47 — THREAD GUIDE & THREAD TAKEUUP MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208399 | THREAD GUIDE | 01 |
| 02 | 004009-1 | SCREW | 01 |
| 03 | 208778 | THREAD GUIDE | 01 |
| 04 | 208777 | THREAD GUIDE | 01 |
| 05 | 208400 | THREAD GUIDE | 01 |
| 06 | 004009-1 | SCREW | 01 |
| 07 | 208777 | THREAD GUIDE | 01 |
| 08 | 202706A | THREAD TAKEUP | 01 |
| 09 | 204707 | THREAD GUIDE | 01 |
| 10 | 001186 | SCREW | 02 |
| 11 | 005299 | SCREW | 02 |
| 12 | 204706 | RETAINER BRACKET | 01 |
| 13 | 202705A | RETAINER BRACKET | 01 |
| 14 | 005359 | SCREW | 01 |
| 15 | 202495 | GUIDE | 01 |
| 16 | 200041 | GUIDE | 01 |
| 17 | 209068 | SPRING | 01 |
| 18 | 009070-2 | SCREW | 01 |
| 19 | 201048A | THREAD EYELET | 01 |
| 20 | 201072A | PIPE | 01 |
| 21 | 210353 | THREAD GUIDE | 01 |
| 22 | 204901 | THREAD TAKEUP | 01 |
| 23 | 002902 | SCREW | 01 |
| 24 | 201048A | THREAD EYELET | 01 |
| 25 | 201072A | PIPE | 01 |
| 26 | 208445 | THREAD TAKEUP/UPPER LOOPER | 01 |
| 27 | 204902 | AUXILIARY THREAD TAKEUP | 01 |
| 28 | 002902 | SCREW | 01 |
| 29 | 202875 | WASHER | 01 |
| 30 | 002921 | SCREW | 01 |
| 31 | 204905 | THREAD GUIDE | 01 |
| 32 | 002905 | SCREW | 01 |
| 33 | 204903 | THREAD TUBE | 01 |
| 34 | 005012 | SCREW | 01 |
Page 49 — THREAD TENSION MECHANISM [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 209174-9U | THREAD TENSION COMPLETE | 01 |
| 02 | 005143A | STUD | 01 |
| 03 | 208449 | FELT | 01 |
| 04 | 210319 | TENSION DISC | 02 |
| 05 | 208450-UA | CUP | 01 |
| 06 | 201037 | SPRING (HEAVY) | 01 |
| 07 | 208448 | SPRING BUSHING | 01 |
| 08 | 208447-UA | POST NUT | 01 |
| 09 | 210529-9U | THREAD TENSION COMPLETE | 01 |
| 10 | 005082A | SCREW STUD | 01 |
| 11 | 210530-9U | THREAD TENSION COMPLETE | 01 |
| 12 | 201086 | SPRING (MEDIUM) | 01 |
| 13 | 210531-9U | THREAD TENSION COMPLETE | 01 |
| 14 | 201068 | SPRING (LIGHT) | 01 |
| 15 | 209445 | THREAD GUIDE | 01 |
| 16 | 005137 | NUT | 01 |
| 17 | 209485 | THREAD GUIDE | 01 |
Page 51 — THREAD TENSION MECHANISM [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 210529-9U | THREAD TENSION COMPLETE | 01 |
| 02 | 005082A | SCREW STUD | 01 |
| 03 | 208449 | FELT | 01 |
| 04 | 210319 | TENSION DISC | 02 |
| 05 | 208450-UA | CUP | 01 |
| 06 | 201037 | SPRING (HEAVY) | 01 |
| 07 | 208448 | SPRING BUSHING | 01 |
| 08 | 208447-UA | POST NUT | 01 |
| 09 | 210530-9U | THREAD TENSION COMPLETE | 01 |
| 10 | 201086 | SPRING (MEDIUM) | 01 |
| 11 | 210531-9U | THREAD TENSION COMPLETE | 01 |
| 12 | 201068 | SPRING (LIGHT) | 01 |
| 13 | 209444 | THREAD GUIDE | 01 |
| 14 | 209445 | THREAD GUIDE | 01 |
| 15 | 005137 | NUT | 01 |
Page 53 — ATTACHMENT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 205835 | AUXILIARY PLATE | 01 |
| 02 | 005299 | SCREW | 01 |
| 03 | 303312A | REGULATOR | 01 |
| 04 | 303313 | FLAT SPRING | 01 |
| 05 | 201211C91 | FOLDER COMPLETE (40MM) | 01 |
| 06 | 137142 | WASHER | 01 |
| 07 | 002905 | SCREW | 01 |
| 08 | 204760A91 | CLOTH GUIDE ASSEMBLY | 01 |
| 09 | 205361 | CLOTH GUIDE | 01 |
| 10 | 205363 | WELT GUIDE | 01 |
| 11 | 005157 | SCREW | 02 |
| 12 | 005363 | SCREW | 01 |
| 13 | 208098 | WELT GUIDE | 01 |
| 14 | 005057 | SCREW | 01 |
| 15 | 001189 | SCREW | 01 |
| 16 | 204762 | BASE/EDGE GUIDE | 01 |
| 17 | 005091 | SCREW | 02 |
| 18 | 209473-91 | TAPE GUIDE ASSEMBLY | 01 |
| 19 | 209469 | TAPE GUIDE | 01 |
| 20 | 205319 | TAPE TAKEUP | 01 |
| 21 | 208735 | FABRIC GURAD | 01 |
| 22 | 001333 | SCREW | 01 |
| 23 | 208554-91 | BRACKET ASS./PRESSER FOOT | 01 |
| 24 | 005328 | SCREW | 01 |
| 25 | 208958-B | SCREW | 01 |
| 26 | 204502A | PIPING FOOT | 01 |
| 27 | 202875 | WASHER | 01 |
| 28 | 002921 | SCREW | 01 |
| 29 | 204460 | FABRIC GUARD | 01 |
| 30 | 005077 | SCREW | 01 |
| 31 | 000403 | TAPE DISC ASSEMBLY | 01 |
| 32 | 000406 | FELT | 01 |
| 33 | 000405 | FIXING ROD | 01 |
| 34 | 000404 | TAPE DISC | 01 |
| 35 | 004012 | SCREW | 01 |
| 36 | 000407 | COLLAR | 01 |
| 37 | 000408 | ADJUSTING SCREW | 01 |
| 38 | 000409 | SHAFT | 01 |
| 39 | 004818 | NUT | 01 |
| 40 | 000410 | BRACKET | 01 |
| 41 | 004908 | SCREW | 03 |
Page 55 — ヒダ取り装置 / SHIRRING DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 209371-91 | SHIRRING ATTACHMENT COMPLETE | 01 |
| 02 | 208660 | BRACKET | 01 |
| 03 | 005152 | SCREW | 02 |
| 04 | 210947 | FLAT SPRING | 01 |
| 05 | 001206 | SCREW | 02 |
| 06 | 210946 | FLAT SPRING | 01 |
| 07 | 001206 | SCREW | 01 |
| 08 | 204888 | SPRING | 02 |
| 09 | 005513 | SCREW | 01 |
| 10 | 005104 | NUT | 01 |
| 11 | 210936 | BRACKET | 01 |
| 12 | 210945 | STOPPER | 01 |
| 13 | 005328 | SCREW | 02 |
| 14 | 210937 | SHAFT | 01 |
| 15 | 206225 | COLLAR | 01 |
| 16 | 001457-1 | SCREW | 02 |
| 17 | 211614 | BRACKET | 01 |
| 18 | 210952 | SPRING | 01 |
| 19 | 001435 | SCREW | 01 |
| 20 | 005292 | SCREW | 01 |
| 21 | 005104 | NUT | 01 |
| 22 | 210948 | LEVER | 01 |
| 23 | 211613 | GUIDE | 01 |
| 24 | 210939 | SPRING | 01 |
| 25 | 210938-92 | LATCH | 01 |
| 26 | 005118 | SCREW | 01 |
| 27 | 210944 | WASHER | 01 |
| 28 | 005082A | SCREW STUD | 01 |
| 29 | 204091 | WASHER | 01 |
| 30 | 210940 | SPRING | 01 |
| 31 | 208448 | SPRING BUSHING | 01 |
| 32 | 208447 | POST NUT | 01 |
| 33 | 205091 | SHIRRING EDGE GUIDE | 01 |
| 34 | 137906 | WASHER | 02 |
| 35 | 001234 | SCREW | 02 |
| 36 | 210955 | WASHER | 01 |
| 37 | 005029 | SCREW | 02 |
| 38 | 210953 | BLADE | 01 |
| 39 | 211885 | BINDER (20) | 01 |
| 40 | 000413 | TAPE INSERTING TOOL | 01 |
| 41 | 167066 | WASHER | 02 |
| 42 | 001202 | SCREW | 02 |
| 43 | 210962 | BRACKET/BINDER | 01 |
| 44 | 005210 | SCREW | 02 |
Page 57 — BT 装置
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| *01 | 304271-91 | THREAD RELEASER ASSEMBLY | 01 |
| 02 | 209466 | BRACKET | 01 |
| 03 | 001732 | SCREW | 01 |
| 04 | 005137 | NUT | 01 |
| 05 | 209468 | SPACER | 01 |
| 06 | 209465 | SHIRRING BLADE | 01 |
| 07 | 005657 | SCREW | 01 |
| 08 | 179762-91 | CABLE | 01 |
| 09 | 005478 | SCREW | 02 |
| 10 | 209467 | BRACKET | 01 |
| 11 | 179761-15 | BRACKET | 01 |
| 12 | 179765-15 | NUT | 01 |
| 13 | 201185 | WASHER | 01 |
| 14 | 007021 | SCREW | 01 |
| 15 | 304008 | BLADE COMPLETE | 01 |
| 16 | 304009 | BRACKET | 01 |
| 17 | 301521 | CLAMP/THREAD CHAIN | 01 |
| 18 | 005536 | SCREW | 01 |
| 19 | 303979 | SPRING | 01 |
| 20 | 005526 | NUT | 01 |
| 21 | 303872 | KNIFE HOLDER | 01 |
| 22 | 005086 | SCREW | 01 |
| 23 | 303873 | KNIFE | 01 |
| 24 | 005524 | SCREW | 01 |
| 25 | 001175-2 | SCREW | 01 |
| 26 | 303873 | KNIFE | 01 |
| 27 | 204762 | BASE/EDGE GUIDE | 01 |
| 28 | 005091 | SCREW | 02 |
Page 59 — PARTS FOR SEMI-SUBMERGED INSTALLATION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 205470-UA | WASTE CHUTE | 01 |
| 02 | 004904 | SCREW | 03 |
| 03 | 205466 | MACHINE REST BOARD | 01 |
| 04 | 205473 | CUSHION RUBBER | 04 |
| 05 | 206336 | NUT | 04 |
| 06 | 206337 | WASHER | |
| 07 | 205467 | SPACER | |
| 08 | 206337 | WASHER | 08 |
| 09 | 205765 | LINER | 04 |
| 10 | 205764 | CUSHION RUBBER | 04 |
| 11 | 004512 | SCREW | 04 |
| 12 | 205468-UA | WASTE CHUTE TOP (A) | 01 |
| 13 | 205469-UA | WASTE CHUTE TOP (B) | 01 |
| 14 | 004905 | SCREW | 04 |
Page 61 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 000486-9S | THREAD STAND ASS. (6-SPOOLS) | 01 | |
| 000486A9S | THREAD STAND ASS. (5-SPOOLS) | 01 | |
| 000486B9S | THREAD STAND ASS. (4-SPOOLS) | 01 | |
| 000486C9S | THREAD STAND ASS. (3-SPOOLS) | 01 | |
| 01 | 000503-SA | THREAD STAND ROD (LOWER) | 01 |
| 02 | 000509 | WASHER | 02 |
| 03 | 004835 | NUT | 01 |
| 04 | 000505-SA | BRACKET | 01 |
| 05 | 000505ASA | BRACKET | 02 |
| 06 | 000380A | SPOOL PIN | 03 |
| 07 | 201252 | SPRING WASHER | 03 |
| 08 | 004803 | NUT | 03 |
| 09 | 000381-SA | SPOOL TRAY | 03 |
| 10 | 000507 | CUSHION | 03 |
| 11 | 000382-SA | SPOOL RETAINING FIN | 03 |
| 12 | 007102 | SCREW | 01 |
| 13 | 000512 | WASHER | 01 |
| 14 | 004022 | SCREW | 01 |
| 15 | 000502-SA | THREAD STAND ROD (UPPER) | 01 |
| 16 | 000504-SA | JOINT | 01 |
| 17 | 004021 | SCREW | 02 |
| 18 | 004805 | NUT | 02 |
| 19 | 000383-SA | BRACKET | 01 |
| 20 | 004014 | SCREW | 01 |
| 21 | 004803 | NUT | 01 |
| 22 | 000384 | THREAD GUIDE BAR ROD | 01 |
| 23 | 004012 | SCREW | 02 |
| 24 | 004803 | NUT | 02 |
| 25 | 000233-SA | HOLDER | 01 |
| 26 | 004012 | SCREW | 01 |
| 27 | 004803 | NUT | 01 |
| 28 | 000293 | THREAD GUIDE BAR (6-SPOOLS) | 01 |
| 29 | 000293A | THREAD GUIDE BAR (5-SPOOLS) | 01 |
| 30 | 000293B | THREAD GUIDE BAR (4-SPOOLS) | 01 |
| 31 | 000293C | THREAD GUIDE BAR (3-SPOOLS) | 01 |
| 32 | 004012 | SCREW | 01 |
| 33 | 004803 | NUT | 01 |
| 34 | 000527-SA | BRACKET | 01 |
| 35 | 000527ASA | BRACKET | 02 |
| 36 | 000506 | THREAD EYELET | 03 |
| 37 | 004117 | SCREW | 01 |
| 38 | 004805 | NUT | 01 |
| 39 | 000386 | ROD CAP | 01 |
Page 62 — M632 Series GAUGE PARTS LIST (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204343A | NEEDLE PLATE | ||
| 204344A | NEEDLE PLATE | ||
| 204345A | NEEDLE PLATE | ||
| 204346A | NEEDLE PLATE | ||
| 208082 | MAIN FEED DOG ASS. | ||
| 204125B | MAIN FEED DOG | ||
| 204424 | AUX. FEED DOG | ||
| 208218 | DIFF. FEED DOG | ||
| 208500 | PRESSER FOOT ASS. | ||
| 204082 | UPPER LOOPER | ||
| 204278 | UPPER SPREADER | ||
| 204072 | LOWER LOOPER | ||
| 204314A | CHAINSTITCH LOOPER | ||
| 201121A | UPPER KNIFE | ||
| 204161 | LOWER KNIFE | ||
| 204782 | OVERLOCK NEEDLE GUARD FRONT | ||
| 204781 | OVERLOCK NEEDLE GUARD REAR | ||
| 204536 | CHAINSTITCH NEEDLE GUARD FRONT | ||
| 204521 | CHAINSTITCH NEEDLE GUARD REAR | ||
| 208908A92 | NEEDLE HOLDER | ||
| DC × 27 #11 | NEEDLE | ||
| 208216 | DIFF. FEED DOG | ||
| 208063 | MAIN FEED DOG ASS. | ||
| 208215 | DIFF. FEED DOG | ||
| 204362 | NEEDLE PLATE | 3 | |
| 204363 | NEEDLE PLATE | 4 | |
| 204364 | NEEDLE PLATE | 5 | |
| 204365 | NEEDLE PLATE | 6 | |
| 204395 | MAIN FEED DOG | ||
| 204425 | AUX. FEED DOG | ||
| 208066 | MAIN FEED DOG ASS. | ||
| 208060 | AUX. FEED DOG | ||
| 208219 | DIFF. FEED DOG |
Page 63 — M632 Series GauGE PARTS LIST (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208062 | MAIN FEED DOG ASS. | ||
| 208063 | MAIN FEED DOG ASS. | ||
| 208065 | MAIN FEED DOG ASS. | ||
| (204424) | AUX. FEED DOG | 3 | |
| 208216 | DIFF. FEED DOG | 3 | |
| 208501 | PRESSER FOOT ASS. | 3 | |
| 204072 | LOWER LOOPPER | 3 | |
| 204314A | CHAINSTITCH LOOPPER | 3 | |
| (208059) | AUX. FEED DOG | 3 | |
| 208215 | DIFF. FEED DOG | 3 | |
| 204367 | NEEDLE PLATE | 4 | |
| 204368 | NEEDLE PLATE | 5 | |
| (204395) | MAIN FEED DOG | 3 | |
| 208218 | DIFF. FEED DOG | 3 | |
| 201121A | UPPER KNIFE | 3 | |
| 204181 | LOWER KNIFE | 3 | |
| 204782 | OVERLOCK NEEDLE GUARD FRONT | 3 | |
| 204781 | OVERLOCK NEEDLE GUARD REAR | 3 | |
| 204521 | CHAINSTITCH NEEDLE GUARD REAR | 3 | |
| 208909A92 | NEEDLE HOLDER | 3 |

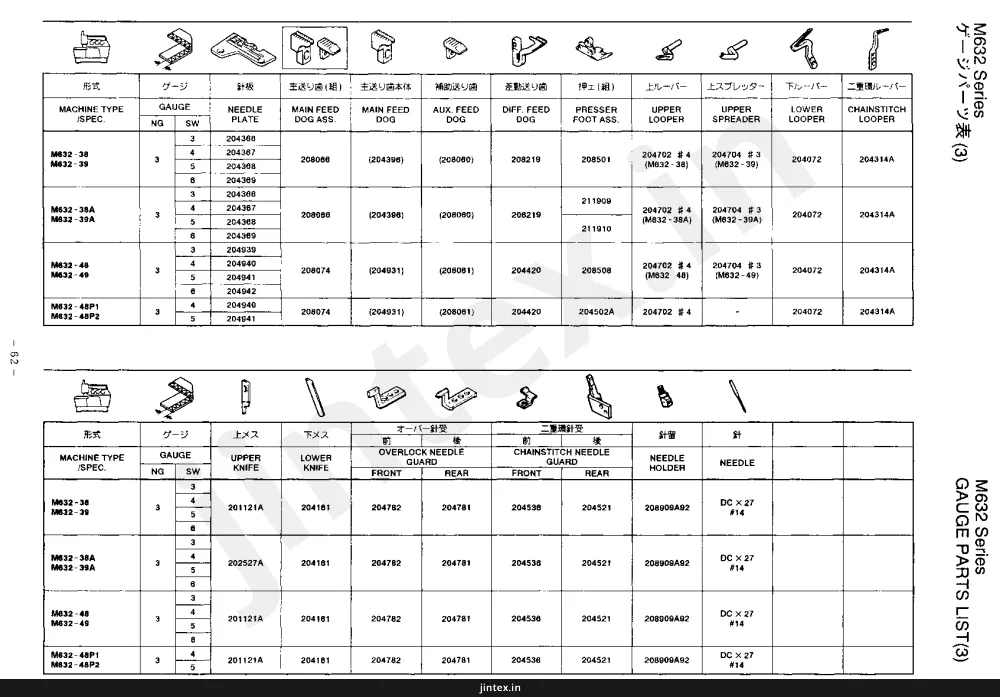

Page 64 — M632 Series ゲージパーツ表 (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204366 | NEEDLE PLATE | ||
| 204367 | NEEDLE PLATE | ||
| 204368 | NEEDLE PLATE | ||
| 204369 | NEEDLE PLATE | ||
| 208066 | MAIN FEED DOG ASS. | ||
| (204396) | MAIN FEED DOG | ||
| (208080) | AUX. FEED DOG | ||
| 208219 | DIFF. FEED DOG | ||
| 208501 | PRESSER FOOT ASS. | ||
| 204702 #4 | UPPER LOOPER | ||
| 204704 #3 | UPPER SPREADER | ||
| 204072 | LOWER LOOPER | ||
| 204314A | CHAINSTITCH LOOPER | ||
| 204386 | NEEDLE PLATE | ||
| 204367 | NEEDLE PLATE | ||
| 204368 | NEEDLE PLATE | ||
| 204369 | NEEDLE PLATE | ||
| 208086 | MAIN FEED DOG ASS. | ||
| (204398) | MAIN FEED DOG | ||
| (208080) | AUX. FEED DOG | ||
| 208219 | DIFF. FEED DOG | ||
| 211909 | PRESSER FOOT ASS. | ||
| 211910 | PRESSER FOOT ASS. | ||
| 204702 #4 | UPPER LOOPER | ||
| 204704 #3 | UPPER SPREADER | ||
| 204072 | LOWER LOOPER | ||
| 204314A | CHAINSTITCH LOOPER | ||
| 204939 | NEEDLE PLATE | ||
| 204940 | NEEDLE PLATE | ||
| 204941 | NEEDLE PLATE | ||
| 204942 | NEEDLE PLATE | ||
| 208074 | MAIN FEED DOG ASS. | ||
| (204931) | MAIN FEED DOG | ||
| (208081) | AUX. FEED DOG | ||
| 204420 | DIFF. FEED DOG | ||
| 208508 | PRESSER FOOT ASS. | ||
| 204702 #4 | UPPER LOOPER | ||
| 204704 #3 | UPPER SPREADER | ||
| 204072 | LOWER LOOPER | ||
| 204314A | CHAINSTITCH LOOPER | ||
| 204940 | NEEDLE PLATE | ||
| 204941 | NEEDLE PLATE | ||
| 208074 | MAIN FEED DOG ASS. | ||
| (204931) | MAIN FEED DOG | ||
| (208081) | AUX. FEED DOG | ||
| 204420 | DIFF. FEED DOG | ||
| 204502A | PRESSER FOOT ASS. | ||
| 204702 #4 | UPPER LOOPER | ||
| 204072 | LOWER LOOPER | ||
| 204314A | CHAINSTITCH LOOPER | ||
| (208060) | AUX. FEED DOG | 3 | |
| 204704 #4 | UPPER SPREADER | 3 | |
| 204936 | NEEDLE PLATE | 3 | |
| (208061) | AUX. FEED DOG | 3 | |
| 201121A | UPPER KNIFE | 3 | |
| 204161 | LOWER KNIFE | 3 | |
| 204782 | OVERLOCK NEEDLE GUARD FRONT | 3 | |
| 204781 | OVERLOCK NEEDLE GUARD REAR | 3 | |
| 204536 | CHAINSTITCH NEEDLE GUARD FRONT | 3 | |
| 204521 | CHAINSTITCH NEEDLE GUARD REAR | 3 | |
| 208909A92 | NEEDLE HOLDER | 3 | |
| DC X 27 #14 | NEEDLE | 3 | |
| 202527A | UPPER KNIFE | 3 |
Page 65 — M632 Series ゲージパーツ表 (4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204358A | NEEDLE PLATE | ||
| 204359A | NEEDLE PLATE | ||
| 208083 | MAIN FEED DOG ASS. | ||
| 204702 #4 | UPPER LOOPER | ||
| 204704 #3 | UPPER SPREADER | ||
| 204072 | LOWER LOOPER | ||
| 204431 | CHAINSTITCH LOOPER | ||
| 201121A | UPPER KNIFE | ||
| 204161 | LOWER KNIFE | ||
| 208910A92 | NEEDLE HOLDER | ||
| DC x 27 #14 | NEEDLE | ||
| 204360A | NEEDLE PLATE | 5 | |
| 204361A | NEEDLE PLATE | 6 | |
| 208063 | MAIN FEED DOG ASS. | 3 | |
| (204248B) | MAIN FEED DOG | 3 | |
| (208059) | AUX. FEED DOG | 3 | |
| 208215 | DIFF. FEED DOG | 3 | |
| 208502 | PRESSER FOOT ASS. | 3 | |
| 204944 | NEEDLE PLATE | 4 | |
| 204943 | NEEDLE PLATE | 5 | |
| 204945 | NEEDLE PLATE | 5 | |
| 204946 | NEEDLE PLATE | 6 | |
| 208076 | MAIN FEED DOG ASS. | 4 | |
| (204933) | MAIN FEED DOG | 4 | |
| 204422 | DIFF. FEED DOG | 4 | |
| 208509 | PRESSER FOOT ASS. | 4 | |
| 204528 | NEEDLE PLATE | 3 | |
| 204529 | NEEDLE PLATE | 4 | |
| 204700 | NEEDLE PLATE | 5 | |
| 204701 | NEEDLE PLATE | 6 | |
| 208064 | MAIN FEED DOG ASS. | 3 | |
| (204394) | MAIN FEED DOG | 3 | |
| 208217 | DIFF. FEED DOG | 3 | |
| 208955 | PRESSER FOOT ASS. | 3 | |
| 204703 #6 | UPPER LOOPER | 3 | |
| 204705 #5 | UPPER SPREADER | 3 | |
| 204431-HC | CHAINSTITCH LOOPER | 3 | |
| 208874 | NEEDLE PLATE | 5 | |
| 208648 | NEEDLE PLATE | 6 | |
| 208066 | MAIN FEED DOG ASS. | 5 | |
| (204396) | MAIN FEED DOG | 5 | |
| (208060) | AUX. FEED DOG | 5 | |
| 208219 | DIFF. FEED DOG | 5 | |
| 208649 | PRESSER FOOT ASS. | 5 | |
| 204963 #8 | UPPER LOOPER | 5 | |
| 204314A | CHAINSTITCH LOOPER | 5 | |
| 204782 | OVERLOCK NEEDLE GUARD FRONT | 3 | |
| 204781 | OVERLOCK NEEDLE GUARD REAR | 3 | |
| 204042 | CHAINSTITCH NEEDLE GUARD FRONT | 3 | |
| 204522 | CHAINSTITCH NEEDLE GUARD REAR | 3 | |
| DC x 27 #21 | NEEDLE | 5 | |
| DC x 27 #11 | NEEDLE | 3 |
Page 66 — M652 Series GAUGE PARTS LIST (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 209298 | NEEDLE PLATE (M652-01, GAUGE NG -, SW 2) | ||
| 209299 | NEEDLE PLATE (M652-01, GAUGE NG -, SW 3) | ||
| 205773 | NEEDLE PLATE (M652-01, GAUGE NG -, SW 4) | ||
| 209300 | NEEDLE PLATE (M652-01, GAUGE NG -, SW 5) | ||
| 202899 | NEEDLE PLATE (M652-05, GAUGE 1.5, SW 2) | ||
| 202674 | NEEDLE PLATE (M652-05, GAUGE 1.5, SW 3) | ||
| 202702 | NEEDLE PLATE (M652-05, GAUGE 2, SW 2) | ||
| 202702 | NEEDLE PLATE (M652-05, GAUGE 2, SW 3) | ||
| 202675 | NEEDLE PLATE (M652-05, GAUGE 2, SW 4) | ||
| 208753 | NEEDLE PLATE (M652-12, GAUGE 2, SW 2) | ||
| 205255 | NEEDLE PLATE (M652-12, GAUGE 2, SW 3) | ||
| 202554E | NEEDLE PLATE (M652-12, GAUGE 2, SW 4) | ||
| 201121A | UPPER KNIFE (M652-01, GAUGE NG -, SW 2-5) | ||
| 201121A | UPPER KNIFE (M652-05, GAUGE 1.5 and 2, SW 2-4) | ||
| 201121A | UPPER KNIFE (M652-12, GAUGE 2, SW 2-4) | ||
| (204729ABF) | MAIN FEED DOG | 2 | |
| (204674) | AUX. FEED DOG | 2 | |
| 204730- BF | DIFF. FEED DOG | 2 | |
| 201152E | PRESSER FOOT | 2 | |
| 201155C | PRESSER FOOT FINGER | 2 | |
| 204072 | LOWER LOOPER | 2 | |
| 208082- BF | MAIN FEED DOG ASS. | 1.5 | |
| 204693- BF | DIFF. FEED DOG | 1.5 | |
| 201230C | PRESSER FOOT | 1.5 | |
| 208078- BF | MAIN FEED DOG ASS. | 2 | |
| (204675ABF) | MAIN FEED DOG | 2 | |
| (208735) | AUX. FEED DOG | 2 | |
| 204690- BF | DIFF. FEED DOG | 2 | |
| 208730 | PRESSER FOOT | 2 | |
| 201310A | PRESSER FOOT FINGER | 2 | |
| 208731 | PRESSER FOOT FINGER | 2 | |
| 208732 | PRESSER FOOT FINGER | 2 | |
| 202295 | LOWER KNIFE | 2 | |
| 204634 | NEEDLE GUARD | FRONT | |
| 209009 | NEEDLE GUARD | REAR | |
| 204659 | NEEDLE GUARD | FRONT | |
| 208904A92 | NEEDLE HOLDER | 1.5 | |
| 208905A92 | NEEDLE HOLDER | 2 | |
| 201127 | UPPER KNIFE | 2 |
Page 67 — M652 Series グーシパーツ表 (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208753 | NEEDLE PLATE | ||
| 205255 | NEEDLE PLATE | ||
| 202554E | NEEDLE PLATE | ||
| 208078-BF | MAIN FEED DOG ASS. | ||
| (204675ABF) | MAIN FEED DOG | ||
| (204674) | AUX. FEED DOG | ||
| 204678-BF | DIFF. FEED DOG | ||
| 208730 | PRESSER FOOT | ||
| 208731 | PRESSER FOOT FINGER | ||
| 208732 | PRESSER FOOT FINGER | ||
| 204949 # 11 | UPPER LOOPER | ||
| 204072 | LOWER LOOPER | ||
| 205465 | NEEDLE PLATE | ||
| 208911 | MAIN FEED DOG ASS. | ||
| (204729A) | MAIN FEED DOG | ||
| (208912) | AUX. FEED DOG | ||
| 204730 | DIFF. FEED DOG | ||
| 201230C | PRESSER FOOT | ||
| 205525 | PRESSER FOOT FINGER | ||
| 204062 # 2 | UPPER LOOPER | ||
| 204072 | LOWER LOOPER | ||
| 202542E | NEEDLE PLATE | ||
| 202546E | NEEDLE PLATE | ||
| 202598E | NEEDLE PLATE | ||
| 202597E | NEEDLE PLATE | ||
| 208078-BF | MAIN FEED DOG ASS. | ||
| (204675ABF) | MAIN FEED DOG | ||
| (204674) | AUX. FEED DOG | ||
| 204678-BF | DIFF. FEED DOG | ||
| 201230C | PRESSER FOOT | ||
| 201224B | PRESSER FOOT FINGER | ||
| 204062 # 2 | UPPER LOOPER | ||
| 204072 | LOWER LOOPER | ||
| 209387-30 | NEEDLE PLATE | ||
| 209387-40 | NEEDLE PLATE | ||
| 209388-25 | NEEDLE PLATE | ||
| 209388-35 | NEEDLE PLATE | ||
| 209388-45 | NEEDLE PLATE | ||
| 209415-16F | MAIN FEED DOG ASS. | ||
| (209416-16F) | MAIN FEED DOG | ||
| (208735) | AUX. FEED DOG | ||
| 209417-16F | DIFF. FEED DOG | ||
| 209386 | PRESSER FOOT | ||
| 201398B | PRESSER FOOT FINGER | ||
| 201310A | PRESSER FOOT FINGER | ||
| 208049 | PRESSER FOOT FINGER | ||
| 208050 | PRESSER FOOT FINGER | ||
| 209209 # 13 | UPPER LOOPER | ||
| 204990 # 12 | UPPER LOOPER | ||
| 204991 | LOWER LOOPER | ||
| 201121A | UPPER KNIFE | ||
| 201127 | LOWER KNIFE | ||
| 202295 | LOWER KNIFE | ||
| 204659 | NEEDLE GUARD FRONT | ||
| 209009 | NEEDLE GUARD REAR | ||
| 208805A92 | NEEDLE HOLDER | ||
| DC x 27 #9 | NEEDLE | ||
| 204634 | NEEDLE GUARD FRONT | ||
| DC x 27 #11 | NEEDLE | ||
| 204676-BF | DIFF. FEED DOG | ||
| 202977E | NEEDLE PLATE | 6 | |
| 204415-16F | MAIN FEED DOG ASS. | ||
| 208905A92 | NEEDLE HOLDER | 2 | |
| 208051 | NEEDLE HOLDER | 2.5 | |
| 208906A92 | NEEDLE HOLDER | 2.5 |
Page 68 — M652 Series GAUGE PARTS LIST (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208753 | NEEDLE PLATE | ||
| 205255 | NEEDLE PLATE | ||
| 202554E | NEEDLE PLATE | ||
| 208030 | NEEDLE PLATE | ||
| 208031 | NEEDLE PLATE | ||
| 208080-BF | MAIN FEED DOG ASS. | ||
| 208093-BF | MAIN FEED DOG ASS. | ||
| (204678ABF) | MAIN FEED DOG | ||
| (208040-BF) | MAIN FEED DOG | ||
| (204674) | AUX. FEED DOG | ||
| 204691-BF | DIFF. FEED DOG | ||
| 208044-BF | DIFF. FEED DOG | ||
| 208730 | PRESSER FOOT | ||
| 208731 | PRESSER FOOT FINGER | ||
| 208732 | PRESSER FOOT FINGER | ||
| 208733 | PRESSER FOOT FINGER | ||
| 208734 | PRESSER FOOT FINGER | ||
| 204964 #9 | UPPER LOOPER | ||
| 204072 | LOWER LOOPER | ||
| 201230C | PRESSER FOOT | ||
| 201396B | PRESSER FOOT FINGER | ||
| 201310A | PRESSER FOOT FINGER | ||
| 208049 | PRESSER FOOT FINGER | ||
| 208050 | PRESSER FOOT FINGER | ||
| 201230C | PRESSER FOOT | ||
| 201224B | PRESSER FOOT FINGER | ||
| 204703 #8 | UPPER LOOPER | ||
| 204072 | LOWER LOOPER | ||
| 204659 | FRONT | ||
| 209009 | REAR | ||
| 208905A92 | NEEDLE HOLDER | ||
| DC X 27 #14 | NEEDLE | ||
| 201121A | UPPER KNIFE | ||
| 201127 | LOWER KNIFE | ||
| 202545E | NEEDLE PLATE | 4 | |
| 208080 | MAIN FEED DOG ASS. | 5 | |
| 202598E | NEEDLE PLATE | 5 | |
| 202597E | NEEDLE PLATE | 6 | |
| 204797 | NEEDLE PLATE | 7 | |
| 204731 | NEEDLE PLATE | 8 | |
| (204678A) | MAIN FEED DOG | 5 | |
| 204679 | DIFF. FEED DOG | 5 | |
| 202295 | LOWER KNIFE | 2 | |
| 208051 | NEEDLE GUARD FRONT | 2.5 | |
| 204634 | NEEDLE GUARD FRONT | 4 | |
| 204635 | NEEDLE GUARD REAR | 4 | |
| 208906A92 | NEEDLE HOLDER | 2.5 | |
| DC X 27 #16 | NEEDLE | 4 |
Page 69 — M652 Series ゲージパーツ表 (4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 205243 | NEEDLE PLATE | ||
| 208079A | MAIN FEED DOG ASS. | ||
| (204675A) | MAIN FEED DOG | ||
| (204677) | AUX. FEED DOG | ||
| 204676 | DIFF. FEED DOG | ||
| 205253 | PRESSER FOOT | ||
| 201310A | PRESSER FOOT FINGER | ||
| 204702 #4 | UPPER LOOPER | ||
| 204072 | LOWER LOOPER | ||
| 201121A | UPPER KNIFE | ||
| 202295 | LOWER KNIFE | ||
| 204659 | NEEDLE GUARD FRONT | ||
| 209009 | NEEDLE GUARD REAR | ||
| 208905A92 | NEEDLE HOLDER | ||
| DC x 27 #11 | NEEDLE | ||
| M652-51 | 205244 | NEEDLE PLATE | 5 |
| M652-52 | (204875ABF) | MAIN FEED DOG | |
| M652-54 | 205320 | NEEDLE PLATE | 3 |
| M652-54 | 205321 | NEEDLE PLATE | 4 |
| M652-54 | (204692A) | MAIN FEED DOG | |
| M652-54 | 204693 | DIFF. FEED DOG | |
| M652-54 | 202799 | PRESSER FOOT | |
| M652-54 | 205322 | NEEDLE PLATE | 5 |
| M652-54 | 205323 | NEEDLE PLATE | 6 |
| M652-54 | 201127 | UPPER KNIFE | 3 |
| M652-54 | 204634 | NEEDLE GUARD FRONT |
Page 70 — M652 Series GAUGE PARTS LIST(5)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 202981 | NEEDLE PLATE | ||
| 202982 | NEEDLE PLATE | ||
| 202983 | NEEDLE PLATE | ||
| 202981 | NEEDLE PLATE | ||
| 202982 | NEEDLE PLATE | ||
| 202983 | NEEDLE PLATE | ||
| 205324 | NEEDLE PLATE | ||
| 205325 | NEEDLE PLATE | ||
| 205326 | NEEDLE PLATE | ||
| 205327 | NEEDLE PLATE | ||
| 202618A | NEEDLE PLATE | ||
| 204913A | NEEDLE PLATE | ||
| 201121A | UPPER KNIFE | ||
| 202295 | LOWER KNIFE | ||
| 204659 | NEEDLE GUARD FRONT | ||
| 208904A92 | NEEDLE HOLDER | ||
| 208905A92 | NEEDLE HOLDER | ||
| 201127 | LOWER KNIFE | ||
| 204634 | NEEDLE GUARD FRONT | ||
| 208083-BF | MAIN FEED DOG ASS. | 2 | |
| (204692ABF) | MAIN FEED DOG | 2 | |
| (204677) | AUX. FEED DOG | 2 | |
| 204693-BF | DIFF. FEED DOG | 2 | |
| 202799 | PRESSER FOOT | 2 | |
| 201396B | PRESSER FOOT FINGER | 2 | |
| 204949 # 11 | UPPER LOOPER | 2 | |
| 204072 | UPPER LOOPER | 2 | |
| 201310A | PRESSER FOOT FINGER | 2 | |
| 212183 (ASS.) | PRESSER FOOT | 2 | |
| 212182 | PRESSER FOOT FINGER | 2 | |
| 208079-BF | MAIN FEED DOG ASS. | 5 | |
| (204675ABF) | MAIN FEED DOG | 5 | |
| 204678-BF | DIFF. FEED DOG | 5 | |
| 205253 | PRESSER FOOT | 5 | |
| 201224B | PRESSER FOOT FINGER | 5 | |
| 204062 # 2 | UPPER LOOPER | 5 | |
| 208090A16F | MAIN FEED DOG ASS. | 5 | |
| (204729B16F) | MAIN FEED DOG | 5 | |
| (204674) | AUX. FEED DOG | 5 | |
| 204730A16F | DIFF. FEED DOG | 5 | |
| 201473B | PRESSER FOOT | 5 | |
| 301433 | PRESSER FOOT FINGER | 5 | |
| 209009 | NEEDLE GUARD REAR | 1.5 | |
| DC X 3 #9 | NEEDLE | 1.5 | |
| DC X 27 #9 | NEEDLE | 2 |
Page 71 — PLAIN SEAMING (LIGHT WEIGHT FABRIC) / PLAIN SEAMING (MEDIUM WEIGHT FABRIC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208908A92 | 2 | ||
| 204062 | 2 | ||
| 204278 | 1 | ||
| 204072 | |||
| 204314A | |||
| 201121A | |||
| 204181 | |||
| 204782 | |||
| 204781 | |||
| 204536 | |||
| 204521 | |||
| 204062 #2 | M632-01,-03 | ||
| 204278 #1 | M632-02,-04 |
Page 72 — GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204362 | |||
| 204363 | |||
| 204364 | |||
| 204365 | |||
| 208065 | |||
| 204395 | |||
| 204425 | |||
| 208066 | |||
| 204398 | |||
| 208060 | |||
| 208218 | |||
| 208219 | |||
| 208500 |
Page 73
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208908A92 | 2 | ||
| 204062 | 2 | ||
| 204278 | 1 | ||
| 204072 | |||
| 204314A | |||
| 201121A | |||
| 204161 | |||
| 204782 | 地縫用（薄生地） PLAIN SEAMING (LIGHT WEIGHT FABRIC) | ||
| 204781 | 地縫用（薄生地） PLAIN SEAMING (LIGHT WEIGHT FABRIC) | ||
| 204536 | 地縫用（中厚生地） PLAIN SEAMING (MEDIUM WEIGHT FABRIC) | ||
| 204521 | 地縫用（中厚生地） PLAIN SEAMING (MEDIUM WEIGHT FABRIC) |
Page 74 — M632 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204294B | |||
| 204039B | |||
| 204252B | |||
| 204295B | |||
| 208062 | |||
| 204125B | |||
| 204424 | |||
| 208063 | |||
| 204248B | |||
| 208059 | |||
| 208216 | |||
| 208215 | |||
| 208501 | |||
| 204262B | |||
| 204240B | 204240B |
Page 75 — PLAIN SEAMING (LIGHT WEIGHT FABRIC) / PLAIN SEAMING (MEDIUM WEIGHT FABRIC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208909A92 | |||
| 204062 | |||
| 204278 | |||
| 204702 | |||
| 204704 | |||
| 204072 | |||
| 204314A | |||
| 201121A | |||
| 204161 | |||
| 204782 | |||
| 204781 | |||
| 204536 | |||
| 204521 |
Page 76 — M632 Series GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204366 | NG×SW 3×3 | ||
| 204367 | NG×SW 3×4 | ||
| 204368 | NG×SW 3×5 | ||
| 204369 | NG×SW 3×6 | ||
| 208065 | |||
| 204395 | |||
| 204425 | |||
| 208066 | |||
| 204396 | |||
| 208060 | |||
| 208218 | |||
| 208219 | |||
| 208501 | |||
| 211909 | NG×SW 3×3 | ||
| 211909 | NG×SW 3×4 | ||
| 211910 | NG×SW 3×5 | ||
| 211910 | NG×SW 3×6 |
Page 77 — PLAIN SEAMING (LIGHT WEIGHT FABRIC / MEDIUM WEIGHT FABRIC / SMALL FOOT)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208909A92 | |||
| 204062 | 2 | ||
| 204278 | 1 | ||
| 204702 | 4 | ||
| 204704 | 3 | ||
| 204072 | |||
| 204314A | |||
| 201121A | |||
| 204161 | |||
| 202527A | |||
| 204161 | |||
| 204782 | |||
| 204781 | |||
| 204538 | |||
| 204521 |
Page 78 — M632 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204358A | |||
| 204359A | |||
| 204360A | |||
| 204361A | |||
| 204528 | |||
| 204529 | |||
| 204700 | |||
| 204701 | |||
| 208063 | |||
| 204248B | |||
| 208059 | |||
| 208064 | |||
| 204394 | |||
| 208059 | |||
| 208215 | |||
| 208217 | |||
| 208225 | |||
| 208502 | |||
| 208955 | |||
| 204355A | NG×SW 5×3 |
Page 79 — PLAIN SEAMING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5 208910A92 | |||
| 204702 | 4 | ||
| 204704 | 3 | ||
| 204703 | 6 | ||
| 204705 | 5 | ||
| 204072 | |||
| 204431 | |||
| 204072 | |||
| 204431-HC | |||
| 201121A | |||
| 204161 | |||
| 204782 | |||
| 204781 | |||
| 204042 | |||
| 204522 | |||
| 2041B1 | 2041B1 |
Page 80 — M632 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208674 | |||
| 208648 | |||
| 208068 | |||
| 204396 | |||
| 208060 | |||
| 208219 | |||
| 208648 | |||
| 205055 | |||
| 208649 |
Page 81 — M632-355
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208965A92 | 3x2 | ||
| 204963 $8 | |||
| 204072 | |||
| 204314A | |||
| 201121A | |||
| 204181 | |||
| 204782 | |||
| 204781 | |||
| 204536 | |||
| 204521 | |||
| 204963 B6 |
Page 82 — M632 Series GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204940 | |||
| 204941 | |||
| 204939 | |||
| 204940 | |||
| 204941 | |||
| 204942 | |||
| 204943 | |||
| 204944 | |||
| 204945 | |||
| 204946 | |||
| 208074 | |||
| 204931 | |||
| 208061 | |||
| 208076 | |||
| 204933 | |||
| 208059 | |||
| 204420 | |||
| 204422 | |||
| 204502A | |||
| 208508 | |||
| 208509 |
Page 83 — SHIRRING・PIPING (MEDIUM WEIGHT FABRIC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208909A92 | |||
| 208910A92 | |||
| 204702 | |||
| 204704 | |||
| 204072 | |||
| 204314A | |||
| 204072 | |||
| 204431 | |||
| 201121A | |||
| 204181 | |||
| 204782 | |||
| 204781 | |||
| 204536 | |||
| 204521 | |||
| 204782 | |||
| 204781 | |||
| 204042 | |||
| 204522 | |||
| 204161 | PRESSER FOOT |
Page 84 — M652 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208753 | |||
| 205255 | |||
| 202554E | |||
| 202542E | |||
| 202546E | |||
| 202596E | |||
| 202597E | |||
| 208078-BF | |||
| 204875ABF | |||
| 204674 | |||
| 204876-BF | |||
| 208730 | |||
| 201230C | |||
| 208731 | |||
| 208732 | |||
| 201224B |
Page 85 — 地縫用・テープ入れ用(薄~中厚生地) PLAIN SEAMING•INSERTING TAPE (LIGHT~MEDIUM WEIGHT FABRIC) / 地縫用(薄~中厚生地) PLAIN SEAMING (LIGHT~MEDIUM WEIGHT FABRIC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 208905A92 | ||
| 201121A | 2 201127 | SW | |
| 201121A | 3 202295 | SW | |
| 201121A | 4 202295 | SW | |
| 201121A | 3 201127 | SW | |
| 201121A | 4 201127 | SW | |
| 201121A | 5 202295 | SW | |
| 201121A | 6 202295 | SW | |
| 204949 $11 | |||
| 204062 $2 | |||
| 204072 | |||
| 201121A | |||
| 2 | 201127 | ||
| 3 | 202295 | ||
| 4 | 202295 | ||
| 201121A | |||
| 3 | 201127 | ||
| 4 | 201127 | ||
| 5 | 202295 | ||
| 6 | 202295 | ||
| 204659 | |||
| 209009 | |||
| 204634 | |||
| 209009 | |||
| M652-13 | 2 208905A92 | NG |
Page 86 — M652 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208753 | |||
| 205255 | |||
| 202554E | |||
| 208030 | |||
| 208031 | |||
| 208080-BF | |||
| 204678ABF | |||
| 204674 | |||
| 208093-BF | |||
| 208040-BF | |||
| 204674 | |||
| 204691-BF | |||
| 208044-BF | |||
| 208730 | |||
| 201230C | |||
| 208731 | |||
| 208731 | |||
| 208732 | |||
| 208733 | |||
| 208734 | |||
| 201396B | |||
| 201396B | |||
| 201310A | |||
| 208049 | |||
| 208050 | |||
| 201395B | SW |
Page 87 — M652-23 / M652-23A
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208905A92 | 2 | ||
| 208906A92 | 2.5 | ||
| 204989 #9 | |||
| 204072 | |||
| 201121A | |||
| 201127 | 2 | ||
| 201127 | 2.5 | ||
| 202295 | 3 | ||
| 202295 | 4 | ||
| 204659 | 2 | ||
| 208051 | 2.5 | ||
| 209009 | |||
| M652-23 | 2 208905A92 | NG | |
| M652-23A | 2 208906A92 | NG | |
| 204989 19 | NG | ||
| 2 201127 | SW | ||
| 3 202295 | SW | ||
| 2 204659 | NG | ||
| 2.5 208051 | NG |
Page 88 — M652 Series GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | 202542E | ||
| 4 | 202546E | ||
| 5 | 202596E | ||
| 6 | 202597E | ||
| 7 | 204797 | ||
| 8 | 204731 | ||
| 208080 | |||
| 204678A | |||
| 204674 | |||
| 204679 | |||
| 201230C | |||
| 201224B | |||
| 205243 | 2 x 4 | ||
| 205244 | 2 x 5 | ||
| 208079A | |||
| 204675A | |||
| 204677 | |||
| 204676 | |||
| 205253 | |||
| 201310A | |||
| 205243 | 2 x 4 | ||
| 208079-BF | |||
| 204675ABF | |||
| 204677 | |||
| 204676-BF |
Page 89 — PLAIN SEAMING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 208905A92 | NG | |
| 3 | 201127 | SW | |
| 204702 | 204702 | ||
| 204703 | 204703 | ||
| 204963 | 204963 | ||
| 2 208905A92 | |||
| 204703 #6 | |||
| 204702 #4 | |||
| 204963 #8 | |||
| 204072 | |||
| 201121A | |||
| 3 201127 | |||
| 4 201127 | |||
| 5 202295 | |||
| 6 202295 | |||
| 7 202295 | |||
| 8 202295 | |||
| 201121A | |||
| 202295 | |||
| 204634 | |||
| 204635 | |||
| 204659 | |||
| 209009 |
Page 90 — M652 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 202981 | |||
| 202982 | |||
| 202983 | |||
| 205320 | |||
| 205321 | |||
| 205322 | |||
| 205323 | |||
| 205324 | |||
| 205325 | |||
| 205326 | |||
| 205327 | |||
| 208083-BF | |||
| 204692A-BF | |||
| 204677 | |||
| 208083 | |||
| 204692A | |||
| 204677 | |||
| 208079-BF | |||
| 204675ABF | |||
| 204677 | |||
| 204693-BF | |||
| 204693 | |||
| 204676-BF | |||
| 202799 | |||
| 205253 | |||
| 201396B | |||
| 201310A | |||
| 201224B | |||
| 202083-BF | 202083-BF | ||
| 202083 |
Page 91 — PLAIN SEAMING (LIGHT-MEDIUM WEIGHT FABRIC) / (MEDIUM WEIGHT FABRIC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208904A92 | |||
| 208905AB2 | |||
| 204949 | 11 | ||
| 204702 | 4 | ||
| 204962 | 2 | ||
| 204072 | |||
| 201121A | |||
| 202295 | |||
| 201121A | |||
| 201127 | 3 | ||
| 201127 | 4 | ||
| 202295 | 5 | ||
| 202295 | 6 | ||
| 204659 | |||
| 209009 | |||
| 204634 | |||
| 209009 | |||
| 208905A92 | NG |
Page 92 — M652 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 209298 | ||
| 3 | 209299 | ||
| 4 | 205773 | ||
| 5 | 209300 | ||
| 5 | 20913A | SW | |
| 208090-BF | |||
| 204729ABF | |||
| 204674 | |||
| 204730-BF | |||
| 201152E | |||
| 201155C | |||
| 1.5 | 205465 | ||
| 208911 | |||
| 204729A | |||
| 208912 | |||
| 204730 | |||
| 201230C | |||
| 205525 | |||
| 4 | 202618A | ||
| 5 | 204913A | ||
| 208090A16F | |||
| 204729B16F | |||
| 204674 | |||
| 204730A16F | |||
| 201473B | |||
| 301433 |
Page 93
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204062 #2 | |||
| 204072 | |||
| 201121A | |||
| 202295 | |||
| 204634 | |||
| 209009 | |||
| BACKLATCHING | バックタック用(薄~中厚地) BACKLATCHING (LIGHT-MEDIUM WEIGHT FABRIC) |
Pegasus M632 / M652 — parts catalog
- Page 1 (cover): This is the cover page for the Pegasus M632 and M652 Series Parts Catalog, featuring the company logo and a tagline about revolutionizing production through worker creativity.
- Page 2 (parts_list): This page lists parts for the M632 and M652 series machines, including part numbers and descriptions.
- Page 3 (toc): This page contains the table of contents for the sewing machine parts catalog, listing various mechanisms and components with their corresponding page numbers in both Japanese and English.
- Page 4 (diagram): This page displays a diagram of sewing machine components, with numbered parts indicated by reference numbers and associated model series information.
- Page 5 (parts_list): This page lists parts for the MACHINE BED FRAME [1], including part numbers, names, and quantities.
- Page 6 (diagram): This page displays a diagram of sewing machine components, with numbered parts indicating their location and relationships within the assembly. It includes various screws, plates, and housing parts.
- Page 7 (parts_list): This page lists parts for the MACHINE BED FRAME [2], including screws, pins, plates, and shields, with their corresponding part numbers, names, and quantities.
- Page 8 (diagram): This page displays a diagram of various sewing machine components, including covers, screws, plates, and brackets, with reference numbers for identification. It also lists specific part numbers and model applicability for certain items.
- Page 9 (parts_list): This page lists parts for the COVER [1] assembly, including part numbers, names, and quantities.
- Page 10 (diagram): This page displays a diagram of sewing machine parts, with numbered components and a list of parts for the M632 Series.
- Page 11 (parts_list): This page lists parts for COVER [2], including screws, washers, nuts, and covers, with part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays diagrams of various sewing machine parts for the M632 and M652 series, including cloth plates, covers, and related hardware, with reference numbers and part details.
- Page 13 (parts_list): This page lists parts for COVER (3) with part numbers, names, and quantities.
- Page 14 (diagram): This page displays a diagram of various sewing machine parts, including a shaft, spools, bearings, and screws, with reference numbers for each component. It also indicates that some parts are for the M632 and M852 series.
- Page 15 (parts_list): This page lists parts for the Crankshaft Drive Mechanism [1], including part numbers, names, and quantities.
- Page 16 (diagram): This page displays a diagram of the M632 Series sewing machine components, with numbered parts and their corresponding model applicability.
- Page 17 (parts_list): This page lists parts for the Crankshaft Drive Mechanism, including part numbers, names, and quantities.
- Page 18 (diagram): This page displays a diagram of the M652 Series components, including part numbers, descriptions, and reference numbers for various parts like shafts, connecting rods, and screws.
- Page 19 (parts_list): This page lists parts for the Crankshaft Drive Mechanism (3), including part numbers, names, and quantities.
- Page 20 (diagram): This page contains a diagram of various sewing machine parts, including needles, shafts, and mounting components, with reference numbers for identification.
- Page 21 (parts_list): This page lists parts for the Needle Drive Mechanism, including part numbers, names, and quantities.
- Page 22 (diagram): This page contains diagrams of parts for the M632 Series and M652 Series sewing machines, with numbered references for each part.
- Page 23 (parts_list): This page lists parts for the Needle Drive Mechanism, including screws, plates, guards, and brackets, with their corresponding part numbers and quantities.
- Page 24 (diagram): This page displays a diagram of various sewing machine components, including linkages, bearings, bolts, and shafts, with reference numbers for each part.
- Page 25 (parts_list): This page lists parts for the Upper Looper Drive Mechanism, including part numbers, names, and quantities.
- Page 26 (diagram): This page displays a diagram of various sewing machine components, including linkages, shafts, screws, and brackets, with reference numbers and model series information for M832 and M652 series machines.
- Page 27 (parts_list): This page lists parts for the Lower Looper Drive Mechanism, including part numbers, names, and quantities.
- Page 28 (diagram): This page displays a diagram of various sewing machine components, including screws, shafts, bearings, and springs, with reference numbers for identification.
- Page 29 (parts_list): This page lists parts for the Feed Mechanism [1], including part numbers, names, and quantities.
- Page 30 (diagram): This page displays a diagram of various sewing machine components, including shafts, brackets, screws, and other hardware, with reference numbers for each part. It also lists specific machine models to which certain parts apply.
- Page 31 (parts_list): This page lists parts for the feed mechanism (2), including shafts, collars, screws, washers, nuts, plugs, retainers, oil wicks, bushings, and various feed bar and guide components, with their corresponding part numbers and quantities.
- Page 32 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 27, with a reference box indicating applicable models M632-48, -49, -48P1, -48P2, -78, -79.
- Page 33 (parts_list): This page lists parts for the Feed Mechanism (3), including part numbers, names, and quantities.
- Page 34 (diagram): This page displays a diagram of various machine parts for the M632 and M652 series, with numbered callouts for each component.
- Page 35 (parts_list): This page lists parts for the Knife Drive Mechanism, including part numbers, names, and quantities.
- Page 36 (diagram): This page displays a diagram of various sewing machine parts, including levers, springs, screws, and other components, with reference numbers for identification. It also indicates compatibility with M632 and M652 Series machines.
- Page 37 (parts_list): This page lists parts for the Presser Foot Mechanism [1], including part numbers, names, and quantities.
- Page 38 (diagram): This page displays diagrams of various sewing machine parts for M632 Series, M632-38A, -39A, M632-86, -87, -88, -89, M652 Series, and other models, with corresponding part numbers and reference numbers.
- Page 39 (parts_list): This page lists parts for the Presser Foot Mechanism (2), including springs, screws, nuts, and fabric guards, with their corresponding part numbers and quantities.
- Page 40 (diagram): This page displays a diagram of sewing machine components, including various screws, a cover, and a detailed assembly with numbered parts.
- Page 41 (parts_list): This page lists parts for the lubrication mechanism, including part numbers, names, and quantities.
- Page 42 (diagram): This page displays a diagram of the M632 Series sewing machine parts, with numbered components indicating their positions and relationships within the machine assembly.
- Page 43 (parts_list): This page lists parts for the CHAINSTITCH LOOPER MECHANISM [1], including part numbers, names, and quantities.
- Page 44 (diagram): This page displays a diagram of M632 Series sewing machine parts, with numbered components indicating their positions.
- Page 45 (parts_list): This page lists parts for the Chainstitch Looper Mechanism [2], including part numbers, names, and quantities.
- Page 46 (diagram): This page displays diagrams of various parts for the M632 and M652 series sewing machines, with reference numbers and some part numbers indicated.
- Page 47 (parts_list): This page lists parts for the Thread Guide & Thread Takeup Mechanism, including part numbers, names, and quantities.
- Page 48 (diagram): This page displays diagrams of various stitch types and their associated parts for the M632 series sewing machines, including specific models like M632-01, M632-02, and M632-355.
- Page 49 (parts_list): This page lists parts for the Thread Tension Mechanism [1], including part numbers, names, and quantities.
- Page 50 (diagram): This page displays diagrams of various sewing machine parts for the M652 Series, including components for stitch types 504-505 and 512-514, with numbered references for identification.
- Page 51 (parts_list): This page lists parts for the Thread Tension Mechanism [2], including part numbers, names, and quantities.
- Page 52 (diagram): This page displays diagrams of sewing machine parts for models M652-01, M652-13, and M632-48P1, -48P2, with numbered components indicated.
- Page 53 (parts_list): This page lists attachment parts with their part numbers, names, and quantities, including screws, plates, and various guides.
- Page 54 (diagram): This page displays a diagram of various sewing machine parts, including screws, levers, springs, and handles, with reference numbers for identification.
- Page 55 (parts_list): This page lists parts for the SHIRRING DEVICE, including part numbers, names, and quantities.
- Page 56 (diagram): This page displays a diagram of various sewing machine parts, including a cable assembly, brackets, screws, and other components, with reference numbers for each part.
- Page 57 (parts_list): This page lists parts for the BT Device, including part numbers, names, and quantities. It details items such as thread releaser assembly, brackets, screws, nuts, spacers, shirring blades, cables, washers, blade completes, clamps, springs, knife holders, knives, and base/edge guides.
- Page 58 (diagram): This page displays a diagram of sewing machine components, including screws, brackets, and covers, with reference numbers for each part.
- Page 59 (parts_list): This page lists parts for semi-submerged installation, including part numbers, names, and quantities.
- Page 60 (diagram): This page displays a diagram of sewing machine parts, with numbered components indicating various screws, washers, bolts, and other hardware, as well as larger structural elements like arms and bases.
- Page 61 (parts_list): This page lists parts for a thread stand, including various thread stand assemblies, washers, nuts, brackets, and screws, with their corresponding part numbers and quantities.
- Page 62 (parts_list): This page lists parts for the M632 Series sewing machines, including part numbers, names, and applicable models for various components like feed dogs, presser feet, and loopers.
- Page 63 (parts_list): This page lists parts for the M632 Series sewing machines, including needle plates, feed dogs, loopers, and needle holders, with part numbers and specifications for different machine types and gauges.
- Page 64 (parts_list): This page lists parts for M632 series sewing machines, including various gauges, feed dogs, presser feet, loopers, and needle guards.
- Page 65 (parts_list): This page lists parts for M632 series sewing machines, including machine type/spec, gauge, needle plate, main feed dog, auxiliary feed dog, diff feed dog, presser foot, upper looper, upper spreader, lower looper, chainstitch looper, upper knife, lower knife, overlock needle guard (front and rear), needle holder, and needle.
- Page 66 (parts_list): This page lists parts for the M652 Series sewing machines, including parts for M652-01, M652-05, and M652-12 models, detailing specifications like gauge, needle plate, and various feed dog components, presser foot parts, and loopers.
- Page 67 (parts_list): This page lists parts for the M652 Series sewing machines, including various components like feed dogs, presser feet, loopers, and needles, with their corresponding part numbers and specifications.
- Page 68 (parts_list): This page lists parts for the M652 Series sewing machines, including part numbers, names, and specifications for various machine types like M652-23, M652-23A, and M652-27.
- Page 69 (parts_list): This page contains a parts list for the M652 Series, specifically listing parts for the Gauge and Needle Guard components. It includes part numbers, names, and specifications for various machine types.
- Page 70 (parts_list): This page contains a parts list for the M652 Series, specifically listing parts for different machine types and specifications, including needle plates, feed dogs, presser feet, and looper parts.
- Page 71 (diagram): This page displays diagrams of various sewing machine parts, including needles, presser feet, and other components, with their corresponding part numbers and descriptions.
- Page 72 (diagram): Gauge parts construction chart for the M632 Series plain seaming (2-needle) machine, showing the NG×SW gauge assembly and the 208085, 208066, 208218, 208219 and 208500 gauge sub-assemblies with their component part numbers.
- Page 73 (diagram): This page displays a diagram of various sewing machine parts, including needles, presser feet, and other components, with their corresponding part numbers and descriptions for models M632-05, M632-06, M632-07, and M632-08.
- Page 74 (diagram): This page displays a diagram of gauge parts for the M632 Series sewing machine, including part numbers and descriptions.
- Page 75 (diagram): This page displays a diagram of various sewing machine parts, including needles, presser feet, and other components, with their corresponding part numbers and descriptions.
- Page 76 (diagram): This page displays a construction chart for gauge parts of the M632 Series sewing machines, detailing various components with their part numbers and associated models.
- Page 77 (diagram): This page displays a diagram of various sewing machine parts, including footers and needles, with their corresponding part numbers and model applicability. It also provides descriptions for some parts, indicating their use with different fabric weights and sewing styles.
- Page 78 (diagram): This page displays a construction chart for M632 Series gauge parts, showing various components with their respective part numbers and model applicability.
- Page 79 (diagram): This page displays a diagram of various sewing machine parts, including needles, presser feet, and other components, categorized by machine models and fabric types.
- Page 80 (diagram): This page displays a construction chart for gauge parts of the M632 Series, specifically for plain seaming with 3 needles. It includes diagrams and part numbers for various components.
- Page 81 (diagram): This page displays a diagram of various sewing machine parts, including needles, presser feet, and other components, with their corresponding part numbers and descriptions.
- Page 82 (diagram): This page displays a construction chart for M632 Series gauge parts, showing various components with their part numbers and associated models.
- Page 83 (diagram): This page displays diagrams of various sewing machine parts, including needles, presser feet, and other components, with their corresponding part numbers and model applicability.
- Page 84 (diagram): This page displays a construction chart for M652 Series gauge parts, featuring diagrams and part numbers for various components like M652-13, M652-17, and other related parts such as 208078-BF, 204674, 204875ABF, 204876-BF, 208730, 201230C, and 201224B.
- Page 85 (diagram): This page displays diagrams of various sewing machine parts, including needles, presser feet, and other components, with their corresponding part numbers and descriptions.
- Page 86 (diagram): This page displays a construction chart for M652 Series gauge parts, showing various components with their part numbers and diagrams.
- Page 87 (diagram): This page displays diagrams of various sewing machine parts, including needles, presser feet, and other components, with their corresponding part numbers and descriptions.
- Page 88 (diagram): This page displays construction diagrams for M652 Series gauge parts, including components for M652-27, M652-51, and M652-52, along with various individual part illustrations and their corresponding part numbers.
- Page 89 (diagram): This page displays diagrams and part numbers for various sewing machine components, including needles, presser feet, and other miscellaneous parts, categorized under model numbers M652-27, M652-51, and M652-52.
- Page 90 (diagram): This page displays a construction chart for M652 Series gauge parts, showing various components with their part numbers and diagrams.
- Page 91 (diagram): This page displays diagrams of various sewing machine parts, including needles, presser feet, and other components, with their corresponding part numbers and descriptions for different machine models.
- Page 92 (diagram): This page displays a diagram of M652 Series gauge parts, including various part numbers and their corresponding illustrations.
- Page 93 (diagram): This page displays a diagram of various sewing machine parts, including part numbers and descriptions for different hemming applications.
- Page 98 (cover): This is the cover page of a parts catalog from Superior Sewing Machine & Supply LLC, featuring a watermark of 'jintex.in'.
- Page 99 (cover): This is the cover page of the catalog, featuring a large watermark and a footer indicating the source library.
- Page 100 (cover): This is the cover page of the catalog for Pegasus Sewing Machine Co., Ltd., featuring the catalog number 9711 A and the publication date of June 1998.
