Pegasus M652 Parts Book (PDF)
Text index — Pegasus M652
Page 5 — MACHINE BED FRAME [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| *01 | 209420A9S | MACHINE FRAME COMPLETE | 01 |
| *02 | 209421A9S | MACHINE FRAME COMPLETE | 01 |
| *03 | 209434-SD | MACHINE ARM (RIGHT) | 01 |
| 04 | 208248 | BUSHING | 01 |
| 05 | 208249 | BUSHING | 01 |
| 06 | 204625A | BUSHING | 01 |
| 07 | 204627A | BUSHING | 01 |
| 08 | 201002 | PIN | 02 |
| 09 | 204251 | GASKET | 01 |
| 10 | 201002 | PIN | 02 |
| *11 | 209418ASD | MACHINE BED | 01 |
| *12 | 209419ASD | MACHINE BED | 01 |
| 13 | 204014 | BUSHING | 01 |
| 14 | 204149 | BUSHING | 01 |
| 15 | 210067 | BUSHING | 01 |
| 16 | 209169A | BUSHING | 01 |
| 17 | 209169 | BUSHING | 01 |
| 18 | 210292 | BUSHING | 01 |
| 19 | 204089 | BUSHING | 01 |
| 20 | 210164 | BUSHING | 01 |
| 21 | 208292 | BUSHING | 01 |
| 22 | 210297 | BUSHING | 01 |
| 23 | 208429 | BUSHING (REAR) | 01 |
| 24 | 208938 | BUSHING (REAR) | 01 |
| 25 | 210124 | BUSHING | 01 |
| 26 | 210125 | BUSHING | 01 |
| 27 | 210296 | BUSHING | 01 |
| 28 | 210297 | BUSHING | 01 |
Page 7 — MACHINE BED FRAME [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| *01 | 209435-SD | MACHINE ARM (LEFT) | 01 |
| 02 | 005163 | SCREW | 01 |
| 03 | 005237 | SCREW | 01 |
| 04 | 208434 | OIL SHIELD | 01 |
| 05 | 005163 | SCREW | 01 |
| 06 | 005078 | SCREW | 04 |
| 07 | 210005 | COVER PLATE | 01 |
| 08 | 005117 | SCREW | 06 |
| *09 | 209357A | NAME PLATE | 01 |
| 10 | 005332A | SCREW | 02 |
| *11 | 230047A | SERIAL NUMBER PLATE | 01 |
| 12 | 210679 | PIN | 02 |
| 13 | 005332A | SCREW | 02 |
| 14 | 204003 | OIL SIGHT GAUGE | 01 |
| *15 | 209450 | TYPE PLATE | 01 |
| 16 | 210679 | PIN | 02 |
| 17 | 204006 | BED PIN | 04 |
| 18 | 002022 | SCREW | 01 |
Page 9 — COVER [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 209422-SD | TOP COVER | 01 |
| 02 | 208482 | CUSHION RUBBER | 02 |
| 03 | 208481 | O RING | 01 |
| 04 | 005118 | SCREW | 04 |
| 05 | 206457 | OIL SIGHT WINDOW | 01 |
| 06 | 206682 | GASKET | 01 |
| 07 | 208919 | BED PLATE COMPLETE (LEFT) | 01 |
| 08 | 208921 | GASKET | 01 |
| 09 | 004009-1 | SCREW | 07 |
| 10 | 005482 | SCREW | 01 |
| 11 | 208342 | GASKET | 01 |
| 12 | 208341 | BED COVER PLATE (RIGHT) | 01 |
| 13 | 005117 | SCREW | 06 |
| 14 | 204848A | FABRIC GUARD | 01 |
| 15 | 004009-1 | SCREW | 02 |
| 16 | 198192 | CUSHION RUBBER | 01 |
| 17 | 204223 | FLAT SPRING | 01 |
| 18 | 004009-1 | SCREW | 01 |
| 19 | 209426-SD | NEEDLE BAR COVER | 01 |
| 20 | 209426ASD | NEEDLE BAR COVER | 01 |
| 21 | 209449A | NAME PLATE | 01 |
| 22 | 202653 | SCREW | 02 |
| 23 | 209427 | FLAT SPRING | 01 |
| 24 | 001234 | SCREW | 02 |
| 25 | 209448 | BRACKET | 01 |
| 26 | 210307 | WASHER | 02 |
| 27 | 005659 | SCREW | 01 |
| 28 | 209446 | EYE GUARD | 01 |
| 29 | 209447 | EYE GUARD | 01 |
| 30 | 202875 | WASHER | 02 |
| 31 | 005359 | SCREW | 02 |
| 32 | 209432-9U | BELT COVER ASSEMBLY | 01 |
| 33 | 209433-UB | BELT COVER | 01 |
| 34 | 240305 | CUSHION RUBBER | 01 |
| 35 | 002903 | SCREW | 03 |
| 36 | 204681 | SPACER | 01 |
| 37 | 002922 | SCREW | 01 |
| 38 | 209459 | SPACER PLATE | 01 |
| 39 | 005010 | SCREW | 01 |
| 40 | 001216 | SCREW | 01 |
Page 11 — COVER [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208430 | FACE PLATE COMPLETE | 01 |
| 02 | 004009-1 | SCREW | 03 |
| 03 | 208945 | COVER/FEED ECCENTRIC | 01 |
| 04 | 001206 | SCREW | 02 |
| 05 | 204868 | SPACER | 01 |
| 06 | 202286 | SPRING WASHER | 01 |
| 07 | 002902 | SCREW | 01 |
| 08 | 210007 | FEED BAR COVER | 01 |
| 09 | 002905 | SCREW | 02 |
| 10 | 208604 | OIL SHIELD COMPLETE | 01 |
| 11 | 005147 | SCREW | 01 |
| 12 | 208008-UD | HINGE/FRONT COVER | 01 |
| 13 | 005095 | SCREW | 01 |
| 14 | 005137 | NUT | 01 |
| 15 | 137906 | WASHER | 03 |
| 16 | 001189 | SCREW | 03 |
| 17 | 208009 | PIN | 01 |
| 18 | 208401A | FRONT COVER (LEFT) | 01 |
| 19 | 208003A | FRONT COVER (LEFT) | 01 |
| 20 | 209285A | FRONT COVER (LEFT) | 01 |
| 21 | 208005A | FRONT COVER (LEFT) | 01 |
| 22 | 208058A | FRONT COVER (LEFT) | 01 |
| 23 | 200821 | WASHER | 02 |
| 24 | 001175-3 | SCREW | 02 |
| 25 | 208001AUD | FRONT COVER (RIGHT) | 01 |
| 26 | 005146 | SCREW | 02 |
| 27 | 208010 | SPRING | 01 |
| 28 | 200555 | RING | 01 |
Page 13 — COVER [3]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208610 | CLOTH PLATE COMPLETE | 01 |
| 02 | 210025 | CUSHION | 01 |
| 03 | 204218 | FLAT SPRING | 01 |
| 04 | 200162A | WASHER | 01 |
| 05 | 001216 | SCREW | 02 |
| 06 | 208612 | CLOTH PLATE COMPLETE | 01 |
| 07 | 210025 | CUSHION | 01 |
| 08 | 204218 | FLAT SPRING | 01 |
| 09 | 200162A | WASHER | 01 |
| 10 | 001216 | SCREW | 02 |
| 11 | 208611 | CLOTH PLATE COMPLETE | 01 |
| 12 | 303874 | CLOTH PLATE | 01 |
| 13 | 204744 | BRACKET | 01 |
| 14 | 204743 | SCREW | 01 |
| 15 | 001202 | SCREW | 01 |
| 16 | 202576 | WASHER | 01 |
| 17 | 201139 | COLLAR | 01 |
| 18 | 001457 | SCREW | 02 |
| 19 | 209475-UB | SIDE COVER | 01 |
| 20 | 005182 | SCREW | 01 |
| 21 | 005091 | SCREW | 02 |
| 22 | 209405 | INDICATION PLATE | 01 |
| 23 | 204243 | RUBBER PLUG | 01 |
| 24 | 204242 | RUBBER PLUG | 01 |
| 25 | 005022 | SCREW | 01 |
| 26 | 003044 | NUT | 01 |
| 27 | 005118 | SCREW | 01 |
| 28 | 208741 | STOPPER | 01 |
| 29 | 001732 | SCREW | 01 |
| 30 | 208740 | SPRING | 01 |
| 31 | 208738 | PIN | 01 |
| 32 | 208737 | LEVER | 01 |
| 33 | 201629 | RING | 01 |
| 34 | 204827 | RUBBER PLUG | 01 |
| 35 | 204749 | RUBBER PLUG | 01 |
| 36 | 204749 | RUBBER PLUG | 01 |
| 37 | 209474-UB | SIDE COVER | 01 |
| 38 | 005091 | SCREW | 01 |
| 39 | 209405 | INDICATION PLATE | 01 |
| 40 | 204748 | SPRING | 01 |
| 41 | 204746 | PIN | 01 |
| 42 | 204747 | GUIDE | 01 |
| 43 | 005053 | SCREW | 01 |
| 44 | 001459 | SCREW | 01 |
| 45 | 001435 | SCREW | 01 |
| 46 | 208245 | WASHER | 01 |
| 47 | 204742 | LATCH | 01 |
| 48 | 204745 | SPRING | 01 |
| 49 | 005362 | SCREW | 01 |
Page 15 — CRANKSHAFT DRIVE MECHANISM [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208932AUD | MACHINE PULLEY | 01 |
| 02 | 005080 | SCREW | 01 |
| 03 | 005081 | SCREW | 01 |
| 04 | 204023 | WASHER | 01 |
| 05 | 005549 | SCREW | 01 |
| 06 | 209482 | SPACER | 01 |
| 07 | 005267 | SCREW | 01 |
| 08 | 209481 | COOLING FAN | 01 |
| 09 | 208476 | OIL SEAL COLLAR | 01 |
| 10 | 208272 | O RING | 01 |
| 11 | 208477 | PLATE | 01 |
| 12 | 204022 | GASKET | 01 |
| 13 | 005117 | SCREW | 04 |
| 14 | 204020A | BUSHING | 01 |
| 15 | 204019A | SPACER | 01 |
| 16 | 204018 | SPRING | 01 |
| 17 | 201523A | BALL BEARING | 01 |
| 18 | 204186A | WORM | 01 |
| 19 | 002022 | SCREW | 01 |
| 20 | 204016-92 | BUSHING | 01 |
| 21 | 001170-1 | SCREW | 02 |
| 22 | 005240 | SCREW | 01 |
| 23 | 240102 | WASHER | 01 |
| 24 | 204010 | BUSHING | 01 |
| 25 | 204873 | CRANK SHAFT EXTENSION | 01 |
| 26 | 005361 | SCREW | 01 |
| 27 | 204881 | HOUSING | 01 |
| 28 | 204737 | HOUSING | 01 |
| 29 | 204319 | GASKET | 01 |
| 30 | 001175-2 | SCREW | 04 |
| 31 | 207358 | OIL FELT | 01 |
| 32 | 005304 | SCREW | 01 |
Page 17 — CRANKSHAFT DRIVE MECHANISM [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 209367A91 | CRANKSHAFT ASSEMBLY | 01 |
| 02 | 209367B91 | CRANKSHAFT ASSEMBLY | 01 |
| 03 | 208951 | CRANKSHAFT | 01 |
| 04 | 001459 | SCREW | 02 |
| 05 | 204029-92 | ROD | 01 |
| 06 | 005233 | SCREW | 02 |
| 07 | 204145A92 | ROD | 01 |
| 08 | 005233 | SCREW | 02 |
| 09 | 208346-92 | ROD | 01 |
| 10 | 005376 | SCREW | 04 |
| 11 | 208192-92 | CRANK | 01 |
| 12 | 002022-4 | SCREW | 02 |
| 13 | 208346-92 | ROD | 01 |
| 14 | 005376 | SCREW | 04 |
| 15 | 204048A92 | CRANK | 01 |
| 16 | 204788-92 | CRANK | 01 |
| 17 | 002022-4 | SCREW | 02 |
Page 19 — CRANKSHAFT DRIVE MECHANISM [3]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 209367C91 | CRANKSHAFT ASSEMBLY | 01 |
| 02 | 209367D91 | CRANKSHAFT ASSEMBLY | 01 |
| 03 | 209367E91 | CRANKSHAFT ASSEMBLY | 01 |
| 04 | 208951 | CRANKSHAFT | 01 |
| 05 | 001459 | SCREW | 02 |
| 06 | 204029-92 | ROD | 01 |
| 07 | 005233 | SCREW | 02 |
| 08 | 204145A92 | ROD | 01 |
| 09 | 005233 | SCREW | 02 |
| 10 | 208346-92 | ROD | 01 |
| 11 | 005376 | SCREW | 04 |
| 12 | 204787-92 | CRANK | 01 |
| 13 | 204788-92 | CRANK | 01 |
| 14 | 002022-4 | SCREW | 02 |
| 15 | 208346-92 | ROD | 01 |
| 16 | 005376 | SCREW | 04 |
| 17 | 204048A92 | CRANK | 01 |
| 18 | 204788-92 | CRANK | 01 |
| 19 | 002022-4 | SCREW | 02 |
Page 21 — NEEDLE DRIVE MECHANISM [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 201360B92 | CRANK | 01 |
| 02 | 201441B92 | CRANK | 01 |
| 03 | 005381 | SCREW | 01 |
| 04 | 205495 | PIN | 01 |
| 05 | 005234 | SCREW | 01 |
| 06 | 201117 | COLLAR | 01 |
| 07 | 005328 | SCREW | 02 |
| 08 | 208250 | OIL SEAL | 01 |
| 09 | 208247 | SHAFT | 01 |
| 10 | 208424-92 | CRANK/NEEDLE BAR | 01 |
| 11 | 002022-4 | SCREW | 01 |
| 12 | 005312 | SCREW | 01 |
| 13 | 208425 | LINK/NEEDLE BAR DRIVE | 01 |
| 14 | 202176 | OIL WICK | 02 |
| 15 | 200654 | PIN | 02 |
| 16 | 005292 | SCREW | 01 |
| 17 | 208427-92 | NEEDLE BAR CLAMP | 01 |
| 18 | 001170-3 | SCREW | 01 |
| 19 | 005292 | SCREW | 01 |
| 20 | 208621 | CAP | 01 |
| 21 | 001457 | SCREW | 01 |
| 22 | 200030 | O RING | 01 |
| 23 | 212186 | OIL WICK | 01 |
| 24 | 208617 | OIL FELT | 01 |
| 25 | 208616 | DUST SHIELD | 01 |
| 26 | 005053 | SCREW | 02 |
| 27 | 204623 | NEEDLE BAR COMPLETE | 01 |
| 28 | 003119 | NUT | 01 |
| 29 | XXXXXX | NEEDLE | 01 |
| 30 | 208903 | NEEDLE BAR | 01 |
| 31 | XXXXXX | NEEDLE HOLDER | 01 |
| 32 | 005292-HU | SCREW | 02 |
| 33 | XXXXXX | NEEDLE | 01 |
| 34 | XXXXXX | NEEDLE HOLDER | 01 |
| 35 | 005292-HU | SCREW | 02 |
| 36 | XXXXXX | NEEDLE | 01 |
| 37 | XXXXXX | NEEDLE HOLDER | 01 |
| 38 | 005292-HU | SCREW | 03 |
| 39 | XXXXXX | NEEDLE | 01 |
| 40 | 208568 | NEEDLE BAR LINK COVER COMPLETE | 01 |
| 41 | 208560 | NEEDLE BAR LINK COVER | 01 |
| 42 | 208561 | OIL FELT | 01 |
| 43 | 208562 | OIL FELT | 01 |
| 44 | 208563 | OIL FELT PLATE | 01 |
| 45 | 208713 | PIN | 02 |
| 46 | 200555 | RING | 02 |
| 47 | 005113 | SCREW | 02 |
Page 23 — NEEDLE DRIVE MECHANISM [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | XXXXXX | NEEDLE PLATE | 01 |
| 02 | 001732-HC | SCREW | 02 |
| 03 | 204783 | BRACKET | 01 |
| 04 | 005227 | SCREW | 01 |
| 05 | 005107 | SCREW | 01 |
| 06 | XXXXXX | NEEDLE GUARD (REAR) | 01 |
| 07 | 005012 | SCREW | 01 |
| 08 | XXXXXX | NEEDLE GUARD (FRONT) | 01 |
| 09 | 005029 | SCREW | 02 |
| 10 | XXXXXX | NEEDLE GUARD (FRONT) | 01 |
| 11 | 005227 | SCREW | 01 |
| 12 | XXXXXX | NEEDLE GUARD (REAR) | 01 |
| 13 | 005010 | SCREW | 01 |
| 14 | 001216 | SCREW | 01 |
| 15 | XXXXXX | NEEDLE PLATE | 01 |
| 16 | 004009-1HC | SCREW | 02 |
| 17 | 204750 | BRACKET/NEEDLE PLATE | 01 |
| 18 | 204630 | PIN | 02 |
| 19 | 005357 | SCREW | 02 |
| 20 | 204631 | KEY | 01 |
| 21 | 005142 | SCREW | 02 |
| 22 | 204636 | BRACKET/NEEDLE DUARD | 01 |
| 23 | 001175-3 | SCREW | 02 |
| 24 | XXXXXX | NEEDLE GUARD (REAR) | 01 |
| 25 | 001206 | SCREW | 01 |
| 26 | XXXXXX | NEEDLE GUARD (FRONT) | 01 |
| 27 | 001206 | SCREW | 01 |
| 28 | 208935 | SUPPORT/NEEDLE PLATE | 01 |
| 29 | 005091 | SCREW | 02 |
| 30 | 204636A | BRACKET/NEEDLE DUARD | 01 |
| 31 | 001175-3 | SCREW | 02 |
| 32 | XXXXXX | MOVABLE NEEDLE GUARD | 01 |
| 33 | 210930 | SPRING WASHER | 01 |
| 34 | 005501 | SCREW | 01 |
Page 25 — UPPER LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 209389-91Y | UPPER LOOPER HOLDER ASSEMBLY | 01 |
| *02 | 204055B92 | CRANK/UPPER LOOPER | 01 |
| 03 | 005239 | SCREW | 01 |
| 04 | 202045 | SPRING WASHER | 01 |
| 05 | 005286 | NUT | 01 |
| 06 | 005084 | SCREW | 01 |
| 07 | 209478-91 | PIN ASSEMBLY | 01 |
| *08 | 208258 | PIN | 01 |
| 09 | 202176 | OIL WICK | 01 |
| *10 | 208976 | UPPER LOOPER HOLDER ASSEMBLY | 01 |
| *11 | 208974 | UPPER LOOPER HOLDER | 01 |
| *12 | 210107 | GUIDE/UPPER LOOPER HOLDER | 01 |
| 13 | 001998-2 | SCREW | 01 |
| 14 | 204274 | OIL WICK | 01 |
| 15 | XXXXXX | UPPER LOOPER | 01 |
| 16 | 208592 | CAP | 01 |
| 17 | 202175 | OIL WICK | 01 |
| 18 | 209250 | HOUSING ASSEMBLY | 01 |
| *19 | 208937 | HOUSING | 01 |
| 20 | 210109 | BUSHING | 01 |
| 21 | 005408 | SCREW | 01 |
| 22 | 001175-2 | SCREW | 02 |
| 23 | 208173 | PLUG | 01 |
| 24 | 210281 | SHAFT/LOWER LOOPER | 01 |
| 25 | 204052A | OIL SEAL | 01 |
| 26 | 204107 | WASHER | 01 |
| 27 | 202286 | SPRING WASHER | 01 |
| 28 | 002193 | SCREW | 01 |
| 29 | 210003 | PLUG | 01 |
| 30 | 201074A | GUIDE | 01 |
| 31 | 202286 | SPRING WASHER | 01 |
| 32 | 005546 | SCREW | 01 |
Page 27 — LOWER LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 204664-91 | LOWER LOOPER HOLDER ASSEMBLY | 01 |
| 02 | 204293 | SPRING WASHER | 01 |
| 03 | 005284 | SCREW | 01 |
| 04 | 209007-91 | LOWER LOOPER HOLDER ASSEMBLY | 01 |
| 05 | 204293 | SPRING WASHER | 01 |
| 06 | 005284 | SCREW | 01 |
| 07 | XXXXXX | LOWER LOOPER | 01 |
| 08 | 001175-3 | SCREW | 01 |
| 09 | 210586 | OIL SEAL | 01 |
| 10 | 210281 | SHAFT/LOWER LOOPER | 01 |
| 11 | 201074A | GUIDE | 01 |
| 12 | 202286 | SPRING WASHER | 01 |
| 13 | 005546 | SCREW | 01 |
| 14 | 240102 | WASHER | 01 |
| 15 | 204107 | WASHER | 01 |
| 16 | 202286 | SPRING WASHER | 01 |
| 17 | 002193 | SCREW | 01 |
Page 29 — FEED MECHANISM [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 204085-92 | CRANK/FEED DRIVE | 01 |
| 02 | 005381 | SCREW | 01 |
| 03 | 205495 | PIN | 01 |
| 04 | 005084 | SCREW | 01 |
| 05 | 204100 | CONNECTION | 01 |
| 06 | 204084 | NEEDLE BEARING | 01 |
| 07 | 210127 | ECCENTRIC/FEED DRIVE | 01 |
| 08 | 005427 | SCREW | 01 |
| 09 | 005292 | SCREW | 01 |
| 10 | 210130 | FLAT SPRING | 01 |
| 11 | 210129 | GUIDE/FEED ECCENTRIC | 01 |
| 12 | 210282A | ECCENTRIC/LOOPER AVOIDING | 01 |
| 13 | 210128A | FEED ECCENTRIC RETAINER | 01 |
| 14 | 005461 | SCREW | 02 |
| 15 | 211802A | ECCENTRIC/FEED REGULATING | 01 |
| 16 | 211804 | STOPPER | 01 |
| 17 | 005437 | SCREW | 01 |
| 18 | 202522 | RING | 01 |
| 19 | 240484 | WASHER | 02 |
| 20 | 200020 | O RING | 02 |
| 21 | 208421 | SPRING | 01 |
| 22 | 209476 | PUSH BUTTON | 01 |
| 23 | 208411 | FEED REGULATING RATCHET | 01 |
| *24 | 208413 | BRACKET | 01 |
| *25 | 208412 | RATCHET | 01 |
| 26 | 005336 | SCREW | 01 |
| 27 | 206781 | PIN | 02 |
| 28 | 208415 | SPRING | 02 |
| 29 | 210136 | RATCHET WHEEL COMPLETE | 01 |
| *30 | 211807 | BRACKET | 01 |
| *31 | 211806 | WHEEL | 01 |
| 32 | 005157 | SCREW | 03 |
| 33 | 005461 | SCREW | 02 |
| 34 | 208944 | SPACER | 01 |
Page 31 — FEED MECHANISM [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 204751 | SHAFT | 01 |
| 02 | 201056 | COLLAR | 01 |
| 03 | 005084 | SCREW | 02 |
| 04 | 208284-92 | CRANK/MAIN FEED | 01 |
| 05 | 005381 | SCREW | 01 |
| 06 | 208285 | SCREW | 01 |
| 07 | 208286 | WASHER | 01 |
| 08 | 005455 | NUT | 01 |
| 09 | 204107 | WASHER | 01 |
| 10 | 004009-1 | SCREW | 01 |
| 11 | 210003 | PLUG | 01 |
| 12 | 204111A | LINK/MAIN FEED | 01 |
| 13 | 204588 | RETAINER | 01 |
| 14 | 204618 | OIL WICK | 01 |
| 15 | 204114 | BUSHING | 01 |
| 16 | 204115 | WASHER | 01 |
| 17 | 005231 | SCREW | 01 |
| 18 | 204122 | LINK/DIFFERENTIAL FEED | 01 |
| 19 | 204115 | WASHER | 02 |
| 20 | 204114 | BUSHING | 01 |
| 21 | 005231 | SCREW | 01 |
| 22 | 204129A | BUSHING | 01 |
| 23 | 002133-1 | SCREW | 01 |
| 24 | 005084 | SCREW | 01 |
| 25 | 204128A | PIN | 01 |
| 26 | 205857 | BLOCK/FEED BAR GUIDE | 01 |
| 27 | 204439A | WASHER | 01 |
| 28 | 005317 | SCREW | 01 |
| 29 | 240162 | PLUG | 01 |
| 30 | 204123A | MAIN FEED BAR | 01 |
| 31 | XXXXXX | MAIN FEED DOG COMPLETE | 01 |
| 31 | XXXXXXX | 01 | |
| 32 | 005492 | SCREW | 01 |
| 33 | 001175-2 | SCREW | 01 |
| 34 | 204124 | DIFFERENTIAL FEED BAR | 01 |
| 35 | XXXXXX | DIFFERENTIAL FEED DOG | 01 |
| 36 | 001175-3 | SCREW | 01 |
| 37 | 001189 | SCREW | 01 |
| 38 | 204810 | BLOCK/FEED BAR LIFT | 01 |
| 39 | 208952 | GUIDE (LEFT)/FEED BAR | 01 |
| 40 | 208168 | GASKET | 01 |
| 41 | 005205 | SCREW | 02 |
| 42 | 208108 | GUIDE (RIGHT)/FEED BAR | 01 |
| 43 | 005205 | SCREW | 02 |
| 44 | 208625 | INSERT PLATE | 01 |
| 45 | 005346 | SCREW | 02 |
| 46 | 208109 | OIL SHIELD/FEED BAR GUIDE | 02 |
Page 33 — FEED MECHANISM [3]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208273-91 | REGULATOR COMPLETE/DIFF. FEED | 01 |
| 02 | 208274 | CRANK | 01 |
| 03 | 005381 | SCREW | 01 |
| 04 | 005141 | SCREW | 01 |
| 05 | 208275 | BLOCK | 01 |
| 06 | 208276 | COVER | 01 |
| 07 | 005029 | SCREW | 02 |
| 08 | 204140A | LINK/DIFF. FEED REGULATING | 01 |
| 09 | 005316 | SCREW | 02 |
| 10 | 204139A92 | LEVER/DIFF. FEED REGULATING | 01 |
| 11 | 005381 | SCREW | 01 |
| 12 | 204754A | COLLAR | 01 |
| 13 | 204757 | PIN | 01 |
| 14 | 005084 | SCREW | 01 |
| 15 | 204756 | SPRING | 01 |
| 16 | 204052A | OIL SEAL | 01 |
| 17 | 204752 | SHAFT | 01 |
| 18 | 204755 | LEVER/DIFF. FEED REGULATING | 01 |
| 19 | 204883 | LEVER | 01 |
| 20 | 005118 | SCREW | 01 |
| 21 | 001216 | SCREW | 01 |
| 22 | 204143A | STOPPER | 02 |
| 23 | 204142B | REGULATING PLATE | 01 |
| 24 | 005118 | SCREW | 02 |
| 25 | 202868 | WASHER | 01 |
| 26 | 204870 | THUMB NUT | 01 |
| 27 | 005321A | SCREW | 01 |
Page 35 — KNIFE DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208693 | UPPER KNIFE LEVER | 01 |
| 02 | 204154 | PIN | 01 |
| 03 | 204796 | PIN | 01 |
| 04 | 208402 | UPPER KNIFE CLAMP | 01 |
| 05 | 204638 | UPPER KNIFE CLAMP | 01 |
| 06 | 001175-2 | SCREW | 02 |
| 07 | XXXXXX | UPPER KNIFE | 01 |
| 08 | 005088 | SCREW | 01 |
| 09 | 208235 | WASHER | 01 |
| 10 | 206181B92 | COLLAR | 01 |
| 11 | 005001 | SCREW | 01 |
| 12 | 204147-92 | CRANK/UPPER KNIFE | 01 |
| 13 | 005381 | SCREW | 01 |
| 14 | 204146 | PIN | 01 |
| 15 | 001458 | SCREW | 01 |
| 16 | 210003 | PLUG | 01 |
| 17 | 005260 | NUT | 01 |
| 18 | 200098 | WASHER | 01 |
| 19 | 204159 | STOPPER | 01 |
| 20 | 005117 | SCREW | 01 |
| 21 | 005117 | SCREW | 01 |
| 22 | 204158 | SPRING | 01 |
| 23 | 208404 | LOWER KNIFE HOLDER | 01 |
| 24 | 004009-1 | SCREW | 01 |
| 25 | XXXXXX | LOWER KNIFE | 01 |
| 26 | 204162 | CLAMP STUD/LOWER KNIFE | 01 |
| 27 | 208851 | LOWER KNIFE HOLDER | 01 |
| 28 | 005002 | SCREW | 01 |
| 29 | XXXXXX | LOWER KNIFE | 01 |
| 30 | 210184 | CLAMP/LOWER KNIFE | 01 |
| 31 | 002193 | SCREW | 01 |
| 32 | 204160A | GUIDE/LOWER BAR | 01 |
| 33 | 208096 | GUIDE/LOWER KNIFE HOLDER | 01 |
| 34 | 001175-2 | SCREW | 01 |
Page 37 — PRESSER FOOT MECHANISM [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208526 | PRESSER ARM | 01 |
| 02 | XXXXXX | PRESSER FOOT COMPLETE | 01 |
| 03 | 209472 | FINGER GUARD | 01 |
| 04 | 209471 | FINGER GUARD | 01 |
| 05 | 202451 | CHAIN CUTTER | 01 |
| 06 | 001229 | SCREW | 02 |
| 07 | 208549 | PIN | 01 |
| 08 | 001457-1 | SCREW | 01 |
| 09 | 208534A | SHAFT | 01 |
| 10 | 209455-91 | BUSHING ASSEMBLY | 01 |
| 11 | 002133-1 | SCREW | 01 |
| 12 | 274005 | SPRING | 01 |
| 13 | 209460 | LEVER | 01 |
| 14 | 209454-92 | COLLAR | 01 |
| 15 | 005457 | SCREW | 01 |
| 16 | 274006 | LINK | 01 |
| 17 | 209452 | LEVER/FOOT LIFT | 01 |
| 18 | 209458 | SPRING | 01 |
| 19 | 007060 | SCREW | 01 |
| 20 | 209453 | STOPPER | 01 |
| 21 | 005118 | SCREW | 02 |
| 22 | 005152 | SCREW | 01 |
| 23 | 003044 | NUT | 01 |
| 24 | 208774 | THUMB SCREW | 01 |
| 25 | 208773 | SPRING | 01 |
| 26 | 208537-91 | PRESSER BAR COMPLETE | 01 |
| 27 | 208598 | LEVER/HAND LIFT | 01 |
| 28 | 202647A | PIN | 01 |
| 29 | 208599 | BUSHING | 01 |
| 30 | 005029 | SCREW | 01 |
| 31 | 201395 | SPRING | 01 |
| 32 | 202645 | PLUNGER | 01 |
| 33 | 005271 | SCREW | 01 |
| 34 | 003044 | NUT | 01 |
Page 39 — PRESSER FOOT MECHANISM [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208529 | SPRING | 01 |
| 02 | 002921 | SCREW | 01 |
| 03 | XXXXXX | PRESSER FOOT COMPLETE | 01 |
| 04 | 005328 | SCREW | 01 |
| 05 | 208958-B | SCREW | 01 |
| 06 | 208528-B | SCREW | 01 |
| 07 | 208913 | SPRING | 01 |
| 08 | 005409 | NUT | 01 |
| 09 | 208531 | FABRIC GUARD | 01 |
| 10 | 208532 | PRESSER FOOT FABRIC GUARD | 01 |
| 11 | 005030 | SCREW | 01 |
| 12 | 211906 | SPRING | 01 |
| 13 | 002921 | SCREW | 01 |
| 14 | 211905-92B | BRACKET/PRESSER FOOT | 01 |
| 15 | 005328 | SCREW | 01 |
| 16 | XXXXXX | PRESSER FOOT COMPLETE | 01 |
| 17 | 211919 | PIN | 01 |
| 18 | 211918 | SPRING | 01 |
| 19 | 211920 | PIN | 01 |
| 20 | 003150 | NUT | 01 |
| 21 | 211915A | PRESSER FOOT FINGER | 01 |
| 22 | 211916A | PRESSER FOOT FINGER | 01 |
| 23 | 211917 | BRACKET | 01 |
| 24 | 300248 | WASHER | 01 |
| 25 | 005089 | SCREW | 01 |
| 26 | 208978 | SPRING | 01 |
| 27 | 005291 | SCREW | 01 |
| 28 | XXXXXX | PRESSER FOOT COMPLETE | 01 |
| 29 | 005328 | SCREW | 01 |
| 30 | 208958-B | SCREW | 01 |
| 31 | 208958-B | SCREW | 02 |
| 32 | 204683 | FABRIC GUARD | 01 |
| 33 | 202875 | WASHER | 01 |
| 34 | 005157 | SCREW | 01 |
| 35 | 208547 | REGULATOR | 01 |
| 36 | 002921 | SCREW | 01 |
| 37 | 208525-92B | BRACKET/PRESSER FOOT | 01 |
| 38 | 005328 | SCREW | 01 |
| 39 | XXXXXX | PRESSER FOOT | 01 |
| 40 | 204668 | PRESSER FOOT UNCURLER | 01 |
| 41 | 210584 | UNCURLER | 01 |
| 42 | 211600 | UNCURLER | 01 |
| 43 | 210585 | WASHER | 01 |
| 44 | 005030 | SCREW | 01 |
| 45 | XXXXXX | PRESSER FOOT FINGER | 01 |
| 46 | 201156 | SET PLATE/PRESSER FOOT | 01 |
| 47 | 005089 | SCREW | 01 |
| 48 | 201265B | FABRIC GURAD | 01 |
| 49 | 208735 | FABRIC GURAD | 01 |
| 50 | 001231 | SCREW | 01 |
| 51 | 005089 | SCREW | 01 |
| 52 | 202875 | WASHER | 01 |
| 53 | 212184 | ELASTIC GUIDE (UPPER) | 01 |
| 54 | 212185 | ELASTIC GUIDE (LOWER) | 01 |
| 55 | XXXXXX | PRESSER FOOT COMPLETE | 01 |
Page 41 — LUBRICATION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 204194A | PIPE COMPLETE | 01 |
| 02 | 201758 | JOINT SCREW | 01 |
| 03 | 204193 | OIL DISTRIBUTOR | 01 |
| 04 | 208117 | OIL DISTRIBUTOR | 01 |
| 05 | 210214 | PLUG | 02 |
| 06 | 200152 | JOINT SCREW | 01 |
| 07 | 204593 | TROCHOID PUMP ASSEMBLY | 01 |
| 08 | 204187 | WORM WHEEL | 01 |
| 09 | 005060 | SCREW | 02 |
| 10 | 209407 | TROCHOID PUMP | 01 |
| 11 | 005145 | SCREW | 01 |
| 12 | 212978-91 | ROTOR (INSIDE) SHAFT | 01 |
| 13 | 212981 | ROTOR (OUTSIDE) | 01 |
| 14 | 212982A | PLATE | 01 |
| 15 | 005328 | SCREW | 03 |
| 16 | 209410 | CLAMP | 01 |
| 17 | 001170-1 | SCREW | 01 |
| 18 | 003091 | NUT | 01 |
| 19 | 209408 | FILTER (INSIDE) | 01 |
| 20 | 209409 | FILTER (OUTSIDE) | 01 |
| 21 | 204185 | O RING | 01 |
| 22 | 005095 | SCREW | 02 |
| 23 | 209425 | GASKET | 01 |
| 24 | 209423-91 | OIL RESERVOIR ASSEMBLY | 01 |
| 25 | 209424 | OIL RESERVOIR | 01 |
| 26 | 202287A | GASKET | 01 |
| 27 | 005138B | SCREW | 01 |
| 28 | 204806 | WASHER | 04 |
| 29 | 005150B | BOLT | 04 |
Page 43 — CHAINSTITCH LOOPER MECHANISM [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 210284 | CONNECTION/LOOPER AVOIDING | 01 |
| 02 | 205015 | NEEDLE BEARING | 01 |
| 03 | 210283 | COLLAR | 01 |
| 04 | 005259 | SCREW | 02 |
| 05 | 210285 | PIN | 01 |
| 06 | 208286 | WASHER | 01 |
| 07 | 005455 | NUT | 01 |
| 08 | 210287-92 | CRANK/LOOPER AVOIDING | 01 |
| 09 | 005457 | SCREW | 01 |
| 10 | 205088 | PLUG | 01 |
| 11 | 208025-92 | LINK/LOOPER AVOIDING | 01 |
| 12 | 005385 | SCREW | 02 |
| 13 | 201056 | COLLAR | 01 |
| 14 | 005084 | SCREW | 02 |
| 15 | 201056 | COLLAR | 01 |
| 16 | 005084 | SCREW | 02 |
| 17 | 204874 | SHAFT/LOOPER AVOIDING | 01 |
| 18 | 208027 | BLOCK | 01 |
| 19 | 005292 | SCREW | 01 |
| 20 | 208026 | PIN | 01 |
| 21 | 208029 | COLLAR | 01 |
| 22 | 005084 | SCREW | 01 |
| 23 | 208028 | WASHER | 01 |
| 24 | 208196 | SHAFT/LOOPER DRIVE | 01 |
| 25 | 004802 | NUT | 01 |
| 26 | 210294-92 | CRANK/LOOPER DRIVE | 01 |
| 27 | 204293 | SPRING WASHER | 01 |
| 28 | 005457 | SCREW | 01 |
| 29 | 005084 | SCREW | 01 |
| 30 | 208195 | PIN | 01 |
| 31 | 202176 | OIL WICK | 01 |
| 32 | 208194 | LINK/LOOPER DRIVE | 01 |
| 33 | 208195 | PIN | 01 |
| 34 | 202176 | OIL WICK | 01 |
| 35 | 005328 | SCREW | 02 |
| 36 | 210586 | OIL SEAL | 01 |
| 37 | 204093-92 | CHAINSTITCH LOOPER LEVER | 01 |
| 38 | 204293 | SPRING WASHER | 01 |
| 39 | 005284 | SCREW | 01 |
| 40 | XXXXXX | DOUBLE CHAINSTITCH LOOPER | 01 |
| 41 | 001189 | SCREW | 01 |
| 42 | 204172 | WASHER | 01 |
| 43 | 002922 | SCREW | 01 |

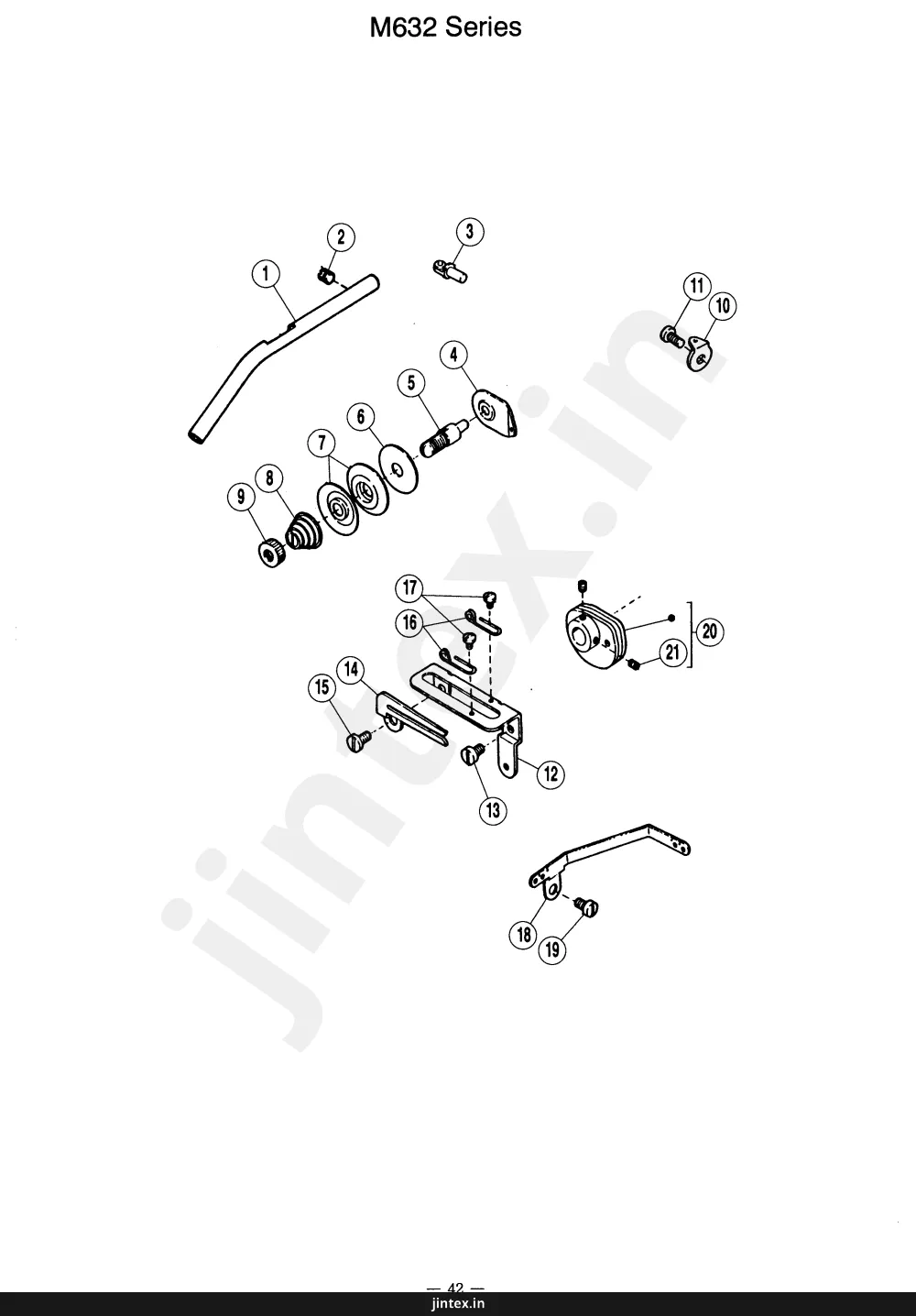

Page 45 — CHAINSTITCH LOOPER MECHANISM [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 204099 | PIPE | 01 |
| 02 | 001457 | SCREW | 01 |
| 03 | 201048A | THREAD EYELET | 01 |
| 04 | 202849 | TENSION GUIDE | 01 |
| 05 | 167072 | TENSION POST | 01 |
| 06 | 208449 | FELT | 01 |
| 07 | 210319 | TENSION DISC | 02 |
| 08 | 167077 | SPRING | 01 |
| 09 | 003056 | NUT | 01 |
| 10 | 167079 | THREAD EYELET | 01 |
| 11 | 005091 | SCREW | 01 |
| 12 | 204097A | BRACKET | 01 |
| 13 | 005113 | SCREW | 01 |
| 14 | 204096 | THREAD TAKEUP | 01 |
| 15 | 004009-1 | SCREW | 01 |
| 16 | 204324 | THREAD EYELET | 02 |
| 17 | 005077 | SCREW | 02 |
| 18 | 208362 | THREAD GUIDE | 01 |
| 19 | 005113 | SCREW | 01 |
| 20 | 204095A92 | THREAD TAKEUP | 01 |
| 21 | 005292 | SCREW | 02 |
Page 47 — THREAD GUIDE & THREAD TAKEUP MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 208399 | THREAD GUIDE | 01 |
| 02 | 004009-1 | SCREW | 01 |
| 03 | 208778 | THREAD GUIDE | 01 |
| 04 | 208777 | THREAD GUIDE | 01 |
| 05 | 208400 | THREAD GUIDE | 01 |
| 06 | 004009-1 | SCREW | 01 |
| 07 | 208777 | THREAD GUIDE | 01 |
| 08 | 202706A | THREAD TAKEUP | 01 |
| 09 | 204707 | THREAD GUIDE | 01 |
| 10 | 001186 | SCREW | 02 |
| 11 | 005299 | SCREW | 02 |
| 12 | 204706 | RETAINER BRACKET | 01 |
| 13 | 202705A | RETAINER BRACKET | 01 |
| 14 | 005359 | SCREW | 01 |
| 15 | 202495 | GUIDE | 01 |
| 16 | 200041 | GUIDE | 01 |
| 17 | 209068 | SPRING | 01 |
| 18 | 009070-2 | SCREW | 01 |
| 19 | 201048A | THREAD EYELET | 01 |
| 20 | 201072A | PIPE | 01 |
| 21 | 210353 | THREAD GUIDE | 01 |
| 22 | 204901 | THREAD TAKEUP | 01 |
| 23 | 002902 | SCREW | 01 |
| 24 | 201048A | THREAD EYELET | 01 |
| 25 | 201072A | PIPE | 01 |
| 26 | 208445 | THREAD TAKEUP/UPPER LOOPER | 01 |
| 27 | 204902 | AUXILIARY THREAD TAKEUP | 01 |
| 28 | 002902 | SCREW | 01 |
| 29 | 202875 | WASHER | 01 |
| 30 | 002921 | SCREW | 01 |
| 31 | 204905 | THREAD GUIDE | 01 |
| 32 | 002905 | SCREW | 01 |
| 33 | 204903 | THREAD TUBE | 01 |
| 34 | 005012 | SCREW | 01 |
Page 49 — THREAD TENSION MECHANISM [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 209174-9U | THREAD TENSION COMPLETE | 01 |
| 02 | 005143A | STUD | 01 |
| 03 | 208449 | FELT | 01 |
| 04 | 210319 | TENSION DISC | 02 |
| 05 | 208450-UA | CUP | 01 |
| 06 | 201037 | SPRING (HEAVY) | 01 |
| 07 | 208448 | SPRING BUSHING | 01 |
| 08 | 208447-UA | POST NUT | 01 |
| 09 | 210529-9U | THREAD TENSION COMPLETE | 01 |
| 10 | 005082A | SCREW STUD | 01 |
| 11 | 210530-9U | THREAD TENSION COMPLETE | 01 |
| 12 | 201086 | SPRING (MEDIUM) | 01 |
| 13 | 210531-9U | THREAD TENSION COMPLETE | 01 |
| 14 | 201068 | SPRING (LIGHT) | 01 |
| 15 | 209445 | THREAD GUIDE | 01 |
| 16 | 005137 | NUT | 01 |
| 17 | 209485 | THREAD GUIDE | 01 |
Page 51 — THREAD TENSION MECHANISM [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 210529-9U | THREAD TENSION COMPLETE | 01 |
| 02 | 005082A | SCREW STUD | 01 |
| 03 | 208449 | FELT | 01 |
| 04 | 210319 | TENSION DISC | 02 |
| 05 | 208450-UA | CUP | 01 |
| 06 | 201037 | SPRING (HEAVY) | 01 |
| 07 | 208448 | SPRING BUSHING | 01 |
| 08 | 208447-UA | POST NUT | 01 |
| 09 | 210530-9U | THREAD TENSION COMPLETE | 01 |
| 10 | 201086 | SPRING (MEDIUM) | 01 |
| 11 | 210531-9U | THREAD TENSION COMPLETE | 01 |
| 12 | 201068 | SPRING (LIGHT) | 01 |
| 13 | 209444 | THREAD GUIDE | 01 |
| 14 | 209445 | THREAD GUIDE | 01 |
| 15 | 005137 | NUT | 01 |
Page 53 — アタッチメント / ATTACHMENT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 205835 | AUXILIARY PLATE | 01 |
| 02 | 005299 | SCREW | 01 |
| 03 | 303312A | REGULATOR | 01 |
| 04 | 303313 | FLAT SPRING | 01 |
| 05 | 201211C91 | FOLDER COMPLETE (40MM) | 01 |
| 06 | 137142 | WASHER | 01 |
| 07 | 002905 | SCREW | 01 |
| 08 | 204760A91 | CLOTH GUIDE ASSEMBLY | 01 |
| 09 | 205361 | CLOTH GUIDE | 01 |
| 10 | 205363 | WELT GUIDE | 01 |
| 11 | 005157 | SCREW | 02 |
| 12 | 005363 | SCREW | 01 |
| 13 | 208098 | WELT GUIDE | 01 |
| 14 | 005057 | SCREW | 01 |
| 15 | 001189 | SCREW | 01 |
| 16 | 204762 | BASE/EDGE GUIDE | 01 |
| 17 | 005091 | SCREW | 02 |
| 18 | 209473-91 | TAPE GUIDE ASSEMBLY | 01 |
| 19 | 209469 | TAPE GUIDE | 01 |
| 20 | 205319 | TAPE TAKEUP | 01 |
| 21 | 208735 | FABRIC GURAD | 01 |
| 22 | 001333 | SCREW | 01 |
| 23 | 208554-91 | BRACKET ASS./PRESSER FOOT | 01 |
| 24 | 005328 | SCREW | 01 |
| 25 | 208958-B | SCREW | 01 |
| 26 | 204502A | PIPING FOOT | 01 |
| 27 | 202875 | WASHER | 01 |
| 28 | 002921 | SCREW | 01 |
| 29 | 204460 | FABRIC GUARD | 01 |
| 30 | 005077 | SCREW | 01 |
| 31 | 000403 | TAPE DISC ASSEMBLY | 01 |
| 32 | 000406 | FELT | 01 |
| 33 | 000405 | FIXING ROD | 01 |
| 34 | 000404 | TAPE DISC | 01 |
| 35 | 004012 | SCREW | 01 |
| 36 | 000407 | COLLAR | 01 |
| 37 | 000408 | ADJUSTING SCREW | 01 |
| 38 | 000409 | SHAFT | 01 |
| 39 | 004818 | NUT | 01 |
| 40 | 000410 | BRACKET | 01 |
| 41 | 004908 | SCREW | 03 |
Page 55 — ヒダ取り装置 / SHIRRING DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 209371-91 | SHIRRING ATTACHMENT COMPLETE | 01 |
| 02 | 208660 | BRACKET | 01 |
| 03 | 005152 | SCREW | 02 |
| 04 | 210947 | FLAT SPRING | 01 |
| 05 | 001206 | SCREW | 02 |
| 06 | 210946 | FLAT SPRING | 01 |
| 07 | 001206 | SCREW | 01 |
| 08 | 204888 | SPRING | 02 |
| 09 | 005513 | SCREW | 01 |
| 10 | 005104 | NUT | 01 |
| 11 | 210936 | BRACKET | 01 |
| 12 | 210945 | STOPPER | 01 |
| 13 | 005328 | SCREW | 02 |
| 14 | 210937 | SHAFT | 01 |
| 15 | 206225 | COLLAR | 01 |
| 16 | 001457-1 | SCREW | 02 |
| 17 | 211614 | BRACKET | 01 |
| 18 | 210952 | SPRING | 01 |
| 19 | 001435 | SCREW | 01 |
| 20 | 005292 | SCREW | 01 |
| 21 | 005104 | NUT | 01 |
| 22 | 210948 | LEVER | 01 |
| 23 | 211613 | GUIDE | 01 |
| 24 | 210939 | SPRING | 01 |
| 25 | 210938-92 | LATCH | 01 |
| 26 | 005118 | SCREW | 01 |
| 27 | 210944 | WASHER | 01 |
| 28 | 005082A | SCREW STUD | 01 |
| 29 | 204091 | WASHER | 01 |
| 30 | 210940 | SPRING | 01 |
| 31 | 208448 | SPRING BUSHING | 01 |
| 32 | 208447 | POST NUT | 01 |
| 33 | 205091 | SHIRRING EDGE GUIDE | 01 |
| 34 | 137906 | WASHER | 02 |
| 35 | 001234 | SCREW | 02 |
| 36 | 210955 | WASHER | 01 |
| 37 | 005029 | SCREW | 02 |
| 38 | 210953 | BLADE | 01 |
| 39 | 211885 | BINDER (20) | 01 |
| 40 | 000413 | TAPE INSERTING TOOL | 01 |
| 41 | 167066 | WASHER | 02 |
| 42 | 001202 | SCREW | 02 |
| 43 | 210962 | BRACKET/BINDER | 01 |
| 44 | 005210 | SCREW | 02 |
Page 57 — BT装置 / BT DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| *01 | 304271-91 | THREAD RELEASER ASSEMBLY | 01 |
| 02 | 209466 | BRACKET | 01 |
| 03 | 001732 | SCREW | 01 |
| 04 | 005137 | NUT | 01 |
| 05 | 209468 | SPACER | 01 |
| 06 | 209465 | SHIRRING BLADE | 01 |
| 07 | 005657 | SCREW | 01 |
| 08 | 179762-91 | CABLE | 01 |
| 09 | 005478 | SCREW | 02 |
| 10 | 209467 | BRACKET | 01 |
| 11 | 179761-15 | BRACKET | 01 |
| 12 | 179765-15 | NUT | 01 |
| 13 | 201185 | WASHER | 01 |
| 14 | 007021 | SCREW | 01 |
| 15 | 304008 | BLADE COMPLETE | 01 |
| 16 | 304009 | BRACKET | 01 |
| 17 | 301521 | CLAMP/THREAD CHAIN | 01 |
| 18 | 005536 | SCREW | 01 |
| 19 | 303979 | SPRING | 01 |
| 20 | 005526 | NUT | 01 |
| 21 | 303872 | KNIFE HOLDER | 01 |
| 22 | 005086 | SCREW | 01 |
| 23 | 303873 | KNIFE | 01 |
| 24 | 005524 | SCREW | 01 |
| 25 | 001175-2 | SCREW | 01 |
| 26 | 303873 | KNIFE | 01 |
| 27 | 204762 | BASE/EDGE GUIDE | 01 |
| 28 | 005091 | SCREW | 02 |
Page 59 — PARTS FOR SEMI-SUBMERGED INSTALLATION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01 | 205470-UA | WASTE CHUTE | 01 |
| 02 | 004904 | SCREW | 03 |
| 03 | 205466 | MACHINE REST BOARD | 01 |
| 04 | 205473 | CUSHION RUBBER | 04 |
| 05 | 206336 | NUT | 04 |
| 06 | 206337 | WASHER | |
| 07 | 205467 | SPACER | |
| 08 | 206337 | WASHER | 08 |
| 09 | 205765 | LINER | 04 |
| 10 | 205764 | CUSHION RUBBER | 04 |
| 11 | 004512 | SCREW | 04 |
| 12 | 205468-UA | WASTE CHUTE TOP (A) | 01 |
| 13 | 205469-UA | WASTE CHUTE TOP (B) | 01 |
| 14 | 004905 | SCREW | 04 |
Page 61 — 糸立台
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 000486-9S | THREAD STAND ASS. (6-SPOOLS) | 01 | |
| 000486A9S | THREAD STAND ASS. (5-SPOOLS) | 01 | |
| 000486B9S | THREAD STAND ASS. (4-SPOOLS) | 01 | |
| 000486C9S | THREAD STAND ASS. (3-SPOOLS) | 01 | |
| 01 | 000503-SA | THREAD STAND ROD (LOWER) | 01 |
| 02 | 000509 | WASHER | 02 |
| 03 | 004835 | NUT | 01 |
| 04 | 000505-SA | BRACKET | 01 |
| 05 | 000505ASA | BRACKET | 02 |
| 06 | 000380A | SPOOL PIN | 03 |
| 07 | 201252 | SPRING WASHER | 03 |
| 08 | 004803 | NUT | 03 |
| 09 | 000381-SA | SPOOL TRAY | 03 |
| 10 | 000507 | CUSHION | 03 |
| 11 | 000382-SA | SPOOL RETAINING FIN | 03 |
| 12 | 007102 | SCREW | 01 |
| 13 | 000512 | WASHER | 01 |
| 14 | 004022 | SCREW | 01 |
| 15 | 000502-SA | THREAD STAND ROD (UPPER) | 01 |
| 16 | 000504-SA | JOINT | 01 |
| 17 | 004021 | SCREW | 02 |
| 18 | 004805 | NUT | 02 |
| 19 | 000383-SA | BRACKET | 01 |
| 20 | 004014 | SCREW | 01 |
| 21 | 004803 | NUT | 01 |
| 22 | 000384 | THREAD GUIDE BAR ROD | 01 |
| 23 | 004012 | SCREW | 02 |
| 24 | 004803 | NUT | 02 |
| 25 | 000233-SA | HOLDER | 01 |
| 26 | 004012 | SCREW | 01 |
| 27 | 004803 | NUT | 01 |
| 28 | 000293 | THREAD GUIDE BAR (6-SPOOLS) | 01 |
| 29 | 000293A | THREAD GUIDE BAR (5-SPOOLS) | 01 |
| 30 | 000293B | THREAD GUIDE BAR (4-SPOOLS) | 01 |
| 31 | 000293C | THREAD GUIDE BAR (3-SPOOLS) | 01 |
| 32 | 004012 | SCREW | 01 |
| 33 | 004803 | NUT | 01 |
| 34 | 000527-SA | BRACKET | 01 |
| 35 | 000527ASA | BRACKET | 02 |
| 36 | 000506 | THREAD EYELET | 03 |
| 37 | 004117 | SCREW | 01 |
| 38 | 004805 | NUT | 01 |
| 39 | 000386 | ROD CAP | 01 |
Page 62 — M632 Series GAUGE PARTS LIST(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DC x 27 #11 | NEEDLE | ||
| 208908A92 | NEEDLE HOLDER | ||
| 204521 | CHAINSTITCH NEEDLE GUARD | ||
| 204538 | CHAINSTITCH NEEDLE GUARD | ||
| 204781 | OVERLOCK NEEDLE GUARD | ||
| 204782 | OVERLOCK NEEDLE GUARD | ||
| 204161 | LOWER KNIFE | ||
| 201121A | UPPER KNIFE | ||
| DC x 27 #11 | NEEDLE | ||
| 208908A92 | NEEDLE HOLDER | ||
| 204521 | CHAINSTITCH NEEDLE GUARD | ||
| 204538 | CHAINSTITCH NEEDLE GUARD | ||
| 204781 | OVERLOCK NEEDLE GUARD | ||
| 204782 | OVERLOCK NEEDLE GUARD | ||
| 204161 | LOWER KNIFE | ||
| 201121A | UPPER KNIFE | ||
| DC x 27 #11 | NEEDLE | ||
| 208908A92 | NEEDLE HOLDER | ||
| 204521 | CHAINSTITCH NEEDLE GUARD | ||
| 204538 | CHAINSTITCH NEEDLE GUARD | ||
| 204781 | OVERLOCK NEEDLE GUARD | ||
| 204782 | OVERLOCK NEEDLE GUARD | ||
| 204161 | LOWER KNIFE | ||
| 201121A | UPPER KNIFE | ||
| DC x 27 #11 | NEEDLE | ||
| 208908A92 | NEEDLE HOLDER | ||
| 204521 | CHAINSTITCH NEEDLE GUARD | ||
| 204538 | CHAINSTITCH NEEDLE GUARD | ||
| 204781 | OVERLOCK NEEDLE GUARD | ||
| 204782 | OVERLOCK NEEDLE GUARD | ||
| 204161 | LOWER KNIFE | ||
| 201121A | UPPER KNIFE | ||
| 208062 | MAIN FEED DOG ASS. | 2 | |
| 204125B | MAIN FEED DOG | 3 | |
| 204424 | DIFF. FEED DOG | 4 | |
| 208063 | MAIN FEED DOG ASS. | 2 | |
| 204248B | MAIN FEED DOG | 3 | |
| 208059 | DIFF. FEED DOG | 4 | |
| 208065 | PRESSER FOOT ASS. | 5 | |
| 204395 | PRESSER FOOT ASS. | 5 | |
| 204425 | DIFF. FEED DOG | 5 | |
| 208066 | PRESSER FOOT ASS. | 6 | |
| 204396 | PRESSER FOOT ASS. | 6 | |
| 204426 | DIFF. FEED DOG | 6 | |
| 204072 | LOWER LOOPER | 4 | |
| 204314A | CHAINSTITCH LOOPER | 4 | |
| 204062 #2 | UPPER LOOPER | 5 | |
| 204278 #1 | UPPER SPREADER | 5 | |
| 204536 | FRONT | 3 |
Page 63 — GAUGE PARTS LIST(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DC X 27 #11 | NEEDLE | ||
| 208909A92 | NEEDLE HOLDER | ||
| 204521 | CHAINSTITCH NEEDLE GUARD REAR | ||
| 204536 | CHAINSTITCH NEEDLE GUARD FRONT | ||
| 204781 | OVERLOCK NEEDLE GUARD REAR | ||
| 204782 | OVERLOCK NEEDLE GUARD FRONT | ||
| 204161 | LOWER KNIFE | ||
| 201121A | UPPER KNIFE | ||
| 204314A | CHAINSTITCH LOOPER | ||
| 204072 | LOWER LOOPER | ||
| 204278 # 1 (M632-32) | UPPER SPREADER | ||
| 204062 # 2 (M632-30) | UPPER LOOPER | ||
| 208501 | PRESSER FOOT ASS. | ||
| 208216 | DIFF. FEED DOG | ||
| (204424) | AUX. FEED DOG | ||
| (204125B) | MAIN FEED DOG | ||
| 208062 | MAIN FEED DOG ASS. | ||
| 204294B | NEEDLE PLATE |
Page 65 — M632 Series ゲージパーツ表 (4) / M632 Series GAUGE PARTS LIST(4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204431 | CHAINSTITCH LOOPER | ||
| 204072 | LOWER LOOPER | ||
| 204704 #3 | UPPER SPREADER | ||
| 204702 #4 | UPPER LOOPER | ||
| 208502 | PRESSER FOOT ASS. | ||
| 208215 | DIFF. FEED DOG | ||
| (208059) | AUX. FEED DOG | ||
| (204248B) | MAIN FEED DOG | ||
| 208063 | MAIN FEED DOG ASS. | ||
| 204358A | NEEDLE PLATE |
Page 66 — M652 Series GAUGE PARTS LIST(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DC x 27 #9 | NEEDLE | ||
| DC x 3 #9 | NEEDLE | ||
| DC x 27 #9 | NEEDLE | ||
| DC x 27 #11 | NEEDLE | ||
| 208904A92 | NEEDLE HOLDER | ||
| 208905A92 | NEEDLE HOLDER | ||
| 208905A92 | NEEDLE HOLDER | ||
| 209009 | REAR | ||
| 209009 | REAR | ||
| 209009 | REAR | ||
| 204834 | FRONT | ||
| 204659 | FRONT | ||
| 204659 | FRONT | ||
| 202295 | LOWER KNIFE | ||
| 202295 | LOWER KNIFE | ||
| 201127 | LOWER KNIFE | ||
| 202295 | LOWER KNIFE | ||
| 201121A | UPPER KNIFE | ||
| 201121A | UPPER KNIFE | ||
| 201121A | UPPER KNIFE |
Page 67 — M652 Series ゲージパーツ表 (2) / M652 Series GAUGE PARTS LIST(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 209009 | NEEDLE GUARD REAR | ||
| 204659 | NEEDLE GUARD FRONT | ||
| 204634 | NEEDLE GUARD FRONT | ||
| 208051 | NEEDLE GUARD FRONT | ||
| 2088905A92 | NEEDLE HOLDER | ||
| 2088906A92 | NEEDLE HOLDER | ||
| 201127 | LOWER KNIFE | ||
| 202295 | LOWER KNIFE | ||
| 201121A | UPPER KNIFE | ||
| 204835 | UPPER KNIFE |
Page 68 — M652 Series GAUGE PARTS LIST(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DC X 27 #14 | |||
| DC X 27 #14 | |||
| DC X 27 #18 | |||
| 208905A92 | |||
| 208906A92 | |||
| 208905A92 | |||
| 208906A92 | |||
| 209009 | |||
| 209009 | |||
| 204635 | |||
| 204659 | |||
| 208051 | |||
| 204659 | |||
| 208051 | |||
| 204634 | |||
| 201127 | |||
| 202295 | |||
| 201121A | |||
| 201121A | |||
| 201121A |
Page 69 — M652 Series GAUGE PARTS LIST(4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DC X 27 #11 | NEEDLE | ||
| 208905A92 | NEEDLE HOLDER | ||
| 209009 | REAR | ||
| 204659 | FRONT | ||
| 202295 | LOWER KNIFE | ||
| 201121A | UPPER KNIFE |
Page 71 — PLAIN SEAMING (LIGHT WEIGHT FABRIC) / PLAIN SEAMING (MEDIUM WEIGHT FABRIC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208908A92 | 2 | ||
| 204062 | 2 | ||
| 204278 | 1 | ||
| 204072 | |||
| 204314A | |||
| 201121A | |||
| 204161 | |||
| 204782 | |||
| 204781 | |||
| 204536 | |||
| 204521 |
Page 72 — M632 Series GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204362 | NG×SW 2×3 | ||
| 204363 | NG×SW 2×4 | ||
| 204364 | NG×SW 2×5 | ||
| 204365 | NG×SW 2×6 | ||
| 208065 | |||
| 204395 | |||
| 204425 | |||
| 208066 | |||
| 204396 | |||
| 208060 | |||
| 208218 | |||
| 208219 | |||
| 208500 |
Page 73 — PLAIN SEAMING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208908A92 | 2 | ||
| 204062 | 2 | ||
| 204278 | 1 | ||
| 204072 | |||
| 204314A | |||
| 201121A | |||
| 204161 | |||
| 204782 | |||
| 204781 | |||
| 204536 | |||
| 204521 |
Page 74 — M632 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204294B | |||
| 204039B | |||
| 204252B | |||
| 204295B | |||
| 208062 | |||
| 204125B | |||
| 204424 | |||
| 208216 | |||
| 208063 | |||
| 204248B | |||
| 208059 | |||
| 208215 | |||
| 208501 |
Page 75 — PLAIN SEAMING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208909A92 | 3 | ||
| 204062 | ‡2 | ||
| 204278 | ‡1 | ||
| 204702 | ‡4 | ||
| 204704 | ‡3 | ||
| 204072 | |||
| 204314A | |||
| 201121A | |||
| 204161 | |||
| 204782 | |||
| 204781 | |||
| 204536 | |||
| 204521 |

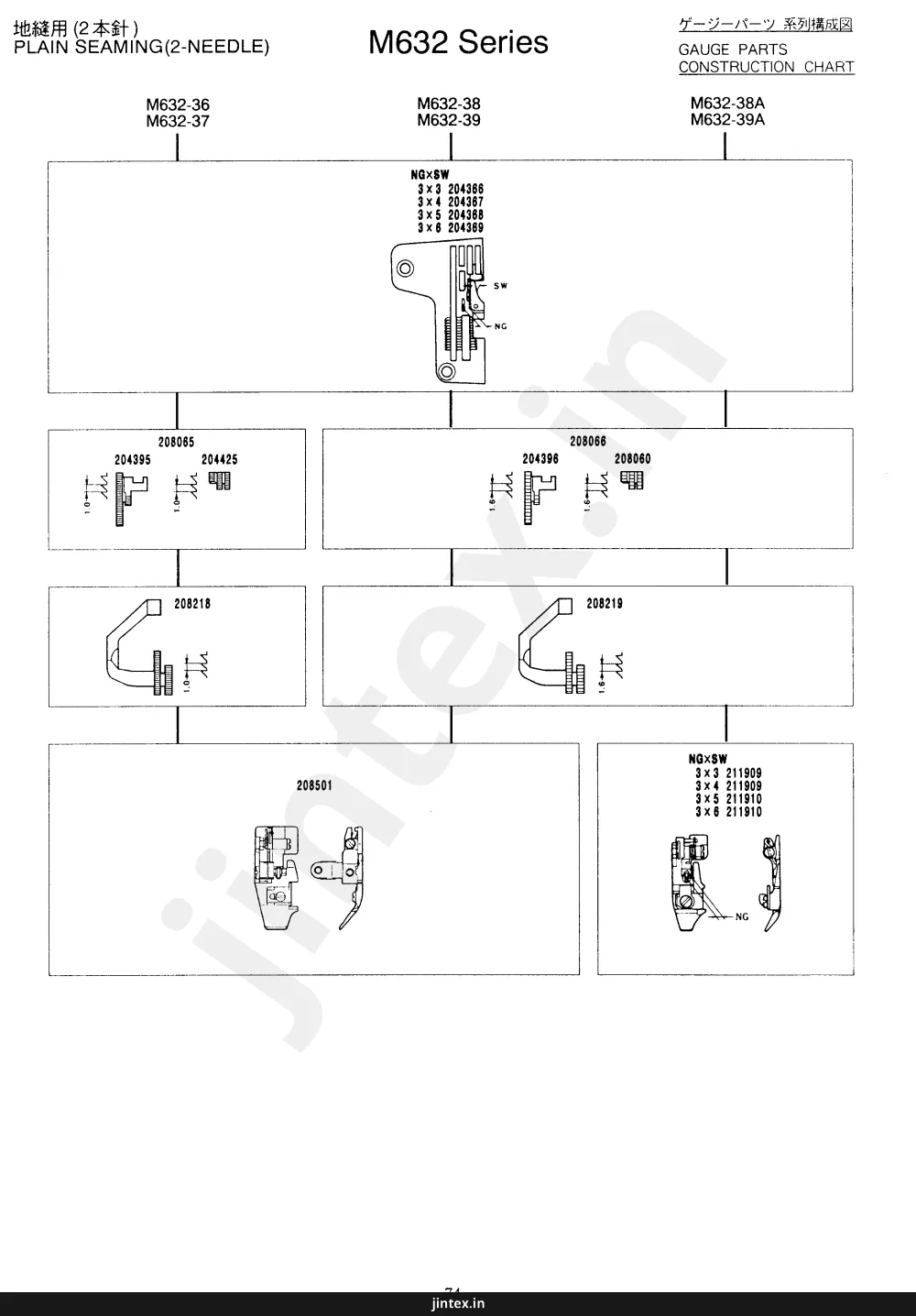

Page 76 — M632 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204366 | |||
| 204367 | |||
| 204368 | |||
| 204369 | |||
| 208065 | |||
| 204395 | |||
| 204425 | |||
| 208066 | |||
| 204396 | |||
| 208060 | |||
| 208218 | |||
| 208219 | |||
| 208501 | |||
| 211909 | |||
| 211909 | |||
| 211910 | |||
| 211910 |
Page 77 — PLAIN SEAMING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 208909A92 | |||
| 204062 | |||
| 204278 | |||
| 204702 | |||
| 204704 | |||
| 204072 | |||
| 204314A | |||
| 201121A | |||
| 204161 | |||
| 202527A | |||
| 204161 | |||
| 204782 | |||
| 204781 | |||
| 204536 | |||
| 204521 |
Page 78 — M632 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204358A | |||
| 204359A | |||
| 204360A | |||
| 204361A | |||
| 204528 | |||
| 204529 | |||
| 204700 | |||
| 204701 | |||
| 208063 | |||
| 204248B | |||
| 208059 | |||
| 208064 | |||
| 204394 | |||
| 208059 | |||
| 208215 | |||
| 208217 | |||
| 208225 | |||
| 208502 | |||
| 208955 |
Page 79 — PLAIN SEAMING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5 208910A92 | |||
| 204702 | |||
| 204704 | |||
| 204703 | |||
| 204705 | |||
| 204072 | |||
| 204431 | |||
| 204072 | |||
| 204431-HC | |||
| 201121A | |||
| 204161 | |||
| 204782 | |||
| 204781 | |||
| 204042 | |||
| 204522 |
Page 80 — M632 Series GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208674 | |||
| 208648 | |||
| 208066 | |||
| 204396 | |||
| 208060 | |||
| 208219 | |||
| 208649 | |||
| M632-355 | 208874 | NG×SW 3×2 × 3 | |
| M632-355 | 208848 | NG×SW 3×2 × 4 |
Page 81 — M632-355
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208965A92 | 3x2 | ||
| 204963 | ß8 | ||
| 204072 | |||
| 204314A | |||
| 201121A | |||
| 204161 | |||
| 204782 | |||
| 204781 | |||
| 204536 | |||
| 204521 |
Page 82 — M632 Series GAUGE PARTS CONSTRUCTION CHART / ゲージーパーツ 系列構成図
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204940 | |||
| 204941 | |||
| 204939 | |||
| 204940 | |||
| 204941 | |||
| 204942 | |||
| 204943 | |||
| 204944 | |||
| 204945 | |||
| 204946 | |||
| 208074 | |||
| 204931 | |||
| 208061 | |||
| 208076 | |||
| 204933 | |||
| 208059 | |||
| 204420 | |||
| 204422 | |||
| 204502A | |||
| 208508 | |||
| 208509 |
Page 83 — SHIRRING・PIPING (MEDIUM WEIGHT FABRIC) / SHIRRING (MEDIUM WEIGHT FABRIC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208909A92 | 3 | ||
| 208910A92 | 5 | ||
| 204702 | 4 | ||
| 204704 | 3 | ||
| 204072 | |||
| 204314A | |||
| 204072 | |||
| 204431 | |||
| 201121A | |||
| 204161 | |||
| 204782 | |||
| 204781 | |||
| 204536 | |||
| 204521 | |||
| 204782 | |||
| 204781 | |||
| 204042 | |||
| 204522 |
Page 84 — M652 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1.6 | 204875ABF | 208078-BF | |
| 208753 | |||
| 205255 | |||
| 202554E | |||
| 202542E | |||
| 202546E | |||
| 202596E | |||
| 202597E | |||
| 208078-BF | |||
| 204675ABF | |||
| 204674 | |||
| 204676-BF | |||
| 208730 | |||
| 201230C | |||
| 208731 | |||
| 208731 | |||
| 208732 | |||
| 201224B |
Page 85 — PLAIN SEAMING·INSERTING TAPE (LIGHT-MEDIUM WEIGHT FABRIC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 201121A | 2 201127 | SW | |
| 201121A | 3 202295 | SW | |
| 201121A | 4 202295 | SW | |
| 201121A | 3 201127 | SW | |
| 201121A | 4 201127 | SW | |
| 201121A | 5 202295 | SW | |
| 201121A | 6 202295 | SW | |
| 208905A92 | 2 | ||
| 204949 | |||
| 204062 | |||
| 204072 | |||
| 201121A | |||
| 201127 | 2 | ||
| 202295 | 3 | ||
| 202295 | 4 | ||
| 204659 | |||
| 209009 | |||
| 201121A | |||
| 201127 | 3 | ||
| 201127 | 4 | ||
| 202295 | 5 | ||
| 202295 | 6 | ||
| 204634 | |||
| 209009 | |||
| M652-13 | 2 208905A92 | NG | |
| 204949 $11 | NG | ||
| 204062 $2 | NG |
Page 86 — GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208753 | |||
| 205255 | |||
| 202554E | |||
| 208030 | |||
| 208031 | |||
| 208080-BF | |||
| 204678ABF | |||
| 204674 | |||
| 208093-BF | |||
| 208040-BF | |||
| 204674 | |||
| 204691-BF | |||
| 208044-BF | |||
| 208730 | |||
| 201230C | |||
| 208731 | 2 | ||
| 208732 | 4 | ||
| 208733 | 2.5 | ||
| 208734 | 4 | ||
| 201396B | 2 | ||
| 201310A | 4 | ||
| 208049 | 2.5 | ||
| 208050 | 4 |
Page 87 — PLAIN SEAMING INSERTING TAPE (HEAVY WEIGHT FABRIC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208905A92 | |||
| 208906A92 | |||
| 204969 | |||
| 204072 | |||
| 201121A | |||
| 201127 | |||
| 202295 | |||
| 204659 | |||
| 208051 | |||
| 209009 |
Page 88 — M652 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | 202542E | ||
| 4 | 202546E | ||
| 5 | 202596E | ||
| 6 | 202597E | ||
| 7 | 204797 | ||
| 8 | 204731 | ||
| 208080 | |||
| 204678A | |||
| 204674 | |||
| 204679 | |||
| 201230C | |||
| 201224B | |||
| NG×SW | |||
| 205243 | 2 x 4 | ||
| 205244 | 2 x 5 | ||
| 208079A | |||
| 204675A | |||
| 204677 | |||
| 204676 | |||
| 205253 | |||
| 201310A | |||
| NG×SW | |||
| 205243 | 2 x 4 | ||
| 208079-BF | |||
| 204675ABF | |||
| 204677 | |||
| 204676-BF |
Page 89 — PLAIN SEAMING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 208905A92 | |||
| 204703 ‡6 | |||
| 204702 ‡4 | |||
| 204702 | |||
| 204072 | |||
| 201121A | |||
| 3 | 201127 | ||
| 4 | 201127 | ||
| 5 | 202295 | ||
| 6 | 202295 | ||
| 7 | 202295 | ||
| 8 | 202295 | ||
| 201121A | |||
| 202295 | |||
| 204634 | |||
| 204635 | |||
| 204659 | |||
| 209009 | |||
| $6 | 204703 | ||
| $8 | 204963 |
Page 90 — M652 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 202981 | |||
| 202982 | |||
| 202983 | |||
| 208083-BF | |||
| 204692ABF | |||
| 204677 | |||
| 204693-BF | |||
| 202799 | |||
| 201396B | |||
| 201310A | |||
| 205320 | |||
| 205321 | |||
| 205322 | |||
| 205323 | |||
| 208083 | |||
| 204692A | |||
| 204677 | |||
| 204693 | |||
| 201224B | |||
| 205324 | |||
| 205325 | |||
| 205326 | |||
| 205327 | |||
| 208079-BF | |||
| 204675ABF | |||
| 204677 | |||
| 204676-BF | |||
| 205253 | |||
| 204892ABF | 204892A | ||
| 204875ABF | 208079-BF |
Page 91 — PLAIN SEAMING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1.5 | 208904A92 | ||
| 2 | 208905A92 | ||
| 204949 | 11 | ||
| 201121A | |||
| 202295 | |||
| 204659 | |||
| 209009 | |||
| 204702 | 4 | ||
| 204072 | |||
| 201121A | |||
| 3 | 201127 | ||
| 4 | 201127 | ||
| 5 | 202295 | ||
| 6 | 202295 | ||
| 204634 | |||
| 209009 | |||
| 204962 | 2 |
Page 92 — M652 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 209298 | ||
| 3 | 209299 | ||
| 4 | 205773 | ||
| 5 | 209300 | ||
| 208090-BF | |||
| 204729ABF | |||
| 204674 | |||
| 204730-BF | |||
| 201152E | |||
| 201155C | |||
| 1.5 | 205465 | ||
| 208911 | |||
| 204729A | |||
| 208912 | |||
| 204730 | |||
| 201230C | |||
| 205525 | |||
| 4 | 202618A | ||
| 5 | 204913A | ||
| 208090A16F | |||
| 204729B16F | |||
| 204674 | |||
| 204730A16F | |||
| 201473B | |||
| 301433 |
Page 93 — BLINDSTITCH HEMMING / TURN DOWN HEMMING / BACKLATCHINNG
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 204062 ‡2 | |||
| 204072 | |||
| 201121A | |||
| 202295 | |||
| 204634 | |||
| 209009 | |||
| 204062 |
Pegasus M652 — parts catalog
- Page 1 (cover): This is the cover page for the Pegasus Parts Catalog for M632 Series High speed safety stitch machines and M652 Series High speed overedgers.
- Page 2 (cover): This page is the cover of the M632-M652 series machine parts catalog, manufactured in February 1995. It provides an introduction to how to use the catalog, explaining its structure and how to find information.
- Page 3 (toc): This page contains the Table of Contents for the parts catalog, listing various machine mechanisms and components with their corresponding page numbers.
- Page 4 (diagram): This page contains a diagram of machine components with numbered parts, indicating compatibility with M632 and M652 series machines.
- Page 5 (parts_list): This page lists parts for the MACHINE BED FRAME [1], including part numbers, names, and quantities. It also contains notes about parts not for sale and gauge parts.
- Page 6 (diagram): This page displays a diagram of machine components with numbered parts, including bolts, plates, and housing elements. The diagram illustrates the assembly of various parts of the machine.
- Page 7 (parts_list): This page lists parts for the MACHINE BED FRAME [2], including part numbers, names, and quantities.
- Page 8 (diagram): This page displays a diagram of various machine components and hardware, including covers, gaskets, screws, and brackets, with corresponding reference numbers for identification.
- Page 9 (parts_list): This page lists parts for the COVER [1] section, including part numbers, names, and quantities.
- Page 10 (diagram): This page displays a diagram of various machine components and parts, including a list of parts for the M632 Series.
- Page 11 (parts_list): This page lists parts for COVER [2], including screws, covers, washers, and pins, with their corresponding part numbers and quantities.
- Page 12 (diagram): This page displays a diagram of M632 and M652 series parts, including various plates, screws, and other components, with reference numbers for identification.
- Page 13 (parts_list): This page lists parts for COVER [3], including part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of various components, including screws, washers, bearings, pulleys, and shafts, with reference numbers and some model series information for M632 and M652.
- Page 15 (parts_list): This page lists parts for the Crankshaft Drive Mechanism [1], including part numbers, names, and quantities.
- Page 16 (diagram): This page displays a diagram of M632 Series components, including various parts like connecting rods, screws, and a shaft, with reference numbers and model applicability indicated.
- Page 17 (parts_list): This page lists parts for the Crankshaft Drive Mechanism [2], including part numbers, names, and quantities.
- Page 18 (diagram): This page displays a diagram of the M652 Series components, including part numbers and their corresponding descriptions and models.
- Page 19 (parts_list): This page lists parts for the crankshaft drive mechanism, including part numbers, names, and quantities.
- Page 20 (diagram): This page displays a diagram of various sewing machine components, including needles, shafts, and mounting brackets, with corresponding reference numbers for identification.
- Page 21 (parts_list): This page lists parts for the Needle Drive Mechanism, including part numbers, names, and quantities.
- Page 22 (diagram): This page contains diagrams of parts for the M632 Series and M652 Series sewing machines, with numbered references for each part.
- Page 23 (parts_list): This page lists parts for the Needle Drive Mechanism (2), including screws, needle plates, guards, and brackets, with their corresponding part numbers and quantities.
- Page 24 (diagram): This page displays a diagram of various machine parts, including bolts, bearings, shafts, and linkages, with reference numbers for identification.
- Page 25 (parts_list): This page lists parts for the Upper Looper Drive Mechanism, including part numbers, names, and quantities.
- Page 26 (diagram): This page displays a diagram of various sewing machine parts, including components for M632 and M652 series machines, with numbered references for each part.
- Page 27 (parts_list): This page lists parts for the Lower Looper Drive Mechanism, including part numbers, names, and quantities.
- Page 28 (diagram): This page displays a diagram of various machine parts, including components for the M632 and M652 series, with numbered references for each part.
- Page 29 (parts_list): This page lists parts for the Feed Mechanism [1], including part numbers, names, and quantities.
- Page 30 (diagram): This page displays a diagram of various machine parts, including screws, bolts, shafts, and housings, with reference numbers ranging from 1 to 46.
- Page 31 (parts_list): This page lists parts for the FEED MECHANISM [2], including part numbers, names, and quantities.
- Page 32 (diagram): This page displays a diagram of various machine components, including levers, screws, and brackets, with reference numbers and a list of applicable models.
- Page 33 (parts_list): This page lists parts for the Feed Mechanism (3), including part numbers, names, and quantities.
- Page 34 (diagram): This page displays a diagram of various machine parts for the M632 and M652 series, with numbered components and their corresponding part numbers and descriptions.
- Page 35 (parts_list): This page lists parts for the KNIFE DRIVE MECHANISM, including part numbers, names, and quantities.
- Page 36 (diagram): This page displays a diagram of various machine parts, including levers, springs, screws, and stands, with reference numbers for identification.
- Page 37 (parts_list): This page lists parts for the Presser Foot Mechanism [1], including part numbers, names, and quantities.
- Page 38 (diagram): This page displays diagrams of M632 Series sewing machine parts, including specific components for models M632-38A, -39A, M632-86, -87, -88, -89, and M652 Series, with associated part numbers and model applicability.
- Page 39 (parts_list): This page lists parts for the presser foot mechanism (2), including part numbers, names, and quantities.
- Page 40 (diagram): This page displays a diagram of various components of an industrial sewing machine, including screws, levers, a gear assembly, and a gasket.
- Page 41 (parts_list): This page lists parts for the Lubrication Mechanism, including part numbers, names, and quantities.
- Page 42 (diagram): This page displays a diagram of the M632 Series components, illustrating various parts with reference numbers.
- Page 43 (parts_list): This page lists parts for the CHAINSTITCH LOOPER MECHANISM [1], including part numbers, names, and quantities.
- Page 44 (diagram): This page displays a diagram of M632 Series machine parts, with numbered components indicating their positions.
- Page 45 (parts_list): This page lists parts for the CHAINSTITCH LOOPER MECHANISM [2], including part numbers, names, and quantities.
- Page 46 (diagram): This page displays diagrams of various parts for the M632 and M652 series sewing machines, with numbered references for each component.
- Page 47 (parts_list): This page lists parts for the Thread Guide & Thread Takeup Mechanism, including part numbers, names, and quantities.
- Page 48 (diagram): This page displays diagrams of various components for the M632 Series sewing machines, including parts for Stitch type 516, Stitch type 515, and Stitch type 401+514 M632-355.
- Page 49 (parts_list): This page lists parts for the Thread Tension Mechanism [1], including part numbers, names, and quantities.
- Page 50 (diagram): This page displays diagrams of various components for the M652 Series sewing machines, including parts for Stitch type 504-505 and Stitch type 512-514.
- Page 51 (parts_list): This page lists parts for the Thread Tension Mechanism [2], including part numbers, names, and quantities.
- Page 52 (diagram): This page displays diagrams of sewing machine parts for models M652-01, M652-13, and M632-48P1, -48P2, with numbered components.
- Page 53 (parts_list): Attachment parts table listing reference numbers, part numbers, Japanese and English names and quantities for folder, guide, screw and foot components, with a gauge-parts footnote.
- Page 54 (diagram): This page displays a diagram of various sewing machine parts, including screws, levers, springs, and handles, with reference numbers for identification.
- Page 55 (parts_list): This page lists parts for the Shirring Device, including part numbers, names, and quantities.
- Page 56 (diagram): This page displays a diagram of various machine parts, including a cable, brackets, screws, and other components, with reference numbers for each part.
- Page 57 (parts_list): This page lists parts for the BT Device, including part numbers, names, and quantities. It details items such as thread releaser assembly, brackets, screws, nuts, spacers, blades, cables, clamps, springs, knife holders, and guides.
- Page 58 (diagram): This page displays a diagram of machine components, including screws, washers, and brackets, with reference numbers and some Japanese and English text describing part usage.
- Page 59 (parts_list): This page lists parts for semi-submerged installation, including part numbers, names, and quantities.
- Page 60 (diagram): This page displays a diagram of various machine parts, including screws, washers, nuts, plates, and other components, each identified by a reference number.
- Page 61 (parts_list): This page lists parts for the THREAD STAND, including part numbers, names, and quantities for various models.
- Page 62 (parts_list): This page contains a parts list for the M632 Series Gauge Parts, including part numbers, descriptions, and applicable machine models.
- Page 63 (parts_list): Gauge parts list for M632 Series sewing machines (part 2) giving needle plate, feed dog, presser foot, looper, spreader, knife and needle guard part numbers by machine model and gauge.
- Page 64 (parts_list): Gauge parts list (3) for the M632 Series sewing machines, cross-referencing needle plate, feed dogs, presser foot, loopers, spreaders, knives and needle guards by machine type (M632-38/39, M632-38A/39A, M632-48/49, M632-48P1/48P2) in a matrix layout.
- Page 65 (parts_list): Gauge parts list for M632 Series machines showing needle plate, feed dogs, presser foot, loopers and spreader part numbers by machine type and gauge.
- Page 66 (parts_list): Gauge parts list for M652 Series sewing machines (M652-01, M652-05, M652-12) giving needle, needle holder, needle guard, knife and related part numbers by gauge, with a Japanese-language version alongside.
- Page 67 (parts_list): Gauge parts list page 2 for M652 series machines, showing needle, needle holder, needle guard, knife and feed-related gauge part numbers by machine type and gauge, with a second Japanese-English table of the same format on the left.
- Page 68 (parts_list): Gauge parts list for the M652 Series (page 3) showing needle, needle holder, needle guard, knife and related part numbers by gauge and machine type M652-23, M652-23A and M652-27.
- Page 69 (parts_list): Gauge parts list (4) for the M652 Series, showing needle, needle holder, needle guard, knives and related part numbers by machine type and gauge, with a Japanese-language counterpart table on the left.
- Page 70 (parts_list): M652 Series gauge parts list (5) showing needle plate, main feed dog, auxiliary feed dog, differential feed dog, presser foot, presser finger, upper and lower looper part numbers by gauge and machine type, plus a second table of upper and lower knife, needle guard, needle, and needle holder numbers.
- Page 71 (diagram): This page displays various sewing machine parts, including needles, presser feet, and other components, with their corresponding part numbers and descriptions, categorized by fabric weight.
- Page 72 (diagram): This page displays a construction chart for gauge parts for the M632 Series sewing machines, specifically for plain seaming with two needles. It includes diagrams and part numbers for various gauge components.
- Page 73 (diagram): This page displays a diagram of various sewing machine parts, including needle bars, presser feet, and other components, with their corresponding part numbers and model applicability.
- Page 74 (diagram): This page displays a construction chart for gauge parts of the M632 Series, specifically for plain seaming with two needles. It includes diagrams and part numbers for various components.
- Page 75 (diagram): This page displays diagrams of various sewing machine parts, including needles, presser feet, and other components, with their corresponding part numbers and model applicability.
- Page 76 (diagram): This page displays a construction chart for M632 Series gauge parts, showing various components with their part numbers and diagrams.
- Page 77 (diagram): This page displays a diagram of various sewing machine parts, including feet and needles, with their corresponding part numbers and model applicability. It also includes descriptions for different fabric types and applications.
- Page 78 (diagram): This page displays a construction chart for M632 Series gauge parts, specifically for plain seaming with two needles. It shows diagrams and part numbers for various components associated with models M632-70, M632-71, M632-86, M632-87, M632-88, and M632-89.
- Page 79 (diagram): This page displays diagrams of various sewing machine parts, including needles, presser feet, and other components, categorized by machine model and fabric type.
- Page 80 (diagram): This page displays a construction chart for gauge parts of the M632 Series, specifically for plain seaming with 3 needles. It includes diagrams and part numbers for various components.
- Page 81 (diagram): This page displays a diagram of various sewing machine parts, including needles, presser feet, and other components, with their corresponding part numbers.
- Page 82 (diagram): Gauge parts construction chart for the M632 series showing shirring and piping gauge parts assemblies across three machine model groups, with part-number labels on each drawing.
- Page 83 (diagram): This page displays diagrams of various sewing machine parts, including needle plates, presser feet, and other components, with their corresponding part numbers and applicable models.
- Page 84 (diagram): This page displays construction diagrams for M652 series gauge parts, including various components with their respective part numbers and descriptions.
- Page 85 (diagram): This page displays diagrams and part numbers for various sewing machine components, including needle plates, presser feet, and other miscellaneous parts, categorized under M652-13 and M652-17.
- Page 86 (diagram): This page displays construction charts for gauge parts of the M652 Series, including diagrams and part numbers for various components.
- Page 87 (diagram): This page displays diagrams of various sewing machine parts, including needles, switches, and other components, with their corresponding part numbers and model applicability.
- Page 88 (diagram): This page displays construction chart diagrams for M652 Series gauge parts, including parts like M652-27, M652-51, M652-52, and various numbered components such as 208080, 204678A, 204674, 208079A, 204675A, 204677, 208079-BF, 204675ABF, 204676-BF, 201230C, 205253, 201224B, and 201310A.
- Page 89 (diagram): This page displays diagrams of various sewing machine parts, including needle plates, presser feet, and other components, with their corresponding part numbers and descriptions for different fabric types.
- Page 90 (diagram): This page displays a construction chart for M652 Series gauge parts, featuring diagrams and part numbers for various components like M652-55, M652-54, and M652-57, along with associated part numbers such as 202981, 205320, and 205324.
- Page 91 (diagram): This page displays diagrams and part numbers for various sewing machine components, categorized under M652-55, M652-54, and M652-57, with specific parts listed for plain seaming on light to medium weight fabrics.
- Page 92 (diagram): This page displays a construction chart for M652 Series gauge parts, showing various components with their respective part numbers and diagrams.
- Page 93 (diagram): This page displays diagrams of various sewing machine parts, including part numbers and descriptions for blindstitch hemming, turn down hemming, and back latching applications, along with model numbers M652-01, M652-16S2, and M652-180.
- Page 96 (index): This page is an index of part numbers and their corresponding page references, organized into four columns.
- Page 98 (unknown): This page contains a watermark and a page number at the bottom.
- Page 99 (unknown): This page contains a watermark and a page number.
- Page 100 (cover): This is the cover page of the catalog for Pegasus Sewing Machine Mfg. Co., Ltd., dated June 1998, with catalog number 9711.
