Pegasus W1500 Parts Book (PDF)
Text index — Pegasus W1500
Page 5 — MACHINE BED FRAME
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2400010 | RING | 1 |
| 2 | 2501480 | FILTER | 1 |
| 3 | 2501170 | BED PIN | 4 |
| 4 | 2065900 | OIL SIGHT GAUGE | 1 |
| 5 | 2050881 | PLUG | 1 |
| 6 | 2400520 | PLUG | 3 |
| 7 | 2401100 | PLUG | 1 |
| 8 | 2081731 | PLUG | 3 |
| 9 | 2402270 | PLUG | 1 |
| 10 | 2500200 | COVER | 1 |
| 11 | 007017A0 | SCREW | 2 |
| 12 | 2106790 | PIN | 2 |
| 13 | 2106790 | PIN | 4 |
| 14 | 007018A0 | SCREW | 1 |
| 15 | 3034480 | WASHER | 1 |
| 16 | 9A30670 | CAUTION LABEL | 1 |
| 17 | 9A30690 | CAUTION LABEL | 1 |
| 18 | 9A30710 | EARTH LABEL | 1 |
Page 7 — COVER (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 260044-TD0 | ARM COVER（LEFT） | 1 |
| 2 | 0073790 | SCREW | 1 |
| 3 | 2600750 | WASHER | 1 |
| 4 | 2600730 | O RING | 1 |
| 5 | 007021A0 | SCREW | 4 |
| 6 | 260048-PD0 | ARM COVER（TOP） | 1 |
| 7 | 2402261 | PLUG | 1 |
| 8 | 179107-050 | OIL SIGHT WINDOW | 1 |
| 9 | 2600560 | O RING | 1 |
| 10 | 007021A0 | SCREW | 7 |
| 11 | 9A31261 | SEAL | 1 |
| 12 | 260057-PB0 | COVER | 1 |
| 13 | 0045430 | SCREW | 1 |
| 14 | 0070890 | SCREW | 1 |
| 15 | 2600460 | BRACKET | 1 |
| 16 | 007019A0 | SCREW | 1 |
| 17 | 2600470 | BRACKET | 1 |
| 18 | 2103070 | WASHER | 2 |
| 19 | 0070660 | SCREW | 1 |
| 20 | 2600450 | EYE GUARD | 1 |
| 21 | 0070090 | SCREW | 2 |
| 22 | 2028750 | WASHER | 2 |
| 23 | 2500510 | FLAT SPRING | 1 |
| 24 | 007018A0 | SCREW | 2 |
| 25 | 007023A0 | SCREW | 2 |
| 26 | 260049-TB0 | BELT COVER | 1 |
| 27 | 004016-HU0 | SCREW | 2 |
| 28 | 9A30690 | CAUTION LABEL | 1 |
Page 9 — COVER (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250074APD1 | BED COVER（RIGHT） | 1 |
| 2 | 007021A0 | SCREW | 4 |
| 3 | 007021A0 | SCREW | 2 |
| 4 | 0070430 | SCREW | 1 |
| 5 | 260078-9P0 | SIDE COVER ASSEMBLY | 1 |
| 6 | 2600760 | RUBBER CUSHION | 1 |
| 7 | 007022A0 | SCREW | 4 |
| 8 | 250071-910 | COVER | 1 |
| 9 | 2500030 | TOP COVER (RIGHT) | 1 |
| 10 | 2500040 | GASKET | 1 |
| 11 | 0070840 | BOLT | 4 |
| 12 | 250069A0 | TOP COVER (LEFT) | 1 |
| 13 | 2500490 | GASKET | 1 |
| 14 | 0070840 | BOLT | 4 |
| 15 | 251007L0 | BRACKET | 1 |
| 16 | 007019A0 | SCREW | 2 |
| 17 | 0070820 | SCREW | 1 |
| 18 | 2401230 | RUBBER CUSHION | 1 |
Page 11 — CRANKSHAFT DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 261024-911 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 252009-920 | CONNECTION ASSEMBLY | 1 |
| 3 | 007015A0 | SCREW | 4 |
| 4 | 252008-920 | CRANK | 1 |
| 5 | 0045340 | BOLT | 1 |
| 6 | 0045450 | SCREW | 1 |
| 7 | 2505060 | JOINT | 1 |
| 8 | 0045550 | SCREW | 1 |
| 9 | 0045470 | SCREW | 3 |
| 10 | 250508-910 | BUSHING | 1 |
| 11 | 0045470 | SCREW | 2 |
| 12 | 2068370 | O RING | 1 |
| 13 | 261026-910 | BALL BEARING ASSEMBLY | 1 |
| 14 | 0045470 | SCREW | 1 |
| 15 | 2610280 | WORM | 1 |
| 16 | 0045470 | SCREW | 2 |
| 17 | 261029-910 | GEAR ASSEMBLY | 1 |
| 18 | 0045470 | SCREW | 4 |
| 19 | 261032-910 | BEARING ASSEMBLY | 1 |
| 20 | 0045550 | SCREW | 1 |
| 21 | 2505140 | SET PLATE | 1 |
| 22 | 0070820 | SCREW | 2 |
| 23 | 261034-TDO | PULLEY | 1 |
| 24 | 0045410 | SCREW | 1 |
| 25 | 0045560 | SCREW | 1 |
| 26 | 2042930 | SPRING WASHER | 1 |
| 27 | 0045230 | BOLT | 1 |
| 28 | 2705260 | PULLEY CAP | 1 |
| 29 | 2610350 | SHAFT | 1 |
| 30 | 2610361 | TIMMING BELT | 1 |
| 31 | 2505250 | ADJUSTING BAR | 1 |
| 32 | 261044-910 | OIL SEAL ASSEMBLY | 1 |
| 33 | 0045390 | SCREW | 2 |
| 34 | 2068370 | O RING | 1 |
| 35 | 2610330 | SPACER | 1 |
| 36 | 201074A0 | GUIDE | 1 |
| 37 | 2022860 | WASHER | 1 |
| 38 | 0040190 | SCREW | 1 |
Page 13 — ARM SHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250526B910 | MOTION ASSEMBLY | 1 |
| 2 | 0045920 | SCREW | 1 |
| 3 | 0070280 | SCREW | 2 |
| 4 | 0071530 | SCREW | 1 |
| 5 | 0071520 | SCREW | 1 |
| 6 | 0072680 | SCREW | 1 |
| 7 | 2610030 | SHAFT | 1 |
| 8 | 2505060 | JOINT | 1 |
| 9 | 0045550 | SCREW | 2 |
| 10 | 0045470 | SCREW | 2 |
| 11 | 2610370 | SHAFT | 1 |
| 12 | 261038-910 | BEARING ASSEMBLY | 1 |
| 13 | 0045550 | SCREW | 1 |
| 14 | 2610400 | GEAR（TOP） | 1 |
| 15 | 0045470 | SCREW | 4 |
| 16 | 261041-910 | BEARING ASSEMBLY | 1 |
| 17 | 0045470 | SCREW | 1 |
| 18 | 2610430 | COLLAR | 1 |
| 19 | 0045470 | SCREW | 1 |
| 20 | 2505240 | BALANCE WEIGHT | 1 |
| 21 | 0045140 | SCREW | 2 |
Page 15 — 針棒機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4S003700000 | NEEDLE BAR | 1 |
| 2 | 2402290 | PLUG | 1 |
| 3 | 1B001400000 | SCREW | 1 |
| 4 | 261500-920 | NEEDLE BAR CLAMP | 1 |
| 5 | 0070200 | SCREW | 1 |
| 6 | 2615060 | LINK | 1 |
| 7 | 2060530 | PIN | 1 |
| 8 | 240098-20 | NEEDLE BEARING | 1 |
| 9 | 2401010 | WASHER | 1 |
| 10 | 2060630 | BLOCK | 1 |
| 11 | 2510171 | GUIDE | 1 |
| 12 | 007021A0 | SCREW | 2 |
| 13 | 2510180 | LATCH | 1 |
| 14 | 179040-050 | SPONGE | 1 |
| 15 | 2065240 | OIL STRING RETAINER | 1 |
| 16 | 2121860 | STRING | 1 |
| 17 | XXXXXX | NEEDLE HOLDER | 1 |
| 18 | 0045540 | SCREW | 2 |
| 19 | 0045540 | SCREW | 3 |
| 20 | XXXXXX | NEEDLE PLATE | 1 |
| 21 | 005373-HC0 | SCREW | 2 |
Page 17 — 針受機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXX | NEEDLE GUARD (REAR) | 1 |
| 2 | 251505-920 | LEVER ASSEMBLY | 1 |
| 3 | 0045000 | BOLT | 1 |
| 4 | 3030670 | SPRING WASHER | 1 |
| 5 | 0070170 | SCREW | 1 |
| 6 | 2515030 | SHAFT | 1 |
| 7 | 2079240 | WASHER | 1 |
| 8 | 2009830 | RING | 1 |
| 9 | 2615040 | LEVER | 1 |
| 10 | 0045140 | SCREW | 1 |
| 11 | 2615050 | BLOCK | 1 |
| 12 | 251500-911 | BRACKET | 1 |
| 13 | 0070810 | SCREW | 1 |
| 14 | 0070190 | SCREW | 3 |
| 15 | XXXXXX | NEEDLE GUARD (FRONT) | 1 |
| 16 | 0070310 | SCREW | 1 |
Page 19 — LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXX | LOOPER | 1 |
| 2 | 1K302900000 | SPACER | 1 |
| 3 | 0070780 | SCREW | 1 |
| 4 | 262015-920 | LOOPER HOLDER ASSEMBLY | 1 |
| 5 | 0070860 | SCREW | 1 |
| 6 | 0045010 | BOLT | 1 |
| 7 | 3030670 | SPRING WASHER | 1 |
| 8 | 252006B0 | SHAFT | 1 |
| 9 | 2105860 | OIL SEAL | 1 |
| 10 | 262011-920 | ECCENTRIC ASSEMBLY | 1 |
| 11 | 0045390 | SCREW | 2 |
| 12 | 2520100 | BALANCE WEIGHT | 1 |
| 13 | 0070110 | SCREW | 2 |
| 14 | 262013-920 | CONNECTION ASSEMBLY | 1 |
| 15 | 007023A0 | SCREW | 2 |
| 16 | 252002A0 | CRANK | 1 |
| 17 | 0045390 | SCREW | 1 |
| 18 | 2520340 | SCREW | 1 |
| 19 | 2400620 | WASHER | 1 |
| 20 | 0048050 | NUT | 1 |
| 21 | 2520030 | BLOCK PIN | 1 |
| 22 | 2080280 | WASHER | 1 |
| 23 | 2620160 | COLLAR | 1 |
| 24 | 0070180 | SCREW | 1 |
| 25 | 0048020 | NUT | 1 |
| 26 | 2520040 | SHAFT | 1 |
| 27 | 2050610 | RING | 1 |
| 28 | 2401020 | WASHER | 1 |
Page 21 — FEED MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 252500-910 | MAIN FEED BAR | 1 |
| 2 | 2625370 | SCREW | 1 |
| 3 | 2061190 | BUSHING | 1 |
| 4 | 2065630 | GUIDE BLOCK | 1 |
| 5 | 2000980 | WASHER | 1 |
| 6 | 0048320 | NUT | 1 |
| 7 | 252502-910 | DIFFERENTIAL FEED BAR | 1 |
| 8 | 262537A0 | SCREW | 1 |
| 9 | 2065660 | BUSHING | 1 |
| 10 | 2065650 | RING | 1 |
| 11 | 2065640 | DIFFERENTIAL FEED LINK | 1 |
| 12 | 2000980 | WASHER | 1 |
| 13 | 0048320 | NUT | 1 |
| 14 | 252504A0 | GUIDE(RIGHT) | 1 |
| 15 | 0045390 | SCREW | 1 |
| 16 | 2525070 | GUIDE (LEFT) | 1 |
| 17 | 0070190 | SCREW | 2 |
| 18 | 2525080 | GUIDE (LOWER) | 1 |
| 19 | 007020A0 | SCREW | 2 |
| 20 | 2525090 | COVER | 1 |
| 21 | 2061330 | OIL SHIELD | 2 |
| 22 | XXXXXX | MAIN FEED DOG | 1 |
| 23 | 0055900 | SCREW | 1 |
| 24 | XXXXXX | DIFFERENTIAL FEED DOG | 1 |
| 25 | 0055900 | SCREW | 1 |
| 26 | 206128-20 | NEEDLE BEARING | 1 |
| 27 | 2065620 | LINK (MAIN FEED) | 1 |
| 28 | 2065690 | PIN | 1 |
| 29 | 0045460 | SCREW | 1 |
| 30 | 206125-20 | NEEDLE BEARING | 1 |
| 31 | 2525100 | SHAFT | 1 |
| 32 | 0045390 | SCREW | 1 |
| 33 | 2065710 | BUSHING | 1 |
| 34 | 0045390 | SCREW | 1 |
| 35 | 2401190 | SPACER | 1 |
| 36 | 2021750 | OIL STRING | 1 |
| 37 | 2073580 | FELT | 2 |
| 38 | 2525160 | SCREW | 1 |
| 39 | 2096730 | SHAFT | 1 |
| 40 | 0045390 | SCREW | 1 |
| 41 | 2096720 | PIN | 1 |
| 42 | 0045430 | SCREW | 1 |
| 43 | 2058570 | BLOCK (FEED BAR GUIDE) | 1 |
| 44 | 204439A0 | WASHER | 1 |
| 45 | 0070410 | SCREW | 1 |
| 46 | 2525190 | BLOCK | 1 |
| 47 | 2525200 | WASHER | 1 |
| 48 | 2525210 | ECCENTRIC | 1 |
| 49 | 2525220 | REGULATOR | 1 |
| 50 | 252523-910 | ECCENTRIC RETAINER | 1 |
| 51 | 2401250 | SPRING WASHER | 5 |
| 52 | 2525250 | SPACER | 1 |
| 53 | 2525430 | NUT | 1 |
| 54 | 0045140 | SCREW | 1 |
| 55 | 2525260 | PIN | 1 |
| 56 | 2005550 | RING | 1 |
| 57 | 2045850 | WASHER | 1 |
| 58 | 2063660 | O RING | 1 |
| 59 | 2401220 | SPRING | 1 |
| 60 | 252527-910 | CRANK | 1 |
| 61 | 0070310 | SCREW | 1 |
Page 23 — FEED MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 252539B910 | BRACKET ASSEMBLY | 1 |
| 2 | 2401290 | O RING | 1 |
| 3 | 007019A0 | SCREW | 5 |
| 4 | 2401621 | PLUG | 1 |
| 5 | 252533-920 | LEVER | 1 |
| 6 | 0045310 | BOLT | 1 |
| 7 | 2625410 | BLOCK GUIDE | 1 |
| 8 | 0070580 | SCREW | 1 |
| 9 | 2525310 | BLOCK | 1 |
| 10 | 262535-910 | LEVER ASSEMBLY | 1 |
| 11 | 2625420 | COLLAR | 1 |
| 12 | 0070360 | SCREW | 2 |
| 13 | 2525360 | SPRING | 1 |
| 14 | 0070660 | SCREW | 1 |
| 15 | 2625250 | NUT | 1 |
| 16 | 0073870 | SCREW | 1 |
| 17 | 2113010 | SPRING WASHER | 1 |
| 18 | 2625280 | GUIDE PLATE | 1 |
| 19 | 2401240 | SPACER | 2 |
| 20 | 007021A0 | SCREW | 2 |
| 21 | 2526580 | STOPPER | 2 |
| 22 | 3034480 | WASHER | 2 |
| 23 | 0070190 | SCREW | 2 |
Page 25 — 押工機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 263008-910 | ADJUSTING BAR | 1 |
| 2 | 2530031 | NUT | 1 |
| 3 | 2402530 | SPRING | 1 |
| 4 | 2402520 | SPRING | 1 |
| 5 | 2530260 | PRESSER BAR | 1 |
| 6 | 2530180 | OIL SHIELD | 1 |
| 7 | 263007-920 | PRESSER BAR CLAMP ASSY. | 1 |
| 8 | 0070210 | SCREW | 1 |
| 9 | 253005-910 | GUIDE | 1 |
| 10 | 007025A0 | SCREW | 2 |
| 11 | 2405850 | OIL SEAL | 1 |
| 12 | 2530280 | FINGER GUARD | 1 |
| 13 | 2404740 | WASHER | 1 |
| 14 | 0070100 | SCREW | 1 |
| 15 | XXXXXX | PRESSER FOOT ASSEMBLY | 1 |
| 16 | 263000-910 | LEVER | 1 |
| 17 | 2630030 | SPRING | 1 |
| 18 | 2630040 | LEVER | 1 |
| 19 | 274003-921 | COLLAR | 1 |
| 20 | 0045340 | BOLT | 1 |
| 21 | 2630050 | LINK | 1 |
| 22 | 2061570 | LINK | 1 |
| 23 | 0070941 | SCREW | 2 |
| 24 | 2740080 | SPRING | 1 |
| 25 | 2630060 | LEVER | 1 |
| 26 | 007060A0 | SCREW | 1 |
| 27 | 253015A1 | BRACKET | 1 |
| 28 | 007019A0 | SCREW | 2 |
| 29 | 0045810 | SCREW | 1 |
| 30 | 0048050 | NUT | 1 |
| 31 | 001170-30 | SCREW | 1 |
Page 27 — SPREADER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 263306-920 | ECCENTRIC | 1 |
| 2 | 0045140 | SCREW | 2 |
| 3 | 2405780 | WASHER | 1 |
| 4 | 0070390 | SCREW | 1 |
| 5 | 2633000 | CONNECTION | 1 |
| 6 | 263301-920 | CRANK | 1 |
| 7 | 0045340 | BOLT | 1 |
| 8 | 2633050 | SCREW | 1 |
| 9 | 2400620 | WASHER | 1 |
| 10 | 0048050 | NUT | 1 |
| 11 | 2710030 | SHAFT | 1 |
| 12 | 2082350 | WASHER | 1 |
| 13 | 2025770 | RING | 1 |
| 14 | 263303-920 | CRANK | 1 |
| 15 | 0045340 | BOLT | 1 |
| 16 | 2082350 | WASHER | 1 |
| 17 | 2545070 | BLOCK | 1 |
| 18 | 2545180 | CRANKSHAFT | 1 |
| 19 | 2079250 | FELT | 2 |
| 20 | 2021760 | OIL STRING | 1 |
| 21 | 2105860 | OIL SEAL | 1 |
| 22 | 2405760 | COLLAR | 1 |
| 23 | 0070080 | SCREW | 2 |
| 24 | 254516-920 | LEVER ASSEMBLY | 1 |
| 25 | 0070220 | SCREW | 1 |
| 26 | 0070200 | SCREW | 1 |
| 27 | XXXXXX | SPREADER | 1 |
| 28 | 2405840 | WASHER | 1 |
Page 29 — 糸調子機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 263500-910 | LEVER ASSEMBLY | 1 |
| 2 | 2540220 | COLLAR | 1 |
| 3 | 007022A0 | SCREW | 1 |
| 4 | 254003B910 | CRANK | 1 |
| 5 | 0045310 | BOLT | 1 |
| 6 | 2028680 | WASHER | 1 |
| 7 | 263548-9T0 | TENSIONER ASSEMBLY | 1 |
| 8 | 254019C0 | BRACKET | 1 |
| 9 | 2540210 | THREAD RELEASER | 1 |
| 10 | 263542A9T0 | TENSION SPRING ASSEMBLY | 3 |
| 11 | 001817-2A0 | SCREW STUD | 3 |
| 12 | 2103190 | TENSION DISC | 6 |
| 13 | 263544-TA0 | SPRING SHIELD | 3 |
| 14 | 2010370 | SPRING (HEAVY) | 3 |
| 15 | 2084480 | RATCHET | 3 |
| 16 | 263543-TA0 | NUT | 3 |
| 17 | 263542B9T0 | TENSION SPRING ASSEMBLY | 1 |
| 18 | 2010860 | SPRING (MEDIUM) | 1 |
| 19 | 263542C9T0 | TENSION SPRING ASSEMBLY | 1 |
| 20 | 2010680 | SPRING (LIGHT) | 1 |
| 21 | 2635490 | THREAD GUIDE | 5 |
| 22 | 2062020 | SPACER | 5 |
| 23 | 3063010 | SPRING | 1 |
| 24 | 0054470 | SCREW | 1 |
| 25 | 2635500 | THREAD GUIDE | 1 |
| 26 | 007017A0 | SCREW | 2 |
| 27 | 007019A0 | SCREW | 2 |
Page 31 — NEEDLE & SPREAD HANDLING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2635280 | THREAD GUIDE | 1 |
| 2 | 007019A0 | SCREW | 1 |
| 3 | 2635270 | THREAD GUIDE | 1 |
| 4 | 0070520 | SCREW | 1 |
| 5 | 2635160 | BRACKET | 1 |
| 6 | 007019A0 | SCREW | 1 |
| 7 | 2635170 | THREAD TAKE-UP | 1 |
| 8 | 0071540 | SCREW | 1 |
| 9 | 2635540 | THREAD SUPPORT | 1 |
| 10 | 0070620 | SCREW | 1 |
| 11 | 263518-920 | BRACKET | 1 |
| 12 | 0070541 | SCREW | 1 |
| 13 | 263519-910 | THREAD GUIDE ASSEMBLY | 1 |
| 14 | 0071190 | SCREW | 1 |
| 15 | 2635220 | BRACKET | 1 |
| 16 | 007019A0 | SCREW | 2 |
| 17 | 2635230 | THREAD GUIDE | 1 |
| 18 | 210955A0 | WASHER | 1 |
| 19 | 007018A0 | SCREW | 2 |
| 20 | 2635240 | THREAD GUIDE | 3 |
| 21 | 2405740 | WASHER | 3 |
| 22 | 0070310 | SCREW | 3 |
| 23 | 2635250 | THREAD GUIDE | 1 |
| 24 | 3034480 | WASHER | 2 |
| 25 | 0070190 | SCREW | 2 |
| 26 | 2635260 | BRACKET | 1 |
| 27 | 0070410 | SCREW | 2 |
| 28 | 1371080 | TENSION DISC | 2 |
| 29 | 2113880 | SPRING | 1 |
| 30 | 0071671 | SCREW | 1 |
| 31 | 2750340 | KNOB | 1 |
| 32 | 2635520 | THREAD GUIDE | 1 |
| 33 | 263529-910 | THREAD GUIDE ASSEMBLY | 1 |
| 34 | 0045540 | SCREW | 1 |
| 35 | 2635530 | THREAD GUIDE | 1 |
| 36 | 2535110 | THREAD GUIDE | 1 |
| 37 | 0045540 | SCREW | 1 |
Page 33 — LOOPER THREAD HANDLING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 253691-910 | THREAD TAKE-UP | 1 |
| 2 | 0045140 | SCREW | 2 |
| 3 | 2635470 | BRACKET | 1 |
| 4 | 2535250 | SHAFT | 1 |
| 5 | 2401150 | SPRING | 1 |
| 6 | 3038650 | O RING | 2 |
| 7 | 2005550 | RING | 1 |
| 8 | 0045540 | SCREW | 1 |
| 9 | 2535260 | SHAFT | 1 |
| 10 | 0045540 | SCREW | 1 |
| 11 | 2005550 | RING | 1 |
| 12 | 2535270 | STOPPER | 1 |
| 13 | 2535280 | SPRING | 1 |
| 14 | 0070870 | SCREW | 1 |
| 15 | 007023A0 | SCREW | 1 |
| 16 | 007019A0 | SCREW | 1 |
| 17 | 3034480 | WASHER | 2 |
| 18 | 2536120 | BRACKET | 1 |
| 19 | 2536140 | THREAD GUIDE | 1 |
| 20 | 3034480 | WASHER | 1 |
| 21 | 0043250 | BOLT | 1 |
| 22 | 2536130 | THREAD SUPPORT | 1 |
| 23 | 0045540 | SCREW | 1 |
| 24 | 2635510 | BRACKET | 1 |
| 25 | 2103531 | THREAD GUIDE | 1 |
| 26 | 0070080 | SCREW | 1 |
| 27 | 253533D0 | THREAD GUIDE | 2 |
| 28 | 2105850 | WASHER | 2 |
| 29 | 0070310 | SCREW | 2 |
| 30 | 1371080 | TENSION DISC | 2 |
| 31 | 0071671 | SCREW | 1 |
| 32 | 2113880 | SPRING | 1 |
| 33 | 2750340 | KNOB | 1 |
| 34 | 0070430 | SCREW | 2 |
| 35 | 2635560 | THREAD GUIDE | 1 |
| 36 | 007018A0 | SCREW | 1 |
| 37 | 2536150 | THREAD GUIDE | 1 |

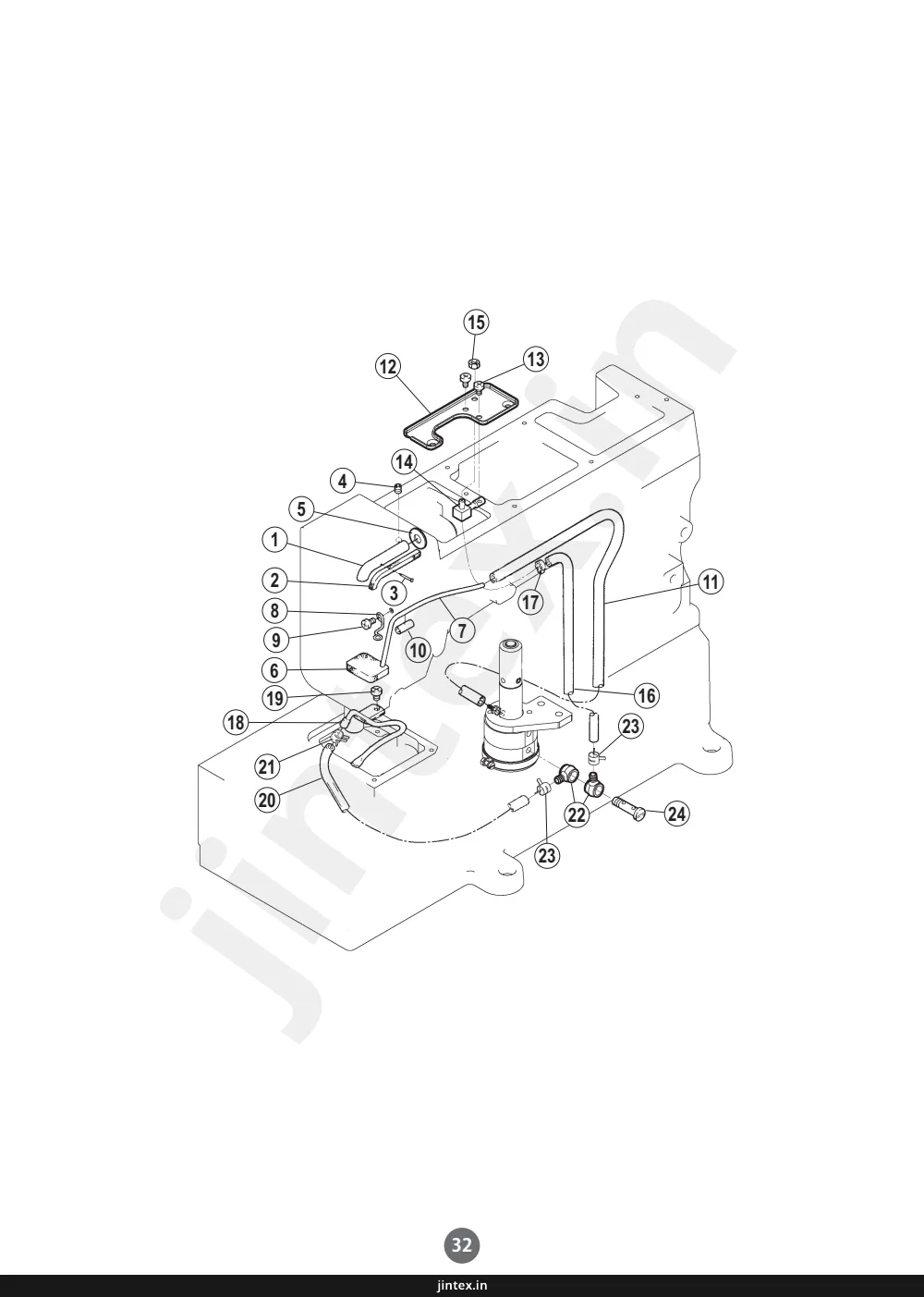

Page 35 — 給油機構 (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2550030 | PIPE | 1 |
| 2 | 2401360 | FELT | 1 |
| 3 | 2107660 | PIN | 1 |
| 4 | 0045140 | SCREW | 1 |
| 5 | 2530180 | OIL SHIELD | 1 |
| 6 | 2550210 | FELT | 1 |
| 7 | 2550390 | PIPE | 1 |
| 8 | 2550050 | LATCH | 1 |
| 9 | 007018A0 | SCREW | 1 |
| 10 | 2401430 | TUBE | 1 |
| 11 | 1L700200000 | TUBE | 1 |
| 12 | 2640030 | OIL RELEASE PLATE | 1 |
| 13 | 007018A0 | SCREW | 2 |
| 14 | 264004-910 | OIL SPLASH PIPE | 1 |
| 15 | 0048210 | NUT | 1 |
| 16 | 2400060 | TUBE | 1 |
| 17 | 2021990 | CLAMP | 1 |
| 18 | 255010A910 | OIL SPLASH PIPE | 1 |
| 19 | 007018A0 | SCREW | 1 |
| 20 | 2068400 | TUBE | 1 |
| 21 | 2021990 | CLAMP | 1 |
| 22 | 2001360 | JOINT | 2 |
| 23 | 2021990 | CLAMP | 2 |
| 24 | 2745860 | JOINT SCREW | 1 |

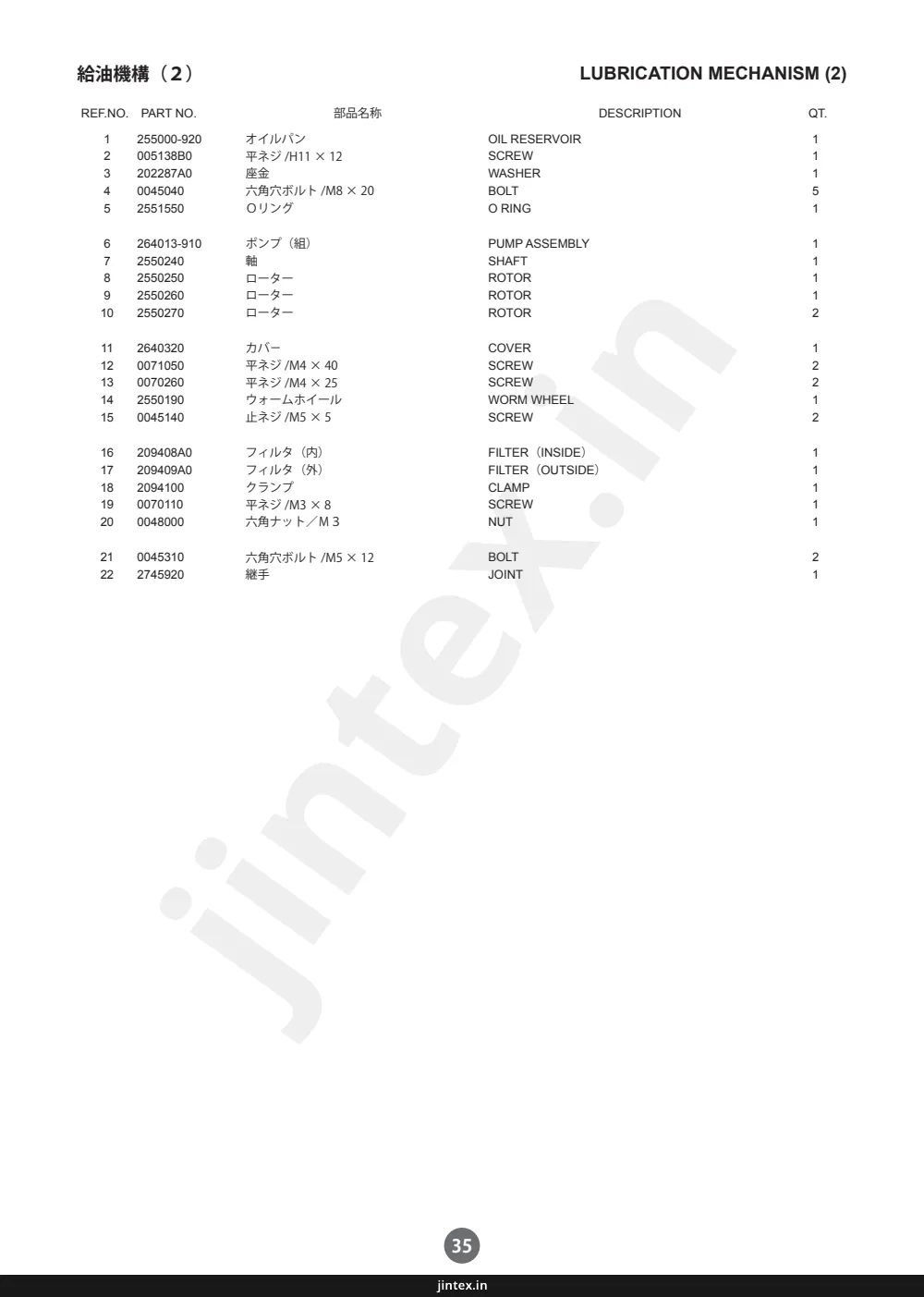

Page 37 — 給油機構 (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 255000-920 | OIL RESERVOIR | 1 |
| 2 | 005138B0 | SCREW | 1 |
| 3 | 202287A0 | WASHER | 1 |
| 4 | 0045040 | BOLT | 5 |
| 5 | 2551550 | O RING | 1 |
| 6 | 264013-910 | PUMP ASSEMBLY | 1 |
| 7 | 2550240 | SHAFT | 1 |
| 8 | 2550250 | ROTOR | 1 |
| 9 | 2550260 | ROTOR | 1 |
| 10 | 2550270 | ROTOR | 2 |
| 11 | 2640320 | COVER | 1 |
| 12 | 0071050 | SCREW | 2 |
| 13 | 0070260 | SCREW | 2 |
| 14 | 2550190 | WORM WHEEL | 1 |
| 15 | 0045140 | SCREW | 2 |
| 16 | 209408A0 | FILTER（INSIDE） | 1 |
| 17 | 209409A0 | FILTER（OUTSIDE） | 1 |
| 18 | 2094100 | CLAMP | 1 |
| 19 | 0070110 | SCREW | 1 |
| 20 | 0048000 | NUT | 1 |
| 21 | 0045310 | BOLT | 2 |
| 22 | 2745920 | JOINT | 1 |
Page 39 — HR DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2550130 | NEEDLE COOLER (LOWER) | 1 |
| 2 | 0070100 | SCREW | 2 |
| 3 | 2550140 | FELT | 1 |
| 4 | 2107660 | PIN | 1 |
| 5 | 2401170 | TUBE | 1 |
| 6 | 2061150 | BRACKET | 1 |
| 7 | 007017A0 | SCREW | 1 |
| 8 | 2021750 | OIL STRING | 1 |
| 9 | 2001550 | CLAMP | 2 |
| 10 | 2550150 | SILICONE OIL RESERVOIR (LOWER) | 1 |
| 11 | 2550160 | CAP | 1 |
| 12 | 004210-HU0 | SCREW | 1 |
| 13 | 264016-910 | SILICONE OIL RESERVOIR ASSY. | 1 |
| 14 | 2403670 | SPRING PIN | 2 |
| 15 | 2070680 | FELT | 1 |
| 16 | 0049280 | SCREW | 2 |
Page 41 — PARTS FOR SEMI-SUBMERGED INSTALLATION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2063380 | RUBBER CUSHION | 4 |
| 2 | 2590000 | REST BOARD | 2 |
| 3 | 0045120 | BOLT | 4 |
| 4 | 0070930 | SCREW | 4 |
| 5 | 2054670 | SPACER | 4 |
| 6 | 2057640 | RUBBER CUSHION | 4 |
| 7 | 2057650 | LINER | 4 |
| 8 | 2063360 | NUT | 4 |
| 9 | 2063370 | WASHER | 12 |
| 10 | 2063290 | TREADLE CHAIN GUIDE | 1 |
| 11 | 0070270 | SCREW | 2 |
Page 43 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 000100A9P0 | THREAD STAND ASSY.(5-SPOOL) | 1 |
| 2 | 000101-PA0 | COLUMN PIPE (UPPER) | 1 |
| 3 | 000102-PA0 | COLUMN PIPE (LOWER) | 1 |
| 4 | 0001030 | JOINT | 1 |
| 5 | 004066-HU0 | SCREW | 2 |
| 6 | 004067-HU0 | NUT | 2 |
| 7 | 000104-PA0 | BRACKET (3-SPOOL) | 1 |
| 8 | 000104APAO | BRACKET (2-SPOOL) | 1 |
| 9 | 0001160 | HOLDER | 2 |
| 10 | 004068-HU0 | SCREW | 2 |
| 11 | 0001050 | SPOOL PIN | 5 |
| 12 | 303067A0 | SPRING WASHER | 5 |
| 13 | 004067-HU0 | NUT | 5 |
| 14 | 000106-PA0 | SPOOL TRAY | 5 |
| 15 | 0001070 | CUSHION | 5 |
| 16 | 000108-PA0 | SPOOL RETAINING FIN | 5 |
| 17 | 000109-PA0 | BRACKET | 1 |
| 18 | 0041130 | SCREW | 1 |
| 19 | 0048030 | NUT | 1 |
| 20 | 0001100 | THREAD GUIDE BAR | 1 |
| 21 | 004065-HU0 | SCREW | 1 |
| 22 | 0048030 | NUT | 1 |
| 23 | 000111-PA0 | BRACKET | 1 |
| 24 | 004065-HU0 | SCREW | 1 |
| 25 | 0048030 | NUT | 1 |
| 26 | 000112A0 | THREAD GUIDE BAR (5-SPOOL) | 1 |
| 27 | 004065-HU0 | SCREW | 1 |
| 28 | 0048030 | NUT | 1 |
| 29 | 000104-PA0 | BRACKET (3-SPOOL) | 1 |
| 30 | 000104APAO | BRACKET (2-SPOOL) | 1 |
| 31 | 0001160 | HOLDER | 2 |
| 32 | 004068-HU0 | SCREW | 2 |
| 33 | 0001130 | THREAD GUIDE | 5 |
| 34 | 0001140 | ROD CAP | 1 |
| 35 | 0001150 | WASHER | 2 |
| 36 | 0001170 | SPRING WASHER | 1 |
| 37 | 007370-HU0 | NUT | 1 |
Page 45 — 専用部品（1） / SPECIFIC PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 260051-PD0 | BED COVER（LEFT） | 1 |
| 2 | 258013-910 | FABRIC GUIDE | 1 |
| 3 | 007020A0 | SCREW | 2 |
| 4 | 3034480 | WASHER | 2 |
| 5 | 2645020 | FABRIC GUIDE（RIGHT） | 1 |
| 6 | 2645030 | FABRIC GUIDE（LEFT） | 1 |
| 7 | 260059-PB0 | FRONT COVER (LEFT) | 1 |
| 8 | 007019A0 | SCREW | 1 |
| 9 | 007021A0 | SCREW | 1 |
| 10 | 260063-PD0 | FRONT COVER ASSEMBLY | 1 |
| 11 | 2500130 | SCREW | 1 |
| 12 | 2401980 | PIN | 1 |
| 13 | 2011910 | SPRING WASHER | 3 |
| 14 | 0045390 | SCREW | 2 |
| 15 | 2100250 | CUSHION | 2 |
| 16 | 2502630 | BRACKET | 1 |
| 17 | 0070090 | SCREW | 2 |
| 18 | 260069-910 | AUXILIARY COVER | 1 |
| 19 | 0070340 | SCREW | 2 |
| 20 | 2045850 | WASHER | 2 |
| 21 | 250052BPD1 | BED COVER（RIGHT） | 1 |
| 22 | 260062-PB0 | FRONT COVER（LEFT） | 1 |
| 23 | 007019A0 | SCREW | 1 |
| 24 | 007021A0 | SCREW | 1 |
| 25 | 260067-PD0 | FRONT COVER ASSEMBLY | 1 |
| 26 | 2500130 | SCREW | 1 |
| 27 | 2401980 | PIN | 1 |
| 28 | 2011910 | SPRING WASHER | 3 |
| 29 | 0045390 | SCREW | 2 |
| 30 | 250050APD0 | FRONT COVER（SMALL） | 1 |
| 31 | 0070270 | SCREW | 2 |
| 32 | 206601A0 | FABRIC GUARD | 1 |
| 33 | 0070790 | SCREW | 2 |
| 34 | 2064390 | FABRIC GUARD | 1 |
| 35 | 2045850 | WASHER | 2 |
| 36 | 0070790 | SCREW | 2 |
| 37 | 2019130 | CLAMP PLATE | 1 |
| 38 | 0051130 | SCREW | 2 |
| 39 | 0055400 | SCREW | 1 |
| 40 | 2019140 | TAPE BINDER BRACKET | 1 |
| 41 | 2064600 | WASHER | 1 |
| 42 | 0070280 | SCREW | 2 |
| 43 | 257718A0 | GUIDE | 1 |
| 44 | 0071200 | SCREW | 1 |
Page 47 — SPECIFIC PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 000257A9S0 | TAPE GUIDE ASSEMBLY | 1 |
| 2 | 000247-SA0 | TAPE BASE | 1 |
| 3 | 0002700 | WASHER | 1 |
| 4 | 0002530 | SHAFT | 1 |
| 5 | 0002500 | BRACKET | 1 |
| 6 | 0014480 | SCREW | 1 |
| 7 | 000251-SA0 | BRACKET | 1 |
| 8 | 0049130 | SCREW | 3 |
| 9 | 0002520 | SCREW | 2 |
| 10 | 3030670 | SPRING WASHER | 2 |
| 11 | 0002260 | NUT | 2 |
| 12 | 2045850 | WASHER | 2 |
| 13 | 0002530 | PIN | 2 |
| 14 | 0002540 | HOLDER | 2 |
| 15 | 0051610 | SCREW | 4 |
| 16 | 0002550 | BRACKET | 1 |
| 17 | 000256-SA0 | HOLDER | 1 |
| 18 | 007023A0 | SCREW | 2 |
| 19 | 0048030 | NUT | 2 |
Page 49 — SPECIFIC PARTS (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2530290 | FINGER GUARD | 1 |
| 2 | 250052CPD1 | BED COVER (LEFT) | 1 |
| 3 | 5C000609200 | ECCENTRIC ASSEMBLY | 1 |
| 4 | 0045390 | SCREW | 2 |
| 5 | 6G006909T00 | BELT COVER ASSY. | 1 |
| 6 | 2403050 | RUBBER CUSHION | 1 |
| 7 | 260060-PB0 | FRONT COVER（LEFT） | 1 |
| 8 | 007021A0 | SCREW | 3 |
| 9 | 6C00070PD00 | FRONT COVER ASSEMBLY | 1 |
| 10 | 2500130 | SCREW | 1 |
| 11 | 2401980 | PIN | 1 |
| 12 | 2011910 | SPRING WASHER | 3 |
| 13 | 0045390 | SCREW | 2 |
| 14 | 2100250 | CUSHION | 1 |
| 15 | 250025-ME0 | FRONT COVER (SMALL) | 1 |
| 16 | 007018A0 | SCREW | 2 |
| 17 | 2500260 | BRACKET | 1 |
| 18 | 0070280 | SCREW | 1 |
| 19 | 2500270 | SHAFT | 1 |
| 20 | 3069200 | PIN | 1 |
| 21 | 0045140 | SCREW | 1 |
| 22 | 2500280 | STOPPER | 1 |
| 23 | 007018A0 | SCREW | 2 |
| 24 | 2023400 | SPRING | 1 |
| 25 | 2500660 | PLUG | 1 |
| 26 | 6K002800000 | FABRIC GUARD | 1 |
| 27 | 2091730 | WASHER | 2 |
| 28 | 0070190 | SCREW | 2 |
Page 51 — SPECIFIC PARTS (4) FT DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4B001109200 | CONNECTION | 1 |
| 2 | 007023A0 | SCREW | 2 |
| 3 | 4C000700000 | CRANK | 1 |
| 4 | 0045390 | SCREW | 2 |
| 5 | 2710010 | PIN | 1 |
| 6 | 0045380 | SCREW | 1 |
| 7 | 2555020 | SHAFT | 1 |
| 8 | 2067480 | FELT | 3 |
| 9 | 2021760 | OIL STRING | 1 |
| 10 | 2400970 | PLUG | 1 |
| 11 | 2403110 | WASHER | 1 |
| 12 | 2050610 | RING | 1 |
| 13 | 204052A0 | OIL SEAL | 1 |
| 14 | 255503-920 | LEVER ASSEMBLY | 1 |
| 15 | 0045010 | BOLT | 1 |
| 16 | 2021740 | OIL WICK | 1 |
| 17 | 2021750 | OIL WICK | 1 |
| 18 | 2555040 | LATCH | 1 |
| 19 | 0070090 | SCREW | 1 |
| 20 | 0045450 | SCREW | 1 |
| 21 | 2555050 | BLOCK | 1 |
| 22 | 2079250 | FELT | 3 |
| 23 | 6A006809100 | BRACKET ASSEMBLY | 1 |
| 24 | 2400990 | NEEDLE BEARING | 2 |
| 25 | 255508-20 | SHAFT | 1 |
| 26 | 0045150 | BOLT | 2 |
| 27 | 3061050 | SPRING | 1 |
| 28 | 2625420 | COLLAR | 1 |
| 29 | 0045430 | SCREW | 1 |
| 30 | 2025220 | RING | 1 |
| 31 | 2070450 | WASHER | 1 |
| 32 | 255507-910 | UPPER KNIFE HOLDER ASSEMBLY | 1 |
| 33 | 0045470 | SCREW | 1 |
| 34 | 3063940 | UPPER KNIFE | 1 |
| 35 | 0051090 | SCREW | 1 |
| 36 | 2555090 | LOWER KNIFE HOLDER | 1 |
| 37 | 0070360 | SCREW | 1 |
| 38 | 2041610 | LOWER KNIFE | 1 |
| 39 | 2555100 | LOWER KNIFE CLAMP | 1 |
| 40 | 0070280 | SCREW | 1 |
| 41 | 2555130 | SCREW | 1 |
| 42 | 2555110 | GUIDE | 1 |
| 43 | 0070100 | SCREW | 1 |
| 44 | 2555150 | CHIP GUARD | 1 |
| 45 | 0070080 | SCREW | 2 |
Page 53 — SPECIFIC PARTS (5)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 306473-UA0 | WASTE CHUTE TOP | 1 |
| 2 | 0049040 | SCREW | 3 |
| 3 | 306474A0 | BRACKET | 1 |
| 4 | 0049050 | SCREW | 4 |
| 5 | 009050-9U0 | WASTE CHUTE SET | 1 |
| 6 | 205468-UA0 | WASTE CHUTE TOP (A) | 1 |
| 7 | 205469-UA0 | WASTE CHUTE TOP (B) | 1 |
| 8 | 3034480 | WASHER | 4 |
| 9 | 0040120 | SCREW | 4 |
| 10 | 306469A9S0 | REEL STAND ASSEMBLY | 1 |
| 11 | 306468ASA0 | THREAD STAND BASE | 1 |
| 12 | 0049130 | SCREW | 3 |
| 13 | 306466ASA0 | COLUMN PIPE | 1 |
| 14 | 0048350 | NUT | 1 |
| 15 | 000383-SA0 | BRACKET | 1 |
| 16 | 0040140 | SCREW | 1 |
| 17 | 0048030 | NUT | 1 |
| 18 | 0040120 | SCREW | 1 |
| 19 | 0048030 | NUT | 1 |
| 20 | 3064640 | SHAFT | 1 |
| 21 | 3064630 | COLLAR | 2 |
| 22 | 0012850 | SCREW | 2 |
| 23 | 3064620 | REEL GUIDE | 2 |
| 24 | 000233-SA0 | BRACKET | 1 |
| 25 | 0040120 | SCREW | 2 |
| 26 | 0048030 | NUT | 2 |
| 27 | 3064670 | ROD | 1 |
| 28 | 0003860 | ROD CAP | 1 |
Page 55 — SPECIFIC PARTS (6) MD DEVICE (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4B001609100 | CONNECTION ASSEMBLY | 1 |
| 2 | 4B001209200 | CONNECTION | 1 |
| 3 | 007023A0 | SCREW | 2 |
| 4 | 4C000800000 | BALL STUD | 1 |
| 5 | 1J600400000 | CONNECTING ROD | 1 |
| 6 | 0048060 | NUT | 1 |
| 7 | 1D000200000 | NUT | 1 |
| 8 | 0045470 | SCREW | 2 |
| 9 | 3062380 | BUSHING | 1 |
| 10 | 3062390 | NEEDLE BEARING | 1 |
| 11 | 4W000100000 | BALANCE WEIGHT | 1 |
| 12 | 0070830 | SCREW | 2 |
| 13 | 4C001309100 | CRANK ASSEMBLY | 1 |
| 14 | 2560460 | SLEEVE | 1 |
| 15 | 0045470 | SCREW | 2 |
| 16 | 0045480 | SCREW | 1 |
| 17 | 2560120 | CLUTCH | 2 |
| 18 | 3065000 | PIN | 6 |
| 19 | 3062430 | GUIDE PLATE ASSEMBLY | 6 |
| 20 | 240114B0 | SPRING | 12 |
| 21 | 4C000900000 | CRANK | 1 |
| 22 | 0070830 | SCREW | 3 |
| 23 | 2560410 | SCREW | 1 |
| 24 | 2560420 | SET PLATE | 1 |
| 25 | 0070100 | SCREW | 2 |
| 26 | 2560080 | PIN | 1 |
| 27 | 2560090 | INDICATOR | 1 |
| 28 | 2040230 | WASHER | 1 |
| 29 | 2560480 | BUTTERFLY NUT | 1 |
| 30 | 256011A0 | COVER | 1 |
| 31 | 0070830 | SCREW | 3 |
| 32 | 4S001100000 | PIN | 1 |
| 33 | 2045850 | WASHER | 1 |
| 34 | 0070270 | SCREW | 1 |
| 35 | 0045140 | SCREW | 1 |
| 36 | 6A008000000 | BRACKET | 1 |
| 37 | 2103070 | WASHER | 2 |
| 38 | 0070660 | SCREW | 1 |
| 39 | 3034480 | WASHER | 1 |
| 40 | 2502570 | EYE GUARD | 1 |
| 41 | 2028750 | WASHER | 2 |
| 42 | 0070090 | SCREW | 2 |
| 43 | 6G003909T00 | MD COVER ASSEMBLY | 1 |
| 44 | 0070200 | SCREW | 3 |
Page 57 — SPECIFIC PARTS (7) MD DEVICE (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6A007509P00 | BRACKET | 1 |
| 2 | 3063640 | BUSHING | 2 |
| 3 | 2560250 | SHAFT | 1 |
| 4 | 2560220 | ROLLER | 1 |
| 5 | 6A007400000 | BRACKET | 2 |
| 6 | 0045140 | SCREW | 4 |
| 7 | 4S001000000 | BRACKET | 1 |
| 8 | 5K000800000 | GUIDE | 2 |
| 9 | 4S001200000 | SHAFT | 1 |
| 10 | 0045540 | SCREW | 4 |
| 11 | 2024330 | WASHER | 2 |
| 12 | 2560240 | LEVER | 1 |
| 13 | 0070100 | SCREW | 2 |
| 14 | 3511880 | LEVER | 1 |
| 15 | 0070100 | SCREW | 2 |
| 16 | 6A007700000 | BRACKET | 1 |
| 17 | 007019A0 | SCREW | 2 |
| 18 | 3511910 | BRACKET | 1 |
| 19 | 2016290 | RING | 1 |
| 20 | 3511900 | BRACKET | 1 |
| 21 | 3511890 | SPRING | 1 |
| 22 | 2079240 | WASHER | 1 |
| 23 | 2105330 | SPRING | 1 |
| 24 | 2105320 | THUMB NUT | 1 |
| 25 | 0052920 | SCREW | 2 |
| 26 | 256019-910 | ROLLER ASSEMBLY | 1 |
| 27 | 0045350 | SCREW | 4 |
| 28 | 6A007800000 | BRACKET | 1 |
| 29 | 007019A0 | SCREW | 2 |
| 30 | 256034A910 | BRACKET | 1 |
| 31 | 2109300 | SPRING WASHER | 2 |
| 32 | 0045280 | BOLT | 1 |
| 33 | 0048030 | NUT | 1 |
| 34 | 2560380 | STOPPER | 1 |
| 35 | 0045730 | SCREW | 1 |
| 36 | 2560390 | LACE GUIDE | 1 |
| 37 | 0045540 | SCREW | 1 |
| 38 | 256039A0 | LACE GUIDE | 1 |
| 39 | 0045540 | SCREW | 1 |
| 40 | 6A00790PD00 | BRACKET | 1 |
| 41 | 0040260 | BOLT | 3 |
| 42 | 0045030 | BOLT | 1 |
| 43 | 256063-910 | SHAFT ASSEMBLY | 1 |
| 44 | 2560140 | SHAFT | 1 |
| 45 | 2401020 | WASHER | 1 |
| 46 | 2025770 | RING | 1 |
| 47 | 0070740 | SCREW | 2 |
| 48 | 2560310 | SCREW | 2 |
| 49 | 1J600500000 | GUIDE | 1 |
| 50 | 2011850 | WASHER | 2 |
| 51 | 007019A0 | SCREW | 2 |
Page 58 — W1500 GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257542-561 | NEEDLE HOLDER | ||
| 〃 641 | NEEDLE HOLDER | ||
| 257541-321 | NEEDLE HOLDER | ||
| 〃 401 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 〃 641 | NEEDLE HOLDER | ||
| 257541-321 | NEEDLE HOLDER | ||
| 〃 401 | NEEDLE HOLDER | ||
| 〃 481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 〃 641 | NEEDLE HOLDER | ||
| 257541-321 | NEEDLE HOLDER | ||
| 〃 401 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 〃 641 | NEEDLE HOLDER | ||
| 2570188640 | 257207-16F0 | 641 | |
| 257192C641 | 257207-16F0 | 641 | |
| 259629B400 | 257279-16F0 | 240 | |
| 259659B400 | 257221-16F0 | 240 | |
| 259660C641 | 257222-16F0 | 641 |
Pegasus W1500 — parts catalog
- Page 1 (cover): This is the cover page for the W1500 Flatbed Interlock Stitch Machines Parts Catalog from PEGASUS.
- Page 2 (text): This page provides an introduction to the W1500 series parts catalog, explaining its structure and how to use it, and lists the models included in the catalog.
- Page 3 (toc): This page contains the table of contents for the industrial sewing machine parts catalog, listing sections and their corresponding page numbers in both Japanese and English.
- Page 4 (diagram): This page displays a diagram of machine components with numbered parts, including items labeled 1 through 18.
- Page 5 (parts_list): This page lists parts for the MACHINE BED FRAME, including part numbers, descriptions, and quantities.
- Page 6 (diagram): This page displays a diagram of various components of the sewing machine, including covers, screws, and other small parts, with reference numbers for identification.
- Page 7 (parts_list): This page lists parts for COVER (1), including part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of various machine components, including plates, brackets, and fasteners, with reference numbers indicating their positions.
- Page 9 (parts_list): This page lists parts for COVER (2) including bed covers, screws, side cover assemblies, rubber cushions, bolts, gaskets, and brackets.
- Page 10 (diagram): This page displays a diagram of various machine components, including shafts, bearings, pulleys, and adjustment mechanisms, with numbered references for each part.
- Page 11 (parts_list): This page lists parts for the Crankshaft Drive Mechanism, including part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays a diagram of various machine parts, including shafts, collars, and mounting components, each identified by a reference number.
- Page 13 (parts_list): This page lists parts for the ARM SHAFT MECHANISM, including part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of various sewing machine parts, including needles, needle holders, and other components, with reference numbers for identification.
- Page 15 (parts_list): This page lists parts for the Needle Bar Mechanism, including part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of various machine parts, including a lever, a valve assembly with multiple components, a spring, and other miscellaneous parts, each identified by a reference number.
- Page 17 (parts_list): This page lists parts for the Needle Guard Mechanism, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of various sewing machine components, including levers, shafts, screws, and clamps, with reference numbers for identification.
- Page 19 (parts_list): This page lists parts for the Looper Drive Mechanism, including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of various machine parts, including screws, shafts, rollers, and housing components, each identified by a reference number.
- Page 21 (parts_list): This page lists parts for the Feed Mechanism (1) with reference numbers, part numbers, descriptions, and quantities. It includes a note about 'xxxxxx' representing gauge parts and a reference to page 56 for the gauge part list.
- Page 22 (diagram): This page displays a diagram of various machine components, including plates, levers, rollers, and fasteners, with reference numbers for each part.
- Page 23 (parts_list): This page lists parts for the FEED MECHANISM (2) with part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of various machine parts, including levers, springs, screws, and other components, with reference numbers for identification.
- Page 25 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of various machine components, including levers, shafts, bearings, and fasteners, with reference numbers for each part.
- Page 27 (parts_list): This page lists parts for the Spreader Mechanism, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of various sewing machine parts, including screws, springs, and other components, with reference numbers for identification.
- Page 29 (parts_list): This page lists parts for the Thread Tension Mechanism, including part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 37, with detailed illustrations of each component.
- Page 31 (parts_list): This page lists parts for NEEDLE & SPREAD HANDLING, including part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of various machine parts, including a brake disc assembly, levers, springs, screws, and nuts, with reference numbers for each component.
- Page 33 (parts_list): This page lists parts for the Looper Thread Handling mechanism, including screws, shafts, springs, and brackets, with their corresponding part numbers and quantities.
- Page 34 (diagram): This page displays a diagram of machine components with numbered callouts, indicating various parts of the sewing machine assembly.
- Page 35 (parts_list): This page lists parts for the lubrication mechanism (1), including part numbers, descriptions, and quantities.
- Page 36 (diagram): This page displays a diagram of various machine components, including screws, gears, and mounting plates, with reference numbers for identification.
- Page 37 (parts_list): This page lists parts for the lubrication mechanism (2), including oil reservoirs, screws, washers, bolts, O-rings, pump assemblies, shafts, rotors, covers, worm wheels, filters, clamps, nuts, and joints, with their corresponding part numbers and quantities.
- Page 38 (diagram): This page displays a diagram of various components of an industrial sewing machine, including a reservoir, hoses, and electrical parts, with numbered references for each part.
- Page 39 (parts_list): This page lists parts for the HR DEVICE, including part numbers, descriptions, and quantities.
- Page 40 (diagram): This page displays a diagram of various machine components, including screws, washers, and other hardware, with reference numbers pointing to specific parts.
- Page 41 (parts_list): This page lists parts for semi-submerged installation, including part numbers, descriptions, and quantities.
- Page 42 (diagram): This page displays a diagram of various machine parts, including screws, nuts, plates, and stands, with reference numbers for identification.
- Page 43 (parts_list): This page lists parts for the Thread Stand, including part numbers, descriptions, and quantities.
- Page 44 (diagram): This page contains diagrams of parts for models W1562-01J and W1562-02G, with numbered parts and some Japanese text indicating "Packed in accessory" and "OPTION".
- Page 45 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions in Japanese and English, and quantities. It covers items like bed covers, fabric guides, screws, washers, and brackets.
- Page 46 (diagram): This page displays a diagram of machine components with reference numbers, including a title W1562-02G(TR10) and a note about packed accessories.
- Page 47 (parts_list): This page lists specific parts for a machine, including part numbers, descriptions, and quantities. It contains 19 parts, numbered from 1 to 19.
- Page 48 (diagram): This page displays a diagram of various machine components, including brackets, plates, rods, and fasteners, with reference numbers for each part.
- Page 49 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 50 (diagram): This page displays a diagram of sewing machine components with numbered parts, including part numbers and descriptions.
- Page 51 (parts_list): This page lists specific parts for the FT Device, including part numbers, descriptions, and quantities.
- Page 52 (diagram): This page displays diagrams for parts of the W1500-05/FT0B and W1500-05B sewing machine models, with numbered components and associated text indicating they are packed in accessories.
- Page 53 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 54 (diagram): This page displays a diagram of various machine components, including a stitch regulator, needle bar assembly, and presser bar assembly, with reference numbers for each part.
- Page 55 (parts_list): This page lists specific parts for MD Device, including part numbers, descriptions, and quantities.
- Page 56 (diagram): This page displays a diagram of various machine parts, including screws, levers, and shafts, with reference numbers ranging from 1 to 51.
- Page 57 (parts_list): This page lists specific parts for the MD Device (2), including part numbers, descriptions, and quantities.
- Page 58 (parts_list): This page contains a parts list for the W1500 gauge, including part numbers, descriptions, and quantities for various machine models.
- Page 61 (unknown): This page contains a watermark with the text "jinttex.in" and a footer with the same text. There is no other discernible content on the page.
- Page 62 (unknown): This page contains a watermark with the text "jinttex.in" and a footer with the same text. There is no other discernible content on the page.
- Page 63 (unknown): This page contains a watermark with the text "jinte.in" and a footer with the text "jinte.in". There is no other discernible content on this page.
- Page 64 (cover): This is the cover page for the PEGASUS SEWING MACHINE MFG. CO., LTD. parts catalog, dated June 2003, with catalog number 9B600800000.
