Pfaff 1163 Parts Book (PDF)
Text index — Pfaff 1163
Page 9 — Gehäuseteile / Housing sections / Piezas del cárter / 机身零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JGS300-8 | |||
| JGR1006-8 | |||
| JGS300-8 | 8x | ||
| JGR1004-8 | |||
| JGR673-8 | |||
| JGR1083-8 | |||
| JGR1432-8 | |||
| JGR1433-8 | |||
| J508562 | |||
| JGR800-8 | |||
| JGS310-8 | |||
| J544204-001 | |||
| JGR585-8 | |||
| JGR586-8 | |||
| JGQ200-8 | |||
| J282171 | |||
| JGK202-8 | |||
| JGK205-8 | |||
| JGR584-8 | |||
| JGR585-8 | |||
| JGS705-8 | 3x | ||
| J368029 | |||
| JGR587-8 | |||
| JGR1005-8 | |||
| JGR1435-8 | |||
| JGR1434-8 | |||
| JGR603-8 | |||
| JGS313-8 | |||
| JGR604-8 | |||
| JGS313-8 | |||
| JGR583-8 | |||
| JGX300-8 | |||
| JGS373-8 | 2x | ||
| JGR724-8 | |||
| JGS338-8 | 2x | ||
| JGM168-8 | |||
| JGM166-8 | |||
| JGM170-8 | |||
| JGM173-8 | |||
| JGM190-8 | |||
| JGM226-8 | |||
| JGM167/4-8 | |||
| JGW190-8 | |||
| JGS339-8 | |||
| JGS299-8 | 4x |
Page 10 — Kopfteile / Needle head parts / Piezas de la cabeza / 机头零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JGR1013/5-8 (-900/93) | |||
| JGR2046-8 (-900/93) | |||
| JGR1014-8 | |||
| JGR599-8 | |||
| JGO265-8 | |||
| JGR1015-8 | |||
| JGL181-8 | |||
| JGH213-8 | |||
| JGO266-8 | |||
| JGS310-8 | |||
| JGW233-8 (-900/93) | |||
| JGW286-8 (-900/93) | |||
| JGZ230-8 | |||
| JGZ251-8 | |||
| JGU152-8 | |||
| JGR598-8 | |||
| JGS311-8 | |||
| JGR600-8 | |||
| JGR801-8 | |||
| JGO267-8 | |||
| JGO289-8 | |||
| JGS312-8 | |||
| JGS315-8 | |||
| JGR1428-8 | |||
| JGS316-8 | |||
| JGR605/11-8 | |||
| JGR606/11-8 | |||
| JGR601-8 | |||
| JGR802-8 | |||
| JGR601-8 | |||
| JGR606-8 | |||
| JGW183-8 | |||
| JGS314-8 | |||
| JGR607-8 | 2x | ||
| JGR608-8 | |||
| JGR609-8 | |||
| JGL167-8 | |||
| JGW182-8 | |||
| JGW184-8 | |||
| JGW202-8 | |||
| JGX201-8 | |||
| JGW185-8 | |||
| JGX200-8 |
Page 11 — Kopfteile / Needle head parts / Piezas de la cabeza / 机头零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JGS325-8 | |||
| JGS326-8 | |||
| JGR629-8 | |||
| JGR630-8 | |||
| JGR628-8 | |||
| JGS322-8 | |||
| JGR621-8 | |||
| JGR620/2-8 | |||
| JGR623/3-8 | |||
| JGR625-8 | |||
| JGR619-8 | |||
| JGS323-8 | 2x | ||
| JGR625-8 | 3x | ||
| JGS318-8 | |||
| JGL168-8 | |||
| JGR1494-8 | |||
| JGW253-8 | |||
| JGW203-8 | |||
| JGW287-8 | |||
| JGZ231-8 | |||
| JGR614-8 | |||
| JGR1023-8 | |||
| JGR1016-8 | |||
| JGR1017-8 | |||
| JGS310-8 | |||
| JGS336-8 | |||
| JGS324-8 | |||
| JGR626-8 | |||
| JGR622-8 | |||
| JGR625-8 | 2x | ||
| JGW189-8 | |||
| JGR627-8 | |||
| JGR1022-8 | |||
| JGR1019-8 | |||
| JGR1018-8 | |||
| JGR2047-8 | |||
| JGR1017-8 | |||
| JGS310-8 | |||
| JGS010 | |||
| JGS520-8 | |||
| JGL6 | 2x | ||
| JGO268-8 | |||
| JGO290-8 | |||
| JGS319-8 | |||
| JGS320-8 | |||
| JGS321-8 | |||
| JGM164/5-8 | |||
| JGR803/5-8 | |||
| JGM191/5-8 | |||
| JGR615-8 |
Page 12 — Armteile / Arm parts / Piezas del brazo / 机臂零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JGS308-8 | |||
| JGR597-8 | |||
| JGX199-8 | |||
| JGR596/2-8 | |||
| JGH212-8 | |||
| JGH358-8 | |||
| JGH211-8 | |||
| JGR351-8 | |||
| JGR595-8 | |||
| JGH358/4-8 | |||
| JGH210/4-8 | |||
| JGO265-8 | |||
| JGS309-8 | |||
| JGR209-8 | |||
| JGH352-8 | |||
| JGH208/2-8 | |||
| JGH352/2-8 | |||
| JGO256-8 | |||
| JGR588-8 | |||
| JGS306-8 | |||
| JGR589-8 | |||
| JGO259-8 | |||
| JGS305-8 | |||
| JGO258-8 | |||
| JGS307-8 | |||
| JGH428-8 | |||
| JGH429-8 | |||
| JGR167-8 | |||
| JGR592-8 | |||
| JGS371-8 | |||
| JGZ229-8 | |||
| JGX198-8 | |||
| JGR591-8 | |||
| JGX198-8 | |||
| JGR590-8 | |||
| JGO261-8 | |||
| JGS517/8 | |||
| JGR1011/3-8 (-900/93) | |||
| JGR1009/2-8 | |||
| JGS518-8 | 2x | ||
| JGO359-8 | 2x | ||
| JGR1007-8 | |||
| JGR1009/2-8 | |||
| JGS304-8 | |||
| JGP173-8 | |||
| JGP174-8 (-900/93) | |||
| JGP162-8 (-900/93) | |||
| JGS304-8 |
Page 13 — Armteile / Arm parts / Piezas del brazo / 机臂零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JGR669-8 | |||
| JGR674-8 | |||
| JGR675-8 | |||
| JGS310-8 | |||
| JGR680-8 | |||
| JGS354-8 | |||
| JGR678-8 | |||
| JGR756-8 | 96 | ||
| JGR677-8 | 40/23 | ||
| JGR676-8 | 40/23 | ||
| JGR644-8 | 96 | ||
| JGR670-8 | |||
| JGR1080-8 | |||
| JGW195-8 | |||
| JGS352-8 | |||
| JGS353-8 | |||
| JGR668-8 | |||
| JGS351-8 | |||
| JGS533-8 | |||
| JGS717-8 | |||
| JGR660-8 | |||
| JGR1079-8 | |||
| JGS328-8 | |||
| JGR667-8 | |||
| JGO276-8 | |||
| JGR662-8 | |||
| JGS350-8 | |||
| JGW194-8 | |||
| JGR661-8 | |||
| JGS348-8 | 3x | ||
| JGR666-8 | |||
| JGR663-8 | |||
| JGR664-8 | |||
| JGR665/2-8 | |||
| JGS349-8 | 3x | ||
| JGR659/20-8 |
Page 14 — 3.04 Grundplattenteile / Bedplate parts / Piezas del cárter / 底板零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JGS311-8 | |||
| JHGT156-8 | |||
| JGT159-8 | |||
| JGS332-8 | |||
| JGR638-8 | |||
| JGR808-8 | |||
| 12-610 330-45 | |||
| JGH214-8 | |||
| JGH353-8 | |||
| JGH218-8 | |||
| JGX204-8 | |||
| JGS333-8 | |||
| JGX205-8 | 2x | ||
| JGR639-8 | 2x | ||
| JGX207-8 | |||
| JGR640-8 | 2x | ||
| JGX207-8 | |||
| JGS333-8 | 2x | ||
| JGR641/2-8 | |||
| JGR811/2-8 | |||
| JGR1024/3-8 | |||
| JGS316-8 | 2x | ||
| JGX208-8 | |||
| JGS337-8 | |||
| JGR648-8 | |||
| JGR810-8 | |||
| JGM165-8 | |||
| JGM169-8 | |||
| JGM174-8 | |||
| JGM192-8 | |||
| JGM227-8 | |||
| JGX222-8 | |||
| JGS333-8 | |||
| JGS334-8 | |||
| JGH215-8 | |||
| JGH354-8 | |||
| JGL142-8 | |||
| JGS334-8 | |||
| JGH217-8 | |||
| JGR643-8 | |||
| JGR807-8 | |||
| JGR589-8 | |||
| JGS167-8 | |||
| JGO273-8 | |||
| JGR644-8 | |||
| JGS336-8 | |||
| JGR634-8 | |||
| 12-305 144-15 | |||
| JGR142-8 | |||
| JGR589-8 | |||
| JGS167-8 | |||
| JGH216-8 | |||
| JGO273-8 | |||
| JGS340-8 |
Page 15 — Grundplattenteile / Bedplate parts / Piezas del cárter / 底板零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JGS319-8 | 2x | ||
| JGZ234-8 | |||
| JGS403-8 | |||
| JGC157-8 | |||
| JGO272-8 | |||
| JGC156-8 | |||
| JGS319-8 | 2x | ||
| JGO271-8 | |||
| JGS319-8 | 2x | ||
| JGC155-8 | |||
| JGC154-8 | |||
| JGC154-8 | (Set) | ||
| JGS319-8 | 2x | ||
| JGO270-8 | |||
| JGR636-8 | |||
| JGR233-8 | |||
| JGS402-8 | |||
| JGR631-8 | |||
| JGS331-8 | 2x | ||
| JGS328-8 | |||
| JGO269-8 | |||
| JGR633-8 | |||
| JHSH-7.94 B | |||
| JHSH-7.94 BOH | |||
| JHSH-7.94 BTR (-900/93) | |||
| JHSH-7.94 ATR (-900/93) | |||
| JGS316-8 | |||
| JGO360-8 | |||
| JGS330-8 | 2x | ||
| JGS330-8 | |||
| JGS329-8 | |||
| JGN138-8 | |||
| JGS327-8 | 2x | ||
| JGS305-8 | 2x | ||
| JGN139-8 | |||
| JGT165-8 |
Page 16 — Fadenabschneid-Einrichtung (-900/93) / Thread trimmer (-900/93) / Cortahilos (-900/93) / 切线器 (-900/93)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JGR1056/2-8 | |||
| JGS525-8 | 2x | ||
| JGR1054-8 | |||
| JGS336-8 | |||
| JGX254-8 | |||
| JGW238-8 | |||
| JGH389-8 | |||
| JGR1063/2-8 | |||
| JGO366-8 | |||
| JGL182-8 | |||
| JGR1053-8 | |||
| JGH388-8 | |||
| JGR625-8 | |||
| JGX253-8 | |||
| JGW237-8 | |||
| JGR1055-8 | |||
| JGS340-8 | |||
| JGR1040/10-8 | |||
| JGR1376-8 | |||
| JGS529-8 | |||
| JGR1045-8 | |||
| JGR1377-8 | |||
| JGS527-8 | |||
| JGR1046-8 | |||
| JGR1379-8 | |||
| JGS528-8 | |||
| JGR1048-8 | |||
| JGR1049/2-8 | |||
| JGS66 | 2x | ||
| JGR1378-8 | |||
| JGR1047-8 | |||
| JGR1041-8 | |||
| JGR1381-8 | |||
| JGR1039-8 | |||
| JGR1051/4-8 | |||
| JGS333-8 | 2x | ||
| JGS523-8 | |||
| JGS522-8 | |||
| JGS524-8 | |||
| JGS33 | |||
| JGR1028-8 | 2x | ||
| JGW239-8 | |||
| JGR1058-8 | |||
| JGX256-8 | |||
| JGL182-8 | |||
| JGR1061/4-8 | |||
| JGR366-8 | |||
| JGR1059/2-8 | |||
| JGR1053-8 | |||
| JGKR202-8 | 2x | ||
| JGR1066-8 | |||
| JGKL201-8 | 2x | ||
| JGR671-8 | |||
| JGR625-8 | |||
| JGH390-8 | |||
| JGS526-8 | |||
| JGR1065-8 | |||
| JGS525-8 | 2x | ||
| JGR1067/6-8 | |||
| JGR2053-8 | |||
| JGS336-8 |
Page 17 — Fadenabstreif-Einrichtung (-909/93) / Thread wiper (-909/93) / Retirahilos (-909/93) / 拨线器 (-909/93)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JGR1070-8 | |||
| JGBS206-8 | |||
| JGBR216-8 | |||
| JGS532-8 | |||
| JGL186-8 | |||
| JGO375-8 | |||
| JGW240-8 | |||
| JGR1081-8 | |||
| JGH391-8 | |||
| JGS531-8 | |||
| JGR1072-8 | |||
| JGL185-8 | |||
| JGR1078-8 | |||
| JGX258-8 | |||
| JGD136-8 | |||
| JGO376-8 | |||
| JGR1074-8 | |||
| JGR1073-8 | |||
| JGBR215-8 | 3x | ||
| JGBS206-8 | 3x | ||
| JGS300-8 | |||
| JGR1075/2-8 | |||
| JGR1071-8 | |||
| JGR625-8 | |||
| JGR1077/3-8 | |||
| JGS530-8 | |||
| JGO374-8 |

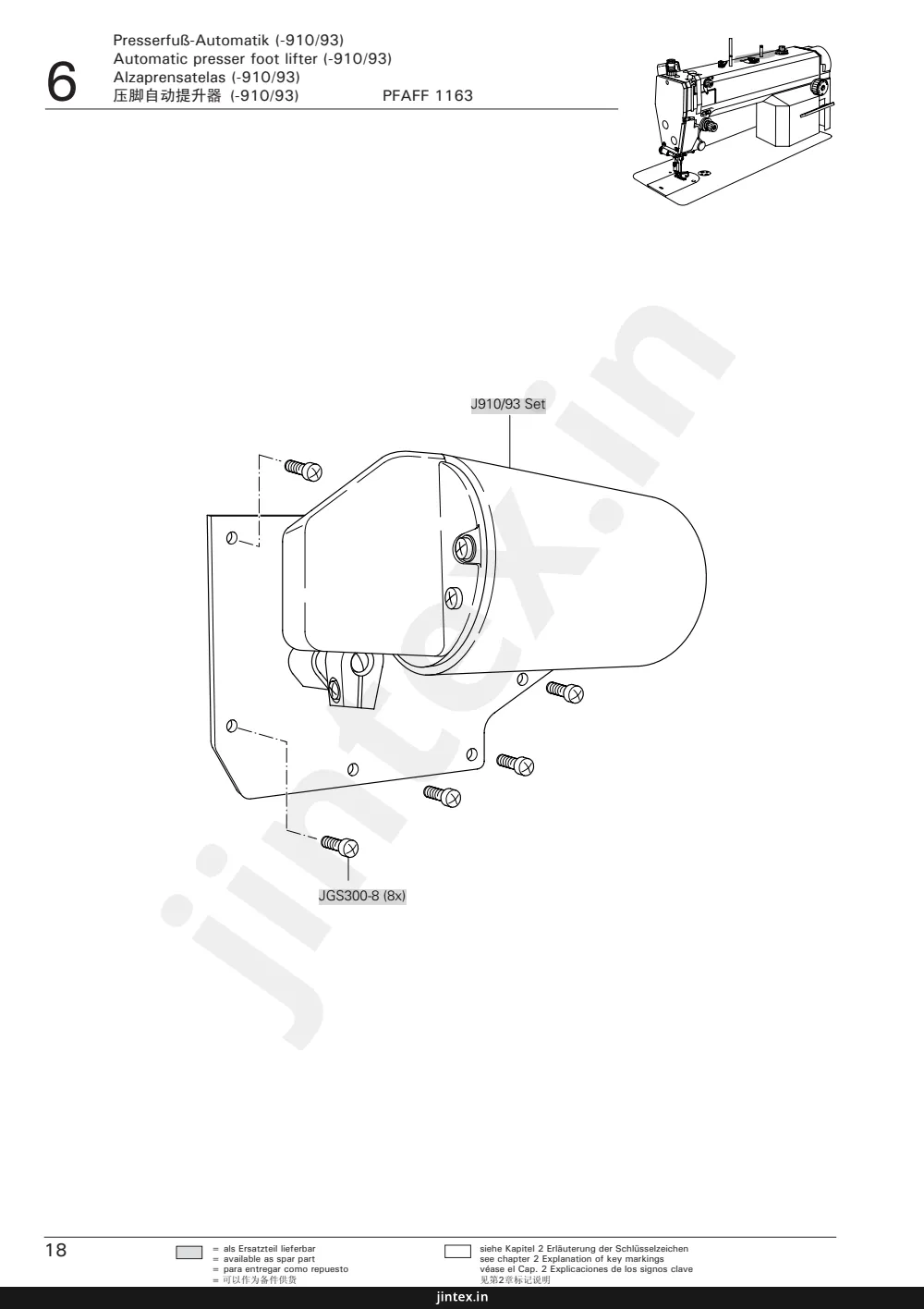

Page 18 — Presserfuß-Automatik (-910/93) / Automatic presser foot lifter (-910/93) / Alzaprensatelas (-910/93) / 压脚自动提升器 (-910/93)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| J910/93 | Set | ||
| JGS300-8 | 8x |
Page 19 — Verriegelungs-Einrichtung (-911/93) / Backtacking mechanism (-911/93) / Rematador (-911/93) / 锁紧装置 (-911/93)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JGS311-8 | 2x | ||
| JGR814-8 | |||
| JGZ254-8 | |||
| JGS408-8 | |||
| JGO274-8 | |||
| JGR817-8 | |||
| JGS311-8 | 2x | ||
| JGD274-8 | |||
| JGR654-8 | |||
| JGS344-8 | |||
| JGX212-8 | |||
| JGX223-8 | |||
| JGW191-8 | |||
| JGX211-8 | |||
| JGR652-8 | |||
| JGR813-8 | |||
| JGS343-8 | |||
| JGR653-8 | |||
| JGS319-8 | 2x | ||
| JGS051 | |||
| JGH342-8 | |||
| JGH255-8 | |||
| JGH386-8 | |||
| JGS342-8 | |||
| JGS521-8 | |||
| JGO361-8 | |||
| JGW204-8 | |||
| JGW192-8 | |||
| JGW288-8 | |||
| JGH344-8 | |||
| JGH357-8 | |||
| JGO275-8 | |||
| JGS346-8 | |||
| JGS407-8 | |||
| JGR625-8 | |||
| JGR657-8 | |||
| JGR816-8 | |||
| JGR2049-8 | |||
| JGR424-8 | |||
| JGZ237-8 | |||
| JGZ253-8 | |||
| JGR656-8 | |||
| JGR1457-8 | |||
| JGR625-8 | |||
| JGR1029-8 | |||
| JGR625-8 | |||
| JGR1031/3-8 | |||
| JGH433-8 | |||
| JGS336-8 | |||
| JGX251-8 | |||
| JGR1034-8 | |||
| JGS079 | |||
| JGW235-8 | |||
| JGR1033-8 | |||
| JGH387-8 | |||
| JGH432-8 | |||
| JGR1027-8 | |||
| JGRO363-8 | |||
| JGRO362-8 | |||
| JGR1035-8 | |||
| JGD135-8 | |||
| JGS300-8 | 2x | ||
| JGBS205-8 | 2x | ||
| JGR1028-8 | 2x | ||
| JGX248-8 | |||
| JGS525-8 | 2x | ||
| JGR1036/2-8 | |||
| JGR1030-8 | |||
| JGR2050-8 |
Page 20 — Knielüfterteile / Knee lifter parts / Piezas del alzaprensatelas por rodillera / 膝松线器零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JGR685-8 | |||
| JGR686-8 | 2x | ||
| JGR680/25-8 | |||
| JGH344-8 | |||
| JGR682-8 | |||
| JGR1476-8 | 4x | ||
| JGR681-8 | |||
| JGR1475-8 | 2x | ||
| JGBX141-8 | 4x | ||
| JGS355-8 | 2x | ||
| JGR684-8 | 2x | ||
| JGH345-8 | |||
| JGZ238-8 | |||
| JGR688-8 | |||
| JGW196-8 | |||
| JGR689-8 | |||
| JGS356-8 | |||
| JGS357-8 | 2x | ||
| JGL170-8 | 2x | ||
| JGS358-8 | 2x | ||
| JGR691-8 | |||
| JGR692-8 | |||
| JGS359-8 | |||
| JGR693-8 | |||
| JGR695-8 | |||
| JGR694-8 | |||
| JGR690/6-8 |

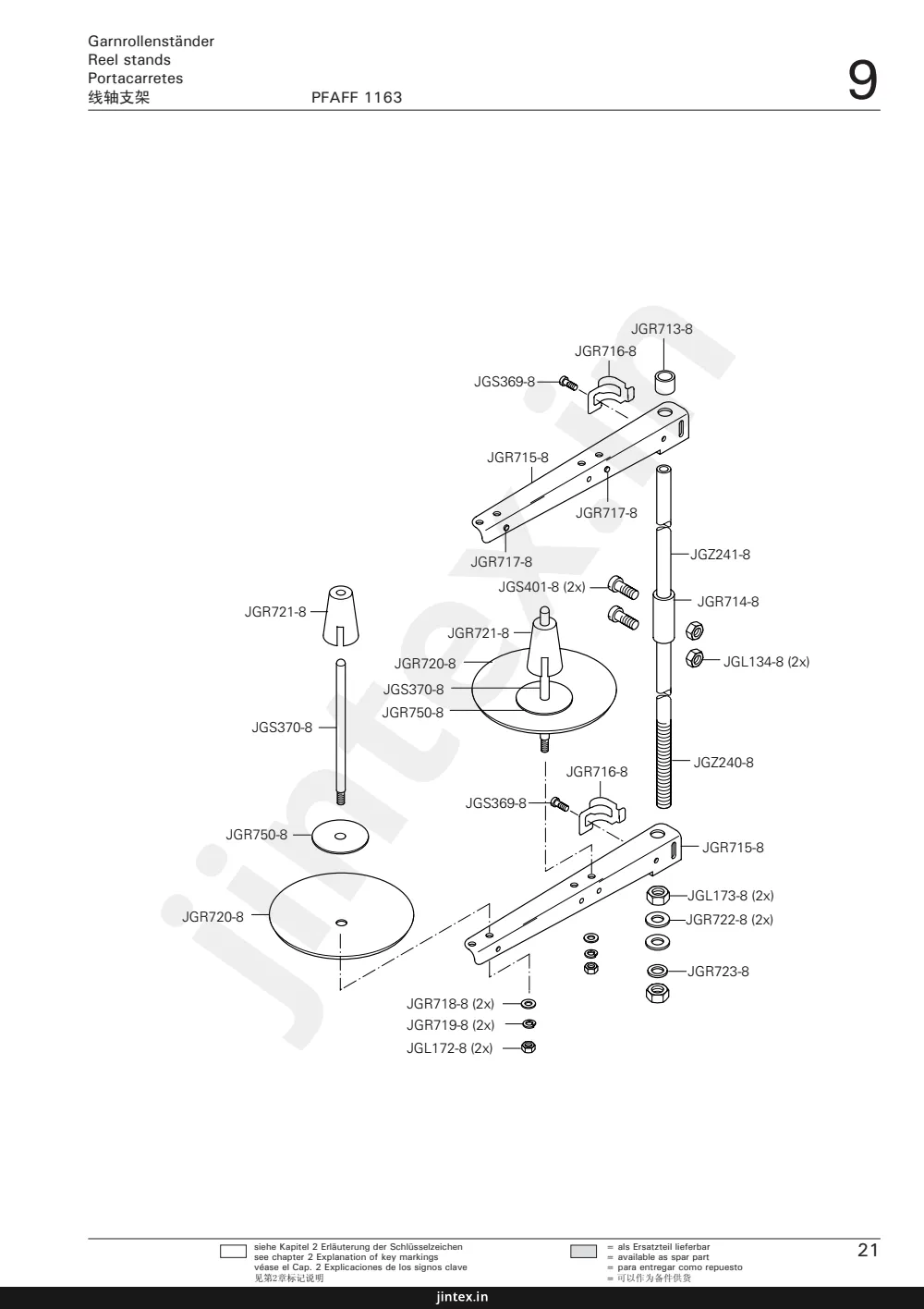

Page 21 — Garnrollenständer / Reel stands / Portacarretes / 线轴支架
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JGR713-8 | |||
| JGR716-8 | |||
| JGS369-8 | |||
| JGR715-8 | |||
| JGR717-8 | |||
| JGR717-8 | |||
| JGZ241-8 | |||
| JGS401-8 | 2x | ||
| JGR714-8 | |||
| JGL134-8 | 2x | ||
| JGR721-8 | |||
| JGR721-8 | |||
| JGR720-8 | |||
| JGS370-8 | |||
| JGR750-8 | |||
| JGZ240-8 | |||
| JGR716-8 | |||
| JGS369-8 | |||
| JGS370-8 | |||
| JGR750-8 | |||
| JGR720-8 | |||
| JGR715-8 | |||
| JGL173-8 | 2x | ||
| JGR722-8 | 2x | ||
| JGR723-8 | |||
| JGR718-8 | 2x | ||
| JGR719-8 | 2x | ||
| JGL172-8 | 2x |
Page 22 — Zubehörteile / Accessory parts / Accesorios / 用于台板的零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JGK200-8 Set | |||
| JGK200-8 | |||
| JGK201-8 | |||
| JGB/T818 | 4x | ||
| JGB/T95 | 4x | ||
| JGX300-8 | 2x | ||
| 12-305 144-15 | 4x | ||
| JGS704-8 | 2x | ||
| 91-027 964-01 | |||
| JGR696/2-8 | 2x | ||
| JGBX142-8 | 4x | ||
| JGR1477-8 | 2x | ||
| JGBR211-8 | |||
| JGN139-8 | 3x | ||
| 91-029 007-91 | |||
| 91-029 946-91 | |||
| 91-029 480-91 | |||
| 91-029 033-75 |
Page 23 — Schmiermittel-Übersicht / Overiew of lubricants / Tabla de lubricantes / 润滑剂一览
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 28-011 201-05 | Oil | ||
| 28-011 202-69 | Grease | ||
| 95-665 735-91 | Isoprophyl-Alkohol | 240 ml |
Page 24 — Antrieb / Drive / Motor / 驱动器
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 74-086 501-91 | Quick-PicoDrive mit P43PD |
Page 25 — Steuerungspaket Quick-PicoDrive mit P43 PD / Control package Quick-PicoDrive with P43 PD / Paquete de control Quick-PicoDrive con P43 PD / 控
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 74-064 295-91 | |||
| 91-264 382-70 | |||
| 11-180 283-25 | 2x | ||
| 12-305 174-25 | 2x | ||
| 74-086 501-91 |
Page 26 — Steuerungspaket Quick-PicoDrive mit P43 PD / Control package Quick-PicoDrive with P43 PD / Paquete de control Quick-PicoDrive con P43 PD / 控
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-305 174-25 | (4x) | ||
| 91-290 113-91 | |||
| 91-290 337-91 | |||
| 11-130 287-25 | (2x) | ||
| 91-290 113-91 | |||
| 91-262 385-75/893 | |||
| 12-499 150-45 | (4x) | ||
| 11-108 174-15 | (4x) | ||
| 99-136 854-55 | (2x) | ||
| 99-137 196-05 | (4x) | ||
| 11-330 205-15 | (4x) | ||
| 16-414 139-05 | |||
| 71-520 006-05 | |||
| 71-520 006-04 | |||
| 71-520 006-02 | |||
| 71-590 007-21 | |||
| 71-520 006-01 | |||
| 71-590 008-65 | |||
| 11-462 403-55 | (4x) | ||
| 11-039 378-15 | (3x) | ||
| 12-335 210-15 | (3x) |
Pfaff 1163 — parts catalog
- Page 9 (diagram): Exploded diagram of the PFAFF 1163 housing sections, showing the arm cover, bed, covers, plates, brackets and screws, each labelled with its part number.
- Page 10 (diagram): Exploded diagram of PFAFF 1163 needle head parts, including the arm shaft, crank, needle bar, feed and hook drive components, with part-number labels for each.
- Page 11 (diagram): Exploded diagram of PFAFF 1163 needle head parts, showing the labelled part numbers for the arms, levers, shafts, clips, and feed linkage.
- Page 12 (diagram): Exploded diagram of PFAFF 1163 arm parts, including the upper arm shaft and bushings, the timing and drive pulleys, the main shaft, and the belt pulley assembly, with their part-number labels.
- Page 13 (diagram): Exploded diagram of PFAFF 1163 arm parts, showing the arm shaft, presser bar, feed and hook assemblies with their JGR/JGS part-number labels.
- Page 14 (diagram): Exploded diagram of the PFAFF 1163 bedplate parts, showing shafts, hooks, bushings, feed components and levers with their part-number labels.
- Page 15 (diagram): Exploded diagram of the PFAFF 1163 bedplate parts, showing the JGC154-8 set, the JGO270-8 and JGO271-8 shafts, the JGR233-8 arm shaft, and the gear and bushing assemblies with their part-number labels.
- Page 16 (diagram): Exploded diagram of the thread trimmer (-900/93) assembly for the PFAFF 1163, with part-number labels pointing to each component.
- Page 17 (diagram): Exploded diagram of the thread wiper assembly (-909/93) for the PFAFF 1163, with part-number labels for each component.
- Page 18 (diagram): Exploded diagram of the automatic presser foot lifter (-910/93) for the PFAFF 1163, showing the J910/93 set and its JGS300-8 screws (8x).
- Page 19 (diagram): Exploded diagram of the PFAFF 1163 backtacking mechanism (-911/93) with part-number labels for screws, guides, levers, springs and link parts.
- Page 20 (diagram): Exploded diagram of the PFAFF 1163 knee lifter parts, showing the knee lifter assembly and its labeled components with part numbers such as JGR680/25-8, JGH344-8 and JGR690/6-8.
- Page 21 (diagram): Exploded drawing of the PFAFF 1163 reel stand assembly showing the reel stand rods, clamps, discs, cones, bolts, nuts and washers with their part-number labels.
- Page 22 (diagram): Accessory parts diagram for PFAFF 1163 showing the JGK200-8 set, screws, washers, guides, gauges, screwdrivers, oiler and the PFAFF manual with their part numbers.
- Page 23 (parts_list): Lubricant overview table listing oil, grease and cleansing agent part numbers with viscosity, density, penetration, drip-point and can order numbers for PFAFF 1163.
- Page 24 (parts_list): Parts overview table for PFAFF 1163 drive motor listing class 1163 Quick-PicoTop, control package Quick-PicoDrive mit P43PD with part number 74-086 501-91, and figure pages 25 and 26.
- Page 25 (diagram): Exploded diagram of the Quick-PicoDrive control package for PFAFF 1163, showing the control panel 74-064 295-91, its mounting kit 91-264 382-70 with screws and washers, the X4 connector cable, and the base unit 74-086 501-91.
- Page 26 (diagram): Exploded diagram of the Quick-PicoDrive control package with P43 PD for a PFAFF 1163, showing ground cables, mounting bracket, pedal linkage, drive motor, control box, belt and pulley, with maker part numbers labeled on each component.
