Singer 591 / 601 Parts Book (PDF)
Text index — Singer 591 / 601
Page 3 — FITTINGS PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 52033 452 | THROAT PLATE (D 100 AD) | ||
| 52033 452 | THROAT PLATE (D 100 AF) | ||
| 414464 | THROAT PLATE (D 100 BD) | ||
| 414464 | THROAT PLATE (D 100 BF) | ||
| 414464 | THROAT PLATE (D 100 GD) | ||
| 414464 | THROAT PLATE (D 100 GF) |

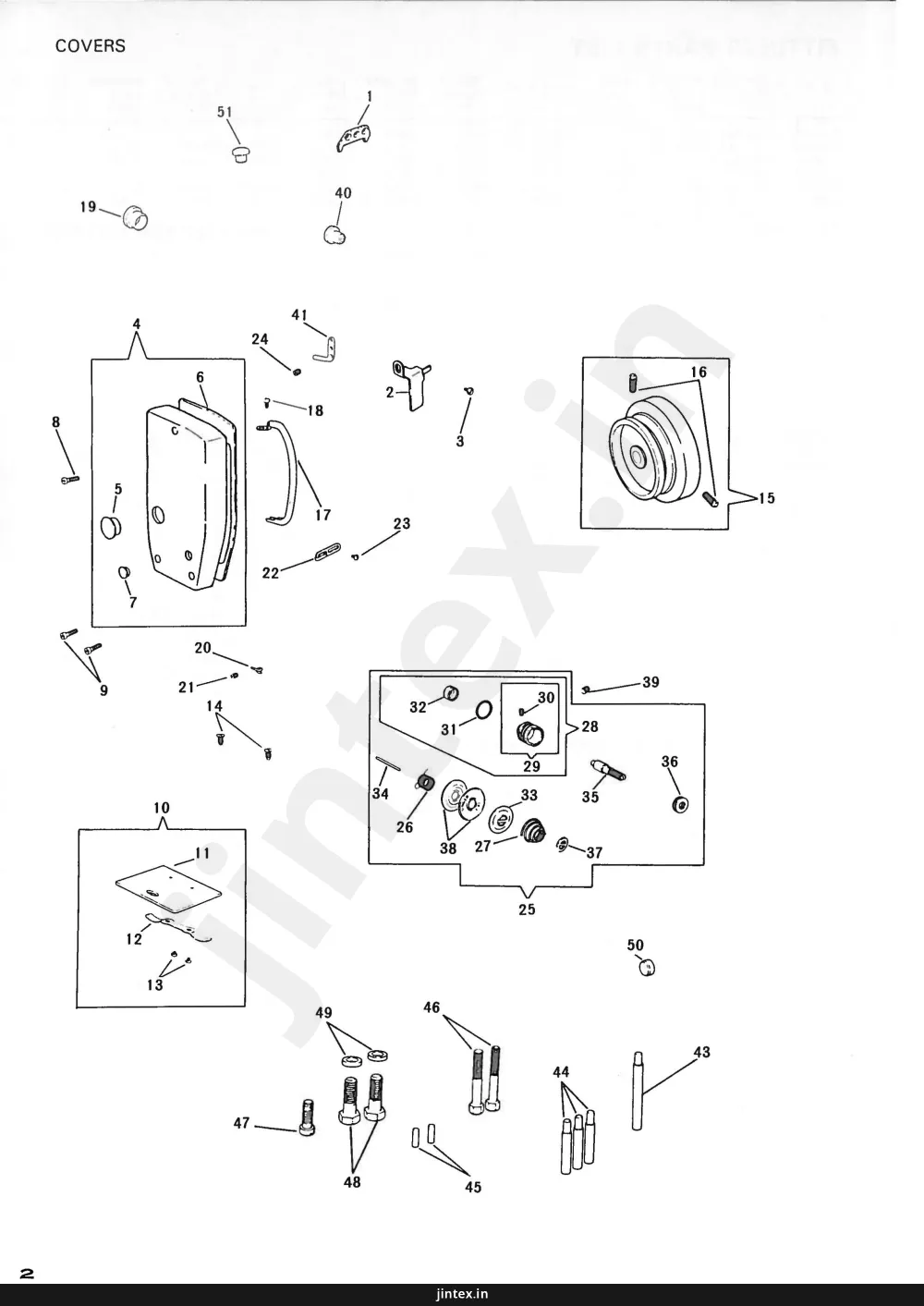

Page 5 — COVERS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 540762 | Thread Guide | |
| 2 | 410774 | Arm Side Shield | |
| 3 | 504010-451 | Arm Side Shield Screw | |
| 4 | 544874 | Face Plate Complete | |
| 4 | 410857 | Face Plate Complete | |
| 4 | 410786 | Face Plate Complete | |
| 4 | 414004 | Face Plate Complete | |
| 5 | 544875 | Face Plate Plug(large) | |
| 6 | 544876 | Face Plate Gasket | |
| 7 | 544782 | Face Plate Plug(small) | |
| 8 | 154971 | Face Plate Screw | |
| 9 | 154971 | Face Plate Screw (2) | |
| 10 | 505317-451 | Bed Slide Complete | |
| 10 | 505317-452 | Bed Slide Complete | |
| 11 | 12431-452 | Bed Slide | |
| 12 | 154884 | Bed Slide Spring | |
| 13 | 154789-451 | Bed Slide Spring Screw (2) | |
| 14 | 691-845 | Throat Plate Screw (2) | |
| 15 | 544901 | Machine Pulley Complete | |
| 15 | 410891 | Machine Pulley Complete | |
| 15 | 414326 | Machine Pulley Complete | |
| 15 | 414328 | Machine Pulley Complete | |
| 16 | 504119 | Machine Pulley Set Screw (2) | |
| 16 | 504070 | Machine Pulley Set Screw (2) | |
| 17 | 544873-452 | Thread Take-up Lever Guard | |
| 18 | 504010-451 | Thread Take-up Lever Guard Screw | |
| 19 | 544886 | Thread Take-up Crank Clamping Screw Hole Plug | |
| 20 | 545901 | Thread Eyelet (side of arm) | |
| 21 | 549128 | Thread Eyelet (side of arm) Screw | |
| 22 | 540549 | Thread Guard (side of arm) | |
| 23 | 549336 | Thread Guard (side of arm) Screw | |
| 24 | 504094 | Thread Retainer Set Screw | |
| 25 | 414274 | Tension Complete | |
| 25 | 414275 | Tension Complete | |
| 26 | 32758 | Thread Take-up Spring | |
| 27 | 540682 | Tension Spring | |
| 27 | 125314 | Tension Spring | |
| 28 | 546928 | Thread Take-up Spring Regulator O-ring and Cap | |
| 29 | 546927 | Thread Take-up Spring Regulator Complete | |
| 30 | 504047 | Tension Stud Set Screw | |
| 31 | 540533 | Thread Take-up Spring Regulator O-ring | |
| 32 | 540534 | Thread Take-up Spring Regulator Rubber Cap | |
| 33 | 414273 | Tension Releasing Disc | |
| 34 | 540684 | Tension Releasing Pin | |
| 35 | 545898 | Tension Stud Complete | |
| 36 | 541182 | Tension Regulating Thumb Nut | |
| 37 | 411154 | Tension Regulating Thumb Nut Washer | |
| 38 | 2102 | Tension Disc (2) | |
| 39 | 154781 | Thread Take-up Spring Regulator Set Screw | |
| 40 | 544782 | Arm Shaft (upright) Bevel Gear (upper) Set Screw Hole Plug | |
| 41 | 52454 | Thread Retainer | |
| 43 | 545776 | Bed Leg (long) | |
| 44 | 545777 | Bed Leg (short) (3) | |
| 45 | 505001 | Arm Dowel Pin (2) | |
| 46 | 545033 | Arm Screw (back) (2) | |
| 47 | 504064 | Arm Screw (small) | |
| 48 | 544368 | Arm Screw (front) | |
| 49 | 543826 | Arm Screw (front) Washer (2) | |
| 50 | 545775 | Bed Hole Plug | |
| 51 | 544782 | Arm Shaft (horizontal) Flanged Bushing (front) Oil Tube Cap |
Page 7 — ARM SHAFT, NEEDLE BAR AND TAKE-UP LEVER
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 540752 | Thread Take-up Complete | |
| 1 | 543417 | Thread Take-up Complete | |
| 1 | 410788 | Thread Take-up Complete | |
| 1 | 410824 | Thread Take-up Complete | |
| 1 | 414006 | Thread Take-up Complete | |
| 1 | 543416 | Thread Take-up Complete | |
| 2 | 543369 | Thread Take-up Lever Link Hinge Stud Complete | |
| 3 | 543368 | Thread Take-up Lever Link Hinge Stud | |
| 4 | 543370 | Thread Take-up Lever Link Hinge Stud Oil Wick(cotton) | |
| 5 | 543367 | Thread Take-up Lever Link | |
| 6 | 540676 | Thread Take-up Lever Complete | |
| 6 | 540751 | Thread Take-up Lever Complete | |
| 7 | 52130 | Thread Take-up Lever Thread Eyelet Bushing | |
| 8 | 540678 | Thread Take-up Crank and Needle Bar Connecting Link | |
| 8 | 540688 | Thread Take-up Crank and Needle Bar Connecting Link | |
| 8 | 414007 | Thread Take-up Crank and Needle Bar Connecting Link | |
| 8 | 410825 | Thread Take-up Crank and Needle Bar Connecting Link | |
| 8 | 410789 | Thread Take-up Crank and Needle Bar Connecting Link | |
| 9 | 540677 | Thread Take-up Crank | |
| 9 | 540685 | Thread Take-up Crank | |
| 10 | 504118 | Needle Bar Connecting Link Cap Screw | |
| 11 | 540661 | Needle Bar Connecting Link Complete | |
| 11 | 410790 | Needle Bar Connecting Link Complete | |
| 12 | 540660 | Needle Bar Connecting Link | |
| 12 | 414008 | Needle Bar Connecting Link | |
| 12 | 410897 | Needle Bar Connecting Link | |
| 13 | 540450 | Needle Bar Connecting Stud and Slide Block | |
| 14 | 544881 | Needle Bar Connecting Stud Complete | |
| 14 | 410791 | Needle Bar Connecting Stud Complete | |
| 15 | 549380 | Needle Bar Connecting Stud Clamping Screw | |
| 16 | 143058 | Needle Bar Connecting Stud Slide Block | |
| 17 | 540662 | Needle Bar Connecting Link Roller Bearing | |
| 17 | 540662 | Thread Take-up Lever Roller Bearing | |
| 18 | 504002 | Thread Take-up Lever Link Hinge Stud Set Screw | |
| 19 | 545908 | Thread Take-up Lever Oil Guard Complete | |
| 19 | 410793 | Thread Take-up Lever Oil Guard Complete | |
| 20 | 545909 | Thread Take-up Lever Oil Guard Wick(cotton) | |
| 21 | 504010-451 | Thread Take-up Lever Oil Guard Screw | |
| 22 | N 1955-01 #14 | Needle(135X65 # 14) | |
| 22 | N 1955-01 #16 | Needle(135X65 # 16) | |
| 22 | N 1955-01 #21 | Needle(135X65 # 21) | |
| 22 | N 1955-01 #18 | Needle(135X65 # 18) | |
| 22 | N 1315-01 #8 | Needle(88X1 # 8) | |
| 23 | 540702 | Needle Bar(hollow) Complete | |
| 23 | 410932 | Needle Bar(hollow) Complete | |
| 23 | 540698 | Needle Bar(hollow) Complete | |
| 23 | 410931 | Needle Bar(hollow) Complete | |
| 23 | 543409 | Needle Bar(hollow) Complete | |
| 23 | 540659 | Needle Bar(hollow) Complete | |
| 23 | 505645 | Needle Bar(hollow) Complete | |
| 23 | 414432 | Needle Bar(hollow) Complete | |
| 24 | 504112 | Needle Set Screw | |
| 24 | 504113 | Needle Set Screw | |
| 25 | 410904 | Needle Bar Thread Guard | |
| 25 | 540663 | Needle Bar Thread Guard | |
| 25 | 543497 | Needle Bar Thread Guard | |
| 26 | 540703 | Needle Bar Bushing(upper) Felt | |
| 27 | 545841 | Needle Bar Bushing(upper) | |
| 28 | 504129 | Needle Bar Bushing(upper) Set Screw | |
| 28 | 540129 | Needle Bar Bushing (upper) Set Screw | |
| 29 | 540528 | Needle Bar Bushing(lower) Felt | |
| 30 | 546933 | Needle Bar Bushing(lower) Complete | |
| 30 | 540546 | Needle Bar Bushing(lower) Complete | |
| 31 | 540524 | Needle Bar Bushing(lower) | |
| 31 | 540525 | Needle Bar Bushing(lower) | |
| 32 | 540771 | Needle Bar Bushing(lower) Thread Eyelet | |
| 32 | 545935 | Needle Bar Bushing(lower) Thread Eyelet | |
| 33 | 504129 | Needle Bar Bushing(lower) Set Screw | |
| 34 | 543365 | Oil Wick Holder Complete | |
| 34 | 543366 | Oil Wick Holder Complete | |
| 35 | 543363 | Oil Wick Holder and Pipe | |
| 35 | 543364 | Oil Wick Holder and Pipe | |
| 36 | 545909 | Oil Wick(cotton) (2) | |
| 37 | 545051 | Oil Wick Holder Screw |
Page 9 — ARM SHAFT, NEEDLE BAR AND TAKE-UP LEVER
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 38 | 540606 | Arm Shaft(horizontal) and Needle Bar Crank Complete | |
| 38 | 544805 | Arm Shaft(horizontal) and Needle Bar Crank Complete | |
| 39 | 414296 | Arm Shaft(horizontal) complete | |
| 40 | 504095 | Thread Take-up Crank Set Screw | |
| 41 | 504117 | Thread Take-up Crank Clamping Screw | |
| 42 | 374100 | Needle Bar Crank Position Screw | |
| 43 | 549230 | Arm Shaft(horizontal) Screw Plug(back) | |
| 44 | 540608 | Arm Shaft(horizontal) Thrust Collar Complete | |
| 45 | 154781 | Arm Shaft(horizontal) Thrust Collar Set Screw (2) | |
| 46 | 545758 | Arm Shaft(horizontal) Bushing(center) | |
| 47 | 504002 | Arm Shaft(horizontal) Flanged Bushing(back) Set Screw | |
| 48 | 540706 | Arm Shaft(horizontal) Flanged Bushing(back) | |
| 49 | 504002 | Arm Shaft(horizontal) Flanged Bushing(back) Set Screw | |
| 50 | 540708 | Arm Shaft(horizontal) Flanged Bushing(back) Ring | |
| 51 | 540707 | Arm Shaft(horizontal) Flanged Bushing(back) Oil Seal | |
| 52 | 540720 | Arm Shaft(horizontal) Flanged Bushing(front) Complete | |
| 52 | 410833 | Arm Shaft(horizontal) Flanged Bushing(front) Complete | |
| 53 | 540406 | Arm Shaft(horizontal) Flanged Bushing(front) | |
| 54 | 540722 | Arm Shaft(horizontal) Flanged Bushing(front) Oil Drain Tube Tape | |
| 55 | 504002 | Arm Shaft(horizontal) Flanged Bushing(front) Set Screw | |
| 57 | 540476 | Thread Take-up Crank Bearing Plate | |
| 58 | 410795 | Needle Bar Frame Oil Retainer Pad | |
| 59 | 410796 | Needle Bar Frame Oil Retainer | |
| 60 | 410797 | Needle Bar Frame Oil Retainer Retaining Ring | |
| 61 | 410761 | Thread Shield | |
| 62 | 504051 | Thread Shield Screw (2) | |
| 63 | 410798 | Needle Bar Frame Pivot Stud Ass'y | |
| 63 | 410826 | Needle Bar Frame Pivot Stud Ass'y | |
| 63 | 410909 | Needle Bar Frame Pivot Stud Ass'y | |
| 64 | 410799 | Needle Bar Frame Ass'y | |
| 64 | 410827 | Needle Bar Frame Ass'y | |
| 64 | 410910 | Needle Bar Frame Ass'y | |
| 65 | 410760 | Needle Bar Frame Stud | |
| 66 | 13288 | Needle Bar Frame Stud Retaining Ring | |
| 67 | 410735 | Needle Bar Frame Pivot Stud | |
| 68 | 522571 | Needle Bar Frame Pivot Stud Retaining Ring(front) | |
| 69 | 543827-001 | Needle Bar Frame Pivot Stud Retaining Ring(back) | |
| 70 | 544142 | Needle Bar Frame Pivot Stud Set Screw | |
| 71 | 410802 | Needle Bar Frame Stabilizer | |
| 72 | 410803 | Needle Bar Frame Connecting Link Ass'y | |
| 73 | 410759 | Needle Bar Frame Connecting Link | |
| 74 | 410804 | Needle Bar Frame Connecting Link Wick | |
| 75 | 410805 | Needle Bar Frame Connecting Link Wick Retainer | |
| 76 | 13288 | Needle Bar Frame Connecting Link Retaining Ring(2 | |
| 77 | 410758 | Needle Bar Frame Eccentric Stud | |
| 78 | 410756 | Needle Bar Frame Rocker Shaft Crank(left side) Complete | |
| 79 | 350881-869 | Needle Bar Frame Rocker Shaft Crank(left side) Screw | |
| 80 | 414508 | Needle Bar Frame Eccentric Stud Clamping Screw | |
| 81 | 543828 | Needle Bar Frame Rock Shaft Thrust Bearing(2 | |
| 82 | 410755 | Needle Bar Frame Rock Shaft Bushing(2) | |
| 83 | 410752 | Needle Bar Frame Rock Shaft Crank(right side) Complete | |
| 84 | 350899-869 | Needle Bar Frame Rock Shaft Crank(right side) Screw | |
| 85 | 350883-869 | Needle Bar Frame Connecting Rod Pin Clamping Screw | |
| 86 | 410754 | Needle Bar Frame Rocker Shaft | |
| 87 | 410885 | Needle Bar Frame Connecting Rod Pin(lower) | |
| 88 | 410750 | Needle Bar Frame Connecting Rod Pin(upper) Screw | |
| 89 | 13288 | Needle Bar Frame Connecting Rod Pin Retaining Ring 2 | |
| 90 | 414223 | Needle Bar Frame Connecting Rod | |
| 91 | 414224 | Needle Bar Frame Connecting Rod Collar | |
| 92 | 410748 | Needle Bar Frame Connecting Rod Drive Crank Complete | |
| 93 | 350883-869 | Needle Bar Frame Connecting Rod Pin Clamping Screw | |
| 94 | 350899-869 | Needle Bar Frame Connecting Rod Drive Crank Screw |
Page 11 — PRESSER BAR AND PRESSER FOOT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 545864 | Presser Bar (hollow) | |
| 2 | 504063-451 | Presser Foot Screw | |
| 3 | 505649 | Presser Bar Bushing (lower) | |
| 4 | 504129 | Presser Bar Bushing (lower) Set Screw | |
| 5 | 545876 | Presser Bar Guide and Pressure Regulating Thumb Screw and Lock Nut | |
| 6 | 504083 | Presser Bar Guide and Pressure Regulating Thumb Screw and Lock Nut | |
| 6 | 549363 | Presser Bar Guide and Pressure Regulating Thumb Screw | |
| 7 | 545403 | Presser Bar Guide and Pressure Regulating Thumb Screw Lock Nut | |
| 8 | 505575 | Presser Bar Spring | |
| 9 | 11170 | Presser Bar Spring Washer | |
| 10 | 545983 | Presser Bar Guide Bracket Complete | |
| 11 | 545099 | Presser Bar Guide Bracket Clamping and Tension Releaser Screw | |
| 12 | 504010-451 | Slack Thread Regulator Screw | |
| 13 | 545868 | Presser Bar Lifter | |
| 13 | 410717 | Presser Bar Lifter | |
| 14 | 545053 | Presser Bar Lifter Hinge Screw | |
| 15 | 540737 | Presser Bar Lifting Lever Link | |
| 15 | 540670 | Presser Bar Lifting Lever Link | |
| 15 | 410859 | Presser Bar Lifting Lever Link | |
| 15 | 414090 | Presser Bar Lifting Lever Link | |
| 16 | 545875 | Presser Bar Lifting Lever Pin | |
| 17 | 548970 | Presser Bar Lifting Lever Pin Spring | |
| 18 | 410718 | Presser Bar Lifting Lever Complete | |
| 19 | 154781 | Presser Bar Lifting Lever Pin Set Screw | |
| 20 | 545054 | Presser Bar Lifting Lever Hinge Screw | |
| 21 | 146610 | Presser Bar Lifting Lever Spring | |
| 22 | 410725 | Presser Bar Lifting Lever Connecting Rod | |
| 23 | 154983 | Presser Bar Lifting Lever Connecting Rod Nut (2) | |
| 24 | 545873 | Presser Bar Lifting Lever Connecting Rod Swivel | |
| 25 | 545872 | Presser Bar Lifting Lever Connecting Rod Oil Mist Retaining Disc | |
| 26 | 543465 | Bell Crank Complete | |
| 27 | 504025 | Bell Crank Bracket Set Screw (2) | |
| 28 | 543426 | Tension Releasing Cam | |
| 29 | 543428 | Tension Releasing Cam Bracket | |
| 30 | 544142 | Tension Releasing Cam Bracket Set Screw | |
| 31 | 543338 | Tension Releasing Cam Pin | |
| 32 | 544145 | Tension Releasing Cam Screw | |
| 33 | 543340 | Tension Releasing Wire Connecting Plate | |
| 34 | 549301 | Tension Releasing Wire Connecting Plate Screw (2) | |
| 35 | 543356 | Tension Releasing Wire Connecting Plate Spring | |
| 36 | 543342 | Tension Releasing Wire Spring | |
| 37 | 543336 | Tension Releasing Wire Spring Retainer | |
| 38 | 504051 | Tension Releasing Wire Spring Retainer Screw | |
| 39 | 408386 | Tension Releasing Wire Spring Retainer Washer | |
| 40 | 545892 | Slack Thread Regulator Complete | |
| 40 | 543353 | Slack Thread Regulator Complete | |
| 40 | 410823 | Slack Thread Regulator Complete | |
| 40 | 410893 | Slack Thread Regulator Complete | |
| 41 | 543354 | Slack Thread Regulator Action Plate | |
| 41 | 410896 | Slack Thread Regulator Action Plate | |
| 41 | 414112 | Slack Thread Regulator Action Plate | |
| 42 | 504051 | Slack Thread Regulator Action Plate Set Screw (2) | |
| 43 | 408572 | Slack Thread Regulator Action Plate Set Screw Washer (2) | |
| 44 | 544980 | Tension Releasing Lever | |
| 48 | 505151 | Tension Releasing Lever Hinge Pin | |
| 49 | 505152 | Tension Releasing Lever Spring | |
| 50 | 544425 | Low Pressure Adjusting Screw | |
| 51 | 544424 | Pressure Regulating Thumb Screw | |
| 52 | 410941 | Presser Foot Spring (compression) | |
| 53 | 410988 | Presser Bar (hollow) | |
| 54 | 410944 | Presser Foot Retainer | |
| 55 | 549013 | Presser Foot Retainer Screw | |
| 56 | 410942 | Presser Foot Collar Complete | |
| 57 | 544207-011 | Presser Foot Collar Screw (2) |
Page 13 — FEED MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 410729 | Feed and Feed Lifting Eccentric complete | |
| 1 | 543474 | Feed and Feed Lifting Eccentric complete | |
| 2 | 545313 | Feed and Feed Lifting Eccentric Set Screw (2) | |
| 3 | 545812 | Feed Lifting Rock Shaft Crank(back) Connecting Rod Complete | |
| 3 | 543488 | Feed Lifting Rock Shaft Crank(back) Connecting Rod Complete | |
| 4 | 545059 | Feed Lifting Rock Shaft Crank(back) Connecting Rod Cap Screw | |
| 5 | 545799 | Feed Lifting Rock Shaft Crank(back) Connecting Rod Hinge Stud | |
| 6 | 540645 | Feed Rock Shaft Driving Frame Complete | |
| 6 | 414407 | Feed Rock Shaft Driving Frame Complete | |
| 6 | 414240 | Feed Rock Shaft Driving Frame Complete | |
| 6 | 414011 | Feed Rock Shaft Driving Link (small) Pin | |
| 6 | 414411 | Feed Rock Shaft Driving Link (small) Pin | |
| 6 | 410736 | Feed Rock Shaft Driving Link (small) Pin | |
| 7 | 540648 | Feed Rock Shaft Crank Connecting Rod Complete | |
| 7 | 414176 | Feed Rock Shaft Crank Connecting Rod Complete | |
| 9 | 545181 | Feed Rock Shaft Crank Connecting Rod Pin Set Screw | |
| 10 | 540649 | Feed Rock Shaft Crank Connecting Rod Pin | |
| 10 | 410737 | Feed Rock Shaft Crank Connecting Rod Pin | |
| 11 | 540655 | Feed Rock Shaft Driving Link (large) (2) | |
| 11 | 410738 | Feed Rock Shaft Driving Link (large) (2) | |
| 12 | 540656 | Feed Rock Shaft Driving Link (small) (2) | |
| 12 | 410739 | Feed Rock Shaft Driving Link (small) (2) | |
| 13 | 540657 | Feed Rock Shaft Driving Link (small) Pin (2) | |
| 13 | 410740 | Feed Rock Shaft Driving Link (small) Pin (2) | |
| 14 | 540644 | Feed Rock Shaft Crank Complete | |
| 14 | 543404 | Feed Rock Shaft Crank Complete | |
| 14 | 414012 | Feed Rock Shaft Crank Clamping Screw | |
| 15 | 549183 | Feed Rock Shaft Crank Pin Set Screw | |
| 17 | 540650 | Feed Rock Shaft Crank Pin | |
| 17 | 410741 | Feed Rock Shaft Driving Frame Complete | |
| 18 | 540652 | Feed Rock Shaft Driving Frame Complete | |
| 18 | 543406 | Feed Rock Shaft Driving Frame Complete | |
| 18 | 544868 | Feed Rock Shaft Driving Frame Complete | |
| 18 | 414014 | Feed Rock Shaft Driving Frame Complete | |
| 18 | 410994 | Feed Rock Shaft Driving Frame Spring Stud | |
| 19 | 545264 | Feed Rock Shaft Driving Frame Spring Stud | |
| 19 | 544138 | Feed Rock Shaft Driving Frame Spring Stud | |
| 20 | 545072 | Feed Rock Shaft Driving Frame Extension Arm Screw | |
| 21 | 410807 | Feed Rock Shaft Driving Frame Extension Arm Screw | |
| 21 | 410980 | Feed Rock Shaft Driving Frame Spring Stud | |
| 22 | 545289 | Feed Reverse Lever Hinge Stud Crank Connecting Link Screw (2) | |
| 23 | 549288 | Feed Reverse Lever Spring Screw | |
| 24 | 544156 | Feed Reverse Lever Spring | |
| 24 | 544394 | Feed Reverse Lever Spring | |
| 25 | 540639 | Feed Rock Shaft Driving Frame Pull Back Spring | |
| 26 | 548091 | Feed Reverse Lever Hinge Stud Crank Complete | |
| 27 | 414416 | Feed Reverse Lever Hinge Stud Crank Complete | |
| 27 | 410809 | Feed Reverse Lever Hinge Stud Crank Complete | |
| 27 | 414412 | Feed Reverse Lever Hinge Stud Crank Complete | |
| 28 | 414737 | Feed Reverse Lever Hinge Stud Crank Clamping Screw | |
| 28 | 549028 | Feed Reverse Lever Hinge Stud Crank Clamping Screw | |
| 29 | 540636 | Feed Reverse Lever Hinge Stud Crank Connecting Link | |
| 29 | 543438 | Feed Reverse Lever Hinge Stud Crank Connecting Link | |
| 29 | 410808 | Feed Reverse Lever Hinge Stud Crank Connecting Link | |
| 29 | 414307 | Feed Reverse Lever Hinge Stud Crank Connecting Link | |
| 30 | 540653 | Feed Rock Shaft Driving Frame Hinge Pin(back) | |
| 30 | 410745 | Feed Rock Shaft Driving Frame Hinge Pin(back) | |
| 31 | 410746 | Feed Rock Shaft Driving Frame Hinge Pin(front) | |
| 32 | 504029 | Feed Rock Shaft Driving Frame Hinge Pin Set Screw (2) | |
| 33 | 543472 | Feed Eccentric Complete | |
| 34 | 504048 | Feed Eccentric Set Screw | |
| 35 | 540641 | Feed Reverse Lever Spring Retainer | |
| 35 | 410981 | Feed Reverse Lever Spring Retainer | |
| 36 | 545183 | Feed Reverse Lever Spring Retainer Screw |
Page 15 — FEED MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 37 | 410733 | Feed Regulating Plate | |
| 37 | 410829 | Feed Regulating Plate | |
| 37 | 410811 | Feed Regulating Plate | |
| 37 | 414016 | Feed Regulating Plate | |
| 38 | 549168 | Feed Regulating Plate Screw (2) | |
| 38 | 545249 | Feed Regulating Plate Screw (2) | |
| 39 | 414471 | Feed Reverse Lever Hinge Stud Complete | |
| 40 | 414472 | Feed Reverse Lever Hinge Stud | |
| 41 | 545825 | Feed Reverse Lever Hinge Stud O-ring | |
| 43 | 540633 | Feed Reverse Lever Hinge Stud Collar Complete | |
| 44 | 504134 | Feed Reverse Lever Hinge Stud Collar Set Screw | |
| 45 | 410720 | Feed Reverse Lever Hinge Stud Flanged Bushing | |
| 46 | 540629 | Feed Reverse Lever and Feed Regulating Dial | |
| 46 | 410878 | Feed Reverse Lever and Feed Regulating Dial | |
| 46 | 414017 | Feed Reverse Lever and Feed Regulating Dial | |
| 46 | 410843 | Feed Reverse Lever and Feed Regulating Dial | |
| 47 | 540628 | Feed Reveres Lever Complete | |
| 47 | 414018 | Feed Reveres Lever Complete | |
| 48 | 545046 | Feed Reverse Lever Clamping Screw | |
| 49 | 549382 | Feed Regulating Screw | |
| 50 | 549383 | Feed Regulating Screw Guide Screw | |
| 51 | 540623 | Feed Regulating Dial Complete | |
| 51 | 543476 | Feed Regulating Dial Complete | |
| 51 | 410837 | Feed Regulating Dial Complete | |
| 52 | 545492 | Feed Regulating Nut | |
| 53 | 540689 | Feed Regulating Dial Pin | |
| 54 | 504134 | Feed Regulating Dial Set Screw | |
| 55 | 540624 | Feed Regulating Dial Lock Pin | |
| 56 | 543399 | Feed Regulating Dial Lock Pin Spring | |
| 57 | 540690 | Feed Segulating Dial Stopper | |
| 58 | 504051 | Feed Regulating Dial Stopper Screw | |
| 60 | 540800 | Feed Reverse Lever Stopper | |
| 61 | 549164-002 | Feed Reverse Lever Stopper Screw | |
| 62 | 414286 | Feed Lifting Rock Shaft Complete | |
| 63 | 414285 | Feed Lifting Rock Shaft | |
| 64 | 545810 | Feed Lifting Rock Shaft Oil Wick (cotton) | |
| 65 | 502987 | Feed Lifting Rock Shaft Oil Plug | |
| 66 | 545807 | Feed Lifting Rock Shaft Crank (back) Complete | |
| 67 | 549183 | Feed Lifting Rock Shaft Crank (back) Clamping Screw (2) | |
| 68 | 545806 | Feed Lifting Rock Shaft Collar Complete (2) | |
| 69 | 504007 | Feed Lifting Rock Shaft Collar Set Screw (4) | |
| 70 | 545949 | Feed Lifting Rock Shaft Flanged bushing (2) | |
| 71 | 540541 | Feed Lifting Rock Shaft Oil Wick (outer) (cotton) | |
| 72 | 414287 | Feed Rock Shaft Complete | |
| 72 | 414289 | Feed Rock Shaft Complete | |
| 73 | 414288 | Feed Rock Shaft | |
| 73 | 414290 | Feed Rock Shaft | |
| 74 | 502987 | Feed Rock Shaft Oil Plug | |
| 75 | 545839 | Feed Rock Shaft Oil Wick (cotton) | |
| 76 | 545949 | Feed Rock Shaft Flanged Bushing (back) | |
| 77 | 545836 | Feed Rock Shaft Flanged Bushing (front) | |
| 78 | 504094 | Feed Rock Shaft Flanged Bushing (front) Set Screw | |
| 79 | 540541 | Feed Rock Shaft Oil Wick (outer) (cotton) | |
| 80 | 545837 | Feed Rock Shaft Collar Complete | |
| 81 | 504007 | Feed Rock Shaft Collar Set Screw (2) | |
| 82 | 504051 | Feed Dog Screw (2) | |
| 83 | 540544 | Feed Bar Complete | |
| 83 | 543483 | Feed Bar Complete | |
| 83 | 414124 | Feed Bar Complete | |
| 84 | 540537 | Feed Bar Carrier Complete | |
| 85 | 540536 | Feed Bar Carrier | |
| 86 | 504013 | Feed Bar Carrier Clamping Screw (2) | |
| 86 | 504013 | Feed Bar Hinge Pin Clamping Screw | |
| 87 | 545987 | Feed Bar(body) Complete | |
| 87 | 543482 | Feed Bar(body) Complete | |
| 88 | 545791 | Feed Bar Hinge Pin | |
| 89 | 540538 | Feed Bar Carrier Oil Wick | |
| 90 | 545789 | Feed Bar Connecting Link Complete | |
| 91 | 545788 | Feed Bar Connecting Link | |
| 92 | 540547 | Feed Bar Connecting Link Oil Wick (cotton) | |
| 93 | 272111 | Feed Bar Connecting Link Oil Wick Clamp | |
| 94 | 504103 | Feed Bar Connecting Link Cap Screw (2) | |
| 95 | 545808 | Feed Lifting Rock Shaft Crank (front) Complete | |
| 96 | 545043 | Feed Lifting Rock Shaft Crank (front) Clamping Screw | |
| 96 | 504135 | Feed Lifting Rock Shaft Crank (front) Clamping Screw | |
| 97 | 416000 | Feed Rock Shaft O-ring | |
| 98 | 410806 | Feed Rock Shaft Bushing (intermediate) | |
| 99 | 414119 | Feed Regulating Plate Screw | |
| 100 | 544801 | Feed Rock Shaft Driving Frame Stopper | |
| 101 | 543803-003 | Feed Rock Shaft Driving Frame Stopper Screw Washer | |
| 102 | 504084 | Feed Rock Shaft Driving Frame Stopper Screw |
Page 16 — UPRIGHT SHAFT AND HOOK DRIVING SHAFT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 47 | 504002 | Rotating Hook Shaft Bushing(back) Set Screw | |
| 48 | 544957 | Rotating Hook Shaft Bushing(back) Oil Felt | |
| 49 | 543910 | Rotating Hook Shaft Collar(back) | |
| 50 | 504102 | Rotating Hook Shaft Collar(back) Set Screw (2) | |
| 51 | 376219 | Rotating Hook Shaft Balance Complete | |
| 52 | 504134 | Rotating Hook Shaft Balance Set Screw (2) |
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 545757 | Arm Shaft(horizontal) Bevel Gear Complete | |
| 2 | 504066 | Arm Shaft(horizontal) Bevel Gear Set Screw (2) | |
| 3 | 540551 | Arm Shaft(upright) | |
| 4 | 545764 | Arm Shaft(upright) Bevel Gear(lower) Right Hand Spiral | |
| 5 | 504101 | Arm Shaft(upright) Bevel Gear(lower) Set Screw (2) | |
| 6 | 545765 | Arm Shaft(upright) Bevel Gear(upper) Left Hand Spiral | |
| 7 | 504101 | Arm Shaft(upright) Bevel Gear(upper) Set Screw (2) | |
| 8 | 545766 | Arm Shaft(upright) Bushing(lower) | |
| 9 | 545767 | Arm Shaft(upright) Bushing(upper) | |
| 10 | 414139 | Rotating Hook, Rotating Hook Bobbin Case Holder and Rotating Hook Bobbin Case Complete | |
| 10 | 544755 | Rotating Hook, Rotating Hook Bobbin Case Holder and Rotating Hook Bobbin Case Complete | |
| 10 | 414256 | Rotating Hook, Rotating Hook Bobbin Case Holder and Rotating Hook Bobbin Case Complete | |
| 10 | 414020 | Rotating Hook, Rotating Hook Bobbin Case Holder and Rotating Hook Bobbin Case Complete | |
| 10 | 414069 | Rotating Hook, Rotating Hook Bobbin Case Holder and Rotating Hook Bobbin Case Complete | |
| 11 | 414126 | Rotating Hook & Rotating Hook Bobbin Case Holder Complete | |
| 11 | 543381 | Rotating Hook & Rotating Hook Bobbin Case Holder Complete | |
| 11 | 544784 | Rotating Hook & Rotating Hook Bobbin Case Holder Complete | |
| 11 | 414070 | Rotating Hook & Rotating Hook Bobbin Case Holder Complete | |
| 11 | 414430 | Rotating Hook & Rotating Hook Bobbin Case Holder Complete | |
| 12 | 545951 | Rotating Hook Complete | |
| 12 | 544756 | Rotating Hook Complete | |
| 12 | 410776 | Rotating Hook Complete | |
| 12 | 414071 | Rotating Hook Complete | |
| 12 | 414436 | Rotating Hook Complete | |
| 13 | 545950 | Rotating Hook (body) Complete | |
| 13 | 544757 | Rotating Hook (body) Complete | |
| 13 | 410777 | Rotating Hook (body) Complete | |
| 13 | 414072 | Rotating Hook (body) Complete | |
| 13 | 414437 | Rotating Hook (body) Complete | |
| 14 | 544244 | Rotating Hook Screw (2) | |
| 15 | 544955 | Rotating Hook Thread Guard | |
| 15 | 544759 | Rotating Hook Thread Guard | |
| 15 | 410779 | Rotating Hook Thread Guard | |
| 16 | 549186 | Rotating Hook Thread Guard Screw | |
| 17 | 545954 | Rotating Hook Section | |
| 17 | 544760 | Rotating Hook Section | |
| 17 | 410780 | Rotating Hook Section | |
| 18 | 549187 | Rotating Hook Section Screw (3) | |
| 19 | 414127 | Rotating Hook Bobbin Case Holder | |
| 19 | 544761 | Rotating Hook Bobbin Case Holder | |
| 19 | 544785 | Rotating Hook Bobbin Case Holder | |
| 19 | 414074 | Rotating Hook Bobbin Case Holder | |
| 19 | 414431 | Rotating Hook Bobbin Case Holder | |
| 20 | 544745 | Rotating Hook Bobbin Case Complete | |
| 20 | 540735 | Rotating Hook Bobbin Case Complete | |
| 20 | 544783 | Rotating Hook Bobbin Case Complete | |
| 21 | 544746 | Rotating Hook Bobbin Case | |
| 21 | 544753 | Rotating Hook Bobbin Case | |
| 21 | 544787 | Rotating Hook Bobbin Case | |
| 22 | 540767 | Rotating Hook Bobbin Case Tension Spring | |
| 23 | 504087 | Rotating Hook Bobbin Case Tension Spring Screw | |
| 24 | 504086 | Rotating Hook Bobbin Case Tension Regulating Screw | |
| 25 | 544808 | Anti-Spill Spring | |
| 26 | 410026 | Rotating Hook Bobbin Case Latch | |
| 27 | 410027 | Rotating Hook Bobbin Case Latch Lever | |
| 28 | 505356 | Rotating Hook Bobbin Case Latch Spring | |
| 29 | 55623 | Rotating Hook Bobbin | |
| 29 | 272152 | Rotating Hook Bobbin | |
| 30 | 545881 | Rotating Hook Bobbin Case Holder Position Bracket | |
| 31 | 504084 | Rotating Hook Bobbin Case Holder Position Bracket Screw | |
| 32 | 376241 | Rotating Hook Shaft and Collar | |
| 33 | 368384 | Rotating Hook Shaft Complete | |
| 34 | 368385 | Rotating Hook Shaft | |
| 35 | 505648 | Rotating Hook Shaft Oil Filter Complete | |
| 36 | 143042 | Rotating Hook Shaft Oil Filter Wick(felt) | |
| 37 | 505647 | Rotating Hook Shaft Oil Filter Wick Holder | |
| 38 | 376218 | Rotating Hook Shaft Oil Retaining Collar Complete | |
| 39 | 504134 | Rotating Hook Shaft Oil Retaining Collar Set Screw (2) | |
| 40 | 544954 | Rotating Hook Shaft Bushing(front) | |
| 41 | 504002 | Rotating Hook Shaft Bushing(front) Set Screw | |
| 42 | 544246 | Rotating Hook Oil Flow Regulating Thumb Screw | |
| 43 | 544958 | Rotating Hook Oil Flow Regulating Thumb Screw Spring | |
| 44 | 545887 | Rotating Hook Shaft Bevel Gear(left hand spiral comp) | |
| 45 | 504101 | Rotating Hook Shaft Bevel Gear Set Screw (2) | |
| 46 | 544956 | Rotating Hook Shaft Bushing(back) |
Page 19 — Oil Pump, Oil Pipe and Oil Tube
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 543493 | Oil Pump(centrifugal) | |
| 1 | 414313 | Arm Top Cover and Bobbin Winder Complete | |
| 2 | 545856 | Oil Pump(centrifugal) Impeller | |
| 2 | 414242 | Arm Top Cover Complete | |
| 3 | 545049 | Oil Pump(centrifugal) Impeller Locking Screw | |
| 3 | 410713 | Arm Top Cover Gasket | |
| 4 | 545855 | Oil Pump(centrifugal) Cover | |
| 5 | 545857 | Oil Pump(centrifugal) Screen | |
| 5 | 410883 | Bobbin Winder Spindle Housing Complete | |
| 6 | 545858 | Oil Pump(centrifugal) Screen Frame | |
| 6 | 543446 | Oil Pump(centrifugal) Screen Frame | |
| 6 | 541171 | Bobbin Winder Pulley Lock Nut | |
| 7 | 504071 | Oil Pump (centrifugal) (body) Screw (2) | |
| 7 | 544857 | Bobbin Winder Pulley Ring (rubber) | |
| 8 | 544858 | Bobbin Winder Bearing | |
| 9 | 540553 | Oil Removing Pump Bracket | |
| 9 | 544859 | Bobbin Winder Shaft | |
| 10 | 540555 | Oil Removing Pump Bracket Set Screw (3) | |
| 10 | 544207-002 | Bobbin Winder Actuating Cam Complete | |
| 11 | 545239 | Oil Removing Pump Piston | |
| 11 | 544862 | Bobbin Winder Actuating Cam Set Screw | |
| 12 | 540556 | Oil Removing Pump Piston Spring | |
| 12 | 544863 | Bobbin Winder Stop Latch Complete | |
| 13 | 540625 | Oil Removing Pump Piston Spring Bracket | |
| 13 | 544212-002 | Bobbin Winder Stop Latch Set Screw | |
| 14 | 540557 | Oil Removing Pump Piston Spring Bracket Screw | |
| 14 | 544243 | Bobbin Winder Bracket Screw Stud | |
| 15 | 504010-451 | Oil Removing Tube Retaining Spring | |
| 15 | 544865 | Bobbin Winder Spring | |
| 16 | 410721 | Oil Pipe Complete | |
| 16 | 544866 | Bobbin Winder Stopper | |
| 17 | 410722 | Oil Pipe | |
| 17 | 543855-001 | Bobbin Winder Stopper Snap Ring | |
| 18 | 545846 | Oil Pipe Clamping Sleeve | |
| 18 | 414318 | Spindle Thread Guard | |
| 19 | 414220 | Oil Pipe Clamping Sleeve Nut | |
| 20 | 545845 | Oil Tube (cpl) | |
| 20 | 504099 | Bobbin Winder Tension Stud Complete | |
| 21 | 547242 | Bobbin Winder Tension Disc | |
| 22 | 545849 | Oil Pipe Clamping Sleeve | |
| 22 | 547243 | Bobbin Winder Tension Disc (2) | |
| 23 | 540719 | Oil Pipe Clamping Sleeve Nut | |
| 23 | 547246 | Bobbin Winder Tension Nut | |
| 24 | 543335 | Oil Tube Holder | |
| 24 | 547247 | Bobbin Winder Tension Set Screw | |
| 25 | 540561 | Oil Removing Tube | |
| 25 | 541170 | Bobbin Winder Stud | |
| 26 | 16380 | Oil Removing Tube Retaining Clamp | |
| 26 | 544204-001 | Bobbin Winder Tension Hole Plug | |
| 27 | 543371 | Oil Removing Tube Retaining Clamp Screw | |
| 27 | 508562 | ||
| 28 | 543334 | Oil Tube Clamp | |
| 29 | 414245 |

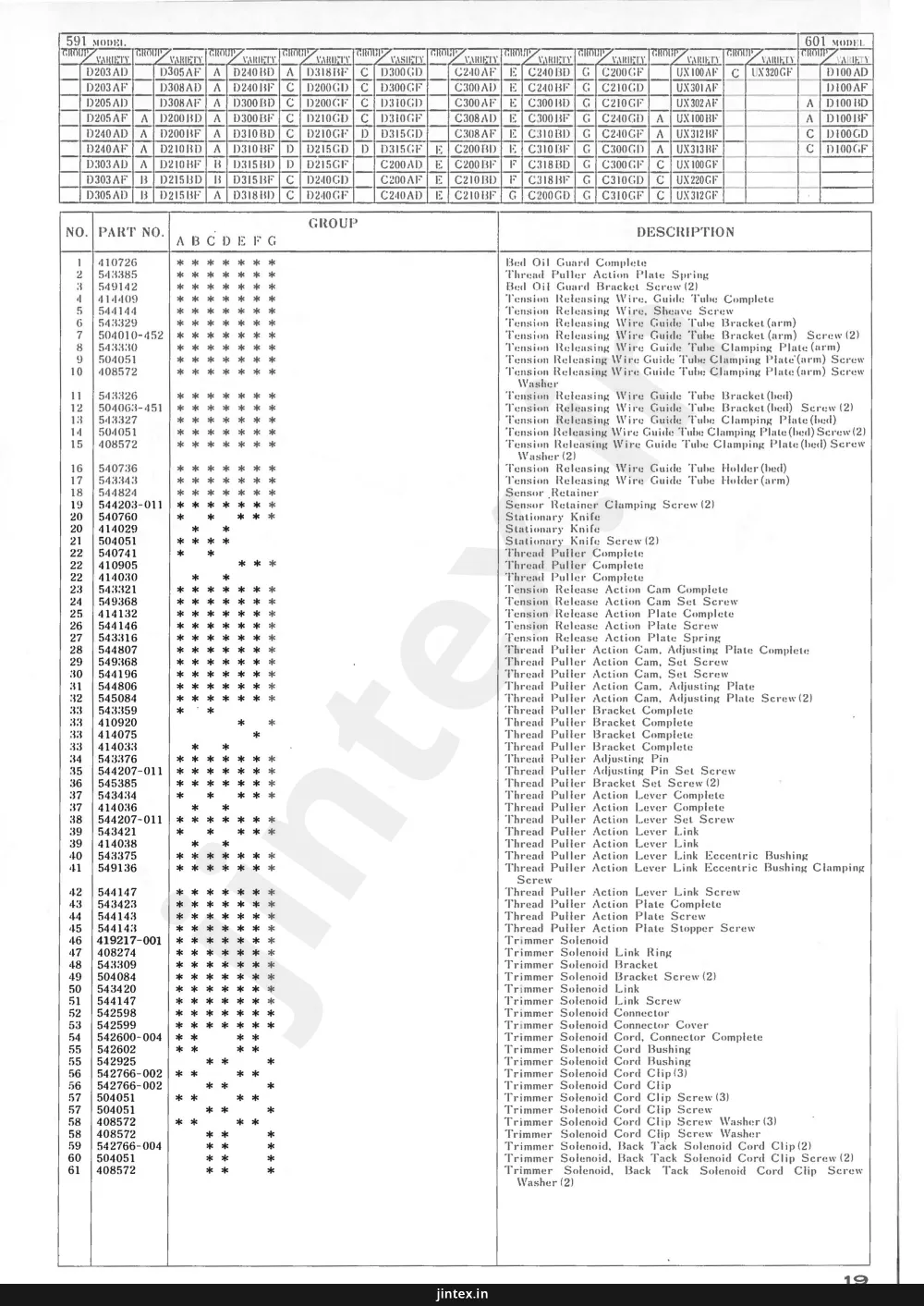

Page 21 — THREAD TRIMMER AND TENSION RELEASE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 410726 | Bed Oil Guard Complete | |
| 2 | 543385 | Thread Puller Action Plate Spring | |
| 3 | 549142 | Bed Oil Guard Bracket Screw (2) | |
| 4 | 414409 | Tension Releasing Wire, Guide Tube Complete | |
| 5 | 544144 | Tension Releasing Wire, Sheave Screw | |
| 6 | 543329 | Tension Releasing Wire Guide Tube Bracket (arm) | |
| 7 | 504010-452 | Tension Releasing Wire Guide Tube Bracket (arm) Screw (2) | |
| 8 | 543330 | Tension Releasing Wire Guide Tube Clamping Plate (arm) | |
| 9 | 504051 | Tension Releasing Wire Guide Tube Clamping Plate(arm) Screw | |
| 10 | 408572 | Tension Releasing Wire Guide Tube Clamping Plate (arm) Screw Washer | |
| 11 | 543326 | Tension Releasing Wire Guide Tube Bracket (bed) | |
| 12 | 504063-451 | Tension Releasing Wire Guide Tube Bracket (bed) Screw (2) | |
| 13 | 543327 | Tension Releasing Wire Guide Tube Clamping Plate (bed) | |
| 14 | 504051 | Tension Releasing Wire Guide Tube Clamping Plate (bed) Screw (2) | |
| 15 | 408572 | Tension Releasing Wire Guide Tube Clamping Plate (bed) Screw Washer (2) | |
| 16 | 540736 | Tension Releasing Wire Guide Tube Holder (bed) | |
| 17 | 543343 | Tension Releasing Wire Guide Tube Holder (arm) | |
| 18 | 544824 | Sensor Retainer | |
| 19 | 544203-011 | Sensor Retainer Clamping Screw (2) | |
| 20 | 540760 | Stationary Knife | |
| 20 | 414029 | Stationary Knife | |
| 21 | 504051 | Stationary Knife Screw (2) | |
| 22 | 540741 | Thread Puller Complete | |
| 22 | 410905 | Thread Puller Complete | |
| 22 | 414030 | Thread Puller Complete | |
| 23 | 543321 | Tension Release Action Cam Complete | |
| 24 | 549368 | Tension Release Action Cam Set Screw | |
| 25 | 414132 | Tension Release Action Plate Complete | |
| 26 | 544146 | Tension Release Action Plate Screw | |
| 27 | 543316 | Tension Release Action Plate Spring | |
| 28 | 544807 | Thread Puller Action Cam, Adjusting Plate Complete | |
| 29 | 549368 | Thread Puller Action Cam, Set Screw | |
| 30 | 544196 | Thread Puller Action Cam, Set Screw | |
| 31 | 544806 | Thread Puller Action Cam, Adjusting Plate | |
| 32 | 545084 | Thread Puller Action Cam, Adjusting Plate Screw (2) | |
| 33 | 543359 | Thread Puller Bracket Complete | |
| 33 | 410920 | Thread Puller Bracket Complete | |
| 33 | 414075 | Thread Puller Bracket Complete | |
| 33 | 414033 | Thread Puller Bracket Complete | |
| 34 | 543376 | Thread Puller Adjusting Pin | |
| 35 | 544207-011 | Thread Puller Adjusting Pin Set Screw | |
| 36 | 545385 | Thread Puller Bracket Set Screw (2) | |
| 37 | 543434 | Thread Puller Action Lever Complete | |
| 37 | 414036 | Thread Puller Action Lever Complete | |
| 38 | 544207-011 | Thread Puller Action Lever Set Screw | |
| 39 | 543421 | Thread Puller Action Lever Link | |
| 39 | 414038 | Thread Puller Action Lever Link | |
| 40 | 543375 | Thread Puller Action Lever Link Eccentric Bushing | |
| 41 | 549136 | Thread Puller Action Lever Link Eccentric Bushing Clamping Screw | |
| 42 | 544147 | Thread Puller Action Lever Link Screw | |
| 43 | 543423 | Thread Puller Action Plate Complete | |
| 44 | 544143 | Thread Puller Action Plate Screw | |
| 45 | 544143 | Thread Puller Action Plate Stopper Screw | |
| 46 | 419217-001 | Trimmer Solenoid | |
| 47 | 408274 | Trimmer Solenoid Link Ring | |
| 48 | 543309 | Trimmer Solenoid Bracket | |
| 49 | 504084 | Trimmer Solenoid Bracket Screw (2) | |
| 50 | 543420 | Trimmer Solenoid Link | |
| 51 | 544147 | Trimmer Solenoid Link Screw | |
| 52 | 542598 | Trimmer Solenoid Connector | |
| 53 | 542599 | Trimmer Solenoid Connector Cover | |
| 54 | 542600-004 | Trimmer Solenoid Cord, Connector Complete | |
| 55 | 542602 | Trimmer Solenoid Cord Bushing | |
| 55 | 542925 | Trimmer Solenoid Cord Bushing | |
| 56 | 542766-002 | Trimmer Solenoid Cord Clip (3) | |
| 56 | 542766-002 | Trimmer Solenoid Cord Clip | |
| 57 | 504051 | Trimmer Solenoid Cord Clip Screw (3) | |
| 57 | 504051 | Trimmer Solenoid Cord Clip Screw | |
| 58 | 408572 | Trimmer Solenoid Cord Clip Screw Washer (3) | |
| 58 | 408572 | Trimmer Solenoid Cord Clip Screw Washer | |
| 59 | 542766-004 | Trimmer Solenoid, Back Tack Solenoid Cord Clip (2) | |
| 60 | 504051 | Trimmer Solenoid, Back Tack Solenoid Cord Clip Screw (2) | |
| 61 | 408572 | Trimmer Solenoid, Back Tack Solenoid Cord Clip Screw Washer (2) |
Page 23 — SWITCH BOX AND WIPER
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 419047 | Wiper Back Tack Switch Box Complete | |
| 1 | 419008 | Wiper Back Tack Switch Box Complete | |
| 1 | 419124 | Wiper Back Tack Switch Box Complete | |
| 2 | 419048 | Wiper Back Tack Switch Cord, Connector Complete | |
| 2 | 419125 | Wiper Back Tack Switch Cord, Connector Complete | |
| 2 | 419009 | Wiper Back Tack Switch Cord, Connector Complete | |
| 3 | 411888 | Back Tack Switch | |
| 4 | 411998 | Wiper Switch | |
| 5 | 544211-056 | Back Tack Switch Screw (2) | |
| 6 | 543805-002 | Back Tack Switch Screw Nut Washer (2) | |
| 7 | 541164-003 | Back Tack Switch Screw Nut (2) | |
| 8 | 544211-001 | Wiper Switch Screw(2) | |
| 9 | 414305 | Wiper Switch Base Plug Cover | |
| 10 | 542766-005 | Wiper Back Tack Switch Cord Clip | |
| 10 | 542766-002 | Wiper Back Tack Switch Cord Clip | |
| 11 | 545307 | Wiper Back Tack Switch Cord Clip Screw | |
| 12 | 414235 | Back Tack Switch Action Shaft Complete | |
| 13 | 414234 | Back Tack Switch Action Shaft Cushion Ring | |
| 14 | 411417 | Back Tack Switch Action Plate | |
| 15 | 544212-054 | Back Tack Switch Action Plate Screw | |
| 16 | 546623 | Back Tack Switch Action Shaft Snap Ring | |
| 17 | 414237 | Wiper Back Tack Switch Box | |
| 18 | 414245 | Switch Action Shaft Plug | |
| 19 | 544212-052 | Wiper Back Tack Switch Box Screw (3) | |
| 20 | 543803-003 | Wiper Back Tack Switch Box Screw Washer (2) | |
| 21 | 542766-004 | Switch Box Cord Clip (2) | |
| 22 | 414291 | Wiper Back Tack Switch Box Spacer | |
| 23 | 414321 | Wiper Solenoid Connector Clip | |
| 24 | 545307 | Wiper Solenoid Connecter Clip Screw | |
| 25 | 504010-452 | Switch Box Cord Clip Screw | |
| 26 | 419090 | Wiper Solenoid Connecter Complete | |
| 27 | 542613 | Wiper Solenoid Bracket | |
| 27 | 414419 | Wiper Solenoid Bracket | |
| 28 | 543383 | Wiper Solenoid Bracket Clamping Plate | |
| 29 | 504063-451 | Wiper Solenoid Bracket Clamping Screw | |
| 30 | 547671 | Wiper Solenoid Bracket Clamping Screw Spring Washer | |
| 31 | 544821 | Wiper | |
| 31 | 544991 | Wiper | |
| 32 | 543432 | Wiper Holder | |
| 33 | 544212-001 | Wiper Holder Set Screw | |
| 34 | 549368 | Wiper Set Screw | |
| 35 | 543435 | Wiper Cushion | |
| 36 | 544212-052 | Wiper Solenoid Bracket Set Screw (2) | |
| 37 | 544740 | Wiper Holder Complete | |
| 38 | 544992 | Wiper Holder | |
| 39 | 544196 | Wiper Holder Set Screw | |
| 40 | 549368 | Wiper Set Screw | |
| 41 | 414420 | Wiper Solenoid Lever Complete | |
| 42 | 549368 | Wiper Solenoid Lever Screw (2) | |
| 43 | 544999 | Wiper Solenoid Link | |
| 44 | 544147 | Wiper Solenoid Link Screw (2) | |
| 45 | 544723 | Wiper Oscilating Shaft Arm Complete | |
| 46 | 549368 | Wiper Oscilating Shaft Arm Screw (2) | |
| 47 | 544998 | Wiper Oscilating Shaft | |
| 48 | 545000 | Wiper Oscilating Shaft Arm Hob | |
| 49 | 504063-451 | Wiper Oscilating Shaft Arm Hob Screw | |
| 50 | 543801-004 | Wiper Oscilating Shaft Snap Ring (2) | |
| 51 | 544997 | Wiper Oscilating Spring | |
| 52 | 543803-003 | Wiper Solenoid Bracket Set Screw Washer (2) |
Page 25 — BACK TACK MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 543454 | Feed Rock Shaft Driving Frame Action Shaft Complete | |
| 2 | 542364 | Feed Rock Shaft Driving Frame Action Shaft Collar Complete | |
| 3 | 549293 | Feed Rock Shaft Driving Frame Action Shaft Collar Set Screw | |
| 4 | 544803 | Feed Rock Shaft Driving Frame Action Lever Complete | |
| 4 | 410997 | Feed Rock Shaft Driving Frame Action Lever Complete | |
| 5 | 543456 | Feed Rock Shaft Driving Frame Action Lever Complete | |
| 5 | 410993-900 | Feed Rock Shaft Driving Frame Action Lever Complete | |
| 6 | 549368 | Feed Rock Shaft Driving Frame Action Lever Screw (2) | |
| 7 | 543458 | Feed Rock Shaft Driving Frame Action Lever Cushion | |
| 8 | 543801-001 | Feed Rock Shaft Driving Frame Action Lever Pin Cushion Ring | |
| 9 | 414268 | Feed Rock Shaft Driving Frame Stopper Spring Complete | |
| 10 | 414269 | Feed Rock Shaft Driving Frame Stopper Spring Bracket | |
| 11 | 414270 | Feed Rock Shaft Driving Frame Stopper Spring | |
| 12 | 544383 | Feed Rock Shaft Driving Frame Stopper Spring Screw (2) | |
| 13 | 504084 | Feed Rock Shaft Driving Frame Stopper Spring Bracket Screw (2) | |
| 14 | 542757-004 | Trim Solenoid and Back Tack Solenoid Cord Connector Complete | |
| 15 | 410701 | Feed Rock Shaft Driving Frame Spring Complete | |
| 16 | 410702 | Feed Rock Shaft Driving Frame Spring | |
| 17 | 410703 | Feed Rock Shaft Driving Frame Spring Hook (2) | |
| 18 | 542598 | Trimmer Solenoid Connector | |
| 19 | 542599 | Trimmer Solenoid Connector Cover | |
| 20 | 419218-001 | Back Tack Solenoid Complete | |
| 20 | 411710-002 | Back Tack Solenoid Complete | |
| 21 | 544213-002 | Back Tack Solenoid Screw (2) | |
| 22 | 414246 | Back Tack Solenoid Bracket | |
| 22 | 411711 | Back Tack Solenoid Bracket | |
| 23 | 545371 | Back Tack Solenoid Bracket Screw (2) | |
| 24 | 542766-002 | Back Tack Solenoid Cord Clip | |
| 25 | 504051 | Back Tack Solenoid Cord Clip Screw | |
| 26 | 408572 | Back Tack Solenoid Cord Clip Screw Washer | |
| 27 | 414247 | Back Tack Solenoid Link | |
| 27 | 543447 | Back Tack Solenoid Link | |
| 28 | 544822 | Back Tack Solenoid Link Pin | |
| 29 | 544823 | Back Tack Solenoid Link Pin Snap Ring | |
| 30 | 414281 | Feed Rock Shaft Driving Frame Action Shaft Bracket (front) Complete | |
| 30 | 543450 | Feed Rock Shaft Driving Frame Action Shaft Bracket (front) Complete | |
| 31 | 549288 | Feed Rock Shaft Driving Frame Action Shaft Bracket (front) Screw (2) | |
| 32 | 543462 | Back Tack Solenoid Spring | |
| 33 | 543463 | Back Tack Solenoid Spring Retainer | |
| 34 | 504051 | Back Tack Solenoid Spring Retainer Screw | |
| 35 | 408572 | Back Tack Solenoid Spring Retainer Screw Washer | |
| 36 | 543451 | Feed Rock Shaft Driving Frame Action Shaft Bracket (back) | |
| 37 | 549288 | Feed Rock Shaft Driving Frame Action Shaft Bracket (back) Screw | |
| 38 | 504084 | Feed Rock Shaft Driving Frame Action Shaft Bracket (back) Screw | |
| 39 | 319561 | Back Tack Solenoid Link Guide Pin Stud Snap Ring |
Page 27 — PRESSER BAR AND ROLLER
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 505317-452 | Bed Slide Complete | |
| 2 | 12431-452 | Bed Slide (body) | |
| 3 | 154884 | Bed Slide Spring | |
| 4 | 154789-451 | Bed Slide Spring Screw (2) | |
| 5 | N1955-01 #14 | Needle (135X65#14) | |
| 6 | 505645 | Needle Bar (hollow) | |
| 7 | 543497 | Needle Bar Thread Guard and Needle Clamp Complete | |
| 8 | 505638 | Needle Clamp Complete | |
| 9 | 504113 | Needle Clamp Screw | |
| 10 | 543496 | Needle Bar Thread Guard | |
| 11 | 504114 | Needle Bar Thread Guard Screw | |
| 12 | 543117-001 | Presser Bar and Roller Complete | |
| 13 | 543115-001 | Presser Bar Complete | |
| 14 | 543116-001 | Roller Presser (ball bearing) Complete | |
| 14 | 543024-001 | Presser Bar and Roller Complete | |
| 15 | 504083 | Presser Regulating Thumb Screw |
Page 29
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 522583 | Feed Roller and Holder Ass'y | |
| 1 | 522577 | Feed Roller and Holder Ass'y | |
| 2 | 522665 | Feed Roller Clutch | |
| 3 | 44731 | Feed Roller Retaining Ring | |
| 4 | 522561 | Feed Roller Shaft Ass'y | |
| 5 | 522551 | Feed Roller Holder Complete | |
| 6 | 522550 | Feed Roller Holder | |
| 7 | 522554 | Feed Roller Lifting Arm Screw (2) | *** |
| 8 | 545050 | Feed Roller Lifting Arm Screw (2) | *** |
| 9 | 522670 | Feed Roller Mounting Stud (2) | *** |
| 10 | 522553 | Feed Roller Mounting Stud Lock Washer (2) | *** |
| 11 | 703473-036 | Feed Roller Mounting Stud Nut (2) | *** |
| 12 | 706382-053 | Feed Roller Hinge Pin (2) | *** |
| 13 | 782872-003 | Feed Roller Hinge Pin Retaining Ring (4) | *** |
| 14 | 522552 | Feed Roller Link | *** |
| 15 | 522571 | Feed Roller Link Retaining Ring (2) | *** |
| 16 | 410862 | Feed Roller Link Stud Ass'y (2) | *** |
| 17 | 13288 | Puller Feed Mounting Bracket Ass'y | *** |
| 18 | 149280 | Puller Feed Driving Shaft Complete | *** |
| 19 | 410863 | Puller Feed Driving Shaft Complete | *** |
| 20 | 522109 | Feed Roller Driving Shaft Adjusting Washer (2) | *** |
| 21 | 410865 | Feed Roller Driving Shaft Adjusting Crank Complete | *** |
| 22 | 522516 | Feed Roller Driving Shaft Adjusting Crank Screw | *** |
| 23 | 522549 | Feed Roller Driving Connecting Rod Hinge Stud Bevel Spring | *** |
| 24 | 350883-869 | Washer | *** |
| 25 | 522542 | Feed Roller Driving Connecting Rod Stud Nut | *** |
| 26 | 51637 | Feed Roller Driving Connecting Rod Stud | *** |
| 27 | 522543 | Feed Roller Brake Spring | *** |
| 28 | 522546 | Feed Roller Brake Spring Screw | *** |
| 29 | 504063-452 | Feed Roller Brake Spring Stud | *** |
| 30 | 522547 | Puller Feed Cover Pressure Spring Adjusting Seat | *** |
| 31 | 522558 | Puller Feed Cover | *** |
| 32 | 522559 | Puller Feed Cover Screw (2) | *** |
| 33 | 410867 | Puller Feed Cover Cushion (2) | *** |
| 34 | 544237 | Puller Feed Cover Screw Washer (2) | *** |
| 35 | 635498-01 | Arm Shaft Feed Eccentric Complete | *** |
| 36 | 408558 | Arm Shaft Feed Eccentric Set Screw (3) | *** |
| 37 | 410762 | Connecting Rod Needle Bearing (large) | *** |
| 38 | 544209-005 | Arm Shaft Feed Eccentric Collar Complete | *** |
| 39 | 410782 | Arm Shaft Feed Eccentric Collar Set Screw (2) | *** |
| 40 | 410764 | Feed Roller Holder Complete | *** |
| 42 | 410835 | Feed Roller Driving Connecting Rod Stud Thrust Washer | *** |
| 43 | 522378 | Feed Roller Driving Connecting Rod Stud Retaining Ring | *** |
| 44 | 522498 | Frame Mounting Screw (large) | *** |
| 46 | 544071 | Puller Feed Base Plate Complete | *** |
| 47 | 350938-451 | Puller Feed Base Plate Screw (2) | *** |
| 48 | 350899-869 | Frame Mounting Screw (large) Washer | *** |
| 49 | 410767 | Feed Roller Lifting Cable | *** |
| 50 | 414077 | Feed Roller Lifting Cable Lock Nut | *** |
| 51 | 1492 | Rear Cover Plate | *** |
| 52 | 543804-006 | Rear Cover Plate Plug (right) | *** |
| 53 | 522555 | Oil Removing Tube Retainer (intermediate) | *** |
| 54 | 522636 | Oil Removing Tube Retainer (intermediate) Screw | *** |
| 55 | 410846 | Rear Cover Plate Screw (5) | *** |
| 56 | 502577 | Rear Cover Plate Plug | *** |
| 57 | 410848 | Oil Guard(inside of arm) | *** |
| 58 | 504051 | *** | |
| 59 | 545334-452 | *** | |
| 60 | 544782 | *** | |
| 61 | 410899 | *** |
Page 31 — VERTICAL EDGE TRIMMER
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 414049-008 | Throat Plate Cutter Bar("1/8" trim small needle hole) | |
| 1 | 414050-012 | Throat Plate Cutter Bar("3/16" trim large needle hole) | |
| 2 | 410961 | Throat Plate Slide | |
| 3 | 544238 | Throat Plate Cutter Bar Screw(2) | |
| 3 | 544238 | Throat Plate Slide Screw | |
| 4 | 410875 | Bed Cover Plate | |
| 5 | 544235 | Bed Cover Plate Screw(3) | |
| 8 | 522499 | Drive Feed Clamp(front) Complete | |
| 8 | 522099 | Drive Feed Clamp(front) Screw (short) | |
| 9 | 350881-869 | Drive Feed Clamp(front) Screw(long) | |
| 10 | 350883-869 | Drive Feed Clamp(front) Screw(short) | |
| 11 | 522516 | Drive Feed Clamp(front) Thrust Washer | |
| 12 | 522515 | Drive Feed Clamp Idler Shaft | |
| 13 | 414258 | Drive Feed Clamp(back) Complete | |
| 14 | 350883-869 | Drive Feed Clamp(back) Screw | |
| 15 | 543856 | Drive Feed Clamp(back) Thrust Washer | |
| 16 | 522508-452 | Frame Ass'y | |
| 17 | 228661 | Rubber Stop(6) | |
| 18 | 522109 | Idler Shaft Bearing(2) | |
| 19 | 522513 | Slide Block Post(long) | |
| 20 | 522514 | Slide Block Post(short) | |
| 21 | 350885-869 | Rocker Arm Shaft Set Screw(2) | |
| 21 | 350885-869 | Slide Block Post Set Screw(2) | |
| 22 | 522519 | Link Complete | |
| 23 | 522378 | Link Bearing(2) | |
| 24 | 522497 | Link Pivot Pin(2) | |
| 25 | 522498 | Link Thrust Washer(4) | |
| 26 | 13288 | Link Pivot Pin Stop Ring(2) | |
| 27 | 522527 | Rocker Arm Shaft | |
| 28 | 522526 | Rocker Arm Complete | |
| 29 | 350944-451 | Rocker Arm Screw(2) | |
| 30 | 522378 | Rocker Arm Bearing(2) | |
| 31 | 522498 | Rocker Arm Thrust Washer(2) | |
| 32 | 522502 | Drive Link Ass'y | |
| 33 | 522505 | Drive Link(lower) Complete | |
| 34 | 522378 | Drive Link(lower) Bearing | |
| 35 | 549157 | Drive Link Pivot Pin Screw | |
| 36 | 522507 | Drive Link(upper) Complete | |
| 37 | 522378 | Drive Link(upper) Bearing | |
| 38 | 522504 | Drive Link Pivot Pin | |
| 39 | 522500 | Drive Link Detent Pin | |
| 40 | 522501 | Drive Link Detent Pin Spring | |
| 41 | 522498 | Drive Link(upper) Thrust Washer(2) | |
| 42 | 522497 | Drive Link(upper) Pivot Pin | |
| 43 | 13288 | Drive Link(upper) Pivot Pin Stop Ring | |
| 44 | 522521 | Spring Retainer Knob | |
| 45 | 544236 | Spring Retainer Knob Screw | |
| 46 | 522528 | Slide Block Complete | |
| 47 | 350899-869 | Slide Block Screw | |
| 48 | 53680-830 | Slide Block Screw Lock Nut | |
| 49 | 350946-830 | Knife Mounting Block Mounting Screw | |
| 50 | 543803-003 | Knife Mounting Block Mounting Screw Washer | |
| 51 | 522785 | Disengagement Spring | |
| 52 | 504103 | Disengagement Spring Screw(2) | |
| 53 | 410839 | Vertical Edge Trimmer Oil Wick | |
| 54 | 410840 | V.E.T. Oil Wick Tube | |
| 55 | 410841 | V.E.T. Oil Wick Tube Mounting Bracket | |
| 56 | 410842 | Oil Wick Tube Mounting Bracket Plate | |
| 57 | 504063-451 | Oil Wick Tube Mounting Bracket Screw | |
| 58 | 522510-452 | V.E.T. Cover | |
| 59 | 544237 | V.E.T. Cover Screw(2) | |
| 60 | 635498-01 | V.E.T. Cover Screw Cushion(2) | |
| 61 | 408558 | V.E.T. Cover Screw Washer(2) | |
| 62 | 544071 | Frame Mounting Screw(large) | |
| 63 | 350938-451 | Frame Mounting Screw(small)(2) | |
| 64 | 350899-869 | Frame Mounting Screw(lower) | |
| 65 | 543804-006 | Frame Mounting Screw(large) Washer | |
| 66 | 522543 | Connecting Rod Pivot Pin. | |
| 67 | 51637 | Connecting Rod Pivot Pin Nut | |
| 68 | 522542 | Connecting Rod Pivot Pin Spring Washer | |
| 69 | 522517 | Knife Mounting Block | |
| 70 | 545315-452 | Knife Mounting Block Adjusting Screw(2) | |
| 71 | 410968 | Knife | |
| 72 | 2291 | Knife Mounting Block Clamping Plate | |
| 73 | 1056-830 | Knife Set Screw(2) | |
| 74 | 410844 | V.E.T. Finger Guard | |
| 75 | 410767 | Frame Supporting Pin | |
| 76 | 410848 | Oil Removing Tube Retainer(intermediate) | |
| 77 | 504051 | Oil Removing Tube Retainer(intermediate) Screw |
Page 33 — ACCESSORIES AND ATTACHMENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 541515 | Cloth Guide | |
| 2 | 504030 | Cloth Guide Screw | |
| 3 | 55623 | Rotating Hook Bobbin(3) | |
| 3 | 272152 | Rotating Hook Bobbin(3) | |
| 4 | N1955-01 #14 | Needle(135×65#14)(3) | |
| 4 | N1955-01#16 | Needle(135×65#16)(3) | |
| 4 | N1955-01 #21 | Needle(135×65#21)(3) | |
| 4 | N1955-01 #18 | Needle(135×65#18)(3) | |
| 4 | N1315-01 #8 | Needle(88×1#8)(3) | |
| 5 | 541513 | Screw Driver(large) | |
| 6 | 541514 | Screw Driver(Small) | |
| 7 | 548701 | Screw Driver(long) | |
| 8 | 545754 | Machine Base and Oil Reservoir Oil Drain Plug Screw Gasket | |
| 9 | 410154 | Oil Can(750 cc, filled with Singer Type "C" Oil) | |
| 10 | 410186 | Machine Rest Pin | |
| 11 | 544976 | Machine Base and Oil Reservoir Complete | |
| 12 | 544977-002 | Machine Base and Oil Reservoir | |
| 13 | 544978 | Machine Base and Oil Reservoir Gasket | |
| 14 | 545036 | Machine Base and Oil Reservoir Oil Drain Plug Screw | |
| 15 | 545754 | Machine Base and Oil Reservoir Oil Drain Plug Screw Gasket | |
| 16 | 376216 | Machine Rest(rubber)(4) | |
| 17 | 376215 | Machine Base and Oil Reservoir Cushion(front) with two Wire Nail(2). | |
| 18 | 376214 | Machine Base and Oil Reservoir Cushion(back) with two Wire Nail(2) | |
| 19 | 540522 | Machine Hinge Connection(2) | |
| 20 | 540523 | Machine Hinge Connection Cushion(2) | |
| 21 | 505655-005 | Thread Unwinder(for two spools) Complete, with three Wood Screw | |
| 21 | 414489-451 | Thread Unwinder(for two spools) Complete | |
| 22 | 543066 | Hexagon Wrench Key(for M4) | |
| 23 | 543087 | Hexagon Wrench Key(for M5) | |
| 24 | 540899 | Sensor Cord Retainer(3) | |
| 25 | 505655-012 | Universal Bobbin Winder Complete | |
| 26 | 414230 | Bell Crank Plunger | |
| 27 | 414113 | Rock Shaft Complete | |
| 28 | 545913 | Rock Shaft | |
| 29 | 545915 | Rock Shaft Crank | |
| 30 | 545922 | Rock Shaft Stop Dog | |
| 31 | 545921 | Rock Shaft Spring | |
| 32 | 544895 | Rock Shaft Knee Arm | |
| 33 | 545918 | Rock Shaft Knee Arm Hub | |
| 34 | 414115 | Rock Shaft Knee Arm Plate Complete | |
| 35 | 543823-001 | Rock Shaft Thrust Washer(2) |
Page 34 — VERTICAL TRIMMER FITTINGS—APPLICABLE FOR 591D205AD/AF, 215BD/BF, 215GD/GF, 305AD/AF, 315BD/BF, 315GD/GF
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 414459-004 | |||
| 414040-004 | |||
| 414040-006 | |||
| 414041-006 | |||
| 414042-008 | |||
| 414043-008 | |||
| 414042-010 | |||
| 414043-010 | |||
| 414042-012 | |||
| 414043-012 | |||
| 414042-016 | |||
| 414043-016 | |||
| 414044-020 | |||
| 414045-020 | |||
| 414046-004 | |||
| 410960 | |||
| 414460 | |||
| 410901 | |||
| 414358 | |||
| 410903 | |||
| 414046-006 | |||
| 410961 | |||
| 414039 | |||
| 414048-006 | |||
| 410932 | |||
| 410931 | |||
| 414048-008 | |||
| 414049-010 | |||
| 414049-012 | |||
| 414049-016 | |||
| 414051-020 | |||
| 414052-020 |
Page 35 — VERTICAL TRIMMER FITTINGS—APPLICABLE FOR 591D205AD/AF, 215BD/BF, 215GD/GF, 305AD/AF, 315BD/BF, 315GD/GF
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 545945 | Box Wrench | |
| 2 | 52032-452 | Throat Plate(large needle hole) | |
| 2 | 142061-452 | Throat Plate(large needle hole) | |
| 2 | 142060-452 | Throat Plate(small needle hole) | |
| 2 | 541599 | Throat Plate | |
| 2 | 540761 | Throat Plate | |
| 2 | 147328 | Throat Plate | |
| 2 | 149225 | Throat Plate | |
| 2 | 414266 | Throat Plate | |
| 3 | 149057 | Feed Dog, 21 teeth | |
| 3 | 543372 | Feed Dog | |
| 3 | 544962 | Feed Dog | |
| 3 | 414320 | Feed Dog | |
| 3 | 530535 | Feed Dog | |
| 3 | 414158 | Feed Dog | |
| 3 | 414198 | Feed Dog | |
| 3 | 414241 | Feed Dog | |
| 3 | 544819 | Feed Dog | |
| 4 | 540739 | Presser Foot Complete | |
| 4 | 145420 | Presser Foot Complete | |
| 4 | 414202 | Presser Foot(teflon) Complete | |
| 5 | 410723 | Belt Guard Complete | |
| 5 | 414091 | Belt Guard Complete | |
| 5 | 410769 | Belt Guard Complete | |
| 5 | 414093 | Belt Guard Complete | |
| 6 | 544217-001 | Belt Guard Screw (8) | |
| 7 | 544085 | Belt Guard(lower) Wood Screw (2) | |
| 8 | 414239 | Rotating Hook Bobbin Case Holder Position Bracket | |
| 8 | 414236 | Rotating Hook Bobbin Case Holder Position Bracket | |
| 8 | 414216 | Rotating Hook Bobbin Case Holder Position Bracket | |
| 9 | 414326 | Machine Pulley Complete (φ64) | |
| 9 | 414328 | Machine Pulley Complete (φ64) | |
| 10 | 504070 | Machine Pulley Set Screw (2) | |
| 11 | 540796 | Needle Guard | |
| 12 | 414396 | Finger Guard Set | |
| 13 | 414386 | Finger Guard | |
| 14 | 374142 | Finger Guard Set Screw | |
| 15 | 548406 | Finger Guard Set Screw Spacer | |
| 16 | 374143 | Presser Foot Nut | |
| 17 | 414137 | Feed Roller(38 teeth) | |
| 17 | 522545 | Feed Roller(64 teeth) | |
| 17 | 522577 | Feed Roller(68 teeth) | |
| 17 | 522579 | Feed Roller(44 teeth, grooved) | |
| 17 | 522581 | Feed Roller(44 teeth) | |
| 17 | 522583 | Feed Roller(polyurethane) | |
| 18 | 414155 | Seal Compound |
Singer 591 / 601 — parts catalog
- Page 1 (cover): This is the cover page for an illustrated parts list for Singer sewing machines, specifically models 591 and 601. It includes copyright information from 1987.
- Page 3 (parts_list): Fittings parts list matrix for 591, 601 and special machine models giving throat plate, presser foot and feed dog numbers, with a machine numbering system diagram and trim margin notes; this output transcribes only the 601 block.
- Page 4 (diagram): This page displays a diagram of various sewing machine parts, including covers, pulleys, and fasteners, with corresponding reference numbers.
- Page 5 (parts_list): Parts list page with a model/group cross-reference table at top and a numbered parts table giving reference numbers, part numbers, group applicability stars, and English descriptions for arm, face plate, bed slide, tension, and thread take-up components.
- Page 6 (diagram): This page displays a diagram of the arm shaft, needle bar, and take-up lever components, with various parts numbered for identification.
- Page 7 (parts_list): This page lists parts for models 591 and 601, including part numbers, descriptions, and model applicability.
- Page 8 (diagram): This page displays a diagram of the arm shaft, needle bar, and take-up lever components of an industrial sewing machine, with numbered parts for identification.
- Page 9 (parts_list): This page lists parts for models 591 and 601, including part numbers, group designations, and descriptions for items like arm shafts, needle bars, and frame components.
- Page 10 (diagram): This page displays a diagram of presser bar and presser foot components, with numbered parts and their corresponding references.
- Page 11 (parts_list): This page lists parts for model 591, including part numbers, descriptions, and applicability to various groups and varieties of sewing machines.
- Page 12 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 13 (parts_list): This page lists parts for the 591 and 601 models, including part numbers, descriptions, and model applicability indicated by asterisks.
- Page 14 (diagram): This page displays a diagram of the feed mechanism with various numbered parts, including components like feed dogs, shafts, and mounting brackets.
- Page 15 (parts_list): This page lists parts for the 591 and 601 models, including part numbers, group designations, and descriptions for items like regulating plates, levers, and shafts.
- Page 16 (parts_list): This page lists parts for the Upright Shaft and Hook Driving Shaft, including part numbers, group information, and descriptions.
- Page 17 (parts_list): This page lists parts for models 591 and 601, including part numbers, descriptions, and applicability to various groups and varieties.
- Page 18 (diagram): This page displays diagrams for the lubricating system and the arm top cover and built-in bobbin winder, with numbered parts for identification.
- Page 19 (parts_list): This page lists parts for models 591 and 601, including oil pump components, screen frames, and bobbin winder parts.
- Page 20 (diagram): This page displays a diagram of the thread trimmer and tension release mechanism, with numbered parts and their corresponding details.
- Page 21 (parts_list): This page lists parts for model 591 and 601, including part numbers, descriptions, and applicability to various groups (A-G).
- Page 22 (diagram): This page displays a diagram of switch box and wiper components, with numbered parts and their corresponding references.
- Page 23 (parts_list): This page contains a parts list for various models of sewing machines, including part numbers, descriptions, and model applicability.
- Page 24 (diagram): This page displays a diagram of the back tack mechanism with numbered parts, including levers, screws, and electrical components.
- Page 25 (parts_list): This page lists parts for the 591 and 601 models, including part numbers, descriptions, and model applicability.
- Page 26 (diagram): This page displays a diagram of the presser bar and roller components, with numbered parts including a presser bar, roller, and various screws and brackets.
- Page 27 (parts_list): This page lists parts for model 591 and 601, including part numbers, descriptions, and model applicability.
- Page 28 (diagram): This page displays a diagram of puller feed components, including various levers, shafts, screws, and plates, each identified by a reference number.
- Page 29 (parts_list): This page lists parts for models 591 and 601, including part numbers, descriptions, and quantities indicated by asterisks.
- Page 30 (diagram): This page displays a diagram of various components for a Vertical Edge Trimmer, with numbered parts and their corresponding references.
- Page 31 (parts_list): This page lists parts for models D203 AD, D203 AF, D205 AD, D205 AF, D240 AD, D240 AF, D301 AD, D303 AF, D305 AD, D305 AF, D308 AD, D308 AF, D200 BF, D210 BF, D210 BD, D310 BD, D310 BF, D215 BD, D315 BD, D315 BF, D318 BD, D200 GD, D200 GF, D210 GD, D210 GF, D215 GD, D215 GF, D240 GD, D240 GF, D300 GD, D300 GF, D310 GD, D310 GF, D315 GD, D315 GF, C240 AF, C240 BD, C200 GF, C210 GD, C210 GF, C240 BD, C240 GF, C300 GD, C300 GF, C310 GD, C310 GF, UX 100 AF, UX 320 GF, D100 AD, D100 AF, D100 BD, D100 BF, D100 GD, D100 GF, UX 100 AF, UX 301 AF, UX 302 AF, UX 100 BF, UX 312 BF, UX 313 BF, UX 100 GF, UX 220 GF, UX 312 GF, and 601 MODEL. It includes part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of accessories and attachments for a sewing machine, with numbered parts indicated for reference.
- Page 33 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, and applicability to different models. It details items like cloth guides, needles, screws, oil cans, and various machine components.
- Page 34 (parts_list): This page lists vertical trimmer fittings applicable for various sewing machine models, including part numbers, descriptions, and quantities for different trim margins.
- Page 35 (parts_list): Parts list page for the 591 and 601 model feed and throat plate, feed dog, presser foot, belt guard and related components, with a model-variety group cross-reference table at the top.
- Page 36 (cover): This is the cover page of a parts catalog for Superior Sewing Machine & Supply LLC, featuring Form U3687 (Rev. 788) and Part No. 379071-002 (Rev. 4), printed in Japan.
