Siruba 700KS Parts Book (PDF)
Text index — Siruba 700KS
Page 1 — GAGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E304 | D517 | ||
| D516 | P152D-3A | ||
| KD501 | KG231K-E | ||
| LP526 | KL502A | ||
| E503 | D515 | ||
| H515 | P987-3A | ||
| KD501 | KG231K-E | ||
| LP526 | KL502A | ||
| E504 | D515 | ||
| H515 | P987-3A | ||
| KD501 | KG231K-E | ||
| LP526 | KL502A | ||
| E324K | D515A | ||
| H517 | P212A-A1 | ||
| KD501 | KG231K-E | ||
| LP526 | KL502A | ||
| E324K | D515A | ||
| H517 | P212A-3A1 | ||
| KD501 | KG231K-E | ||
| LP526 | KL502A | ||
| E505 | D515 | ||
| H515 | P987-3A | ||
| KD501 | KG231K-E | ||
| LP526 | KL502A | ||
| E513 | D515A | ||
| H517 | P987-3A | ||
| KD501B | KG231K-E | ||
| LP519 | KL502A | ||
| E324K | D515A | ||
| H517 | P987-3A | ||
| KD501B | KG231K-E | ||
| LP519 | KL502A | ||
| E515 | D515A | ||
| H517 | P987-3A | ||
| KD501B | KG231K-E | ||
| LP519 | KL502A | ||
| E523 | D515 | ||
| H515 | P987-4A | ||
| KD501 | KG242K-E | ||
| LP518 | KL502 | ||
| E424 | D515 | ||
| H515 | P987-4A | ||
| KD501 | KG242K-E | ||
| LP518 | KL502 | ||
| E434K | D515A | ||
| H517 | P212A-2A1 | ||
| KD501 | KG242K-E | ||
| LP518 | KL502 | ||
| E434K | D515A | ||
| H517 | P212A-2A1 | ||
| KD501 | KG242K-E | ||
| LP518 | KL502 | ||
| E434K | D515A | ||
| H517 | P212A-4A1 | ||
| KD501 | KG242K-E | ||
| LP518 | KL502 | ||
| E434K | D515A | ||
| H517 | P212A-4A1 | ||
| KD501 | KG242K-E | ||
| LP518 | KL502 | ||
| E525 | D515 | ||
| H515 | P987-4A | ||
| KD501 | KG242K-E | ||
| LP518 | KL502 | ||
| E533 | D515A | ||
| H517 | P987-4A | ||
| KD501B | KG242K-E | ||
| LP519 | KL502A | ||
| E434K | D515A | ||
| H517 | P987-4A | ||
| KD501B | KG242K-E | ||
| LP519 | KL502A | ||
| E535 | D515A | ||
| H517 | P987-4A | ||
| KD501B | KG242K-E | ||
| LP519 | KL502A |
Page 2 — KA
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KA509 | |||
| KA508 | |||
| SK438 | 3 | ||
| PP2051 | |||
| KA117-1 | |||
| KJ58 | 2 | ||
| PP2213 | |||
| KA501S | |||
| KA304-A | |||
| PP7140 | |||
| KA305 | |||
| KA304 | |||
| PP2072 | |||
| SK557 | |||
| KA224 | |||
| PP6211 | |||
| KC306L | |||
| KA33 | 2 | ||
| KQ555 | 2 | ||
| PM502 | |||
| SK228 | 2 | ||
| SK216 | 2 | ||
| KA56 | |||
| KA63 | |||
| SK270 | |||
| SM131 | |||
| SK262 | 3 | ||
| KA64 | 2 | ||
| KA502 | |||
| SK216 | |||
| KA55 | |||
| WKO1 | |||
| SK250 | |||
| SK215 | |||
| KA57 | |||
| KA59 | |||
| SK277 | 2 | ||
| SK401 | 4 | ||
| WK23 | 4 | ||
| SW02 | 4 | ||
| SK400 | 4 | ||
| KJ58*2 | KJ58*2 | ||
| SK438*3 | SK438*3 | ||
| KA33*2 | KA33*2 | ||
| KQ555*2 | KQ555*2 | ||
| SK216*2 | SK216*2 | ||
| SK228*2 | SK228*2 | ||
| KA64*2 | KA64*2 | ||
| SK401*4 | SK401*4 | ||
| WK23*4 | WK23*4 | ||
| SW02*4 | SW02*4 | ||
| SK262*3 | SK262*3 | ||
| SK400*4 | SK400*4 | ||
| SK277*2 | SK277*2 |
Page 3 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KB208 | |||
| KB502 | |||
| SM6300 | 2 | ||
| KB218 | 2 | ||
| KA504 | |||
| SK257 | 2 | ||
| KA512 | |||
| KA507 | |||
| KA506 | |||
| SK507 | 4 | ||
| SK675 | |||
| KA512-A | |||
| SM6300*2 | SM6300*2 | ||
| KB218*2 | KB218*2 | ||
| SK257*2 | SK257*2 | ||
| SK507*4 | SK507*4 |
Page 4 — KC
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KC67-A1 | |||
| KC67 | |||
| OR'63 | |||
| SK934 | 6 | ||
| KC40 | |||
| KC501-3 | |||
| KC501-4 | |||
| KC501 | |||
| KC503 | |||
| KC218 | |||
| SK273 | 3 | ||
| KC38KS | |||
| KC215 | |||
| SK569 | |||
| KZ502 | |||
| KC18 | |||
| SM401 | |||
| KC512 | |||
| SM430 | |||
| KC212 | |||
| SM301- | |||
| SM307 | |||
| KC28 | |||
| SM431 | 2 | ||
| KC508A- | |||
| EM030 | |||
| KC507 | |||
| KC514 | |||
| SV401 | 2 | ||
| WM641 | |||
| WM641 | |||
| SM484 | |||
| WM301 | 2 | ||
| SM330 | 2 | ||
| KC321 | |||
| KC320 | |||
| KC320-A | |||
| KC123 | |||
| WM609 | 2 | ||
| SK245 | 2 | ||
| KC304-A1 | |||
| KC507-A | |||
| OR163-0 | |||
| SK934*6 | |||
| WM301*2 | |||
| SM330*2 | |||
| WK09*2 | |||
| SK245*2 | |||
| SV431*2 | |||
| SV401*2 | |||
| SK273*3 |
Page 5 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KD208-E | |||
| KD208 | |||
| SM613 | |||
| SW02 | |||
| KD24 | |||
| SK347 | |||
| SK414 | |||
| KD95-E | |||
| KD95 | |||
| SM606 | 2 | ||
| UT817-2 | 2 | ||
| KD210-A | |||
| KD210 | |||
| OR400 | |||
| OR170 | |||
| SK269 | 3 | ||
| KD14 | |||
| KD211 | |||
| WMH03 | |||
| BR1173 | |||
| SK270 | |||
| KD529-E | |||
| KD529 | |||
| KD502 | |||
| BR1174 | |||
| KD219 | |||
| KD525 | |||
| SM603 | |||
| KD501 | |||
| SK958 | |||
| SK958 | 2 | ||
| SK957 | 2 | ||
| KD501-E | |||
| KD501-A | |||
| BR2151-E | |||
| BR4100 | |||
| SK249 | |||
| KD508 | |||
| KD223 | |||
| KD203 | |||
| SK339 | 4 | ||
| SM606*2 | SM606 | ||
| UT817-2*2 | UT817 | ||
| SK269*3 | SK269 | ||
| SK958*2 | SK958 | ||
| SK957*2 | SK957 | ||
| SK339*4 | SK339 |

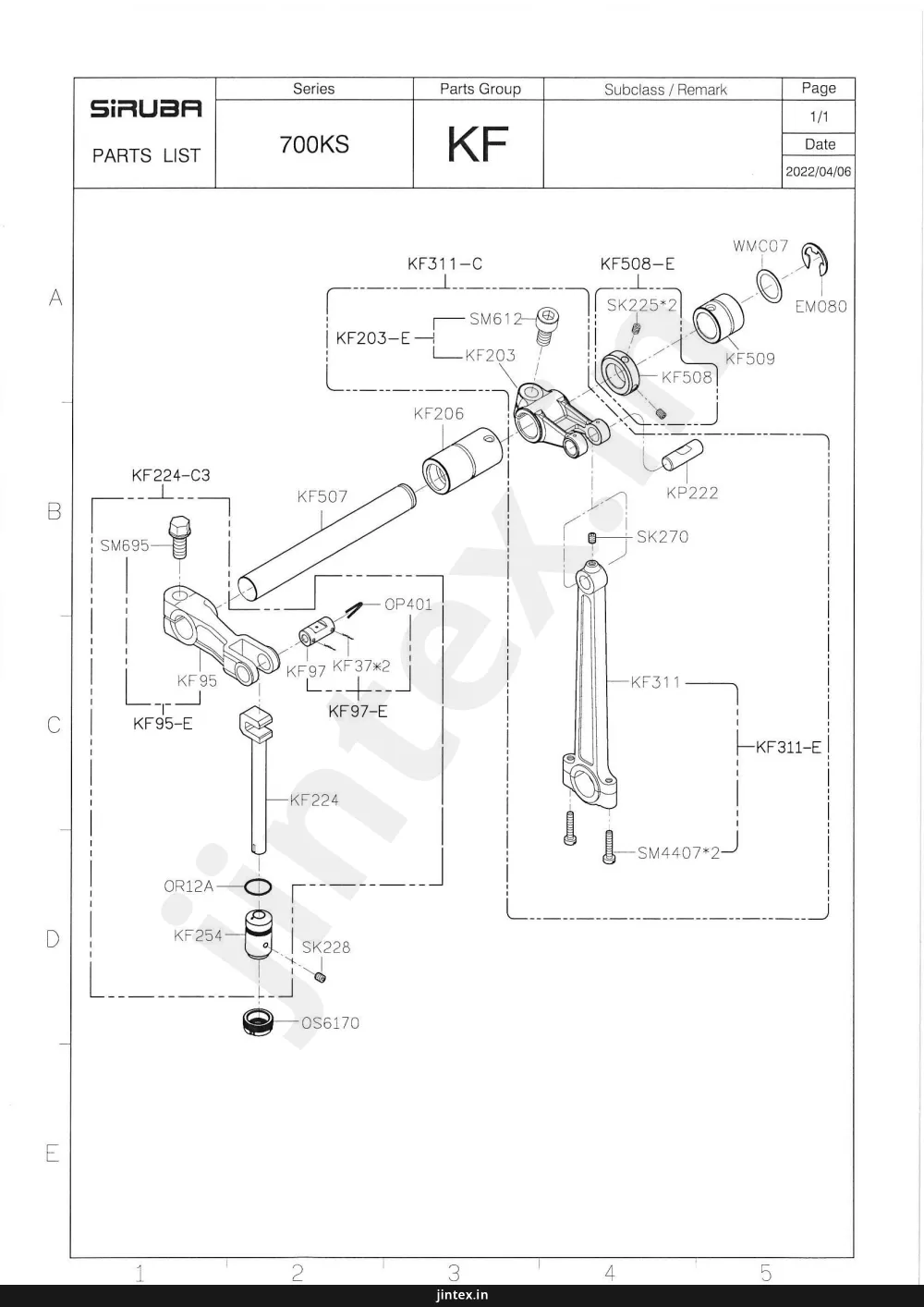

Page 6 — KF Parts Group - Series 700KS Parts List
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| WMCO7 | |||
| EM080 | |||
| KF509 | |||
| SK225 | 2 | ||
| KF508 | |||
| SM612 | |||
| KF203-E | |||
| KF203 | |||
| KF206 | |||
| KF507 | |||
| SM695 | |||
| KF224-C3 | |||
| KF95 | |||
| KF95-E | |||
| KF97 | |||
| KF37 | 2 | ||
| OP401 | |||
| KF97-E | |||
| KF224 | |||
| KF311 | |||
| KF311-E | |||
| KP222 | |||
| SK270 | |||
| SM4407 | 2 | ||
| OR12A | |||
| KF254 | |||
| SK228 | |||
| OS6170 | |||
| KF311-C | KF311-C | ||
| KF508-E | KF508-E | ||
| SK225*2 | SK225*2 | ||
| KF37*2 | KF37*2 | ||
| SM4407*2 | SM4407*2 |
Page 7 — KG
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KC305 | |||
| KG03K | *3 | ||
| KG264 | *3 | ||
| KG08 | *3 | ||
| KG06K | *3 | ||
| KG265 | *2 | ||
| KG05K | *3 | ||
| SK250N | |||
| KG07K | *6 | ||
| KG04K-G | |||
| KG68 | |||
| KG04K-Y | |||
| KG04K | *3 | ||
| KG04K-R | |||
| KG512 | |||
| SK230 | |||
| SK450 | |||
| KG211K | |||
| SK250N | |||
| KG223-4 | |||
| KG224 | |||
| KG223 | |||
| KG225 | |||
| KG222 | |||
| SK277N | |||
| SK260 | *2 | ||
| EXXX | |||
| SK437N | |||
| KG212 | |||
| SK216 | |||
| KG213K | |||
| KG212-4 | |||
| KG41-A | |||
| SM340 | |||
| KG27 | |||
| KG41 | |||
| KG29 | |||
| KG28 | |||
| SM280B | |||
| KG41-E | |||
| SM251 | |||
| SK216 | *2 | ||
| KG92 | |||
| KGXXXK | |||
| KGXXXK-E | |||
| KGXXXK-A | |||
| DCXXX- | |||
| KG95 | |||
| KG74-A | |||
| KG74 | |||
| KG24-1 | |||
| SK438 | |||
| SK209 | |||
| KG75 | |||
| KG03K*3 | KG03K*3 | ||
| KG264*3 | KG264*3 | ||
| KG08*3 | KG08*3 | ||
| KG265*2 | KG265*2 | ||
| KG05K*3 | KG05K*3 | ||
| KG07K*6 | KG07K*6 | ||
| KG04K*3 | KG04K*3 | ||
| KG264*4 | KG264*4 | ||
| KG06K*4 | KG06K*4 | ||
| KG08*4 | KG08*4 | ||
| KG05K*4 | KG05K*4 | ||
| KG03K*4 | KG03K*4 | ||
| KG07K*8 | KG07K*8 | ||
| KG68*2 | KG68*2 | ||
| KG04K*4 | KG04K*4 | ||
| KG04K-Y1 | KG04K-Y1 | ||
| KG262 | KG262 | ||
| KG248 | KG248 | ||
| KG93 | KG93 | ||
| KG509 | KG509 | ||
| KG212-3 | KG212-3 | ||
| SK260*2 | SK260*2 | ||
| SK216*2 | SK216*2 | ||
| KGXXXXK | KGXXXXK | ||
| KGXXXX-E | KGXXXX-E | ||
| KGXXXX-A | KGXXXX-A | ||
| KG74-1 | KG74-1 |
Page 8 — PARTS LIST 700KS KJ *Use For 514-M-3-28
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KL208 | |||
| SK4306 | *2 | ||
| KJ06B | |||
| SK408 | |||
| KJ502 | |||
| KJ504 | |||
| KJ513 | |||
| KJ01J | |||
| SK4306 | *2 | ||
| SM627 | |||
| KJ506 | |||
| KJ501 | |||
| SM410 | |||
| KJ215 | |||
| SM695 | |||
| KB503 | |||
| OS1190 | |||
| SK216 | |||
| KJ225 | |||
| KJ229*2 | *2 | ||
| KJ224 | |||
| KJ213 | |||
| KJ508 | |||
| KJ503 | |||
| KJ216 | |||
| SK714 | |||
| SK339 | |||
| KJ507 | |||
| KJ218 | |||
| KL210 | |||
| KJ220 | |||
| KJ221 | |||
| SM433 | |||
| SK223 | |||
| SK506 | *2 | ||
| SK223 | *2 | ||
| KJ217 | |||
| WK05 | *2 | ||
| SK273 | *2 | ||
| SM611 | *2 | ||
| SK229 | |||
| LPxxx | |||
| KJ212 | |||
| KJ302 | |||
| SK270 | |||
| KJ505 | |||
| KJ211 | |||
| OP401 | |||
| KF37 | *2 | ||
| KJ516 | KJ516 | ||
| KJ516-E | KJ516-E | ||
| KJ516-C | KJ516-C | ||
| KJ502-E | KJ502-E | ||
| KJ513-E | KJ513-E | ||
| KJ513-C | KJ513-C | ||
| KJ204K | KJ204K | ||
| SK4306*2 | SK4306*2 | ||
| KJ01J-E | KJ01J-E | ||
| KJ215-E | KJ215-E | ||
| KB503-A | KB503-A | ||
| DS1190 | DS1190 | ||
| KJ505-A | KJ505-A | ||
| *KJ528-C | *KJ528-C | ||
| KJ508-C | KJ508-C | ||
| SK506*2 | SK506*2 | ||
| KJ220-A | KJ220-A | ||
| WK05*2 | WK05*2 | ||
| KJ217-A | KJ217-A | ||
| SK223*2 | SK223*2 | ||
| SM611*2 | SM611*2 | ||
| KJ211-E | KJ211-E | ||
| KF37*2 | KF37*2 |
Page 9 — KL
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SK441 | |||
| SW03 | |||
| KL17 | |||
| KL508 | |||
| KL208 | |||
| WMA06 | |||
| SK408 | |||
| KJ06B | |||
| KJ01J | |||
| SK4306 | 2 | ||
| SK4306 | 2 | ||
| SM627 | |||
| KL505 | |||
| KL523 | |||
| KL502 | |||
| KL504 | |||
| KL522 | |||
| SM340 | |||
| PM10C | |||
| SM136 | |||
| SM511 | |||
| OS2150 | |||
| KL514 | |||
| KL514-4 | |||
| KL520 | |||
| SK506 | |||
| SK4306*2 | SK4306*2 | ||
| KJ01J-E | KJ01J-E | ||
| KL505-E | KL505-E | ||
| KL514-E | KL514-E | ||
| KL514-A | KL514-A | ||
| KL502A | KL502A | ||
| KL514-A1 | KL514-A1 |
Page 10 — KP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SK399 | |||
| KP39 | |||
| KP60 | |||
| WM603 | |||
| SK250 | 2 | ||
| KP92 | |||
| KP46 | 2 | ||
| KP43 | 2 | ||
| WK01 | 2 | ||
| KP95 | |||
| KP81 | |||
| KP503 | |||
| KP506- | |||
| KP502 | |||
| TF23-E | |||
| SK216 | 2 | ||
| SM516 | |||
| KP92-A1 | |||
| KP502-E | |||
| KP501- | |||
| EM060 | |||
| SK262 | |||
| WK01 | |||
| SK657 | 2 | ||
| WK31 | |||
| OS2150 | |||
| KQ509-E | |||
| SM502 | |||
| KQ507 | |||
| SM280B | |||
| SM508 | |||
| KQ506 | |||
| KQ512 | |||
| PM217 | 2 | ||
| KQ509 | |||
| KF509 | |||
| KQ520 | |||
| KQ520-E | |||
| KQ501 | |||
| SM627 | |||
| KQ517 | |||
| OR065 | |||
| KQ571 | |||
| KQ517 | |||
| OR065 | |||
| KQ516 | |||
| KQ515 | |||
| KQ504 | |||
| KP504 | |||
| KP504-E | |||
| KP18-1 | |||
| SK221 | |||
| KP505-1 | |||
| SK270 | 2 | ||
| SM303B | 2 | ||
| KP505-A | |||
| KQ501-C | |||
| SK250*2 | SK250*2 | ||
| KP46*2 | KP46*2 | ||
| WK01*2 | WK01*2 | ||
| KP43*2 | KP43*2 | ||
| SK216*2 | SK216*2 | ||
| PM217*2 | PM217*2 | ||
| SM303B*2 | SM303B*2 | ||
| SK270*2 | SK270*2 |
Page 11 — KQ
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KQ549A | |||
| WM40H | |||
| SM430 | |||
| SK225*2 | 2 | ||
| KF508 | |||
| KF205 | |||
| WMC07 | |||
| KF206 | |||
| KQ570 | |||
| KQ564 | |||
| SM402 | 2 | ||
| OR060 | |||
| KQ559 | |||
| EM050 | |||
| KQ522 | |||
| KQ521 | |||
| KQ527 | |||
| KQ550 | |||
| SM627 | |||
| SK809 | 2 | ||
| SK270 | |||
| KQ210 | |||
| KQ212 | |||
| WM103 | |||
| SK212 | |||
| KQ531 | |||
| KQ529 | |||
| KQ537 | |||
| KQ540A | |||
| SM4063 | 2 | ||
| KQ546A | |||
| SM430 | |||
| WM40H | |||
| KQ542 | |||
| KQ543 | |||
| KQ35 | |||
| KQ541 | |||
| H515 | |||
| SK230 | |||
| SK230 | |||
| D5XX | |||
| D5XX | |||
| SM340 | |||
| SK563 | |||
| KQ552 | |||
| KQ519*2 | 2 | ||
| KQ557 | |||
| SM433 | |||
| KQ549A-A | P+Q=KQ549A-A | ||
| KF508-E | KF508-E | ||
| KQ564-E | KQ564-E | ||
| SM402*2 | SM402*2 | ||
| KQ559-E | KQ559-E | ||
| KQ210-E | KQ210-E | ||
| KQ531-C | KQ531-C | ||
| KQ521-A | KQ521-A | ||
| SM4063*2 | SM4063*2 | ||
| D5XX-E | D5XX-E | ||
| SK809*2 | SK809*2 |
Page 12 — SIRUBA 700KS KR • Use For 504-M-3-03
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KM17 | |||
| SK270 | |||
| KR204 | |||
| SM627 | |||
| KR403 | |||
| KR202 | |||
| SK270 | |||
| KR204 | |||
| KR505 | |||
| OS2150 | |||
| SK270 | |||
| KR311 | |||
| SM4407 | |||
| KR503 | |||
| KR22 | |||
| KR206 | |||
| SK269 | |||
| WM401 | |||
| SK246 | |||
| KR23 | |||
| KR52 | |||
| KR56 | |||
| SK261 | |||
| KR55 | |||
| KR46 | |||
| SK221 | |||
| KR43 | |||
| KR204-E | KR204-E | ||
| KR202-E | KR202-E | ||
| KR311-C | KR311-C | ||
| KR311-E | KR311-E | ||
| KR206-A | KR206-A | ||
| KR506 | KR506(FOR M-3-03) | ||
| KR46-A | KR46-A | ||
| KR46-A1 | KR46-A1 |
Page 13 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM543 | |||
| NM511 | |||
| KS216L | |||
| KS216L-E | |||
| SK257 | 2 | ||
| KS210 | |||
| KS211 | |||
| SM870 | |||
| KS212 | |||
| KFT618 | |||
| KFT601 | |||
| SK279B | |||
| KFT599-E | |||
| KFT599-1 | |||
| SK506*2 | 2 | ||
| PM310 | |||
| KS230 | |||
| KS317-E | |||
| KS317 | |||
| OR12A | |||
| KS314A-E | |||
| KS314A | |||
| KS242 | |||
| OR12C | |||
| OR12A | |||
| KS313 | |||
| KS312-E | |||
| PM312 | |||
| KS26-3 | |||
| KS312 | |||
| SK270 | |||
| SM511 | |||
| KS214 | |||
| KS22 | |||
| KS22-E | |||
| SK270 | |||
| KS502 | |||
| KS208 | |||
| KS206K-N | |||
| SM4022 | 2 | ||
| KS206K | |||
| KS63 | |||
| KS201 | |||
| KS24 | |||
| KS206K-A | |||
| SK357 | |||
| PXXX-A | |||
| SK257*2 | SK257*2 | ||
| KS270 | KS270 | ||
| SM4022*2 | SM4022*2 |
Page 14 — KT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| VL186 | |||
| OR30A | |||
| SK273 | 3 | ||
| KT14-A | |||
| KT509 | |||
| KT539 | |||
| SK335 | |||
| SG105 | 2 | ||
| OT628 | |||
| KT24 | |||
| KT227 | |||
| SK304 | 2 | ||
| KT532 | |||
| OT610 | |||
| OT610-A | |||
| KT227 | |||
| KT505 | |||
| SG103 | |||
| OT528 | |||
| ALT104S | |||
| KT507 | |||
| KT502A | |||
| KT201 | |||
| SM502B | |||
| KT205 | |||
| ML09 | |||
| VL07 | |||
| ML07 | |||
| VL09 | |||
| JA201 | |||
| SG104 | |||
| OT533 | |||
| KT208 | |||
| KT209 | |||
| KT211 | |||
| KT210 | |||
| SV4057 | 3 | ||
| SK335 | 2 | ||
| OT611 | |||
| SG105 | 2 | ||
| KT501 | |||
| SK262 | |||
| KT58 | |||
| KT57 | |||
| KT503 | |||
| SK310 | |||
| OS4140 | |||
| V337 | ML186-E | ||
| SK273*3 | OR30A | ||
| SK304*2 | |||
| KT224 | |||
| SG105*2 | |||
| OT528-A | |||
| KT501-A | |||
| KT539-A | |||
| KT502A-C | |||
| KT502A-A | |||
| KT201-E | |||
| SV4057*3 | |||
| SK335*2 |
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KU504 | |||
| KU503-A | |||
| KU503 | |||
| OR04A | 2 | ||
| KU505 | |||
| SM149 | 2 | ||
| KU71 | 2 | ||
| KU506 | 2 | ||
| KU62 | 2 | ||
| KU68 | 2 | ||
| SM1657 | 2 | ||
| KU69 | |||
| KU501-A | |||
| KU74 | |||
| KU26 | |||
| KU502 | |||
| KU501 | |||
| KU67 | |||
| SK219*2 | 2 | ||
| OR04A*2 | OR04A*2 | ||
| SM149*2 | SM149*2 | ||
| KU71*2 | KU71*2 | ||
| KU506*2 | KU506*2 | ||
| KU62*2 | KU62*2 | ||
| KU68*2 | KU68*2 | ||
| SM1657*2 | SM1657*2 |
Page 16 — KU60-E, KU49-E, KU220-E
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SK329 | |||
| SK367 | |||
| KU60-13 | |||
| KU60-9 | |||
| KU60-11 | |||
| KU60-14 | |||
| KU60-A | |||
| KU60-10 | |||
| KU60-6 | |||
| KU60-2 | |||
| SK442 | |||
| SK250 | |||
| KU60-1 | |||
| KU60-7 | |||
| KU60-12 | |||
| KU60-13 | |||
| KU60-8 | |||
| KU60-5 | |||
| SK233N | |||
| KU59- | |||
| KU46 | |||
| KU53 | |||
| SK221N | |||
| KU49 | |||
| KU51 | |||
| SK230 | |||
| SK266 | |||
| KP46 | |||
| KU220 | |||
| KU221 | |||
| SK257N | |||
| NK26 | |||
| KU34 | |||
| KU35 | |||
| SK239 | |||
| SK246 | 2 | ||
| WK09 | 2 | ||
| WK06-1 | WK06-1 | ||
| KU220-E | KU220-E | ||
| SK246*2 | SK246*2 | ||
| WK09*2 | WK09*2 |
Page 17 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KW36B | |||
| SM6200 | 2 | ||
| KW05B | 2 | ||
| SW01 | 2 | ||
| KW26E | |||
| NK31B*2 | 2 | ||
| KW01E | |||
| SM4655 | |||
| SM4654 | |||
| KW14E | |||
| NK29B | 2 | ||
| NM514 | 2 | ||
| KW17B | |||
| SM5060*2 | 2 | ||
| KW43 | |||
| KW20E | |||
| SM4655 | |||
| SM4655 | |||
| NK29B | 2 | ||
| KW25 | |||
| SM4656 | |||
| KW22 | |||
| SK422 | |||
| KW13E*3 | 3 | ||
| KW09B | 3 | ||
| KW16*3 | 3 | ||
| KW12E | 3 | ||
| SW04 | 3 | ||
| NK29B | |||
| NK29B | 3 | ||
| KW04E | |||
| KW02E | |||
| WK25B | |||
| WMG10 | |||
| NK30B | |||
| KW32E | 3 | ||
| SM6200*2 | SM6200*2 | ||
| KW05B*2 | KW05B*2 | ||
| SW01*2 | SW01*2 | ||
| KW32E*3 | KW32E*3 | ||
| NM514*2 | NM514*2 | ||
| KW09B*3 | KW09B*3 | ||
| KW12E*3 | KW12E*3 | ||
| SW04*3 | SW04*3 | ||
| NK29B*3 | NK29B*3 | ||
| NK29B*2 | NK29B*2 |
Page 18 — SIRUBA PARTS LIST KW40E-4
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KW36B | |||
| SM6200 | 4 | ||
| KW05B | 4 | ||
| KW26E | |||
| NK31B | 4 | ||
| KW32E | 4 | ||
| KW01E | |||
| SW01 | 4 | ||
| SM4655 | |||
| KW28E | |||
| SM4654 | |||
| KW14E | |||
| NK29B | 2 | ||
| NM514 | 2 | ||
| KW17B | |||
| SM5060 | 2 | ||
| KW43 | |||
| KW20E | |||
| SM4655 | |||
| SM4655 | |||
| SM4656 | |||
| SK422 | |||
| KW22 | |||
| KW13E | 4 | ||
| KW09B | 4 | ||
| KW16*4 | 4 | ||
| KW12E | 4 | ||
| SW04*4 | 4 | ||
| NK29B | |||
| NK29B | 4 | ||
| KW04E | |||
| NK29B | 2 | ||
| KW25 | |||
| KW02E | |||
| WK25B | |||
| WMG10 | |||
| NK30B | |||
| KW29E | |||
| KW40E-4 | KW40E-4 | ||
| SM5200*4 | SM5200*4 | ||
| KW05B*4 | KW05B*4 | ||
| NK31B*4 | NK31B*4 | ||
| SW01*4 | SW01*4 | ||
| KW32E*4 | KW32E*4 | ||
| NM514*2 | NM514*2 | ||
| NK29B*2 | NK29B*2 | ||
| SM5060*2 | SM5060*2 | ||
| KW13E*4 | KW13E*4 | ||
| KW09B*4 | KW09B*4 | ||
| KW12E*4 | KW12E*4 | ||
| NK29B*4 | NK29B*4 |
Page 19 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KW36B | |||
| SM6200 | 4 | ||
| KW05B | 4 | ||
| KW26E | |||
| NK31B | 4 | ||
| KW32E | 5 | ||
| KW01E | |||
| SW01 | 4 | ||
| SM4655 | |||
| KW28E | |||
| SM4654 | |||
| KW14E | |||
| NK29B | 2 | ||
| NM514*2 | 2 | ||
| KW17B | |||
| SM5060 | 2 | ||
| KW43 | |||
| SM4655 | |||
| KW20E | |||
| SM4655 | |||
| NK29B | 2 | ||
| KW23 | |||
| SM4656 | |||
| SK422 | |||
| KW22 | |||
| KW13E | 5 | ||
| KW09B | 5 | ||
| KW16 | 5 | ||
| KW12E | 5 | ||
| SW04 | 5 | ||
| NK29B | 5 | ||
| NK29B | |||
| KW04E | |||
| WK25B | |||
| WMG10 | |||
| NK30B | |||
| KW02E | |||
| KW29E | |||
| SM6200*4 | SM6200*4 | ||
| KW05B*4 | KW05B*4 | ||
| SW01*4 | SW01*4 | ||
| NK31B*4 | NK31B*4 | ||
| KW32E*5 | KW32E*5 | ||
| NK29B*2 | NK29B*2 | ||
| SM5060*2 | SM5060*2 | ||
| KW13E*5 | KW13E*5 | ||
| KW09B*5 | KW09B*5 | ||
| KW16*5 | KW16*5 | ||
| KW12E*5 | KW12E*5 | ||
| SW04*5 | SW04*5 | ||
| NK29B*5 | NK29B*5 |
Page 20 — Overlock KW
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KW36B | |||
| SM6200 | 4 | ||
| KW05B | 4 | ||
| KW26E | |||
| NK31B | 4 | ||
| KW32E | 6 | ||
| SW01 | 4 | ||
| SM4655 | |||
| KW26E | |||
| KW01E | |||
| SM4654 | |||
| KW14E | |||
| NK29B | 2 | ||
| NM514 | 2 | ||
| KW17B | |||
| SM5060 | 2 | ||
| KW43 | |||
| KW20E | |||
| SM4655 | |||
| SM4655 | |||
| KW23 | |||
| NK29B | 2 | ||
| SM4656 | |||
| SK422 | |||
| KW22 | |||
| KW13E | 6 | ||
| KW09B | 6 | ||
| KW16 | 6 | ||
| KW12E | 6 | ||
| KW04E | 2 | ||
| SW04 | 6 | ||
| NK29B | 2 | ||
| NK29B | 6 | ||
| WK25B | |||
| WMG10 | |||
| NK30B | |||
| KW02E | |||
| SM4656 | |||
| SK422 | |||
| KW24 |
Page 21 — KX04F-A5
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KX05 | 4 | ||
| KX206 | 8 | ||
| KX203 | 2 | ||
| KX02 | 2 | ||
| KX501 | |||
| WM850 | 4 | ||
| WM800 | 4 | ||
| WM800 | 4 | ||
| WM810 | 4 | ||
| KX04F | 4 | ||
| KX04F-A5 | |||
| KX10E | |||
| WK21 | 4 | ||
| SK391 | 3 | ||
| SK392 | 4 | ||
| KX12E | |||
| KX13E | |||
| KX10E-A |
Page 22 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KY01-1 | |||
| KY02F-A | |||
| KY03 | |||
| KY04 | |||
| KY14 | |||
| KY201JK | |||
| KY30 | |||
| LY33 | |||
| KY18 | |||
| SK216 | |||
| KT14-A | |||
| KZ03 | |||
| 針 | 4 | ||
| LY35 | |||
| KR55 | |||
| KY21-A/MY21-A |
Page 23
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KZ504 | KZ504 | CASE | |
| KZ503 | KZ503 | CASE | |
| KZ503-A | KZ503-A | CASE | |
| KZ501S | KZ501S | BOX |
Page 26 — TABLE CUT - OUT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 700KS/T | TABLE CUT - OUT | ||
| 700KS-T2 | Semi-submerged installation |
Siruba 700KS — parts catalog
- Page 1 (parts_list): This page lists parts for the SIRUBA GAGE PARTS LIST, Series 700KS, with models 737KS and 747KS. It includes part numbers, names, and remarks for various components like Needle Plate, Feed Dog, Presser Foot, Crank, Upper Looper, Lower Looper, and Needle.
- Page 2 (diagram): This page displays a diagram of the KA group of parts for the Siruba 700KS sewing machine, including various screws, pins, and covers.
- Page 3 (diagram): This page displays a diagram of parts for the SIRUBA 700KS KB series, including part numbers like KB502, SM6300*2, KB218*2, KA504, SK257*2, KA512, KA507, KA506, SK507*4, SK675, and KB208.
- Page 4 (diagram): This page displays a diagram of the Siruba 700KS sewing machine, specifically focusing on the KC parts group. It illustrates various components and their assembly, with part numbers and references clearly labeled.
- Page 5 (diagram): This page displays a diagram of parts for the Siruba 700KS sewing machine, specifically for the KD parts group. It includes part numbers, names, and visual representations of various components.
- Page 6 (diagram): This page displays a diagram of parts for the Siruba 700KS sewing machine, specifically focusing on the KF parts group. It includes part numbers, names, and visual representations of various components.
- Page 7 (diagram): This page displays a diagram of sewing machine parts for the Siruba 700KS, KG series, with various components labeled with part numbers and reference numbers, and a table indicating part numbers for models #3 and #4.
- Page 8 (diagram): This page displays a diagram of parts for the Siruba 700KS sewing machine, specifically for the KJ parts group, with part numbers and references indicated. It also includes a table listing part numbers and their corresponding models.
- Page 9 (diagram): This page contains a diagram of various machine parts for the Siruba 700KS, specifically focusing on the KL series components. It includes part numbers and visual representations of the parts.
- Page 10 (diagram): This page displays a diagram of parts for the Siruba 700KS sewing machine, specifically for the KP parts group. It includes various components like levers, shafts, springs, and screws, each labeled with a part number and reference.
- Page 11 (diagram): This page displays a diagram of various machine parts for the Siruba 700KS sewing machine, including part numbers like KQ549A-A, KF508-E, and KQ564-E, along with associated components and reference labels.
- Page 12 (diagram): This page displays a diagram of various machine parts for the Siruba 700KS, specifically focusing on the KR group of components. It includes part numbers, reference numbers, and some descriptive text for each component shown.
- Page 13 (diagram): This page displays a diagram of parts for the SIRUBA 700KS sewing machine, specifically for the KS parts group. It includes various components labeled with part numbers and reference indicators.
- Page 14 (diagram): This page displays a diagram of parts for the Siruba 700KS sewing machine, specifically focusing on the KT parts group. It includes various components like screws, tubes, and housings, with their corresponding part numbers and reference indicators.
- Page 15 (diagram): This page displays a diagram of parts for the SIRUBA 700KS KU series, including components like KU504, KU503-A, KU71*2, KU68*2, SM1657*2, KU69, KU502, KU74, KU26, KU501-A, KU501, KU67, SK219*2, KU506*2, SM149*2, OR04A*2, and KU505.
- Page 16 (diagram): This page displays a diagram of sewing machine parts for the KU group, including various screws, brackets, and plates, with part numbers and reference indicators.
- Page 17 (diagram): This page displays a diagram of various machine parts for the Siruba Overlock MO6800 series, including components like KW36B, KW26E, KW01E, SM4654, KW14E, NK29B, SM5060, KW43, KW25, KW02E, WK25B, WMG10, NK30B, KW04E, NK29B, SW04, NK29B, KW16E, KW12E, KW09B, KW13E, KW22, SK422, and SM4656.
- Page 18 (diagram): This page displays a diagram of parts for the SIRUBA Overlock KW MO6800 series sewing machine, specifically part group KW, page 2/4.
- Page 19 (diagram): This page displays a diagram of parts for the Siruba Overlock MO6800 series sewing machine, specifically part group KW, page 3/4.
- Page 20 (diagram): This page displays a diagram of various parts for the Siruba Overlock MO6800 series sewing machine, including part numbers and their corresponding labels within the diagram.
- Page 21 (diagram): This page displays a diagram of parts for the Siruba 700KS sewing machine, specifically for the KX parts group, with part numbers and quantities indicated.
- Page 22 (parts_list): This page is a parts list for the SIRUBA 700KS sewing machine, detailing various parts with their respective part numbers and descriptions.
- Page 23 (parts_list): This page lists parts for the SIRUBA 700KS KZ series, showing diagrams of various components including a sewing machine head, casings, and boxes.
- Page 24 (diagram): This page contains a diagram of the Siruba 700KS/T table cut-out with various dimensions and part references.
- Page 25 (diagram): This page contains a diagram of the SIRUBA 700KS/T TABLE CUT - OUT, with dimensions and specifications.
- Page 26 (diagram): This page contains a diagram of the Siruba 700KS/T TABLE CUT - OUT machine, with various dimensions and part callouts indicated.
- Page 27 (diagram): This page contains a diagram of the table cut-out for the SIRUBA 700KS/T, 700KS-T3 sewing machine, detailing dimensions and mounting information.
- Page 28 (diagram): This page contains a diagram of the Siruba 700KS/T table cut-out with dimensions and specifications including unit, tolerance, and weight.
- Page 29 (diagram): This page contains a diagram of the table cut-out for the Siruba 700KS/T, 700KS-T5 sewing machine, including dimensions and mounting information.
