Siruba C007J / C007JD Parts Book (PDF)
Text index — Siruba C007J / C007JD
Page 2 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C007J-W121 /CH | M5356 | E 3816P | 356 |
| C007J-W121 /CH | M5364 | E 3817P | 364 |
| C007J-W121 /CH | D4206 | H4458 | 356 |
| C007J-W121 /CH | D4207 | H4459 | 364 |
| C007J-W121 /CH | P2446-A | MH41 | 356 |
| C007J-W121 /CH | P2447-A | MT01 | 364 |
| C007J-W121 /CH | UY128GAS #10 | MH41 | 356 |
| C007J-W121 /CH | UY128GAS #10 | MT01 | 364 |
| C007J-U121 /CH | M5356 | E 3816P | 356 |
| C007J-U121 /CH | M5364 | E 3817P | 364 |
| C007J-U121 /CH | D4206 | H4458 | 356 |
| C007J-U121 /CH | D4207 | H4459 | 364 |
| C007J-U121 /CH | P2446-A | MT01 | 356 |
| C007J-U121 /CH | P2447-A | MT01 | 364 |
| C007J-U121 /CH | UY128GAS #10 | MT01 | 356 |
| C007J-U121 /CH | UY128GAS #10 | MT01 | 364 |
| C007J-U121 CH/UTP(UTR) | M5356 | E 3816P | 356 |
| C007J-U121 CH/UTP(UTR) | M5364 | E 3817P | 364 |
| C007J-U121 CH/UTP(UTR) | D4206 | H4458 | 356 |
| C007J-U121 CH/UTP(UTR) | D4207 | H4459 | 364 |
| C007J-U121 CH/UTP(UTR) | P2446-A | MT01 | 356 |
| C007J-U121 CH/UTP(UTR) | P2447-A | MT01 | 364 |
| C007J-U121 CH/UTP(UTR) | UY128GAS #10 | MT01 | 356 |
| C007J-U121 CH/UTP(UTR) | UY128GAS #10 | MT01 | 364 |
| C007J-W122 /CH | M5240 | E 3524P | 240 |
| C007J-W122 /CH | M5248 | E3525P | 248 |
| C007J-W122 /CH | M5356 | E 3826S | 256 |
| C007J-W122 /CH | M5356 | E 3826P | 356 |
| C007J-W122 /CH | M5364 | E 3827P | 364 |
| C007J-W122 /CH | D4206 | H4458 | 240 |
| C007J-W122 /CH | D4206 | H4458 | 248 |
| C007J-W122 /CH | D4206 | H4458 | 256 |
| C007J-W122 /CH | D4206 | H4458 | 356 |
| C007J-W122 /CH | D4207 | H4459 | 364 |
| C007J-W122 /CH | P2544-A | MH41 | 240 |
| C007J-W122 /CH | P2545-A | MT01 | 248 |
| C007J-W122 /CH | P2446-A | MT01 | 256 |
| C007J-W122 /CH | P2446-A | MT01 | 356 |
| C007J-W122 /CH | P2447-A | MT01 | 364 |
| C007J-W122 /CH | UY128GAS #10 | MT01 | 240 |
| C007J-W122 /CH | UY128GAS #10 | MT01 | 248 |
| C007J-W122 /CH | UY128GAS #10 | MT01 | 256 |
| C007J-W122 /CH | UY128GAS #10 | MT01 | 356 |
| C007J-W122 /CH | UY128GAS #10 | MT01 | 364 |
| C007J-U122 /CH | M5240 | E 3524P | 240 |
| C007J-U122 /CH | M5248 | E3525P | 248 |
| C007J-U122 /CH | M5356 | E 3826S | 256 |
| C007J-U122 /CH | M5356 | E 3826P | 356 |
| C007J-U122 /CH | D4206 | H4458 | 240 |
| C007J-U122 /CH | D4206 | H4458 | 248 |
| C007J-U122 /CH | D4206 | H4458 | 256 |
| C007J-U122 /CH | D4206 | H4458 | 356 |
| C007J-U122 /CH | P2544-A | MT01 | 240 |
| C007J-U122 /CH | P2545-A | MT01 | 248 |
| C007J-U122 /CH | P2446-A | MT01 | 256 |
| C007J-U122 /CH | P2446-A | MT01 | 356 |
| C007J-U122 /CH | UY128GAS #10 | MT01 | 240 |
| C007J-U122 /CH | UY128GAS #10 | MT01 | 248 |
| C007J-U122 /CH | UY128GAS #10 | MT01 | 256 |
| C007J-U122 /CH | UY128GAS #10 | MT01 | 356 |
Page 3 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5240 | E 3524P | ||
| M5248 | E3525P | ||
| M5356 | E 3826S | ||
| M5364 | E 3826P | ||
| H4458 | P2544-A | ||
| H4458 | P2545-A | ||
| H4458 | P2546-A | ||
| H4459 | P2447-A | ||
| M5356 | E 3826Q | ||
| H4458 | P0216-A | ||
| MT01 | UY128GAS #10 | ||
| M5356 | E 3826Q | ||
| H4458 | P0416-A | ||
| MT01 | UY128GAS #10 | ||
| M5240 | E 3534P | ||
| M5248 | E3535P | ||
| M5356 | E 3836P | ||
| M5364 | E 3837P | ||
| H4458 | P2544-A | ||
| H4458 | P2545-A | ||
| H4458 | P2546-A | ||
| H4459 | P2447-A | ||
| M5240 | E 3534P | ||
| M5248 | E3535P | ||
| M5356 | E 3836P | ||
| M5364 | E 3837P | ||
| H4458 | P2544-A | ||
| H4458 | P2545-A | ||
| H4458 | P2546-A | ||
| H4459 | P2447-A | ||
| M5240 | E 2324P | ||
| M5248 | E2325P | ||
| M5356 | E2326P | ||
| M5364 | E2327P | ||
| H2219 | P2904-A | ||
| H2219 | P2905-A | ||
| H2220 | P2906-A | ||
| H2220 | P2907-A | ||
| M5356 | E 2326P | ||
| M5364 | E2327P | ||
| P2906-A | MH41 | ||
| P2907-A | UY128GAS #10 |
Page 4 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5356 | M5364 | 356 364 | |
| E4326P | E4327P | 356 364 | |
| D3216 | D3217 | 356 364 | |
| H3262 | H3263 | 356 364 | |
| P2416-A | P2417-A | 356 364 | |
| MH41 | MT01 | 356 364 | |
| UY128GAS #10 | UY128GAS #10 | 356 364 | |
| M5356 | M5364 | 356 364 | |
| E4326P | E4327P | 356 364 | |
| D3216 | D3217 | 356 364 | |
| H3262 | H3263 | 356 364 | |
| P2416-A | P2417-A | 356 364 | |
| MT01 | UY128GAS #10 | 356 364 | |
| M5356 | M5364 | 356 364 | |
| E4326P | E4327P | 356 364 | |
| D3216 | D3217 | 356 364 | |
| H3262 | H3263 | 356 364 | |
| P2416-A | P2417-A | 356 364 | |
| MH41 | MT01A | 240 248 356 364 | |
| TV*5 #14~16 | TV*5 #14~16 | 240 248 356 364 | |
| M5240 | M5248 M5356 M5364 | 240 248 356 364 | |
| E3544 | E3545 E3846 E3847 | 240 248 356 364 | |
| D4206 | D4206 D4206 D4207 | 240 248 356 364 | |
| H4458 | H4458 H4458 H4459 | 240 248 356 364 | |
| P2544-A | P2545-A P2446-A P2447-A | 240 248 356 364 | |
| MT01A | TV*5 #14~16 | 240 248 356 364 | |
| M5240 | M5248 M5356 M5364 | 240 248 356 364 | |
| E3544 | E3545 E3846 E3847 | 240 248 356 364 | |
| D4206 | D4206 D4206 D4207 | 240 248 356 364 | |
| H4458 | H4458 H4458 H4459 | 240 248 356 364 | |
| P2544-A | P2545-A P2446-A P2447-A | 240 248 356 364 | |
| MH41 | MT01A | 240 248 356 364 | |
| TV*5 #14~16 | TV*5 #14~16 | 240 248 356 364 |
Page 5 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 針 座 | M5240 | NEEDLE CLAMP | 240 |
| 針 座 | M5248 | NEEDLE CLAMP | 248 |
| 針 座 | M5356 | NEEDLE CLAMP | 356 |
| 針 座 | M5364 | NEEDLE CLAMP | 364 |
| 針 板 | E4124P | NEEDLE PLATE | |
| 針 板 | E4125P | NEEDLE PLATE | |
| 針 板 | E4426P | NEEDLE PLATE | |
| 針 板 | E4427P | NEEDLE PLATE | |
| 主送具 | D3216 | MAIN FEED DOG | |
| 主送具 | D3216 | MAIN FEED DOG | |
| 主送具 | D3216 | MAIN FEED DOG | |
| 主送具 | D3217 | MAIN FEED DOG | |
| 差送具 | H3362 | DIFF. FEED DOG | |
| 差送具 | H3362 | DIFF. FEED DOG | |
| 差送具 | H3362 | DIFF. FEED DOG | |
| 差送具 | H3363 | DIFF. FEED DOG | |
| 押 具 | P1814-A | PRESSER FOOT | |
| 押 具 | P1815-A | PRESSER FOOT | |
| 押 具 | P2116-A | PRESSER FOOT | |
| 押 具 | P2117-A | PRESSER FOOT | |
| 上 叉 | MH41 | SPREADER | |
| 勾 | MTO1 | LOOP | |
| 針 號 | UY128GAS #10 | NEEDLE | |
| 針 座 | M5356 | NEEDLE CLAMP | 256 |
| 針 板 | E2326Q | NEEDLE PLATE | |
| 主送具 | D2110 | MAIN FEED DOG | |
| 差送具 | H2220Q | DIFF. FEED DOG | |
| 押 具 | P2906Q-A | PRESSER FOOT | |
| 上 叉 | MH41 | SPREADER | |
| 勾 | MTO1A | LOOP | |
| 針 號 | TV*5 #14 | NEEDLE | |
| 針 座 | M5356 | NEEDLE CLAMP | 356 |
| 針 座 | M5364 | NEEDLE CLAMP | 364 |
| 針 板 | E2826P | NEEDLE PLATE | |
| 針 板 | E2827P | NEEDLE PLATE | |
| 主送具 | D2107L | MAIN FEED DOG | |
| 主送具 | D2107L | MAIN FEED DOG | |
| 差送具 | H3259M | DIFF. FEED DOG | |
| 差送具 | H3259M | DIFF. FEED DOG | |
| 押 具 | P2456-A | PRESSER FOOT | |
| 押 具 | P2457-A | PRESSER FOOT | |
| 上 叉 | MH41 | SPREADER | |
| 勾 | MTO1 | LOOP | |
| 針 號 | UY128GAS #10 | NEEDLE | |
| 針 座 | M5356 | NEEDLE CLAMP | 356 |
| 針 座 | M5364 | NEEDLE CLAMP | 364 |
| 針 板 | E2826P | NEEDLE PLATE | |
| 針 板 | E2827P | NEEDLE PLATE | |
| 主送具 | D2107L | MAIN FEED DOG | |
| 主送具 | D2107L | MAIN FEED DOG | |
| 差送具 | H3259M | DIFF. FEED DOG | |
| 差送具 | H3259M | DIFF. FEED DOG | |
| 押 具 | P2456-A | PRESSER FOOT | |
| 押 具 | P2457-A | PRESSER FOOT | |
| 勾 | MTO1 | LOOP | |
| 針 號 | UY128GAS #10 | NEEDLE | |
| 針 座 | M5356 | NEEDLE CLAMP | 356 |
| 針 座 | M5364 | NEEDLE CLAMP | 364 |
| 針 板 | E2826P | NEEDLE PLATE | |
| 針 板 | E2827P | NEEDLE PLATE | |
| 主送具 | D2107L | MAIN FEED DOG | |
| 主送具 | D2107L | MAIN FEED DOG | |
| 差送具 | H3259M | DIFF. FEED DOG | |
| 差送具 | H3259M | DIFF. FEED DOG | |
| 押 具 | P2456-A | PRESSER FOOT | |
| 押 具 | P2457-A | PRESSER FOOT | |
| 上 叉 | MH41 | SPREADER | |
| 勾 | MTO1 | LOOP | |
| 針 號 | UY128GAS #10 | NEEDLE | |
| 針 座 | M5356 | NEEDLE CLAMP | 356 |
| 針 座 | M5364 | NEEDLE CLAMP | 364 |
| 針 板 | E2826P | NEEDLE PLATE | |
| 針 板 | E2827P | NEEDLE PLATE | |
| 主送具 | D2107L | MAIN FEED DOG | |
| 主送具 | D2107L | MAIN FEED DOG | |
| 差送具 | H3259M | DIFF. FEED DOG | |
| 差送具 | H3259M | DIFF. FEED DOG | |
| 押 具 | P2456-A | PRESSER FOOT | |
| 押 具 | P2457-A | PRESSER FOOT | |
| 勾 | MTO1 | LOOP | |
| 針 號 | UY128GAS #10 | NEEDLE |
Page 6 — CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5356 M5364 | NEEDLE CLAMP | ||
| E2626P E2627P | NEEDLE PLATE | ||
| D2107 | MAIN FEED DOG | ||
| H3159 | DIFF. FEED DOG | ||
| P2456-A P2457-A | PRESSER FOOT | ||
| MH41 | SPREADER | ||
| MT01 | LOOPER | ||
| UY128GAS #10 | NEEDLE |
Page 7 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5232 | E 3523R | 232 | |
| M5240 | E 3524R | 240 | |
| M5356 | E 3826R | 356 | |
| M5364 | E 3827R | 364 | |
| M5240 | E 3524R | 240 | |
| M5356 | E 3826R | 356 | |
| M5364 | E 3827R | 364 | |
| M5356 | E6426R | 356 | |
| M5364 | E6427R | 364 | |
| M5356 | E6426R | 356 | |
| M5364 | E6427R | 364 | |
| M5232 | E6423R | 232 | |
| M5356 | E6426R | 356 | |
| M5364 | E6427R | 364 | |
| M5356 | E6426R | 356 | |
| M5364 | E6427R | 364 | |
| M5456 | E1828P | 456 | |
| M5464 | E1848P | 464 | |
| M5456 | E1828P | 456 | |
| M5464 | E1848P | 464 | |
| M5456 | E1828P | 456 | |
| M5464 | E1848P | 464 |
Page 8 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5248 | E0215R | ||
| M5356 | E0216R | ||
| M5364 | E0217R | ||
| M5248 | E0215Q | ||
| M5356 | E0216Q | ||
| M5364 | E0217Q | ||
| M5248 | E0215R | ||
| M5356 | E0216R | ||
| M5364 | E0217R | ||
| M5248 | E0215Q | ||
| M5356 | E0216Q | ||
| M5364 | E0217Q | ||
| M5248 | E0215R | ||
| M5356 | E0216R | ||
| M5364 | E0217R | ||
| M5248 | E0215Q | ||
| M5356 | E0216Q | ||
| M5364 | E0217Q | ||
| M5248 | E0215R | ||
| M5356 | E0216R | ||
| M5364 | E0217R | ||
| M5248 | E0215Q | ||
| M5356 | E0216Q | ||
| M5364 | E0217Q | ||
| M5232 | E0223R | ||
| M5248 | E0225R | ||
| M5356 | E0226R | ||
| M5364 | E0227R | ||
| M5248 | E0225Q | ||
| M5356 | E0226Q | ||
| M5364 | E0227Q | ||
| M5248 | E0225R | ||
| M5356 | E0226R | ||
| M5364 | E0227R | ||
| M5248 | E0225Q | ||
| M5356 | E0226Q | ||
| M5364 | E0227Q |
Page 9 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5248 | E0225R | 248 | |
| M5356 | E0226R | 356 | |
| M5364 | E0227R | 364 | |
| M5248 | E0225Q | 248 | |
| M5356 | E0226Q | 356 | |
| M5364 | E0227Q | 364 | |
| M5248 | E0225R | 248 | |
| M5356 | E0226R | 356 | |
| M5364 | E0227R | 364 | |
| M5248 | E0225Q | 248 | |
| M5356 | E0226Q | 356 | |
| M5364 | E0227Q | 364 | |
| M5248 | E0225R | 248 | |
| M5356 | E0226R | 356 | |
| M5364 | E0227R | 364 | |
| M5248 | E0225Q | 248 | |
| M5356 | E0226Q | 356 | |
| M5364 | E0227Q | 364 | |
| M5248 | E0235R | 248 | |
| M5356 | E0236R | 356 | |
| M5364 | E0237R | 364 | |
| M5248 | E0235Q | 248 | |
| M5356 | E0236Q | 356 | |
| M5364 | E0237Q | 364 | |
| M5248 | E0235R | 248 | |
| M5356 | E0236R | 356 | |
| M5364 | E0237R | 364 | |
| M5248 | E0235Q | 248 | |
| M5356 | E0236Q | 356 | |
| M5364 | E0237Q | 364 |
Page 10 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D2101Q | M5248 | E0235R | 248 |
| D2101Q | M5356 | E0236R | 356 |
| D2101Q | M5364 | E0237R | 364 |
| D2101Q | M5248 | E0235Q | 248 |
| D2101Q | M5356 | E0236Q | 356 |
| D2101Q | M5364 | E0237Q | 364 |
| D2101Q | M5248 | E0235R | 248 |
| D2101Q | M5356 | E0236R | 356 |
| D2101Q | M5364 | E0237R | 364 |
| D2101Q | M5248 | E0225R | 248 |
| D2101Q | M5356 | E0226R | 356 |
| D2101Q | M5364 | E0227R | 364 |
| D2101Q | M5248 | E0235R | 248 |
| D2101Q | M5356 | E0236R | 356 |
| D2101Q | M5364 | E0237R | 364 |
| D2101Q | M5248 | E0225R | 248 |
| D2101Q | M5356 | E0226R | 356 |
| D2101Q | M5364 | E0227R | 364 |
| D2101Q | M5248 | E0235R | 248 |
| D2101Q | M5356 | E0236R | 356 |
| D2101Q | M5364 | E0237R | 364 |
Page 11 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D2101Q | M5248 | E0225R | 248 |
| H2203R | M5356 | E0226R | 356 |
| P0965-A | M5364 | E0227R | 364 |
| P0966-A | M5248 | E0235R | 248 |
| P0967-A | M5356 | E0236R | 356 |
| MT01 | M5364 | E0237R | 364 |
| UY128GAS #10 | M5248 | E0225R | 248 |
| TV*5 #14 | M5356 | E0226R | 356 |
| M5364 | E0227R | 364 | |
| P0965-A | M5248 | E0235R | 248 |
| P0966-A | M5356 | E0236R | 356 |
| P0967-A | M5364 | E0237R | 364 |
Page 12 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5356 M5364 | E 6426P E 6427P | ||
| M5356 M5364 | E 6426P E 6427P | ||
| M5356 M5364 | E 6426P E 6427P | ||
| M5356 M5364 | E 6426P E 6427P | ||
| M5356 M5364 | E 6426P E 6427P | ||
| M5356 M5364 | E 6426P E 6427P |
Page 13 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5356 | E 3816P | ||
| M5364 | E 3817P | ||
| M5356 | E 3816P | ||
| M5364 | E 3817P | ||
| M5356 | E 3816P | ||
| M5364 | E 3817P | ||
| M5240 | E 3524P | ||
| M5248 | E3525P | ||
| M5356 | E 3826S | ||
| M5364 | E 3826P | ||
| M5364 | E 3827P | ||
| M5240 | E 3524P | ||
| M5248 | E3525P | ||
| M5356 | E 3826S | ||
| M5364 | E 3826P | ||
| M5364 | E 3827P |
Page 14 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 240 | M5240 | E 3524P | 240 |
| 248 | M5248 | E 3525P | 248 |
| 256 | M5356 | E 3826S | 256 |
| 356 | M5356 | E 3826P | 356 |
| 364 | M5364 | E 3827P | 364 |
| 356 | P0216-A | MH41 | 356 |
| 356 | P0416-A | MT01 | 356 |
| 240 | P2544-A | MH41 | 240 |
| 248 | P2545-A | MH41 | 248 |
| 356 | P2446-A | MH41 | 356 |
| 364 | P2447-A | MH41 | 364 |
| 240 | P2544-A | MT01 | 240 |
| 248 | P2545-A | MT01 | 248 |
| 356 | P2446-A | MT01 | 356 |
| 364 | P2447-A | MT01 | 364 |
| 240 | E 2324P | D2109 | 240 |
| 248 | E 2325P | D2110 | 248 |
| 356 | E 2326P | D2110 | 356 |
| 364 | E 2327P | D2110 | 364 |
| 240 | P2904-A | MH41 | 240 |
| 248 | P2905-A | MH41 | 248 |
| 356 | P2906-A | MH41 | 356 |
| 364 | P2907-A | MH41 | 364 |
| 356 | E 2326P | D2110 | 356 |
| 364 | E 2327P | D2110 | 364 |
| 356 | P2906-A | MH41 | 356 |
| 364 | P2907-A | MH41 | 364 |
Page 15 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5356 | E4326 | ||
| M5356 | E4326 | ||
| M5356 | E4326 | ||
| M5356 | E4326 | ||
| M5240 | E3544 | ||
| M5240 | E3544 | ||
| M5240 | E3544 | ||
| UY128GAS #10 | UY128GAS #10 | ||
| UY128GAS #10 | UY128GAS #10 | ||
| UY128GAS #10 | UY128GAS #10 | ||
| UY128GAS #10 | UY128GAS #10 | ||
| TV*5 #14~16 | TV*5 #14~16 | ||
| TV*5 #14~16 | TV*5 #14~16 | ||
| TV*5 #14~16 | TV*5 #14~16 |
Page 16 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5240 | E4124P | ||
| M5248 | E4125P | ||
| M5356 | E4426P | ||
| M5364 | E4427P | ||
| M5356 | E2326Q | ||
| M5356 | E2826P | ||
| M5364 | E2827P | ||
| M5356 | E2826P | ||
| M5364 | E2827P | ||
| M5356 | E2826P | ||
| M5364 | E2827P | ||
| M5356 | E2826P | ||
| M5364 | E2827P |
Page 17 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5356 M5364 | NEEDLE CLAMP | 356 364 | |
| E2626P E2627P | NEEDLE PLATE | 356 364 | |
| D2107 | MAIN FEED DOG | 356 364 | |
| H3159 | DIFF. FEED DOG | 356 364 | |
| P2456-A P2457-A | PRESSER FOOT | 356 364 | |
| MH41 | SPREADER | 356 364 | |
| MT01 | LOOPER | 356 364 | |
| UY128GAS #10 | NEEDLE | 356 364 | |
| T501HE | Motor | 356 364 |
Page 18 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| P2914-A | P3216-A | ||
| MH41 | MT01 | ||
| P3414-A | P3716-A | ||
| — | MT01 | ||
| P3816R-A | P3817R-A | ||
| MT01 | UY128GAS #10 | ||
| P3816R-A | P3817R-A | ||
| MT01 | UY128GAS #10 | ||
| P3816R-A | P3817R-A | ||
| MT01 | UY128GAS #10 | ||
| P3816R-A | P3817R-A | ||
| MT01 | UY128GAS #10 | ||
| P2428Q-A | P2448Q-A | ||
| MT01B | SM1014B#10 (MY1014B#70,SY7256) | ||
| P2428Q-A | P2448Q-A | ||
| MT01B | SM1014B#10 (MY1014B#70,SY7256) | ||
| P2428Q-A | P2448Q-A | ||
| MT01B | SM1014B#10 (MY1014B#70,SY7256) |
Page 19 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D2101Q | M5248 | E0215R | 248 |
| H2203R | M5356 | E0216R | 356 |
| MH41 | M5364 | E0217R | 364 |
| — | MH41 | MTO1 | — |
| D2101Q | M5248 | E0215Q | 248 |
| H2203Q | M5356 | E0216Q | 356 |
| MH41 | M5364 | E0217Q | 364 |
| — | MH41 | MTO1 | — |
| D2101Q | M5248 | E0215R | 248 |
| H2203R | M5356 | E0216R | 356 |
| MH41 | M5364 | E0217R | 364 |
| — | MH41 | MTO1 | — |
| D2101Q | M5248 | E0215Q | 248 |
| H2203Q | M5356 | E0216Q | 356 |
| MH41 | M5364 | E0217Q | 364 |
| — | MH41 | MTO1 | — |
| D2101Q | M5248 | E0215R | 248 |
| H2203R | M5356 | E0216R | 356 |
| — | M5364 | E0217R | 364 |
| — | — | MTO1 | — |
| D2101Q | M5248 | E0225Q | 248 |
| H2203Q | M5356 | E0226Q | 356 |
| — | M5364 | E0227Q | 364 |
| — | — | MTO1 | — |
| D2101Q | M5248 | E0225R | 248 |
| H2203R | M5356 | E0226R | 356 |
| MH41 | M5364 | E0227R | 364 |
| — | MH41 | MTO1 | — |
| D2101Q | M5248 | E0225Q | 248 |
| H2203Q | M5356 | E0226Q | 356 |
| MH41 | M5364 | E0227Q | 364 |
| — | MH41 | MTO1 | — |
| D2101Q | M5248 | E0225R | 248 |
| H2203R | M5356 | E0226R | 356 |
| — | M5364 | E0227R | 364 |
| — | — | MTO1 | — |
| D2101Q | M5248 | E0225Q | 248 |
| H2203Q | M5356 | E0226Q | 356 |
| — | M5364 | E0227Q | 364 |
| — | — | MTO1 | — |
Page 20 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D2101Q | M5248 | E0225R | 248 |
| H2203R | M5356 | E0226R | 356 |
| M5364 | E0227R | 364 | |
| D2101Q | M5248 | E0225Q | 248 |
| H2203Q | M5356 | E0226Q | 356 |
| M5364 | E0227Q | 364 | |
| D2101Q | M5248 | E0225R | 248 |
| H2203R | M5356 | E0226R | 356 |
| M5364 | E0227R | 364 | |
| D2101Q | M5248 | E0225Q | 248 |
| H2203Q | M5356 | E0226Q | 356 |
| M5364 | E0227Q | 364 | |
| D2101Q | M5248 | E0225R | 248 |
| H2203R | M5356 | E0226R | 356 |
| M5364 | E0227R | 364 | |
| D2101Q | M5248 | E0225Q | 248 |
| H2203Q | M5356 | E0226Q | 356 |
| M5364 | E0227Q | 364 | |
| D2101Q | M5248 | E0235R | 248 |
| H2203R | M5356 | E0236R | 356 |
| M5364 | E0237R | 364 | |
| D2101Q | M5248 | E0235Q | 248 |
| H2203Q | M5356 | E0236Q | 356 |
| M5364 | E0237Q | 364 | |
| D2101Q | M5248 | E0235R | 248 |
| H2203R | M5356 | E0236R | 356 |
| M5364 | E0237R | 364 | |
| D2101Q | M5248 | E0235Q | 248 |
| H2203Q | M5356 | E0236Q | 356 |
| M5364 | E0237Q | 364 |
Page 21 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D2101Q | MAIN FEED DOG | ||
| H2203R | DIFF. FEED DOG | ||
| MH41 | SPREADER | ||
| MTO1 | LOOPER | ||
| C007JD-W813 | MODEL | 248 356 364 | |
| M5248 | SUB-CLASS | ||
| M5356 | SUB-CLASS | ||
| M5364 | SUB-CLASS | ||
| C007JD-W813A | MODEL | 248 356 364 | |
| M5248 | SUB-CLASS | ||
| M5356 | SUB-CLASS | ||
| M5364 | SUB-CLASS | ||
| C007JD-U813 | MODEL | 248 356 364 | |
| M5248 | SUB-CLASS | ||
| M5356 | SUB-CLASS | ||
| M5364 | SUB-CLASS | ||
| C007JD-U813A | MODEL | 248 356 364 | |
| M5248 | SUB-CLASS | ||
| M5356 | SUB-CLASS | ||
| M5364 | SUB-CLASS | ||
| C007JD-W822 | MODEL | 248 356 364 | |
| M5248 | SUB-CLASS | ||
| M5356 | SUB-CLASS | ||
| M5364 | SUB-CLASS | ||
| C007JD-W823 | MODEL | 248 356 364 | |
| M5248 | SUB-CLASS | ||
| M5356 | SUB-CLASS | ||
| M5364 | SUB-CLASS | ||
| C007JD-U822 | MODEL | 248 356 364 | |
| M5248 | SUB-CLASS | ||
| M5356 | SUB-CLASS | ||
| M5364 | SUB-CLASS | ||
| C007JD-U823 | MODEL | 248 356 364 | |
| M5248 | SUB-CLASS | ||
| M5356 | SUB-CLASS | ||
| M5364 | SUB-CLASS | ||
| C007JD-W822 | MODEL | 248 356 364 | |
| M5248 | SUB-CLASS | ||
| M5356 | SUB-CLASS | ||
| M5364 | SUB-CLASS | ||
| C007JD-W823 | MODEL | 248 356 364 | |
| M5248 | SUB-CLASS | ||
| M5356 | SUB-CLASS | ||
| M5364 | SUB-CLASS | ||
| D2101Q | MAIN FEED DOG | ||
| H2203R | DIFF. FEED DOG | ||
| MH41 | SPREADER | ||
| MTO1 | LOOPER | ||
| D2101Q | MAIN FEED DOG | ||
| H2203R | DIFF. FEED DOG | ||
| MH41 | SPREADER | ||
| MTO1 | LOOPER | ||
| D2101Q | MAIN FEED DOG | ||
| H2203R | DIFF. FEED DOG | ||
| MH41 | SPREADER | ||
| MTO1 | LOOPER | ||
| D2101Q | MAIN FEED DOG | ||
| H2203R | DIFF. FEED DOG | ||
| MH41 | SPREADER | ||
| MTO1 | LOOPER | ||
| D2101Q | MAIN FEED DOG | ||
| H2203R | DIFF. FEED DOG | ||
| MH41 | SPREADER | ||
| MTO1 | LOOPER | ||
| D2101Q | MAIN FEED DOG | ||
| H2203R | DIFF. FEED DOG | ||
| MH41 | SPREADER | ||
| MTO1 | LOOPER | ||
| D2101Q | MAIN FEED DOG | ||
| H2203R | DIFF. FEED DOG | ||
| MTO1 | LOOPER | ||
| D2101Q | MAIN FEED DOG | ||
| H2203R | DIFF. FEED DOG | ||
| MTO1 | LOOPER | ||
| D2101Q | MAIN FEED DOG | ||
| H2203R | DIFF. FEED DOG | ||
| MTO1 | LOOPER | ||
| D2101Q | MAIN FEED DOG | ||
| H2203R | DIFF. FEED DOG | ||
| MTO1 | LOOPER |
Page 22 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5248 | E0225R | ||
| M5356 | E0226R | ||
| M5364 | E0227R | ||
| M5248 | E0235R | ||
| M5356 | E0236R | ||
| M5364 | E0237R | ||
| M5248 | E0225R | ||
| M5356 | E0226R | ||
| M5364 | E0227R | ||
| M5248 | E0235R | ||
| M5356 | E0236R | ||
| M5364 | E0237R |
Page 23 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5356 M5364 | E 6426P E 6427P | ||
| M5356 M5364 | E 6426P E 6427P | ||
| M5248 M5356 M5364 | E 0225R E 0226R E 0227R | ||
| M5248 M5356 M5364 | E 0225R E 0226R E 0227R | ||
| M5248 M5356 M5364 | E 0235R E 0236R E 0237R | ||
| M5248 M5356 M5364 | E 0235R E 0236R E 0237R |
Page 24 — PARTS LIST FOR MF GROUP / PARTS LIST FOR MG GROUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM502 | |||
| MF07 | |||
| MF15 | |||
| SM605 | |||
| SM612 | |||
| MF13 | |||
| SM542 | |||
| MF01-2 | |||
| MF01-3 | |||
| PM213 | |||
| MF01J-1 | |||
| SM801 | 2 | ||
| GMF09 | |||
| SM139 | |||
| SM604 | |||
| MF21-1 | |||
| OR430 | |||
| MD42J | |||
| MF21-2 | |||
| SM602 | |||
| SM602 | |||
| MS05J | |||
| SM602 | |||
| SM604 | |||
| MD41 | |||
| SM602 | 3 | ||
| MF21-1 | |||
| OR430 | |||
| SM602 | |||
| MF21-2 | |||
| SM604 | |||
| SM534 | |||
| WM500 | |||
| SM602 | |||
| SM603 | |||
| MF129 | |||
| MF30*MF130 | |||
| *MF35 | |||
| SM602 | |||
| MG10 | |||
| GMG58 | |||
| KL15 | |||
| MF13 | |||
| GMG57 | |||
| KL20 | |||
| GMG31 | |||
| SM132 | |||
| GMG33 | |||
| GMG35J | |||
| SM435 | |||
| WM510 | |||
| SM511 | |||
| WM400 | |||
| WM400 | |||
| MG05 | |||
| SM132 | |||
| KN40 | |||
| GMG37 | |||
| GKN42 | |||
| KN43 | |||
| KN44 | |||
| GMG01 | |||
| GMG28 | |||
| WM400 | |||
| SM435 | |||
| SM801*2 | SM801*2 | ||
| SM602*3 | SM602*3 | ||
| MF 30 | MF 30 | ||
| *MF 130 | *MF 130 | ||
| GMG28J | GMG28J | ||
| GKNA2 | GKNA2 | ||
| KN64 | KN64 |
Page 25 — PARTS LIST FOR MH GROUP | PARTS LIST FOR MJ GROUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MH54 | |||
| GMH81 | |||
| MH73 | |||
| SM502 | |||
| SM612 | |||
| MH56E | |||
| NM511 | |||
| MH55 | |||
| MH60 | |||
| SM332 | |||
| GMH76 | |||
| SM602 | |||
| MV24 | |||
| WM310 | |||
| MH52E | |||
| GMH16E | |||
| MH50E | |||
| OP101 | 8 | ||
| MH49E | |||
| MH75 | |||
| MH66 | |||
| SM4550 | |||
| MH86 | |||
| MH10D | |||
| MH11 | |||
| MH09J | |||
| MH14D | |||
| OP233 | |||
| SM131 | |||
| SM435 | 2 | ||
| GMH79 | |||
| MH13 | |||
| GMH08 | |||
| SK277 | |||
| MH07D | |||
| MH48 | |||
| MH46 | |||
| OR100 | |||
| KL11 | |||
| MH85 | |||
| SM402 | |||
| SM534 | |||
| SM137 | |||
| MH43 | |||
| MH41 | |||
| MH03K | |||
| MH15 | |||
| EM136 | |||
| M5XXX | |||
| MA91J | |||
| SK216 | |||
| GMH70 | |||
| GMH71 | |||
| MH72 | |||
| SK531 | |||
| GMH05 | |||
| SK219 | |||
| XXXXXXXX | |||
| MJ01 | |||
| MJ21 | |||
| PM410 | |||
| SK253A | |||
| SK270 | |||
| WK01 | |||
| SK519 | |||
| MJ40 | |||
| MJ27 | |||
| MJ27 | |||
| MJ29 | |||
| SK519 | |||
| SK257 | |||
| SK270 | |||
| MJ43 | |||
| MJ41 | |||
| MJ02H | |||
| MJ03 | |||
| MJ22 | |||
| SK251 | |||
| MJ23 | |||
| MJ08 | |||
| SM440 | |||
| PM310 | |||
| SK518 | |||
| MJ06 | |||
| MJ04 | |||
| NM610 | |||
| MJ38 | |||
| SM513 | |||
| NM511 | |||
| MJ37 | |||
| SM432 | |||
| SM532 | |||
| SK265 | |||
| MJ12 | |||
| MJ35H | |||
| MJ34H | |||
| GMJ36H | |||
| SM531 | |||
| SK270 | |||
| OR100 | |||
| MJ32 | |||
| MJ13 | |||
| GMJ14 | |||
| MJ17 | |||
| MJ39 | |||
| SK216 | |||
| MJ15D | |||
| PXXXX | |||
| SK241 | |||
| SM332 | |||
| GMJ18 | |||
| MJ137 | |||
| MJ137 | |||
| KA24 | (For UXXX) | ||
| GMH64 | GMH64 | ||
| MH4550 | MH4550 | ||
| GMH02 | GMH02 | ||
| XXXXXXXXX | XXXXXXXXX | ||
| MJ47 | MJ47 | ||
| MJ26 | MJ26 | ||
| C007J/C007JD/S007K/S007KD | FOR C007J/C007JD/S007K/S007KD | ||
| C007JD/S007KD | * USE FOR C007JD/S007KD |
Page 26 — PARTS LIST FOR MK GROUP / PARTS LIST FOR MN GROUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| GMK35J | |||
| GMK37H | |||
| MK94 | |||
| SM430 | |||
| SM432 | |||
| SM511 | |||
| PM501 | |||
| MK41 | |||
| WM805 | |||
| MK39H | |||
| SM4803 | |||
| MK40 | |||
| SM432 | |||
| MK38H | |||
| SM447 | |||
| VJO1-3 | |||
| GMK28H | |||
| GVK02J | 5 | ||
| GVK10 | 5 | ||
| GMK27H | |||
| VK09-R1(H) | |||
| VK09-E1(H) | |||
| VK09-Y1(H) | |||
| VK09-G1(M) | |||
| VK09-B1(M) | |||
| GVK05 | |||
| GKG07 | |||
| KG08 | |||
| VK09 | |||
| KG06E | |||
| KG02E | |||
| KG05 | |||
| KG04F | |||
| KX05 | |||
| MZ36 | |||
| SM581 | |||
| MN08 | |||
| SM531 | |||
| MN09 | |||
| GMN03 | |||
| KX08 | 2 | ||
| WM850 | |||
| KX08 | |||
| WM810 | |||
| KX04 | |||
| GVK02J*5 | GVK02J*5 | ||
| GVK10*5 | GVK10*5 | ||
| VK09-E1 | VK09-E1 | ||
| VK09-Y1 | VK09-Y1 | ||
| VK09-G1 | VK09-G1 | ||
| VK09-B1 | VK09-B1 | ||
| KX08*2 | KX08*2 |
Page 27 — PARTS LIST FOR MN GROUP / PARTS LIST FOR MQ GROUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MN08 | |||
| SM886 | |||
| SK391 | |||
| GMY29D | |||
| MN09 | |||
| WM800 | |||
| WM810 | |||
| NM810 | |||
| SM480 | |||
| WM641 | |||
| MQ15J | |||
| SM4053 | |||
| GMQ01J | |||
| SM461 | |||
| MQ04H | |||
| MQ05H | |||
| *WM510 | |||
| *WM504 | |||
| *SM513 | |||
| T501HE | |||
| T501PE | |||
| KA33 | |||
| MB08J | |||
| MB35 | |||
| *MB09 | |||
| NM410 | |||
| SM630 | |||
| GMA15E | |||
| MA17 | |||
| KA21 | |||
| KA26 | |||
| MB14 | |||
| SM910 | |||
| PM510 | |||
| KN44 | |||
| KN43 | |||
| GKN42 | |||
| KN40 | |||
| GWP16 | |||
| SM4725 | |||
| MQ21 | |||
| MQ22 | |||
| SM160 | |||
| EXXXXX | |||
| MQ18 | |||
| MB29 | |||
| SM437 | |||
| MQ35 | |||
| PM401 | |||
| SM488 | |||
| EM030 | |||
| MQ19H | |||
| SM131 | |||
| PM402 | |||
| MB29 | |||
| MA03 | |||
| MT06 | |||
| SM446 | |||
| SM151 | |||
| GMQ11J | |||
| MA19J | |||
| MA19 | |||
| SM132 | |||
| SM488 | |||
| MB10J | |||
| MQ21 | |||
| GMQ12J | |||
| KP46 | |||
| SM442 | |||
| SK714 | |||
| MQ32 | |||
| SM447 | |||
| SM5051 | |||
| WM500 | |||
| GMQ34 | |||
| MQ27H | |||
| SK373 | |||
| MQ33 | |||
| SM474 | |||
| SM401 | |||
| SM431 | |||
| WM505 | |||
| GMQ13H | |||
| SM540 | |||
| GMY29D(C007JD/S007KD用) | GMY29D(C007JD/S007KD用) | ||
| SK391(C007JD/S007KD用) | SK391(C007JD/S007KD用) | ||
| WM601 | WM601 |
Page 28 — PARTS LIST FOR MR GROUP / PARTS LIST FOR MS GROUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM132 | SM132 | SCREW | |
| MA09H | MA09H | COVER | |
| GMA07D | GMA07D | BRACKET | |
| KA117 | KA117 | SPRING | |
| MA05J | MA05J | COVER | |
| SM439 | SM439 | SCREW | |
| GMA08JQ | GMA08JQ | BRACKET | |
| GMA108HQ | GMA108HQ | BRACKET | |
| GMA108Q | GMA108Q | BRACKET | |
| MA12J | MA12J | COVER | |
| KC67 | KC67 | KNOB | |
| KC58 | KC58 | WASHER | |
| GMA02J | GMA02J | COVER | |
| GMA102 | GMA102 | COVER | |
| SM4401 | SM4401 | SCREW | |
| KA26 | KA26 | WASHER | |
| MA89 | MA89 | BRACKET | |
| UT815 | UT815 | BRACKET | |
| MR110 | MR110 | BRACKET | |
| SM443 | SM443 | SCREW | |
| PM313 | PM313 | BRACKET | |
| SM314 | SM314 | BRACKET | |
| MA11 | MA11 | COVER | |
| PM210 | PM210 | COVER | |
| MA11-1 | MA11-1 | COVER | |
| GMA11-2 | GMA11-2 | COVER | |
| SM301 | SM301 | SCREW | |
| SM432 | SM432 | SCREW | |
| GMA10J | GMA10J | COVER | |
| MR07J | MR07J | BRACKET | |
| MR112 | MR112 | BRACKET | |
| SM630 | SM630 | SCREW | |
| MR02J | MR02J | BRACKET | |
| MR102-1 | MR102-1 | BRACKET | |
| GMA13E | GMA13E | COVER | |
| MR21 | MR21 | COVER | |
| WM400 | WM400 | WASHER | |
| MR30 | MR30 | BRACKET | |
| MR09J | MR09J | BRACKET | |
| SM402 | SM402 | SCREW | |
| MR08J | MR08J | BRACKET | |
| MR13H | MR13H | BRACKET | |
| SM137 | SM137 | SCREW | |
| MR16H | MR16H | BRACKET | |
| MR12H | MR12H | BRACKET | |
| SM131 | SM131 | SCREW | |
| SM331 | SM331 | SCREW | |
| GMR114H | GMR114H | BRACKET | |
| MR115 | MR115 | PLATE | |
| MR17-1 | MR17-1 | BRACKET | |
| OT622 | OT622 | SHAFT | |
| KP60 | KP60 | WASHER | |
| SM497 | SM497 | SCREW | |
| MR18 | MR18 | BRACKET | |
| MR17D | MR17D | BRACKET | |
| MR29 | MR29 | BRACKET | |
| MB30 | MB30 | COVER | |
| KT57 | KT57 | WASHER | |
| KT58 | KT58 | WASHER | |
| SM430 | SM430 | SCREW | |
| SK310 | SK310 | COVER | |
| KT56 | KT56 | WASHER | |
| WM807 | WM807 | WASHER | |
| SM812 | SM812 | SCREW | |
| MR28 | MR28 | BRACKET | |
| WM807 | WM807 | WASHER | |
| SM812 | SM812 | SCREW | |
| MR216 | MR216 | BRACKET | |
| SM812 | SM812 | SCREW | |
| SM604 | SM604 | SCREW | |
| MS13J | MS13J | PULLEY | |
| SM502 | SM502 | SCREW | |
| MS16J | MS16J | BELT | |
| SM603 | SM603 | SCREW | |
| SM431 | SM431 | SCREW | |
| MS35J | MS35J | PULLEY | |
| SM6007 | SM6007 | PULLEY | |
| MS62H | MS62H | PULLEY | |
| SM502 | SM502 | SCREW | |
| SM604 | SM604 | SCREW | |
| SM603 | SM603 | SCREW | |
| MS114 | MS114 | PULLEY | |
| SM6007 | SM6007 | PULLEY | |
| SM604 | SM604 | SCREW | |
| MD31-E | MD31-E | PULLEY | |
| SM602 | SM602 | SCREW | |
| SM602 | SM602 | SCREW | |
| SM602 | SM602 | SCREW | |
| MD15-1 | MD15-1 | Bearing | |
| OR390 | OR390 | O-ring | |
| FR51D*3 | FR51D*3 | BRACKET | |
| SM501 | SM501 | SCREW | |
| MS06 | MS06 | SHAFT | |
| SM505 | SM505 | SCREW | |
| MS12-4 | MS12-4 | PIN | |
| PM213 | PM213 | PIN | |
| MS12-4 | MS12-4 | PIN | |
| SM501 | SM501 | SCREW | |
| MS12-4 | MS12-4 | PIN | |
| PM213 | PM213 | PIN | |
| MS12-4 | MS12-4 | PIN | |
| MS12-3 | MS12-3 | PIN | |
| WMA01 | WMA01 | SPRING | |
| MS43 | MS43 | SPRING | |
| SK216 | SK216 | BEARING | |
| EM090 | EM090 | BRACKET | |
| GMK08 | GMK08 | BRACKET | |
| SM502 | SM502 | SCREW | |
| MH74 | MH74 | SHAFT | |
| OR20A | OR20A | RING | |
| SM492 | SM492 | SCREW | |
| KP60 | KP60 | WASHER | |
| SM130 | SM130 | SCREW | |
| GMS30 | GMS30 | BRACKET | |
| WM400 | WM400 | WASHER | |
| MS33 | MS33 | SCREW | |
| SM435 | SM435 | SCREW | |
| WM406 | WM406 | WASHER | |
| GMS40 | GMS40 | BRACKET | |
| GMS31J | GMS31J | BRACKET | |
| GMS41 | GMS41 | BRACKET | |
| WM002 | WM002 | WASHER | |
| GMS30 | GMS30 | BRACKET | |
| SM130 | SM130 | SCREW |
Page 29 — PARTS LIST FOR MT GROUP / PARTS LIST FOR MU GROUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MT32 | |||
| MU01 | |||
| MU34-1 | |||
| GMU35-1 | |||
| MS06 | MS08D MS108 | ||
| SM506 | MT16 | ||
| MT17 | SM502 | ||
| MT18D | SM537 | ||
| MT33 | SM30 | ||
| MT106 | SM411 | ||
| SM448 | MT09H | ||
| JA202-1 | JA202 | ||
| OP209 | MT32 | ||
| WM130 | MT10-1 | ||
| MT19 | MT34 | ||
| WA01 | MT11-1 | ||
| MT11 | GMT08D | ||
| NM511 | MT15 | ||
| PM110 | WM500 | ||
| MT13D | SM603 | ||
| MT05H | JA202-1 | ||
| JA202 | OP209 | ||
| MT10-1 | MT19 | ||
| MT34 | WA01 | ||
| MT11-1 | MT11 | ||
| GMT20 | MT20-1 | ||
| MT29D-1 | MT22 | ||
| MT24 | SM110 | ||
| SM144 | MT29D | ||
| GMT27 | SM6100 | ||
| SM612 | MT29D-1 | ||
| MU02 | MU05 | ||
| MU07 | MU16 | ||
| SM490 | SM502 | ||
| MU30 | MU31 | ||
| PM311 | SM533 | ||
| WM400 | MU36 | ||
| MU32 | MU33 | ||
| SM301 | PM403 | ||
| MU06 | MU08 | ||
| MU09 | SM402 | ||
| MU10 | MU11 | ||
| MU12 | EM095 | ||
| MU17H | MU20 | ||
| MU21 | SM451 | ||
| KP39 | SK399 | ||
| SM431 | KP46 | ||
| SM502 | EM253 | ||
| MU05 | MU03 | ||
| SM404 | SM603 | ||
| MU18H | OR160 | ||
| SM603 | MU35-2 | ||
| MU28 | GMU35-1 |
Page 30 — PARTS LIST FOR MV GROUP / PARTS LIST FOR MW GROUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MV01 | |||
| MV03 | |||
| MV05 | |||
| MV08 | |||
| MV56 | |||
| MV60D | |||
| MV09-1 | |||
| MV09-2 | |||
| MV11 | |||
| MV12 | |||
| MV13 | |||
| MV14 | |||
| MV16 | |||
| MV17D | |||
| MV17-1 | |||
| MV19D | |||
| MV20J | |||
| MV21 | |||
| MV22 | |||
| MV22-1 | |||
| MV23 | |||
| MV26 | |||
| MV28 | |||
| MV29H | |||
| MV33H | |||
| MV32D | |||
| MV34 | |||
| MV39 | |||
| MV40 | |||
| MV41 | |||
| MV42 | |||
| MV46 | |||
| MV47 | |||
| MU01 | |||
| MU12 | |||
| ML02 | |||
| ML04 | |||
| ML05J | |||
| ML06J | |||
| ML07J | |||
| ML105 | |||
| ML08J | |||
| SM6104 | |||
| ML49 | |||
| OT626 | |||
| OT534 | |||
| SM133 | SM133 | ||
| SM135 | SM135 | ||
| MV38 | MV38 | ||
| WK11 | WK11 | ||
| PM110 | PM110 | ||
| SM147 | SM147 | ||
| SM050 | SM050 | ||
| PM002 | PM002 | ||
| SK555 | SK555 | ||
| MV27 | MV27 | ||
| WK01 | WK01 | ||
| SK254 | SK254 | ||
| SM432 | SM432 | ||
| GMV18 | GMV18 | ||
| HXXXX | HXXXX | ||
| SM501 | SM501 | ||
| GMV31H | GMV31H | ||
| MV36 | MV36 | ||
| GMV30 | GMV30 | ||
| OP220 | OP220 | ||
| OP225 | OP225 | ||
| GMV37H | GMV37H | ||
| GMV35 | GMV35 | ||
| SM503 | SM503 | ||
| DXXXX | DXXXX | ||
| SM603 | SM603 | ||
| SK576 | SK576 | ||
| SM447 | SM447 | ||
| MB37 | MB37 | ||
| GML186 | GML186 | ||
| OR30A | OR30A | ||
| KT14 | KT14 | ||
| GKT15 | GKT15 | ||
| SM404 | SM404 | ||
| ML09 | ML09 | ||
| ML07 | ML07 | ||
| ML11J | ML11J | ||
| ML12 | ML12 | ||
| ML74 | ML74 | ||
| ML75 | ML75 | ||
| SM4103 | SM4103 | ||
| SM4104 | SM4104 | ||
| SM4050 | SM4050 | ||
| SM401 | SM401 | ||
| *ML104 | *ML104 | ||
| GMW09 | GMW09 | ||
| ML30 | ML30 | ||
| SM431 | SM431 | ||
| ML83 | ML83 | ||
| ML43 | ML43 | ||
| MW10 | MW10 | ||
| OT628 | OT628 | ||
| ML16 | ML16 | ||
| NA03 | NA03 | ||
| OT624 | OT624 | ||
| MW05 | MW05 | ||
| SK312 | SK312 | ||
| *OT623 | *OT623 | ||
| OT621 | OT621 | ||
| SG105*8 | SG105*8 | ||
| KT24*4 | KT24*4 | ||
| SK304*3 | SK304*3 | ||
| OT620 | OT620 | ||
| EM164 | EM164 | ||
| OT625 | OT625 | ||
| ML82 | ML82 | ||
| YU10 | YU10 | ||
| ALT087S | ALT087S | ||
| OT532 | OT532 | ||
| JA201 | JA201 | ||
| *JA211 | *JA211 |
Page 31 — PARTS LIST FOR MY GROUP / PARTS LIST FOR MZ GROUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| GMY01 | |||
| KY02-A | |||
| KY03 | |||
| KY04 | |||
| KY05 | |||
| KY07 | |||
| KY08 | |||
| KY09 | |||
| MY09 | |||
| KY10 | |||
| MY10 | |||
| MY11 | |||
| MY12 | |||
| KY11 | |||
| KY14 | |||
| KY17 | |||
| KY16 | |||
| KY18 | |||
| GKY20D-A | |||
| KY21-1 | |||
| MY21 | |||
| GKY26F | |||
| KZ03 | 1 | ||
| KT14 | |||
| GMY29D | |||
| GMY29 | |||
| SM886-A | |||
| SM886 | 4 | ||
| WM800 | 4 | ||
| WM810 | 4 | ||
| NM811 | 4 | ||
| SK391 | 5 | ||
| MY127 | |||
| MY32J | |||
| MY136 | |||
| MZ16E-3 | |||
| MZ15 | |||
| MZ27 | |||
| MZ13 | |||
| MZ16H-5 | |||
| MZ12 | |||
| MZ16J-4 | |||
| MZ23J | |||
| KY12 | Allen Wrench | ||
| KZ03*1 | Accessory Bag | ||
| SM886*4 | Screw | ||
| WM800*4 | Washer | ||
| WM810*4 | Washer | ||
| NM811*4 | Nut | ||
| SK391*5 | Screw | ||
| UT120J | Part | ||
| UT240J | Part | ||
| MZ117 | Part | ||
| MZ116-3 | Part | ||
| CFC46 | Part | ||
| MZ116-5 | Part | ||
| MZ12(UTP/UTR用) | Glass Panel | ||
| MZ116-4 | Part | ||
| MZ123 | Part |
Page 32 — PARTS LIST FOR THREAD STAND GROUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KW36B | |||
| KW05B | 4 | ||
| SK421 | 4 | ||
| GKW26E | |||
| KW32E | 3 | ||
| NK31B | 4 | ||
| SW01 | 4 | ||
| KW32E | 2 | ||
| GKW28E | |||
| SK281B | |||
| SK386B | |||
| KW14E | |||
| NK29B | 2 | ||
| GKW17B | |||
| GKW03E | |||
| KW20E | |||
| SK386B | |||
| SK386B | |||
| GMZ01 | |||
| NK29B | 2 | ||
| SK420 | |||
| SK422 | |||
| KW22 | |||
| KW13E | 5 | ||
| GKW09B | 5 | ||
| KW16 | 5 | ||
| GKW02E | |||
| GKW04E | |||
| NK29B | |||
| NK29B | 5 | ||
| SW04 | 5 | ||
| KW12E | 5 | ||
| WK25B | |||
| WMG10 | |||
| NK30B | |||
| GKW29E | |||
| SW01*4 | SW01*4 | ||
| KW075B*4 | KW075B*4 | ||
| KW02E*2 | KW02E*2 | ||
| SK421*4 | SK421*4 | ||
| KW32E*2 | KW32E*2 | ||
| GKW01E | GKW01E | ||
| NK31B*4 | NK31B*4 | ||
| NK29B*2 | NK29B*2 | ||
| GKW09B*5 | GKW09B*5 | ||
| KW16*5 | KW16*5 | ||
| KW12E*5 | KW12E*5 |
Siruba C007J / C007JD — parts catalog
- Page 1 (cover): This is the cover page for the Siruba C007J/C007JD industrial sewing machine parts list.
- Page 2 (parts_list): This page contains a parts list for various sewing machine models, including part numbers, sub-classes, needle clamps, needle plates, feed dogs, presser feet, spreaders, loopers, and needles.
- Page 3 (parts_list): This page is a conversion chart for sewing machine parts, listing models, sub-classes, and corresponding part numbers for various components like needle clamps, needle plates, feed dogs, presser feet, spreaders, loopers, and needles.
- Page 4 (parts_list): This page contains a parts list for various sewing machine models including C007J-W152, C007J-U152, C007J-W162, and C007J-U162, detailing sub-class, needle clamp, needle plate, main feed dog, diff. feed dog, presser foot, spreader, looper, and needle.
- Page 5 (parts_list): This page is a conversion chart for sewing machine parts, listing models and their corresponding part numbers for various components like needle clamp, needle plate, feed dog, presser foot, spreader, loop, and needle.
- Page 6 (parts_list): This page is a parts list for sewing machine models C007J-W322/CE, C007J-U322/CE, C007J-W322 CE/UTP(UTR), and C007J-U322 CE/UTQ(UTS). It lists various parts including needle clamp, needle plate, feed dog, presser foot, spreader, looper, and needle with their corresponding part numbers and specifications.
- Page 7 (parts_list): This page contains a conversion chart for various sewing machine models and their corresponding parts, including needle clamp, needle plate, feed dog, presser foot, spreader, looper, and needle.
- Page 8 (parts_list): This page contains a parts list for various sewing machine models, detailing part numbers, names, and specifications for components like needle clamps, plates, feed dogs, presser feet, spreaders, loopers, and needles.
- Page 9 (parts_list): This page contains a conversion chart for various sewing machine models, listing sub-class, needle clamp, needle plate, main feed dog, diff. feed dog, presser foot, spreader, looper, and needle part numbers.

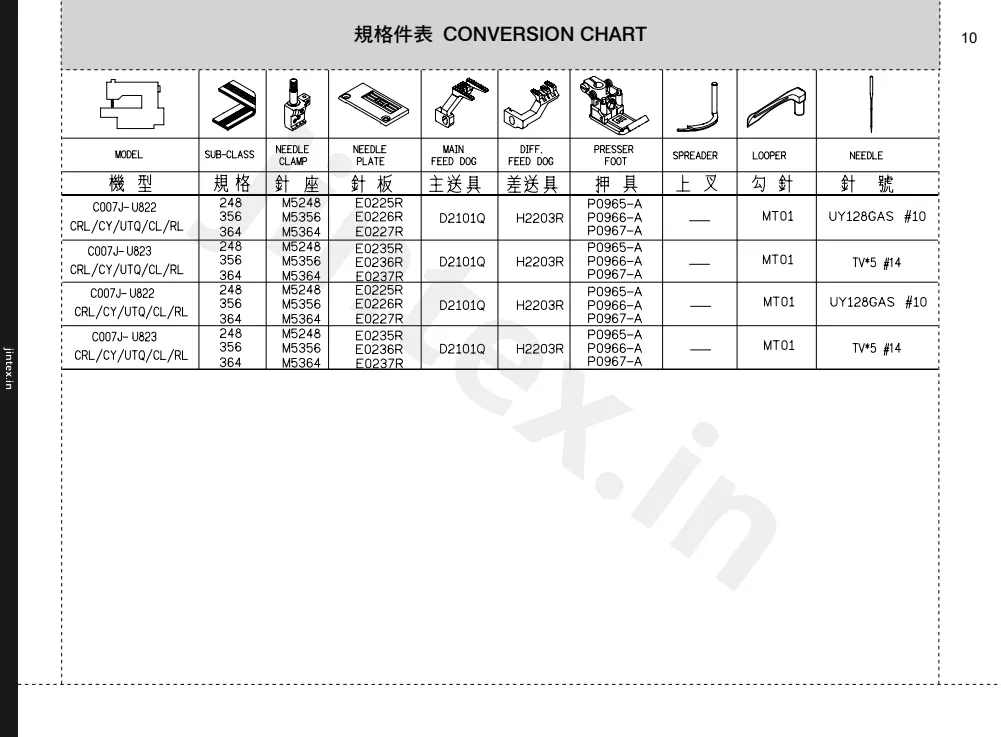

- Page 10 (parts_list): This page contains a parts list for various sewing machine models, detailing sub-class, needle plate, main feed dog, diff. feed dog, presser foot, spreader, looper, and needle information.
- Page 11 (parts_list): This page contains a conversion chart for sewing machine parts, listing models, sub-class, needle plate, main feed dog, diff. feed dog, presser foot, spreader, looper, and needle information.
- Page 12 (parts_list): This page contains a parts list for various sewing machine models, including part numbers, descriptions, and specifications for components like needle clamps, plates, feed dogs, presser feet, spreaders, loopers, cams, and needles.
- Page 13 (parts_list): This page contains a conversion chart for sewing machine parts, listing models, sub-classes, and various components like needle plate, feed dogs, presser foot, spreader, looper, needle, and motor with their corresponding part numbers and specifications.
- Page 14 (parts_list): This page contains a parts list for various sewing machine models, detailing sub-class, needle clamp, needle plate, main feed dog, diff. feed dog, presser foot, spreader, looper, needle, and motor.
- Page 15 (parts_list): This page is a conversion chart for sewing machine parts, listing various models and their corresponding part numbers for components like needle clamp, needle plate, feed dogs, presser foot, spreader, looper, needle, and motor.
- Page 16 (parts_list): This page contains a parts list for various sewing machine models, detailing sub-class, needle clamp, needle plate, feed dogs, presser foot, spreader, looper, needle, and motor.
- Page 17 (parts_list): This page is a conversion chart for sewing machine parts, listing various components like needle clamp, presser foot, and motor with their corresponding part numbers and model applicability.
- Page 18 (parts_list): This page contains a parts list for various sewing machine models, detailing sub-class, needle clamp, needle plate, feed dogs, presser foot, spreader, looper, needle, and motor.

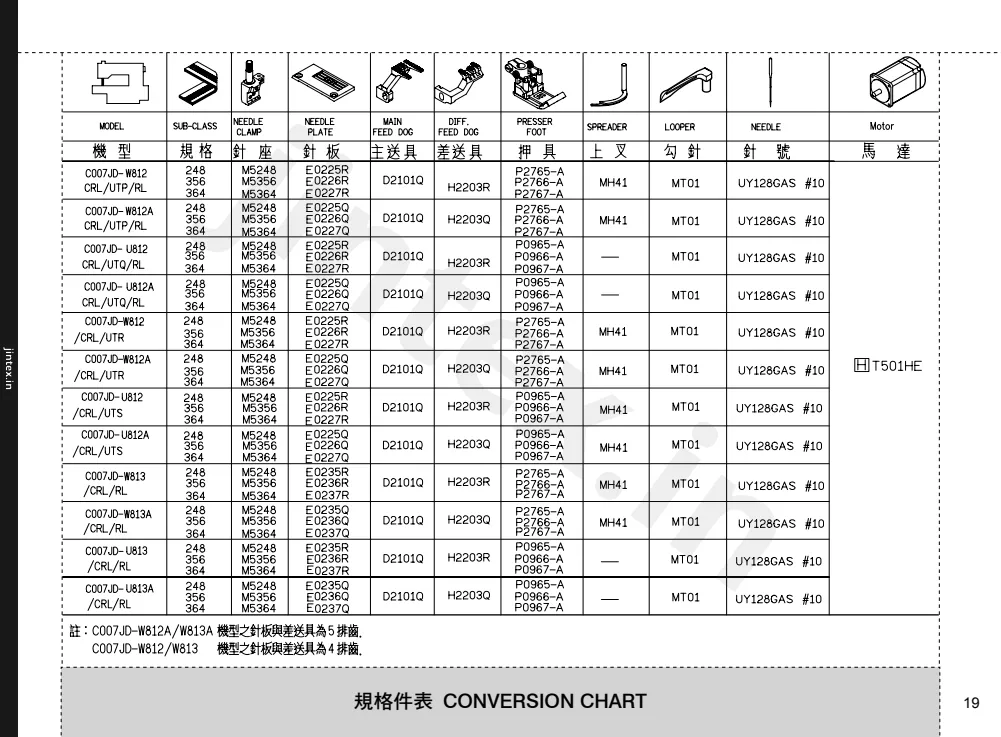

- Page 19 (parts_list): This page is a conversion chart showing part numbers for various machine models, including needle plate, main feed dog, diff. feed dog, presser foot, spreader, looper, needle, and motor.
- Page 20 (parts_list): This page lists parts for various sewing machine models, including part numbers, descriptions, and specifications for components like needle plates, feed dogs, presser feet, and motors.
- Page 21 (parts_list): This page is a conversion chart for sewing machine models, listing various parts like needle clamp, needle plate, feed dogs, presser foot, spreader, looper, needle, and motor, along with their corresponding part numbers and specifications for different sub-classes.
- Page 22 (parts_list): This page contains a parts list for various sewing machine models, including part numbers, descriptions, and associated specifications.
- Page 23 (parts_list): This page contains a conversion chart for sewing machine parts, listing models, sub-classes, and various components like needle clamp, needle plate, feed dogs, presser foot, spreader, looper, cam, and needle with their corresponding part numbers.
- Page 24 (diagram): This page displays a diagram of various parts for the MF and MG groups, including components like pulleys, belts, screws, and brackets, with part numbers and labels for identification.
- Page 25 (diagram): This page displays diagrams of parts for the MH Group and MJ Group, including part numbers and descriptions.
- Page 26 (parts_list): This page contains a parts list for the MK GROUP and MN GROUP, detailing various components with their part numbers and names.
- Page 27 (diagram): This page displays a diagram of parts for the MN and MQ groups, including various screws, nuts, washers, plates, and a motor.
- Page 28 (diagram): This page contains diagrams of various machine parts and sub-assemblies, including components for C007J and C007JD models, and parts lists for MR and MS groups.
- Page 29 (parts_list): This page contains parts lists for the MT GROUP and MU GROUP, detailing various components with their respective part numbers and names.
- Page 30 (diagram): This page displays a diagram of various parts for the MV Group, including components like MV01, MV03, MV05, and SM133, along with their associated part numbers and labels.
- Page 31 (parts_list): This page contains parts lists for the MY GROUP and MZ GROUP, detailing various components with their respective part numbers and descriptions, including tools, oil, filters, and machine parts.
- Page 32 (diagram): This page displays a diagram of the thread stand group components, including various screws, nuts, and stand parts with their respective part numbers and quantities.
- Page 33 (cover): This is the cover page for the C007J/C007JD industrial sewing machine parts catalog from KAULIN MFG. CO., LTD., dated November 2007.
