Siruba C007K Attachments Parts Book (PDF)
Text index — Siruba C007K Attachments
Page 1 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT54J | |||
| JA014 | |||
| AP608 | |||
| JA072 | |||
| AP604 | |||
| AP604 | |||
| UT959B-E | |||
| UT262 | |||
| SM332 | 2 | ||
| MJ37K | |||
| WM600 | 2 | ||
| SM6104 | 2 | ||
| UT959B | |||
| JA052 | |||
| JA052 | |||
| JA019 | |||
| JA019 | |||
| JA192 | |||
| AP615 | |||
| JA016 | |||
| AC262 | |||
| CAR05-A1 | |||
| CAR05 | |||
| CAR08 | |||
| WM400 | 2 | ||
| SM411 | 2 | ||
| CAR07 | |||
| SM435 | |||
| SM332*2 | SM332*2 | ||
| WM600*2 | WM600*2 | ||
| SM6104*2 | SM6104*2 | ||
| WM400*2 | WM400*2 | ||
| SM411*2 | SM411*2 |
Page 2 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | UT54J-2 | BRACKET | |
| A | SK392 | SCREW | |
| A | ALT255S*8 | SCREW | |
| A | JA014 | UNION | |
| A | UT54J-A | REGULATOR | |
| A | JA025 | NIPPLE | |
| A | UT54J | UNION | |
| A | AP604 | PIPE | |
| CAR | UT959B-E | SOLENOID | 1 |
| CAR/UTP(UTO) | UT955KC-E1 | SOLENOID | 4 |
| G | UT261K | BRACKET | |
| G | SM413*4 | SCREW | |
| UT955KC-E1 | UT955KC | VALVE | |
| UT955KC-E1 | JA062 | PLUG | |
| UT955KC-E1 | JA062 | PLUG | |
| UT955KC-E1 | JA062 | PLUG | |
| UT955KC-E1 | JA018 | ELBOW | |
| UT955KC-E1 | JA053 | PLUG | |
| UT955KC-E1 | JA053 | PLUG | |
| B | AP452 | PIN | |
| B | AP456 | PIN | |
| B | AP455 | PIN | |
| B | JA021 | UNION | |
| B | JA018 | ELBOW | |
| B | JA042 | UNION | |
| B | JA192 | UNION | |
| C | AP453 | PIN | |
| C | AP454 | PIN | |
| C | JA021 | UNION | |
| D | AP615 | PIN | |
| D | JA047 | UNION | |
| D | AP457 | PIN | |
| D | JA021 | UNION | |
| E | EP107 | CABLE | |
| E | JC150-A | CONNECTOR | |
| E | AC262 | VALVE | |
| E | CAR05-A1 | BRACKET | |
| E | JA016 | UNION | |
| E | CAR05 | BRACKET | |
| E | WM400*2 | WASHER | |
| E | SM411*2 | SCREW | |
| E | CAR08 | BASE | |
| E | CAR07 | LEVER | |
| E | SM435 | SCREW |
Page 3 — CC-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MXXXXK | |||
| PXXXX | |||
| E5XXXXX | |||
| MQ35K | |||
| MQ33K | |||
| CC01K | |||
| SK652 | *2 | ||
| CC02K | |||
| DXXXX | |||
| HXXXX | |||
| SK652*2 | SK652*2 |
Page 4 — CE-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MXXXXK | |||
| PXXXX | |||
| E5XXXXX | |||
| MQ35K | |||
| MQ33K | |||
| CE01K | |||
| SK652 | 2 | ||
| CE02K | |||
| DXXXX | |||
| HXXXX | |||
| CC01K | |||
| CC02K | |||
| SK652*2 | SK652*2 |
Page 5 — CFC-K For C007K/C858K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | SM810*2 | SCREW | |
| WM500*4 | WASHER | ||
| CFC37D | OIL TANK | ||
| SM511*4 | SCREW | ||
| CFC36H | BRACKET | ||
| FFC20K | BELT | ||
| CFC47 | PULLEY | ||
| SM501*2 | SCREW | ||
| CFC31 | PULLEY | ||
| CFC33K | PULLEY | ||
| CFC33K-2 | PULLEY | ||
| SM432*2 | SCREW | ||
| SM604 | RING | ||
| MS17 | BELT | ||
| SM502*2 | SCREW | ||
| SM501*2 | SCREW | ||
| FFC15 | PULLEY | ||
| MH74 | COLLAR | ||
| SK216*2 | WASHER | ||
| CFC25K | BRACKET | ||
| MS09 | PLATE | ||
| CFC50-A | BRACKET | ||
| CFC26 | SHAFT | ||
| CFC22 | SHAFT | ||
| CFC21 | U-JOINT | ||
| SM501*2 | SCREW | ||
| CFC49 | BELT | ||
| CFC50 | BRACKET | ||
| CFC23K | SHAFT | ||
| LF184 | WASHER | ||
| LF183 | KNOB | ||
| SM402*2 | SCREW | ||
| LF194 | RING | ||
| WK04 | WASHER | ||
| WM641 | WASHER | ||
| WK04 | WASHER | ||
| CFC13 | COLLAR | ||
| PM210 | PIN | ||
| CFC11 | SHAFT | ||
| SM181 | SCREW | ||
| LF193 | LEVER | ||
| CFC12 | COLLAR | ||
| WM300 | NUT | ||
| SM330 | SCREW | ||
| CFC05K-A | BRACKET | ||
| FFC15 | PULLEY | ||
| SM435*3 | SCREW | ||
| CFC05K | BRACKET | ||
| WM400*3 | WASHER | ||
| SM501*2 | SCREW | ||
| CFC31K | PULLEY | ||
| FD104 | COLLAR | ||
| CFC17 | SHAFT | ||
| FD118C | SHAFT | ||
| SM401*2 | SCREW | ||
| SM404 | SCREW | ||
| CFC03 | SHAFT | ||
| FFC27 | BEARING | ||
| CFC51 | BRACKET | ||
| CFC18 | BRACKET | ||
| CFC19 | BRACKET | ||
| CFC20 | SHAFT | ||
| CFC04K | SHAFT | ||
| CFC07 | COLLAR | ||
| CFC10 | SPRING | ||
| CFC08 | LEVER | ||
| SM583 | SCREW | ||
| SK216*3 | WASHER | ||
| SK216 | WASHER | ||
| CFC07 | COLLAR | ||
| CFC06 | SHAFT | ||
| SK216*4 | WASHER |
Page 6 — CFC-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CRL160 | |||
| SM4054 | 3 | ||
| MQ38 | 2 | ||
| CFC01K | |||
| SM151 | 3 | ||
| SM132 | |||
| SM438 | |||
| MA19K | |||
| NM410 | |||
| SM424 | |||
| CFC52 | |||
| SM447 | 2 | ||
| SM5051 | 2 | ||
| WM500 | 2 | ||
| SM474 | |||
| SM401 | |||
| SM511 | 2 | ||
| MQ13K | |||
| CFC53 | |||
| SM432 | 2 | ||
| MQ27 | |||
| CFC41 | |||
| SM410 | |||
| B523K(A) | |||
| B524K(A) | |||
| SM4054*3 | SM4054*3 | ||
| MQ38*2 | MQ38*2 | ||
| SM151*3 | SM151*3 | ||
| SM447*2 | SM447*2 | ||
| SM5051*2 | SM5051*2 | ||
| WM500*2 | WM500*2 | ||
| SM511*2 | SM511*2 | ||
| SM432*2 | SM432*2 |
Page 7 — CFC-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM6104 | |||
| KP60 | |||
| MJ34K | |||
| CFC38K | |||
| MJ53 | |||
| MJ54 | |||
| SM492 | |||
| SM445 | 3 | ||
| CFC55 | |||
| SM510 | 2 | ||
| CFC50 | |||
| SM432 | 2 | ||
| CFC56 | |||
| SM510 | 2 | ||
| MR29K | |||
| SM432 | |||
| KT58 | |||
| KT57 | |||
| SK310 | |||
| OS4140 | |||
| CFC57 | |||
| CFC57-A | |||
| WM807 | 4 | ||
| SM812 | 4 | ||
| B | SM445*3 | SM445*3 | |
| B | SM510*2 | SM510*2 | |
| C | SM432*2 | SM432*2 | |
| E | WM807*4 | WM807*4 | |
| E | SM812*4 | SM812*4 |
Page 8 — CFC-K For C007K/C858K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B523K(A) | |||
| B524K(A) | |||
| SM883 | |||
| WMCO1 | |||
| CZ116 | |||
| SM603 | 2 | ||
| CZ115 | |||
| SM490 | |||
| WM600 | 2 | ||
| SK392 | 2 | ||
| SM470 | |||
| PM502 | |||
| CFC45 | |||
| SM521 | |||
| CZ123 | |||
| CZ124 | |||
| CY112 | |||
| SM433 | 2 | ||
| CZ122 | |||
| KY21-1 | |||
| FFD23 | |||
| CZ28 | |||
| EM040 | |||
| CZ119 | |||
| WM500 | |||
| SM513 | |||
| CZ117 | |||
| WM800 | |||
| NM810 | |||
| SM603*2 | SM603*2 | ||
| WM600*2 | WM600*2 | ||
| SK392*2 | SK392*2 | ||
| SM433*2 | SM433*2 |
Page 9 — PARTS LIST C007K/C007KD C858K/C858KD
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MXXXX | |||
| PXXXX | |||
| E5XXX | |||
| MQ35K | |||
| CH87K | |||
| CH88K | |||
| CH89K | |||
| CH90K | |||
| BF331 | |||
| SM435 | 2 | ||
| SM3650 | |||
| SM5051 | 2 | ||
| WM500 | 2 | ||
| CQ12 | |||
| MQ27K | |||
| MQ32K | |||
| SK714 | |||
| CE01K | |||
| CE02K | |||
| CC01K | |||
| CC02K | |||
| FQ11 | 2 | ||
| FQ12 | 2 | ||
| FQ13 | 2 | ||
| SM501 | 4 | ||
| # SM510*2 | 2 | ||
| WM502 | 2 | ||
| NM511 | |||
| CQ15K | |||
| CQ15K-A | |||
| CQ10K | |||
| SM435 | 2 | ||
| SM435*2 | SM435*2 | ||
| SM5051*2 | SM5051*2 | ||
| WM500*2 | WM500*2 | ||
| WM502*2 | WM502*2 | ||
| FQ11*2 | FQ11*2 | ||
| FQ12*2 | FQ12*2 | ||
| SM501*4 | SM501*4 |

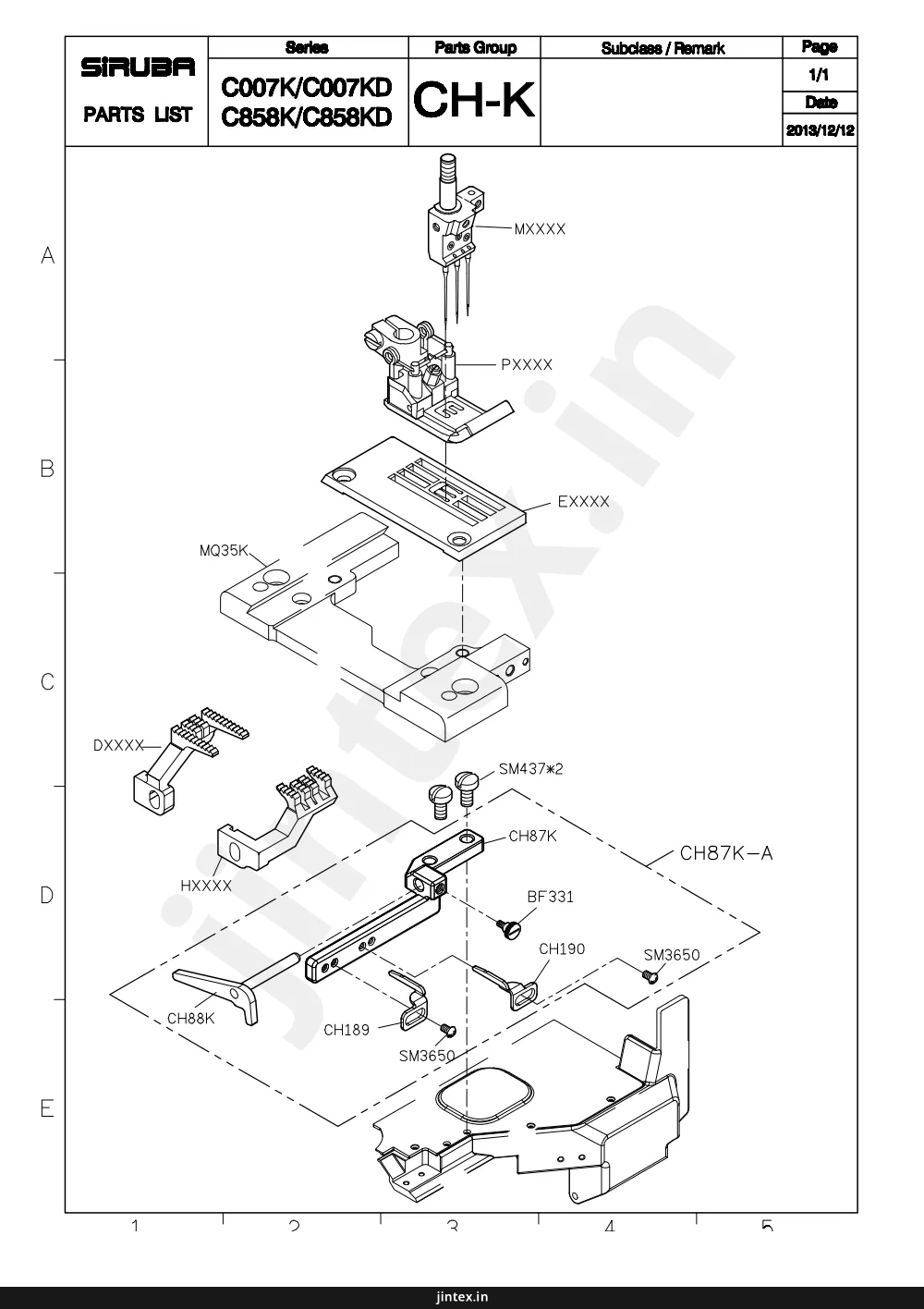

Page 10 — CHK-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM412 | |||
| SM431 | 2 | ||
| WM402 | 2 | ||
| MQ38 | 2 | ||
| JA043 | 2 | ||
| SM3052 | 2 | ||
| CHK14 | |||
| CHK07 | |||
| CHK11 | |||
| SK303 | 2 | ||
| SK303 | 2 | ||
| CHK05 | |||
| CHK17 | |||
| CHK17-A | |||
| SM454 | 2 | ||
| CHK03 | |||
| CHK04 | |||
| SM4105*2 | 2 | ||
| SM4301 | 2 | ||
| SM451 | 2 | ||
| SM441 | 2 | ||
| CHK06 | |||
| SM430 | |||
| CHK10 | |||
| AC028 | |||
| SM415 | 2 | ||
| CHK02 | |||
| CHK08 | |||
| CHK01 | |||
| JA011 | 2 | ||
| SM412 | 2 | ||
| CHK13 | |||
| SM5058 | 2 | ||
| SM151 | 3 | ||
| WM400 | 4 | ||
| CHK09 | |||
| CHK12 | 2 | ||
| SM480 | 2 | ||
| CHK15 | |||
| CHK16 | |||
| CHK05-A | CHK05-A | ||
| SM3052*2 | SM3052*2 | ||
| JA043*2 | JA043*2 | ||
| SM431*2 | SM431*2 | ||
| WM402*2 | WM402*2 | ||
| MQ38*2 | MQ38*2 | ||
| SK303*2 | SK303*2 | ||
| SM454*2 | SM454*2 | ||
| SM4301*2 | SM4301*2 | ||
| SM451*2 | SM451*2 | ||
| SM441*2 | SM441*2 | ||
| SM415*2 | SM415*2 | ||
| CHK08-A | CHK08-A | ||
| SM412*2 | SM412*2 | ||
| JA011*2 | JA011*2 | ||
| SM151*3 | SM151*3 | ||
| SM5058*2 | SM5058*2 | ||
| AC028-A | AC028-A | ||
| WM400*4 | WM400*4 | ||
| CHK12*2 | CHK12*2 | ||
| SM480*2 | SM480*2 |
Page 11 — CHK-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT54J-2- | BRACKET | ||
| JA025 | COUPLING | ||
| UT54J | AIR FILTER | ||
| JA014 | ELBOW COUPLING | ||
| AP604 | TUBE | ||
| JA062*3 | PLUG | ||
| UT957C | SOLENOID VALVE | ||
| UT957C-E | SOLENOID VALVE | ||
| AP434 | TUBE | ||
| JA018 | ELBOW COUPLING | ||
| AP435 | TUBE | ||
| JA021 | COUPLING | ||
| AP433 | TUBE | ||
| JA021 | COUPLING | ||
| AP432 | TUBE | ||
| AP437 | TUBE | ||
| JA042 | TEE COUPLING | ||
| JA021 | COUPLING | ||
| AP436 | TUBE | ||
| AP438 | TUBE | ||
| AP439 | TUBE | ||
| JA018 | ELBOW COUPLING | ||
| JA016 | ELBOW COUPLING | ||
| JA192 | PLUG | ||
| AP608 | TUBE | ||
| JA071 | TEE COUPLING | ||
| AP408*2 | TUBE | ||
| UT54J-A | BRACKET | ||
| ALT104S*6 | SCREW | ||
| UT261K | NEEDLE | ||
| JA053*2 | PLUG | ||
| JA013 | ELBOW COUPLING | ||
| EP107 | HARNESS | ||
| SM413*4 | SCREW | ||
| FEC34 | FOOT SWITCH | ||
| JC150-A | CONNECTOR | ||
| JC300-A | CONNECTOR | ||
| JC161-A | CONNECTOR | ||
| CY110 | BRACKET | ||
| WM600*2 | WASHER | ||
| SK392*2 | SCREW | ||
| SM430*2 | WASHER | ||
| WM400*2 | WASHER |
Page 12 — CH-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MXXXX | |||
| PXXXX | |||
| EXXXX | |||
| MQ35K | |||
| DXXXX | |||
| HXXXX | |||
| SM437 | 2 | ||
| CH87K | |||
| BF331 | |||
| CH190 | |||
| SM3650 | |||
| CH88K | |||
| CH189 | |||
| SM3650 | |||
| EXXX | EXXX | ||
| SM437*2 | SM437*2 | ||
| CH87K-A | CH87K-A |
Page 13 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CRL162 | |||
| CRL168L | |||
| CRL168 | |||
| AP430 | |||
| NM300 | 2 | ||
| JA221 | |||
| AP458 | |||
| SM312*2 | 2 | ||
| SM4050 | 2 | ||
| WM406 | 2 | ||
| CRL135K | |||
| SM4052 | 2 | ||
| WM400 | 2 | ||
| CRL195 | |||
| WM503 | 2 | ||
| CRL125K | |||
| SM151 | 2 | ||
| AP430 | 2 | ||
| JA011 | 2 | ||
| SM430 | |||
| WM400 | |||
| CRL126 | |||
| SM441 | 2 | ||
| CRL143K | |||
| SM430 | |||
| CRL148K | |||
| AC261 | |||
| WM400 | 2 | ||
| SM430 | 2 | ||
| SM132 | |||
| MA19K | |||
| SM438 | |||
| NM410 | |||
| CRL24K | |||
| SM424 | |||
| SM401 | |||
| MQ13K | |||
| KP46 | 2 | ||
| SM474 | |||
| CP103 | |||
| SM431 | |||
| CRL162 | |||
| CRL178 | |||
| CRL163 | |||
| CRL150K | |||
| SK411 | 2 | ||
| WM500 | 2 | ||
| NM511 | 2 | ||
| CRL149K | |||
| SM441 | 2 | ||
| CRL194 | 2 | ||
| SM351 | 2 | ||
| CRL148K-A | |||
| SM351 | 2 | ||
| CRL194 | 2 | ||
| CRL179K | |||
| CRL178-A | |||
| CRL178 | |||
| NM300*2 | Screw | ||
| WM503*2 | Washer | ||
| SM4050*2 | Screw | ||
| WM406*2 | Washer | ||
| SM441*2 | Screw | ||
| SK411*2 | Screw | ||
| WM500*2 | Washer | ||
| NM511*2 | Screw | ||
| SM351*2 | Screw | ||
| CRL194*2 | Bracket | ||
| SM4052*2 | Screw | ||
| WM400*2 | Washer | ||
| SM151*2 | Screw | ||
| AP430*2 | Tube | ||
| JA011*2 | Elbow | ||
| CRL24K-A | Bracket | ||
| SM430*2 | Screw | ||
| KP46*2 | Screw |
Page 14 — CHP(CY)/UTP-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JA025 | UT54J-2 | ||
| SK392*2 | UT54J-A | ||
| JA014 | UT54J | ||
| AP604 | AP452 | ||
| AP453 | JA018 | ||
| AP455 | JA021 | ||
| AP454 | JA021 | ||
| AP457 | JA018 | ||
| AP620 | JA018 | ||
| JA016 | JA192 | ||
| JA013 | JA053*2 | ||
| SM413*4 | UT960C-E | ||
| WM600*2 | UT960C | ||
| SK392*2 | (T84XXX用) | ||
| SM430*2 | JA062*3 | ||
| WM400*2 | AP456 | ||
| JA021 | JA042 | ||
| EP107 | CY110 | ||
| UT261K | LIFT PRESSER FOOT | ||
| JC150 | LOOP TRIMMER | ||
| JC300 | TOP CUTTER (WIPER) | ||
| SM435*4 | OPTION | ||
| JA231 | TO MOTOR | ||
| JA072 | "FOOT LIFTER" | ||
| AP620 | RECEPTACLE | ||
| JA222 | HOUSING | ||
| AP604 | |||
| OT2602 | TU20P-E | ||
| CRL241 | TU20P-1 | ||
| CRL44 | TU20P-4 | ||
| TU20P-2 | TU20P-3 |
Page 15 — CL(CLA)-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| PP6410 | CL08E-A | ||
| CL08E | CL08E | ||
| CL10 | CL10 | ||
| CL12 | CL12 | ||
| CL13 | CL13 | ||
| OS3210 | OS3210 | ||
| EM100 | EM100 | ||
| SM615*4 | SM615*4 | ||
| CL09 | CL09 | ||
| OS2170 | OS2170 | ||
| MH73-E | MH73-E | ||
| SM502*2 | SM502*2 | ||
| MH73 | MH73 | ||
| CL01-C | CL01-C | ||
| CL06 | CL06 | ||
| CL01-E | CL01-E | ||
| SM604 | SM604 | ||
| SM602 | SM602 | ||
| CL01 | CL01 | ||
| CL05-E | CL05-E | ||
| CL05 | CL05 | ||
| WM600 | WM600 | ||
| SM491 | SM491 | ||
| CL46 | CL46 | ||
| CL31 | CL31 | ||
| CL46-E | CL46-E | ||
| NM410 | NM410 | ||
| SM432*2 | SM432*2 | ||
| CL02 | CL02 | ||
| BR4243 | BR4243 | ||
| SM147*2 | SM147*2 | ||
| SM491 | SM491 | ||
| CL31 | CL31 | ||
| CL21 | CL21 | ||
| CL22K | CL22K | ||
| EM243 | EM243 | ||
| #CL20P | #CL20P | ||
| CL19R | CL19R | ||
| CL19 | CL19 | ||
| SM502*2 | SM502*2 | ||
| CL17K | CL17K | ||
| CL18K | CL18K | ||
| NM410 | NM410 | ||
| CL32 | CL32 | ||
| SM6104 | SM6104 | ||
| SM616 | SM616 | ||
| CL17K-A | CL17K-A | ||
| CL18K-A1 | CL18K-A1 | ||
| CL52P | CL52P | ||
| CL52R | CL52R | ||
| CL53 | CL53 | ||
| CL20P | CL20P | ||
| CL19R | CL19R | ||
| CL19 | CL19 | ||
| CZ/CZP | CZ/CZP |
Page 16 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CL25 | |||
| CL59 | |||
| CL31 | |||
| CL30 | |||
| CL32 | |||
| CL33 | |||
| CL34 | |||
| CL28E | |||
| CL29 | |||
| CL24E | |||
| CL26 | |||
| CL35 | |||
| CL46 | |||
| CL47 | |||
| CL48 | |||
| CL49 | |||
| CL27 | |||
| CL36 | |||
| CL38 | |||
| CL37F | |||
| CL44 | |||
| CL45F | |||
| CL53 | |||
| CL52R | |||
| CL39H | |||
| CL63 | |||
| CL64 | |||
| CL65 | |||
| CL42 | |||
| CL40H | |||
| CL43 | |||
| EM090 | |||
| EM123 | |||
| WM800 | |||
| NM810 | 2 | ||
| CL22K-A1 | |||
| CL22K-A2 | SM491*2+NM410*2 | ||
| CL46-E | CL46-E | ||
| SM492 | SM492 | ||
| NM410 | NM410 | ||
| SM472 | SM472 | ||
| SM682 | SM682 | ||
| VCL41-A | VCL41-A | ||
| HE37-E | HE37-E | ||
| SM139*2 | SM139*2 | ||
| HE37 | HE37 | ||
| VCL41 | VCL41 | ||
| OR070 | OR070 | ||
| NM610 | NM610 | ||
| NM511 | NM511 | ||
| LF208-D | LF208-D | ||
| LF210*3 | LF210*3 | ||
| LF211*6 | LF211*6 | ||
| LF209*6 | LF209*6 | ||
| LF208 | LF208 | ||
| SK373*3 | SK373*3 | ||
| SM681 | SM681 | ||
| CL25-E | CL25-E | ||
| SM611*2 | SM611*2 | ||
| SM432 | SM432 | ||
| CP103 | CP103 | ||
| SM440 | SM440 | ||
| SM611 | SM611 | ||
| BR4081B | BR4081B | ||
| SM502*2 | SM502*2 | ||
| SM470 | SM470 | ||
| SM402*3 | SM402*3 | ||
| SM461*3 | SM461*3 | ||
| CL52P | CL52P | ||
| SM520*2 | SM520*2 | ||
| SM531*4 | SM531*4 | ||
| SM502 | SM502 | ||
| NM810*2 | NM810*2 |
Page 17 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CMR01 | |||
| CMR01-A | |||
| NM410 | |||
| WM600 | *2 | ||
| SK392 | *2 | ||
| BR3050 | *2 | ||
| CMR03 | |||
| CMR02 | |||
| CFC45-A | |||
| SM883 | |||
| WMCO1 | |||
| CZ116 | |||
| SM603 | |||
| CZ115 | |||
| SM490 | |||
| PM502 | |||
| SM470 | |||
| WM600 | |||
| SK392 | |||
| KY21-1 | |||
| WM800 | |||
| NM810 | |||
| SM521 | |||
| CFC45 | |||
| CZ123 | |||
| CZ124 | |||
| SM433 | |||
| CY112 | |||
| CZ122 | |||
| FFD23 | |||
| CZ28 | |||
| EM040 | |||
| CZ119 | |||
| WM500 | |||
| SM513 | |||
| CZ117 | |||
| WM600*2 | WM600*2 | WASHER | |
| BR3050*2 | BR3050*2 | PIN | |
| SK392*2 | SK392*2 | SCREW |
Page 18 — CQA-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CQA04K | |||
| CQA02K | |||
| SM480 | |||
| MQ38 | 2 | ||
| WM601 | |||
| WM641 | |||
| WM601 | |||
| NM410 | |||
| CQA14K | |||
| SM131 | 2 | ||
| CQA09 | |||
| SM620 | |||
| SK250 | |||
| CQA13 | |||
| SM532 | 2 | ||
| CQA11 | |||
| CQA03K | |||
| CQA12K | |||
| SM411 | 2 | ||
| MQ38*2 | MQ38*2 | ||
| CQA02K-A | CQA02K-A | ||
| SM131*2 | SM131*2 | ||
| CQA09-A | CQA09-A | ||
| SM532*2 | SM532*2 | ||
| SM411*2 | SM411*2 |
Page 19 — CQA-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MXXXXK | |||
| SM031 | |||
| CQA08K | |||
| PXXXX | |||
| EXXXX | |||
| MT01A | |||
| CQA09K | |||
| SK222 | |||
| DXXXX | |||
| HXXXX | |||
| SM432 | |||
| MA81 | |||
| CQA01K | |||
| CQA05K | |||
| CQA06K |
Page 20 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CQ08K | |||
| SM131 | 2 | ||
| CQ04K | |||
| WM400 | |||
| SM431 | |||
| SM620 | |||
| SK250 | |||
| FQ06 | |||
| CQ11H | |||
| FQ11 | |||
| FQ12 | |||
| SM501 | |||
| FQ13 | |||
| SM511 | |||
| CQ16 | |||
| CQ09K | |||
| CQ15K | |||
| NM511 | |||
| NM511 | |||
| SM432 | |||
| WM400 | |||
| CQ03K | |||
| MQ12K | |||
| SM435 | |||
| CQ10K | |||
| SM131*2 | SM131*2 |
Page 21 — CR-K PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MQ38*2 | MQ38*2 | ||
| CR305 | CR305 | ||
| CR306-A | CR306-A | ||
| UT817-2*2 | UT817-2*2 | ||
| CR306 | CR306 | ||
| E****** | E****** | ||
| CR307-E | CR307-E | ||
| MV34 | MV34 | ||
| CR307 | CR307 | ||
| OP222 | OP222 | ||
| CR34 | CR34 | ||
| SM480 | SM480 | ||
| CR35 | CR35 | ||
| MQ38*2 | MQ38*2 | ||
| WM601 | WM601 | ||
| WM641 | WM641 | ||
| WM601 | WM601 | ||
| NM410 | NM410 | ||
| SM151*3 | SM151*3 | ||
| CR36 | CR36 | ||
| CR304 | CR304 | ||
| CR301 | CR301 | ||
| CR302 | CR302 | ||
| CR302-A | CR302-A | ||
| CR302-A1 | CR302-A1 | ||
| MA19K | MA19K | ||
| SM4405 | SM4405 | ||
| NM410 | NM410 | ||
| SM401 | SM401 | ||
| MQ13K | MQ13K | ||
| SM474 | SM474 | ||
| CR307-A | CR307-A | ||
| CR308 | CR308 | ||
| SM433 | SM433 | ||
| BRA050 | BRA050 | ||
| CR309 | CR309 | ||
| CR309-A | CR309-A | ||
| CR313-A | CR313-A | ||
| CR335-A | CR335-A | ||
| CR315K-A | CR315K-A | ||
| CR311 | CR311 | ||
| SM542 | SM542 | ||
| WM505 | WM505 | ||
| NM511 | NM511 | ||
| PP2050 | PP2050 | ||
| SM540 | SM540 | ||
| CR310 | CR310 | ||
| CR336 | CR336 | ||
| SM516 | SM516 | ||
| CR315K | CR315K | ||
| SM471 | SM471 | ||
| CR114 | CR114 | ||
| CR334 | CR334 | ||
| CR317 | CR317 | ||
| CR318 | CR318 | ||
| CR319 | CR319 | ||
| SM332*2 | SM332*2 | ||
| PP6090 | PP6090 | ||
| CR314-E | CR314-E | ||
| CR317-A | CR317-A | ||
| CR317-A1 | CR317-A1 | ||
| CR322K | CR322K | ||
| OR210 | OR210 | ||
| JA048 | JA048 | ||
| CR110 | CR110 | ||
| CR111 | CR111 | ||
| CR323-A2 | CR323-A2 | ||
| CR323-A1 | CR323-A1 | ||
| CR323-A | CR323-A | ||
| CR323 | CR323 | ||
| SM430 | SM430 | ||
| CR325 | CR325 | ||
| SM4652*4 | SM4652*4 | ||
| CR312 (DENTATE) | CR312 (DENTATE) | ||
| CR312A | CR312A |

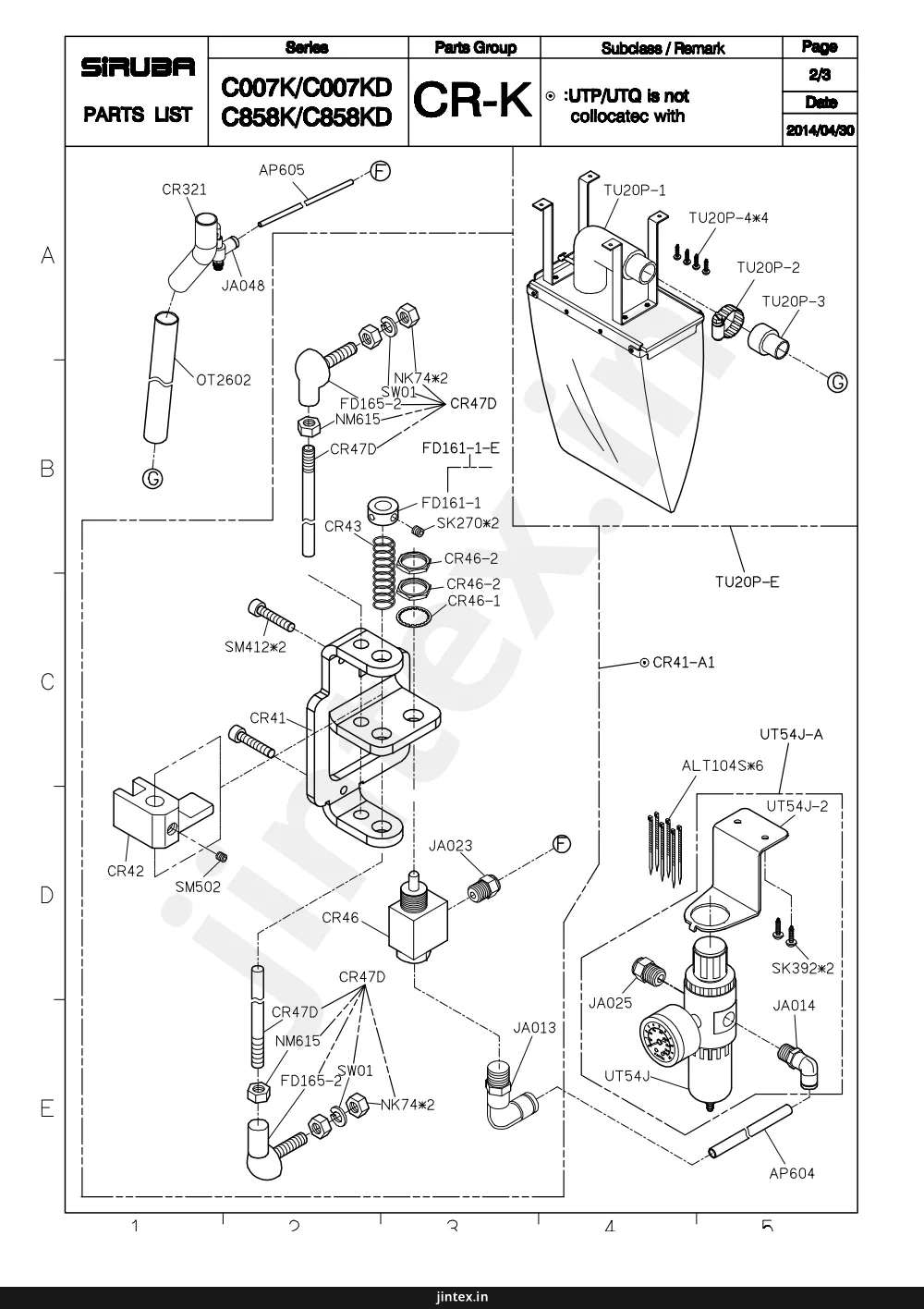

Page 22 — PARTS LIST 2/3
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| AP605 | |||
| CR321 | |||
| JA048 | |||
| OT2602 | |||
| TU20P-1 | |||
| TU20P-4 | 4 | ||
| TU20P-2 | |||
| TU20P-3 | |||
| TU20P-E | |||
| FD161-1-E | |||
| CR47D | |||
| NK74 | 2 | ||
| SW01 | |||
| FD165-2 | |||
| NM615 | |||
| CR47D | |||
| FD161-1 | |||
| SK270 | 2 | ||
| CR43 | |||
| CR46-2 | |||
| CR46-2 | |||
| CR46-1 | |||
| SM412 | 2 | ||
| CR41 | |||
| CR41-A1 | |||
| CR42 | |||
| SM502 | |||
| CR46 | |||
| JA023 | |||
| CR47D | |||
| CR47D | |||
| NM615 | |||
| SW01 | |||
| FD165-2 | |||
| NK74 | 2 | ||
| JA013 | |||
| ALT104S | 6 | ||
| UT54J-A | |||
| UT54J-2 | |||
| SK392 | 2 | ||
| JA025 | |||
| JA014 | |||
| UT54J | |||
| AP604 | |||
| SM412*2 | SM412*2 | ||
| TU20P-4*4 | TU20P-4*4 | ||
| NK74*2 | NK74*2 | ||
| SK270*2 | SK270*2 | ||
| ALT104S*6 | ALT104S*6 | ||
| SK392*2 | SK392*2 |
Page 23 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT54J-2 | |||
| UT54J-A | |||
| UT54J | |||
| SK392 | 2 | ||
| ALT255S | 6 | ||
| JA025 | |||
| JA014 | |||
| AP604 | |||
| AP434 | |||
| AP433 | |||
| JA021 | |||
| AP435 | |||
| JA042 | |||
| AP437 | |||
| JA192 | |||
| UT951C-E | |||
| UT955C-E | |||
| JA062 | 3 | ||
| JA053 | 2 | ||
| UT261K | |||
| JA013 | |||
| JC150-A | |||
| SM413 | 4 | ||
| EP107 | |||
| JC300-A | |||
| AP432 | |||
| JA021 | 2 | ||
| JA047 | |||
| AP436 | |||
| SM435 | 4 | ||
| CR321 | |||
| AP605 | |||
| JA048 | |||
| OT2602 | |||
| TU20P-1 | |||
| TU20P-4 | |||
| TU20P-2 | |||
| TU20P-3 | |||
| UT951C | UT951C | ||
| TU20P-E | TU20P-E |
Page 24 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CRL01K | |||
| MV37K | |||
| SM501 | 2 | ||
| MV36-E | 2 | ||
| MV35K | |||
| MV33K-E | |||
| CRL12K | |||
| CRL145K | |||
| CRL166 | |||
| KQ34 | |||
| MT33 | |||
| MT33 | |||
| NM410 | |||
| BRA050 | |||
| SM4406 | |||
| CR320 | |||
| FR31 | |||
| WM808 | |||
| FR32 | |||
| SM401 | 2 | ||
| SM401 | |||
| OP211 | |||
| CRL06K | |||
| CR115 | |||
| SM5050 | |||
| CRL169 | |||
| JA019 | |||
| SM370 | |||
| KL23-4 | |||
| CRL167 | |||
| SM402 | |||
| CRL174 | |||
| CRL175 | |||
| SM512 | 2 | ||
| SM332 | 2 | ||
| SM501 | 2 | ||
| CRL241 | |||
| OR220 | |||
| CRL 44 | |||
| CRL265 | |||
| OR220 | |||
| CRL204 | |||
| CRL103K | |||
| SM4307 | |||
| SM411 | |||
| CRL115 | |||
| SM144 | |||
| CRL172 | |||
| SM131 | |||
| CRL09J | |||
| CRL08K | |||
| CRL36K | |||
| SM501*2 | 2 | ||
| WM500 | |||
| NM511 | |||
| MV36-E*2 | MV36-E*2 | ||
| SM401*2 | SM401*2 | ||
| CRL145K-A | CRL145K-A | ||
| CRL06K-E | CRL06K-E | ||
| FR32-E | FR32-E | ||
| CRL08K-A | CRL08K-A | ||
| CRL115-A | CRL115-A | ||
| SM512*2 | SM512*2 | ||
| SM332*2 | SM332*2 | ||
| CRL241-A1 | CRL241-A1 |
Page 25 — CRL-K 系列圖
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CRL162 | |||
| E5***** | |||
| MQ38 | 2 | ||
| CRL160 | |||
| CRL160-E | |||
| CRL01K | |||
| UT817-2 | 2 | ||
| CRL21K | |||
| CRL21K-A | |||
| CRL29K-A | |||
| CRL29K-E | |||
| CRL29K | |||
| MR108K | |||
| MR14K | |||
| WM100 | 2 | ||
| MR12K | |||
| MR06 | |||
| MR13K | |||
| SM137 | 3 | ||
| SM311 | 2 | ||
| CRL140K | |||
| CRL164 | |||
| SM430 | 2 | ||
| CRL24K-A1 | |||
| CRL125K | |||
| WM406*2 | 2 | ||
| SM4050*2 | 2 | ||
| WM406 | 2 | ||
| CRL135 | |||
| SM430 | |||
| WM400 | |||
| CRL126 | |||
| CRL143K | |||
| SM441 | 2 | ||
| SM430 | |||
| CRL24K | |||
| SM132 | |||
| MA19K | |||
| SM438 | |||
| NM410 | |||
| SM424 | |||
| SM401 | |||
| KP46 | |||
| CRL193K | |||
| SM351*2 | 2 | ||
| CRL194 | 2 | ||
| SM474 | |||
| MQ13K | |||
| E5XXXXXX | Diagram of part | ||
| MQ38*2 | Diagram of part | ||
| UT817-2*2 | Diagram of part | ||
| WM100*2 | Diagram of part | ||
| SM311*2 | Diagram of part | ||
| SM430*2 | Diagram of part | ||
| SM137*3 | Diagram of part | ||
| SM151*2 | Diagram of part | ||
| SM441*2 | Diagram of part | ||
| SM436 | Diagram of part | ||
| CRL194*2 | Diagram of part |
Page 26 — PARTS LIST 3/4
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| OT2602 | OT2602 | ||
| AP604 | AP604 | ||
| JA222 | JA222 | ||
| CR47D | CR47D | ||
| FD161-1-E | FD161-1-E | ||
| FD161-1 | FD161-1 | ||
| SK270*2 | SK270*2 | ||
| CR43 | CR43 | ||
| CR46-2 | CR46-2 | ||
| CR46-2 | CR46-2 | ||
| CR46-1 | CR46-1 | ||
| SM412*2 | SM412*2 | ||
| CR41 | CR41 | ||
| SM502 | SM502 | ||
| CR42 | CR42 | ||
| #CR41-A1 | #CR41-A1 | ||
| ALT104S*6 | ALT104S*6 | ||
| TU20P-1 | TU20P-1 | ||
| TU20P-4*4 | TU20P-4*4 | ||
| TU20P-2 | TU20P-2 | ||
| TU20P-3 | TU20P-3 | ||
| TU20P-E | TU20P-E | ||
| UT54J-A | UT54J-A | ||
| UT54J-2 | UT54J-2 | ||
| SK392*2 | SK392*2 | ||
| JA014 | JA014 | ||
| JA025 | JA025 | ||
| CR46 | CR46 | ||
| JA013 | JA013 | ||
| CR47D | CR47D | ||
| NM615 | NM615 | ||
| SW01 | SW01 | ||
| NK74*2 | NK74*2 | ||
| FD165-2 | FD165-2 | ||
| NM615 | NM615 | ||
| SW01 | SW01 | ||
| NK74*2 | NK74*2 | ||
| FD165-2 | FD165-2 | ||
| AP604 | AP604 |
Page 27 — CRL-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT54J-A | |||
| UT54J-2 | |||
| SK392 | 2 | ||
| JA025 | |||
| JA014 | |||
| UT54J | |||
| AP604 | |||
| AP434 | |||
| AP433 | |||
| AP435 | |||
| AP437 | |||
| AP432 | |||
| AP436 | |||
| JA222 | |||
| AP608 | |||
| AP604 | |||
| JA018 | 2 | ||
| JA021 | |||
| JA021 | 2 | ||
| JA062 | 3 | ||
| JA013 | |||
| JA053 | 2 | ||
| SM413 | 4 | ||
| JC150 | |||
| JC300 | |||
| JA042 | |||
| JA192 | |||
| JA019 | |||
| EP107 | |||
| UT951C-E | |||
| #UT955C-E | |||
| UT951C | |||
| UT261K | |||
| SM435 | 4 | ||
| CRL241 | |||
| OT2602 | |||
| CRL44 | |||
| TU20P-1 | |||
| TU20P-4 | |||
| TU20P-2 | |||
| TU20P-3 | |||
| JA021*2 | JA018*2 | ||
| JA062*3 | UT951C-E | ||
| SM413*4 | JC300 | ||
| LOOP TRIMMER | |||
| TOP CUTTER (WIPER) | |||
| OPTION | TO MOTOR "SEWING MACHINE" RECEPTACLE HOUSING | ||
| CRL-K | CRL241 |
Page 28 — CW-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MH75 | |||
| M5XXXX | |||
| MH05 | |||
| P5XXXX | |||
| SM160 | |||
| E5XXXX | |||
| SM5051 | 2 | ||
| FW14K | |||
| MQ35K | |||
| DXXXX | |||
| HXXXX | |||
| MT01B | |||
| MQ127 | |||
| MQ12K | |||
| SM5051*2 | SM5051*2 |
Page 29 — CW-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FW05J | |||
| MK37H | |||
| KN37 | |||
| SM430 | |||
| SM432 | |||
| SM430 | 2 | ||
| MK37H | 2 | ||
| MK94 | 2 | ||
| FW01H | |||
| FW04H | |||
| VK09-R1 | |||
| VK09-E1 | |||
| VK09-Y1 | |||
| KG05-G1 | |||
| VK09-B1 | |||
| VK02J | 6 | ||
| VK10 | 6 | ||
| VK09-B1 | |||
| SM430*2 | SM430*2 | ||
| MK37H*2 | MK37H*2 | ||
| MK94*2 | MK94*2 | ||
| VK02J*6 | VK02J*6 | ||
| VK10*6 | VK10*6 |
Page 30 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM511 | |||
| UT28K | |||
| PM501 | |||
| MK39H | |||
| UT34H | |||
| EM040 | |||
| VJ01-3 | |||
| SM4105 | |||
| FW34-A | |||
| FW33 | |||
| UT37-2 | |||
| UT37 | |||
| SM430 | |||
| SK216 | |||
| FW32 | |||
| VK09-R1 | |||
| VK09-E1 | |||
| VK09-Y1 | |||
| KG05-G1 | |||
| VK09-B1 | |||
| VK09-B1 | |||
| FW31 | |||
| UT35H-1 | |||
| SM330 | |||
| FW34 | |||
| VK02J | 6 | ||
| VK10*6 | 6 | ||
| UT34-3 | |||
| SM404 | |||
| UT38 | |||
| SK216 | |||
| VK02J*6 | VK02J*6 |
Page 31 — CX-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CR330 | CR330 | ||
| CR331 | CR331 | ||
| SM502*3 | SM502*3 | ||
| NM615 | NM615 | ||
| CX13 | CX13 | ||
| SM502 | SM502 | ||
| CR332 | CR332 | ||
| CX17 | CX17 | ||
| CX116 | CX116 | ||
| RB07 | RB07 | ||
| SM609*2 | SM609*2 | ||
| RB07-E | RB07-E | ||
| SM401*2 | SM401*2 | ||
| LF24C | LF24C | ||
| SM6105 | SM6105 | ||
| CR328 | CR328 | ||
| CX106 | CX106 | ||
| SM501*2 | SM501*2 | ||
| P******-A | P******-A | ||
| SM430 | SM430 | ||
| CR325 | CR325 | ||
| SM330*2 | SM330*2 | ||
| CR326 | CR326 | ||
| CX12 | CX12 | ||
| CR327 | CR327 | ||
| CR333 | CR333 | ||
| CR323 | CR323 | ||
| NM511 | NM511 | ||
| CR323-A1 | CR323-A1 | ||
| SM434 | SM434 |
Page 32 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM436 | 2 | ||
| SM338 | 2 | ||
| CZ01K(CZ21K) | |||
| CZ03K(CZ22K) | |||
| SM431 | |||
| WM300 | |||
| WM400 | |||
| SM330 | |||
| CZ04K | |||
| CZ05K | |||
| SM498 | |||
| CZ07K | |||
| SM441 | 2 | ||
| CHKO6 | |||
| SM430 | |||
| SM461 | 2 | ||
| AC028 | |||
| CZ09K | |||
| CZ08K | |||
| SM412 | 2 | ||
| CZ06K | |||
| JA011 | 2 | ||
| SM4057 | 2 | ||
| CZ11K | |||
| CZ10K | |||
| NM615 | |||
| SM430 | 2 | ||
| SM430 | 2 | ||
| CR332 | |||
| SM6105 | |||
| SM151 | 2 | ||
| CZ13K | |||
| CZ14K | |||
| SM132 | |||
| MA19K | |||
| SM438 | |||
| NM410 | |||
| SM410 | 2 | ||
| SM462 | 2 | ||
| CZ12K | |||
| CZ17K | |||
| SK714 | |||
| CZ15K | |||
| SK357 | 2 | ||
| CZ16K | |||
| CZ02K | |||
| SM436*2 | SM436*2 | ||
| SM338*2 | SM338*2 | ||
| SM412*2 | SM412*2 | ||
| JA011*2 | JA011*2 | ||
| SM441*2 | SM441*2 | ||
| SM430*2 | SM430*2 | ||
| SM4057*2 | SM4057*2 | ||
| SM151*2 | SM151*2 | ||
| SM462*2 | SM462*2 | ||
| CZ15K-A | CZ15K-A | ||
| CZ14K-A | CZ14K-A | ||
| SK357*2 | SK357*2 | ||
| CZ01K | CZ01K | ||
| CZ03K | CZ03K | ||
| CZ21K | CZ21K | ||
| CZ22K | CZ22K |
Page 33 — CZ-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT54J-2 | |||
| SK392*2 | 2 | ||
| JA025 | |||
| UT54J | |||
| JA162 | |||
| AP603 | |||
| AP603 | |||
| ALT104S | 6 | ||
| CY110 | |||
| WM600 | 2 | ||
| SK392 | 2 | ||
| NM410 | |||
| SM415 | |||
| SM438 | |||
| WM400*2 | 2 | ||
| CY107 | |||
| CY106 | |||
| CY104 | |||
| CY111 | |||
| EM060 | 2 | ||
| CY108 | |||
| CY112 | |||
| CY114-3 | |||
| CY114-2 | |||
| AP406 | |||
| AP407 | |||
| JA011 | 2 | ||
| CY114-1 | |||
| JA016 | |||
| ALT104S*6 | ALT104S*6 | ||
| EM060*2 | EM060*2 | ||
| JA011*2 | JA011*2 | ||
| WM600*2 | WM600*2 |
Page 34 — CZ-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CY109 | |||
| SM623 | |||
| CY101 | |||
| SM623 | |||
| CY102 | |||
| CY103 | |||
| SM623 | |||
| FD165-1 | |||
| NM615 | |||
| FD165-2 | |||
| SW01 | |||
| NK74 | 2 | ||
| CY116 | |||
| SM628 | 2 | ||
| WM600 | 2 | ||
| NM610 | 2 | ||
| CY105 | |||
| FD165-2 | |||
| SM884 | 2 | ||
| NM615 | |||
| SW01 | |||
| NK74 | 2 | ||
| CY115 | |||
| AC210 | |||
| JA012 | |||
| AP410 | |||
| JA012 | |||
| AP409 | |||
| UT41K | |||
| WM600 | 2 | ||
| SM611 | 2 | ||
| CY114-1 | |||
| JA011 | 2 | ||
| AC210-3 | |||
| AC210-4 | |||
| UT43 | |||
| CY114-2 | |||
| CY114-3 | |||
| JA016 | |||
| NK74*2 | NK74*2 | ||
| NM610*2 | NM610*2 | ||
| SM628*2 | SM628*2 | ||
| WM600*2 | WM600*2 | ||
| SM884*2 | SM884*2 | ||
| JA011*2 | JA011*2 | ||
| SM611*2 | SM611*2 |
Page 35 — CZP-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM430 | |||
| WM400 | |||
| WM300 | |||
| SM330 | |||
| CZ04K | |||
| CZ05K | |||
| SM498 | |||
| CZ07K | |||
| SM338B | 2 | ||
| SM433 | 2 | ||
| CZ01K(CZ21K) | |||
| CZ03K(CZ22K) | |||
| SM441 | 2 | ||
| CHK06 | |||
| SM430 | |||
| SM461 | 2 | ||
| CZP01K | |||
| CZ11K | |||
| SM430 | 2 | ||
| SM4052 | 4 | ||
| WK21 | 4 | ||
| CZP08K | |||
| CZP02K | |||
| PM301 | |||
| CZP02K-E | |||
| CZP07K | |||
| SM404 | |||
| CZP06K | |||
| CZP05K | |||
| SM404 | |||
| CZP04K | |||
| PM302 | |||
| CZP03K-E | |||
| CZP03K | |||
| CZP01K-A | CZP01K-A | ||
| CZ01K | CZ01K(CZ21K) | ||
| CZ03K | CZ03K(CZ22K) | ||
| CZ21K | CZ21K | ||
| CZ22K | CZ22K |
Page 36 — CZP-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM151 | 2 | ||
| CZ13K | |||
| CZ14K | |||
| SM462 | 2 | ||
| CZ12K | |||
| SM410 | 2 | ||
| SM132 | |||
| MA19K | |||
| SM438 | |||
| NM410 | |||
| SM424 | |||
| KP46 | |||
| CZ02K | |||
| SM474 | |||
| SM401 | |||
| MQ13K | |||
| SM511 | 2 | ||
| SM151*2 | SM151*2 | ||
| SM462*2 | SM462*2 | ||
| SM410*2 | SM410*2 | ||
| SM511*2 | SM511*2 |
Page 37 — CZP-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CZP22K | |||
| NM810 | |||
| CZP21K | |||
| SM616 | |||
| CZP23K | |||
| SM602 | 3 | ||
| CZP24K | |||
| SM884 | 4 | ||
| CZP14K | |||
| SM602 | 2 | ||
| CZP13K | |||
| SM611 | |||
| CZP15K | |||
| SM602 | |||
| CZP12K | |||
| CZP24K-A | |||
| LM24-E | |||
| SM626 | |||
| WM603 | |||
| LM24 | |||
| SM625 | |||
| CZP20K-A | |||
| CZP20K | |||
| LM19 | |||
| LM18 | |||
| LM20 | |||
| SM621 | |||
| LM17 | |||
| SM602*3 | SM602*3 | ||
| SM602*2 | SM602*2 | ||
| SM884*4 | SM884*4 |
Page 38 — FE-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FE43K | |||
| FE222-A | |||
| FE04 | |||
| SM132 | |||
| FE05K | |||
| SM485 | |||
| SM4801 | |||
| BY124-1 | |||
| GBY123 | |||
| FE21-A | |||
| FE01E-A1 | |||
| FE228 | |||
| FE37E | |||
| FFC07 | |||
| FFC05 | |||
| FFC08 | |||
| FFC10 | |||
| FFC11 | |||
| FE11 | |||
| FE01E | |||
| LF102K-2 | |||
| LF57E-1 | |||
| LF57E-2 | |||
| LF57E-3 | |||
| KW33E | |||
| SM603 | SM603 | ||
| SM604 | SM604 | ||
| FE40J | FE40J | ||
| SM486 | SM486 | ||
| FE19 | FE19 | ||
| FE23 | FE23 | ||
| WM400 | WM400 | ||
| SM432 | SM432 | ||
| SK270 | SK270 | ||
| SK221 | SK221 | ||
| LF47 | LF47 | ||
| SM135*2 | SM135*2 | ||
| WM100 | WM100 | ||
| LF48 | LF48 | ||
| KL11 | KL11 | ||
| SM613 | SM613 | ||
| BR3102 | BR3102 | ||
| SK216 | SK216 | ||
| FE22P | FE22P | ||
| FE22 | FE22 | ||
| FE20 | FE20 | ||
| SM301 | SM301 | ||
| FE229-1 | FE229-1 | ||
| FE229-2 | FE229-2 | ||
| SM404 | SM404 | ||
| FE12 | FE12 | ||
| FE13-2 | FE13-2 | ||
| BR3050 | BR3050 | ||
| SM401 | SM401 | ||
| FE13-1 | FE13-1 | ||
| LF22 | LF22 | ||
| MK21 | MK21 | ||
| NM412 | NM412 | ||
| SM432*2 | SM432*2 | ||
| WM403*2 | WM403*2 | ||
| FE38 | FE38 | ||
| MQ27K | MQ27K | ||
| SM151*3 | SM151*3 | ||
| CR36 | CR36 | ||
| FFC36 | FFC36 | ||
| CR302 | CR302 | ||
| FFC33 | FFC33 | ||
| CR35-A | CR35-A | ||
| LF86 | LF86 | ||
| LF87 | LF87 | ||
| LF54 | LF54 | ||
| SK371*2 | SK371*2 | ||
| NK30 | NK30 | ||
| NK43 | NK43 | ||
| KW36 | KW36 |
Page 39 — FFC-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FE04 | |||
| SM132 | 2 | ||
| KP60 | |||
| MJ35K | |||
| MJ34K | |||
| SM630 | |||
| NM412 | |||
| WM400 | |||
| FE05K | |||
| SM485 | |||
| SM4801 | |||
| FFD24 | |||
| SM486 | |||
| FE19 | |||
| FE18 | |||
| SM432 | |||
| SK270 | |||
| FE23 | |||
| FE22P | |||
| FE22 | |||
| FE20 | |||
| FE21 | |||
| FFC20 | |||
| SM502 | 2 | ||
| SM301 | 2 | ||
| SM611 | 2 | ||
| WM500 | 4 | ||
| WM600 | 2 | ||
| SM511 | 4 | ||
| FFC19K | |||
| SM430 | 2 | ||
| FFC113 | |||
| FFC12J | |||
| SM501*2 | 2 | ||
| FFC16 | |||
| FFC17K | 2 | ||
| FFC23 | |||
| FFC21K | |||
| MJ53 | |||
| SM510 | 2 | ||
| WM500 | 2 | ||
| SM604 | |||
| FFC124K | |||
| SM603 | |||
| CFC14-A | |||
| FFC01K-A | |||
| FFC15 | |||
| FE38 | |||
| SM432 | 2 | ||
| WM403 | 2 | ||
| FFC37K | |||
| FFC38 | |||
| KW36 | |||
| NK43 | |||
| LF86 | |||
| LF87 | |||
| LF54 | |||
| SK371 | 2 | ||
| LF57E-1 | |||
| LF57E-2 | |||
| LF57E-3 | |||
| SK574 | 3 | ||
| NK30 | |||
| KW33E |
Page 40 — C007KD FFT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CFT02-E | |||
| CFT02 | |||
| MQ38 | 2 | ||
| SM438 | 7 | ||
| FFT102-A | |||
| FFT45 | |||
| FFT44 | |||
| FFT102 | |||
| FFT102-E | |||
| FFT03 | |||
| OR050 | |||
| WM504 | |||
| EM030 | |||
| SM438 | 9 | ||
| OS3171 | |||
| FFT06 | |||
| FFT07 | |||
| FFT06-E | |||
| PP6190 | 2 | ||
| FFT101-A1 | |||
| FFT101 | |||
| MR01K | |||
| FFT04-A | |||
| FFT04 | |||
| FFT05 | |||
| SM435 | 4 | ||
| CFT03 | |||
| CFT04 | |||
| CFT04-A | |||
| MQ38*2 | MQ38*2 | ||
| SM438*9 | SM438*9 | ||
| PP6190*2 | PP6190*2 | ||
| SM435*4 | SM435*4 | ||
| SM438*7 | SM438*7 |
Page 41 — FFT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FFT09-C | |||
| KS12-E | |||
| FFT13-E | |||
| FFT23-A | |||
| FFT11-E | |||
| FFT10-C | |||
| FFT12-E | |||
| FFT67-E | |||
| MH73-E | |||
| FFT19-E | |||
| FFT20-C | |||
| FFT20-E | |||
| FFT18-A | |||
| F7XXX-E | |||
| FFT13 | |||
| SM6104 | |||
| SM502 | *2 | ||
| FFT16 | |||
| FFT54 | |||
| MG58 | |||
| FFT15 | |||
| FFT14 | |||
| FFT22 | |||
| FFT21 | |||
| FFT56 | |||
| FFT20 | |||
| FFT60 | *4 | ||
| FFT17 | |||
| FFT55 | |||
| FFT57 | |||
| FFT63 | |||
| FFT18 | |||
| FFT23 | |||
| FFT24 | |||
| FFT26 | |||
| FFT46 | |||
| FFT61 | *2 | ||
| FFT12 | |||
| BR1050 | |||
| MH81 | |||
| SM510 | |||
| SM432 | |||
| WM402 | |||
| OP221 | |||
| OP206 | |||
| OP229 | |||
| OP209 | |||
| SG107 | |||
| OT515 | |||
| OP311 | |||
| SM410*4 | *4 | ||
| F7XXX | |||
| SM411 | |||
| SM4105 | *2 | ||
| SM435 | *3 | ||
| SK216 | *2 | ||
| MG58 | |||
| SM502*2 | SM502*2 | SM502*2 | |
| KS12 | KS12 | KS12 | |
| SK216*2 | SK216*2 | SK216*2 | |
| FFT11 | FFT11 | FFT11 | |
| SM603*2 | SM603*2 | SM603*2 | |
| FFT61*2 | FFT61*2 | FFT61*2 | |
| SM402 | SM402 | SM402 | |
| FFT67 | FFT67 | FFT67 | |
| MH73 | MH73 | MH73 | |
| FFT19 | FFT19 | FFT19 | |
| SM4105*2 | SM4105*2 | SM4105*2 | |
| SM435*3 | SM435*3 | SM435*3 | |
| FFT60*4 | FFT60*4 | FFT60*4 |
Page 42 — FFT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FFT12 | |||
| FFT61 | 2 | ||
| OP206 | |||
| FFT12-E | |||
| EM253 | |||
| BR4250 | |||
| FFT09 | |||
| FFT08 | |||
| SM502 | 2 | ||
| FFT08-E | |||
| SM502 | 2 | ||
| MF40 | |||
| MF40-A | |||
| MF39 | |||
| SM502 | 2 | ||
| MF39-E | |||
| MF09K | |||
| SM139 | 2 | ||
| MF09K-E | |||
| MF09K-C1 | |||
| FFT12 | |||
| FFT61 | 2 | ||
| OP206 | |||
| FFT12-E | |||
| FFT10 | |||
| BR4250 | |||
| KP216 | |||
| SM303 | |||
| FFT42 | |||
| FFT42-E | |||
| FFT43 | |||
| SM502 | 2 | ||
| FFT43-E | |||
| FFT39 | |||
| SM280 | |||
| FFT40 | |||
| PM215 | 2 | ||
| FFT40-E | |||
| FFT38 | |||
| SM501 | |||
| SM508 | |||
| FFT38-E | |||
| FFT41 | |||
| FFT10-C | |||
| SM604 | |||
| FFT64 | |||
| SM602 | 3 | ||
| FFT65 | |||
| BR2250 | |||
| BR2250-E | |||
| FFT151 | |||
| FFT64-A1 | |||
| MS05K | |||
| FFT152 | |||
| FFT152-E | |||
| FFT09-C | FFT09-C |
Page 43 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E7XXX | |||
| E7XXX-A | |||
| MA91K | |||
| SK219 | |||
| SK216 | 4 | ||
| M5XXX | |||
| M5XXX-E | |||
| M5XXX-A2 | |||
| FFT59-E | |||
| OT534 | |||
| FFT58 | |||
| OT532 | |||
| SM332 | |||
| FFT59 | |||
| FFT35 | |||
| FFT34 | |||
| FFT62 | |||
| FFT33 | |||
| FFT35-A | |||
| FFT31 | |||
| PM310 | |||
| FFT30 | |||
| FFT30-E | |||
| FFT28 | |||
| SM437 | |||
| FFT29 | |||
| FFT29-E | |||
| P7XXX-A | |||
| D7XXX | |||
| H7XXX | |||
| FFT136 | |||
| FFT136-E | |||
| FFT25 | |||
| FFT27 | |||
| WM300 | |||
| SM337B | |||
| WM405 | |||
| SM435 | |||
| A | FFT35-A1 | Needle Bar | |
| B | SK216*4 | Screw | |
| B | SK219 M5XXX | Screw | |
| C | FFT59-A | Presser Bar |
Page 44 — FFT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| ML09 | |||
| ML07 | |||
| ML11J | |||
| ML12 | |||
| ML74 | |||
| ML75 | |||
| SM4103 | |||
| SM4104 | |||
| ML02 | |||
| SM401 | 2 | ||
| ML04 | |||
| SM6104 | |||
| ML05J | |||
| ML06J | |||
| ML07J | |||
| CFT05 | |||
| ML06J | |||
| ML07J | |||
| ML08J | |||
| FFT37 | |||
| FFT37-A | |||
| OT627 | |||
| MF36K | |||
| CFT05-A1 | |||
| ALT087S | |||
| OT532 | |||
| ML16 | |||
| NA03 | |||
| CFT05-A | |||
| SG103 | |||
| SK304 | |||
| JA211 | |||
| SG103 | |||
| JA201 | 3 | ||
| OT641 | |||
| KT24 | 2 | ||
| SG105 | 2 | ||
| OT641-A | |||
| SG103 | |||
| SM401*2 | SM401*2 | ||
| JA201*3 | JA201*3 | ||
| KT24*2 | KT24*2 | ||
| SG105*2 | SG105*2 |
Page 45 — SIRUBA PARTS LIST C007KD FFT Use for UT 6/7 2014/03/10
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT141-A | |||
| SM611 | 2 | ||
| WM610 | 2 | ||
| UT141 | |||
| AC029-E | |||
| UT811 | |||
| AC027-A1 | |||
| SM432 | 2 | ||
| ALT104S | |||
| UT788 | |||
| UT778 | |||
| SM611*2 | SM611*2 | ||
| WM610*2 | WM610*2 | ||
| SM432*2 | SM432*2 |
Page 46
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FFT53-1 | FFT53-1 | ||
| MZ115K | MZ115K | ||
| FFT66 | FFT66 | ||
| MZ17K | MZ17K | ||
| MZ12K | *MZ12K | ||
| MZ17K | MZ17K | ||
| FFT53 | FFT53 |
Page 48 — RLQ-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CZP18K | CZP18K | ||
| RL05 | RL05 | ||
| EM090 | EM090 | ||
| WM600 | WM600 | ||
| SM611 | SM611 | ||
| RL14 | RL14 | ||
| SM502 | SM502 | ||
| RL14 | RL14 | ||
| WM600 | WM600 | ||
| SM611 | SM611 | ||
| EM090 | EM090 | ||
| RL03 | RL03 | ||
| RL05 | RL05 | ||
| RLQ05 | RLQ05 | ||
| RL11 | RL11 | ||
| EM090 | EM090 | ||
| RL14 | RL14 | ||
| RL06 | RL06 | ||
| SM888 | SM888 | ||
| RL04 | RL04 | ||
| SM884 | SM884 | ||
| RL08 | RL08 | ||
| SM502 | SM502 | ||
| SM810 | SM810 | ||
| SM431 | SM431 | ||
| RL12 | RL12 | ||
| RL12 | RL12 | ||
| EM090 | EM090 | ||
| RL14 | RL14 | ||
| CZP18K | CZP18K | ||
| RL05 | RL05 | ||
| SM630 | SM630 | ||
| RL03 | RL03 | ||
| RL04 | RL04 | ||
| EM090 | EM090 | ||
| RL02 | RL02 | ||
| SM431 | SM431 | ||
| RL14 | RL14 | ||
| RL06 | RL06 | ||
| WM600 | WM600 | ||
| SM885 | SM885 | ||
| RL01 | RL01 | ||
| SM884 | SM884 | ||
| RLQ04*3 | RLQ04*3 | ||
| BR3050*6 | BR3050*6 | ||
| RLQ02*3 | RLQ02*3 | ||
| SM616 | SM616 | ||
| WM600 | WM600 | ||
| NM410 | NM410 | ||
| SM616 | SM616 | ||
| NM410 | NM410 | ||
| WM600 | WM600 | ||
| RLQ01 | RLQ01 | ||
| NM410 | NM410 |
Page 49 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| RL11 | RL11 | ||
| SM884 | SM884 | ||
| RL12 | RL12 | ||
| EM070 | EM070 | ||
| RL10 | RL10 | ||
| SM502 | SM502 | ||
| SK216*2 | SK216*2 | ||
| RL09D | RL09D | ||
| MH74 | MH74 | ||
| RL15 | RL15 | ||
| SM810 | SM810 | ||
| RL03 | RL03 | ||
| RL13 | RL13 | ||
| RL04 | RL04 | ||
| SM431 | SM431 | ||
| RL16 | RL16 | ||
| EM090 | EM090 | ||
| RL06 | RL06 | ||
| RL14 | RL14 | ||
| RL05 | RL05 | ||
| RL02 | RL02 | ||
| SM630 | SM630 | ||
| WM800*2 | WM800*2 | ||
| SM884 | SM884 | ||
| RL01 | RL01 | ||
| SM885 | SM885 | ||
| RL07 | RL07 | ||
| RL17 | RL17 | ||
| SM610 | SM610 | ||
| WM600 | WM600 |
Page 50 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MY39 | |||
| SM4553B | |||
| UT515J | |||
| UT992 | |||
| SM231 | 2 | ||
| SM233B | |||
| UT506K | |||
| UT507 | |||
| SM337 | 2 | ||
| UT963 | |||
| SM4553B | |||
| UT514K | |||
| WM40B | |||
| UT968K | |||
| SM4553B | |||
| UT514K | |||
| SM337 | 2 | ||
| WM304 | 2 | ||
| UT964 | |||
| SM030 | 2 | ||
| UT977 | |||
| SM250 | 2 | ||
| UT962 | |||
| UT501J | |||
| UT966 | |||
| SM330 | |||
| WM304 | |||
| UT965 | |||
| WM40B | |||
| UT519 | |||
| SM230 | 2 | ||
| UT971 | |||
| UT967 | |||
| UT518D | |||
| SM450 | |||
| SM335 | 2 | ||
| SM432 | 7 | ||
| UT991 | |||
| UT991-A | |||
| SM152 | 2 | ||
| UT969K | |||
| UT970K | |||
| SM331 | |||
| SM231*2 | SM231*2 | ||
| SM337*2 | SM337*2 | ||
| WM304*2 | WM304*2 | ||
| SM030*2 | SM030*2 | ||
| SM250*2 | SM250*2 | ||
| SM432*7 | SM432*7 | ||
| SM335*2 | SM335*2 | ||
| SM152*2 | SM152*2 |
Page 51
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM432 | |||
| CP103 | |||
| MJ37K | |||
| UT979 | |||
| JA012 | 2 | ||
| AC211 | |||
| AP453 | |||
| UT41K-A | |||
| UT41K | |||
| WM600 | 2 | ||
| SM611 | 2 | ||
| AP452 | |||
| AC211-3 | |||
| AC211-4 | |||
| UT43 | |||
| SM492 | |||
| KP60 | |||
| SM510 | |||
| SM484 | |||
| UT805K | |||
| SM432 | |||
| WM405 | |||
| UT530K | |||
| UT802K | |||
| UT825K | |||
| UT804K | |||
| UT524K-A1 | |||
| LA58 | |||
| MB34 | |||
| UT109 | |||
| SM4051 | |||
| SM438 | 2 | ||
| UT828 | |||
| UT47K | |||
| UT817-2 | |||
| SM410 | 2 | ||
| SM432 | 2 | ||
| UT803K | |||
| WM406 | 2 | ||
| SM430 | |||
| UT831 | |||
| UT535K | |||
| SM132 | 2 | ||
| SM404 | |||
| UT259 | |||
| SM516 | |||
| UT807K | |||
| WM510 | |||
| UT829 | |||
| AC211-3 | |||
| UT103E | |||
| AC033 | |||
| JA041 | 2 | ||
| PM307 | |||
| AC211-3 | |||
| UT524K | |||
| WM800 | 2 | ||
| SM810 | 2 | ||
| SM435 | 4 | ||
| CP101 | |||
| AP454 | |||
| AP455 | |||
| JA012*2 | JA012*2 | ||
| WM600*2 | WM600*2 | ||
| SM611*2 | SM611*2 | ||
| SM438*2 | SM438*2 | ||
| SM410*2 | SM410*2 | ||
| SM432*2 | SM432*2 | ||
| WM406*2 | WM406*2 | ||
| SM132*2 | SM132*2 | ||
| JA041*2 | JA041*2 | ||
| WM800*2 | WM800*2 | ||
| SM810*2 | SM810*2 | ||
| SM435*4 | SM435*4 |
Page 52 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | UT54J-2 | UT54J-2 | |
| A | SK392*2 | SK392*2 | |
| A | ALT255S*6 | ALT255S*6 | |
| A | JA025 | JA025 | |
| B | UT54J | UT54J | |
| B | JA014 | JA014 | |
| A | UT54J-A | UT54J-A | |
| B | AP604 | AP604 | |
| E | UT950C-E | UT950C-E | |
| E | JA062*3 | JA062*3 | |
| E | UT950C | UT950C | |
| C | AP452 | AP452 | |
| C | JA018 | JA018 | |
| C | AP453 | AP453 | |
| C | JA018 | JA018 | |
| C | SM413*4 | SM413*4 | |
| C | JA021 | JA021 | |
| C | AP455 | AP455 | |
| D | JA021 | JA021 | |
| D | AP456 | AP456 | |
| D | JA042 | JA042 | |
| D | AP454 | AP454 | |
| D | JA021 | JA021 | |
| E | AP457 | AP457 | |
| G | JA013 | JA013 | |
| G | JA053*2 | JA053*2 |
Page 53 — UTP(UTQ)-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT54J-2 | |||
| ALT255S | 8 | ||
| SK392 | |||
| JA025 | |||
| JA014 | |||
| GUT54J | |||
| AP604 | |||
| AP434 | |||
| AP430 | |||
| AP613 | |||
| AP433 | |||
| JA071 | |||
| JA019 | |||
| JA021 | |||
| AP435 | |||
| AP613 | |||
| JA071 | |||
| JA019 | |||
| AP437 | |||
| JA042 | |||
| JA021 | |||
| AP432 | |||
| AP436 | |||
| JA047 | |||
| JA062 | |||
| JA192 | |||
| JA053 | |||
| JA013 | |||
| UT261K | |||
| SM413 | 4 | ||
| UT955C-E | |||
| UT955C | |||
| EP107 | |||
| JC150-A | |||
| JC300-A | |||
| SM435 | 4 | ||
| CP101 | |||
| CRL241 | |||
| CRL169 | |||
| AP615 | |||
| OT2602 | |||
| CRL44 | |||
| CR322 | |||
| CR321 | |||
| TU20P-1 | |||
| TU20P-4 | |||
| TU20P-2 | |||
| TU20P-3 | |||
| ALT255S*8 | SCREW | ||
| JA062-E | JOINT | ||
| SM413*4 | SCREW | ||
| SM435*4 | SCREW | ||
| TU20P-E | BRACKET | ||
| CRL-K | BRACKET |
Page 55 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT979 | |||
| SM511 | |||
| MK39K | |||
| UT34H | |||
| EM040 | |||
| VJ01-3 | |||
| SM4105 | |||
| UT37-1 | |||
| SM4803 | |||
| MK28H | |||
| MK40 | |||
| SM430 | 2 | ||
| UT35H-1 | 5 | ||
| SM330 | 5 | ||
| UT35H | |||
| UT34-3 | |||
| SM404 | |||
| UT38 | 5 | ||
| UT37-2 | 10 | ||
| SK216 | 15 | ||
| VK02J | 5 | ||
| VK10 | 5 | ||
| MK27H | |||
| VK09-R | |||
| VK09-E1 | |||
| VK09-Y1 | |||
| VK09-G1 | |||
| VK09-B1 | |||
| UT979-E | UT979-E | ||
| UT34H-E | UT34H-E | ||
| UT35J-A | UT35J-A |
Page 56 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT235H | |||
| UT236H | |||
| UT235H-A | |||
| WM402 | 4 | ||
| SM446 | 4 |
Page 57 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| AC027-E | |||
| JA011 | 2 | ||
| AC027 | |||
| WP51 | |||
| SM418 | 2 | ||
| WP55 | |||
| WM810 | |||
| NM810 | |||
| NM410 | |||
| NM410 | |||
| NM410 | |||
| WP54 | |||
| NM410 | |||
| NM410 | |||
| SM330 | |||
| WM301 | |||
| SM030 | |||
| UT564 | |||
| WP58 | |||
| NM410 | |||
| WP42 | |||
| WP41K | |||
| SM130 | |||
| WP52 | |||
| SM4553B | 2 | ||
| SM4306 | |||
| WP53 | |||
| SM4812 | |||
| WP34K | |||
| WP32 | |||
| WP56 | |||
| SM410 | 2 | ||
| WM402 | 2 | ||
| WM402 | 2 | ||
| SM410 | 2 | ||
| WP36 | |||
| BC715 | |||
| JA011*2 | JA011*2 | ||
| WP51-A1 | WP51-A1 | ||
| WP51-A | WP51-A | ||
| SM418*2 | SM418*2 | ||
| SM410*2 | SM410*2 | ||
| WM402*2 | WM402*2 | ||
| SM4553B*2 | SM4553B*2 |
Page 58 — UTP-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM630 | |||
| CP112 | |||
| AC027-A | |||
| SM432 | 2 | ||
| WM400 | 2 | ||
| AP457 | |||
| AP456 | |||
| JA011 | 2 | ||
| WM400 | 2 | ||
| SM435 | 2 | ||
| AC027 | |||
| UT773 | |||
| UT771 | |||
| UT772 | |||
| WK05 | 2 | ||
| WM110 | 2 | ||
| SM135 | 2 | ||
| UT759 | |||
| SM035B | 2 | ||
| UT762 | |||
| UT761 | |||
| UT760K | |||
| NM816 | |||
| WM002 | 2 | ||
| SM035B | 2 | ||
| NM410 | |||
| UT774 | |||
| SM301 | |||
| UT774-A | |||
| UT758K | |||
| NM410 | |||
| SM337B | 2 |
Page 59 — UTP(UTQ)-K For C007K/C858K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT818J-A | |||
| UT817-2 | *2 | ||
| MF129 | |||
| SM604 | |||
| SM603 | |||
| UT815 | |||
| UT816 | |||
| SM4054 | |||
| T999 | |||
| UT817-2*2 | UT817-2*2 |
Page 60 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM604 | |||
| SM603 | |||
| MF131 | |||
| UT817-2 | 2 | ||
| TXXXXX-A | POWER CONTROL BOX COMB | ||
| UT815 | |||
| SM4054 | |||
| WM405 | |||
| F-10 | |||
| T999 | |||
| UT817-2*2 | UT817-2*2 | ||
| TX XXXXX-A | POWER CONTROL BOX COMB | ||
| IF-10 | IF-10 |
Page 61 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM604 | |||
| SM603 | |||
| MF131 | |||
| UT817-2 | 2 | ||
| SM4054 | |||
| WM405 | |||
| UT815 | |||
| UT837 | |||
| TXXXXX-A | |||
| TMD5502CB-1 | |||
| TXXXXX | |||
| CS101-A8 | |||
| T999 | |||
| UT817-2*2 | UT817-2*2 |
Page 62 — UTR(UTS)-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MY39 | |||
| SM4553B | |||
| UT515J | |||
| UT992 | |||
| SM4553B | |||
| UT514K | |||
| UT963 | |||
| WM40B | |||
| SM231 | 2 | ||
| SM233B | |||
| UT506K | |||
| UT507 | |||
| SM337 | 2 | ||
| UT968K | |||
| SM4553B | |||
| UT514K | |||
| SM337 | 2 | ||
| WM304 | 2 | ||
| UT501J | |||
| UT964 | |||
| SM030 | 2 | ||
| UT977 | |||
| UT966 | |||
| SM250 | 2 | ||
| UT962 | |||
| SM330 | |||
| WM304 | |||
| UT965 | |||
| UT519 | |||
| WM40B | |||
| SM230 | 2 | ||
| SM450 | |||
| SM335 | 2 | ||
| UT971 | |||
| UT967 | |||
| UT518D | |||
| SM432 | 7 | ||
| UT991 | |||
| SM152 | 2 | ||
| UT969K | |||
| UT970K | |||
| SM331 | |||
| UT991-A | |||
| SM231*2 | SM231*2 | ||
| SM337*2 | SM337*2 | ||
| WM304*2 | WM304*2 | ||
| SM030*2 | SM030*2 | ||
| SM250*2 | SM250*2 | ||
| SM432*7 | SM432*7 | ||
| SM335*2 | SM335*2 | ||
| SM152*2 | SM152*2 |
Page 63 — UTR(UTS)-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM432 | |||
| CP103 | |||
| MJ37K | |||
| UT979 | |||
| SM492 | |||
| KP60 | |||
| SM484 | |||
| SM510 | |||
| UT805K | |||
| SM510 | 3 | ||
| UT802K | |||
| UT825K | |||
| UT534K-4 | |||
| UT801K | |||
| WM800 | 2 | ||
| SM810*2 | 2 | ||
| CP104 | |||
| SM432 | |||
| SM410 | 2 | ||
| WM406 | 2 | ||
| UT803K | |||
| SM432 | |||
| WM405 | |||
| UT550 | |||
| UT530K | |||
| UT828 | |||
| SM438 | 2 | ||
| UT47K- | |||
| UT817-2- | |||
| UT47K-E | |||
| SM432 | 2 | ||
| UT804K | |||
| UT826 | |||
| PM307 | |||
| UT255 | |||
| SM430 | |||
| UT535K | |||
| GUT103E | |||
| SM132 | 2 | ||
| SM510 | 2 | ||
| UT534K | |||
| MS21-E | |||
| SM404 | |||
| SM301 | 2 | ||
| MS21 | |||
| SM516 | |||
| WM510 | |||
| UT829 | |||
| UT807K | |||
| SM510*3 | SM510*3 | ||
| WM800*2 | WM800*2 | ||
| SM410*2 | SM410*2 | ||
| WM406*2 | WM406*2 | ||
| SM438*2 | SM438*2 | ||
| SM432*2 | SM432*2 | ||
| SM510*2 | SM510*2 | ||
| SM301*2 | SM301*2 | ||
| SM132*2 | SM132*2 | ||
| UT801K-A1 | UT801K-A1 |
Page 64 — C007K/C007KD C858K/C858KD UTR(UTS)-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT985 | |||
| UT986 | |||
| UT548K | |||
| UT550 | |||
| UT811K | |||
| UT109 | |||
| MB34 | |||
| LA58 | |||
| SM4051 | |||
| SM516 | *3 | ||
| SM532 | *2 | ||
| WM600 | *2 | ||
| WM610 | *2 | ||
| SM611 | *2 | ||
| ALT255S | *4 | ||
| UT985-A |
Page 65 — UTR(UTS)-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT776 | TO WIPER | ||
| UT103E | TO SYNCHRONIZER | ||
| UT226D | TO UNDER TRIMMER | ||
| UT534K | TO UNDER TRIMMER | ||
| EP107 | TXxxxx | ||
| T999 | TO PRESSER FOOT |
Page 66 — UTR(UTS)-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT776 | TO WIPER | ||
| UT103E | |||
| UT226D | |||
| UT534K | TO UNDER TRIMMER | ||
| EP107 |
Page 67 — UTR(UTS)-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT776 | |||
| UT534K | |||
| UT226D | |||
| UT103E | |||
| EP107 | |||
| TXXXXX | |||
| T999 | |||
| TXXXXXX |
Page 68 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM630 | |||
| CP112 | |||
| UT776-A | |||
| SM432 | 2 | ||
| WM400 | 2 | ||
| UT776 | |||
| WM400 | 2 | ||
| SM435 | 2 | ||
| UT771 | |||
| UT773 | |||
| UT772 | |||
| WK05 | 2 | ||
| WM110 | 2 | ||
| SM135 | 2 | ||
| UT759 | |||
| SM035B | 2 | ||
| UT762 | |||
| UT761 | |||
| UT760K | |||
| WM002 | 2 | ||
| SM035B | 2 | ||
| WM810 | |||
| SM301 | |||
| NM810 | |||
| OR040 | |||
| WM40D | |||
| NM410 | |||
| NM410 | |||
| NM410 | |||
| UT774 | |||
| UT774-A | |||
| UT758K | |||
| NM410 | |||
| SM337B | 2 |
Page 69 — C007K/C007KD C858K/C858KD UTS-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT776 | |||
| SM418 | 2 | ||
| WP55 | |||
| WM810 | |||
| NM810 | |||
| OR040 | |||
| WM40D | |||
| NM410 | |||
| NM410 | |||
| WP54 | |||
| NM410 | |||
| NM410 | |||
| WP51 | |||
| WP42 | |||
| WP41K | |||
| SM130 | |||
| WP52 | |||
| SM4553B | 2 | ||
| SM330 | |||
| WM301 | |||
| SM030 | |||
| UT564 | |||
| WP58 | |||
| NM410 | |||
| NM410 | |||
| SM4306 | |||
| WP32 | |||
| WP53 | |||
| SM4831 | |||
| WP34K | |||
| WP56 | |||
| SM410 | 2 | ||
| WM402 | 2 | ||
| WM402 | 2 | ||
| SM410 | 2 | ||
| WP36 | |||
| BC715 | |||
| WP51-A2 | WP51-A2 | ||
| WP51-A | WP51-A |
Page 70 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT979 | |||
| SM511 | |||
| MK39K | |||
| UT34H | |||
| EM040 | |||
| VJ01-3 | |||
| SM4105 | |||
| UT37-1 | |||
| SM4803 | |||
| MK40 | |||
| MK28H | |||
| SM430 | 2 | ||
| UT35H-1 | 5 | ||
| SM330 | 5 | ||
| UT35H | |||
| VK02J | 5 | ||
| VK10 | 5 | ||
| MK27H | |||
| VK09-R | |||
| VK09-E1 | |||
| VK09-Y1 | |||
| VK09-G1 | |||
| VK09-B1 | |||
| SM404 | |||
| UT34-3 | |||
| UT38 | 5 | ||
| UT37-2 | 10 | ||
| SK216 | 15 | ||
| UT979-E | UT979-E | ||
| UT35J-A | UT35J-A |
Page 71 — UTR(UTS)-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT818J-A | |||
| SM604 | |||
| SM603 | |||
| MF129 | |||
| UT817-2 | 2 | ||
| UT815 | |||
| UT816 | |||
| SM4054 | |||
| T999 | |||
| UT817-2*2 | UT817-2*2 | ||
| TXxxxx | TXxxxx |
Page 72 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MF131-E | |||
| MF131 | |||
| SM604 | |||
| SM603 | |||
| UT817-2 | 2 | ||
| TXXXXX-A | (POWER CONTROL BOX COMB) | ||
| UT815 | |||
| WM405 | |||
| SM4054 | |||
| F-10 | |||
| T999 | |||
| UT817-2*2 | UT817-2*2 | ||
| TX XXXXXX-A | (POWER CONTROL BOX COMB) |
Page 73 — UTR(UTS)-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM604 | |||
| MF131-E | |||
| SM603 | |||
| MF 131 | |||
| UT817-2 | 2 | ||
| SM4054 | |||
| WM405 | |||
| UT815 | |||
| UT837 | |||
| TXXXXX-A | |||
| TMD6502CB-1 | (POWER CONTROL BOX COMB) | ||
| TXXXXXX | |||
| CS101-A8 | |||
| T999 | |||
| UT817-2*2 | UT817-2*2 |
Siruba C007K Attachments — parts catalog
- Page 1 (parts_list): This page contains a parts list for the SIRUBA C007K/C007KD C858K/C858KD CAR series sewing machine, with part numbers, descriptions, and quantities.
- Page 2 (parts_list): This page contains a parts list for the CAR series, specifically for models C007K/C007KD and C858K/C858KD-UT, with a date of 2013/10/08.
- Page 3 (diagram): This page displays a diagram of various sewing machine parts for the CC-K series, including parts labeled MXXXXK, PXXXX, E5XXXXX, MQ35K, MQ33K, CC01K, CC02K, SK652*2, DXXXX, and HXXXX.
- Page 4 (diagram): This page displays a diagram of various sewing machine parts for the CE-K series, including components labeled MXXXXK, PXXXX, E5XXXXX, MQ35K, MQ33K, CE01K, SK652*2, CE02K, CC01K, DXXXX, and HXXXX.
- Page 5 (diagram): This page displays a diagram of various parts for the Siruba CFC-K sewing machine series, including components like belts, pulleys, screws, and brackets, with part numbers and reference labels.
- Page 6 (diagram): This page displays a diagram of sewing machine parts for the CFC-K series, specifically for models C007K/C007KD and C858K/C858KD. It includes part numbers and references for various components.
- Page 7 (parts_list): This page contains a parts list for the Siruba CFC-K series sewing machines, specifically for models C007K/C007KD and C858K/C858KD. It includes various part numbers and their descriptions, along with diagrams illustrating their placement.
- Page 8 (diagram): This page displays a diagram of various sewing machine parts, including screws, nuts, washers, and other components, with their corresponding part numbers and labels.
- Page 9 (diagram): This page displays a diagram of various machine parts for the Siruba CH-3M series, including part numbers like MXXXX, PXXXX, E5XXX, and others, with some parts noted as not attached in CE type.
- Page 10 (parts_list): This page contains a parts list for the CHK-K series, specifically for models C007K/C007KD and C858K/C858KD, with a publication date of 2015/09/07.
- Page 11 (diagram): This page displays a diagram of various components for the CHK-K series, including air preparation units, solenoid valves, electrical connectors, and a foot switch, with associated part numbers and descriptions.
- Page 12 (diagram): This page displays a diagram of sewing machine parts for the CH-K series, specifically for models C007K/C007KD and C858K/C858KD. It includes various components labeled with part numbers and references.
- Page 13 (diagram): This page displays a diagram of machine parts for the SIRUBA C007K/C007KD C858K/C858KD CHP(CY)/UTP-K series. It includes part numbers, descriptions, and their placement within the machine assembly.
- Page 14 (diagram): This page displays a diagram of various components for the Siruba C007K/C007KD C858K/C858KD CHP(CY)/UTP-K sewing machine, including air control parts, electrical connectors, and a dust collector.
- Page 15 (parts_list): This page contains a parts list for the SIRUBA C007K/C007KD C858K/C858KD CL(CLA)-K series sewing machine, detailing various components with their part numbers and descriptions, including a table for roller specifications.
- Page 16 (diagram): This page displays a diagram of sewing machine parts for the CL-K series, including various components labeled with part numbers and reference indicators.
- Page 17 (diagram): This page displays a diagram of various machine parts including brackets, screws, nuts, washers, and chains, with labels and reference numbers for identification.
- Page 18 (diagram): This page displays a diagram of various machine parts for the CQA-K series, including components labeled CQA04K, CQA02K, CQA09-A, CQA14K, CQA13, CQA09, CQA11, CQA03K, and CQA12K, along with associated hardware like SM480, MQ38*2, WM601, WM641, NM410, SM131*2, SM620, SK250, SM532*2, and SM411*2.
- Page 19 (diagram): This page displays a diagram of sewing machine parts for the CQA-K series, including parts like MXXXXK, SM031, CQA08K, PXXXX, EXXXX, MT01A, CQA09K, SK222, DXXXX, HXXXX, MA81, CQA01K, SM432, CQA05K, CQA06K.
- Page 20 (diagram): This page displays a diagram of sewing machine parts for the C007K/C007KD and C858K/C858KD series, specifically the CQ-K parts group. It includes various part numbers and their corresponding labels within the diagram.
- Page 21 (diagram): This page displays a diagram of various parts for the SIRUBA CR-K series sewing machine, including components like CR305, CR306-A, CR307-E, and CR301, along with their associated part numbers and references.
- Page 22 (diagram): This page displays a diagram of various machine parts for the Siruba CR-K series, including components like CR321, JA048, OT2602, and TU20P series parts, along with their corresponding part numbers and references.
- Page 23 (diagram): This page displays a diagram of various parts for the SIRUBA CR-K series sewing machines, including components like UT54J-2, JA025, UT54J-A, and others, with reference numbers and part names.
- Page 24 (diagram): This page displays a diagram of sewing machine parts, including various components labeled with part numbers and reference indicators. It is part of a larger series for C007K/C007KD and C858K/C858KD models, specifically for the CRL-K group.
- Page 25 (diagram): This page displays a diagram of machine parts for the SIRUBA C007K/C007KD C858K/C858KD CRL-K series, with part numbers and references indicated.
- Page 26 (diagram): This page displays a diagram of various parts for the CRL-K series, including components like AP604, CR47D, FD161-1-E, and TU20P series parts, along with their associated part numbers and descriptions.
- Page 27 (diagram): This page displays a diagram of the CRL-K series parts, including various components like the lift presser foot, loop trimmer, and top cutter, along with their corresponding part numbers and references.
- Page 28 (diagram): This page displays a diagram of sewing machine parts for models C007K/C007KD and C858K/C858KD, part of the CW-K series. It includes various components labeled with part numbers and references.
- Page 29 (diagram): This page displays a diagram of sewing machine parts for the CW-K series, specifically for models C007K/C007KD and C858K/C858KD. It includes part numbers and references for various components.
- Page 30 (diagram): This page displays a diagram of sewing machine parts, including various screws, brackets, and components labeled with part numbers and references.
- Page 31 (diagram): This page displays a diagram of parts for the Siruba CX-K series, specifically C007K/C007KD and C858K/C858KD models, with part numbers and references indicated.
- Page 32 (diagram): This page displays a diagram of parts for the SIRUBA CZ-K series sewing machines, specifically models C007K/C007KD and C858K/C858KD. It includes part numbers, names, and references within the diagram.
- Page 33 (diagram): This page displays a diagram of various parts for the SIRUBA CZ-K series, including part numbers like UT54J-2, JA025, SK392*2, and others, with associated labels and reference points.
- Page 34 (diagram): This page displays a diagram of parts for the Siruba CZ-K series sewing machine, including part numbers like CY109, SM623, and AC210.
- Page 35 (diagram): This page displays a diagram of sewing machine parts, including part numbers like CZP01K-A, CZ04K, CZ07K, CZ11K, CZ01K, CZ03K, CZ22K, CZ02K-E, CZ05K, CZ06K, CZ04K, and associated hardware such as SM430, WM300, SM330, SM498, SM441*2, CHK06, SM461*2, WK21*4, SM4052*4, PM301, PM302, and SM404.
- Page 36 (diagram): This page displays a diagram of machine parts for the SIRUBA C007K/C007KD C858K/C858KD CZP-K series, with part numbers and labels indicated.
- Page 37 (diagram): This page displays a diagram of parts for the SIRUBA CZP-K sewing machine, series C007K/C007KD and C858K/C858KD. It includes various components labeled with part numbers and references.
- Page 38 (diagram): This page displays a diagram of the FE-K parts group for the C007K/C007KD and C858K/C858KD sewing machine models, with various components labeled and illustrated.
- Page 39 (diagram): Exploded diagram of the FFC-K belt drive, tensioner, and mounting assemblies for the Siruba F007K/F858K/C007K/C858K, with a lower-left FFC01K-A group, an FE38 plate note, and an LS-A detail, each part labeled with its part number.
- Page 40 (diagram): This page displays a diagram of various parts for the FFT series, including components like FFT102-A, FFT102-E, FFT06, FFT07, and FFT04-A, along with associated hardware such as MQ38*2 and SM438*9 screws.
- Page 41 (diagram): This page displays a diagram of the FFT parts group for the SIRUBA C007KD sewing machine, detailing various components and their assembly.
- Page 42 (diagram): This page displays a diagram of the FFT parts group for the C007KD series, including various components like FFT12, FFT09-C, FFT43-E, and FFT38-E, along with their associated part numbers and references.
- Page 43 (diagram): This page displays a diagram of various sewing machine parts, including needle plates, presser feet, and other components, with their corresponding part numbers and labels.
- Page 44 (parts_list): This page lists parts for the SIRUBA C007KD FFT series, including various ML, SM, CFT, OT, SG, SK, KT, JA, and MF components.
- Page 45 (diagram): This page displays a diagram of parts for the Siruba C007KD FFT series, including components like SM611*2, WM610*2, UT141-A, ALT104S, UT141, AC029-E, UT811, AC027-A1, SM432*2, UT788, and UT778.
- Page 46 (diagram): This page displays a diagram of parts for the Siruba FFT sewing machine, including part numbers like FFT53-1, MZ115K, FFT66, MZ17K, and FFT53, along with a date of 2012/12/25.
- Page 48 (diagram): This page displays a diagram of parts for the Siruba RLQ-K series, including parts like CZP18K, RL05, EM090, SM502, RL14, SM611, WM600, RL03, RLQ05, RL04, SM431, RL11, SM884, RL12, RL08, SM810, RL13, RL02, SM885, RL01, RLQ04*3, BR3050*6, RLQ02*3, SM616, NM410, and RLQ01.
- Page 49 (diagram): This page displays a diagram of parts for the RL series, including components like RL11, SM884, RL12, EM070, RL10, SM502, SK216*2, RL09D, MH74, RL15, SM810, RL03, RL04, SM431, RL13, RL08, RL16, WM600, SM630, RL05, EM090, RL14, SM885, RL02, RL01, RL07, RL17, SM610, and WM800*2.
- Page 50 (diagram): This page displays a diagram of sewing machine parts, including various screws, washers, and components labeled with part numbers like UT992, UT506K, UT507, UT968K, UT514K, UT963, UT964, UT962, UT965, UT971, UT967, UT518D, UT969K, UT970K, UT991, and UT991-A, along with associated hardware such as SM4553B, UT515J, SM231*2, SM233B, SM337*2, WM40B, SM330, WM304, SM230*2, SM335*2, SM450, SM432*7, SM152*2, and SM331.
- Page 51 (diagram): This page displays a diagram of various machine parts including brackets, screws, and cylinders, with part numbers and quantities indicated.
- Page 52 (diagram): This page displays a diagram of various machine parts including a filter regulator, solenoids, and wiring harnesses, with part numbers and reference indicators.
- Page 53 (diagram): This page displays a diagram of various components for the Siruba C007K/C007KD C858K/C858KD sewing machine, including air control parts, motor connections, and other miscellaneous items.
- Page 54 (diagram): This page contains a diagram of the machine's electrical components, including a synchronizer, main power connection, and an ON/OFF switch, with associated part numbers and descriptions.
- Page 55 (diagram): This page contains a diagram of various machine parts including UT979, SM511, UT979-E, MK39K, UT34H, VJ01-3, SM4105, UT34H-E, EM040, SM4803, MK40, MK28H, SM430*2, UT35H-1*5, UT35H, UT34-3, VK09-R, VK09-E1, VK09-Y1, VK09-G1, VK09-B1, MK27H, VK10*5, SM330*5, UT37-1, UT38*5, UT37-2*10, SK216*15, UT35J-A, and SM404.
- Page 56 (parts_list): This page is a parts list for the Siruba UTQ-K series, specifically for models C007K/C007KD and C858K/C858KD. It includes a diagram showing parts UT235H, UT236H, UT235H-A, WM402*4, and SM446*4.
- Page 57 (parts_list): This page contains a parts list for Siruba sewing machines, series C007K/C858KD, parts group UTQ-K1. It includes a diagram with various parts labeled with their respective part numbers and descriptions.
- Page 58 (diagram): This page displays a diagram of parts for the UTP-K series, including various screws, nuts, washers, and brackets labeled with part numbers like SM630, CP112, AC027, UT771, and UT772.
- Page 59 (diagram): This page displays a diagram of the C007K/C007KD C858K/C858KD UTP(UTQ)-K series sewing machine, specifically detailing components related to the H brand motor and power connection.
- Page 60 (diagram): This page displays a diagram of the C007K/C007KD C858K/C858KD series, UTP(UTQ)-K parts group, for H brand motor. It includes various components such as SM604, SM603, UT817-2*2, MF131, TXXXXX-A (POWER CONTROL BOX COMB), UT815, WM405, SM4054, T999, and IF-10.
- Page 61 (parts_list): This page lists parts for Siruba sewing machines C007K/C007KD and C858K/C858KD, specifically for the UTP(UTQ)-K parts group, applicable to T and H brand motors. It includes a diagram with various components like motors, controllers, and fasteners, with their corresponding part numbers and descriptions.
- Page 62 (diagram): This page displays a diagram of various parts for the SIRUBA C007K/C007KD C858K/C858KD UTR(UTS)-K series sewing machine, including screws, washers, and brackets, with part numbers and labels.
- Page 63 (diagram): This page displays a diagram of various machine parts, including brackets, screws, springs, and motors, with their corresponding part numbers and labels.
- Page 64 (diagram): This page displays a diagram of sewing machine parts, including components labeled UT985, UT986, UT548K, UT550, UT811K, SM516*3, SM532*2, SM611*2, WM600*2, WM610*2, LA58, UT109, MB34, UT985-A, and ALT255S*4.
- Page 65 (diagram): This page displays a diagram of the C007K/C858K series sewing machine, specifically for the UTR(UTS)-K parts group, detailing components related to the H brand motor and its connections to the wiper, synchronizer, main power, and presser foot.
- Page 66 (parts_list): This page is a parts list for Siruba sewing machines, series C007K/C007KD and C858K/C858KD, specifically for the UTR(UTS)-K parts group, intended for use with H brand motors (HVP-70). It includes a diagram illustrating various components and their connections.
- Page 67 (diagram): This page displays a diagram of electrical components for Siruba sewing machines, including parts like UT776, UT226D, UT103E, UT534K, and T999, with connections to the wiper, under trimmer, main power, and presser foot.
- Page 68 (diagram): This page displays a diagram of parts for the UTR-K series, specifically for models C007K/C007KD and C858K/C858KD. It includes part numbers, descriptions, and quantities for various components.
- Page 69 (diagram): This page displays a diagram of sewing machine parts, including components labeled UT776, WP51-A2, WP51-A, and various other part numbers like WM810, NM810, SM418, WP55, WP51, WP52, WP42, WP41K, SM130, SM330, WM301, NM410, WP54, UT564, WP58, WP34K, SM4831, WP53, SM4553B, SM4306, WP32, WP56, WM402, SM410, WP36, and BC715.
- Page 70 (diagram): This page displays a diagram of various machine parts for the Siruba C007K/C007KD, C858K/C858KD, and UTR(UTS)-K models. It includes part numbers and references for components like UT979, SM511, UT37-1, MK40, SM4803, and others.
- Page 71 (diagram): This page displays a diagram of the Siruba C007K/C007KD and C858K/C858KD UTR(UTS)-K series sewing machine parts, specifically for the C007K/C858K subclass and H brand motor. It includes part numbers like SM604, UT817-2*2, MF129, SM603, UT818J-A, UT815, SM4054, UT816, T999, and TXXXXX, along with a switch labeled ON/OFF and a connection to the main power.
- Page 72 (diagram): This page displays a diagram of various components for the SIRUBA C007K/C007KD and C858K/C858KD sewing machines, specifically for the UTR(UTS)-K parts group, noting it's for H brand motors (HVP-20). It includes part numbers like SM604, MF131-E, UT817-2*2, MF131, TXXXXXX-A, UT815, WM405, T999, and F-10, along with a diagram illustrating their placement.
- Page 73 (diagram): This page displays a diagram of various machine parts including a motor, control box, and associated components, with part numbers and descriptions.
