Siruba C007KD Attachments — Part Book

Siruba C007KD Attachments — parts catalog

Page 16 (diagram): This page displays a diagram of sewing machine parts for the CL(CLA) series, including part numbers and their corresponding diagrams. It also lists the series as C007L/C007LD, C007K/C007KD, and C858K.
Page 17 (diagram): This page displays a diagram of parts for the SIRUBA CMR-K series, including various screws, nuts, washers, and brackets.
Page 18 (diagram): This page displays a diagram of machine parts for the SIRUBA C007K/C007KD C858K CQ-K series, with part numbers and labels indicated.
Page 19 (diagram): This page displays a diagram of parts for the CQA-K series, including components like CQA04K, CQA02K, CQA14K, CQA09, CQA11, CQA03K, and CQA12K, along with associated hardware like SM480, WM601, WM641*2, NM410, SM131*2, SM620 SK250*2, CQA13, SM532*2, and SM411*2.
Page 20 (diagram): This page displays a diagram of sewing machine parts for the CQA-K series, including various components like presser feet, needle plates, and mounting brackets, with part numbers and labels.
Page 21 (diagram): This page displays a diagram of various parts for the SIRUBA CR-K sewing machine series, including components like CR305, CR306-A, CR307-E, and CR323, along with their associated part numbers and reference indicators.
Page 22 (diagram): This page displays a diagram of various parts for the Siruba CR-K series sewing machines, including components labeled TU20P-1 through TU20P-5, AP605, JA025, and UT54J-A, along with their associated part numbers and descriptions.
Page 23 (diagram): This page displays a diagram of various parts for the SIRUBA C007K/C007KD C858K C007L/C007LD CR-K series sewing machine, including components like lift presser foot, loop trimmer, and top cutter, along with their corresponding part numbers and references.
Page 24 (diagram): This page displays a diagram of various machine parts for the CRL-K series, including components like CRL01K, SM501*2, CRL12K, and others, with their respective labels and some quantity indicators.
Page 25 (parts_list): This page contains a parts list for the SIRUBA C007KP/C007K C858K sewing machine, specifically for the CRL-K parts group, with items like CRL162, CRL21K, CRL29K, and various screws and washers.
Page 26 (diagram): This page displays a diagram of various parts including a filter regulator, a bracket, and pneumatic components with their corresponding part numbers and descriptions.
Page 27 (diagram): This page displays a diagram of the CRL-K parts group, including various components like air filters, solenoids, and motor housings, with their corresponding part numbers and reference labels.
Page 28 (parts_list): This page lists parts for the Siruba CW-K series sewing machines, including series C007KD, C007KP/C858K, and C007L/C007LX. It displays a diagram with various components labeled with part numbers and references.
Page 29 (diagram): This page displays a diagram of various machine parts, including components labeled FW05J, MK37H, KN37, SM430, FW01J-A, FW01H, FW04H, KG05-G1, VK02J*6, VK05*6, KG07*12, KG08*6, VK10*6, VK09-B1, and others, organized into sections A, B, C, D, and E.
Page 30 (parts_list): This page contains a parts list for the SIRUBA CW-K series, specifically for models C007K/C007KD, C007KP/C858K, and C007L/C007LX. It details various components with their part numbers and names, including items like SM511, UT28K, PM501, EM040, UT34H, FW33, FW31, FW34, UT35H-1, SM330, FW34-E, SM430, UT37-2, UT38, UT38-E1, SK216, VK02J, VK10, VK05, KG07, KG08, KG05-G1, and VK09-B1.

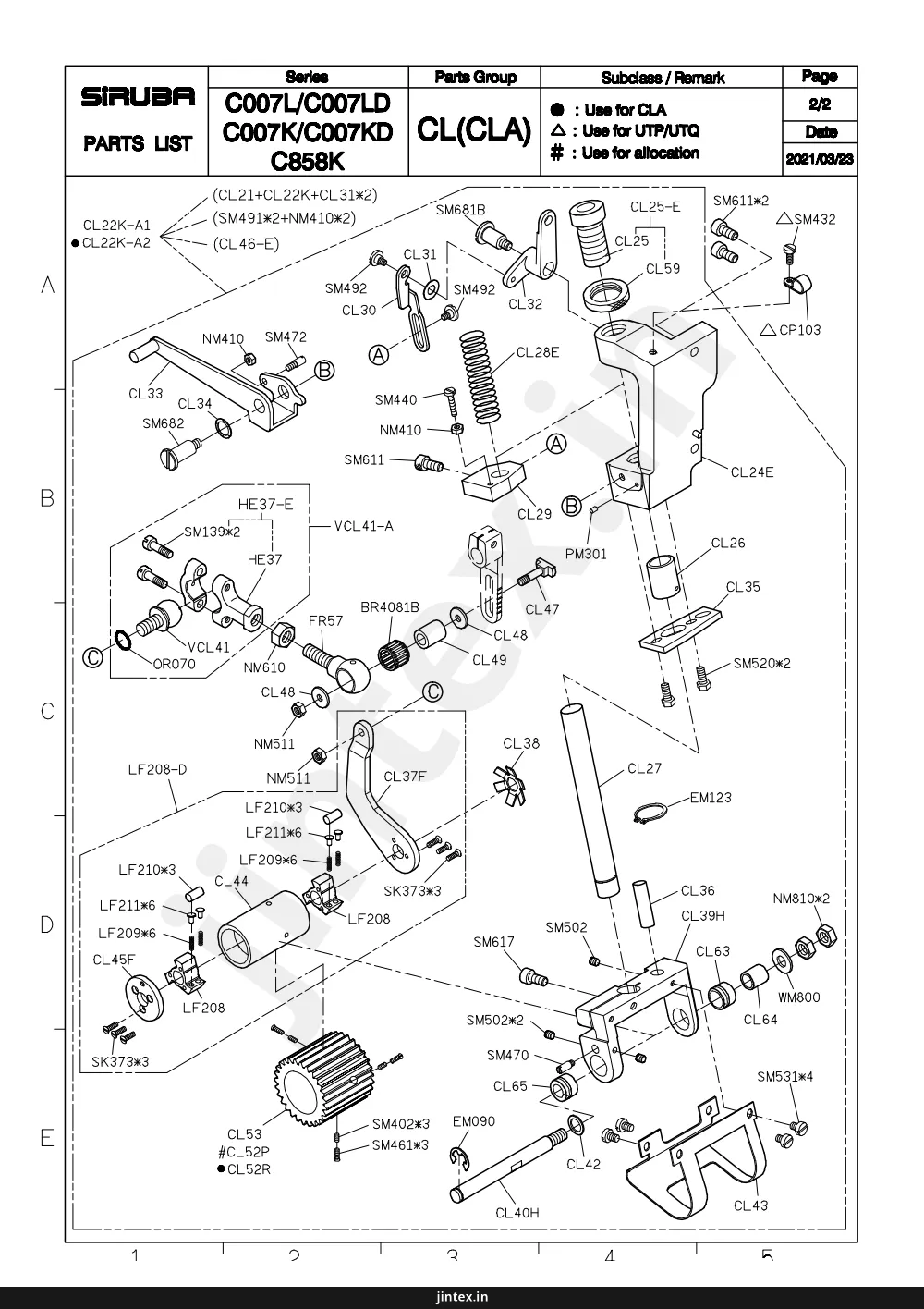

Page 16

Siruba C007KD Attachments parts on page 16
Ref	Part number	Part name	Qty
	CL22K-A1	CL 22K-A1
	CL22K-A2	CL22K-A2
	SM4912+NM4102
	CL21+CL22K+CL31*2
	CL46-E
	SM681B
	CL 31
	SM492
	CL 30
	SM492
	CL 32
	CL 25-E
	SM611*2
	SM432
	CL 59
	CL 33
	NM410
	SM472
	CL 34
	SM682
	SM440
	CL 28E
	NM410
	SM611
	HE37-E
	SM139*2
	VCL41-A
	CL 29
	CL 24E
	HE37
	PM301
	CL 26
	CL 35
	FR57
	BR4081B
	VCL41
	CL 47
	CL 48
	OR070
	NM610
	CL 48
	CL 38
	NM511
	CL 27
	CL37F
	EM123
	NM511
	LF208-D
	LF210*3
	LF209*6
	LF210*3
	CL44
	LF211*6
	LF209*6
	LF208
	SK373*3
	SM617
	SM502
	CL 36
	NM810*2
	CL39H
	CL 63
	CL45F
	LF208
	WM800
	SM502*2
	CL64
	SM470
	CL 53
	CL65
	CL52P
	CL52R
	SM402*3
	EM090
	SM461*3
	CL42
	CL43
	CL40H
	CP103

SIRUBA PARTS LIST Series C007L/C007LD C007K/C007KD C858K Parts Group CL(CLA) Subclass / Remark : Use for CLA : Use for UTP/UTQ : Use for allocation Page 2/2 Date 2021/03/23 CL 22K-A1 CL22K-A2 (CL21+CL22K+CL31*2) (SM491*2+NM410*2) (CL46-E) SM681B CL 25-E SM611*2 SM432 CL 31 CL 59 SM492 CL 30 CL32 CP103 CL 33 NM410 SM472 CL 34 SM682 SM440 CL 28E NM410 SM611 HE37-E SM139*2 VCL41-A CL 29 CL 24E HE37 PM301 CL 26 FR57 BR4081B CL 35 CL 47 VCL41 CL 48 OR070 NM610 CL 48 CL 38 NM511 CL 27 CL37F EM123 NM511 LF208-D LF210*3 LF209*6 LF210*3 CL44 LF211*6 LF209*6 LF208 SK373*3 SM617 SM502 CL 36 NM810*2 CL39H CL 63 CL45F LF208 WM800 SM502*2 CL64 SM470 CL 53 CL65 #CL52P CL52R SM402*3 EM090 SM461*3 CL42 CL43 CL40H 1 2 3 4 5 jintex.in

Page 17

Siruba C007KD Attachments parts on page 17
Ref	Part number	Part name	Qty
	CMR01-A	BRACKET
	NM410	NUT
	WM600*2	WASHER
	SK392*2	SCREW
	BR3050*2	PIN
	CMR03	SHAFT
	CFC45-A	BRACKET
	SM883	SCREW
	WMCO1	WASHER
	CMR02	SHAFT
	CZ116	BRACKET
	SM603*2	SPRING
	CZ115	BRACKET
	SM490	SCREW
	CFC45	BRACKET
	PM502	PIN
	SM470	SCREW
	SK392*2	SCREW
	SM521	SCREW
	KY21-1	HOOK
	WM800	WASHER
	NM810	NUT
	CZ119	BRACKET
	CZ123	BRACKET
	FFD23	CHAIN
	CZ124	BRACKET
	SM433*2	SCREW
	EM040	PIN
	WM500	WASHER
	SM513	SCREW
	CZ28	RING
	CY112	COVER
	CZ122	BRACKET
	CZ117	BRACKET

SIRUBA PARTS LIST Series C007K/C007KD C007KP/C858K S007K/S007KD Parts Group CMR-K Subclass / Remark Page 1/1 Date 2016/8/29 CMR01-A NM410 WM600*2 SK392*2 BR3050*2 CFC45-A CMR03 SM883 WMCO1 CMR02 CZ116 SM603*2 CZ115 SM490 CFC45 PM502 SM470 WM600*2 SK392*2 SM521 KY21-1 WM800 NM810 CZ119 CZ123 FFD23 EM040 CZ124 SM433*2 WM500 SM513 CZ28 CY112 CZ122 CZ117 1 2 3 4 5 jintex.in

Page 18

Siruba C007KD Attachments parts on page 18
Ref	Part number	Part name	Qty
	CQ08K	CQ08K
	SM131*2	SM131*2
	SM620	SM620
	SK250*2	SK250*2
	FQ06	FQ06
	CQ11H	CQ11H
	CQ16	CQ16
	CQ04K	CQ04K
	WM400	WM400
	SM431	SM431
	FQ11*2	FQ11*2
	FQ12*2	FQ12*2
	SM511*2	SM511*2
	CQ09K	CQ09K
	NM511	NM511
	CQ15K	CQ15K
	SM435*2	SM435*2
	SM501*4	SM501*4
	FQ13*2	FQ13*2
	SM432*2	SM432*2
	WM400*2	WM400*2
	CQ03K	CQ03K

SIRUBA PARTS LIST Series C007K/C007KD C858K Page 1/1 Date 2016/8/29 Parts Group CQ-K Subclass / Remark CQ08K SM131*2 SM620 SK250*2 FQ06 CQ11H CQ16 CQ04K WM400 SM431 FQ11*2 FQ12*2 SM511*2 CQ09K NM511 CQ15K SM435*2 NM511 SM501*4 FQ13*2 WM400*2 SM432*2 CQ03K 1 2 3 4 5 jintex.in

Page 19 — CQA-K

Siruba C007KD Attachments parts on page 19
Ref	Part number	Part name	Qty
	SM480	SM480
	CQA04K	CQA04K
	CQA02K	CQA02K
	CQA02K-A	CQA02K-A
	WM601	WM601
	WM641*2	WM641*2
	WM601	WM601
	NM410	NM410
	CQA14K	CQA14K
	CQA09-A	CQA09-A
	SM131*2	SM131*2
	SM620 SK250*2	SM620 SK250*2
	CQA09	CQA09
	CQA13	CQA13
	SM532*2	SM532*2
	CQA11	CQA11
	CQA03K	CQA03K
	CQA12K	CQA12K
	SM411*2	SM411*2

Series Parts Group Subclass / Remark Page SIRUBA C007K/C007KD C858K CQA-K 1/2 Date 2021/8/25 SM480 CQA04K CQA02K CQA02K-A WM601 WM641*2 WM601 NM410 CQA14K CQA09-A SM131*2 SM620 SK250*2 CQA09 CQA13 SM532*2 A CQA11 CQA03K CQA12K SM411*2 1 2 3 4 5 jintex.in

Page 20 — C007K/C007KD C858K CQA-K

Siruba C007KD Attachments parts on page 20
Ref	Part number	Part name	Qty
	SM031	SM031
	CQA08K	CQA08K
	PXXXX	PXXXX
	EXXXX	EXXXX
	MT01A	MT01A
	CQA09K	CQA09K
	SK222	SK222
	CQA06K-A	CQA06K-A
	DXXXX	DXXXX
	SM432	SM432
	HXXXX	HXXXX
	MA81	MA81
	MQ738*2	MQ738*2
	CQA05K	CQA05K
	CQA01K	CQA01K
	CQA06K	CQA06K

SIRUBA PARTS LIST Series C007K/C007KD C858K Page 2/2 Date 2021/8/25 Parts Group CQA-K Subclass / Remark SM031 CQA08K PXXXX EXXXX MT01A CQA09K SK222 B+A=CQA06K-A DX SM432 HXXXX MA81 MQ738*2 CQA05K CQA01K CQA06K 1 2 3 4 5 jintex.in

Page 21 — PARTS LIST

Siruba C007KD Attachments parts on page 21
Ref	Part number	Part name	Qty
	CR305	CR305
	CR306-A	CR306-A
	UT817-2	UT817-2
	CR306	CR306
	CR307-E	CR307-E
	MV34	MV34
	CR307	CR307
	OP222	OP222
	CR35	CR35
	SM480	SM480
	WM601	WM601
	WM641*2	WM641*2
	WM601*2	WM601*2
	NM410	NM410
	CR301	CR301
	CR35-A	CR35-A
	MQ738*2	MQ738*2
	CR302-A	CR302-A
	CR302-A1	CR302-A1
	CR36	CR36
	CR304	CR304
	CR302	CR302
	CR309	CR309
	BRA050	BRA050
	CR307-A	CR307-A
	CR308	CR308
	SM436	SM436
	CR310	CR310
	CR335-A1	CR335-A1
	CR335-A	CR335-A
	CR315K-A	CR315K-A
	SM542	SM542
	CR311	CR311
	CR336	CR336
	CR312A	CR312A
	CR312	CR312
	CR314	CR314
	OP2091	OP2091
	SM404	SM404
	CR317-E	CR317-E
	WM505	WM505
	SM516	SM516
	CR311	CR311
	SM540	SM540
	NM511	NM511
	SM471	SM471
	PP2050	PP2050
	CR1167	CR1167
	SM471	SM471
	SM441	SM441
	CR114	CR114
	CR317-A	CR317-A
	CR317-A1	CR317-A1
	CR334	CR334
	CR318	CR318
	CR319	CR319
	SM332*2	SM332*2
	PP6090	PP6090
	CR115	CR115
	WM808	WM808
	CR320	CR320
	FR32	FR32
	SM401*2	SM401*2
	FR31	FR31
	FR32-E	FR32-E
	PP6210	PP6210
	SM516*2	SM516*2
	CR323-A2	CR323-A2
	CR323-A1	CR323-A1
	CR323-A	CR323-A
	CR322K	CR322K
	OR210	OR210
	JA019	JA019
	CR110	CR110
	SM430	SM430
	CR325	CR325
	CR323	CR323
	SM4652*4	SM4652*4
	CR312(DENTATE)	CR312(DENTATE)
	CR312A	CR312A

SIRUBA Series C007K/C007KD PARTS LIST C858K CR305 CR306-A UT817-2 *2 CR306 CR307-E MV34 CR307 OP222 CR35 SM480 WM601 WM641*2 WM601*2 NM410 CR301 CR35-A MQ738*2 CR302-A CR302-A1 CR36 CR304 CR302 CR309 BRA050 CR307-A CR308 SM436 CR310 CR335-A1 CR335-A CR315K-A SM542 CR311 CR336 CR312A CR312 CR314 OP2091 SM404 CR317-E WM505 SM516 CR311 SM540 NM511 SM471 PP2050 CR1167 SM471 SM441 CR114 CR317-A CR317-A1 CR334 CR318 CR319 SM332*2 PP6090 CR115 WM808 CR320 FR32 SM401*2 FR31 FR32-E PP6210 SM516*2 CR323-A2 CR323-A1 CR323-A CR322K OR210 JA019 CR110 SM430 CR325 CR323 SM4652*4 MEDIUM FABRIC 中厚布 CR312(DENTATE) THIN FABRIC 薄布 CR312A 1 2 3 4 5 jintex.in Parts Group Subclass / Remark Page 1/3 Date 2022/1/5 : Use for Basic CR #: Use for CX O: Use for CR/CX 7: Use for attach FFC : Use allocation

Page 22

Siruba C007KD Attachments parts on page 22
Ref	Part number	Part name	Qty
	TU20P-1	TU20P-1
	TU20P-4*4	TU20P-4*4
	TU20P-2	TU20P-2
	TU20P-3	TU20P-3
	TU20P-5	TU20P-5
	OT2602	OT2602
	AP605	AP605
	JA222	JA222
	AP615	AP615
	TU20P-E	TU20P-E
	A-100ST-E	A-100ST-E
	PU-BL-040-060-L300	PU-BL-040-060-L300
	A-101-15	A-101-15
	A-101-14	A-101-14
	PU-BL-040-060	PU-BL-040-060
	A-101-08	A-101-08
	A-101-15	A-101-15
	OR-1040-120-00	OR-1040-120-00
	A-101-14	A-101-14
	ALT104S*6	ALT104S*6
	UT54J-A	UT54J-A
	A-101-33	A-101-33
	OR-0700-150-00	OR-0700-150-00
	A-101-06-1	A-101-06-1
	A-100-20	A-100-20
	A-101-42	A-101-42
	A-101-02	A-101-02
	A-101-09	A-101-09
	A-100-04	A-100-04
	A-101-03-2	A-101-03-2
	OR-0480-150-00	OR-0480-150-00
	A-100-01	A-100-01
	A-101-11	A-101-11
	A-101-05	A-101-05
	A-101-12	A-101-12
	A-101-31	A-101-31
	A-101-32	A-101-32
	A-101-38L	A-101-38L
	A-101-35	A-101-35
	A-101-06	A-101-06
	JA025	JA025
	JA014	JA014
	UT54J	UT54J
	UT54J-2	UT54J-2
	SK392*2	SK392*2
	AP604	AP604

SIRUBA PARTS LIST Series C007K/C007KD C007L/C007LX C858K Parts Group CR-K Subclass / Remark *: UTP/UTQ Is not collocotec with Page 2/3 Date 2021/6/24 OT2602 TU20P-1 TU20P-4*4 TU20P-2 TU20P-3 TU20P-5 AP605 JA222 AP615 TU20P-E *A-100ST-E Air-In PU-BL-040-060-L300 A-101-15 A-101-14 PU-BL-040-060 A-101-08 A-101-15 OR-1040-120-00 A-101-14 ALT104S*6 UT54J-A A-101-33 OR-0700-150-00 A-101-06-1 A-100-20 A-101-42 A-101-02 A-101-09 A-100-04 A-101-03-2 OR-0480-150-00 A-100-01 A-101-11 A-101-05 A-101-12 A-101-31 A-101-32 A-101-38L A-101-35 A-101-06 JA025 JA014 UT54J SK392*2 AP604 1 2 3 4 5 jintex.in

Page 23

Siruba C007KD Attachments parts on page 23
Ref	Part number	Part name	Qty
	JA025	JA025
	UT54J-2	UT54J-2
	SK392*2	SK392*2
	JA014	JA014
	UT54J-A	UT54J-A
	ALT255S*6	ALT255S*6
	UT951T-E	UT951T-E
	UT955T-E	UT955T-E
	UT261K	UT261K
	UT54J	UT54J
	JA062T*3	JA062T*3
	AP604	AP604
	JA018T	JA018T
	JA013T	JA013T
	AP434	AP434
	JA021T	JA021T
	AP433	AP433
	JA018T	JA018T
	SM413*4	SM413*4
	AP435	AP435
	JA042T	JA042T
	JA192T	JA192T
	AP437	AP437
	AP432	AP432
	JA021T*2	JA021T*2
	AP436	AP436
	JA019T	JA019T
	SM435*4	SM435*4

SIRUBA PARTS LIST Series C007K/C007KD C858K C007L/C007LD Parts Group CR-K Subclass / Remark i70M.i60S #: 1.DCT101ADE-E 2.Use for C007KD-CR(CX) Page 3/3 Date 2018/5/23 CR-K系列圖 A JA025 UT54J-2 SK392*2 JA014 UT54J-A ALT255S*6 UT951T-E #UT955T-E UT261K LIFT PRESSER FOOT (拾壓腳功能) 2 LOOP TRIMMER (下切線功能) 3 TOP CUTTER(WIPER) (上切線或吹氣功能) 4 OPTION (其他選項功能,吸碎布/吸風) TO MOTOR "SEWING MACHINE" RECEPTACLE HOUSING (縫紉機馬達接頭箱) UT54J JA062T*3 AP604 JA018T JA013T B AP434 JA021T TO MOTOR "FOOT LIFTER" RECEPTACLE HOUSING (拾壓腳馬達接頭箱) AP433 JA018T SM413*4 AP435 JA042T JA192T C AP436 JA021T*2 JA019T SM435*4 CR-K TU20P-E D E 1 2 3 4 5 jintex.in

Page 24 — PARTS LIST

Siruba C007KD Attachments parts on page 24
Ref	Part number	Part name	Qty
	CRL01K	CRL01K
	SM501*2	SM501*2
	CRL12K	CRL12K
	CRL145K	CRL145K
	CRL166	CRL166
	KQ34	KQ34
	MT33	MT33
	NM410	NM410
	BRA050	BRA050
	NM808	NM808
	SM4406	SM4406
	CR320	CR320
	FR31	FR31
	FR32	FR32
	SM401	SM401
	OP211	OP211
	CRL06K	CRL06K
	SM401*2	SM401*2
	FR32-E	FR32-E
	CRL08K-A	CRL08K-A
	WM500	WM500
	NM511	NM511
	CRL06K-E	CRL06K-E
	CRL08K	CRL08K
	CRL742	CRL742
	SM5050	SM5050
	JA019	JA019
	CRL103K	CRL103K
	CRL174	CRL174
	CRL175	CRL175
	CRL204	CRL204
	CRL115	CRL115
	SM144	SM144
	SM370	SM370
	KL23-4	KL23-4
	SM131	SM131
	CRL172	CRL172
	CRL09J	CRL09J
	CRL167	CRL167
	CRL741L	CRL741L
	SM501*2	SM501*2
	SM4307	SM4307
	SM411	SM411
	CRL115-A	CRL115-A
	OR220	OR220
	SM512*2	SM512*2
	SM332*2	SM332*2
	OR220	OR220
	CRL 44	CRL 44
	CRL741L-A2	CRL741L-A2
	CRL265	CRL265

SIRUBA PARTS LIST Series C007KP/C007K C858K Parts Group CRL-K Subclass / Remark Page 1/4 Date 2020/7/3 CRL01K SM501*2 CRL12K CRL145K CRL166 KQ34 MT33 NM410 BRA050 NM808 SM4406 CR320 FR31 FR32 SM401 OP211 CRL06K SM401*2 FR32-E CRL08K-A WM500 NM511 CRL06K-E CRL08K CRL742 SM5050 JA019 CRL103K CRL174 CRL175 CRL204 CRL115 SM144 SM370 KL23-4 SM131 CRL172 CRL09J CRL167 CRL741L SM501*2 SM4307 SM411 CRL115-A OR220 SM512*2 SM332*2 OR220 CRL 44 CRL741L-A2 CRL265 1 2 3 4 5 jintex.in

Page 25

Siruba C007KD Attachments parts on page 25
Ref	Part number	Part name	Qty
	CRL162	Cover
	UT817-2*2	Screw
	CRL21K	Bracket
	CRL21K-A	Bracket
	CRL29K	Cover
	CRL29K-A	Cover
	CRL29K-E	Cover
	SM430	Washer
	WM400	Washer
	SM441*2	Screw
	CRL143K	Bracket
	SM4050*2	Screw
	WM406*2	Washer
	CRL135	Lever
	CRL127	Bracket
	CRL164	Cover
	CRL125K	Cover
	SM311*2	Screw
	CRL140K	Bracket
	SM430*2	Screw
	CRL24K-A1	Bracket
	SM151*2	Screw
	CRL24K	Cover
	PXXXX-A	Presser Foot Assembly
	CHP03-3	Presser Foot
	CRL22-3	Presser Foot
	SM031	Screw
	CHP03-1	Presser Foot
	CRL22-1	Presser Foot
	CRL197	Bracket
	SM351*2	Screw
	CRL194*2	Bracket

Series SIRUBA PARTS LIST C007KP/C007K C858K Parts Group CRL-K Subclass / Remark : Use for general machine to re-equip Page 2/4 Date 2019/09/17 • CRL162 CRL21K-A UT817-2*2 CRL21K CRL29K-A CRL29K-E CRL29K SM430 WM400 SM441*2 CRL143K A SM430 SM4050*2 WM406*2 CRL135 CRL127 CRL164 CRL125K CRL197 SM351*2 CRL194*2 SM311*2 CRL140K SM430*2 CRL24K-A1 SM151*2 CRL24K E PXXXX-A (CHP03-3) CRL22-3 SM031 (CHP03-1) CRL22-1 1 2 3 4 53 jintex.in

Page 26

Siruba C007KD Attachments parts on page 26
Ref	Part number	Part name	Qty
	AP605	F
	JA222
	OT2602
	TU20P-1
	TU20P-4*4
	TU20P-2
	TU20P-3
	TU20P-5
	TU20P-E
	A-100ST-E
	PU-BL-040-060-L300
	A-101-15
	A-101-14
	A-101-08
	A-101-15
	OR-1040-120-00
	A-101-14
	OR-0700-150-00
	A-101-06-1
	A-100-20
	A-101-02
	A-101-42
	A-101-09
	A-100-04
	101-03-2
	OR-0480-150-00
	A-100-01
	A-101-05
	A-101-11
	A-101-31
	A-101-12
	A-101-33
	A-101-32
	A-101-38L
	A-101-35
	A-101-06
	ALT104S*6
	UT54J-A
	UT54J-2
	SK392*2
	JA025
	JA014
	UT54J
	AP604

SIRUBA PARTS LIST Series C007KP/C007K C858K Parts Group CRL-K Subclass / Remark *: UTP/UTQ Is not collocatec with Page 3/4 Date 2021/6/24 AP605 F JA222 A G OT2602 TU20P-1 TU20P-4*4 TU20P-2 TU20P-3 TU20P-5 C TU20P-E *A-100ST-E Air-In PU-BL-040-060-L300 A-101-15 A-101-14 A-101-08 A-101-15 OR-1040-120-00 A-101-14 OR-0700-150-00 A-101-06-1 A-100-20 A-101-02 A-101-42 A-101-09 A-100-04 101-03-2 OR-0480-150-00 A-100-01 A-101-05 A-101-11 A-101-31 A-101-12 A-101-33 A-101-32 A-101-38L A-101-35 A-101-06 E ALT104S*6 UT54J-A UT54J-2 SK392*2 JA025 JA014 UT54J AP604 1 2 3 4 5 jintex.in

Page 27 — CRL-K

Siruba C007KD Attachments parts on page 27
Ref	Part number	Part name	Qty
	UT54J-2	UT54J-2
	JA025	JA025
	SK392*2	SK392*2
	JA014	JA014
	UT54J	UT54J
	UT951T-E	UT951T-E
	UT955T-E	UT955T-E
	UT261K	UT261K
	JA062T*3	JA062T*3
	JA018T	JA018T
	JA021	JA021
	AP604	AP604
	AP434	AP434
	JA018T	JA018T
	JA042T	JA042T
	JA021T	JA021T
	AP433	AP433
	JA192T	JA192T
	JA053T*2	JA053T*2
	SM413*4	SM413*4
	AP435	AP435
	AP437	AP437
	AP432	AP432
	AP436	AP436
	JA019T	JA019T
	SM435*4	SM435*4
	TU20P-E	TU20P-E

SIRUBA PARTS LIST Series C007KP/C007K C858K Parts Group CRL-K Subclass / Remark H i70M.i60S.DCP101ADE * :T=DCT101ADE CRL-K 系列 Page 4/4 Date 2019/09/17 JA025 UT54J-2 UT54J SK392*2 JA014 UT951T-E *UT955T-E UT261K LIFT PRESSER FOOT (抬壓腳功能) 2 LOOP TRIMMER (下切線功能) 3 TOP CUTTER (WIPER) (上切線或吹氣功能) 4 OPTION (其他選項功能,吸碎布/吸風) TO MOTOR "SEWING MACHINE" RECEPTACLE HOUSING (縫纫機到馬達插頭) JA062T*3 JA018T JA021 AP604 AP434 JA018T JA042T JA021T AP433 JA192T JA053T*2 SM413*4 AP435 AP437 AP432 AP436 JA019T TO MOTOR "FOOT LIFTER" RECEPTACLE HOUSING (抬壓腳到馬達插頭) SM435*4 CRL-K TU20P-E E 2 3 4 5 jintex.in

Page 28 — CW-K

Siruba C007KD Attachments parts on page 28
Ref	Part number	Part name	Qty
	M5XXXX	M5XXXX
	SM160	SM160
	P5XXXX	P5XXXX
	FW14K	FW14K
	E5XXXX	E5XXXX
	DX XXXX	DX XXXX
	HXXXX	HXXXX
	MQ127	MQ127
	MTO1B	MTO1B

Series C007KD C007KP/C858K C007L/C007LX PARTS LIST CW-K Subclass / Remark Page 1/4 Date 2021/1/28 SIRUBA M5XXXX SM160 P5XXXX FW14K E5XXXX DX XXXX HXXXX MQ127 MTO1B 1 2 3 4 5 jintex.in

Page 29

Siruba C007KD Attachments parts on page 29
Ref	Part number	Part name
FW05J-A	FW05J	FW05J
	MK37H	MK37H
	KN37	KN37
	SM430	SM430
	FW01J-A	FW01J-A
	FW01H	FW01H
	FW04H	FW04H
	KG05-G1	KG05-G1
	VK02J*6	VK02J*6
	VK05*6	VK05*6
	KG07*12	KG07*12
	KG08*6	KG08*6
	VK10*6	VK10*6
	VK09-B1	VK09-B1

SIRUBA PARTS LIST Series C007K/C007KD C007KP/C858K C007L/C007LX Parts Group CW-K Subclass / Remark Page 2/4 Date 2021/1/28 FW05J-A FW05J MK37H KN37 SM430 FW01J-A FW01H FW04H KG05-G1 VK02J*6 VK05*6 KG07*12 KG08*6 VK10*6 VK09-B1 1 2 3 4 5 jintex.in

Page 30 — PARTS LIST

Siruba C007KD Attachments parts on page 30
Ref	Part number	Part name	Qty
SM511	SM511	SCREW
UT28K	UT28K	SHAFT
UT28K-E	UT28K-E	SHAFT
PM501	PM501	PIN
EM040	EM040	WASHER
UT34H	UT34H	SHAFT
FW34-A	FW34-A	BRACKET
FW33	FW33	BRACKET
FW32	FW32	BRACKET
FW31	FW31	BRACKET
VK02J	VK02J	BRACKET	6
VK10	VK10	BRACKET	6
KG05-G1	KG05-G1	NEEDLE
VK05	VK05	WASHER	6
KG07	KG07	WASHER	12
KG08	KG08	WASHER	6
VK09-B1	VK09-B1	NEEDLE	2
UT35H-1	UT35H-1	SCREW	6
FW34	FW34	BRACKET
SM404	SM404	SPRING
UT38	UT38	BRACKET	6
SM330	SM330	SCREW	6
UT37-2	UT37-2	BRACKET	12
UT38-E1	UT38-E1	BRACKET
SK216	SK216	SPRING	18
SM430	SM430	SCREW

SIRUBA PARTS LIST Series C007K/C007KD C007KP/C858K C007L/C007LX Page 3/4 Date 2021/1/28 Parts Group CW-K Subclass / Remark For UTQ SM511 UT28K UT28K-E PM501 EM040 FW33 UT34H FW34-A FW32 FW31 VK02J*6 VK10*6 KG05-G1 VK05*6 KG07*12 KG08*6 VK09-B1*2 UT35H-1*6 FW34 SM404 UT38*6 SM330*6 UT37-2*12 FW34-E UT38-E1 SK216*18 SM430 1 2 3 4 5 jintex.in

Part Books

Search
