Page 1 — F007J/JD ATTACHMENT
SIRUBA 銀箭牌工業用縫紉機 INDUSTRIAL SEWING MACHINE F007J/JD ATTACHMENT 輔助件零件圖 AUXILIARY PARTS LIST SPECIFICATION DEVICE FP U122-232 KAULIN MFG. CO., LTD. SIRUBA MODEL F007J CE CE jintex.in
Siruba F007J Attachments — parts catalog
- Page 1 (cover): This is the cover page for the Siruba F007J/JD Attachment industrial sewing machine parts list. It features the Siruba logo, model information, and a picture of the machine.
- Page 2 (parts_list): This page contains a parts list for the FBP group and FE (1) group, detailing parts such as FBP01A, FBP01B, and FBP01C with their respective stitch distances and sizes.
- Page 3 (diagram): This page displays diagrams of parts for the FE (2) GROUP and FE/FEC GROUP, including various components like brackets, screws, power supplies, and motors, with part numbers and labels for identification.
- Page 4 (diagram): This page displays a diagram of various parts for the FFC and FFD (1) groups, including components like belts, pulleys, shafts, and mounting plates, with part numbers and labels for identification.
- Page 5 (parts_list): This page lists parts for the FFD (2) GROUP and FFD (3) GROUP, including part numbers, names, and quantities for various components.
- Page 6 (parts_list): This page contains a parts list for FFP (1) GROUP and FFP (2) GROUP, featuring various components like screws, nuts, springs, and brackets, with part numbers and descriptions.
- Page 7 (diagram): This page displays a parts list diagram for the FFP (3) GROUP and FQ GROUP, showing various components with their respective part numbers and labels.
- Page 8 (parts_list): This page contains a parts list for the FR (1) GROUP and FR (2) GROUP of an industrial sewing machine, detailing various components with their part numbers and descriptions.
- Page 9 (parts_list): This page lists parts for the FR (3) GROUP and FSM (1) GROUP, including various screws, bolts, washers, and mechanical components like gears and belts.
- Page 10 (parts_list): This page lists parts for FSM (2) GROUP and FSM (3) GROUP, including various screws, nuts, washers, and machine components with their respective part numbers and descriptions.

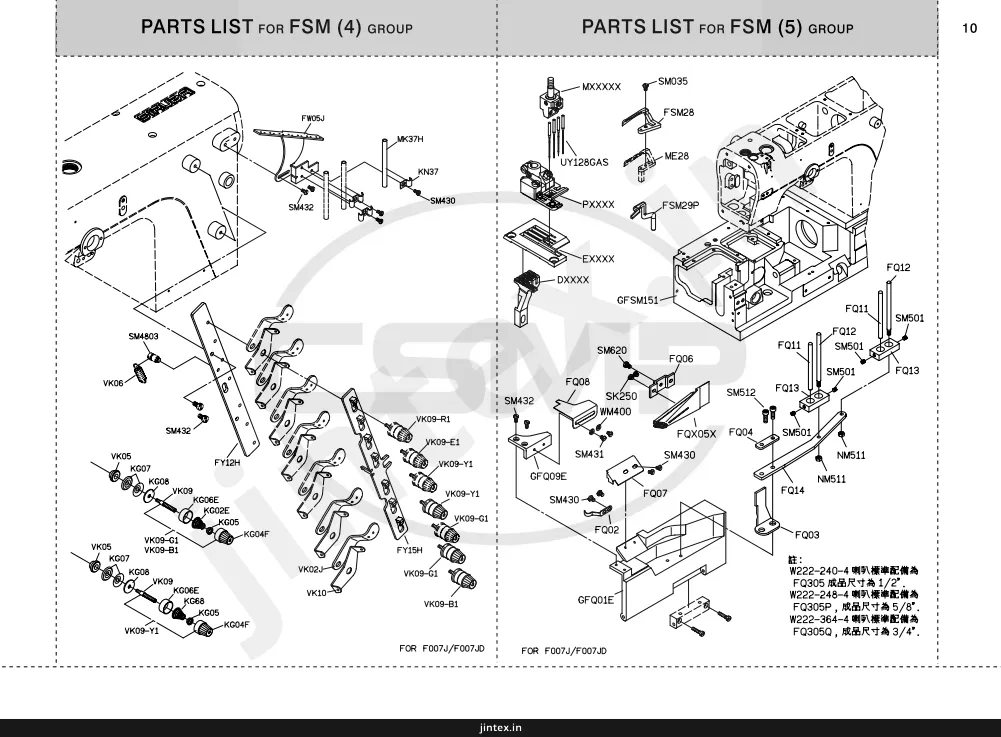

- Page 11 (diagram): This page displays a diagram of parts for FSM (4) GROUP and FSM (5) GROUP, including various components like screws, springs, and machine parts, with their corresponding labels and reference numbers.
- Page 12 (parts_list): This page lists parts for the FSM (6) GROUP and FSP GROUP, including various screws, bolts, and specialized components like the FS01E and MK01.
- Page 13 (diagram): This page displays a diagram of parts for the FSQ GROUP and FSR (1) GROUP sewing machines, with various components labeled with part numbers and reference designators.
- Page 14 (diagram): This page displays a diagram of various machine parts for the FSR (2) GROUP and FW (1) GROUP, including components like MA47, SM034, FSR01, FW06, FW07, and others, with part numbers and labels for identification.
- Page 15 (parts_list): This page lists parts for the FW (2) GROUP and FW (3) GROUP, including various screws, brackets, and components with their respective part numbers and descriptions.
- Page 16 (diagram): This page displays a diagram of various machine parts for the FW (4) GROUP and FWP (1) GROUP, including components like SM511, UT28H, MK39H, FW33, UT37-2, and many others, with part numbers and descriptions.
- Page 17 (parts_list): This page contains parts lists for FWP (2) GROUP and FWP (3) GROUP, with diagrams and part numbers for various components.
- Page 18 (parts_list): This page lists parts for FWP (4) GROUP and FY (1) GROUP, including various screws, brackets, and machine components with their respective part numbers and descriptions.
- Page 19 (parts_list): This page contains parts lists for the FY (2) GROUP and FY (3) GROUP, including diagrams and part numbers for various components.
- Page 20 (diagram): This page displays a diagram of parts for WP (1) and WP (2) groups, with various components labeled with part numbers and descriptions.
- Page 21 (cover): This is the cover page for the F007J/JD ATTACHMENT parts list, dated March 2007, from Kaulin Mfg. Co., LTD.
Page 2
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FBP01A | FBP01A | ||
| FBP01B | FBP01B | ||
| FBP01C | FBP01C |
FSR01 MA47 SM030 MXOXX PXXXX GFSR04J 針距 5.6 5.6 6.4 成品尺寸 9 (mm) 10 12 刺叭代號 FBP01A FBP01B FBP01C PARTS LIST FOR FBP GROUP FOR F007J/F007JD FOR F007J/F007JD PARTS LIST FOR FE (1) GROUP jintex.in 1
Page 3
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| EC38 | EC38 | ||
| SK392 | SK392 | ||
| GFE35E | GFE35E | ||
| SK346 | SK346 | ||
| WK14 | WK14 | ||
| EC44 | EC44 | ||
| GFE32(110V) | GFE32(110V) | ||
| GFE33(220V) | GFE33(220V) | ||
| GFE31 | GFE31 | ||
| GFE06D | GFE06D | ||
| WM600 | WM600 | ||
| SK392 | SK392 | ||
| SM430 | SM430 | ||
| CY110 | CY110 | ||
| GFE35E | GFE35E | ||
| SK346 | SK346 | ||
| WK14 | WK14 | ||
| EC44 | EC44 | ||
| NK27 | NK27 | ||
| GFE38 | GFE38 | ||
| GFEC15 | GFEC15 | ||
| GFE30 | GFE30 | ||
| GFEC34 | GFEC34 | ||
| GFE28-A | GFE28-A |
PARTS LIST FOR FE (2) GROUP EC38 SK392 GFE35E SK346 WK14 EC44 GFE32(110V) 2P 2P GFE33(220V) 綠色 接地 6P GFE31 GFE06D WM600 SK392 SM430 CY110 PARTS LIST FOR FE/FEC GROUP 2 GFE35E SK346 WK14 EC44 NK27 GFE38 (220V) 3P GFEC15 GFE30 3P 4P 3P GFEC34 GFE28-A FOR F007J/F007JD FOR F007J/F007JD jintex.in
Page 4
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FFC14H | BRACKET | ||
| FE04 | BRACKET | ||
| SM132 | SCREW | ||
| FFC14H | BRACKET | ||
| MJ34H | SHAFT | ||
| SM510 | SCREW | ||
| SM502 | PULLEY | ||
| MJ34H | SHAFT | ||
| SM502 | PULLEY | ||
| SM604 | GEAR | ||
| FFC20 | GEAR | ||
| FFC124 | BRACKET | ||
| GFFC21J | BRACKET | ||
| FFC17 | BELT | ||
| SM510 | SCREW | ||
| WM500 | WASHER | ||
| SM603 | GEAR | ||
| FFC23 | SHAFT | ||
| FFC17 | BELT | ||
| SM485 | BOLT | ||
| NM412 | NUT | ||
| WM400 | WASHER | ||
| FE05J | SHAFT | ||
| SM486 | BOLT | ||
| FE19 | BOLT | ||
| FE18 | BOLT | ||
| SM432 | SCREW | ||
| FSM39 | BRACKET | ||
| SM134 | SCREW | ||
| NM400 | NUT | ||
| FE20 | BOLT | ||
| FE22P | BRACKET | ||
| FE22 | BRACKET | ||
| SK270 | BRACKET | ||
| FE21 | BOLT | ||
| SM438 | SCREW | ||
| GFFC18G | OIL TANK | ||
| SM301 | SCREW | ||
| WM400 | WASHER | ||
| NM511 | NUT | ||
| SM524 | BOLT | ||
| FFC29 | BRACKET | ||
| SM430 | SCREW | ||
| SM434 | SCREW | ||
| FFC16 | PULLEY | ||
| FFC15 | PULLEY | ||
| SM501 | SCREW | ||
| SM501 | SCREW | ||
| SM432 | SCREW | ||
| GFFC19H | BRACKET | ||
| LF47 | BRACKET | ||
| SM301 | SCREW | ||
| SM613 | BOLT | ||
| MQ31 | PLATE | ||
| MQ30 | BRACKET | ||
| GFFC01E | BRACKET | ||
| LF48 | BRACKET | ||
| WM100 | WASHER | ||
| FFC07 | BRACKET | ||
| GFFD16 | BRACKET | ||
| SM135 | SCREW | ||
| SM613 | BOLT | ||
| FFC27 | BEARING | ||
| FFC26 | SHAFT | ||
| FE13-2 | BRACKET | ||
| GFE12 | BRACKET | ||
| FFC08 | SHAFT | ||
| SK216 | SCREW | ||
| SM401 | SCREW | ||
| FFC27 | BEARING | ||
| FFC26 | SHAFT | ||
| FE13-1 | BRACKET | ||
| GFE12 | BRACKET | ||
| MK21 | BRACKET | ||
| LF22 | BRACKET | ||
| SK216 | SCREW | ||
| FFC11 | SHAFT | ||
| FFC09 | SHAFT | ||
| FFC10 | SHAFT | ||
| SK216 | SCREW | ||
| MA81 | BRACKET | ||
| SM430 | SCREW | ||
| FE38 | BRACKET |
FFC14H FE04 SM132 MJ34H SM510 SM502 FFC14H MJ34H SM502 SM604 FFC20 FFC124 (F007J/C007J) GFFC21J FFC17 SM510 WM500 SM603 FFC23 FFC17 SM485 NM412 WM400 FE05J SM486 FE19 FE18 SM432 FSM39 SM134 NM400 FE20 FE22P FE22 SK270 FE21 SM438 GFFC18G SM301 WM400 NM511 SM524 FFC29 FFC+CL時用 SM430 SM434 FFC16 FFC15 SM501 SM501 SM432 GFFC19H LF47 SM301 SM613 MQ31 (C007J) MQ30 (C007J) GFFC01E LF48 WM100 FFC07 GFFD16 SM135 LF48 WM100 GFFC01E SM613 FFC27 FFC26 FE13-2 GFE12 FFC08 SK216 SM401 FFC26 FE13-1 GFE12 MK21 LF22 SK216 FFC11 FFC09 FFC10 SK216 FOR F007J 加裝FR時不用 SM430 MA81 FE38 EQR F007J PARTS LIST FOR FFC GROUP jintek.in PARTS LIST FOR FFD (1) GROUP 3
Page 5
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| GFFC01E | GFFC01E | ||
| EM060 | EM060 | ||
| FFD09 | FFD09 | ||
| FFD15 | FFD15 | ||
| SM310 | SM310 | ||
| FFD01E | FFD01E | ||
| SM502 | SM502 | ||
| FFD02 | FFD02 | ||
| NM511 | NM511 | ||
| FFD03 | FFD03 | ||
| WM510 | WM510 | ||
| SM412 | SM412 | ||
| FFD08 | FFD08 | ||
| SM591 | SM591 | ||
| FFD04 | FFD04 | ||
| FFD05 | FFD05 | ||
| FFD12 | FFD12 | ||
| WM400 | WM400 | ||
| FFD13 | FFD13 | ||
| SM883 | SM883 | ||
| FFD19 | FFD19 | ||
| FFD20 | FFD20 | ||
| KY21-1 | KY21-1 | ||
| SM433 | SM433 | ||
| CZ122 | CZ122 | ||
| CY112 | CY112 | ||
| CZ124 | CZ124 | ||
| FFD23 | FFD23 | ||
| SM520 | SM520 | ||
| FFD18E | FFD18E | ||
| SM511 | SM511 | ||
| NM511 | NM511 | ||
| FFD22 | FFD22 | ||
| WM600 | WM600 | ||
| NM810 | NM810 | ||
| FFD21 | FFD21 | ||
| SM521 | SM521 | ||
| FQ10 | FQ10 | ||
| FQ12 | FQ12 | ||
| FQ13 | FQ13 | ||
| SM512 | SM512 | ||
| FQ06 | FQ06 | ||
| FQ04 | FQ04 | ||
| SM501 | SM501 | ||
| NM511 | NM511 | ||
| SK250 | SK250 | ||
| FQ14 | FQ14 | ||
| SM620 | SM620 | ||
| FQ05Q | FQ05Q | ||
| WM400 | WM400 | ||
| SM431 | SM431 | ||
| SM430 | SM430 | ||
| FQ08 | FQ08 | ||
| SM432 | SM432 | ||
| FQ07 | FQ07 | ||
| SM430 | SM430 | ||
| GFQ09E | GFQ09E | ||
| FQ02 | FQ02 | ||
| GFQ01E | GFQ01E |
PARTS LIST FOR FFD (2) GROUP PARTS LIST FOR FFD (3) GROUP 4 GFFC01E EM060 FFD09 FFD15 SM310 FFD01E SM502 FFD02 NM511 FFD03 WM510 FFD04 FFD05 FFD12 WM400 SM412 FFD08 SM591 FFD13 SM883 FFD19 FFD20 KY21-1 SM433 CZ122 CY112 CZ124 A FOR F007J FFD23 SM520 FFD18E SM511 NM511 FFD22 WM600 NM810 FFD21 SM521 FQ10 FQ12 FQ13 SM512 FQ06 FQ04 SM501 NM511 SK250 FQ14 SM620 FQ05Q WM400 SM431 SM430 FQ08 SM432 FQ07 SM430 GFQ09E FQ02 GFQ01E FOR F007J jintex.in
Page 6
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MA09E(MA99E) | MA09E(MA99E) | ||
| FFP02 | FFP02 | ||
| SK456 | SK456 | ||
| NK26 | NK26 | ||
| WK01 | WK01 | ||
| FFP03 | FFP03 | ||
| TR24 | TR24 | ||
| SK442 | SK442 | ||
| NK09 | NK09 | ||
| GTR22 | GTR22 | ||
| GTR21 | GTR21 | ||
| VK09 | VK09 | ||
| TR23 | TR23 | ||
| TR28 | TR28 | ||
| TR30 | TR30 | ||
| TR04 | TR04 | ||
| FE04 | FE04 | ||
| SM132 | SM132 | ||
| MG21 | MG21 | ||
| SM134 | SM134 | ||
| NM412 | NM412 | ||
| WM400 | WM400 | ||
| FE05J | FE05J | ||
| SM4801 | SM4801 | ||
| TR25 | TR25 | ||
| FFP04 | FFP04 | ||
| FFP05 | FFP05 | ||
| GFFP01 | GFFP01 | ||
| EM062 | EM062 | ||
| GFFD01E | GFFD01E | ||
| SM502 | SM502 | ||
| FFD02 | FFD02 | ||
| NM511 | NM511 | ||
| WM510 | WM510 | ||
| FFD03 | FFD03 | ||
| SM590 | SM590 | ||
| FFD04 | FFD04 | ||
| FFD05 | FFD05 | ||
| FFD12 | FFD12 | ||
| SM412 | SM412 | ||
| FFD08 | FFD08 | ||
| SM591 | SM591 | ||
| FFD13 | FFD13 | ||
| SM446 | SM446 | ||
| SM883 | SM883 | ||
| FFD22 | FFD22 | ||
| KY21-1 | KY21-1 | ||
| SM430 | SM430 | ||
| CZ124 | CZ124 | ||
| CY112 | CY112 | ||
| CZ122 | CZ122 | ||
| FFD21 | FFD21 | ||
| SM521 | SM521 | ||
| CZ123 | CZ123 | ||
| SM611 | SM611 | ||
| FFD09 | FFD09 | ||
| FFD15 | FFD15 | ||
| SM310 | SM310 | ||
| FFD10 | FFD10 | ||
| FFD07 | FFD07 | ||
| FFD11 | FFD11 | ||
| SM502 | SM502 | ||
| FFD23 | FFD23 | ||
| FFD19 | FFD19 | ||
| FFD20 | FFD20 | ||
| SM520 | SM520 | ||
| FFD18E | FFD18E | ||
| NM511 | NM511 | ||
| SM520 | SM520 | ||
| NM511 | NM511 | ||
| WM800 | WM800 | ||
| NM810 | NM810 |
MA09E(MA99E) FFP02 SK456 NK26 WK01 FFP03 TR24 SK442 NK09 GTR22 GTR21 VK09 TR23 TR28 TR30 TR04 FE04 SM132 MG21 SM134 NM412 WM400 FE05J NM412 WM400 SM4801 SM4801 TR25 FFP04 FOR F007J/F007JD PARTS LIST FOR FFP (1) GROUP FFP05 GFFP01 EM062 GFFD01E SM502 FFD02 NM511 WM510 FFD03 SM590 FFD04 FFD05 FFD12 WM400 SM412 SM4801 FFD08 NM511 WM510 SM591 FFD13 SM446 SM883 FFD22 KY21-1 SM430 CZ124 CY112 CZ122 A FFD21 SM521 CZ123 A FOR F007J/F007JD SM611 FFD09 FFD15 SM310 FFD10 FFD07 FFD11 SM502 SM520 FFD18E NM511 SM520 NM511 FFD19 FFD20 FFD23 WM800 NM810 PARTS LIST FOR FFP (2) GROUP jinte.in 5
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FQ10 | FQ10 | ||
| FQ12 | FQ12 | ||
| FQ11 | FQ11 | ||
| SM512 | SM512 | ||
| FQ06 | FQ06 | ||
| SM620 | SM620 | ||
| SK250 | SK250 | ||
| FQ04 | FQ04 | ||
| NM511 | NM511 | ||
| FQ14 | FQ14 | ||
| FQ03 | FQ03 | ||
| FQ07 | FQ07 | ||
| SM430 | SM430 | ||
| SM431 | SM431 | ||
| GFQ09E | GFQ09E | ||
| FQ02 | FQ02 | ||
| GFQ10 | GFQ10 | ||
| GFQ10D | GFQ10D | ||
| FQ12 | FQ12 | ||
| FQ11 | FQ11 | ||
| SM512 | SM512 | ||
| SM501 | SM501 | ||
| FQ06 | FQ06 | ||
| FQ04 | FQ04 | ||
| NM511 | NM511 | ||
| FQ14 | FQ14 | ||
| SM620 | SM620 | ||
| SK250 | SK250 | ||
| WM400 | WM400 | ||
| SM431 | SM431 | ||
| FQ05 | FQ05 | ||
| SM430 | SM430 | ||
| KB05 | KB05 | ||
| GFQ09E | GFQ09E | ||
| FQ07 | FQ07 | ||
| FQ07D | FQ07D | ||
| FQ15 | FQ15 | ||
| GFQ01E | GFQ01E | ||
| GFQ01F | GFQ01F | ||
| FQ02 | FQ02 | ||
| FQ02D | FQ02D |
PARTS LIST FOR FFP (3) GROUP FQ10 FQ12 FQ11 SM512 FQ06 SM620 SK250 FQ04 NM511 FQ14 FQ03 FQ07 SM430 SM431 GFQ09E FQ02 FOR F007J/F007JD PARTS LIST FOR FQ GROUP GFQ10 GFQ10D FQ12 FQ11 SM512 SM501 FQ06 FQ04 NM511 FQ14 SM620 SK250 WM400 SM431 FQ05 SM430 KB05 GFQ09E FQ07 FQ07D FQ15 GFQ01E GFQ01F FQ02 FQ02D FOR F007J USE FOR F007J/UTG(UTH.UTJ.UTK) 6
Page 8
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FR42 | (加FEC時用) | ||
| FR43 | (加FEC時用) | ||
| GFR01E | |||
| GFR52 | (無FEC時用) | ||
| GFR55 | (加FEC時用) | ||
| SM613 | |||
| FR03 | |||
| SM401 | |||
| FR02 | |||
| MB29 | |||
| GFR04E | |||
| SM460 | |||
| FR05 | |||
| KA26 | |||
| FR06 | |||
| KC28 | |||
| EM040 | |||
| FR10 | |||
| SM432 | |||
| FR09 | |||
| SM401 | |||
| WM400 | |||
| GFR53 | |||
| SM499 | |||
| FR08D | |||
| WM100 | |||
| SM181 | |||
| MG21 | |||
| GFR13J | |||
| SM134 | |||
| GFR54 | |||
| PM210 | |||
| FR14 | |||
| FR15 | |||
| GFR16J | |||
| FR46J | |||
| SM499 | |||
| FR31 | |||
| SM401 | |||
| SM404 | |||
| FR32J | |||
| FR60 | |||
| SM502 | |||
| WM808 | |||
| WM411 | |||
| SK934 | |||
| FR40J | |||
| GFR37J | |||
| FR38J | |||
| SM431 | |||
| SM502 | |||
| SM133 | |||
| FR49J | |||
| SM502 | |||
| FR35J | |||
| SM138 | |||
| FR19J | |||
| SM502 | |||
| GFR18 | |||
| GMA51P | |||
| SK480A | |||
| FR23 | |||
| GFR20 | |||
| FR21 | |||
| FR22 | |||
| GFR24 | |||
| KP32 | |||
| FR56J | |||
| FR59 | |||
| FR134 | |||
| FR33D | |||
| KA21 |
FR42 FR43(加FEC時用) GFR01E GFR52(無FEC時用) GFR55(加FEC時用) SM613 FR03 SM401 FR02 MB29 GFR04E SM460 FR05 KA26 FR06 KC28 EM040 FR10 SM432 FR09 SM401 WM400 GFR53 SM499 FR08D WM100 SM181 MG21 GFR13J SM134 GFR54 FR14 PM210 FR15 GFR16J FR46J SM499 FR31 SM401 SM404 FR32J FR60 SM502 WM808 WM411 SK934 FR40J GFR37J FR38J SM431 SM502 SM133 FR49J SM502 FR35J FR19J SM502 GFR18 SM138 GMA51P SK480A FR23 GFR20 FR21 FR22 GFR24 KP32 FR56J FR59 FR134 FR33D KA21 SM613 FOR F007J/F007JD FOR F007J/F007JD FR FR/FEC(FAC) 不 用 * FR42 不 用 * FR43 * GFR52 * GFR55 PARTS LIST FOR FR (1) GROUP jintex.in PARTS LIST FOR FR (2) GROUP 7
Page 9 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SK391 | SK391 | 3 | |
| KX10E | KX10E | ||
| WK21 | WK21 | ||
| KX12E | KX12E | ||
| KX13E | KX13E | ||
| KX05 | KX05 | 3 | |
| SM415*3 | SM415*3 | 3 | |
| SM412 | SM412 | ||
| GF SM02 | GF SM02 | ||
| SM443*3 | SM443*3 | 3 | |
| GFSM41 | GFSM41 | ||
| SM502*2 | SM502*2 | 2 | |
| SM32*2 | SM32*2 | 2 | |
| FSM06 | FSM06 | ||
| GVCL07D | GVCL07D | ||
| FSM46 | FSM46 | ||
| FSM05 | FSM05 | ||
| SM501*4 | SM501*4 | 4 | |
| SM501*2 | SM501*2 | 2 | |
| SM49*2 | SM49*2 | 2 | |
| GVCL09D | GVCL09D | ||
| VCL1*2 | VCL1*2 | 2 | |
| FSM03 | FSM03 | ||
| FSM47 | FSM47 | ||
| SM4055 | SM4055 | ||
| SM480 | SM480 | ||
| FSM04 | FSM04 | ||
| FSM31 | FSM31 | ||
| FSM30 | FSM30 | ||
| WM850 | WM850 | ||
| MN08 | MN08 | ||
| SM531 | SM531 | ||
| MN09 | MN09 | ||
| KX08*2 | KX08*2 | 2 | |
| MN02 | MN02 | ||
| WM810 | WM810 | ||
| KX04 | KX04 | ||
| GFSM01 | GFSM01 | ||
| WM601 | WM601 | ||
| KP60 | KP60 | ||
| WM400 | WM400 | ||
| MD36 | MD36 | ||
| NM410 | NM410 | ||
| SM534 | SM534 | ||
| MD40 | MD40 | ||
| SM603 | SM603 |
PARTS LIST FOR FR (3) GROUP SK391 KX10E WK21 KX12E KX13E FOR F007J/F007JD PARTS LIST FOR FSM (1) GROUP 8 SK391 KX05 SM415*3 SM412 GF SM02 SM443*3 GFSM41 SM502*2 SM32*2 FSM06 GVCL07D FSM46 FSM05 SM501*4 SM501*2 SM502*2 SM49*2 GVCL09D VCL1*2 FSM03 FSM47 SM4055 SM480 FSM04 FSM32 FSM30 WM850 MN08 SM531 MN09 MN02 KX08*2 KX08 WM810 KX04 GFSM01 WM601 KP60 WM400 MD36 NM410 MD40 SM603 FOR F007J/F007JD
Page 10
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| GFSM10 | GFSM10 | ||
| WME01 | WME01 | ||
| SM602 | SM602 | ||
| MS12-3 | MS12-3 | ||
| FSM07 | FSM07 | ||
| FSM42 | FSM42 | ||
| FSM17 | FSM17 | ||
| SM402*3 | SM402*3 | ||
| FSM201 | FSM201 | ||
| FSM202 | FSM202 | ||
| FSM09 | FSM09 | ||
| SK270*2 | SK270*2 | ||
| MH12 | MH12 | ||
| FSM45 | FSM45 | ||
| SM420*2 | SM420*2 | ||
| FSM43 | FSM43 | ||
| SK216 | SK216 | ||
| FSM25P(364用) | FSM25P(364用) | ||
| FSM25(248用) | FSM25(248用) | ||
| FSM44 | FSM44 | ||
| SM301*2 | SM301*2 | ||
| SM501*2 | SM501*2 | ||
| FSM08 | FSM08 | ||
| SM501*2 | SM501*2 | ||
| KL11 | KL11 | ||
| VCL31D | VCL31D | ||
| FSM48 | FSM48 | ||
| FSM16 | FSM16 | ||
| NM412 | NM412 | ||
| SK506 | SK506 | ||
| FSM11 | FSM11 | ||
| FSM13E | FSM13E | ||
| UT76 | UT76 | ||
| SM475 | SM475 | ||
| SM475 | SM475 | ||
| FSM13E | FSM13E | ||
| SK506 | SK506 | ||
| FSM12 | FSM12 | ||
| UT76 | UT76 | ||
| FSM20 | FSM20 | ||
| SM4550*4 | SM4550*4 | ||
| FSM14 | FSM14 | ||
| EM030 | EM030 | ||
| WM404 | WM404 | ||
| FSM21 | FSM21 | ||
| SM430*2 | SM430*2 | ||
| FSM19*2 | FSM19*2 | ||
| FSM15H | FSM15H | ||
| FSM18 | FSM18 | ||
| SM432*4 | SM432*4 | ||
| NM302 | NM302 | ||
| KG02E-B1*6 | KG02E-B1*6 | ||
| VK02J | VK02J | ||
| VK10 | VK10 | ||
| SM432*2 | SM432*2 | ||
| CFC38H | CFC38H | ||
| SM435 | SM435 | ||
| SM603 | SM603 | ||
| SM4801 | SM4801 | ||
| SM486 | SM486 | ||
| SM311 | SM311 | ||
| FSM38 | FSM38 | ||
| NM412 | NM412 | ||
| FSM35*2 | FSM35*2 | ||
| SM404*2 | SM404*2 | ||
| WM400 | WM400 | ||
| FSM37 | FSM37 | ||
| SM132 | SM132 | ||
| FSM50 | FSM50 | ||
| NM412 | NM412 | ||
| KG08*6 | KG08*6 | ||
| KG07*12 | KG07*12 | ||
| FSM36 | FSM36 | ||
| FSM39 | FSM39 | ||
| FE19 | FE19 | ||
| FE23 | FE23 | ||
| FSM40 | FSM40 | ||
| SM031 | SM031 | ||
| FE20 | FE20 | ||
| WM002 | WM002 | ||
| FY05 | FY05 | ||
| FY06 | FY06 | ||
| MK01 | MK01 | ||
| KN44 | KN44 | ||
| KN43 | KN43 | ||
| KN42 | KN42 | ||
| KN40 | KN40 | ||
| FS10 | FS10 | ||
| FE22P | FE22P | ||
| SM135 | SM135 | ||
| SM301*2 | SM301*2 | ||
| FE18 | FE18 | ||
| WM100 | WM100 | ||
| FW09 | FW09 | ||
| FSM39 | FSM39 | ||
| FW06 | FW06 | ||
| FW07 | FW07 | ||
| MA11-2 | MA11-2 | ||
| FW10E | FW10E | ||
| SM460 | SM460 |
GFSM10 WME01 SM602 MS12-3 FSM07 FSM42 FSM17 SM402*3 D E FSM201 FSM202 FSM09 SK270*2 MH12 FSM45 SM420*2 FSM43 SK216 FSM25P(364用) FSM25(248用) FSM44 SM301*2 SM501*2 FSM08 SM501*2 KL11 VCL31D FOR F007J/F007JD PARTS LIST FOR FSM (2) GROUP FSM48 FSM16 NM412 SK506 FSM11 FSM13E UT76 C A SM475 SM475 B FSM13E SK506 FSM12 UT76 FSM20 SM4550*4 FSM14 EM030 WM404 FSM21 SM430*2 FSM19*2 FSM15H FSM18 SM432*4 NM302 注:凸輪 FSM220/222 為備品 KG02E-B1*6 VK02J VK10 SM432*2 CFC38H SM435 SM603 SM4801 SM486 SM311 FSM38 NM412 FSM35*2 SM404*2 WM400 FSM37 SM132 FSM50 NM412 KG08*6 KG07*12 FSM36 FSM39 FE19 FE23 FSM40 SM031 FE20 WM002 FY05 FY06 MK01 KN44 KN43 KN42 KN40 FS10 FE22P SM301*2 SM135 FE18 WM100 FW09 FSM39 FW06 FW07 MA11-2 FW10E SM460 FOR F007J/F007JD PARTS LIST FOR FSM (3) GROUP 9 jinte.in
Page 11 — PARTS LIST FOR FSM (4) GROUP PARTS LIST FOR FSM (5) GROUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FW05J | FW05J | ||
| SM432 | SM432 | ||
| VK05 | VK05 | ||
| KG07 | KG07 | ||
| KG08 | KG08 | ||
| VK09 | VK09 | ||
| KG06E | KG06E | ||
| KG02E | KG02E | ||
| KG05 | KG05 | ||
| KG04F | KG04F | ||
| VK09-G1 | VK09-G1 | ||
| VK09-B1 | VK09-B1 | ||
| VK05 | VK05 | ||
| KG07 | KG07 | ||
| KG08 | KG08 | ||
| VK09 | VK09 | ||
| KG06E | KG06E | ||
| KG02E | KG02E | ||
| KG05 | KG05 | ||
| KG04F | KG04F | ||
| VK09-Y1 | VK09-Y1 | ||
| MXxxxx | MXxxxx | ||
| SM035 | SM035 | ||
| FSM28 | FSM28 | ||
| UY128GAS | UY128GAS | ||
| ME28 | ME28 | ||
| SM430 | SM430 | ||
| FSM29P | FSM29P | ||
| EXXXX | EXXXX | ||
| EXXXX | EXXXX | ||
| GFSM151 | GFSM151 | ||
| SM620 | SM620 | ||
| FQ06 | FQ06 | ||
| FQ08 | FQ08 | ||
| SK250 | SK250 | ||
| WM400 | WM400 | ||
| SM431 | SM431 | ||
| GFQ09E | GFQ09E | ||
| SM430 | SM430 | ||
| FQ02 | FQ02 | ||
| FQ12 | FQ12 | ||
| FQ11 | FQ11 | ||
| SM501 | SM501 | ||
| FQ13 | FQ13 | ||
| SM501 | SM501 | ||
| FQ12 | FQ12 | ||
| FQ11 | FQ11 | ||
| SM501 | SM501 | ||
| FQ13 | FQ13 | ||
| SM501 | SM501 | ||
| FQ14 | FQ14 | ||
| NM511 | NM511 | ||
| NM511 | NM511 | ||
| FQ03 | FQ03 | ||
| SM4803 | SM4803 | ||
| VK06 | VK06 | ||
| SM432 | SM432 | ||
| FY12H | FY12H | ||
| VK09-R1 | VK09-R1 | ||
| VK09-E1 | VK09-E1 | ||
| VK09-Y1 | VK09-Y1 | ||
| VK09-G1 | VK09-G1 | ||
| VK09-B1 | VK09-B1 | ||
| FY15H | FY15H | ||
| VK09-G1 | VK09-G1 | ||
| VK09-B1 | VK09-B1 | ||
| VK02J | VK02J | ||
| VK10 | VK10 | ||
| FQ07 | FQ07 | ||
| GFQ01E | GFQ01E | ||
| W222-240-4 | 喇叭標準配備為 FQ305 成品尺寸為 1/2" | ||
| W222-240-4 | 喇叭標準配備為 FQ305P, 成品尺寸為 5/8" | ||
| W222-364-4 | 喇叭標準配備為 FQ305Q, 成品尺寸為 3/4" |
PARTS LIST FOR FSM (4) GROUP SIRUBA FW05J SM432 SM432 VK05 KG07 KG08 VK09 KG06E KG02E KG05 KG04F VK09-G1 VK09-B1 VK05 KG07 KG08 VK09 KG06E KG02E KG05 KG04F VK09-Y1 PARTS LIST FOR FSM (5) GROUP 10 MXxxxx SM035 FSM28 UY128GAS ME28 SM430 FSM29P EXXXX EXXXX GFSM151 SM620 FQ06 FQ08 SK250 WM400 SM431 GFQ09E SM430 FQ02 FOR F007J/F007JD FOR F007J/F007JD FQ12 FQ11 SM501 FQ13 SM501 FQ12 FQ11 SM501 FQ13 SM501 FQ14 NM511 NM511 FQ03 註: W222-240-4 喇叭標準配備為 FQ305 成品尺寸為 1/2" W222-240-4 喇叭標準配備為 FQ305P, 成品尺寸為 5/8" W222-364-4 喇叭標準配備為 FQ305Q, 成品尺寸為 3/4" FY15H VK09-R1 VK09-E1 VK09-Y1 VK09-G1 VK09-B1 VK02J VK09-G1 VK09-B1 VK10 SM4803 VK06 SM432 FY12H VK09-G1 VK09-Y1 FQ07 GFQ01E jinte.in
Page 12
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| NK30*10- | GVZ12 | ||
| GVZ10*6 | KW13E*12 | ||
| VZ04*12 | VZ20*12 | ||
| VZ11*12 | KW09B*12 | ||
| GVZ09*2 | LF57E-3*4 | ||
| SW04*12 | NK29B*12 | ||
| LF57E-2*4 | VZ14 | ||
| SK281B | SK368B | ||
| VZ13 | VZ04*12 | ||
| SM434*12 | NK29B*12 | ||
| GVZ07*2 | GKW33E*2 | ||
| NM412 | WM400 | ||
| FE05J | SM4801 | ||
| NM420 | SM445 | ||
| FS06 | SM431 | ||
| FS11 | SM435 | ||
| FS08 | FS01E | ||
| SM134 | FS09 | ||
| FS12 | SM4701 | ||
| FS09 | FS03 | ||
| FS04 | SM511 | ||
| FS02 | ME70 | ||
| WM600 | SM510 | ||
| SM631 | KN44 | ||
| KN43 | KN42 | ||
| KN40 | FS10 | ||
| MK01 | MH19 | ||
| PXXXX- | EXXXX- | ||
| DXXXX- | HXXXX- |
NK30*10- GVZ12 GVZ10*6 KW13E*12 VZ04*12 VZ20*12 VZ11*12 KW09B*12 GVZ09*2 LF57E-3*4 SW04*12 NK29B*12 LF57E-2*4 VZ14 SK281B SK368B VZ13 VZ04*12 SM434*12 NK29B*12 GVZ07*2 GKW33E*2 FOR F007J/F007JD PARTS LIST FOR FSM (6) GROUP NM412 WM400 FE05J SM4801 NM420 SM445 FS06 SM431 FS11 SM435 FS08 FS01E SM134 FS09 FS12 FS09 SM4701 FS03 FS04 SM511 FS02 ME70 WM600 SM510 SM631 KN44 KN43 KN42 KN40 FS10 MK01 MH19 PXXXX- EXXXX- DXXXX- HXXXX- FOR F007J/F007JD PARTS LIST FOR FSP GROUP 11
Page 13 — PARTS LIST FOR FSQ GROUP PARTS LIST FOR FSR (1) GROUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM431 | SM431 | SCREW | |
| FS11 | FS11 | BRACKET | |
| MF 91 | MF 91 | SHAFT | |
| FS01E | FS01E | SHAFT | |
| SM134 | SM134 | SCREW | |
| FS08 | FS08 | BRACKET | |
| SM4701 | SM4701 | SCREW | |
| FS12 | FS12 | BRACKET | |
| FS09 | FS09 | BRACKET | |
| FS03 | FS03 | LOOPER | |
| ME 70 | ME 70 | VALVE | |
| SM401 | SM401 | SCREW | |
| WM600 | WM600 | WASHER | |
| SM510 | SM510 | SCREW | |
| SM511 | SM511 | SCREW | |
| FSR02 | FSR02 | NEEDLE BAR | |
| PXXXX | PXXXX | PRESSER FOOT | |
| EXXXX | EXXXX | BASE | |
| SM188 | SM188 | SCREW | |
| KN43 | KN43 | SPRING | |
| KN42 | KN42 | WASHER | |
| KN40 | KN40 | SCREW | |
| FS10 | FS10 | BRACKET | |
| MK01 | MK01 | BASE PLATE | |
| SM631 | SM631 | SCREW | |
| MH19 | MH19 | BASE PLATE | |
| HXXXX | HXXXX | THREAD GUIDE | |
| DXXXX | DXXXX | THREAD GUIDE |
PARTS LIST FOR FSQ GROUP PARTS LIST FOR FSR (1) GROUP 12 SM431 FS11 MF 91 FS01E SM134 FS08 SM4701 FS12 FS09 FS09 FS03 ME 70 SM401 WM600 SM510 FSR02 SM511 PXXXX EXXXX SM188 KN43 KN42 KN40 FS10 MK01 FOR F007J/F007JD SM431 FS11 FS01E SM134 FS08 SM4701 FS12 FS09 FS09 FSR02 SM511 SM510 ME 70 SM401 WM600 SM188 KN43 KN42 KN40 FS10 MK01 FOR F007J/F007JD MH19 HXXXX DXXXX SM631 MH19 HXXXX DXXXX jintex.in
Page 14
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM034 | MA47 | ||
| FSR01 | FSR01 | ||
| WM400 | WM400 | ||
| SM441 | SM441 | ||
| B512 | B512 | ||
| WM601 | WM601 | ||
| SM630 | SM630 | ||
| FSR03 | FSR03 | ||
| FW09 | FW09 | ||
| FW07 | FW07 | ||
| PM210 | PM210 | ||
| FW11 | FW11 | ||
| SM134 | SM134 | ||
| FW10E | FW10E | ||
| SM460 | SM460 | ||
| PXXXX | PXXXX | ||
| SX539 | SX539 | ||
| EXXXX | EXXXX | ||
| FW29 | FW29 | ||
| FW28 | FW28 | ||
| PM110 | PM110 | ||
| SM031 | SM031 | ||
| SM511 | SM511 | ||
| SM188 | SM188 | ||
| WM510 | WM510 | ||
| FW30 | FW30 |
SM034 MA47 FSR01 WM400 SM441 B512 WM601 SM630 FSR03 FOR F007J/F007JD PARTS LIST FOR FSR (2) GROUP jinte.in FW09 FW07 PM210 FW11 SM134 FW10E SM460 PXXXX SX539 EXXXX FW29 FW28 PM110 SM031 SM511 SM188 WM510 FW30 FOR F007J/F007JD PARTS LIST FOR FW (1) GROUP 13
Page 15 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FW05J | FW05J | BRACKET | |
| MK37H | MK37H | BRACKET | |
| KN37 | KN37 | BRACKET | |
| SM430 | SM430 | SCREW | |
| SM432 | SM432 | SCREW | |
| SM4803 | SM4803 | SPRING | |
| MK40 | MK40 | SPRING | |
| VK05 | VK05 | WASHER | |
| KG07 | KG07 | WASHER | |
| KG08 | KG08 | WASHER | |
| VK09 | VK09 | SPRING | |
| KG06E | KG06E | WASHER | |
| KG02E | KG02E | WASHER | |
| KG05 | KG05 | WASHER | |
| KG04F | KG04F | WASHER | |
| VK09-B1 | VK09-B1 | KNOB | |
| FW01H | FW01H | BRACKET | |
| KG05-G1 | KG05-G1 | WASHER | |
| VK02J | VK02J | BRACKET | |
| VK10 | VK10 | BRACKET | |
| FW04H | FW04H | BRACKET | |
| VK09-R1(H) | VK09-R1(H) | KNOB | |
| VK09-E1(H) | VK09-E1(H) | KNOB | |
| VK09-Y1(H) | VK09-Y1(H) | KNOB | |
| VK05-G1(H) | VK05-G1(H) | WASHER | |
| VK09-B1(H) | VK09-B1(H) | KNOB | |
| SK421*4 | SK421*4 | SCREW | |
| KW05B*4 | KW05B*4 | BRACKET | |
| GKW26E*2 | GKW26E*2 | BRACKET | |
| KW17B | KW17B | BRACKET | |
| SK386B | SK386B | SCREW | |
| KW20E | KW20E | BRACKET | |
| NK29B*2 | NK29B*2 | NUT | |
| SK420 | SK420 | BRACKET | |
| SK422 | SK422 | BRACKET | |
| KW22 | KW22 | BRACKET | |
| KW16*6 | KW16*6 | BRACKET | |
| KW12E*6 | KW12E*6 | BRACKET | |
| SW04*6 | SW04*6 | WASHER | |
| KW09B*6 | KW09B*6 | BRACKET | |
| KW36B | KW36B | BRACKET | |
| GKW01E | GKW01E | BRACKET | |
| SK386B | SK386B | SCREW | |
| SK281B | SK281B | BRACKET | |
| KW14E | KW14E | BRACKET | |
| NK29B*2 | NK29B*2 | NUT | |
| GKW03E | GKW03E | BRACKET | |
| GKW02E | GKW02E | BRACKET | |
| KW13E*6 | KW13E*6 | BRACKET | |
| GKW04E*2 | GKW04E*2 | BRACKET | |
| WK25B | WK25B | BRACKET | |
| WMG10 | WMG10 | BRACKET | |
| NK30B | NK30B | NUT | |
| NK29B*6 | NK29B*6 | NUT | |
| SW01*4 | SW01*4 | WASHER | |
| NK31B*4 | NK31B*4 | NUT | |
| KW24 | KW24 | BRACKET |
PARTS LIST FOR FW (2) GROUP FW05J MK37H KN37 SM430 SM432 SM4803 MK40 VK05 KG07 KG08 VK09 KG06E KG02E KG05 KG04F VK09-B1 FW01H KG05-G1 VK02J VK10 FW04H VK09-R1(H) VK09-E1(H) VK09-Y1(H) VK05-G1(H) VK09-B1(H) PARTS LIST FOR FW (3) GROUP 14 SK421*4 KW05B*4 GKW26E*2 KW17B SK386B KW20E NK29B*2 SK420 SK422 KW22 KW16*6 KW12E*6 SW04*6 KW09B*6 KW36B GKW01E SK386B SK281B KW14E NK29B*2 GKW03E GKW02E KW13E*6 GKW04E*2 WK25B WMG10 NK30B NK29B*6 SW01*4 NK31B*4 SK420 SK422 KW24 FOR F007J/F007JD/C007J/C007JD/S007J/S007JD FOR F007J/F007JD/C007J/C007JD/S007J/S007JD jinte.in
Page 16
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM511 | UT28H | ||
| WM805 | UT28H | ||
| PM501 | UT28H | ||
| MK39H | UT34H | ||
| EM040 | VJ01-3 | ||
| SM447 | VJ01-3 | ||
| FW33 | UT37-2 | ||
| UT37-2 | FW32 | ||
| SM430 | SK216 | ||
| SM403 | MK40 | ||
| FW31 | UT37 | ||
| VK05 | UT35H-1 | ||
| KG07 | SM330 | ||
| KG08 | KG05-G1 | ||
| KG06E | KG05 | ||
| KG05 | KG04F | ||
| KG02E | KG05 | ||
| KG04F | VK09-B1 | ||
| VK09-R1(H) | VK09-E1(H) | ||
| VK09-E1(H) | VK09-Y1(H) | ||
| VK09-Y1(H) | VK09-B1(M) | ||
| VK02J | SM404 | ||
| VK10 | UT34-3 | ||
| UT38 | SK216 | ||
| FW06 | GFW07 | ||
| FW11 | SM134 | ||
| FW10E | SM460 | ||
| SK539 | EXXXX | ||
| FW29 | FW28D | ||
| PM110 | ME30 | ||
| MXXXX | DXXXX | ||
| HXXXX | ME30 | ||
| FW09 | SM630 | ||
| FW14 | SM031 | ||
| SM511 | SM188 | ||
| WM510 | FOR F007J/F007JD |
SM511 UT28H WM805 PM501 MK39H EM040 UT34H FW33 UT37-2 SM430 SK216 SM403 MK40 FW31 VK05 UT35H-1 KG07 SM330 KG05-G1 KG08 KG06E KG05 KG04F KG02E KG05 KG04F VK09-B1 VK09-R1(H) VK09-E1(H) VK09-Y1(H) VK02J SM404 VK10 UT34-3 UT38 SK216 FOR CW-UT/FW-UT PARTS LIST FOR FW (4) GROUP jinte.in FW06 GFW07 FW11 SM134 FW10E SM460 SK539 EXXXX FW29 FW28D PM110 ME30 MXXXX DXXXX HXXXX ME30 FW09 SM630 FW14 SM031 SM511 SM188 WM510 FOR F007J/F007JD PARTS LIST FOR FWP (1) GROUP 15
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FW05J | |||
| MK37H | |||
| KN37 | |||
| SM432 | |||
| SM430 | |||
| SM4803 | |||
| MK40 | |||
| FW01H | |||
| VK05 | |||
| KG07 | |||
| KG08 | |||
| VK09 | |||
| KG06E | |||
| KG05 | |||
| KG04F | |||
| KG05-G1 | |||
| VK05 | |||
| KG07 | |||
| KG08 | |||
| VK09 | |||
| KG06E | |||
| KG02E | |||
| KG05 | |||
| KG04F | |||
| VK09-B1 | |||
| VK02J | |||
| VK10 | |||
| FW04H | |||
| VK09-R1(H) | |||
| VK09-E1(H) | |||
| VK09-Y1(H) | |||
| VK09-B1(M) | |||
| VK09-B1(M) | |||
| NM412 | |||
| WM400 | |||
| SM4801 | |||
| FE05J | |||
| VPL02 | |||
| VPL05*4 | |||
| SM4801 | |||
| NM412 | |||
| WM400 | |||
| FWP04*3 | |||
| SK216 | |||
| SK216 | |||
| SM515*2 | |||
| FWP02 | |||
| FWP03*3 | |||
| SK216 | |||
| VPL06 | |||
| WM500 | |||
| SM510 | |||
| NM610 | |||
| VPL07 | |||
| FWP01J | |||
| SM430 | |||
| B417R |
PARTS LIST FOR FWP (2) GROUP FW05J MK37H KN37 SM432 SM430 SM4803 MK40 FW01H VK05 KG07 KG08 VK09 KG06E KG05 KG04F KG05-G1 VK05 KG07 KG08 VK09 KG06E KG02E KG05 KG04F VK09-B1 VK02J VK10 FW04H VK09-R1(H) VK09-E1(H) VK09-Y1(H) VK09-B1(M) VK09-B1(M) FOR F007J/F007JD PARTS LIST FOR FWP (3) GROUP 16 NM412 WM400 SM4801 FE05J VPL02 VPL05*4 SM4801 NM412 WM400 FWP04*3 SK216 SK216 A SM515*2 FWP02 FWP03*3 SK216 A B SRUBA OA VPL06 WM500 SM510 NM610 VPL07 FWP01J SM430 B417R FOR F007J/F007JD
Page 18
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SK421 | KW05B*4 | BRACKET | |
| GKW26E*2 | BRACKET | ||
| KW32E*6 | WASHER | ||
| KW17B | ROD | ||
| SK386B | SCREW | ||
| SK386B | SCREW | ||
| MZ01 | BRACKET | ||
| KW20E | BRACKET | ||
| NK29B*2 | NUT | ||
| SK420 | BRACKET | ||
| SK422 | SCREW | ||
| KW22 | BRACKET | ||
| KW13E*6 | BASE | ||
| KW09B*6 | BASE | ||
| KW16*6 | BASE | ||
| KW12E*6 | BASE | ||
| SW04*6 | WASHER | ||
| NK29B | NUT | ||
| NK30B | NUT | ||
| WKG10 | COLLAR | ||
| WK25B | WASHER | ||
| GKW03E | COLLAR | ||
| GKW02E | ROD | ||
| KW36B | COLLAR | ||
| GKW01E | ROD | ||
| SW01*4 | WASHER | ||
| NK31B*4 | NUT | ||
| FY21 | COLLAR | ||
| SM401 | SCREW | ||
| FY08 | ARM | ||
| SK219 | SCREW | ||
| FY11 | NEEDLE BAR | ||
| FY10 | HOLDER | ||
| SK219 | SCREW | ||
| SK207 | SCREW | ||
| FY09 | NEEDLE GUIDE | ||
| PXXXX | PRESSER FOOT | ||
| SK539 | SCREW | ||
| MH49E | BRACKET | ||
| SM137 | SCREW | ||
| SM534 | SCREW | ||
| FY19 | BRACKET | ||
| SK216 | SCREW | ||
| SK216 | SCREW | ||
| WM400 | BRACKET | ||
| FY07 | BRACKET | ||
| SM435 | BRACKET | ||
| MG37 | SCREW | ||
| MXXXX | SHAFT | ||
| SM034 | SCREW | ||
| MA47 | PLATE | ||
| FY18 | BRACKET | ||
| MH19 | BASE PLATE | ||
| EXXXX | BASE PLATE | ||
| DX | PRESSER FOOT | ||
| FY02 | ARM | ||
| FS01E | SHAFT | ||
| HXXXX | PRESSER FOOT | ||
| SM188 | SCREW | ||
| ME84 | BRACKET | ||
| FY01 | BRACKET | ||
| SM511 | SCREW | ||
| ME70 | VALVE | ||
| ME75 | VALVE | ||
| SM401 | SCREW | ||
| SM510 | SCREW | ||
| SM631 | SCREW | ||
| SM031 | SCREW | ||
| WM002 | WASHER | ||
| FY05 | BRACKET | ||
| FY06 | BRACKET | ||
| KN44 | SPRING | ||
| KN43 | WASHER | ||
| KN42 | WASHER | ||
| KN40 | SPRING | ||
| FS10 | BRACKET | ||
| MK01 | BRACKET | ||
| KN44 | SPRING | ||
| KN43 | WASHER | ||
| KN42 | WASHER | ||
| KN40 | SPRING | ||
| KN43 | WASHER | ||
| KN44 | SPRING | ||
| SM4701 | SHAFT | ||
| SM431 | BRACKET | ||
| FS12 | BRACKET | ||
| FS09 | BRACKET | ||
| FS11 | BRACKET | ||
| GFY17J | HOUSING | ||
| FY03 | BRACKET | ||
| FS04 | BRACKET | ||
| FS03 | BRACKET |
KW36B GKW01E SK421*4 KW05B*4 GKW26E*2 KW32E*6 KW17B SK386B SK386B MZ01 KW20E NK29B*2 SK420 SK422 KW22 KW13E*6 KW09B*6 KW16*6 KW12E*6 SW04*6 NK29B NK30B WKG10 WK25B GKW03E GKW02E SW01*4 NK31B*4 FY21 SM401 FY08 SK219 FY11 FY10 SK219 SK207 FY09 PXXXX SK539 MH49E SM137 SM534 FY04 FY19 SK216 SK216 WM400 FY07 SM435 MG37 MXXXX SM034 MA47 FY18 MH19 EXXXX DX FY02 FS01E HXXXX SM188 ME84 FY01 SM511 ME70 ME75 SM401 SM510 SM631 SM031 WM002 FY05 FY06 KN44 KN43 KN42 KN40 FS10 MK01 KN44 KN43 KN42 KN40 KN43 KN44 SM4701 SM431 FS12 FS09 FS11 GFY17J FY03 FS04 FS03 FOR F007J/F007JD/C007J/C007JD/S007JD PARTS LIST FOR FWP (4) GROUP 17 jintex.in PARTS LIST FOR FY (1) GROUP
Page 19
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FW05J | FW05J | ||
| MK37H | MK37H | ||
| KN37 | KN37 | ||
| SM430 | SM430 | ||
| SM432 | SM432 | ||
| SM4803 | SM4803 | ||
| MK40 | MK40 | ||
| FY12H | FY12H | ||
| VK05 | VK05 | ||
| KG07 | KG07 | ||
| KG08 | KG08 | ||
| VK09 | VK09 | ||
| KG06E | KG06E | ||
| KG02E | KG02E | ||
| KG05 | KG05 | ||
| KG04F | KG04F | ||
| VK09-G1 | VK09-G1 | ||
| VK09-B1 | VK09-B1 | ||
| VK02J | VK02J | ||
| VK10 | VK10 | ||
| VK09-R1 | VK09-R1 | ||
| VK09-E1 | VK09-E1 | ||
| VK09-Y1 | VK09-Y1 | ||
| VK09-G1 | VK09-G1 | ||
| FY15H | FY15H | ||
| VK09-G1 | VK09-G1 | ||
| VK09-B1 | VK09-B1 | ||
| SM622*6 | SM622*6 | ||
| GKW28E*2 | GKW28E*2 | ||
| KW32E*10 | KW32E*10 | ||
| KW05B*6 | KW05B*6 | ||
| WM610*6 | WM610*6 | ||
| NM610*6 | NM610*6 | ||
| GVZ02*2 | GVZ02*2 | ||
| VZ03*6 | VZ03*6 | ||
| WM601*6 | WM601*6 | ||
| WM610*6 | WM610*6 | ||
| SM621*6 | SM621*6 | ||
| KW36B | KW36B | ||
| SK386B | SK386B | ||
| SK281B | SK281B | ||
| KW14E | KW14E | ||
| GKW03E | GKW03E | ||
| NK29B*2 | NK29B*2 | ||
| SK420*2 | SK420*2 | ||
| SK422*2 | SK422*2 | ||
| KW22*2 | KW22*2 | ||
| KW13E*7 | KW13E*7 | ||
| KW09B*7 | KW09B*7 | ||
| KW16*7 | KW16*7 | ||
| KW12E*7 | KW12E*7 | ||
| GKW29E*2 | GKW29E*2 | ||
| WK25B | WK25B | ||
| WM610*6 | WM610*6 | ||
| NK30B | NK30B | ||
| SW04*7 | SW04*7 | ||
| NK29B*7 | NK29B*7 |
PARTS LIST FOR FY (2) GROUP PARTS LIST FOR FY (3) GROUP 18 FW05J MK37H KN37 SM430 SM432 SM4803 MK40 FY12H VK05 KG07 KG08 VK09 KG06E KG02E KG05 KG04F VK09-G1 VK09-B1 FOR F007J/F007JD SM622*6 GKW28E*2 KW32E*10 VK02J VK10 VK09-R1 VK09-E1 VK09-Y1 VK09-G1 VK09-G1 FY15H VK09-G1 VK09-B1 FOR F007J/F007JD KW05B*6 WM610*6 NM610*6 GVZ02*2 VZ03*6 WM601*6 WM610*6 SM621*6 KW36B F D E C B A SK386B SK281B KW14E GKW03E NK29B*2 KW20E NK29B*2 KW13E*7 KW09B*7 KW16*7 KW12E*7 GKW29E*2 WK25B WM610*6 NK30B SW04*7 NK29B*7 jintex.in
Page 20
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM511 | UT28H | ||
| PM501 | MK39H | ||
| WM805 | UT34H | ||
| EM040 | VJ01-3 | ||
| SM447 | C | ||
| SM410 | WM400 | ||
| SM4403 | WP11 | ||
| WP12 | WP02 | ||
| GWP19 | WP13 | ||
| NM410 | SK569 | ||
| EM050 | SM4054 | ||
| WP01 | WP06 | ||
| WP20 | SM132 | ||
| WP07 | SM303 | ||
| WP08 | WP05 | ||
| WP09 | WM100 | ||
| SK239 | SM140 | ||
| WP10 | SM4700 | ||
| WP16 | KN46 | ||
| KN42 | KN43 | ||
| KN44 | SM534 | ||
| SM137 | WP15 | ||
| M5XXX | WP14 | ||
| UT37-1 | MK28H | ||
| UT35H | UT37-3 | ||
| UT37-3 | VK02J | ||
| UT37 | VK10 | ||
| SK216 | SM430 | ||
| UT34-3 | SM404 | ||
| VK09-R1(H) | VK09-E1(H) | ||
| VK09-Y1(H) | VK09-G1(M) | ||
| VK09-B1(M) | MK27H |
SM511 UT28H WM805 PM501 MK39H UT34H EM040 SM447 VJ01-3 SM410 WM400 SM4403 WP11 WP12 WP02 GWP19 SK569 EM050 SM4054 WP01 WP06 WP20 SM132 WP07 SM303 WP08 WP05 WP09 WM100 SK239 SM140 WP10 SM4700 WP16 KN46 KN42 KN43 KN44 SM534 SM137 M5XXX WP15 WP14 FOR F007J/F007JD/C007J/C007JD/S007K/S007KD UT37-1 MK28H UT35H UT37-3 UT37 VK02J VK10 SK216 UT34-3 SM430 SM404 VK09-R1(H) VK09-E1(H) VK09-Y1(H) VK09-G1(M) VK09-B1(M) MK27H FOR F007J/F007JD/C007J/C007JD/S007K/S007KD PARTS LIST FOR WP (1) GROUP PARTS LIST FOR WP (2) GROUP 19 jintex.in
Page 21 — F007J/JD ATTACHMENT
The specification and/or appearences of the equipment described in this parts list are subject to change because of modification without previous notice. MY137. MAR. 2007 KAULIN MFG. CO., LTD. F007J/JD ATTACHMENT jintex.in
