Page 1 — PARTS LIST
SIRUBA 銀鈴牌工業用縫紉機 INDUSTRIAL SEWING MACHINE L818F-RM1 零件圖 PARTS LIST CE KAULIN MFG. CO., LTD. jintex.in
Parts index — Siruba L818F-RM1tap a row to open its page
Page 2 — 規格件表 CONVERSION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| L818F-RM1-32 | 32 | ||
| E705Q | D705 | ||
| G111 | G201 | ||
| LR104DS | DB*1#14 | ||
| LR106 | |||
| L818F-RM1-40 | 40 | ||
| E705R | D705 | ||
| (E705Q) | |||
| G111 | G201 | ||
| LR104DS | DB*1#14 | ||
| LR106 | |||
| L818F-RM1-48 | 48 | ||
| E705 | D705 | ||
| (E705Q) | |||
| G111 | G201 | ||
| LR104DS | DB*1#14 | ||
| LR106 | |||
| L818F-RM1-64 | 64 | ||
| E705S | D702 | ||
| (E705Q) | (D705) | ||
| G111 | G201 | ||
| LR104D | DB*1#14 | ||
| (LR104DS) | (LR141S) | ||
| (LR106) | |||
| L818F-RM1-95 | 95 | ||
| E705T | D702 | ||
| (E705Q) | (D705) | ||
| G111 | G201 | ||
| LR104D | DB*1#14 | ||
| (LR104DS) | (LR141S) | ||
| (LR106) |
Page 3
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SK609 | SCREW | ||
| GLA12 | BRACKET | ||
| LA13 | WASHER | ||
| SK607 | SCREW | ||
| LA15F | COVER | ||
| LA14F | COVER | ||
| LA14F-A1 | COVER | ||
| WM500 | WASHER | ||
| SK645 | SCREW | ||
| WM400 | WASHER | ||
| SK392 | SCREW | ||
| SK603 | SCREW | ||
| GLA41 | BRACKET | ||
| SK602 | SCREW | ||
| GLR108 | PIN | ||
| SK651 | SCREW | ||
| LA05 | BEARING | ||
| LA40 | WASHER | ||
| LA42 | WASHER | ||
| LA06 | BEARING | ||
| MB30 | LABEL | ||
| LA45 | BEARING | ||
| GLA44 | BRACKET | ||
| LA02H | COVER | ||
| GLA02H | COVER | ||
| SK610 | SCREW | ||
| LA03F | COVER | ||
| MB09 | SCREW | ||
| SK675 | SCREW | ||
| E7XXX | BRACKET | ||
| SK238 | SCREW | ||
| LR101 | BRACKET | ||
| LR103 | BRACKET | ||
| LR105 | BRACKET | ||
| SK222 | SCREW | ||
| LR138 | BRACKET | ||
| LR104XX | BRACKET | ||
| LA16 | BEARING | ||
| LA19 | BEARING | ||
| SK609 | SCREW | ||
| SK690 | SCREW | ||
| LA18 | BEARING | ||
| LA07D | BEARING | ||
| LA617 | BRACKET | ||
| LU38 | SCREW | ||
| GLA43 | BRACKET | ||
| KA33P | BRACKET | ||
| LA09H | BRACKET | ||
| SK249 | SCREW | ||
| PM701 | PIN | ||
| LR14B | WASHER | ||
| SK623 | SCREW | ||
| LR106 | BRACKET | ||
| LR107 | BRACKET | ||
| LR143 | SPRING | ||
| LA27 | WASHER | ||
| LA37 | WASHER | ||
| SM920 | WASHER | ||
| GLA60 | PULLEY | ||
| LA28 | SHAFT | ||
| SM921 | SCREW | ||
| LA30 | BEARING | ||
| LA31 | BEARING | ||
| LA32 | GEAR | ||
| GLA33 | BRACKET | ||
| LR139-A | COVER | ||
| LA35 | SPRING | ||
| LA36 | SPRING | ||
| LA35-A | SPRING | ||
| SK615 | SCREW | ||
| SK604 | SCREW | ||
| LB09 | BRACKET | ||
| OR040 | WASHER | ||
| LB12 | BRACKET | ||
| LB14 | BRACKET | ||
| EM050 | SPRING | ||
| EM050 | SPRING | ||
| EM050 | SPRING | ||
| LB13 | BRACKET | ||
| SK624 | SCREW | ||
| LB15 | ROD | ||
| SK616 | SCREW | ||
| LB16 | BRACKET | ||
| SK635 | SCREW | ||
| LB17 | BRACKET | ||
| EM050 | SPRING | ||
| LR144 | BRACKET | ||
| EM050 | SPRING | ||
| EM050 | SPRING | ||
| LB19 | SHAFT | ||
| LB20 | SPRING | ||
| LB04 | SPRING | ||
| LB05 | BRACKET | ||
| GLB06 | BRACKET | ||
| SK241 | SCREW | ||
| SK316 | SCREW | ||
| LB01 | SCREW | ||
| LB02 | WASHER | ||
| LB07 | TUBE | ||
| LR45 | ROD | ||
| LB03 | ROD | ||
| PXXX | FOOT | ||
| SK621 | SCREW | ||
| LB22 | SPRING | ||
| SK643 | SCREW | ||
| EM050 | SPRING | ||
| LB21 | SPRING |
Page 4 — PARTS LIST FOR LC GROUP PARTS LIST FOR LD GROUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| LC19-E | SK233 | SCREW | |
| LC19-E | LC20 | SLEEVE | |
| LC19-E | LC18 | SHAFT | |
| LC19-E | LC25 | SPRING PIN | |
| LC19-E | LC24 | SPRING PIN | |
| LC19-E | WK27 | WASHER | |
| LC19-E | OR115 | O-RING | |
| LC19-E | LC623G | GEAR | |
| LC19-E | LC623G-A | GEAR | |
| LC55-E | SK945 | SCREW | |
| LC55-E | SK596 | SCREW | |
| LC55-E | LC55 | HANDLE | |
| LC55-E | WMCO5 | WASHER | |
| LC55-E | OR085 | O-RING | |
| LC07F-E | EM050 | SHAFT | |
| LC07F-E | LC07F-E | BRACKET | |
| LC07F-E | LC07F | SHAFT | |
| LC07F-E | LC62P | SPRING PIN | |
| LC07F-E | LC06 | SPRING | |
| LC07F-E | EM050 | SHAFT | |
| LC07F-E | SK646 | SCREW | |
| LC07F-E | LC10 | SPRING | |
| LC12-E | LC14 | SHAFT | |
| LC12-E | LC15D | LINK | |
| LC12-E | LC16D | LINK | |
| LC12-E | LC13 | SHAFT | |
| LC12-E | SK302 | SCREW | |
| LC12-E | LC12 | BRACKET | |
| LC12-E | SK461 | SCREW | |
| LC12-E | LC11 | SPRING | |
| LC12-E | SK629 | SCREW | |
| LC12-E | LC12-E | BRACKET | |
| LC12-E | LC57 | SPRING | |
| LC12-E | LC09 | BRACKET | |
| LC12-E | SK691 | PIN | |
| LD03-E | LD03-E | BRACKET | |
| LD03-E | LD04 | SHAFT | |
| LD03-E | SK600 | SPRING | |
| LD03-E | LD03 | SHAFT | |
| LD03-E | LD02 | SLEEVE | |
| LD03-E | EM153 | COLLAR | |
| LD12-E | LD11 | SHAFT | |
| LD12-E | LD12 | BRACKET | |
| LD12-E | WK27 | WASHER | |
| LD12-E | SK611 | SCREW | |
| LD12-E | SK437 | SCREW | |
| LD12-E | LD12-E | BRACKET | |
| LD19-A | LD19 | SHAFT | |
| LD19-A | LD19-A | BRACKET | |
| LD06-E | LD08 | SHAFT | |
| LD06-E | LD07 | SLEEVE | |
| LD17-E | LD18 | SHAFT | |
| LD17-E | SK230 | SCREW | |
| LD17-E | SK612 | SCREW | |
| LD17-E | LD17 | BRACKET | |
| LD17-E | LD17-E | BRACKET | |
| LD06-E | LD06-E | BRACKET | |
| LD06-E | LD06 | SHAFT | |
| LD06-E | NK61 | NUT | |
| LD06-E | SK612 | SCREW | |
| LD06-E | LD07 | SLEEVE | |
| LD06-E | LD116 | SHAFT | |
| LD01P-E | LD01P | SHAFT | |
| LD01P-E | SK277 | SCREW | |
| LD01P-E | LD01P-E | BRACKET | |
| LD03-E | LD03-E | BRACKET | |
| LD06-E | LD09 | SHAFT | |
| LD06-E | LD10 | SHAFT | |
| LD06-E | SK230 | SCREW |

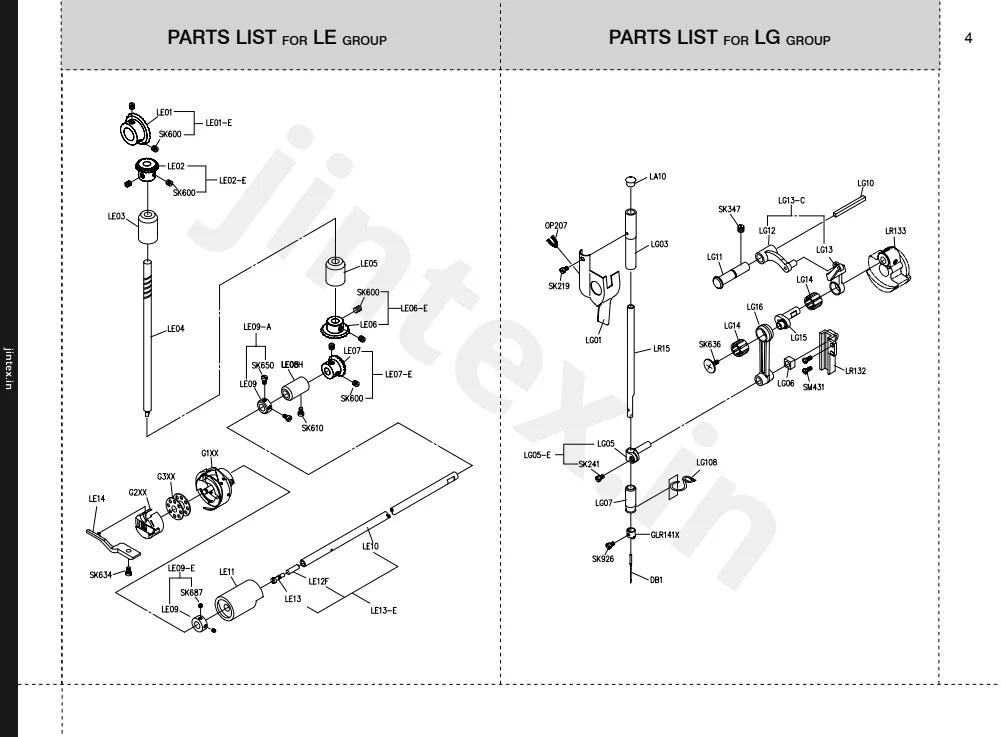

Page 5
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| LE01 | LE01-E | ||
| SK600 | |||
| LE02 | LE02-E | ||
| SK600 | |||
| LE03 | |||
| LE05 | |||
| SK600 | |||
| LE06 | LE06-E | ||
| LE04 | |||
| LE09-A | |||
| LE07 | LE07-E | ||
| SK650 | |||
| LE08H | |||
| LE09 | |||
| SK600 | |||
| SK610 | |||
| G1XX | |||
| G2XX | |||
| LE14 | |||
| SK634 | |||
| LE09-E | |||
| LE11 | |||
| SK687 | |||
| LE09 | |||
| LE12F | |||
| LE13 | LE13-E | ||
| LA10 | |||
| OP207 | |||
| LG03 | |||
| SK219 | |||
| LG01 | |||
| LG13-C | |||
| LG12 | |||
| LG13 | |||
| LG10 | |||
| LR133 | |||
| LG11 | |||
| LG14 | |||
| LG15 | |||
| LG05 | LG05-E | ||
| SK241 | |||
| LG07 | |||
| GLR141X | |||
| SK926 | |||
| DB1 | |||
| LR15 | |||
| SK636 | |||
| LG06 | |||
| SM431 | |||
| LR132 | |||
| LG108 | |||
| LE10 |
Page 6
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| LR06-E | LR06 | ||
| SK617 | SK834 | ||
| LR133-E | LR133 | ||
| OR05A | SK637 | ||
| SK608 | LH06 | ||
| EM203 | LE01 | ||
| LD03 | SK600 | ||
| LD03-E | LR14 | ||
| LH14 | OR035 | ||
| LH11 | LR14-E | ||
| LH08 | LR137 | ||
| LH03 | LH04 | ||
| LH05 | SK618 | ||
| GLH101 | GLH101-E | ||
| SK804A | |||
| SK639 | LL09 | ||
| LL10 | LL11 | ||
| LL12 | LL13 | ||
| LL14 | SK647 | ||
| LL11-A | GLR49 | ||
| SK392 | KX12E | ||
| KX13E | LL22 | ||
| LL15 | SM384 | ||
| LL18 | SK634 | ||
| SK628 | LL16 | ||
| LL17 | LL19 | ||
| LL01F | KC58 | ||
| LL102 | LL03 | ||
| LL04-1 | LL04-3 | ||
| LL04-4 | WM400 | ||
| OP222 | LL55 | ||
| OP214 | SK606 | ||
| OR10C | LL23 | ||
| SK625 | LL04-1 | ||
| LL06 | LL07 | ||
| LL100 | WM605 | ||
| SM437 | SK607 | ||
| SM607 | NM610 | ||
| SM697 | NM610 | ||
| LM21 | LM23 | ||
| EM100 | LM24 | ||
| SM617 | NM610 | ||
| LM22 | LR48 | ||
| SK630 | LR46 |
Page 8
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| LY01 | LY01 | ||
| LY02 | LY02 | ||
| YM04*2 | YM04*2 | ||
| LY05*2 | LY05*2 | ||
| YM102*2 | YM102*2 | ||
| LY08F | LY08F | ||
| LY19 | LY19 | ||
| LY24 | LY24 | ||
| LY21-A | LY21-A | ||
| G3XX*2 | G3XX*2 | ||
| LY20*8 | LY20*8 | ||
| #*2 | #*2 | ||
| GMY01 | GMY01 | ||
| MY11 | MY11 | ||
| KZ03*1 | KZ03*1 | ||
| MY13 | MY13 | ||
| KY16 | KY16 | ||
| KY17 | KY17 | ||
| GKY26F | GKY26F | ||
| LZ68 | LZ68 | ||
| LZ65 | LZ65 | ||
| LZ53 | LZ53 | ||
| LZ52 | LZ52 | ||
| LZ70 | LZ70 | ||
| LZ74 | LZ74 | ||
| LZ66-1 | LZ66-1 | ||
| LZ66-2 | LZ66-2 | ||
| LZ01F | LZ01F |
Page 9 — PARTS LIST FOR THREAD STAND GROUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KW36B | |||
| GLW08 | |||
| SW01 | |||
| NK31B | |||
| KW05B | |||
| SK421 | |||
| KW32E*2 | |||
| GKW28E | |||
| KW03E | |||
| LW09*2 | |||
| GKW09B*2 | |||
| GLW07 | |||
| KW16*2 | |||
| KW12E*2 | |||
| GLW10 | |||
| KW05B | |||
| SK421 | |||
| WK25B | |||
| WMG10 | |||
| NMG11 | |||
| SW01 | |||
| GLW07-A | |||
| SW04*2 | |||
| NK29B*2 |
Siruba L818F-RM1 — parts catalog
- Page 1 (cover): This is the cover page for the Siruba L818F-RM1 industrial sewing machine parts list. It features the Siruba logo, the model number L818F-RM1, and the text "PARTS LIST". The page also includes CE marking and manufacturer information for Kaulin Mfg. Co., Ltd.
- Page 2 (parts_list): This page contains a conversion chart for sewing machine models L818F-RM1-32, L818F-RM1-40, L818F-RM1-48, L818F-RM1-64, and L818F-RM1-95, listing various parts and their corresponding codes.
- Page 3 (parts_list): This page contains parts lists for the LA Group and LB Group, featuring diagrams and part numbers for various machine components.
- Page 4 (diagram): This page contains diagrams of parts for the LC and LD groups, with various components labeled with part numbers and reference designators.
- Page 5 (parts_list): This page contains a parts list for the LE GROUP and LG GROUP, detailing various components with their respective part numbers and names.
- Page 6 (diagram): This page displays diagrams of parts for the LH and LL groups, including various components like rollers, shafts, brackets, and fasteners, with part numbers and labels for identification.
- Page 8 (parts_list): This page contains parts lists for the LY and LZ groups, featuring various machine components, tools, and accessories with their respective part numbers and descriptions.
- Page 9 (parts_list): This page lists parts for the thread stand group, including various screws, bolts, washers, and structural components with their corresponding part numbers and descriptions.
- Page 10 (cover): This is the cover page for the L818F-RM1 industrial sewing machine, manufactured by KAULIN MFG. CO., LTD. The document was published in November 2007.
Page 2 — 規格件表 CONVERSION CHART
規格件表 CONVERSION CHART MODEL SUB-CLASS GAUGE WIDTH NEEDLE PLATE FEED DOG PRESSER FOOT HOOK ASM BOBBIN CASE ASM BOBBIN THROAT PLATE CHIP GUARD NEEDLE THREAD GUIDE THROAT PLATE COVER 機 型 規格 切 距 離 針 板 送 具 押 具 梭 頭 梭 殼 梭 子 下導布架 針 號 導線片 布板蓋 L818F-RM1-32 32 1/8" (3.2mm) E705Q D705 P705 G111 G201 G301 LR104DS DB*1#14 LR141S LR106 L818F-RM1-40 40 5/32" (4.0mm) E705R (E705Q) D705 P705 G111 G201 G301 LR104DS DB*1#14 LR141S LR106 L818F-RM1-48 48 3/16" (4.8mm) E705 (E705Q) D705 P705 G111 G201 G301 LR104DS DB*1#14 LR141S LR106 L818F-RM1-64 64 1/4" (6.4mm) E705S (E705Q) D702 (D705) P701 (P705) G111 G201 G301 LR104D (LR104DS) DB*1#14 LR141 (LR141S) LR106S (LR106) L818F-RM1-95 95 3/8" (9.5mm) E705T (E705Q) D702 (D705) P701 (P705) G111 G201 G301 LR104D (LR104DS) DB*1#14 LR141 (LR141S) LR106T (LR106) 1
Page 3
PARTS LIST FOR LA GROUP 2 PARTS LIST FOR LB GROUP SK609 WM500 SK645 WM400 SK392 SK603 GLA12 LA15F LA14F LA14F-A1 LA13 GLA41 SK602 GLR108 SK651 LA05 LA40 LA42 LA06 SK607 MB30 LA45 GLA44 LA05 LA02H GLA02H SK610 LA03F MB09 SK675 E7XXX SK238 LR101 LR103 SK675 LR105 SK222 LR138 LR104XX LA16 LA19 SK609 SK690 LA18 LA07D LA617 LU38 GLA43 KA33P LA09H SK249 PM701 LR14B SK623 LR106 LR107 LR143 LA27 LA37 SM920 GLA60 LA28 SM921 LA30 LA31 LA32 GLA33 LR139-A LA35 LA36 LA35-A SK615 SK624 LB13 LB09 OR040 LB12 LB14 EM050 EM050 EM050 LB15 SK616 LB16 SK635 LB17 EM050 LR144 EM050 EM050 LB19 LB20 LB04 LB05 GLB06 SK241 SK316 LB01 LB02 LB07 LR45 LR03 PXXX SK621 LB22 SK604 SK624 SK643 EM050 LB21
Page 4 — PARTS LIST FOR LC GROUP PARTS LIST FOR LD GROUP
Jintex.in PARTS LIST FOR LC GROUP LC19-E LC20 SK233 LC18 LC25 LC24 WK27 OR115 LC623G LC623G-A LC55-E SK945 SK596 LC55 WMCO5 OR085 EM050 LC07F-E LC07F LC62P LC06 EM050 SK646 LC10 LC14 LC15D LC16D LC13 SK302 LC12 SK461 LC11 SK629 LC12-E LC57 LC09 SK691 PARTS LIST FOR LC GROUP LD03-E LD04 SK600 LD03 LD02 EM153 LD11 LD12 WK27 SK611 SK437 LD12-E LD19 LD19-A LD08 LD07 LD18 SK230 SK612 LD17 LD17-E LD06-E LD06 NK61 SK612 LD07 LD116 LD01P LD01P-E SK277 LD03-E LD09 LD10 SK230 NK61 LD07 3 PARTS LIST FOR LD GROUP
Page 5
PARTS LIST FOR LE GROUP PARTS LIST FOR LG GROUP 4 LE01 LE01-E SK600 LE02 LE02-E SK600 LE03 LE05 SK600 LE06-E LE06 LE04 LE09-A LE07 SK650 LE08H LE09 SK600 SK610 G1XX G2XX LE14 SK634 LE09-E LE11 SK687 LE09 LE12F LE13 LE13-E LA10 OP207 LG03 SK219 LG01 LG13-C LG12 LG13 LG10 LR133 LG11 LG14 LG15 LG05 LG05-E SK241 LG07 GLR141X SK926 DB1 LR15 SK636 LG06 SM431 LR132 LG108
Page 6
jinttex.in PARTS LIST FOR LH GROUP LR06-E LR06 SK617 SK834 LR133-E LR133 OR05A SK637 SK608 LH06 EM203 LE01 LD03 SK600 LD03-E LR14 LH14 OR035 LH11 LR14-E LH08 LR137 LH03 LH04 LH05 SK618 GLH101 GLH101-E SK804A SK639 LL09 LL10 LL11 LL12 LL13 LL14 SK647 LL11-A GLR49 SK392 KX12E KX13E LL22 LL15 SM384 LL18 SK634 SK628 LL16 LL17 LL19 LL01F KC58 LL102 LL03 LL04-1 LL04-3 LL04-4 WM400 OP222 LL55 OP214 SK606 OR10C LL23 SK625 LL04-1 LL06 LL07 LL100 WM605 SM437 SK607 SM607 NM610 SM697 NM610 LM21 LM23 EM100 LM24 SM617 NM610 LM22 LR48 SK630 LR46 PARTS LIST FOR LL GROUP 5
Page 8
LY01 LY02 YM04*2 LY05*2 YM102*2 LY08F LY19 LY24 LY21-A INSTRUCTION KAULIN MFG. CO., LTD. PARTS LIST INSTRUCTION KAULIN MFG. CO., LTD. G3XX*2 LY20*8 #*2 GMY01 MY11 KZ03*1 3 mm MY13 KY16 KY17 GKY26F LZ68 LZ65 LZ53 LZ52 LZ70 LZ74 LZ66-1 LZ66-2 LZ74 LZ68 SIRUBA INDUSTRIAL SEWING MACHINE L818F SIRUBA INDUSTRIAL SEWING MACHINE L818F LZ01F PARTS LIST FOR LY GROUP PARTS LIST FOR LZ GROUP 7
Page 9 — PARTS LIST FOR THREAD STAND GROUP
PARTS LIST FOR THREAD STAND GROUP 8 KW36B GLW08 SW01 NK31B KW05B SK421 KW32E*2 GKW28E KW03E LW09*2 GKW09B*2 GLW07 KW16*2 KW12E*2 GLW10 KW05B SK421 WK25B WMG10 NMG11 SW01 GLW07-A SW04*2 NK29B*2
Page 10 — L818F-RM1
K L818F-RM1 高林股份有限公司 KAULIN MFG. CO., LTD. jintex.in The specification and/or appearences of the equipment described in this parts list are subject to change because of modification without previous notice. jintex.in LY24. NOV 2007
