| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DL918-BH1A-03 | DL918-BH1A-00 | ||
| DL918-BH1-03 | DL918-BH1-00 | ||
| DL918-BM1A-00 | DL918-BM1A-03 | ||
| DL918-BM1-03 | DL918-BM1C-03 | ||
| L-700B | 薄布 | ||
| L-900 | 厚布料 | ||
| E704D | 至 | ||
| E711D | E711 | ||
| E711 | E711 | ||
| E704 | E704 | ||
| E701 | E701 | ||
| G125J | G125J | ||
| G202 | G202 | ||
| G303 | G303 | ||
| DBX1#21 | LH500P-A(P車) | ||
| DBX1#14 | T505UP-A | ||
| DBX1#14 | T505HE |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SK609 | SCREW | ||
| LA513 | BRACKET | ||
| LA217 | BRACKET | ||
| LA13 | COVER | ||
| PP6160 | CAP | ||
| SM3052 | SCREW | ||
| PP2080 | PLUG | ||
| LA45- | RING | ||
| BC711 | BRACKET | ||
| LA508 | COVER | ||
| SK607 | SCREW | ||
| LA11F | COVER | ||
| PP2120 | RING | ||
| PP2112 | PLUG | ||
| PP2080 | PLUG | ||
| MB30 | LABEL | ||
| LA45 | RING | ||
| LA202 | COVER | ||
| LA203 | COVER | ||
| SK610 | SCREW | ||
| PP3120 | RING | ||
| LA34 | BRACKET | ||
| SK249 | SCREW | ||
| SK675 | SCREW | ||
| E7XX | BASE PLATE | ||
| LA35 | COVER | ||
| LA36 | BLADE | ||
| LA35-A | COVER ASSEMBLY | ||
| SK615 | SCREW | ||
| LA515 | COVER | ||
| SK609 | SCREW | ||
| PP2080 | PLUG | ||
| PP1190 | RING | ||
| PM408 | SHAFT | ||
| PP2103 | RING | ||
| PP1200 | RING | ||
| SK633 | SCREW | ||
| LA58 | WASHER | ||
| KA33P | BRACKET | ||
| LA213 | COVER | ||
| MB33 | LABEL | ||
| LA24 | BRACKET | ||
| SK414 | SCREW | ||
| LA25 | BRACKET | ||
| SK249 | SCREW | ||
| SK956 | SCREW | ||
| LA23 | BRACKET | ||
| LA22 | BRACKET | ||
| LA500 | COVER | ||
| LA21 | COVER | ||
| LA39 | BRACKET | ||
| PM701 | PIN | ||
| LA251 | BRACKET | ||
| LB101 | SPRING | ||
| LB19 | WASHER | ||
| LB20 | SPRING | ||
| SK623 | SCREW | ||
| SM920 | SCREW | ||
| LA26 | COVER | ||
| LA27 | BRACKET | ||
| LA37 | BRACKET | ||
| LA28 | BRACKET | ||
| SK691 | PIN | ||
| LA30 | RING | ||
| LA31D | RING | ||
| LA33 | COVER | ||
| LA60 | RING | ||
| LA32 | RING | ||
| SM921 | SCREW |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| LA526 | LA526 | ||
| LA524 | LA524 | ||
| LA535 | LA535 | ||
| WM40H | WM40H | ||
| LA531 | LA531 | ||
| LA520 | LA520 | ||
| LA527 | LA527 | ||
| LA522 | LA522 | ||
| LA518 | LA518 | ||
| LA530 | LA530 | ||
| LA519 | LA519 | ||
| EM057 | EM057 | ||
| LA521 | LA521 | ||
| BR1501 | BR1501 | ||
| EM040 | EM040 | ||
| LA521-1 | LA521-1 | ||
| BR1501 | BR1501 | ||
| EM040 | EM040 | ||
| LA523 | LA523 | ||
| OR257 | OR257 | ||
| SK609*2 | SK609*2 | ||
| WM503*2 | WM503*2 | ||
| LA33 | LA33 | ||
| LA32 | LA32 | ||
| LA720 | LA720 | ||
| LA718*2 | LA718*2 | ||
| LA512-E | LA512-E | ||
| NK31B | NK31B |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SK604 | SCREW | ||
| LB09 | BRACKET | ||
| OR040 | O-RING | ||
| LB13-A | BRACKET | ||
| SK616 | SCREW | ||
| LB15 | ROD | ||
| SK624*2 | SCREW | ||
| LB13 | BRACKET | ||
| EM050 | SPRING | ||
| SK635 | SCREW | ||
| LB16 | BRACKET | ||
| LB12 | SHAFT | ||
| EM050 | SPRING | ||
| SK630 | SCREW | ||
| LB53 | BRACKET | ||
| LB14 | BRACKET | ||
| EM050 | SPRING | ||
| LB17 | ROD | ||
| LB04 | SPRING | ||
| EM050 | SPRING | ||
| LB55D | BRACKET | ||
| SK607 | SCREW | ||
| LB05 | PIN | ||
| SK643 | SCREW | ||
| LB06 | BRACKET | ||
| SK607 | SCREW | ||
| SK241*2 | SCREW | ||
| LB01 | SCREW | ||
| EM050 | SPRING | ||
| LB54 | BRACKET | ||
| SK316 | WASHER | ||
| LB02 | NUT | ||
| LB19 | PIN | ||
| EM050 | SPRING | ||
| LB21 | BRACKET | ||
| LB07 | TUBE | ||
| LB03 | PIN | ||
| LB20 | SPRING | ||
| LB08 | TUBE | ||
| EM050 | SPRING | ||
| LB70 | ROD | ||
| SK621 | SCREW | ||
| PXXX | BRACKET | ||
| LB22 | SPRING | ||
| NK60*2 | SPRING |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| LC19-E1 | LC19-E1 | LC19-E1 | |
| LC20 | LC20 | LC20 | |
| SK619 | SK619 | SK619 | |
| LC19 | LC19 | LC19 | |
| SK233*2 | SK233*2 | SK233*2 | |
| LC18D | LC18D | LC18D | |
| LC25 | LC25 | LC25 | |
| LC24 | LC24 | LC24 | |
| LC21 | LC21 | LC21 | |
| OR115 | OR115 | OR115 | |
| LC623D | LC623D | LC623D | |
| WK27 | WK27 | WK27 | |
| SK930 | SK930 | SK930 | |
| LC623D-A | LC623D-A | LC623D-A | |
| LC55D-E | LC55D-E | LC55D-E | |
| SK622 | SK622 | SK622 | |
| LC02 | LC02 | LC02 | |
| SK945 | SK945 | SK945 | |
| SK596 | SK596 | SK596 | |
| LC55D | LC55D | LC55D | |
| LC54 | LC54 | LC54 | |
| LC04 | LC04 | LC04 | |
| EM050 | EM050 | EM050 | |
| OR085 | OR085 | OR085 | |
| LC06 | LC06 | LC06 | |
| LC501 | LC501 | LC501 | |
| LC62P | LC62P | LC62P | |
| EM050 | EM050 | EM050 | |
| LC501-E | LC501-E | LC501-E | |
| LC58 | LC58 | LC58 | |
| SK646 | SK646 | SK646 | |
| LC13 | LC13 | LC13 | |
| LC15 | LC15 | LC15 | |
| LC16*2 | LC16*2 | LC16*2 | |
| LC14 | LC14 | LC14 | |
| LC15 | LC15 | LC15 | |
| LC14 | LC14 | LC14 | |
| LD18 | LD18 | LD18 | |
| LD17 | LD17 | LD17 | |
| LC13 | LC13 | LC13 | |
| LC201 | LC201 | LC201 | |
| SK461*2 | SK461*2 | SK461*2 | |
| LC11 | LC11 | LC11 | |
| SK302 | SK302 | SK302 | |
| LC09 | LC09 | LC09 | |
| LC201-E | LC201-E | LC201-E | |
| SK629*2 | SK629*2 | SK629*2 | |
| SK691*2 | SK691*2 | SK691*2 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| EM050 | EM050 | EM050 | |
| EM090 | EM090 | EM090 | |
| LC205 | LC205 | LC205 | |
| LC204 | LC204 | LC204 | |
| LC202D | LC202D | LC202D | |
| EM040 | EM040 | EM040 | |
| EM120 | EM120 | EM120 | |
| LU60 | LU60 | LU60 | |
| LU59 | LU59 | LU59 | |
| LC209-6 | LC209-6 | LC209-6 | |
| LC206 | LC206 | LC206 | |
| EM040*2 | EM040*2 | EM040*2 | |
| SK640*2 | SK640*2 | SK640*2 | |
| LC209 | LC209 | LC209 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| LD18 | LD18 | ||
| SK230 | SK230 | ||
| LD17 | LD17 | ||
| SK612 | SK612 | ||
| LD03-E | LD03-E | ||
| LU266 | LU266 | ||
| LD17-E | LD17-E | ||
| SK600*2 | SK600*2 | ||
| LD03 | LD03 | ||
| LH606 | LH606 | ||
| LD02 | LD02 | ||
| EM153 | EM153 | ||
| LD09 | LD09 | ||
| LD11 | LD11 | ||
| WK27 | WK27 | ||
| SK611 | SK611 | ||
| SK437 | SK437 | ||
| LD12-E | LD12-E | ||
| D7XX | D7XX | ||
| SK674*2 | SK674*2 | ||
| LD13 | LD13 | ||
| WM40A | WM40A | ||
| LD15 | LD15 | ||
| LD14 | LD14 | ||
| LD13-A | LD13-A | ||
| LD08 | LD08 | ||
| LD10 | LD10 | ||
| SK230 | SK230 | ||
| LD06-E | LD06-E | ||
| NK61 | NK61 | ||
| LD06 | LD06 | ||
| SK612 | SK612 | ||
| SK627 | SK627 | ||
| LD21 | LD21 | ||
| LD03 | LD03 | ||
| LD02 | LD02 | ||
| EM153 | EM153 | ||
| LD01P | LD01P | ||
| SK277 | SK277 | ||
| LD01P-E | LD01P-E | ||
| LD03-E | LD03-E | ||
| SK600*2 | SK600*2 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| LE01 | LE01-E2 | ||
| SK882*2 | |||
| LE02 | LE02-E2 | ||
| SK882*2 | |||
| LE03 | |||
| LE05 | |||
| SK882*2 | |||
| LE06 | LE06-E2 | ||
| LE04 | |||
| LE09-A | |||
| LE07 | LE07-E2 | ||
| SK650*2 | LE08H | ||
| LE09 | |||
| SK610 | |||
| SK882*2 | |||
| G1XX | |||
| LE101 | |||
| G2XX | |||
| LE14D | |||
| G3XX | |||
| LE10 | |||
| SK269 | |||
| LE09-E | |||
| LE15 | |||
| LE251 | |||
| LE12F | |||
| SK687*2 | |||
| LE13 | |||
| LE09 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| OP207 | OP207 | ||
| PP2082 | PP2082 | ||
| LG03 | LG03 | ||
| LG13-C | LG13-C | ||
| LG10 | LG10 | ||
| LG12 | LG12 | ||
| LG13 | LG13 | ||
| LH10 | LH10 | ||
| LG01 | LG01 | ||
| LG11 | LG11 | ||
| WM803 | WM803 | ||
| BR4080 | BR4080 | ||
| LG16 | LG16 | ||
| LG15 | LG15 | ||
| LG04 | LG04 | ||
| SK636 | SK636 | ||
| BR4080 | BR4080 | ||
| LG06 | LG06 | ||
| LG05-E | LG05-E | ||
| LG05 | LG05 | ||
| SK241 | SK241 | ||
| LG108 | LG108 | ||
| LG07 | LG07 | ||
| SK926 | SK926 | ||
| LG09 | LG09 | ||
| DB1 | DB1 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| LH509-E | LH509 | ||
| SM606 | SM606 | ||
| LD03-E | LD03 | ||
| SK600 | SK600 | ||
| WME04 | WME04 | ||
| LH07 | LH07 | ||
| LH10-E | LH10 | ||
| SK834 | SK834 | ||
| BR1350 | BR1350 | ||
| OS1550 | OS1550 | ||
| LH606-E | LH606 | ||
| SK601 | SK601 | ||
| EM203 | EM203 | ||
| LE01 | LE01 | ||
| LH508 | LH508 | ||
| LH14 | LH14 | ||
| OR035 | OR035 | ||
| LH11 | LH11 | ||
| LH514-E | LH514 | ||
| LH512-E | LH512 | ||
| SM504 | SM504 | ||
| LH503 | LH503 | ||
| T505HE | T505HE | ||
| T505PE | T505PE | ||
| LH505 | LH505 | ||
| SM512 | SM512 | ||
| WM504 | WM504 | ||
| LH500 | LH500 | ||
| SM502 | SM502 | ||
| AWK01 | AWK01 | ||
| ASM4063 | ASM4063 | ||
| LH500-E | LH500 | ||
| WM510 | WM510 | ||
| DL918-BM1/H1 | TRIMMER |

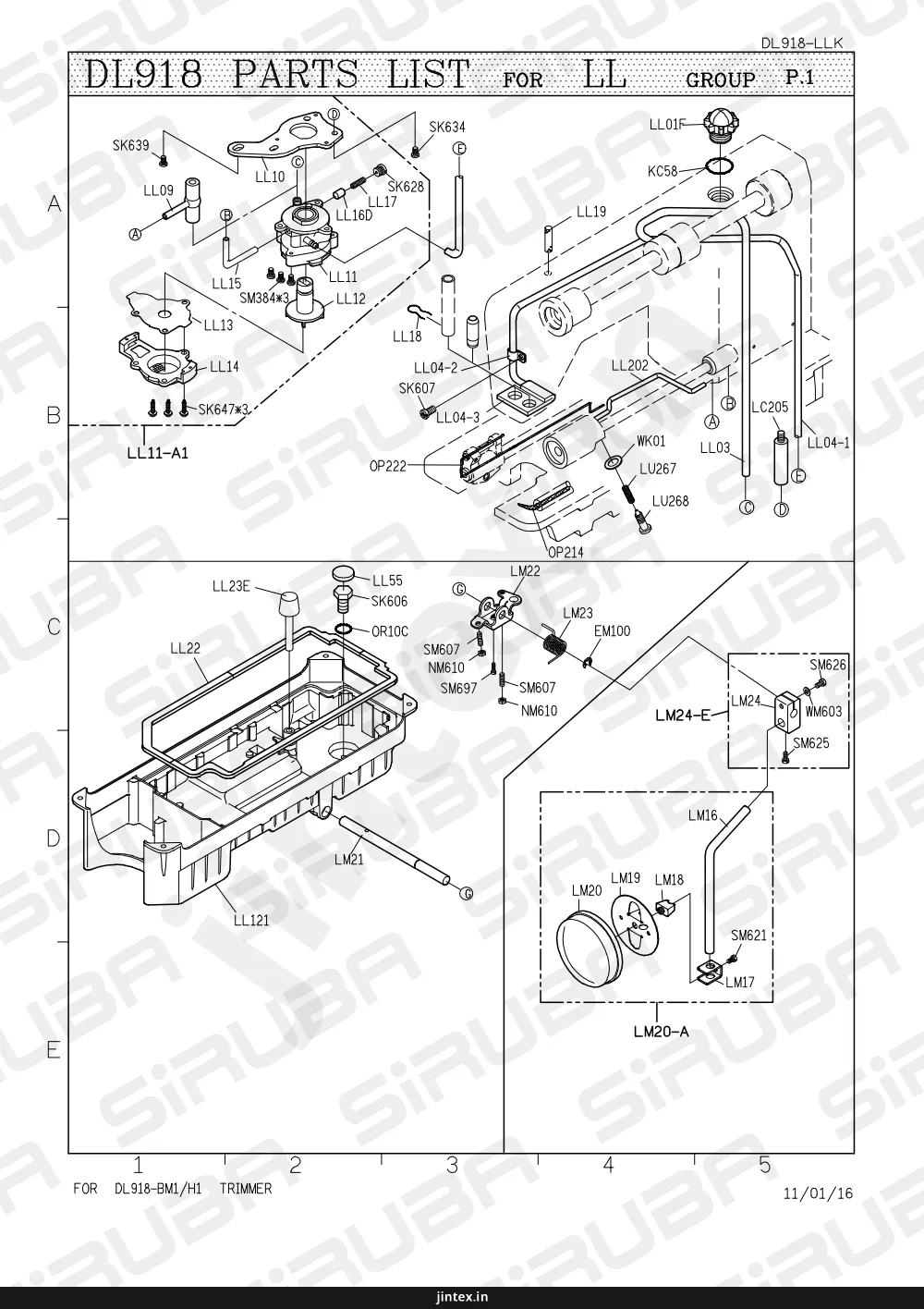

| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SK639 | SCREW | ||
| LL09 | PIPE | ||
| LL10 | BRACKET | ||
| LL15 | PIPE | ||
| SM384*3 | SCREW | ||
| LL11 | BRACKET | ||
| LL13 | BRACKET | ||
| LL14 | BRACKET | ||
| SK647*3 | SCREW | ||
| LL11-A1 | BRACKET | ||
| SK634 | SCREW | ||
| SK628 | SPRING | ||
| LL17 | SHAFT | ||
| LL16D | SHAFT | ||
| LL11 | BRACKET | ||
| LL12 | BRACKET | ||
| LL18 | SHAFT | ||
| LL04-2 | BRACKET | ||
| SK607 | SCREW | ||
| LL04-3 | BRACKET | ||
| OP222 | GEAR CASE | ||
| OP214 | BRACKET | ||
| LL23E | SHAFT | ||
| LL22 | COVER | ||
| LL55 | PIPE | ||
| SK606 | SCREW | ||
| OR10C | O-RING | ||
| LM21 | SHAFT | ||
| LL121 | COVER | ||
| LM22 | BRACKET | ||
| LM23 | BRACKET | ||
| EM100 | SPRING | ||
| SM607 | SCREW | ||
| NM610 | NUT | ||
| SM697 | SCREW | ||
| NM610 | NUT | ||
| LM24-E | BRACKET | ||
| LM24 | BRACKET | ||
| WM603 | WASHER | ||
| SM625 | SCREW | ||
| LM16 | SHAFT | ||
| LM17 | BRACKET | ||
| SM621 | SCREW | ||
| LM19 | BRACKET | ||
| LM18 | BRACKET | ||
| LM20 | COVER | ||
| LM20-A | COVER | ||
| WK01 | WASHER | ||
| LU267 | SPRING | ||
| LU268 | SHAFT | ||
| LL03 | PIPE | ||
| LC205 | PIPE | ||
| LL04-1 | PIPE | ||
| LL01F | CAP | ||
| KC58 | O-RING | ||
| LL202 | SHAFT | ||
| LL19 | SHAFT |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| LU254-A1 | LU254-A1 | ||
| LU701 | LU701 | ||
| LU251 | LU251 | ||
| NK26 | NK26 | ||
| LU706 | LU706 | ||
| SM511 | SM511 | ||
| LU253 | LU253 | ||
| SK857*2 | SK857*2 | ||
| WK27*2 | WK27*2 | ||
| SK273*2 | SK273*2 | ||
| LU711 | LU711 | ||
| LU264 | LU264 | ||
| LU714 | LU714 | ||
| LU715 | LU715 | ||
| LU258-A | LU258-A | ||
| LU257 | LU257 | ||
| SW04*2 | SW04*2 | ||
| NM410*2 | NM410*2 | ||
| SM630 | SM630 | ||
| LU261 | LU261 | ||
| LU260 | LU260 | ||
| WM600 | WM600 | ||
| SM613 | SM613 | ||
| LU265 | LU265 | ||
| SM606*2 | SM606*2 | ||
| LU265-E | LU265-E | ||
| LU709 | LU709 | ||
| LU713 | LU713 | ||
| LU707 | LU707 | ||
| LU255 | LU255 | ||
| SM502 | SM502 | ||
| LU256 | LU256 | ||
| LU263-A | LU263-A | ||
| LU263-E | LU263-E | ||
| EM060 | EM060 | ||
| NM410 | NM410 | ||
| LU759 | LU759 | ||
| LU763 | LU763 | ||
| LU718 | LU718 | ||
| SM4850 | SM4850 | ||
| LU258 | LU258 | ||
| LU25-4 | LU25-4 | ||
| WM600 | WM600 | ||
| SM404 | SM404 | ||
| LU262 | LU262 | ||
| LU79 | LU79 | ||
| LU79-E | LU79-E | ||
| JC73 | JC73 | ||
| LU269 | LU269 | ||
| LU259 | LU259 | ||
| LB251 | LB251 | ||
| LB53 | LB53 | ||
| SM430 | SM430 | ||
| SK630 | SK630 | ||
| LU32 | LU32 | ||
| LN70 | LN70 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | LL100 | BRACKET | |
| A | SK609 | SCREW | |
| A | CP102 | CLIP | |
| A | SK609 | SCREW | |
| A | ALT104S*3 | WIRE | |
| A | LU35 | BRACKET | |
| B | SM332 | SCREW | |
| B | WK06 | WASHER | |
| A | CP104 | CLIP | |
| A | SK609 | SCREW | |
| A | ALT104S*4 | WIRE | |
| B | SM332 | SCREW | |
| B | WK06 | WASHER | |
| A | LU36 | HOUSING | |
| A | LU34 | BRACKET | |
| A | LU41 | BRACKET | |
| A | ALU82 | ROLLER | |
| A | SK610 | SCREW | |
| A | ASk614 | SCREW | |
| C | SK667 | SCREW | |
| C | LU46 | BRACKET | |
| C | LU37 | COVER | |
| C | LU39 | SHAFT | |
| C | LU80 | BRACKET | |
| C | LU40 | BRACKET | |
| C | LU47 | BRACKET | |
| C | PP2041 | SPRING | |
| C | LU48 | SPRING | |
| C | SK609 | SCREW | |
| D | LU45 | BRACKET | |
| B | SK666 | SCREW | |
| D | EM025 | CLIP | |
| A | SM332*4 | SCREW | |
| A | NK26 | NUT | |
| A | LU32 | CONNECTOR | |
| A | EM050 | CLIP | |
| A | LU42 | BRACKET | |
| A | LU44 | SHAFT | |
| E | LU43 | BRACKET | |
| E | LU81 | BRACKET | |
| A | SK665 | SCREW |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| LU32 | LU32 | ||
| LU79 | LU79 | ||
| LU51 | LU51 | ||
| SM3051*2 | SM3051*2 | ||
| LU53 | LU53 | ||
| SK250*2 | SK250*2 | ||
| LU55 | LU55 | ||
| EM030 | EM030 | ||
| LU54 | LU54 | ||
| LU77 | LU77 | ||
| SK609 | SK609 | ||
| WM500 | WM500 | ||
| LU78 | LU78 | ||
| LU52 | LU52 | ||
| LU772 | LU772 | ||
| JC72P | JC72P | ||
| JC021 | JC021 | ||
| SM5054*2 | SM5054*2 | ||
| LU507 | LU507 | ||
| LU506 | LU506 | ||
| LU504E | LU504E | ||
| LU508 | LU508 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| NK63 | NK63 | NUT | |
| WK23 | WK23 | WASHER | |
| LU64F | LU64F | MOTOR | |
| UT550 | UT550 | BRACKET | |
| EM040 | EM040 | CIRCLIP | |
| LU67F | LU67F | SHAFT | |
| SK630 | SK630 | SCREW | |
| LU69 | LU69 | PIN | |
| LU66 | LU66 | SLEEVE | |
| LU68 | LU68 | BRACKET | |
| SK4100 | SK4100 | SCREW | |
| LU65F | LU65F | BRACKET | |
| OS2141 | OS2141 | SPRING PIN | |
| EM080 | EM080 | WASHER | |
| SM4051*2 | SM4051*2 | SCREW | |
| WMA01 | WMA01 | WASHER | |
| WM402*2 | WM402*2 | WASHER | |
| LU71 | LU71 | ADJUSTING SCREW | |
| LU230 | LU230 | BRACKET | |
| LU73 | LU73 | PLATE | |
| WM607 | WM607 | WASHER | |
| SK640 | SK640 | SCREW | |
| NMG11 | NMG11 | NUT | |
| LU74 | LU74 | BRACKET | |
| SK629 | SK629 | SCREW | |
| NK65 | NK65 | NUT | |
| LU75 | LU75 | LEVER | |
| LU76 | LU76 | LINK | |
| EM050 | EM050 | CIRCLIP | |
| SK685 | SK685 | SCREW | |
| LB16 | LB16 | BRACKET | |
| SK610 | SK610 | SCREW | |
| SK684 | SK684 | SCREW |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DL918-XX-00(20) | 機型 | ||
| DL918-XX-00(20) | 機型 | 1 | |
| DL918-XX-01(21) | 機型 | ||
| DL918-XX-02(22) | 機型 | 1 | |
| DL918-XX-03(23) | 機型 | ||
| DL918-XX-10(30) | 機型 | 1 | |
| DL918-XX-11(31) | 機型 | ||
| DL918-XX-12(32) | 機型 | 1 | |
| DL918-XX-13(33) | 機型 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KW36B | KW36B | ||
| SW01 | SW01 | ||
| NK31B | NK31B | ||
| KW32E*2 | KW32E*2 | ||
| KW28E | KW28E | ||
| LW08 | LW08 | ||
| KW05B | KW05B | ||
| SK421 | SK421 | ||
| LW09*2 | LW09*2 | ||
| KW03E | KW03E | ||
| KW09B*2 | KW09B*2 | ||
| KW16*2 | KW16*2 | ||
| KW12E*2 | KW12E*2 | ||
| LW07 | LW07 | ||
| LW10 | LW10 | ||
| KW05B | KW05B | ||
| SW01 | SW01 | ||
| NK31B | NK31B | ||
| SW04*2 | SW04*2 | ||
| WK25B | WK25B | ||
| NK29B*2 | NK29B*2 | ||
| WMG10 | WMG10 | ||
| NMG11 | NMG11 | ||
| LW07-A | LW07-A |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| LY01 | LY01 | ||
| LY02 | LY02 | ||
| YM04*2 | YM04*2 | ||
| LY05*2 | LY05*2 | ||
| YM102*2 | YM102*2 | ||
| LY501 | LY501 | ||
| LY529 | LY529 | ||
| LY37-A | LY37-A | ||
| YM103*2 | YM103*2 | ||
| G3XX*2 | G3XX*2 | ||
| MY10 | MY10 | ||
| 針*2 | 針*2 | ||
| LY38 | LY38 | ||
| MY11 | MY11 | ||
| MY12 | MY12 | ||
| KZ03*1 | KZ03*1 | ||
| LY33 | LY33 | ||
| LY34 | LY34 | ||
| LY35 | LY35 | ||
| KY201 | KY201 |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| LZ504 | LZ504 | ||
| LZ52 | LZ52 | ||
| LZ53D | LZ53D | ||
| LZ500D-2 | LZ500D-2 | ||
| LZ500D-1 | LZ500D-1 | ||
| LZ502D | LZ502D |
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DL918-T1-1070 | 長度(L):1200/ | ||
| DL918-T1 | 長度(L):1200/ |
DL918-BM/BH规格表 CONVERSION CHART MODEL DL918-BH1A-03 DL918-BH1A-00 (DL918-BH1A-10) DL918-BH1-03 (DL918-BH1-13) DL918-BH1-00 (DL918-BH1-10) DL918-BM1A-00 (DL918-BM1A-03) DL918-BM1-03 (DL918-BM1C-03) 至 薄布 厚布料 (實欣) (實欣) L-900 L-700B (魚線克斷) E711D E711 E704D E704 E701 E711 D711D D711 D702 D701 D701 G125J G125J G121 G121 G202 G202 G202 G202 G303 G303 G303 G303 DBX1#21 DBX1#14 DBX1#14 DBX1#14 LH500P-A(P車) LH500-A(實欣) T505UP-A (魚線克斷) T505HE (實欣) 10.06.20 Jinte.in
DL918 PARTS LIST FOR LA GROUP P.1/2 SK609*8 LA513 LA217 LA13 PP6160 SM3052*2 PP2080 LA45- BC711 LA508 SK607 LA11F PP2120 PP2112 PP2080 MB30 LA45 LA202 LA203 SK610*3 PP3120*2 LA34 SK249 SK675*2 E7XX LA35 LA36 LA35-A SK615*2 1 FOR DL918-BM1/H1 TRIMMER 2 3 LA515 SK609*3 PP2080 PP1190 PM408 PP2103 PP1200 SK607 LA58 SK633 KA33P LA213 MB33 LA24 SK414 LA25 SK249 LA29H LA23*2 LA22 LA500 LA21 PM701*2 LA251 LB101 LB19 LB20 LA26 LA27 LA37 LA28 SK691*2 LA30 LA31D LA33 LA32 4 5 11/01/25 jintex.in
DL918 PARTS LIST FOR LA GROUP P.2/2 LA526 LA531 LA535 LA524 WM40H LA520 LA527 LA522 LA518 LA530 LA519 EM057 LA521 BR1501 EM040 LA521-1 BR1501 EM040 LA523 OR257 SK609*2 WM503*2 LA33 LA32 LA720 LA718*2 LA512-E NK31B 1 FOR DL91-BM1/H1 TRIMMER 2 3 4 5 11/03/07 jintex.in
DL918 PARTS LIST FOR LB GROUP P.1 A SK604 LB09 OR040 LB13-A SK616 LB15 SK624*2 LB13 EM050 SK635 LB16 LB12 EM050 SK630 LB53 LB14 EM050 LB17 LB04 EM050 LB55D SK607 LB05 P SK643 LB06 SK607 SK241*2 LB01 EM050 LB54 SK316 LB02 LB19 EM050 LB21 LB07 LB03 LB20 LB08 EM050 LB70 E SK621 PXXX LB22 NK60*2 1 FOR DL918-BM1/H1 TRIMMER 2 3 4 5 11/01/16 jintex.in
DL918 PARTS LIST FOR LC GROUP P.1/2 DL918-LCK LC19-E1 LC20 SK619 LC19 SK233*2 LC18D LC25 LC24 LC19 LC21 OR115 LC623D WK27 SK930 LC623D-A LC55D-E SK622 LC02 SK945 LC596 LC55D LC54 LC04 EM050 OR085 LC06 LC62P LC501 EM050 LC501-E LC58 SK646 LC13 LC15 LC16*2 LC14 LC15 LC14 LD18 LD17 LC13 LC201 LC11 SK302 SK461*2 LC09 SK629*2 LC201-E SK691*2 1 FOR DL918-BM1/H1 TRIMMER 2 3 4 5 11/01/16 jinttex.in
DL918 PARTS LIST FOR LC GROUP P.2/2 DL918-LCK EM050 EM090 LC205 LC204 LC202D EM040 EM050 EM120 LU60 LU59 LC209-6 LC206 EM040*2 SK640*2 LC209 1 FOR DL918-BM1/H1 TRIMMER 2 3 4 5 11/01/16 jintex.in
DL918 PARTS LIST FOR LD GROUP P.1 L918-LDK LD18 SK230 LD17 SK612 LD03-E LU266 LD17-E SK600*2 LD03 LH606 LD02 EM153 LD09 LD11 WK27 SK611 SK437 LD12-E D7XX SK674*2 LD13 LD08 LD10 SK230 LD06-E NK61 LD06 SK612 SK627 LD21 LD03 LD02 EM153 LD01P SK277 LD01P-E LD03-E SK600*2 1 2 3 4 5 11/01/16 FOR DL918-BM1/H1 TRIMMER
DL918 PARTS LIST FOR LE GROUP P.1 L918-LEK LE01 LE01-E2 SK882*2 LE02 LE02-E2 SK882*2 LE03 LE05 SK882*2 LE06-E2 LE06 LE04 LE09-A LE07 SK650*2 LE08H LE07-E2 LE09 SK610 SK882*2 G1XX LE101 G2XX LE14D G3XX LE10 SK269 LE09-E LE15 LE251 LE12F SK687*2 LE13 LE09 1 2 3 4 5 FOR DL918-BM1/H1 TRIMMER FOR T505PE 11/01/16 jintex.in
DL918 PARTS LIST FOR LG GROUP P.1 DL918-LGK OP207 PP2082 LG03 LG13-C LG10 LG12 LG13 LH10 LG01 LG11 WM803 BR4080 LG16 LG15 LG04 SK636 BR4080 LG06 LG05-E LG05 SK241 LG108 LG07 SK926 LG09 DB1 FOR DL918-BM1/H1 TRIMMER 1 2 3 4 5 11/01/16 jintex.in
DL918 PARTS LIST FOR LH GROUP P.1 DL918-LHK LH10-E LH09-E LH09 LD03-E LD03 SK600*2 WME04 LH07 LH10 SK834*2 BR1350 OS1550 LH06-E LH606 LH601*2 EM203 LE01 LH508 LH14 OR035 LH11 LH514-E LH512-E LH514 SM504 LH512 LH503 E T505HE P T505PE LH505 SM512*4 WM504*4 LH500 SM502*2 AWK01*2 ASM4063*2 LH500-E WM510*4 1 FOR DL918-BM1/H1 TRIMMER A FOR T505PE 2 3 4 5 11/01/25 jintex.in
DL918 PARTS LIST FOR LL GROUP P.1 DL918-LLK SK639 LL09 LL10 LL15 SM384*3 LL11 LL13 LL14 SK647*3 LL11-A1 SK634 SK628 LL17 LL16D LL11 LL12 LL18 LL04-2 SK607 LL04-3 OP222 OP214 LL23E LL22 LL55 SK606 OR10C LM21 LM121 LM22 LM23 EM100 SM607 NM610 SM697 NM610 LM24-E LM24 WM603 SM625 LM16 LM17 SM621 LM19 LM18 LM20 LM20-A WK01 LU267 LU268 LL03 LC205 LL04-1 LL01F KC58 LL202 LL19 FOR DL918-BM1/H1 1 TRIMMER 2 3 4 5 11/01/16
DL918 PARTS LIST FOR LU GROUP P.1/6 L918-LUK LU254-A1 LU701 LU251 LU252 NK26 LU706 SM511 LU253 SK857*2 WK27*2 SK273*2 LU711 LU264 LU714 LU715 LU258-A LU257 SW04*2 NM410*2 SM630 LU261 LU260 WM600 SM613 1 FOR DL918-BM1/BH1 TRIMMER 2 LU265 SM606*2 LU709 LU713 LU707 LU255 SM502 LU256 LU263-A LU263-E EM060 NM410 LU759 LU763 LU718 SM4850 LU258 LU25-4 WM600 SM404 LU259 LU262 LU79 LU79-E JC73 LU269 LB251 LB53 SM430 SK630 B LU261 B LU259 LB251 LB53 SM430 SK630 3 4 5 11/01/16 jintex.in
LU-K DL918 PARTS LIST FOR LU Thread GROUP P.2/6 Wiper CP102 LL100 SK609 * 不加裝接線 SK609 ALT104S*3 裝置時使用 LU35 SM332 WK06 CP104 SK609 ALT104S*4 SM332 WK06 LU36 LU39 LU34 LU41 ALU82 SK610 ASk614 WM606 SK667 LU46 LU37 LU80 LU40 LU47 PP2041 LU48 SK609 LU45 B SK666 EM025 LU32 EM050 LU42 LU43 A LU81 LU44 SK665 1 2 3 4 5 FOR DL918-BM1/H1 TRIMMER A FOR DL918-NF1/H1 TRIMMER 11/01/16
DL918 PARTS LIST FOR LU One-touch type reverse Feed GROUP P.3/6 DL918-LUK A LU32 LU79 LU51 SM3051*2 LU53 SK250*2 LU55 SM3051*2 LU54 EM030 LU77 B SK609 WM500 LU78 LU52 C LU772 JC72P JC021 SM5054*2 D LU507 LU506 E LU504E LU508 1 2 3 4 5 FOR DL918-BM1/H1 TRIMMER 11/01/16 jintex.in
DL918 PARTS LIST FOR LU Auto Lifter GROUP P.4/6 LU64F-A1 UT550 DL918-LUK NK63 WK23 LU64F NK63 WK23 EM040 LU67F SK630 EM040 LU69 LU66 LU68 SK4100 LU65F OS2141 EM080 SM4051*2 WMA01 WM402*2 LU71 LU230 LU73 WM607 SK640 NMG11 LU74 SK629 WM607 SK640 NK65 LU75 LU76 EM050 SK685 LB16 SK610 SK684 1 2 3 4 5 11/01/16 FOR DL918-BM1/H1 TRIMMER jintex.in
DL918 PARTS LIST FOR Connecting DL918-LUK the Motor cords GROUP P.5/6 H 牌用 P 牌用 TXxxxxxx-A (馬達電控箱組) TXxxxxxx-A (電控箱組) LU64F LC209 CP102 CP104 L-XXX 機型 CP102 使用數量 CP104 使用數量 DL918-XX-00(20) 1 1 DL918-XX-01(21) 0 2 DL918-XX-02(22) 1 1 DL918-XX-03(23) 0 2 DL918-XX-10(30) 1 1 DL918-XX-11(31) 0 2 DL918-XX-12(32) 1 1 DL918-XX-13(33) 0 2 LU53 LU36 LU262 1 2 3 4 5 11/01/16 FOR DL918-BM1/H1 TRIMMER jintex.in
DL918 PARTS LIST FOR LW GROUP P.1 DL 918-LWK KW36B SW01 NK31B KW32E*2 KW28E LW08 KW05B SK421 LW09*2 KW03E KW09B*2 KW16*2 KW12E*2 LW07 LW10 KW05B SW01 NK31B SW04*2 WK25B NK29B*2 WMG10 NMG11 LW07-A 1 FOR DL918-BM1/H1 2 TRIMMER 3 4 5 11/01/16 jintex.in
DL918 PARTS LIST FOR LY GROUP P.1 DL918-LYK LY01 LY02 YM04*2 LY05*2 YM102*2 LY501 LY529 LY37-A YM103*2 INSTRUCTION PARTS LIST G3XX*2 MY10 KAULIN MFG. CO.,LTD. 2.5 mm 針*2 LY38 MY11 MY12 KZ03*1 3 mm 4 mm LY33 LY34 LY35 KY201 E 1 2 3 4 5 11/01/16 FOR DL918-BM1/H1 TRIMMER jinte.in
DL918 PARTS LIST FOR LZ GROUP P.1 DL918-LZK LZ504 LZ52 LZ53D LZ500D-2 LZ500D-1 D E A B C 1 FOR DL918 TRIMMER 2 3 4 5 09/11/17 SIRUBA INDUSTRIAL SEWING MACHINE LZ502D
DL 918桌板圖 TABLE CUT-OUT SEMI-SUBMERGED 單位/UNIT:mm 所有尺寸公差/DIFFERENCE DL918-T1-1070 長度(L):1200/ DL918-T1 長度(L):1200/ 全封邊灰格紋光塑曲面台板 重量:10Kg±5% 重量:11.4Kg±5% TABLE CUT-OUT OF L918-T1 黑色刻度線 0 32 2-R26 80 2-R30 8-R10 4-R10 340 66 3-08.5 钻穿 406 322 283 247 2-R10 15.6 4-R10 20 218 215 4-R9 CH 36 2-R218 43.5 200 205 15 140 355.5 400 490 540 25 25±0.5 40 C2 C2 2-R30 1 FOR DL918 TRIMMER 2 3 4 5 08/06/04 jintex.in
