Siruba S007KD (59 pages) — Part Book

Siruba S007KD (59 pages) — parts catalog

Page 16 (diagram): This page displays a diagram of parts for the Siruba S007K/S007KD ST-K sewing machine, including various components like MT16-C, BR4260, ST102K-A, and MT11.
Page 17 (diagram): This page displays a diagram of parts for the SIRUBA S007K/S007KD 2nd Generation sewing machine, specifically for the SU-K parts group.
Page 18 (parts_list): This page contains a parts list for the SIRUBA SV-K series, specifically for models S007K/S007KD 2nd Generation. It includes part numbers, names, and quantities for various components.
Page 19 (parts_list): This page contains a parts list for the SIRUBA S007K/S007KD sewing machine, featuring various tools, accessories, and components with their respective part numbers and descriptions.
Page 20 (diagram): This page displays a diagram of sewing machine parts for the S007K/KD SZ-K 2nd Generation, with various components labeled with part numbers and reference designators.
Page 21 (diagram): This page displays a diagram of the CMR-K parts group for Siruba sewing machines, specifically for series C007K/C007KD, C858K/C858KD, and S007K/S007KD. It includes various components like brackets, screws, nuts, and chains, with their respective part numbers and labels.
Page 22 (diagram): This page displays a diagram of various parts for the Siruba FFT sewing machine, including components labeled SFT02, FFT102-A, FFT102-E, FFT03, FFT06, FFT07, FFT04, FFT05, SFT01, and SR151K-E, along with associated hardware like screws (SM438*7, SM438*9, SM435*4) and washers.
Page 23 (diagram): This page displays a diagram of various parts for the FFT series, including components like FFT23-A, FFT13-E, FFT11-E, FFT67-E, and FFT18-A, along with their associated part numbers and references.
Page 24 (diagram): This page displays a diagram of various machine parts for the FFT series, including components like FFT12, FFT09, FFT43, FFT38, FFT40, FFT10, FFT64, and FFT152, along with their associated hardware and sub-assemblies.
Page 25 (diagram): This page displays a diagram of various parts for the Siruba S007KD FFT series sewing machine, including components like FFT35, FFT34, FFT62, FFT31, and others, with their respective part numbers and references.
Page 26 (diagram): This page displays a diagram of parts for the FFT group of the Siruba S007KD sewing machine, including components like ML09, ML07, ML11J, ML02, SM401, ML04, SM6104, ML05J, ML06J, ML07J, CFT05, ML08J, ML12, ML74, ML75, SM4103, SM4104, FFT37, OT627, MF36K, CFT05-A2, ALT087S, OT532, SK304, ML16, NA03, CFT05-A, JA211, OT620, KT24*2, and OT620-A.
Page 27 (diagram): This page displays a diagram of various parts for the Siruba FFT series, including screws, washers, and other components labeled with part numbers like SM611*2, WM610*2, UT141, AC029-E, UT811, AC027-A1, SM432*2, UT788, and UT778.
Page 28 (diagram): This page displays a diagram of various parts for the Siruba S007KD FFT sewing machine, including components labeled FFT53-1, MZ117, MZ12K, MZ17K, FFT66, and SFT05, along with an illustration of the main sewing machine unit.
Page 29 (diagram): This page displays a diagram of the SAR parts group for the S007K/S007KD 2nd Generation machine, including various components like solenoids, wires, and mounting brackets.
Page 30 (diagram): This page displays a diagram of SAR parts for the S007K/S007KD 2nd Generation -UT sewing machine, specifically for H brand motors (HVP-20). It includes part numbers, descriptions, and quantities for various components like solenoids, fittings, and brackets.

Page 16 — PARTS LIST

Siruba S007KD (59 pages) parts on page 16
Ref	Part number	Part name	Qty
	MT16-C	MT16-C
	MT16	MT16
	SM502*2	SM502*2
	BR4260	BR4260
	MT18D	MT18D
	NM511	NM511
	MT15	MT15
	PM117	PM117
	MT09D	MT09D
	SM603	SM603
	ST103K	ST103K
	WM503	WM503
	WMC09	WMC09
	MT33	MT33
	SM537	SM537
	WMC09	WMC09
	ST102K-A	ST102K-A
	MT01	MT01
	SM411	SM411
	ST101K	ST101K
	MT08D	MT08D
	MT11-1	MT11-1
	SM412	SM412
	WA01	WA01
	WM130	WM130
	MT12-E	MT12-E
	MT11	MT11
	OR14D	OR14D
	SM404	SM404
	ST102K	ST102K
	MT10-1	MT10-1
	SM412	SM412
	SM139*2	SM139*2
	MT10-1	MT10-1
	SM401	SM401
	ST101K-C	ST101K-C
	WA01	WA01
	MT19	MT19
	WM130	WM130
	MT10-A	MT10-A
	MT20-E	MT20-E
	MT20	MT20
	MT32	MT32
	MT10	MT10
	MT20-1	MT20-1
	MT32-3	MT32-3
	MT29D	MT29D
	SM110	SM110
	OP218	OP218
	MT30	MT30
	BR8120	BR8120
	MT32-E	MT32-E
	MT29D*2	MT29D*2
	MT22-E1	MT22-E1
	SM608*2	SM608*2
	MT24	MT24
	SM612	SM612
	MT27	MT27

SIRUBA Series S007K/S007KD PARTS LIST ST-K Page 1/1 Date 2012/10/31 A MT16-C MT16 SM502*2 BR4260 MT18D SM603 NM511 MT15 PM117 MT09D ST103K WM503 WMC09 MT33 SM537 WMC09 B ST102K-A MT01 SM411 ST101K MT08D MT11-1 SM412 WA01 WM130 MT12-E MT11 OR14D SM404 ST102K MT10-1 SM412 SM139*2 MT10-1 SM401 ST101K-C WA01 MT19 WM130 MT10-A MT20-E MT20 MT32 MT10 MT20-1 C MT32-3 MT29D SM110 OP218 MT30 BR8120 MT32-E MT29D*2 MT22-E1 SM608*2 MT24 SM612 MT27 D E jintex.in

Page 17 — PARTS LIST

Siruba S007KD (59 pages) parts on page 17
Ref	Part number	Part name	Qty
	SU109K-A1	A + B = SU109K-A1
	SU105K	SU105K
	SU106K	SU106K
	PP3163	PP3163
	SU108K	SU108K
	WM505	WM505
	SK809	SK809
	SU103K	SU103K
	SU102K	SU102K
	SU115K	SU115K
	WM402	WM402
	SK833	SK833
	WM605	WM605
	SK906	SK906
	SM332	SM332
	WM400	WM400
	SU123K	SU123K
	SM447	SM447
	WM400	WM400
	KP46	KP46
	SM431	SM431
	KP39	KP39
	SK399	SK399
	SU121K	SU121K
	SU126K-A	SU126K-A
	SM610	SM610
	WMB01	WMB01
	SU101K	SU101K
	SU109K	SU109K
	SU125K	SU125K
	SM102	SM102
	SU120K	SU120K
	OR12B	OR12B
	SU120K-E	SU120K-E
	SU122K	SU122K
	SU126K	SU126K
	SU127K	SU127K
	SM611	SM611
	SU128K	SU128K
	SU109K-A1	SU109K-A1

SIRUBA Series S007K/S007KD PARTS LIST SU-K Parts Group Subclass / Remark Page 1/1 Date 2012/10/31 A + B = SU109K-A1 A SU109K-A1 SU SS 列列 SU105K SU106K PP3163 SU108K WM505*2 SK809*2 SU103K SU102K SU115K WM402 SK833 WM605 SK906 SM332 WM400 SU123K*2 SM447*2 WM400*2 KP46*2 SM431*2 KP39 SK399 SU121K SU126K-A SM610 WMB01 SU101K SU109K SU125K G SM102 SU120K OR12B*2 SU120K-E SU122K SU126K SU127K SM611 jintex.in

Page 18

Siruba S007KD (59 pages) parts on page 18
Ref	Part number	Part name	Qty
	PM704	PM704
	SM404	SM404
	SV101K-1	SV101K-1
	SV101K	SV101K
	SV102K	SV102K
	SM402	SM402
	EM253	EM253
	SV104K	SV104K
	MU07	MU07
	BR4250	BR4250
	SV126K	SV126K
	SM050*2	SM050*2
	SV111K	SV111K
	SK270PB	SK270PB
	MU08	MU08
	SV106K	SV106K
	SM510	SM510
	MU09	MU09
	SV107K	SV107K
	EM095	EM095
	SM402*2	SM402*2
	SV110K	SV110K
	SV108K	SV108K
	MU10	MU10
	SM310	SM310
	WM300	WM300
	SV123K	SV123K
	SV132K	SV132K
	SM502	SM502
	SV137K-A	SV137K-A
	SV128K	SV128K
	SV138K	SV138K
	SV133K	SV133K
	SV135K	SV135K
	SM404	SM404
	SV140K	SV140K
	SM603	SM603
	SM490	SM490
	SM401*2	SM401*2
	OR09B*2	OR09B*2
	SK216*2	SK216*2
	SV136K	SV136K
	MU16	MU16
	SV141K-A	SV141K-A
	SV141K	SV141K
	SV139K	SV139K
	SM435*2	SM435*2
	SV135K-A	SV135K-A

SIRUBA PARTS LIST Series S007K/S007KD Parts Group SV-K Subclass / Remark For S007K/S007KD 2nd Generation Page 1/1 Date 2012/10/31 PM704 SM404 SV101K-1 SV101K SV102K SM402 EM253 SV104K MU07 BR4250 SV126K SM050*2 SV111K SK270PB MU08 SV106K SM510 MU09 SV107K EM095 SM402*2 SV110K SV108K MU10 SM310 WM300 SV123K SV132K SM502 SV137K-A SV128K SV138K SV133K SV135K SM404 SV140K SM603 SM490 SM401*2 OR09B*2 SK216*2 SV136K MU16 SV141K-A SV141K SV139K B+A SM435*2 SV135K-A jintex.in

Page 19

Siruba S007KD (59 pages) parts on page 19
Ref	Part number	Part name	Qty
	KZ03*1	Bag
	XXXXX	Needle
	KY03	Oil feeder
	KY04	Funnel
	KY05-A	Oil bottle
	KY23-A	Wrench
	KY09	Wrench
	KY23(6/7mm)	Wrench
	KY18	Tweezers
	MY09	Allen wrench
	MY10	Allen wrench
	MY10	Allen wrench
	MY11	Allen wrench
	MY12	Allen wrench
	MY10-A	Allen wrench set
	LY33	Screwdriver
	LY33-A	Screwdriver
	LY34	Screwdriver
	KY14	Filter
	KT14	Filter
	KY21-1	Chain
	KY201	Screwdriver
	MY01	Screwdriver
	MY21	Chain
	SM886-A	Screw set
	SM886-A1	Screw set
	SM886*4	Screw
	WM800*4	Washer
	WM810*4	Washer
	NM810*4	Nut
	SK391*2	Screw
	SK391*3	Screw
	MY29D	Base plate
	SY201K	Instruction & Parts Book
	SY202K	Parts List
	KY20D-A	Base plate

SIRUBA Series Parts Group Subclass / Remark Page PARTS LIST S007K/S007KD SY-K For S007K/S007KD 2nd Generation 1/1 △ :Use for S007K Date □ :Use for S007KD 2013/10/23 KZ03*1 XXXXX KY03 KY04 KY05-A KY23-A KY09 KY23(6/7mm) KY18 LY33-A LY34 MY09 MY10 MY10 MY11 MY12 LY33 MY10-A 1.5 2 2.5 3 4 5 KY14 KT14 KY21-1 KY201 MY01 MY21 ASM886-A SM886-A1 SM886*4 WM800*4 SM886*4 WM800*4 WM810*4 NM810*4 WM810*4 NM810*4 SK391*2 SK391*3 SK391*2 SK391*3 MY29D SY201K SY202K KY20D-A SIRUBA SIRUBA INSTRUCTION & PARTS BOOK PARTS LIST 1 2 3 4 5 jintex.in

Page 20

Siruba S007KD (59 pages) parts on page 20
Ref	Part number	Part name	Qty
	MZ18	MZ18
	SZ301K	SZ301K
	SZ301K-E	SZ301K-E
	#SZ301K-E1	#SZ301K-E1
	MZ27	MZ27
	SZ16	SZ16
	#MZ117	#MZ117
	KY02F-A	KY02F-A
	SZ14	SZ14
	(UT)用	(UT)用
	#MZ17K	#MZ17K
	MZ13	MZ13
	#MZ17K	#MZ17K
	SZ27K	SZ27K
	SZ102K	SZ102K
	#SZ202K	#SZ202K

SIRUBA Series PARTS LIST S007K/KD SZ-K Page 1/1 Date 2013/03/14 Subclass / Remark For S007K/S007KD 2nd Generation # :Use for S007KD 2nd Generation MZ18 SZ301K-E #SZ301K-E1 MZ27 SZ301K SZ16 #MZ117 KY02F-A SZ14 (UT)用 #MZ17K MZ13 #MZ17K SZ27K SIRUBA SIRUBA INDUSTRIAL SEWING MACHINE SZ102K #SZ202K 1 2 3 4 5 jintex.in

Page 21

Siruba S007KD (59 pages) parts on page 21
Ref	Part number	Part name
NM410	NM410	NUT
CMR01-A	CMR01-A	BRACKET
WM600	WM600	WASHER
SK392	SK392	SCREW
BR3050	BR3050	PIN
CMR03	CMR03	PIN
CFC45-A	CFC45-A	BRACKET
SM883	SM883	SCREW
WMCO1	WMCO1	WASHER
CZ116	CZ116	SPRING PIN
PM502	PM502	PIN
SM603	SM603	SPRING
CZ115	CZ115	BRACKET
CFC45	CFC45	BRACKET
SM490	SM490	PIN
SM470	SM470	PIN
SM521	SM521	SCREW
WM600	WM600	WASHER
SK392	SK392	SCREW
CZ123	CZ123	BRACKET
WM800	WM800	WASHER
NM810	NM810	NUT
SM433	SM433	SCREW
CZ124	CZ124	COVER
CZ122	CZ122	COVER
KY21-1	KY21-1	CHAIN
FFD23	FFD23	CHAIN
CZ28	CZ28	RING
EM040	EM040	CIRCLIP
CZ117	CZ117	LEVER
CZ119	CZ119	SPRING
WM500	WM500	WASHER
SM513	SM513	SCREW
CY112	CY112	COVER
CMR02	CMR02	PIN

SIRUBA PARTS LIST Series C007K/C007KD C858K/C858KD S007K/S007KD Parts Group CMR-K Subclass / Remark Page 1/1 Date 2012/11/01 NM410 CMR01-A WM600*2 SK392*2 BR3050*2 CMR03 CFC45-A SM883 WMCO1 CZ116 PM502 CFC45 SM521 CZ123 SM433 CY112 CZ124 CZ122 KY21-1 FFD23 CZ28 EM040 CZ119 CMR02 SM603 CZ115 SM490 SM470 WM600 SK392 WM800 NM810 WM500 SM513 CZ117 E jintex.in

Page 22

Siruba S007KD (59 pages) parts on page 22
Ref	Part number	Part name	Qty
	SFT02	SFT02
	FFT102-A	FFT102-A
	FFT45	FFT45
	FFT44	FFT44
	SM438*7	SM438*7
	SFT02-E	SFT02-E
	OR050	OR050
	WM504	WM504
	EM030	EM030
	FFT102-E	FFT102-E
	FFT102	FFT102
	FFT03	FFT03
	OS3171	OS3171
	SFT01-A	SFT01-A
	SFT01	SFT01
	FFT06	FFT06
	FFT07	FFT07
	PP6190*2	PP6190*2
	FFT06-E	FFT06-E
	SR151K-E	SR151K-E
	FFT04	FFT04
	FFT05	FFT05
	SM435*4	SM435*4
	FFT04-A	FFT04-A
	SFT04-A	SFT04-A
	SFT04	SFT04
	SFT03	SFT03

Series S007KD FFT Page 1/7 Date 2013/09/02 PARTS LIST SFT02 FFT102-A FFT45 FFT44 SM438*7 SIRUBA SFT02-E OR050 WM504 EM030 FFT102-E FFT102 FFT03 OS3171 SFT01-A SFT01 FFT06 FFT07 PP6190*2 FFT06-E SR151K-E SIRUBA FFT04 FFT05 SM435*4 FFT04-A SFT04-A SFT04 SFT03 1 2 3 4 5 jintex.in

Page 23

Siruba S007KD (59 pages) parts on page 23
Ref	Part number	Part name	Qty
	FFT23-A	FFT23-A
	FFT13-E	FFT13-E
	FFT09-C	FFT09-C
	SM6104	SM6104
	SM502*2	SM502*2
	KS12-E	KS12-E
	SK216*2	SK216*2
	KS12	KS12
	FFT16	FFT16
	FFT13	FFT13
	MG58	MG58
	SM6104	SM6104
	SM502*2	SM502*2
	FFT13	FFT13
	FFT54	FFT54
	FFT11-E	FFT11-E
	SM502	SM502
	FFT11	FFT11
	SM603*2	SM603*2
	FFT46	FFT46
	OP221	OP221
	FFT12-E	FFT12-E
	FFT26	FFT26
	FFT61*2	FFT61*2
	OP206	OP206
	FFT12	FFT12
	FFT23	FFT23
	SM402	SM402
	FFT15	FFT15
	BR1050	BR1050
	FFT24	FFT24
	FFT22	FFT22
	FFT21	FFT21
	FFT19-E	FFT19-E
	FFT67-E	FFT67-E
	SM510	SM510
	FFT67	FFT67
	SM502*2	SM502*2
	MH73	MH73
	FFT19	FFT19
	SM4105*2	SM4105*2
	FFT12-E	FFT12-E
	MH81	MH81
	MH73-E	MH73-E
	FFT20-C	FFT20-C
	FFT18	FFT18
	SM435*3	SM435*3
	FFT20	FFT20
	FFT60*4	FFT60*4
	OP209	OP209
	FFT17	FFT17
	FFT20-E	FFT20-E
	FFT18-A	FFT18-A
	OT515	OT515
	SG107	SG107
	FFT55	FFT55
	FFT57	FFT57
	F7XXX-E	F7XXX-E
	WM402	WM402
	FFT63	FFT63
	F7XXX	F7XXX
	SM411	SM411
	SM432	SM432
	OP311	OP311
	SM410*4	SM410*4

SIRUBA PARTS LIST Series S007KD Page 2/7 Date 2013/08/16 FFT Subclass / Remark FFT23-A FFT13-E FFT09-C SM6104 SM502*2 KS12-E SK216*2 KS12 FFT16 FFT13 MG58 SM6104 SM502*2 FFT13 FFT54 FFT11-E SM502 FFT11 SM603*2 FFT46 OP221 FFT12-E FFT26 FFT23 SM402 FFT12 FFT15 FFT10-C BR1050 FFT24 FFT22 FFT21 FFT19-E FFT67-E FFT56 SM510 FFT67 SM502*2 MH73 FFT19 SM4105*2 FFT12-E MH81 MH73-E FFT20-C FFT18 SM435*3 FFT20 FFT60*4 OP209 FFT17 FFT20-E FFT18-A OT515 SG107 FFT55 FFT57 F7XXX-E WM402 FFT63 F7XXX SM411 SM432 OP311 SM410*4 1 2 3 4 5 jintex.in

Page 24 — PARTS LIST

Siruba S007KD (59 pages) parts on page 24
Ref	Part number	Part name	Qty
	FFT12	FFT12-
	FFT61*2	FFT61*2
	OP206	OP206
	FFT12-E	FFT12-E
	EM253	EM253
	FFT09-C	FFT09-C
	MF40-A	MF40-A
	SM502*2	SM502*2
	FFT09	FFT09
	FFT43-E	FFT43-E
	MF40	MF40
	SM502*2	SM502*2
	FFT08	FFT08
	FFT12-E	FFT12-E
	FFT43	FFT43
	MF39	MF39
	SM502*2	SM502*2
	FFT08-E	FFT08-E
	FFT61*2	FFT61*2
	OP206	OP206
	MF39-E	MF39-E
	KP216	KP216
	MF09K-E	MF09K-E
	SM139*2	SM139*2
	MF09K-C1	MF09K-C1
	SM303	SM303
	FFT42	FFT42
	FFT40-E	FFT40-E
	FFT42-E	FFT42-E
	FFT39	FFT39
	SM280	SM280
	FFT10	FFT10
	FFT38-E	FFT38-E
	FFT38	FFT38
	SM501	SM501
	PM215*2	PM215*2
	FFT40	FFT40
	SM604	SM604
	SM508	SM508
	FFT64	FFT64
	FFT41	FFT41
	SM602*3	SM602*3
	FFT65	FFT65
	FFT10-C	FFT10-C
	BR2250	BR2250
	BR4250	BR4250
	FFT151	FFT151
	FFT152	FFT152
	MS05K	MS05K
	FFT64-A1	FFT64-A1
	FFT152-E	FFT152-E

SIRUBA PARTS LIST Series S007KD Parts Group FFT Subclass / Remark Page 3/7 Date 2012/12/25 A B FFT12- FFT61*2 OP206 FFT12-E EM253 FFT09-C MF40-A SM502*2 FFT09 FFT43-E MF40 SM502*2 FFT08 FFT12-E FFT43 MF39 SM502*2 FFT08-E FFT61*2 OP206 MF39-E MF09K-E KP216 SM139*2 A MF09K-C1 SM303 FFT42 FFT40-E FFT42-E FFT39 SM280 FFT10 FFT38-E FFT38 SM501 PM215*2 FFT40 SM604 SM508 FFT64 FFT41 SM602*3 FFT65 FFT10-C BR2250 BR4250 FFT151 FFT152 MS05K FFT64-A1 FFT152-E 1 2 3 4 5 jintex.in

Page 25 — PARTS LIST

Siruba S007KD (59 pages) parts on page 25
Ref	Part number	Part name
A	E7XXX	PLATE
A	FFT35-A1	SCREW
A	FFT35	SCREW
B	E7XXX-A	PLATE
B	FFT34	COLLAR
B	MA91K	SHAFT
B	FFT59-E	SHAFT
B	FFT62	COLLAR
B	SK216*4	SCREW
B	FFT58	SHAFT
B	SK219	SCREW
B	M5XXX	COLLAR
B	FFT33	COLLAR
B	M5XXX-E	COLLAR
C	M5XXX-A2	SHAFT
C	OT532	SHAFT
C	FFT59	SHAFT
C	FFT35-A	SPRING
C	FFT31	SHAFT
C	SM332	SCREW
D	PM310	PIN
D	FFT30	BRACKET
D	FFT30-E	BRACKET
D	FFT28	SHAFT
D	FFT136	SHAFT
D	P7XXX-A	BASE
E	SM437	SCREW
E	FFT29	SHAFT
E	D7XXX	BRACKET
E	FFT29-E	SHAFT
E	FFT25	COLLAR
E	FFT27	SHAFT
E	WM300	WASHER
E	FFT136-E	SHAFT
E	SM337B	SCREW
E	WM405	WASHER
E	SM435	SCREW
E	H7XXX	BRACKET

SIRUBA PARTS LIST Series S007KD Parts Group FFT Subclass / Remark Page 4/7 Date 2013/08/14 A E7XXX FFT35-A1 FFT35 B E7XXX-A FFT34 MA91K FFT59-E FFT62 SK216*4 FFT58 SK219 M5XXX FFT33 M5XXX-E C M5XXX-A2 OT532 FFT59 FFT35-A FFT31 SM332 PM310 FFT30 FFT30-E FFT28 D FFT136 P7XXX-A SM437 FFT29 D7XXX FFT29-E E FFT25 FFT27 WM300 FFT136-E SM337B WM405 SM435 jintex.in H7XXX

Page 26

Siruba S007KD (59 pages) parts on page 26
Ref	Part number	Part name	Qty
	ML09	ML09
	ML07	ML07
	ML11J	ML11J
	ML12	ML12
	ML74	ML74
	ML75	ML75
	SM4103	SM4103
	SM4104	SM4104
	ML02	ML02
	SM401*2	SM401*2
	ML04	ML04
	SM6104	SM6104
	ML05J	ML05J
	ML06J	ML06J
	ML07J	ML07J
	CFT05	CFT05
	ML06J	ML06J
	ML07J	ML07J
	ML08J	ML08J
	FFT37-A	FFT37-A
	OT627	OT627
	MF36K	MF36K
	CFT05-A2	CFT05-A2
	ALT087S	ALT087S
	OT532	OT532
	SK304	SK304
	ML16	ML16
	NA03	NA03
	CFT05-A	CFT05-A
	JA211	JA211
	OT620	OT620
	KT24*2	KT24*2
	OT620-A	OT620-A

SIRUBA Series PARTS LIST S007KD Page 5/7 Date 2013/08/27 Parts Group FFT Subclass / Remark A ML09 ML07 ML11J ML12 ML74 ML75 SM4103 SM4104 ML02 SM401*2 ML04 SM6104 ML05J ML06J ML07J CFT05 ML06J ML07J ML08J FFT37-A OT627 MF36K CFT05-A2 B ALT087S ML16 NA03 CFT05-A OT532 JA211 SK304 OT620 KT24*2 OT620-A E 1 2 3 4 5 jintex.in

Page 27

Siruba S007KD (59 pages) parts on page 27
Ref	Part number	Part name
1	SM611*2	SCREW
2	WM610*2	WASHER
3	UT141	BRACKET
4	UT141-A	BRACKET
5	ALT104S	NEEDLE
6	ACO29-E	CYLINDER
7	UT811	SPRING CASE
8	ACO27-A1	BRACKET
9	SM432*2	SCREW
10	UT788	BRACKET
11	UT778	PLATE

Series S007KD FFT Subclass / Remark Use for UT Page 6/7 Date 2014/03/10 SM611*2 UT141-A WM610*2 ALT104S UT141 ACO29-E UT811 ACO27-A1 SM432*2 UT788 UT778 1 2 3 4 5 jintex.in

Page 28

Siruba S007KD (59 pages) parts on page 28
Ref	Part number	Part name
A	FFT53-1	FFT53-1
MZ117	MZ117	MZ117
MZ12K	MZ12K	MZ12K
MZ12K	MZ17K	MZ17K
FFT66	FFT66	FFT66
SFT05	SFT05	SFT05

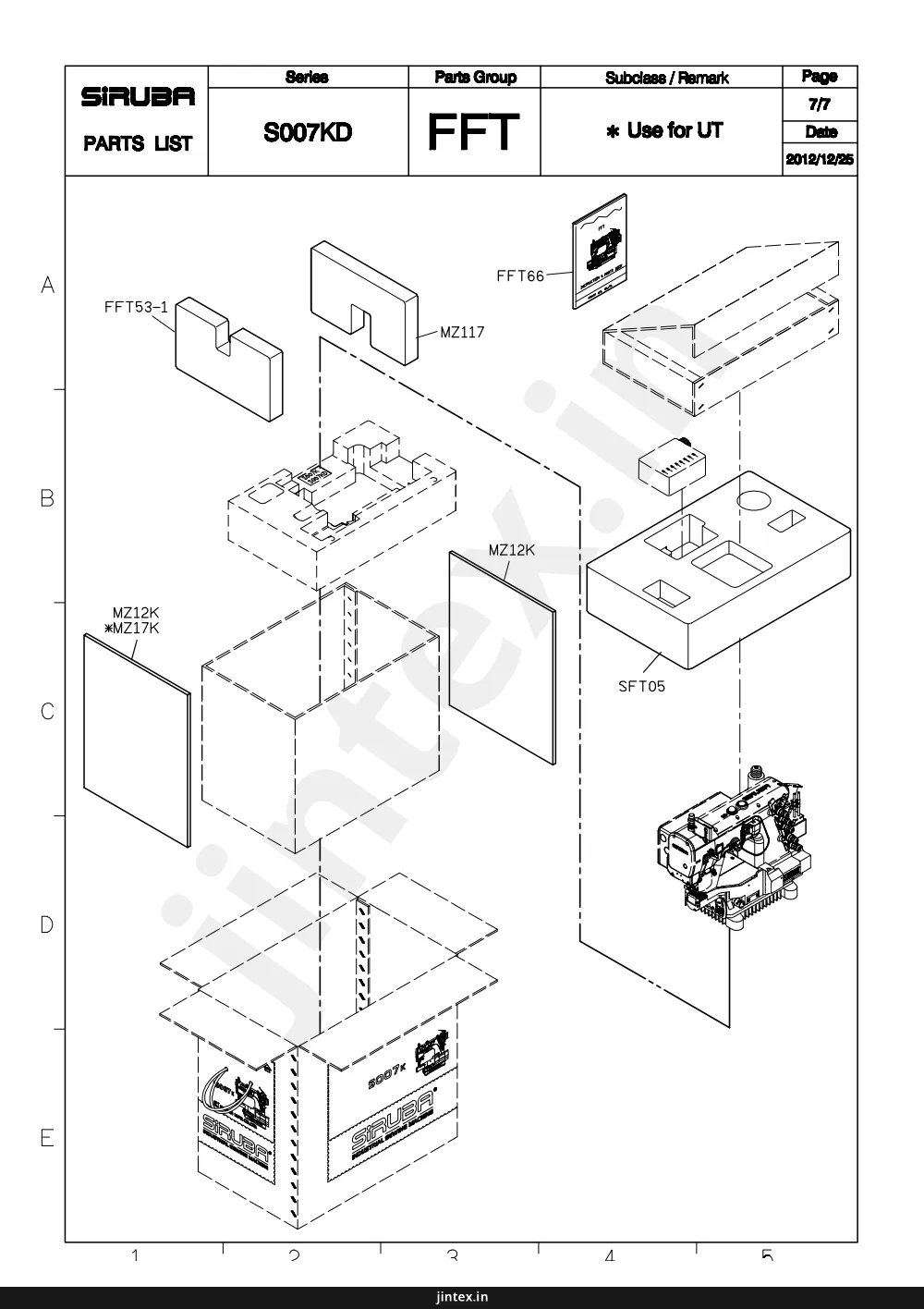

SIRUBA PARTS LIST Series S007KD Parts Group FFT Subclass / Remark * Use for UT Page 7/7 Date 2012/12/25 A FFT53-1 B MZ117 MZ12K *MZ17K C D E SIRUBA INDUSTRIAL SEWING MACHINE S007K SIRUBA INDUSTRIAL SEWING MACHINE FFT66 MZ12K SFT05 jintex.in

Page 29

Siruba S007KD (59 pages) parts on page 29
Ref	Part number	Part name	Qty
	UT54J	UT54J
	JA014	JA014
	AP608	AP608
	JA072	JA072
	AP604	AP604
	AP604	AP604
	SM332*2	SM332*2
	UT262	UT262
	MJ37K	MJ37K
	UT959B-E	UT959B-E
	UT959B	UT959B
	JA052	JA052
	JA019	JA019
	WM600*2	WM600*2
	SM6104*2	SM6104*2
	JA192	JA192
	SM616*2	SM616*2
	2*NM610	2*NM610
	SU131	SU131
	SV142K-A	SV142K-A
	AC260	AC260
	SM447*2	SM447*2
	SU121K	SU121K
	WM405	WM405
	SU123K	SU123K
	SM490	SM490
	SU131-A	SU131-A
	SM6101	SM6101
	JA016	JA016
	SM375	SM375
	SU130	SU130
	SU128K	SU128K

Series PARTS LIST S007K/S007KD SAR For S007K/S007KD 2nd Generation add SAR to the type UT : Use for H brand motor (HVP-20) Page 1/2 Date 2013/03/28 UT54J JA014 AP608 JA072 AP604 AP604 Joint the solenoid of UT set (接UT電磁閥組) SM332*2 UT262 MJ37K UT959B-E UT959B JA052 JA019 BLACK WIRE (黑線) RED WIRE (紅線) WM600*2 SM6104*2 JA192 SM616*2 2*NM610 SU131 SV142K-A AC260 SM447*2 SU121K WM405 SU123K SM490 SU131-A SM6101 JA016 SM375 SU130 SU128K 1 2 3 4 5 jintex.in

Page 30 — PARTS LIST

Siruba S007KD (59 pages) parts on page 30
Ref	Part number	Part name	Qty
A	UT54J-2	UT54J-2
	ALT255S*8	ALT255S*8
	SK392	SK392
	UT959B-E	SAR	1
	UT955KC-E1	SAR/UTT(UTU)	4
	JA025	JA025
	UT261K	UT261K
	SM413*4	SM413*4
	JA014	JA014
	UT54J-A	UT54J-A
	GUT54J	GUT54J
	AP604	AP604
	UT955KC-E1	UT955KC-E1
	UT955KC	UT955KC
	JA062	JA062
	JA062	JA062
	JA018	JA018
	JA053	JA053
	AP452	AP452
	JA018	JA018
	JC150-A	JC150-A
	AP455	AP455
	JA021	JA021
	EP107	EP107
	JC300-A	JC300-A
	AP453	AP453
	JA021	JA021
	JA042	JA042
	AP454	AP454
	JA021	JA021
	JA192	JA192
	AP457	AP457
	JA047	JA047
	SM616*2	SM616*2
	2*NM610	2*NM610
	SU131-A	SU131-A
	CP101	CP101
	SU121K	SU121K
	SV142K-A	SV142K-A
	SM447*2	SM447*2
	SU131	SU131
	WM405	WM405
	AC260	AC260
	SM490	SM490
B	SV142K	SV142K
	SU123K	SU123K
	SM6101	SM6101
	JA016	JA016
	SU130	SU130
	SM375	SM375
	AP615	AP615
C	SU128K	SU128K

SIRUBA Series PARTS LIST S007K/S007KD Parts Group SAR Subclass/Remark For S007K/S007KD 2nd Generation -UT : Use for H brand motor (HVP-20) Page 2/2 Date 2012/10/31 UT54J-2 ALT255S*8 ITEM NO. SAR SAR/UTT(UTU) UT959B-E UT955KC-E1 Solenoid QTY 1 4 JA025 UT261K SM413*4 UT54J-A GUT54J AP604 UT955KC-E1 UT955KC (T84XXX用) JA062 JA062 JA018 JA053 TO MOTOR "SPRING MACHINE" RECEPTACLE HOU JC150-A AP452 JA018 EP107 AP455 JA021 TO MOTOR "FOOT LIFTER" RECEPTACLE HOU JC300-A JA042 AP453 JA021 JA192 AP454 JA021 AP457 JA047 SM616*2 2*NM610 SU131-A CP101 SU121K A SV142K-A SM447*2 SU131 WM405 AC260 B SU123K B SM490 SV142K SM6101 JA016 SM375 SU130 C AP615 I SU128K C A jintex.in

Part Books

Search
