Page 1 — SIRUBA GAGE PARTS LIST S007K / S007KD
Siruba S007KD parts on page 1| Ref | Part number | Part name | Qty |
|---|
| M5240 | E4094K | |
| M5248 | E4095K | |
| M5356 | E4096K | |
| M5364 | E4097K | |
| H4387K | H4307K | |
| H4387K | H4307K | |
| H4379K | H4308K | |
| H4379K | H4308K | |
| MT01 | MH41 | |
| M5240 | E3994K | |
| M5248 | E3995K | |
| M5356 | E3996K | |
| M5364 | E3997K | |
| H4387K | H4307K | |
| H4387K | H4307K | |
| H4379K | H4308K | |
| H4379K | H4308K | |
| MT01 | MH41 | |
| M5240 | E4064K | |
| M5248 | E4065K | |
| M5356 | E4066K | |
| M5364 | E4067K | |
| H4487K | H4307K | |
| H4487K | H4307K | |
| H4479K | H4308K | |
| H4479K | H4308K | |
| MT01 | MH41 | |
| M5240 | E3964K | |
| M5248 | E3965K | |
| M5356 | E3966K | |
| M5364 | E3967K | |
| H4487K | H4307K | |
| H4487K | H4307K | |
| H4479K | H4308K | |
| H4479K | H4308K | |
| MT01 | MH41 | |
| M5356 | E3996S | |
| H4308S | P5356Q-A2 | |
| MT01A | | |
| M5240 | E3994RM | |
| M5248 | E3995RM | |
| P2764-A | P2765-A | |
| MT01 | MH41 | |
| M5356 | E3996RM | |
| M5364 | E3997RM | |
| P2766-A | P2767-A | |
SIRUBA
GAGE PARTS LIST
Series
S007K / S007KD
Remark
Page
1/1
Date
2019/10/9
MODEL
SUB-CLASS
NEEDLE
CLAMP
NEEDLE
PLATE
MAIN
FEED DOG
DIFF.
FEED DOG
PRESSER
FOOT
LOOPER
LOOPER
NEEDLE
機 型
規
格
針 座
針 板
主送具
差送具
押具
勾針
上叉
針 號
W121/PCH-3M
240
248
356
364
M5240
M5248
M5356
M5364
E4094K
E4095K
E4096K
E4097K
D4324K
D4324K
D4325K
D4325K
H4387K
H4387K
H4379K
H4379K
H4307K
H4307K
H4308K
H4308K
P2674K-A
P2674K-A
P2576K-A
P2576K-A
MTO1
MH41
UYX128GAS#10
S007K(KD)
W122/PCH-3M
240
248
356
364
M5240
M5248
M5356
M5364
E3994K
E3995K
E3996K
E3997K
D4324K
D4324K
D4325K
D4325K
H4387K
H4387K
H4379K
H4379K
H4307K
H4307K
H4308K
H4308K
P2674K-A
P2674K-A
P2576K-A
P2576K-A
MTO1
MH41
UYX128GAS#10
W321/PCE
240
248
356
364
M5240
M5248
M5356
M5364
E4064K
E4065K
E4066K
E4067K
D4324K
D4324K
D4325K
D4325K
H4487K
H4487K
H4479K
H4479K
H4307K
H4307K
H4308K
H4308K
P2674K-A
P2674K-A
P2576K-A
P2576K-A
MTO1
MH41
UYX128GAS#10
W322/PCE
240
248
356
364
M5240
M5248
M5356
M5364
E3964K
E3965K
E3966K
E3967K
D4324K
D4324K
D4325K
D4325K
H4487K
H4487K
H4479K
H4479K
H4307K
H4307K
H4308K
H4308K
P2674K-A
P2674K-A
P2576K-A
P2576K-A
MTO1
MH41
UYX128GAS#10
U173/RF/UTT
100
M5356
E3996S
D4325S
H4308S
P5356Q-A2
MTO1A
-
UYX128GAS#18
W815/SRL/UTT
240
248
M5240
M5248
E3994RM
E3995RM
D7240S
H7240S
P2764-A
P2765-A
MTO1
MH41
UYX128GAS#10
W815A/SRL/UTT
356
364
M5356
M5364
E3996RM
E3997RM
D7356S
H7356R
P2766-A
P2767-A
jinte
x.in
Page 2
Siruba S007KD parts on page 2| Ref | Part number | Part name | Qty |
|---|
| D4324K | M5240 | E4094K | 240 |
| H4387K | M5240 | E4095K | 248 |
| H4307K | M5240 | E4096K | 356 |
| F7240N | M5240 | E4097K | 364 |
| D4324K | M5240 | E4094K | 240 |
| H4387K | M5240 | E4095K | 248 |
| H4307K | M5240 | E4096K | 356 |
| F7240N | M5240 | E4097K | 364 |
| D4324K | M5240 | E3994K | 240 |
| H4387K | M5240 | E3995K | 248 |
| H4307K | M5240 | E3996K | 356 |
| F7240N | M5240 | E3997K | 364 |
| D4324K | M5240 | E3994K | 240 |
| H4387K | M5240 | E3995K | 248 |
| H4307K | M5240 | E3996K | 356 |
| F7240N | M5240 | E3997K | 364 |
SIRUBA
GAGE PARTS LIST
Series
S007KD
Remark
Page
Date
USE FOR FFT
1/2
2019/8/20
MODEL
SUB-CLASS
NEEDLE
CLAMP
NEEDLE
PLATE
MAIN
FEED DOG
DIFF.
FEED DOG
TOP
FEED DOG
PRESSER
FOOT
LOOPER
SPREADER
NEEDLE
機 型
規格
座
針 板
主送具
差送具
上送具
壓具
勾針
上叉
使用針
W121/FFT/PCH
240
248
356
364
M5240
E4094K
E4095K
E4096K
E4097K
D4324K
H4387K
H4307K
F7240N
P7240N-A
P7248N-A
P7356N-A
P7364N-A
MTO1
MH41
UYX128GAS#10
W121/FFT/PCH
/UTT(UTX)
240
248
356
364
M5240
E4094K
E4095K
E4096K
E4097K
D4324K
H4387K
H4307K
F7240N
P7240N-A
P7248N-A
P7356N-A
P7364N-A
MTO1
MH41
UYX128GAS#10
W122/FFT/PCH
240
248
356
364
M5240
E3994K
E3995K
E3996K
E3997K
D4324K
H4387K
H4307K
F7240N
P7240N-A
P7248N-A
P7356N-A
P7364N-A
MTO1
MH41
UYX128GAS#10
W122/FFT/PCH
/UTT(UTX)
240
248
356
364
M5240
E3994K
E3995K
E3996K
E3997K
D4324K
H4387K
H4307K
F7240N
P7240N-A
P7248N-A
P7356N-A
P7364N-A
MTO1
MH41
UYX128GAS#10
jntex.in
Page 3 — GAGE PARTS LIST
Siruba S007KD parts on page 3| Ref | Part number | Part name | Qty |
|---|
| 240 | M5240 | NEEDLE CLAMP | 240 |
| 248 | M5248 | NEEDLE CLAMP | 248 |
| 356 | M5356 | NEEDLE CLAMP | 356 |
| 364 | M5364 | NEEDLE CLAMP | 364 |
| 240 | E7240SL | NEEDLE PLATE | 240 |
| 248 | E7248SL | NEEDLEPLATE | 248 |
| 356 | E7356SL | NEEDLEPLATE | 356 |
| 364 | E7364SL | NEEDLEPLATE | 364 |
| 240 | E7240SM | NEEDLEPLATE | 240 |
| 248 | E7248SM | NEEDLEPLATE | 248 |
| 356 | E7356SM | NEEDLEPLATE | 356 |
| 364 | E7364SM | NEEDLEPLATE | 364 |
| 240 | E3994RM | NEEDLEPLATE | 240 |
| 248 | E3995RM | NEEDLEPLATE | 248 |
| 356 | E3996RM | NEEDLEPLATE | 356 |
| 364 | E3997RM | NEEDLEPLATE | 364 |
| 240 | D7240S | MAIN FEED DOG | 240 |
| 356 | D7356S | MAIN FEED DOG | 356 |
| 240 | H7240S | DIFF. FEED DOG | 240 |
| 356 | H7356S | DIFF. FEED DOG | 356 |
| 356 | H7356R | DIFF. FEED DOG | 356 |
| 240 | F7240F | TOP FEED DOG | 240 |
| 356 | F7356F | TOP FEED DOG | 356 |
| 240 | P7240F-A | PRESSER FOOT | 240 |
| 248 | P7248F-A | PRESSER FOOT | 248 |
| 356 | P7356F-A | PRESSER FOOT | 356 |
| 364 | P7364F-A | PRESSER FOOT | 364 |
| 240 | P7240F-A1 | PRESSER FOOT | 240 |
| 248 | P7248F-A1 | PRESSER FOOT | 248 |
| 356 | P7356F-A1 | PRESSER FOOT | 356 |
| 364 | P7364F-A1 | PRESSER FOOT | 364 |
| 240 | MT01 | LOOPER | 240 |
| 240 | MH41 | SPREADER | 240 |
| 240 | UYX128GAS#10 | NEEDLE | 240 |
SIRUBA
GAGE PARTS LIST
Series
S007KD
Remark
USE FOR FFT
Page
2/2
Date
2019/9/3
MODEL
SUB-CLASS
NEEDLE
CLAMP
NEEDLE
PLATE
MAIN
FEED DOG
DIFF.
FEED DOG
TOP
FEED DOG
PRESSER
FOOT
LOOPER
SPREADER
NEEDLE
機 型
規格
針 座
針 板
主送具
差送具
上送具
壓 具
勾 針
上 叉
使用針
W131/FFT/PCH
240
M5240
E7240SL
D7240S
H7240S
F7240F
P7240F-A
MT01
MH41
UYX128GAS#10
248
M5248
E7248SL
P7248F-A
356
M5356
E7356SL
D7356S
H7356S
F7356F
P7356F-A
364
M5364
E7364SL
P7364F-A
W131/FFT/PCH
/UTT(UTX)
240
M5240
E7240SL
D7240S
H7240S
F7240F
P7240F-A
MT01
MH41
UYX128GAS#10
248
M5248
E7248SL
P7248F-A
356
M5356
E7356SL
D7356S
H7356S
F7356F
P7356F-A
364
M5364
E7364SL
P7364F-A
W132/FFT/PCH
240
M5240
E7240SM
D7240S
H7240S
F7240F
P7240F-A
MT01
MH41
UYX128GAS#10
248
M5248
E7248SM
P7248F-A
356
M5356
E7356SM
D7356S
H7356S
F7356F
P7356F-A
364
M5364
E7364SM
P7364F-A
W132/FFT/PCH
/UTT(UTX)
240
M5240
E7240SM
D7240S
H7240S
F7240F
P7240F-A1
MT01
MH41
UYX128GAS#10
248
M5248
E7248SM
P7248F-A1
356
M5356
E7356SM
D7356S
H7356S
F7356F
P7356F-A1
364
M5364
E7364SM
P7364F-A1
W815/FFT/
SRL/UTT
240
M5240
E3994RM
D7240S
H7240S
F7240F
P7240F-A1
MT01
MH41
UYX128GAS#10
248
M5248
E3995RM
P7248F-A1
356
M5356
E3996RM
D7356S
H7356R
F7356F
P7356F-A1
364
M5364
E3997RM
P7364F-A1
jntex.in

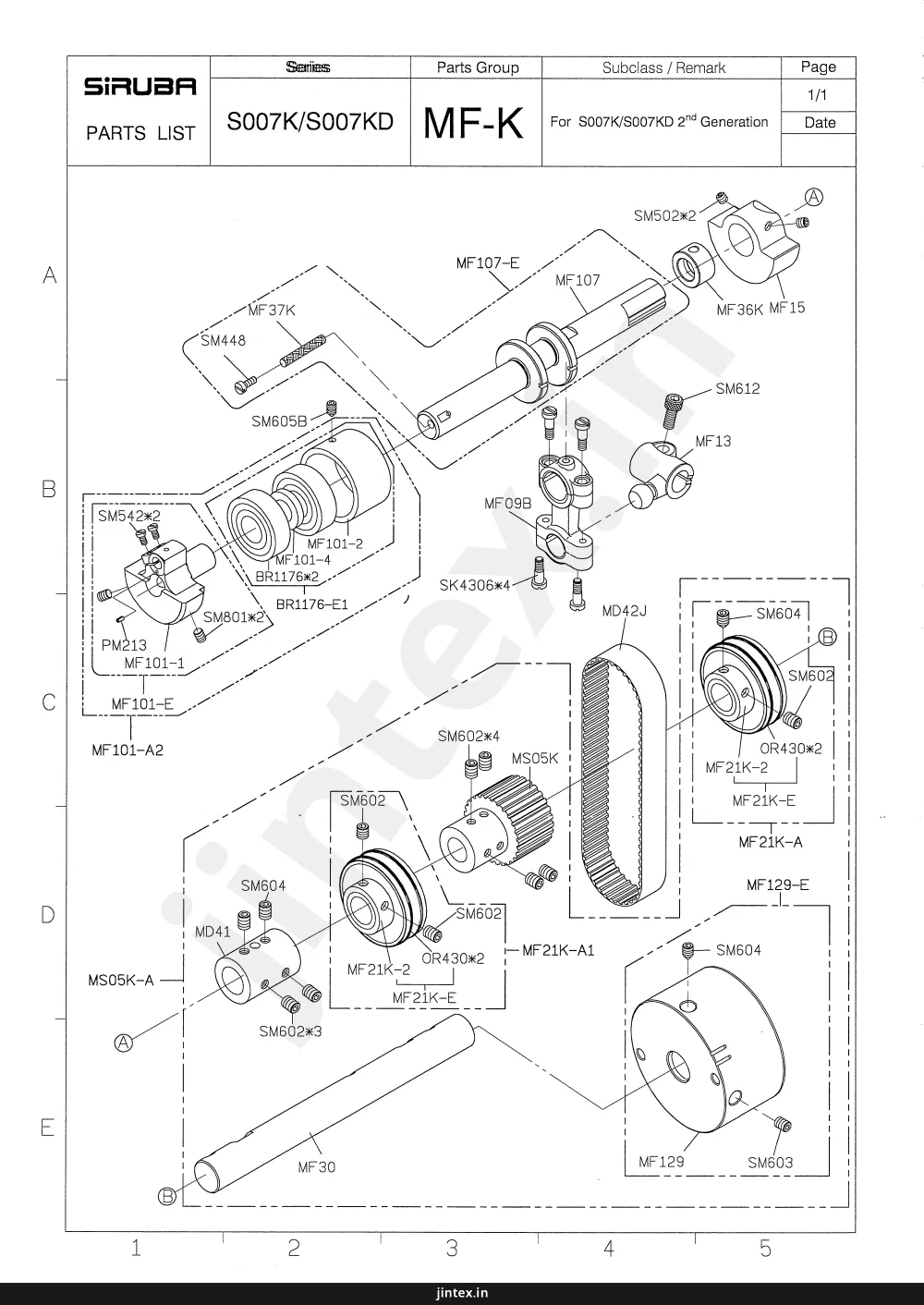

Page 4 — PARTS LIST
Siruba S007KD parts on page 4| Ref | Part number | Part name | Qty |
|---|
| SM502*2 | SM502*2 | |
| MF36K MF15 | MF36K MF15 | |
| MF107 | MF107 | |
| MF107-E | MF107-E | |
| SM448 | SM448 | |
| SM612 | SM612 | |
| MF13 | MF13 | |
| SM605B | SM605B | |
| MF101-2 | MF101-2 | |
| MF101-4 | MF101-4 | |
| BR1176*2 | BR1176*2 | |
| BR1176-E1 | BR1176-E1 | |
| SK4306*4 | SK4306*4 | |
| MD42J | MD42J | |
| SM542*2 | SM542*2 | |
| PM213 | PM213 | |
| MF101-1 | MF101-1 | |
| MF101-E | MF101-E | |
| MF101-A2 | MF101-A2 | |
| SM604 | SM604 | |
| SM602*4 | SM602*4 | |
| MS05K | MS05K | |
| SM602 | SM602 | |
| OR430*2 | OR430*2 | |
| MF21K-2 | MF21K-2 | |
| MF21K-E | MF21K-E | |
| MF21K-A1 | MF21K-A1 | |
| MF21K-A | MF21K-A | |
| SM604 | SM604 | |
| MD41 | MD41 | |
| MS05K-A | MS05K-A | |
| SM602*3 | SM602*3 | |
| MF129-E | MF129-E | |
| MF129 | MF129 | |
| SM603 | SM603 | |
| MF30 | MF30 | |
SIRUBA
PARTS LIST
Series
S007K/S007KD
MF-K
For S007K/S007KD 2nd Generation
Page
1/1
Date
A
MF37K
SM448
SM502*2
MF107-E
MF107
MF36K MF15
SM612
MF13
SM605B
MF101-2
MF101-4
BR1176*2
BR1176-E1
SK4306*4
MD42J
SM604
SM542*2
PM213
MF101-1
MF101-E
MF101-A2
SM602*4
SM602
MS05K
SM602
OR430*2
MF21K-E
MF21K-A1
MF21K-E
MF21K-2
MF21K-A
SM604
MD41
MS05K-A
SM602*3
MF129-E
MF129
SM603
MF30
E
1
2
3
4
5
jintex.in
Page 5 — PARTS LIST
Siruba S007KD parts on page 5| Ref | Part number | Part name | Qty |
|---|
| MG10 | MG10 | |
| MG58 | MG58 | |
| KL15 | KL15 | |
| MG57 | MG57 | |
| OS1190 | OS1190 | |
| MG31 | MG31 | |
| SM132*2 | SM132*2 | |
| MG33 | MG33 | |
| WM400*2 | WM400*2 | |
| SM132*2 | SM132*2 | |
| SM435*2 | SM435*2 | |
| MG05K | MG05K | |
| SM511 | SM511 | |
| MG05K-E | MG05K-E | |
| MG28K | MG28K | |
| MG01K | MG01K | |
| SM435*2 | SM435*2 | |
| MG05K-A | MG05K-A | |
| MG35K | MG35K | |
| MG37 | MG37 | |
| KN40 | KN40 | |
| KN42*2 | KN42*2 | |
| KN43 | KN43 | |
| KN44 | KN44 | |
SIRUBA
PARTS LIST
Series
S007K/S007KD
Parts Group
MG-K
Subclass / Remark
Page
1/1
Date
2016/9/6
MG10
MG58
KL15
MG57
OS1190
MG31
SM132*2
MG33
WM400*2
SM132*2
SM435*2
MG05K
SM511
MG05K-E
MG28K
MG01K
SM435*2
MG05K-A
MG35K
MG37
KN40
KN42*2
KN43
KN44
1
2
3
4
5
jintex.in
Page 6 — MH-K系列圖
Siruba S007KD parts on page 6| Ref | Part number | Part name | Qty |
|---|
| CS3170 | For UXXX | |
| MH58 | MH58 | |
| EV C80 | EV C80 | |
| WV C07 | WV C07 | |
| VH81 | VH81 | |
| MH52E-E | MH52E-E | |
| M-176 | M-176 | |
| MH56E | MH56E | |
| SM612 | SM612 | |
| SM602*2 | SM602*2 | |
| NM511 | NM511 | |
| MHS5 | MHS5 | |
| MH52E | MH52E | |
| MH60K | MH60K | |
| SM311 | SM311 | |
| MH56E-A1 | MH56E-A1 | |
| MH64K-1 | MH64K-1 | |
| WM400 | WM400 | |
| SK243 | SK243 | |
| MV24 | MV24 | |
| MH50E | MH50E | |
| OP101*8 | (針線) OP101*8 | |
| MH16K | MH16K | |
| MH109K-E | MH109K-E | |
| MH64K-C1 | MH64K-C1 | |
| MH709-2 | MH709-2 | |
| MH109K | MH109K | |
| MH175 | MH175 | |
| SM502*2 | SM502*2 | |
| MH49E | MH49E | |
| MH66KA-E | MH66KA-E | |
| OP307 | OP307 | |
| MH46 | (For UXXX) MH46 | |
| MH114 | MH114 | |
| BR4080B | BR4080B | |
| MH110 | MH110 | |
| SM439*2 | SM439*2 | |
| MH48-E | MH48-E | |
| MH86 | MH86 | |
| SM4553 | SM4553 | |
| MH08 | MH08 | |
| MH48 | MH48 | |
| MH107-E | MH107-E | |
| MH107 | MH107 | |
| OR100 | OR100 | |
| SK277 | SK277 | |
| KL11 | KL11 | |
| MH85-E | MH85-E | |
| SM131 | SM131 | |
| MH14D | MH14D | |
| MHS5 | MHS5 | |
| SM402*2 | SM402*2 | |
| MH13 | MH13 | |
| MH14D-C | MH14D-C | |
| MH79K | MH79K | |
| SM534 | SM534 | |
| MH03K-E | MH03K-E | |
| OS2122 | OS2122 | |
| SM137 | SM137 | |
| MH43-E | MH43-E | |
| EM106 | EM106 | |
| MH43 | MH43 | |
| M5XXX | M5XXX | |
| SK216*4 | SK216*4 | |
| M5XXX-E | M5XXX-E | |
| MA91K | MA91K | |
| M5XXXXK-A | M5XXXXK-A | |
| SK219 | SK219 | |
| MH70 | MH70 | |
| MH71 | MH71 | |
| MH72K | MH72K | |
| SK531 | SK531 | |
| MH41 | MH41 | |
| MH05 | MH05 | |
| XXXXXXXXXX | XXXXXXXXXX | |
SIRUBA
Series
PARTS LIST
S007K/S007KD
MH-K
Page
1/1
Date
2019/9/16
For S007K/S007KD 2nd Generation
MH49E-C
CS3170(For UXXX)
MH58
EV C80
WV C07
VH81
MH52E-E
M-176
MH56E
SM612
SM602*2
NM511
MHS5
MHS2E
MH60K
SM311
MH56E-A1
MH64K-1
MV24
WM400
SK243
MH50E
(針線)
OP101*8
MH16K
MH109K-E
MH64K-C1
MH709-2
MH109K
MH175
SM502*2
MH49E
MH66KA-E
OP307
(For UXXX)
MH46
MH114
BR4080B
MH110
SM439*2
MH48-E
MH86
MH08
SM4553
MH48
MH107-E
MH107
OR100
SK277
KL11
MH85-E
SM131
MH14D
MH13
MHS5
SM402*2
MH14D-C
MH79K
SM534
MH03K-E
OS2122
SM137
MH43-E
EM106
MH43
M5XXX
SK216*4
M5XXX-E
MA91K
M5XXXXK-A
SK219
MH70
MH71
MH72K
MH41
SK531
MH05
XXXXXXXXXX
2
3
4
5
jintex.in
MH-K系列圖
Page 7
Siruba S007KD parts on page 7| Ref | Part number | Part name | Qty |
|---|
| MJ35K-A1 | MJ35K/MJ38/NM610
MJ54K/SM492 | |
| MJ35K-A3 | MJ35K/MJ38/NM610 | |
| MJ01-A | MJ01 | |
| MJ02H | MJ01 | |
| SM415*2 | MJ08 | |
| PM310 | MJ08-E | |
| SK518 | MJ06 | |
| SK518 | MJ04-A | |
| MJ12 | MJ43 | |
| MJ13 | MJ14-E | |
| OS2141 | MJ14 | |
| MJ56 | MJ18 | |
| SM332 | MJ15D | |
| MJ05 | | |
| MJ03 | | |
| MJ28 | | |
| MJ27K | | |
| KS22-E | KS22 | |
| SM612 | | |
| MJ37K-E | MJ37K | |
| SM540 | NM511 | |
| SM520 | NM511 | |
| SM6104*2 | WM600*2 | |
| MJ29K | | |
| NM610 | MJ35K | |
| MJ38 | | |
| MJ34K | | |
| PXXXXXK-A | MJ53 | |
| MJ54K | | |
| MJ35K(S007KD-UT) | | |
| MJ35K-A1(S007K/S007KD) | | |
| MJ35K-A3(S007K-UT) | | |
SIRUBA
Series
Parts Group
Subclass / Remark
Page
PARTS LIST
S007K/S007KD
MJ-K
For S007K/S007KD 2nd Generation
1/1
Date
2016/8/26
組件代號
零件內容
MJ35K-A1
MJ35K/MJ38/NM610
MJ54K/SM492
MJ35K-A3
MJ35K/MJ38/NM610
A
MJ01-A
MJ01
MJ02H
B
SM415*2
MJ08
PM310
MJ08-E
SK518
MJ06
SK518
MJ04-A
C
MJ12
MJ43
MJ13
D
MJ14-E
OS2141
E
MJ56
SM332
MJ15D
MJ18
1
2
MJ03
MJ28
MJ29K
SM6104*2
WM600*2
MJ37K
SM540
NM511
SM520
NM511
MJ37K-E
MJ27K
KS22-E
SM612
KS22
NM610
MJ35K
MJ38
MJ34K
PXXXXXK-A
MJ53
MJ54K
SM492
MJ35K(S007KD-UT)
MJ35K-A1(S007K/S007KD)
MJ35K-A3(S007K-UT)
3
4
5
jintex.in
Page 8
Siruba S007KD parts on page 8| Ref | Part number | Part name | Qty |
|---|
| MK35J | MK35J | *MK35KP | |
| SM432 | *2 | 2 |
| MK37H | *2 | 2 |
| MK94 | *2 | 2 |
| SM430 | *2 | 2 |
| SMS11 | | |
| MK41K-E | | |
| MK41K | | |
| MK39K | | |
| MK28H | | |
| VK02J | *5 | 5 |
| VK10 | *5 | 5 |
| SM4803 | | |
| MK40 | | |
| SM432 | *2 | 2 |
| VK05 | | |
| KG07K | *2 | 2 |
| KG08 | | |
| VK09-R1 | | |
| VK09-E1 | | |
| VK09-Y1 | | |
| VK09 | | |
| KG06E | | |
| KG97 | | |
| KG05 | | |
| VK09-G1 | | |
| VK09-B1 | | |
| KG04F | | |
| KG08F | | |
| KG68 | | |
| KG05 | | |
| KG04F | | |
| MK38H-E | | |
| MK38H | | |
| VJ01-3 | | |
| SM4105 | | |
| MK27H | | |
| VK09-R1 | | |
| VK09-E1 | | |
| VK09-Y1 | | |
| VK09-G1 | | |
| VK09-B1 | | |
SIRUBA
PARTS LIST
Series
S007K/S007KD
S007KP
Parts Group
MK-K
Subclass / Remark
For S007K/S007KD 2nd Generation
*:Use for S007KP
Page
1/1
Date
2019/6/13
A
B
C
D
E
MK35J
*MK35KP
SM432*2
MK37H*2
MK94*2
SM430*2
SMS11
MK41K-E
MK41K
MK39K
MK28H
VK02J*5
VK10*5
SM4803
MK40
SM432*2
VK05
KG07K*2
KG08
VK09-R1
VK09-E1
VK09-Y1
VK09
KG06E
KG97
KG05
VK09-G1
VK09-B1
KG04F
KG08F
KG68
KG05
KG04F
MK38H-E
VJ01-3
SM4105
VK09-R1
VK09-E1
VK09-Y1
MK27H
VK09-G1
VK09-B1
1
2
3
4
5
jintex.in
Page 9
Siruba S007KD parts on page 9| Ref | Part number | Part name | Qty |
|---|
| 1 | KX05 | 4 | |
| 2 | MN03-E | 1 | |
| 3 | MN09 | 1 | |
| 4 | SM531 | 2 | |
| 5 | MN14-A | 1 | |
| 6 | MN03 | 2 | |
| 7 | MN17 | 4 | |
| 8 | MN12 | 1 | |
| 9 | MN12-E | 4 | |
| 10 | MN15 | 1 | |
| 11 | KX08 | 4 | |
| 12 | MN13 | 4 | |
| 13 | MN16 | 4 | |
| 14 | KX206 | 3 | |
| 15 | MN14 | 4 | |
| 16 | TXXXXXX-A | POWER CONTROL BOX COMB | |
SIRUBA
PARTS LIST
Series
S007K/S007KD
S007KP
Parts Group
MN-K
Subclass / Remark
For S007K 2nd Generation
Page
1/3
Date
2019/08/08
KX05*4
MN03-E
MN09
SM531*2
MN14-A
MN03*2
MN17*4
MN12
MN12-E*4
MN15
KX08*4
MN13*4
MN16*4
KX206*3
MN14*4
TXXXXXX-A
POWER CONTROL
BOX COMB
1
2
3
4
5
jintex.in
Page 10
Siruba S007KD parts on page 10| Ref | Part number | Part name | Qty |
|---|
| SM886*4 | SM886-A | 4 |
| #SK392*3 | SK392*3 | 3 |
| #MY29D | MY29D | |
| WM800*4 | WM800 | 4 |
| WM810*4 | WM810 | 4 |
| NM810*4 | NM810 | 4 |
| SK392*2 | SK392 | 2 |
SIRUBA
PARTS LIST
Series
S007K/S007KD
S007KP
Parts Group
MN-K
Subclass / Remark
For S007K 2nd Generation
# Use for S007K
Page
2/3
Date
2019/08/08
#SK392*3
SM886*4
#MY29D
SM886-A
WM800*4
WM810*4
NM810*4
SK392*2
1
2
3
4
5
jintex.in
Page 11
Siruba S007KD parts on page 11| Ref | Part number | Part name | Qty |
|---|
| 1 | SM513*2 | SCREW | |
| 2 | NM412*2 | NUT | |
| 3 | FD701 | CONTROL BOX | |
| 4 | MN18KP | BRACKET | |
| 5 | NM511*2 | NUT | |
| 6 | MN19KP | FAN | |
| 7 | MN19KP-A | BRACKET | |
| 8 | MN21KP | COVER | |
| 9 | SM443*2 | SCREW | |
| 10 | MN20KP | BASE | |
| 11 | SM531*2 | SCREW | |
SIRUBA
PARTS LIST
Series
S007KP
Page
3/3
Date
2019/09/18
Parts Group
MN-K
Subclass / Remark
*Use For Direct-Drive Motor (P/N/U/M)
SM513*2
NM412*2
*FD701
MN18KP
NM511*2
MN19KP
MN19KP-A
MN21KP
SM443*2
MN20KP
SM531*2
1
2
3
4
5
jintex.in
Page 12
Siruba S007KD parts on page 12| Ref | Part number | Part name | Qty |
|---|
| ML09 | ML09 | GEAR | |
| ML07 | ML07 | GEAR | |
| ML11J | ML11J | SHAFT | |
| ML12 | ML12 | SHAFT | |
| ML74 | ML74 | WASHER | |
| ML75 | ML75 | WASHER | |
| SM4103*2 | SM4103*2 | SCREW | |
| SM4104*2 | SM4104*2 | SCREW | |
| NM615 | NM615 | NUT | |
| WM601 | WM601 | WASHER | |
| ML02 | ML02 | GEAR | |
| SM401*2 | SM401*2 | SCREW | |
| ML04K | ML04K | BRACKET | |
| SM6104*2 | SM6104*2 | SCREW | |
| ML05J | ML05J | SHAFT | |
| ML06J | ML06J | GEAR | |
| ML07J | ML07J | GEAR | |
| ML105 | ML105 | SHAFT | |
| ML06J | ML06J | GEAR | |
| ML07J | ML07J | GEAR | |
| ML08J | ML08J | SHAFT | |
| ML16+NA03+(H)=ML05J-A1 | ML16+NA03+(H)=ML05J-A1 | ASSEMBLY | |
| SL111K-E | SL111K-E | SHAFT | |
| SL111K | SL111K | SHAFT | |
| OP102 | OP102 | PIN | |
| SL113K | SL113K | PAD | |
| SM447*3 | SM447*3 | SCREW | |
| MB37 | MB37 | RING | |
| ML186 | ML186 | BEARING | |
| OR30A | OR30A | RING | |
| KT14 | KT14 | PIN | |
| KT15 | KT15 | PIN | |
| ML88-A | ML88-A | COVER | |
| ML88 | ML88 | COVER | |
| SM401 | SM401 | SCREW | |
| ML49-E | ML49-E | WIRE | |
| PP3071 | PP3071 | CLAMP | |
| ML49 | ML49 | WIRE | |
| ML30-E | ML30-E | WIRE | |
| OP233 | OP233 | CLAMP | |
| ML30 | ML30 | WIRE | |
| SM432 | SM432 | SCREW | |
| ML83 | ML83 | SHAFT | |
| ML16 | ML16 | SHAFT | |
| ALT087S | ALT087S | SPRING | |
| OT624 | OT624 | SPRING | |
| MW10 | MW10 | NUT | |
| SM432 | SM432 | SCREW | |
| KT24 | KT24 | PIN | |
| WM601 | WM601 | WASHER | |
| ML43K | ML43K | SHAFT | |
| OR030 | OR030 | RING | |
| ML66 | ML66 | SHAFT | |
| SG105*3 | SG105*3 | SPRING | |
| OT634 | OT634 | PIN | |
| KT54JK-A | KT54JK-A | BRACKET | |
| SL101K-A | SL101K-A | SHAFT | |
| KT55 | KT55 | PIN | |
| KT74 | KT74 | PIN | |
| KT54JK | KT54JK | PIN | |
| SL101K-E | SL101K-E | SHAFT | |
| SM432 | SM432 | SCREW | |
| ML32J | ML32J | SHAFT | |
| OT532 | OT532 | PIPE | |
| SG103*2 | SG103*2 | SPRING | |
| SK304*2 | SK304*2 | SLEEVE | |
| JA201*3 | JA201*3 | SCREW | |
| OT534 | OT534 | PIPE | |
| SG103*2 | SG103*2 | SPRING | |
| OT619 | OT619 | SPRING | |
| SG105*4 | SG105*4 | SPRING | |
| SL103K | SL103K | SHAFT | |
| OT620-A | OT620-A | BRACKET | |
| KT24*2 | KT24*2 | PIN | |
| OT625 | OT625 | SPRING | |
| OT620 | OT620 | PIPE | |
| SG105*2 | SG105*2 | SPRING | |
| KT24 | KT24 | PIN | |
| MW05-A1 | MW05-A1 | BRACKET | |
| SL185K-A | SL185K-A | SHAFT | |
| CP103 | CP103 | HOLDER | |
| JA201 | JA201 | SCREW | |
| SG103 | SG103 | SPRING | |
| SM411*2 | SM411*2 | SCREW | |
| OT623 | OT623 | SPRING | |
| SG105*2 | SG105*2 | SPRING | |
| KT24 | KT24 | PIN | |
| SG105 | SG105 | SPRING | |
| SK312 | SK312 | SLEEVE | |
SIRUBA
PARTS LIST
S007K/S007KD
SL-K
For S007K/S007KD 2nd Generation
Page
1/1
Date
2019/07/04
A
F
B
SL111K-E
SL111K
OP102
SL113K
MB37
ML186
OR30A
KT14
KT15
ML49-E
ML30-E
OP233
ML30
KT54JK-A
SL101K-A
KT55
KT74
KT54JK
SL101K-E
C
D
E
JA201
SG103
SM411*2
CP103
ML09
ML07
ML11J
ML12
ML74
ML75
SM447*3
SM4103*2
SM4104*2
NM615
WM601
ML88-A
ML88
SM401
ML49
ML83
ML16
ALT087S
SM432
ML32J
OT532
SG103*2
SK304*2
JA201*3
OT619
SG105*4
SL103K
OT620-A
OT625
KT24*2
OT620
ML02
SM401*2
ML04K
SM6104*2
ML05J
ML06J
ML07J
ML105
ML06J
ML07J
ML08J
ML16+NA03+(H)=ML05J-A1
ALT087S
OT624
MW10
SM432
KT24
WM601
ML43K
OR030
ML66
SG105*3
OT634
OT534
SG103*2
OT534
SG105*2
KT24
MW05-A1
SG105
SK312
1
2
3
4
5
jintex.in
Page 13 — PARTS LIST
Siruba S007KD parts on page 13| Ref | Part number | Part name | Qty |
|---|
| MD31K-A | MD31K-E | |
| SM432*2 | EM498 | |
| MD31K-2 | SM604 | |
| MS02J | SM602 | |
| MS02J-E | SM501*4 | |
| MS06-E | MS06 | |
| MH74-E | SK216*2 | |
| MH74 | OR20A*2 | |
| BR2102-E | BR1101 | |
| WMA07 | EM080*2 | |
| BR2101 | OR270*2 | |
| BR220E | MS08D | |
| BR2101-E | MS38 | |
| #SM604 | #MS13J | |
| #SM603 | MS35J-E | |
| SM502*2 | MS107-E | |
| SM502*2 | MS107 | |
| BR2250 | MD126-A2 | |
| MD126-2 | MS39 | |
| SM432*2 | SQ09K | |
| SQ09K-A | SQ06 | |
| SQ05K-A | SQ05K | |
| MK08 | SM031*2 | |
| WM002*2 | MK05 | |
| SQ04K | WM400 | |
| KP60 | SM492 | |
| SM130 | MS41 | |
| SM130 | WM406 | |
| SQ11K | SQ10K | |
| SM435 | MS40 | |
Series Parts Group Subclass / Remark Page SIRUBA S007K/S007KD SQ-K For S007K/S007KD 2nd Generation 1/1 PARTS LIST # : use for S007K Date 2016/8/24 A B C D E MS16J MD31K-A MD31K-E SM432*2 EM498 MD31K-2 SM604 MS02J SM602 MS02J-E SM501*4 MS06-E MS06 SQ06 MH74-E SK216*2 MH74 OR20A*2 BR2102-E BR1101 WMA07 EM080*2 BR2101 OR270*2 BR220E MS08D BR2101-E #SM604 #MS13J #SM603 MS35J-E SM502*2 MS107-E SM502*2 MS107 BR2250 MD126-A2 MD126-2 MS39 SM432*2 SQ09K SQ09K-A B SQ05K-A SQ05K MK08 SM031*2 WM002*2 MK05 SQ04K WM400 KP60 SM492 SM130 MS41 SM130 WM406 SQ11K SQ10K SM435 1 2 3 4 5 jinte.x.in
Page 14 — SR-K
Siruba S007KD parts on page 14| Ref | Part number | Part name | Qty |
|---|
| SM132*2 | SM132*2 | SCREW | |
| MA09H | MA09H | BRACKET | |
| MA110-A | MA110-A | COVER | |
| *MA110KP-A | *MA110KP-A | COVER | |
| KC67 | KC67 | KNOB | |
| KC67-A1 | KC67-A1 | KNOB | |
| OR16B | OR16B | O-RING | |
| SM438*7 | SM438*7 | SCREW | |
| MA13KP-E | MA13KP-E | COVER | |
| MA13KP | MA13KP | BRACKET | |
| MA14KP | MA14KP | BRACKET | |
| SM330*2 | SM330*2 | SCREW | |
| MA07D | MA07D | PIN | |
| MA109 | MA109 | BRACKET | |
| MA110 | MA110 | COVER | |
| *MA110KP | *MA110KP | COVER | |
| MA110-E | MA110-E | COVER | |
| *MA110KP-E | *MA110KP-E | COVER | |
| #SM443*3 | #SM443*3 | SCREW | |
| #MR07J | #MR07J | COVER | |
| SR142 | SR142 | COVER | |
| MB34 | MB34 | WASHER | |
| MA04K-A | MA04K-A | COVER | |
| *MA04KP-A | *MA04KP-A | COVER | |
| MA12K | MA12K | COVER | |
| MA04K | MA04K | COVER | |
| *MA04KP | *MA04KP | COVER | |
| SM439*4 | SM439*4 | SCREW | |
| PM413 | PM413 | PIN | |
| MA03 | MA03 | BRACKET | |
| SR151K | SR151K | COVER | |
| SR113KP(S007KP) | SR113KP(S007KP) | COVER | |
| SR213KA(S007KD) | SR213KA(S007KD) | COVER | |
| SR113KA(S007K) | SR113KA(S007K) | COVER | |
| KA33*2 | KA33*2 | SCREW | |
| *MA13KP-E | *MA13KP-E | COVER | |
| MA13K-E | MA13K-E | COVER | |
| PP2092 | PP2092 | SCREW | |
| SM402 | SM402 | SCREW | |
| MA13K | MA13K | BRACKET | |
| MA13K-1 | MA13K-1 | COVER | |
| SR203K | SR203K | BRACKET | |
| SM4105*3 | SM4105*3 | SCREW | |
| SM235*4 | SM235*4 | SCREW | |
| SM460*2 | SM460*2 | SCREW | |
| MR104 | MR104 | COVER | |
| KC40 | KC40 | LABEL | |
| SM4063 | SM4063 | SCREW | |
| SM432*2 | SM432*2 | SCREW | |
| PM309*5 | PM309*5 | PIN | |
| SM134*2 | SM134*2 | SCREW | |
| MR27*4 | MR27*4 | PIN | |
| KT58 | KT58 | WASHER | |
| SM432 | SM432 | SCREW | |
| SK310 | SK310 | COVER | |
| SM812*4 | SM812*4 | SCREW | |
| OS4140 | OS4140 | SEAL | |
| SR127K | SR127K | COVER | |
| NM410 | NM410 | NUT | |
| MA11K | MA11K | BRACKET | |
| *MA11K-1*4 | *MA11K-1*4 | BRACKET | |
| MA110-E | MA110-E | COVER | |
| *MA110KP-E | *MA110KP-E | COVER | |
| SM430*3 | SM430*3 | SCREW | |
| △SM330*4 | △SM330*4 | SCREW | |
| MA11K-E1 | MA11K-E1 | COVER | |
| △MA11K-E | △MA11K-E | COVER | |
| MA10K-A1 | MA10K-A1 | COVER | |
| △MA10K-A | △MA10K-A | COVER | |
| MG21K | MG21K | BRACKET | |
| MB33 | MB33 | WASHER | |
| WM641 | WM641 | WASHER | |
| MA86K | MA86K | COVER | |
| SM497 | SM497 | SCREW | |
| MA86K-A | MA86K-A | COVER | |
| SR126K-A | SR126K-A | COVER | |
| SR126K | SR126K | COVER | |
| MA86K-A1 | MA86K-A1 | COVER | |
| WM807*2 | WM807*2 | SCREW | |
SIRUBA
PARTS LIST
Series
S007K/S007KD
S007KP
Parts Group
SR-K
Subclass / Remark
For S007K/S007KD 2nd Generation
#: use for S007K
*: use for S007KP
△: use for SW
Page
1/4
Date
2019/6/13
MA110-A
*MA110KP-A
KC67 KC67-A1
OR16B
SIRUBA
SM132*2
MA09H
MA13KP-E
MA13KP
MA14KP
SM330*2
MA07D
MA109
MA110
*MA110KP
MA110-E
*MA110KP-E
#SM443*3
SR142
#MR07J
MB34
MA04K-A
*MA04KP-A
MA12K
MA04K
*MA04KP
SM439*4
SIRUBA
PM413
MA03
SR151K
SR113KP(S007KP)
SR213KA(S007KD)
SR113KA(S007K)
KA33*2
*MA13KP-E
MA13K-E
PP2092
SM402
MA13K
MA13K-1
SR203K
SM4105*3
SM235*4
SM460*2
MR104
KC40
SM4063
SM432*2
PM309*5
SM134*2
MR27*4
KT58
SK310
SM412
PM406*2
SM432
OS4140
SM812*4
SR127K
NM410
MA11K
*MA11K-1*4
MA110-E
*MA110KP-E
SM430*3
△SM330*4
MA11K-E1
△MA11K-E
MG21K
MB33
MA10K-A1
△MA10K-A
WM641
MA86K
SM497
MA86K-A
SR126K-A
SR126K
MA86K-A1
1
2
3
4
5
jintex.in
Page 15
Siruba S007KD parts on page 15| Ref | Part number | Part name | Qty |
|---|
| A | EXXXX | PCE | |
| A | PCE02 | PCE02 | |
| A | SM035*2 | SM035*2 | |
| A | PCE01 | PCE01 | |
| A | SM430 | SM430 | |
| A | SM438 | SM438 | |
| A | SR225 | SR225 | |
| A | SM461*7 | SM461*7 | |
| A | SM147*2 | SM147*2 | |
| A | SR134K | SR134K | |
| A | SR139K | SR139K | |
| A | SR141K | SR141K | |
| A | PP2076 | PP2076 | |
| A | PP2078 | PP2078 | |
| A | OS3150 | OS3150 | |
| A | PP2076 | PP2076 | |
| A | OS3200 | OS3200 | |
| A | SM031*2 | SM031*2 | |
| A | E4826-1 | E4826-1 | |
| A | E3626-3 | E3626-3 | |
| A | SM181*2 | SM181*2 | |
| A | SM133*2 | SM133*2 | |
| A | EXXXX | EXXXX | |
| A | SR137K | SR137K | |
| A | UT817-2 | UT817-2 | |
| A | SR137K-E | SR137K-E | |
| A | PCC02 | PCC02 | |
| A | PCC01 | PCC01 | |
| A | SM035*2 | SM035*2 | |
| A | PCC-A | PCC-A | |
| A | SR132K-A | SR132K-A | |
| A | SR106K | SR106K | |
| A | SR132K | SR132K | |
| A | SR107K | SR107K | |
| A | SM1655*3 | SM1655*3 | |
| A | SM910*4 | SM910*4 | |
| A | PM510*2 | PM510*2 | |
| A | SM411 | SM411 | |
| A | SR131K | SR131K | |
| A | KN43 | KN43 | |
| A | KN40 | KN40 | |
| A | KN42*2 | KN42*2 | |
| A | KN40-A | KN40-A | |
| A | SR131K-A | SR131K-A | |
| A | SM488 | SM488 | |
| A | MT06 | MT06 | |
| A | SM432 | SM432 | |
| A | MZ02K-1 | MZ02K-1 | |
| A | OS3200 | OS3200 | |
| A | SM418 | SM418 | |
| A | SR135K | SR135K | |
| A | SM353*3 | SM353*3 | |
| A | SM130 | SM130 | |
| A | MA19 | MA19 | |
| A | SM4300 | SM4300 | |
| A | SR223K | SR223K | |
| A | SM421*2 | SM421*2 | |
| A | NM410*2 | NM410*2 | |
| A | SR114 | SR114 | |
| A | KP46*2 | KP46*2 | |
| A | SZ203K-1 | SZ203K-1 | |
| A | SR114-E | SR114-E | |
| A | MA19K | MA19K | |
| A | WM504 | WM504 | |
| A | BF331 | BF331 | |
| A | PCH01K | PCH01K | |
| A | SM474 | SM474 | |
| A | SR138K | SR138K | |
| A | PCH02K | PCH02K | |
| A | SM181*2 | SM181*2 | |
| A | SM435*2 | SM435*2 | |
| A | PCH04K | PCH04K | |
| A | PCH03K | PCH03K | |
| A | PCHK-A | PCHK-A | |
| A | WM500 | WM500 | |
| A | SR114-A | SR114-A | |
| A | SM511*2 | SM511*2 | |
SIRUBA
S007K/S007KD
S007KP
PARTS LIST
PCE
EXXXX
PCE02
SM035*2
PCE01
SM430
SM438
SR224K
SM461*7
SM147*2
SR134K
SR139K
SR141K
PP2076
PP2078
OS3150
PP2076
OS3200
SM031*2
E4826-1
E3626-3
SM181*2
SM133*2
EXXXX
SR137K
UT817-2
SR137K-E
PCC02
PCC01
SM035*2
PCC-A
SR132K-A
SR106K
SR132K
SR107K
SM1655*3
Series
Parts Group
SR-K
Subclass / Remark
For S007K/S007KD 2nd Generation
Page
2/4
Date
2019/6/13
SM910*4
PM510*2
SM411
SR131K
KN43
KN40
KN42*2
KN40-A
SR131K-A
SM488
MT06
SM432
MZ02K-1
OS3200
SM418
SR135K
SM353*3
SM130
MA19
SM4300
SR223K
SM421*2
NM410*2
SR114
KP46*2
SZ203K-1
SR114-E
MA19K
WM504
BF331
PCH01K
SM474
SR138K
PCH02K
SM181*2
SM435*2
PCH04K
PCH03K
PCHK-A
WM500
SR114-A
SM511*2
1
2
3
4
5
Page 16
Siruba S007KD parts on page 16| Ref | Part number | Part name | Qty |
|---|
| SM4837 | SM4837*4 | 4 |
| DFHM0160E-2 | DFHM0160E-2 | |
| SM412 | SM412*3 | 3 |
| WM411 | WM411*3 | 3 |
| DSHM0160E-1 | DSHM0160E-1 | |
| SM394 | SM394*2 | 2 |
| DCHM0160E-4 | DCHM0160E-4 | |
| DFHM0160E-4 | DFHM0160E-4 | |
| DCHM0160E-3 | DCHM0160E-3 | |
| DSHM0160E-E | DSHM0160E-E | |
| SR146H | SR146H | |
| DSH101ADE-A | #DSH101ADE-A | |
| DSH101EDE-A | %DSH101EDE-A | |
| DCH101ADE-E | #DCH101ADE-E | |
| DCH101EDE-E | %DCH101EDE-E | |
| TXXXXX | TXXXXX (控速器) | |
| T999 | T999 | |
| DCH101ADE | #DCH101ADE | |
| DCH101EDE | %DCH101EDE | |
SIRUBA
PARTS LIST
Series
S007K/S007KD
S007KP
Parts Group
SR-K
Subclass / Remark
For S007K/S007KD 2nd Generation
For Direct-Drive Motor (H牌)
#For Pneumatic Automatic
%For Electric Automatic
Page
3/4
Date
2019/6/13
SM4837*4
DFHM0160E-2
SM412*3
WM411*3
DSHM0160E-1
SM394*2
DCHM0160E-4
DFHM0160E-4
DCHM0160E-3
DSHM0160E-E
SR146H
#DSH101ADE-A
%DSH101EDE-A
#DCH101ADE-E
%DCH101EDE-E
[TXXXXX
(控速器)
T999
#DCH101ADE
%DCH101EDE
1
2
3
4
5
jintex.in
Page 17 — PARTS LIST
Siruba S007KD parts on page 17| Ref | Part number | Part name | Qty |
|---|
| UT817-2*2 | UT817-2*2 | |
| TSA21 | TSA21 | |
| SM4063 | SM4063 | |
| UT816 | UT816 | |
| SM415*3 | SM415*3 | |
| WM411*3 | WM411*3 | |
| SM4846*4 | SM4846*4 | |
| DFTM0160E-2 | DFTM0160E-2 | |
| SR146H | SR146H | |
| DCTM0160E-3 | DCTM0160E-3 | |
| DSTMO160E-1 | DSTMO160E-1 | |
| DCTM0160E-2 | DCTM0160E-2 | |
| DSTMO160E-E | DSTMO160E-E | |
| #DST101ADE-A | #DST101ADE-A | |
| %DST101EDE-A | %DST101EDE-A | |
| CS101-A8 | CS101-A8 | |
| #DCT101ADE-E | #DCT101ADE-E | |
| %DCT101EDE-E | %DCT101EDE-E | |
| #DCT101ADE | #DCT101ADE | |
| %DCT101EDE | %DCT101EDE | |
Series
S007K/S007KD
S007KP
PARTS LIST
SIRUBA
Parts Group
SR-K
Subclass / Remark
For S007K/S007KD 2nd Generation
For Direct-Drive Motor (T牌)
#For Pneumatic Automatic
%For Electric Automatic
Page
4/4
Date
2019/6/13
UT817-2*2
TSA21 SM4063
UT816
SM415*3
WM411*3
DFTM0160E-2
SR146H
DCTM0160E-3
DSTMO160E-1
DCTM0160E-2
DSTMO160E-E
#DST101ADE-A
%DST101EDE-A
CS101-A8
#DCT101ADE-E
%DCT101EDE-E
#DCT101ADE
%DCT101EDE
E
2
3
4
5
jintex.in
Page 18
Siruba S007KD parts on page 18| Ref | Part number | Part name | Qty |
|---|
| SS106K-E | SS106K-E | |
| SK270*2 | SK270*2 | |
| SS107K*2 | SS107K*2 | |
| SS131K | SS131K | |
| SS141K-E | SS141K-E | |
| SM301*2 | SM301*2 | |
| SS141K | SS141K | |
| SM502*2 | SM502*2 | |
| SS127K | SS127K | |
| SS102K | SS102K | |
| SS118K | SS118K | |
| SK809 | SK809 | |
| SS102K | SS102K | |
| SS122K | SS122K | |
| SS110K-E | SS110K-E | |
| OP330 | OP330 | |
| PM605 | PM605 | |
| SS122K-E | SS122K-E | |
| SS112K-A | SS112K-A | |
| SS110K | SS110K | |
| SK270 | SK270 | |
| SS134K-E | SS134K-E | |
| SK270*2 | SK270*2 | |
| SS139K | SS139K | |
| SS134K | SS134K | |
| SK270*4 | SK270*4 | |
| SS104K | SS104K | |
| SS127K*2 | SS127K*2 | |
| SS122K-A | SS122K-A | |
| PM403 | PM403 | |
| SK225 | SK225 | |
| SS131K | SS131K | |
| SS113K-A | SS113K-A | |
| SS136K | SS136K | |
| SS112K | SS112K | |
| SS103K | SS103K | |
| SS105K-E | SS105K-E | |
| SS121K*2 | SS121K*2 | |
| SM032 | SM032 | |
| SS108K | SS108K | |
| SS115K | SS115K | |
| SS135K-E | SS135K-E | |
| SS106K | SS106K | |
| SS113K | SS113K | |
| SS106K-E | SS106K-E | |
| MS12-4 | MS12-4 | |
| OP204 | OP204 | |
| OP203 | OP203 | |
| SS105K | SS105K | |
| OP202 | OP202 | |
| SS113K-A | SS113K-A | |
| SS123K-E | SS123K-E | |
| SS132K | SS132K | |
| SS117K | SS117K | |
| SS109K | SS109K | |
| SS126K | SS126K | |
| SK213 | SK213 | |
| SS116K | SS116K | |
| SS123K | SS123K | |
| SK270 | SK270 | |
| SK809 | SK809 | |
| SS125K | SS125K | |
| SS124K | SS124K | |
| SS130K-E | SS130K-E | |
| SK270 | SK270 | |
| HXXXX | HXXXX | |
| OP336 | OP336 | |
| SK213 | SK213 | |
| SM031 | SM031 | |
| SS137K | SS137K | |
| SS109K | SS109K | |
| SK270 | SK270 | |
| SM102 | SM102 | |
| MS12-4*2 | MS12-4*2 | |
| SS129K | SS129K | |
| SS138K | SS138K | |
| SS143K | SS143K | |
| SS128K | SS128K | |
| SS111K | SS111K | |
| SS138K-E | SS138K-E | |
| SU109K-A1 | SU109K-A1 | |
SIRUBA
Series
Parts Group
Subclass / Remark
Page
PARTS LIST
S007K/S007KD
SS-K
For S007K/S007KD 2nd Generation
1/1
Date
2016/8/24
SS106K-E
SK270*2
SS141K-E
SS107K*2
SS127K
SS131K
SM301*2
SS141K
SM502*2
SS127K
SS102K
SS118K
SK809
SS102K
SS122K
SS110K-E
OP330
PM605
SS122K-E
SS112K-A
SS110K
SK270
SS134K-E
SK270*2
SS139K
SS134K
SS104K
SS127K*2
SS122K-A
PM403
SK225
SS131K
SS113K-A
SS136K
SS112K
SS103K
SS105K-E
SS121K*2
SM032
SS108K
SS115K
SS106K
SS135K-E
SS106K-E
OP330
SS113K
MS12-4
SS105K
OP204
OP203
SS113K-A
SS123K-E
SS132K
SS117K
SS109K
SK809
SS116K
SS126K
SK213
SS123K
SK270
SK809
SS124K
SS125K
SK270
HXXXX
SS130K-E
OP336
SK213
HXXXX
SM031
SK270
SS137K
SS109K
SM102
MS12-4*2
SS129K
SS138K
SS143K
SS128K
SS111K
SS138K-E
1
2
3
4
5
jintex.in
Page 19 — PARTS LIST
Siruba S007KD parts on page 19| Ref | Part number | Part name | Qty |
|---|
| MT16-C | MT16-C | |
| SM502*2 | SM502*2 | |
| BR4260 | BR4260 | |
| MT18D | MT18D | |
| SM537 | SM537 | |
| WMC09 | WMC09 | |
| MT01 | MT01 | |
| ST102K-A | ST102K-A | |
| SM411 | SM411 | |
| WM130 | WM130 | |
| ST102K | ST102K | |
| SM404 | SM404 | |
| MT16 | MT16 | |
| MT33 | MT33 | |
| MT10-1 | MT10-1 | |
| SM412 | SM412 | |
| WA01 | WA01 | |
| MT10 | MT10 | |
| WM130 | WM130 | |
| MT32 | MT32 | |
| OP218 | OP218 | |
| MT32-1 | MT32-1 | |
| MT32-E | MT32-E | |
| NM500 | NM500 | |
| MT15 | MT15 | |
| PM117 | PM117 | |
| MT09D | MT09D | |
| ST101K | ST101K | |
| OR14D | OR14D | |
| MT11-1 | MT11-1 | |
| MT11 | MT11 | |
| ST101K-C | ST101K-C | |
| MT10-A | MT10-A | |
| MT34 | MT34 | |
| MT19 | MT19 | |
| SM603 | SM603 | |
| ST103K | ST103K | |
| SM412 | SM412 | |
| MT12 | MT12 | |
| WM130 | WM130 | |
| MT12-E | MT12-E | |
| SK4306*4 | SK4306*4 | |
| MT20A-E | MT20A-E | |
| MT20A | MT20A | |
| MT20-1 | MT20-1 | |
| SM110 | SM110 | |
| MT29D | MT29D | |
| MT30 | MT30 | |
| BR8120 | BR8120 | |
| MT22 | MT22 | |
| SM608*2 | SM608*2 | |
| MT22-E1 | MT22-E1 | |
| MT24 | MT24 | |
| MT24-E | MT24-E | |
| SM612 | SM612 | |
| BR8120 | BR8120 | |
| MT27 | MT27 | |
| MT29D | MT29D | |
SIRUBA
Series
S007K/S007KD
PARTS LIST
ST-K
Subclass / Remark
For S007K/S007KD 2nd Generation
Page
1/1
Date
2017/8/31
MT16-C
SM502*2
BR4260
MT18D
SM537
WMC09
MT01
ST102K-A
SM411
WM130
ST102K
SM404
MT16
MT33
MT10-1
SM412
WA01
MT10
WM130
MT32
OP218
MT32-1
MT32-E
NM500
MT15
PM117
MT09D
ST101K
OR14D
MT11-1
MT11
ST101K-C
MT10-A
MT34
MT19
SM603
ST103K
SM412
MT12
WM130
MT12-E
SK4306*4
MT20A-E
MT20A
MT20-1
SM110
MT29D
MT30
BR8120
MT22
SM608*2
MT22-E1
MT24
MT24-E
SM612
BR8120
MT27
MT29D
1
2
3
4
5
jintex.in
Page 20
Siruba S007KD parts on page 20| Ref | Part number | Part name | Qty |
|---|
| SU109K-A1 | A + B = SU109K-A1 | |
| SU105K | SU105K | |
| SU106K | SU106K | |
| PP3163 | PP3163 | |
| SU102K | SU102K | |
| WM402 | WM402 | |
| SK833 | SK833 | |
| WM505 | WM505 | |
| SK906 | SK906 | |
| SM447*2 | SM447*2 | |
| SU121K- | SU121K- | |
| WM400*2 | WM400*2 | |
| KP46*2 | KP46*2 | |
| SM431*2 | SM431*2 | |
| SU121K-A | SU121K-A | |
| SK399 | SK399 | |
| SU126K-A | SU126K-A | |
| SU108K | SU108K | |
| WM505*2 | WM505*2 | |
| SK809*2 | SK809*2 | |
| SU103K | SU103K | |
| SU115K | SU115K | |
| SU128K | SU128K | |
| SM332 | SM332 | |
| WM400 | WM400 | |
| SU123K*2 | SU123K*2 | |
| KP60 | KP60 | |
| KP39 | KP39 | |
| SM627- | SM627- | |
| SU109K-A1 | SU109K-A1 | |
| WMB01 | WMB01 | |
| SU101K | SU101K | |
| WMB01 | WMB01 | |
| SU109K-E | SU109K-E | |
| SU125K | SU125K | |
| OR12B | OR12B | |
| SU109K | SU109K | |
| SU124K | SU124K | |
| SU120K | SU120K | |
| OR12B | OR12B | |
| SU120K-E | SU120K-E | |
| OR08A | OR08A | |
| SU122K | SU122K | |
| SU126K | SU126K | |
| SU127K | SU127K | |
| SM611 | SM611 | |
SIRUBA
PARTS LIST
Series
S007K/S007KD
Parts Group
SU-K
Subclass / Remark
For S007K/S007KD 2nd Generation
Page
1/1
Date
2019/1/16
A + B = SU109K-A1
SU
SS
系列
系列
SU105K
SU106K
PP3163
SU102K
WM402
SK833
WM505
SK906
SM447*2
SU121K-
WM400*2
KP46*2
SM431*2
SU121K-A
SK399
SU108K
WM505*2
SK809*2
SU103K
SU115K
SU128K
SM332
WM400
SU123K*2
KP60
KP39
SU126K-A
SM627-
SU109K-A1
WMB01
SU101K
WMB01
SU109K-E
SU125K
OR12B
SU109K
SU124K
SU120K
OR12B
SU120K-E
OR08A
SU122K
SU126K
SU127K
SM611
G
1
2
3
4
5
jintex.in
Page 21 — PARTS LIST
Siruba S007KD parts on page 21| Ref | Part number | Part name | Qty |
|---|
| PM704 | PM704 | |
| SM404 | SM404 | |
| SV101K-1 | SV101K-1 | |
| SV101K | SV101K | |
| SV102K | SV102K | |
| SM402 | SM402 | |
| EM253 | EM253 | |
| MU07 | MU07 | |
| SV126K | SV126K | |
| BR4250 | BR4250 | |
| SV103K | SV103K | |
| SM050*2 | SM050*2 | |
| SV111K | SV111K | |
| SK270PB | SK270PB | |
| SM502*2 | SM502*2 | |
| SV104K | SV104K | |
| SV106K | SV106K | |
| MU08 | MU08 | |
| SM510 | SM510 | |
| SV107K | SV107K | |
| EM095 | EM095 | |
| SV108K | SV108K | |
| MU09 | MU09 | |
| SM402*2 | SM402*2 | |
| SM310 | SM310 | |
| WM300 | WM300 | |
| SV132K | SV132K | |
| MU10 | MU10 | |
| SV137K-A | SV137K-A | |
| SV123K | SV123K | |
| SV137K | SV137K | |
| SV128K | SV128K | |
| SM502 | SM502 | |
| SV138K | SV138K | |
| SV135K | SV135K | |
| SV133K | SV133K | |
| SM490 | SM490 | |
| SM603 | SM603 | |
| SV140K | SV140K | |
| SM401*2 | SM401*2 | |
| SK216*2 | SK216*2 | |
| SV136K | SV136K | |
| OR09B*2 | OR09B*2 | |
| SV141K-A | SV141K-A | |
| SV141K | SV141K | |
| SV139K | SV139K | |
| SM435*2 | SM435*2 | |
| SV135K-A | SV135K-A | |
SIRUBA
Series
Parts Group
Subclass / Remark
Page
PARTS LIST
S007K/S007KD
SV-K
For S007K/S007KD 2nd Generation
1/1
Date
2016/8/24
PM704
SM404 SV101K-1
SV101K
SV102K
SM402
EM253
MU07
SV126K
BR4250
SV103K
SM050*2
SV111K
SK270PB
SM502*2
SV104K
SV106K
MU08
SM510
SV107K
EM095
SV110K
SV108K
MU09
SM402*2
SM310
WM300
SV132K
MU10
SV137K-A
SV123K
SV137K
SV128K
SM502
SV138K
SV135K
SV133K
SM490
SM603
SV140K
SM401*2
SK216*2
SV136K
OR09B*2
SV141K-A
SV141K
SV139K
B+A
SM435*2
SV135K-A
1
2
3
4
5
jintex.in
Page 22
Siruba S007KD parts on page 22| Ref | Part number | Part name | Qty |
|---|
| KZ03*1 | XXXXXX | |
| KY03 | | |
| KY04 | | |
| LY33 | | |
| KY18 | | |
| KY14 | | |
| KT14-A | | |
| MY21-E | KY21-1 | |
| MY21 | | |
| KY201JK | | |
| MY01 | | |
| MY29D | (For S007K) | |
| SM886-A | (For S007K) | |
| SM886-A1 | (For Direct-Drive Motor) | |
| SM886 | 4 | |
| WM800 | 4 | |
| WM810 | 4 | |
| NM810 | 4 | |
| SK392 | 5 | |
| SM886 | 4 | |
| WM800 | 4 | |
| WM810 | 4 | |
| NM810 | 4 | |
| SK392 | 2 | |
Series
Parts Group
Subclass / Remark
Page
SIRUBA
PARTS LIST
S007K/S007KD
SY-K
For S007K/S007KD 2nd Generation
1/1
Date
2018/07/24
KZ03*1
XXXXXX
KY03
KY04
LY33
KY18
KY14
KT14-A
MY21-E
KY21-1
MY21
KY201JK
MY01
MY29D(For S007K)
SM886-A(For S007K)
SM886-A1(For Direct-Drive Motor)
SM886*4
WM800*4
WM810*4
NM810*4
SK392*5
SM886*4
WM800*4
WM810*4
NM810*4
SK392*2
1
2
3
4
5
jintex.in
Page 23
Siruba S007KD parts on page 23| Ref | Part number | Part name | Qty |
|---|
| MZ18 | MZ18 | |
| MZ15 | MZ15 | |
| SZ301K-E | SZ301K-E | |
| KY02F-A | KY02F-A | |
| SZ301K | SZ301K | |
| MZ27 | MZ27 | |
| SZ14 | SZ14 | |
| MZ17K | MZ17K | |
| MZ13 | MZ13 | |
| S007K | S007K | |
| S007KP | S007KP | |
| SZ102K | SZ102K(FOR TAIWAN) | |
| SZ102KA | SZ102KA | |
SIRUBA
PARTS LIST
Series
S007K
S007KP
Parts Group
SZ-K
Subclass / Remark
* : USE FOR S007KP
Page
1/2
Date
2019/06/12
MZ18
MZ15
SZ301K-E
KY02F-A
SZ301K
MZ27
SZ14
MZ13
MZ17K
S007K
S007KP
SZ102K(FOR TAIWAN)
SZ102KA
1
2
3
4
5
jintex.in
Page 24
Siruba S007KD parts on page 24| Ref | Part number | Part name | Qty |
|---|
| MZ18 | MZ18 | |
| MZ117K | MZ117K | |
| SFT06 | SFT06 | |
| SFT06-E | SFT06-E | |
| MZ27 | MZ27 | |
| KY02F-A | KY02F-A | |
| SFT06-1 | SFT06-1 | |
| FFT68-2 | FFT68-2 | |
| MZ17K | MZ17K | |
| MZ142 | MZ142 | |
| MZ17K | @MZ17K | |
| SZ204 | SZ204(FOR TAIWAN) | |
| SZ204KA | SZ204KA | |
Series
S007KD
S007KP
PARTS LIST
Parts Group
SZ-K
Subclass / Remark
@: Use for Drive Motor+UT
*: USE FOR S007KP
Page
2/2
Date
2019/06/12
A
MZ18
SFT06
B
C
MZ17K
D
E
MZ117K
SFT06-E
MZ27
KY02F-A
SFT06-1
FFT68-2
MZ142
@MZ17K
SZ204(FOR TAIWAN)
SZ204KA
1
2
3
4
5
jintex.in
Page 25 — TABLE CUT-OUT OF S007K-T1
S007K卓板図
TABLE CUT-OUT OF S007K-T1
三針簡単上乗卓板図
S007K/KD SERIES TABLE CUT-OUT SEMI-SUBMERGED
單位/UNIT:mm
FOR 一般車及自動切線
所有尺寸公差/DIFFERENCE:±2
S007K-T1-1070長度(L):1070
S007K-T1長度(L):1200
全封邊灰格紋光面塑合板
B-B 剖面(1/3)
871
785
520
247
190
E
45
1
2
3
4
5
10/09/13
jintex.in
Page 26 — S007K-T2
TABLE CUT-OUT OF S007K-T2
S007K桌板圖
三針筒車下桌板圖
S007K/S007KD SERIES TABLE CUT-OUT SEMI-SUBMERGED
單位/UNIT:mm
FOR一般車及自動切線
所有尺寸公差/DIFFERENCE:
S007K-T2 1070長度(L)/重量:11.5kg±5%
S007K-T2長度(L):1200長度(L)/重量:12.5kg±5%
全封邊水格紋光塑面合板
0
80
200
290
296
1020
黑色刻度線
7-R6
4-R10
4-R30
185
279
4-Ø13
B
B
R20
49
66
3-Ø9.5
Ø35
80
159
Ø35
Ø17
55
290
200
55
0
28
61
115
343
392
450
465
540
45
1
2
3
4
5
10/09/13
jintex.in
Page 27 — TABLE CUT - OUT
SIRUBA
Series
TABLE
CUT - OUT
C007K/C007KD
C858KD/C858KD
S007K/S007KD
Item Code
C007K-T23
Subclass / Remark
For All Series
Mounting
Semi-submerged
Date
2013/01/26
三針簡單車
長桌板圖
單位/UNIT:mm
車及自動切線
公差/DIFFERENCE:±2
FOR 一般型
所有尺寸公差
C007K-T23-長度(L):1070 寬度(W):1200mm 重量:11.5kg±5%
長度(L):1200mm 寬度(W):12.5kg±5%
黑色刻度線
6-R6
4-R10
3-R6
4-R30
185
279
4-013
B
R20
B
45
28
61
115
200
266
290
296
564
547
8
228
274
218
206
343
392
450
465
540
66
3-09.5
35
159
80
49
35
017
532
15
B-B剖面
290
200
55
0
jintex.in
Page 28 — TABLE CUT - OUT SEMI-SUBMERGED
Siruba S007KD parts on page 28| Ref | Part number | Part name | Qty |
|---|
| MY29K-E | MY29K-E (直立式不用) | |
| SM886-A1 | SM886-A1 | |
| SK391*3 | SK391*3 | |
| SM886*4 | SM886*4 | |
| SK391*2 | SK391*2 | |
| WM800*4 | WM800*4 | |
| WM810*4 | WM810*4 | |
| NM810*4 | NM810*4 | |
SIRUBA
TABLE
CUT - OUT
Series
C007K/C007KD
C858K/C858KD
S007K/S007KD
Item Code
C007K-T25
Subclass / Remark
For All Series excluding
① RLP,RLQ Celastic tape attaching
② CRL Models
③ Condesed stitch(CAR,CMR,SAR,SER…)
Mounting
Non-submerged
Date
2013/01/26
L
319
871
785
100
R20
2-R20
520
492
3-R20
B
B
185
Ø35
228
340
Ø18
247
190
45
540
465
390
191
Ø15
3-09
66
159
80
Ø35
Ø18
85
0
147
114
95
80
B-B 剖面 (1/3)
262
190
MY29K-E
(直立式不用)
MY29K
SM886-A1
-SK391*3
-SM886*4
-SK391*2
WM800*4
WM810*4
NM810*4
三針筒車上乗板圖
C007K/C007KD/S007K/S007KD SERIES TABLE CUT-OUT SEMI-SUBMERGED
單位/UNIT:mm
FOR CRL,CRL/UT
所有尺寸公差/DIFF
C007K-T25-1070長度(L):1070/重量:11.3kg±5%
C007K-T25長度(L):1200/重量:12.3kg±5%
主封邊灰紙板防光塑膠面
jintex.in
