Page 16 — SIRUBA PARTS LIST VC008 VJ # Use for VUT

Siruba VC008 (95 pages) parts on page 16
Ref	Part number	Part name	Qty
	VJ16	VJ16
	SM432*2	SM432*2
	VJO5D-2	VJO5D-2
	VJO5D-A	VJO5D-A
	SM531*2	SM531*2
	VJO3	VJO3
	VJO4	VJO4
	PM505	PM505
	SM511	SM511
	VJO2	VJO2
	VJ16-A	VJ16-A
	VJO1	VJO1
	VJO1-B	VJO1-B
	VJO5-1	VJO5-1
	VJO1-3	VJO1-3
	VJ01-3P	VJ01-3P
	MJ02H	MJ02H
	A	A
	OS1180	OS1180
	VJO6D-2	VJO6D-2
	VJO20	VJO20
	VJO6D-1	VJO6D-1
	SM4105	SM4105
	SM451	SM451
	MJ03	MJ03
	SM412	SM412
	SSP06	SSP06
	VJ11D	VJ11D
	VJ01-E	VJ01-E
	VJ01P-E	VJ01P-E
	VJO7D-A	VJO7D-A
	VJO7D	VJO7D
	SM610	SM610
	VJ08-E	VJ08-E
	VJ09-A	VJ09-A
	MJ12	MJ12
	SK518	SK518
	VJ14	VJ14
	4 NEEDLE	4 NEEDLE
	PM404	PM404
	VJ01-E	VJ01-E
	MJ13	MJ13
	SM502	SM502
	12 NEEDLE	12 NEEDLE
	VJ13	VJ13
	VJ01P-E	VJ01P-E
	VC008-04XXX	VC008-04XXX
	VC008-04XX-XXX	VC008-04XX-XXX
	VC008-12XXX	VC008-12XXX
	VJ21D-E	VJ21D-E
	#VJ28	#VJ28
	OS2141	OS2141
	SK436*2	SK436*2
	SM504*2	SM504*2
	NM511*2	NM511*2
	VJ18	VJ18
	P9004-5	P9004-5
	P9004-4	P9004-4
	SK493	SK493
	SM528	SM528
	P9012-4	P9012-4
	P9004-3	P9004-3
	P9004-3	P9004-3
	P9012-6	P9012-6
	SK492	SK492
	P9012-3	P9012-3
	P9X04-2	P9X04-2
	P9X04A-2	P9X04A-2
	SK492	SK492
	P9X04-1	P9X04-1
	P9X04A-1	P9X04A-1
	SK492	SK492
	SM332	SM332
	VJ23D(B)	VJ23D(B)
	P9012	P9012
	P9112	P9112
	SK494	SK494

SIRUBA PARTS LIST Series VC008 Page 1/1 Date 2012/08/23 Parts Group VJ Subclass / Remark # Use for VUT VJ16 SM432*2 VJO5D-2 VJO5D-A SM531*2 VJO3 VJO4 PM505 SM511 VJO2 VJ16-A VJO1 VJO1-B VJO5-1 B MJ02H A OS1180 VJO1-3 (VJ01-3P) MJ03 SM412 VJO6D-2 VJO20 VJO6D-1 SM4105 (SM451) SSP06 VJ11D VJ01-E (VJ01P-E) VJO7D-A VJO7D SM612 SM610 VJ08-E VJ09-A MJ12 SK518 VJ14 4 NEEDLE PM404 VJ01-E MJ13 SM502 12 NEEDLE VJ13 VJ01P-E VC008-04XXX VC008-04XX-XXX VC008-12XXX C VJ21D-E (#VJ28) OS2141 SK436*2 SM504*2 NM511*2 VJ18 P9004-5 P9004-4 SK493 SM528 P9012-4 P9004-3 P9004-3 P9012-6 P9012-3 SK492 P9012-5 P9X04-2 P9X04A-2 SK492 P9X04-1 P9X04A-1 SK436*2 SK492 E SM332 VJ23D(B) P9012 P9112 1 2 3 4 5 jintex.in

Page 17

Siruba VC008 (95 pages) parts on page 17
Ref	Part number	Part name	Qty
	VK13	VK13
	SM432	SM432
	VK18	VK18
	VK11	VK11
	SM432	SM432
	VK22	VK22
	PM413	PM413
	SM460	SM460
	VK15	VK15
	SM404	SM404
	VK11	VK11
	SM432	SM432
	PM413	PM413
	SM432	SM432
	SM533*2	SM533*2
	SM432	SM432
	SM4803	SM4803
	VK01	VK01
	VK07	VK07
	VK06	VK06
	VK01-A	VK01-A
	SM432	SM432
	VK02*8	VK02*8
	VK10*8	VK10*8
	VK05	VK05
	VK09-R	VK09-R
	KG06E	KG06E
	KG05	KG05
	KG07	KG07
	VK09	VK09
	KG68	KG68
	KG04F	KG04F
	VK09-G	VK09-G
	KG06E	KG06E
	KG05	KG05
	KG07	KG07
	VK09	VK09
	KG97	KG97
	KG04F	KG04F
	VK04	VK04

SIRUBA PARTS LIST Series VC008 Page 1/2 Date 2012/08/23 Parts Group VK Subclass / Remark (FOR 4 NEEDLE) VK13 SM432 VK18 VK11 SM432 VK22 PM413 SM460 VK15 SM404 VK11 SM432 PM413 SM432 SM533*2 SM432 SM4803 VK01 VK07 VK06 VK01-A SM432 VK02*8 VK10*8 VK05 VK09-R KG06E KG05 KG07 VK09 KG68 KG04F VK09-G KG06E KG05 KG07 VK09 KG97 KG04F VK04 1 2 3 4 5 jintex.in

Page 18

Siruba VC008 (95 pages) parts on page 18
Ref	Part number	Part name	Qty
	VK13P	VK13P
	PM413	PM413
	VK15P	VK15P
	SM460	SM460
	VK17P	VK17P
	SM404	SM404
	SM432	SM432
	PM413	PM413
	VK11P	VK11P
	SM432	SM432
	VK18P	VK18P
	SM432	SM432
	VK07P	VK07P
	SM432	SM432
	VK01P-A	VK01P-A
	VK10P	VK10P
	SK250*3	SK250*3
	VK08	VK08
	MK30*48	MK30*48
	SM534	SM534
	VK06P	VK06P
	VK03	VK03
	VK10P	VK10P
	VK01P	VK01P
	VK04P	VK04P
	VK05	VK05
	KG07	KG07
	KG06E	KG06E
	VK04P	VK04P
	MK32	MK32
	KG05	KG05
	KG68	KG68
	KG05	KG05
	KG04F	KG04F
	KG97	KG97
	KG04F	KG04F

SIRUBA PARTS LIST Series VC008 VK Page 2/2 Date 2012/08/23 (FOR 12 NEEDLE) VK13P PM413 VK15P SM460 VK17P SM404 SM432 PM413 VK11P SM432 VK18P SM432 VK07P SM432 VK01P-A VK10P SK250*3 VK08 MK30*48 SM534 VK06P VK03 VK10P VK01P VK04P VK05 KG07 KG06E VK04P MK32 KG05 KG68 KG05 KG04F (上12個) KG97 KG04F (下12個) 1 2 3 4 5 jintex.in

Page 19

Siruba VC008 (95 pages) parts on page 19
Ref	Part number	Part name
3	SM412*3	SCREW
KT16E	KT16E	BRACKET
KT16E-A	KT16E-A	BRACKET
OR30A	OR30A	SHAFT
MB37	MB37	HOUSING
VL11	VL11	SHAFT
SM432	SM432	SCREW
OT614	OT614	PIPE
VC13	VC13	SHAFT
SG105	SG105	WASHER
VL14-A	VL14-A	BRACKET
SG105	SG105	WASHER
VL23	VL23	SHAFT
VL14	VL14	SHAFT
MW03-1	MW03-1	BRACKET
SM432	SM432	SCREW
SG105	SG105	WASHER
LE12F	LE12F	SHAFT
SG105	SG105	WASHER
VL12	VL12	SHAFT
OT613	OT613	PIPE
OT613-A	OT613-A	PIPE
SM432	SM432	SCREW
VL22	VL22	SHAFT
VL13	VL13	BLOCK
EM164	EM164	CIRCLIP
SG105	SG105	WASHER
KA40	KA40	HOUSING
VL21-A	VL21-A	SHAFT
MW05	MW05	JOINT
SG105	SG105	WASHER
OT618	OT618	PIPE
PM304	PM304	SHAFT
SK312	SK312	SHAFT
SG105	SG105	WASHER
VL02	VL02	GASKET
VL01	VL01	HOUSING
VL01-A	VL01-A	HOUSING
ML09	ML09	SHAFT
ML07	ML07	SHAFT
ML11	ML11	SHAFT
ML12	ML12	SHAFT
WM500	WM500	SHAFT
SM414	SM414	SCREW
VL03-A	VL03-A	BRACKET
VL04	VL04	SHAFT
VL04-E	VL04-E	SHAFT
SM401	SM401	SCREW
VL03	VL03	BRACKET
NA03	NA03	NUT
ML05	ML05	SHAFT
ML06	ML06	GEAR
ML07	ML07	SHAFT
ML08	ML08	SHAFT
SM812*4	SM812*4	SCREW
SM413	SM413	SCREW
OT607	OT607	PIPE
SK304	SK304	SHAFT
OT617-A	OT617-A	PIPE
SG105	SG105	WASHER
KT24*2	KT24*2	SHAFT
SG105	SG105	WASHER
OT617	OT617	PIPE
SK310	SK310	SHAFT
OS4140	OS4140	SHAFT
SK304	SK304	SHAFT
SM498	SM498	SCREW
VL21	VL21	SHAFT
SG105*8	SG105*8	WASHER
SM498	SM498	SCREW
SM435	SM435	SCREW
KT58	KT58	PLATE
KT57	KT57	RING
SM611*2	SM611*2	SCREW

SIRUBA PARTS LIST Series VC008 Parts Group VL Subclass Remark Page 1/1 Date 2012/06/21 SM412*3 KT16E KT16E-A OR30A MB37 VL11 SM432 OT614 VC13 SG105 VL14-A SG105 VL23 VL14 MW03-1 SM432 SG105 LE12F SG105 VL12 OT613 OT613-A SM432 VL22 VL13 EM164 SG105 KA40 VL21-A MW05 SG105 OT618 PM304 SK312 SG105 VL02 VL01 VL01-A 1 2 3 ML09 ML07 ML11 ML12 WM500 SM414 VL03-A VL03 SM401 NA03 ML05 ML06 ML07 ML08 SM812*4 SM413 OT607 SK304 OT617-A SG105 KT24*2 SG105 OT617 SK310 SG105 OS4140 SK304 SM498 SG105 OT618 SM432 SG105 SM498 VL21 SG105*8 SM435 KT58 KT57 SM611*2 4 5 jintex.in

Page 20

Siruba VC008 (95 pages) parts on page 20
Ref	Part number	Part name	Qty
	KX05*4	KX05*4
	VN01*2	VN01*2
	MN09	MN09
	SM531*2	SM531*2
	VN01-E	VN01-E
	MN14-A	MN14-A
	MN17*4	MN17*4
	MN12*4	MN12*4
	MN15*4	MN15*4
	MN12-E	MN12-E
	KX206*3	KX206*3
	TXXXXXX-A	TXXXXXX-A (馬達電控箱組)
	KX08*4	KX08*4
	MN13*4	MN13*4
	MN16*4	MN16*4
	KX08*4	KX08*4
	MN14*4	MN14*4

SIRUBA PARTS LIST Series VC008 Page 1/3 Date 2014/03/13 Parts Group VN Subclass / Remark KX05*4 VN01*2 MN09 SM531*2 VN01-E MN14-A MN17*4 MN12*4 MN15*4 MN12-E KX206*3 TXXXXXX-A (馬達電控箱組) KX08*4 MN13*4 MN16*4 KX08*4 MN14*4 1 2 3 4 5 jintex.in

Page 21

Siruba VC008 (95 pages) parts on page 21
Part number	Part name	Qty
MN12*4	Screw	4
SM886*4	Screw	4
SM886-A1	Screw	1
WM800*4	Nut	4
WM810*4	Nut	4
NM810*4	Nut	4
SK391*2	Screw	2

SIRUBA PARTS LIST Series VC008 VN Page 2/3 Date 2014/03/13 Subclass / Remark Use for 上乗式卓板 MN12*4 SM886*4 SM886-A1 WM800*4 WM810*4 NM810*4 SK391*2 1 2 3 4 5 jintex.in

Page 22 — SIRUBA VC008 VN Use for 全沉式桌板 3/3 2014/03/13

Siruba VC008 (95 pages) parts on page 22
Ref	Part number	Part name	Qty
	MN12*4	MN12*4
	SM886*4	SM886*4
	VC008-T10	VC008-T10
	VC008-T10-1	VC008-T10-1
	VC008-T10-2	VC008-T10-2
	SM886-A1	SM886-A1
	WM800*4	WM800*4
	WM810*4	WM810*4
	NM810*4	NM810*4
	KX05*5	KX05*5
	KX08*5	KX08*5
	WM810*5	WM810*5
	NM810*5	NM810*5
	SM899*5	SM899*5
	NM810*5	NM810*5
	WM810*5	WM810*5
	KX08*5	KX08*5
	KX08*5	KX08*5
	WM810*5	WM810*5
	NM810*5	NM810*5
	SM899-A	SM899-A
	SK391*2	SK391*2

SIRUBA PARTS LIST Series VC008 VN Subclass / Remark Use for 全沉式桌板 Page 3/3 Date 2014/03/13 MN12*4 SM886*4 VC008-T10 VC008-T10-1 VC008-T10-2 SM886-A1 WM800*4 WM810*4 NM810*4 KX05*5 KX08*5 WM810*5 NM810*5 SM899*5 NM810*5 WM810*5 KX08*5 KX08*5 WM810*5 NM810*5 SM899-A SK391*2 1 2 3 4 5 jintex.in

Page 23 — SIRUBA VC008 VY

Siruba VC008 (95 pages) parts on page 23
Ref	Part number	Part name	Qty
	MY01	防塵罩
	KY02F-A	油罐
	KY03	油壺
	KY04	漏斗
	KY07	開口板手
	KY08	開口板手
	KY09	開口板手
	KY10	六角板手
	KY11	六角板手
	MY12	六角板手
	KY13	六角板手
	KY14	內六角螺絲起子
	KY15	一字起子
	KY16	一字起子
	KY17	一字起子
	KY18	鑷子
	KY22	一字起子
	KT14-A	濾油器
	KY26F	工具袋
	KZ03	乾燥劑
	針*5	針*5
	KY20D-A	腳踏板
	KY21-1/MY21	鉤子/鍊條
	VY04	零件圖
	VY09	輔助件零件圖
	VY01/P	使用說明書

Series Parts Group Subclass / Remark Page SIRUBA VC008 VY 1/2 PARTS LIST Date 2012/08/23 MY01 KY02F-A KY03 KY04 KY07 防塵罩油罐油壺漏斗開口板手 KY08 KY09 KY10 KY11 KY12 KY13 KY14 KY15 KY16 KY17 開口板手開口板手六角板手六角板手六角板手六角板手內六角螺絲起子一字起子一字起子 1.5 2 2.5 3 KY18 KY22 KT14-A KY26F KZ03 針*5 鑷子一字起子濾油器工具袋乾燥劑 (23針用) KY20D-A KY21-1/MY21 VY04 VY09 VY01/P 腳踏板鉤子/鍊條零件圖輔助件零件圖使用說明書四針(十二針)車使用說明書 1 2 3 4 5 jintex.in

Page 24

Siruba VC008 (95 pages) parts on page 24
Ref	Part number	Part name	Qty
	VZ15	VZ15
	MZ13	MZ13
	VY03	VY03
	MZ27	MZ27
	VY07	VY07
	VY03-A	VY03-A
	VY05D	VY05D

SIRUBA PARTS LIST Series VC008 VY Subclass / Remark Page 2/2 Date 2012/06/23 VZ15 MZ13 VY03 MZ27 VY07 VY03-A VY05D MODEL SERIES M.NO. N.W. G.W. SIRUBA KAULIN MFG.CO.,LTD. 1 2 3 4 5 jintex.in

Page 25 — PARTS LIST

Siruba VC008 (95 pages) parts on page 25
Part number	Part name	Qty
KW36B	KW36B	1
WM610*6	WM610*6	6
VZ02*2	VZ02*2	2
SM622*6	SM622*6	6
KW05B*6	KW05B*6	6
WM601*6	WM601*6	6
VZ03*6	VZ03*6	6
WM610*6	WM610*6	6
SM606*4	SM606*4	4
NM610*6	NM610*6	6
KW28E	KW28E	1
KW32E*6	KW32E*6	6
SM621*6	SM621*6	6
KW01E	KW01E	1
SM4654	SM4654	1
SM4655	SM4655	1
KW14E	KW14E	1
NK29B*2	NK29B*2	2
KW17B	KW17B	1
KW03E	KW03E	1
VZ01	VZ01	1
SM4655*2	SM4655*2	2
KW20E	KW20E	1
NK29B	NK29B	1
SM4656	SM4656	1
SK422	SK422	1
KW22	KW22	1
KW13E*8	KW13E*8	8
KW09B*8	KW09B*8	8
KW16*8	KW16*8	8
KW12E*8	KW12E*8	8
KW04E*2	KW04E*2	2
WK25B	WK25B	1
WMG10	WMG10	1
NK30B	NK30B	1
KW29E	KW29E	1
SW04*8	SW04*8	8
NK29B*8	NK29B*8	8

SIRUBA Series PARTS LIST VC008 Page 1/2 Date 2012/11/15 OPTION:VZ02-A (4 NEEDLE USE) Parts Group VZ Subclass / Remark KW36B F WM610*6 VZ02*2 D SM622*6 KW05B*6 WM601*6 F VZ03*6 WM610*6 SM606*4 NM610*6 E KW28E KW32E*6 B SM621*6 KW01E SM4654 SM4655 KW14E NK29B*2 KW17B KW03E VZ01 SM4655*2 KW20E C NK29B SM4656 A SK422 KW22 D KW13E*8 KW09B*8 KW16*8 KW12E*8 KW04E*2 E 1 2 3 WK25B WMG10 NK30B 4 5 jintex.in

Page 26 — OPTION:VZ09-A (FOR 6~12 NEEDLE USE)

Siruba VC008 (95 pages) parts on page 26
Part number	Part name	Qty
KW32E*12	KW32E*12	12
NK30*2	NK30*2	2
SW04*24	SW04*24	24
VZ12*2	VZ12*2	2
KW13E*12	KW13E*12	12
NK29B*24	NK29B*24	24
VZ10*6	VZ10*6	6
KW32E*12	KW32E*12	12
SM4655	SM4655	12
VZ13	VZ13	12
VZ20*12	VZ20*12	12
NK30*2	NK30*2	2
SM4654	SM4654	24
NK29B*24	NK29B*24	24
KW09B*12	KW09B*12	12
VZ11*12	VZ11*12	12
NK30*2	NK30*2	2
VZ09*2	VZ09*2	2
LF57E-3*2	LF57E-3*2	2
VZ14	VZ14	12
KW32E*12	KW32E*12	12
SW04*12	SW04*12	12
SM4655	SM4655	12
NK29B*12	NK29B*12	12
KW13E*12	KW13E*12	12
LF57E-2*2	LF57E-2*2	2
SM4654	SM4654	24
VZ20*12	VZ20*12	12
NK29B*24	NK29B*24	24
VZ11*12	VZ11*12	12
KW09B*12	KW09B*12	12
NK30*2	NK30*2	2
LF57E-3*2	LF57E-3*2	2
VZ14	VZ14	12
SK574*3	SK574*3	3
SW04*12	SW04*12	12
NK29B*12	NK29B*12	12
LF57E-2*2	LF57E-2*2	2
VZ09*2	VZ09*2	2
VZ07*2	VZ07*2	2
SK574*3	SK574*3	3
NK30*2	NK30*2	2
KW33E*2	KW33E*2	2

SIRUBA Series PARTS LIST VC008 VZ Page 2/2 Date 2012/11/15 OPTION:VZ09-A (FOR 6~12 NEEDLE USE) A KW32E*12 NK30*2 SW04*24 VZ12*2 KW13E*12 NK29B*24 VZ10*6 KW32E*12 SM4655 VZ13 VZ20*12 NK30*2 SM4654 NK29B*24 B KW09B*12 VZ11*12 NK30*2 VZ09*2 LF57E-3*2 VZ14 KW32E*12 KW32E*12 SW04*12 SM4655 NK29B*12 VZ13 C KW13E*12 LF57E-2*2 SM4654 VZ20*12 NK29B*24 D VZ11*12 KW09B*12 NK30*2 LF57E-3*2 VZ14 SK574*3 SW04*12 NK29B*12 LF57E-2*2 VZ09*2 VZ07*2 SK574*3 E NK30*2 KW33E*2 1 2 3 4 5 jintex.in

Page 27 — VC008 VAD

Siruba VC008 (95 pages) parts on page 27
Ref	Part number	Part name	Qty
	CY114-1	CY114-1
	JA016	JA016
	JA011	JA011
	JA011	JA011
	CY114-2	CY114-2
	CY114-3*2	CY114-3*2
	VAD02	VAD02
	CY114-E	CY114-E
	TI28*2	TI28*2
	SM623*3	SM623*3
	VAD03	VAD03
	CY109	CY109
	VAD02-A	VAD02-A
	AP603	AP603
	UT54J-A	UT54J-A
	UT54J-2	UT54J-2
	SK392	SK392
	JA025	JA025
	AC211	AC211
	AP420	AP420
	JA012	JA012
	VAD01	VAD01
	WM600	WM600
	SM611	SM611
	AC211-3	AC211-3
	AC211-4	AC211-4
	UT43	UT43
	VAD04	VAD04
	AC211-A	AC211-A
	SM435	SM435
	SM630	SM630
	VAD01-A1	VAD01-A1
	VAD01	VAD01
	VAD02A	VAD02A
	AC211-A	AC211-A
	UT43	UT43
	SM435	SM435
	SM611*2	SM611*2
	SM630	SM630
	ALT104S*2	ALT104S*2
	VAD02-A	VAD02-A
	CY114-E	CY114-E
	UT54J-A	UT54J-A
	AP419-A	AP419-A

SIRUBA PARTS LIST Series VC008 Page 1/1 Date 2012/08/24 Parts Group VAD Subclass / Remark CY114-1 JA016 JA011 JA011 CY114-2 CY114-3*2 VAD02 CY114-E TI28*2 SM623*3 VAD03 CY109 VAD02-A AP603 C UT54J-A UT54J-2 SK392 JA025 AC211 AP420 JA012 VAD01 WM600 SM611 AC211-3 AC211-4 UT43 VAD04 AC211-A SM435 SM630 VAD01-A1 VAD01 VAD02A AC211-A UT43 SM435 SM611*2 SM630 WM600*2 ALT104S*2 VAD02-A CY114-E UT54J-A AP419-A 1 2 3 4 5 jintex.in

Page 28 — SIRUBA PARTS LIST VC008 VCE

Siruba VC008 (95 pages) parts on page 28
Ref	Part number	Part name
VCE-A	VCE-A	VCE-A
SM431*2	SM431*2	SM431*2
VCE02	VCE02	VCE02
VCE01-A	VCE01-A	VCE01-A
SM030*2	SM030*2	SM030*2
VCE03	VCE03	VCE03
VCE01	VCE01	VCE01

SIRUBA PARTS LIST Series VC008 Page 1/1 Date 2012/08/24 Parts Group VCE Subclass / Remark VCE-A SM431*2 VCE02 VCE01-A SM030*2 VCE03 VCE01 1 2 3 4 5 jintex.in

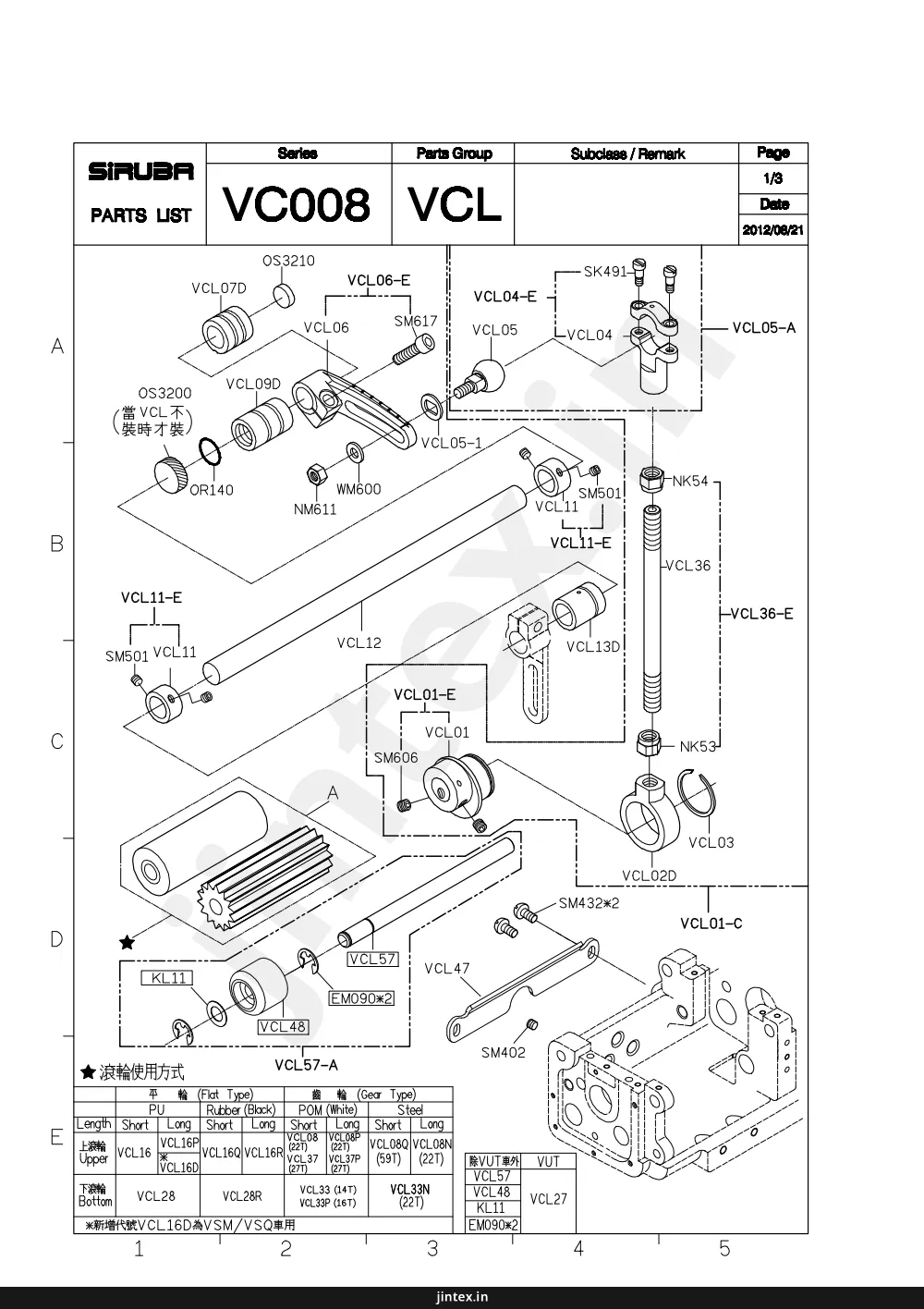

Page 29

Siruba VC008 (95 pages) parts on page 29
Ref	Part number	Part name	Qty
	OS3210	VCL07D
	VCL06-E	VCL06
	SM617	VCL06
	VCL09D	OS3200
	OR140	WM600
	NM611	VCL11
	VCL11-E	SM501 VCL11
	VCL12	VCL13D
	VCL04-E	VCL05
	SK491	VCL04
	VCL05-A	VCL05-1
	VCL11-E	SM501 VCL11
	VCL01-E	VCL01
	SM606	VCL01
	VCL57	VCL47
	KL11	EM090*2
	VCL 48	VCL57-A
	VCL16P	VCL16
	VCL16D	VCL16
	VCL16Q	VCL16
	VCL16R	VCL16
	VCL08P	VCL16P
	VCL08Q	VCL16Q
	VCL08N	VCL16R
	VCL37	VCL16R
	VCL28	VCL28
	VCL28R	VCL28R
	VCL33 (14T)	VCL28R
	VCL33P (16T)	VCL28R
	VCL08	VCL16P
	VCL37	VCL16P
	VCL33 (14T)	VCL28
	VCL33P (16T)	VCL28
	VCL36	NK54
	NK53	VCL03
	VCL02D	VCL03
	VCL36-E	VCL36
	SM432*2	VCL01-C
	SM402	VCL01-C
	VCL57	除VUT車外
	VCL48	除VUT車外
	KL11	除VUT車外
	EM090*2	除VUT車外
	VCL27	VUT

SIRUBA PARTS LIST Series VC008 OS3210 VCL07D VCL06-E VCL06 SM617 VCL09D OS3200 (常 VCL不 (装時才装) OR140 NM611 VCL11-E SM501 VCL11 VCL12 Parts Group VCL Subclass / Remark Page 1/3 Date 2012/08/21 VCL04-E VCL05 SK491 VCL05-A VCL04 WM600 VCL05-1 SM501 VCL11 VCL11-E VCL13D VCL01-E VCL01 SM606 A VCL57 VCL47 KL11 EM090*2 VCL 48 VCL57-A ★ 滾輪使用方式平輪 (Flat Type) PU Rubber (Black) Short Long Short Long VCL16P VCL16Q VCL16R VCL08P (22T) VCL08Q (59T) VCL08N (22T) VCL16 Upper VCL16D VCL 37 (2T) VCL 28 VCL 28R VCL 33 (14T) VCL33P (16T) Bottom *新增代號VCL16D為VSM/VSQ車用 1 2 POM Short Long VCL01-C VCL02D VCL03 VCL36 NK54 NK53 VCL36-E SM432*2 SM402 除VUT車外 VUT VCL57 VCL48 VCL27 KL11 EM090*2 3 4 5 jintex.in

Page 30 — VC008 VCL

Siruba VC008 (95 pages) parts on page 30
Ref	Part number	Part name
SM491	SM491	SCREW
GVCL25	GVCL25	SHAFT
VCL35	VCL35	BRACKET
NM410	NM410	NUT
SM492	SM492	SCREW
SM681	SM681	SHAFT
CL31	CL31	WASHER
VCL24	VCL24	BRACKET
VCL23	VCL23	BRACKET
CL33	CL33	SHAFT
SM682	SM682	SHAFT
CL34	CL34	BRACKET
SM531	SM531	SCREW
NM410	NM410	NUT
SM491	SM491	SCREW
NM410	NM410	NUT
SM4400	SM4400	SCREW
VCL22	VCL22	BRACKET
VCL34	VCL34	BRACKET
SM453	SM453	SCREW
SM472	SM472	PIN
SM617	SM617	SCREW
VCL38	VCL38	SHAFT
CL25-E	CL25-E	SLEEVE
CL25	CL25	SLEEVE
CL59	CL59	SLEEVE
VCL21	VCL21	BRACKET
PM302	PM302	SPRING
VCL30	VCL30	SHAFT
EM123	EM123	CIRCLIP
SM603	SM603	SPRING
VCL58	VCL58	BRACKET
CL26	CL26	SLEEVE
VCL20	VCL20	BRACKET
SM520	SM520	SCREW

SIRUBA PARTS LIST Series VC008 Page 2/3 Date 2012/08/21 Parts Group VCL Subclass / Remark CL31 SM491 GVCL 25 VCL 35 NM410 SM492 SM681 CL31 VCL 24 VCL 23 CL33 SM682 CL34 SM531 NM410 SM491 NM410 SM4400 VCL 22 VCL 34 SM453 SM472 SM617 VCL 38 CL25-E CL25 CL59 VCL 21 PM302 VCL 30 EM123 SM603 VCL 58 CL26 VCL 20 SM520 1 2 3 4 5 jintex.in

Part Books

Search
