Page 2
SIRUBA
GAGE PARTS LIST
Series
VC008
*VPT:適用於VC008-12XXX
*VSF:適用於VC008-0448/0464
*VWL:適用於VC008-04XXX
Remark
applicable to VC008-12XXX
applicable to VC008-0448/0464
applicable to VC008-04XXX
Page
2/6
Date
2013/05/13
機
型
MODEL
規格
CLASS
種類
NEEDLE
GAUGE
針座
NEEDLE
HOLDER
針板
NEEDLE
PLATE
送
具
FEED
DOG
押
具
PRESSER
FOOT
撥線軸
RETAINER
HOLDER
勾針
LOOPER
護針片
NEEDLE
GUARD
勾針座台
LOOPER
BLOCK
針號
NEEDLE
VC008-04/VUT
127P
1 1/2"
M9404
E9404D
D9404P
P9404
VUT109P
VE51
VE49
L9404
VOX113GS
#11~#14
VC008-04A
64P
1/4"
M9213
E9213
D9213
P9213D
R9213
VE51
VE49
L9002
VOX113GS*4
VE11Q
#11~#14
VC008-04A32
032P
(1/4-1/8-1/4)
*3
M9113
E9113
D9113
P9113D
R9113
VE51T
VE49T
L9119T-E
VOX113GS
VE11Q
#11~#14
191P
3/16-3/16"
M9504A
E9504E
D9504A
P9504A
R9504A
VE51
VE49
L9504A
VOX113GS
VE11Q
#11~#14
VC008-0448
222P
3/16-7/8-3/16"
M9204A
E9204A
D9204A
P9204A
R9204A
VE51
VE49
L9204A
VOX113GS
VE11Q
#11~#14
254P
3/16-1-3/16"
M9404A
E9404E
D9404A
P9404A
R9404A
VE51
VE49
L9404A
VOX113GS
VE11Q
#11~#14
VC008-0448
/VSF
254P
3/16-1-3/16"
M9404A
E9404E
D9404A
P9404A
R9404A
VE51
VE49
L9404A
VOX113GS
VE11Q
#11~#14
191P
1/4-3/4-1/4"
M9304A
E9304A
D9304A
P9304A
R9304A
VE51
VE49
L9304A
VOX113GS
VE11Q
#11~#14
VC008-0464
127P
1/4-1/2-1/4"
M9004A
E9004E
D9004A
P9004A
R9004A
VE51
VE49
L9004A
VOX113GS
VE11Q
#11~#14
254P
1/4-1-1/4"
M9104A
E9104E
D9104A
P9104A
R9104A
VE51
VE49
L9104A
VOX113GS
VE11Q
#11~#14
VC008-06/VPL
048P
3/16"
M9012
E9012
D9012
P9412D
R9012
VE51
VE49
L9012
VOX113GS
VE11Q
#11~#14
jinte.in
Page 3
SIRUBA
GAGE PARTS LIST
Series
VC008
*VPT:適用於VC008-12XXX
*VSF:適用於VC008-0448/0464
*VWL:適用於VC008-04XXX
Remark
applicable to VC008-12XXX
applicable to VC008-0448/0464
applicable to VC008-04XXX
Page
3/6
Date
2013/06/22
機
型
MODEL
規格
SVB
CLASS
種類
NEEDLE
GAUGE
針
座
NEEDLE
HOLDER
針
板
NEEDLE
PLATE
送
具
FEED
DOG
押
具
PRESSER
FOOT
撥線
軸
RETAINER
HOLDER
勾
針
LOOP
ER
勾針
座
LOOP
HOLDER
BLOCK
護針
片
NEEDLE
GUARD
針
號
NEEDLE
VC008-06/VPL
064P
1/4"
M9112
E9112
D9112
P9512D
R9112
VE51
VE49
L9112
VE11Q
UOX113GS
#11~#14
VC008-06/VPL
064P
1/2"
M9112
E9112
D9112
P9512B
R9112
VE51
VE49
L9112
VE11Q
UOX113GS
#11~#14
VC008-06/VUT
064P
1/4"
M9112
E9112
D9112
P9112D
VUT109P
VE51
VE49
L9112
VE11Q
UOX113GS
#11~#14
VC008-06
048P
3/16"
M9012
E9012
D9012
P9412D
R9012
VE51
VE49
L9012
VE11Q
UOX113GS
#11~#14
VC008-08/VUT
064P
1/4"
M9108
E9108
D9108
P9108
VUT109P
VE51
VE49
L9112
VE11Q
UOX113GS
#11~#14
VC008-1132
064P
1/8-1/4-1/8"
M9313
E9211
D9211JK
P9211-A
P9211A-A
R9313
VE51T
VE49T
L9113T-E
VE11Q
UOX113GS
#11~#14
048P
3/16"
M9012
E9012
D9012
P9012D
R9012
VE51
VE49
L9012
VE11Q
UOX113GS
#11~#14
VC008-12
050P
5mm
M9612
E9612
D9612
P9612D
R9612
VE51
VE49
L9612
VE11Q
UOX113GS
#11~#14
064P
1/4"
M9112
E9112
D9112
P9112D
R9112
VE51
VE49
L9112
VE11Q
UOX113GS
#11~#14
VC008-12/VPQ
064P
1/4"
M9112
E9312
D9312
P9312
R9112
VE51Q
VE49
L9112
VE11Q
UOX113GS
#11~#14
048P
3/16"
M9012
E9212
D9212
P9212
R9012
VE51Q
VE49
L9012
VE11Q
UOX113GS
#11~#14
jinte
x.in
Page 4 — SIRUBA
GAGE PARTS LIST
SIRUBA
GAGE PARTS LIST
Series
VC008
Remark
*VPT:適用於VC008-12XXX
*VSF:適用於VC008-0448/0464
*VWL:適用於VC008-04XXX
applicable to VC008-12XXX
applicable to VC008-0448/0464
applicable to VC008-04XXX
Page
4/6
Date
2013/05/13
機
型
MODEL
規格
SVB
CLASS
種類
NEEDLE
GAUGE
針
座
NEEDLE
HOLDER
針
板
NEEDLE
PLATE
送
具
FEED
DOG
押
賢
PRESSER
FOOT
撥線
軸
RETAINER
HOLDER
勾
針
LOOPER
護
針
片
NEEDLE
GUARD
勾
針
座
LOOPER
BLOCK
針
號
NEEDLE
VC008-12/VPQK
064P
1/4"
M9112
E9312
D9312
P9312
R9112
VE51Q
VE49
L9112
VE11Q
UOX113GS
#11~#14
VC008-12/VPQK
048P
3/16"
M9012
E9212
D9212
P9212
R9012
VE51Q
VE49
L9012
VE11Q
UOX113GS
#11~#14
VC008-12/VPS
048P
3/16"
M9012
E9212A
D9212
P9212B
VSM47
L9012
VE11Q
DV-K25
#18~#21
064P
1/4"
M9112
E9312A
D9312
P9312B
VSM47
L9112
VE11Q
DV-K25
#18~#21
VC008-12/VPL
064P
1/4"
M9112
E9112
D9112
P9712D
R9112
VE51
VE49
L9112
VE11Q
UOX113GS
#11~#14
048P
3/16"
M9012
E9012
D9012
P9012D
R9012
VE51
VE49
L9012
VE11Q
UOX113GS
VC008-12/VPT
#11~#14
064P
1/4"
M9112
E9112
D9112
P9112D
R9112
VE51
VE49
L9112
VE11Q
UOX113GS
#11~#14
048P
3/16"
M9012
E9012
D9012
P9012B
R9012
VE51
VE49
L9012
VE11Q
DVX57
VC008-12/VSM
#11~#18
064P
1/4"
M9112
E9112
D9112
P9112B
R9112
VE51
VE49
L9112
VE11Q
DVX57
#11~#18
048P
3/16"
M9012
E9212A
D9212
P9212B
VSM47
L9012
VE11Q
DV-K25
VC008-12/VSQ
#18
064P
1/4"
M9112
E9312A
D9312
P9312B
VSM47
L9112
VE11Q
DV-K25
#18
jinte
x.in
Page 5 — GAGE PARTS LIST
SIRUBA
GAGE PARTS LIST
Series
VC008
Remark
*VPT:適用於VC008-12XXX
*VSF:適用於VC008-0448/0464
*VWL:適用於VC008-04XXX
applicable to VC008-12XXX
applicable to VC008-0448/0464
applicable to VC008-04XXX
Page
5/6
Date
2017/01/04
機型
MODEL
規格
SVB
CLASS
種類
NEEDLE
GAUGE
針座
HOLDER
針板
NEEDLE
PLATE
送具
FEED
DOG
押具
PRESSER
FOOT
撥線軸
RETAINER
HOLDER
勾針
LOOPER
護針
NEEDLE
GUARD
勾針座台
LOOPER
HOLDER
BLOCK
針號
NEEDLE
VC008-12/VSSM
048P
3/16"
M9012
E9212
D9212
P9212B
R9012
VE51Q
VE49
L9012
VE11Q
DVX57
#11~#18
VC008-12/VSSM
064P
1/4"
M9112
E9312
D9312
P9312B
R9112
VE51Q
VE49
L9112
VE11Q
DVX57
#11~#18
VC008-12/VUT
050P
5mm
M9612
E9612
D9612P
P9612D
VUT109P
VE51
VE49
L9612
VE11Q
VOX113GS
#11~#14
VC008-12/VSC
048P
3/16"
M9012
E9012E
D9012E
P9012D
R9012
VE51
VE49
L9012
VE11Q
VOX113GS
#11~#14
VC008-12/VSC
064P
1/4"
M9112
E9112E
D9112E
P9112D
R9112
VE51
VE49
L9112
VE11Q
VOX113GS
#11~#14
VC008-12A32
032P
(1/4-1/8-1/8
1/4)x3
M9113
E9113
D9113
P9113D
R9113
VE51T
VE49T
L9119T-E
VE11Q
VOX113GS
#11~#14
VC008-12A
64P
1/4"
M9213
E9213
D9213
P9213D
R9213
VE51
VE49
L9002
VE11Q
VOX113GSx6
#11~#14
VC008-13
032P
1/8"
M9313
E9313
D9313
P9313
R9313
VE51T
VE49T
L9113T-E
VE11Q
VOX113GSx4
#11~#14
064P
1/4"
M9213
E9213
D9213
P9213D
R9213
VE51
VE49
L9213
VE11Q
VOX113GSx4
#11~#14
VC008-1332
032P
(1/4-1/8-1/8
1/4)x3
M9113
E9113
D9113
P9113D
R9113
VE51T
VE49T
L9119T-E
VE11Q
VOX113GSx4
#11~#14
VC008-17
032P
1/8"
M9117
E9117A
D9117A
P9117
R9117
VE51T
VE49T
L9119T-E
VE11Q
VOX113GSx4
#11~#14
jinte.in
Page 6 — GAGE PARTS LIST
SIRUBA
GAGE PARTS LIST
Series
VC008
Remark
*VPT:適用於VC008-12XXX
applicable to VC008-12XXX
*VSF:適用於VC008-0448/0464
applicable to VC008-0448/0464
*VWL:適用於VC008-04XXX
applicable to VC008-04XXX
Page
6/6
Date
2017/01/04
機 型
MODEL
規格
SVB
CLASS
種類
NEEDLE
GAUGE
針 座
HOLDER
NEEDLE
針 板
NEEDLE
PLATE
送 具
FEED
DOG
押 具
PRESSER
FOOT
撥線軸
RETAINER
HOLDER
勾 針
LOOPER
護針
NEEDLE
GUARD
勾針座台
LOOPER
HOLDER
BLOCK
針 號
NEEDLE
UOX11GS*4
#11~#14
VC008-21
032P
1/8"
M9121
E9121B
D9121A
P9121
R9121
VE51T
VE49T
L9123T-E
VE11Q
UOX11GS*4
#11~#14
VC008-23
032P
1/8"
M9123
E9123A
D9123A
P9123
R9123
VE51T
VE49T
L9123T-E
VE11Q
jinte.in
Page 7 — VCO08 VA FOR 12 NEEDLE
Series
SIRUBA
PARTS LIST
VCO08
VA
FOR 12 NEEDLE
Page
1/2
Date
2018/12/25
SM4805
AVA07P(12針)
KC69F(4針用)
WM641*2
MA80
SM132*2
SM432*2
VA19P-A
MA79
VA19P
VA102
SM162*2
KA117
PM404
VA08
PP2092
SM4401*4
VA05-A
SIRUBA
VA05
PP2092
PP2092*3
VA04
KC67-A1
KC67
AVA07P-A
MA80-A
OR16B
SIRUBA
CAUTION
Moving parts may cause
Operate with safety
Turn off main switch
threading
changing
MB30
VA03
VA02
SM4401*6
VA02-A
SM414*3
VA23T
KA33*2
KC306L
SIRUBA VC008
VA51
VA09A
KA33*2
PM510*2
VA06-E
VA06
VA06-1*2
VA06-2
VA34
MR27*4
PM413
SM432
VA55D
OS3310
SM416*4
1
2
3
4
5
jintex.in
Page 8
SIRUBA
PARTS LIST
VC008
VB
Series
Parts Group
Subclass / Remark
Page
1/1
Date
2014/05/23
A
SM460*3
VB57D
*VB57
SM153*2
SM153*2
SM435*3
VB57D-A
VB59
SM534
SM630*2
VB13
WMA40*2
VB11
NM511
VB17
VB58
VB11-1
VB12
SM432*5
VB03
SM130*2
SM432*2
VB02-A
VB02
VB15
VB16
SM160*4
VB20
VB19
C
VB18
E9XXXD
*E9XXX
OR070
WM704
EM050
SM432*4
B
PM502*2
VB56Q
*VB56P
MB34
D
E
1
2
3
4
5
jintex.in
Page 9 — VC008
SIRUBA
PARTS LIST
Series
VC008
Page
1/1
Date
2012/08/23
VC
SM103
VD43-A
VC07-E
VC07
VC11
KF37*2
VC08-E
VC08
SM612
VC02-E
SM103
SM600
VC02
VC01D
VC12-E
VC13
KF37*2
VC12
SK496
WK01
VC14D
VC25-E
VC25
VC14D-C
1
2
3
jintex.in
SM103
VC09D
CL13
MH73
SM502
OP324
VC06-1
VC06
VC19
VC16D
PM301*2
VC18D
SK216
KM15
VC21-E
VC21
SK270
BR4181
SM104
VC22D
VC22D-E
VC06-E
MS12-4*2
SK497
NK55
SK213
D9XXXX
SK265
4
5
Page 10 — VC008 VD
Series
Parts Group
Subclass / Remark
Page
SIRUBA
VC008
VD
1/1
PARTS LIST
Date
2018/08/15
A+B=VD23-A
VD VE
A+B=VD31-A
VD VE
SM532
SM604
VD02-3
OR150
VD01T-A
BR8150
VD05D
VD03-2
SM603
VD04
VD03-2
VD02
VD04-E
SM606*2
VD09
PM401
VD07-3
MT32-1
VD07-E
SK490
SK818
VD48
VD43
VD45-E
SM103
VD45
BR4280
VD44
A+B=VD43-A
VD VC
A VD43-A
VD11-C
VD08
VD11
VD11-E
SM139
VD47-A
SK219
KP18-1
VD47
SM170
SM102
BR4241
VD50
SK216
SK270*2
A VD31-A
BR4241
VD26
VD27-E
VD26
VD25
VD25-E
OS2210
SM602
SM103
VD23
VD27
VD23-E
VD31
VD31-E
VD07-2
VD25
VD02-2*4
SM103
VD25-E
VD28
SK270*2
VD29
A+B=VD11-C
A VD23-A
VD VE
MS12-4*3
OP329
VD29-E
SM603
1
2
3
4
5
jintex.in
Page 11
SIRUBA
PARTS LIST
Series
VC008
Parts Group
VE
Subclass / Remark
Page
1/4
Date
2019/10/16
VD23-A
VE01-E
VE01
VE09K
KL11
OR100
VF25
VD31-A
VE02-E
KF37*2
VC11
VE02
VE04D-E
VE04D
OP416
VE10D
MS12-4*4
VE02-E
KF37*2
VE02
VC11
VE05
VE03D
KL11
VE07-E
SM511
WM510
VE07
VE08
VE51
VE45
VE11Q-E
VE13D-E
VE11Q
VE13D
EM060
VE49
(L9XXX)
SM502B*2
PM201
WA07
SK532
VE14D
VE21
EM090
SK486
WA07
VE15
VE25
SK216*4
SK872
VE17
VE16
VE28D
VE11Q-A
VE30Q*4
R9XX4
(R9X12)
VE28D
VE24
VE27
SM135
WM100
VE32
(VE32P)
SM432
VE23D
1
2
3
4
5
jintex.in

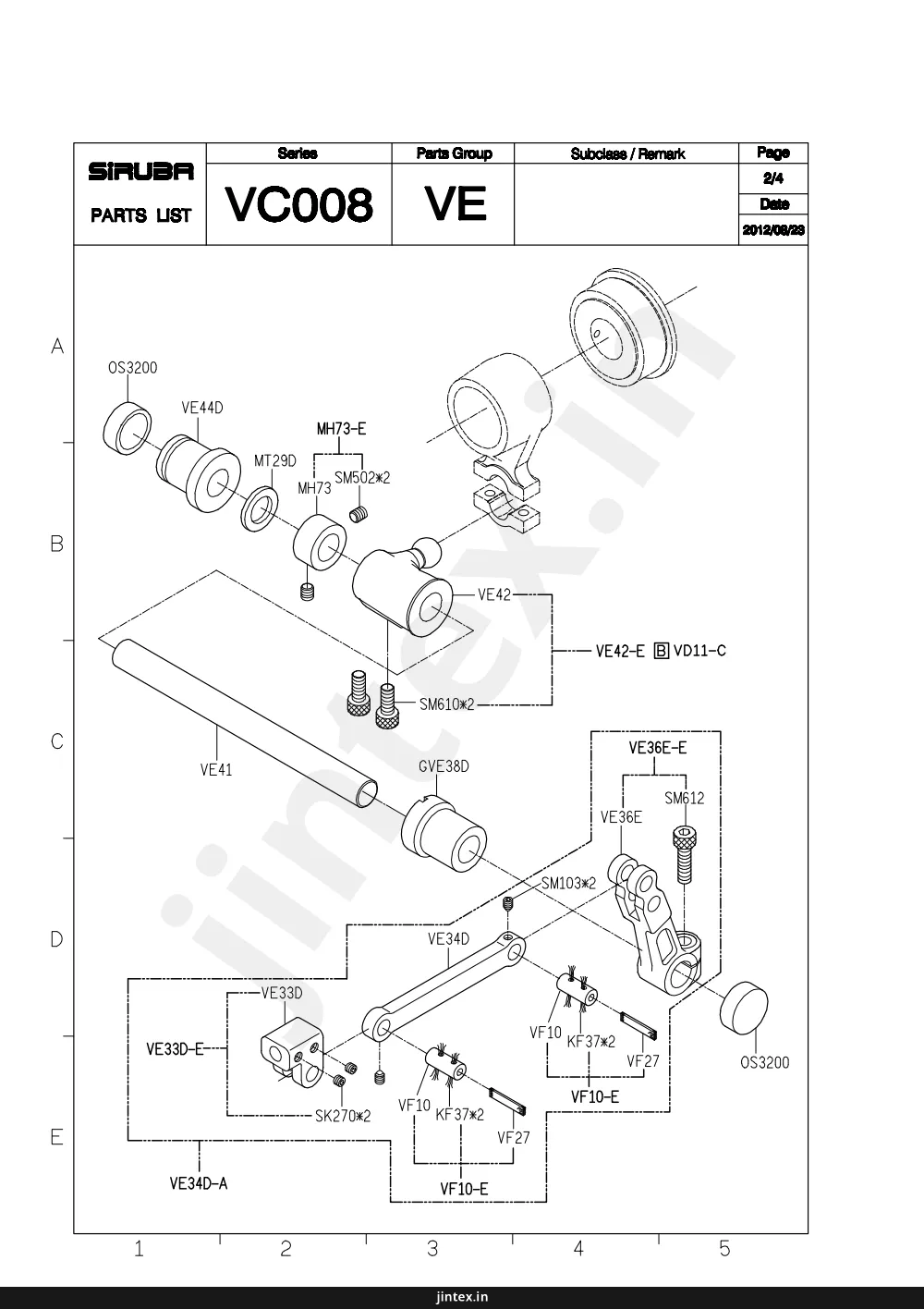

Page 12 — VC008 VE
SIRUBA
PARTS LIST
Series
VC008
Page
2/4
Date
2012/06/23
Parts Group
VE
Subclass / Remark
A
OS3200
VE44D
MH73-E
MT29D
SM502*2
MH73
B
VE42
VE42-E VD11-C
SM610*2
C
VE41
GVE38D
VE36E-E
SM612
VE36E
SM103*2
D
VE34D
VE33D
VE33D-E
VF10
KF37*2
VF27
OS3200
SK270*2
VF10
KF37*2
VF27
E
VE34D-A
VF10-E
VF10-E
1
2
3
4
5
jintex.in
Page 13 — VC008 VE
SIRUBA
PARTS LIST
VC008
VE
FOR 13~25 NEEDLE
Series
Parts Group
Subclass / Remark
Page
3/4
Date
2019/10/16
VD23-A
VE01-E
VE09K
SM627
VE01
OR100
VD31-A
VE02-E
KF37*2
VE02
VC11
VE10D
MS12-4*4
VE02-E
VE04D
VE04D-E
VE03D
KL11
SM511
VE05
VE10
VE06
WM510
VE07
VE08
VE11Q-E
VE51
VE45
VE22
SK866
VE13D-E
VE13D
VE13D
EM060 VE49
SM502B*2-PM201
WA07
SK532
VE14D
VE21
VE28D
EM090
VE11Q-A
VE15
VE14
WA07
SK486
SK872
*SK590
VE16
VE32P
R9X13
VE30Q*4
VE28D
SM135
VE49T-
SM313*2
WM303
*2
VE24
VE27
VE23D
VE216
SK532
L9119T-1
(L9123T-1)
SK872
VE51T
(L9123T-2)
L9119T-2
機種
勾針座
勾針
護針片
備註
13032P
L9113T-E
VE51T
VE49T
標準型13針
13064
L9213
VE51
VE49
標準型13針
1332-032P
L9119T-E
VE51T
VE49T
標準型13針
04A32
L9119T-E
VE51T*4
VE49T*4
4針改13針
12A32
L9119T-E
VE51T*6
VE49T*6
12針改13針
04A64
L9002*4
VE51*4
VE49*4
4針改13針
12A64
L9002*6
VE51*6
VE49*6
12針改13針
17032P
L9119T-E
VE51T
VE49T
標準型17針
21032P
L9123T-E
VE51T
VE49T
標準型21針
23032P
L9123T-E
VE51T
VE49T
標準型23針
25032P
L9125T-E
VE51T
VE49T
標準型25針
1
2
3
4
5
jintex.in
Page 14 — PARTS LIST
SIRUBA
PARTS LIST
FOR 13~25 NEEDLE
Series
VC008
VE
Page
4/4
Date
2012/08/23
OS3200
VE44D
MT29D
MH73
MH73-E
SM502*2
VE42
VE42-E
VE41
VE38D
SM610*2
VE36E-E
SM612
VE36E
SM103*2
VE34D
VF10
KF37*2
VF10-E
VF27
VE133 SK270*2
VF10
KF37*2
VF10-E
VE133-E
OS3200
1
2
3
4
5
jintex.in
Page 15
SIRUBA
PARTS LIST
VC008
VF
Series
Parts Group
Subclass / Remark
Page
1/1
Date
2019/07/04
A
SM132-
(VF19P)
VF19
OS3270
VF06
VF12T
SM184B
VF13
VF09-E
VF01-A2
SM601*2
ALT150S*2
VF01
SM600*2 OP231
BR8150
VF05D
SM502*2 VF05D
VF05D-E
VF02D-E
VF02D
VF03D
VD03-2
VF26
SM184
VF08
VF10*2
KF14-3
*2
KF37*4
OS1180
SM511-
VF17-
VF17-E
SM545 VF09
VF14
VF11D
SM412*2
VF18
(VF18P)
VF18-A
VF14-E
EM144
MH79K
SK440
M9XX4
(M9X12)
SK216*4
SK259*2
UOX113GS*4
M9XX4-1
(M9X12-1)
SK239*2
SK4306*2
VF16E
HF01-A
SK277
VF22A
SM432*2
SK490*2-
1
2
3
4
5
jintex.in
Page 16 — PARTS LIST
SIRUBA
PARTS LIST
Series
VCO08
Page
1/1
Parts Group
VJ
Subclass / Remark
# Use for VUT
Date
2017/07/19
A
VJ16
SM531*2
VJ16-A
MJ02H
SM412
MJ03
SK502
VJ07D
SM610
MJ12
MJ13
VJ21D
(#VJ28)
OS2141
VJ18
SK436*2
P9XXXX
SM332
VJ23D(B)
1
VJ20
VJ05D-2
VJ03
VJ05-1
OS1180
VJ06D-2
VJ11D
SSP06
SK518
VJ13
SM502
VC008-04XXX
VC008-04XX-XXX
SK436*2
P9004-5
P9004-4
P9004-3
P9004-3
SK492
P9X04-2
P9X04A-2
SK492
2
VJ05D-A
VJ04
PM505
SSP06
VJ06D-1
VJ09
VJ08
VJ09-A
PM404
VJ01
VJ02
VJ01-3
(VJ01-3P)
SM511
SM4105
(SM451)
VJ01-E
(VJ01P-E)
4 NEEDLE
VJ01-E
12 NEEDLE
VJ01P-E
VC008-12XXX
SM528
SM504*2
NM511*2
P9012-4
P9012-6
P9012-3
P9012-5
SK494
P9012
P9112
3
4
5
jintex.in
Page 17 — PARTS LIST
SIRUBA
Series
PARTS LIST
VC008
VK
(FOR 4 NEEDLE)
Page
1/2
Date
2018/09/28
A
VK13
SM404
PM413
VK15
SM460S
VK17
SM432*2
B
PM413
SM432
VK18
SM432
VK22
VK11
SM432*2
SM534*2
SM432
C
SM4803
VK01
VK06
VK23
VK01-A
SM432
VK02*8
VK10*8
VK05
D
VK09-R
KG06E
KG05
KG07K*2
VK09
KG68
KG04F
(上4個)
KG05
KG07K*2
KG06E
VK09
KG97
VK09-G
KG04F
(下4個)
VK04
E
1
2
3
4
5
jintex.in
9/28
Page 18
SIRUBA
Series
PARTS LIST
VC008
VK
Page
2/2
Date
2015/08/05
(FOR 12 NEEDLE)
VK13P
VK18P
SM404
PM413
SM432
VK15P
SM460
VK17P
PM413
SM432
VK11P
SM432
PM413
VK11P
MK30*48
SK250*3
VK08
VK23
SM432
VK10P
SM534
VK06P
VK01P-A
SK250
VK03 VK10P
VK05
VK05
KG07K
VK01P
VK04P
KG07K
KG06E
VK04P
KG05
KG68
MK32
KG05
KG04F
(上12個)
MK32
KG97
KG04F
(下12個)
1
2
3
4
5
jintex.in
Page 19
SIRUBA
PARTS LIST
VC008
VL
Series
Parts Group
Subclass Remark
Page
1/1
Date
2017/04/13
SM412*3
KT16E-A
OR30A
KT14-A
VL14-A
SG105
VL14
MW03-1
SM432
B
OT613-A
VL13
EM164
SG105
OP358
C
D
MW05
SG105
OT618
PM304
SK312
VL21-A
VL11
OT614
SG105
VL23
SG105
VL12
LE12F
SG105
VL22
SG105
VL21
SG105*8
SM432
OT607 SK304
OT617-A
SG105
KT24*2
OT617
SK304
OS4140
SG105
VL02
SM498
VL01
VL01-A
E
1
2
3
jintex.in
4
VL04-E
VL04
SM401
VL03
ML09
ML07
ML11
ML12
WM500-
SM414-
SM413
ML05
NA03
ML08
VL03-A
SM812*4
ML06
ML07
ML08
SM435
KT58
KT57
SM498
SM611*2
5
Page 20
SIRUBA
PARTS LIST
Series
VC008
Parts Group
VN
Subclass / Remark
Page
1/3
Date
2014/03/13
A
B
C
D
KX206*3
TXXXXXXX-A
(馬達電控箱組)
E
1
2
VN01*2
MN09
VN01-E
SM531*2
MN17*4
MN12*4
MN15*4
MN14-A
MN12-E
KX05*4
KX08*4
MN13*4
MN16*4
KX08*4
MN14*4
3
4
5
jintex.in
Page 21 — PARTS LIST
SIRUBA
PARTS LIST
Series
VC008
Parts Group
VN
Subclass / Remark
Use for 上乗式桌板
Page
2/3
Date
2014/03/13
MN12*4
SM886*4
SM886-A1
WM800*4
WM810*4
NM810*4
SK391*2
1
2
3
4
5
jintex.in
Page 22
SIRUBA
PARTS LIST
Series
VC008
Page
3/3
VN
Date
2014/03/13
Subclass / Remark
Use for 全沉式桌板
MN12*4
SM886*4
VC008-T10
VC008-T10-1
VC008-T10-2
SM886-A1
WM800*4
WM810*4
NM810*4
KX05*5
KX08*5
WM810*5
NM810*5
WM810*5
KX08*5
SM899*5
KX08*5
WM810*5
NM810*5
SM899-A
SK391*2
1
2
3
4
5
jintex.in
Page 23
Series
SIRUBA
PARTS LIST
VC008
Page
1/2
Date
2018/07/31
Parts Group
Subclass / Remark
VY
MY01
防塵罩
KT14-A
濾油器
KY02F-A
油罐
KY03
油壺
KY04
漏斗
KY14
內六角螺絲起子
KY18
鑷子
KY22
一字起子
(23針用)
KY201JK
工具袋
KY21-E
鉤子
-MY21-1
-MY21
鍊條
KZ03
乾燥劑
LY33
一字起子
針*4
jintex.in
Page 24
SIRUBA
PARTS LIST
Series
VC008
Parts Group
VY
Subclass / Remark
Page
2/2
Date
2018/07/31
VZ15
MZ27
MZ13
VY03
VY03-A
VY07
VY05D
VC008
SIRUBA MFG. CO., LTD.
1
2
3
4
5
jintex.in
Page 25 — OPTION:VZ02-A (4 NEEDLE USE)
SIRUBA
Series
PARTS LIST
VC008
VZ
Page
1/2
Date
2017/01/17
OPTION:VZ02-A
(4 NEEDLE USE)
NK52*6
SM5811*6
KW26K*2
VZ02*2
F
KW36B
D
E
SM606*4
KW32E*8
WM601*6
VZ03*6
WM610*6
KW28K
SM621*6
KW01E
SM4655
KW14E
NK29B*2
KW17B
KW03E
SM4655*2
VZ01
KW20E
NK29B*2
A
B
C
NK29B
SM4656
D
SK422
KW22
KW13E*8
KW02E
KW09B*8
KW16*8
KW12E*8
KW04K*2
WK25B
WMG10
NK30B
KW29K
SW04*8
NK29B*8
1
2
3
4
5
jintex.in
Page 26
SIRUBA
PARTS LIST
Series
VC008
Page
2/2
Date
2012/11/15
Parts Group
VZ
Subclass / Remark
OPTION:VZ09-A
(FOR 6~12 NEEDLE USE)
A
KW32E*12
NK30*2
SW04*24
KW13E*12
NK29B*24
VZ20*12
B
KW09B*12
NK30*2
KW32E*12
SW04*12
C
KW13E*12
VZ20*12
D
KW09B*12
NK30*2
SK574*3
E
1
VZ12*2
VZ10*6
VZ11*12
VZ09*2
LF57E-3*2
NK29B*12
LF57E-2*2
VZ11*12
NK29B*12
VZ09*2
2
3
jintex.in
KW32E*12
SM4655
VZ13
SM4654
NK29B*2
VZ14
SM4655
VZ13
SM4654
NK29B*2
VZ14
LF57E-3*2
VZ07*2
SK574*3
KW33E*2
4
5
Page 27
SIRUBA
Series
VC008
VC008A
VC008B
TABLE
CUT - OUT
Item Code
VC008-T1
Subclass Remark
For VC008(A、B)-04
VC008(A、B)-04P/VCE
VC008(A、B)-04P/VUT
VC008(A、B)-04P/VSF
Mounting
Semi-submerged
Date
2019/11/06
單位/UNIT:mm
長度(L):1070/長
長度(W):12.6kg±5%
所有尺寸公差/TOLERANCE:±2
BLACK GRADUATION
1020
4-R5
5
66
3-09.5
228
4-R28
183
293
4-013
300
245
218
4-R10
R15
325
250
35
159
80
017
30
45
540
512
470
420
360
155
132
75
0
jintex.in
Page 28 — TABLE CUT - OUT
SIRUBA
TABLE
CUT - OUT
Series
VC008
VC008A
VC008B
Item Code
VC008-T2
Subclass Remark
For VC008(A、B)-04
VC008(A、B)-04P/VCE
VC008(A、B)-04P/VUT
VC008(A、B)-04P/VSF
Mounting
Non-submerged
Date
2019/11/06
337
188
106
0
單位/UNIT:m
所有尺寸公差/TOLERANCE:±2
長度(L):1070/長度(L):1200/重量(W):11.4kg±5%
重量(W):12.4kg±5%
875
755
2-R20
490
228
4
B
4
B
66
3-09.5
015
30
193
30
80
159
09
B-B剖面(1/3)
R15
217
187
242
167
30
540
427
45
139
117
0
jintex.in
Page 29 — TABLE CUT - OUT
SIRUBA
TABLE
CUT - OUT
Series
VC008
VC008A
VC008B
Item Code
VC008-T3
Subclass Remark
For VC008(A, B)-12, VC008(A)-13
VC008(A, B)-06/VPL
VC008(A, B)-12/VPQ
VC008(A, B)-12/VPT
VC008(A, B)-12/VUT
Mounting
Semi-submerged
Date
2019/11/06
單位/UNIT:mm
公差/TOLERANCE:±2
長度(L):1200/
長度(W):11.6kg±5%
重量(W):12.6kg±5%
BLACK GRADUATION
L
1020
400
350
218
45
228
540
512
470
420
360
155
132
257
177
99
4-R5
5
4-R28
183
293
4-013
4-R10
R15
66
30
80
159
35
3-09.5
425
350
0
0
jintex.in
Page 30
SIRUBA
TABLE
CUT - OUT
Series
VC008
VC008A
VC008B
Item Code
VC008-T4
Subclass Remark
For VC008(A, B)-12, VC008(A)-13
VC008(A, B)-06/VPL
VC008(A)-12/VPQ
VC008(A, B)-12/VPT
VC008(A, B)-12/VUT
Mounting
Non-submerged
Date
2019/11/06
UNIT:mm
單位/UNIT:mm
所有尺寸公差/TOLERANCE:±2
長度(L):1070/長度(W):11.4kg±5%
長度(L):1200/長度(W):12.4kg±5%
345
196
114
975
855
2-R20
590
4
B
66
3-09.5
228
193
30
30
R15
30
015
3
09
342
B-B剖面(1/3)
267
45
540
435
147
0
0
jintex.in
Page 31 — VC008
SIRUBA
TABLE
CUT - OUT
Series
VC008
Item Code
VC008-T5
Subclass Remark
For VC008-04/VW
VC008-04/VWLB
VC008-04/VWLC
Mounting
Semi-submerged
Date
2012/11/08
UNIT/TOLERANCE:±2
mm
單位/UNIT
公差
長度(L):1070
長度(W):11.5kg±5%
長度(W):12.5kg±5%
L
BLACK GRADUATION
495
(415)
257
177
89
4-R10
4-R5
183
293
4-Ø13
4-R10
R15
5
5
66
3-Ø9.5
Ø30
159
80
35
325
250
Ø17
30
0
540
512
470
420
360
155
122
75
0
45
0
jintex.in
Page 32
SIRUBA
TABLE
CUT - OUT
Series
VC008
Item Code
VC008-T6
Subclass Remark
For VC008-12/VPQK
VC008-12/VWL
VC008-12/VSSM
Mounting
Semi-submerged
Date
2015/12/16
單位/UNIT:mm
單位/UNIT:mm
長度(L):1070/重量
長度(L):1200/重量
(W):11.5kg±5%
(W):12.5kg±5%
TOLERANCE:±2
490
(410)
257
177
122
89
0
L
1020
BLACK
GRADUATION
4-R10
4-R5
4-R28
183
293
4-013
4-R10
R15
5
66
3-09.5
030
80
159
35
425
350
228
400
350
218
540
512
420
360
155
122
0
45
Jinte.in
Page 33
SIRUBA
TABLE
CUT - OUT
Series
VC008
Item Code
VC008-T7
Subclass
For VC008-02/VMR
Mounting
Semi-submerged
Date
2012/11/08
L
1020
BLACK GRADUATION
495
(415)
177
69
0
680
580
4-R10
4-R5
5
183
293
4-013
4-R10
300
218
540
512
420
375
155
122
75
0
66
3-09.5
30
159
80
50
017
30
0
單位/UNIT
mm
所有尺寸公差
長度(L):1070
長度(W):11.6kg±5%
長度(W):12.6kg±5%
/TOLERANCE:±2
jintex.in
Page 34 — VC008-T8
SIRUBA
TABLE
CUT - OUT
Series
VC008
Item Code
VC008-T8
Subclass Remark
For VC008-12/VSM
VC008-12/VSQ
Mounting
Semi-submerged
Date
2012/11/08
UNIT/mm
單位/UNIT
公差/TOLERANCE:±2
長度(L):1070
長度(W):11.6kg±5%
長度(L):1200
長度(W):12.6kg±5%
L
1020
BLACK
GRADUATION
228
822
600
530
218
45
540
512
420
360
155
122
4-R5
4-R28
183
293
4-Ø13
4-R10
R15
5
66
30
159
80
35
3-Ø9.5
615
545
0
0
0
jintex.in
Page 35 — VC008 TABLE CUT - OUT
SIRUBA
TABLE
CUT - OUT
Series
VC008
Item Code
VC008-T9
Subclass Remark
For VC008-12/VSC
Mounting
Semi-submerged
Date
2015/12/16
單位/UNIT:mm
所有尺寸公差/TOLERANCE:±2
長度(L):1070/重量(W):11.4Kg±5%
長度(L):1200/重量(W):12.4Kg±5%
黑色刻度線
490
(410)
177
69
0
1020
780
4-R10
293
4-Ø13
66
3-Ø9.5
680
4-R28
Ø30
183
5
80
228
5-R5
4-R10
400
320
R15
159
218
315
395
257
155
102
420
540
512
R25
C30
R20
R17
45
jintex.in
Page 36 — TABLE CUT - OUT
SIRUBA
TABLE
CUT - OUT
Series
VC008
Item Code
VC008-T10-1
Subclass
For VC008-04, VC008-12
Mounting
Fully-submerged
Date
2015/11/19
540
422
279.5
253
147
0
165
771
750
710
690
614
594
566.5
2.5
R5
4
A
4
A
4
B
4
B
R8
R13
Ø30
463.5
422
398.5
7.5
R50
173.5
143.5
0
540
45
370
38.5
620
0
246
133
90
Ø17
300
0
47
25
7
VC008 SERIES
TABLE CUT-OUT SUBMERGED
單位/UNIT: mm
所有尺寸公差/TOLE
長度(L):1070/重量
長度(L):1200/重量
(W):10.4kg±5%
(W):11.4kg±5%
四針串全汽缸桌板
B-B 剖面(1/2)
A-A 剖面(1/2)
5-Ø27
3
5-Ø13
jintex.in
Page 37 — TABLE CUT-OUT SUBMERGED
SIRUBA
TABLE
CUT - OUT
Series
VC008
Item Code
VC008-T10-2
Subclass Remark
For VC008-04, VC008-12
Mounting
Fully-submerged
Date
2015/11/19
四針筒車全包式桌板
VC008 SERIES
TABLE CUT-OUT SUBMERGED
單位/UNIT:mm
所有尺寸公差/TOLERANCE:±2
重量(W):6.1Kg±5%
2-R25
720
599
285
5-15
154
64
50
120
0
456
433
4
A
4
A
193
4
B
4
B
66
30
R15
30
228
159
370
205
175
31.5
0
R25
414
371
304
281
R20
R20
300
63
53.5
20
45
25
20
25
B-B 剖面(1/2)
09
530
Ø15
3
R25
A-A 剖面
jintex.in
Page 38 — VC008
VC008-T21
For VC008:/P/PQS/PTV
Semi-submerged
2012/12/08
SIRUBA
TABLE
CUT - OUT
Series
VC008
Item Code
VC008-T21
Subclass Remark
For VC008:/P/PQS/PTV
Mounting
Semi-submerged
Date
2012/12/08
1200
1020
黑色刻度線
單位/UNIT:mm
所有尺寸公差/DIFFERENCE:±2
VC008-T21長度:1200/重量:22.5kg±5%
全封邊灰格紋光塑板
293
243
193
4-13
3-09.5
628
183
66
584
425
400
385
350
345
4-R10
R15
218
2-017
600
550
357
252
150
127
94
60
25
0
0
jintex.in
Page 39
SIRUBA
Series
Item Code
Subclass Remark
Mounting
Semi-submerged
TABLE
VC008
VC008-T22
For
VC008:/PQ2/PQ3/PQV
Date
CUT - OUT
2012/12/06
1200
220
910
1020
838
293
4-R28
243
172
193
4-013
678
3-09.5
628
584
183
66
159
400
4-R10/R15
420
385
345
350
218
4-017
25
0
600
550
357
252
150
127
94
60
35
0
二
二十五針(以上)筒車-ODM桌板圖
單位/UNIT:mm
所有尺寸公差/DIM. TOLERANCE:±2
VC008-T22長度:1200/重量:22.5Kg±5%
全封邊灰格紋光塑膠
jintex.in
Page 40 — VC008 VC008-T23
SIRUBA
Series
Item Code
Subclass Remark
Mounting
Semi-submerged
TABLE
VC008
VC008-T23
For
VC008:/PSM/PQSM/PQ2R
Date
CUT - OUT
2012/12/08
二.二十五針(以上)筒
單位/UNIT:mm
所有尺寸公差/DIM.TOLERANCE:±2
VC008-T23
長度/LENGTH:1200/
重量:2.5kg±5%
厚度:45mm
全封邊灰格紋光塑塑
1200
黑色刻度線
4-φ17
910
250
245.5
4-R28
224
4-φ13
628
185
515
400
315
256.5
218
3-R17.5
420
360
274
25
0
600
550
517
400
296.5
193
168
140
65
35
0
jintex.in
Page 41 — VC008 TABLE CUT - OUT
SIRUBA
TABLE
CUT - OUT
Series
VC008
Item Code
VC008-T24
For
Subclass Remark
VC008:/PSSM/PQ3M/PQTM
Mounting
Semi-submerged
Date
2012/12/08
1200
1020
838
678
628
400
315
256.5
218
220
250
4-R28
185
3-R17.5
600
550
517
400
296.5
193
168
140
65
35
0
6-017
245.5
224
4-013
65
3-08.5
515
470
420
360
274
25
0
二
二十五針(以上)筒
單位/UNIT:mm
所有尺寸公差/DIM
VC008-T24桌板
全封邊灰格紋光塑
REFERENCE:±2
重量:22.5kg±5%
jintex.in
Page 42 — TABLE CUT - OUT
SIRUBA
TABLE
CUT - OUT
Series
VC008
VC008A
VC008B
Item Code
VC008-T25
Subclass Remark
For SLA
Mounting
Non-submerged
Date
2019/11/06
UNIT:mm
單位/UNIT:mm
所有尺寸公差/TOLERANCE:±2
長度(L):1070/±5%
長度(W):11.7kg±5%
長度(L):1200/±5%
345
114
0
228
317
287
4
B
4
B
66
3-09.5
040
193
30
R15
30
159
80
09
342
267
B-B剖面(1/3)
540
435
147
45
0
jintex.in
