SunStar KM-2300 Parts Book (PDF)
Text index — SunStar KM-2300
Page 2
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01-010076-00 | Screw | ||
| 01-010078-00 | Screw | ||
| 01-001M-120C | Face Plate Gasket | ||
| SC-K174-4122 | Face Plate | ||
| 01-1100-123C | Rubber Cap for Face Plate | ||
| 01-001M-120C | Screw | ||
| 01-001M-120C | Screw | ||
| 01-001M-120C | Screw | ||
| 01-201M7-00 | Arm-up Cover | ||
| 01-2100M-120C | Cover | ||
| 01-217M40-00 | Bed Cover | ||
| 01-2100M-120C | Bed Cover | ||
| 01-2100M-120C | Bed Cover | ||
| 01-017M-120C | Weather | ||
| 01-017M-120C | Bed Cover Gasket (1) | ||
| 44002818-300H | Oil Tank Rubber Cap | ||
| 01-027A-123C | Thread Guide (1) | ||
| 01-027C-200H | Thread Guide (L) | ||
| 01-020C-200H | Thread Guide(L) | ||
| 01-2100-123C | Screw | ||
| 01-200C-123C | H. Silicon Assy | ||
| 01-2100M-120C | Arm Thread Guide Assy | ||
| 11-0170-750C | Nut | ||
| 01-020C-200H | Thread Guide(L) | ||
| 01-200C-123C | H. Silicon Assy | ||
| 01-200C-123C | H. Silicon Tank Assy | ||
| 01-200C-123C | H. Silicon | ||
| 01-200C-123C | H. Silicon Oil Window | ||
| 01-200C-123C | H. Silicon Oil Window | ||
| 01-200C-123C | H. Silicon Rail | ||
| 01-200C-123C | H. Silicon Rail | ||
| 01-2100M-120C | H. Kakter Lever (A) Assy | ||
| 01-2100M-120C | H. Kakter Lever (A) Assy | ||
| 04-1604-1230 | Lever | ||
| 01-2100M-120C | Arm Lever Part Rubber | ||
| 04-020M-120C | Needle Bar Rubber Cap | ||
| 01-040M-120C | Rubber Cap (L) | ||
| 44002114-7400 | Rubber Cap (S) | ||
| 01-027M-120C | Rubber Cap | ||
| 01-012M-120C | Rubber Cap | ||
| 01-012M-120C | Model Sticker | ||
| GP-012M12-00 | Model Sticker (M) | ||
| GP-012M21-00 | Model Sticker (L) | ||
| GP-012M20-00 | Model Sticker (K) | ||
| 01-0110-230C | Cable Holder | ||
| 01-051A-100C | Top Cover | ||
| 41-151A-120C | Bobbin Winder Assy | ||
| 4100015-300H | Bobbin Winder Base Assy | ||
| 41-020A-120H | Bobbin Winder Shaft | ||
| 01-020M-300H | S. Spoon | ||
| 01-020M-300H | S. Spoon (Sticker) | ||
| 01-030C-1230 | Old part | ||
| AS-000000-00 | Set parts | ||
| GP-000000-00 | Instrumental parts | ||
| EP-000000-00 | Electrical parts |
Page 7 — Machine Body Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-1 | AS-000350-00 | Arm·Bed | 1/1/1/1/1/1/1 |
| A-2 | CMB-LA010801 | Face Plate | 1/1/1/1/1/1/1 |
| A-3 | CMB-FC003900 | Face Plate Gasket | 1/1/1/1/1/1/1 |
| A-4 | DSC-BF008400 | Screw [3/16" n=28, L=11] | 15/15/15/15/15/15/15 |
| A-5 | DPK-CB000900 | Face Plate Rubber Cap (L) | 1/1/1/1/1/1/1 |
| A-6 | DPK-CB000200 | Rubber Cap (M) | 7/7/7/7/7/7/7 |
| A-7 | CMB-LA004300 | Thread Take-up Lever Cover | 1/1/1/1/1/1/1 |
| A-8 | DSC-BF000600 | Screw [3/16" n=28] | 1/1/1/1/1/1/1 |
| A-9 | CMB-LB005500 | Rear Cover | 1/1/1/1/1/1/1 |
| A-10 | DTC-AH000200 | Cord Holder "A" | 1/1/1/1/1/1/1 |
| A-11 | CMB-LA010701 | Motor Cover | 1/1/1/1/1/1/1 |
| A-12 | PSC-AC001200 | Screw [M5, L=15] | 5/5/5/5/5/5/5 |
| A-13 | CMB-BB005800 | Bed Supporter-A | 1/1/1/1/1/1/1 |
| A-14 | DSC-BF000700 | Screw [15/64" n=28, L=14] | 4/4/4/4/4/4/4 |
| A-15 | CMB-BB005900 | Bed Supporter-B | 1/1/1/1/1/1/1 |
| A-16 | CMB-BJ002400 | Gauge Plate | 1/1/1/1/1/1/1 |
| A-17 | DSC-BC000100 | Screw [11/64" n=40] | 3/3/3/3/3/3/3 |
| A-18 | CMB-LB004400 | Slide Plate Ass'y | 1/1/1/1/1/1/1 |
| A-19 | CGA-GA003200 | Needle Plate (A-Type, 4 row) | 1/(1)/1/(1)/1/(1)/ |
| A-20 | CGA-GA000201 | Needle Plate (A-Type, 3 row) | /1/ /1/ /1/ / |
| A-22 | CGA-GA001200 | Needle Plate (BH-Type, 4 row) | /////1 |
| A-23 | DPK-CB002300 | Rubber Cap | 1/1/1/1/1/1/1 |
| A-24 | DPK-CB000801 | Rubber Cap (S) | 4/4/4/4/4/4/4 |
| A-25 | DSC-CB000700 | Screw [M5, L=5] | 2/2/2/2/// |
| A-26 | DSC-CB000500 | Screw [15/64" n=28, L=7.5] | 1/1/// |
| A-27 | PPK-BA001500 | O-Ring (P9)[φ8.8×φ12.6, W=1.9] | 1/1/1/1/1/1/1 |
| A-28 | DPN-AD006600 | Air Discharging Bushing | 1/1/1/1/1/1/1 |
| A-29 | DPK-CZ000400 | Cap of Air Discharging Bushing | 1/1/1/1/1/1/1 |
| A-30 | CMB-HK002000 | Upper Thread Guide Pin | 1/1/1/1/1/1/1 |
| A-31 | DSN-AA000100 | Nut [11/64" n=40] | 1/1/1/1/1/1/1 |
| A-32 | ATA-PS002401 | Sub Upper Thread Tension Control Ass'y-Heavy | ///////1 |
| A-33 | DSC-CB000300 | Screw [11/64" n=40] | 1/1/1/1/1/1/1 |
| A-34 | CMB-HK000501 | Arm Thread Guide | 1/1/1/1/1/1/1 |
| A-35 | DSC-BA000100 | Screw [9/64" n=40] | 2/2/2/2/2/2/2 |
| A-36 | ATA-PS001301 | Thread Tension Control Ass'y | /1/ /1/ /1/ / |
| A-37 | ATA-PS005400 | Thread Tension Control Ass'y (Heavy) | /////1/ |
| A-38 | DSC-CA000800 | Screw [15/64" n=28] | 1/1/1/1/1/1/1 |
| A-39 | CMB-HK001901 | Face Plate Thread Guide | 1/1/1/1/1/1/1 |
| A-40 | CMB-LD012300 | Model Mark (KM-2300SG) | ///1/// |
| A-41 | CMB-LD012400 | Model Mark (KM-2300SA) | //1///// |
| A-42 | CMB-LD012500 | Model Mark (KM-2300FG) | /1////// |
| A-43 | CMB-LD012600 | Model Mark (KM-2300FA) | 1////// |
| A-44 | CMB-LD012700 | Model Mark (KM-2300MG) | ////1// |
| A-45 | CMB-LD012800 | Model Mark (KM-2300MA) | /////1/ |
| A-46 | CMB-LD012900 | Model Mark (KM-2300MB) | //////1 |
| A-48 | PPN-AD000100 | Pin | 4/4/4/4/4/4/4 |
| A-49 | CMB-LD001000 | Caution Label | 1/1/1/1/1/1/1 |
| A-50 | CMB-LD013000 | Brand Mark-A | 1/1/1/1/1/1/1 |
| A-51 | CMB-BJ006600 | Machine Number Plate | 1/1/1/1/1/1/1 |
| A-52 | CMB-BB006000 | Safety Switch Base | 1/1/1/1/1/1/1 |
| A-53 | CMB-BJ003700 | Safety Switch Plate | 1/1/1/1/1/1/1 |
| A-54 | DSP-AC004300 | Safety Switch Spring | 1/1/1/1/1/1/1 |
| A-55 | DSC-FA012200 | Safety Switch Hinge Screw | 1/1/1/1/1/1/1 |
| A-56 | 46-004A-2300 | Safety Switch | 1/1/1/1/1/1/1 |
| A-57 | PSC-AC015900 | Screw [M2, L=12] | 2/2/2/2/2/2/2 |
| A-58 | CMB-BJ003800 | Safety Switch Sub Bracket | 1/1/1/1/1/1/1 |
Page 9 — Machine Body Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-59 | DSC-BF003600 | Screw [11/64" n=40] | 2 2 2 2 2 2 2 |
| A-60 | CMB-LD010100 | Oil Caution Label | - - 1 1 1 1 1 |
| A-61 | CMB-LD010400 | Deflation Bushing Cap Caution Label | 1 1 1 1 1 1 1 |
| A-62 | ATA-PS005301 | Sub Upper Thread Tension Control Ass'y | 1 1 1 1 1 1 - |
| A-63 | 40-004A-257U | Thread Tension Control Ass'y(Light) | 1 - 1 - 1 - - |
| A-64 | DPK-CB002400 | Rubber Cap | 1 1 1 1 1 1 1 |
| A-65 | CMB-LD006000 | Warning Sticker A | 1 1 1 1 1 1 1 |
| A-66 | CMB-LD010500 | Sticker | 1 1 1 1 1 1 1 |
| A-67 | CMB-LD010200 | CE Mark | 1 1 1 1 1 1 1 |
| A-68 | PTC-AG000200 | Cable Tie | 6 6 6 6 6 6 6 |
| A-69 | PTC-AG000100 | Nylon Clip | 4 4 4 4 4 4 4 |
| A-70 | DPK-CB002400 | Rubber Cap | 1 1 1 1 1 1 1 |
Page 11 — Upper Shaft & Needle Bar Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1 | CUS-KC001300 | Upper Shaft | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| B-2 | CUS-DA001300 | Link Cam | 1 1 1 1 1 1 1 |
| B-3 | DSC-BJ003700 | Screw (A) [9/32" n=28, L=16] | 1 1 1 1 1 1 1 |
| B-4 | DSC-CA002100 | Screw (B) [9/32" n=28, L=16] | 1 1 1 1 1 1 1 |
| B-5 | DSC-CB002300 | Screw [1/4" n=40, L=6] | 8 8 8 8 8 8 8 |
| B-6 | DCL-AB001900 | Main Shaft Bearing Support | 2 2 2 2 2 2 2 |
| B-7 | PBR-AA002400 | Bearing [6204ZZC3NR] | 1 1 1 1 1 1 1 |
| B-8 | DBR-AA000100 | Bearing [6304ZZC3NR] | 1 1 1 1 1 1 1 |
| B-9 | CUS-CF000400 | Bobbin Winder Driving Wheel | 1 1 1 1 1 1 1 |
| B-10 | DSC-CB000100 | Screw [11/64" n=40, L=4] | 2 2 2 2 2 2 2 |
| B-12 | DPL-BC003300 | Timing Pulley-Upper-O Type | 1 1 1 1 1 1 1 |
| B-13 | DBT-BC000100 | Timing Belt | 1 1 1 1 1 1 1 |
| B-14 | DCR-AD000300 | Coupling | 1 1 1 1 1 1 1 |
| B-15 | PSC-CB000100 | Screw [M6, L=8] | 6 6 6 6 6 6 6 |
| B-16 | SFAM-500-002 | Motor-Hollow | 1 1 1 1 1 1 1 |
| B-17 | PSC-AC000100 | Screw [M5, L=25] | 4 4 4 4 4 4 4 |
| B-18 | DWS-CA000100 | Spring Washer | 4 4 4 4 4 4 4 |
| B-19 | DWS-AA000600 | Washer | 4 4 4 4 4 4 4 |
| B-20 | CUS-CP000401 | Pulley | 1 1 1 1 1 1 1 |
| B-21 | DSC-CB000500 | Screw [15/64" n=28, L=7.5] | 4 4 4 4 4 4 4 |
| B-22 | AS-000333-00 | Thread Take-up Lever Ass'y (Full-Dry,General) | |
| B-23 | AS-000334-00 | Thread Take-up Lever Ass'y (Micro,General) | |
| B-25 | AS-000336-00 | Thread Take-up Lever Ass'y (Heavy) | |
| B-26 | CTH-HJ001301 | Thread Take-up (General) | 1 1 1 1 1 1 |
| B-27 | CTH-HJ002400 | Thread Take-up (Heavy) | MB1 |
| B-28 | PBR-AA007700 | Bearing [605DD] | 1 1 1 1 1 1 1 |
| B-29 | PBR-AA001700 | Bearing [608DD] | 2 2 2 2 2 2 2 |
| B-30 | CTH-CB001000 | Thread Take-up Crank | 1 1 1 1 1 1 1 |
| B-31 | DPN-AD006500 | Thread Take-up Crank Shaft | |
| B-32 | DPN-AD009500 | Thread Take-up Crank Shaft(Full-Dry) | |
| B-33 | DWS-AA010100 | Bearing Support | 2 2 2 2 2 2 2 |
| B-34 | PBR-BA002600 | Bearing [KT 71010] | 2 2 2 2 2 2 2 |
| B-35 | CTH-CJ000900 | Needle Bar Crank(General) | |
| B-37 | CTH-CB001700 | Needle Bar Crank(Heavy) | |
| B-38 | CTH-CC000800 | Needle Bar Crank Rod | 1 1 1 1 1 1 1 |
| B-39 | DBS-DA012900 | Needle Bar Crank Rod Bushing | 1 1 1 1 1 1 1 |
| B-40 | DSC-BF001600 | Screw [9/64" n=40] | 1 1 1 1 1 1 1 |
| B-41 | CNB-BF001200 | Needle Bar Holder | 1 1 1 1 1 1 1 |
| B-42 | DSC-BA001000 | Screw [9/64" n=40] | 1 1 1 1 1 1 1 |
| B-43 | CNB-CD000100 | Slide Block | 1 1 1 1 1 1 1 |
| B-44 | DCL-BB001700 | Thrust Collar[D=φ7, W=8] | 1 1 1 1 1 1 1 |
| B-46 | DSC-BA000100 | Screw [9/64" n=40] | 1 1 1 1 |
| B-47 | DBS-DA012600 | Needle Bar Bushing, Upper | 1 1 1 1 1 1 1 |
| B-48 | DBS-DA013000 | Needle Bar Bushing, Lower(Micro Lubrication) | |
| B-49 | DBS-DA027900 | Needle Bar Bushing, Lower(Full-Dry) | 1 1 1 1 |
| B-50 | DBS-DA014900 | Needle Bar Bushing, Lower(Heavy) | MB1 |
| B-51 | CNB-BH000100 | Thread Guide for Needle Bar Bushing | 1 1 1 1 1 1 1 |
| B-52 | CNB-KA001301 | Needle Bar(Micro Lubrication) | MG1 |
| B-53 | CNB-KA001400 | Needle Bar (Heavy) | MB1 |
| B-54 | CMB-KA003600 | Needle Bar (Full-Dry) | 1 1 1 1 |
| B-55 | CNB-HK000400 | Needle Bar Thread Guide | 1 1 1 1 1 1 1 |
| B-56 | DSC-BF000100 | Screw [1/8" n=44] | 1 1 1 1 1 1 1 |
| B-57 | - | Needle (DB×1SF(KN)#11) | FA1 SA1 MA1 |
| B-58 | - | Needle (DB×1 #14) | FG1 SG1 MG1 |
| B-59 | - | Needle (DB×1 #21) | MB1 |
| B-60 | CUS-BJ000900 | Sync. Sensor Slit | 1 1 1 1 1 1 1 |
Page 13 — Upper Shaft & Needle Bar Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-61 | DSC-BA002400 | Screw [M6] | 2 2 2 2 2 2 2 |
| B-62 | CUS-BA000200 | Sync. Sensor Base | 1 1 1 1 1 1 1 |
| B-63 | 46-102A-2300 | Sync. Sensor | 1 1 1 1 1 1 1 |
| B-64 | CUS-BB001200 | Sensor Bracket | 1 1 1 1 1 1 1 |
| B-65 | PSC-BA000100 | Screw [M3, L=10] | 1 1 1 1 1 1 1 |
| B-66 | DSC-BF008400 | Screw [3/16" n=28] | 2 2 2 2 2 2 2 |
| B-67 | CUS-FZ000100 | Cable Guide Rubber | 1 1 1 1 1 1 1 |
| B-68 | AS-001577-00 | Thread Take-up Lever Ass'y (Full-Dry, Light) | 1 1 (FA, SA) |
| B-69 | AS-001578-00 | Thread Take-up Lever Ass'y (Micro, Light) | 1 (MA) |
Page 15 — Thread Winder Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-1 | 41-101A-2300 | Bobbin Winder Ass'y | 1 1 1 1 1 1 1 |
| C-2 | ABW-PS000201 | Bobbin Winder Base Ass'y | 1 1 1 1 1 1 1 |
| C-3 | CBW-KC000300 | Bobbin Winder Driving Shaft | 1 1 1 1 1 1 1 |
| C-4 | CBW-BA000500 | Bobbin Winder Action Body | 1 1 1 1 1 1 1 |
| C-5 | CBW-CP000200 | Bobbin Winder Action Pulley | 1 1 1 1 1 1 1 |
| C-6 | DSC-CB000300 | Screw [11/64" n=40] | 2 2 2 2 2 2 2 |
| C-7 | CBW-FA000300 | Bobbin Winder Action Ring | 1 1 1 1 1 1 1 |
| C-8 | CBW-FA000200 | Bobbin Winder Shaft Rubber Ring | 1 1 1 1 1 1 1 |
| C-9 | CBW-BN000200 | Bobbin Stand | 1 1 1 1 1 1 1 |
| C-10 | CBW-BH000200 | Bobbin Stopper | 1 1 1 1 1 1 1 |
| C-11 | CBW-BJ000400 | Bobbin Winder Adjusting Plate | 1 1 1 1 1 1 1 |
| C-12 | DSC-BF001800 | Screw [1/8" n=40] | 1 1 1 1 1 1 1 |
| C-13 | PWS-AA002100 | Washer | 1 1 1 1 1 1 1 |
| C-14 | CBW-CM000200 | Bobbin Winder Lever | 1 1 1 1 1 1 1 |
| C-15 | PSC-CB000200 | Screw [M4×P0.7] | 1 1 1 1 1 1 1 |
| C-16 | CBW-KC000100 | Bobbin Winder Lever Shaft | 1 1 1 1 1 1 1 |
| C-17 | PSR-AC000200 | E-ring [φ5] | 2 2 2 2 2 2 2 |
| C-18 | DWS-AA000400 | Washer | 2 2 2 2 2 2 2 |
| C-19 | CBW-DZ000100 | Thread Winder Adjusting Cam | 1 1 1 1 1 1 1 |
| C-20 | PSC-AC001800 | Screw [M4×P0.7] | 1 1 1 1 1 1 1 |
| C-21 | DSP-AB000100 | Thread Winder Spring | 1 1 1 1 1 1 1 |
| C-22 | CBW-BJ000100 | Thread Winder Action Plate | 1 1 1 1 1 1 1 |
| C-23 | AMB-PS002300 | Thread Tension Control Ass'y | 1 1 1 1 1 1 1 |
| C-24 | DSN-CD000100 | Thread Tension Control Cap Nut | 1 1 1 1 1 1 1 |
| C-25 | CTA-BJ000100 | Thread Tension Control Spring Stopper | 1 1 1 1 1 1 1 |
| C-26 | DSP-BA001900 | Thread Tension Control Spring | 1 1 1 1 1 1 1 |
| C-27 | CTA-BD000200 | Spring Cover | 1 1 1 1 1 1 1 |
| C-28 | CTA-HL000101 | Thread Tension Disk | 1 1 1 1 1 1 1 |
| C-29 | CMB-HM000100 | Thread Tension Adjusting Shaft | 1 1 1 1 1 1 1 |
| C-30 | CMB-HK001000 | Thread Guide Plate | 1 1 1 1 1 1 1 |
| C-31 | DSN-AA000700 | Nut | 1 1 1 1 1 1 1 |
| C-32 | CMB-NB000100 | Bobbin Winder Mes | 1 1 1 1 1 1 1 |
| C-33 | DSC-BC000200 | Screw [9/64" n=40] | 2 2 2 2 2 2 2 |
| C-34 | DSC-BF001700 | Screw [11/64" n=40] | 3 3 3 3 3 3 3 |
| C-35 | DBS-DB003500 | Bobbin Winder Action Body Bushing | 1 1 1 1 1 1 1 |
| C-36 | DWS-AA011200 | Washer for Bobbin Winder Driving Shaft | 1 1 1 1 1 1 1 |
Page 17 — Feed Adjusting Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-1 | CFA-CA000700 | Feed Link | 1 1 1 1 1 1 1 |
| D-2 | DPN-BC002500 | Feed Link Connecting Pin-A | 1 1 1 1 1 1 1 |
| D-3 | DPN-BC002600 | Feed Link Connecting Pin-B | 1 1 1 1 1 1 1 |
| D-4 | DSC-CB000500 | Screw [15/64" n=28, L=7.5] | 3 3 3 3 3 3 3 |
| D-5 | DPN-AD006700 | Feed Link Pin | 2 2 2 2 2 2 2 |
| D-6 | CFA-CA000801 | Feed Link Connecting Rod | 1 1 1 1 1 1 1 |
| D-7 | CFA-CB000800 | Feed Adjusting Shaft Crank(Front) | 1 1 1 1 1 1 1 |
| D-8 | DSC-BA002500 | Screw [11/64" n=40] | 4 4 4 4 4 4 4 |
| D-9 | DSC-CB002300 | Screw [1/4" n=40, L=6] | 4 4 4 4 4 4 4 |
| D-10 | CFA-KC000401 | Feed Adjusting Shaft | 1 1 1 1 1 1 1 |
| D-11 | DBS-DA013100 | Feed Adjusting Shaft Bushing(Front) | 1 1 1 1 1 1 1 |
| D-12 | DBS-DA013200 | Feed Adjusting Shaft Bushing(Rear) | 1 1 1 1 1 1 1 |
| D-13 | DPK-AA000100 | Feed Adjusting Shaft Oil Seal [ϕ10×ϕ19×7] | 1 1 1 1 1 1 1 |
| D-14 | DCL-AA005300 | Feed Adjusting Shaft Collar | 1 1 1 1 1 1 1 |
| D-15 | CFA-CB000700 | Feed Adjusting Shaft Crank(Rear) | 1 1 1 1 1 1 1 |
| D-16 | DSC-BF000700 | Screw [3/16" n=28, L=15.5] | 1 1 1 1 1 1 1 |
| D-17 | DSC-GC000400 | Feed Adjusting Shaft Crank(Rear) Hinge Screw | 1 1 1 1 1 1 1 |
| D-18 | DSN-AA000500 | Nut [1/4" n=40] | 1 1 1 1 1 1 1 |
| D-19 | CFA-CC000600 | Feed Regulator Rod | 1 1 1 1 1 1 1 |
| D-20 | CFA-DF000200 | Feed Regulator | 1 1 1 1 1 1 1 |
| D-21 | DBS-DA013300 | Feed Regulator Bushing | 1 1 1 1 1 1 1 |
| D-22 | DCL-AA002300 | Feed Regulator Collar | 1 1 1 1 1 1 1 |
| D-23 | CFA-CH000100 | Feed Regulator Eccentric Pin | 1 1 1 1 1 1 1 |
| D-24 | DSC-HD001000 | Feed Adjusting Spring Holder Screw | 1 1 1 1 1 1 1 |
| D-25 | DSN-AA000900 | Nut [11/64" n=40] | 1 1 1 1 1 1 1 |
| D-26 | DSP-AB002900 | Feed Adjusting Spring | 1 1 1 1 1 1 1 |
| D-27 | CLB-JG000900 | Hose [ϕ3×ϕ5, L=80] | 1 1 1 1 1 1 1 |
| D-28 | CFA-CM000600 | Reverse Feed Control Lever | 1 1 1 1 1 1 1 |
| D-29 | DSC-BA001400 | Screw [3/16" n=32] | 1 1 1 1 1 1 1 |
| D-30 | CFA-KC000500 | Reverse Feed Control Lever Shaft | 1 1 1 1 1 1 1 |
| D-31 | PBS-BA000600 | DU Bushing [ϕ12×ϕ14×20] | 1 1 1 1 1 1 1 |
| D-32 | DBS-DA013400 | Reverse Feed Lever Shaft Bushing(Rear) | 1 1 1 1 1 1 1 |
| D-33 | CFA-CB000600 | Reverse Feed Lever Crank | 1 1 1 1 1 1 1 |
| D-34 | DPN-AA007800 | Reverse Feed Lever Crank Pin | 1 1 1 1 1 1 1 |
| D-35 | DSP-AB003000 | Reverse Feed Lever Return Spring | 1 1 1 1 1 1 1 |
| D-36 | CFA-FZ000100 | Reverse Feed Lever Stopper Rubber | 1 1 1 1 1 1 1 |
| D-37 | DSC-FA006200 | Stopper Stud Screw | 1 1 1 1 1 1 1 |
| D-38 | CFA-KJ000201 | Feed Regulator Dial Shaft | 1 1 1 1 1 1 1 |
| D-39 | PPK-BA001600 | O-Ring | 1 1 1 1 1 1 1 |
| D-40 | CFA-CQ003101 | Dial (4mm) | 1 1 1 |
| D-41 | CFA-CQ000301 | Dial (5mm) | 1 1 1 1 1 |
| D-43 | DSC-BF001900 | Screw [3/16" n=28] | 1 1 1 1 1 1 1 |
| D-44 | DPN-AA007700 | Dial Pin | 1 1 1 1 1 1 1 |
| D-45 | DSP-AA002800 | Spring for Dial Pin | 1 1 1 1 1 1 1 |
| D-47 | DSC-BJ003800 | Screw [15/64" n=28, L=10.5] | 1 1 1 1 1 1 1 |
| D-48 | DSC-BF000700 | Screw [15/64" n=28, L=14] | 2 2 2 2 2 2 2 |
| D-50 | DSC-BJ000200 | Screw [11/64" n=40] | 2 2 2 2 2 2 2 |
| D-51 | CFA-BJ001000 | Dial Shaft Locker Ass'y | 1 1 1 1 1 1 1 |
| D-52 | DSP-AA005200 | Spring | 1 1 1 1 1 1 1 |
| D-53 | AS-000240-00 | Reverse Feed Lever Crank Ass'y | 1 1 1 1 1 1 1 |
| D-54 | DPN-AD009700 | Feed Link Pin B | 1 1 1 1 1 1 1 |
Page 19 — Lower Shaft Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E-1 | CLS-KC001900 | Lower Shaft A | 1/1/1/1/1/1/1 |
| E-2 | DSC-BF011800 | Oil Seal Screw [3/16" n=32, L=14] | / /1/1/1/1/1 |
| E-3 | CLB-JL002400 | Oil Wick | / /1/1/1/1/1 |
| E-4 | DGR-AB000900 | Lower Shaft Gear A | 1/1/1/1/1/1/1 |
| E-5 | DSC-CB002300 | Screw [1/4" n=40] | 4/4/4/4/4/4/4 |
| E-6 | DBS-DA013700 | Lower Shaft Bushing(Rear) A | 1/1/1/1/1/1/1 |
| E-7 | PPK-AA000200 | Oil Seal [φ10×φ20×7] | 1/1/1/1/1/1/1 |
| E-8 | DBR-AA000200 | Bearing [6902ZZ,φ15×φ28×7] | 1/1/1/1/1/1/1 |
| E-9 | DCL-AB002000 | Lower Shaft Bearing Bushing(Rear) A | 2/2/2/2/2/2/2 |
| E-10 | DSC-BJ000200 | Screw [11/64" n=40] | 2/2/2/2/2/2/2 |
| E-11 | DBS-DA013601 | Lower Shaft Bushing(Front) A | / /1/1/1/1/1 |
| E-12 | DPK-AA000300 | Oil Seal [φ10×φ22×7] | / /1/1/1/1/1 |
| E-13 | DPK-AA000200 | Oil Seal [φ10×φ18×7] | / /1/1/1/1/1 |
| E-14 | DBS-DB008400 | Lower Shaft Bushing(Front)(Full-Dry) A | 1/1/ / / / / |
| E-15 | PBR-AA009600 | Bearing [6802ZZ,φ15×φ24×5] | 2/2/ / / / / |
| E-16 | DCL-AB003300 | Lower Shaft Bearing Bushing(Front)(Full-Dry)A | 1/1/ / / / / |
| E-17 | CHK-HA003200 | Hook Ass'y (Full-Dry) | 1/1/ / / / / |
| E-18 | CHK-HA000700 | Hook Ass'y (Micro Lubrication) | / /1/1/1/1/ |
| E-19 | CHK-HA000900 | Hook Ass'y (Heavy) | / / / / / /1 |
| E-20 | CHK-HB000600 | Bobbin | 1/1/1/1/1/1/1 |
| E-21 | CHK-HC000700 | Bobbin Case Ass'y | 1/1/1/1/1/1/1 |
| E-22 | CHK-HH000700 | Inner Bobbin Stopper | 1/1/1/1/1/1/1 |
| E-23 | DSC-BF001000 | Screw [11/64" n=40] | 1/1/1/1/1/1/1 |
| E-24 | DWS-CA000100 | Washer for Inner Bobbin Stopper | 1/1/1/1/1/1/1 |
| E-25 | DSC-CA000100 | Screw [15/64" n=28] | 1/1/1/1/1/1/1 |
| E-26 | DWS-AA012200 | Washer | 1/1/1/1/1/1/1 |
| E-27 | PPN-AA000600 | Pin | / /1/1/1/1/1 |
Page 21 — Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-1 | CLF-DC000500 | Feed Cam | 1 1 1 1 1 1 1 |
| F-2 | DSC-CB002300 | Screw [1/4" n=40, L=6] | 14 14 14 14 14 14 14 |
| F-3 | PBR-BA001000 | Needle Bearing [KT252910] | 1 1 1 1 1 1 1 |
| F-4 | CLF-CC000600 | Feed Cam Connecthing Rod | 1 1 1 1 1 1 1 |
| F-5 | CLF-BJ001100 | Feed Cam Plate | 1 1 1 1 1 1 1 |
| F-6 | DSC-BJ001400 | Screw [9/64" n=40] | 4 4 4 4 4 4 4 |
| F-7 | CLF-CA000600 | Connecting Link, A | 2 2 2 2 2 2 2 |
| F-8 | CLF-CA000700 | Connecting Link, B | 2 2 2 2 2 2 2 |
| F-9 | DPN-AA007900 | Feed Cam Connecting Rod Pin | 1 1 1 1 1 1 1 |
| F-10 | CLF-CB001100 | Feed Rocker Crank | 1 1 1 1 1 1 1 |
| F-12 | DPN-AA008000 | Feed Rocker Crank Pin | 1 1 1 1 1 1 1 |
| F-13 | DSC-BF012200 | Screw [3/16" n=28, L=15.5] | 3 3 3 3 3 3 3 |
| F-14 | CLF-KC001500 | Feed Rocker Shaft | 1 1 |
| F-15 | CLF-KD000200 | Feed Rocker Shaft(Micro Lubriction) | 1 1 1 1 |
| F-16 | DBS-DA013800 | Feed Rocker Shaft Bushing(Rear) | 1 1 1 1 1 1 1 |
| F-17 | DBS-DA013900 | Feed Rocker Shaft Bushing(Front) | 1 1 1 1 1 1 1 |
| F-18 | DPK-AZ000500 | Oil Seal [φ14.72×φ22×7] | 2 2 2 2 2 2 2 |
| F-19 | DCL-AA004900 | Feed Rocker Shaft Collar | 2 2 2 2 2 2 2 |
| F-20 | CLF-CB000900 | Feed Bar Crank | 1 1 1 1 1 1 1 |
| F-21 | CLF-KH000500 | Feed Bar Crank Eccentric Shaft | 1 1 |
| F-23 | DSC-BF003600 | Screw [11/64" n=40] | 2 2 2 2 2 2 2 |
| F-24 | DSC-CB002400 | Screw [1/8" n=44, L=3] | 2 2 |
| F-25 | CLF-BC000100 | Feed Bar | 1 1 1 1 1 1 1 |
| F-26 | DWS-AA011400 | Washer [φ7.1×φ11×1] | 1 1 1 1 1 1 1 |
| F-27 | CGA-GB017600 | Feed Dog (Light, 4 row) | (1) (1) (1) |
| F-28 | CGA-GB000501 | Feed Dog (General, 3 row) | 1 1 1 |
| F-29 | CFA-GB017700 | Feed Dog (General, 4 row) | 1 (1) 1 (1) 1 (1) |
| F-31 | CGA-GB001200 | Feed Dog (Heavy, 4 row) | 1 |
| F-32 | DSC-BF001800 | Screw [1/8" n=44, L=6] | 2 2 2 2 2 2 2 |
| F-33 | CLF-CB001000 | Feed Lifiting Crank | 1 1 1 1 1 1 1 |
| F-34 | CLF-KH000600 | Feed Lifiting Crank Eccentric Shaft | 1 1 |
| F-35 | CLF-KH000200 | Feed Lifiting Crank Eccentric Shaft A | 1 1 1 1 1 |
| F-36 | CLF-DC000700 | Feed Lifting Cam | 1 1 1 1 1 1 1 |
| F-38 | DWS-AA011300 | Feed Lifting Cam Thrust Guide | 2 2 2 2 2 2 2 |
| F-39 | PBR-AA007500 | Needle Bearing [KT 202417] | 1 1 1 1 1 1 1 |
| F-40 | CLF-LA000100 | Feed Lifting Cam Plate | 1 1 1 1 1 1 1 |
| F-41 | CLF-KC000300 | Feed Lifting Shaft | 1 1 1 1 1 1 1 |
| F-42 | DBS-DB003600 | Feed Lifting Bearing Bushing(Front) | 1 1 1 1 1 1 1 |
| F-43 | PBR-AA002200 | Bearing [6003C3NR] | 1 1 1 1 1 1 1 |
| F-44 | PPK-AZ000200 | Oil Seal | 1 1 1 1 1 1 1 |
| F-45 | DGR-AB001000 | Feed Lifting Gear Ass'y | 1 1 1 1 1 1 1 |
| F-46 | PPK-AZ000300 | Oil Seal [φ12×φ42×5] | 1 1 1 1 1 1 1 |
| F-47 | PBR-AA007400 | Bearing [6004C4NR] | 1 1 1 1 1 1 1 |
| F-49 | DPL-BC003200 | Timing Pulley-Lower-O Type | 1 1 1 1 1 1 1 |
| F-50 | DBS-DB003701 | Feed Lifting Bushing(M) | 1 1 1 1 1 1 1 |

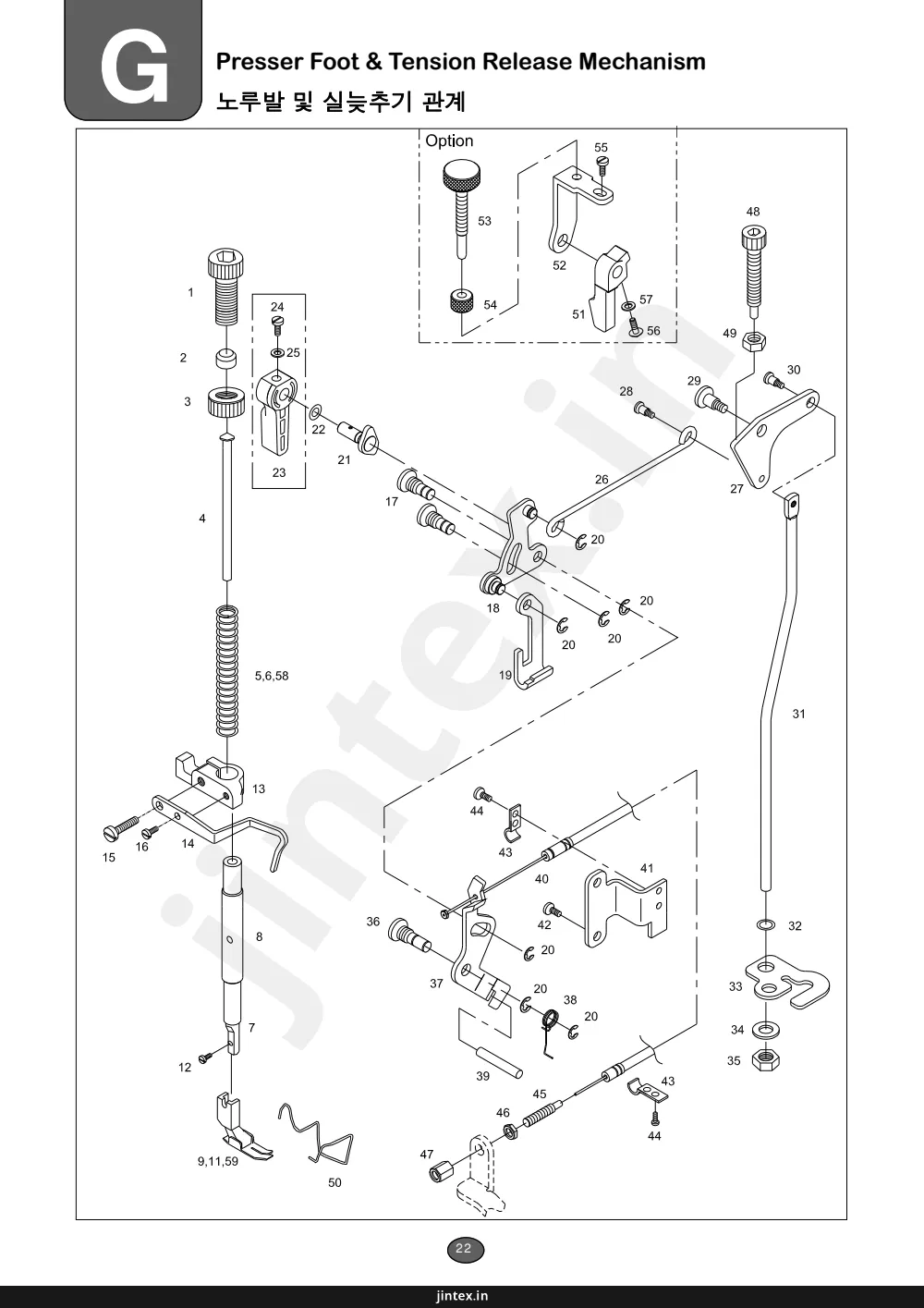

Page 23 — Presser Foot & Tension Release Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G-1 | DSC-HA000100 | Presser Adjusting Screw [9/16" n=20] | 1 1 1 1 1 1 1 |
| G-2 | DCL-BA000900 | Spacer for Presser Adjusting Screw | 1 1 1 1 1 1 1 |
| G-3 | DSN-CC000100 | Nut [9/16" n=20] | 1 1 1 1 1 1 1 |
| G-4 | CPB-KC000300 | Presser Guide Bar | 1 1 1 1 1 1 1 |
| G-5 | DSP-AA001700 | Presser Spring | |
| G-6 | DSP-AA006200 | Presser Spring(Heavy) | |
| G-7 | CPB-KB000700 | Presser Bar | 1 |
| G-8 | DBS-DA014000 | Presser Bar Bushing | 1 |
| G-9 | CGA-GC000701 | Presser Foot Ass'y (General) | 1 |
| G-11 | CGA-GC001900 | Presser Foot Ass'y (Heavy-4row) | 1 |
| G-12 | DSC-BA000200 | Screw [9/64" n=40, L=10.5] | 1 |
| G-13 | CPB-BF000400 | Presser Bar Guide Bracket | 1 |
| G-14 | CPB-BJ000700 | Thread Guide Plate | 1 |
| G-16 | DSC-BF010100 | Screw B [9/64" n=40, L=9] | 1 |
| G-17 | DSC-FH000300 | Hinge Screw [5/16" n=24] | 2 |
| G-18 | APM-PS000700 | Presser Bar Lifter Link Ass'y | 1 |
| G-19 | CPM-CM000900 | Presser Bar Lifter Lever | 1 |
| G-20 | PSR-AC000200 | E-Ring [05] | 7 |
| G-21 | CPB-DF000300 | Presser Lifter Cam Shaft | 1 |
| G-22 | PPK-BA000400 | O-Ring | 1 |
| G-23 | CPB-CM000300 | Presser Lifter | 1 |
| G-24 | DSC-BJ000300 | Screw [9/64" n=40] | 1 |
| G-25 | DWS-AA003800 | Washer | 1 |
| G-26 | CPM-BH000600 | Presser Lifter Connect Bar | 1 |
| G-28 | DSC-FC000100 | Hinge Screw | 1 |
| G-29 | DSC-FA006000 | Hinge Screw | 1 |
| G-31 | CPM-CR000400 | Knee Lifting Bar | 1 |
| G-32 | PPK-BA000300 | O-Ring (P5) | 1 |
| G-33 | CPM-BJ001000 | Knee Lifting Bar Guide | 1 |
| G-34 | PWS-CA000400 | Spring Washer | 1 |
| G-35 | DSN-AA002300 | Nut [5/16" n=28] | 1 |
| G-36 | DSC-FH000401 | Hinge Screw [5/16" n=24] | 1 |
| G-37 | CTR-CM000800 | Thread Tension Release Plate | 1 |
| G-38 | DSP-AC002101 | Thread Tension Release Spring | 1 |
| G-39 | DPN-AA008300 | Thread Tension Release Supporting Pin | 1 |
| G-40 | ATR-PS000100 | Thread Tension Release Wire | 1 |
| G-41 | CTR-BB000700 | Wire Holder Bracket | 1 |
| G-42 | DSC-BF008400 | Screw [3/16" n=28, L=11] | 2 |
| G-43 | DTC-AH000800 | Wire Holder | 2 |
| G-44 | DSC-BF000600 | Screw [3/16" n=28] | 4 |
| G-45 | GP-027094-00 | Cable Connecting Bolt | 1 |
| G-46 | DSN-AA002400 | Cable Connecting Nut A [3/16" n=32] | 1 |
| G-47 | PSN-AA001700 | Cable Connecting Nut B [3/16" n=32] | 1 |
| G-48 | DSC-AC000400 | Bolt [M6] | 1 |
| G-50 | CPB-BH000600 | Finger Guard | 1 |
| G-51 | CPB-CM001000 | Presser Foot Lifter-A | (1) |
| G-52 | CPM-BB001900 | Presser Foot Minute Lifting Base | (1) |
| G-53 | DSC-HZ001600 | Presser Foot Minute Lifting Control Screw | (1) |
| G-54 | DSN-CZ001100 | Presser Foot Minute Lifting Control Nut | (1) |
Page 25 — Presser Foot & Tension Release Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G-58 | DSP-AA011600 | Presser Spring(Light) | 1 |
| G-59 | AGA-PS005200 | Presser Foot Ass'y (Light) | 1 |
Page 27 — LubricationMechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H-1 | CLB-LA000400 | Gear Box Cover | 1 1 1 1 1 1 1 |
| H-2 | CLB-JJ000801 | Oil Window of Gear Box Cover | 1 1 1 1 1 1 1 |
| H-3 | CLB-FC000100 | Gear Box Cover Gasket | 1 1 1 1 1 1 1 |
| H-4 | DSC-BF001100 | Screw [3/16" n=28, L=10] | 10 10 13 13 13 13 13 |
| H-5 | CLB-JJ000700 | Oil Window (Micro Lubriction) | 1 1 1 1 1 1 |
| H-6 | CLB-JJ001300 | Oil Window (Full-Dry) | 1 1 |
| H-7 | CLB-JN000500 | Floater Ass'y | 1 1 1 1 1 |
| H-8 | CLB-LC000100 | Floater Case | 1 1 1 1 1 |
| H-9 | PPK-BA001700 | O-Ring [P20] | 1 1 1 1 1 |
| H-10 | CLB-BH001300 | Hose Holder | 5 5 5 5 5 |
| H-11 | CLB-BF000200 | Hose Holder(Small) | 3 3 4 4 4 |
| H-13 | CLB-JG000900 | Hose [φ3×φ5, L=700] | 1 1 1 |
| H-14 | CLB-JD000900 | Oil Wick | 1 1 1 |
| H-15 | CLB-JG001000 | Hose B [φ8×φ10, L=240] | 1 1 1 1 1 |
| H-16 | ALB-PS001300 | Oil Tank Ass'y | 1 1 1 1 1 |
| H-17 | DSC-BF012300 | Screw of Oil Tank Ass'y [5/16" n=24] | 1 1 1 1 1 |
| H-18 | DPK-BA000500 | O-Ring [P11] | 1 1 1 1 1 |
| H-19 | DWS-AA001600 | Washer | 12 12 12 12 12 |
| H-20 | CLB-JG001000 | Hose [φ8×φ10, L=280] | 1 1 1 1 1 |
| H-21 | CLB-JN000601 | Oil Inlet | 1 1 1 1 1 |
| H-22 | CLB-JG000900 | Hose C [φ3×φ5, L=250] | 1 1 1 1 1 |
| H-23 | CLB-JP001700 | Oil Filter Connector | 2 2 2 2 2 |
| H-24 | CLB-JM000700 | Oil Filter Ass'y | 1 1 1 1 1 |
| H-25 | CLB-JG001000 | Hose [φ8×φ10, L=50] | 1 1 1 1 1 |
| H-26 | CLB-JP001200 | Nipple | 2 2 2 2 2 |
| H-29 | CLB-BG003500 | Oil Wick Support Plate | 1 1 1 |
| H-30 | CLB-JD000300 | Oil Wick [L=150] | 1 1 1 |
| H-31 | DSC-BF006500 | Screw [9/64" n=40,L=6] | 1 1 1 |
| H-32 | CLB-BH001400 | Holder of Oil Return Felt | 1 1 1 |
| H-33 | CLB-JL005900 | Face Plate Felt | 1 1 1 |
| H-34 | DSC-HZ000900 | Oil Adjusting Screw | 1 1 1 1 1 |
| H-35 | PPK-BA001100 | O-Ring [P3] | 1 1 1 1 1 |
| H-36 | DSC-HZ001000 | Plunger Screw | 1 1 1 1 1 |
| H-37 | PPK-BA000500 | O-Ring [P7] | 1 1 1 1 1 |
| H-38 | DSP-AA002700 | Piston Spring | 1 1 1 1 1 |
| H-39 | CLB-CN000200 | Piston | 1 1 1 1 1 |
| H-40 | CLB-JG000300 | Hose [φ3×φ5, L=100] | 1 1 1 1 1 |
| H-41 | CLB-JD000300 | Oil Wick | 1 1 1 1 1 |
| H-42 | DPK-CB000400 | Rubber Cap | 2 2 2 2 2 |
| H-43 | CLB-JD000900 | Oil Wick | 1 1 1 1 1 |
| H-44 | CLB-JD000300 | Oil Wick | 1 1 1 1 1 |
| H-45 | DTC-AH000800 | Hose Holder | 1 1 1 1 1 |
| H-46 | DSC-BF000600 | Screw [3/16" n=28] | 1 1 1 1 1 |
| H-47 | CLB-JG000300 | Hose [φ3×φ5, L=250] | 1 1 1 1 1 |
| H-52 | CLB-JP001600 | Oil Tank(L) Nipple(S) | 1 1 1 1 1 |
| H-53 | CLB-JP001400 | Oil Tank(L) Nipple(l) | 3 3 3 3 3 |
| H-54 | CLB-BJ001301 | Gear Box Window Cover | 1 1 1 1 1 1 1 |
| H-56 | CLB-FA000300 | O-Ring of Gear Box Cover Oil Window | 1 1 1 1 1 1 1 |
| H-57 | CLB-JP001500 | Oil Tank Nipple(M) | 1 1 1 1 1 |
| H-58 | CLB-JP001301 | Oil Absord Nipple | 1 1 1 1 1 |
Page 29 — Thread Trimmer Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| I-1 | CTT-NB000900 | Fixed Mes | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| I-2 | DSC-BB002000 | Screw [9/64" n=40] | 1 each |
| I-3 | DSC-BF006200 | Screw [1/8" n=40] | 1 each |
| I-4 | DSN-AA001700 | Nut [1/8" n=40] | 1 each |
| I-5 | CTT-BJ001100 | Thread Retaining Plate | 1 each |
| I-6 | DSC-BJ000200 | Screw [11/64" n=40] | 1 each |
| I-7 | DWS-AA001100 | Washer | 1 each |
| I-8 | CTT-NA000600 | Rotary Mes | FA1 FG1 SA1 SG1 MA1 MG1 |
| I-9 | CTT-NA001000 | Rotary Mes | MB1 |
| I-10 | DSC-BB001400 | Screw [11/64" n=40] | 2 each |
| I-11 | CTT-BF000700 | Thread Trimming Holder | 1 each |
| I-12 | DWS-AA012800 | Washer of Thread Trimming Holder | 1 each |
| I-13 | PSR-AA001400 | C-Ring [φ22, t=1.2] | 1 each |
| I-14 | CTT-CA000800 | Thread Trimming Lever Connecting Link | 1 each |
| I-15 | DSC-FA005600 | Stud Screw [11/64" n=40] | 2 each |
| I-16 | DSN-AA000900 | Nut [11/64" n=40] | 1 each |
| I-17 | CTT-CM001100 | Thread Trinming Lever | 1 each |
| I-18 | PSC-AC000600 | Screw [M6] | 1 each |
| I-19 | CTT-KF000400 | Thread Timming Shaft | 1 each |
| I-20 | DWS-AA005200 | Washer | 1 each |
| I-21 | PSR-AC000100 | E-ring [φ9] | 1 each |
| I-22 | DCL-BA000600 | Return Spring Guide Bushing | 1 each |
| I-23 | DSP-AA005600 | Slide Arm Return Spring | 1 each |
| I-24 | CTT-CM001900 | Slide Arm | 1 each |
| I-25 | CTT-CL000300 | Roller | 1 each |
| I-26 | DSC-GA000400 | Stud Screw | 1 each |
| I-27 | DSN-AA000600 | Nut [3/16" n=32] | 1 each |
| I-28 | CTT-FB000200 | Cushion Washer | 1 each |
| I-29 | CTT-CB000700 | Cam Follower Crank | 1 each |
| I-30 | DSC-BJ002000 | Screw [1/4" n=40] | 2 each |
| I-31 | DSC-BF007200 | Stopper Screw [15/64" n=28] | 1 each |
| I-32 | CTT-FD000200 | Cushion Rubber | 1 each |
| I-33 | DSN-AA000400 | Nut [15/64" n=28] | 2 each |
| I-34 | DSC-BF012400 | Thread Trimmer Stopper Screw | 1 each |
| I-35 | DSP-AB001000 | Spring | 1 each |
| I-36 | CTT-BB000800 | Spring Holder | 1 each |
| I-37 | DSC-BF000600 | Screw [3/16" n=28] | 6 each |
| I-38 | CTT-DF000200 | Thread Trimming Cam | 1 each |
| I-39 | DSC-CB000400 | Screw [1/4" n=40] | 2 each |
| I-40 | CTT-CM001800 | Clutch Lever Ass'y | 1 each |
| I-41 | DSC-FH000200 | Stud Screw | 1 each |
| I-42 | DSC-FD001100 | Clutch Lever Hinge Screw | 1 each |
| I-43 | CTT-BJ001200 | Base Plate | 1 each |
| I-44 | CTT-BK000100 | Solenoid Block | 1 each |
| I-45 | DSC-BA001000 | Screw [11/64" n=40] | 2 each |
| I-46 | 10-044A-2300 | Thread Trimming Solenoid Ass'y | 1 each |
| I-47 | CTT-BB002000 | Base for Thread Trimming Solenoid | 1 each |
| I-48 | PWS-CA000500 | Washer | 2 each |
| I-49 | DSC-BF000700 | Screw [15/64" n=28] | 2 each |
| I-50 | CTT-BH000500 | Bobbin Stopper Lever | 1 each |
| I-51 | CTT-BF000200 | Bobbin Stopper Holder | 1 each |
| I-52 | DSP-AC001700 | Bobbin Stopper Spring | 1 each |
| I-53 | PSR-AC000500 | E-ring [φ6] | 1 each |
| I-54 | DSC-BF000100 | Screw [1/8" n=44] | 4 each |
| I-55 | DSC-HC000800 | Hinge Screw [15/64" n=28] | 1 each |
| I-56 | CTT-BH000400 | Bobbin Stopper | 1 each |
Page 31 — Thread Trimmer Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| I-57 | DTC-AH000800 | Cable Holder | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| I-58 | CTT-BB002100 | Bobbin Stopper Bracket | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| I-59 | DSC-CB000300 | Screw [11/64"n=40] | FA2 FG2 SA2 SG2 MA2 MG2 MB2 |
| I-60 | CTT-FD000100 | Stopper for Bobbin Presser | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| I-61 | DSC-BF012500 | Screw [15/64"n=28] | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| I-62 | PBR-BA002700 | Needle Cage | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| I-63 | DWS-AA012900 | Washer-A | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| I-64 | DWS-AA012200 | Washer | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
Page 33 — Oil Pan & Knee Lifting Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| J-1 | CST-JA001400 | Oil Pan | 1 1 1 1 1 1 1 |
| J-2 | CST-BB002600 | Knee Lifting Controller-A | 1 1 1 1 1 1 1 |
| J-3 | DSC-AC000400 | Screw A [M6×P1.0, L=38] | 1 1 1 1 1 1 1 |
| J-4 | PSC-AC007200 | Screw B [M6×P1.0, L=25] | 1 1 1 1 1 1 1 |
| J-5 | PSN-AA001400 | Nut [M6] | 2 2 2 2 2 2 2 |
| J-6 | CST-KC000100 | Knee Lifting Controller Shaft-A | 1 1 1 1 1 1 1 |
| J-7 | DSC-BA002700 | Screw [15/64" n=28] | 2 2 2 2 2 2 2 |
| J-8 | DSP-AC004600 | Knee Lifting Controller Spring | 1 1 1 1 1 1 1 |
| J-9 | PSR-AC000100 | E-ring φ9 | 3 3 3 3 3 3 3 |
| J-10 | CST-CA000100 | Knee Lifting Connecting Link | 1 1 1 1 1 1 1 |
| J-11 | DSC-FD000300 | Hinge Screw [D=7.24, H=3.3] | 2 2 2 2 2 2 2 |
| J-12 | DSN-AA000400 | Nut [15/64" n=28] | 2 2 2 2 2 2 2 |
| J-13 | CST-BB002700 | Knee Lifting Controller-B | 1 1 1 1 1 1 1 |
| J-14 | CST-KC000200 | Knee Lifting Controller Shaft-B | 1 1 1 1 1 1 1 |
| J-15 | CST-CR000300 | Knee Lifting Bar Support Cap | 1 1 1 1 1 1 1 |
| J-16 | AST-PS000300 | Knee Lifting Pad Ass'y | 1 1 1 1 1 1 1 |
Page 35 — Reverse Button Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| K-1 | 06-026A-2300 | Reverse Feed Solenoid Ass'y | 1 1 1 1 1 1 1 |
| K-2 | CFA-BJ000601 | Reverse Feed Solenoid Base | 1 1 1 1 1 1 1 |
| K-3 | DSC-BF003600 | Screw [11/64" n=40, L=7] | 4 4 4 4 4 4 4 |
| K-4 | DSC-BF000700 | Screw [15/64" n=28, L=14] | 2 2 2 2 2 2 2 |
| K-5 | CFA-CB000900 | Reverse Feed Solenoid Crank | 1 1 1 1 1 1 1 |
| K-6 | DPN-AD007000 | Hinge Screw [D=φ9.53, H=15] | 1 1 1 1 1 1 1 |
| K-7 | CRB-LC000100 | Reverse Button Case | 1 1 1 1 1 1 1 |
| K-8 | DSC-BF000600 | Screw [3/16" n=28] | 2 2 2 2 2 2 2 |
| K-9 | 46-005A-2300 | Reverse Button S/W Ass'y | 1 1 1 1 1 1 1 |
| K-10 | CRB-FD000100 | Insulated Rubber | 1 1 1 1 1 1 1 |
| K-11 | DSC-BJ005500 | Screw | 2 2 2 2 2 2 2 |
| K-12 | DPN-AA003501 | Reverse Button Actuator Pin | 1 1 1 1 1 1 1 |
| K-13 | ARB-PS000301 | Reverse Feed Control Lever Ass'y | 1 1 1 1 1 1 1 |
| K-14 | DSC-BA001100 | Screw [11/64" n=40] | 1 1 1 1 1 1 1 |
| K-15 | DSP-AC002200 | Spring | 1 1 1 1 1 1 1 |
| K-16 | PSR-AC000100 | E-ring [φ9] | 2 2 2 2 2 2 2 |
| K-17 | DSC-CB000500 | Screw [15/64" n=28] | 1 1 1 1 1 1 1 |
| K-18 | DPK-CB001901 | Reverse Button Cable Bushing | 1 1 1 1 1 1 1 |
| K-19 | 46-007A-2300 | Housing | 1 1 1 1 1 1 1 |
| K-20 | 46-009A-2300 | Cap | 1 1 1 1 1 1 1 |
Page 37 — Thread Wiper Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| L-1 | AWP-PS000800 | Wiper Bracket Ass'y | 1 1 1 1 1 1 1 |
| L-2 | DSC-BF000600 | Screw [3/16" n=28] | 2 2 2 2 2 2 2 |
| L-3 | CWP-KC000200 | Wiper Rotation Shaft | 1 1 1 1 1 1 1 |
| L-4 | PSR-AC000200 | E-Ring (φ5) | 1 1 1 1 1 1 1 |
| L-5 | CWP-BH000200 | Wiper | 1 1 1 1 1 1 1 |
| L-6 | DSC-BA000100 | Screw [9/64" n=40] | 1 1 1 1 1 1 1 |
| L-7 | AWP-PS000200 | Wiper Crank Ass'y | 1 1 1 1 1 1 1 |
| L-8 | PSC-CB000200 | Screw [M4] | 2 2 2 2 2 2 2 |
| L-9 | DSC-FA000800 | Hinge Screw | 3 3 3 3 3 3 3 |
| L-10 | DSN-AA000900 | Nut [11/64" n=40] | 3 3 3 3 3 3 3 |
| L-11 | CWP-CA001300 | Wiper Rod-A | 1 1 1 1 1 1 1 |
| L-12 | AWP-PS000300 | Wiper Driving Link Ass'y | 1 1 1 1 1 1 1 |
| L-13 | DSC-FA000900 | Hinge Screw | 1 1 1 1 1 1 1 |
| L-14 | DWS-AA000600 | Washer | 1 1 1 1 1 1 1 |
| L-15 | DSN-AA000600 | Nut [3/16" n=32] | 1 1 1 1 1 1 1 |
| L-16 | CWP-CA000100 | Wiper Solenoid Connection Link | 1 1 1 1 1 1 1 |
| L-17 | DSP-AC000200 | Wiper Spring | 1 1 1 1 1 1 1 |
| L-18 | CWP-BB000100 | Wiper Base | 1 1 1 1 1 1 1 |
| L-19 | DSC-BF000600 | Screw [3/16" n=28] | 3 3 3 3 3 3 3 |
| L-20 | 11-015A-2300 | Wiper Solenoid Ass'y | 1 1 1 1 1 1 1 |
| L-21 | PSC-BA000100 | Screw [M3] | 4 4 4 4 4 4 4 |
| L-22 | PWS-CA000100 | Spring Washer | 4 4 4 4 4 4 4 |
| L-23 | PWS-AA000500 | Washer | 4 4 4 4 4 4 4 |
| L-24 | CWP-LA000400 | Wiper Cover | 1 1 1 1 1 1 1 |
| L-25 | DSC-BA000100 | Screw [9/64" n=40] | 2 2 2 2 2 2 2 |
| L-26 | 46-006A-2300 | Housing | 1 1 1 1 1 1 1 |
| L-27 | 46-008A-2300 | Cap | 1 1 1 1 1 1 1 |
Page 39 — Auto Knee Lifter Solenoid Mechanism (Option)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-1 | SL-000068-00 | Auto Knee Lifter Solenoid Ass'y | 1 1 1 1 1 1 1 |
| M-2 | CMB-LB009700 | Back Cover for Auto Knee Lifter | 1 1 1 1 1 1 1 |
| M-3 | DSC-BF000700 | Screw [15/64" n=28] | 4 4 4 4 4 4 4 |
| M-4 | DWS-AA014400 | Washer | 4 4 4 4 4 4 4 |
| M-5 | DSN-AA000700 | Nut [15/64" n=28] | 4 4 4 4 4 4 4 |
| M-6 | CPM-CB001301 | Knee Lifter Connection Crank | 1 1 1 1 1 1 1 |
| M-7 | DSC-BF001100 | Screw [3/16" n=28] | 1 1 1 1 1 1 1 |
| M-8 | DCL-AA005000 | Collar for Auto Knee Lifter Shaft | 1 1 1 1 1 1 1 |
| M-9 | DSC-CA000400 | Screw [11/64" n=40] | 2 2 2 2 2 2 2 |
| M-10 | DBS-DA031400 | Auto Knee Lifter Shaft Bushing | 1 1 1 1 1 1 1 |
| M-11 | DSN-CY000600 | Nut for Auto Knee Lifter Shaft | 1 1 1 1 1 1 1 |
| M-12 | DWS-AA011800 | Washer for Auto Knee Lifter Shaft | 1 1 1 1 1 1 1 |
| M-13 | PSR-AC000600 | E-ring [φ8] | 1 1 1 1 1 1 1 |
| M-14 | APM-PS001700 | Auto Knee Lifter Shaft Ass'y | 1 1 1 1 1 1 1 |
Page 41 — Accessories Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| N-1 | CAC-MH000100 | Accessory Bag | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| N-2 | PTL-BA000100 | Driver(Large) | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| N-3 | PTL-BA000200 | Driver(Middle, Small) | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| N-4 | - | Needle(DB×1SF(KN)#11) | FA5 FG SA5 SG MA5 MG MB |
| N-5 | - | Needle(DB×1#14) | FA FG5 SA SG5 MA MG5 MB |
| N-6 | - | Needle(DB×1#21) | MB5 |
| N-7 | CHK-HB000600 | Bobbin(AL) | FA4 FG4 SA4 SG4 MA4 MG4 MB4 |
| N-8 | DTL-CC000100 | Spanner | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| N-9 | PTL-AB000300 | L Wrench(3mm) | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| N-10 | PTL-AB000500 | L Wrench(2.5mm) | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| N-11 | PTL-AB000100 | L Wrench(2mm) | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| N-12 | CTT-NB000900 | Fixed Mes | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| N-13 | CAC-MA000700 | Head Cover | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| N-14 | CAC-JB000400 | Oil Tank | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| N-15 | CST-BB002500 | Head Hinge | FA2 FG2 SA2 SG2 MA2 MG2 MB2 |
| N-16 | CST-FD002001 | Head Support Rubber (A) | FA2 FG2 SA2 SG2 MA2 MG2 MB2 |
| N-17 | CST-FD002100 | Head Support Rubber (B) | FA2 FG2 SA2 SG2 MA2 MG2 MB2 |
| N-18 | CST-FD002200 | Head Support Rubber (C) | FA4 FG4 SA4 SG4 MA4 MG4 MB4 |
| N-19 | CST-FF000500 | Rubber Cushion for Hinge | FA2 FG2 SA2 SG2 MA2 MG2 MB2 |
| N-20 | - | Nail | FA8 FG8 SA8 SG8 MA8 MG8 MB8 |
| N-21 | CST-CR000100 | Head Rest | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| N-22 | CST-MF000100 | Thread Stand Ass'y | FA1 FG1 SA1 SG1 MA1 MG1 MB1 |
| N-23 | CGA-GA003200 | Needle Plate (Light) | FA1 SA1 MA1 |
| N-24 | CGA-GA000201 | Needle Plate (A-Type) | FG1 SG1 MG1 |
| N-26 | CGA-GA001200 | Needle Plate (BH-Type) | MB1 |
| N-27 | CAC-JB000100 | Oiler | SA1 SG1 MA1 MG1 MB1 |
| N-28 | CAC-JF000100 | Grease Tube | FA1 FG1 SA1 SG1 |
| N-29 | CAC-JF000200 | Grease Nozzle | FA1 FG1 SA1 SG1 |
Page 42 — Index
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 06-026A-2300 | Reverse Feed Solenoid Ass'y | ||
| 10-044A-2300 | Thread Trimming Solenoid Ass'y | ||
| 11-015A-2300 | Wiper Solenoid Ass'y | ||
| 40-004A-257U | Thread Tension Control Ass'y(Light) | ||
| 41-101A-2300 | Bobbin Winder Ass'y | ||
| 46-004A-2300 | Safety Switch | ||
| 46-005A-2300 | Reverse Button S/W Ass'y | ||
| 46-007A-2300 | Housing | ||
| 46-008A-2300 | Cap | ||
| 46-102A-2300 | Sync. Sensor | ||
| ABW-PS0002 | Bobbin Winder Base Ass'y | ||
| ALB-PS0013 | Oil Tank Ass'y | ||
| AMB-PS0023 | Thread Tension Control Ass'y | ||
| APM-PS0007 | Auto Knee Lifter Shaft Ass'y | ||
| APM-PS0017 | Reverse Feed Control Lever Ass'y | ||
| ARB-PS0003 | Reverse Feed Control Lever Ass'y | ||
| AS-000240 | Reverse Feed Lever Crank Ass'y | ||
| AS-000333 | Thread Take-up Lever Ass'y (Full-Dry, General) | ||
| AS-000334 | Thread Take-up Lever Ass'y (Micro, General) | ||
| AS-000336 | Thread Take-up Lever Ass'y (Heavy) | ||
| AS-000350 | Arm Bed | ||
| AS-001577 | Thread Take-up Lever Ass'y (Full-Dry, Light) | ||
| AS-001578 | Thread Take-up Lever Ass'y (Micro, Light) | ||
| AST-PS0003 | Knee Lifting Pad Ass'y | ||
| ATA-PS0013 | Thread Tension Control Ass'y | ||
| ATA-PS0024 | Sub Upper Thread Tension Control Ass'y | ||
| ATA-PS0053 | Sub Upper Thread Tension Control Ass'y | ||
| ATA-PS0054 | Thread Tension Control Ass'y (Heavy) | ||
| ATR-PS0001 | Thread Tension Release Wire | ||
| AWP-PS0002 | Wiper Crank Ass'y | ||
| AWP-PS0003 | Wiper Driving Link Ass'y | ||
| AWP-PS0008 | Wiper Bracket Ass'y | ||
| CAC-JB0001 | Oiler | ||
| CAC-JF0001 | Grease Tube | ||
| CAC-JF0002 | Grease Nozzle | ||
| CAC-MA0007 | Head Cover | ||
| CAC-MH0001 | Accessory Bag | ||
| CBW-BA0005 | Bobbin Winder Action Body | ||
| CBW-BH0002 | Bobbin Stopper | ||
| CBW-BJ0001 | Thread Winder Action Plate | ||
| CBW-BJ0004 | Bobbin Winder Adjusting Plate | ||
| CBW-BN0002 | Bobbin Stand | ||
| CBW-CM0002 | Bobbin Winder Lever | ||
| CBW-CP0002 | Bobbin Winder Action Pulley | ||
| CBW-DZ0001 | Thread Winder Adjusting Cam | ||
| CBW-FA0002 | Bobbin Winder Shaft Rubber Ring | ||
| CBW-FA0003 | Bobbin Winder Action Ring | ||
| CBW-KC0001 | Bobbin Winder Lever Shaft | ||
| CBW-KC0003 | Bobbin Winder Driving Shaft | ||
| CFA-BJ0006 | Reverse Feed Solenoid Base | ||
| CFA-CA0007 | Feed Link | ||
| CFA-CA0008 | Feed Link Connecting Rod | ||
| CFA-CB0006 | Reverse Feed Lever Crank | ||
| CFA-CB0007 | Feed Adjusting Shaft Crank(Rear) | ||
| CFA-CB0008 | Feed Adjusting Shaft Crank(Front) | ||
| CFA-CB0009 | Reverse Feed Solenoid Crank | ||
| CFA-CC0006 | Feed Regulator Rod | ||
| CFA-CH0001 | Feed Regulator Eccentric Pin | ||
| CFA-CM0006 | Reverse Feed Control Lever | ||
| CFA-CQ0003 | Dial (5mm) | ||
| CFA-CQ0031 | Dial (4mm) | ||
| CFA-DF0002 | Feed Regulator | ||
| CFA-FZ0001 | Reverse Feed Lever Stopper Rubber | ||
| CFA-GB0177 | Feed Dog (General, 4 row) | ||
| CFA-KC0005 | Reverse Feed Control Lever Shaft | ||
| CFA-KJ0002 | Feed Regulator Dial Shaft | ||
| CGA-GA0002 | Needle Plate (A-Type, 3 row) | ||
| CGA-GA0002 | Needle Plate (A-Type) | ||
| CGA-GA0012 | Needle Plate (BH-Type, 4 row) | ||
| CGA-GA0012 | Needle Plate (BH-Type) | ||
| CGA-GA0032 | Needle Plate (A-Type, 3 row) | ||
| CGA-GA0032 | Needle Plate (Light) | ||
| CGA-GB0005 | Feed Dog (General, 3 row) | ||
| CGA-GB0012 | Feed Dog (Heavy, 4 row) | ||
| CGA-GB0176 | Feed Dog (Light, 4 row) | ||
| CGA-GC0007 | Presser Foot Ass'y (General) | ||
| CGA-GC0019 | Presser Foot Ass'y (Heavy-4row) | ||
| CHK-HA0009 | Hook Ass'y (Heavy) | ||
| CHK-HA0032 | Hook Ass'y (Full-Dry) | ||
| CHK-HB0006 | Bobbin | ||
| CHK-HB0006 | Bobbin (AL) | ||
| CHK-HC0007 | Bobbin Case Ass'y | ||
| CHK-HH0007 | Inner Bobbin Stopper | ||
| CLB-BF0002 | Hose Holder (Small) | ||
| CLB-BG0035 | Oil Wick Support Plate | ||
| CLB-BH0014 | Holder of Oil Return Felt | ||
| CLB-BJ0013 | Gear Box Window Cover | ||
| CLB-CN0002 | Piston | ||
| CLB-FA0003 | O-Ring of Gear Box Cover Oil Window | ||
| CLB-FC0001 | Gear Box Cover Gasket | ||
| CLB-JD0003 | Oil Wick | ||
| CLB-JD0003 | Oil Wick | ||
| CLB-JD0003 | Oil Wick | ||
| CLB-JD0009 | Oil Wick | ||
| CLB-JD0009 | Oil Wick | ||
| CLB-JG0003 | Hose (3x5, L=100) | ||
| CLB-JG0003 | Hose (3x5, L=250) | ||
| CLB-JG0009 | Hose (3x5, L=80) | ||
| CLB-JG0009 | Hose (3x5, L=700) | ||
| CLB-JG0010 | Hose C (3x5, L=250) | ||
| CLB-JG0010 | Hose B (08x10, L=240) | ||
| CLB-JG0010 | Hose (08x10, L=280) | ||
| CLB-JG0010 | Hose (08x10, L=50) | ||
| CLB-JJ0007 | Oil Window (Micro Lubrication) | ||
| CLB-JJ0008 | Oil Window of Gear Box Cover | ||
| CLB-JJ0013 | Oil Window (Full-Dry) | ||
| CLB-JL0024 | Oil Wick | ||
| CLB-JL0059 | Face Plate Felt | ||
| CLB-JM0007 | Oil Filter Ass'y | ||
| CLB-JN0005 | Floater Ass'y | ||
| CLB-JN0006 | Oil Inlet | ||
| CLB-JP0012 | Nipple | ||
| CLB-JP0013 | Oil Absord Nipple | ||
| CLB-JP0014 | Oil Tank(L) Nipple(I) | ||
| CLB-JP0015 | Oil Tank Nipple(M) | ||
| CLB-JP0016 | Oil Tank(L) Nipple(S) | ||
| CLF-BC0001 | Feed Bar | ||
| CLF-CA0006 | Connecting Link, A | ||
| CLF-CA0007 | Connecting Link, B | ||
| CLF-CB0009 | Feed Bar Crank | ||
| CLF-CB0010 | Feed Lifting Crank | ||
| CLF-CB0011 | Feed Rocker Crank | ||
| CLF-CC0006 | Feed Cam Connecting Rod | ||
| CLF-DC0002 | Feed Cam | ||
| CLF-DC0007 | Feed Lifting Cam | ||
| CLF-KC0003 | Feed Lifting Shaft | ||
| CLF-KC0015 | Feed Rocker Shaft | ||
| CLF-KD0002 | Feed Rocker Shaft (Micro Lubrication) | ||
| CLF-KH0002 | Feed Lifting Crank Eccentric Shaft A | ||
| CLF-KH0005 | Feed Bar Crank Eccentric Shaft | ||
| CLF-KH0006 | Feed Lifting Crank Eccentric Shaft | ||
| CLF-LA0001 | Feed Lifting Cam Plate | ||
| CLS-KC0019 | Lower Shaft A | ||
| CMB-BB0058 | Bed Supporter-A | ||
| CMB-BB0059 | Bed Supporter-B | ||
| CMB-BB0060 | Safety Switch Base | ||
| CMB-BJ0024 | Gauge Plate | ||
| CMB-BJ0037 | Safety Switch Plate | ||
| CMB-BJ0038 | Safety Switch Sub Bracket | ||
| CMB-BJ0066 | Machine Number Plate | ||
| CMB-FC0039 | Face Plate Gasket | ||
| CMB-HK0005 | Arm Thread Guide | ||
| CMB-HK0019 | Face Plate Guide | ||
| CMB-HK0020 | Upper Thread Guide Pin | ||
| CMB-HM0001 | Thread Tension Adjusting Shaft | ||
| CMB-KA0036 | Needle Bar (Full-Dry) | ||
| CMB-LA0043 | Thread Take-up Lever Cover | ||
| CMB-LA0107 | Motor Cover | ||
| CMB-LA0108 | Face Plate | ||
| CMB-LB0044 | Slide Plate Ass'y | ||
| CMB-LB0055 | Rear Cover | ||
| CMB-LB0097 | Back Cover for Auto Knee Lifter | ||
| CMB-LD0010 | Caution Label | ||
| CMB-LD0060 | Warning Sticker A | ||
| CMB-LD0101 | Oil Caution Label | ||
| CMB-LD0102 | CE Mark | ||
| CMB-LD0104 | Deflation Bushing Cap Caution Label | ||
| CMB-LD0105 | Sticker | ||
| CMB-LD0123 | Model Mark (KM-2300SG) | ||
| CMB-LD0124 | Model Mark (KM-2300FG) | ||
| CMB-LD0125 | Model Mark (KM-2300FA) | ||
| CMB-LD0126 | Model Mark (KM-2300MG) | ||
| CMB-LD0127 | Model Mark (KM-2300MA) | ||
| CMB-LD0128 | Model Mark (KM-2300MB) | ||
| CMB-LD0130 | Brand Mark-A | ||
| CMB-NB0001 | Bobbin Winder Mes | ||
| CNB-BF0012 | Needle Bar Holder | ||
| CNB-BH0001 | Thread Guide for Needle Bar Bushing | ||
| CNB-CD0001 | Slide Block | ||
| CNB-HK0004 | Needle Bar Thread Guide | ||
| CNB-KA0013 | Needle Bar(Micro Lubrication) | ||
| CNB-KA0014 | Needle Bar (Heavy) |
Page 43 — Index
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G-13 | CPB-BF0004 | Presser Bar Guide Bracket | 23 |
| G-50 | CPB-BH0006 | Finger Guard | 23 |
| G-14 | CPB-BJ0007 | Thread Guide Plate | 23 |
| G-23 | CPB-CM0003 | Presser Lifter | 23 |
| G-51 | CPB-CM0010 | Presser Foot Lifter-A | 23 |
| G-21 | CPB-DF0003 | Presser Lifter Cam Shaft | 23 |
| G-7 | CPB-KB0007 | Presser Bar | 23 |
| G-52 | CPB-KB0019 | Presser Foot Lifter Base | 23 |
| G-26 | CPB-BM0019 | Presser Foot Lifter Connector Bar | 23 |
| G-33 | CPB-BJ0010 | Knee Lifting Bar Guide | 23 |
| G-27 | CPM-CA0010 | Knee Lifting Link | 23 |
| M-6 | CPM-CB0013 | Knee Lifter Connection Crank | 39 |
| G-19 | CPM-CM0009 | Presser Bar Lifter Lever | 23 |
| G-31 | CPM-CR0004 | Knee Lifting Bar | 23 |
| K-10 | CRB-FD0001 | Insulated Rubber | 35 |
| K-7 | CRB-LC0001 | Reverse Button Case | 35 |
| N-15 | CST-BB0025 | Head Hinge | 41 |
| J-2 | CST-BB0026 | Knee Lifting Controller-A | 33 |
| J-13 | CST-BB0027 | Knee Lifting Controller-B | 33 |
| J-10 | CST-CA0001 | Knee Lifting Connecting Link | 33 |
| N-21 | CST-CR0001 | Head Rest | 41 |
| J-15 | CST-CR0003 | Knee Lifting Bar Support Cap | 33 |
| N-16 | CST-FD0020 | Head Support Rubber (A) | 41 |
| N-18 | CST-FD0022 | Head Support Rubber (C) | 41 |
| N-19 | CST-FF0005 | Rubber Cushion for Hinge | 41 |
| J-1 | CST-JA0014 | Oil Pan | 33 |
| J-6 | CST-KC0001 | Knee Lifting Controller Shaft-A | 33 |
| J-14 | CST-KC0002 | Knee Lifting Controller Shaft-B | 33 |
| N-22 | CST-ME0001 | Thread Stand Ass'y | 41 |
| C-27 | CTA-BD0002 | Spring Cover | 15 |
| C-25 | CTA-BJ0001 | Thread Tension Control Spring Stopper | 15 |
| C-28 | CTA-HL0001 | Thread Tension Disk | 15 |
| B-30 | CTH-CB0010 | Thread Take-up Crank | 11 |
| B-37 | CTH-CB0017 | Needle Bar Crank(Heavy) | 11 |
| B-38 | CTH-CC0008 | Needle Bar Crank Rod | 11 |
| B-35 | CTH-CJ0009 | Needle Bar Crank(General) | 11 |
| B-26 | CTH-HJ0013 | Thread Take-up (General) | 11 |
| B-27 | CTH-HJ0024 | Thread Take-up (Heavy) | 11 |
| G-41 | CTR-BB0007 | Wire Holder Bracket | 23 |
| G-37 | CTR-CM0008 | Thread Tension Release Plate | 23 |
| I-36 | CTT-BB0008 | Spring Holder | 29 |
| I-47 | CTT-BB0020 | Base for Thread Trimming Solenoid | 29 |
| I-58 | CTT-BB0021 | Bobbin Stopper Bracket | 31 |
| I-51 | CTT-BF0002 | Bobbin Stopper Holder | 29 |
| I-11 | CTT-BF0007 | Thread Trimming Holder | 29 |
| I-50 | CTT-BH0005 | Bobbin Stopper Lever | 29 |
| I-5 | CTT-BJ0011 | Thread Retaining Plate | 29 |
| I-43 | CTT-BJ0012 | Base Plate | 29 |
| I-44 | CTT-BK0001 | Solenoid Block | 29 |
| I-14 | CTT-CA0008 | Thread Trimming Lever Connecting Link | 29 |
| I-29 | CTT-CB0007 | Cam Follower Crank | 29 |
| I-25 | CTT-CL0003 | Roller | 29 |
| I-17 | CTT-CM0011 | Thread Trimming Lever | 29 |
| I-40 | CTT-CM0018 | Clutch Lever Ass'y | 29 |
| I-24 | CTT-CM0019 | Slide Arm | 29 |
| I-38 | CTT-DF0002 | Thread Trimming Cam | 29 |
| I-28 | CTT-FB0002 | Cushion Washer | 29 |
| I-60 | CTT-FD0001 | Stopper for Bobbin Presser | 31 |
| I-32 | CTT-FD0002 | Cushion Rubber | 29 |
| I-19 | CTT-KF0004 | Thread Timming Shaft | 29 |
| I-8 | CTT-NA0006 | Rotary Mes | 29 |
| I-9 | CTT-NA0010 | Rotary Mes | 29 |
| I-1 | CTT-NB0009 | Fixed Mes | 29 |
| B-62 | CUS-BA0002 | Sync. Sensor Base | 13 |
| B-64 | CUS-BB0012 | Sensor Bracket | 13 |
| B-9 | CUS-CF0004 | Bobbin Winder Driving Wheel | 11 |
| B-20 | CUS-CP0004 | Pulley | 11 |
| B-67 | CUS-FZ0001 | Cable Guide Rubber | 13 |
| B-1 | CUS-KC0013 | Upper Shaft | 11 |
| L-5 | CWP-BH0002 | Wiper | 37 |
| L-16 | CWP-CA0001 | Wiper Solenoid Connection Link | 37 |
| L-11 | CWP-CA0013 | Wiper Rod-A | 37 |
| L-3 | CWP-KC0002 | Wiper Rotation Shaft | 37 |
| L-24 | CWP-LA0004 | Wiper Cover | 37 |
| B-8 | DBR-AA0001 | Bearing [6304ZZC3NR] | 11 |
| E-8 | DBR-AA0002 | Bearing [6902ZZ,Φ15×Φ28×7] | 19 |
| B-47 | DBS-DA0129 | Needle Bar Bushing, Upper | 11 |
| B-39 | DBS-DA0130 | Needle Bar Crank Bushing | 11 |
| D-11 | DBS-DA0131 | Feed Adjusting Shaft Bushing(Front) | 17 |
| D-12 | DBS-DA0132 | Feed Adjusting Shaft Bushing(Rear) | 17 |
| D-21 | DBS-DA0133 | Feed Regulator Bushing | 17 |
| D-32 | DBS-DA0134 | Reverse Feed Lever Shaft Bushing(Rear) | 17 |
| E-11 | DBS-DA0136 | Lower Shaft Bushing(Front) A | 19 |
| E-6 | DBS-DA0137 | Lower Shaft Bushing(Rear) A | 19 |
| F-16 | DBS-DA0138 | Feed Rocker Shaft Bushing(Front) | 21 |
| F-17 | DBS-DA0139 | Feed Rocker Shaft Bushing(Rear) | 21 |
| G-8 | DBS-DA0140 | Presser Bar Bushing | 23 |
| B-50 | DBS-DA0149 | Needle Bar Bushing, Lower(Heavy) | 11 |
| B-49 | DBS-DA0279 | Needle Bar Bushing, Lower(Full-Dry) | 11 |
| M-10 | DBS-DA0314 | Auto Knee Lifter Shaft Bushing | 39 |
| C-35 | DBS-DB0035 | Bobbin Winder Action Body Bushing | 15 |
| F-42 | DBS-DB0036 | Feed Lifting Bushing(Front) | 21 |
| F-50 | DBS-DB0037 | Feed Lifting Bushing(M) | 21 |
| E-14 | DBS-DB0084 | Lower Shaft Bushing(Front/Full-Dry) A | 19 |
| B-13 | DBT-BC0001 | Timing Belt | 11 |
| D-22 | DCL-AA0023 | Feed Regulator Collar | 17 |
| F-19 | DCL-AA0049 | Feed Rocker Shaft Collar | 21 |
| M-8 | DCL-AA0050 | Collar for Auto Knee Lifter Shaft | 39 |
| D-14 | DCL-AA0053 | Feed Adjusting Shaft Collar | 17 |
| B-6 | DCL-AB0019 | Main Shaft Bearing Support | 11 |
| E-9 | DCL-AB0020 | Lower Shaft Bearing Bushing(Rear) | 19 |
| E-16 | DCL-AB0033 | Lower Shaft Bearing Bushing(Front/Full-Dry) A | 19 |
| I-22 | DCL-BA0006 | Return Spring Guide Bushing | 29 |
| G-2 | DCL-BA0009 | Spacer for Presser Adjusting Screw | 23 |
| B-44 | DCL-BB0017 | Thrust Collar [D=Φ7, W=8] | 11 |
| B-14 | DCR-AB0003 | Coupling | 11 |
| E-4 | DGR-AB0009 | Lower Shaft Gear A | 19 |
| F-45 | DGR-AD0010 | Feed Lifting Gear Ass'y | 21 |
| D-13 | DPK-AA0001 | Feed Adjusting Shaft Oil Seal [Φ10×Φ19×7] | 17 |
| E-13 | DPK-AA0002 | Oil Seal [Φ10×Φ18×7] | 19 |
| E-12 | DPK-AA0003 | Oil Seal [Φ10×Φ22×7] | 19 |
| F-18 | DPK-AZ0005 | Oil Seal [Φ14.72×Φ22×7] | 21 |
| H-18 | DPK-BA0005 | O-Ring [P11] | 27 |
| A-6 | DPK-CB0002 | Rubber Cap (M) | 7 |
| H-42 | DPK-CB0004 | Rubber Cap | 27 |
| A-24 | DPK-CB0008 | Rubber Cap (S) | 7 |
| A-5 | DPK-CB0009 | Face Plate Rubber Cap (L) | 7 |
| K-18 | DPK-CB0019 | Reverse Button Cable Bushing | 35 |
| A-23 | DPK-CB0023 | Rubber Cap | 7 |
| A-64 | DPK-CB0024 | Rubber Cap | 9 |
| A-70 | DPK-CB0024 | Rubber Cap | 9 |
| A-29 | DPK-CZ0004 | Cap of Air Discharging Bushing | 7 |
| F-49 | DPL-BC0032 | Timing Pulley-Lower-O Type | 21 |
| B-12 | DPL-BC0033 | Timing Pulley-Upper-O Type | 11 |
| K-12 | DPN-AA0035 | Reverse Button Actuator Pin | 35 |
| D-44 | DPN-AA0077 | Dial Pin | 17 |
| D-34 | DPN-AA0078 | Reverse Feed Lever Crank Pin | 17 |
| F-9 | DPN-AA0079 | Feed Cam Connecting Rod Pin | 21 |
| F-12 | DPN-AA0080 | Feed Rocker Crank Pin | 21 |
| G-39 | DPN-AA0083 | Thread Tension Release Supporting Pin | 23 |
| B-31 | DPN-AD0065 | Thread Take-up Crank Shaft | 11 |
| A-28 | DPN-AD0066 | Air Discharging Bushing | 7 |
| D-5 | DPN-AD0067 | Feed Link Pin | 17 |
| K-6 | DPN-AD0070 | Hinge Screw [D=Φ9.53, H=15] | 35 |
| B-32 | DPN-AD0095 | Thread Take-up Crank Shaft(Full-Dry) | 11 |
| D-54 | DPN-AD0097 | Feed Link Pin B | 17 |
| D-2 | DPN-BC0025 | Feed Link Connecting Pin-A | 17 |
| D-3 | DPN-BC0026 | Feed Link Connecting Pin-B | 17 |
| G-48 | DSC-AC0004 | Bolt [M6] | 23 |
| J-3 | DSC-AC0004 | Screw A [M6×P1.0, L=38] | 33 |
| A-35 | DSC-BA0001 | Screw [9/64" n=40] | 7 |
| B-46 | DSC-BA0001 | Screw [9/64" n=40] | 11 |
| L-6 | DSC-BA0001 | Screw [9/64" n=40] | 37 |
| L-25 | DSC-BA0001 | Screw [9/64" n=40] | 37 |
| G-12 | DSC-BA0002 | Screw [9/64" n=40, L=10.5] | 23 |
| B-42 | DSC-BA0010 | Screw [9/64" n=40] | 11 |
| I-45 | DSC-BA0010 | Screw [11/64" n=40] | 29 |
| K-14 | DSC-BA0011 | Screw [11/64" n=40] | 35 |
| D-29 | DSC-BA0014 | Screw [3/16" n=32] | 17 |
| B-61 | DSC-BA0024 | Screw [M6] | 13 |
| D-8 | DSC-BA0025 | Screw [11/64" n=40] | 17 |
| J-7 | DSC-BA0027 | Screw [15/64" n=28] | 33 |
| I-10 | DSC-BB0014 | Screw [11/64" n=40] | 29 |
| I-2 | DSC-BB0020 | Screw [9/64" n=40] | 29 |
| A-17 | DSC-BC0001 | Screw [11/64" n=40] | 7 |
| C-33 | DSC-BC0002 | Screw [9/64" n=40] | 15 |
| B-56 | DSC-BF0001 | Screw [1/8" n=44] | 11 |
| I-54 | DSC-BF0001 | Screw [1/8" n=44] | 29 |
| A-8 | DSC-BF0006 | Screw [3/16" n=28] | 7 |
| G-44 | DSC-BF0006 | Screw [3/16" n=28] | 23 |
| H-46 | DSC-BF0006 | Screw [3/16" n=28] | 27 |
| I-37 | DSC-BF0006 | Screw [3/16" n=28] | 29 |
| K-8 | DSC-BF0006 | Screw [3/16" n=28] | 35 |
| L-2 | DSC-BF0006 | Screw [3/16" n=28] | 37 |
| L-19 | DSC-BF0006 | Screw [3/16" n=28] | 37 |
| A-14 | DSC-BF0007 | Screw [15/64" n=28, L=14] | 7 |
| D-16 | DSC-BF0007 | Screw [3/16" n=28, L=15.5] | 17 |
| D-48 | DSC-BF0007 | Screw [15/64" n=28, L=14] | 17 |
| I-49 | DSC-BF0007 | Screw [15/64" n=28] | 29 |
| K-4 | DSC-BF0007 | Screw [15/64" n=28] | 35 |
| M-3 | DSC-BF0007 | Screw [15/64" n=28] | 39 |
| E-23 | DSC-BF0010 | Screw [11/64" n=40] | 19 |
| H-4 | DSC-BF0011 | Screw [3/16" n=28, L=10] | 27 |
| M-7 | DSC-BF0011 | Screw [3/16" n=28] | 39 |
| G-15 | DSC-BF0012 | Screw A [11/64" n=40, L=18] | 23 |
| B-40 | DSC-BF0016 | Screw [9/64" n=40] | 11 |
| C-34 | DSC-BF0017 | Screw [11/64" n=40] | 15 |
| C-12 | DSC-BF0018 | Screw [1/8" n=40] | 15 |
Page 44 — Index
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-32 | DSC-BF0018 | Screw [1/8" n=44, L=6] | |
| D-43 | DSC-BF0019 | Screw [3/16" n=28] | |
| A-59 | DSC-BF0036 | Screw [11/64" n=40] | |
| F-23 | DSC-BF0036 | Screw [11/64" n=40] | |
| K-3 | DSC-BF0036 | Screw [11/64" n=40, L=7] | |
| 1-3 | DSC-BF0062 | Screw [1/8" n=40] | |
| H-31 | DSC-BF0065 | Screw [9/64" n=40, L=6] | |
| 1-31 | DSC-BF0072 | Stopper Screw [15/64" n=28] | |
| A-4 | DSC-BF0084 | Screw [3/16" n=28, L=11] | |
| B-66 | DSC-BF0084 | Screw [3/16" n=28] | |
| G-55 | DSC-BF0084 | Screw [3/16" n=28, L=11] | |
| G-42 | DSC-BF0084 | Screw [3/16" n=28, L=11] | |
| F-13 | DSC-BF0122 | Screw [3/16" n=28, L=15.5] | |
| H-17 | DSC-BF0123 | Screw of Oil Tank Ass'y [5/16" n=24] | |
| 1-34 | DSC-BF0124 | Thread Trimmer Stopper Screw | |
| 1-61 | DSC-BF0125 | Screw [15/64" n=28] | |
| D-50 | DSC-BJ0002 | Screw [11/64" n=40] | |
| E-10 | DSC-BJ0002 | Screw [11/64" n=40] | |
| 1-6 | DSC-BJ0002 | Screw [11/64" n=40] | |
| G-24 | DSC-BJ0003 | Screw [9/64" n=40] | |
| G-56 | DSC-BJ0003 | Screw [9/64" n=40] | |
| F-6 | DSC-BJ0014 | Screw [9/64" n=40] | |
| 1-30 | DSC-BJ0020 | Screw [1/4" n=40] | |
| B-3 | DSC-BJ0037 | Screw (A) [9/32" n=28, L=16] | |
| D-47 | DSC-BJ0038 | Screw [15/64" n=28, L=10.5] | |
| K-11 | DSC-BJ0055 | Screw | |
| E-25 | DSC-CA0001 | Screw [15/64" n=28] | |
| M-9 | DSC-CA0004 | Screw [11/64" n=40] | |
| A-38 | DSC-CA0008 | Screw [15/64" n=28] | |
| B-4 | DSC-CA0021 | Screw (B) [9/32" n=28, L=16] | |
| B-10 | DSC-CB0001 | Screw [11/64" n=40, L=4] | |
| A-33 | DSC-CB0003 | Screw [11/64" n=40] | |
| C-6 | DSC-CB0003 | Screw [11/64" n=40] | |
| 1-59 | DSC-CB0003 | Screw [11/64" n=40] | |
| 1-39 | DSC-CB0004 | Screw [1/4" n=40] | |
| A-26 | DSC-CB0005 | Screw [15/64" n=28, L=7.5] | |
| B-21 | DSC-CB0005 | Screw [15/64" n=28, L=7.5] | |
| D-4 | DSC-CB0005 | Screw [15/64" n=28, L=7.5] | |
| K-17 | DSC-CB0005 | Screw [15/64" n=28] | |
| A-25 | DSC-CB0007 | Screw [M5, L=5] | |
| B-5 | DSC-CB0023 | Screw [1/4" n=40, L=6] | |
| D-9 | DSC-CB0023 | Screw [1/4" n=40, L=6] | |
| E-5 | DSC-CB0023 | Screw [1/4" n=40] | |
| F-2 | DSC-CB0023 | Screw [1/4" n=40, L=6] | |
| F-24 | DSC-CB0024 | Screw [1/8" n=44, L=3] | |
| G-30 | DSC-FA0007 | Hinge Screw | |
| L-9 | DSC-FA0008 | Hinge Screw | |
| L-13 | DSC-FA0009 | Hinge Screw | |
| 1-15 | DSC-FA0056 | Stud Screw [11/64" n=40] | |
| G-29 | DSC-FA0060 | Hinge Screw | |
| D-37 | DSC-FA0062 | Stopper Stud Screw | |
| G-28 | DSC-FC0001 | Hinge Screw | |
| J-11 | DSC-FD0003 | Hinge Screw [D=7.24, H=3.3] | |
| 1-42 | DSC-FD0011 | Clutch Lever Hinge Screw | |
| 1-41 | DSC-FH0002 | Stud Screw | |
| G-17 | DSC-FH0003 | Hinge Screw [5/16" n=24] | |
| G-36 | DSC-FH0004 | Hinge Screw [5/16" n=24] | |
| 1-26 | DSC-GA0004 | Stud Screw | |
| D-17 | DSC-GC0004 | Feed Adjusting Shaft Crank (Rear) Hinge Screw | |
| 1-12 | DWS-AA0128 | Washer of Thread Trimming Holder | |
| 1-63 | DWS-AA0129 | Washer-A | |
| M-4 | DWS-AA0144 | Washer | |
| B-18 | DWS-CA0001 | Spring Washer | |
| E-24 | DWS-CA0001 | Washer for Inner Bobbin Stopper | |
| G-45 | GP-027094 | Cable Connecting Bolt | |
| B-29 | PBR-AA0017 | Bearing [608DD] | |
| B-7 | PBR-AA0024 | Bearing [6204ZZC3NR] | |
| F-47 | PBR-AA0074 | Bearing [6004C4NR] | |
| B-28 | PBR-AA0077 | Bearing [605DD] | |
| B-34 | PBR-BA0006 | Bearing [KT 71010] | |
| B-34 | PBR-BA0026 | Bearing [KT 71010] | |
| 1-62 | PBR-BA0026 | Needle Gauge | |
| E-7 | PPK-AA0002 | Oil Seal [10x20x7] | |
| E-7 | PPK-AA0002 | Oil Seal [10x20x7] | |
| E-7 | PPK-AA0002 | Oil Seal [10x20x7] | |
| E-7 | PPK-AA0002 | Oil Seal [10x20x7] | |
| G-32 | PPK-BA0003 | O-Ring (P5) | |
| H-35 | PPK-BA0005 | O-Ring [P7] | |
| H-35 | PPK-BA0011 | O-Ring [P3] | |
| A-27 | PPK-BA0015 | O-Ring (P9) [Φ8.8xΦ12.6, W=1.9] | |
| D-39 | PPK-BA0016 | O-Ring | |
| H-9 | PPK-BA0017 | O-Ring [P20] | |
| E-27 | PPN-AA0001 | Pin | |
| A-48 | PPN-AD0001 | Pin | |
| B-17 | PSC-AC0001 | Screw [M5, L=25] | |
| 1-18 | PSC-AC0006 | Screw [M6] | |
| A-12 | PSC-AC0012 | Screw [M5, L=15] | |
| C-20 | PSC-AC0018 | Screw [M4×P0.7] | |
| J-4 | PSC-AC0072 | Screw B [M6×P1.0, L=25] | |
| A-57 | PSC-AC0159 | Screw [M2, L=12] | |
| A-57 | PSC-AC0159 | Screw [M2, L=12] | |
| B-65 | PSC-BA0001 | Screw [M3, L=10] | |
| B-15 | PSC-CB0001 | Screw [M6, L=8] | |
| C-15 | PSC-CB0002 | Screw [M4×P0.7] | |
| L-8 | PSC-CB0002 | Screw [M4] | |
| G-49 | PSN-AA0014 | Nut [15/64" n=28] | |
| J-5 | PSN-AA0014 | Nut [M6] | |
| G-47 | PSN-AA0017 | Cable Connecting Nut B [3/16" n=32] | |
| 1-13 | PSR-AA0014 | C-Ring [Φ22, t=1.2] | |
| 1-21 | PSR-AC0001 | E-ring [Φ9] | |
| J-9 | PSR-AC0001 | E-ring [Φ9] | |
| K-16 | PSR-AC0001 | E-ring [Φ9] | |
| C-17 | PSR-AC0002 | E-ring [Φ5] | |
| G-20 | PSR-AC0002 | E-Ring [Φ5] | |
| L-4 | PSR-AC0002 | E-ring [Φ5] | |
| 1-53 | PSR-AC0005 | E-ring [Φ6] | |
| M-13 | PSR-AC0006 | E-ring [Φ8] | |
| A-69 | PTC-AG0001 | Nylon Clip | |
| A-68 | PTC-AG0002 | Cable Tie | |
| N-11 | PTL-AB0001 | L Wrench (2mm) | |
| N-9 | PTL-AB0003 | L Wrench (3mm) | |
| N-10 | PTL-AB0005 | L Wrench (2.5mm) | |
| N-2 | PTL-BA0001 | Driver (Large) | |
| N-3 | PTL-BA0002 | Driver (Middle, Small) | |
| L-23 | PWS-AA0005 | Washer | |
| C-13 | PWS-AA0021 | Washer | |
| L-22 | PWS-CA0001 | Spring Washer | |
| L-14 | DWS-AA0006 | Washer | |
| 1-7 | DWS-AA0011 | Washer | |
| H-19 | DWS-AA0016 | Washer | |
| G-25 | DWS-AA0038 | Washer | |
| G-57 | DWS-AA0038 | Washer | |
| 1-20 | DWS-AA0052 | Washer | |
| B-33 | DWS-AA0101 | Bearing Support | |
| C-36 | DWS-AA0112 | Washer for Bobbin Winder Driving Shaft | |
| F-38 | DWS-AA0113 | Feed Lifting Cam Thrust Guide | |
| F-26 | DWS-AA0114 | Washer [Φ7.1xΦ11x1] | |
| M-12 | DWS-AA0118 | Washer for Auto Knee Lifter Shaft | |
| E-26 | DWS-AA0122 | Washer | |
| 1-64 | DWS-AA0122 | Washer |
Page 45 — Index
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| PWS-CA0004 | Spring Washer | ||
| PWS-CA0005 | Washer | ||
| SFAM-500-002 | Motor-Hollow | ||
| SL-000068 | Auto Knee Lifter Solenoid Assy | ||
| Needle (DB×1SF(KN)#11) | Needle (DB×1SF(KN)#11) | ||
| Needle (DB×1 #14) | Needle (DB×1 #14) | ||
| Needle (DB×1 #21) | Needle (DB×1 #21) | ||
| Needle(DB×1SF(KN)#11) | Needle(DB×1SF(KN)#11) | ||
| Needle(DB×1#14) | Needle(DB×1#14) | ||
| Needle(DB×1#21) | Needle(DB×1#21) | ||
| Nail | Nail |
SunStar KM-2300 — parts catalog
- Page 1 (cover): This is the cover page for the SunStar KM-2300U Parts Book, which is a direct drive, high speed, 1-needle lock stitch machine with an automatic thread trimmer. The page also includes the model number PME-121109 and the manufacturer's name, SunStar CO., LTD.
- Page 2 (text): This page provides information about the structure of the parts book, including explanations of different codes and references, along with a diagram of the machine's arm, bed, and body mechanism.
- Page 3 (text): This page contains warnings and notes regarding parts ordering and usage for Sunstar machines, including instructions for ordering parts online and through the parts management system.
- Page 4 (text): This page provides a code key for lubrication types and applications for the KM-2300U sewing machine, with both English and Korean translations.
- Page 5 (toc): This page contains the table of contents for the sewing machine manual, listing various mechanisms and their corresponding page numbers.
- Page 6 (diagram): This page displays a diagram of the machine body mechanism, illustrating various components and their assembly with reference numbers.
- Page 7 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and application periods.
- Page 8 (diagram): This page displays a diagram of the machine body mechanism, illustrating various components and their reference numbers for identification and assembly.
- Page 9 (parts_list): This page contains a parts list for SunStar industrial sewing machines, detailing part numbers, names, and quantities for various components.
- Page 10 (diagram): This page displays a diagram of the Upper Shaft & Needle Bar Mechanism, showing various components with reference numbers for identification.
- Page 11 (parts_list): This page lists parts for a SunStar sewing machine, including part numbers, names, quantities, and application periods. It also includes a note about selective parts.
- Page 12 (diagram): This page displays a diagram of the Upper Shaft & Needle Bar Mechanism, showing various components with reference numbers.
- Page 13 (parts_list): This page lists parts for SunStar sewing machines, including screws, sensors, and brackets, with quantities specified for different models (FA, FG, SA, SG, MA, MG, MB).
- Page 14 (diagram): This page displays a diagram of the thread winder mechanism, with numbered parts indicated for identification.
- Page 15 (parts_list): This page lists parts for a SunStar sewing machine, including part numbers, names, and quantities for various models, with a focus on bobbin winder and thread tension components.
- Page 16 (diagram): This page displays a diagram of the Feed Adjusting Mechanism, with numbered parts and their corresponding labels.
- Page 17 (parts_list): This page lists parts for a SunStar sewing machine, including feed links, screws, nuts, and various adjusting components, with their corresponding part numbers, descriptions, and quantities for different machine models.
- Page 18 (diagram): This page displays a diagram of the lower shaft mechanism, with numbered parts indicated for identification.
- Page 19 (parts_list): This page lists parts for a SunStar sewing machine, including part numbers, names, quantities, and assembly numbers.
- Page 20 (diagram): This page displays a diagram of the feed mechanism, with numbered parts and their corresponding references.
- Page 21 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, and quantities for various models.
- Page 22 (diagram): This page displays a diagram of the Presser Foot & Tension Release Mechanism, with numbered parts and their corresponding references.
- Page 23 (parts_list): This page lists parts for SunStar industrial sewing machines, including part numbers, names, and quantities for various models.
- Page 24 (diagram): This page displays a diagram of the Presser Foot & Tension Release Mechanism, with numbered parts and their corresponding references.
- Page 25 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, descriptions, and quantities for different models.
- Page 26 (diagram): This page displays a diagram of the lubrication mechanism, showing various components with reference numbers.
- Page 27 (parts_list): This page lists parts for SunStar industrial sewing machines, including part numbers, descriptions, and quantities for various models.
- Page 28 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts and their corresponding references.
- Page 29 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, descriptions, and quantities for various models like FA, FG, SA, SG, MA, MG, and MB. It covers items from reference number I-1 to I-56.
- Page 30 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts for identification.
- Page 31 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, and quantities for various models.
- Page 32 (diagram): This page displays a diagram of the Oil Pan & Knee Lifting Mechanism, with various parts numbered for identification.
- Page 33 (parts_list): This page contains a parts list for various components of a SunStar sewing machine, including oil pans, screws, nuts, and controllers, with part numbers, names, and quantities for different models.
- Page 34 (diagram): This page displays a diagram of the reverse button mechanism, with numbered parts and their corresponding references.
- Page 35 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and applied periods for various components like screws, bases, and housings.
- Page 36 (diagram): This page displays a diagram of the thread wiper mechanism, illustrating various components with reference numbers for identification.
- Page 37 (parts_list): This page lists parts for a SunStar sewing machine, including part numbers, descriptions, and quantities for various models.
- Page 38 (diagram): This page displays a diagram of the Auto Knee Lifter Solenoid Mechanism (Option), with numbered parts indicated.
- Page 39 (parts_list): This page contains a parts list for the SunStar sewing machine, detailing various components with their part numbers, names, and quantities for different assembly models.
- Page 40 (diagram): This page displays a diagram of accessories and mechanisms for an industrial sewing machine, with various parts numbered for identification.
- Page 41 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, descriptions, and quantities for various models.
- Page 42 (index): This page is an index of machine parts, listing part numbers, names, page numbers, and reference numbers.
- Page 43 (index): This page is an index of parts for an industrial sewing machine, listing part numbers, names, page numbers, and reference numbers.
- Page 44 (index): This page is an index of parts for an industrial sewing machine, listing part numbers, names, page numbers, and reference numbers.
- Page 45 (index): This page is an index of parts for an industrial sewing machine, listing part numbers, names, page numbers, and reference numbers.
