SunStar KM-250 Parts Book (PDF)
Text index — SunStar KM-250
Page 7 — Machine Body & Thread Tension Adjusting Mechanism 외장 및 실장력 조절관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-1 | 01-001A-250A | Arm, Bed | 1 |
| A-2 | 01-001A-250B | Arm, Bed | 1 |
| A-3 | 01-001A-257A | Arm, Bed | 1 |
| A-4 | 01-001A-257B | Arm, Bed | 1 |
| A-4-1 | 01-001A-25BL | Arm, Bed | 1 |
| A-4-2 | 01-001A-2BLS | Arm, Bed | 1 |
| A-5 | 01-036C-2500 | Face Plate | 1 |
| A-6 | 01-137M-2500 | Gasket For A-5 | 1 |
| A-7 | SC-0523-1230 | Screw(3/16" n=28) | 3 |
| A-8 | 01-139C-2500 | Thread Take Up Cover | 1 |
| A-9 | SC-0548-7400 | Screw(3/16" n=28) | 1 |
| A-10 | 01-144R-1230 | Face Plate Rubber Cap(L) | 1 |
| A-11 | 01-110R-1230 | Face Plate Rubber Cap(S) | 1 |
| A-12 | 01-140C-2500 | Back Cover | 1 |
| A-13 | 01-141M-2500 | Gasket For A-12 | 1 |
| A-13-1 | 01-142M-2500 | Gasket For A-12 | 1 |
| A-14 | SC-0548-7400 | Screw(3/16" n=28) | 8 |
| A-14-1 | SC-0523-1230 | Screw(3/16" n=28) | 3 |
| A-14-2 | SC-0548-7400 | Screw(3/16" n=28) | 5 |
| A-14-3 | SC-0215-1230 | Screw(9/64" n=40) | 1 |
| A-14-4 | 02-019W-1230 | Washer | 1 |
| A-15 | 01-110R-1230 | Arm Rubber Cap(L) | 2 |
| A-16 | 04-003R-1600 | Arm Rubber Cap(S) | 2 |
| A-17 | GP-044042-00 | Rubber Cap For B-40 | 1 |
| A-17 | 04-003R-1600 | Rubber Cap For B-40 | 1 |
| A-18 | 01-021R-1600 | Bed Rubber Cap | 1 |
| A-19 | 01-005A-257A | Code Bushing | 1 |
| A-20 | 01-016C-1230 | Bed Base "FRONT"(A-TYPE) | 1 |
| A-21 | 01-115C-1230 | Bed Base(R) | 1 |
| A-22 | SC-0346-2350 | Screw(M8×1.25) | 1 |
| A-23 | 01-038W-1230 | Spring Washer For A-21 | 2 |
| A-24 | SN-0112-1230 | Nut(M8×1.25) | 1 |
| A-26 | 01-142A-257A | Code Holder "A" | 1 |
| A-27 | 01-143A-257A | Code Holder "B" | 1 |
| A-28 | 01-009R-5300 | Code Holder(7N) | 1 |
| A-29 | 12-016M-2350 | Earth Line | 1 |
| A-30 | 02-003A-2700 | Nylon Clip | 3 |
| A-31 | 01-135A-123A | Needle Plate(A-TYPE) | 1 |
| A-32 | 01-135A-123B | Needle Plate(B-TYPE) | 1 |
| A-33 | 06-135A-235B | Needle Plate(BH-TYPE) | 1 |
| A-34 | SC-000568-00 | Screw(11/64" n=40) | 2 |
| A-35 | GP-012128-00 | Slide Plate | 1 |
| A-36 | 01-144A-257A | Gauge Plate | 1 |
| A-37 | 01-136S-1230 | Screw(11/64" n=40) | 1 |
| A-38 | GP-009247-00 | Model Mark(KM-250A) | 1 |
| A-39 | 01-045M-250B | Model Mark(KM-250B) | 1 |
| A-40 | GP-009253-00 | Model Mark(KM-250A-7S) | 1 |
| A-41 | GP-009254-00 | Model Mark(KM-250B-7S) | 1 |
| A-42 | 01-035P-1370 | Machine Number Plate | 1 |
| A-43 | 01-035P-7400 | Pin | 2 |
| A-45 | 01-116A-2350 | Upper Thread Guide Pin and Nut | 1 |
| A-47 | 40-201A-2700 | Sub Upper Thread Tension Control Ass'y | 1조 |
| A-48 | SC-0542-1230 | Screw(11/64" n=40) | 1 |
| A-51 | 01-030C-1230 | Arm Thread Guide | 1 |
| A-52 | SC-0120-1230 | Screw(9/64" n=40) | 1 |
| A-53 | 01-031C-1230 | Thread Guide For A-5 | 1 |
| A-53-1 | 01-003C-250B | Thread Guide For A-5 | 1 |
| A-54 | AS-005578-00 | Screw(9/64" n=40) | 1 |
| A-55 | 40-104A-2350 | Thread Tension Control Ass'y | 1조 |
| A-56-1 | 40-004A-250B | Thread Tension Control Ass'y | (1조) |
| A-56-2 | 40-333G-123B | Thread Tension Adjusting Spring | (1) |
| A-57 | 08-001S-1230 | Screw(15/64" n=28) | 1 |
| A-58 | 01-017C-1230 | Bed Base "FRONT"(B) | 1 |
| A-59 | 01-227A-1230 | Thread Guide With Three Holes | 1 |
| A-60 | 40-008R-1230 | Cap For Tension Release Pin | 1 |
| A-61 | SC-0164-2700 | Screw(M5×L5) | 1 |
| A-62 | 01-135A-235A | Needle Plate | 1 |

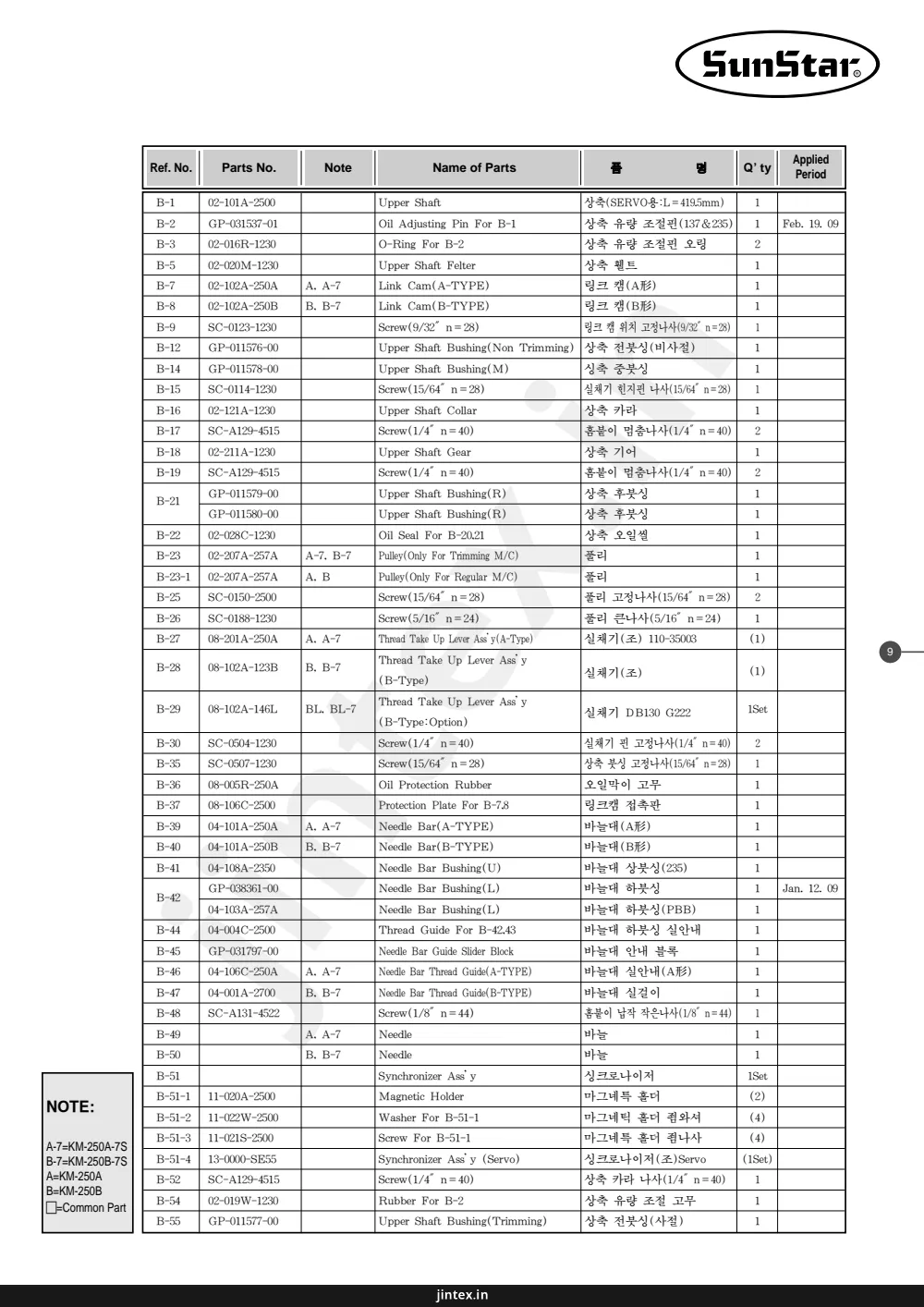

Page 9 — B Upper Shaft & Needle Bar Mechanism 상축 및 바늘대 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1 | 02-101A-2500 | Upper Shaft | 1 |
| B-2 | GP-031537-01 | Oil Adjusting Pin For B-1 | 1 |
| B-3 | 02-016R-1230 | O-Ring For B-2 | 2 |
| B-5 | 02-020M-1230 | Upper Shaft Felter | 1 |
| B-7 | 02-102A-250A | Link Cam(A-TYPE) | 1 |
| B-8 | 02-102A-250B | Link Cam(B-TYPE) | 1 |
| B-9 | SC-0123-1230 | Screw(9/32" n=28) | 1 |
| B-12 | GP-011576-00 | Upper Shaft Bushing(Non Trimming) | 1 |
| B-14 | GP-011578-00 | Upper Shaft Bushing(M) | 1 |
| B-15 | SC-0114-1230 | Screw(15/64" n=28) | 1 |
| B-16 | 02-121A-1230 | Upper Shaft Collar | 1 |
| B-17 | SC-A129-4515 | Screw(1/4" n=40) | 2 |
| B-18 | 02-211A-1230 | Upper Shaft Gear | 1 |
| B-19 | SC-A129-4515 | Screw(1/4" n=40) | 2 |
| B-21 | GP-011579-00 | Upper Shaft Bushing(R) | 1 |
| B-21 | GP-011580-00 | Upper Shaft Bushing(R) | 1 |
| B-22 | 02-028C-1230 | Oil Seal For B-20.21 | 1 |
| B-23 | 02-207A-257A | Pulley(Only For Trimming M/C) | 1 |
| B-23-1 | 02-207A-257A | Pulley(Only For Regular M/C) | 1 |
| B-25 | SC-0150-2500 | Screw(15/64" n=28) | 2 |
| B-26 | SC-0188-1230 | Screw(5/16" n=24) | 1 |
| B-27 | 08-201A-250A | Thread Take Up Lever Ass'y(A-Type) | (1) |
| B-28 | 08-102A-123B | Thread Take Up Lever Ass'y (B-Type) | (1) |
| B-29 | 08-102A-146L | Thread Take Up Lever Ass'y (B-Type:Option) | 1Set |
| B-30 | SC-0504-1230 | Screw(1/4" n=40) | 2 |
| B-35 | SC-0507-1230 | Screw(15/64" n=28) | 1 |
| B-36 | 08-005R-250A | Oil Protection Rubber | 1 |
| B-37 | 08-106C-2500 | Protection Plate For B-7,8 | 1 |
| B-39 | 04-101A-250A | Needle Bar(A-TYPE) | 1 |
| B-40 | 04-101A-250B | Needle Bar(B-TYPE) | 1 |
| B-41 | 04-108A-2350 | Needle Bar Bushing(U) | 1 |
| B-42 | GP-038361-00 | Needle Bar Bushing(L) | 1 |
| B-42 | 04-103A-257A | Needle Bar Bushing(L) | 1 |
| B-44 | 04-004C-2500 | Thread Guide For B-42,43 | 1 |
| B-45 | GP-031797-00 | Needle Bar Guide Slider Block | 1 |
| B-46 | 04-106C-250A | Needle Bar Thread Guide(A-TYPE) | 1 |
| B-47 | 04-001A-2700 | Needle Bar Thread Guide(B-TYPE) | 1 |
| B-48 | SC-A131-4522 | Screw(1/8" n=44) | 1 |
| B-51-1 | 11-020A-2500 | Magnetic Holder | (2) |
| B-51-2 | 11-022W-2500 | Washer For B-51-1 | (4) |
| B-51-3 | 11-021S-2500 | Screw For B-51-1 | (4) |
| B-51-4 | 13-0000-SE55 | Synchronizer Ass'y (Servo) | (1Set) |
| B-52 | SC-A129-4515 | Screw(1/4" n=40) | 1 |
| B-54 | 02-019W-1230 | Rubber For B-2 | 1 |
| B-55 | GP-011577-00 | Upper Shaft Bushing(Trimming) | 1 |
| B-49 | Needle | Needle |
Page 11 — Upright Shaft & Lower Shaft Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-1 | 03-001A-1600 | Upright Shaft | 1 |
| C-2 | 02-212A-1230 | Upright Shaft Gear(U) | 1 |
| C-3 | SC-A129-4515 | Screw(1/4" n=40) | 2 |
| C-5 | 03-102A-1230 | Upright Shaft Bushing(U) | 1 |
| C-6 | SC-0507-1230 | Screw(15/64" n=28) | 1 |
| C-7 | GP-011581-00 | Upright Shaft Bushing(L) | 1 |
| C-8 | 02-213A-1230 | Upright Shaft Gear(L) | 1 |
| C-9 | SC-0129-7400 | Screw(1/4" n=40) | 2 |
| C-10 | GP-043692-00 | Lower Shaft | 1 |
| C-10 | 07-103A-257A | Lower Shaft | 1 |
| C-11 | 02-214A-1230 | Lower Shaft Gear | 1 |
| C-12 | 07-005M-1230 | Lower Shaft Felter | 1 |
| C-13 | SC-000593-00 | Cap Screw For Lower Shaft oil | 1 |
| C-14 | SC-A129-4515 | Screw(1/4" n=40) | 2 |
| C-16 | GP-018589-00 | Lower Shaft Bushing(R) | 1 |
| C-17 | SC-0507-1230 | Screw(1/4" n=40) | 1 |
| C-18 | 07-103A-1600 | Lower Shaft Bushing(M) | 1 |
| C-19 | GP-030777-00 | Lower Shaft Bushing(F) | 1 |
| C-20 | 07-107A-250A | Lower Shaft Bushing(F) | 1 |
| C-21 | SC-0114-1230 | Screw(15/64" n=28) | 1 |
| C-22 | SC-0361-1230 | Screw(3/16" n=32) | 1 |
| C-23 | 07-015G-1230 | Spring For C-22 | 1 |
| C-24 | CL-000156-00 | Collar For Lower Shaft | 1 |
| C-25 | SC-A550-4517 | Screw(11/64" n=40) | 2 |
| C-26 | 07-003A-270A | Rotary Hook Ass'y | 1Set |
| C-27 | 07-007A-123A | Rotary Hook Ass'y | 1Set |
| C-28 | 07-003A-270B | Rotary Hook Ass'y | 1Set |
| C-29 | 07-007A-123B | Rotary Hook Ass'y | 1Set |
| C-30 | 07-105A-2700 | Bobbin(AL) | 1 |
| C-32 | 07-104A-2700 | Bobbin Case Ass'y | 1Set |
| C-33 | 07-106A-123A | Bobbin Case Ass'y | 1Set |
| C-34 | 07-013A-1230 | Inner Bobbin Stopper | 1 |
| C-35 | SC-A174-4122 | Screw(11/64" n=40) | 1 |
| C-36 | 07-011W-1230 | Washer For C-35 | 1 |
Page 13
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-1 | 06-101A-250A | Feed Cam A | 1 |
| D-2 | SC-0129-7400 | Screw(1/4" n=40) | 2 |
| D-3 | 06-101A-250B | Feed Cam B | 1 |
| D-4 | 06-103C-235B | Stop-Ring "C" For D-1,3 | 1 |
| D-5 | 06-102A-2500 | Feed Cam C | 1 |
| D-6 | SC-0504-1230 | Screw(1/4" n=40) | 2 |
| D-7 | 06-103A-2500 | Feed Rocker Shaft Connecting Rod | 1 |
| D-8 | 06-154A-1230 | Crank Rod | 1 |
| D-9 | 06-104A-257A | Feed Regulator Link | 1 |
| D-10 | 06-103A-2350 | Feed Regulator Link | 1 |
| D-11 | 06-104P-2350 | Feed Connection Link Pin(A) | 1 |
| D-12 | SC-0496-3710 | Screw(11/64" n=40) | 1 |
| D-13 | 06-105A-2350 | Feed Connection Link(A) | 2 |
| D-14 | 06-106A-2350 | Feed Connection Link(B) | 2 |
| D-15 | 06-107P-2350 | Feed Adjusting Link Hinge Pin(A) | 1 |
| D-16 | SC-0504-1230 | Screw(1/4" n=40) | 1 |
| D-17 | 06-108P-2350 | Feed Adjusting Link Hinge Pin(B) | 1 |
| D-18 | SC-A0308-4517 | Screw(1/4" n=40) | 1 |
| D-19 | 06-109P-2350 | Feed Connection Link Pin(B) | 1 |
| D-20 | SC-0496-3710 | Screw(11/64" n=40) | 1 |
| D-21 | 06-110P-2350 | Feed Connection Link Pin(C) | 1 |
| D-22 | SC-0175-1230 | Screw(11/64" n=40) | 1 |
| D-23 | 06-023P-2350 | Hinge Pin For D-75 | 1 |
| D-24 | 04-009C-3710 | E-Ring(ϕ5) | 1 |
| D-25 | SC-0175-1230 | Screw(11/64" n=40) | 1 |
| D-26 | 06-311A-2350 | Level Feed Crank(R) | 1 |
| D-27 | 06-119S-1230 | Screw(3/16" n=28) | 1 |
| D-28 | 06-112A-2350 | Feed Rock Shaft | 1 |
| D-30 | 06-140A-1230 | Feed Rock Shaft Bushing(R) | 1 |
| D-31 | SC-0114-1230 | Screw(15/64" n=28) | 1 |
| D-32 | 06-113A-2350 | Feed Rock Shaft Bushing(F) | 1 |
| D-33 | SC-0114-1230 | Screw(15/64" n=28) | 1 |
| D-34 | 06-021R-1230 | Oil Cover For D-28,54 | 2 |
| D-35 | 06-008A-2350 | Feed Bar Crank | 1 |
| D-36 | SC-0307-1230 | Screw(3/16" n=32) | 2 |
| D-37 | 06-114A-2350 | Feed bar Shaft | 1 |
| D-39 | 44-009C-1230 | Wick Holder For D-37 | 1 |
| D-40 | SC-0133-1230 | Screw(1/8" n=44) | 2 |
| D-41 | 06-102W-2350 | Washer For D-37 | 1 |
| D-42 | SC-0122-1230 | Screw(15/64" n=28) | 1 |
| D-43 | GP-034931-00 | Feed Bar | 1 |
| D-44 | GP-011202-00 | Feed Dog(A-TYPE) | 1 |
| D-45 | 06-107A-123B | Feed Dog(B-TYPE) | 1 |
| D-46 | GP-008589-00 | Feed Dog(BH-TYPE)(Magrin) | 1 |
| D-47 | SC-0130-1230 | Screw(1/8" n=44) | 2 |
| D-48 | 06-117A-1230 | Feed Bar Block and Shaft | 1 |
| D-50 | 06-020S-1230 | Screw(3/16" n=32) | 1 |
| D-51 | 06-128A-2350 | Feed Lifting Shaft Crank(F) | 1 |
| D-53 | 06-119S-1230 | Screw(3/16" n=28) | 1 |
| D-54 | 06-116A-2350 | Feed Lifting Shaft | 1 |
| D-55 | 44-029M-1230 | Stopper For Wick | 2 |
| D-56 | 06-139A-1230 | Feed Lifting Shaft Bushing(F) | 1 |
| D-57 | SC-0114-1230 | Screw(15/64" n=28) | 1 |
| D-58 | 06-140A-1230 | Feed Lifting Shaft Bushing(R) | 1 |
| D-59 | SC-0114-1230 | Screw(15/64" n=28) | 1 |
| D-60 | 06-038A-235A | Feed Lifting Shaft Crank(R): A-TYPE | 1 |
| D-61 | 06-041A-235B | Feed Lifting Shaft Crank(R): B-TYPE | 1 |
| D-62 | 06-119S-1230 | Screw(3/16" n=28) | 1 |
| D-63 | 06-037P-1230 | Crank Rod Connection Pin | 1 |
| D-64 | SC-0175-1230 | Screw(11/64" n=40) | 1 |
| D-65 | 01-037R-1230 | Rubber Cap For D-28,54(F) | 2 |
| D-66 | GP-008523-00 | Feed Regulator Shaft | 1 |
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-67 | 06-043R-1230 | O-Ring For D-66 | 2 |
| D-68 | SC-0507-1230 | Screw(15/64" n=28) | 1 |
| D-69 | GP-008525-01 | Feed Regulator | 1 |
| D-70 | GP-008524-01 | Feed Regulator | 1 |
| D-71 | SC-0174-1230 | Screw(11/64" n=40) | 2 |
| D-72 | 06-220A-2350 | Collar For D-66 | 1 |
| D-73 | SC-0129-7400 | Screw(1/4" n=40) | 2 |
| D-74 | 06-221A-2350 | Feed Adjusting Shaft | 1 |
| D-75 | 06-122A-2500 | Connecting Rod For Feed Regulator | 1 |
| D-75-1 | 06-122A-1370 | Feed Regulator Rod | 1 |
| D-76 | 04-009C-3710 | E-ring(ϕ5) | 1 |
| D-77 | 06-023C-257A | B/T Spring Holder | 1 |
| D-78 | SC-0528-1230 | Screw(9/64" n=40) | 2 |
| D-79 | 06-023G-257B | Reverse Feed Spring | 1 |
| D-80 | 06-024C-257A | Holder For D-79 | 1 |
| D-81 | 06-125A-2500 | Reverse Feed Control Lever Shaft | 1 |
| D-82 | 06-042R-1230 | O-Ring For D-81 | 1 |
| D-83 | 06-126A-257A | Reverse Feed Lever Crank Ass'y | (1) |
| D-84 | 06-126A-250A | Reverse Feed Lever Crank Ass'y | (1) |
| D-85 | SC-0184-1600 | Screw(3/16" n=28) | 1 |
| D-86 | SC-0174-1230 | Screw(11/64" n=40) | 1 |
| D-87 | 06-024G-1230 | Spring For D-112 | 1 |
| D-87-1 | 06-023G-257B | Spring For D-112 | 1 |
| D-88 | 06-056G-2350 | Spring For D-112 | 1 |
| D-89 | 06-040S-1600 | Holder For D-112 | 1 |
| D-90 | SN-0101-1600 | Nut(11/64" n=40) | 2 |
| D-91 | GP-037384-00 | Feed Regulator Dial Shaft | 1 |
| D-92 | 10-042C-2700 | O-Ring For D-91 | 2 |
| D-93 | 06-028C-250A | Feed Regulator Control Plate(4mm) | 1 |
| D-94 | 06-028C-250B | Feed Regulator Control Plate(7mm) | 1 |
| D-95 | SC-0193-1230 | Screw(3/16" n=28) | 1 |
| D-96 | PN-000273-00 | Pin For D-93,94 | 1 |
| D-97 | 06-027G-1230 | Spring For D-96 | 1 |
| D-98 | 06-048A-2507 | Reverse Feed Solenoid Ass'y | 1조 |
| D-98-1 | 06-048B-2507 | Reverse Feed Solenoid Ass'y | 1조 |
| D-99 | 06-130A-257A | Bracket For Reverse Feed Solenoid | 1 |
| D-100 | SC-0166-2350 | Screw(M5×0.8) | 2 |
| D-101 | 01-020W-2350 | Spring Washer For Bracket | 3 |
| D-102 | SC-0108-2350 | Screw(M6) | 3 |
| D-103 | 06-131A-2578 | Reverse Feed Solenoid Crank | 1 |
| D-104 | 06-032S-257A | Stud Screw For D-103 | 1 |
| D-106 | 40-005C-2700 | Hinge Nut For D-107 | 1 |
| D-107 | GP-018185-00 | Reverse Solenoid Connecting Rod | 1 |
| D-108 | 06-035A-257A | Hinge Pin For D-107 | 1 |
| D-109 | SC-0175-1230 | Screw(11/64" n=40) | 1 |
| D-111 | 06-053W-1230 | Washer For D-81 | 1 |
| D-112 | 06-036C-2500 | Feed Regulator Lever | 1 |
| D-113 | SC-0186-1230 | Screw(3/16" n=32) | 1 |
| D-114 | SC-0185-1230 | Screw(3/16" n=32) | 1 |
| D-115 | 06-072R-7507 | Stopper Rubber For D-112 | 1 |
| D-116 | 06-071S-7507 | Stopper Stud Screw For D-112 | 1 |
| D-117 | 11-019M-2350 | Terminal Tube(L) | 1 |
| D-118 | 11-018M-2350 | Solenoid Terminal(12P) | 1 |
| D-119 | PN-000602-01 | Dial Pin | 1 |
| D-120 | 06-028C-257A | Feed Regulator ControlPlate(INSERT) | 1 |
| D-121 | 06-028C-257B | Feed Regulator ControlPlate(INSERT) | 1 |
| D-122 | 06-103A-25BL | Feed Regulator Link | 1 |
| D-123 | 06-103A-2BLS | Feed Regulator Link | 1 |
| D-124 | AS-008438-00 | Dial Shaft Eccentric Stopper | 1 |
| D-125 | GP-016351-01 | Dial Shaft Locker A'ssy | 1 |
| D-126 | 06-107A-235A | Feed Dog | 1 |
Page 17

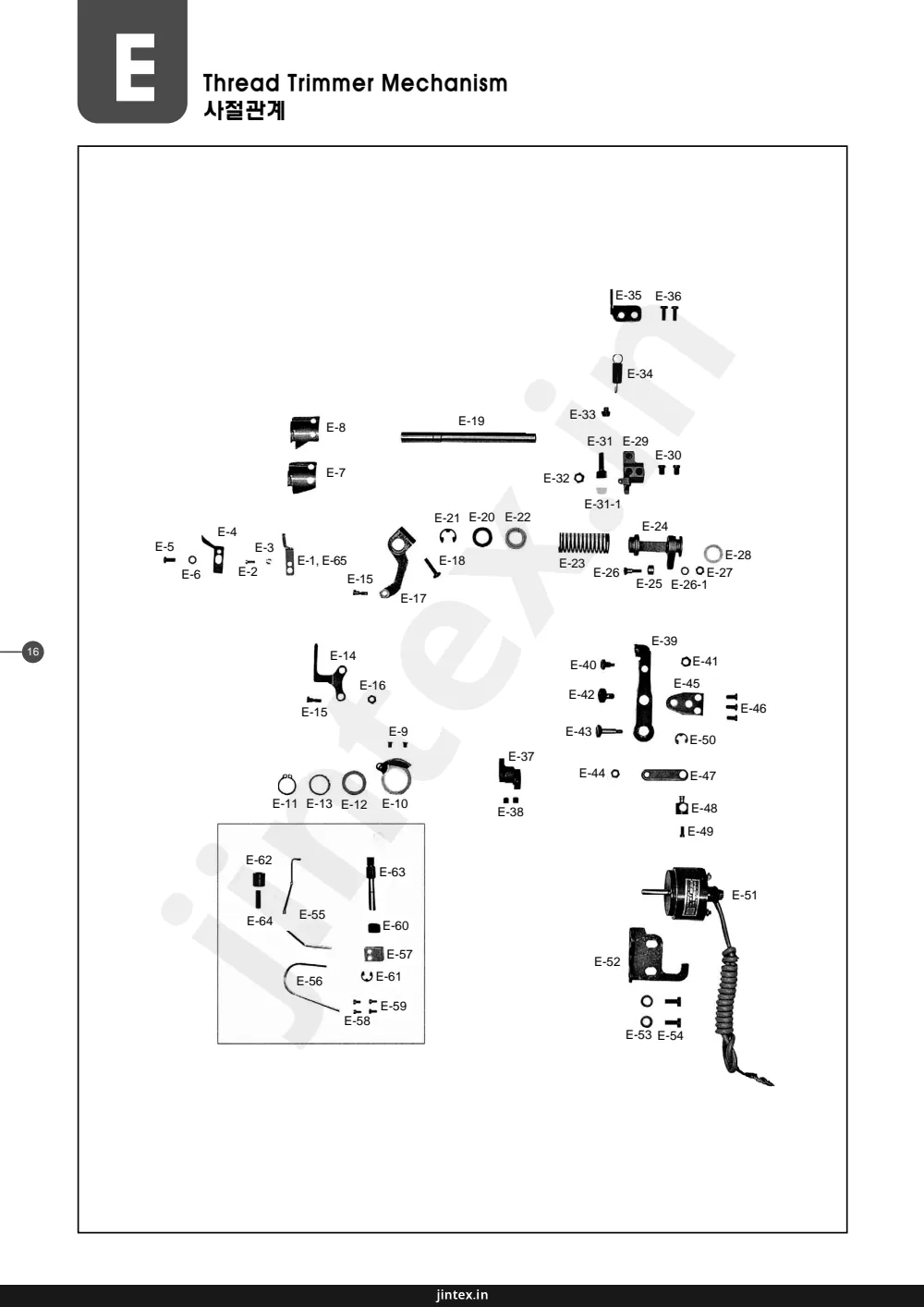

| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E-1 | GP-043680-00 | Fixed Mes | 1 |
| 10-101A-2700 | Fixed Mes | 1 | |
| E-2 | SC-0137-2700 | Screw(1/8" n=40) | 1 |
| E-3 | SN-0103-2700 | Nut(1/8" n=40) | 1 |
| E-4 | 10-005A-2700 | Thread Retaining Plate | 1 |
| E-5 | SC-0543-2302 | Screw(11/64" n=40) | 1 |
| E-6 | 01-017W-1600 | Washer For E-5 | 1 |
| E-7 | 10-106A-2700 | Rotary Mes | 1 |
| E-8 | 10-106A-235B | Rotary mes | 1 |
| E-9 | SC-A154-4114 | Screw(11/64" n=40) | 2 |
| E-10 | 10-108A-257A | Thread Trimming Holder | 1 |
| E-11 | 10-009C-2700 | Stop-Ring For E-11 | 1 |
| E-12 | 10-110W-2700 | Washer For E-11 | 1 |
| E-13 | 10-011A-2700 | Needle Bearing | 1 |
| E-14 | 10-112A-257A | Thread Trimming Lever Connecting Link | 1 |
| E-15 | 10-013S-257A | Stud Screw For E-15 | 2 |
| E-16 | SN-0101-1600 | Nut(11/64" n=40) | 1 |
| E-17 | 10-114A-257A | Thread Trimming Lever | 1 |
| E-18 | SC-0108-2350 | Screw(M6) | 1 |
| E-19 | 10-115A-257A | Thread Trimming Shaft | 1 |
| E-20 | 10-116W-257A | Washer For E-20 | 1 |
| E-21 | 43-009C-1600 | E-Ring(ϕ9) | 1 |
| E-22 | 10-017A-257A | Return Spring Guide Bushing | 1 |
| E-23 | 10-018G-257A | Slide Arm Return Spring | 1 |
| E-24 | GP-019026-00 | Slide Arm | 1 |
| E-25 | 10-166A-7507 | Roller | 1 |
| E-26 | 10-067S-7507 | Stud Screw For E-26 | 1 |
| E-26-1 | 07-011W-1230 | Washer For E-27 | 1 |
| E-27 | SN-0115-7400 | Nut(3/16" n=32) | 1 |
| E-28 | 10-044R-5607 | Cushion Washer For E-20 | 1 |
| E-29 | 10-121A-257A | Cam Follower Crank | 1 |
| E-30 | 15-002S-5607 | Screw For E-30 | 2 |
| E-31 | 10-032S-257A | Stopper Screw | 1 |
| E-31-1 | 10-032R-257A | Cushion Rubber For E-32 | 1 |
| E-32 | SN-0105-3400 | Nut(15/64" n=28) | 1 |
| E-33 | 10-122P-257A | Stopper Pin | 1 |
| E-34 | 10-023G-257A | Spring For E-30 | 1 |
| E-35 | 10-124C-257A | Spring Holder | 1 |
| E-36 | SC-0548-7400 | Screw(3/16" n=28) | 2 |
| E-37 | GP-020747-00 | Thread Trimming Cam | 1 |
| E-38 | SC-A308-4517 | Screw(1/4" n=40) | 2 |
| E-39 | 10-126A-257A | Clutch Lever Ass'y | 1Set |
| E-40 | GP-013513-00 | Stud Screw For E-40 | 1 |
| E-41 | SN-0105-3400 | Nut(15/64" n=28) | 1 |
| E-42 | 43-004S-3400 | Clutch Lever Moving Pin Screw | 1 |
| E-44 | SN-0115-7400 | Nut(3/16" n=32) | 1 |
| E-45 | 10-129A-257A | Base Plate | 1 |
| E-46 | SC-0548-7400 | Screw(3/16" n=28) | 3 |
| E-47 | 10-130A-257A | Solenoid Connection Link | 1 |
| E-48 | 10-131P-257A | Solenoid Pin | 1 |
| E-49 | SC-0496-3710 | Screw(11/64" n=40) | 1 |
| E-50 | 04-009C-3710 | E-Ring(ϕ5) | 1 |
| E-51 | AS-014978-00 | Thread Trimming Solenoid Ass'y | 1Set |
| E-52 | 10-033A-257A | Base For E-52 | 1 |
| E-53 | 01-020W-2350 | Washer For E-53 | 2 |
| E-54 | SC-0183-2700 | Screw(15/64" n=28) | 2 |
| E-55 | GP-035920-00 | Bobbin Catcher | 1 |
| E-56 | GP-034021-00 | Bobbin Catcher Lever | 1 |
| E-57 | 01-114C-2350 | Bobbin Catcher Holder | 1 |
| E-58 | SC-A131-4522 | Screw(1/8" n=44) | 2 |
| E-59 | SC-A131-4522 | Screw(1/8" n=44) | 2 |
| E-60 | 01-015C-2350 | Bobbin Catcher Spring | 1 |
| E-61 | 06-020C-7400 | E-Ring(ϕ6) | 1 |
| E-62 | 01-016R-2700 | Stopper Rubber For E-56 | 1 |
| E-63 | 01-105A-2350 | Bed base "FRONT"(B) | 1 |
| E-64 | SC-0508-1230 | Screw | 1 |
Page 19 — Presser Foot & Tension Release Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-1 | SC-0339-1230 | Screw(9/16" n=20) | 1 |
| F-2 | 05-002C-2500 | Presser Adjusting Nut | 1 |
| F-3 | 05-014C-250A | Presser Adjusting Spring(A-TYPE) | 1 |
| F-4 | 05-014C-250B | Presser Adjusting Spring(B-TYPE) | 1 |
| F-5 | 05-007C-1230 | Presser Adjusting Bar | 1 |
| F-6 | 05-101A-1230 | Presser Bar | 1 |
| F-7 | 05-115A-2500 | Presser Bar Bushing | 1 |
| F-8 | 05-103A-1370 | Presser Bar Holder | 1 |
| F-9 | SC-0498-3710 | Screw(11/64" n=40) | 1 |
| F-10 | GP-013150-00 | Presser Foot Ass'y(A-TYPE) | 1조 |
| F-11 | 05-012A-1230 | Presser Foot Ass'y(B-TYPE) | 1조 |
| F-12 | 05-009A-350B | Presser Foot Ass'y(BH-TYPE) | 1조 |
| F-13 | SC-0157-1230 | Screw(9/64" n=40) | 1 |
| F-14 | GP-023786-00 | Thread Guide Plate | 1 |
| F-15 | SC-0502-2302 | Screw(9/64" n=40) | 1 |
| F-16 | 43-001A-2500 | Presser Lifter | 1 |
| F-17 | 02-019W-1230 | Washer For F-16 | 1 |
| F-18 | SC-0528-1230 | Screw(9/64" n=40) | 1 |
| F-19 | 43-102A-2500 | Presser Lifter Cam Shaft | 1 |
| F-20 | 02-016R-1230 | O-Ring For F-19 | 1 |
| F-21 | AS-003057-00 | Presser Lifter Link(set) | 1 |
| F-22 | 43-004S-2500 | Hinge Screw For F-21 | 2 |
| F-23 | 04-009C-3710 | E-Ring(ϕ5) | 5 |
| F-24 | 43-105A-2500 | Presser Lifter Lever | 1 |
| F-25 | 43-106C-2500 | Presser Lifter Connection Bar | 1 |
| F-26 | 43-007S-2500 | Stud Screw For F-25 | 1 |
| F-27 | 43-108A-2500 | Knee Lifting Link | 1 |
| F-28 | SC-000437-00 | Hinge Screw For F-27 | 1 |
| F-29 | 43-109C-2500 | Knee Lifing Bar | 1 |
| F-30 | 43-010S-2500 | Hinge Screw For F-29 | 1 |
| F-31 | 40-003P-2500 | Tension Release Pin | 1 |
| F-32 | 40-105C-2500 | Tension Release Plate | 1 |
| F-33 | 40-006S-2500 | Stud Screw For Tension Release Plate | 1 |
| F-34 | 04-009C-3710 | E-Ring(ϕ5) | 2 |
| F-35 | GP-024276-00 | Spring For Tension Release Plate | 1 |
| F-36 | GP-021217-00 | Tension Release Cable Ass'y | 1조 |
| F-37 | 40-209A-257A | Tension Release Cable Holder(U) | 1 |
| F-38 | SC-0527-7600 | Screw(3/16" n=28) | 1 |
| F-39 | SC-0175-1230 | Screw(11/64" n=40) | 1 |
| F-40 | GP-022094-00 | Screw(9/32" n=28) | 1 |
| F-41 | 01-038W-1230 | Spring Washer | 1 |
| F-42 | 40-004C-2700 | Nut (9/32" n=28) | 1 |
| F-43 | 44-026G-7400 | Tension Release Cable Holder(M) | 1 |
| F-44 | SC-0548-7400 | Screw(3/16" n=28) | 1 |
| F-45 | 40-211A-257A | Tension Release Cable Holder(L)(ϕ5) | 1 |
| F-46 | SC-0175-1230 | Screw(11/64" n=40) | 1 |
| F-47 | 40-210A-257A | Tension Release Cable Holder(ϕ5) | 1 |
Page 21 — Thread Wiper Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G-1 | 11-001A-257A | Wiper Bracket Ass'y | 1조 |
| G-2 | SC-0548-7400 | Screw(3/16" n=28) | 2 |
| G-3 | GP-037820-00 | Wiper Rotation Shaft | 1 |
| G-4 | 04-009C-3710 | E-Ring(ϕ5) | 1 |
| G-5 | 11-003A-257A | Wiper | 1 |
| G-7 | SC-0120-1230 | Screw(9/64" n=40) | 1 |
| G-8 | 11-106A-257A | Wiper Crank Ass'y | 1조 |
| G-9 | SC-0105-7500 | Screw(M4) | 1 |
| G-10 | 16-113S-3710 | Hinge Screw For G-8 | 1 |
| G-11 | SN-0101-1600 | Nut(11/64" n=40) | 1 |
| G-12 | 11-007A-257A | Wiper Rod | 1 |
| G-13 | 16-113S-3710 | Hinge Screw For G-12 | 1 |
| G-14 | SN-0101-1600 | Nut(11/64" n=40) | 1 |
| G-15 | 11-008A-257A | Wiper Driving Link Ass'y | 1조 |
| G-16 | 11-009S-257A | Hinge Screw For G-15 | 1 |
| G-17 | 10-020W-2700 | Washer For G-15 | 1 |
| G-18 | SN-0101-1600 | Nut(3/16" n=32) | 1 |
| G-19 | 11-010A-257A | Wiper Solenoid Connection Link | 1 |
| G-20 | 16-113S-3710 | Hinge For G-19 | 1 |
| G-21 | SN-0101-1600 | Nut(11/64" n=40) | 1 |
| G-22 | 11-011G-257A | Wiper Spring | 1 |
| G-23 | 11-112A-257A | Wiper Base | 1 |
| G-24 | SC-0548-7400 | Screw(3/16" n=28) | 3 |
| G-25 | 11-013C-257A | Wiper Cover | 1 |
| G-26 | SC-0120-1230 | Screw(9/64" n=40) | 2 |
| G-27 | 11-015A-2507 | Wiper Solenoid Ass'y | 1조 |
| G-28 | SC-0196-2700 | Screw(M3×0.5) | 4 |
| G-29 | 11-016W-2700 | Spring Washer For G-27 | 4 |
| G-30 | 11-017W-2700 | Washer For G-27 | 4 |
Page 22 — Reverse Button Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H-1 | 12-001A-5607 | Reverse Button Case | 1 |
| H-2 | SC-0523-1230 | Screw(9/64" n=40) | 2 |
| H-3 | 12-131A-5607 | Reverse Button S/W Ass'y | (2) |
| H-4 | 12-012S-2700 | Screw | 2 |
| H-5 | PN-000695-00 | Reverse Button Actuator Pin | 1 |
| H-5 | 12-104P-5607 | Reverse Button Actuator Pin | 1 |
| H-6 | 43-009C-1600 | E-Ring(φ9) | 2 |
| H-7 | 12-101A-257A | Reverse Feed Control Lever | 1 |
| H-8 | SC-0178-7400 | Screw(11/64" n=40) | 1 |
| H-9 | 12-008G-5607 | Spring For H-7 | 1 |
| H-10 | 12-009R-5607 | Insulated Rubber | 1 |
| H-11 | 12-010A-5607 | Reverse Button Cable Bushing | 1 |
Page 23 — Lubrication 급유관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| I-1 | 44-001C-2500 | Oil Gauge Window | 1 |
| I-2 | 44-002R-2500 | O-Ring For I-1 | 1 |
| I-4 | 44-120A-1600 | Arm Oil Shield | 1 |
| I-5 | 44-131C-1230 | Arm Oil Shield | 1 |
| I-6 | 44-0000-1230 | Oil Wick | 1 |
| I-7 | SC-0120-1230 | Screw(9/64" n=40) | 1 |
| I-8-1 | 44-012C-1230 | Oil Return Tube | 1 |
| I-10 | 44-117A-1600 | Oil Return Tube Holder | 1 |
| I-11 | SC-0548-7400 | Screw(3/16" n=28) | 1 |
| I-12 | 44-008P-2500 | Upper Shaft Oil Pipe Ass'y | 1 |
| I-13 | 44-009P-2500 | Oil Pipe For Lower Shaft | 1 |
| I-14 | AS-006239-01 | Oil Pump Ass'y | 1Set |
| I-14-1 | 44-012A-2350 | Oil Pump Body | (1) |
| I-14-2 | 44-011W-1600 | Washer For I-14-1 | (3) |
| I-14-3 | SC-0528-1230 | Screw(9/64" n=40) | (3) |
| I-14-4 | 44-010C-1600 | Nipple For Oil Return Pipe | (1) |
| I-14-5 | CLB-JP000601 | Oil Nipple For Lower Shaft | (1) |
| I-14-6 | 44-126A-1230 | Impeller | (1) |
| I-14-7 | GP-037562-00 | Piston | 1 |
| I-14-7 | 44-117A-1230 | Piston | (1) |
| I-14-8 | 44-118G-1230 | Piston Spring | (1) |
| I-14-9 | 44-119S-1230 | Pin Screw For I-14-8 | (1) |
| I-14-10 | 44-120P-1230 | Pin For I-14-8 | (1) |
| I-14-11 | 44-104C-2350 | Cover For Oil Pump | (1) |
| I-14-12 | 44-024C-1230 | Oil Pump Cap | (1) |
| I-14-13 | 44-105C-2350 | Magnetic Holder | (1) |
| I-14-14 | 44-120S-1230 | Screw(9/64" n=40) | (4) |
| I-14-15 | 44-119A-1230 | Collar For Impeller Shagt | (1) |
| I-14-16 | SC-0512-1230 | Screw(11/64" n=40) | (2) |
| I-15 | 44-010A-2500 | Oil Pump Bracket | 1 |
| I-16 | SC-0548-7400 | Screw(3/16" n=28) | 3 |
| I-17 | 44-016G-1230 | Oil Pump Connection Spring | 1 |
| I-18 | 44-115A-1230 | Oil Pump Connection Collar | 1 |
| I-19 | SC-0542-1230 | Screw(11/64" n=40) | 2 |
| I-20 | 02-003A-2700 | Clip | 1 |
| I-21 | 01A143S-811H | Cable Tie | 1 |
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| J-1 | 91-001C-1230 | Accessory Bag | 1 |
| J-2 | 91-102C-1230 | Driver(Large) | 1 |
| J-3 | 91-103C-1230 | Driver(Middle, Small) | 1 |
| J-7 | 07-105A-2700 | Bobbin(AL) | 4 |
| J-9 | 91-105C-2700 | Spanner | 1 |
| J-10 | 91-001C-2700 | L Wrench(2mm) | 1 |
| J-11 | 10-201A-2700 | Fixed Mes | 1 |
| J-12 | 91-106C-2700 | Head Cover | 1 |
| J-14 | 91-008C-1230 | Oil Tank | 1 |
| J-15 | 44-010C-1230 | Magnetic | 1 |
| J-16 | 01-043C-1230 | Head Hinge | 2 |
| J-17 | 01-042R-1230 | Rubber Cushion For Hinge | 2 |
| J-18 | 01-241R-1230 | Head Support Rubber "A" | 2 |
| J-19 | 01-213R-1230 | Head Support Rubber "B" | 2 |
| J-21 | GP-012352-00 | Head Rest | 1 |
| J-22 | 60-001A-2500 | Belt Cover"A" | 1 |
| J-23 | 60-003A-2500 | Belt Cover"A"(FOR NP MOTOR) | 1 |
| J-24 | 60-002A-2500 | Belt Cover"B" | 1 |
| J-25 | SC-0344-8260 | Screw(5/16" n=24) | 2 |
| J-26 | 09-025W-8270 | Washer For J-22,23 | 2 |
| J-27 | SC-0184-4118 | Screw(3/16" n=28) | 1 |
| J-28 | 10-020W-2700 | Washer For J-22,23 | 1 |
| J-29 | 91-002S-3400 | Nail For J-24 | 2 |
| J-30 | 41-101A-1230 | Bobbin Winder Assy | 1Set |
| J-31 | 44-012A-2500 | Oil Pan | 1 |
| J-32 | 44-003M-1230 | Oil Pan Gasket | 2Set |
| J-33 | SC-0347-1230 | Screw(M8×1.25) | 1 |
| J-34 | 44-005R-1230 | Packing For J-33 | 1 |
| J-35 | 44-032C-1230 | Oil Pan Nipple | 1 |
| J-36 | SC-0509-1230 | Screw(15/64" n=28) | 1 |
| J-37-1 | 43-106C-1600 | Knee Lifter Shaft | 1 |
| J-37-2 | 43-101R-1600 | Knee Lifter Pad | 1 |
| J-37-3 | GP-043691-00 | Knee Lifter Pad Insert Plate | 1 |
| J-37-3 | 43-102C-1600 | Knee Lifter Pad Insert Plate | 1 |
| J-37-4 | 43-101A-1230 | Holder For J-37-2 | 1 |
| J-37-5 | 43-108S-1230 | Set Screw For J-37-4 | 1 |
| J-37-6 | 43-106C-1230 | Knee Lifter Arm Joint Complete | 1 |
| J-37-7 | SC-0181-1230 | Screw(5/16" n=18) | 2 |
| J-37-8 | 43-108C-1600 | Shaft For J-40 | 1 |
| J-38 | 43-009C-1600 | E-Ring(φ9) | 1 |
| J-39 | 91-007A-2302 | Thread Stand Assy | 1Set |
| J-40 | 43-007A-1600 | Knee Lifting Controller | 1 |
| J-41 | SC-0106-7400 | Screw(15/64" n=28) | 1 |
| J-42 | SC-0545-1230 | Screw(15/64" n=28) | 1 |
| J-43 | SC-0546-1230 | Screw(15/64" n=28) | 1 |
| J-44 | SN-0105-3400 | Nut(15/64" n=28) | 2 |
| J-45 | 43-008G-1600 | Spring For J-40 | 1 |
| J-46 | 43-010A-1600 | Knee Base Rubber | 1 |
| J-47 | 04-104R-1230 | Rubber Cap For J-31 | 1 |
| J-48 | 44-011R-2350 | Packing | 1 |
| J-49 | 01-135A-123A | Needle Plate(A-Type) | 1 |
| J-50 | 01-135A-123B | Needle Plate(B-Type) | 1 |
| J-51 | 06-135A-235B | Needle Plate(BH-Type) | 1 |
| J-52 | 91-011C-1230 | Oil Tank | 1 |
| J-53 | 44-012C-1230 | Oil Return Tube | 1 |
| Needle(A-Type) | 바늘(A형) | 5 | |
| Needle(B-Type) | 바늘(B형) | 5 | |
| Nail |
Page 26 — Program Unit Box & Pressor Lifting Solenoid Mechanism / 프로그램 유니트 박스 및 자동 무릎 올림 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| K-7 | KM-2507 | Auto Knee Lifter Solenoid Ass'y | 1 |
| K-7-1 | HEC-2507 | Auto Knee Lifter Solenoid Ass'y | (1조) |
| K-7-6 | SC-0183-2700 | Screw(15/64" n=28) | (4) |
| K-7-7 | 06-051W-7400 | Washer For K-7-4, K-7-5 | (4) |
| K-7-8 | SN-0121-7400 | Nut(15/64" n=28) | (4) |
| K-7-9 | 43-013A-257A | Knee Lifter Connection Crank | (1) |
| K-7-10 | 09-016S-9570 | Screw(3/16" n=28) | (1) |
| K-7-11 | 43-014A-257A | Back Cover For Knee Lifter | (1) |
| K-7-12 | 43-015A-257A | Knee Lifter Shaft Bushing | (1) |
| K-7-13 | 43-016R-257A | Oil Seal For K-7-12 | (1) |
| K-7-14 | 43-017C-257A | Nut For Knee Lifter | (1) |
| K-8-1 | 43-018A-257A | Knee Lifter Shaft | (1) |
| K-8-2 | 06-021W-7400 | Washer For K-8-1 | (1) |
| K-8-4 | 43-021A-257A | Collar For K-8-1 | (1) |
| K-8-5 | SC-0512-1230 | Screw(11/64" n=40) | (2) |
| K-8-6 | SC-0548-7400 | Screw | (2) |
Page 27 — Special Parts For KM-250AU Series / KM-250AU 시리즈 전용 부품관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| L-1 | 01-135A-235A | Needle Plate(AU-Type) | 1 |
| L-2 | GP-009256-00 | Model Mark(KM-250AU) | 1 |
| L-3 | GP-009250-00 | Model Mark(KM-250AU-7S) | 1 |
| L-4 | 40-104A-257U | Thread Tension Control Ass'y | (1조) |
| L-5 | 08-201A-257U | Thread Take-Up Lever Ass'y | (1조) |
| L-7 | 07-003A-257U | Oil-Less Rotary Hook Ass'y(For Thread Trimmer) | 1조 |
| L-9 | 07-005S-250U | Oil Protection Screw For Lower Shaft | 1 |
| L-10 | 07-106A-123A | Bobbin Case Ass'y | 1조 |
| L-12 | 06-107A-257U | Feed Dog(AU-Type) | 1 |
| L-13 | 05-014C-257U | Presser Adjusting Spring | 1 |
| L-14 | 05-013C-257U | Arm Thread Guide(L) | 1 |
| L-15 | 05-115C-257U | Arm Thread Guide Holder Plates | 1 |
| L-16 | 05-116W-257U | Washer For Arm Thread Guide | 1 |
| L-17 | 11-017C-7507 | Nut For Arm Thread Guide | 1 |
| L-18 | 07-004R-250U | O-Ring For L-9 | 1 |
| L-19 | 40-008R-1230 | Cap For Tension Release Pin | 1 |
| L-20 | GP-013150-00 | Presser Foot | 1 |
Page 28 — Special Parts For
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-1 | 01-45NP-257U | Model Mark(KM-250AU-7N) | 1 |
| M-2 | 01-45NP-257A | Model Mark(KM-250A-7N) | 1 |
| M-3 | 01-45NP-257B | Model Mark(KM-250B-7N) | 1 |
| M-4 | 02-101A-257N | Upper Shaft(NP-Type) | 1 |
| M-6 | 02-003A-2350 | Pulley | 1 |
| M-7-25 | 01-019P-2350 | Guide Pin For Synchronizer | (2) |
| M-7-26 | SC-0108-4113 | Screw(M6) | (2) |
| M-7-27 | 01-020W-2350 | Washer For Synchronizer | (2) |
| M-8-1 | 11-020A-2500 | Magnetic Holder | (2) |
| M-8-2 | 11-022W-2500 | Washer For B-51-1 | (4) |
| M-8-3 | 11-021S-2500 | Screw For B-51-1 | (4) |
| M-8-4 | 13-0000-SE55 | Synchronizer Ass'y (Servo) | (1조) |
| M-9 | 02-207A-257A | Pulley(Only For Trimming M/C) | 1 |
Page 29 — Special Parts KM-250BH Series KM-250BH 시리즈 전용 부품 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| N-1 | GP-009249-00 | Model Mark(KM-250BH) | 1 |
| N-2 | GP-009255-00 | Model Mark(KM-250BH-7S) | 1 |
| N-3 | GP-009291-00 | Model Mark(KM-250BH-7N) | 1 |
| N-4 | 01-102A-250H | Link Cam(BH-Type) | 1 |
| N-5 | 08-101A-25BH | Thread Take-Up Lever Ass'y | 1 |
| N-6 | 01-003C-250B | Thread Guide For A-5 | 1 |
| N-7 | GP-034931-00 | Feed Bar(BH-Type) | 1 |
Page 31 — Special Parts For KM-250BL Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| O-1 | 10-101A-64L7 | Fixed Mes | 1 |
| O-2 | SC-A301-4119 | Screw(9/64" n=40) | 1 |
| O-3 | SC-0137-2700 | Screw(1/8" n=40) | 1 |
| O-4 | SN-0103-2700 | Nut(1/8" n=40) | 1 |
| O-5 | 10-005A-64L7 | Thread Retaining Plate | 1 |
| O-6 | SC-0543-2302 | Screw(11/64" n=40) | 1 |
| O-7 | 02-019W-1230 | Washer For O-5 | 1 |
| O-8 | 10-111C-642L7 | Rotary Mes | 1 |
| O-9 | SC-A154-4115 | Screw(11/64" n=40) | 2 |
| O-10 | 10-113C-64L7 | Thread Trimming Holder | 1 |
| O-11 | 10-011C-64L7 | Thread Trimming Holder Cover | 1 |
| O-12 | SC-A301-4119 | Screw(9/64" n=40) | 3 |
| O-13 | 10-013C-64L7 | Thread Trimming Lever Connecting Link | 1 |
| O-14 | 10-014S-64L7 | Stud Screw For O-13 | 2 |
| O-15 | SN-0115-7400 | Nut For O-14 | 2 |
| O-16 | 10-121C-64L7 | Thread Trimming Lever | 1 |
| O-17 | SC-0109-2350 | Screw | 1 |
| O-18 | 10-118A-64L7 | Thread Trimming Shaft | 1 |
| O-19 | 10-021C-64L7 | Guide Bush For Return Spring | 1 |
| O-20 | 10-022G-64L7 | Slide Arm Return Spring | 1 |
| O-21 | 10-123A-64L7 | Slide Arm | 1 |
| O-22 | 10-166A-7507 | Roller | 2 |
| O-23 | 10-067S-7507 | Stud Screw For O-22 | 2 |
| O-24 | SN-0115-7400 | Nut(3/16" n=32) | 2 |
| O-25 | 10-127A-64L7 | Cam Follwer Crank | 1 |
| O-26 | SC-0169-1600 | Screw(15/64" n=28) | 2 |
| O-27 | 10-029G-64L7 | Return Spring | 1 |
| O-28 | 10-130A-64L7 | Stopper Lever | 1 |
| O-29 | SC-0317-2700 | Screw(15/64" n=28) | 2 |
| O-30 | 06-220A-2350 | Collar For O-18 | 1 |
| O-31 | SC-A308-4517 | Screw(1/4" n=40) | 2 |
| O-32 | 10-118A-2700 | Stopper | 1 |
| O-33 | SC-0190-2700 | Screw(3/16" n=32) | 2 |
| O-34 | 10-020W-2700 | Washer | 2 |
| O-35 | 10-021R-270 | Stopper Lever Cushion Rubber | 1 |
| O-36 | 10-054A-64L7 | Mes Cam | 1 |
| O-37 | SC-A308-4517 | Screw(1/4" n=40) | 2 |
| O-38 | 10-038A-25BL | Cluth Lever | 1 |
| O-39 | 43-004S-3400 | Stud Screw For O-38 | 1 |
| O-40 | 10-041S-64L7 | Stud Screw For O-38 | 1 |
| O-41 | SN-0105-3400 | Nut(15/64" n=28) | 1 |
| O-42 | 43-004S-3400 | Stud Cres For O-47 | 1 |
| O-43 | 10-044A-25BL | Base Plate | 1 |
| O-44 | SC-0485-4113 | Screw(M5×P0.8) | 2 |
| O-45 | 07-011W-1230 | Spring Washer For O-44 | 2 |
| O-46 | 10-020W-2700 | Washer For O-44 | 2 |
| O-47 | 10-048A-25BL | Solenoid Connecting Link | 1 |
| O-48 | SC-0164-2700 | Screw(M5xP0.8) | 2 |
| O-49 | 10-144A-2507 | Thread Trimming Solenoid Ass'y | 1(조) |
| O-50 | 10-151A-25BL | Base For O-49 | 1 |
| O-52 | SC-0109-2350 | Screw(M6×P1) | 2 |
| O-53 | 01S128S-306H | Washer | 2 |
Page 33 — Special Parts For KM-250BL Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| P-1 | 01-001A-25BL | Arm Bed | 1 |
| P-2 | 01-105A-2350 | Bed Base "Front"(B) | 1 |
| P-3 | GP-009288-00 | Modle Mark(KM-250BL-7S) | 1 |
| P-4 | 01-139C-2500 | Thread Take up Cover | 1 |
| P-5 | 02-102A-250B | Link Cam | 1 |
| P-6 | 03-101A-1230 | Upright Shaft | 1 |
| P-7 | 006-007-0005 | Needle | 1 |
| P-8 | 06-190A-25BL | Bracket For Reverse Feed Solenoid | 1 |
| P-9 | 07-101A-25BL | Lower Shaft | 1 |
| P-10 | 07-009A-25BL | Lower Shaft Bushing(M) | 1 |
| P-11 | 07-110A-25BL | Lower Shaft Bushing(F) | 1 |
| P-11-1 | 07-110A-2BLS | Lower Shaft Bushing(F) | 1 |
| P-12 | 07-024A-64L7 | Rotary Hook Ass'y | 1(조) |
| P-12-1 | 07-007A-146L | Rotary Hook Ass'y | 1(조) |
| P-13 | 07-225A-64L7 | Bobbin | 1 |
| P-14 | 07-026A-64L7 | Bobbin Case Assembly | 1(조) |
| P-14-1 | 07-106A-146L | Bobbin Case Assembly | 1(조) |
| P-15 | 08-102A-146L | Thread Take up Lever Assembly | 1(조) |
| P-16 | 44-101A-25BL | Oil Pump Bracket | 1 |
| P-17 | 40-001A-25BL | Tension Release Cable Ass'y | 1조 |
| P-18 | 40-003A-2700 | Connecting Bolt For P-17 | 1 |
| P-19 | 40-004C-2700 | Nut A For P-17 | 1 |
| P-20 | 40-005C-2700 | Nut B For P-17 | 1 |
| P-21 | 40-140C-64L7 | Tension Release Cable Holder(L) | 1 |
| P-22 | SC-0543-2302 | Screw | 1 |
| P-23 | 40-142A-64L7 | Bracket For P-21 | 1 |
| P-24 | SC-0211-7500 | Screw | 2 |
| P-25 | 01-017W-1600 | Washer |
Page 34 — INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| P-7 | 006-007-0005 | Needle | 33 |
| A-1 | 01-001A-250B | Arm. Bed | 7 |
| A-2 | 01-001A-250B | Arm. Bed | 7 |
| A-3 | 01-001A-257A | Arm. Bed | 7 |
| A-4 | 01-001A-257B | Arm. Bed | 7 |
| A-4-1 | 01-001A-25BL | Arm. Bed | 7 |
| P-1 | 01-001A-25BL | Arm Bed | 33 |
| A-4-2 | 01-001A-2BLS | Arm. Bed | 7 |
| A-53-1 | 01-003C-250B | Thread Guide For A-5 | 7 |
| N-6 | 01-003C-250B | Thread Guide For A-5 | 29 |
| A-19 | 01-005A-257A | Code Bushing | 7 |
| A-28 | 01-009R-5300 | Code Holder(7N) | 7 |
| E-60 | 01-015C-2350 | Bobbin Catcher Spring | 17 |
| A-20 | 01-016C-1230 | Bed Base "FRONT(A-TYPE) | 7 |
| E-62 | 01-016R-2700 | Stopper Rubber For E-56 | 17 |
| A-58 | 01-017C-1230 | Bed Base "FRONT"(B) | 7 |
| E-6 | 01-017W-1600 | Washer For E-5 | 17 |
| P-25 | 01-017W-1600 | Washer | 33 |
| M-7-25 | 01-019P-2350 | Guide Pin for Synchronizer | 28 |
| D-101 | 01-020W-2350 | Spring Washer For Bracket | 15 |
| E-53 | 01-020W-2350 | Washer For E-53 | 17 |
| M-7-27 | 01-020W-2350 | Washer For Synchronizer | 28 |
| A-18 | 01-021R-1600 | Bed Rubber Cap | 7 |
| A-51 | 01-030C-1230 | Arm Thread Guide | 7 |
| A-53 | 01-031C-1230 | Thread Guide For A-5 | 7 |
| A-42 | 01-035P-1370 | Machine Number Plate | 7 |
| A-43 | 01-035P-7400 | Pin | 7 |
| A-5 | 01-036C-2500 | Face Plate | 7 |
| D-65 | 01-037R-1230 | Rubber Cap For D-28.54(F) | 13 |
| A-23 | 01-038W-1230 | Spring Washer For A-21 | 7 |
| F-41 | 01-038W-1230 | Spring Washer | 19 |
| J-17 | 01-042R-1230 | Rubber Cushion For Hinge | 25 |
| J-16 | 01-043C-1230 | Head Hinge | 25 |
| A-39 | 01-045M-250B | Model Mark(KM-250B) | 7 |
| N-4 | 01-102A-250H | Link Cam(BH-Type) | 29 |
| E-63 | 01-105A-2350 | Bed base "FRONT"(B) | 17 |
| P-2 | 01-105A-2350 | Bed Base "Front" (B) | 33 |
| A-11 | 01-110R-1230 | Face Plate Rubber Cap(S) | 7 |
| A-15 | 01-110R-1230 | Arm Rubber Cap(L) | 7 |
| E-57 | 01-114C-2350 | Bobbin Catcher Holder | 17 |
| A-21 | 01-115C-1230 | Bed Base(R) | 7 |
| A-45 | 01-116A-2350 | Upper Thread Guide Pin and Nut | 7 |
| A-31 | 01-135A-123A | Needle Plate(A-TYPE) | 7 |
| J-49 | 01-135A-123A | Needle Plate(A-TYPE) | 25 |
| A-32 | 01-135A-123B | Needle Plate(B-TYPE) | 7 |
| J-50 | 01-135A-123B | Needle Plate(B-TYPE) | 25 |
| L-1 | 01-135A-235A | Needle Plate(AU-Type) | 27 |
| A-37 | 01-136S-1230 | Screw(11/64" n=40) | 7 |
| A-6 | 01-137M-2500 | Gasket For A-5 | 7 |
| A-8 | 01-139C-2500 | Thread Take Up Cover | 7 |
| P-4 | 01-139C-2500 | Thread Take up Cover | 33 |
| A-12 | 01-140C-2500 | Back Cover | 7 |
| A-13 | 01-141A-2500 | Gasket For A-12 | 7 |
| A-13-1 | 01-142A-257A | Code Holder "A" | 7 |
| A-26 | 01-143A-257A | Code Holder "B" | 7 |
| A-36 | 01-144A-257A | Gauge Plate | 7 |
| A-10 | 01-144R-1230 | Face Plate Rubber Cap(L) | 7 |
| J-19 | 01-213R-1230 | Head Support Rubber "B" | 25 |
| A-59 | 01-227A-1230 | Thread Guide With Three Holes | 7 |
| J-18 | 01-241R-1230 | Head Support Rubber "A" | 25 |
| M-3 | 01-45NP-257B | Model Mark(KM-250B-7N) | 28 |
| M-1 | 01-45NP-257U | Model Mark(KM-250AU-7N) | 28 |
| I-21 | 01A143S-811H | Cable Tie | 23 |
| O-53 | 01S128S-306H | Washer | 31 |
| M-6 | 02-003A-2350 | Pulley | 28 |
| A-30 | 02-003A-2700 | Nylon Clip | 7 |
| I-20 | 02-003A-2700 | Clip | 23 |
| B-3 | 02-016R-1230 | O-Ring For B-2 | 9 |
| F-20 | 02-019W-1230 | Washer For F-19 | 19 |
| A-14-4 | 02-019W-1230 | Washer | 7 |
| B-54 | 02-019W-1230 | Rubber For B-2 | 9 |
| F-17 | 02-019W-1230 | Washer For F-16 | 19 |
| O-7 | 02-019W-1230 | Washer For O-5 | 31 |
| B-5 | 02-020M-1230 | Upper Shaft Felter | 9 |
| B-22 | 02-028C-1230 | Oil Seal For B-20,21 | 9 |
| B-1 | 02-101A-2500 | Upper Shaft | 9 |
| M-4 | 02-101A-257N | Upper Shaft(NP-Type) | 28 |
| B-7 | 02-102A-250A | Link Cam(A-TYPE) | 9 |
| B-8 | 02-102A-250B | Link Cam(B-TYPE) | 9 |
| P-5 | 02-102A-250B | Link Cam | 33 |
| B-16 | 02-121A-1230 | Upper Shaft Collar | 9 |
| B-23 | 02-207A-257A | Pulley(Only for Regular M/C) | 9 |
| B-23- | 02-207A-257A | Pulley(Only for Regular M/C) | 9 |
| M-9 | 02-207A-257A | Pulley(Only for Trimming M/C) | 28 |
| B-18 | 02-211A-1230 | Upper Shaft Gear | 9 |
| C-2 | 02-212A-1230 | Upright Shaft Gear(U) | 11 |
| C-8 | 02-213A-1230 | Upright Shaft Gear(L) | 11 |
| C-11 | 02-214A-1230 | Lower Shaft Gear | 11 |
| C-1 | 03-001A-1600 | Upright Shaft | 11 |
| P-6 | 03-101A-1230 | Upright Shaft | 33 |
| C-5 | 03-102A-1230 | Upright Shaft Bushing | 11 |
| B-47 | 04-001A-2700 | Needle Bar Thread Guide(B-TYPE) | 9 |
| A-16 | 04-003R-1600 | Arm Rubber Cap(S) | 7 |
| A-17 | 04-003R-1600 | Rubber Cap For B-40 | 7 |
| B-44 | 04-004C-2500 | Thread Guide For B-42,43 | 9 |
| D-24 | 04-009C-3710 | E-Ring(Ø5) | 13 |
| D-76 | 04-009C-3710 | E-ring (Ø 5) | 15 |
| E-50 | 04-009C-3710 | E-Ring (Ø 5) | 17 |
| F-23 | 04-009C-3710 | E-Ring (Ø 5) | 19 |
| F-34 | 04-009C-3710 | E-Ring (Ø 5) | 19 |
| G-4 | 04-009C-3710 | E-Ring (Ø 5) | 21 |
| B-39 | 04-101A-250A | Needle Bar(A-TYPE) | 9 |
| B-40 | 04-101A-250B | Needle Bar(B-TYPE) | 9 |
| B-42 | 04-103A-257A | Needle Bar Bushing(L) | 9 |
| B-46 | 04-106C-250A | Needle Bar Thread Guide(A-TYPE) | 9 |
| B-41 | 04-108A-2350 | Needle Bar Bushing(U) | 9 |
| F-2 | 05-002C-2500 | Presser Adjusting Nut | 19 |
| F-5 | 05-007C-1230 | Presser Adjusting Bar | 19 |
| F-12 | 05-009A-350B | Presser Foot Ass'y(BH-TYPE) | 19 |
| F-11 | 05-012A-1230 | Presser Foot Ass'y(B-TYPE) | 19 |
| L-14 | 05-013C-257U | Arm Thread Guide(L) | 27 |
| F-3 | 05-014C-250A | Presser Adjusting Spring(A-TYPE) | 19 |
| F-4 | 05-014C-250B | Presser Adjusting Spring(B-TYPE) | 19 |
| L-13 | 05-014C-257U | Presser Adjusting Spring | 27 |
| F-6 | 05-101A-1230 | Presser Bar | 19 |
| F-8 | 05-103A-1370 | Presser Bar Holder | 19 |
| F-7 | 05-115A-2500 | Presser Bar Bushing | 19 |
| L-15 | 05-115C-257U | Arm Thread Guide Holder Plates | 27 |
| L-16 | 05-116W-7400 | Washer For Arm Thread Guide | 27 |
| D-35 | 06-008A-2350 | Feed Bar Crank | 13 |
| E-61 | 06-020C-7400 | E-Ring(Ø6) | 17 |
| D-50 | 06-020S-1230 | Screw(3/16" n=32) | 13 |
| D-34 | 06-021R-1230 | Oil Cover For D-28,54 | 13 |
| K-8-2 | 06-021W-7400 | Washer For K-8-1 | 26 |
| D-77 | 06-023C-257A | B/T Spring Holder | 15 |
| D-97 | 06-023G-257B | Spring For D-112 | 15 |
| D-79 | 06-023G-257B | Reverse Feed Spring | 15 |
| D-80 | 06-024C-257A | Feed Regulator Spring | 15 |
| D-93 | 06-024C-257A | Feed Regulator Spring | 15 |
| D-120 | 06-024C-257A | Feed Regulator Control Plate(4mm) | 15 |
| D-94 | 06-024C-257B | Feed Regulator Control Plate(7mm) | 15 |
| D-121 | 06-024C-257B | Feed Regulator Control Plate(INSERT) | 15 |
| D-121 | 06-028C-250A | Feed Regulator Control Plate(INSERT) | 15 |
| D-121 | 06-028C-250B | Feed Regulator Control Plate(INSERT) | 15 |
| D-104 | 06-032S-257A | Stud Screw For D-103 | 15 |
| D-108 | 06-035A-257A | Hinge Pin For D-107 | 15 |
| D-112 | 06-036C-2500 | Feed Regulator Lever | 15 |
| D-48 | 06-037P-1230 | Crank Rod Connection Pin | 13 |
| D-60 | 06-038A-235A | Feed Lifting Shaft Crank(R): A-TYPE | 13 |
| D-89 | 06-040S-1600 | Holder For D-112 | 15 |
| D-61 | 06-041A-235B | Feed Lifting Shaft Crank(R): B-TYPE | 13 |
| D-82 | 06-042R-1230 | O-Ring For D-81 | 15 |
| D-67 | 06-043R-1230 | O-Ring For D-66 | 15 |
| D-98 | 06-048A-2507 | Reverse Feed Solenoid Ass'y | 15 |
| D-98- | 06-048B-2507 | Reverse Feed Solenoid Ass'y | 15 |
| K-7-7 | 06-051W-7400 | Washer For K-7,4, K-7-3 | 26 |
| D-111 | 06-053W-1230 | Washer For D-81 | 15 |
| D-88 | 06-056G-2350 | Spring For D-112 | 15 |
| D-116 | 06-071S-7507 | Stopper Stud Screw For D-112 | 15 |
| D-115 | 06-072R-7507 | Stopper Rubber For D-112 | 15 |
| D-1 | 06-101A-250A | Feed Cam A | 13 |
| D-3 | 06-101A-250B | Feed Cam B | 13 |
| D-5 | 06-102A-2500 | Feed Cam C | 13 |
| D-41 | 06-102W-2350 | Washer For D-37 | 13 |
| D-10 | 06-103A-2350 | Feed Regulator Link | 13 |
| D-7 | 06-103A-2500 | Feed Rocker Shaft Connecting Rod | 13 |
| D-122 | 06-103A-25BL | Feed Regulator Link | 15 |
| D-123 | 06-103A-2BLS | Feed Regulator Link | 15 |
| D-4 | 06-103C-235B | Stop-Ring "C" For D-1,3 | 13 |
| D-9 | 06-104A-257A | Feed Regulator Link | 13 |
| D-11 | 06-104P-2350 | Feed Connection Link Pin(A) | 13 |
| D-13 | 06-105A-2350 | Feed Connection Link(A) | 13 |
| D-14 | 06-106A-2350 | Feed Connection Link(B) | 13 |
| D-45 | 06-107A-123B | Feed Dog(B-TYPE) | 13 |
| D-126 | 06-107A-235A | Feed Dog | 15 |
| L-12 | 06-107A-257U | Feed Dog(AU-Type) | 27 |
| D-15 | 06-107P-2350 | Feed Adjusting Link Hinge Pin(A) | 13 |
| D-17 | 06-108P-2350 | Feed Adjusting Link Hinge Pin(B) | 13 |
| D-19 | 06-109P-2350 | Feed Connection Link Pin(B) | 13 |
| D-21 | 06-110P-2350 | Feed Connection Link Pin(C) | 13 |
| D-28 | 06-112A-2350 | Feed Rock Shaft | 13 |
| D-32 | 06-113A-2350 | Feed Rock Shaft Bushing(F) | 13 |
| D-37 | 06-114A-2350 | Feed bar Shaft | 13 |
| D-54 | 06-116A-2350 | Feed Lifting Shaft | 13 |
| D-48 | 06-117A-1230 | Feed Bar Block and Shaft | 13 |
| D-27 | 06-119S-1230 | Screw(3/16" n=28) | 13 |
| D-53 | 06-119S-1230 | Screw(3/16" n=28) | 13 |
| D-62 | 06-119S-1230 | Screw(3/16" n=28) | 13 |
Page 35
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-75- | 06-122A-1370 | Feed Regulator Rod | 15 |
| D-75- | 06-122A-2500 | Connecting Rod For Feed Regulator | 15 |
| D-81 | 06-125A-2500 | Reverse Feed Control Lever Shaft | 15 |
| D-84 | 06-126A-250A | Reverse Feed Lever Crank Ass'y | 15 |
| D-83 | 06-126A-257A | Reverse Feed Lever Crank Ass'y | 15 |
| D-51 | 06-128A-2350 | Feed Lifting Shaft Crank(F) | 13 |
| D-99 | 06-130A-257A | Bracket For Reverse Feed Solenoid | 15 |
| D-103 | 06-131A-2578 | Reverse Feed Solenoid Crank | 15 |
| A-33 | 06-135A-235B | Needle Plate(BH-TYPE) | 7 |
| D-56 | 06-139A-1230 | Feed Lifting Shaft Bushing(F) | 13 |
| D-30 | 06-140A-1230 | Feed Rock Shaft Bushing(R) | 13 |
| D-58 | 06-140A-1230 | Feed Lifting Shaft Bushing(R) | 13 |
| D-8 | 06-154A-1230 | Crank Rod | 13 |
| P-8 | 06-190A-25BL | Bracket For Reverse Feed Solenoid | 33 |
| D-72 | 06-220A-2350 | Collar For D-66 | 15 |
| 0-30 | 06-220A-2350 | Collar For O-18 | 31 |
| D-74 | 06-221A-2350 | Feed Adjusting Shaft | 15 |
| D-26 | 06-311A-257A | Level Feed Crank(R) | 13 |
| L-7 | 07-003A-257U | Oil-Less Hook Ass'y (for Thread Trimmer) | 27 |
| C-26 | 07-003A-270A | Rotary Hook Ass'y | 11 |
| C-28 | 07-003A-270B | Rotary Hook Ass'y | 11 |
| L-18 | 07-004R-250U | O-Ring For L-9 | 27 |
| C-12 | 07-005M-1230 | Lower Shaft Felter | 11 |
| L-9 | 07-005S-250U | Oil Protection For Lower Shaft | 27 |
| C-27 | 07-007A-123A | Rotary Hook Ass'y | 11 |
| C-29 | 07-007A-123B | Rotary Hook Ass'y | 11 |
| P-12-1 | 07-007A-146L | Rotary Hook Ass'y | 33 |
| C-36 | 07-011W-1230 | Washer For C-35 | 11 |
| E-26-1 | 07-011W-1230 | Washer For E-27 | 17 |
| 0-45 | 07-011W-1230 | Spring Washer For O-44 | 31 |
| C-34 | 07-013A-1230 | Inner Bobbin Stopper | 11 |
| C-23 | 07-015G-1230 | Spring For C-22 | 11 |
| P-12 | 07-024A-64L7 | Rotary Hook Ass'y | 33 |
| P-14 | 07-026A-64L7 | Bobbin Case Assembly | 33 |
| P-9 | 07-101A-25BL | Lower Shaft | 33 |
| C-18 | 07-103A-1600 | Lower Shaft Bushing(M) | 11 |
| C-10 | 07-103A-257A | Lower Shaft | 11 |
| C-32 | 07-104A-2700 | Bobbin Case Ass'y | 11 |
| C-30 | 07-105A-2700 | Bobbin (AL) | 11 |
| J-7 | 07-105A-2700 | Bobbin (AL) | 25 |
| C-33 | 07-106A-123A | Bobbin Case Ass'y | 11 |
| L-10 | 07-106A-123A | Bobbin Case Ass'y | 27 |
| P-14-1 | 07-106A-146L | Bobbin Case Assembly | 33 |
| C-20 | 07-107A-250A | Lower Shaft Bushing(F) | 11 |
| P-11-1 | 07-110A-25BL | Lower Shaft Bushing(F) | 33 |
| P-13 | 07-225A-64L7 | Bobbin | 33 |
| A-57 | 08-001S-1230 | Screw (15/64" n = 28) | 7 |
| B-36 | 08-005R-250A | Oil Protection Rubber | 9 |
| N-5 | 08-101A-25BH | Thread Take-Up Lever Ass'y | 29 |
| B-28 | 08-102A-123B | Thread Take Up Lever Ass'y(b-Type) | 9 |
| B-29 | 08-102A-146L | Thread Take Up Lever Ass'y | 9 |
| P-15 | 08-102A-146L | Thread Take up Lever Assembly | 33 |
| B-37 | 08-106C-2500 | Protection Plate For B-7,8 | 9 |
| B-27 | 08-201A-250A | Thread Take Up Lever Ass'y(A-Type) | 9 |
| L-5 | 08-201A-257U | Thread Take-Up Lever Ass'y | 27 |
| K-7-10 | 09-016S-9570 | Screw (3/16" n = 28) | 26 |
| J-26 | 09-025W-8270 | Washer For J-22,23 | 25 |
| E-4 | 10-005A-2700 | Thread Retaining Plate | 17 |
| 0-5 | 10-005A-64L7 | Thread Retaining Plate | 31 |
| E-11 | 10-009C-2700 | Stop-Ring For E-11 | 17 |
| E-13 | 10-011A-2700 | Needle Bearing | 17 |
| 0-11 | 10-011C-64L7 | Thread Trimming Holder Cover | 31 |
| 0-13 | 10-013C-64L7 | Thread Trimming Lever Connecting Link | 31 |
| E-15 | 10-013S-257A | Stud Screw For E-15 | 17 |
| 0-14 | 10-014S-64L7 | Stud Screw For O-13 | 31 |
| E-22 | 10-017A-257A | Return Spring Guide Bushing | 17 |
| E-23 | 10-018G-257A | Slide Arm Return Spring | 17 |
| G-17 | 10-020W-2700 | Washer For G-15 | 21 |
| J-28 | 10-020W-2700 | Washer For J-22,23 | 25 |
| 0-34 | 10-020W-2700 | Washer | 31 |
| 0-19 | 10-021C-64L7 | Guide Bush For Return Spring | 31 |
| 0-35 | 10-021R-270 | Stopper Lever Cushion Rubber | 31 |
| 0-20 | 10-022G-64L7 | Slide Arm Return Spring | 31 |
| E-34 | 10-023G-257A | Spring For E-30 | 17 |
| 0-27 | 10-029G-64L7 | Return Spring | 31 |
| E-31-1 | 10-032R-257A | Cushion Rubber For E-32 | 17 |
| E-31 | 10-032S-257A | Stopper Screw | 17 |
| E-52 | 10-033A-257A | Base For E-52 | 17 |
| 0-38 | 10-038A-25BL | Cluth Lever | 31 |
| 0-40 | 10-041S-64L7 | Stud Screw For O-38 | 31 |
| D-92 | 10-042C-2700 | O-Ring For D-91 | 15 |
| 0-43 | 10-044A-25BL | Base Plate | 31 |
| E-28 | 10-044R-5607 | Cushion Washer For E-20 | 17 |
| 0-47 | 10-048A-25BL | Solenoid Connecting Link | 31 |
| 0-36 | 10-054A-64L7 | Mes Cam | 31 |
| E-26 | 10-067S-7507 | Stud Screw For E-26 | 17 |
| 0-23 | 10-067S-7507 | Stud Screw For O-22 | 31 |
| E-1 | 10-101A-2700 | Fixed Mes | 17 |
| 0-1 | 10-101A-64L7 | Fixed Mes | 31 |
| E-8 | 10-106A-235B | Rotary mes | 17 |
| E-7 | 10-106A-2700 | Rotary Mes | 17 |
| E-10 | 10-108A-257A | Thread Trimming Holder | 17 |
| E-12 | 10-110W-2700 | Washer For E-11 | 17 |
| 0-8 | 10-111C-64L7 | Rotary Mes | 31 |
| E-14 | 10-112A-257A | Thread Trimming Lever Connecting Link | 17 |
| 0-10 | 10-113C-64L7 | Thread Trimming Holder | 31 |
| E-17 | 10-114A-257A | Thread Trimming Lever | 17 |
| E-19 | 10-115A-257A | Thread Trimming Shaft | 17 |
| E-20 | 10-116W-257A | Washer For E-20 | 17 |
| 0-32 | 10-118A-2700 | Stopper | 31 |
| 0-18 | 10-118A-64L7 | Thread Trimming Shaft | 31 |
| E-29 | 10-121A-257A | Cam Follower Crank | 17 |
| 0-16 | 10-121C-64L7 | Thread Trimming Lever | 31 |
| 0-16 | 10-122P-257A | Stopper Pin | 17 |
| 0-21 | 10-123A-64L7 | Slide Arm | 31 |
| E-35 | 10-124C-257A | Spring Holder | 17 |
| E-39 | 10-126A-257A | Clutch Lever Ass'y | 17 |
| 0-25 | 10-127A-64L7 | Cam Follower Crank | 31 |
| E-45 | 10-130A-257A | Base Plate | 17 |
| E-47 | 10-130A-257A | Solenoid Connection Link | 17 |
| 0-28 | 10-130A-64L7 | Stopper Lever | 31 |
| E-48 | 10-131P-257A | Solenoid Pin | 17 |
| 0-49 | 10-144A-2507 | Thread Trimming Solenoid Ass'y | 31 |
| 0-50 | 10-151A-25BL | Base For O-49 | 31 |
| E-25 | 10-166A-7507 | Roller | 17 |
| 0-22 | 10-166A-7507 | Roller | 31 |
| J-11 | 10-201A-2700 | Fixed Mes | 25 |
| G-1 | 11-001A-257A | Wiper Bracket Ass'y | 21 |
| G-5 | 11-003A-257A | Wiper | 21 |
| G-12 | 11-007A-257A | Wiper Rod | 21 |
| G-15 | 11-008A-257A | Wiper Driving Link Ass'y | 21 |
| G-16 | 11-009S-257A | Hinge Screw For G-15 | 21 |
| G-19 | 11-010A-257A | Wiper Solenoid Connection Link | 21 |
| G-22 | 11-011G-257A | Wiper Spring | 21 |
| G-25 | 11-013C-257A | Wiper Cover | 21 |
| G-27 | 11-015A-2507 | Wiper Solenoid Ass'y | 21 |
| G-29 | 11-016W-2700 | Spring Washer For G-27 | 21 |
| G-30 | 11-017W-2700 | Washer For G-27 | 21 |
| D-118 | 11-018M-2350 | Solenoid Terminal(12P) | 15 |
| D-117 | 11-019M-2350 | Terminal Tube(L) | 15 |
| B-51-1 | 11-020A-2500 | Magnetic Holder | 9 |
| M-8-1 | 11-020A-2500 | Magnetic Holder | 28 |
| B-51-3 | 11-021S-2500 | Screw For B-51-1 | 9 |
| M-8-3 | 11-021S-2500 | Screw For B-51-1 | 28 |
| B-51-2 | 11-022W-2500 | Washer For B-51-1 | 9 |
| M-8-2 | 11-022W-2500 | Washer For B-51-1 | 28 |
| G-8 | 11-106A-257A | Wiper Crank Ass'y | 21 |
| G-23 | 11-112A-257A | Wiper Base | 21 |
| A-29 | 12-016M-2350 | Earth Line | 7 |
| B-51-4 | 13-0000-SE55 | Synchronizer Ass'y (Servo) | 9 |
| M-8-4 | 13-0000-SE55 | Synchronizer Ass'y (Servo) | 28 |
| E-30 | 15-002S-5607 | Screw For E-30 | 17 |
| G-10 | 16-113S-3710 | Hinge Screw For G-8 | 21 |
| G-13 | 16-113S-3710 | Hinge Screw For G-12 | 21 |
| G-20 | 16-113S-3710 | Hinge Screw For G-19 | 21 |
| P-17 | 40-001A-25BL | Tension Release Cable Ass'y | 33 |
| P-18 | 40-003A-2700 | Connecting Bolt For P-17 | 33 |
| F-31 | 40-003P-2500 | Tension Release Pin | 19 |
| A-56-1 | 40-004A-250B | Thread Tension Control Ass'y | 7 |
| F-42 | 40-004C-2700 | Nut (9/32" n = 28) | 19 |
| P-19 | 40-004C-2700 | Nut A For P-17 | 33 |
| D-106 | 40-005C-2700 | Hinge Nut For D-107 | 15 |
| P-20 | 40-005C-2700 | Nut B For P-17 | 33 |
| F-33 | 40-006S-2500 | Stud Screw For Tension Release Plate | 19 |
| A-60 | 40-008R-1230 | Cap For Tension Release Pin | 7 |
| L-19 | 40-008R-1230 | Cap For Tension Release Pin | 27 |
| A-55 | 40-104A-2350 | Thread Tension Control Ass'y | 7 |
| L-4 | 40-104A-257U | Thread Tension Control Ass'y | 27 |
| F-32 | 40-105C-2500 | Tension Release Plate | 19 |
| P-21 | 40-140C-64L7 | Tension Release Cable Holder(L) | 33 |
| P-23 | 40-142A-64L7 | Bracket For P-21 | 33 |
| A-47 | 40-201A-2700 | Sub Upper Thread Tension Control Ass'y | 7 |
| F-37 | 40-209A-257A | Tension Release Cable Holder(U) | 19 |
| F-47 | 40-210A-257A | Tension Release Cable Holder(Ø5) | 19 |
| A-56-2 | 40-333G-123B | Thread Tension Adjusting Spring | 7 |
| J-30 | 41-101A-1230 | Bobbin Winder Ass'y | 25 |
| F-16 | 43-001A-2500 | Presser Lifter | 19 |
| F-22 | 43-004S-2500 | Hinge Screw For F-21 | 19 |
| E-42 | 43-004S-3400 | Clutch Lever Moving Pin Screw | 17 |
| 0-39 | 43-004S-3400 | Stud Screw For O-38 | 31 |
| J-40 | 43-007A-1600 | Knee Lifting Controller | 25 |
| F-26 | 43-007S-2500 | Stud Screw For F-25 | 19 |
| J-45 | 43-008G-1600 | Spring For J-40 | 25 |
| E-21 | 43-009C-1600 | E-Ring (Ø 9) | 17 |
| J-38 | 43-009C-1600 | E-Ring (Ø 9) | 25 |
| J-46 | 43-010A-1600 | Knee Base Rubber | 25 |
Page 36
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-30 | 43-010S-2500 | Hinge Screw For F-29 | 19 |
| K-7-9 | 43-013A-257A | Knee Lifter Connection Crank | 26 |
| K-7-11 | 43-014A-257A | Back Cover For Knee Lifter | 26 |
| K-7-12 | 43-015A-257A | Knee Lifter Shaft Bushing | 26 |
| K-7-13 | 43-016R-257A | Oil Seal For K-7-12 | 26 |
| K-7-14 | 43-017C-257A | Nut For Knee Lifter | 26 |
| K-8-1 | 43-018A-257A | Knee Lifter Shaft | 26 |
| K-8-4 | 43-021A-257A | Collar For K-8-1 | 26 |
| J-37-4 | 43-101A-1230 | Holder For J-37-2 | 25 |
| J-37-3 | 43-101R-1600 | Knee Lifter Pad | 25 |
| F-19 | 43-102A-2500 | Presser Lifter Cam Shaft | 19 |
| J-37-3 | 43-102C-1600 | Knee Lifter Pad Insert Plate | 25 |
| F-24 | 43-105A-2500 | Presser Lifter Lever | 19 |
| J-37-6 | 43-106C-1230 | Knee Lifter Arm Joint Complete | 25 |
| J-37-1 | 43-106C-1600 | Knee Lifter Shaft | 25 |
| F-25 | 43-106C-2500 | Presser Lifter Connection Bar | 19 |
| F-27 | 43-108A-2500 | Knee Lifting Link | 19 |
| J-37-8 | 43-108C-1600 | Shaft For J-40 | 25 |
| J-37-5 | 43-108S-1230 | Set Screw For J-37-4 | 25 |
| F-29 | 43-109C-2500 | Knee Lifting Bar | 19 |
| I-6 | 44-0000-1230 | Oil Wick | 23 |
| I-1 | 44-001C-2500 | Oil Gauge Window | 23 |
| I-2 | 44-002R-2500 | O-Ring For I-1 | 23 |
| J-32 | 44-003M-1230 | Oil Pan Gasket | 25 |
| J-34 | 44-005R-1230 | Packing For J-33 | 25 |
| I-12 | 44-008P-2500 | Upper Shaft Oil Pipe Ass'y | 23 |
| D-39 | 44-009C-1230 | Wick Holder For D-37 | 13 |
| I-13 | 44-009P-2500 | Oil Pipe For Lower Shaft | 23 |
| I-15 | 44-010A-2500 | Oil Pump Bracket | 23 |
| J-15 | 44-010C-1230 | Magnetic | 25 |
| I-14-4 | 44-010C-1600 | Nipple For Oil Return Pipe | 23 |
| J-48 | 44-011R-2500 | Packing | 25 |
| I-14-2 | 44-011W-1600 | Washer For I-14-1 | 23 |
| I-14-1 | 44-012A-2350 | Oil Pump Body | 23 |
| J-31 | 44-012A-2500 | Oil Pan | 25 |
| I-8-1 | 44-012C-1230 | Oil Return Tube | 23 |
| J-53 | 44-012C-1230 | Oil Return Tube | 25 |
| I-17 | 44-016G-1230 | Oil Pump Connection Spring | 23 |
| I-14-12 | 44-024C-1230 | Oil Pump Cap | 23 |
| F-43 | 44-026G-7400 | Tension Release Cable Holder(M) | 19 |
| D-55 | 44-029M-1230 | Stopper For Wick | 13 |
| J-35 | 44-032C-1230 | Oil Pan Nipple | 25 |
| P-16 | 44-101A-25BL | Oil Pump Bracket | 33 |
| I-14-11 | 44-104C-2350 | Cover For Oil Pump | 23 |
| I-14-13 | 44-105C-2350 | Magnetic Holder | 23 |
| I-18 | 44-115A-1230 | Oil Pump Connection Collar | 23 |
| I-14-7 | 44-117A-1600 | Piston | 23 |
| I-10 | 44-117A-1600 | Oil Return Tube Holder | 23 |
| I-14-8 | 44-118G-1230 | Piston Spring | 23 |
| I-14-15 | 44-119A-1230 | Collar For Impeller Shagt | 23 |
| I-14-9 | 44-119S-1230 | Pin Screw For I-14-8 | 23 |
| I-4 | 44-120A-1600 | Arm Oil Shield | 23 |
| I-14-10 | 44-120P-1230 | Pin For I-14-8 | 23 |
| I-14-14 | 44-120S-1230 | Screw (9/64" n = 40) | 23 |
| I-14-6 | 44-126A-1230 | Impeller | 23 |
| I-5 | 44-131C-1230 | Arm Oil Shield | 23 |
| J-22 | 60-001A-2500 | Belt Cove"r A" | 25 |
| J-24 | 60-002A-2500 | Belt Cove"r B" | 25 |
| J-23 | 60-003A-2500 | Belt Cove"r A" (FOR NP MOTOR) | 25 |
| J-1 | 91-001C-1230 | Accessory Bag | 25 |
| J-10 | 91-001C-2700 | L Wrench (2mm) | 25 |
| J-29 | 91-002S-3400 | Nail For J-24 | 25 |
| J-39 | 91-007A-2302 | Thread Stand Ass'y | 25 |
| J-14 | 91-008C-1230 | Oil Tank | 25 |
| J-52 | 91-011C-1230 | Oil Tank | 25 |
| J-2 | 91-102C-1230 | Driver (Large) | 25 |
| J-3 | 91-103C-1230 | Driver (Middle, Small) | 25 |
| J-9 | 91-105C-2700 | Spanner | 25 |
| F-21 | AS-002557-00 | Presser Lifter Link(set) | 19 |
| I-14 | AS-006239-01 | Oil Pump Ass'y | 23 |
| D-124 | AS-008438-00 | Dial Shaft Eccentric Stopper | 15 |
| E-51 | AS-014978-00 | Thread Trimming Solenoid Ass'y | 17 |
| C-24 | CL-000156-00 | Collar For Lower Shaft | 11 |
| I-14-5 | CLB-JP000601 | Oil Nipple For Lower Shaft | 23 |
| D-66 | GP-008523-00 | Feed Regulator Shaft | 13 |
| D-70 | GP-008524-01 | Feed Regulator | 15 |
| D-69 | GP-008525-01 | Feed Regulator | 15 |
| D-46 | GP-008589-00 | Feed Dog(BH-TYPE)(Magrin) | 13 |
| A-38 | GP-009247- | Model Mark(KM-250A) | 7 |
| N-1 | GP-009249- | Model Mark(KM-250BH) | 29 |
| L-3 | GP-009250-00 | Model Mark(KM-250AU-7S) | 27 |
| A-40 | GP-009253- | Model Mark(KM-250A-7S) | 7 |
| A-41 | GP-009254- | Model Mark(KM-250BH-7S) | 7 |
| N-2 | GP-009255-00 | Model Mark(KM-250BH-7S) | 29 |
| L-2 | GP-009256-00 | Model Mark(KM-250AU) | 27 |
| P-3 | GP-009288-00 | Modle Mark(KM-250BL-7S) | 33 |
| N-3 | GP-009291-00 | Model Mark(KM-250BH-7N) | 29 |
| D-44 | GP-011202-00 | Feed Dog(A-TYPE) | 13 |
| B-12 | GP-011576-00 | Upper Shaft Bushing(Non) | 9 |
| B-55 | GP-011577-00 | Upper Shaft Bushing(Trimming) | 9 |
| B-14 | GP-011578-00 | Upper Shaft Bushing(M) | 9 |
| B-21 | GP-011579-00 | Upper Shaft Bushing(R) | 9 |
| B-21 | GP-011580-00 | Upper Shaft Bushing(R) | 9 |
| C-7 | GP-011581-00 | Upright Shaft Bushing | 11 |
| A-35 | GP-012128- | Slide Plate | 7 |
| J-21 | GP-012352-00 | Head Rest | 25 |
| F-10 | GP-013150-00 | Presser Foot Ass'y(A-TYPE) | 19 |
| L-20 | GP-013150-00 | Presser Foot | 27 |
| E-40 | GP-013513-00 | Stud Screw For E-40 | 17 |
| D-125 | GP-016351-01 | Dial Shaft Locker Ass'y | 15 |
| D-107 | GP-018185-00 | Reverse Solenoid Connecting Rod | 15 |
| C-16 | GP-018589-00 | Lower Shaft Bushing(R) | 11 |
| E-24 | GP-019026-00 | Slide Arm | 17 |
| E-37 | GP-020747-00 | Thread Trimming Cam | 17 |
| F-36 | GP-021217-00 | Tension Release Cable Ass'y | 19 |
| F-40 | GP-022094-00 | Screw (9/32" n = 28) | 19 |
| F-14 | GP-023786-00 | Thread Guide Plate | 19 |
| F-35 | GP-024276-00 | Spring For Tension Release Plate | 19 |
| C-19 | GP-030777-00 | Lower Shaft Bushing(F) | 11 |
| B-2 | GP-031537-01 | Oil Adjusting Pin For B- | 9 |
| B-45 | GP-031797-00 | Needle Bar Guide Slider Block | 9 |
| E-56 | GP-034021-00 | Bobbin Catcher Lever | 17 |
| D-43 | GP-034931-00 | Feed Bar | 13 |
| E-55 | GP-035920-00 | Bobbin Catcher | 17 |
| D-91 | GP-037384-00 | Feed Regulator Dial Shaft | 15 |
| I-14-7 | GP-037562-00 | Piston | 23 |
| G-3 | GP-037820-00 | Wiper Rotation Shaft | 21 |
| B-42 | GP-038361-00 | Needle Bar Bushing(L) | 9 |
| E-1 | GP-043680-00 | Fixed Mes | 17 |
| J-37-3 | GP-043691-00 | Knee Lifter Pad Insert Plate | 25 |
| C-10 | GP-043692-00 | Lower Shaft | 11 |
| A-17 | GP-044042- | Rubber Cap For B-40 | 7 |
| K-7-1 | HEC-2507 | Auto Knee Lifter Solenoid Ass'y | 26 |
| K-7 | KM-2507 | Auto Knee Lifter Solenoid Ass'y | 26 |
| D-96 | PN-000273-00 | Pin For D-93.94 | 15 |
| D-119 | PN-000602-01 | Dial Pin | 15 |
| A-34 | SC-000568- | Screw (11/64" n = 40) | 7 |
| C-13 | SC-000578- | Screw (9/64" n = 40) | 11 |
| G-9 | SC-0105-7500 | Screw (M4) | 21 |
| J-41 | SC-0106-7400 | Screw (15/64" n = 28) | 25 |
| D-102 | SC-0108-2350 | Screw (M6) | 15 |
| E-18 | SC-0108-2350 | Screw (M6) | 17 |
| M-7-26 | SC-0108-4113 | Screw (M6) | 28 |
| 0-52 | SC-0109-2350 | Screw (M6 x P1) | 31 |
| B-15 | SC-0114-1230 | Screw (15/64" n = 28) | 9 |
| C-21 | SC-0114-1230 | Screw (15/64" n = 28) | 11 |
| D-31 | SC-0114-1230 | Screw (15/64" n = 28) | 13 |
| D-33 | SC-0114-1230 | Screw (15/64" n = 28) | 13 |
| D-57 | SC-0114-1230 | Screw (15/64" n = 28) | 13 |
| D-59 | SC-0114-1230 | Screw (15/64" n = 28) | 13 |
| A-52 | SC-0120-1230 | Screw (9/64" n = 40) | 7 |
| G-7 | SC-0120-1230 | Screw (9/64" n = 40) | 21 |
| G-26 | SC-0120-1230 | Screw (9/64" n = 40) | 21 |
| I-7 | SC-0120-1230 | Screw (9/64" n = 40) | 23 |
| D-42 | SC-0122-1230 | Screw (15/64" n = 28) | 13 |
| B-9 | SC-0123-1230 | Screw (9/32" n = 28) | 9 |
| C-9 | SC-0129-7400 | Screw (1/4" n = 40) | 11 |
| D-2 | SC-0129-7400 | Screw (1/4" n = 40) | 13 |
| D-73 | SC-0129-7400 | Screw (1/4" n = 40) | 15 |
| D-47 | SC-0130-1230 | Screw (1/8" n = 44) | 13 |
| D-40 | SC-0133-1230 | Screw (1/8" n = 44) | 13 |
| E-2 | SC-0137-2700 | Screw (1/8" n = 40) | 17 |
| 0-3 | SC-0137-2700 | Screw (1/8" n = 40) | 31 |
| B-25 | SC-0150-2500 | Screw (15/64" n = 28) | 9 |
| F-13 | SC-0157-1230 | Screw (9/64" n = 40) | 19 |
| A-61 | SC-0164-2700 | Screw (M5 x L5) | 7 |
| 0-48 | SC-0164-2700 | Screw (M5xP0.8) | 31 |
| D-100 | SC-0166-2350 | Screw (M5 x 0.8) | 15 |
| 0-26 | SC-0169-1600 | Screw (15/64" n = 28) | 31 |
| D-71 | SC-0174-1230 | Screw (11/64" n = 40) | 15 |
| D-86 | SC-0174-1230 | Screw (11/64" n = 40) | 15 |
| D-22 | SC-0175-1230 | Screw (11/64" n = 40) | 13 |
| D-25 | SC-0175-1230 | Screw (11/64" n = 40) | 13 |
| D-64 | SC-0175-1230 | Screw (11/64" n = 40) | 13 |
| D-109 | SC-0175-1230 | Screw (11/64" n = 40) | 15 |
| F-39 | SC-0175-1230 | Screw (11/64" n = 40) | 19 |
| F-46 | SC-0175-1230 | Screw (11/64" n = 40) | 19 |
| J-37-7 | SC-0181-1230 | Screw (5/16" n = 18) | 25 |
| E-54 | SC-0183-2700 | Screw (15/64" n = 28) | 17 |
| K-7-6 | SC-0183-2700 | Screw (15/64" n = 28) | 26 |
| D-85 | SC-0184-1600 | Screw (3/16" n = 28) | 15 |
| J-27 | SC-0184-4118 | Screw (3/16" n = 28) | 25 |
| D-114 | SC-0185-1230 | Screw (3/16" n = 32) | 15 |
| D-113 | SC-0186-1230 | Screw (3/16" n = 32) | 15 |
| B-26 | SC-0188-1230 | Screw (5/16" n = 24) | 9 |
| 0-33 | SC-0190-2700 | Screw (3/16" n = 32) | 31 |
| D-95 | SC-0193-1230 | Screw (3/16" n = 28) | 15 |
| G-28 | SC-0196-2700 | Screw (M3 x 0.5) | 21 |
Page 37 — INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| P-24 | SC-0211-7500 | Screw | 33 |
| A-14-3 | SC-0215-1230 | Screw (9/64" n = 40) | 7 |
| D-36 | SC-0307-1230 | Screw (3/16" n = 32) | 13 |
| 0-29 | SC-0317-2700 | Screw (15/64" n = 28) | 31 |
| F-1 | SC-0339-1230 | Screw (9/16" n = 20) | 19 |
| J-25 | SC-0344-8260 | Screw (5/16" n = 24) | 25 |
| A-22 | SC-0346-2350 | Screw (M8 x 1.25) | 7 |
| J-33 | SC-0347-1230 | Screw (3/16" n = 32) | 25 |
| C-22 | SC-0361-1230 | Screw (3/16" n = 32) | 11 |
| D-12 | SC-0400-4113 | Screw (1/4" n = 40) | 13 |
| D-12 | SC-0406-3710 | Screw (11/64" n = 40) | 13 |
| D-20 | SC-0406-3710 | Screw (11/64" n = 40) | 13 |
| E-49 | SC-0406-3710 | Screw (11/64" n = 40) | 17 |
| F-9 | SC-0406-3710 | Screw (11/64" n = 40) | 19 |
| F-15 | SC-0498-3710 | Screw (11/64" n = 40) | 19 |
| F-15 | SC-0502-2302 | Screw (9/64" n = 40) | 19 |
| B-30 | SC-0504-1230 | Screw (1/4" n = 40) | 9 |
| D-6 | SC-0504-1230 | Screw (1/4" n = 40) | 13 |
| D-16 | SC-0504-1230 | Screw (1/4" n = 40) | 13 |
| B-35 | SC-0507-1230 | Screw (15/64" n = 28) | 9 |
| C-6 | SC-0507-1230 | Screw (15/64" n = 28) | 11 |
| C-17 | SC-0507-1230 | Screw (1/4" n = 40) | 11 |
| D-68 | SC-0507-1230 | Screw (15/64" n = 28) | 15 |
| E-64 | SC-0508-1230 | Screw | 17 |
| J-36 | SC-0509-1230 | Screw (15/64" n = 28) | 25 |
| 1-14-16 | SC-0512-1230 | Screw (11/64" n = 40) | 23 |
| K-8-5 | SC-0512-1230 | Screw (11/64" n = 40) | 26 |
| A-7 | SC-0523-1230 | Screw (3/16" n = 28) | 7 |
| A-14-1 | SC-0523-1230 | Screw (3/16" n = 28) | 7 |
| F-38 | SC-0527-7600 | Screw (3/16" n = 28) | 19 |
| D-78 | SC-0528-1230 | Screw (9/64" n = 40) | 15 |
| F-18 | SC-0528-1230 | Screw (9/64" n = 40) | 19 |
| 1-14-3 | SC-0528-1230 | Screw (9/64" n = 40) | 23 |
| A-48 | SC-0542-1230 | Screw (11/64" n = 40) | 7 |
| 1-19 | SC-0542-1230 | Screw (11/64" n = 40) | 23 |
| E-5 | SC-0543-2302 | Screw (11/64" n = 40) | 17 |
| P-22 | SC-0543-2302 | Screw | 33 |
| J-42 | SC-0543-2302 | Screw (15/64" n = 28) | 25 |
| J-43 | SC-0545-1230 | Screw (15/64" n = 28) | 25 |
| A-9 | SC-0546-7400 | Screw (3/16" n = 28) | 7 |
| A-14 | SC-0548-7400 | Screw (3/16" n = 28) | 7 |
| A-14-2 | SC-0548-7400 | Screw (3/16" n = 28) | 7 |
| E-36 | SC-0548-7400 | Screw (3/16" n = 28) | 17 |
| E-46 | SC-0548-7400 | Screw (3/16" n = 28) | 17 |
| F-44 | SC-0548-7400 | Screw (3/16" n = 28) | 19 |
| G-2 | SC-0548-7400 | Screw (3/16" n = 28) | 21 |
| G-24 | SC-0548-7400 | Screw (3/16" n = 28) | 21 |
| 1-11 | SC-0548-7400 | Screw (3/16" n = 28) | 23 |
| 1-16 | SC-0548-7400 | Screw (3/16" n = 28) | 23 |
| K-8-6 | SC-0548-7400 | Screw | 26 |
| D-18 | SC-A0308-4517 | Screw (1/4" n = 40) | 13 |
| B-17 | SC-A129-4515 | Screw (1/4" n = 40) | 9 |
| B-19 | SC-A129-4515 | Screw (1/4" n = 40) | 9 |
| B-52 | SC-A129-4515 | Screw (1/4" n = 40) | 9 |
| C-3 | SC-A129-4515 | Screw (1/4" n = 40) | 11 |
| C-14 | SC-A129-4515 | Screw (1/4" n = 40) | 11 |
| B-48 | SC-A131-4522 | Screw (1/8" n = 44) | 9 |
| E-58 | SC-A131-4522 | Screw (1/8" n = 44) | 17 |
| E-59 | SC-A131-4522 | Screw (1/8" n = 44) | 17 |
| E-9 | SC-A154-4114 | Screw (11/64" n = 40) | 17 |
| 0-9 | SC-A154-4115 | Screw (11/64" n = 40) | 31 |
| C-35 | SC-A174-4122 | Screw (11/64" n = 40) | 11 |
| 0-2 | SC-A301-4119 | Screw (9/64" n = 40) | 31 |
| 0-12 | SC-A301-4119 | Screw (9/64" n = 40) | 31 |
| E-38 | SC-A308-4517 | Screw (1/4" n = 40) | 17 |
| 0-31 | SC-A308-4517 | Screw (1/4" n = 40) | 31 |
| 0-37 | SC-A308-4517 | Screw (1/4" n = 40) | 31 |
| C-25 | SC-A550-4517 | Screw (11/64" n = 40) | 11 |
| D-90 | SN-0101-1600 | Nut (11/64" n = 40) | 15 |
| E-16 | SN-0101-1600 | Nut (11/64" n = 40) | 17 |
| G-18 | SN-0101-1600 | Nut (3/16" n = 32) | 21 |
| G-14 | SN-0101-1600 | Nut (11/64" n = 40) | 21 |
| G-3 | SN-0101-1600 | Nut (1/4" n = 40) | 21 |
| E-3 | SN-0103-2700 | Nut (1/8" n = 40) | 17 |
| 0-4 | SN-0103-2700 | Nut (1/8" n = 40) | 31 |
| E-32 | SN-0105-3400 | Nut (15/64" n = 28) | 17 |
| E-41 | SN-0105-3400 | Nut (15/64" n = 28) | 17 |
| J-44 | SN-0105-3400 | Nut (15/64" n = 28) | 25 |
| 0-41 | SN-0105-3400 | Nut (15/64" n = 28) | 31 |
| A-24 | SN-0112-1230 | Nut (M8 x 1.25) | 7 |
| E-27 | SN-0115-7400 | Nut (3/16" n = 32) | 17 |
| E-44 | SN-0115-7400 | Nut (3/16" n = 32) | 17 |
| 0-15 | SN-0115-7400 | Nut For O-14 | 31 |
| 0-24 | SN-0115-7400 | Nut (3/16" n = 32) | 31 |
| K-7-8 | SN-0121-7400 | Nut (15/64" n = 28) | 26 |
SunStar KM-250 — parts catalog
- Page 1 (cover): This is the cover page of the SunStar Parts Book for 1-needle, straight lock-stitch machine series. It lists various machine models and includes a picture of a SunStar sewing machine.
- Page 2 (cover): This page is the cover of the parts book, titled 'INFORMATION A. Parts Book Structure of Part Book'. It includes a diagram illustrating the structure of the parts book and a table categorizing parts.
- Page 3 (text): This page contains a warning in Korean and English regarding the use and ordering of parts, stating that parts classified as assembly items may cause damage if not purchased as part of an assembly and that the parts book cannot be used as a manual.
- Page 4 (text): This page lists various models of sewing machines categorized by the type of material they are designed for, including models for new, thin, thick, and heavy materials.
- Page 5 (toc): This page contains the table of contents for the SunStar industrial sewing machine parts catalog, listing various mechanisms and parts with their corresponding page numbers.
- Page 6 (diagram): This page displays a diagram of the machine body and thread tension adjusting mechanism, with various parts labeled with reference numbers and part numbers.
- Page 7 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and applied periods.
- Page 8 (diagram): This page displays a diagram of the Upper Shaft & Needle Bar Mechanism, showing various parts labeled with their corresponding part numbers.
- Page 9 (parts_list): This page contains a parts list for SunStar sewing machines, detailing part numbers, names, quantities, and applied periods for various components.
- Page 10 (diagram): This page displays a diagram of the Upright Shaft & Lower Shaft Mechanism, with various parts labeled with their corresponding part numbers such as C-1 through C-37.
- Page 11 (parts_list): This page lists parts for SunStar sewing machines, including upright shafts, screws, bushings, and rotary hooks, with their corresponding part numbers and descriptions.
- Page 12 (diagram): This page displays a diagram of the feed mechanism with various parts labeled with reference numbers and part numbers.
- Page 13 (parts_list): This page lists parts for the SunStar sewing machine, including part numbers, names, quantities, and applied periods. It also includes a note section explaining abbreviations.
- Page 14 (diagram): This page displays a diagram of the feed mechanism for a sewing machine, with various parts labeled with reference numbers and part numbers.
- Page 15 (parts_list): This page lists parts for the SunStar sewing machine, including part numbers, names, quantities, and applied periods. It also provides a key for specific part notations like A-7 and B-7.
- Page 16 (diagram): This page displays a diagram of the thread trimmer mechanism, with various parts labeled with reference numbers and part numbers.
- Page 17 (parts_list): This page contains a parts list for SunStar sewing machines, detailing parts with reference numbers, part numbers, notes, names of parts, and quantities.
- Page 18 (diagram): This page displays a diagram of the Presser Foot & Tension Release Mechanism, showing various parts labeled with reference numbers and part numbers.
- Page 19 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and applied periods. It also provides a note explaining part codes like A-7 and B-7.
- Page 20 (diagram): This page displays a diagram of the thread wiper mechanism and its associated parts, labeled with reference numbers G-1 through G-30.
- Page 21 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, descriptions, quantities, and notes.
- Page 22 (diagram): This page displays a diagram of the reverse button mechanism and a parts list for its components, including part numbers, names, quantities, and applied periods.
- Page 23 (parts_list): This page contains a parts list for lubrication components, including part numbers, names, quantities, and application periods.
- Page 24 (diagram): This page displays a diagram of various sewing machine accessories and parts, labeled with part numbers ranging from J-1 to J-53.
- Page 25 (parts_list): This page lists parts for SunStar sewing machines, including reference numbers, part numbers, names, quantities, and applied periods. It details various components like needles, screws, washers, and specialized parts for knee lifters and oil pans.
- Page 26 (parts_list): This page lists parts for the Program Unit Box & Pressor Lifting Solenoid Mechanism, including part numbers, descriptions, quantities, and application notes.
- Page 27 (parts_list): This page lists special parts for the SunStar KM-250AU series sewing machines, including part numbers, names, quantities, and Korean descriptions.
- Page 28 (parts_list): This page lists parts for KM-250AU-7N, KM-250A-7N, and KM-250B-7N sewing machines, including part numbers, names, quantities, and applied periods.
- Page 29 (parts_list): This page lists special parts for the SunStar KM-250BH Series sewing machines, including part numbers, names, quantities, and applied periods.
- Page 30 (diagram): This page displays a diagram of special parts for the KM-250BL Series, with various components labeled with reference numbers.
- Page 31 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and applied periods.
- Page 32 (diagram): This page displays a diagram of special parts for the KM-250BL Series sewing machine, with various components labeled with part numbers.
- Page 33 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and applied periods.
- Page 34 (index): This page contains an index of parts for an industrial sewing machine, listing part numbers, names, page numbers, and reference numbers.
- Page 35 (index): This page contains an index of parts for an industrial sewing machine, listing part numbers, names, page numbers, and reference numbers.
- Page 36 (index): This page contains an index of parts for an industrial sewing machine, listing part numbers, names, page numbers, and reference numbers.
- Page 37 (index): This page contains an index of parts for an industrial sewing machine, listing part numbers, names, page numbers, and reference numbers.
