Page 1 — PARTS BOOK
PARTS BOOK FOR 1-NEEDLE, NEEDLE FEED LOCK-STITCH MACHINE SERIES KM-350A-7S KM-350A-7N KM-350B-7S KM-350B-7N KM-350A KM-350B SunStar SunStar PME-060525 SUNSTAR MACHINERY CO., LTD. jintex.in
SunStar KM-350A / KM-350B — parts catalog
- Page 1 (cover): This is the cover page of the SunStar Parts Book for 1-needle, needle feed lock-stitch machine series, featuring models KM-350A-7S, KM-350A-7N, KM-350B-7S, KM-350B-7N, KM-350A, and KM-350B. The page also includes a large image of a SunStar sewing machine and the part number PME-060525.
- Page 2 (cover): This is the cover page of the SunStar Parts Book for 1-Needle, Needle Feed Lock-Stitch Machine Series, specifically models KM-350A-7S, KM-350A-7N, KM-350B-7S, KM-350B-7N, KM-350A, and KM-350B. It features the SunStar logo and a photograph of a sewing machine.
- Page 3 (text): This page lists models of sewing machines for thin and thick materials, including their part numbers and descriptions.
- Page 5 (diagram): This page displays a diagram of the machine body and thread tension adjusting mechanism, with various parts labeled with reference numbers and some part numbers indicated.
- Page 7 (parts_list): This page lists parts for the Upper Shaft & Thread Take Up Lever Mechanism, including part numbers, names, quantities, and assembly numbers.
- Page 9 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with various parts labeled with reference numbers and part numbers.
- Page 10 (parts_list): This page lists parts for SunStar industrial sewing machines, including part numbers, names, quantities, and notes.
- Page 11 (diagram): This page displays a diagram of the feed mechanism, with various parts labeled with their corresponding part numbers, such as D-116, D-94, D-90, D-117, D-118, D-119, D-2, D-1, D-3, D-4, D-7, D-8, D-12, D-48, D-50, D-53, D-54, D-47, D-36, D-45, D-32, D-43, D-44, D-41, D-42, D-27, D-39, D-35, D-40, D-33, D-32, D-30, D-62, D-31, D-37, D-38, D-36, D-97, D-98, D-99, D-115, D-114, D-116, D-64, D-68, D-70, D-89, D-93, D-88, D-69, D-71, D-73, D-67, D-66, D-2, D-5, D-6, D-72-1, D-72, D-75, D-74, D-59, D-58, D-57, D-55, D-56, D-61, D-60, D-106, D-22, D-25, D-9, D-13, D-14, D-19, D-24, D-10, D-18, D-17, D-11, D-23, D-26, D-28, D-29, D-104, D-100, D-103, D-101, D-102, D-95, D-95-1, D-113, D-112, D-111, D-110, D-78, D-108, D-80, D-81, D-79, D-78, D-84, D-85, D-86, D-87, D-109, D-113, D-112, D-111, D-110, D-77, D-76.
- Page 12 (parts_list): This page contains a parts list for various components of a SunStar industrial sewing machine, including feed regulators, screws, rings, and other hardware, with part numbers, names, and quantities.
- Page 13 (diagram): This page displays a diagram of the thread trimmer mechanism, with various parts labeled with reference numbers and part numbers.
- Page 15 (parts_list): This page lists parts for the Needle Bar Driving Mechanism, including part numbers, names, quantities, and assembly numbers.
- Page 16 (parts_list): This page contains a parts list for the Presser Foot & Tension Release Mechanism, including part numbers, names, quantities, and assembly numbers.
- Page 17 (parts_list): This page lists parts for the Thread Wiper Mechanism, including part numbers, names, quantities, and assembly numbers.
- Page 18 (diagram): This page displays a diagram of the reverse button mechanism and a parts list for its components, including part numbers, names, and quantities.
- Page 19 (parts_list): This page lists parts for the Program Unit Box & Presser Lifting Solenoid Mechanism, including part numbers, descriptions, quantities, and assembly numbers.
- Page 20 (parts_list): This page contains a parts list for Lubrication components, including part numbers, names, quantities, and assembly numbers.
- Page 21 (diagram): This page displays a diagram of various accessories for a SunStar sewing machine, labeled with part numbers ranging from L-1 to L-52.
- Page 22 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly numbers. It also includes a note explaining model abbreviations.
- Page 23 (parts_list): This page lists special parts for KM-350A-7N and KM-350B-7N sewing machines, including part numbers, names, quantities, and assembly numbers.
Page 2 — PARTS BOOK
PARTS BOOK FOR 1-NEEDLE, NEEDLE FEED LOCK-STITCH MACHINE SERIES KM-350A-7S KM-350A-7N KM-350B-7S KM-350B-7N KM-350A KM-350B SunStar SunStar KM-350A-7S SUNSTAR SEWING MACHINE CO., LTD. PME-051121 SUNSTAR MACHINERY CO., LTD. jintex.in
Page 3 — MODEL
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KM-350A-7S | 1-NEEDLE, NEEDLE FEED LOCK-STITCH MACHINE WITH THREAD TRIMMER DRIVEN BY SERVO MOTOR | ||
| KM-350A-7N | 1-NEEDLE, NEEDLE FEED LOCK-STITCH MACHINE WITH THREAD TRIMMER DRIVEN BY NEEDLE POSITIONING MOTOR | ||
| KM-350A | 1-NEEDLE, NEEDLE FEED LOCK-STITCH MACHINE | ||
| KM-350B-7S | 1-NEEDLE, NEEDLE FEED LOCK-STITCH MACHINE WITH THREAD TRIMMER DRIVEN BY SERVO MOTOR | ||
| KM-350B-7N | 1-NEEDLE, NEEDLE FEED LOCK-STITCH MACHINE WITH THREAD TRIMMER DRIVEN BY NEEDLE POSITIONING MOTOR | ||
| KM-350B | 1-NEEDLE, NEEDLE FEED LOCK-STITCH MACHINE |
MODEL FOR THIN MATERIAL KM-350A-7S 1-NEEDLE, NEEDLE FEED LOCK-STITCH MACHINE WITH THREAD TRIMMER DRIVEN BY SERVO MOTOR KM-350A-7N 1-NEEDLE, NEEDLE FEED LOCK-STITCH MACHINE WITH THREAD TRIMMER DRIVEN BY NEEDLE POSITIONING MOTOR KM-350A 1-NEEDLE, NEEDLE FEED LOCK-STITCH MACHINE FOR THICK MATERIAL KM-350B-7S 1-NEEDLE, NEEDLE FEED LOCK-STITCH MACHINE WITH THREAD TRIMMER DRIVEN BY SERVO MOTOR KM-350B-7N 1-NEEDLE, NEEDLE FEED LOCK-STITCH MACHINE WITH THREAD TRIMMER DRIVEN BY NEEDLE POSITIONING MOTOR KM-350B 1-NEEDLE, NEEDLE FEED LOCK-STITCH MACHINE jintex.in
Page 5
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-14 | TTTTTTTT | ||
| A-14-1 | T | ||
| A-12 | |||
| A-13 | |||
| A-14-3 | |||
| A-14-4 | |||
| A-47 | |||
| A-14-2 | |||
| A-26 | |||
| A-15 | |||
| A-27 | |||
| A-7 | TTT | ||
| A-6 | |||
| A-8 | |||
| A-9 | |||
| A-15 | |||
| A-50 | |||
| A-15 | |||
| A-16 | |||
| A-15 | |||
| A-5 | |||
| A-55 | |||
| A-56 | |||
| A-59 | |||
| A-16 | |||
| A-15 | |||
| A-54 | |||
| A-53 | |||
| A-61 | |||
| A-63 | |||
| A-58-1 | |||
| A-36 | |||
| A-35 | |||
| A-19 | |||
| A-40 | KM-350B-7S KOREA SEWING MACHINE IND.CO.,LTD. | ||
| A-17 | |||
| A-37 | KM-350B KOREA SEWING MACHINE IND.CO.,LTD. | ||
| A-38 | |||
| A-10 | |||
| A-11 | |||
| A-44 | |||
| A-1, A-2 A-3, A-4 | |||
| A-45 | |||
| A-20 | |||
| A-62 | |||
| A-41 | |||
| A-42 | |||
| A-43 | |||
| A-34 | |||
| A-31 | |||
| A-32 | |||
| A-29 | |||
| A-30 | |||
| A-33 | |||
| A-23 | |||
| A-24 | |||
| A-21 | |||
| A-22 | |||
| A-39 | KM-350A-7S KOREA SEWING MACHINE IND.CO.,LTD. | ||
| A-18 | |||
| A-65 | |||
| A-64 |
A Machine Body & Thread Tension Adjusting Mechanism 외장 및 실장력 조절 관계 A-14 TTTTTTTT A-14-1 A-12 A-13 A-14-3 A-14-4 A-47 A-14-2 A-26 A-15 A-27 A-7 TTT A-6 A-8 A-9 A-15 A-50 A-15 A-16 A-15 A-5 A-55 A-56 A-59 A-16 A-15 A-54 A-53 A-61 A-63 A-58-1 A-36 A-35 A-19 A-40 KM-350B-7S KOREA SEWING MACHINE IND.CO.,LTD. A-37 KM-350B KOREA SEWING MACHINE IND.CO.,LTD. A-38 A-17 A-18 A-10 A-11 A-44 A-1, A-2 A-3, A-4 A-45 A-20 A-62 A-41 A-42 A-43 A-34 A-31 A-32 A-29 A-30 A-33 A-23 A-24 A-21 A-22 A-39 KM-350A-7S KOREA SEWING MACHINE IND.CO.,LTD. 4 jintex.in
Page 7 — Upper Shaft & Thread Take Up Lever Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 02-101A-2500 | Upper Shaft | ||
| 02-115C-1230 | Oil Adjusting Pin For B-1 | ||
| 02-016R-1230 | O-Ring For B-2 | ||
| GP-008586-00 | Upper Shaft Felter | ||
| 02-102A-250A | Link Cam(A-TYPE) | ||
| 02-102A-350B | Link Cam(B-TYPE) | ||
| SC-0123-1230 | Screw | ||
| 02-104A-350A | Upper Shaft Bushing(F) | ||
| 02-104A-350A | Upper Shaft Bushing(F) | ||
| 02-105A-2500 | Upper Shaft Bushing(M) | ||
| SC-0507-1230 | Screw | ||
| 02-121A-1230 | Upper Shaft Collar | ||
| SC-A129-4515 | Screw | ||
| 02-211A-1230 | Main Shaft Gear | ||
| SC-A129-4515 | Screw | ||
| 02-106A-257B | Upper Shaft Bushing(R) | ||
| 02-106A-257B | Upper Shaft Bushing(R) | ||
| 02-028C-1230 | Oil Seal For B-20,21 | ||
| 02-007A-257A | Pulley | ||
| 02-007A-257A | Pulley | ||
| SC-0150-2500 | Screw | ||
| SC-0188-1230 | Screw | ||
| 08-201A-250A | Thread Take Up Lever Ass'y | ||
| SC-A129-4515 | Screw | ||
| 44-0000-1230 | Oil Wick | ||
| SC-0507-1230 | Screw | ||
| 08-005R-250A | Oil Protection Rubber | ||
| 08-106C-2500 | Protection Plate For B-7, 8 | ||
| B-34 | Synchronizer Ass'y | ||
| 11-020A-2500 | Washer For B-34-1 | ||
| 11-022W-2500 | Screw for B-34-1 | ||
| 11-021S-2500 | Synchronizer Ass'y (Servo) | ||
| 13-0000-SE55 | Rubber For B-2 | ||
| 02-018W-1230 | Rubber For B-2 |
B Upper Shaft & Thread Take Up Lever Mechanism 상축 및 실제기 관계 Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. B-1 02-101A-2500 Upper Shaft 상축(SERVO용:L=419.5mm) 1 B-2 02-115C-1230 Oil Adjusting Pin For B-1 상축 유량 조절핀(137 & 235) 1 B-3 02-016R-1230 O-Ring For B-2 상축 유량 조절핀 오링 1 B-5 GP-008586-00 Upper Shaft Felter 상축 펠트 1 B-7 02-102A-250A A, A-7 Link Cam(A-TYPE) 링크 캠(A형) 1 B-8 02-102A-350B B, B-7 Link Cam(B-TYPE) 링크 캠(B형) 1 B-9 SC-0123-1230 Screw Screw (9/32" n = 28) 홈붙이 납작 작은 나사(9/32" n = 28) 1 B-12 02-104A-350A A-7, B-7 Upper Shaft Bushing(F) 상축 전보싱 1 B-13 02-104A-350A A, B Upper Shaft Bushing(F) 상축 전보싱 1 B-14 02-105A-2500 Upper Shaft Bushing(M) 상축 중보싱 1 B-15 SC-0507-1230 Screw (15/64" n = 28) 홈붙이 납작 나사(15/64" n = 28) 1 B-16 02-121A-1230 Upper Shaft Collar 상축 카라 1 B-17 SC-A129-4515 Screw (1/4" n = 40) 홈붙이 납작 나사(1/4" n = 40) 2 B-18 02-211A-1230 Main Shaft Gear 상축기어 1 B-19 SC-A129-4515 Screw (1/4" n = 40) 홈붙이 납작 나사(1/4" n = 40) 2 B-20 02-106A-257B A-7, B-7 Upper Shaft Bushing(R) 상축 후보싱 1 B-21 02-106A-257B A, B Upper Shaft Bushing(R) 상축 후보싱 1 B-22 02-028C-1230 Oil Seal For B-20,21 상축 오일씰 1 B-23 02-007A-257A A-7, B-7 Pulley 풀리 1 B-24 02-007A-257A A, B Pulley 풀리 1 B-25 SC-0150-2500 Screw (15/64" n = 28) 홈붙이 납작 나사(15/64" n = 28) 2 B-26 SC-0188-1230 Screw (5/16" n = 24) 홈붙이 바인딩 작은 나사(5/16" n = 24) 1 B-27 08-201A-250A Thread Take Up Lever Ass'y 실체기 (조)110-39070 1 B-28 SC-A129-4515 Screw (1/4" n = 40) 홈붙이 납작 나사(1/4" n = 40) 2 B-30 44-0000-1230 Oil Wick 오일 심지 1 B-31 SC-0507-1230 Screw (15/64" n = 28) 홈붙이 납작 나사(15/64" n = 28) 1 B-32 08-005R-250A Oil Protection Rubber 오일 막이 고무 1 B-33 08-106C-2500 Protection Plate For B-7, 8 링크 캠 접촉판 1 B-34 Synchronizer Ass'y 싱크로 나이저(조) B-34-1 11-020A-2500 Washer For B-34-1 마그네틱 홀더 와셔 (2) B-34-2 11-022W-2500 Screw for B-34-1 마그네틱 홀더 잼나사 (2) B-34-3 11-021S-2500 Synchronizer Ass'y (Servo) 싱크로 나이저(조) Servo (1조) B-34-4 13-0000-SE55 Rubber For B-2 상축 유량 조절 고무 1 B-36 02-018W-1230 Rubber For B-2 상축 유량 조절 고무 1 NOTE: A-7=KM-350A-7S B-7=KM-350B-7S A=KM-350A B=KM-350B Common Part jintex.in
Page 9 — Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-116 | |||
| D-64 | |||
| D-80 | |||
| D-110 | |||
| D-94 | |||
| D-68 | |||
| D-70 | |||
| D-79 | |||
| D-111 | |||
| D-90 | |||
| D-89 | |||
| D-93 | |||
| D-78 | |||
| D-108 | |||
| D-117 | |||
| D-88 | |||
| D-118 | |||
| D-92 | |||
| D-71 | |||
| D-85 | |||
| D-120 | |||
| D-73 | |||
| D-82 | |||
| D-83 | |||
| D-113 | |||
| D-91 | |||
| D-84 | |||
| D-67 | |||
| D-86 | |||
| D-109 | |||
| D-2 | |||
| D-4 | |||
| D-5 | |||
| D-1 | |||
| D-77 | |||
| D-3 | |||
| D-7 | |||
| D-72-1 | |||
| D-8 | |||
| D-76 | |||
| D-72 | |||
| D-75 | |||
| D-12 | |||
| D-59 | |||
| D-58 | |||
| D-62 | |||
| D-48 | |||
| D-50 | |||
| D-51 | |||
| D-32 | |||
| D-36 | |||
| D-61 | |||
| D-55 | |||
| D-53 | |||
| D-45 | |||
| D-60 | |||
| D-56 | |||
| D-54 | |||
| D-47 | |||
| D-106 | |||
| D-22 | |||
| D-25 | |||
| D-43 | |||
| D-9 | |||
| D-10 | |||
| D-18 | |||
| D-44 | |||
| D-11 | |||
| D-41 | |||
| D-32 | |||
| D-21 | |||
| D-17 | |||
| D-42 | |||
| D-105 | |||
| D-13 | |||
| D-14 | |||
| D-23 | |||
| D-27 | |||
| D-19 | |||
| D-24 | |||
| D-39 | |||
| D-35 | |||
| D-33 | |||
| D-32 | |||
| D-26 | |||
| D-62 | |||
| D-30 | |||
| D-31 | |||
| D-34 | |||
| D-28 | |||
| D-104 | |||
| D-37 | |||
| D-97 | |||
| D-95 | |||
| D-29 | |||
| D-95-1 | |||
| D-100 | |||
| D-103 | |||
| D-38 | |||
| D-36 | |||
| D-98 | |||
| D-99 | |||
| D-101 | |||
| D-102 | |||
| D-115 | |||
| D-114 |
D Feed Mechanism 피이드 관계 D-116 D-64 D-80 D-110 D-94 D-68 D-70 D-79 D-111 D-90 D-89 D-93 D-78 D-108 D-117 D-88 D-118 D-92 D-71 D-85 D-120 D-73 D-82 D-83 D-113 D-91 D-84 D-67 D-86 D-109 D-2 D-81 D-112 D-4 D-5 D-1 D-77 D-3 D-7 D-72-1 D-8 D-76 D-72 D-75 D-12 D-59 D-58 D-62 D-48 D-50 D-51 D-32 D-36 D-61 D-55 D-53 D-45 D-60 D-56 D-54 D-47 D-106 D-22 D-25 D-43 D-9 D-10 D-18 D-44 D-11 D-41 D-32 D-21 D-17 D-42 D-105 D-13 D-14 D-23 D-27 D-19 D-24 D-39 D-35 D-33 D-32 D-26 D-62 D-30 D-31 D-34 D-28 D-104 D-37 D-97 D-95 D-29 D-95-1 D-100 D-103 D-38 D-36 D-98 D-99 D-101 D-102 D-115 D-114 8 jintex.in
Page 10
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 06-101A-350A | Feed Cam A | ||
| SC-0129-7400 | Screw(1/4" n=40) | ||
| 06-101A-350B | Feed Cam B | ||
| 06-103C-235B | Stop Ring "C" For C-1, 3 | ||
| 06-102A-3500 | Feed Cam C | ||
| SC-0504-1230 | Screw(1/4" n=40) | ||
| 06-103A-2500 | Feed Rocker Shaft Connecting Rod | ||
| 06-104A-2350 | Crank Rod | ||
| 06-104A-257A | Feed Regulator Link | ||
| 06-103A-2350 | Feed Regulator Link | ||
| 06-104P-2350 | Feed Connection Link Pin(A) | ||
| SC-0496-3710 | Screw(11/64" n=40) | ||
| 06-105A-2350 | Feed Connection Link(A) | ||
| 06-106A-2350 | Feed Connection Link(B) | ||
| 06-107P-2350 | Feed Adjusting Link Hinge Pin(A) | ||
| SC-0504-1230 | Screw(1/4" n=40) | ||
| 06-108P-2350 | Feed Adjusting Link Hinge Pin(B) | ||
| SC-0504-1230 | Screw(1/4" n=40) | ||
| 06-109P-2350 | Feed Connection Link Pin(B) | ||
| 06-110P-2350 | Feed Connection Link Pin(C) | ||
| SC-0175-1230 | Screw(11/64" n=40) | ||
| 06-023P-2350 | Hinge Pin For D-72 | ||
| 04-009C-3710 | E-Ring($5) | ||
| SC-0175-1230 | Screw(11/64" n=40) | ||
| 06-112A-2350 | Feed Rock Shaft | ||
| 44-0000-1230 | Oil Wick | ||
| 06-140A-1230 | Feed Rock Shaft Bushing(R) | ||
| SC-0114-1230 | Screw(15/64" n=28) | ||
| 06-113A-2350 | Feed Rock Shaft Bushing(F) | ||
| SC-0114-1230 | Screw(15/64" n=28) | ||
| 06-021R-1230 | Oil Cover For D-26, 51 | ||
| 06-008A-2350 | Feed Bar Crank | ||
| SC-0307-1230 | Screw(3/16" n=32) | ||
| 06-114A-2350 | Feed Bar Shaft | ||
| 44-0000-1230 | Oil Wick | ||
| 06-114A-2350 | Wick Holder For D-35 | ||
| SC-0133-1230 | Screw(1/8" n=44) | ||
| 06-102W-2350 | Washer For D-35 | ||
| SC-0133-1230 | Screw(15/64" n=28) | ||
| 06-215A-2350 | Feed Bar | ||
| 06-131A-350A | Feed Dog(A-TYPE) | ||
| 06-031A-350B | Feed Dog(B-TYPE) | ||
| SC-0130-1230 | Screw(1/8" n=44) | ||
| 06-021A-1230 | Sliding Block | ||
| 06-128A-2350 | Screw(3/16" n=32) | ||
| 06-128A-2350 | Feed Lifting Bell Arm | ||
| 06-119S-1230 | Screw(15/64" n=28) | ||
| 06-116A-2350 | Feed Lifting Shaft | ||
| 44-029M-1230 | Stopper For Wick | ||
| 06-139A-1230 | Feed Lifting Shaft Bushing(F) | ||
| SC-0114-1230 | Screw(15/64" n=28) | ||
| 06-140A-1230 | Feed Lifting Shaft Bushing(R) | ||
| SC-0114-1230 | Screw(15/64" n=28) | ||
| 06-038A-235A | Feed Lifting Shaft Crank(R): A-Type | ||
| 06-041A-235B | Feed Lifting Shaft Crank(R): B-Type | ||
| 06-119S-1230 | Screw(3/16" n=28) | ||
| 06-037P-1230 | Crank Rod Connection Pin | ||
| SC-0175-1230 | Screw(11/64" n=40) | ||
| 01-037R-1230 | Rubber Cap For D-26, 51(F) |
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. D-1 06-101A-350A A Feed Cam A 피이드 캠 A 1 D-2 SC-0129-7400 Screw(1/4" n=40) 홈붙이 멈춤나사(1/4" n=40) 2 D-3 06-101A-350B B, B-7 Feed Cam B 피이드 캠 B 1 D-4 06-103C-235B Stop Ring "C" For C-1, 3 스냅링 28#D 1 D-5 06-102A-3500 Feed Cam C 피이드 캠 C 1 D-6 SC-0504-1230 Screw(1/4" n=40) 홈붙이 멈춤나사(1/4" n=40) 2 D-7 06-103A-2500 Feed Rocker Shaft Connecting Rod 수평 이송 로드 1 D-8 06-104A-2350 Crank Rod 크랭크 로드 1 D-9 06-104A-257A A-7, B-7 Feed Regulator Link 피이드 조절 링크 1 D-10 06-103A-2350 A, B Feed Regulator Link 피이드 조절 링크 1 D-11 06-104P-2350 Feed Connection Link Pin(A) 피이드 연결 링크 핀(A) 1 D-12 SC-0496-3710 Screw(11/64" n=40) 홈붙이 납작 작은 나사(11/64" n=40) 1 D-13 06-105A-2350 Feed Connection Link(A) 피이드 연결링크(A) 2 D-14 06-106A-2350 Feed Connection Link(B) 피이드 연결링크(B) 2 D-15 06-107P-2350 Feed Adjusting Link Hinge Pin(A) 피이드 조절링크 힌지핀(A) 1 D-16 SC-0504-1230 Screw(1/4" n=40) 홈붙이 멈춤나사(1/4" n=40) 1 D-17 06-108P-2350 Feed Adjusting Link Hinge Pin(B) 피이드 조절링크 힌지핀(B) 1 D-18 SC-0504-1230 Screw(1/4" n=40) 홈붙이 멈춤나사(1/4" n=40) 1 D-19 06-109P-2350 Feed Connection Link Pin(B) 피이드 연결링크 핀(B) 1 D-21 06-110P-2350 Feed Connection Link Pin(C) 피이드 연결링크 핀(C) 1 D-22 SC-0175-1230 Screw(11/64" n=40) 홈붙이 납작 작은 나사(11/64" n=40) 1 D-23 06-023P-2350 Hinge Pin For D-72 피이드 조절 연결 로드 힌지핀 1 D-24 04-009C-3710 E-Ring($5) E링($5) 1 D-25 SC-0175-1230 Screw(11/64" n=40) 홈붙이 납작 작은 나사(11/64" n=40) 1 D-26 06-112A-2350 Feed Rock Shaft 수평밀대 축 1 D-27 44-0000-1230 Oil Wick 유심 1 D-28 06-140A-1230 Feed Rock Shaft Bushing(R) 들대 붓싱(후) 11.11×17.7×16 1 D-29 SC-0114-1230 Screw(15/64" n=28) 홈붙이 멈춤나사(15/64" n=28) 1 D-30 06-113A-2350 Feed Rock Shaft Bushing(F) 수평밀대 전봉 11.11×17.7×16 1 D-31 SC-0114-1230 A, B Screw(15/64" n=28) 홈붙이 멈춤나사(15/64" n=28) 1 D-32 06-021R-1230 Oil Cover For D-26, 51 들대 밀대 고무마개 2 D-33 06-008A-2350 Feed Bar Crank 톱니 받침 크랭크 1 D-34 SC-0307-1230 Screw(3/16" n=32) 홈붙이 납작 작은 나사(3/16" n=32) 2 D-35 06-114A-2350 Feed Bar Shaft 톱니 받침 축 1 D-36 44-0000-1230 Oil Wick 유심 1 D-37 06-114A-2350 Wick Holder For D-35 심지 지지대 1 D-38 SC-0133-1230 Screw(1/8" n=44) 홈붙이 납작 작은 나사(1/8" n=44) 2 D-39 06-102W-2350 Washer For D-35 톱니 받침 와셔 1 D-40 SC-0133-1230 Screw(15/64" n=28) 홈붙이 납작 작은 나사(15/64" n=28) 1 D-41 06-215A-2350 Feed Bar 톱니 받침 1 D-42 06-131A-350A A, A-7 Feed Dog(A-TYPE) 톱니 (A형) 1 D-43 06-031A-350B B, B-7 Feed Dog(B-TYPE) 톱니 (B형) 1 D-44 SC-0130-1230 Screw(1/8" n=44) 홈붙이 납작 작은 나사(1/8" n=44) 2 D-45 06-021A-1230 Sliding Block 톱니 받침 블럭 1 D-47 06-128A-2350 Screw(3/16" n=32) 홈붙이 넙은 나사(3/16" n=32) 1 D-48 06-128A-2350 Feed Lifting Bell Arm 들대 크랭크(전) 1 D-50 06-119S-1230 Screw(15/64" n=28) 홈붙이 납작 작은 나사(15/64" n=28) 1 D-51 06-116A-2350 Feed Lifting Shaft 들대 1 D-52 44-029M-1230 Stopper For Wick 오일 심지 스토퍼 2 D-53 06-139A-1230 Feed Lifting Shaft Bushing(F) 들대 붓싱(전) 11.11×17.46×20 1 D-54 SC-0114-1230 Screw(15/64" n=28) 홈붙이 멈춤나사(15/64" n=28) 1 D-55 06-140A-1230 Feed Lifting Shaft Bushing(R) 들대 붓싱(후) 11.11×16.8×20 1 D-56 SC-0114-1230 Screw(15/64" n=28) 홈붙이 멈춤나사(15/64" n=28) 1 D-57 06-038A-235A A, A-7 Feed Lifting Shaft Crank(R): A-Type 들대 크랭크(후) 1 D-58 06-041A-235B B, B-7 Feed Lifting Shaft Crank(R): B-Type 들대 크랭크(후) 1 D-59 06-119S-1230 Screw(3/16" n=28) 홈붙이 납작 작은 나사(3/16" n=28) 1 D-60 06-037P-1230 Crank Rod Connection Pin 들대 크랭크 핀 1 D-61 SC-0175-1230 Screw(11/64" n=40) 홈붙이 멈춤나사(11/64" n=40) 1 D-62 01-037R-1230 Rubber Cap For D-26, 51(F) 들대 유심마개 2 NOTE: A-7=KM-350A-7S B-7=KM-350B-7S A=KM-350A B=KM-350B =Common Part jintex.in 9

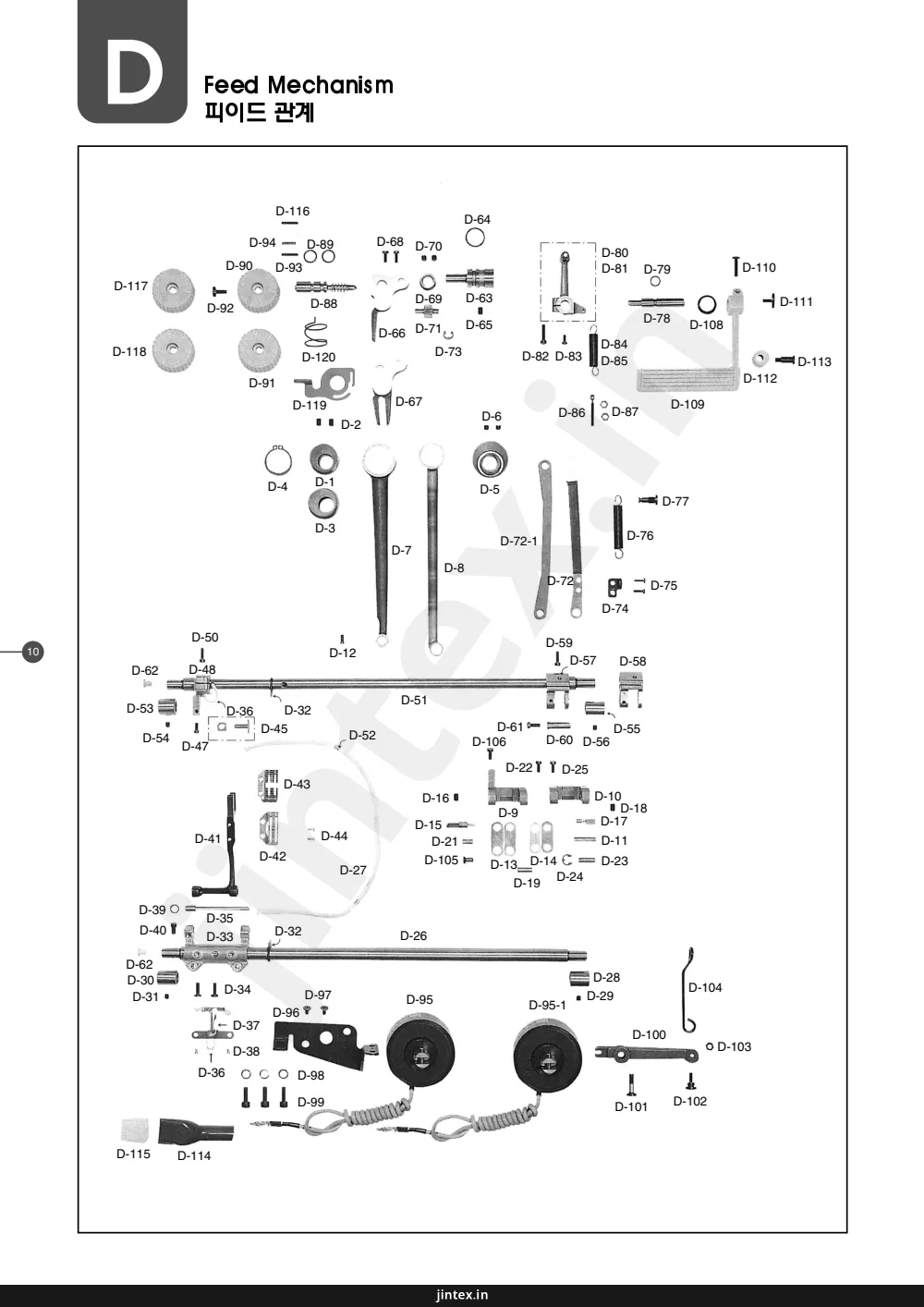

Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-116 | |||
| D-94 | |||
| D-89 | |||
| D-68 | |||
| D-70 | |||
| D-90 | |||
| D-93 | |||
| D-117 | |||
| D-88 | |||
| D-69 | |||
| D-70 | |||
| D-118 | |||
| D-120 | |||
| D-63 | |||
| D-71 | |||
| D-85 | |||
| D-73 | |||
| D-83 | |||
| D-91 | |||
| D-67 | |||
| D-2 | |||
| D-6 | |||
| D-4 | |||
| D-1 | |||
| D-3 | |||
| D-7 | |||
| D-8 | |||
| D-5 | |||
| D-72-1 | |||
| D-72 | |||
| D-59 | |||
| D-58 | |||
| D-57 | |||
| D-51 | |||
| D-50 | |||
| D-12 | |||
| D-62 | |||
| D-48 | |||
| D-53 | |||
| D-36 | |||
| D-32 | |||
| D-54 | |||
| D-45 | |||
| D-47 | |||
| D-36 | |||
| D-43 | |||
| D-44 | |||
| D-41 | |||
| D-42 | |||
| D-27 | |||
| D-39 | |||
| D-35 | |||
| D-40 | |||
| D-33 | |||
| D-32 | |||
| D-26 | |||
| D-62 | |||
| D-30 | |||
| D-31 | |||
| D-34 | |||
| D-97 | |||
| D-37 | |||
| D-38 | |||
| D-36 | |||
| D-98 | |||
| D-99 | |||
| D-115 | |||
| D-114 | |||
| D-64 | |||
| D-66 | |||
| D-80 | |||
| D-81 | |||
| D-79 | |||
| D-110 | |||
| D-78 | |||
| D-108 | |||
| D-84 | |||
| D-85 | |||
| D-113 | |||
| D-86 | |||
| D-87 | |||
| D-109 | |||
| D-112 | |||
| D-113 | |||
| D-111 | |||
| D-110 | |||
| D-77 | |||
| D-76 | |||
| D-75 | |||
| D-74 | |||
| D-61 | |||
| D-60 | |||
| D-56 | |||
| D-55 | |||
| D-106 | |||
| D-22 | |||
| D-25 | |||
| D-9 | |||
| D-13 | |||
| D-14 | |||
| D-19 | |||
| D-24 | |||
| D-10 | |||
| D-18 | |||
| D-17 | |||
| D-11 | |||
| D-23 | |||
| D-16 | |||
| D-15 | |||
| D-21 | |||
| D-105 | |||
| D-95 | |||
| D-95-1 | |||
| D-28 | |||
| D-29 | |||
| D-104 | |||
| D-100 | |||
| D-103 | |||
| D-101 | |||
| D-102 |
D Feed Mechanism 피이드 관계 D-116 D-64 D-94 D-89 D-68 D-70 D-90 D-93 TT D-117 D-88 D-69 D-70 D-118 D-120 D-63 D-71 D-85 D-73 D-83 D-91 D-67 D-2 D-4 D-3 D-7 D-8 D-5 D-72-1 D-72 D-59 D-58 D-57 D-51 D-50 D-12 D-62 D-48 D-53 D-36 D-32 D-54 D-45 D-47 D-36 D-43 D-44 D-41 D-42 D-27 D-39 D-35 D-33 D-32 D-26 D-62 D-30 D-31 D-34 D-97 D-37 D-38 D-36 D-98 D-99 D-115 D-114 D-95 D-95-1 D-28 D-29 D-100 D-103 D-101 D-102 D-104 D-113 D-112 D-111 D-110 D-78 D-108 D-80 D-81 D-79 D-78 D-84 D-85 D-86 D-87 D-109 D-113 D-112 D-111 D-110 D-77 D-76 D-75 D-74 D-61 D-60 D-56 D-55 D-106 D-22 D-25 D-9 D-13 D-14 D-19 D-24 D-10 D-18 D-17 D-11 D-23 D-16 D-15 D-21 D-105 10 jintex.in
Page 12
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| GP-008523-00 | Feed Regulator Shaft | ||
| 06-043R-1230 | O-Ring For D-63 | ||
| SC-0507-1230 | Screw(15/64" n = 28) | ||
| GP-008525-00 | Feed Regulator | ||
| GP-008524-00 | Feed Regulator | ||
| SC-0174-1230 | Screw(11/64" n = 40) | ||
| 06-220A-1230 | Collar For D-63 | ||
| 06-042R-1230 | Screw(1/4" n = 40) | ||
| 06-221A-2350 | Feed Adjusting Shaft | ||
| 06-122A-2500 | Feed Regulating Rod | ||
| 06-122A-1370 | Connecting Rod For Feed Regulator | ||
| 04-009C-3710 | E-Ring($5) | ||
| 06-023C-257A | B/T Spring Holder | ||
| SC-0528-1230 | Screw(9/64" n = 40) | ||
| 06-023G-7400 | Reverse Feed Spring | ||
| 06-024C-257A | Holder For D-76 | ||
| 06-042R-1230 | Reverse Feed Control Lever Shaft | ||
| 06-042R-1230 | O-Ring For D-78 | ||
| 06-026A-257A | Reverse Feed Lever Crank Ass'y | ||
| 06-026A-250A | Reverse Feed Lever Crank Ass'y | ||
| SC-0184-1600 | Screw(3/16" n = 28) | ||
| SC-0174-811H | Screw(11/64" n = 40) | ||
| 06-024G-1230 | Spring For D-109 | ||
| 06-056G-2350 | Spring For D-109 | ||
| 06-040S-1600 | Nut (11/64" n = 40) | ||
| SN-0101-1600 | Nut (11/64" n = 40) | ||
| GP-016930-00 | Feed Regulator Dial Shaft | ||
| 06-010R-1230 | O-Ring For D-88 | ||
| 06-028C-250A | Feed Regulator Control Plate(4mm) | ||
| 06-028C-357B | Feed Regulator Control Plate(5mm) | ||
| SC-0193-1230 | Screw(3/16" n = 28) | ||
| PN-000273-00 | Pin For D-90, 91 | ||
| 06-027G-1230 | Spring For D-93 | ||
| 06-048A-2507 | Reverse Feed Solenoid Ass'y | ||
| 06-048B-2507 | Reverse Feed Solenoid Ass'y | ||
| 06-130A-257A | Bracket For Reverse Feed Solenoid | ||
| SC-0166-2350 | Screw(M5 x 0.8) | ||
| 01-020W-2350 | Washer For Synchronizer | ||
| SC-0109-2350 | Screw(M6) | ||
| 06-131A-257A | Reverse Feed Solenoid Crank | ||
| 06-032S-257A | Stud Screw For D-100 | ||
| SC-000550-00 | Hinge Screw For D-104 | ||
| 40-005C-2700 | Hinge Nut For D-104 | ||
| 06-034A-257A | Reverse Solenoid Connecting Rod | ||
| 06-035A-257A | Hinge Pin For D-104 | ||
| SC-0175-1230 | Screw(11/64" n = 40) | ||
| 06-053W-1230 | Washer For D-78 | ||
| 06-036C-2500 | Feed Regulator Lever | ||
| SC-0186-1230 | Screw(3/16" n = 32) | ||
| SC-0185-1230 | Screw(3/16" n = 32) | ||
| 06-072R-7507 | Stopper Rubber For D-109 | ||
| 06-071S-7507 | Stopper Stud Screw For D-109 | ||
| 11-019M-2350 | Terminal Tube(L) | ||
| 11-018M-2350 | Solenoid Terminal(12P) | ||
| PN-000267-00 | Dial Pin(INSERT) | ||
| 06-028C-257A | Feed Regulator Control Plate(4mm)(INSERT) | ||
| 06-028C-357B | Feed Regulator Control Plate(5mm)(INSERT) | ||
| GP-016425-00 | Dial Shaft Eccentric Stopper | ||
| GP-016351-01 | Dial Shaft Eccentric Stopper Spring |
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. D-63 GP-008523-00 Feed Regulator Shaft 피이드 조절기 축 1 D-64 06-043R-1230 O-Ring For D-63 피이드 조절기 붓싱 오링 2 D-65 SC-0507-1230 Screw(15/64" n = 28) 홈볼이 멈춤나사 (15/64" n=28) 1 D-66 GP-008525-00 A-7, B-7 Feed Regulator 피이드 조절기 1 D-67 GP-008524-00 A, B Feed Regulator 피이드 조절기 1 D-68 SC-0174-1230 Screw(11/64" n = 40) 홈볼이 납작 나사 (11/64" n=40) 1 D-69 06-220A-1230 Collar For D-63 피이드 조절기 카라 1 D-70 06-042R-1230 Screw(1/4" n = 40) 홈볼이 납작 나사 (1/4" n=40) 2 D-71 06-221A-2350 Feed Adjusting Shaft 피이드 조절축 1 D-72 06-122A-2500 A-7, B-7 Feed Regulating Rod 피이드 조절 로드 1 D-72-1 06-122A-1370 A, B Connecting Rod For Feed Regulator 피이드 조절기 로드 1 D-73 04-009C-3710 E-Ring($5) E링($5) 1 D-74 06-023C-257A A-7, B-7 B/T Spring Holder 자동 역진 스프링 홀더 1 D-75 SC-0528-1230 A-7, B-7 Screw(9/64" n = 40) 홈볼이 둥근 납작 나사 (9/64" n=40) 2 D-76 06-023G-7400 A-7, B-7 Reverse Feed Spring 역진 레버 스프링 1 D-77 06-024C-257A A-7, B-7 Holder For D-76 자통 역진 스프링 걸이 1 D-78 06-042R-1230 Reverse Feed Control Lever Shaft 역진 레버 축 1 D-79 06-042R-1230 O-Ring For D-78 레버축 오링 1 D-80 06-026A-257A A-7, B-7 Reverse Feed Lever Crank Ass'y 역진 레버 인장 크랭크(조) 1 D-81 06-026A-250A A, B Reverse Feed Lever Crank Ass'y 역진 레버 인장 크랭크(조) 1 D-82 SC-0184-1600 Screw(3/16" n = 28) 홈볼이 납작 작은나사 (3/16" n=28) 1 D-83 SC-0174-811H Screw(11/64" n = 40) 홈볼이 납작 나사 (11/64" n=40) 1 D-84 06-024G-1230 A, A-7 Spring For D-109 역진 레버 스프링 1 D-85 06-056G-2350 B, B-7 Spring For D-109 역진 레버 스프링 1 D-86 06-040S-1600 A-7, B-7 Nut (11/64" n = 40) 너트 (11/64" n=40) 2 D-87 SN-0101-1600 A-7, B-7 Nut (11/64" n = 40) 너트 (11/64" n=40) 1 D-88 GP-016930-00 Feed Regulator Dial Shaft 피이드 조절 다이알 축 1 D-89 06-010R-1230 O-Ring For D-88 다이알 축 오링 1 D-90 06-028C-250A A Feed Regulator Control Plate(4mm) 다이알 문자판(4mm) 1 D-91 06-028C-357B B Feed Regulator Control Plate(5mm) 다이알 문자판(5mm) 1 D-92 SC-0193-1230 Screw(3/16" n = 28) 홈볼이 납작 작은나사 (3/16" n=28) 1 D-93 PN-000273-00 A, B Pin For D-90, 91 다이알 핀 1 D-94 06-027G-1230 Spring For D-93 다이알 스프링 1 D-95 06-048A-2507 B-7 Reverse Feed Solenoid Ass'y 역진 솔레노이드(SBT-5) 1조 D-95-1 06-048B-2507 A-7 Reverse Feed Solenoid Ass'y 역진 솔레노이드(SBT-7) 1조 D-96 06-130A-257A A-7, B-7 Bracket For Reverse Feed Solenoid 역진 솔레노이드 브라켓 1 D-97 SC-0166-2350 A-7, B-7 Screw(M5 x 0.8) 홈볼이 접시 작은나사(M5 x 0.8) 2 D-98 01-020W-2350 A-7, B-7 Washer For Synchronizer 싱크로 베이스 스프링 와셔 (φ6) 3 D-99 SC-0109-2350 A-7, B-7 Screw(M6) 육각 구멍 볼트 (M6) 3 D-100 06-131A-257A A-7, B-7 Reverse Feed Solenoid Crank 역진 솔레노이드 크랭크 1 D-101 06-032S-257A A-7, B-7 Stud Screw For D-100 역진 솔레노이드 크랭크 단나사 1 D-102 SC-000550-00 A-7, B-7 Hinge Screw For D-104 역진 솔레노이드 연결 로드 힌지 나사 1 D-103 40-005C-2700 A-7, B-7 Hinge Nut For D-104 케이블 연결 너트(B) 1 D-104 06-034A-257A A-7, B-7 Reverse Solenoid Connecting Rod 역진 솔레노이드 연결 로드 1 D-105 06-035A-257A A-7, B-7 Hinge Pin For D-104 역진 솔레노이드 연결 로드 힌지 핀 1 D-106 SC-0175-1230 A-7, B-7 Screw(11/64" n = 40) 홈볼이 납작 나사 (11/64" n=40) 1 D-108 06-053W-1230 Washer For D-78 레버 와셔 1 D-109 06-036C-2500 Feed Regulator Lever 역진 레버 1 D-110 SC-0186-1230 Screw(3/16" n = 32) 홈볼이 납작 작은나사 (3/16" n=32) 1 D-111 SC-0185-1230 Screw(3/16" n = 32) 홈볼이 바인딩 작은나사 (3/16" n=32) 1 D-112 06-072R-7507 Stopper Rubber For D-109 역진 레버 스토퍼(상) 고무 1 D-113 06-071S-7507 Stopper Stud Screw For D-109 역진 레버 스토퍼(상) 단나사 1 D-114 11-019M-2350 A-7, B-7 Terminal Tube(L) 솔레노이드 튜브 1 D-115 11-018M-2350 A-7, B-7 Solenoid Terminal(12P) 솔레노이드 프러그 1 D-116 PN-000267-00 A-7, B-7 Dial Pin(INSERT) 다이알 핀(인써트) 1 D-117 06-028C-257A A-7 Feed Regulator Control Plate(4mm)(INSERT) 다이알 문자판(4mm)(인써트) 1 D-118 06-028C-357B B-7 Feed Regulator Control Plate(5mm)(INSERT) 다이알 문자판(5mm)(인써트) 1 D-119 GP-016425-00 Dial Shaft Eccentric Stopper 다이알 축 편심 스토퍼 1 D-120 GP-016351-01 Dial Shaft Eccentric Stopper Spring 다이알 축 편심 스토퍼 스프링 1 NOTE: A-7=KM-350A-7S B-7=KM-350B-7S A=KM-350A B=KM-350B =Common Part jintex.in 11
Page 13 — Thread Trimmer Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E-36 | TT | ||
| E-37 | TT | ||
| E-35 | Spring | ||
| E-9 | Bracket | ||
| E-20 | Shaft | ||
| E-34 | Screw | ||
| E-8 | Bracket | ||
| E-32 | Screw | ||
| E-30 | Bracket | ||
| E-33 | Washer | ||
| E-31 | Screw | ||
| E-22 | Circlip | ||
| E-21 | Washer | ||
| E-23 | Washer | ||
| E-32-1 | Spring | ||
| E-25 | Shaft | ||
| E-29 | Washer | ||
| E-6 | Screw | ||
| E-5 | Lever | ||
| E-4 | Pin | ||
| E-1 | Lever | ||
| E-19 | Screw | ||
| E-24 | Spring | ||
| E-27 | Screw | ||
| E-26 | Screw | ||
| E-28 | Washer | ||
| E-7 | Washer | ||
| E-3 | Pin | ||
| E-2 | Lever | ||
| E-27-1 | Screw | ||
| E-16 | Screw | ||
| E-18 | Lever | ||
| E-15 | Bracket | ||
| E-17 | Nut | ||
| E-40 | Bracket | ||
| E-42 | Bracket | ||
| E-41 | Lever | ||
| E-43 | Screw | ||
| E-46 | Bracket | ||
| E-16 | Screw | ||
| E-47 | Screw | ||
| E-10 | Screw | ||
| E-44 | Screw | ||
| E-11 | Ring | ||
| E-51 | Circlip | ||
| E-38 | Bracket | ||
| E-45 | Screw | ||
| E-48 | Lever | ||
| E-12 | Ring | ||
| E-14 | Ring | ||
| E-13 | Ring | ||
| E-39 | Screw | ||
| E-49 | Bracket | ||
| E-50 | Screw | ||
| E-64 | Shaft | ||
| E-63 | Bracket | ||
| E-65 | Bracket | ||
| E-56 | Lever | ||
| E-61 | Bracket | ||
| E-58 | Bracket | ||
| E-57 | Lever | ||
| E-62 | Screw | ||
| E-59 | Screw | ||
| E-60 | Screw | ||
| E-53 | Bracket | ||
| E-52 | Motor | ||
| E-54 | Washer | ||
| E-55 | Screw |
E Thread Trimmer Mechanism 사절 관계 E-36 E-37 TT E-35 E-9 E-20 E-34 E-8 E-32 E-30 E-33 E-32-1 E-22 E-21 E-23 E-25 E-29 E-6 E-5 E-4 E-1 E-19 E-24 E-27 E-26 E-28 E-7 E-3 E-2 E-16 E-18 E-27-1 E-15 E-40 E-17 E-42 E-41 E-43 E-46 E-16 E-47 E-10 E-44 E-11 E-51 E-38 E-45 E-48 E-12 E-14 E-13 E-39 E-49 E-50 E-64 E-63 E-65 E-56 E-61 E-58 E-57 E-62 E-59 E-60 E-53 E-52 E-54 E-55 12 jintex.in
Page 15 — F Needle Bar Driving Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-1 | 15-001A-3500 | Needle Bar Frame | |
| F-1-1 | SC-0113-3400 | Screw | |
| F-2 | 15-002A-3500 | Needle Bar Frame Guide | |
| F-3 | SC-0157-1230 | Screw (9/64" n = 40) | |
| F-3-1 | 11-017C-7507 | Stud Nut | |
| F-4 | 15-103A-3500 | Needle Bar Frame Shaft Bushing | |
| F-5 | SC-0352-7400 | Screw (3/16" n = 28) | |
| F-6 | 15-104A-3500 | Slide Block Guide | |
| F-7 | SC-0184-1600 | Screw (3/16" n = 28) | |
| F-8 | 15-105A-3500 | Needle Bearing | |
| F-9 | 15-006A-3500 | Driving Link | |
| F-10 | 15-007P-3500 | Needle Bar Link Pin | |
| F-11 | SC-0159-3500 | Screw (9/64" n = 40) | |
| F-12 | 15-009A-3500 | Driving Crank(F) | |
| F-13 | SC-0497-1230 | Screw (3/16" n = 28) | |
| F-14 | 15-010A-3500 | Rock Shaft Bushing(F) | |
| F-15 | 15-112A-3500 | Needle Bar Frame Shaft | |
| F-16 | 15-013A-3500 | Rock Shaft Bushing(R) | |
| F-17 | SC-0352-7400 | Screw (3/16" n = 28) | |
| F-18 | 15-011A-3500 | Collar For F-15 | |
| F-19 | SC-0114-1230 | Screw (15/64" n = 28) | |
| F-20 | 15-014A-3500 | Driving Crank(R) | |
| F-21 | SC-0497-1230 | Screw (3/16" n = 28) | |
| F-22 | 15-015S-3500 | Stud Screw For F-20 | |
| F-23 | SN-0105-3400 | Nut (15/64" n = 28) | |
| F-24 | 15-116A-3500 | Needle Feed Connection Rod | |
| F-25 | 15-017A-3500 | Needle Feed Connection Rod Shaft | |
| F-26 | 06-051W-7400 | Washer For F-24 | |
| F-27 | SN-0105-3400 | Nut (15/64" n = 28) | |
| F-28 | SC-0316-2350 | Screw (11/64" n = 40) | |
| F-29 | 06-129A-3500 | Level Feed Crank(R) | |
| F-30 | SC-0327-3500 | Screw (9/32" n = 28) | |
| F-33 | 04-101A-350A | Needle Bar(A-TYPE) | |
| F-34 | 04-101A-350B | Needle Bar(B-TYPE) | |
| F-35 | 04-005A-2500 | Needle Bar Guide Slider Block | |
| F-36 | 04-106C-250A | Needle Bar Thread Guide(A-TYPE) | |
| F-37 | 04-001A-2700 | Needle Bar Thread Guide(B-TYPE) | |
| F-38 | SC-A131-4522 | Screw (1/8" n = 44) | |
| F-39 | A, A-7 | Needle | |
| F-40 | B, B-7 | Needle |
F Needle Bar Driving Mechanism 바늘대 요동 관계 F-19 F-19 F-18 O F-17 O F-18 F-14 F-15 F-16 F-21 F-13 T F-12 F-20 F-22 F-11 F-9 F-10 F-23 F-3-1 F-34 F-33 F-2 F-11 F-6 F-24 F-3 F-35 F-7 F-1-1 F-4 F-8 F-1 F-37 F-36 F-38 F-5 F-26 F-27 F-25 F-29 F-40 F-39 F-28 14 Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. F-1 15-001A-3500 Needle Bar Frame 바늘대 후레임(110-03559) 1 F-1-1 SC-0113-3400 Screw 바늘대 볼트 나사(45/5) 1 F-2 15-002A-3500 Needle Bar Frame Guide 바늘대 후레임 가이드 1 F-3 SC-0157-1230 Screw (9/64" n = 40) 홈붙이 넘비 작은 나사(9/64" n=40) 2 F-3-1 11-017C-7507 Stud Nut 와이퍼 링크 "A" 연결 단나 2 F-4 15-103A-3500 Needle Bar Frame Shaft Bushing 바늘대 후레임 축 부싱 1 F-5 SC-0352-7400 Screw (3/16" n = 28) 홈붙이 넘비 작은 나사(3/16" n=28) 1 F-6 15-104A-3500 Slide Block Guide 슬라이드 블럭 가이드 1 F-7 SC-0184-1600 Screw (3/16" n = 28) 홈붙이 넘비 작은 나사(3/16" n=28) 1 F-8 15-105A-3500 Needle Bearing 니이들 베어링(B2913-412-NOO) 1 F-9 15-006A-3500 Driving Link 요동 링크 1 F-10 15-007P-3500 Needle Bar Link Pin 바늘대 링크핀 2 F-11 SC-0159-3500 Screw (9/64" n = 40) 홈붙이 넘비 작은 나사(9/64" n=40) 2 F-12 15-009A-3500 Driving Crank(F) 요동 크랭크(전) 1 F-13 SC-0497-1230 Screw (3/16" n = 28) 홈붙이 넘비 작은 나사(3/16" n=28) 1 F-14 15-010A-3500 Rock Shaft Bushing(F) 요동축 보싱(전) 1 F-15 15-112A-3500 Needle Bar Frame Shaft 바늘대 후레임 축 1 F-16 15-013A-3500 Rock Shaft Bushing(R) 요동축 보싱(후) 1 F-17 SC-0352-7400 Screw (3/16" n = 28) 홈붙이 넘비 작은 나사(3/16" n=28) 1 F-18 15-011A-3500 Collar For F-15 칼라 (F-15용) 2 F-19 SC-0114-1230 Screw (15/64" n = 28) 홈붙이 넘비 작은 나사(15/64" n=28) 4 F-20 15-014A-3500 Driving Crank(R) 요동 크랭크(후) 1 F-21 SC-0497-1230 Screw (3/16" n = 28) 홈붙이 넘비 작은 나사(3/16" n=28) 1 F-22 15-015S-3500 Stud Screw For F-20 요동 크랭크(후) 스터드 나사 1 F-23 SN-0105-3400 Nut (15/64" n = 28) 육각 너트 (15/64" n=28) 1 F-24 15-116A-3500 Needle Feed Connection Rod 침송 연결로드 1 F-25 15-017A-3500 Needle Feed Connection Rod Shaft 침송 연결로드 축 1 F-26 06-051W-7400 Washer For F-24 포크 죠나사 와셔 1 F-27 SN-0105-3400 Nut (15/64" n = 28) 육각 너트 (15/64" n=28) 1 F-28 SC-0316-2350 Screw (11/64" n = 40) 홈붙이 바인딩 작은 나사(11/64" n=40) 1 F-29 06-129A-3500 Level Feed Crank(R) 수평밀대 크랭크(후) 1 F-30 SC-0327-3500 Screw (9/32" n = 28) 육각 볼트 (9/32" n=28) 1 F-33 04-101A-350A A, A-7 Needle Bar(A-TYPE) 바늘대 (A形) 1 F-34 04-101A-350B B, B-7 Needle Bar(B-TYPE) 바늘대 (B形) 1 F-35 04-005A-2500 Needle Bar Guide Slider Block 바늘대 안내 블럭 1 F-36 04-106C-250A A, A-7 Needle Bar Thread Guide(A-TYPE) 바늘대 실안내(A形) 1 F-37 04-001A-2700 B, B-7 Needle Bar Thread Guide(B-TYPE) 바늘대 실걸이 1 F-38 SC-A131-4522 Screw (1/8" n = 44) 홈붙이 넘비 작은 나사(1/8" n=44) 1 F-39 A, A-7 Needle 바늘 1 F-40 B, B-7 Needle 바늘 1 NOTE: A=KM-350A-7S B=KM-350B-7S A=KM-350A B=KM-350B Common Part jintex.in
Page 16 — Presser Foot & Tension Release Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SC-0339-1230 | Screw(9/16" n = 20) | ||
| 05-002C-2500 | Presser Adjusting Nut | ||
| 05-014C-250A | Presser Adjusting Spring(A-TYPE) | ||
| 05-014C-250B | Presser Adjusting Spring(B-TYPE) | ||
| 05-007C-1230 | Presser Adjusting Bar | ||
| 05-101A-1230 | Presser Bar Bushing | ||
| 05-115A-2500 | Presser Bar Holder | ||
| 05-108A-3500 | Screw(11/64" n = 40) | ||
| SC-0174-1230 | Presser Foot Ass'y(A-TYPE) | ||
| 05-009A-350A | Presser Foot Ass'y(A-TYPE) | ||
| 05-009B-350B | Presser Foot Ass'y(B-TYPE) | ||
| SC-0157-1230 | Screw(9/64" n = 40) | ||
| 43-001A-2500 | Presser Lifter | ||
| 02-019W-1230 | Washer For G-13 | ||
| SC-0528-1230 | Screw(9/64" n = 40) | ||
| 43-102A-2500 | Presser Lifter Cam Shaft | ||
| 02-016R-1230 | O-Ring For G-16 | ||
| 43-103A-2500 | Presser Lifter Link | ||
| 43-004S-3500 | Hinge Screw For G-18 | ||
| 04-009C-3710 | E-Ring($5) | ||
| 43-005A-3500 | Collar For Trust | ||
| SC-0531-2302 | Screw(9/64" n = 40) | ||
| 43-106C-3500 | Presser Lifter Lever | ||
| 43-106C-3500 | Presser Lifter Connection Bar | ||
| 43-007S-2500 | Stud Screw For G-24 | ||
| 43-108A-3500 | Knee Lifting Link | ||
| 43-008S-3500 | Hinge Screw For G-26 | ||
| 43-109C-3500 | Knee Lifting Bar | ||
| 43-010S-2500 | Hinge Screw For G-28 | ||
| 40-005A-3500 | Tension Release Link | ||
| 43-008S-3500 | Hinge Screw For G-30 | ||
| 40-107A-3500 | Tension Release Plate | ||
| 40-008S-3500 | Spring For G-32 | ||
| 06-033M-3800 | E-Ring($3) | ||
| 40-009G-3500 | Spring For G-32 | ||
| 40-008A-2500 | Tension Release Cable (Ass'y) | ||
| 40-209A-257A | Tension Release Cable Holder (U) | ||
| SC-0516-3500 | Screw(3/16" n = 28) | ||
| SC-0175-1230 | Cable Connection Bolt | ||
| 40-004C-2700 | Nut For Cable Connection Bolt "A" | ||
| 40-005C-2700 | Nut For Cable Connection Bolt "B" | ||
| 44-026G-7400 | Tension Release Cable Holder(M) | ||
| SC-0548-7400 | Screw(3/16" n = 28) | ||
| 40-210A-257A | Tension Release Cable Holder(L) | ||
| SC-0175-1230 | Screw(11/64" n = 40) |
G Presser Foot & Tension Release Mechanism 노루발 및 실놓기 관계 Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. G-1 SC-0339-1230 Screw(9/16" n = 20) 호불이 동근남자 작은나사(9/16 n=20) 1 G-2 05-002C-2500 Presser Adjusting Nut 압력 조절 나사 너트 1 G-3 05-014C-250A A, B-7 Presser Adjusting Spring(A-TYPE) 압력 조절 스프링(A형) 1 G-4 05-014C-250B B, B-7 Presser Adjusting Spring(B-TYPE) 압력 조절 스프링(B형) 1 G-5 05-007C-1230 Presser Adjusting Bar 압력 조절봉 1 G-6 05-101A-1230 Presser Bar Bushing 노루대 부싱 1 G-7 05-115A-2500 Presser Bar Holder 노루대 잡이 1 G-8 05-108A-3500 Screw(11/64" n = 40) 호불이 냅작 작은나사(11/64 n=40) 1 G-9 SC-0174-1230 Presser Foot Ass'y(A-TYPE) 노루발(조립): A형 1조 G-10 05-009A-350A A, B-7 Presser Foot Ass'y(A-TYPE) 노루발(조립): A형 1조 G-11 05-009B-350B B, B-7 Presser Foot Ass'y(B-TYPE) 노루발(조립): B형 1조 G-12 SC-0157-1230 Screw(9/64" n = 40) 호불이 냅작 작은나사(9/64 n=40) 1 G-13 43-001A-2500 Presser Lifter 노루대 올리기 1 G-14 02-019W-1230 Washer For G-13 상축 휄트 와셔 1 G-15 SC-0528-1230 Screw(9/64" n = 40) 호불이 동근남자 작은나사(9/64 n=40) 1 G-16 43-102A-2500 Presser Lifter Cam Shaft 노루대 올리기 캠축 1 G-17 02-016R-1230 O-Ring For G-16 상축 유량 조절 오링 2 G-18 43-103A-2500 Presser Lifter Link 노루대 올리기 링크 1 G-19 43-004S-3500 Hinge Screw For G-18 수동 올림 링크 힌지 나사 1 G-20 04-009C-3710 E-Ring($5) E링($5) 2 G-21 43-005A-3500 Collar For Trust 트러스트 칼라 1 G-22 SC-0531-2302 Screw(9/64" n = 40) 호불이 동근남자 작은나사(9/64 n=40) 1 G-23 43-106C-3500 Presser Lifter Lever 노루대 올리기 레버 1 G-24 43-106C-3500 Presser Lifter Connection Bar 노루대 올리기 연결봉 1 G-25 43-007S-2500 Stud Screw For G-24 두루마리 나사 1 G-26 43-108A-3500 Knee Lifting Link 무릎 올림 링크 1 G-27 43-008S-3500 Hinge Screw For G-26 무릎 올림 링크 힌지 나사 1 G-28 43-109C-3500 Knee Lifting Bar 무릎 올림 봉 1 G-29 43-010S-2500 Hinge Screw For G-28 무릎 올림 봉 힌지 나사 1 G-30 40-005A-3500 Tension Release Link 실놓기 링크 1 G-31 43-008S-3500 Hinge Screw For G-30 실놓기 링크 힌지 나사 1 G-32 40-107A-3500 Tension Release Plate 실놓기 링크 단나사 1 G-33 40-008S-3500 Spring For G-32 실놓기 스프링 1 G-34 06-033M-3800 E-Ring($3) E링($3) 1조 G-35 40-009G-3500 Spring For G-32 실놓기 스프링 1 G-36 40-008A-2500 Tension Release Cable (Ass'y) 실놓기 케이블(조립) 1 G-37 40-209A-257A A-7, B-7 Tension Release Cable Holder (U) 실놓기 케이블잡이(U) 1 G-38 SC-0516-3500 A-7, B-7 Screw(3/16" n = 28) 호불이 잽시 작은나사(3/16 n=28) 1 G-39 SC-0175-1230 A-7, B-7 Cable Connection Bolt 케이블 연결 볼트 1 G-40 40-004C-2700 A-7, B-7 Nut For Cable Connection Bolt "A" 케이블 연결 너트(A) 1 G-41 40-005C-2700 A-7, B-7 Nut For Cable Connection Bolt "B" 케이블 연결 너트(B) 1 G-42 44-026G-7400 A-7, B-7 Tension Release Cable Holder(M) 휠트잡이 스프링 1 G-43 SC-0548-7400 A-7, B-7 Screw(3/16" n = 28) 호불이 잽시 작은나사(3/16 n=28) 1 G-44 40-210A-257A A-7, B-7 Tension Release Cable Holder(L) 실놓기 케이블잡이(L) 1 G-45 SC-0175-1230 A-7, B-7 Screw(11/64" n = 40) 호불이 냅작 작은나사(11/64 n=40) 1 NOTE: A-7=KM-350A-7S B-7=KM-350B-7S A=KM-350A B=KM-350B =Common Part jintex.in
Page 17 — Thread Wiper Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-001A-257A | Wiper Bracket Ass'y | ||
| SC-0548-7400 | Screw(3/16" n=28) | ||
| 11-002A-357A | Wiper Rotation Shaft | ||
| 04-009C-3710 | E-Ring(φ5) | ||
| 11-003A-257A | Wiper | ||
| SC-0120-1230 | Screw(9/64" n=40) | ||
| 11-106A-257A | Wiper Crank Ass'y | ||
| SC-0105-7500 | Screw(M4) | ||
| 16-113S-3710 | Hinge Screw For H-8 | ||
| SN-0101-1600 | Nut(11/64" n=40) | ||
| 11-007A-257A | Wiper Rod | ||
| 16-113S-3710 | Hinge Screw For H-12 | ||
| SN-0101-1600 | Nut(11/64" n=40) | ||
| 11-008A-257A | Wiper Driving Link Ass'y | ||
| 11-009S-257A | Hinge Screw For H-15 | ||
| 10-020W-2700 | Washer For H-15 | ||
| SN-0115-7400 | Nut(3/16" n=32) | ||
| 11-010A-257A | Wiper Solenoid Connection Link | ||
| 16-113S-3710 | Hinge For H-19 | ||
| SN-0101-1600 | Nut(11/64" n=40) | ||
| 11-011G-257A | Wiper Spring | ||
| 11-112A-257A | Wiper Base | ||
| SC-0548-7400 | Screw(3/16" n=28) | ||
| 11-013C-257A | Wiper Cover | ||
| SC-0120-1230 | Screw(9/64" n=40) | ||
| 11-015A-2507 | Wiper Solenoid Ass'y | ||
| SC-0196-2700 | Screw(M3×0.5) | ||
| 11-016W-2700 | Spring Washer For H-27 | ||
| 11-017W-2700 | Washer For H-27 |
H Thread Wiper Mechanism 와이퍼 관계 H-27 H-24 T H-25 H-29 H-26 H-20 H-19 H-15 H-13 H-2 H-14 H-28 H-30 H-23 H-1 H-3 H-4 H-6 H-7 H-5 H-12 H-10 H-11 H-16 H-17 H-18 H-21 H-22 H-9 H-8 Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. H-1 11-001A-257A A-7, B-7 Wiper Bracket Ass'y 와이퍼 브라켓(組) 1조 H-2 SC-0548-7400 A-7, B-7 Screw(3/16" n=28) 홈붙이 납작 나사(3/16" n=28) 2 H-3 11-002A-357A A-7, B-7 Wiper Rotation Shaft 와이퍼 회전축 1 H-4 04-009C-3710 A-7, B-7 E-Ring(φ5) E링(φ5) 1 H-5 11-003A-257A A-7, B-7 Wiper 와이퍼 1 H-7 SC-0120-1230 A-7, B-7 Screw(9/64" n=40) 홈붙이 냄비 작은 나사(9/64" n=40) 1 H-8 11-106A-257A A-7, B-7 Wiper Crank Ass'y 와이퍼 크랭크(組) 1조 H-9 SC-0105-7500 A-7, B-7 Screw(M4) 육각구멍붙이 덤플나사(M4) 2 H-10 16-113S-3710 A-7, B-7 Hinge Screw For H-8 지그재그 연결 링크 단나사(도금) 1 H-11 SN-0101-1600 A-7, B-7 Nut(11/64" n=40) 육각너트(11/64" n=40) 1 H-12 11-007A-257A A-7, B-7 Wiper Rod 와이퍼 로드 1 H-13 16-113S-3710 A-7, B-7 Hinge Screw For H-12 지그재그 연결 링크 단나사(도금) 1 H-14 SN-0101-1600 A-7, B-7 Nut(11/64" n=40) 육각너트(11/64" n=40) 1 H-15 11-008A-257A A-7, B-7 Wiper Driving Link Ass'y 와이퍼 요동링크(組) 1조 H-16 11-009S-257A A-7, B-7 Hinge Screw For H-15 와이퍼 요동링크 힌지 나사 1 H-17 10-020W-2700 A-7, B-7 Washer For H-15 스토퍼 와셔 1 H-18 SN-0115-7400 A-7, B-7 Nut(3/16" n=32) 육각너트(3/16" n=32) 1 H-19 11-010A-257A A-7, B-7 Wiper Solenoid Connection Link 와이퍼 솔레노이드 연결링크 1 H-20 16-113S-3710 A-7, B-7 Hinge For H-19 지그재그 연결 링크 단나사(도금) 1 H-21 SN-0101-1600 A-7, B-7 Nut(11/64" n=40) 육각너트(11/64" n=40) 1 H-22 11-011G-257A A-7, B-7 Wiper Spring 와이퍼 스프링 1 H-23 11-112A-257A A-7, B-7 Wiper Base 와이퍼 베이스 1 H-24 SC-0548-7400 A-7, B-7 Screw(3/16" n=28) 홈붙이 납작 나사(3/16" n=28) 3 H-25 11-013C-257A A-7, B-7 Wiper Cover 와이퍼 커버 1 H-26 SC-0120-1230 A-7, B-7 Screw(9/64" n=40) 홈붙이 냄비 작은 나사(9/64" n=40) 2 H-27 11-015A-2507 A-7, B-7 Wiper Solenoid Ass'y 와이퍼 솔레노이드(SWP-5) 1조 H-28 SC-0196-2700 A-7, B-7 Screw(M3×0.5) 홈붙이 냄비 작은 나사(M3×0.5) 4 H-29 11-016W-2700 A-7, B-7 Spring Washer For H-27 솔레노이드 부착 스프링 와셔 4 H-30 11-017W-2700 A-7, B-7 Washer For H-27 솔레노이드 부착 평와셔 4 NOTE: A-7=KM-350A-7S B-7=KM-350B-7S A=KM-350A B=KM-350B D=Common Part 16 jintex.in
Page 18 — Reverse Button Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-001A-5607 | Reverse Button Ass'y | ||
| SC-0523-1230 | Screw(9/64" n = 40) | ||
| 12-131A-5607 | Reverse Button S/W Ass'y | ||
| 12-012S-2700 | Screw(M2×0.4) | ||
| 12-104P-5607 | Reverse Button Actuator Pin | ||
| 43-009C-1600 | E-Ring($9) | ||
| 12-010A-357 A | Reverse Feed Control Lever | ||
| SC-0178-7400 | Screw(11/64" n = 40) | ||
| 12-008G-5607 | Spring For I-7 | ||
| 12-009R-5607 | Insulated Rubber | ||
| 12-010A-5607 | Reverse Button Cable Bushing |
I Reverse Button Mechanism 역진 버튼 관계 I-7 I-6 I-6 I-11 I-1 I-5 I-8 I-2 I-9 I-10 I-3 I-3-2 I-4 I-3-1 Ref. No. Parts No. Note Name of Parts Q' ty Assembly No. I-1 12-001A-5607 A-7, B-7 Reverse Button Ass'y 버튼 케이스 1 I-2 SC-0523-1230 A-7, B-7 Screw(9/64" n = 40) 홈볼이 둥근납작 작은나사(9/64"n=40) 2 I-3 12-131A-5607 A-7, B-7 Reverse Button S/W Ass'y 역진 버튼 스위치(조립) (1조) I-4 12-012S-2700 A-7, B-7 Screw(M2×0.4) 스위치 고정볼트(M2×0.4) 2 I-5 12-104P-5607 A-7, B-7 Reverse Button Actuator Pin 역진 버튼 작동핀 1 I-6 43-009C-1600 A-7, B-7 E-Ring($9) 제어체 축 링(E링9) 2 I-7 12-010A-357 A A-7, B-7 Reverse Feed Control Lever 역진 작동 레버(조립) 1 I-8 SC-0178-7400 A-7, B-7 Screw(11/64" n = 40) 홈볼이 널비 작은나사(11/64" n=40) 1 I-9 12-008G-5607 A-7, B-7 Spring For I-7 역진 버튼 스위치 누름대 스프링 1 I-10 12-009R-5607 A-7, B-7 Insulated Rubber 스위치 받침 절연 고무 1 I-11 12-010A-5607 A-7, B-7 Reverse Button Cable Bushing 역진 버튼 케이블 부싱 1 NOTE: A-7=KM-350A-7S B-7=KM-350B-7S A=KM-350A B=KM-350B =Common Part jintex.in 17
Page 19 — Program Unit Box & Presser Lifting Solenoid Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| KM-2507 | Auto Knee Lifter Solenoid Ass'y | ||
| HEC-2507 | Auto Knee Lifter Solenoid Ass'y | ||
| SC-0183-2700 | Screw(15/64" n=28) | ||
| 06-051W-7400 | Washer For J-7-4, J-7-5 | ||
| SN-0121-7400 | Nut(15/64" n=28) | ||
| 43-013A-257A | Knee Lifter Connection Crank | ||
| SC-0497-1230 | Screw(3/16" n=28) | ||
| 43-014A-257A | Back Cover For Knee Lifter | ||
| 43-015A-257A | Knee Lifter Shaft Bushing | ||
| 43-016R-257A | Oil Seal For J-7-12 | ||
| 43-017C-257A | Nut For Knee Lifter | ||
| 43-018A-257A | Knee Lifter Shaft | ||
| 06-021W-7400 | Washer For J-8-1 | ||
| 43-021A-257A | Collar For J-8-1 | ||
| SC-0512-1230 | Screw(11/64" n=40) | ||
| SC-0548-7400 | Screw(3/16" n=28) |
J Program Unit Box & Presser Lifting Solenoid Mechanism 프로그램 유니트 박스 및 자동 무릎 올림 관계 SunStar Model No. SPV-1000 J-7 J-7-15 J-7-11 J-7-7 J-7-8 J-8-6 J-8-1 J-7-12 J-7-13 J-8-4 J-7-10 J-7-14 J-8-2 J-8-5 J-7-9 J-7-1 Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. J-7 KM-2507 A-7, B-7 Auto Knee Lifter Solenoid Ass'y 자동 무릎 올림 솔레노이드(조) (1) J-7-1 HEC-2507 A-7, B-7 Auto Knee Lifter Solenoid Ass'y 자동 무릎 올림장치(SPF-5) (1조) J-7-6 SC-0183-2700 A-7, B-7 Screw(15/64" n=28) 홈볼이 납작 작은나사(15/64" n=28) (3) J-7-7 06-051W-7400 A-7, B-7 Washer For J-7-4, J-7-5 포크 잼나사 와셔 (4) J-7-8 SN-0121-7400 A-7, B-7 Nut(15/64" n=28) 육각너트(15/64" n=28) (4) J-7-9 43-013A-257A A-7, B-7 Knee Lifter Connection Crank 자동 무릎올림 연결 크랭크(AK) (1) J-7-10 SC-0497-1230 A-7, B-7 Screw(3/16" n=28) 홈볼이 납작 작은나사(3/16" n=28) (1) J-7-11 43-014A-257A A-7, B-7 Back Cover For Knee Lifter 자동 무릎올림 뒷뚜껑(AK) (1) J-7 J-7-12 43-015A-257A A-7, B-7 Knee Lifter Shaft Bushing 자동 무릎올림 부싱(AK) (1) J-7-13 43-016R-257A A-7, B-7 Oil Seal For J-7-12 자동 무릎올림축 오일 씰(AK) (1) J-7-14 43-017C-257A A-7, B-7 Nut For Knee Lifter 자동 무릎 올림 너트(AK) (1) J-8-1 43-018A-257A A-7, B-7 Knee Lifter Shaft 자동 무릎 올림축(조)(AK) (1) J-8-2 06-021W-7400 A-7, B-7 Washer For J-8-1 역진 레버 와셔 (1) J-8-4 43-021A-257A A-7, B-7 Collar For J-8-1 자동 무릎올림축 카라(AK) (1) J-8-5 SC-0512-1230 A-7, B-7 Screw(11/64" n=40) 홈볼이 멈춤나사(11/64" n=40) (2) J-8-6 SC-0548-7400 A-7, B-7 Screw(3/16" n=28) 다이알판 멈춤나사(3/16" n=28) (2) NOTE: A-7=KM-350A-7S B-7=KM-350B-7S A=KM-350A B=KM-350B Common Part jintex.in 18
Page 20 — K Lubricaiton
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 44-001C-2500 | Oil Gauge Window | 1 | |
| 44-002R-2500 | O-Ring For K-1 | 1 | |
| 44-012C-1230 | Oil Return Tube | 1 | |
| 44-048C-3500 | Oil Return Felter(A) | 1 | |
| 44-048M-3500 | Oil Return Felter Holder | 1 | |
| 44-117A-1600 | Oil Return Pipe Holder | 1 | |
| SC-0548-7400 | Screw(3/16" n= 28) | 1 | |
| 44-008P-2500 | Upper Shaft Oil Pipe Ass'y | 1 | |
| 44-009P-2500 | Oil Pipe For Lower Shaft | 1 | |
| 44-150A-2500 | Oil Pump Ass'y | 1 | |
| 44-012A-2350 | Oil Pump Body | (1) | |
| 44-012A-2350 | Washer For K-9-1 | (3) | |
| SC-0528-1230 | Screw(9/64" n= 40) | (3) | |
| SC-0528-1230 | Nipple For Oil Return Pipe | (1) | |
| 44-010C-1600 | Oil Nipple For Lower Shaft | (1) | |
| 44-009C-1600 | Impeller | (1) | |
| 44-126A-1230 | Piston | (1) | |
| 44-117A-1230 | Piston Spring | (1) | |
| 44-118G-1230 | Pin Screw For K-9-8 | (1) | |
| 44-119S-1230 | Pin For K-9-8 | (1) | |
| 44-120P-1230 | Cover For Oil Pump | (1) | |
| 44-104C-2350 | Oil Pump Cap | (1) | |
| 44-105C-2350 | Magnetic Holder | (1) | |
| SC-0120-1230 | Screw(9/64" n= 40) | (4) | |
| 44-119A-1230 | Collar For Impeller Shaft | (1) | |
| SC-0512-1230 | Screw(11/64" n= 40) | (2) | |
| 44-010A-2500 | Oil Pump Bracket | 1 | |
| SC-0548-7400 | Screw(3/16" n= 28) | 3 | |
| 44-016G-1230 | Oil Pump Connection Spring | 1 | |
| 44-015A-1230 | Oil Pump Connection Collar | 1 | |
| SC-0542-1230 | Screw(11/64" n= 40) | 2 |
K Lubricaiton 급유관계 Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. K-1 44-001C-2500 Oil Gauge Window 유창 1 K-2 44-002R-2500 O-Ring For K-1 유창 O-Ring (G25) 1 K-3 44-012C-1230 Oil Return Tube 환류 파이프 1 K-3 K-3-1 44-048C-3500 Oil Return Felter(A) 환류 펠터(A) 1 K-3-2 44-048M-3500 Oil Return Felter Holder 환류 펠터잡이 1 K-4 44-117A-1600 Oil Return Pipe Holder 환류 파이프잡이 1 K-5 SC-0548-7400 Screw(3/16" n= 28) 홈볼이 납작 작은나사 (3/16" n=28) 1 K-6 44-008P-2500 Upper Shaft Oil Pipe Ass'y 상축 급유 파이프(조) 1 K-7 44-009P-2500 Oil Pipe For Lower Shaft 하축 급유 파이프 1 K-8 44-150A-2500 Oil Pump Ass'y 오일 펌프(조) 1 K-9 44-012A-2350 Oil Pump Body 오일 펌프 몸체 (1) K-9 K-9-1 44-012A-2350 Washer For K-9-1 오일 펌프 몸체 죔나사와 와셔($4) (3) K-9-2 SC-0528-1230 Screw(9/64" n= 40) 홈볼이 둥근납작 작은나사(9/64" n=40) (3) K-9-3 SC-0528-1230 Nipple For Oil Return Pipe 환류 파이프 니플 (1) K-9-4 44-010C-1600 Oil Nipple For Lower Shaft 하축 급유 니플 (1) K-9-5 44-009C-1600 Impeller 임펠러 (1) K-9-6 44-126A-1230 Piston 피스톤 (1) K-9-7 44-117A-1230 Piston Spring 피스톤 스프링 (1) K-9 K-9-8 44-118G-1230 Pin Screw For K-9-8 피스톤 스프링 핀나사 (1) K-9-9 44-119S-1230 Pin For K-9-8 피스톤 스프링 핀(RP 2×8) (1) K-9-10 44-120P-1230 Cover For Oil Pump 오일 펌프 커버 (1) K-9-11 44-104C-2350 Oil Pump Cap 오일 펌프 휄타 캡 (1) K-9-12 44-105C-2350 Magnetic Holder 자석잡이 (1) K-9-13 SC-0120-1230 Screw(9/64" n= 40) 홈볼이 넙적 작은나사(9/64" n=40) (4) K-9-14 44-119A-1230 Collar For Impeller Shaft 오일 펌프 카라 (1) K-9-15 SC-0512-1230 Screw(11/64" n= 40) 홈볼이 넙적 나사(11/64" n=40) (2) K-12 44-010A-2500 Oil Pump Bracket 오일 펌프 브라켓 1 K-13 SC-0548-7400 Screw(3/16" n= 28) 홈볼이 납작 작은나사 (3/16" n=28) 3 K-14 44-016G-1230 Oil Pump Connection Spring 오일 펌프 조인트 스프링 1 K-15 44-015A-1230 Oil Pump Connection Collar 오일 펌프 조인트 카라(조) 1 K-16 SC-0542-1230 Screw(11/64" n= 40) 홈볼이 넙적 나사(11/64" n=40) 2 NOTE: A-7=KM-350A-7S B-7=KM-350B-7S A=KM-350A B=KM-350B =Common Part jintex.in 19
Page 21
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| L-14 | Bottle | ||
| L-49 | Cap | ||
| L-20 | Pin | ||
| L-50 | Cap | ||
| L-19 | Needle | ||
| L-18 | Needle | ||
| L-17 | Needle | ||
| L-16 | Shaft | ||
| L-39 | Bobbin Winder | ||
| L-22 | Base Plate | ||
| L-23 | Base Plate | ||
| L-31 | Base Plate | ||
| L-47 | Screw | ||
| L-32 | Rod | ||
| L-36 | Screw | ||
| L-35 | Spring | ||
| L-40 | Bracket | ||
| L-44 | Screw | ||
| L-42 | Pin | ||
| L-41 | Lever | ||
| L-45 | Spring | ||
| L-44 | Screw | ||
| L-43 | Screw | ||
| L-33 | Screw | ||
| L-34 | Screw | ||
| L-51 | Oil Bottle | ||
| L-5 | Needles | ||
| L-6 | Needles | ||
| L-7 | Washer | ||
| L-1 | Plastic Bag | ||
| L-48 | Screw | ||
| L-11 | Bracket | ||
| L-10 | Screw | ||
| L-9 | Screw | ||
| L-15 | Screw | ||
| L-2 | Screwdriver | ||
| L-46 | Shaft | ||
| L-21 | Shaft | ||
| L-27 | Screw | ||
| L-25 | Screw | ||
| L-28 | Screw | ||
| L-26 | Screw | ||
| L-24 | Bracket | ||
| L-30 | Arm | ||
| L-52 | Belt | ||
| L-38 | Clip | ||
| L-37-7 | Screw | ||
| L-37-6 | Screw | ||
| L-37-1 | Rod | ||
| L-37-5 | Screw | ||
| L-37-2 | Plate | ||
| L-37-3 | Plate | ||
| L-37-4 | Screw | ||
| L-37-8 | Screw | ||
| L-37 | Accessory Kit | ||
| L-3 | Screwdriver Set | ||
| L-12 | Bag |
L Accessories 액세서리 L-14 L-49 L-20 L-50 L-19 L-18 L-17 L-16 L-39 L-22 L-23 L-31 L-47 L-32 L-36 L-35 L-40 L-44 L-42 L-41 L-45 L-44 L-43 L-33 L-34 SunStar L-12 L-51 L-5 L-6 L-7 L-1 L-48 L-11 L-10 L-9 L-15 L-2 L-46 L-21 L-27 L-25 L-28 L-26 L-24 L-30 L-52 L-37-7 L-37-1 L-37-6 L-37-5 L-37-2 L-37-3 L-37-4 L-37-8 L-37 20 jintex.in
Page 22
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-001C-1230 | Accessory Box | 1 | |
| 91-102C-1230 | Driver (Large) | 1 | |
| 91-103C-1230 | Driver (Middle, Small) | 1 | |
| Needle(A-Type) | Needle(A-Type) | 5 | |
| Needle(B-Type) | Needle(B-Type) | 5 | |
| 07-105A-2700 | Bobbin(AL) | 4 | |
| 07-105A-2700 | Spanner | 4 | |
| 91-105C-2700 A-7, B-7 | Spanner | 1 | |
| 91-001C-2700 A-7, B-7 | L-Wrench(2mm) | 1 | |
| 91-101A-2700 A-7, B-7 | Fixed Mes | 1 | |
| 91-106C-2700 | Head Cover | 1 | |
| 91-008C-1230 | Oil Tank | 1 | |
| 44-010C-1230 | Magnetic | 1 | |
| 01-043C-1230 | Head Hinge | 2 | |
| 01-042R-1230 | Rubber Cushion For Hinge | 2 | |
| 01-241R-1230 | Head Support Rubber "A" | 2 | |
| 01-213R-1230 | Head Support Rubber "B" | 2 | |
| Nail | Nail | 8 | |
| Head Rest | Head Rest | 1 | |
| 60-001A-2500 | Belt Cover "A" | 1 | |
| 60-003A-2500 A-7N, B-7N | Belt Cover "A" (For NP Motor) | 1 | |
| 60-002A-2500 | Belt Cover "B" | 1 | |
| SC-0344-8260 | Screw(5/16" n=24) | 2 | |
| 09-025W-8270 | Washer For L-22, 23 | 1 | |
| SC-0184-1600 | Screw(3/16" n=28) | 1 | |
| 10-020W-2700 | Washer For L-22, 23 | 2 | |
| 91-002S-3400 | Nail For L-24 | 2 | |
| 41-101A-1230 | Bobbin Winder Ass'y | 1조 | |
| 44-012A-2500 | Oil Pan | 1 | |
| 44-003M-1230 | Oil Pan Gasket | 2 | |
| SC-0347-1230 | Screw (M8×1.25) | 1 | |
| 44-005R-1230 | Packing For L-33 | 1 | |
| 44-032C-1230 | Oil Pan Nipple | 1 | |
| SC-0114-1230 | Screw(15/64" n=28) | 1 | |
| 43-001A-1600 | Knee Lifting Assembly | 1 | |
| 43-106C-1600 | Knee Lifter Shaft | 1 | |
| 43-101R-1600 | Knee Lifter Pad | 1 | |
| 43-102C-1600 | Knee Lifter Pad Insert Plate | 1 | |
| 43-101A-1230 | Knee Lifter Lever | 1 | |
| 43-108S-1230 | Set Screw For L-37-4 | 1 | |
| 43-106C-1230 | Knee Lifter Arm Joint Complete | 1 | |
| SC-0181-1230 | Screw(5/16" n=18) | 2 | |
| 43-108C-1600 | Shaft For L-40 | 1 | |
| 43-009C-1600 | E-Ring($9) | 1 | |
| 91-007A-2302 | Thread Stand Ass'y | 1 | |
| 43-007A-1600 | Knee Lifting Controller | 1 | |
| SC-0106-7400 | Screw(15/64" n=28) | 1 | |
| SC-0545-1230 | Screw(15/64" n=28) | 1 | |
| 43-002S-3500 | Screw(15/64" n=28) | 1 | |
| SN-0105-3400 | Screw(15/64" n=28) | 2 | |
| 43-008G-1600 | Spring For L-40 | 1 | |
| 43-010A-1600 | Knee Base Rubber | 1 | |
| 04-104R-1230 A-7, B-7 | Rubber Cap For L-31 | 1 | |
| 44-011R-2350 | Packing | 1 | |
| 01-144A-350A A-7 | Needle Plate(A-type) | 1 | |
| 01-144A-350B B, B-7 | Needle Plate(B-type) | 1 | |
| 91-011C-1230 | Oil Tank | 1 | |
| 44-012C-1230 | Oil Return Tube | 1 |
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. L-1 91-001C-1230 Accessory Box 액세서리 박스 1 L-2 91-102C-1230 Driver (Large) 드라이버(대) 1 L-3 91-103C-1230 Driver (Middle, Small) 드라이버(중, 소) 1 L-5 Needle(A-Type) 바늘(A형) 5 L-6 Needle(B-Type) 바늘(B형) 5 L-7 07-105A-2700 Bobbin(AL) 보빈 4 L-8 07-105A-2700 4 L-9 91-105C-2700 A-7, B-7 Spanner 고정 렌치(2mm) 1 L-10 91-001C-2700 A-7, B-7 L-Wrench(2mm) L렌치(2mm) 1 L-11 91-101A-2700 A-7, B-7 Fixed Mes 고정메스(7AN701) 1 L-12 91-106C-2700 Head Cover 미싱 커버(대) 1 L-14 91-008C-1230 Oil Tank 오일 캔 1 L-15 44-010C-1230 Magnetic 자석 1 L-16 01-043C-1230 Head Hinge 힌지 2 L-17 01-042R-1230 Rubber Cushion For Hinge 힌지 고무(대) 2 L-18 01-241R-1230 Head Support Rubber "A" 힌지 고무(대) 2 L-19 01-213R-1230 Head Support Rubber "B" 힌지 고무(중) 2 L-20 Nail 못 8 L-21 Head Rest 미싱 받침대 1 L-22 60-001A-2500 Belt Cover "A" 벨트 커버 "A"(SERVO) 1 L-23 60-003A-2500 A-7N, B-7N Belt Cover "A" (For NP Motor) 벨트 커버 "A"(NP) 1 L-24 60-002A-2500 Belt Cover "B" 벨트 커버 "B" 1 L-25 SC-0344-8260 Screw(5/16" n=24) 홈볼이 둥근나사(5/16" n=24) 2 L-26 09-025W-8270 Washer For L-22, 23 새들 점나사 와셔 1 L-27 SC-0184-1600 Screw(3/16" n=28) 홈볼이 넙적 작은나사(3/16" n=28) 1 L-28 10-020W-2700 Washer For L-22, 23 새들 점나사 와셔 2 L-29 91-002S-3400 Nail For L-24 못나사 2 L-30 41-101A-1230 Bobbin Winder Ass'y 실감기(조립) 1조 L-31 44-012A-2500 Oil Pan 오일 팬 1 L-32 44-003M-1230 Oil Pan Gasket 오일 팬 가스켓 2 L-33 SC-0347-1230 Screw (M8×1.25) 홈볼이 넙적 작은나사(M8×1.25) 1 L-34 44-005R-1230 Packing For L-33 배유 구멍마개 나사 오링 1 L-35 44-032C-1230 Oil Pan Nipple 오일 팬 니플 1 L-36 SC-0114-1230 Screw(15/64" n=28) 홈볼이 넙적 나사(15/64" n=28) 1 Am'y L-37 43-001A-1600 Knee Lifting Assembly 무릎 받침 조립 1 L-37-1 43-106C-1600 Knee Lifter Shaft 무릎 받침축 1 L-37-2 43-101R-1600 Knee Lifter Pad 무릎 받침 고무 1 L-37-3 43-102C-1600 Knee Lifter Pad Insert Plate 무릎 받침 고무판 1 L-37-4 43-101A-1230 Knee Lifter Lever 무릎 올림 레버 1 L-37 L-37-5 43-108S-1230 Set Screw For L-37-4 무릎 받침 연결 링크 잠금 나사 1 L-37-6 43-106C-1230 Knee Lifter Arm Joint Complete 무릎 받침 연결 크랭크 1 L-37-7 SC-0181-1230 Screw(5/16" n=18) 사각 멈춤나사(5/16" n=18) 2 L-37-8 43-108C-1600 Shaft For L-40 제어체 축 1 L-38 43-009C-1600 E-Ring($9) 제어체 스프링(E링 $9) 1 L-39 91-007A-2302 Thread Stand Ass'y 실패 꽃이(조립) 1 L-40 43-007A-1600 Knee Lifting Controller 제어체 1 L-41 SC-0106-7400 Screw(15/64" n=28) 육각 보르트(15/64" n=28) 1 L-42 SC-0545-1230 Screw(15/64" n=28) 홈볼이 넙적 나사(15/64" n=28) 1 L-43 43-002S-3500 Screw(15/64" n=28) 홈볼이 넙적 나사(15/64" n=28) 1 L-44 SN-0105-3400 Screw(15/64" n=28) 육각 너트(15/64" n=28) 2 L-45 43-008G-1600 Spring For L-40 제어체 스프링 1 L-46 43-010A-1600 Knee Base Rubber 무릎 올림봉 받침 캡 1 L-47 04-104R-1230 A-7, B-7 Rubber Cap For L-31 바늘대 상부 싱 마개(흰색) 1 L-48 44-011R-2350 Packing 오일팬 누유방지 고무 1 L-49 01-144A-350A A-7 Needle Plate(A-type) 침판(A형) 1 L-50 01-144A-350B B, B-7 Needle Plate(B-type) 침판(B형) 1 L-51 91-011C-1230 Oil Tank 유차 1 L-52 44-012C-1230 Oil Return Tube 환류 파이프 1 NOTE: A-7=KM-350A-7S B-7=KM-350B-7S A=KM-350A B=KM-350B =Common Part jintex.in 21
Page 23 — Special Parts For [KM-350A-7N, KM-350B-7N]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01-040M-357N | Model Mark(KM-350A-7N) | ||
| 01-040M-35BN | Model Mark(KM-350B-7N) | ||
| 02-101A-257N | Upper Shaft | ||
| 02-003A-2350 | Pully | ||
| 12-0000-4701 | Synchronizer For N.P Ass'y | ||
| 01-019P-2350 | Guide Pin For Synchronizer | ||
| SC-0109-2350 | Screw(M6) | ||
| 01-020W-2350 | Washer For Synchronizer |
M Special Parts For [KM-350A-7N, KM-350B-7N] [KM-350A-7N, KM-350B-7N] 전용 부품 관계 M-3 M-6 M-5 M-6-25 M-1 KM-350A-7N KOREA SEWING MACHINE IND. CO., LTD. M-1 M-2 KM-350B-7N KOREA SEWING MACHINE IND. CO., LTD. M-2 22 Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. M-1 01-040M-357N Model Mark(KM-350A-7N) 모델 마크 1 M-2 01-040M-35BN Model Mark(KM-350B-7N) 모델 마크 1 M-3 02-101A-257N Upper Shaft 상축(NP용: L=431mm) 1 M-5 02-003A-2350 Pully 풀리 1 M-6 12-0000-4701 Synchronizer For N.P Ass'y 싱크로나이저(외장형)-N.P 1 M-6 M-6-25 01-019P-2350 Guide Pin For Synchronizer 싱크로베이스 기준 핀 2 M-6-26 SC-0109-2350 Screw(M6) 육각 구멍붙이 보올트(M6) 2 M-6-27 01-020W-2350 Washer For Synchronizer 싱크로베이스링 와셔(Φ6) 2 NOTE: A-7=KM-350A-7S B-7=KM-350B-7S A=KM-350A B=KM-350B Common Part jintex.in
